Heat Exchangers Manufacturer for Floating Production Storage and Offloading (FPSO)

Page 1


Introduction:

A mechanical device called a heat exchanger is used to move heat, or thermal energy, between two or more 몭uids that are at di몭erent temperatures. E몭ectively exchanging heat from a hotter to a cooler 몭uid, or vice versa, without letting the two 몭uids mix, is the goal of a heat exchanger This thermal energy transfer is widely employed in daily applications as well as industrial operations for a variety of functions, such as heating, cooling, condensation, and evaporation

A heat exchanger’s basic idea is to increase the surface area of contact between the two 몭uids in order to promote e몭ective heat transfer There are many di몭erent kinds of heat exchangers, each having unique advantages and applications depending on the needs of the process These include shell and tube heat exchangers, plate heat exchangers, 몭nned tube heat exchangers, and more.

Heat exchangers are essential components of Floating Production, Storage, and O몭oading (FPSO) systems because of the particular di몭culties associated with o몭shore oil and gas operations Heat exchangers are necessary for FPSOs for the following reasons:

Facilities for processing hydrocarbons, such as natural gas and crude oil, that are drawn from o몭shore wells are installed on FPSOs. Heat exchangers play a critical role in processes like treating and separating hydrocarbon streams, condensing vapours, and regulating temperature at di몭erent stages of processing

Temperature control is essential to FPSO operation e몭ciency In order to maintain the ideal range for processing and storage conditions, heat exchangers assist in controlling the temperature of process 몭uids

For machinery and other equipment like gas compressors, FPSOs frequently need cooling systems Equipment overheating is avoided via heat exchangers, especially air coolers and 몭nned tube heat exchangers, which dissipate excess heat produced during compression

Boilers are usually used by FPSOs to produce steam, which is necessary for a number of operations, including heating and power generation. These boilers’ feedwater is preheated by heat exchangers, which increases energy e몭ciency and lowers fuel usage

Common FPSO tasks include processing generated water, separating gases, and condensing vapours Heat

exchangers play a crucial role in these procedures by guaranteeing e몭ective heat transfer and enabling the phase shifts required for treatment and separation

Weight and space restrictions pose serious problems for FPSOs. Heat exchangers must be made to be lightweight, small, and able to withstand the demanding thermal requirements of the vessel’s numerous processing units. FPSOs work in harsh o몭shore conditions with exposure to saltwater, strong winds, and possible wave movement It is necessary to use materials and coatings in the design of heat exchangers that are resistant to corrosion and degradation under these circumstances

Strict safety requirements and standards must be followed by FPSOs. Heat exchangers are essential for preserving safe working conditions, and in order to assure compliance and prevent accidents, safety features must be incorporated into their design

In o몭shore oil and gas production, 몭oating production, storage, and o몭oading (FPSO) boats are essential because they provide a 몭exible platform for the processing and storage of hydrocarbons The intricate process of designing heat exchangers for 몭oating production and storage units (FPSOs) necessitates a deep comprehension of the particular di몭culties presented by o몭shore environments, strict safety regulations, and the particular needs of hydrocarbon processing. We will explore the complexities involved in creating heat exchangers speci몭cally for FPSO applications.

Overview of FPSO Operations

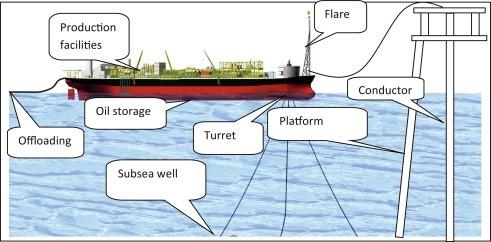

In essence, FPSOs are 몭oating facilities that integrate the processes of producing, storing, and unloading gas and oil These boats are situated in o몭shore 몭elds where it is not feasible to have permanent infrastructure Hydrocarbons are delivered to FPSOs from undersea wells, where they undergo onboard processing, store the generated oil, and then discharge it onto shuttle tankers for re몭nery delivery.

Separation units, gas compression systems, water injection systems, and utilities like electricity generation are typical examples of the processing facilities on an FPSO. Heat exchangers play a crucial role in these systems by performing functions such as heating, condensing, and chilling di몭erent process streams

Key

Key Considerations in Heat Exchanger Design for FPSOs

1 Environmental Challenges

FPSOs work in challenging o몭shore conditions with exposure to saltwater, strong winds, and possible wave movement. In order to guarantee lifespan and dependability, the heat exchangers must be built to endure these circumstances, using materials that are resistant to corrosion and protective coatings

2 Space Limitations

Since there is a limited amount of space on an FPSO, heat exchanger architecture optimization is essential. It is crucial to use compact designs that optimise heat transfer e몭ciency within a limited space.

3 Weight Constraints

In order to ensure stability, weight is a crucial component in FPSO design Lightweight materials must be used in heat exchanger design without sacri몭cing e몭ciency, safety, or structural integrity

4. Safety Standards and Regulations

Strict safety requirements and standards must be followed by FPSOs. In order to ensure compliance with industrial and regulatory standards, heat exchanger designs must have safety elements to prevent mishaps such as leakage, overpressure, or fouling

5 Heat Exchanger Types for FPSOs

On FPSOs, a variety of heat exchanger types are used, such as:

Heat exchangers with shell and tubes These exchangers, which are widely utilised in high-temperature and highpressure applications, are e몭cient and adaptable

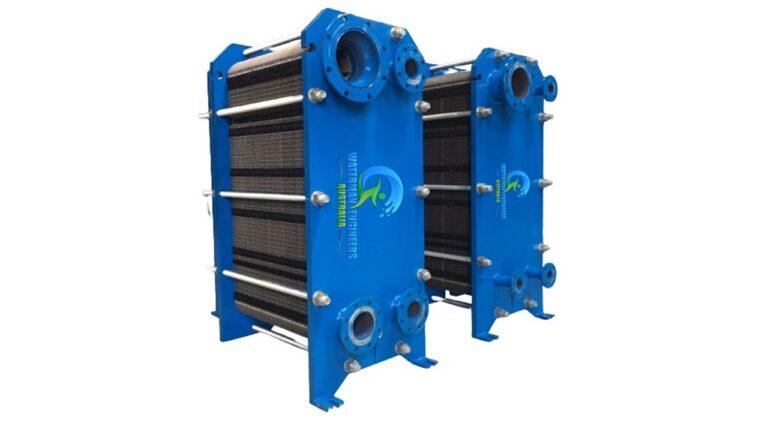

Plate heat exchangers are small, e몭ective, and appropriate for applications with limited area

Air coolers can be used to cool particular process streams or in scenarios where water is limited

Applications where a larger surface area is needed for improved heat transmission are best suited for 몭nned tube heat exchangers.

6 Fluid Characteristics

When designing heat exchangers, it is essential to comprehend the characteristics of the 몭uids being processed FPSOs deal with a range of 몭uids, such as chemicals, water, natural gas, and crude oil Temperature variations, corrosiveness, and possible phase shifts must all be taken into consideration in the design.

7. Operational Flexibility

Since FPSOs are made to function in a variety of environments, the heat exchangers need to be 몭exible in their operation This involves having the capacity to deal with changes in 몭uid composition, temperature, and 몭ow rates

8 Maintenance Accessibility

An important factor in the design of an FPSO heat exchanger is accessibility for maintenance and inspection. To reduce downtime, parts should be accessible for regular inspections, cleanings, and repairs.

Steps in Designing Heat Exchangers for FPSOs

1 De몭ne Operational RequirementsClearly state what the heat exchangers’ particular operating requirements are This entails being aware of the ranges of pressure and temperature, the 몭ow rates, and the kinds of 몭uids being handled

2 Environmental AnalysisAnalyse the operating environment of the FPSO in detail Take into account elements including exposure to saltwater, wind loads, and wave movement. Choose coatings and materials that won’t corrode or deteriorate under these circumstances.

3 Fluid Dynamics and Thermodynamics AnalysisAnalyse thermodynamics and 몭uid dynamics to 몭nd out what is needed for heat transmission Recognize the viscosity, thermal conductivity, and speci몭c heat of the 몭uids involved in the heat exchange process

4. Type and Con몭guration SelectionChoose the right heat exchanger type and con몭guration based on the operating requirements and analysis. Think of things like weight restrictions, space restrictions, and heat transfer e몭ciency.

5 Materials SelectionSelect materials that are resistant to the aggressive properties of hydrocarbons and the corrosive impacts of seawater To increase durability, materials like coatings and alloys resistant to corrosion are frequently used

6. Safety Features IntegrationInclude safety measures like temperature sensors, corrosion monitoring systems, and pressure relief valves in the heat exchanger design. Make that the design conforms to industry safety requirements and guidelines

7 Optimization of FootprintMake the heat exchangers’ footprint as little as possible on an FPSO because of the space constraints Investigate small designs that don’t sacri몭ce functionality to maximise the amount of space available.

8 Weight OptimizationThink about optimising weight without sacri몭cing structural stability To ful몭l weight restrictions without sacri몭cing e몭ectiveness or safety, use lightweight materials and creative design techniques

9 Flexibility in OperationIt is important to plan the heat exchangers to account for changes in 몭uid composition, 몭ow rates, and temperature as well as other operational factors This guarantees adaptability to various situations

10. Accessibility for MaintenanceMake sure that maintenance and inspection may be done with ease thanks to the design It is important that parts are easily accessible for regular inspections and any required maintenance

Implementation of FPSO Heat Exchangers

A project including the design and construction of heat exchangers for an FPSO working in the treacherous waters was recently undertaken by Waterman Engineers Australia The undertaking comprised:

Rigorous Environmental examination of the challenging o몭shore environment to establish corrosion prevention strategies and material requirements.

strategies and material requirements

Making use of sophisticated computational 몭uid dynamics (CFD) models to maximise the heat exchanger arrangement in the limited area of the FPSO using lightweight materials to satisfy strict weight restrictions without sacri몭cing structural strength putting in place safety measures like corrosion monitoring systems and pressure release valves to guarantee adherence to industry safety requirements creating heat exchangers with 몭exible operating designs that could adapt to changes in 몭uid characteristics, 몭ow rates, and temperatures. ensuring that parts were made to be easily accessed, making regular maintenance and inspections easier The dependability and general e몭ciency of the FPSO’s processing capabilities were greatly enhanced by the e몭ective installation of these heat exchangers

It takes a multidisciplinary approach to design heat exchangers for FPSOs, including materials science, 몭uid dynamics, thermodynamics, and safety engineering Because of the particular di몭culties presented by o몭shore locations, environmental considerations, weight restrictions, and space constraints must all be carefully taken into account. Waterman Engineers Australia is a prime example of successful implementation because of its dedication to safety standards, environmental studies, and innovative design processes Heat exchanger design and optimization will be critical to improving productivity, guaranteeing safety, and advancing o몭shore hydrocarbon production as FPSO operations develop

Choose Waterman Engineers Australia Heat Exchangers for Floating Production Storage and O몭oading (FPSO) that elevate your industrial processes to new heights Contact us today to explore how we can optimize your heat transfer applications and contribute to the success of your operations
