DANIEL CÔTÉ
L A N D S C A P E A R C H I T E C T U R E P O R T F O L I O
DANIEL CÔTÉ
EDUCATION
MacEwan University, Edmonton,AB,Canada
University of Calgary
Calgary,AB,Canada
Major: Anthropology Minor: French
GPA Sum Total: 3.707
Master of Landscape Architecture M1 (second year)
EXPERIENCE
Adept Landscape and Construction Inc. ·
Calgary,AB,Canada
ATCO Land Department
Edmonton,AB,Canada
ATCO, Customer Care & Billing
Edmonton,AB,Canada
RCAC Villeneuve Flying Site
Villeneuve,AB,Canada
2014 - 2020 2021 -
Landscaper & Landscape Technologist Summer 2022
Land Administrative Coordinator Summers 2016 - 2018
Back Office Clerk Summer 2015
Pilot & flying centre support staff 2013 - 2016
LANGUAGES
English French Native proficiency Basic proficiency
www.linkedin.com/in/daniel-côté-b8095a260
daniel.cote@ucalgary.ca
TECHNICAL SKILLS
AutoCAD drafting,constructiondocuments
Lumion 3drendering
Adobe Photoshop graphics,rendering
Adobe Illustrator graphics,linework
Adobe Indesign projectpresentations,document
Sketchup modeling
Rhino 3D modeling
ArcMap mapping,siteanalysis,censusdata
Hand Graphics drafting,rendering,siteanalysis,ideation
Shop Skills modelbuilding,woodworking,3dprinting
Microsoft Office Suite documentpreparation,data
organization manipulation,charts&graphs
WARM
FLEXIBLE
THOUGHTFUL PEOPLE PERSON
DILIGENT
PASSIONATE
CREATIVE
INQUISITIVE ARTISTIC DEPENDABLE
DETAIL ORIENTED ACTIVE
CONTENTS 01 02 03 04 05 06 A STORIED LANDSCAPE 5- 15 16-19 20-21 22 HAT TRICK BOW HEIGHTS LAKESIDE FIREPIT MAKERS2 ARTISTIC WORKS 23-26 27
A STORIED LANDSCAPE
Under the Revised Stoney Industrial Area Structure Plan, North Nose Creek is set to see intense and transformative development. Yet, in our haste to write a new story, we run the risk of many more irrevocably being silenced. Nose Creek holds important parts of our cultural heritage. Even without a comprehensive inventory, within the area, about 100-150 pre-contact and historic period sites have been recorded.
This proposal acts as an expression of contemporary place-keeping and place-making, leveraging development to elevate stories embeded within the landscape and its communities by providing tangible stages and platforms for real engagement and presence.

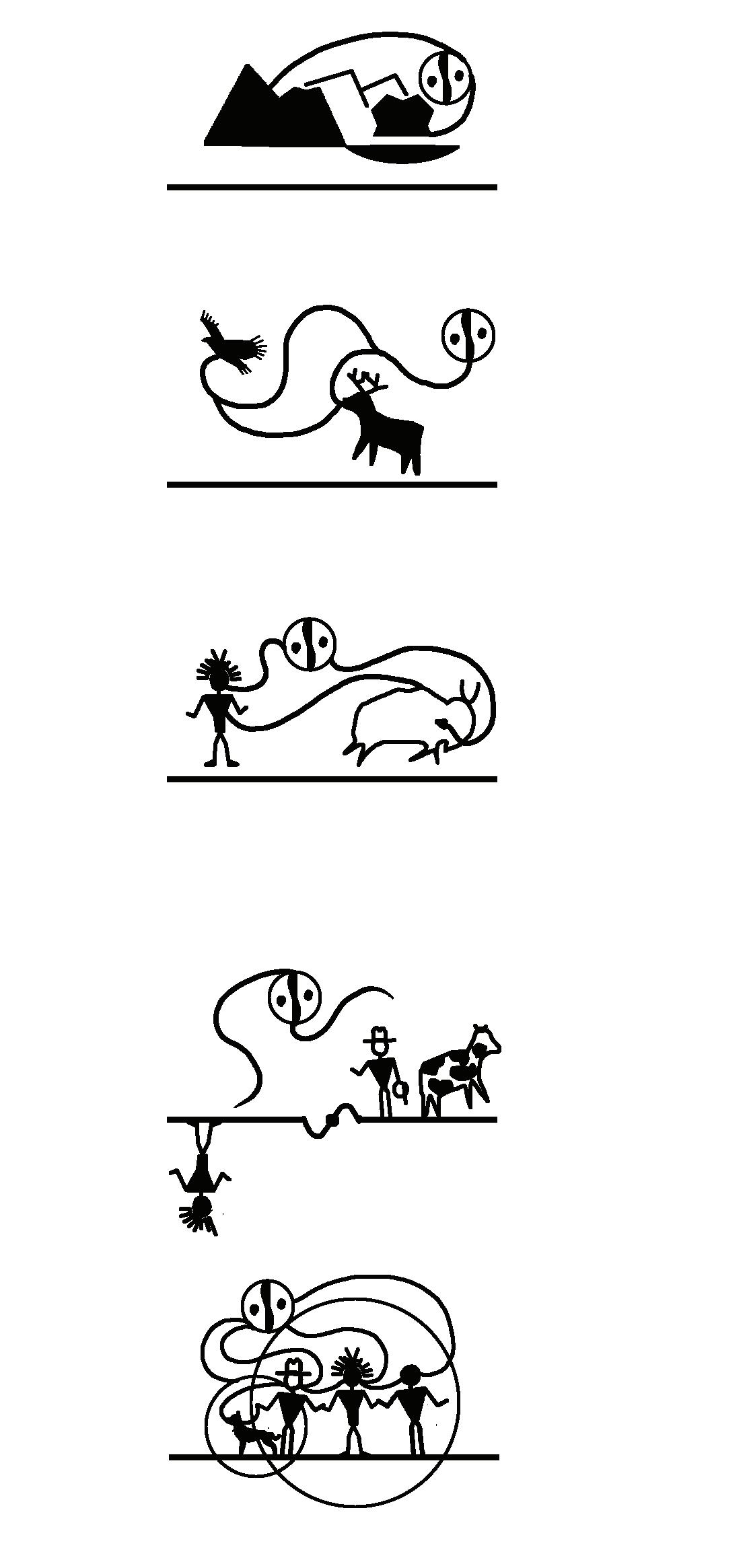

Parkwide Programming Interpretive Framework
Engagement Facilitated Themes
Interperative elements
Take in the Story
Geoglacial Story
Lifeweb Story
Experiential elements
Enter the Story
First People’s Story
Interactive elements
Take up the Story
Homestead Story Home Story
A set of story themes are recognized in the landscape and provide an interpretive framework.
Of these, First People’s Stories are ubiquitous, restoring indigenous presence within the landscape and facilitating cross-cultural engagement.
Give Stories a Platform Stories Elevated & Shared
Stories Latent & Hidden
I. II. III. IV. V.
ofUnderstanding
Activate SenseofPlaceSenseofCommunity SenseSenseofStewardship
Historical Elements

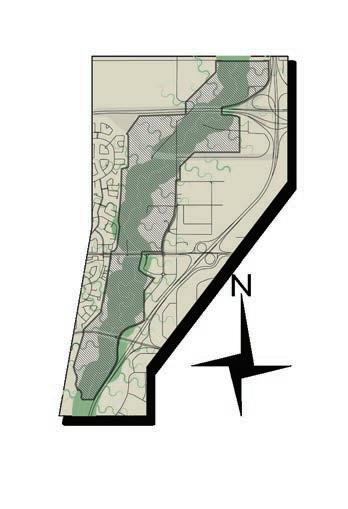

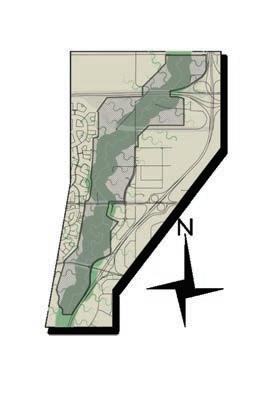

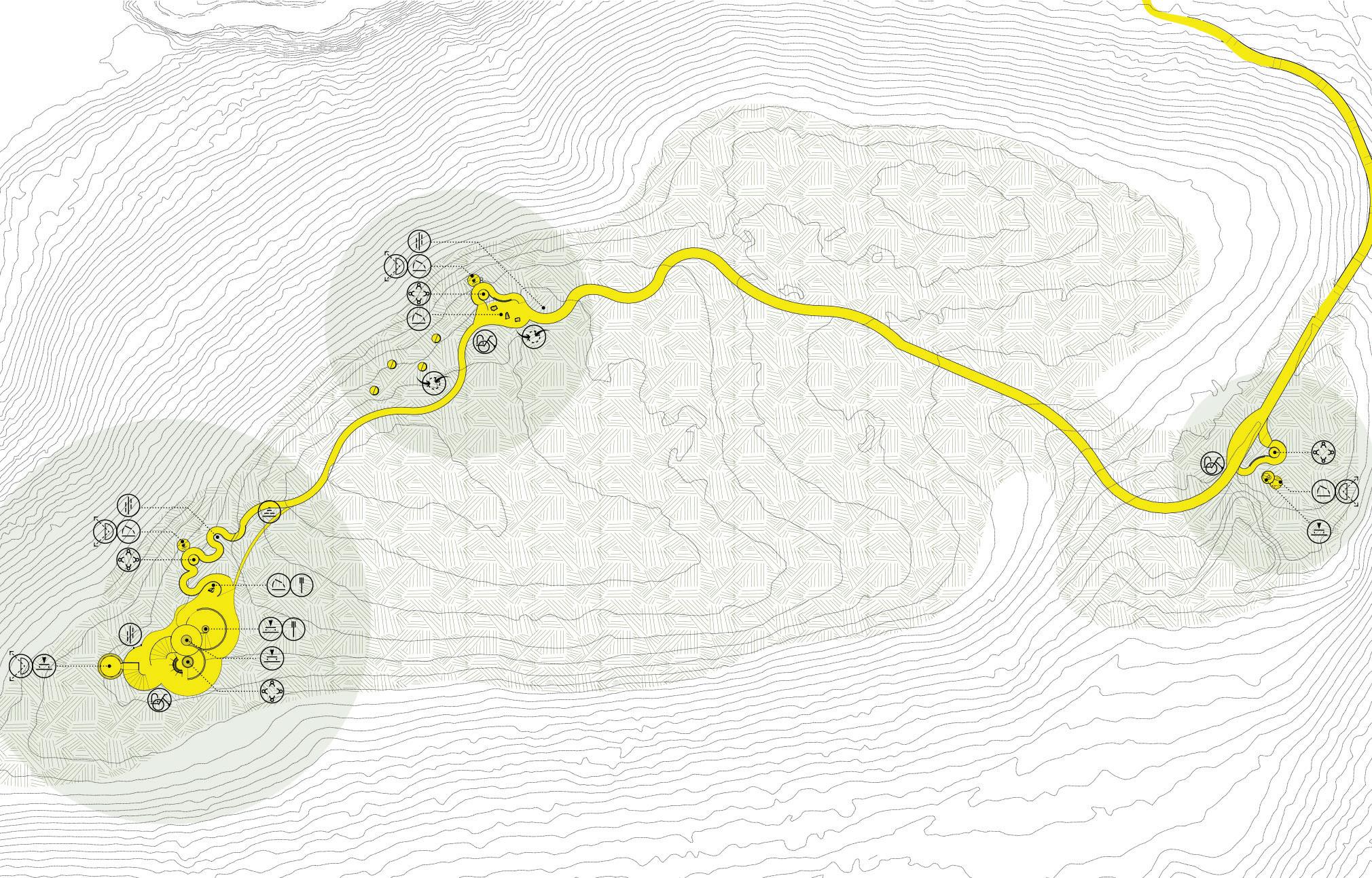

Parkwide Concept

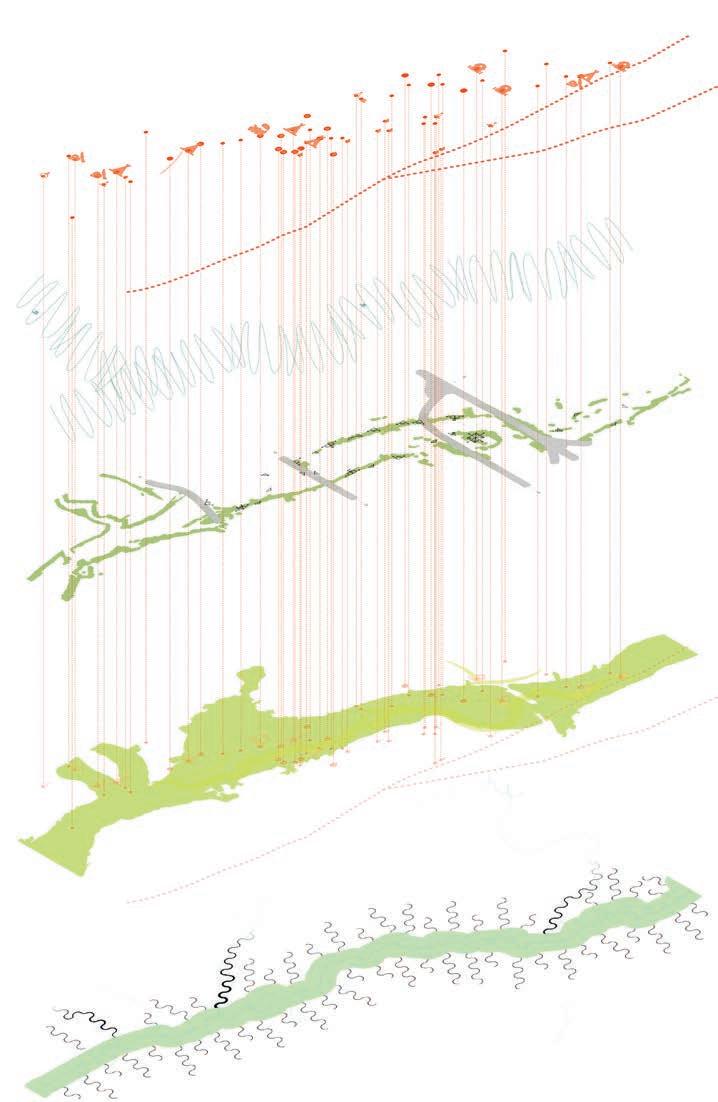

Spatial Framework
Traces of Travel (old north trail)

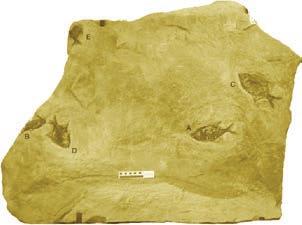

Paleocene Fish
Farmstead
Lookout
Interpretive Centre (Indigenous run)
Wildlife blinds
Living in The Landscape
Beddington Erratic
Wetland
Performing in The Landscape
Former CPR Pumphouse
Landscape Pavillion
CalgaryInternationalAirport
StoneyTrail
DeerfootTrail
Experiential Modes
DistantProximateIntimate
Straight Commuter Trail
Geoglacial Elements
Winding Interpretive trail with Programme niches
Slopes & Views
Ephemeral Belt
Riparian Belt
Spatial Concept

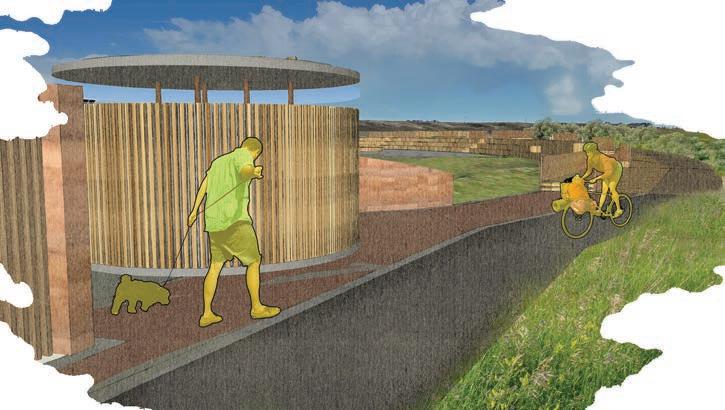

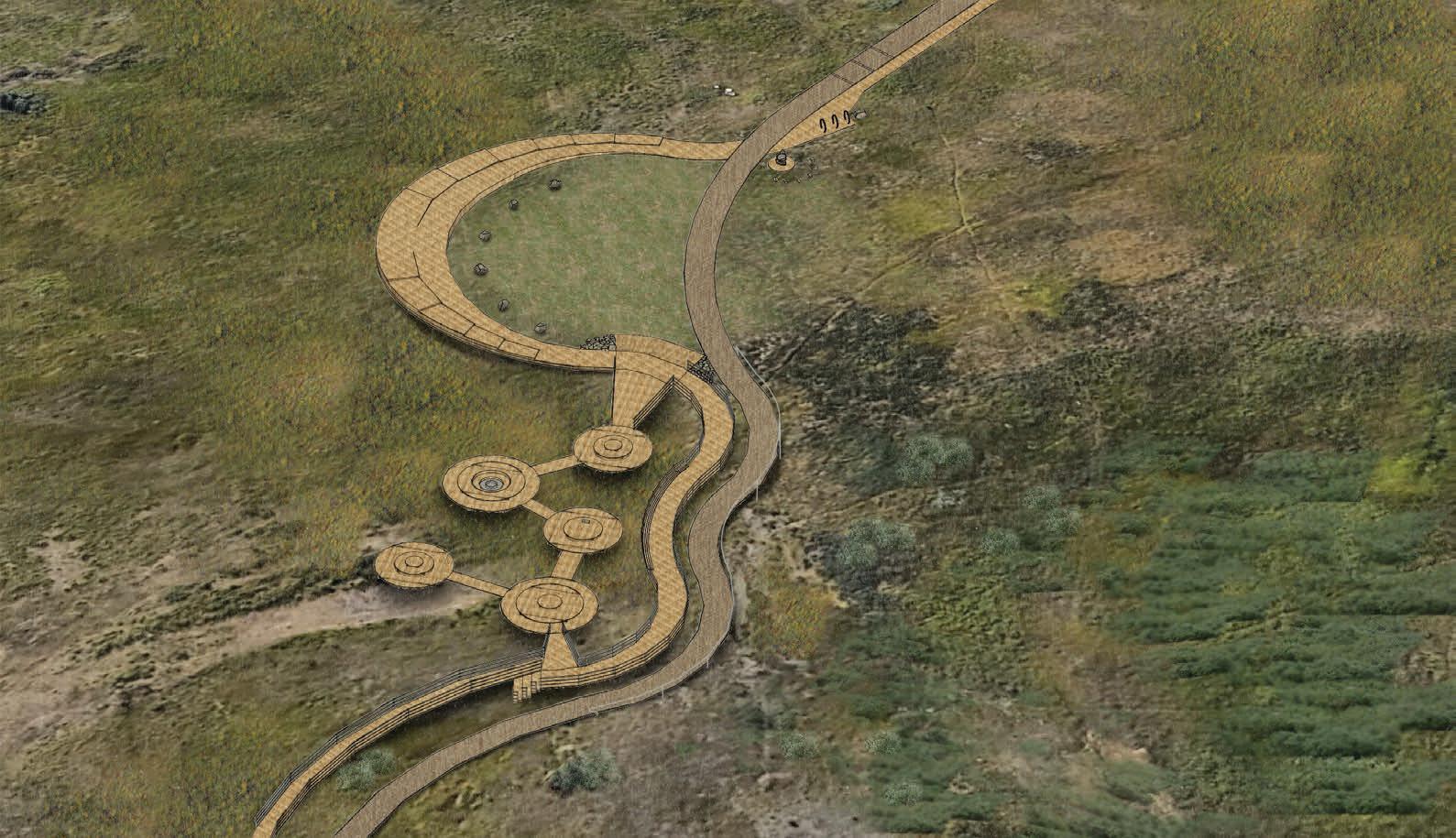

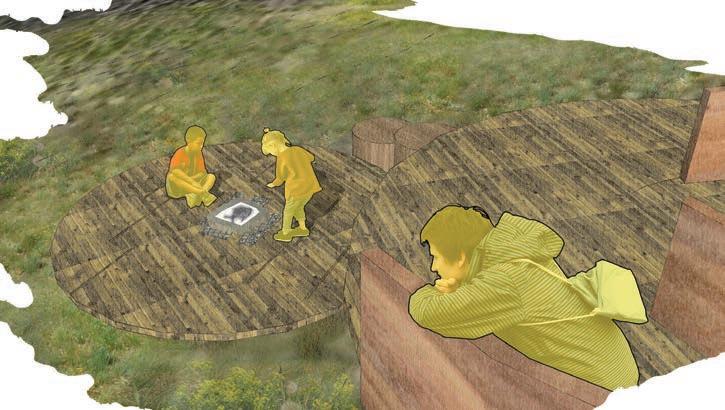

Living in the Landscape: A Platform for the Land

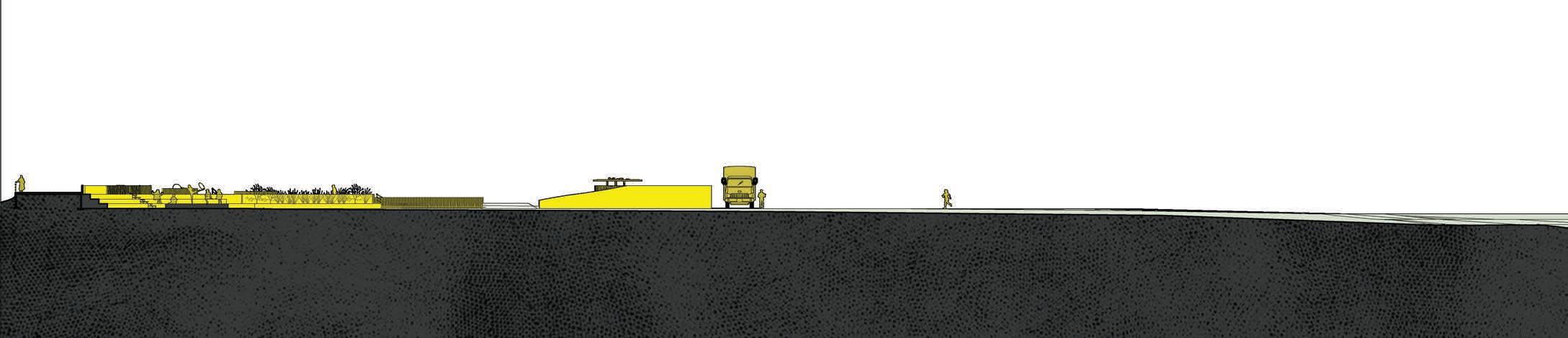

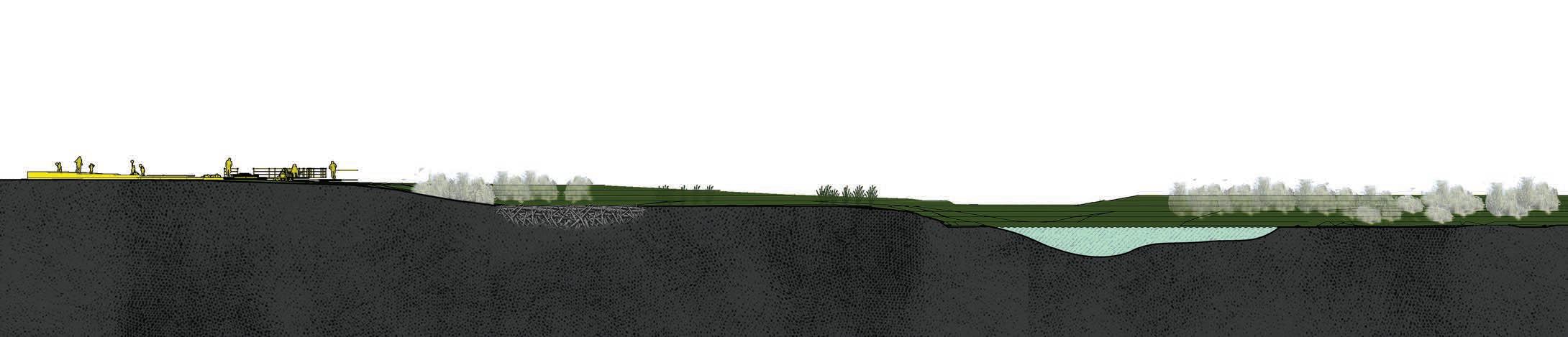

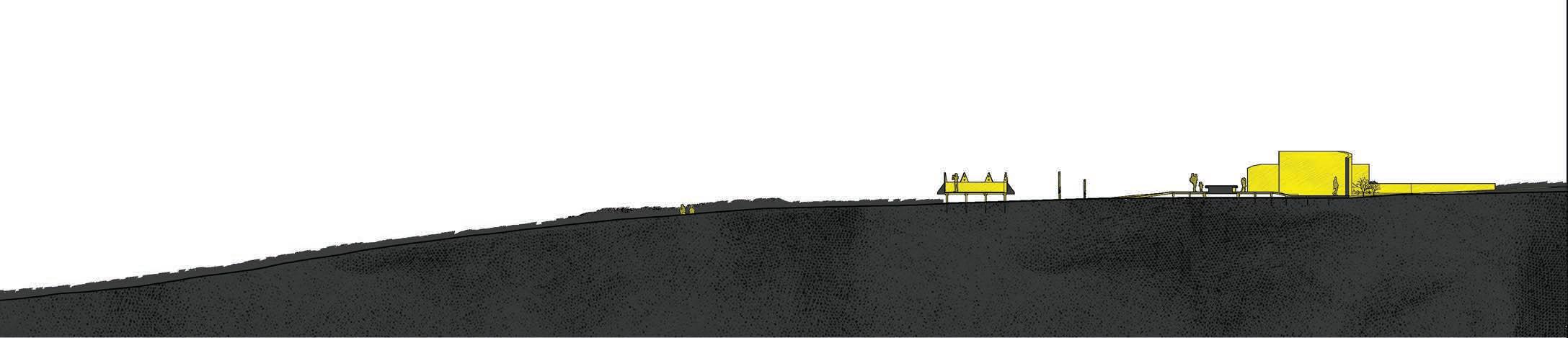

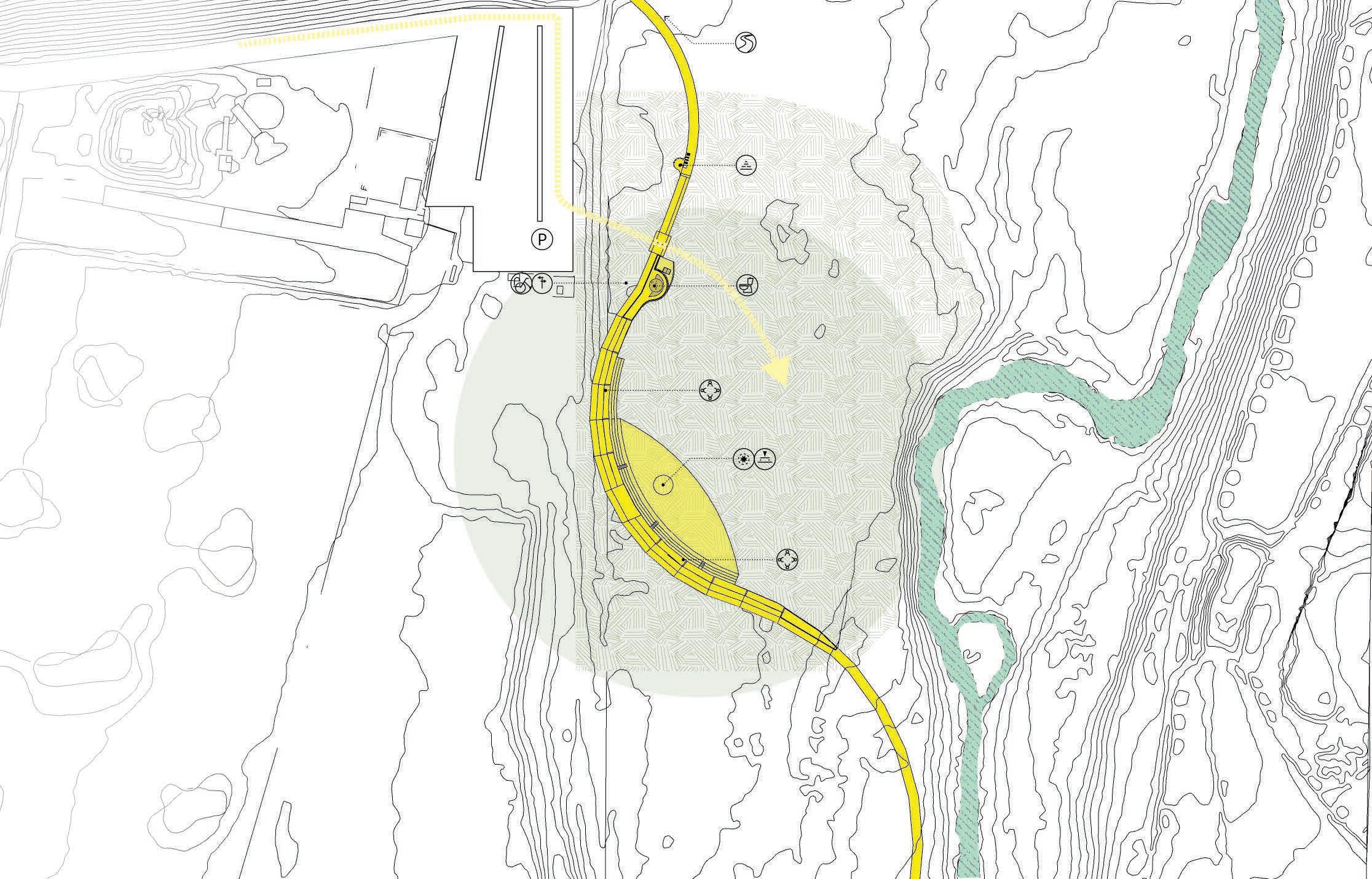

SECTION scale: 1:500
P Platform Pause Point Thematic Cairn Story Stone Activity Point Loukout Point Social Point Parking Bike Parking Public Restrooms Interpretive sign Wayfinding Point
Living in the Landscape: A Platform for the Land
Historical Elements
Bison Bone Fragments
Fire Cracked Rocks
Tools & lithic debitage
Pasturage
Key Design Strategies
Encouraging intangible heritage practices & processes of memory through the uncovering or highlighing of indigenous ways of living in the land.
Giving a platform to indigenous and community voices in the Land.
e.g. interractive installations

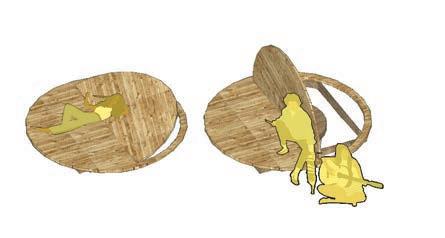

Programmable platforms
Programmable niche
Enter the Story Take up the Story

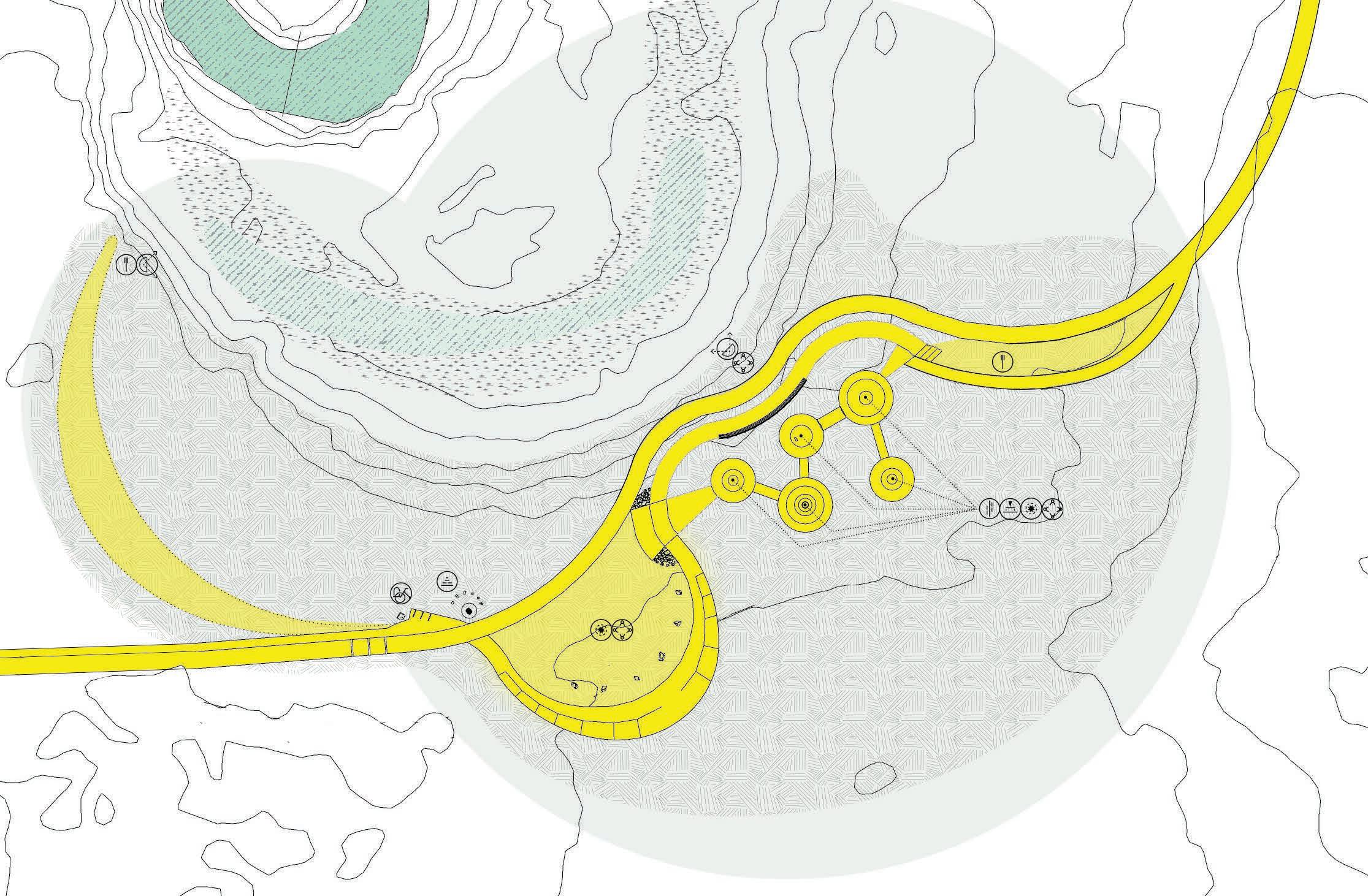

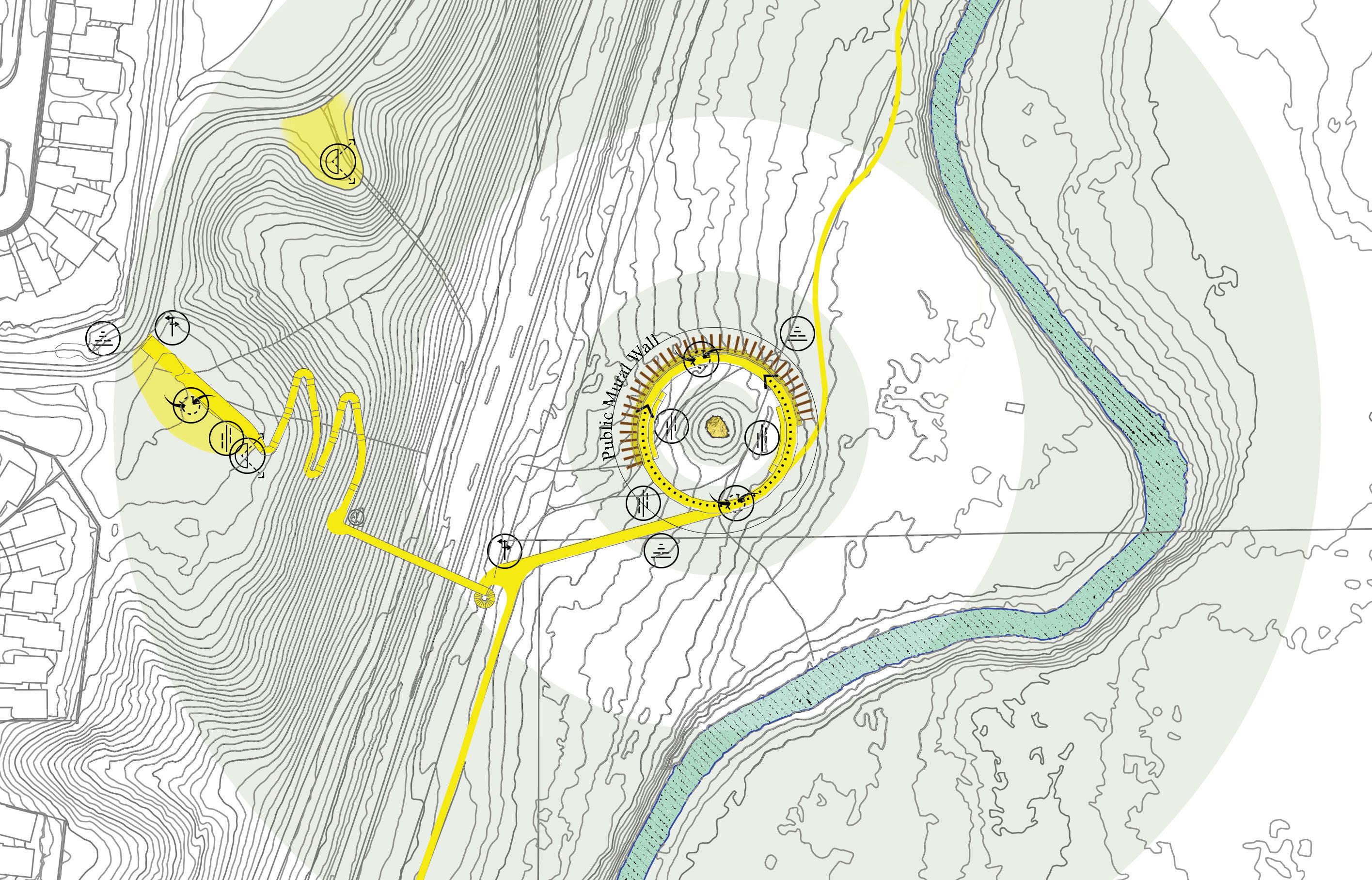

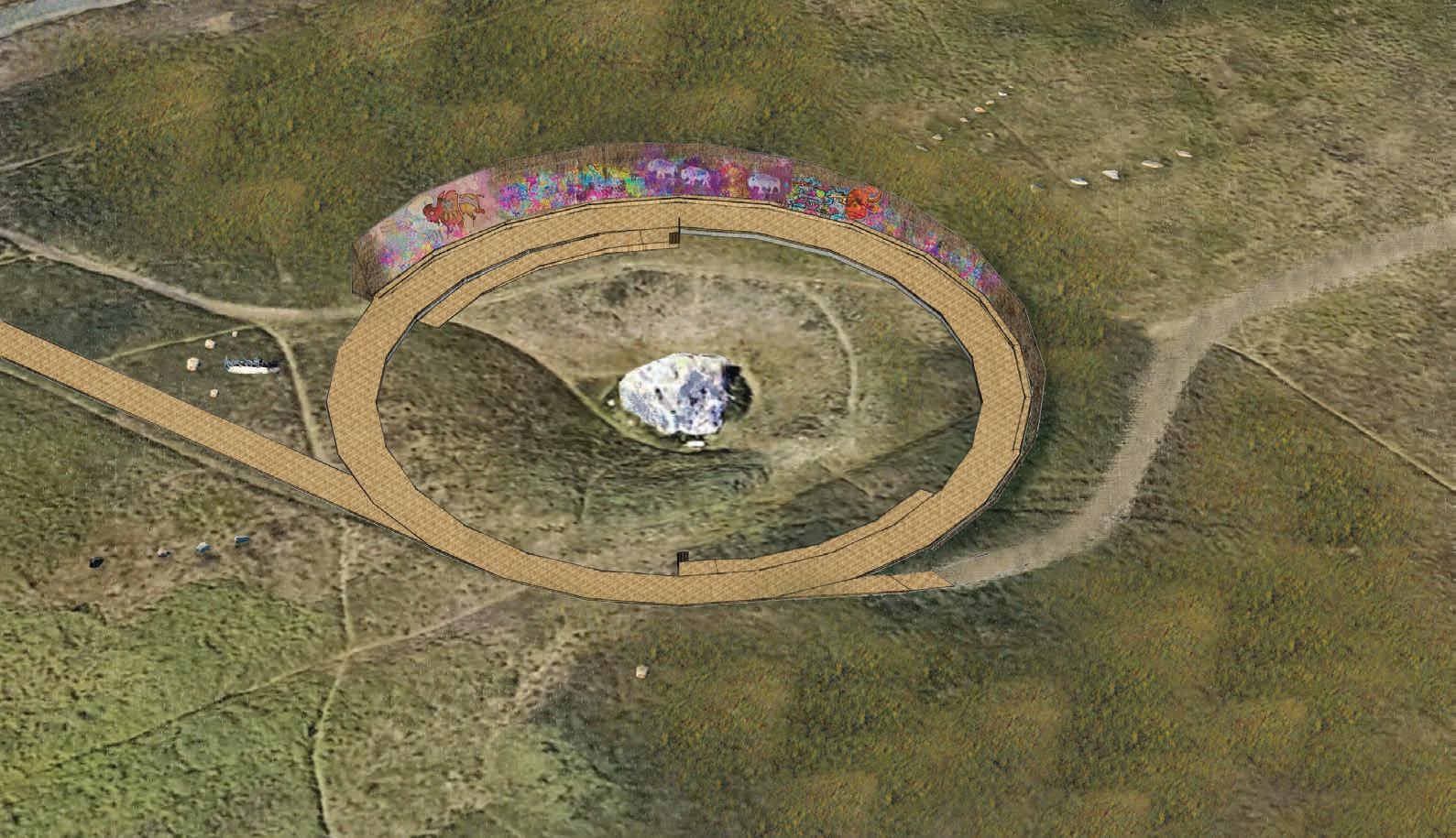

Beddington Erratic: History Set in Stone

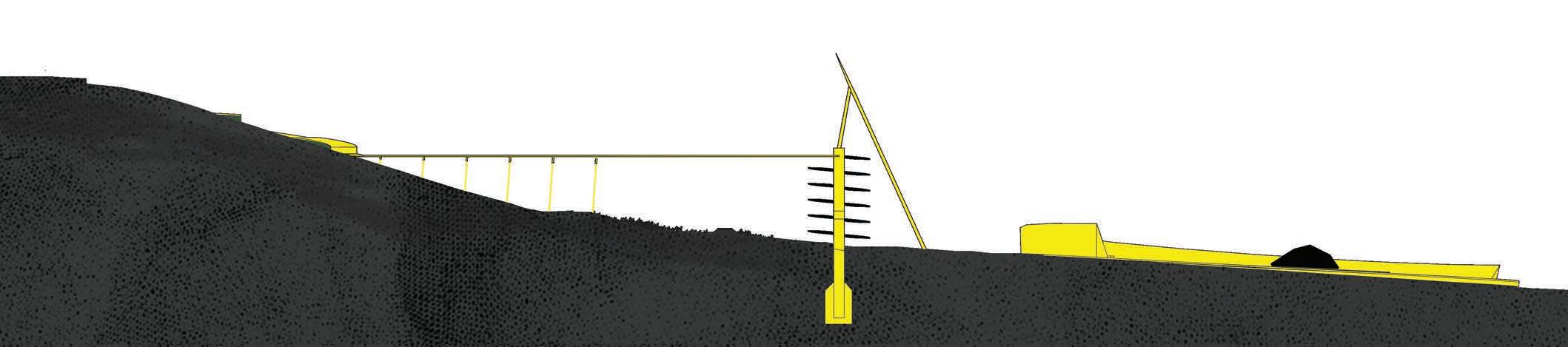

SECTION scale: 1:500 9m P Platform Pause Point Thematic Cairn Story Stone Activity Point Loukout Point Social Point Parking Bike Parking Public Restrooms Interpretive sign Wayfinding Point
Beddington Erratic: History Set in Stone
Historical Elements
Bison Bone Fragments
Fire Cracked Rocks
Glacial Erratic
Pasturage
Key Design Strategies
Elevating Natural features of the landscape to initiate engagement with their stories.

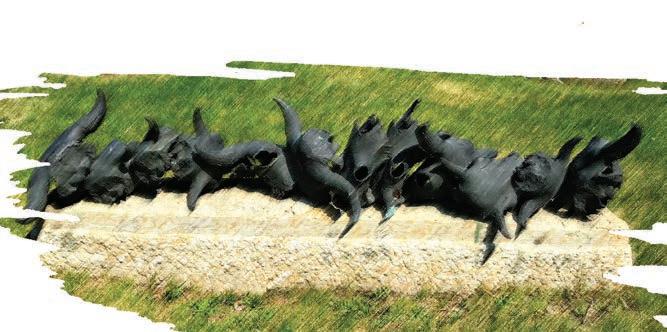

Mural Memento: Bronze casts of Bison bones found on-site
Community
Beddington Erratic
Distant
Proximate
Intimate Take in the Story Enter the Story
Give the community a sanctioned creative outlet to engage with.
e.g. Wascana Centre
Vantage Hill: Views on a Place in Motion
SECTION scale: 1:500 Contemplation Points P Platform Pause Point Thematic Cairn Story Stone Activity Point Loukout Point Social Point Parking Bike Parking Public Restrooms Interpretive sign Wayfinding Point
Vantage Hill: Views on a Place in Motion
Historical Elements
Fossils
Glacier Story
Erratic Train Story
Soil Story
Fire Cracked Rocks
Gravel Extraction
Tipi Rings
View of Old North Trail
Names of the land lookout
Key Design Strategies
Elevating Natural features of the landscape to initiate engagement with their stories.
Giving a platform to indigenous and community voices in the Land.
Providing points of pause & viewing that frame story-landscapes.
Distant
Intimate
Take in the Story
Take up the Story
Ampitheatre: Performing in the Landscape
SECTION scale: 1:400 P Platform Pause Point Thematic Cairn Story Stone Activity Point Loukout Point Social Point Parking Bike Parking Public Restrooms Interpretive sign Wayfinding Point
Ampitheatre: Performing in the Landscape
Historical Elements
Bison Bone Fragments
Cairns
Tools & lithic debitage
Tipi Rings
Key Design Strategies
Performance Space
Public Washroom
Vehicle Access
Provide a quality space & facilities for individual & cultural expression.
Giving a platform to indigenous and community voices in the Land.
Providing a stage for inter community dialogue & story telling.
Take Up the Story
HAT TRICK

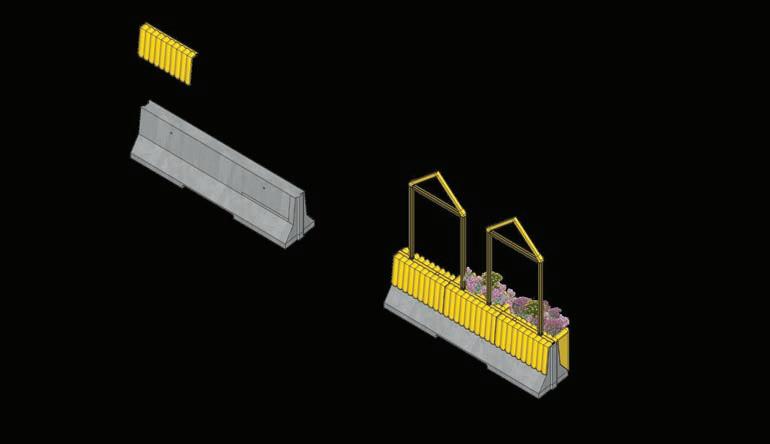

MODULAR BARRIER SYSTEM
What is it?
Goals
Provide safe separation for seating and pedestrian uses from the travel lane, providing coverage for all three sides of the platform perimeters.
Provides greatest impact for the cost.
Components are movable using a forklift / small crane.
Components are easy to store, use & repurpose.
Design supports the LID stormwater system goals.
The design enhances the character of the area.
1 2 3

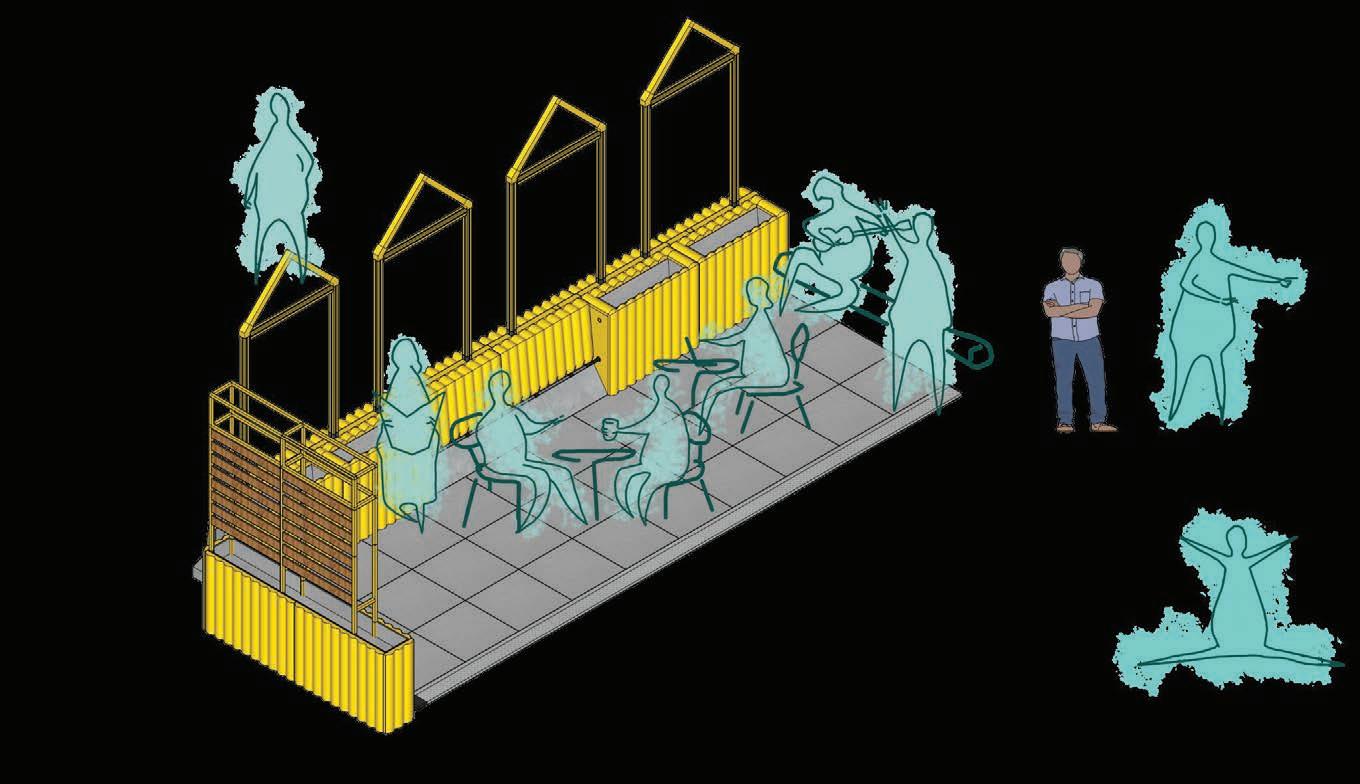

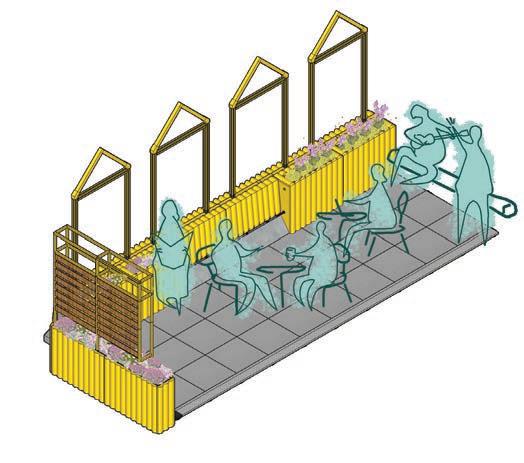

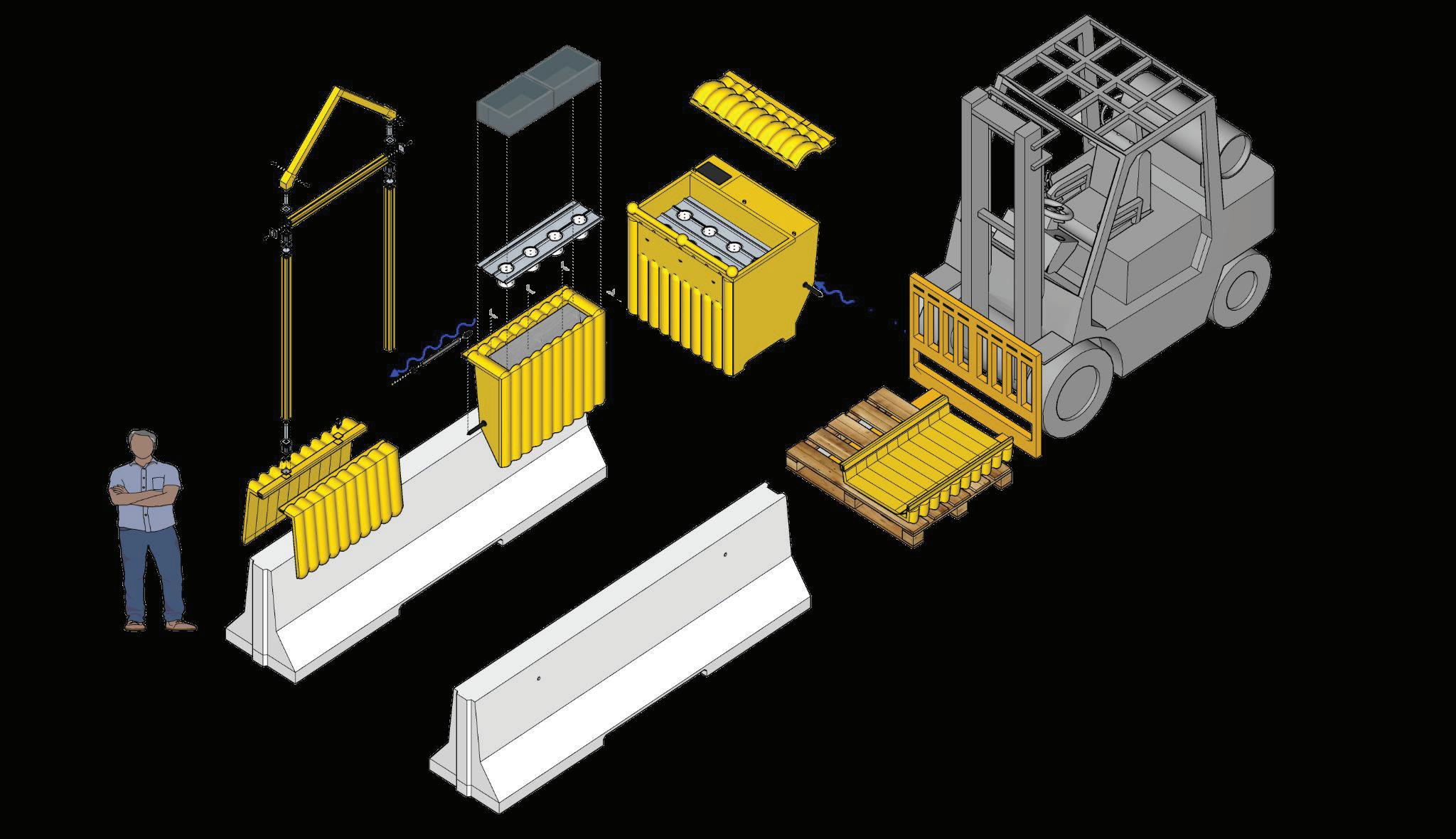

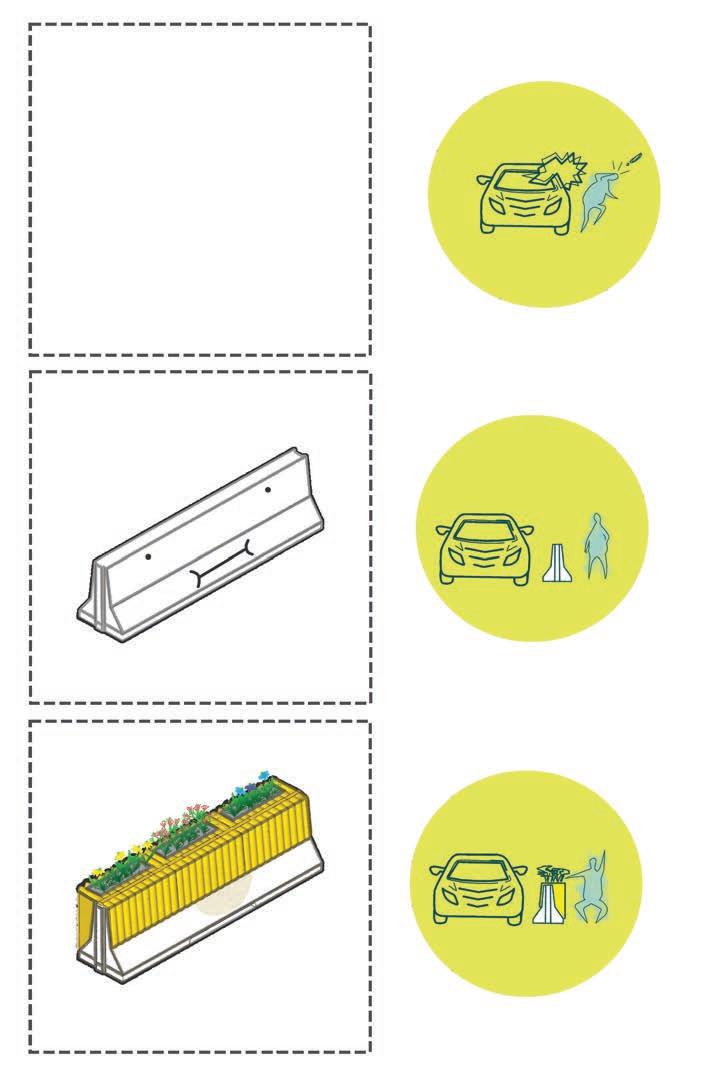

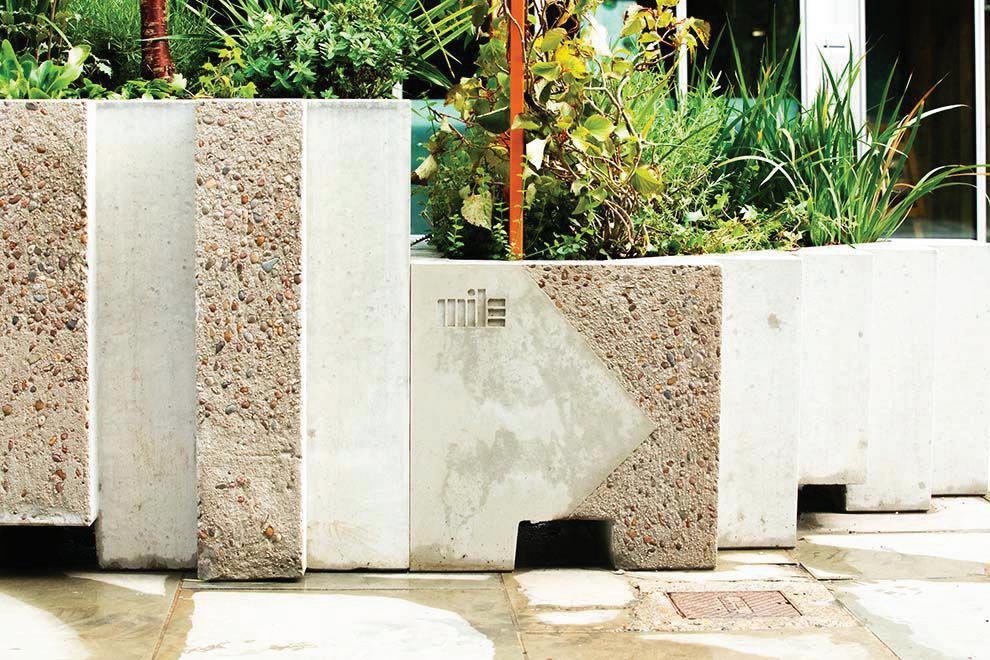

A series of interlocking precast concrete traffic barriers with planters and siding.
Public Parklet CONFIGURATIONS Semi-Private Patio
Hats off to Choices!
Easy to iterate
Easy to assemble
Educate the public about sustainability Elements that reinforce community character.
Pioneer sustainable materials & techniques.

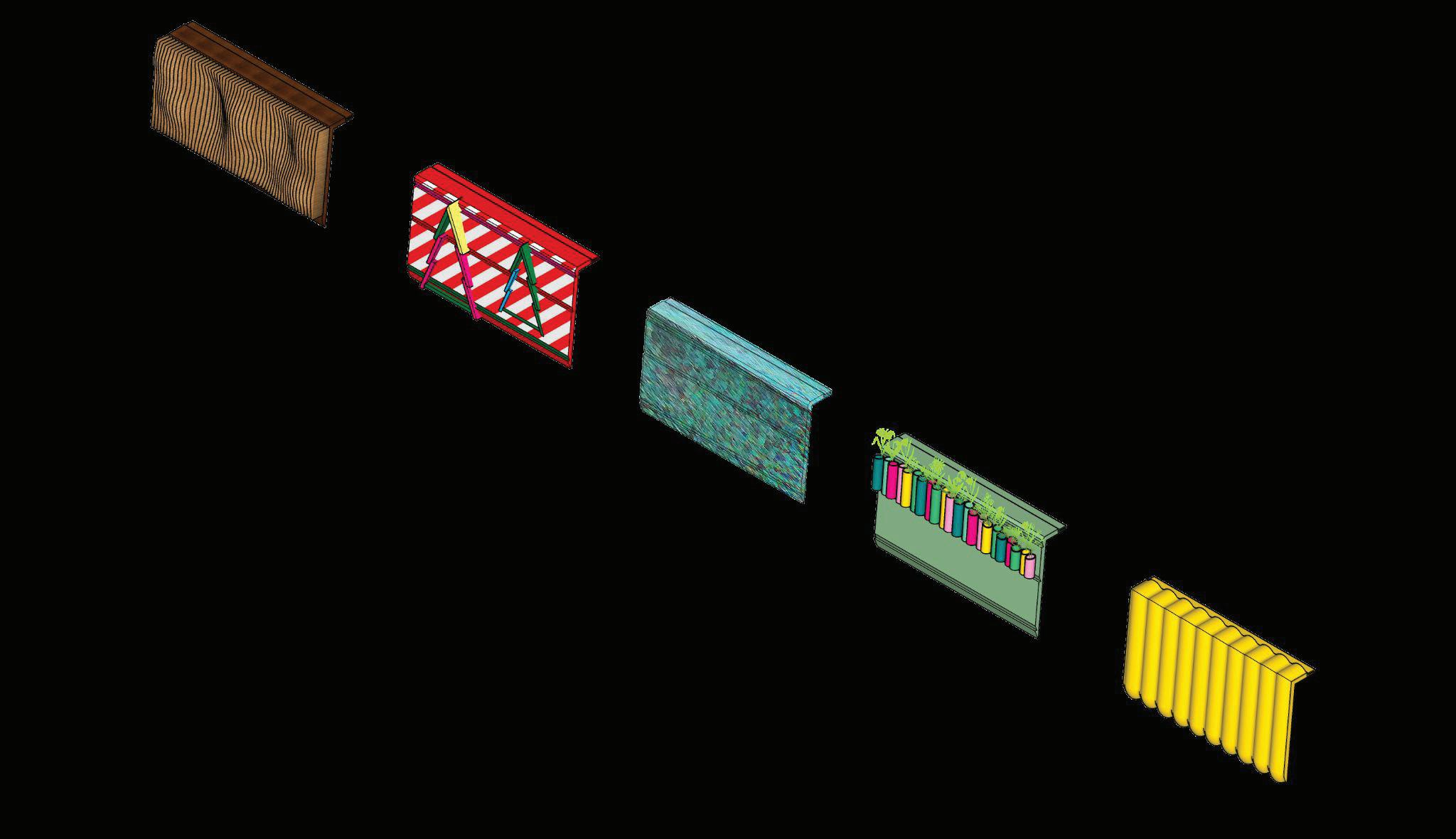

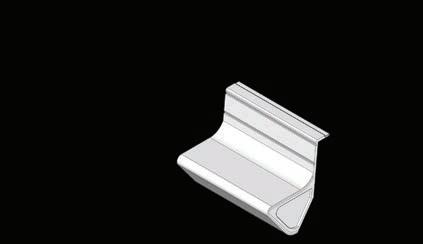

Sleeve
Barrier
More Sleeves
Standard concrete Jersey Barriers make for a cost effective base, only costing the city ~$500 per unit.
DESIGN CONCEPT
= HAT
R3direct & Giulia Grande
Bow to Bluff

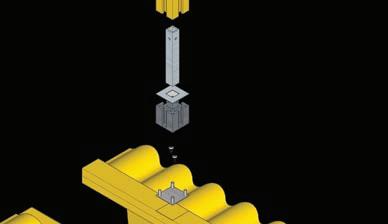

SLEEVE SYSTEM SCHEME Materiality Precast ConcreteAluminium PCR Plastics Aluminium Dimensions Powder-coated
colourant Link System Upper fixtures connection
brushed Form finish 785mm 860mm 957mm 454mm 400mm 1000mm 3000mm 930mm 660mm 860mm 140mm 1430mm 45mm 505mm 255mm 100mm 1000mm 530mm
Resin
Anodized

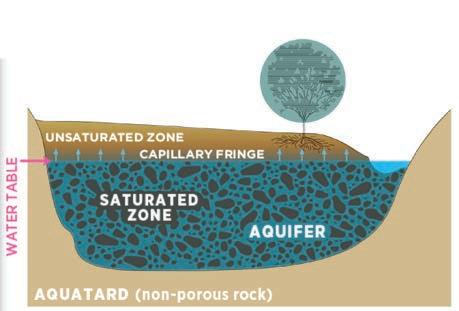

Wicking, subirrigation systems mimic (on a small scale) what we see happening everyday on our planet.
Separate soil from aggregate in capillary columns
Water sealing
Kinetic powered sump pump
Connection & sub-irrigation

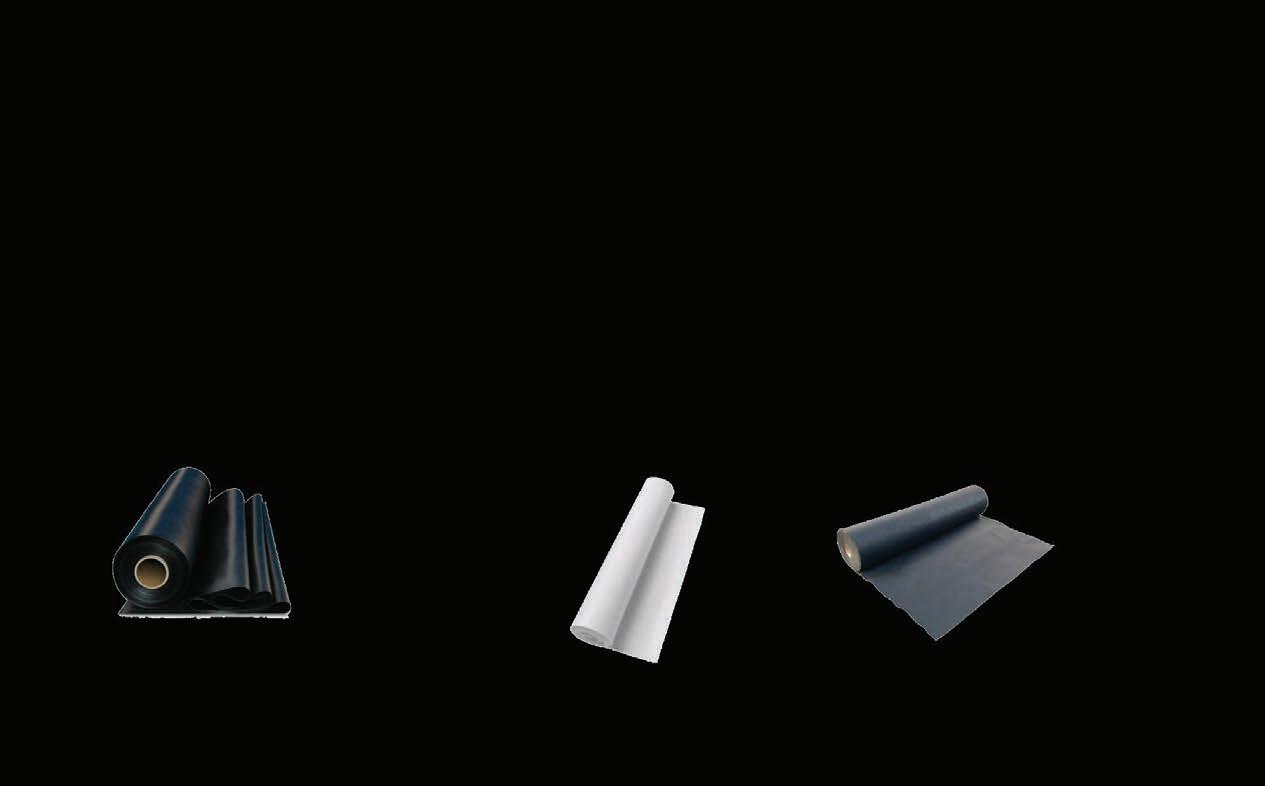

Needle punched RPE liner
Planting medium
Sub-basin reservoir aggregate
Solid & perforated
pipe weeps with threaded connection.
Angular
Anodized
50mm 350mm 300mm 120mm 50mm 250mm 420mm 120mm System SUB-IRRIGATION SYSTEM SCHEME Components
Filter Fabric Waterproof Membrane PVC Pipes 1” dia. Steel Pipe 1/2” dia. Quartzite 3-400mm Soil Mix 2-350mm Mulch 50mm Steel Sheet PVC Tubes 4 1/2”
dia.
Capillary soil columns
Garden soil & biochar Pine or red cedar Pine or red cedar
Perforated
BOW HEIGHTS
ADVANCED URBAN PLANNING STUDIO

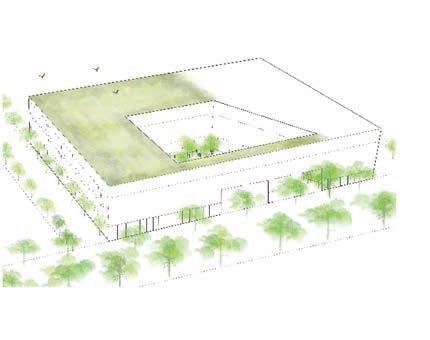

The product of focused development in a group of 3 Landscape Architecture students and 4 Planning students, this project engaged new and emerging tools guiding urban development in urban areas around the world. Using a human focused, Baukultur approach, our aim was to create a complete community informed by the area’s current condition and character. My role was in detailed and landscape design, and rendering scenes that convey the experiences we wish to facilitate with our design.

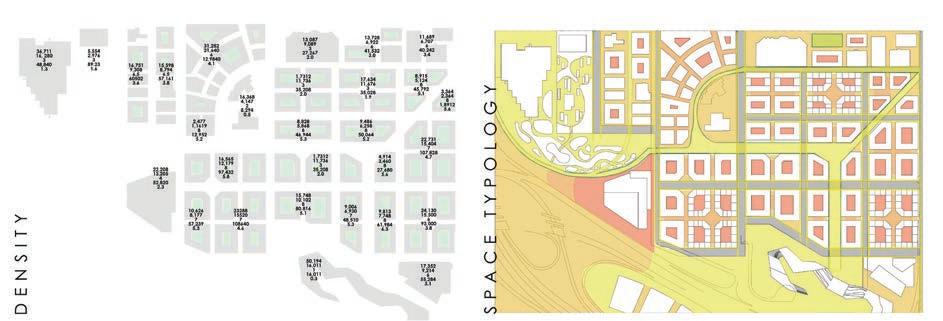

EXPLORATION OF PROGRAMMING + SPACE IDEATION + ITERRATION EXPLORATION OF FORMS + DESIGN LANGUAGE LAYOUT ITTERATING
EXPLORATION OF FORMS + DESIGN LANGUAGE

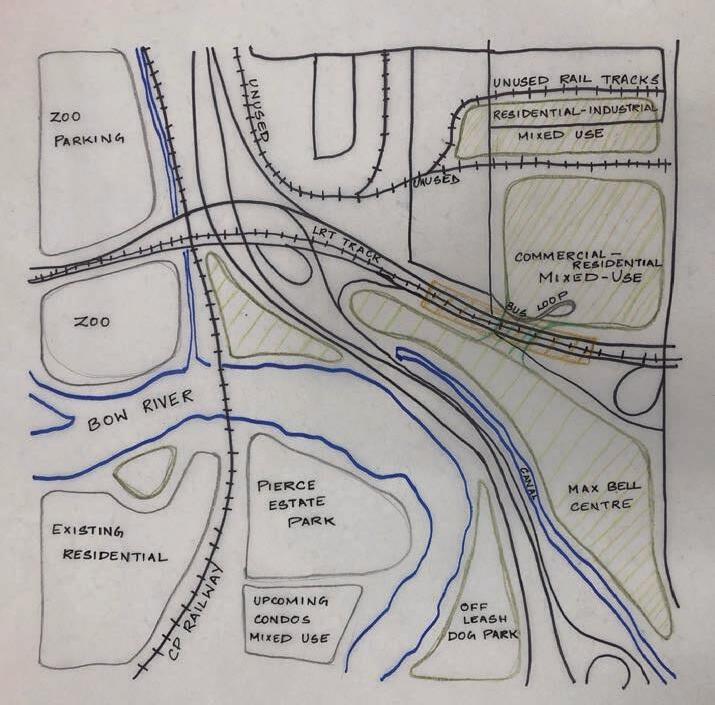

Collaborativemapping
Illustratorconceptbyme

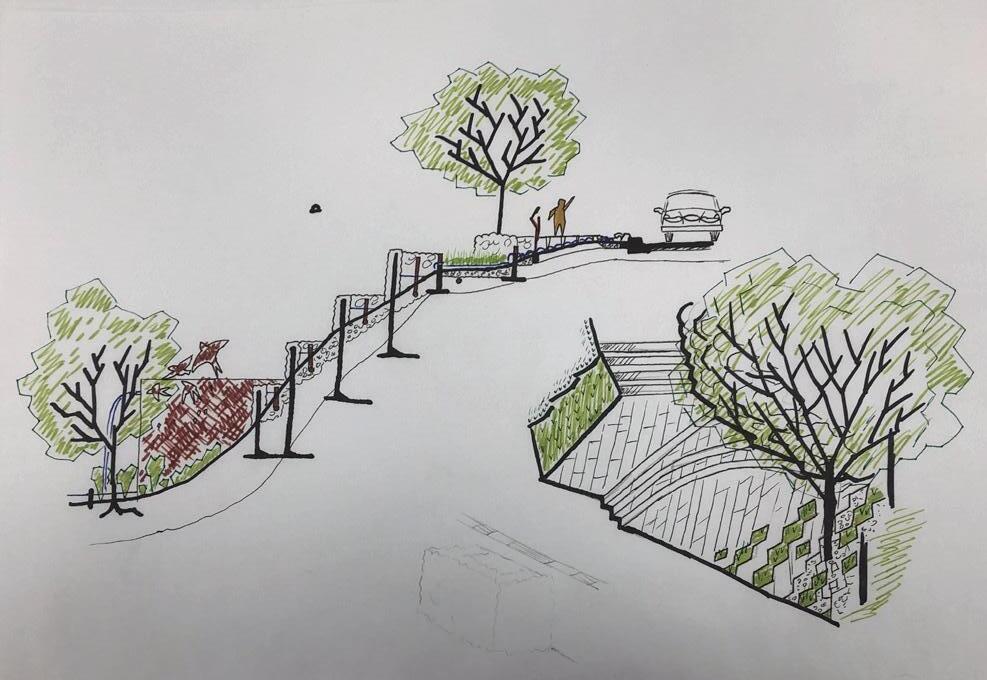

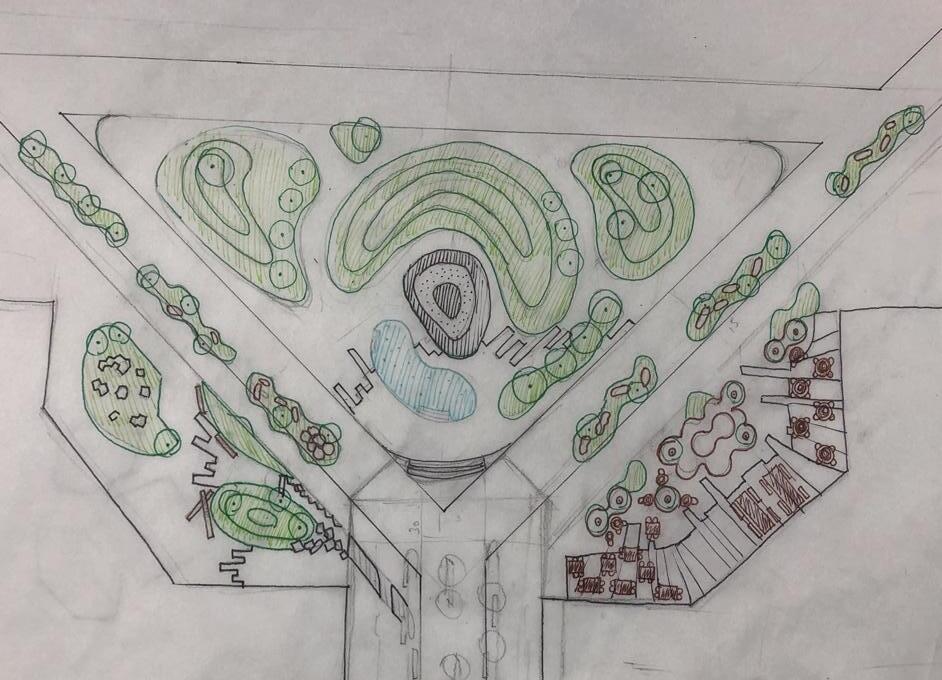

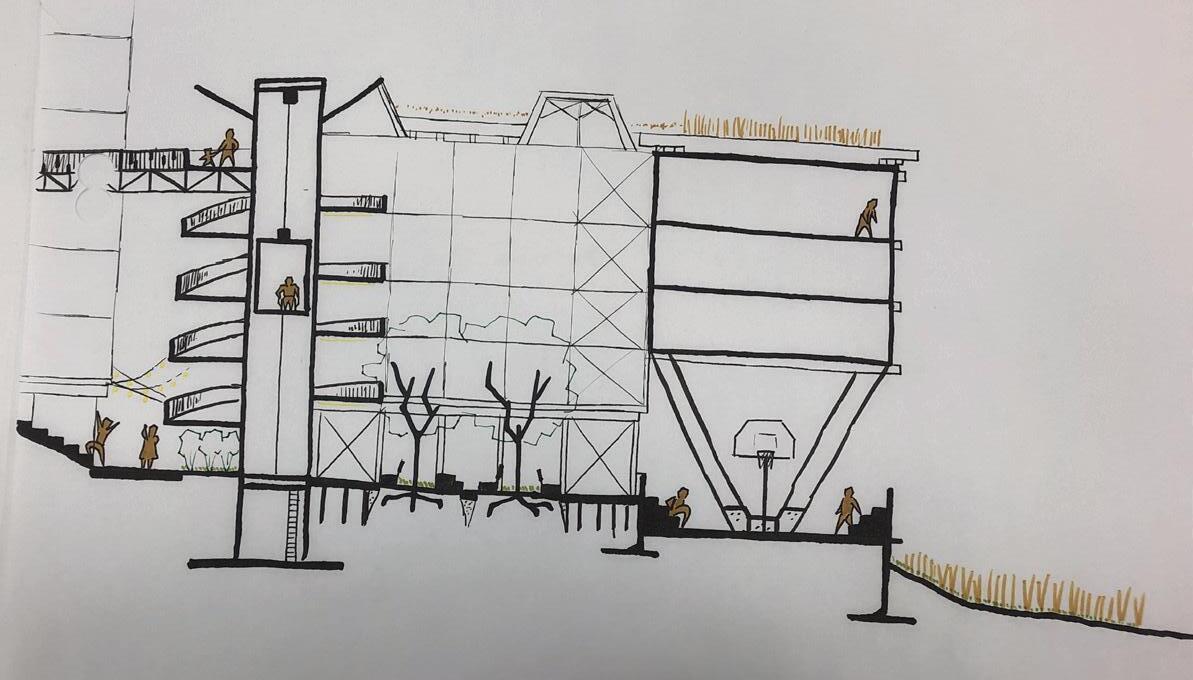

Sketchesbyme
Conceptswithsubsequentannotationsbyteammates

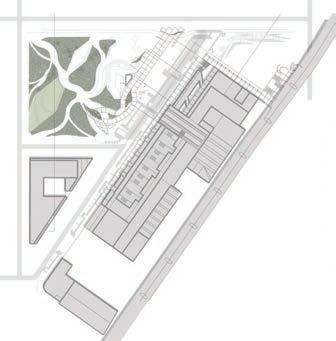

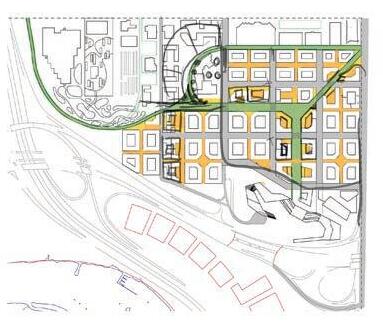

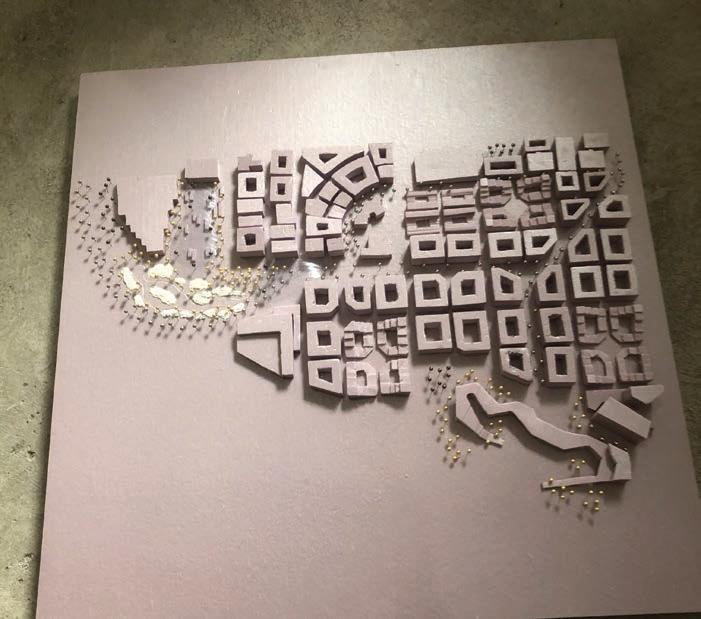

Final model collaborative

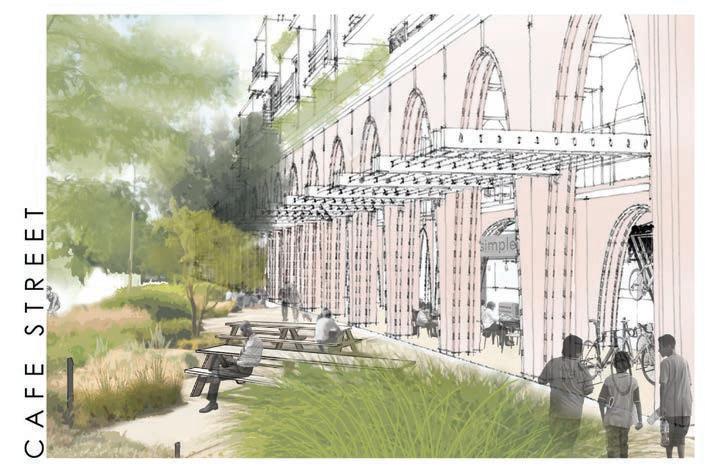

Renderbyme
Renderbyme
Renderbyme

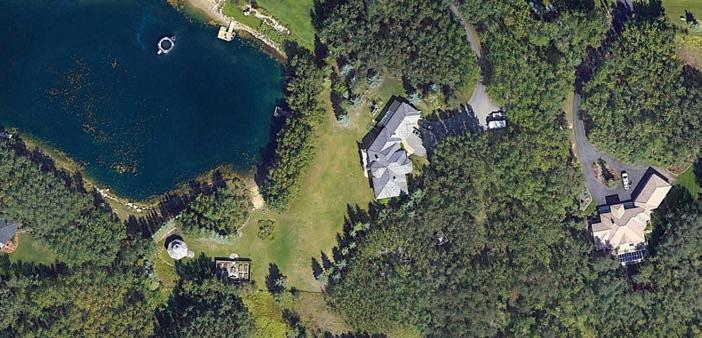

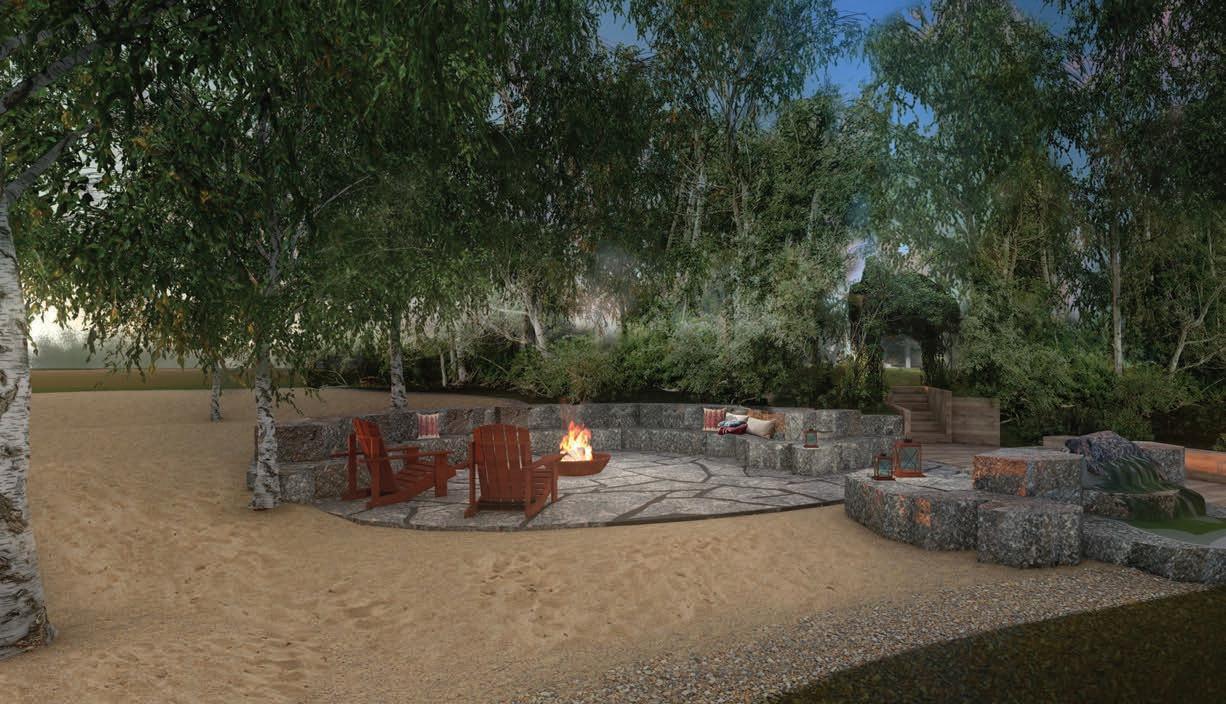

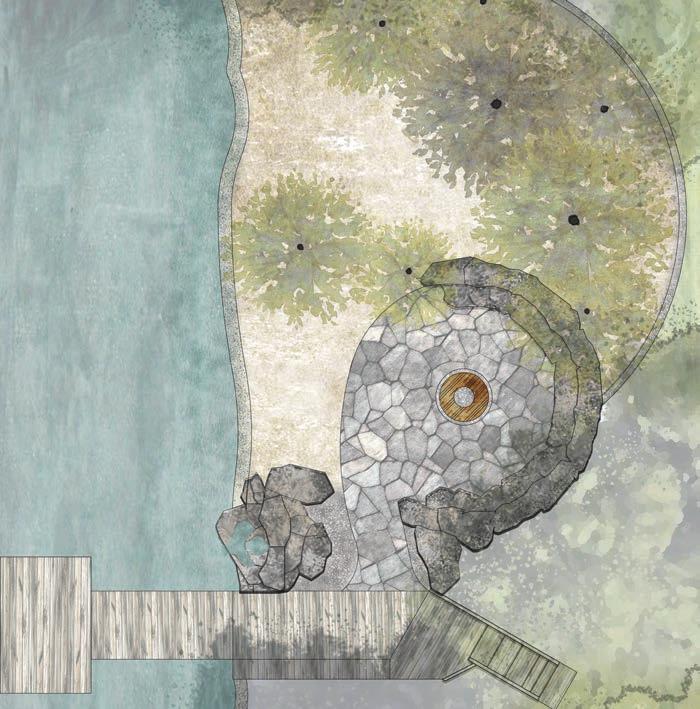

FIREPIT
Design & rendering for a client over the summer of 2022.

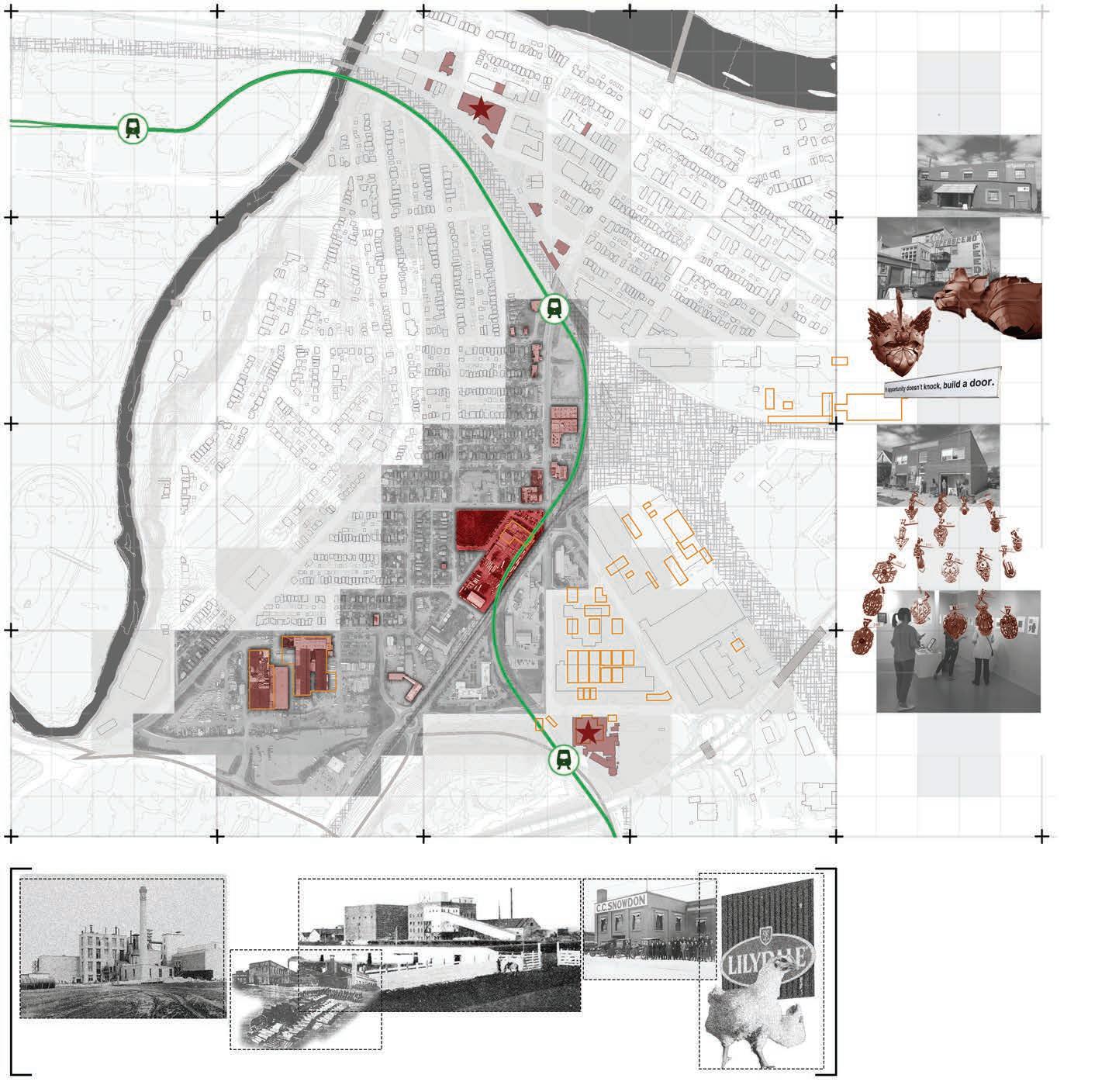

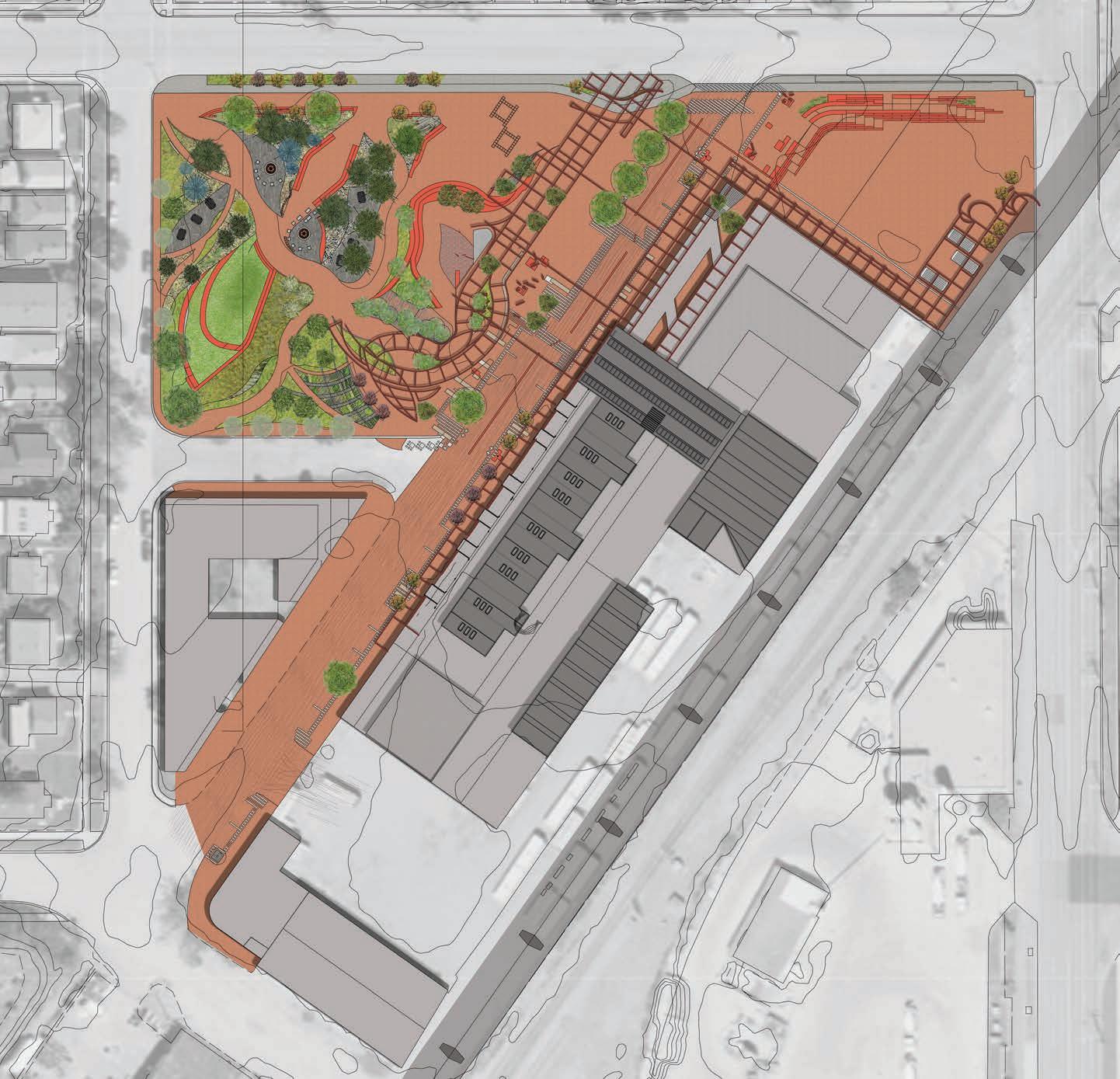

MAKERS2
The lives lived and the land uses established in the areas of Inglewood and Ramsay have been oriented around creative and productive activities. As the neighbourhood has evolved from an industrial, working class community to a funky, bohemian neighborhood, the types and scale of productive and creative activities have changed, but the spirit of making remains. Today, the many creative enterprises that have taken root in Ramsay contributed to its diversity, liveliness and granularity.
Makers2 seeks to preserve and amplify this vibrant mix of living and making, and to script its stories into the space. Design language that draws from its industrial heritage and distinctive creativity strengthens sense of place. The layout can be conceived of as a continuum of community to Makers’ Hub orientation, struck through down the middle by spaces oriented around bridging the two as the stage where makers and community members can interact, engage and create dialogue.
MAKERS OF RAMSAY
Alexandra Centre Society

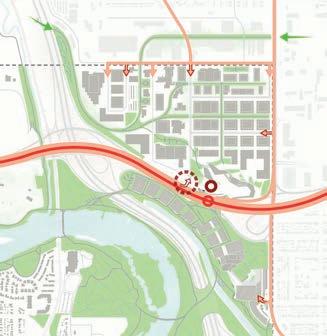

FUTURE TRANSIT ORIENTED DEVELOPMENT (TOD)
Esker Foundation
Cold Garden & Ol’ Beautiful Brewing
Art Point Gallery & Studios Society
Heritage Spinners & Weavers Guild of Calgary
Superblend Feeds Studios
nvrlnd. Arts Foundation
Free Fall Alchemy (jewelery)
Site
Burns Visual Arts Society
F&D Scene Changes (film sets)
Rosso Coffee Roasters
Industrial History
Mixed use infill
Transitional infill
TOD Mixed use infill
TOD Mixed use infill 2044+
A CREATIVE SPINE
Crossroads Market
Bohemian Present
Design
Calgary Brewing & Malting Riverside Iron Works Burns Meat beef iron beer & soda oil chicken Lilydale Poultry C.C. SnowdonA B C D D E B A C E
Community oriented Makerspace Oriented Community Engagement Rocky Surface Permeable Surface Vehicle grd. Paving Pedestrian grd. Paving Softscape Planting Softscape Lawn B Tool Share Gallery spaces in arcade Outdoor event spaces Back laneway workshops Makers Spaces Flexible Events Plaza Maker’s Hub Front-facing Residential Production courtyard Workshops, studios & Warehouses Heavy vehicle access Woonerf/shared street Community Garden Sun Terraces Recycled Steel Fire Pits Bike lane Covered promenade 21 Ave S.E. 11 St S.E. Bus stop N 1:1000 FOCUS CIRCULATION SURFACES Truck Cycle Automobile Main Entries Pedestrian Parking Primary Secondary
CONIFER GROVE A.
CONIFER GROVE B.
(1) Abies nordmanniana ‘golden spreader’ • (2) Picea glauca var. densata • (3) Pinus sylvestris • (4) Pinus uncinata •
(5) Pinus mugo • (6) Cornus sericea flaviramea •
(7) Cornus sericea sanguinea •
(8) Physocarpus opulifolius
(1) Festuca campestris •
(2) Penstemon nitidus •
(3) Festuca idahoensis •
(4) Agropyron dasystachyum
(1) Parthenocissus quinquefolia
VINE-CLAD ARCADE 21 AVE S.E. BOULEVARD PLANTING
ASPEN STAND
(1) Populus tremuloides(1) Ulmus americana ‘Brandon’ • (2) Prunus virginiana ‘shubert’ • (3) Acer tataricum ‘GarAnna’ • (4) Physocarpus opulifolius
21 Ave SE Sun terraces Passive stormwater A A B B Path seating Fescue Meadow Pinus uncinata Abies nordmanniana ‘golden spreader’ Picea pungens Ulmus americana ‘Brandon’ Quercus macrocarpa
3 3 4 1 1 1 1 2 2 2 3 4 4 4 4 3 3 1 1 1 1 1 3 2 4 1 5 7 6 8 2 2 Bike lane 21 Ave SE Flexible events plaza Step seating Acer tataricum ‘GarAnna’ Parthenocissus quinquefolia Pinus mugo + Physocarpus opulifolius Bike lane Accessability ramp

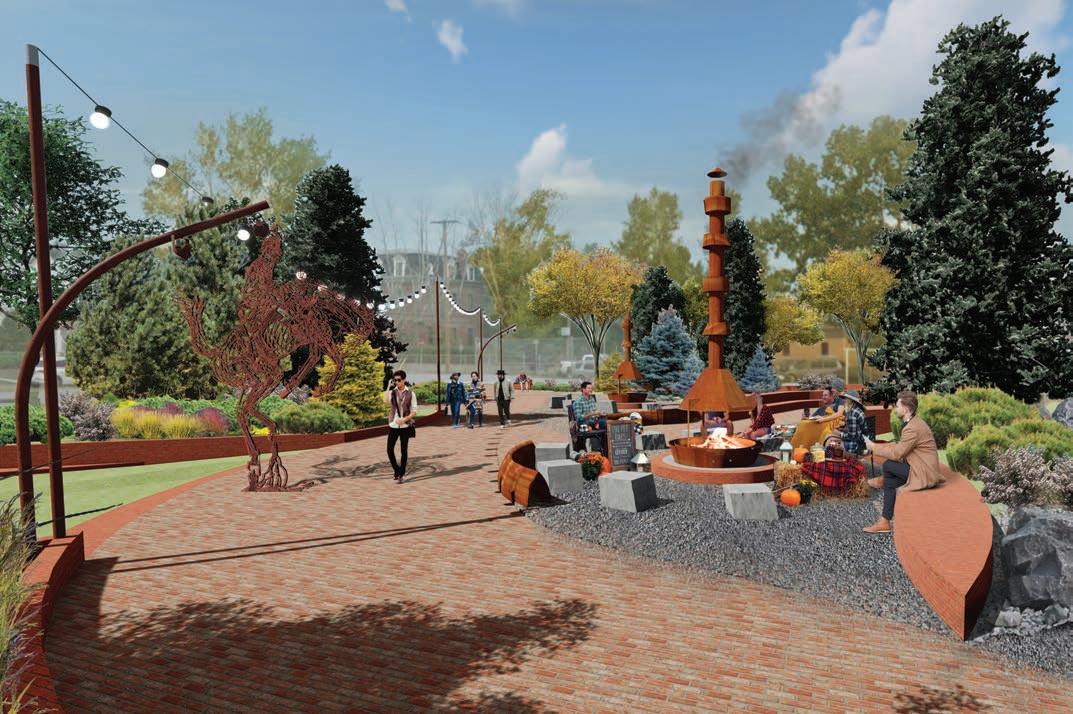

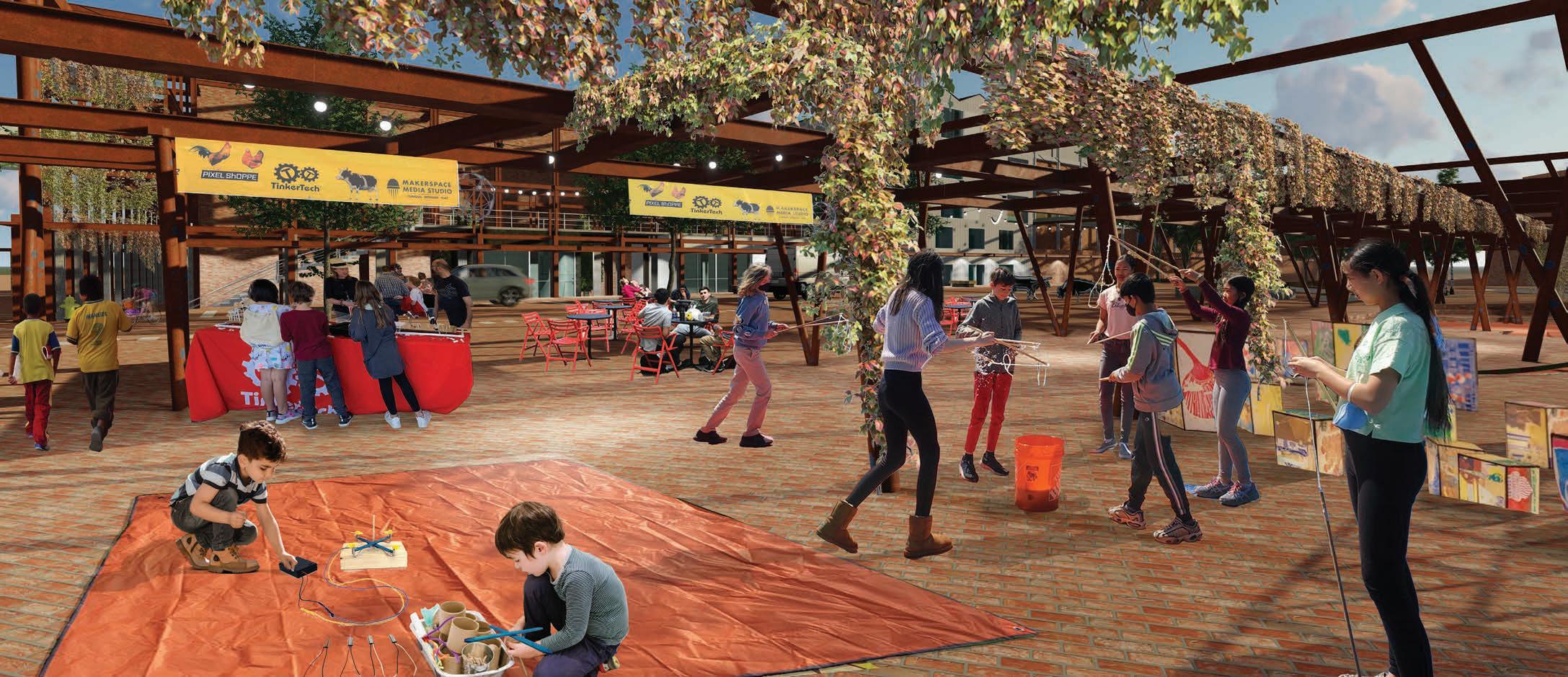

ART WALK & FIREPITS
A-A
B-B FESCUE
a. a. b. c. c. b. d. d. e. e. f. f.

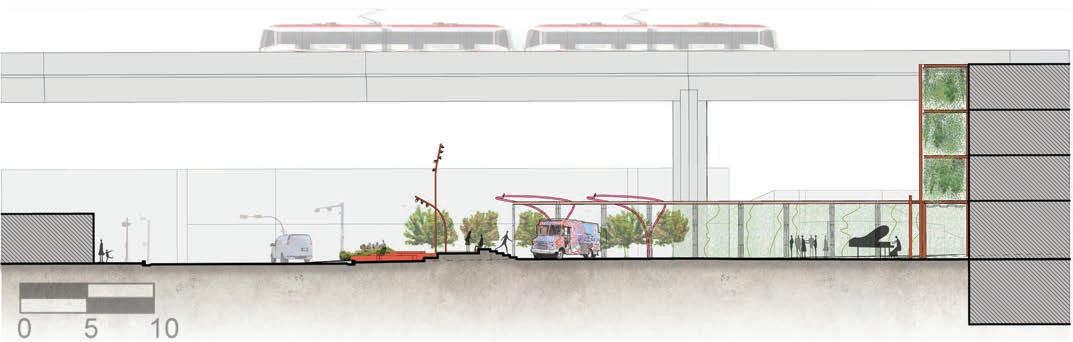

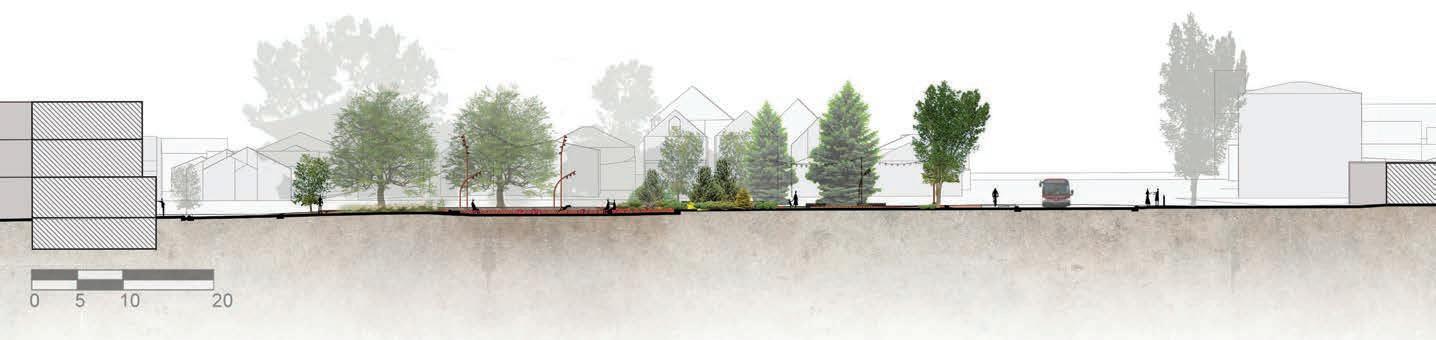

SECTION
SECTION
MEADOW
ARTISTIC WORK
Wayfarer
A photographic journey through urban Calgary.
La Fierté Gauloise
A work in Rubber-Block Print
Song for the Village Children
Calligraphic work composed with a mix of marker and pencil crayon applied to a faux aged, tea soaked sheet of paper.
