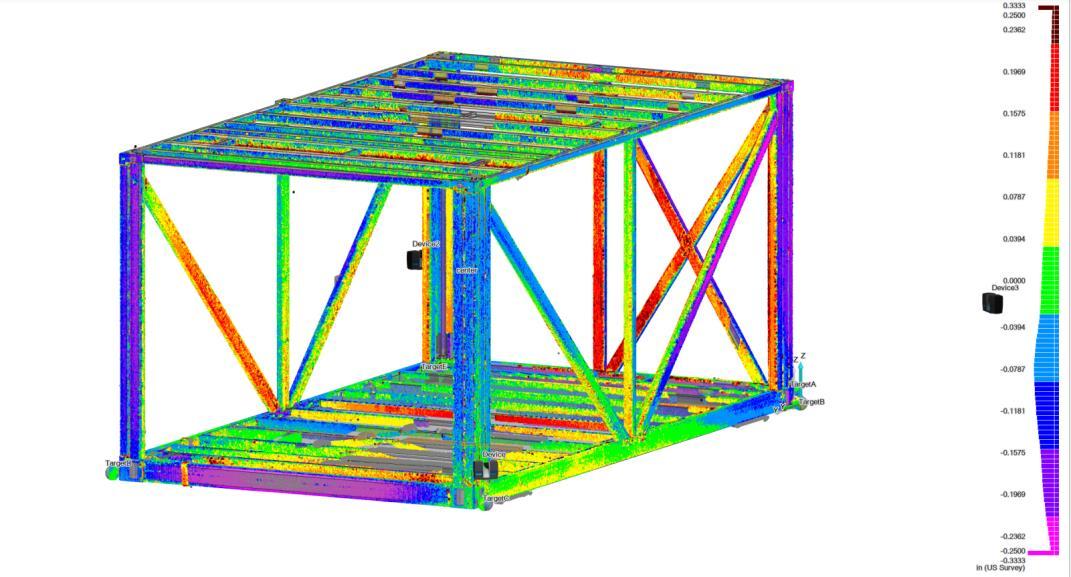

Figure 14. Resulted Isometric view of from the cloud data association with BuildIT software

problems. In Figure 14, the most important members in context of manufacturing are the lateral deviations found in the back columns. These present an outwards deviation of around 0.2000 inches and can be fixed at the shop by compressing the columns inwards using a pulling mechanism.

Figure 14. Resulted Isometric view of from the cloud data association with BuildIT software

Inwards deviations do not present higher risk than deviations that are outside the chassis. This is because the alignment between the modules introduces more risk when their shared columns form a concave line between each other, and present gaps at the lower and upper ends. Inwards deviationsare to be troubleshot when they becomelargely excessive and may require in some rework and more intense pushing mechanisms to correct them thanthe process of compressingthem inwards
