PORTFOLIO
DAISY CUI | Interior Design
DAISY CUI
INTERIOR DESIGNER
Passionate and dedicated graduate interior design student with a flair for residential design. Eager to contribute creative solutions and provide exceptional support in crafting beautiful, personalized spaces.
EDUCATION
MASTER OF ARTS IN INTERIOR ARCHITECTURE & DESIGN
ACADEMY OF ART UNIVERSITY | GPA: 3.83 (01/2023-Present)
BACHELOR OF SCIENCE IN INTERIOR DESIGN
SAN FRANCISCO STATE UNIVERSITY | GPA: 3.80 (Graduate in 12/2021)
WORK EXPERIENCE
650-667-9128
daisycui7@gmail.com
Daisy Cui
San Mateo, CA
DESIGN ASSISTANT NICHOLAS VINCENT DESIGN, CA (03/2022-01/2023)
HOSPITALITY INTERN NICOLEHOLLIS, CA (09/2021-01/2022)
AutoCAD
Sketch Up Photoshop
InDesign
Design Manager
SPEXX
Microsoft Office Pack
Twinmotion
Revit
Wood Working
Hand Drafting
Photography
LANGUAGES
English
WWW.DAISYCDESIGNS.WIXSITE.COM/HOME CONTACT SKILLS
Mandarin Cantonese
TABLE OF CONTENTS ACADEMIC OTHER WORKS • Refugee Center • Hawaii Resort Renderings 4 31 • Medical Office • Pink Marrakesh Dream Bathroom 18 32 • Cozy Living • Morocco Inspired Bathroom • Ferry Building Bookstore Renderings 24 33 35
REFUGEE CENTER
Portland, OR
Rose City Park Refugee Center is intended to welcome new refugees and provide them with a space for social services, education, job training, community connection, and temporary accommodation as they journey toward selfsufficiency and adjust to life in a new city.

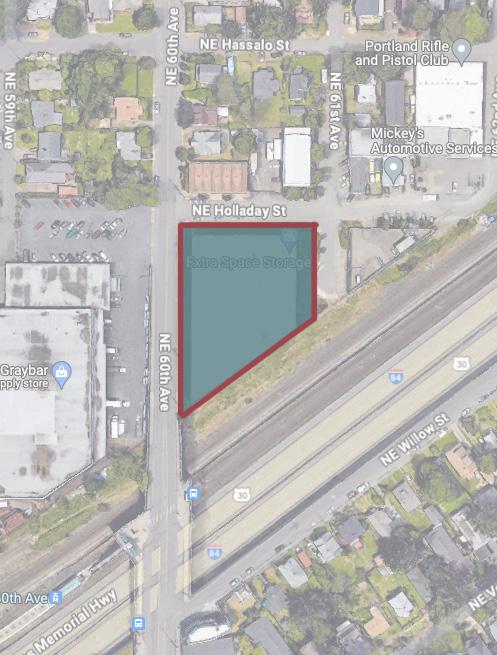

Address: 6015 Northeast Holladay Street, Portland, OR 97213
Lot: 0.9 Acres
Surrounding: Adjacent to Interstate 84, residential area, light industrial area, as well as Normandale Park
The site is located at the South edge of Rose City Park, which it’s a neighborhood in Northeast Portland, OR. With a population of 29k people, Rose City Park is very family and dog-friendly,it has a nice mix of Old and New Portland vibes, thanks to its cluster of hip and trendy restaurants. It’s has easy access to bus stops and Max Light Rail stations.

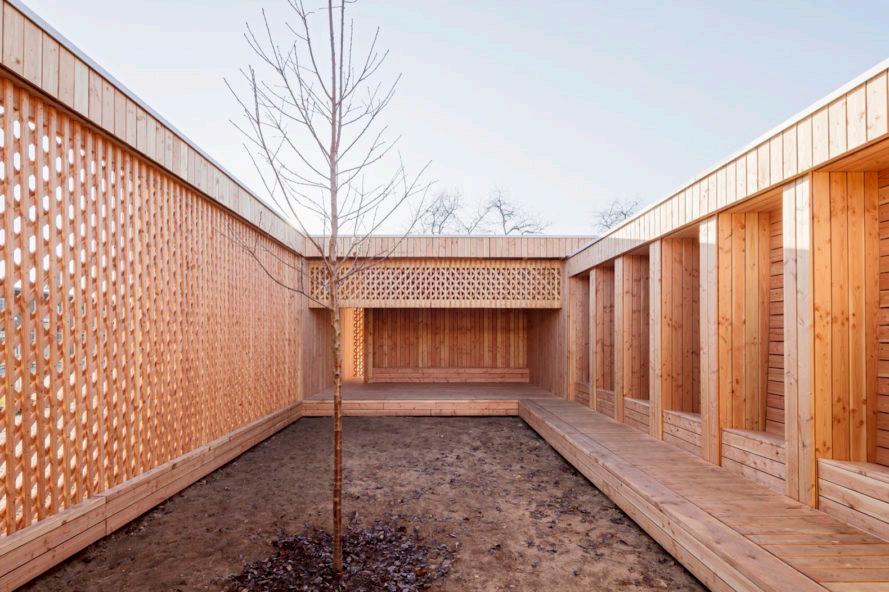

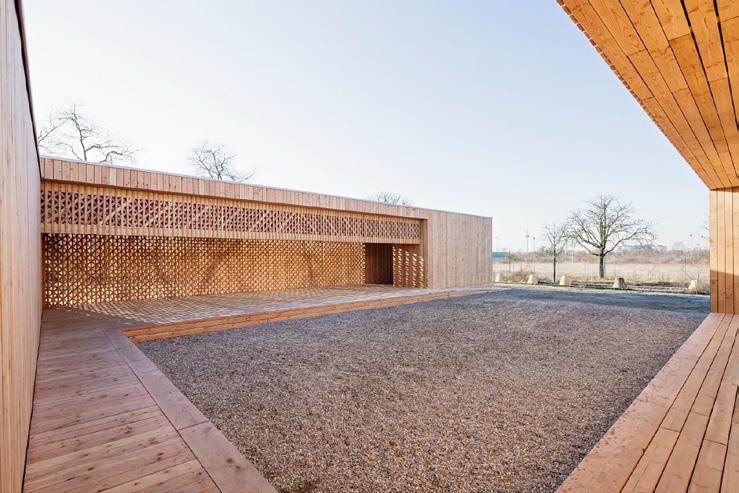

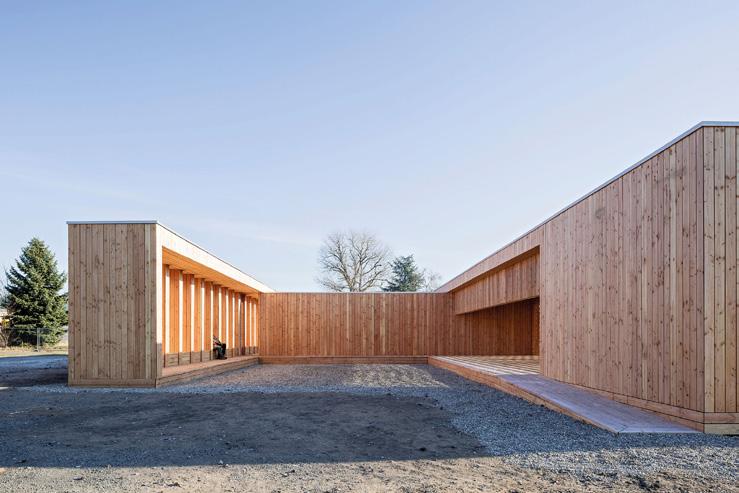

COMMUNITY CENTRE SPINELLI BARRACKS MANNHEIM
Location: Mannheim, Germany
Size: 5920 sqft
Year Built: 2016
Architecture: 18 students from the Department of Architecture at the Technical University of Kaiserslautern
Users: Refugees arriving in Germany are well provided with the bare essentials, but the immediate surroundings are quite desolate and lack the quality of common spaces.
Under the program “Building Together - Learning Together”, these 18 architecture students built the community center together 25 refugees, The refugees were given the opportunity acquire new skills.
FUNCTIONAL INSIGHTS
• Create spaces open to the exterior - connect with nature
• Create enclosed spaces for personal needs - quiet times
• Include spaces that publics can access - connect with the community
PRECEDENT
PROJECT ANALYSIS
STUDY

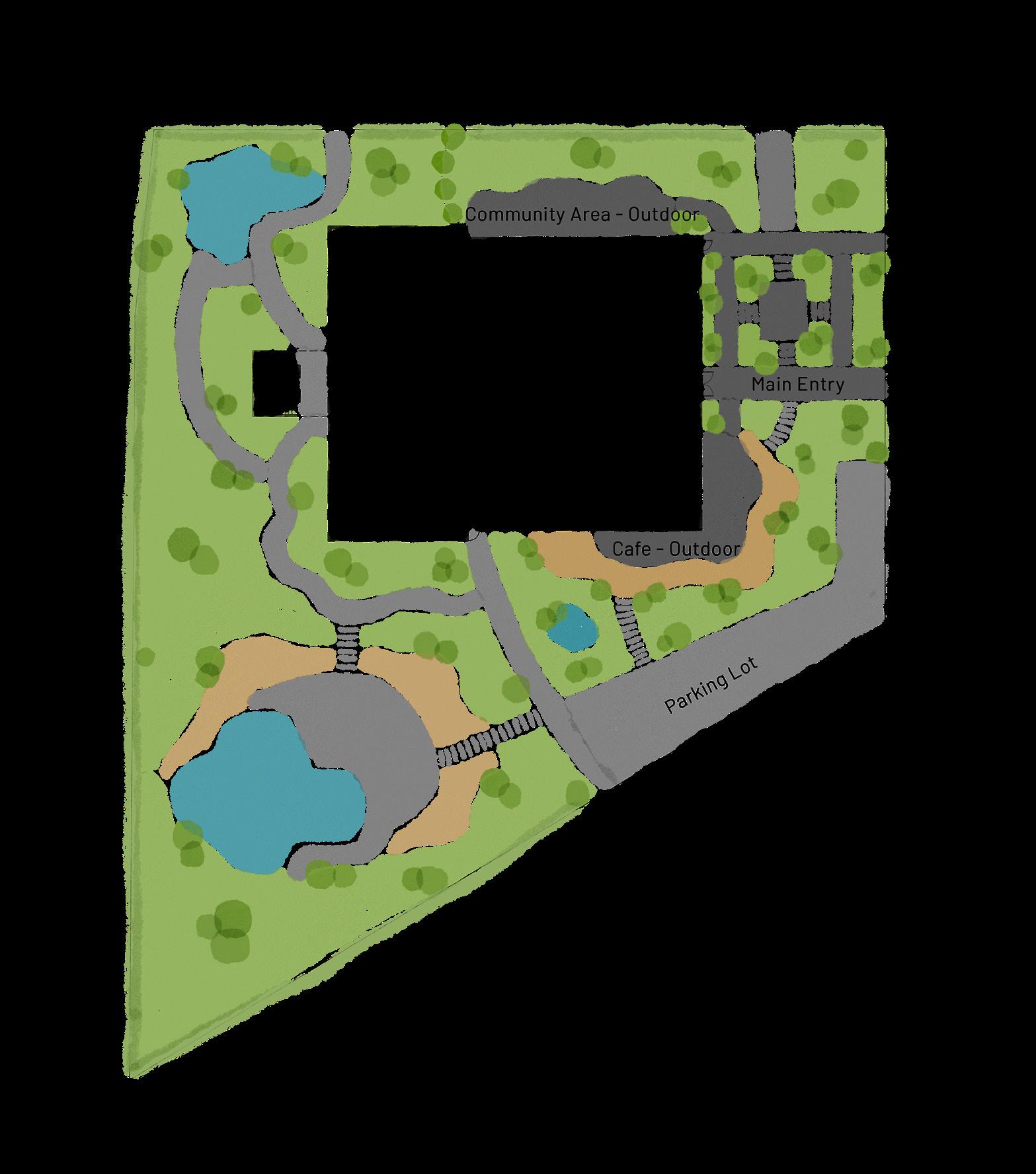

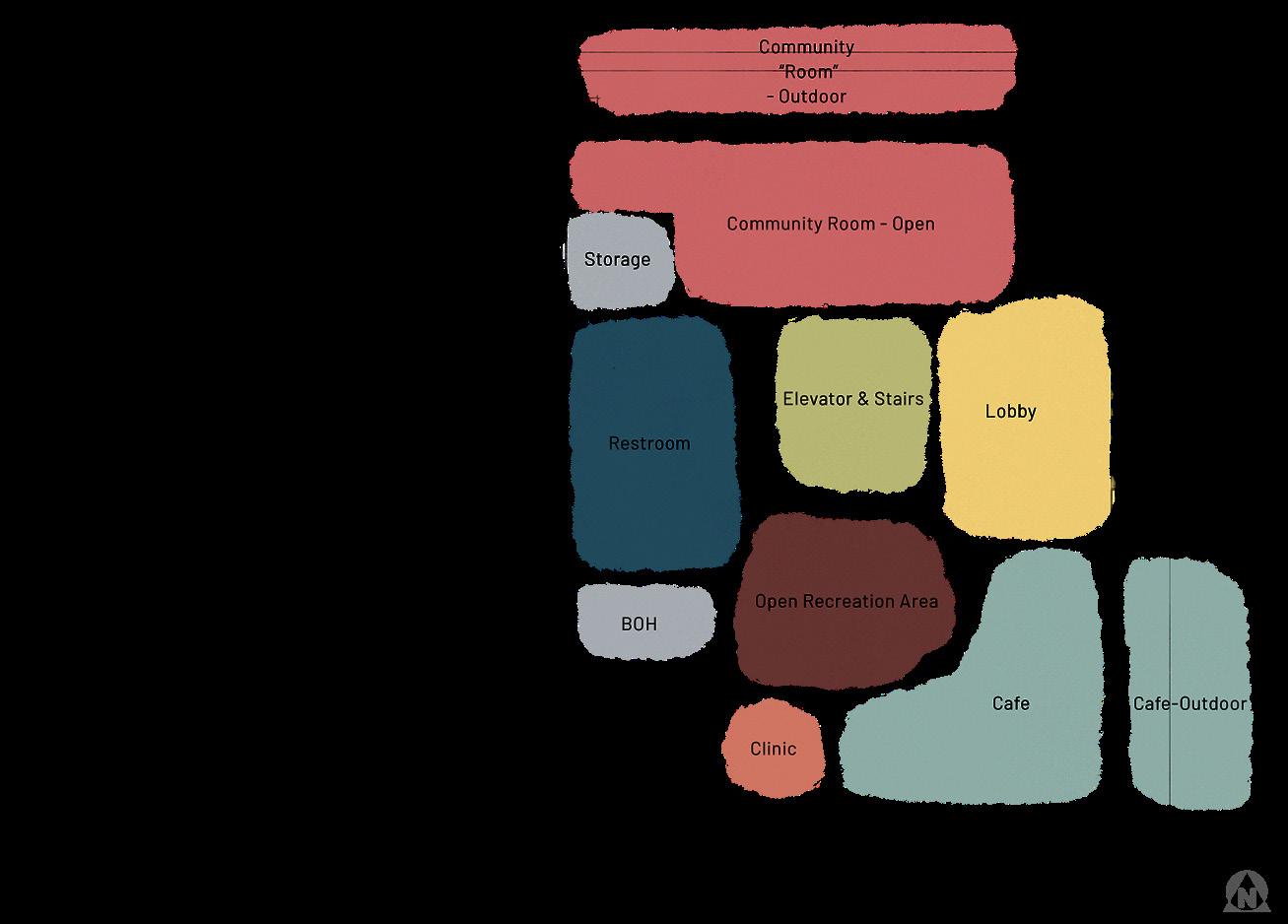

DIAGRAM SITE PLAN

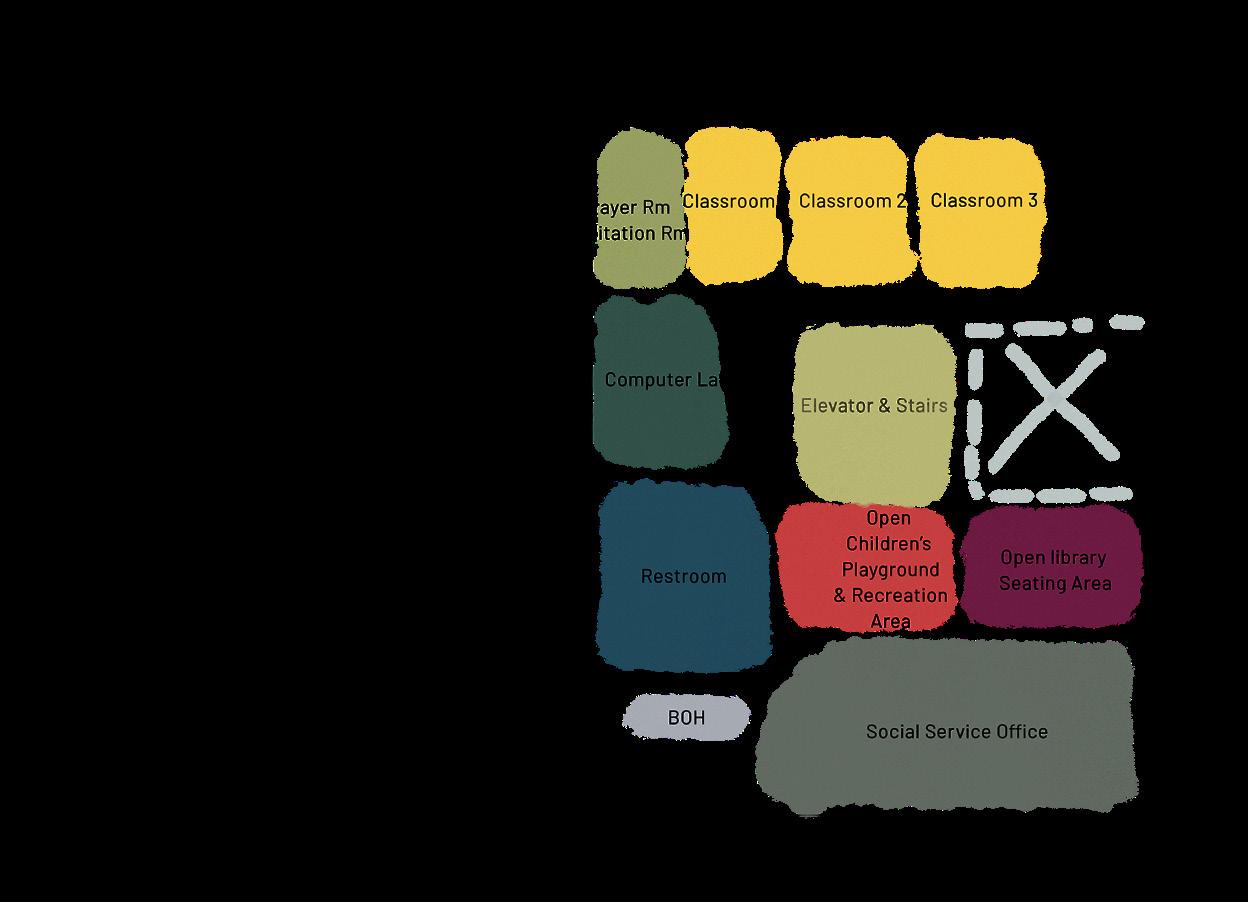

BLOCK

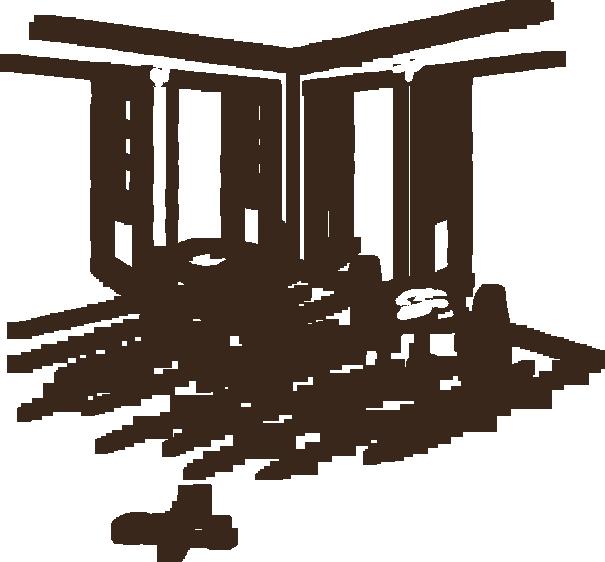

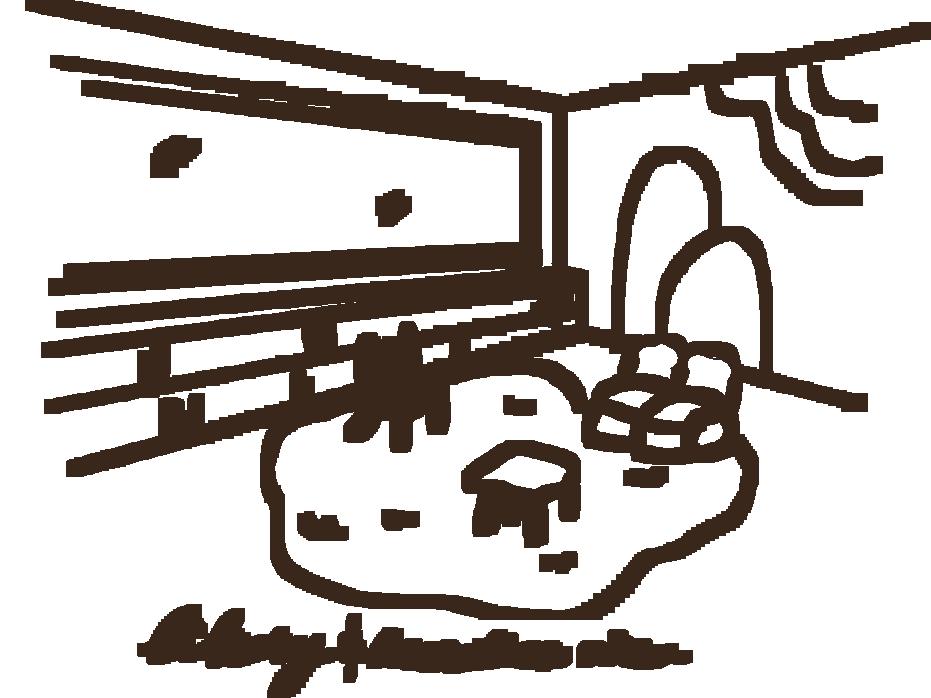

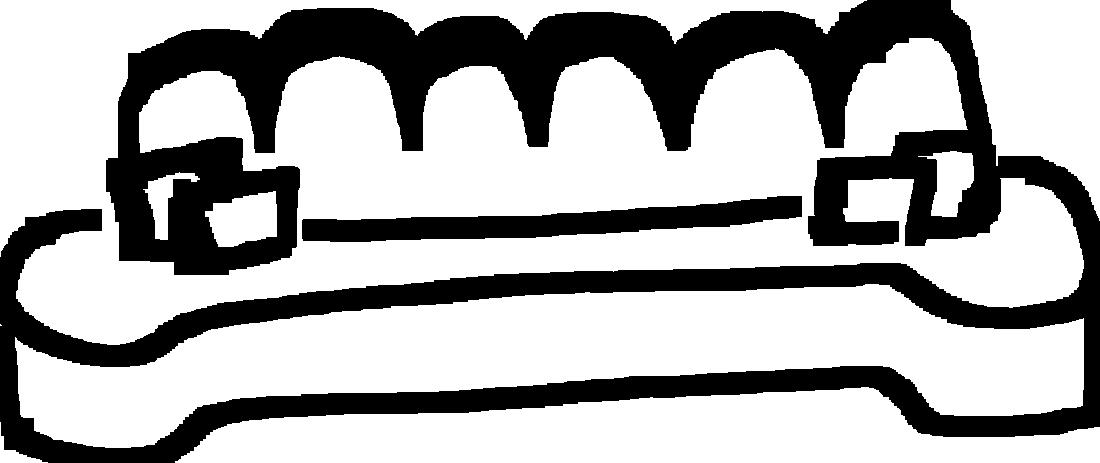

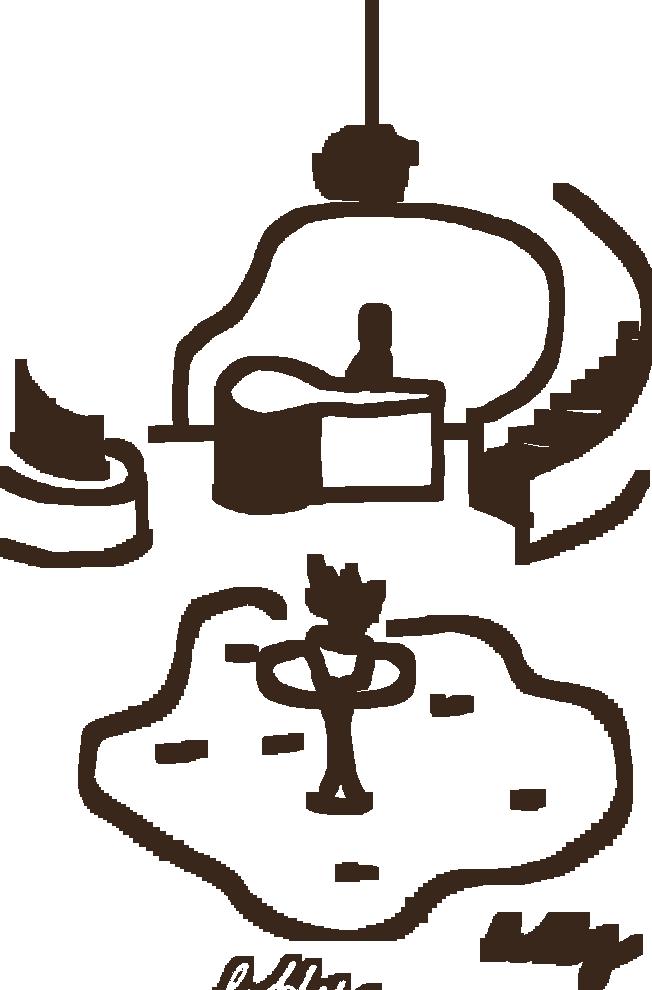

CONCEPTUAL SKETCHES

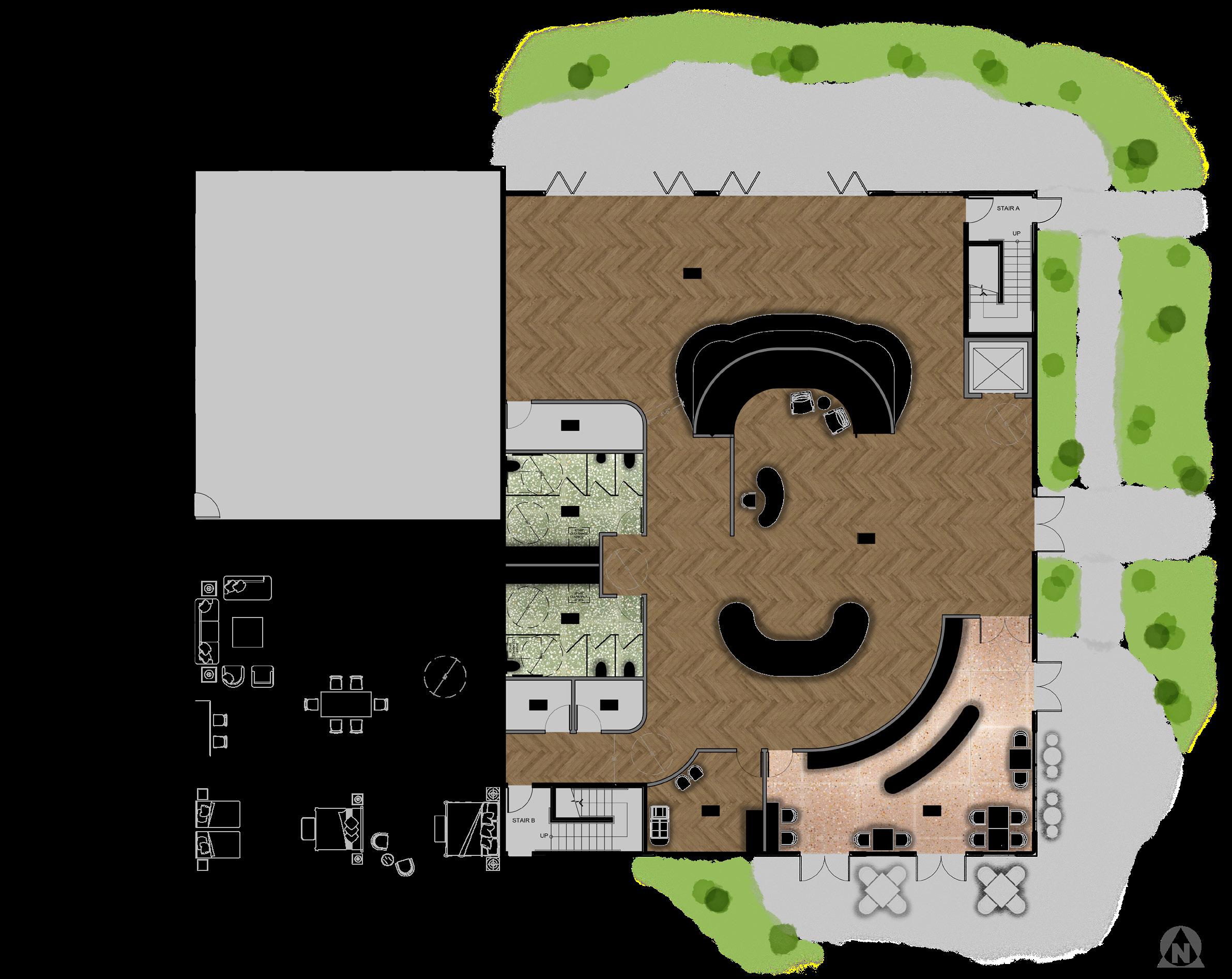

FIRST FLOOR ROOM LEGEND 101 102 103 104 105 106 107 108 109 Lobby Open Community Area Storage Men’s Restroom Women’s Restroom Janitor’s Closet Mechanical Room First Aid Room Cafe

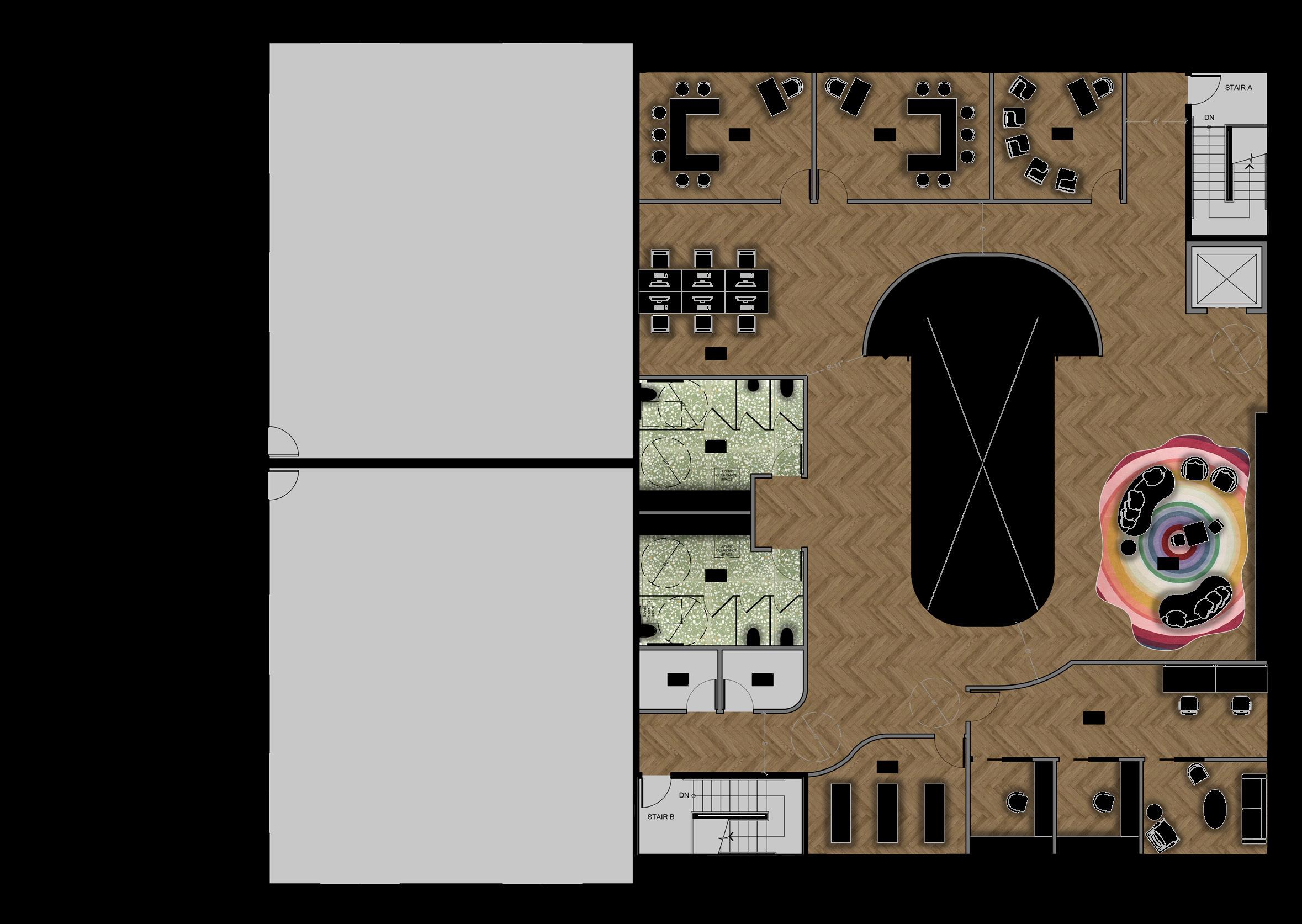

SECOND FLOOR ROOM LEGEND 201 202 203 204 205 206 207 208 209 210 211 Library & Recreation Area Classroom 1 Classroom 2 Classroom 3 Open Computer Lab Men’s Restroom Women’s Restroom Janitor’s Closet Mechanical Room Meditation/Prayer Room Social Service Offices
Dawn of A New Day
Dawn symbolizes the start of a fresh day, bringing with it the promise of new beginnings and opportunities. This space embodies a sense of renewal and hope by offering a welcoming sanctuary for refugees in their time of need. I’m hoping to use bright colors and eclectic elements to create a warm and energetic space, Like the warmth of the morning sun, to help individuals and families find stability and belonging in their new surroundings.
CONCEPT
MOOD BOARD

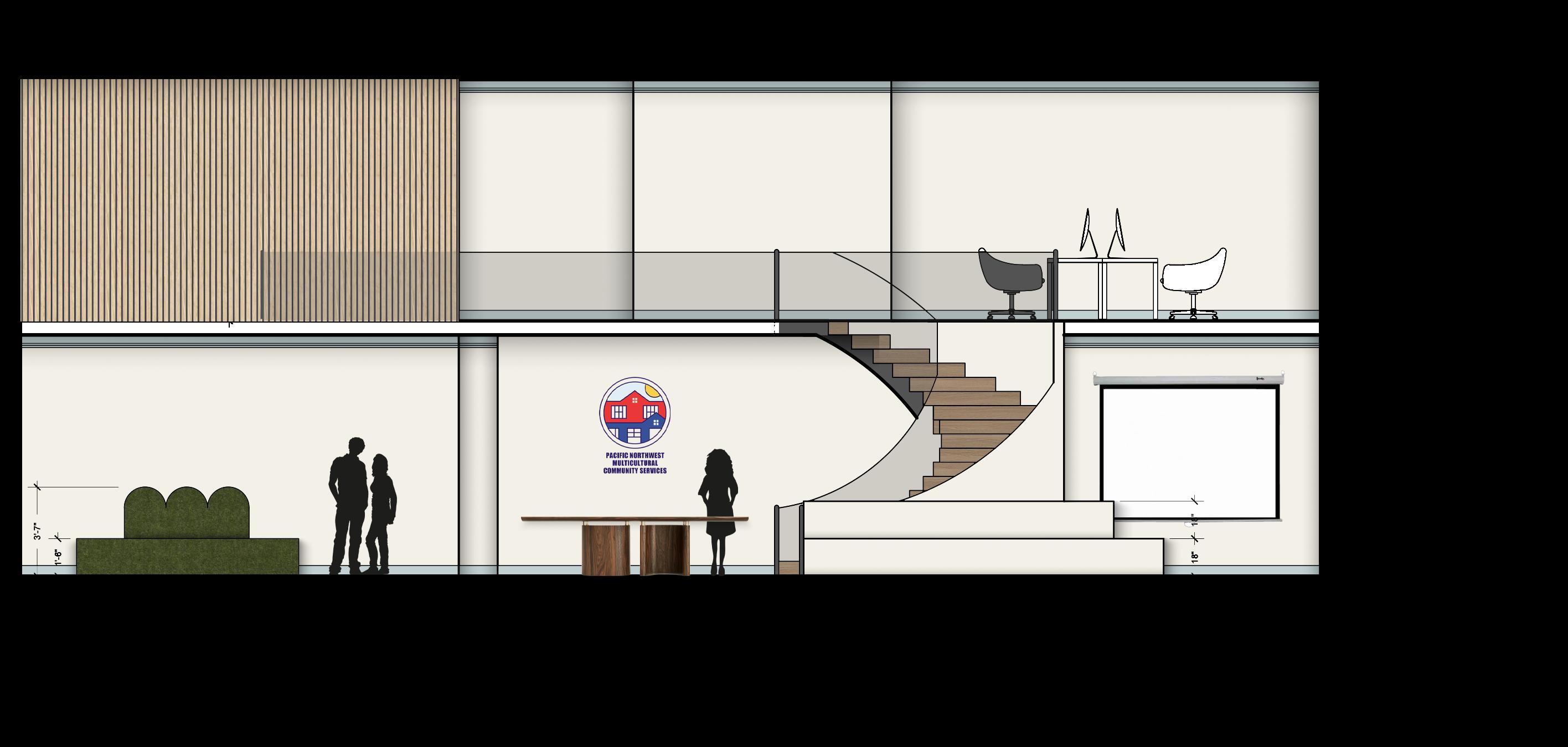

RENDERED SECTION - ENTRY

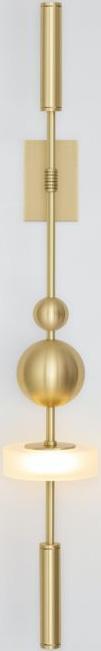

Chandelier by Karl ZahnSymbolize the gentle warmth of sunlight breaking through the clouds at dawn
RENDERED ELEVATIONS - CAFE
MATERIAL BOARD
Carlise Wide Plank Floors - Lenox Hill Herringbone Flooring @Throughout

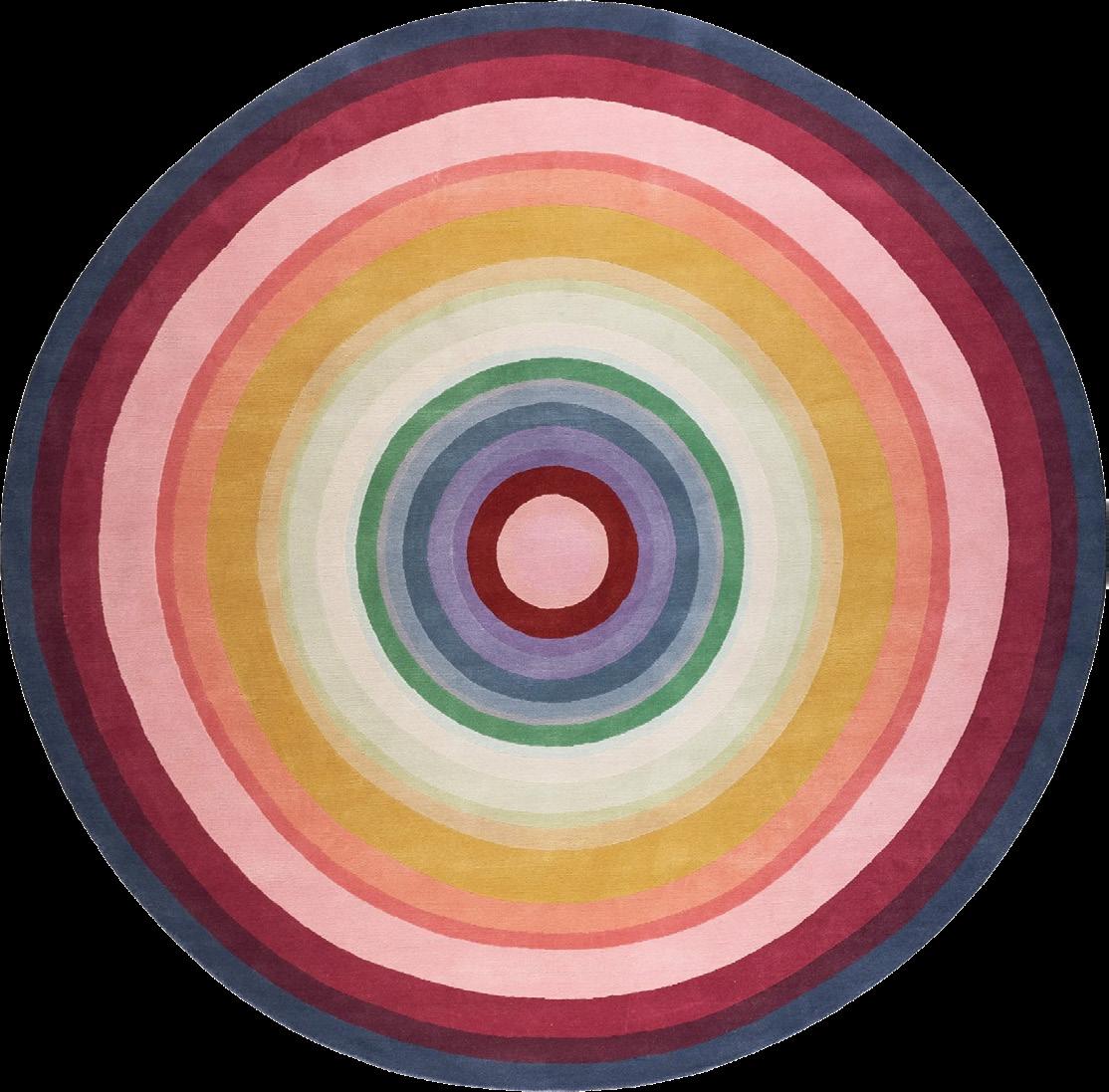

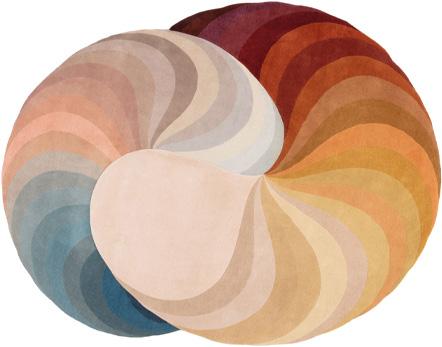

The Rug Company - Custom Shaped Prisma Carpet @2nd Flr Open Library/Recreation Area

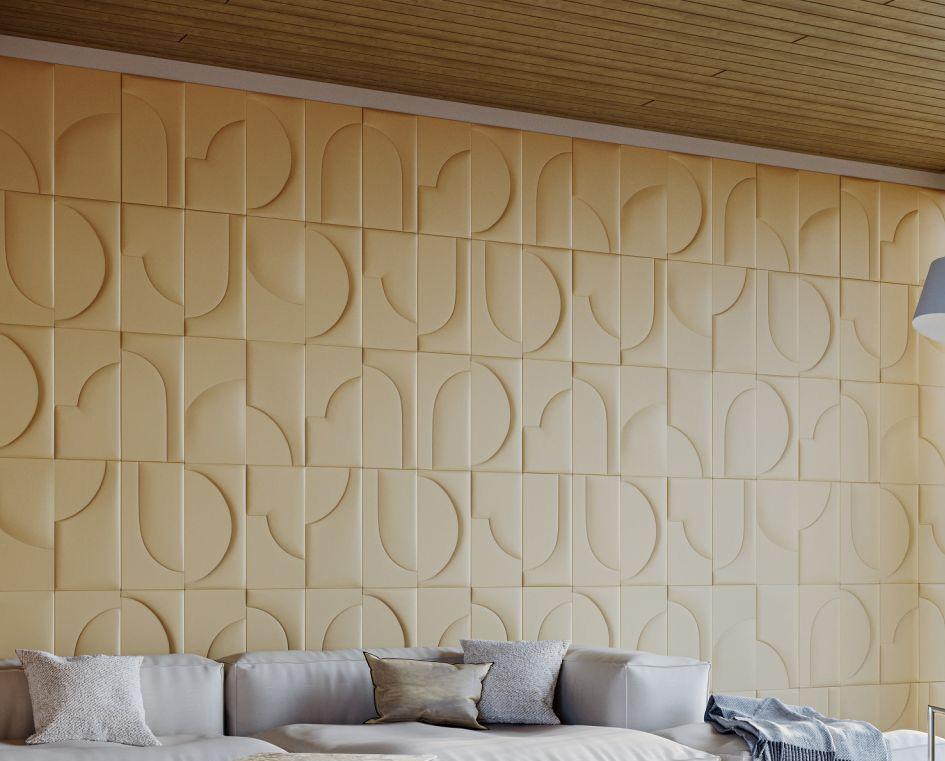

Studio Art - Bon Ton Leather Wall Panels @2nd Flr Open Computer Lab

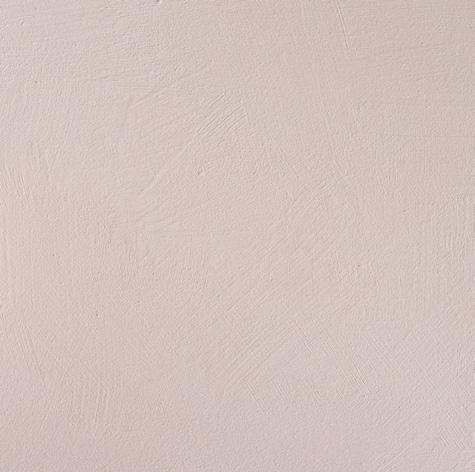

Portola Paints - Antique White Lime Wash Wall Paint @Throughout

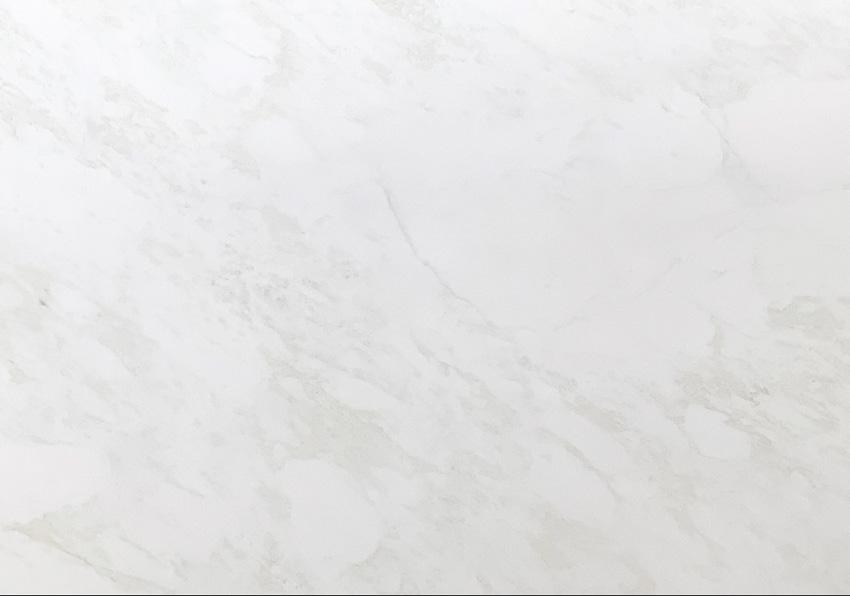

Da Vinci Marble - Mystery White Marble Honed @Cafe Countertops

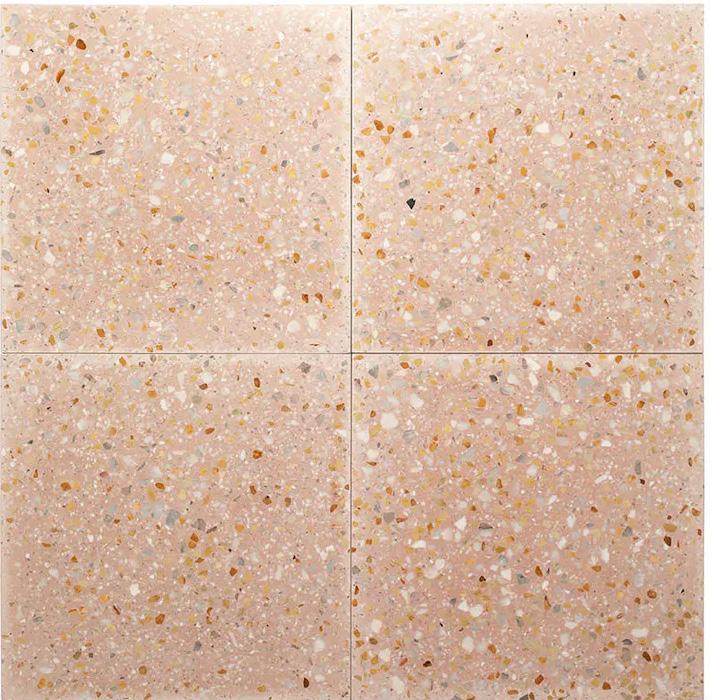

Zia Tile - Mesquite Terrazzo Floor Tile @Restroom Floors
Fire Clay - 1x6 Ivory Straight Sheet Tile @Restroom Walls
James Malone - Maia Green Wallpaper @2nd Flr Open Library/Recreation Area
Light Green Tile @Cafe Bar Front

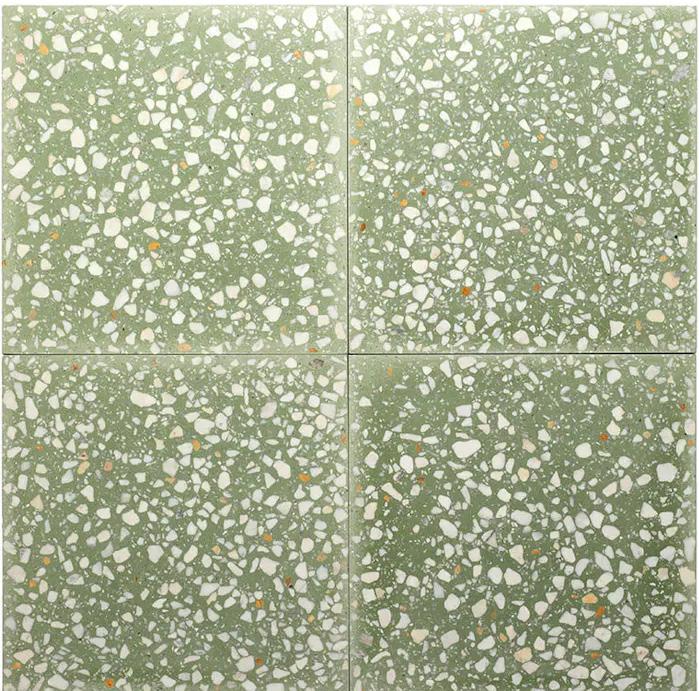

Zia Tile - Las Palmas Terrazzo Floor Tile @Cafe Floor

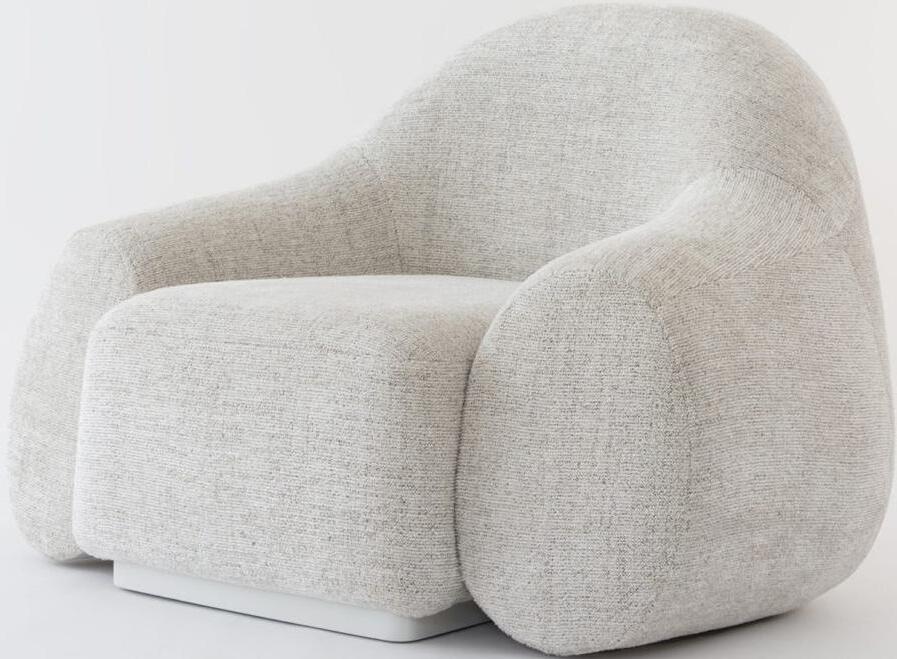

FURNISHES BOARD - LOBBY
A: Karl Zahn - ST.WD.01 – WINTER 1 +
ST.WE.01 – WINTER 2, SET

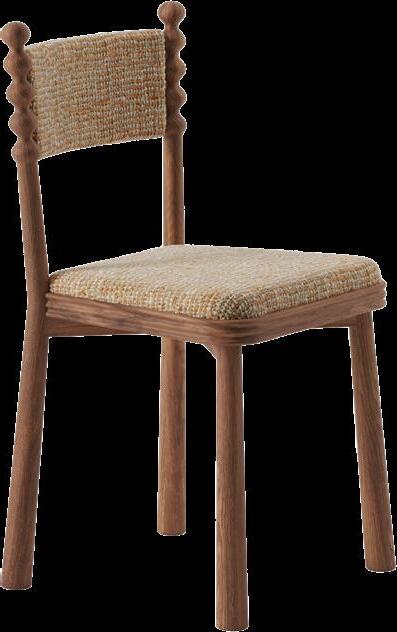

B: Emmanuelle Simon
- Tama Chair
C: Maxime Boutillier

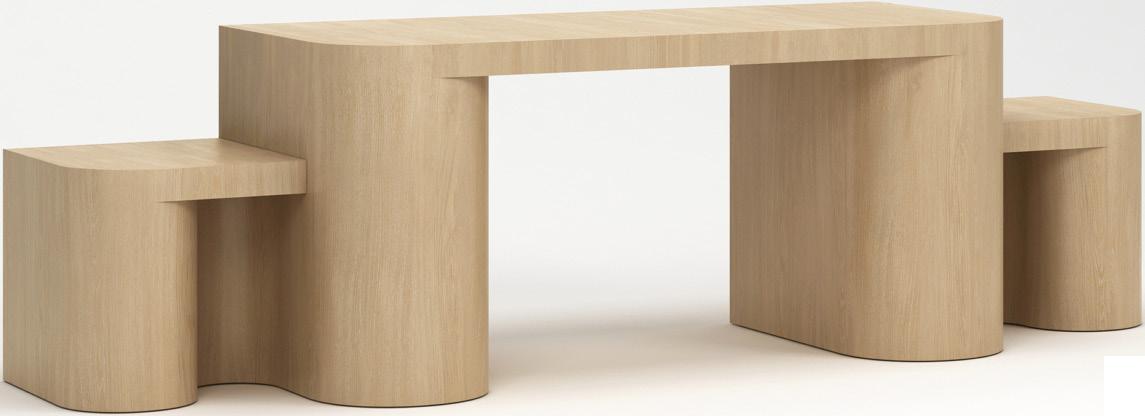

- CM2 Desk Oak
D: Patricia Urquiola
- Double Slinkie Carpet

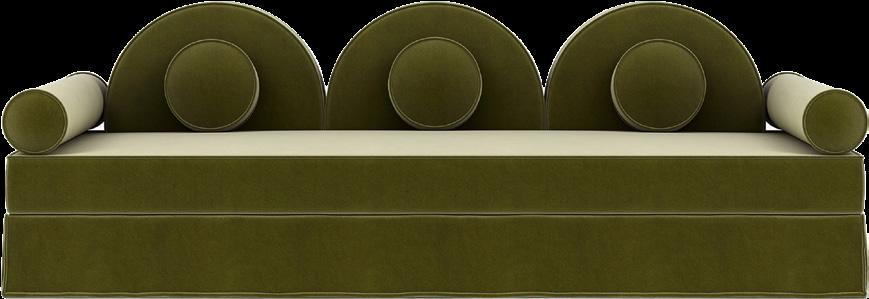

E: Custom Banquette Sketch - Inspo:
Badinage 03 Sofa By Maxime Boutillier
F: Big Game - Moustache Bold Chair

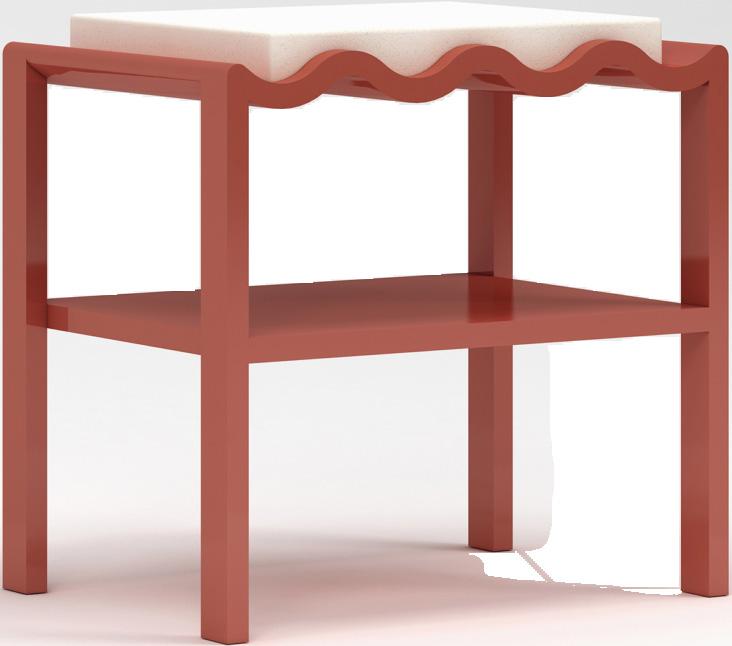

G: Maxime Boutillier - Luy Side Table
H: Alter Ego - Cassette Armchair

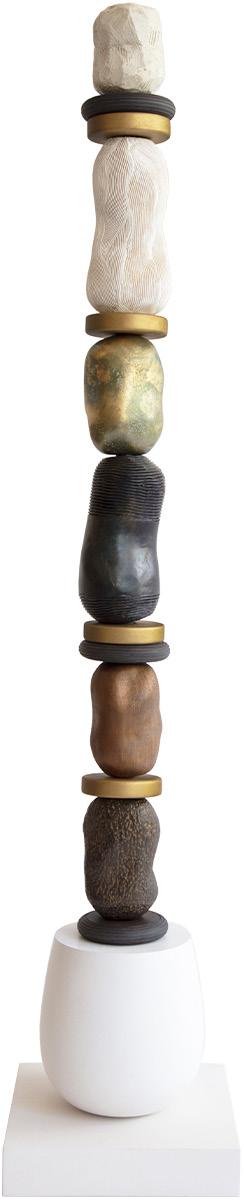

I: Girodroux & Delpy - Horace Totems
A B C E F G D I H
FURNISHES BOARD - 2ND

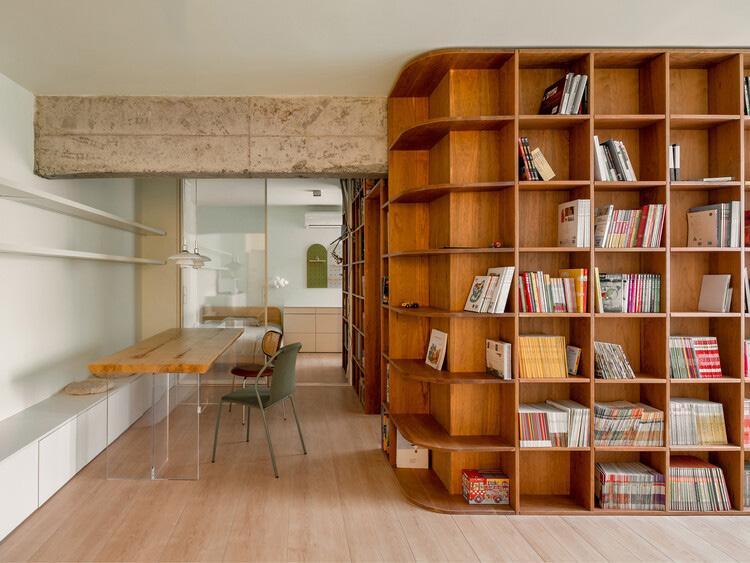

Built-in Bookcases InspoUnder the Windows
G:
A B C E F G D

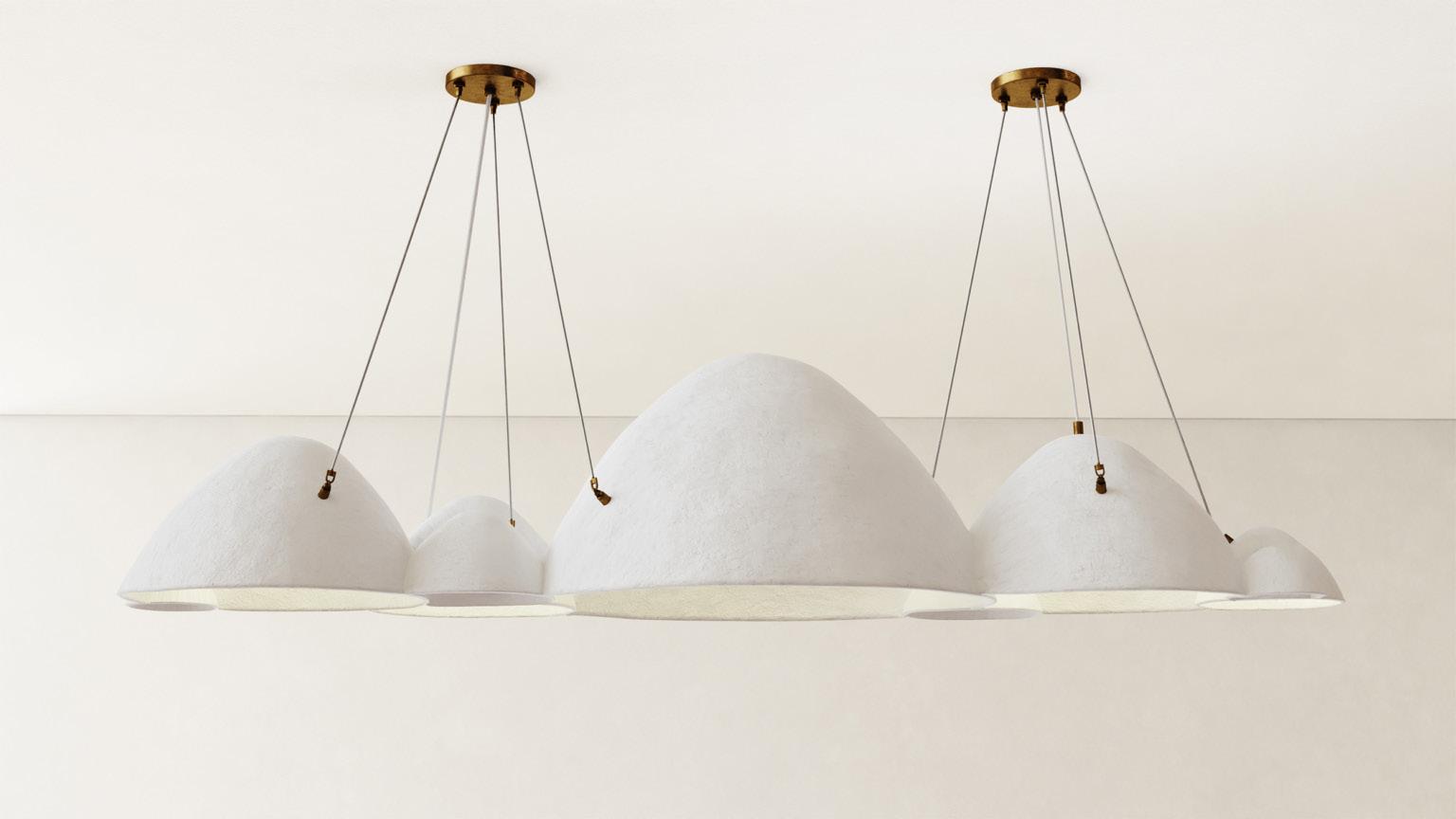

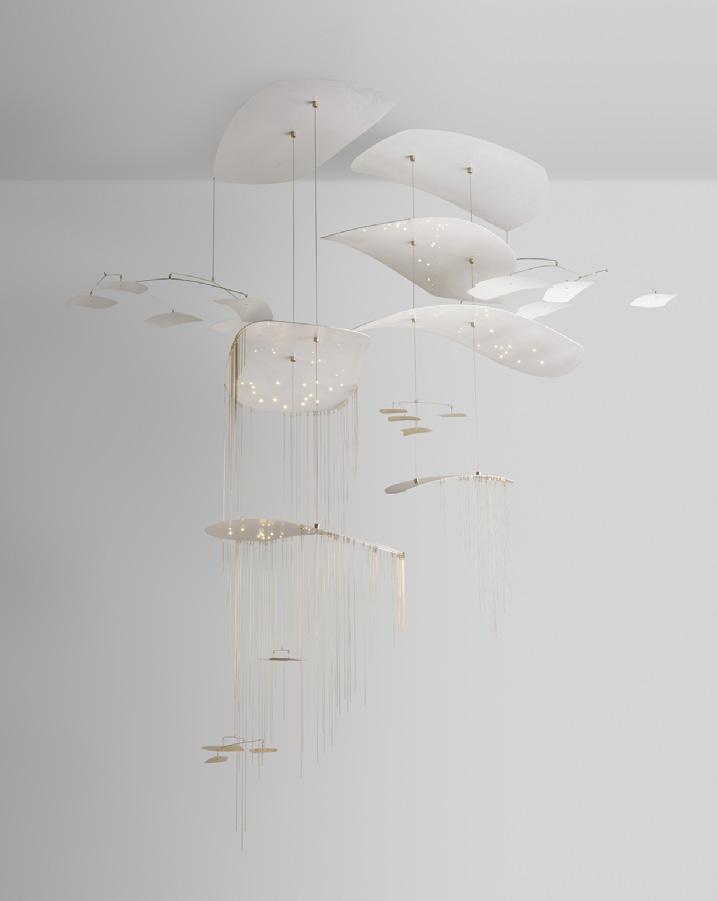

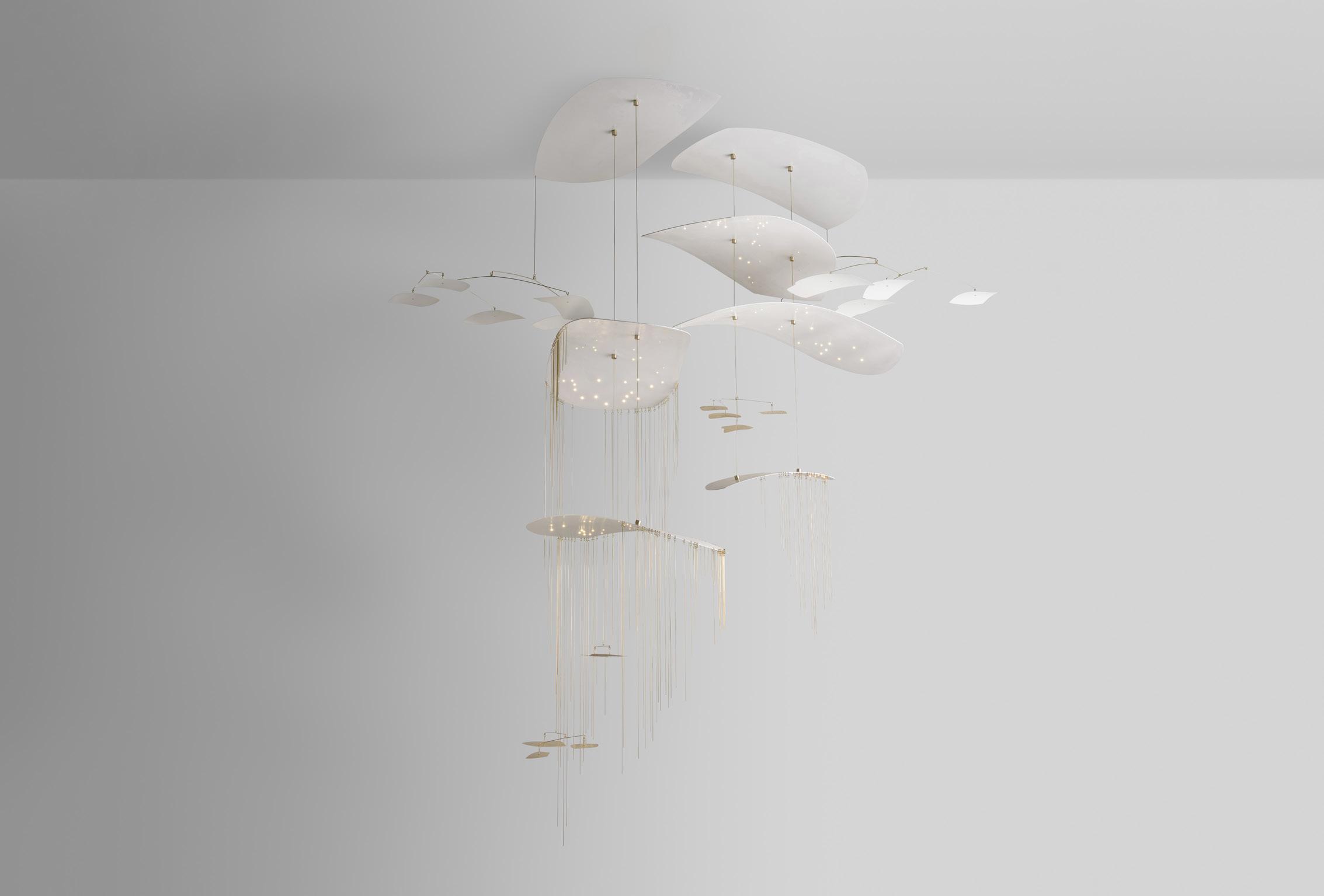

A: Brent Warr - Colline 9 Chandelier

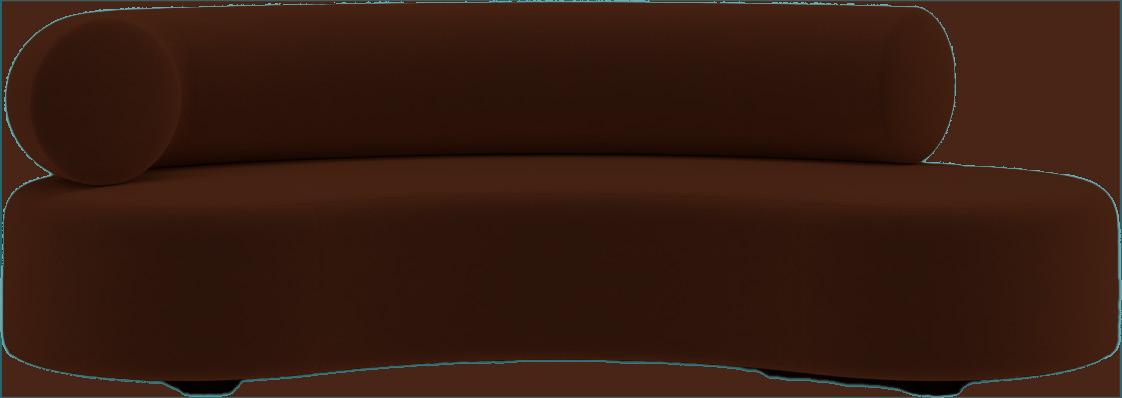

B: Maxime Boutillier - Jaspe Sofa

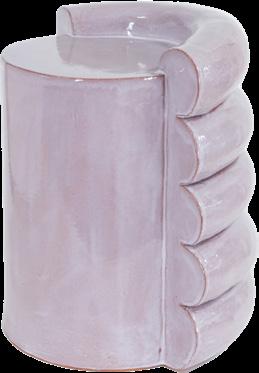

C: Bari Ziperstein - Stacked Donut Side Table

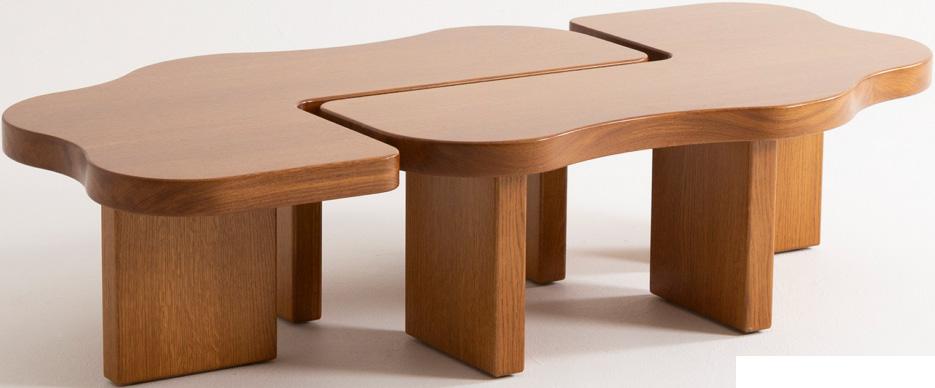

D: Emmanuelle Simon - Orma Coffee Table

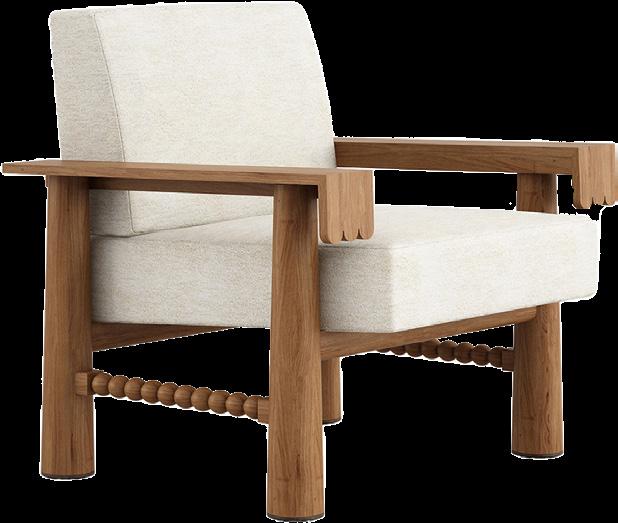

E: Girodroux & Delpy - Ernest Armchair
F: Martin Massé - Agatha 01 Armchair

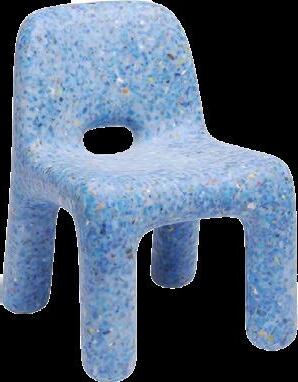

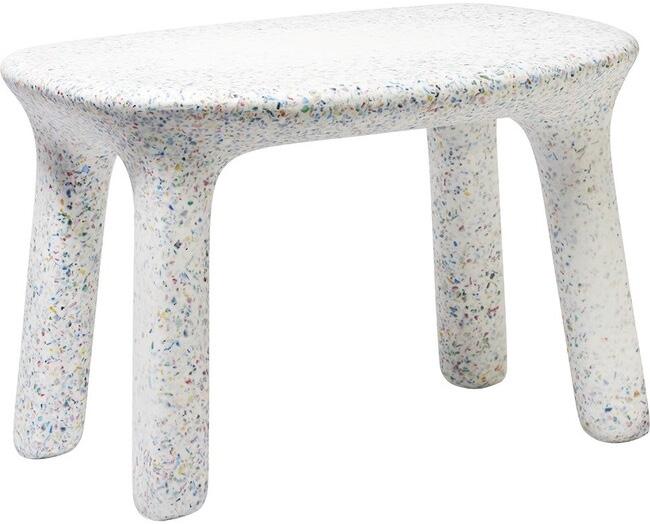

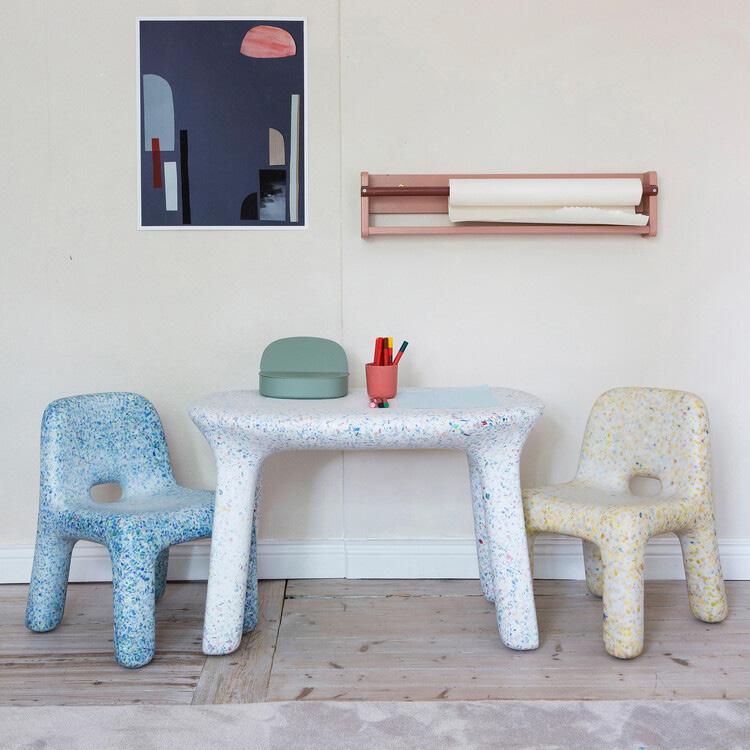

Ecobirdy - Kid’s Set

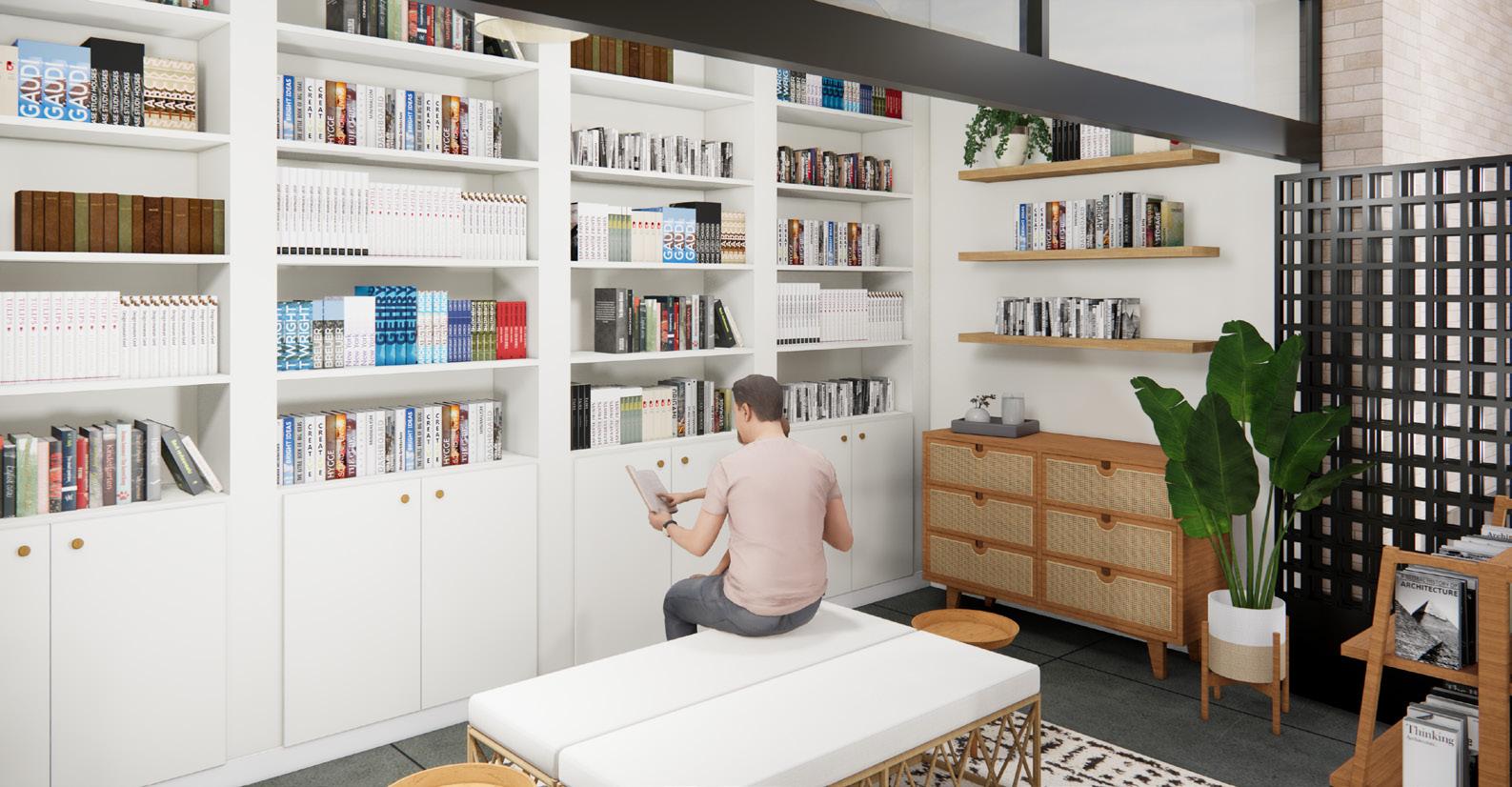

FLR LIBRARY
& RECREATION AREA
- LOBBY

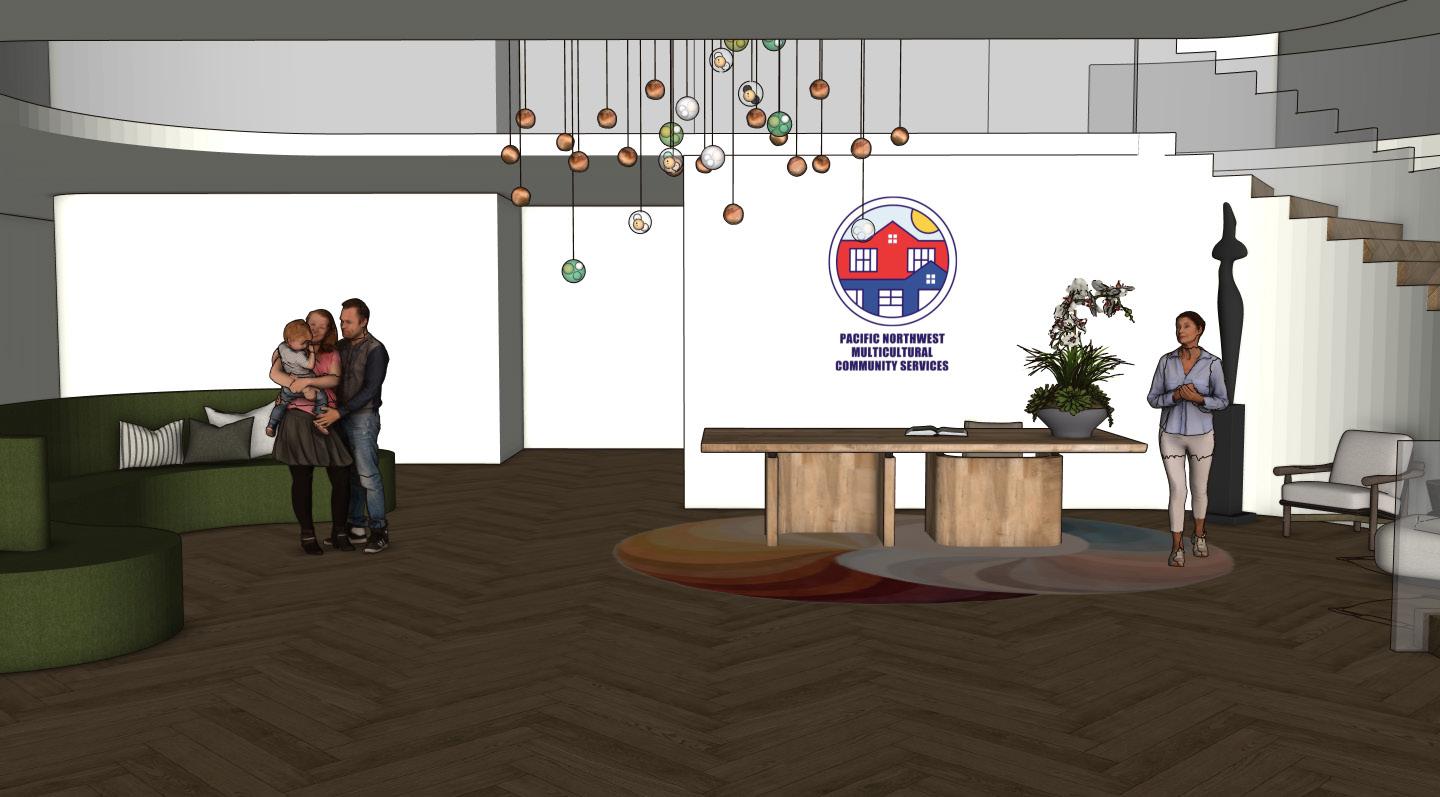

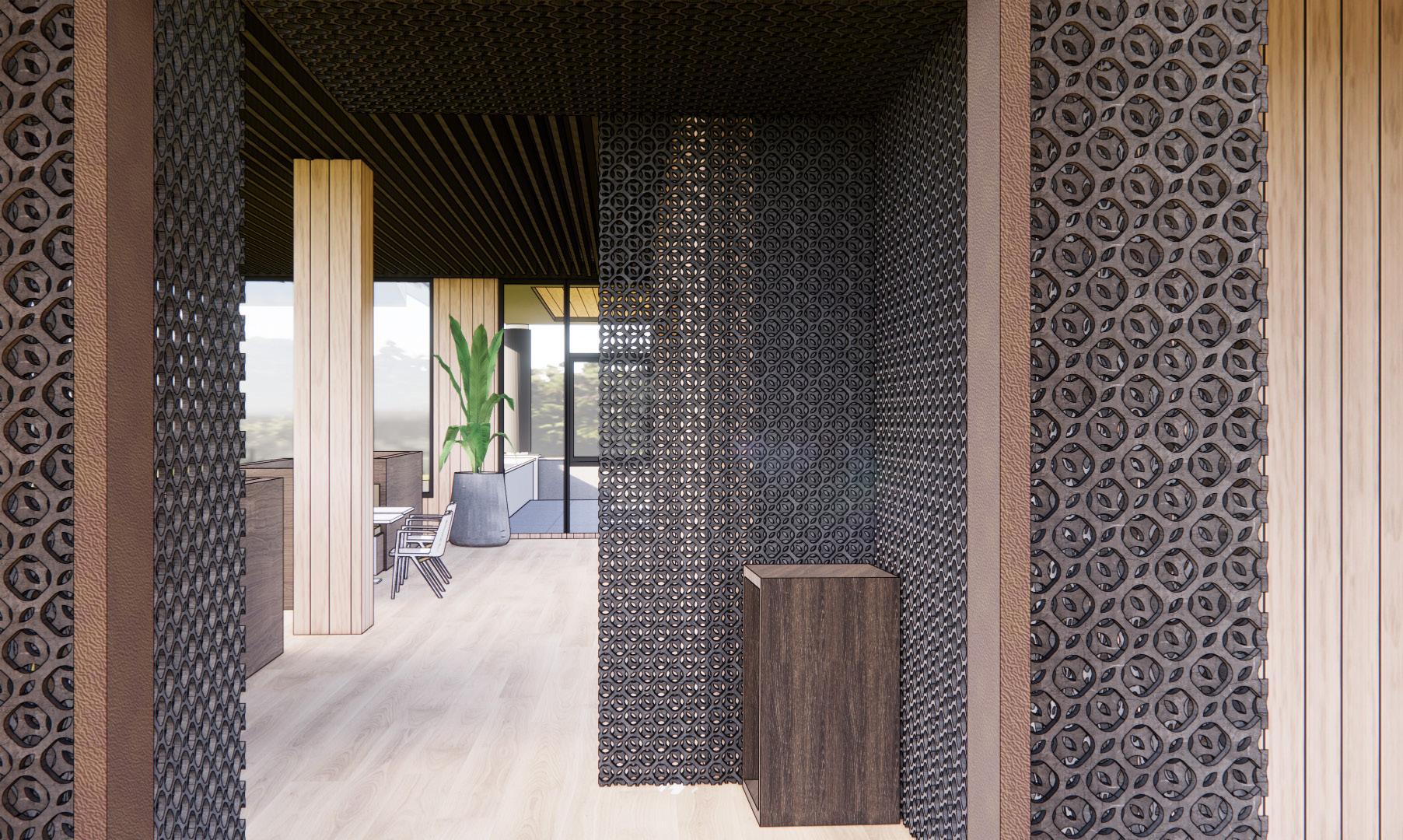

RENDERING
RENDERING - OPEN COMMUNITY AREA
MEDICAL OFFICE
Winthrop, AR
FAMILIAR GROUND
Ground is the foundation upon which all agricultural endeavors thrive, providing stability and nourishment for growth. Just like how health stands as the cornerstone of one’s well-being, nurturing vitality and resilience. Dr. Rockefeller’s office aspires to nurture a flourishing community by offering compassionate healthcare for the enduring health and happiness of all Little River County residents. The office seeks to create an inviting and comforting environment, fostering trust and understanding between medical professionals and the community.
CONCEPT
MOOD BOARD

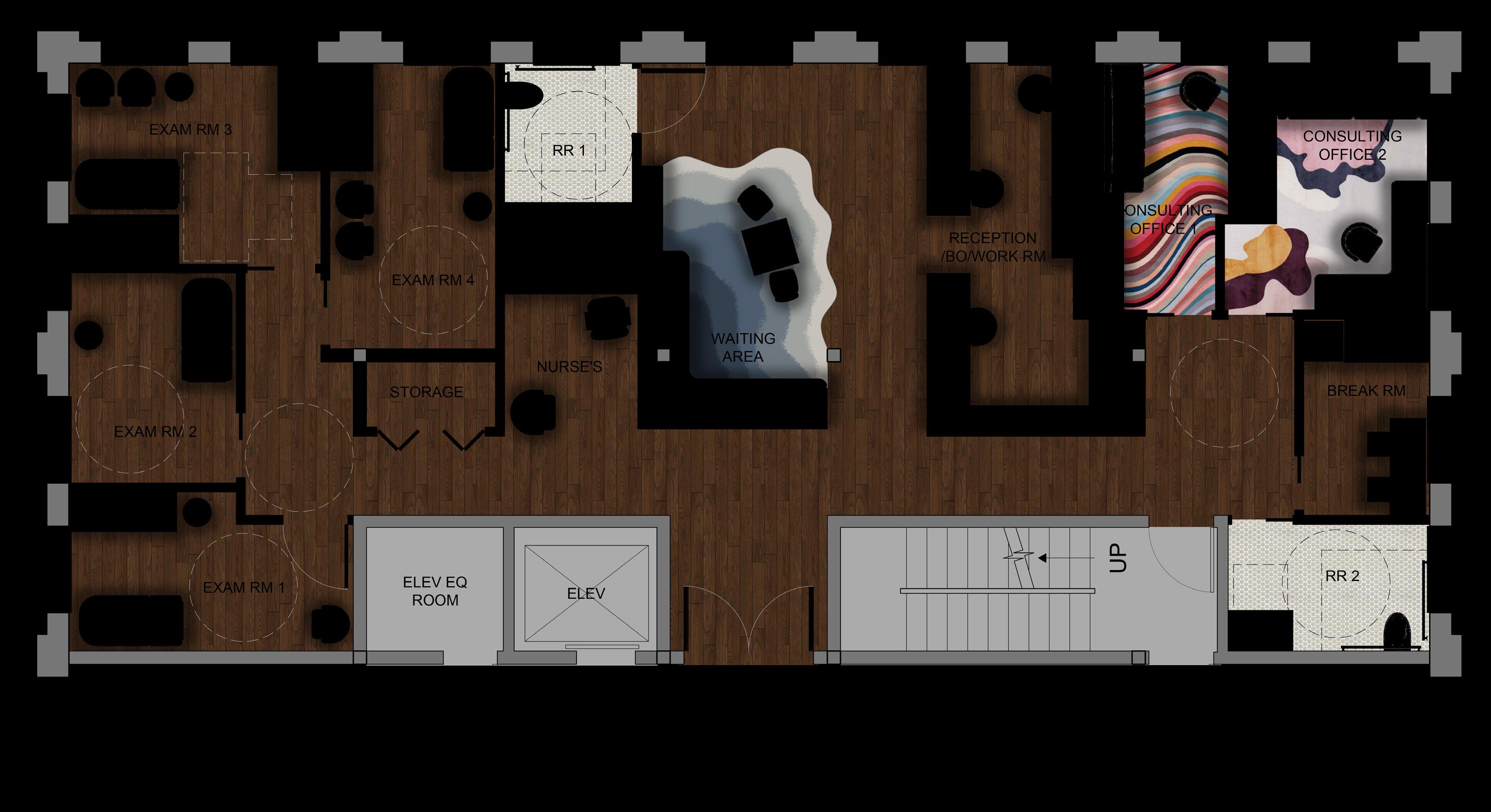

FLOOR PLAN
RENDERED
UP CONSULTING OFFICE 1 RECEPTION/BO/WORK RM CLO 1 INNOTEK

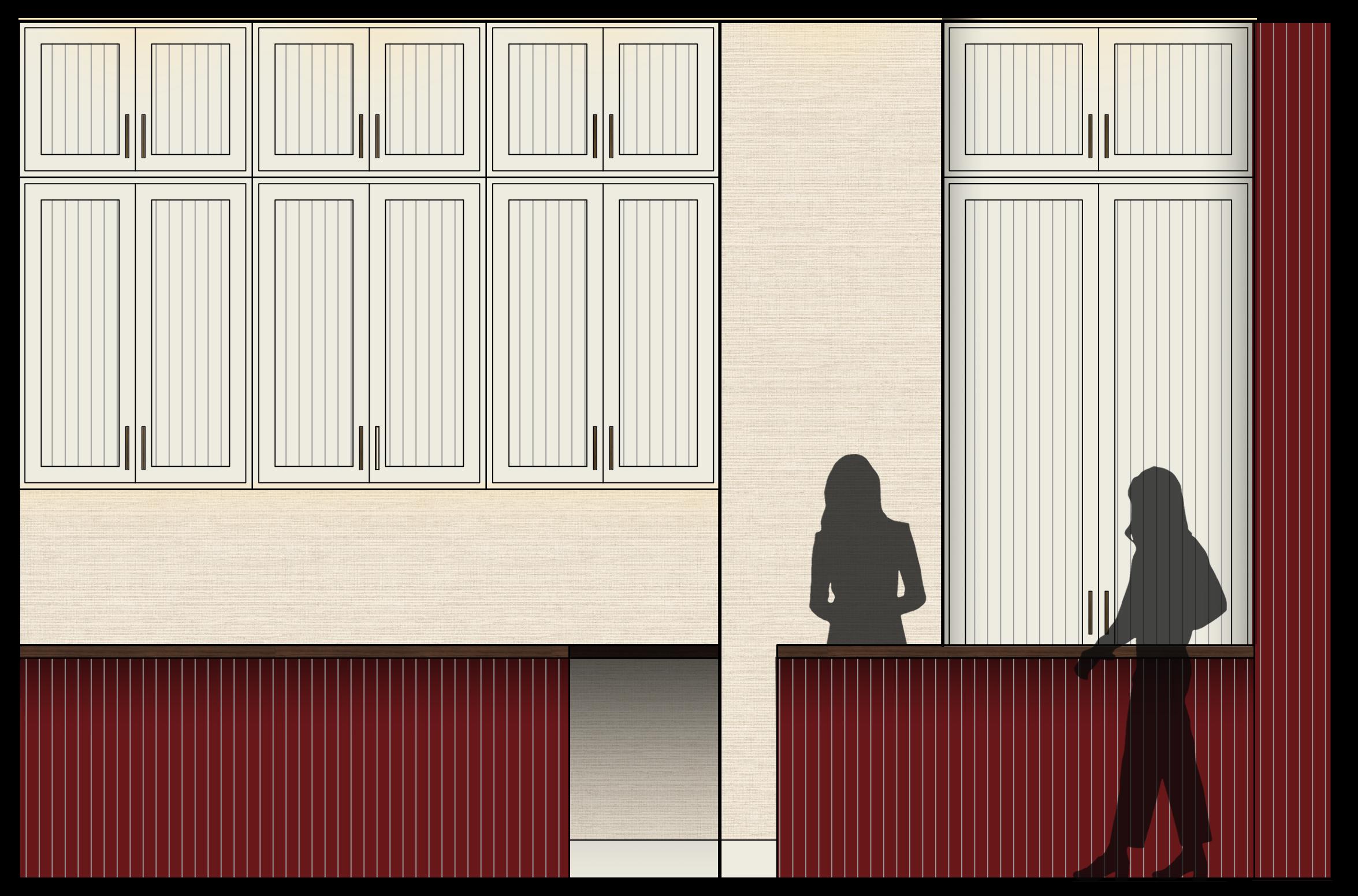

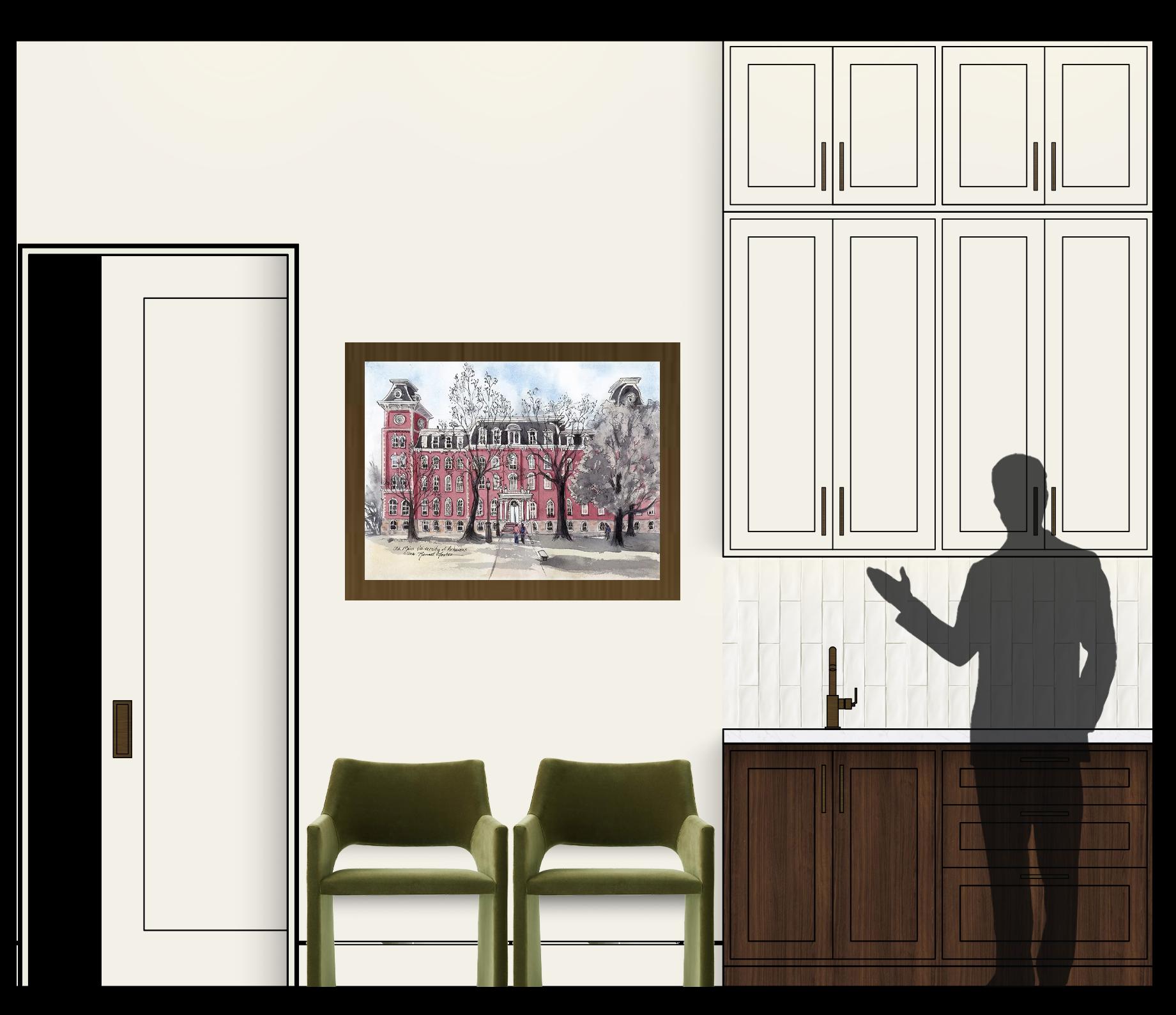

ELEVATION
RENDERED
- RECEPTION
Paint - Swiss Coffee
Paint - Classic Burgundy
Grasscloth Wallpaper

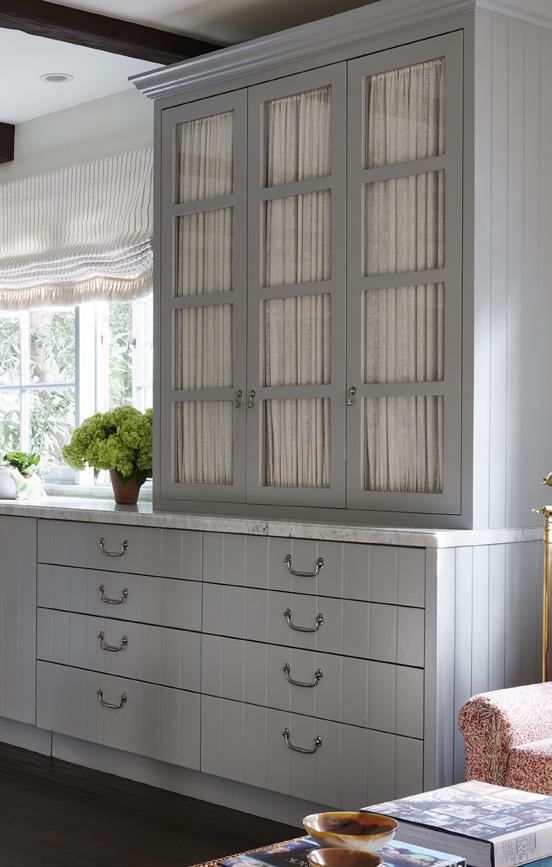

Cabinet Inspiration
Wood Flooring
Trim Inspiration
RAMP DN UP ELEV EQ ROOM ELEV EXAM RM 1 EXAM RM 4 STORAGE NURSE'S RR 1 2 3
ELEVATION - EXAM ROOM
RENDERED
Wood Flooring

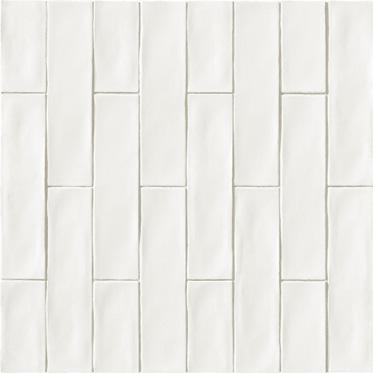

Backsplash - Vertical White Subway Tile

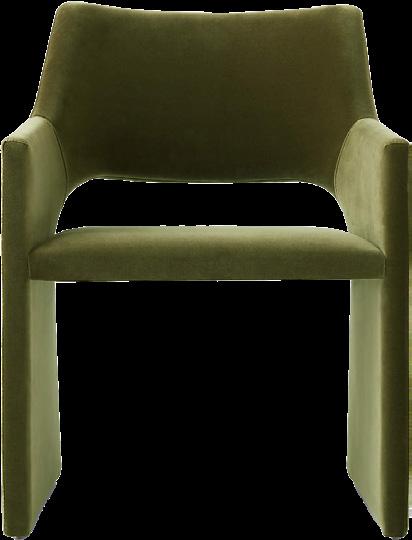

Waiting Chairs
Paint - Alabaster Door

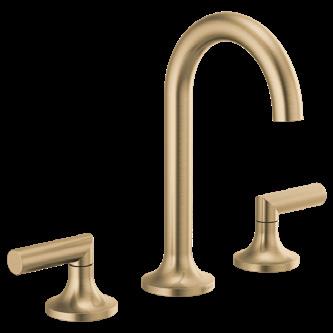

Faucet - Brizo Litze

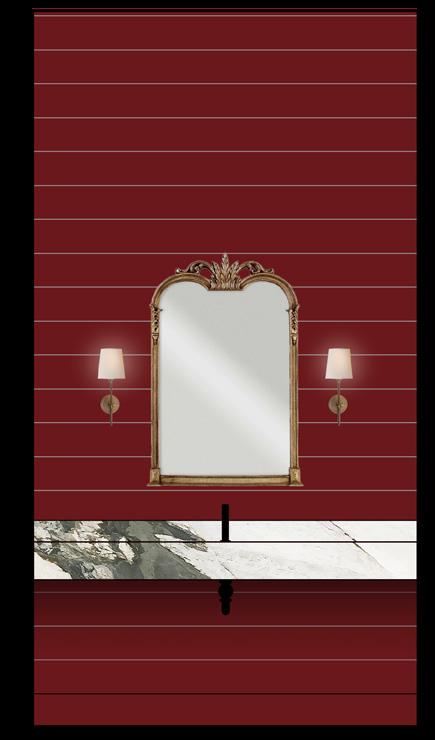

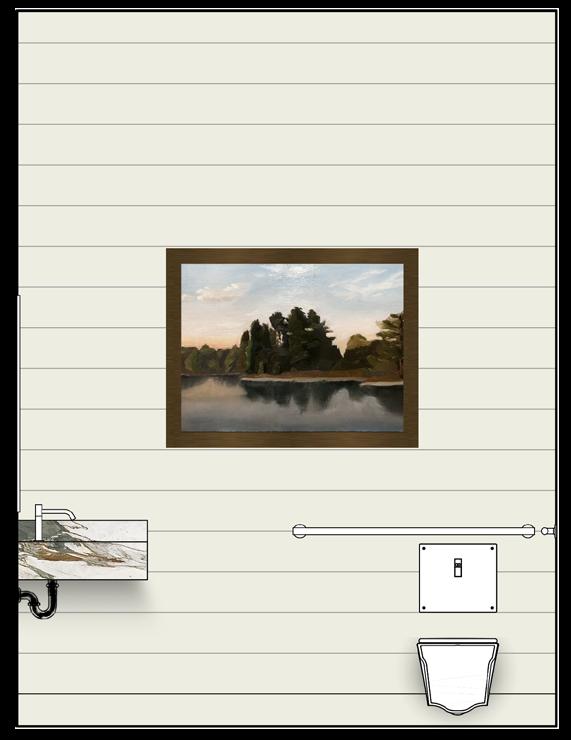

RENDERED ELEVATION - RESTROOM
FURNITURE BOARD
PERSPECTIVE SKETCH - WAITING AREA
COZY LIVING
Residential Remodel
RENDERED

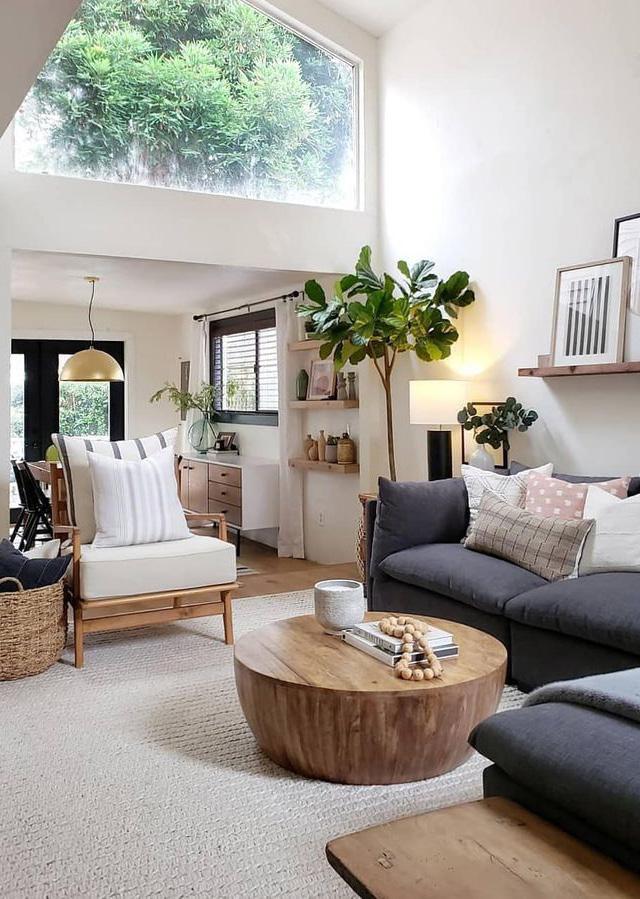

INSPIRATION
FLOOR PLAN
IMAGES
10' / 17'9"
PROJECT SCOPE
REPLACE EXISTING FRONT DOOR WITH WINDOW REPLACE EXISTING GARAGE DOOR WITH NEXT FRONT DOOR
REMOVE LEFT GARAGE DOOR, BUILT NEW WALL AT PLACE
THE LEFT GARAGE IS BEING REPLACED WITH FOYER, LAUNDRY AND UTILITY ROOM
DEMOLISH ALL EXISTING INTERIOR WALL AND FIXTURE
C.H. 10' / 15'9"
THE EXISTING GUEST BEDROOM IS BEING RECONFIGURE INTO A NEW LIVING ROOM THE GUEST BATHROOM IS BEING MOVED TO EAST CENTER OF THE HOUSE THE EXISTING LIVING IS BEING RECONFIGURE INTO A NEW GUEST BEDROOM THE EXISTING KITCHEN IS BEING REPLACED WITH NEW DINING
C.H. 10' / 17'9"
THE EXISTING DINING ROOM IS BEING REPLACE WITH NEW KITCHEN
FIXED WINDOWS ARE BEING INSTALLED IN THE NORTH AND WEST WALL OF THE NEW LIVING ROOM
PANORAMIC SLIDING GLASS DOOR SYSTEM IS BEING INSTALLED IN THE SOUTH WALL OF THE NEW KITCHEN AND DINING ROOM
A SET OF FRENCH DOORS ARE BEING INSTALLED IN THE EAST WALL OF THE MASTER BEDROOM
/ 17'9"
10' / 17'9"
PROJECT SCOPE
REPLACE EXISTING FRONT DOOR WITH WINDOW
REPLACE EXISTING GARAGE DOOR WITH NEXT FRONT DOOR
REMOVE LEFT GARAGE DOOR, BUILT NEW WALL AT PLACE
THE LEFT GARAGE IS BEING REPLACED WITH FOYER, LAUNDRY AND UTILITY ROOM
DEMOLISH ALL EXISTING INTERIOR WALL AND FIXTURE
THE EXISTING GUEST BEDROOM IS BEING RECONFIGURE INTO A NEW LIVING ROOM
THE GUEST BATHROOM IS BEING MOVED TO EAST CENTER OF THE HOUSE
THE EXISTING LIVING IS BEING RECONFIGURE INTO A NEW GUEST BEDROOM
THE EXISTING KITCHEN IS BEING REPLACED WITH NEW DINING
THE EXISTING DINING ROOM IS BEING REPLACE WITH NEW KITCHEN
FIXED WINDOWS ARE BEING INSTALLED IN THE NORTH AND WEST WALL OF THE NEW LIVING ROOM
PANORAMIC SLIDING GLASS DOOR SYSTEM IS BEING INSTALLED IN THE SOUTH WALL OF THE NEW KITCHEN AND DINING ROOM
A SET OF FRENCH DOORS ARE BEING INSTALLED IN THE EAST WALL OF THE MASTER BEDROOM
ROOM
C.H. 10' / 17'9"
A SET OF FRENCH DOORS ARE BEING INSTALLED IN THE SOUTH WALL OF THE NEW GUEST BEDROOM
C.H. 10' DINING ROOM
A SET OF FRENCH DOORS ARE BEING INSTALLED IN THE SOUTH WALL OF THE NEW GUEST BEDROOM
C.H. 10' / 17'9"
KEYNOTES
DEMOLITION LEGEND
EXISTING (TO REMAIN) EXISTING FIXTURE AND APPLIANCE TO BE REMOVED
C.H. 8' / 10'
WALL LEGEND
DEMOLITION LEGEND
DEMOLITION
EXISTING (TO REMAIN)
EXISTING FIXTURE AND APPLIANCE TO BE REMOVED
WALL LEGEND
WALL
WINDOW
LIGHTING/ELECTRIC
AC
HV
LAUNDRY AND UTILITY ROOM
GARAGE
FOYER
C.H. 10'
LIVING
KITCHEN
GUEST BEDROOM
MASTER BEDROOM
PANTRY MASTER BATHROOM
GUEST BATHROOM C.H.
W D GFI GROUND FAULT INTERRUPTER GFI GFI GFI GFI W D S DW REF RANGE 110V OUTLET GFI 220 SP SP 220V OUTLET 220 220 SPECIAL PURPOSE OUTLET SP DW GD DW GD DISHWASHER OUTLET GARBAGE DISPOSAL OUTLET LED WALL SCONCE S S S SWITCH WITH DIMMER VENTILATION FAN/LIGHT COMBO F F F VENTILATION FAN/LIGHT COMBO IN BATHROOM 4000 KELVIN L RECESSED LED FIXTURE PENDANT FIXTURE G GARBAGE DISPOSAL SWITCH G USE OCCUPANCY SENSOR SWITCH IN BATHROOMS L L L L S 3 L L L S L 3 3 WAY SWITCH WITH DIMMER 3 S L S 4 L L L L 4 4 3 3 S S LED STRIP LIGHT AUTOMATIC 12V NIGHT LIGHT - WALL N N N N S L L L S S N 3 3 L S L L L GFI GFI GFI S S L L L L GDO GDO GARAGE DOOR OPENER 3 L L L L L L L L 3 S L L L L R DOOR BELL RINGER R S S WATER HEATER S L L L L L L S S S L L L L L L L S 3 L 3 LED WALL SCONCE IN BATHROOM 4000 KELVIN ・4" LED RECESSED LIGHT IN BATHROOM 4000 KELVIN 4" LED RECESSED LIGHT IN KITCHEN 4000 KELVIN LED PENDANT LIGHT IN KITCHEN / 3000 KELVIN 4" LED RECESSED LIGHT IN NONSPECIFIed AREA 3000 KELVIN ・4" LED RECESSED LIGHT IN UTILITY ROOM 4000 KELVIN 4" LED RECESSED LIGHT IN GARAGE 4000 KELVIN 4" LED RECESSED LIGHT IN DINING ROOM 3000 KELVIN ・LED PENDANT LIGHT IN LIVING ROOM & MASTER BEDROOM / 2700 KELVIN ・LED WALL SCONCE IN OUTDOOR AREA / 3000 KELVIN LEGEND 4 4 WAY SWITCH WITH DIMMER NOTES PLACE WALL LIGHT SWITCHES AT 52" AFF PLACE KITCHEN SWITCHES AND OUTLETS AT 42" AFF 1 1 DOG BATHING STATION KELVIN TEMPERATURE AND LIGHT TYPE
C.H. 10' / 16'4"
C.H. 10' / 16'
10'
PLAN 1/8" = 1'-0" FLOOR PLAN 1/8" = 1'-0" N E S W S LED STRIP LIGHT IN KITCHEN ARE UNDER CABINET L S GFI GFI GFI GFI KATRINA HOUSE DESIGN A 3.0 SHEET SCALE 1/8"=1'-0" OCT 24, 2021 DAISYCDESIGNS SAN MATEO, CA DRAWN BY: DAISY CUI W D HV AC
NEW
NEW
DOOR
NEW
1 DEMOLITION KEYNOTES
NEW DOOR
POCKET
1 CONSTRUCTION KEYNOTES
GARAGE C.H. 10' LAUNDRY AND UTILITY ROOM C.H. 10' FOYER C.H. 10' LIVING ROOM C.H. 10' / 17'9" DINING ROOM C.H.
KITCHEN C.H. 10' / 17'9" MASTER BATHROOM C.H. 10' / 16' MASTER BEDROOM C.H. 10' / 16'4" GUEST BATHROOM C.H. 10' GUEST BEDROOM C.H. 10' / 15'9" PANTRY 12'-8" 6' 11'-6" 15' 6' 15'-7" 11' 26' 7'-4" 9'-4" KEYNOTES 1 1 1 1 2 2 PANORAMIC SLIDING GLASS DOOR SYSTEM 3 WATER HEATER 3 1 REMOVE EXISTING GARAGE DOOR HV AC W D DEMO PLAN 1/8" = 1'-0" PROPOSED PLAN 1/8" = 1'-0" W S E N 1 KATRINA HOUSE DESIGN A 1.0 SHEET SCALE 1/8"=1'-0" SEP 20, 2021 DEMO PLAN & PROPOSED PLAN DAISYCDESIGNS SAN MATEO, CA DRAWN BY: DAISY CUI W D HV AC
10' / 17'9"
DEMOLITION
NEW WALL 1 DEMOLITION KEYNOTES NEW WINDOW NEW DOOR NEW POCKET DOOR 1 CONSTRUCTION KEYNOTES
GARAGE C.H. 10' LAUNDRY AND UTILITY ROOM C.H. 10' FOYER C.H. 10' LIVING ROOM C.H.
DINING
KITCHEN
MASTER BEDROOM
10'
16'4" GUEST BEDROOM C.H. 10' 15'9" PANTRY 12'-8" 6' 11'-6" 15' 6' 15'-7" 11' 26' 7'-4" 9'-4"
ROOM C.H. 10'
C.H.
C.H.
/
1 1 1 1 2 2 PANORAMIC SLIDING GLASS DOOR SYSTEM 3 WATER HEATER 3 1 REMOVE EXISTING GARAGE DOOR PROPOSED PLAN 1/8" = 1'-0" KATRINA HOUSE DESIGN A 1.0 SHEET SCALE 1/8"=1'-0" SEP 20, 2021 DEMO PLAN & PROPOSED PLAN DAISYCDESIGNS SAN MATEO, CA DRAWN BY: DAISY CUI
DEMO PLAN LIGHTING/ELECTRIC PLAN
KITCHEN PLAN AND ELEVATIONS
HOOD 1 15 2 11 3 12 13 5 6 7 8 9 10 1 14 2 11 3 12 13 4 5 6 7 8 9 10 STANDARD BASE CABINET 49" STANDARD BASE CABINET 33" THREE-DRAWER BASE CABINET 18" STANDARD BASE CABINET 21" ONE-DRAWER BASE CABINET 24" WITH 24" DRAWER MICROWAVE SINK FRONT BASE CABINET 39" THREE-DRAWER BASE CABINET 18" STANDARD BASE CABINET 36" STANDARD BASE CABINET 33" STANDARD BASE CABINET 36" WALL CABINET 33" W 42" H, 21" AWAY FROM COUNTERTOP WALL CABINET 18" W 42" H, 21" AWAY FROM COUNTERTOP WALL CABINET 21" W 42" H, 21" AWAY FROM COUNTERTOP WALL CABINET 30" W 12" H, ABOVE FRIDGE 4 15 THREE LAYER OPENING SHELVING, 21" AWAY FROM COUNTERTOP 14 24" DISHWASHER 21" 51" 16" 25" 55" 143" 223" 132" 72" 5" 50" 93" 42" DRAWER MICROWAVE 25" 55" 107" 36" 41" CL CL CL CL S S S S SS L L S 220 L L L L L L L GFI GFI G GD L L L 3 3 N SWITCH WITH DIMMER 52" AFF 3 G GFI 220 GD DW DW L N GROUND FAULT INTERRUPTER OUTLET - 30" AFF DISHWASHER OUTLET 10" AFF GARBAGE DISPOSAL OUTLET 10" AFF 220V OUTLET 10" AFF 110V OUTLET 47" AFF (10" AFF BEHIND FRIDGE) 3 WAY SWITCH WITH DIMMER 52" AFF GARBAGE DISPOSAL BOTTOM RECESSED LED FIXTURE PENDENT FIXTURE UNDER CABINET LED STRIP LIGHT AUTOMATIC 12V NIGHT LIGHT - 12" AFF LIGHTING/ELECTRIC LEGEND CABINET SIZE LEGEND CABINET FILLER W W FRIDGE/FREEZER WATER LINE KITCHEN PLAN 1/2" = 1' 0" 5" 36" KATRINA HOUSE DESIGN A 6.0 SHEET SCALE: 1/2" = 1' 0 " NOV 14, 2021 DAISYCDESIGNS SAN MATEO, CA DRAWN BY: DAISY CUI 32" 21" 2" 15" 2" 15" 2" 40" 54" 98" 89" 3" 2" (TOTE KICK) 133" 4" (BASE BOARD) EAST ELEVATION NORTH ELEVATION 11 12 13 14 24" DISHWASHER DRAWER MICROWAVE S S S L S 220 L L L L N E HOOD EAST NORTH SOUTH 32" 21" 2" 15" 2" 15" 2" 40" 54" 98" 89" 3" 2" (TOTE KICK) 133" 4" (BASE BOARD) EAST ELEVATION NORTH ELEVATION 11 12 13 14 24" DISHWASHER DRAWER MICROWAVE S S S L S L L L L N DW E HOOD EAST NORTH SOUTH 216" 96" 21" 42" 20" 37" 24" 96" 32" 21" 2" 15" 2" 15" 2" 40" 54" 98" 89" 3" 2" (TOTE KICK) NORTH ELEVATION SOUTH ELEVATION KITCHEN 1/4" = 1'15 SS S L L L L N E NORTH 84" 15" 21" 68" 6" 26" 37" 41" 178" 15" 26" 120" 133" 4" (BASE BOARD) RANGE HOOD WITH MILLWORK PANEL EAST ELEVATION WEST ELEVATION 14 L L L GFI W SOUTH KATRINA HOUSE DESIGN A 7.0 SHEET SCALE: 1/4" = 1' 0 " NOV 29, 2021 DAISYCDESIGNS SAN MATEO, CA DRAWN BY: DAISY CUI 84" 15" 21" 68" 6" 26" 37" 41" 178" 15" 26" 120" 133" 4" (BASE BOARD) RANGE HOOD WITH MILLWORK PANEL EAST ELEVATION WEST ELEVATION 14 L L L SOUTH KATRINA HOUSE DESIGN A 7.0 SHEET SCALE: 1/4" = 1' 0 " NOV 29, 2021 DAISYCDESIGNS SAN MATEO, CA DRAWN BY: DAISY CUI HV AC W D DEMO PLAN 1/8" = 1'-0" W S E N
EXTERIOR ELEVATIONS
SOUTH
NOTES
VERTICAL WOOD SLATS SMOOTH STUCCO - WHITE - TYPICAL EXTERIOR WALLS WOOD TRIM - TYPICAL WINDOWS BLACK BRICK BOARD AND BATTEN SIDING - WHITE BLACK SHINGLES ROOF
EAST
NORTH
WEST
EXTERIOR ELEVATIONS 1/8"=1'-0" NORTH ELEVATION WEST ELEVATION EAST ELEVATION SOUTH ELEVATION 4 5 1 2 3 6 4 5 1 2 3 6
6 4 0 LIVING ROOM GUEST BATHROOM MASTER BEDROOM GUEST BEDROOM DINING ROOM KITCHEN PANTRY GARAGE LAUNDRY AND UTILITY ROOM FOYER MASTER BATHROOM KATRINA HOUSE DESIGN A 2.0 SHEET SCALE 1/8"=1'-0" OCT 10, 2021 DAISYCDESIGNS SAN MATEO, CA DRAWN BY: DAISY CUI
3D RENDERINGS

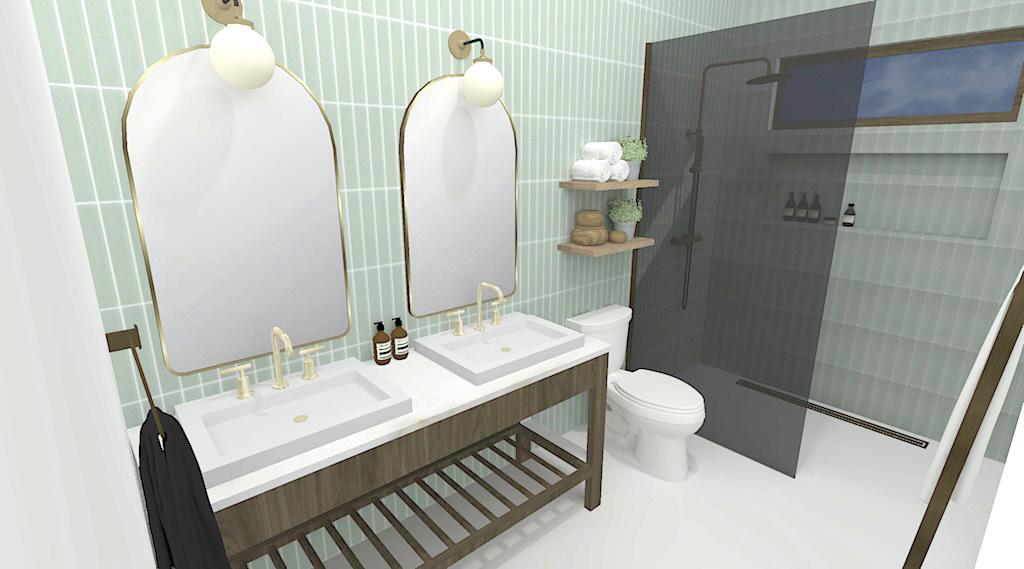

Primary Bathroom

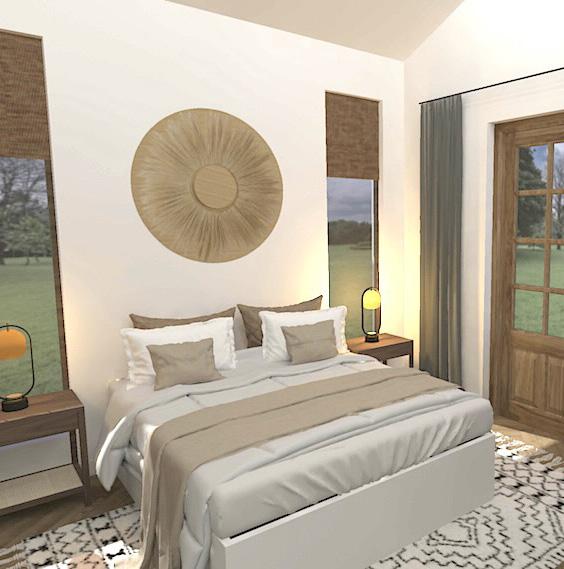

Primary Bedroom

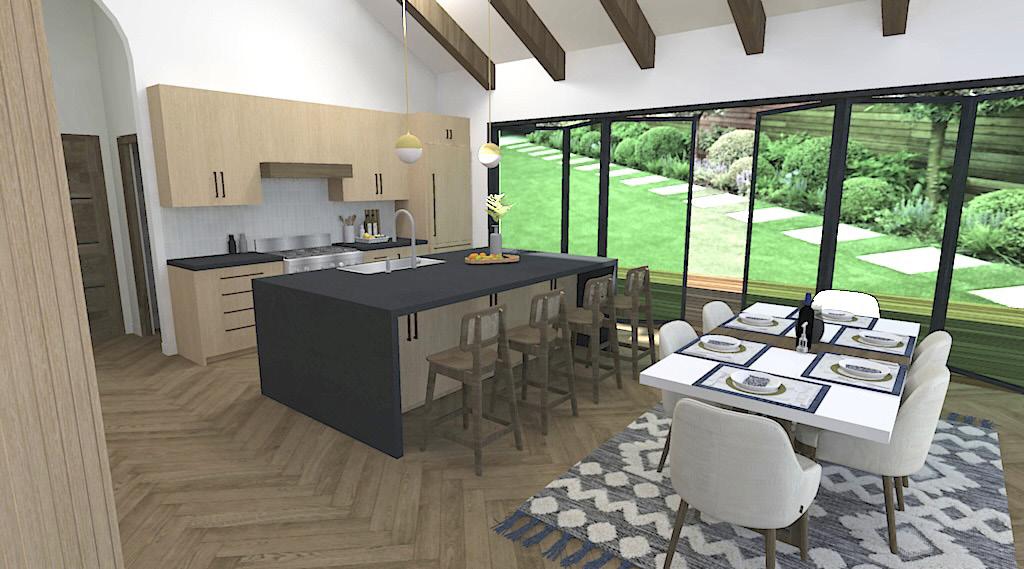

Kitchen & Dining Room
Living Room
OTHER WORKS

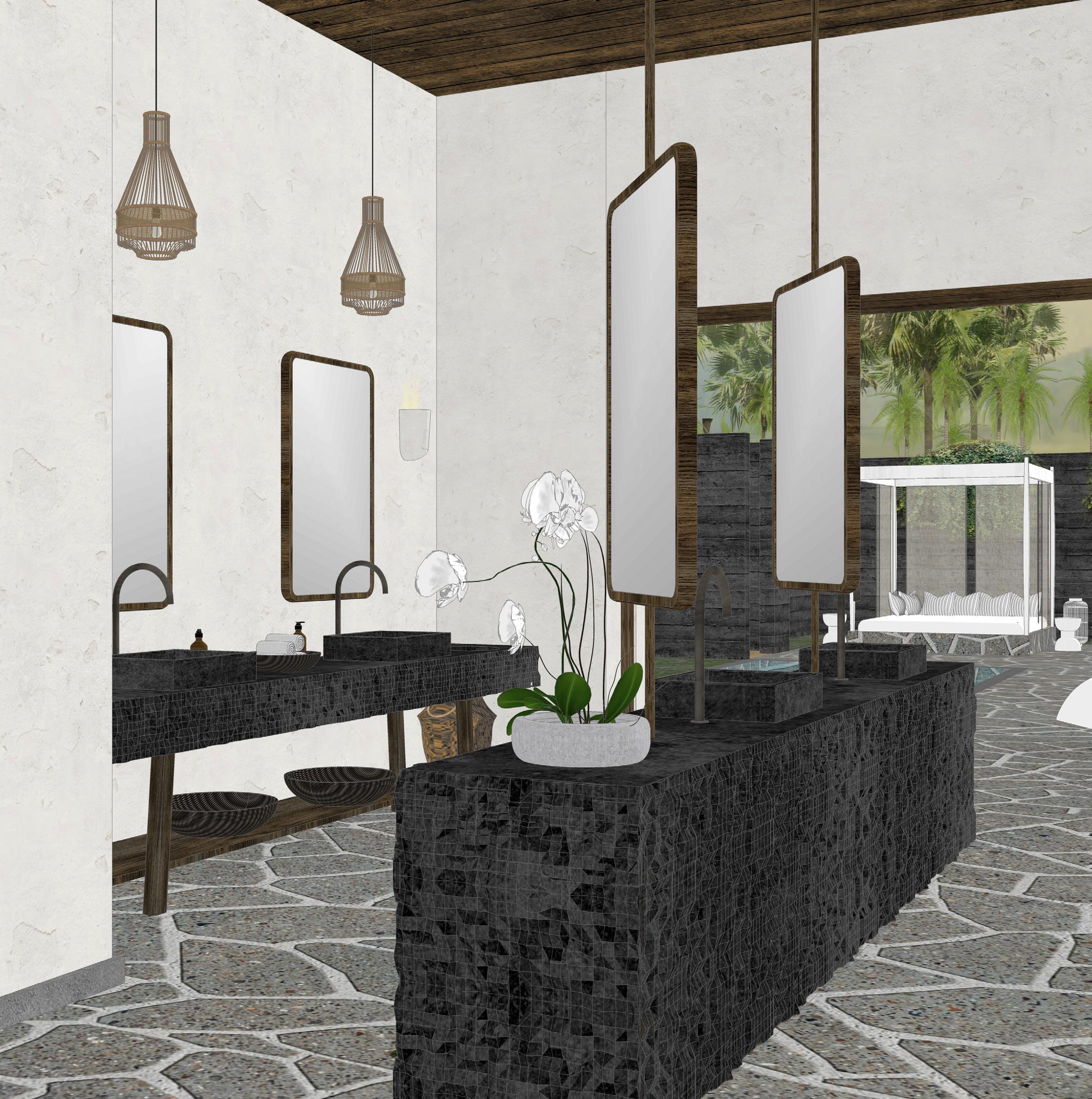

RESORT
HAWAII
RENDERINGS
- SCHEME 1
MOROCCO INSPIRED BATHROOM
SCHEME 2
MOROCCO INSPIRED BATHROOM -

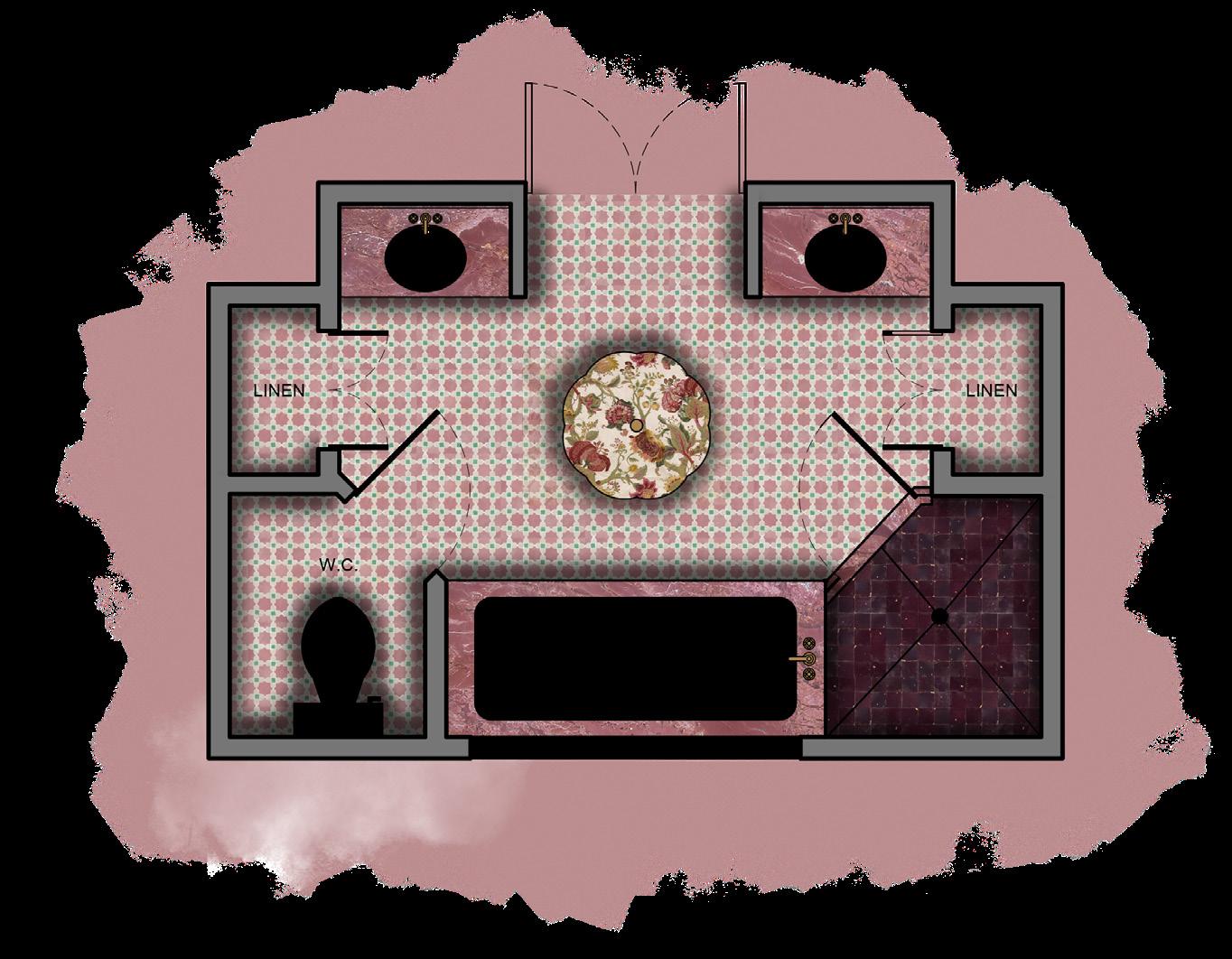

PINK MARRAKESH DREAM BATHROOM

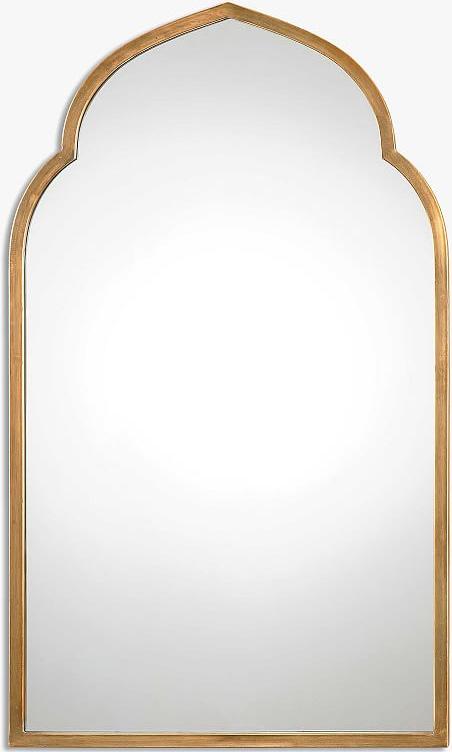

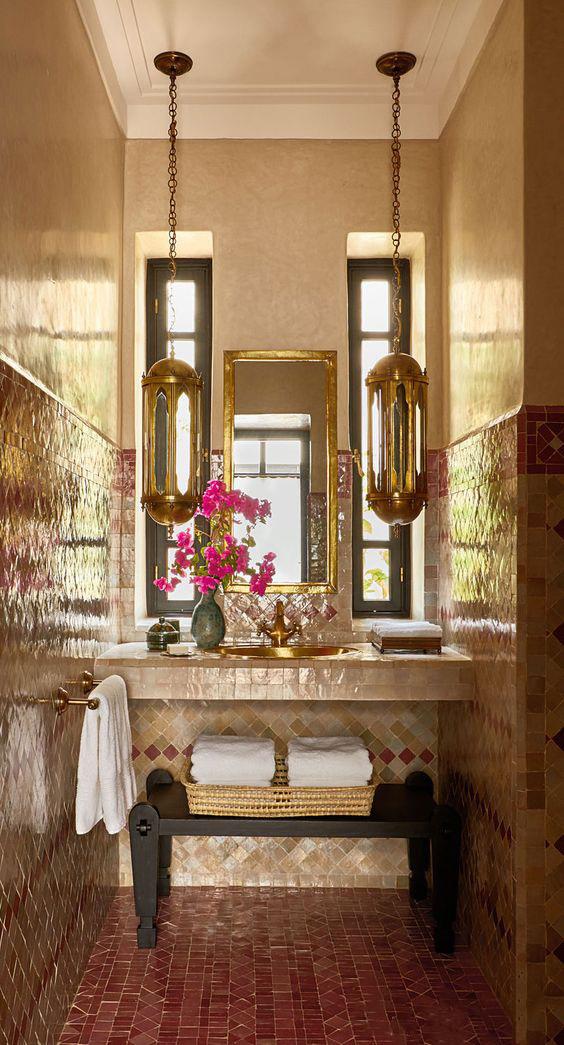

Inspiration

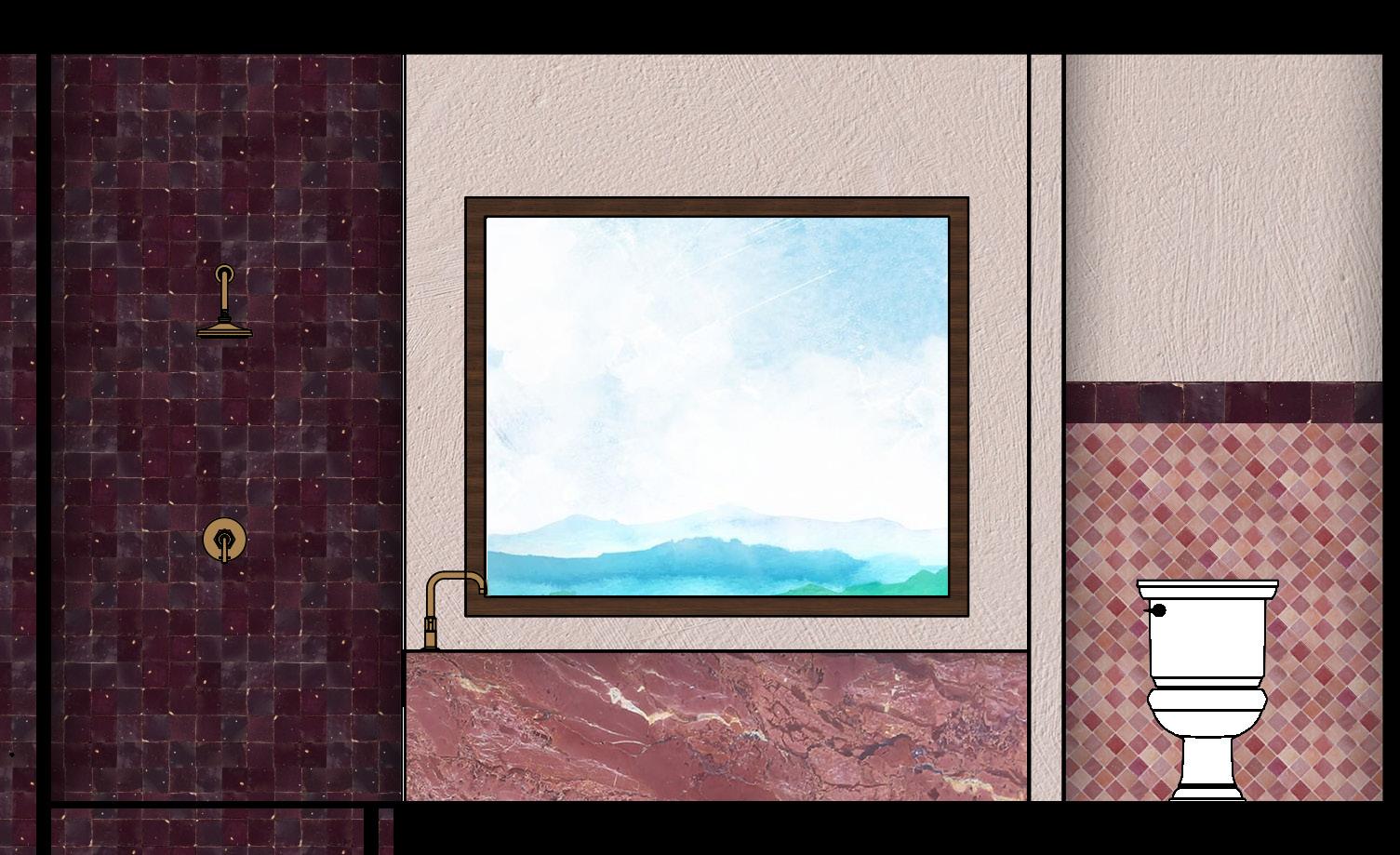

Bathroom North Elevation

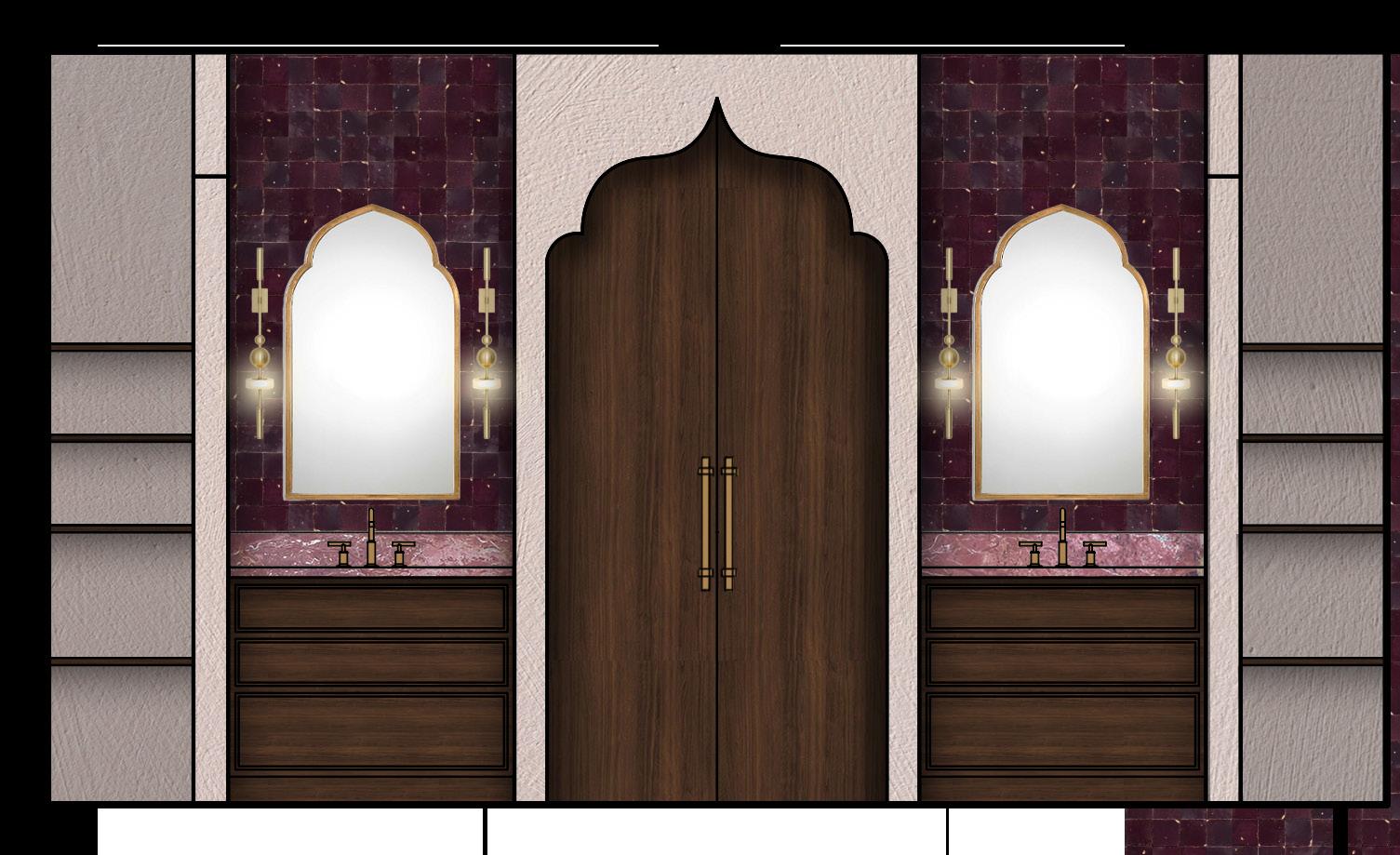

Bathroom South Elevation

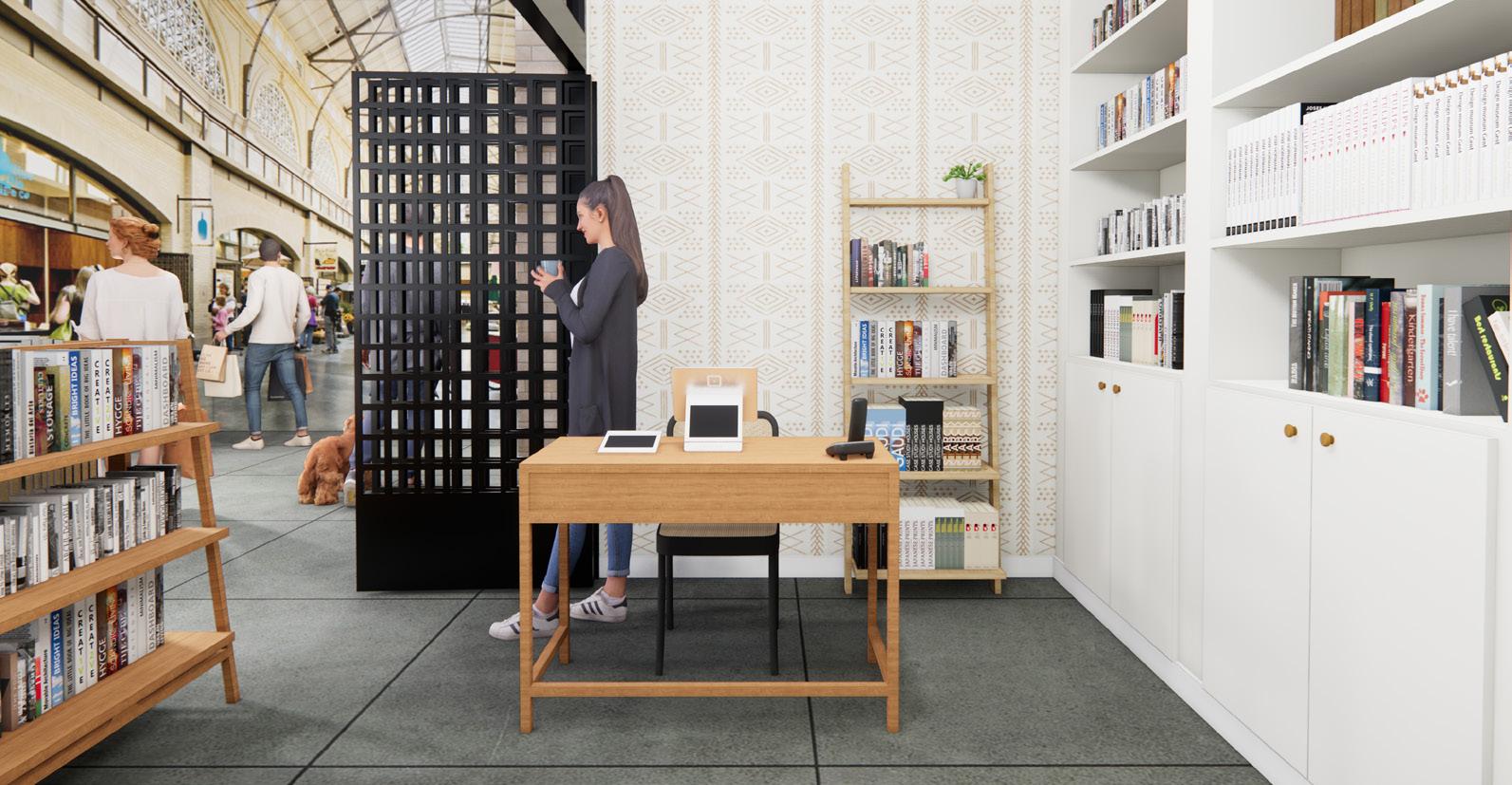

BUILDING BOOKSTORE RENDERINGS
FERRY
THANK YOU
DAISY CUI | Interior Design
