Dash+ & Mobile Ehail Operations Manual

Log Into The System

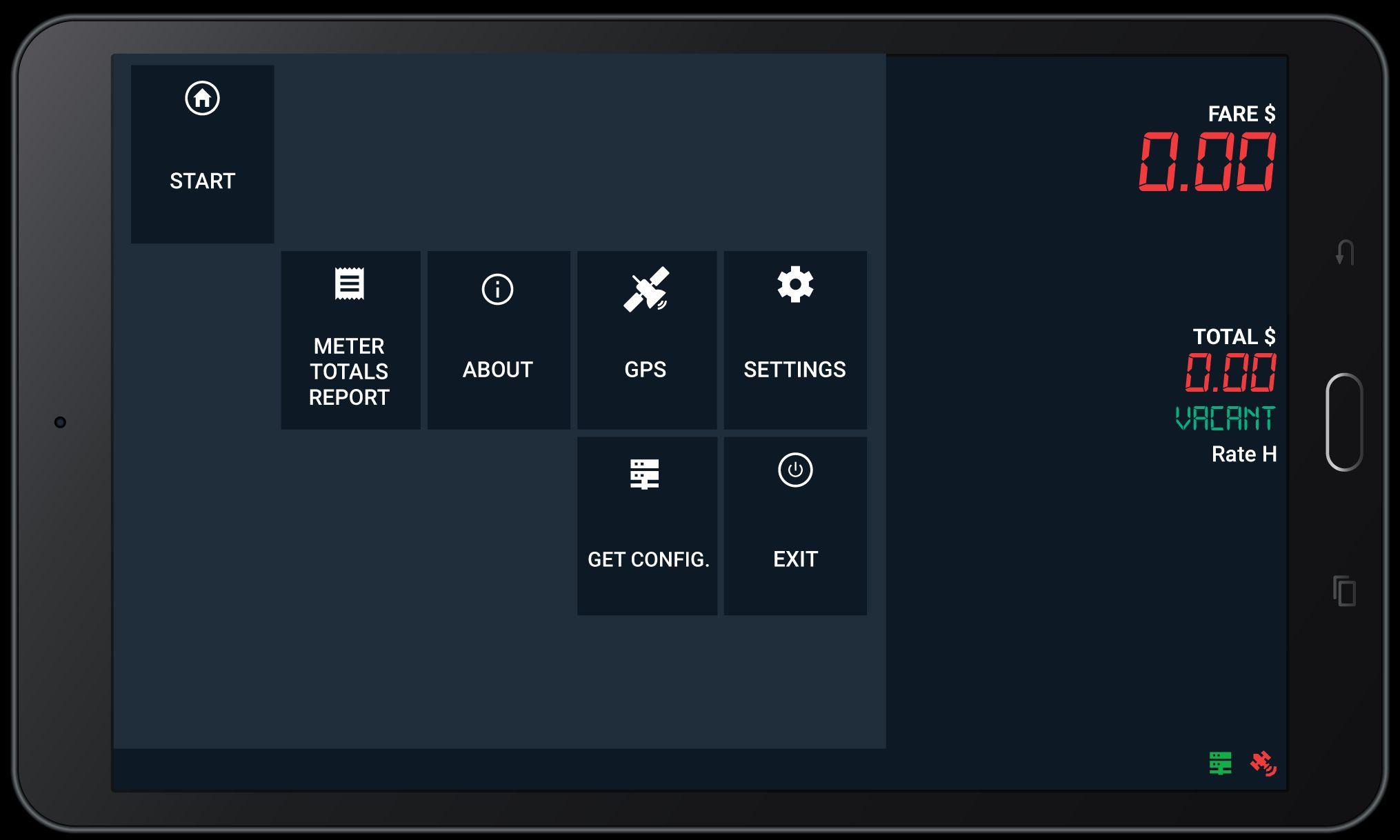

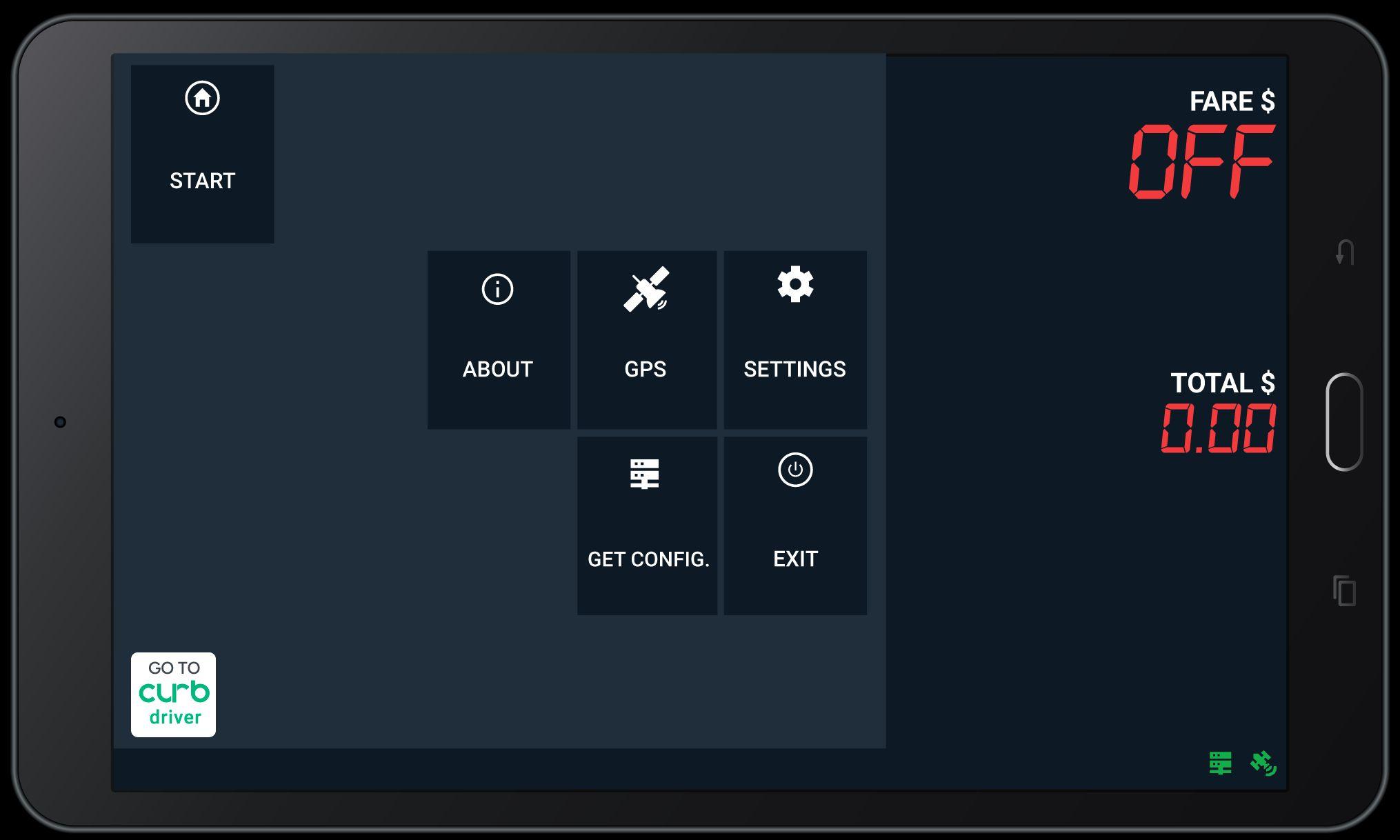

Tap the START button to enter your Driver ID and Password.

Log Into The System

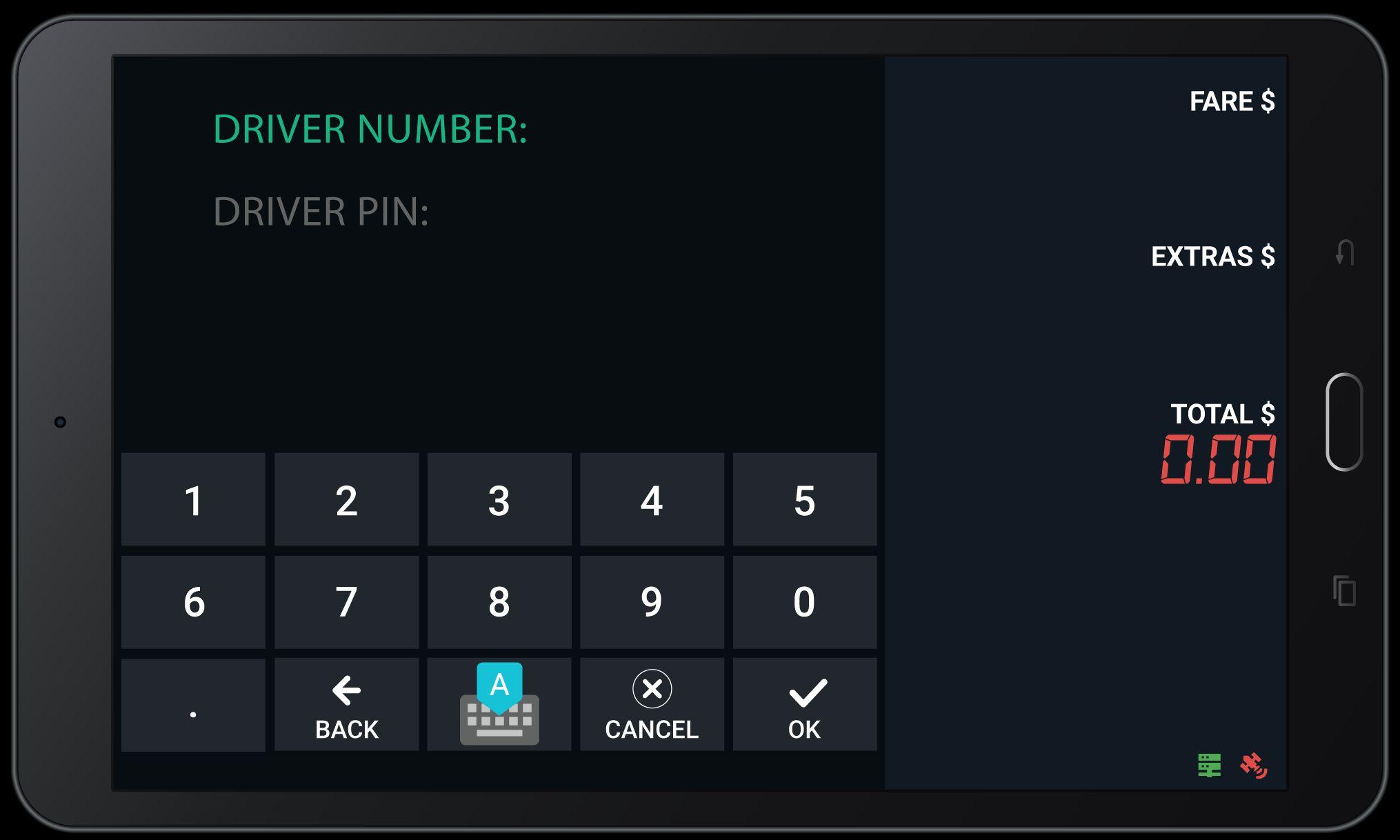

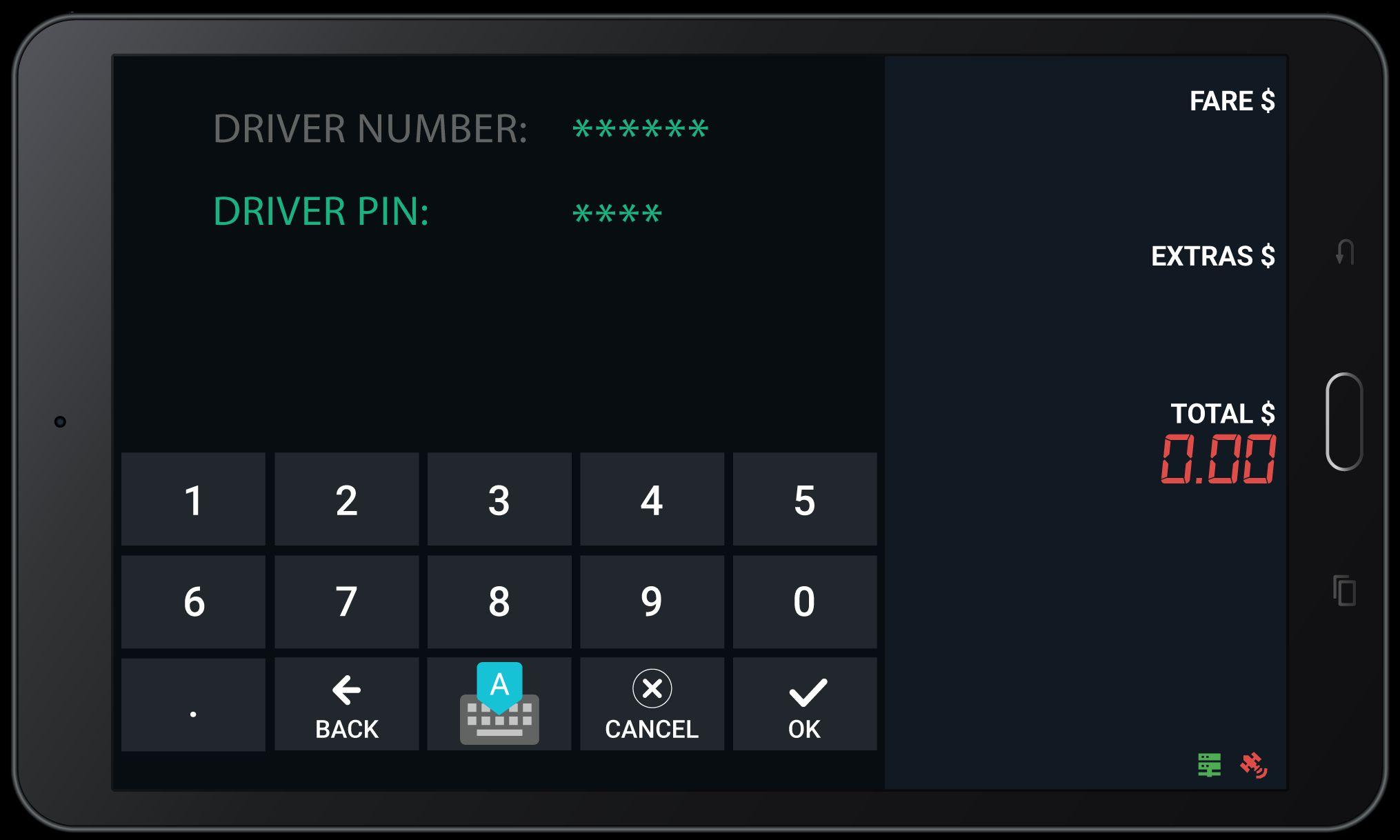

Tap DRIVER NUMBER to enter your number.

To enter letters from your drivers license, tap the keyboard icon to expand.

Tap DRIVER PIN to enter your PIN number.

Log Into The System

Note: These are the Server, GPS and Meter icons that indicate the status of each service. All icons will turn green once they are properly connected. Tap the OK button to log in.

Log Into The System

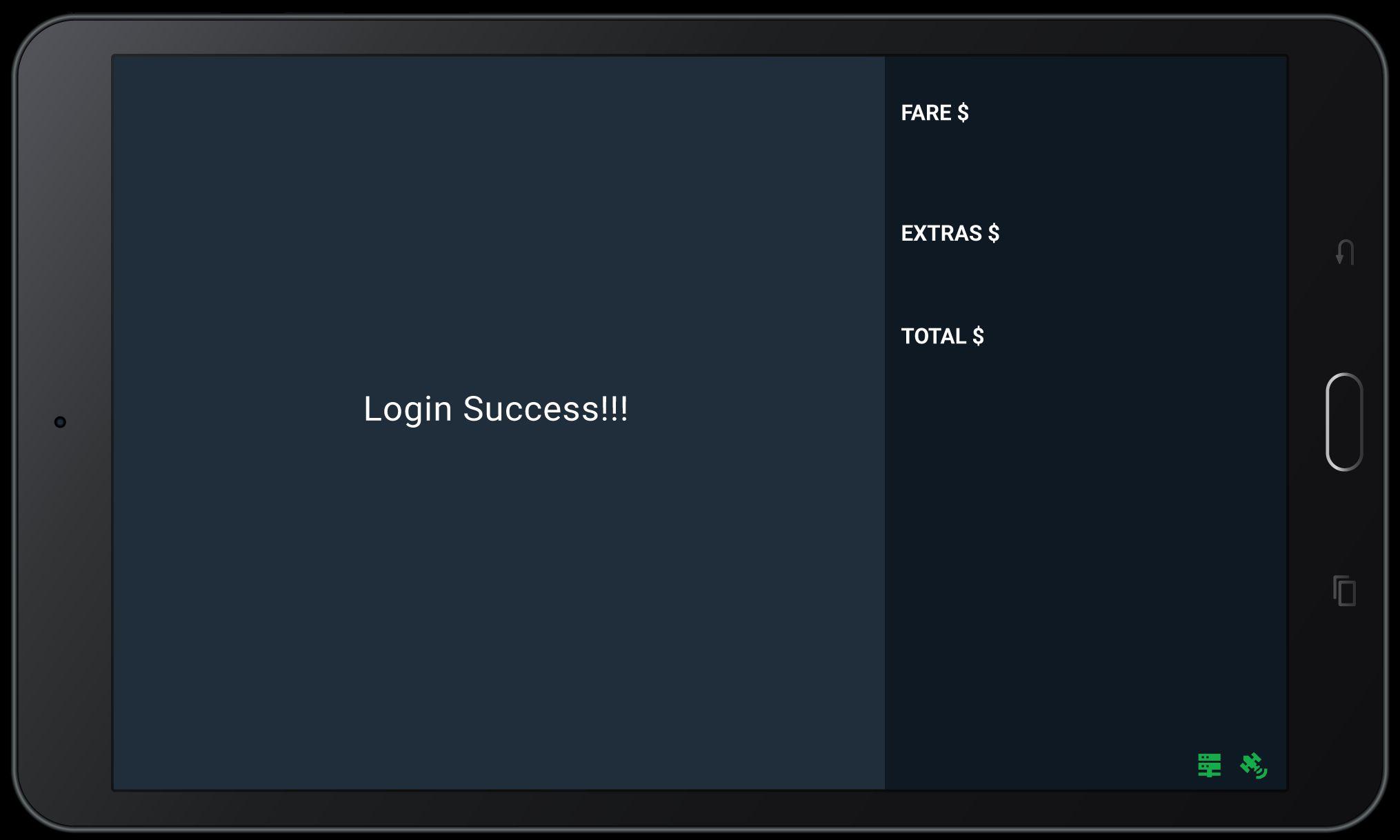

After entering your Driver ID and PIN, the following messages will appear.

Preparing for Trips

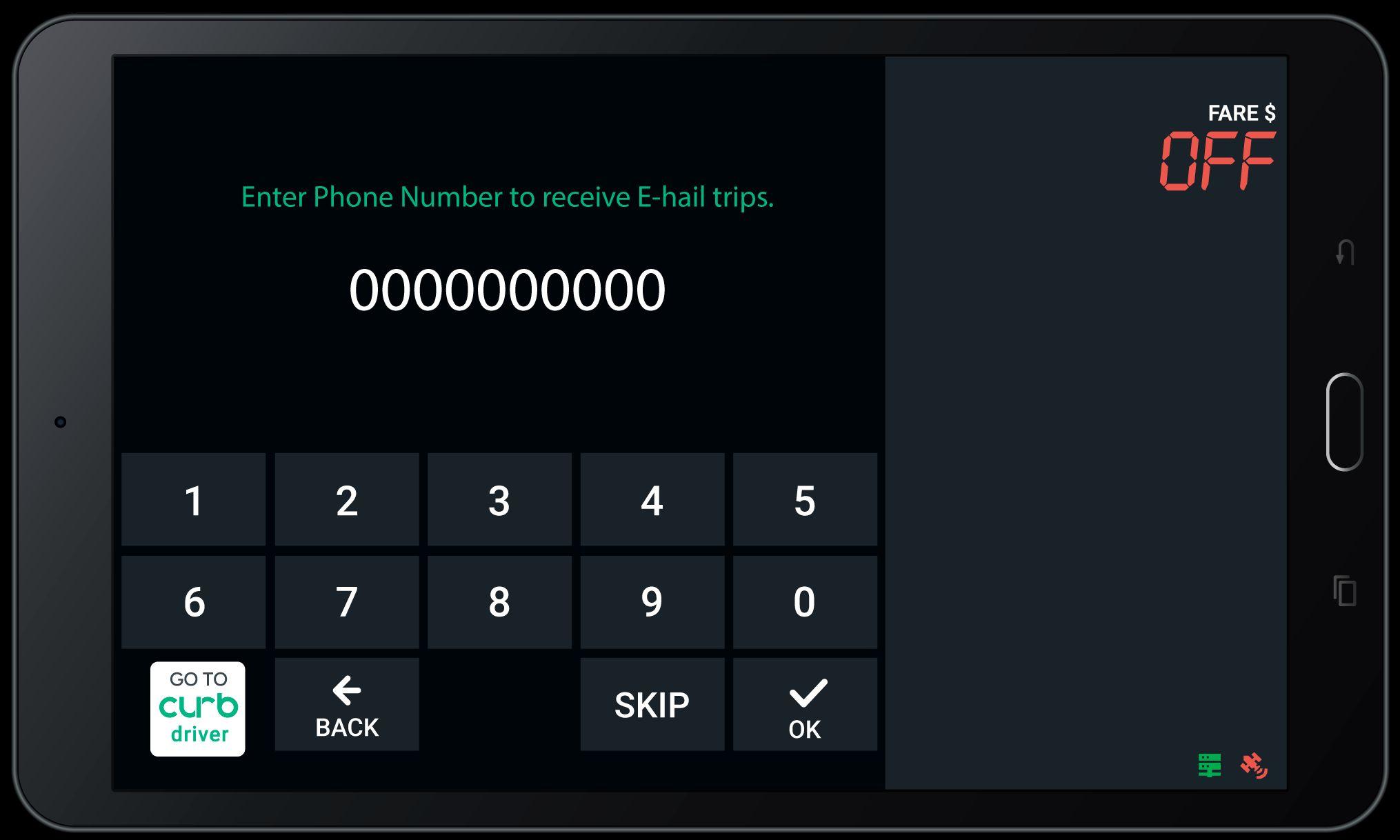

Enter your cell phone number to receive E-hail trips, then select the OK button to submit number.

If you do not wish to receive any E-Hail trips, then tap on the SKIP button.

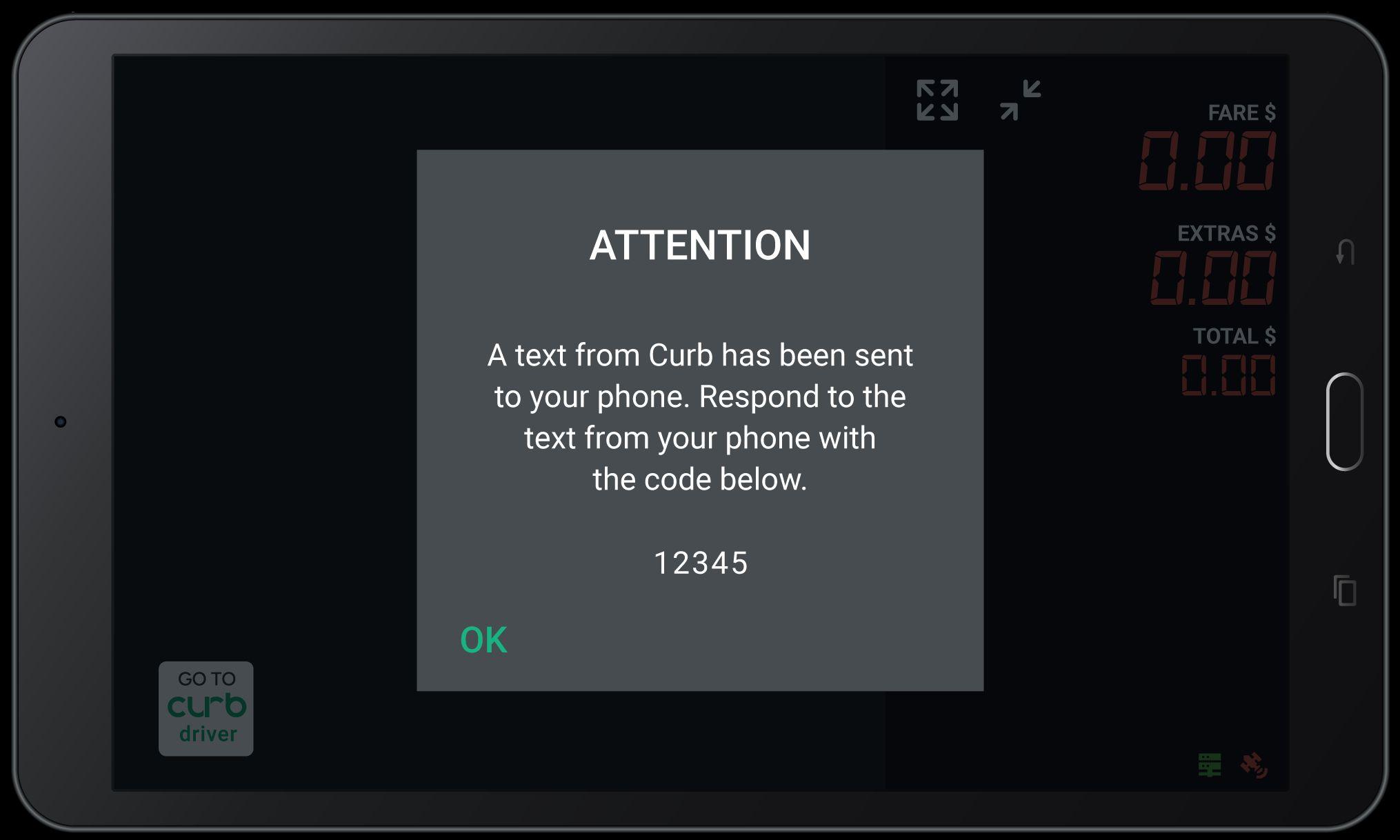

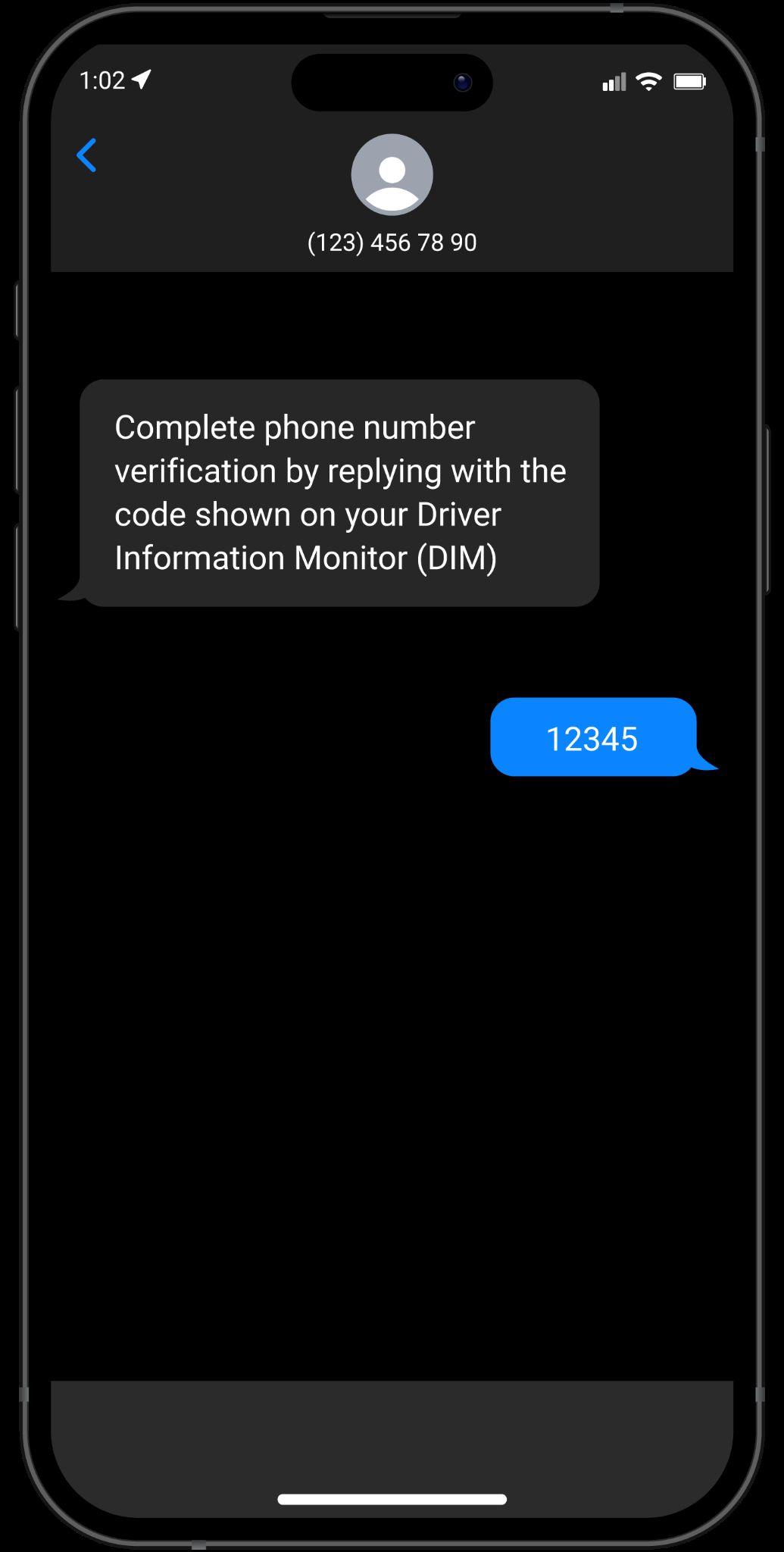

You will then be sent a text message to reply with the code on your tablet.

Once you have replied with the code, you will be able to receive E-hail trips.

Starting Trip: Hiring The Meter

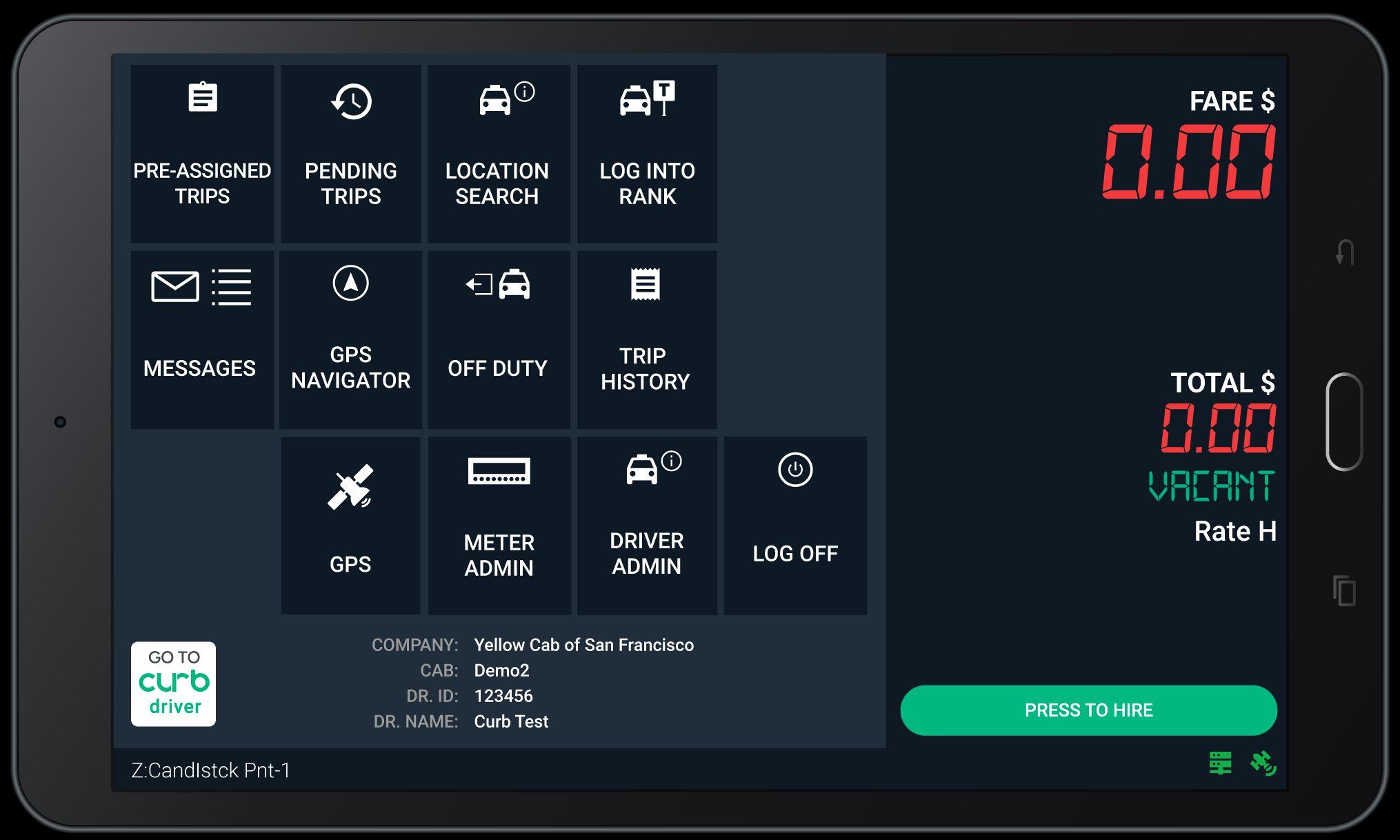

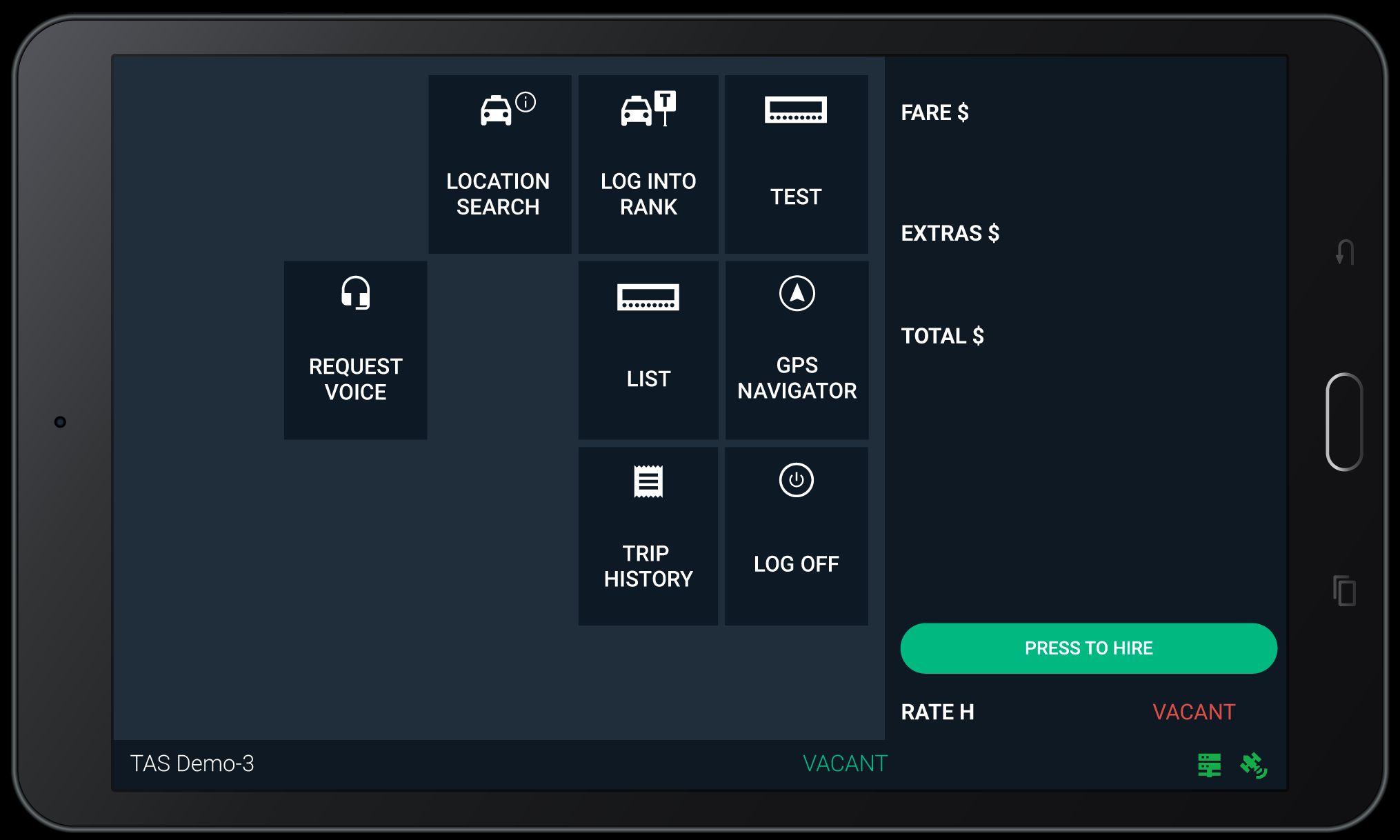

Tap the green PRESS TO HIRE button to hire the meter.

Starting Trip: Hiring The Meter

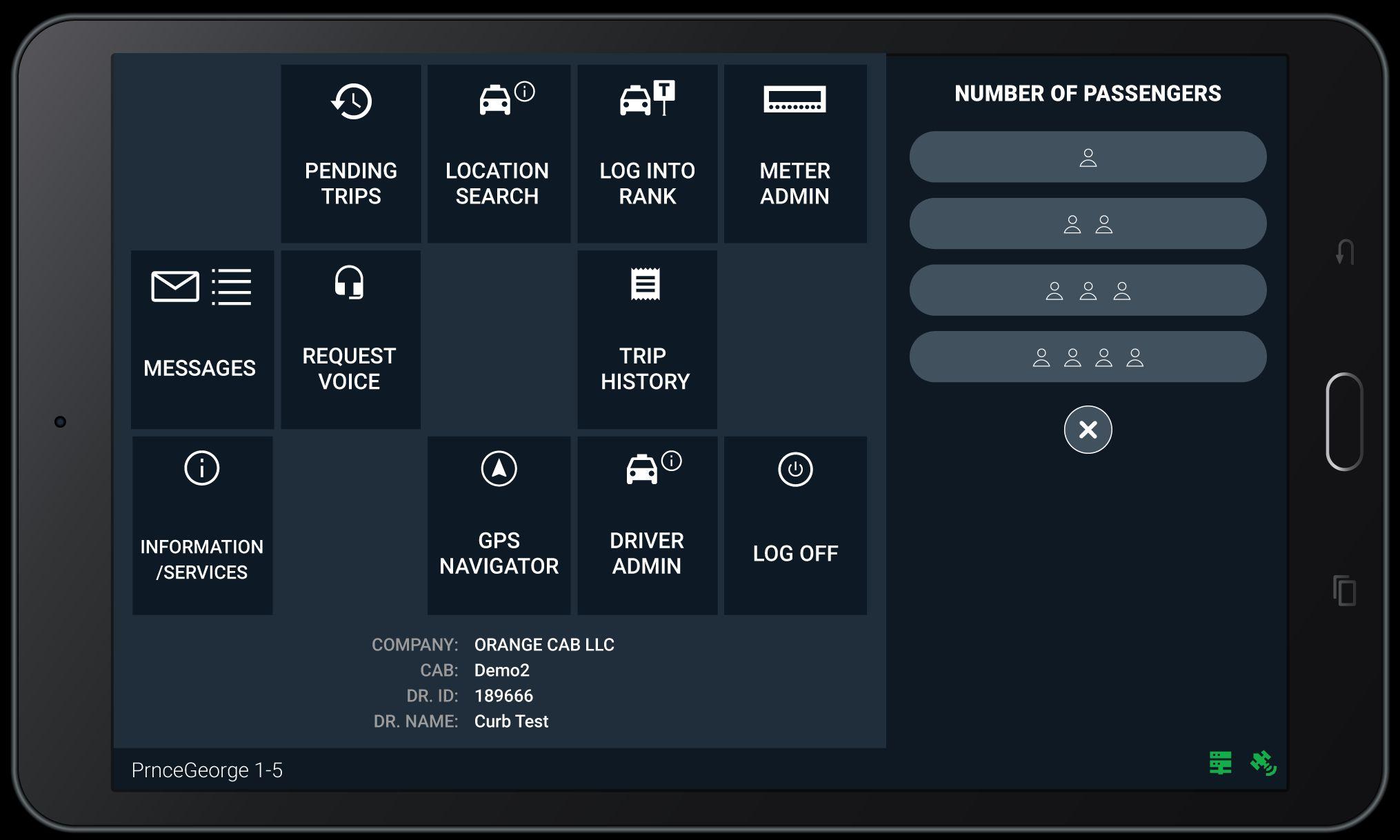

Select the number of Passengers for the trip.

YoucanalsocanceltheselectionbytappingtheXbutton.

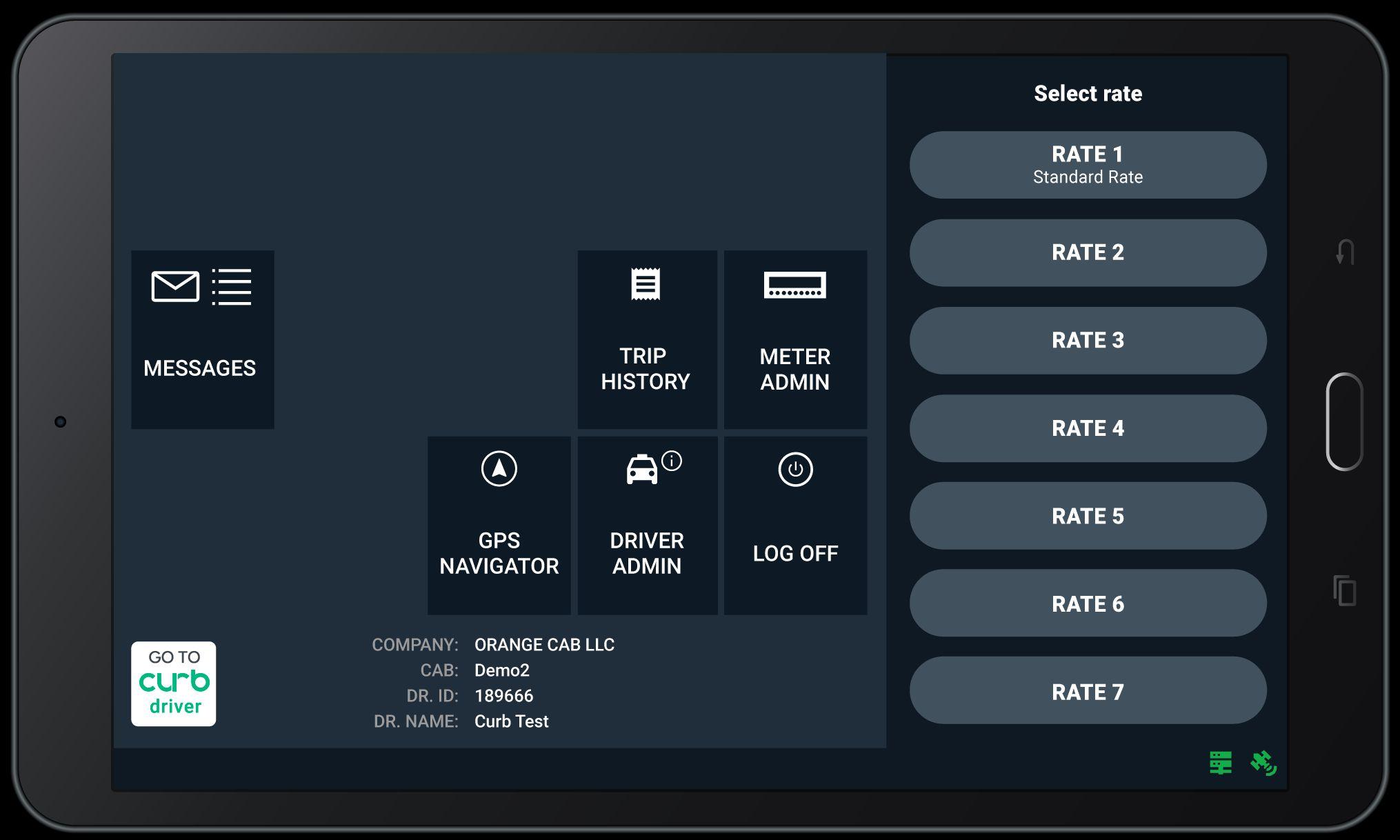

Now select the applicable RATE for the trip.

Fares and Payments

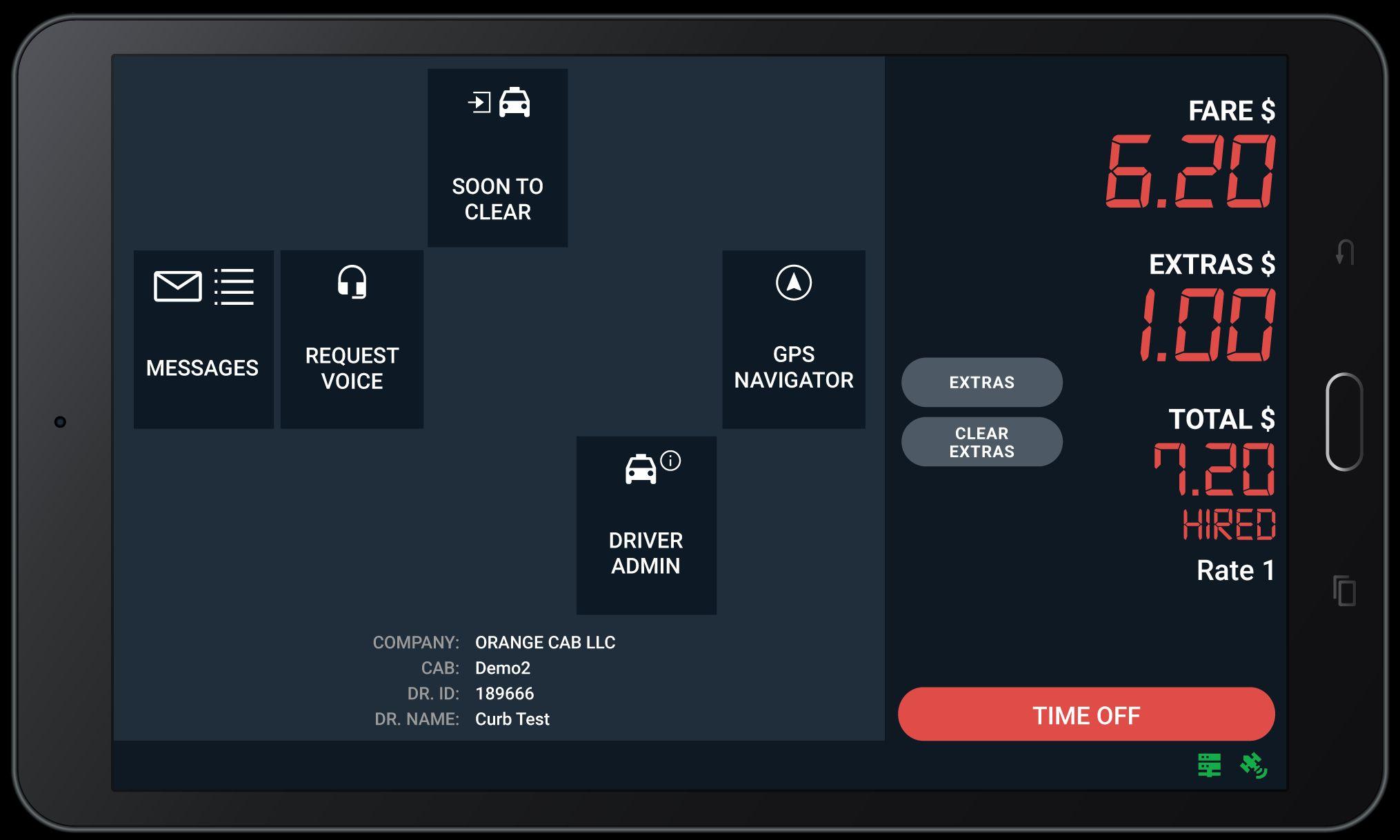

Tap the CLEAR EXTRAS button to remove all extras added.

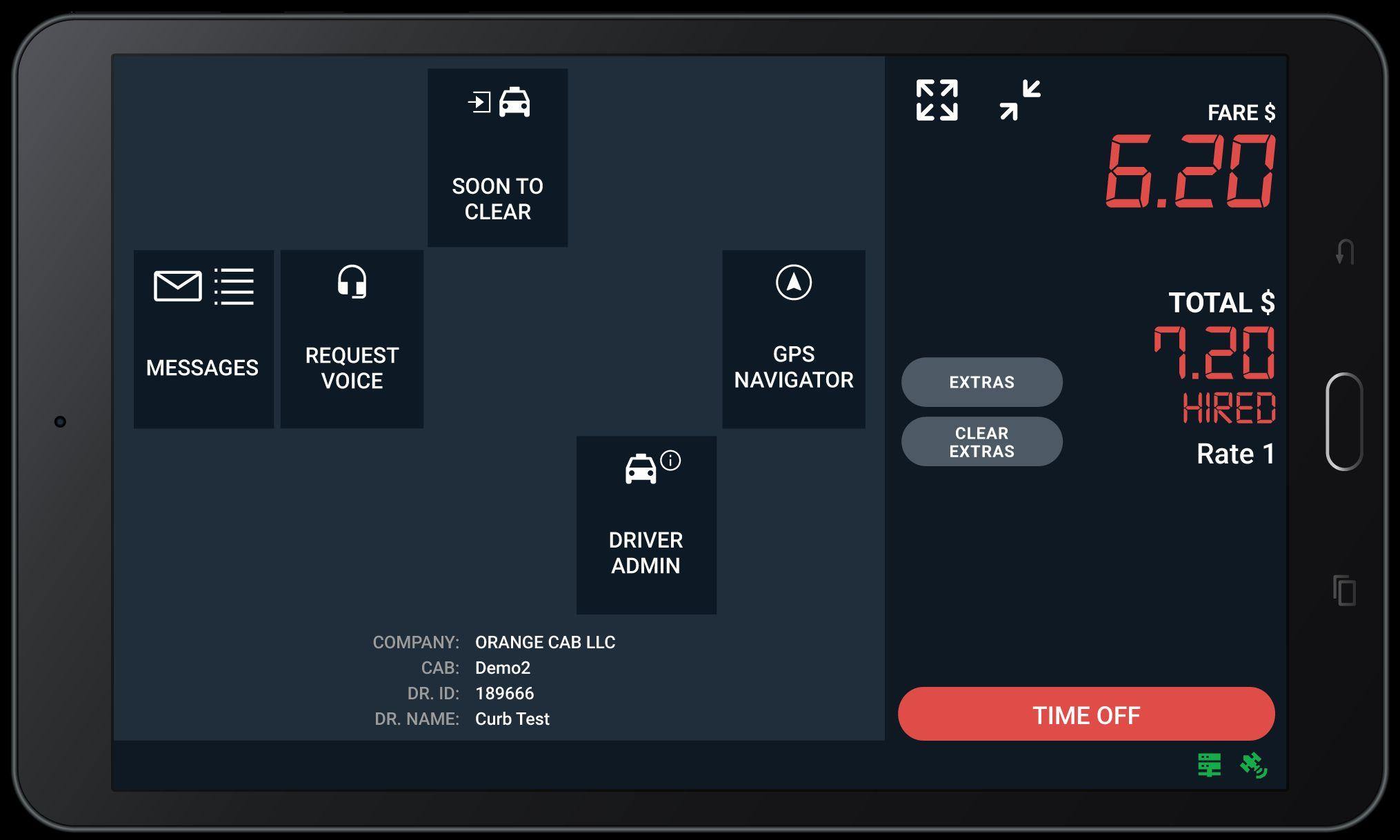

After you hire the Meter, the following screen will appear:

Tap the EXTRAS button to add extra charges. You can also tap directly on Extras $.

Curb App and Pair & Pay

If the passenger wants to pay with the Curb App instead of a physical card, the passenger must use the Pair & Pay feature during the ride and pair the code displayed on the Marquee screen with their Curb App.

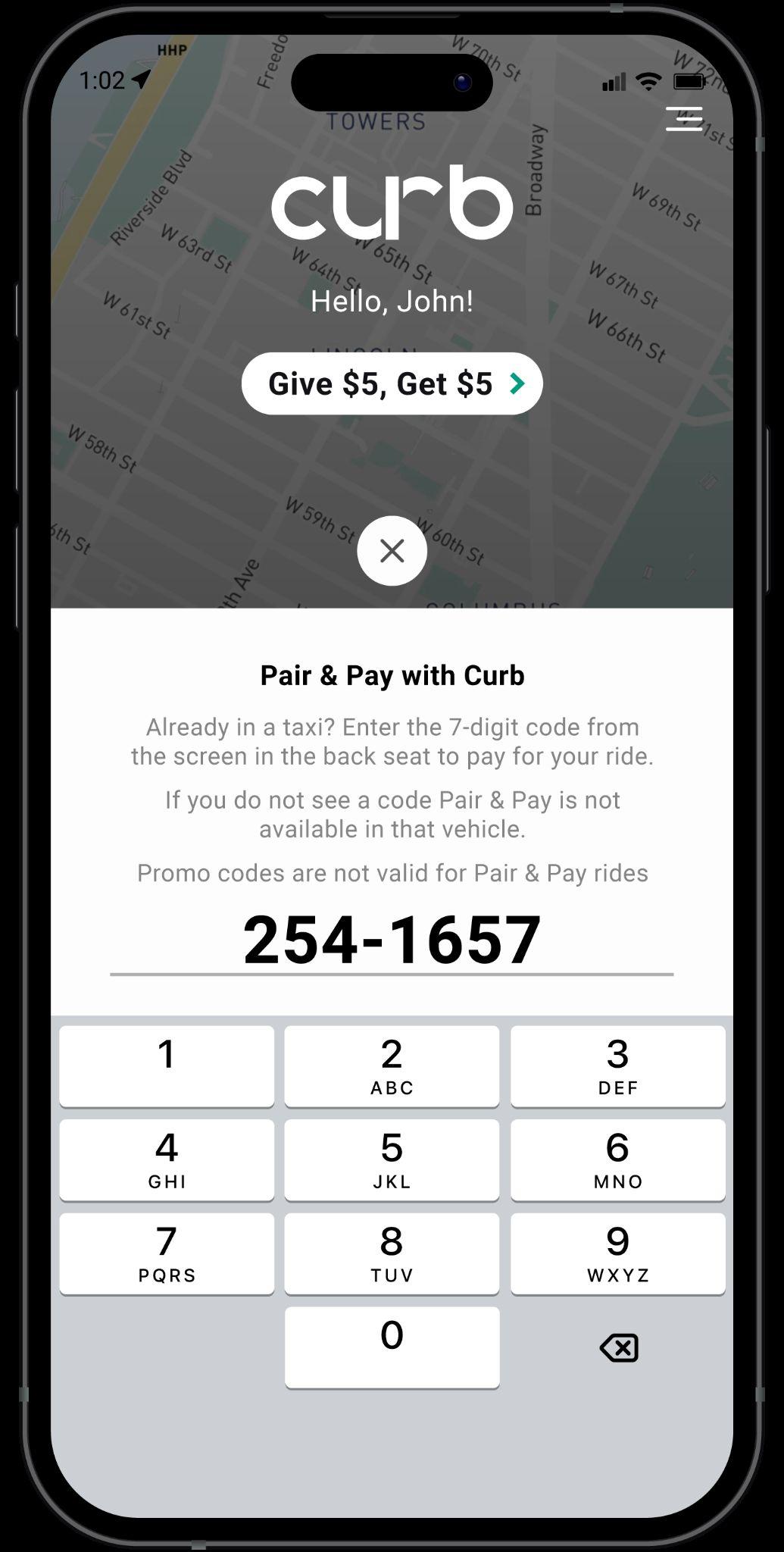

The passenger will enter the Pair & Pay code from the Marquee screen onto their Curb App.

Curb App and Pair & Pay

Important! Wait for an approval code and receipt to automatically process.

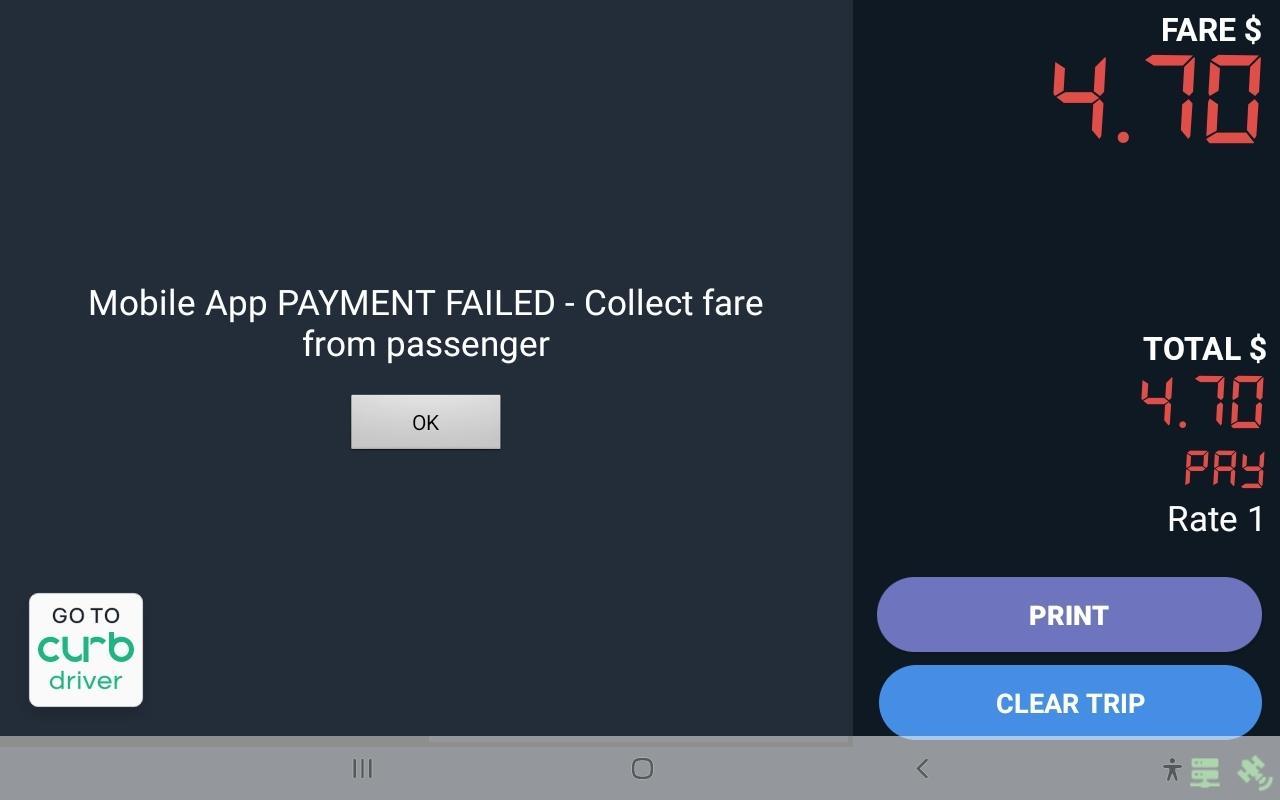

● If you do not receive an approval code or if you received a “declined” message, you have not been paid.

● If this occurs, you may request another form of payment from the passenger.

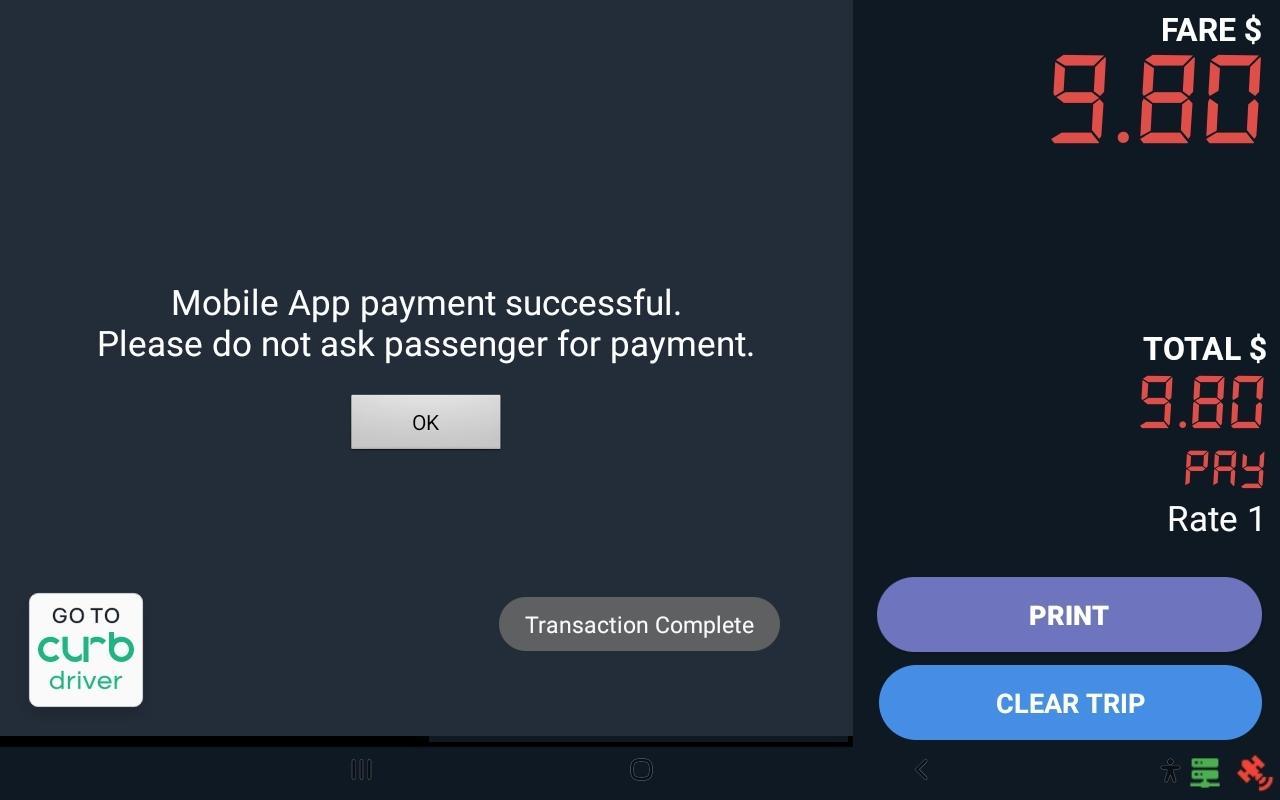

At the end of the trip, the payment will automatically be processed as MPAY = Mobile Payment.

If the network is down, the Marquee screen will prompt the passenger to pay with cash or credit card.

Fares and Payments

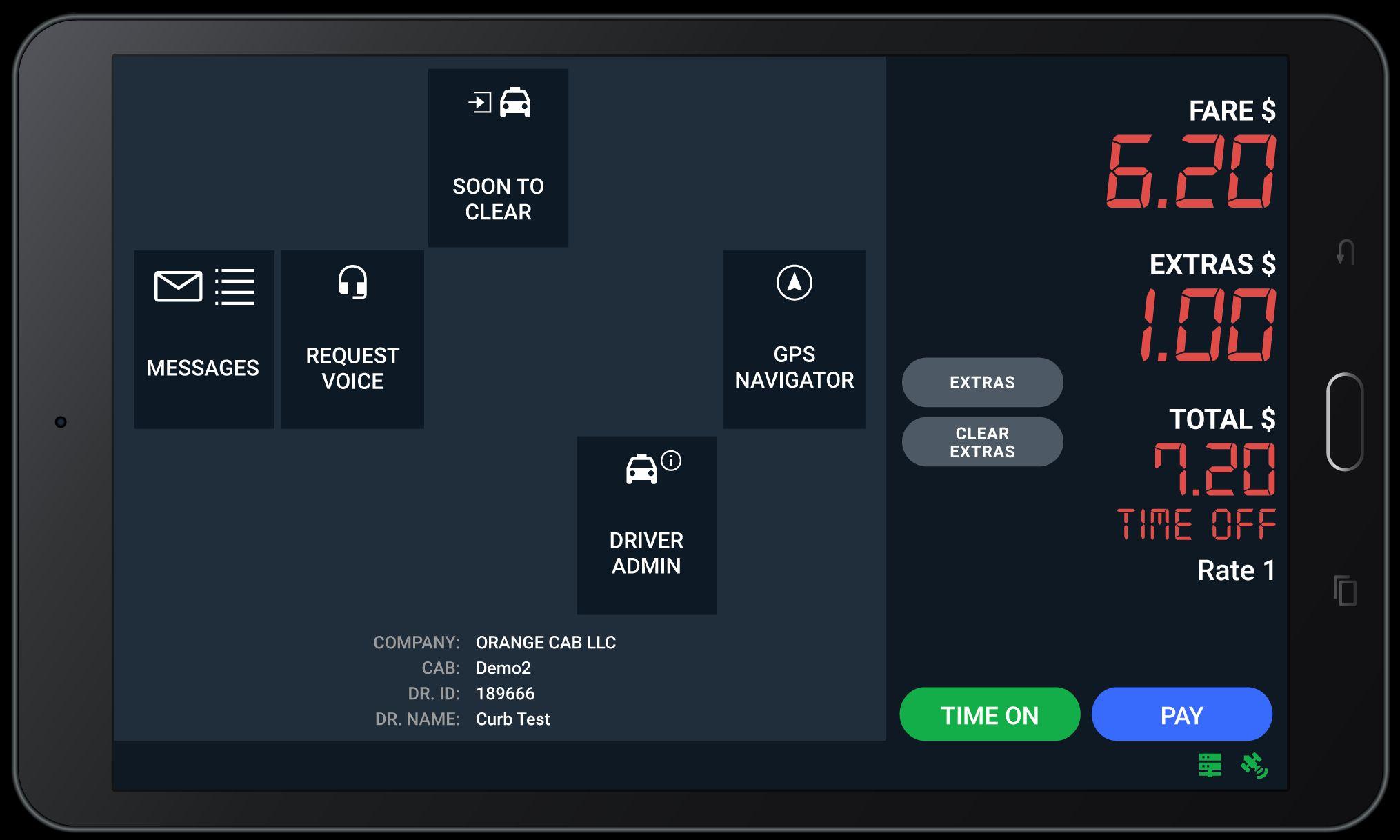

Tap TIME OFF to stop charging time.

Tap TIME ON to resume the trip and continue with the trip.

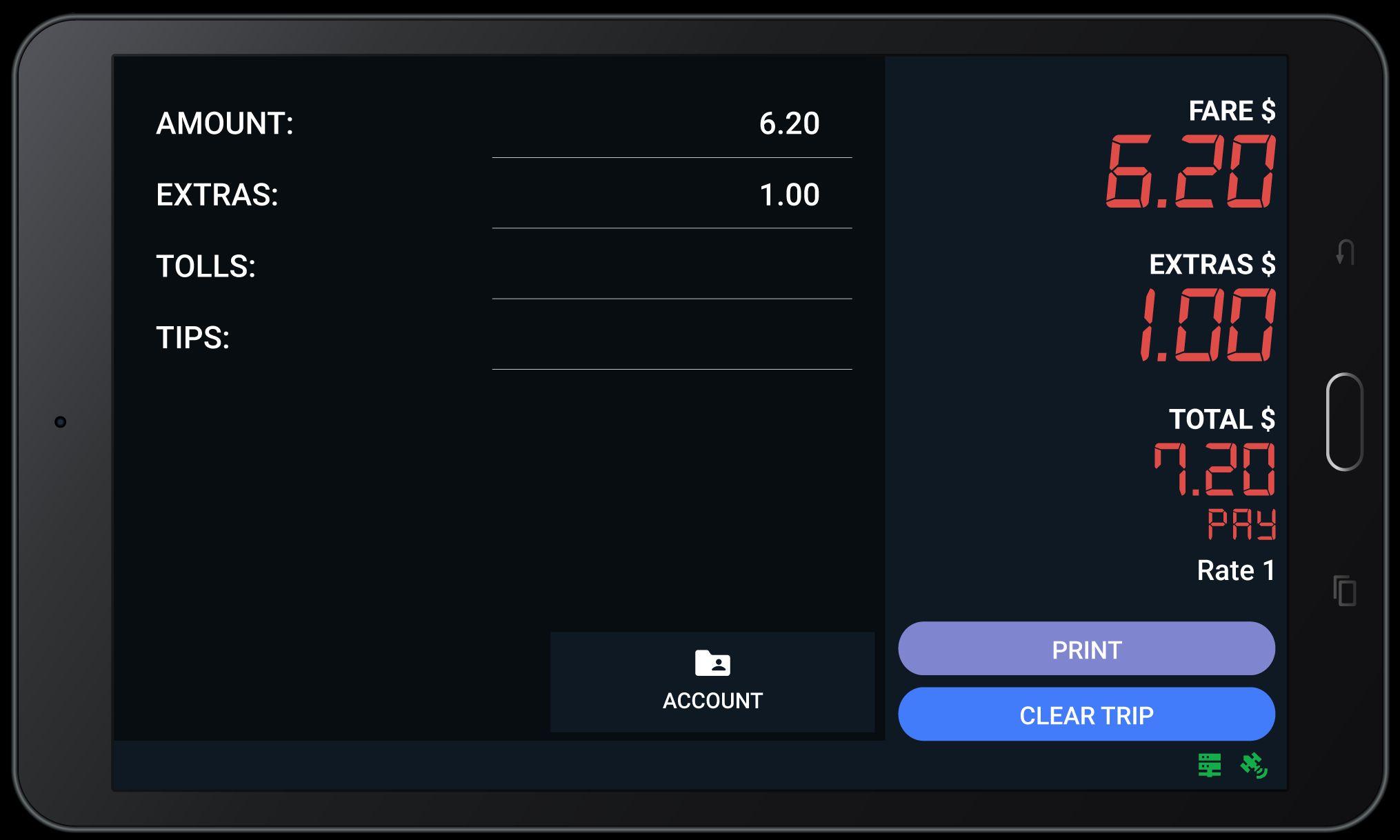

Tap PAY if you are ready to accept CASH or CREDIT payment or to process mobile payment.Once the PAY button is pressed, you cannot resume the trip MUST end the trip. If the destination has changed you must start a new trip.

Fares and Payments

Tap PRINT only if the passenger requests a cash receipt.

Allow passenger to select Cash or Credit as payment method.

Tap CLEAR TRIP only if passenger hands cash and exits the cab.

Otherwise, meter clears automatically once credit or mobile payment is completed.

Fares and Payments

If passenger selects Cash, then the eReceipt button will be shown to process receipt and the Back button will be shown to change payment method.

You will be notified on your Dash+ app if passenger selects Cash option. The passenger then has the option to print a receipt or issue an eReceipt.

Fares and Payments

If passenger selects Credit, then the Next button will be shown to select a Tip amount and the Back button will be shown to change payment method.

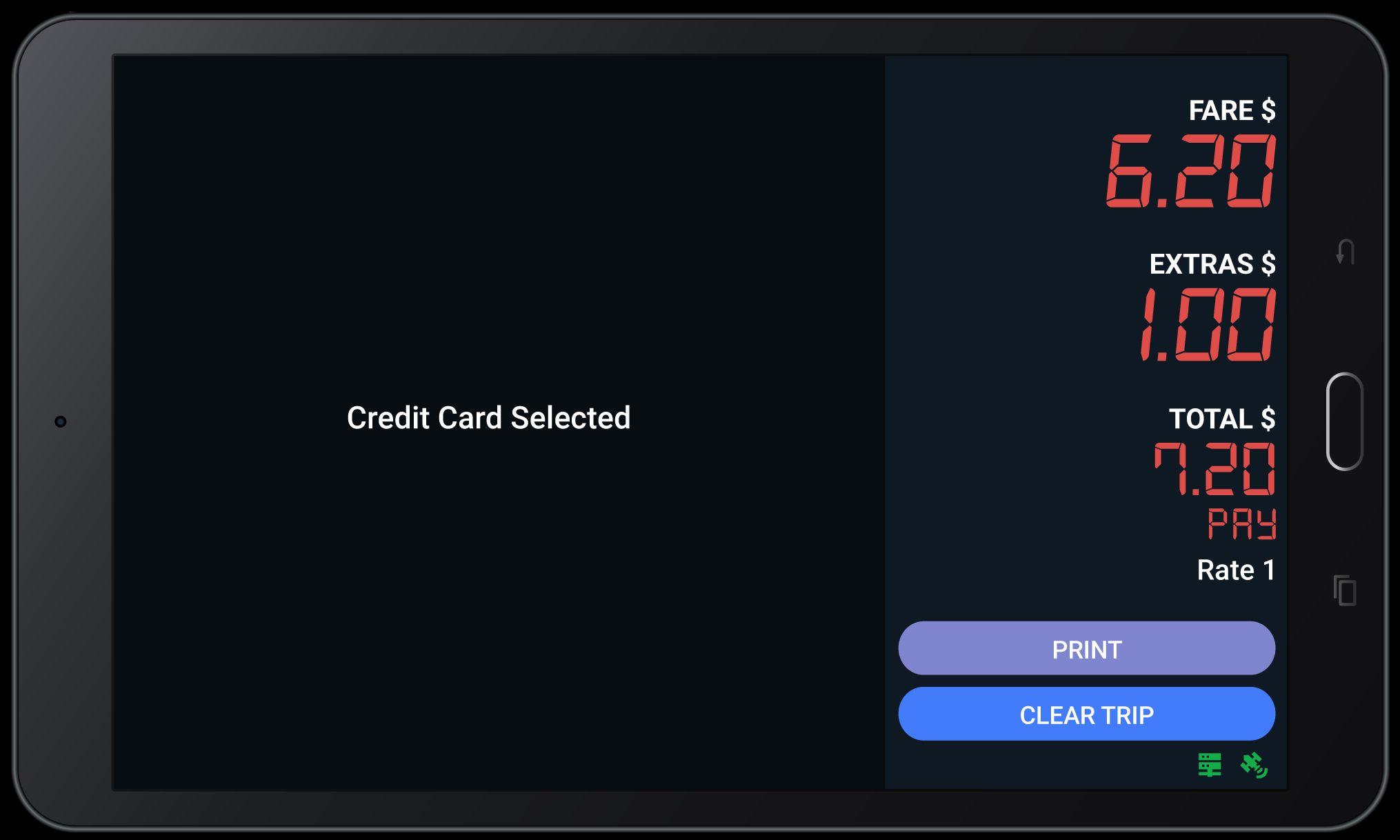

You will be notified on your Dash+ app if passenger selects Credit Card

The passenger then has the option to print a receipt or issue an eReceipt.

Adding Tips

To add a tip, the passenger can either select from the predetermined amounts or tap on Other to apply a specific amount.

Accepting Credit and Debit Cards

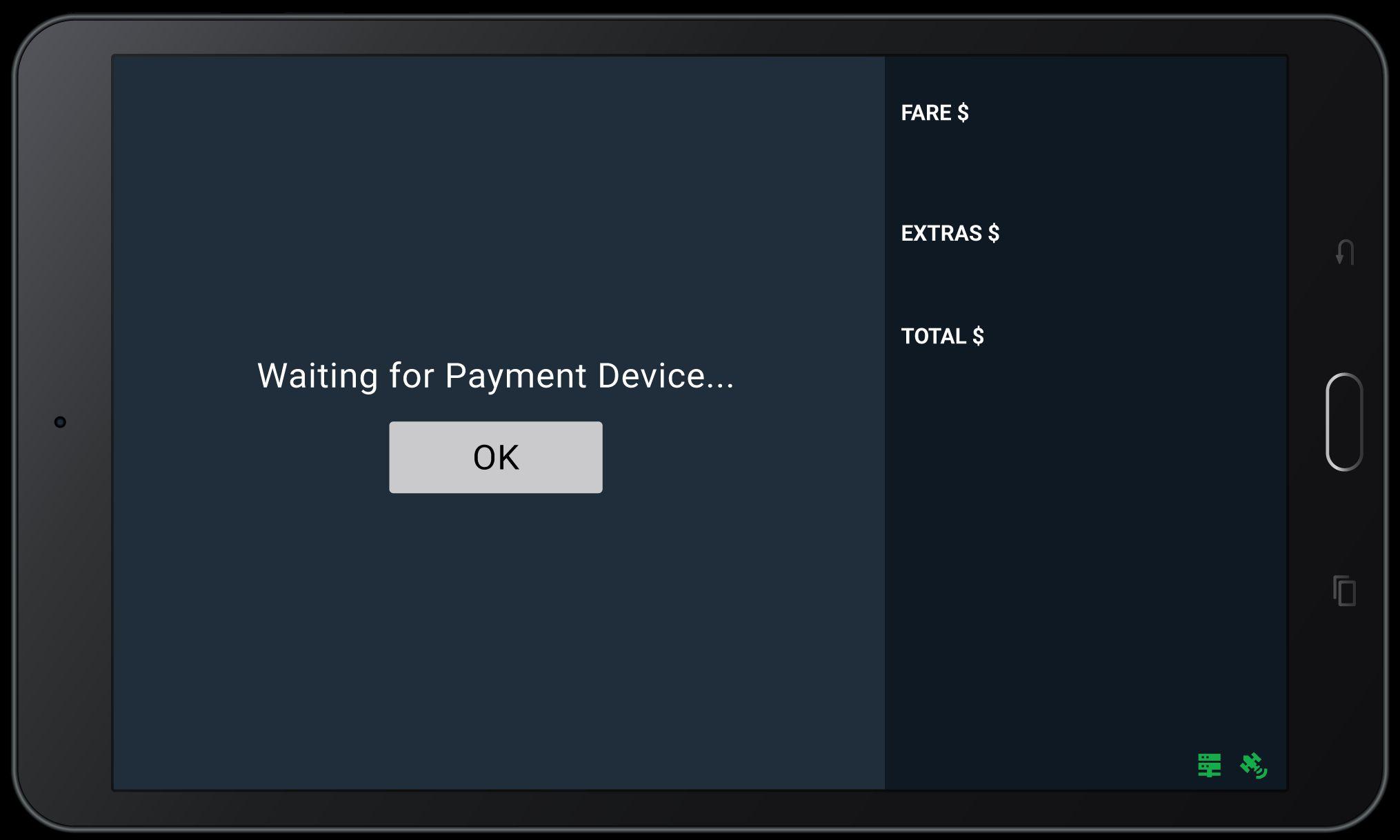

Passenger can select the Next button to process a credit card transaction to pay for the trip.

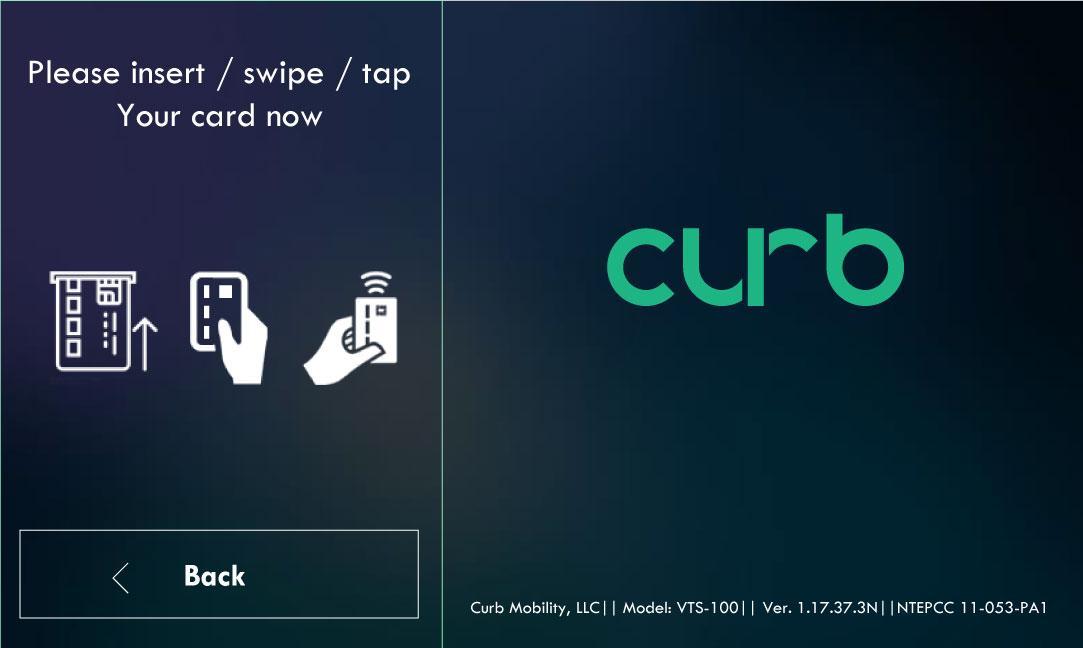

Accepting Credit and Debit Cards

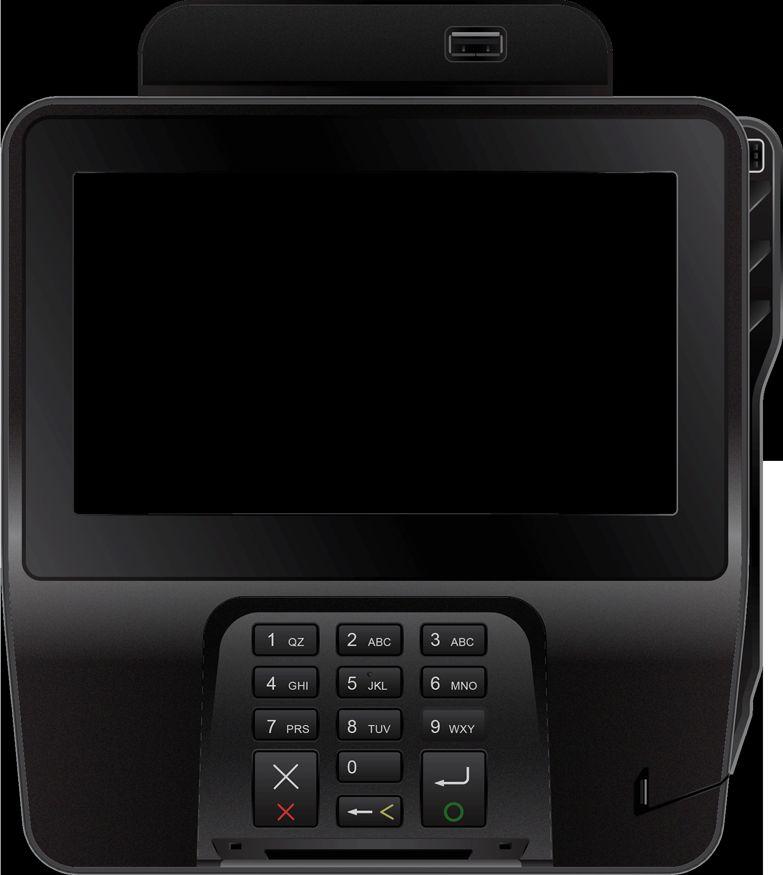

Passenger can insert Chip + Pin Credit Card here.

Passenger can tap Contactless Credit Card on the payment screen.

Passenger can swipe Credit Card here.

Payment Authorization

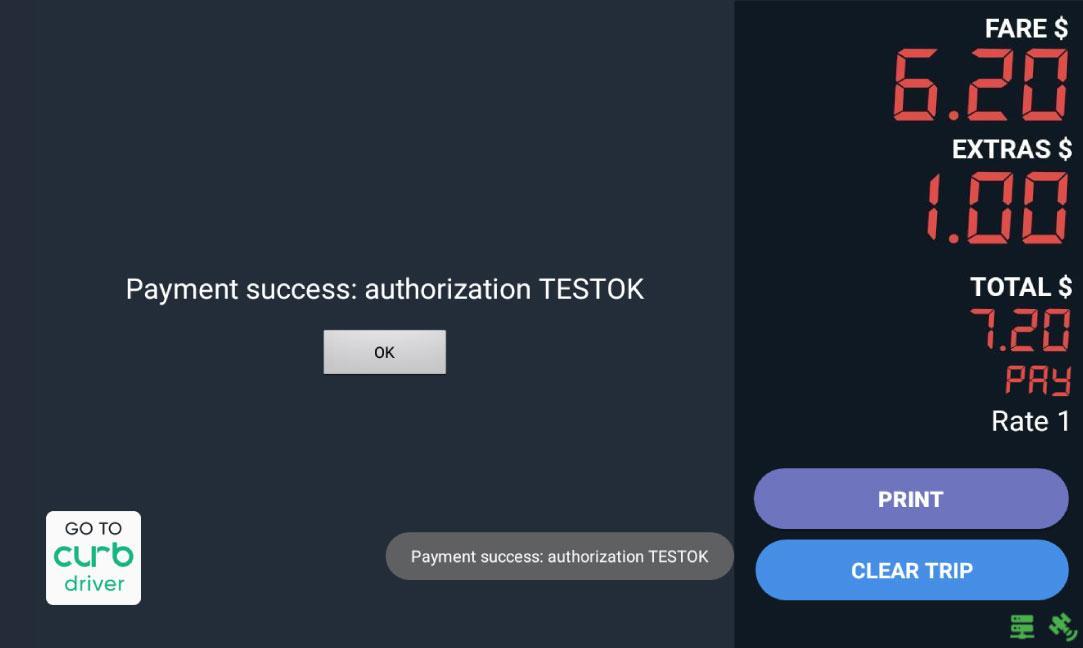

Once the credit card transaction is confirmed, you will see an authorization number on the Dash+ tablet. Your screen will then clear and go back to Vacant Mode.

E-Receipts

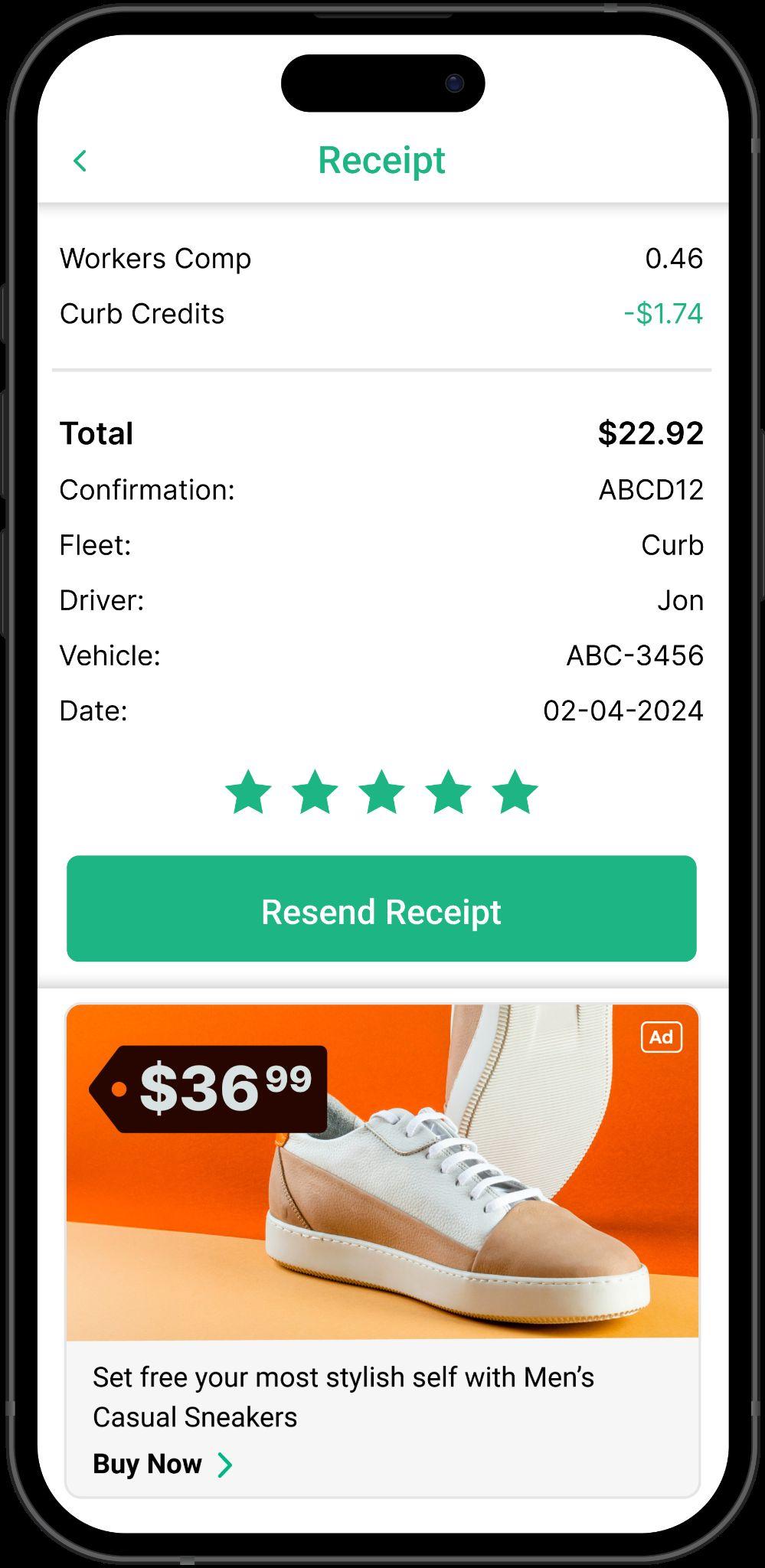

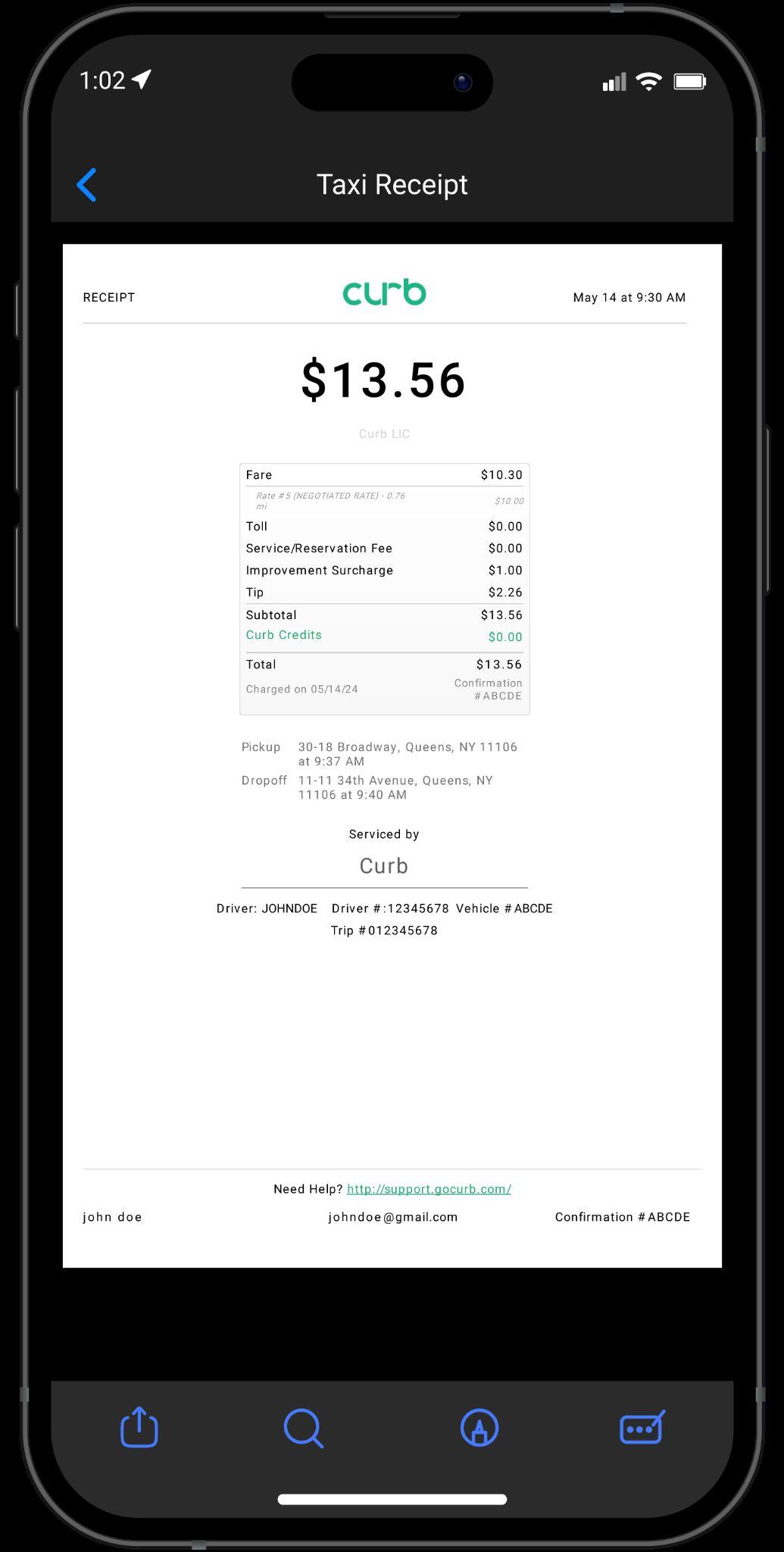

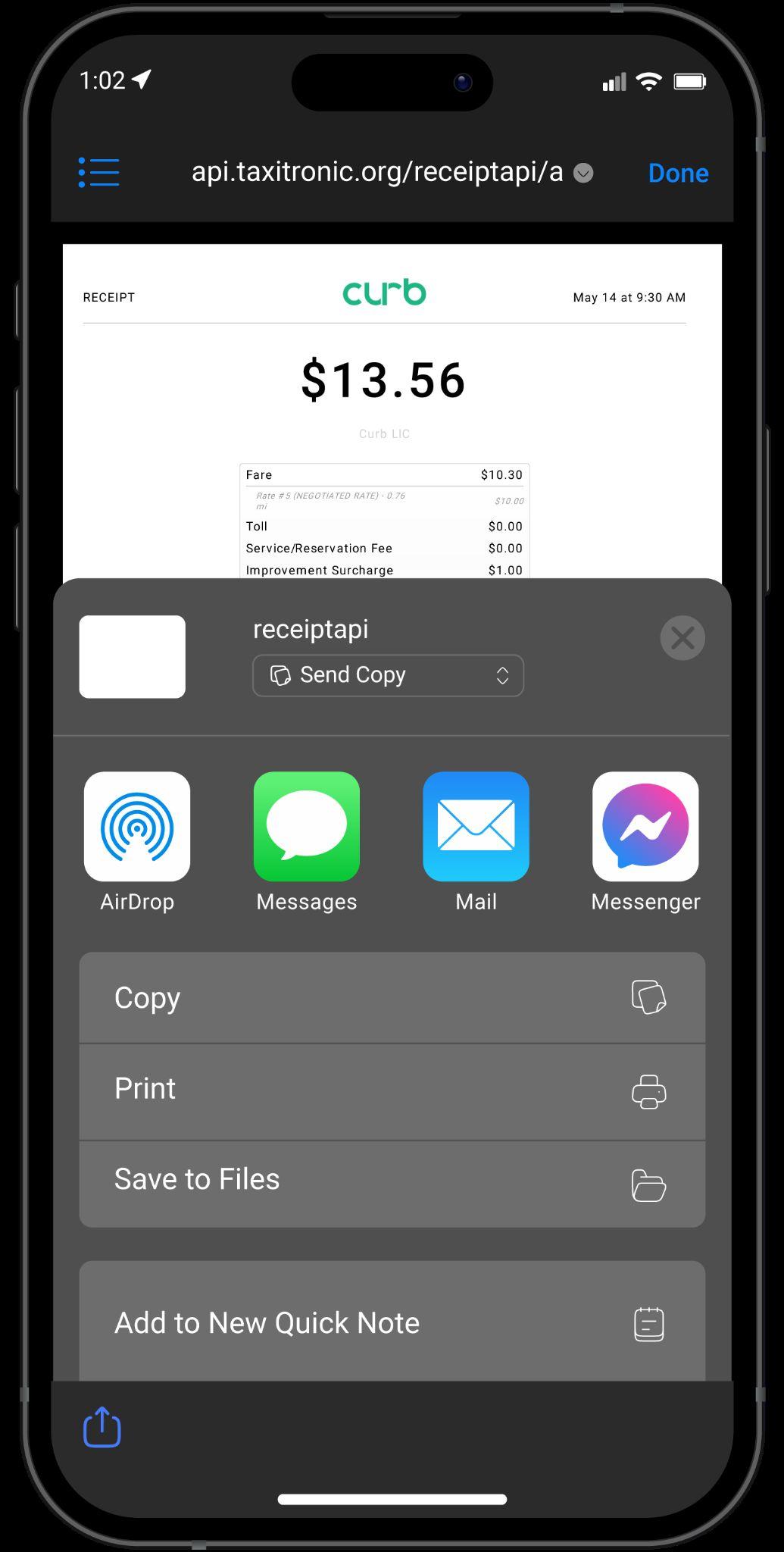

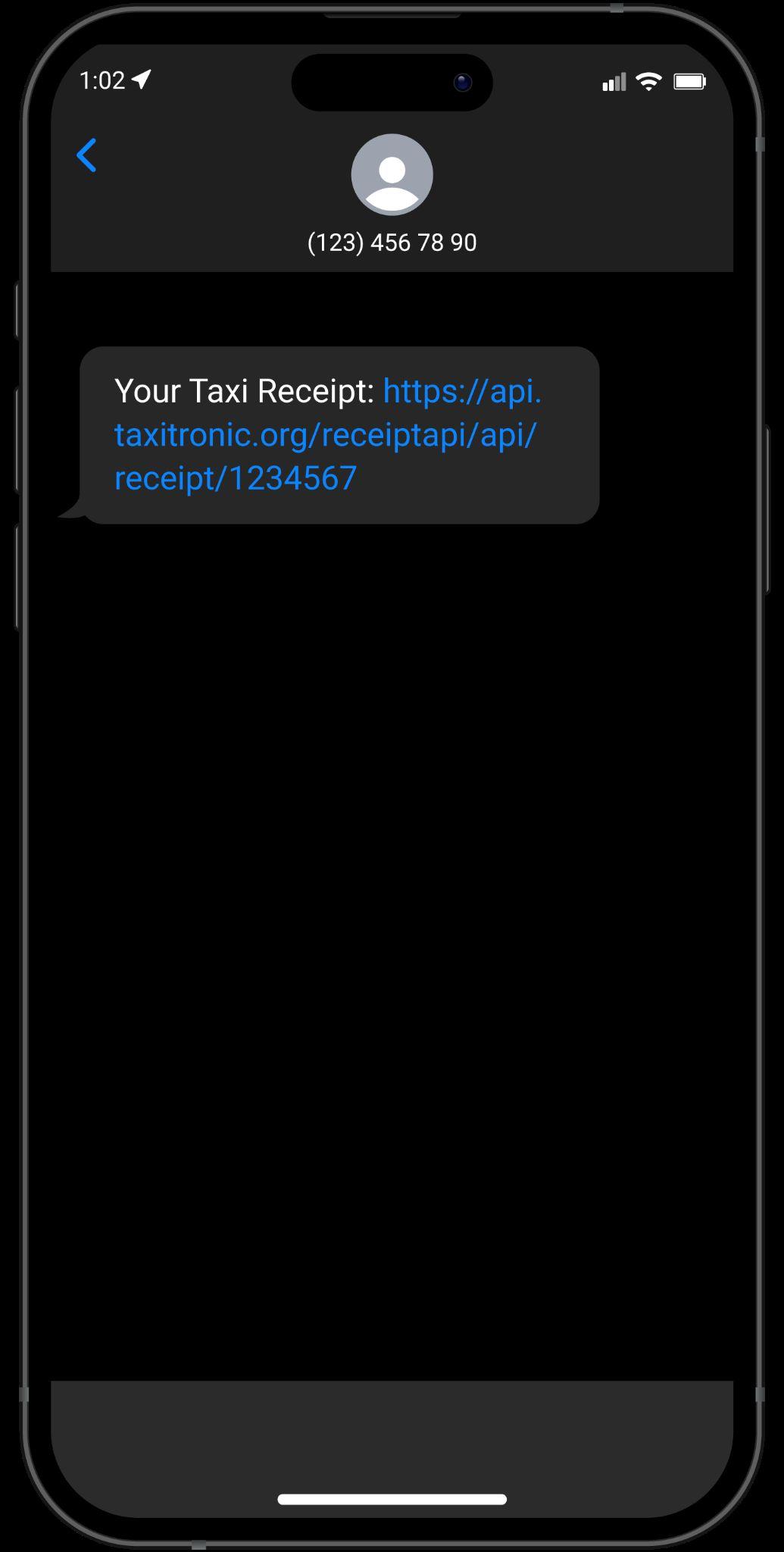

Passenger will receive a text link to download e-Receipt after submitting phone number in the Marquee. The passenger will be able to view the full trip details after tapping the link and downloading.

Trip History

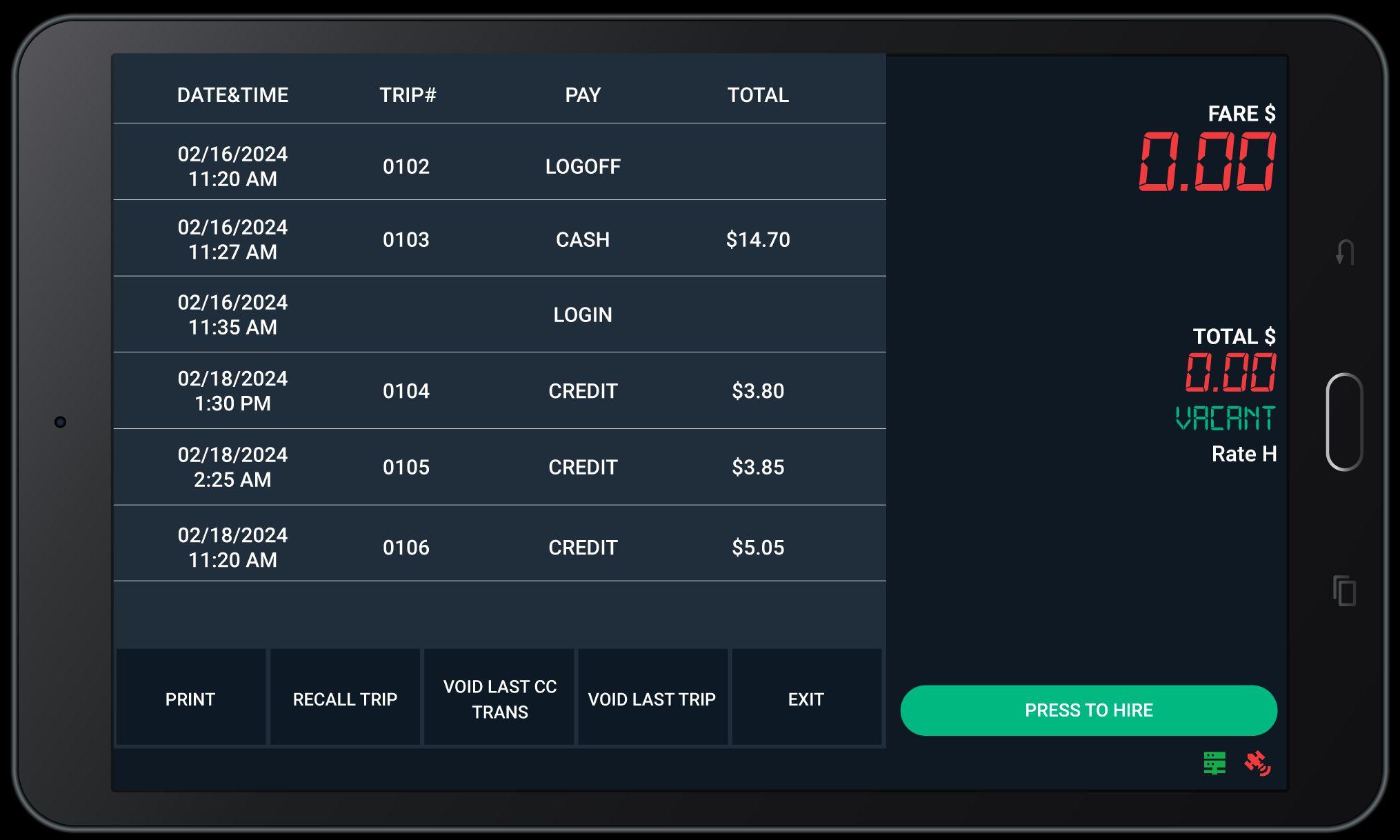

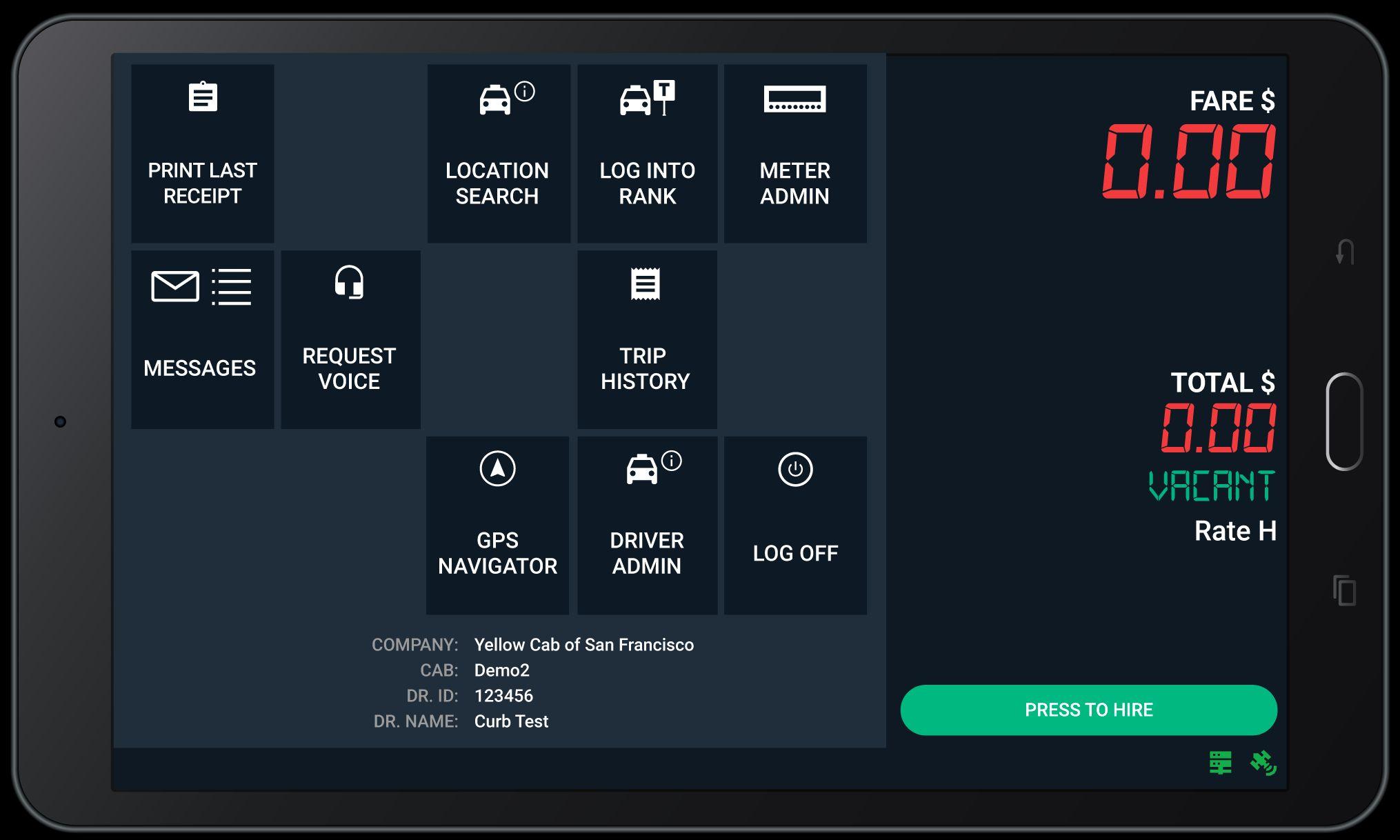

Tap TRIP HISTORY to view trip history.

You can now scroll and select individual trips to view details and reprint receipt if needed. This is Vacant Mode

Logging Off

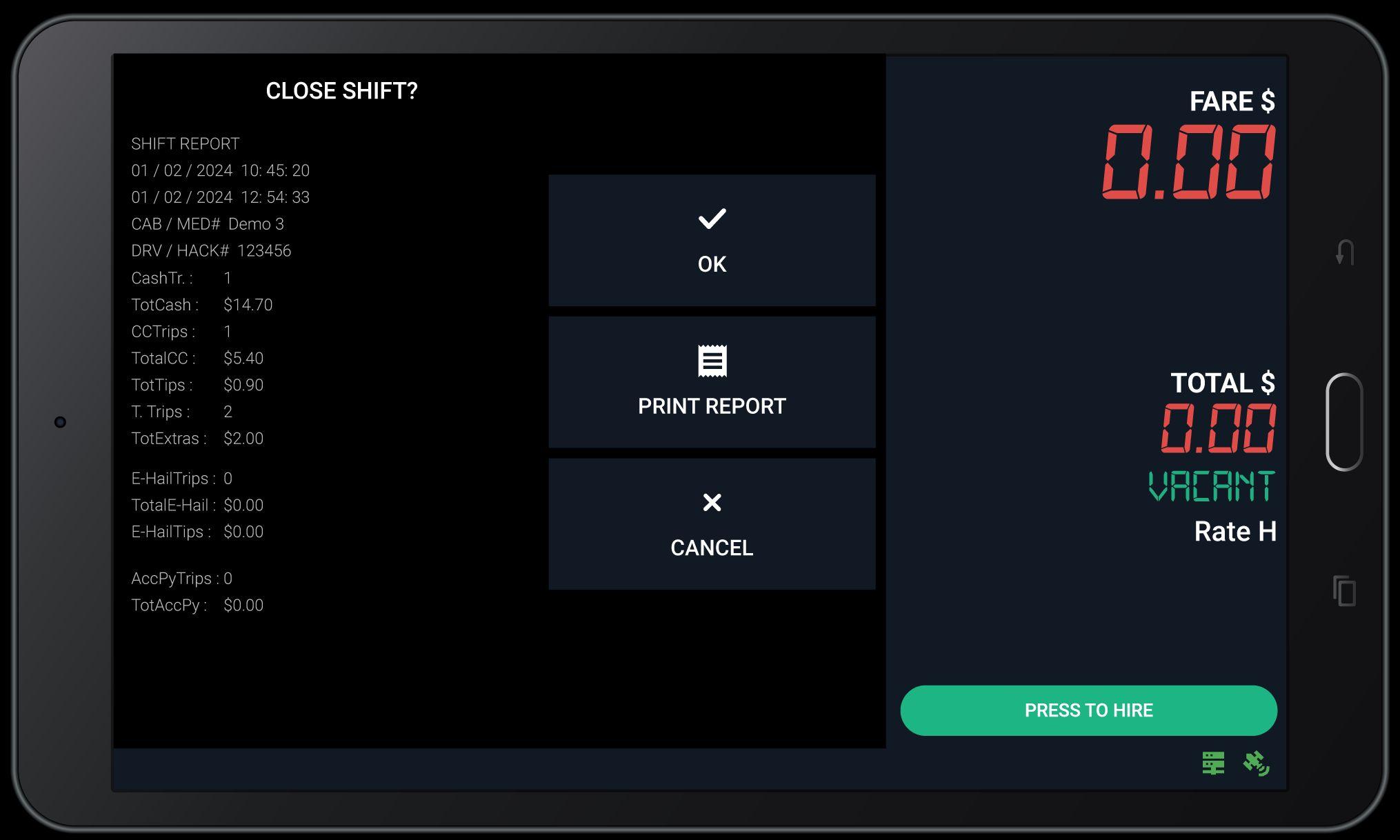

Tap LOG OFF to close out your shift.

Tap OK to continue with logging off or PRINT REPORT to print shift. Wait until you see LOG OFF SUCCESS before you power off the tablet. You are now logged off.

Curb Mobile

E-hail Trips

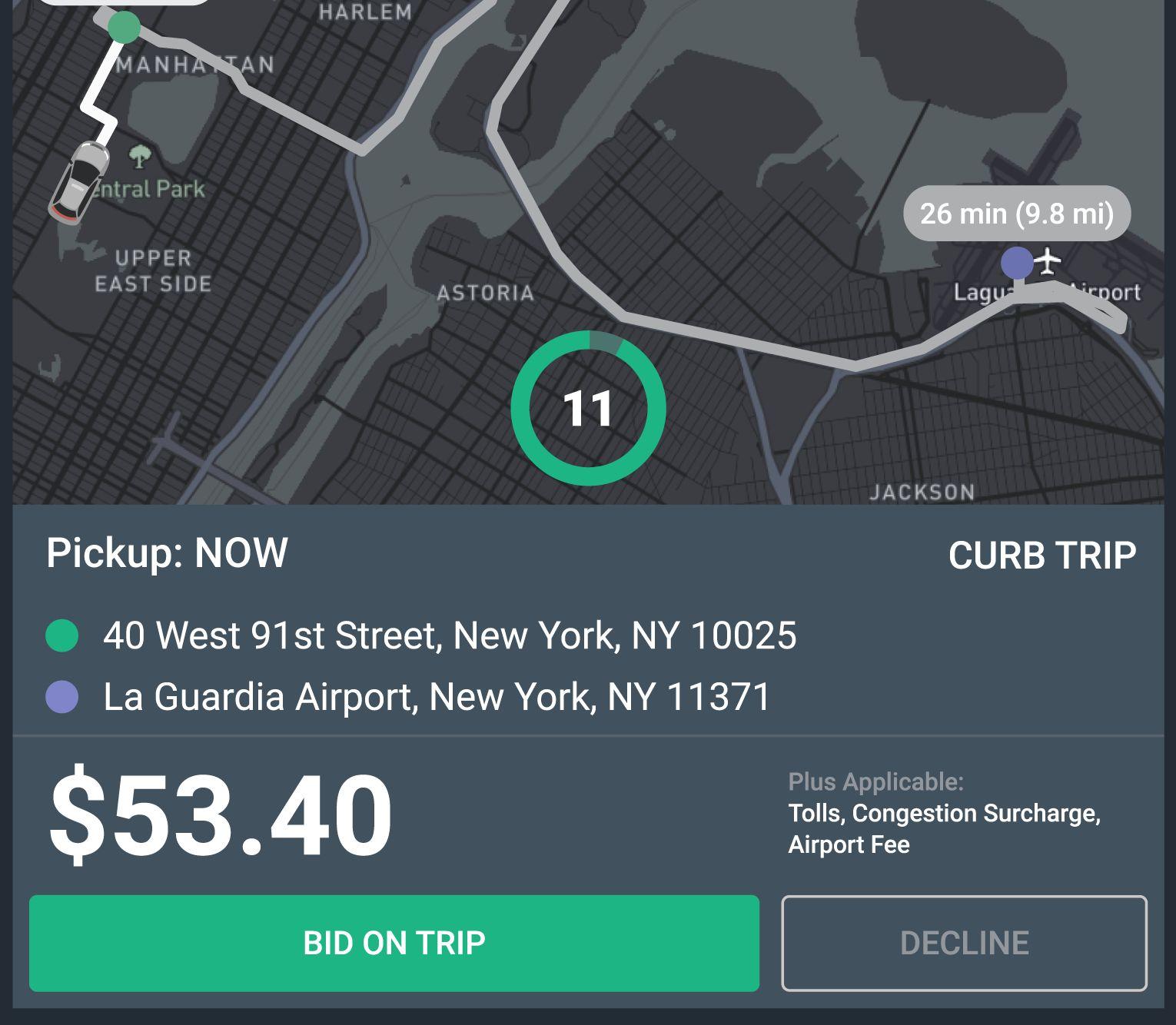

Curb Trip Offer

Pickup

The map now shows time (min) and distance (mi) to the requested pickup location, indicated with a green dot.

When you get an Trip Offer, this screen will appear on your tablet.

Drop-off

The map also shows the estimated time and distance for the offered trip. The purple dot shows the requested drop-off location.

Curb Trip Offer

The Fare

The Fare for the trip does not include Tolls, Fees, or Surcharges (if applicable).

Bid on Trip

Bid only on the trips you really want to take.

When you get an Trip Offer, this screen will appear on your tablet.

The Timer

The timer shows the number of seconds you have to “Bid on Trip” or “Decline” before the offer expires. You do NOT need to hurry!

Tolls & Surcharges

Tolls, Fees, or Surcharges (if applicable) will be added to the Grand Total at the end of the trip.

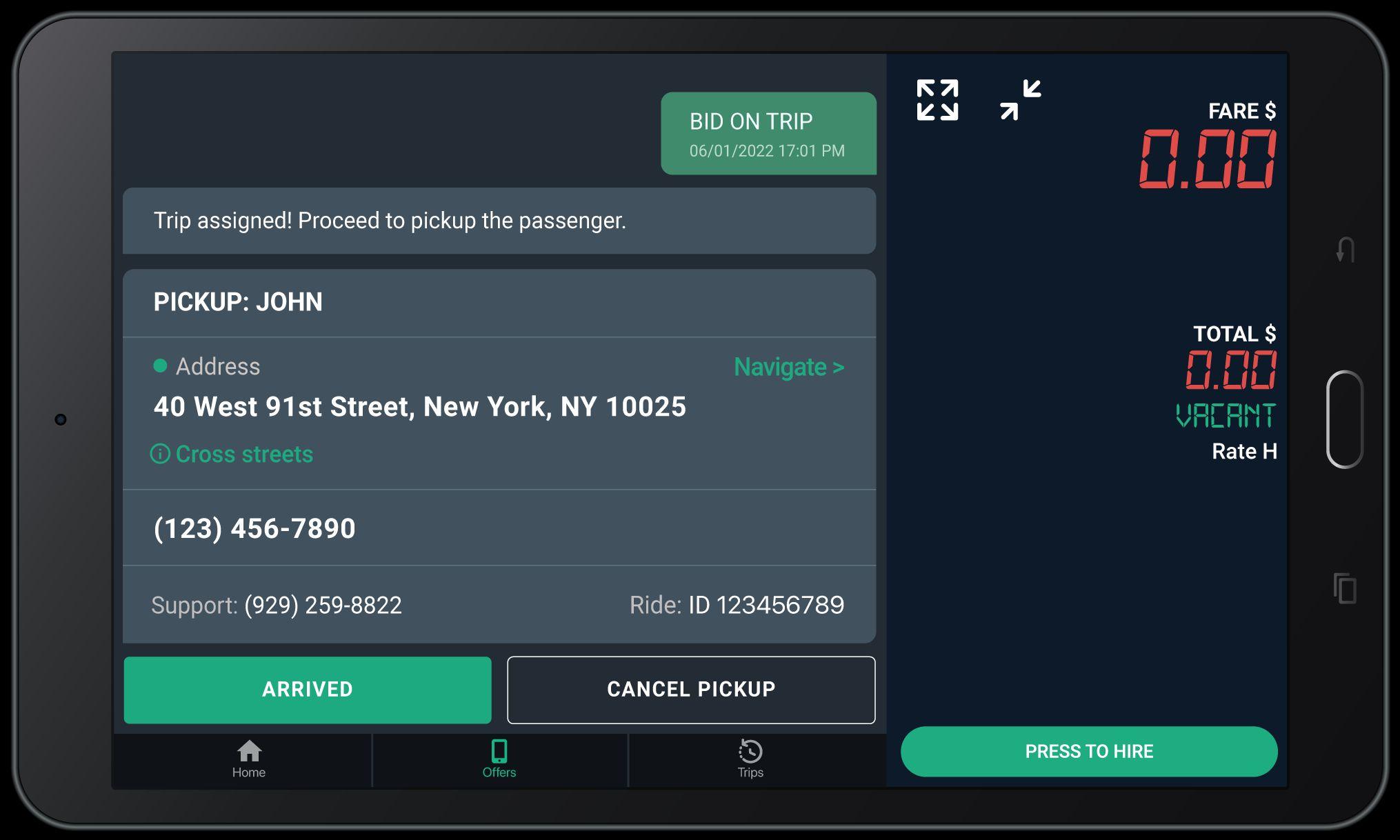

Arrival at Pickup

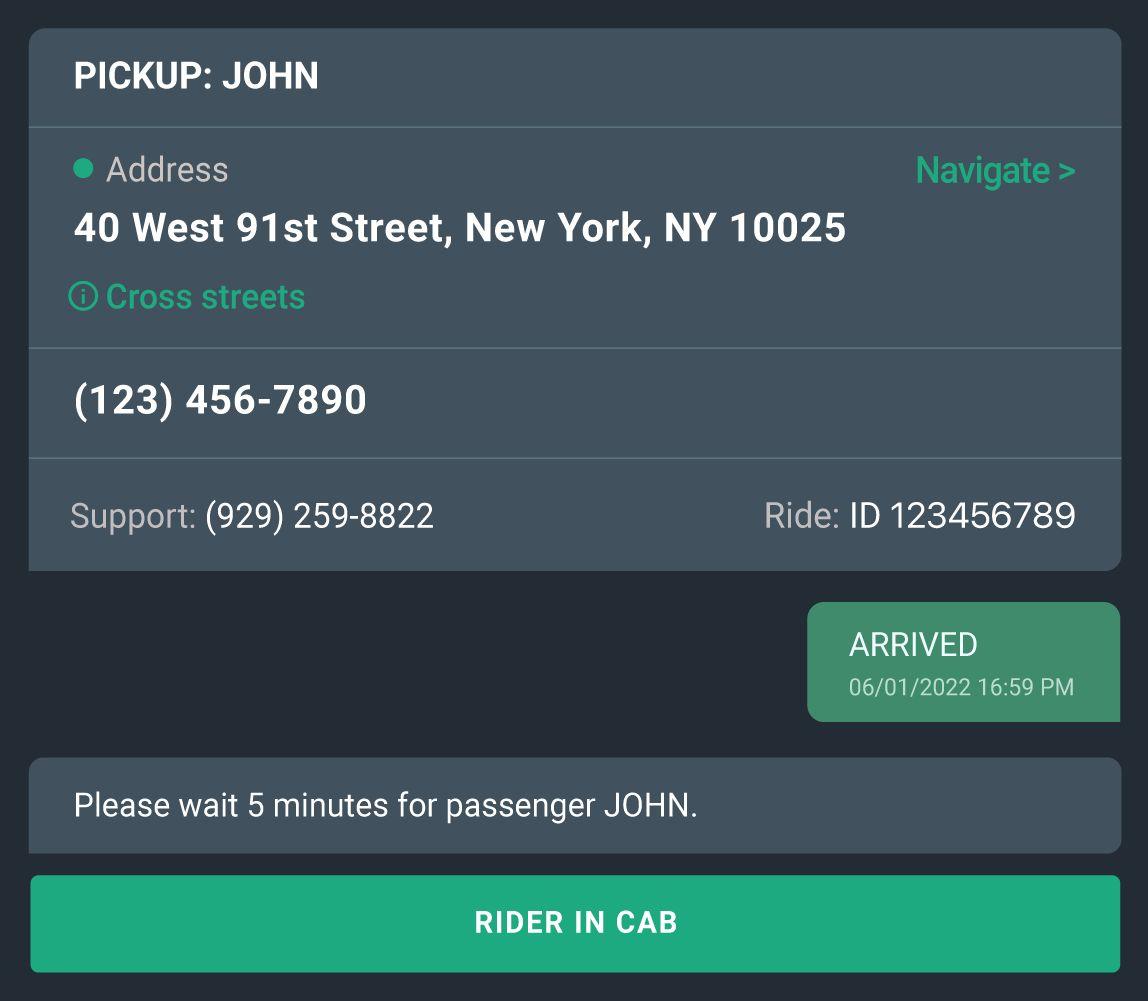

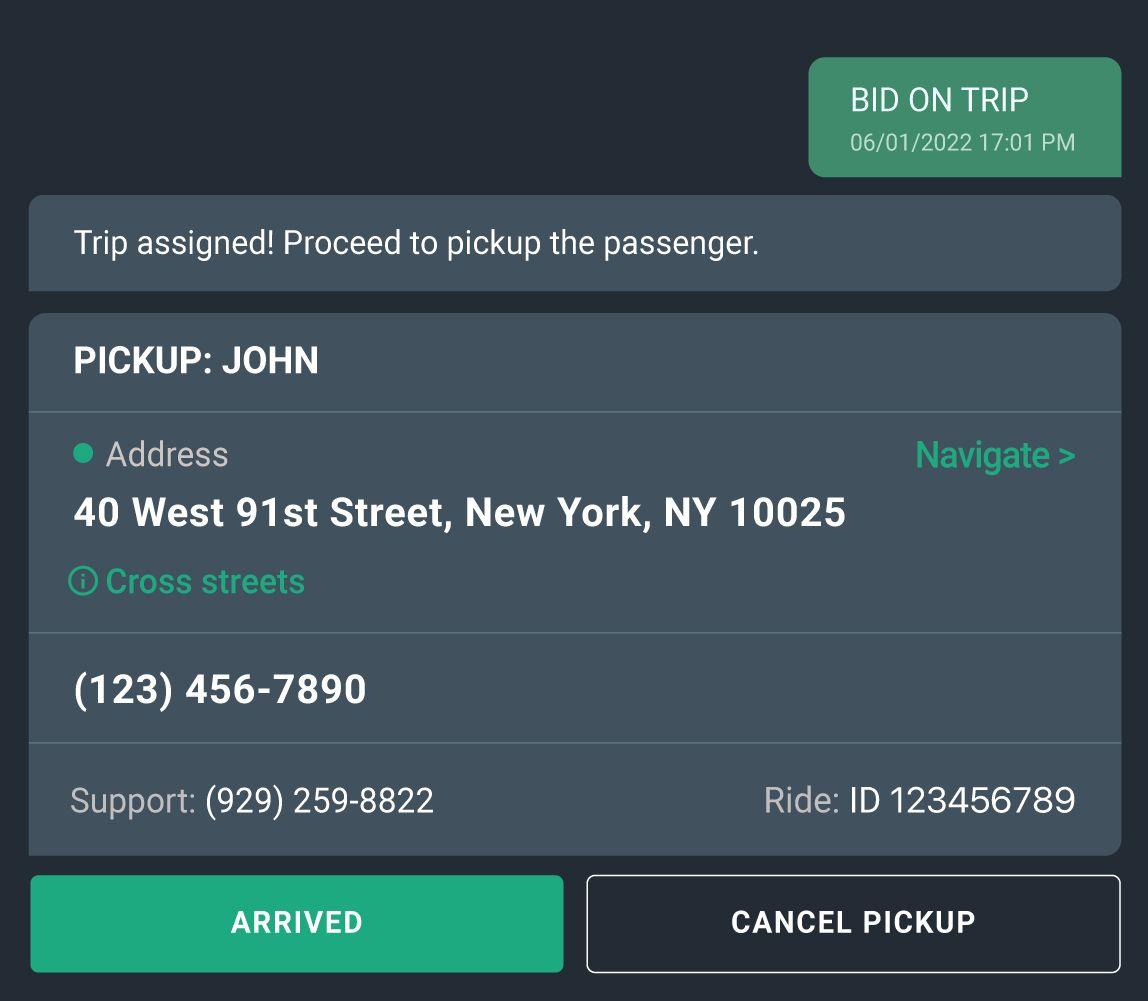

If you win the bid, you will see the pickup screen with the passenger’s name and phone number.

Cross streets

Tap to see the cross streets for the pickup address.

Call Passenger

Dial this number to call the passenger.

Navigate

Tap to use Google Maps to get to the pickup address.

Call Support

Dial the Support number and provide the agent with your Ride ID for assistance.

Passenger Experience & Notifications

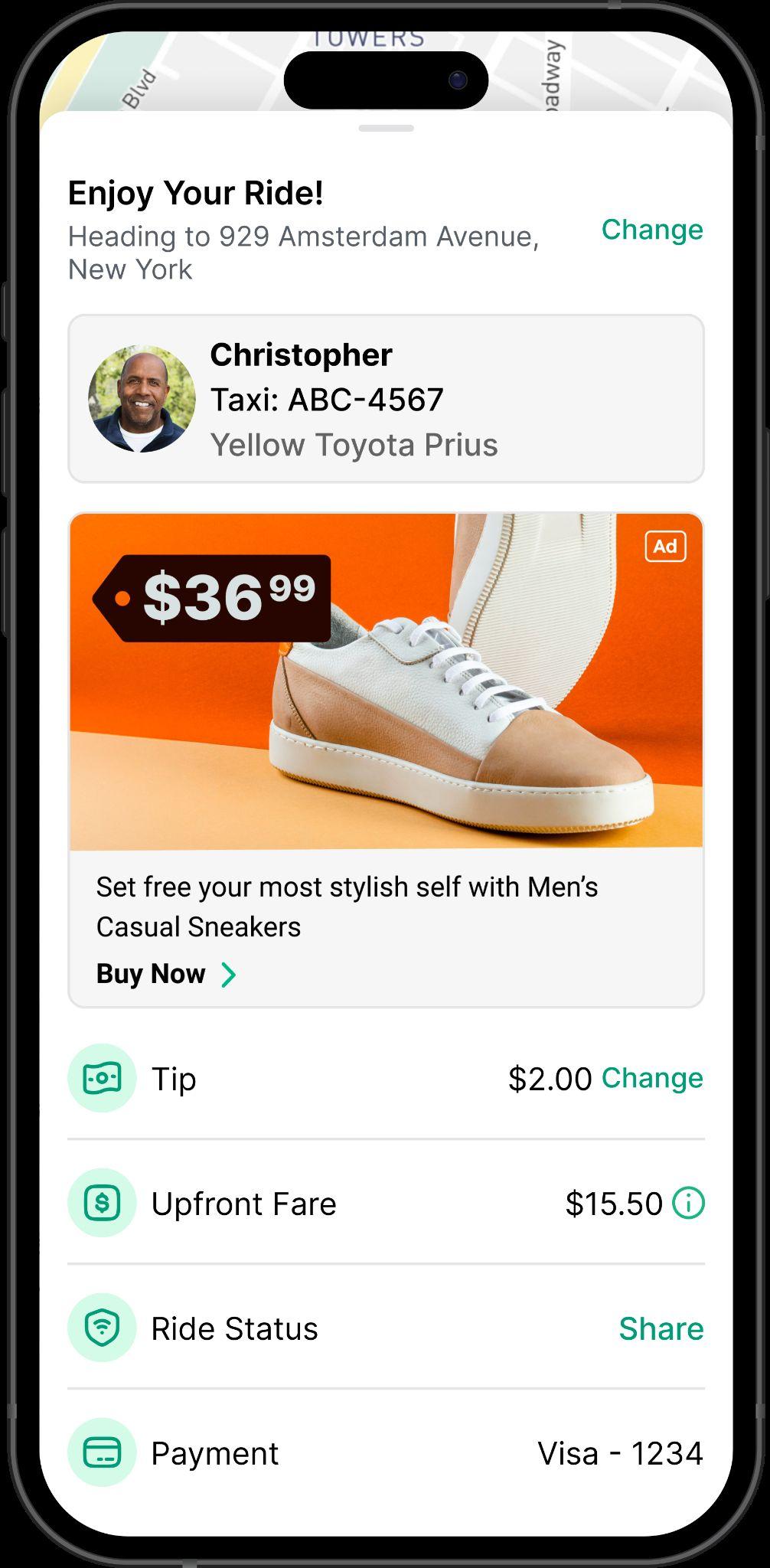

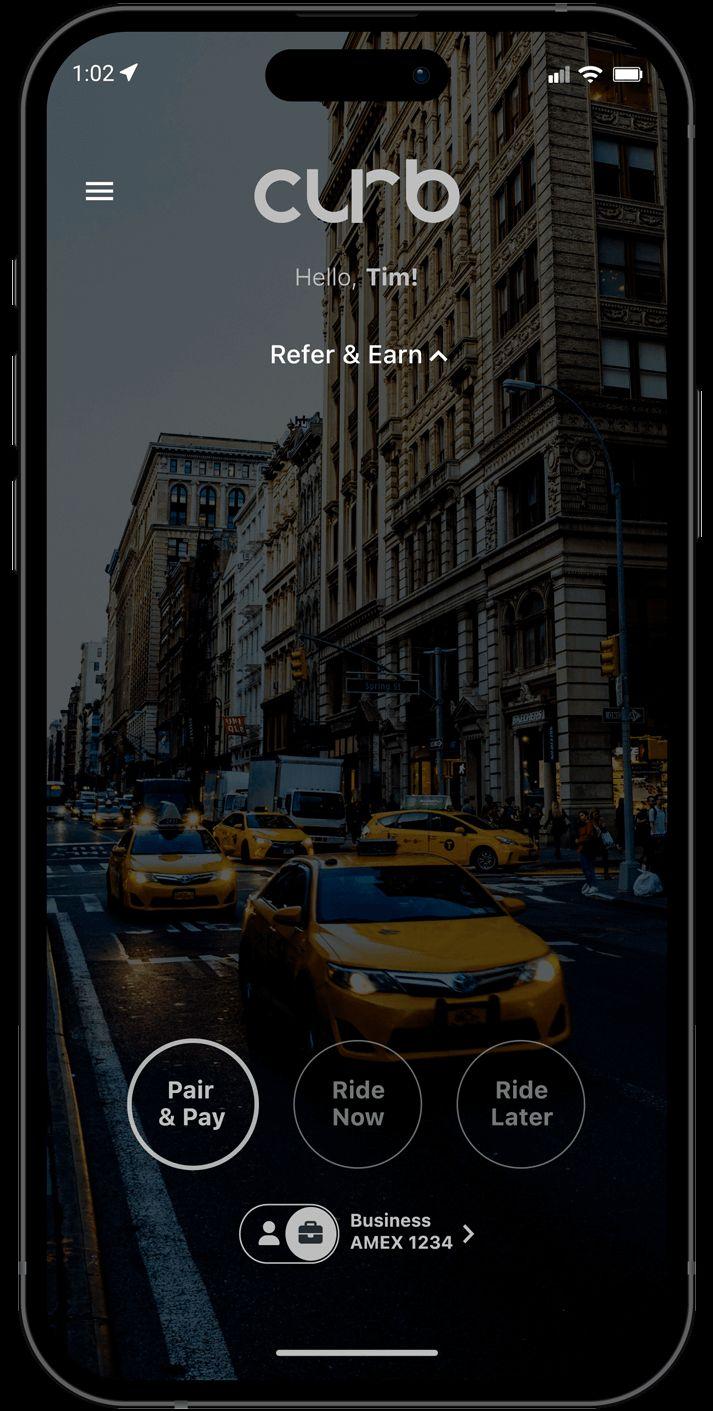

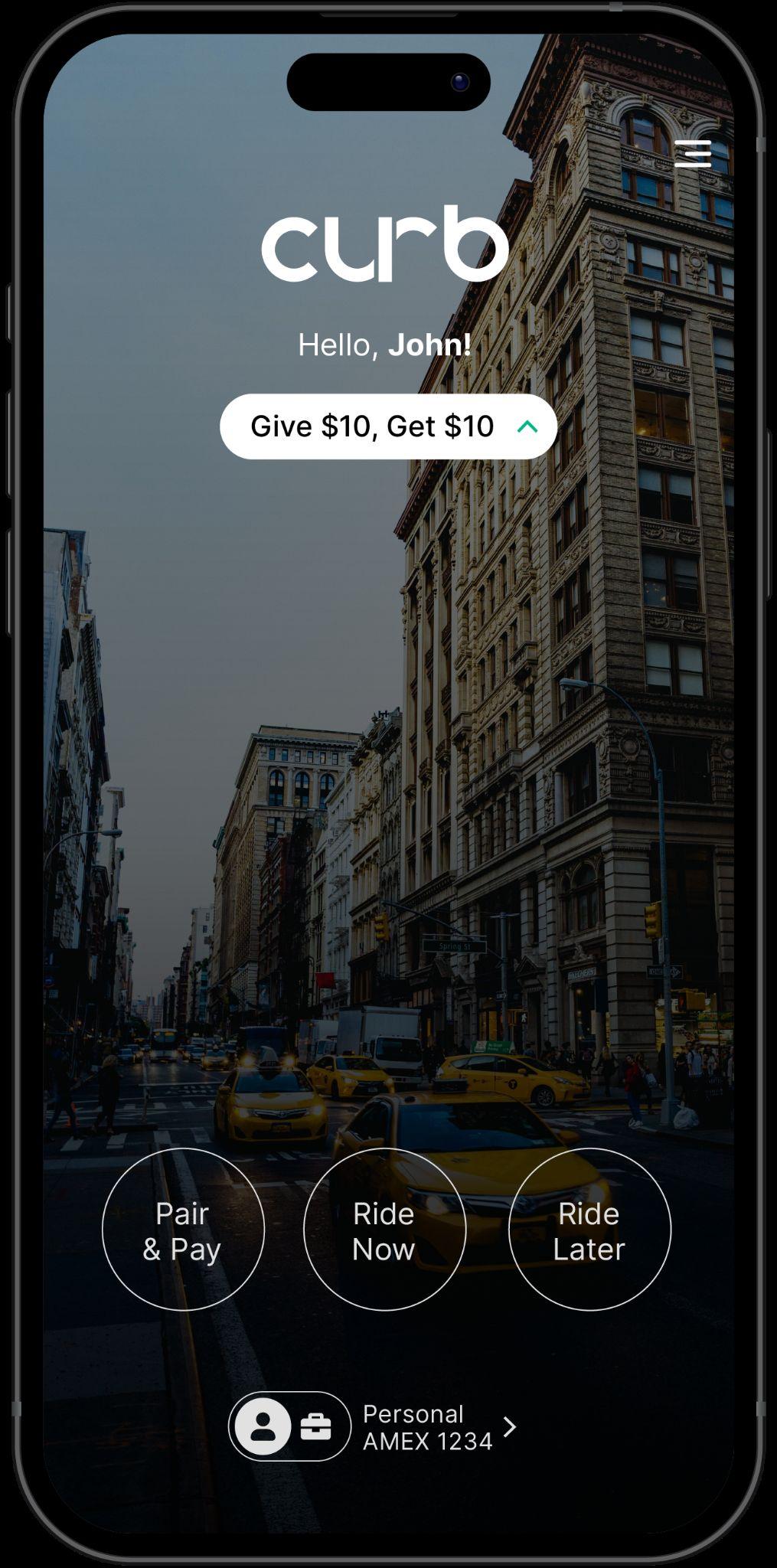

Passenger can use Curb App to order rides.

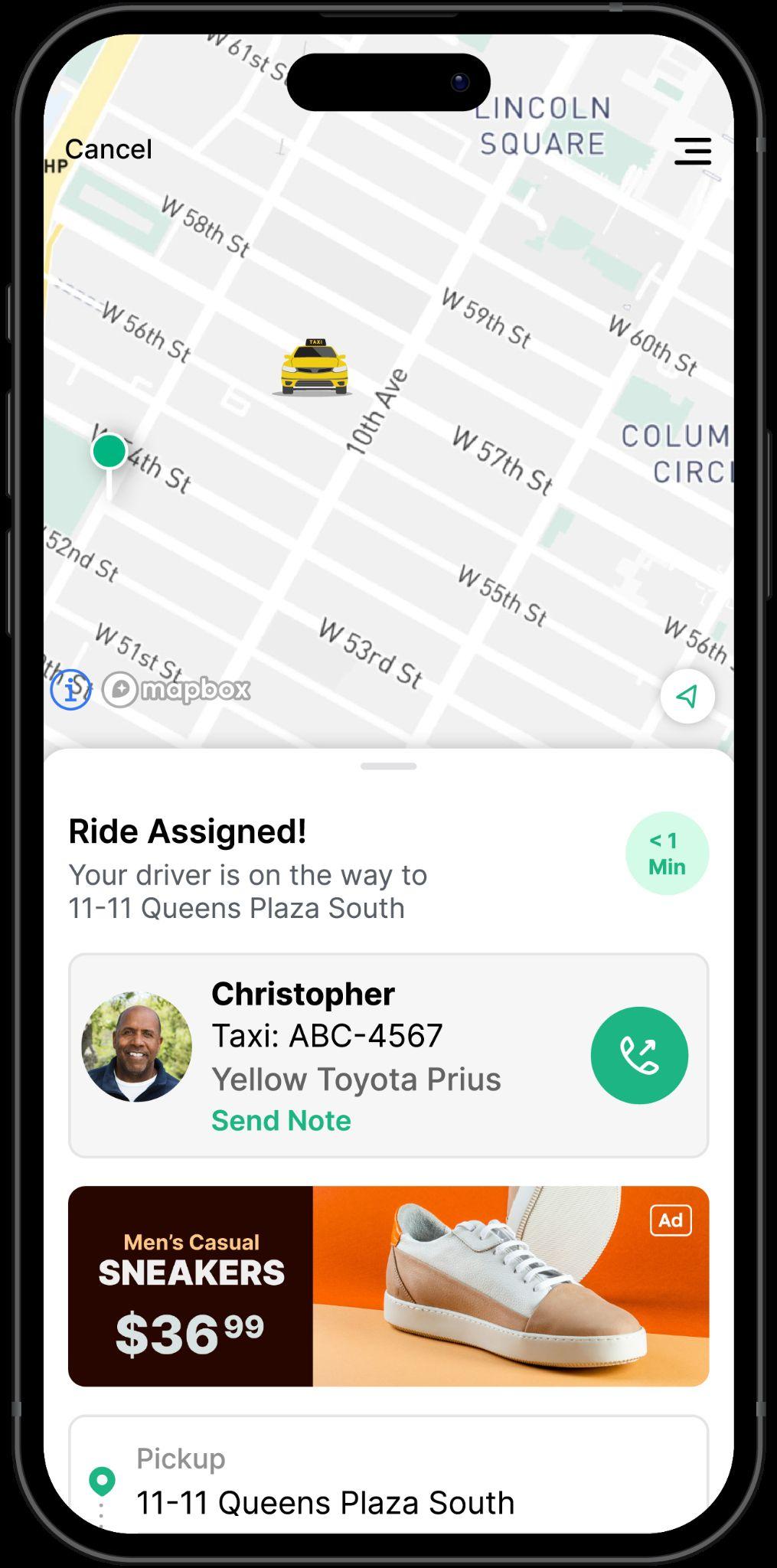

Passenger can view a live map with the taxi location in the app.

Passenger will be notified by push notification or text message that the taxi is arriving.

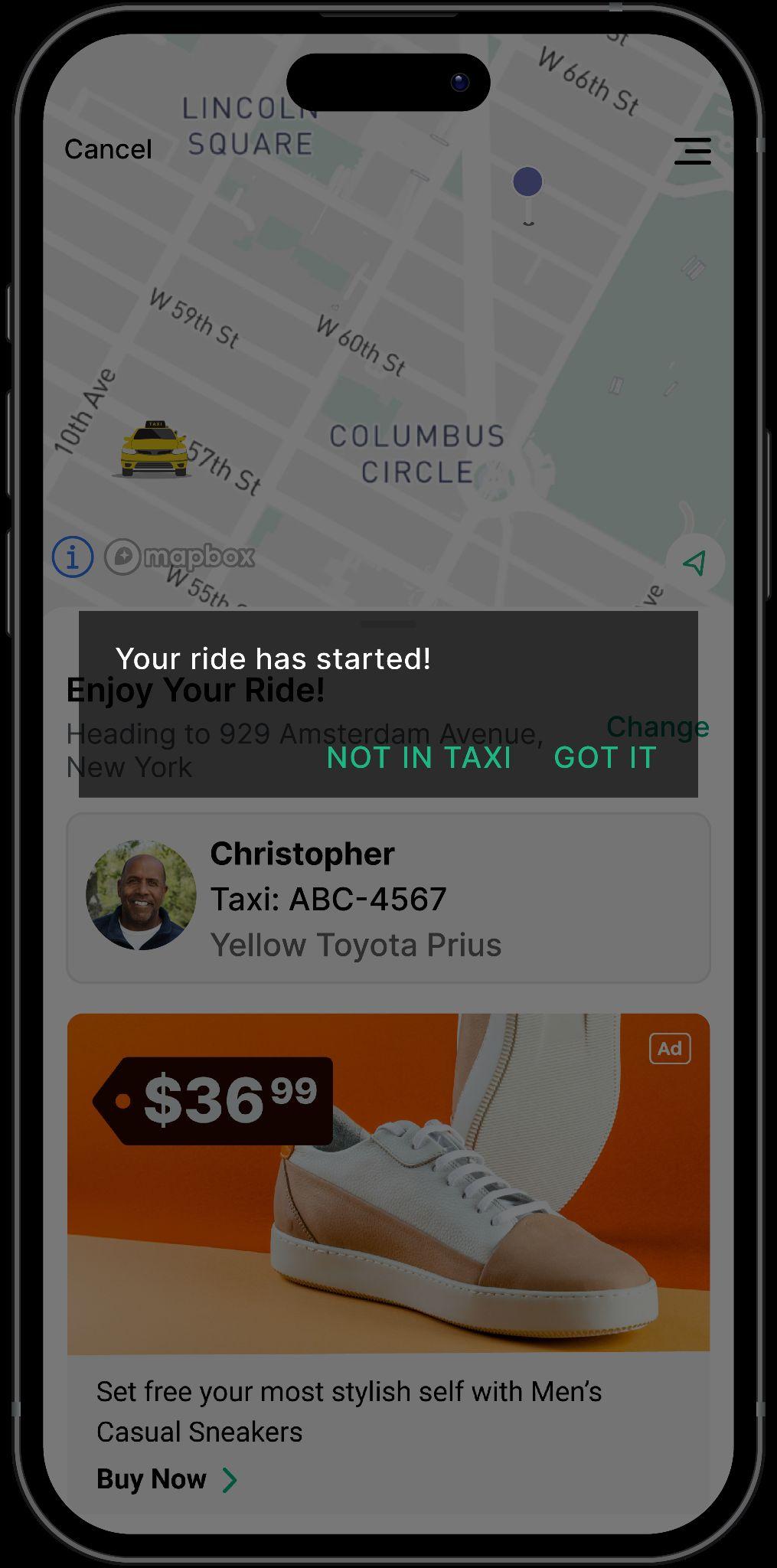

Passenger will select “Got it” in the app to confirm arrival in the correct taxi.

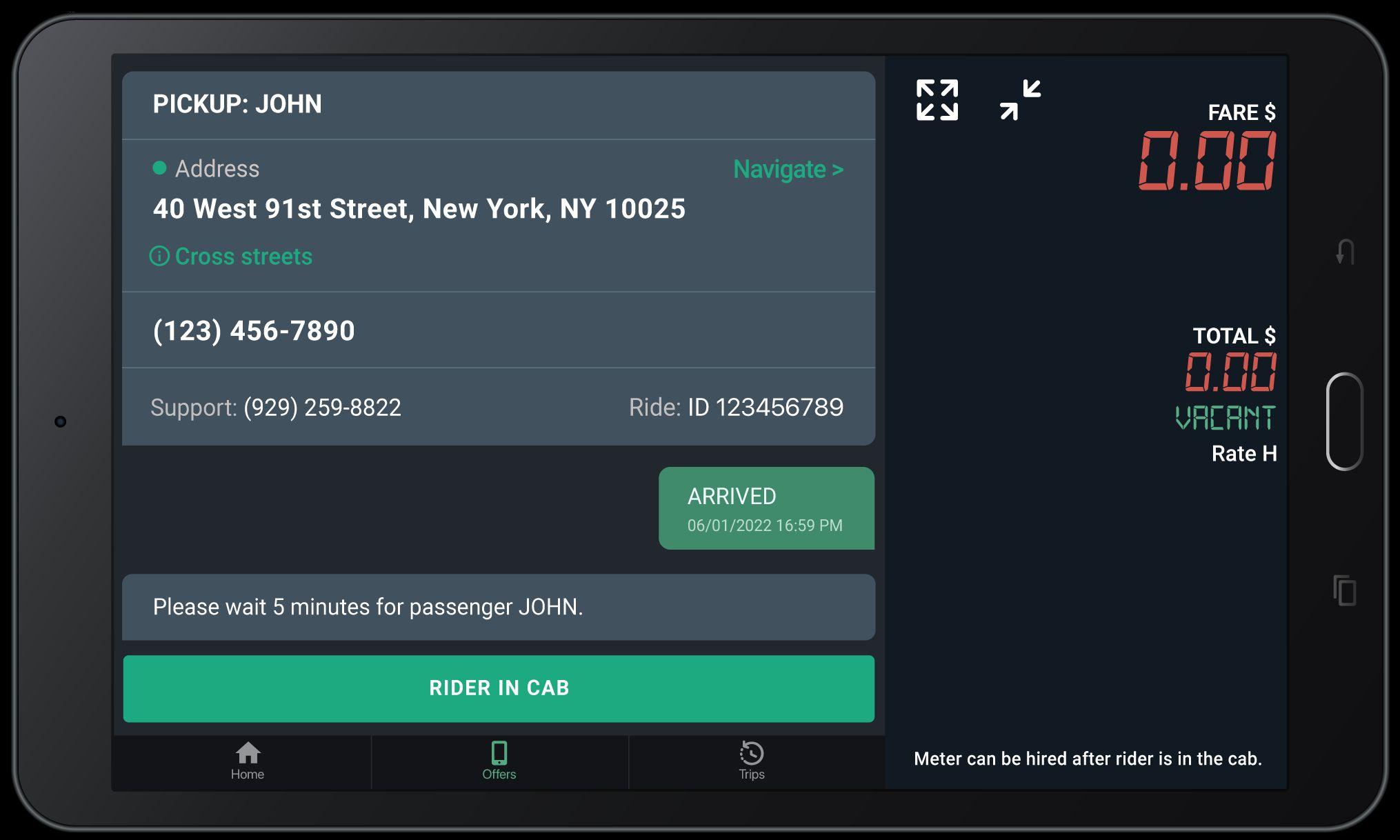

Confirm Passenger

You should wait 5 Minutes for passenger to arrive before you call passenger or contact Driver Support.

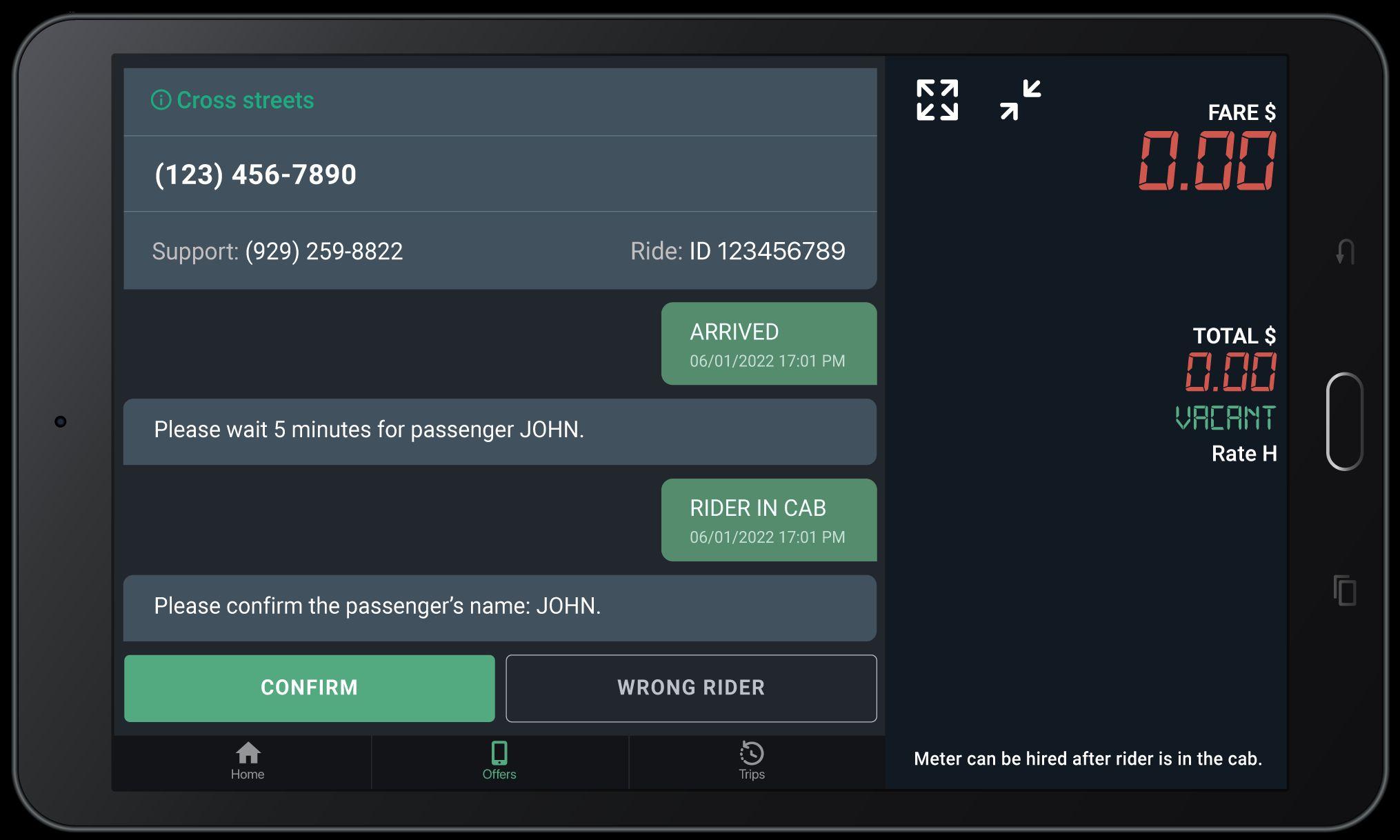

Rider in Cab

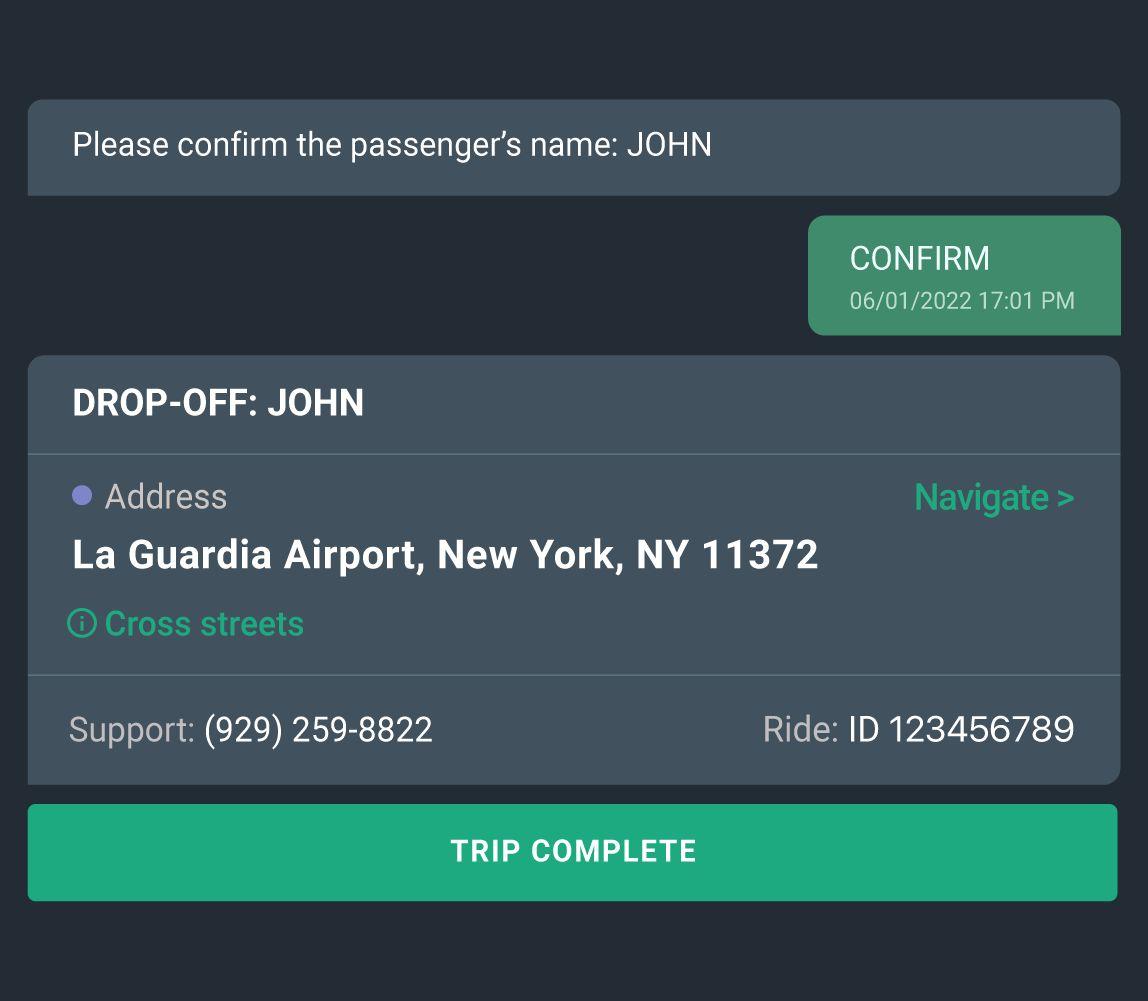

Confirm

Tap after passengers enters the cab. Wrong Rider

Tap once designated passenger is present in the cab.

Tap if passenger’s name does not match what is listed on your trip offer.

Passenger will be notified once ride has started at this point.

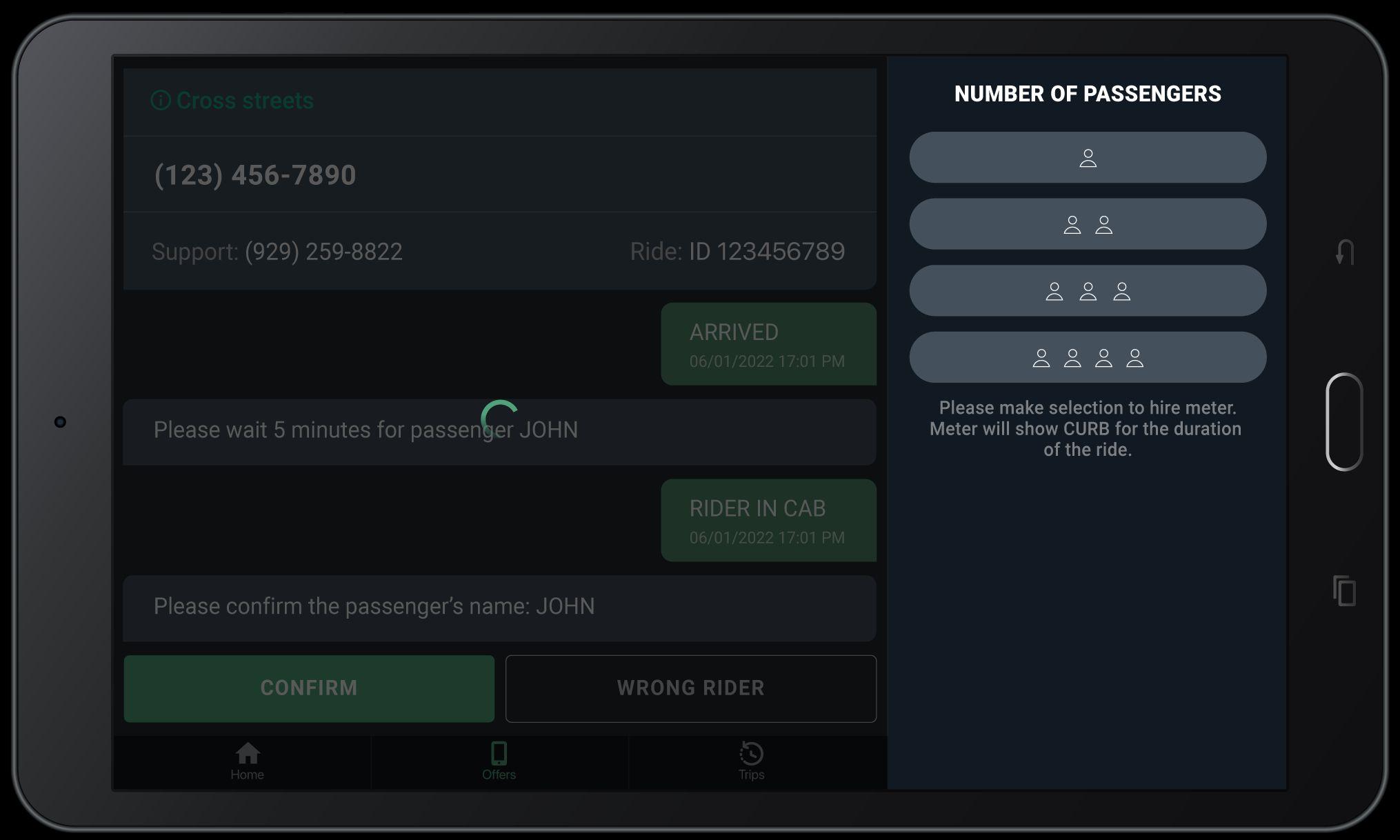

Number of Passengers

Number of Passengers

Select the number of passenger(s) riding in cab.

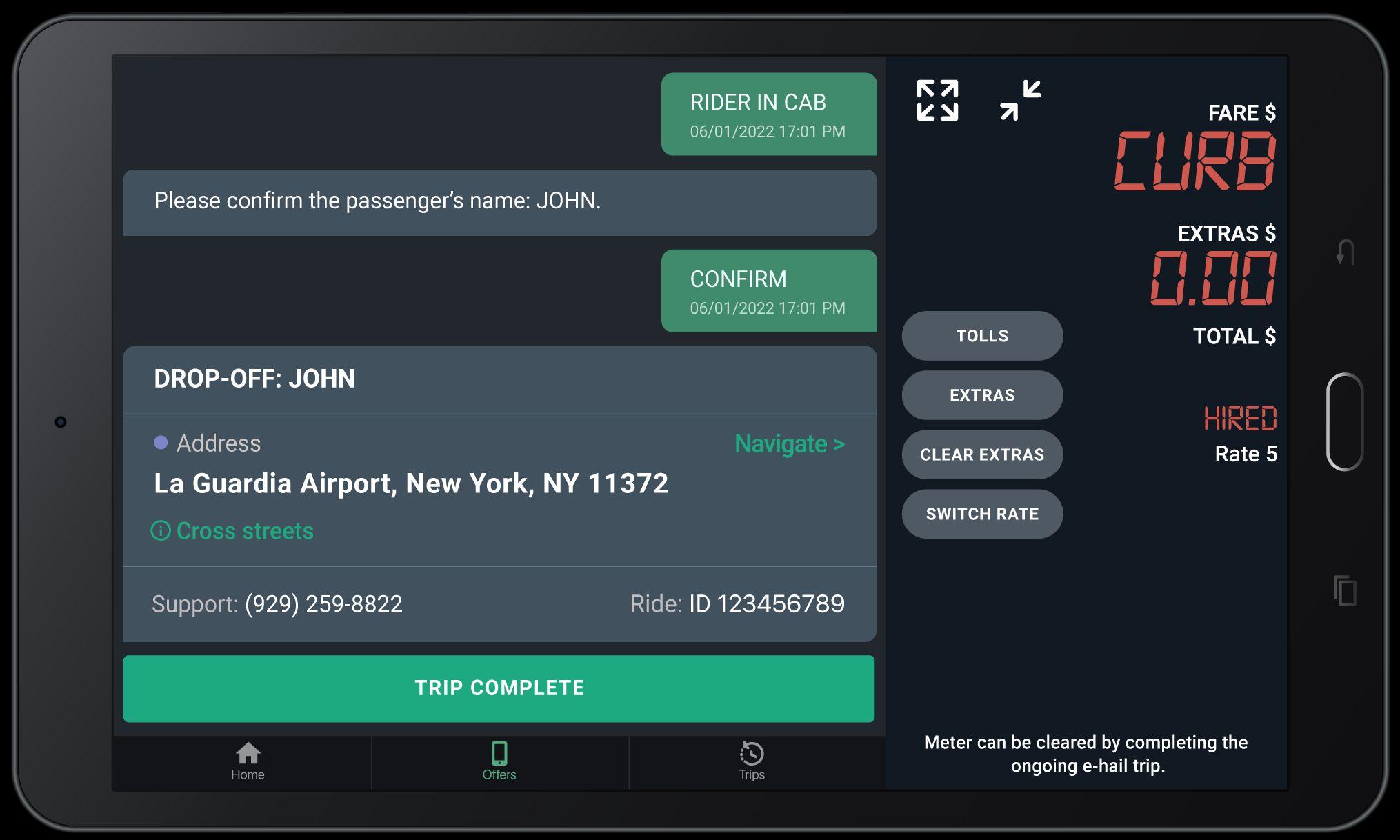

Trip Complete

After arriving at drop off address and dropping off passenger, tap Trip Complete.

Navigate to Destination and Trip Completion

Tap here to access the full menu for the Dash+.

Tap here to shrink to minature view.

Tap to print receipt.

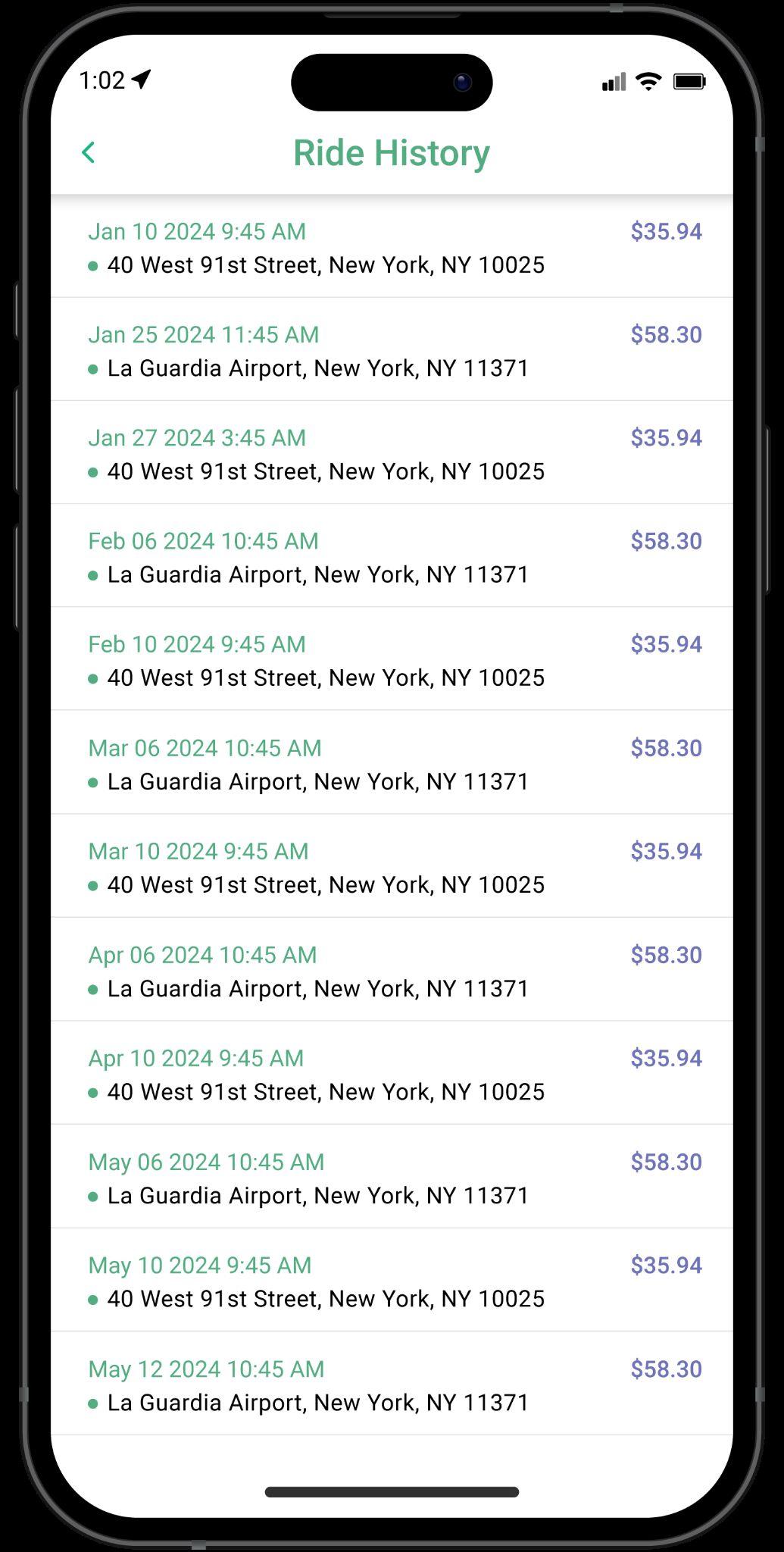

Passenger can view the ride details in app under Ride History.

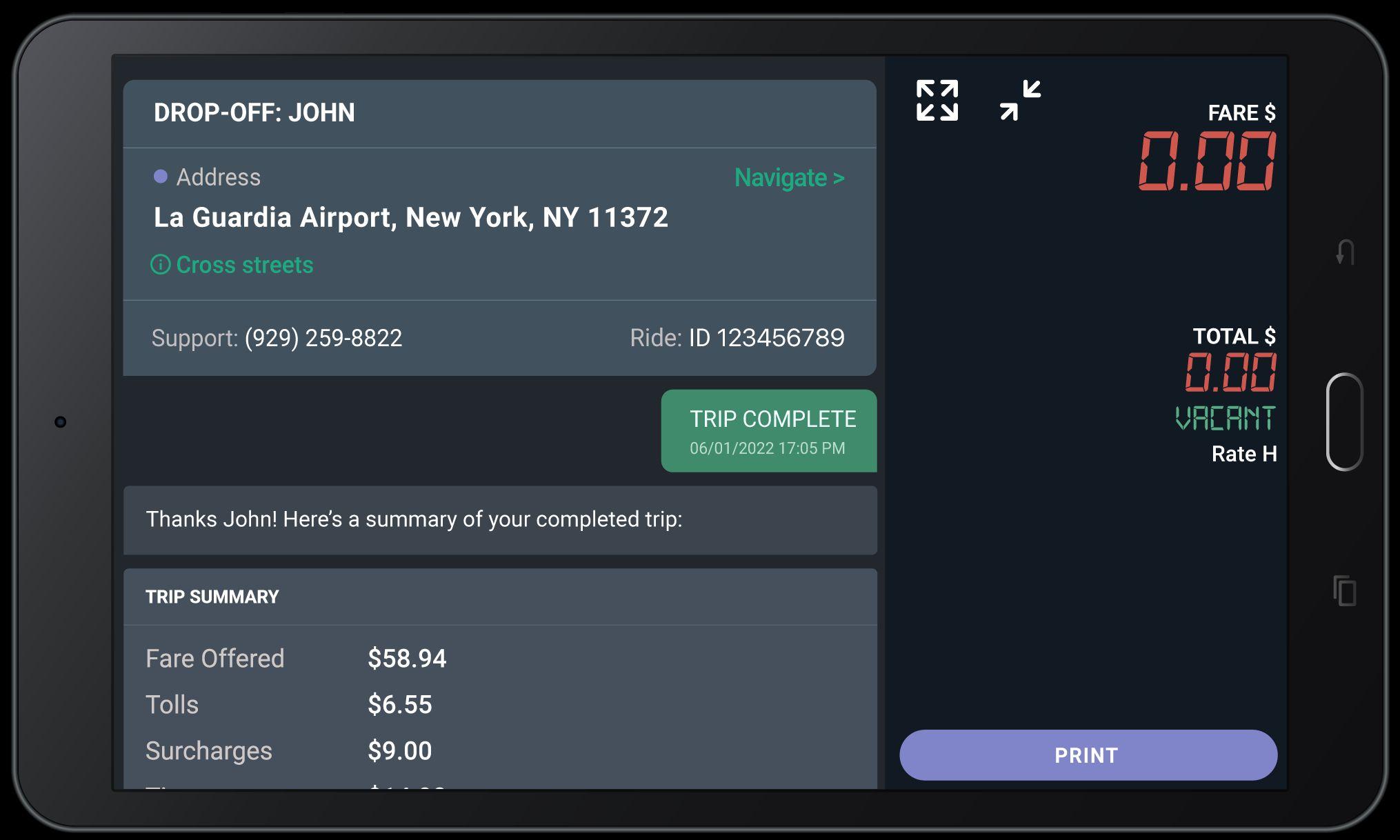

Trip Completion

Trip is completed

You are now ready to hire meter for the next passenger.

You see the Trip Summary after completing the trip.

Passenger view
