Curious, ambitious, and detail-oriented architecture student with a passion for geometry and dimensionality in design. Experience working with a variety of CAD, 3D Design, and BIM softwares through formal and informal training. Efficient time management, organization, and leadership skills that are applicable to any workplace environment.
EXPERIENCE
May 2022Present Charlottetown, P.E.I.
ARCHwork Studio Student Intern*
Assisted with the creation of digital collages, creating social media content, and improving technical skills through informal training. Created conceptual design and project presentation panels in collaboration with other employees.
*Full-Time (Summer 2022) and Part-Time Post Processing Work (Remote Position).
EDUCATION
2021 - Present Cambridge, ON
Honours Bachelor of Architectural Studies Co-op University of Waterloo - School of Architecture Achievements: Term Dean Honours List (Fall 2021)
DISTINCTIONS
2019 - Present June 2021
June 2021 June 2021
SKILLS
Rhino7
Illustrator
Photoshop
InDesign
Enscape Render
AutoCAD 2023
Revit 2022/2023
SketchUp Pro
Grasshopper
Model Making
Hand Drafting
2019-2021
April 2021
VIP Coach - Sport Nova Scotia
Jenna Delaney Memorial ScholarshipCobequid Educational Centre
Merit Entrance Scholarship - University of Waterloo Principal’s Medal - Cobequid Educational Centre
• Awarded to a student who demonstrates exemplary commitment to the school in all three years and made a difference to the school and community Trailblazer Award - Girl Guides of Canada
• Gold (2021), Silver (2020), Bronze (2019) Young Achiever Volunteer Award - Village of Bible Hill, NS
PROFESSIONAL DEVELOPMENT
July 2022
July 2022
Accessibility in Technology, Information and Communications Technology Council, Online Delivery
Engineering of Structures Around Us, Dartmouth College (DartmouthX), Online Delivery
LANGUAGES
English - speak, read, and write fluently French - speak, read, and write with high proficiency (Oral Proficiency Interview B1)
The Origami Library
Created with Rhino7, Adobe Photoshop, Adobe Ilustrator, Adobe InDesign, and Enscape Render
Located in West Don Lands, Ontario, this library offers a place of gathering and learning to the occupants of the neighboring apartment buildings. The geometric brick-tile façade is inspired by the historical development of the area; from the adjacent industrial buildings from the 1800s to the modern condominium units of the present day. The folded building envelope acts as a statement in this urban environment, enticing people to come out of their condo units and come together as a community.

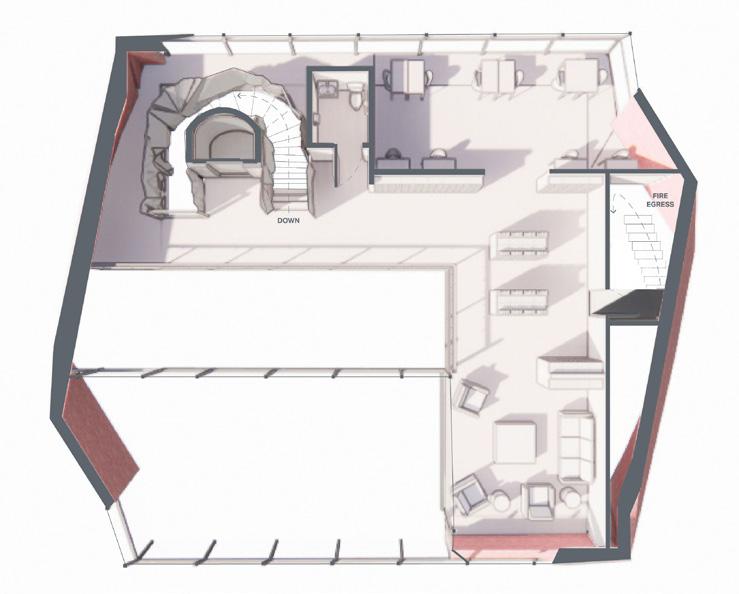

Program Organization
Reading Area
Study Space
Children’s Area
Meeting Room
Bookstacks
Community Kitchen
Dining Area
Reception and Entry
Hobby Herb Garden
Vertical Circulation
Folding Morphology

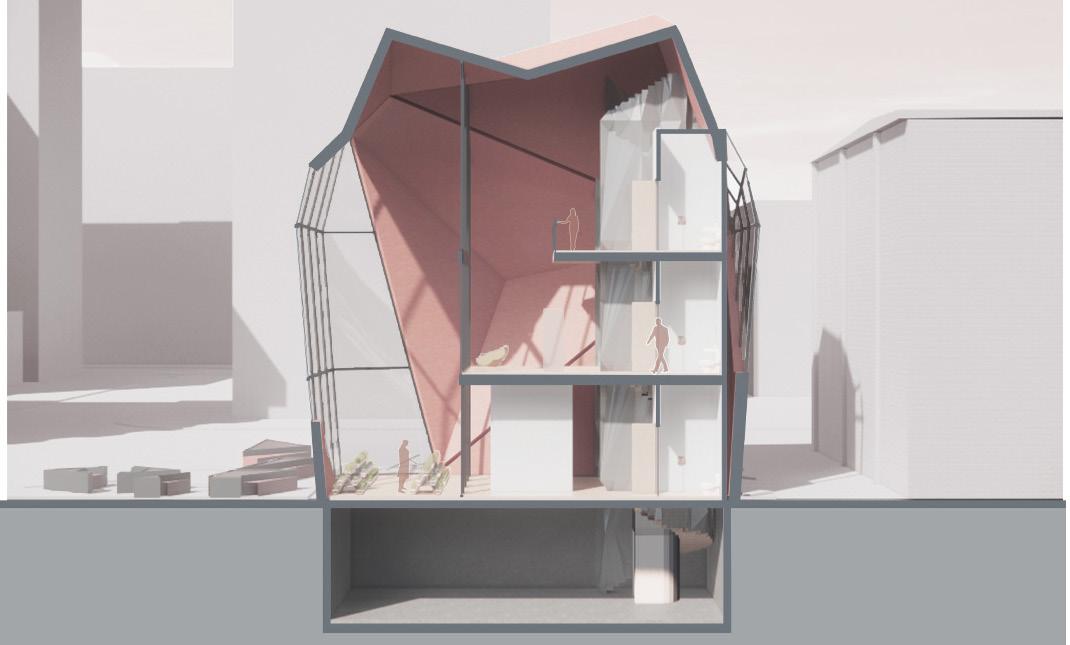

Elevations & Sections
Interior Views
Physical Model
Dimensional Relief
3D Model originally completed in collaboration with Mattan Jin, Sadie Berzins, and Jenna Jardin. Graphic style updated by author since project completion.
Created with Rhino7, Enscape Render, Adobe Photoshop, Adobe Illustrator, and Adobe InDesign
This yoga studio and student living space shares a steeply pitched site with three other buildings to create a welcoming environment for a total of eight student tenants. The name, Dimensional Relief, alludes to the logic of the building design as well as the relief and dimensionality harnessed in one’s inner yogi. The logic behind this building’s dense design was carving spaces out of the density and adding in other elements, such as windows and furnishing. Providing more than enough shelving and storage opportunities, this dense structure also provides its users with built-in furniture- or rather, ‘carved-out’ furniture.

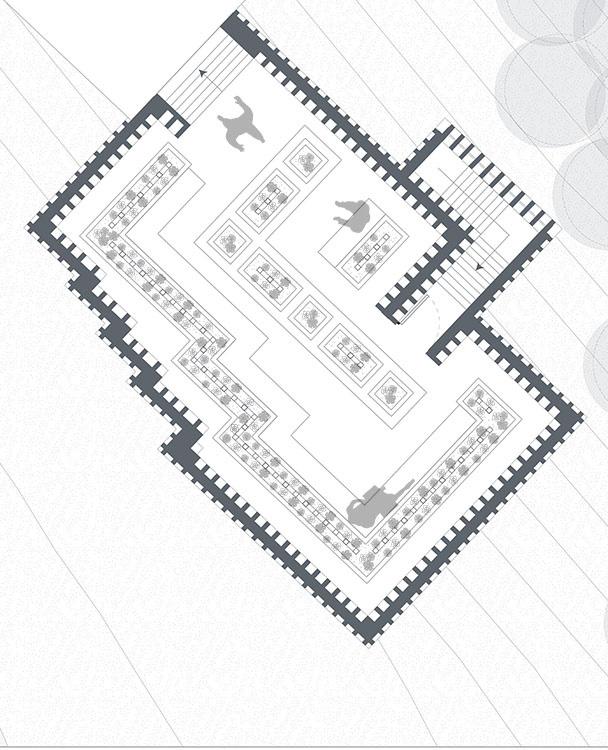

Site Plan
= Music Amphitheatre
= Kitchen
= In-Ground Patio
= Game Design Workshop
= Yoga Studio
= Yoga Studio Patio

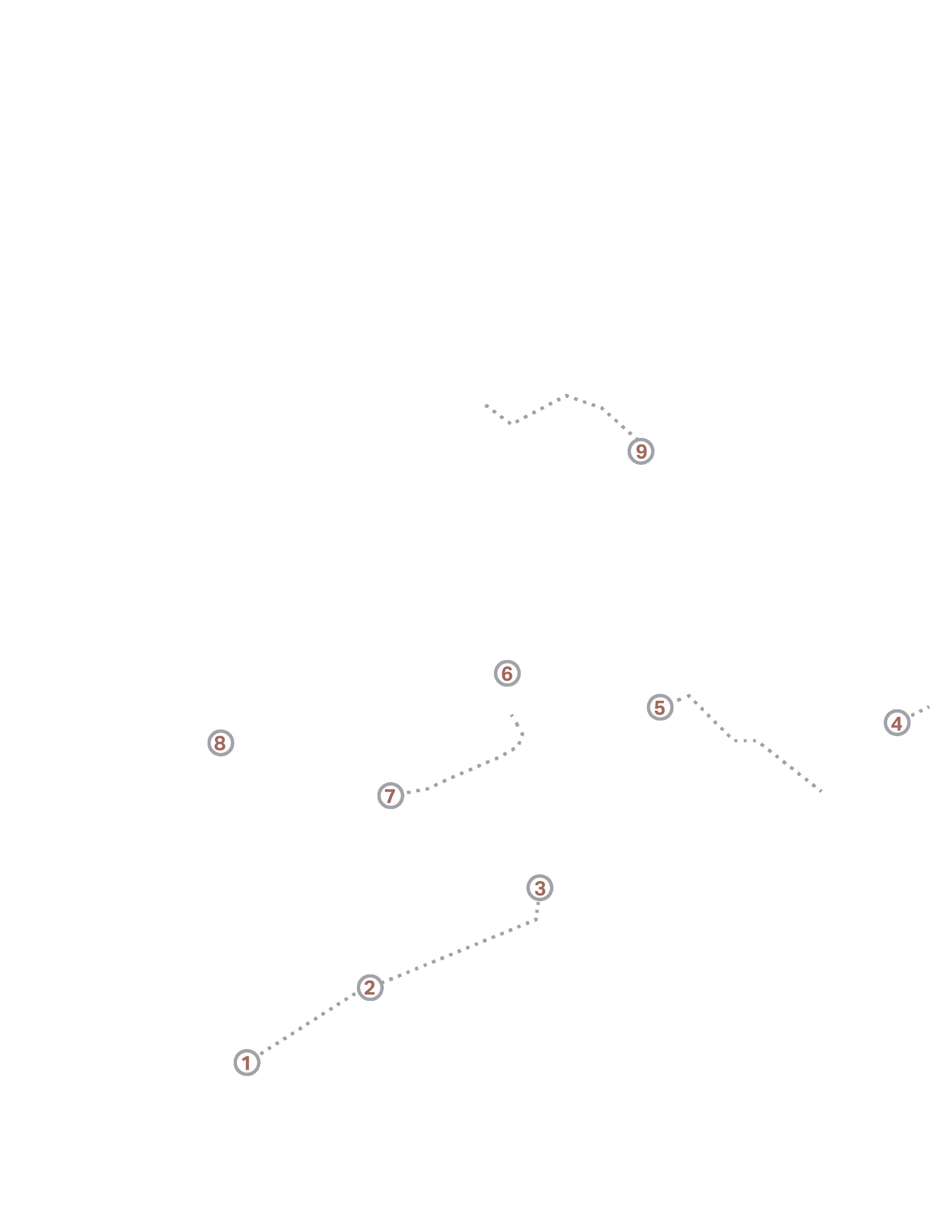

Morphological Diagram
3. Participate in Self Led Yoga, Attend a Yoga Class, or Relax in the
4. Enjoy Yoga on the Patio or go to the Student Residence (Private Access)
5. Entry Closet and Communal Area for Residents and Guests to Socialize
6. Kitchenette with Mini Fridge, Microwave, Sink, and Storage for
9. Rooftop Garden and Gathering Area (Connects to the Other Buildings on the Site)
1. Main Entry to Yoga Studio on North Side of Building (Public Access)
2. Change Rooms, Benches, and Storage for Personal Belongings
Sauna
7. Bathroom: Personal Hygiene is Important!
8. Bedroom for Each Resident to Sleep, Study, Procrastinate from Studying...
Snacks
Bridge Jeffersonianum
Created with Rhino7, Adobe Photoshop, Adobe Illustrator, AutoCAD, and Enscape
The Dundas Valley Conservation Area is the natural habitat to various wildlife and vegetation. This ten-meter pedestrian bridge design is inspired by its surroundings, primarily the Jefferson Salamanders, Ambystoma jeffersonianum, which are native to Central and Southern Ontario. Its design not only mimics the shape of the little amphibian, but it also blends into its surroundings by reflecting nature back to any inattentive by passers through the use of polished aluminum panels. The weathered steel panels lining the interior of the bridge ‘rib cage’ allows for the user to have two different experiences when approaching and walking across the bridge.
Section & Views
AUTUMN WINTER
Material Assembly the Same as Shown Above
Grand River Oasis
Originally completed in collaboration with Dakota Bacchus. Graphic style updated by author since project completion.
Created with Rhino7, Revit 2023, Adobe Photoshop, Adobe Ilustrator, Enscape, and Climate Consultant 6
Using recycled materials and self-sustaining energy and water services, this urban oasis is designed to be a sustainable, eco-friendly retreat located along the Grand River in Cambridge, Ontario. Site analysis and the climate of the region were carefully considered during the design process. Given the cold climate of Cambridge, design strategies addressing the wetter months were imparative to ensure user comfort.
Site Analysis
Solstice
Spring/Fall
Equinox
Winter Solstice
Water Collection
Double Glazd Solar Windows with Vinyl Window Frames
Recycled Stone Cladding
Propane Tank
Blackwater Tratment
High River Crest (March - April)
Low River Crest (Rest of Year)
Recycled Slate Roof Tiles Tyvek
13mm Plywood Sheathing
Pre-Engineered Wood Trusses
Preformed Ventilation Spacer
386mm Loose Denim Insulation
13mm Gypsum Board
13mm Drywall
Eavestrough
Prefinished Fascia
Vented Soffit
Assembly Details
Premanufactured Operable Window
Sealant and Backer Rod
Precast Concrete Sill with Drip Edge
Recycled Stone Cladding Mortar
25mm Air Space
Porcelain Tile
Tile Bond Coat
50mm Mortar Bed
Mortar Bond Bed Coat
19mm Plywood Subfloor
Loose Denim Insulation
13mm Gypsum Board
12mm Drywall
Drainage Board
38mm Rigid EPS Insulation Tyvek
200mm Poured Concrete Foundation Wall
Loose Denim Insulation on 386mm Wood Studs
13mm Gypsum Board
13mm Drywall
Key
400mm x 200mm Precast Concrete Footing
150mm Gravel
100m
Drainage Tile with Filter Cloth Wrap
200mm Concrete Slab
38mm Rigid EPS Insulation
150mm Crushed Stone
Undisturbed Soil
Seven Sacred Teachings
Originally completed in collaboration with Rona Kong. Graphic style updated by author since project completion.
Created with Rhino7, Adobe Photoshop, Adobe Ilustrator, and Enscape. Sketches scanned and refined in Adobe Illustrator.
Spanning Calgary’s newly developed Ring Road, this 183m bridge that offers its users views to the Rocky Mountains and city skyline, acting as a space of meaningful gathering, storytelling, and education as one transitions from a residential community to Indigenous land. The seven vertical rings encircling the bridge not only encaptures the name of its surroundings, but it also reflects the Indigenous circular way of life. The Circular gathering area in the center of the bridge and the quadrant bench placement subtly alludes to the medicine wheel and its inherent seven teachings of harmony. A red, eagle feather inspired guardrail was designed to represent and acknowledge the symbolism of the color and object. Red represents energy, blood, fire, and the missing and murdered Indigenous women and the eagle feather as one of the most sacred objects in Indigenous culture. It also symbolizes a step forward in the ongoing Reconciliation.
Concept Design Sketches
Plans & Elevation
Safety Rail
Red-Metallic Painted
Stainless Steel
AESS 3
Handrail
Stainless Steel
AESS 3
Cables
PC Strand High-Carbon Steel Wire
AESS 3
Rings & Structural Support
Welded White Powder Coated
Stainless Steel (WWPCSS)
AESS 2
Cross Section
Materials & Details
15.24mm 1x7 PC Strand High Carbon Steel Wire Cables
75mm Stainless Steel Handrail (1.2m above deck)
50mm Red-Metallic Painted Stainless Steel Safety Rail (Angled at 30°)
300mm Longitudinal Girder, WWPCSS
100mm Reinforced Concrete
300mm Diameter Diagonal Tubing, WWPCSS
250mm Diameter Square Pipe Cross Bracing, WWPCSS
300mm Diameter Square Pipe Cross Beam, WWPCSS
300mm Diameter Diagonal Tubing, Welded White Powder Coated Stainless Steel
600mm Diameter Square Pipe, WWPCSS
600mm Diameter Pipe, WWPCSS
15.24mm 1x7 PC Strand High Carbon Steel Wire Cables
Wedge
Anchor Barrel
Anchor Plate
Spiral Reinforcement
Corrugated Pipe
Concrete Anchor
15.24mm 1x7 PC Strand High Carbon Steel Wire Cables
