Design Report - MArch ESALA by Cormac Lunn

S U R FAC E M AT T E R S [Ex]Posing Paradigms for a Shifting Ground

Grounding Naples [2022-2024] Cormac Lunn

“Surface should be understood neither as a merely structural, nor as a merely decorative aspect of building. Rather, the creation of surfaces organises a programme which allows for a reading of the space of architecture.”

Andrew Benjamin

S U R FAC E M AT T E R S [Ex]Posing Paradigms for a Shifting Ground

Grounding Naples [Integrated Studio Pathway] [2022-2024] Cormac Lunn

10 |

ABSTRACT

Surface Matters explores approaches to Neapolitan ground which reflect the intensely material nature of the city. Through a collection of projects along the ridge extending from the Belvedere di Sant’Antonio a Posillipo at Mergellina where J.M.W. Turner sketched Vesuvius, to the north of Chiaia and up the west of the Quartieri Spagnoli to Parco Ventaglieri, architecture is positioned as a device through which the interplay between structure and substrata is made manifest. Developing Andrew Benjamin’s concept of the “double register” of architecture—where architecture is understood as both something which effects and affects, and something that is the effect of material concerns—it explores how the consistent material surface which unifies the city’s walls, streets, and ground is not only a surface upon, from or with which to build, but also an agent that shapes and is shaped by broader ecological and architectural conditions. Surface materials are re-conceived as Surface Matters; the materials which surface the city become (ecologically, economically, if not always structurally) precarious and contingent, unstable in a manner which extends beyond the friability of the compressed volcanic dust and ash aggregates which make up the tufo. As Surface Matters, material surfaces become things for which we must exhibit due concern .

This reconsideration of surface—recalling Benjamin’s double register—affects the architecture which is constructed above . As an invitation to exhibit concern, Surface Matters occupies several ruins within the UNESCO World Heritage site, proposing a series of architectures which serve as stewards for Naples’ historic fabric. Occupying sites in Montecalvario, Posillipo, and the Quartieri Spagnoli where the intensity of unpredictable ground movements is evident, facilities for the management of water runoff, the surveying and recording of vulnerable sites, and the preparation of replacement stones for conservation work seek to reimagine the relationship between ground and building fabric in areas where an increasing number of buildings are at risk of collapse. These monitoring sites develop a series of architectural typologies emanating from a central site at the Belvedere at Mergellina, where water is harvested, Turner’s Neapolitan paintings are exhibited, and local Greco di Tufo wines are aged and served. A series of basins, cut into, cast onto and constructed from the tuff, manage rain and surge water to relieve the pressure caused by soil erosion, and provide irrigation for planting. Above, cooling towers take advantage of the presence of the water to generate passive ventilation, aiding in reducing energy demands. At an urban scale, positioned along the ridge these cooling towers generate currents which encourage the movement of air in the city’s canopy layer, which currently acts as a barrier preventing the escape of heat and suppressing airborne pollutants. As a set of interconnected programmes for monitoring, retaining and stabilising a set of shifting ground conditions, these isolated but related architectures are understood as capable of considerable affect, and as rearticulations of the urban surfaces that they activate and by which they are activated.

| 11

12 |

| 13

14 |

| 15

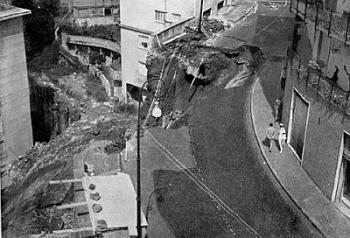

Sinkhole in Corso Amedeo di Savoia, 1979

16 |

CONTENTS SURFACE MATTER [Ex]Posing Paradigms of a Shifting Ground

GLOSSARY

CHAPTER THREE | DISREPAIR Inhabiting a Ruin

XI. Buildings at Risk XII. Decay of Chiesa SS. Trinata XIII. Preservation of Craft XIV. Surveying a Ruin XV. The Stone Masons Yard XVI. Occupying the Nave [Reflection - Surveying]

CHAPTER ONE | SUBSTRATE Characterising Precarity

I. Volcanic Substratum II. Unstable Ground III. Geology of the City IV. Urban Cavities [Reflection - Group Working]

CHAPTER FOUR | RIDGE Mediating Uncertain Ground

XVII. A Hydrological Crisis XVIII. A Shifting Surface XIX. Traversing the Ridge XX. The Hydrological Guild XXI. Inhabiting a Belvedere XXII. Stabilising the Ridge XXIII. A Network of Monitoring

CHAPTER TWO | PARTICULATE

[Reflection - Drawing]

V. Constructing a Studiolo VI. Taxonomy of Materials VII. A City Ravine VIII. Turner in Naples IX. The Urban Canopy Layer X. The Meteorological Observatory

CHAPTER FIVE | DETAIL XXIV. Framing XXV. Embedding XXVI. Transecting

[Reflection - Crafting]

[Reflection - Exhibiting]

Capturing Suspended States

Defining Architectural Footings

| 17

18 |

| 19

20 |

| 21

GLOSSARY [SURFACE MATTERS]

Surface Effects

Urban Canopy Layer

Surface Effects, as proposed by Andrew Benjamin, go beyond just structural or decorative aspects in buildings. They play a key role in organising architectural programs and interpreting architectural space. This space carries a “double register”, relating to specific buildings and their impact, and also to a broader concept that architecture arises from the potential within the materials used in surface construction.

The Urban Canopy Layer is the atmospheric layer in urban areas, from ground level to average rooftop height. It includes natural and built features like vegetation and buildings, influencing the urban microclimate and ecology. Shaped by human activities and urban design, it affects heat retention, air quality, and biodiversity.

Managing this layer is crucial for addressing urban heat islands, reducing air pollution, and enhancing urban ecological resilience.

Material Reciprocity Material Reciprocity refers to the symbiotic relationship between materials and their environment, highlighting a dynamic exchange of resources. It suggests that materials are not passive, but actively shape and respond to their surroundings. This concept underscores the interconnectedness between materials and their ecosystems, promoting sustainability within the built environment.

22 |

[SURFACE CHARACTERISTICS]

Tufo

Substrata

Tufo is a volcanic rock formed from consolidated volcanic ash and debris. Abundant in the region due to volcanic activity, especially from Mount Vesuvius, this porous, lightweight stone is easily workable, making it a popular building material in Naples for centuries. Used in various architectural applications, its porous nature also makes it suitable for water storage and filtration, playing a significant role in the city’s infrastructure and urban development.

Substrata refers to the geological formations underpinning the city’s landscape and urban development. It includes a network of rock, soil, and volcanic deposits, reflecting Naples’ proximity to Mount Vesuvius. The substrata also encapsulates the city’s historical, cultural, and social foundations, contributing to Naples’ unique identity and character.

Aquifer An aquifer is a subsurface layer of permeable material containing water for human use. It’s a vital freshwater source, providing drinking water, agricultural irrigation, and ecosystem support.

Naples’ aquifers are replenished by rainfall and surface water, filling underground spaces. Given their importance to the region’s water supply, sustainable management and conservation are crucial for their long-term viability amidst urban development and environmental pressures.

| 23

GLOSSARY [SCALES OF OPERATION]

Neapolitan Ground

Zone

Vitruvius’ description of the construction of a wall folds together material, constructional and environmental concerns. “Since the stones used are soft and porous,” he writes, “they are apt to suck the moisture out of the mortar... But when there is abundance of lime and sand, the wall, containing more moisture, will not soon lose its strength, for they will hold it together.” With a sustained interest in Neapolitan surfaces and through the scale implied by ‘Neapolitan Ground’, this thesis explores the broader ecological territory and material reciprocities that underpin this notional wall. It explores how the constituents of the wall—the tufo, lime and sand—belong to broader, an often problematic, conditions and ecologies.

A Zone, following Bruno Latour, denotes a space characterised by “no established meaning... marked by ambiguity, still in the process of delineation, exuding an unsettling ambiance.” It focuses on the contingent and the elusive, encompassing phenomena that are either not easily categorizable or remain undocumented.

In this interpretation, architectures become interwoven with the structural and underlying material conditions. In the domain of critical zone science, a Zone functions as a porous interface connecting the upper canopies of trees to the groundwater below.

This thesis address emanations, atmospheres, and impacts that extend beyond ground level, such as the effects of concrete in hilly suburbs and dense urban landscapes, contributing to the urban heat island effect.

Groundings A grounding evolves into a potent point of interaction, necessitating the reconfiguration of the ground and building to facilitate an architecture that operates to the mutual advantage of that ground. These groundings influence the flow and alleviation of pressures. This thesis suggests a network of groundings that participate in beneficial exchanges and investigate the technical and environmental potentials of the city’s material consituents.

24 |

[PROTAGONIST]

J.M.W. Turner [ Joseph Mallord William Turner] (born April 23, 1775, London, England-died December 19, 1851, London), English Romantic landscape painter whose expressionistic studies of light, colour, and atmosphere were unmatched in their range and sublimity.

Turner visited naples in 1819 after being made aware of Vesuvius recent activity and hoped to witness and eruption.

| 25

26 |

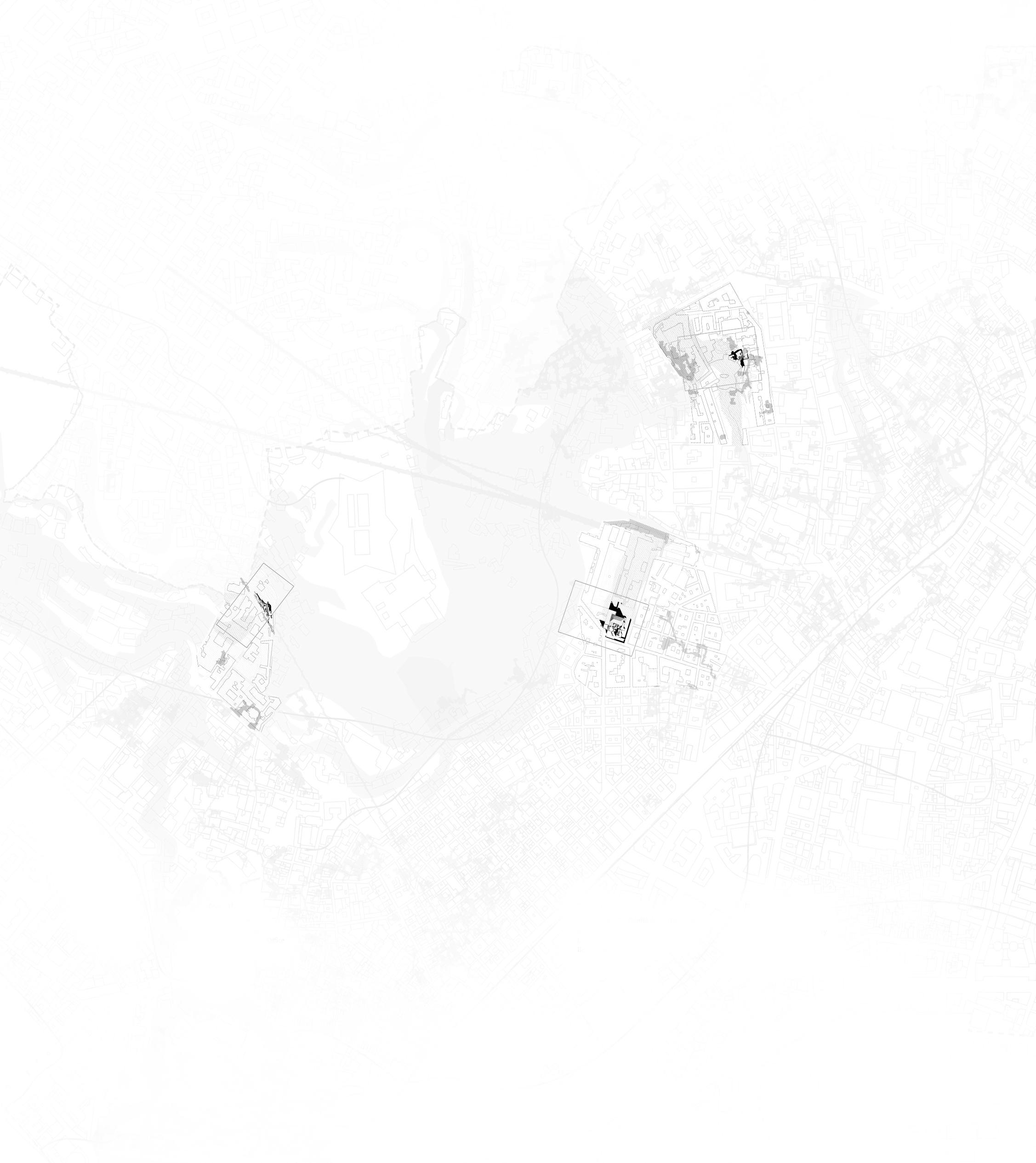

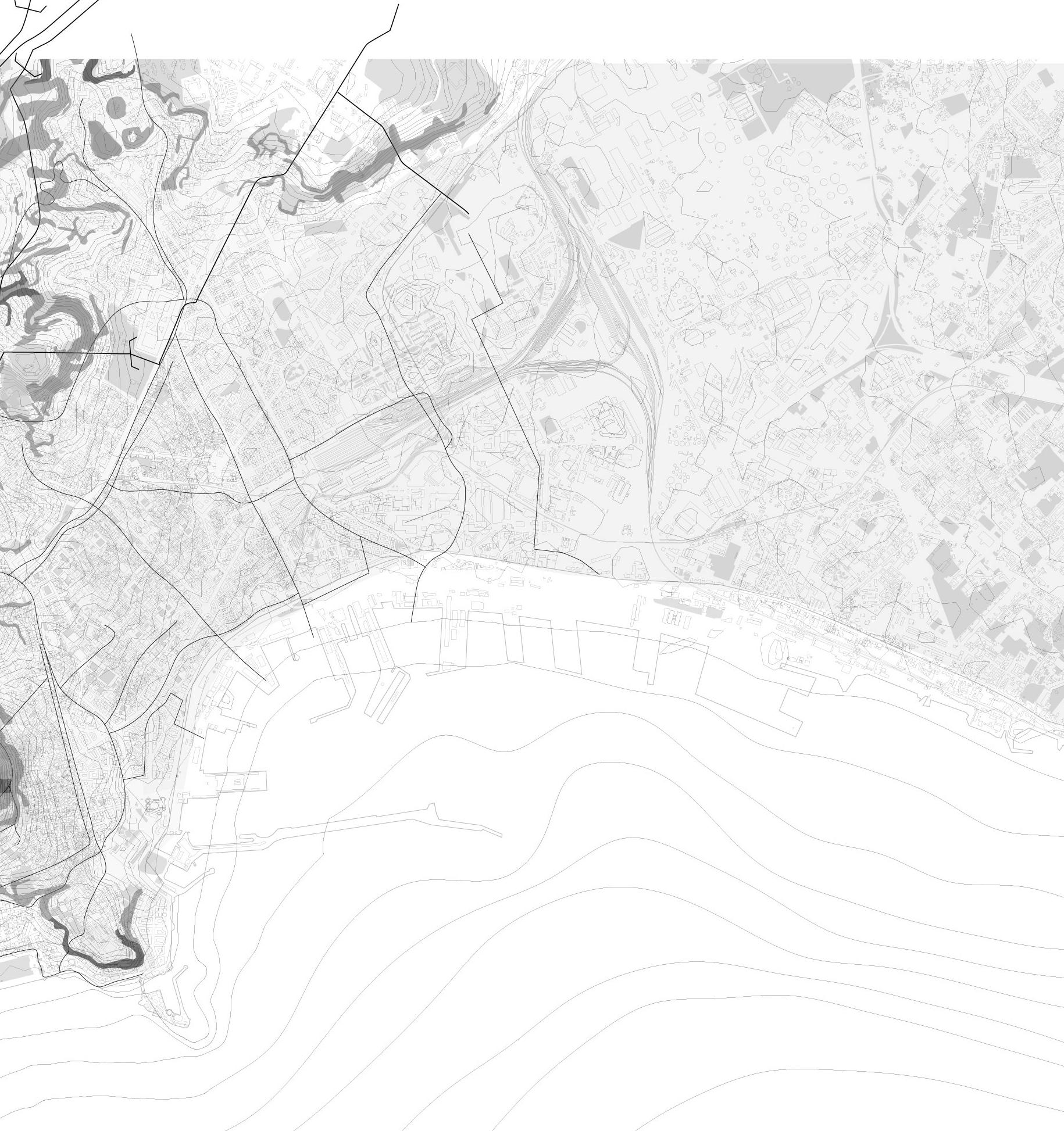

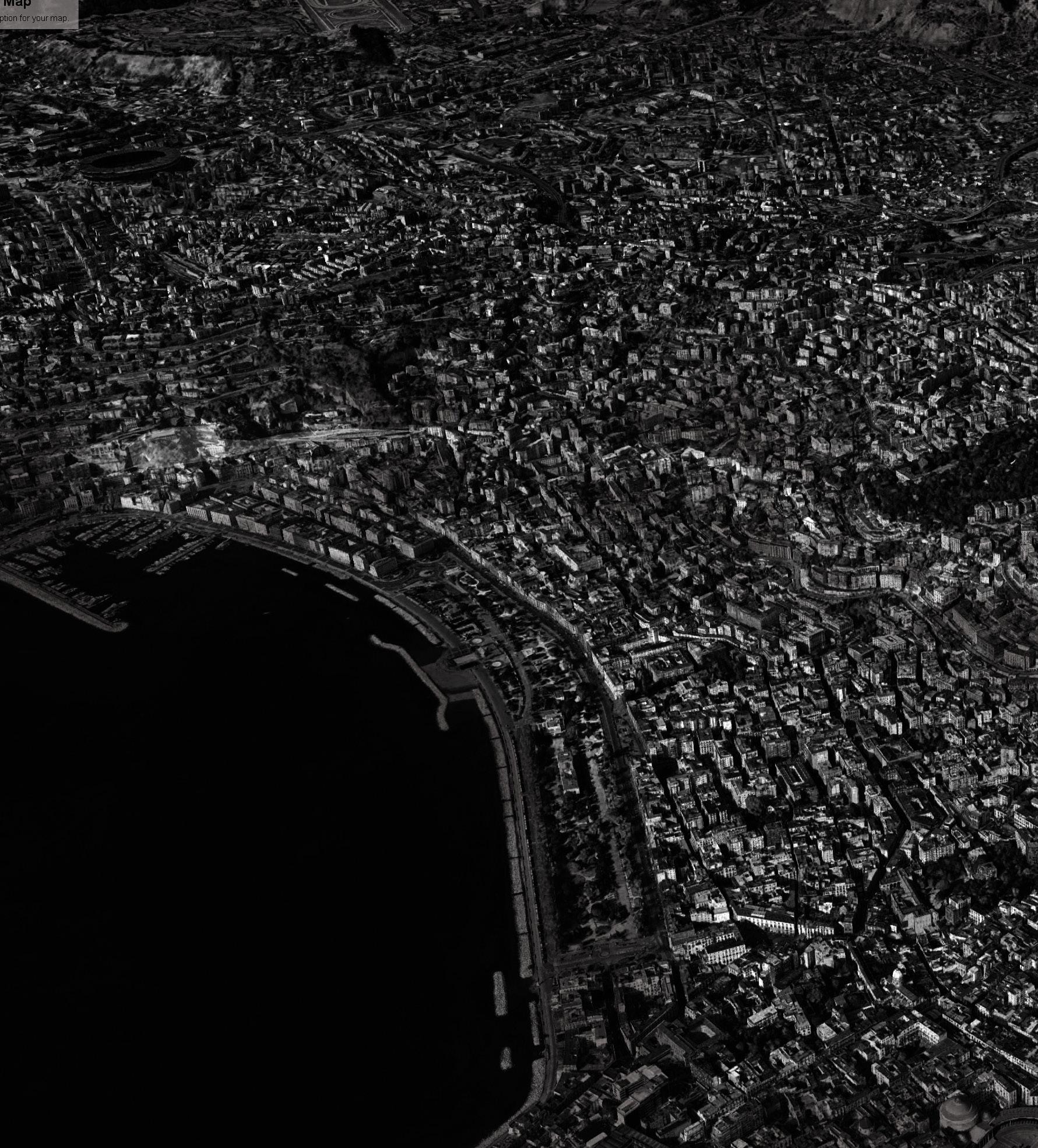

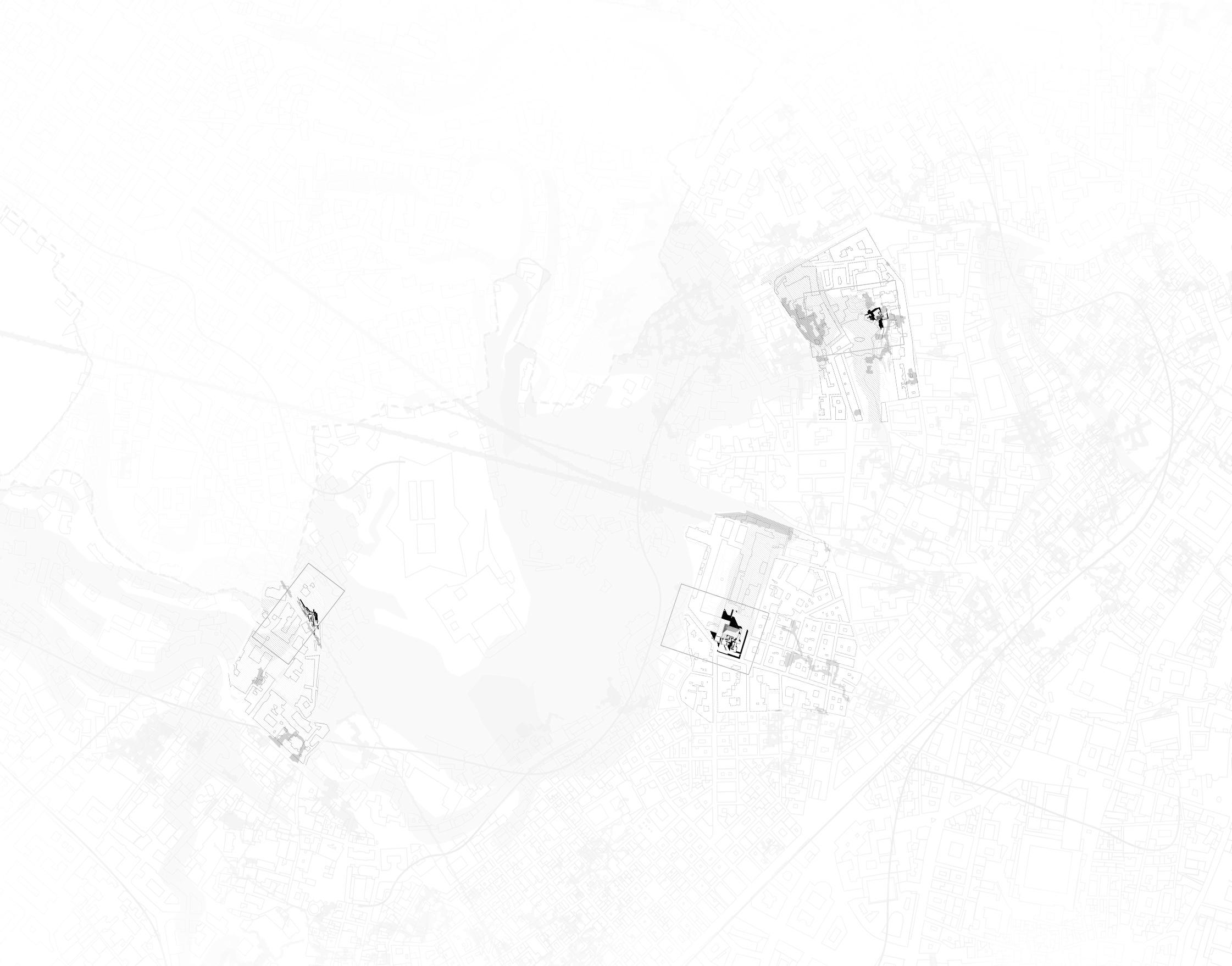

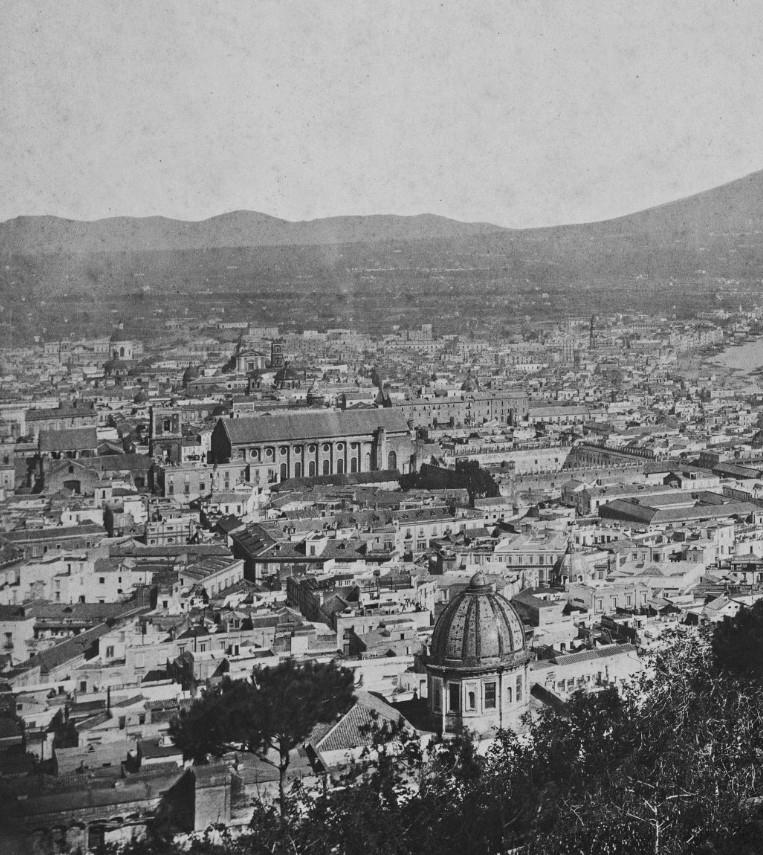

City of Naples

| 27

28 |

| 29

[Zone 1 ] Parco dei Ventaglieri Meteorological Observatory Painting Studio Belvedere

30 |

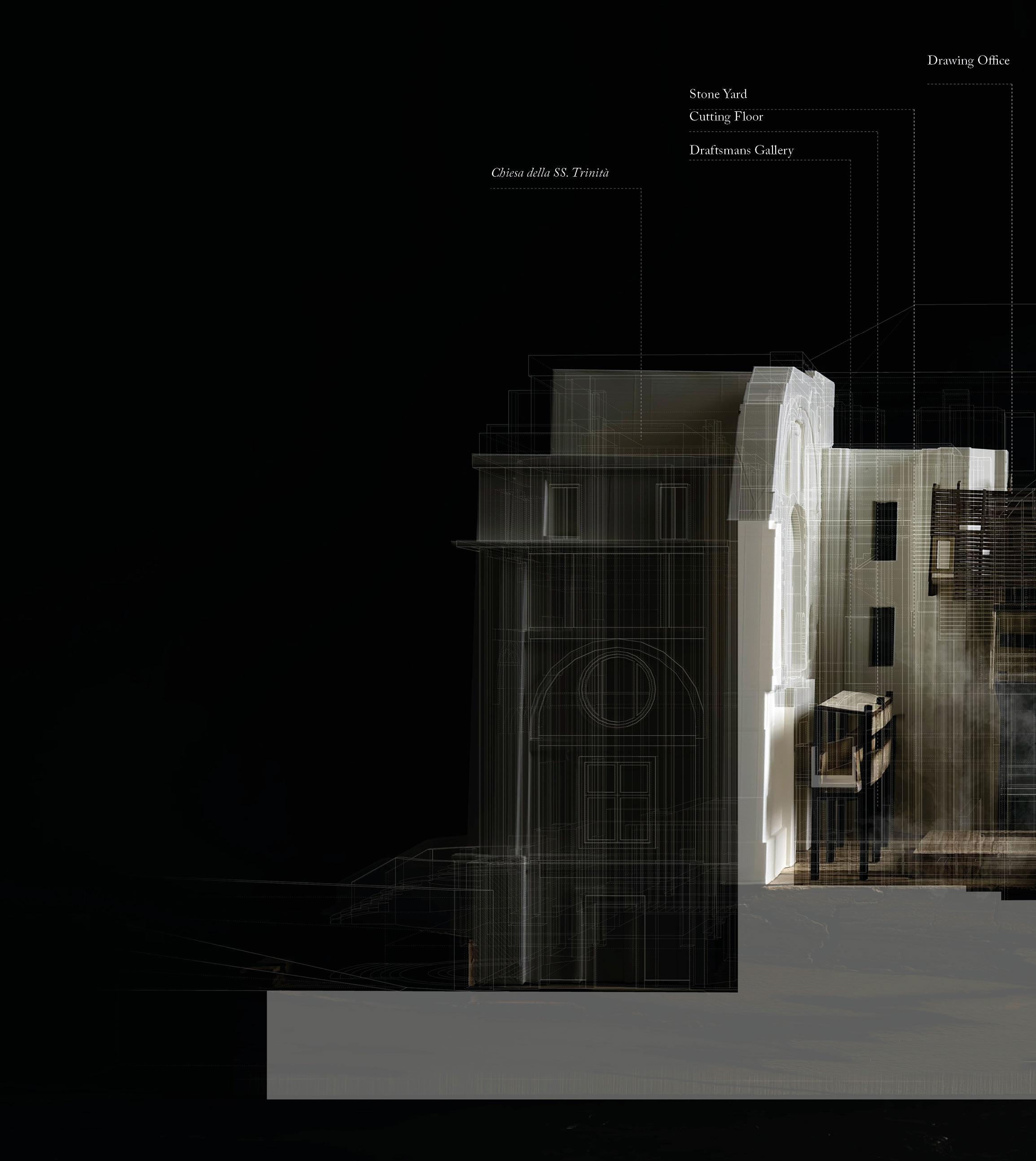

[Zone 2] Chiesa della SS. Trinità delle Monache Stone Yard Drawing Office Belvedere

[Zone 3] Largo Petraio Funicular Station Water Commission Office Tabbacci Belvedere

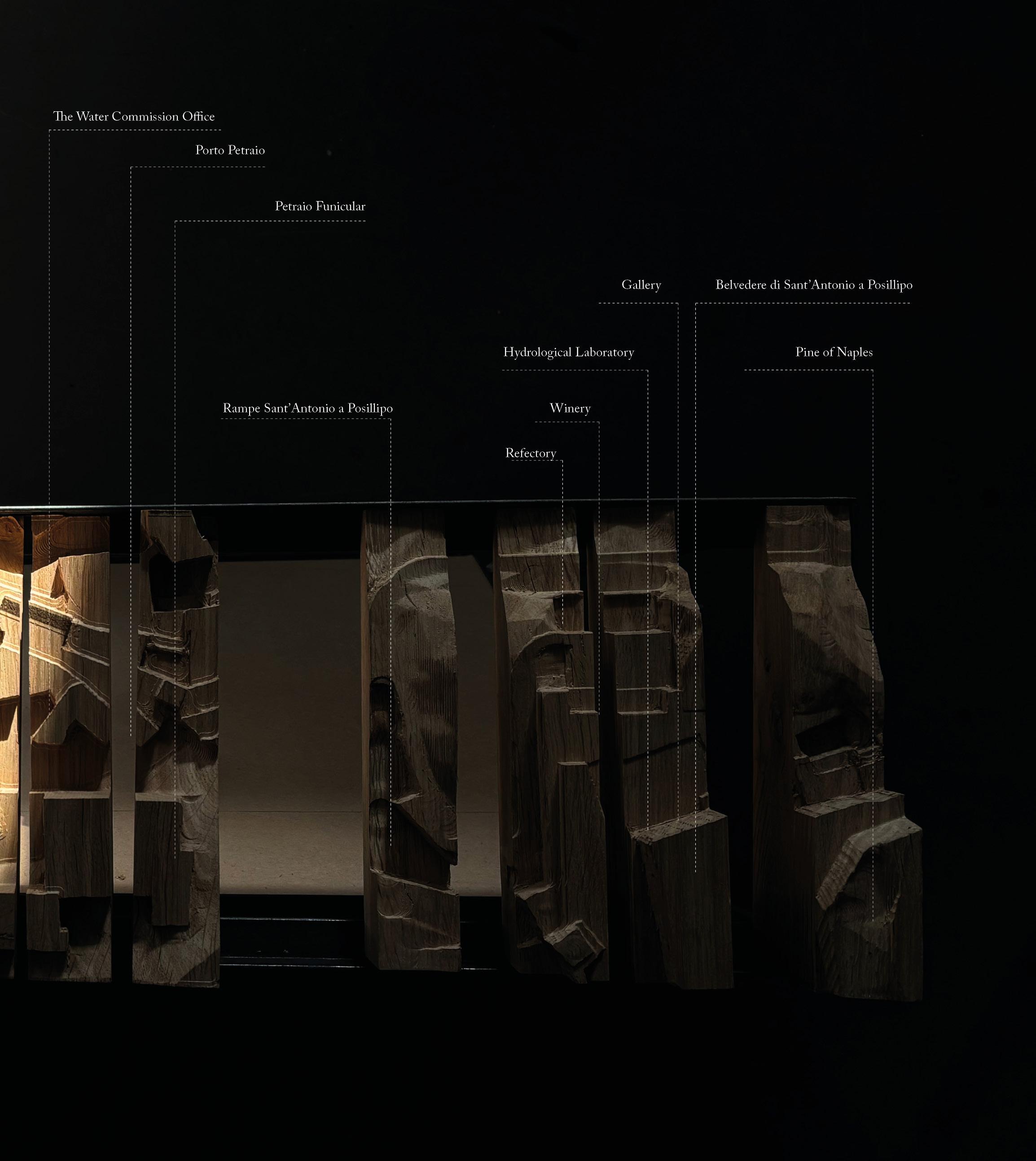

[Zone 4] Belvedere di Sant'Antonio Hydrological Laboratory Gallery Winery Refectory Belvedere | 31

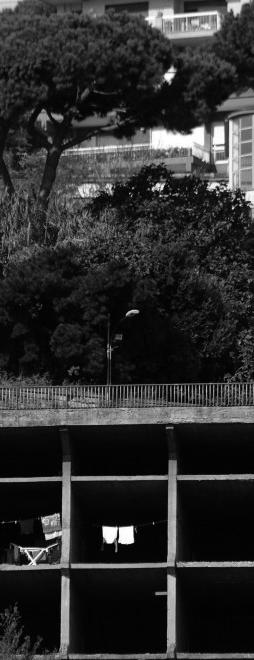

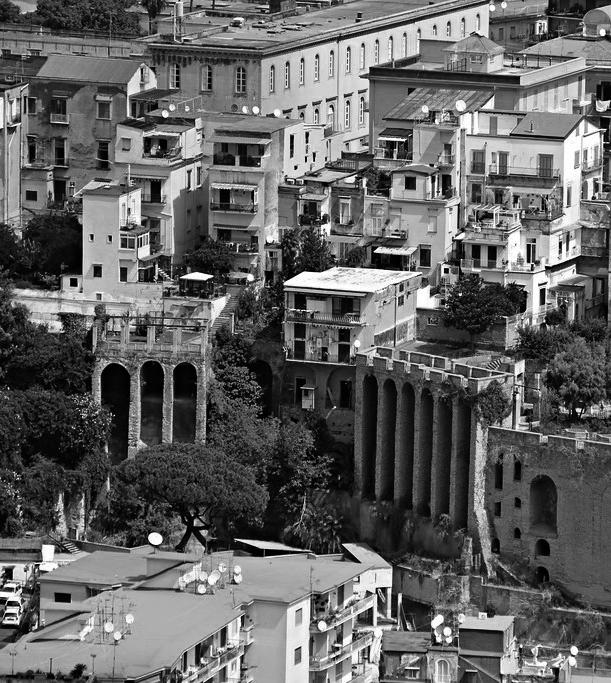

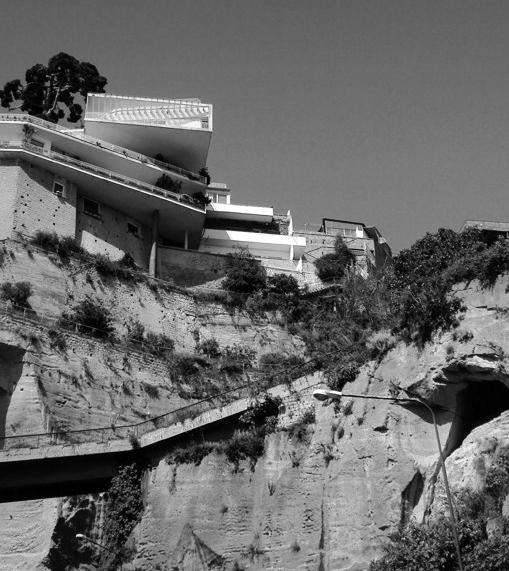

[left] abondoned cavity in mergellina, cut out of the tufo ridge [right] transects of the unstable ground condition across the bay of naples

32 |

| 33

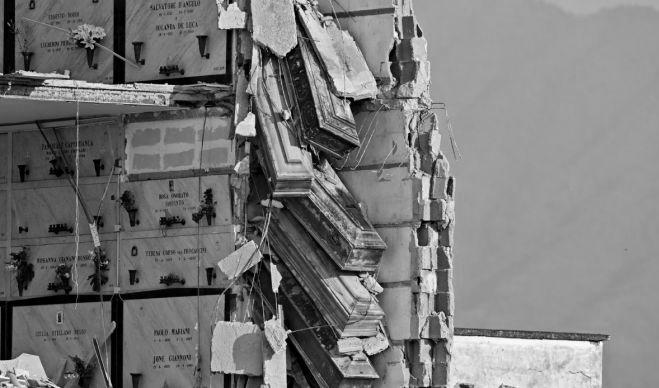

[top] the Poggioreale cemetery after the collapse of a four-storey wall in the graveyard left at least a dozen coffins hanging precariously from a considerable height. [bottom] Part of the facade of a , Santa Maria del Rosario alle Pigne in central Naples collapse due to degradation and ground movement [right] surface movement within naples UNESCO boundary 34 |

| 35

36 |

ONE.

SUBSTRATE

CHARACTERISING PRECARITY I. Volcanic Substratum II. Unstable Ground III. Geology of the City IV. Urban Cavities

| 37

I.

RECORDING PRECARITY

Naples, the capital of Italy’s Campania region, is strategically located within the Campanian Volcanic Arc, bordered by Mount Vesuvius to the East and the volcanic craters of Campi Flegrei (Phlegrean Fields) to the West.[1] The cityscape of Naples has been moulded by the volcanic activities and eruptions from both areas, leading to the creation of tuff, a porous rock that forms from the solidification of volcanic dust and ash, which serves as the city’s foundation. This geological base, with a depth of at least ten meters in Naples’ historic centre, [2] has had a significant impact on the city’s physical and social evolution, affecting building methods, materials, and ground conditions.

79 The eruption of Mount Vesuvius in 79 AD destroyed the Roman cities of Pompeii, Herculaneum, Oplontis, Stabiae, and several other settlements. The eruption ejected a cloud of stones, ashes and volcanic gases to a height of 33 km (21 mi), erupting molten rock and pulverized pumice 172 203 6 November 472

[1] Carlo Gerundo, Valerio Di Pinto, and Vincenzo Stefano, ‘Naples and Its Parallel City’, 2015, 35.

512

[2] Gerundo, Di Pinto, and Stefano, 35.

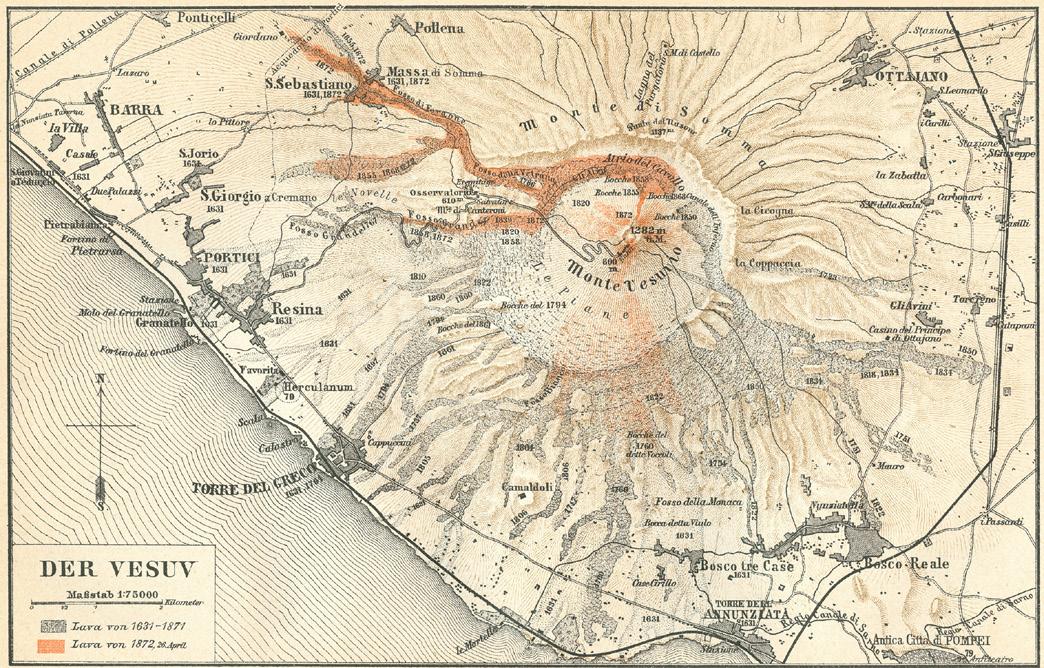

26 February 685 787 968 991 993 999 1007 1036 27 January 1037 1068 1078 [above] vesuvius eruptions and lava flows from 1631 to 1872. From Meyers

29 May 1139

Konversations - 1885.

1305 38 |

15 November 1868 1500

19 October 1767

16 December 1631

1771

1649

1776

3 July 1660

8 August 1779

1680

1785

1682

15 June 1794

1685

1805

1689

1810

13 April 1694

1812

28 July 1707

1813

1714

1817

million m3 crater left by the eruption of 1906.

1717

1820

3 June 1929

1723

22 October 1822

A lava flow toward Terzigno. The lava flow emission was

1725

1831

by sustained seismic tremor.

1728

23 August 1834

18 March 1944

1730

1839

A lava flow invades Massa and S. Sebastiano. On 6

20 May 1737

6 February 1850

1751

1 May 1855

1752

1858

and part of San Giorgio a Cremano are destroyed.

1755

8 December 1861

This was the last eruption recorded.

23 December 1760

1867

1871 24 April 1872 1884 1891 1895 1899 May 1905 - 4 April 1906 5 July of 1913.

A prolonged period of permanent activity begins, characterized by quiet effusion of lava and minor explosion from a small conelet, slowly filled the 80

followed by a phase of lava fountaining accompanied

January, 1944 there was a lava flow from the conelet that rapidly reaches the border of the rim and outflows.

The small lava flows continues until 26 January outside the rim and until 23 February within it. The villages of San Sebastiano al Vesuvio, Massa di Somma, Ottaviano

| 39

[Campi Flegrei]

[above ] magma chamber below the cities suspended morphology 40 |

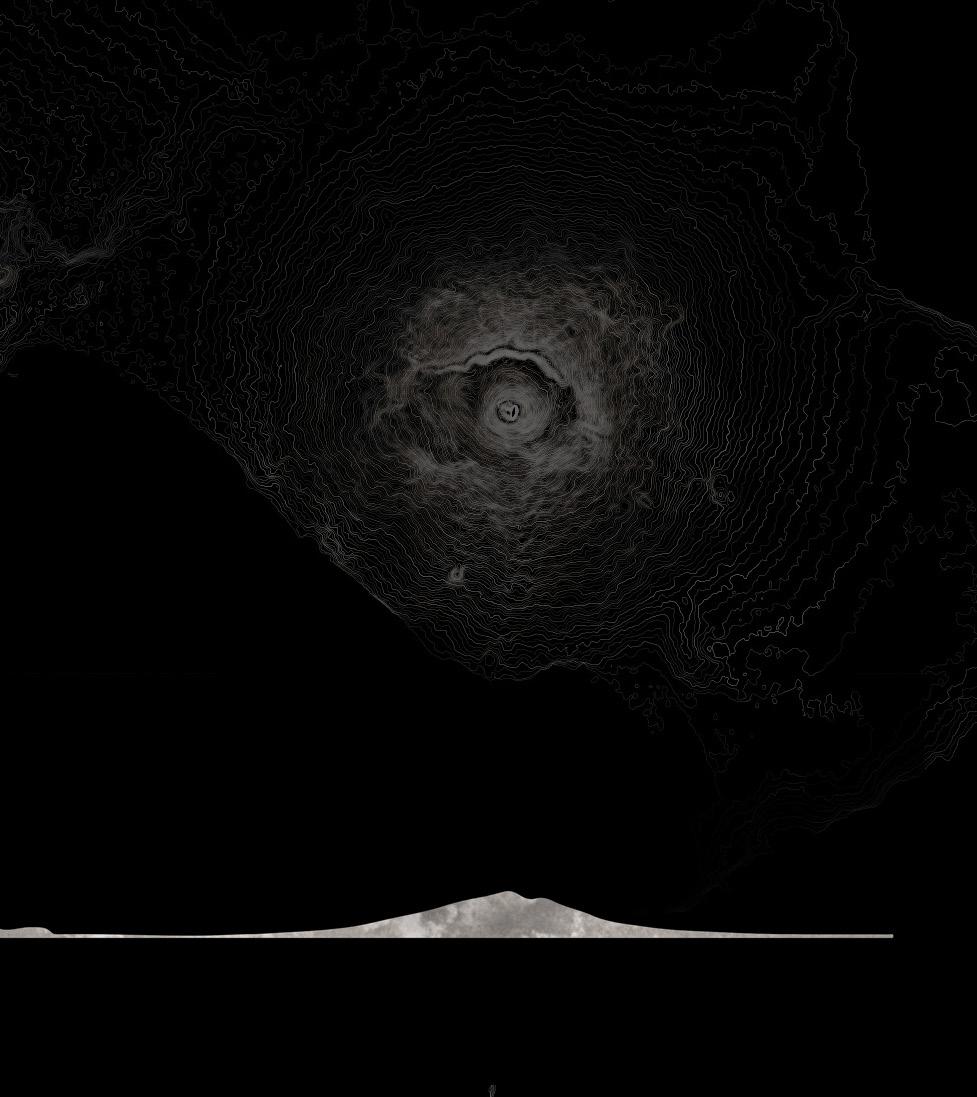

[Mount Vesuvius]

| 41

II.

UNSTABLE GROUND

The geological formation of the volcanic bedrock, combined with the area’s rugged terrain, seismic events, bradyseism, and other natural occurrences, contribute to an inherently unstable ground condition for the city’s foundation, independent of any human alterations. This instability is exacerbated by the susceptibility of the volcanic bedrock to erosion by water.

Aquifers and the fluctuation of the water table infiltrate the layers of pyroclastic flows, leading to the degradation of the surrounding bedrock and consequent instability.[3] These factors affecting the resilience of the volcanic substratum underscore the fragility of the layers of subsoil and urban infrastructure positioned above it.

[3] Paolo M. Guarino and Stefania Nisio, ‘Anthropogenic Sinkholes in the Territory of the City of Naples (Southern Italy)’, Physics and Chemistry of the Earth, Innovative modelling approaches for disaster risk reduction, 49 (1 January 2012): 93, https://doi.org/10.1016/j.pce.2011.10.023.

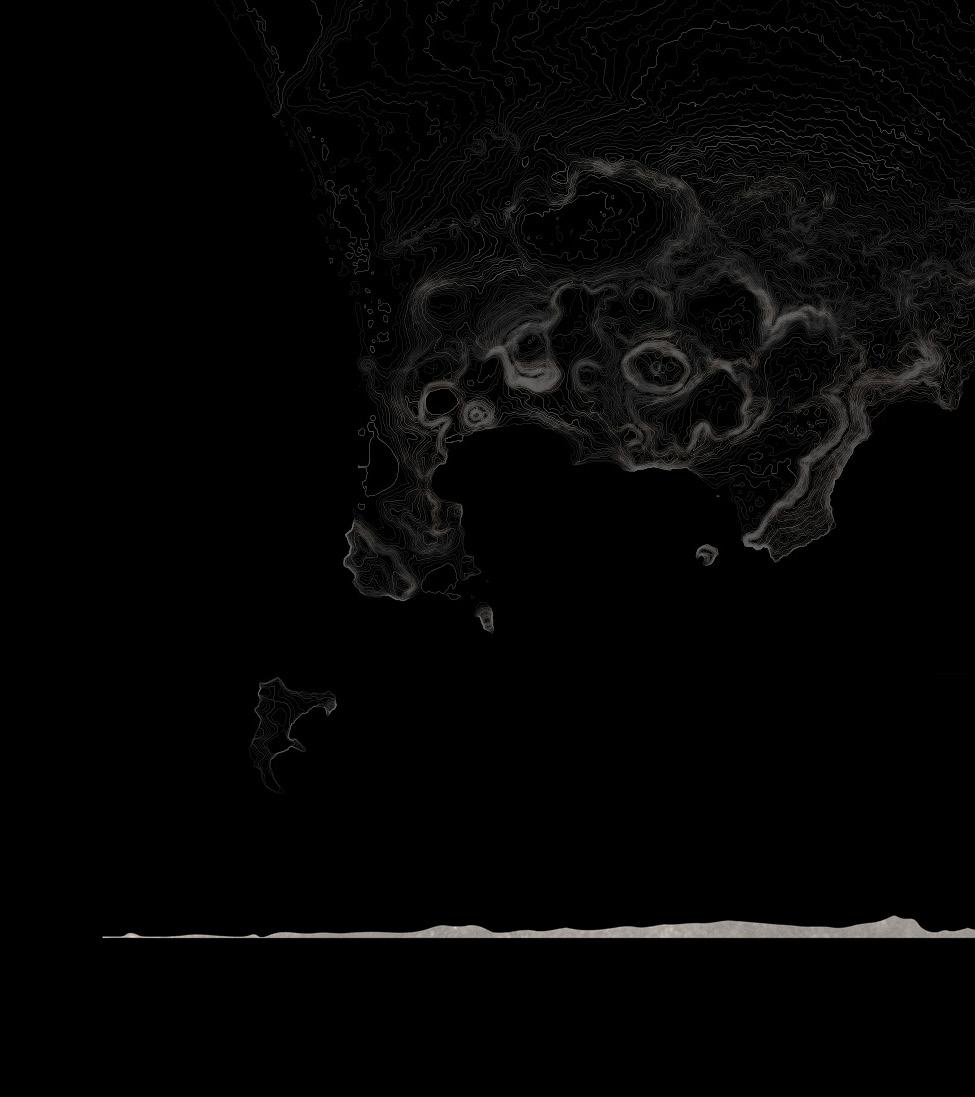

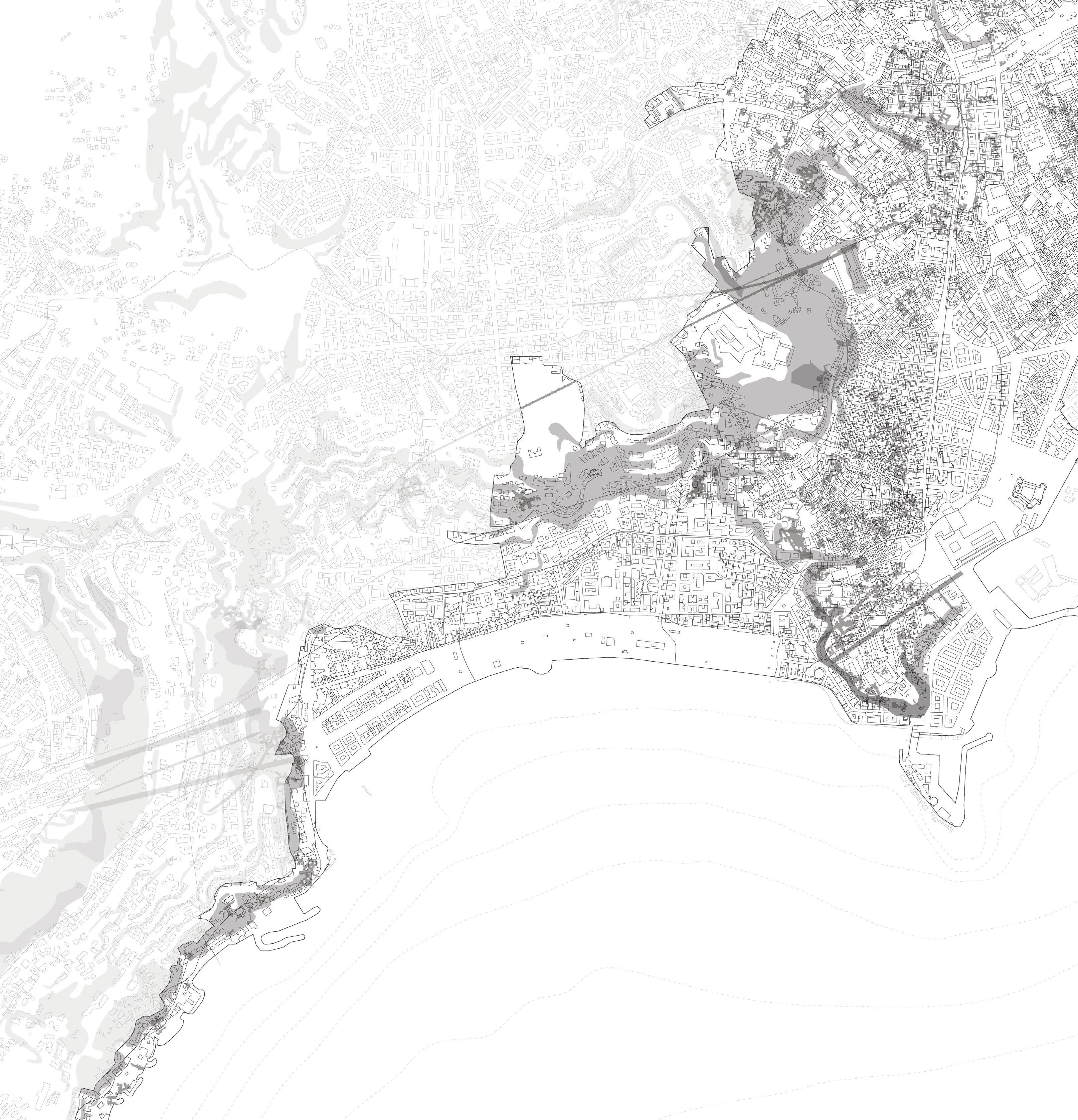

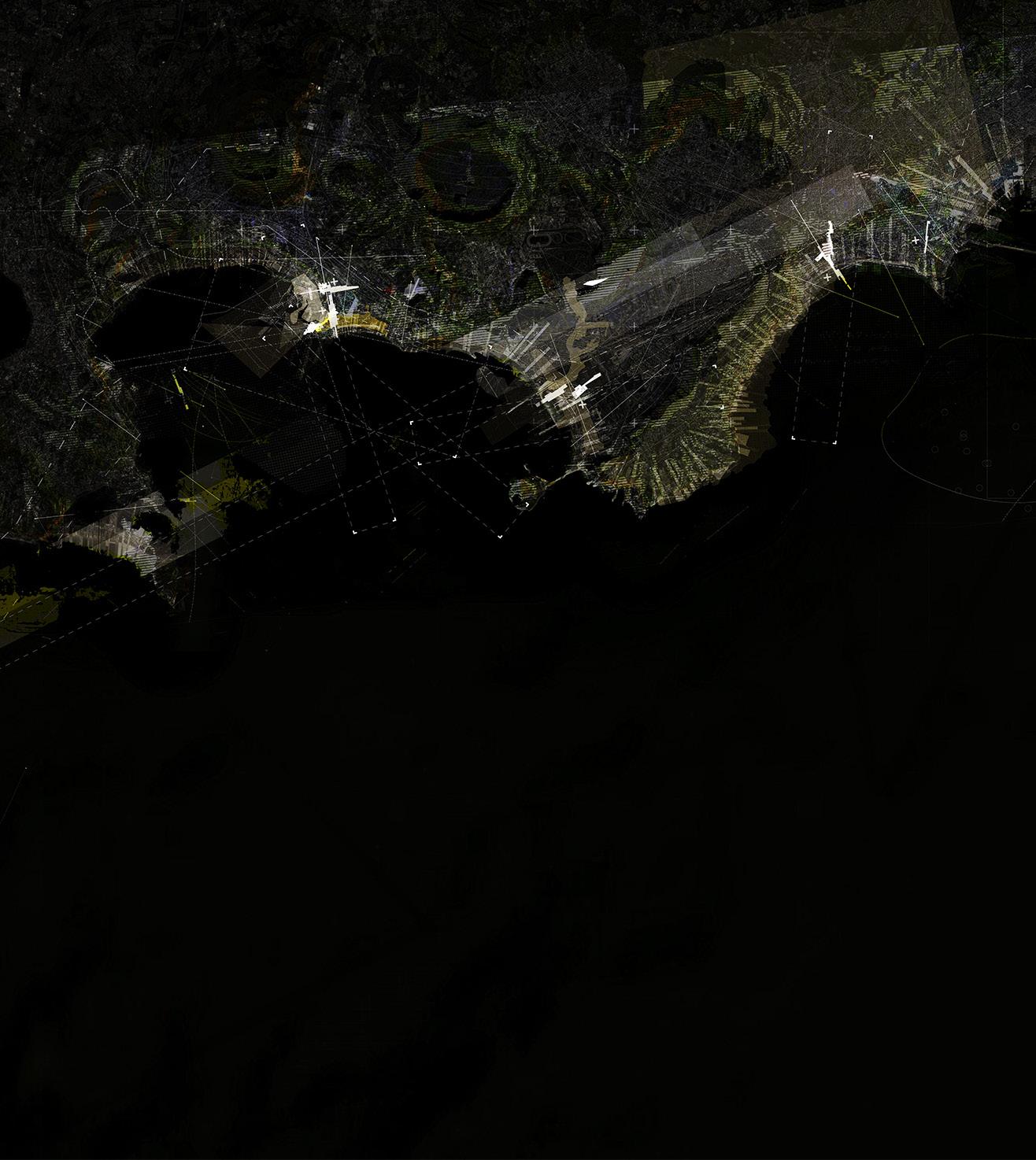

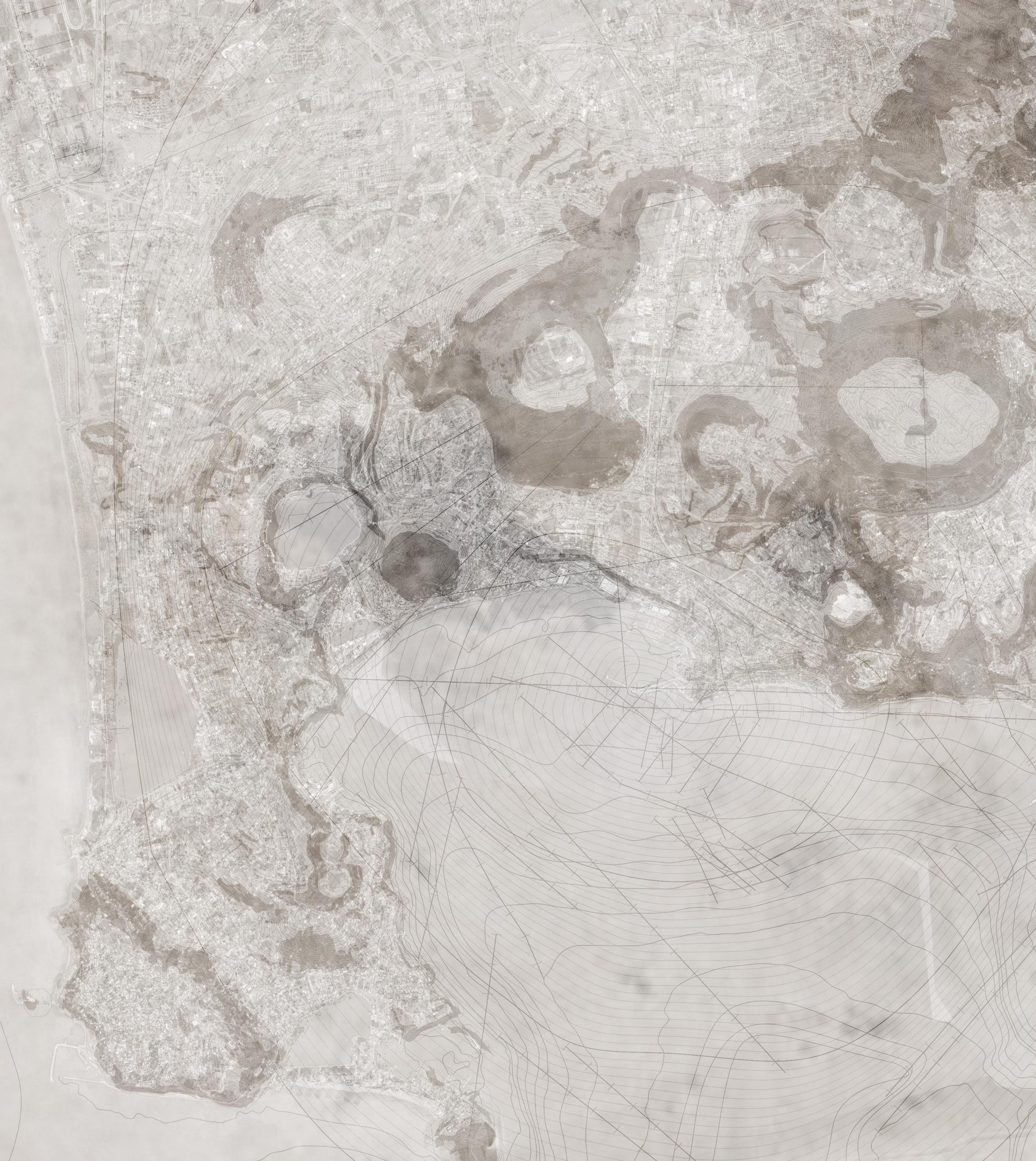

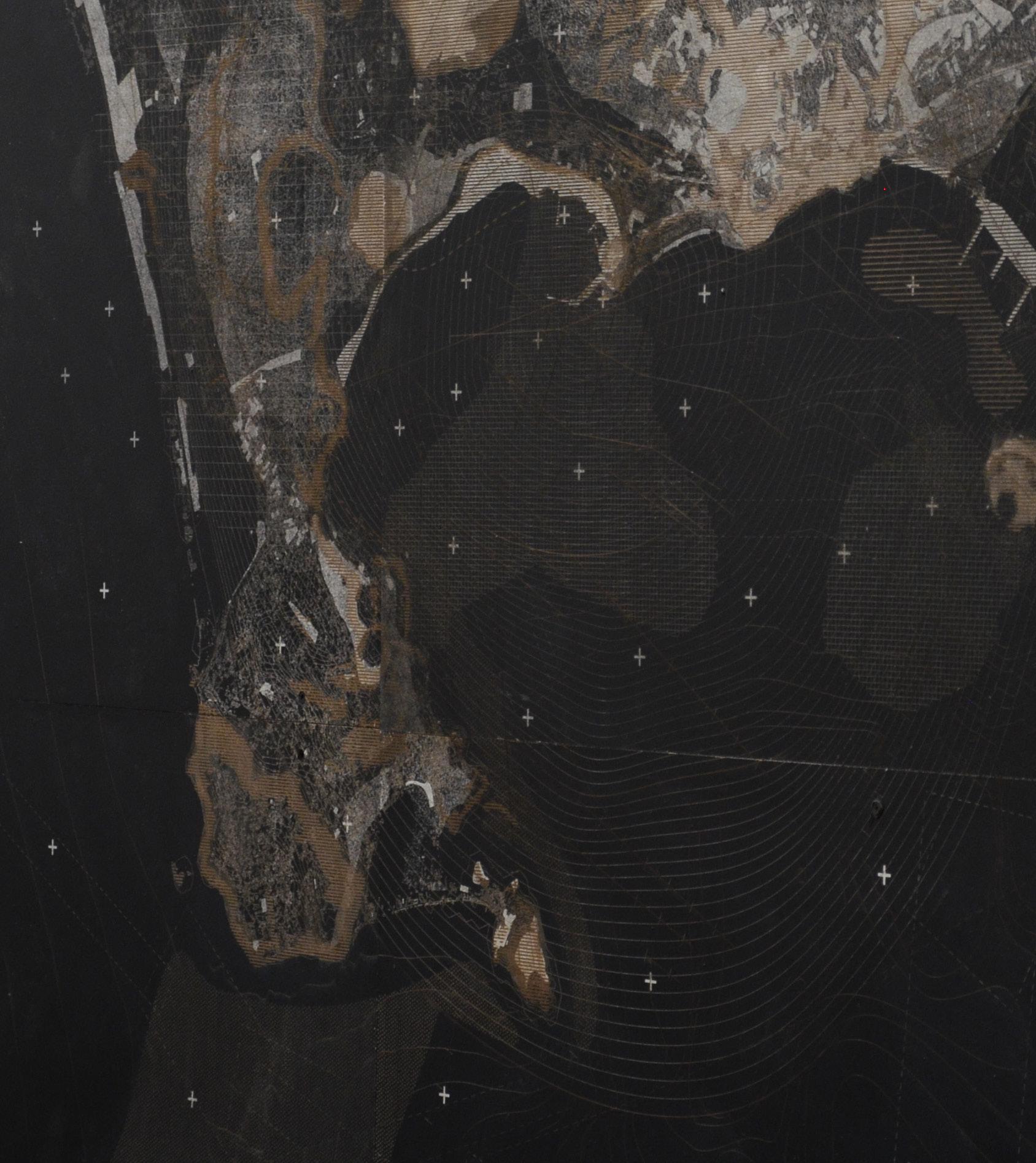

[right] surface mapping of ground movement within the bay of naples

42 |

| 43

44 |

III.

GEOLOGY OF THE CITY

The subterranean strata of Naples serve as a geological chronicle of the city, preserving records of past volcanic activities and eruptions from neighbouring regions. The layered bedrock, in conjunction with the overlying soil strata, is composed of several compacted pyroclastic flows, leading to the unique varieties of tuff found in the area. Despite the common belief that a city founded on rock would be inherently stable, Naples exhibits a different scenario.

A pronounced tuff ridge cuts through the city, marking a shift in the city’s geological base, from thick pyroclastic sediments on the ridge’s crest to friable pyroclastic deposits at its base. This disparity in sediment structure leads to varying erosion rates.

Districts such as Montecalvario, Quartieri Spagnoli, Vomero, and Posillipo are located on this less stable foundation, rendering them prone to erosion due to water infiltration and runoff along the ridge.

Neapolitan Yellow Tuff, the most common type of tuff in Naples, is renowned for its ease of cutting, lightness, and durability. It has been extensively used in a variety of buildings, from residential structures to iconic landmarks like Castel dell’Ovo, Castel Nuovo, and Castel Sant’Elmo. Tuff has significantly influenced the architectural character of the region. Its porous nature and ability to retain moisture, contribute to the weathered look and progressive decay of Naples’ building fabric, both above and beneath the ground, bestowing a unique allure to its visible surface.

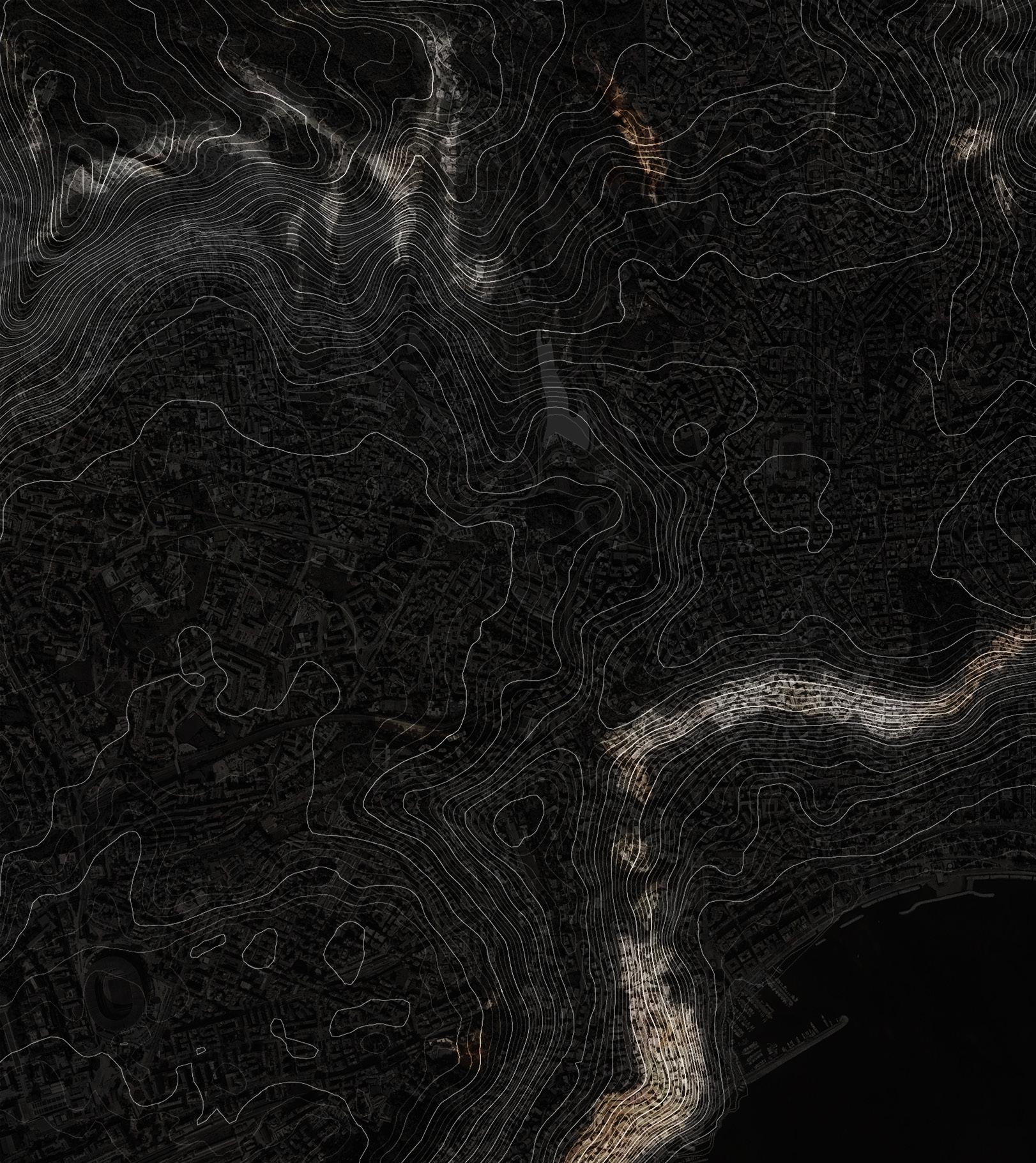

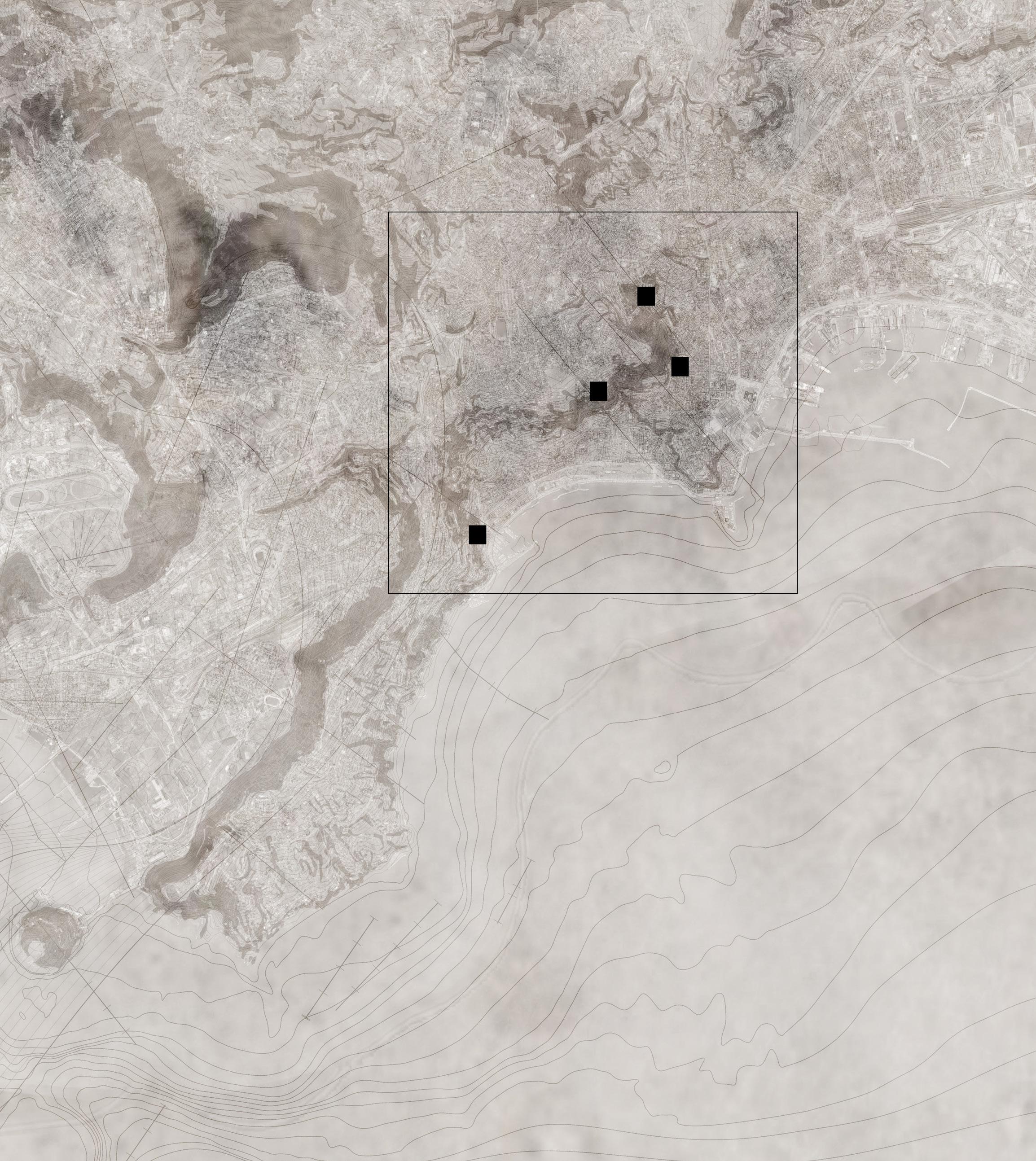

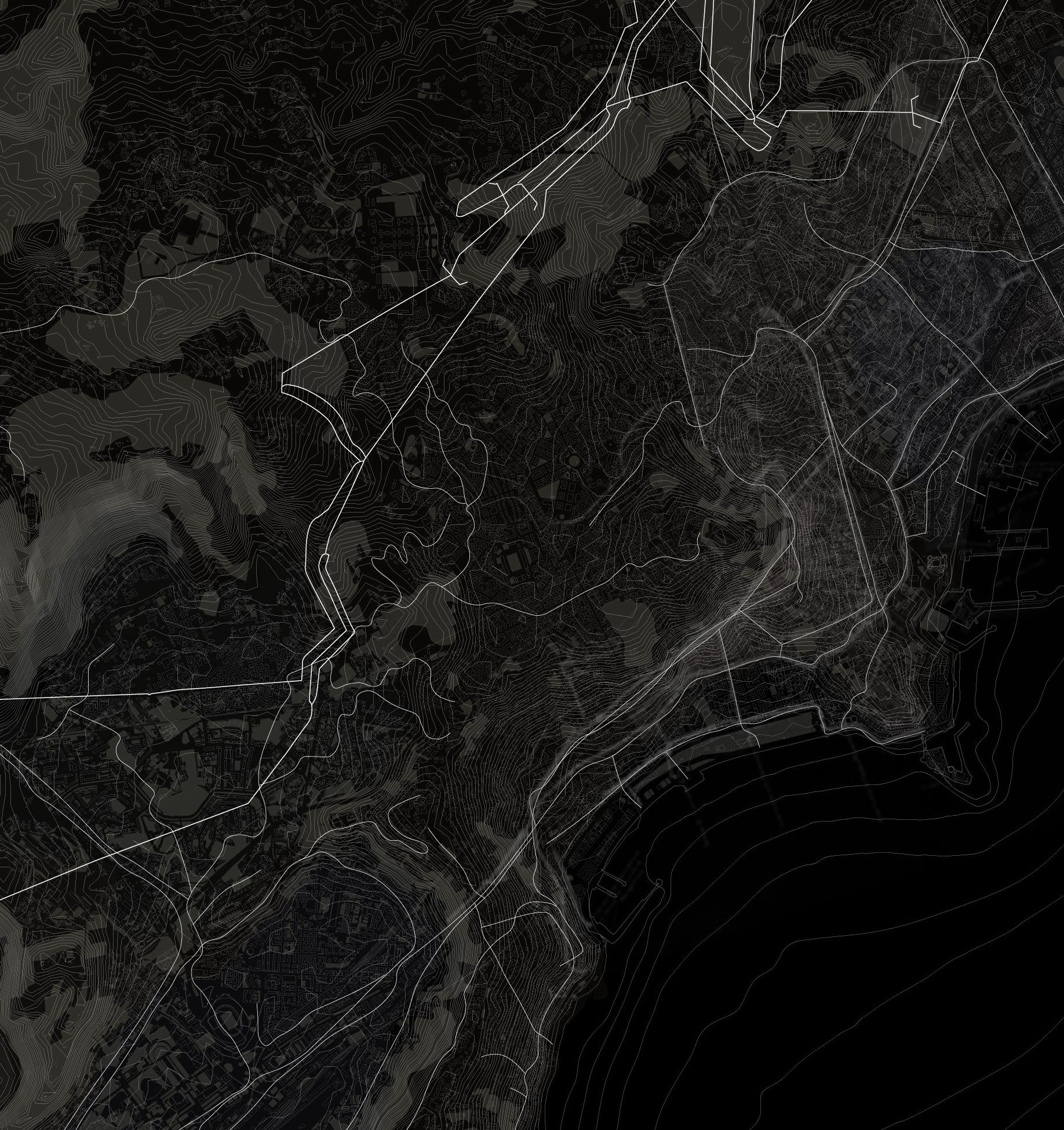

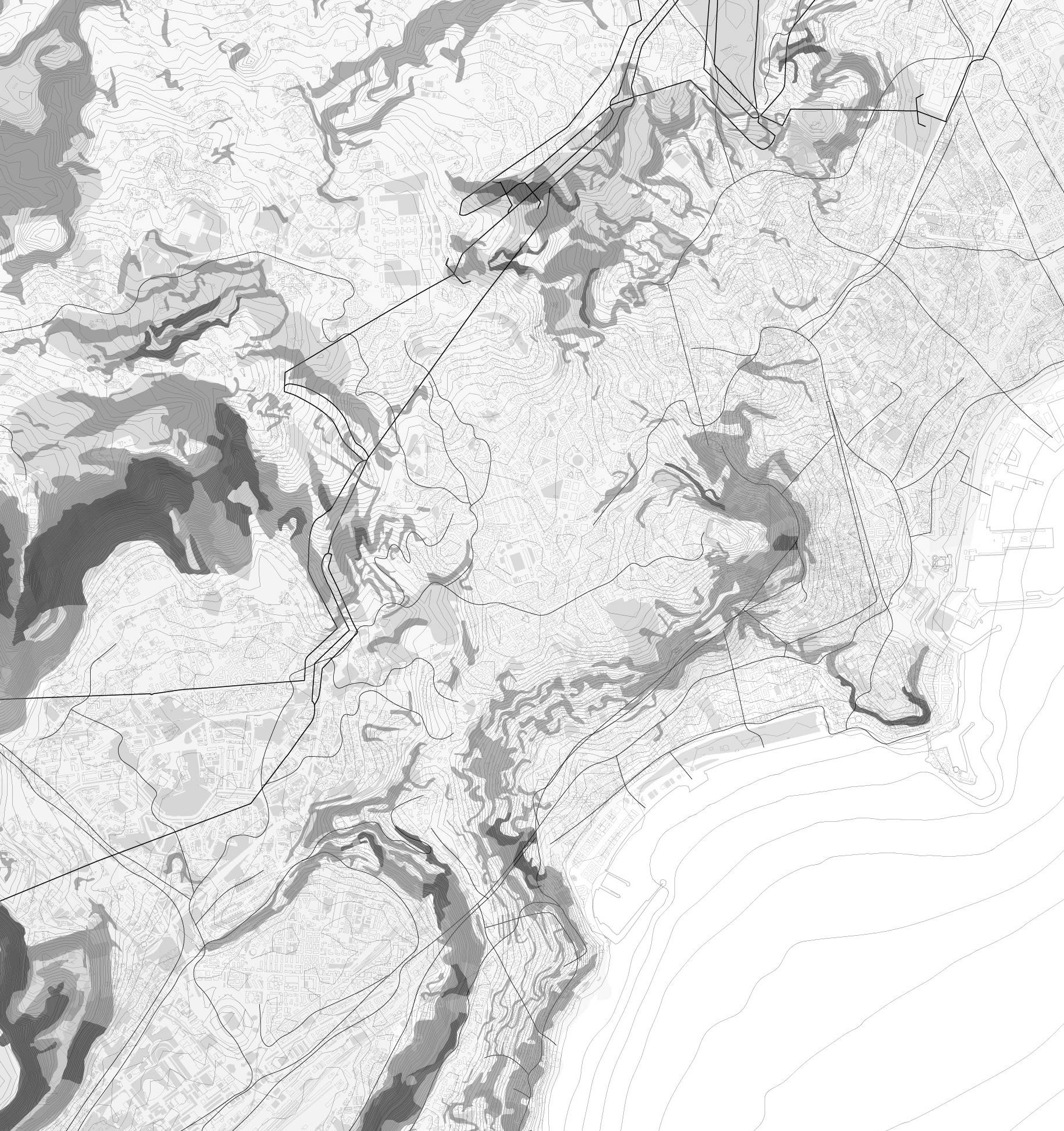

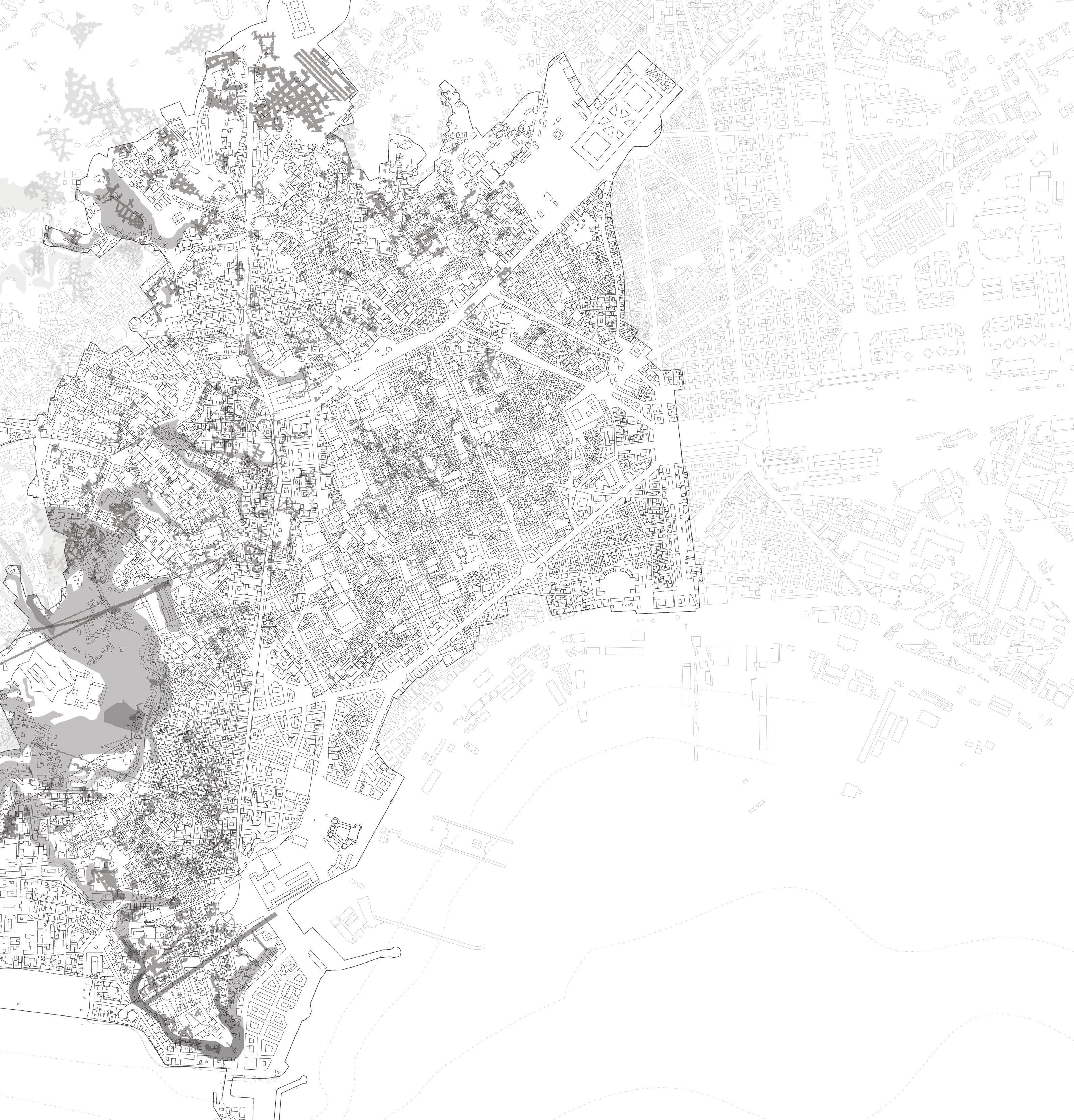

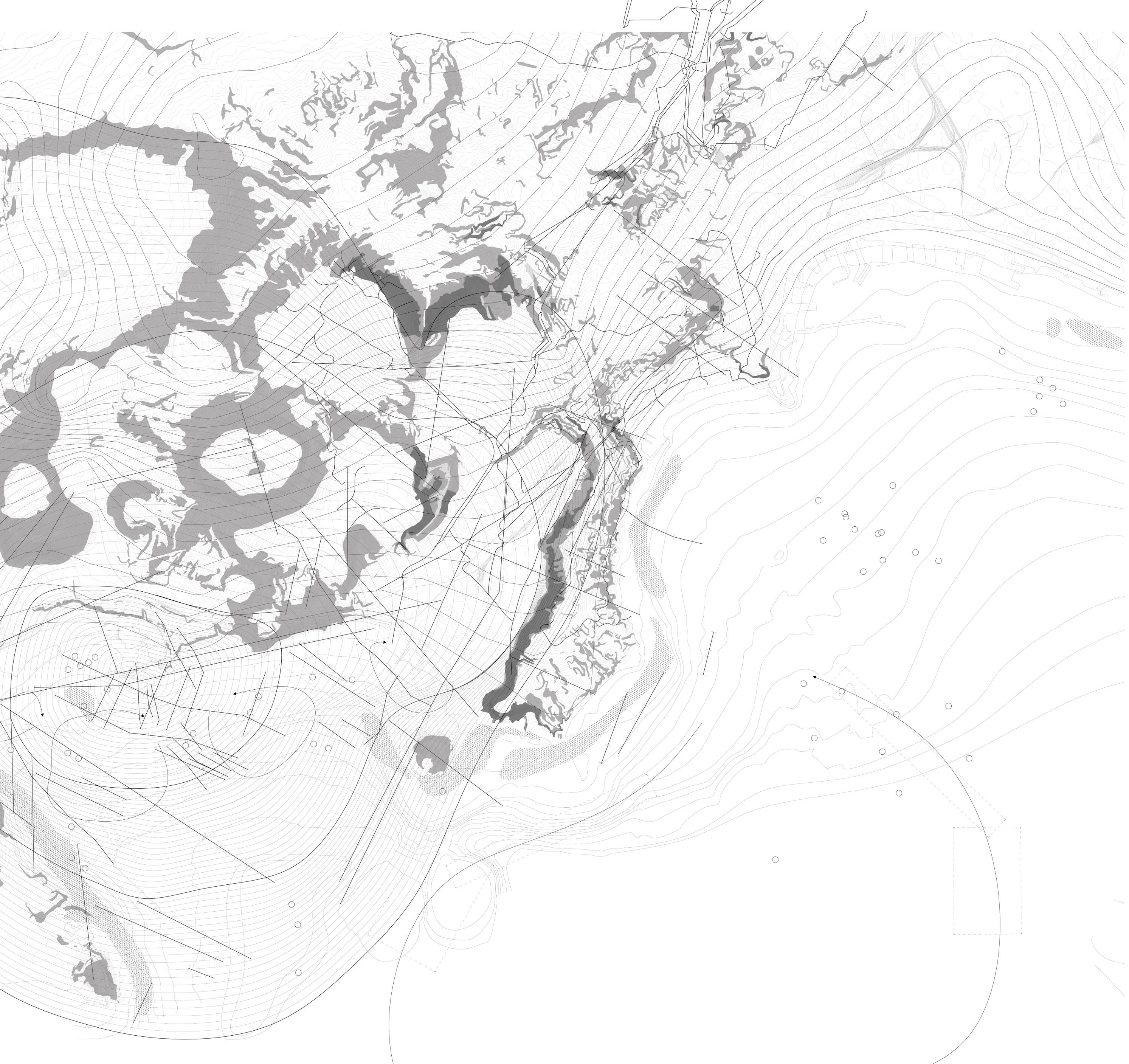

[above ] superimposed mapping of tuff with the cities topography | 45

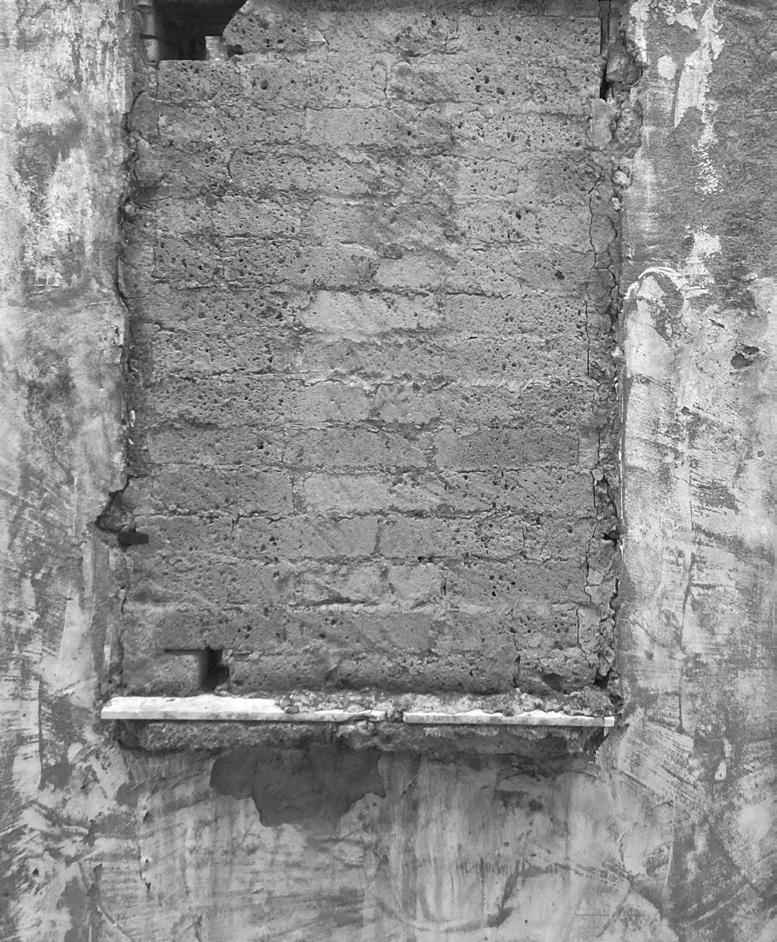

window infill using tufo masonry on via domenico cirillo

46 |

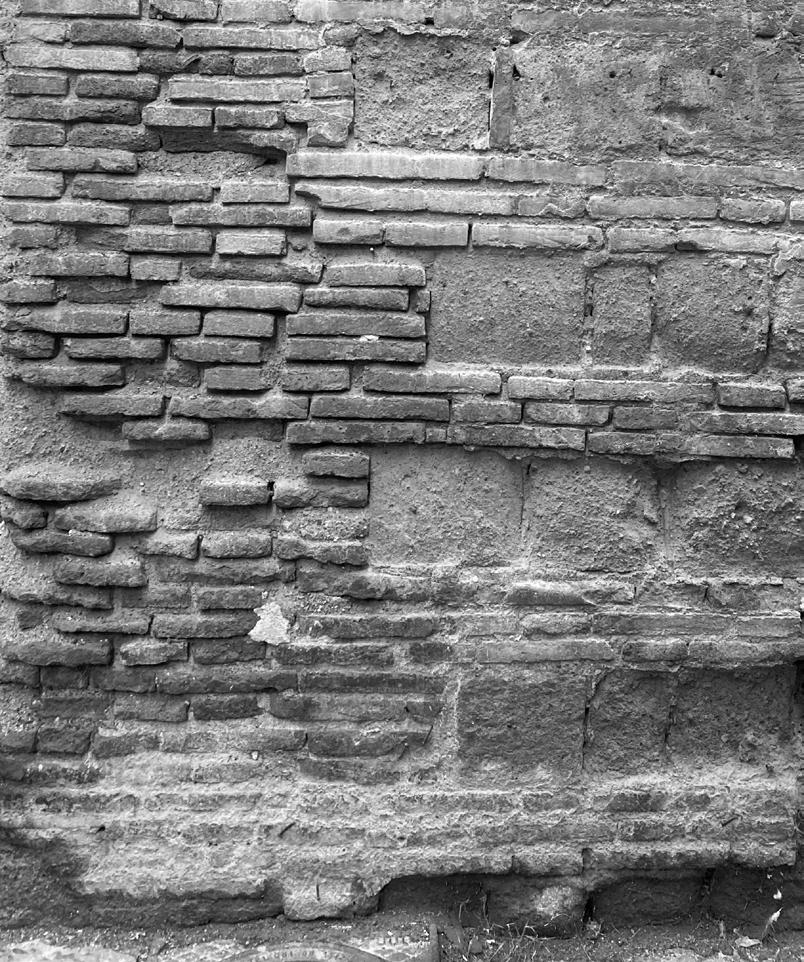

brick coursing between tufo blocks to reduce rising damp

weathered tufo wall on the west face of castel dell’ovo

supporting tufo arches at the galleria borbonica

“… an infinitely porous, spongy, or cavernous texture without emptiness, caverns endlessly contained in other cavers: no matter how small, each body contains a world pierced with irregular passages…” [4]

[4] Gilles Deleuze and Jonathan Strauss, ‘The Fold’, Yale French Studies, no. 80 (1991): 80, https://doi.org/10.2307/2930269.

| 47

IV.

URBAN CAVITIES

For many centuries, the inhabitants of Naples favoured the extraction of tuff from subterranean locations for construction purposes, leading to the formation of a complex network of cavities beneath the city, as opposed to using embankments or open-air quarries which would have necessitated significant material transportation.[5] The techniques used for extraction led to the creation of large voids within the rocky substratum, typically hidden from sight at ground level. Tuff, once extracted from the quarries, was often used near its source, resulting in a direct relationship between the city’s growth and the increase in these underground cavities.[6] Areas such as Montecalvario, Posillipo, and the Quartieri Spagnoli (Spanish Quarters) experienced extensive tuff extraction, thereby housing the greatest density of subterranean voids. This increased occurrence of underground cavities makes these districts especially prone to subsidence in the overlying subsoil.

[5] Relazione della Commissione di studio, a cura del Comune di Napoli, Il Sottosuolo di Napoli, trans. Jeff Matthews, (Napoli: A Cure Del Comune, 1967), 54.

[6] Relazione della Commissione di studio, a cura del Comune di Napoli, Il Sottosuolo di Napoli, 123.

48 |

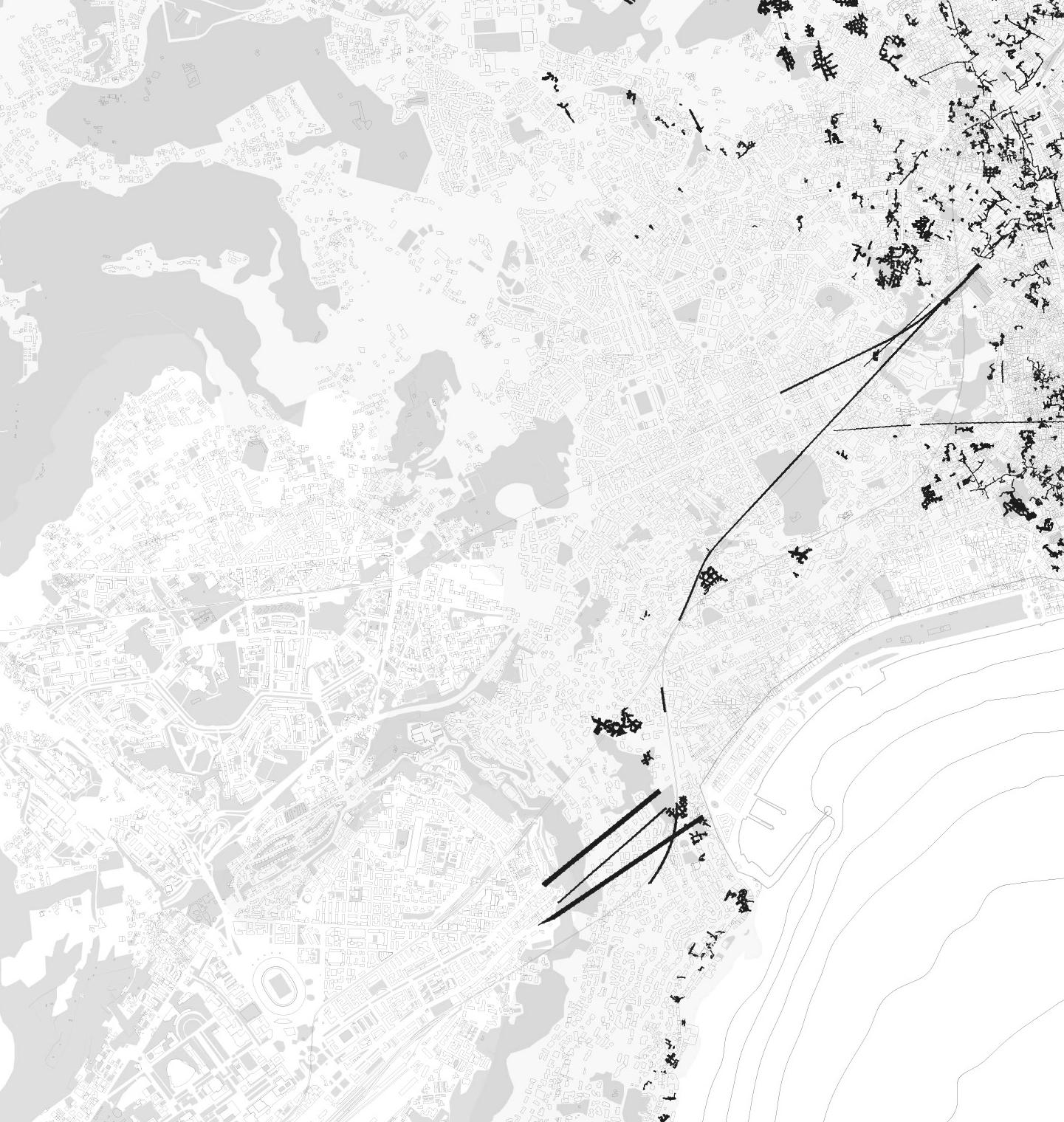

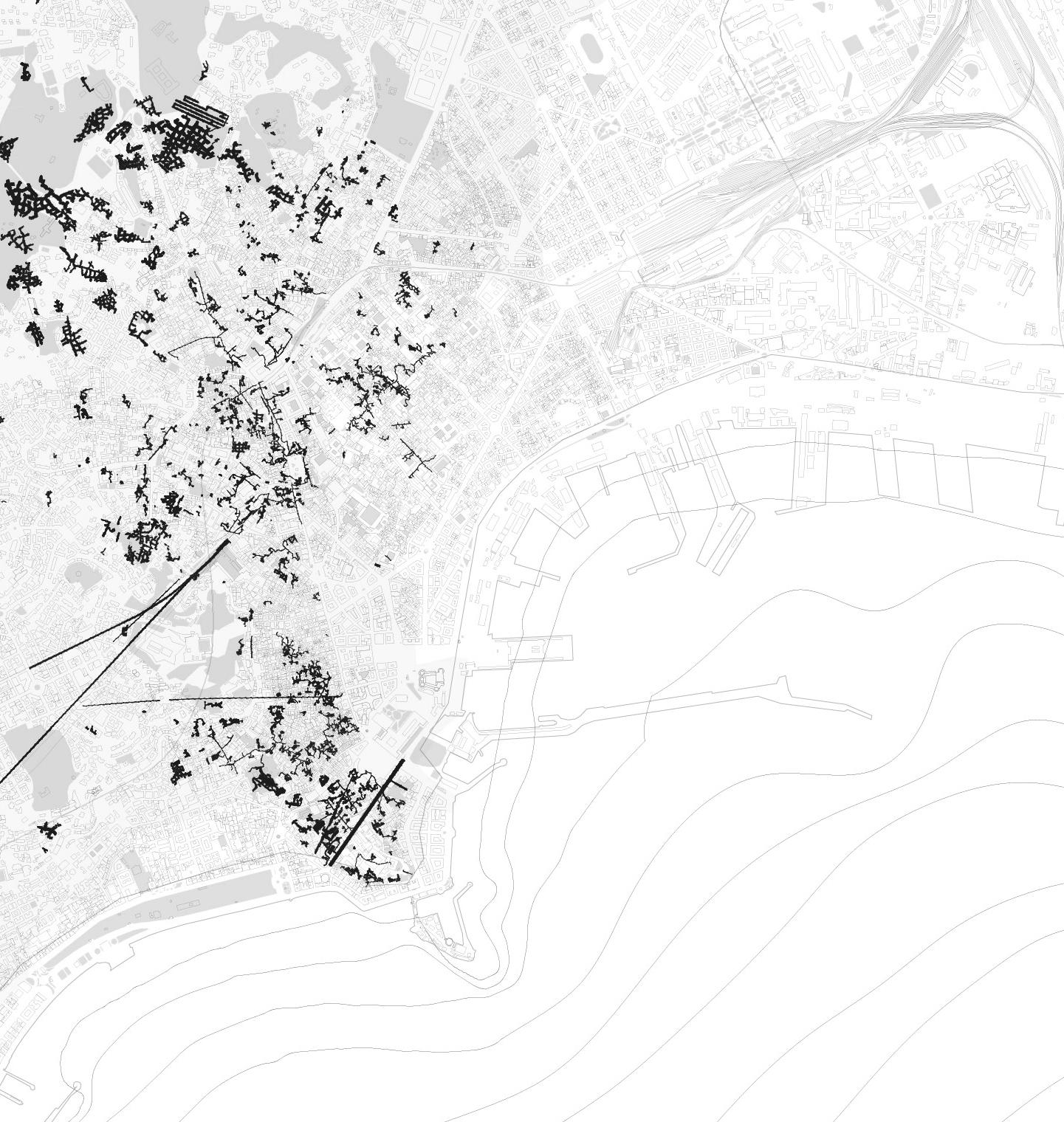

[above] distribution of common cavities found in naples in relation to the urban morphology above. | 49

Bottle or Bell

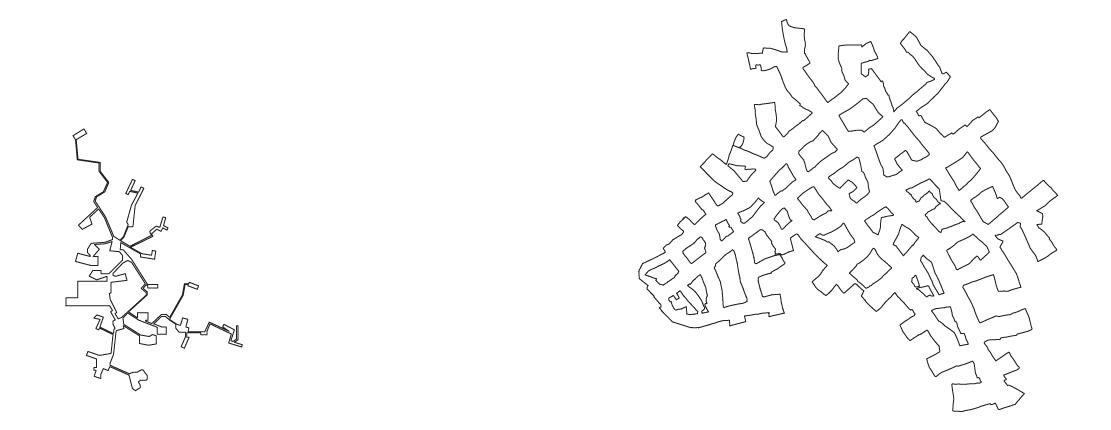

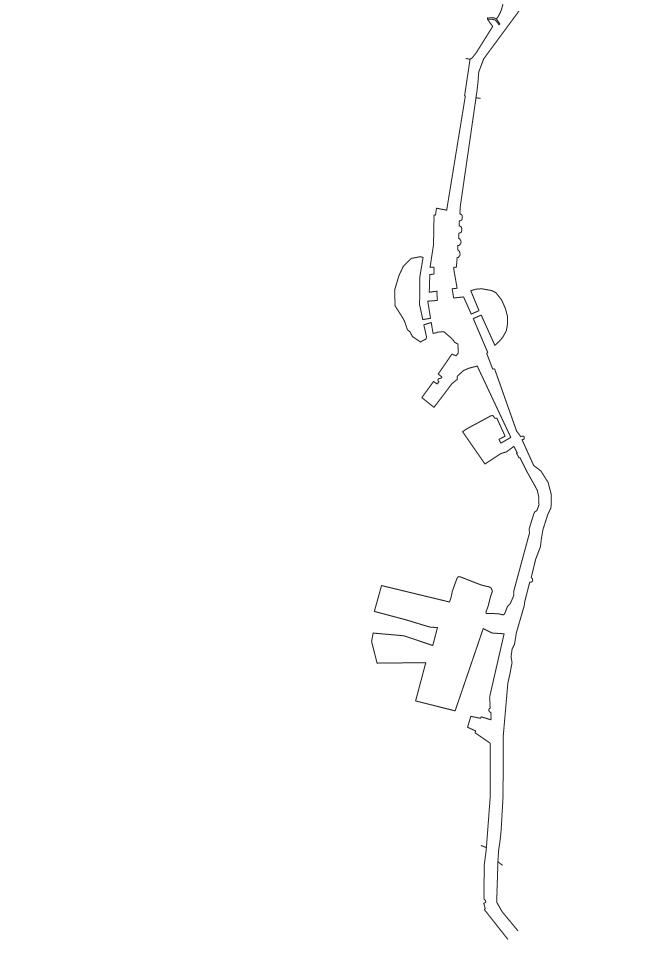

[above] survey of common cavities found in naples 50 |

Gallery

Catacombs

Crypta

| 51

52 |

REFLECTION

GROUP WORKING

| 53

REFLECTION

GROUP WORKING

Throughout the two-year integrated pathway, I have had the privilege of collaborating with numerous talented individuals whose contributions have significantly influenced both the installed work and individual outputs. This group work has facilitated the exchange of ideas and allowed each member to learn from the strengths and interests of others.

In the first year of the course, my working group focused on a critical theoretical foundation of this thesis – surface effects. The city’s framing through the lens of Andrew Benjamin provided a focal point for the material conditions of the city. Upon reflection, this focus has driven a thesis that views architecture as both an effector and an affected entity, and as a consequence of material concerns.

During my final semester, we were offered conversation groups where we could share overlapping research that had been conducted. This evolved into a working group where we developed extensive mappings of surface movement across the bay, tested a series of hybrid architectures and tectonics that had been explored in Studio A, and constructed a shared zone model of the bay. This model served as a sort of worktable that housed individual 1:100 models.

I firmly believe that collaborative work in the studio has not only enhanced the enjoyment of the course but also resulted in a more productive output. The regular discussions we had leading up to and following tutorials maintained an understanding of each other’s projects and ensured the best balance for group outputs.

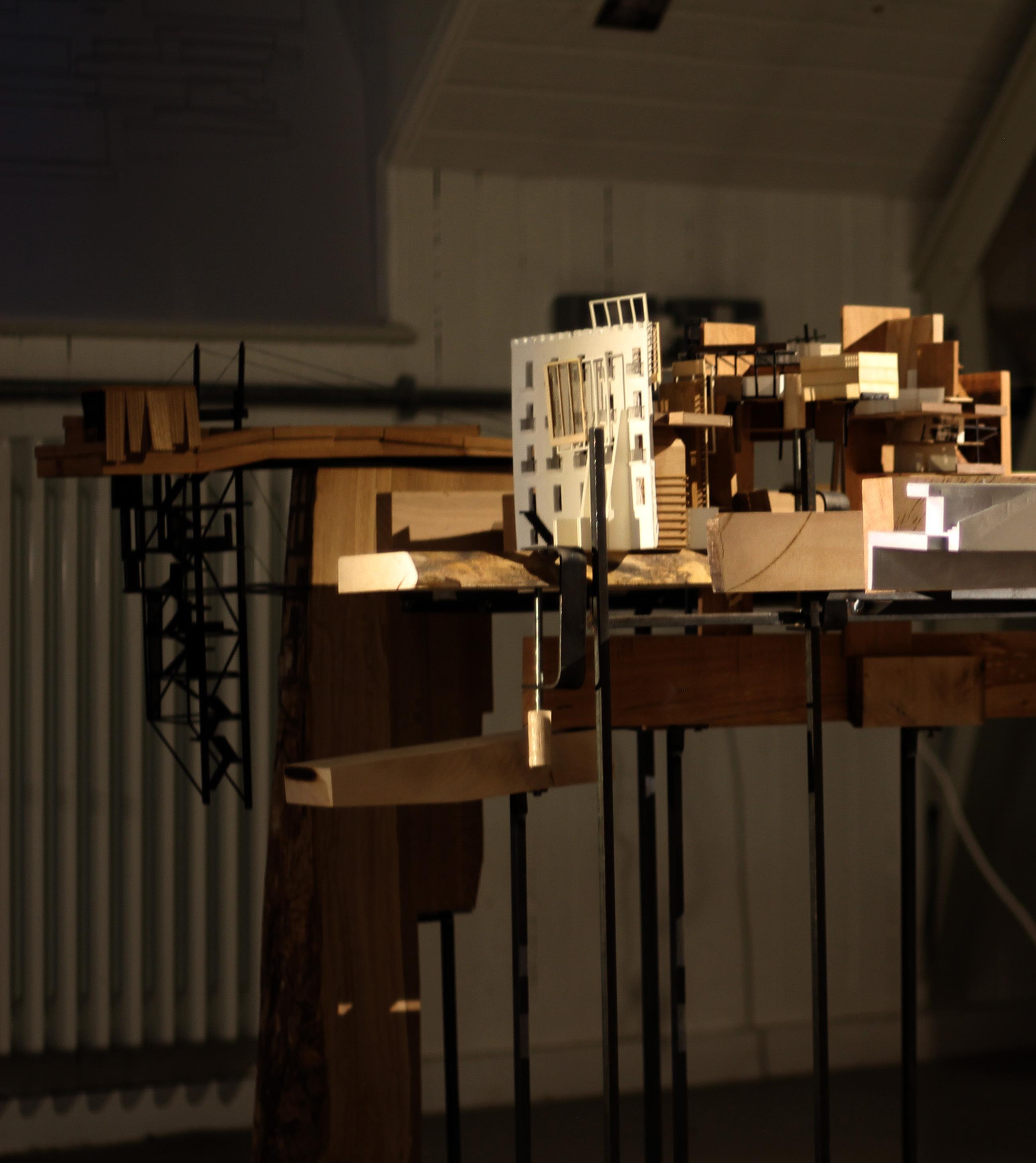

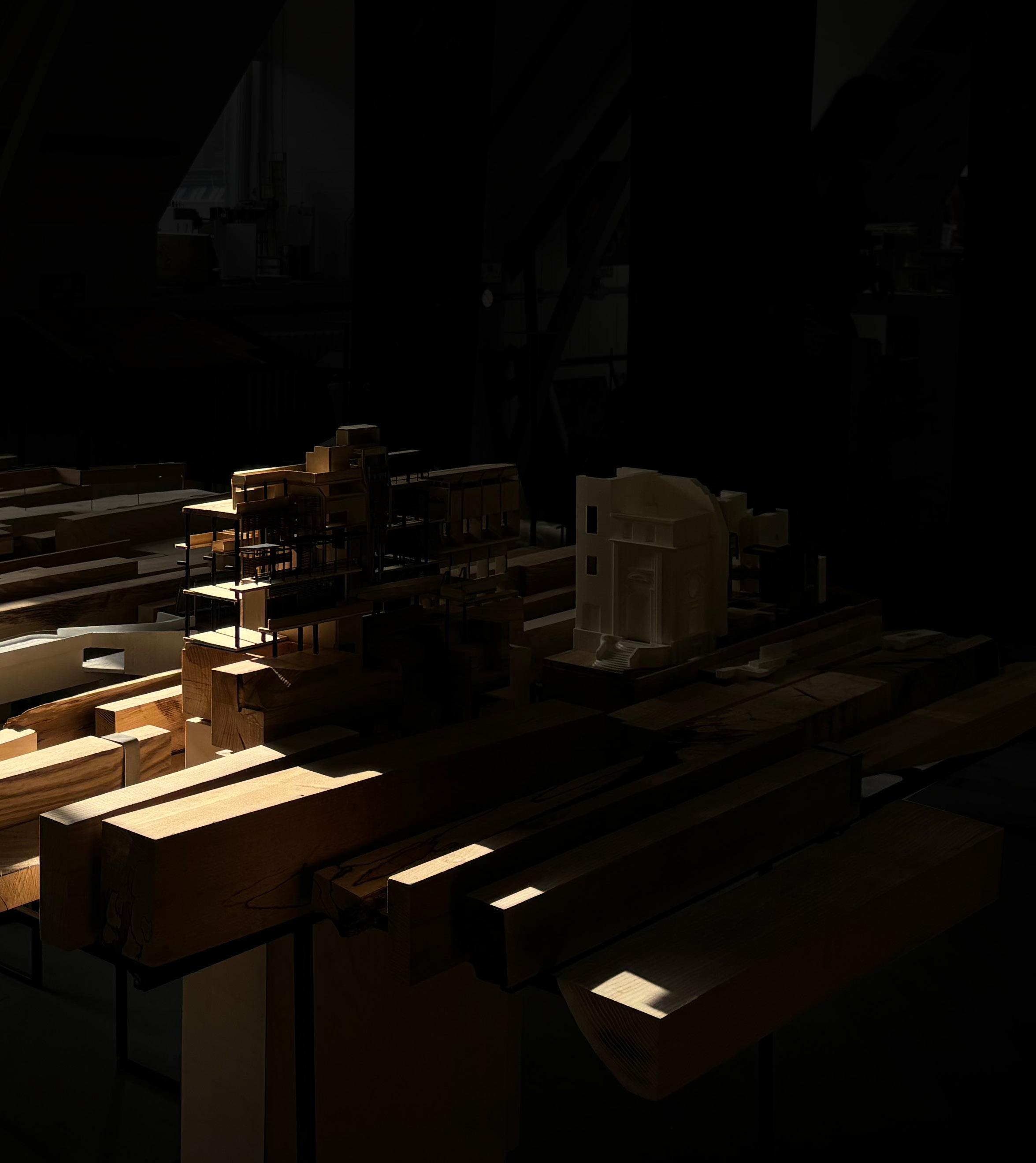

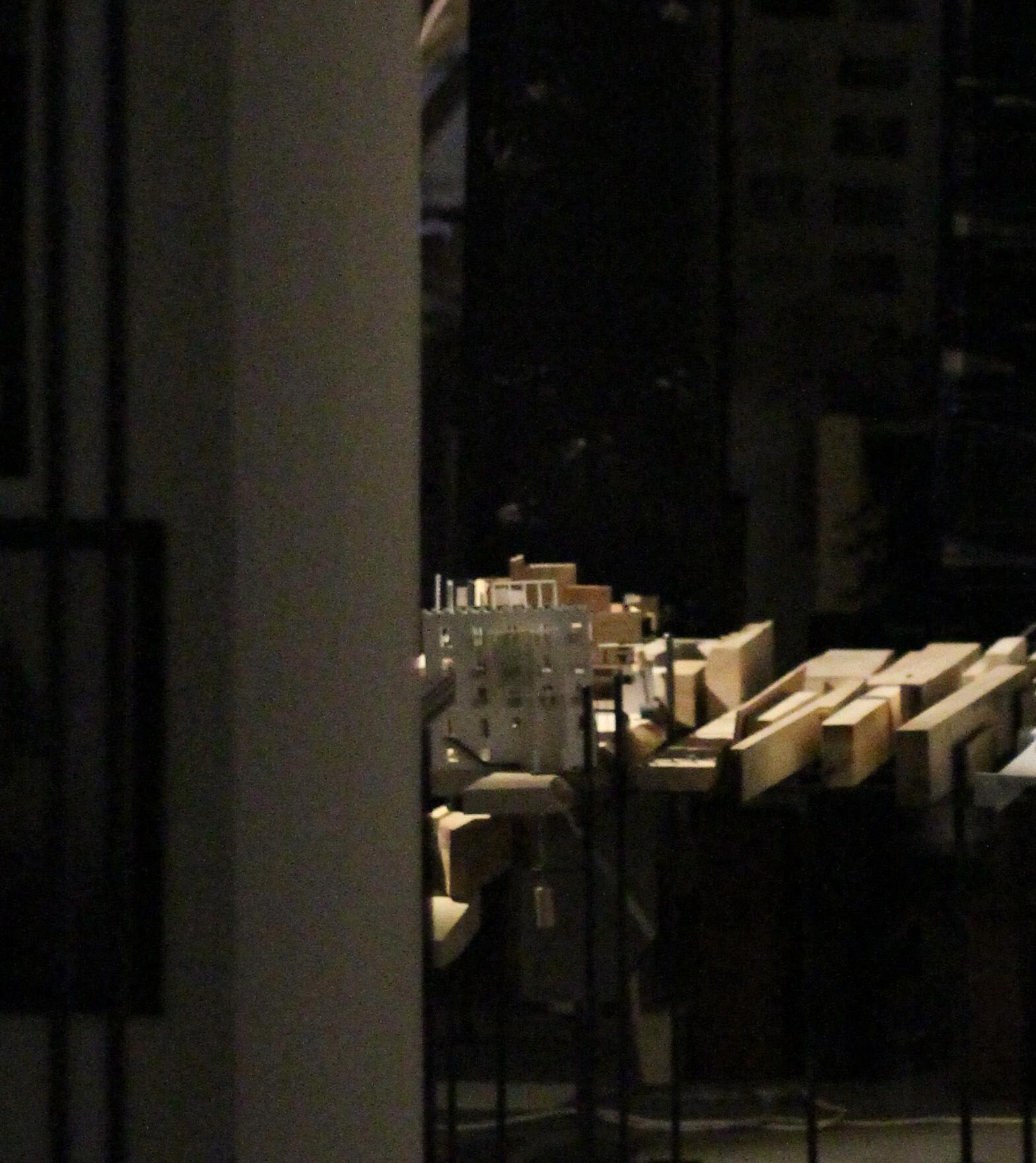

The final installation transcended the display of individual pieces to become a celebration of a collective interpretation of a shifting ground condition.

54 |

| 55

56 |

| 57

58 |

| 59

60 |

TWO.

PARTICULATE

CAPTURING SUSPENDED STATES V. Constructing a Studiolo VI. Taxonomy of Materials VII. A City Ravine VIII. Turner in Naples IX. The Urban Canopy Layer X. The Meteorological Observatory

| 61

V.

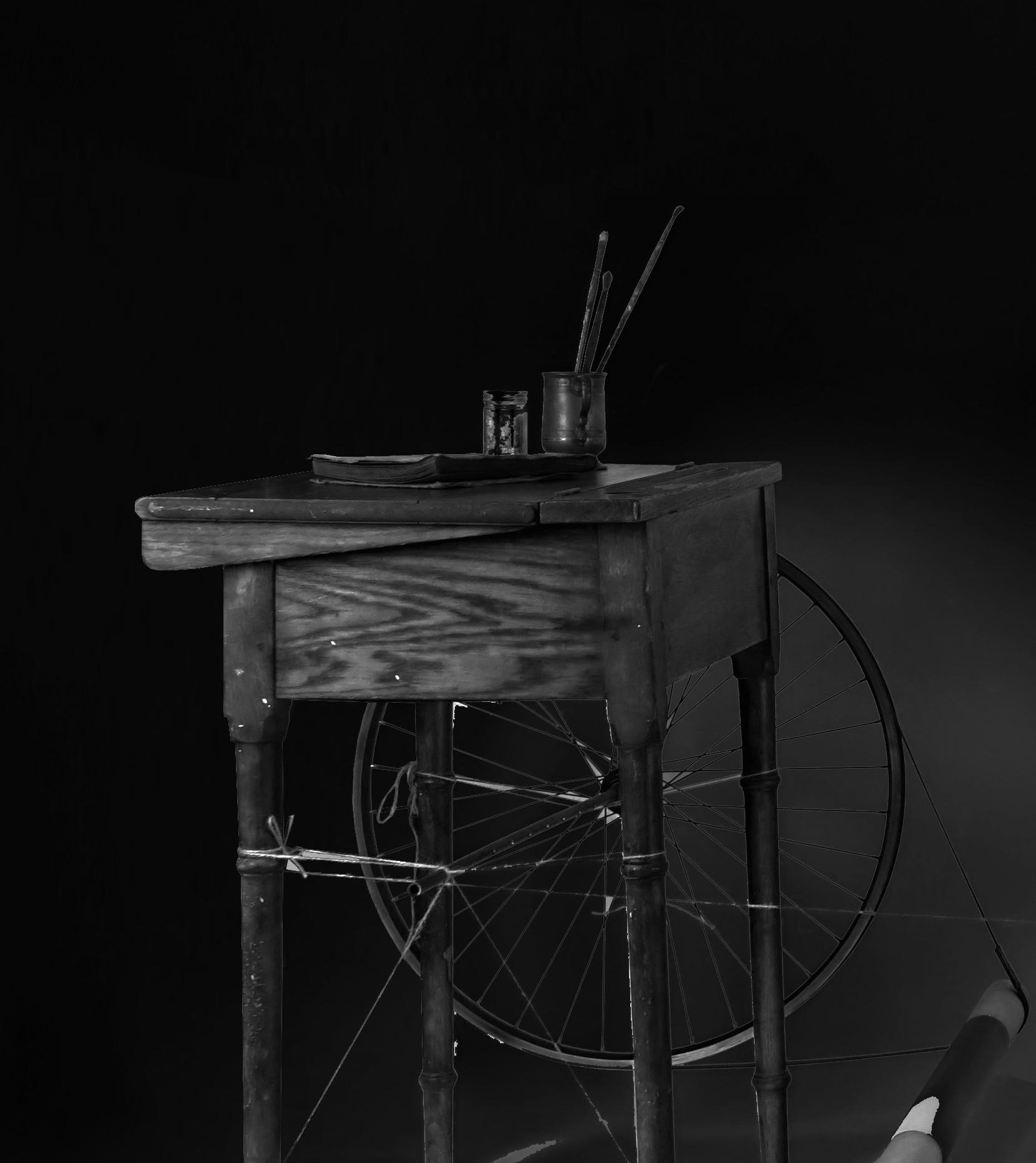

CONSTRUCTING A STUDIOLO

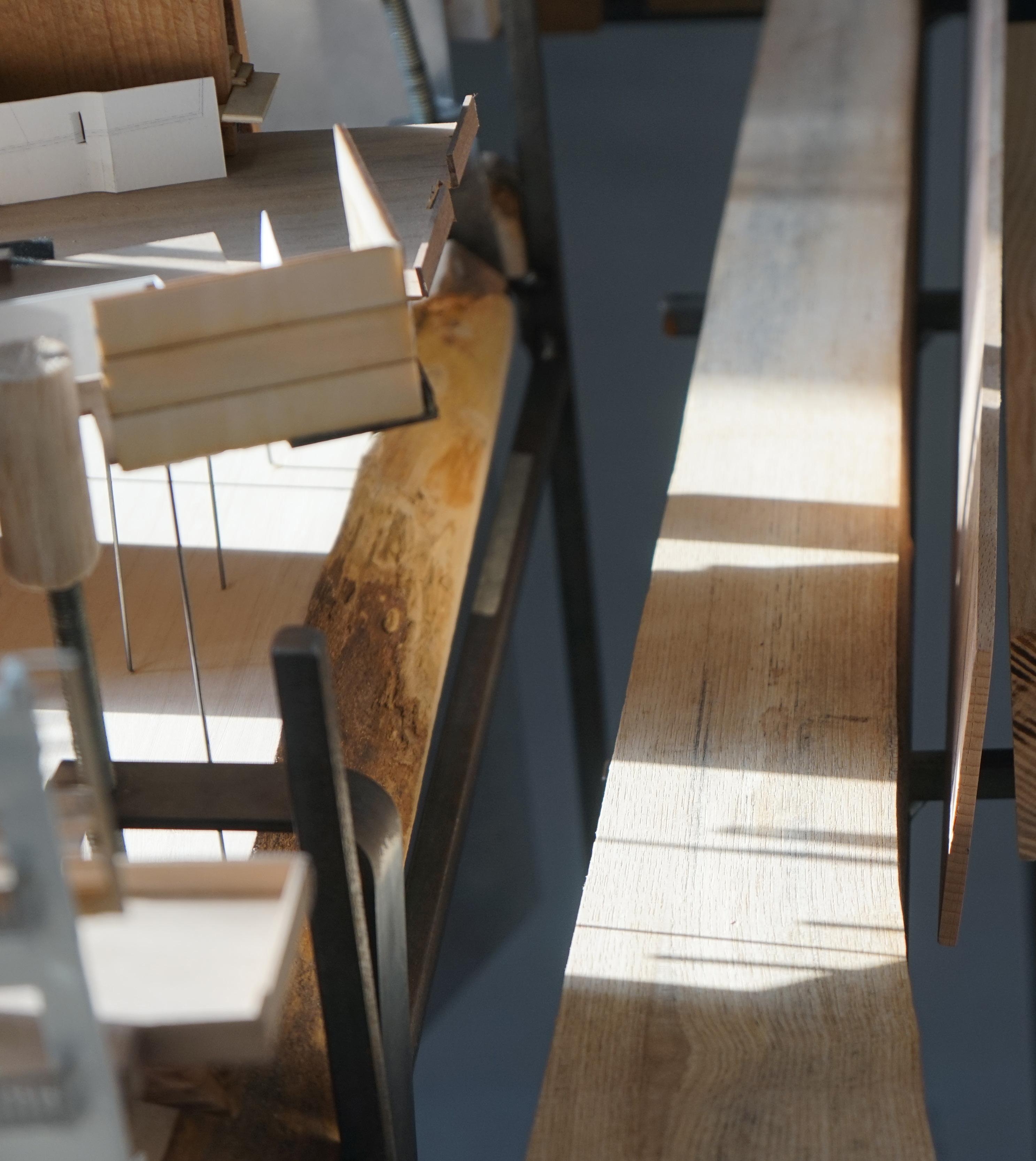

The studiolo is emblematic an archaeological device, where a series of layers come to represent the sequential process of making and un-making precarity. In order to continue the cycle of markmaking through the disruption and undoing of the surface, we propose a device that may register tremors and movement and, in turn, respond by tapping and chipping away at the surface.

The surface created is intentionally fragile, so as to create unpredictable conditions, through mark making. We projected geological information gathered, and chiselled out areas of the cast surface specific to the layer of projected information, i.e. sinkholes that have arisen from subterranean undoings. In doing so, we hoped to register a convergent condition, representative of a surface and its constituents. It is an intentionally uneasy surface, unworkable, unrepairable and unstable. In essence, however, it becomes a sketchbook, or a wall; a Neapolitan surface behaving geologically to describe a perplexing landscape. Drawings or workings deface themselves, becoming performative pieces, collected in trays, vials, scrolls, and stored in the desk to create an ever-evolving archive of pigment, deposit, sediment, and dust.

62 |

The captured surfaces can be thought of as registers of material conditions, or rather as a sort of “double register,” in the words of Andrew Benjamin, where walls and landscapes are at once surfaces but also the surface effects in question.[7] Using the logic of ‘Terroir,’ which can be used to encapsulate the range of investigations necessary to re-engage the theme of capturing surface effects within a larger set of questions and interrelations, the first part of the fieldwork begins to contextualise our findings at the urban scale. What had been captured when at Naples, including mineralogical samples, building fragments, rock dust, rubbings, photographs of surface conditions etc., are used to construct a set of material studies and taxonomies that then re contextualize materiality within a wider set of landscapes, following the logic of Jane Hutton’s ‘Reciprocal Landscapes.’

[7]

Andrew

Benjamin,

‘Surface

Effects:

Borromini,

Semper,

Loos’,

The Journal of Architecture 11, no. 1 (1 February 2006): 1, https://doi. org/10.1080/13602360600636099.

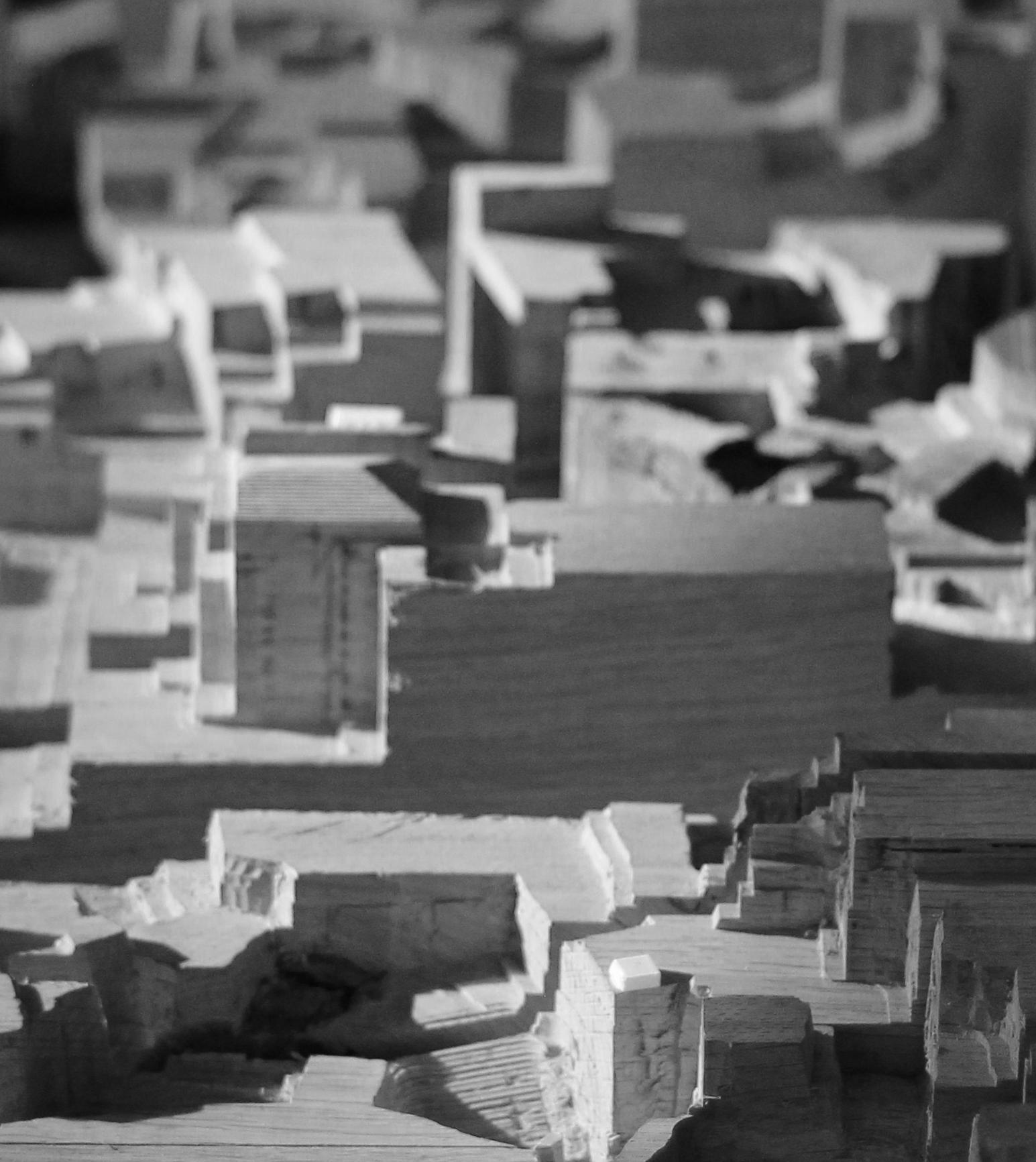

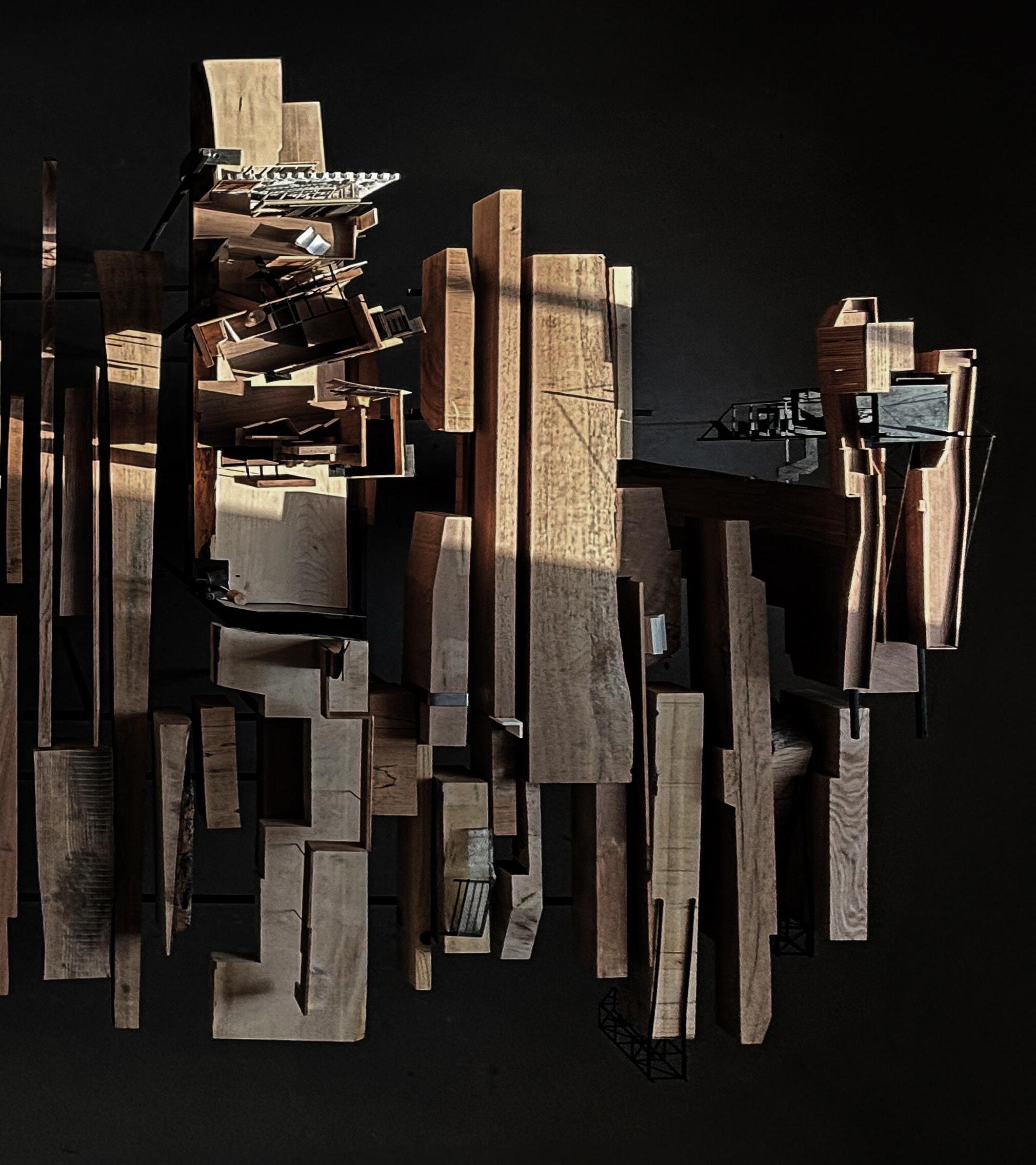

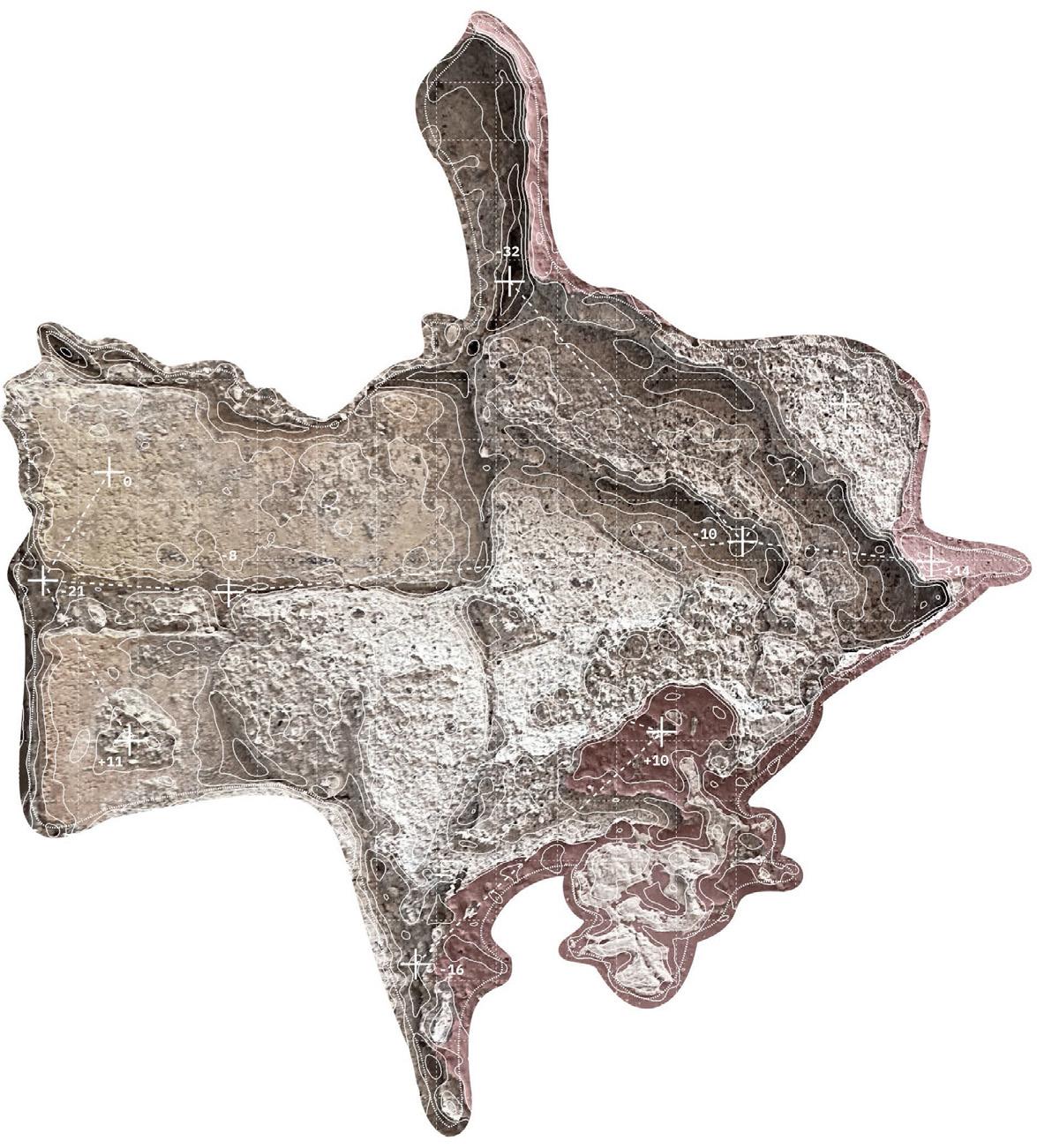

[above] studiolo acting as both a landscape and 1:1 reading of the city’s surface [left] collected rock samples from the accent of Vesuvius during the field trip

| 63

[1]

[1] [2] [3] [4]

64 |

Writers Desk Paper Roll Surrogate Surface Sifting Trays

[2]

[3]

[4]

[above] annimated drawing of the studiolo

| 65

VI.

TAXONOMY OF MATERIAL

Buildings “should be constructed with the smallest stones so that the walls, fully saturated with mortar made of lime and sand, will bound together for longer. For since these stones are soft and thin in consistency, they dry out the mortar absorbing the moisture. But when the amount of lime and sand is great and plentiful, the wall will not give way quickly since it contains more moisture, but is held together by these material.” [8]

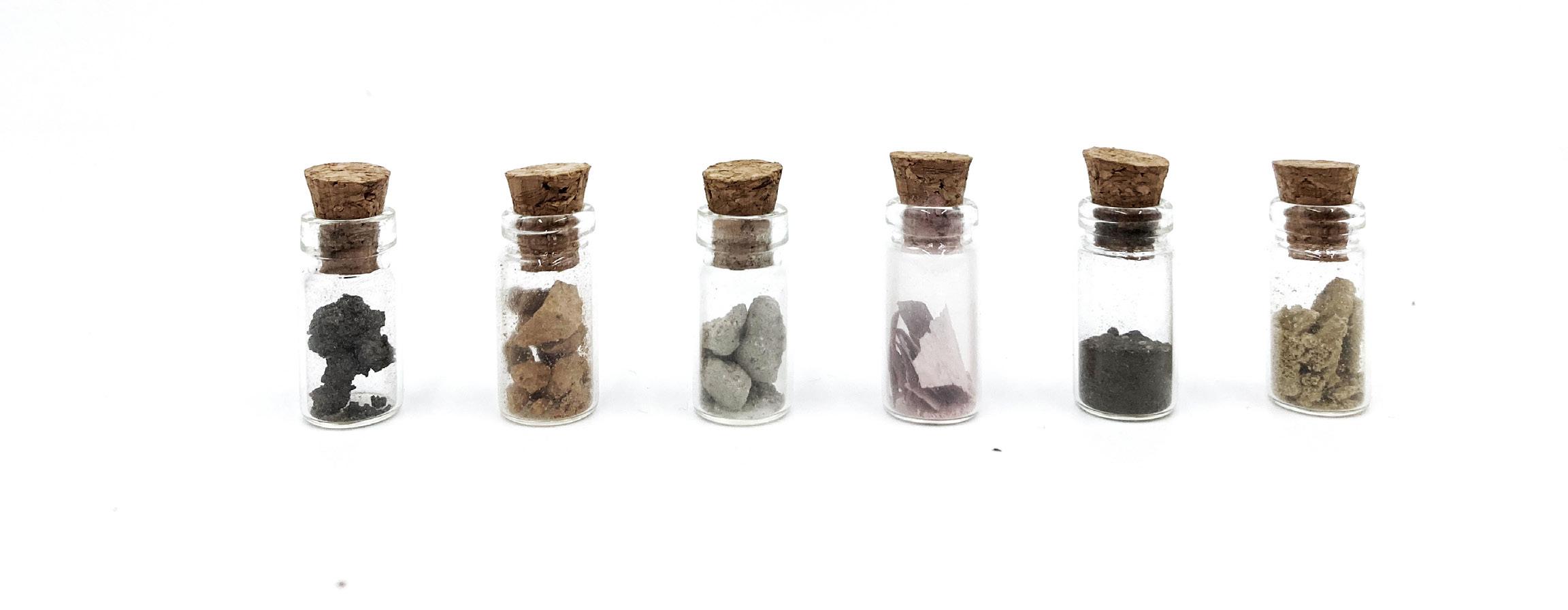

[1] [2] [3] [4] [5] [6]

Andesite Brick Piperno Paint Ash Tufo

[8] Vitruvius, Ingrid D. Rowland, and Thomas Noble Howe, Vitruvius: ‘Ten Books on Architecture’ (Cambridge University Press, 1999), 50, https://doi.org/10.1017/ CBO9780511840951.

[1]

66 |

[2]

[3]

[4]

[5]

[6]

[above] wall study of parco ventaglieri

| 67

68 |

VII.

A CITY RAVINE

A series of ravines are present in the city, situated along and in proximity to the tuff ridge, and were formed due to the effects of water erosion. Portions of the urban structure were constructed around these ravines or directly against their boundaries, complicating the determination of whether the dramatic terrain or the buildings came into existence first. The destabilizing factors of the Neapolitan terrain - the geological composition and transformations, tufo mining, hydrological activities, and topography - are interrelated and mutually influence each other, resulting in this ambiguous, overlooked terrain.

First observed from the elevated perspective of Castel Sant’Elmo, Parco Ventaglieri presents itself as a void in the city, a ravine of sorts that sits as a materially charged space, particularly relevant to our various material investigations. Atmospheric effects, such as smog, dust, clouds and an undulating topography blur distinctions between surfaces, landscapes and buildings.

This unstable substratum became the setting for an observatory that seeked to explore and provoke material investigation, whilst generating novel material possibilities. In conjunction with the vulnerability posited by the fragile Neapolitan landscape, the observatory developed a tectonic language that attempt to contend with this state of fragility, whilst also thinking about the material states at work.

[left] aerial view of parco ventaglieri

| 69

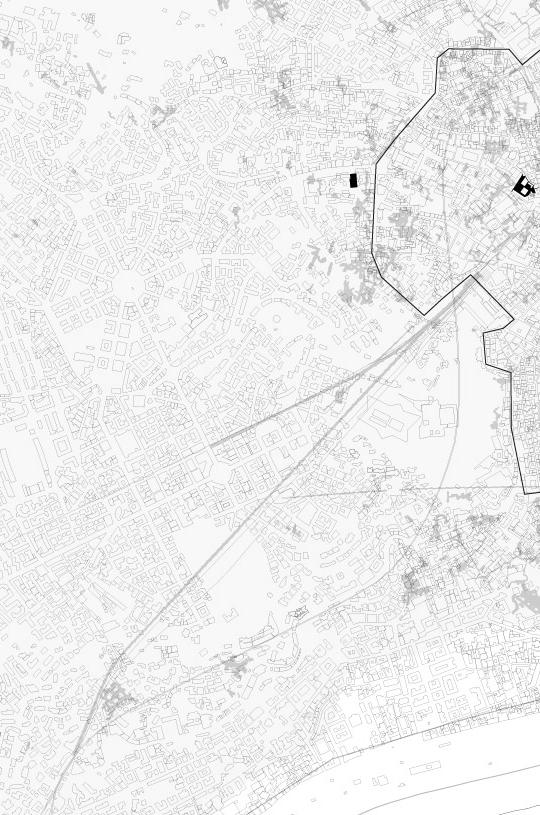

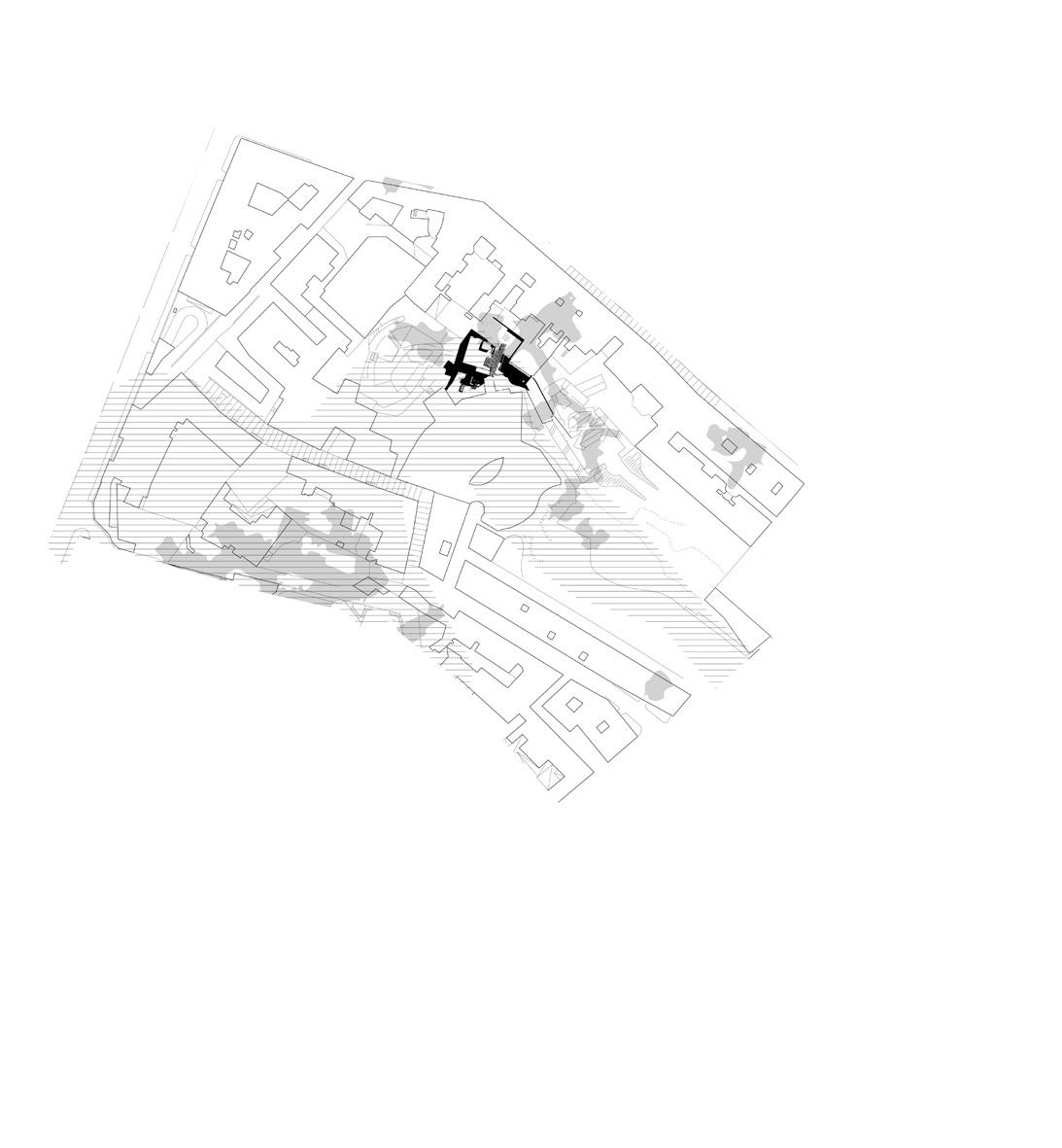

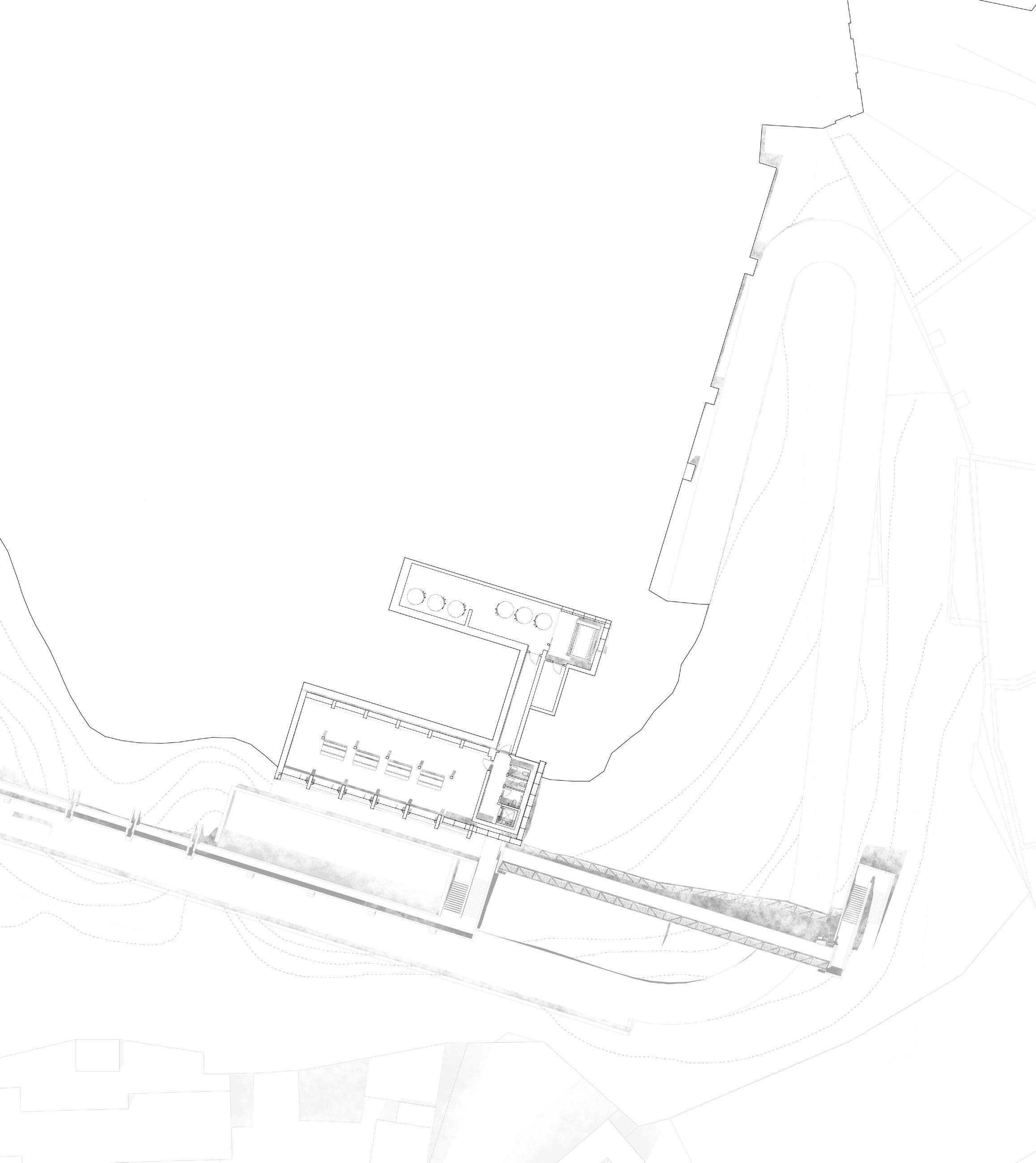

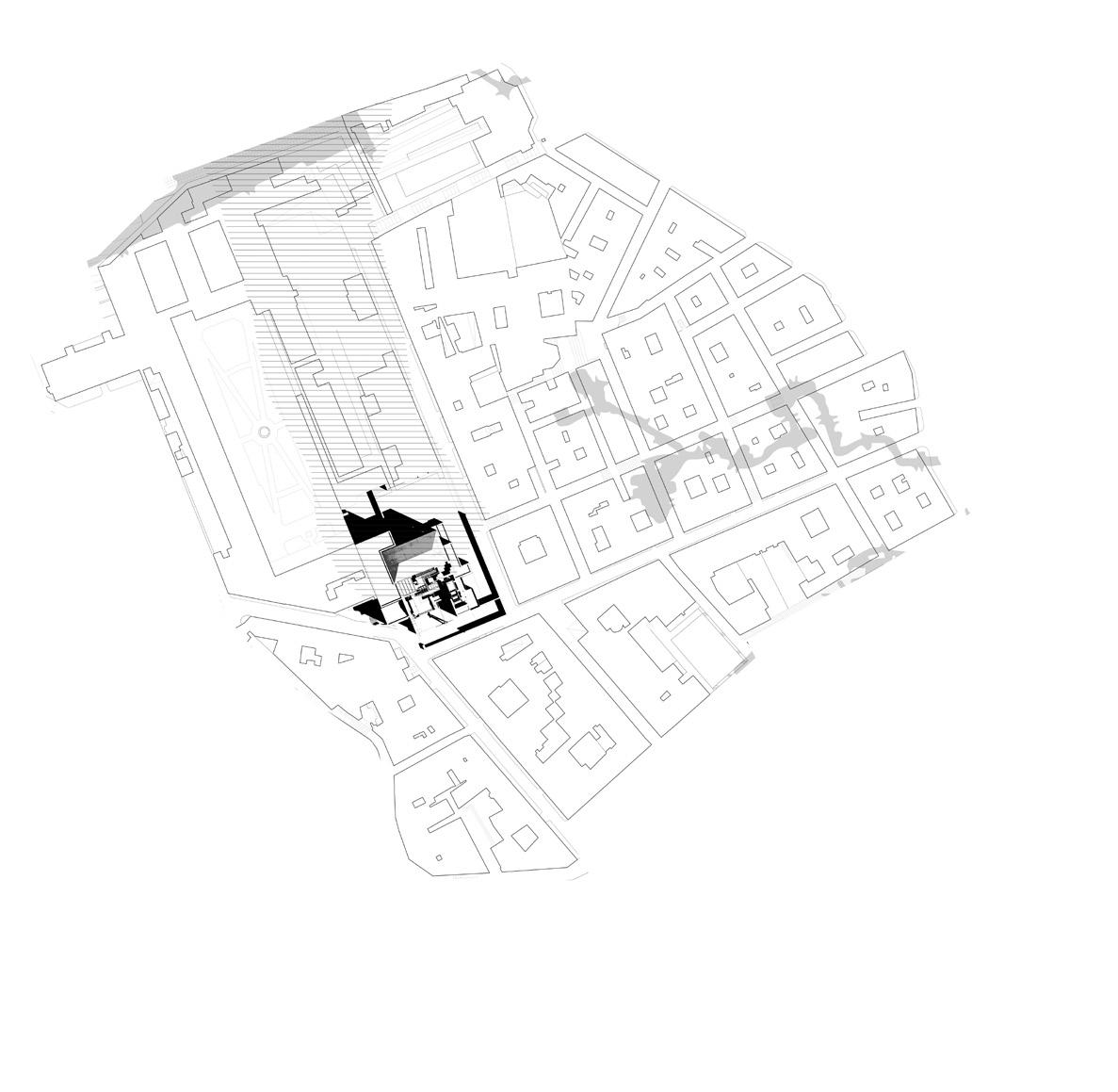

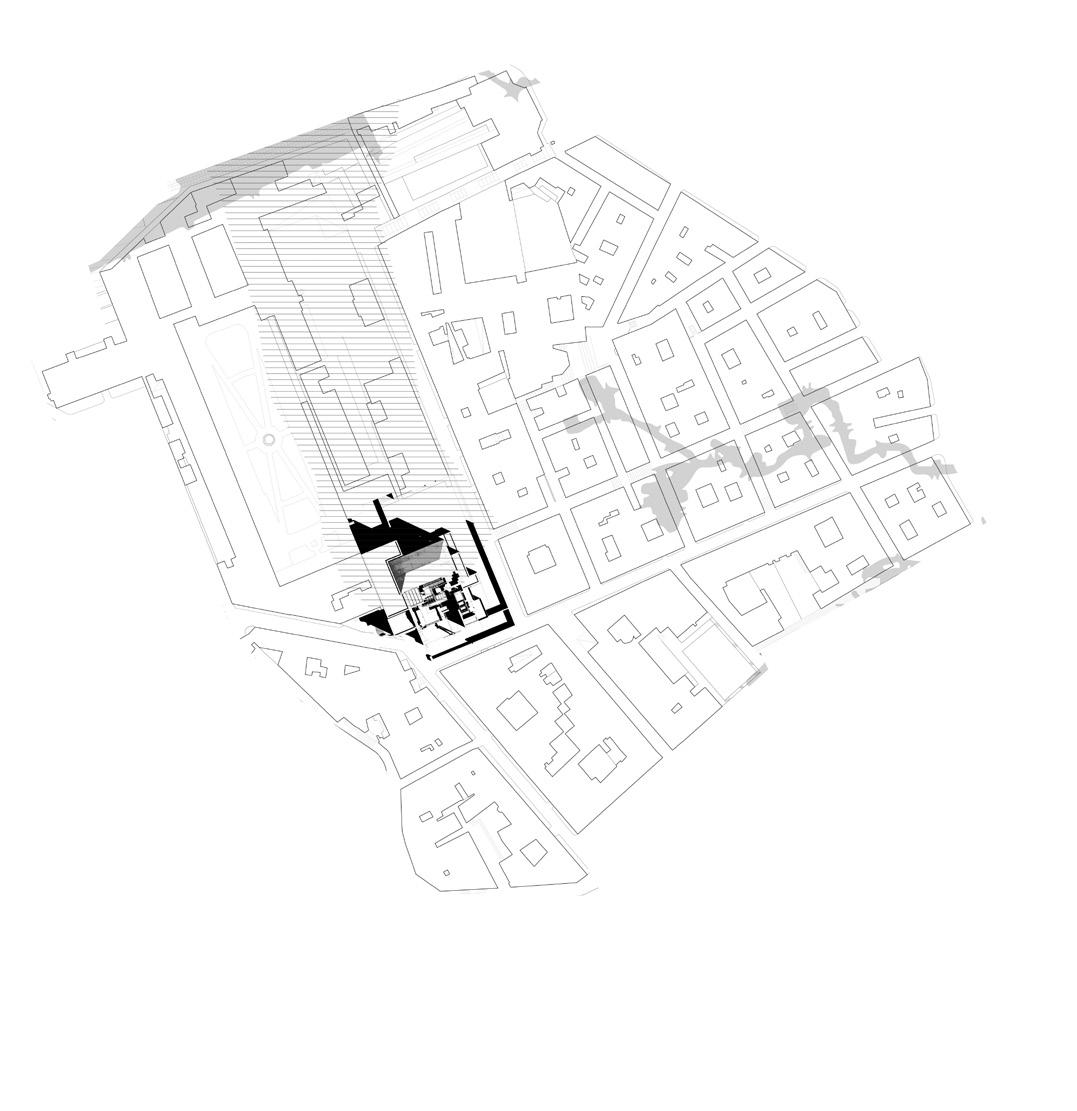

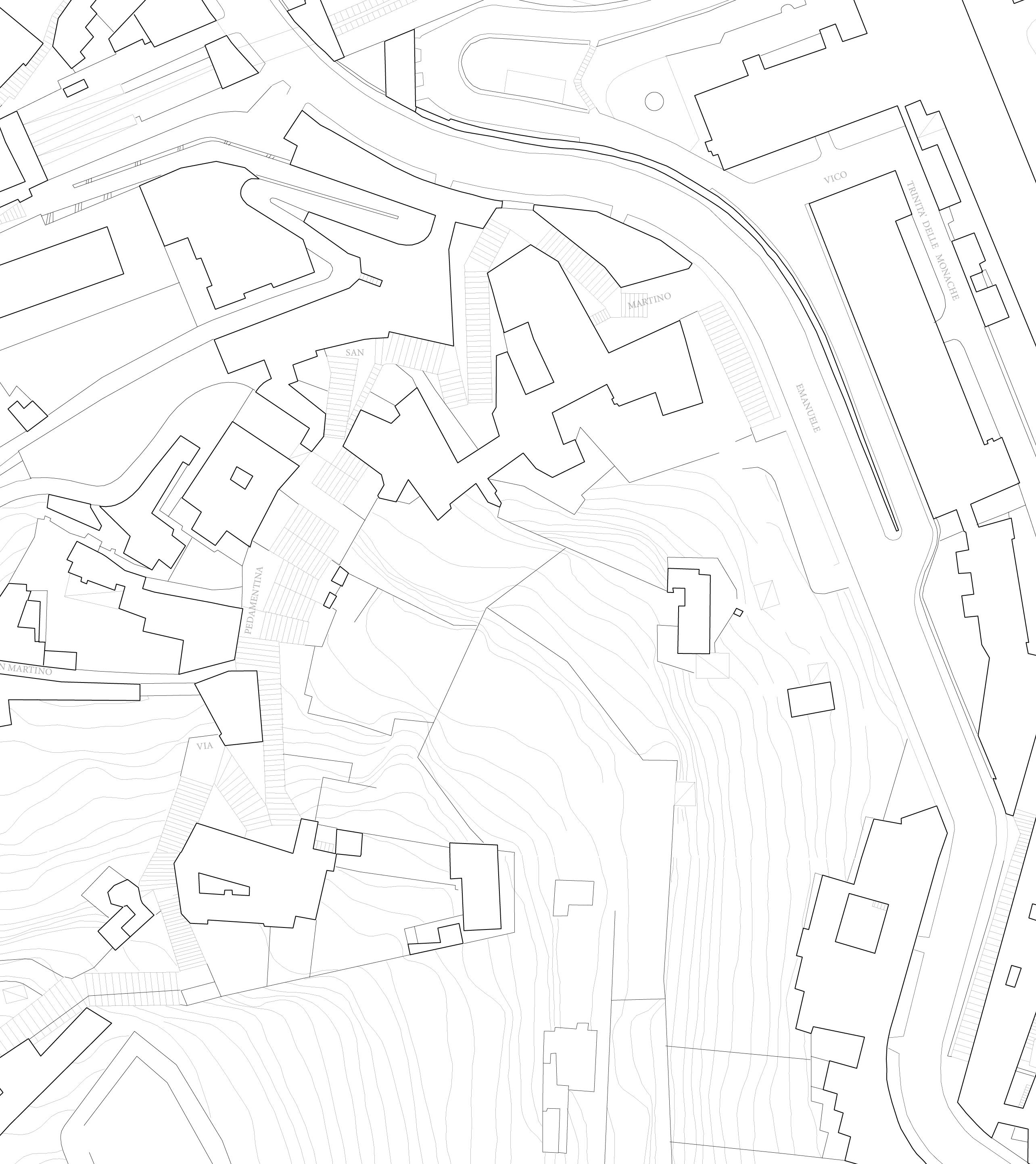

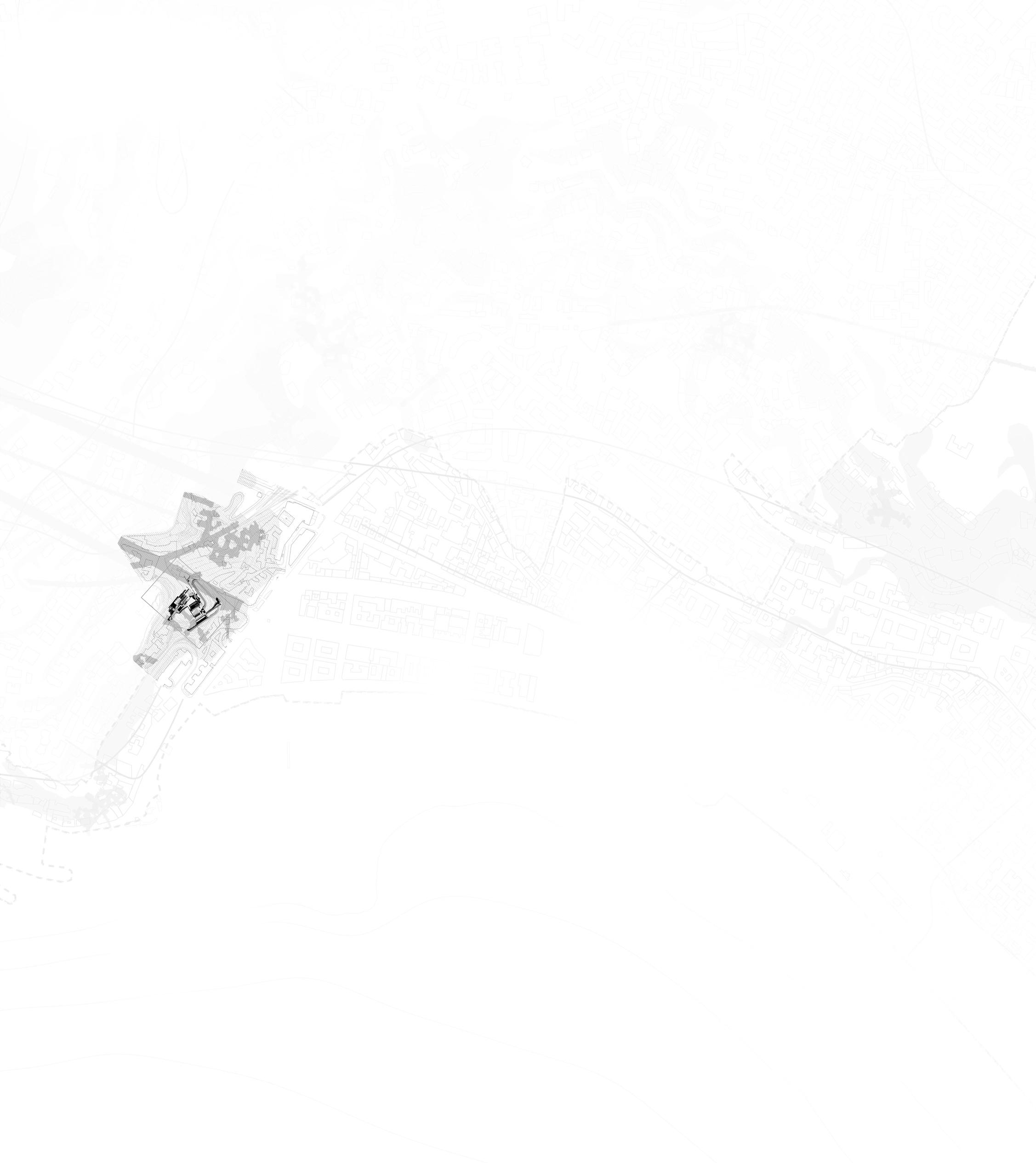

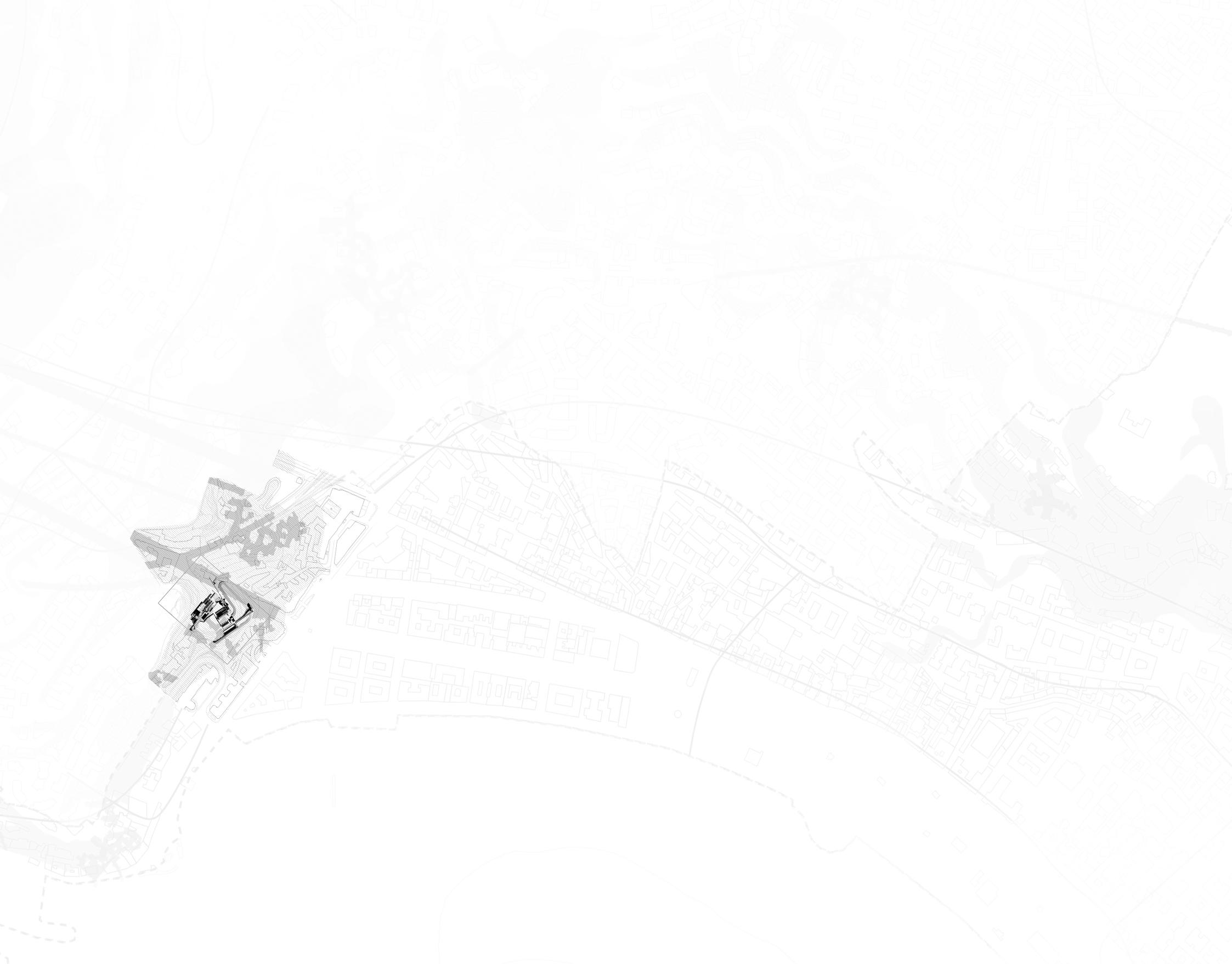

Location Plan The Meterological Observatory 70 |

Situated on tuff, loose top soils, and a series of old quarries, the park remains susceptible to movement from external triggers like significant rainfall events.

“As porous as this stone is the architecture.

Building and action interpenetrate in the courtyards, arcades, and stairways. In everything they preserve the scope to become a theater of new, unforeseen constellations.” [9] - Walter Benjamin

[9] Sophie Wolfrum, Porous City: From Metaphor to Urban Agenda / Editors, Sophie Wolfrum [and 6 Others]. (Basel: Birkhäuser, 2018), 27.

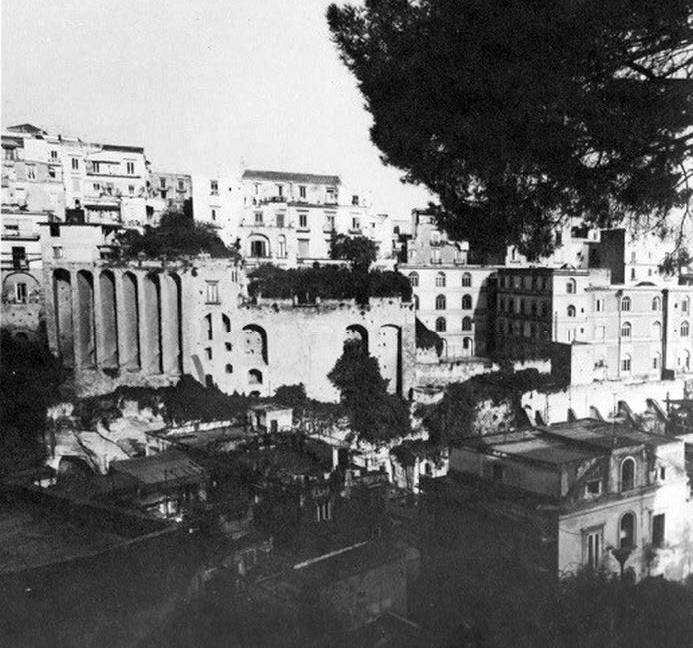

[above] Photo from Strada Nuova in 1980. Parco Ventaglieri non-existent. Prior to the Iripinia earthquake in 1980, the full landscape was at the level of what we are now considering ‘the upper park.’ | 71

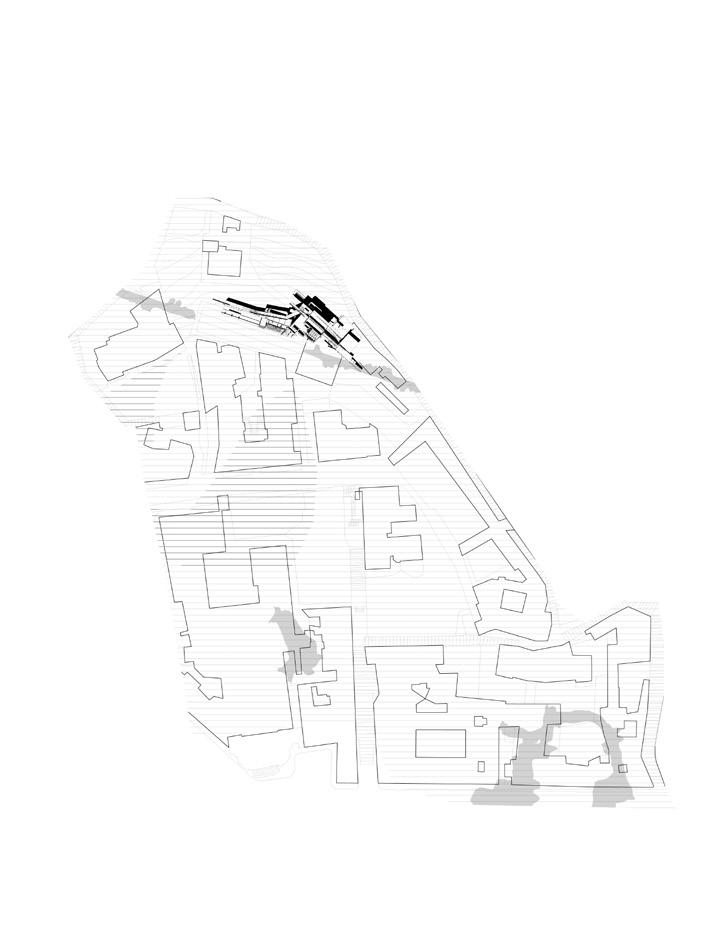

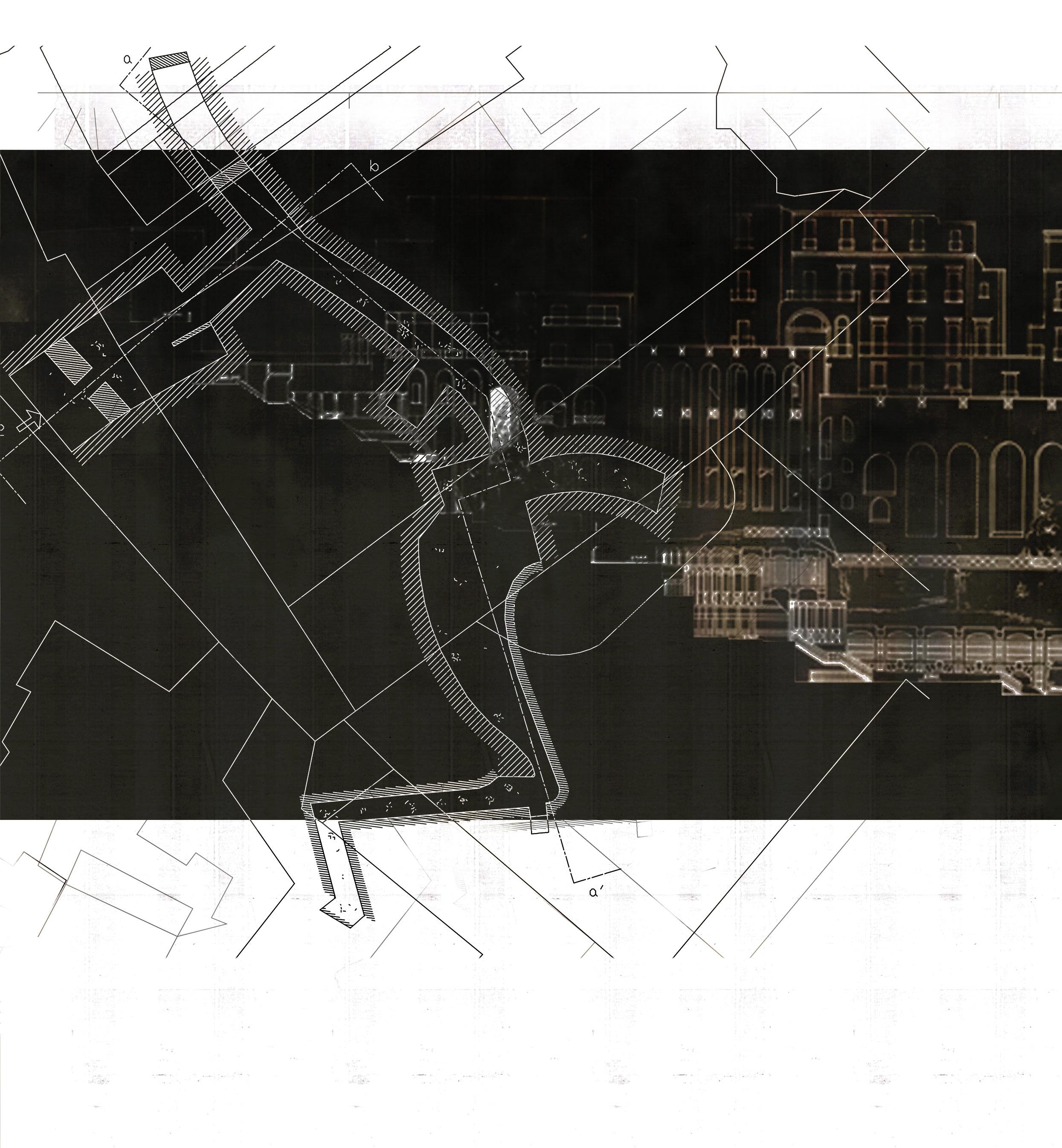

[above] zone drawing of parco ventaglieri showing the network of cavities and steep drop of the ravine

72 |

| 73

VIII.

TURNER IN NAPLES

Integral to the exploration of the Naples has been the analysis and interpretation of J.M.W. Turner’s 1819 visit to the city, as documented in his sketchbook ‘Gandolfo to Naples’. These sketches serve as invaluable windows into the historical, social, and ecological tapestry of Naples before the onset of modern urban development.

Turner’s fascination with atmospheric phenomena, his observations of an active Vesuvius, and his portrayal of the city amidst looming danger resonate profoundly with the architecture of this thesis.

The selected pages from Turners sketchbook offer an initial surface to read the city, a temporal register of a precarious ground, a city in the wake of danger, and corporeal reading of the city that offers as series of belevederes to record the surface.

“‘First, he receives a true impression from the place itself, and takes care to keep hold of that as his chief good ... and then he sets himself as far as possible to reproduce that impression on the mind of the spectator of his picture” - John Ruskin, Modern Painters [10] A. J. Finberg, The Life of J.M.W. Turner / by A.J. Finberg; with a Supplement

by Hilda F. Finberg., Second edition revised. (Oxford: Clarendon Press, 1961), 262.

[11] James Hamilton, Turner and the Scientists / James Hamilton. (London: Tate Gallery Pub., 1998), 12.

74 |

Turner’s sketchbooks, of which nearly 300 survived, were mostly filled with pencil sketches, as this was the artist’s preferred method of working outside. ‘It would take too much time to colour in the open air,’ he once said, noting that he ‘could make 15 or 16 pencil sketches to one coloured’. Back in his lodgings, he usually coloured up the day’s pencil sketches.Turner’s sketchbooks show that during his 1819 tour of Italy, he relied heavily on pencil point work. For him, pencil sketches served a single purpose: to record facts and serve as a repository of topographical information. He painted seven watercolour studies of Naples, but only a small proportion of these, if any, were done in the open air; the rest were done from memory after the pencil sketches were completed. [10] Turner had a keen sense of light and atmosphere, and the immediacy of the watercolour medium was ideal for his artistic goals. Light and atmosphere surpassed topography in his works as his career progressed. Turner famously stated in an 1818 lecture, “Light is therefore colour.” The fact that so many of his elemental studies remained unfinished in his studio suggests that

[above] page from turners sketchbook showing ash captured from his assent of vesuvius

he was content with them in their unfinished, purely atmospheric state. Such experimental studies were not displayed, but were kept as reference material for specific light effects and weather conditions.

Turner obsessively studied cumulonimbus clouds, which are associated with torrential downpours, hail storms, and lightning.

His increased interest in cloud and sky studies can be seen around 1820. His skill in rendering dramatic weather effects is highlighted here by the varied application of broad brushstrokes and the opposing areas of light and dark.

Turner’s artistic interest in industry and energy coincided with scientific and climatic research. The Royal Society, which promoted science, was located directly across the street from the Royal Academy, which promoted the arts. Because of their

proximity, members of one institution were encouraged to attend meetings of the other. [11] Turner was a frequent visitor to the Royal Society, where he met with a number of distinguished scientists.

Sir Humphry Davy, Professor of Chemistry at the Royal Institution, is a notable acquaintance; Turner was not present at Sir Davy’s dinner party on October 31, 1819. Vesuvius had erupted a few days before, and he had rushed to Naples to see it.

A page from his sketchbook illustrates his inquisitive nature and eagerness to register such a sublime event. A number of scholars have followed John Gage’s suggestion that these were made by a shower of hot volcanic ash during Turner’s ascent of Vesuvius.

| 75

IX.

THE URBAN CANOPY

The state of the atmosphere and the direction of its currents necessitate frequent observations, which result in experiences.

Because experience is consigned to the possessor’s memory, relaying verbally can be misleading.

To allow meteorologists to quantify the experience of others, Luke Howard published the first systematic investigation of cloud formations through a methodical nomenclature, applicable to the various forms of suspended water, or rather the Modifications of Cloud. [12] The Nomenclature is drawn from Latin to create a universal language, with each Term immediately conveying the objects being defined.

Later, Howard focused on the way in which the city creates its own clouds, titled The Climate of London, with On the modification of clouds as the introduction. Howard recognised that pollution from all over London contributed to the formation of city-wide fogs, similar to what can be seen in Naples. Here, the weather is the city. Howard’s discusses the instruments and methods used to measure weather and climate, including a Hygrometer, which measures moisture content.

Howard discovered a ‘pool’ of warmer air in the built-up area.

The magnitude of this urban heat island grows toward the settlement’s core, where building density is highest.

Howard is describing the urban ‘canopy layer’ effect on air temperature. The canopy layer may be defined as the air that lies below roof level. The outdoor canopy layer acquires its properties through interaction with the adjacent surfaces (building walls and street surface) and through exchanges of air with indoor (across building openings and gaps) and outdoor (between streets and with the overlying atmosphere) spaces. He identifies four causes for the observed differences in air temperature: [1]

The geometry of urban surfaces which ‘traps’ radiation and obstructs ‘free radiation to the sky’.

[2]

The effect of urban ‘roughness’ in impeding the passage of ‘the light winds of summer’.

[3]

The availability of moisture for evaporation in the country.

[12] Luke Howard, Essay on the Modifications of Clouds / Luke Howard., Cambridge Library Collection. Earth Science (Place of publication not identified: publisher not identified, 1865), 2.

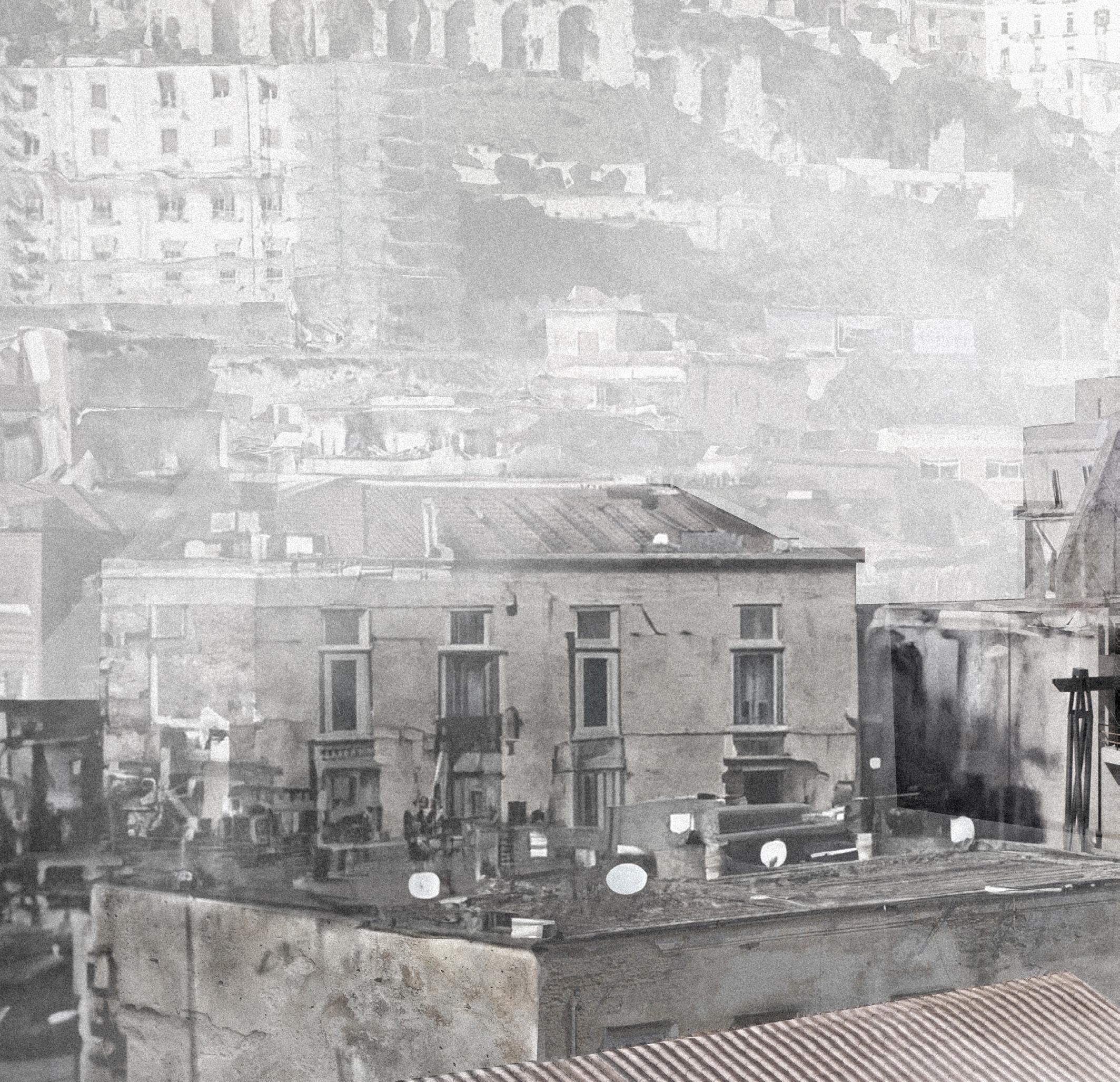

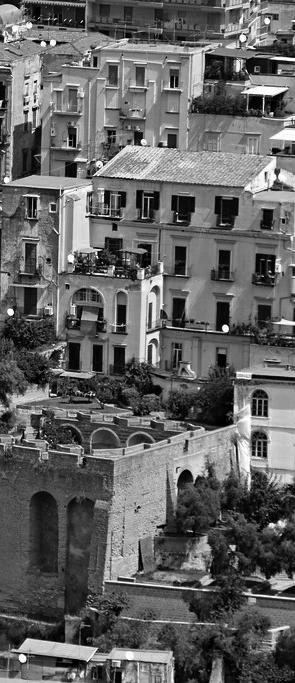

[right] view across rooftops in quartieri spagnoli with vesuvius in the background

76 |

| 77

X.

THE METEOROLOGICAL OBSERVATORY

In conjunction with the vulnerability posited by the fragile Neoplolitan landscape, the observatory seeks to develop a novel tectonic language that attempts to contend with the recognised Neopolitan state of fragility. The design of the observatory evokes a range of questions from materiality to tectonics and how architecture begins to occupy it telluric substrate. It speaks to a much larger landscape, and to develop, to borrow from Jane Hutton, material reciprocities. If sites are real and physical and non-sites are abstract, the in-between becomes the territory that this observatory occupies.[13] The structure serves as a meteorological observatory, providing a place to measure, record and monitor atmospheric conditions.

Such conditions are brought to a degree of visibility through a ‘twitching’ architecture that moves and shifts in response to the surrounding environment.

Perched amidst the elevated position of Parco Ventaglieri, the Meteorological Station monitors weather conditions such as rainfall intensity, temperature and humidity. This data can be correlated with ground movement patterns for better understanding of landslide and sinkhole triggers.

[13] Jane Elizabeth Hutton, Reciprocal Landscapes: Stories in Material Movements / Jane Hutton. (Abingdon, Oxon ; Routledge, Taylor & Francis Group, 2020).

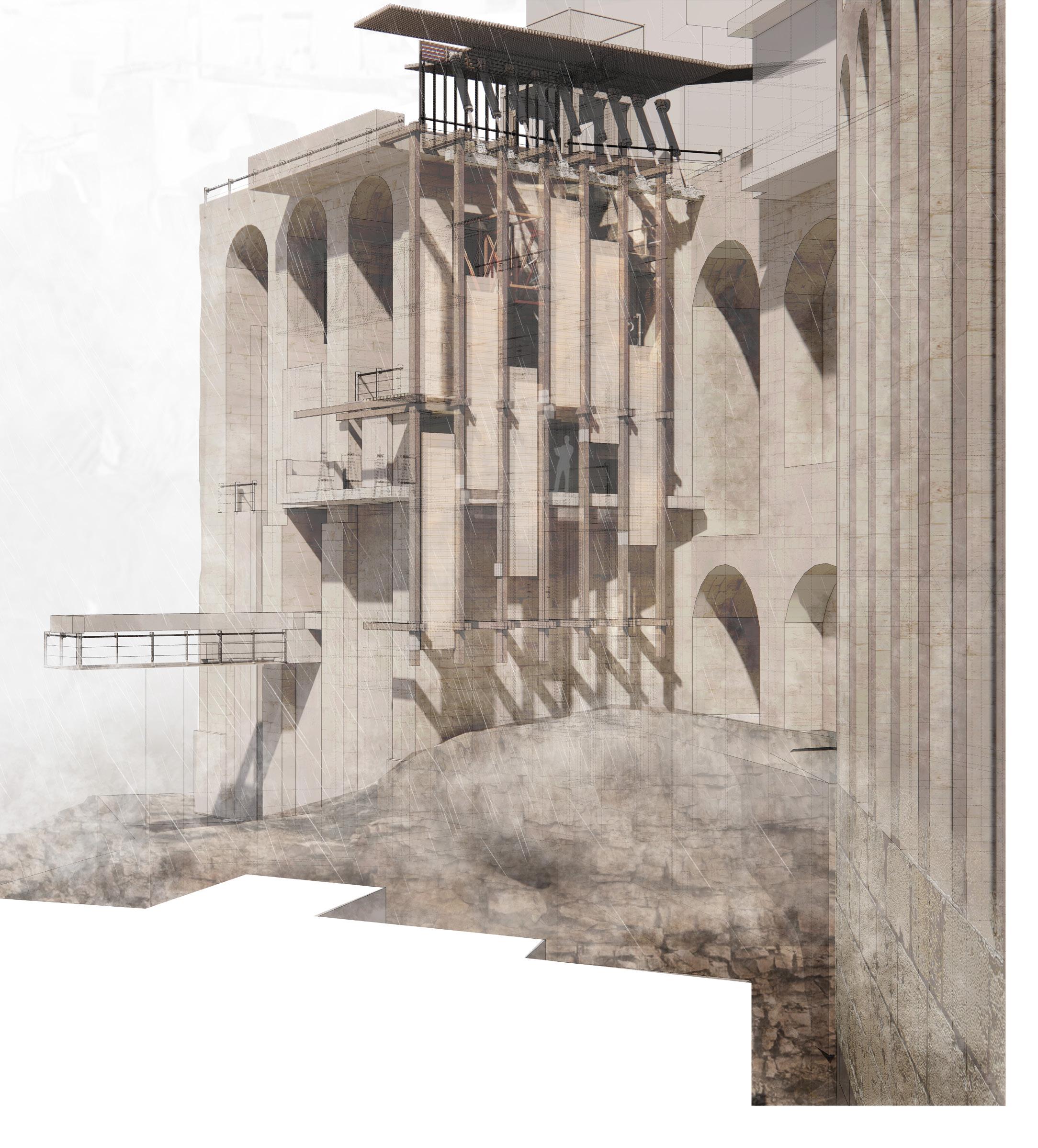

[right] view of the meteorological observatory form the park

78 |

| 79

[1]

[2] [3]

[4] [5]

[6]

[7]

80 |

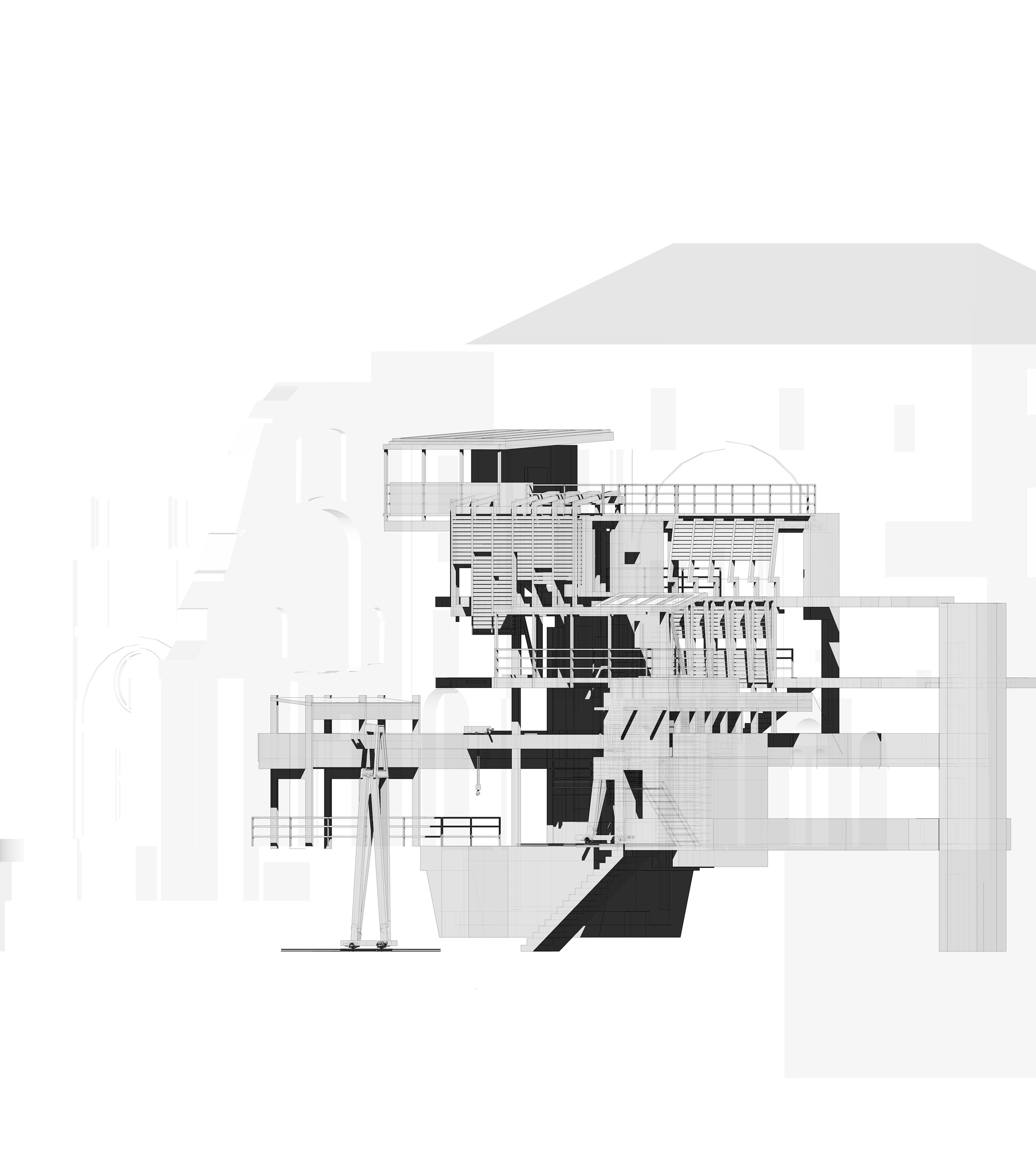

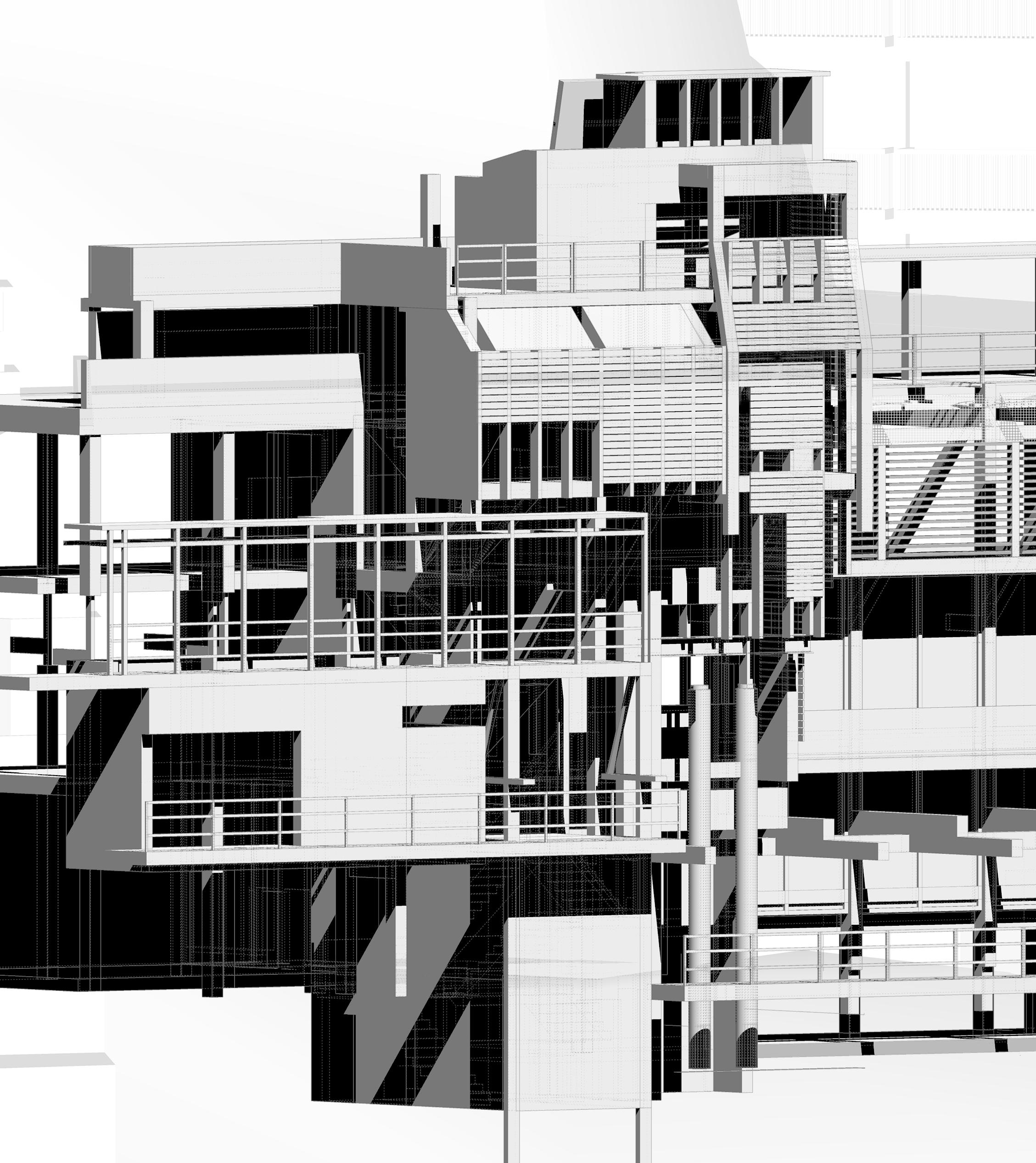

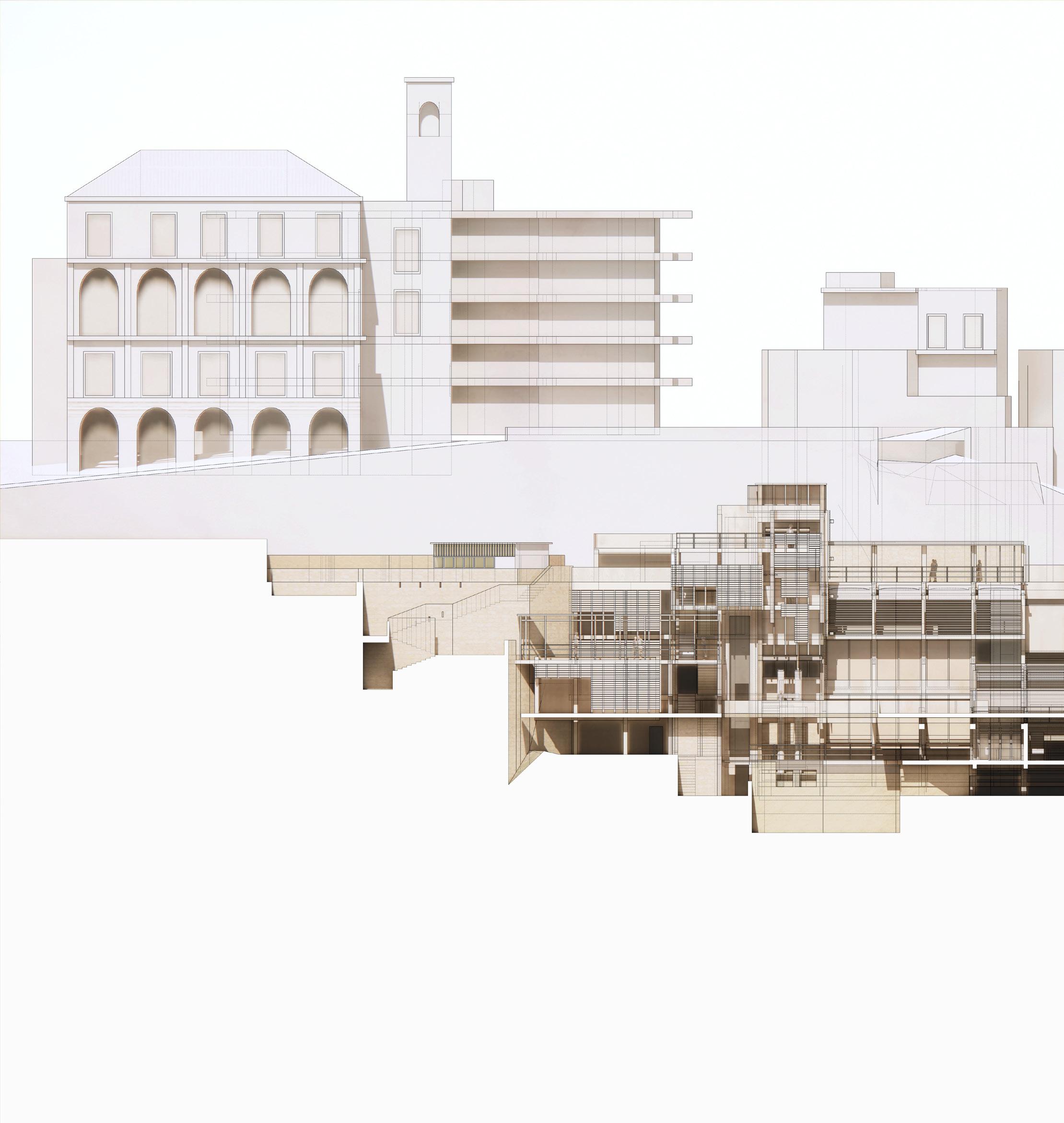

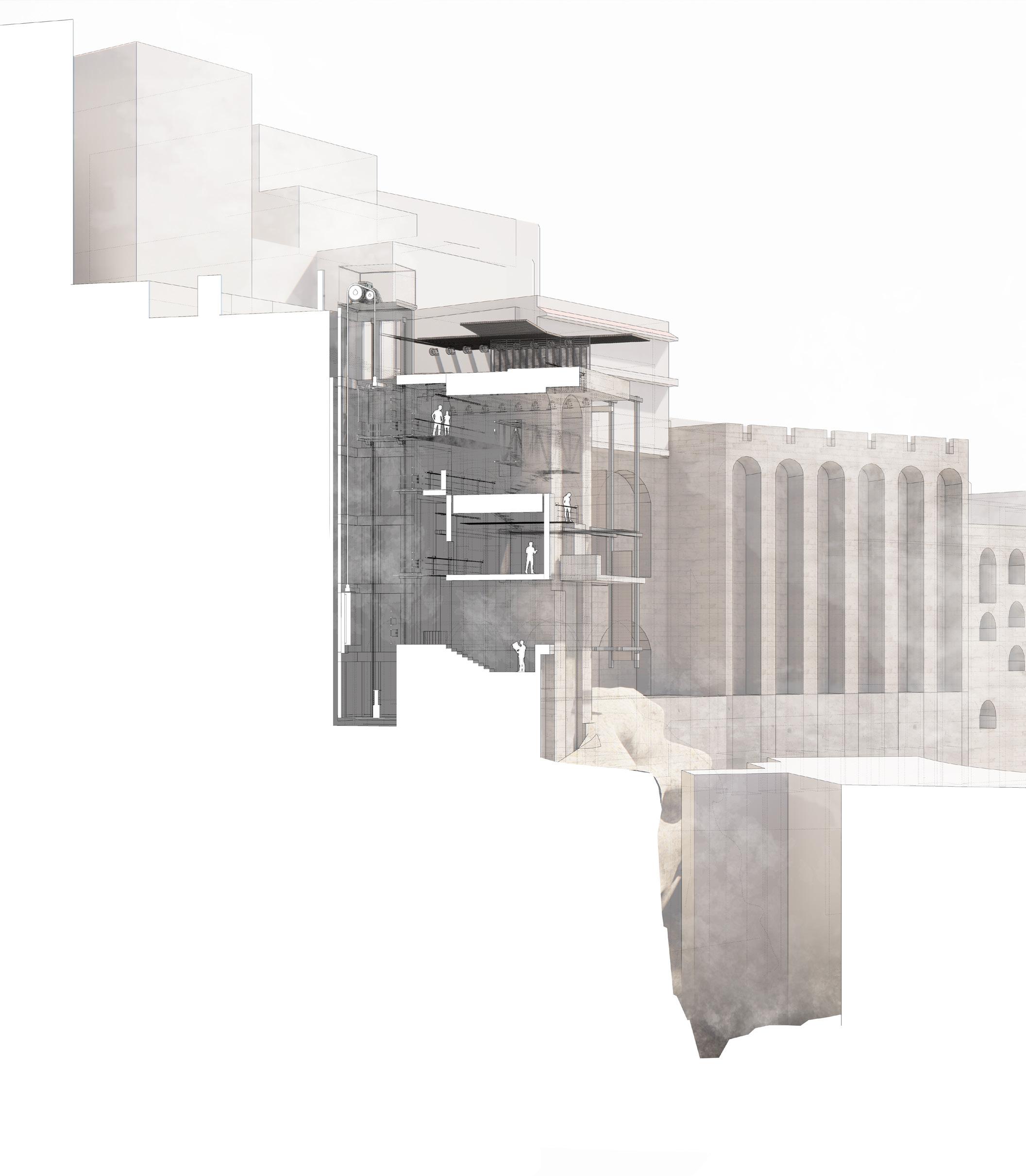

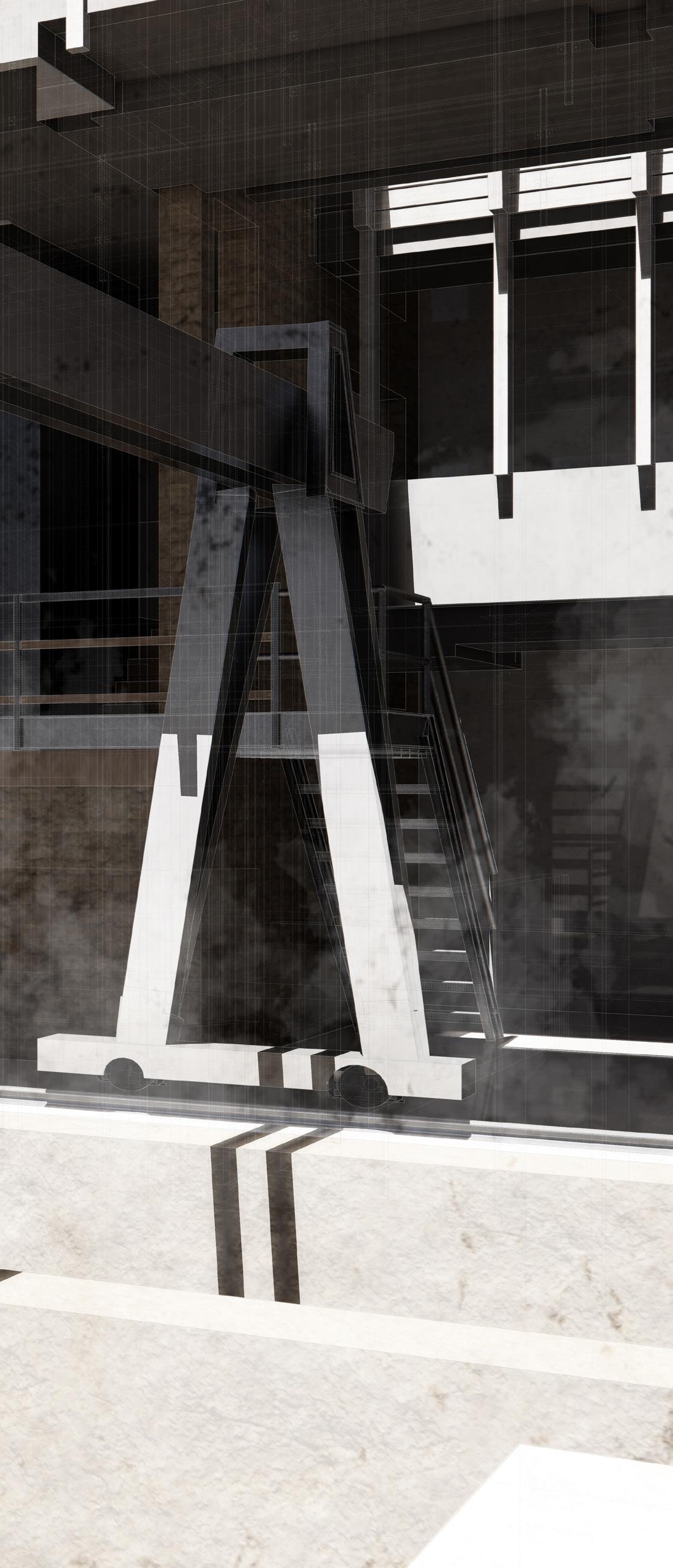

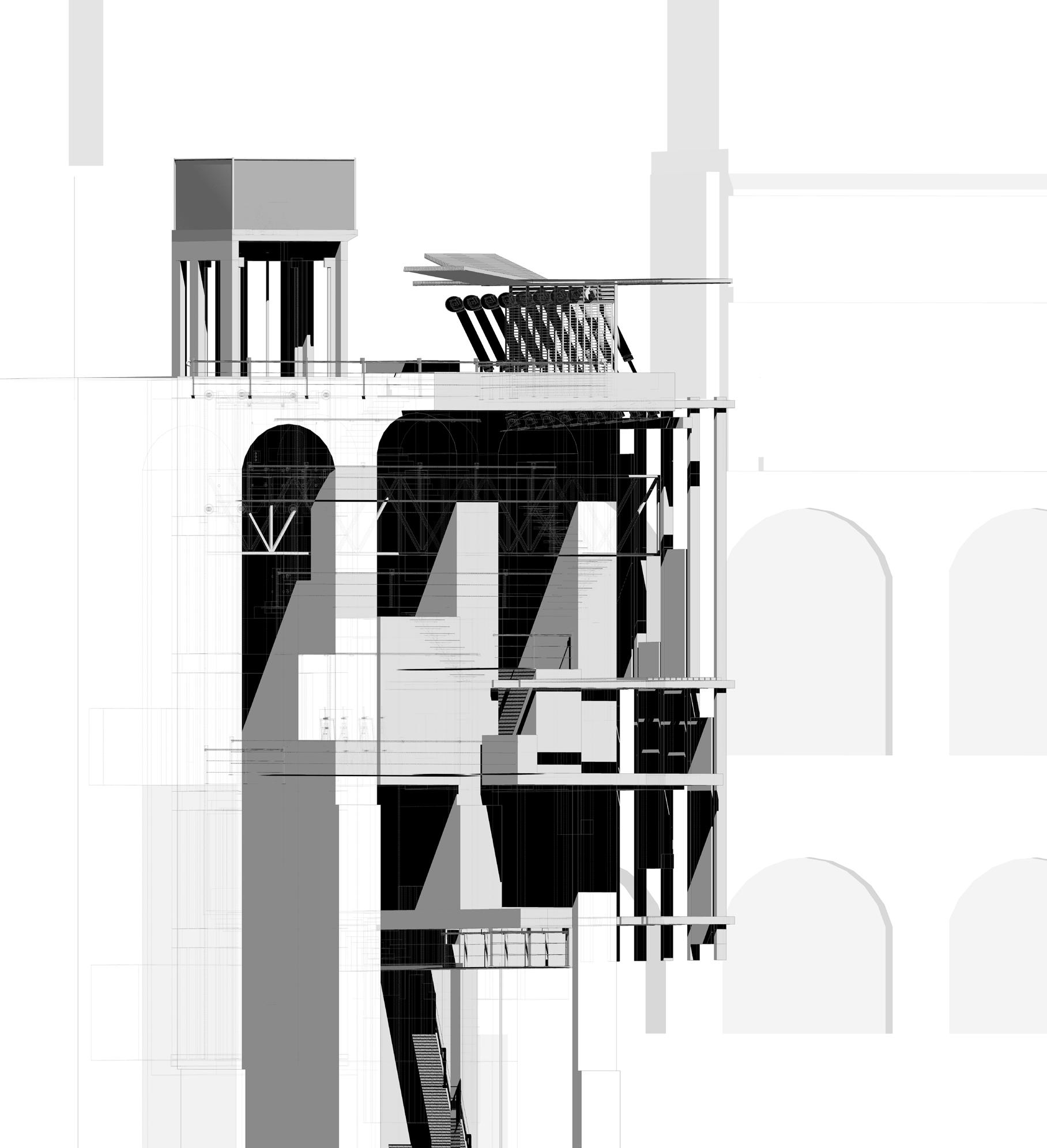

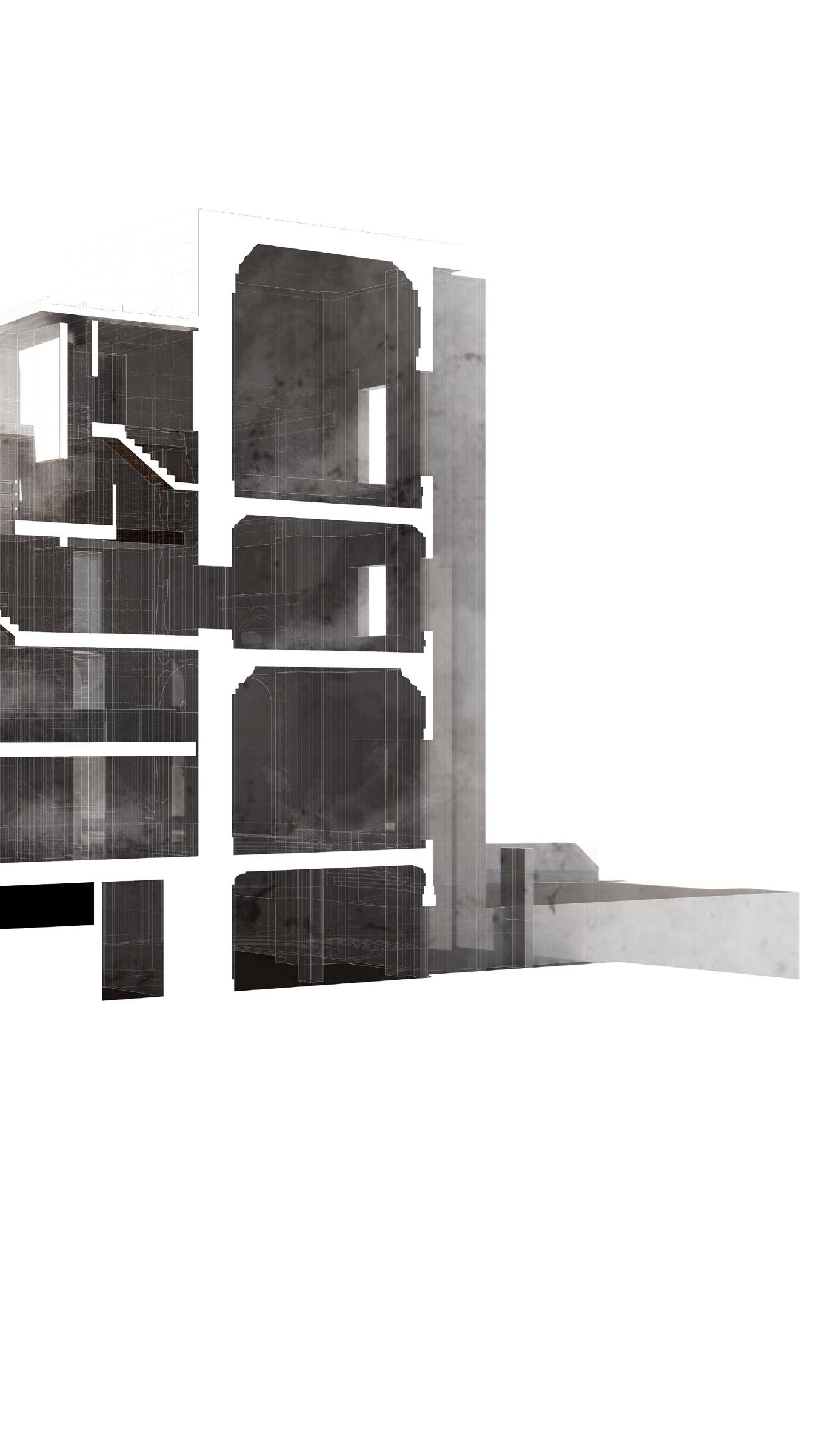

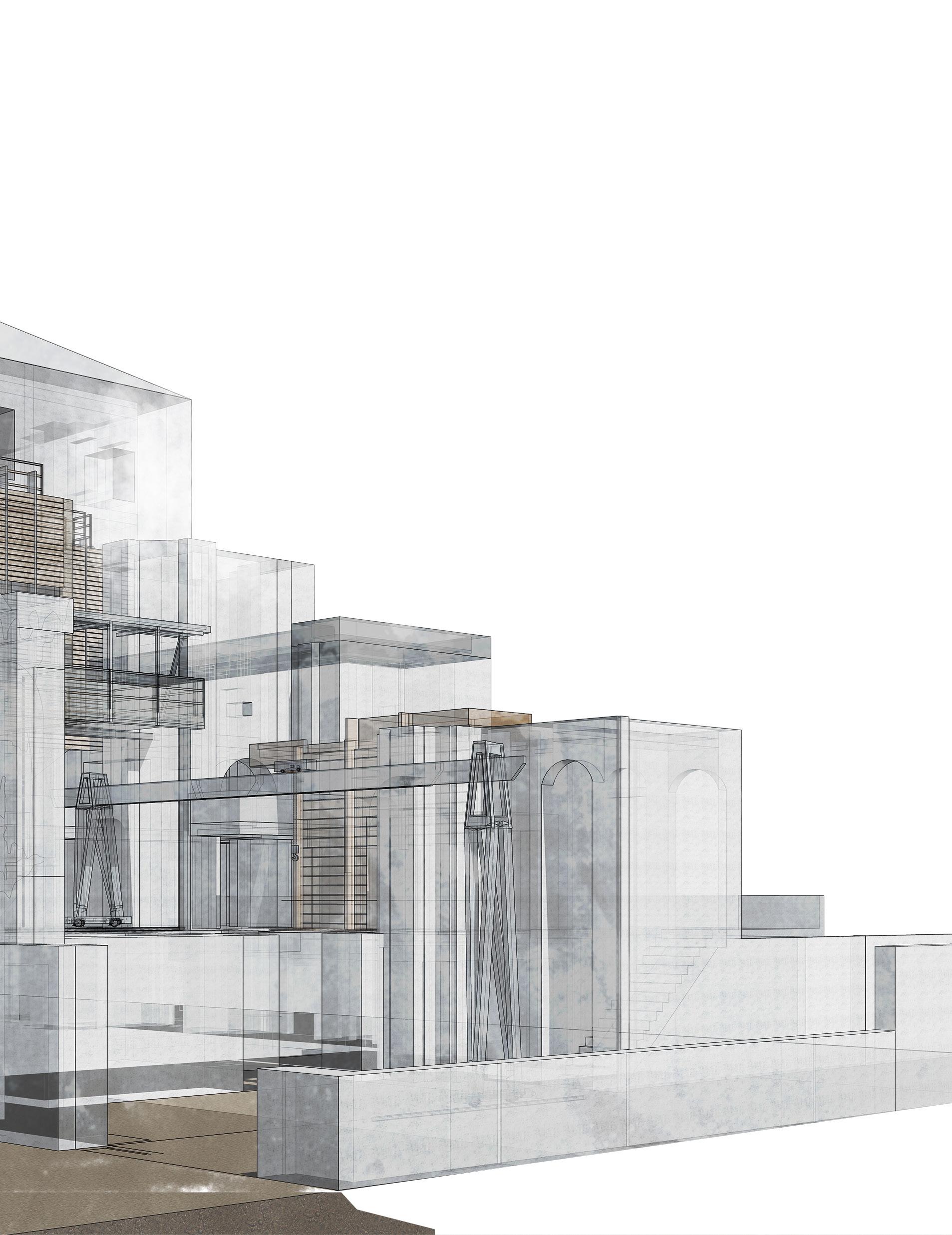

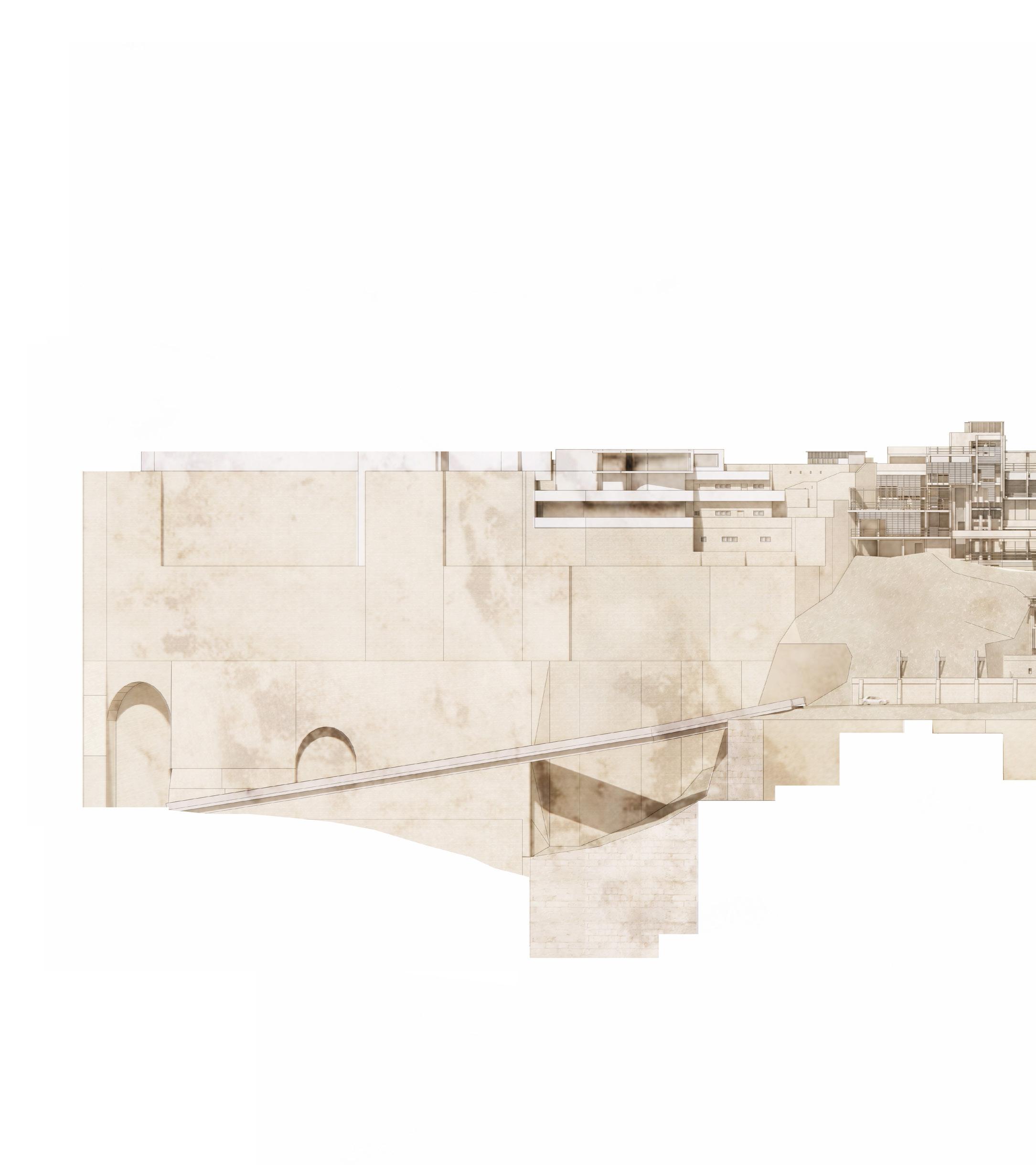

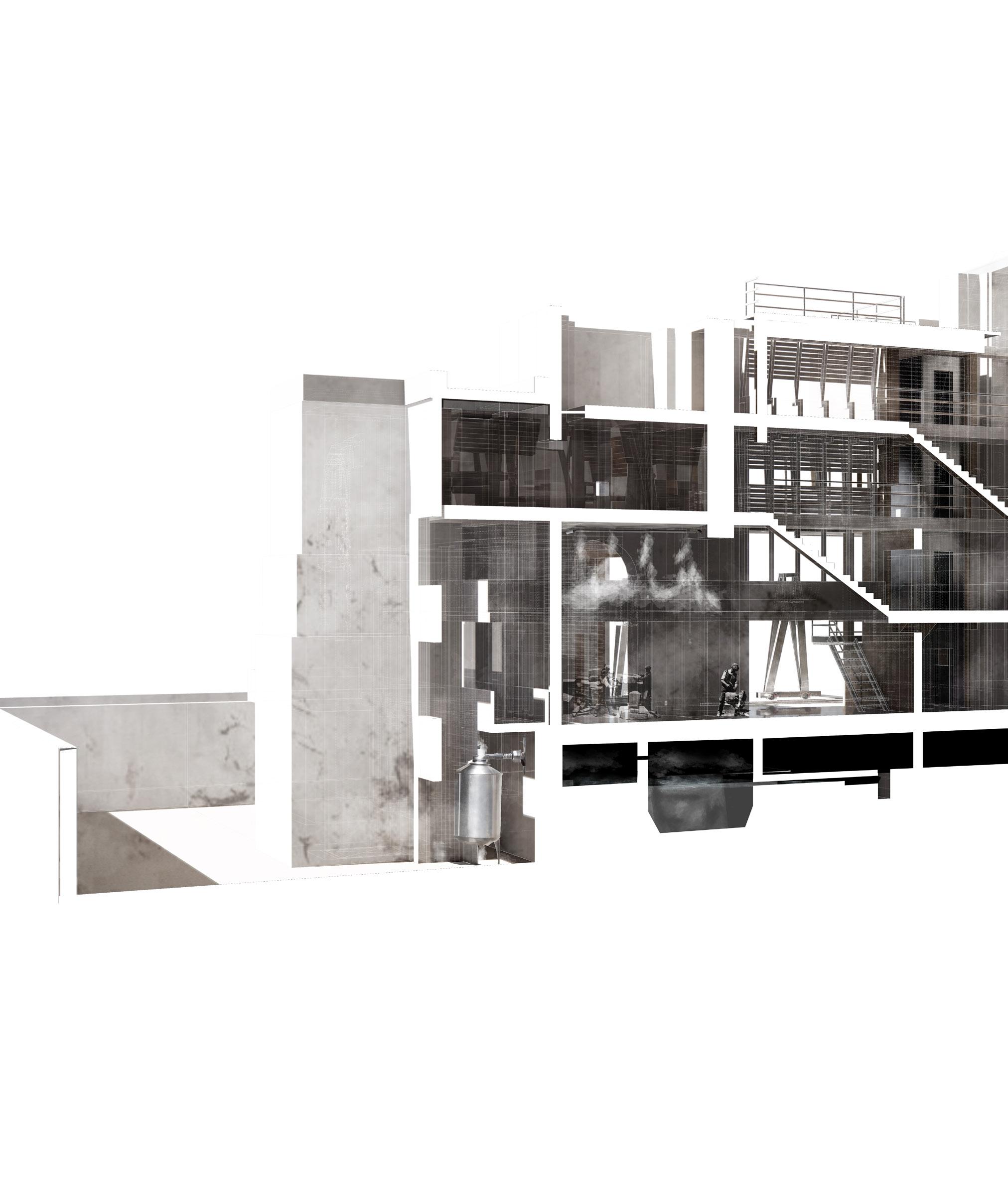

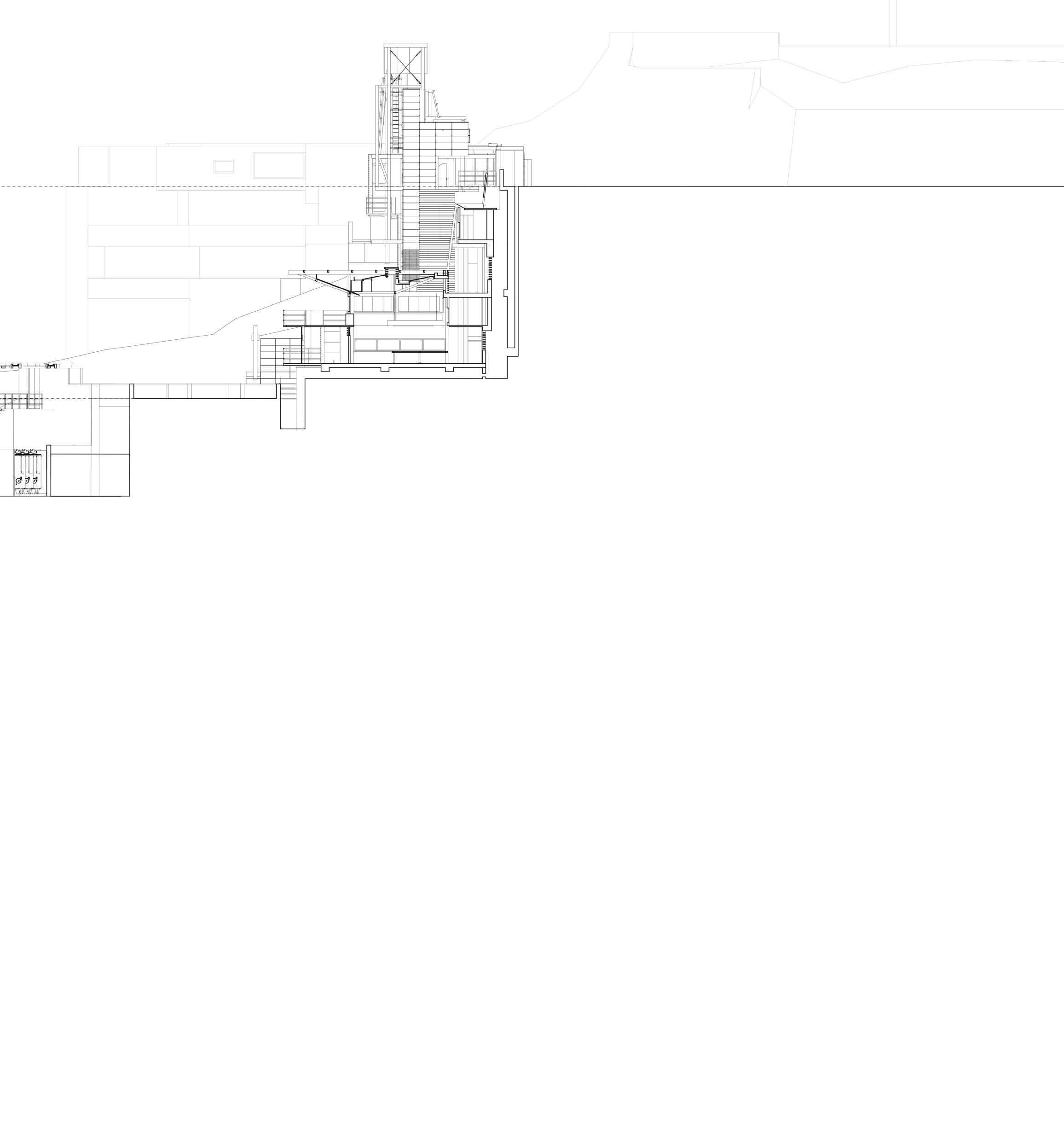

Perspective Section cutting through connecting bridge, painting balconies & studio [1] [2] [3] [4] [5] [6] [7] [8]

entrance terrace lift connecting bridge painting balconies painting studio drying hall urban canyon parco ventaglieri

[8]

| 81

82 |

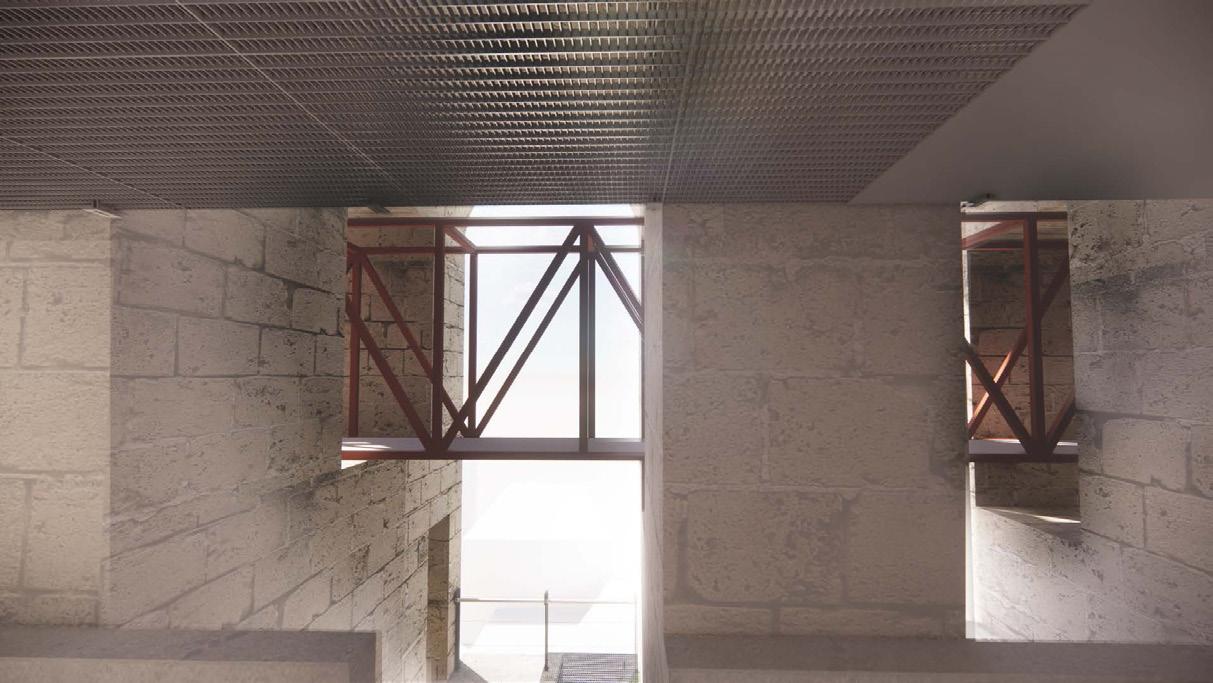

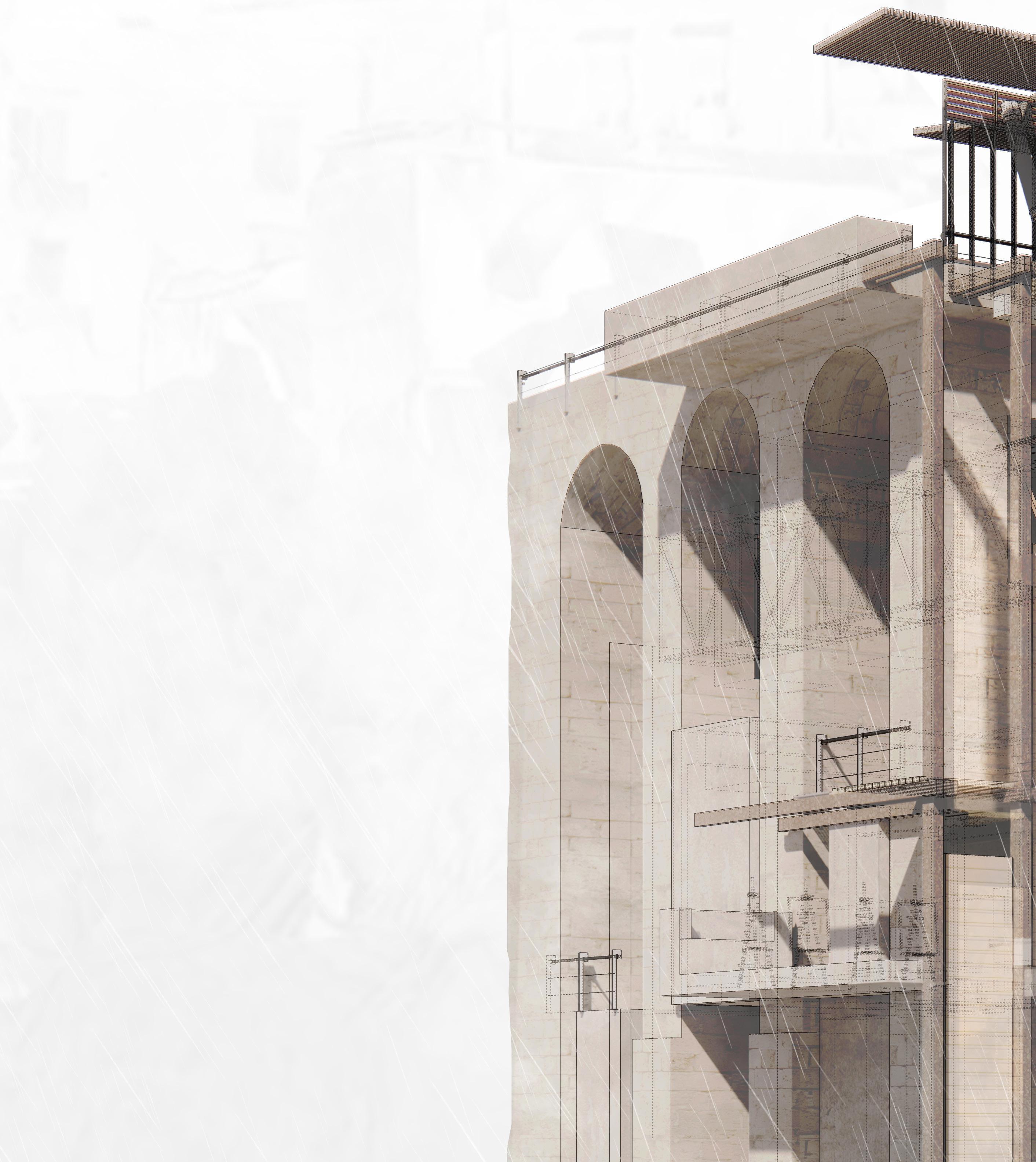

[above] connecting bridge through tufo arches between hygrometer and paiting balconies

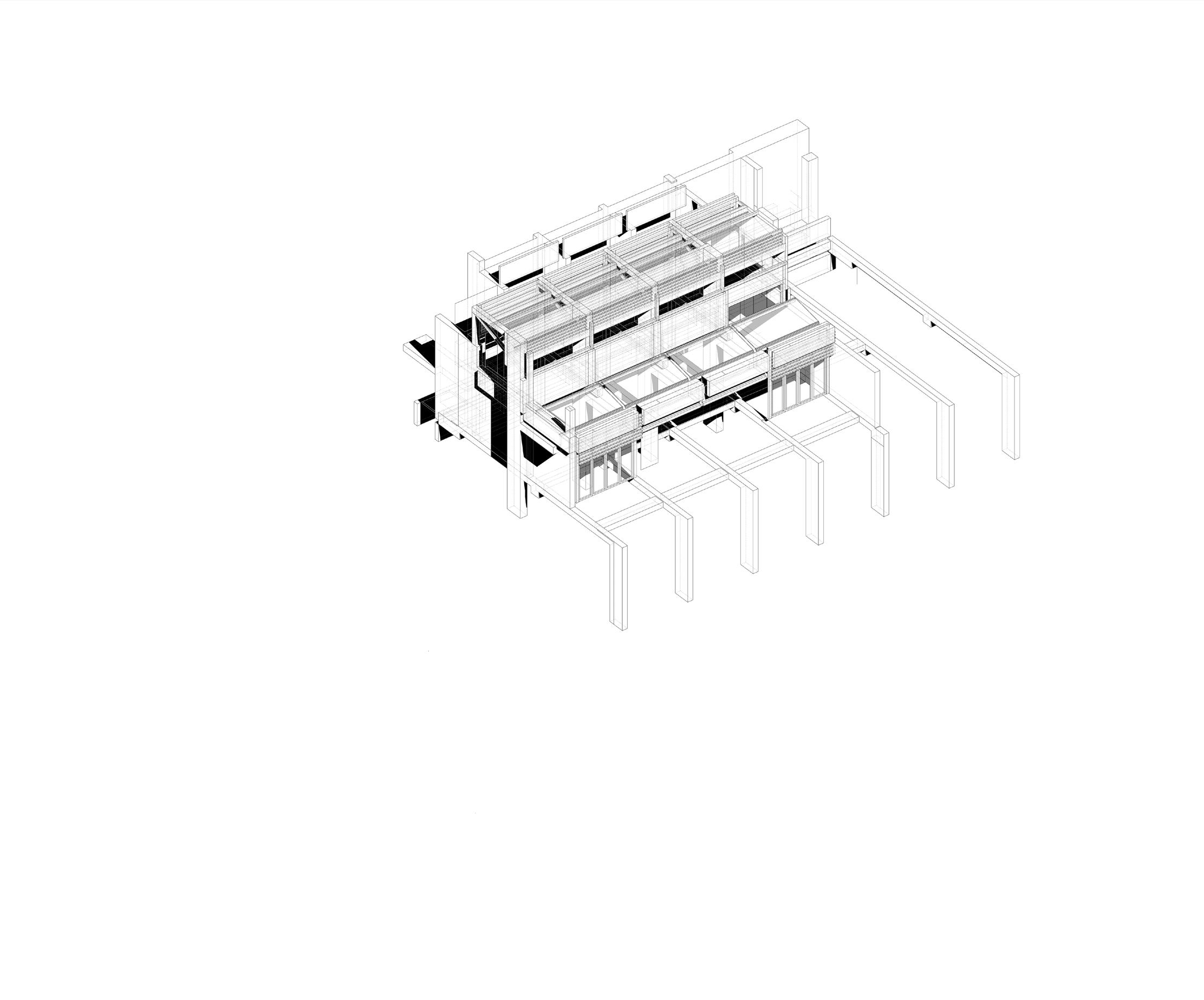

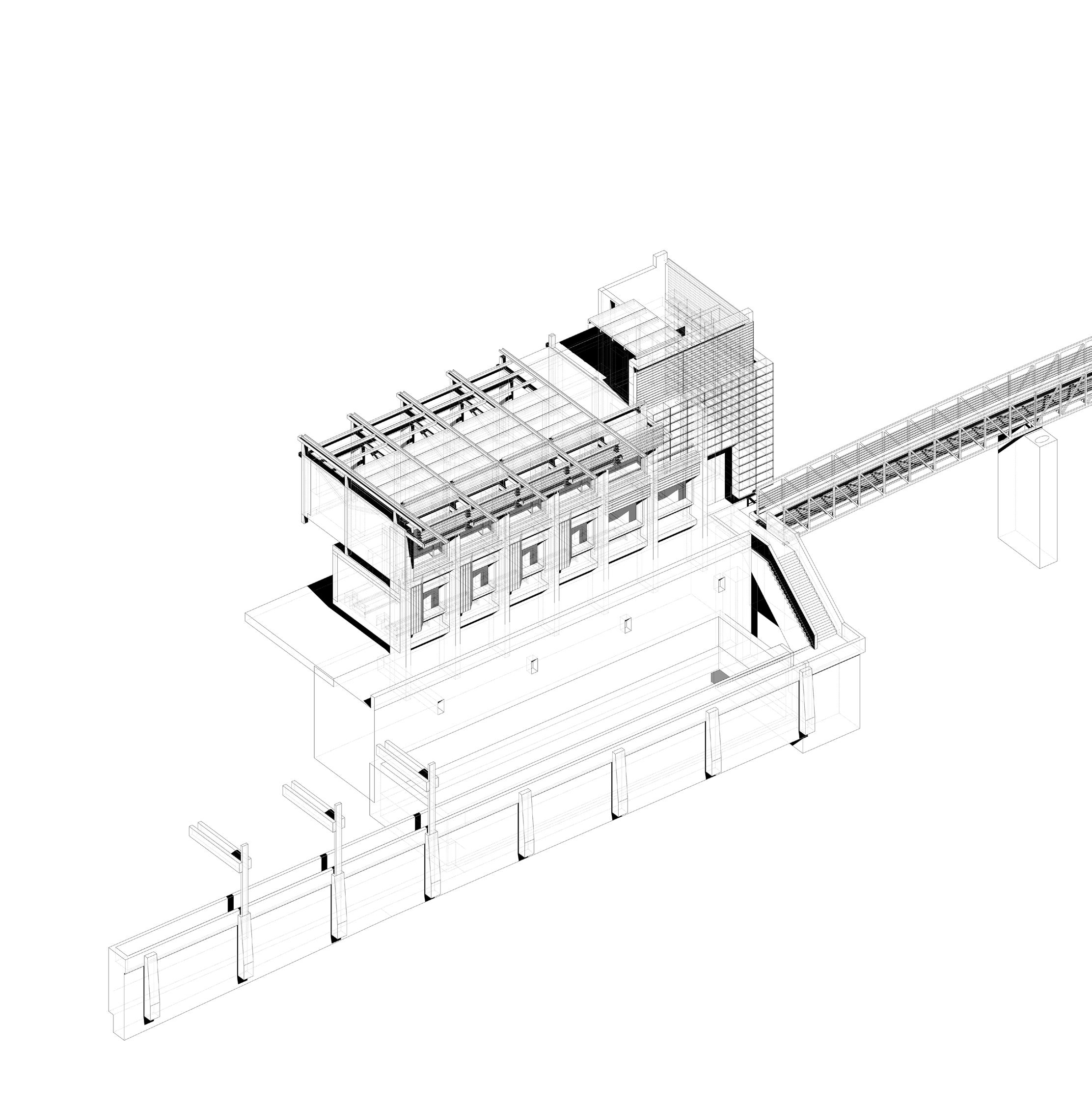

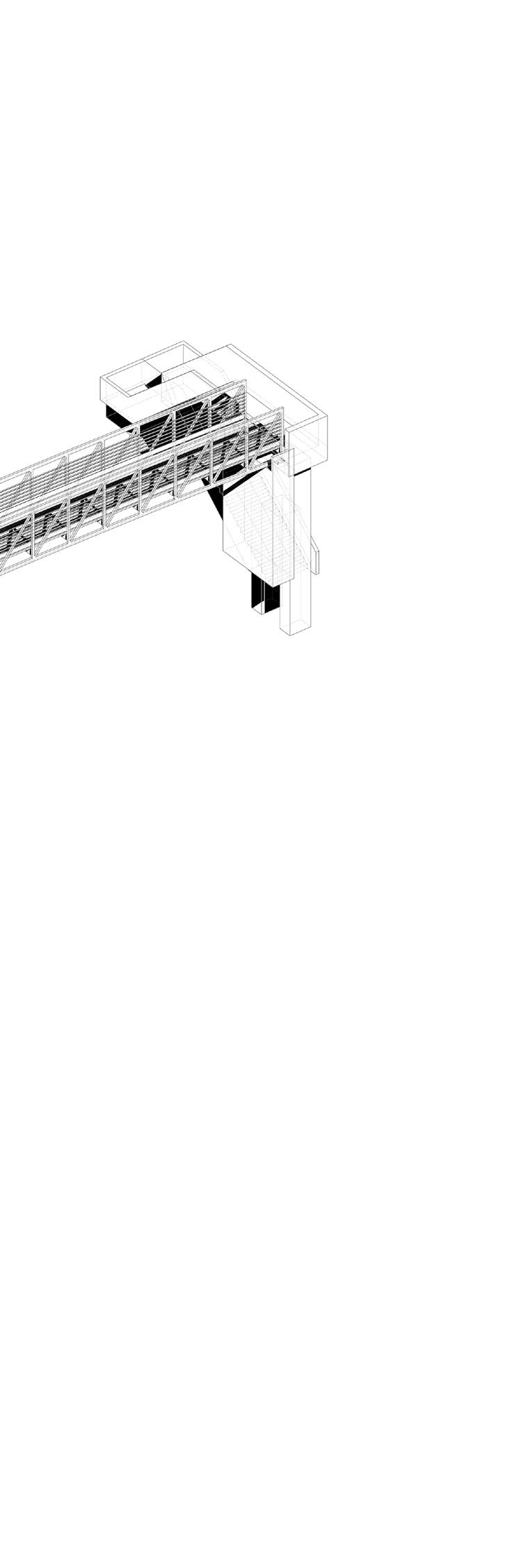

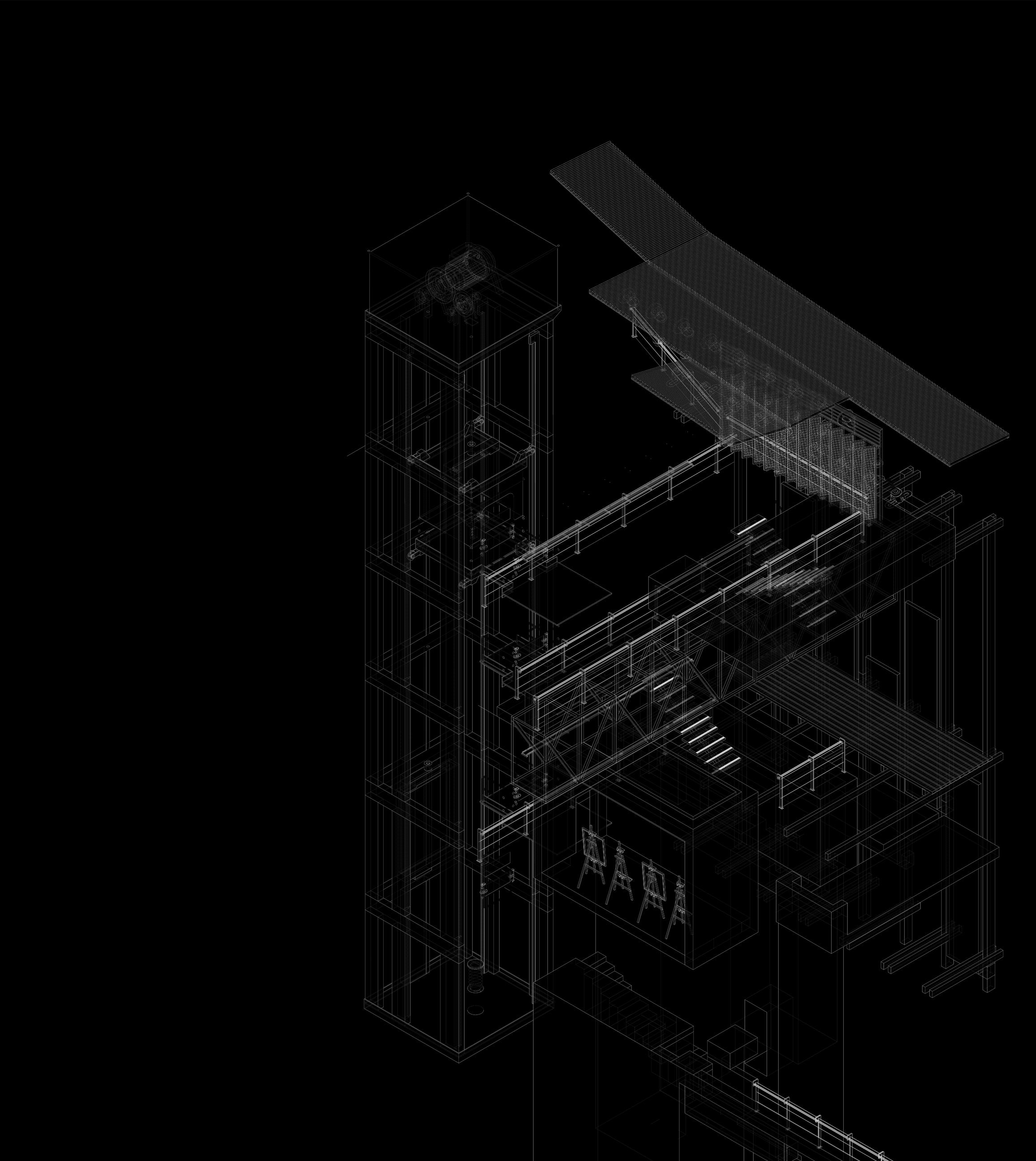

[above] painting studio for J.M.W. Turner [left] isometric of meteorological observatory

| 83

[5] [6]

[1] [3]

[7] [2]

[4]

[9] [8]

84 |

Gallery Plan at Level +2 cutting through control room, water collection tanks and study [1] [2] [3] [4] [5] [6] [7] [8] [9]

paint store room hygrometer connecting bridge studio lift staircase to gallery staircase to balcony canvas store room lower painting balcony

| 85

‘A meaningful architectural experience is not simply a series of retinal images. The elements of architecture are not visual units, they are encounters, confrontations that interact with memory. In such memory the past is embodied in action.

Rather than being contained separately somewhere in the mind or brain, it is actively an ingredient in the very bodily movements that accomplish a particular action,’ [14]

[14] Edward S. Casey, Remembering, Second Edition: A Phenomenological Study, 2nd ed. (Indiana University Press, 2000).

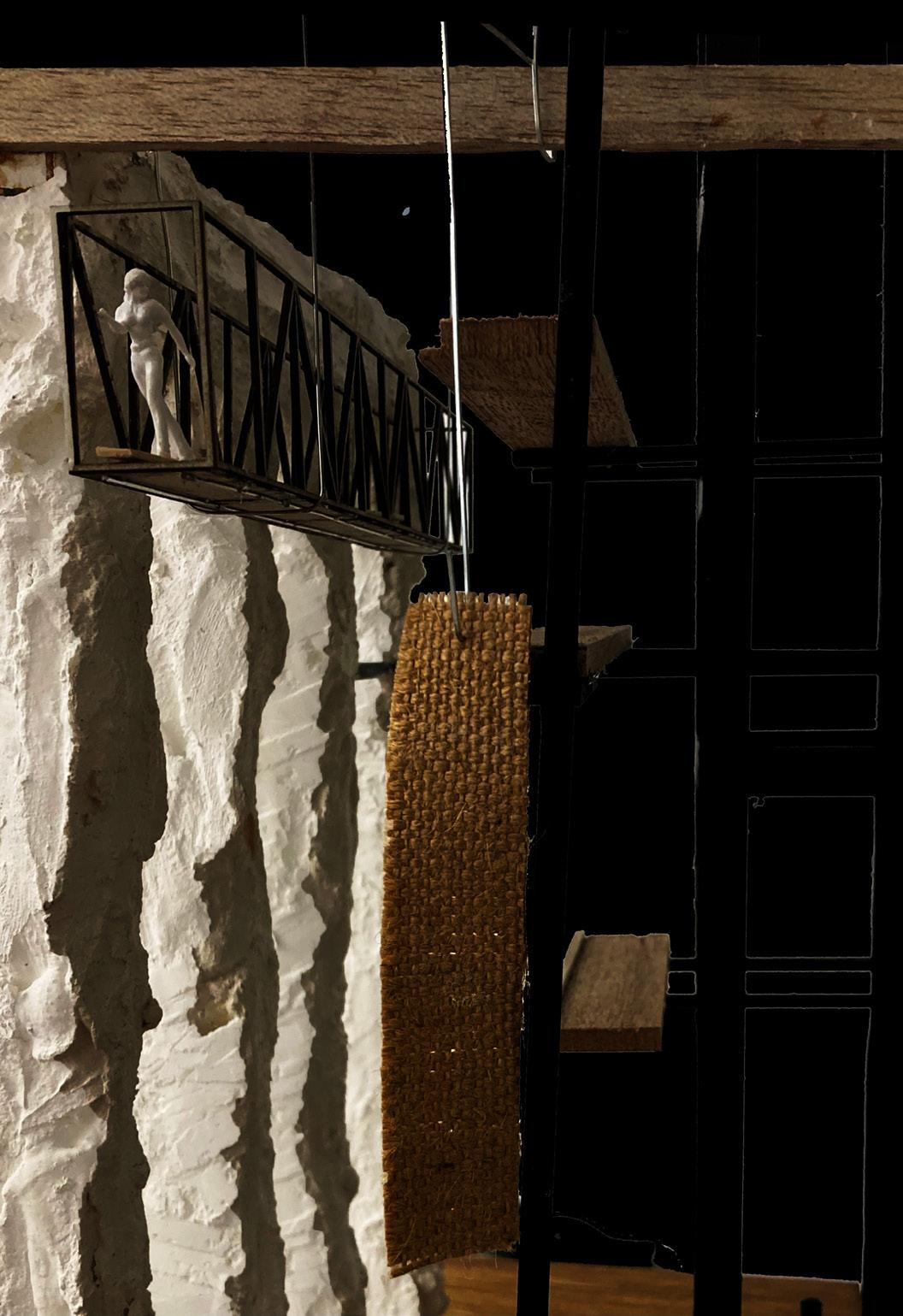

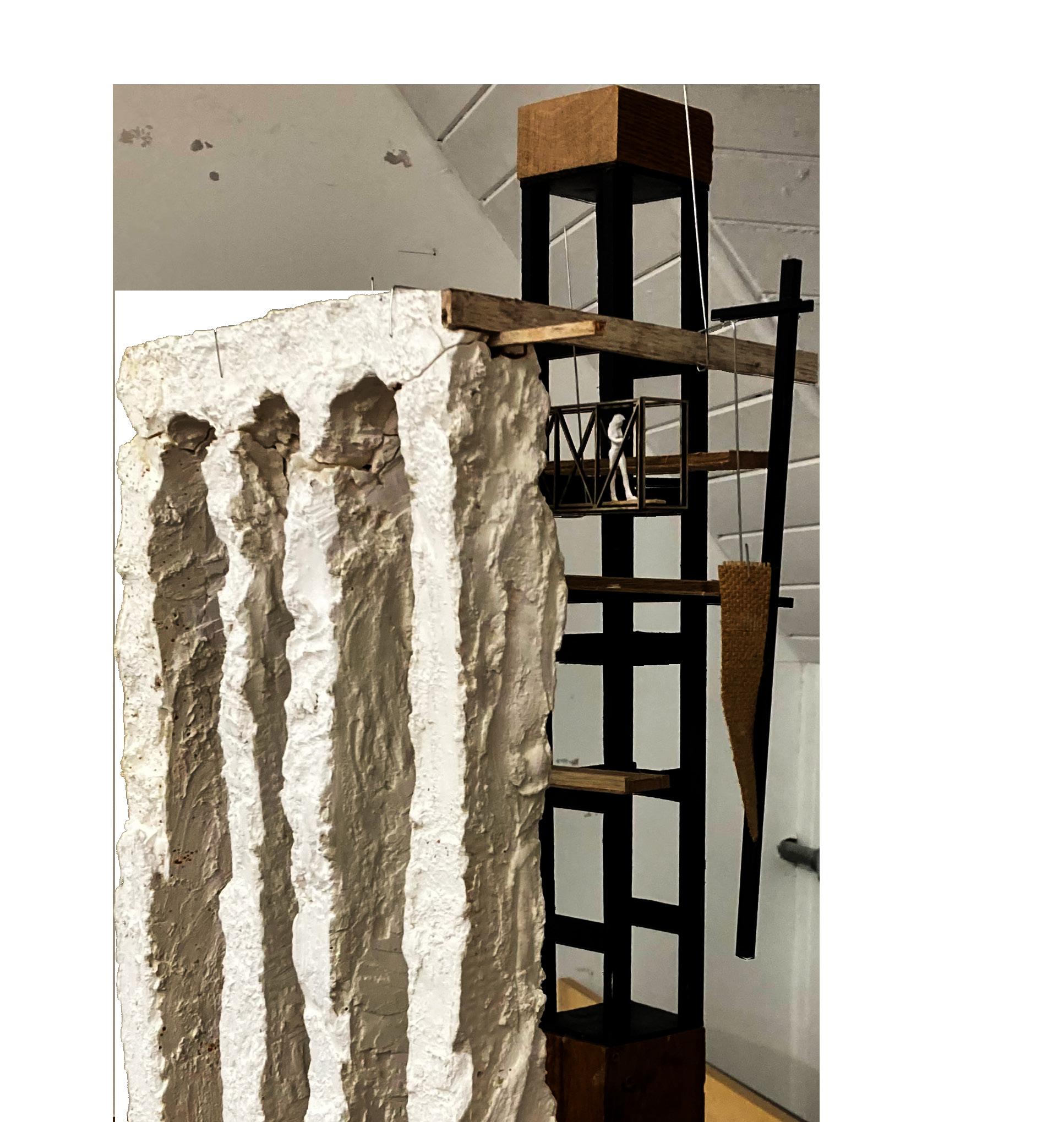

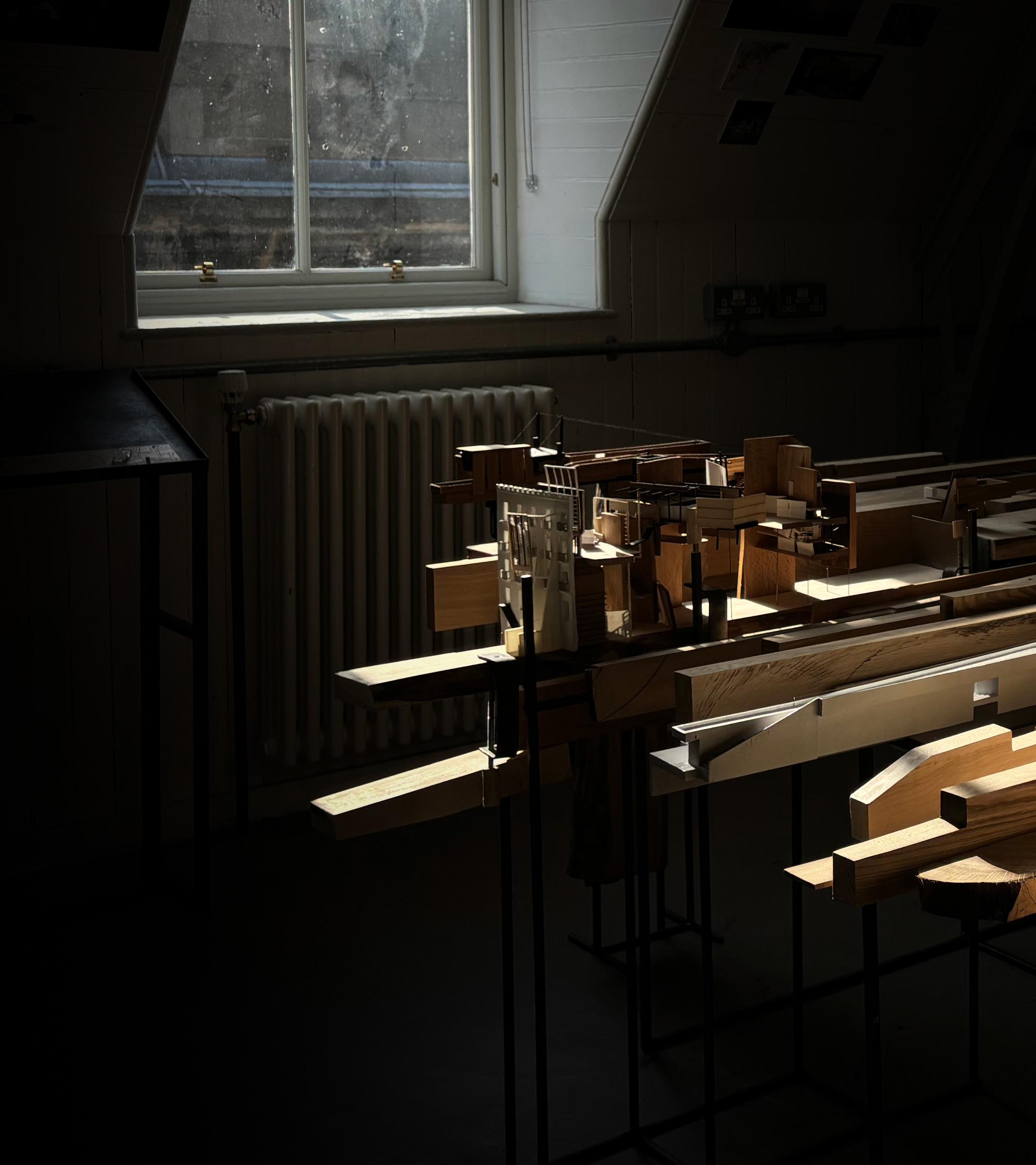

[above & right ] 1:50 model exploring the principle circulation of the observatory 86 |

| 87

[above] painting balconies looking out towards the steep tufo ridge, at the top of which is Castel Sant’Elmo.

88 |

| 89

90 |

REFLECTION

CRAFTING

| 91

REFLECTION

CRAFTING

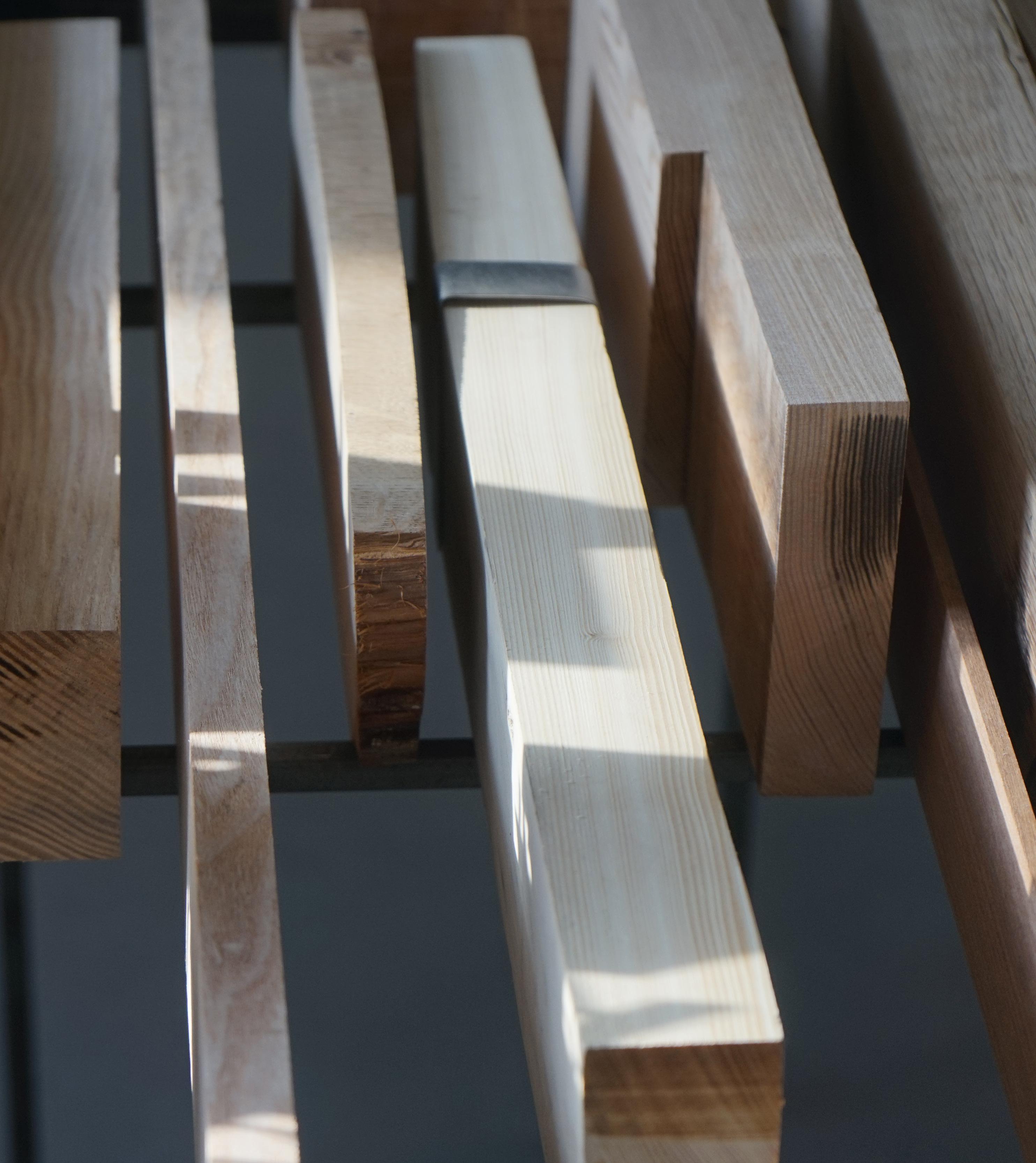

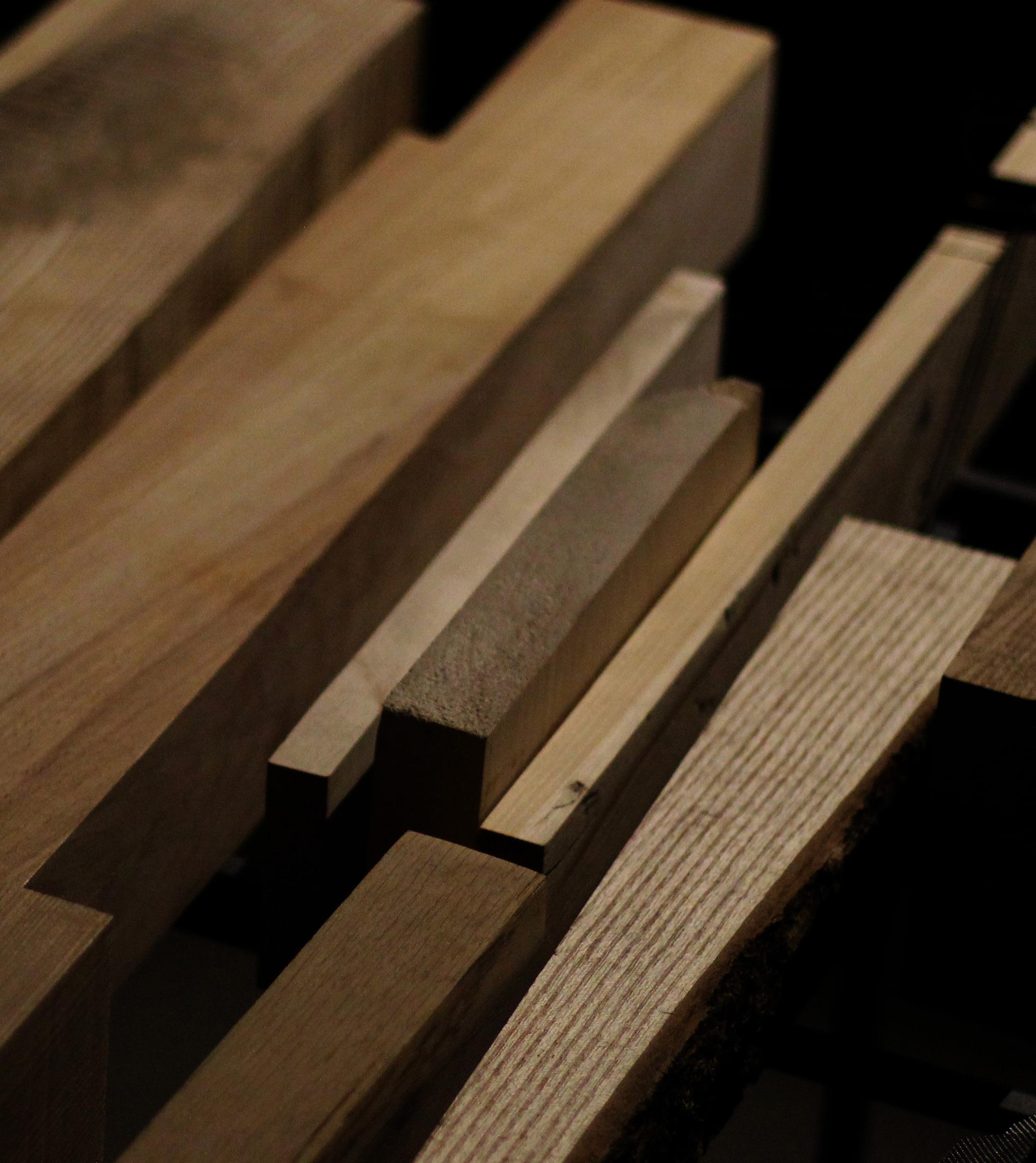

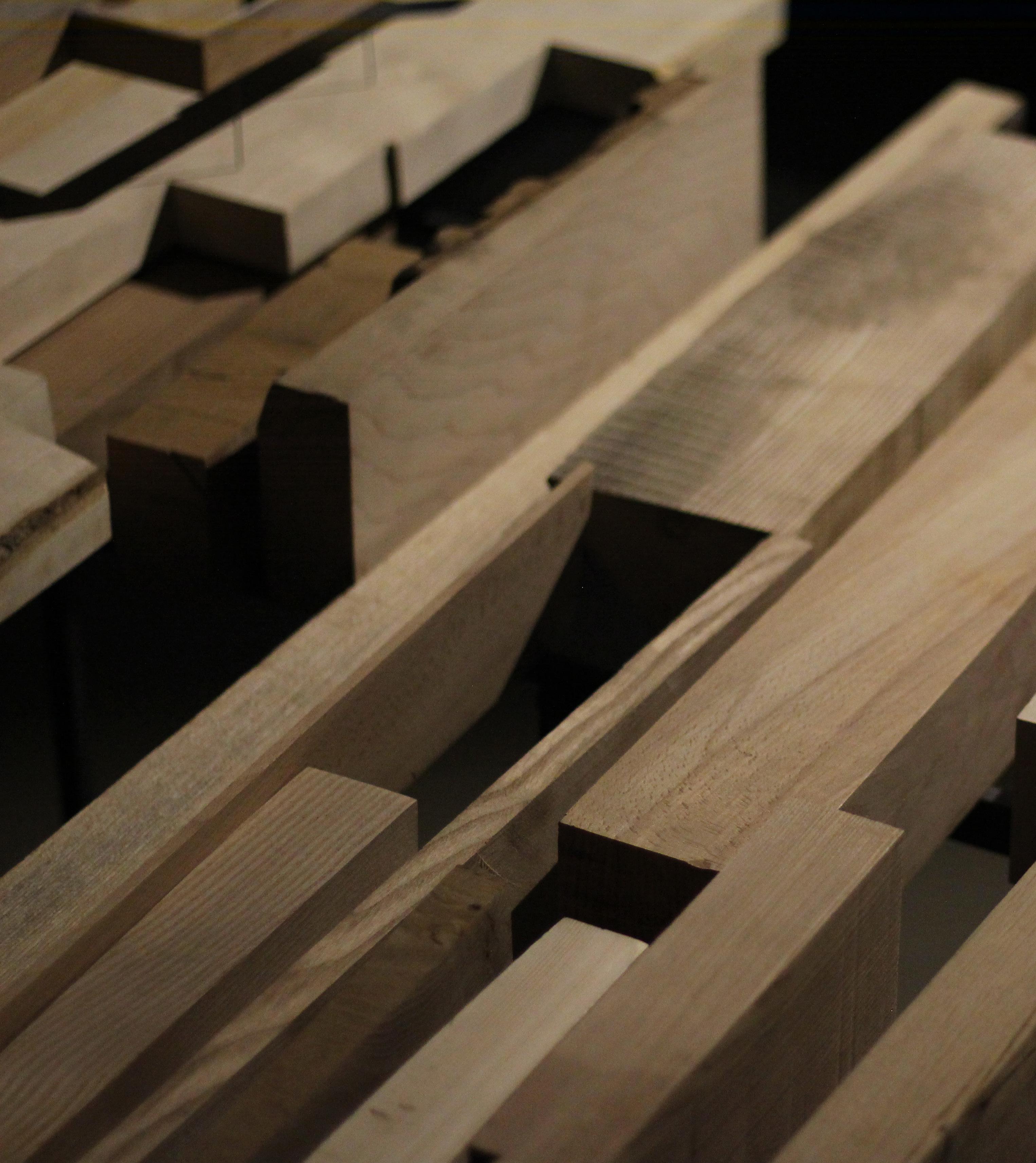

From constructing a studiolo to the final installation of the worktable for the exhibition, craftsmanship has been a consistent instrument employed throughout the design process. This approach has not only tested my proficiency in working across various scales, ranging from 1:1 to 1:1000, but it has also enhanced the overall design, rendering the proposal more tactile and imbued with materiality.

The creation of these larger installed pieces, achieved through a combination of manual craftsmanship and digital tools, as opposed to solely relying on digital fabrication methods, augmented their utility to the project. The aspiration to render objects to a degree of visibility through the studiolo was reflected in the observatory’s dynamic façade, and the evolving worktable of the final semester resulted in an architecture meticulously calibrated to a deteriorating ruin in Quartieri Spagnoli.

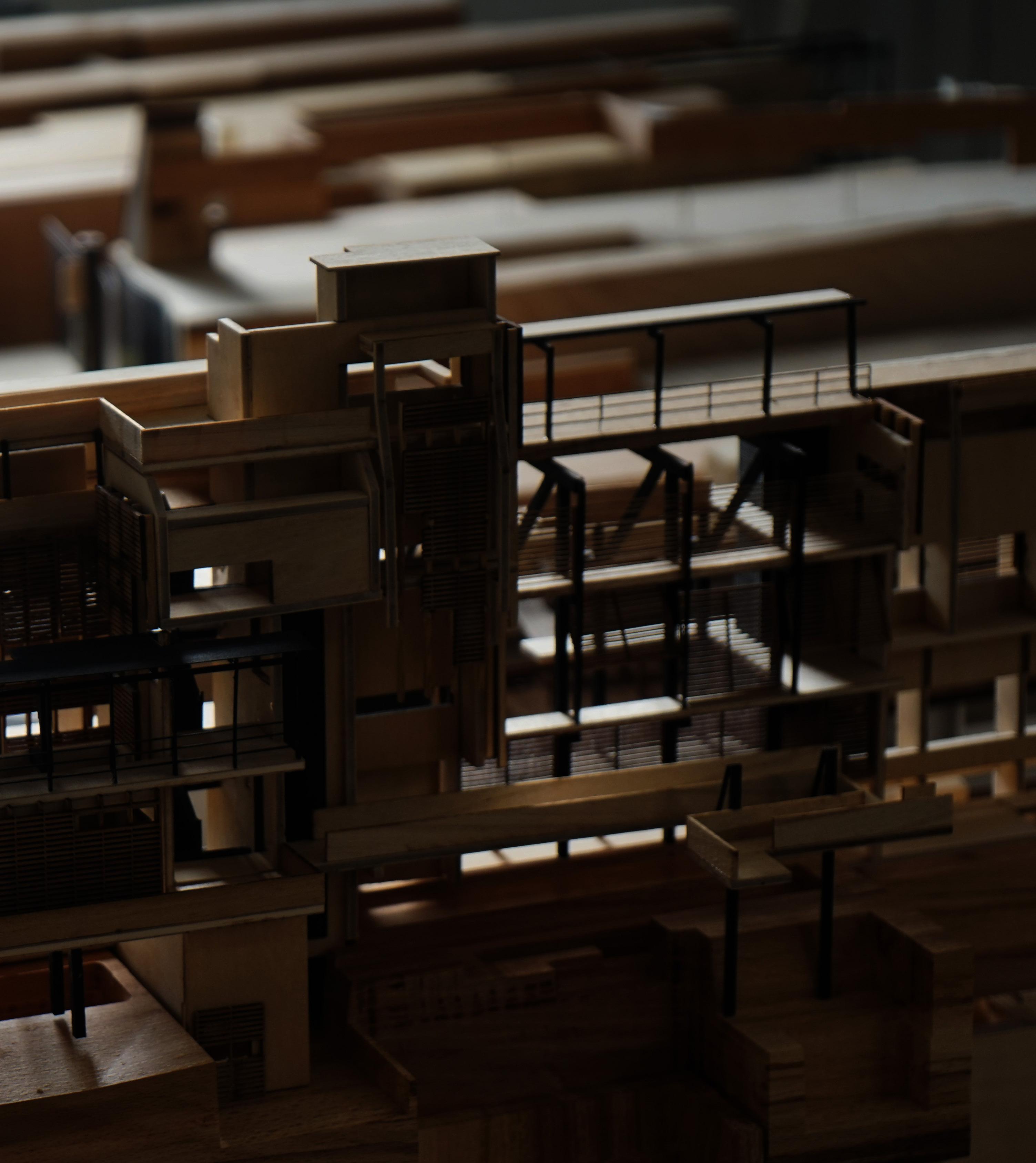

The final collection of models produced for the degree show underscore this physical craftsmanship, wherein carefully chosen beech and oak pieces were machined and hand-finished for display. The machining process necessitated these pieces to be digitally modelled, which required meticulous consideration when accounting for the constraints of the CNC and the material.

Balancing physical craftsmanship with digital modelling and drawing presented a challenge, yet it was essential for conveying the tectonic and material interpretation of Naples’ shifting ground. Investing time in the development of these physical models ensured that the final installation was populated and engaging, inviting a closer examination and a comprehensive appreciation for the work undertaken throughout the integrated pathway.

92 |

| 93

94 |

| 95

96 |

| 97

98 |

THREE.

DISREPAIR

INHABITING A RUIN XI. Buildings at Risk XII. Decay of Chiesa SS. Trinata XIII. Preservation of Craft XIV. Surveying a Ruin XV. The Stone Masons Yard XVI. Occupying the Nave

| 99

XI.

BUILDINGS AT RISK

The historic urban core of Naples, which was inscribed on the UNESCO World Heritage List in 1995, is populated by a wealth of centuries-old religious structures—cathedrals, chapels, and churches built in an array of architectural styles—numbering roughly 500 in total.[15] New findings from a team based at the Department of Earth, Environmental, and Resource Sciences at the University of Naples Federico II illustrated how vulnerable the landmark churches that compose a bulk of the real estate in Naples’s center are.[16] As detailed in research published the Journal of Cultural Heritage, 95 historic places of worship within Naples’s World Heritage Site zone are at risk of being damaged or destroyed by sinkholes caused by the collapse of underground cavities.Using map data and satellite imagery that tracked small but important shifts in ground levels, the team created a citywide inventory of sinkholes, cavities, and places of worship and concluded that nine historic Naples churches are built directly above underground cavities and are at high risk of collapse. Another 57 places of worship are susceptible to “potential future cavity collapses” per the Art Newspaper.[17] [15] Concetta Rispoli et al., ‘Sinkholes Threatening Places of Worship in the Historic Center of Naples’, Journal of Cultural Heritage 46 (1 November 2020): 1, https://doi.org/10.1016/j.culher.2020.09.009.

[16] Rispoli et al., ‘Sinkholes Threatening Places of Worship in the Historic Center of Naples’.

[17] Rispoli et al.

[right] place of worship requiring a quick response and continuous monitoring.

100 |

Basilica di Santa Maria della Pazienza Chiesa di Santa Maria della Sapienza

San Giuseppe delle Scalze a Pontecorvo

Basilica dello Spirito Santo

Chiesa di Santa Rita alla Speranzella

Chiesa di Santa Maria Maddalena delle Convertite Spagnole

Basilica di San Francesco di Paola

Chiesa della Nunziatella

| 101

102 |

Landmovment Risk High Medium Low UNESCO Boundary Sewerage Network Cavities

| 103

XII.

DECAY OF CHIESA SS. TRINATA

In 1732, Naples was hit by a severe earthquake, causing damage to both Chiesa SS. Trinata and the Monastery. The nuns had to exhaust all their resources for the restoration of the entire structure, but it was insufficient. They had to seek financial assistance from the Vicariate of Naples, borrowing 5000 ducats for the second phase of the works. To repay this debt, they sold the entire marble floor and the altars to complete the church’s restoration, which was finished in 1743.[18] In 1815, King Ferdinand IV entered Naples and initiated various restoration works in the city. However, the Trinity Complex was left to decay. The church dome’s collapsed in 1897 and marked the beginning of the restoration work on the entire building.

Consequently, the hospital adopted its current appearance, with the church serving as a military pharmacy. Regrettably, only a few of the paintings, frescoes, and sculptures that once adorned the entire structure remain today. In 1992, the structure was decommissioned as a hospital and has since been left to the ravages of time and total neglect.[19] [18] webmaster, ‘Il Parco Dei Quartieri Spagnoli, Un Polmone Verde Nel Centro Di Napoli’, Articolo45, 16 November 2015, https://www.articolo45.it/il-parco-deiquartieri-spagnoli-un-polmone-verde-nel-centro-di-napoli/.

[19] webmaster.

104 |

[above] The Quartieri Spagnoli park, a green lung in the center of Naples [right] In the foreground you can see the dome (no longer existing) of the church of the Santissima Trinità delle Monache.

| 105

XIII.

PRESERVATION OF CRAFT

The church was once a sanctuary for the artworks of renowned artists such as Battistello Caracciolo, Jusepe de Ribera, Giovanni Luigi Rodrigo, and Fabrizio Santafede. The frescoes adorning the church’s interior are attributed to the artistic prowess of Giovanni Bernardino Siciliano. Cosimo Fanzago orchestrated the creation of sculptures and ornaments, with remarkable pieces encompassing specific doors, the pulpit, and the floor. Sculptors Andrea Lazzari and Vitale Finelli, along with marble artisans like Domenico Agliani, made significant contributions under Fanzago’s guidance.

One notable artwork is “Saint Jerome and the Angel of Judgement,” an oil on canvas painting by Jusepe de Ribera, signed and dated by the artist in 1626. This masterpiece was created for display in a side chapel adjacent to the church’s high altar, which also housed Ribera’s “Earthly Trinity.” Following the suppression of the religious order managing the building in 1813, the canvas was incorporated into the Bourbon Collection and is currently displayed at the National Museum of Capodimonte in Naples.[20] [20] webmaster, ‘Il Parco Dei Quartieri Spagnoli, Un Polmone Verde Nel Centro Di Napoli’, Articolo45, 16 November 2015, https://www.articolo45.it/il-parco-deiquartieri-spagnoli-un-polmone-verde-nel-centro-di-napoli/.

106 |

Saint Jerome and the Angel of Judgement

The Earthly Trinity with Saints

| 107

XIV.

SURVEYING A RUIN

Surveying is a fundamental component in shaping the proposal for the ruin, leading to the development of spaces that interact with the city’s materials - plaster, stone, and dust.

The assessment of the level of degradation forms an archetype and a material taxonomy for other ruins within the city.

This knowledge informs suitable interventions and support mechanisms for the city’s architectural fabric.

These fragments of the city articulate a broader material condition within Naples. They represent a reciprocal relationship between the city’s materials, its architectural structures, and the ground, thereby contributing to a comprehensive understanding of the city’s material ecology.

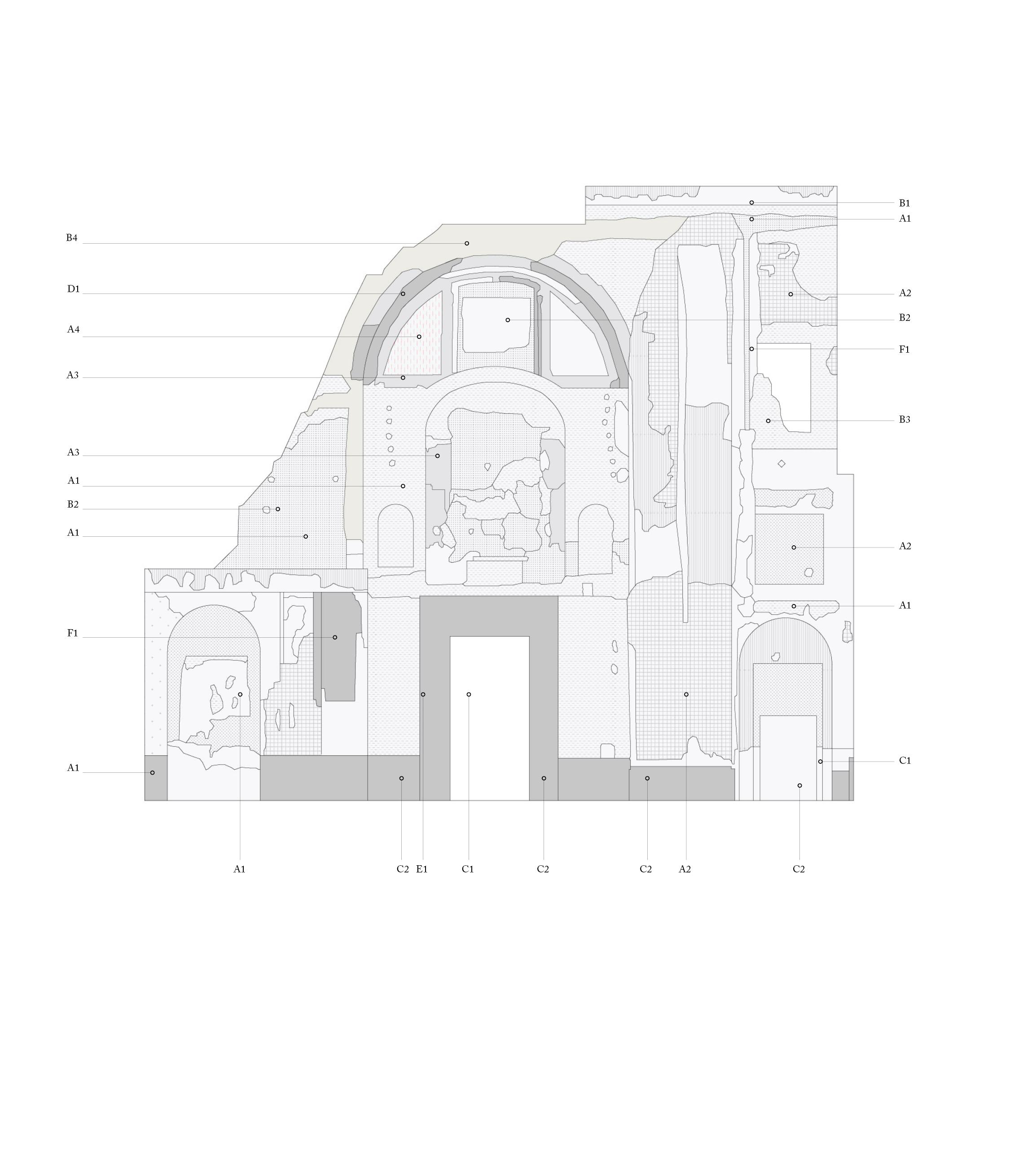

A - Plasters and Mortars A1 - Cement Mortar A2 - Lime-based Plaster A3 - Stucco A4 - Frescoes A5 - Lime-based Mortar B - Brickwork B1 - Brick B2 - Tuff Masonry B3 - Stone Facing B4 - Tuff Blocks C - Wooden Elements C1 - Fixtures C2 - Boards against agents D - Stone Elements D1 - Marble E1 - Metal Elements E1 - Metal Wedge Nails F - Plastic Elements F1 - Electrical Conduits

B1

A1 B4

D1

A2 B2

A4

F1 A3

B3 A3 A1 B2 A1

A2

A1 F1

C1

A1

A1

C2 E1

C1

C2

C2

A2

C2

XV.

THE STONE MASONS YARD

Nestled within the historic Chiesa della SS.Trinità delle Monache, the stone mason’s yard emerges as a bastion safeguarding Naples’ cherished craftsmanship and reverence for heritage. This initiative reflects an acute understanding of the city’s architectural history and the imperative for meticulous conservation - a commitment to stone that requires careful stewardship. The vision extends to the renovation of the churches Nave and altar, once adorned with frescos and the artwork of Ribera.

Strategically positioned, the masons yard offers an elevated perspective to the south while utilising the existing church structure as both a backdrop and a sanctuary for the artisans diligently at work. Beneath a sprawling canopy of timber screens, designed to combat the relentless Neopolitan sun, workers find respite from its harsh rays, while the structure ingeniously collects and channels rainwater during huge deluge.

[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13]

110 |

chiesa trinita drawing office terrace draughtsmans office water collection gutters gantry control room ventilated bridge gallery walkway drafting gallery gantry arm stone cutting yard water collection basin stone delivery yard

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[9] [8] [10]

[11]

[12]

[13]

| 111

112 |

| 113

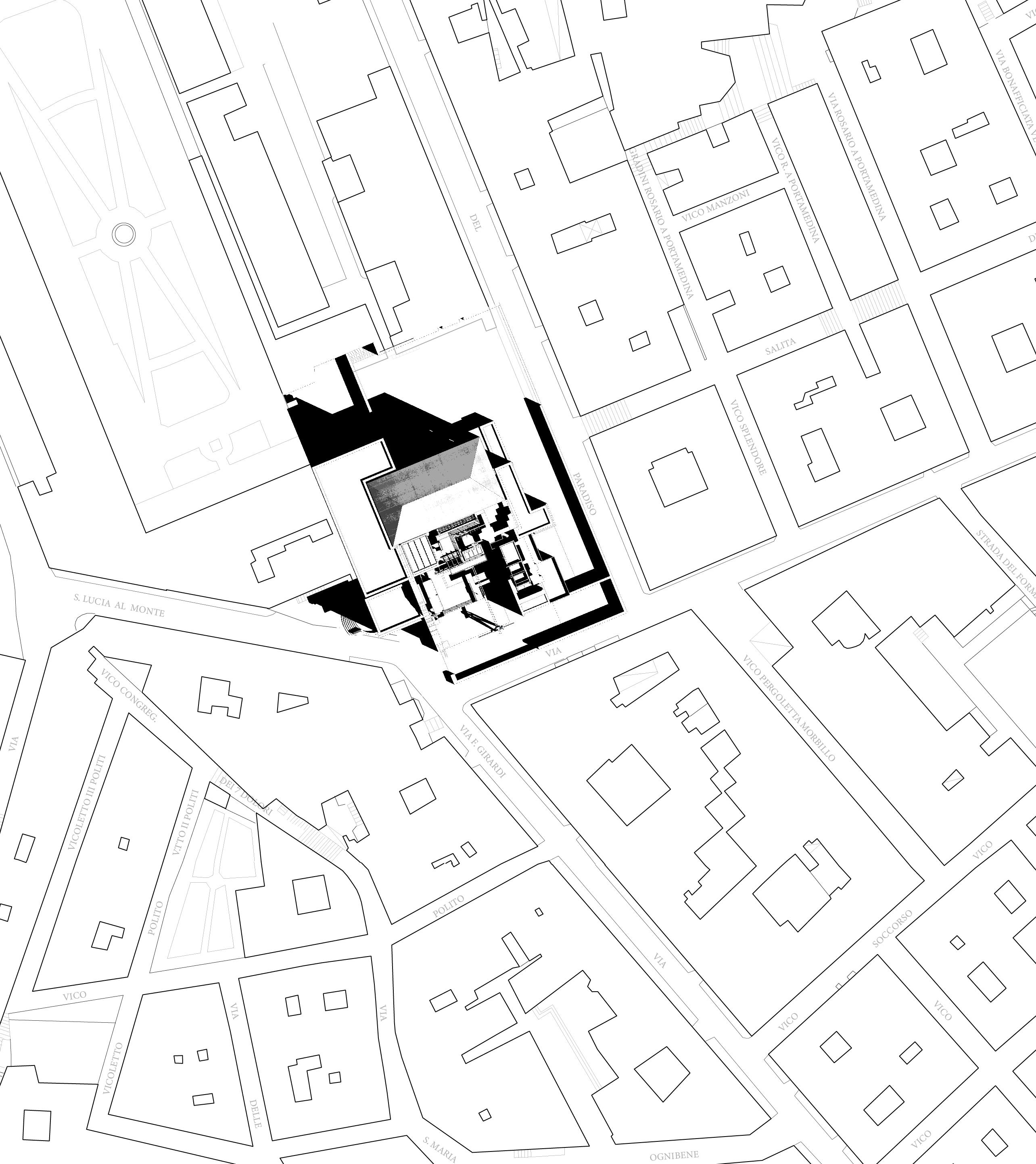

Location Plan The Mason’s Yard 114 |

| 115

[1]

116 |

Perspective View Yard Entrance [1] [2] [3] [4] [5] [6]

[2]

Chiesa della SS. Trinità Drawing Office Draftsmans Gallery Gantry Control Room Foremans Office Cutting Floor

[3]

[5]

[6]

[4]

[6]

| 117

XVI.

OCCUPYING THE NAVE

The Drawing Office provides a series of condition spaces in which drawings, sketchbooks and archival material are stored. The elevated position within the nave of the church allows for a view across the city and a birds eye view of the stone being prepared below. It operates over two levels, the lower serving as an office space, the upper providing a ventilated store room for delicate material. It is here that the draughtsman can escape the dust of the stone yard, wash their hands in the water collection sinks, and file working or found drawings.

The Drafting Gallery and cutting floor offer architectural draughtsmen a unique space to meticulously prepare full-scale drawings of intricate church stone details. Elevated above the cutting floor and situated in front of the Chiesa Trinita altar, adorned with frescoes and masterpieces by Ribera, drafters and visitors gaze down upon the fragments of the city sculpted in stone and etched from stone dust. These intricate forms are replicated on drawing boards above. Safely housed in The Drawing Office, these drawings are shielded from the harsh Neapolitan sun, dust, and smog, preserving them for posterity.

The Stone Yard is rooted in the rich traditions of stone masonry, understanding the surface of Naples as the effect of material concerns. Towering over the yard is a gantry arm, lifting tufo and piperno into position for cutting. Below, a water basin collects the spray from the cutting jets and sludge of the stone dust. Amidst the industrious atmosphere, the Foreman’s Mess beckons, offering a shelter for workers to convene, plan and eat during a days work. From the rhythmic clinks of chisels to the camaraderie Italians share over a meal, The Stone Yard embodies the timeless artistry of craftsmanship.

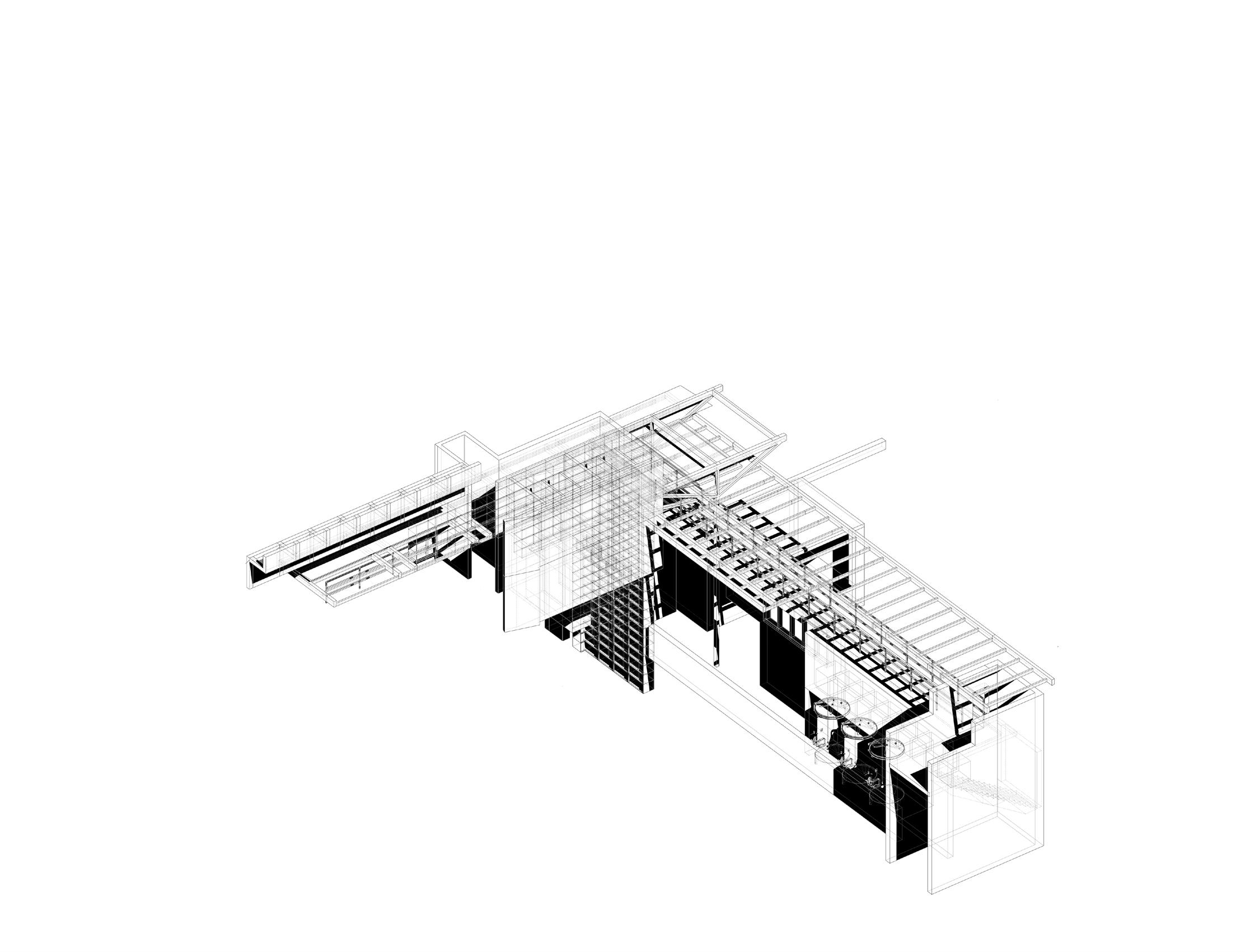

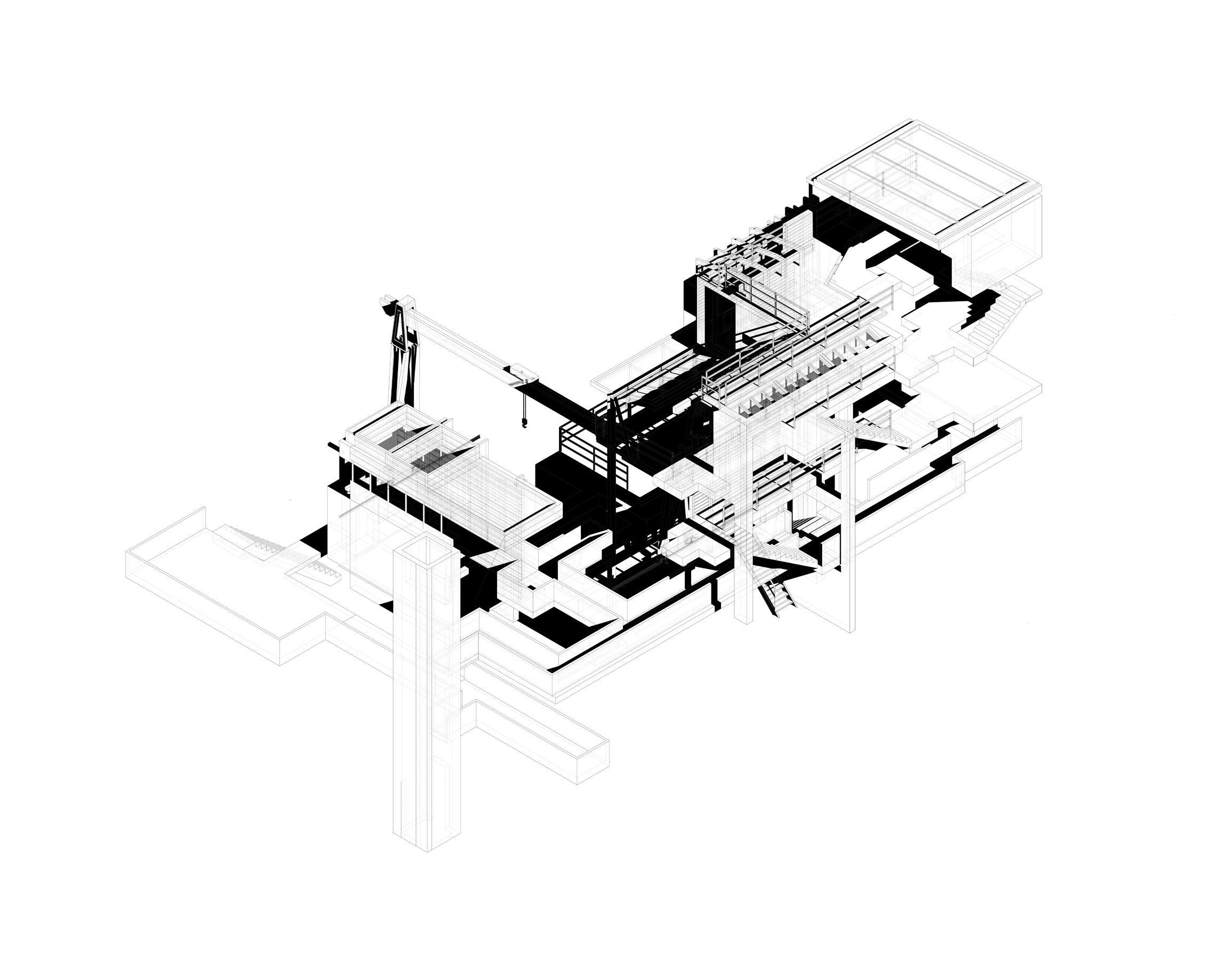

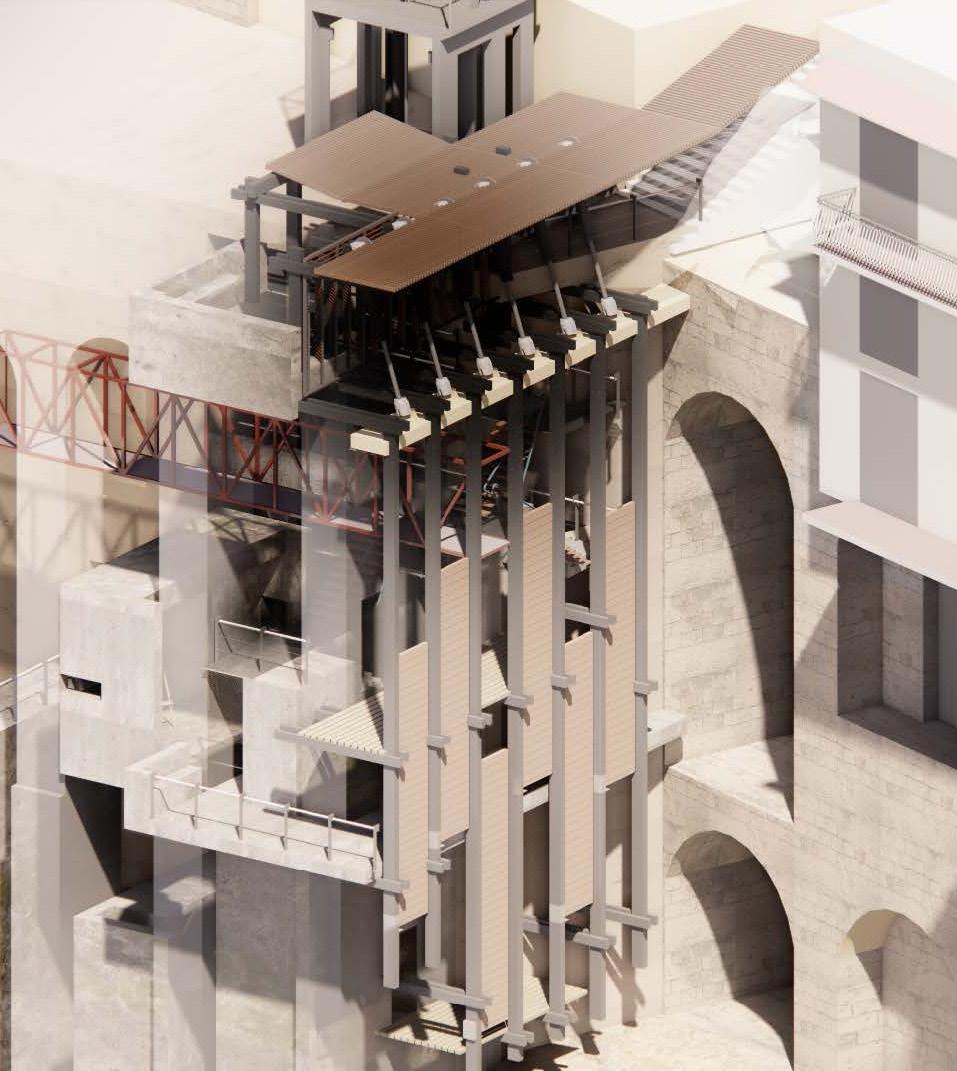

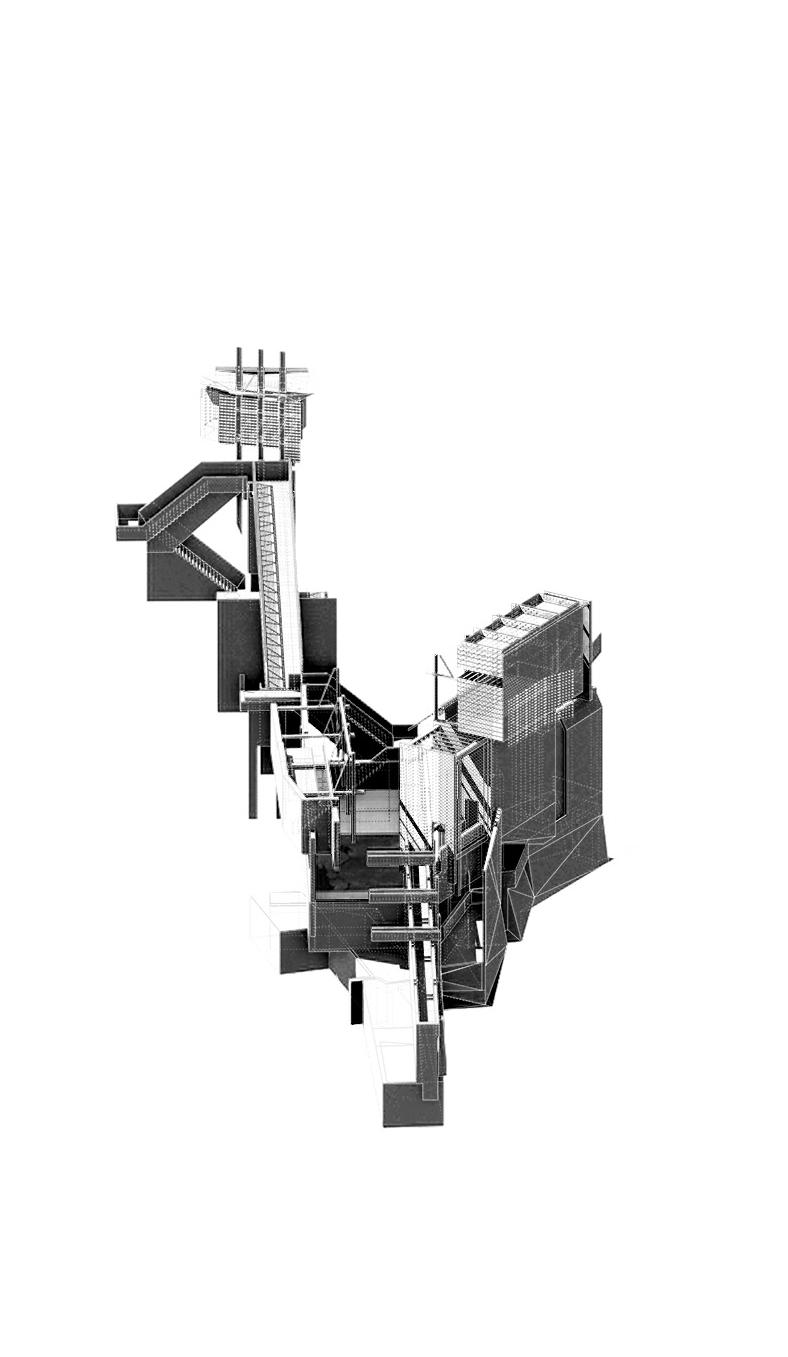

[left] exploded isometric of the stone masons yard

122 |

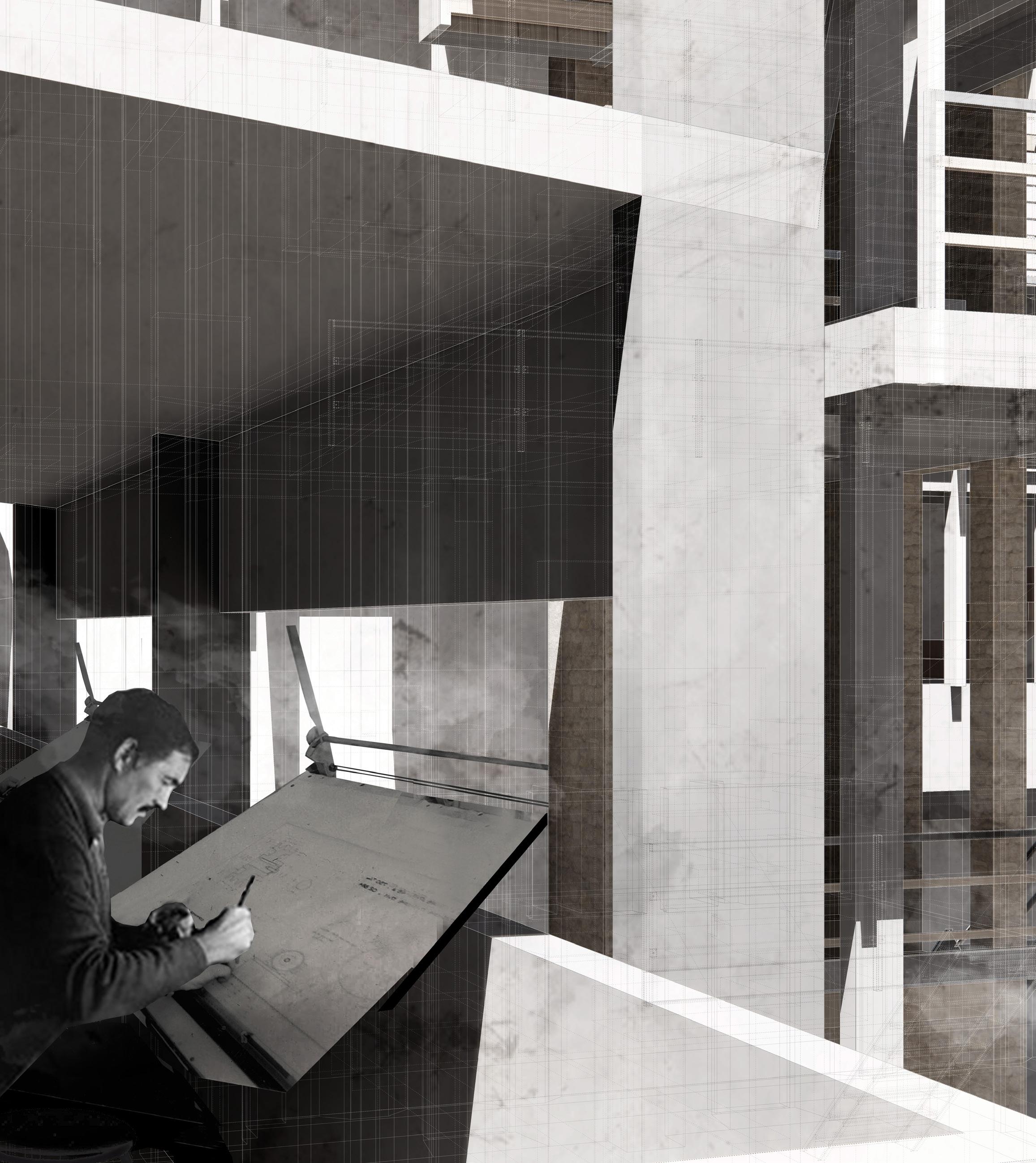

[left] view from the draughmans gallery overlooking the stone cutting yard where inricate stone details are replicated on drawing boards above.

| 123

B

[1]

[2]

[3] [4]

[5]

[7]

A

[6] [8]

[9]

124 |

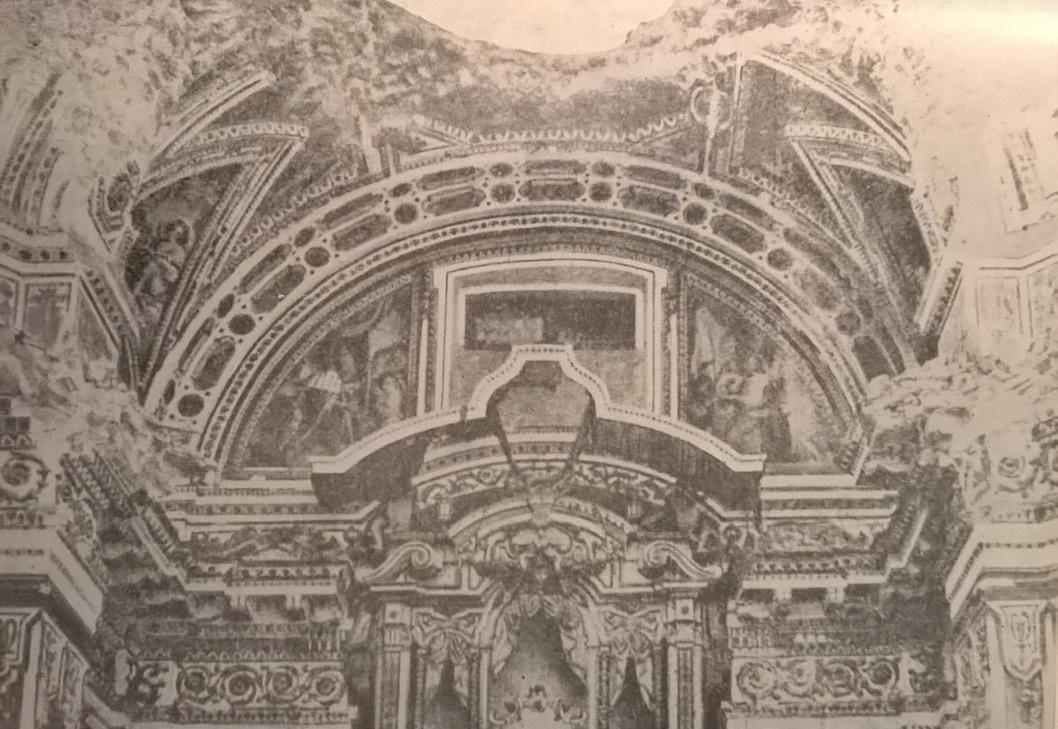

[above] detail of the dome after the collapse

A

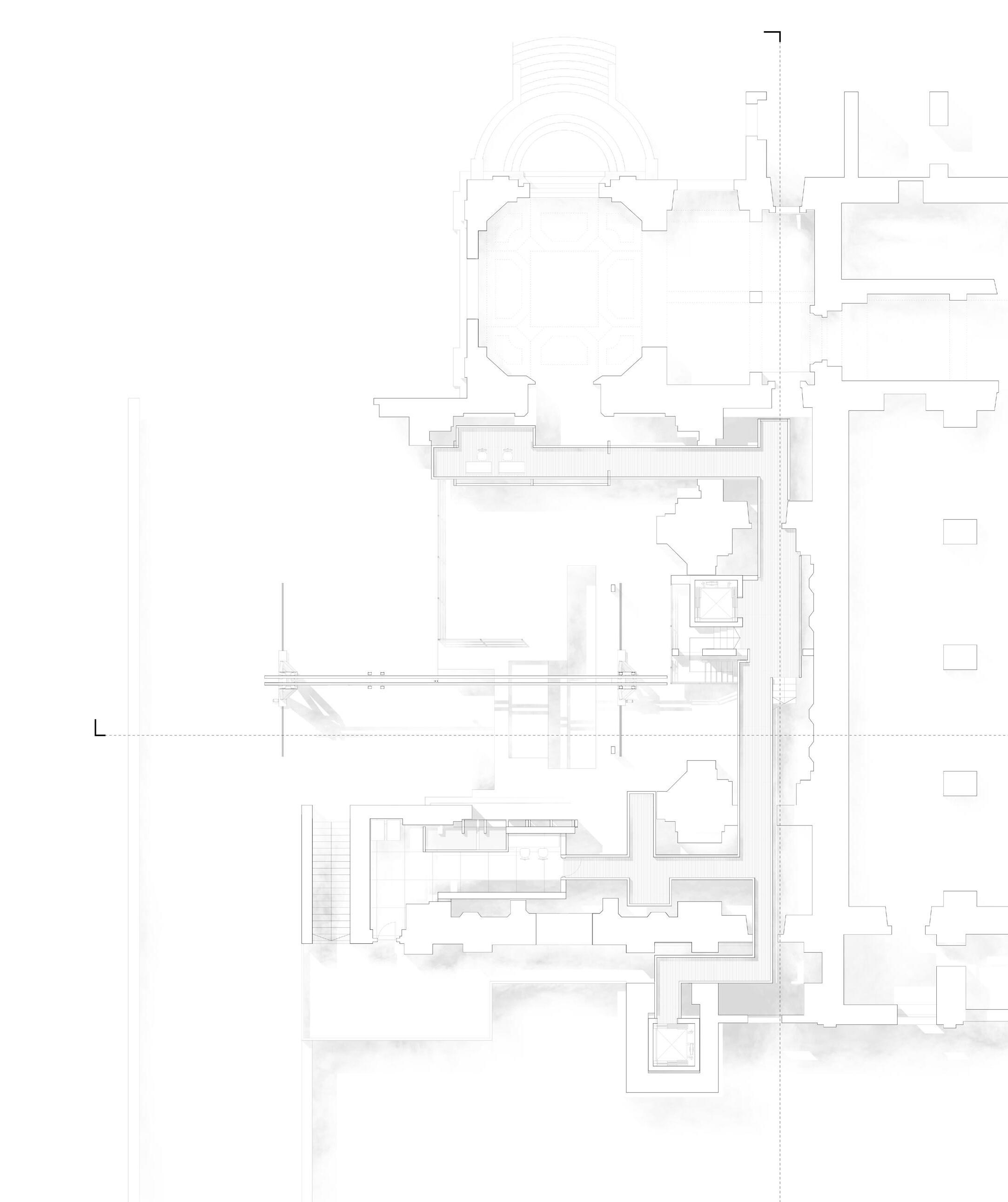

Gallery Plan at Level +1 cutting through drafting gallery, stone yard and foremans mess [1] [2] [3] [4] [5] [6] [7] [8] [9]

chiesa trinita drafting gallery Stone delivery yard stone cutting yard gantry arm water collection basin stairs to gantry control room ventilated bridge over stone detailing yard foremans mess | 125

[1]

[2]

[3]

[4]

[5] [6]

[7]

[8]

126 |

[9]

[above] stone mason carving an architrave detail in a stone yard.

Gallery Plan at Level +2 cutting through control room, water collection tanks and study [1] [2] [3] [4] [5] [6] [7] [8] [9]

chiesa trinita toilets stairs to drawing office terrace overlooking stone yard gantry control room water collection tanks store room tool store study overlooking vesuvius | 127

[8]

[7] [2]

[3]

[6]

[4]

[5]

[1]

128 |

[9]

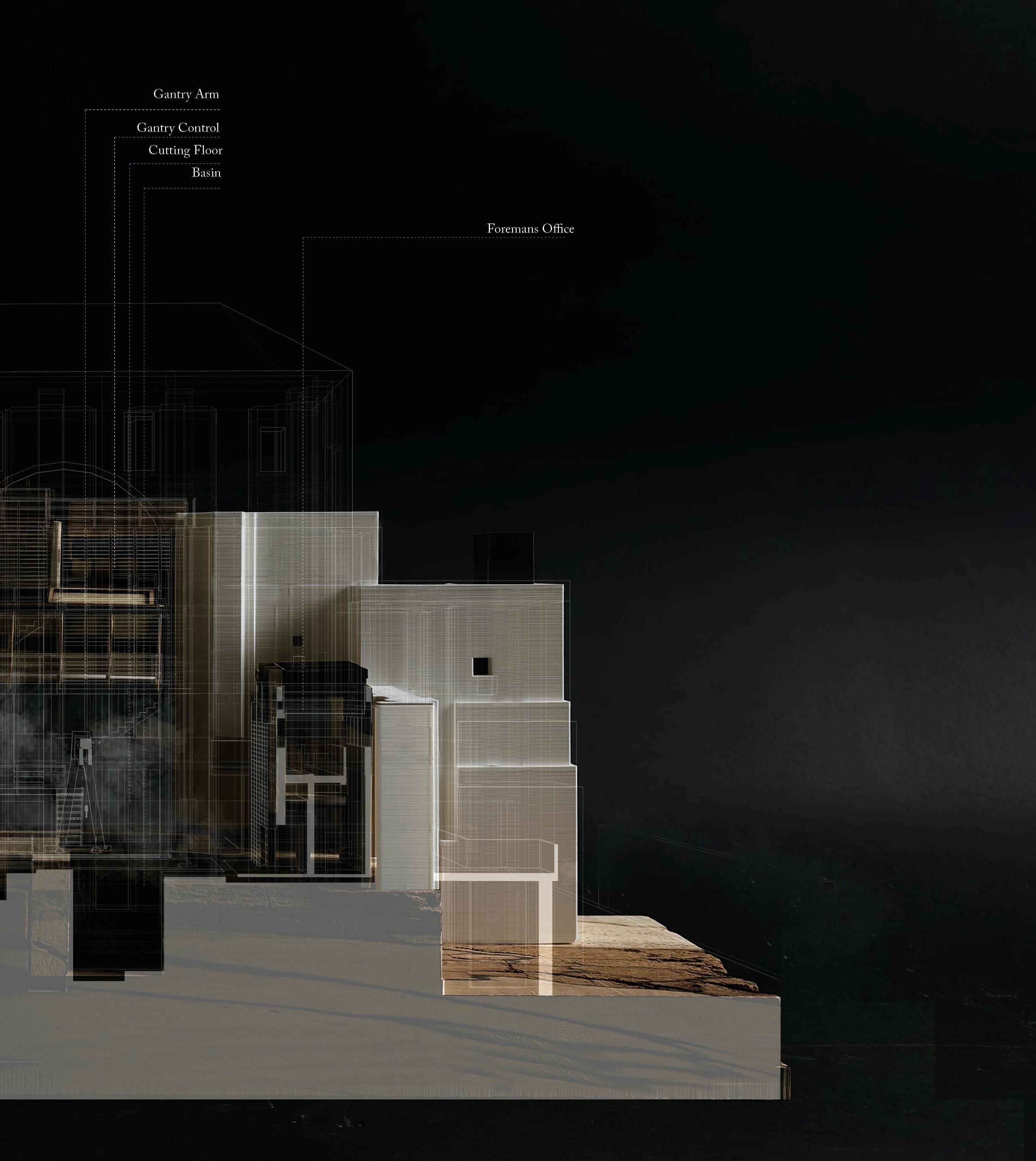

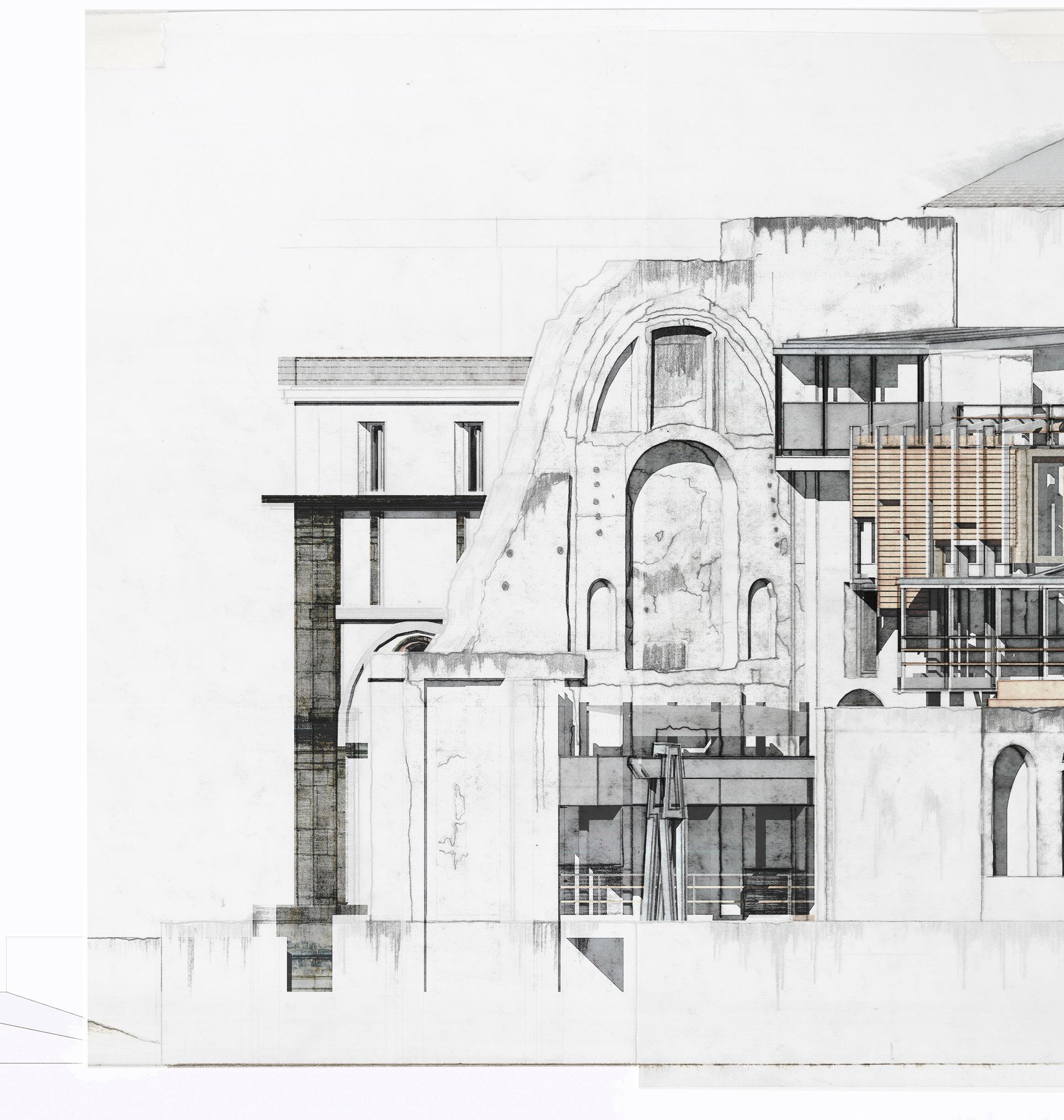

Perspective Section through drawing room, detailing yard & drawing office [1] [2] [3] [4] [5] [6] [7] [8] [9]

rear access to stone yard drawing store room water misting jets for stone dust stone detailing yard water attenuation basins ventilated bridge water collection gutters & sink terrace overlooking quartieri spagnoli drawing office | 129

130 |

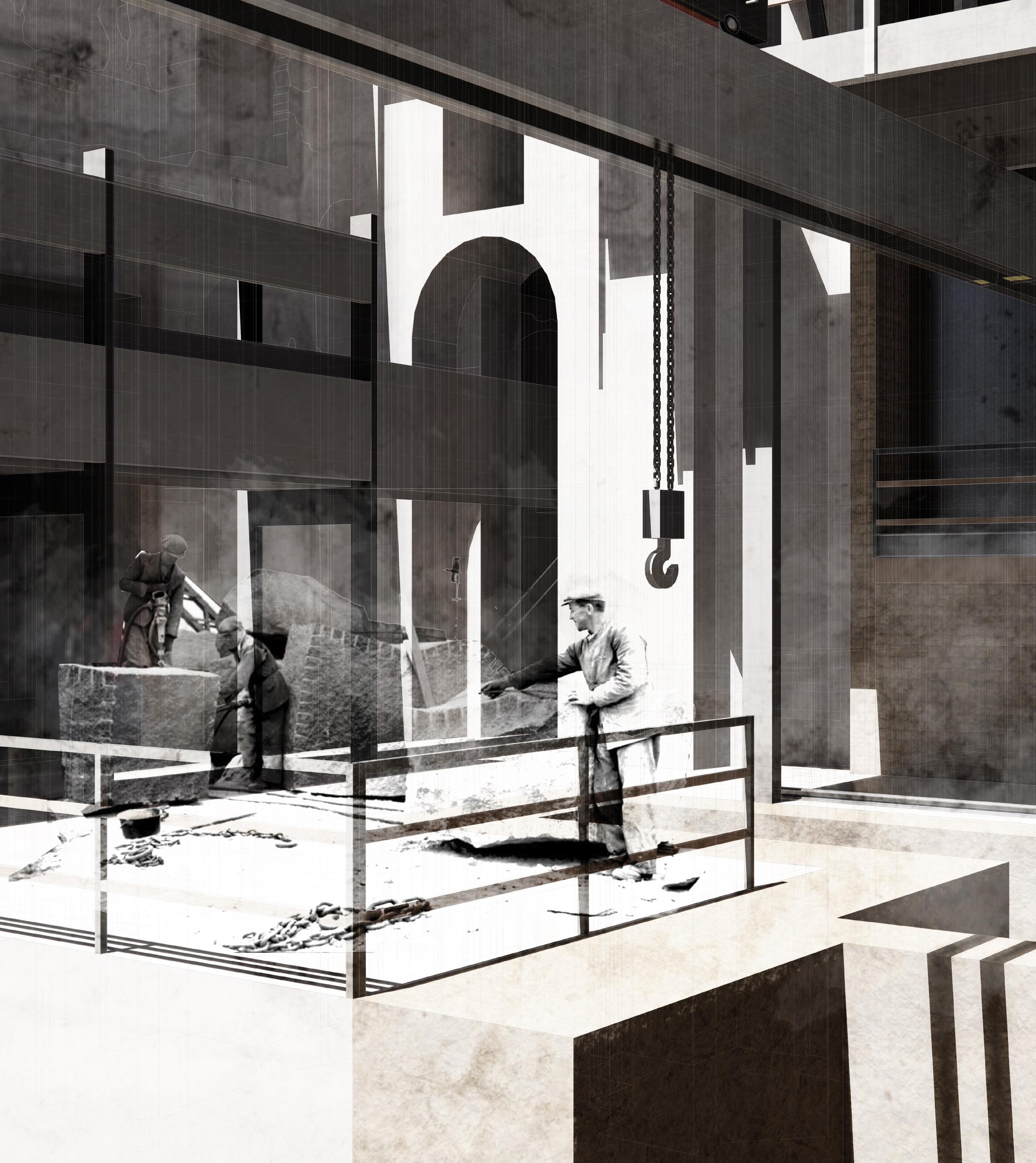

[left] masons in the stone yard moving tufo blocks into position using a gantry arm.

These blocks are then cut to size and water is collected in the basin below.

| 131

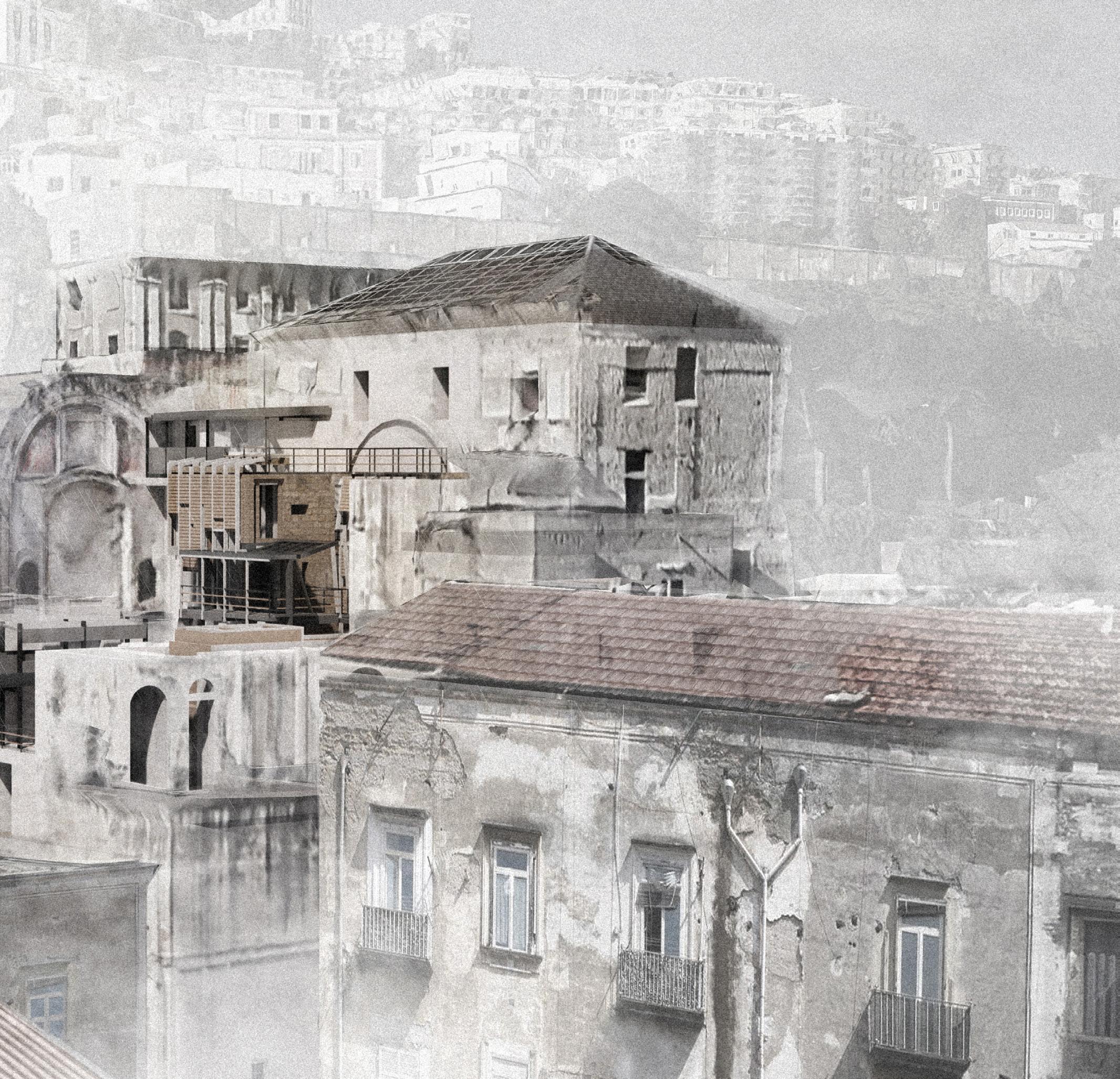

[above] roof top view overlooking the masons yard 132 |

| 133

134 |

REFLECTION

SURVEYING

| 135

REFLECTION

SURVEYING

To thoroughly understand the palimpsest nature of Naples and the elements of its uncertain ground, it was essential to excavate its numerous layers through rigorous surveying of discovered material related to geology and history of the cities fabric.

In the first semester, this process commenced with the examination of J.M.W. Turner’s sketchbook ‘Gandolfo to Naples’, where one page captures ash from an ascent of Vesuvius. These sketches served as invaluable portals into the historical, social, and ecological fabric of Naples prior to the advent of modern urban development, and fostered a reading of the city through the lens of precarity.

Following this, surface surveys of both walls and the broader landscape were conducted, recognising that the material constituents of the city were part of a much larger reciprocal landscape. This methodology assumed even greater significance in Studio A, where these ground surveys began to inform a tectonic for mediating such unstable terrain. The mappings of cavities, landslides, fault lines, and aquifer depths began to unfold a series of zones along the city’s tufo ridge where these uncertainties are most prominent. Here, cavity drawings, façade degradation surveys, and landslide risk assessments became a generator of potential interventions.

This surveying process was further scrutinised when establishing a set of transects across the bay, where a collective reading of surface movement generated a more nuanced understanding of the sites we occupied.

136 |

| 137

138 |

| 139

140 |

| 141

142 |

FOUR.

RIDGE

MEDIATING UNCERTAIN GROUND XVII. A Hydrological Crisis XVIII. A Shifting Surface XIX. Traversing the Ridge XX. The Hydrological Guild XXI. Inhabiting a Belvedere XXII. Stabilising the Ridge XXIII. A Network of Monitoring

| 143

XVII.

A HYDROLOGICAL CRISIS

Heavy rainfall can strain Naples’ water system, leading to water seeping into the subsoil. This infiltration softens the pyroclastic layer, triggering collapses, settlements, and sinkholes. The city’s sewage infrastructure is undersized and not well-maintained.[18] In Italy, aqueducts lose about 40% of their water, and in Naples, the daily water consumption per person is approximately 155 litres, while the system experiences a 34% water loss. It’s clear that Naples requires a comprehensive approach to tackle its infrastructure issues.[19] The primary elements of Naples’ water system are those constructed following the cholera outbreak in 1884. The route of the affluent network, or collection network, was designed to align with the city’s layout and to make use of as many existing sewers as possible for cost-effectiveness. The city was divided into three zones: high, middle, and low. All points of the affluent network converged at Piedigrotta, located in the far west of the city, within the tuffaceous formation of the Posillipo hill.[20]

[18] ‘Anthropogenic Sinkholes of the City of Naples, Italy: An Update’, https:// core.ac.uk/reader/541676150.

[19] ‘Naples Life,Death & Miracle’, http://www.naplesldm.com/aqueduct.php.

[20] ‘Naples Life,Death & Miracle’.

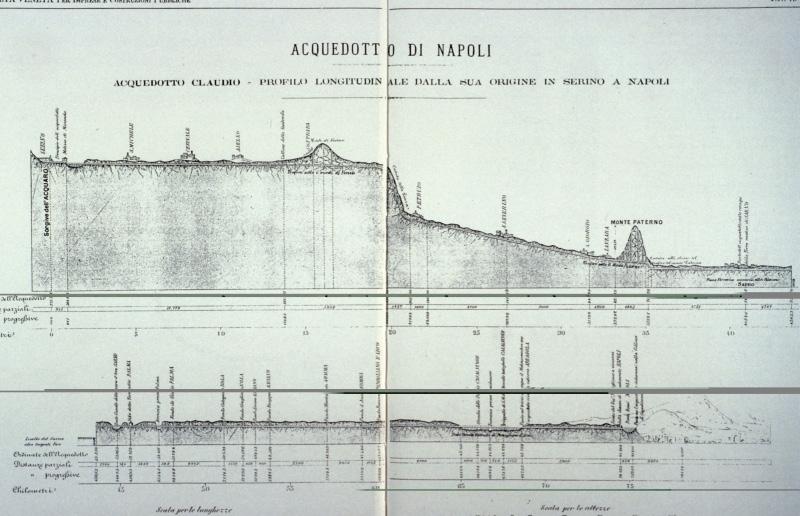

[above] working drawings of the 1889 project to redevelop the water sytem. [right] underground branch of the Aqua Augusta, which is also known as the Serino aqueduct. This particular branch of the 87-mile-long aqueduct was built between 30 and 20 B.C. and carried water to private villas on the hill of Posillipo

144 |

| 145

[above][above] water network subterenean system water of naples netwrok of the city

146 |

| 147

XVIII.

A SHIFTING SURFACE

The reason for surface movement is multifaceted. The cities unique

topography, featuring a deep aquifer, sloping terrain, and numerous cavities, allows water to permeate the ground above the tuff. Initially robust, this terrain can gradually shift due to water absorption, leading to erosion caused by significant hydraulic gradients. These ongoing, albeit minor, movements contribute substantially to the erosion of ageing structures and infrastructure.

However, any disruption, such as a rupture in an aqueduct or sewer line overload, intensifies water infiltration. This amplifies the previously mentioned phenomena, potentially culminating in collapses and sinkholes, furthering the challenges faced by the area.

148 |

Retaining wall collapse and street cave-in on via Tasso ( June 1966)

Landmovement Risk High Medium Low

| 149

Posillipo

Mergellina

Substrata

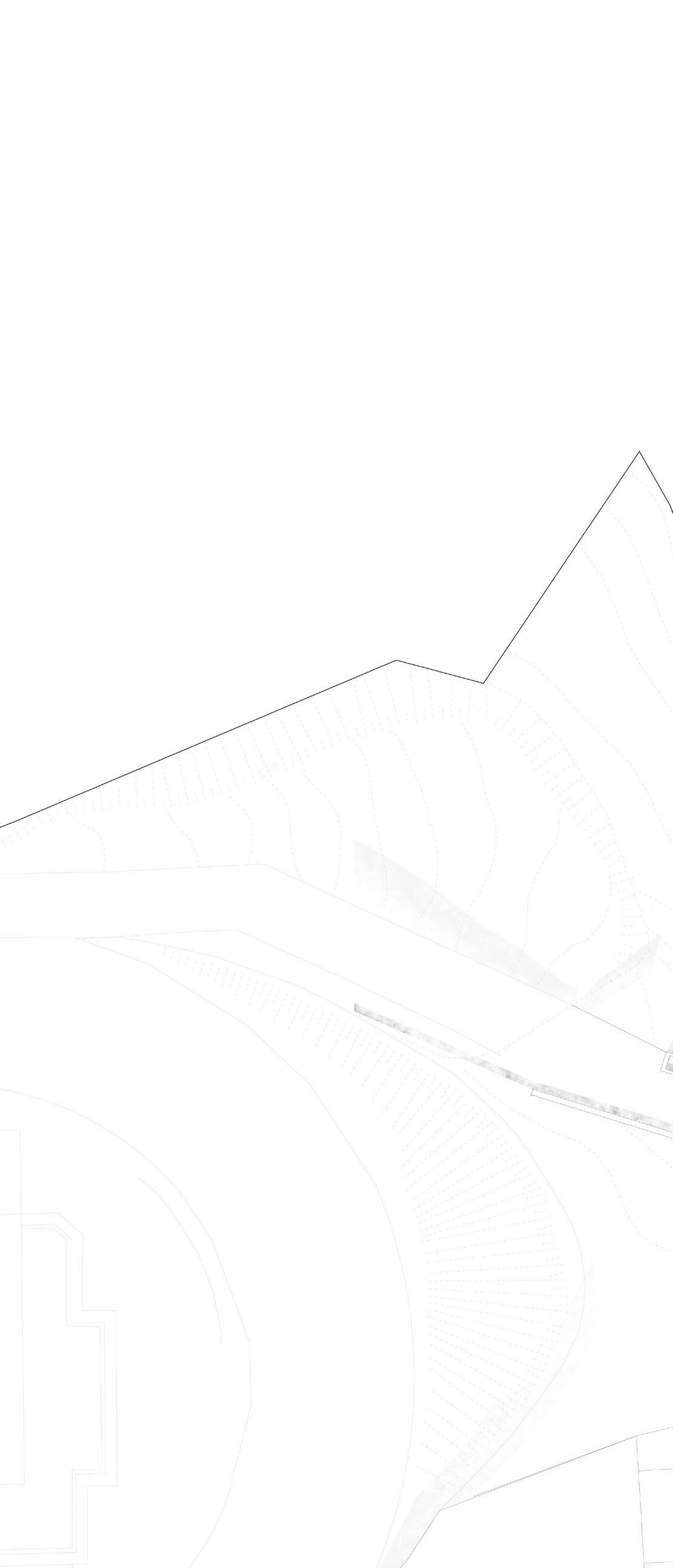

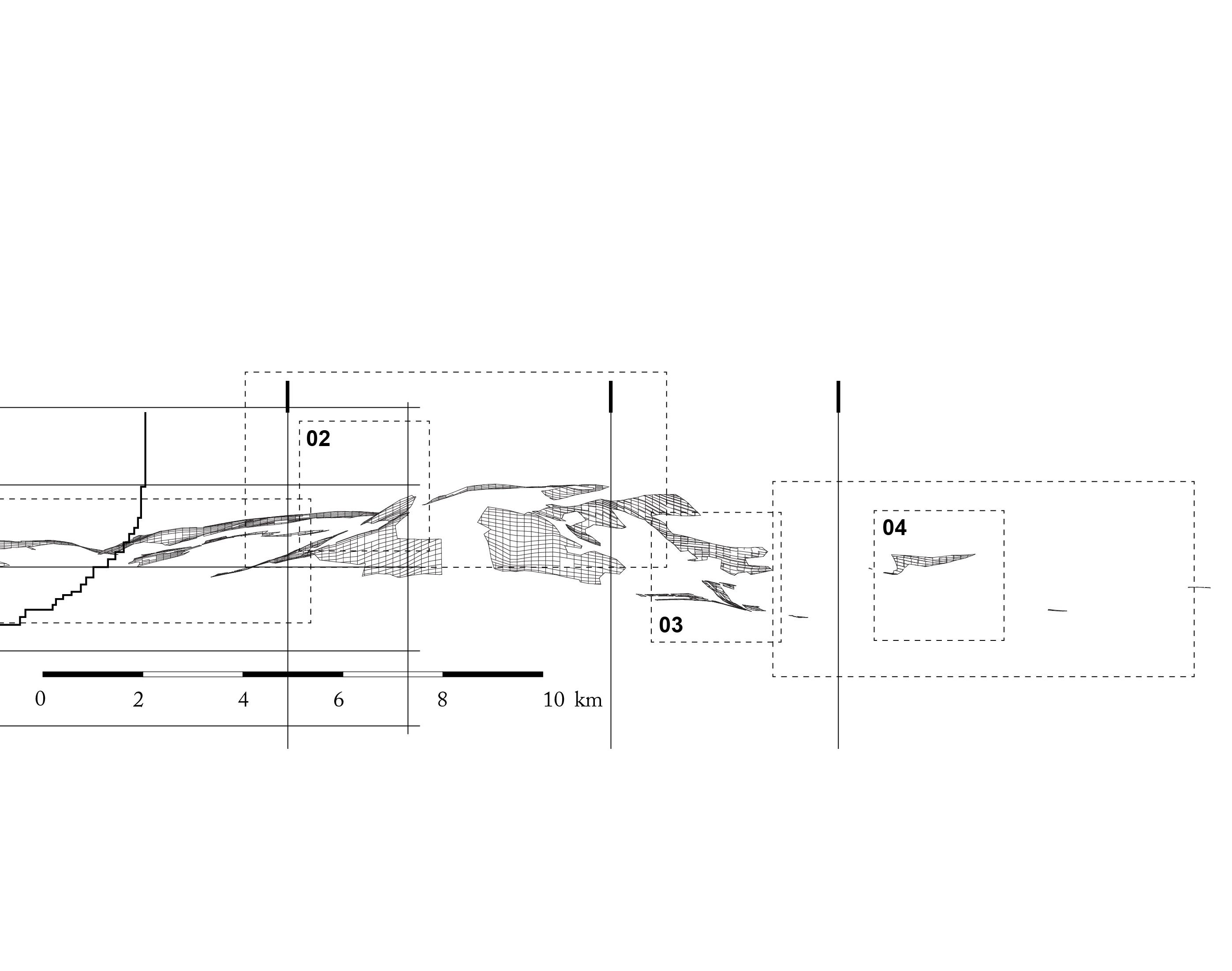

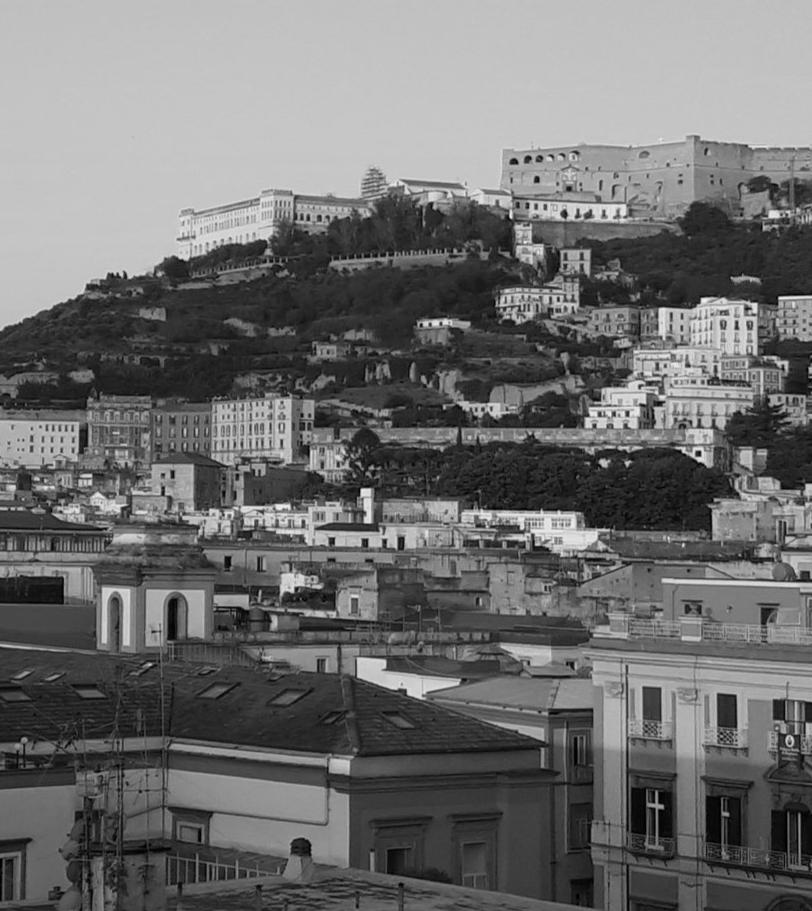

[above] landslide susceptibility across the ridge 150 |

Chiaia

Vomero

Quatieri Spagnoli

Montecalvario

| 151

XIX. TRAVERSING THE RIDGE

[above] network of zones along the ridge 152 |

| 153

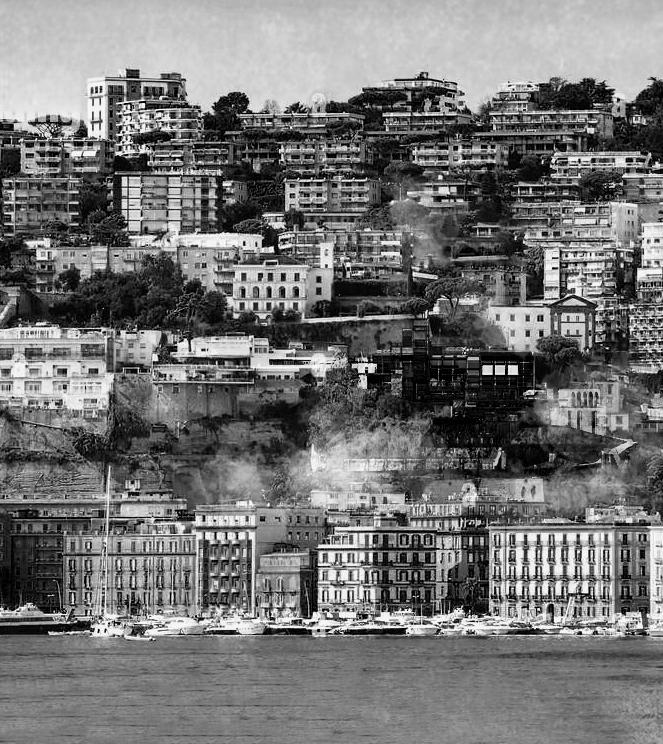

[above] posillipo ridge with the proposed hydrological guild 156 |

| 157

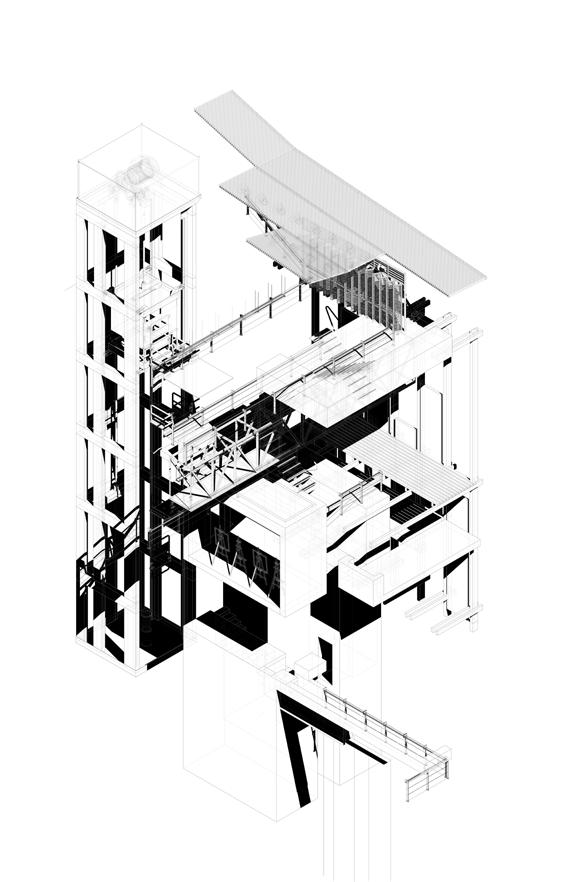

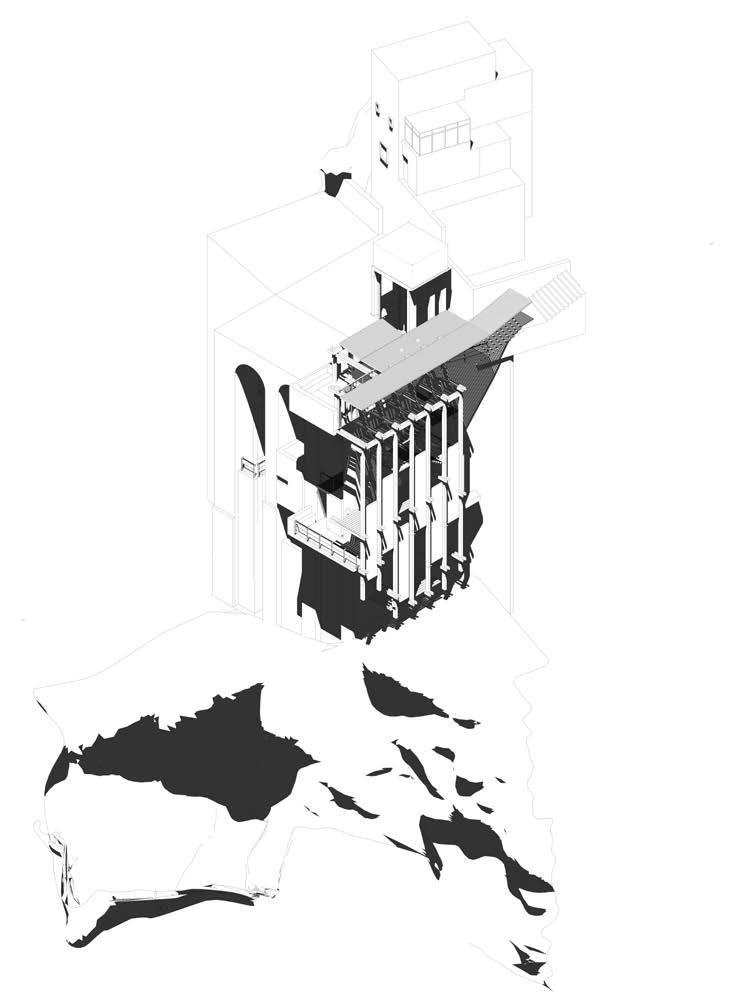

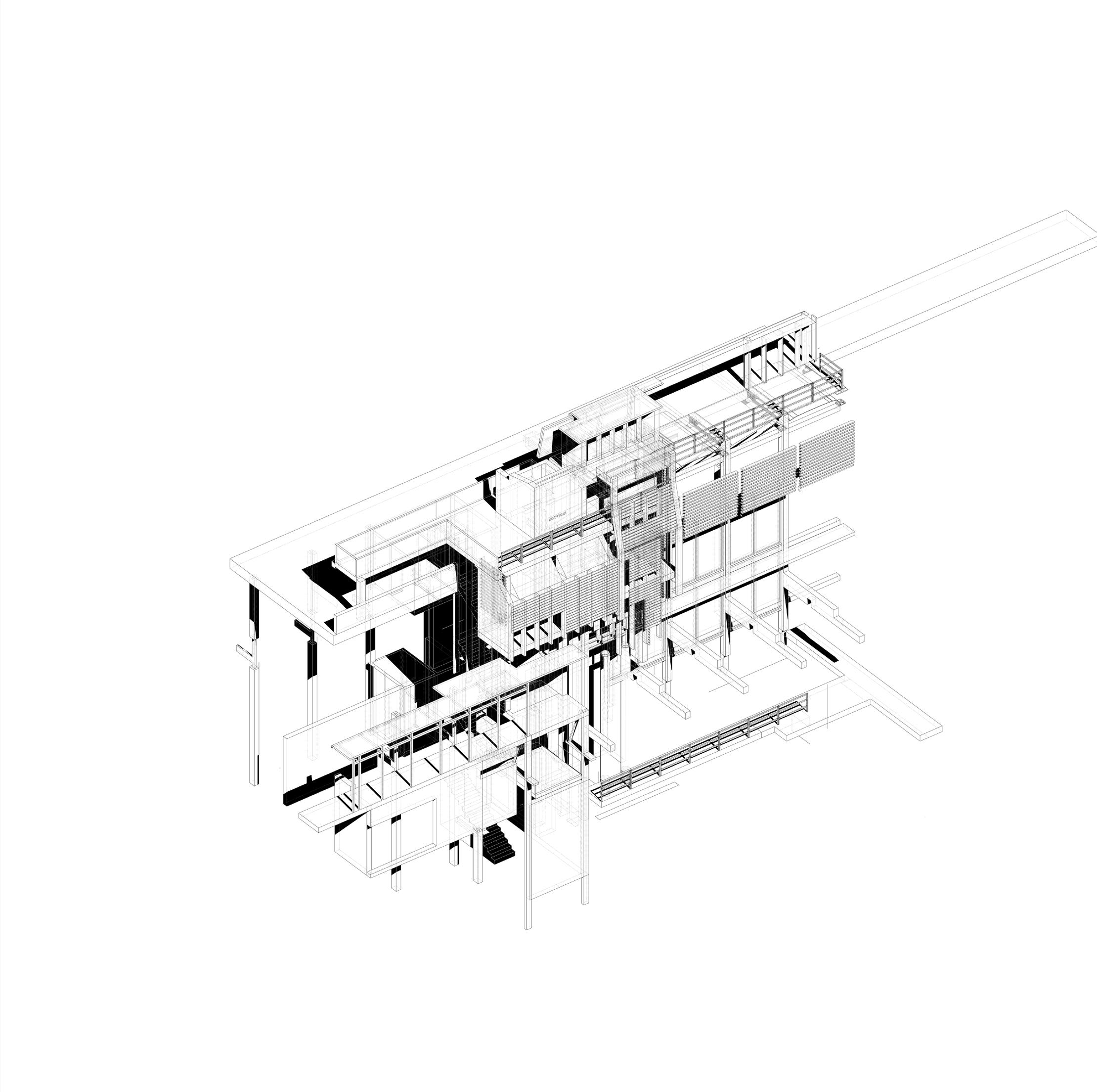

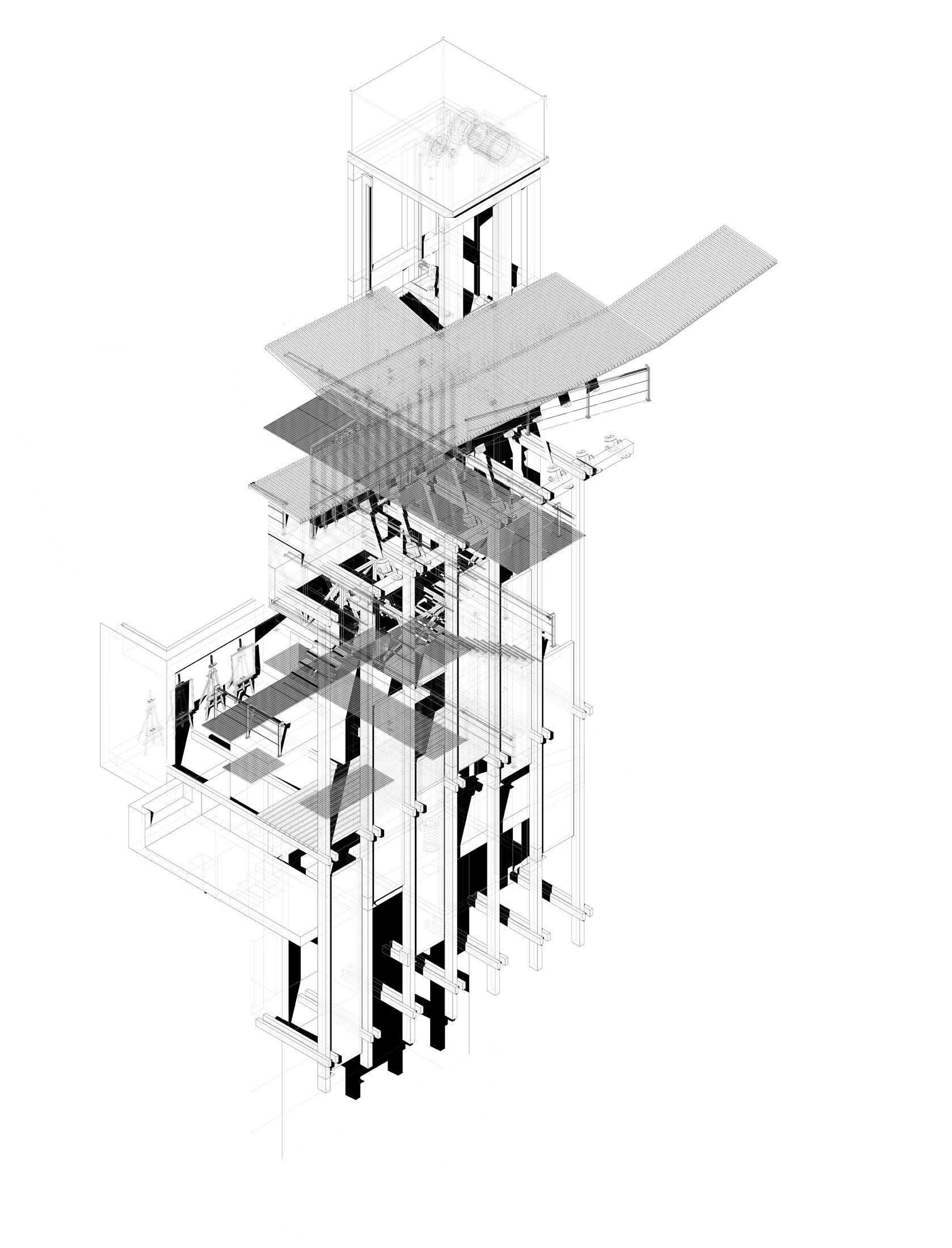

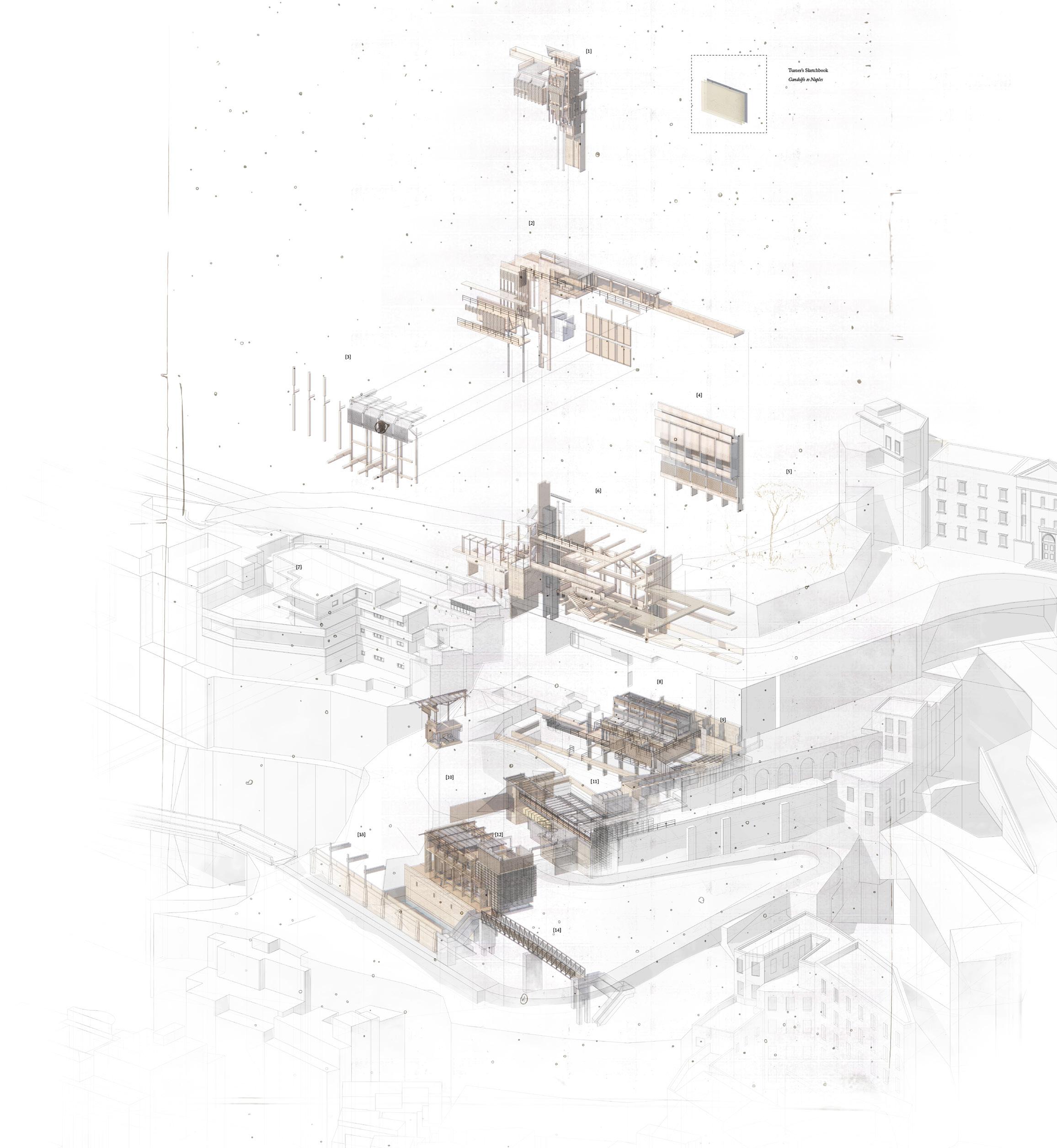

[above] exploded isometric of the hydrolical guild 158 |

XX.

THE HYDROLOGICAL GUILD

The Hydrological Guild seeks to address the problems of surface movement caused by water seeping into the porous tuff ridge of Posillipo. This is accomplished through a range of programmes underpinned by a series of retention basins. These strategically placed basins are intended to control excess water during periods of heavy rainfall, reducing soil erosion and stabilising the landscape. By carefully managing water runoff, The Guild aims to lessen the effects of hydraulic gradients, reducing the burden on infrastructure and contributing to the overall stability of the ridge.

[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14]

belvedere stack tower conditioned envelope of gallery timber & steel primary structure laboratory stack vent Pine of Naples by J.M.W Turner gallery circulation & viewing balconies Villa Crespi by Davide Pacanowski hydrological laboratory amphitheatre accommodation vessels greco di tufo winery refectory observation walkway pedestrian bridge

| 159

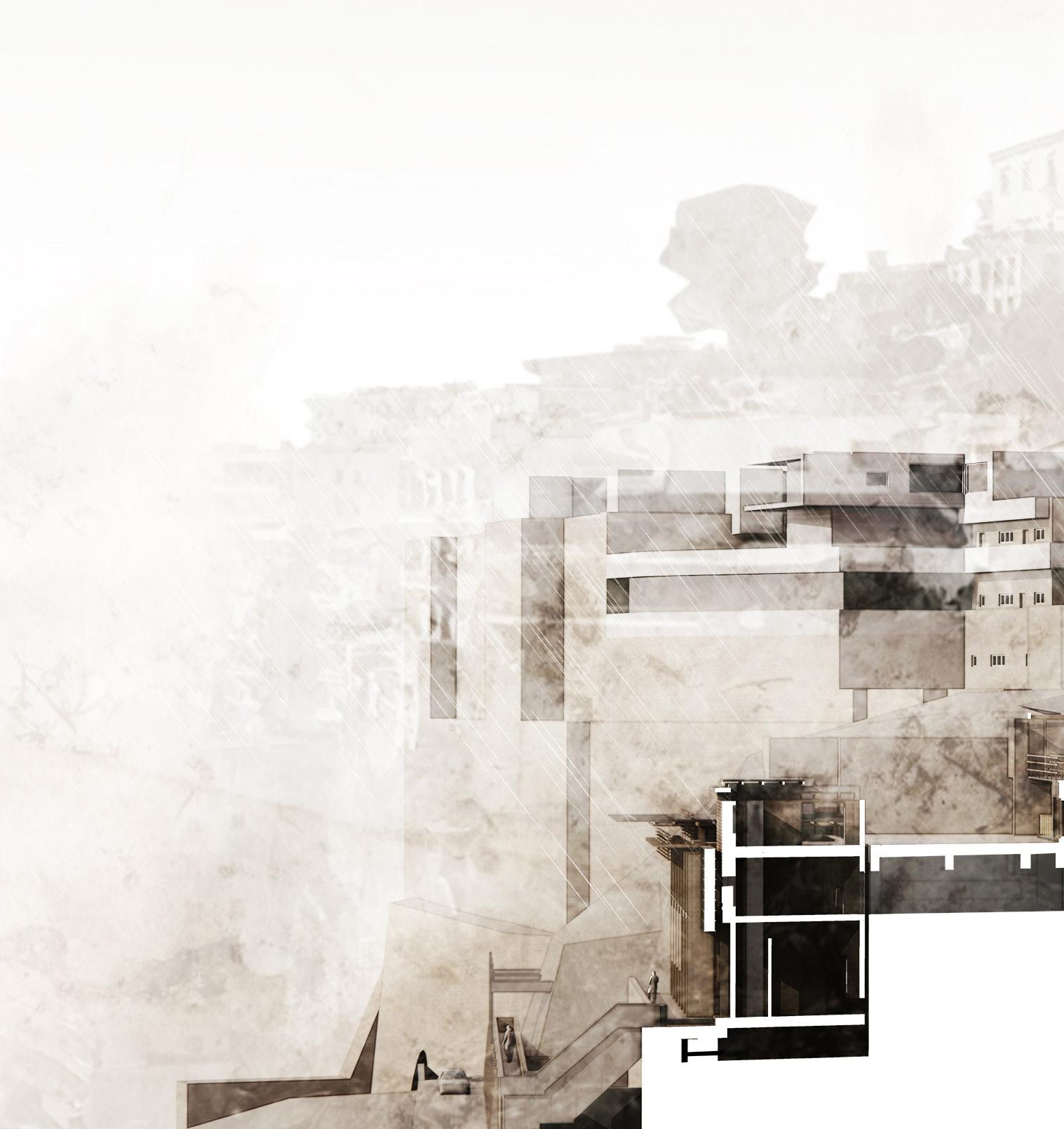

[above] perspective view of the Guild in the tufo ridge 160 |

| 161

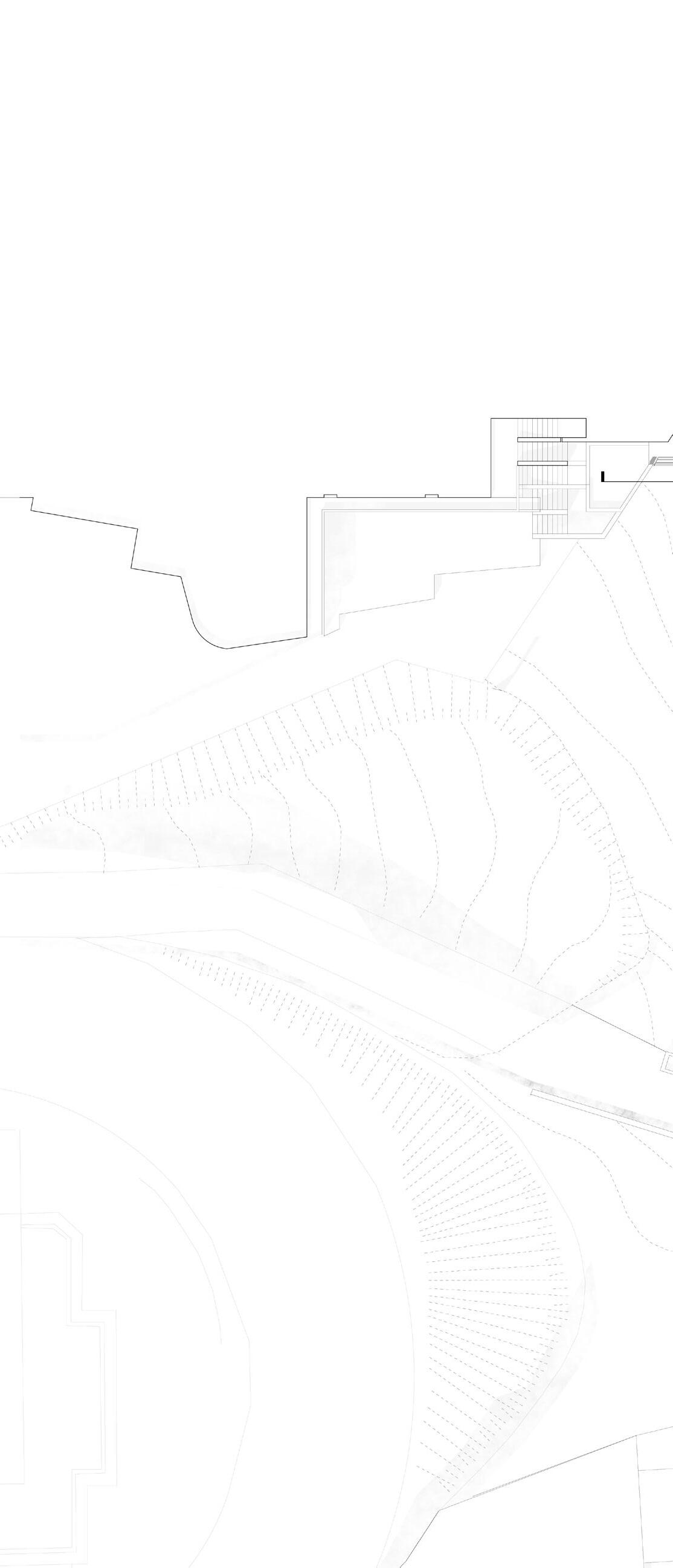

Location Plan The Hydrological Guild 162 |

| 163

[1] [2] [4]

[3]

[6] [5]

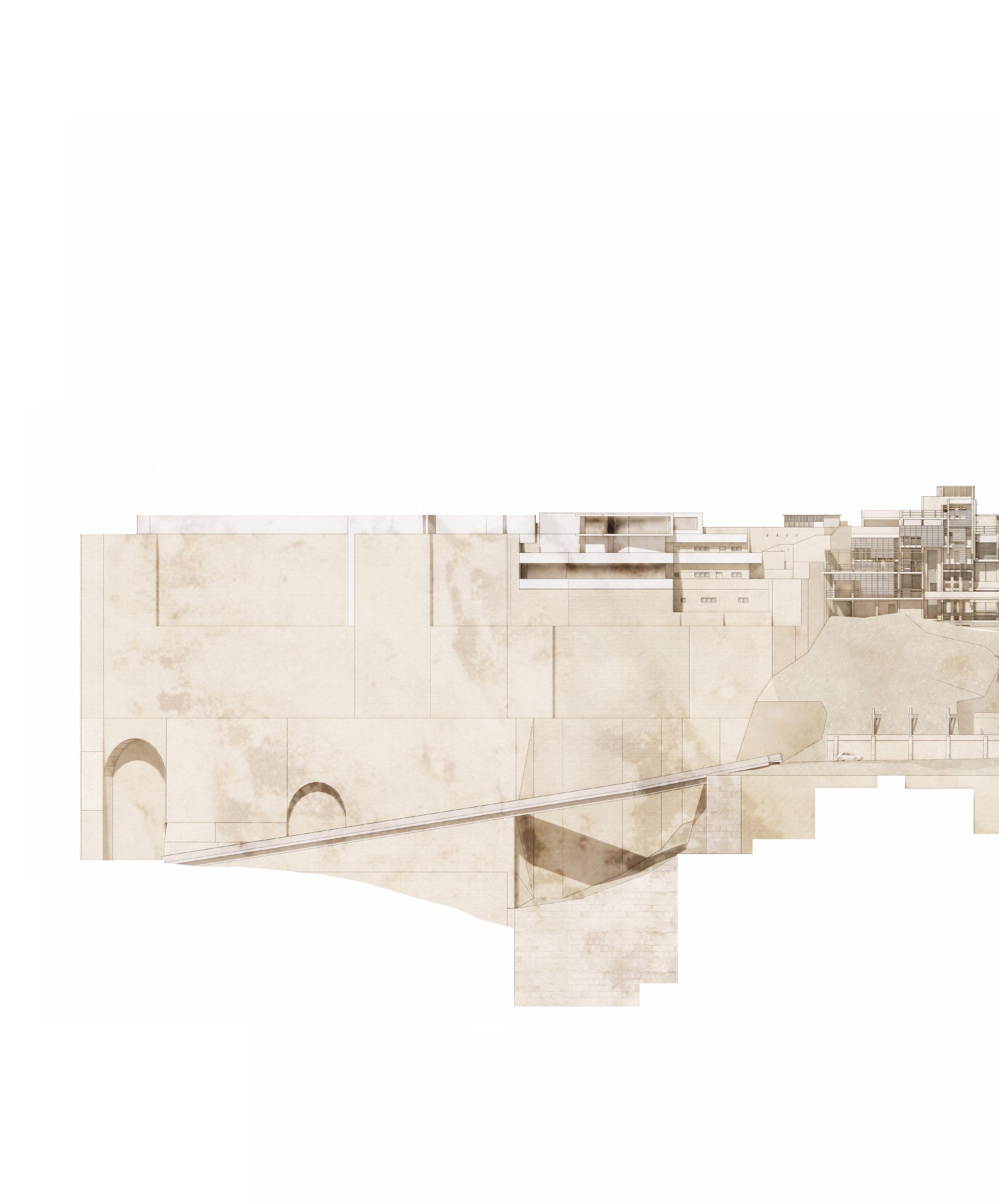

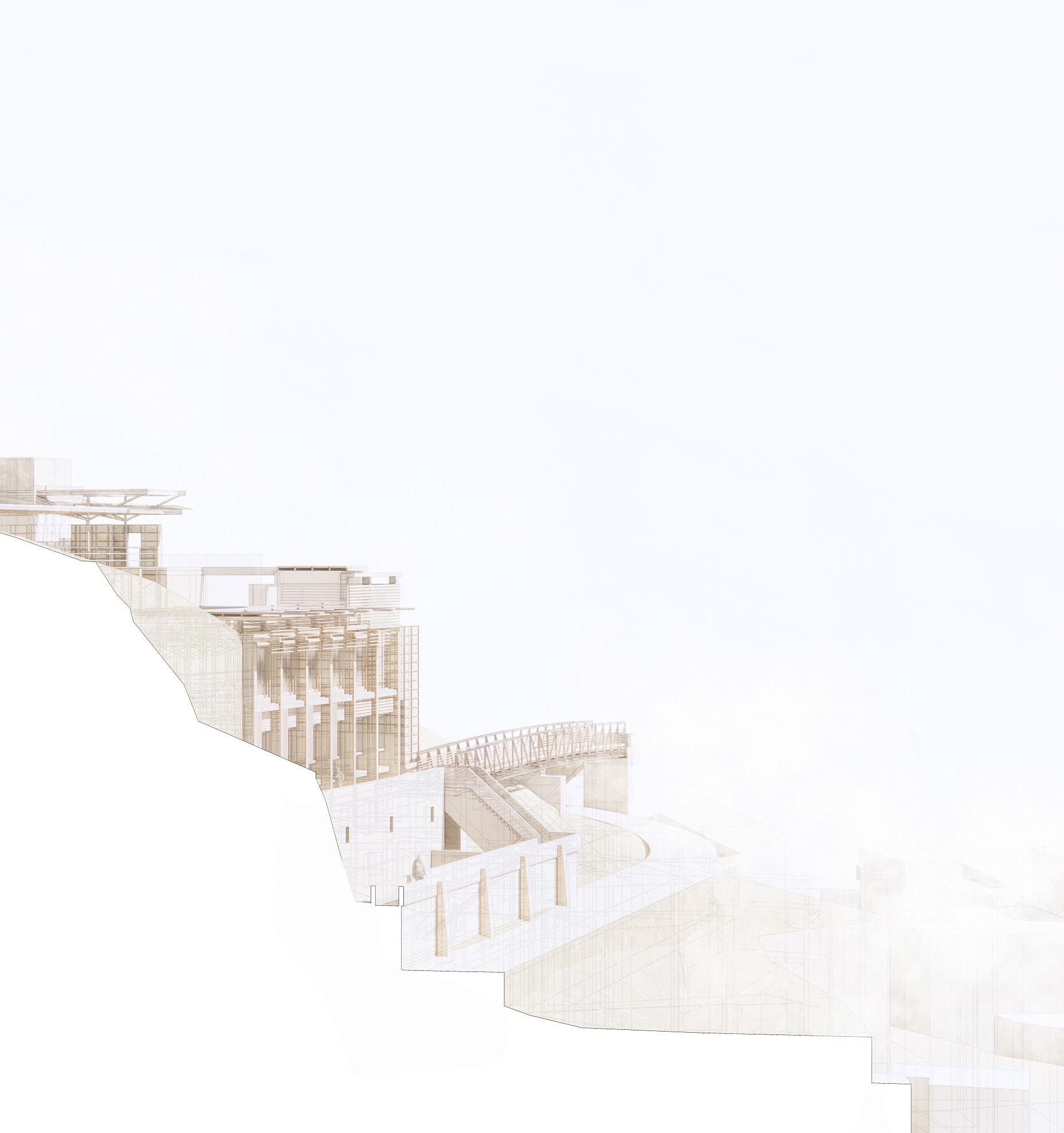

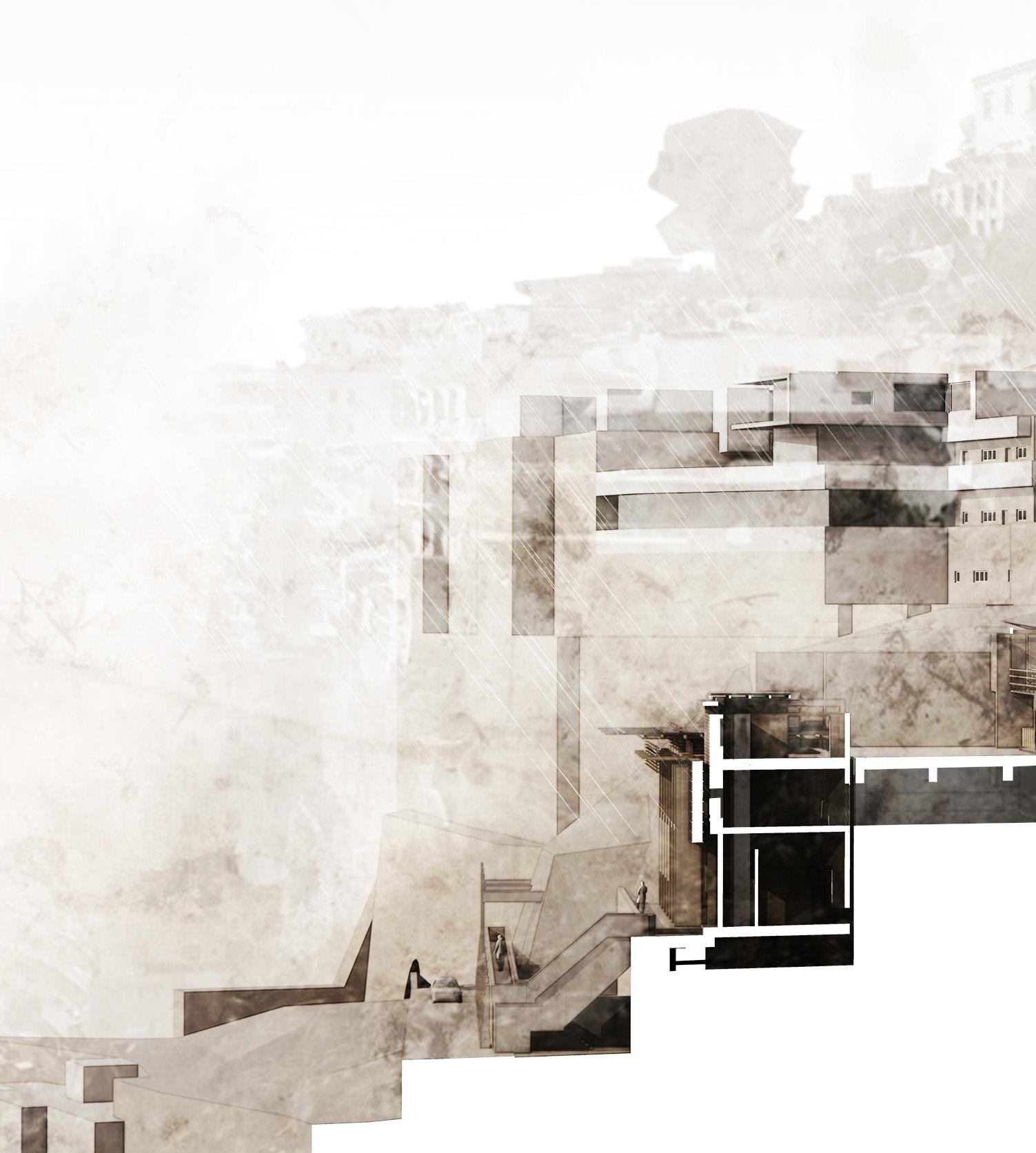

Long Perspective Section AA through retention basin, laboratory, auditorium [1] [2] [3] [4] [5] [6] [7] [8] [9] 164 |

upper arrival area viewing balconies stack vent gallery retention basin vineyard refectory retention basin lower arrival area

[7]

[8] [9]

| 165

166 |

XXI.

INHABITING A BELVEDERE

The Hydrological Guild utilises the existing concrete structure that serves as a support for the viewpoint point adjacent to the church of Sant’Antonio in Posillipo. In its current state of disrepair, it presents a significant hazard to the local inhabitants.

Nevertheless, it appears that those who are less privileged to reside in one of the expansive surrounding villas have taken up residence in the ruin. The daily sight of clothes hanging out suggests that some individuals, likely homeless and in desperate circumstances, have found refuge in these spaces. In periods of crisis, even a nondescript concrete ruin can become a home.

[left] existing concrete retain structure supporting the sant’antonio belvedere and the lives of homeless refugees

| 167

[2] [1]

[3]

Short Section BB through retention basin, laboratory, auditorium [1] [2] [3] [4] [5] [6] [7] [8]

168 |

viewing terrace timber stack vent observation walkway retention basin hydrological laboratory concrete stack vent amphitheatre Chiesa di Sant’Antonio a Posillipo

[4]

[8]

[6]

[5] [7]

| 169

XXII.

STABILISING THE RIDGE

Spanning the expanse of this tuff ridge, there exist four distinct monitoring zones that are dedicated to the observation and analysis of surface movement. These zones are characterised by the specific geological and infrastructural phenomena they monitor, which include: 1. The detection and monitoring of landslides, which are typically triggered by factors such as changes in groundwater levels, seismic activity, and human interference.

2. The identification and tracking of sinkholes, which are often caused by the dissolution of soluble rocks or the collapse of underground cavities.

3. The phenomenon of aquifer rebound, which refers to the rise of the ground level due to the recovery of an aquifer’s water level.

4. The deterioration of buildings, often resulting from factors such as age, environmental conditions, and poor construction practices.

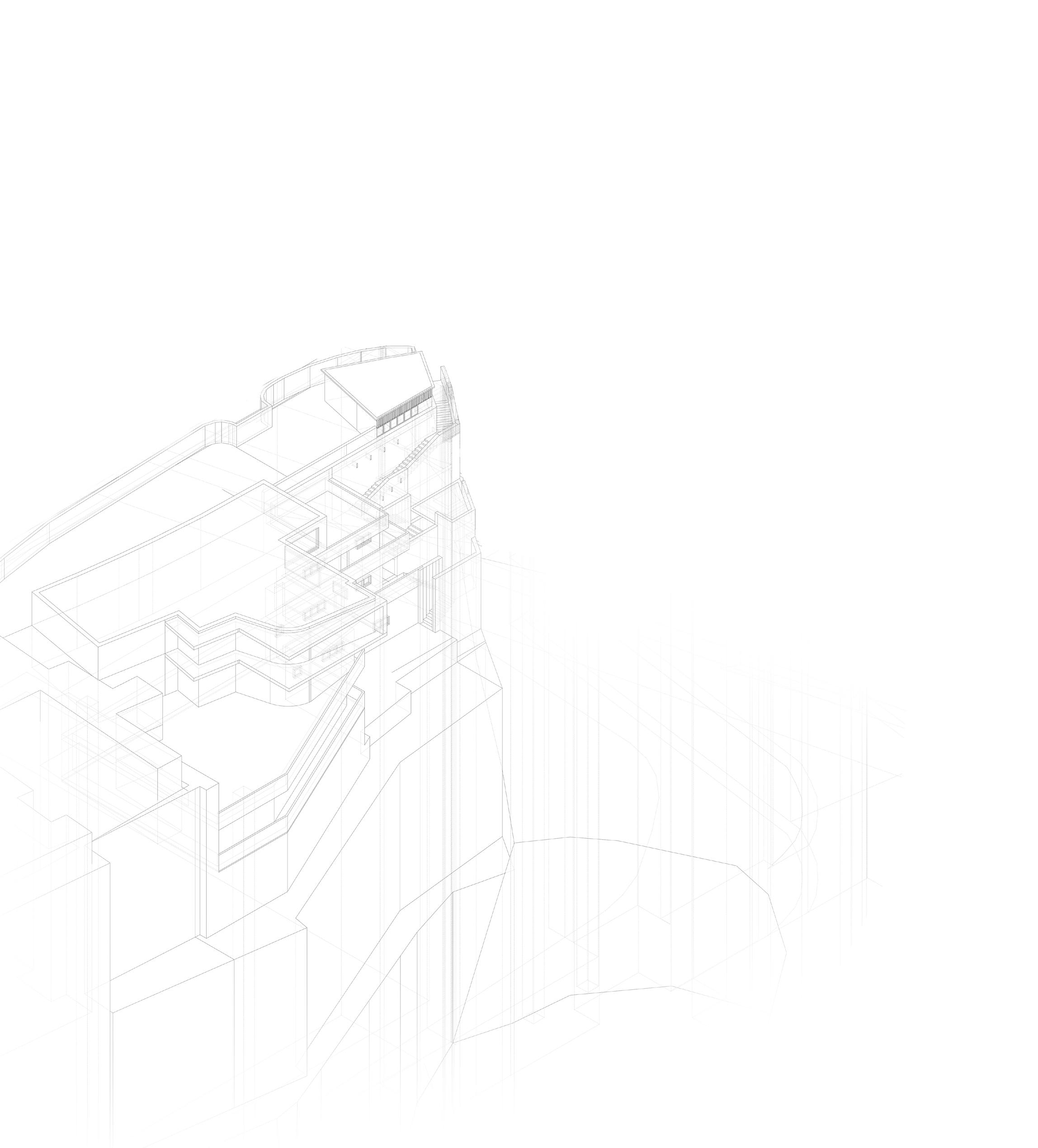

[left] isometric of villa crespi [right] villa crespi perched on top of and built from the tufo ridge 170 |

| 171

[7]

[8] [9]

172 |

[1]

[2]

[5]

[6]

[3] [4] Perspective Section CC through laboratory, winery & refectory [1] [2] [3] [4] [5] [6] [7] [8] [9]

stack vent hydrological laboratory water flow rate monitoring water collection channel retention basin winery refectory accommodation water overflow channel | 173

[1] [2]

[3]

[4]

[6] [5] [7]

[10]

174 |

Isometric View showing the water collection strategy of the hydrolgical guild [1] [2] [3] [4] [5] [6] [7] [8] [9] [10]

stack vent gutter laboratory rain collection water flow rate channels sluice gate retention basin 1 winery rainwater collection retention basin 2 refectory rainwater collection retention basin 3 retaining wall

[8]

[9]

| 175

Site Plan at level 2 through refectory & fermentation rooms [1] [2] [3] [4] [5] [6] [7]

176 |

observation walkway access road retention bason refectory access tunnel fermentation rooms pedestrian bridge

[6]

[5]

[4]

[1] [3] [2]

[7]

| 177

Site Plan at level 4 through retention basin, observation deck & fermentation room [1] [2] [3] [4] [5] [6] [7] [8]

178 |

retention basin sluice gate overflow channel piazza observation deck retention basin fermentation room delivery area

[1] [2]

[3]

[4] [5] [6]

[7]

[8]

| 179

A

Site Plan at level 6 through laboratory, ventilation stack & ampitheatre [1] [2] [3] [4] [5] [6] [7] [8]

180 |

basement gallery heat pump service room retention basin observation deck basement gallery 2 laboratory ventilation stack ampitheatre

B

F C [5]

[1]

[7]

[4] [6]

[2]

[8]

A

[3]

F

B

| 181

A

Site Plan at level 8 through exhibition rooms, stack vent & lab office [1] [2] [3] [4] [5] [6] [7] [8]

182 |

temporary exhibition room stack vent exhibition room viewing walkway sketchbook room storage rooms concrete stack vent lab office

B

F

[4] [1]

[3]

[5]

C [7] [6]

[8]

[2] A

F

B

| 183

184 |

[Zone 1 ]

[Zone 2]

Parco dei Ventaglieri

Chiesa della SS. Trinità delle Monache

Meteorological Observatory Painting Studio Belvedere

Stone Yard Drawing Office Belvedere

XXIII.

A NETWORK OF MONITORING

Across this tuff ridge are four monitoring zones dealing with surface movement, these being; landslides, sinkholes, aquifer rebound, building degradation.

[Zone 3]

[Zone 4]

Largo Petraio

Belvedere di Sant'Antonio

Funicular Station Water Commission Office Tabbacci Belvedere

Hydrological Laboratory Gallery Winery Refectory Belvedere

| 185

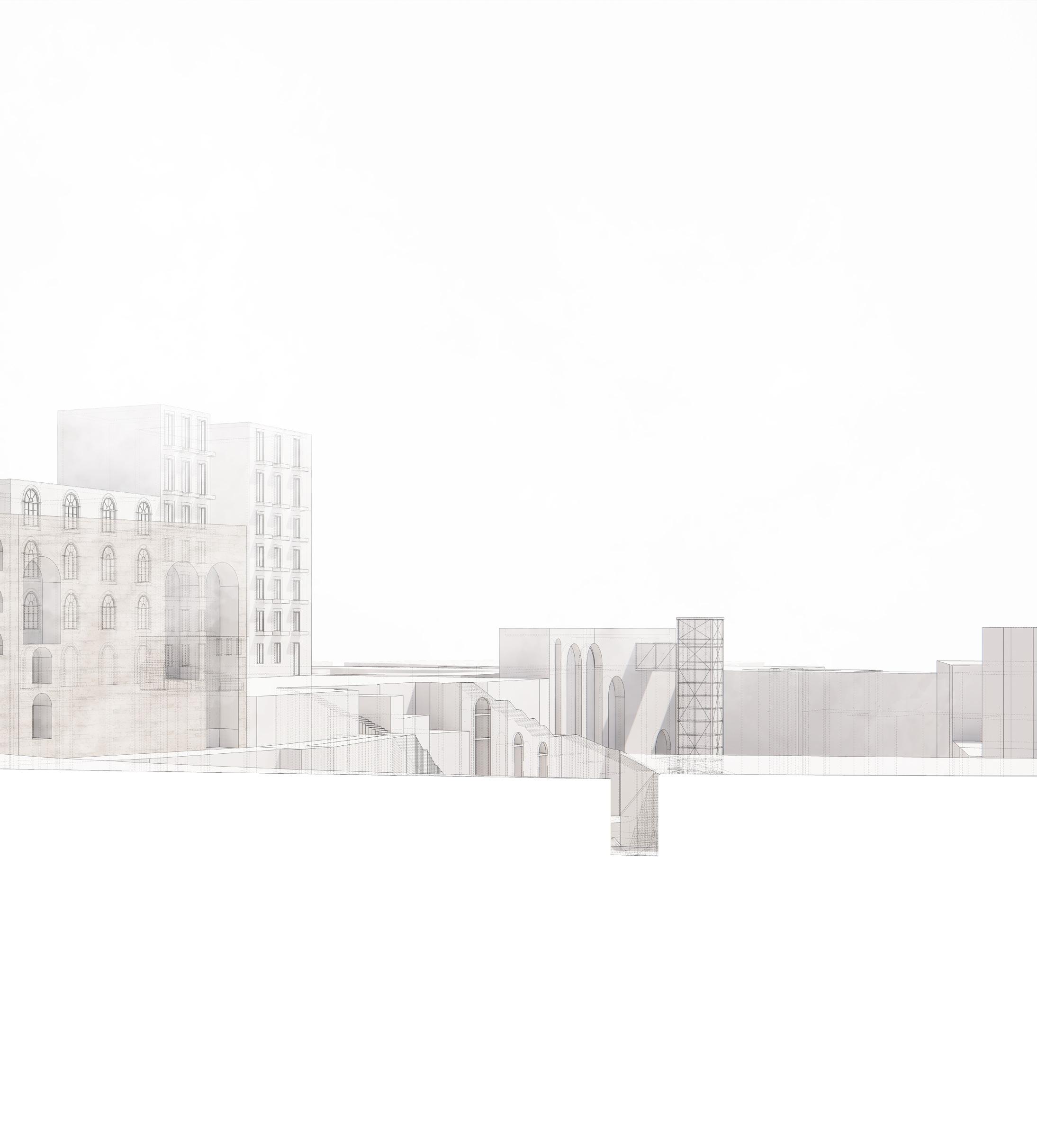

[above] isolated south east elevation of the hydrogical guild 186 |

| 187

188 |

THE GALLERY The Gallery serves as a repository for Neapolitan paintings sourced from churches currently under restoration, as well as the work of J.M.W. Turner. The large stack vent not only generates a cooling atmosphere for the plaza below, but also provides a succession of balconies that offer sweeping panoramas, paying homage to Turner’s enduring captivation—Vesuvius. From these strategically positioned observation points, visitors are privy to views of Vesuvius’ iconic silhouette, invoking Turner’s fascination with the interplay of light and the magnificence of nature. This arrangement serves as a testament to the harmonious coexistence of art, architecture, and the natural world, echoing Turner’s profound connection to the landscape and its ever-evolving elements.

| 189

190 |

THE LABORATORY The Laboratory safeguards the Neapolitan aquifer from groundwater rebound, a result of reduced groundwater exploitation. From 1990 to 2015, a significant groundwater rebound of up to +16.54 meters was observed, causing unexpected flooding in buildings and agricultural soils. Retention and detention basins are used to manage water runoff, maintaining aquifer stability during heavy rain or service disruptions. These basins control stormwater flow, gradually releasing water to reduce downstream flooding, thereby contributing to the city’s water resource management.

| 191

192 |

THE WINERY The Winery is cut into and built from the tuff ridge, generating optimal humidity conditions or fermenting the local Greco di Tufo grape, a variant of Greco Bianco. The name ‘Tufo’ refers to both the village and the volcanic rock it’s built upon, distinct from limestone tufa, formed by compacted ash from eruptions.

| 193

194 |

THE REFECTORY The Refectory, with its dual functionality, serves as a crucial element in retaining the loose topsoil while also providing a dining hall for the enjoyment of the locally produced Greco di Tufo wine. The interior is furnished with long wooden tables and benches, promoting a communal dining experience for visitor to the Guild. Large windows illuminate the space with natural light and offer captivating views of the surrounding vineyards and the majestic Vesuvius in the distance.

| 195

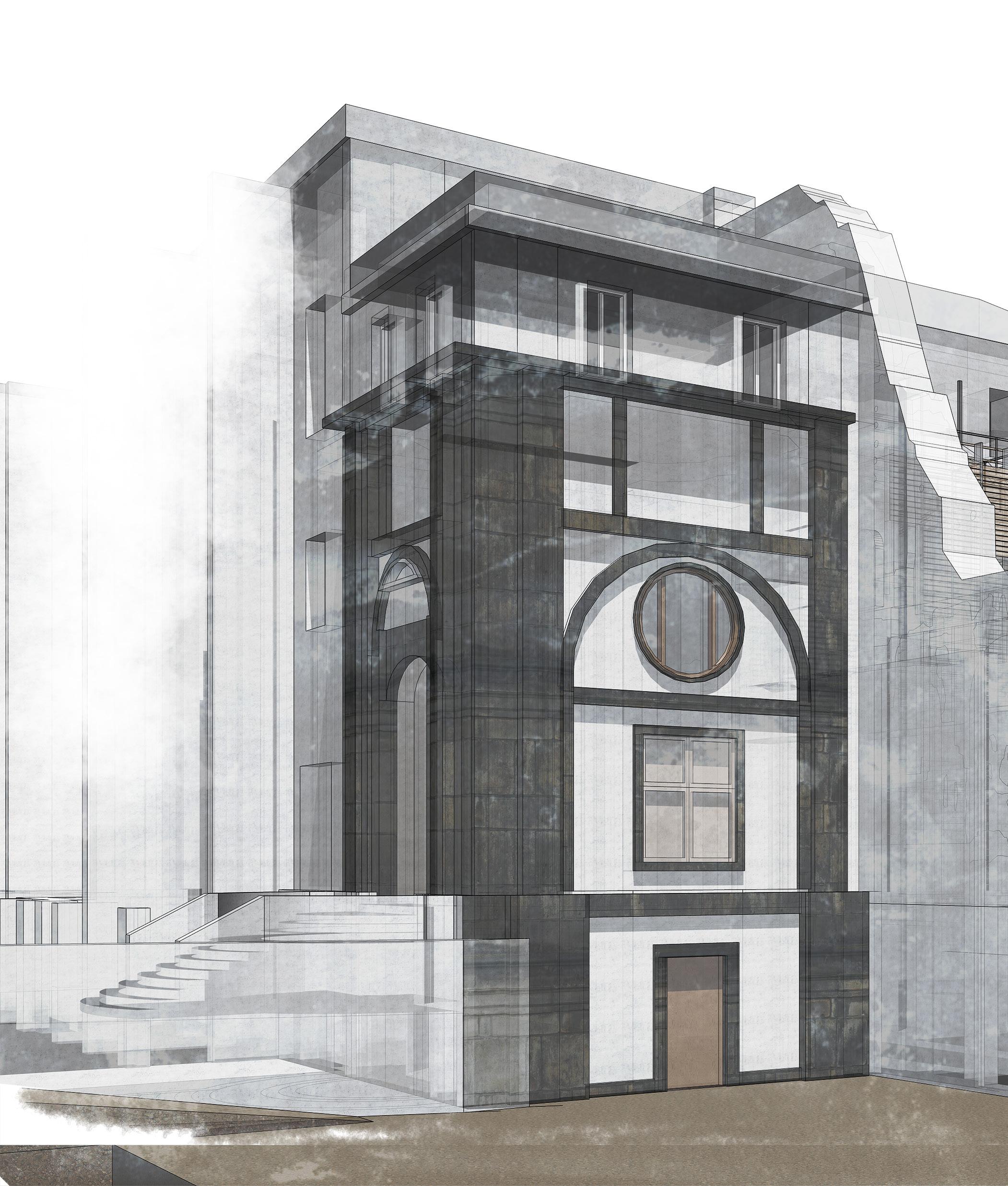

[above] isolated north elevation of the meterological observatory 196 |

| 197

198 |

THE OBSERVATORY The Meteorological Observatory serves as a dedicated facility for the measurement, recording, and monitoring of atmospheric conditions. These conditions are rendered perceptible through an architectural design that is characterized by its ‘twitching’ nature, dynamically responding to the environmental stimuli.

Strategically situated amidst the elevated terrain of Parco Ventaglieri, the Observatory vigilantly monitors meteorological parameters such as the intensity of rainfall, ambient temperature, and humidity levels. The collected data can be cross-referenced with patterns of ground movement, thereby facilitating a more comprehensive understanding of the triggers for geological phenomena such as landslides and sinkholes.

| 199

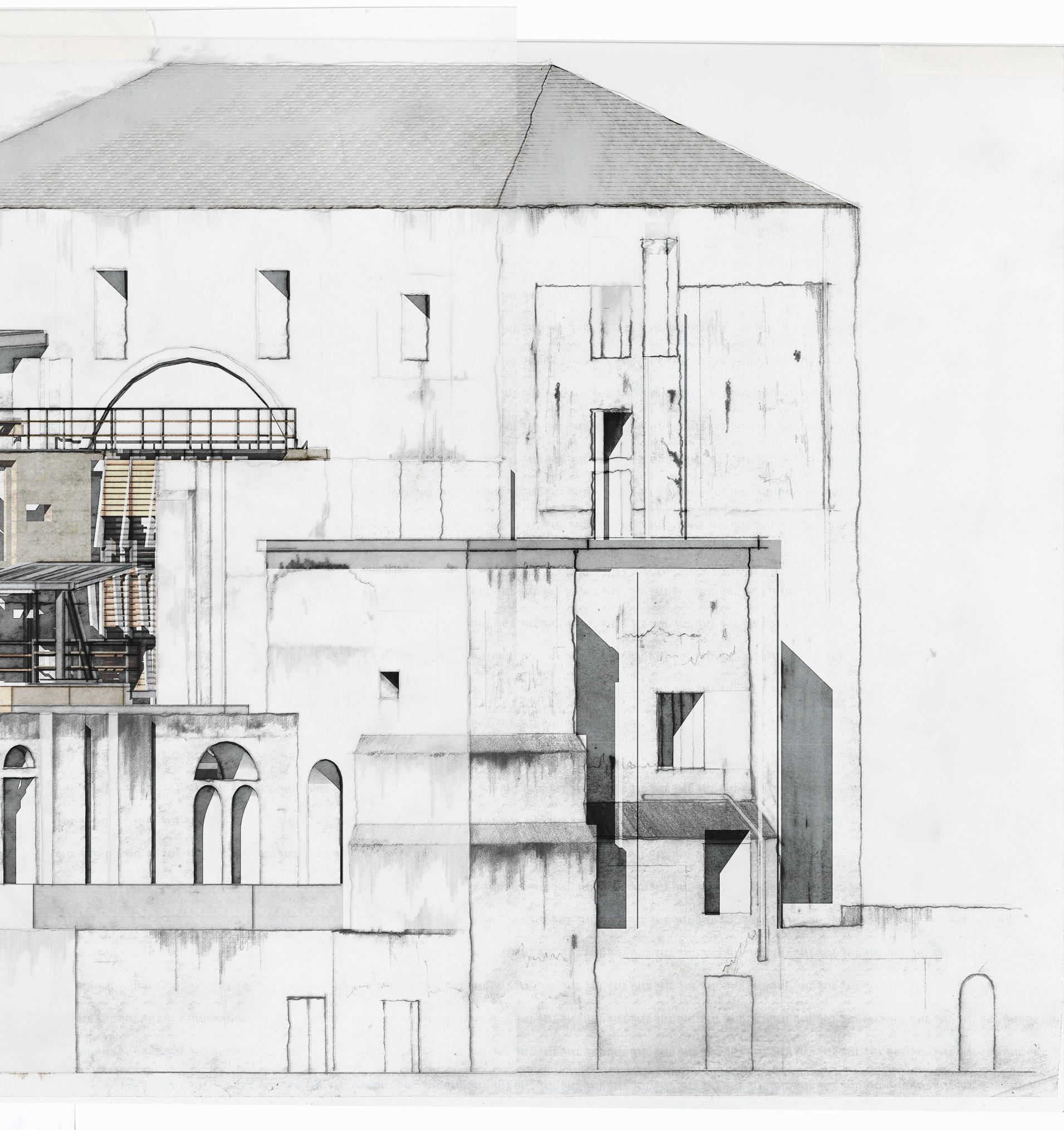

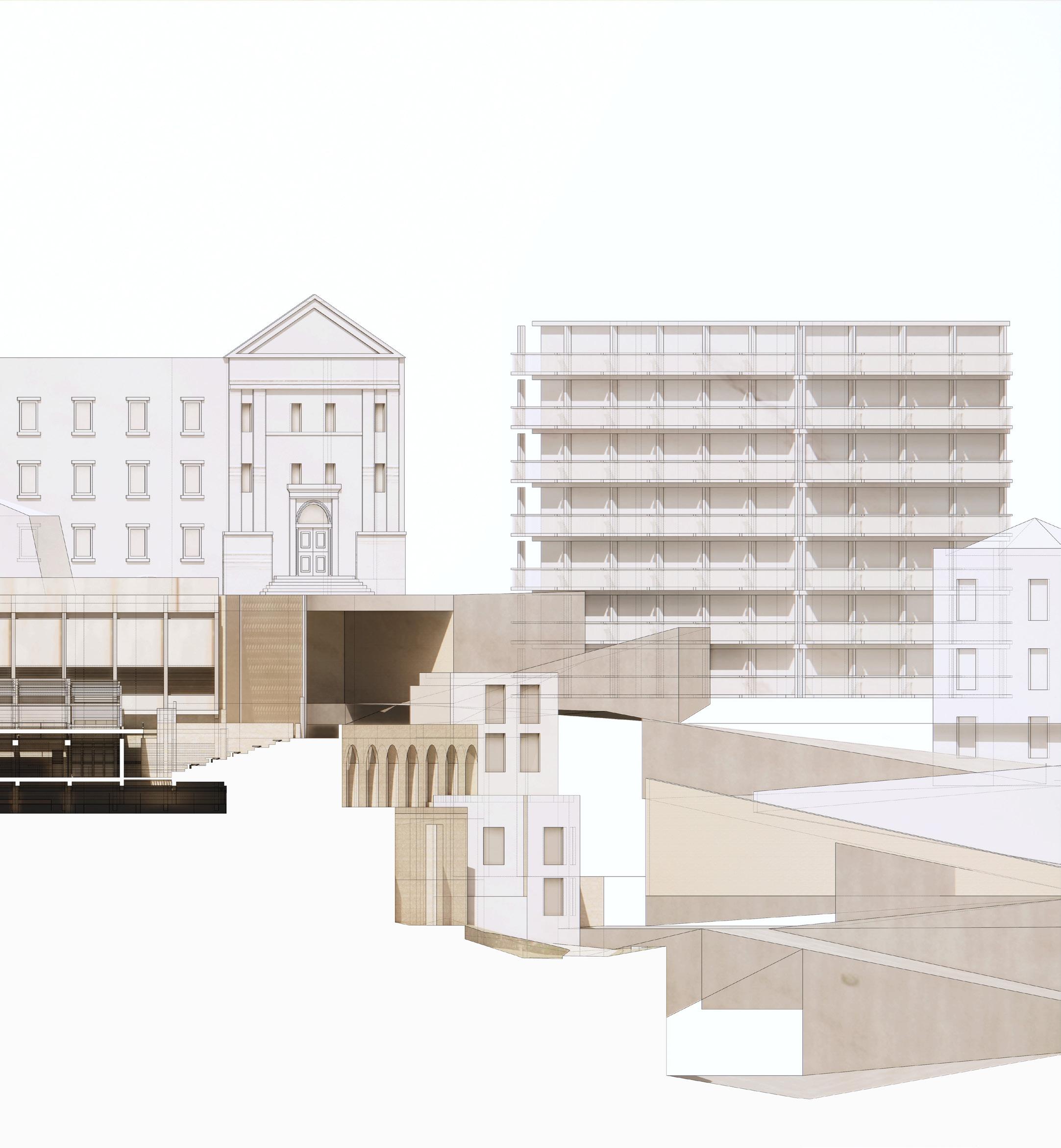

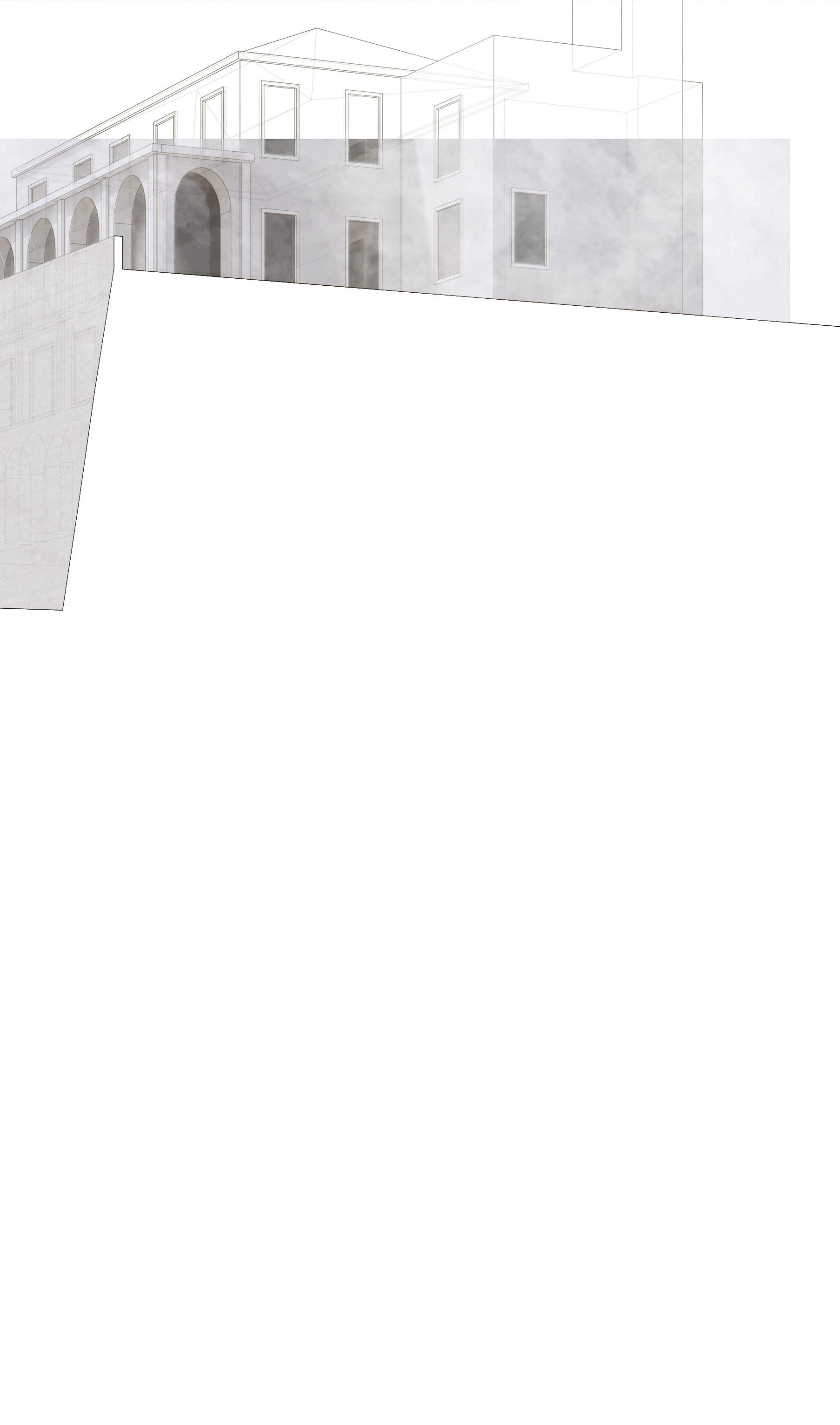

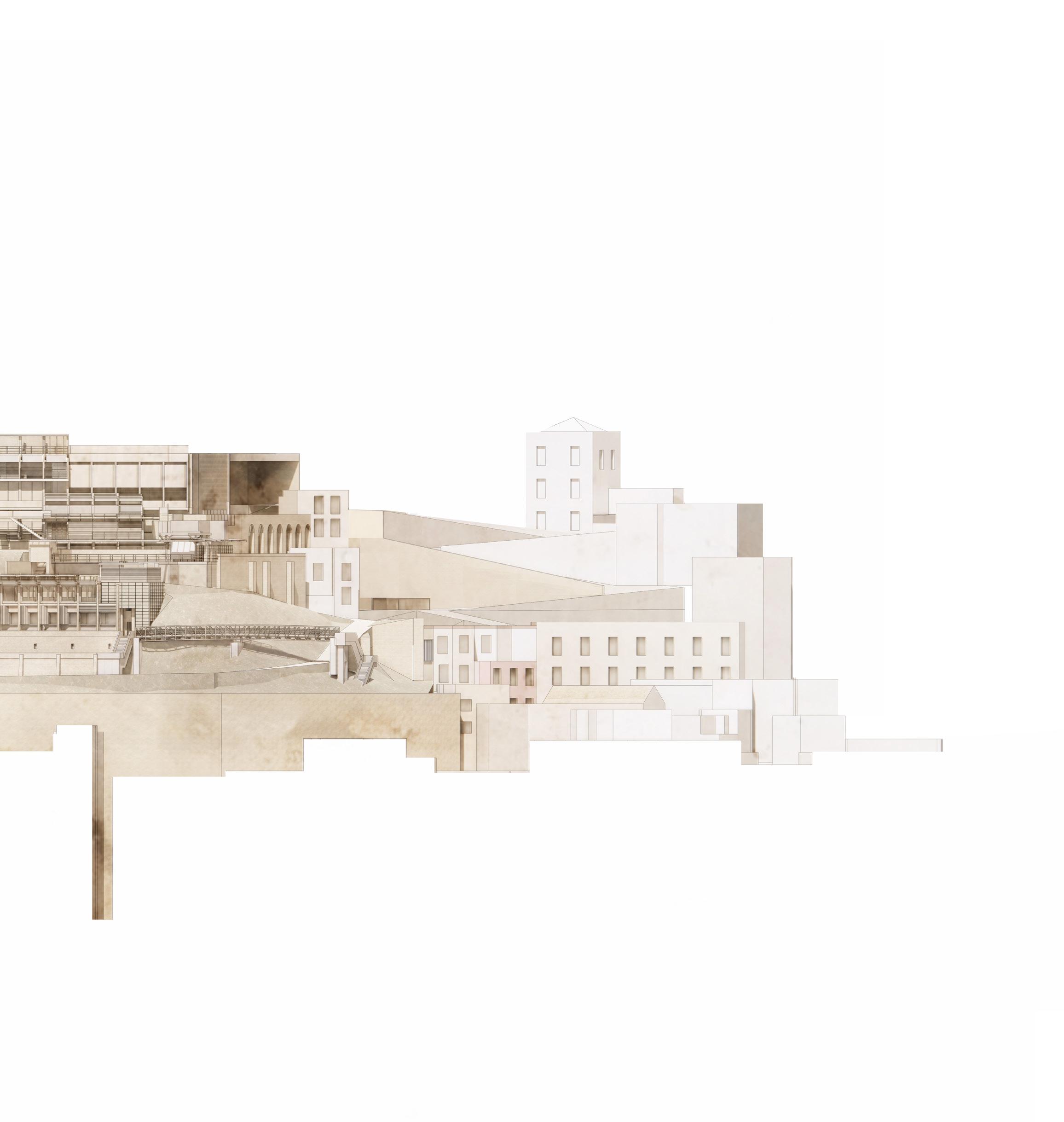

[above] isolated south elevation of the masons yard 200 |

| 201

202 |

THE STONE MASONS YARD The Stone Mason’s Yard emerges as a bastion safeguarding Naples’ cherished craftsmanship and reverence for heritage. This initiative reflects an acute understanding of the city’s architectural history and the imperative for meticulous conservation - a commitment to stone that requires careful stewardship. Strategically positioned, the masons yard offers an elevated perspective to the south while utilising the existing church structure as both a backdrop and a sanctuary for the artisans diligently at work. Beneath a sprawling canopy of timber screens, designed to combat the relentless Neapolitan sun, workers find respite from its harsh rays, while the structure ingeniously collects and channels rainwater during huge deluge.

| 203

204 |

REFLECTION

DRAWING

| 205

REFLECTION

DRAWING

As my understanding of the city and drawing techniques expanded, each project adopted a distinct graphic style. In the final semester of this thesis, I curated and refined drawings to provide a more consistent graphic representation of the work, using the material at hand as a reference. A pivotal method for unifying the series of projects I had been working on was the isometric, which aided in understanding the key tectonic strategies of each proposal and deconstructing their associated programmes.

By reverting to this straightforward yet effective drawing method, each proposal or component of a proposal could be developed with the same rigour and read as an individual piece within the context of the shifting ground. This proved particularly useful when constructing a set of hybrid figures, which incorporated elements of my working group’s architectures. This was complemented by a consistent style of rendering the proposals, orchestrating the material concerns of each site and bringing clarity to the spatial assemblage.

In addition to traditional drawing methods, studio leaders strongly encouraged the exploration of more speculative drawing methods for the ground. In Studio D, my proposal was concerned with broader reciprocal landscapes, which generated a series of larger mappings and a more relaxed approach to factual representation.

206 |

| 207

208 |

| 209

210 |

| 211

212 |

FIVE.

DETAIL

DEFINING ARCHITECTURAL FOOTINGS XXIV. Framing XXV. Embedding XXVI. Transecting

[an assemblage of actions shape the observatory, stone yard & hydrological guild]

The Hydrological Guild is the culmination of a comprehensive investigation into Neapolitan Ground conditions through the development of a studioli, observatory, stone yard and the works of J.M.W. Turner. It employs a common architectureal language that is articulated through a set of individual and group investigations , these sharing a key set of moves. | 213

XXIV.

FRAMING

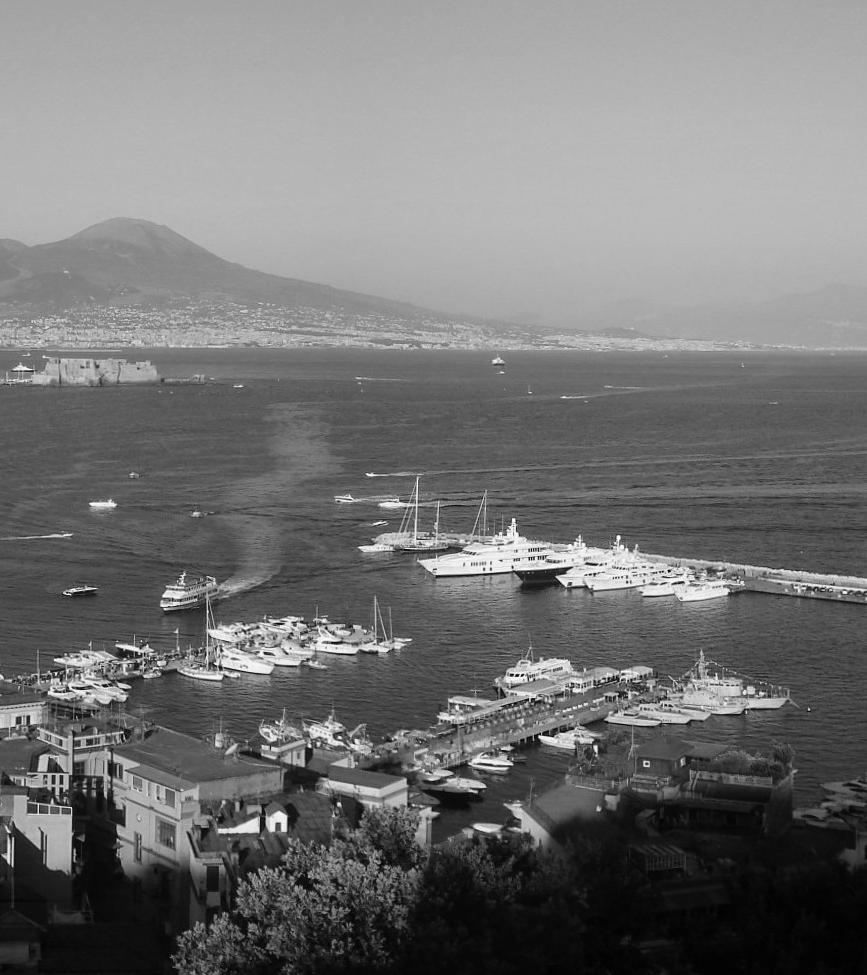

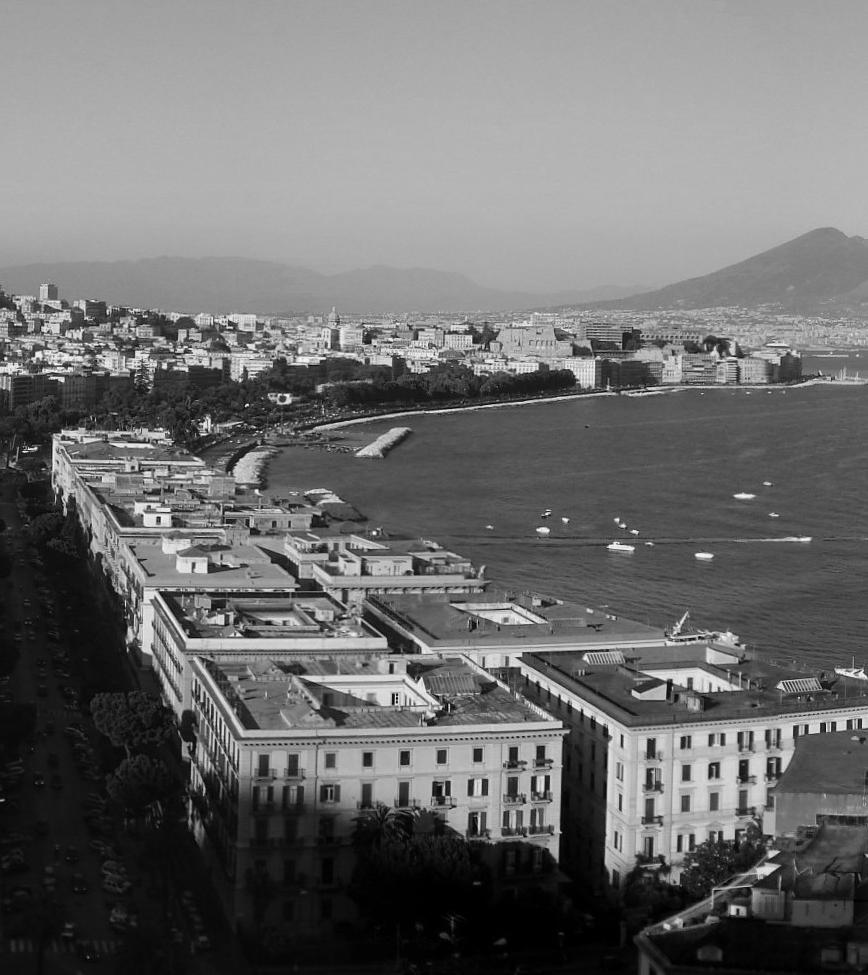

Many of Turner’s Neapolitan sketches are panoramic vistas across the city taken from elevated positions. This is reflected in the series of framed views and elevated framed structures that provide views across the city.

214 |

| 215

M - Materiality E - Environmental F - Function C - Contextual

Capture M - Steamed metal + Primary LVL columns + Secondary steel tension wires E - Holds water collected from the facade and keeps it at a high gravitational potential F - Collects rainwater runoff and avoids over saturation of the ground below C - Mirrors the parallel cliff face and frames views towards Vesuvius

Stack M - Primary LVL Columns/Beams + Secondary LVL Stressed Skin Cassette Panels E - Pulls fresh air through and to reduce the need for AC system F - Provide fresh air to gallery spaces behind C - Supports tuff facade system Channel M - Tuff cladding panels + steel support frame E - Provide breathable facade while channelling water into collection trays F - Channel and store water C - Mirror cliff face Stair M - CLT steps + LVL Stressed Skin Cassette Panels + Timber cladding E - Vertical transition through states of atmosphere and moisture F - Circulation + scale (scala) C - Connects and breaks through the existing concrete belvedere Enclose M - Tuff stonework + Concrete retaining wall E - Create a dry, dark, sheltered space for Turners artwork F - Protection from the elements + Collection of rainwater in pool C - Provides a lighting quality to display light sensitive artwork by Turner

216 |

| 217

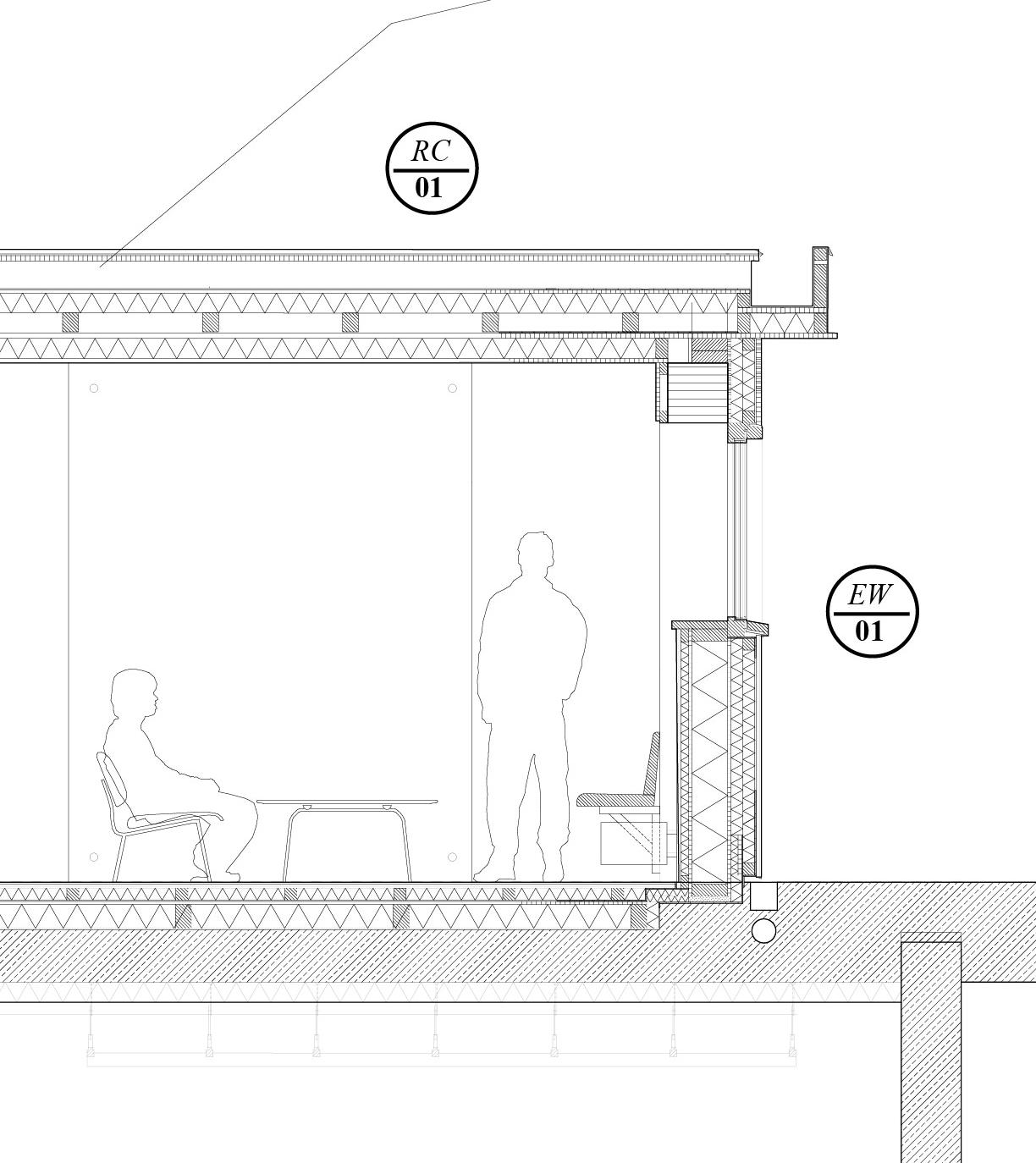

Roof Construction RC 01

0.5 mm tin-plated stainless-steel standing seam roofing 27 mm composite wood boarding 120 mm ventilated cavity underlayer; 16 mm fibreboard 2≈ 100 mm mineral-wool insulation vapour-retarding layer; 2 5 mm OSB 100 mm mineral-wool insulation 9 mm 3-ply laminated softwood boarding 320 mm rafters

External Walls EW 01

218 |

27 mm untreated softwood boarding 2≈ 60 mm mineral wool 16 mm fibreboard; 60/180 mm wood bearers with mineral-wool insulation between 15 mm OSB; 40/60 mm battens with insulation 19 mm 3-ply lam. softwood internal lining

RC 01

EW 01

| 219

Floor Construction FC 01

FC 02

30 mm wood boarding; 60/60 mm battens with insulation; vapour-retarding layer; 15 mm OSB 60/160 mm wood bearers with glass wool 80/120 mm wood bearers with glass wool 300 mm concrete floor slab 5 mm PVC flooring; 70 mm screed 200 mm reinforced concrete slab 100 mm acoustic insulation 20/89 mm oak louvers suspended ceiling

External Walls EW 02

220 |

300mm LVL Beam Stressed skin cassette panel Aluminium angle brakcet flashing tuff panel

EW 02

FC 01

FC 02

| 221

[1]

[2]

[3]

[4]

[5]

[6]

[8]

222 |

[7]

Isometric View showing the series of balconies within the observatory [1] [2] [3] [4] [5] [6] [7] [8]

access lift rainwater collection roof facade pulleys terrace overlooking parco ventaglieri hygrometer bridge painting balcony painting canvas store room painting studio

| 223

224 |

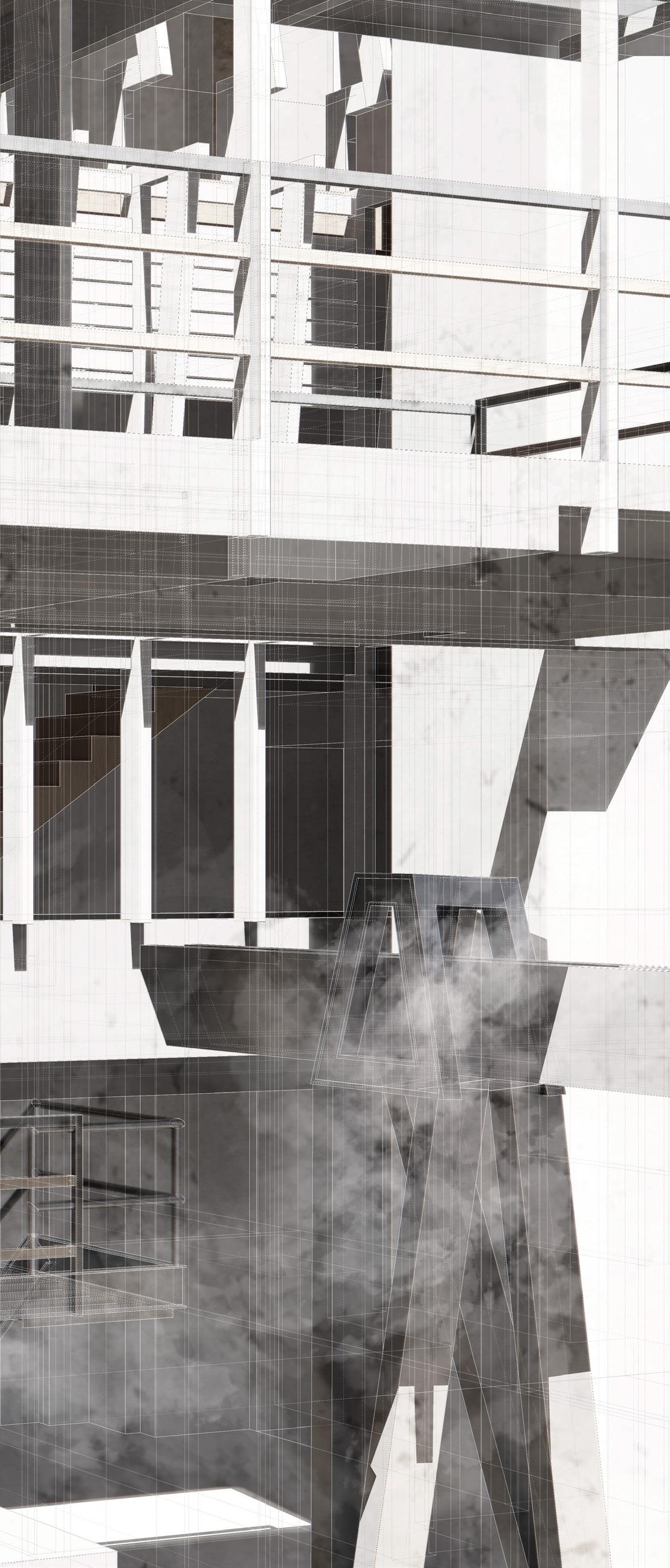

[above] perspective elevation showing the circulation and supporting framework across different levels of the observatory.

[left] Isolated isometric of the meteorological observatory that inhabits a set of retaining tufo arches. The external frame ‘twitches’ in response to chances in moisture and which change the opening heights of the shutters on the painting balconies looking to the south.

| 225

XXV.

EMBEDDING

Just as the city’s structures are carved and constructed using the underlying Tuff, the Guild emerges from and melds with the very ground it stands upon, intricately carved into the cliffside to form an artificial landscape. This design not only addresses the inherent challenges of materiality and environment but also harmonizes with the topography of the Hills of Posillipo.

The initial stages of constructing the Guild involve sculpting into the tuff ridge. This serves a dual purpose: anchoring the building securely while crafting a series of basins strategically positioned to capture and manage water runoff. This approach underscores the Guild’s commitment to sustainable practices and respect for the natural environment in contemporary architecture.

226 |

| 227

[1] [2] [3]

[4]

[7]

[5]

[6]

[8]

[9]

228 |

Footing throughstack vent, gallery & bains [1] [2] [3] [4] [5] [6] [7] [8] [9]

stack vent viewing balcony upper reception area gallery ventilated corridoor observation walkway gallery concrete pile foundations retention basin | 229

External Walls EW 03

200 mm tuff stone wall 20 mm cement mortar; sealing layer 30 mm cement mortar, coated 120 mm brick wall, plastered

Floor Construction FC 03

FC 04

230 |

65/65 mm solid oak handrail 15 mm glass balustrade 10 mm steel plate 9 mm three-ply oak-veneered plinth fascia, 10 mm shadow joint 380/119 mm angled steps: 5 mm oak veneer on 15 mm chipboard 10 mm composite wood board fixed to concrete structural stairs

10 mm finely sandblasted Tuff stone 65 mm heated screed 10 mm impact-sound insulation 40 mm insulation 40 mm polyurethane thermal insulation 220 mm concrete slab

FC 03

EW 03

FC 04

| 231

Foundations FD 01

232 |

300 mm piperno slab 500mm concrete strip foundation 11500mm concrete pile foundation

FD 01

| 233

234 |

[5]

| 235

XXVI.

TRANSECTING

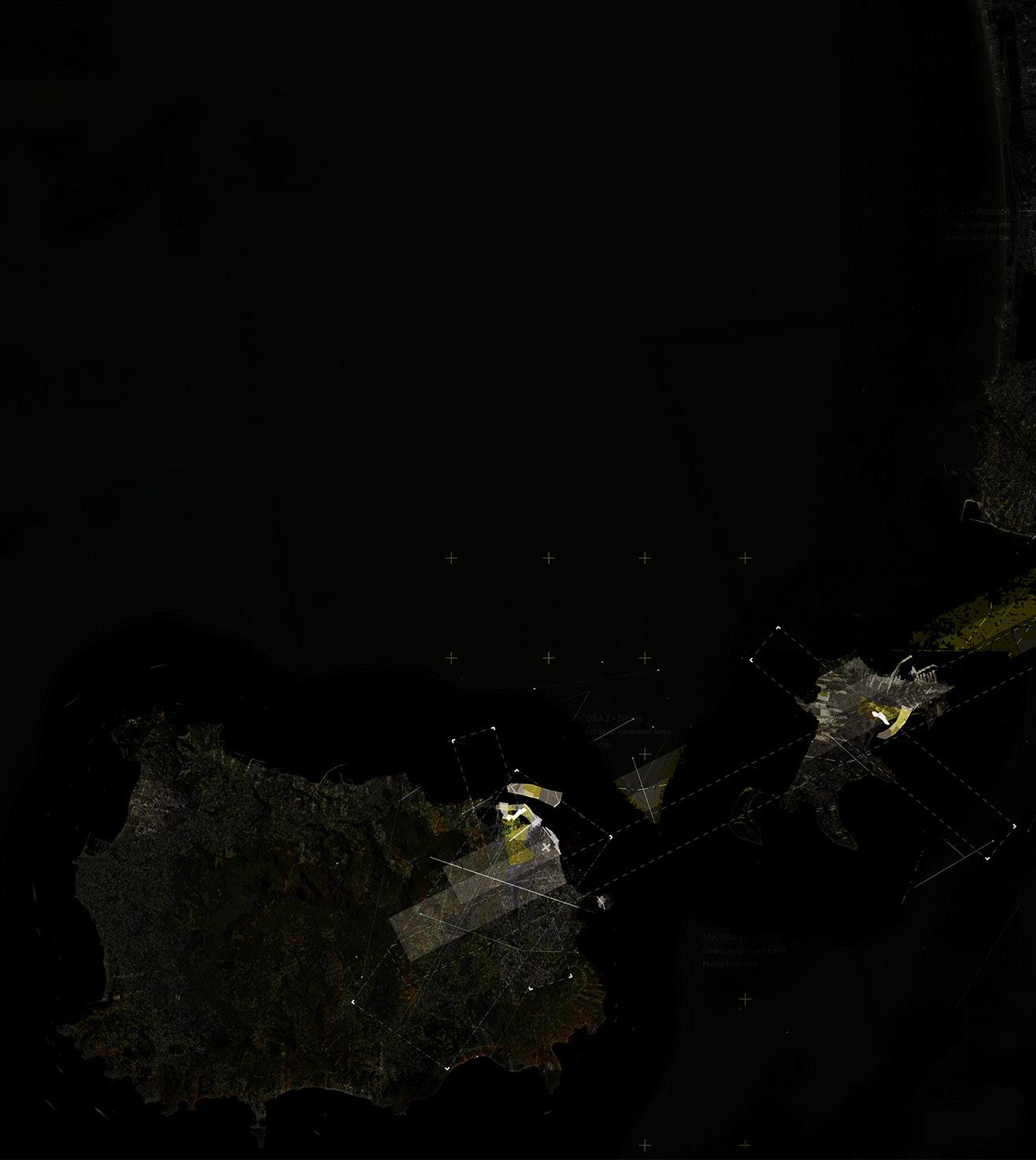

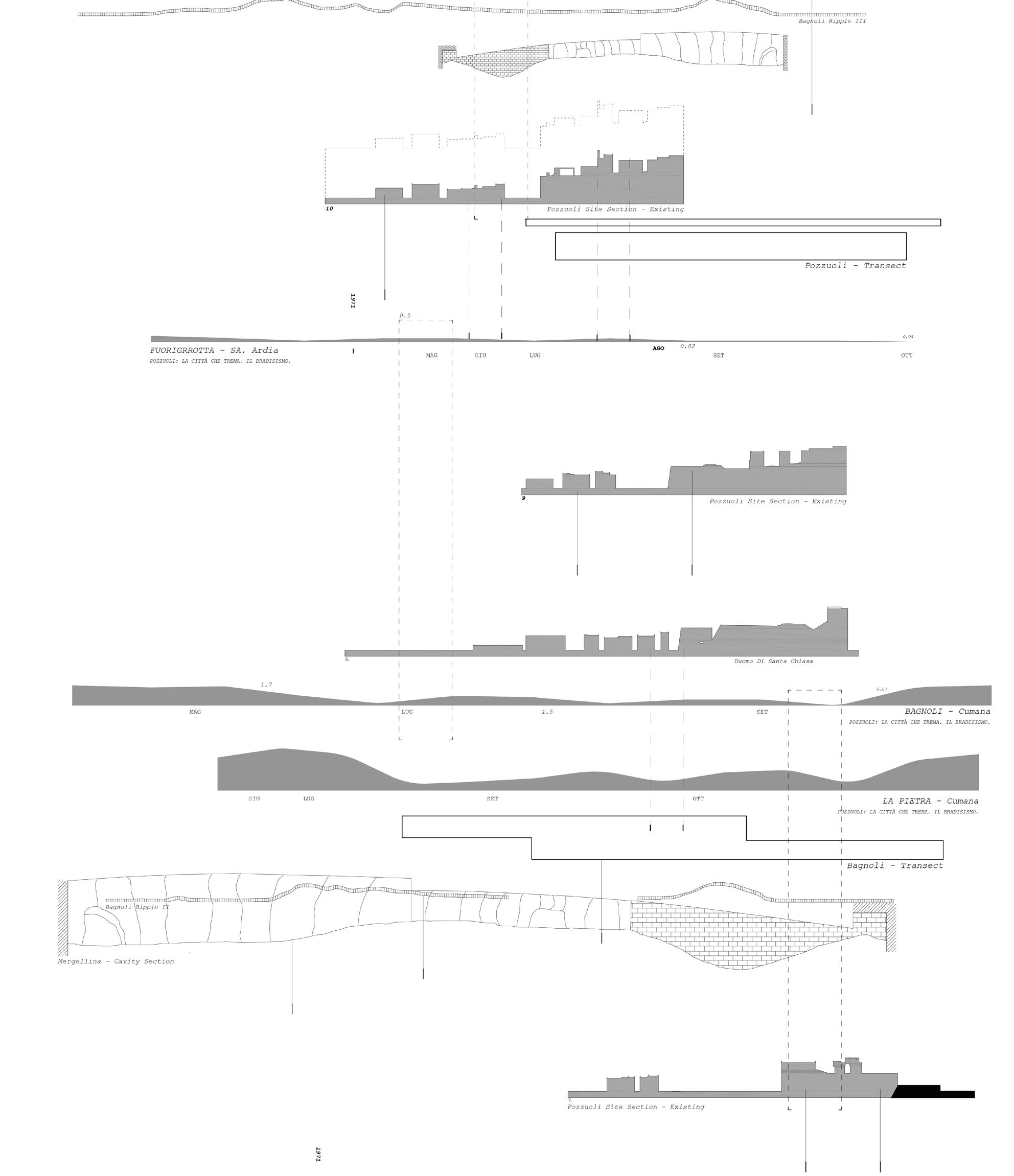

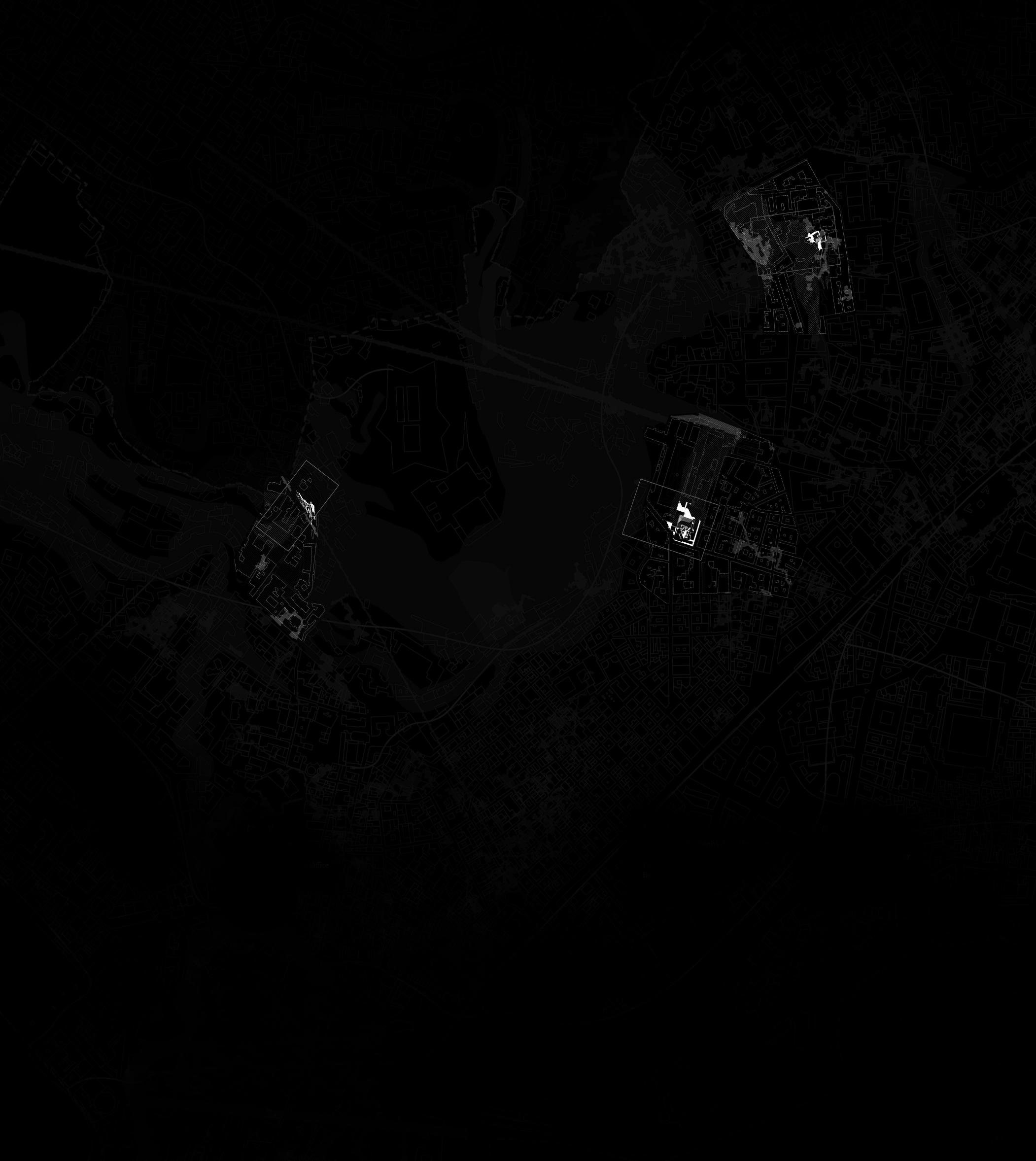

When mapping our separate material flows in the Bay of Naples, we were able to identify specific site of extreme overlapping ground conditions. When delineating these forces we developed a joint language of drawing communication as a way of being able to develop joint architectural hybrid figures. The Neapolitan Ground Drawing shows the 1-50,000 mapping generated during this process.

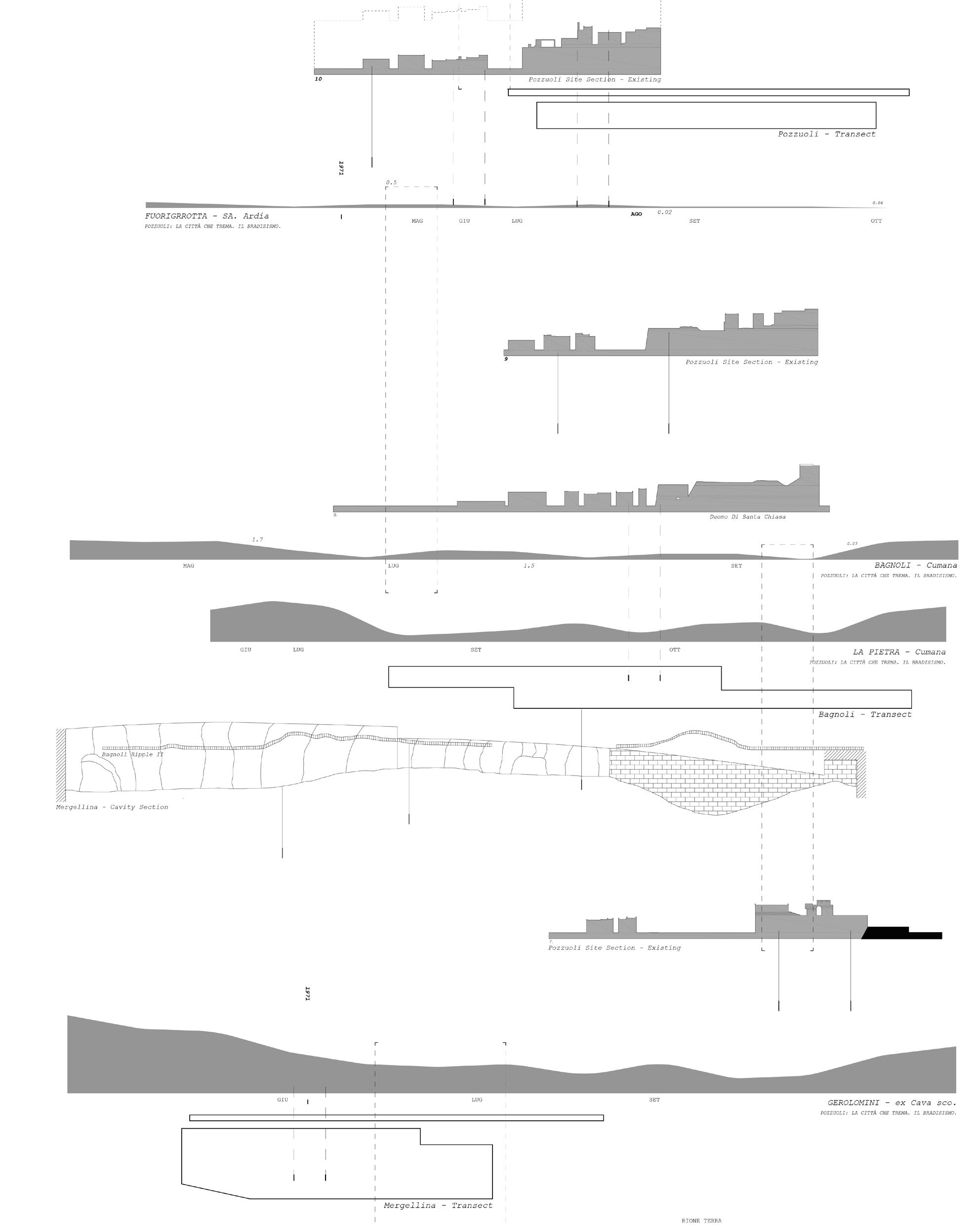

Following on from the identification of these sites of dense overlapping ground conditions, we were able to generate transects of specific intervention (areas that would be at the behest of most of these forces simultaneously). These transects appear at four separate points down the coast of the Bay of Naples, and each of them has an area within which architectures are proposed, as well as a wider area. This wider area contains the data of these forces in full. As a result the area of specific interest not only sits within these transects but also pulls in the forces from a wider field of research. This map shows these four transects and their wider fields.

With the aim of mapping these conditions as a way of testing our architectures, this drawing overlaps our site specific research as a way of generating hyper active overlapped conditions ( these include areas of high landslide risk, Bradyseism, Sea Level Rise, Ground and Water Contamination among others. By generating these labs we were able to test the hybrid architectures and categorise specific tectonics in position.

236 |

| 237

238 |

| 239

240 |

| 241

242 |

| 243

244 |

| 245

246 |

REFLECTION

EXHIBITING

| 247

REFLECTION

EXHIBITING

The exhibition of this work was the primary focus of our final semester, with physical outputs taking precedence as the medium for conveying a considered architectural design-research project.

Having amassed a significant body of work over the past three semesters, we were tasked with critically reviewing and revising previous work, repositioning it for presentation to a broader audience. This necessitated both reflective and forward-thinking approaches to how we might install our projects within the studio space.

With this output as the focal point, and drawing from previous work, I formed a new working group focused on seismic matter, eruptions, datums, landslides, and monitoring. These themes served as the driving force for our final exhibition, fostering an understanding of each other’s projects and guiding us towards a shared output that would optimally exhibit our research to date.

This collective approach to exhibiting the work facilitated the presentation of shared outputs in relation to the individual concerns of our projects. Ultimately, the exhibition of this work transcended the mere display of individual pieces to become a celebration of a collective interpretation of a shifting ground condition.

248 |

| 249

250 |

| 251

252 |

| 253

254 |

| 255

256 |

| 257

258 |

| 259

BIBLIOGRAPHY

[IMAGE CREDITS] Most historic images were found at: https://www.flickr.com/search/?text=naples Naples Cemetery wall collapses. Retrieved from https://www. wantedinrome.com/news/italy-naples-cemetery-collapsepoggioreale.html Belvedere Sant’Antonio. Retrieved from https://www. laboratorionapoletano.com/2013/07/chi-sono-i-disperati-cheabitano-sotto.html.

Holy Family and Saints.

Retrieved from https://www. metmuseum.org/art/collection/search/437455.

Panorama from San Martino. Retrieved from http:// napolicapitalediunregno.altervista.org/napoli-panorama-dasan-martino-con-vista-della-cupola-appartenuta-la-chiesadella-santissima-trinita-delle-monache-e-la-chiesa-di-santachiara-foto-1870-75-ca/.

The Quartieri Spagnoli Park. Retrieved from https://www. articolo45.it/il-parco-dei-quartieri-spagnoli-un-polmoneverde-nel-centro-di-napoli/.

Saint Jerome and the Angel of Judgement. https://www. collezionegalleriaborghese.it/en/opere/saint-jerome-and-theangel-of-judgement.

Street of Naples. Retrieved from https://www.flickr.com/ photos/131415280@N03/38301821075/sizes/l/. *All site photos were taken by author

260 |

[TEXT] Benjamin, Andrew. ‘Surface Effects: Borromini, Semper, Loos’.

The Journal of Architecture 11, no. 1 (1 February 2006): 1–36. https://doi.org/10.1080/13602360600636099.

Casey, Edward S. Remembering, Second Edition: A Phenomenological Study. 2nd ed. Indiana University Press, 2000. https://www.jstor. org/stable/j.ctt16gzfjf.

Deleuze, Gilles, and Jonathan Strauss. ‘The Fold’. Yale French Studies, no. 80 (1991): 227–47. https://doi.org/10.2307/2930269.

Finberg, A. J. The Life of J.M.W. Turner / by A.J. Finberg; with a Supplement by Hilda F. Finberg. Second edition revised. Oxford: Clarendon Press, 1961.

Gerundo, Carlo, Valerio Di Pinto, and Vincenzo Stefano. ‘Naples and Its Parallel City’, 9, 2015.

Guarino, Paolo M., and Stefania Nisio. ‘Anthropogenic Sinkholes in the Territory of the City of Naples (Southern Italy)’. Physics and Chemistry of the Earth, Innovative modelling approaches for disaster risk reduction, 49 (1 January 2012): 92–102. https:// doi.org/10.1016/j.pce.2011.10.023.

Hamilton, James. Turner and the Scientists / James Hamilton.

London: Tate Gallery Pub., 1998.

Howard, Luke. Essay on the Modifications of Clouds / Luke Howard. Cambridge Library Collection. Earth Science. Place of publication not identified: publisher not identified, 1865.

Hutton, Jane Elizabeth. Reciprocal Landscapes: Stories in Material Movements / Jane Hutton. ; Abingdon, Oxon ; Routledge, Taylor & Francis Group, 2020.

‘Il sottosuolo di Napoli. Relazione della Commissione di studio.

Napoli, A cura del Comune, 1967. da AA. VV. | Libreria del Castello’. Accessed 03 May 2024. https://www.abebooks.it/ prima-edizione/sottosuolo-Napoli-Relazione-Commissionestudio-cura/31565719908/bd.

‘Naples Life,Death & Miracle’. Accessed 03 May 2024. http:// www.naplesldm.com/aqueduct.php.

Object, object. ‘Anthropogenic Sinkholes of the City of Naples, Italy: An Update’. Accessed 03 May 2024. https://core.ac.uk/ reader/541676150.

Rispoli, Concetta, Diego Di Martire, Domenico Calcaterra, Piergiulio Cappelletti, Sossio Fabio Graziano, and Luigi Guerriero. ‘Sinkholes Threatening Places of Worship in the Historic Center of Naples’. Journal of Cultural Heritage 46 (1 November 2020): 313–19. https://doi.org/10.1016/j. culher.2020.09.009.

Ruskin, John. Modern Painters. G. Routledge, 1860.

Vitruvius, Ingrid D. Rowland, and Thomas Noble Howe.

Vitruvius: ‘Ten Books on Architecture’. Cambridge University Press, 1999. https://doi.org/10.1017/CBO9780511840951. webmaster. ‘Il Parco Dei Quartieri Spagnoli, Un Polmone Verde Nel Centro Di Napoli’. Articolo45, 16 November 2015. https:// www.articolo45.it/il-parco-dei-quartieri-spagnoli-un-polmoneverde-nel-centro-di-napoli/.

Wolfrum, Sophie. Porous City: From Metaphor to Urban Agenda / Editors, Sophie Wolfrum [and 6 Others]. Basel: Birkhäuser, 2018.

| 261
