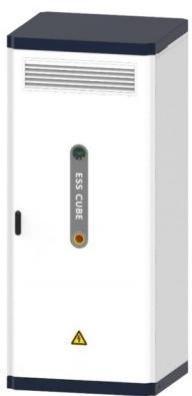

100KW/215KWHIndustrialandCommercialAll-on-oneEnergyStorageSystemCabinet
Performancefeatures
■Highintegration,modulardesign,easytomaintain
■On-demanddeploymentandsupportforparalleluseofmultiplecabinets
■Supportsoff-gridandVF/PQseamlessswitching
■Multipleelectricalprotection,activewarningandprotection
■SupporttheInternetofThingsandcloudplatform
■Toplinedesign
Ratedpower
Charginganddischargingrate
RatedACpower 100kW
Cellparameters
Moduleparameters
LFP-32V-280Ah-896Wh
LFP-512V-14336kWh
RatedDCvoltage 768Vdc
Operatingvoltagerange 660852Vdc
Maximumcurrent 160A
Systemlife
Cycleefficiency
BMSsolution
Communicationinterface
Temperaturecontrolscheme
Fireprotectionplan
Gridvoltage
8000@25℃,05CP,95%DOD,and≥70%EOL
TheACsideisgreaterthan88%
Bidirectionalactivebalance
RS485/CAN/Ethernet/MQTT
Intelligentvariablefrequencyaircooling
Probetube+gas/smoke/temperaturedetection+ perfluorohexanone
400Vac(three-phasefour-wire)
RatedACcurrent 145A
Ratedgridfrequency 50/60Hz
Non-isolated
Isolationmethod
Wiringmethod Topwiring
Altitude
Workingtemperature
Lessthan3500m(>2000mreduced)
