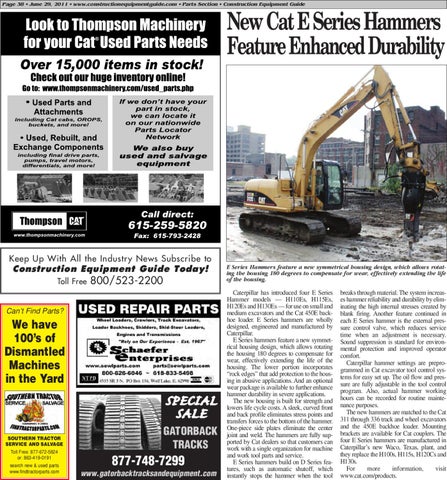

Page 38 • June 29, 2011 • www.constructionequipmentguide.com • Parts Section • Construction Equipment Guide
New Cat E Series Hammers Feature Enhanced Durability
Keep Up With All the Industry News Subscribe to
Construction Equipment Guide Today! Toll Free
800/523-2200
Can’t Find Parts?
We have 100’s of Dismantled Machines in the Yard
SPECIAL SALE SOUTHERN TRACTOR SERVICE AND SALVAGE Toll Free: 877-672-5824 or: 863-419-0191 search new & used parts www.findtractorparts.com
GATORBACK TRACKS
877-748-7299 www.gatorbacktracksandequipment.com
E Series Hammers feature a new symmetrical housing design, which allows rotating the housing 180 degrees to compensate for wear, effectively extending the life of the housing.
Caterpillar has introduced four E Series Hammer models — H110Es, H115Es, H120Es and H130Es — for use on small and medium excavators and the Cat 450E backhoe loader. E Series hammers are wholly designed, engineered and manufactured by Caterpillar. E Series hammers feature a new symmetrical housing design, which allows rotating the housing 180 degrees to compensate for wear, effectively extending the life of the housing. The lower portion incorporates “rock edges” that add protection to the housing in abusive applications. And an optional wear package is available to further enhance hammer durability in severe applications. The new housing is built for strength and lowers life cycle costs. A sleek, curved front and back profile eliminates stress points and transfers forces to the bottom of the hammer. One-piece side plates eliminate the center joint and weld. The hammers are fully supported by Cat dealers so that customers can work with a single organization for machine and work tool parts and service. E Series hammers build on D Series features, such as automatic shutoff, which instantly stops the hammer when the tool
breaks through material. The system increases hammer reliability and durability by eliminating the high internal stresses created by blank firing. Another feature continued in each E Series hammer is the external pressure control valve, which reduces service time when an adjustment is necessary. Sound suppression is standard for environmental protection and improved operator comfort. Caterpillar hammer settings are preprogrammed in Cat excavator tool control systems for easy set up. The oil flow and pressure are fully adjustable in the tool control program. Also, actual hammer working hours can be recorded for routine maintenance purposes. The new hammers are matched to the Cat 311 through 336 track and wheel excavators and the 450E backhoe loader. Mounting brackets are available for Cat couplers. The four E Series hammers are manufactured in Caterpillar’s new Waco, Texas, plant, and they replace the H100s, H115s, H120Cs and H130s. For more information, visit www.cat.com/products.
