PRODUCT BROCHURE

®

SERIES

PRODUCT BROCHURE #0527_08312021

#0527_08312021

PRODUCT BROCHURE

C L E A N E A S I LY

PRODUCT BROCHURE #0527_08312021

PRODUCT BROCHURE

EA SY TO U S E

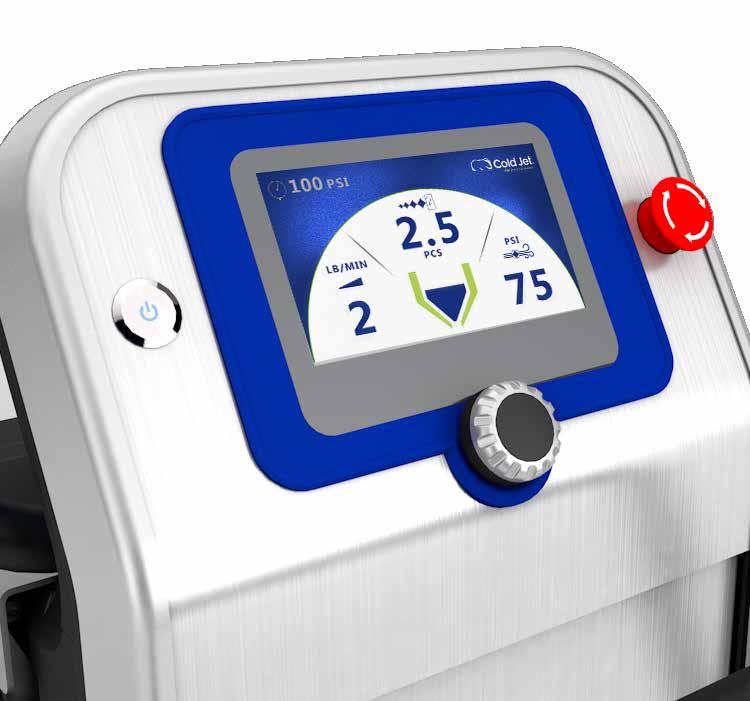

Aero2 Series machines are not only the most technologically advanced dry ice blasters on the market, they are also the easiest to use HMI: 7” LCD color screen with digital controls Intuitive display - Easily view and control blasting parameters and machine settings Programmable and password-protected application recipes (blast pressure, particle size, feed rate)

ICE

ICE

ICE

ICE

CLEAN WITH HIGH PERFORMANCE

A IR & ICE

A I R & I CE

PRODUCT BROCHURE

AIR

AIR

AIR

AIR

PRODUCT BROCHURE

CLEA N S FA ST ER

Aero2 machines are the highest performing dry ice blasters available Industry changing performance allows user to clean faster and with greater power Optimized design leads to consistent and pulse-free blast stream

EF F I C I EN T

Clean more effectively with less air and less dry ice Streamlined “straight through” air system maximizes air supply yield Continuous dry ice flow minimizes sublimation and waste Advanced air flow system minimizes pressure loss within the machine and maximizes available air supply

CLEAN SMARTER

S M A RT

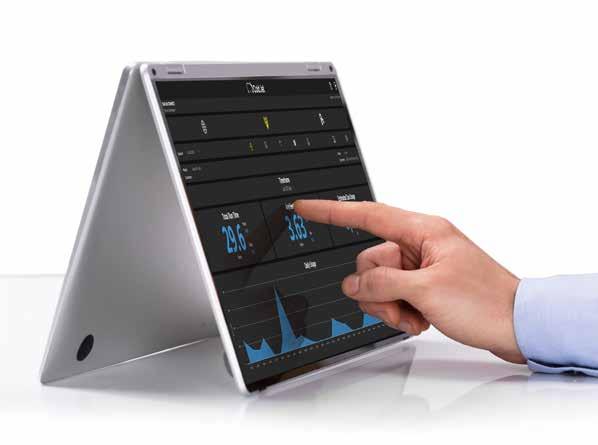

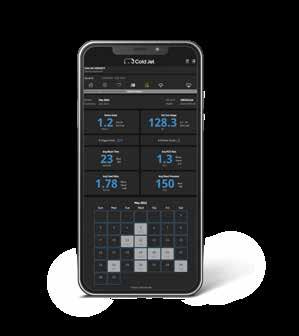

Dry Ice 4.0 – IoT connectivity enables operators to get the most out of their machines Remote monitoring and diagnostics with Cold Jet CONNECT® Online portal provides machine usage data and data views for remote technical support

PRODUCT BROCHURE

PCS 60 PPRROODDUUCCTTBBRROOCCHHUURRE E PCS 60

DRY ICE USAGE

AVERAGE FEED RATES

DAILY RUNTIME

C L E A N C O M F O R TA B LY

QU I ET

Designed to limit and reduce noise levels Aero2 machines clean more effectively at lower air supply and blast pressures, reducing noise Proprietary enclosed thumper system

DU RA B L E

Aero2 machines are constructed to endure rough environments and extensive use Coated tool grade aluminum alloy, stainless steel and polymer frame Built with high end parts to maximize reliability and performance Engineered to minimize part wear

PRODUCT BROCHURE

PRODUCT BROCHURE

E RGO N OM I C

Engineering and design innovations lead to a more comfortable clean Optimized design and combination of materials allows for an ergonomically-friendly footprint Wheels and braking system are designed for mobility and maneuverability Blast hoses have been designed for the ultimate in flexibility and durability

C L E A N R E S P O N S I B LY

E N VIRO N M EN TA L LY RES P O N S I B L E

Dry ice blasting is environmentally responsible and truly environmentally friendly. To fulfill our mission of providing value and protecting the environment, our equipment: Utilizes media that is inert, non-conductive, non-corrosive and does not add to the hazardous waste stream Improves working conditions and the health and safety of the labor force Uses more recycled and renewable content in the product and packaging

PRODUCT BROCHURE

PRODUCT BROCHURE

A COM P L ET E SO LU T I O N

Cold Jet offers the complete solution for every application A wide and dynamic line of the industry’s most technologically advanced and efficient nozzles A varied line of applicators that are designed for comfort, safety and simplicity A complete range of flexible and durable air and blast hoses Options for on-board storage

CLEAN WITH THE BEST

DRY I C E B L A ST I N G REI N V EN T ED

Cold Jet invented modern dry ice blast cleaning technology We hold more than 100 patents worldwide Cold Jet holds the original patent on modern dry ice blasting - US Patent 4,617,064 (1986) The Aero2 Series utilizes 4 new patents

PRODUCT BROCHURE

PRODUCT BROCHURE

P ROV I D ES IN COM PA RA B L E VA LU E

Require significantly less dry ice and air pressure than competing machines Clean much faster than any machine on the market Offer the lowest cost of ownership in the marketplace Quickly achieve return on investment with optimal use

CLEAN WITHOUT INTERRUPTION

AUTOMATION & INTEGRATION CAPABLE

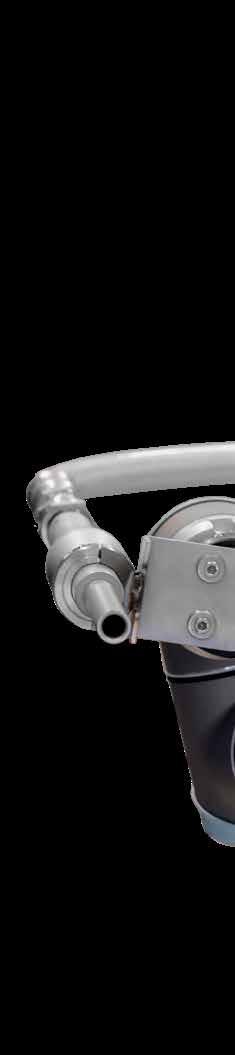

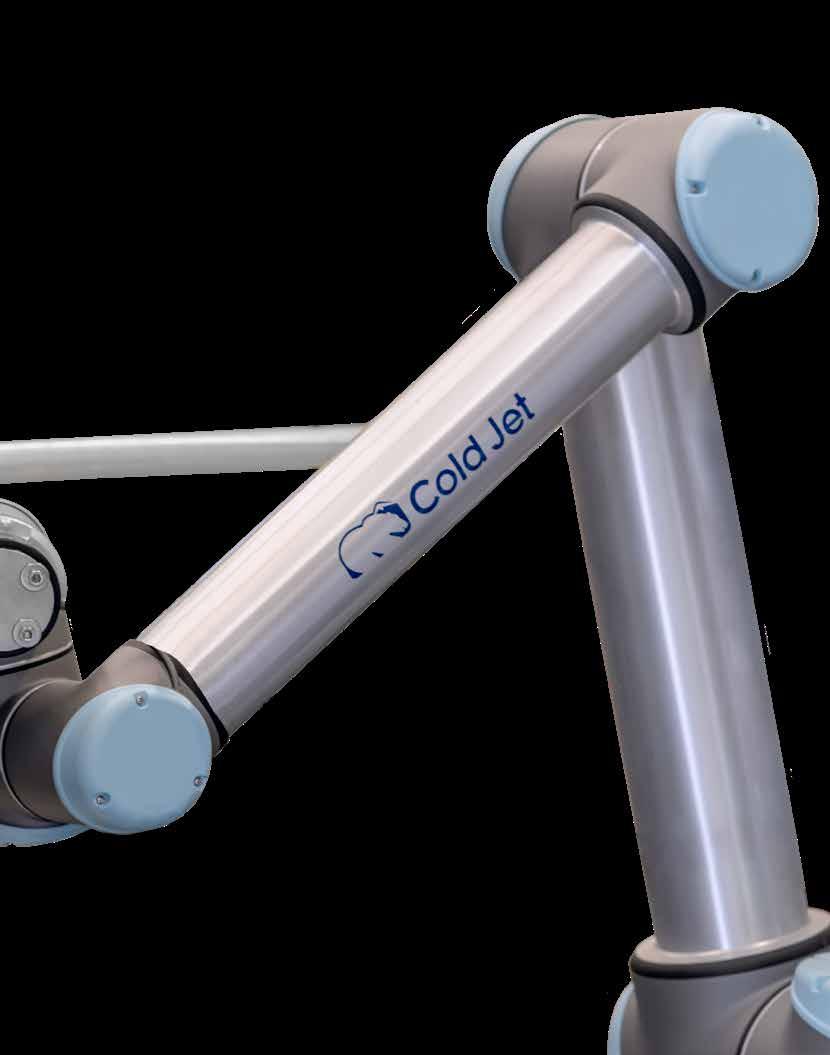

Integrate select Aero2 machines with a dry ice production unit for continuous blasting Easily connect to a robot or any other PLC-controlled automation system via an optional accessory package Seamlessly transition from an integrated unit to manually controlling the machine

PRODUCT BROCHURE

#0527_08312021

PRODUCT BROCHURE

P R E C I S I O N , V E R S AT I L I T Y, P O W E R

SERIES

The Aero2 Series provides you with performance options. Choose the machine that is best suited for your unique applicaition. application.

The PCS 60 gives you complete control of particle size and unrivaled precision and application versatility.

Need more power?

The PLT 60 is designed for applications that require higher performance.

PRODUCT BROCHURE

#0527_08312021

PRODUCT BROCHURE

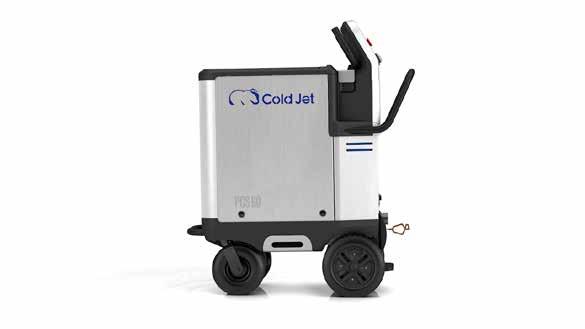

CLEAN WITH MORE CONTROL USING THE PCS 60

V ERSAT I L E FO R ALL A P P L I C AT I O N S

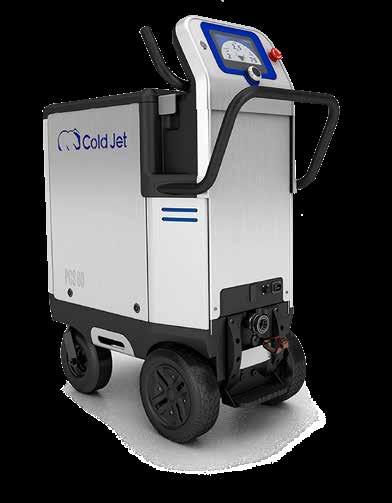

The Cold Jet PCS® 60 utilizes finely controlled particles of dry ice as a blasting medium, via our proprietary and patented Particle Control System™ (PCS) Accepts 3mm pellets as input and, via the PCS, precisely cuts the dry ice into diamond shaped particles in the exact dimensions chosen by the operator Choose dry ice particle size from 3mm to 0.3mm and every size in between The user has complete control and can fine-tune the most effective setting for each unique application

PARTICLE CO N T RO L SYST EM (P C S ) C HOOSE B E T W E E N 28 DIAMON D SH APED PARTIC LE S IZES 3mm

3mm

0.3mm

PRODUCT BROCHURE

PCS 60 S P E C S H E E T ®

DRY ICE BLASTING REINVENTED

PCS 60 ®

PCS = PA RTI C L E CO NTROL SYSTEM

THE NEW STANDARD IN DRY ICE BLASTING

D ES I GN E D FOR V ERSATI L I TY & PREC I SI O N S E L EC T 2 8 DI ST I N CT PA RTICLE SIZ ES ( 3 M M - 0. 3 M M )

MACHINE DIMENSIONS

HOPPER CAPACITY

BLAST PRESSURE RANGE

Length x Width x Height:

27 kg

1.4 - 10 bar

99 cm x 19 48 cm x 114 cm Weight: 122 kg

HMI DISPLAY 7” LCD Color Screen

POWER REQUIREMENTS Input Voltage: 110/230V AC (50/60 Hz)

FEED RATE

AMPS: 4.3

Variable - up to 4 lb/min (1.8 kg/min)

COMPRESSED AIR SUPPLY 2.8 - 10 bar NOZZLE AIR CONSUMPTION 0.3 - 2.8 m3/min at 5.5 bar

Compliant with the EU Machinery Directive (CE) and UL Design Standards

DRY ICE PARTICLE SIZE Input: 3mm; Output: 3mm - 0.3mm

BLAST FLOW PATH

Utilizes 28 distinct dry ice particle sizes

3/4” Straight Through Tubing SUREFLOW Thumper, Ramrods, Electric Vibrator “Always-On” Hopper Agitation Isolated Hopper

Learn more at coldjet.com

PCS 60 S P E C S H E E T

C L E A N W I T H P O W E R U S I N G T H E P LT 6 0

BLAST WITH MO R E P OWER

With PLT machines, you can blast with up to 250 PSI (17.2 bar) of pressure Optimized for high performance nozzles Designed for applications that require more aggression Blast with 3mm dry ice pellets only for a more aggresive clean

PRODUCT BROCHURE

PLT 60 S P E C S H E E T

®

DRY ICE BLASTING REINVENTED

PLT 60 ®

PLT = PEL L ET BLA ST E R

THE NEW STANDARD IN DRY ICE BLASTING

D ESI G NED FO R POW ER B L A ST U P TO 2 5 0 P S I

MACHINE DIMENSIONS

HOPPER CAPACITY

BLAST PRESSURE RANGE

Length x Width x Height:

60 lb (27 kg)

20 - 250 psi (2.4 - 17.2 bar)

HMI DISPLAY

COMPRESSED AIR SUPPLY

7” LCD Color Screen

40 - 250 psi (2.8 - 17.2 bar)

FEED RATE

NOZZLE AIR CONSUMPTION

Variable - up to 6 lb/min (2.7 kg/min)

50 - 165 cfm (1.4 - 4.7 m3/min) at 80 psi (5.5 bar)

DRY ICE PARTICLE SIZE

BLAST FLOW PATH

Input: 3mm ; Output: 3mm

1” Straight Through Tubing

39 in (99 cm) x 19 in (48 cm) x 45 in (114 cm) Weight: 251 lb (113.85 kg) POWER REQUIREMENTS Input Voltage: 110/230V AC (50/60 Hz) AMPS: 4.3 Compliant with the EU Machinery Directive (CE) and UL Design Standards

SUREFLOW Thumper, Ramrods, Electric Vibrator “Always-On” Hopper Agitation Isolated Hopper

Learn more at coldjet.com

PLT 60 S P E C S H E E T

Global Headquarters Loveland, OH USA +1 513.831. 3211 Europe Headquarters Zellik, Belgium +32 (0) 13 53 95 47 Cold Jet Deutschland We i n s h e i m , G e r m a n y +49 6551 9606-0 Cold Jet Poland Oborniki, Poland +48 798 33 88 00 Cold Jet Denmark Bramming , Denmark + 4 5 76 5 6 1 5 0 0 C O L D J E T L O C AT I O N S W O R L D W I D E : w w w. c o l d j e t . c o m /o f f i c e s
