Interior Design Portfolio | Spring 2024
College of DuPage
THE STEWART RESIDENCE
Residential Design

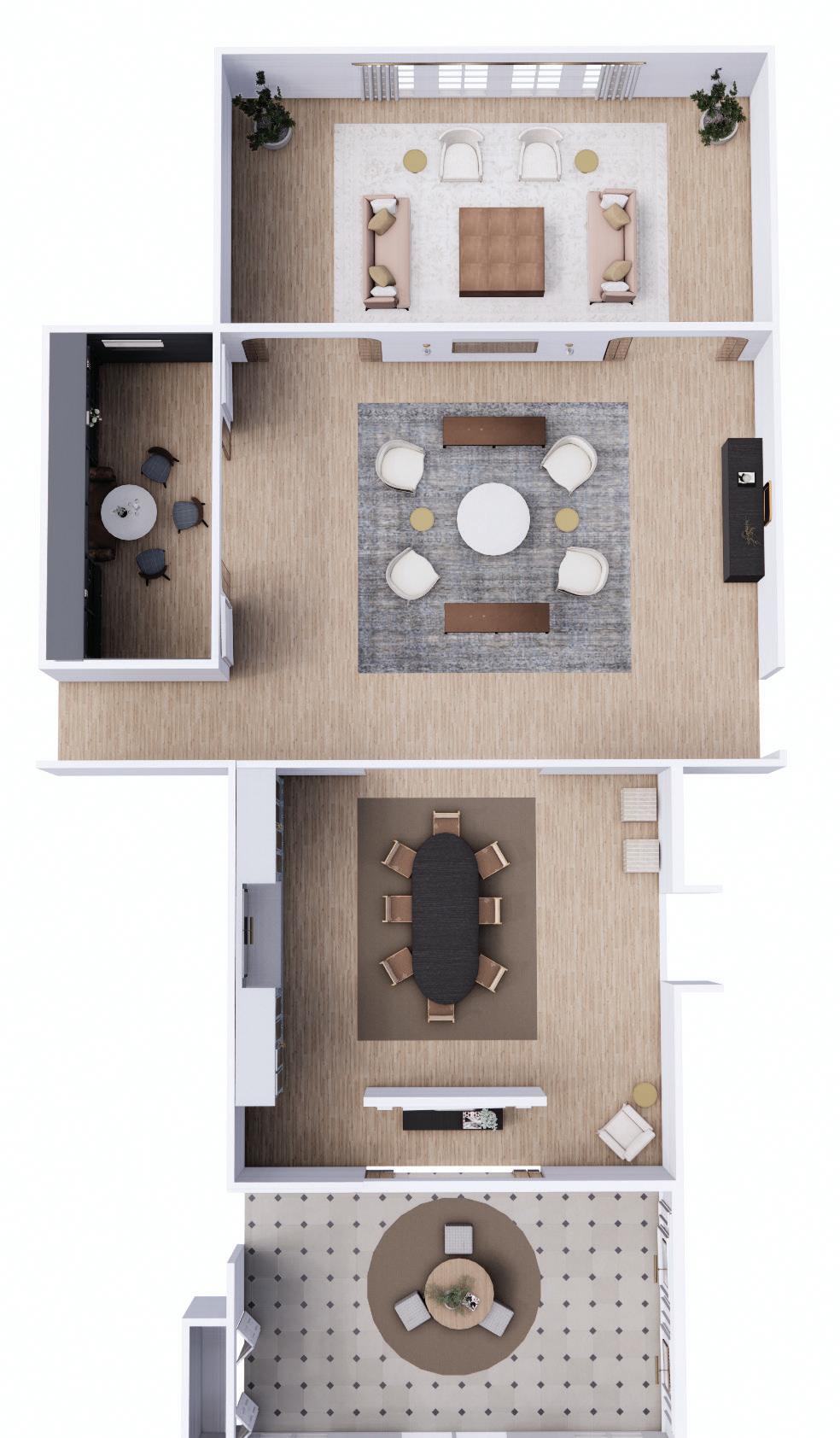

Birds eye 1-point perspective
SCALE: 1/4” = 1’- 0”
DESIGN CONCEPT
The customization of the Stewart Residence foyer, dining room, living room, cocktail room, and family room created a beautiful yet functional space through the following:
- Adding custom features such as built-ins, intricate wainscoting, ceiling details and dividing partitions in the space
- Creating a classical and timeless palette with a variety of color and texture that will last in both style and sustainability
- Considering durability and environmental factors by including PVC free, bio-based, and recyled products
- Simplifying circulation and traffic patterns for future comfort as the owners age in place

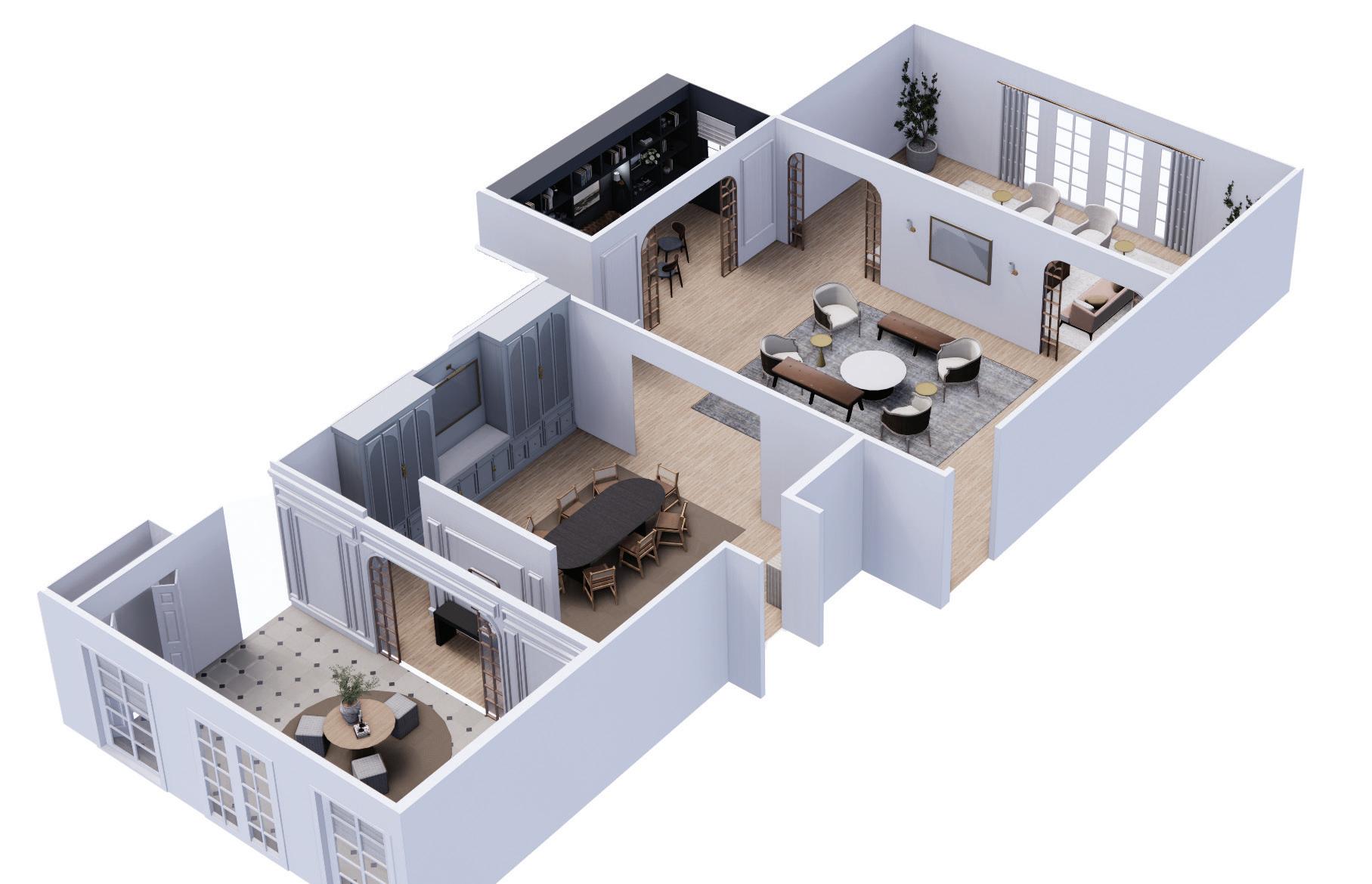

Birds eye 3-point perspective

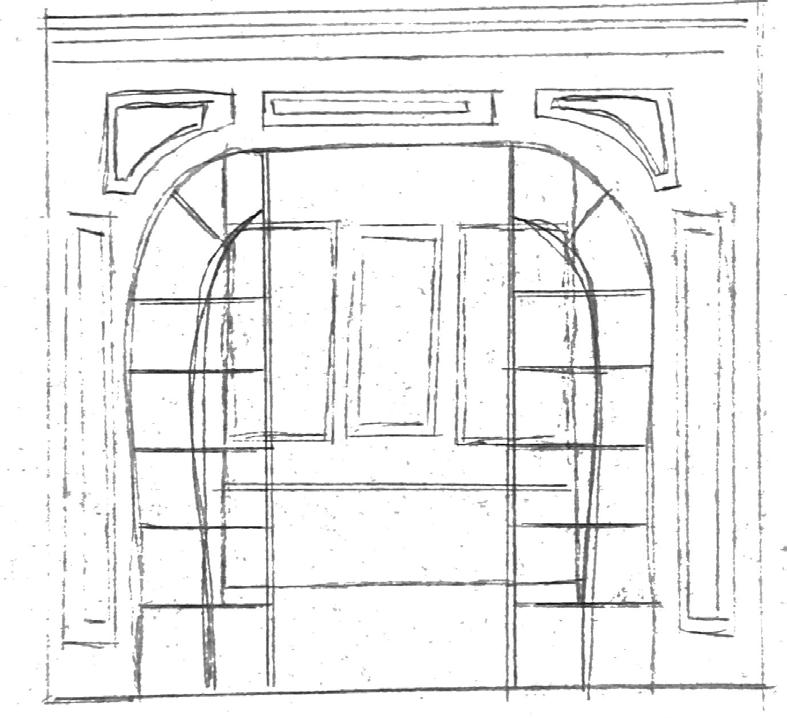

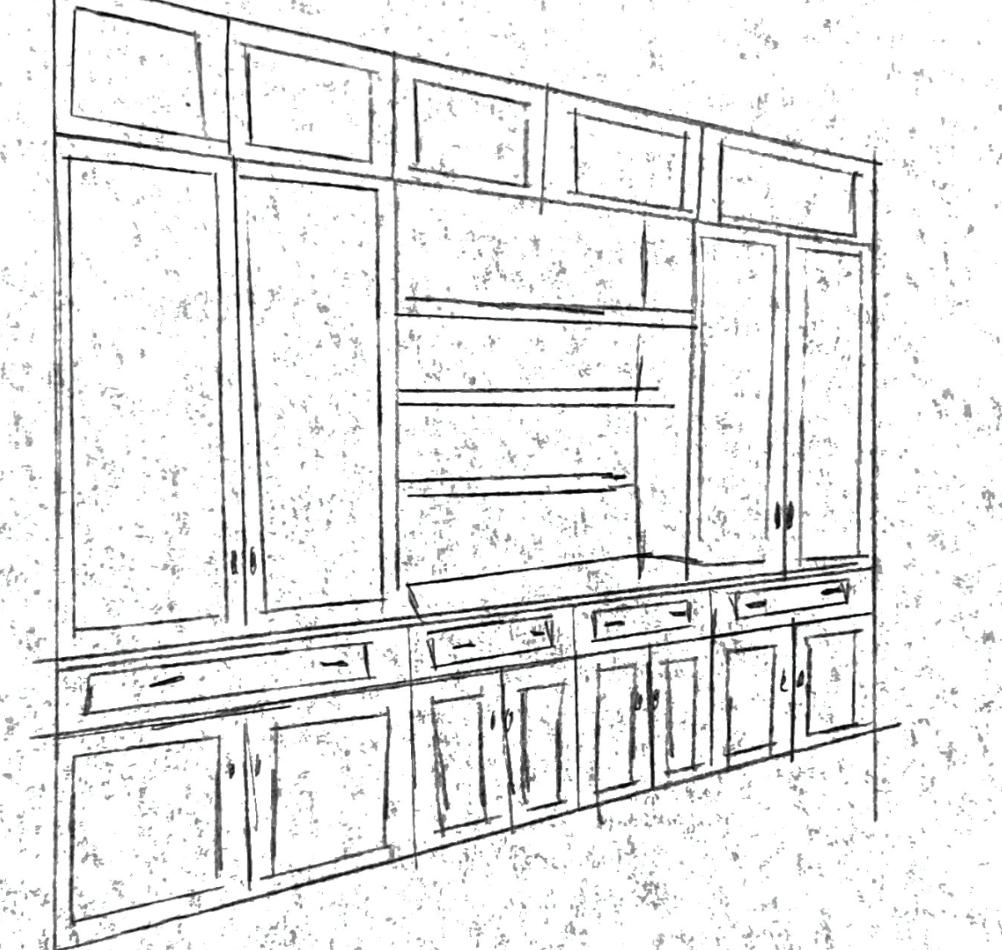

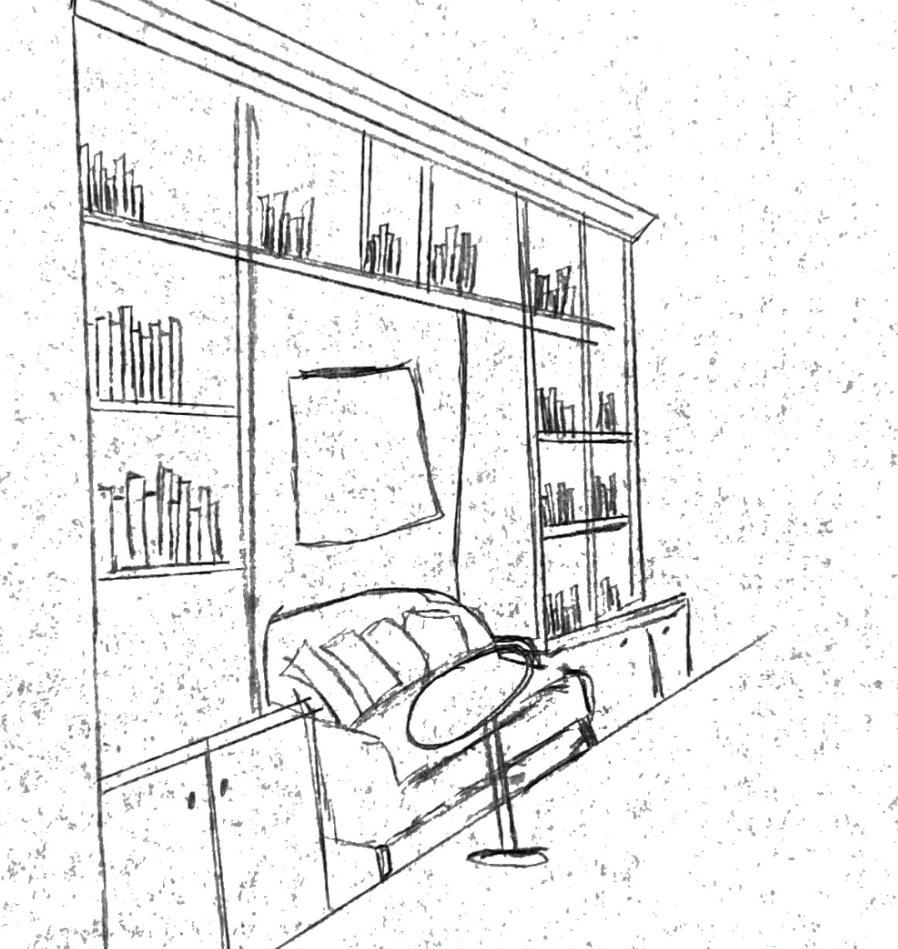

Initial Sketches
01

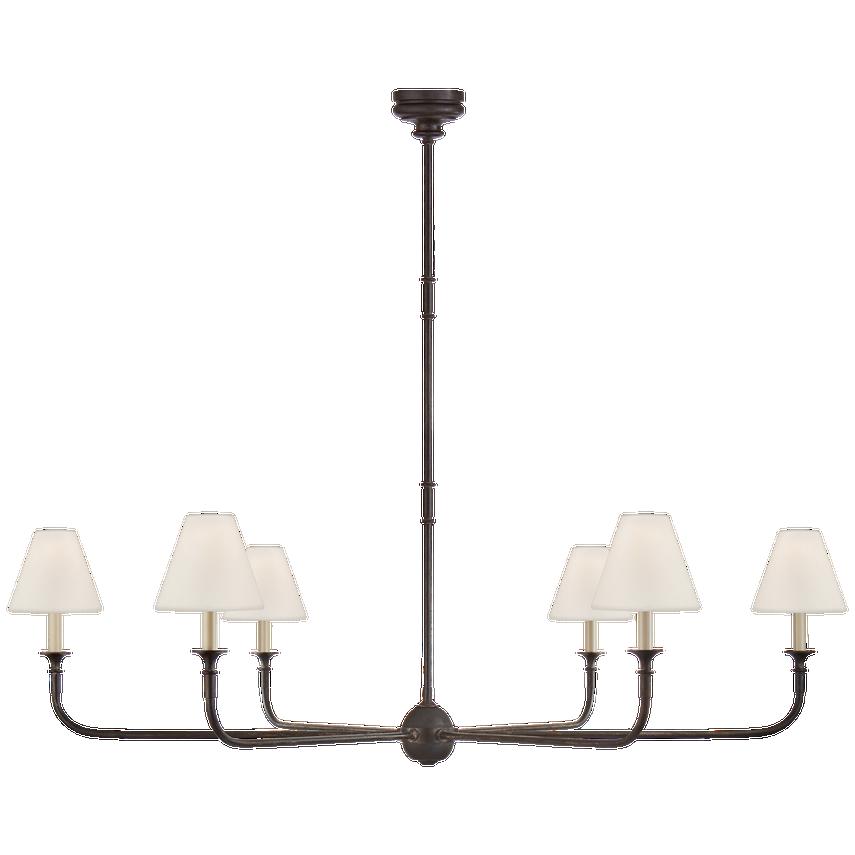

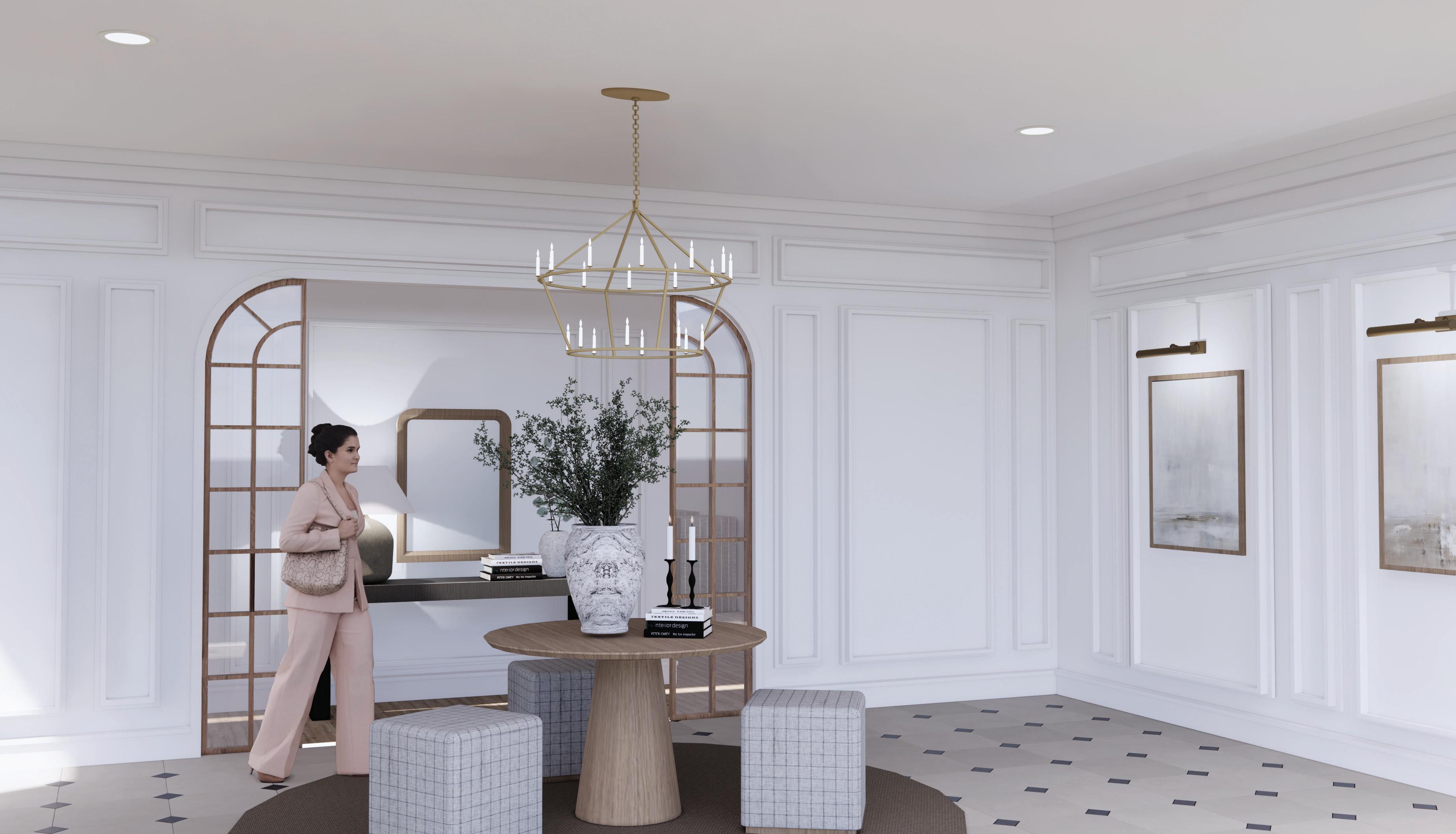

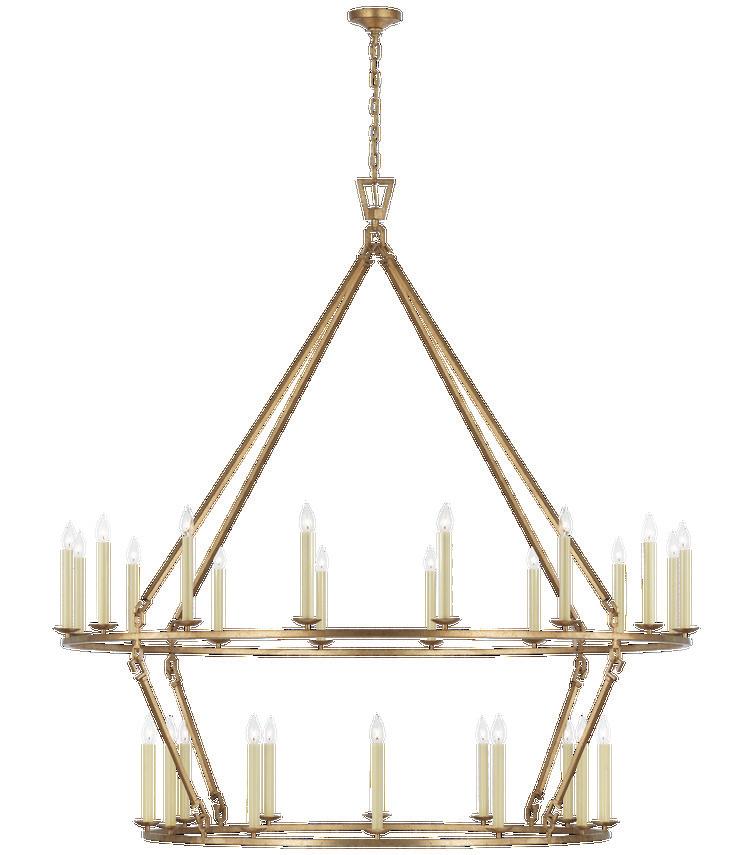

THE STEWART RESIDENCE Foyer 1 7 Modeled in Sketchup and rendered with Enscape 2 3 4 FIXTURE AND FINISH SELECTIONS 5 6 1 - Visual Comfort Darlana chandelier 2 - Palm Desert round gathering table 3 - Benjamin Moore White Dove paint in eggshell finish 4 - White Oak hardwood floors & paneling 5 - Honed limestone 6 - Nero honed porcelain 7 - Ottoman upholstered in Kravet - 36310-11
THE STEWART RESIDENCE

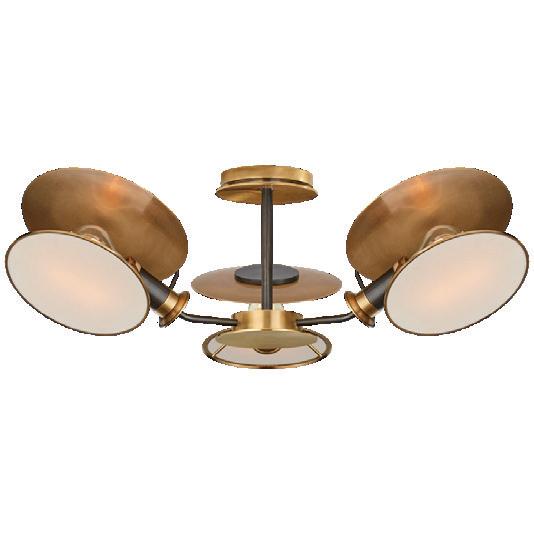

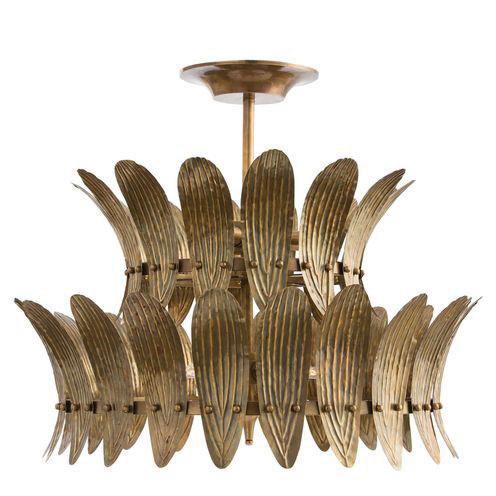

1 - Visual Comfort Piaf chandelier

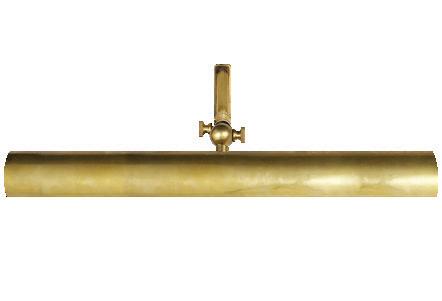

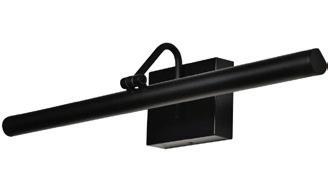

2 - Visual Comfort 18” picture light in antique brass
3
4

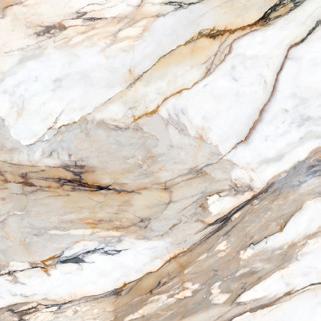

5 - London gray honed marble
6

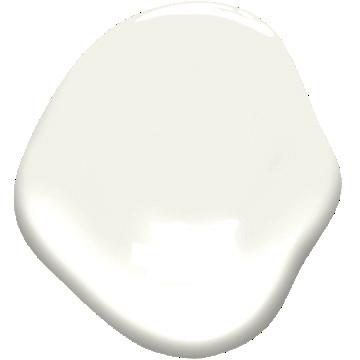

- Benjamin Moore White Dove in eggshell finish
- Benjamin Moore Boothbay Gray in eggshell finish

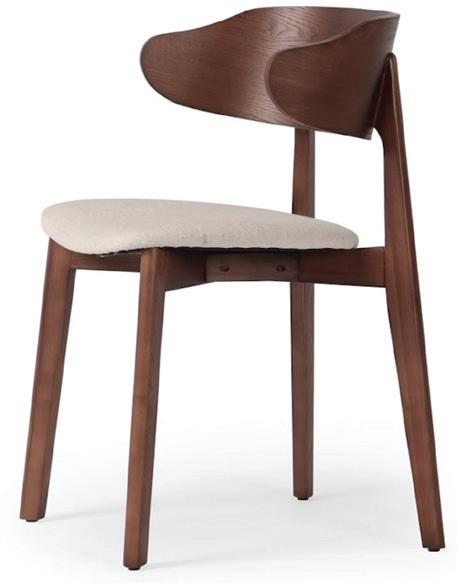

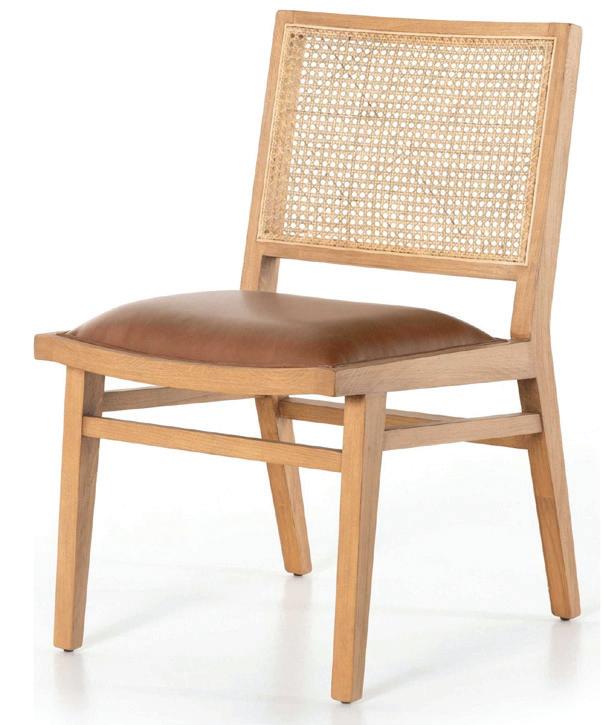

- Four Hands Caswell Sage beach wood dining chair

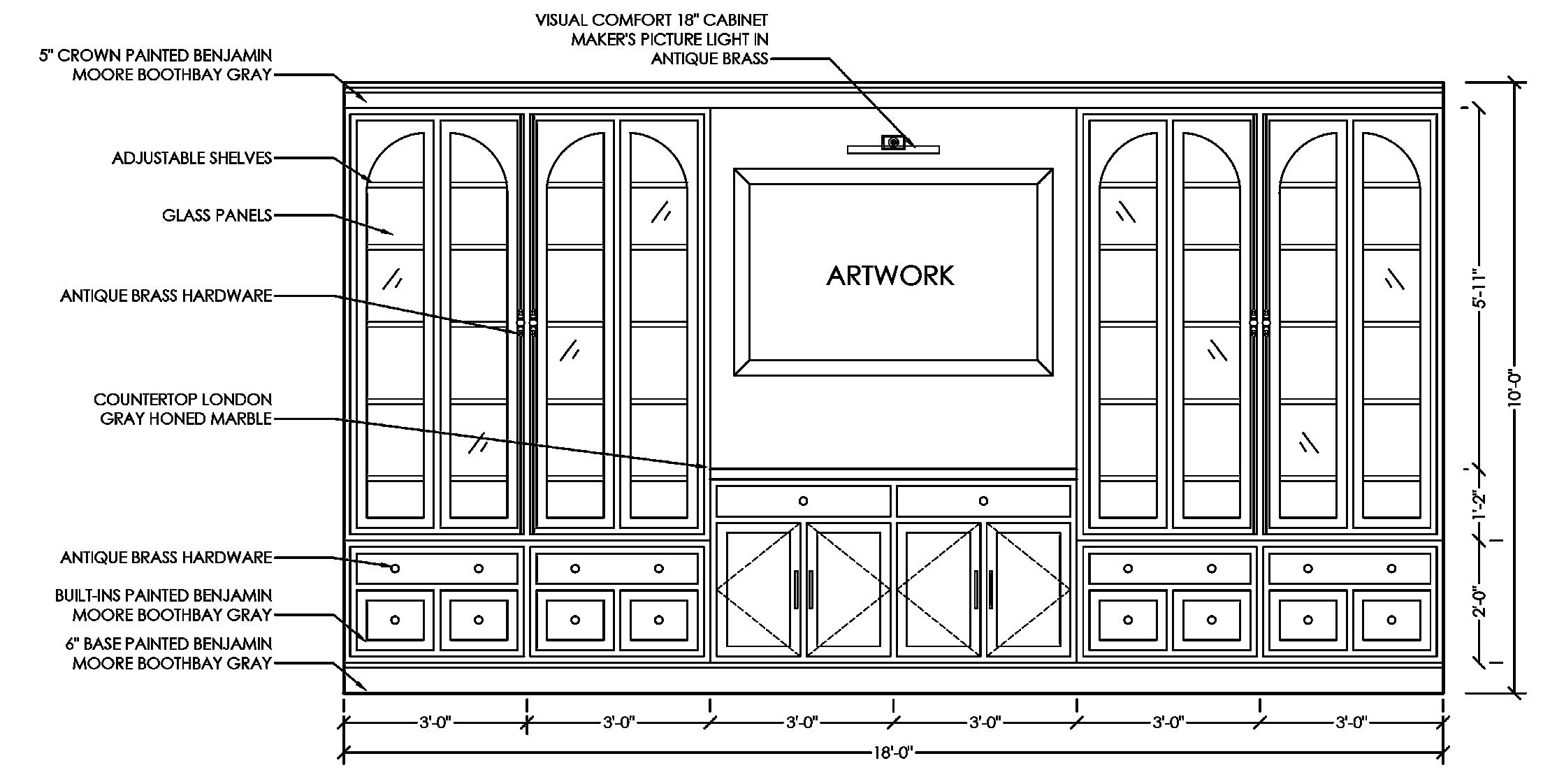

Detail Drawings FIXTURE
3 4 5 6 1 2
AND FINISH SELECTIONS
All drawings produced in Autodesk AutoCAD - NTS - all scales to industry standards
Produced in Sketchup
SCALE: 1/2” = 1’- 0” SCALE: 1/2” = 1’- 0”
THE STEWART RESIDENCE

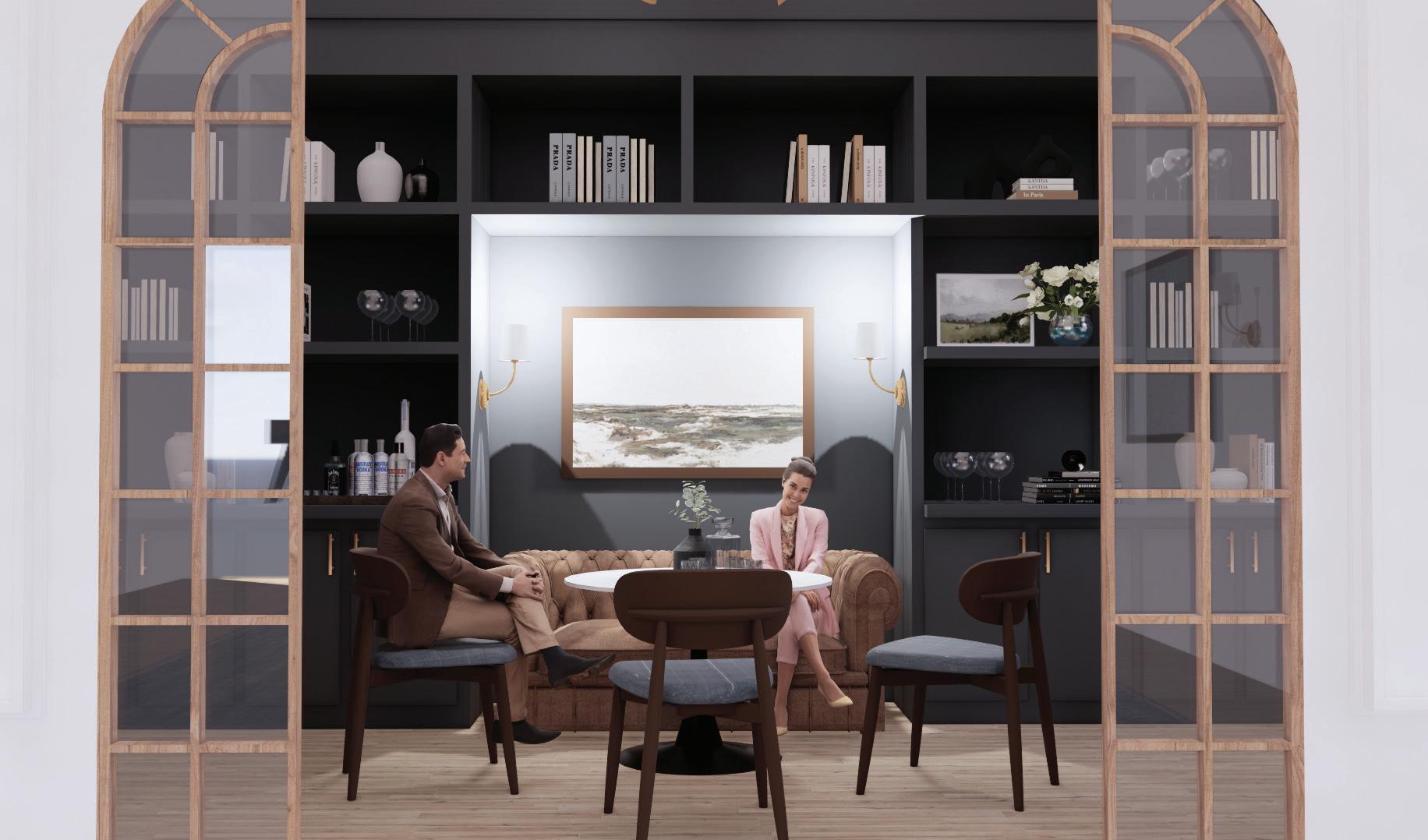

Cocktail Room
Modeled in Sketchup and rendered with Enscape
HISTORIC BROWNSTONE 02
Residential Design

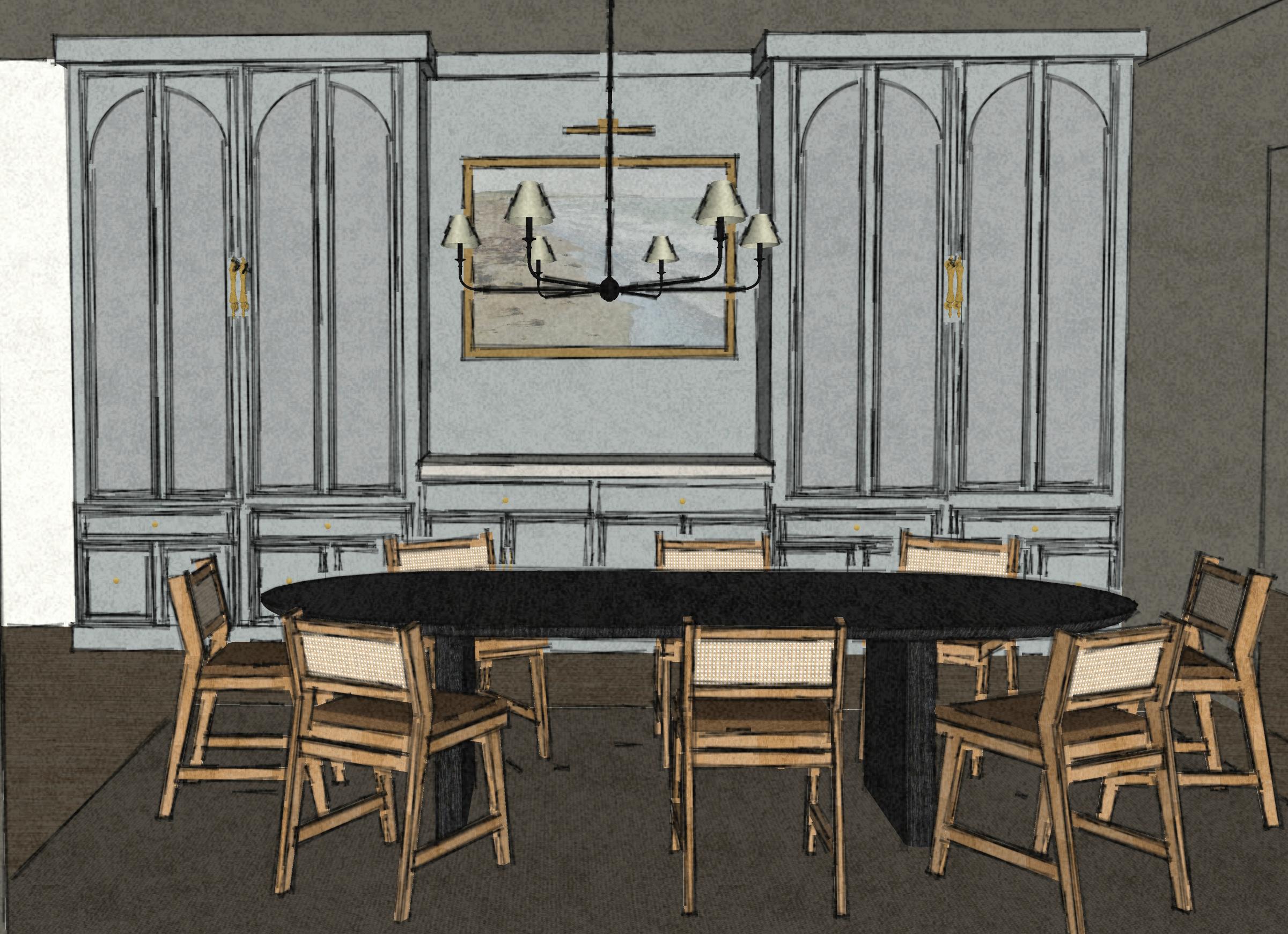

DINING ROOM
DESIGN CHALLENGE:
The main concern for the Adkins family was preserving the historic charm of their 1888 brownstone, while updating their space to meet the needs of today’s modern family. The Adkins family wants to use their home for entertaining and would like an updated space plan that provides a more open and cohesive feel to their first floor.
DESIGN SOLUTION:
The reconfigured first floor layout consists of the following:
- Enclosed foyer to serve as a transitory space from the public exterior
- Spacious living room comfortably seating 8 with a custom built-in window seat
- Dining room table to seat 6-8 with additional storage providing flexibility

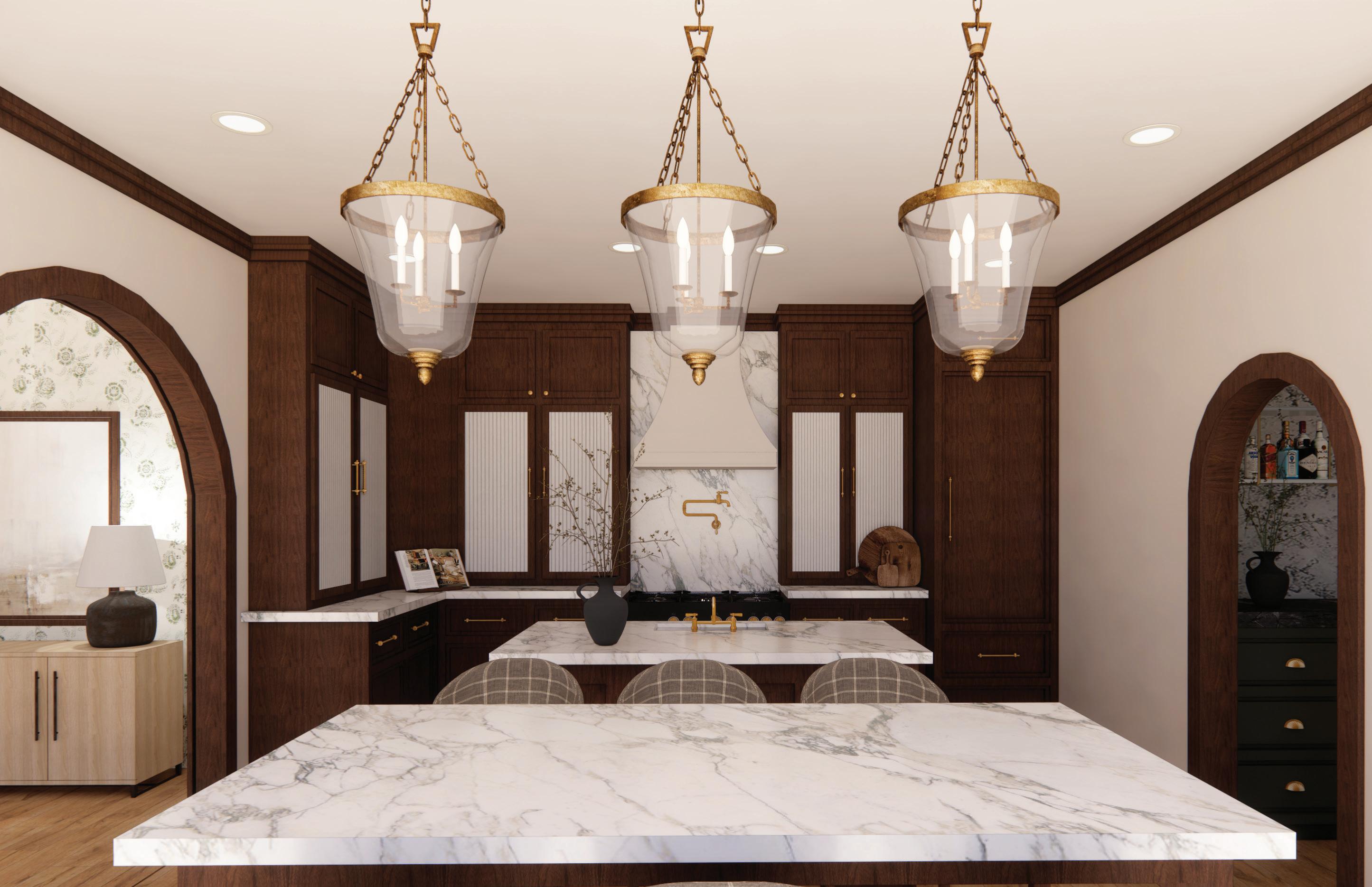

- Expanded kitchen including modern appliances, pantry, and island that seats 4
- Butler’s pantry for serving with additional storage for alcohol and glassware
- Full bath incorporating preserved clawfoot tub and shower head
- Mudroom/office with laundry, 2 built-in desks, and closet for coat storage
Furniture, fabric, and lighting solutions sourced through Kravet Inc.
HISTORIC PRESERVATION FEATURES:
- Restoration of ornate wood moldings on doors and windows
- Use of historic ceiling medallions to emphasize lighting fixtures
- Salvaged doors and windows to be reinstalled FOYER

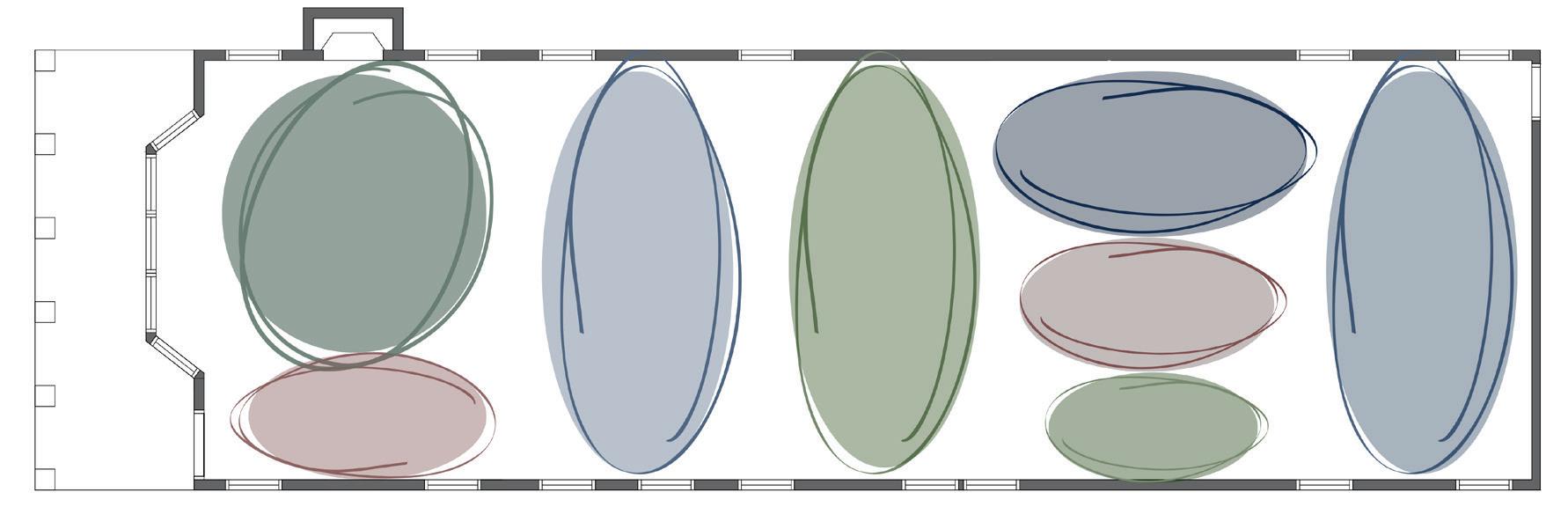

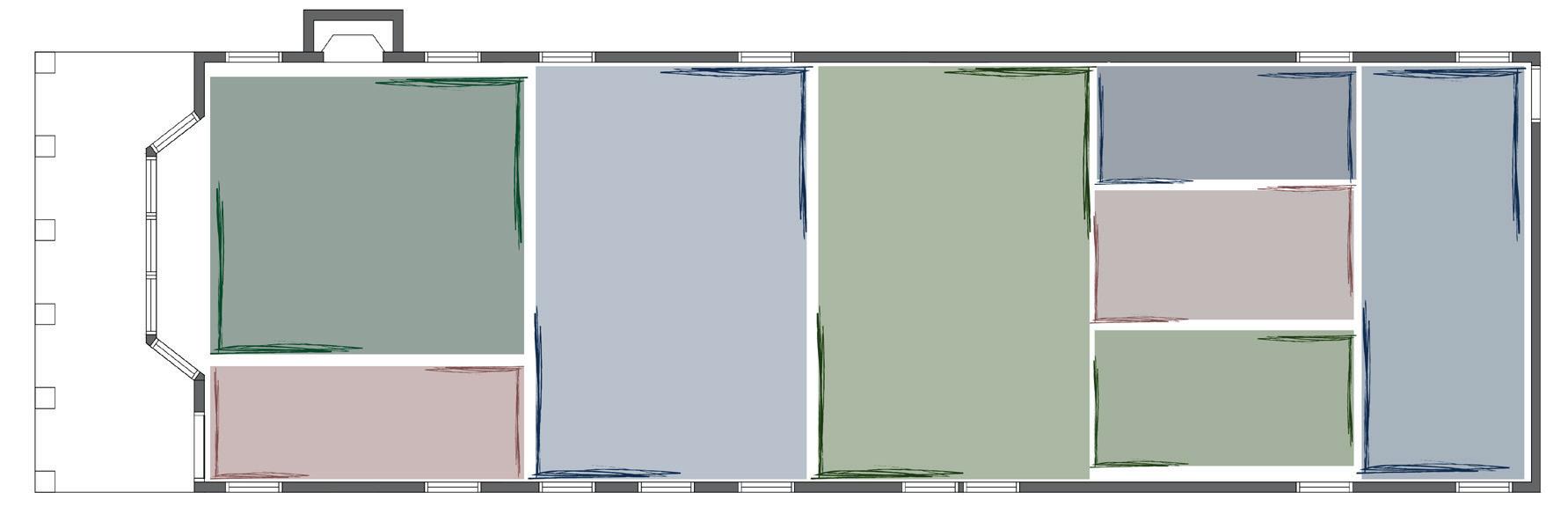

BUBBLE PLAN BLOCK PLAN FOYER FOYER LIVING ROOM LIVING ROOM DINING ROOM DINING ROOM KITCHEN KITCHEN BATH BATH BUTLER’S/ BAR PANTRY PANTRY MUDROOM/ OFFICE MUDROOM/ OFFICE
BUTLER’S/ BAR
KITCHEN
HISTORIC BROWNSTONE
Plans and Elevations

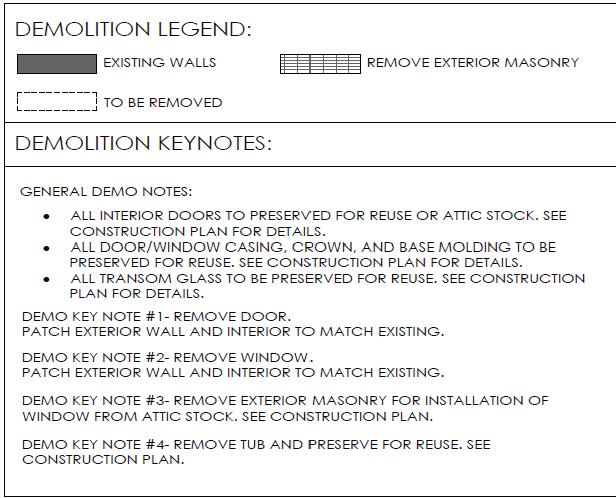

DEMOLITION PLAN
SCALE: 1/4” = 1’- 0”

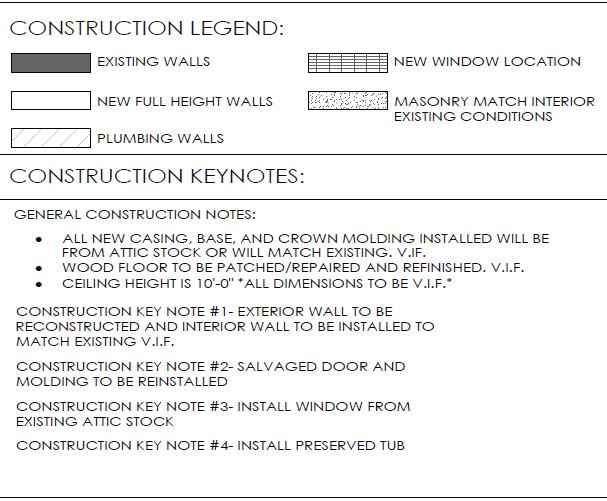

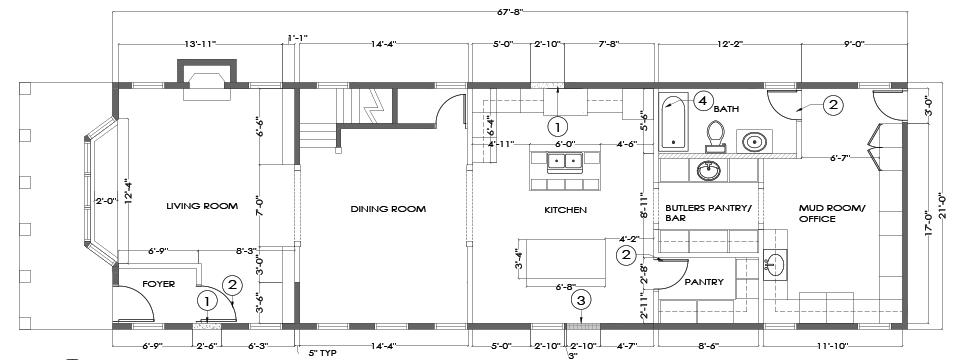

CONSTRUCTION PLAN
SCALE: 1/4” = 1’- 0”

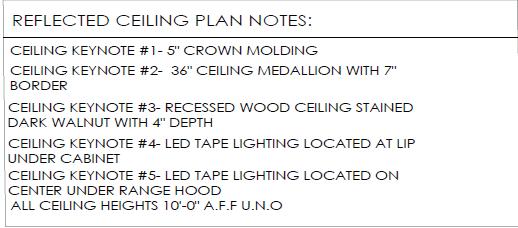

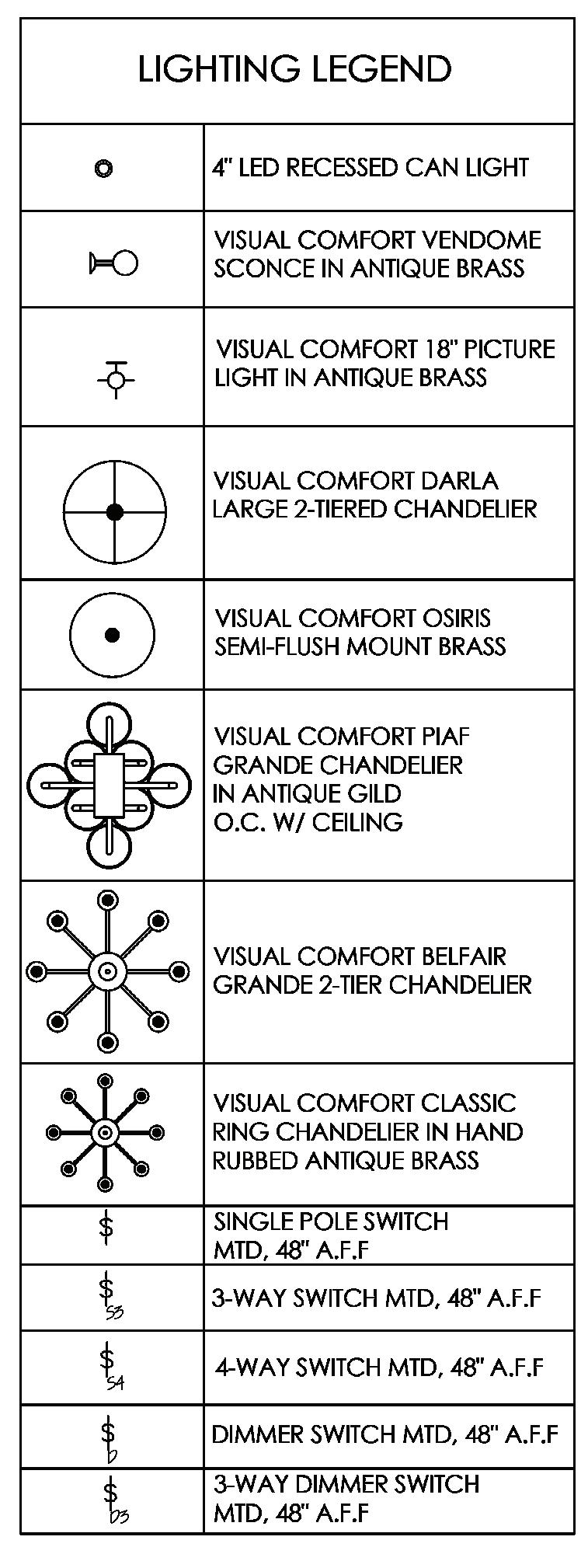

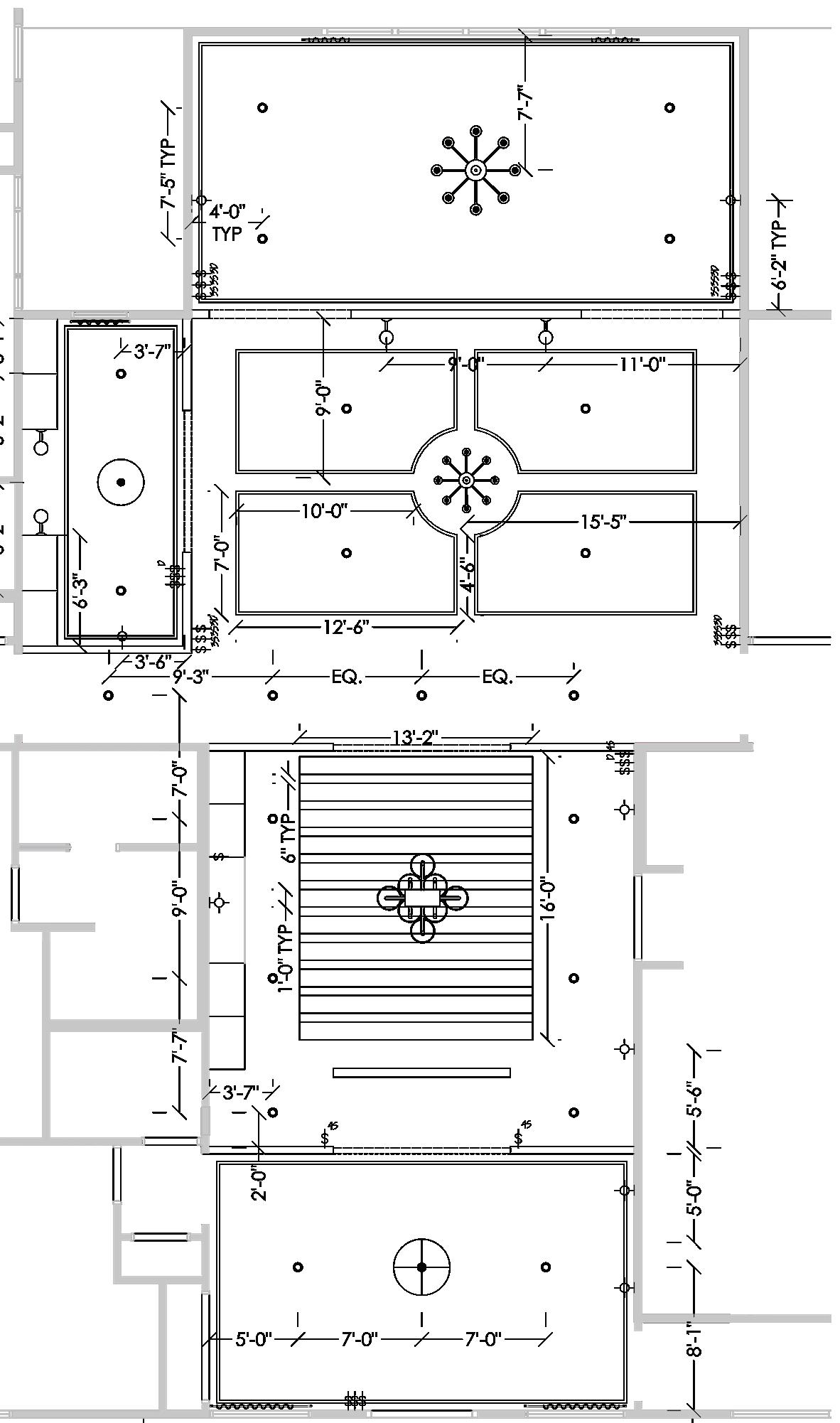

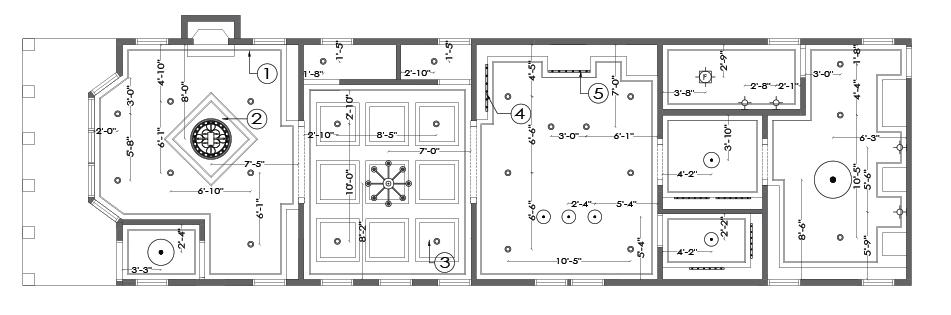

REFLECTED CEILING PLAN
SCALE: 1/4” = 1’- 0”

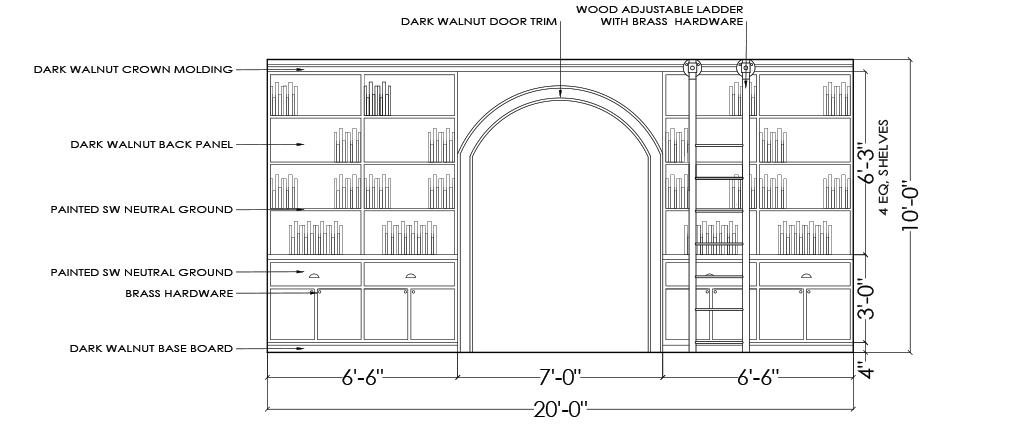

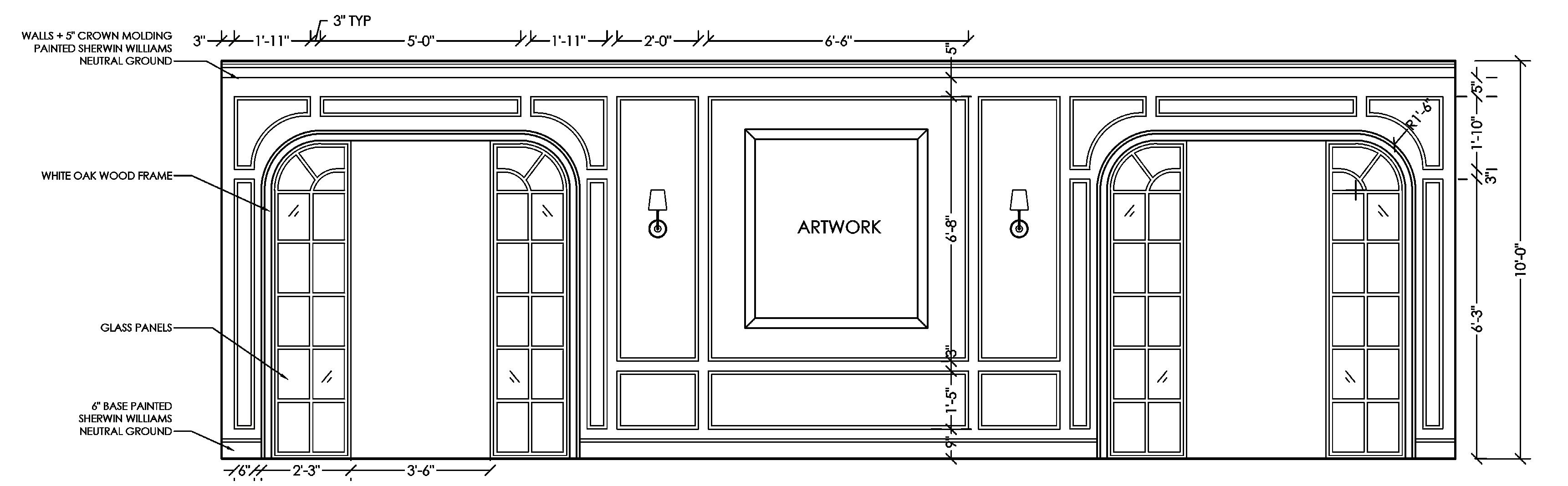

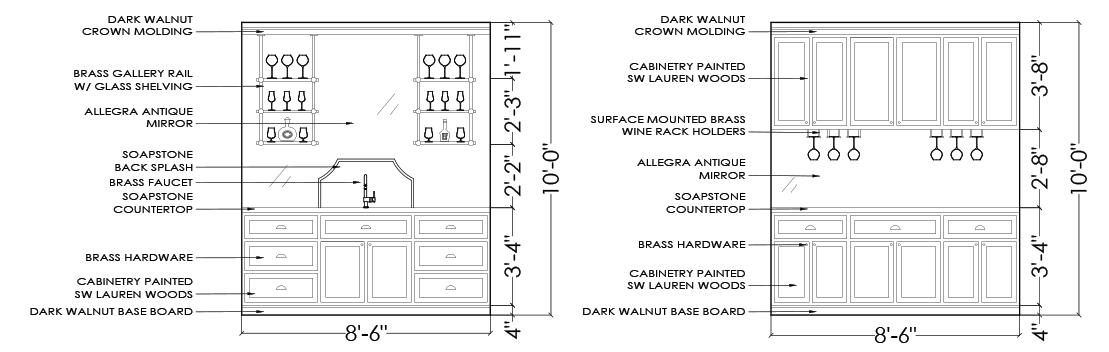

BUTLER’S ELEVATION - SCALE: 1/2” = 1’ - 0” LIVING ROOM ELEVATION - SCALE: 1/2” = 1’ - 0”
2'-1" 4'-0" 3'-7" 3'-1" 2'-8" 3'-0" 4'-0" 2'-3" 5" 10'-0" 4"

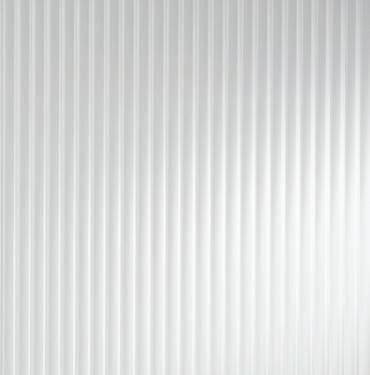

B DARK WALNUT CROWN MOLDING DARK WALNUT BASE BOARD CLEAR FLUTED GLASS DARK WALNUT CABINETRY BRASS HARDWARE HONED MARBLE BACK SPLASH IN BIANCO RANGE HOOD PAINTED SW NEUTRAL GROUND BRASS POT FILLER FREE STANDING FUEL RANGE IN BLACK/BRASS TRIM HONED MARBLE COUNTERTOP IN BIANCO
KITCHEN ELEVATION SCALE: 1/2"=1'-0"
All drawings produced in Autodesk AutoCAD - NTS - all scales to industry standards
KITCHEN ELEVATION - SCALE: 1/2” = 1’ - 0”
HISTORIC BROWNSTONE
Residential Design
FULL BATH DESIGN CONSIDERATIONS:
- Preservation of antique vanity to be reused and repurposed
- Reuse of clawfoot tub and shower head

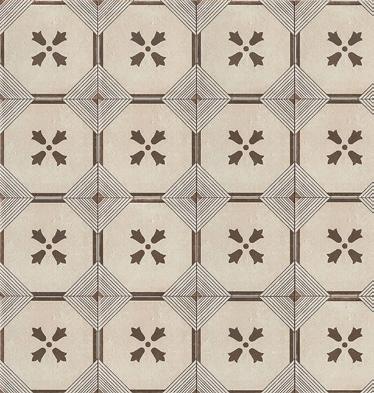

- Selection of floor tile with a coefficient of friction above .60
- Preservation of ornate wood molding throughout
- Selection of water efficient plumbing fixtures containing a WaterSense label

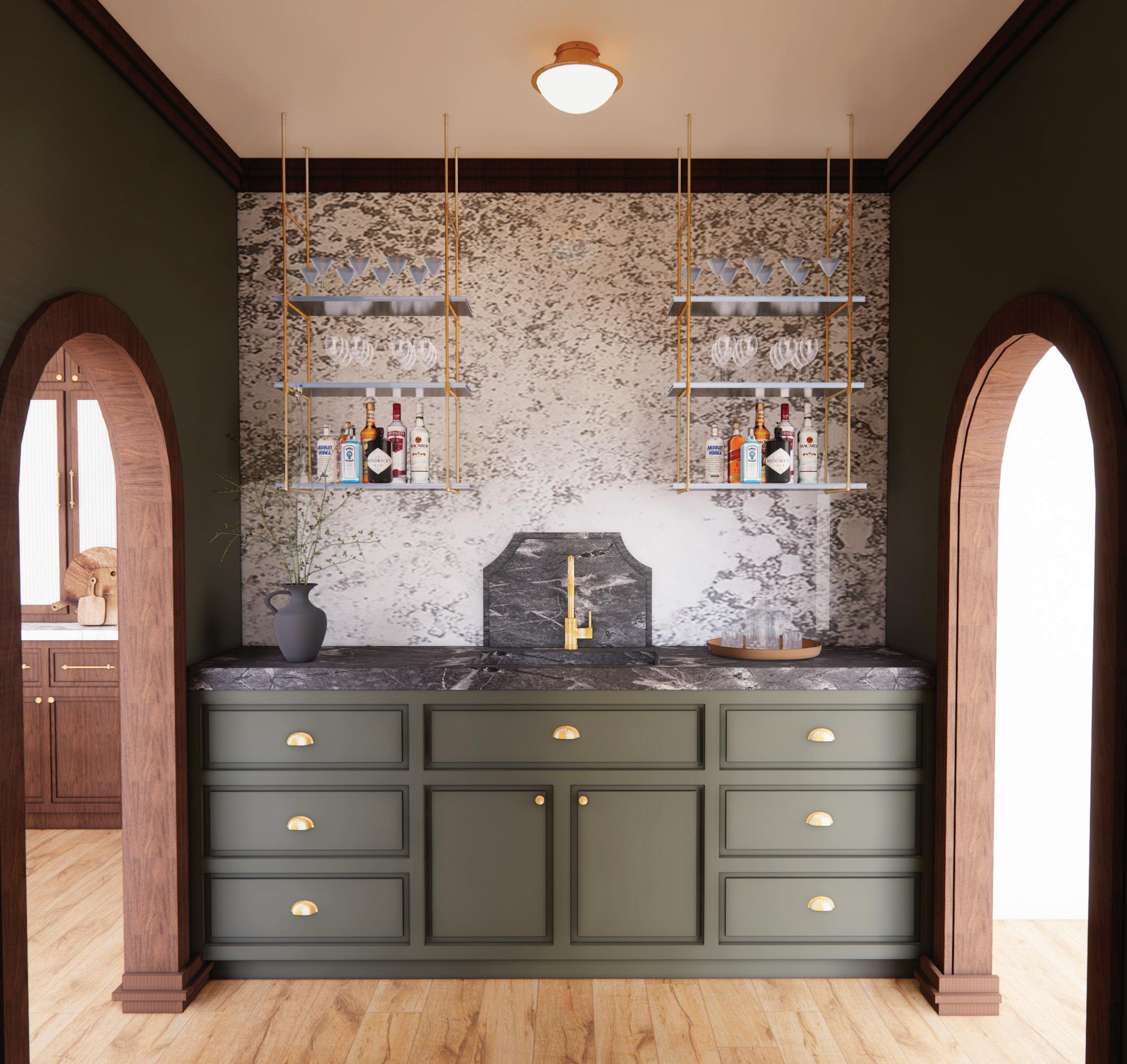

BUTLER’S PANTRY/BAR DESIGN CONSIDERATIONS:
- Centralized location provides convenient access for entertaining guests
- Built-in cabinetry allows for additional storage seperate from kitchen
- Open shelving to display glassware and alcohol selection
- Soapstone countertop selected for durability and ease of maintenance
- Antique mirror backsplash adds visual interest and dimension
Modeled in Sketchup and rendered with Enscape

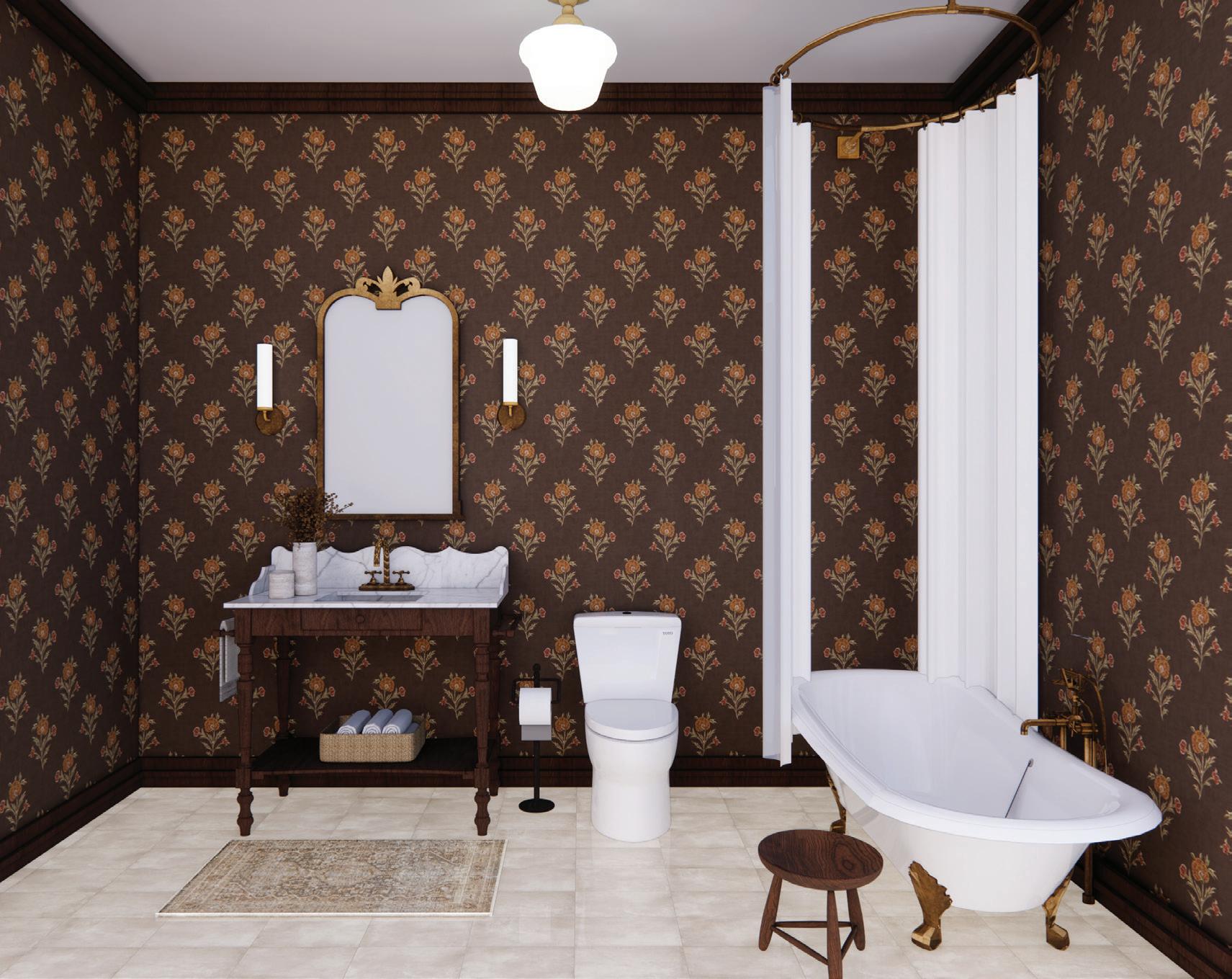

FULL BATH
BUTLER’S PANTRY/BAR

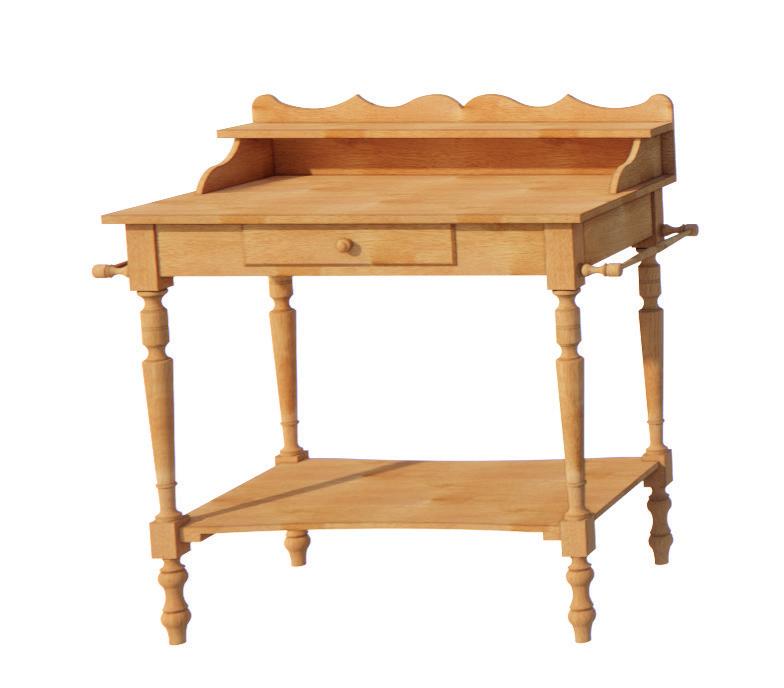

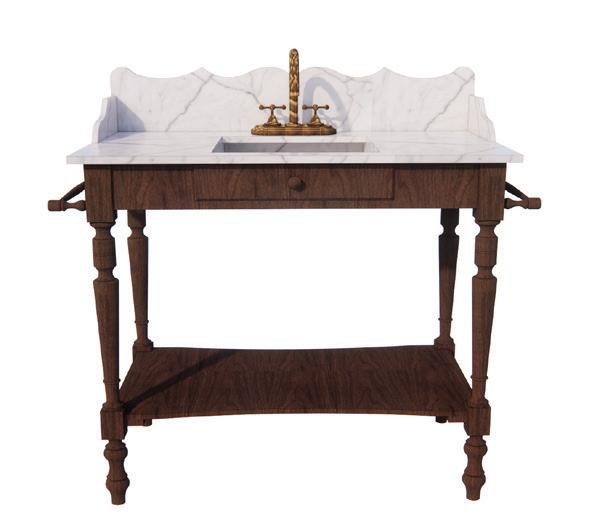

Initial Vanity Repurposed Vanity

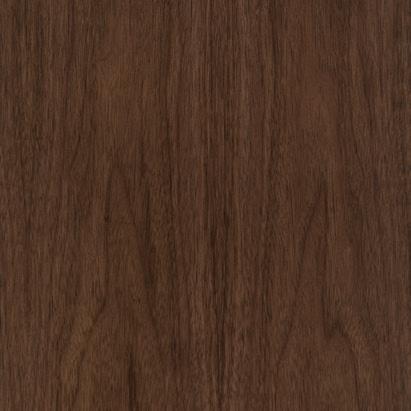

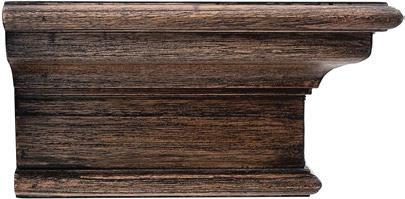

Dark Walnut Crown Molding

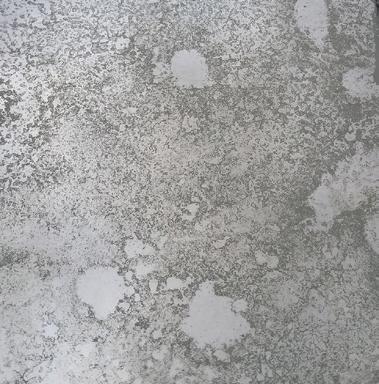

Antique Mirror

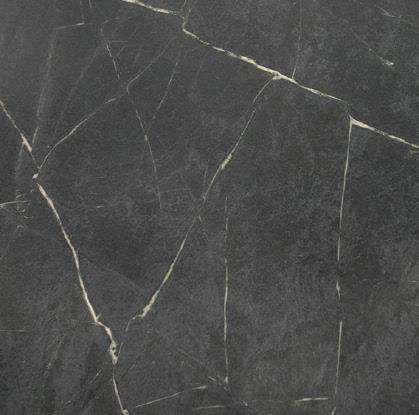

Honed Soapstone
Sherwin Williams Laurel Woods
Modeled in Sketchup and rendered with Enscape
MAMA BEAR 03
Retail Design

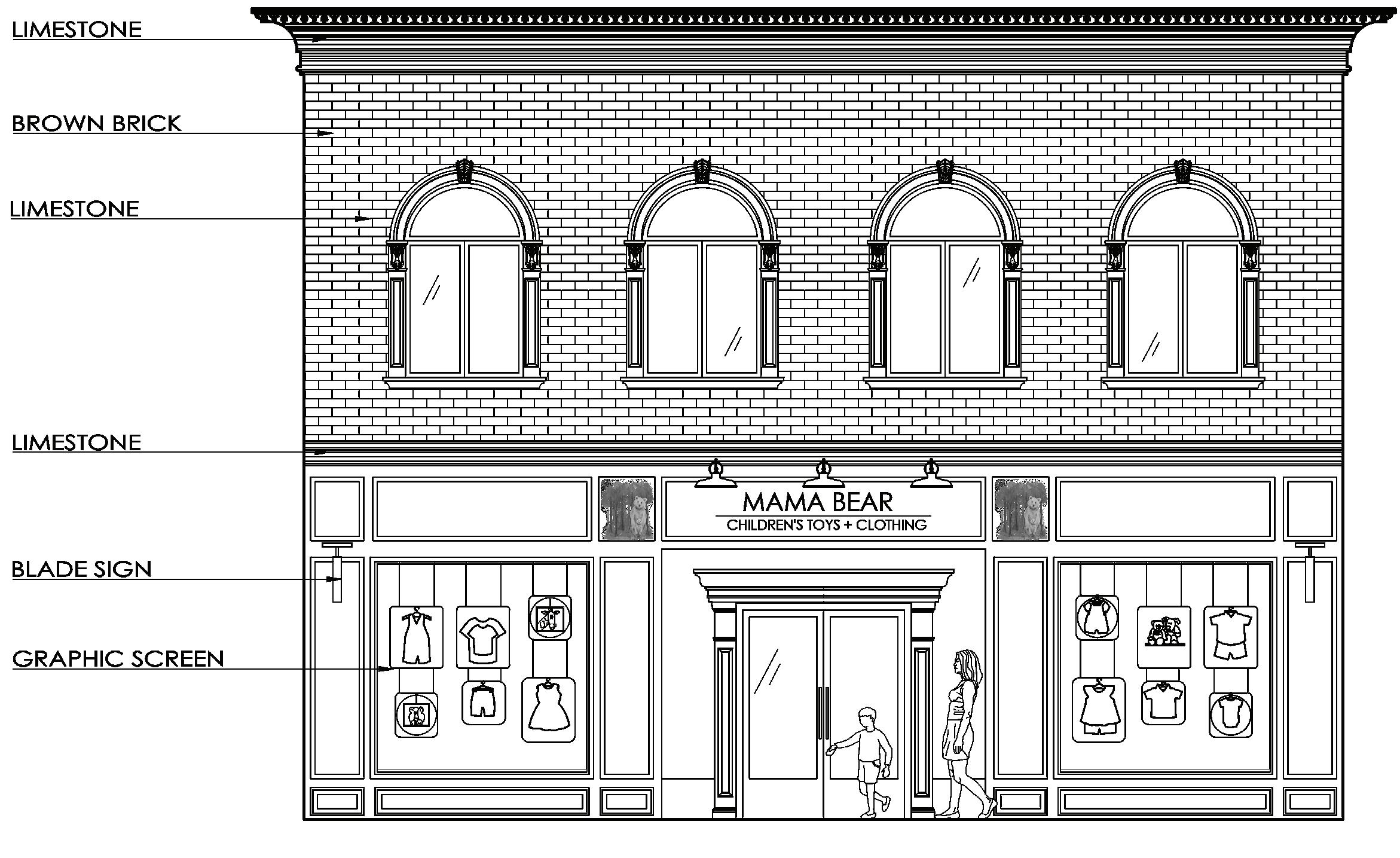

EXTERIOR ELEVATION
SCALE: 1/4” = 1’- 0”
Design Considerations
Brand Identity - Neutral pastel colors which promote a whimsical environment
Sustainability - Using low VOC materials and efficient lighting
Wayfinding - Flooring materiality and ceiling elements guide customers through space
Rendered Floor Plan Merchandise Plan Secondary Seasonal Impulse Specialty service

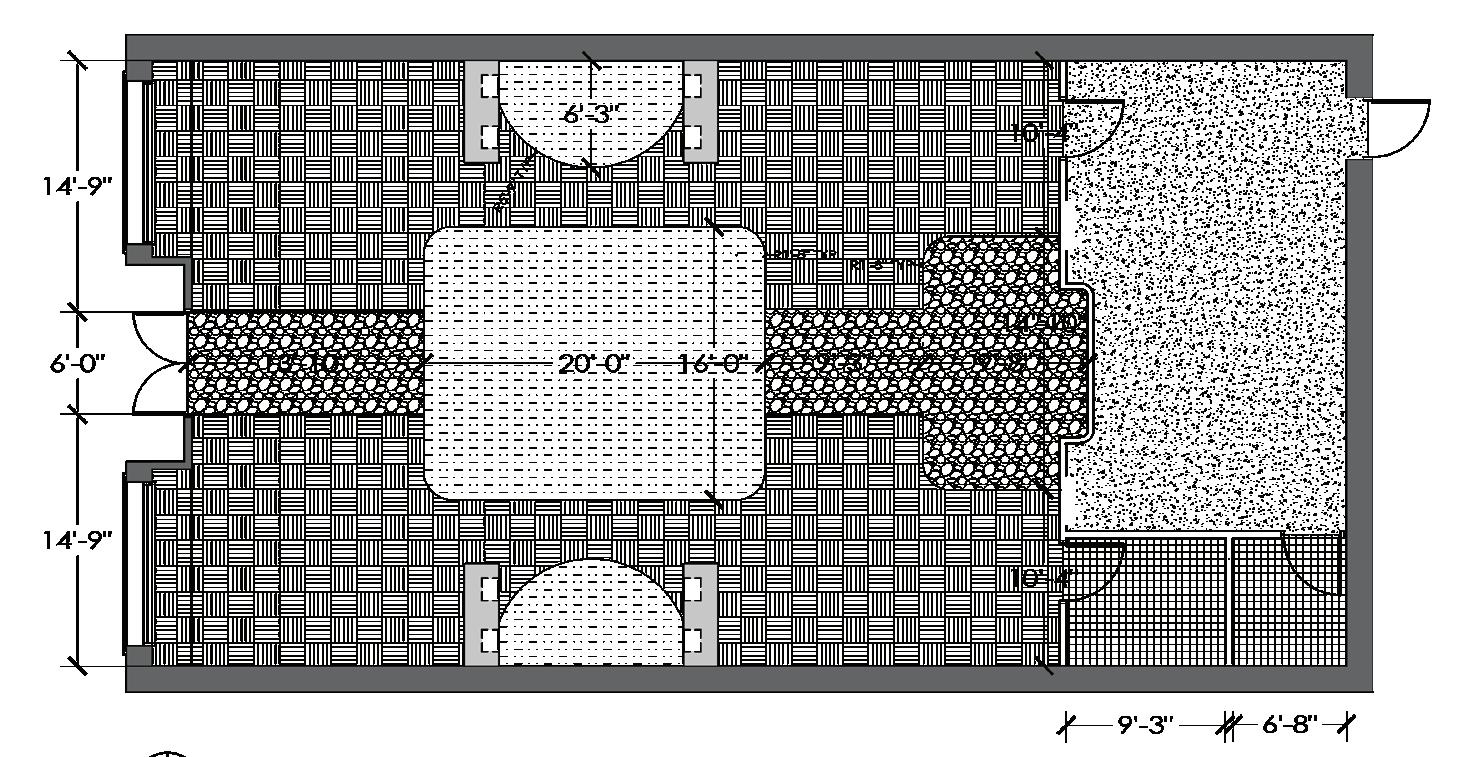

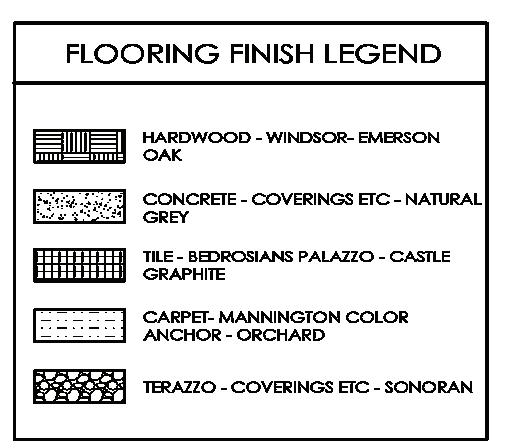

Flooring Finish Plan
MATERIAL PALETTE
Primary
MAMA BEAR
Retail Design

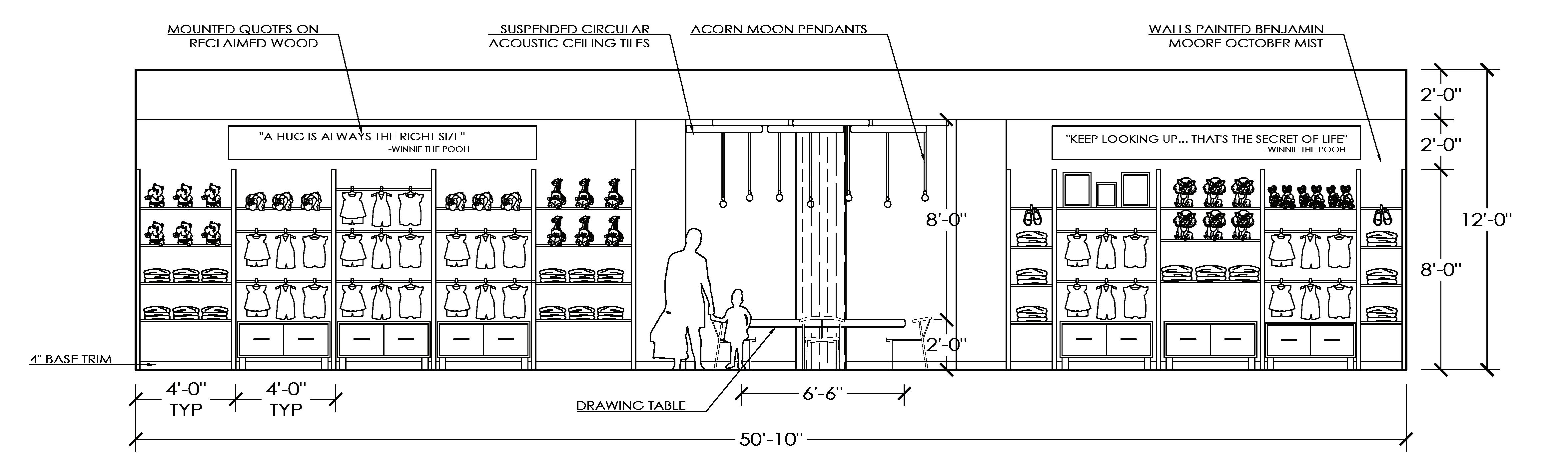

WEST WALL ELEVATION
SCALE: 1/8” = 1’- 0”
DESIGN CONCEPT
Mama Bear is a children’s toys and clothing store located in Naperville, IL. Mama Bear provides parents with a convenient place to shop while also creating a fun atmosphere for children. Mama Bear will give an elevated shopping experience for both adults and children.
The target market for Mama Bear is parental figures with expendable income or anyone who wishes to shop for a little one.
The design of Mama Bear focuse on:
- Sustainable and durable materials
- ADA compliant circulation paths and restrooms
- Energy efficient LED light fixtures

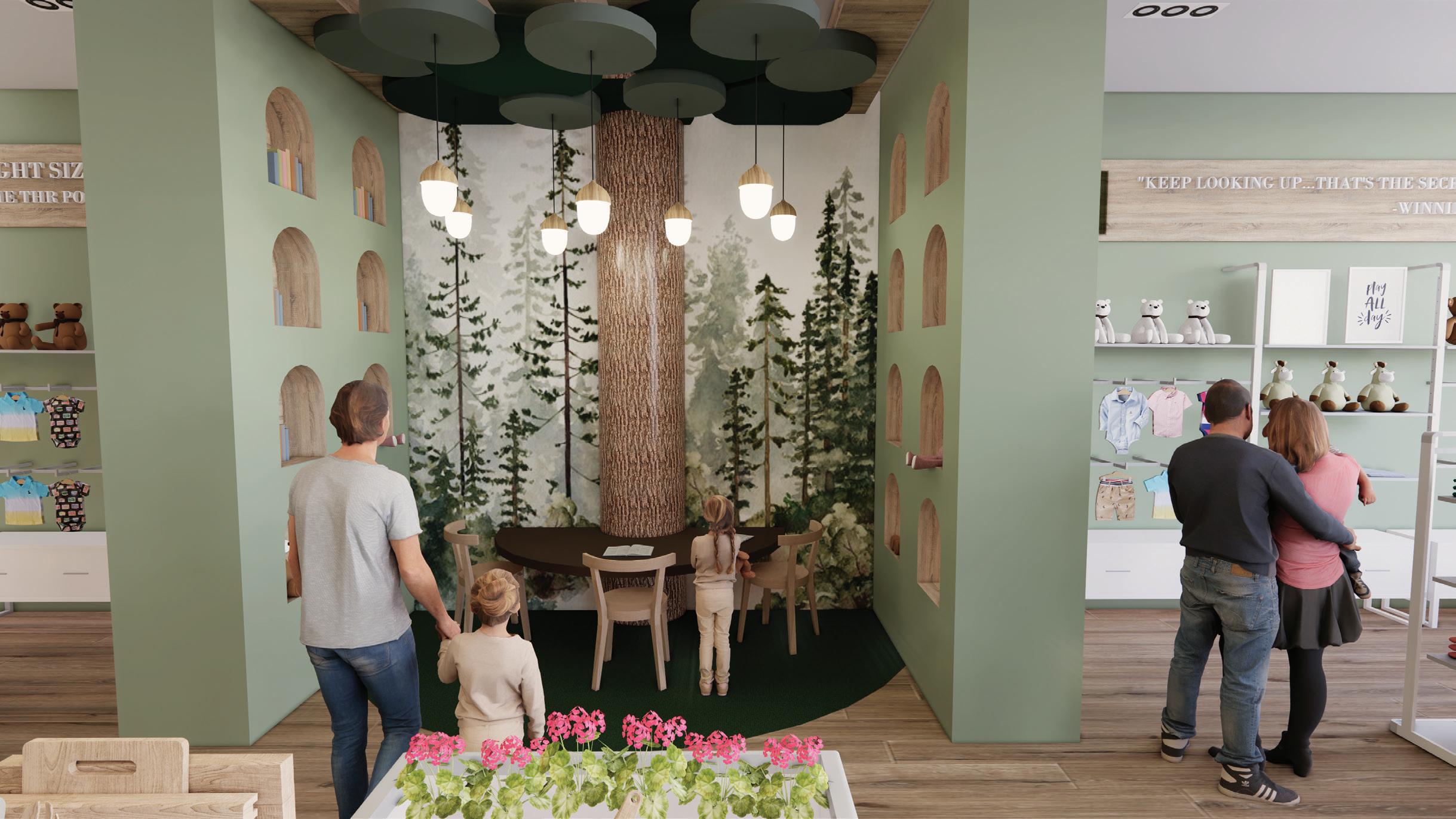

- Designated areas for children to play
- Providing a whimsical feel
BRANDING
All drawings produced in Autodesk AutoCAD - NTS - all scales to industry standards
Modeled in Sketchup and rendered with Enscape

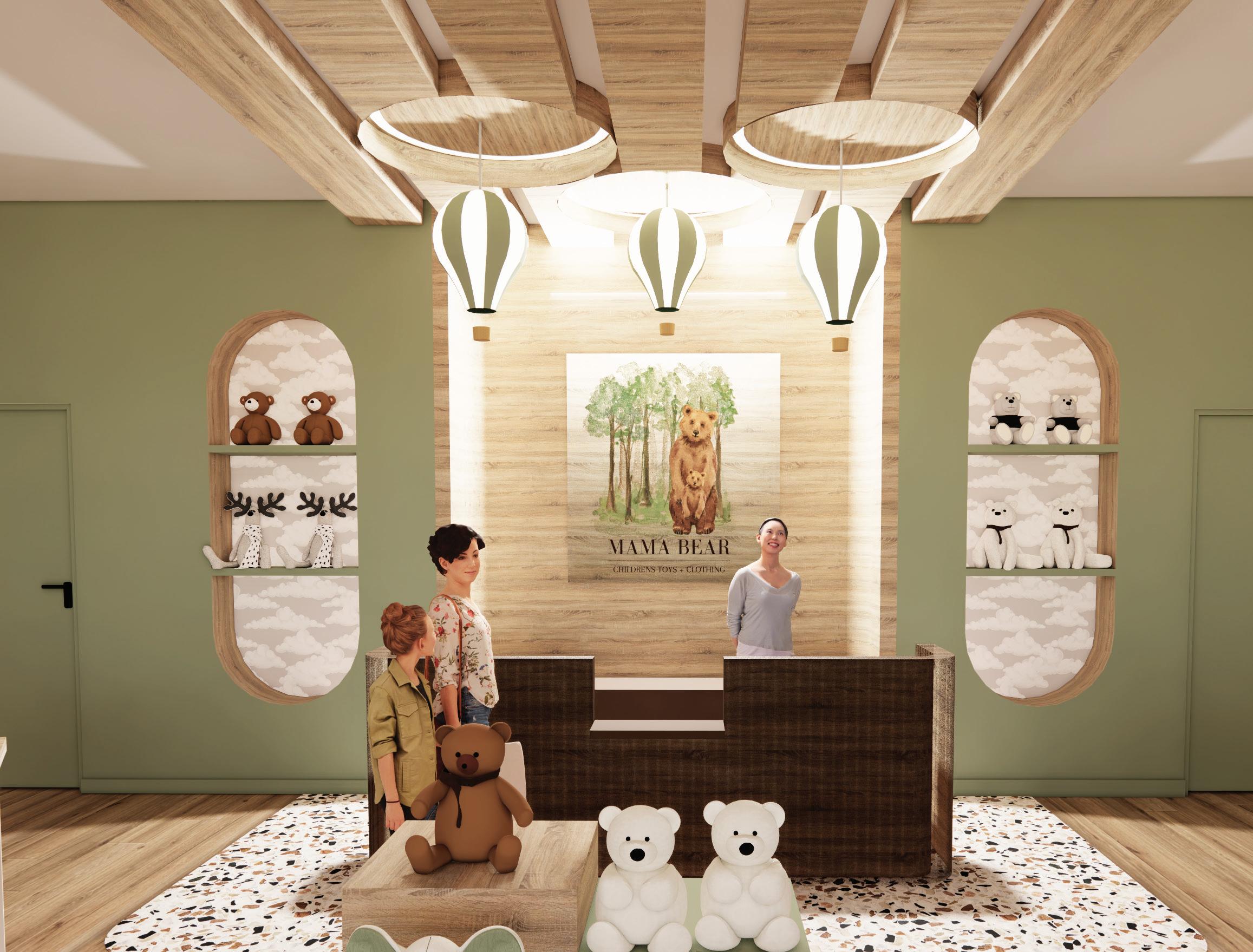

MAMA BEAR
Retail Design

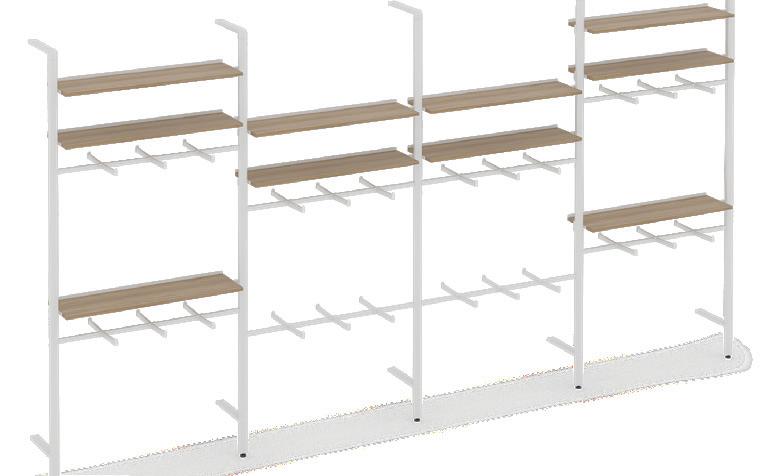

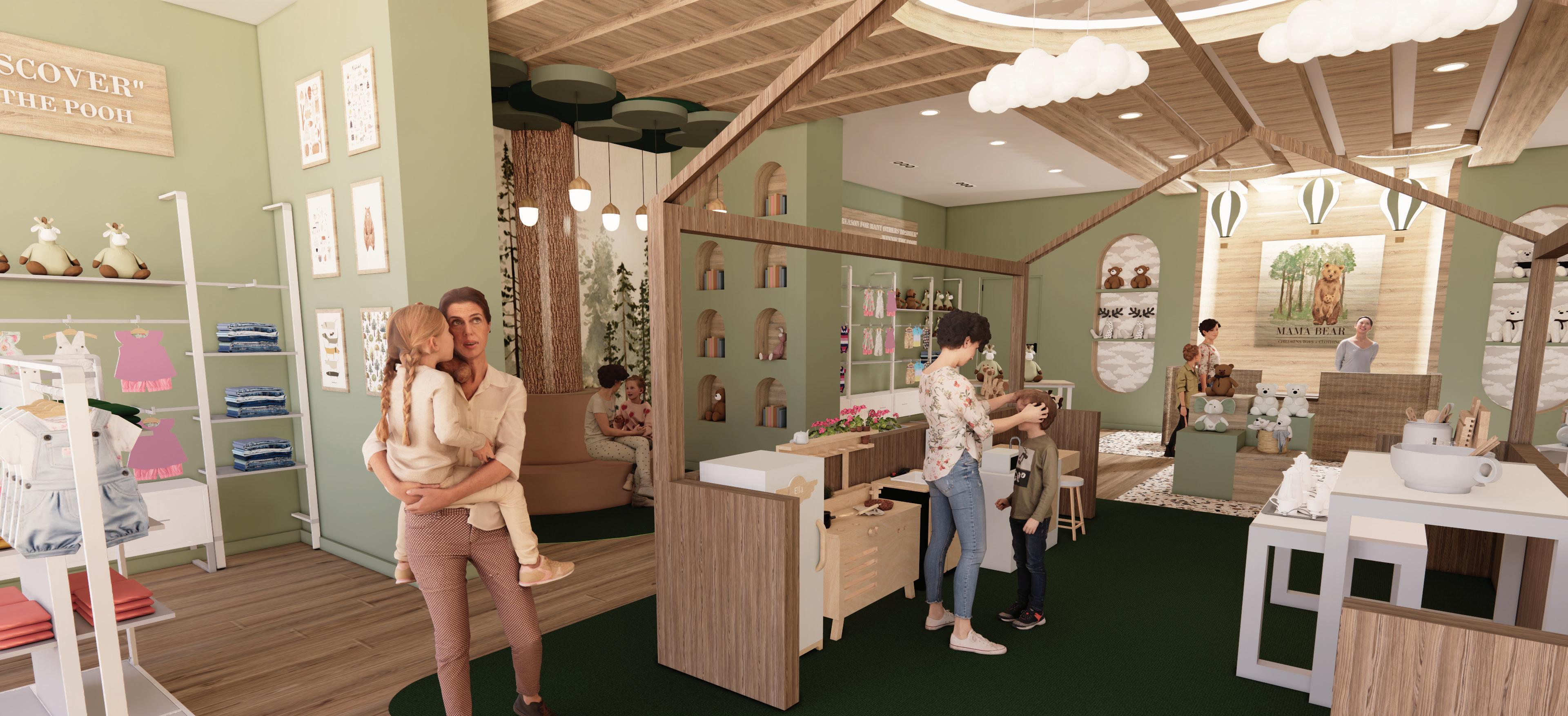

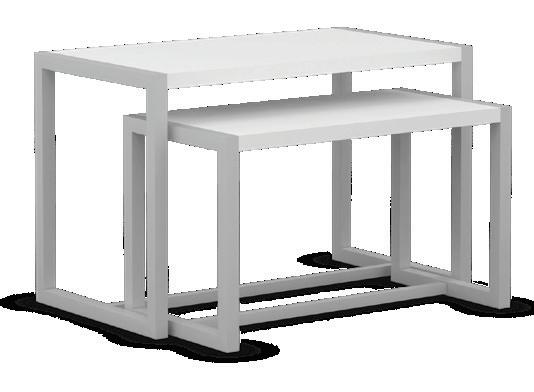

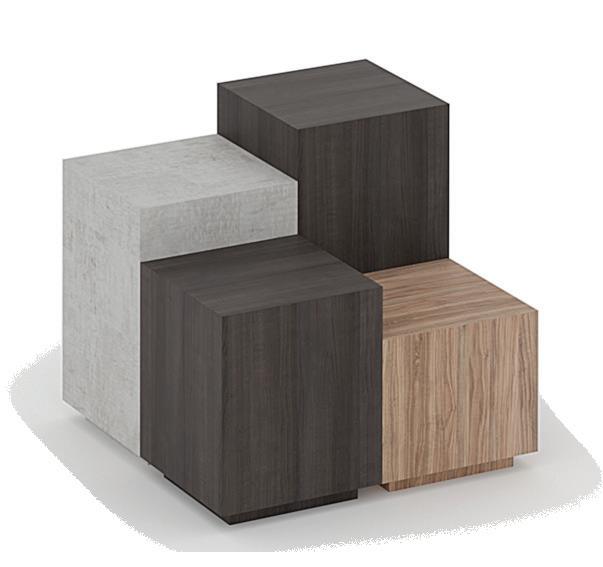

Modeled in Sketchup and rendered with Enscape 1 2 3 4 5 6 1 - Opto Reveal - 2 module - low 3 way 2 - Opto Reveal - grouping table with laminated side and top 3 - Opto Reveal - display cube set 4 - Opto Edge - nesting tables with laminated tops and open sides 5 - Opto Reveal - outrigger post wall system 6 - Opto Reveal - 2 drawer laminated cabinet FIXTURE SELECTIONS Strong, bold visual images and light draw customers to the back of the store Diversity and choices of products are offered within the merchandise strategy Customers will leave with an impactful and positive lasting experience in the store
Modeled in Sketchup and rendered with Enscape
SALUDOS 04
Restaurant Design
DESIGN CONCEPT
Saludos, meaning ‘greetings, is a Spanish Cuisine inspired restaurant providing guests with a local destination honoring the historic culture and traditions of Spain. Through popular Spanish dishes, traditional tapas dining style, and seating promoting socialization, guests will feel immersed in the Spanish culture. Saludos provides a local destination through the use of vibrant colors, biophilia, and a variety of textures and patterns.
SUSTAINABILITY CONSIDERATIONS
- Paint containing no VOC’s
- Energy efficient light fixtures
- Fixtures meeting WaterSense criteria, GREENGUARD certification
- Use of reclaimed wood for flooring throughout
ACOUSTIC CONSIDERATIONS
- Plush material selections for seating
- Suspended ceiling treatment above bar
- Space dividers in between banquette seating
ADA CONSIDERATIONS
- 5% of overall seating is accessible
- Traffic paths accessible for those in a wheelchair
- Washrooms compliant with 60” turning radius

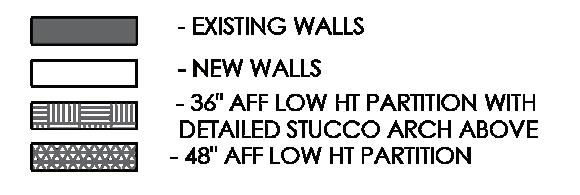

WALL LEGEND

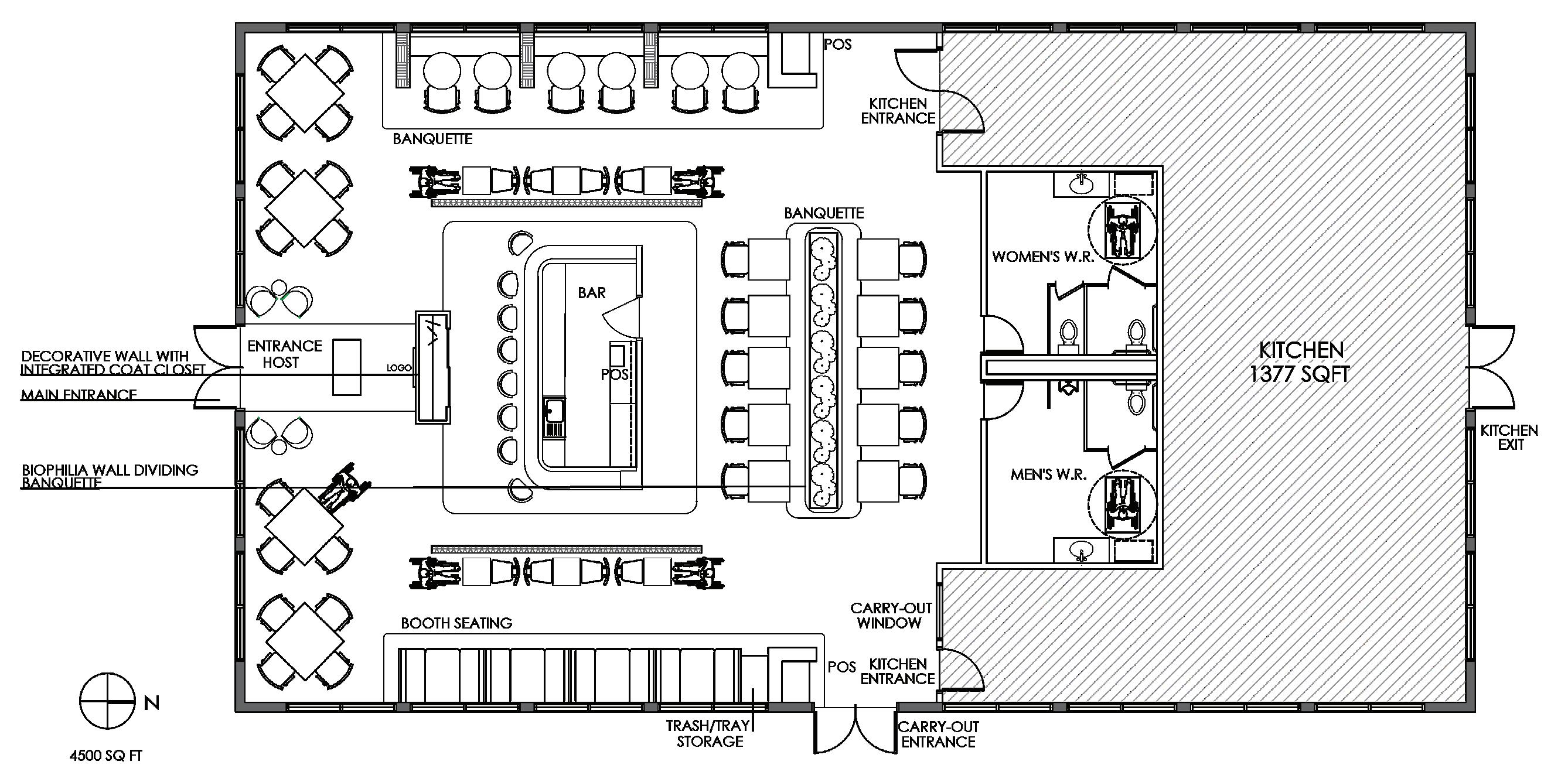

FLOOR PLAN
Restaurant Type: Spanish Cuisine
Project Size: 4500 SQ.FT.
Restaurant Location: Glen Ellyn, IL
Restaurant Name: Saludos
Target Customers: Millennials/Gen Z
Unique Features: Suspended floral grid

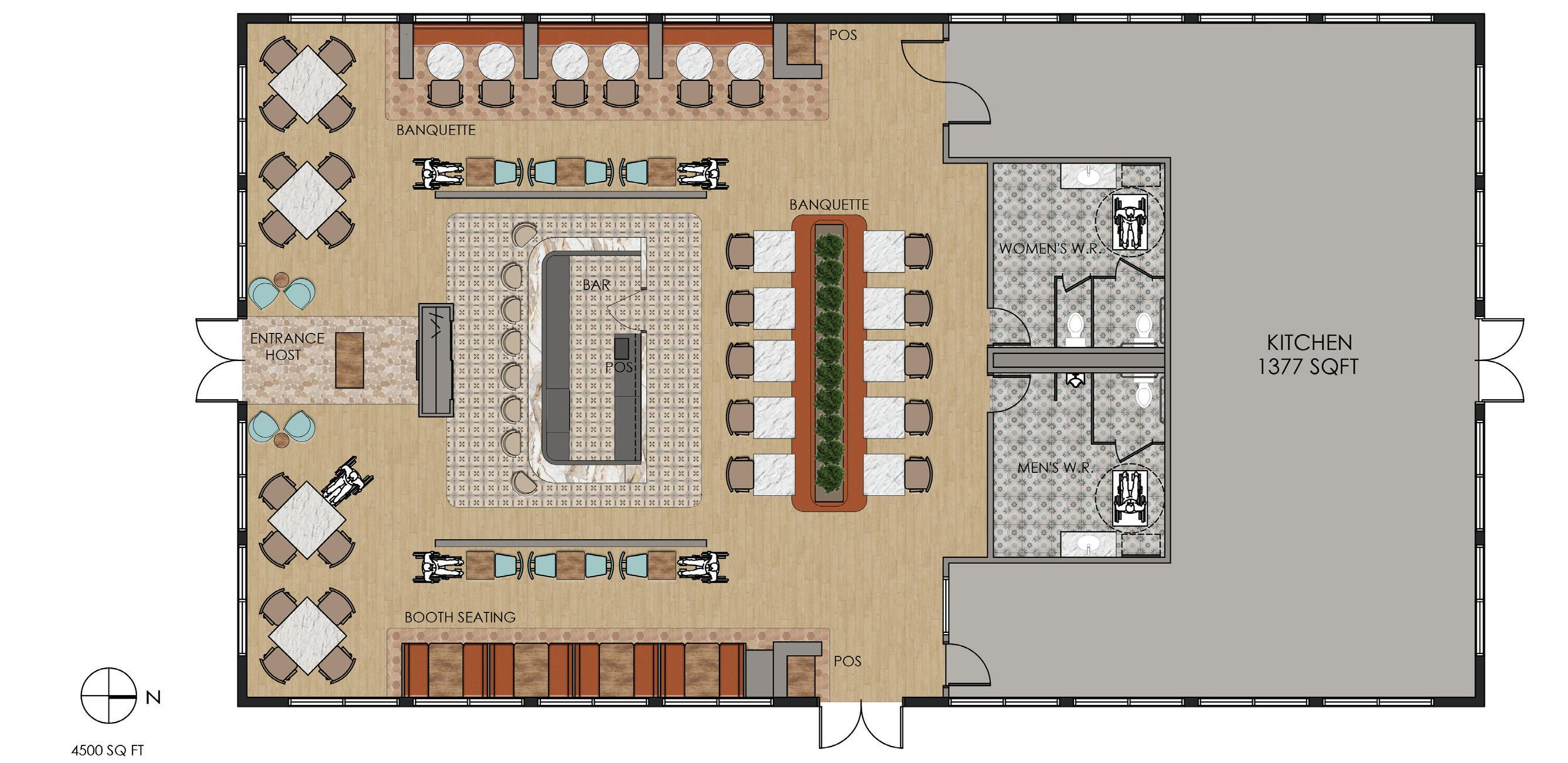

SCALE: 1/8” = 1’- 0” RENDERED FLOOR PLAN
All drawings produced in Autodesk AutoCAD - NTS - all scales to industry standards
SCALE: NTS
Produced in Adobe Photoshop
SALUDOS
Restaurant Design

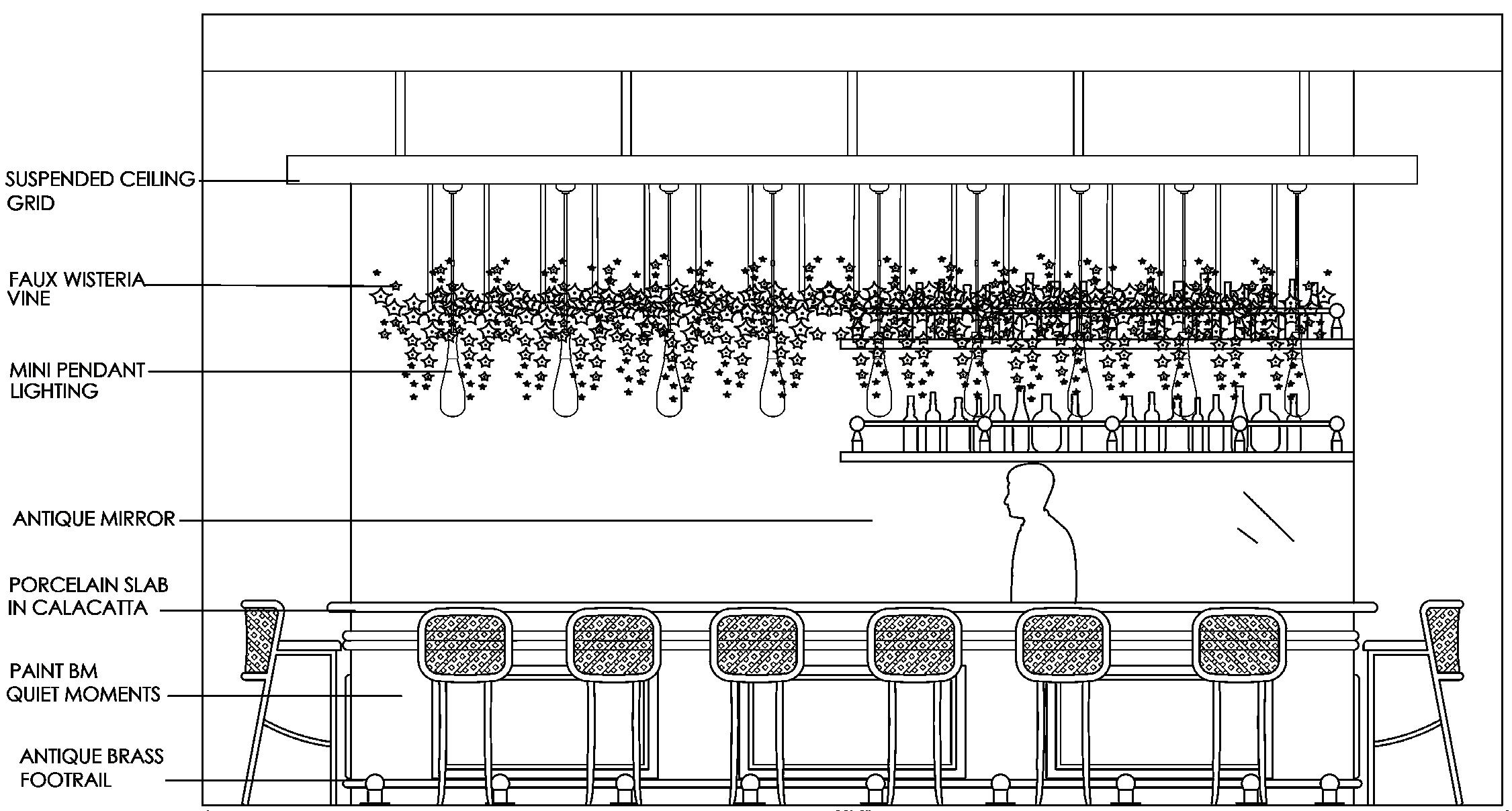

BAR ELEVATION
SCALE: 1/2” = 1’- 0”
BANQUETTE ELEVATION
SCALE: 1/2” = 1’- 0”
MATERIAL SELECTIONS

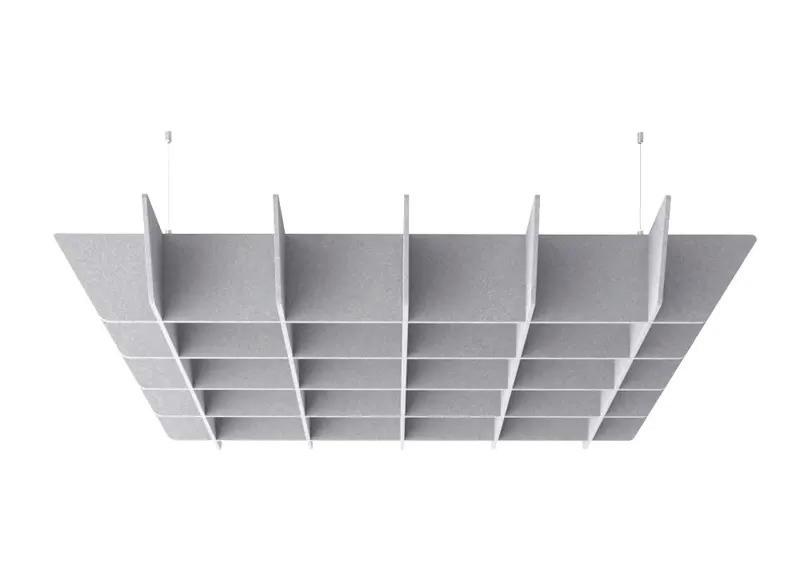

1 - Acoustic grid canopy in color tree bark to aid in sound absorption over bar area

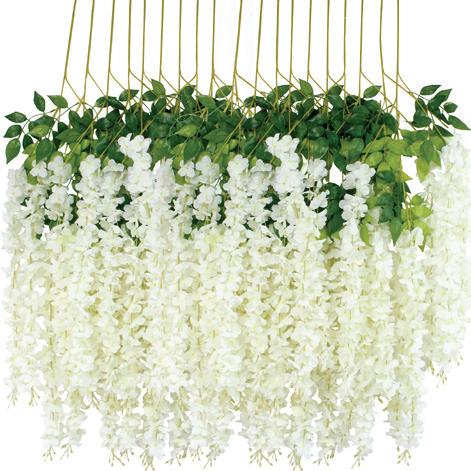

2 - Suspended wisteria vine

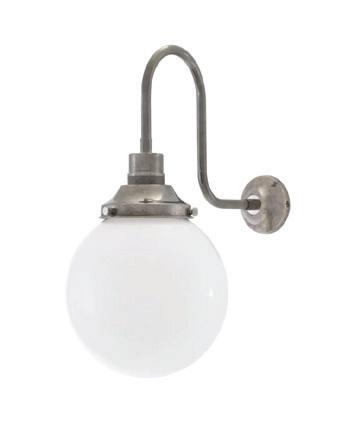

3 - Mullan Yerevan opal glass globe swan neck wall light for wayfinding

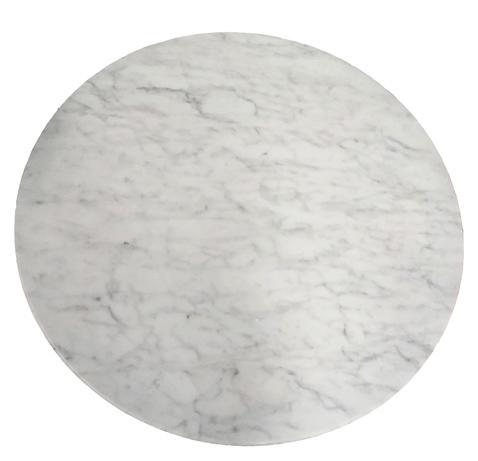

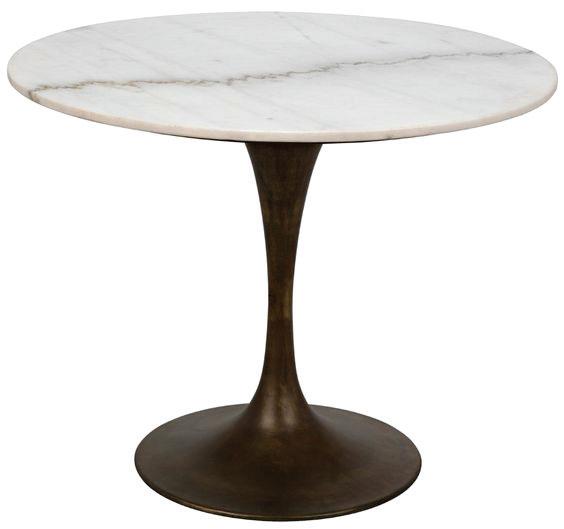

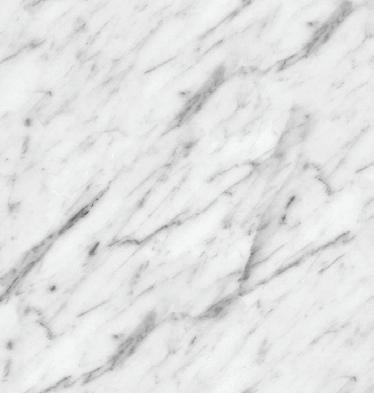

4 - Aceray round table top in Bianco Carrara

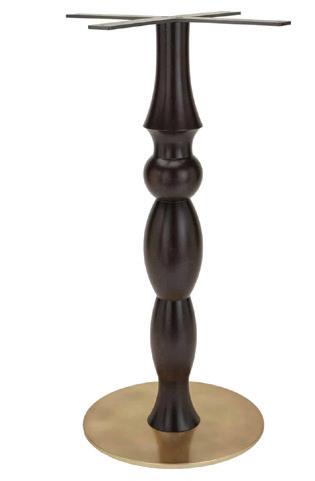

5 - Aceray Tusca round table base in walnut with brushed brass finish
FURNITURE & LIGHTING SELECTIONS

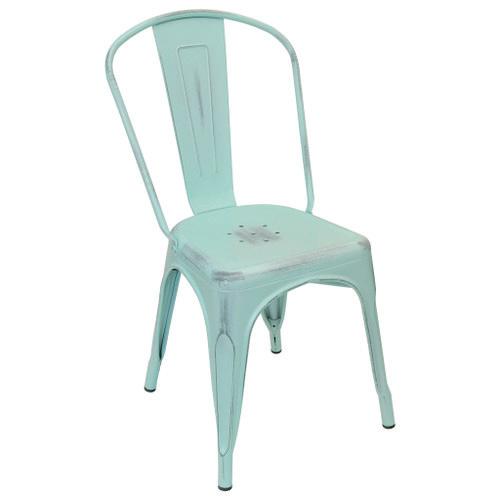

6 - East Coast Chair & Barstool Victor steel chair in sky blue finish

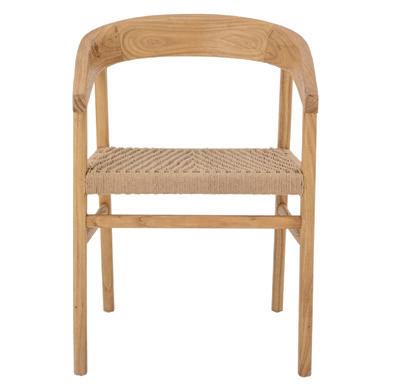

7 - Aceray Riva armchair with hand woven seat and back

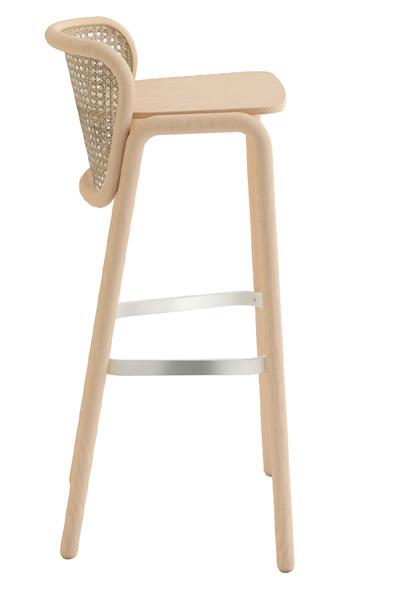

8 - Aceray Tempo - 5 barstool in light beech finish

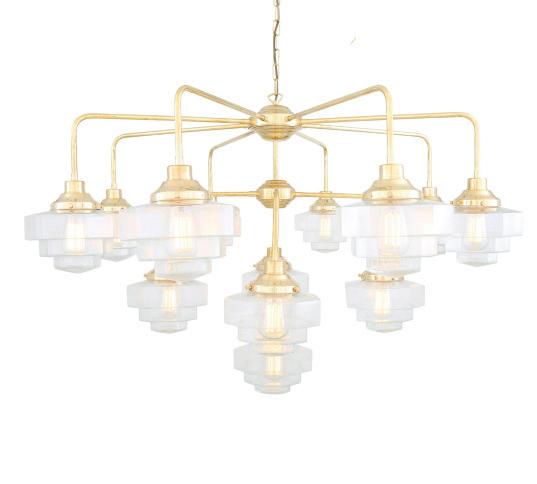

9 - Mullan lighting Sienna art deco three-tier brass chandelier
10 - Palacek Everly pendant, small in natural
1 2
3 4 5
6
8 9
7
10
WASHINGTON RETREAT 05
Hospitality Design
DESIGN FEATURES
- Double sided couch to maximize seating and provide multiple conversation zones
- Use of dark paint color on walls to bring a masculine feel to the space
- Fireplace that is centrally located in room to be enjoyed in all areas of the retreat
- Dining table comfortably seating 6 for guest
- Wood paneled ceiling and floors incorporating natural elements into the space
- Full functioning kitchen with modern appliances, including a custom island with additional seating and dark wood cabinetry
Autodesk AutoCAD - Used for developing a scaled floor plan shell, furniture blocking, preliminary and final layout, and preparing the file to be imported into Sketchup for 3D model build.
Sketchup - Used to build the 3D environments as shown to facilitate the visualization of custom features (kitchen island and cabinetry), to accurately show furniture selection through the use of products available in the 3D Warehouse, and to create sections, 2-point perspectives, and 3-point perspectives.
Enscape - Used to create photo realistic renderings by enhanicng both natural and artificial lighting, applying and editing materials, creating outdoor environments and backgrounds.
1 - Entry 2 - Powder Room 3 - Living Room 4 - Dining Room 5 - Kitchen 6 - Master Bedroom 7 - Full Bath 8 - Laundry Room 9 - Secondary Bedroom 10 - Porch 1 2 3 4 5 6 7 8 9 10 10 10 FLOOR PLAN SCALE: 1/8” = 1’- 0” All drawings produced in Autodesk AutoCAD - NTS - all scales to industry standards
SOFTWARE USED
Produced in Sketchup
WASHINGTON RETREAT
Hospitality Design

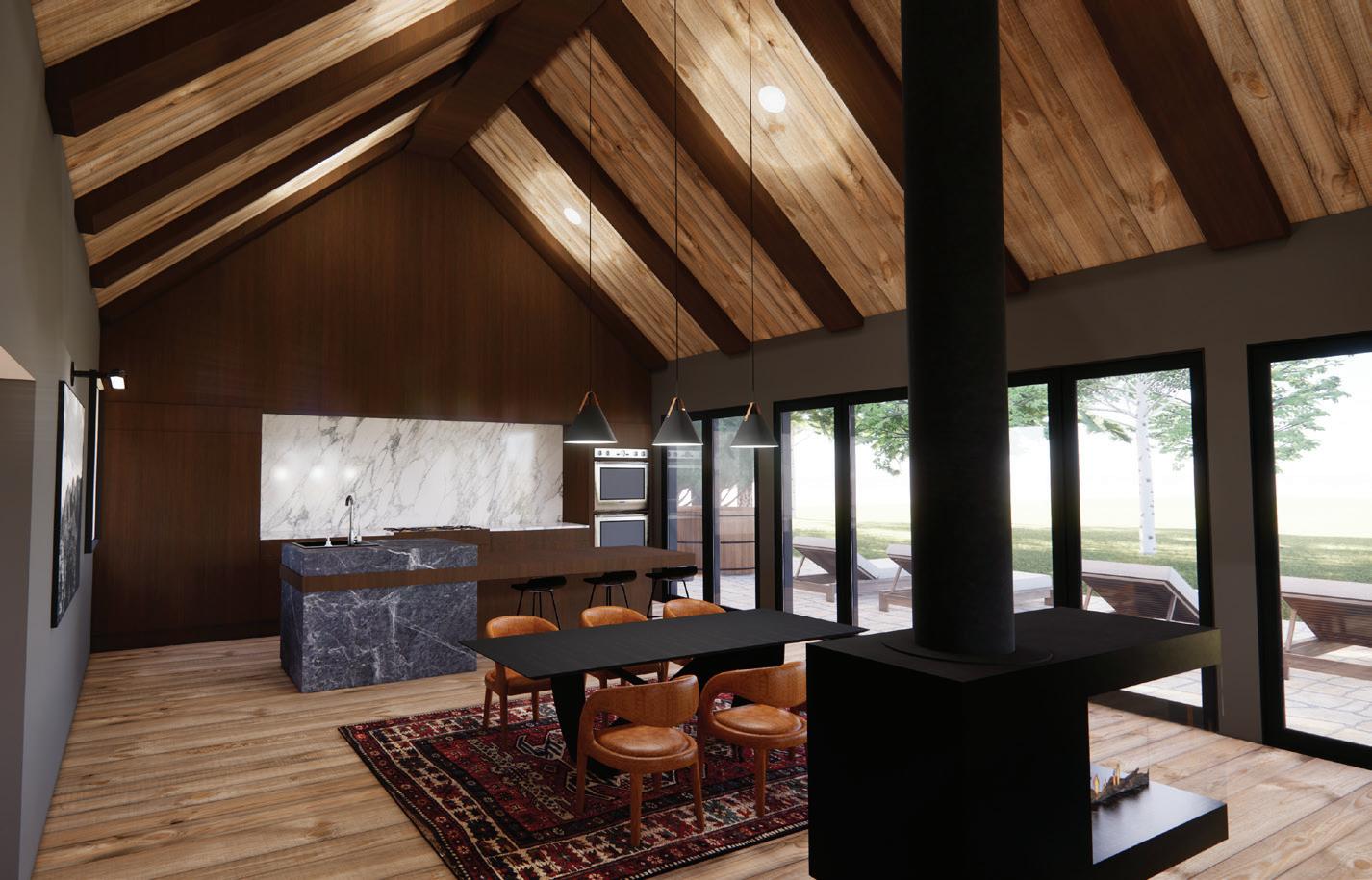

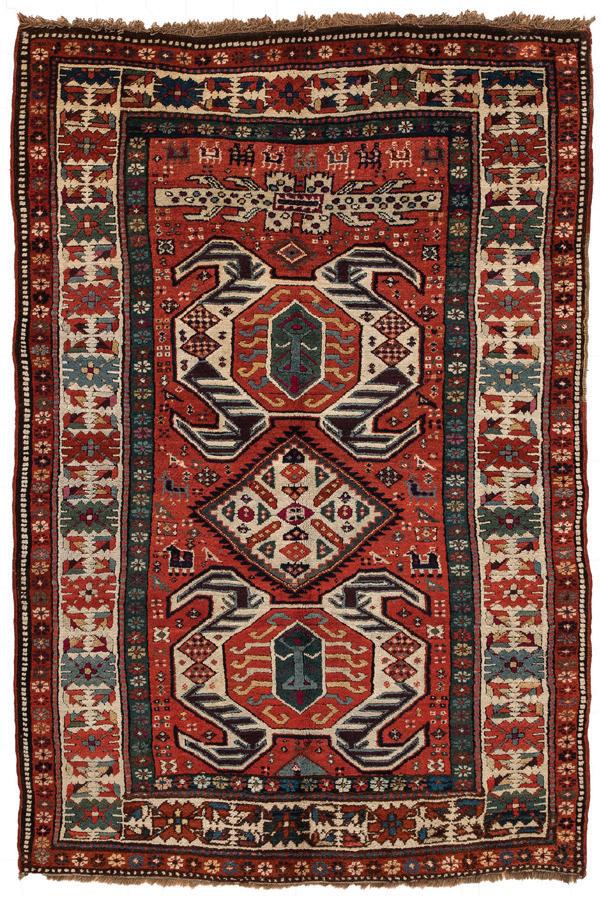

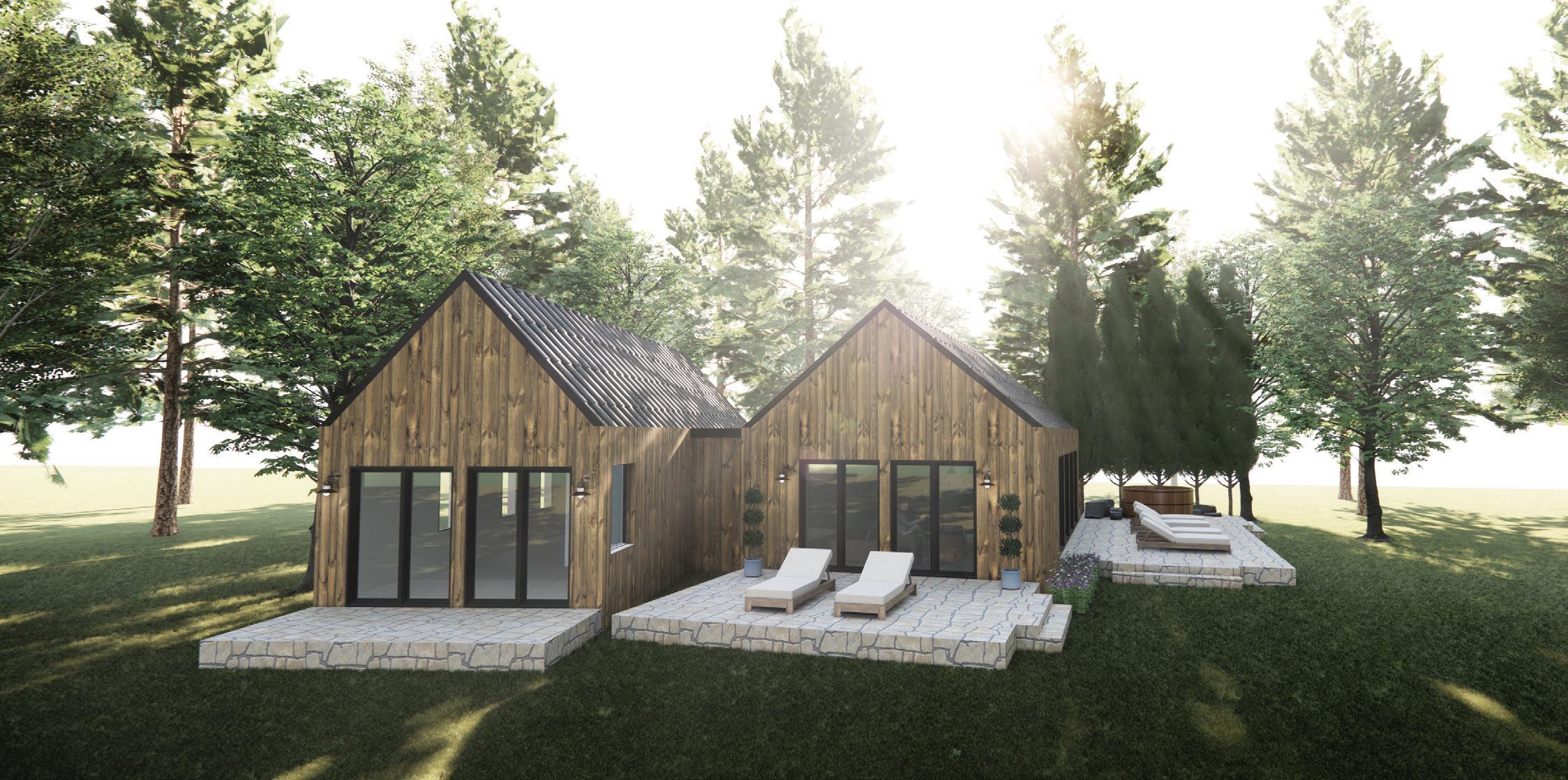

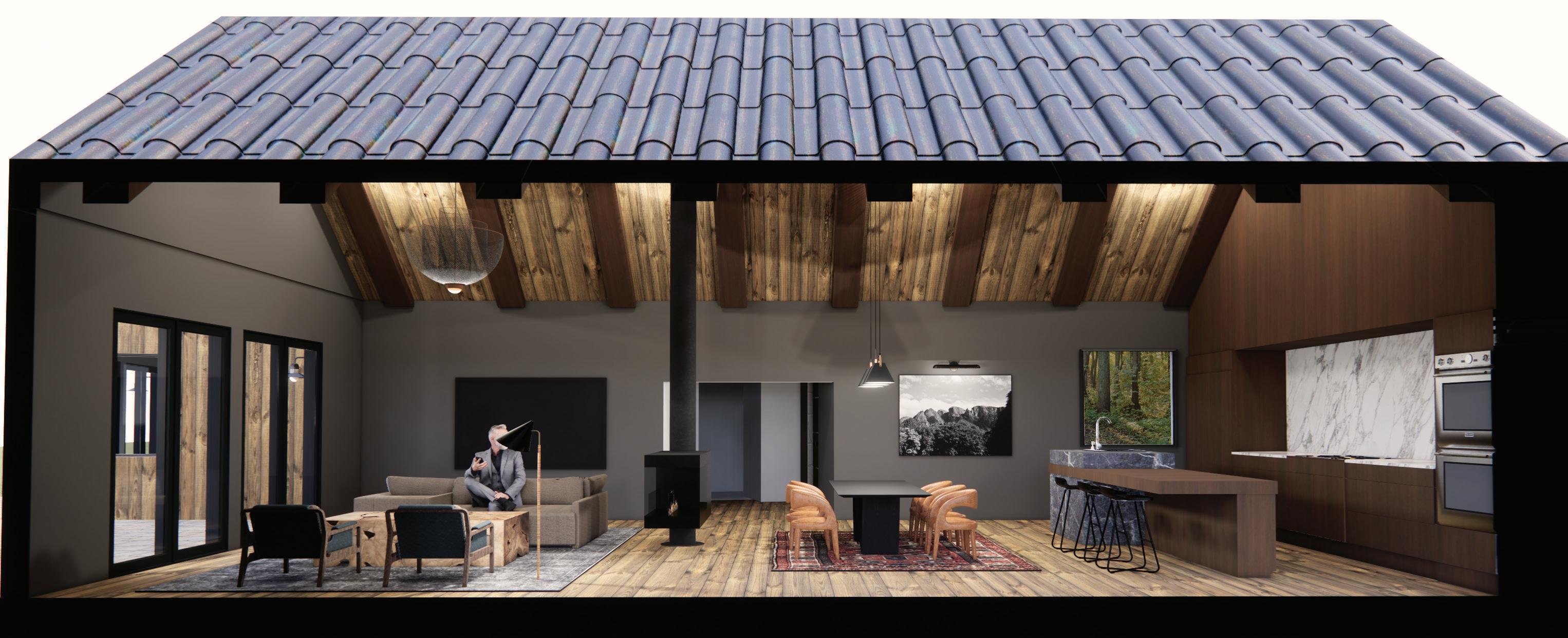

SECTION CUT VIEW EXTERIOR VIEW 1 2 3 4 5 6 7 8 FIXTURE AND FINISH SELECTIONS 1 - Medallion antique Kazak area rug 2 - Four Hands Hawkins dining chair 3 - Nordlux strap pendant 4 - Milo Teak coffee table 5 - Honed soapstone 6 - Honed white Carrara marble 7 - Benjamin Moore Wrought Iron in matte finish 8 - Dark walnut wood paneling
Modeled in Sketchup and rendered with Enscape
REWORK: COWORKING
Office Design
SCALE: 1/8” = 1’- 0”
DESIGN CONCEPT
REWORK is driven by the opportunity to rethink the way we work and the atmosphere within which we work. REWORK is designed to provide a playful environment that promotes collaboration and creativity. A variety of textures, bold colors, and visual graphics make REWORK more than just a place to work while creating a place to gather and socialize.
DESIGN CONSIDERATIONS
- Use of graphics at each major corner for wayfinding and zone designation
- Maximize access to daylight by locating shared spaces along window line
- Variety of flexible working areas with acoustical privacy provided
- Durable and sustainable finish selections aiding in individual health while contributing to LEED credits
ADJACENCY MATRIX
PRIMARY ADJACENCY
SECONDARY ADJACENCY
UNDESIRED ADJACENCY

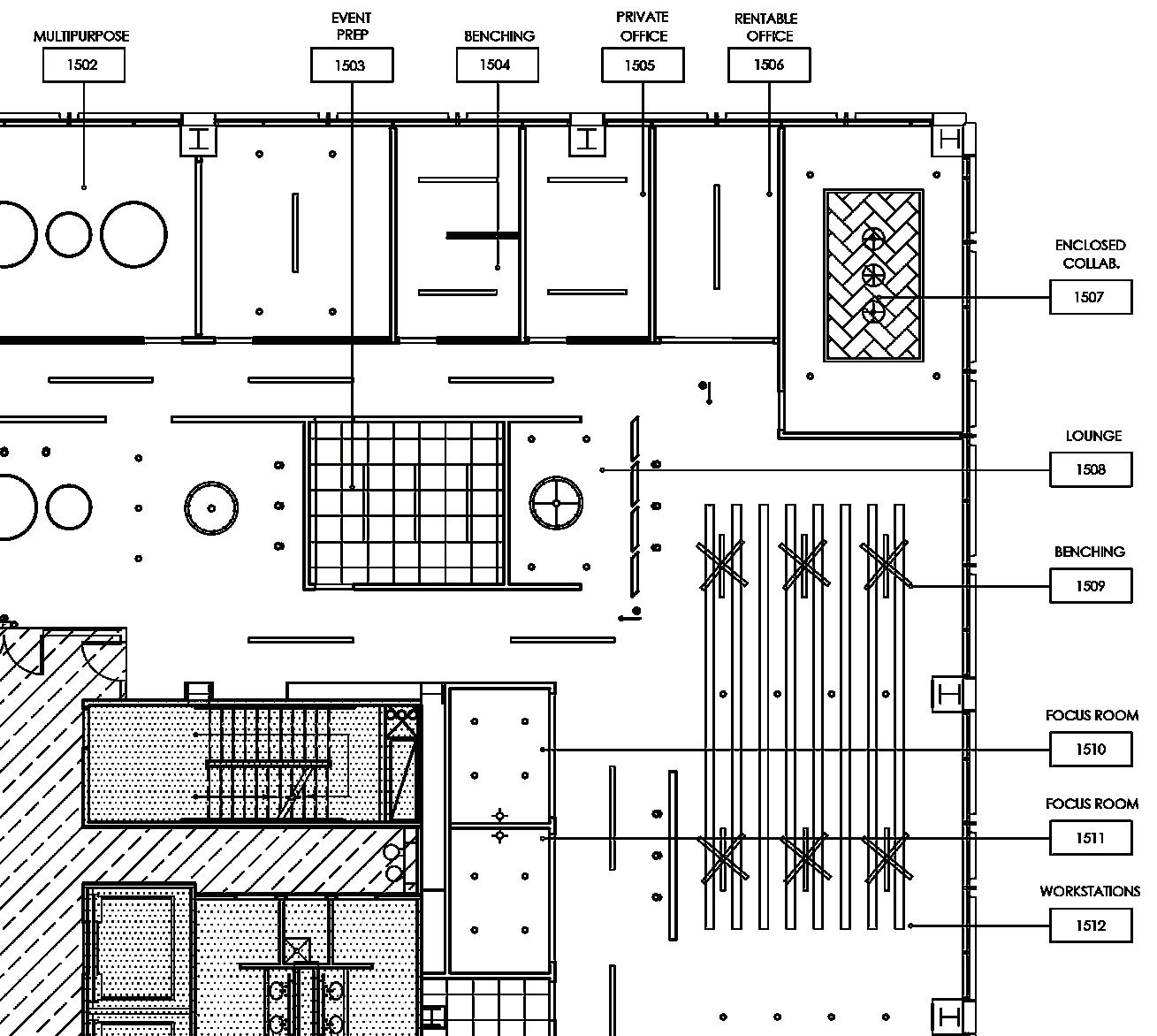

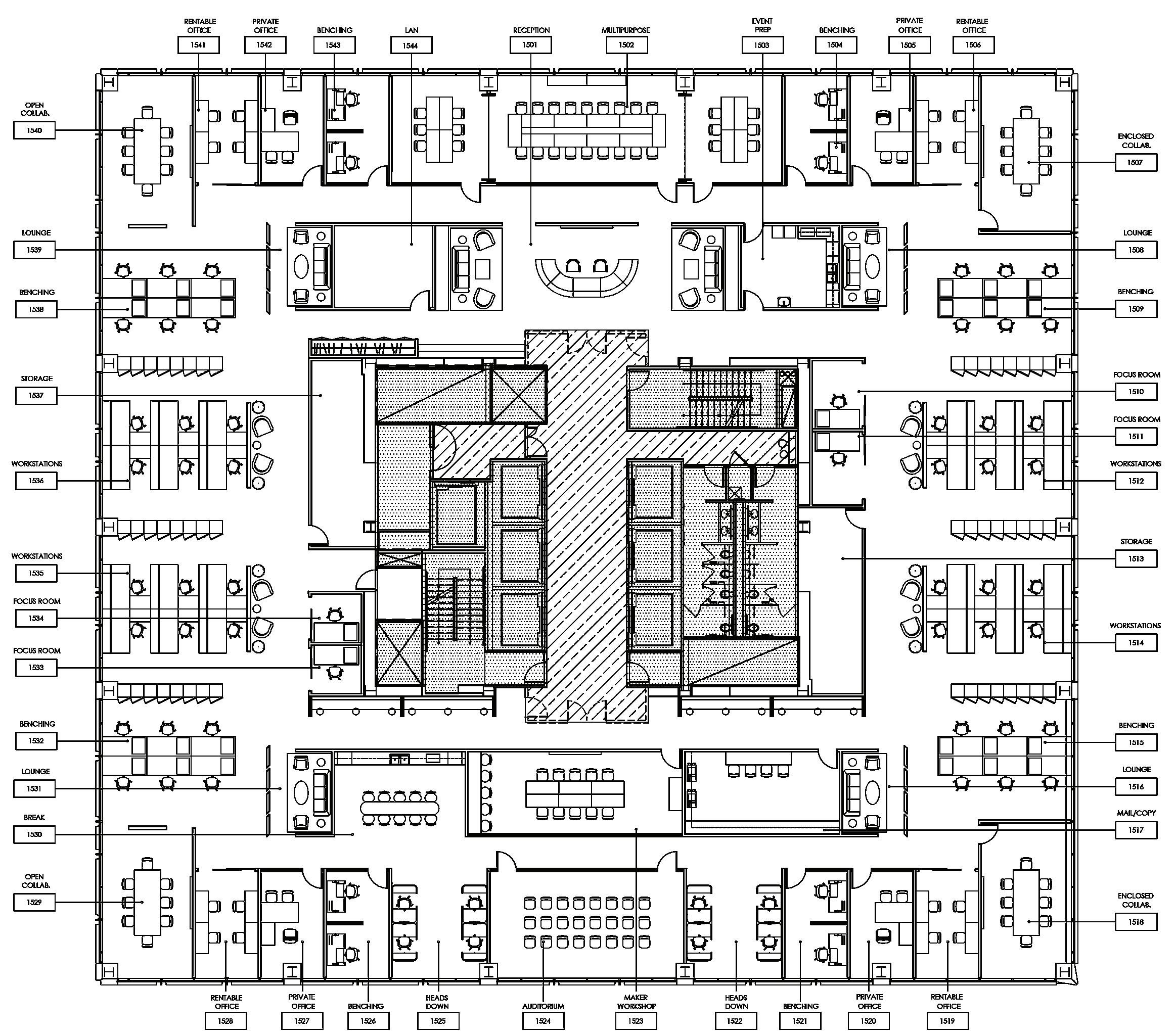

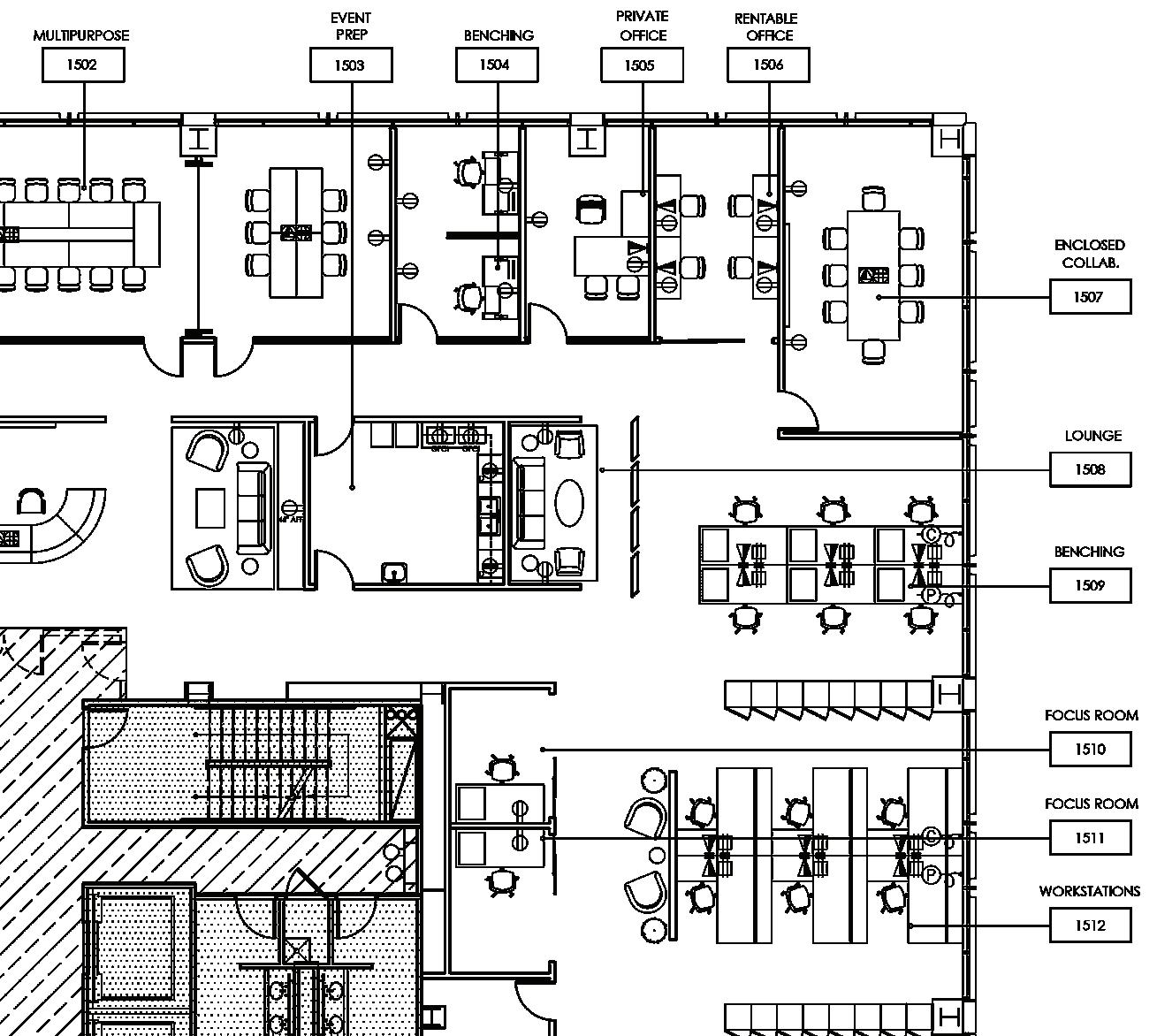

SPACE PLAN
All drawings produced in Autodesk AutoCAD - NTS - all scales to industry standards
06
REWORK: COWORKING
Office Design

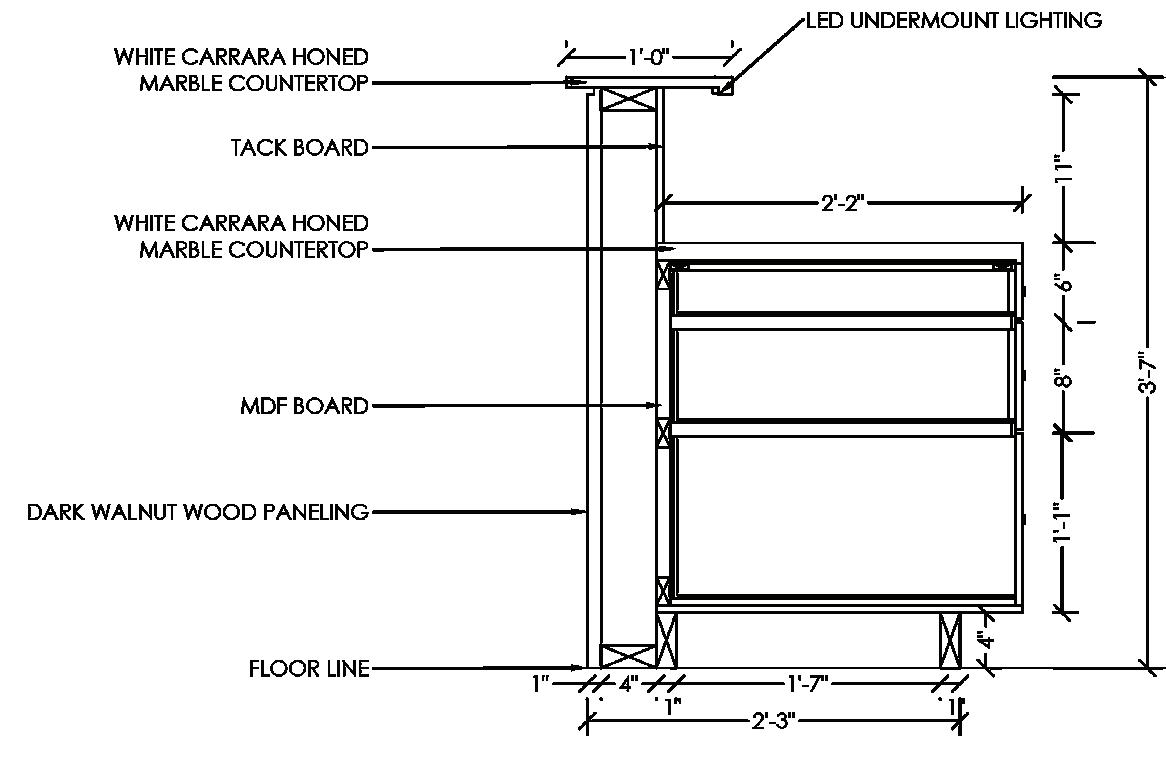

RECEPTION DESK SECTION SCALE: 1/2” = 1’- 0” FURNITURE SELECTIONS
LIGHTING SELECTIONS
1 - Visual Comfort Whare pendant in antique brass

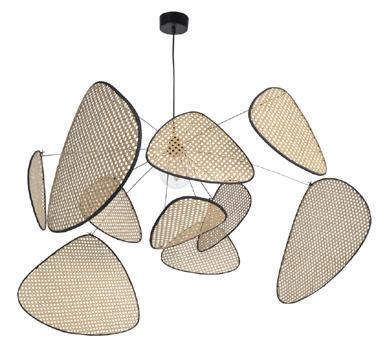

2 - Trouva large mobile rattan pendant

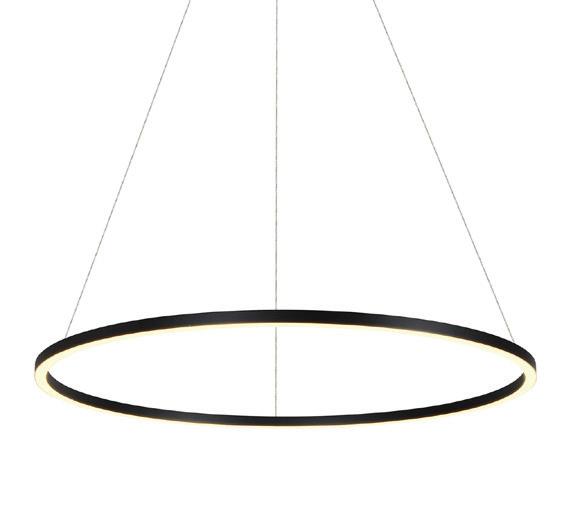

3 - Vonn Tania 60” integrated LED ring chandelier
4 - Vonn Artisan Lyra 16” pendant in brass
5 - Vonn Sirius 40” chandelier in black
6 - Vonn Procyron wall light in black

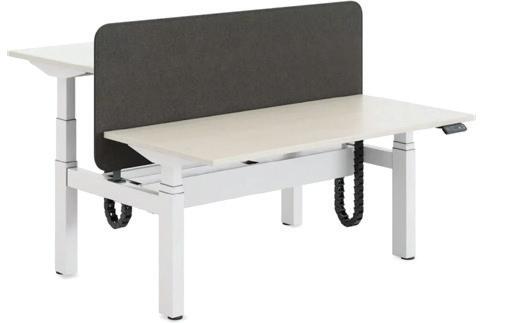

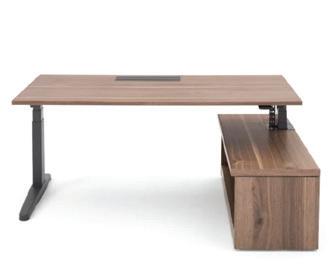

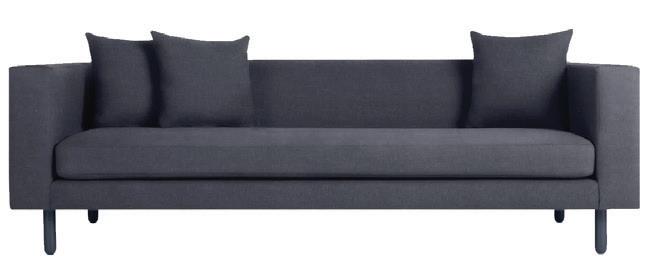

1 - Steelcase Council lounge chair 2 - Steelcase Mono lounge sofa 3 - Steelcase Sling barstool 4 - Steelcase Elective Elements height adjustable desk 5 - Steelcase Lagunitas
nook 6 - Steelcase
SE bench
- Steelcase
side chair

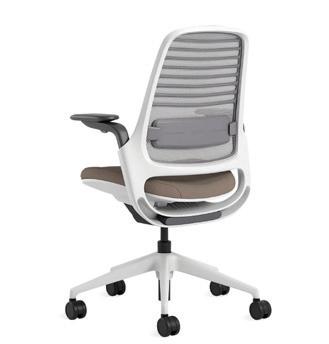

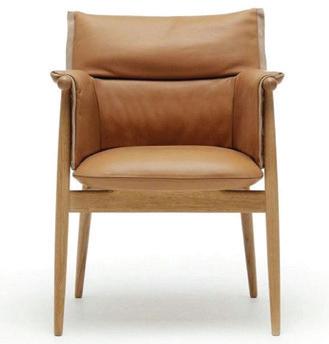

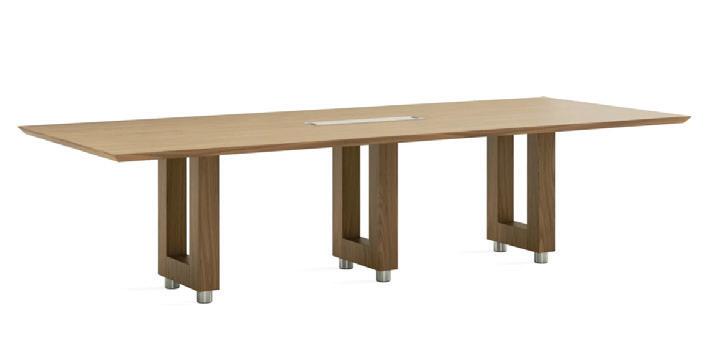

- Steelcase Series 1 office chair in Finesse 9 - Steelcase Currency conference table 10 - Steelcase Embrace wood frame chair POWER PLAN SCALE: 1/8” = 1’- 0” 1 2 1 2 3 4 5 LIGHTING PLAN SCALE: 1/8” = 1’- 0” 3 All lighting included in the space is LED for low energy consumption and high efficiency while still providing adequate illumination levels. Layered lighting is carefully considered within each space to provide flexibility and ensure maximum levels of performance. 4 5 6 6 7 8 9 10
focus
Migration
7
Dibs
8
Claire Sporer is a graduate from the College of DuPage with her Associates of Applied Science Degree in Interior Design. She is a self-motivated designer who is passionate about both Residential and Contract design. Claire’s education has enabled her to showcase her skills and abilities to create beautiful and functional spaces while utilizing her knowledge in furniture/fabric/finish selections. Claire prides herself in being a collaborative designer who is detail oriented and always comes to work with a positive attitude. Claire was selected by the faculty and served as a Department Aide from the Fall of 2023 - Spring of 2024. She is proficient in a variety of software programs such as Autodesk AutoCAD, Sketchup with Enscape, Adobe Photoshop, and Adobe InDesign. Claire tutored students in industry-relevant software due to her advanced knowledge in problem solving. She is skilled in 2D technical drawings, 3D models and renderings, space planning, and sketching. Claire was a finalist in the Kravet Design of Distinction Competition in the Fall of 2023 for her Historic Brownstone and was also selected to serve as a student juror for the FCCLA Interior Design Competition in the Spring of 2024.
