Cosentino Facade Brochure

COSENTINO FACADE ATTACHMENT SYSTEMS

Cosentino Facades

Cosentino Facades

Content 01 About Cosentino®

4

02 Sustainability

6

03 Dekton® by Cosentino

8

04 Advantages

10

05 25-year Warranty

11

06 Dekton ID

12

07 Certifications

14

07 Implementation and Support

16

08 Technical characteristics

17

09 Systems

19

10 Sizes, Formats and Thicknesses

44

11 Projects

46

DEKTON® BY COSENTINO Product Description & Characteristics

Inspire people through innovative and sustainable spaces.

About Us Cosentino® is an international family-owned company that produces and distributes surfaces that enrich architecture and design. Founded in 1979, the company today has 5 global brands that are considered industry standards. Its commitment to innovation has created an industrial park of more than 1,000,000 sqft which year after year continues to grow thanks to the passion of its more than 4000 employees around the world.

4

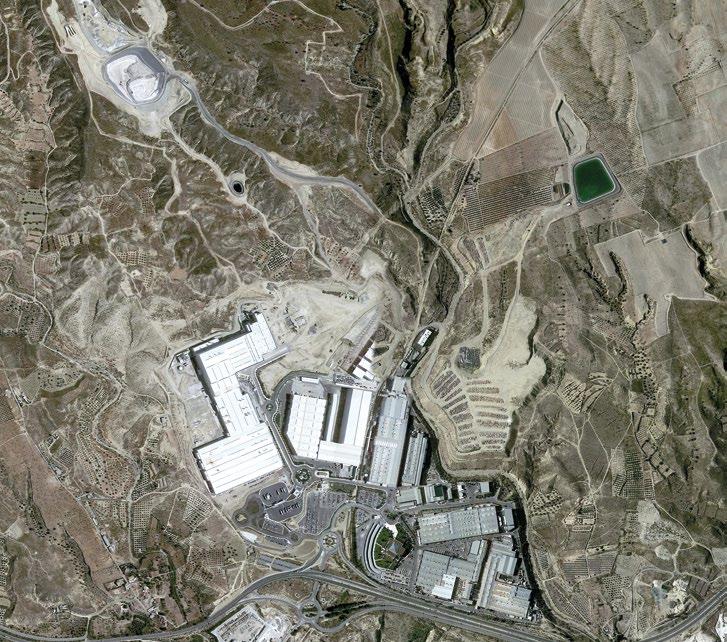

Cosentino's main offices® are located at the Cosentino Group Industrial Park® in Cantoria which is located in the province of Almería, Spain. These offices are the productive, administrative and logistical hub from which the Group manages and supervises its international distribution system.

Cosentino owns a global network of distribution that allows us to be close to our clients and partners. Cosentino provides service through 140 commercial and business units worldwide, in the form of 119 Cosentino Centers, 14 Cosentino Cities, and logistics hubs.

Cosentino has a strong presence in North America with Cosentino Centers, Cities, and Hubs in all major cities to support distribution.

Distribution is mainly carried out through Cosentino Centers, which combine the functions of a warehouse, brand and product showroom, and sales network, which receive materials from our Cosentino logistics hubs.

Toronto, and Montreal, and growing year over year.

Our Cosentino CENTERS are the heart of the company no matter where we might be in the world.

Our warehouses are available to those curious and passionate about design who may want to touch and see our products on a real scale.

Our Cosentino CITIES, which are located in some of the most iconic cities around the world, create spaces so that anyone can discover Dekton® and the latest market trends by using all five senses.

North America

Israel

43 Centers 2 Hubs 12 Workshops 8 Cosentino Cities

1 Center

Latin America

Europe 23 Centers 1 Cosentino City 14 Distributors

26 Distributors 1 Granite Factory 8 Centers

Iberia

Singapore

20 Centers 1 Cosentino City

1 Centers 1 Cosentino City

Australia

Turkey 3 Centers

3 Centers 1 Cosentino City 5

Very Close to Our Customers and their Projects

Montréal San Francisco Seattle Toronto Vancouver Washington

Product Description & Characteristics

Atlanta Boston Chicago Los Angeles Manhattan Miami

DEKTON® BY COSENTINO

North America is home to 45 Cosentino Centers and 8 Cosentino Cities

DEKTON® BY COSENTINO

Sustainability in the factory Cosentino is a leader in sustainable manufacturing and continually invests in new and cutting edge environmental improvements in the production processes.

→

Implementing actions aimed at eliminating or reducing air emissions from industrial installations.

→

Water treatment systems to recycle 99% of water with zero external spillage.

Dekton production implements the best available techniques (BATs), representing an investment exceeding 14 million euros.

→

Investments in sustainable mobility, energy efficiency, and creation of green spaces.

Over 2 kilometres of bike paths have been designed and bicycles purchased, an investment of over 50,000 euros.

→

Use of electric vehicles in the industrial park.

Sustainability in the factory

→

→

RETAILER

6

1

2

3

4

1

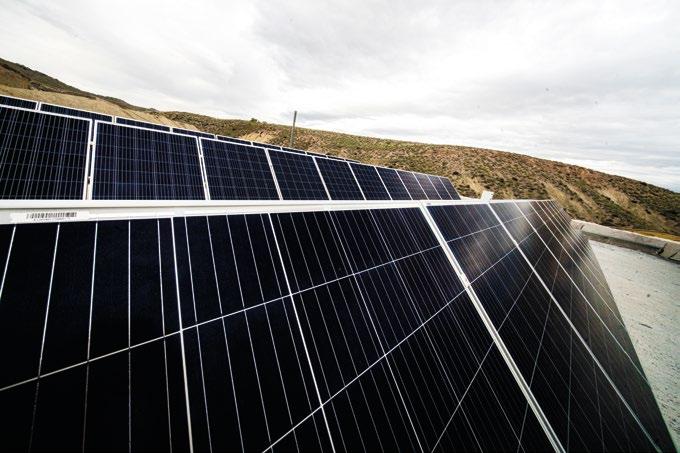

100% certified renewable electric energy

2

Raw materials

3

Recycled raw materials

4

99% recycled water

5

Factory

6

+1,011,807 sq ft. Green spaces

7

Cosentino City

8

Cosentino Center

9

Fabricator, kitchen and bathroom shops, architects and designers

10

End consumer

5

We produce 1.45 million m2 of products containing recovered or recycled materials Recovery of 33% of the waste generated

Use 19% more recycled water than in 2018

6

7

8

We promote sustainability Products with up to 25-year warranties

Our sustainable mobility strategy avoided 1,255 tons emissions of CO2 equivalent per year in 2019

Dekton® products represents the emission of 14.54 kg of CO2 per m2, 11% less than in 2018

9

Agreements signed with shipping companies In 2019 we have avoided the emission of 4,000 tons of CO2 equivalent

We renewed the ISO 14001:2015.

10

To achieve carbon neutrality in Dekton®, we offset our emissions over the entire product life cycle (scopes 1+2+3) by investing in GHG emission of setting projects.

For this purpose, we identify projects that meet the requirements for responsible offsetting and that, in turn, have a strong social dimension that contributes to the achievement of the Sustainable Development Goals of the UN's 2030 Agenda.

ZERO EMISSION STRATEGY

The ultra-compact surface, Dekton, is the only solid surface on the market certified cradleto-grave carbon neutral.

DEKTON® BY COSENTINO

Dekton Cradle-to-Grave CO2 Neutral

We offset our CO2 emissions over the entire product life cycle.

7

Sustainability in the factory

The project selected to offset the 42,532 tons of CO2 emissions resulting from one year of Dekton® production was the "Loma Los Colorados Land ll Gas Project" in Chile, which has a direct impact on sustainable development by supporting the local economy, providing training and job opportunities..

DEKTON® BY COSENTINO 8

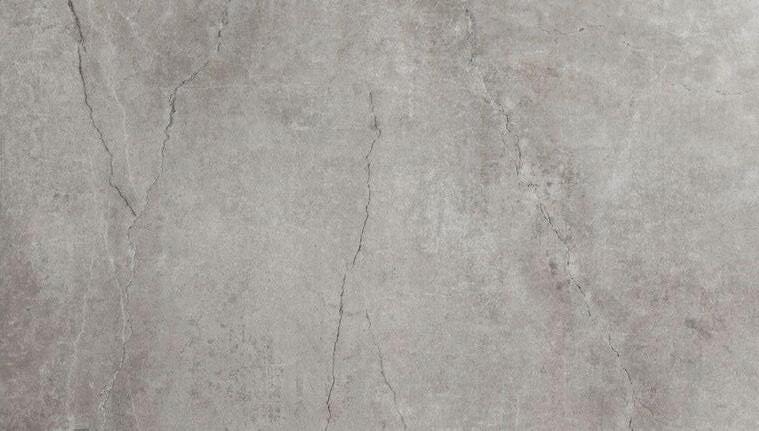

Strato - TECH Nadal Blue - CUSTOM COLORS

DEKTON® BY COSENTINO

What is Dekton®?

Dekton® is a sophisticated blend of more than 20 inorganic minerals that have been extracted from nature. Its production process is the result of years of learning and gathering inspiration from the manufacturing process of glass, state of the art porcelain and quarz surfaces.

The manufacturing of Dekton® uses exclusive TSP technology, which is capable of sintering mineral particles and causing them to bond molecularly with each other, as well as change and compact their internal structure. A unique and innovative technological process that involves an accelerated version metamorphic process by which natural stone is created, when the minerals are exposed for millennia to extreme pressure and extreme heat.

In the span of a few hours, Dekton® emulates what took nature thousands of years thanks to the exclusive TSP technology.

9

The extreme compaction and sintering process, which are exclusive to Dekton®, allows for extremely low porosity in the material. This reduced porosity and absence of microdefects that cause stress or weak points, are some of the differentiating qualities of Dekton® vs other surfacing materials.

DEKTON® BY COSENTINO Product Description & Characteristics

Advantages Dekton's technical features set it apart from other surfacing materials in all applications, but especially as a facade material.

^

9

3

Non-combustible material

Highly resistant to ultraviolet (UV) light

Superior mechanical resistance

Dekton® can withstand high temperatures without burning, scorching or cracking. European Standard EN 13501 and ASTM E84 testing, classifies Dekton® as a noncombustible material.

Dekton® is highly resistant to UV light and will not fade or degrade over time in any kind of outdoor application.

Dekton’s® variety of thicknesses allow it to be used in applications where resistance to wind or impact are a project requirement.

0

1

8

Low water absorption

Color durability

Scratch resistant

Dekton’s® water absorption is negligible so it does not undergo any expansion movement due to it.

Dekton’s® control of pigmentation and decoration in the manufacturing process provides better color consistency from one slab to another, resulting in a long lasting product that will not fade over time.

Dekton® is one of the most scratchresistant surfaces on the market.

2

7

5

Dimensional stability

Resistance to freezing and thawing

Abrasion resistant

Dekton® expansion is minimal so it can be installed between panels.

These joints will keep their width in all conditions.

Dekton®resistance to durability tests in freezing and thawing situations and its application in various weather conditions prove its high performance.

Dekton® is even more resistant to abrasion than granite and porcelain, making it the ideal surface for facades or high-traffic flooring in commercial applications.

10

4

6

Maximum fire and heat resistance

Easy cleaning and low maintenance

Stain resistant

Dekton® has been successfully installed on facades in areas exposed to high temperatures.

Graffiti can be removed from Dekton® with standard cleaning products.

Maintenance costs are reduced.

Dekton® is resistant to stains from a variety of sources so they can easily be removed without altering their finish.

*

25

YEAR

WARRANTY FACADES

Product Description & Characteristics

*See warranty for details

11

Cosentino has a specific team from the Quality Department, trained to provide on-site support. In addition, we have our Dekton® Trainers. Their mission is to provide training and the certification of workshops for the proper preparation of materials.

DEKTON® BY COSENTINO

Dekton® Warranty

DEKTON® BY COSENTINO 12

Colors and Surfaces - Dekton iD

Dekton iD is a breakthrough service

by Cosentino that enables the possibility to customize our Dekton® products.

DEKTON® BY COSENTINO

PRO Minimum quantities may apply

Combine any of our color bases.

Choose one of our textures.

Print a design, patterns, graphics, or even a logo or brand.

1

Base color

Base color selection

+

The first step is the selection of the base color. You can choose any Dekton® color or you can even choose a custom base color using a RAL or Pantone number.

=

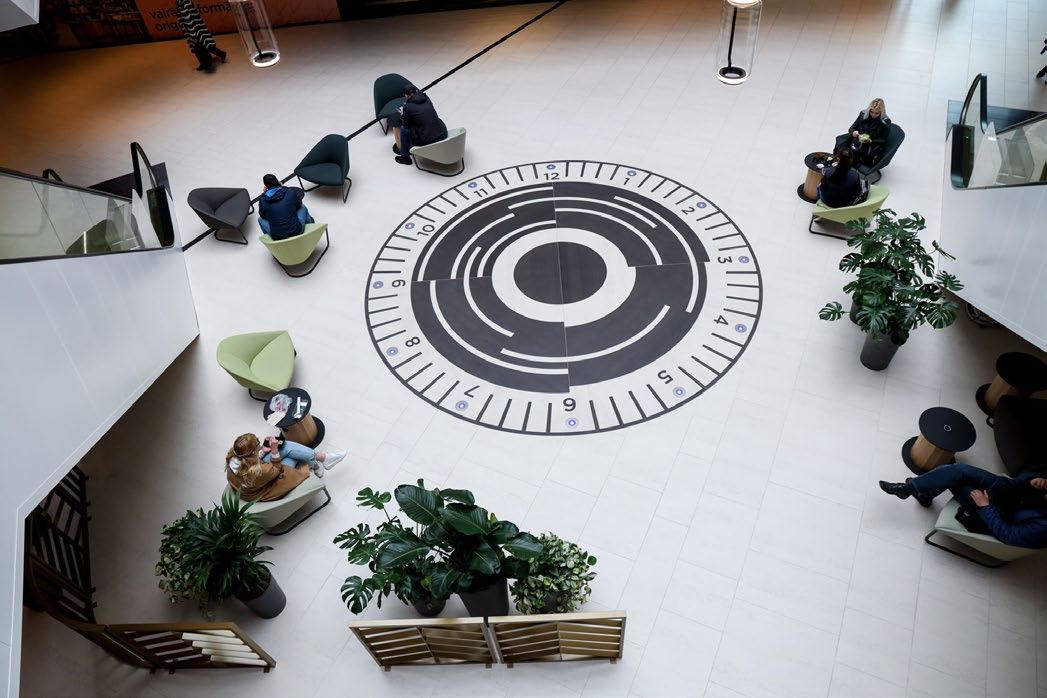

Design application onto Dekton® surfaces You can apply countless customized designs to Dekton® surfaces, as well as colors and grades that will transform its appearance.

3

Design

+

Custom design

+

Opera design

Texture selection

=

The different textures available, such as matte*, ultra-gloss, wood, and slate, to name a few, will provide the finish with attractive nuances and a unique feel.

4

=

Strato base

Colors and Surfaces - Dekton iD

2

Aeris base

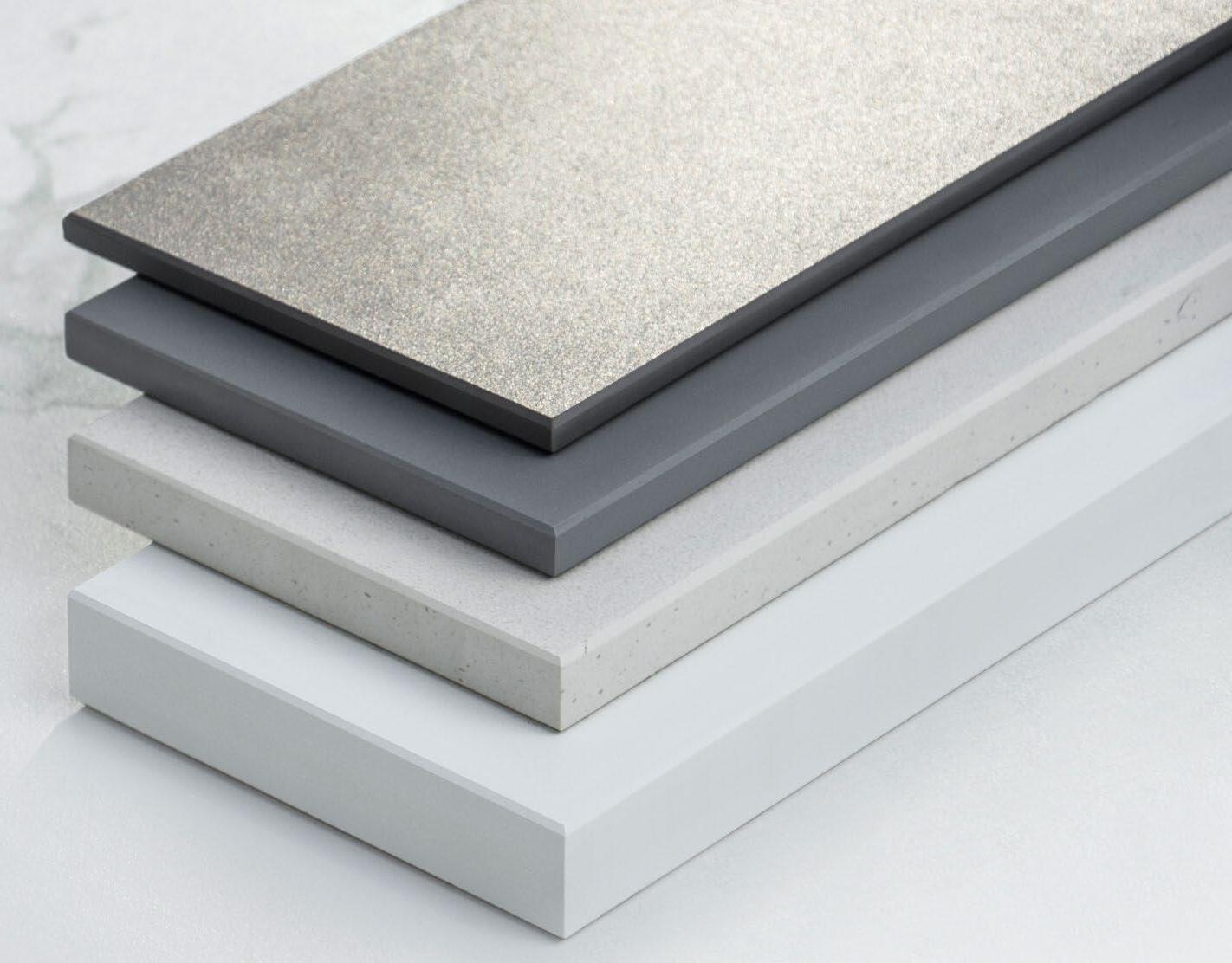

Thickness selection While Dekton® standard thicknesses are 4mm (5 ⁄ 32”), 8 mm (5 ⁄ 16”), 12 mm (1/2"), 20 mm (3/4") and 30 mm (1 3/16”).

Textures

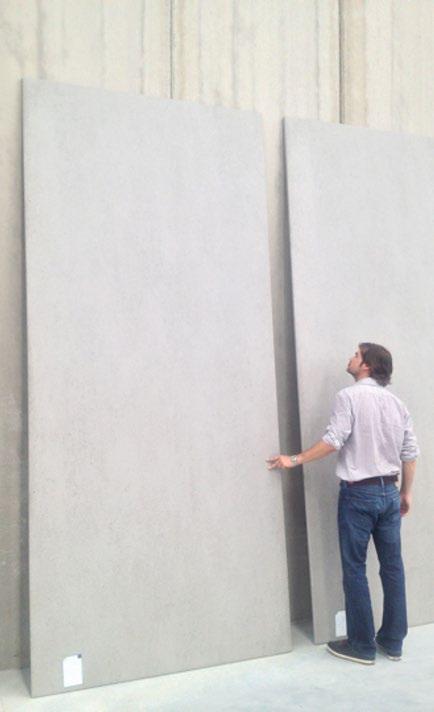

5 Dekton® large format slabs can be cut to size, regardless of the shape.

Velvet

Polished

Slate

Matte

Wood

Grip+

13

Cutting

DEKTON® BY COSENTINO Certifications 14

Certifications Dekton® has achieved, among others, the following prestigious certifications.

It is also subject to strict controls and tests, some of which are also listed below.

ISO 9001

ISO 14001

DGNB LABEL

ETA 14/0413

NOA

ICC - ESR 3721

BBA 16/5346

EPD

UL Greenguard

NFPA-285

Florida Code Approval

Other product certifications

Self-Declaration and Tests

Non combustible

VOC Eurofins

Non combustible. ASTM E 84

HPD

Non combustible in ASTM E 136

NCREE Earthquakes

15

Certifications

DEKTON® BY COSENTINO

DEKTON® BY COSENTINO Integral Services for International Projects

Implementation and Support A budget is drawn up for each part of the project based on the initial proposal, any changes suggested by the experts, any new designs and the inclusion of customised colors.

Project management and execution.

Production

Quality control

Guaranteed deadlines thanks to the link between the Project and Factory through our Project Manager.

Validation of production plans by the customer as well as the final product before loading and shipping.

Daily review of production date plans adjusting to work setbacks.

Each piece of the finished product is individually checked by our quality team.

Production factory: More than 140 workers.

Max capacity of 2,583,338 sq ft.CTS a month.

Support when receiving the material/piece from our Technicians, according to the project

Project Factory. Facades, flooring and cladding.

Max. capacity of 1,614,586 sq ft. month.

Packing

Logistics

Customized packaging. We pack all our materials treating each piece as an individual unit, adding specific protection in each case.

We manage the goods efficiently from point to point for the customer thanks to a Logistics and Planning team of more than 170 people.

Vertical or horizontal design possibilities.

More than 40 Containers and 20 trucks per day.

Choice of other specific materials - ECO Packaging.

Preferential agreements with the world's leading shipping companies.

Organization by lots, items and size.

Dry port in our facilities with capacity for more than 150 containers.

Information sheets (safety, material, use, maintenance, etc.)

Post-sales services Cosentino's specialized staff can travel for 'on-site' assessment and resolution.

Transportation insurance to guarantee the perfect condition of our shipment.

16

Monitoring and traceability of all shipments to their destination.

Training in the use and maintenance of the material in each application.

Agility in customs and ports.

DEKTON® BY COSENTINO

Technical characteristics ASTM

REGULATION

DETERMINATION

UD

FAMILY I

FAMILY II

FAMILY III

ASTM C370

Average humidity expansion

%

0.020

0.005

0.004

ASTM E-136

Combustibility Assessment

ASTM C648

Break Strength

Ibf

3.963

4.896

3.932

ASTM C674

Average rupture module

psi

10.828

13.997

9.005

ASTM C373

Average water absorption

%

0.03 (non-porous)

0.05 (non-porous)

0.01 (non-porous)

Dry adhesion and friction coefficient

-0

0.800

0.770

0.77

Dry and wet adhesion and friction coefficient

-0

0.660

0.560

0.69

182.23

337

240

ASTM C1028

Non-Combustible

ASTM C501

Average wear index because of abrasion

ASTM C484

Thermal Shock Resistance

-

Not Affected

Not Affected

Not Affected

ASTM C482

Average adhesion strength

psi

423

437

357

Acetic acid, 3% (v/v)

-

Does not affect

Does not affect

Does not affect

Acetic acid, 10% (v/v)

-

Does not affect

Does not affect

Does not affect

Ammonium chloride, 100 g/l

-

Does not affect

Does not affect

Does not affect

Citric acid solution, 100 g/l

-

Does not affect

Does not affect

Does not affect

Lactic acid, 5% (v/v)

-

Does not affect

Does not affect

Does not affect

Phosphoric acid, 3% (v/v)

-

Does not affect

Does not affect

Does not affect

Phosphoric acid, 10% (v/v)

-

Does not affect

Does not affect

Does not affect

Sulfamic acid, 30 g/l

-

Does not affect

Does not affect

Does not affect

Sulfamic acid, 100 g/l

-

Does not affect

Does not affect

Does not affect

Chemical pool products

-

Does not affect

Does not affect

Does not affect

Sodium hypochlorite solution, 20 mg/l

-

Does not affect

Does not affect

Does not affect

Acids and bases

-

Does not affect

Does not affect

Does not affect

Hydrochloric acid solution, 3%

-

Does not affect

Does not affect

Does not affect

Hydrochloric acid solution, 18% (v/v)

-

Does not affect

Does not affect

Does not affect

Potassium hydroxide, 30 g/l

-

Does not affect

Does not affect

Does not affect

Potassium hydroxide, 100 g/l

-

Does not affect

Does not affect

Does not affect

Average Water Absorbtion

%

0.020

0.040

0.02

Average density

lb/ft2

156

160.63

157.6

Average condition of dry rupture

psi

8128

9.042

7.369

Average condition of wet rupture

psi

7.490

8.446

7.480

Average condition of dry flexibility

psi

6.840

3.118

5.858

Average condition of wet flexibility

psi

6.205

4.187

5.119

Average strength condition of dry compression

psi

34.409

>55.000

44.882

Average strength condition of wet compression

psi

17.823

>55.000

40.165

Average abrasion index

-

349

349.48

265.8

ASTM C650

Technical Specifications

Daily use cleaning products

ASTM C99

ASTM C880

ASTM C170 ASTM C1353

*View references by families.

17

ASTM C97

DEKTON® BY COSENTINO DKT1

Cap Ferrat by Juan Carlos Di Filippo, Rio de Janeiro, Brasil

18

Danae - NATURAL

Ventilated Facade - DKT1 Undercut Anchor System Discreet fixing system using hidden clips anchored to the panel via an undercut screw on the back of the panels.

DEKTON® BY COSENTINO

DK T1

Each panel has two adjustment points and a fixed point at the top, which makes possible the adjustment while preventing undesirable movements of the entire plate.

The panels are fixed to the wall by hanging the clamps in the horizontal profiles.

The DKT1 system provides ultra design flexibility with a wide range of panel sizes, shapes, and designs, the possibilities are endless!

Available

Notes

8 mm

"

Unlimited

12 mm

"

Unlimited

20 mm

"

Unlimited

19

Thickness

DKT1 - Introduction

Available

DEKTON® BY COSENTINO DKT1 - Diagram 20

DKT1 SYSTEM | DIAGRAM

Ventilated Facade - DKT1 Undercut Anchor System

DEKTON® BY COSENTINO

Construction Detail

13 8

6 13 4 8 5 11 6 3 4 5 6 11 8 3

6 13 4 8 5 11 6 3 4 5 6 11 8 3

12 6 7 8 2

12 6 7 8 2

12 6 7

12 6 7

9 2 10 6

9 2 10 6

3 10 12 8 3 107 12 58 11 7 1 5911

DETAIL 1 DETAIL - VERTICAL 1 - VERTICAL SECTION SECTION

9 9 Vertical section 10

10

2 11 7

6 2 11 12

6 2 11 12

6

6

8 12

8 12

4 8 5 6

4 8 5 6

3 4

3 4

5 6

5 6

3

3

9 10

9 10

Horizontal section

31

9

3

DETAIL 2 DETAIL - HORIZONTAL 2 - HORIZONTAL SECTION SECTION

3

DETAIL 3 DETAIL - VERTICAL 3 - VERTICAL SECTION SECTION 9 9 10 10 1 - DEKTON 1 - DEKTON DETAIL 3 DETAIL -2CLIP VERTICAL 3 - CLIP VERTICAL SECTION SECTION 2 - FIXING - FIXING Vertical section 3 - TRAGPROFILE 3 - TRAGPROFILE 4 - DRILLING SCREW SCREW 4 - DRILLING 15 -- DEKTON 15 -- DEKTON ADJUSTABLE CLASPS CLASPS ADJUSTABLE 2 -- SELF-DRILLING FIXING6 2CLIP FIXINGSCREW CLIP 6 -- SELF-DRILLING SCREW 3 TRAGPROFILE 3 7 --Dekton VERTICAL PROFILE PROFILE 7 -- TRAGPROFILE VERTICAL 1.

8. "L" Separator 4 DRILLING SCREW 4 DRILLING SCREW 8 - "L" BRACKET 8 - "L" BRACKET 5 ADJUSTABLE CLASPS 5 ADJUSTABLE CLASPS 2.

Fixed attachment clip 9 - THERMAL INSULATION 9 - THERMAL INSULATION 9. Thermal isolation 6 - -SELF-DRILLING 6 - -SELF-DRILLING 10 WALL10 WALLSCREW SCREW 3.

Horizontal profile 10. Support wall 7 - -VERTICAL PROFILE 7 - -VERTICAL PROFILE 11 KEIL UNDERCUT ANCHOR 11 KEIL UNDERCUT ANCHOR 8 - Drilling BRACKET 8 - screw BRACKET 12 -"L" THERMAL BRIDGE BREAK 12 -"L" THERMAL BRIDGE BREAK 4.

11. Keil anchor or 9 - -THERMAL INSULATION 9 - -THERMAL 13 COPING 13 COPING INSULATION 5.

Adjustable other approved 10 - WALL10 - WALL 11 - KEIL UNDERCUT ANCHOR ANCHOR 11 - KEIL UNDERCUT attachment clip anchoring system 12 - THERMAL BRIDGE BREAK 12 - THERMAL BRIDGE BREAK 13 Auto-drilling - COPING 13 - COPING 6. screw 12. Thermal bridge break

7. Vertical profile

3

DKT1 - Details

2 11 7

9

DETAIL 2 DETAIL - HORIZONTAL 2 - HORIZONTAL SECTION SECTION 3 10 12 8 3 107 12 58 11 7 1 5911

7 7 DETAIL 1 DETAIL - VERTICAL 1 - VERTICAL SECTION SECTION

31

6

37

68

7 10 81

9 10

21 5 9 4

254

DETAIL 4 DETAIL - HORIZONTAL 4 - HORIZONTAL SECTION SECTION 3

6

37

68

7 10 81

9 10

21 5 9 4

254

DETAIL 4 DETAIL - HORIZONTAL 4 - HORIZONTAL SECTION SECTION

Horizontal section

DKT1 / VENTILATED DKT1 / VENTILATED FACADE SYSTEM FACADE SYSTEM

DKT1 / VENTILATED DKT1 / VENTILATED FACADE SYSTEM FACADE SYSTEM

13. Padding

21

13 8

DEKTON® BY COSENTINO DKT2

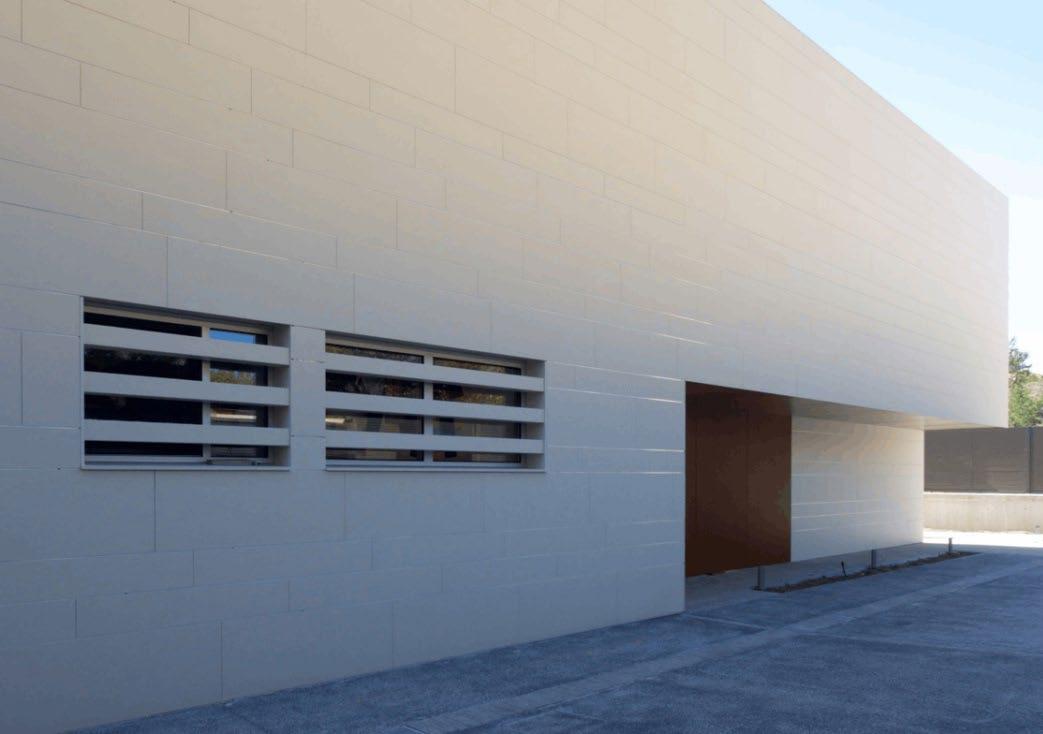

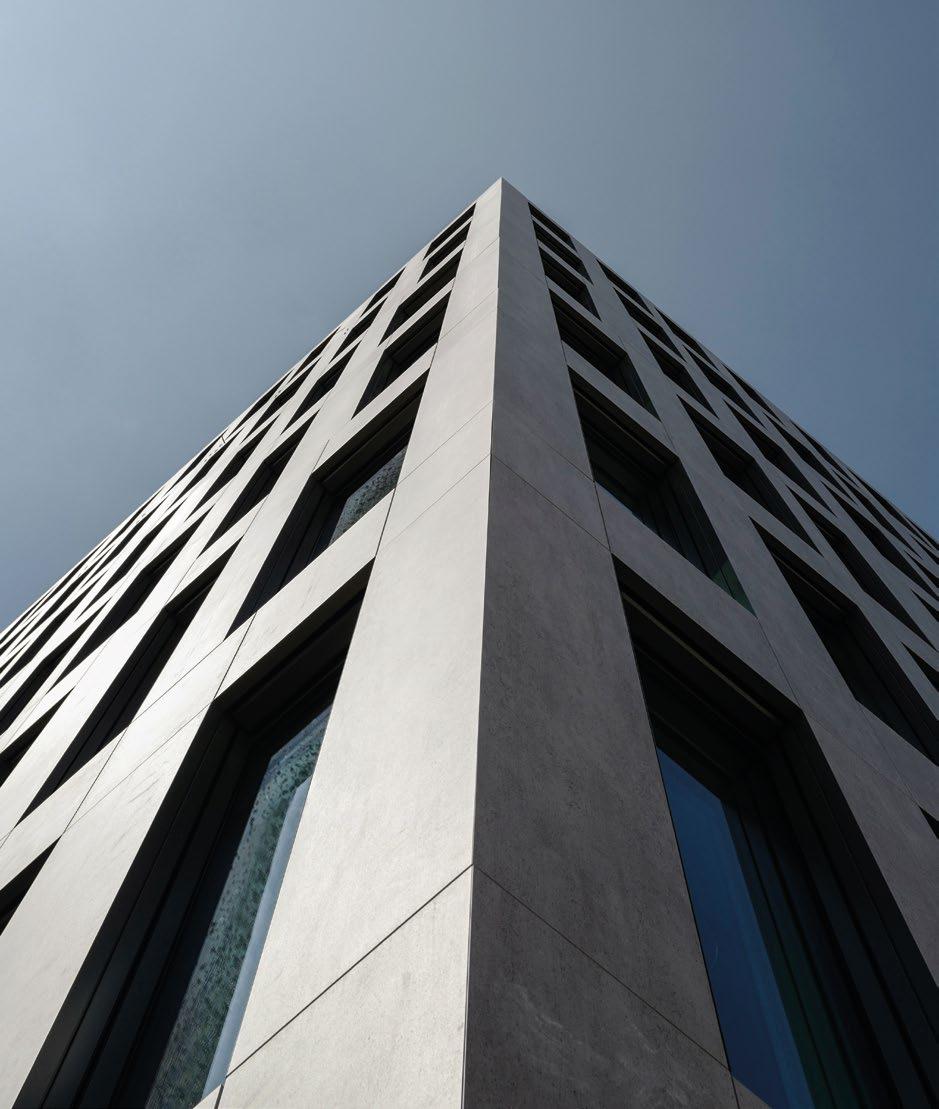

Aravaca

22

Warm - CUSTOM COLORS Korus - SOLID

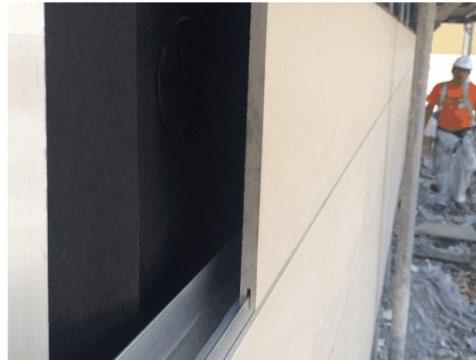

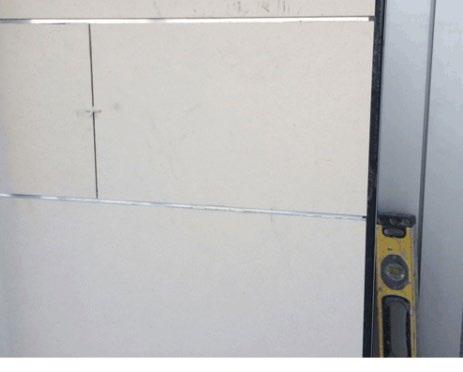

Ventilated Facade - DKT2 Continuous Grooved Edge System DKT2 concealed fixing system by using a continuous profile housed in grooves made in the horizontal edges of the panels.

DEKTON® BY COSENTINO

DK T2

Especially apt for large façade surfaces with horizontal modulations.

There are maximum panel sizes with this type of system.

Thickness

Available

12 mm

"

20 mm

"

23

Available

DKT2 - Introduction

The horizontal profiles that serve as fixing for the panels are anchored on a vertical structure.

DEKTON® BY COSENTINO 24

Ventilated Facade - DKT2 Continuous Grooved Edge System

DEKTON® BY COSENTINO

DK T2 Construction Detail

1

1

6 1

6 1

6 3

6 3

3 8

3 8

7

7

4 4 8 8 6 6 7 7 2 2 6 6 4 4 5 5 16 16 2 2 6 6 5 5 DETAIL VERTICAL SECTION SECTION 1 1 -DETAIL 1 1 - VERTICAL

7

18 9

1 9

Vertical section

DETAIL 2 -DETAIL HORIZONTAL 2 - HORIZONTAL SECTION SECTION Horizontal section 46 2 3 6 5 37 58 7 4 2

18 9

1 9

8 8 DETAIL 1 -DETAIL VERTICAL 1 - VERTICAL SECTION SECTION

DETAIL 2 -DETAIL HORIZONTAL 2 - HORIZONTAL SECTION SECTION

6 8 2

6 8 2

6 2

6 2

5

5

6 5

6 5

4 6

4 6

4 7

4 7

1

1

7

7

1 1 DETAIL 3 -DETAIL VERTICAL 3 - VERTICAL SECTION SECTION

4

2

1

Vertical section

3 - VERTICAL 3 - VERTICAL PROFILE PROFILE 4 - "L" BRACKET 4 - "L" BRACKET 1 DEKTON 1 DEKTON 5 - MECHANICAL 5 - MECHANICAL ANCHOR ANCHOR 2 -- SELF-DRILLING HORIZONTAL 2 PROFILE 6 6 -- HORIZONTAL SELF-DRILLING SCREWPROFILE SCREW 3 -- THERMAL VERTICAL 3 PROFILE INSULATION PROFILE 7 7 -- VERTICAL THERMAL INSULATION 7. Thermal insulation 4 "L" BRACKET 4 "L" BRACKET 1.8 Dekton - WALL 8 - WALL 5 -- ADHESIVE MECHANICAL 5 -- MECHANICAL ANCHOR ANCHOR 8. Structural Wall 9 9 ADHESIVE 2. profile 6 -Horizontal SELF-DRILLING 6 - SELF-DRILLING SCREW SCREW 9. Adhesive 7 THERMAL 7 THERMAL INSULATION INSULATION 3. Vertical profile 8 - WALL 8 - WALL 4.

Separator 9 -"L" ADHESIVE 9 - ADHESIVE

2

2 3 6

5

37

16 3 2 6 64 3

58

56 4 7

8 5

7

8

8 5

7

8

DETAIL 4 -DETAIL HORIZONTAL 4 - HORIZONTAL SECTION SECTION 1

1 - DEKTON 1 - DEKTON DETAIL 3 -DETAIL 3 - VERTICAL SECTION SECTION 2 - HORIZONTAL 2VERTICAL - HORIZONTAL PROFILE PROFILE

6 4

2

16 3 2 6 64 3

56 4 7

DETAIL 4 -DETAIL HORIZONTAL 4 - HORIZONTAL SECTION SECTION

Horizontal section

®

DKT2 / VENTILATED FACADE SYSTEM DKT2 / VENTILATED FACADE SYSTEM

DKT2 / VENTILATED FACADE SYSTEM DKT2 / VENTILATED FACADE SYSTEM

25

5. Mechanical anchor 6. Auto-drilling screw

26

DKT4

DEKTON® BY COSENTINO

DEKTON® BY COSENTINO

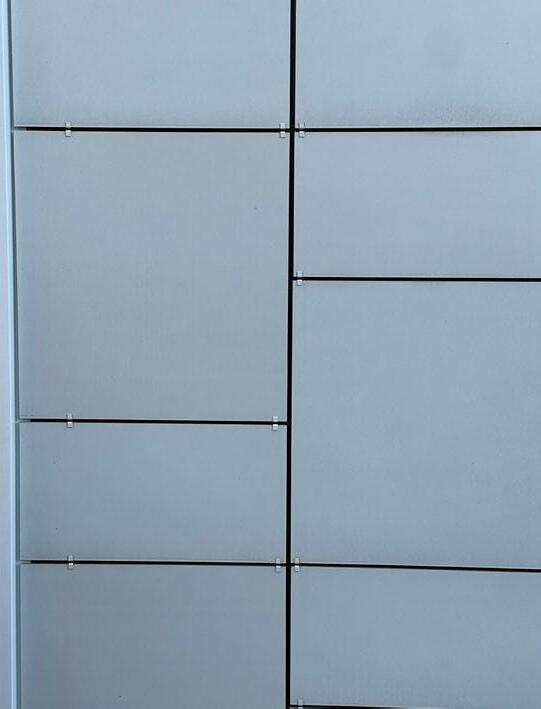

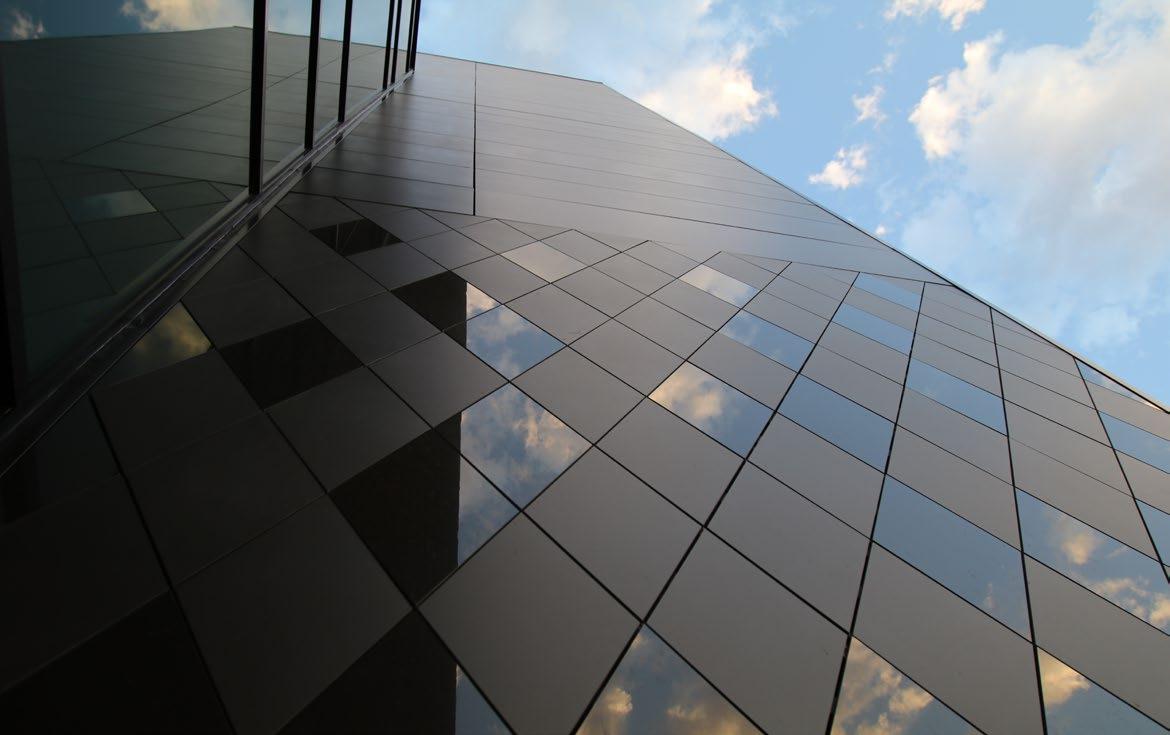

DK T4 Visible Clip Attachment System (joints) between consecutive pieces.

Although this type of attachment is fairly flexible in adapting to the thickness of the material, it is ideal for the smaller sizes, lighter weights and smaller thicknesses.

DKT4 - Introduction

In the DKT4 system of visible attachment, the piece is shown as it is, with the attachment tabs of the upper and lower pieces visible to the eye. The clips hold both pieces and keep them in line with the plane of the façade, as well as maintaining the distances

Thickness

Available

8 mm

"

12 mm

"

27

Available

28

DKR

DEKTON® BY COSENTINO

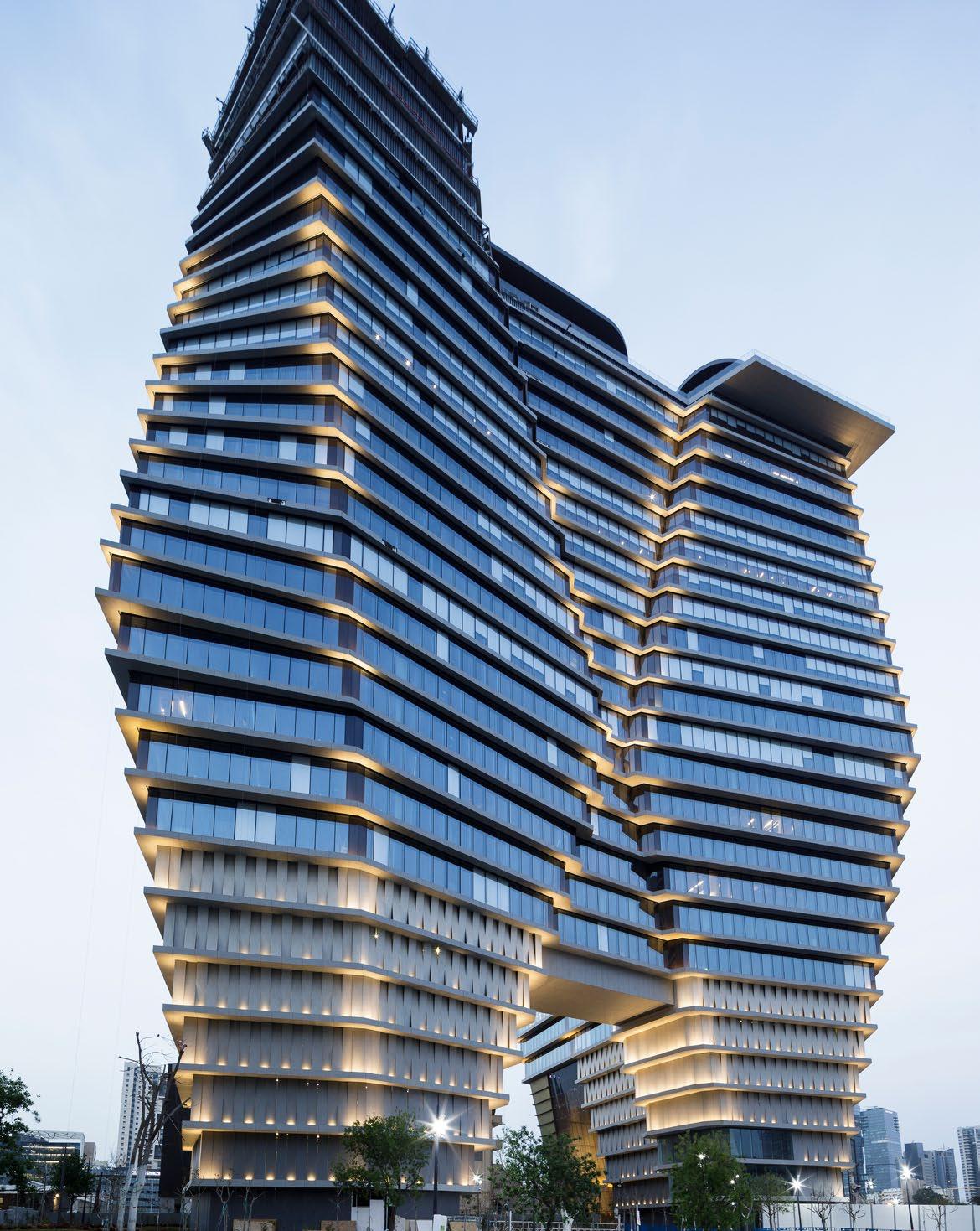

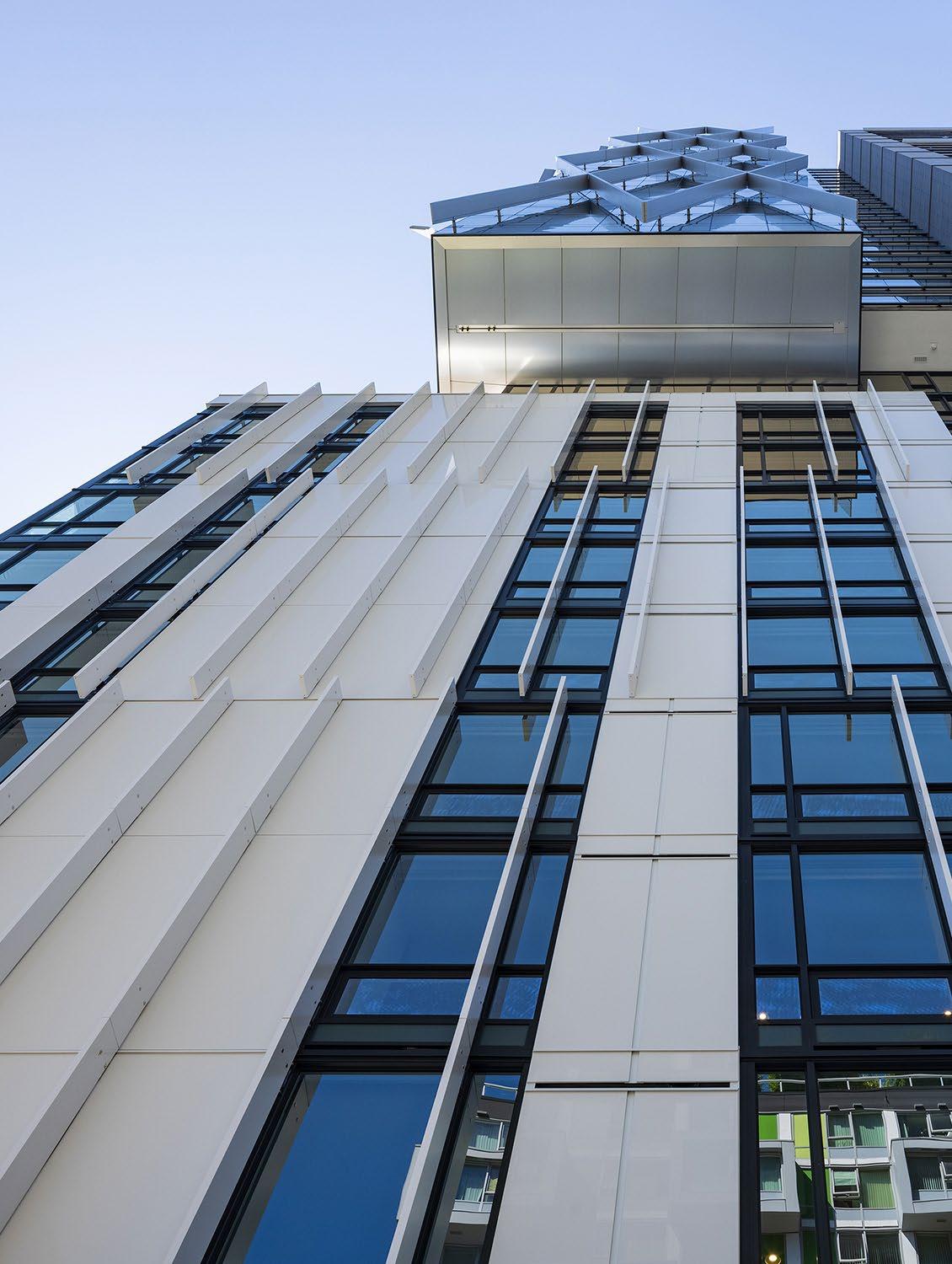

Elan Center, Israel.

DEKTON® BY COSENTINO

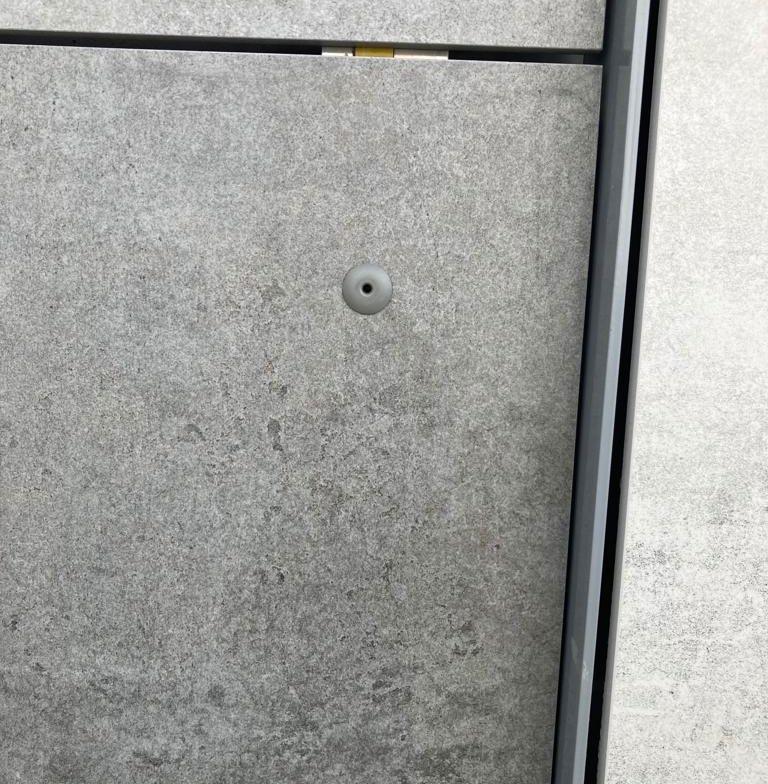

DK R Rivet fixing System DKR mechanical fixing of exposed struts with rivet.

The Maximum size is 130” x 63” Cutting: Vertical and Horizontal.

Commercial advantages: Fixing with aluminium rivet in Dekton color.

Complete system.

Easy and quick installation.

High installation performance.

Thickness

Available

4 mm

"

8 mm

"

DKR - Introduction

Available

Elan Center, Israel.

29

Mechanical fixing of exposed struts with rivet

DEKTON® BY COSENTINO DKC 30

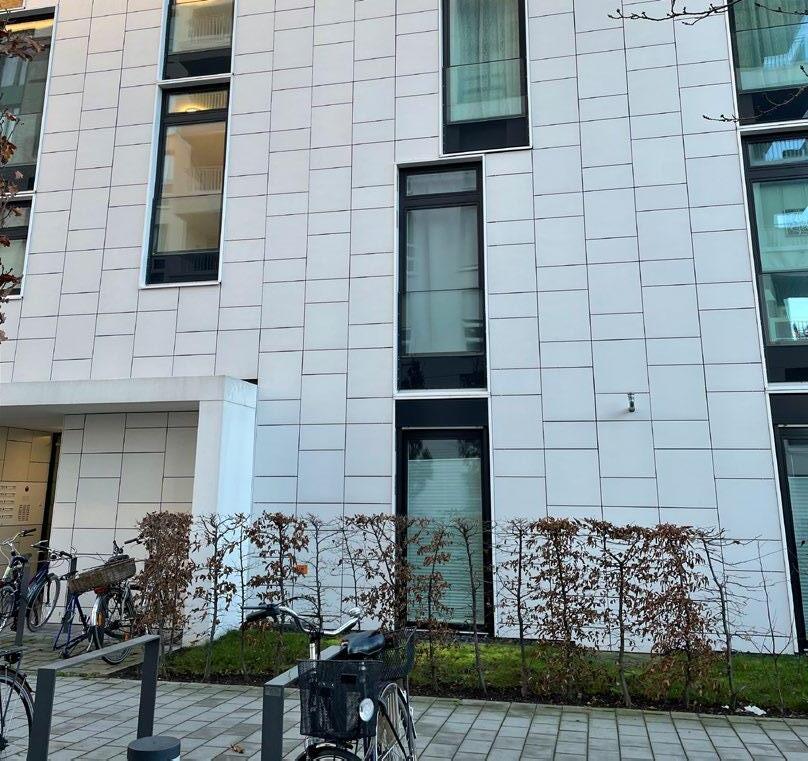

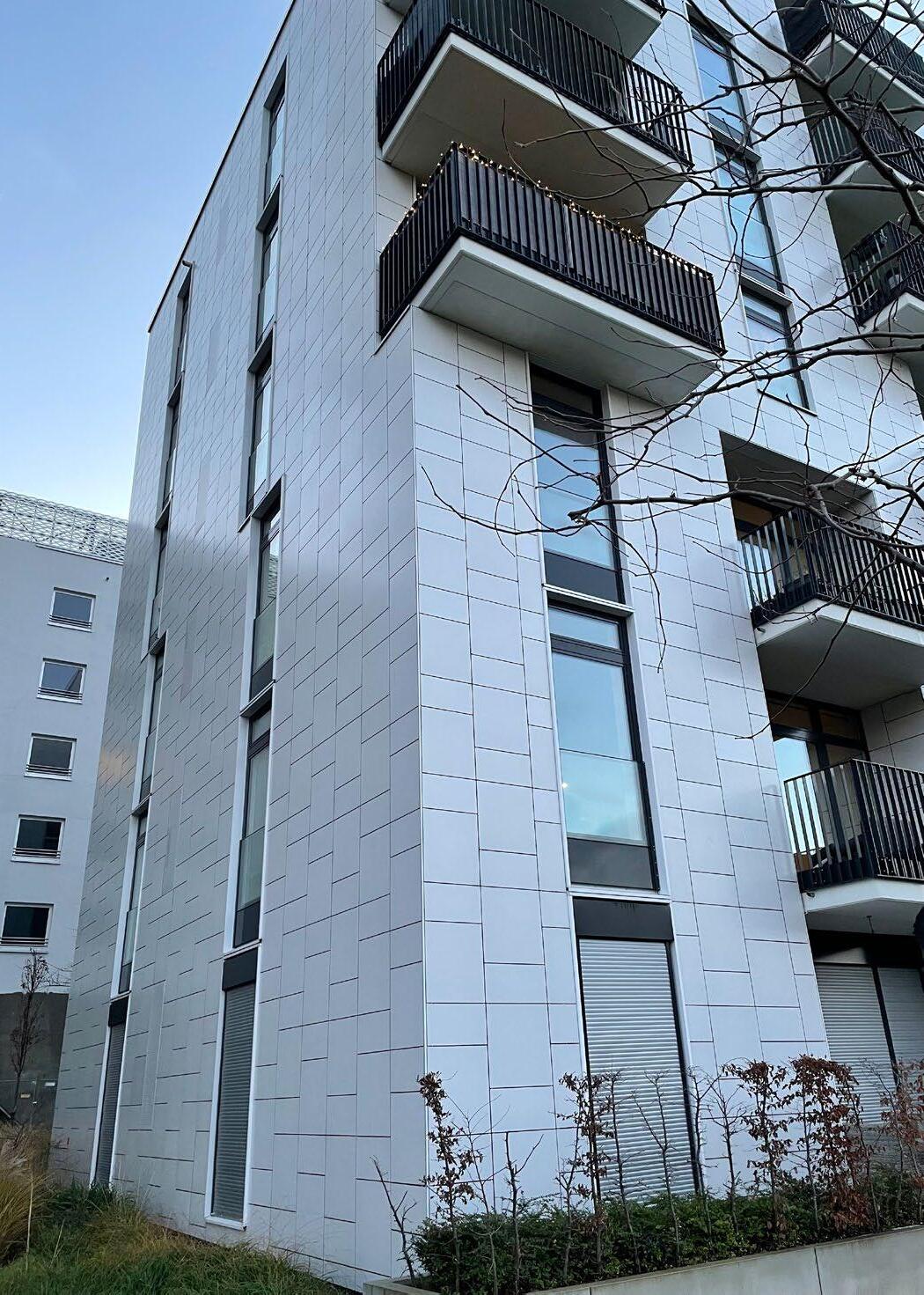

Zeeduin renovation project. Nieuwpoort, Belgium

DEKTON® BY COSENTINO

DK C Chemical Anchor System DKC is a completely chemical attachment system, which allows panels to be glued directly to the supporting substructure with structural adhesives, avoiding any need for drilling the panels. Starting from a profile, two strips of double-sided tape are placed in the center while they are added to the perimeter of said profile.

During attachment, the double-sided tape secures the piece while the adhesive is curing. You can work with a wide range of formats and even design pre-assembled elements in the factory. This system allows a wide range of thicknesses, with 8 mm (0.315 in) being the most common.

DKC - Introduction

.

Thickness

Available

4 mm

"

8 mm

"

31

Available

DEKTON® BY COSENTINO

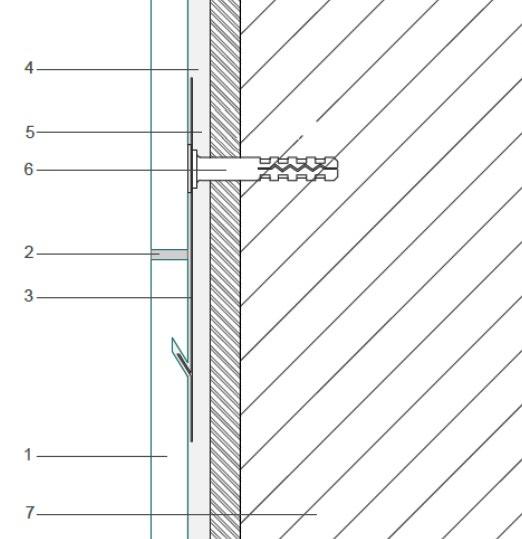

Direct Adhere System on Traditional Support - DKB

1

Support Wall

4

Safety Clips*

2

Regularization Layer

5

Dekton

3

Adhesive

6

Grouting

3

1

2 6

4

5

32

* Safety clips are optional. Check local codes for more information

DEKTON® BY COSENTINO

DK B Construction Detail

Detail - Vertical Section 1- Dekton 2- Water proof joint material 3- Safety Clip* 4- High-perfomance deformable cement-based adhesive 5- Regularization layer 6- Mechanical anchor 7- Support wall * Safety clips optional 33

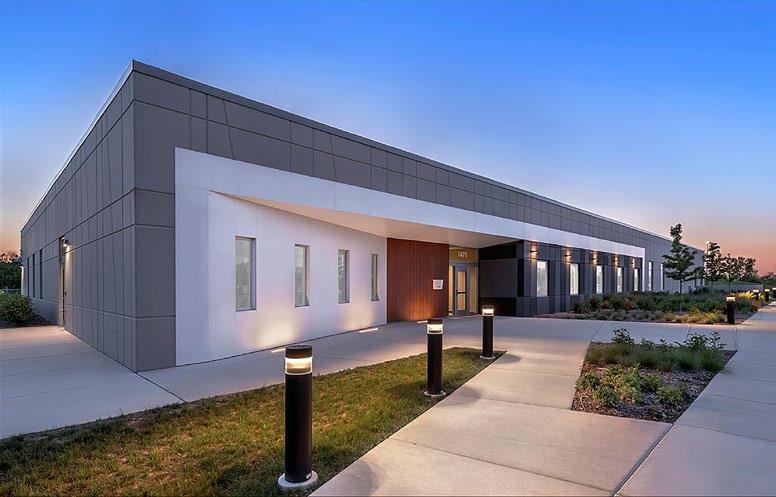

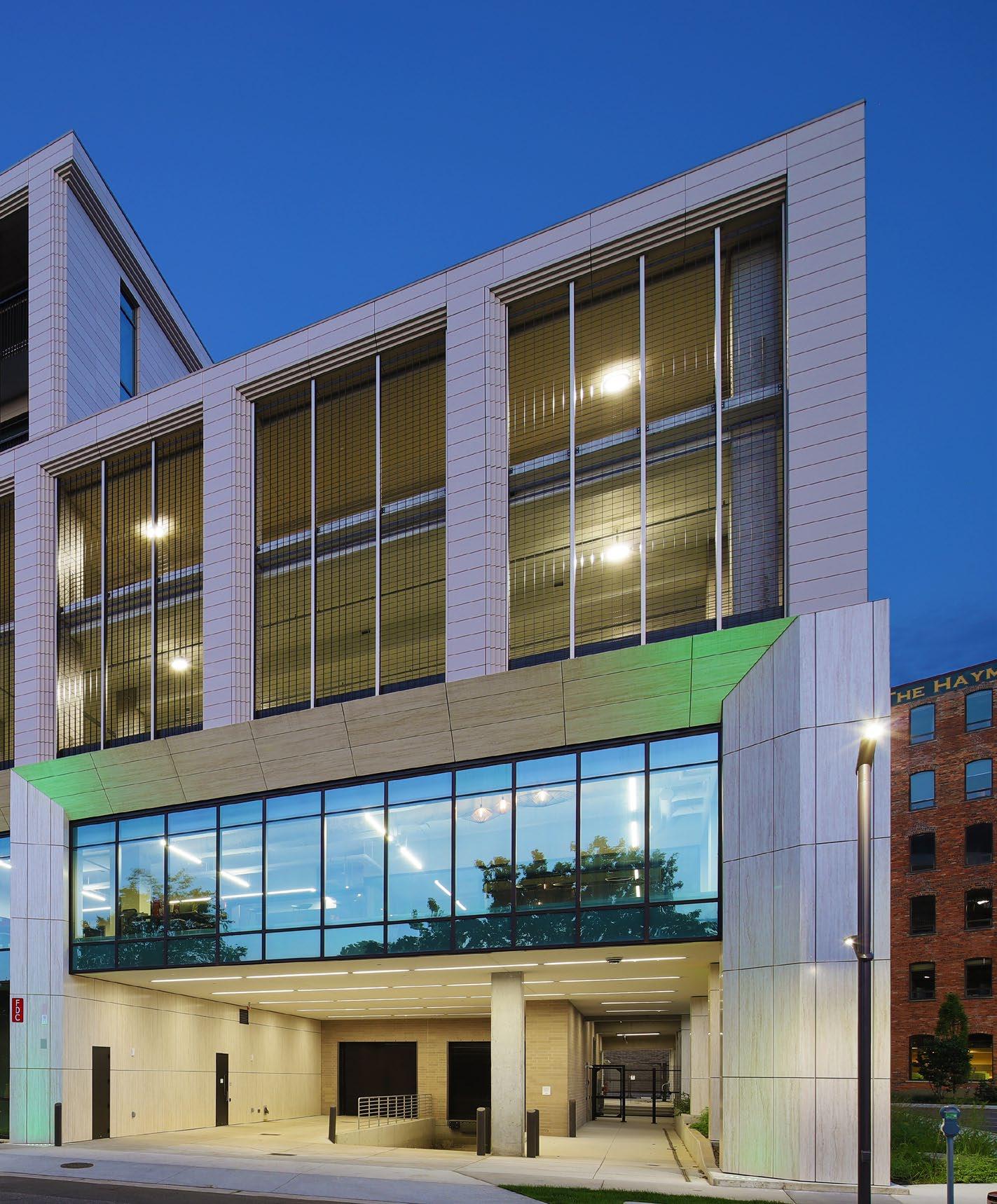

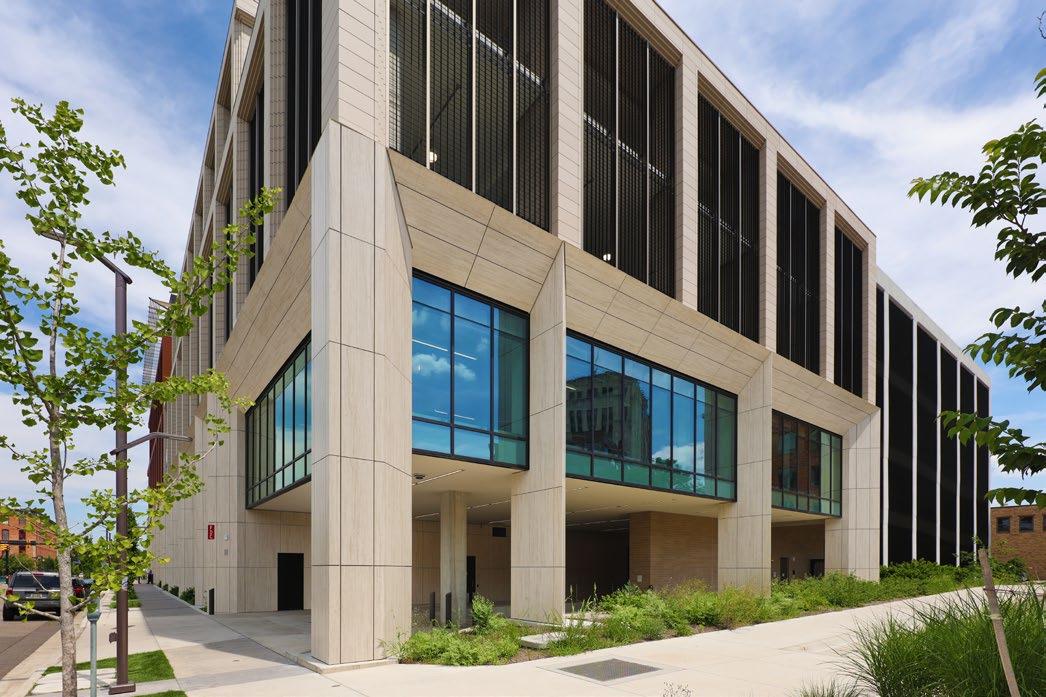

Addison Police Consolidated Dispatch Center

DEKTON® BY COSENTINO 34

Curtain Wall Traditional Captured Curtain Wall Traditional SSG Curtain Wall Unitized Curtain Wall Unitized SSG Curtain Wall

35

DEKTON® BY COSENTINO

DEKTON® BY COSENTINO

Curtain Wall

D

E A

B

2

C

F

ELEVATION

6

6

2

7

6

6

7 5

2 7

5

5

5 3

1/2" [12.0mm]

3

4

36

1/2" [12.7mm]

2 1/2" [63.5mm] F.W.

4

1

1

DLO

DLO

1 2 1/2" [63.5mm] F.W.

DLO

1 DLO

2 1/2" [63.5mm] F.W.

R.O.

R.O.

R.O.

A

B

C

JAMB DETAIL 12mm DEKTON INFILL

VERTICAL DETAIL 12mm DEKTON INFILL

JAMB DETAIL 12mm DEKTON INFILL

1/2" [12.7mm]

COSENTINO GROUP / Ctra. A334 Baza-Huércal Overa, km 59 / 04850 Cantoria (Almería) /España (Spain) www.cosentino.com

DLO

HORIZONTAL DETAIL 12mm DEKTON INFILL

DEKTON® BY COSENTINO

8

2

1

5

1

5

7

7

2 1/2" [63.5mm]

F.H.

E

R.O.

DLO

DLO

HEAD DETAIL 12mm DEKTON INFILL

4

2 1/2" [63.5mm]

F.H.

D

R.O.

3/4" [19.1mm]

3

6

6

2

1

5

6

5

6

1/2" [12.7mm]

SILL DETAIL 12mm DEKTON INFILL

7 2

4

8

3

DEKTON PANEL CURTAINWALL SYSTEM BUILDING CONDITION PRIMARY SEAL INSULATION BACKPAN BACKPAN FASTENER CURTAINWALL ANCHOR

12mm DEKTON

GLAZED INTO TRADITIONAL CAPTURED CW 37

1.

2.

3.

4.

5.

6.

7.

8.

1

2 1/2" [63.5mm]

F.H.

F

R.O.

DLO

1/2" [12.0mm]

DEKTON® BY COSENTINO

Curtain Wall

D

E A

B

F

2 7

C

ELEVATION

6

6

5

5

2 7

6

6

5

5

2 7 3

4

1/2" [12.7mm]

1 2 1/2" [63.5mm] F.H.

DLO

38

R.O.

1/2" [12.0mm]

3

1 DLO

1 2 1/2" [63.5mm] F.H.

DLO

R.O.

4

1 DLO

2 1/2" [63.5mm] F.H.

1/2" [12.7mm]

R.O.

A

B

C

JAMB DETAIL 12mm DEKTON INFILL

VERTICAL DETAIL 12mm DEKTON INFILL

JAMB DETAIL 12mm DEKTON INFILL

COSENTINO GROUP / Ctra. A334 Baza-Huércal Overa, km 59 / 04850 Cantoria (Almería) /España (Spain) www.cosentino.com

DLO

HORIZONTAL DETAIL 12mm DEKTON INFILL

DEKTON® BY COSENTINO

8

2

1

5

1

5

7

7

2 1/2" [63.5mm]

F.H.

E

R.O.

DLO

DLO

HEAD DETAIL 12mm DEKTON INFILL

4

2 1/2" [63.5mm]

F.H.

D

R.O.

1/2" [12.7mm]

3

6

6

2

1

5

6

5

6

1/2" [12.7mm]

SILL DETAIL 12mm DEKTON INFILL

7 2

4

8

3

DEKTON CURTAINWALL SYSTEM BUILDING CONDITION PRIMARY SEAL INSULATION BACKPAN BACKPAN FASTENER CURTAINWALL ANCHOR

12mm DEKTON

GLAZED INTO TRADITIONAL SSG CW 39

1.

2.

3.

4.

5.

6.

7.

8.

1

2 1/2" [63.5mm]

F.H.

F

R.O.

DLO

1/2" [12.0mm]

DEKTON® BY COSENTINO

Curtain Wall

D 1.

2.

3.

4.

5.

6.

7.

8.

E

DEKTON CURTAINWALL SYSTEM BUILDING CONDITION PRIMARY SEAL INSULATION BACKPAN BACKPAN FASTENER CURTAINWALL ANCHOR

F A

B

G 3" [76.2mm]

C

ELEVATION

6

3" [76.2mm]

6

7

7

6

3" [76.2mm]

6

7

7

3

3 5

5

5

5

4 2 1

40

3/4" [19.1mm]

1 1/2" DLO [38.1mm] 1 1/2" UNIT MOD. [38.1mm]

1/2" [12.0mm]

4 2 1

2 1

DLO

1 1/2" 1 1/2" DLO [38.1mm] [38.1mm] UNIT MOD. UNIT MOD.

1

DLO

1 1/2" [38.1mm] UNIT MOD. 1 1/2" [38.1mm]

A

B

C

JAMB DETAIL 12mm DEKTON INFILL

VERTICAL DETAIL 12mm DEKTON INFILL

JAMB DETAIL 12mm DEKTON INFILL

3/4" [19.1mm]

COSENTINO GROUP / Ctra. A334 Baza-Huércal Overa, km 59 / 04850 Cantoria (Almería) /España (Spain) www.cosentino.com

7

6

5 1/2" [139.7mm]

2 1/4" [57.2mm]

7 DLO

UNIT MOD.

6

2

E HORIZ STACK DETAIL 12mm DEKTON INFILL

3

DEKTON® BY COSENTINO

3/4" [19.1mm] DLO

3" [76.2mm]

5

3 1/4" [82.6mm]

UNIT MOD.

7

5

1

DLO

HEAD DETAIL 12mm DEKTON INFILL

UNIT MOD.

D

2

1

6

DLO

HORIZONTAL DETAIL 12mm DEKTON INFILL

1

5

7

3" [76.2mm]

F

UNIT MOD.

DLO

5

6

2

7

5

1

6

5

1

7

3" [76.2mm]

6

2

4

8

3

12mm DEKTON

GLAZED INTO UNITIZED CW (CAPTURED) 41

SILL DETAIL 12mm DEKTON INFILL

1/4" [6.4mm]

G

UNIT MOD.

DLO

1/2" [12.0mm]

DEKTON® BY COSENTINO

Curtain Wall

D 1.

2.

3.

4.

5.

6.

7.

8.

E

DEKTON CURTAINWALL SYSTEM BUILDING CONDITION PRIMARY SEAL INSULATION BACKPAN BACKPAN FASTENER CURTAINWALL ANCHOR

F A

B

G 3" [76.2mm]

C

ELEVATION

6

3" [76.2mm]

6

7

7

6

3" [76.2mm]

6

7

7

3

3 5

5

5

5

4 2 1

42

3/4" [19.1mm]

1 1/2" DLO [38.1mm] 1 1/2" UNIT MOD. [38.1mm]

1/2" [12.0mm]

4 2

2 1

1

DLO

1 1/2" 1 1/2" DLO [38.1mm] [38.1mm] UNIT MOD. UNIT MOD.

1

DLO

1 1/2" [38.1mm] UNIT MOD. 1 1/2" [38.1mm]

A

B

C

JAMB DETAIL 12mm DEKTON INFILL

VERTICAL DETAIL 12mm DEKTON INFILL

JAMB DETAIL 12mm DEKTON INFILL

3/4" [19.1mm]

COSENTINO GROUP / Ctra. A334 Baza-Huércal Overa, km 59 / 04850 Cantoria (Almería) /España (Spain) www.cosentino.com

7

5

1

5

1

7

6

5 1/2" [139.7mm]

2 1/4" [57.2mm]

7 DLO

UNIT MOD.

6

2

E HORIZ STACK DETAIL 12mm DEKTON INFILL

3

DEKTON® BY COSENTINO

3/4" [19.1mm] 3" [76.2mm] DLO

2

3 1/4" [82.6mm]

UNIT MOD.

DLO

HEAD DETAIL 12mm DEKTON INFILL

UNIT MOD.

D

1

6

7

6

2

DLO

HORIZONTAL DETAIL 12mm DEKTON INFILL

5

1

3" [76.2mm]

F

UNIT MOD.

DLO

5

7

5

6

7

6

2

4

8

3

12mm DEKTON

GLAZED INTO UNITIZED CW (SSG) 43

SILL DETAIL 12mm DEKTON INFILL

5

1

3 1/4" [82.6mm]

G

UNIT MOD.

DLO

1/2" [12.0mm]

DEKTON® BY COSENTINO

Sizes, Formats and Thicknesses Standard size Thanks to the large format of Dekton, with a full size panel of 56" x 126", the design possibilities are endless.

Formats recommended to maximize use of Dekton® Thickness (mm- inches)

Format (inches)

Sizes, Formats and Thicknesses

28” x 28” 56” x 31” 56” x 56” 4mm / 5 ⁄ 32”

28” x 56”

8mm / 5 ⁄ 16”

28” x 42”

12mm / 1/2"

56'' x 42''

20mm / 3/4"

28” x 63” 56” x 63” 56 x 126''

28” x 126”

Jumbo format

44

130” x 63”

Dekton® slabs come in different thicknesses so that you choose the most appropriate option depending on the application, design or desired effect, from 4mm (0.157 in) to 20 mm (0,787 in).

• • • • • • • • •

Density: 2,52 ± 4 % g/cm3 Bending strength: ≥ 45 N/mm 2 Modulus of elasticity: 84,000 N/mm 2 Linear thermal expansion: 5.9 x 10 -6 º C -1 Water absorption: 0.1 %.

Porosity: 0.2 %.

Maximun expansion: 0.1 mm/m.

Thermal conductivity: 0.483 W/mºK Reaction to fire. Class A fire rated, EN 13501-1 2018 and NFPA/ IBC Class A, ASTM E 84 and noncombustible per ASTM E 136.

NFPA-285 compliant.

DEKTON® BY COSENTINO

Technical features

45

Standard thicknesses

46

DEKTON® BY COSENTINO

Projects

47

DEKTON® BY COSENTINO

TYPES OF FIXING

CASE STUDY

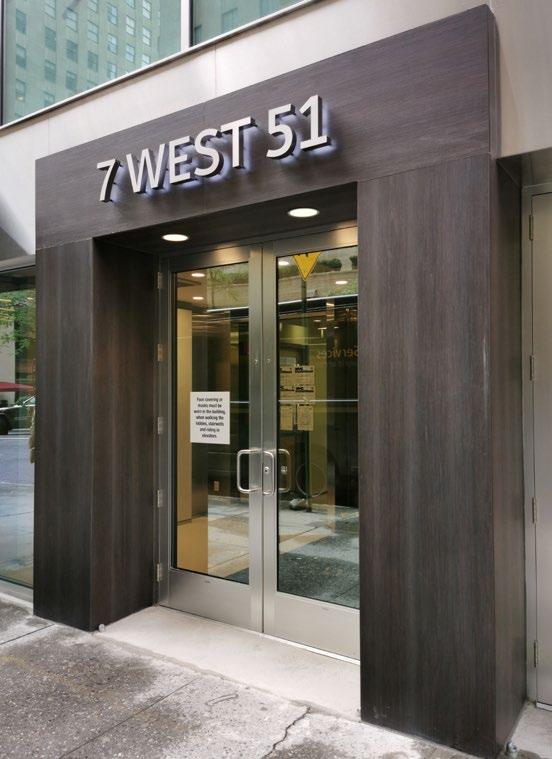

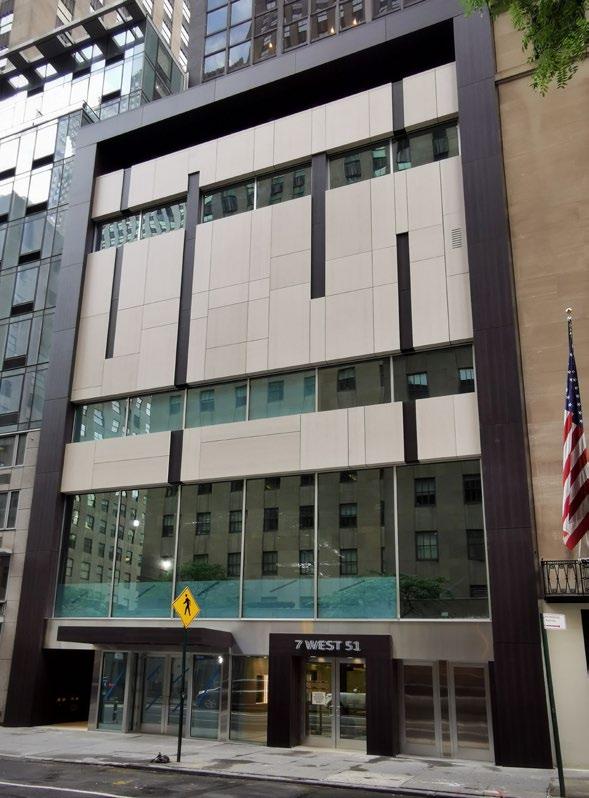

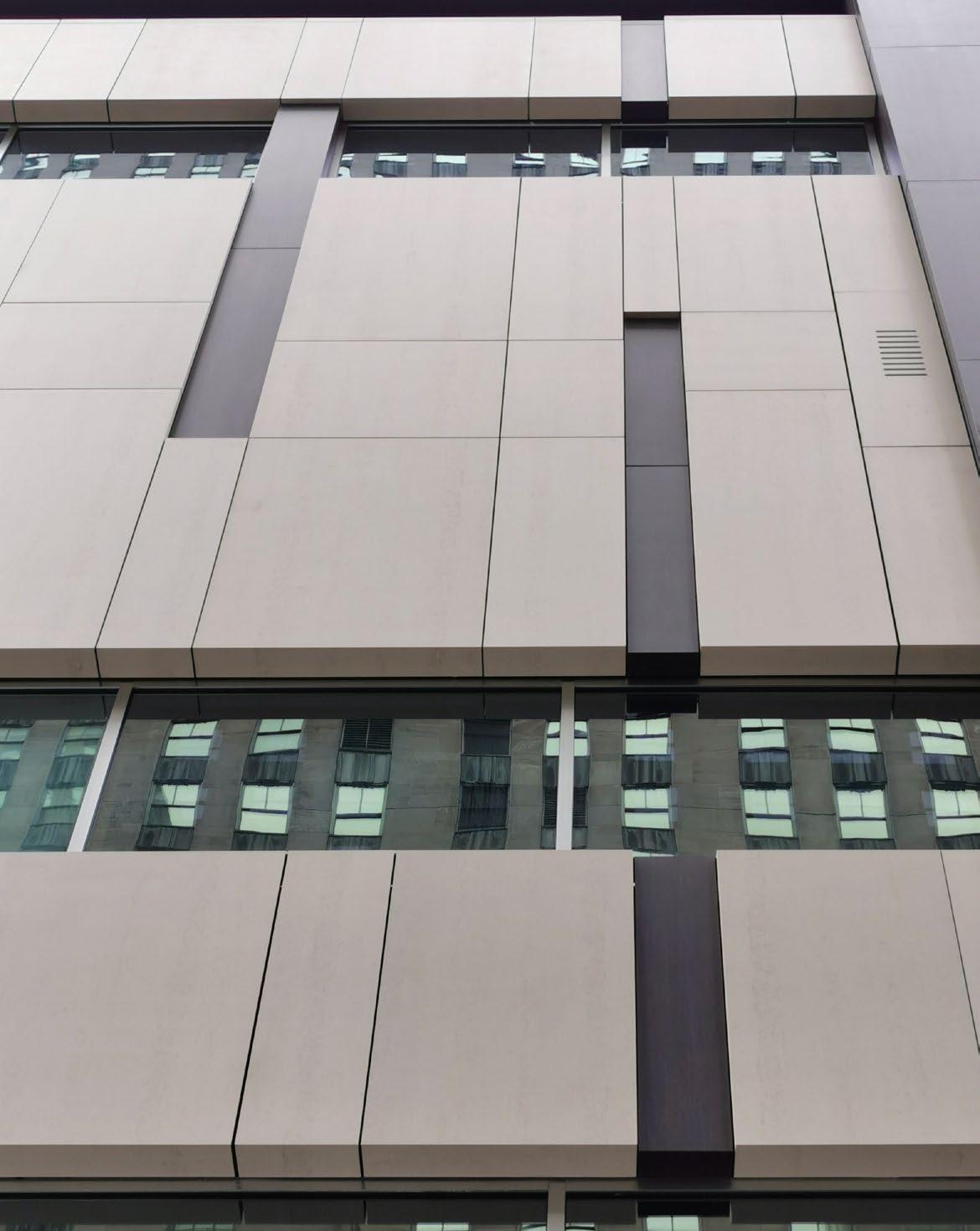

7 West 51st Street New York, NY Material 5,586 sq ft. Dekton® Danae, Borea, and Edora

Facade system Hybrid Mechanical and Chemical Adhesive

48

Título DKT1 - Case Study

Thickness 12mm (1/2")

49

DKT1 - Case Study

TYPES OF FIXING

CASE STUDY

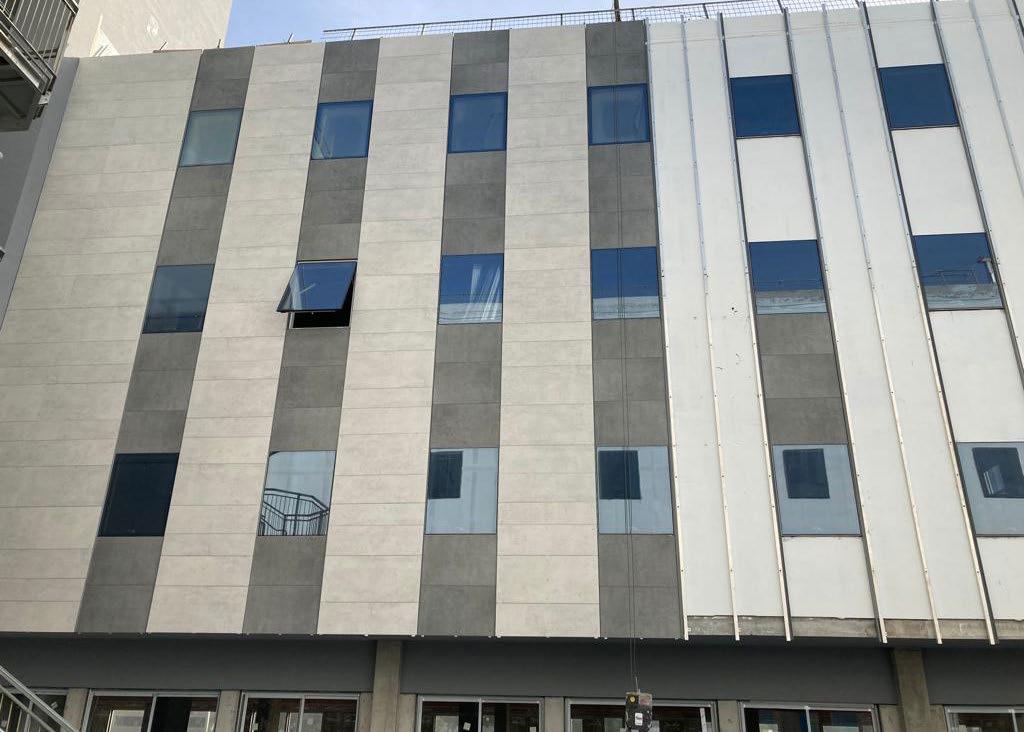

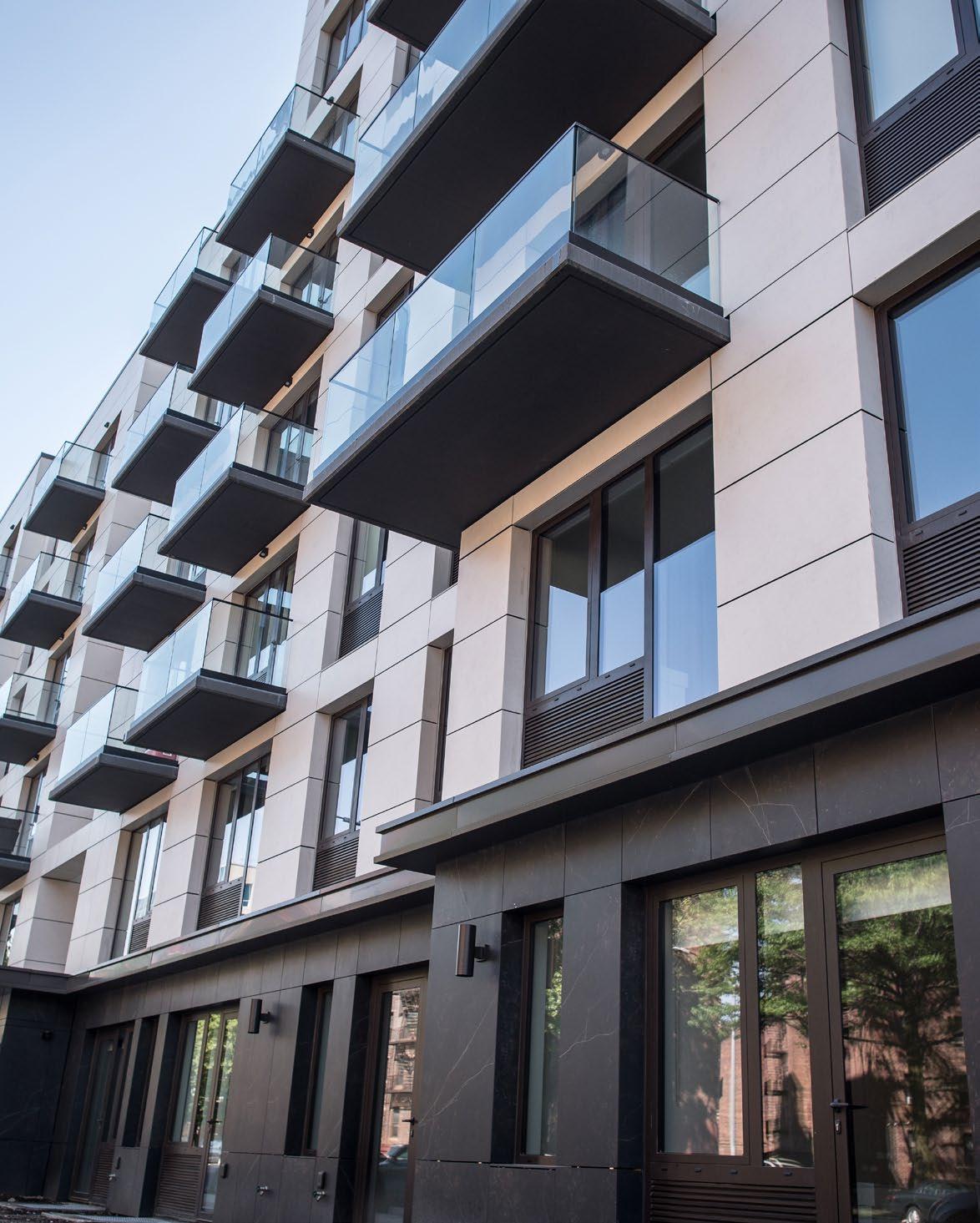

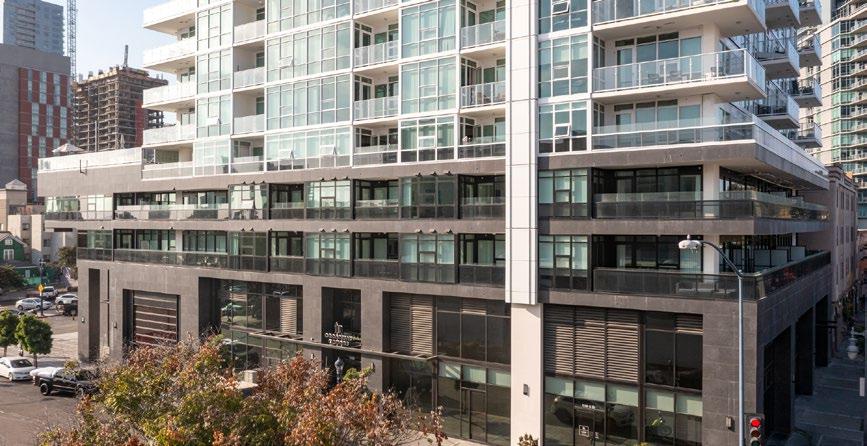

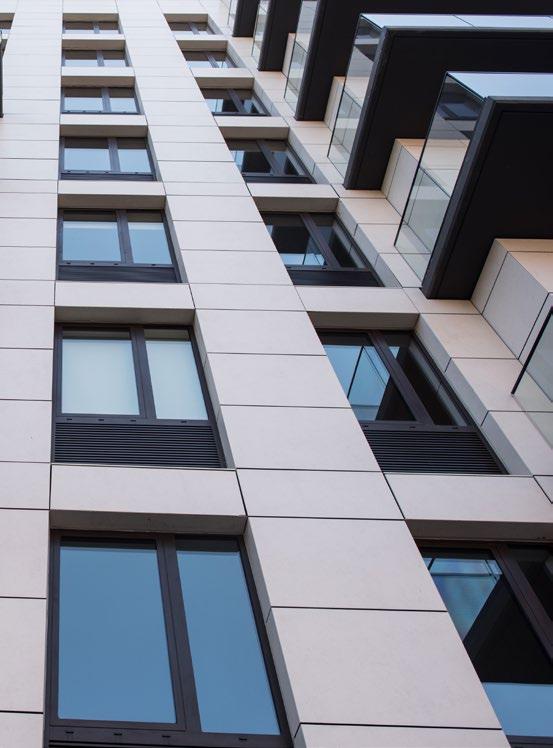

1825 Ocean Avenue Brooklyn, New York Material 8,366 sq ft. Dekton® Irok and Dekton® Kelya

Facade system DKT1

Thickness

50

DKT1 - Case Study

12mm (1/2")

51

DKT1 - Case Study

TYPES OF FIXING DKT1 - Case Study

CASE STUDY

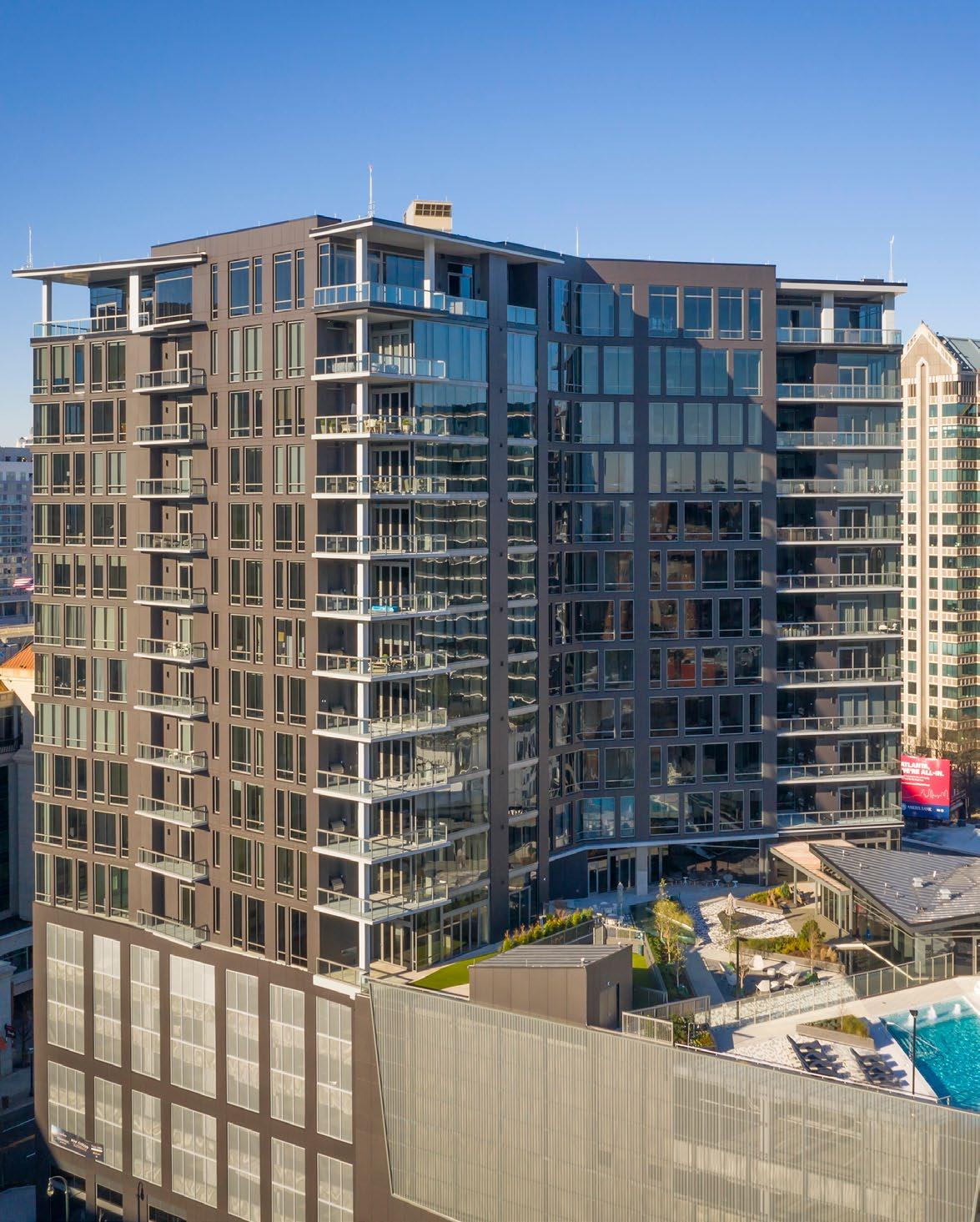

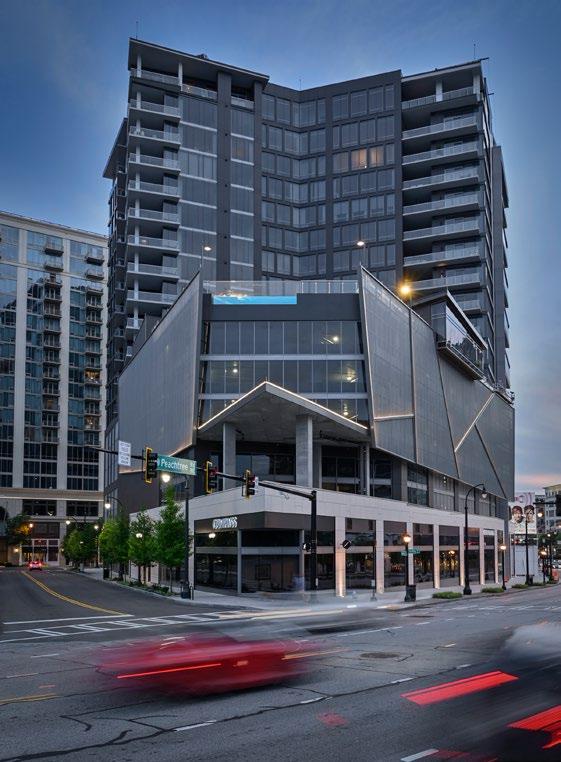

The Charles Building Atlanta, USA Material 22,000 sq ft. Dekton® Domoos and Dekton® Danae

Facade system DKT1

Thickness

52

12 mm (1/2")

53

DKT1 - Case Study

TYPES OF FIXING

CASE STUDY

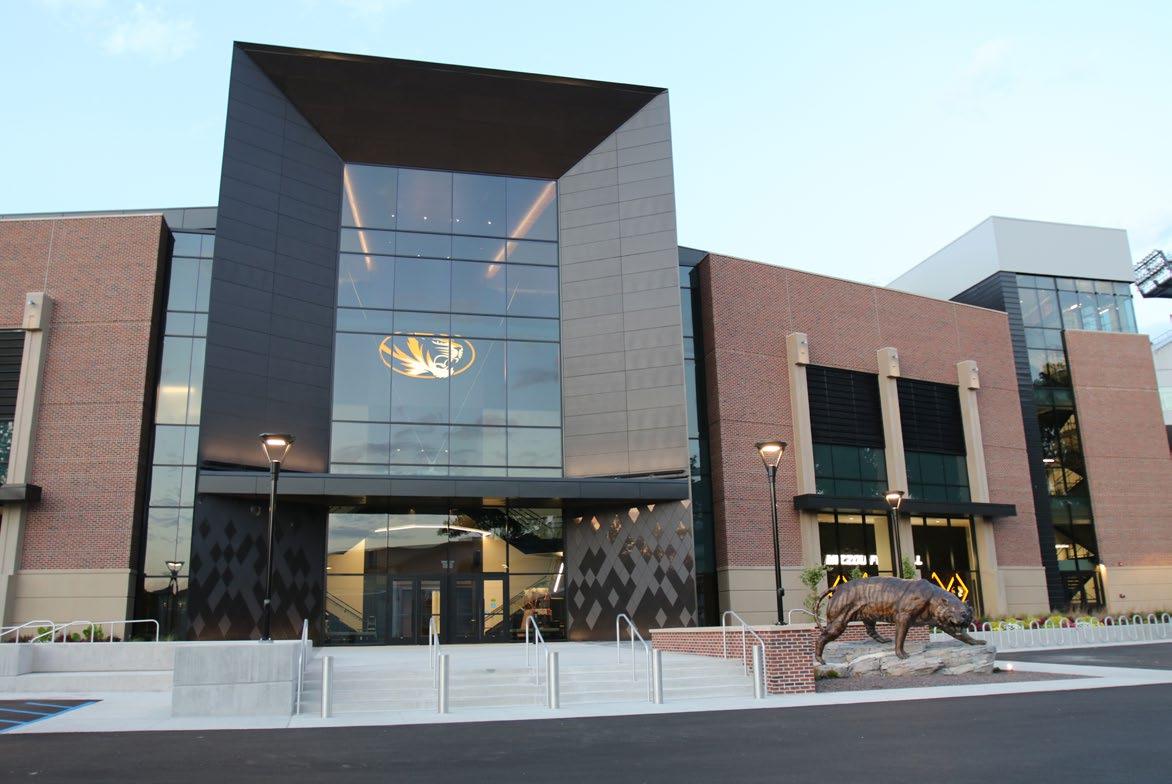

University of Missouri Stadium Missouri, USA Material 5,640 sq ft. Dekton® Domoos and Dekton® Spectra

Facade system DKT1 and DKT2

Thickness

54

DKT1 - Case Study

12 mm (1/2") and 20 mm (3/4")

55

DKT1 - Case Study

TYPES OF FIXING

CASE STUDY

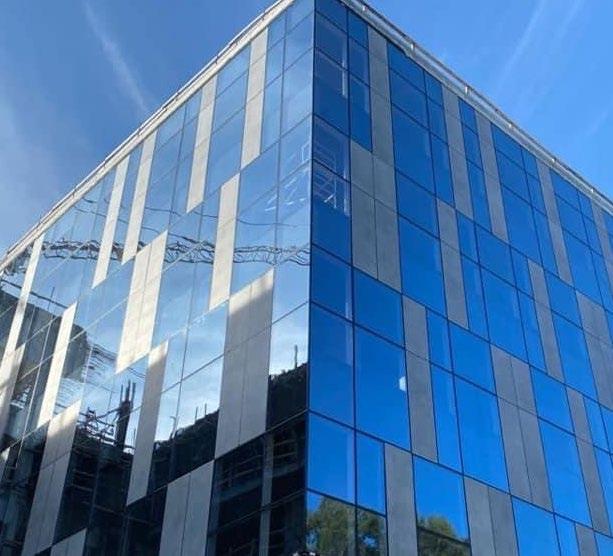

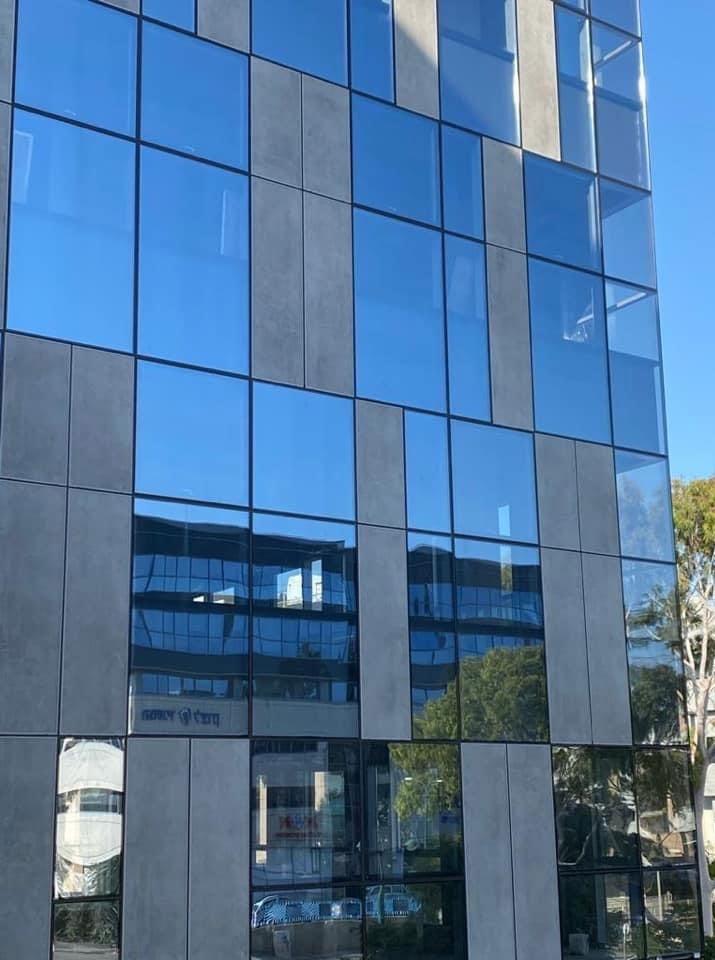

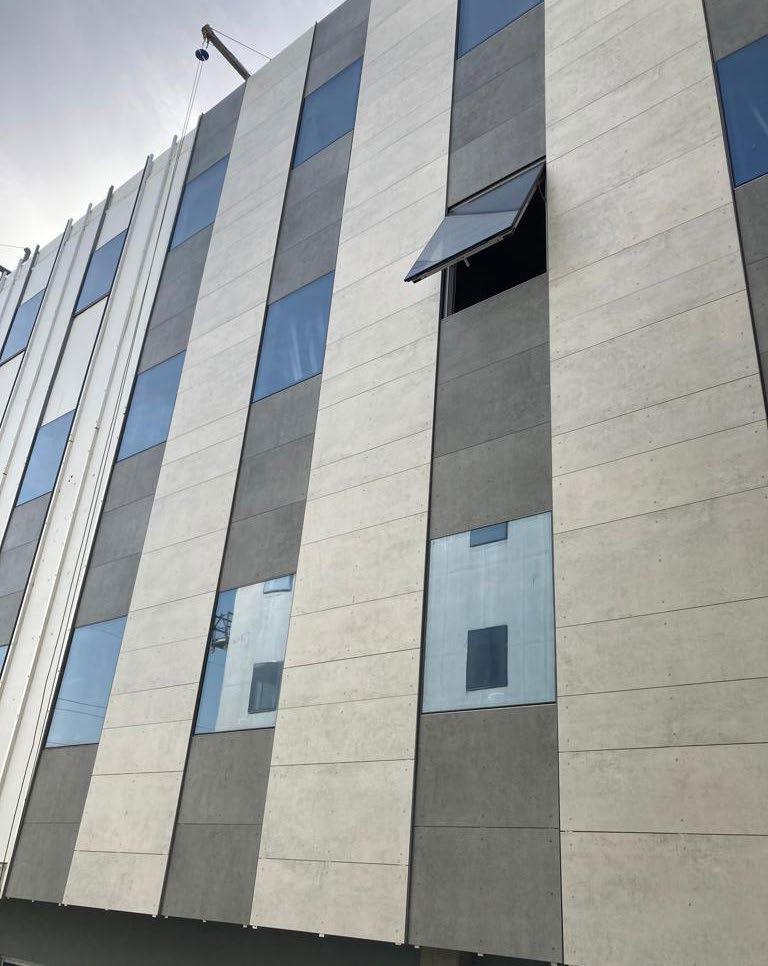

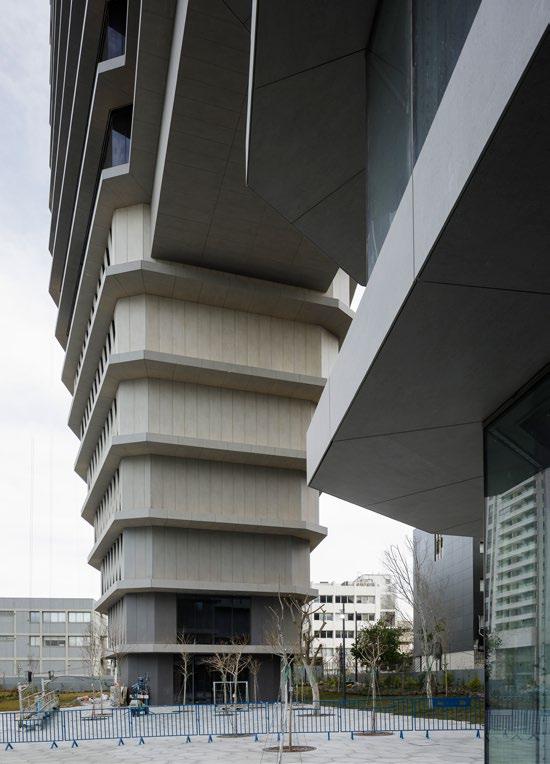

Toha Project Tel Aviv, Israel Material 140,000 sq ft. Dekton® Keon

Facade system DKT1

56

Título DKT1 - Case Study

Thickness 12mm ( 1/2")

57

DKT1 - Case Study

TYPES OF FIXING DKT1 - Case Study

CASE STUDY

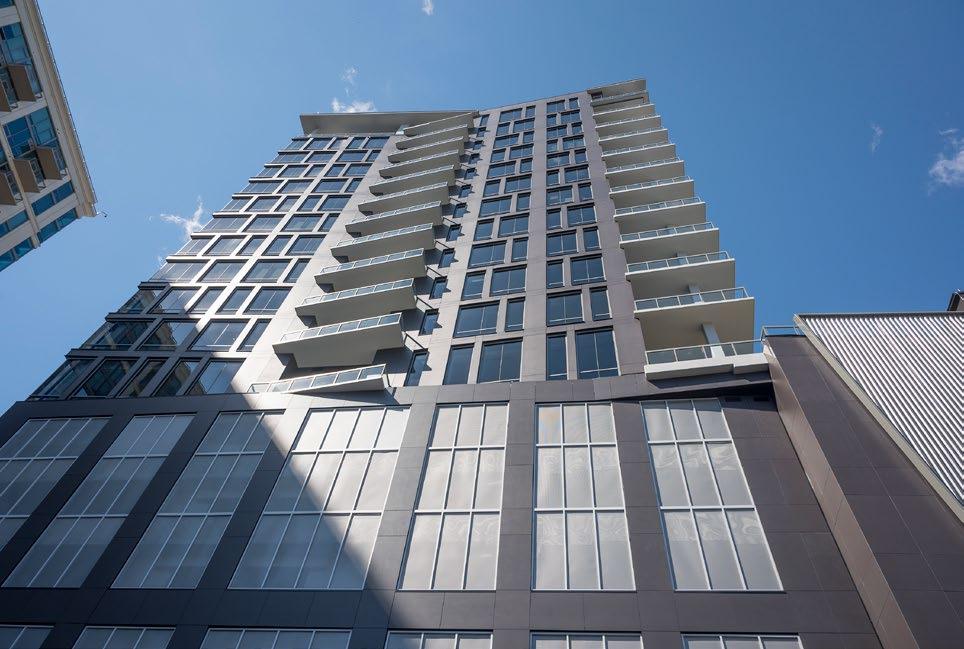

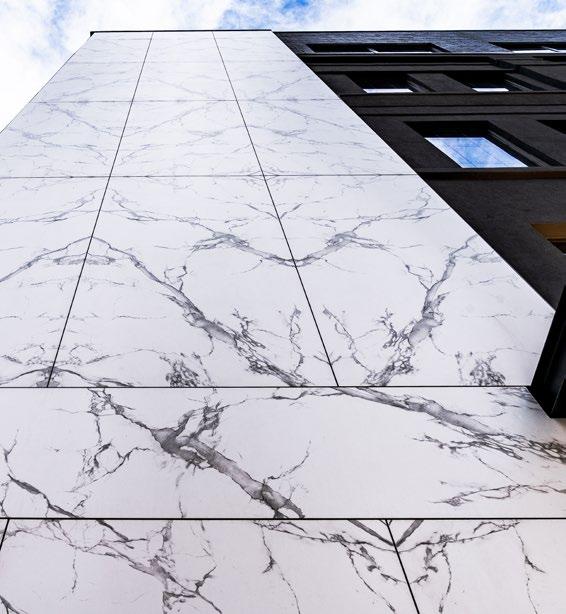

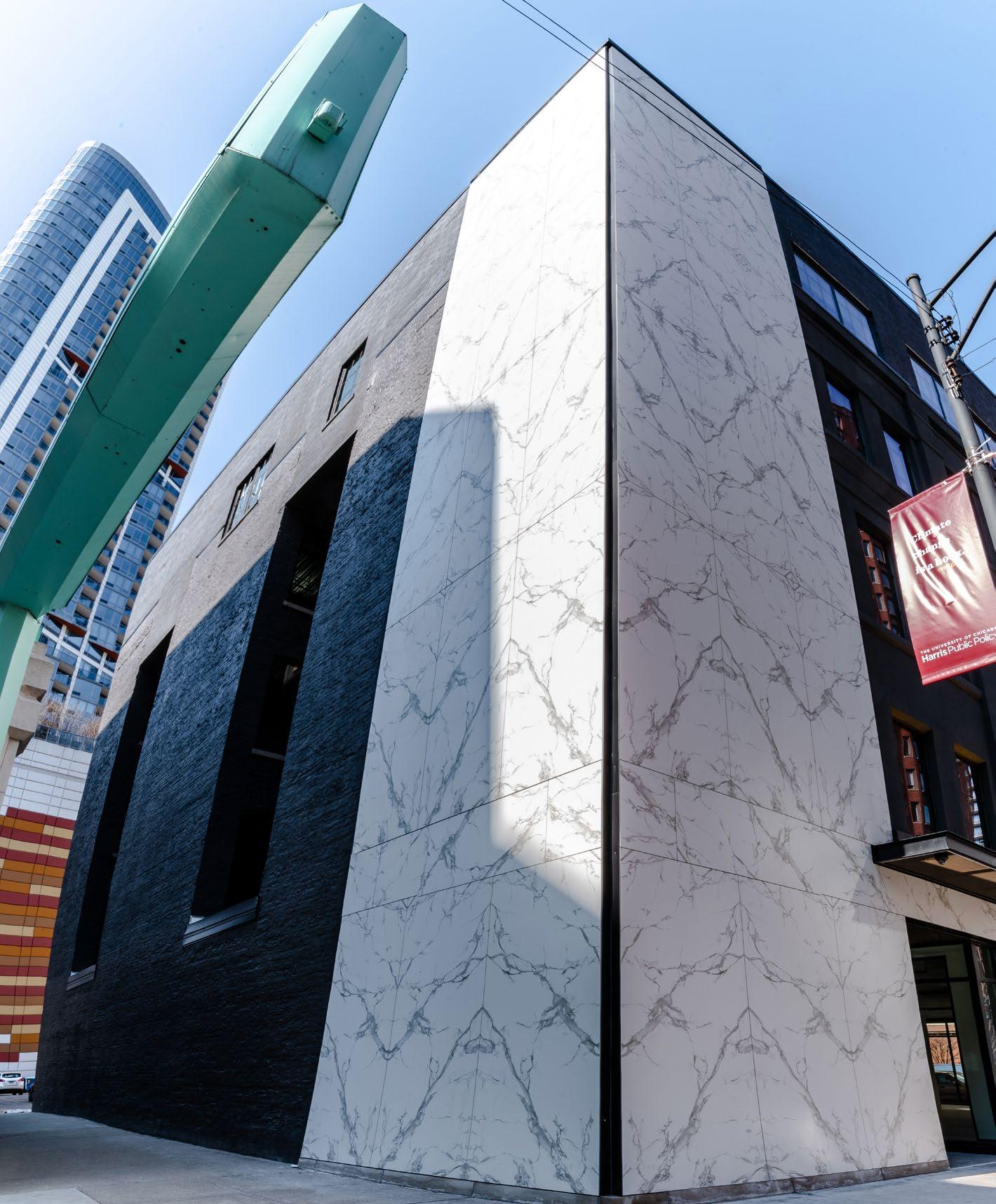

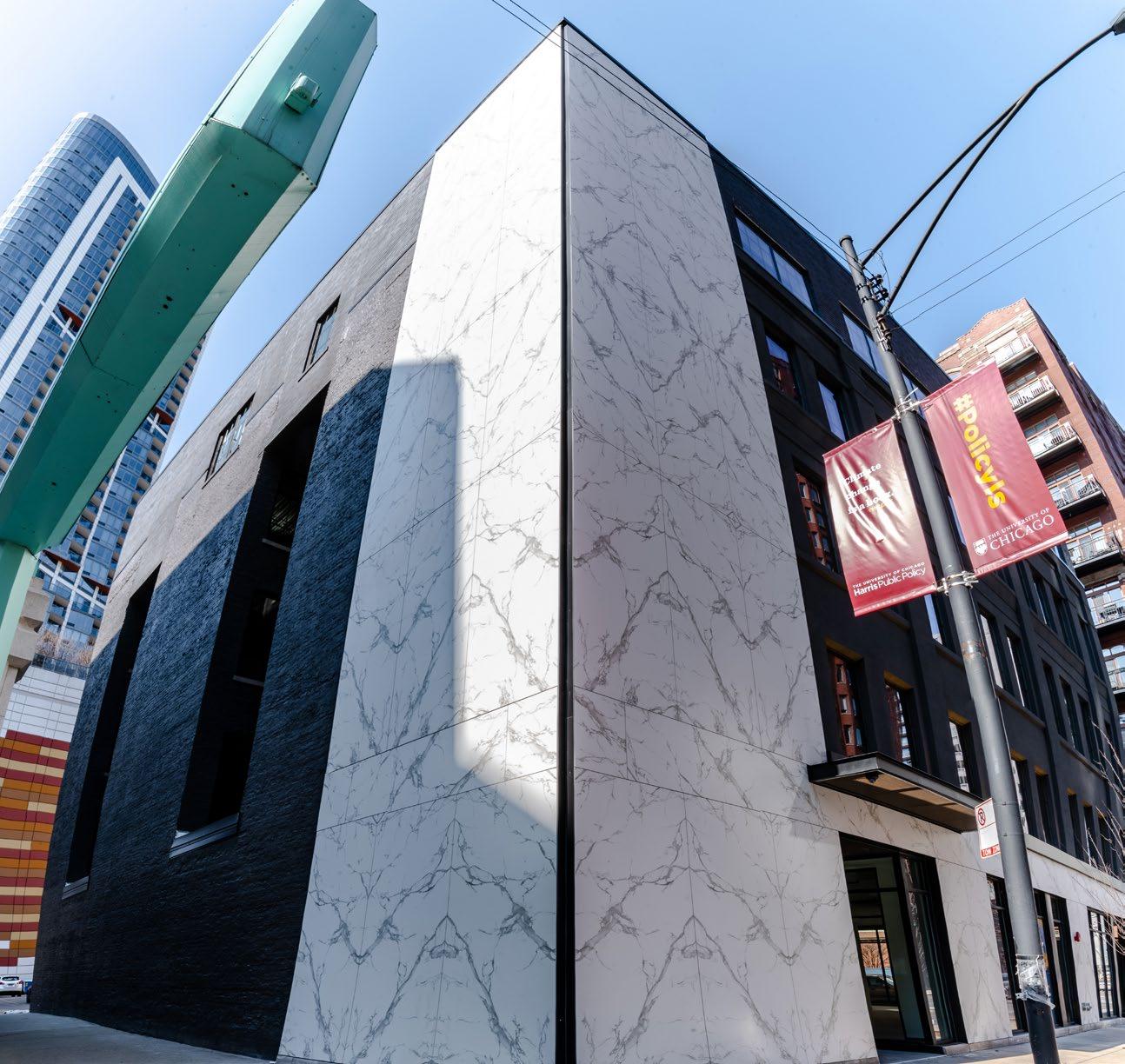

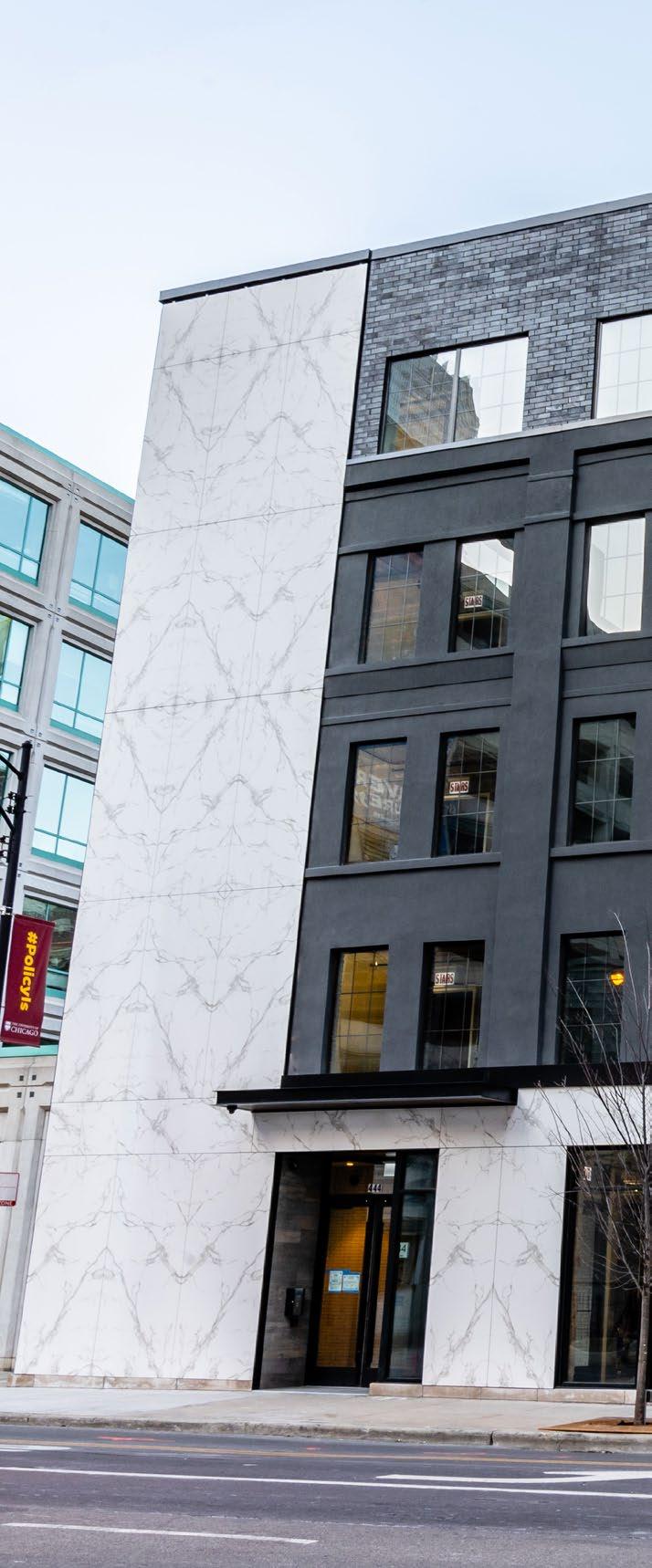

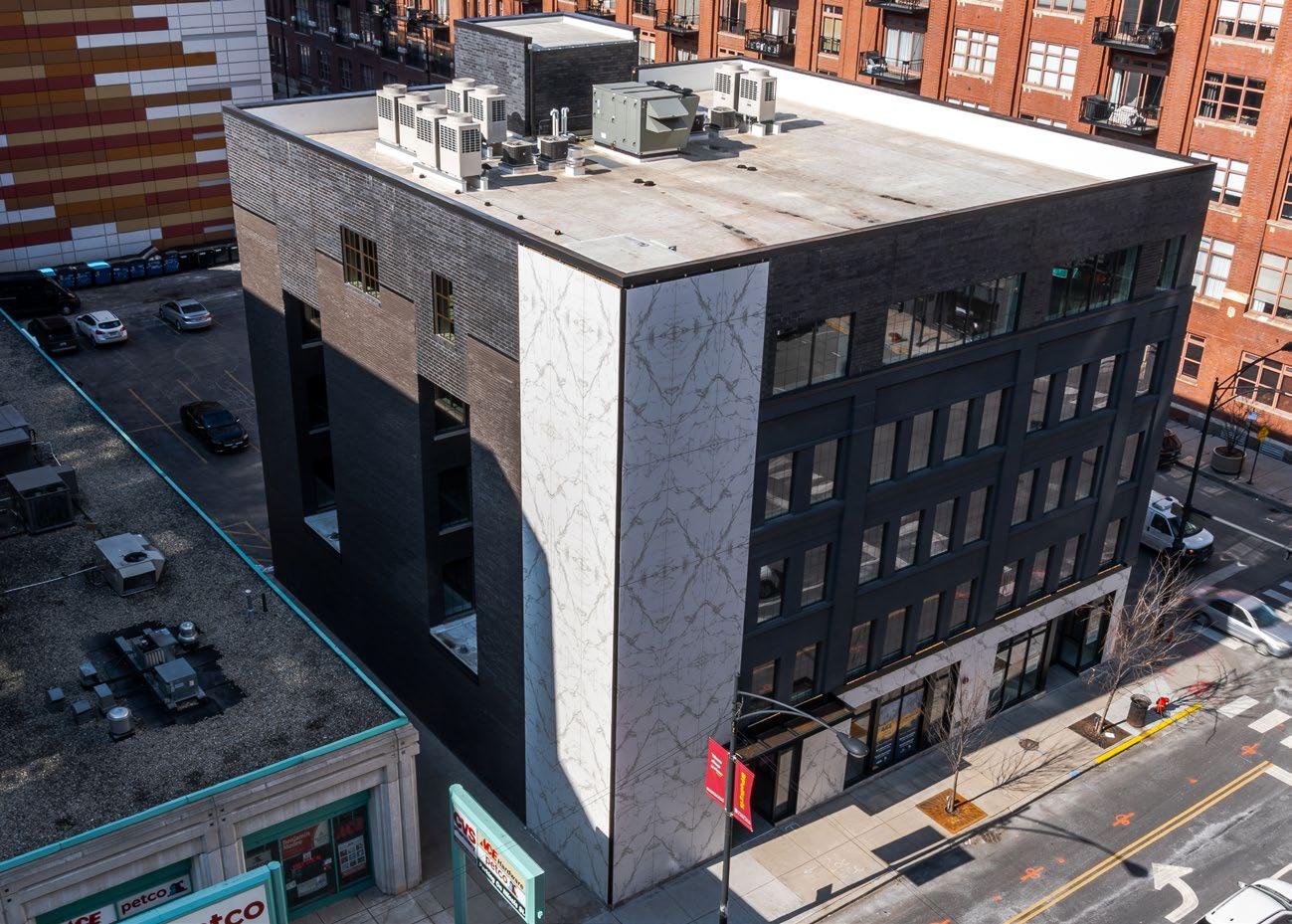

444 N Orleans St. Chicago, IL Material Dekton® Aura 15 Bookmatch

Installation system DKT1

Thickness

58

12mm ( 1/2")

59

DKT1 - Case Study

TYPES OF FIXING DKT1 - Case Study

CASE STUDY

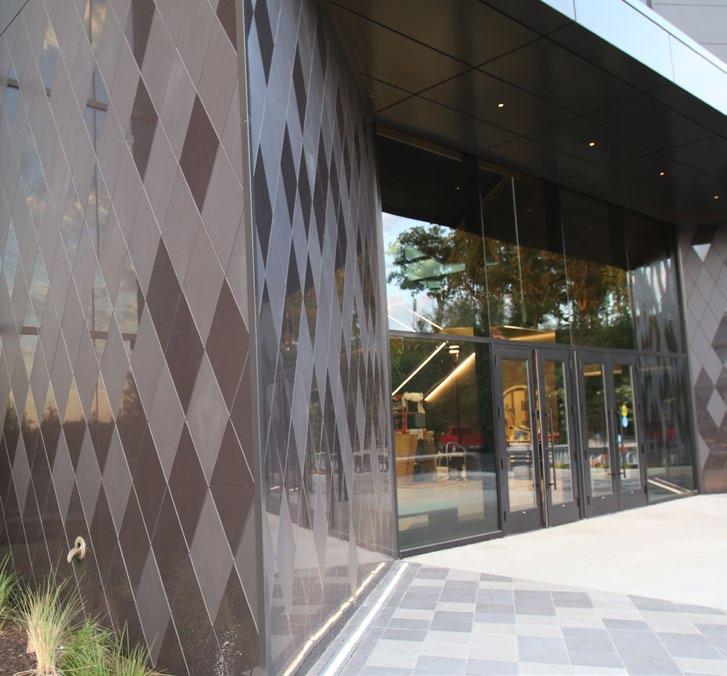

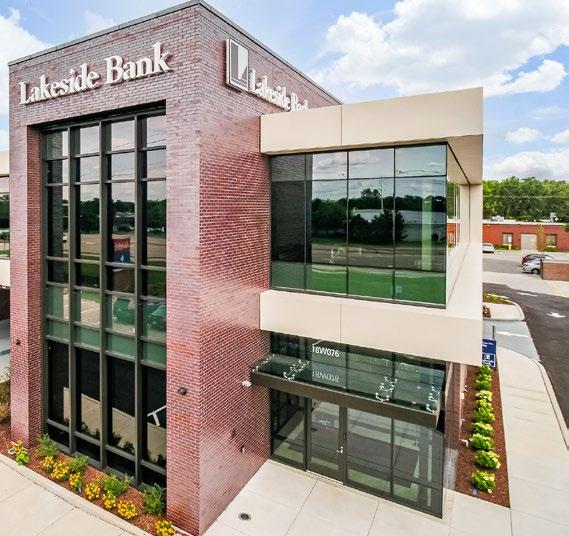

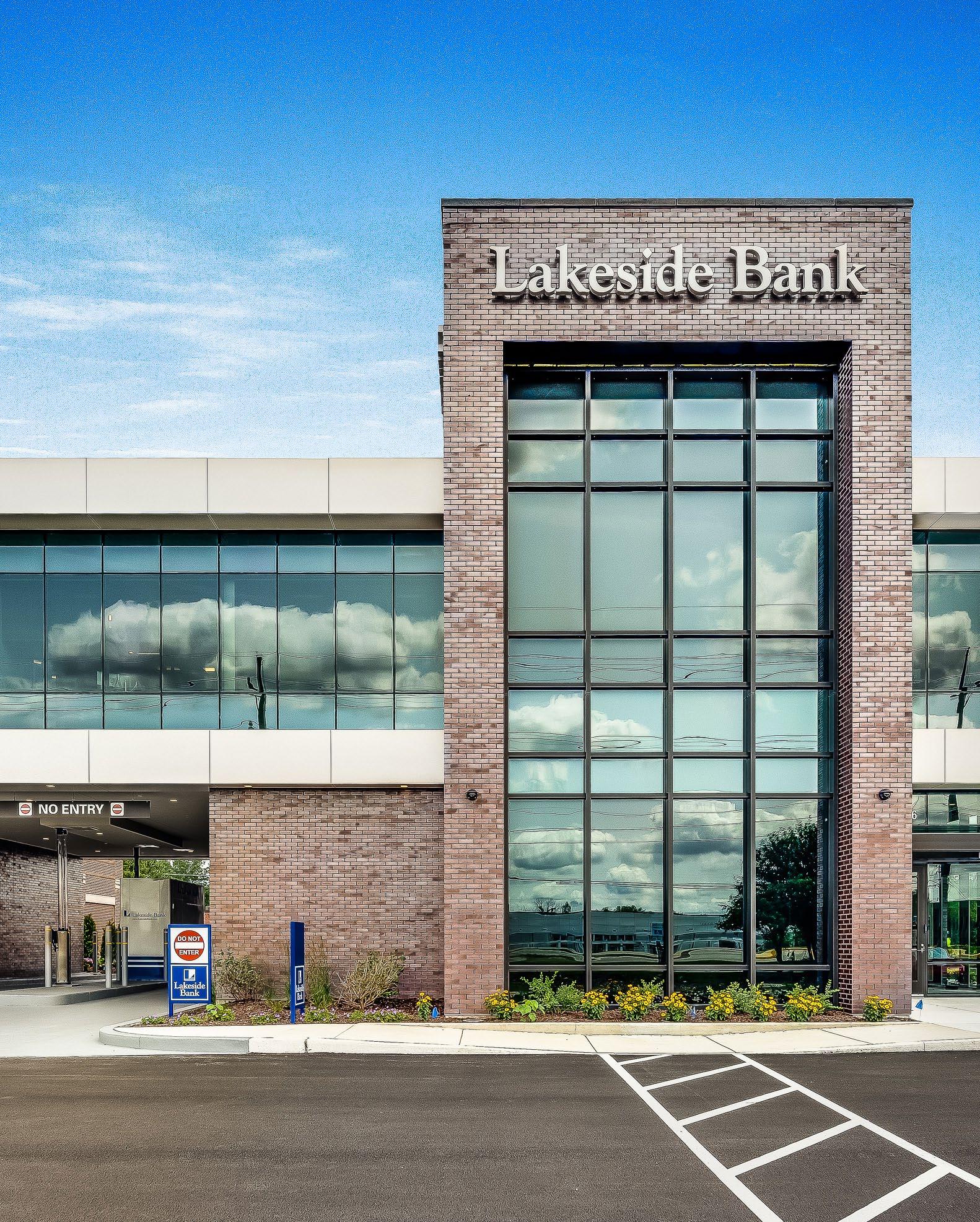

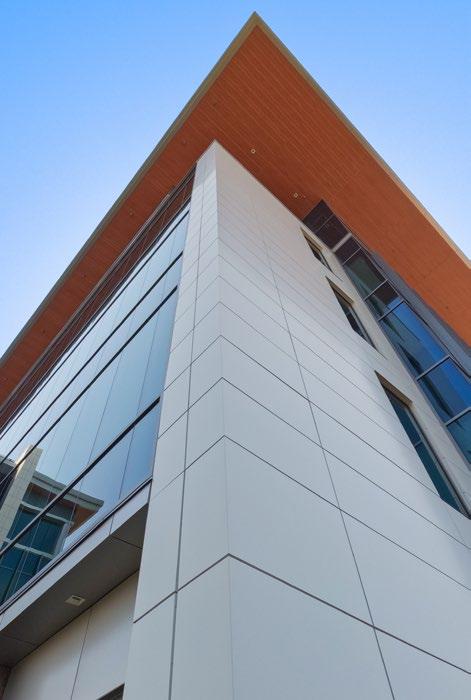

Lakeside Bank Oakbrook Terrace, IL Material 5,000 sq ft. Dekton® Zenith

Facade system DKBG

Thickness

60

12mm (1/2")

61

DKT1 - Case Study

TYPES OF FIXING

CASE STUDY

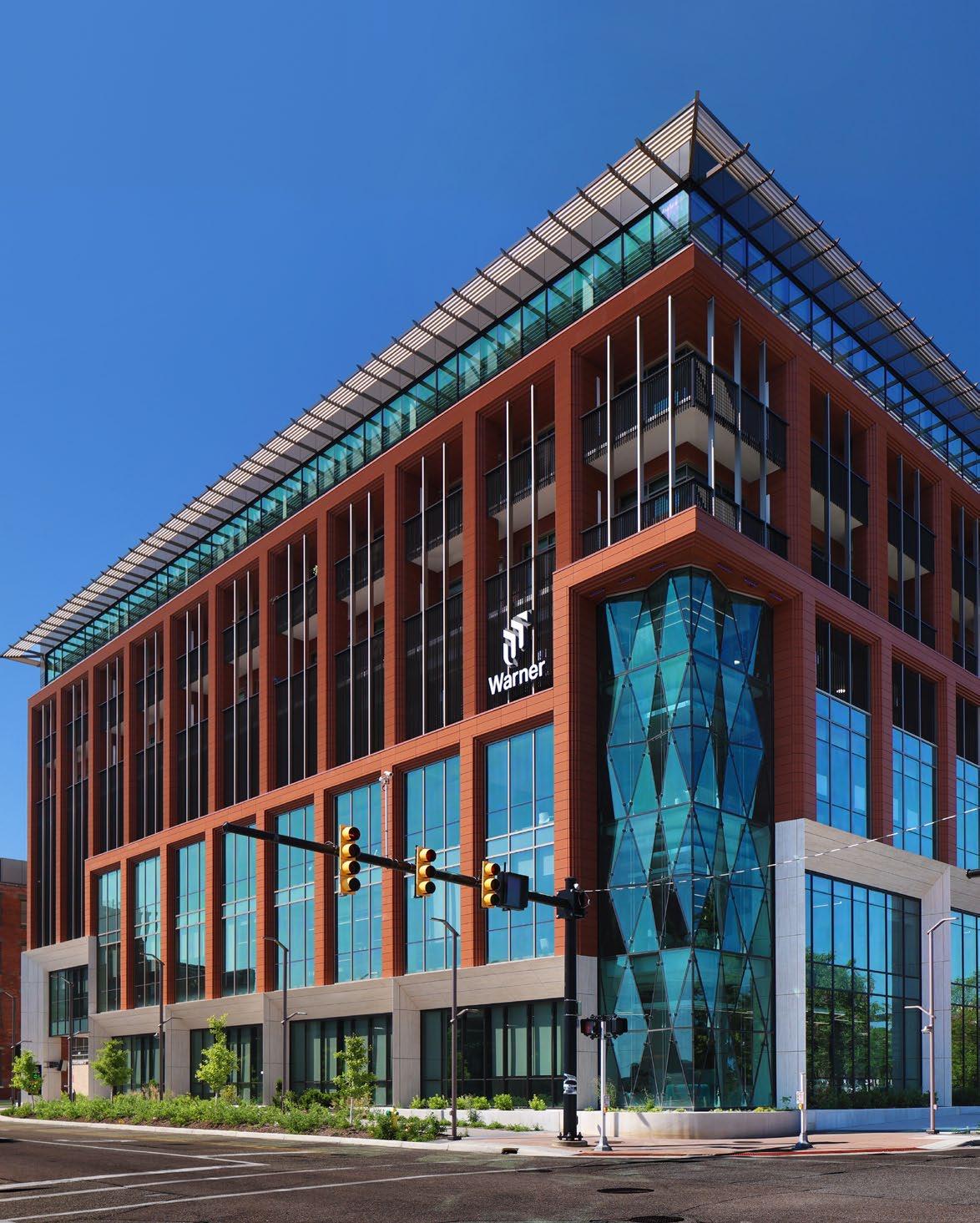

The Warner Building Kalamazoo, Michigan, USA Material 10,776 sq. ft. Dekton® Sterling

Facade system DKT1

Thickness

62

DKT1 - Case Study

12mm (1/2")

63

DKT1 - Case Study

TYPES OF FIXING

CASE STUDY

64

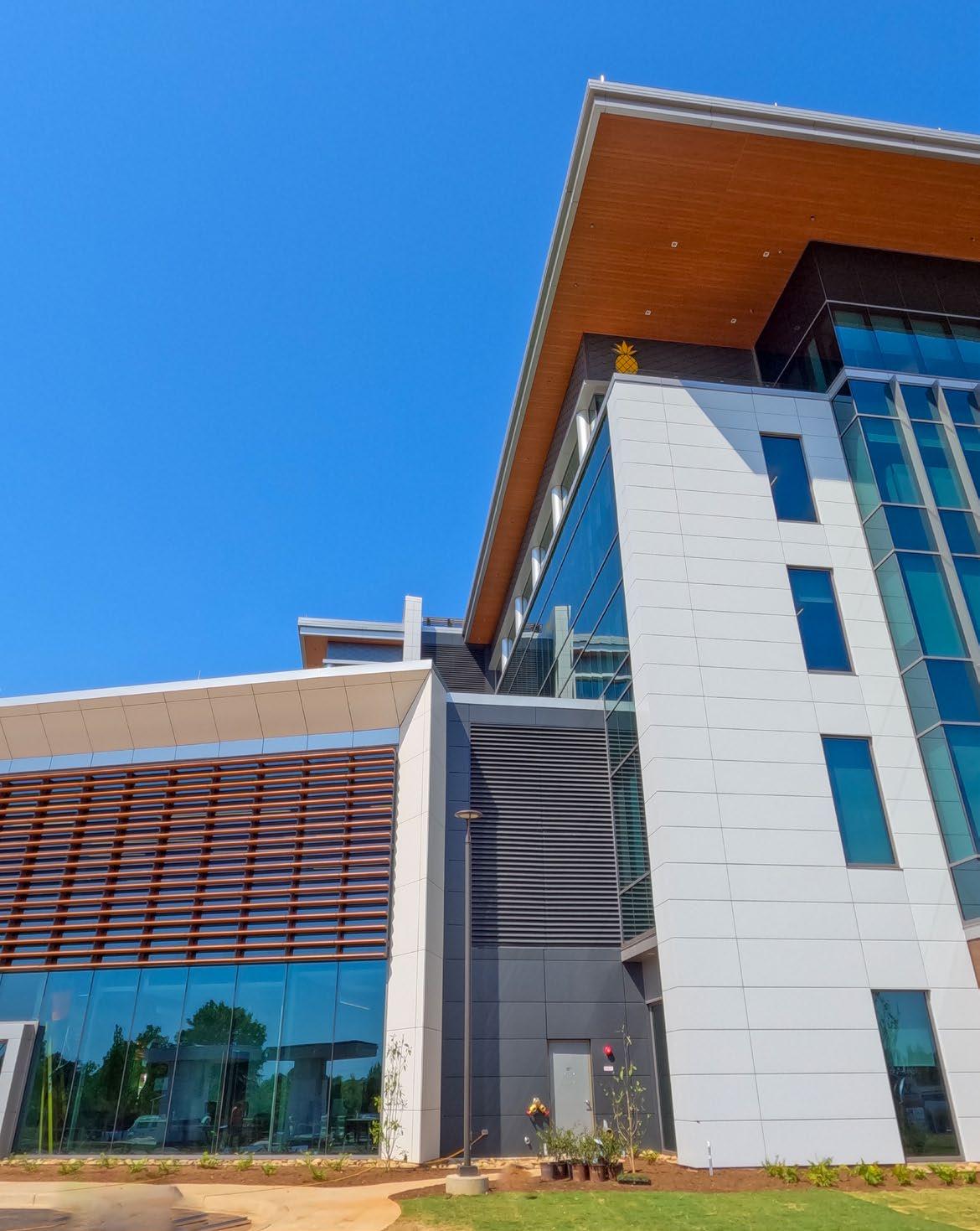

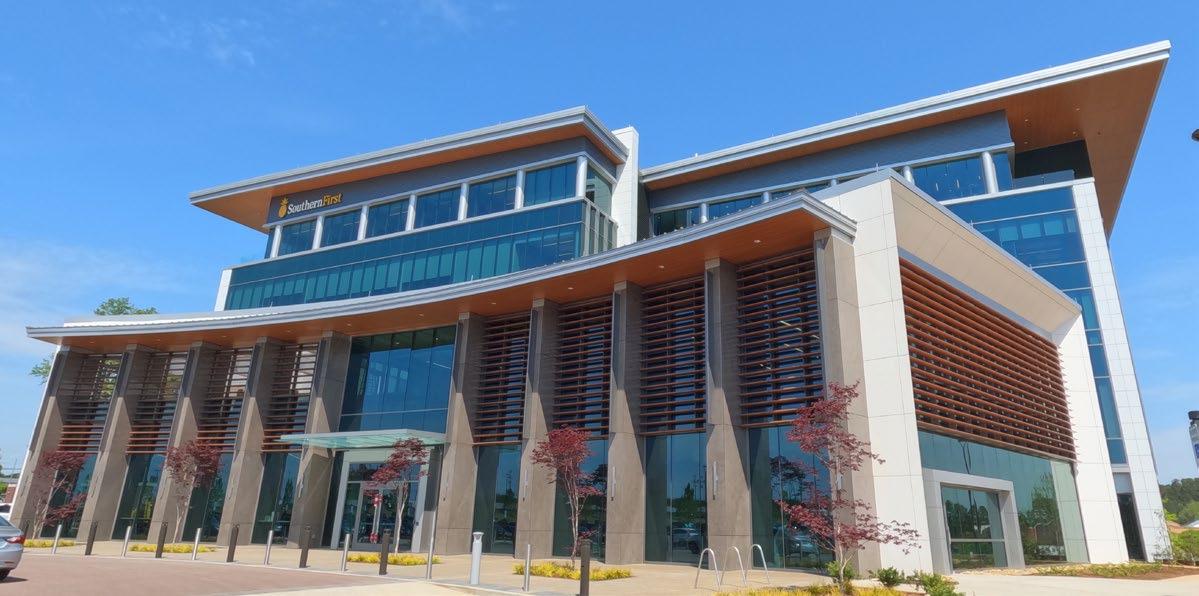

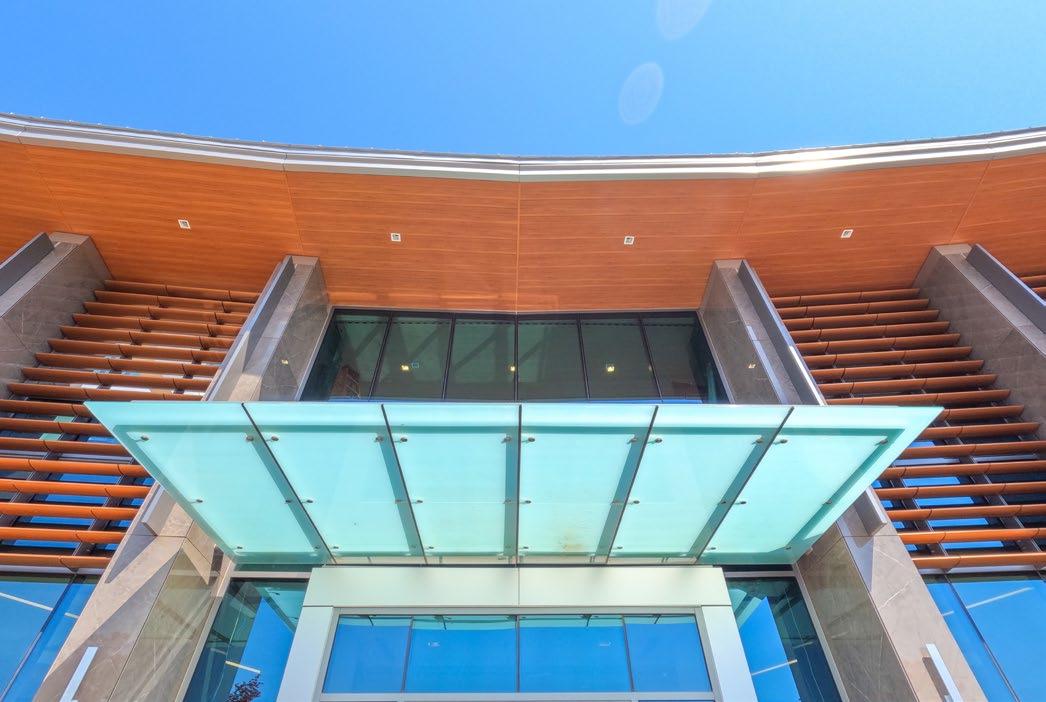

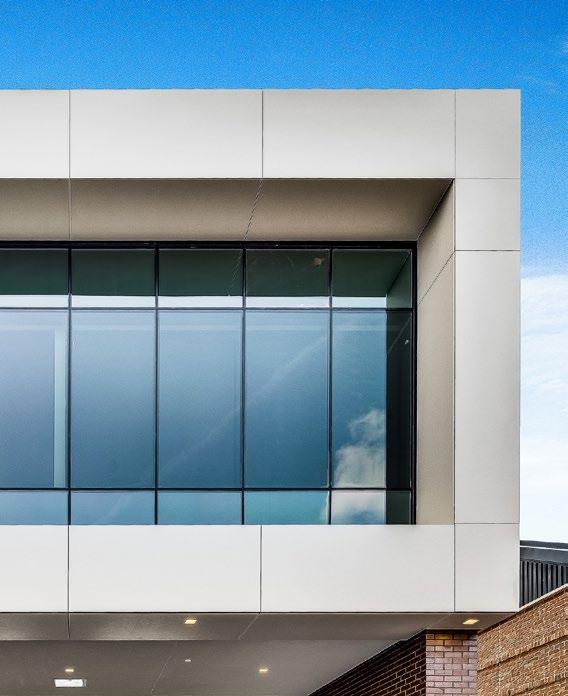

Southern First

65

DKT1 - Case Study

TYPES OF FIXING

CASE STUDY

66

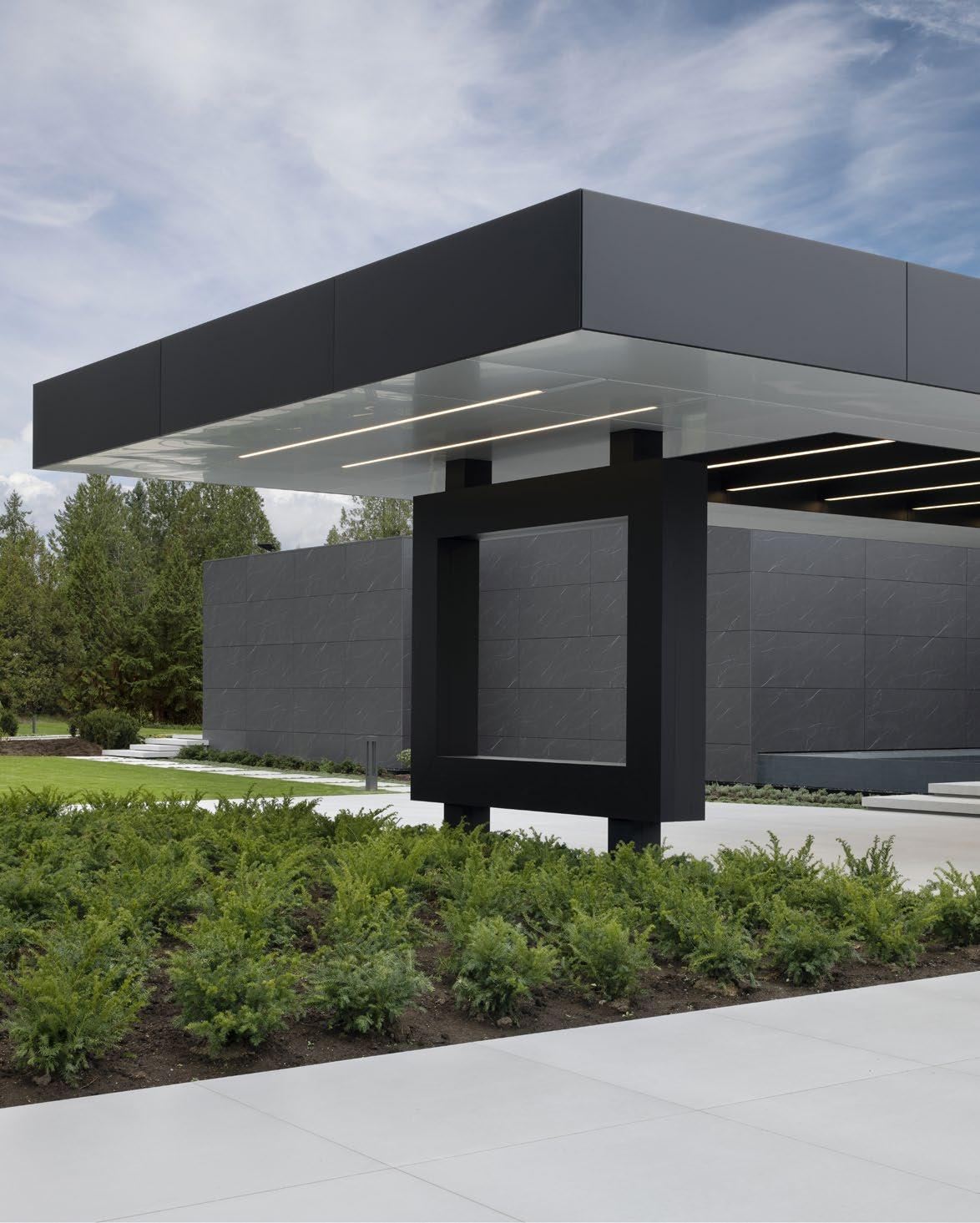

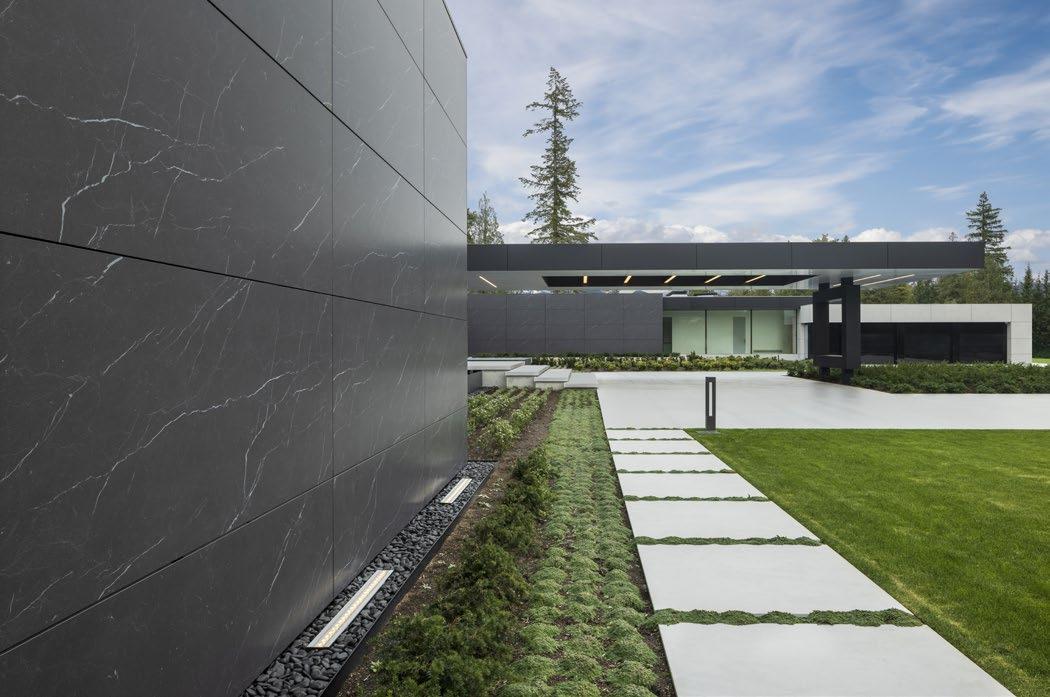

Fort Langley Home

67

COSENTINO NORTH AMERICA HEADQUARTERS 355 Alhambra Circle Suite 1000, Coral Gables, FL 33134 , United States of America www.cosentino.com/usa/facades

Rev: October 2022
