LENSES

LAB MOD SYSTEM FRAME PARTS

6.0 LENSES Bases The base of a lens is the curvature of the lens itself. The higher the value of the base, the more the lens is curved and the glasses wrap around the face. It Is important to know this data when choosing a lens to mount on a frame. It is necessary to select the lens with the most suitable base according to the curve of the bevel of the eyepiece.

TOOLS

B 8

B 6 B 4

PLIERS

B 2

LAB CONSUMABLES

EQUIPMENTS

Base 2 Suitable for the world of fashion frames with straight fronts.

Base 4 Much used for trendy and latest generation sunglasses. Available in many variations according to speciﬁc needs.

Base 6 Base 8 Suitable for sport and wrap around sunglasses. Base 8 lenses are more curved to ensure a greater wrapping of the sunglasses, to protect more of the eyes and increase the visual ﬁeld of the wearer. The optical centre is decentred from the geometrical axis to ensure a clear and better vision even in lateral areas.

α = 15° n tio a n c li

rap W =

INDEX

REFRACTION & ORTHOPTIC

LENSES

For sunglasses with classic sun lenses. Available in diﬀerent variants according to speciﬁc needs.

in nd u ro

6.0

Materials

LAB MOD SYSTEM

LENSES CR39

FRAME PARTS

It is the most used plastic polymer for making sun lenses and for ophthalmic use. It is thinner and weighs half as much as a glass lens. Oﬀers impact resistance above FDA (the American regulatory body) requirements but it is not unbreakable and therefore not recommended for use in active sports. CR39 lenses oﬀer a high quality of vision and transparency, UV protection up to 360 nm and with a particular treatment up to 400 nm

POLYCARBONATE TOOLS

It is an organic material that is characterized by a high level impact resistance compared to CR39 and glass. It is used to make children’s sunglasses, sports and safety frames. Polycarbonate also oﬀers ultraviolet protection, ensuring a UV protection up to 380 nm as well as good vision quality and transparency.

NYLON

POLARIZED SHEETS

PLIERS

Nylon, or polyamide, is a new high performance material, because it combines the advantages of polycarbonate and those of CR39 lenses. Nylon lenses have considerable impact resistance and do not break when drilled with the drill (making them perfect for clip-ons and rimless). It is compatible with all the materials used for frames, light and easy to work with, coated with a hard coating it has good resistance to impact and scratches; it is recommended for coatings including mirroring. Polarized lenses made of a material called Tri-acetate of cellulose orhave many advantages including a natural abrasion resistance. The lens is lighter and thinner than other sun lenses. The polarizing filter with which it is fitted allows shielding the reflections created by highly reflective surfaces such as water or asphalt, reducing glare, improving comfort, the perception of contrast and the vision of the wearer. High optical quality and remarkable scratch resistance characterize mineral glass lenses. The low chromatic dispersion ensures a clear vision, full of contrasts and comfortable. The greater specific weight and frangibility limit the use in the case of sports and dynamic activities.

LAB CONSUMABLES

Coatings

EQUIPMENTS

GLASS

HARD COATING HC HARD MULTICOATED Hard coating on both sides of the lens. Protects from scratches. Extends the life of the lens. Recommended on all organic lenses.

ANTI-REFLECTION HMC HARD MULTICOATED LENSES

It is an anti-reflection treatment combined with hard coating; ensures excellent transparency, reduces the reflections of sunlight and artificial light by increasing the light transmission up to 99%. Indispensable for all high index lenses, it improves the aesthetic appearance and visual comfort.

HYDROPHOBIC

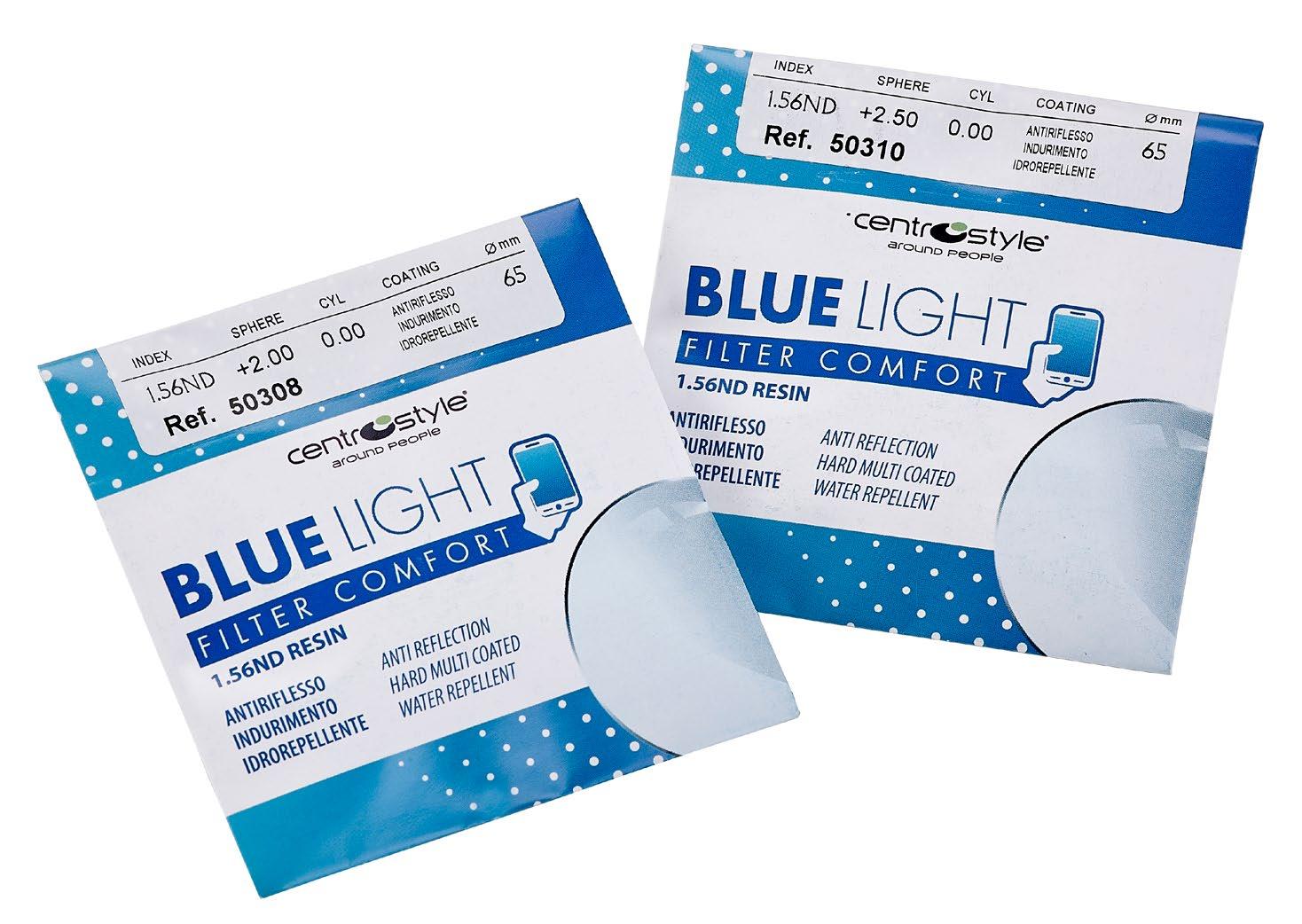

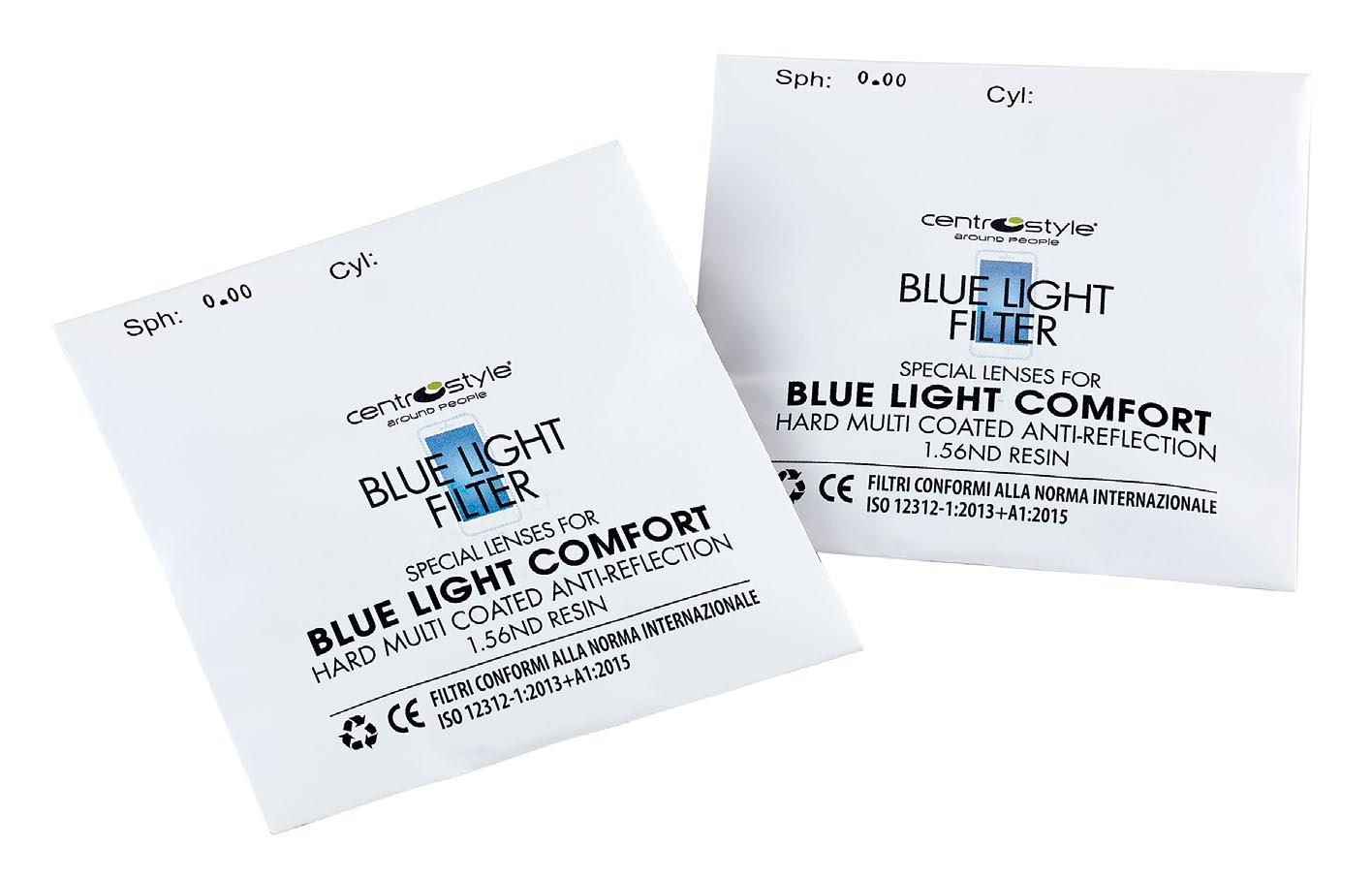

BLUE LIGHT FILTER It protects the eyes from the harmful effects of blue light by reflecting it better than a lens with the anti-reflection coating – It blocks the blue light component up to 40% making the use of electronic devices more comfortable. Ensures 100% protection from ultraviolet light (UV 400).

MIRROR COATING OR FLASH COATING

REFRACTION & ORTHOPTIC

The hydrophobic treatment allows water to slide quickly on the surfaces of the lens; it repels moisture and oily substances thanks to hydrophobic and oleo-phobic properties. This treatment allows a simple and easier cleaning of the lens and reduces the possibility of superﬁcial scratches.

Mirroring is a highly reﬂection treatment that signiﬁcantly reduces the amount of light reaching the eyes of the wearer of glasses. This treatment is usually applied on sun lenses and can be applied on a base of any colour.

INDEX

LAB MOD SYSTEM LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

6.0 LENSES

6.1 CR39 Base 2 - Base 4

6.3 CR39 Mirrored and Fashion Base 6-8

• CR39 Special Base 2 ........................................................ 6 • CR39 Classic full colour and gradient Base 4............. 7 • CR39 Fashion full colour and gradient Base 4 .......... 8 • CR39 Photochromic Lenses Classic, Gradient and Mirrored Base 4...................... 9 • CR39 Dark Glam with HC and mirror coating Base 4 ............ 12 • CR39 Gradient with HC and AR coating inside Base 4 .......... 13

• Flash Electric Back Base 6 ............................................. • CR39 with Hard Coating and mirror coating Base 6..... • CR39 Multilayer mirrored Base 6 ............................... • CR39 Fashion Flash Mirror Base 6-8 .......................... • CR39 Fashion Bicolour Base 6 .................................... • CR39 Fashion Gradient and full colour Base 6 ...........

6.2 CR39 Classic and Polarized Base 6-8

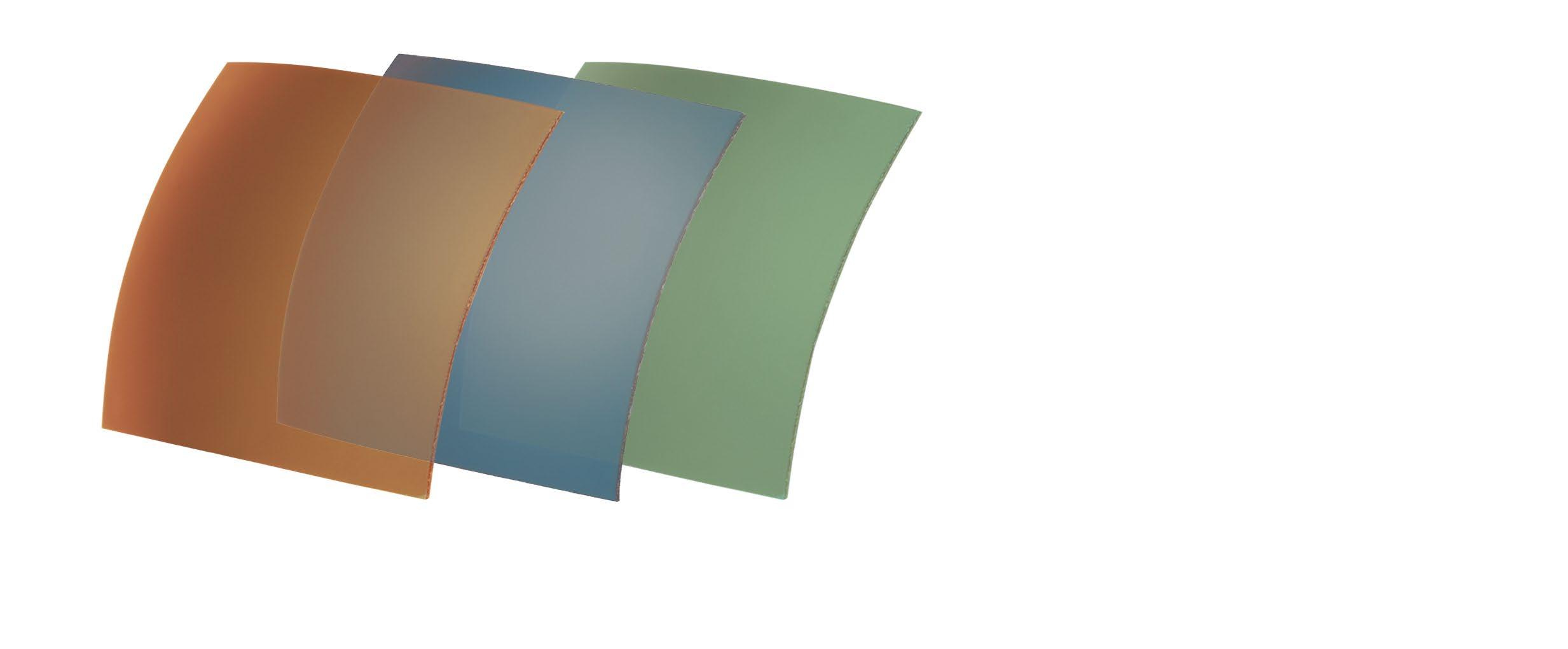

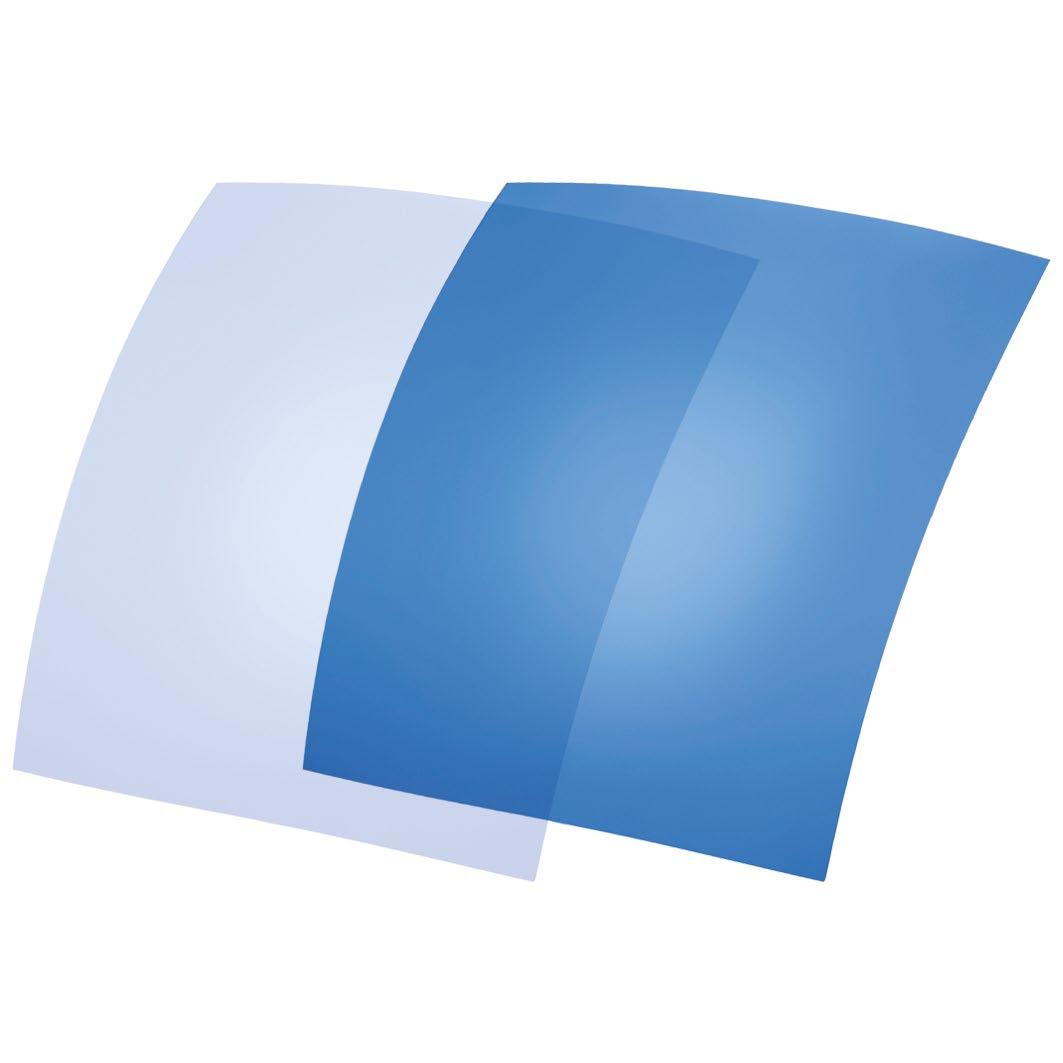

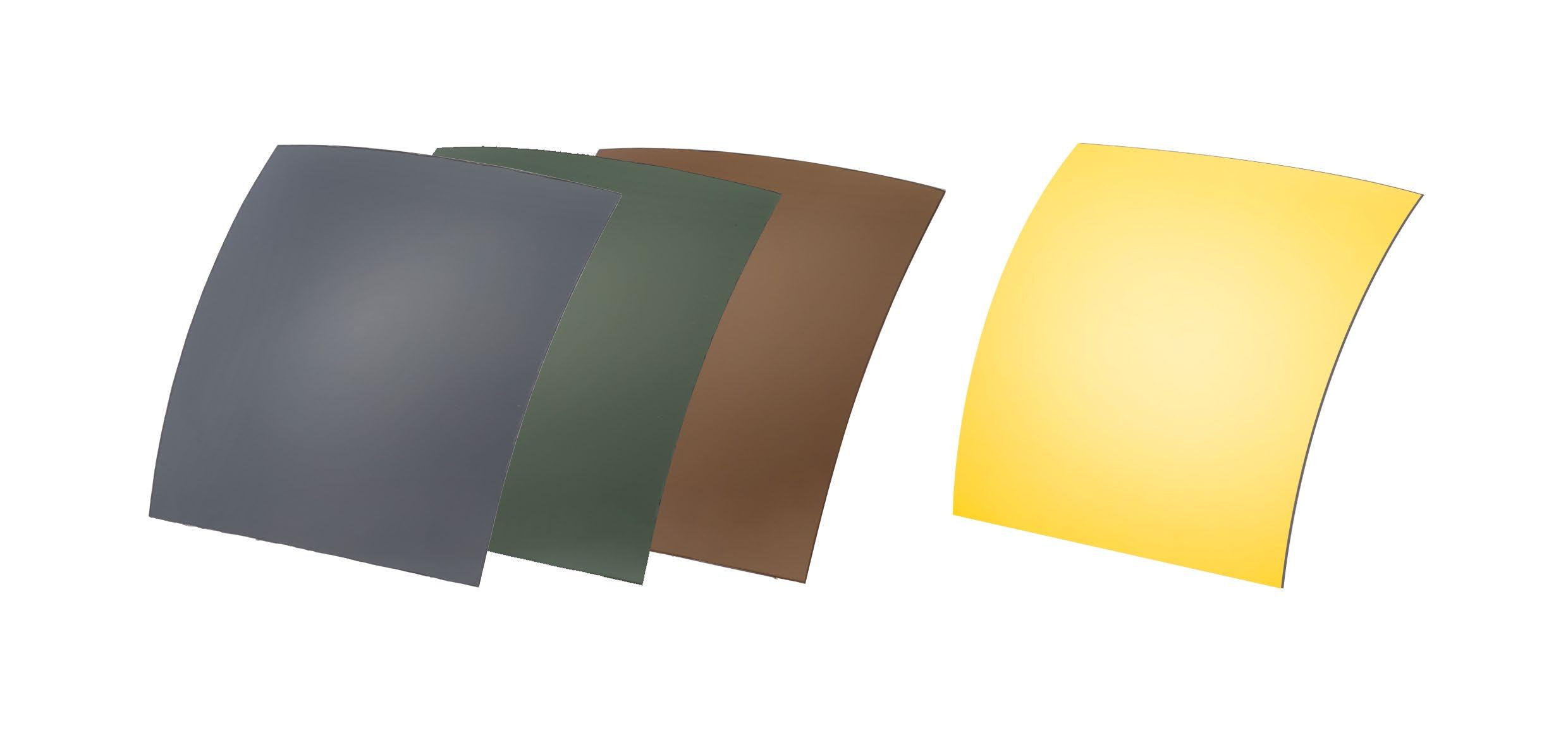

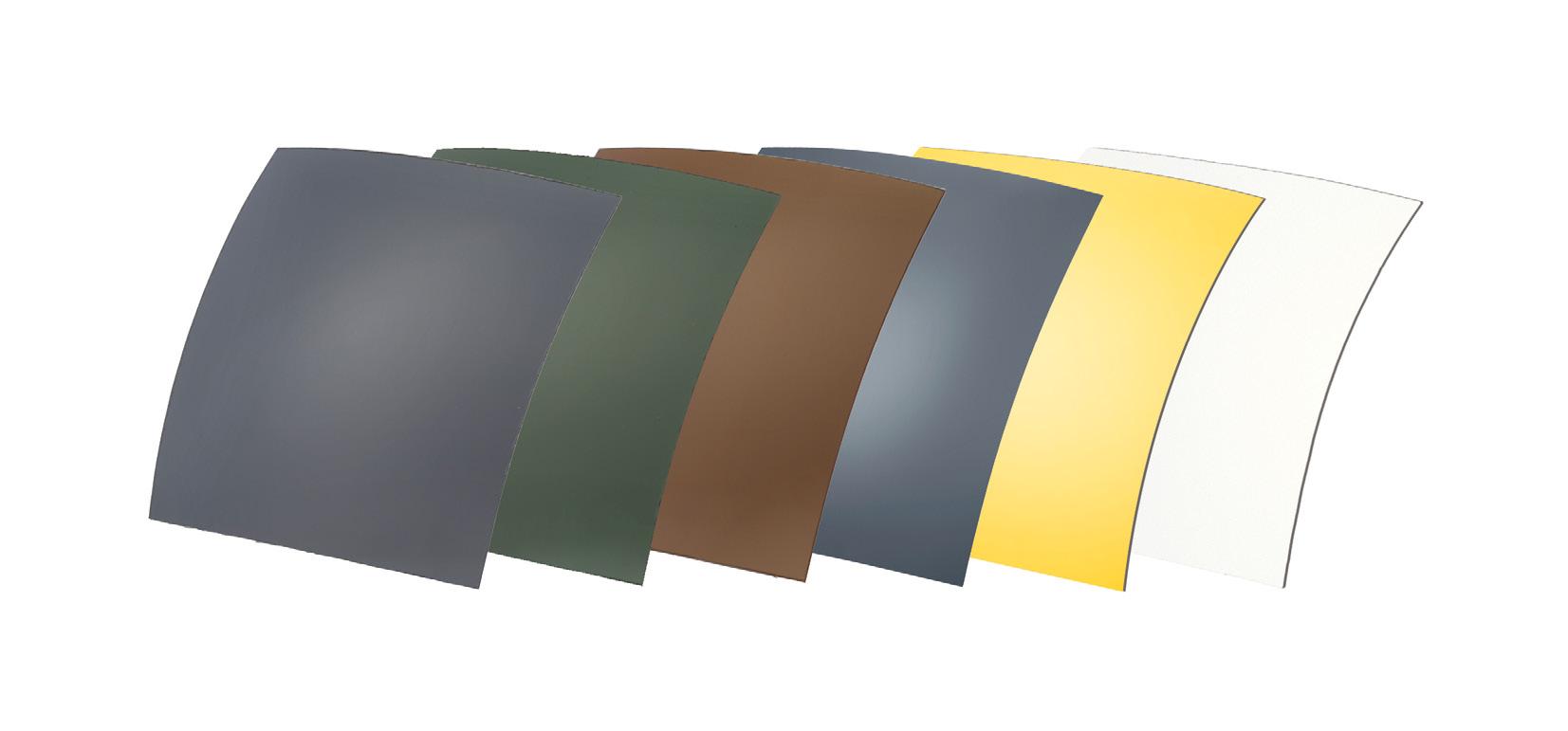

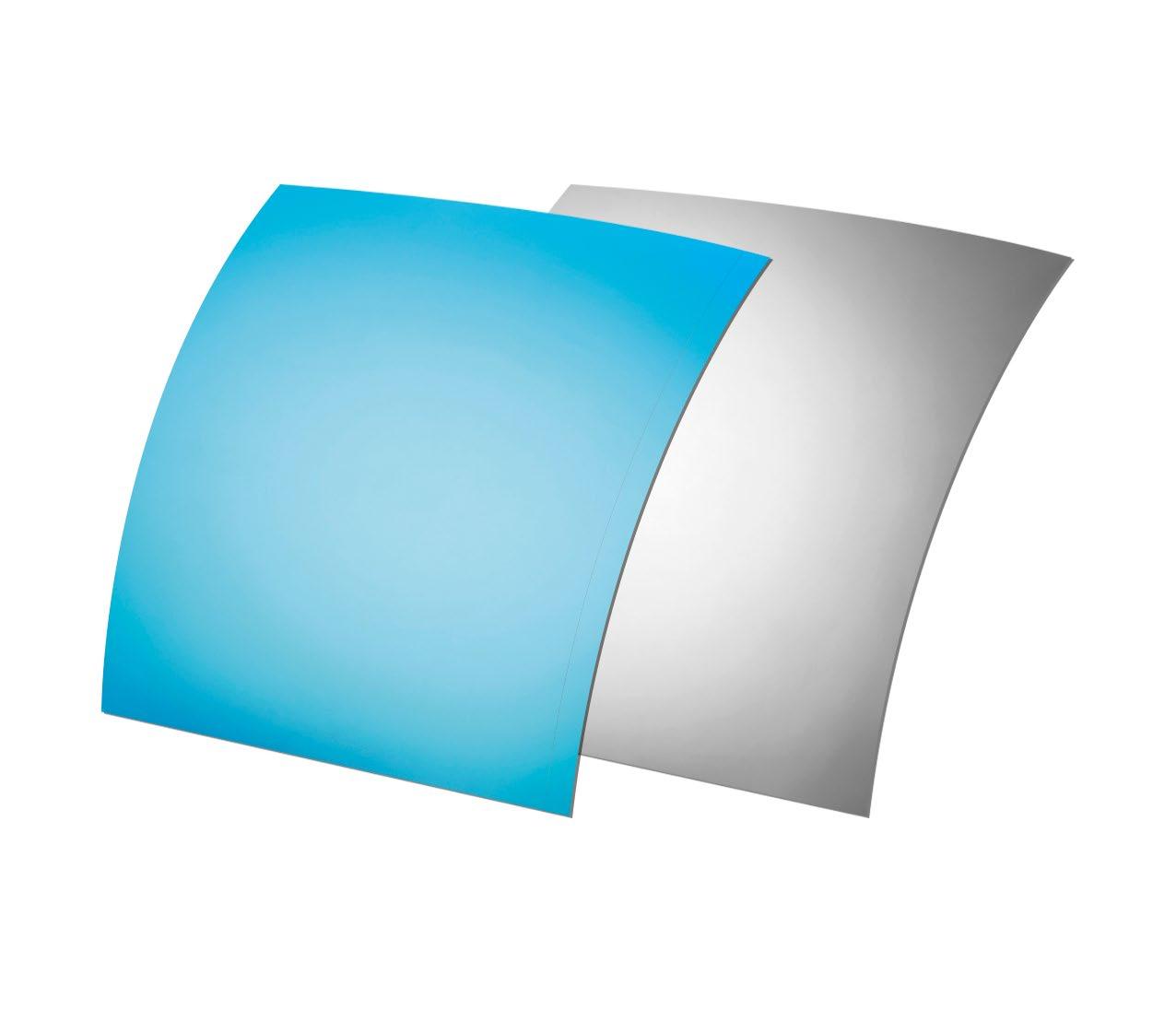

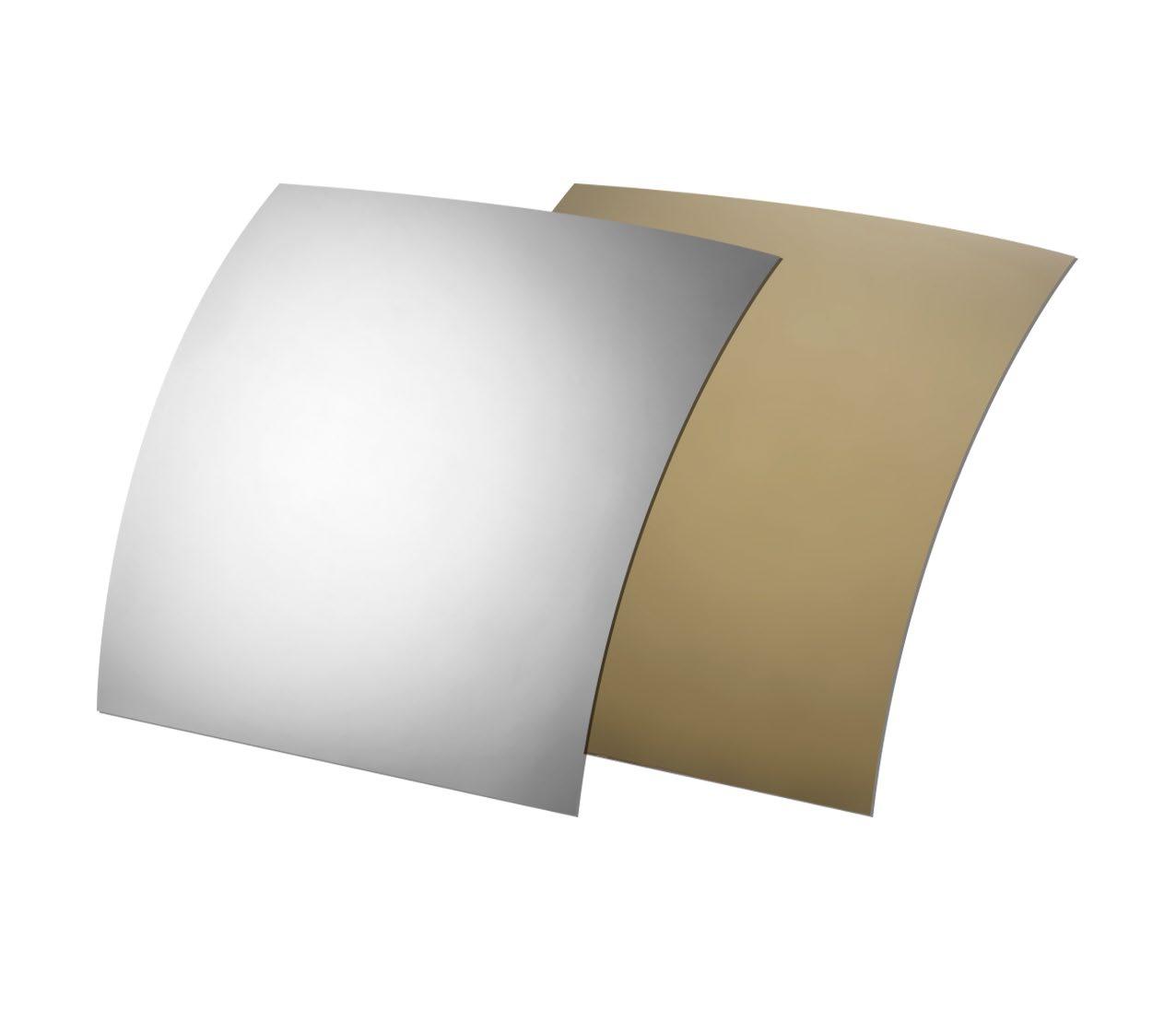

6.4 Polarizing Sheets

REFRACTION & ORTHOPTIC

LENSES

• CR39 Classic full colour and gradient Base 6-8 ............ • CR39 Polarized Base 6-8 ................................................ • CR39 Polarizad with hard coating and AR coating inside Base 6-8................................... • CR39 Polarized Mirrored Base 6 ................................. • CR39 Polarized Fashion and Gradient Base 6 ........

14 17 18 19 20

28 29 30 32

INTERNATIONAL STANDARD EN ISO 12312-1:2013+A1:2015

TESTING METHODS

Requirements and testing methods.

• Static, dynamic and inflammability tests: To verify the filter is not dangerous for the eyes.

Filters suitable for continual use • For spherical and astigmatic powers: no more than ± 0,12 diopters

• Optical tests to check transmittance: verifies the refractive power and light diffusion as well as quality defects.

Recognition of the colours of signal lights

• Ageing test: To verify the durability of the filtering performance.

INDEX

Q = Inferior limits of the Q transmission values Q RED - 0,80 / Q YELLOW - 0,60 / Q GREEN - 0,60 / Q BLUE - 0,60

• Classic full colour and gradient Base 4 ................... • Multilayer mirrored Base 4 ........................................... • Photochromic Base 4 .................................................... • Classic full colour Base 6 ..............................................

22 23 24 25 26 27

LAB MOD SYSTEM

6.0

FRAME PARTS TOOLS PLIERS EQUIPMENTS

6.5 Polycarbonate

6.7 Special Lenses 33 34 35 36 37 38

6.6 Mineral • Classic full colour ............................................................. 39 • Polarized with AR coating inside ............................... 39

40 42 43 44 45

LENSES

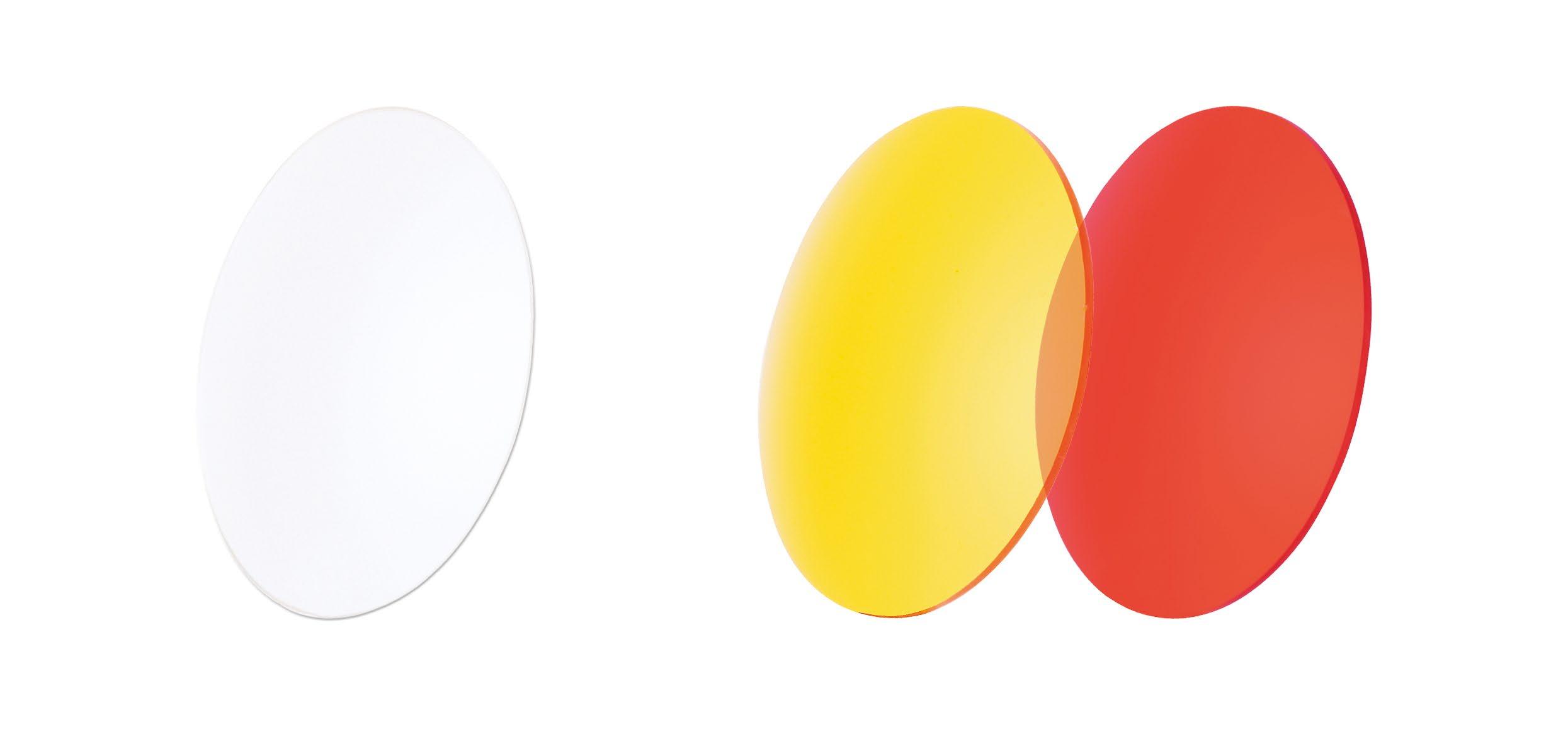

Special lenses for driving • With hard coating and an external anti-reﬂective treatment Base 4 ................................ 1.56nd Lenses • HMC Lenses Blue Light Comfort Base 4 ................. Special devices, foggy weather, 530 nm • For video terminals/displays - Fog - 530 nm Base 6 .................................................................................. CR39 transparent for lab • Tinting CR39 Base 6-8 ................................................... • Demo CR39 for rimless and nylor frames Base 4-6-8 .......................................................................... 1.56nd lenses for presbyopia • HMC positive single vision lenses Blue Light Comfort ........................................................ • Polarized Tests ...............................................................

LAB CONSUMABLES

• Photochromic Base 4 .................................................... • Classic full colour and gradient Base 6 .................... • Fashion Mirror Base 6..................................................... • Polarized decentred Base 6 ......................................... • Polarized with AR coating inside Base 6-8.............. • Classic full colour and gradient Base 8 ....................

46 47

PROTECTION AGAINST SUN RAYSSOLARI PROTEZIONE DALLE RADIAZIONI TRANSMISSION VALUES OF VISIBLE LIGHT 380-780 nm

UVB FACTOR 280-315 nm

UVA FACTOR 315-380 nm

0 CLEAR

80-100

0,05 • Tv

1 LIGHT

43-80

0,05 • Tv

2 MEDIUM

18-43

1,0

0,5 • Tv

3 DARK

8-18

1,0

0,5 • Tv

3-8

1,0

4 VERY DARK

(not suitable for driving or road use)

REFRACTION & ORTHOPTIC

FILTER CATEGORY

Printed example so colours may vary from actual lens colour due to factors beyond our control.

INDEX

LAB MOD SYSTEM

6.1 CR39 Special Base 2 UV400 MADE IN ITALY

FRAME PARTS

Base B 2 Ø 76 mm |

2,0 mm

2 pcs.

Ref. 06290 Ref. 06291 Ref. 06292 FC3 (τ 9-12%) FC3 (τ 8-10%) FC3 (τ 12%) Dark Grey Dark Brown Dark Green-Grey 75% 75% 75% G15

Ref. 06293 Ref. 06295 Ref. 06294 FC2 (τ 38%) FC2 (τ 30-32%) FC1 (τ 50%) Medium Gray Medium Brown Light Cobalt Gradient Gradient Gradient 60% 60% 35%

NEW

EQUIPMENTS

PLIERS

TOOLS

NEW

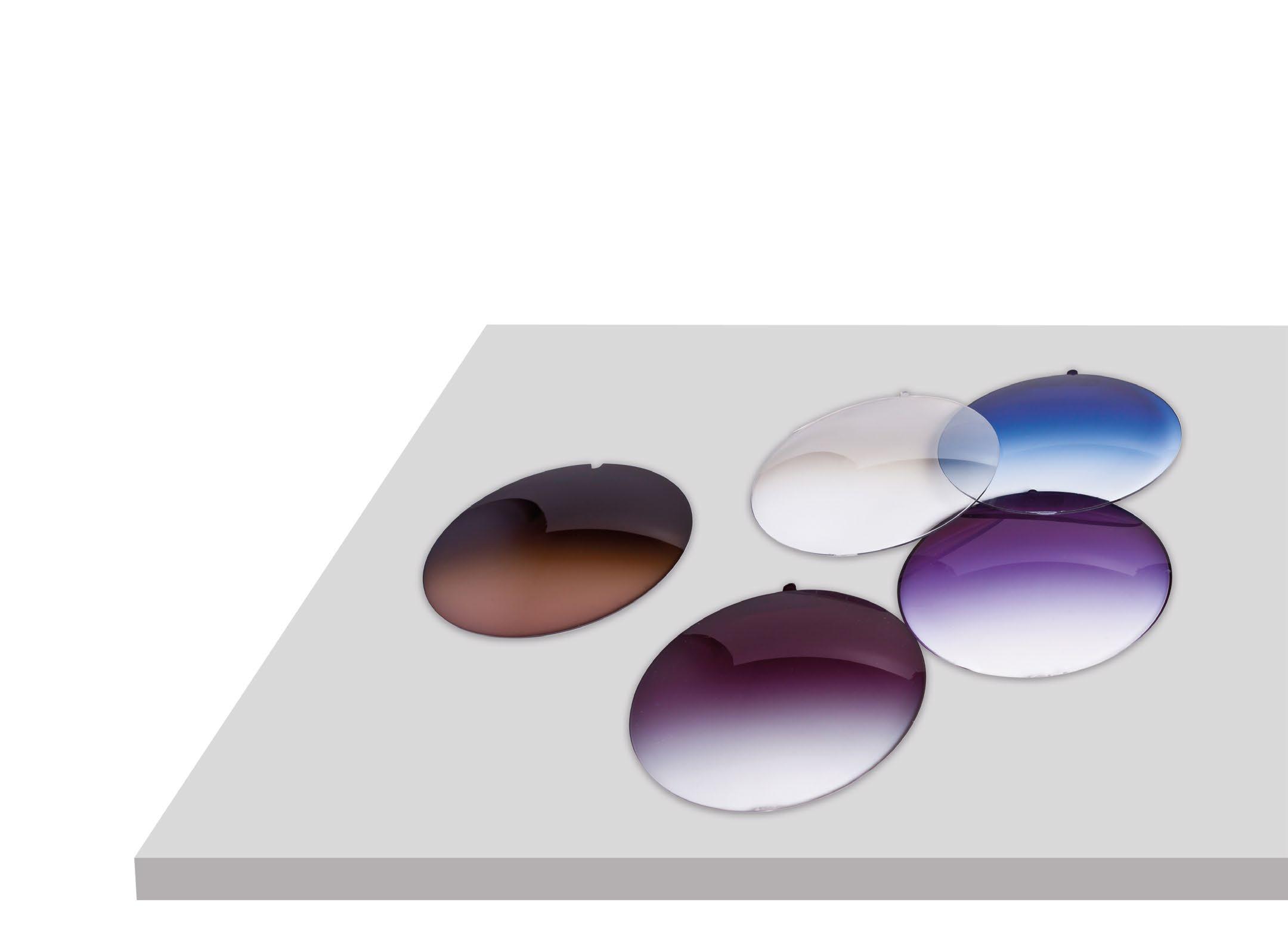

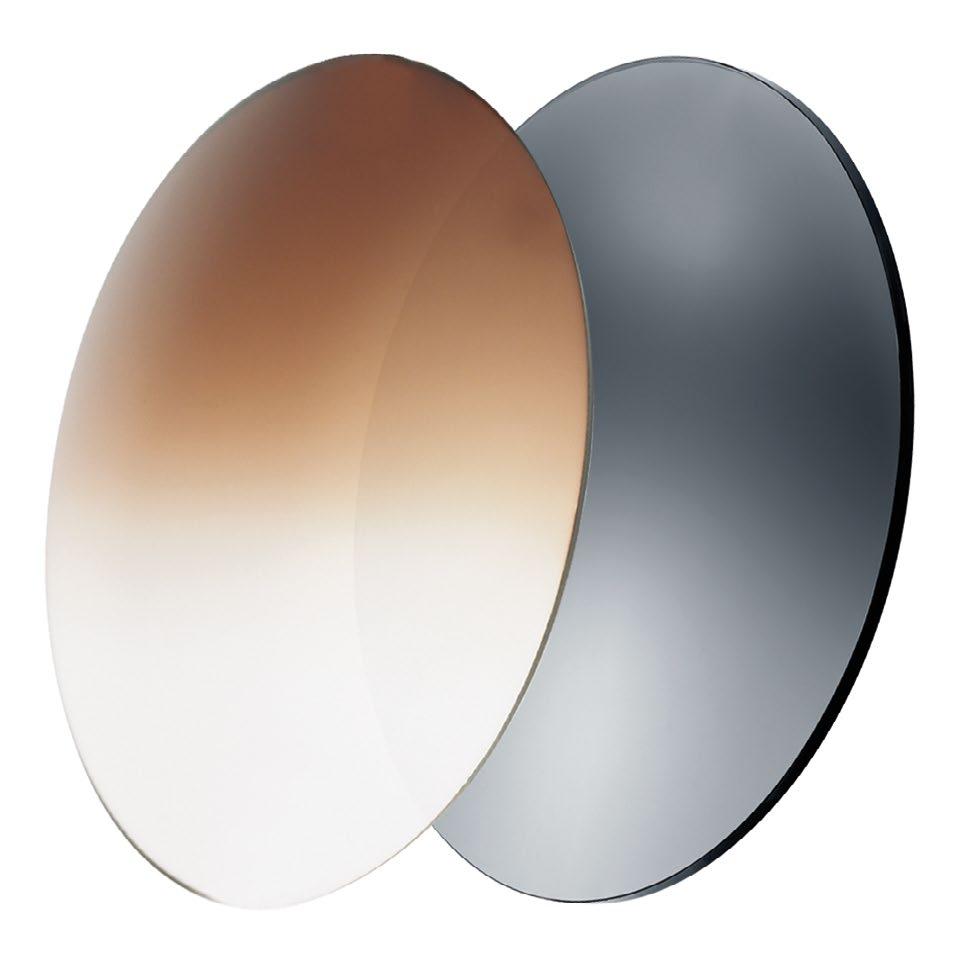

Gradient

LAB CONSUMABLES

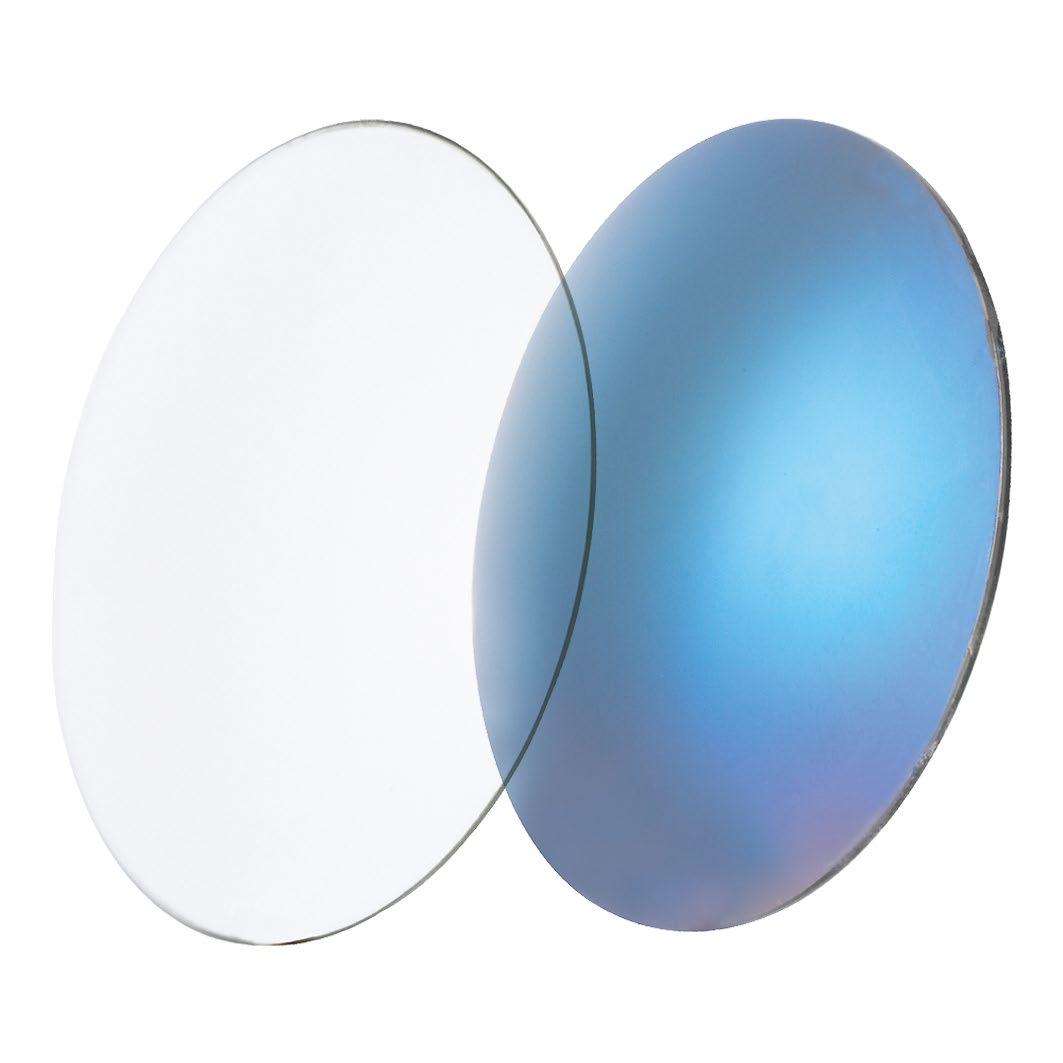

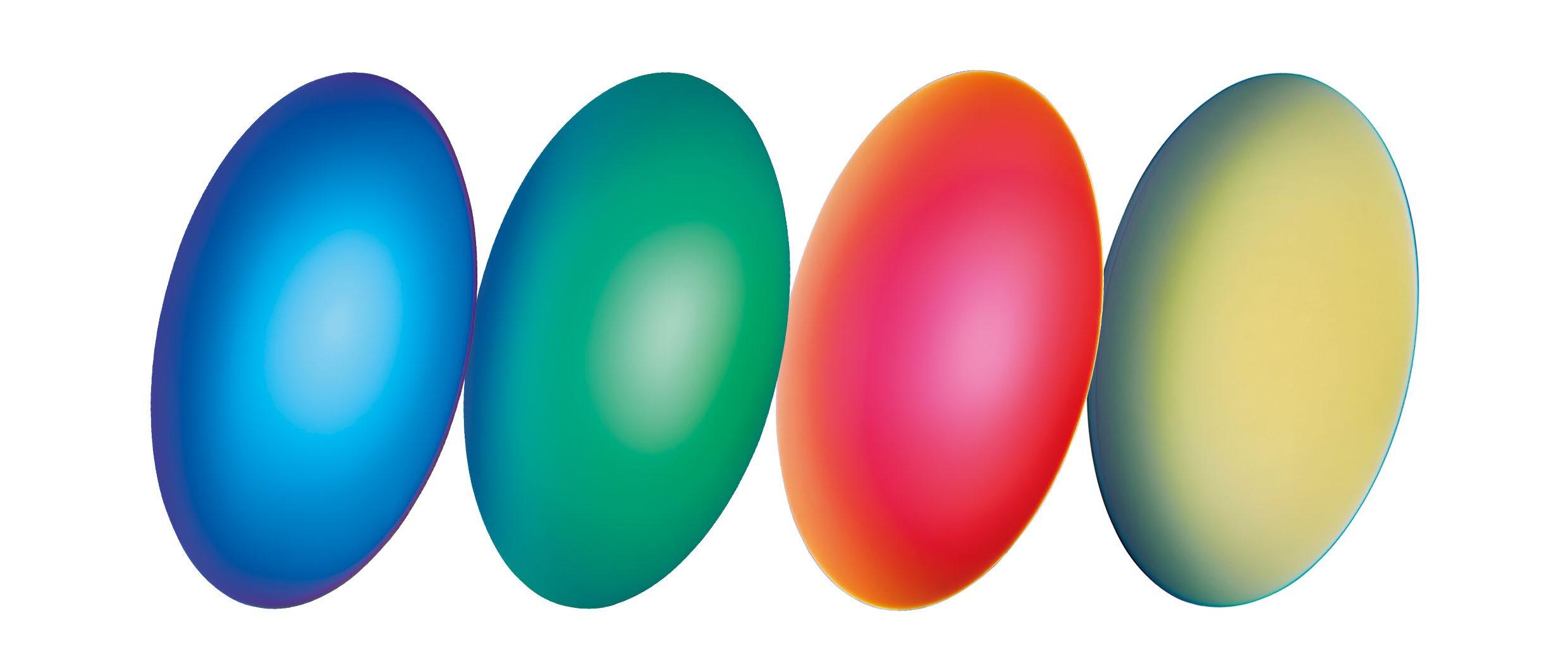

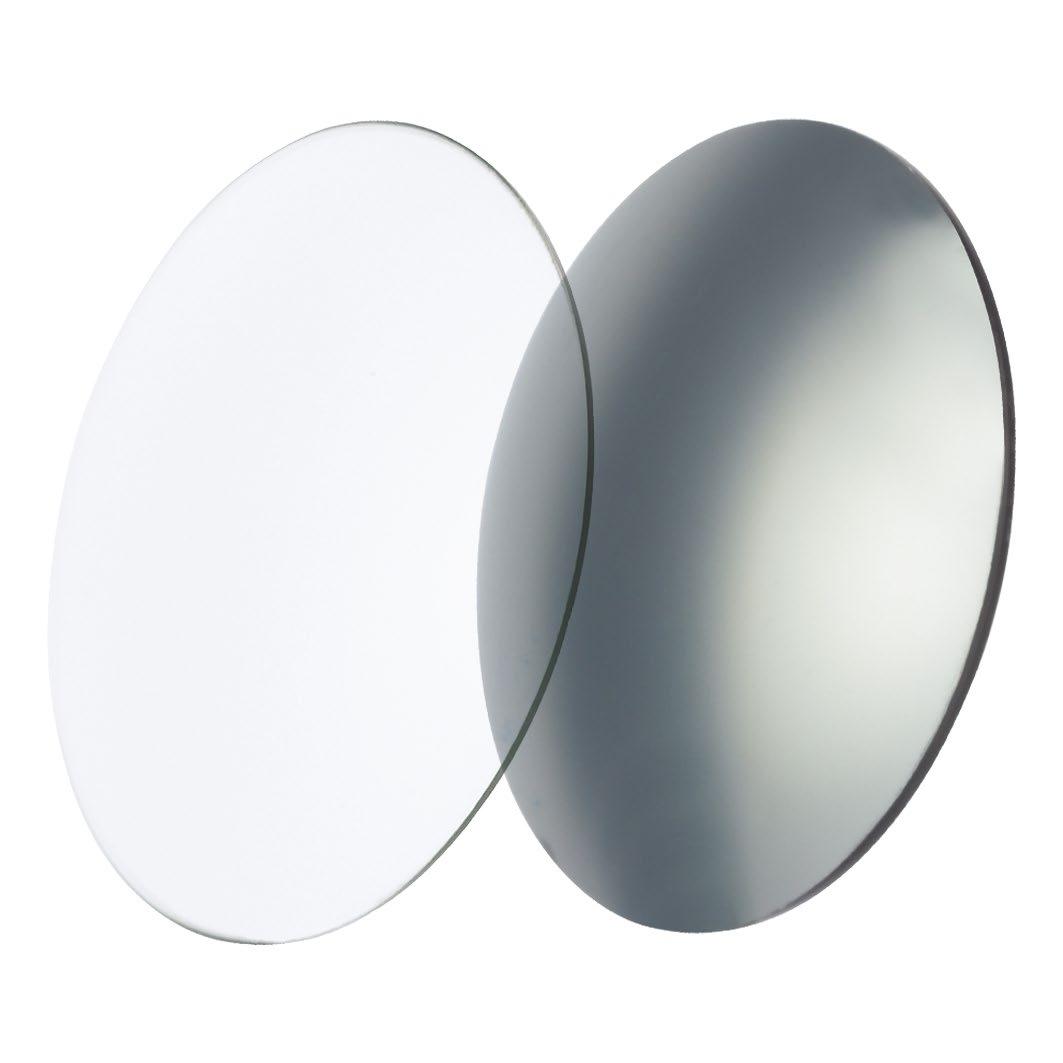

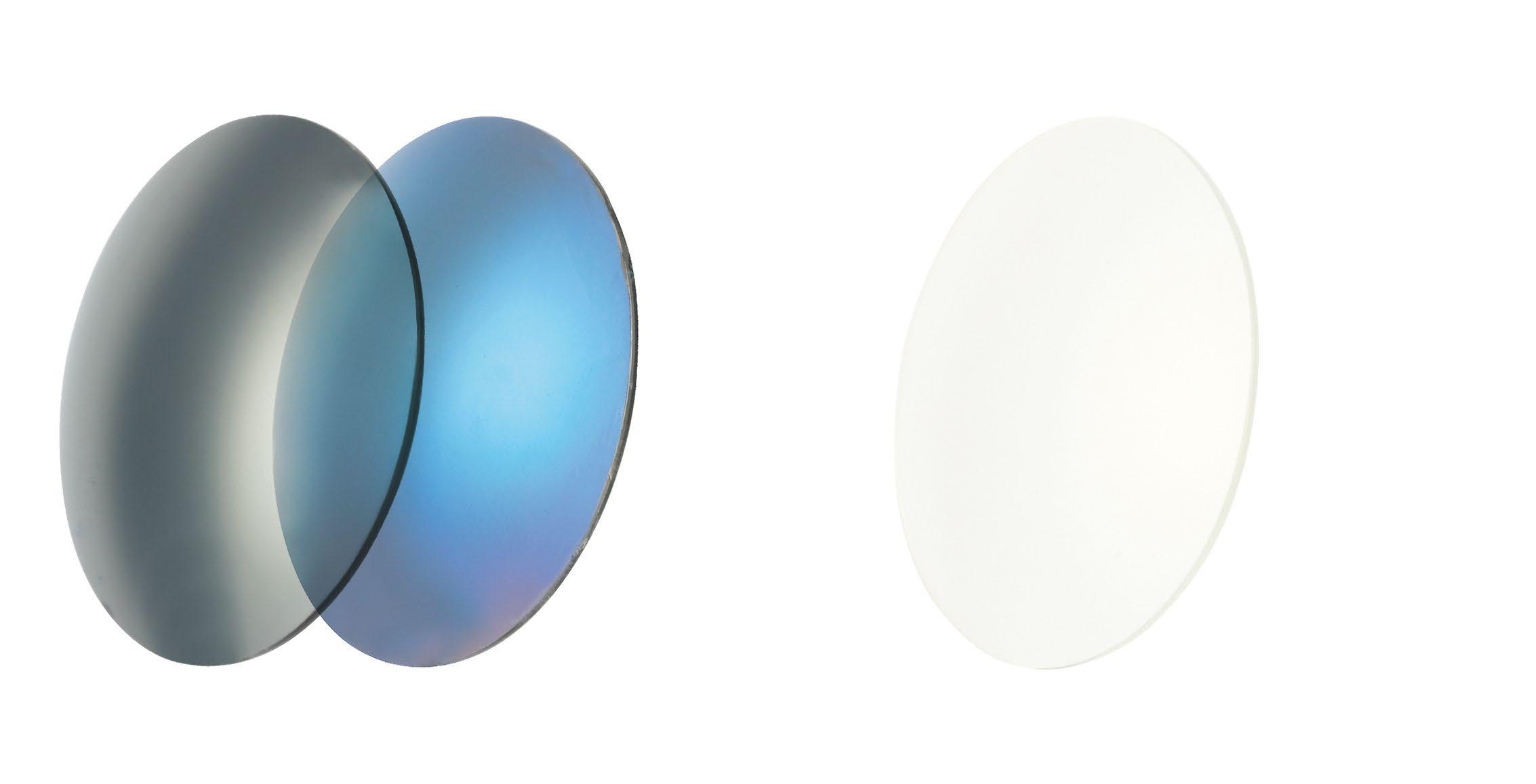

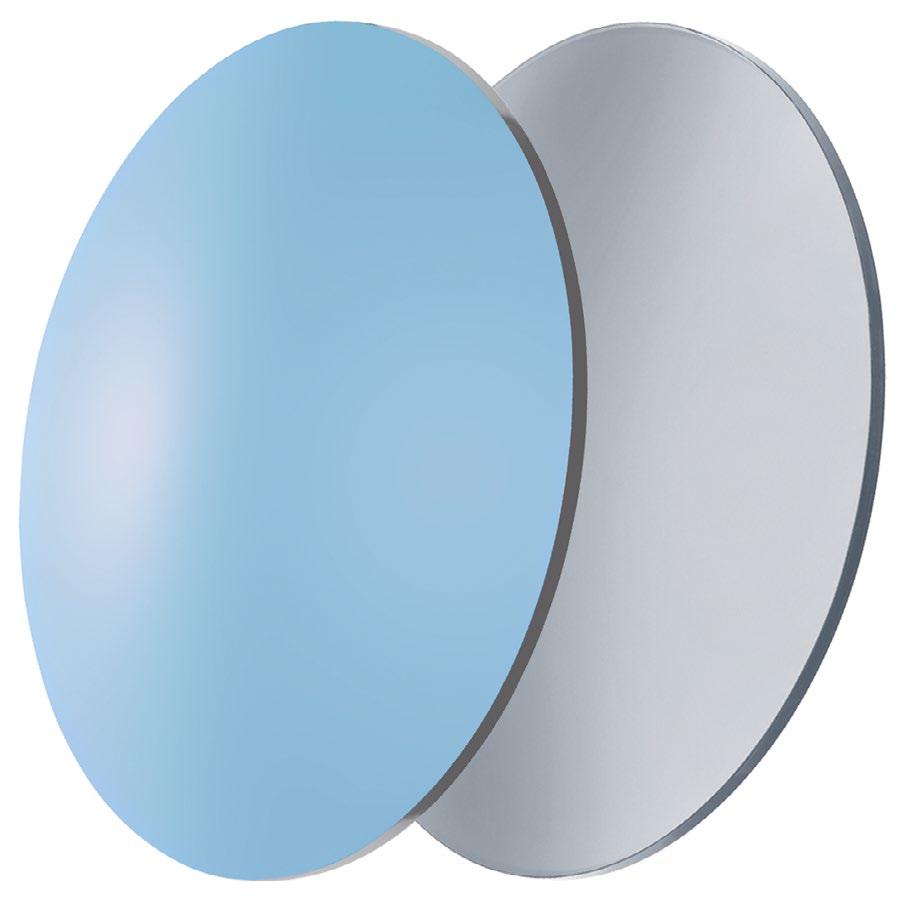

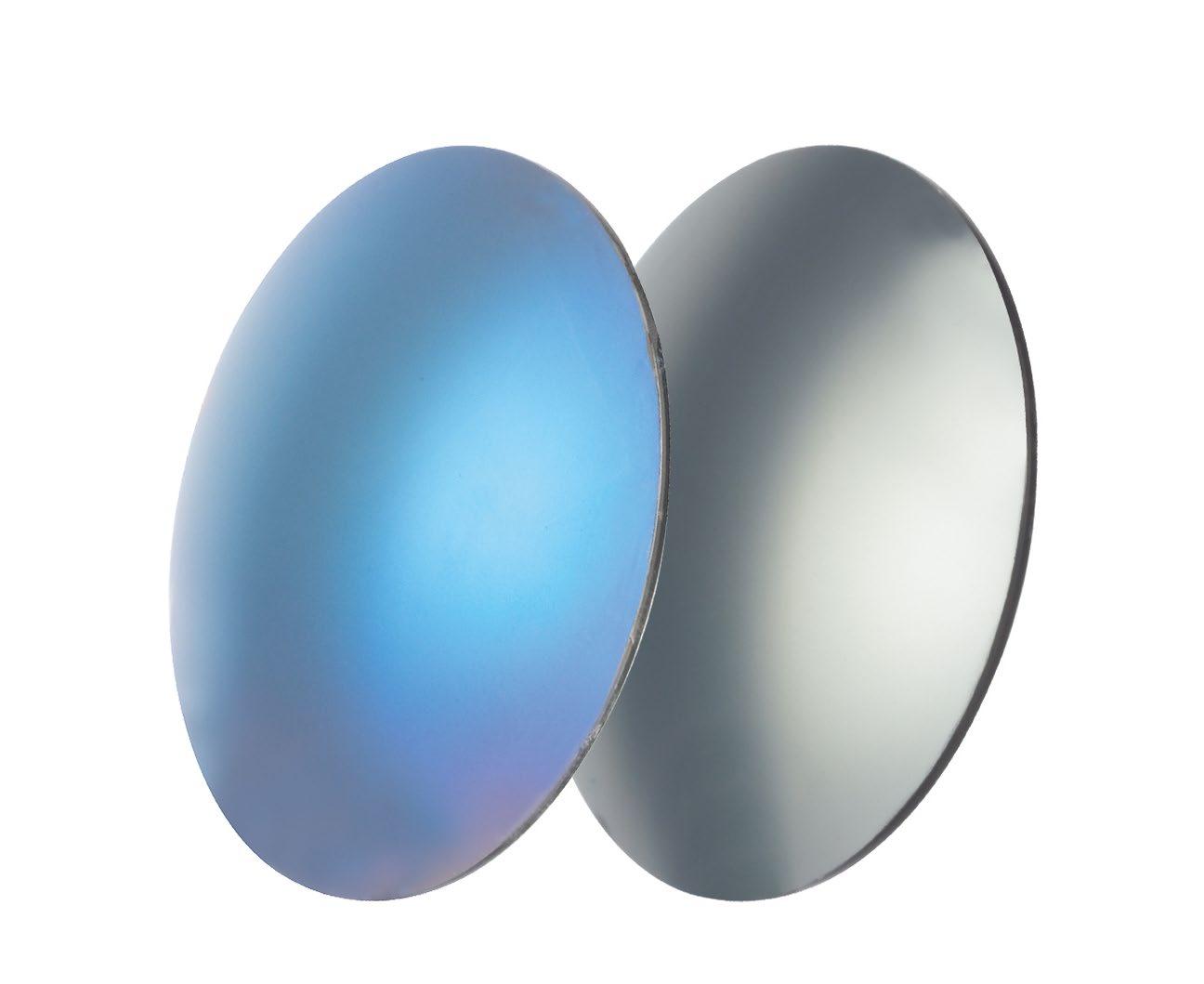

Mirror Ref. 06297 FC3 (τ 15-17%) Blue Mirror Base Grey 75%

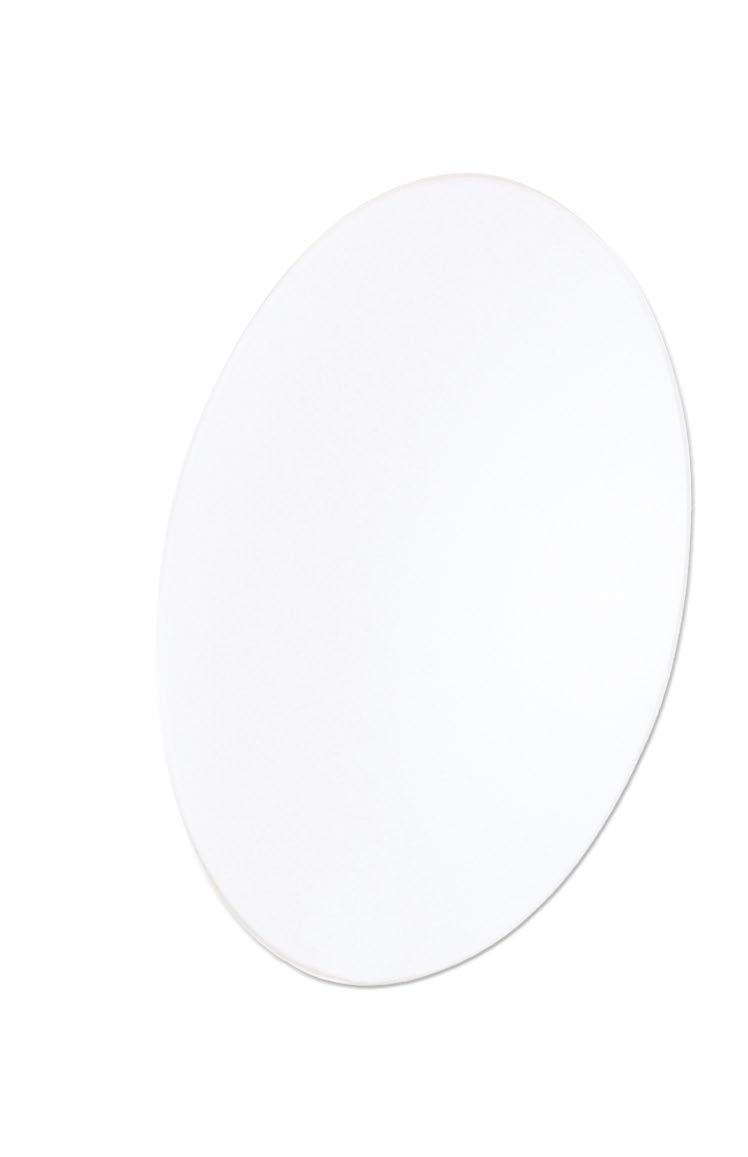

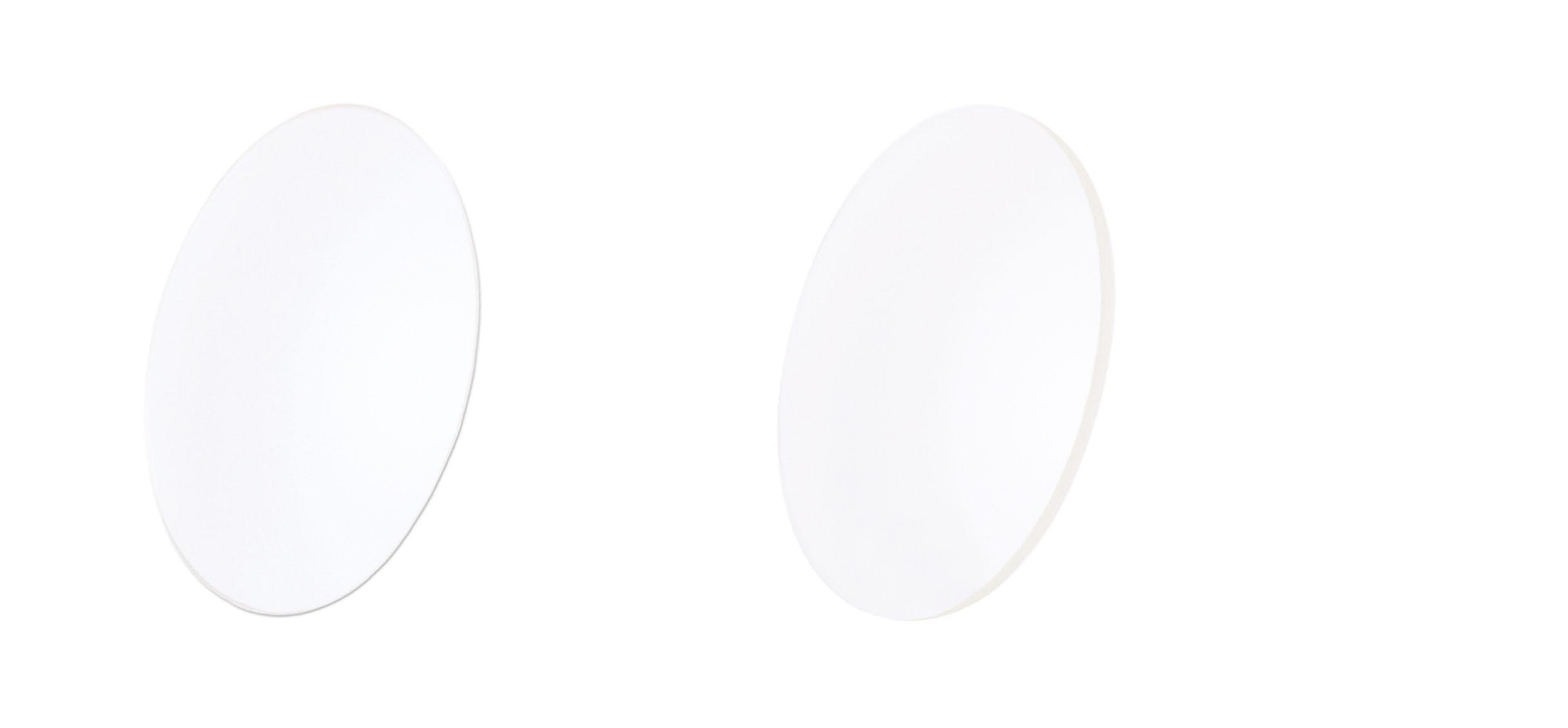

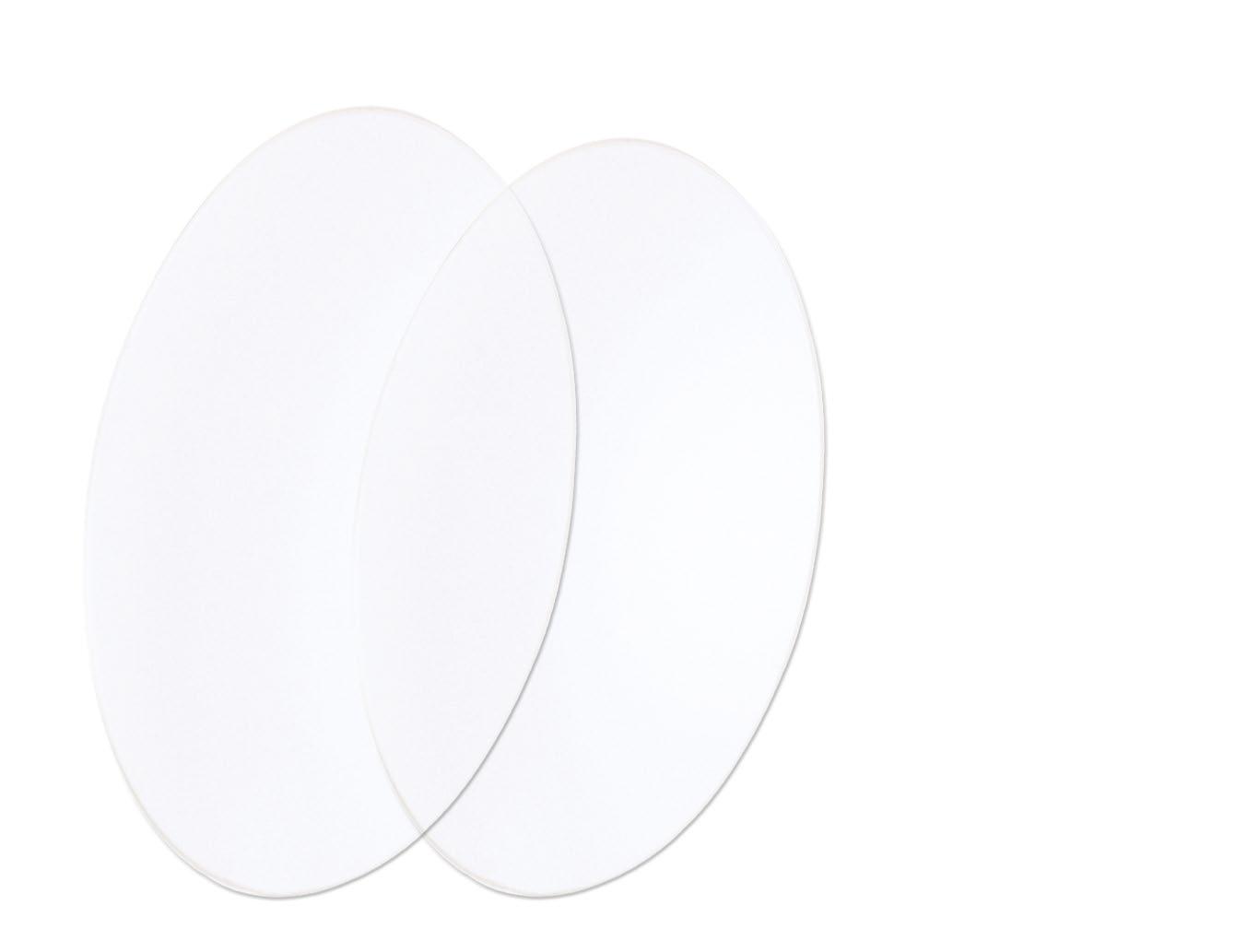

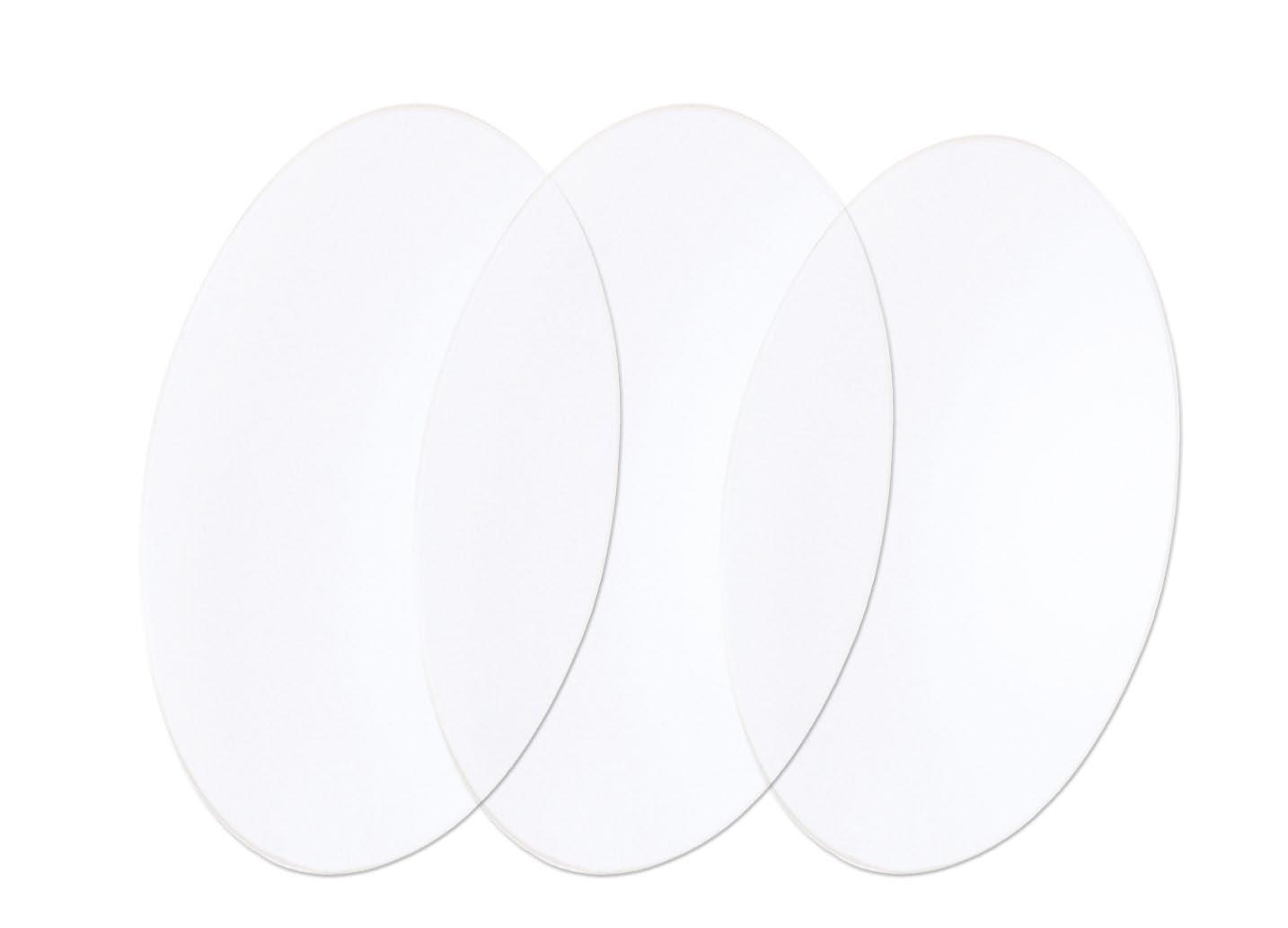

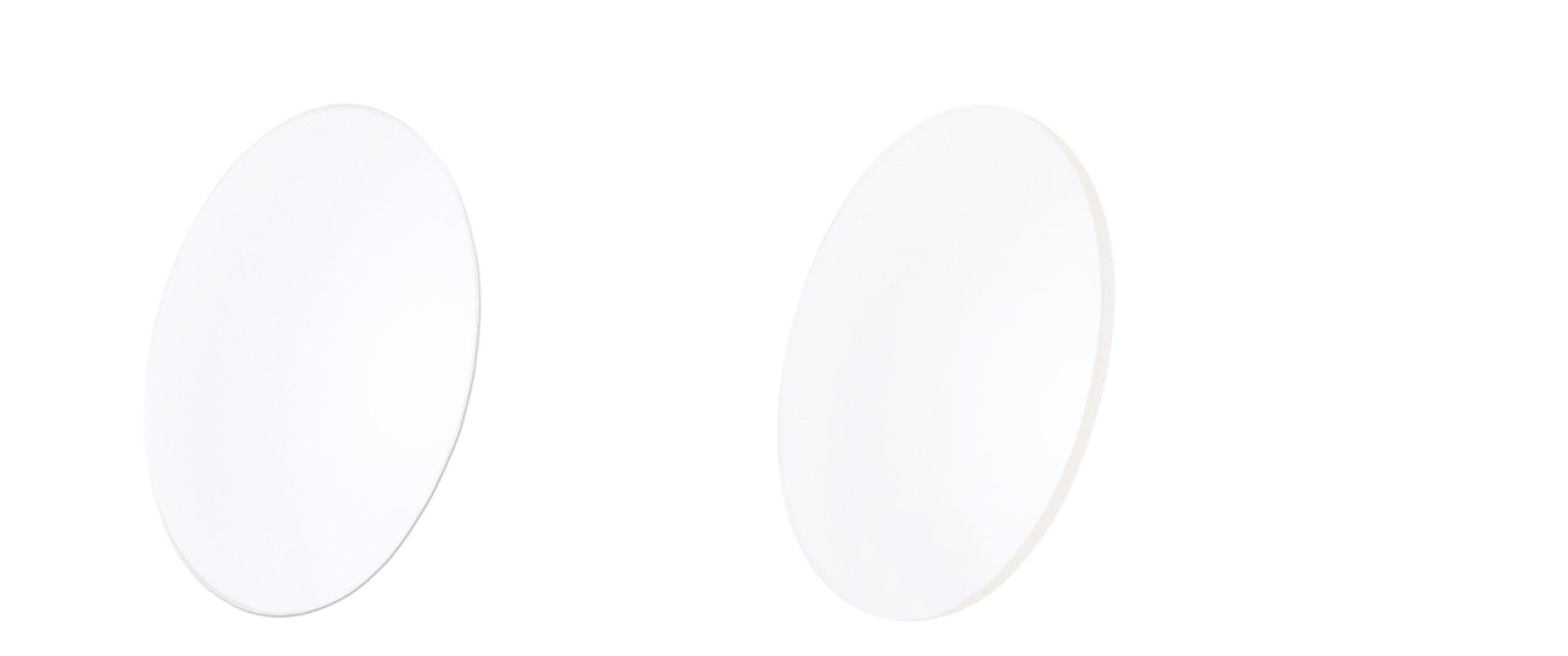

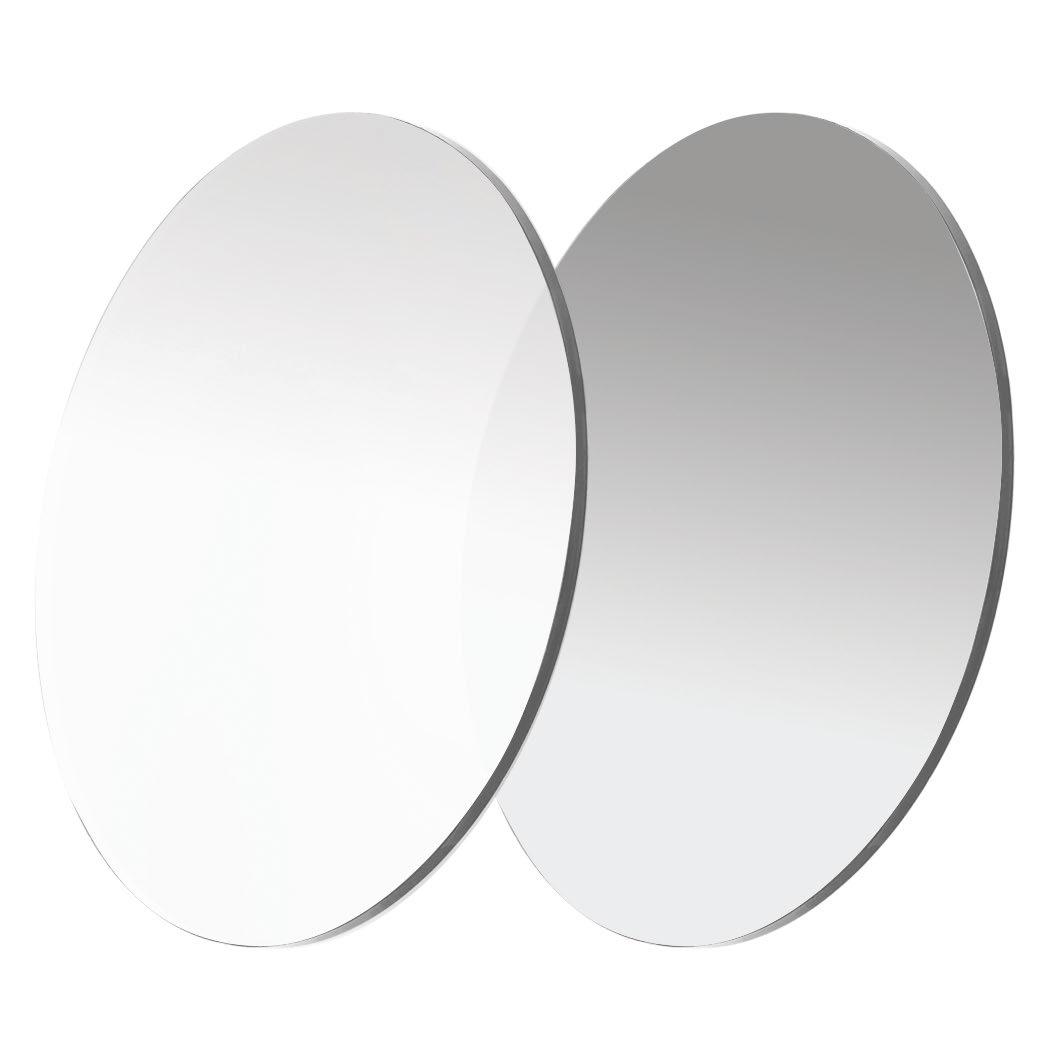

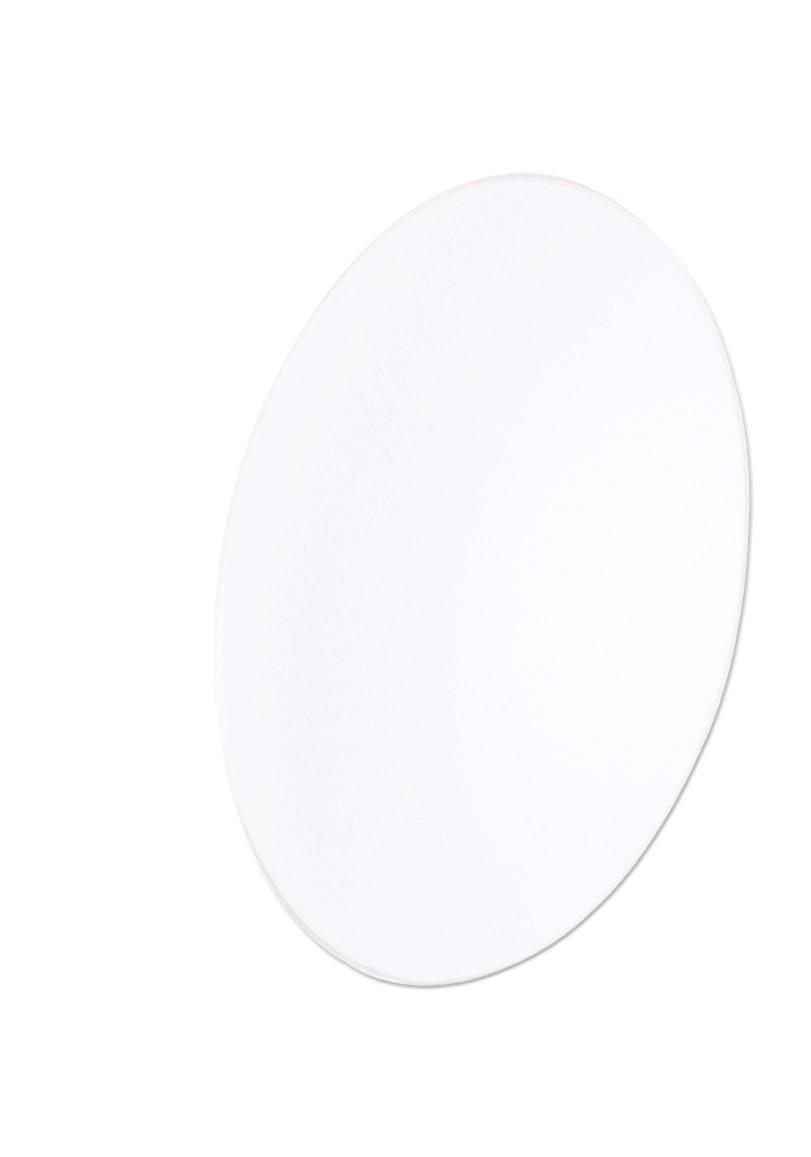

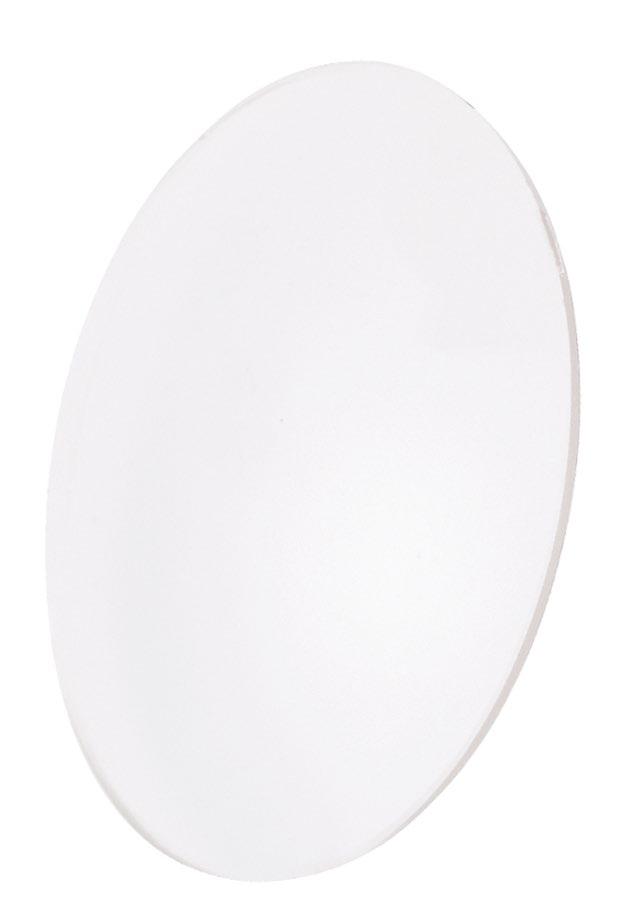

Ref. 06299 FC0 (τ 92%) Clear UV400

INDEX

REFRACTION & ORTHOPTIC

LENSES

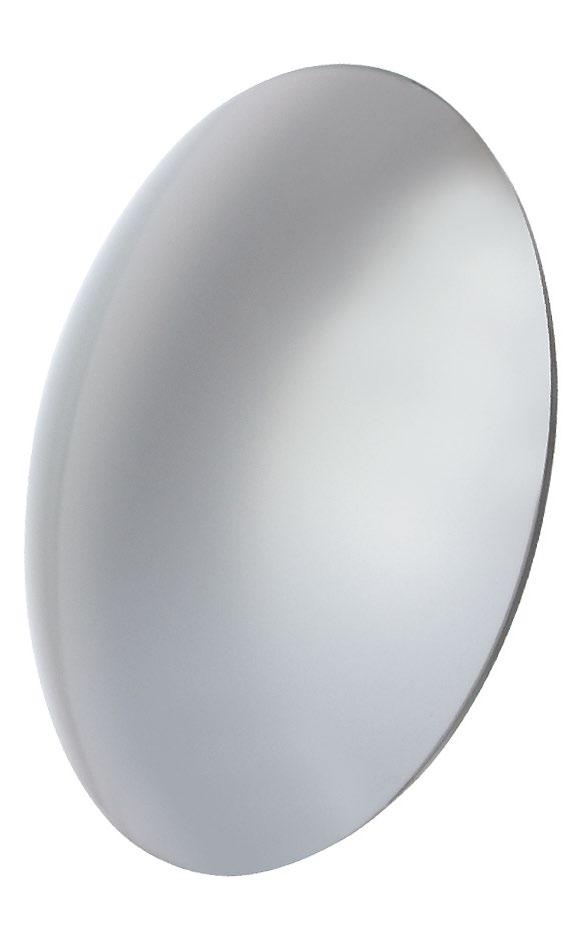

Ref. 06296 FC3 (τ 8-10%) Silver Mirror Base Grey 75%

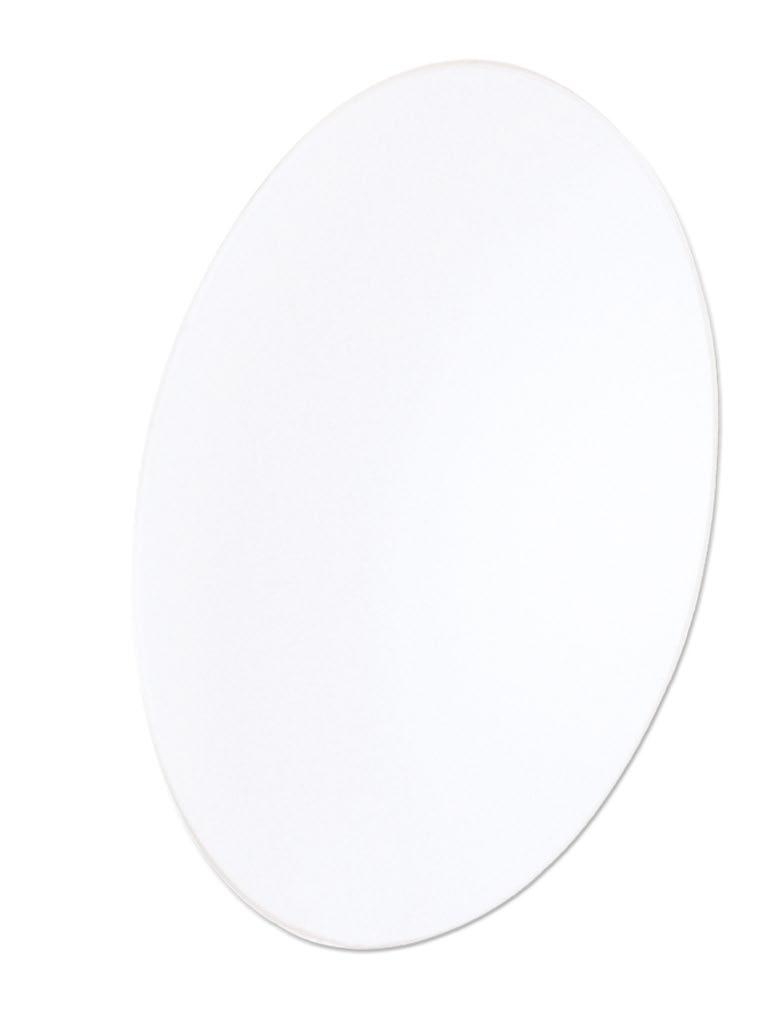

Clear

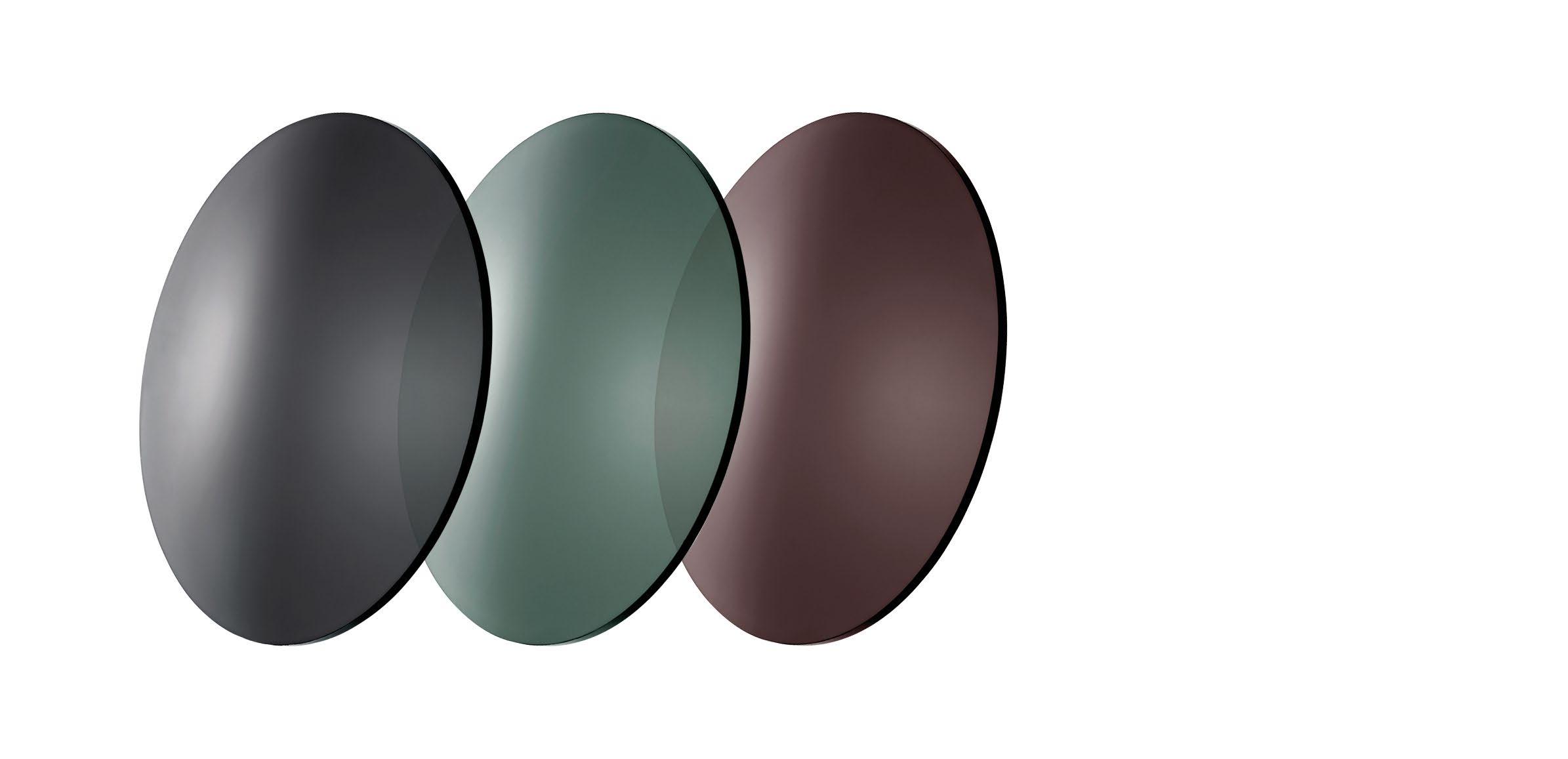

UV400 - Full colour - Lenses manufactured by Carl Zeiss Vision 1,8 mm

MADE IN ITALY

6 pcs.

Ref. 06334 FC3 (τ 15.5%) Green Grey 75% G15

Ref. 06336 FC3 (τ 10%) Brown 75%

NEW

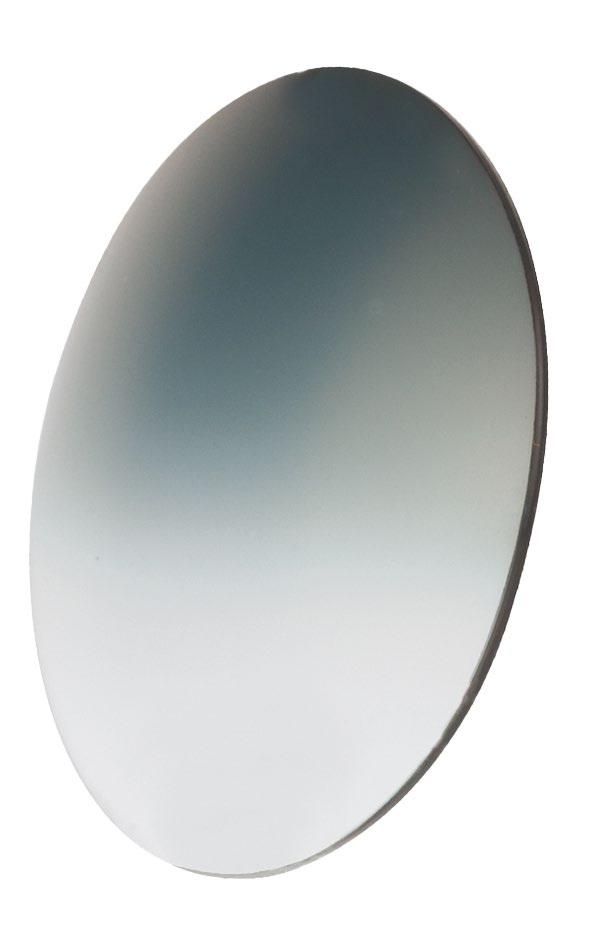

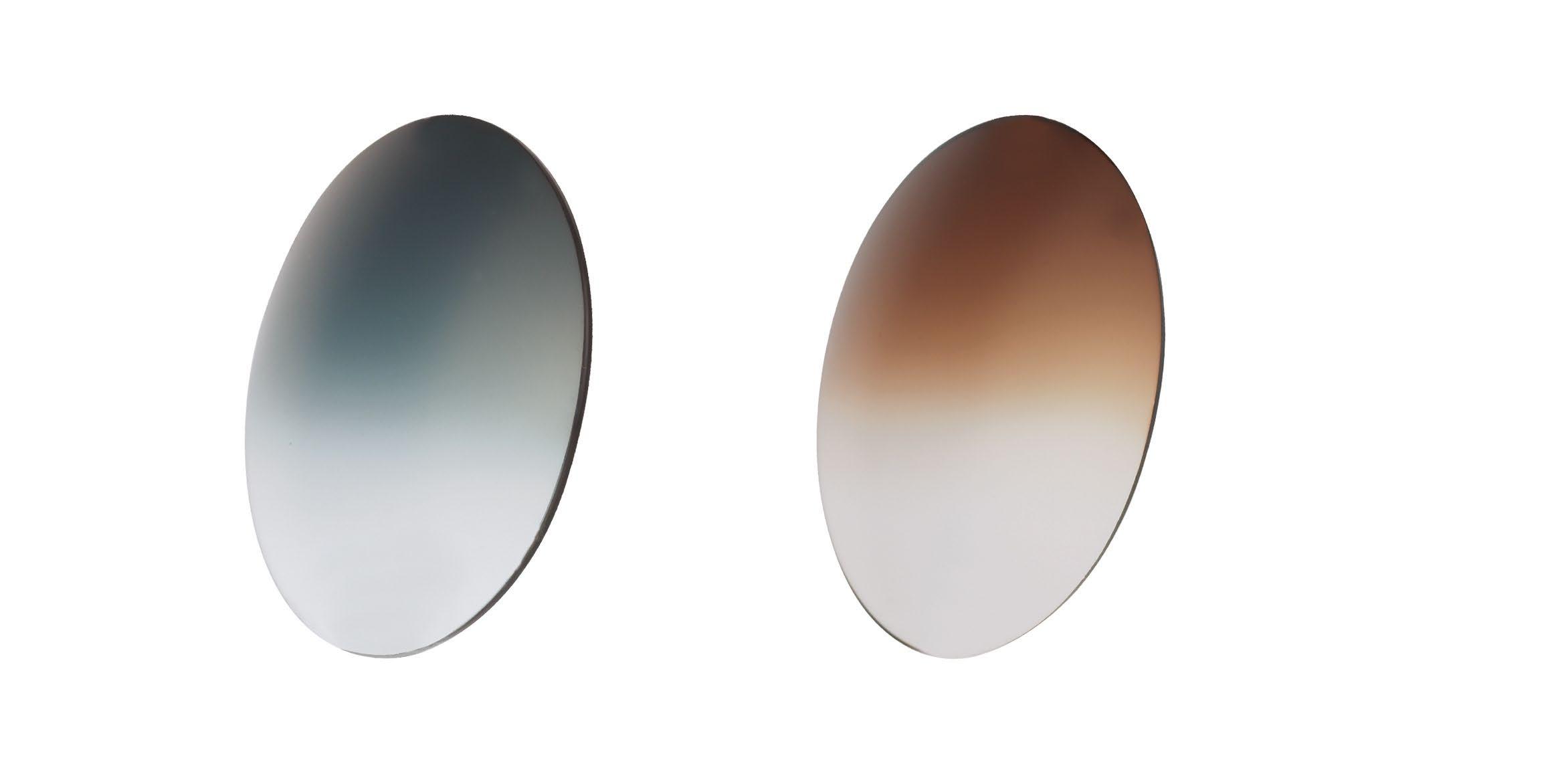

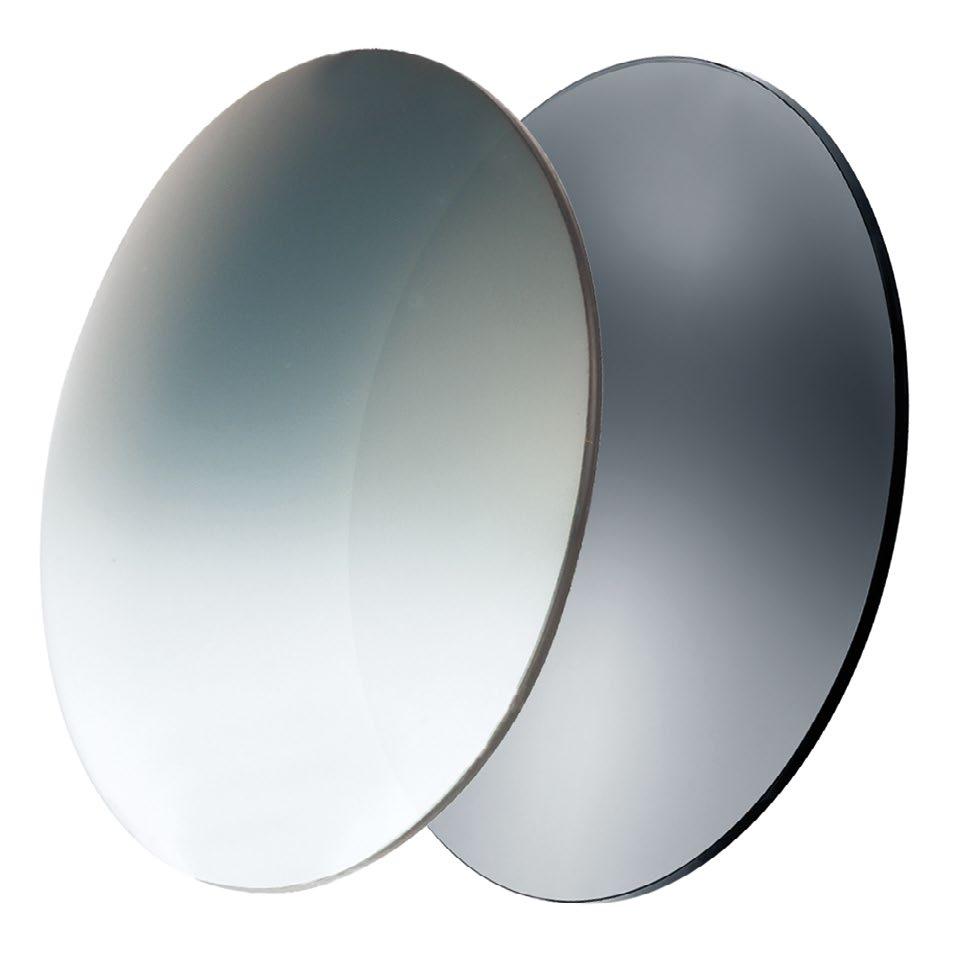

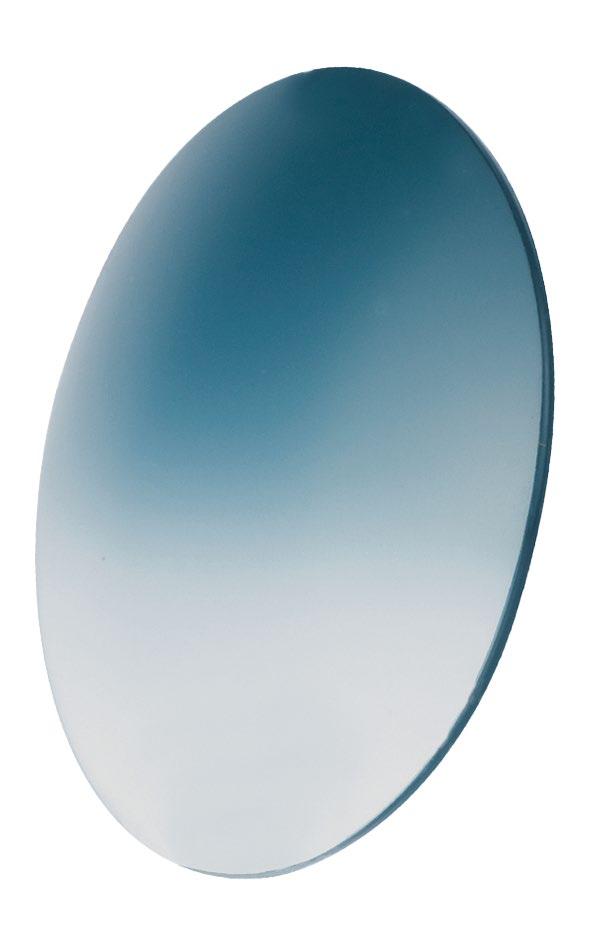

Ref. 06333 FC2 (τ 20%) Grey Gradient 60%

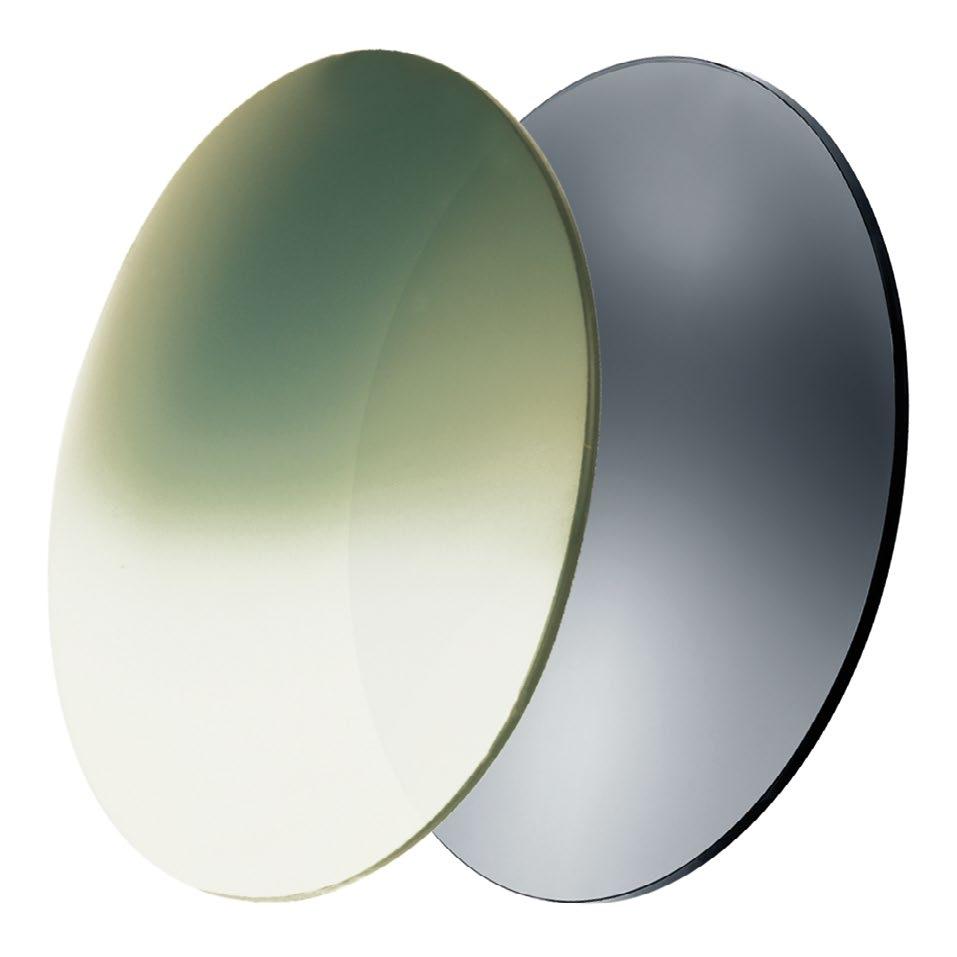

Ref. 06335 FC3 (τ 13%) Green Grey Gradient 60% G15

Ref. 06337 FC3 (τ 16%) Medium Brown Gradient 60%

NEW

TOOLS

Ref. 06332 FC3 (τ 9.5%) Grey 75%

FRAME PARTS

Base B 4 Ø 76 mm |

6.1

LAB MOD SYSTEM

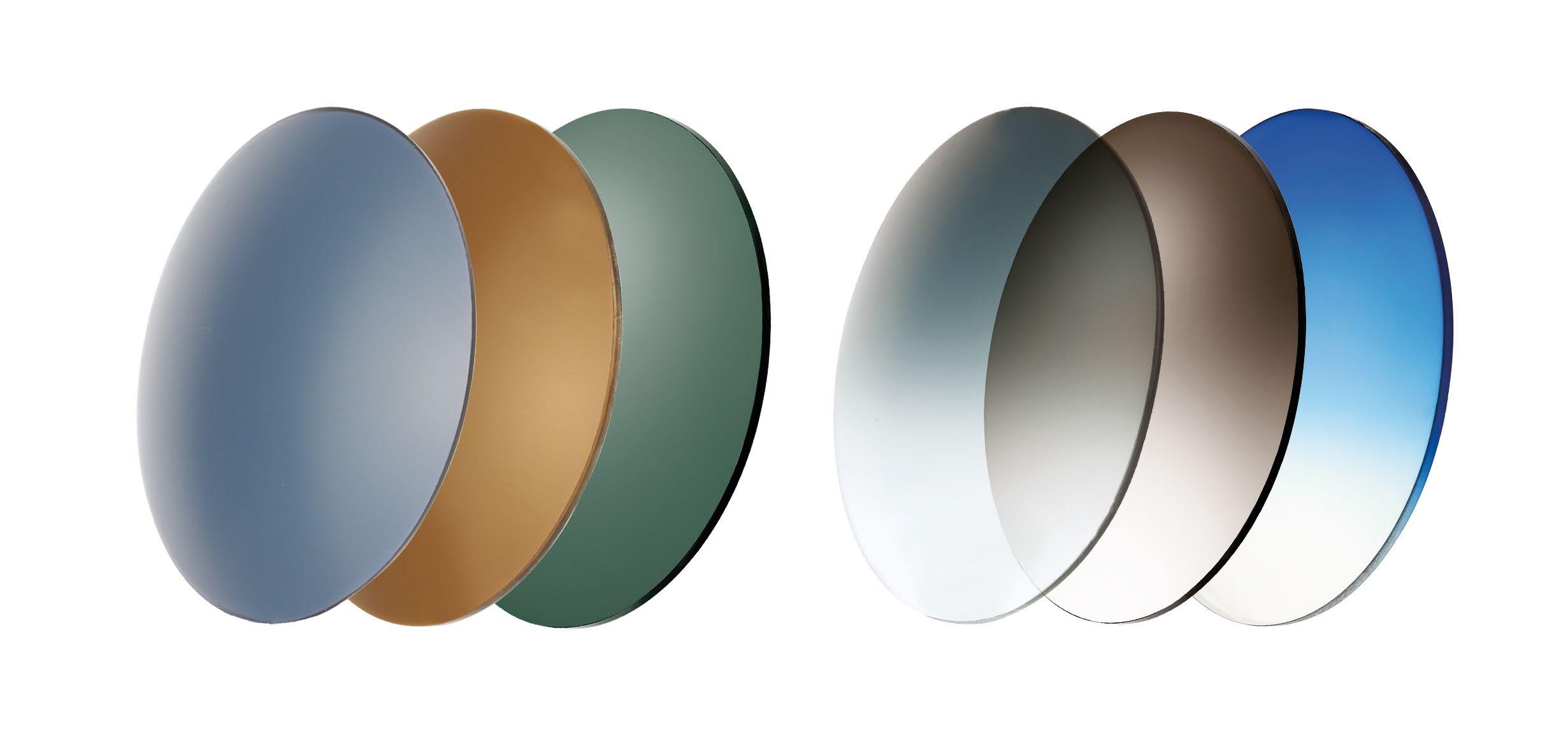

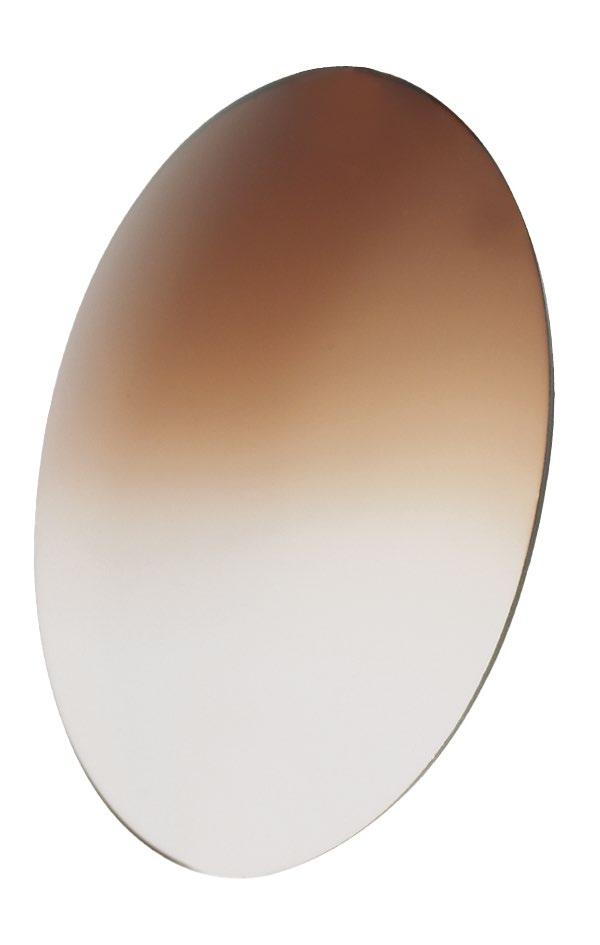

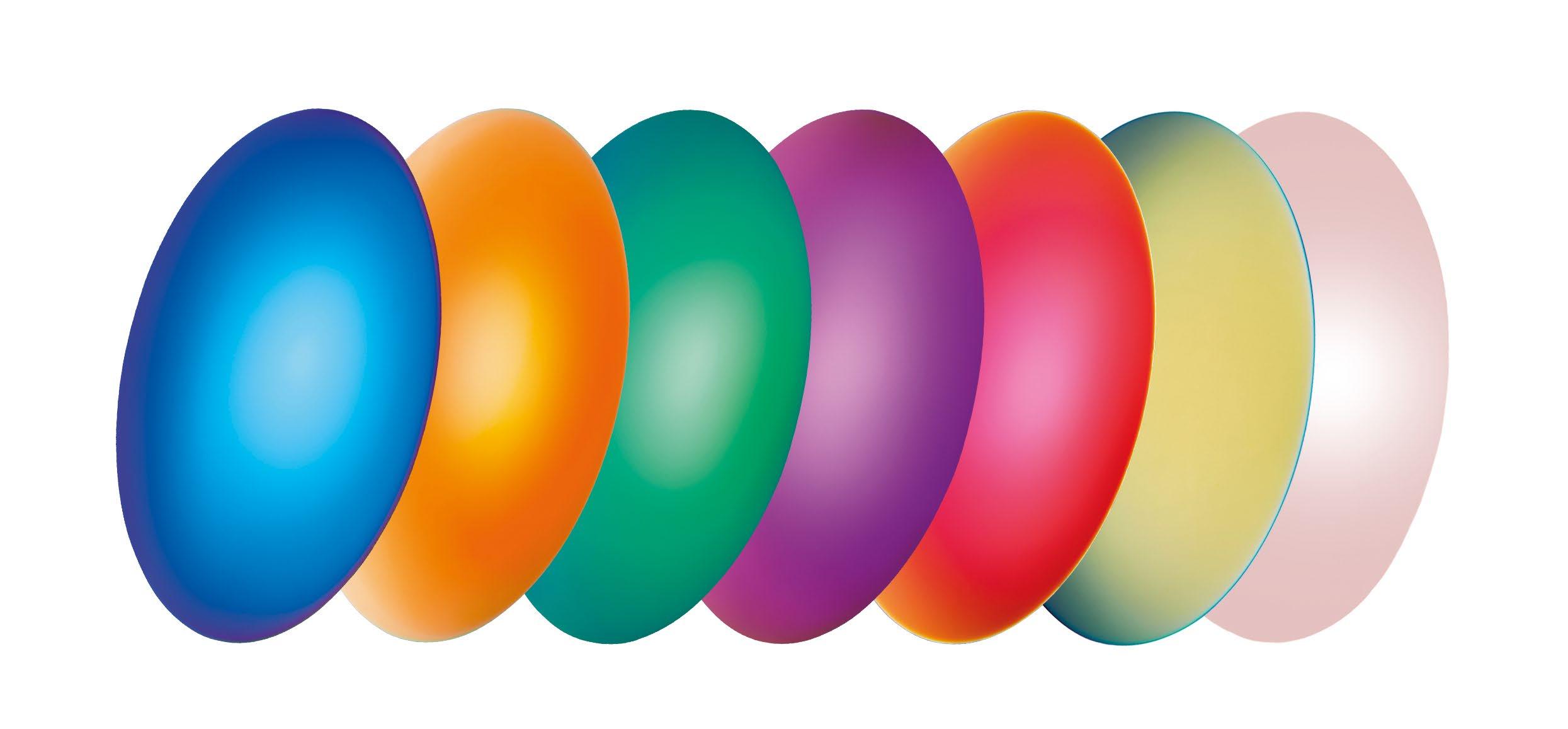

CR39 “Classic” full colour and gradient Base 4

PLIERS EQUIPMENTS

Gradient LAB CONSUMABLES LENSES REFRACTION & ORTHOPTIC

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

UV400 - Full colour - Lenses manufactured by Carl Zeiss Vision Base B 4 Ø 76 mm |

FRAME PARTS

LAB MOD SYSTEM

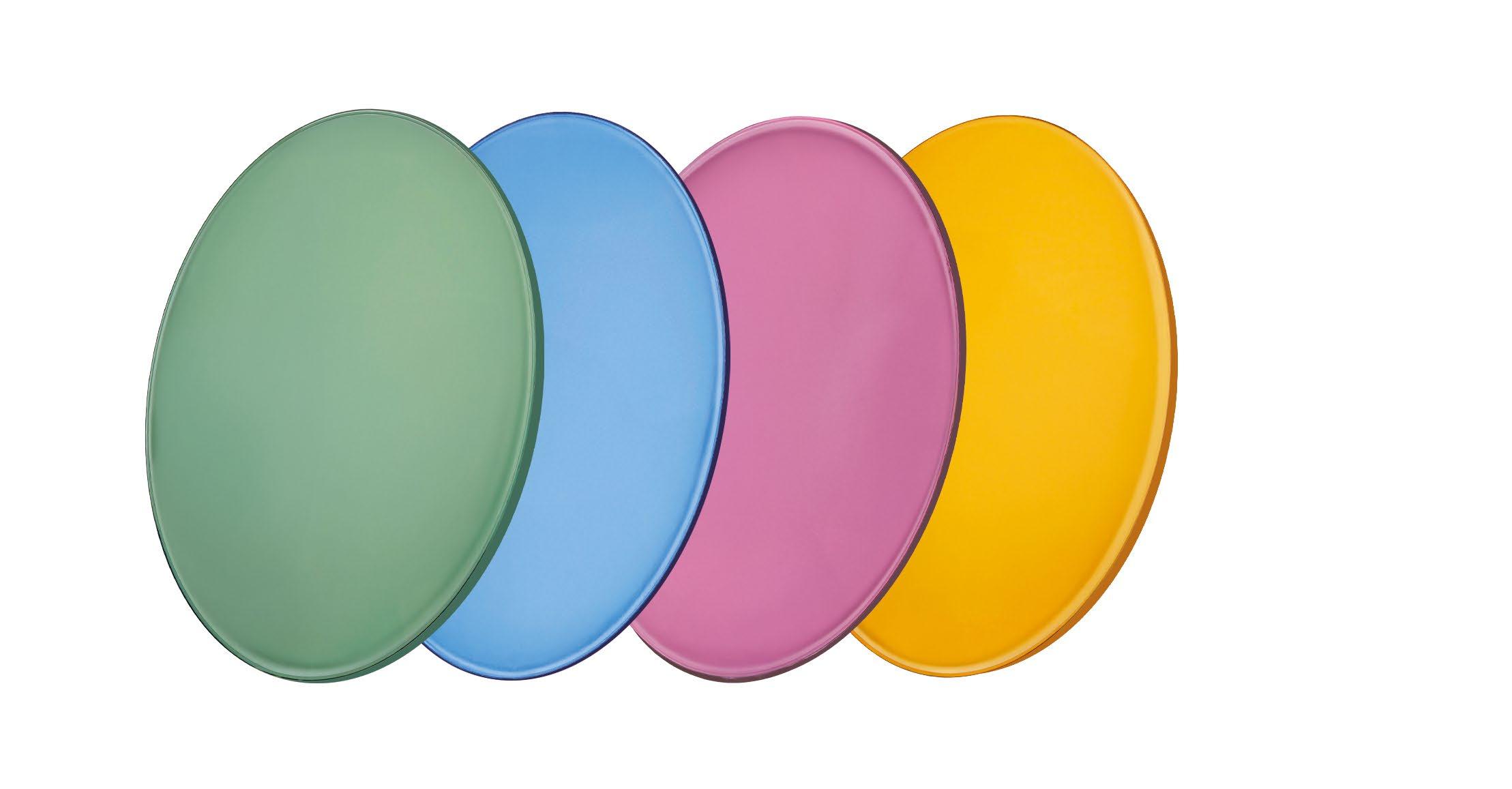

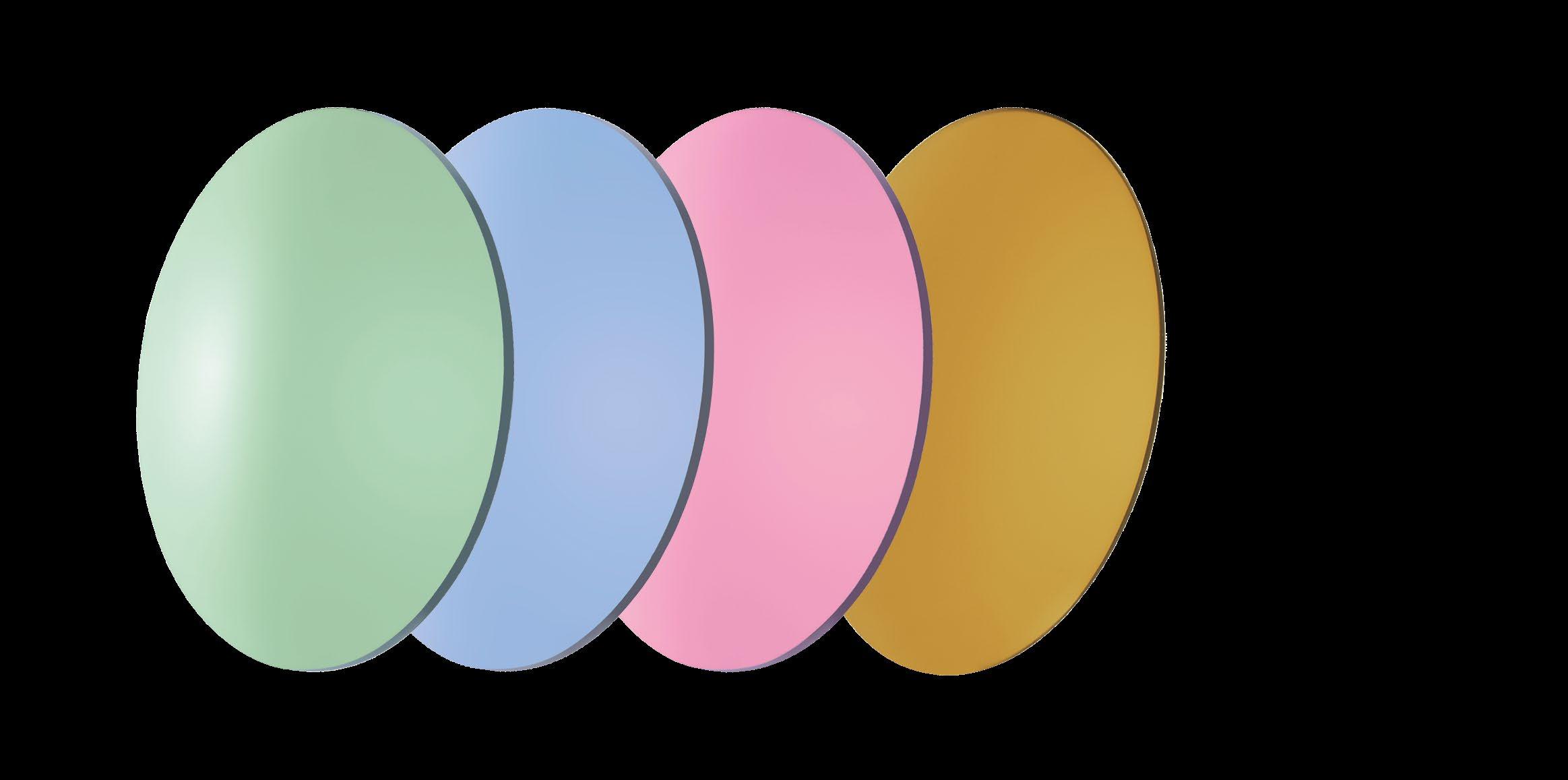

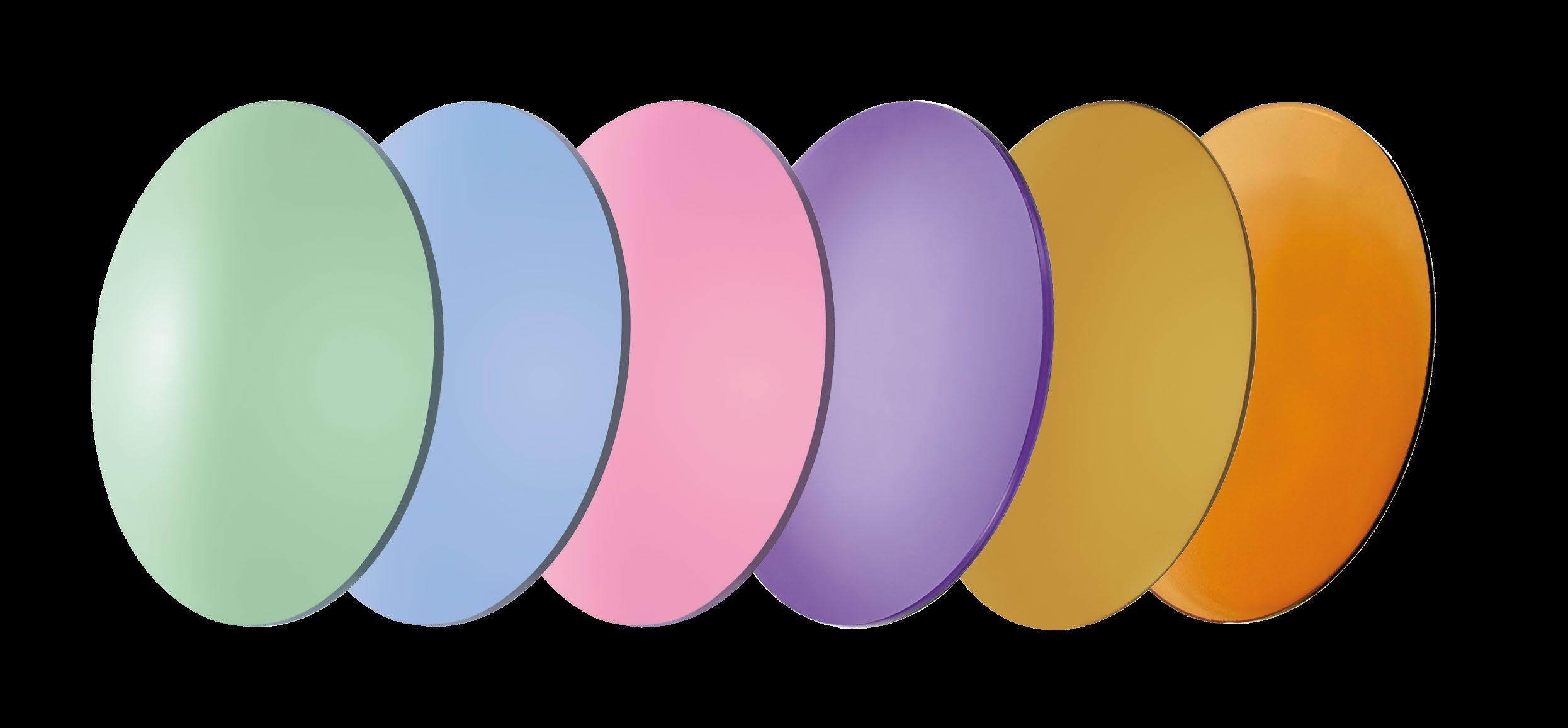

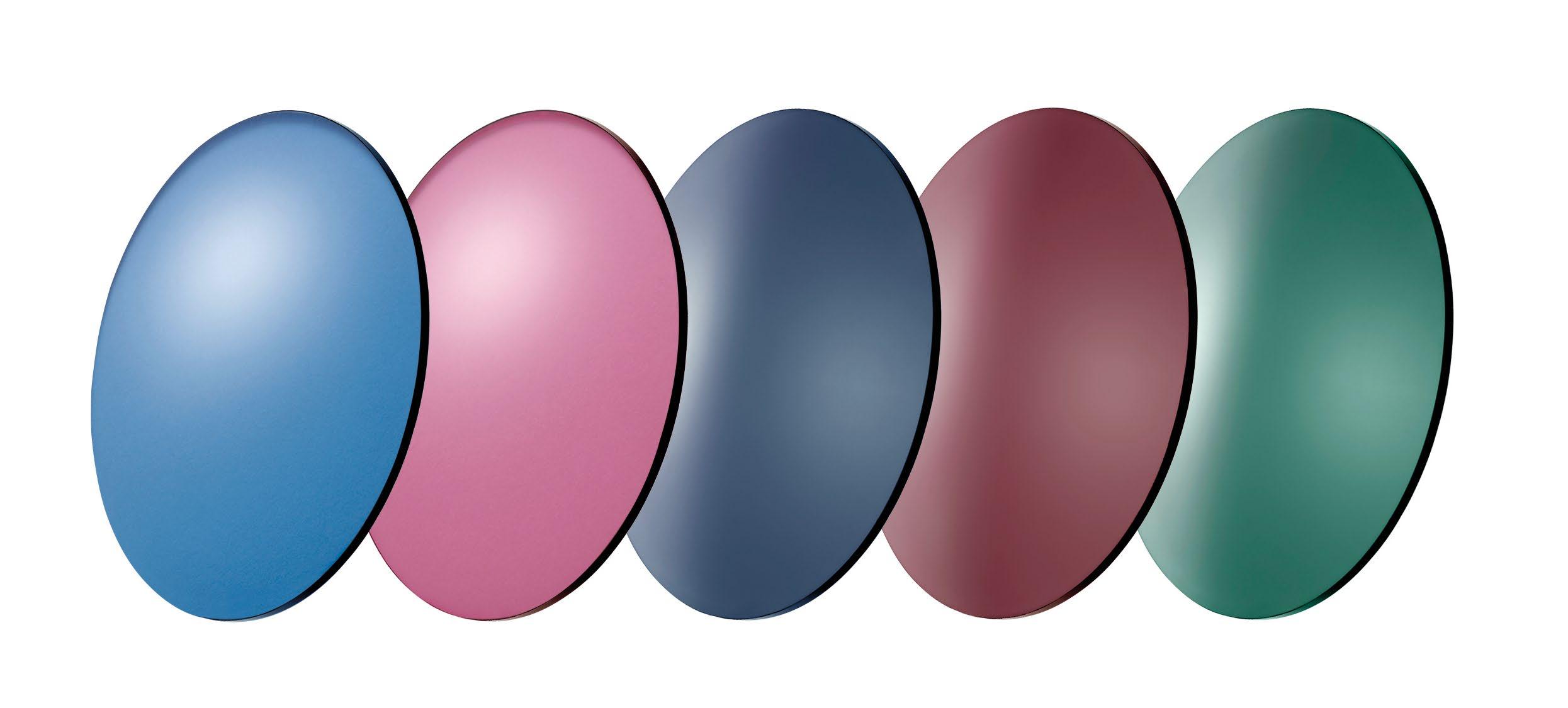

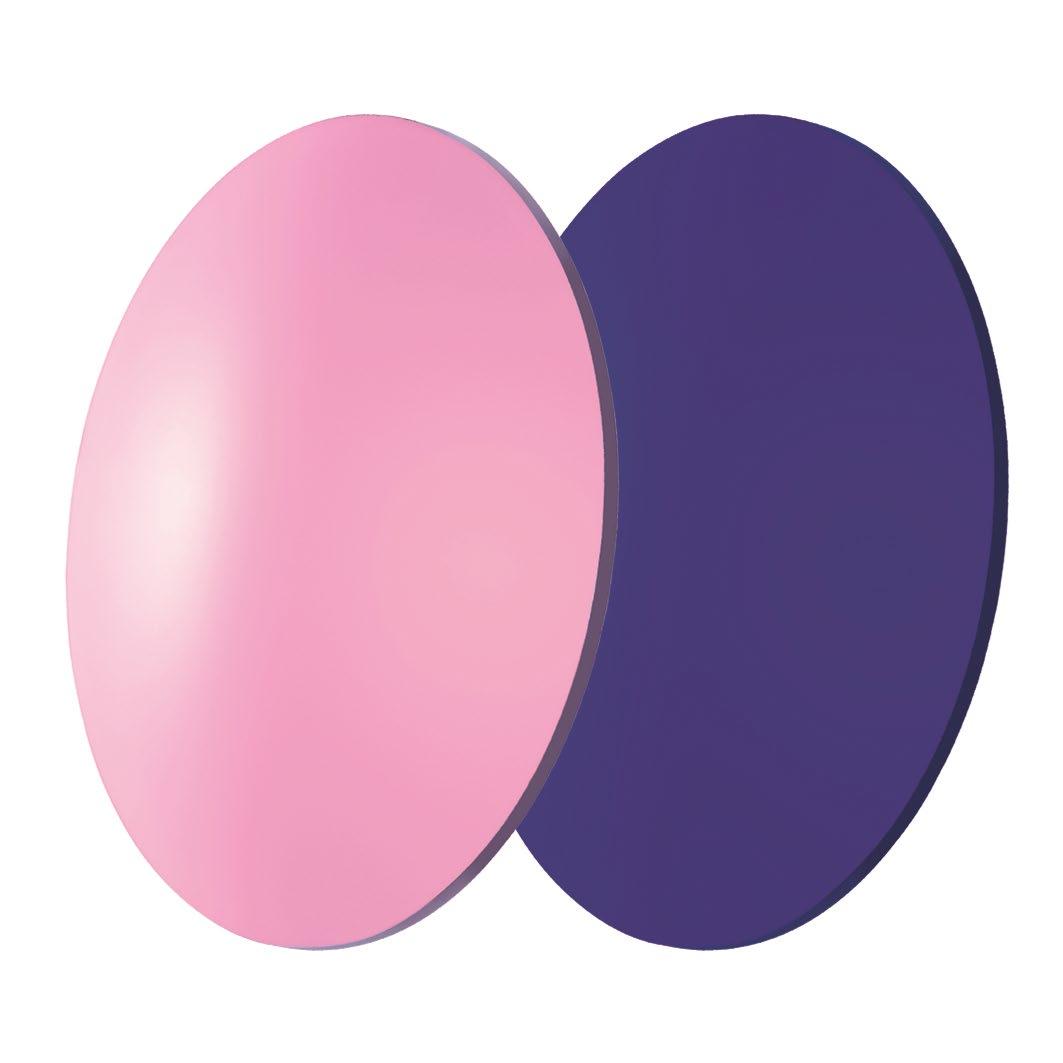

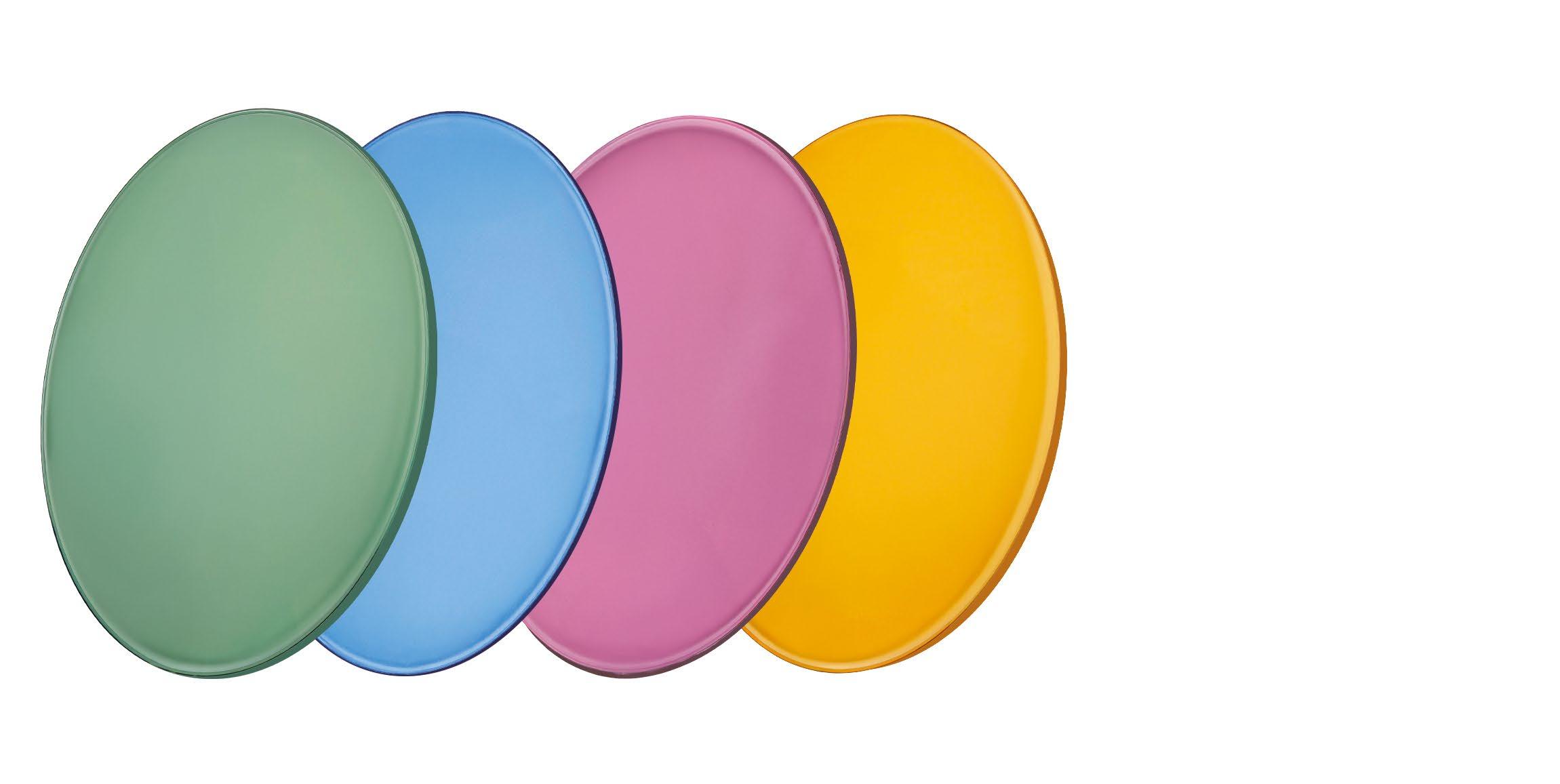

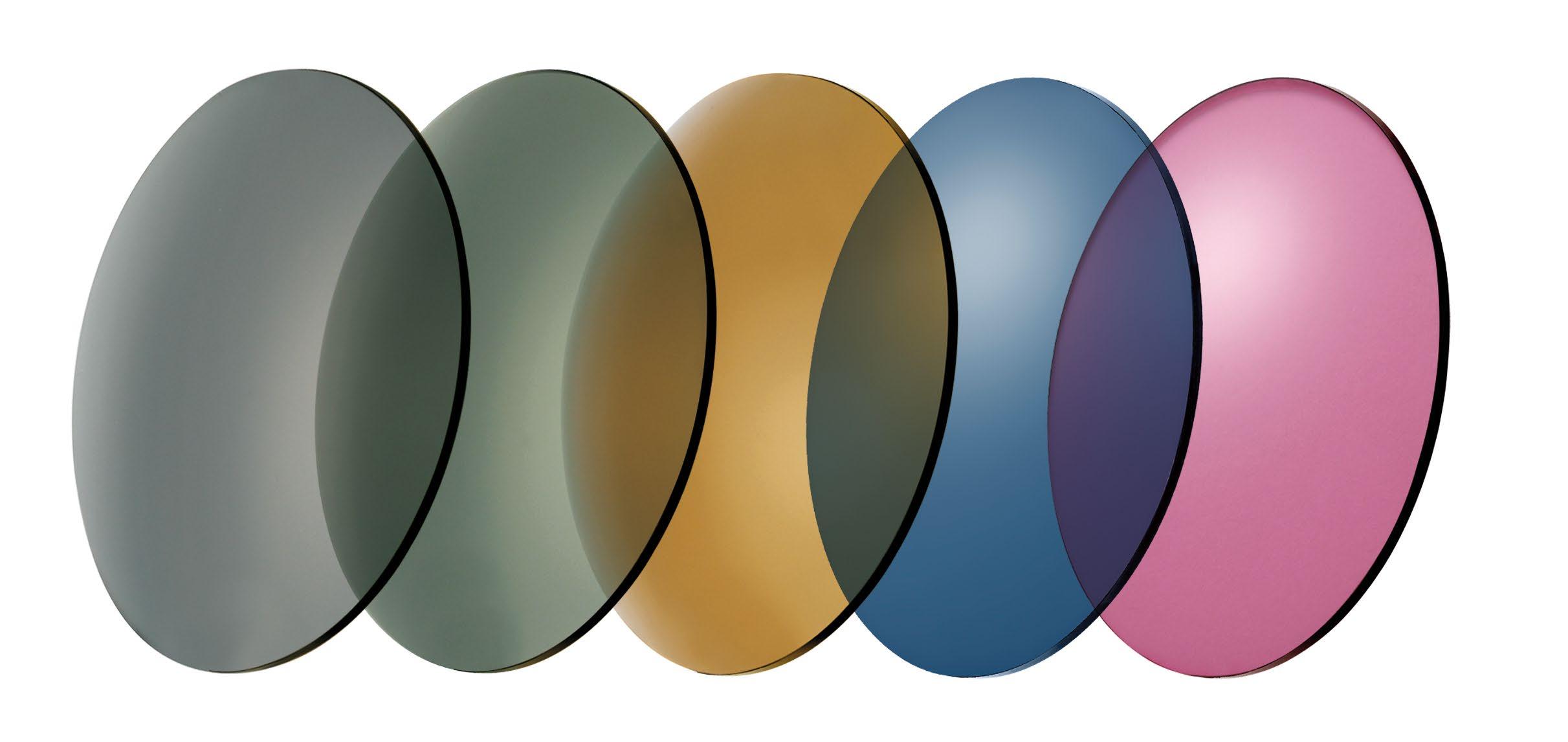

6.1 CR39 Fashion Base 4

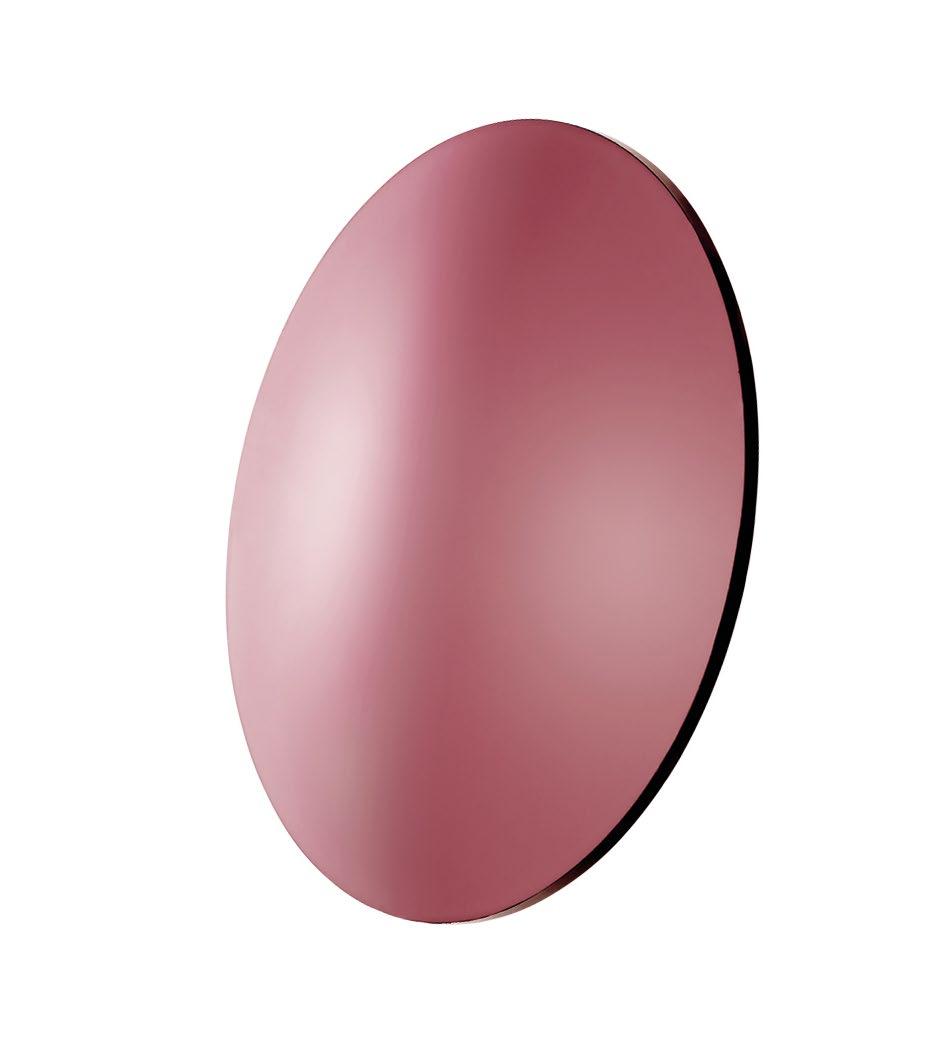

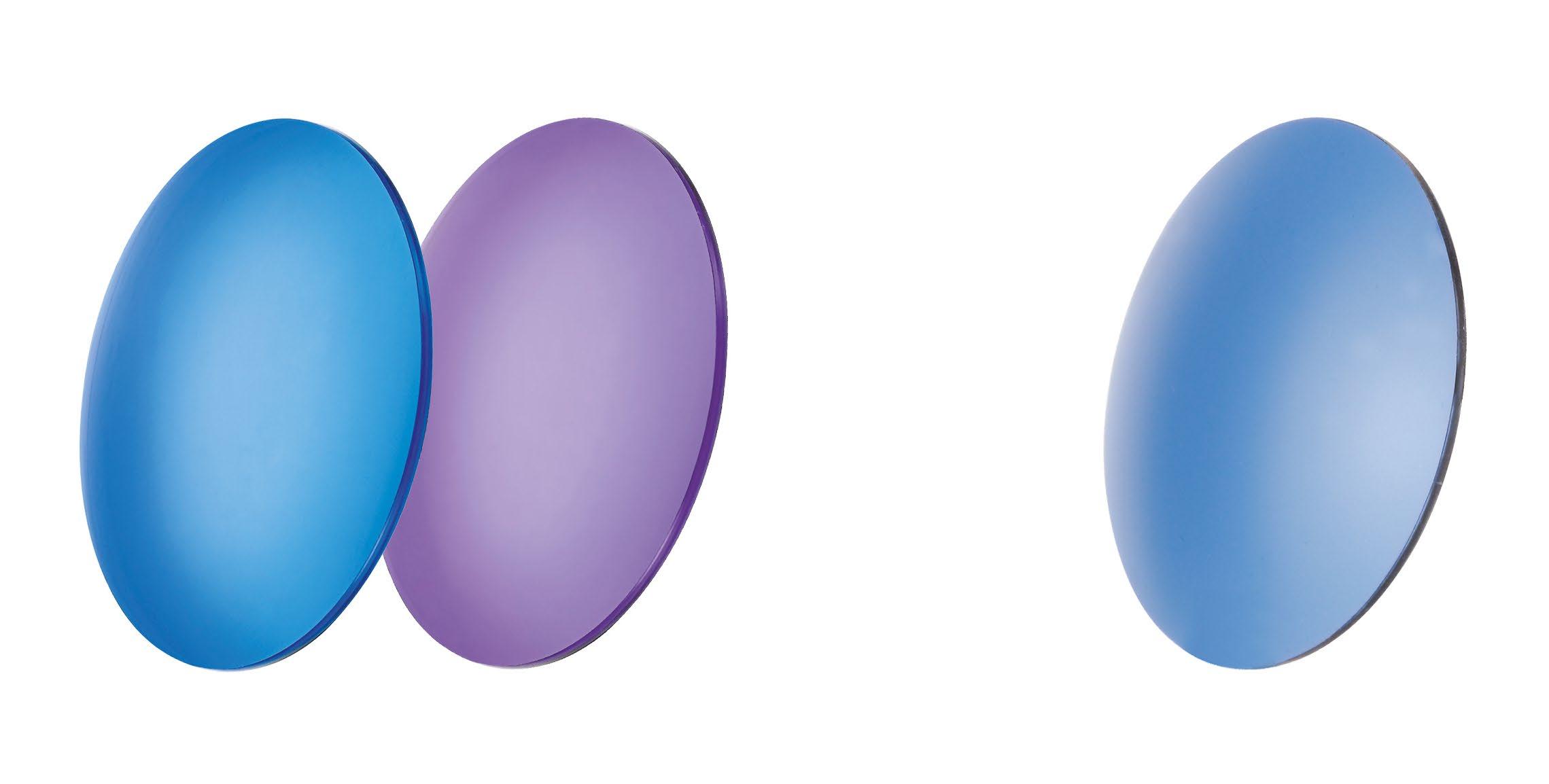

Ref. 06307 FC1 (τ 55%) Pink 25%

2 pcs. Ref. 06338 FC3 (τ 15%) Blue 60%

Ref. 06305 FC2 (τ 21%) Pink / Violet 60%

Ref. 06309 FC2 (τ 40%) Green 25%

NEW

EQUIPMENTS

PLIERS

TOOLS

Ref. 06306 FC1 (τ 44%) Light Blue 25%

1,8 mm

MADE IN ITALY

LAB CONSUMABLES

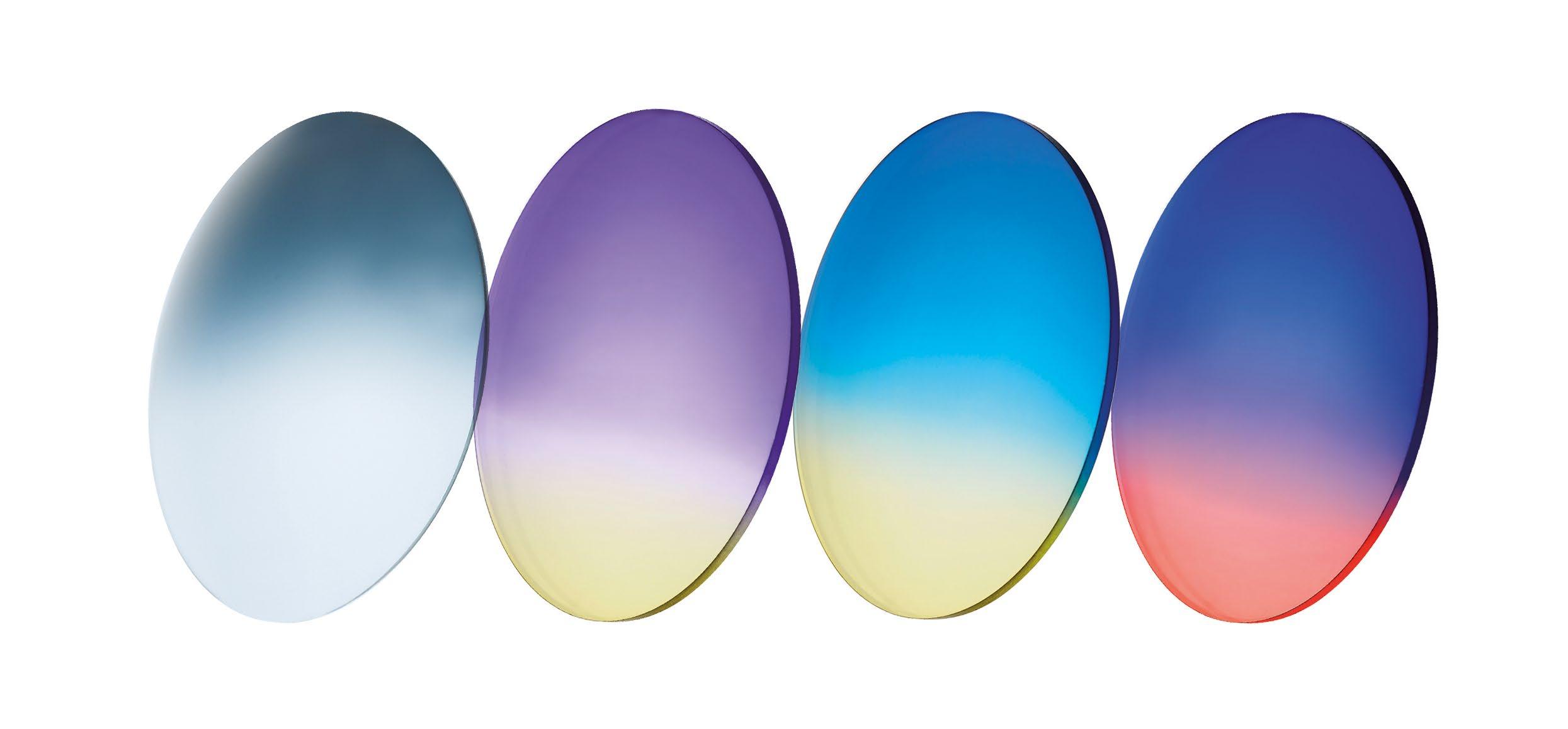

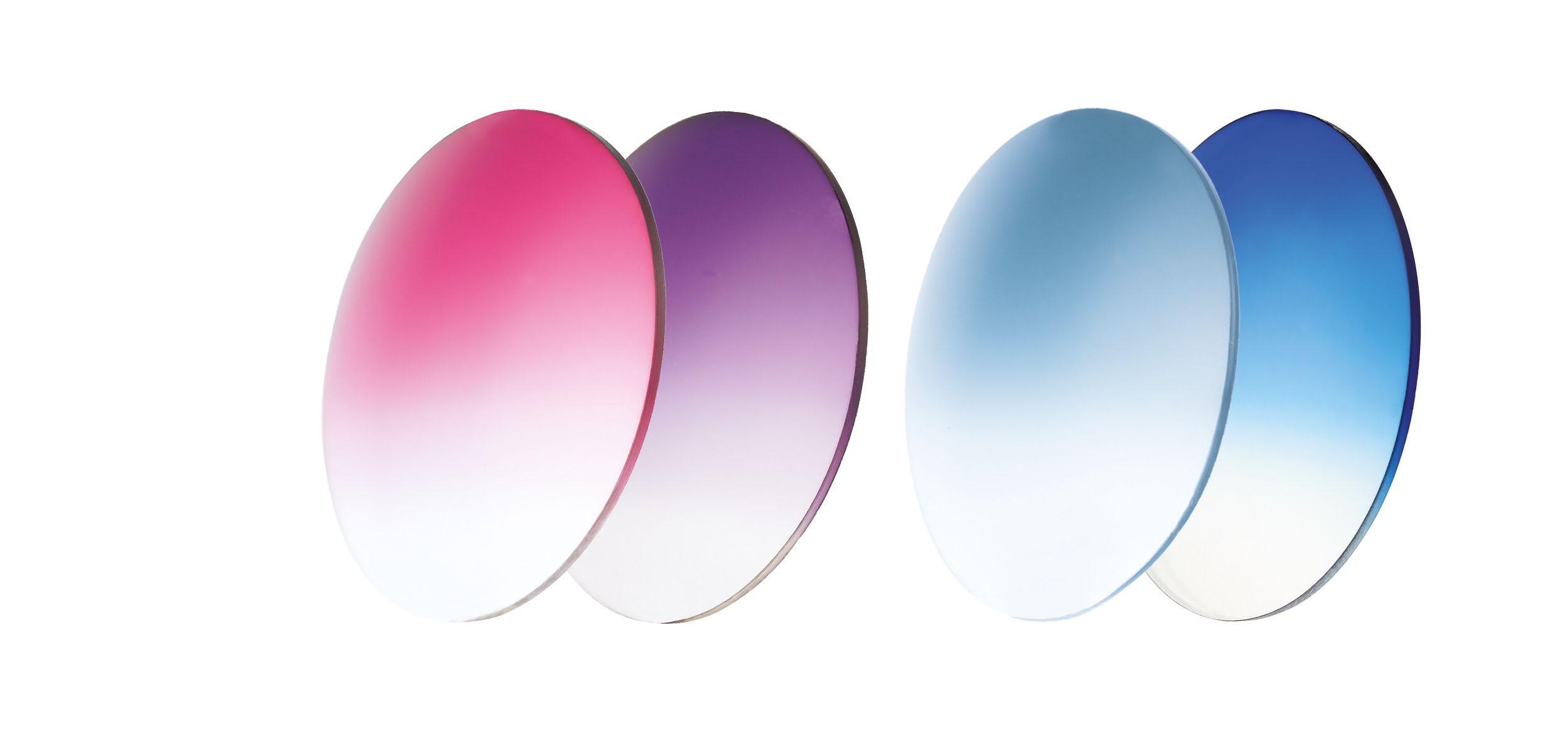

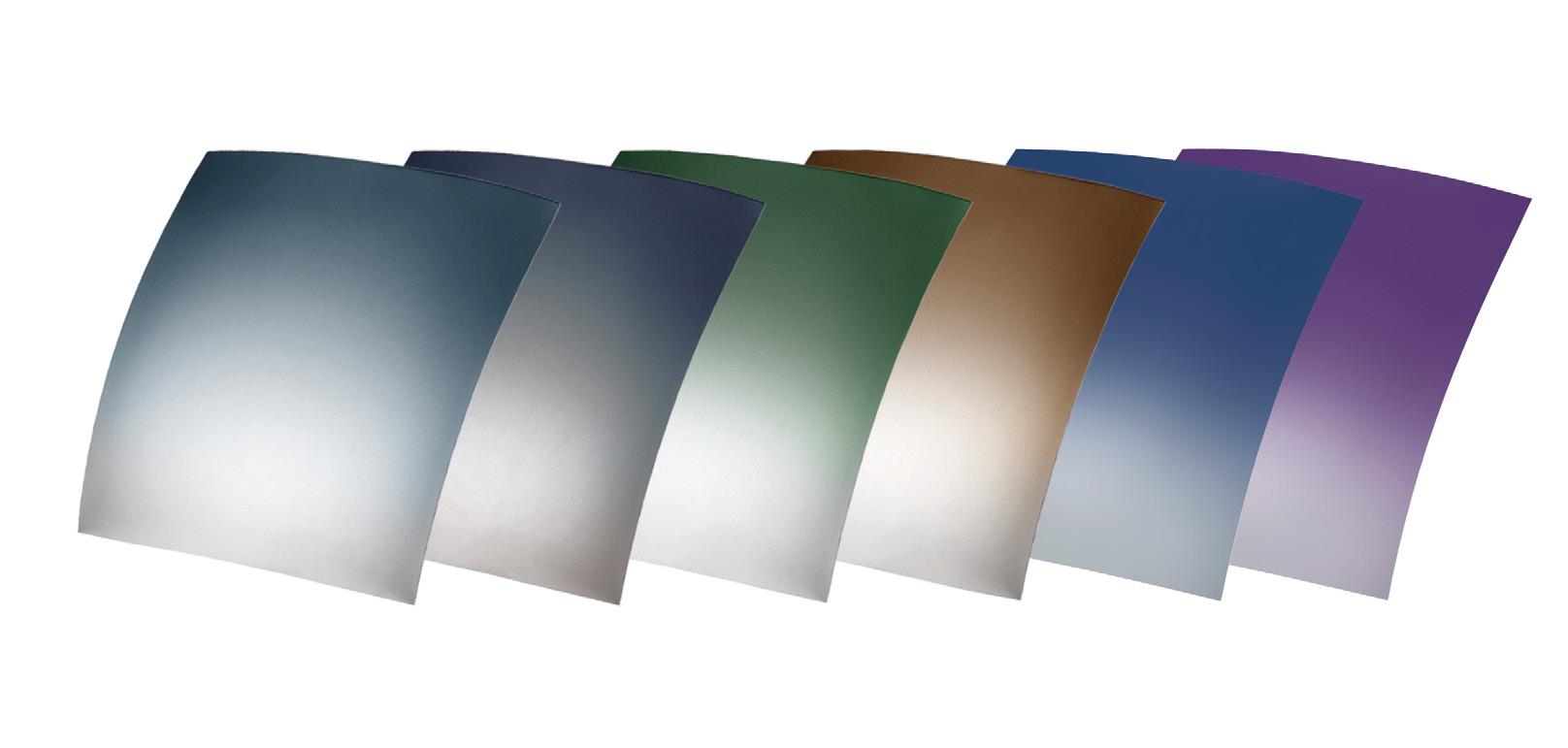

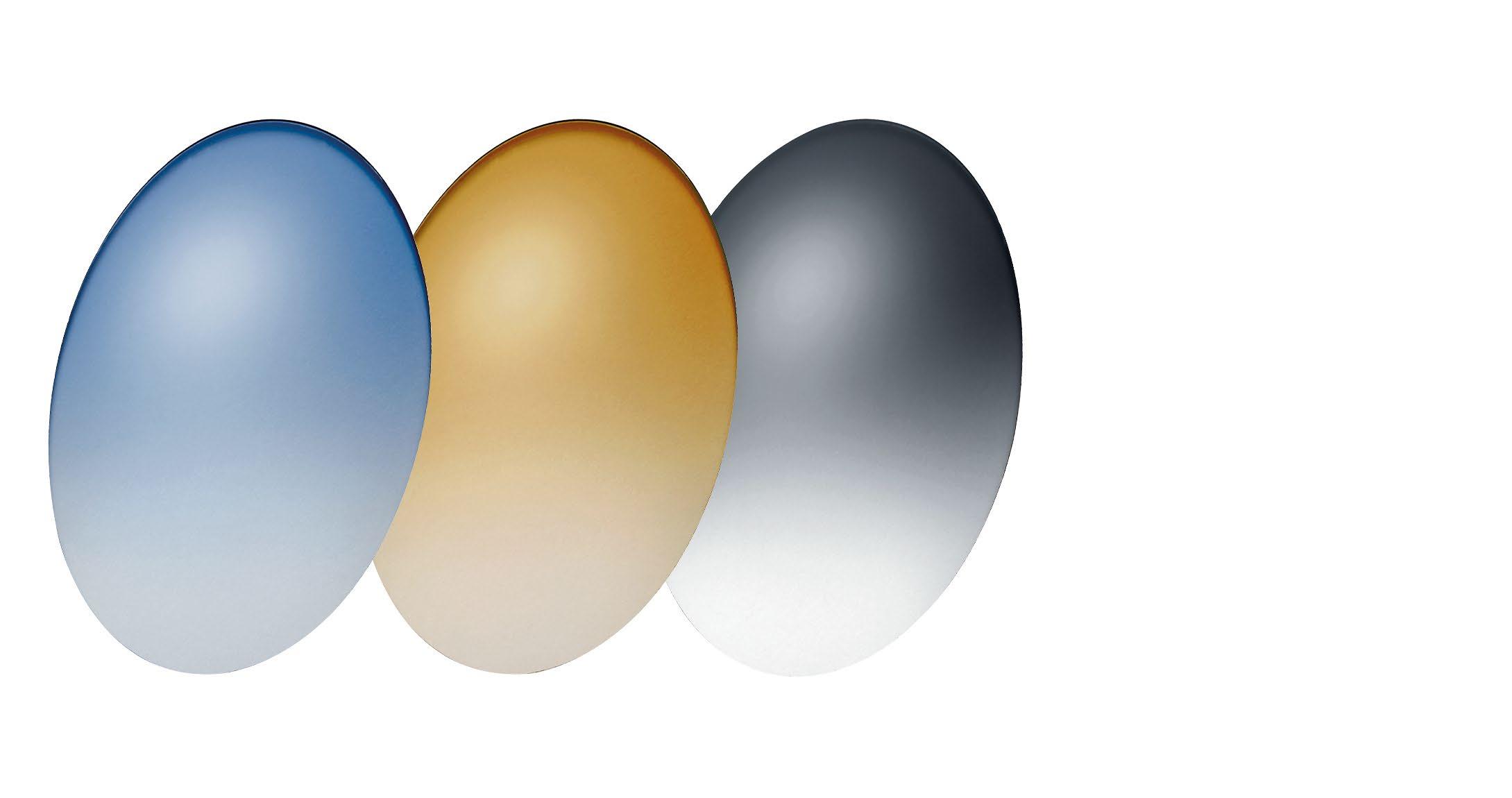

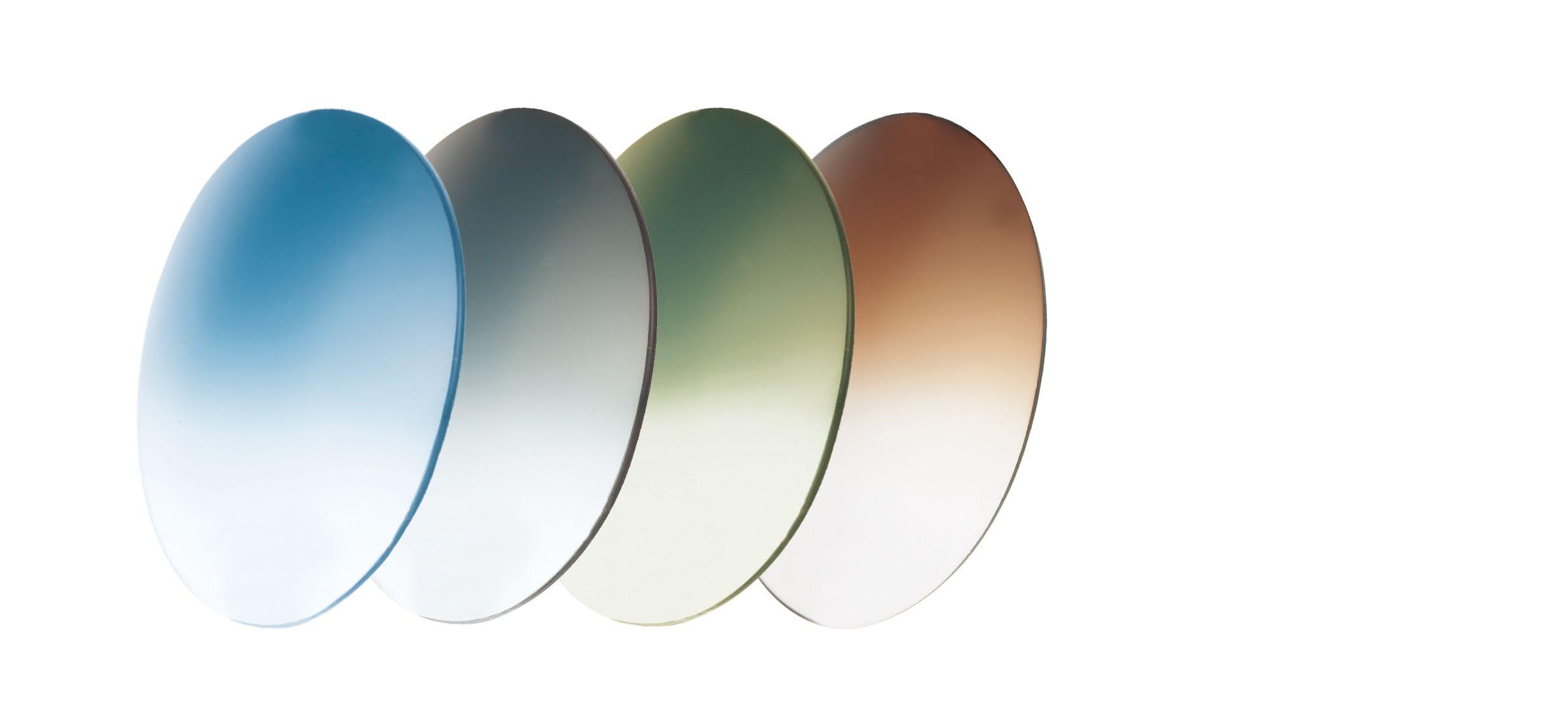

UV400 - Gradient - Lenses manufactured by Carl Zeiss Vision Base B 4 Ø 76 mm |

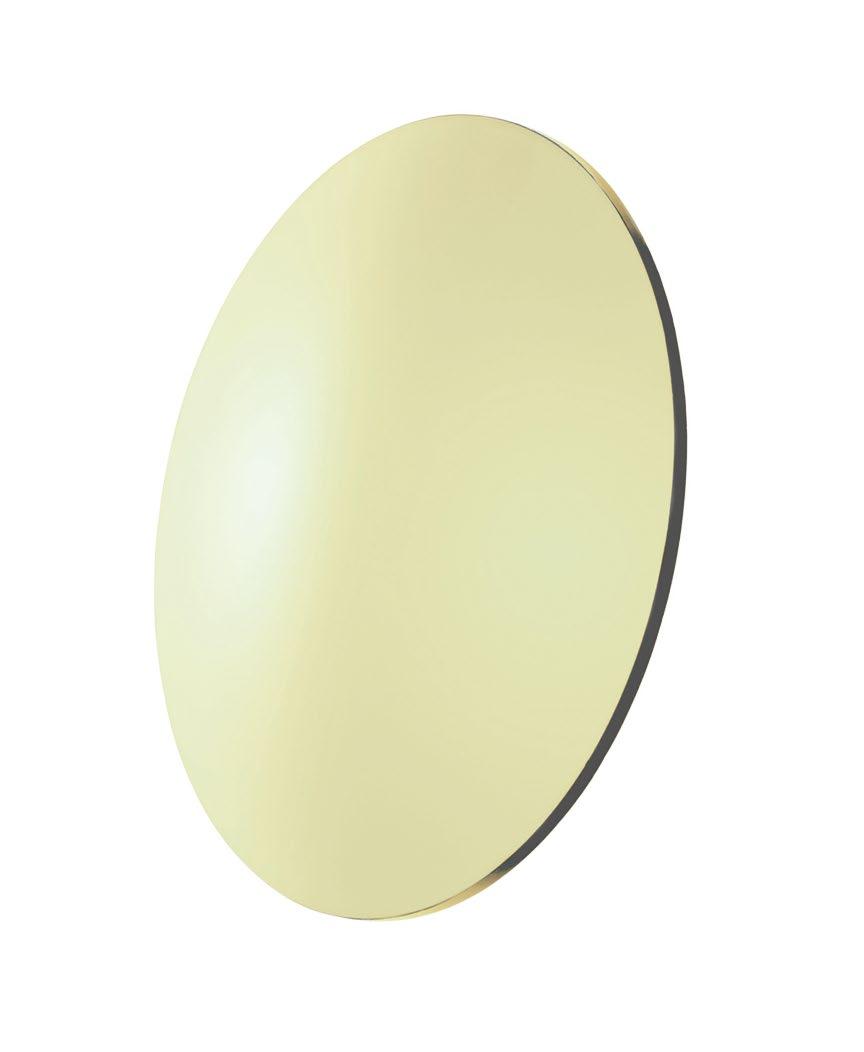

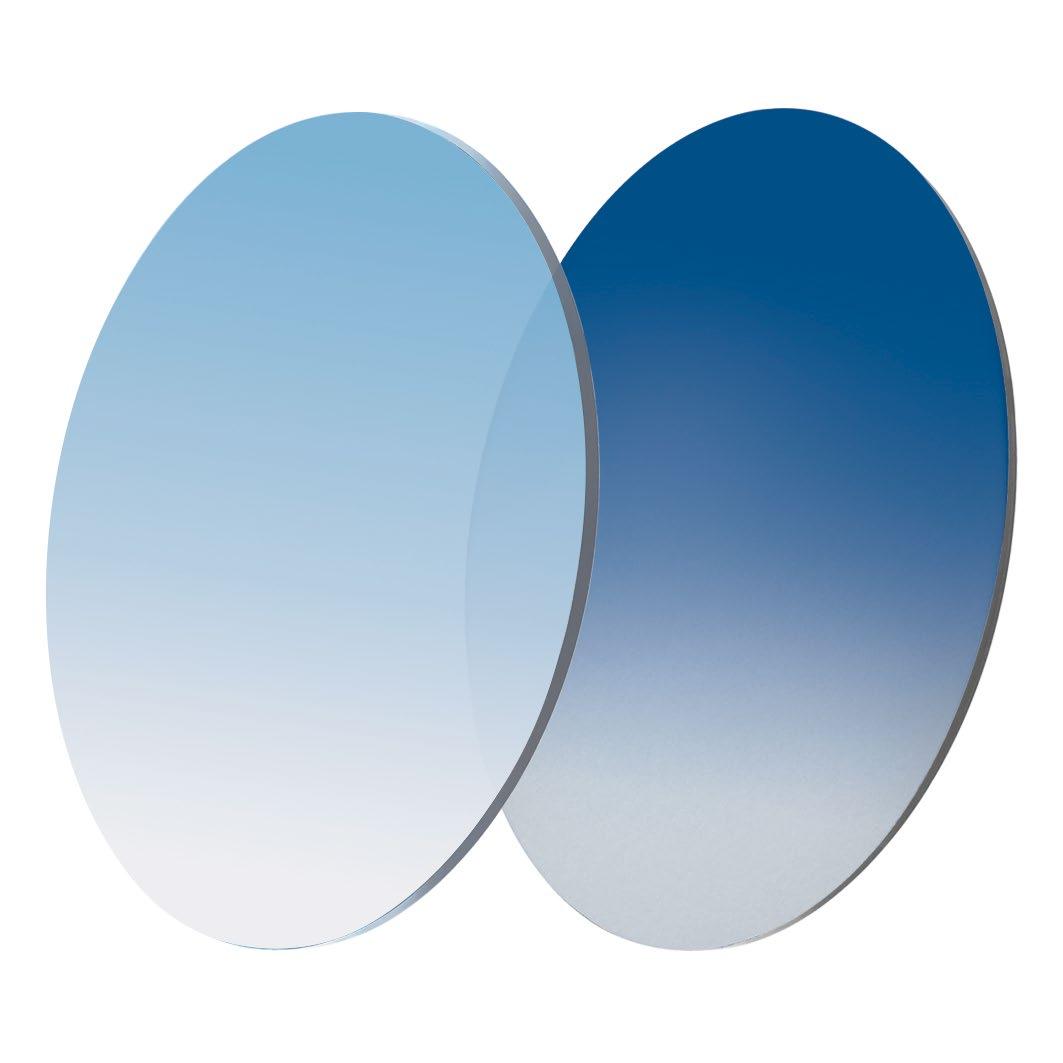

Ref. 06312 FC1 (τ 65%) Light Yellow Gradient 25%

2 pcs.

Ref. 06310 FC2 (τ 39%) Light Grey Gradient 25%

INDEX

REFRACTION & ORTHOPTIC

LENSES

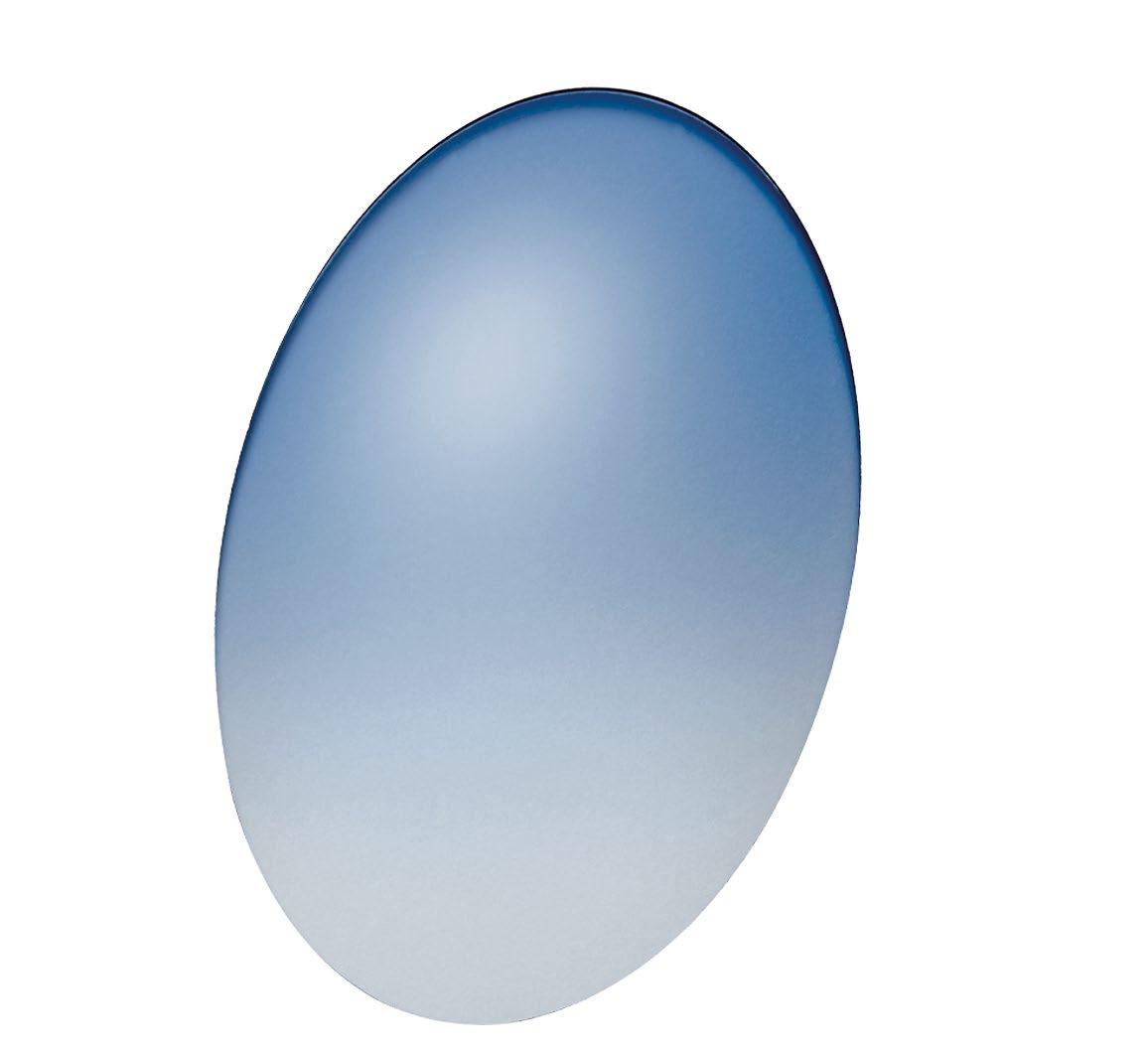

Ref. 06311 FC1 (τ 51%) Light Blue Gradient 25%

1,8 mm

6.1

UV400 - Very lightweight, more comfortable

LAB MOD SYSTEM

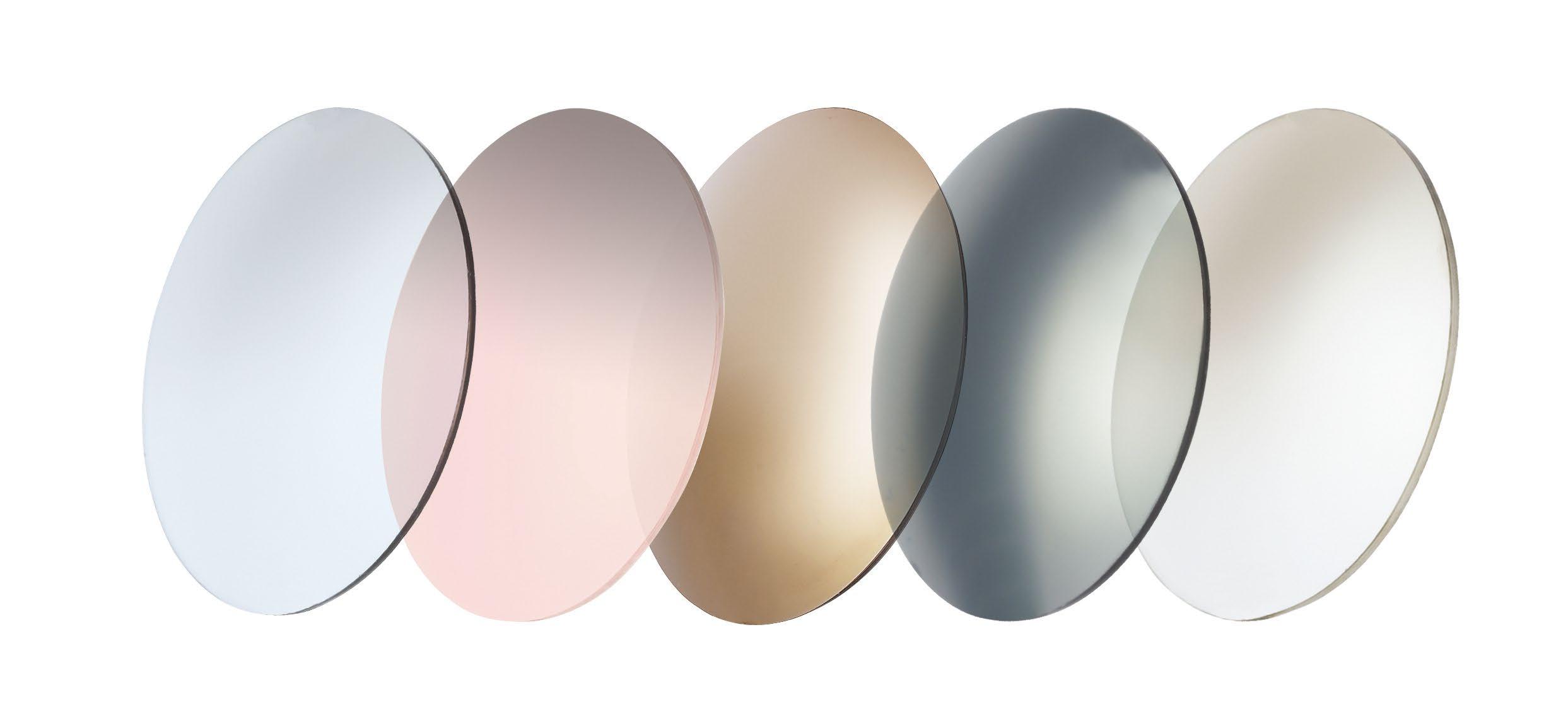

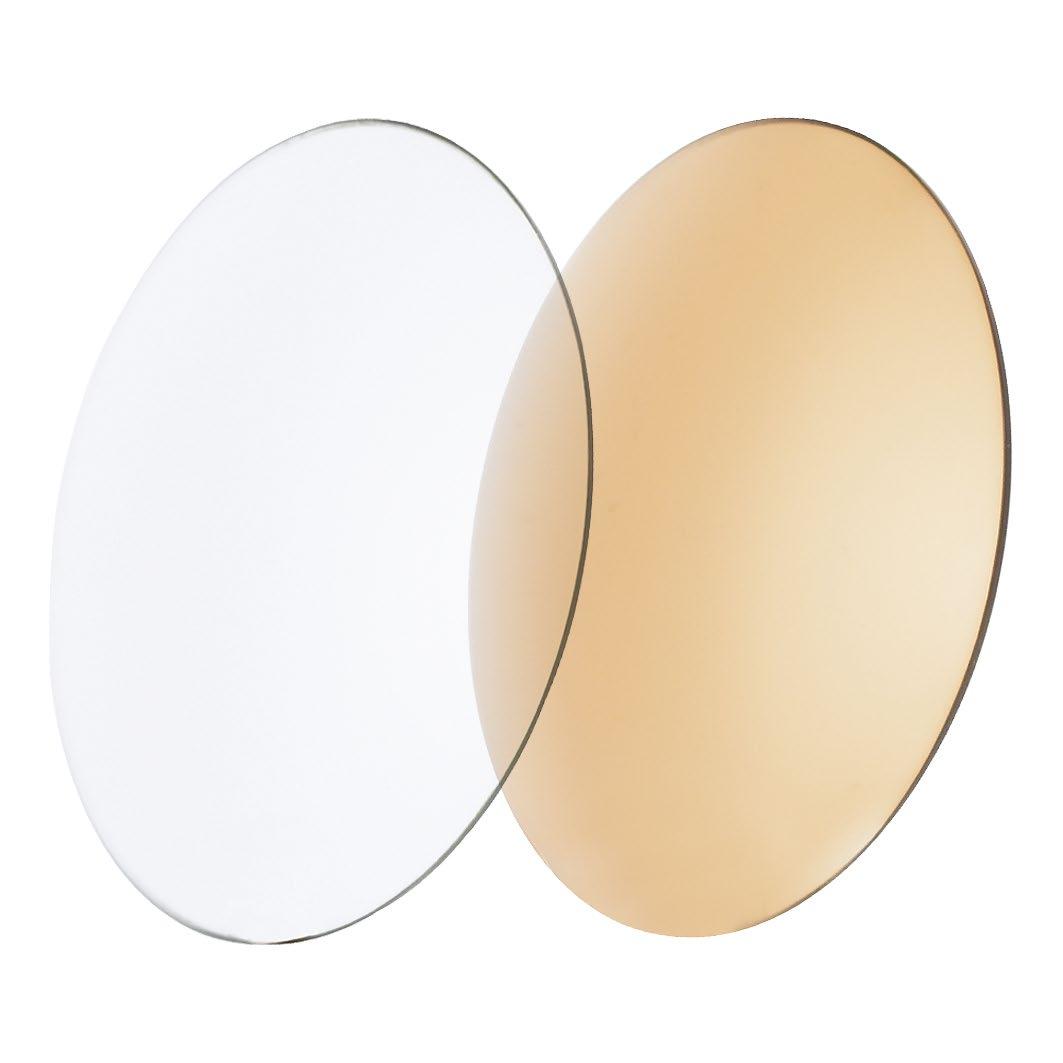

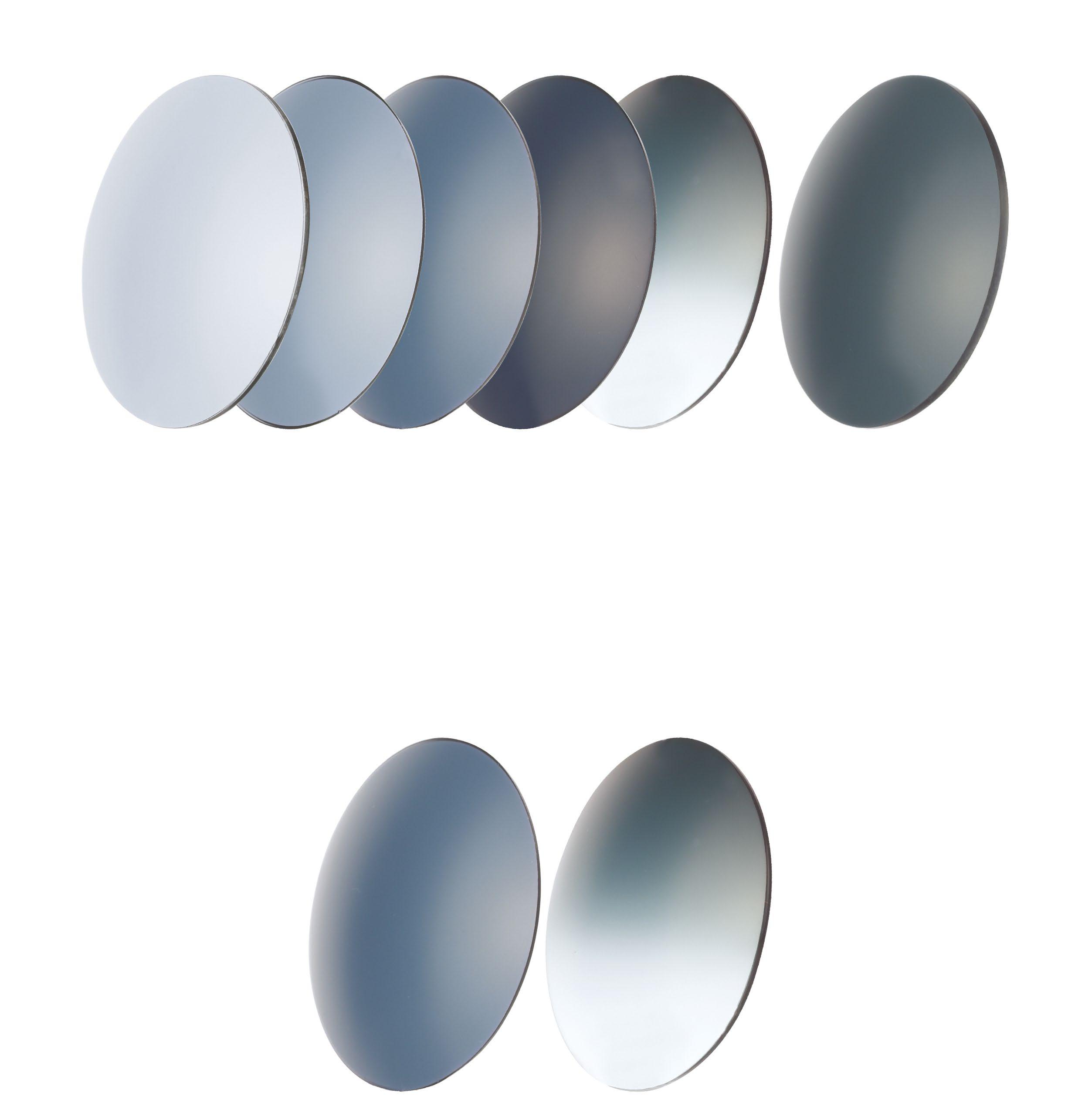

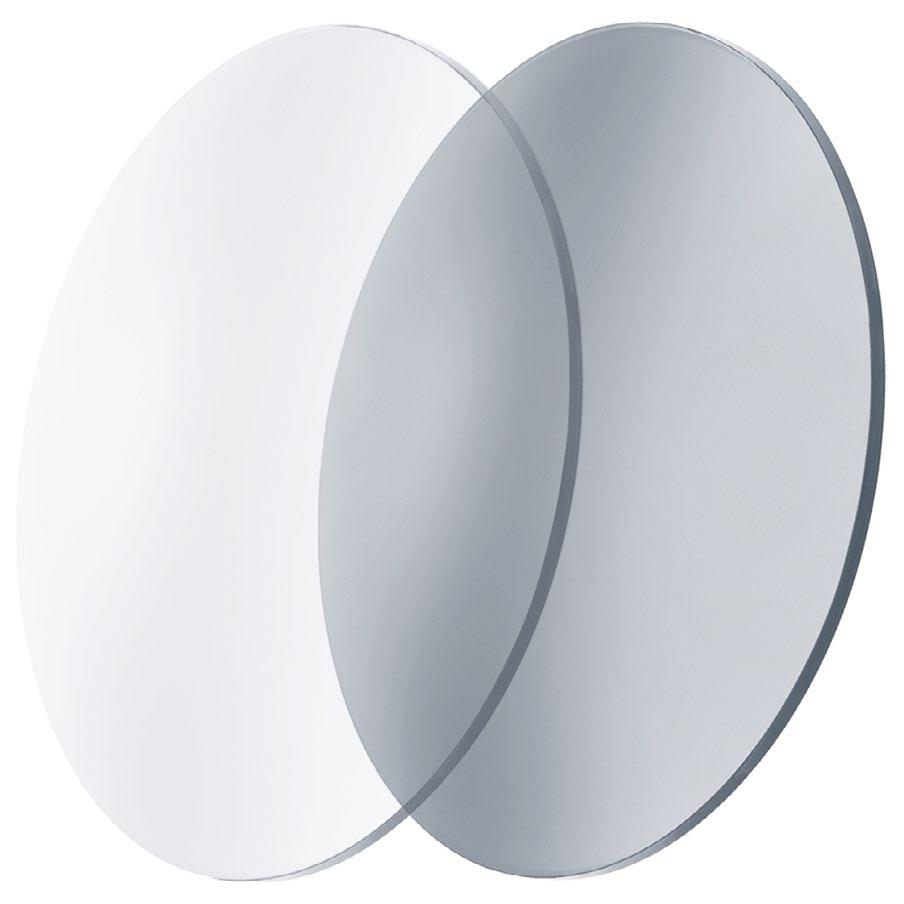

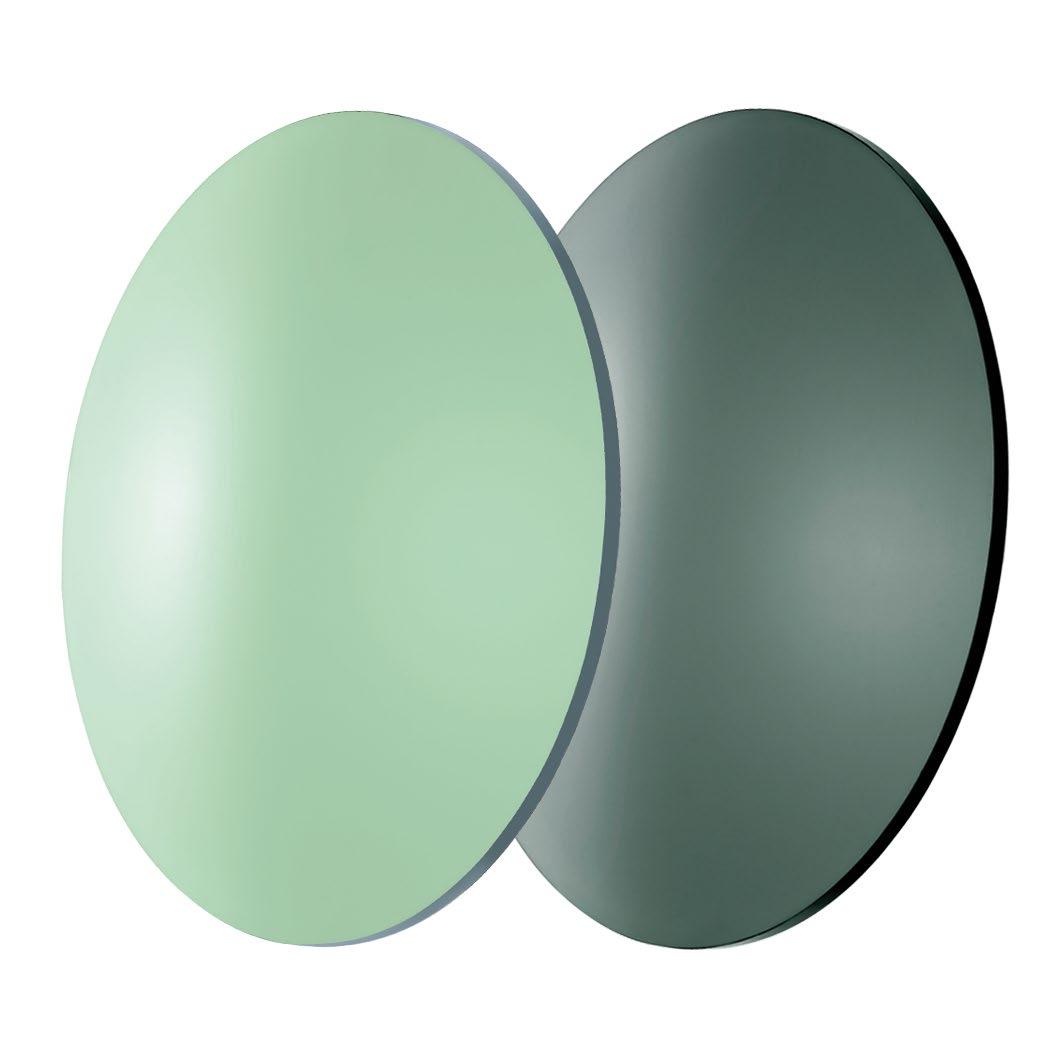

CR39 Photochromic Lenses Base 4

MADE IN JAPAN

2,0 mm

2 pcs.

Ref. 06635 FC2 (dark lens τ 32%)

FRAME PARTS

Base B 4 Ø 70 mm |

Ref. 06634 FC2 (dark lens τ 32%)

TOOLS PLIERS

Dark Grey 65%

Light Brown 5%

Dark Brown 65%

darkens in a few seconds

Lightens in a few minutes

EQUIPMENTS

Light Grey 5%

100 clear lens

60 40 20 0 300

400

500

600

700

600

700

LENSES

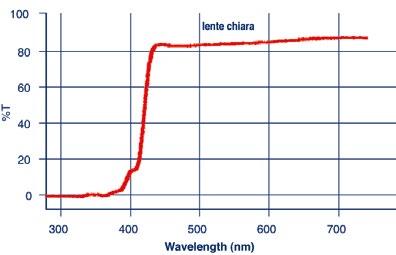

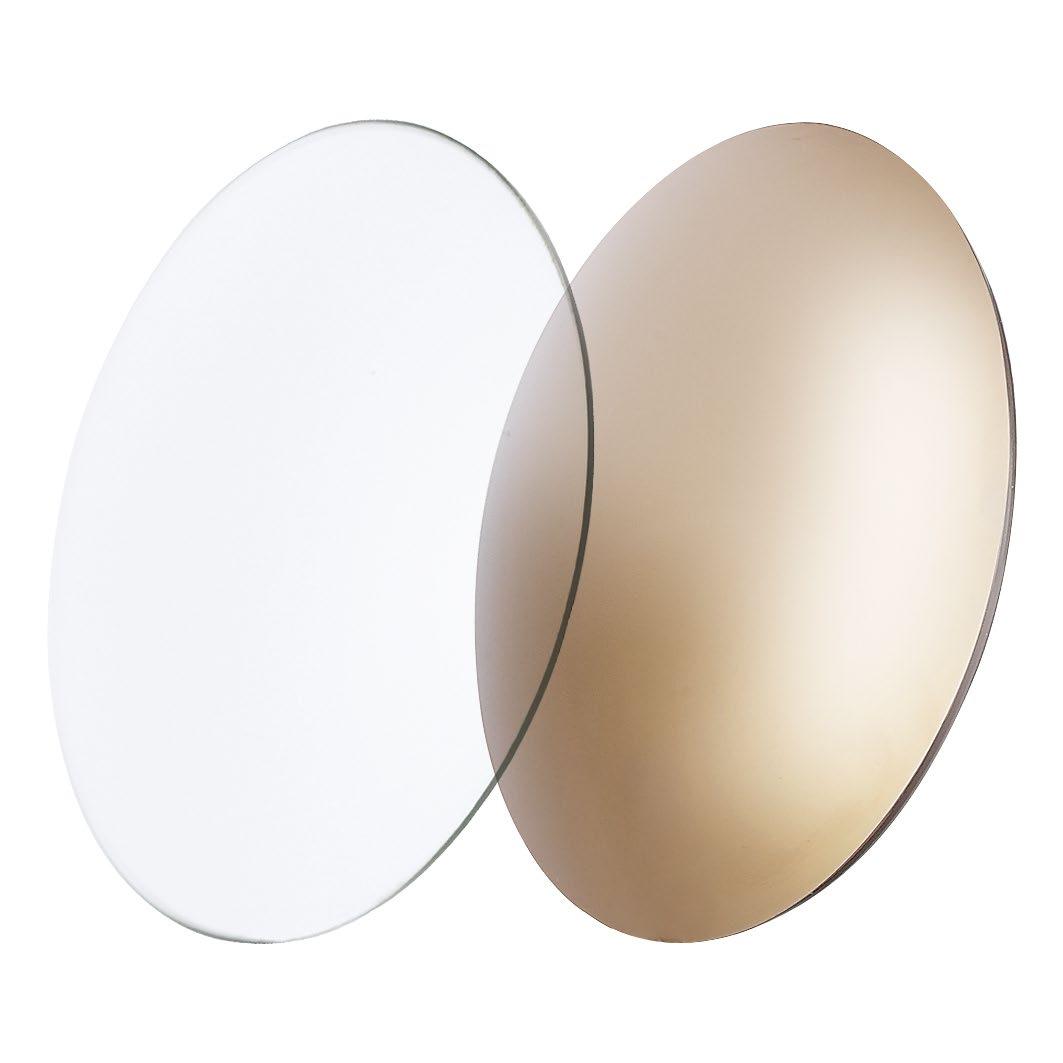

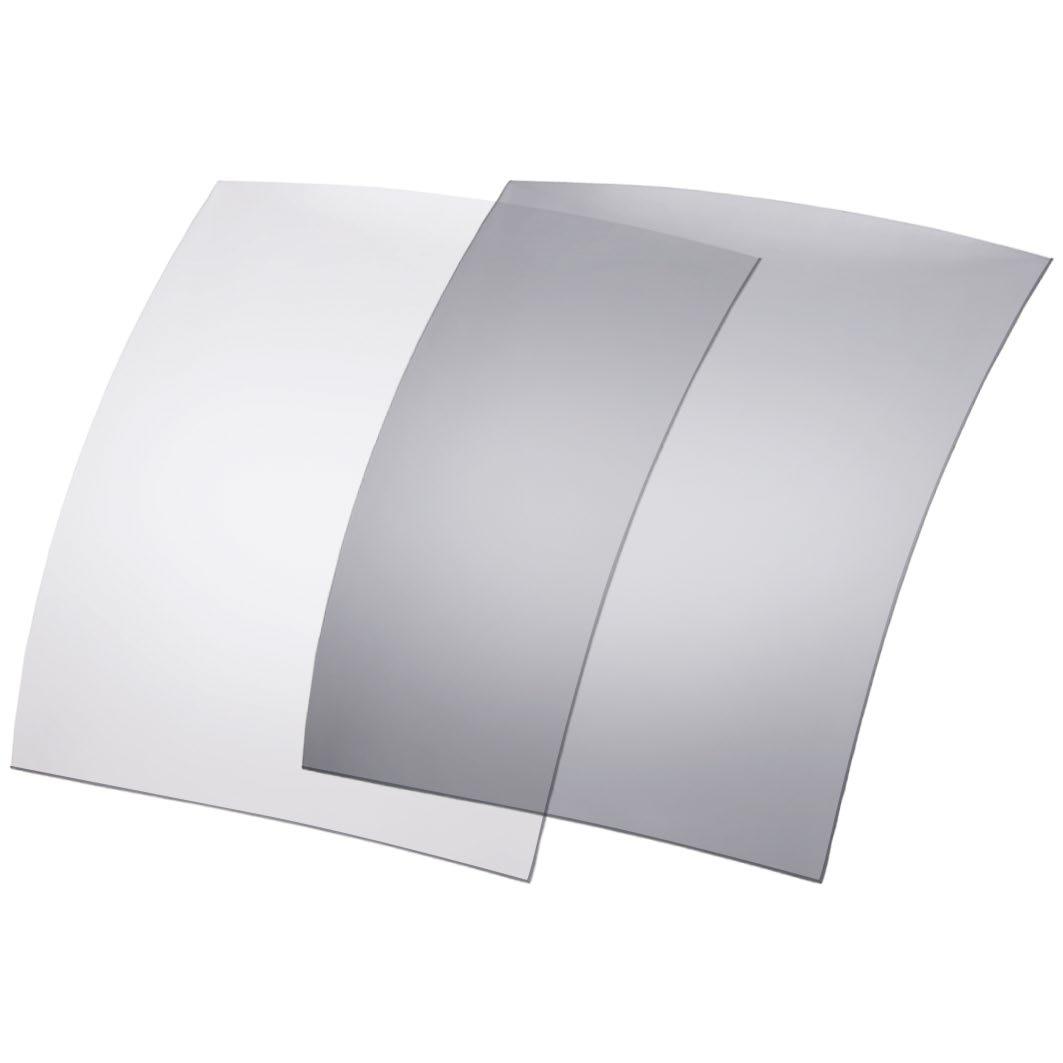

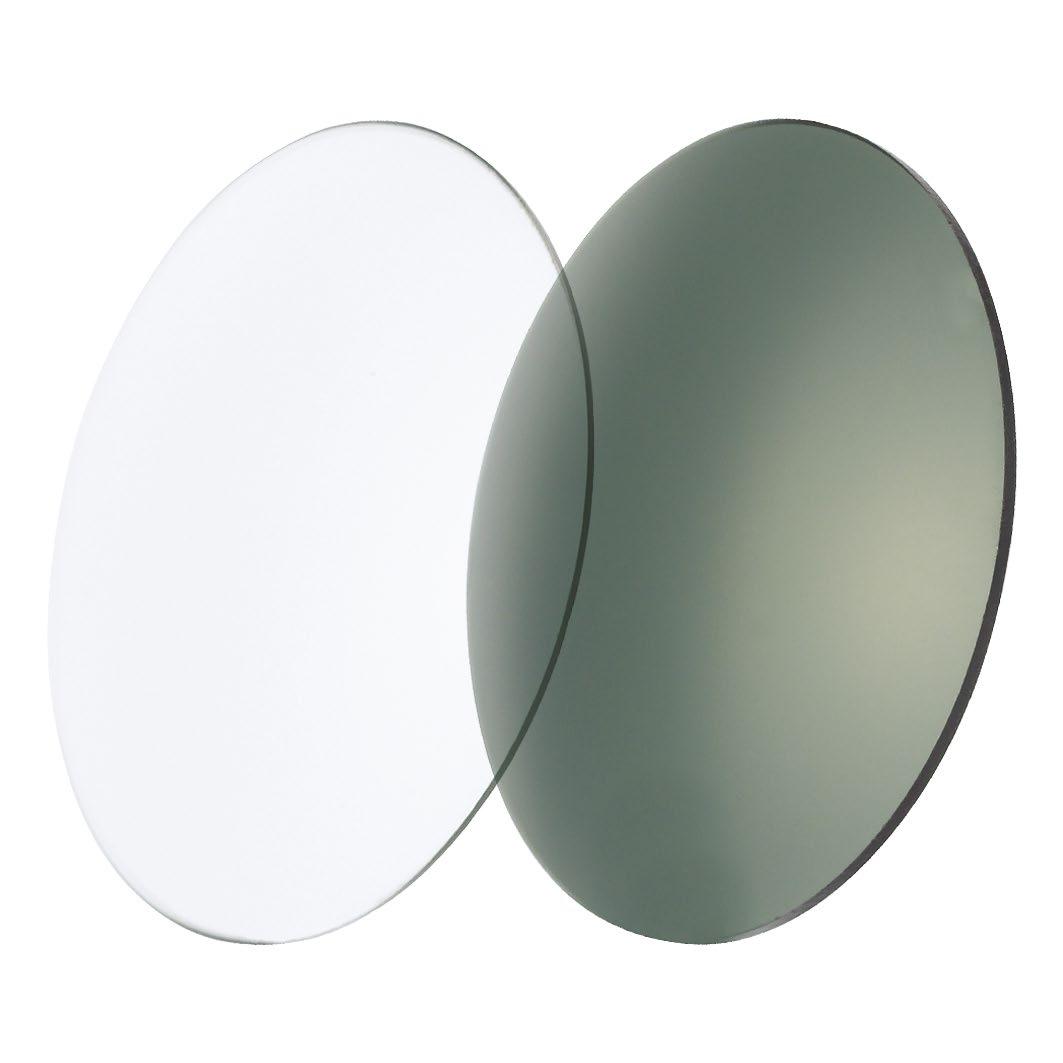

Clear lens 5% Extremely clear indoors. Photochromic CR39 lenses are light and comfortable to wear.

LAB CONSUMABLES

Ref. 06632 FC2 (dark lens τ 29%)

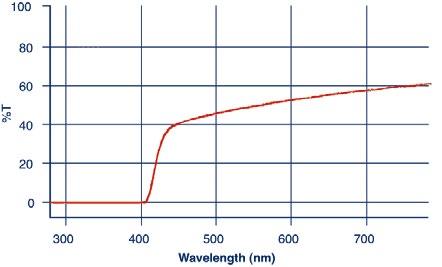

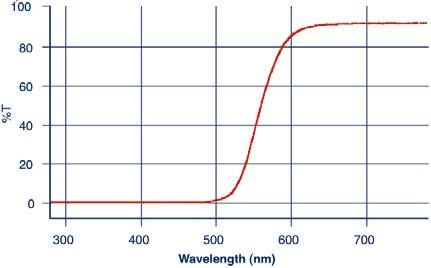

Wavelength (nm)

REFRACTION & ORTHOPTIC

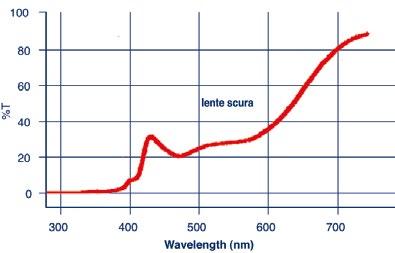

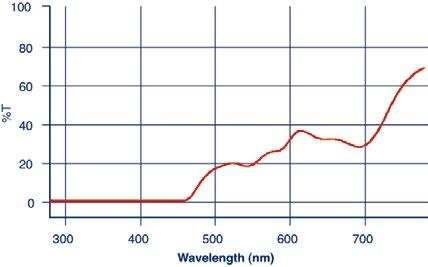

100 80 60 %T

Dark lens 65% The colour also fades faster than with glass lenses, granting a 100% UV protection.

dark lens

40 20 0 300

400

500 Wavelength (nm)

Light G15 5%

Dark G15 65% FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

darkens in a few seconds

INDEX

Lightens in a few minutes

UV400 - Very lightweight, more comfortable - 1,56ND Base B 4 Ø 75 mm |

FRAME PARTS

LAB MOD SYSTEM

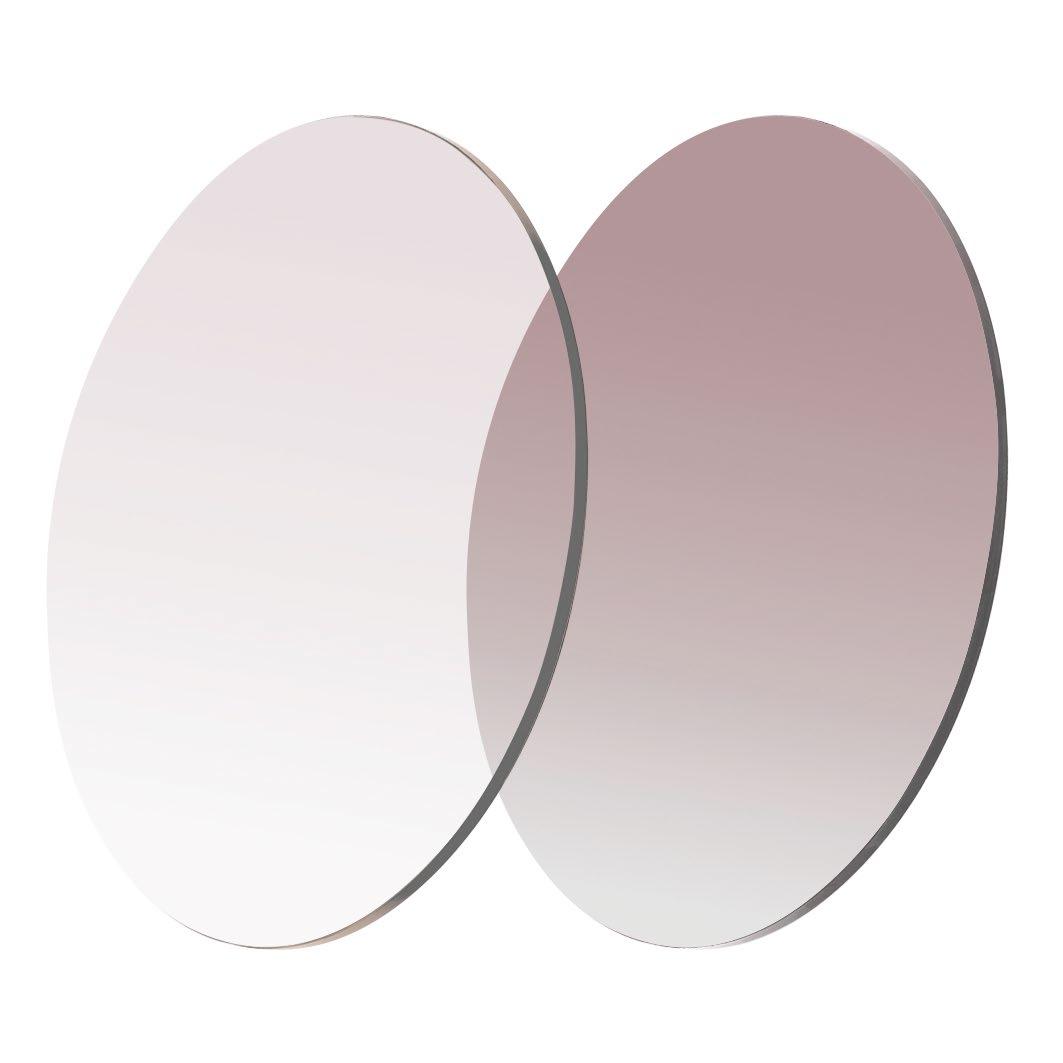

6.1 CR39 Photochromic Gradient Base 4 2,0 mm

2 pcs.

PLIERS

TOOLS

Ref. 06647 FC1 (lens center τ 80%)

EQUIPMENTS

Light Pink Gradient 5%

Pink/Grey Gradient 65%

darkens in a few seconds

LENSES

Clear lens 5% Extremely clear indoors. Photochromic CR39 lenses are light and comfortable to wear.

100 clear lens

80 60

LAB CONSUMABLES

Lightens in a few minutes

40 20 0 300

400

500

600

700

600

700

Dark lens 65% The colour also fades faster than with glass lenses, granting a 100% UV protection.

100 80 60 %T

REFRACTION & ORTHOPTIC

Wavelength (nm)

dark lens

40 20 0 300

400

500

INDEX

Wavelength (nm)

6.1

UV400 - Very lightweight, more comfortable

LAB MOD SYSTEM

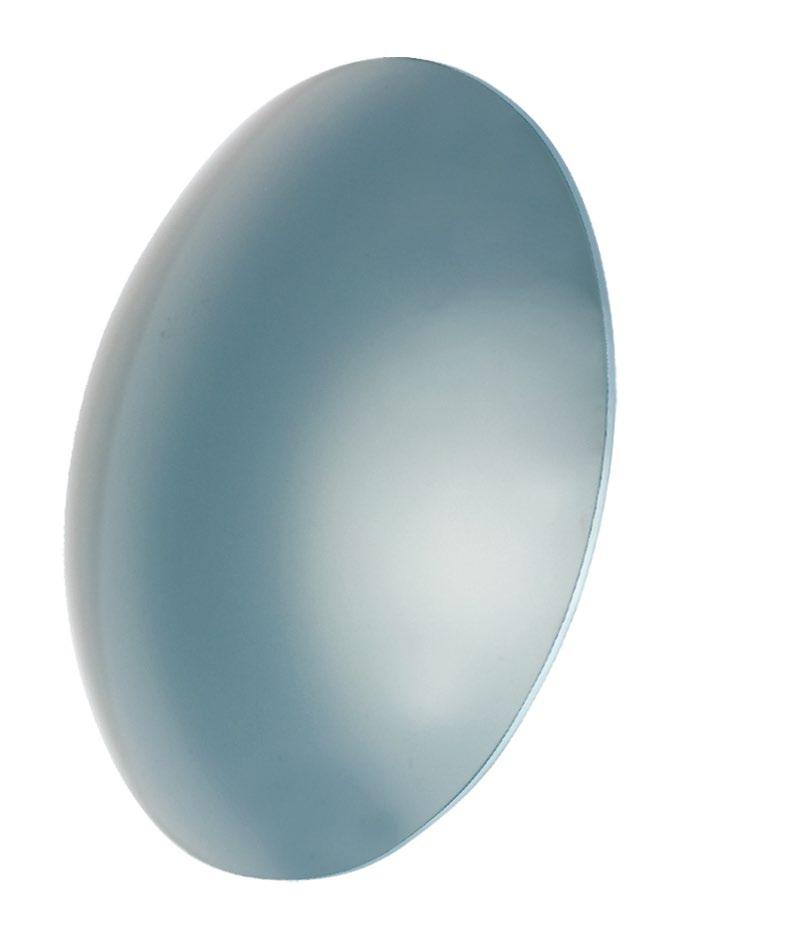

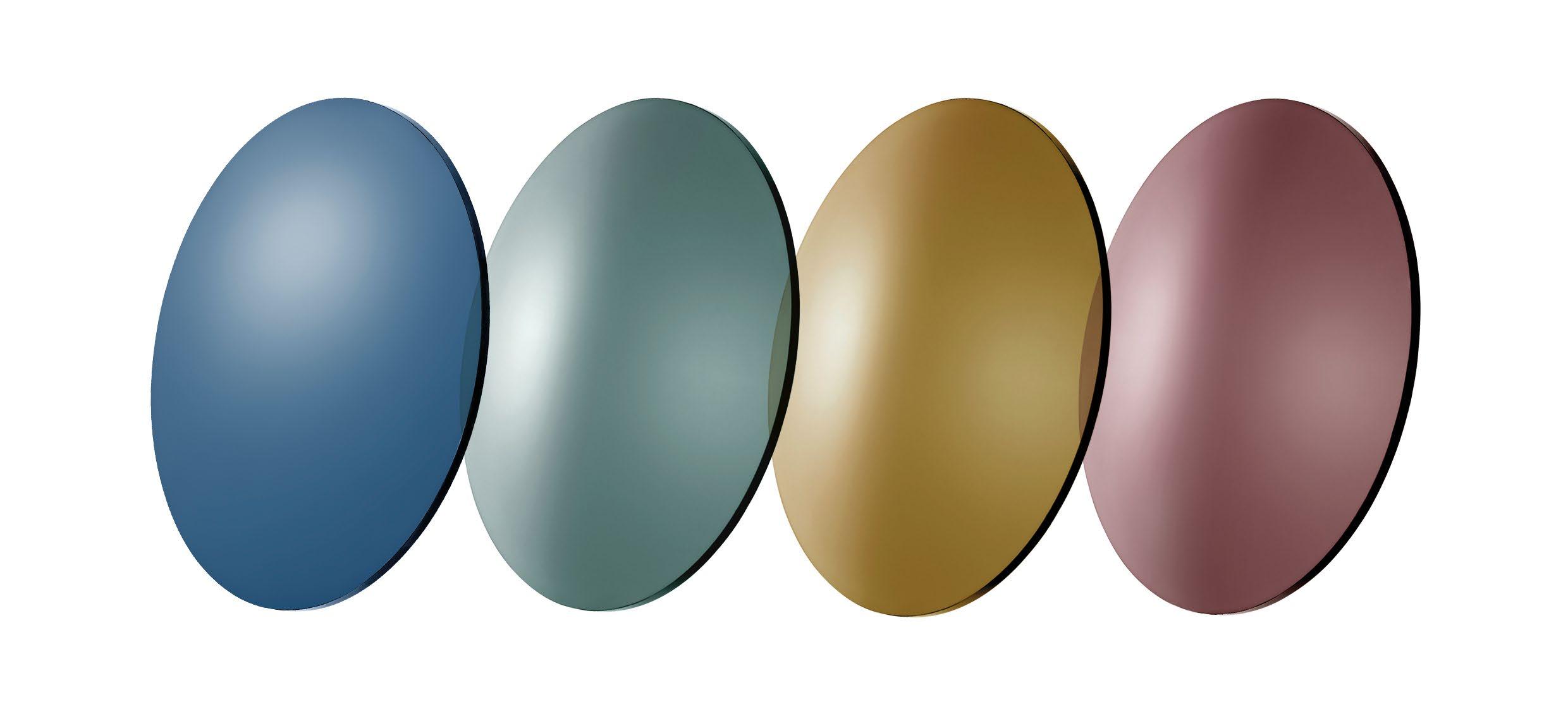

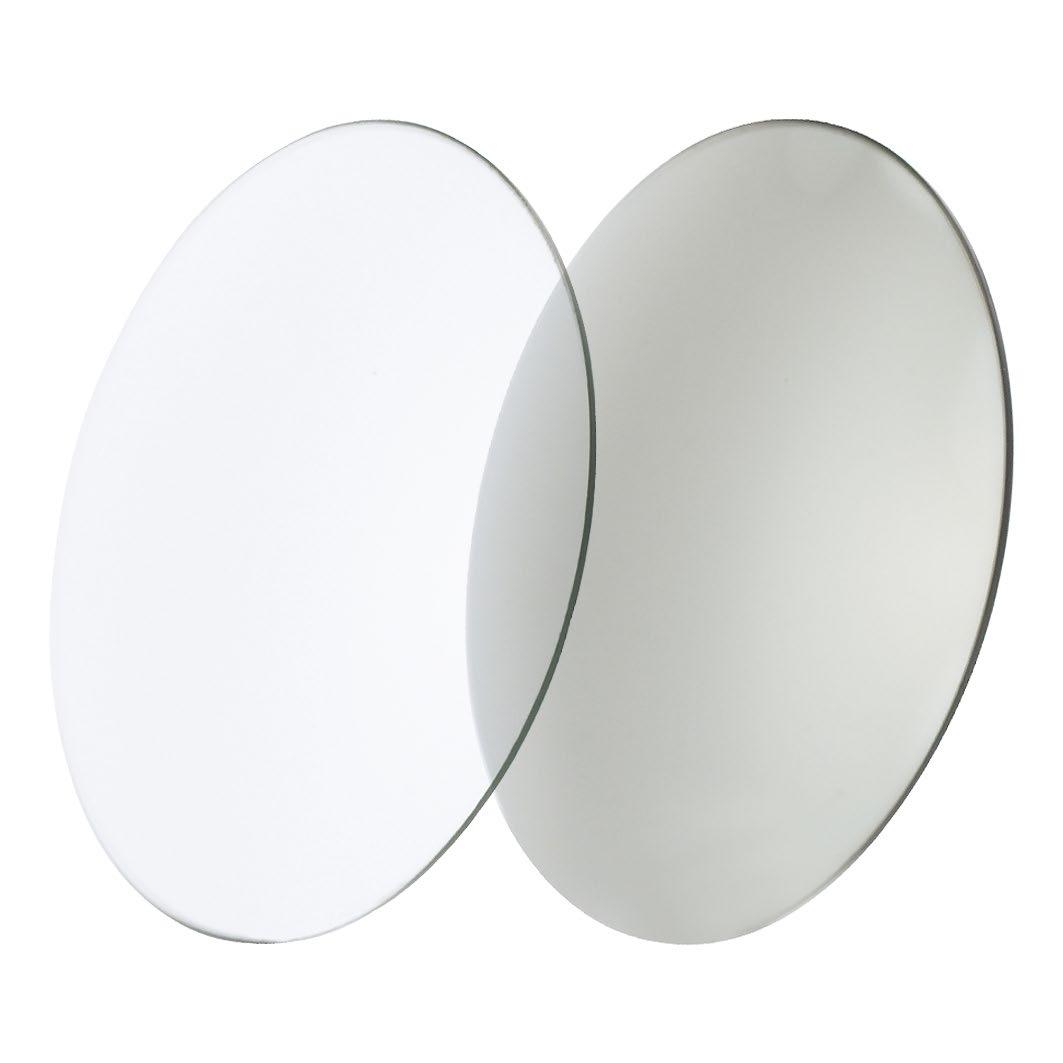

CR39 Photochromic Mirrored Base 4

MADE IN JAPAN

2,1 mm

2 pcs.

FRAME PARTS

Base B 4 Ø 70 mm | Ref. 06629 FC1 (dark lens τ 47%)

TOOLS PLIERS

Mirror Dark Gold 65%

EQUIPMENTS

Mirror Light Gold 5%

darkens in a few seconds Lightens in a few minutes

100 clear lens

60 40 20 0 300

400

500

700

600

700

100 80 60 %T

Dark lens 65% The colour also fades faster than with glass lenses, granting a 100% UV protection.

dark lens

40 20 0 300

400

500 Wavelength (nm)

Mirror Light Silver 5%

Mirror Dark Silver 65%

REFRACTION & ORTHOPTIC

600

Wavelength (nm)

LENSES

Clear lens 5% Extremely clear indoors. Photochromic CR39 lenses are light and comfortable to wear.

LAB CONSUMABLES

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

Ref. 06631 FC2 (dark lens τ 25%)

darkens in a few seconds

INDEX

Lightens in a few minutes

LAB MOD SYSTEM

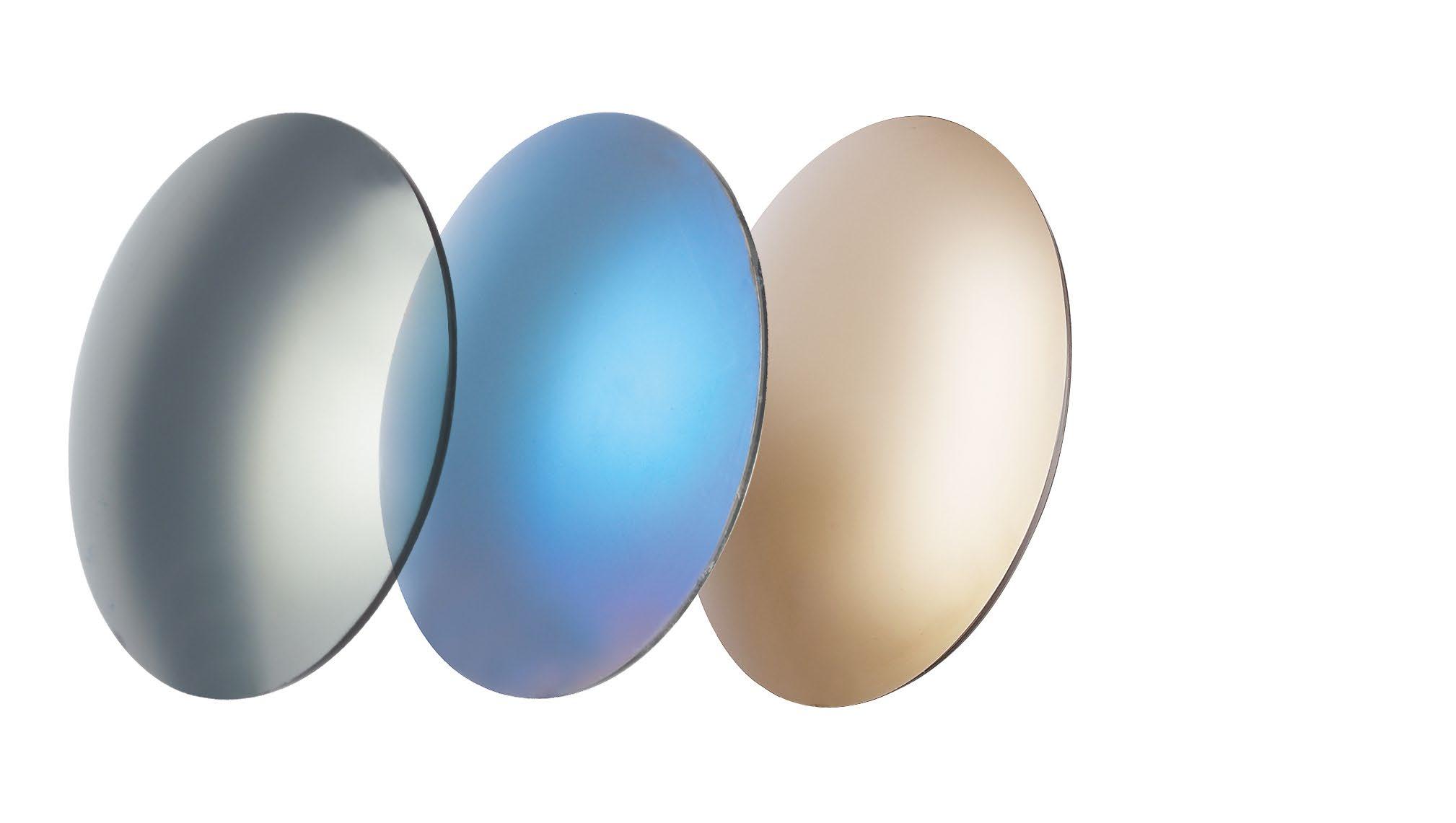

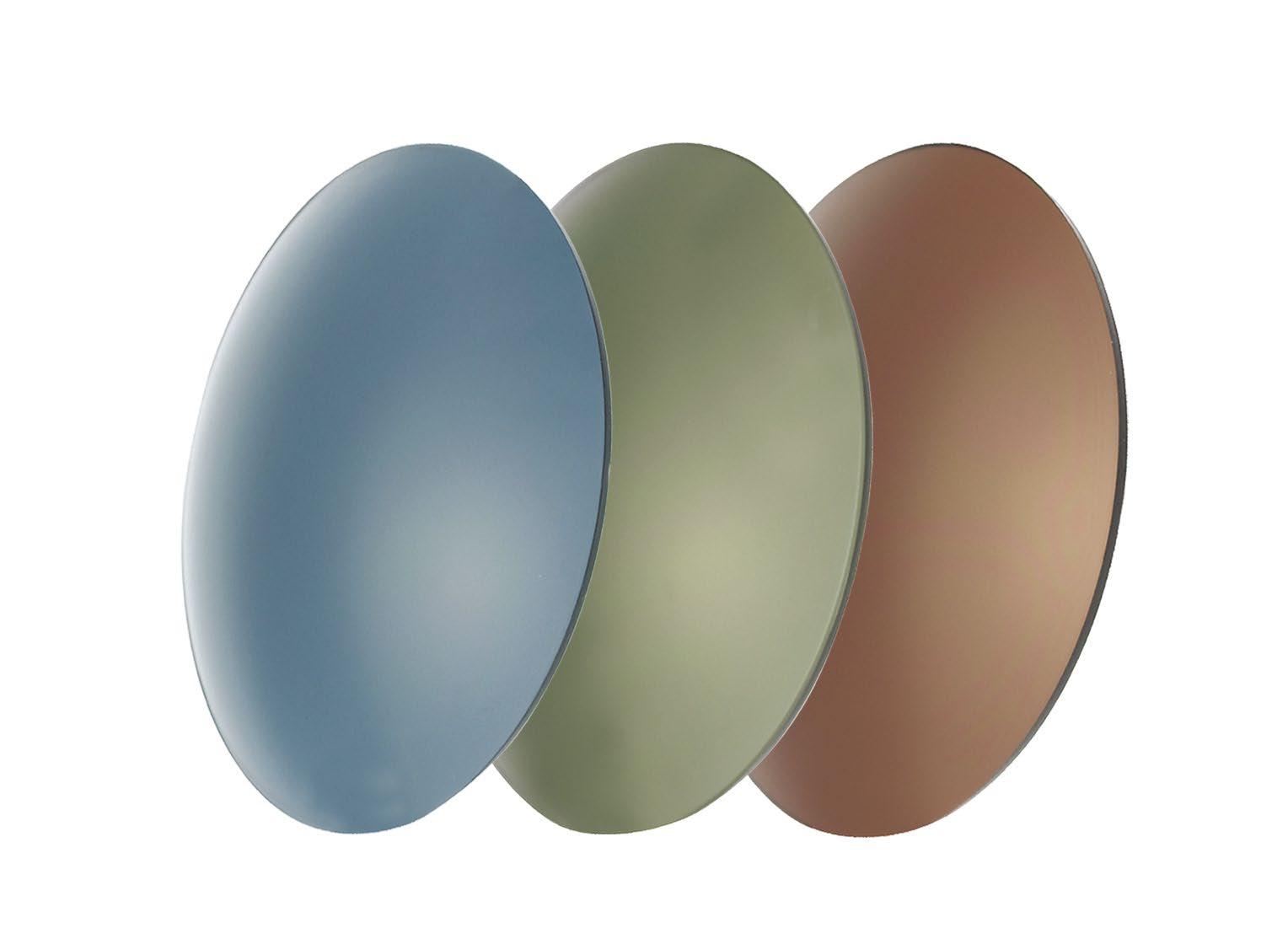

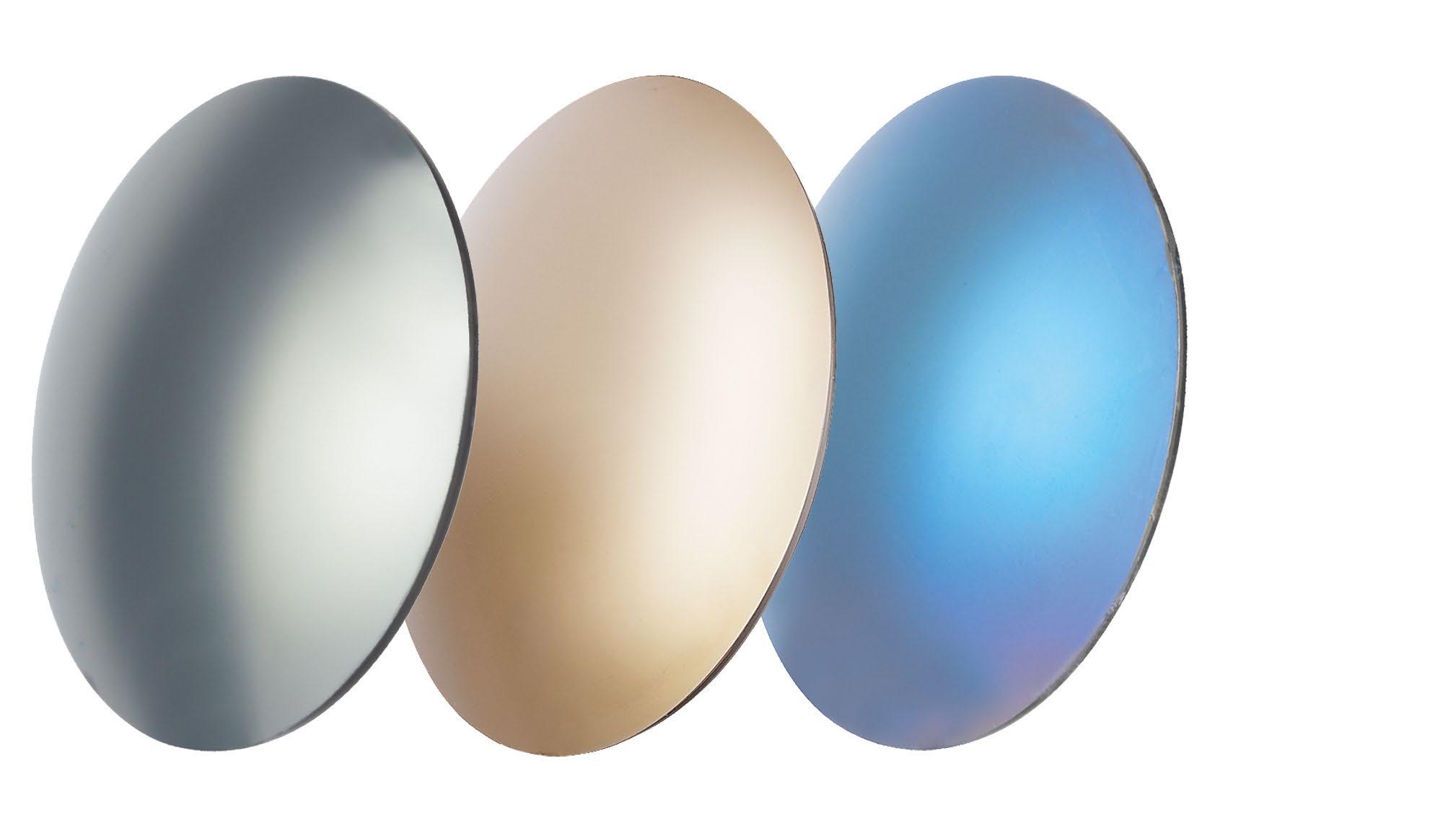

6.1 CR39 “Dark Glam“ with Hard Coating and mirror treatment Base 4 UV400 - Hard coating and mirror treatment MADE IN ITALY

FRAME PARTS

Base B 4 Ø 75 mm |

1,9 mm

2 pcs.

EQUIPMENTS

PLIERS

TOOLS

Ref. 06241 FC3 (τ 13.5%) Mirror Gold Base Brown 75%

LAB CONSUMABLES

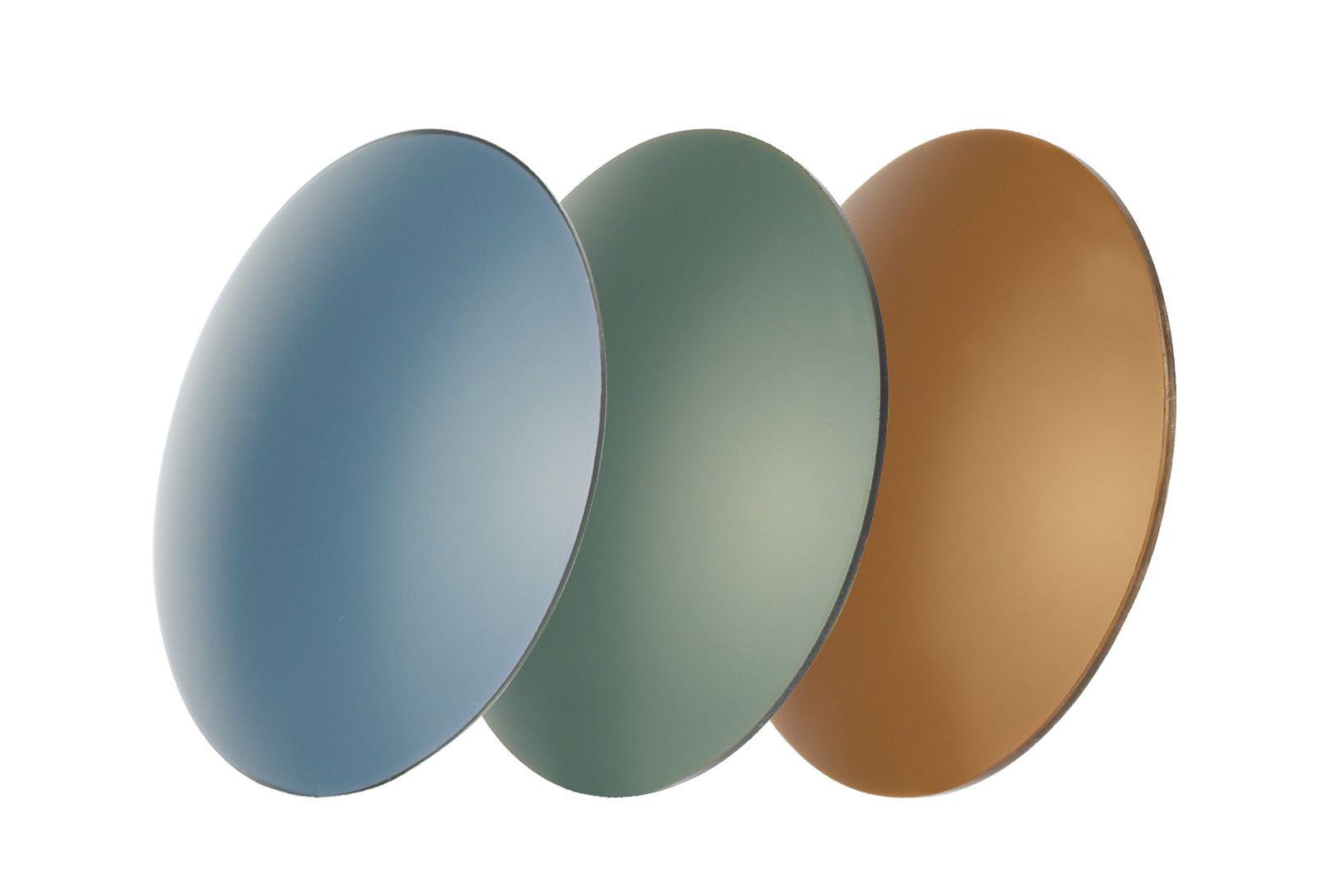

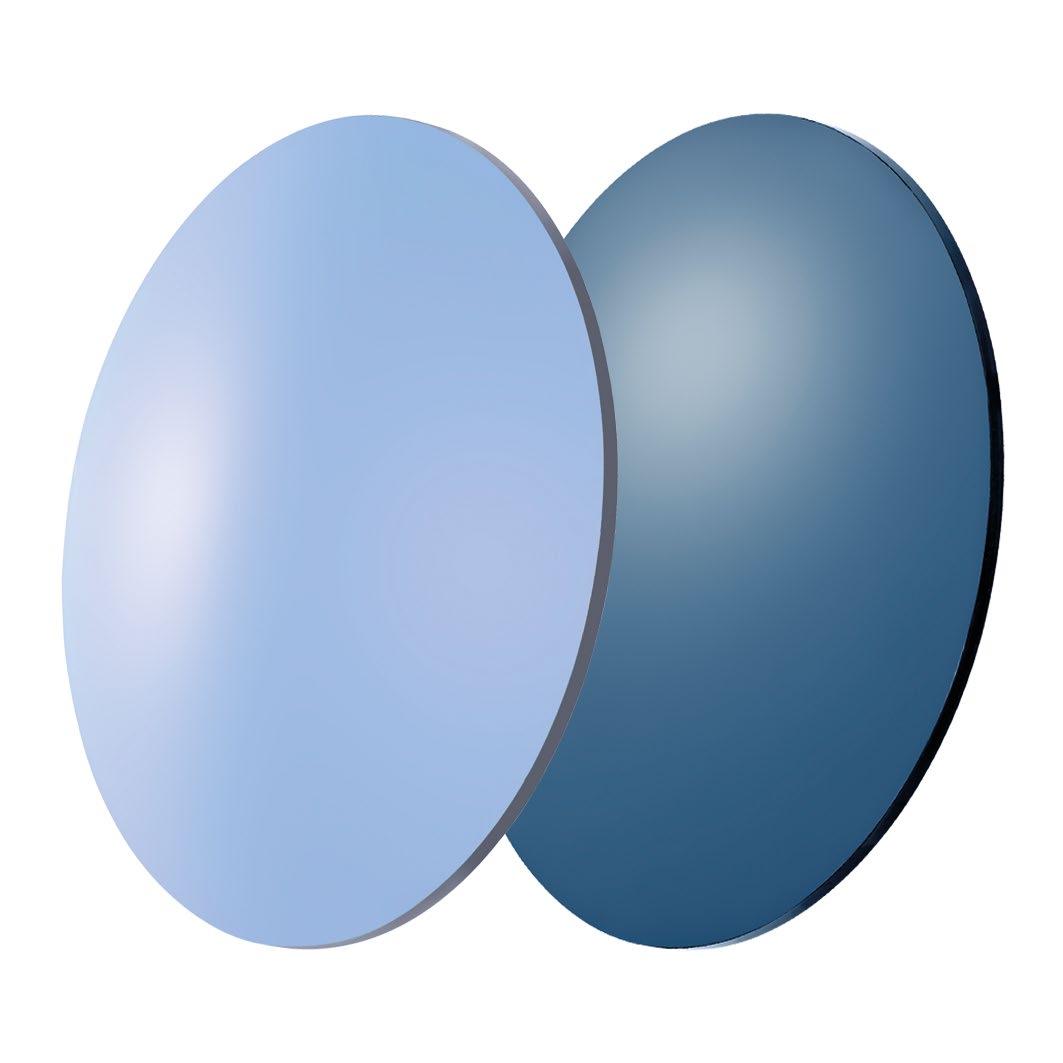

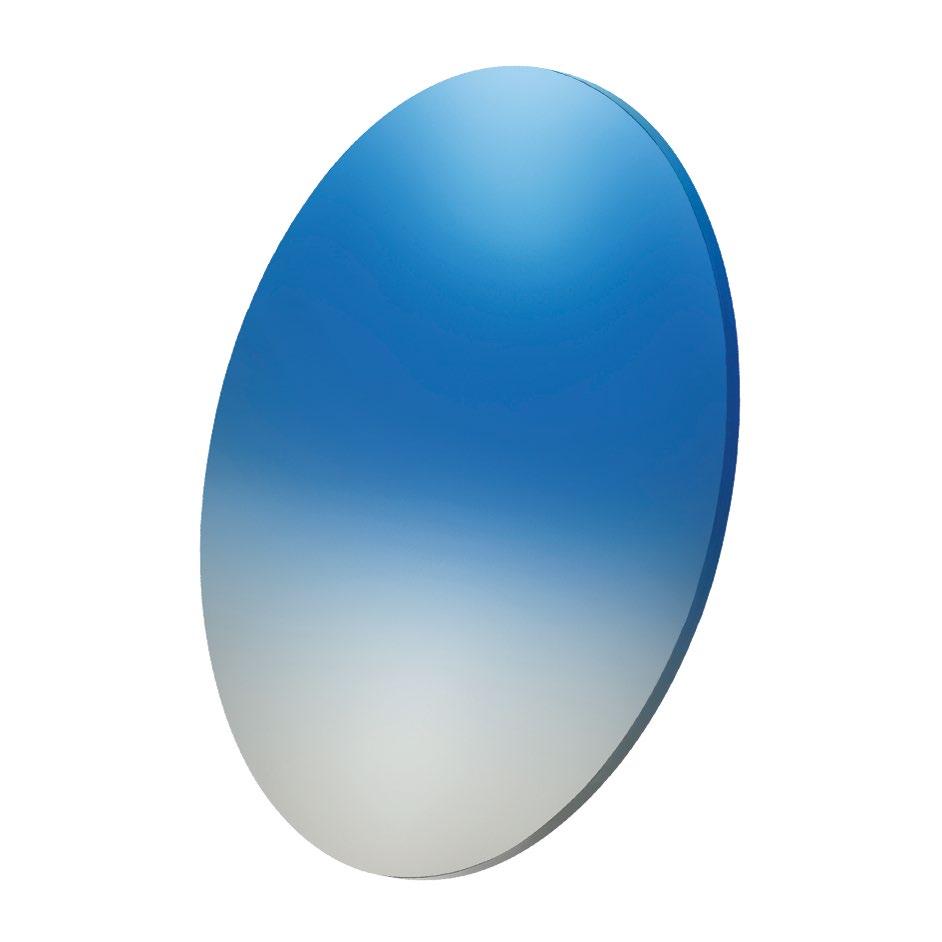

UV400 - Gradient Ref. 06750 FC2 (τ 32%) Mirror Blue Light Blue Gradient 50%

LENSES

NEW

Hard coating and mirror treatment

REFRACTION & ORTHOPTIC

• Excellent scratch and impact resistance. • Low light absorption. • Partial IR protection.

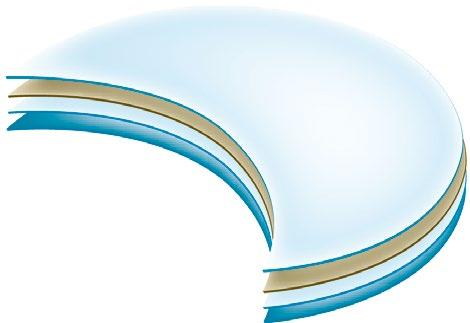

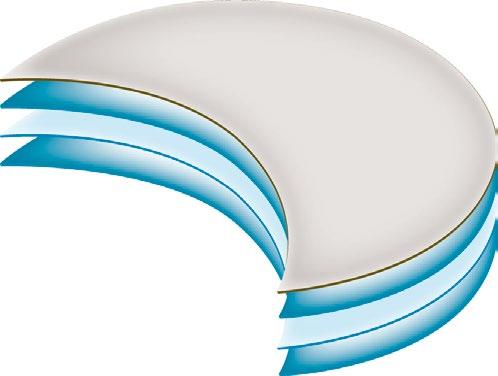

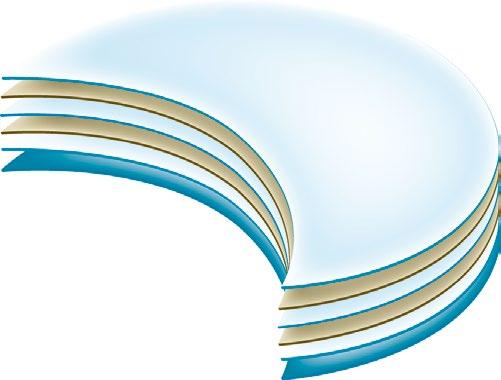

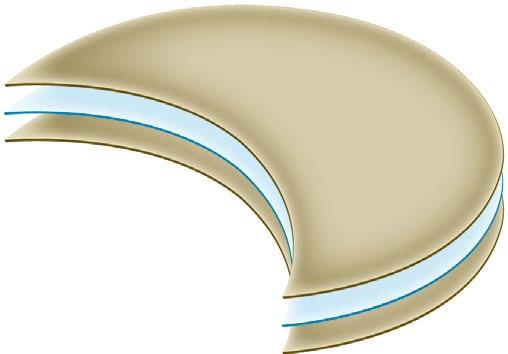

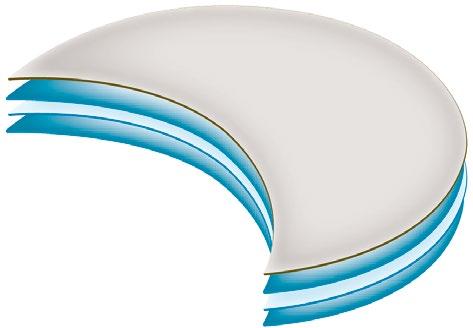

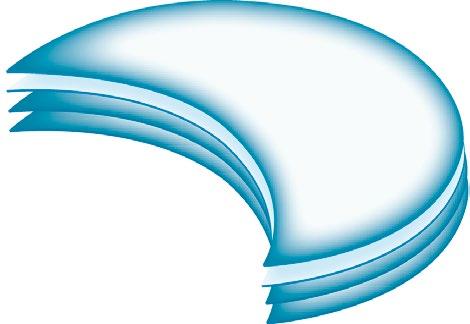

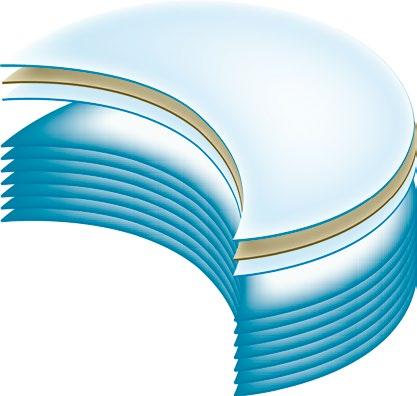

Mirror coating Hard coating CR39 lens Hard coating

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

UV400 - Hard coating and Anti-reflective Coating (AR) inside

LAB MOD SYSTEM

CR39 “Gradient“ with HC and AR treatment inside Base 4 6.1 MADE IN ITALY

1,9 mm

2 pcs.

FRAME PARTS

Base B 4 Ø 75 mm | Ref. 06248 FC2 (τ 20%) Pink Grey Gradient 60%

TOOLS PLIERS EQUIPMENTS LAB CONSUMABLES

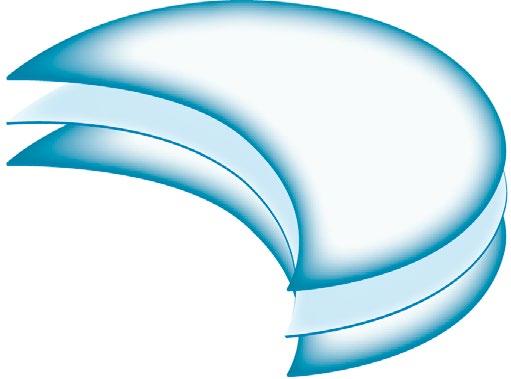

Hard coating CR39 lens Hard coating

REFRACTION & ORTHOPTIC

• Excellent scratch and impact resistance. • Each lens has a durable and effective AR Coating treatment on the inner side for enhanced vision.

LENSES

Hard coating and AR inside

Anti-reflective coating

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

INDEX

LAB MOD SYSTEM

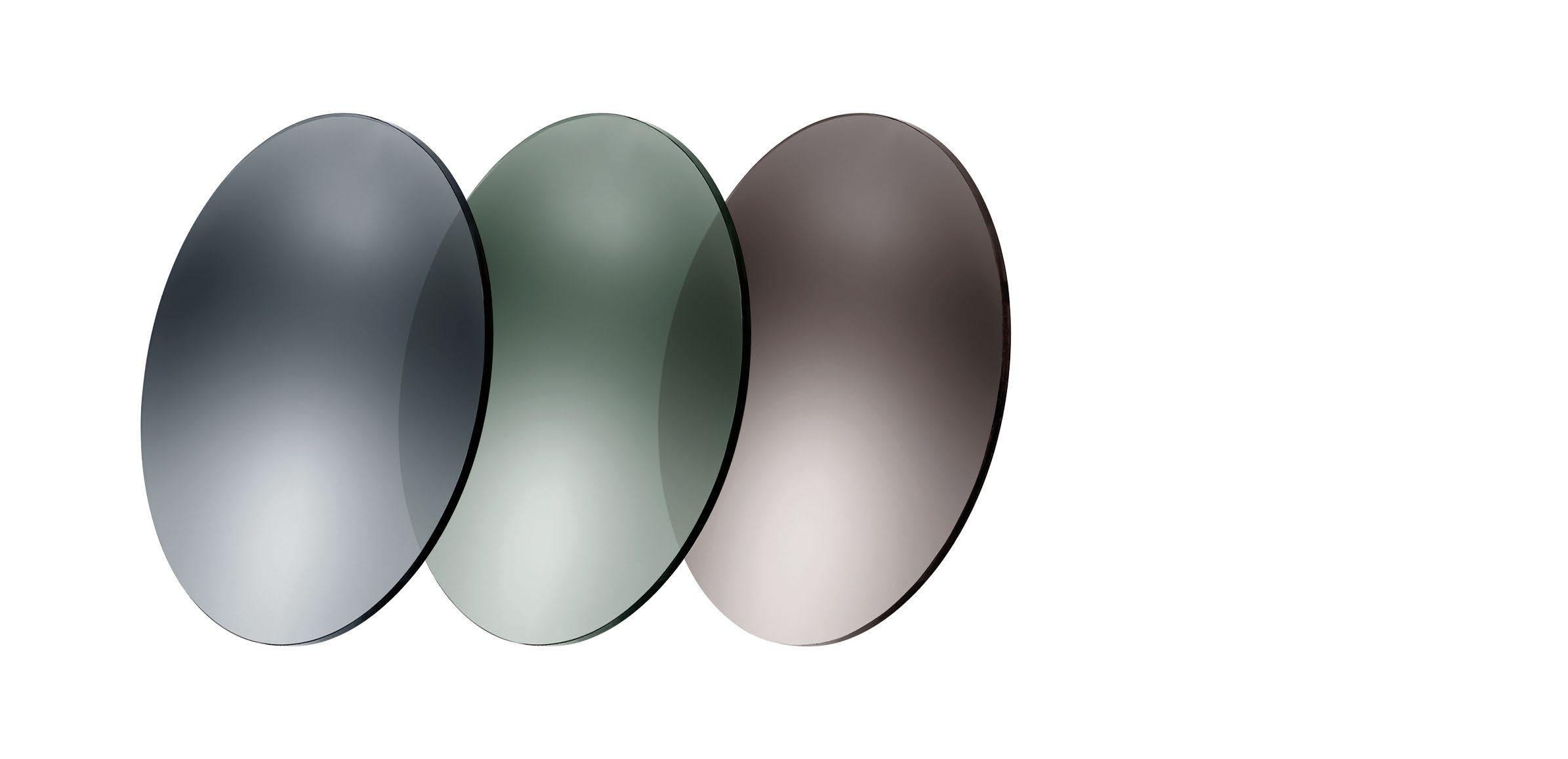

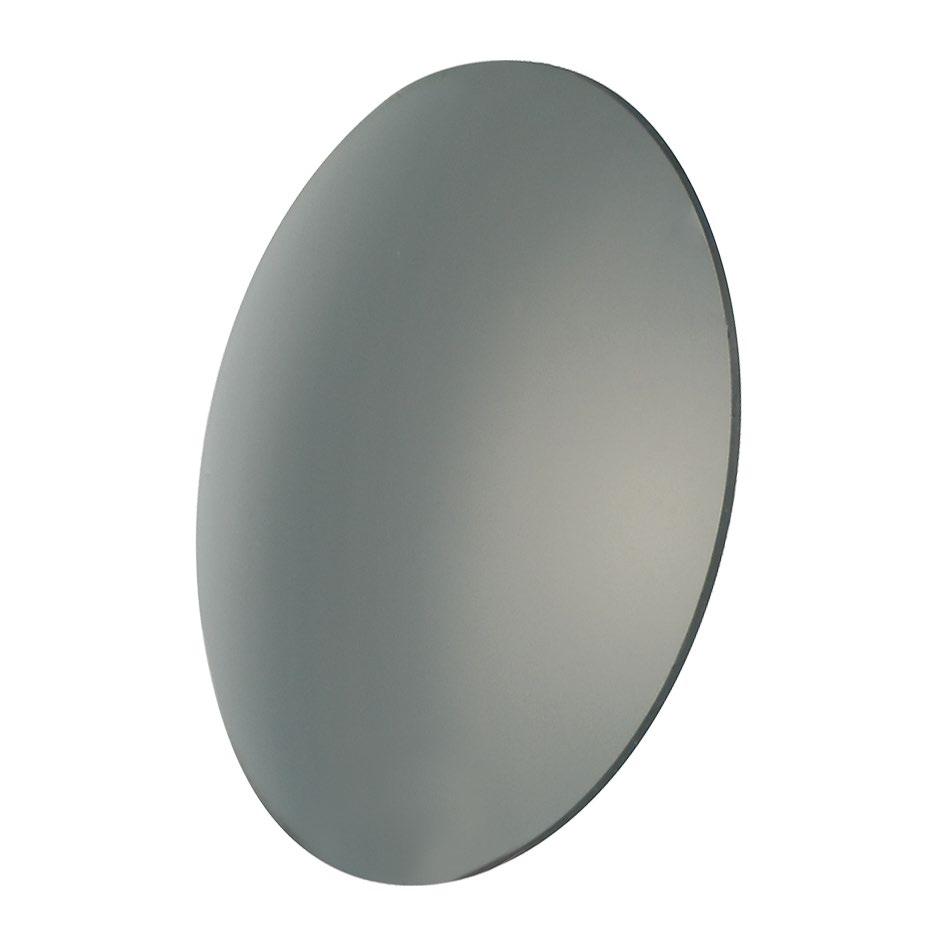

6.2 CR39 “Classic” full colour and gradient Base 6  Base 8 UV400 MADE IN ITALY

FRAME PARTS

Base B 6 Ø 76 mm |

1,8 mm

2,2 mm

12 pcs.

Ref. 06608 FC3 (τ 9-12%) Dark Grey 75%

EQUIPMENTS

PLIERS

TOOLS

Ref. 06610 Ref. 06611 Ref. 06612 Ref. 06613 Ref. 06614 FC1 (τ 50%) FC2 (τ 18-20%) FC3 (τ 9-12%) FC4 (τ 5-7%) FC2 (τ 36%) Light Grey Medium Grey Dark Grey Very Dark Grey Medium Grey 25% 60% 75% 90% Gradient 60% 2 pcs.

For supra frames

LAB CONSUMABLES

Base 8 Decentred lenses The optical centre is decentred from the geometrical axis for better vision. Thickness from 1,8 to 2,2 mm

Base B 8 Ø 76 mm |

1,8 mm

Ref. 06666 FC3 (τ 8-10%) Dark Grey 75%

Ref. 06615 FC2 (τ 22-38%) Medium Grey Gradient 60%

α = 15°

REFRACTION & ORTHOPTIC

LENSES

α = Wrap-around inclination

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

6 pcs.

UV400

LAB MOD SYSTEM

CR39 “Classic” full colour and gradient Base 6  Base 8 6.2 MADE IN ITALY

1,8

2,2 mm

12 pcs.

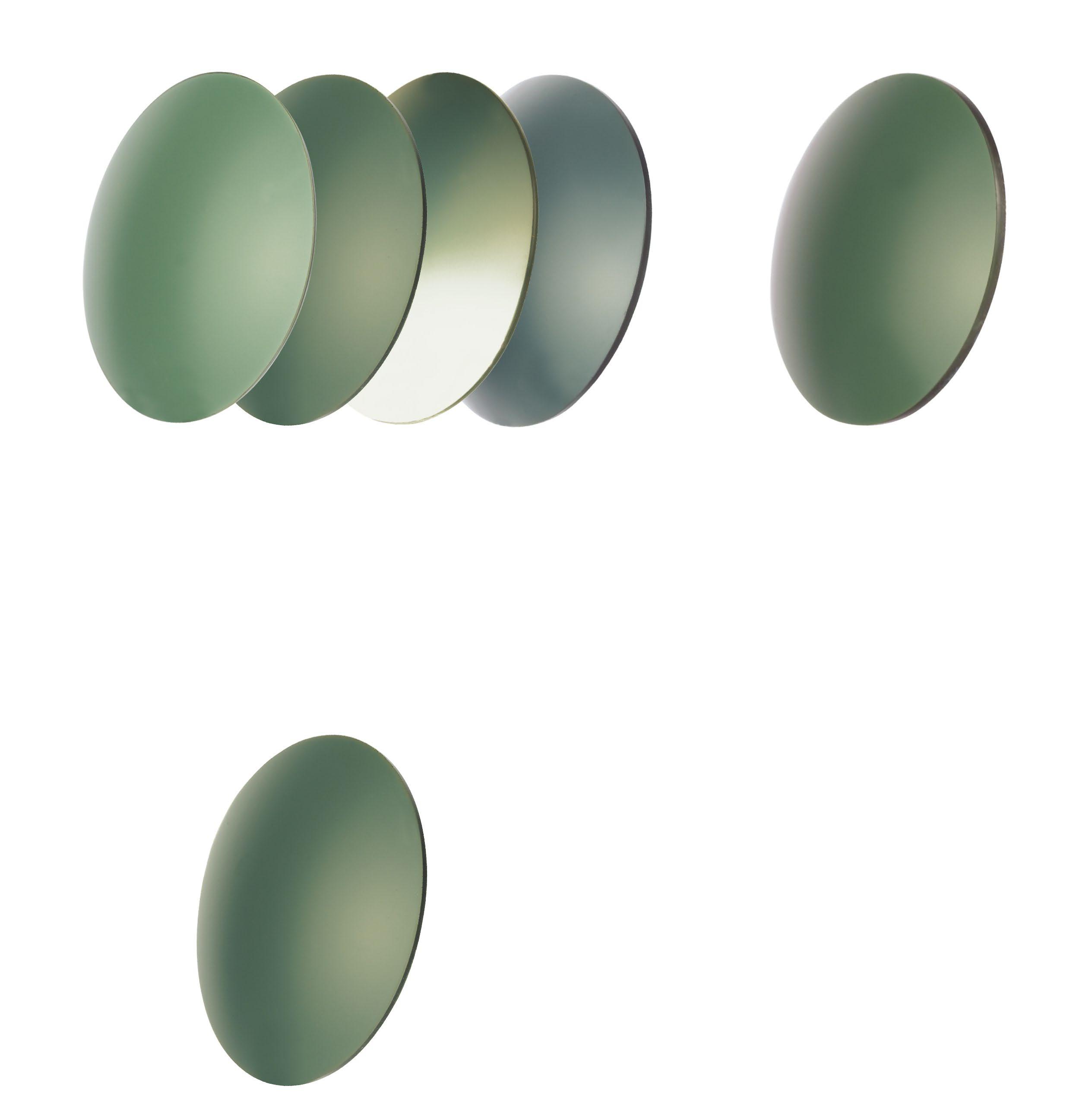

Ref. 06618 Ref. 06619 Ref. 06638 FC2 (τ 21%) FC3 (τ 12%) FC2 (τ 39%) Green-Grey Dark Green-Grey Green-Grey 60% G15 75% G15 Gradient 60% G15

Ref. 06616 FC3 (τ 10-13%) Dark Green 75%

Ref. 06609 FC3 (τ 12-15%) Dark Green-Grey 75% G15

FRAME PARTS

Base B 6 Ø 76 mm |

TOOLS PLIERS

Base B 8 Ø 76 mm |

1,8 mm

6 pcs. LAB CONSUMABLES

Ref. 06667 FC3 (τ 8-12%) Dark Green-Grey 75% G15

EQUIPMENTS

For supra frames

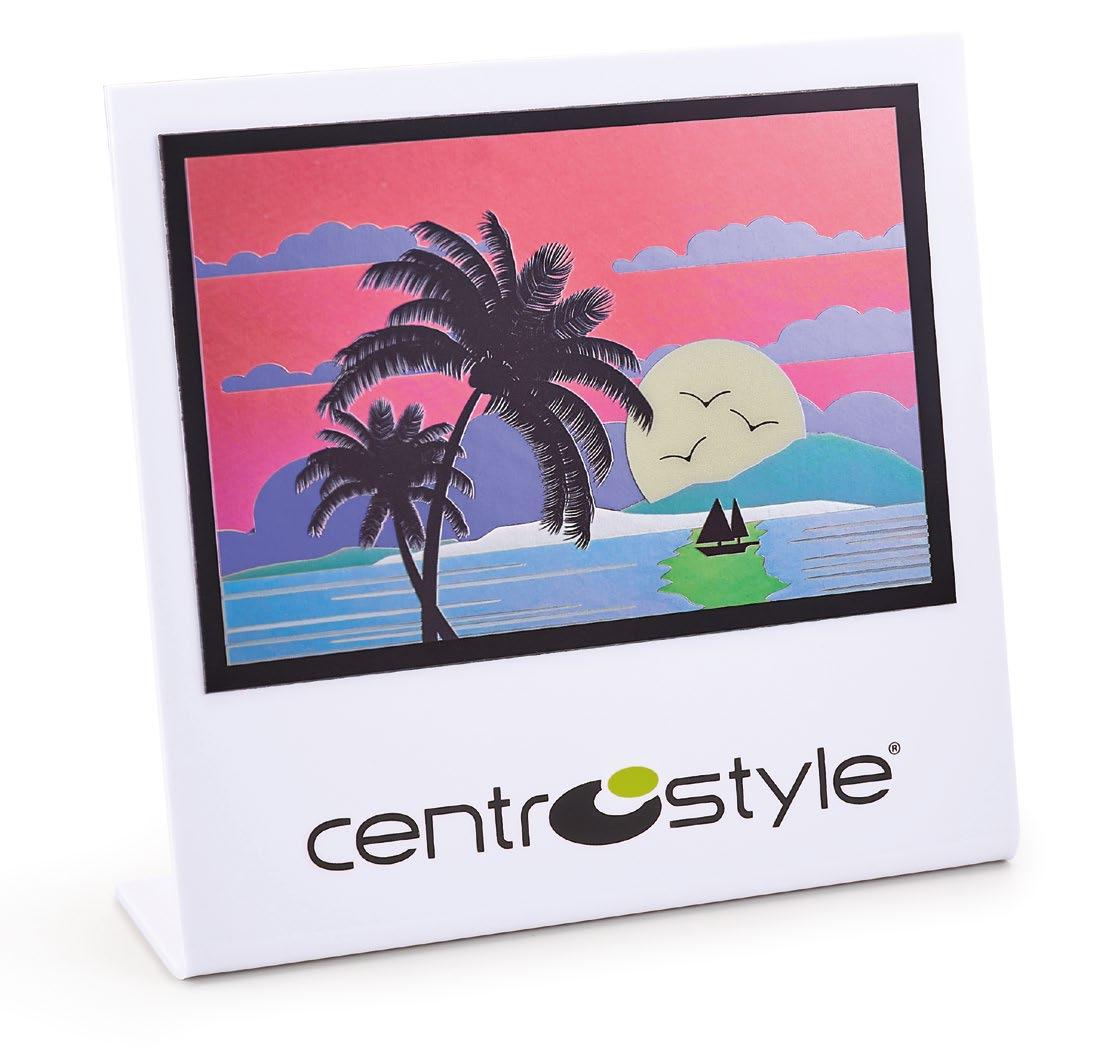

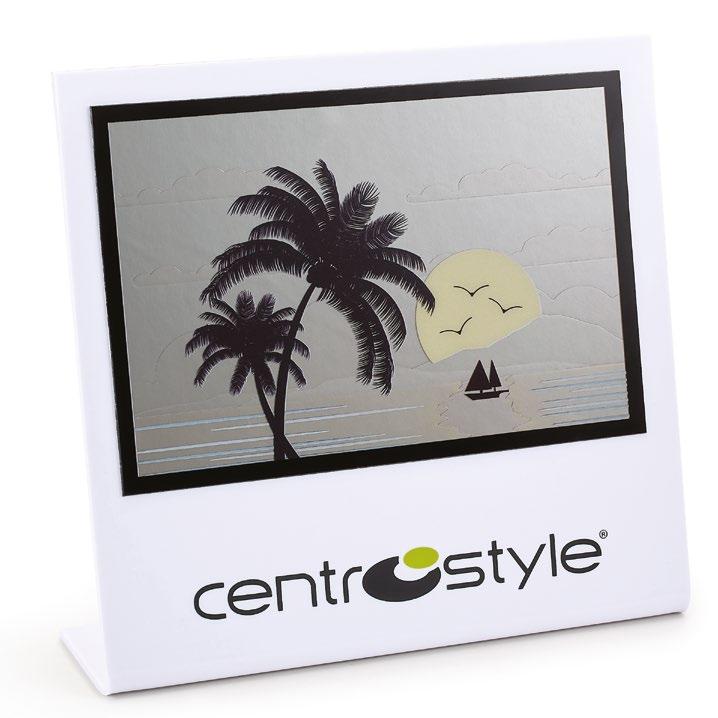

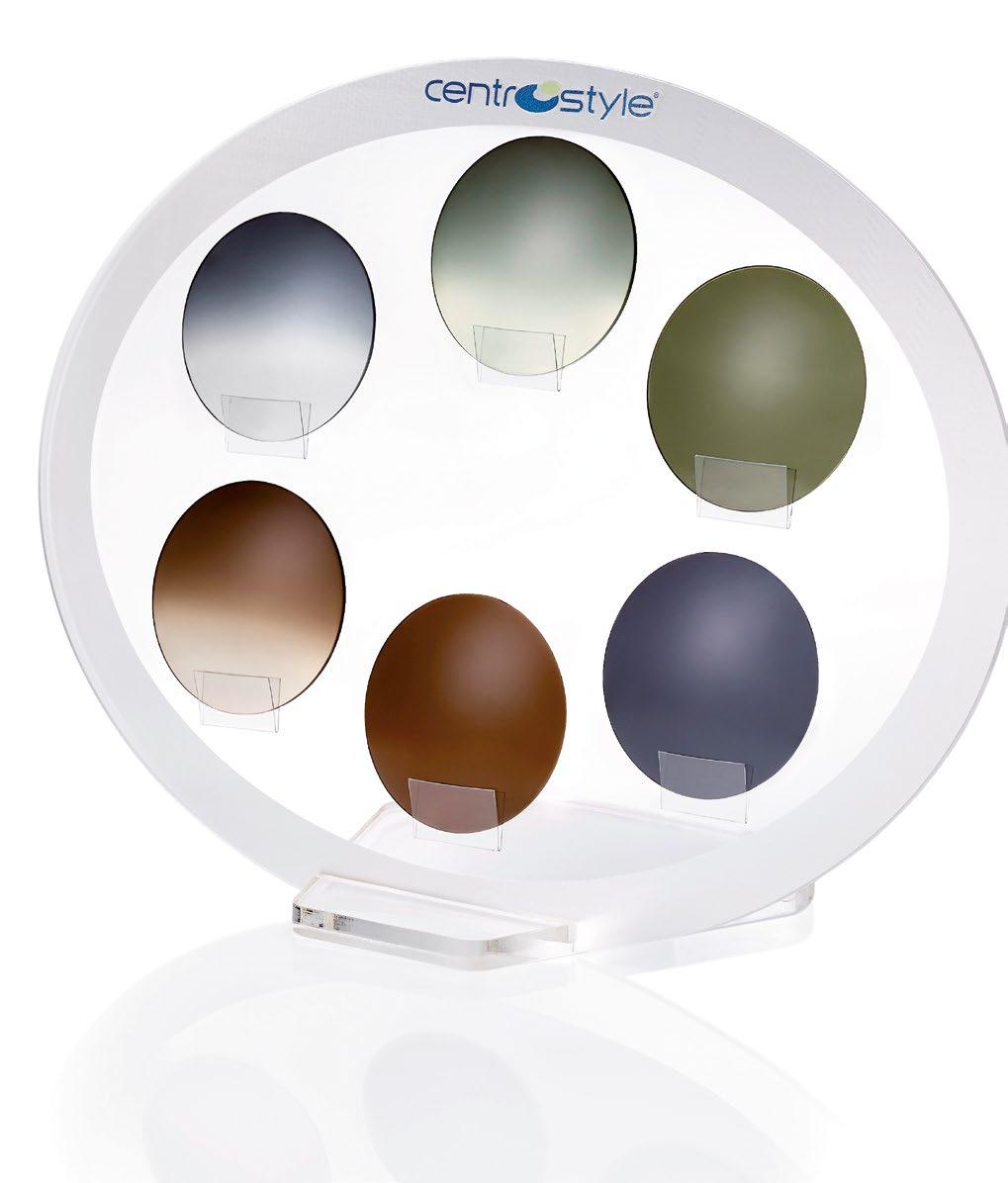

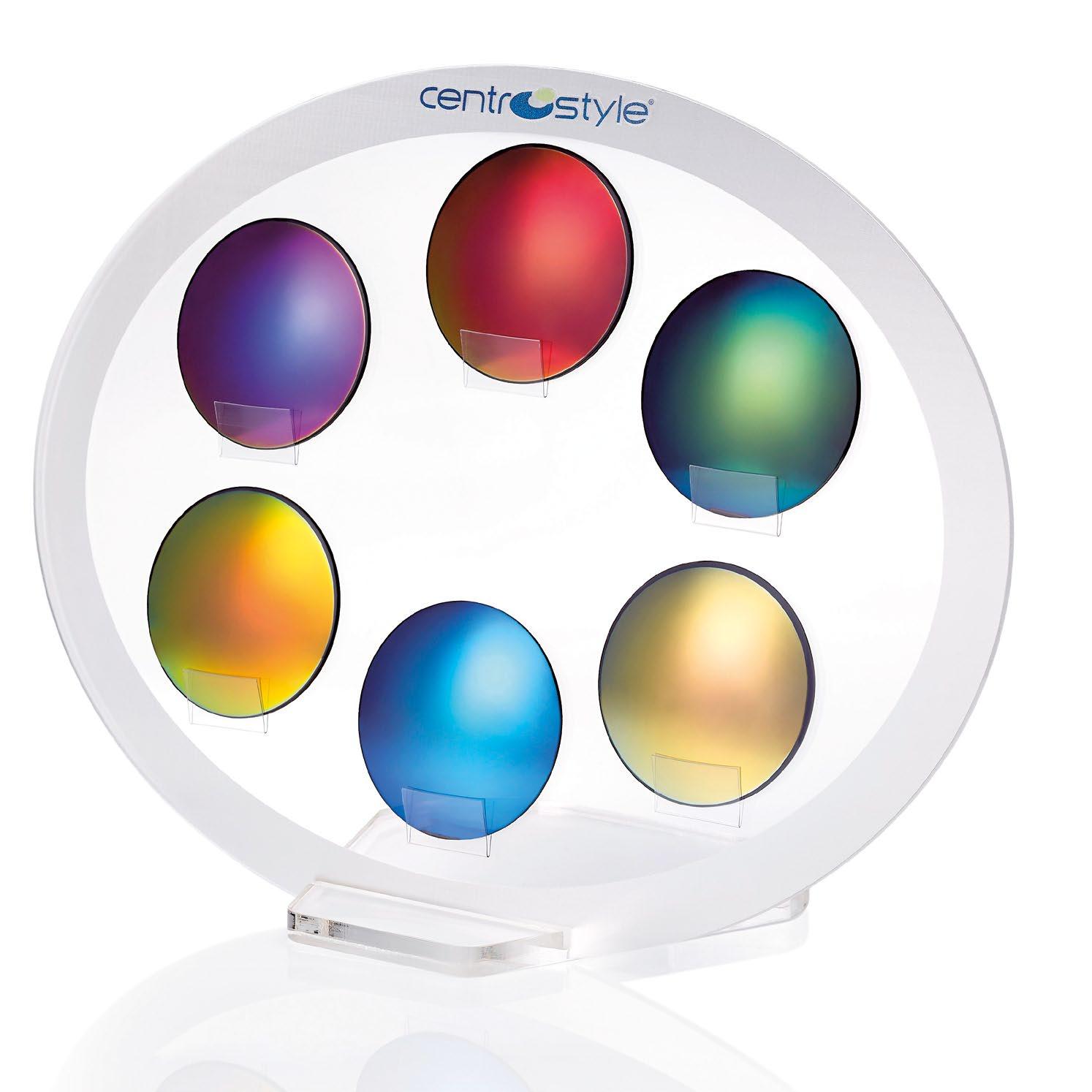

Ref. 06786 Display included f.o.c. with orders of 12 packs of lenses.

LENSES REFRACTION & ORTHOPTIC

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

LAB MOD SYSTEM

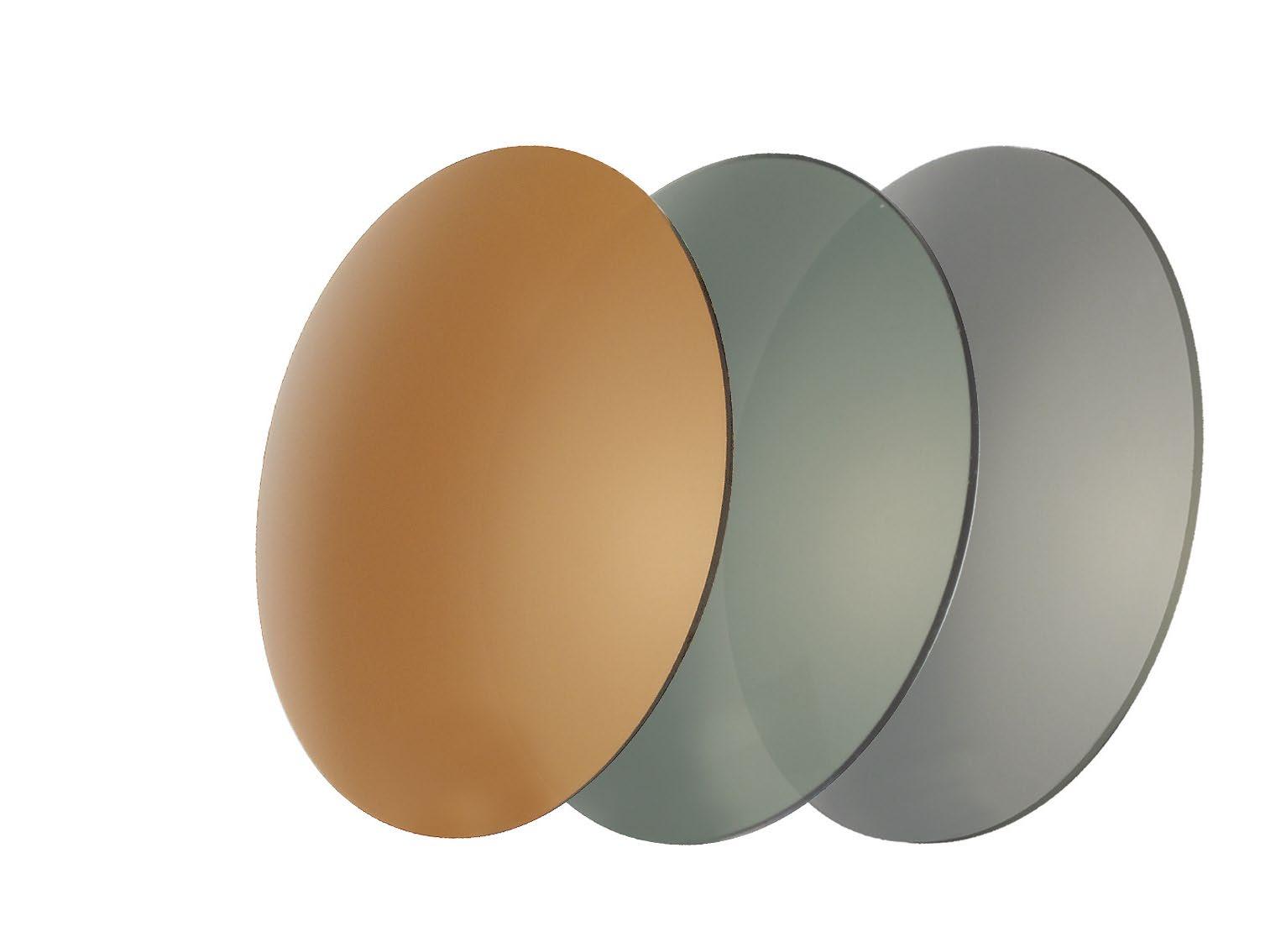

6.2 CR39 “Classic” full colour and gradient Base 6  Base 8 UV400 MADE IN ITALY

FRAME PARTS

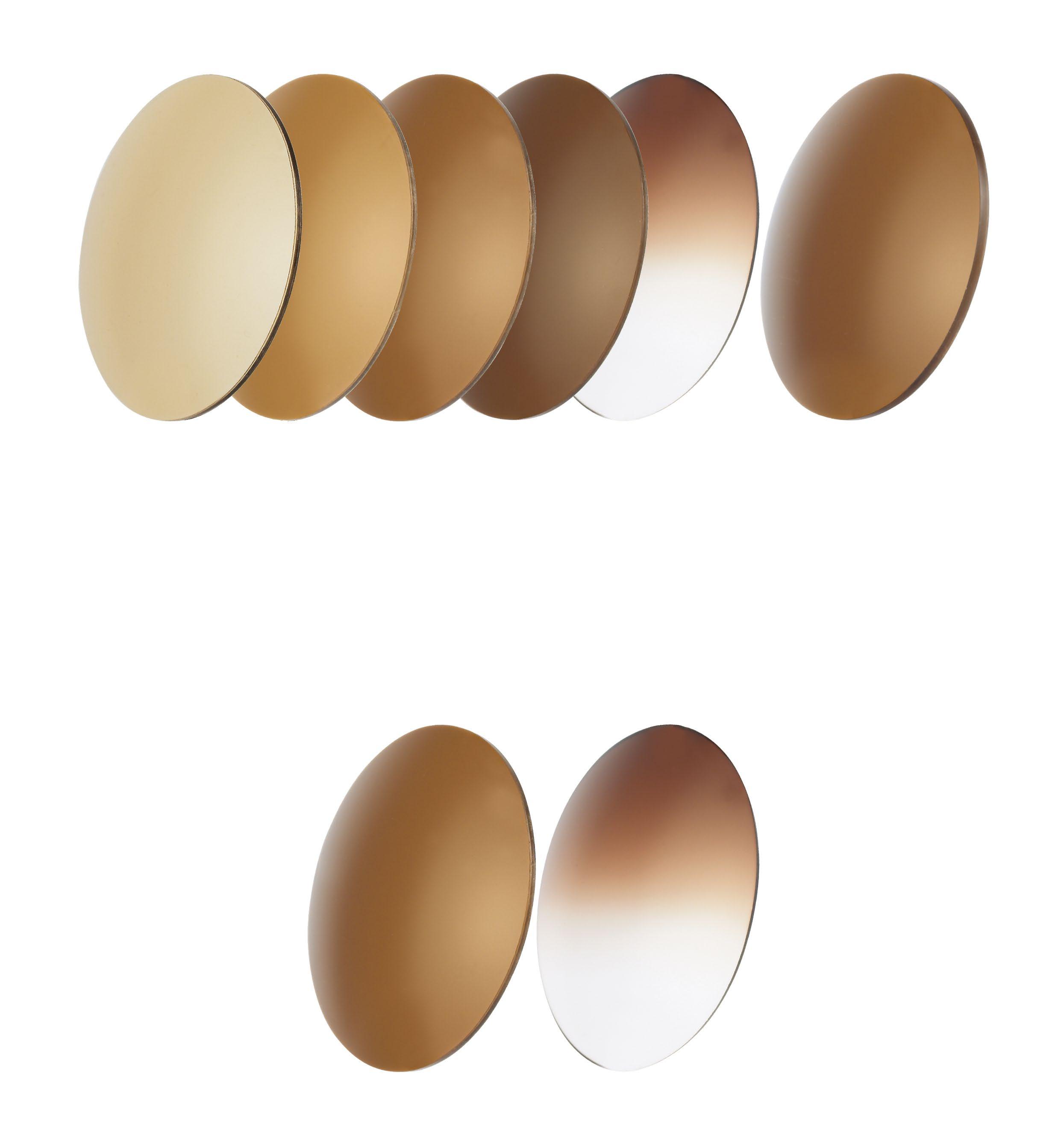

Base B 6 Ø 76 mm | Ref. 06600 FC1 (τ 56%) Light Brown 25%

1,8

2,2 mm

12 pcs.

Ref. 06601 Ref. 06602 Ref. 06603 Ref. 06604 FC2 (τ 23%) FC3 (τ 8-10%) FC4 (τ 3-5%) FC2 (τ 30-32%) Medium Brown Dark Brown Very Dark Brown Medium Brown 60% 75% 90% Gradient 60%

Ref. 06607 FC3 (τ 8-10%) Dark Brown 75%

EQUIPMENTS

PLIERS

TOOLS

2 pcs.

For supra frames

LAB CONSUMABLES

Base 8 Decentred lenses The optical centre is decentred from the geometrical axis for better vision. Thickness from 1,8 to 2,2 mm

Base B 8 Ø 76 mm |

1,8 mm

Ref. 06669 FC3 (τ 9-12%) Dark Brown 75%

Ref. 06605 FC2 (τ 30-32%) Medium Brown Gradient 60%

6 pcs.

α = 15°

INDEX

REFRACTION & ORTHOPTIC

LENSES

α = Wrap-around inclination

6.2

UV400 - Lenses manufactured by Carl Zeiss Vision

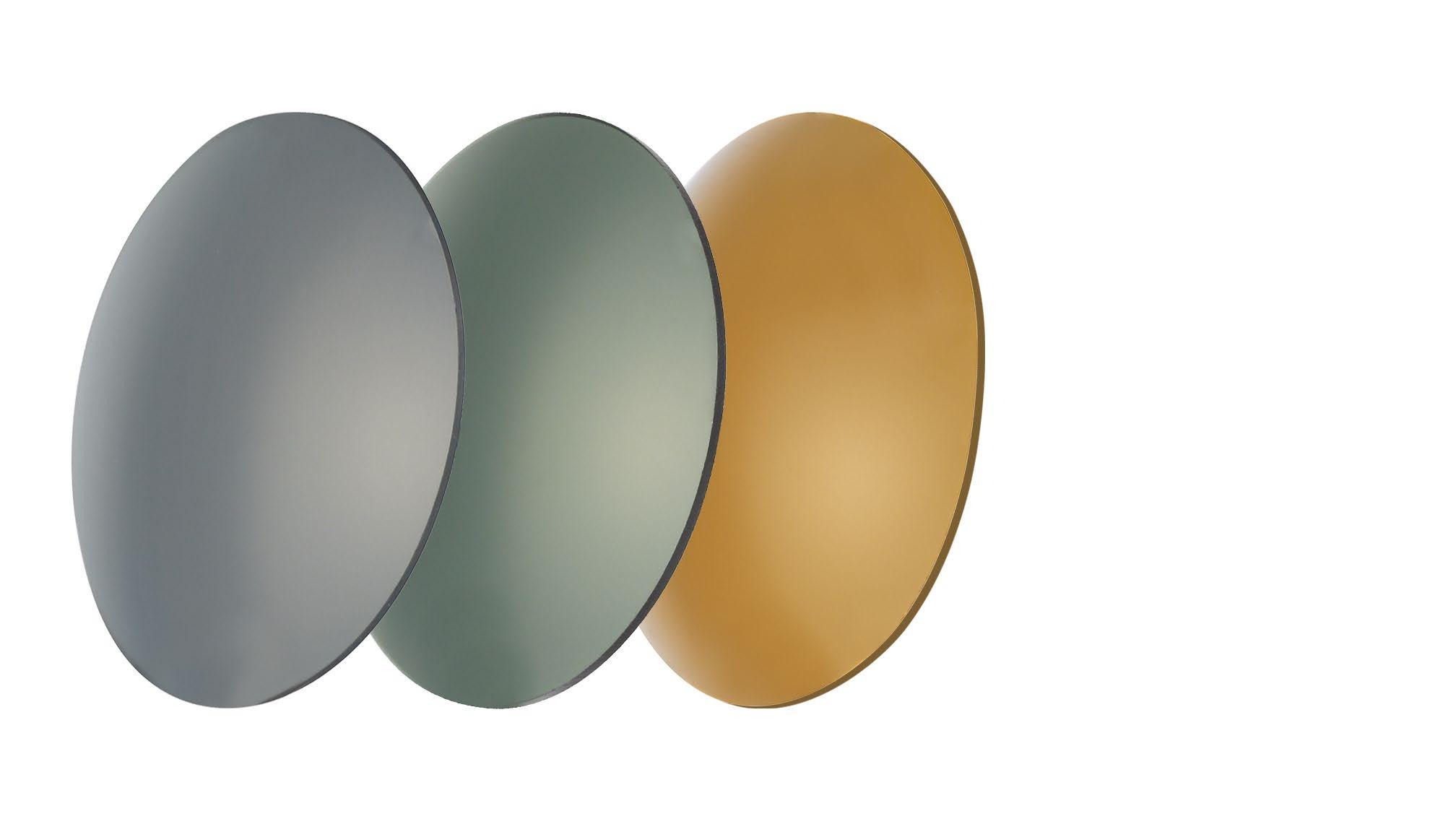

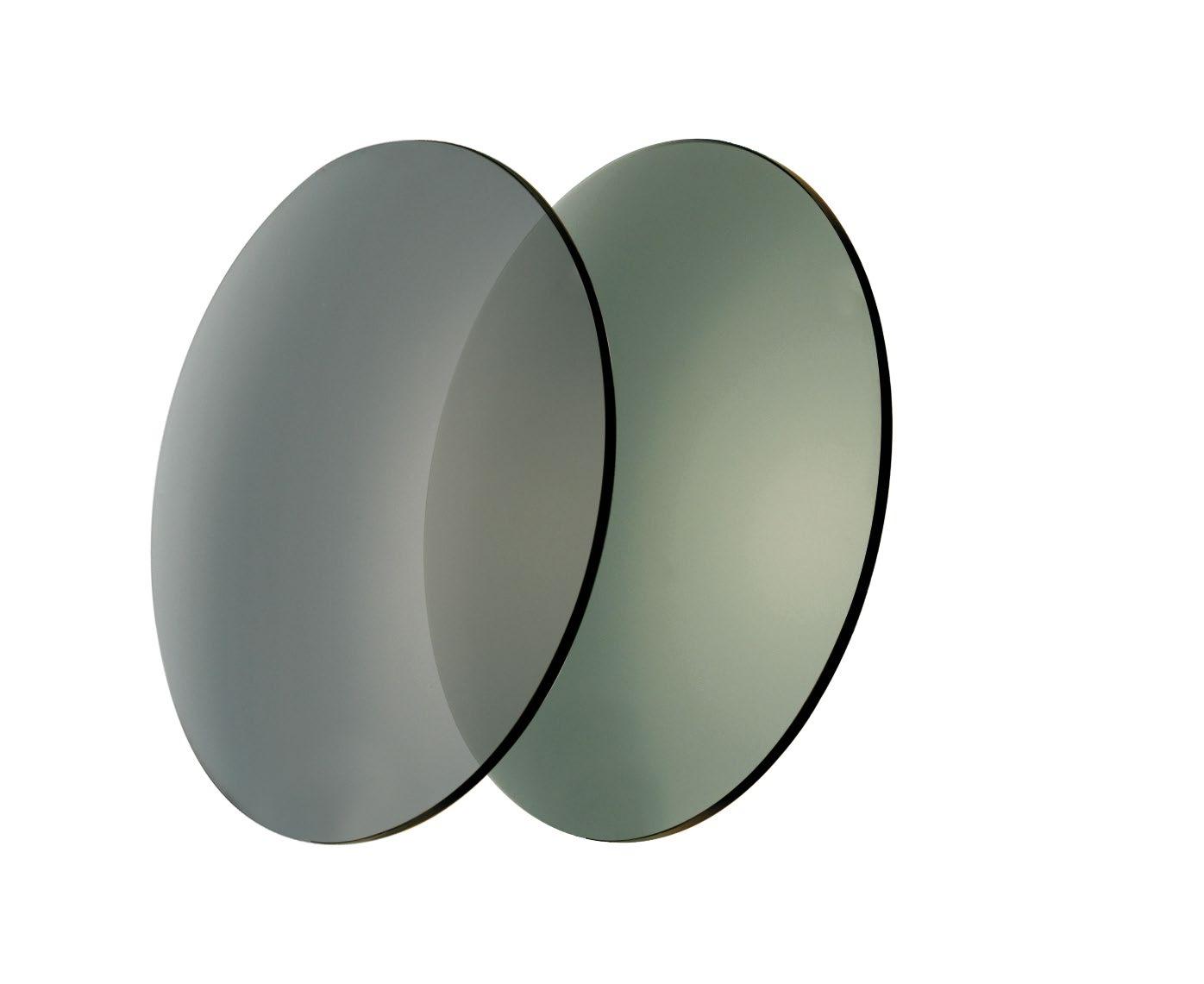

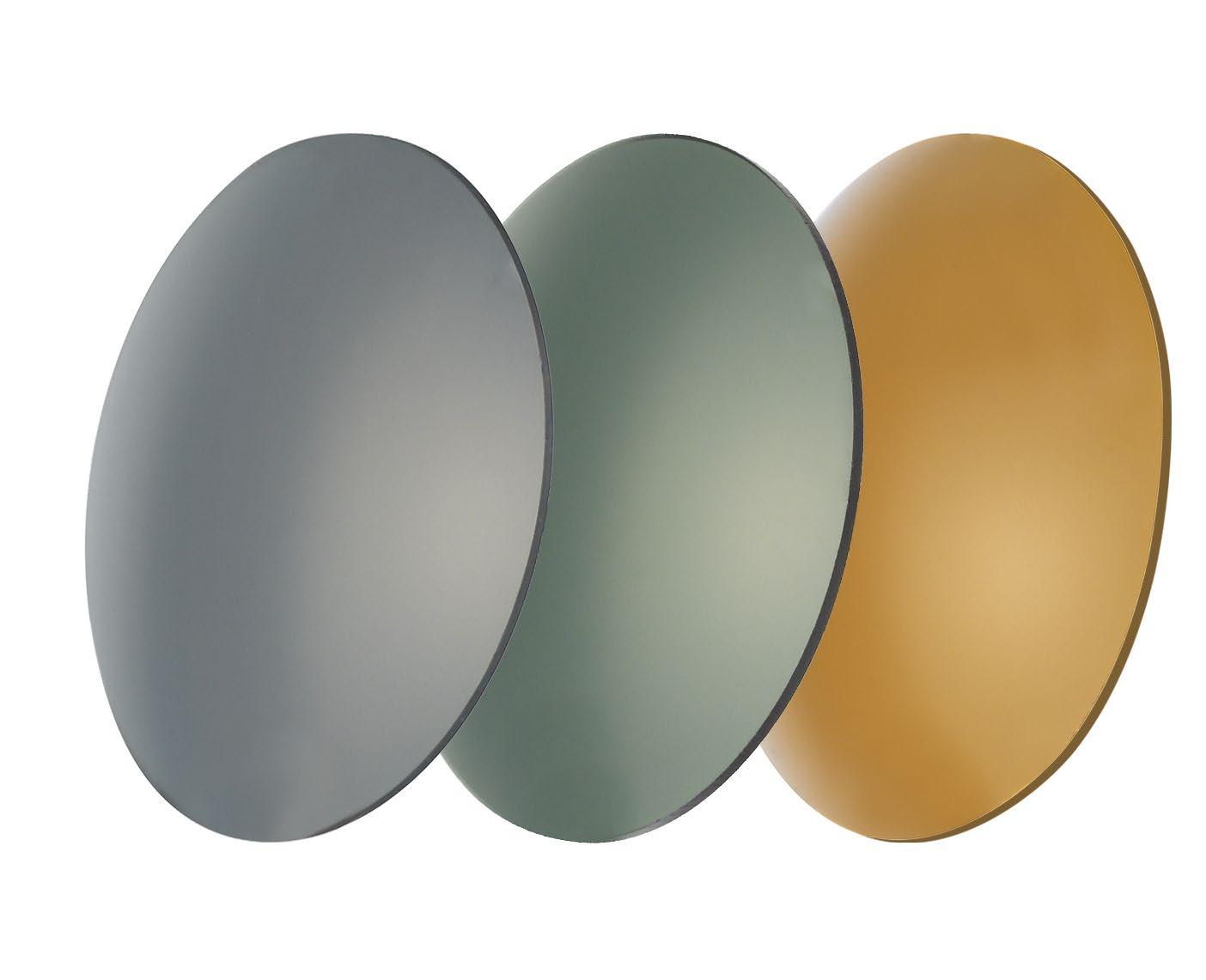

Ref. 06350 FC3 (τ 15%) Polarized Grey 75%

2,0 mm

Ref. 06352 FC3 (τ 15%) Polarized Green Grey 75% G15

2 pcs.

FRAME PARTS

Base B 6 Ø 80 mm |

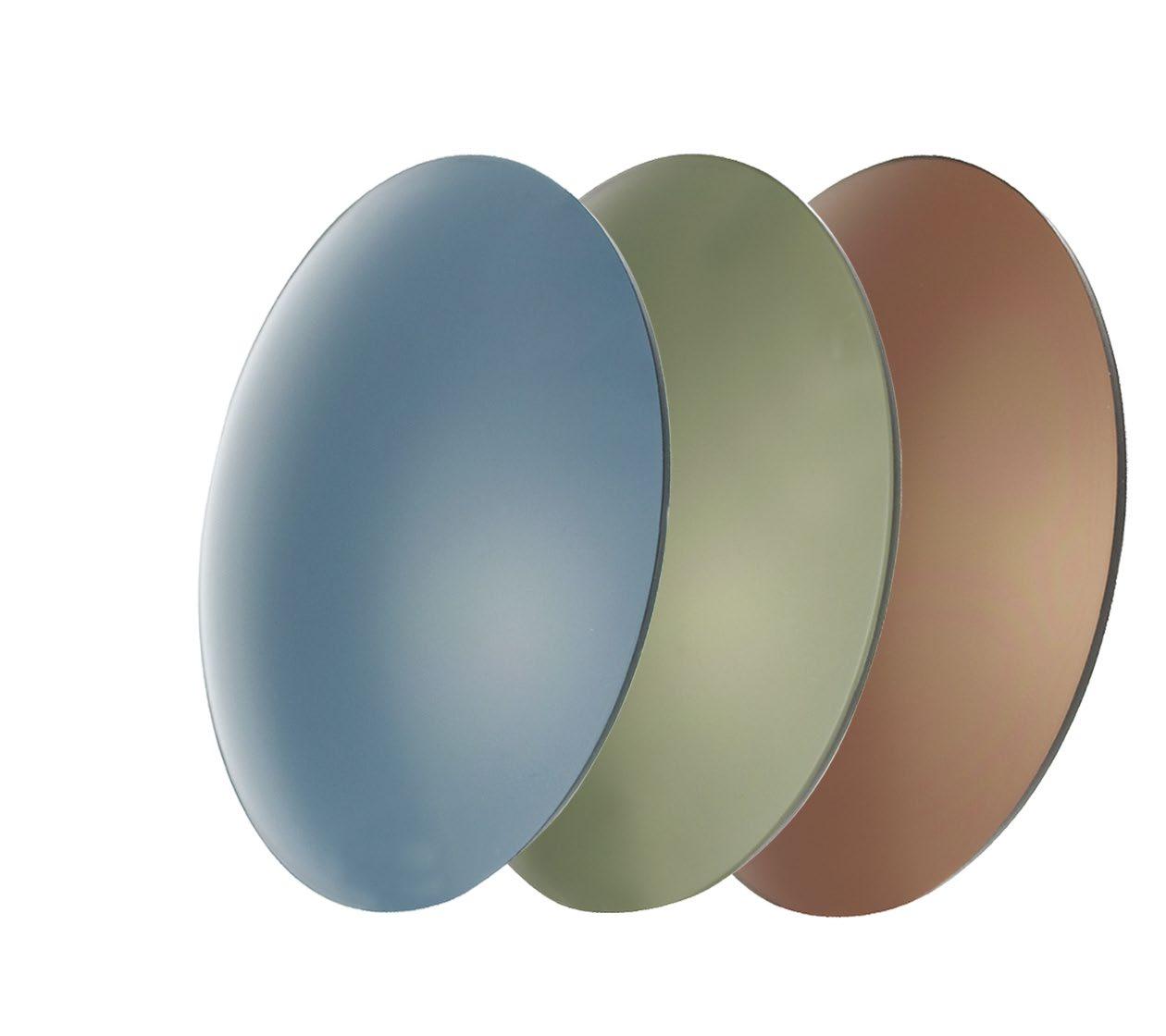

LAB MOD SYSTEM

CR39 Polarized Base 6  Base 8

Ref. 06351 FC3 (τ 11%) Polarized Brown 75%

TOOLS PLIERS

Outer lens layer in CR39 Middle lens layer in polarized material Inner lens layer in CR39

EQUIPMENTS

Base B 8 Ø 80 mm |

2 pcs. LAB CONSUMABLES

Ref. 06360 FC3 (τ 15%) Polarized Grey 75%

2,0 mm Decentred lenses

Ref. 06362 FC3 (τ 15%) Polarized Green-Grey 75% G15

α = 15°

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

REFRACTION & ORTHOPTIC

Polarizing effect

LENSES

α = Wrap-around inclination

LAB MOD SYSTEM

UV400 - Anti-reflective Coating (AR) inside - Lenses manufactured by Carl Zeiss Vision Base B 6 Ø 78 mm | Ref. 06380 FC3 (τ 15%) Polarized Grey 75%

2,0 mm

Ref. 06382 FC3 (τ 15%) Polarized Green Grey 75% G15

2 pcs. Ref. 06381 FC3 (τ 10%) Polarized Brown 75%

Hard Coating and AR Coating inside

TOOLS

FRAME PARTS

6.2 CR39 Polarized with Hard Coating and Anti Reflection Base 6 and Base 8

• Excellent scratch and impact resistance. • Each lens has a durable and effective AR Coating treatment on the inner side for enhanced vision.

Hard coating

PLIERS

Outer lens layer in CR39 Middle lens layer in polarized material Inner lens layer in CR39 Hard coating

Base B 8 Ø 78 mm |

2,0 mm Decentred lenses

2 pcs.

Ref. 06390

Ref. 06392

Ref. 06391

Base 8 Decentred lenses

FC3 (τ 15%)

FC3 (τ 10%)

Polarized Grey 75%

Polarized Green Grey 75% G15

Polarized Brown 75%

The optical centre is decentred from the geometrical axis for better vision. Thickness from 1,8 to 2,2 mm

α = 15° α = Wrap-around inclination

LENSES

LAB CONSUMABLES

EQUIPMENTS

Anti-reflective coating

REFRACTION & ORTHOPTIC

Polarizing effect

INDEX

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

6.2

UV400 - Polarized Mirrored Lenses

LAB MOD SYSTEM

CR39 Polarized Mirrored Base 6

MADE IN ITALY

Ref. 06370 FC3 (τ 13%) Silver Mirror Base Grey 75%

2,0 mm

Ref. 06371 FC3 (τ 12%) Blue Mirror Base Grey 75%

2 pcs.

FRAME PARTS

Base B 6 Ø 76 mm |

Ref. 06372 FC3 (τ 17%) Gold Mirror Base Brown 75%

TOOLS PLIERS EQUIPMENTS LAB CONSUMABLES LENSES

Polarizing effect

Outer lens layer in CR39 Middle lens layer in polarized material

REFRACTION & ORTHOPTIC

Mirror coating

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

Inner lens layer in CR39

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

LAB MOD SYSTEM

UV400 - Lenses manufactured by Carl Zeiss Vision Base B 6 Ø 80 mm |

2,0 mm

2 pcs.

Ref. 06356 FC3 (τ 13%) Polarized Light Blue 75%

Ref. 06355 FC2 (τ 25%) Polarized Light Green 60%

Ref. 06353 FC2 (τ 27%) Polarized Yellow/Brown 60%

Ref. 06354 FC2 (τ 23%) Polarized Pink/Violet 60%

NEW

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

6.2 CR39 Polarized Fashion Base 6

LENSES

Middle lens layer in polarized material

REFRACTION & ORTHOPTIC

Outer lens layer in CR39

Polarizing effect

Inner lens layer in CR39

INDEX

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

6.2

UV400 - Lenses manufactured by Carl Zeiss Vision

Ref. 06389 FC3 (τ 13%) Polarized Grey Gradient 75%

2,0 mm

Ref. 06385 FC3 (τ 13%) Polarized Grey/Smoke Gradient 75%

2 pcs. Ref. 06386 FC3 (τ 17%) Polarized Green-Grey Gradient 75% G15

Ref. 06387 FC3 (τ 16%) Polarized Brown Gradient 75%

FRAME PARTS

Base B 6 Ø 78 mm |

LAB MOD SYSTEM

CR39 Polarized Gradient Base 6

Ref. 06388 FC3 (τ 17%) Polarized Blue Gradient 75%

NEW TOOLS PLIERS EQUIPMENTS

CR39 “Classic” Bicolour

2 pcs.

Ref. 06384 FC3 (τ 13%) Polarized Grey/Light Brown Gradient 75%

NEW

LAB CONSUMABLES

Ref. 06383 FC3 (τ 13%) Polarized Grey/Light Green Gradient 75%

Outer layer in CR39 gradient colour Middle lens layer in polarized material

LENSES

Inner layer in CR39 gradient colour

Polarizing effect

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

REFRACTION & ORTHOPTIC

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

UV400 - Flash Electric Back - Lenses manufactured by Carl Zeiss Vision Base B 6 Ø 71 mm |

FRAME PARTS

LAB MOD SYSTEM

6.3 CR39 Flash Electric Back Base 6 2 pcs.

Ref. 06346 FC3 (τ 12,6%) Green Gradient with Flash Electric Back 75%

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06341 FC3 (τ 17,9%) Blue/Yellow with Flash Electric Back 75%

1,8 mm

MADE IN ITALY

Flash Electric Back The “Flash Electric Back” treatment features an AR and mirror coating on the inside of the lens. This treatment enhances the gradient lens colour and eliminates annoying reflections on the inside.

LENSES

Layer of hardening and anti-scratch lacquer CR39 lens

REFRACTION & ORTHOPTIC

Layer of hardening and anti-scratch lacquer

INDEX

Flash Electric Mirror with AR component

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

6.3

UV400

LAB MOD SYSTEM

CR39 With Hard Coating Base 6

MADE IN ITALY

Ref. 06650 FC3 (τ 9-12%) Dark Grey 75%

1,8 mm with hard coating treatment and AR inside

Ref. 06651 FC3 (τ 12-15%) Dark Green-Grey 75% G15

2 pcs.

FRAME PARTS

Base B 6 Ø 76 mm |

Ref. 06652 FC3 (τ 8-10%) Dark Brown 75%

• Excellent scratch and impact resistance. • Each lens has a durable and effective AR Coating treatment on the inner side for enhanced vision.

PLIERS

Hard coating

TOOLS

Hard coating and AR inside

CR39 lens Hard coating

Anti-reflective coating

EQUIPMENTS

UV400 - Mirror

Ref. 06658 FC3 (τ 12%) Mirror Blue Base Grey 75%

1,8 mm with hard coating and mirror treatment

LAB CONSUMABLES

Base B 6 Ø 76 mm |

6 pcs.

Ref. 06659 FC4 (τ 7%) Mirror Silver Base Grey 90%

LENSES

Hard coating and mirror treatment • Excellent scratch and impact resistance. • Low light absorption. • Partial IR protection.

REFRACTION & ORTHOPTIC

Mirror coating Hard coating

CR39 lens Hard coating

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

LAB MOD SYSTEM

6.3 CR39 Multilayer Mirrored Lenses Base 6 UV400 - 12 layers - Fashion Colours Base B 6 Ø 76 mm |

1,8 mm

Ref. 06680 FC3 (τ 11%) Mirror Blue Base G15 75%

Ref. 06683 FC3 (τ 10%) Mirror Green Base Grey 75%

Ref. 06682 FC3 (τ 11%) Mirror Orange Base Grey 75%

2 pcs. Ref. 06681 FC3 (τ 12%) Mirror Violet Base G15 75%

Ref. 06684 FC3 (τ 13%) Mirror Red Base Grey 75%

Ref. 06687 FC3 (τ 10%) Mirror Gold Base Grey 75%

Ref. 06686 FC3 (τ 12%) Mirror Pink Base Green 75%

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

MADE IN ITALY

INDEX

Ref. 06786 Display included f.o.c. with orders of 12 packs of lenses.

6.3

UV400

LAB MOD SYSTEM

CR39 Flash Gradient Mirror Base 6  Base 8

MADE IN ITALY

Ref. 06754 FC1 (τ 66%) Silver Flash Mirror Base Light Blue 20%

1,8 mm

Ref. 06747 FC2 (τ 30%) Silver Flash Mirror Base Pink 25%

6 pcs. Ref. 06656 FC3 (τ 10-12%) Gold Flash Mirror Base Brown 75%

Ref. 06657 FC3 (τ 16-17.5%) Silver Flash Mirror Base Grey 75%

2 pcs.

Ref. 06752 FC1 (τ 60%) Silver Flash Mirror Base Brown 20%

FRAME PARTS

Base B 6 Ø 76 mm |

2 pcs. TOOLS PLIERS EQUIPMENTS

1,8 mm Decentred Lens

6 pcs.

LAB CONSUMABLES

Base B 8 Ø 76 mm | Ref. 06655 FC3 (τ 10%) Silver Flash Mirror Base Dark Grey 75%

LENSES

Base 8 Decentred lenses

REFRACTION & ORTHOPTIC

The optical centre is decentred from the geometrical axis for better vision. Thickness from 1,8 to 2,2 mm. α = 15° α = Wrap-around inclination

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

LAB MOD SYSTEM

6.3 CR39 Bicolour “Fashion” Base 6 UV400 - Gradient MADE IN ITALY

FRAME PARTS

Base B 6 Ø 76 mm |

1,8 mm

2 pcs.

Ref. 06776 FC2 (τ 39%) Bicolour: Yellow/Violet Gradient 30%

CR39 “Classic” Bicolour

2 pcs.

Ref. 06773 FC2 (τ 38%) Bicolour: Yellow/Cobalt Gradient 30%

Ref. 06777 FC2 (τ 19%) Bicolour: Cobalt/Rubio Gradient 30%

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06772 FC2 (τ 35%) Bicolour: Grey/Blue Gradient 25%

Ref. 06769 FC3 (τ 13-15%) Dark/Light Brown Gradient 75%

INDEX

REFRACTION & ORTHOPTIC

LENSES

Ref. 06768 FC3 (τ 13-15%) Dark/Light Grey Gradient 75%

6.3

UV400 - Gradient

LAB MOD SYSTEM

CR39 “Fashion” Base 6

MADE IN ITALY

1,8 mm

Ref. 06770 FC2 (τ 41%) Pink Gradient 25%

6 pcs.

Ref. 06771 FC2 (τ 36%) Violet Gradient 25%

Ref. 06748 FC1 (τ 52%) Light Blue Gradient 25%

FRAME PARTS

Base B 6 Ø 76 mm |

Ref. 06749 FC1 (τ 43%) Light Cobalt Gradient 35%

TOOLS PLIERS EQUIPMENTS

UV400 - Full colour

Ref. 06742 FC1 (τ 55%) Violet 35%

Ref. 06617 FC2 (τ 20-25%) Ø 74 mm Medium Blue 60%

LAB CONSUMABLES

Ref. 06741 FC 2 (τ 18%) Cobalt 60%

6 pcs.

12 pcs. LENSES REFRACTION & ORTHOPTIC

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

UV400 - “Classic” Full colour Base B 4 70x60 mm |

FRAME PARTS

LAB MOD SYSTEM

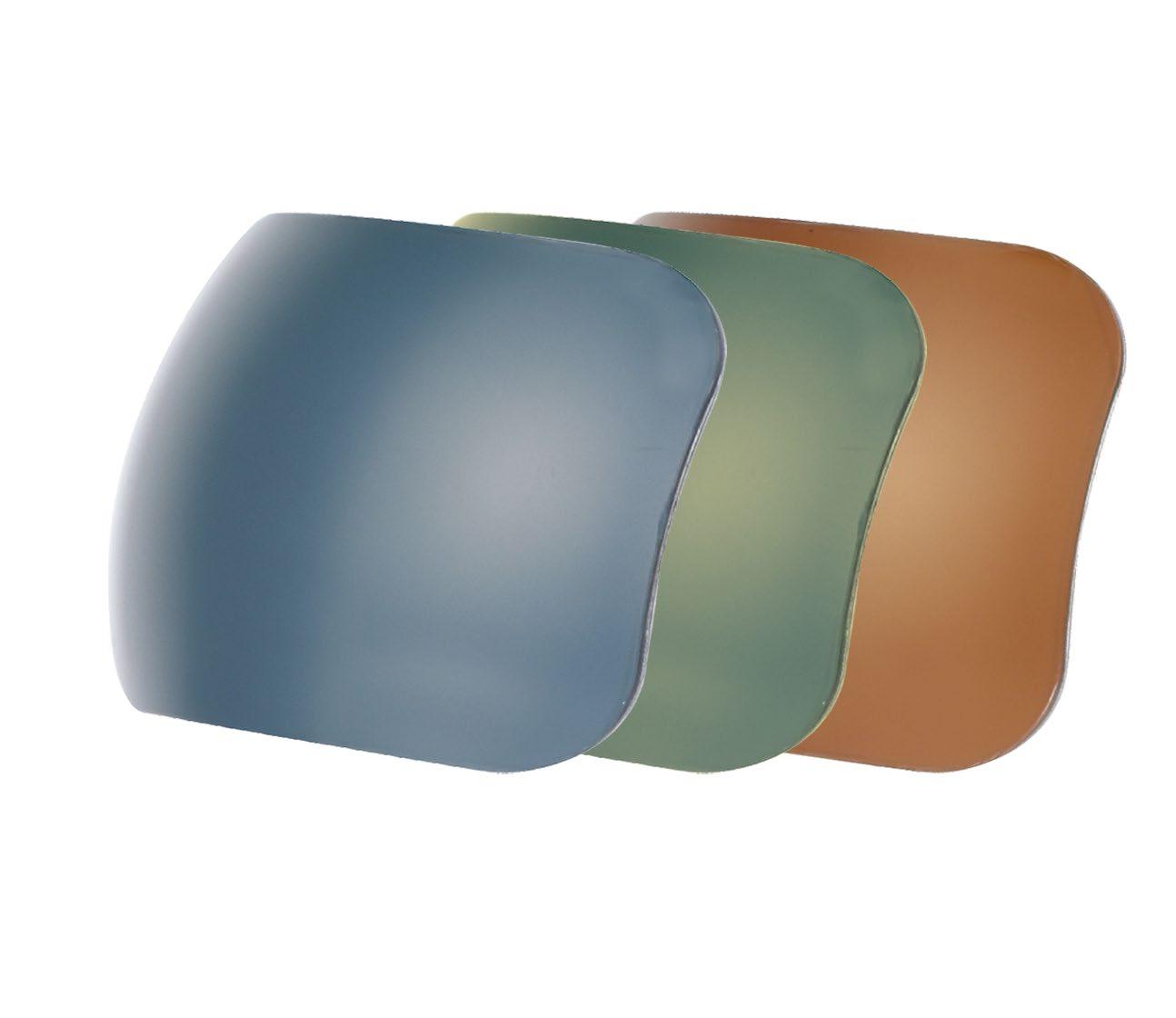

6.4 POLARIZING SHEETS Triacetate Base 4

Ref. 06280 FC3 (τ 15%) Grey/Smoke 65%

0,74 mm

Ref. 06281 FC3 (τ 14%) Green-Grey 65% G15

12 pcs.

Ref. 06282 FC3 (τ 14%) Brown 65%

Ref. 06279 FC3 (τ 19%) Grey/Blue 65%

Ref. 06287 FC0 (τ 84%) Yellow 12%

NEW

EQUIPMENTS

PLIERS

TOOLS

2 pcs.

LAB CONSUMABLES

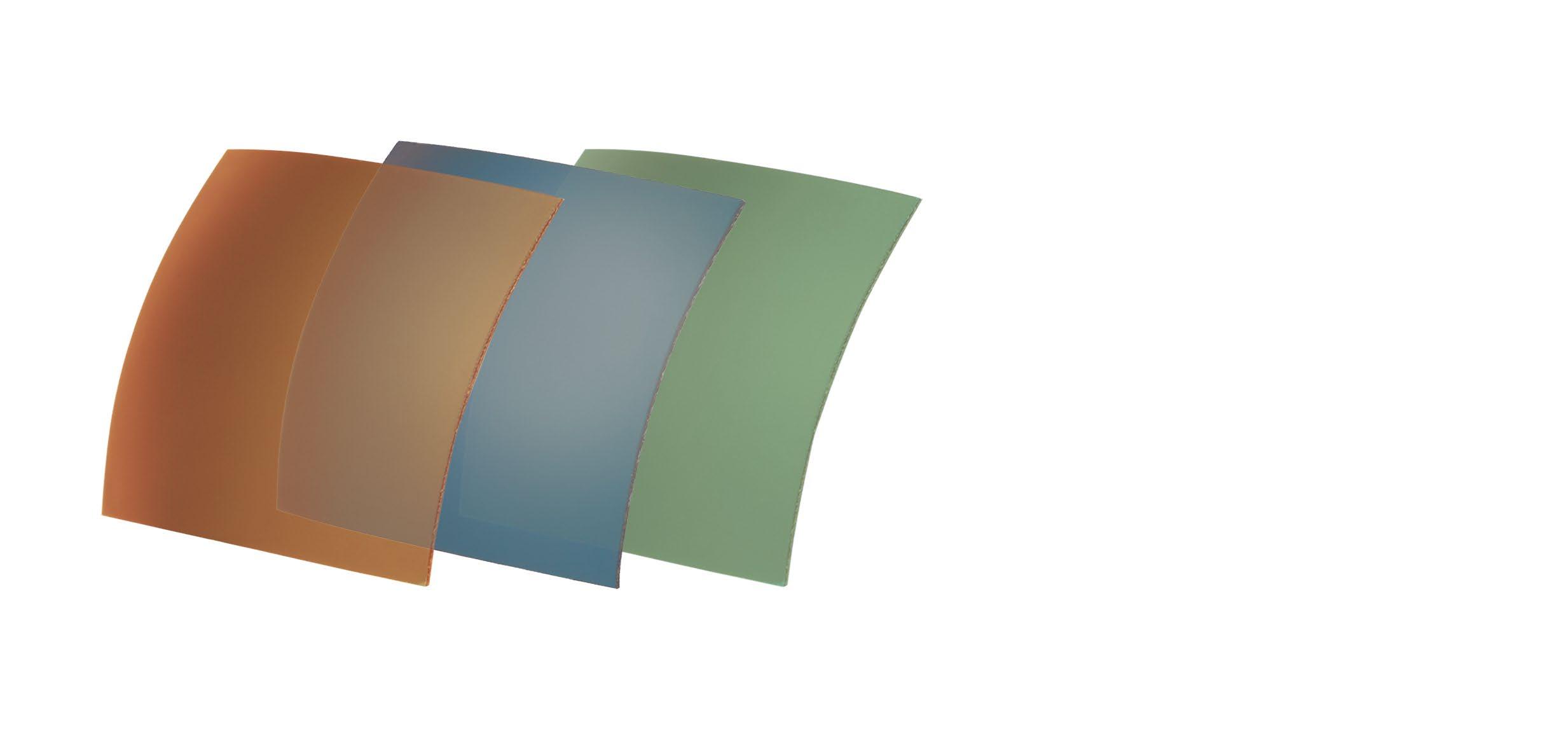

UV400 - Gradient 0,74 mm

6 pcs.

Ref. 06283 FC3 (τ 13%) Grey Gradient 75%

Ref. 06284 FC3 (τ 14%) Green-Grey Gradient 75% G15

Ref. 06285 FC3 (τ 17%) Brown Gradient 75%

Ref. 06288 FC3 (τ 14%) Blue Gradient 75%

Ref. 06289 FC3 (τ 15%) Purple Gradient 75%

NEW

INDEX

REFRACTION & ORTHOPTIC

LENSES

Base B 4 70x60 mm |

UV400

Ref. 06272 FC3 (τ 9.5%) Mirror Blue Base Brown 75%

0,74 mm

Ref. 06273 FC3 (τ 13.7%) Mirror Green Base Violet 75%

2 pcs.

Ref. 06274 FC3 (τ 11.9%) Mirror Pink Base G15 75%

Ref. 06275 FC3 (τ 16.7%) Mirror Red Base Blue 75%

FRAME PARTS

Base B 4 70x60 mm |

LAB MOD SYSTEM

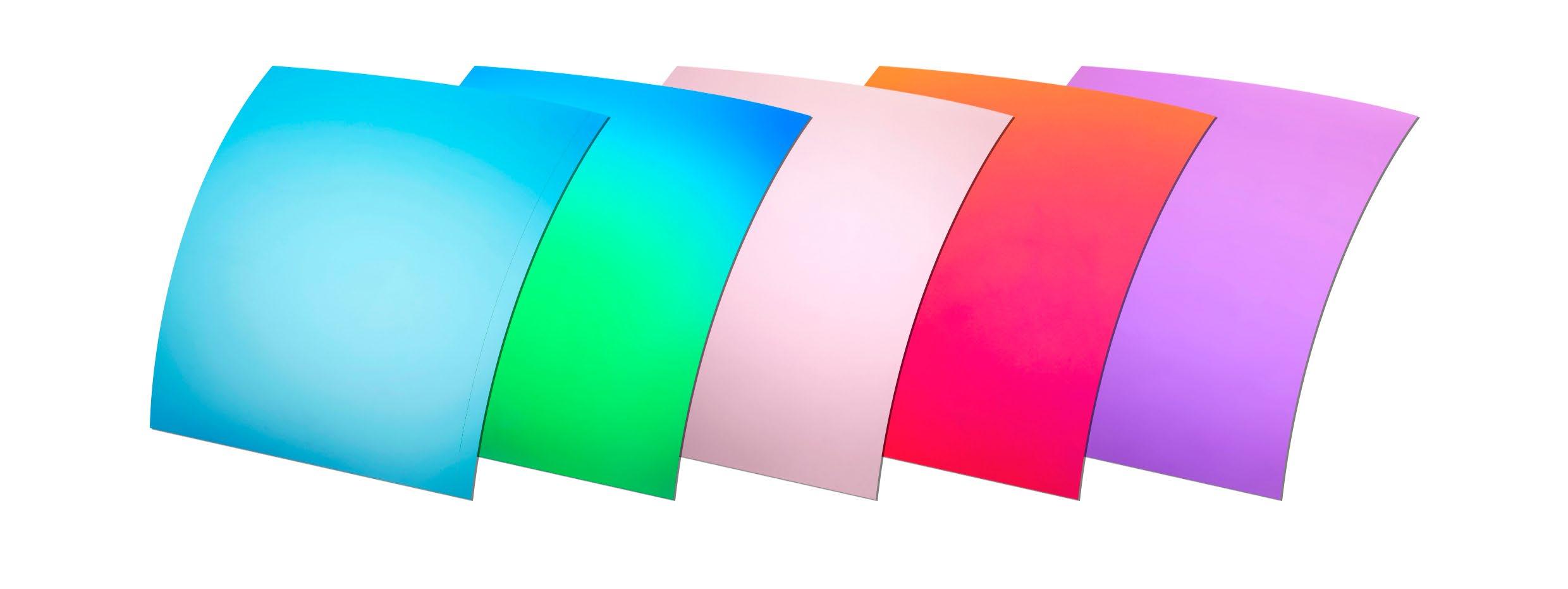

POLARIZING SHEETS Multilayer Mirrored Base 4 6.4

Ref. 06276 FC3 (τ 14.5%) Mirror Violet Base Green 75%

TOOLS PLIERS EQUIPMENTS

Flash Mirror Ref. 06270 FC3 (τ 11.5%) Silver Base Smoke 75%

0,74 mm

LAB CONSUMABLES

Base B 4 70x60 mm |

2 pcs.

Ref. 06271 FC3 (τ 14%) Gold Base Grey 75%

LENSES

Polarizing effect

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

REFRACTION & ORTHOPTIC

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

UV400 - Light / Medium colour Base B 4 70x60 mm |

FRAME PARTS

LAB MOD SYSTEM

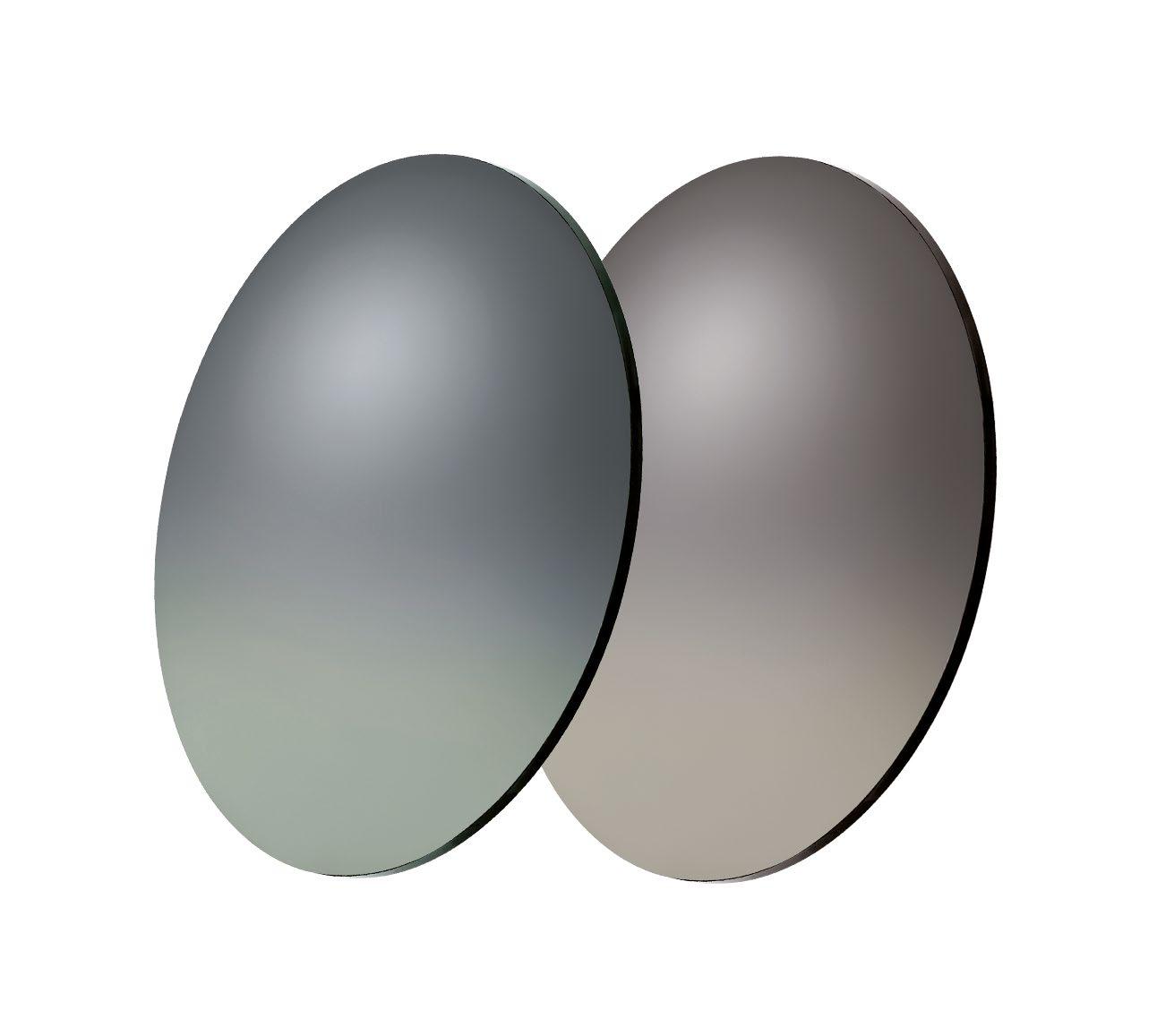

6.4 TRIACETATE PHOTOCHROMIC SHEETS Base 4 0,74 mm

6 pcs.

Ref. 06260 FC3 (τ 17%)

Ref. 06263 FC2 (τ 23.5%)

POLARIZED

NEW

Light Grey to Medium Grey 20% 60%

Light Blue to Medium Blue 20% 60%

darkens in a few seconds

Lightens in a few minutes

LENSES

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

NEW

Polarizing effect

INDEX

REFRACTION & ORTHOPTIC

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

UV400 - Clear / Medium colour 0,74 mm

6 pcs.

Ref. 06265 FC2 (τ 36%)

FRAME PARTS

Base B 4 70x60 mm |

LAB MOD SYSTEM

TRIACETATE PHOTOCHROMIC SHEETS Base 4 6.4

Ref. 06267 FC1 (τ 63%)

NEW

TOOLS PLIERS

Clear to Medium Grey 5% 60%

Clear to Pink 5%

darkens in a few seconds

Lightens in a few minutes

60% EQUIPMENTS LAB CONSUMABLES

CLIP-ON SHAPING KIT LENSES

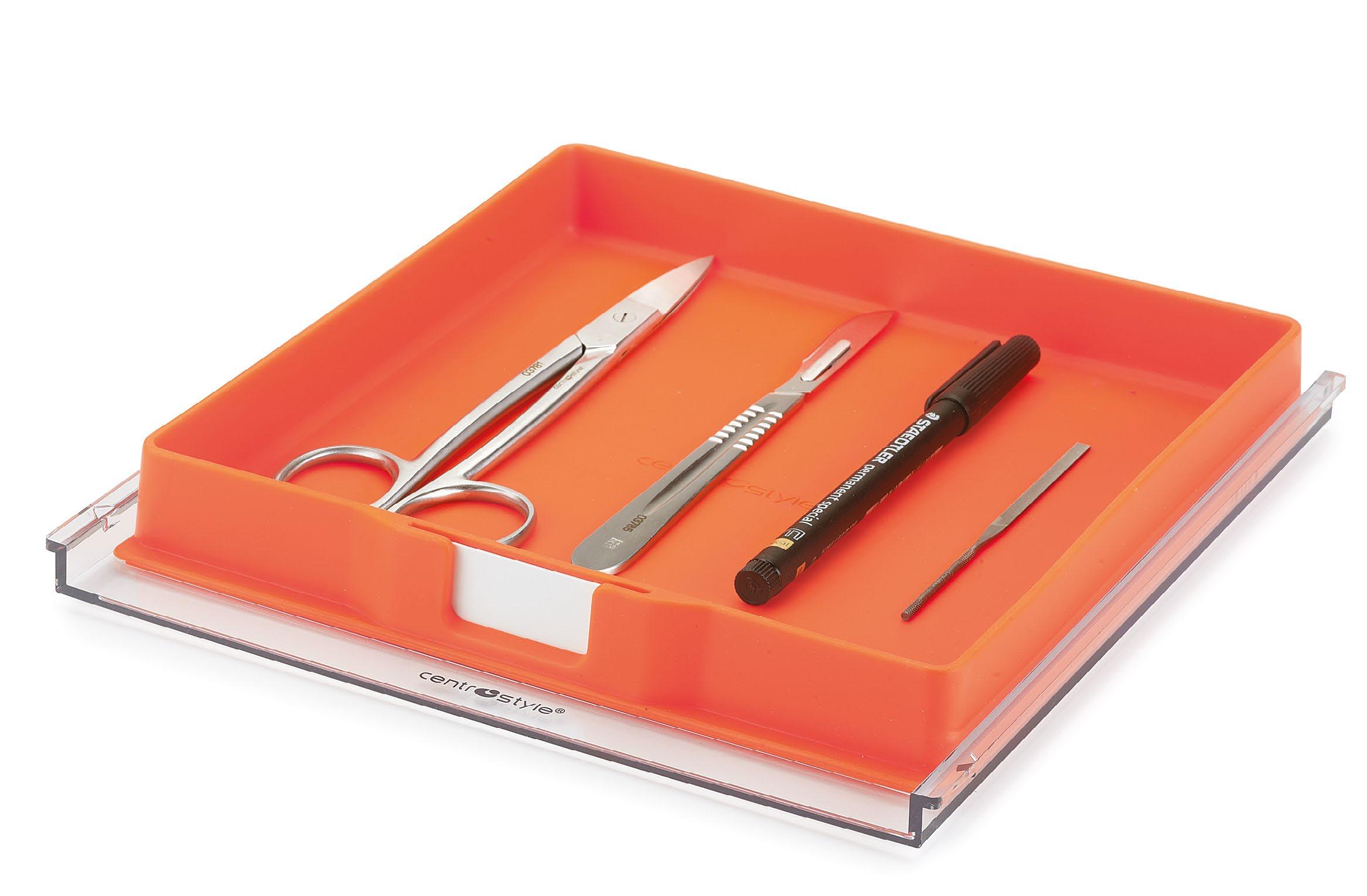

Ref. 03916 Clip-on or triacetate filters shaping kit composed of: Special marker pen (Ref. 06965) Stainless steel scissors (Ref. 03781) Flat needle file (Ref. 02908) Scalpel knife (Ref. 03785)

REFRACTION & ORTHOPTIC

Tray included, suitable for new LMS Cube.

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

LAB MOD SYSTEM

6.4 POLARIZING SHEETS Triacetate Base 6 UV400 Base B 6 70x60 mm | Ref. 06790 FC3 (τ 15%) Brown 65%

Ref. 06791 FC3 (τ 15%) Grey 65%

0,74 mm

12 pcs.

Ref. 06792 FC3 (τ 13%) Green-Grey 65% G15

Base B 6 70x60 mm | Ref. 06798 FC3 (τ 15%) Brown 65%

Ref. 06799 FC3 (τ 15%) Grey 65%

1,10 mm

6 pcs.

Ref. 06797 FC3 (τ 13%) Green-Grey 65% G15

LENSES

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

MADE IN USA

Polarizing effect

INDEX

REFRACTION & ORTHOPTIC

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

6.5

UV400 - Fashion Colours - Impact resistant 2,0 mm

2 pcs.

Ref. 06732 FC0 (τ 69%)

Ref. 06733 FC1 (τ 72.5%)

NEW

FRAME PARTS

Base B 4 Ø 76 mm |

LAB MOD SYSTEM

POLYCARBONATE Photochromic Base 4

TOOLS PLIERS

Dark Grey 65%

Light Brown 5%

Dark Grey 65%

darkens in a few seconds

Lightens in a few minutes

EQUIPMENTS

Light Grey 5%

LAB CONSUMABLES

Ref. 06734 FC1 (τ 64.5%)

NEW 100 clear lens

60 40 20 0 300

400

500

700

600

700

100 80 60 %T

Dark lens 65% The colour also fades faster than with glass lenses, granting a 100% UV protection.

dark lens

40 20 0 300

400

500 Wavelength (nm)

Light Pink 5%

Dark Grey 65%

REFRACTION & ORTHOPTIC

600

Wavelength (nm)

LENSES

Clear lens 5% Extremely clear indoors. Photochromic CR39 lenses are light and comfortable to wear.

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

darkens in a few seconds

INDEX

Lightens in a few minutes

UV400 - Classic Colours - Impact resistant Base B 6 Ø 74 mm |

FRAME PARTS

LAB MOD SYSTEM

6.5 POLYCARBONATE Base 6 2,0 mm

Ref. 06700 FC3 (τ 13-15%) Green-Grey 75% G15

UV400 - Gradient

12 pcs.

Ref. 06705

Ref. 06702 FC 3 (τ 11-13%) Brown 75%

FC0 Clear UV300

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06701 FC3 (τ 15-17%) Grey 75%

Clear

12 pcs.

Ref. 06706 FC1 (τ 60%) Light Blue Gradient 25%

Ref. 06778 FC3 (τ 11-13%) Medium Grey Gradient 60%

Ref. 06783 FC3 (τ 15%) Green-Grey Gradient 60% G15

Ref. 06787 FC3 (τ 12-14%) Medium Brown Gradient 60%

INDEX

REFRACTION & ORTHOPTIC

LENSES

6 pcs.

6.5

UV400 - 9 layers - Fashion Colours - Impact resistant

Ref. 06718 FC3 (τ 10%) Mirror Blue 75%

2,0 mm

2 pcs.

Ref. 06720 FC3 (τ 9%) Mirror Green 75%

Ref. 06724 FC3 (τ 15%) Mirror Red 75%

FRAME PARTS

Base B 6 Ø 76 mm |

LAB MOD SYSTEM

POLYCARBONATE Multilayer Mirrored Base 6

Ref. 06729 FC3 (τ 15%) Mirror Gold 75%

TOOLS PLIERS EQUIPMENTS

UV400 - Flash Mirror 2,0 mm

LAB CONSUMABLES

Base B 6 Ø 74 mm |

6 pcs.

Ref. 06703 FC3 (τ 16-17%) Flash Mirror Base Grey 60%

LENSES REFRACTION & ORTHOPTIC

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

LAB MOD SYSTEM FRAME PARTS TOOLS

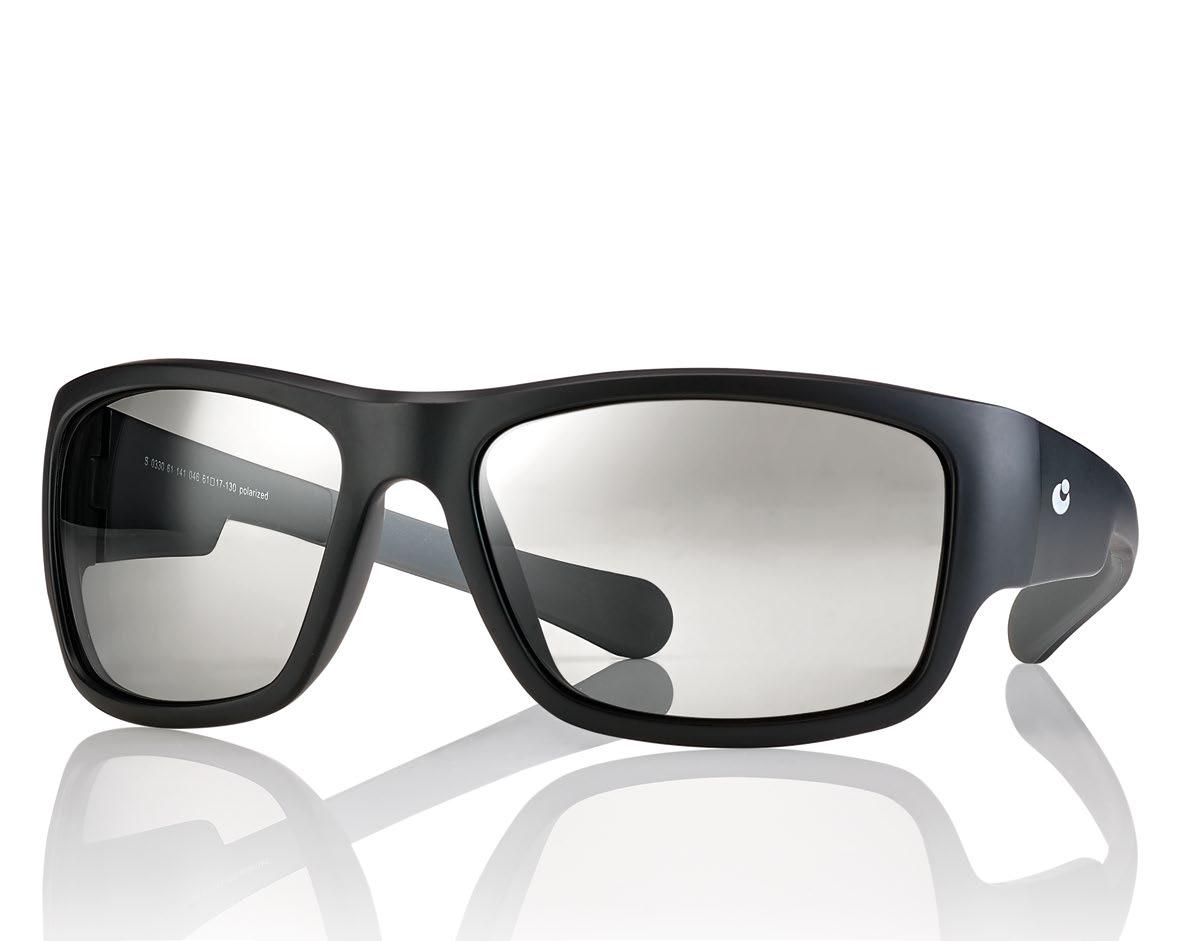

6.5 POLYCARBONATE Polarized Base 6 UV400 - Decentred - Impact resistant Base B 6 76x55 mm | Decentred Lenses

Base 6 polarized lenses have a curvature corrected by an offset of the focal center. For this reason, they are used on frames with a wide field of vision and high eye wire shape. In this way, the vision is clearer, more comfortable and free of aberrations.

Polarized sheet

2 pcs.

Base 6 Decentred lenses The optical centre is decentred from the geometrical axis for better vision. Thickness from 1,8 to 2,1 mm.

α = 15°

• Polarizing sheet eliminates reflections created

by highly reflective surfaces.

α = Wrap-around inclination

Bottom layer in polycarbonate

EQUIPMENTS

PLIERS

Outer layer in polarized material

INDEX

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

Ref. 06765 FC3 (τ 17%) Dark Brown 75%

UV400 - Anti-reflective Coating (AR) inside - Impact resistant

LAB MOD SYSTEM

POLYCARBONATE Polarizing Sheets Base 6  Base 8 6.5 MADE IN JAPAN

Ref. 06708 FC3 (τ 14-16%) Dark Grey 75%

1,5 mm

Ref. 06707 FC3 (τ 14-16%) Dark Green-Grey 75% G15

2 pcs.

Ref. 06709 FC3 (τ 12-14%) Dark Brown 75%

AR Coating inside Each lens has a durable and effective AR Coating treatment on the inner side for enhanced vision.

FRAME PARTS

Base B 6 70x50 mm |

Outer lens layer in polycarbonate Middle lens layer in polarized material

TOOLS

Inner lens layer in polycarbonate Anti-reflective coating

Polarizing effect

2 pcs.

Ref. 06714 FC3 (τ 14-16%) Dark Green-Grey 75% G15

LAB CONSUMABLES

Ref. 06715 FC3 (τ 14-16%) Dark Grey 75%

1,5 mm - Not decentred

EQUIPMENTS

Base B 8 70x50 mm |

PLIERS

• Enables colours and contrasts to be seen as they really are. • Recommended for adults when driving, playing golf, sailing, fishing, skiing.

LENSES REFRACTION & ORTHOPTIC

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

UV400 - Classic colours - Impact resistant Base B 8 Ø 80 mm | Decentred Lenses

FRAME PARTS

LAB MOD SYSTEM

6.5 POLYCARBONATE Base 8 6 pcs.

LENSES

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06711 Ref. 06710 Ref. 06712 FC3 (τ 15-17%) FC3 (τ 13-15%) FC3 (τ 9-11%) Grey Green-Grey Brown 75% 75% G15 75%

Base 8 Decentred lenses

REFRACTION & ORTHOPTIC

The optical centre is decentred from the geometrical axis for better vision. Thickness from 1,6 to 2,1 mm. α = 15°

INDEX

α = Wrap-around inclination

6.6

UV400 - Polarized with AR coating inside (7 layers)

Ref. 06735 FC3 (τ 10-12%) Medium Brown 65%

2,0 mm

Ref. 06737 FC3 (τ 13-15%) Medium Green-Grey 65% G15

2 pcs.

FRAME PARTS

Base B 6 Ø 71 mm |

LAB MOD SYSTEM

MINERAL Base 6

Ref. 06736 FC3 (τ 11-13%) Medium Grey 65%

TOOLS PLIERS EQUIPMENTS LAB CONSUMABLES

Polarizing effect AR coating inside LENSES

• High quality optical glass. • Polarizing. • Anti-reflective coating. • High scratch resistance. Mineral lens

REFRACTION & ORTHOPTIC

Polarizing film Mineral lens 7 layers of anti-reflective coating

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

With external anti-reflective and hard coating treatment - Lenses manufactured by Carl Zeiss Vision Base B 4 Ø 76 mm |

FRAME PARTS

LAB MOD SYSTEM

6.7 CR39 LENS Special driving Base 4 1,8 mm

MADE IN ITALY

2 pcs.

Ref. 06322 FC0 (τ 83%) Yellow

TOOLS

NEW

Anti-reflection coating

PLIERS

Hard coating

Coloured lens

EQUIPMENTS

Hard coating

Ideal for night driving

INDEX

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

• Certified against the dazzling effects of both LED and artificial light • Illuminating effect • Protection from reflection • Reduction of blue light emitted from artificial lighting

With external anti-reflective and hard coating treatment - Lenses manufactured by Carl Zeiss Vision 1,8 mm

MADE IN ITALY

2 pcs.

FRAME PARTS

Base B 4 Ø 76 mm |

6.7

LAB MOD SYSTEM

CR39 LENS Special driving Base 4

Ref. 06323 FC1 (dark lens τ 53%) Light pink

NEW

TOOLS

Anti-reflection coating Hard coating

PLIERS

Coloured lens

Hard coating

EQUIPMENTS LAB CONSUMABLES

Ideal for driving during sunset or for low light and cloudy conditions • Certified against glare from oncoming lights • High contrast and definition • Maximum visibility of detail • Vivid, accentuated colour

LENSES REFRACTION & ORTHOPTIC

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

Lens with anti-reflective, hard coating and water-repellent coating Base B 4 Ø 70 mm |

FRAME PARTS

LAB MOD SYSTEM

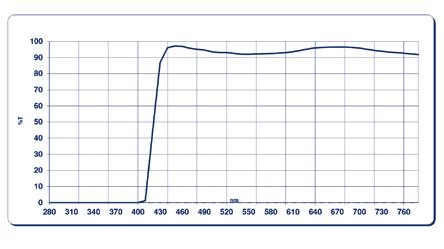

6.7 1.56nd BLUE LIGHT COMFORT Base 4 2,0 mm

1 pc.

Ref. 50300 FC0 (τ 98%) Index 1.56nd 410 nm

TOOLS

NEW Water-repellent coating 7 layers of anti-reflective coating Hard coating

PLIERS

Lens with blue light filter

Hard coating 7 layers of anti-reflective coating

LAB CONSUMABLES

EQUIPMENTS

Water-repellent coating

INDEX

REFRACTION & ORTHOPTIC

LENSES

100% UVA and UVB protection

6.7

Computer - For foggy weather - 530 nm

LAB MOD SYSTEM

CR39 Special Base 6

MADE IN ITALY

1,8 mm

2 pcs.

Computer lenses

For foggy weather

Red 530 nm

Ref. 06670 FC0 (τ 98%) Clear Clear AR int./ext.+ water-repellent UV380

Ref. 06672 FC1 (τ 65-76%) Yellow UV400

Ref. 06673 FC2 (τ 24-27%) Red UV400

FRAME PARTS

Base B 6 Ø 76 mm |

TOOLS PLIERS EQUIPMENTS

Eliminates reflections caused by artificial light

Red 530 nm • Recommended for low vision. • Absorbs the blue-green band of visible light to 530 nm. • 100% UV protection.

60 %T

100

0 300

400

500

600

700

0 300

Wavelength (nm)

400

500 Wavelength (nm)

600

700

300

400

500

600

700

Wavelength (nm)

INDEX

FILTERS CONFORM TO INTERNATIONAL NORM EN ISO 12312-1:2013+A1:2015

REFRACTION & ORTHOPTIC

LENSES

For foggy weather • Reduces blue light • Increases colour contrast

LAB CONSUMABLES

Computer lenses • Suitable for protection against radiation and flickering of computer and TV screens. • 100% UV protection. • Neutral contrast and colour perception.

LAB MOD SYSTEM

6.7 CR39 Clear Base 6  Base 8 For tinting MADE IN ITALY

1,8; 2,2 e 2,9 mm

12 pcs.

Ref. 06660

Ref. 06665

Ref. 06664

FC0

1,8 mm UV380

2,2 mm UV380 For supra frames

2,9 mm UV380 For supra frames

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

Base B 6 Ø 76 mm |

12 pcs.

Ref. 06668

Ref. 06675

FC0

1,8 mm UV380

2,2 mm UV380 For supra frames

INDEX

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

Base B 8 Ø 76 mm

6.7

For Rimless and Supra Frames

Ref. 06676 2,0 mm Ø 73 mm

50 pcs.

FRAME PARTS

Base B 4

LAB MOD SYSTEM

CR39 Demo Lenses

Ref. 06688 3,0 mm Ø 70 mm

TOOLS

Ref. 06663 1,8 mm Ø 73 mm

PLIERS

Base B 6

50 pcs.

Ref. 06662 2,2 mm Ø 73 mm

Ref. 06677 3,2 mm Ø 70 mm EQUIPMENTS LAB CONSUMABLES LENSES

Base B 8

50 pcs.

Ref. 06678 3,2 mm Ø 75 mm

REFRACTION & ORTHOPTIC

INDEX

LAB MOD SYSTEM

6.7 1.56nd LENSES Blue light comfort Base 4 410 nm NEW

FRAME PARTS

Organic single vision lenses Anti-reflection and hydrophobic treatment, with high resistance to scratches and easier cleaning.

Water-repellent coating

TOOLS

7 layers of anti-reflective coating Hard coating

Lens with blue light filter

Hard coating

PLIERS

7 layers of anti-reflective coating Water-repellent coating

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

EQUIPMENTS

100% UVA and UVB Protection

Base B 4

1 pc.

HARD COATING HC HARD MULTICOAT

Ø 65 mm

Ø 70 mm

Hard coating on both sides of the lens. Protects from scratches. Extends the life of the lens. Recommended on all organic lenses.

Positive lens

Negative lens

Power

Ref.

Power

Ref.

50300*

+0,25 +0,5 +0,75

50301 50302 50303

-0,25 -0,5 -0,75

50298 50297 50296

+1 +1,25 +1,5 +1,75

50304 50305 50306 50307

-1 -1,25 -1,5 -1,75

50295 50294 50293 50292

+2 +2,25 +2,5 +2,75

50308 50309 50310 50311

-2

50291

+3 +3,5

50312 50314

50316

ANTI-REFLECTION HMC HARD MULTICOAT It is an anti-reflection treatment combined with hard coating; ensures excellent transparency, reduces the reflections of sunlight and artificial light by increasing the light transmission up to 99%. Indispensable for all high index lenses, it improves the aesthetic appearance and visual comfort.

HYDROPHOBIC The hydrophobic treatment allows water to slide quickly on the surfaces of the lens; it repels moisture and oily substances thanks to hydrophobic and oleo-phobic properties. This treatment allows a simple and easier cleaning of the lens and reduces the possibility of superﬁcial scratches.

INDEX

* Ø 70 mm

6.7

To simulate polarized vision

NEW

FRAME PARTS

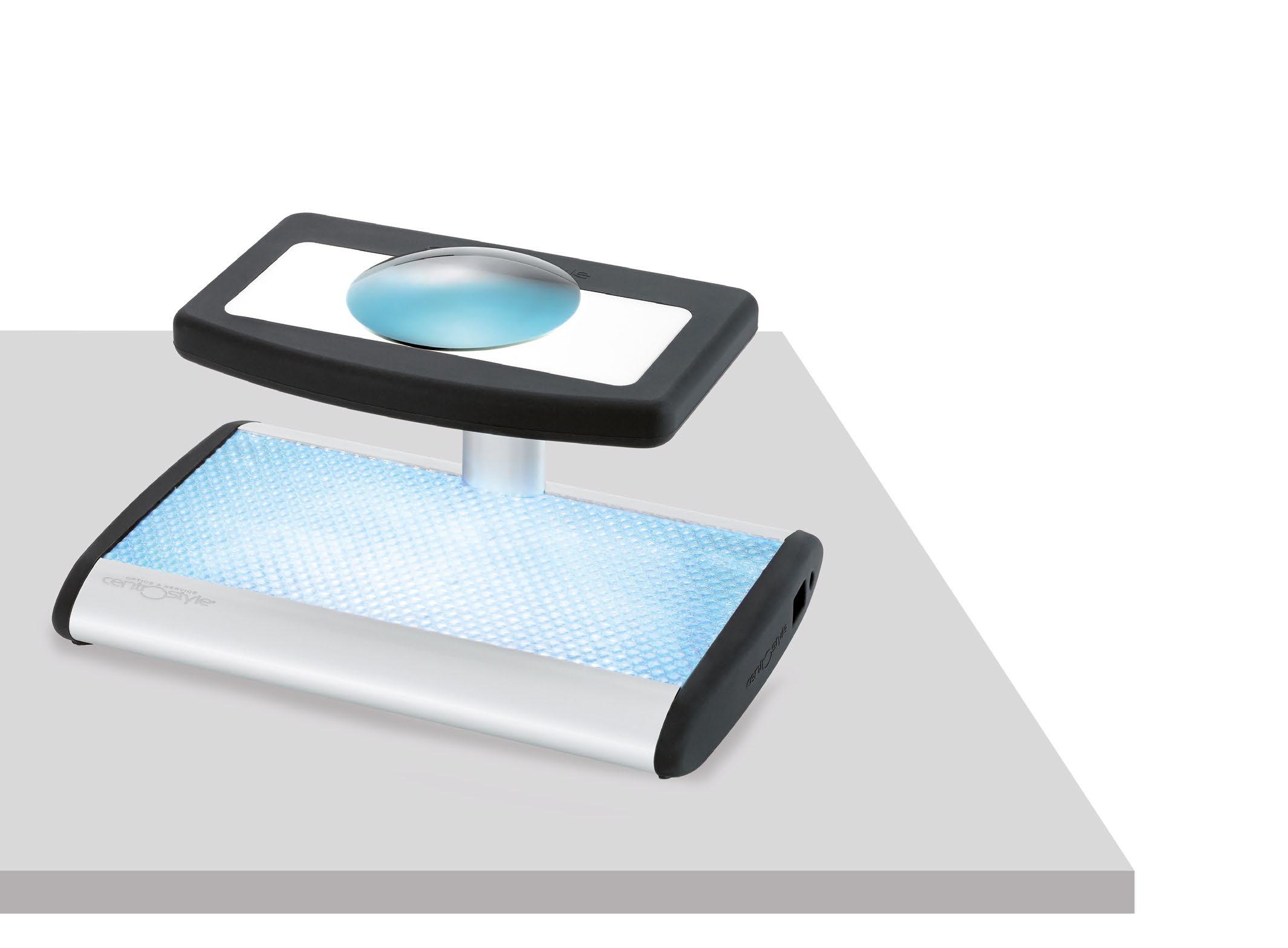

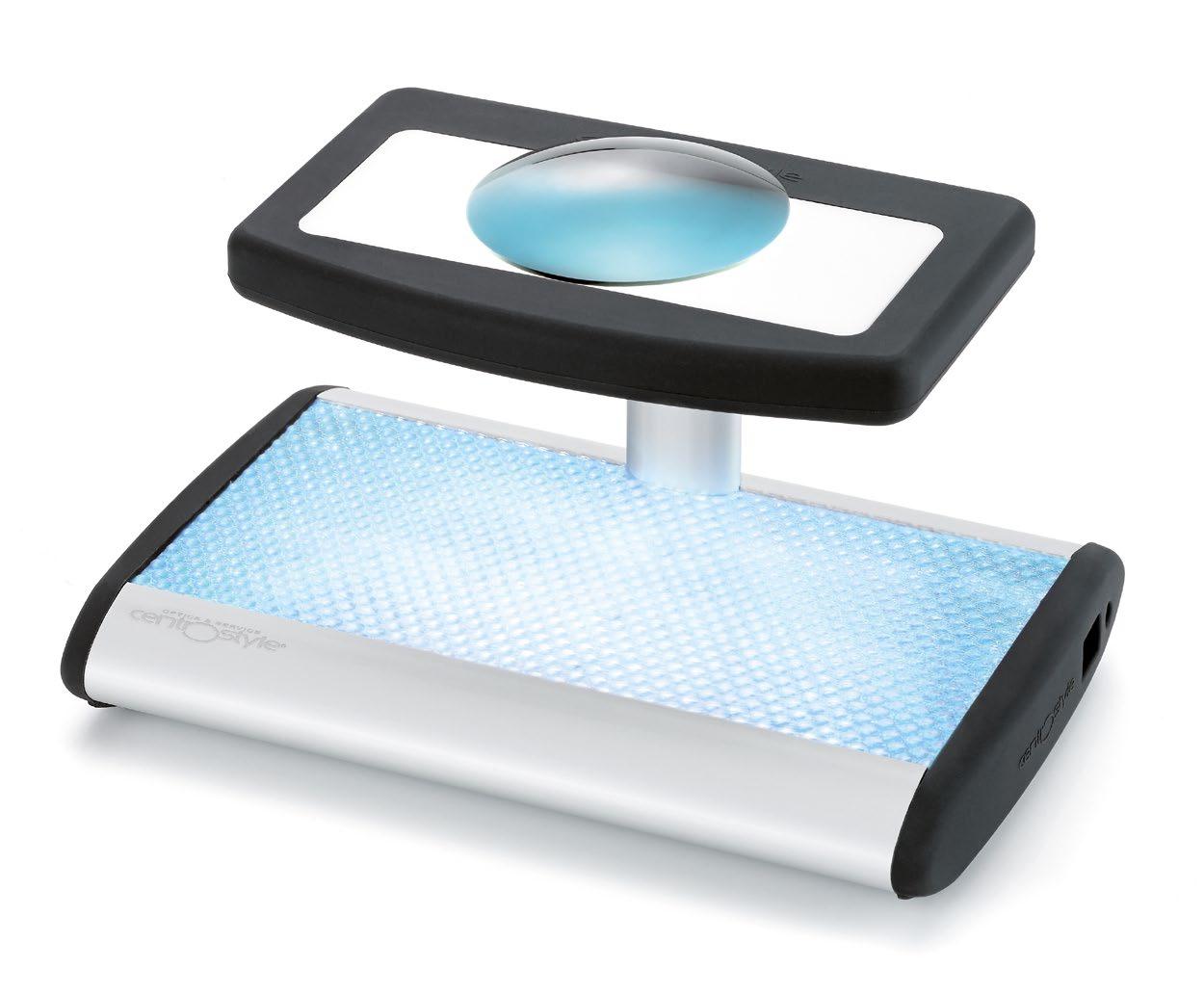

IDEAL TEST TO HIGHLIGHT THE ADVANTAGES OF A POLARIZED VISION USING GLASSES WITH POLARIZED LENSES.

LAB MOD SYSTEM

POLARIZED TESTS

NEW

TOOLS

Vision with polarized lenses.

PLIERS

Ref. 06596 Plexiglass display with road safety-oriented graphics. Dim.: Display: 170x160 mm - Imagine: 150x100 mm Weight: 110 gr. 1 pc.

NEW EQUIPMENTS LENSES

Vision with polarized lenses.

LAB CONSUMABLES

Ref. 06597 Plexiglass display with graphics to highlight the contrast of colors in full sun. Dim.: Display: 170x160 mm - Imagine: 150x100 mm Weight: 110 gr. 1 pc.

NEW

REFRACTION & ORTHOPTIC

Ref. 06598 PVC Card with color effect for a quick polarized vision test. Dim.: Card: 85x55 mm - Imagine: 50x20 mm Weight: 5 gr. 10 pcs.

INDEX
