LENSES

LAB MOD SYSTEM

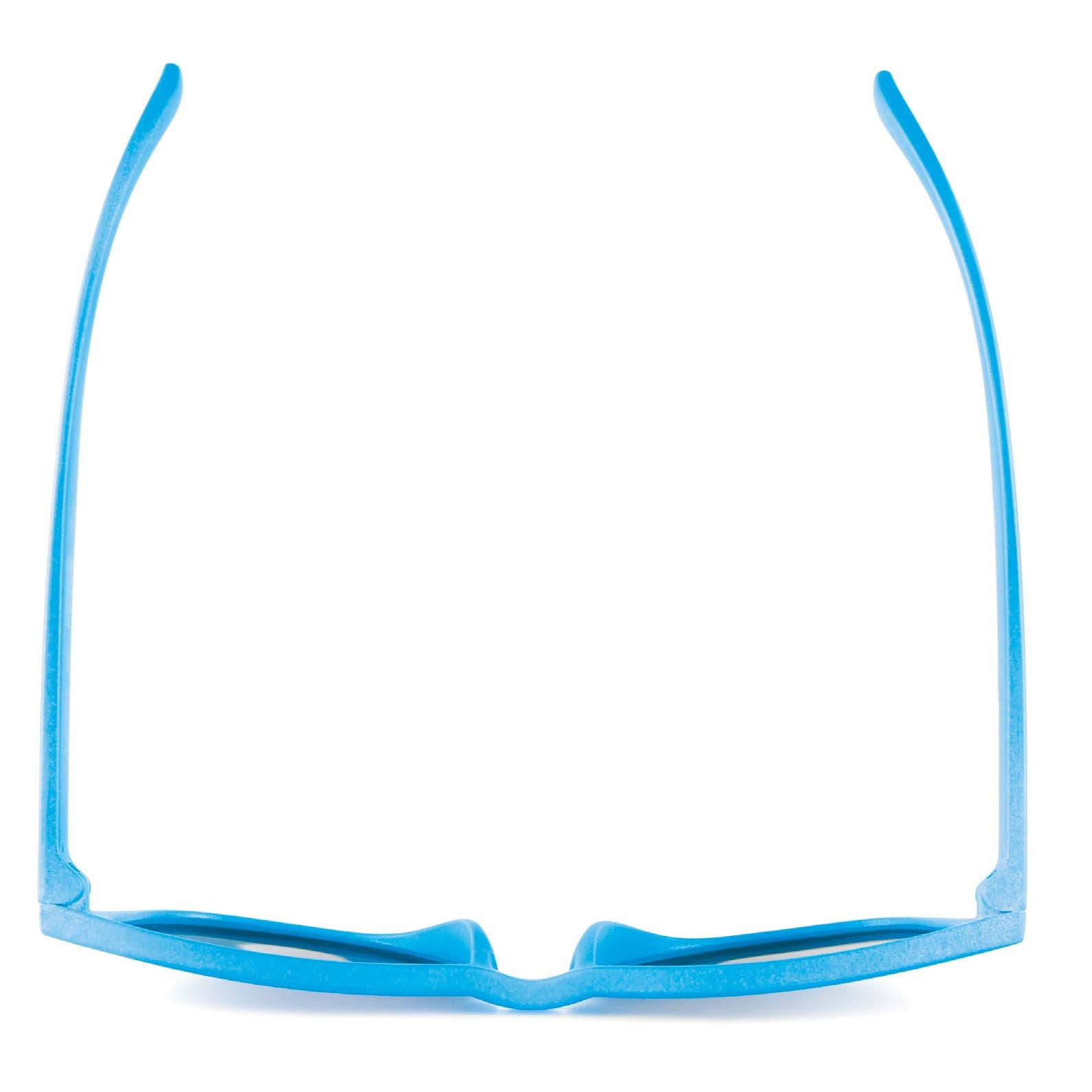

Bases The base of a lens is the curvature of the lens itself.

The higher the value of the base, the more the lens is curved and the glasses wrap around the face.

It Is important to know this data when choosing a lens to mount on a frame.

It is necessary to select the lens with the most suitable base according to the curve of the bevel of the eyepiece.

TOOLS

FRAME PARTS

6.0 LENSES

PLIERS

B 2

LAB CONSUMABLES

EQUIPMENTS

Base 2 Suitable for the world of fashion frames with straight fronts.

Base 4 Much used for trendy and latest generation sunglasses. Available in many variations according to specific needs.

Base 6 Base 8 Suitable for sport and wrap around sunglasses. Base 8 lenses are more curved to ensure a greater wrapping of the sunglasses, to protect more of the eyes and increase the visual field of the wearer.

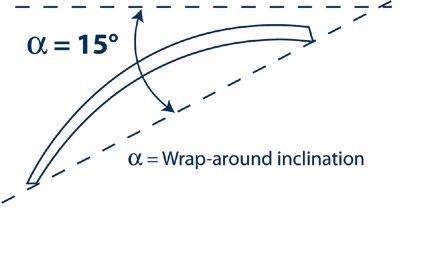

The optical centre is decentred from the geometrical axis to ensure a clear and better vision even in lateral areas.

α = 15°

αα

iioonn t t a a cclliinn n n i i d uunnd o o r r aa aapp r r W ==W

INDEX

REFRACTION & ORTHOPTIC

LENSES

For sunglasses with classic sun lenses. Available in different variants according to specific needs.

2

ALL RIGHTS RESERVED ©

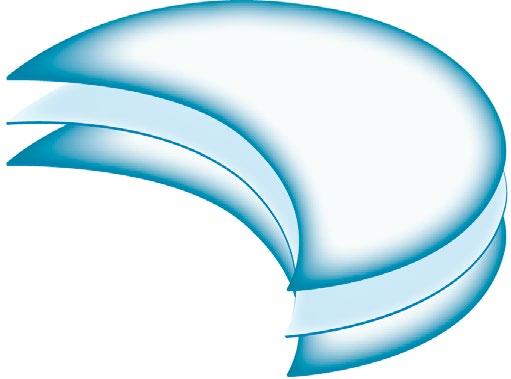

Materials

LAB MOD SYSTEM

6.0

LENSES CR39

FRAME PARTS

It is the most used plastic polymer for making sun lenses and for ophthalmic use. It is thinner and weighs half as much as a glass lens. Offers impact resistance above FDA (the American regulatory body) requirements but it is not unbreakable and therefore not recommended for use in active sports. CR39 lenses offer a high quality of vision and transparency, UV protection up to 360 nm and with a particular treatment up to 400 nm

TOOLS

POLYCARBONATE

It is an organic material that is characterized by a high level impact resistance compared to CR39 and glass. It is used to make children’s sunglasses, sports and safety frames.

Polycarbonate also offers ultraviolet protection, ensuring a UV protection up to 380 nm as well as good vision quality and transparency.

NYLON

PLIERS

Nylon, or polyamide, is a new high performance material, because it combines the advantages of polycarbonate and those of CR39 lenses. Nylon lenses have considerable impact resistance and do not break when drilled with the drill (making them perfect for clip-ons and rimless). It is compatible with all the materials used for frames, light and easy to work with, coated with a hard coating it has good resistance to impact and scratches; it is recommended for coatings including mirroring.

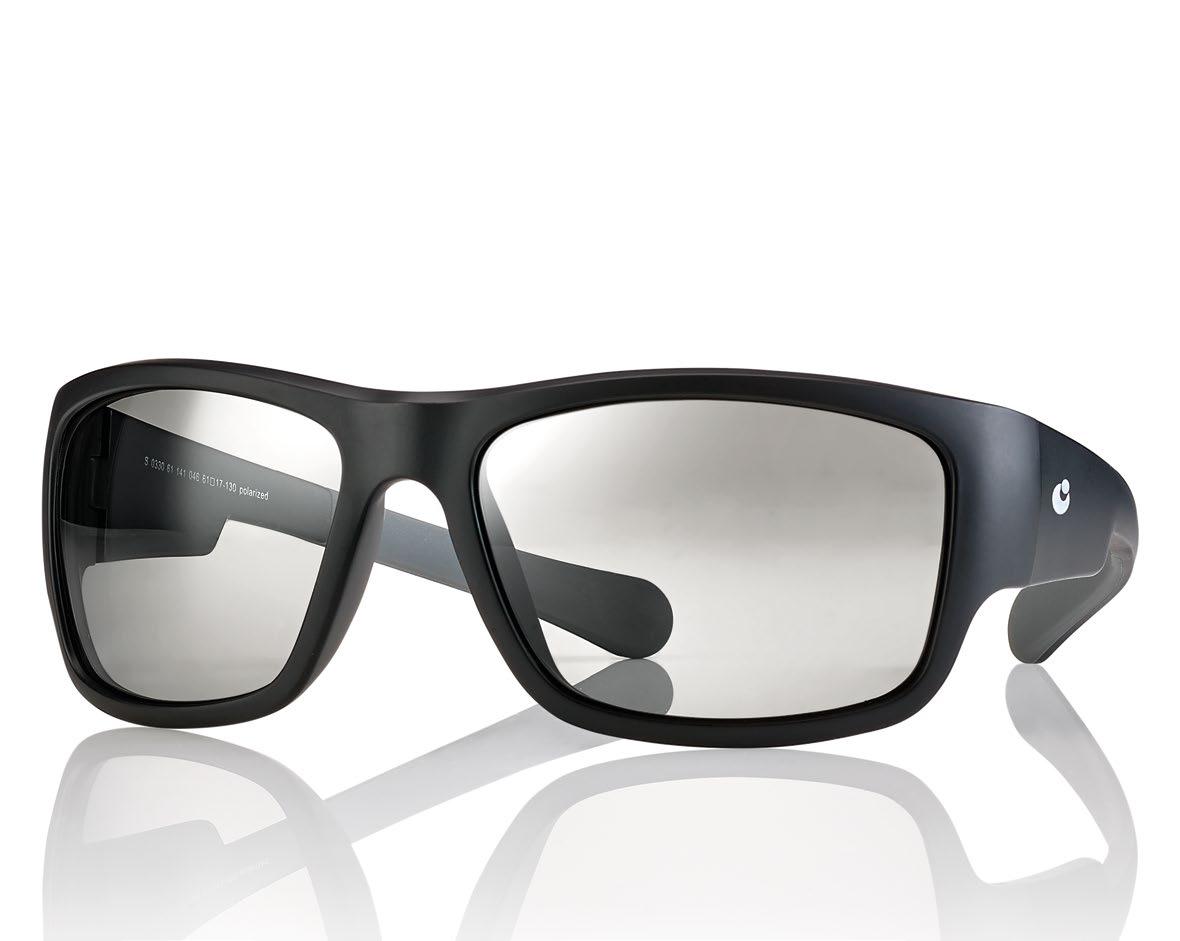

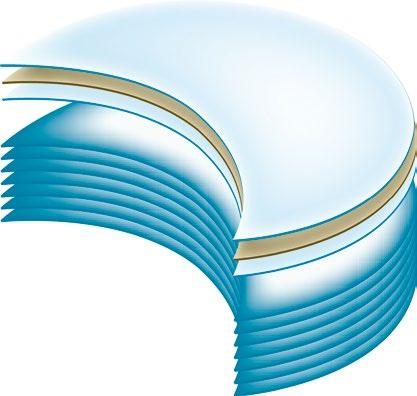

POLARIZED SHEETS

GLASS

High optical quality and remarkable scratch resistance characterize mineral glass lenses. The low chromatic dispersion ensures a clear vision, full of contrasts and comfortable. The greater specific weight and frangibility limit the use in the case of sports and dynamic activities.

EQUIPMENTS

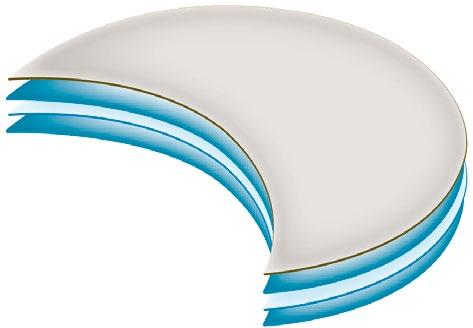

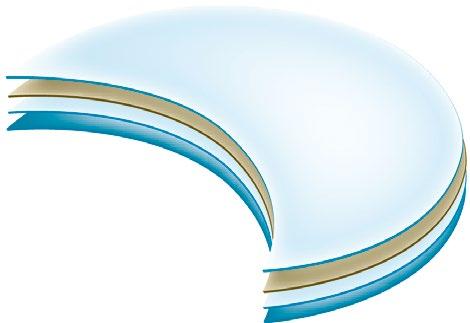

Polarized lenses made of a material called Tri-acetate of cellulose orhave many advantages including a natural abrasion resistance. The lens is lighter and thinner than other sun lenses. The polarizing filter with which it is fitted allows shielding the reflections created by highly reflective surfaces such as water or asphalt, reducing glare, improving comfort, the perception of contrast and the vision of the wearer.

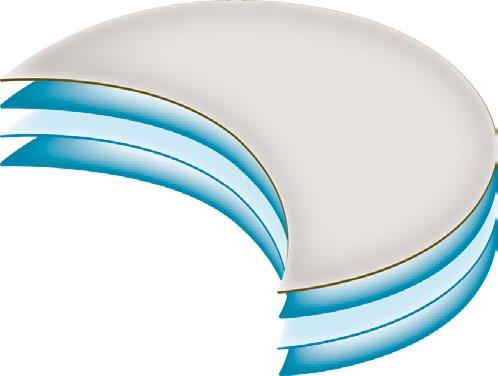

Coatings

LAB CONSUMABLES

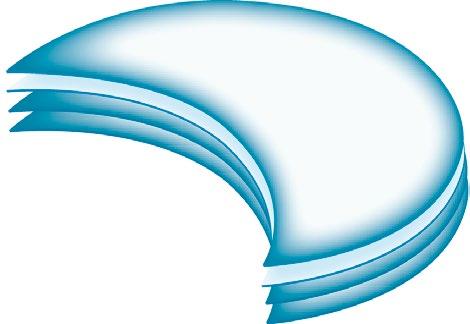

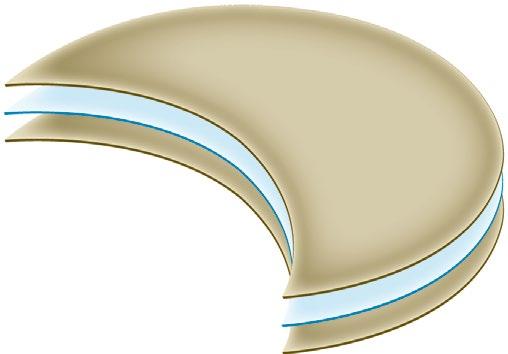

HARD COATING HC

Hard coating on both sides of the lens.

Protects from scratches. Extends the life of the lens.

Recommended on all organic lenses.

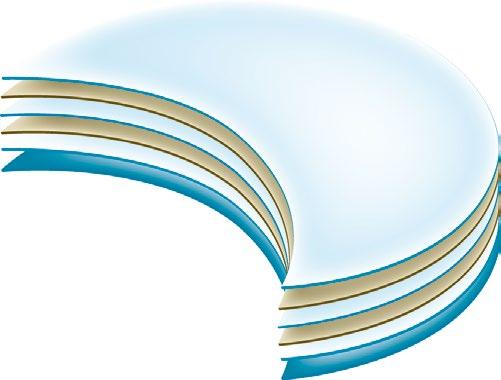

ANTI-REFLECTION HMC HARD MULTICOATED

LENSES

It is an anti-reflection treatment combined with hard coating; ensures excellent transparency, reduces the reflections of sunlight and artificial light by increasing the light transmission up to 99%. Indispensable for all high index lenses, it improves the aesthetic appearance and visual comfort.

HYDROPHOBIC

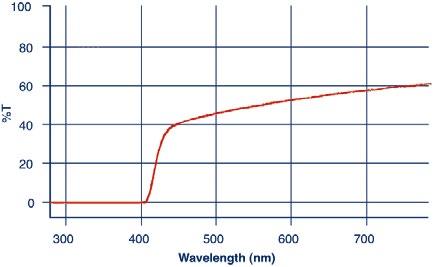

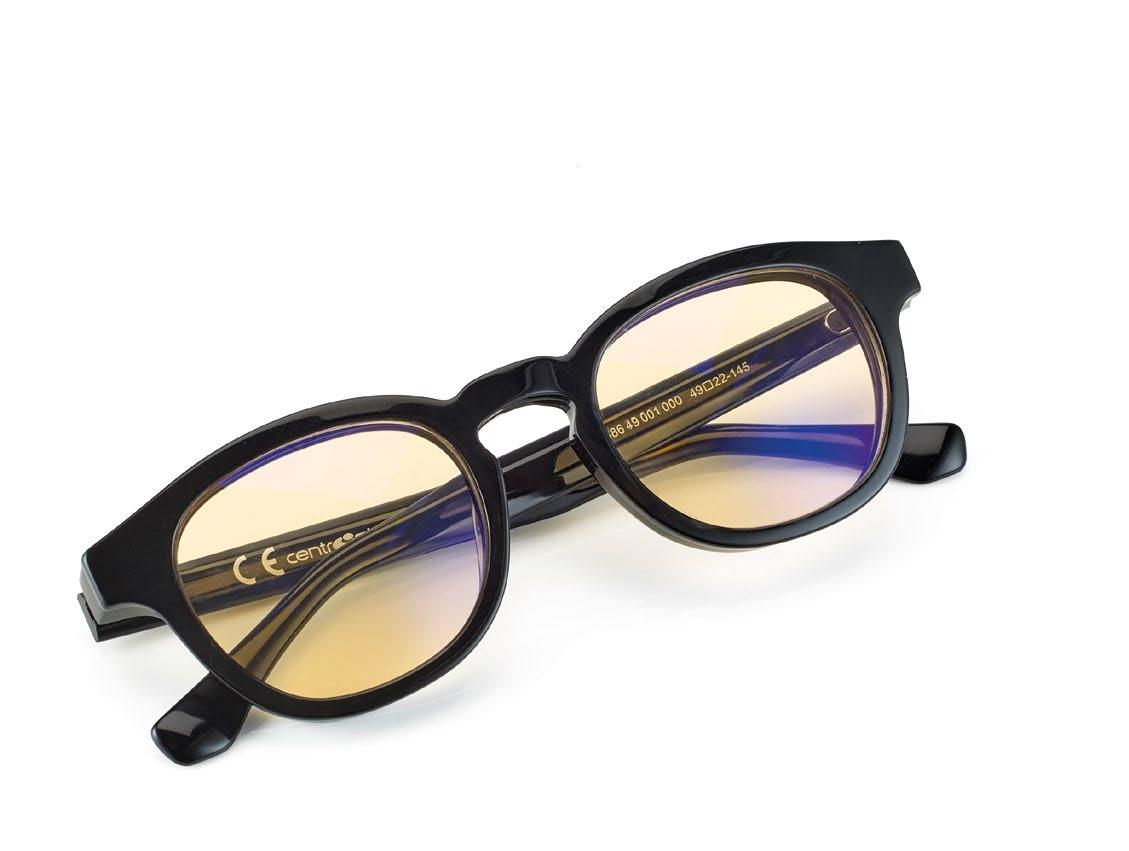

BLUE LIGHT FILTER

It protects the eyes from the harmful effects of blue light by reflecting it better than a lens with the anti-reflection coating – It blocks the blue light component up to 40% making the use of electronic devices more comfortable.

Ensures 100% protection from ultraviolet light (UV 400).

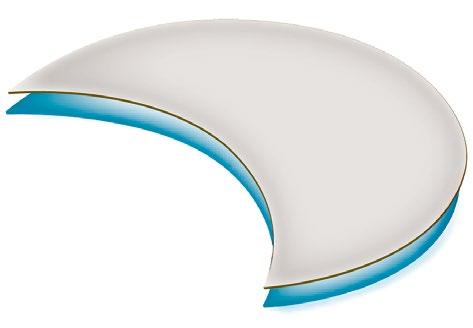

MIRROR COATING OR FLASH COATING

Mirroring is a highly reflection treatment that significantly reduces the amount of light reaching the eyes of the wearer of glasses. This treatment is usually applied on sun lenses and can be applied on a base of any colour.

REFRACTION & ORTHOPTIC

The hydrophobic treatment allows water to slide quickly on the surfaces of the lens; it repels moisture and oily substances thanks to hydrophobic and oleo-phobic properties. This treatment allows a simple and easier cleaning of the lens and reduces the possibility of superficial scratches.

INDEX

ALL RIGHTS RESERVED ©

3

LAB MOD SYSTEM PLIERS

TOOLS

FRAME PARTS

6.0 INDEX

EQUIPMENTS

6.1 CR39 Base 2 - Base 4

LAB CONSUMABLES

• CR39 Special Base 2 ��������������������������������������������������������������������6 • CR39 Photochromic Fashion Lenses Base 2 ��������������������������������8 • CR39 “Classic” full colour and gradient Base 4 �����������������������������9 • CR39 Fashion Base 4 �����������������������������������������������������������������10 • CR39 Photochromic Lenses Base 4 �������������������������������������������12 • CR39 Photochromic Gradient Base 4 �����������������������������������������13 • CR39 Photochromic Mirrored Base 4 ������������������������������������������14 • CR39 Polarized Base 4 ���������������������������������������������������������������15 • CR39 Polarized mirrored with hard coating Base 4 ��������������������16 • Polarized test �������������������������������������������������������������������������������17 • CR39 Lens special driving Base 4 ����������������������������������������������18 • CR39 Lens special driving Base 4 and Base 6 ���������������������������19

REFRACTION & ORTHOPTIC

LENSES

6.2 CR39 Classic and Polarized Base 6-8

6.3 CR39 Mirrored and Fashion Base 6-8 • CR39 Polarized Mirrored Base 6 ����������������������������������������28 • CR39 With Hard Coating Base 6 �������������������������������������������������29 • CR39 Multilayer Mirrored Lenses Base 6 ������������������������������������30 • CR39 Flash Gradient Mirror Base 6 - Base 8 ������������������������������31 • CR39 Bicolour “Fashion” Base 6 �������������������������������������������������32 • CR39 “Fashion” Base 6 ���������������������������������������������������������������33 • CR39 Clear Base 6 - Base 8 �������������������������������������������������������34 • CR39 Demo lenses ���������������������������������������������������������������������35

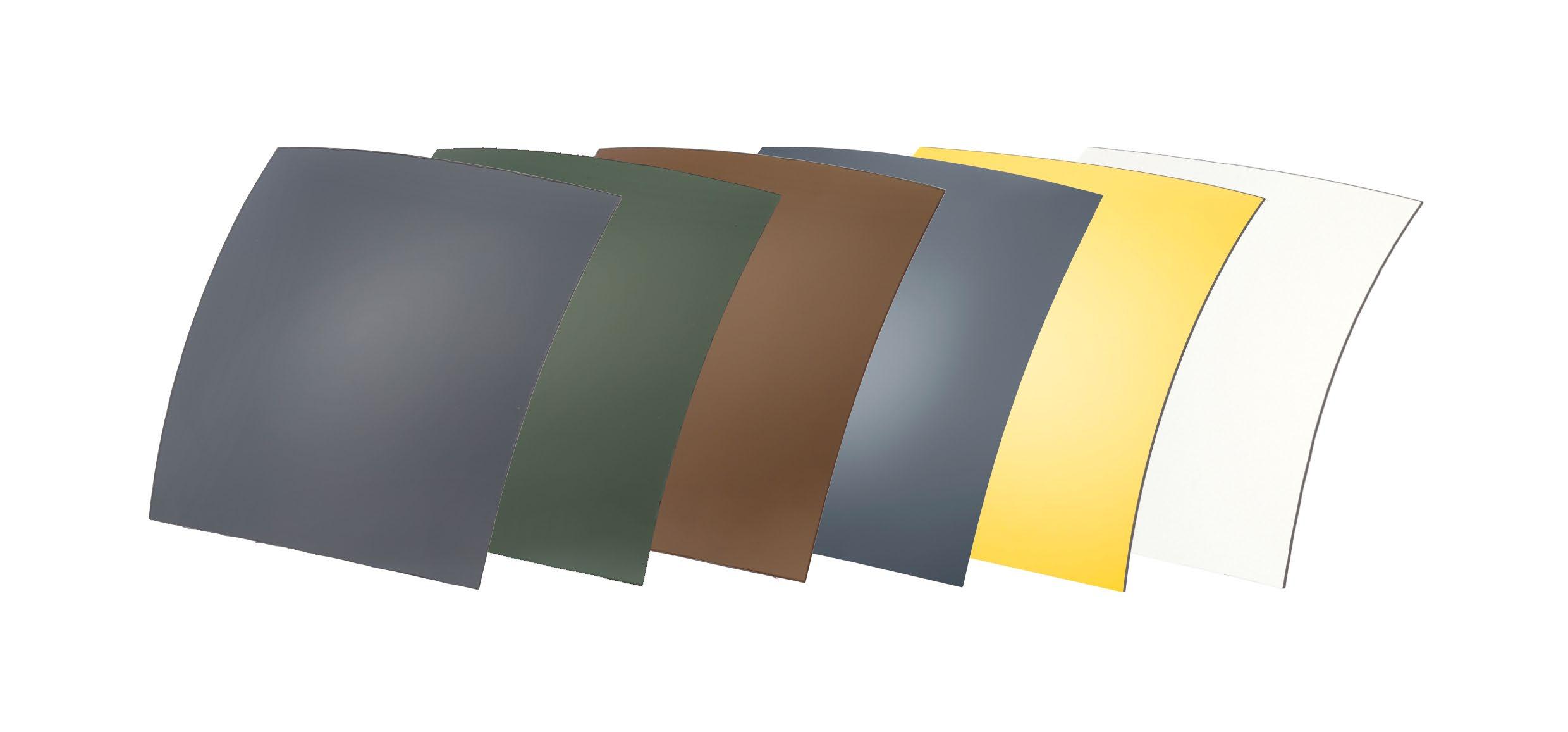

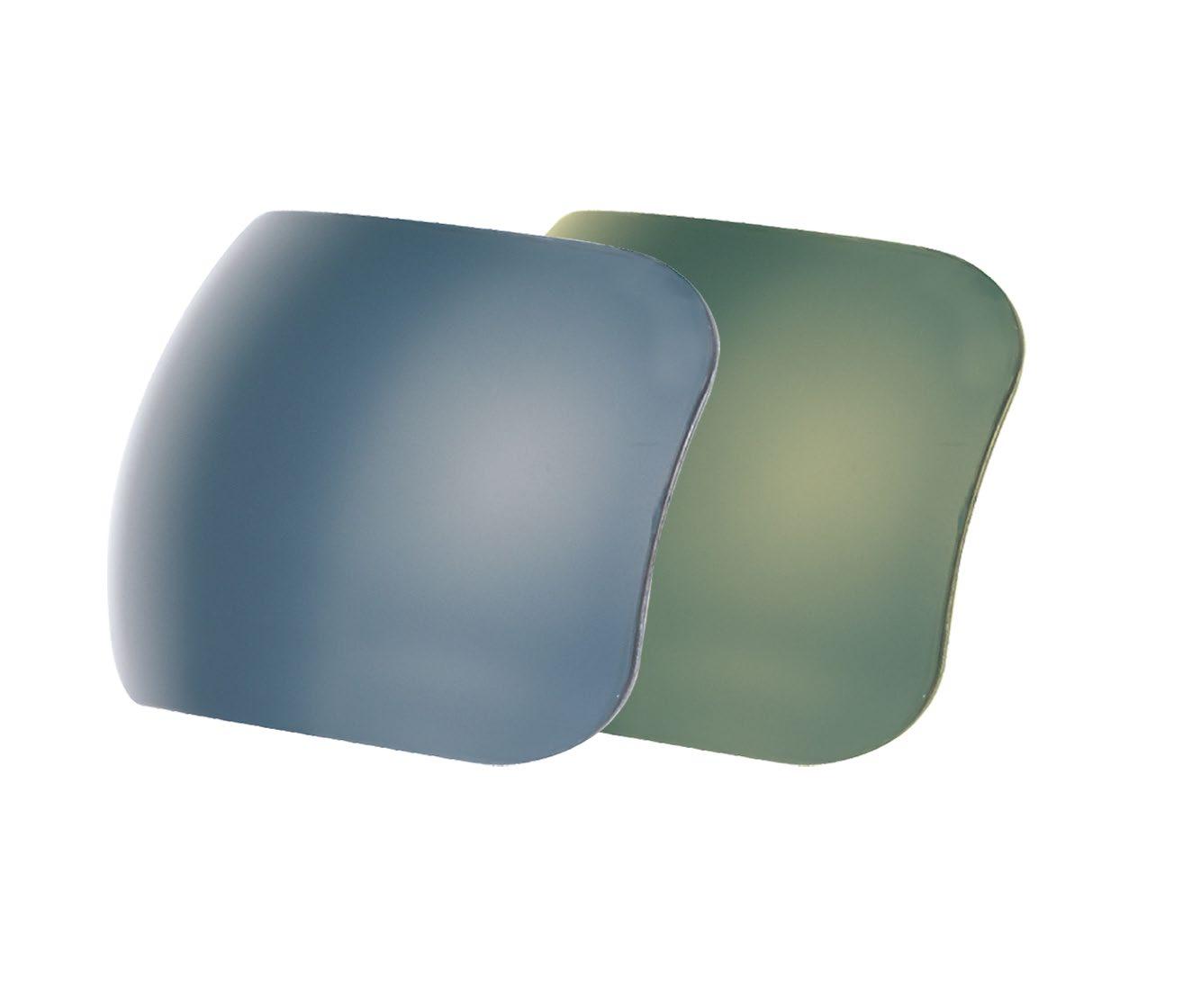

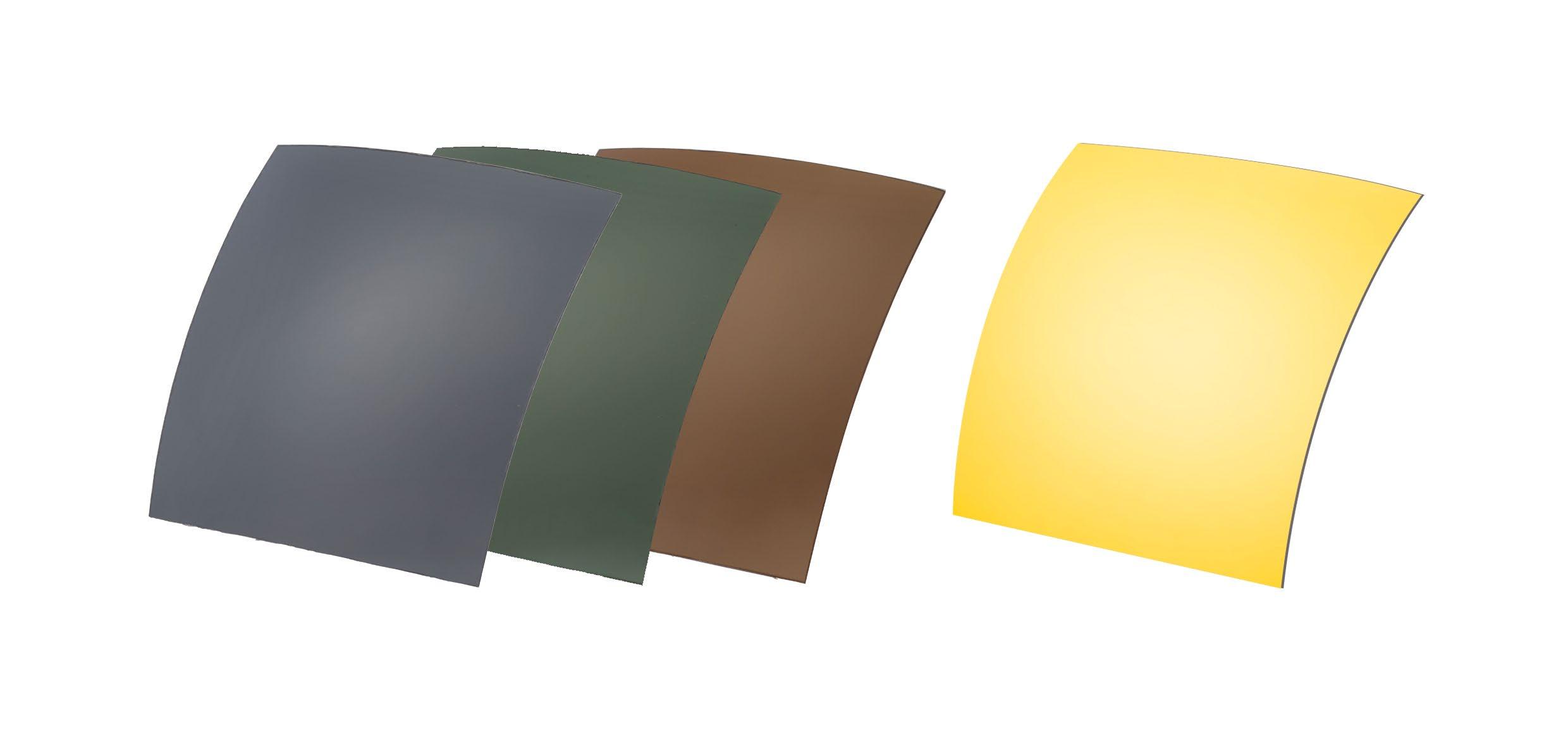

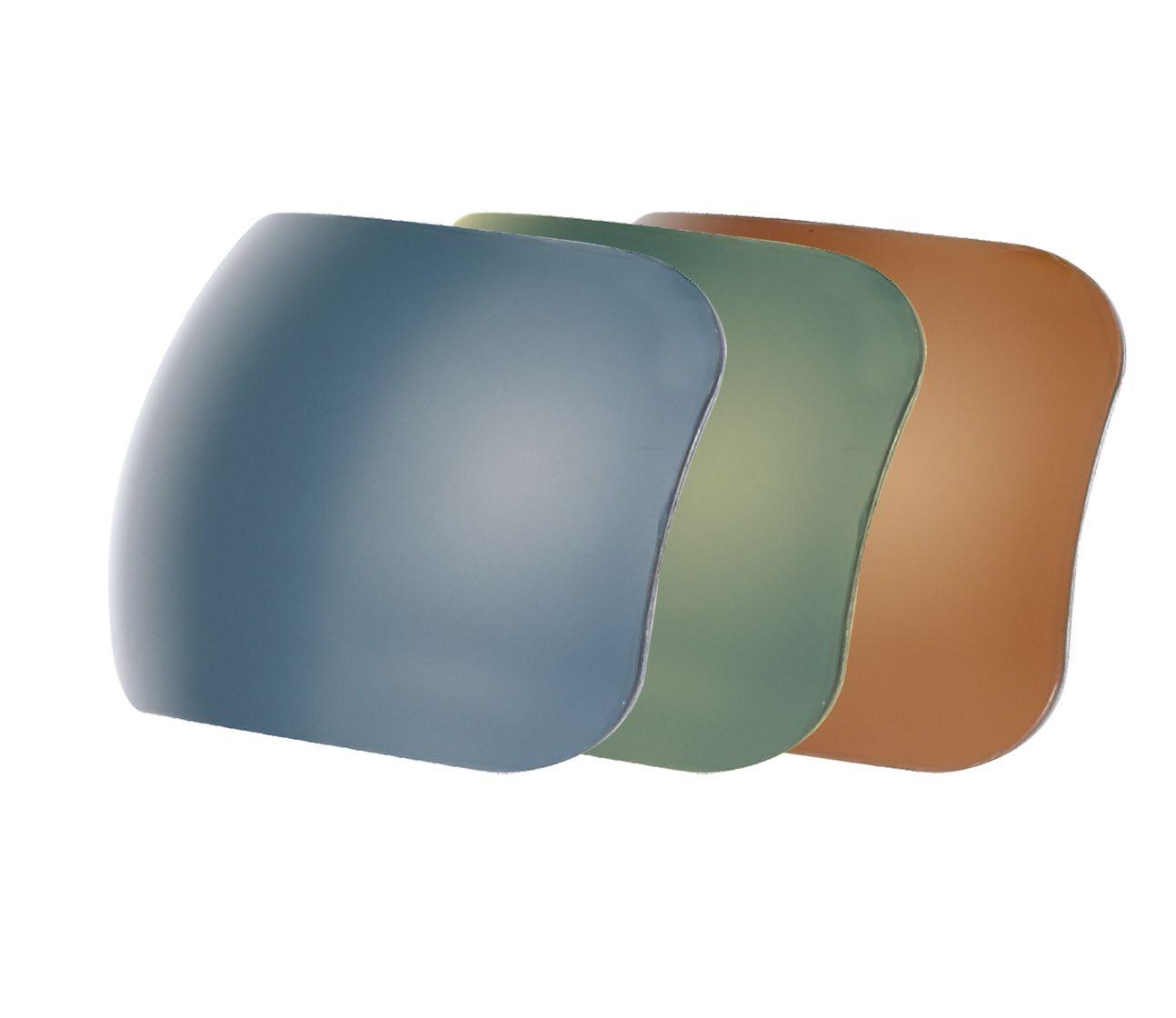

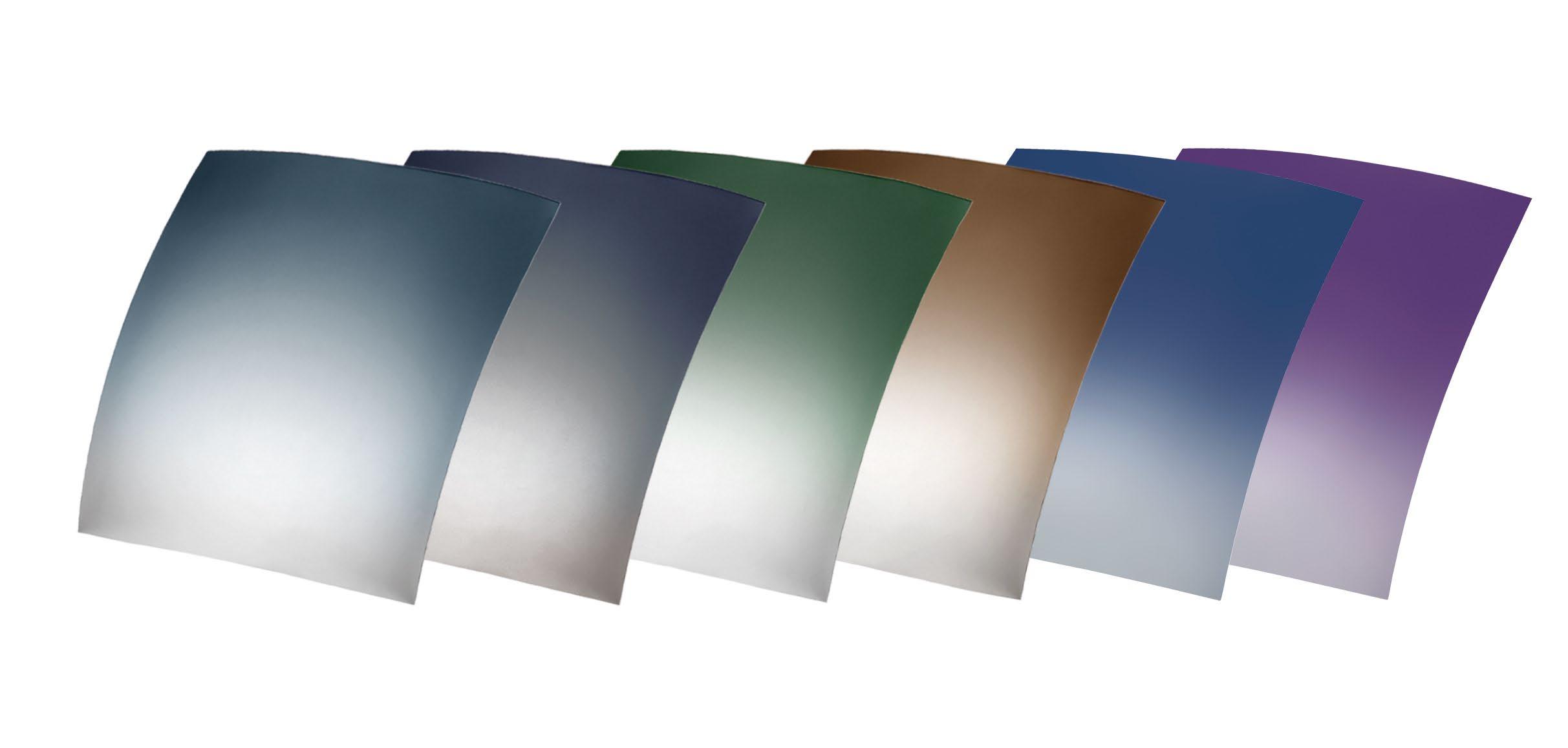

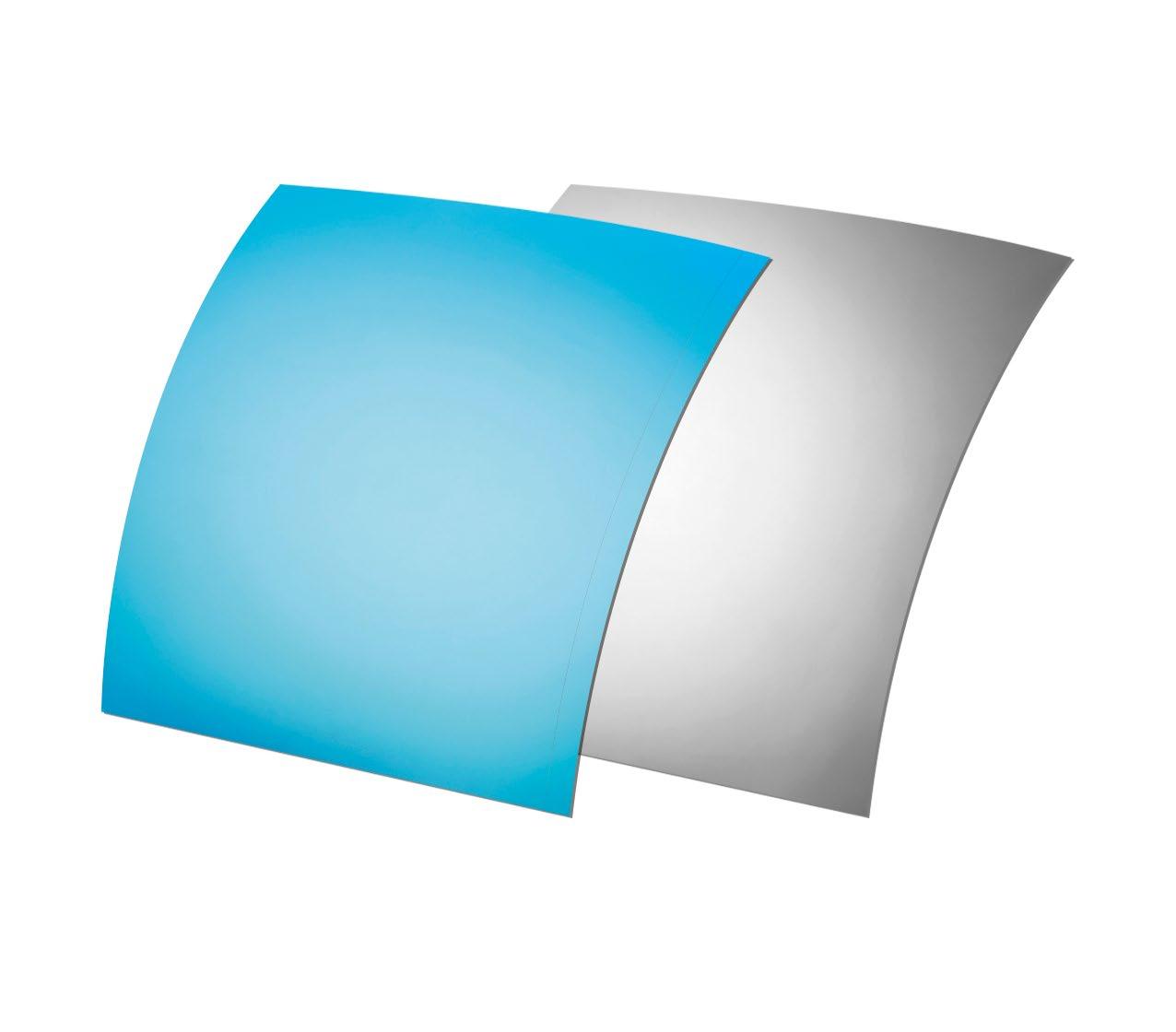

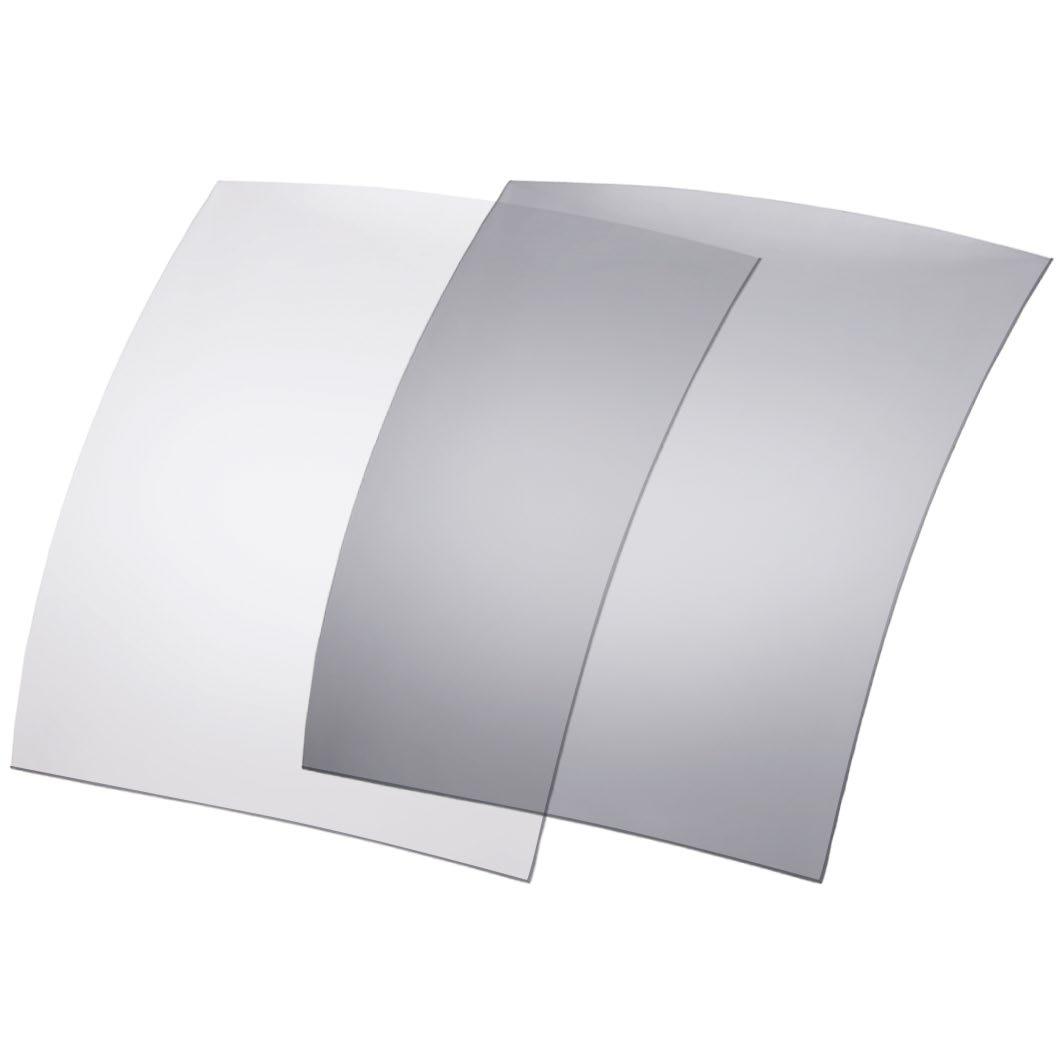

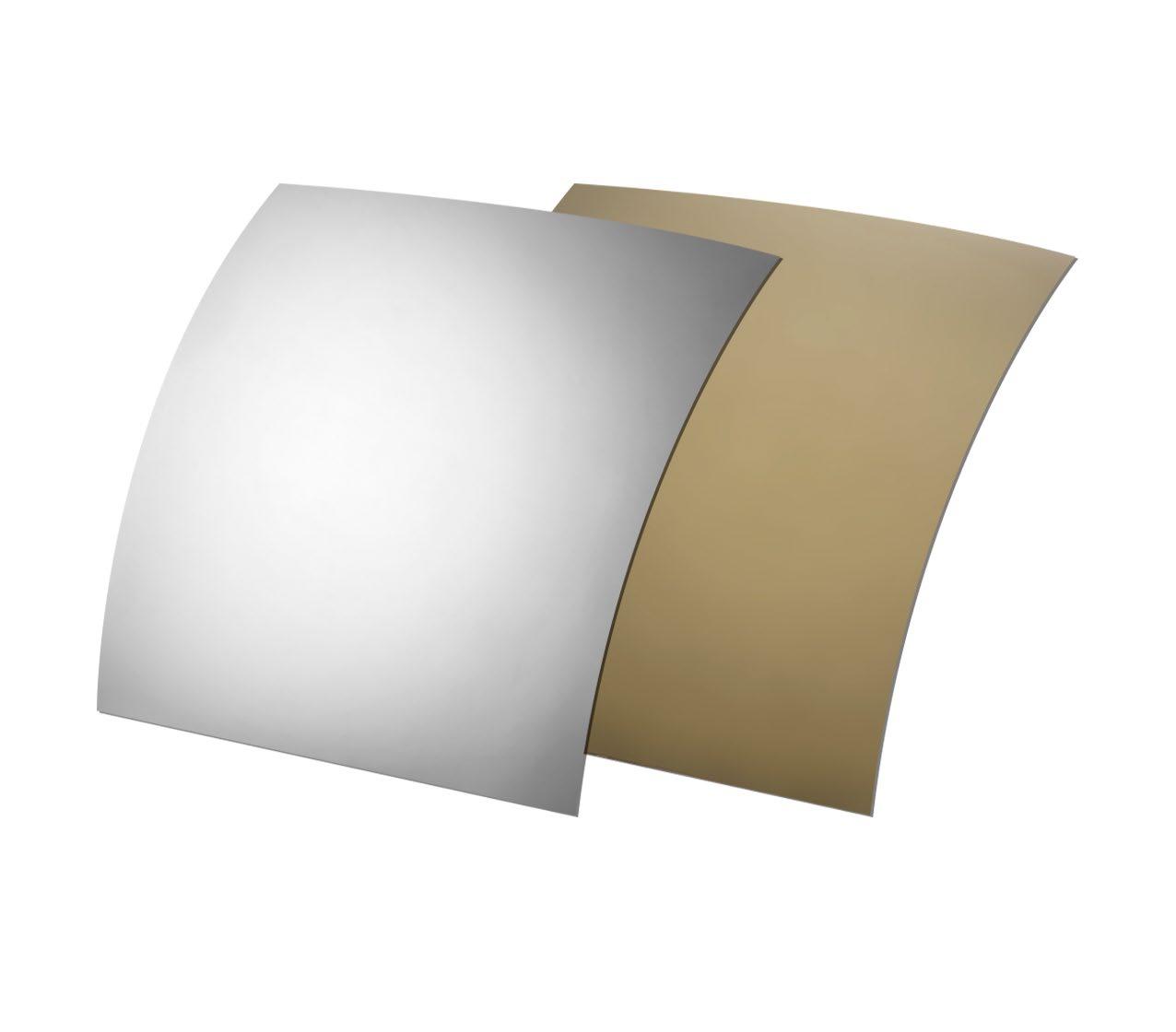

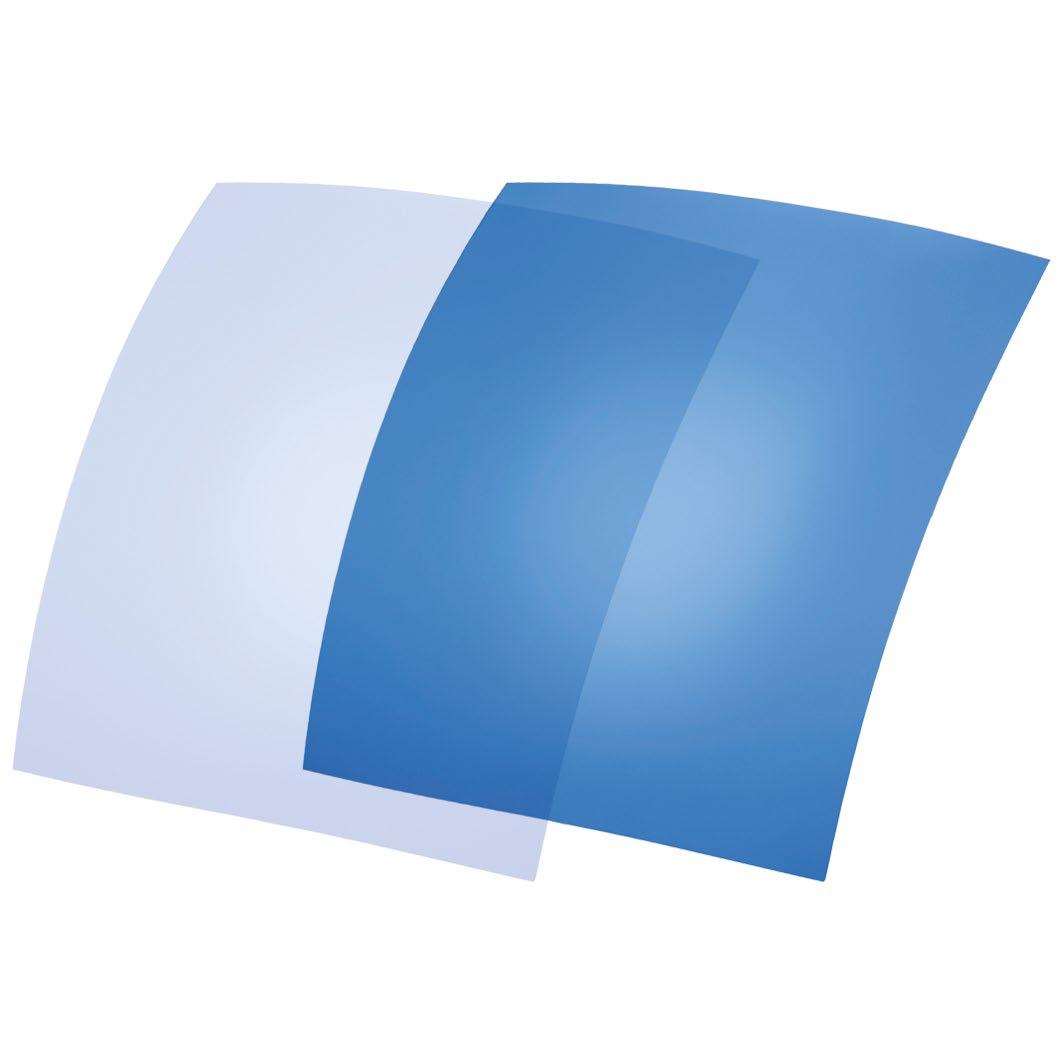

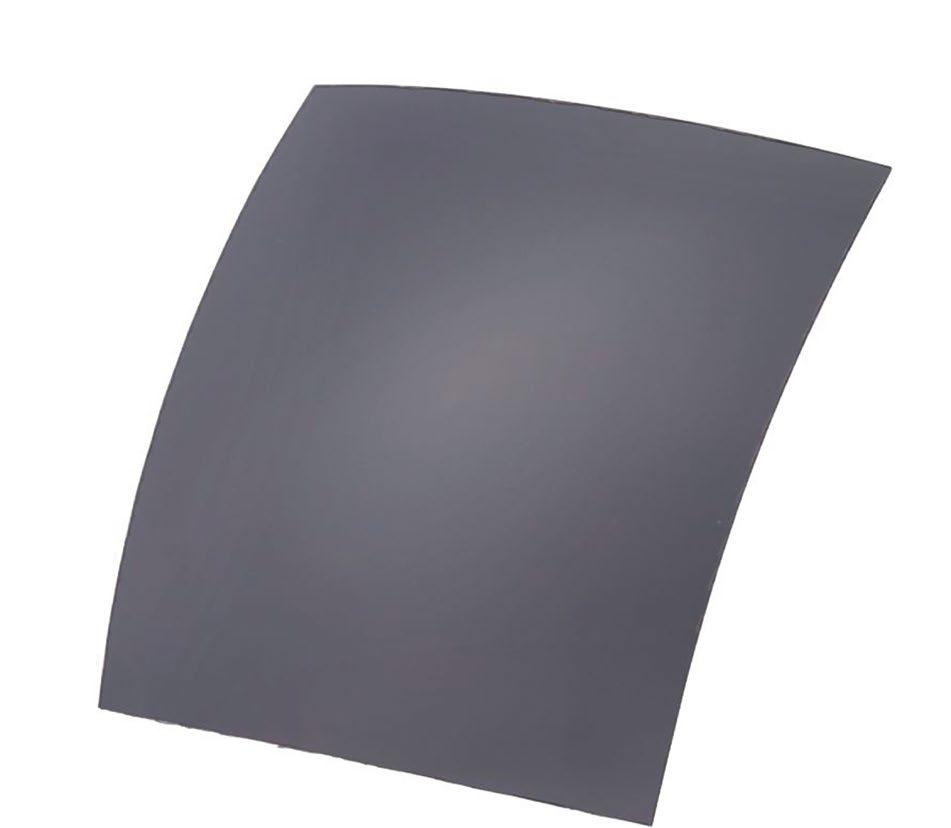

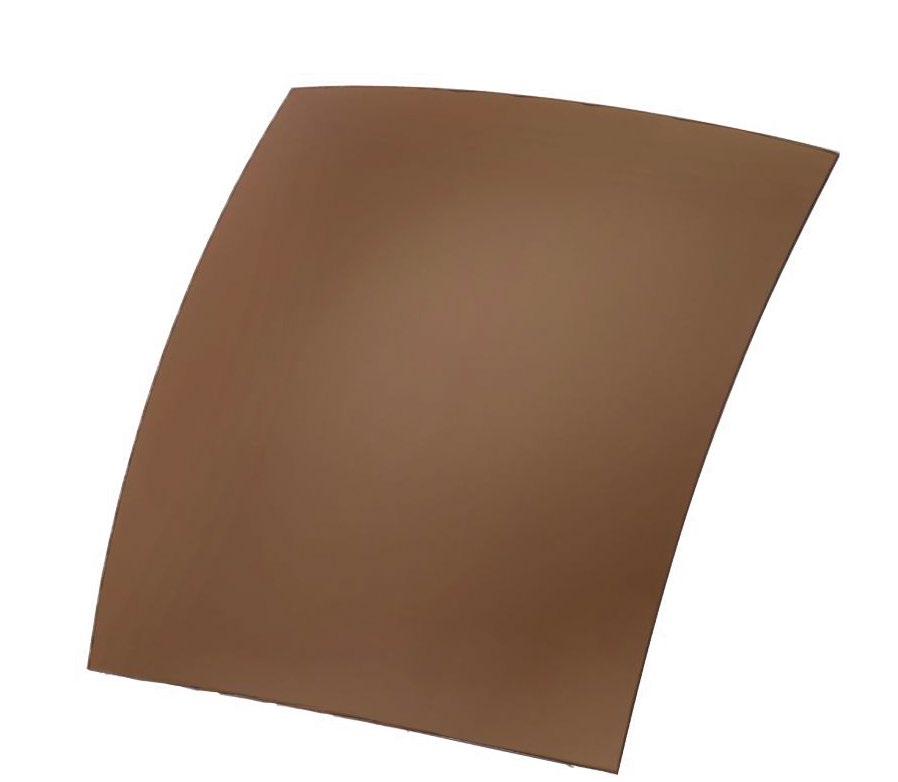

6.4 Polarizing Sheets (Triacetate)

• CR39 “Classic” full colour and gradient Base 6 - Base 8 ������������20 • CR39 Special Base 6 ������������������������������������������������������������������23 • CR39 Polarized with Hard Coating and Anti Reflection Base 6 and

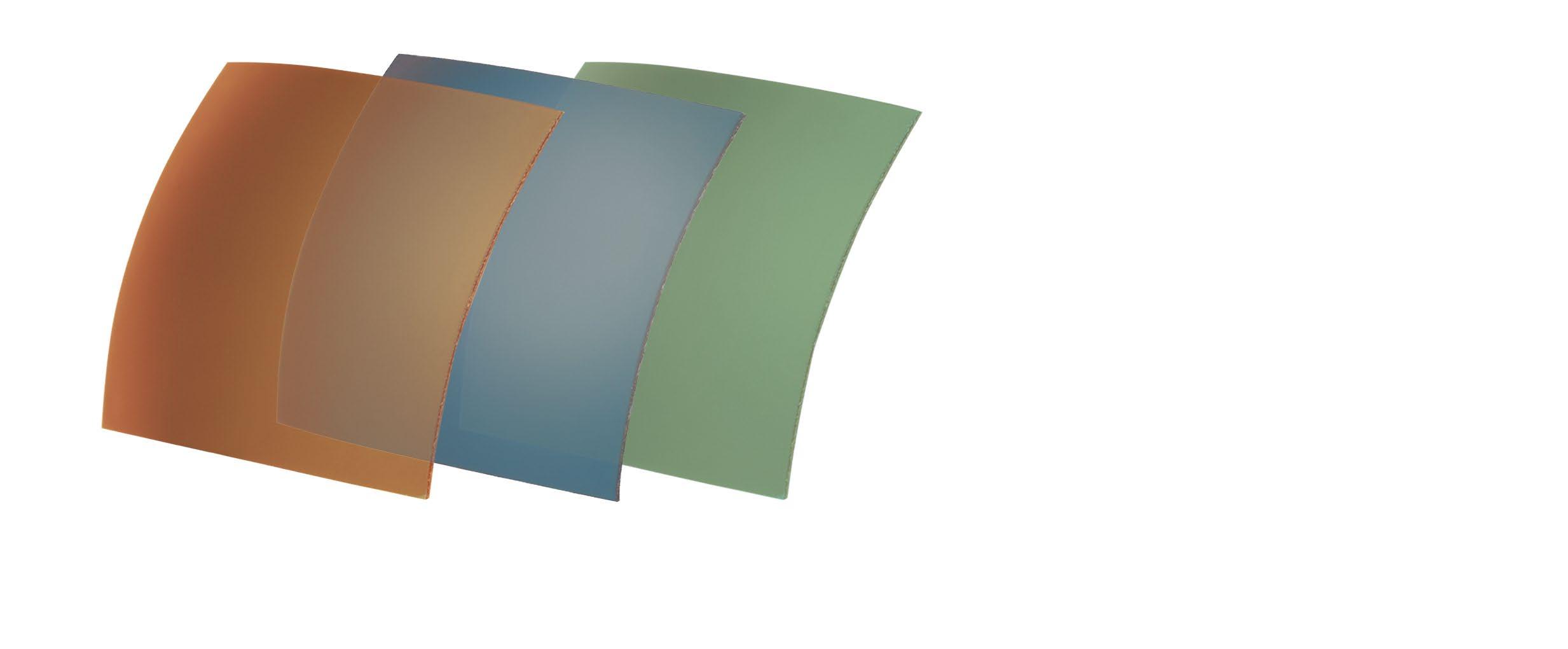

• Polarizing sheets triacetate Base 4 ���������������������������������������������36 • Low Polarizing sheets triacetate Base 4 �������������������������������������37

INTERNATIONAL STANDARD EN ISO 12312-1:2013+A1:2015

TESTING METHODS

Requirements and testing methods.

• Static, dynamic and inflammability tests: To verify the filter is not dangerous for the eyes.

• Optical tests to check transmittance: verifies the refractive power and light diffusion as well as quality defects.

• Ageing test: To verify the durability of the filtering performance.

Filters suitable for continual use • For spherical and astigmatic powers: no more than ± 0,12 diopters

INDEX

Recognition of the colours of signal lights Q = Inferior limits of the Q transmission values Q RED - 0,80 / Q YELLOW - 0,60 / Q GREEN 0,60 / Q BLUE - 0,60

4

Base 8 ���������������������������������������������������������������������������������������������24 • CR39 Polarized Base 6 and Base 8 ��������������������������������������������25 • CR39 Polarized Fashion Base 6 ������������������������������������������������26 • CR39 Polarized Gradient Base 6 �����������������������������������������������27

ALL RIGHTS RESERVED ©

LAB MOD SYSTEM

6.0

FRAME PARTS TOOLS PLIERS

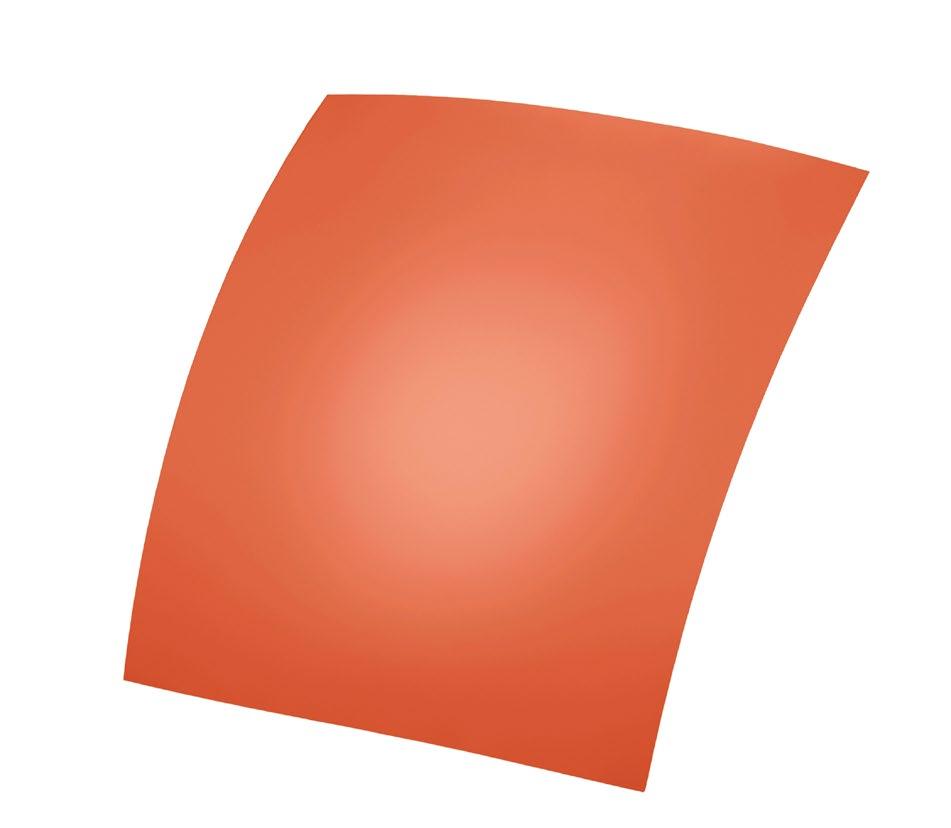

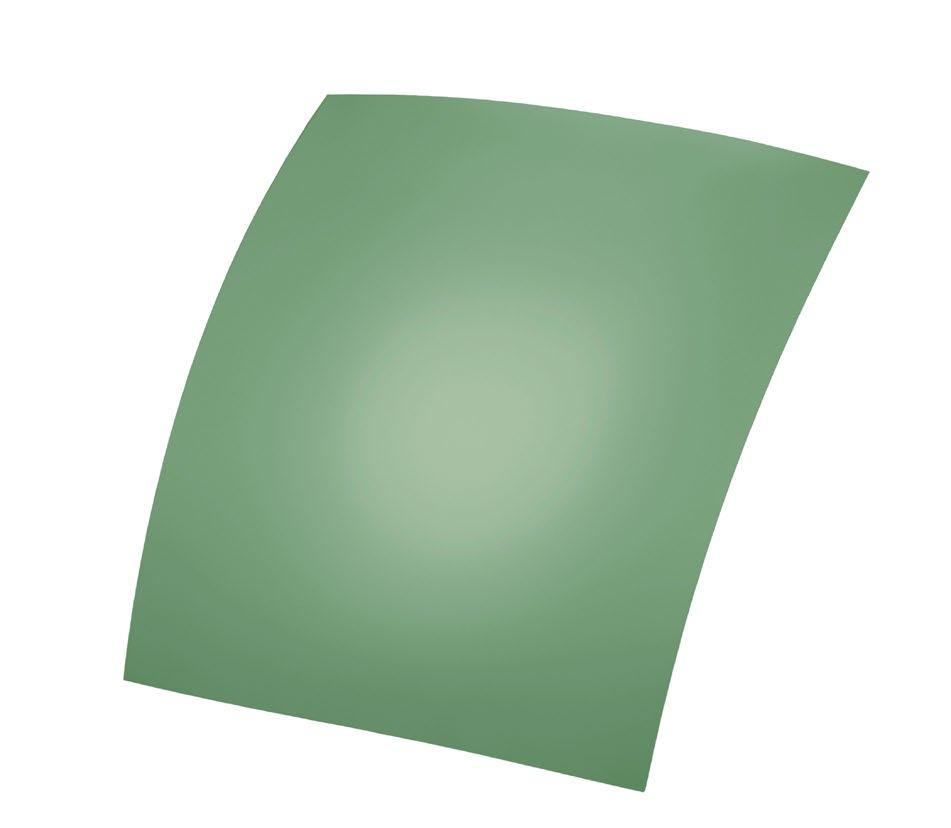

• Polarizing Fashion sheets triacetate Base 4 �������������������������������38 • Polarizing sheets multilayer mirrored Base 4 ������������������������������39 • Triacetate photochromic sheets Base 4 ��������������������������������������40 • Clip-on shaping kit �����������������������������������������������������������������������41 • Polarizing sheets triacetate Base 6 ���������������������������������������������42 • Polarizing sheets triacetate Base 8 ���������������������������������������������43

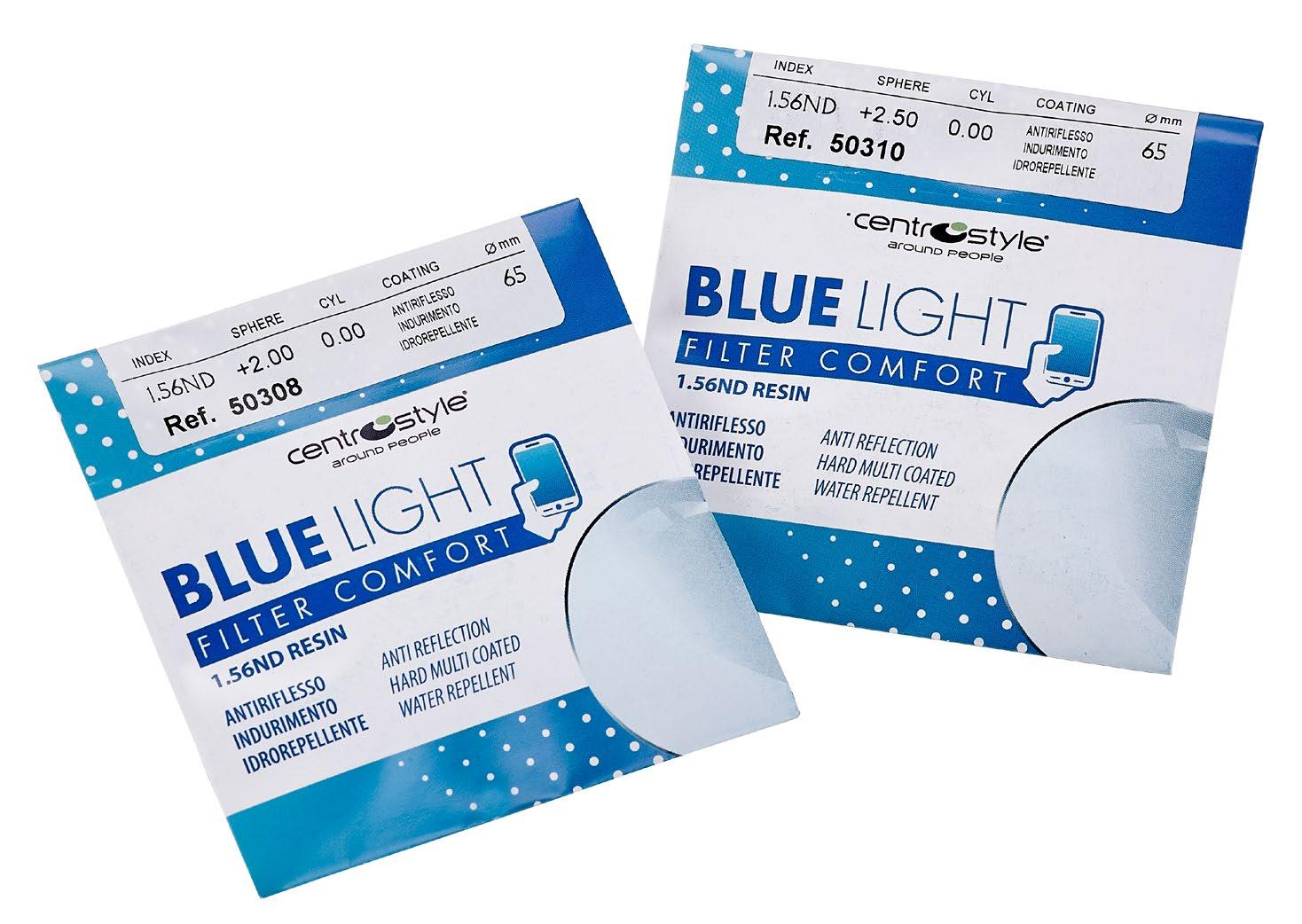

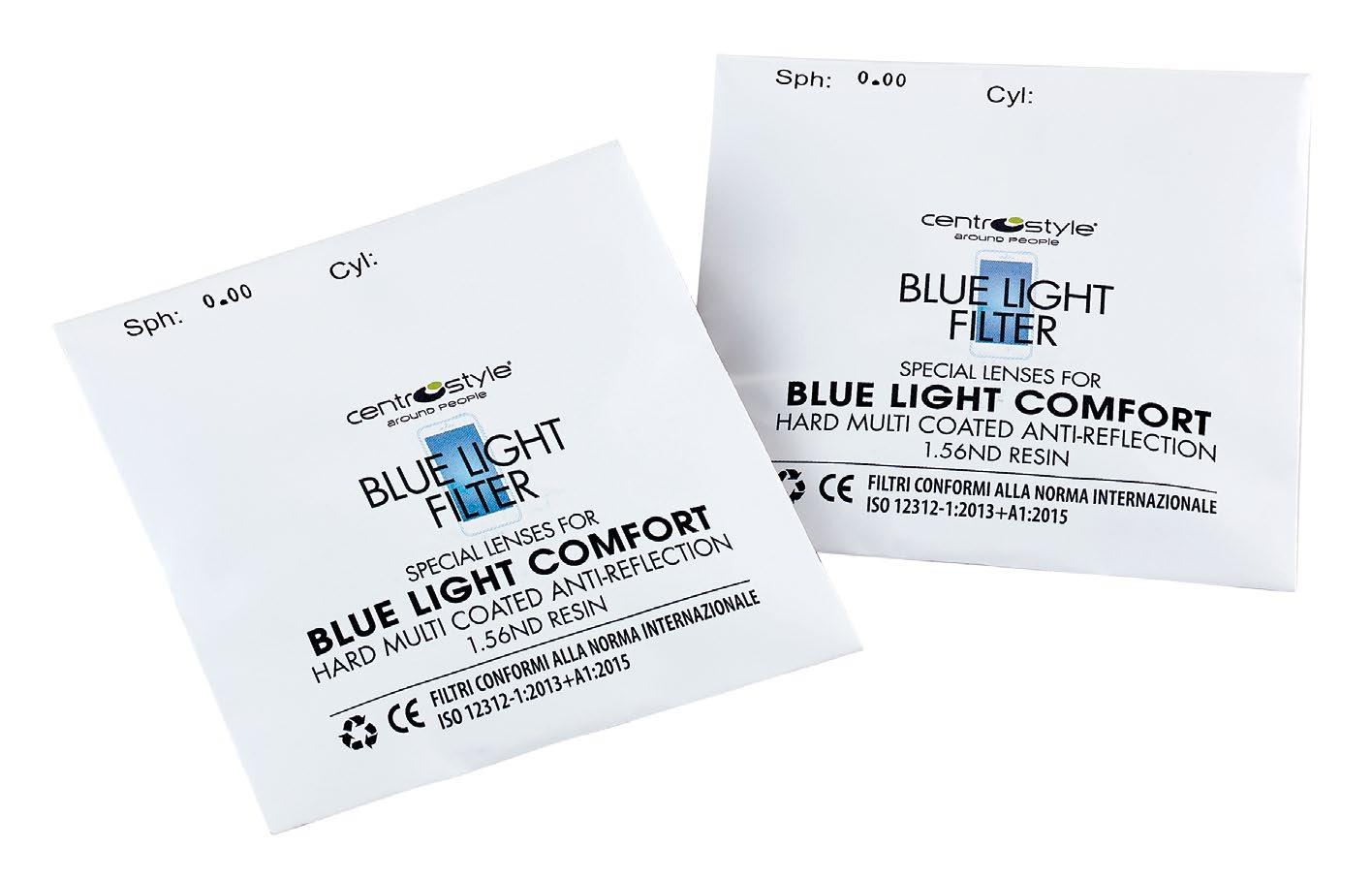

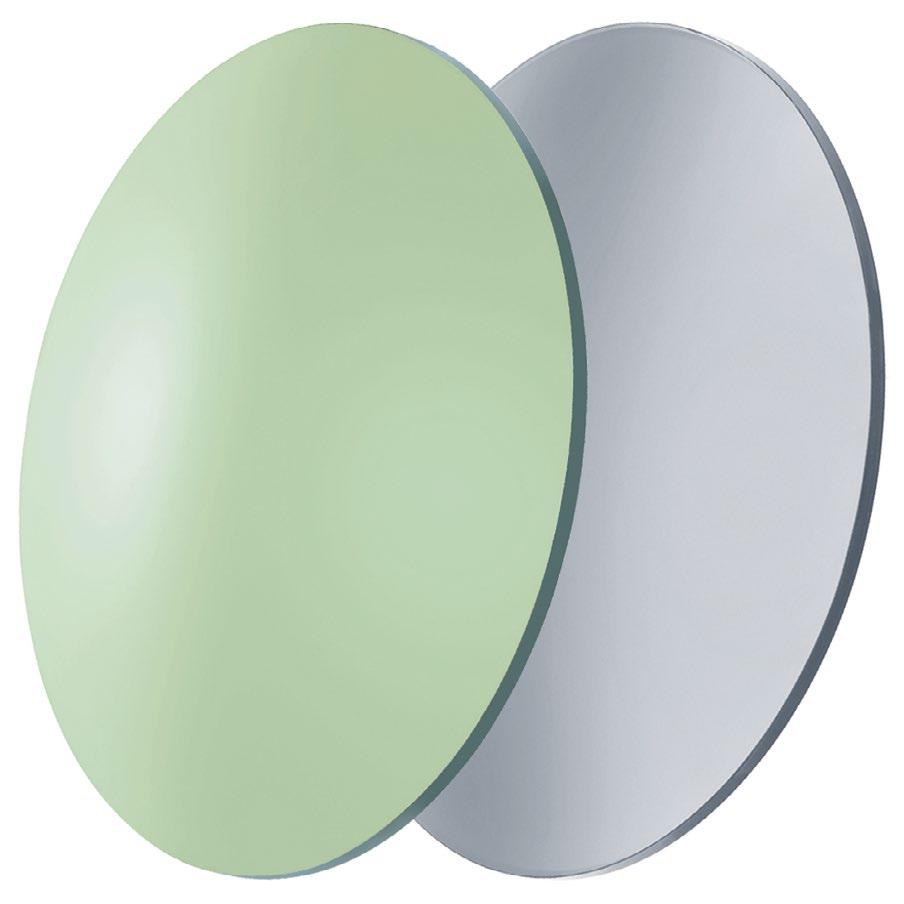

• 1.56nd Lenses Blue Light Comfort Base 4 ����������������������������������58

6.5 Polycarbonate

• Mineral Base 6 ����������������������������������������������������������������������������60

• Polycarbonate with inner AR Base 2 �������������������������������������������44 • Polycarbonate Classic and Fashion Base 4 ��������������������������������45 • Polycarbonate Special Gaming Base 4 ���������������������������������������46 • Polycarbonate photochromic Base 4 �������������������������������������������48 • Polycarbonate photochromic gradient Base 4 �����������������������������49 • Polycarbonate Performance Sport Base 6 ����������������������������������50 • Polycarbonate Base 6 �����������������������������������������������������������������54 • Polycarbonate multilayer mirrored Base 6 ����������������������������������55 • Polycarbonate polarizing sheets Base 6 - Base 8 �����������������������56 • Polycarbonate Base 8 �����������������������������������������������������������������57

6.7 Sun Lens Cases

EQUIPMENTS

6.6 1.56nd Lenses Blue Light Comfort 6.7 Mineral

LAB CONSUMABLES

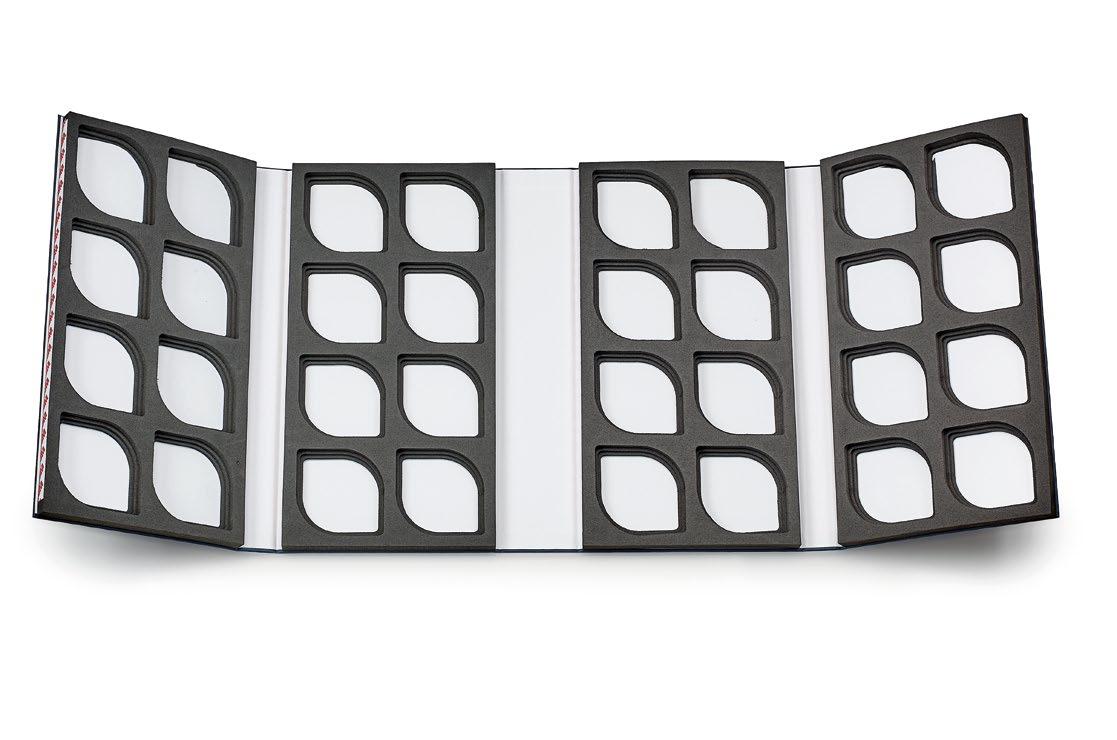

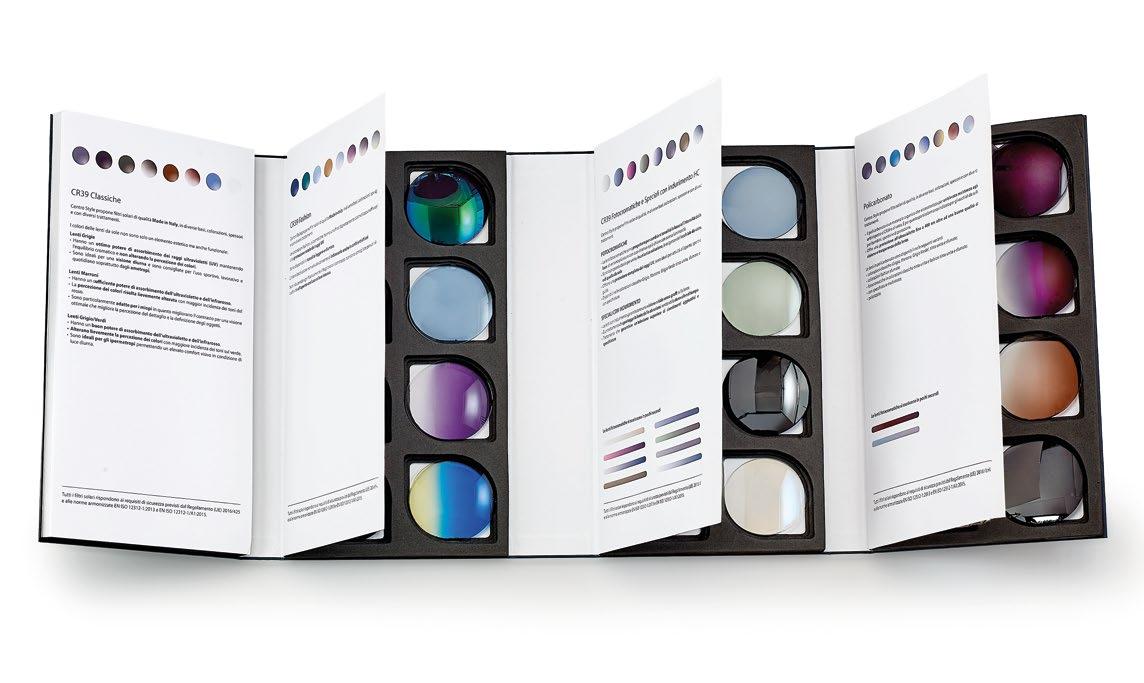

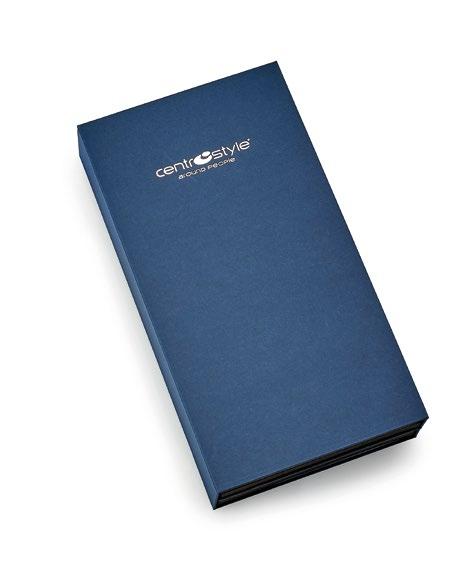

• Lens Cases ���������������������������������������������������������������������������������57

LENSES

PROTECTION AGAINST SUNsolari RAYS Protezione dalle radiazioni UVB FACTOR 280-315 nm

UVA FACTOR 315-380 nm

0 CLEAR

80-100

0,05 • Tv

Tv

1 LIGHT

43-80

0,05 • Tv

Tv

2 MEDIUM

18-43

1,0

0,5 • Tv

8-18

1,0

0,5 • Tv

3-8

1,0

1,0

3 DARK 4 VERY DARK

(not suitable for driving or road use)

REFRACTION & ORTHOPTIC

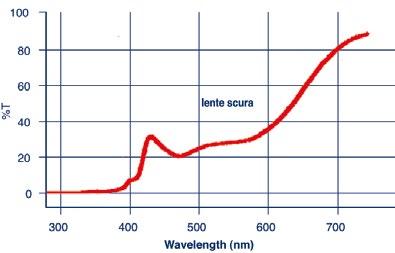

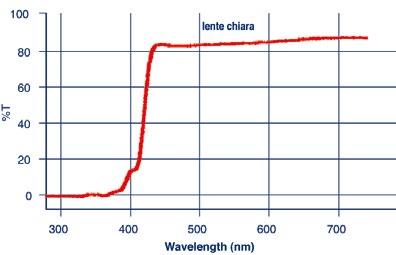

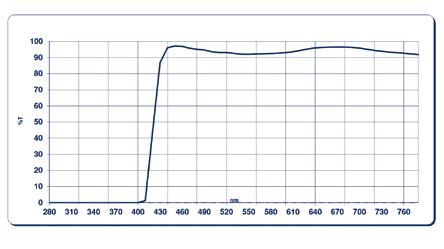

TRANSMISSION VALUES OF VISIBLE LIGHT 380-780 nm

FILTER CATEGORY

Printed example so colours may vary from actual lens colour due to factors beyond our control.

INDEX

ALL RIGHTS RESERVED ©

5

LAB MOD SYSTEM

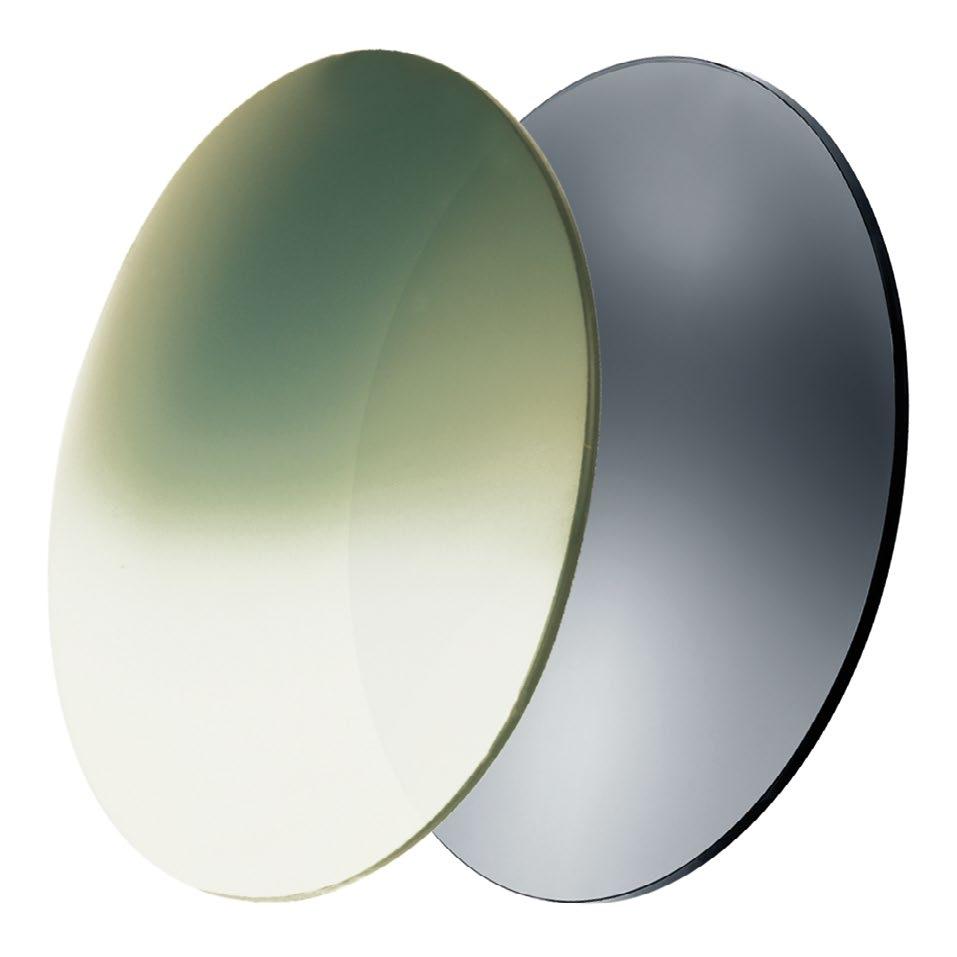

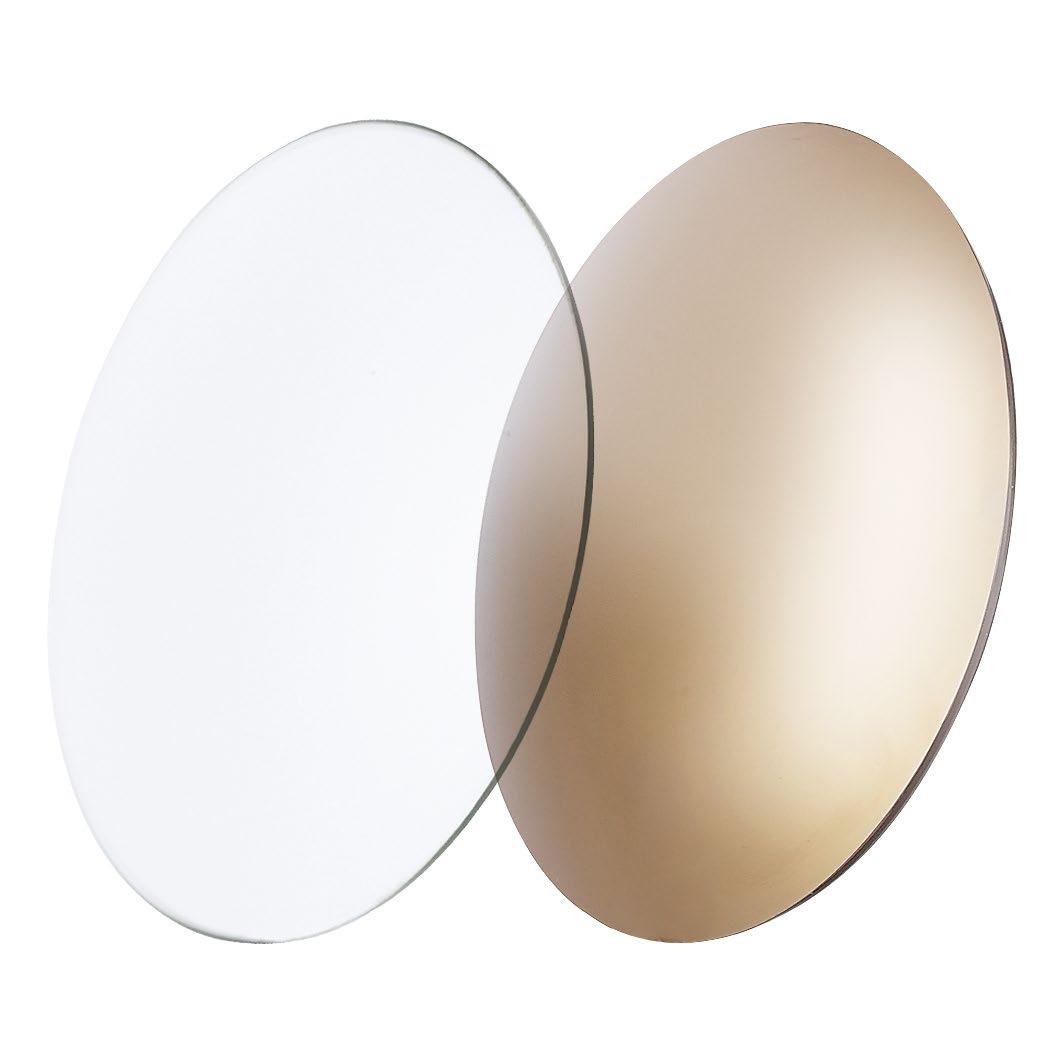

6.1 CR39 Special Base 2 UV400 MADE IN ITALY

FRAME PARTS

Base B 2 Ø 76 mm | Ref. 06291 FC3 (τ 8-10%) Dark Brown 75%

2 pcs.

Ref. 06292 FC3 (τ 12%) Dark Green-Grey 75% G15

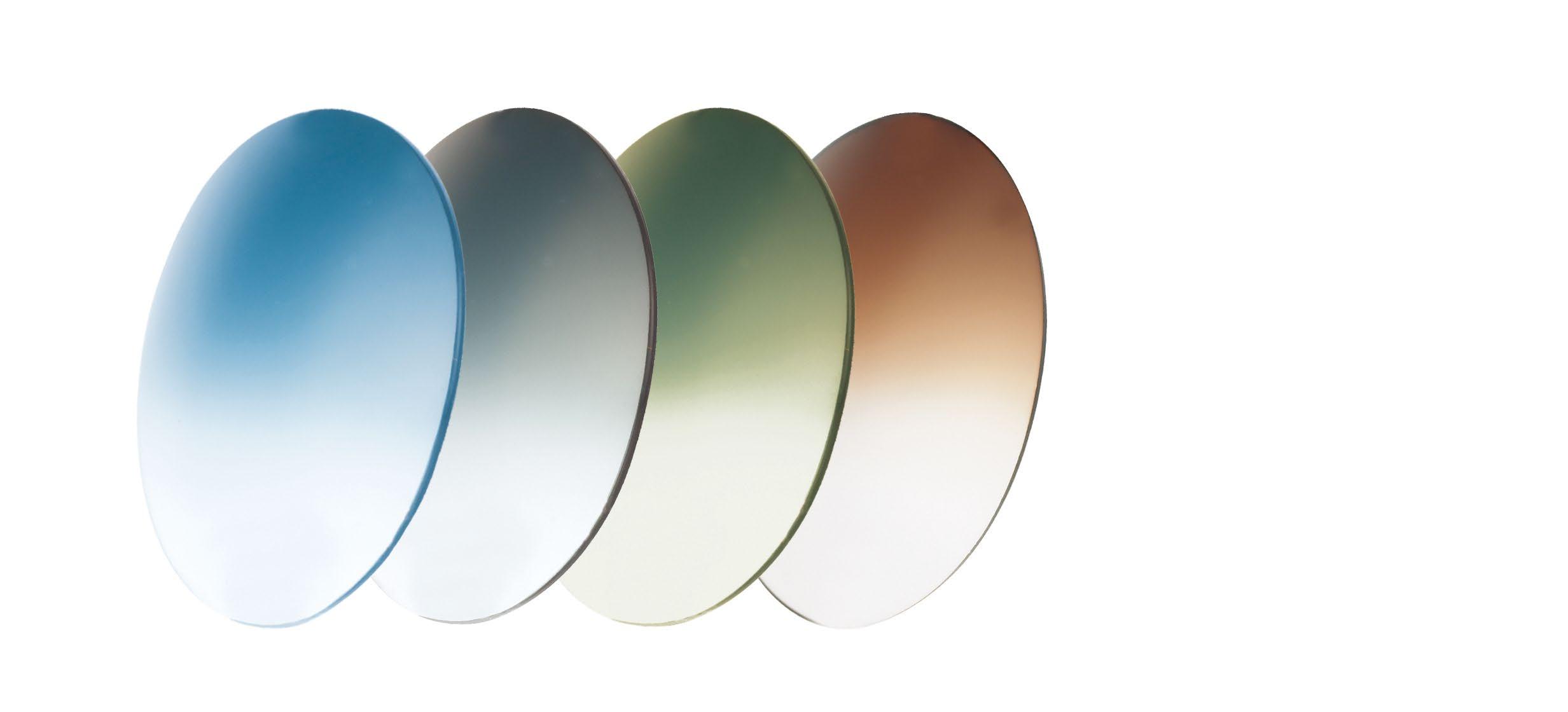

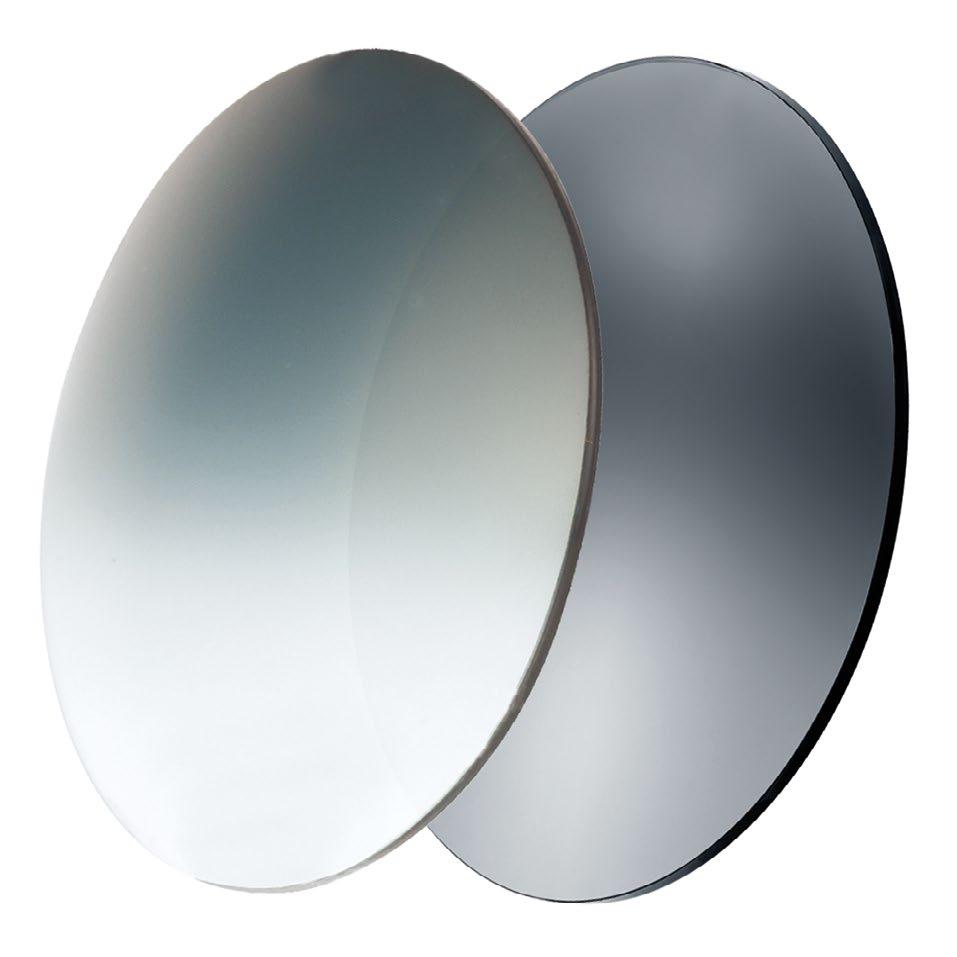

Gradient Ref. 06293 Ref. 06294 Ref. 06295 FC2 (τ 38%) FC2 (τ 30-32%) FC1 (τ 50%) Medium Gray Medium Brown Light Cobalt Gradient Gradient Gradient 60% 35% 60%

EQUIPMENTS

PLIERS

TOOLS

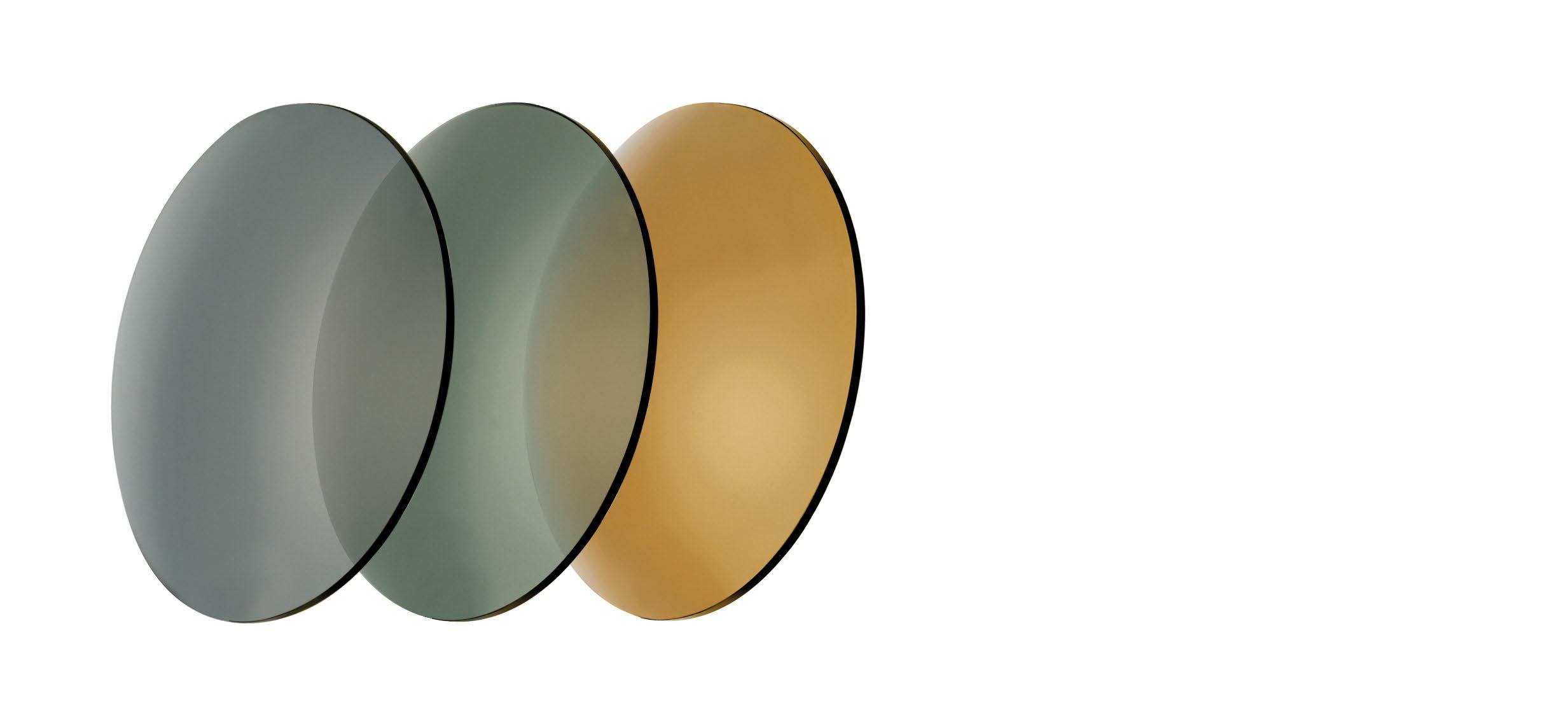

Ref. 06290 FC3 (τ 9-12%) Dark Grey 75%

1,8 mm

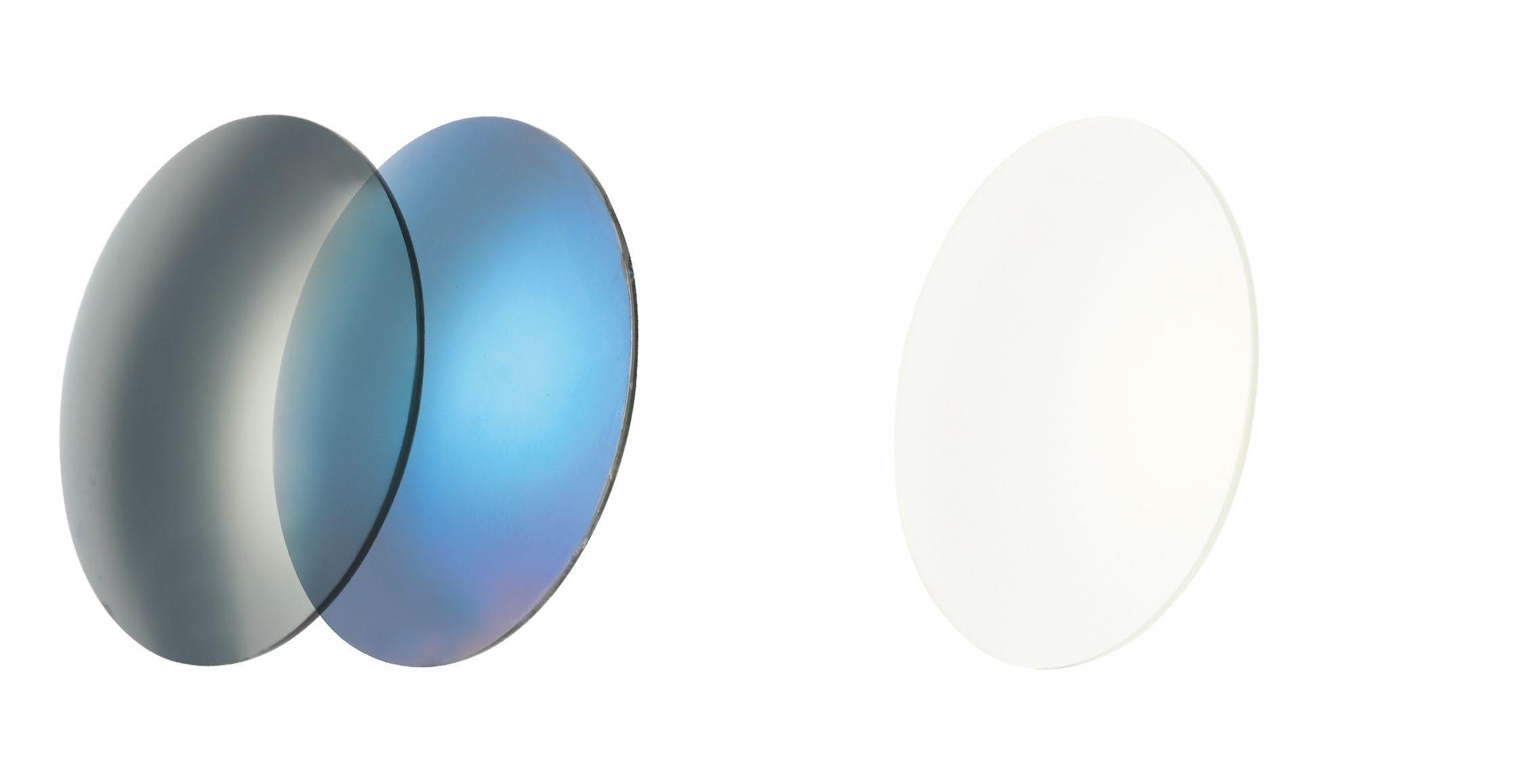

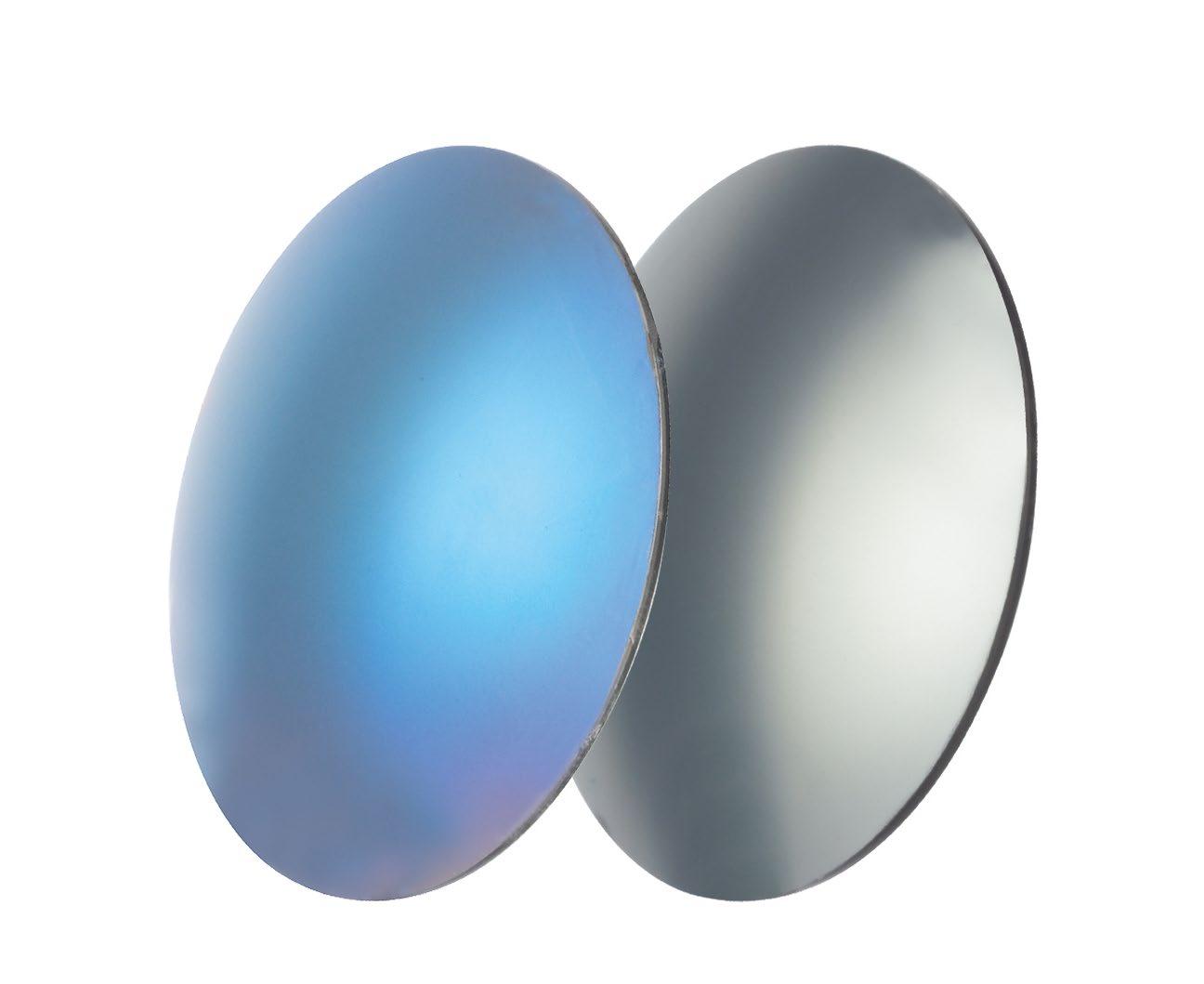

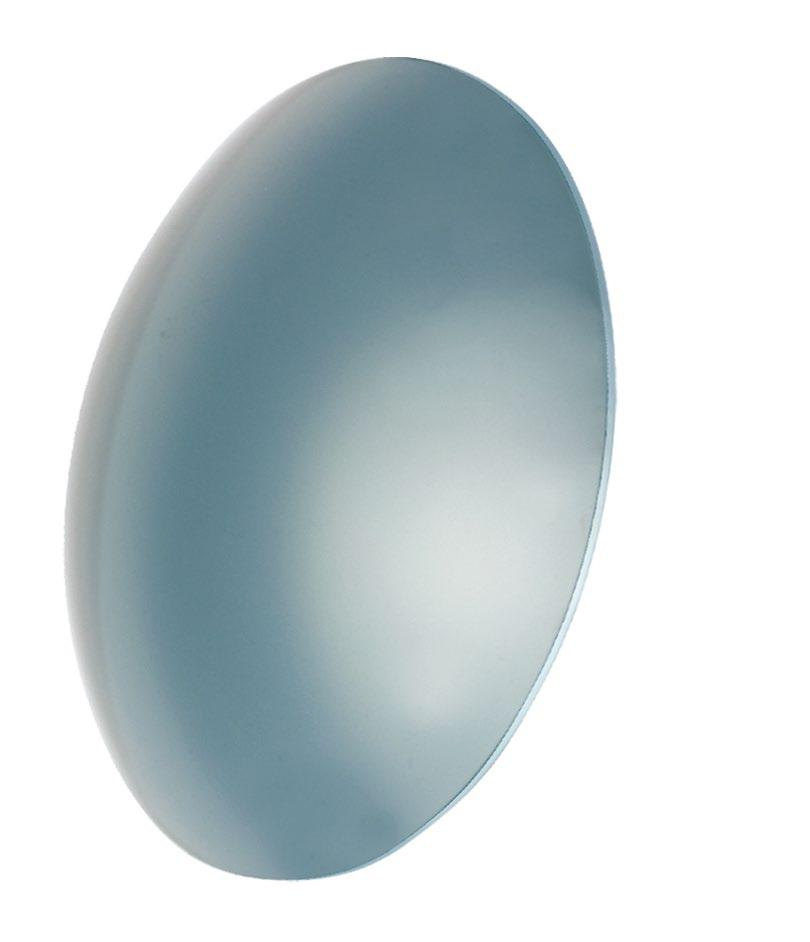

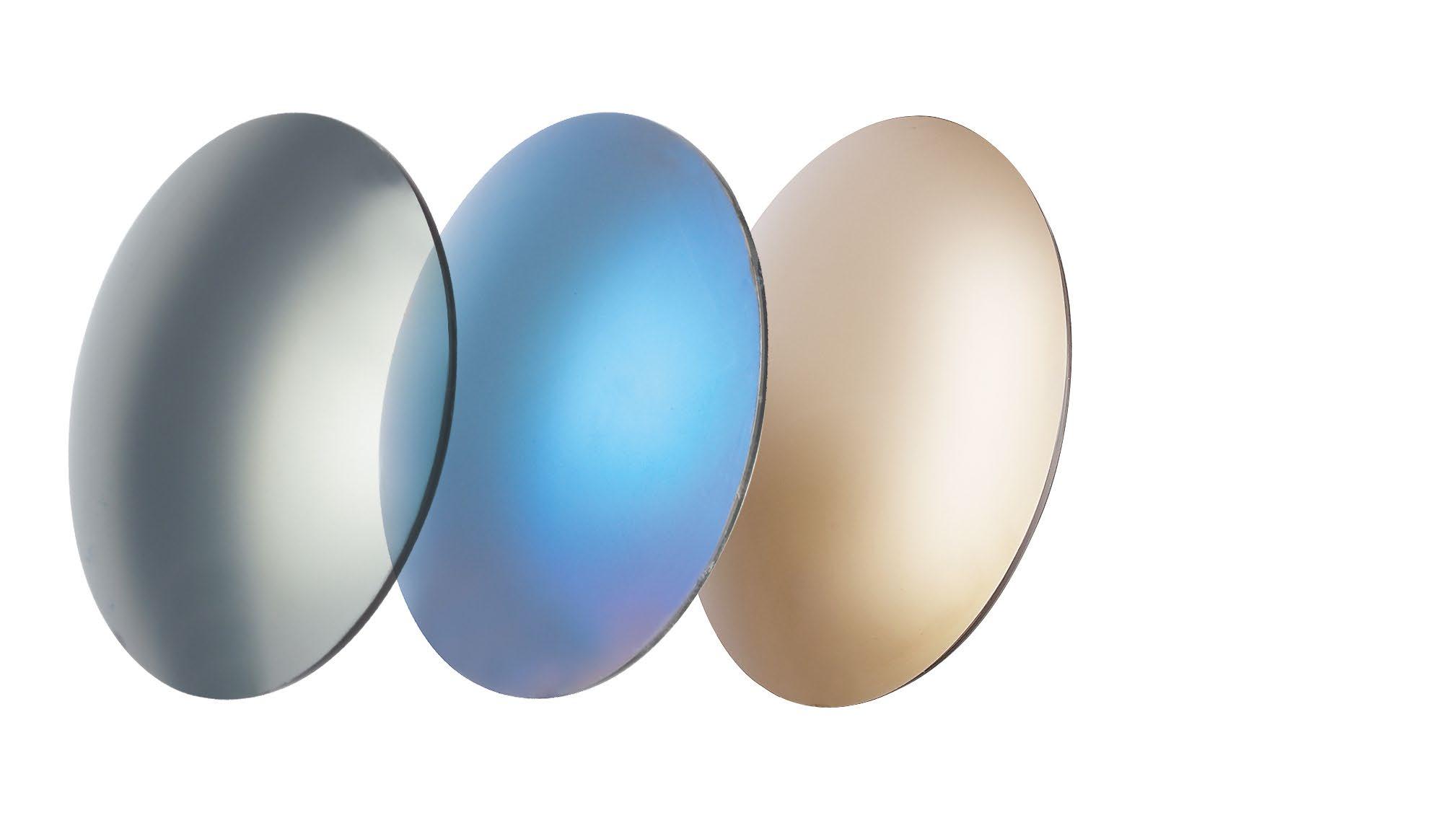

Mirror Ref. 06297 FC3 (τ 15-17%) Blue Mirror Base Grey 75%

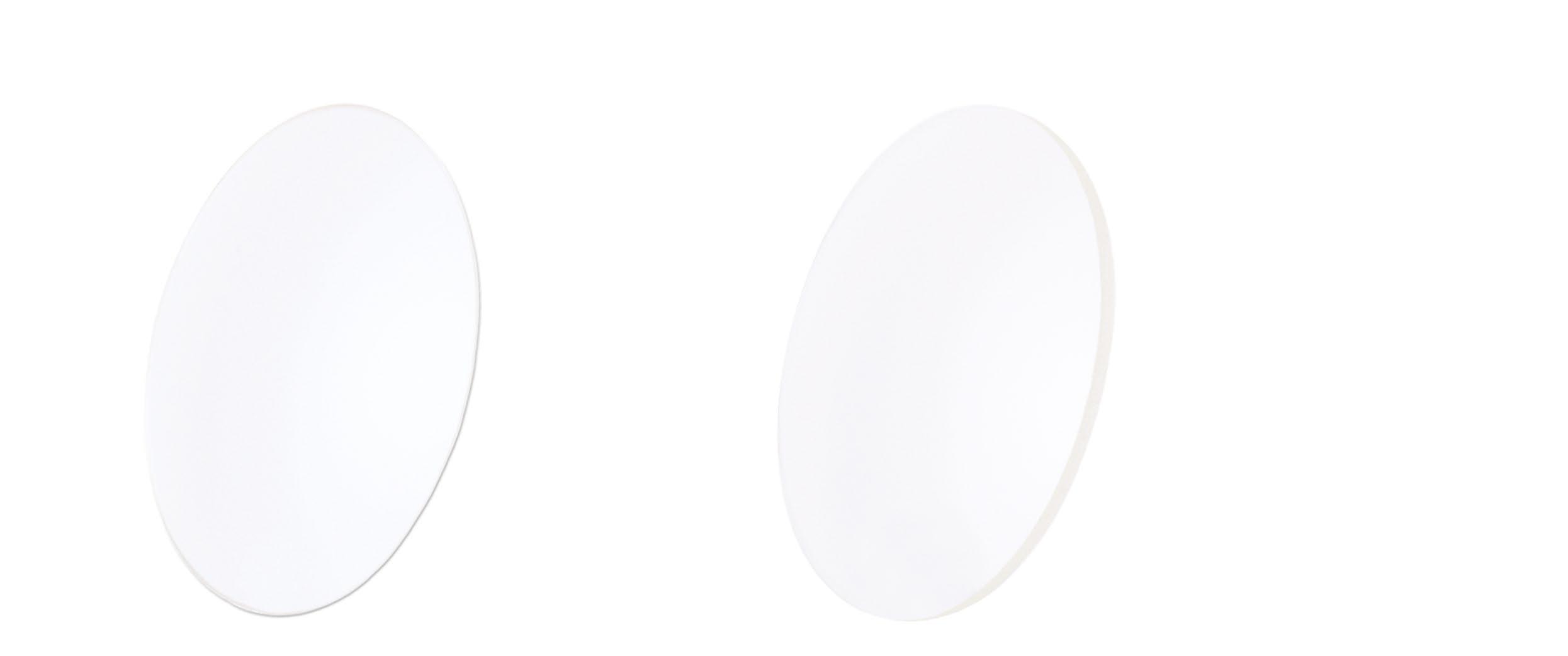

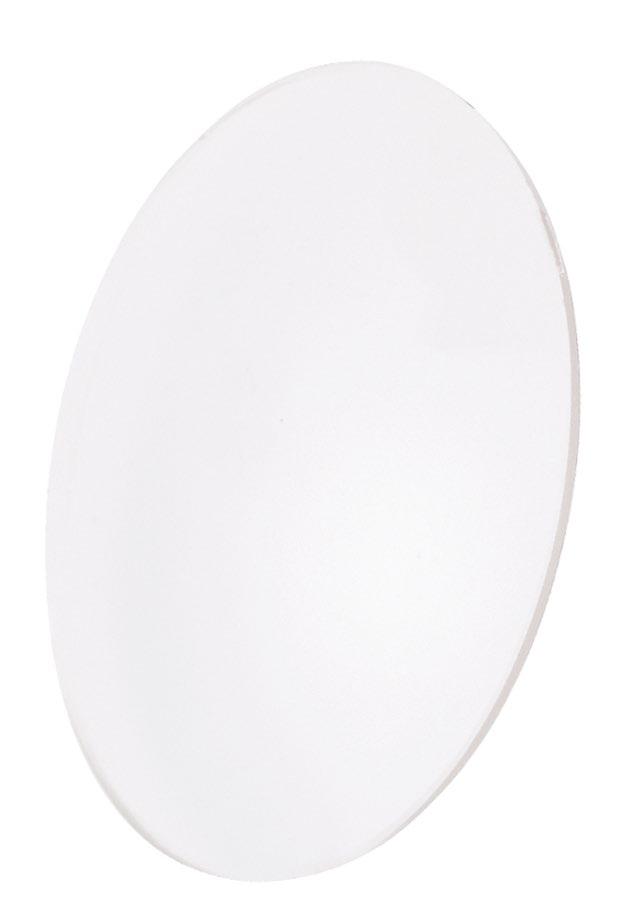

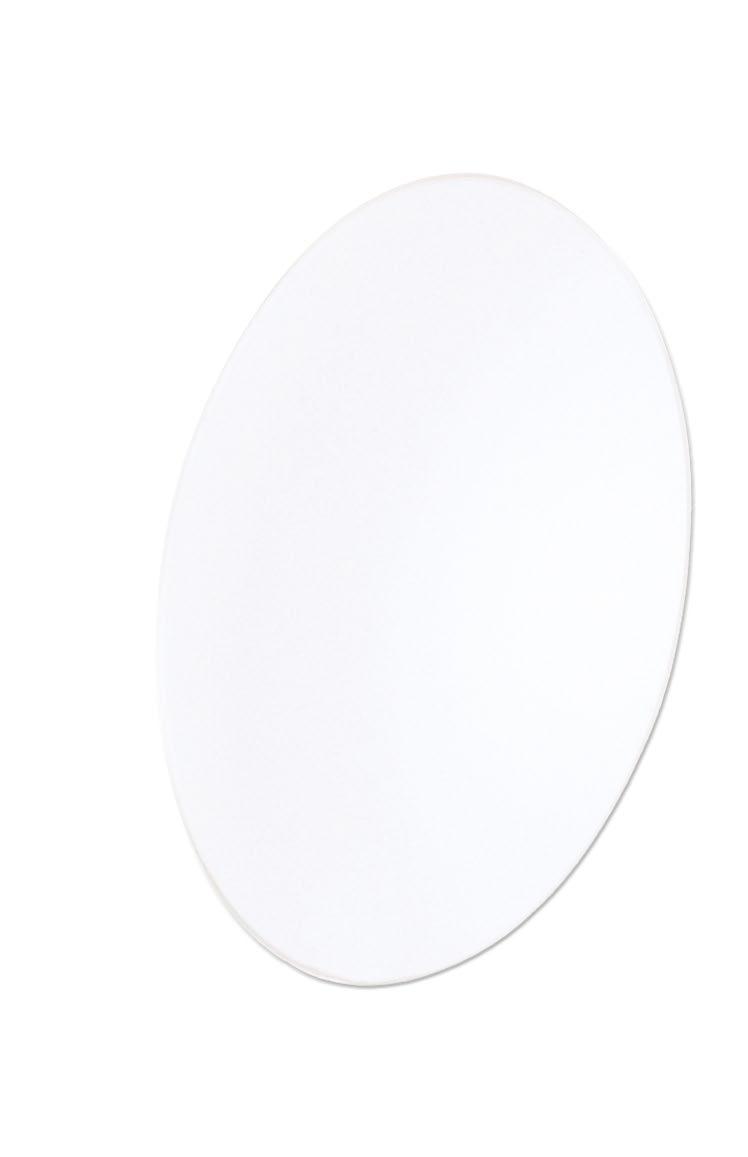

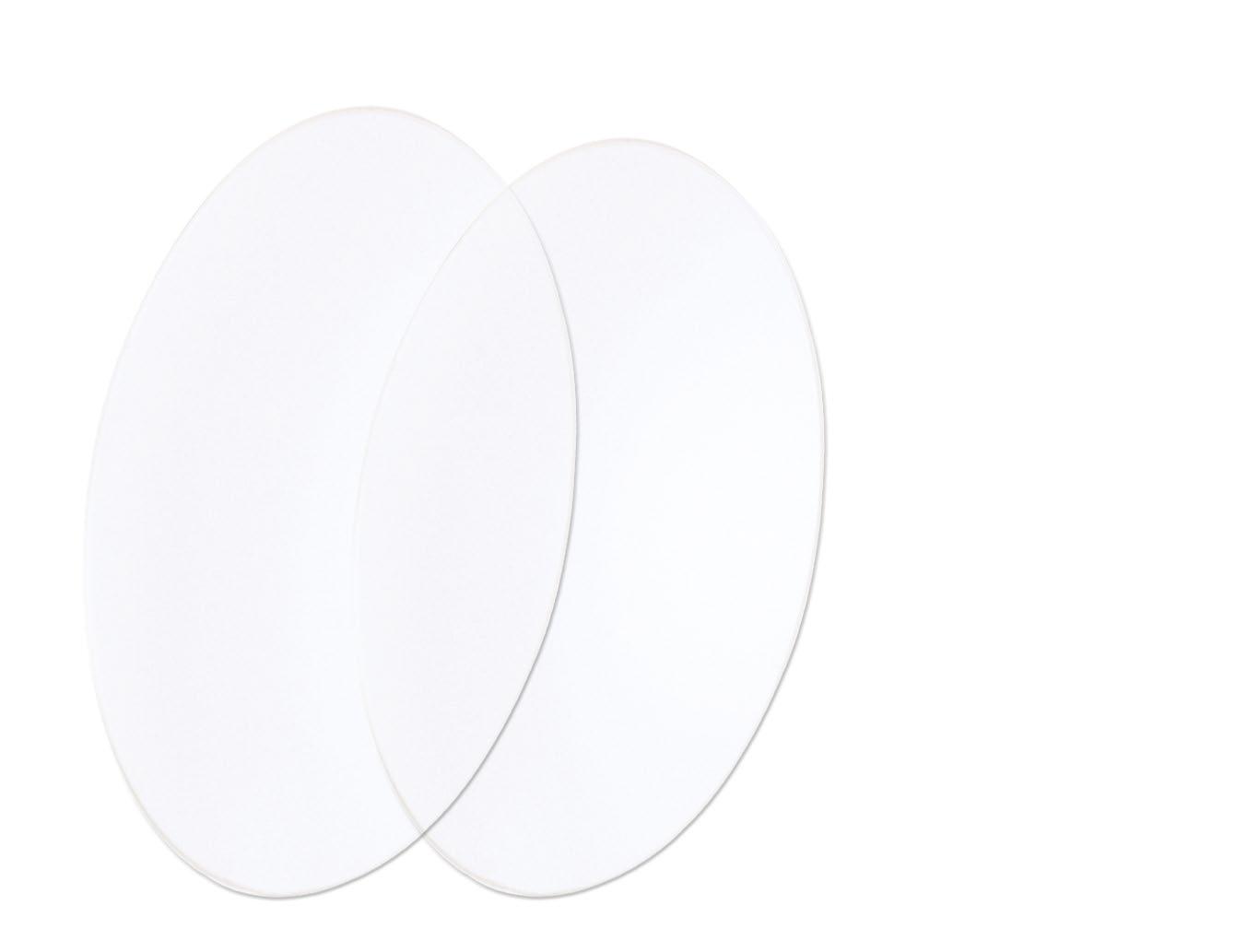

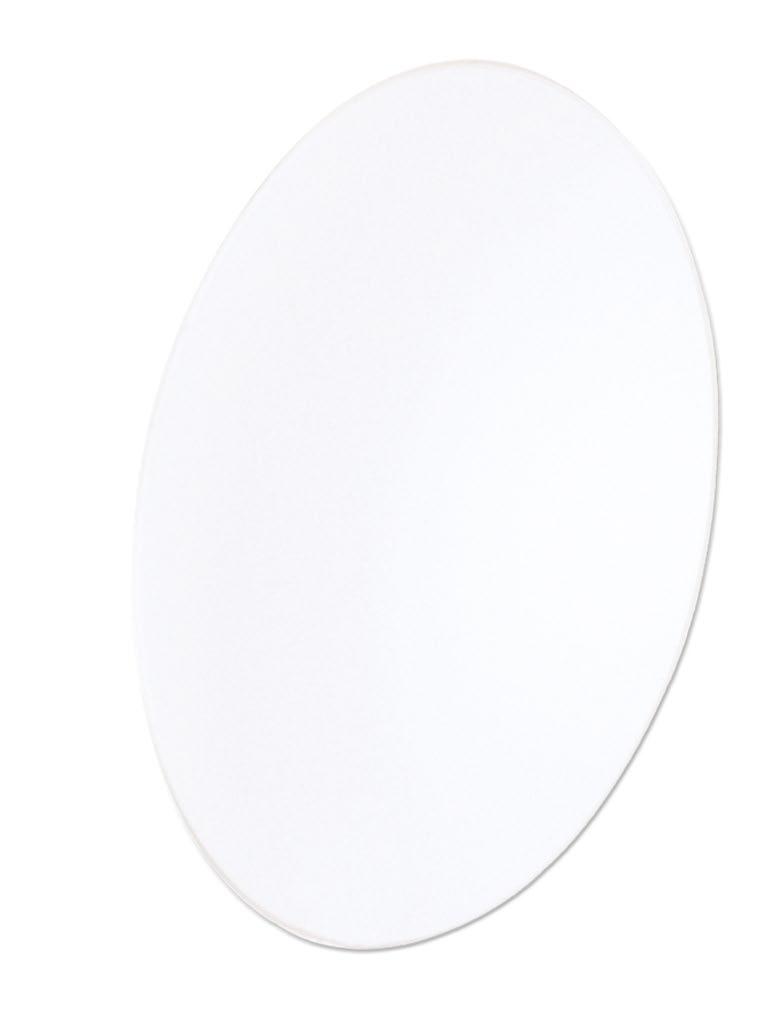

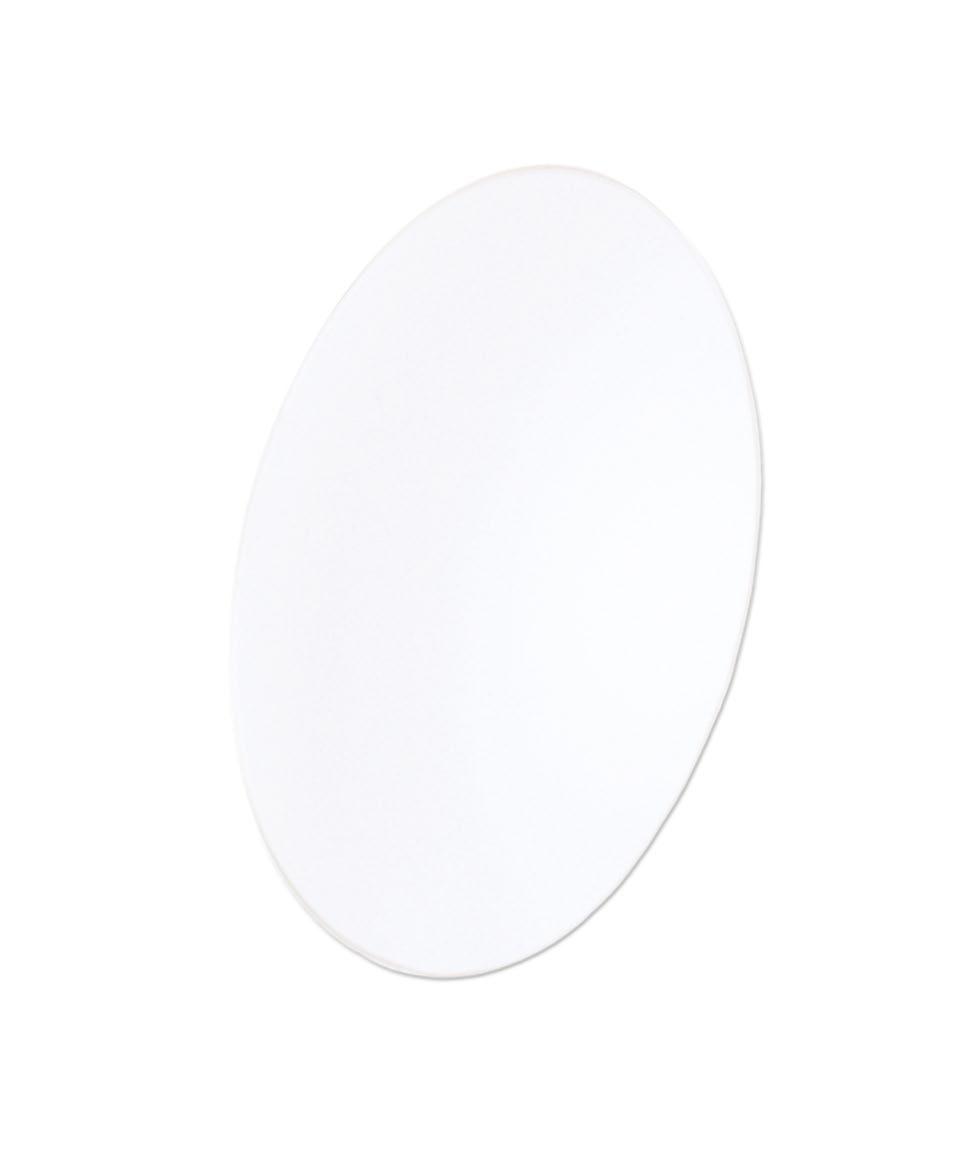

Ref. 06299 FC0 (τ 92%) Clear UV400

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

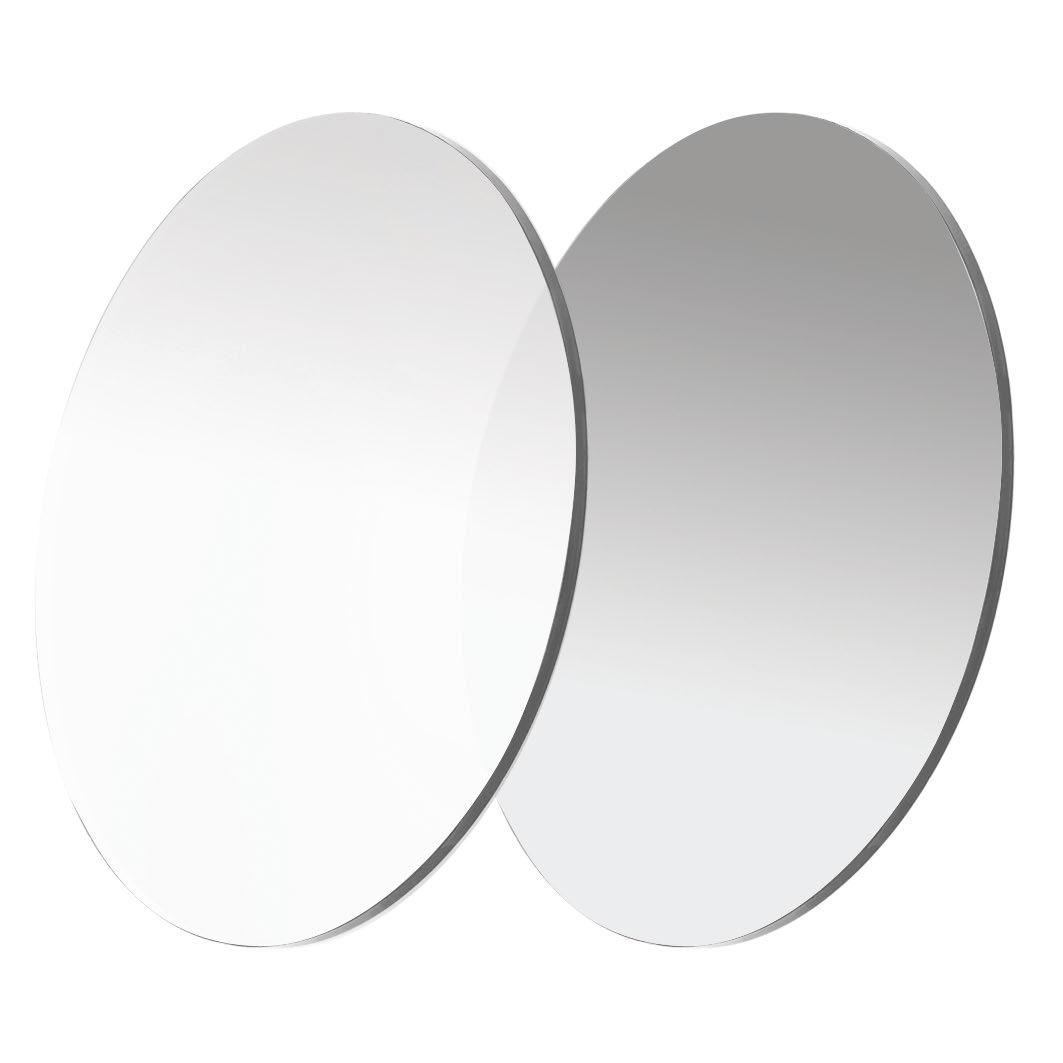

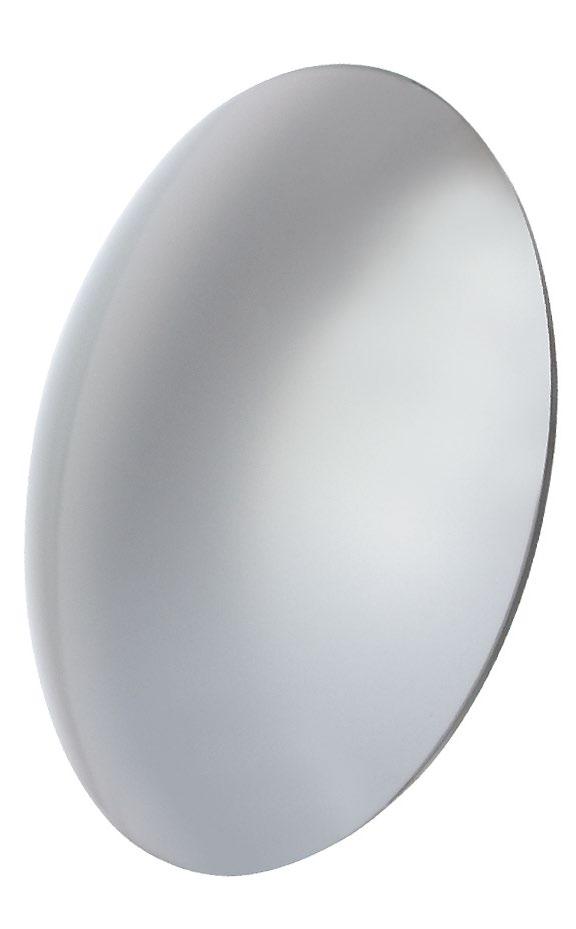

Ref. 06296 FC3 (τ 8-10%) Silver Mirror Base Grey 75%

Clear

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

6

ALL RIGHTS RESERVED ©

UV400 - Solid colour

LAB MOD SYSTEM

6.1

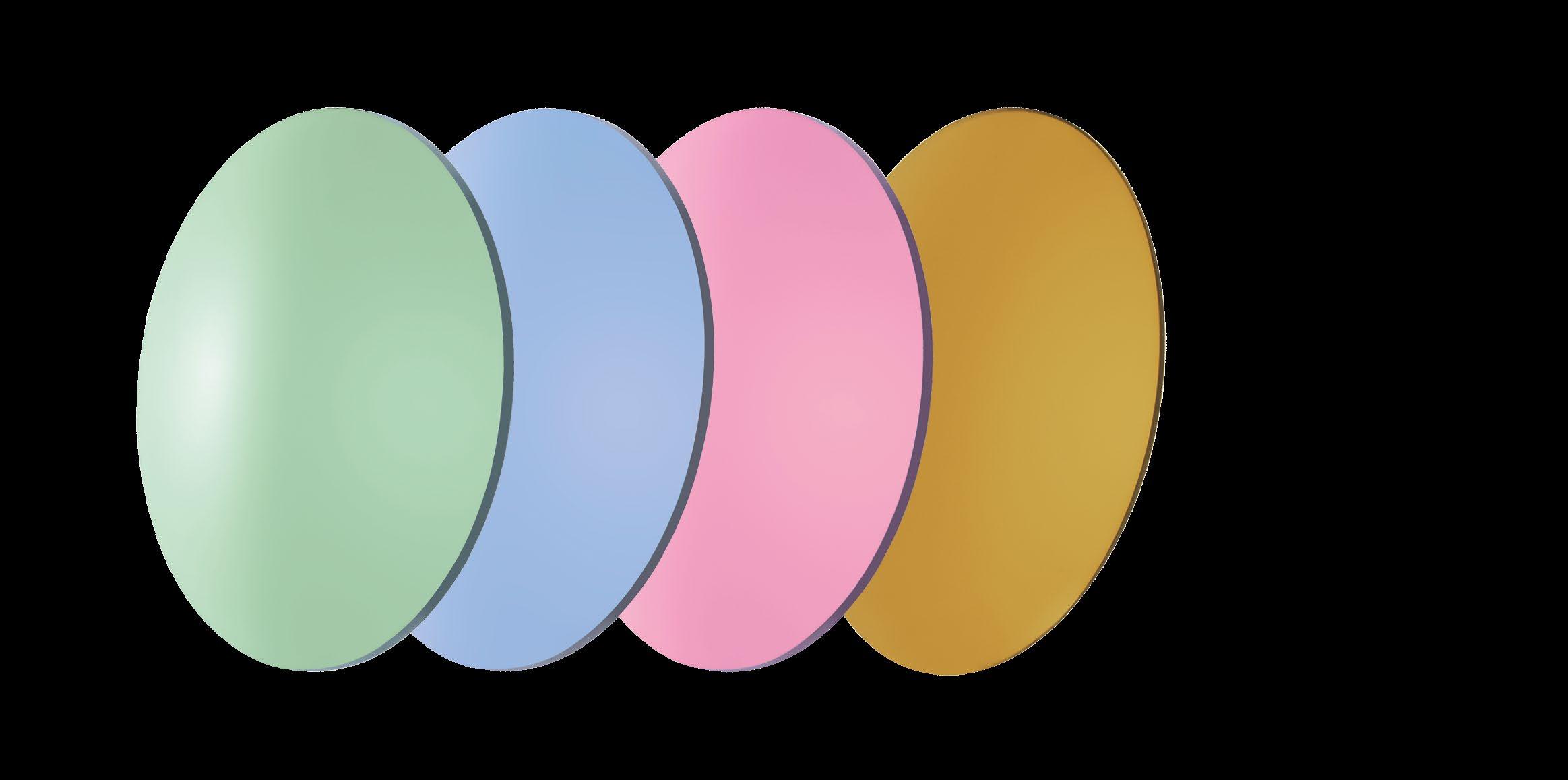

CR39 Fashion Base 2

MADE IN ITALY

1,8 mm

2 pcs.

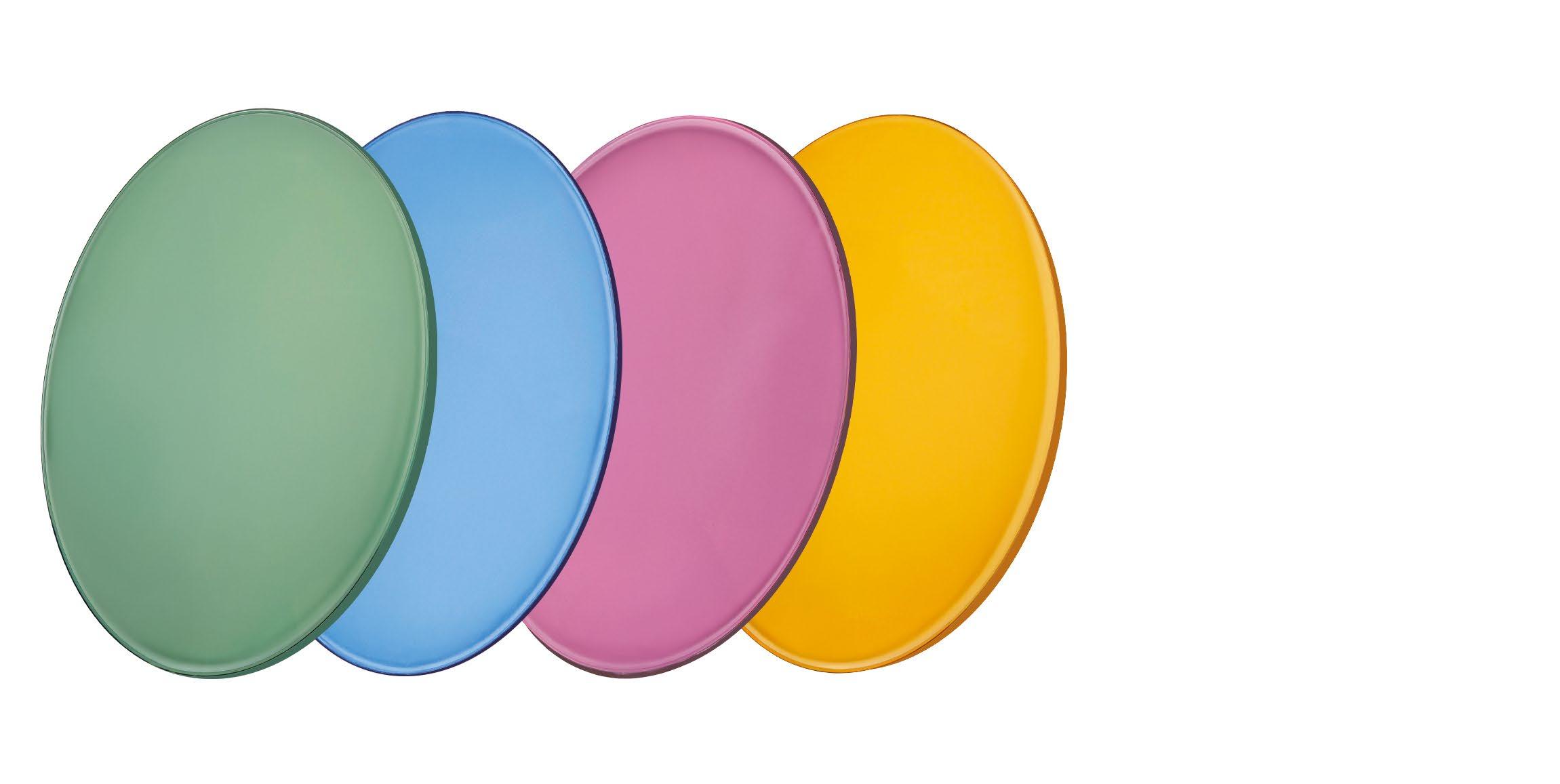

Ref. 06326 FC1 (τ 79%) Light Green 20%

Ref. 06327 FC1 (τ 62%) Light Blue 20%

Ref. 06329 FC1 (τ 72%) Light Pink 20%

Ref. 06331 FC1 (τ 57%) Light Brown 25%

NEW

NEW

NEW

NEW

FRAME PARTS

Base B 2 Ø 76 mm |

TOOLS PLIERS EQUIPMENTS LAB CONSUMABLES LENSES REFRACTION & ORTHOPTIC

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

INDEX

ALL RIGHTS RESERVED ©

7

UV400 - Very lightweight, more comfortable Base B 2 Ø 75 mm |

FRAME PARTS

LAB MOD SYSTEM

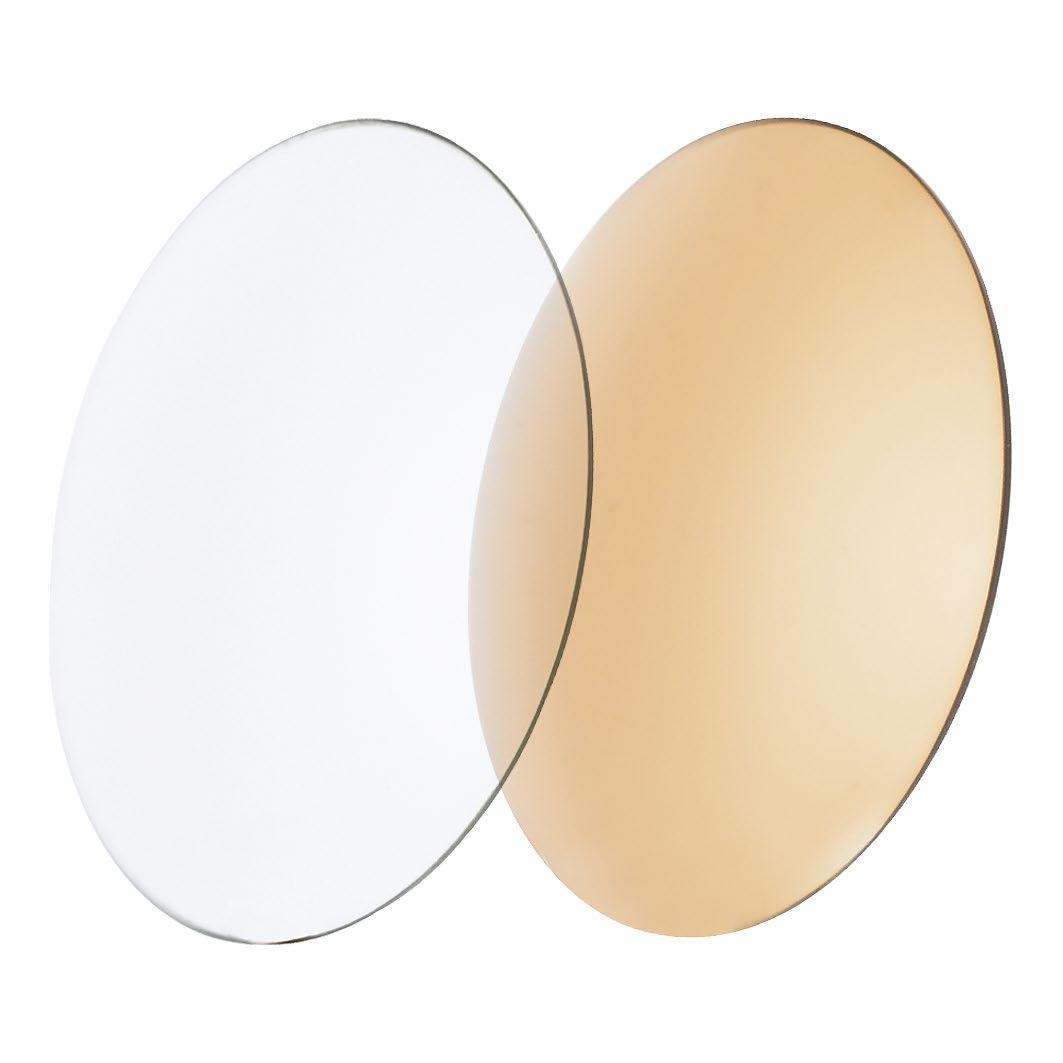

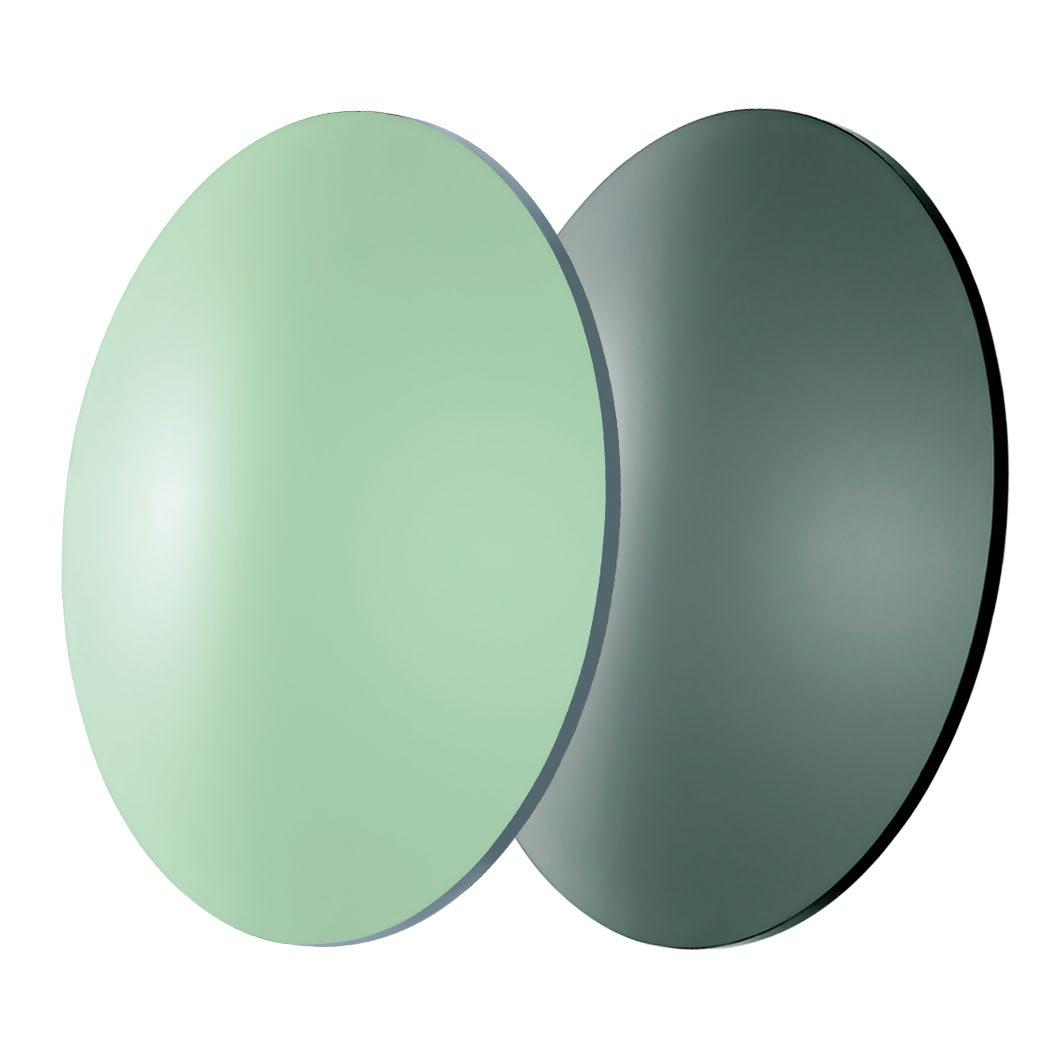

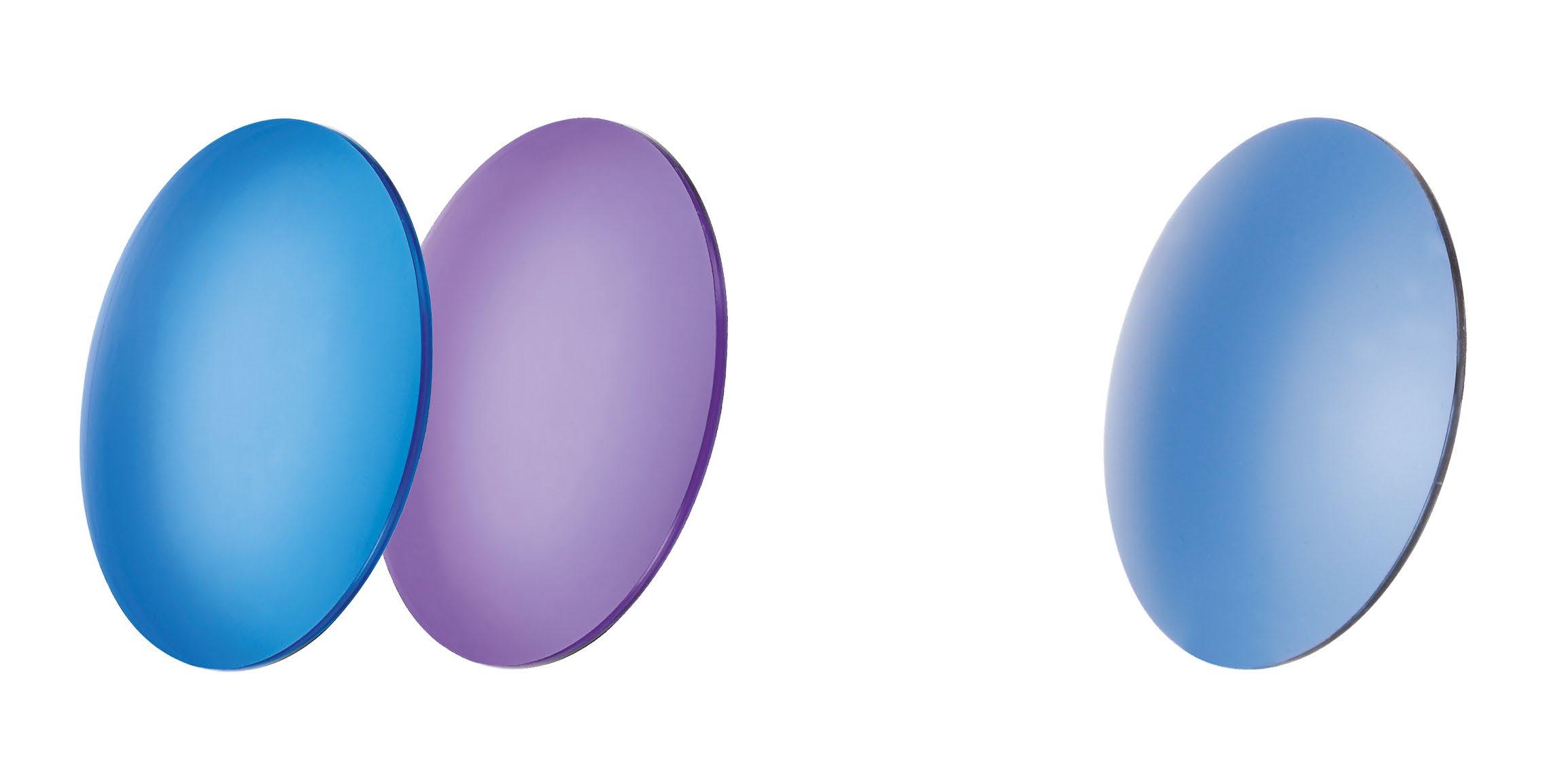

6.1 CR39 Photochromic Fashion Lenses Base 2 2,0 mm

2 pcs.

Ref. 06318 FC1 (τ 66%)

PLIERS

TOOLS

Ref. 06317 FC1 (τ 66%)

Blue 65%

Light Pink 5%

darkens in a few seconds Lightens in a few minutes

Violet 65% darkens in a few seconds

Lightens in a few minutes

Ref. 06319 FC1 (τ 72%)

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

EQUIPMENTS

Light Blue 5%

Light Green 5%

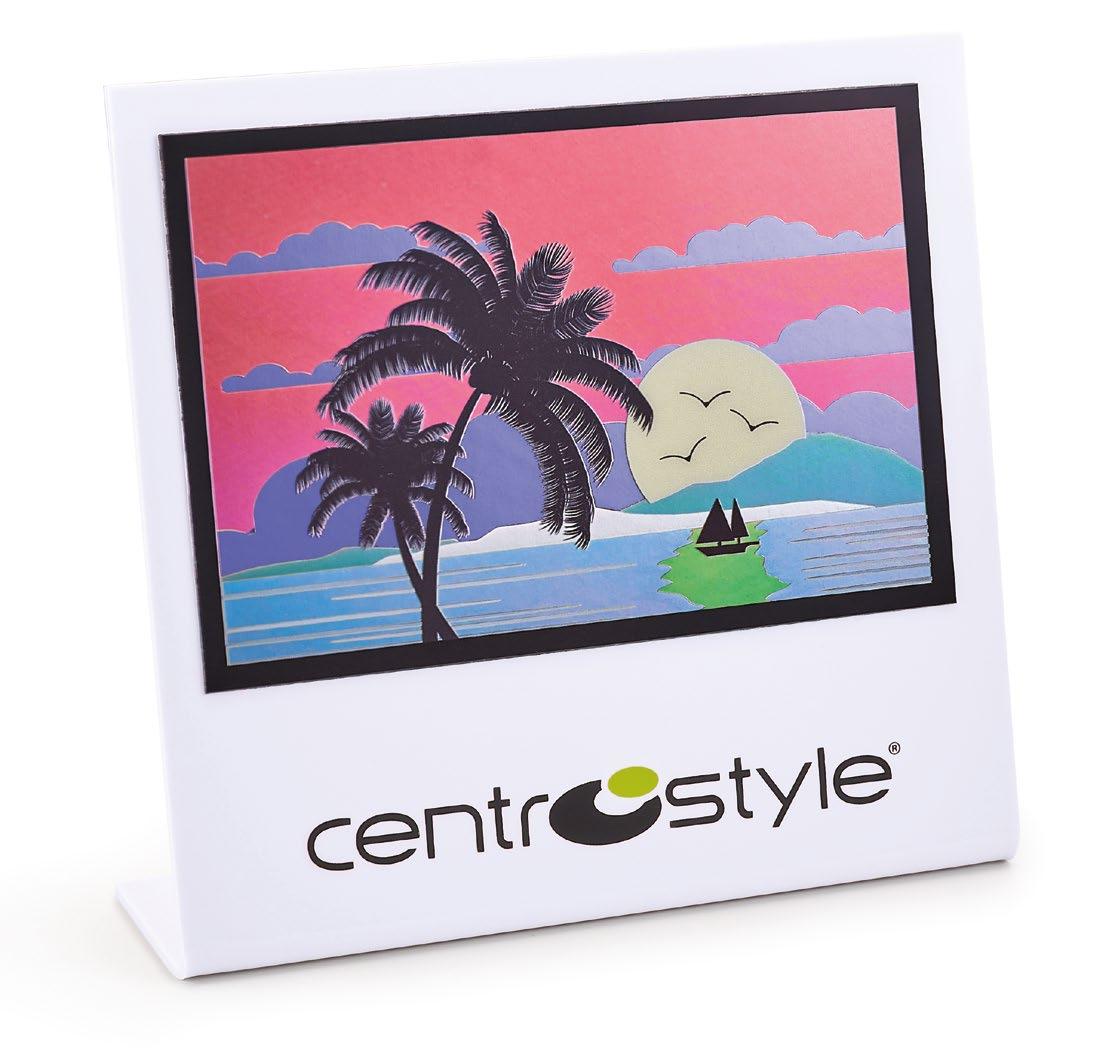

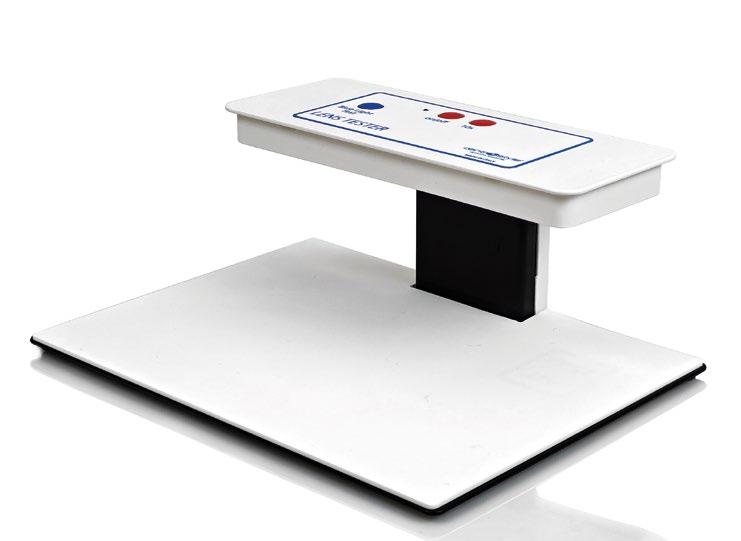

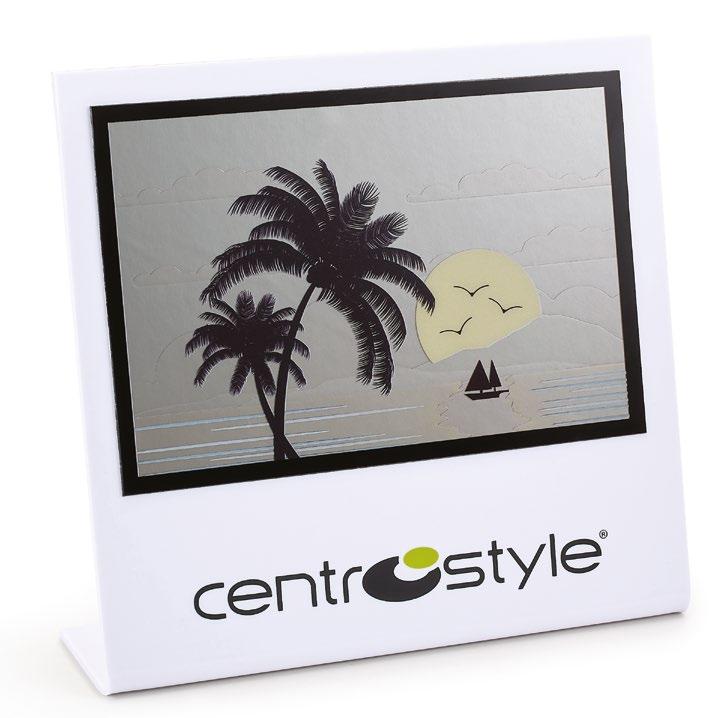

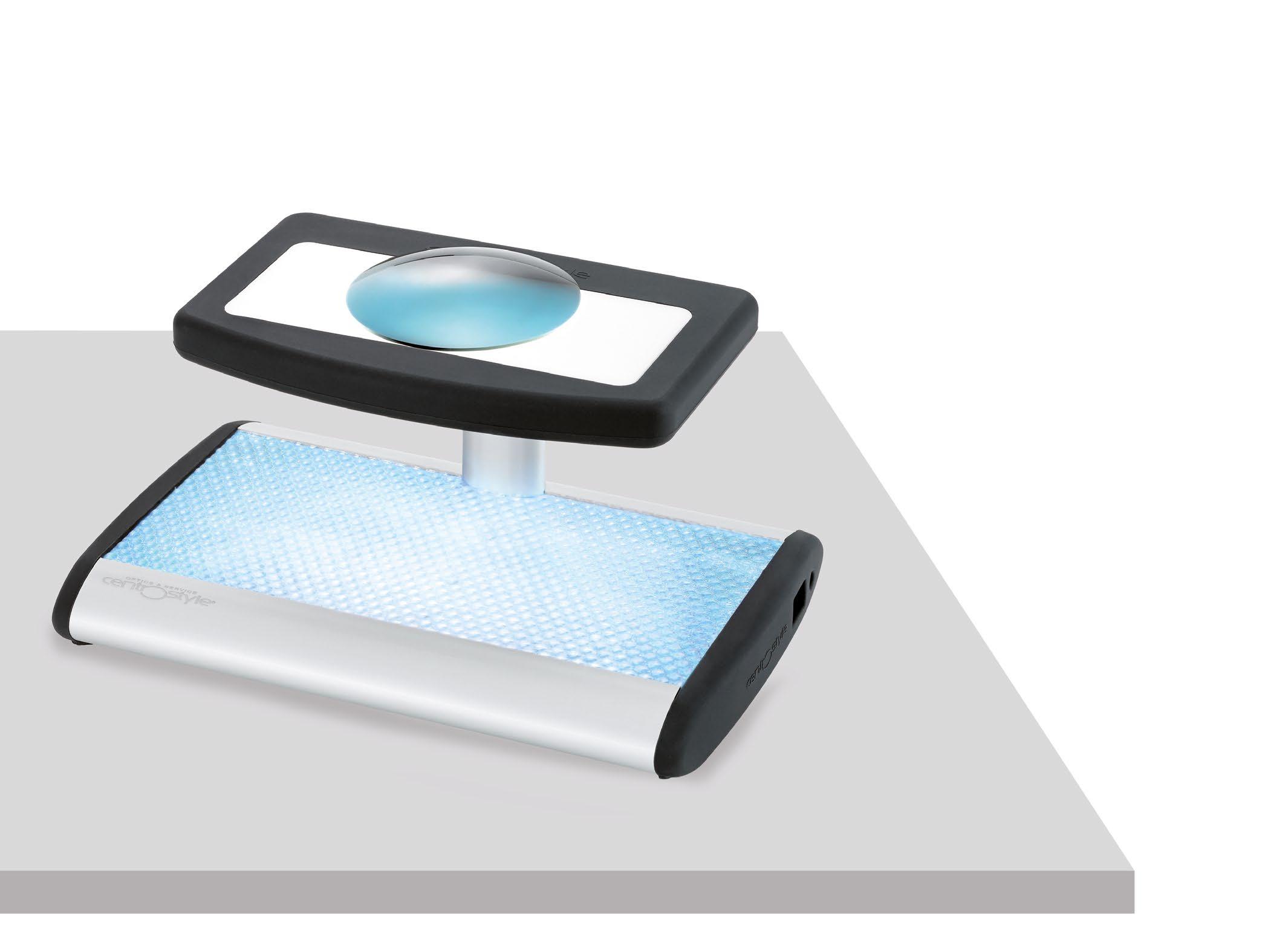

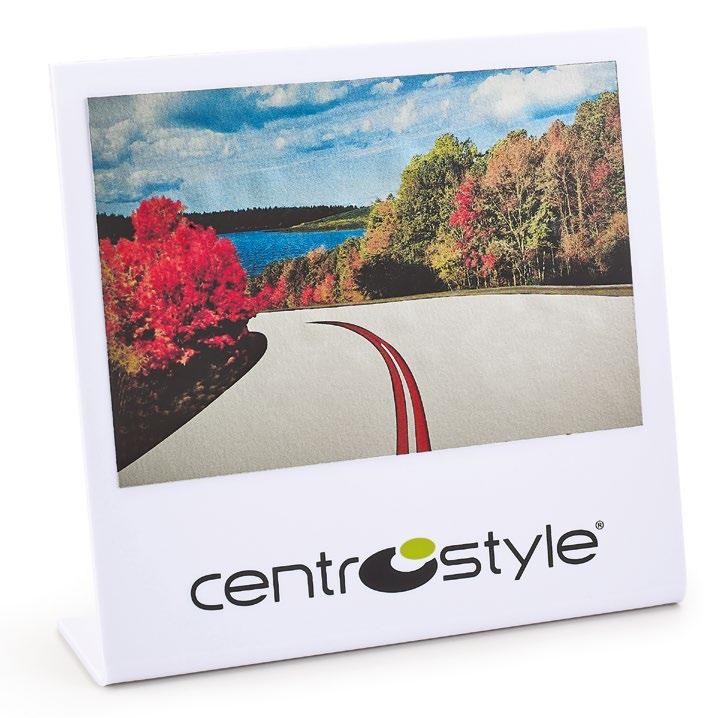

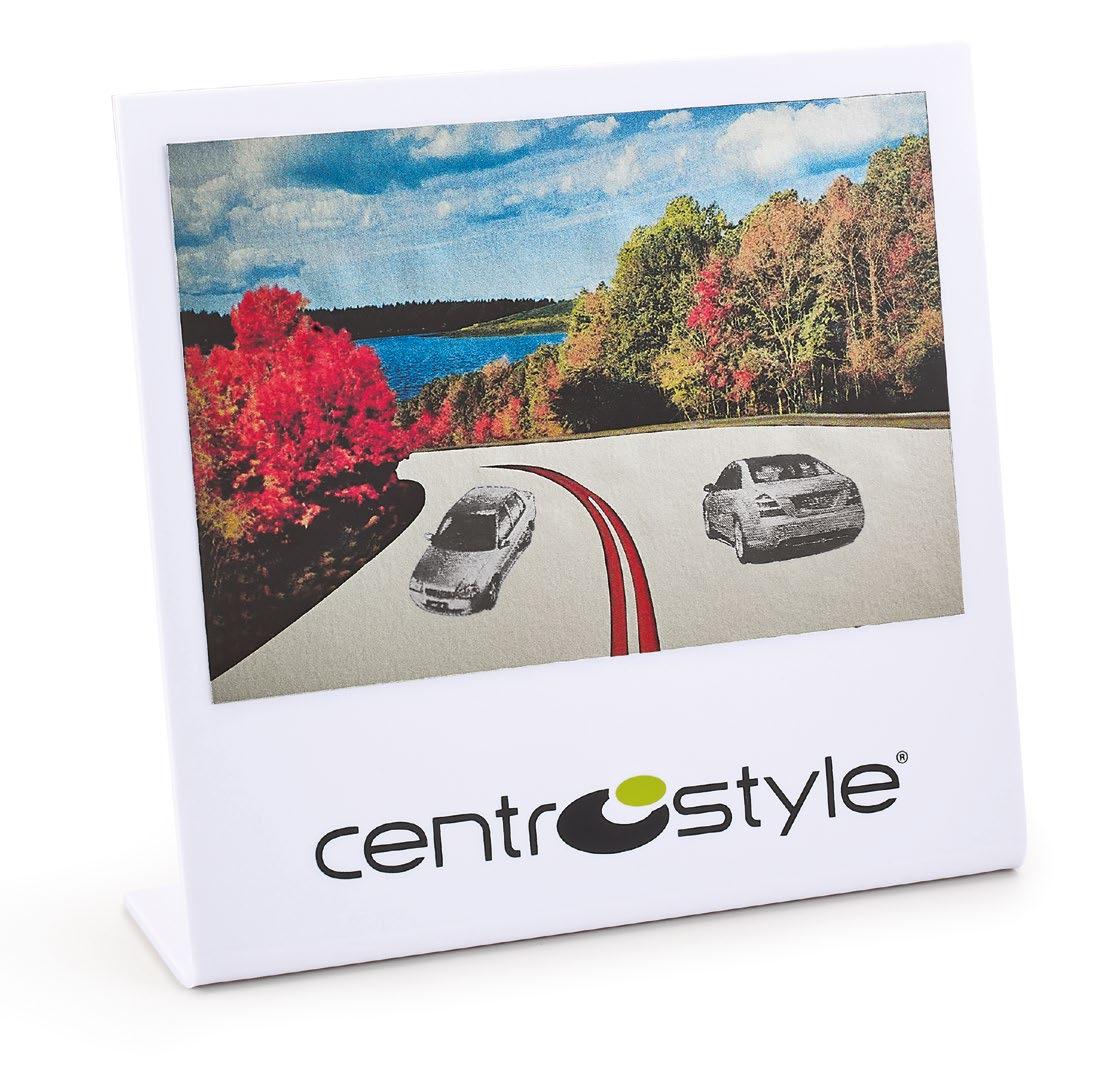

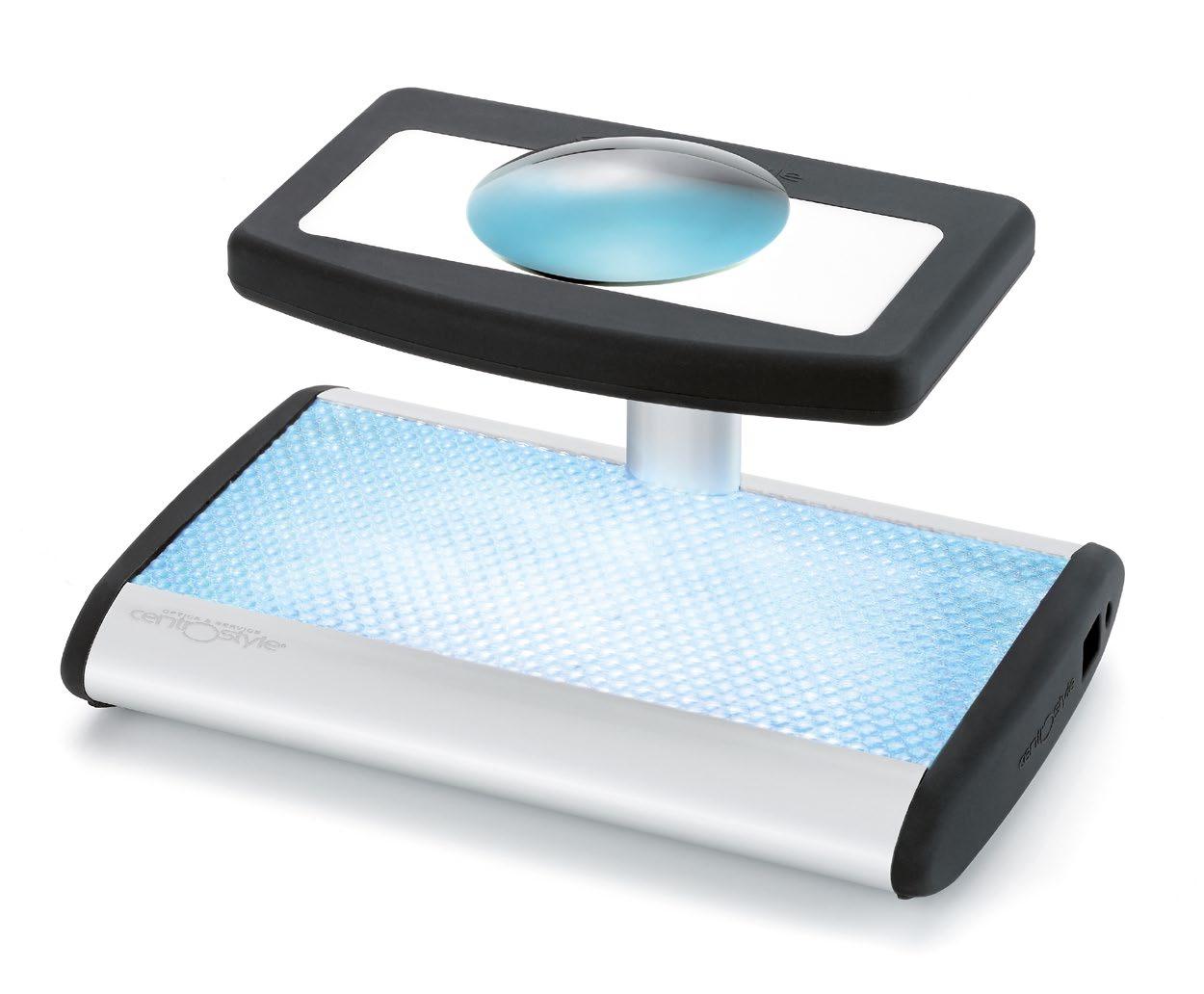

Ref. 05063 The photochromic lens tester with LED technology allows to quickly demonstrate the photochromic properties of a lens.

Green-Grey 65%

INDEX

darkens in a few seconds FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

Lightens in a few minutes

8

ALL RIGHTS RESERVED ©

UV400 - Full colour - Lenses manufactured by Carl Zeiss Vision

LAB MOD SYSTEM

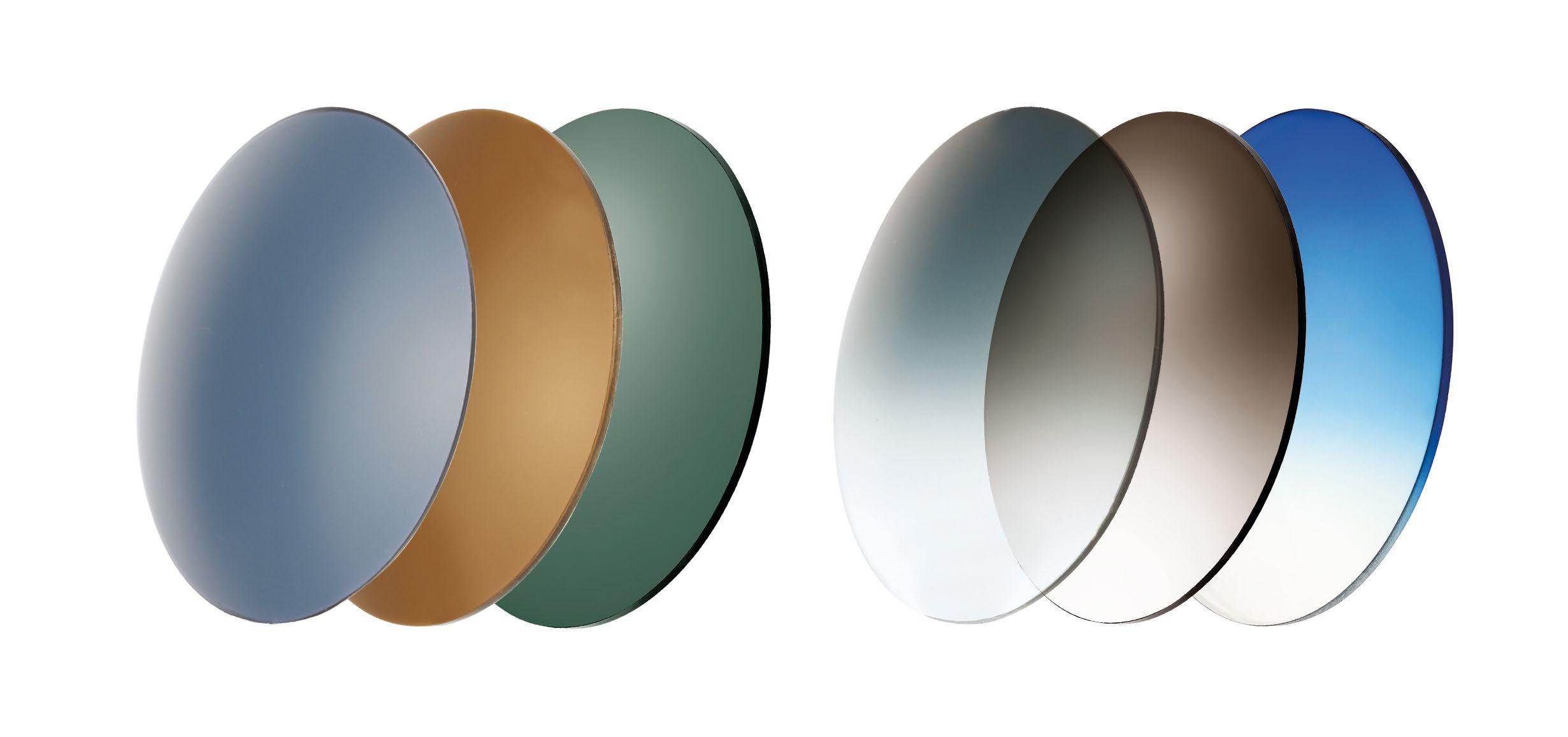

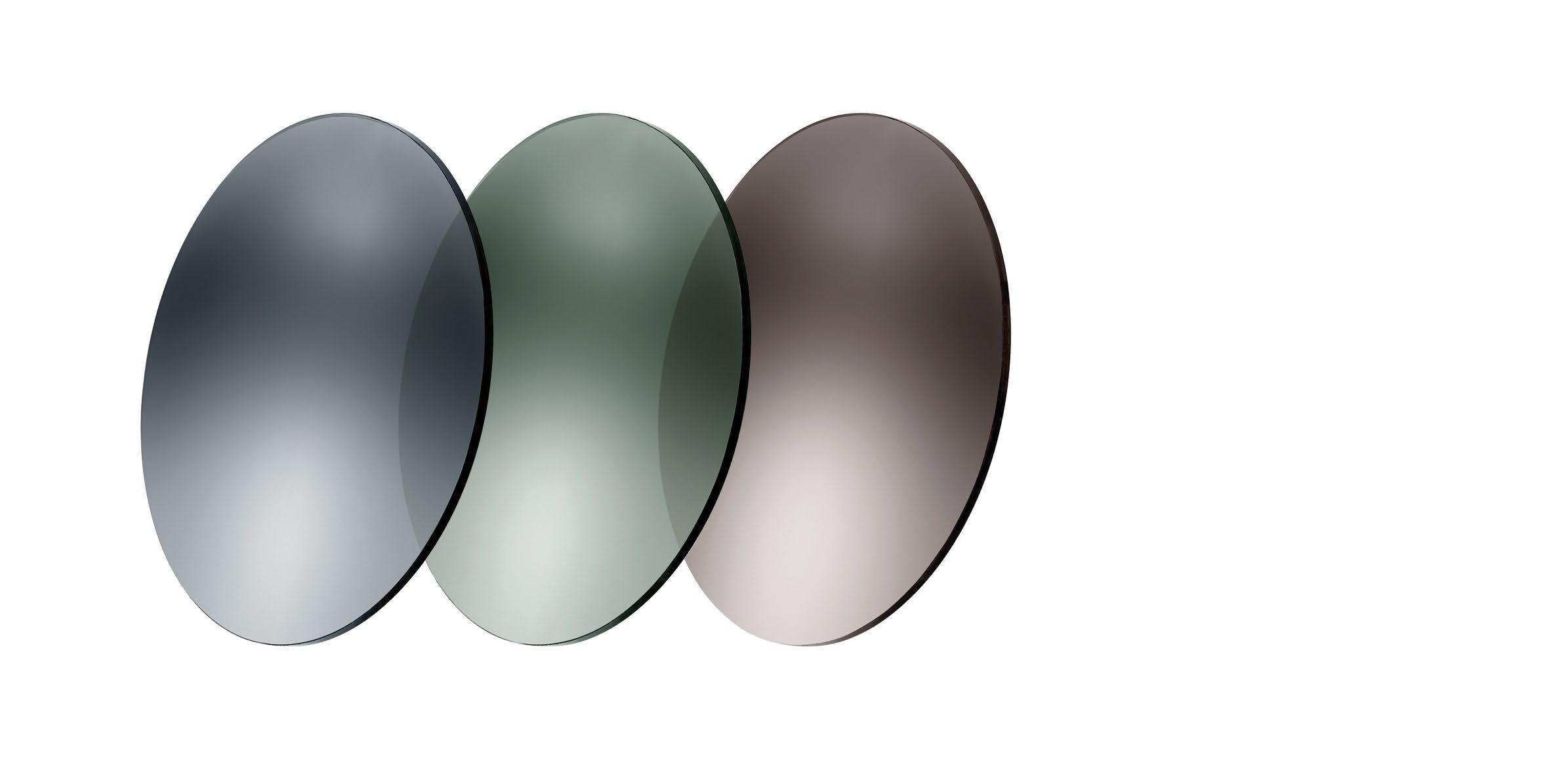

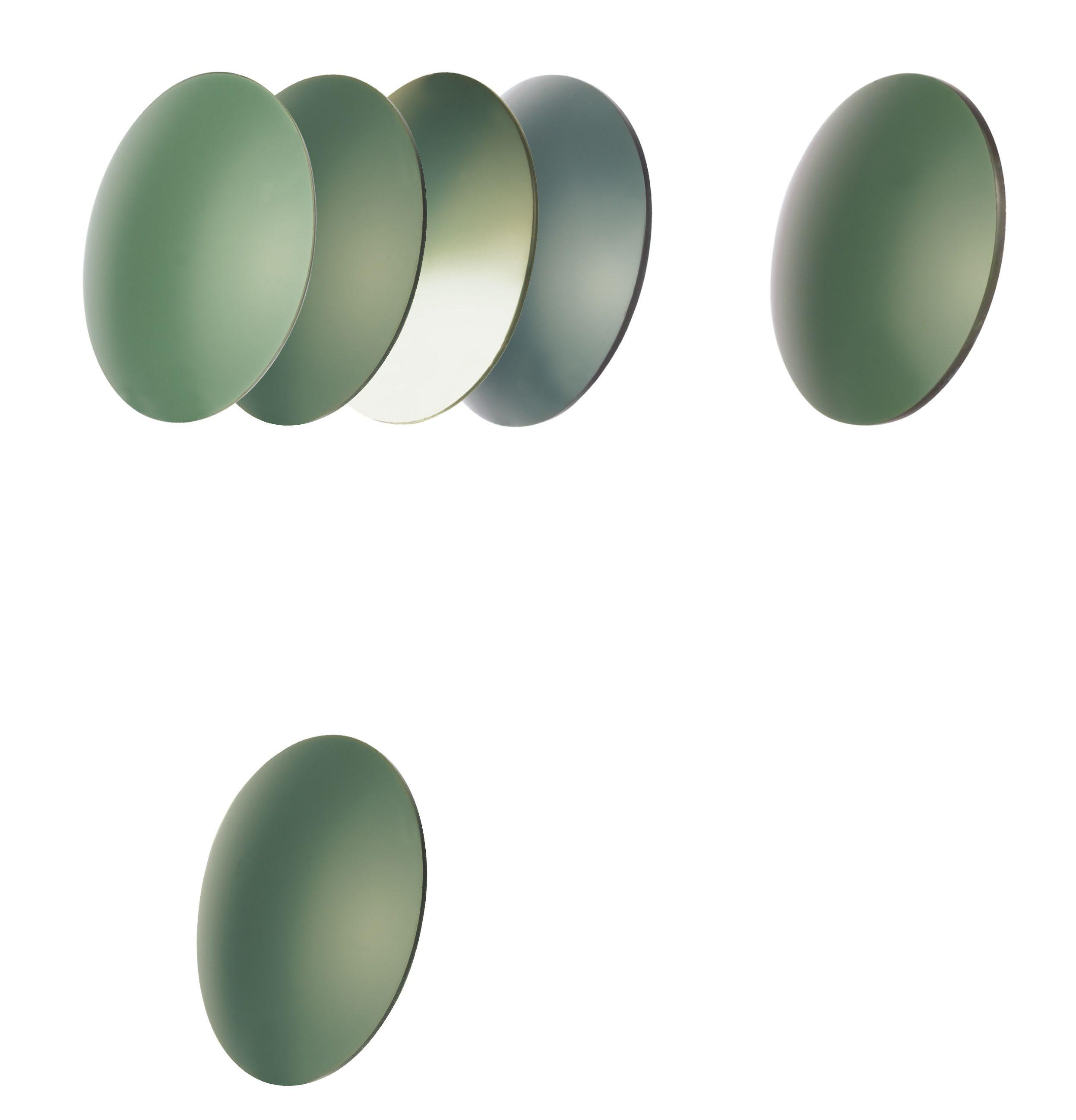

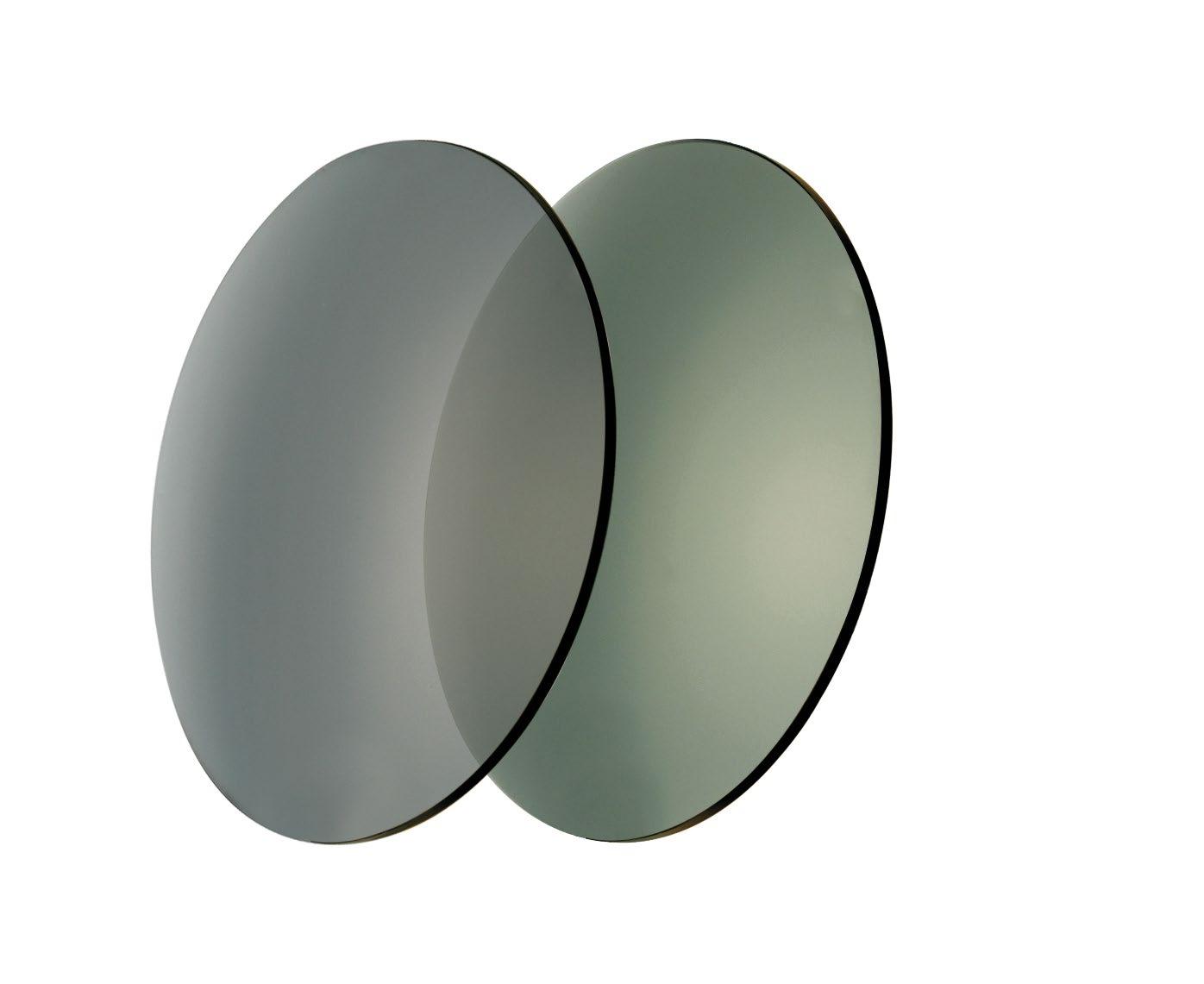

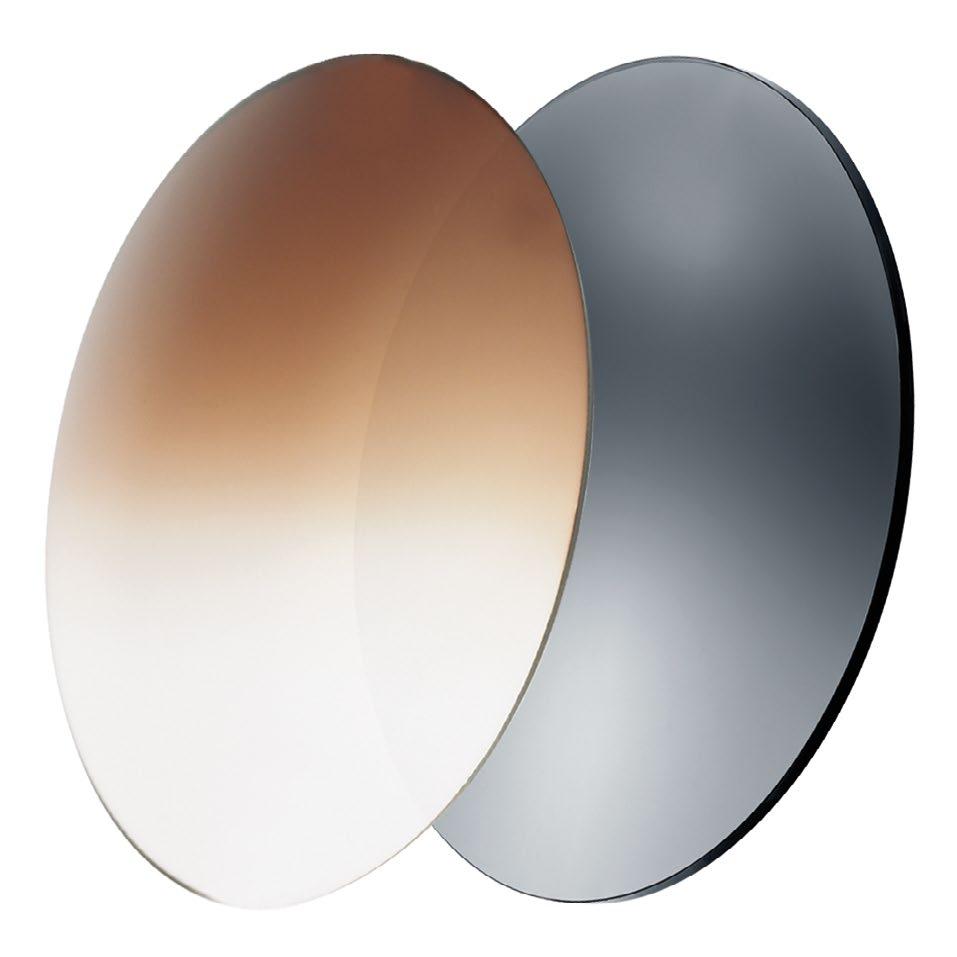

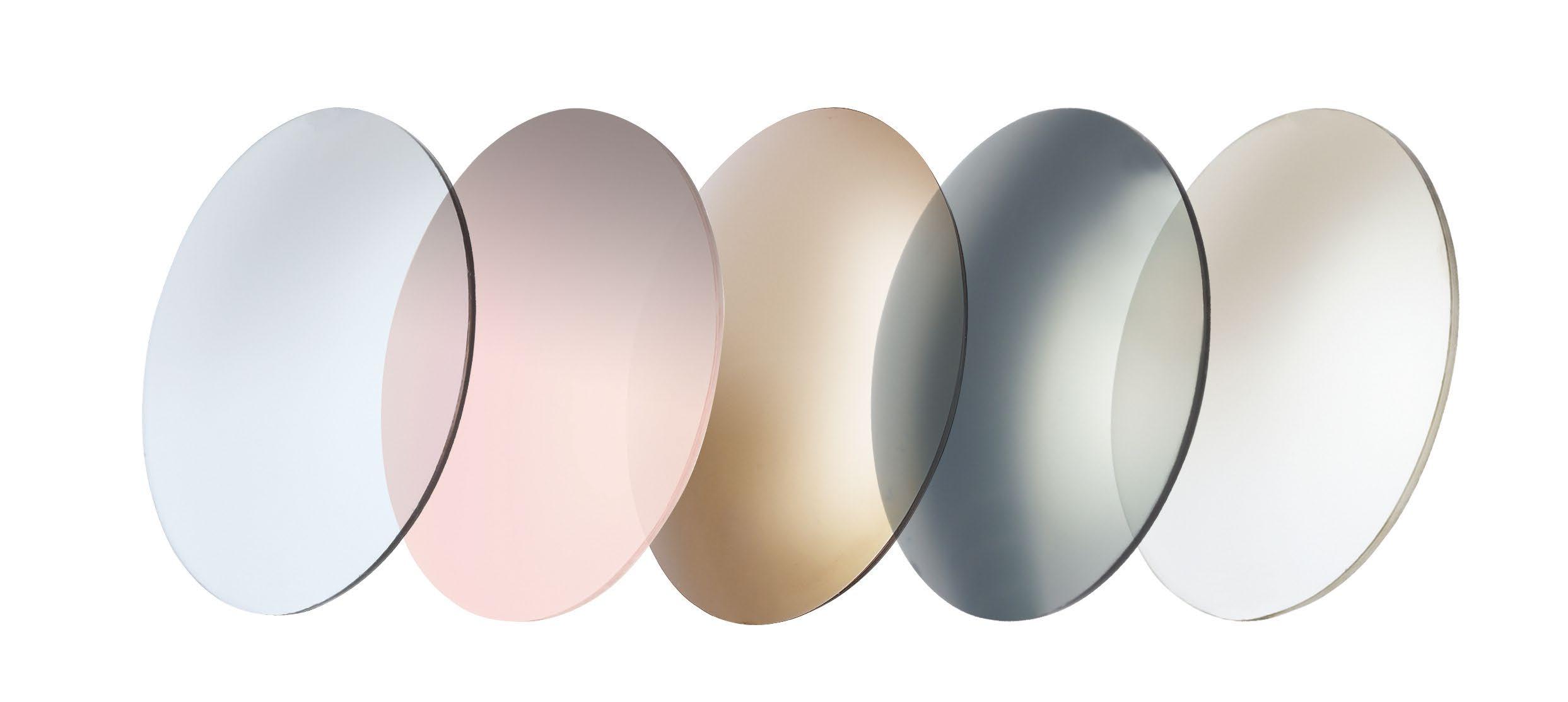

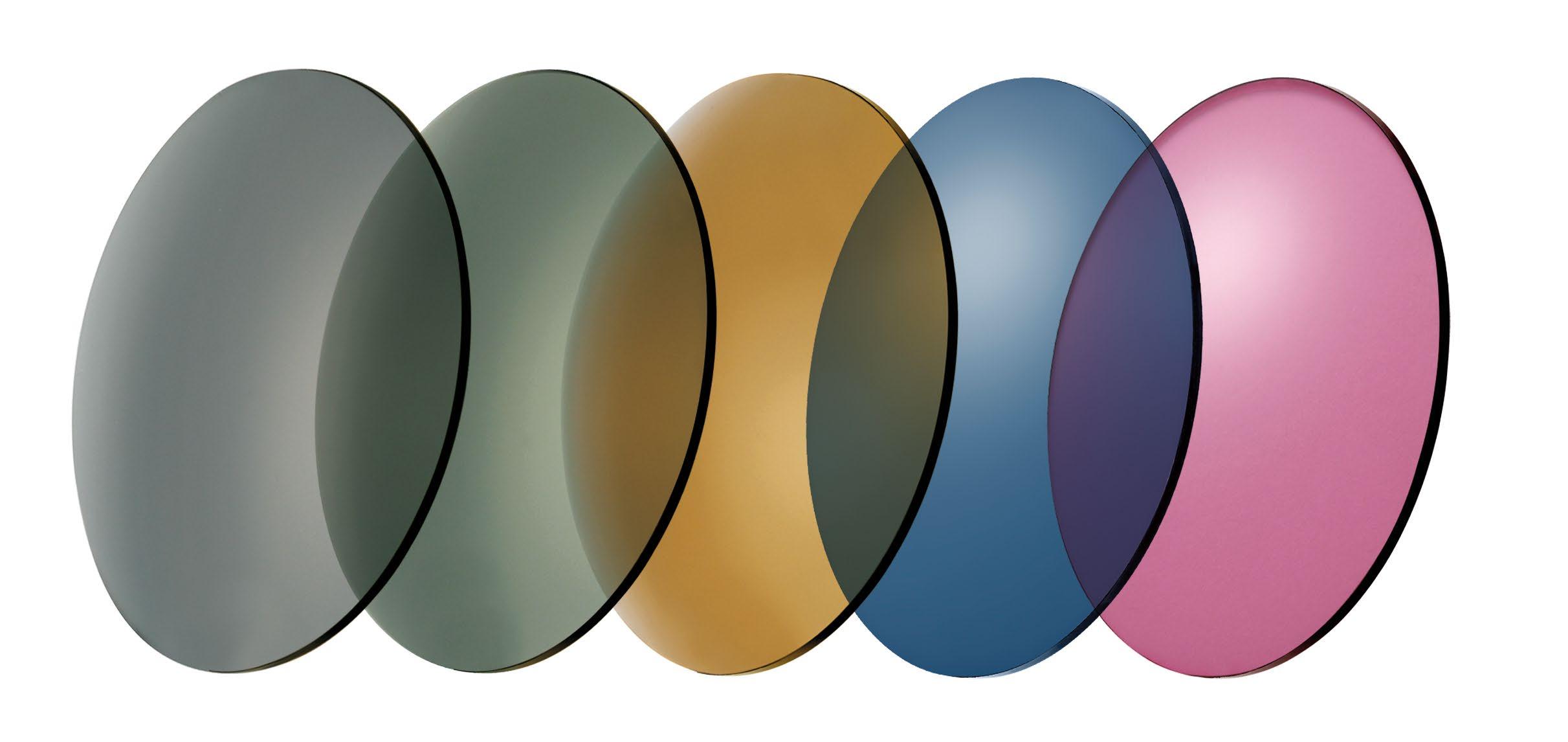

CR39 “Classic” full colour and gradient Base 4 6.1 MADE IN ITALY

Ref. 06332 FC3 (τ 9.5%) Grey 75%

Ø 76 mm |

1,8 mm

6 pcs.

Ref. 06336 FC3 (τ 10%) Brown 75%

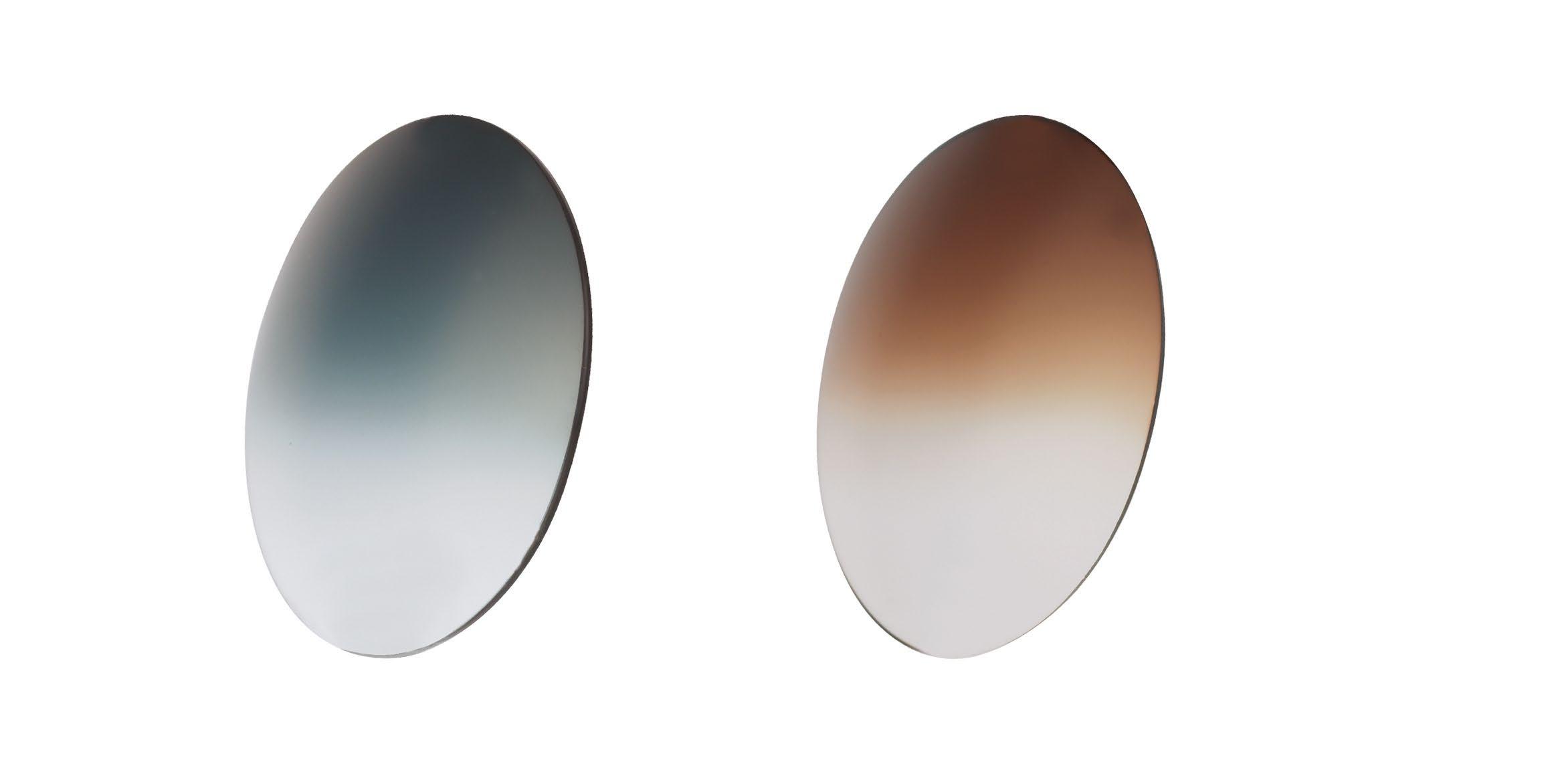

Ref. 06335 FC3 (τ 13%) Green Grey Gradient 60% G15

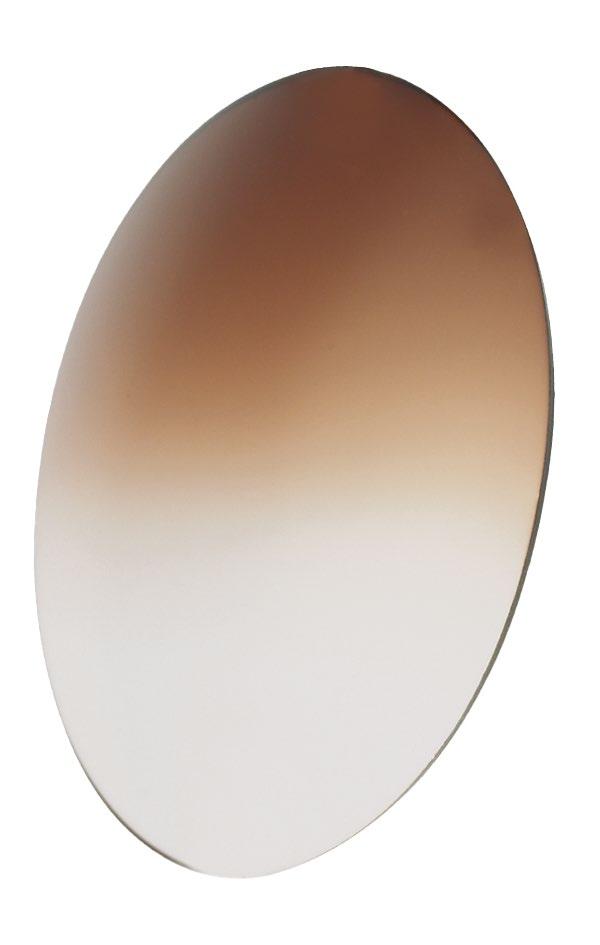

Ref. 06337 FC3 (τ 16%) Medium Brown Gradient 60%

TOOLS

Ref. 06334 FC3 (τ 15.5%) Green Grey 75% G15

FRAME PARTS

Base

PLIERS EQUIPMENTS

Gradient LAB CONSUMABLES

Ref. 06333 FC2 (τ 20%) Grey Gradient 60%

LENSES REFRACTION & ORTHOPTIC

ALL RIGHTS RESERVED ©

9

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

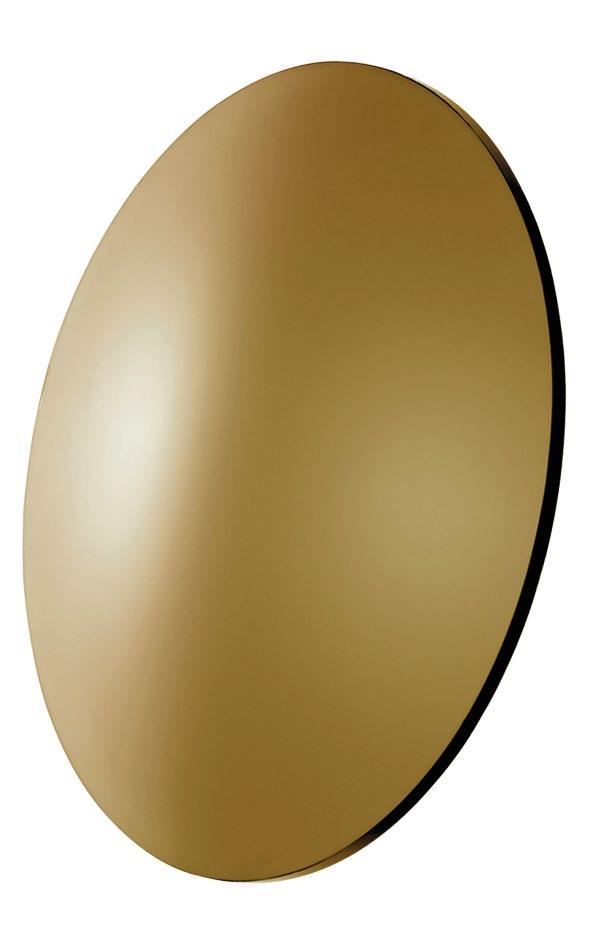

LAB MOD SYSTEM

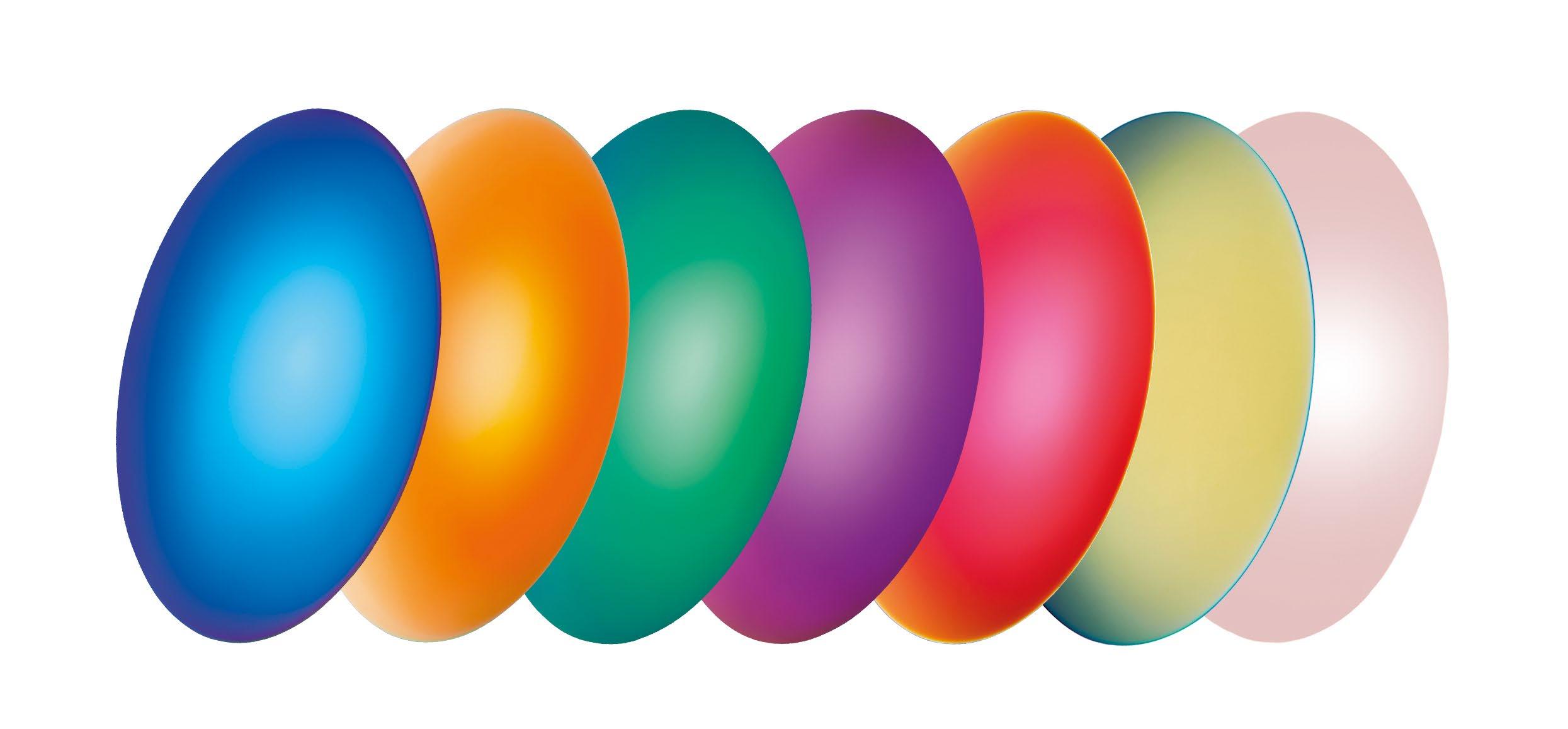

6.1 CR39 Fashion Base 4 UV400 - Full colour - Lenses manufactured by Carl Zeiss Vision MADE IN ITALY

FRAME PARTS

Base

1,8 mm

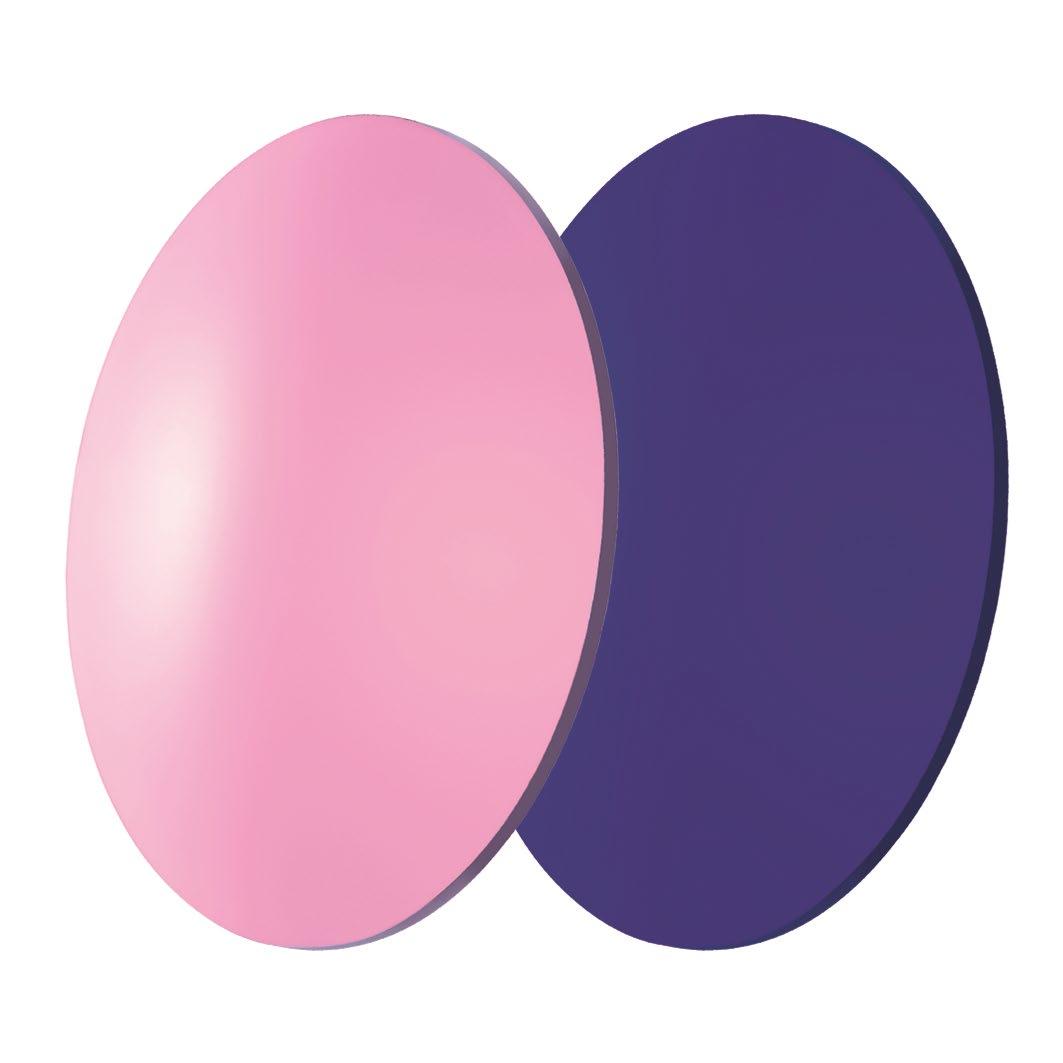

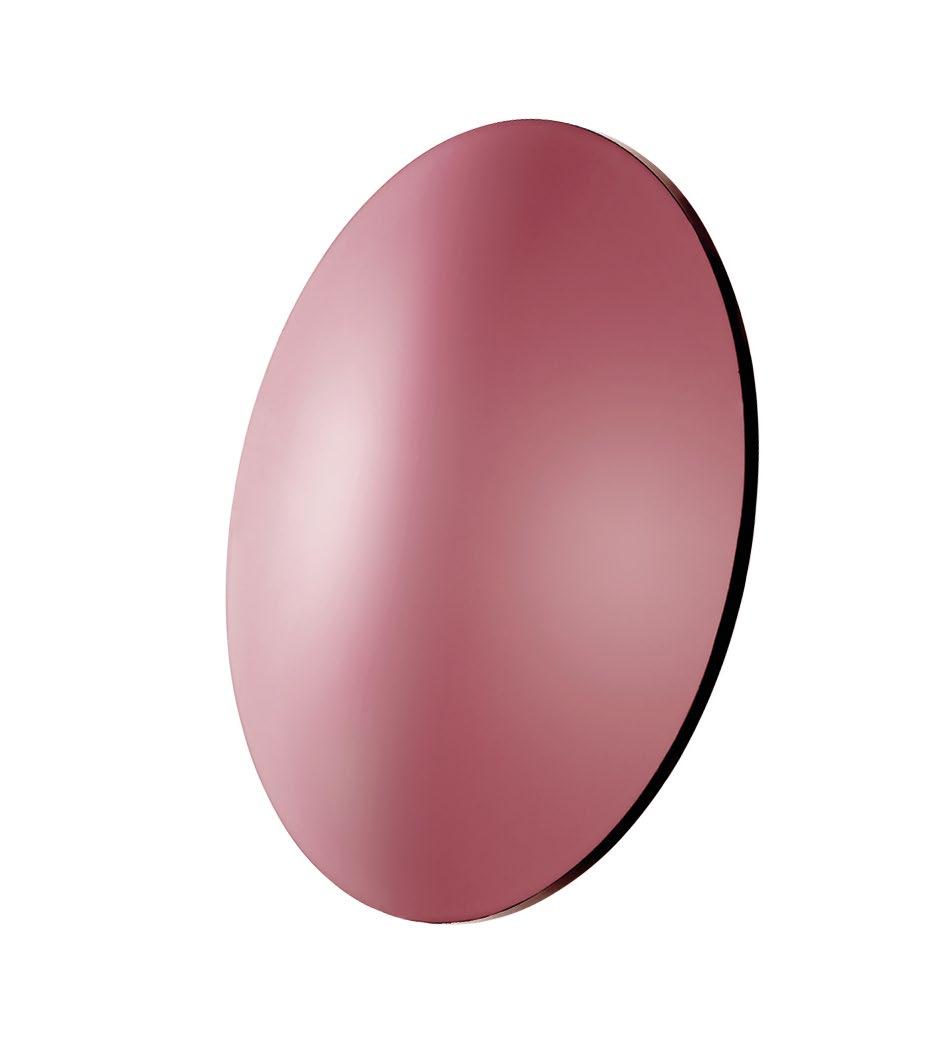

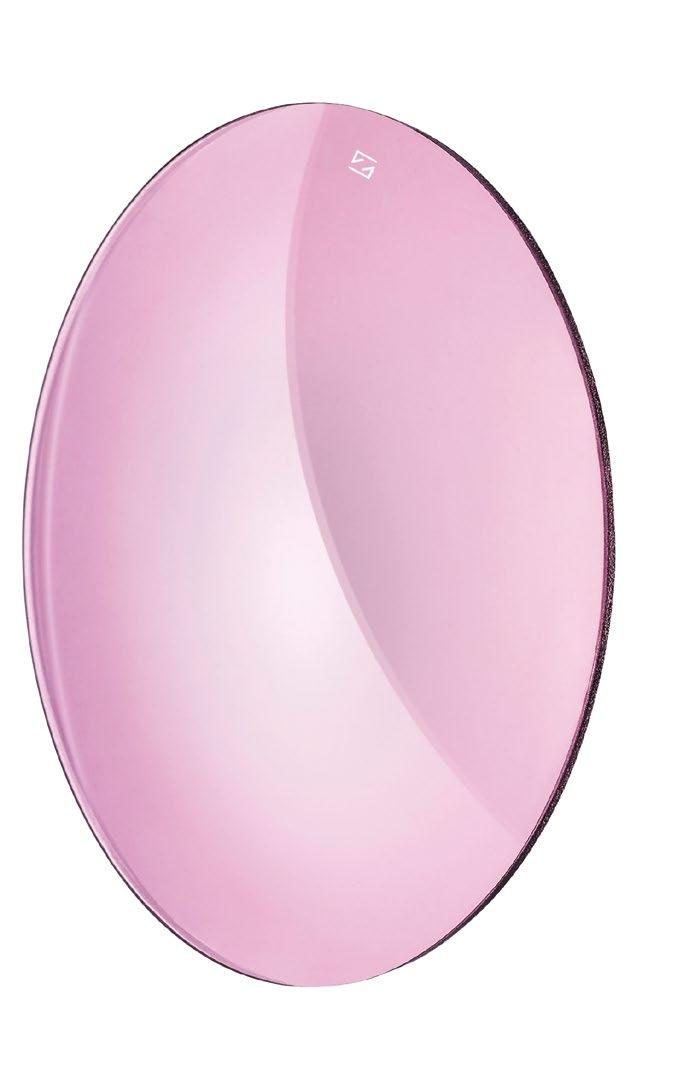

Ref. 06307 FC1 (τ 55%) Pink 25%

2 pcs.

Ref. 06338 FC3 (τ 15%) Blue 60%

Ref. 06305 FC2 (τ 21%) Pink / Violet 60%

Ref. 06309 FC1 (τ 44%) Green 25%

EQUIPMENTS

PLIERS

TOOLS

Ref. 06306 FC1 (τ 44%) Light Blue 25%

Ø 76 mm |

LAB CONSUMABLES

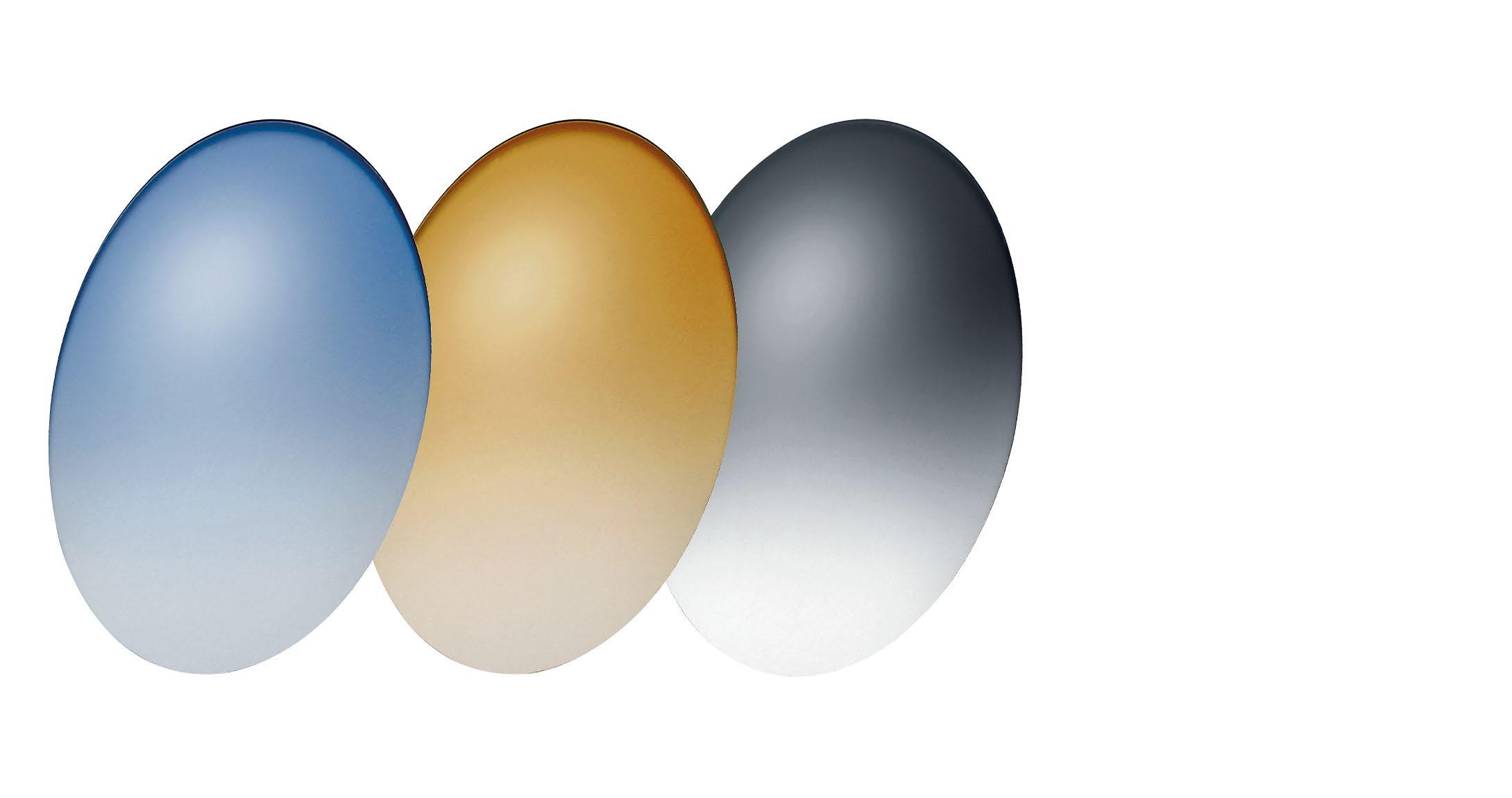

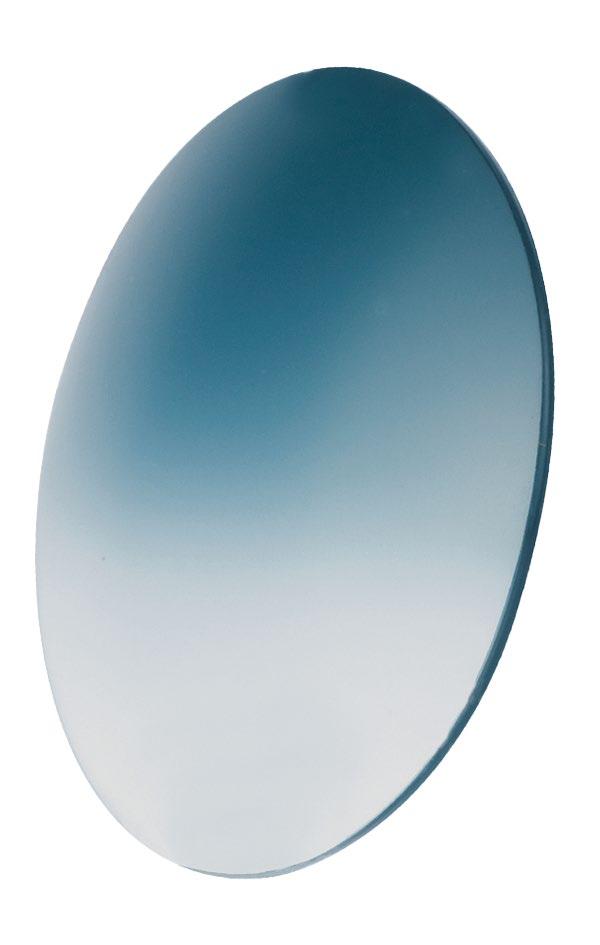

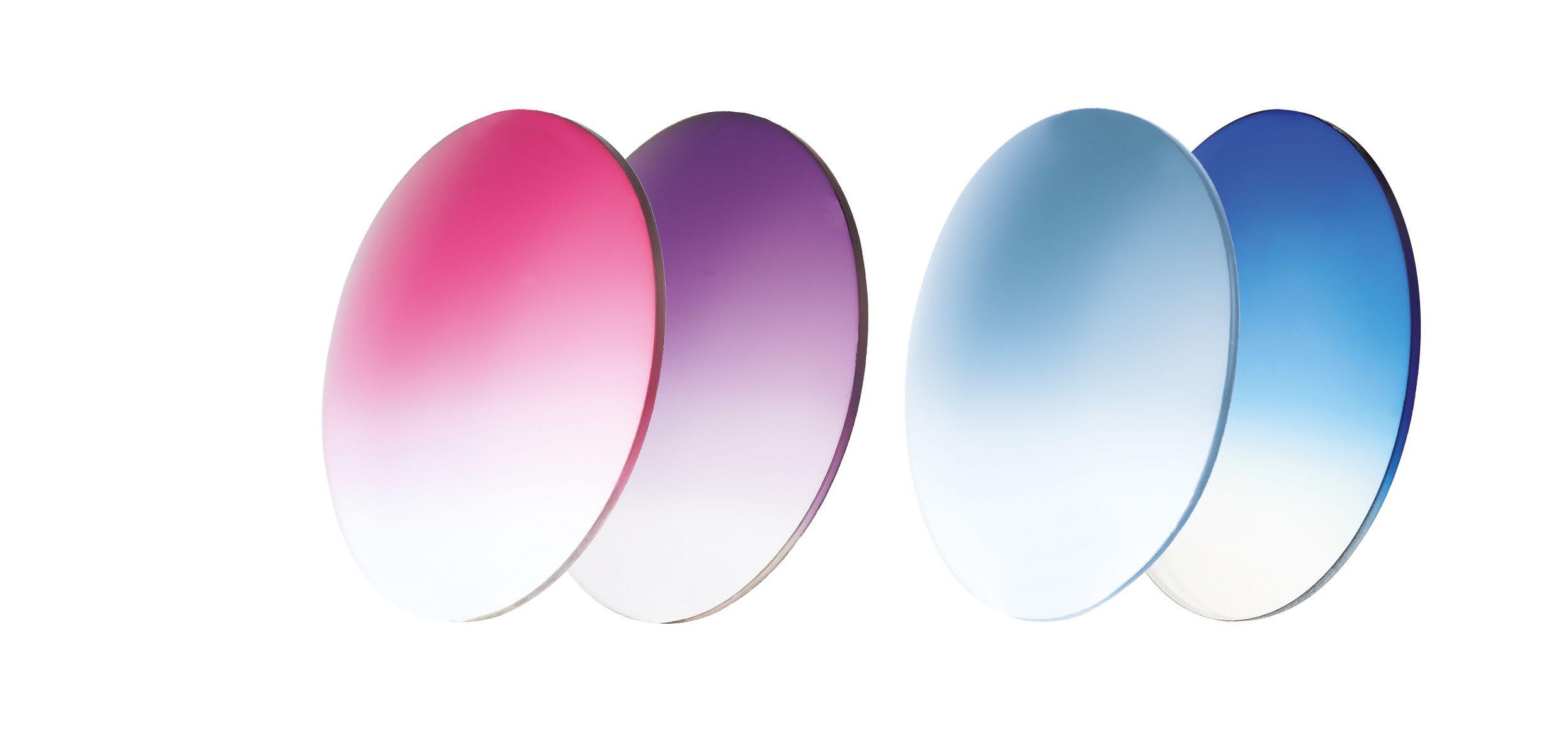

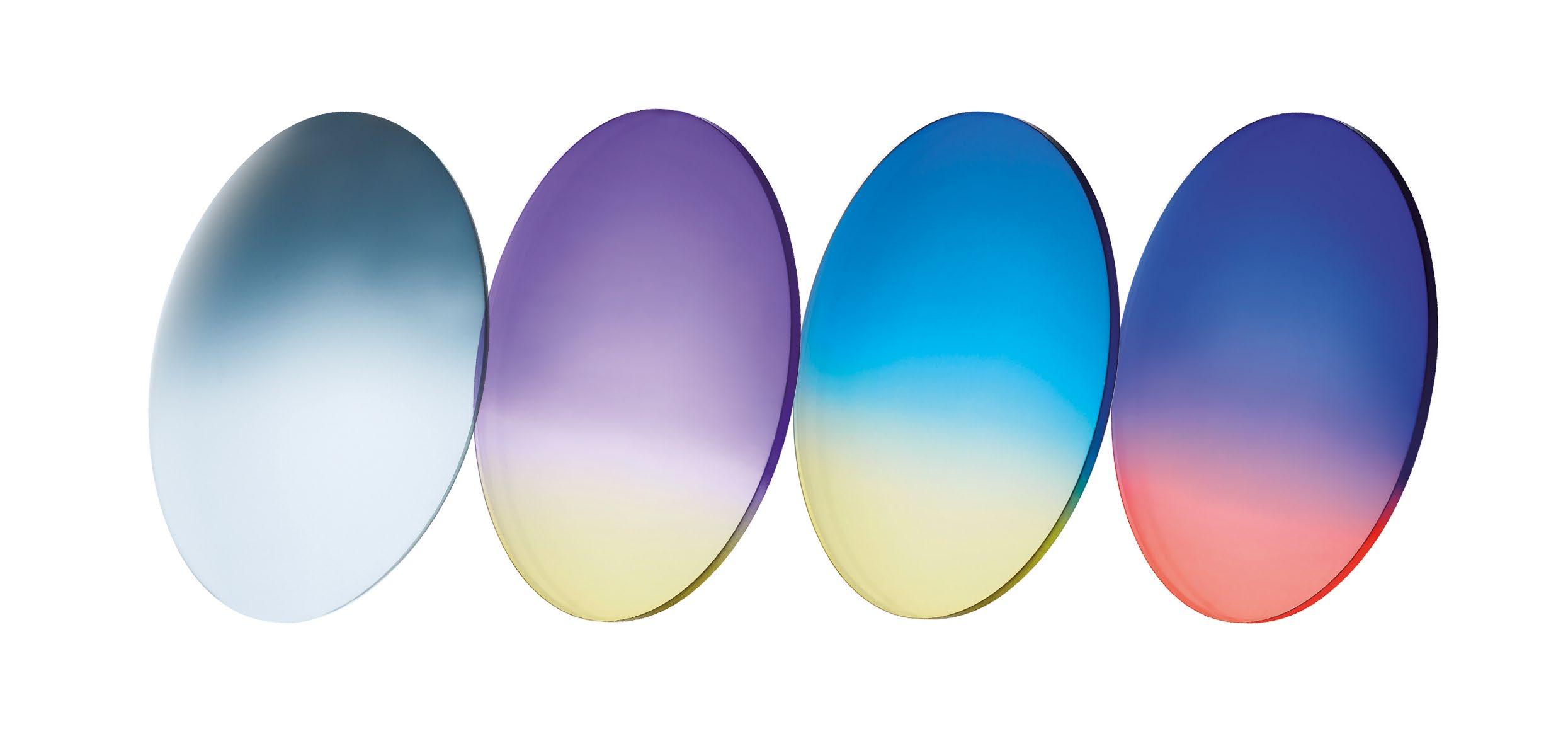

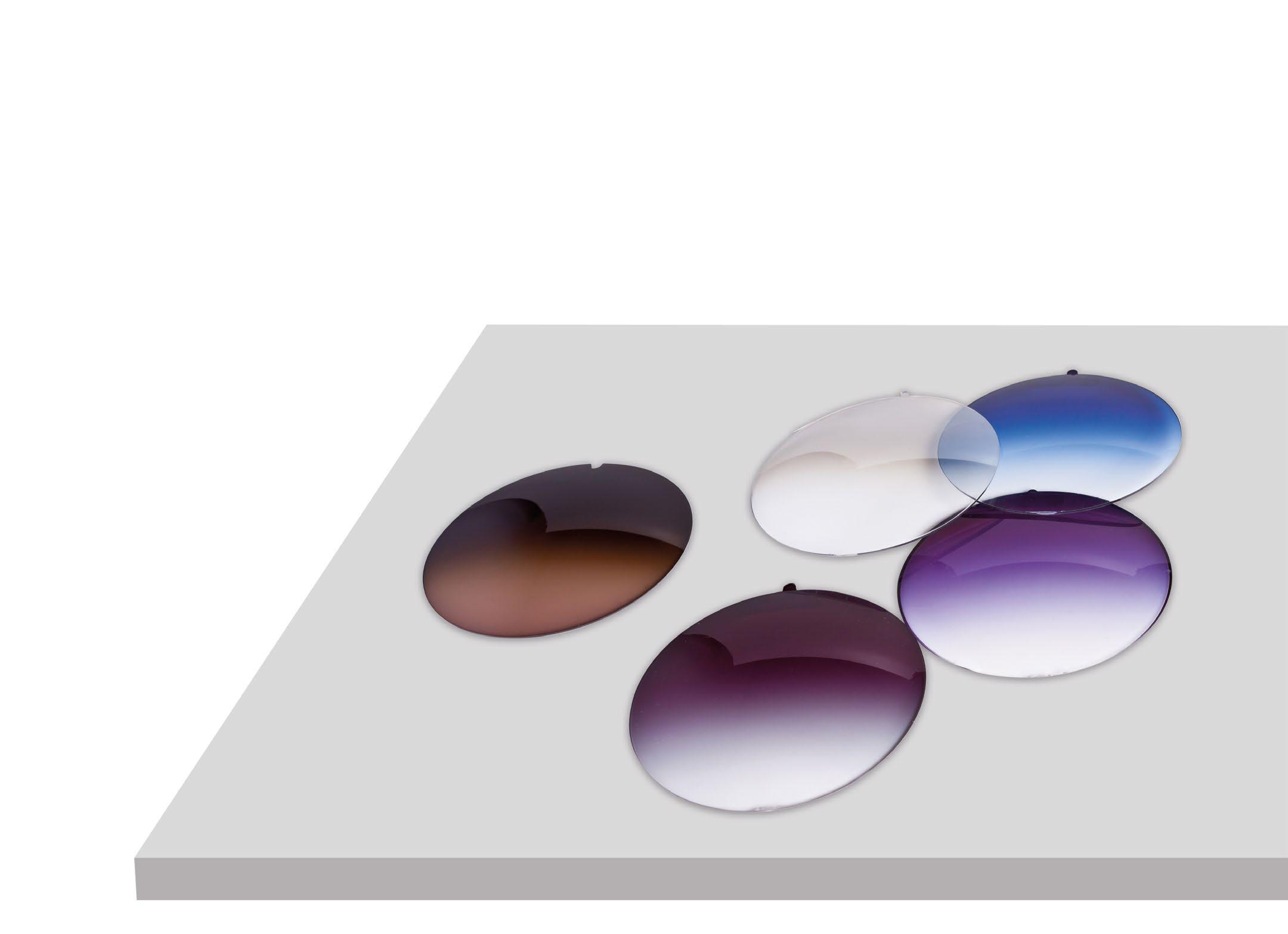

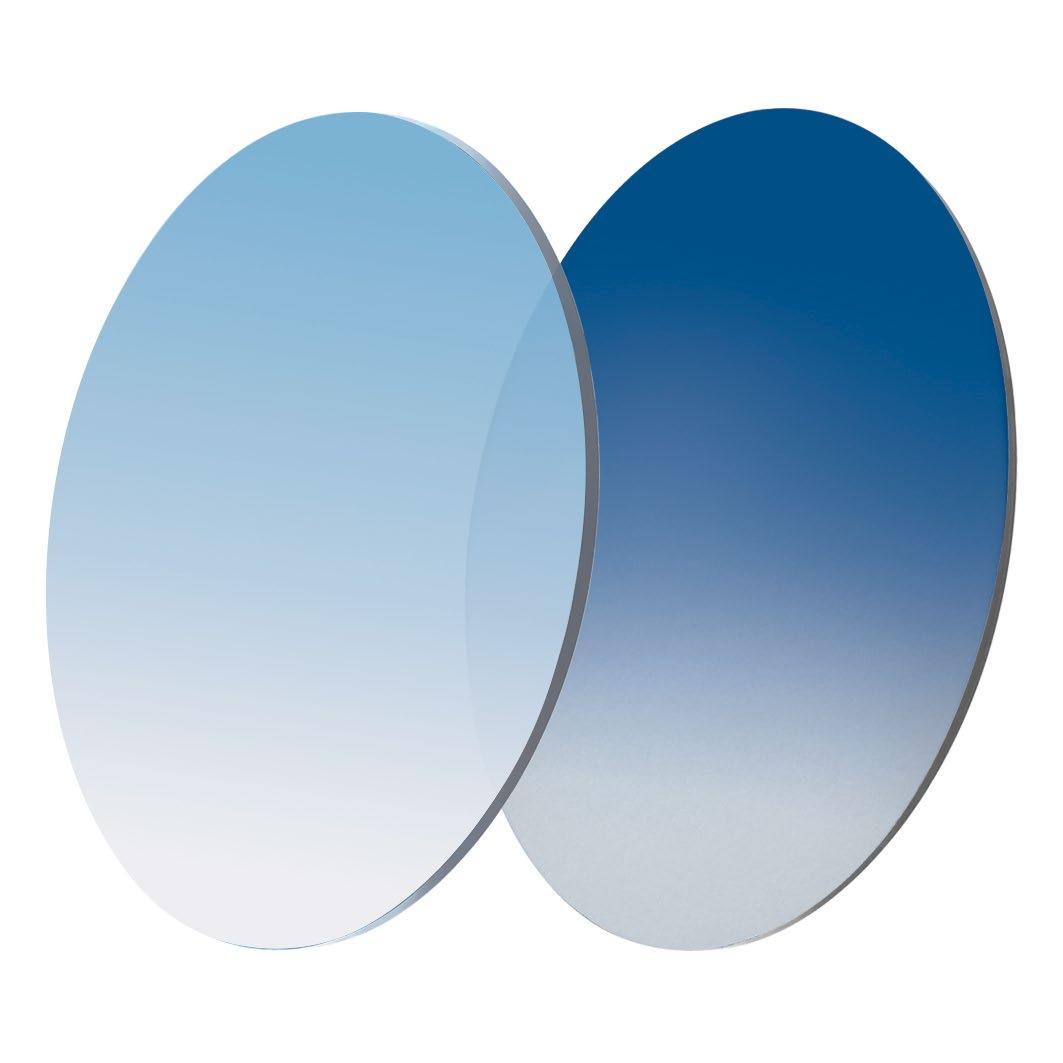

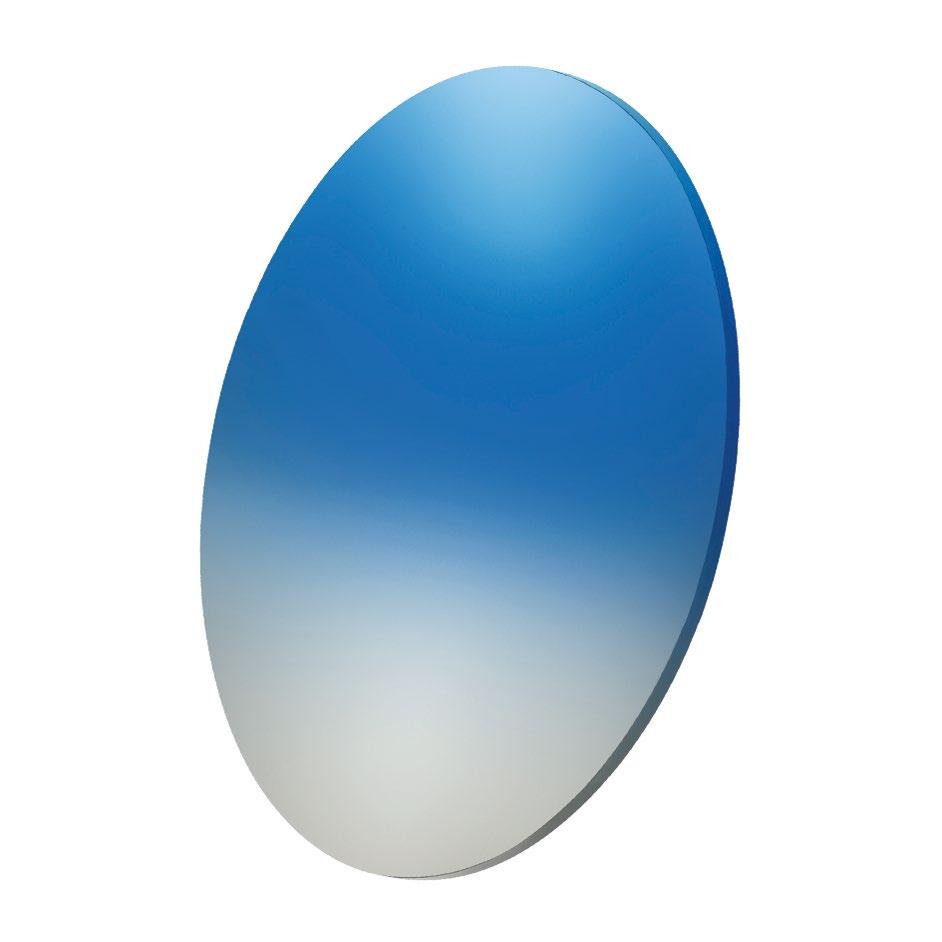

UV400 - Gradient - Lenses manufactured by Carl Zeiss Vision Base

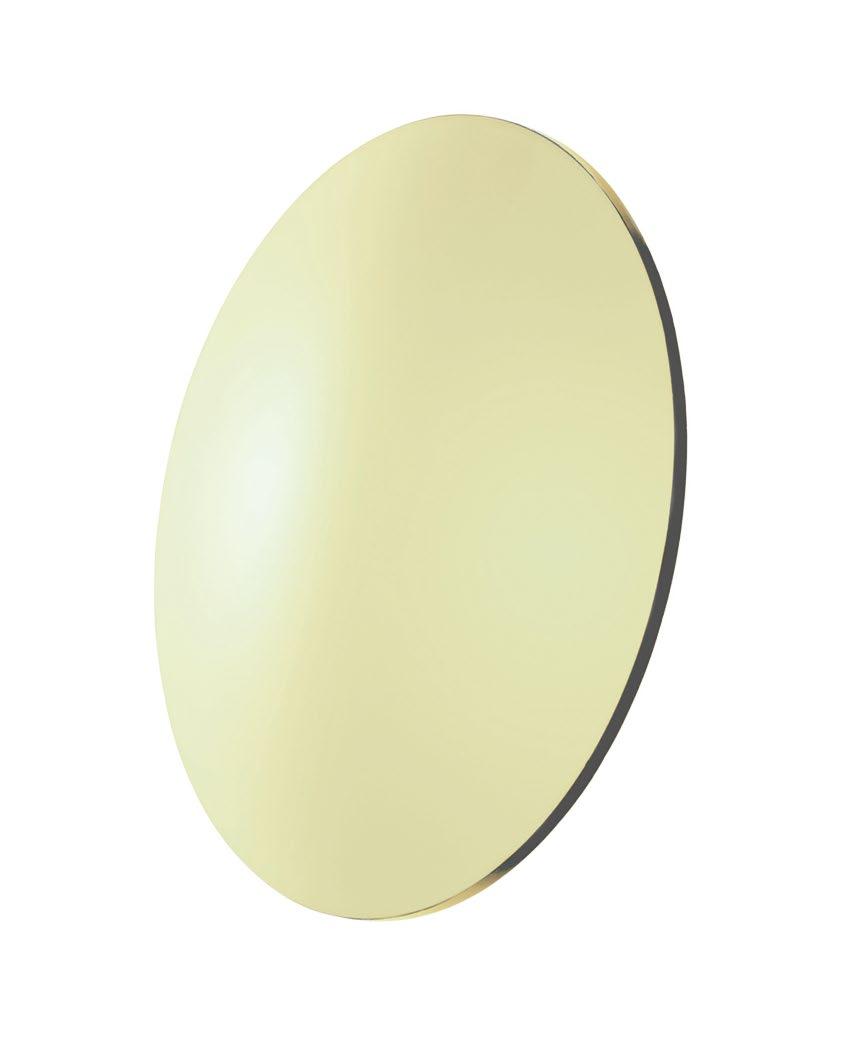

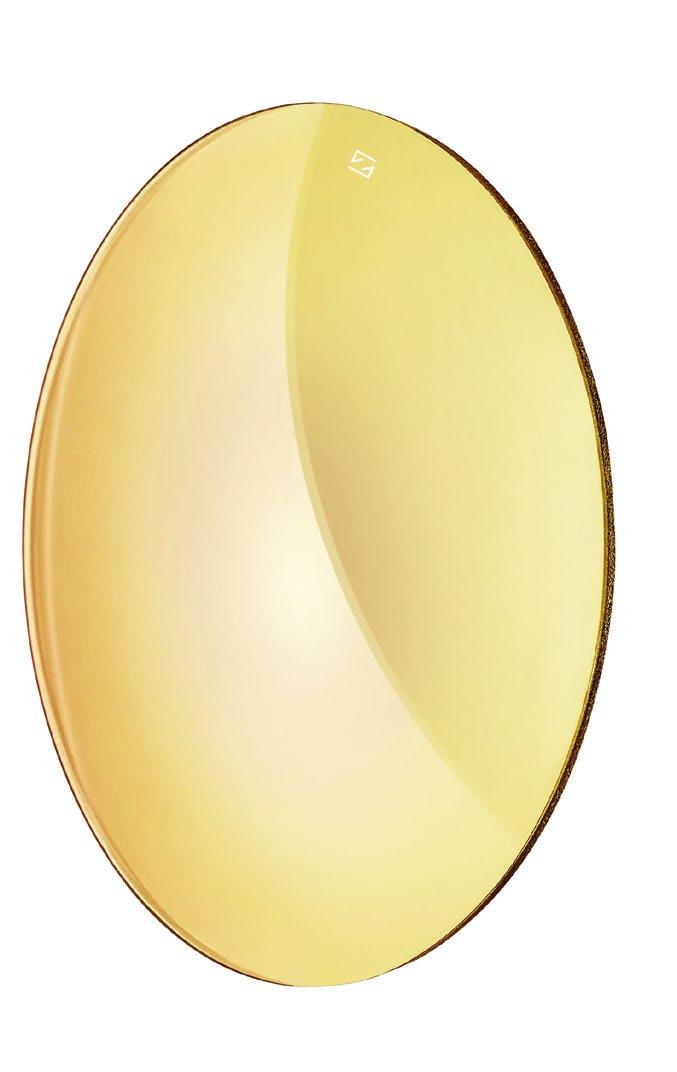

Ref. 06312 FC1 (τ 65%) Light Yellow Gradient 25%

1,8 mm

2 pcs.

Ref. 06310 FC2 (τ 39%) Light Grey Gradient 25%

REFRACTION & ORTHOPTIC

LENSES

Ref. 06311 FC1 (τ 51%) Light Blue Gradient 25%

Ø 76 mm |

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

10

ALL RIGHTS RESERVED ©

LAB MOD SYSTEM

6.1

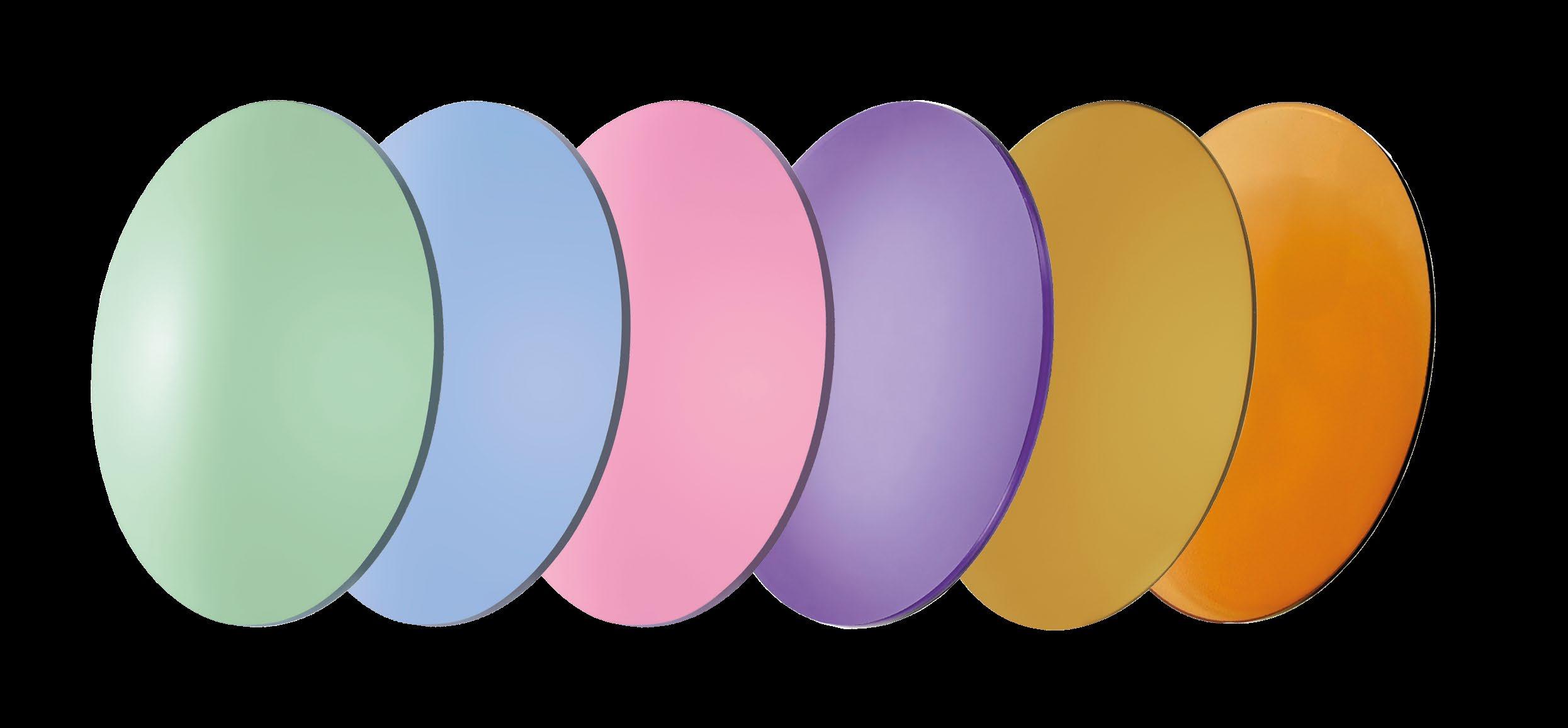

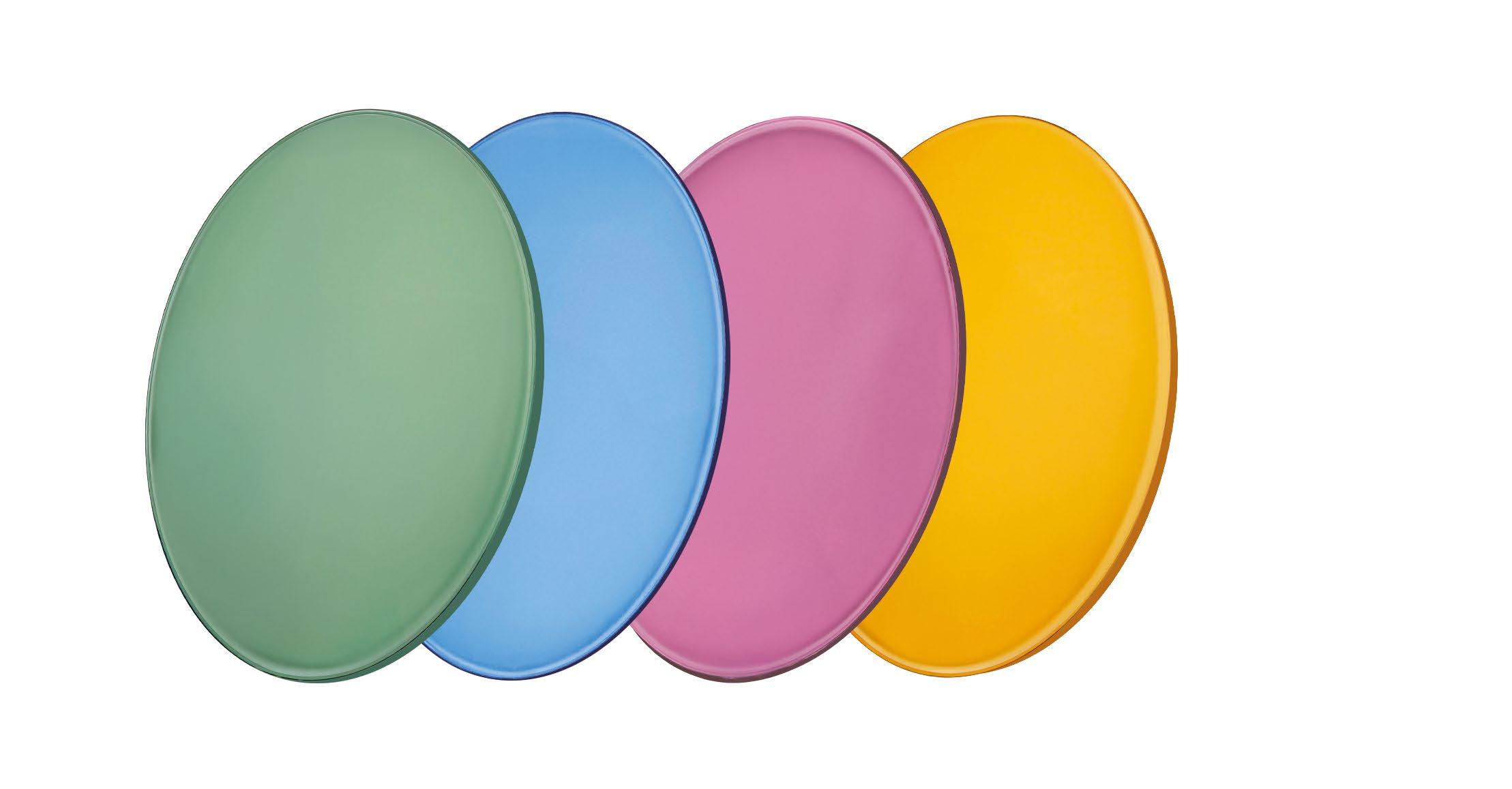

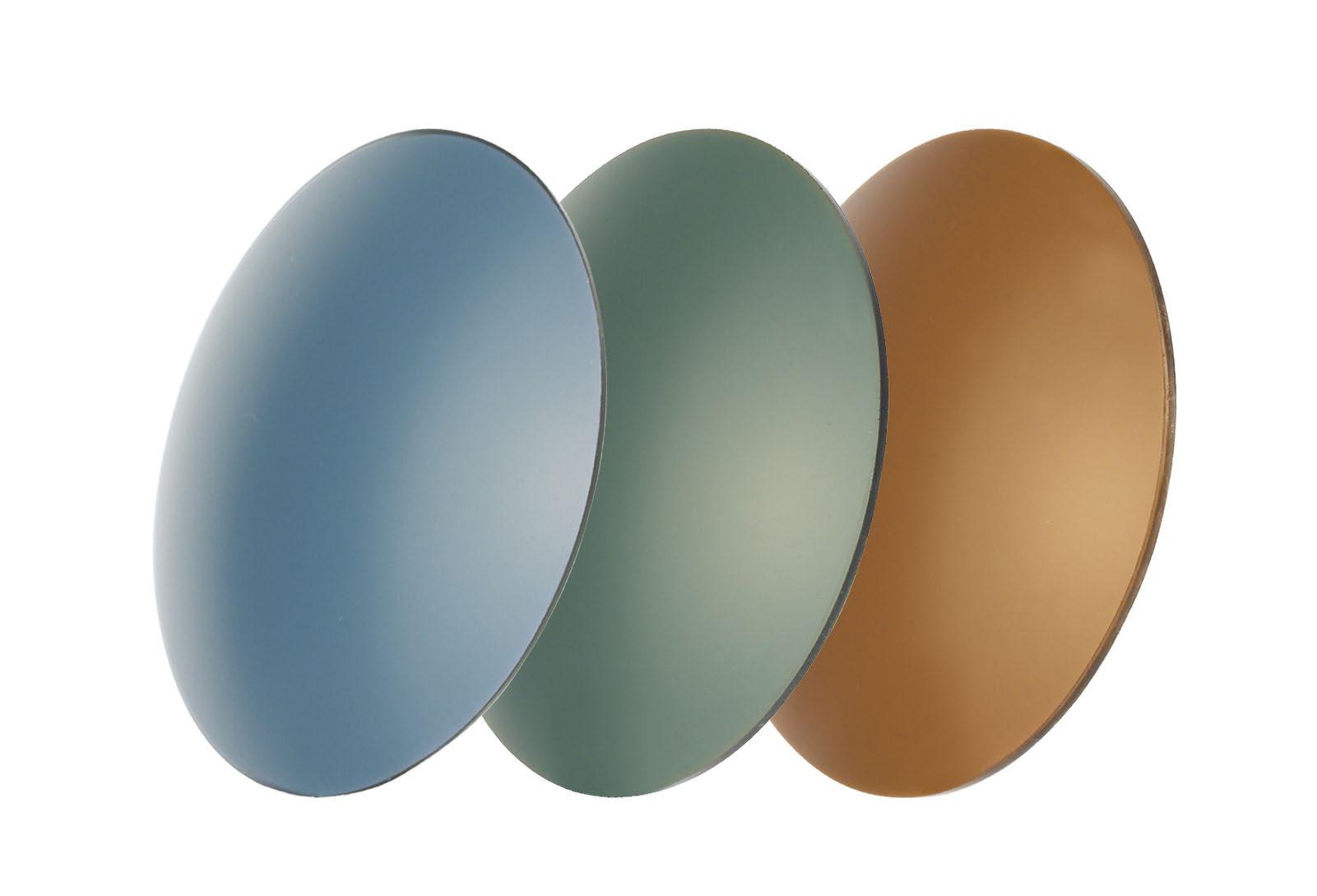

CR39 Fashion Base 4

MADE IN ITALY

Ø 76 mm |

Ref. 06365 FC1 (τ 76%) Light Green 20%

Ref. 06366 FC1 (τ 62%) Light Blue 20%

2 pcs.

1,8 mm Ref. 06367 FC1 (τ 72%) Light Pink 20%

Ref. 06368 FC2 (τ 42%) Violet 25%

Ref. 06369 FC1 (τ 55%) Light Brown 25%

FRAME PARTS

Base

Ref. 06364 FC1 (τ 56%) Orange 25%

NEW

TOOLS PLIERS EQUIPMENTS LAB CONSUMABLES LENSES REFRACTION & ORTHOPTIC INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

ALL RIGHTS RESERVED ©

11

LAB MOD SYSTEM

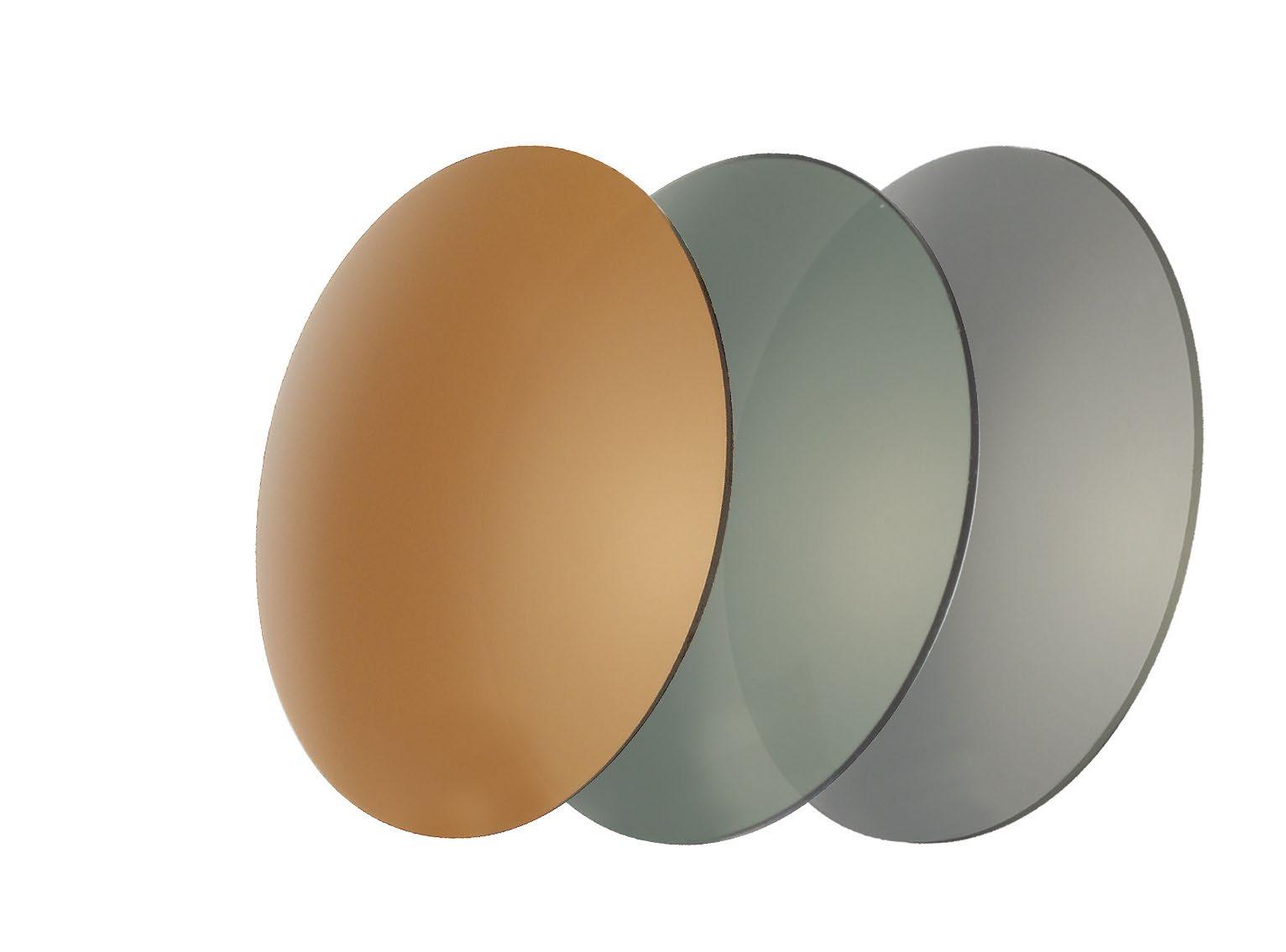

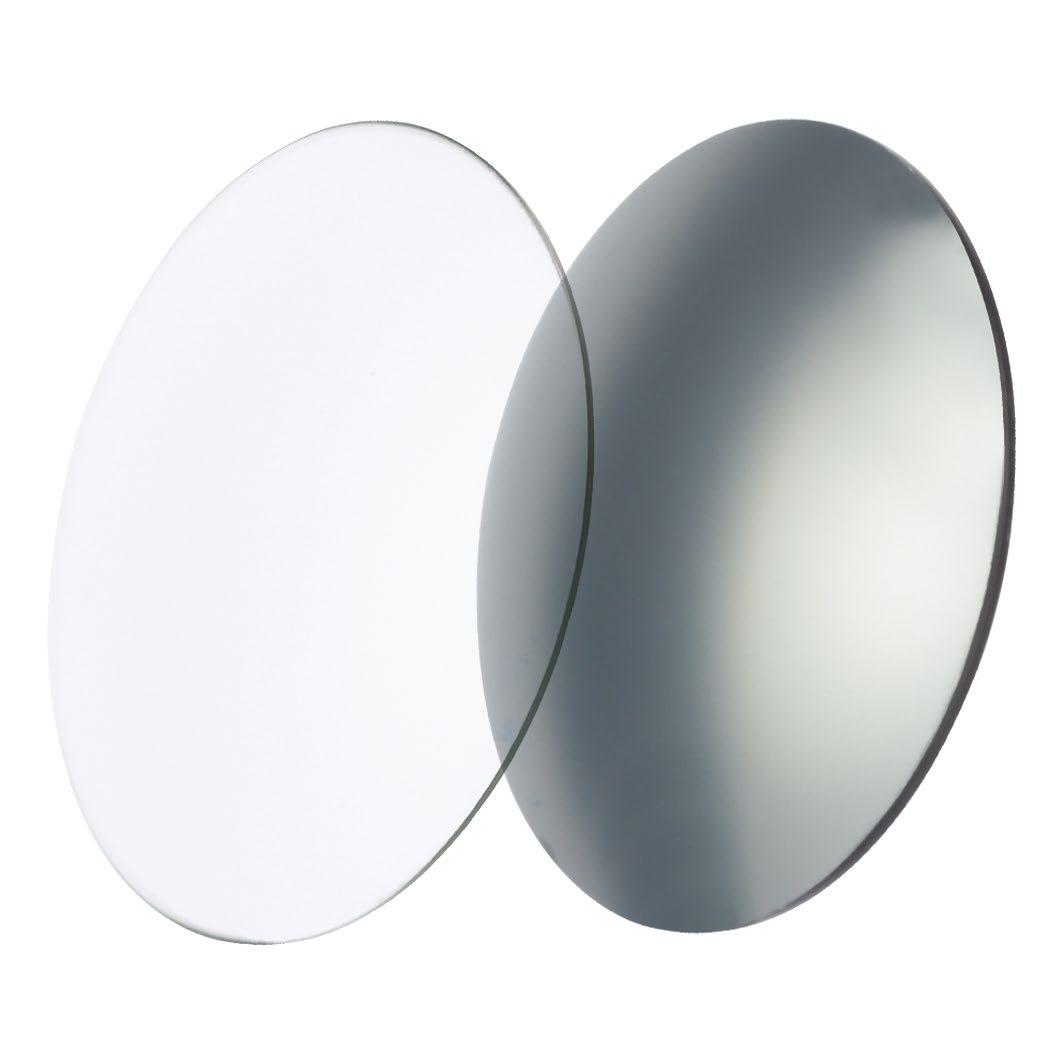

6.1 CR39 Photochromic Lenses Base 4 UV400 - Very lightweight, more comfortable MADE IN JAPAN

FRAME PARTS

Base

Ø 70 mm |

2 pcs.

2,0 mm

Ref. 06634 FC2 (τ 32%)

PLIERS

TOOLS

Ref. 06635 FC2 (τ 32%)

Dark Grey 65%

Light Brown 5%

darkens in a few seconds Lightens in a few minutes

Dark Brown 65% darkens in a few seconds

Lightens in a few minutes

Ref. 06632 FC2 (τ 29%)

LAB CONSUMABLES

EQUIPMENTS

Light Grey 5%

REFRACTION & ORTHOPTIC

LENSES

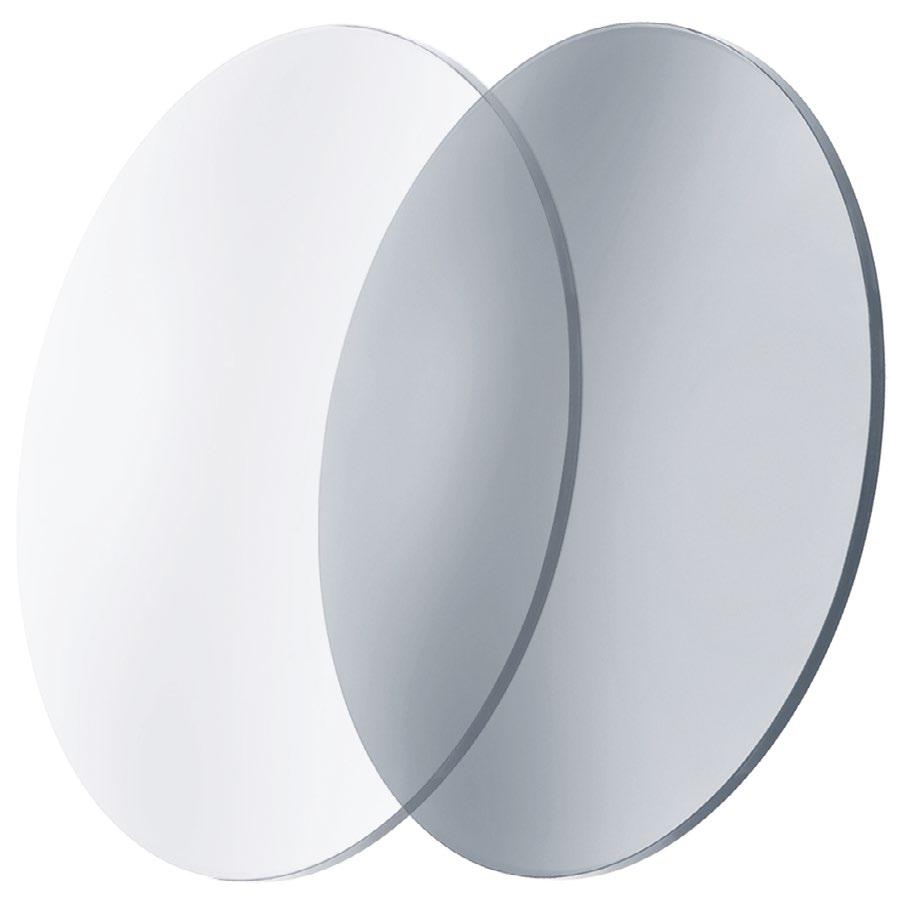

Clear lens 5% Extremely clear indoors.

Photochromic CR39 lenses are light and comfortable to wear.

Dark lens 65% The colour also fades faster than with glass lenses, granting a 100% UV protection.

Light G15 5%

Dark G15 65%

INDEX

darkens in a few seconds FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

Lightens in a few minutes

12

ALL RIGHTS RESERVED ©

6.1

UV400 - Very lightweight, more comfortable Ø 75 mm |

2 pcs.

2,0 mm

Ref. 06644 FC1 (τ 68%)

FRAME PARTS

Base

LAB MOD SYSTEM

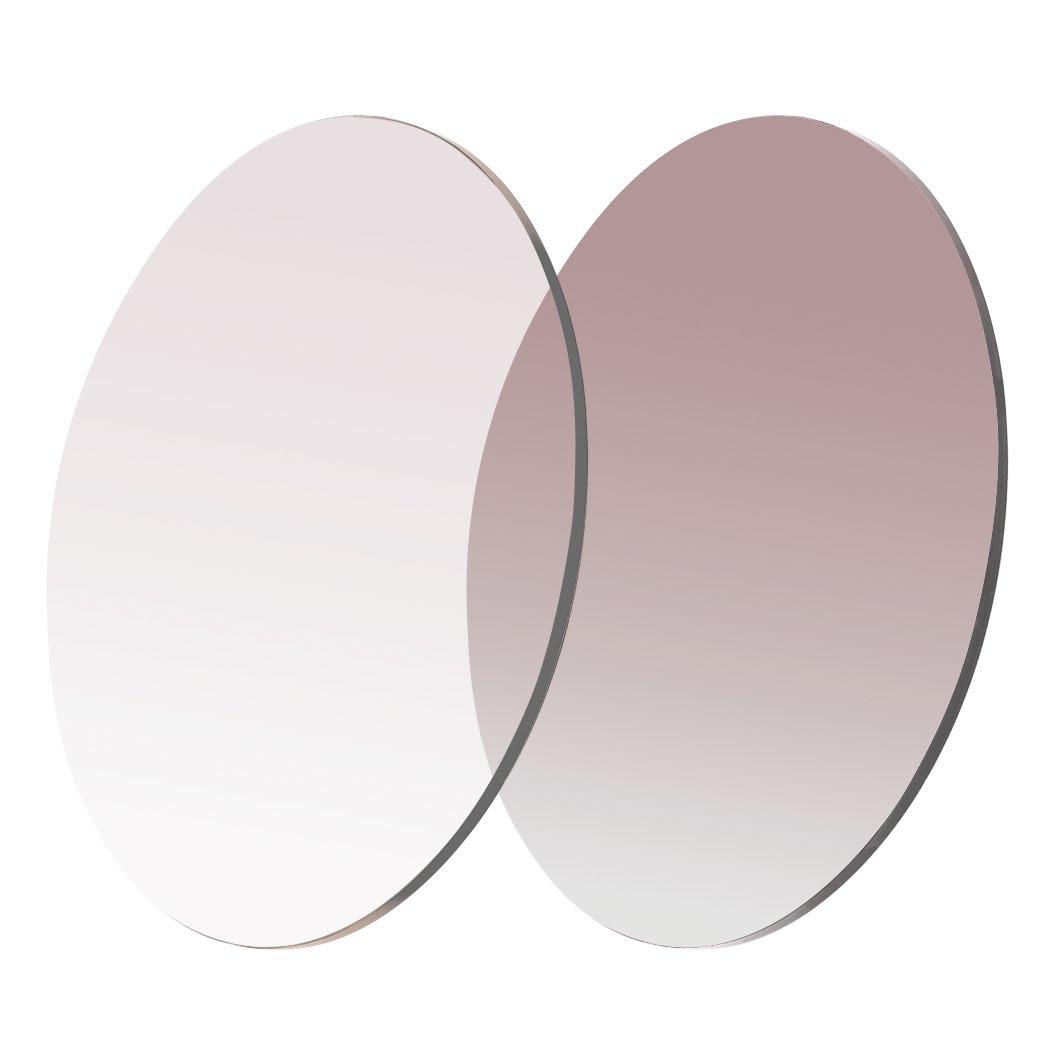

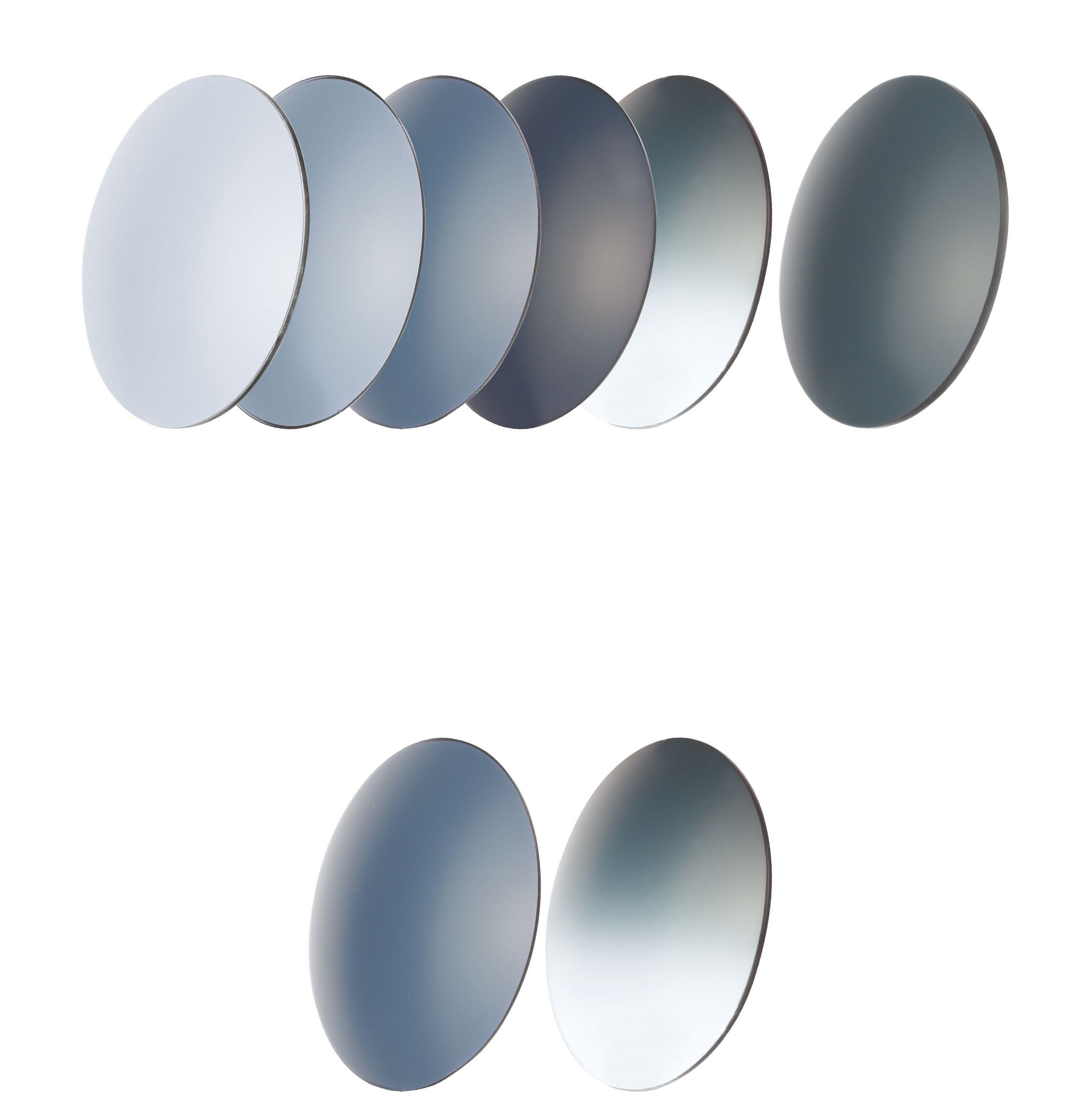

CR39 Photochromic Gradient Base 4

Ref. 06647 FC1 (τ 80%)

TOOLS PLIERS

Gradient Light Blue 5%

Gradient Blue 65%

Gradient Light Pink 5%

Lightens in a few minutes

darkens in a few seconds Lightens in a few minutes

LAB CONSUMABLES

Ref. 06649 FC1 (τ 66%)

LENSES

Clear lens 5% Extremely clear indoors.

Photochromic CR39 lenses are light and comfortable to wear.

REFRACTION & ORTHOPTIC

Dark lens 65% The colour also fades faster than with glass lenses, granting a 100% UV protection.

Gradient Grey 5%

EQUIPMENTS

darkens in a few seconds

Gradient Pink/Grey 65%

Gradient Grey 65% darkens in a few seconds

Lightens in a few minutes

ALL RIGHTS RESERVED ©

13

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

LAB MOD SYSTEM

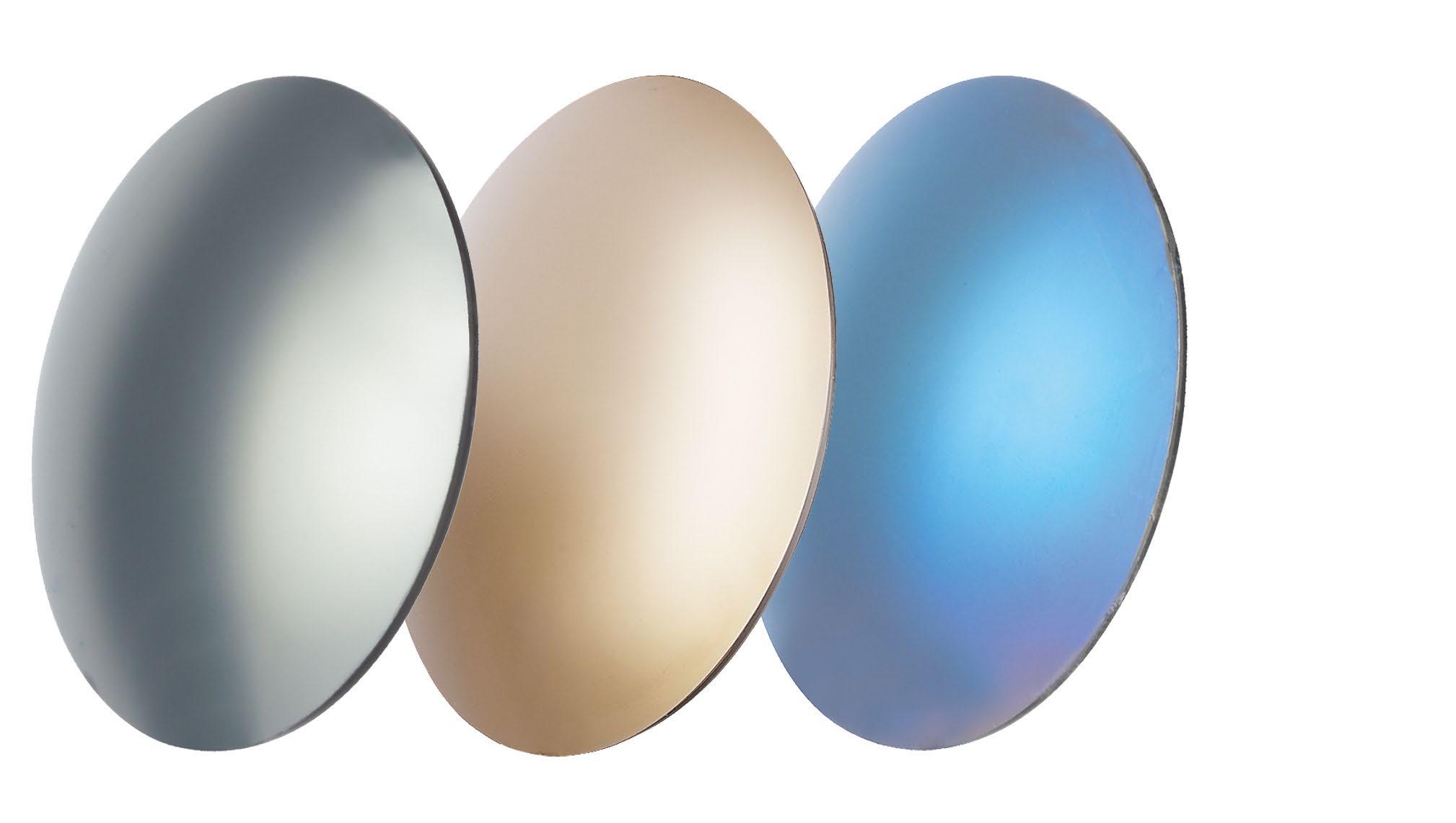

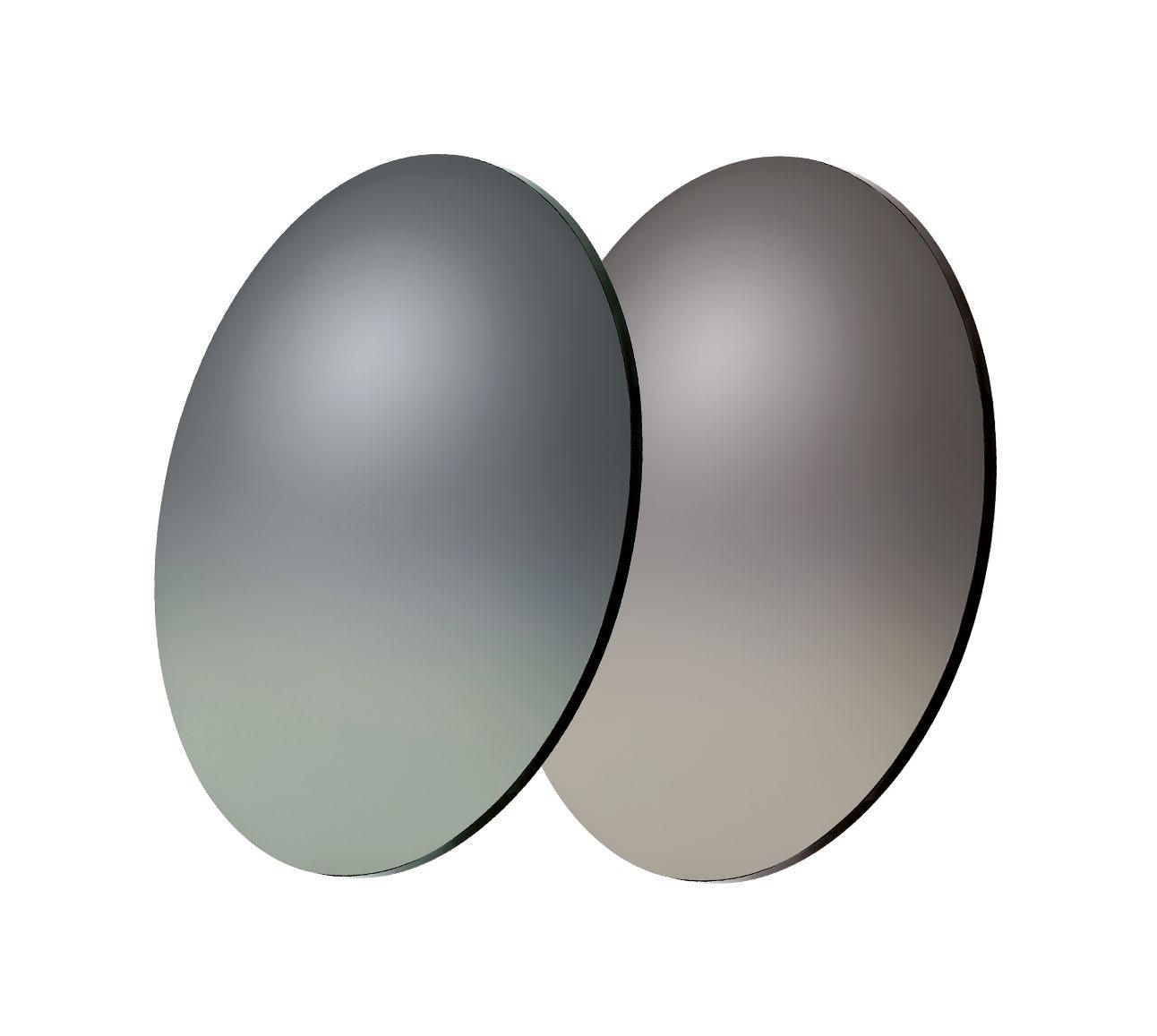

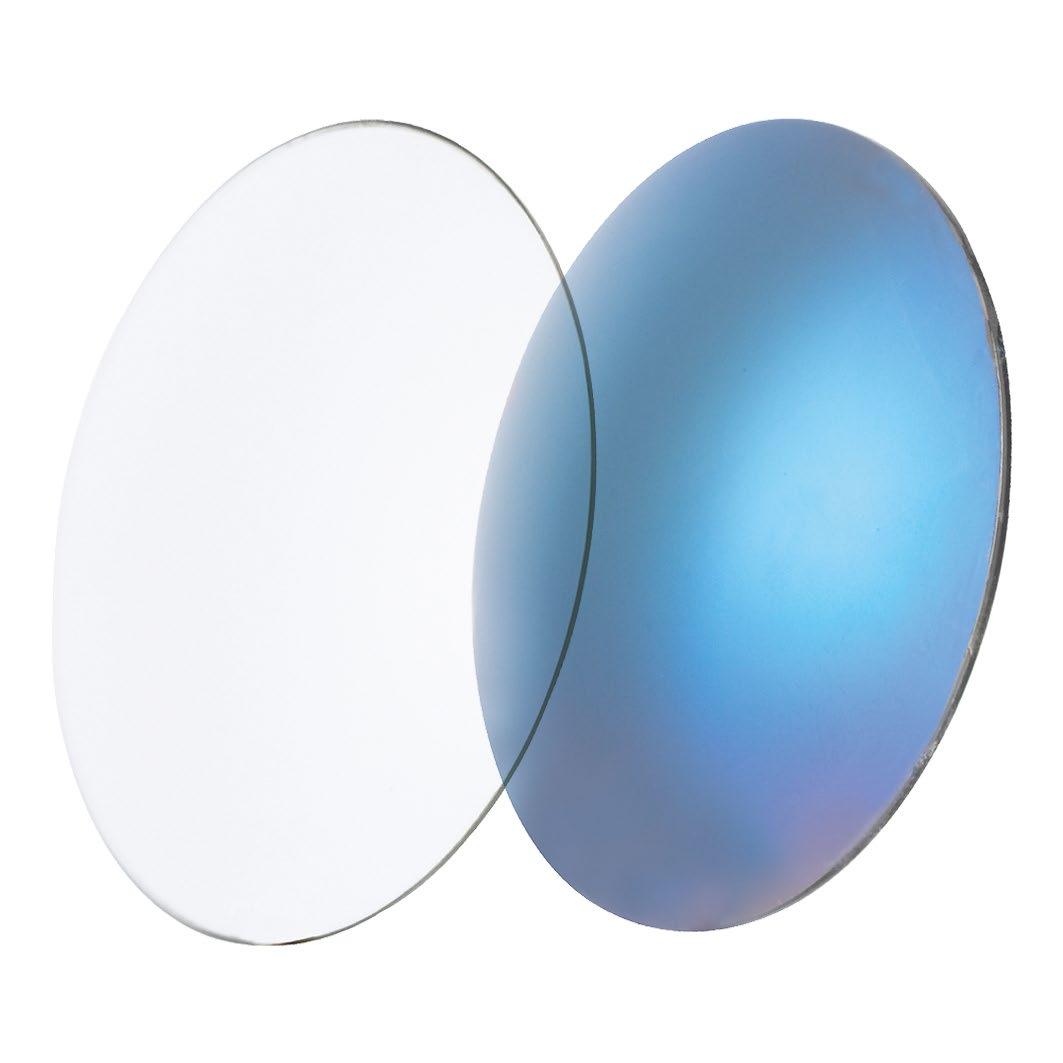

6.1 CR39 Photochromic Mirrored Base 4 UV400 - Very lightweight, more comfortable MADE IN JAPAN

FRAME PARTS

Base

Ø 70 mm |

2 pcs.

2,1 mm

Ref. 06630 FC2 (τ 29%)

PLIERS

TOOLS

Ref. 06629 FC1 (τ 47%)

Mirror Dark Gold 65%

Mirror Light Blue 5%

darkens in a few seconds Lightens in a few minutes

Mirror Dark Blue 65% darkens in a few seconds

Lightens in a few minutes

Ref. 06631 FC2 (τ 25%)

LAB CONSUMABLES

EQUIPMENTS

Mirror Light Gold 5%

REFRACTION & ORTHOPTIC

LENSES

Clear lens 5% Extremely clear indoors.

Photochromic CR39 lenses are light and comfortable to wear.

Dark lens 65% The colour also fades faster than with glass lenses, granting a 100% UV protection.

Mirror Light Silver 5%

Mirror Dark Silver 65%

INDEX

darkens in a few seconds FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

Lightens in a few minutes

14

ALL RIGHTS RESERVED ©

LAB MOD SYSTEM

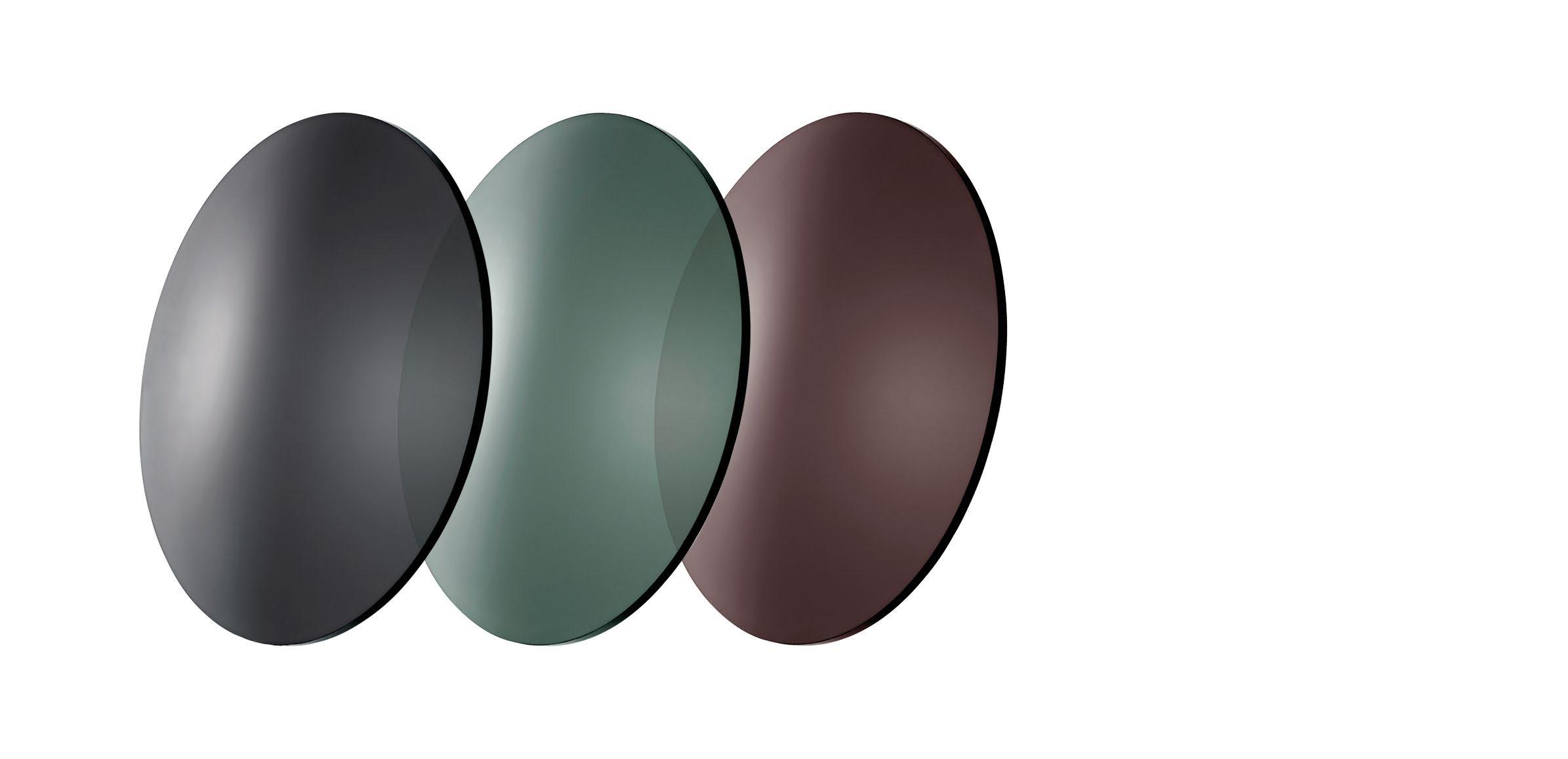

6.1 CR39 Polarized Base 4 UV400 - Lenses manufactured by Carl Zeiss Vision Ø 80 mm |

Ref. 06230 FC3 (τ 15%) Polarized Grey 75%

2,0 mm

Ref. 06231 FC3 (τ 15%) Polarized Green Grey 75% G15

2 pcs.

Ref. 06232 FC3 (τ 11%) Polarized Brown 75%

Ref. 06233 FC3 (τ 13%) Polarized Light Blue 75%

FRAME PARTS

Base

Ref. 06234 FC2 (τ 23%) Polarized Pink 25%

TOOLS PLIERS EQUIPMENTS

CR39 Gradient Bicolour

LAB CONSUMABLES

Ref. 06238 FC2 (τ 24%) Polarized Blue Double Gradient 25%

2 pcs.

Outer layer in CR39 gradient colour Middle lens layer in polarized material Inner layer in CR39 gradient colour

LENSES

Polarizing effect

REFRACTION & ORTHOPTIC

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

INDEX

ALL RIGHTS RESERVED ©

15

UV400 - Hard coating treatment - Lenses manufactured by Carl Zeiss Vision Base

FRAME PARTS

LAB MOD SYSTEM

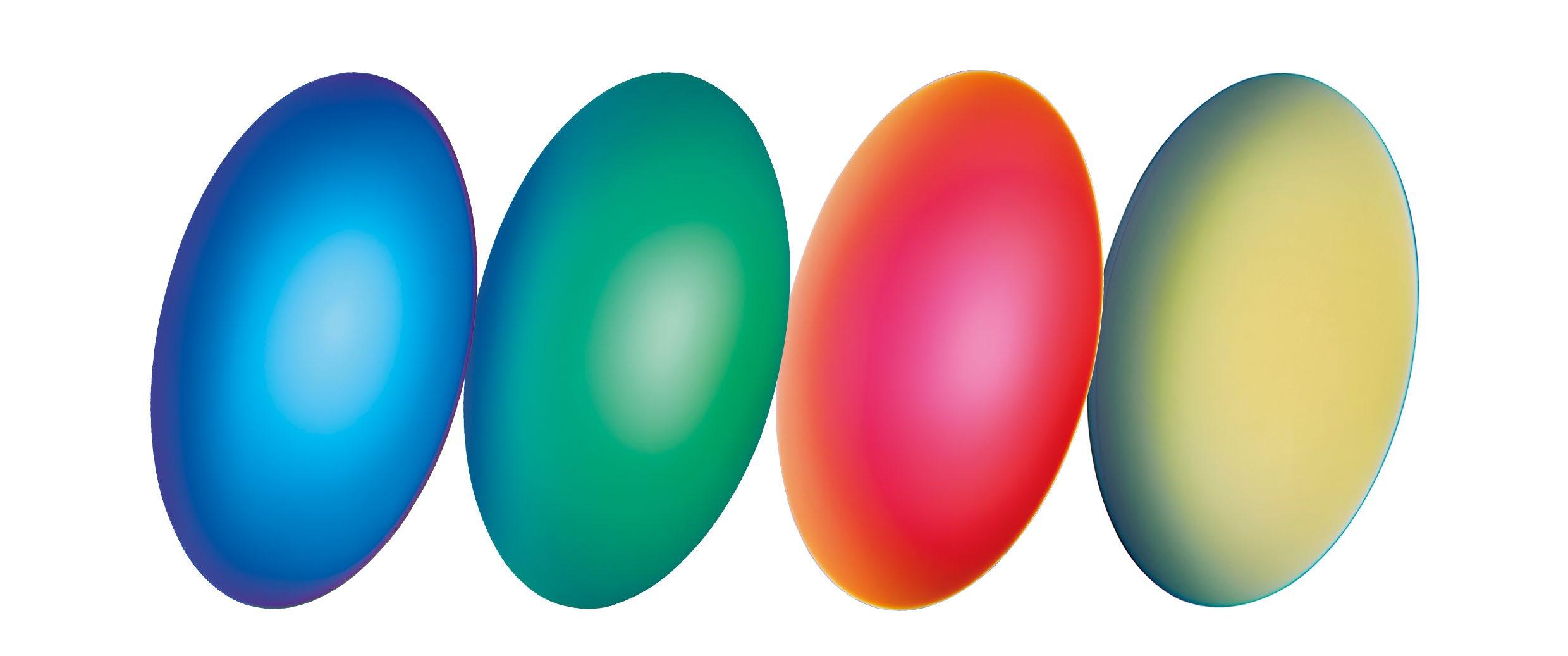

6.1 CR39 Polarized mirrored with hard coating Base 4 2,0 mm

Ref. 06228 FC3 (τ 11%) Gold Mirror Base Grey Blue 75%

2 pcs.

Ref. 06229 FC3 (τ 17%) Blue Mirror Base Blue 75%

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06227 FC3 (τ 14%) Ivory Mirror Base Grey 75%

Ø 80 mm |

Polarizing effect Mirror coating

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

Middle lens layer in polarized material Inner lens layer in CR39

REFRACTION & ORTHOPTIC

LENSES

Outer lens layer in CR39

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

16

ALL RIGHTS RESERVED ©

To simulate polarized vision

FRAME PARTS

IDEAL TEST TO HIGHLIGHT THE ADVANTAGES OF A POLARIZED VISION USING GLASSES WITH POLARIZED LENSES.

LAB MOD SYSTEM

6.1

POLARIZED TEST

TOOLS PLIERS

Ref. 06597 Plexiglass display with graphics to highlight the contrast of colors in full sun.

Dim.: Display: 170x160 mm - Imagine: 150x100 mm Weight: 110 gr.

1 pc.

EQUIPMENTS

Vision with polarized lenses.

LAB CONSUMABLES LENSES REFRACTION & ORTHOPTIC

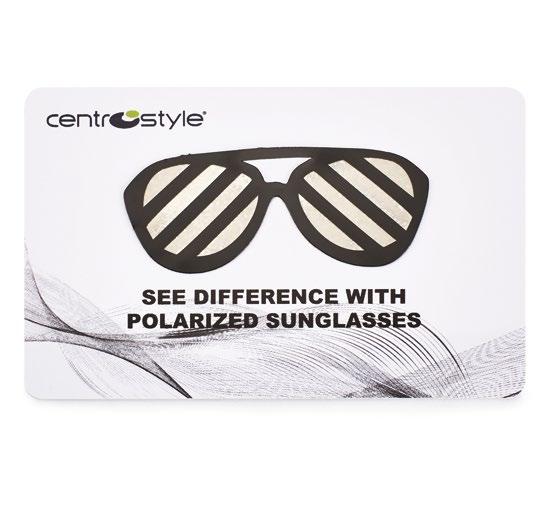

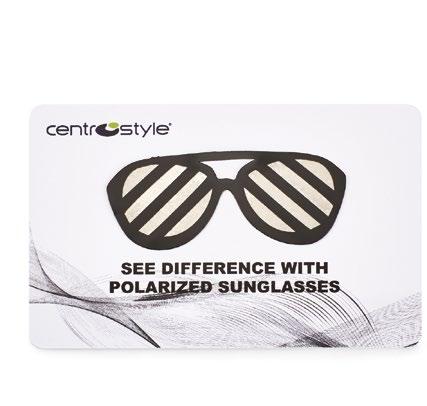

Ref. 06598 PVC Card with color effect for a quick polarized vision test.

Dim.: Card: 85x55 mm - Imagine: 50x20 mm Weight: 5 gr.

10 pcs.

INDEX

ALL RIGHTS RESERVED ©

17

UV400 with external anti-reflective and hard coating treatment - Lenses manufactured by Carl Zeiss Vision Base

FRAME PARTS

LAB MOD SYSTEM

6.1 CR39 LENS SPECIAL DRIVING BASE 4 Ø 76 mm |

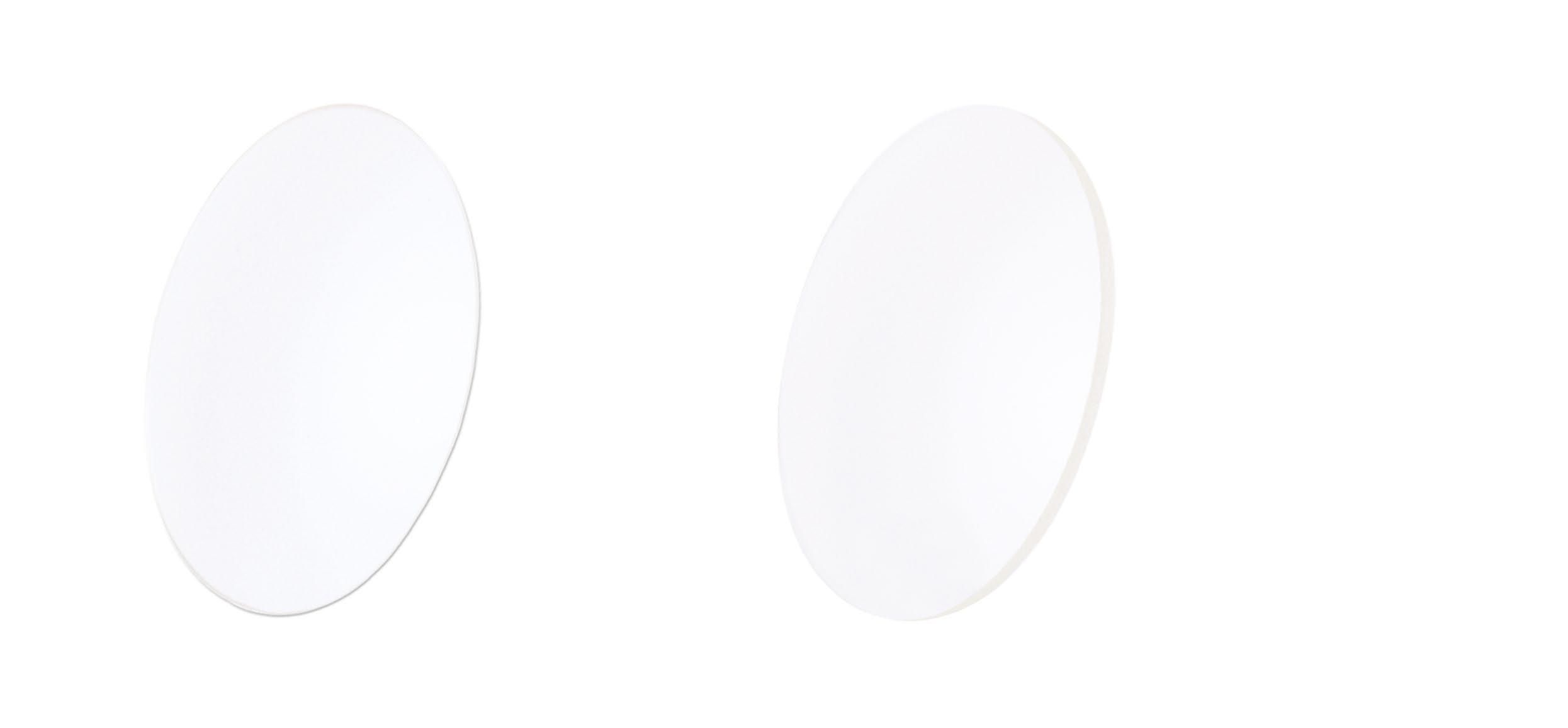

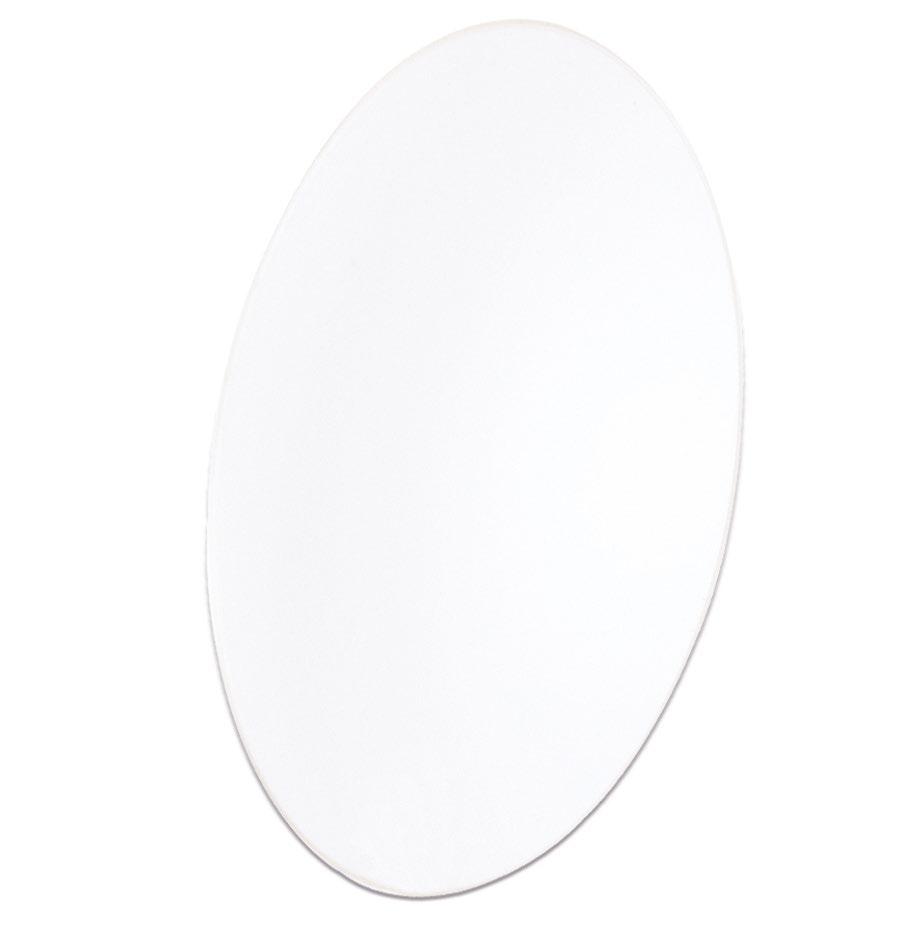

Ref. 06324 FC0 (τ 96%) Clear

1,8 mm

2 pcs.

Anti-reflection coating Hard coating

TOOLS

CR39 lens

PLIERS

Hard coating

Ideal for night driving

LAB CONSUMABLES

EQUIPMENTS

• Certified against the dazzling effects of both LED and artificial light • Illuminating effect • Protection from reflection • Reduction of blue light emitted from artificial lighting

Ref. 06322 FC0 (τ 83%) Yellow

MADE IN ITALY

Anti-reflection coating Hard coating

LENSES

CR39 lens

REFRACTION & ORTHOPTIC

Hard coating

Ideal for night driving Improved perception of contrasts

INDEX

• Certified against the dazzling effects of both LED and artificial light • Illuminating effect • Protection from reflection • Reduction of blue light emitted from artificial lighting

18

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

UV400 with external anti-reflective and hard coating treatment - Lenses manufactured by Carl Zeiss Vision

LAB MOD SYSTEM

6.1

CR39 LENS SPECIAL DRIVING BASE 4

MADE IN ITALY

Ø 76 mm |

1,8 mm

Ref. 06323 FC1 (τ 53%) Light pink

2 pcs.

FRAME PARTS

Base

Trattamento antiriflesso Trattamento di indurimento

Lente CR39

TOOLS

Trattamento indurimento

PLIERS

Ideal for driving during sunset or for low light and cloudy conditions

UV400 - Polarized with Hard Coating and Anti Reflection inside - Lenses manufactured by Carl Zeiss Vision Ø 78 mm |

2,0 mm

2 pcs.

Ref. 06380 FC3 (τ 15%) Polarized Grey 75%

LAB CONSUMABLES

Base

EQUIPMENTS

• Certified against glare from oncoming lights • High contrast and definition • Maximum visibility of detail • • Vivid, accentuated colour

Hard coating Outer lens layer in CR39 Middle lens layer in polarized material Inner lens layer in CR39 Hard coating Anti-reflective coating

LENSES

Ideal for daytime driving

Hard Coating and AR Coating inside

• Excellent scratch and impact resistance.

• Each lens has a durable and effective AR Coating treatment on the inner side for enhanced vision.

REFRACTION & ORTHOPTIC

• Prolonged use on days with strong sun and glare • PASS LED light recognition signal standard (ISO) • Reduction of glare thanks to polarised filter • Total protection and maximum visual comfort • Natural perception of colours without colour distortion

Polarizing effect

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

ALL RIGHTS RESERVED ©

19

INDEX

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

LAB MOD SYSTEM

6.2 CR39 “Classic” full colour and gradient Base 6  Base 8

FRAME PARTS

MADE IN ITALY

Base

Ø 76 mm |

1,8 mm

Ref. 06610 FC1 (τ 50%) Light Grey 25%

Ref. 06611 FC2 (τ 18-20%) Medium Grey 60%

Ref. 06612 FC3 (τ 9-12%) Dark Grey 75%

2,2 mm

12 pcs.

Ref. 06613 Ref. 06614 FC4 (τ 5-7%) FC2 (τ 36%) Very Dark Grey Medium Grey 90% Gradient 60%

Ref. 06608 FC3 (τ 9-12%) Dark Grey 75%

EQUIPMENTS

PLIERS

TOOLS

2 pcs.

For supra frames

LAB CONSUMABLES

Base 8 Decentred lenses

Ø 76 mm |

Ref. 06666 FC3 (τ 8-10%) Dark Grey 75%

1,8 mm

6 pcs.

Ref. 06615 FC2 (τ 22-38%) Medium Grey Gradient 60%

INDEX

REFRACTION & ORTHOPTIC

LENSES

The optical centre is decentred from the geometrical axis for better vision.

Thickness from 1,8 to 2,2 mm

Base

20

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

ALL RIGHTS RESERVED ©

UV400

LAB MOD SYSTEM

CR39 “Classic” full colour and gradient Base 6  Base 8 6.2 MADE IN ITALY

Ø 76 mm |

Ref. 06618 FC2 (τ 21%) Green-Grey 60% G15

Ref. 06619 Ref. 06638 FC3 (τ 12%) FC2 (τ 39%) Dark Green-Grey Green-Grey 75% G15 Gradient 60% G15

1,8 mm

2,2 mm

12 pcs.

Ref. 06616 FC3 (τ 10-13%) Dark Green 75%

Ref. 06609 FC3 (τ 12-15%) Dark Green-Grey 75% G15

FRAME PARTS

Base

TOOLS PLIERS

Base

Ø 76 mm |

1,8 mm

6 pcs.

LAB CONSUMABLES

Ref. 06667 FC3 (τ 8-12%) Dark Green-Grey 75% G15

EQUIPMENTS

For supra frames

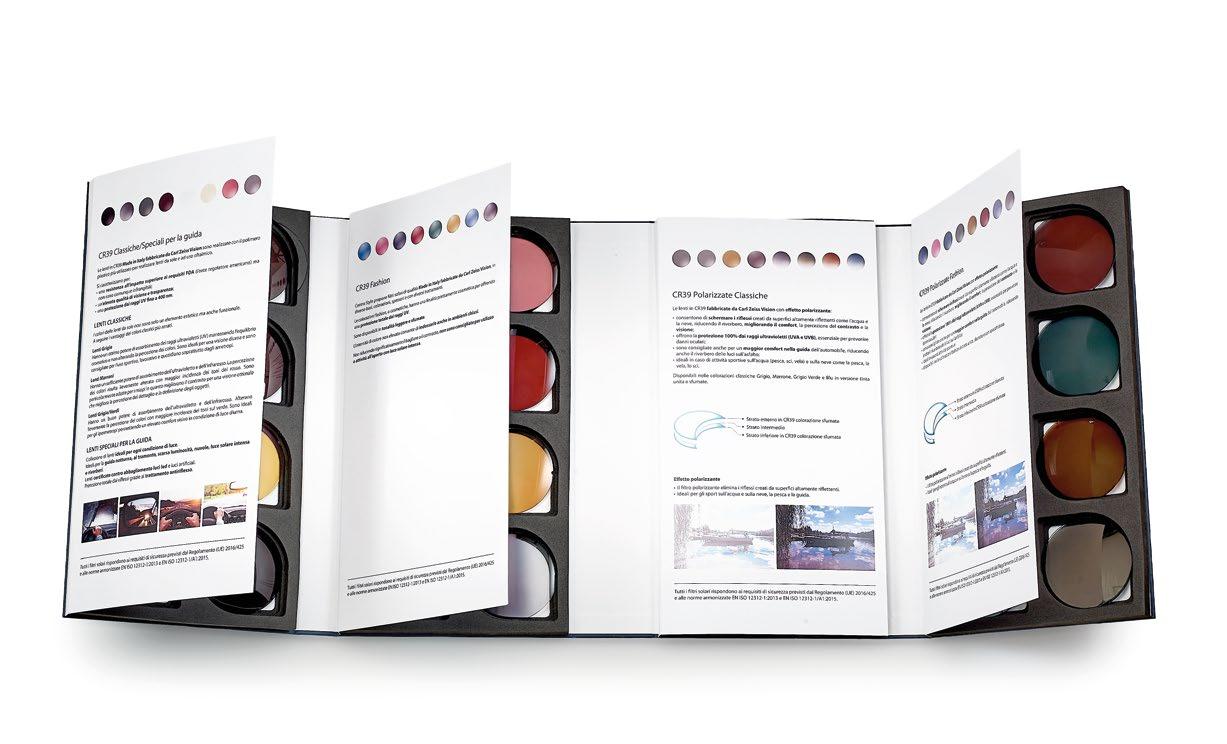

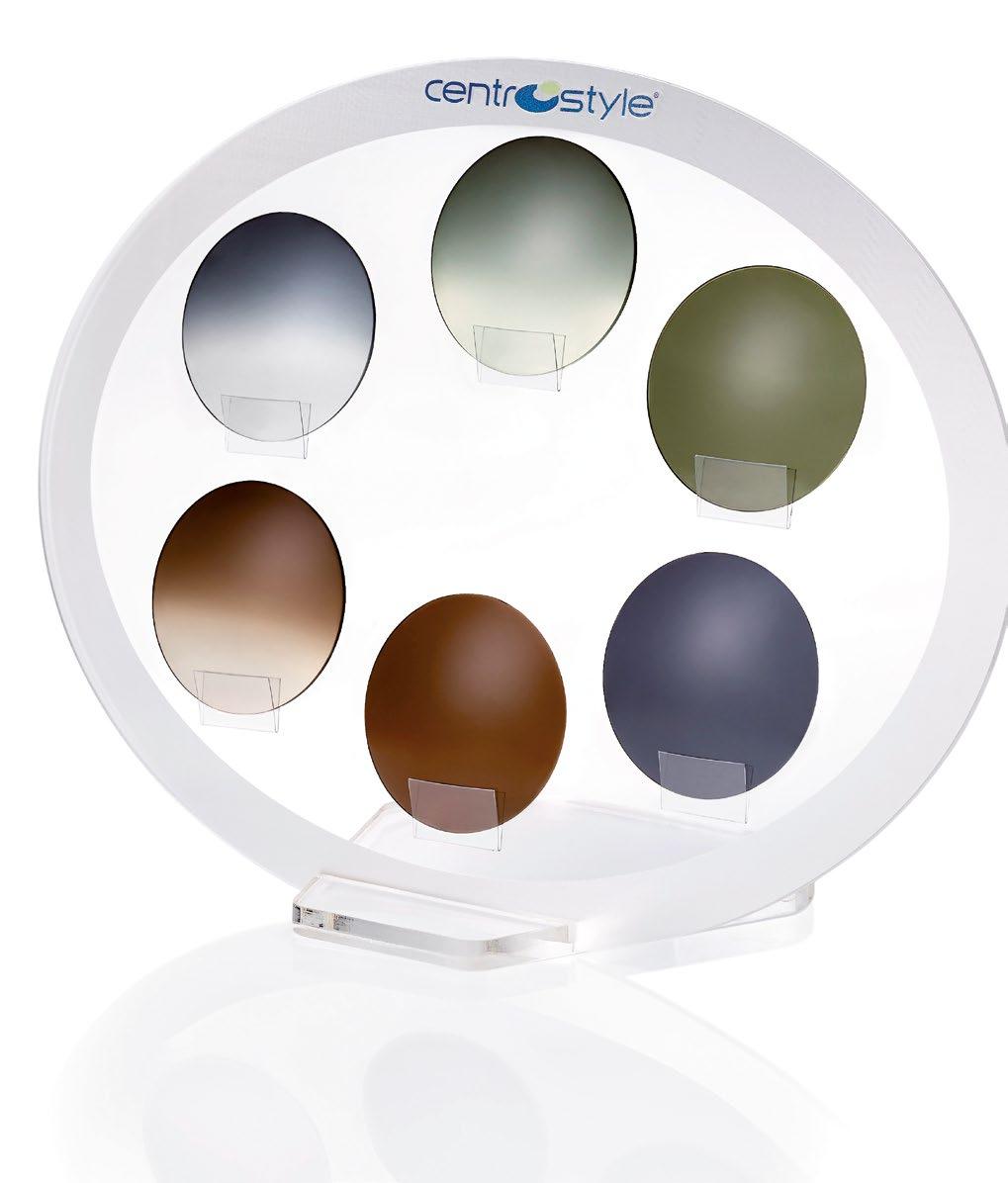

Ref. 06786 Display included f.o.c. with orders of 12 packs of lenses.

LENSES REFRACTION & ORTHOPTIC INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

ALL RIGHTS RESERVED ©

21

LAB MOD SYSTEM

6.2 CR39 “Classic” full colour and gradient Base 6  Base 8 UV400

FRAME PARTS

MADE IN ITALY

Base

Ø 76 mm |

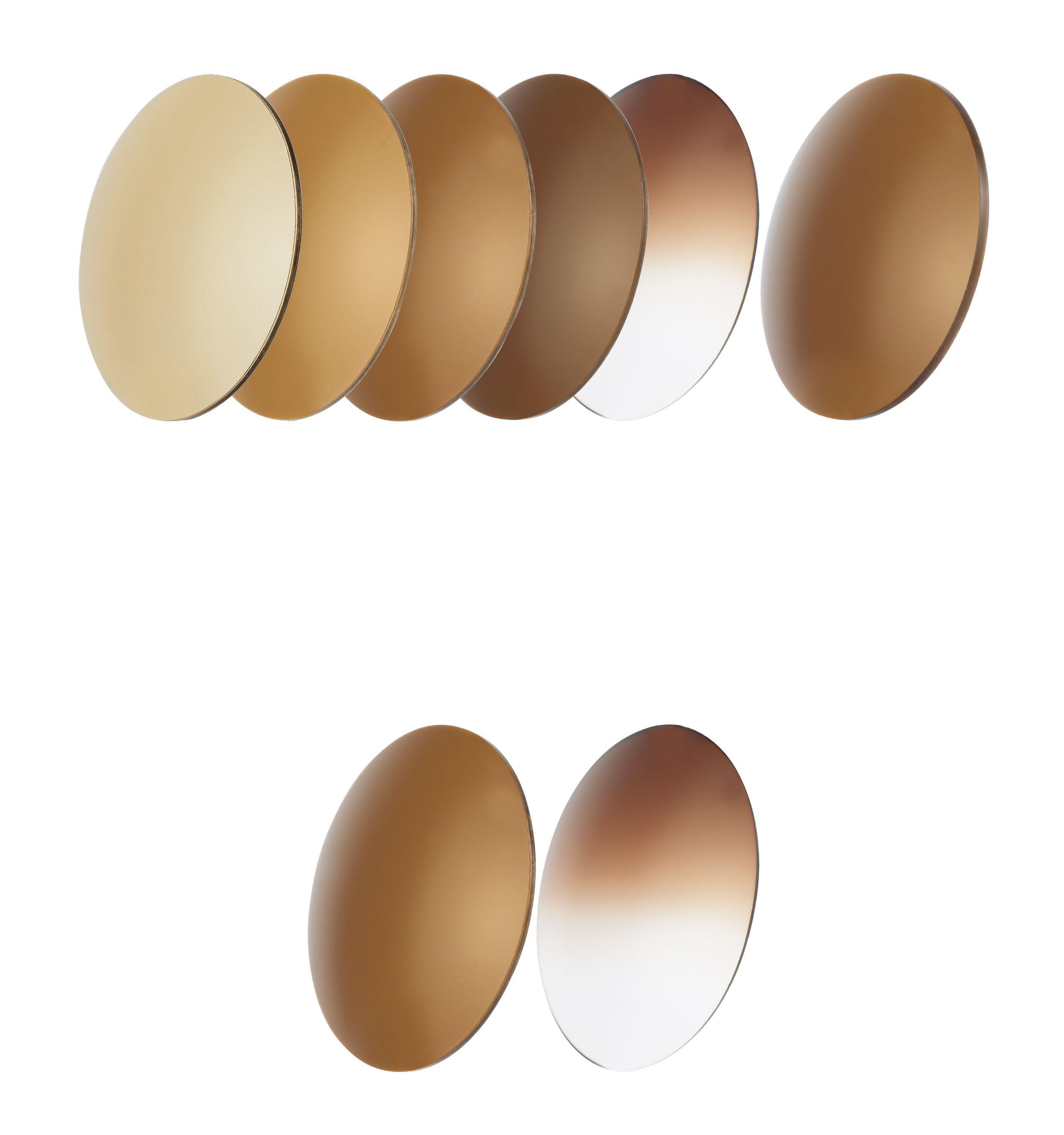

Ref. 06600 FC1 (τ 56%) Light Brown 25%

Ref. 06601 Ref. 06602 FC2 (τ 23%) FC3 (τ 8-10%) Medium Brown Dark Brown 60% 75%

2,2 mm

12 pcs.

1,8 mm

Ref. 06603 FC4 (τ 3-5%) Very Dark Brown 90%

Ref. 06604 FC2 (τ 30-32%) Medium Brown Gradient 60%

Ref. 06607 FC3 (τ 8-10%) Dark Brown 75%

EQUIPMENTS

PLIERS

TOOLS

2 pcs.

For supra frames

LAB CONSUMABLES

Base 8 Decentred lenses

Ø 76 mm |

Ref. 06669 FC3 (τ 9-12%) Dark Brown 75%

1,8 mm

6 pcs.

Ref. 06605 FC2 (τ 30-32%) Medium Brown Gradient 60%

INDEX

REFRACTION & ORTHOPTIC

LENSES

The optical centre is decentred from the geometrical axis for better vision.

Thickness from 1,8 to 2,2 mm

Base

22

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

Computer - For foggy weather - 530 nm

LAB MOD SYSTEM

6.2

CR39 SPECIAL BASE 6

MADE IN ITALY

Ø 76 mm |

2 pcs.

1,8 mm

Computer lenses

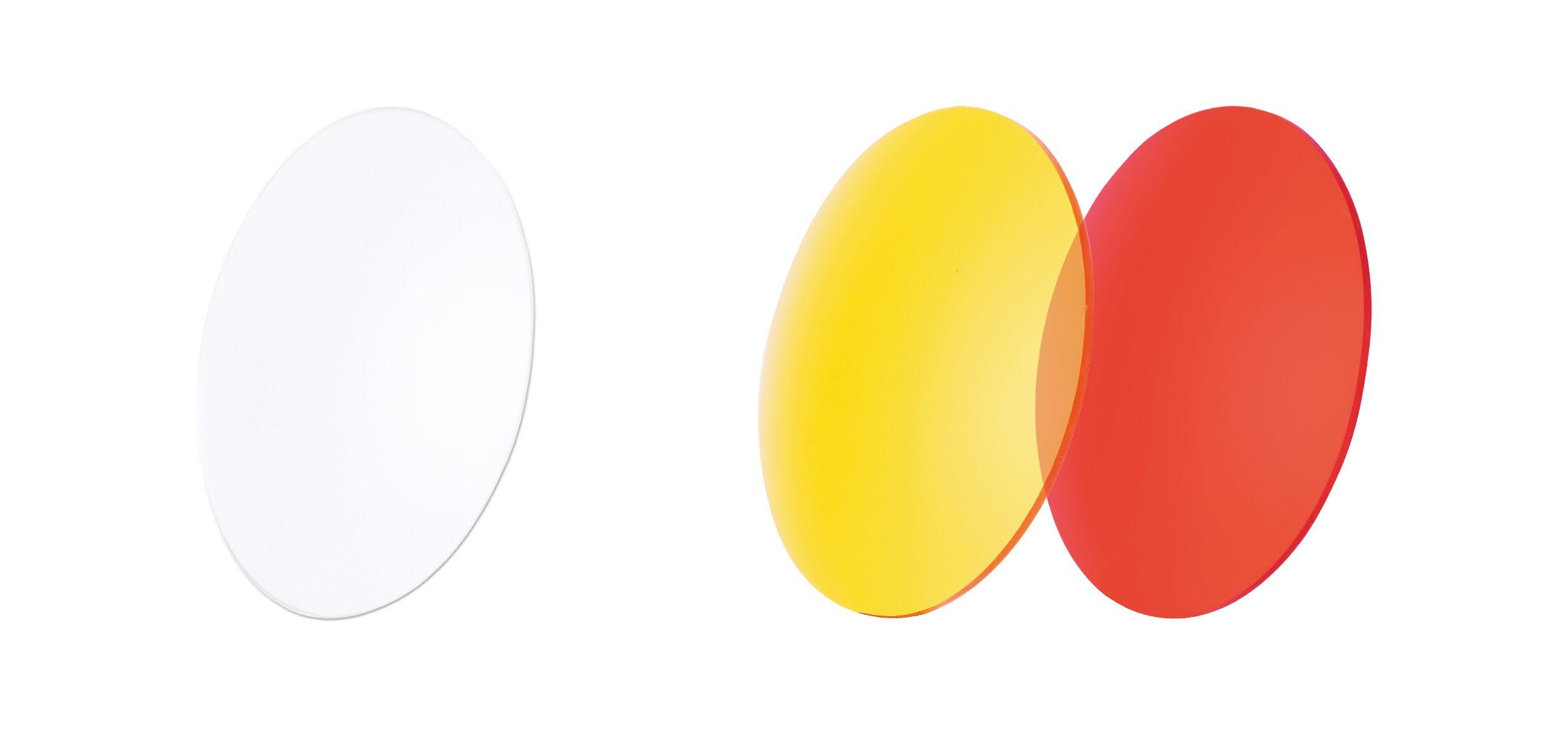

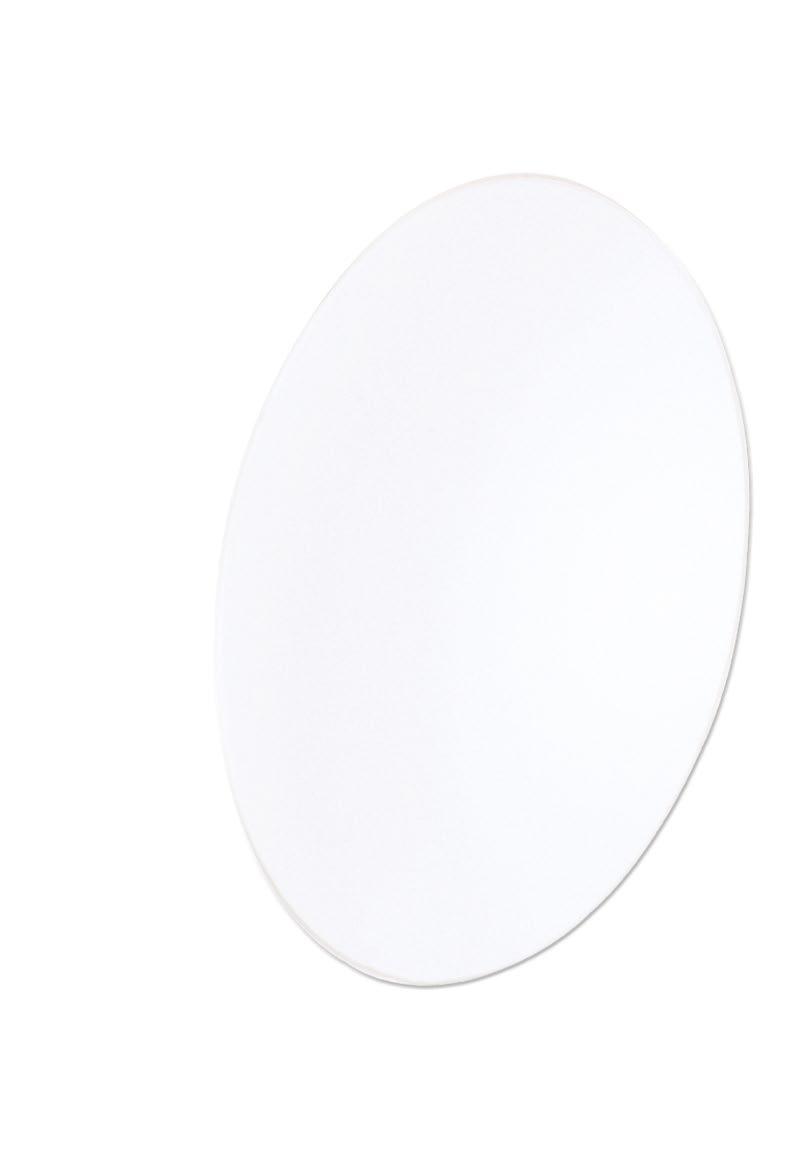

Ref. 06670 FC0 (τ 98%) Clear Clear AR int./ext.+ water-repellent UV380

Red 530 nm

Ref. 06672 FC1 (τ 65-76%) Yellow UV400

Ref. 06673 FC2 (τ 24-27%) Red UV400

For foggy weather

Red 530 nm

TOOLS

or foggy weather

FRAME PARTS

Base

PLIERS EQUIPMENTS

Eliminates reflections caused by artificial light

• Suitable for protection against radiation and flickering of computer and TV screens.

• 100% UV protection.

• Neutral contrast and colour perception.

• Reduces blue light • Increases colour contrast

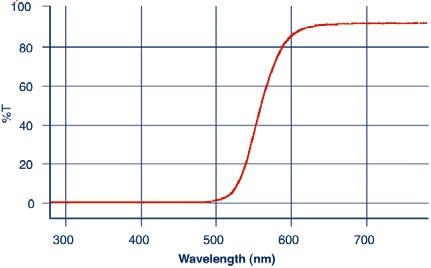

• Absorbs the blue-green band of visible light to 530 nm.

• 100% UV protection.

LAB CONSUMABLES

Computer lenses

LENSES REFRACTION & ORTHOPTIC INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

ALL RIGHTS RESERVED ©

23

LAB MOD SYSTEM

UV400 - Anti-reflective Coating (AR) inside - Lenses manufactured by Carl Zeiss Vision Base

Ø 78 mm |

Ref. 06380 FC3 (τ 15%) Polarized Grey 75%

Ref. 06382 FC3 (τ 15%) Polarized Green Grey 75% G15

2,0 mm

2 pcs.

Ref. 06381 FC3 (τ 10%) Polarized Brown 75%

Hard Coating and AR Coating inside

TOOLS

FRAME PARTS

6.2 CR39 Polarized with Hard Coating and Anti Reflection Base 6 and Base 8

• Excellent scratch and impact resistance.

• Each lens has a durable and effective AR Coating treatment on the inner side for enhanced vision.

Hard coating

PLIERS

Outer lens layer in CR39 Middle lens layer in polarized material Inner lens layer in CR39 Hard coating

Base

Ø 78 mm |

Ref. 06390 FC3 (τ 15%) Polarized Grey 75%

Ref. 06392 FC3 (τ 15%) Polarized Green Grey 75% G15

2,0 mm Decentred lenses Ref. 06391 FC3 (τ 10%) Polarized Brown 75%

2 pcs.

Base 8 Decentred lenses The optical centre is decentred from the geometrical axis for better vision.

Thickness from 1,8 to 2,2 mm

LENSES

LAB CONSUMABLES

EQUIPMENTS

Anti-reflective coating

REFRACTION & ORTHOPTIC

Polarizing effect

INDEX

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

24

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

6.2

UV400 - Lenses manufactured by Carl Zeiss Vision Ø 80 mm |

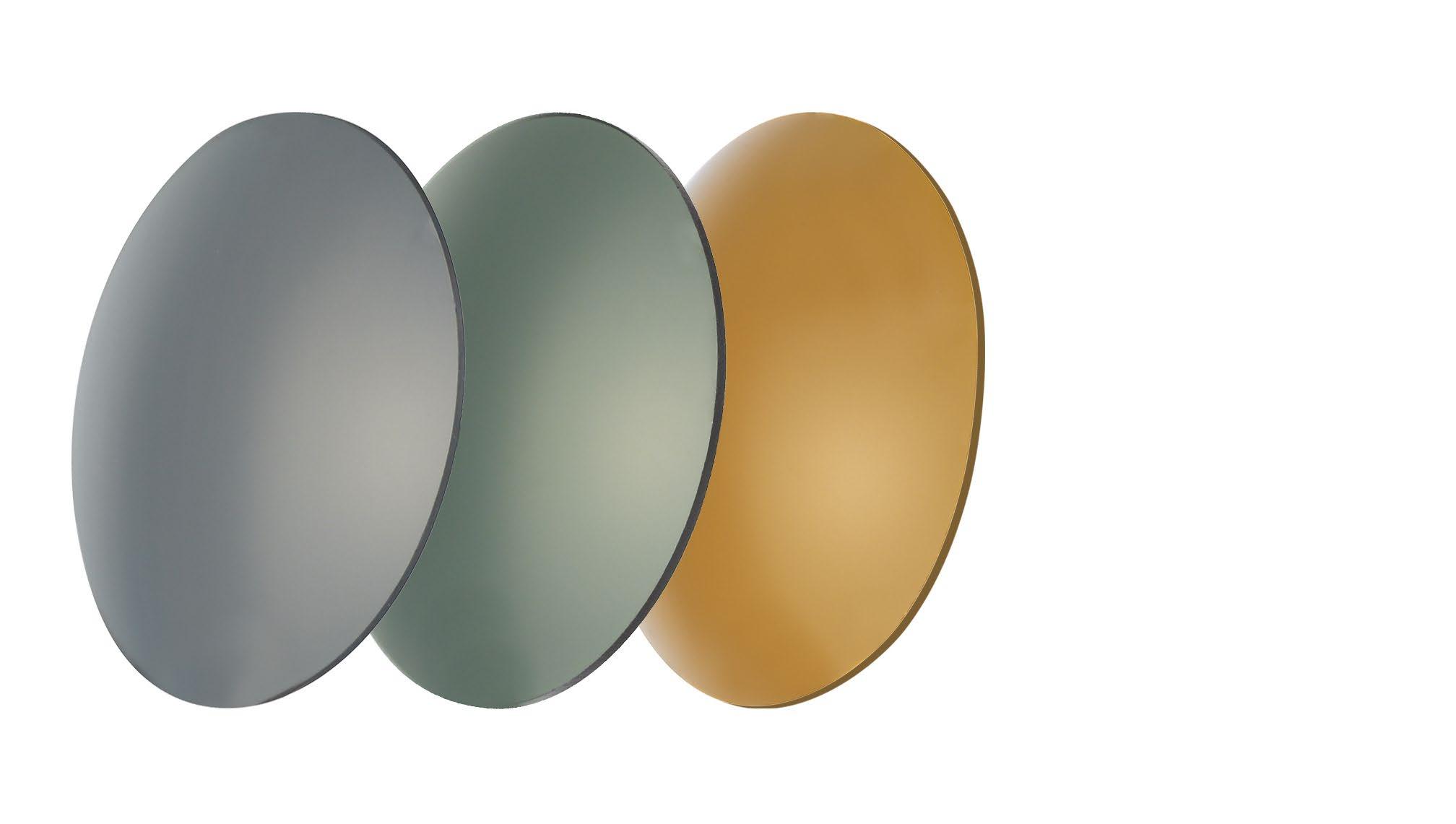

Ref. 06350 FC3 (τ 15%) Polarized Grey 75%

2,0 mm

Ref. 06352 FC3 (τ 15%) Polarized Green Grey 75% G15

2 pcs.

FRAME PARTS

Base

LAB MOD SYSTEM

CR39 Polarized Base 6 and Base 8 Ref. 06351 FC3 (τ 11%) Polarized Brown 75%

TOOLS PLIERS

Outer lens layer in CR39 Middle lens layer in polarized material Inner lens layer in CR39

EQUIPMENTS

Base

Ø 80 mm |

2 pcs.

Ref. 06362 FC3 (τ 15%) Polarized Green-Grey 75% G15

LAB CONSUMABLES

Ref. 06360 FC3 (τ 15%) Polarized Grey 75%

2,0 mm Decentred lenses

Base 8 Decentred lenses

LENSES

The optical centre is decentred from the geometrical axis for better vision.

Thickness from 1,8 to 2,2 mm

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

REFRACTION & ORTHOPTIC

Polarizing effect

ALL RIGHTS RESERVED ©

25

UV400 - Lenses manufactured by Carl Zeiss Vision Base

FRAME PARTS

LAB MOD SYSTEM

6.2 CR39 Polarized Fashion Base 6 Ø 80 mm |

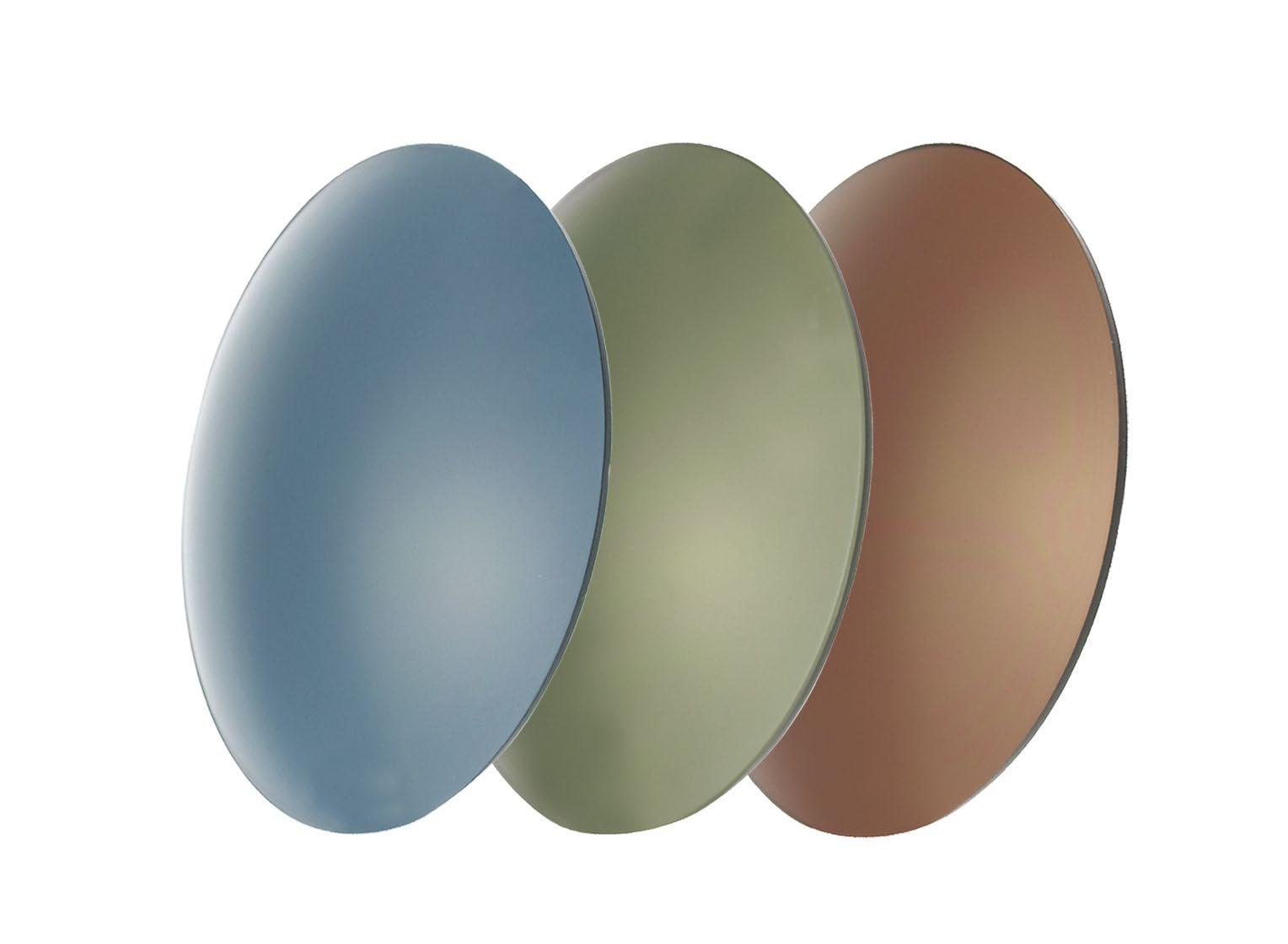

Ref. 06355 FC2 (τ 25%) Polarized Light Green 60%

2 pcs.

Ref. 06353 FC2 (τ 27%) Polarized Yellow/Brown 60%

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06356 FC3 (τ 13%) Polarized Light Blue 75%

2,0 mm

LENSES

Middle lens layer in polarized material

REFRACTION & ORTHOPTIC

Outer lens layer in CR39

Polarizing effect

Inner lens layer in CR39

INDEX

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

26

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

LAB MOD SYSTEM

6.2 CR39 Polarized Gradient Base 6 UV400 - Lenses manufactured by Carl Zeiss Vision Ø 78 mm |

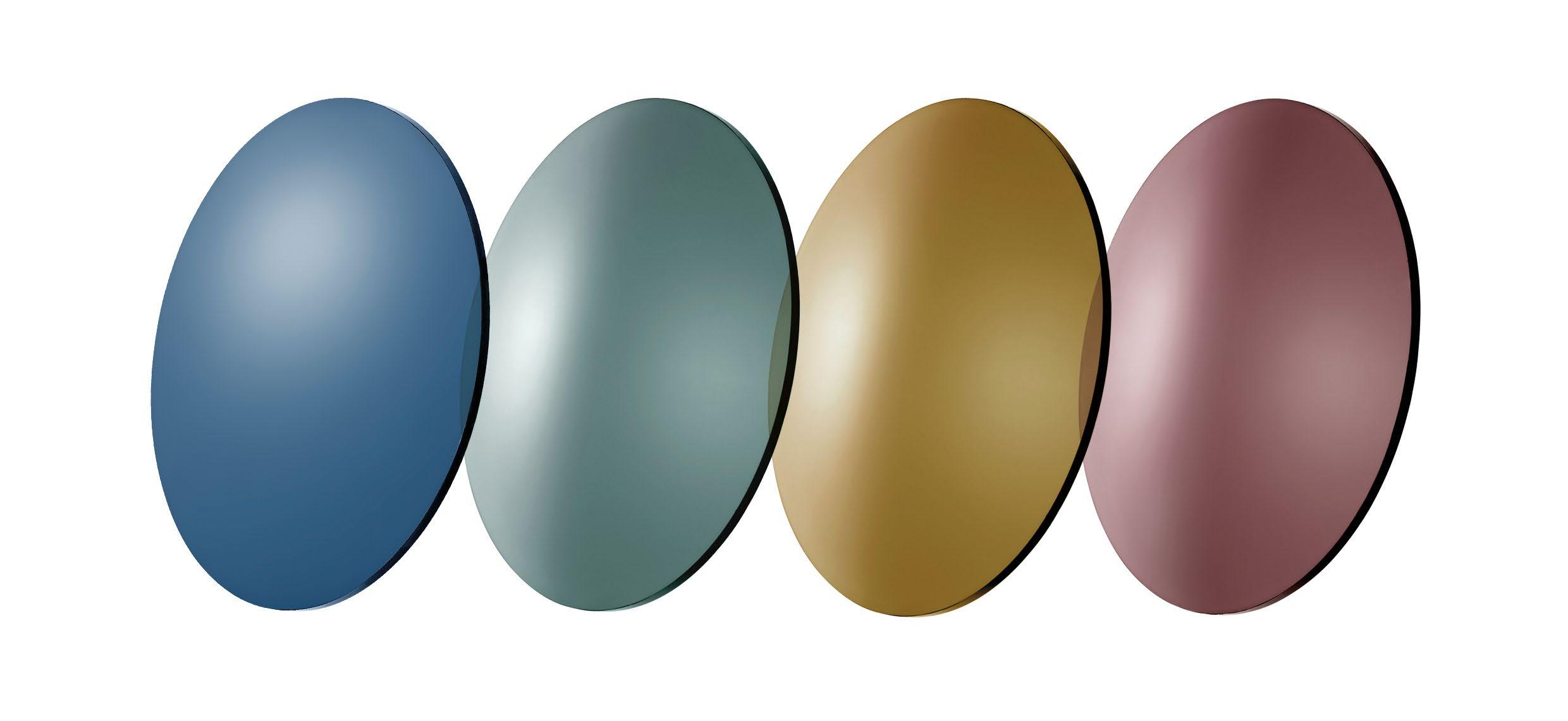

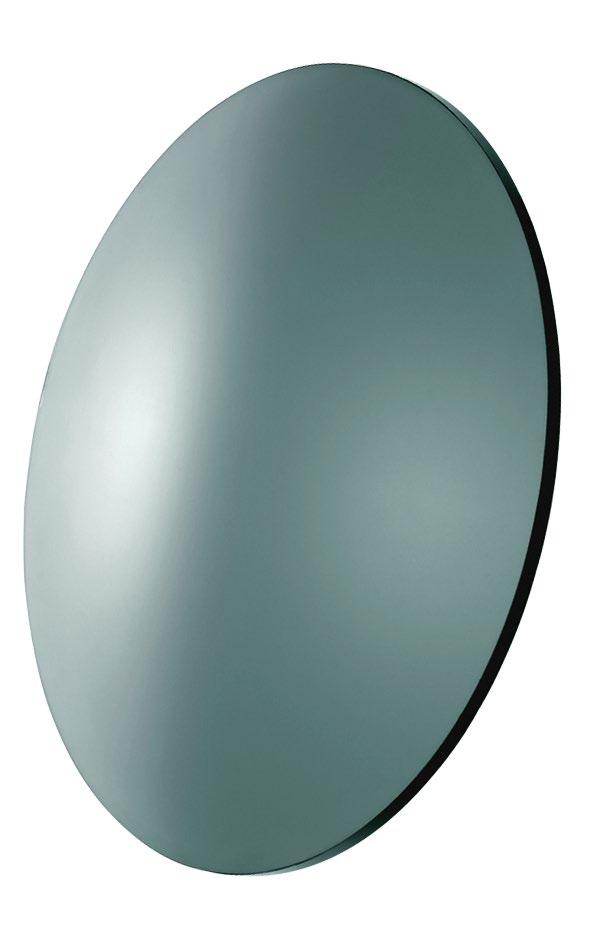

Ref. 06385 FC3 (τ 13%) Polarized Grey/Smoke Gradient 75%

2,0 mm

2 pcs.

Ref. 06386 FC3 (τ 17%) Polarized Green-Grey Gradient 75% G15

Ref. 06387 FC3 (τ 16%) Polarized Brown Gradient 75%

FRAME PARTS

Base

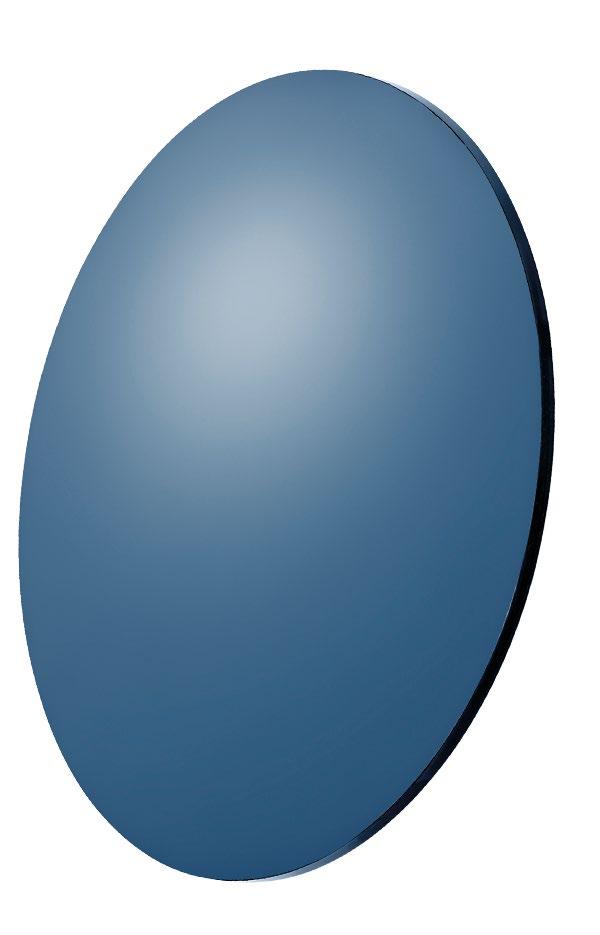

Ref. 06388 FC3 (τ 17%) Polarized Blue Gradient 75%

TOOLS PLIERS EQUIPMENTS

CR39 “Classic” Bicolour

LAB CONSUMABLES

Ref. 06383 FC3 (τ 13%) Polarized Grey/Light Green Gradient 75%

2 pcs.

Ref. 06384 FC3 (τ 13%) Polarized Grey/Light Brown Gradient 75% Outer layer in CR39 gradient colour

LENSES

Middle lens layer in polarized material Inner layer in CR39 gradient colour

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

REFRACTION & ORTHOPTIC

Polarizing effect

ALL RIGHTS RESERVED ©

27

LAB MOD SYSTEM

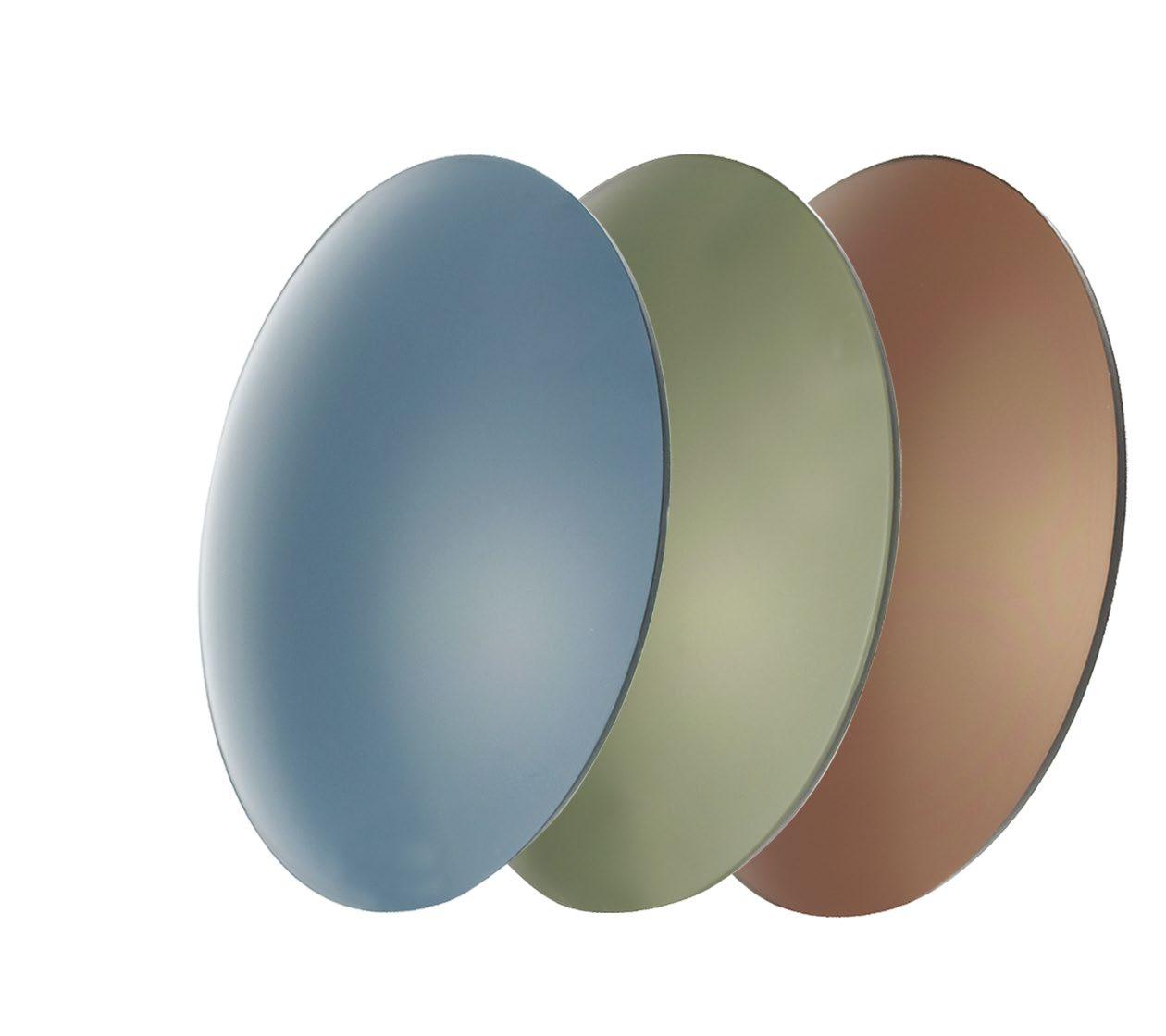

6.3 CR39 Polarized Mirrored Base 6 UV400 - Polarized Mirrored Lenses MADE IN ITALY

FRAME PARTS

Base

2,0 mm

Ref. 06371 FC3 (τ 12%) Blue Mirror Base Grey 75%

2 pcs.

Ref. 06372 FC3 (τ 17%) Gold Mirror Base Brown 75%

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06370 FC3 (τ 13%) Silver Mirror Base Grey 75%

Ø 76 mm |

Polarizing effect Mirror coating

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

Middle lens layer in polarized material Inner lens layer in CR39

REFRACTION & ORTHOPTIC

LENSES

Outer lens layer in CR39

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

28

ALL RIGHTS RESERVED ©

Ø 76 mm |

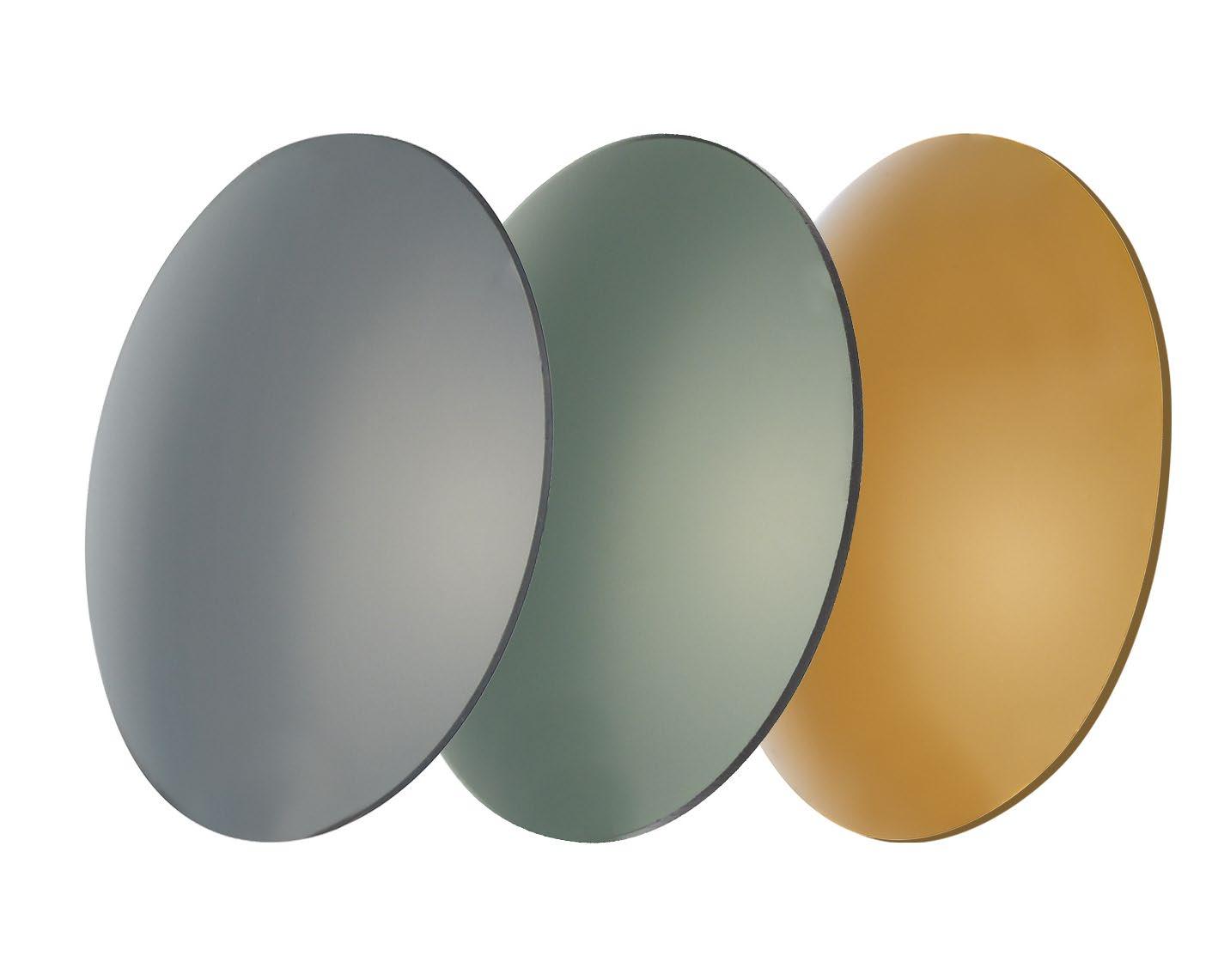

Ref. 06650 FC3 (τ 9-12%) Dark Grey 75%

1,8 mm with hard coating treatment and AR inside

Ref. 06651 FC3 (τ 12-15%) Dark Green-Grey 75% G15

2 pcs.

Ref. 06652 FC3 (τ 8-10%) Dark Brown 75%

FRAME PARTS

Base

LAB MOD SYSTEM

6.3

CR39 With Hard Coating Base 6

Hard coating and AR inside

TOOLS

• Excellent scratch and impact resistance.

• Each lens has a durable and effective AR Coating treatment on the inner side for enhanced vision.

Hard coating CR39 lens

PLIERS

Hard coating Anti-reflective coating

EQUIPMENTS

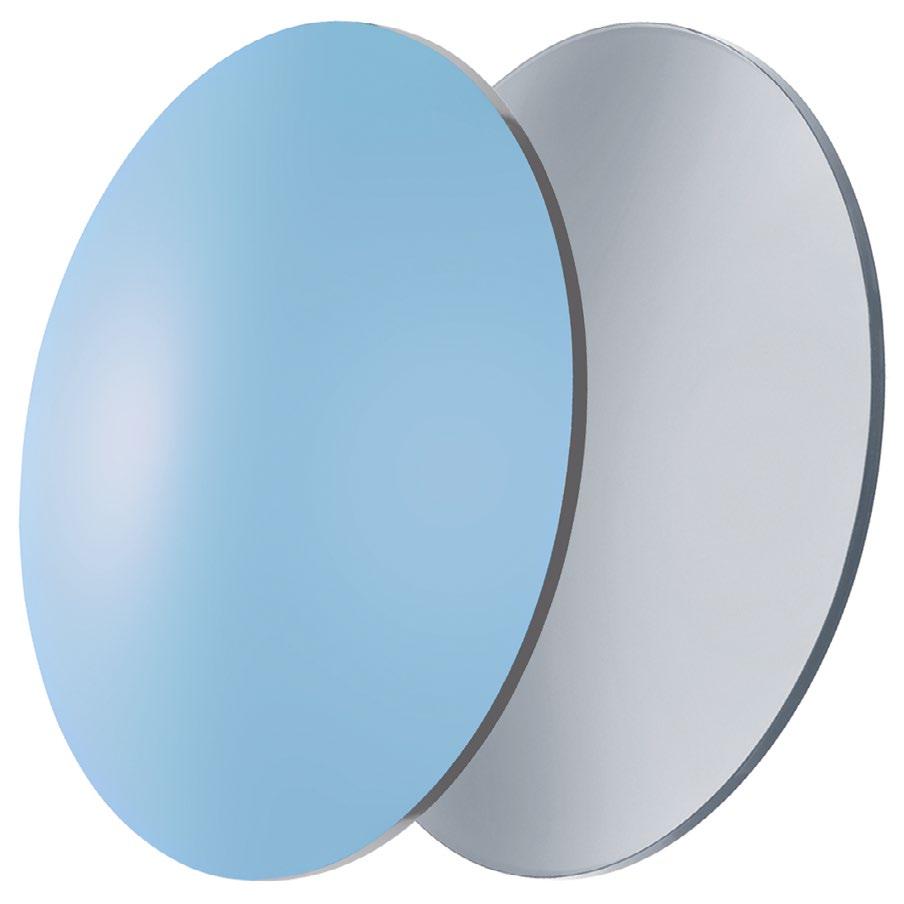

UV400 - Mirror MADE IN ITALY

Base

1,8 mm with hard coating and mirror treatment

Ref. 06659 FC4 (τ 7%) Mirror Silver Base Grey 90%

6 pcs.

LAB CONSUMABLES

Ref. 06658 FC3 (τ 12%) Mirror Blue Base Grey 75%

Ø 76 mm |

Hard coating and mirror treatment • Excellent scratch and impact resistance.

• Low light absorption.

• Partial IR protection.

LENSES

Mirror coating Hard coating

REFRACTION & ORTHOPTIC

CR39 lens Hard coating

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

INDEX

ALL RIGHTS RESERVED ©

29

LAB MOD SYSTEM

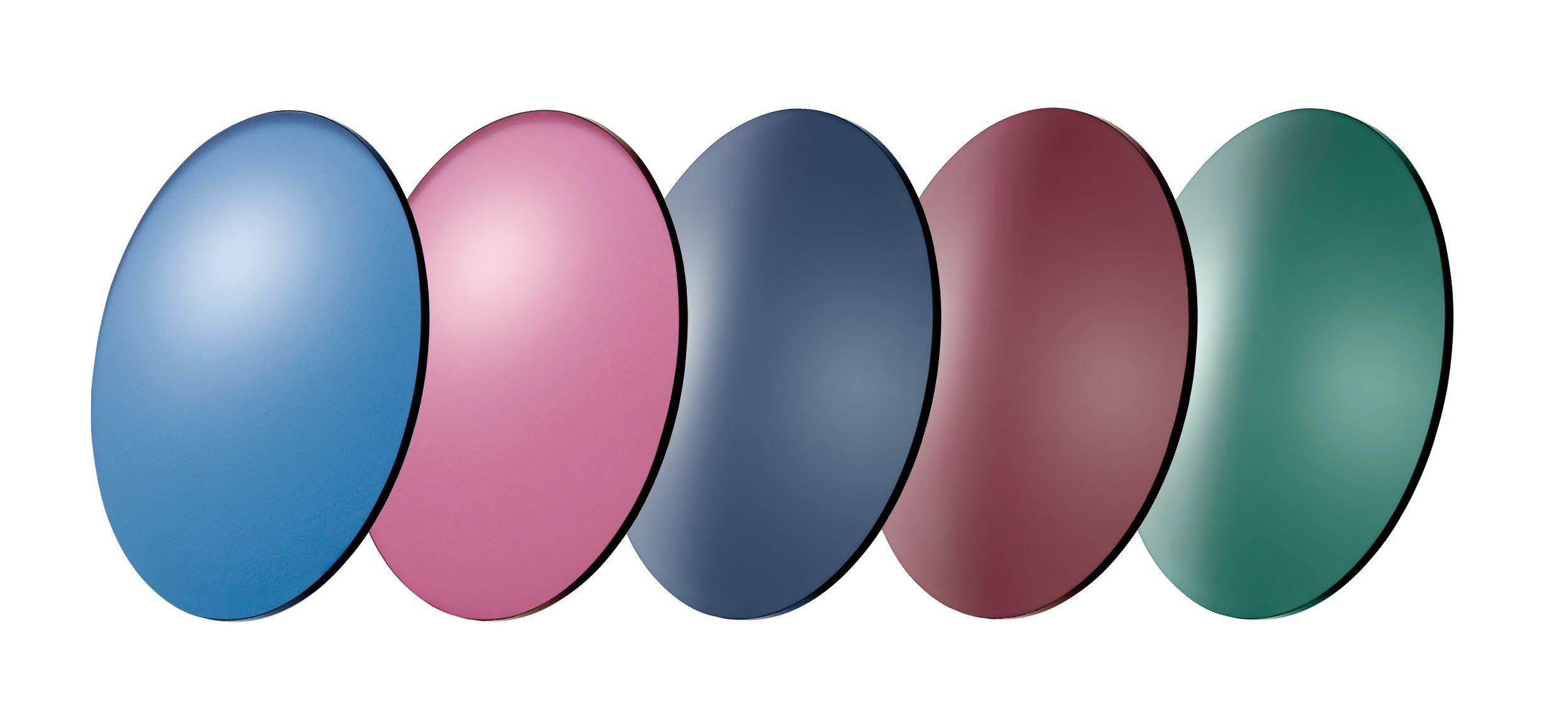

6.3 CR39 Multilayer Mirrored Lenses Base 6 UV400 - 12 layers - Fashion Colours Base

Ø 76 mm |

1,8 mm

Ref. 06680 FC3 (τ 11%) Mirror Blue Base G15 75%

Ref. 06682 FC3 (τ 11%) Mirror Orange Base Grey 75%

Ref. 06683 FC3 (τ 10%) Mirror Green Base Grey 75%

2 pcs.

Ref. 06681 FC3 (τ 12%) Mirror Violet Base Grey 75%

Ref. 06684 FC3 (τ 13%) Mirror Red Base Grey 75%

Ref. 06687 FC3 (τ 10%) Mirror Gold Base Grey 75%

Ref. 06686 FC3 (τ 12%) Mirror Pink Base Grey 75%

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

MADE IN ITALY

INDEX

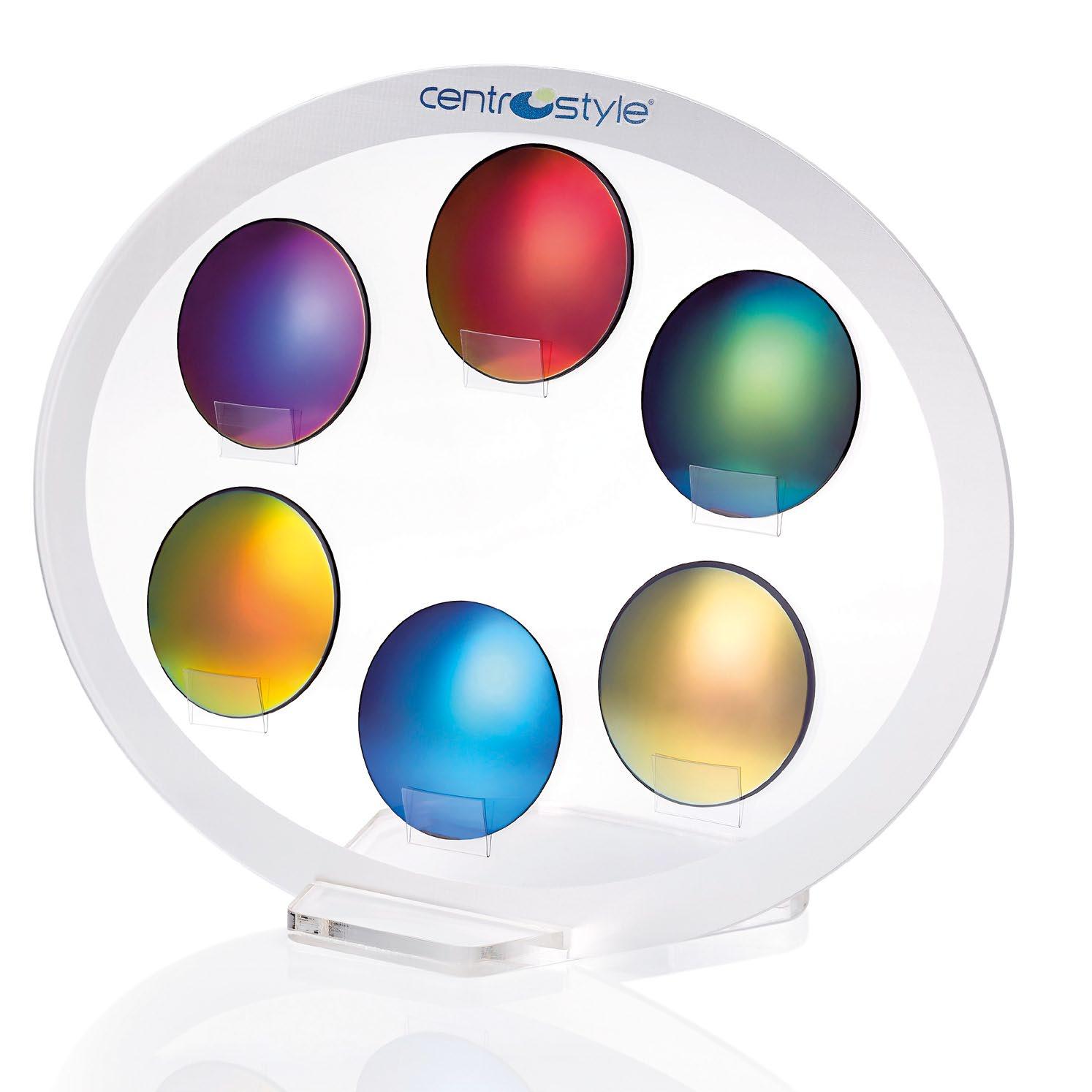

Ref. 06786 Display included f.o.c. with orders of 12 packs of lenses.

30

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

UV400

LAB MOD SYSTEM

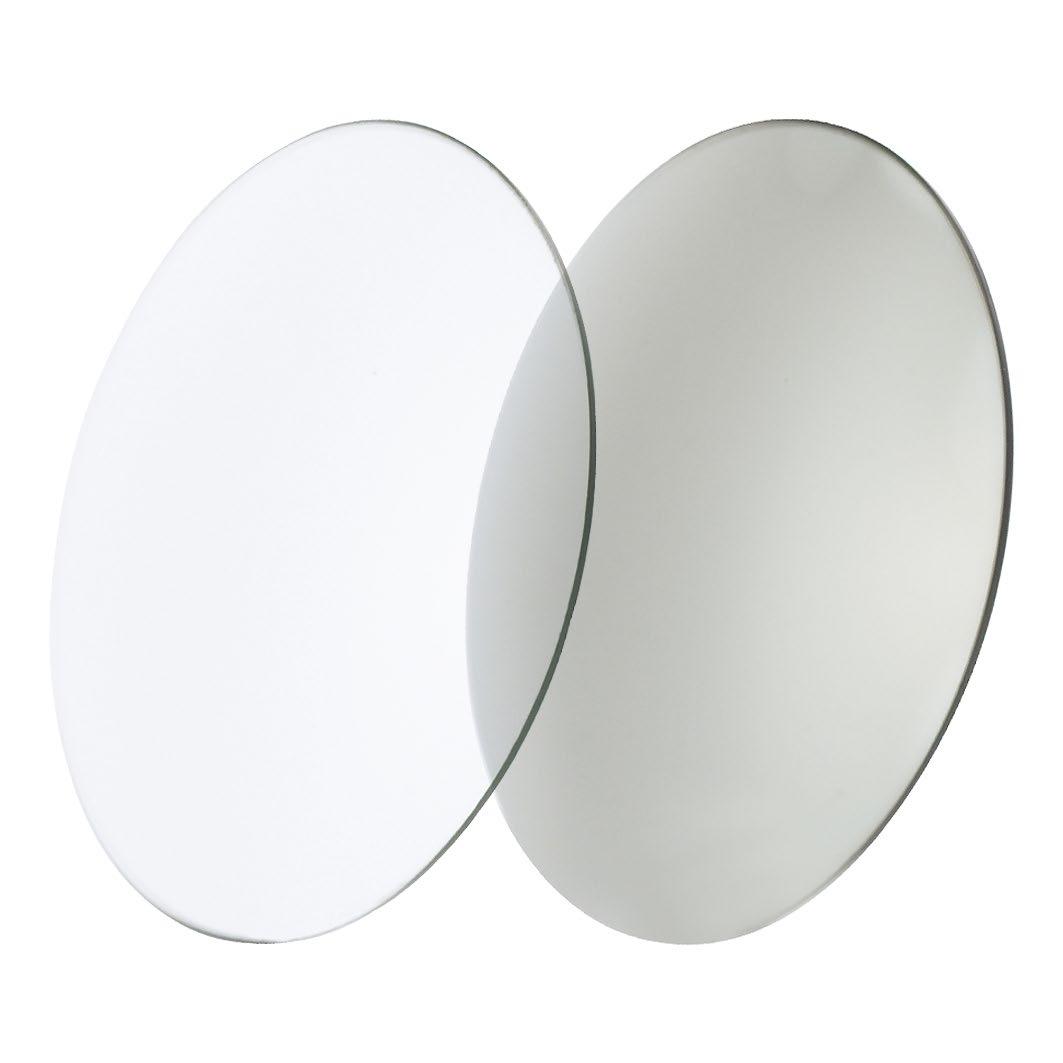

CR39 Flash Gradient Mirror Base 6  Base 8 6.3 MADE IN ITALY

Ø 76 mm |

Ref. 06754 FC1 (τ 66%) Silver Flash Mirror Base Light Blue Gradient 20%

1,8 mm

Ref. 06747 FC2 (τ 30%) Silver Flash Mirror Base Pink 25%

6 pcs.

Ref. 06656 FC3 (τ 10-12%) Gold Flash Mirror Base Brown 75%

Ref. 06657 FC3 (τ 16-17.5%) Silver Flash Mirror Base Grey 75%

2 pcs.

Ref. 06752 FC1 (τ 60%) Silver Flash Mirror Base Brown Gradient 20%

FRAME PARTS

Base

2 pcs.

TOOLS PLIERS EQUIPMENTS

Ø 76 mm |

1,8 mm Decentred Lens

6 pcs.

LAB CONSUMABLES

Base

Ref. 06655 FC3 (τ 10%) Silver Flash Mirror Base Dark Grey 75%

LENSES

Base 8 Decentred lenses

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

REFRACTION & ORTHOPTIC

The optical centre is decentred from the geometrical axis for better vision.

Thickness from 1,8 to 2,2 mm.

ALL RIGHTS RESERVED ©

31

LAB MOD SYSTEM

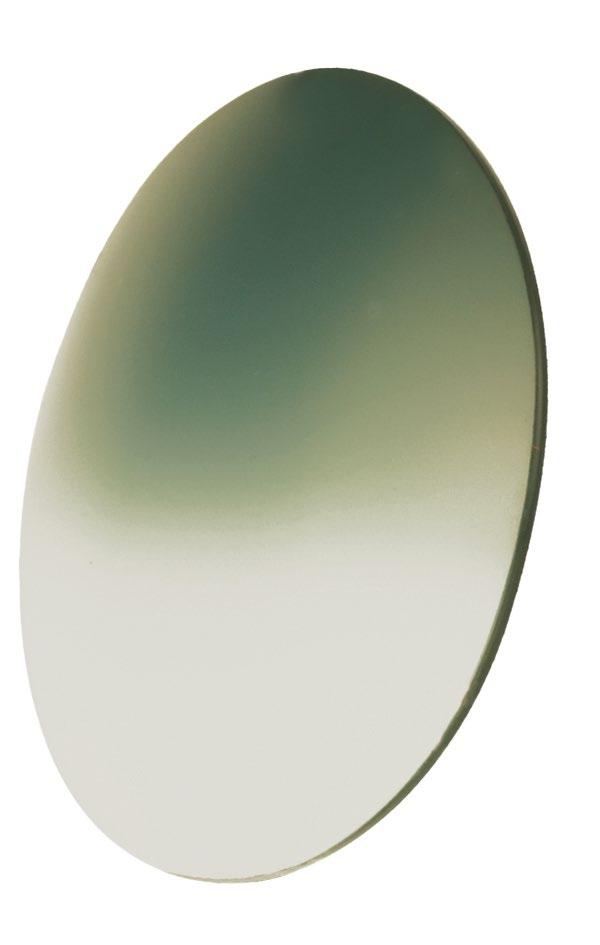

6.3 CR39 Bicolour “Fashion” Base 6 UV400 - Gradient MADE IN ITALY

FRAME PARTS

Base

Ø 76 mm |

2 pcs.

1,8 mm Ref. 06776 FC2 (τ 39%) Bicolour: Yellow/Violet Gradient 30%

CR39 “Classic” Bicolour

2 pcs.

Ref. 06773 FC2 (τ 38%) Bicolour: Yellow/Cobalt Gradient 30%

Ref. 06777 FC2 (τ 19%) Bicolour: Cobalt/Rubio Gradient 30%

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06772 FC2 (τ 35%) Bicolour: Grey/Blue Gradient 25%

Ref. 06768 FC3 (τ 13-15%) Dark/Light Grey Gradient 75%

INDEX

REFRACTION & ORTHOPTIC

LENSES

Ref. 06769 FC3 (τ 13-15%) Dark/Light Brown Gradient 75%

32

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

UV400 - Gradient

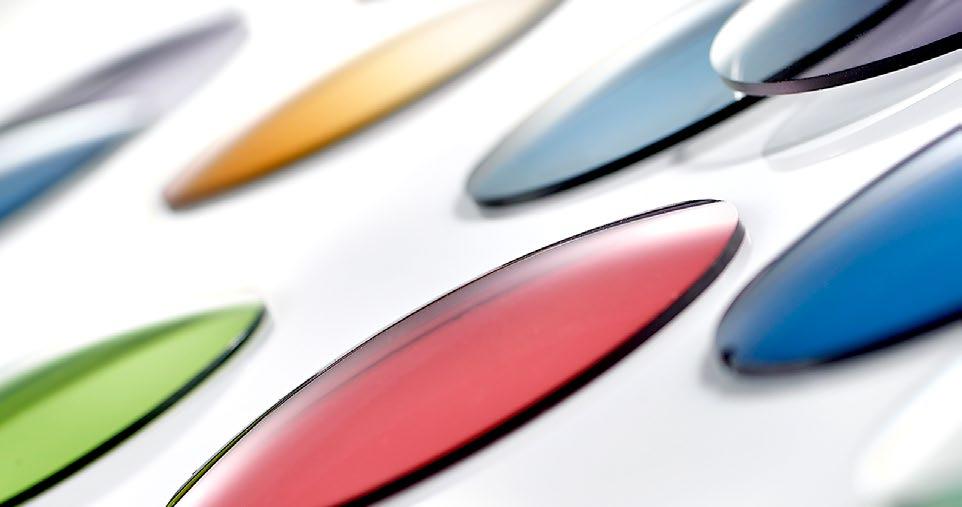

LAB MOD SYSTEM

6.3

CR39 “Fashion” Base 6

MADE IN ITALY

Ø 76 mm | Ref. 06770 FC2 (τ 41%) Pink Gradient 25%

6 pcs.

1,8 mm Ref. 06771 FC2 (τ 36%) Violet Gradient 25%

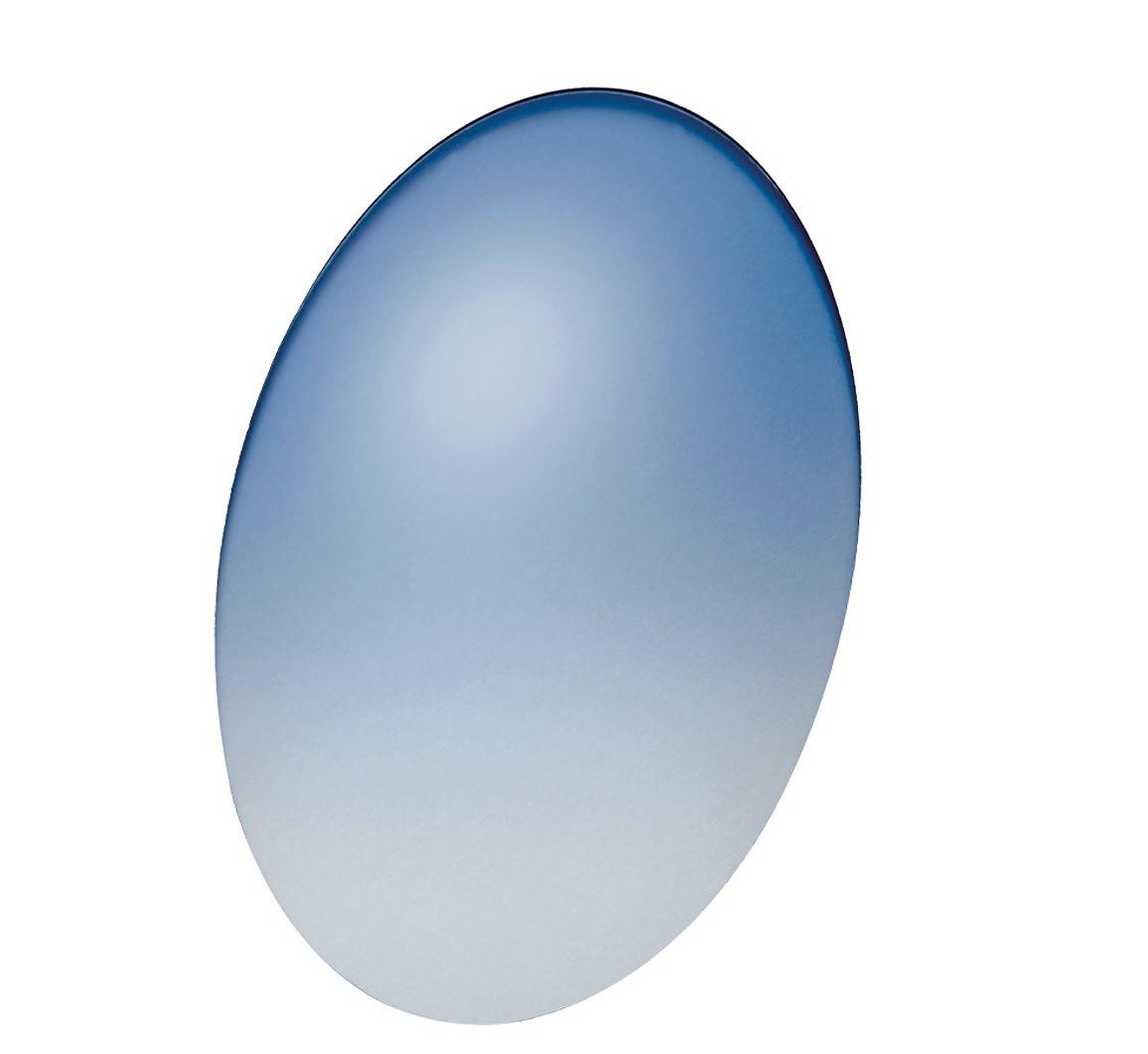

Ref. 06748 FC1 (τ 52%) Light Blue Gradient 25%

FRAME PARTS

Base

Ref. 06749 FC1 (τ 43%) Light Cobalt Gradient 35%

TOOLS PLIERS EQUIPMENTS

UV400 - Full colour

Ref. 06742 FC1 (τ 55%) Violet 35%

Ref. 06617 FC2 (τ 20-25%) Medium Blue 60%

LAB CONSUMABLES

Ref. 06741 FC 2 (τ 18%) Cobalt 60%

6 pcs.

12 pcs.

LENSES REFRACTION & ORTHOPTIC INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

ALL RIGHTS RESERVED ©

33

LAB MOD SYSTEM

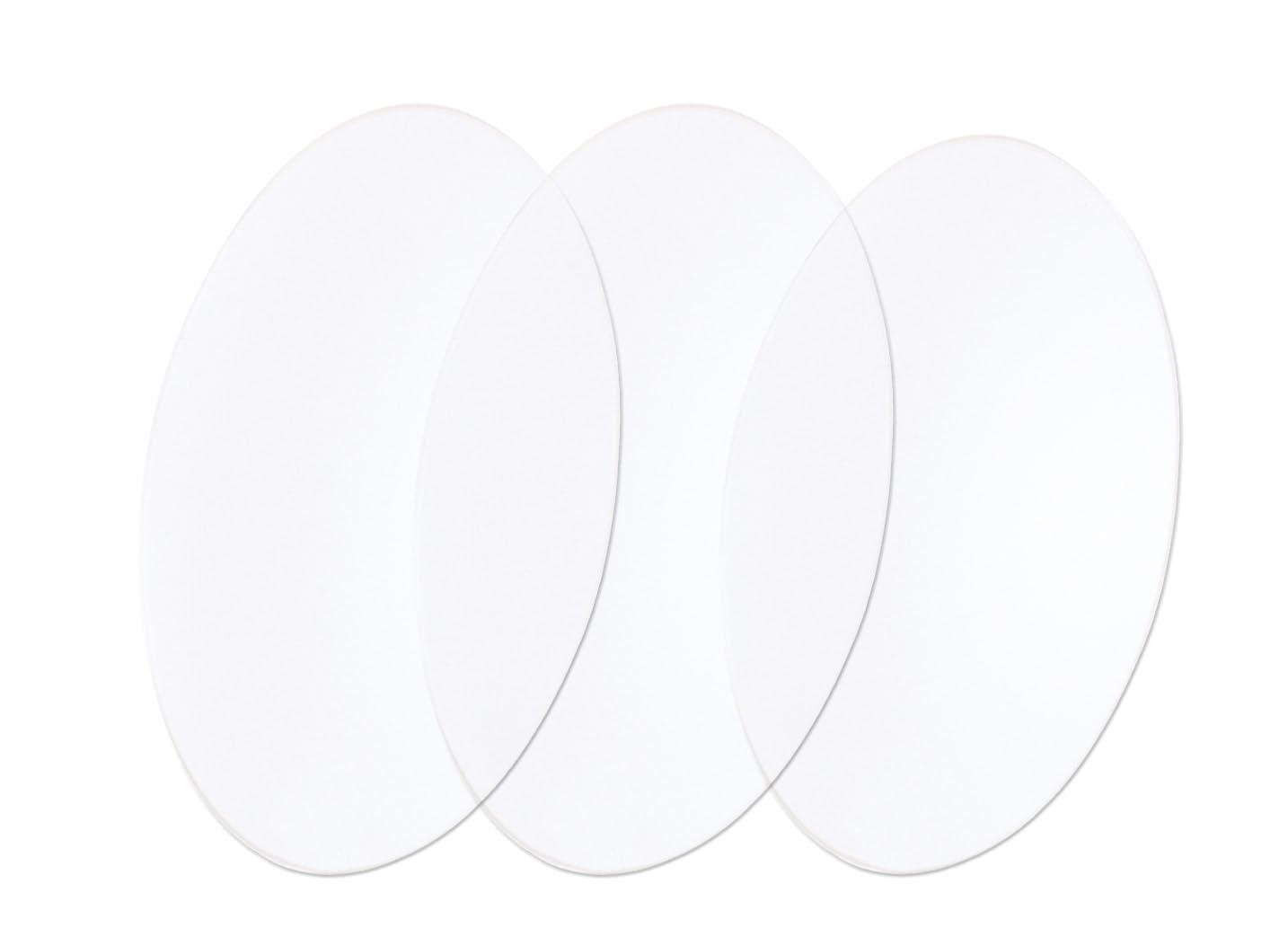

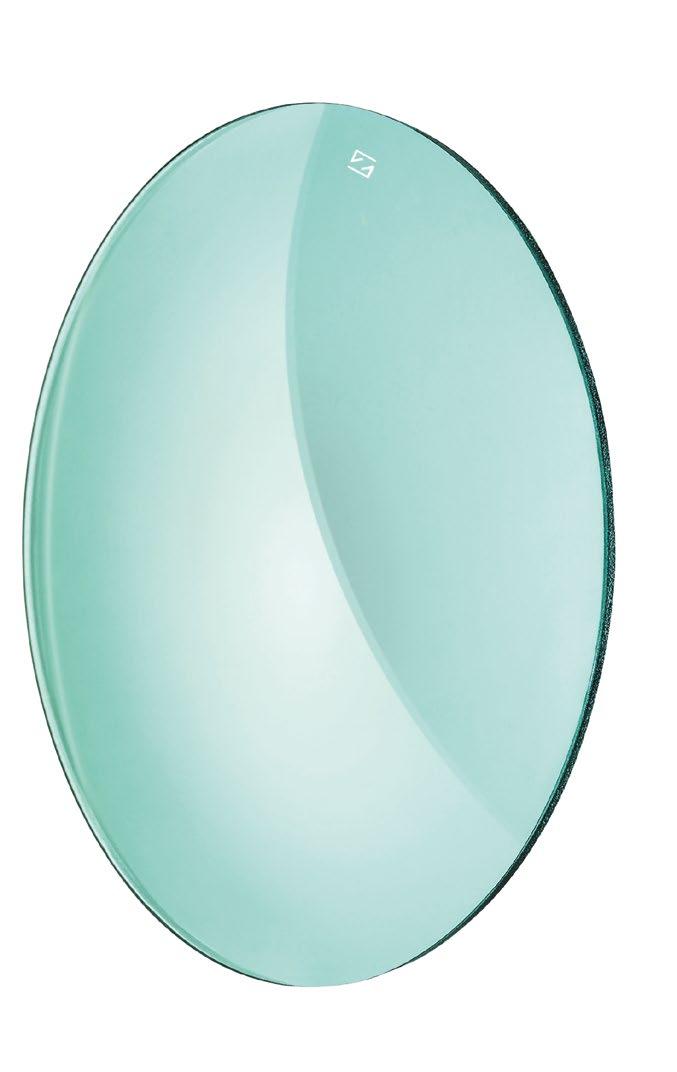

6.3 CR39 CLEAR Base 6  Base 8 For tinting MADE IN ITALY

FRAME PARTS

Base

Ø 76 mm |

1,8 - 2,2 - 2,9 mm

12 pcs.

Ref. 06665

Ref. 06660

FC0

FC0

2,2 mm UV380 For supra frames

EQUIPMENTS

PLIERS

TOOLS

1,8 mm UV380

LAB CONSUMABLES

Base

Ø 76 mm

12 pcs.

Ref. 06668

FC0

REFRACTION & ORTHOPTIC

LENSES

1,8 mm UV380

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

34

ALL RIGHTS RESERVED ©

For Rimless and Supra Frames - H ref. with Hard Coating treatment 50 pcs.

FRAME PARTS

Base

LAB MOD SYSTEM

6.3

CR39 DEMO Lenses

Ref. 06676N Ref. 06688N 2,0 mm 3,0 mm Ø 73 mm Ø 70 mm

NEW Ref. 06676H Ref. 06688H with Hard Coating treatment

TOOLS PLIERS

Base

50 pcs.

Ref. 06663N Ref. 06662N Ref. 06677 3,2 mm 1,8 mm 2,2 mm Ø 70 mm Ø 73 mm Ø 73 mm

EQUIPMENTS

NEW Ref. 06662H Ref. 06663H with Hard Coating treatment

LAB CONSUMABLES

Base

50 pcs.

LENSES

Ref. 06678N 3,2 mm Ø 75 mm

REFRACTION & ORTHOPTIC

NEW Ref. 06678H with Hard Coating treatment

INDEX

ALL RIGHTS RESERVED ©

35

UV400 - “Classic” Full colour Base

FRAME PARTS

LAB MOD SYSTEM

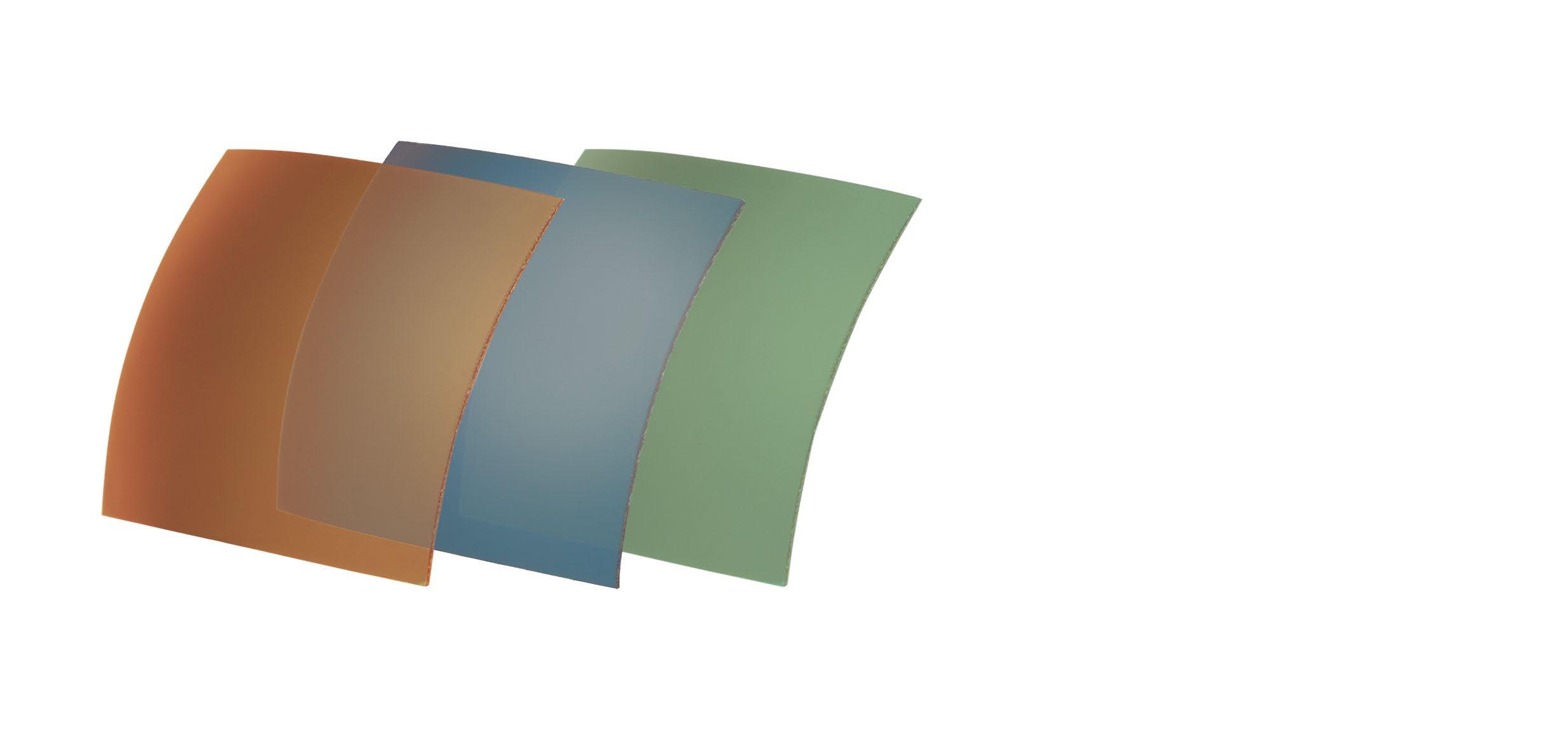

6.4 POLARIZING Sheets Triacetate Base 4 70x60 mm |

Ref. 06280 FC3 (τ 15%) Grey/Smoke 65%

Ref. 06281 FC3 (τ 14%) Green-Grey 65% G15

0,74 mm Ref. 06282 FC3 (τ 14%) Brown 65%

12 pcs.

Ref. 06279 FC2 (τ 25%) Grey/Blue 65%

Ref. 06287 FC0 (τ 84%) Yellow 12%

Ref. 06277 - No polarized FC0 (τ 84%) Blue Light Comfort 12%

TOOLS

2 pcs.

6 pcs.

EQUIPMENTS

PLIERS

Blue Light COMFORT

LAB CONSUMABLES

UV400 - Gradient Base Ref. 06283 FC3 (τ 13%) Grey Gradient 75%

70x60 mm | Ref. 06283B FC3 (τ 15%) Black Gradient 75%

0,74 mm

6 pcs.

Ref. 06284 FC3 (τ 14%) Green-Grey Gradient 75% G15

Ref. 06285 FC3 (τ 17%) Brown Gradient 75%

Ref. 06288 FC3 (τ 14%) Blue Gradient 75%

Ref. 06289 FC3 (τ 15%) Purple Gradient 75%

INDEX

REFRACTION & ORTHOPTIC

LENSES

NEW

36

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

UV400 - Classic Full colour 70x60 mm | Ref. 06215 FC3 (τ 15%) Grey/Smoke 65%

0,74 mm Ref. 06216 FC3 (τ 14%) Green-Grey 65% G15

12 pcs.

NEW

FRAME PARTS

Base

LAB MOD SYSTEM

6.4

LOW Polarizing Sheets Triacetate Base 4

Ref. 06217 FC3 (τ 14%) Brown 65%

TOOLS PLIERS EQUIPMENTS

Maximum UVA/UVB sun protection combined with the comfort of lighter polarised lenses, designed to ensure optimal vision even on LCD screens.

LAB CONSUMABLES

Vision with polarized lenses.

Vision with polarized lenses.

LENSES REFRACTION & ORTHOPTIC

Ref. 06597 Plexiglass display with graphics to highlight the contrast of colors in full sun.

Ref. 06598 PVC Card with color effect for a quick polarized vision test.

Dimension Display: 170x160 mm Image: 150x100 mm Weight: 110 gr.

1 pc.

ALL RIGHTS RESERVED ©

INDEX

Dimension Card: 85x55 mm Image: 50x20 mm Weight: 5 gr.

10 pcs.

37

LAB MOD SYSTEM

UV400 - Full colour Base

70x60 mm | Ref. 06171 FC1 (τ 51%) Light Green 20%

0,74 mm Ref. 06172 FC1 (τ 47%) Light Blue 20%

6 pcs.

NEW

Ref. 06173 FC1 (τ 60%) Light Pink 20%

Ref. 06174 FC2 (τ 51%) Light Orange 20%

Protection that’s always on: ideal even indoors or in areas with little sun exposure, for consistent visual protection in every situation. An innovative range designed for those who want visual comfort, protection and style, even in light colours.

INDEX

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

6.4 Polarizing FASHION Sheets Triacetate Base 4

38

ALL RIGHTS RESERVED ©

6.4

UV400 70x60 mm |

Ref. 06272 FC3 (τ 9.5%) Mirror Blue Base Brown 75%

0,74 mm

Ref. 06273 FC3 (τ 13.7%) Mirror Green Base Violet 75%

2 pcs.

Ref. 06274 FC3 (τ 11.9%) Mirror Pink Base G15 75%

Ref. 06275 FC3 (τ 16.7%) Mirror Red Base Blue 75%

FRAME PARTS

Base

LAB MOD SYSTEM

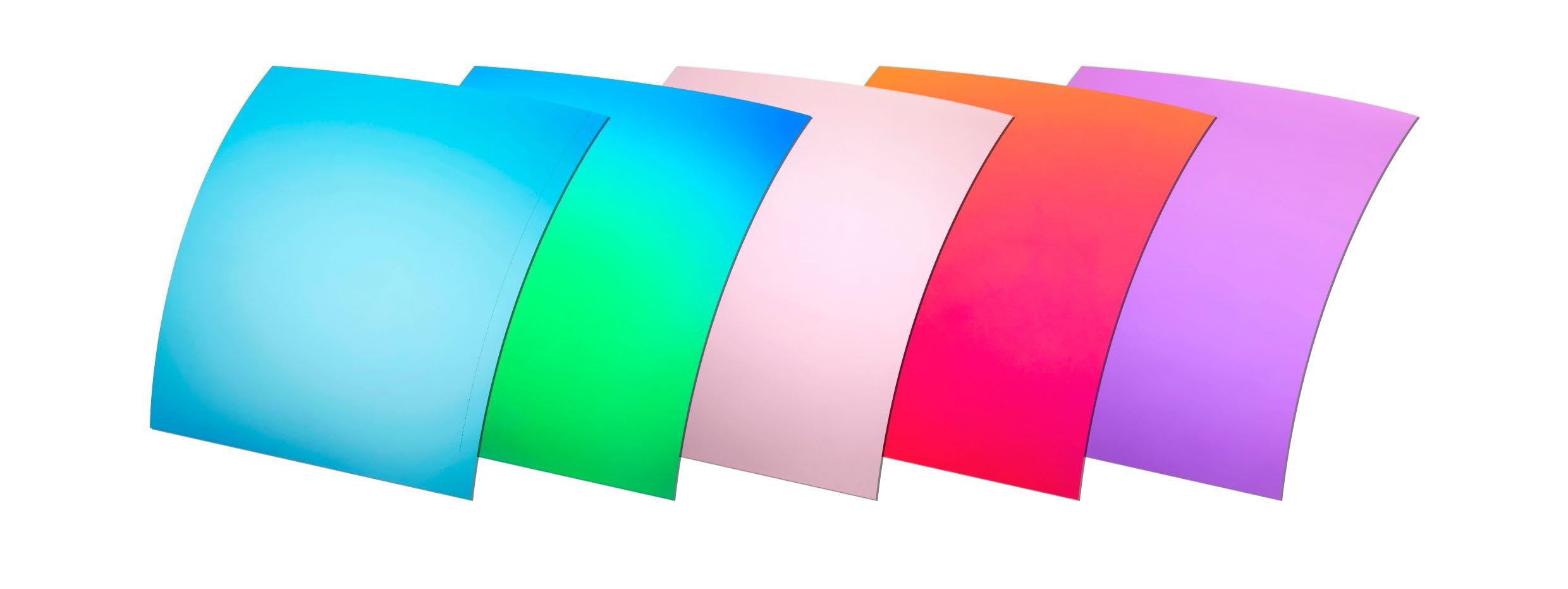

Polarizing Sheets MULTILAYER MIRRORED base 4

Ref. 06276 FC3 (τ 14.5%) Mirror Violet Base Green 75%

TOOLS PLIERS EQUIPMENTS

Flash Mirror 70x60 mm |

Ref. 06270 FC3 (τ 11.5%) Silver Base Smoke 75%

0,74 mm

LAB CONSUMABLES

Base

2 pcs.

Ref. 06271 FC3 (τ 14%) Gold Base Grey 75%

LENSES

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

REFRACTION & ORTHOPTIC

Polarizing effect

ALL RIGHTS RESERVED ©

39

UV400 - Light / Medium color - Polarized Base

FRAME PARTS

LAB MOD SYSTEM

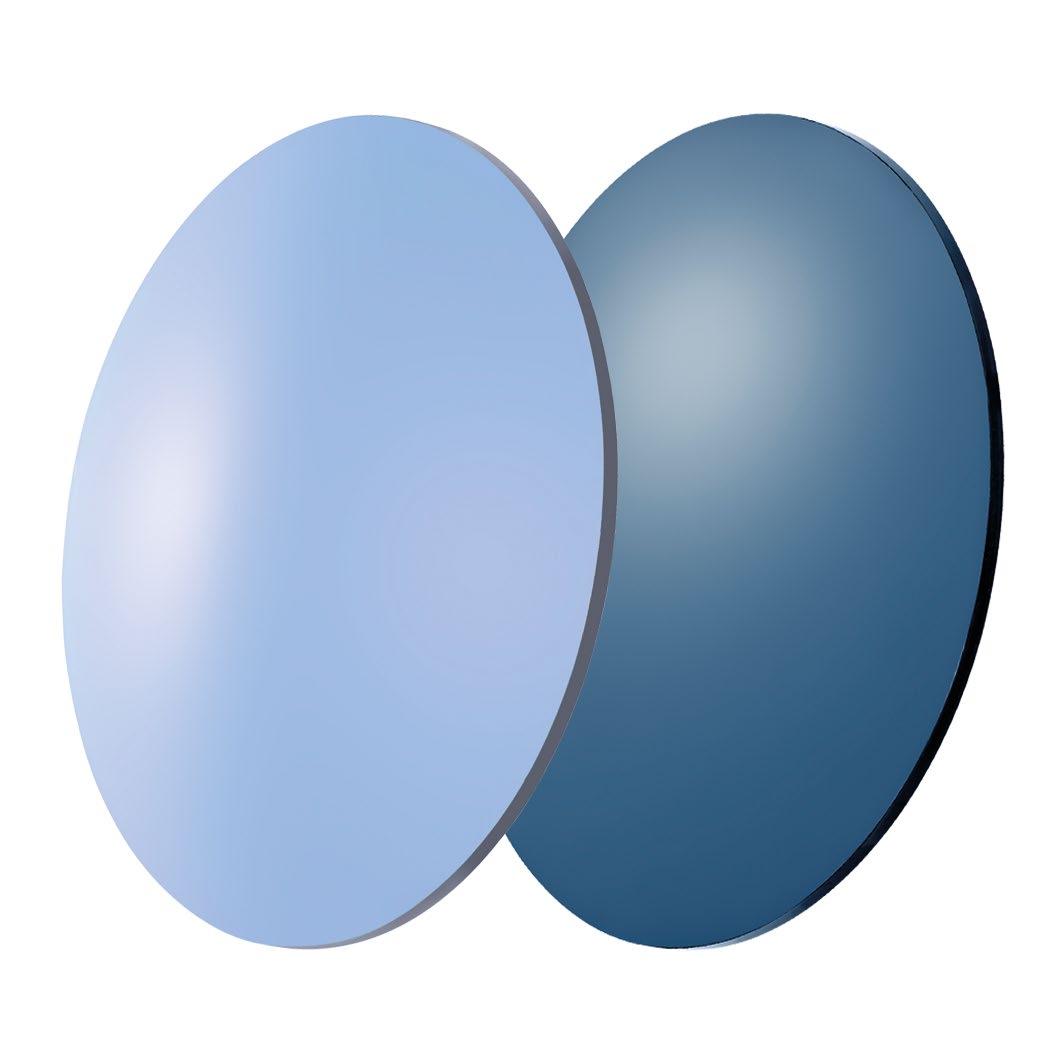

6.4 TRIACETATE PHOTOCHROMIC SHEETS BASE 4 70x60 mm |

0,74 mm

6 pcs.

PLIERS

TOOLS

Ref. 06260 FC3 (τ 17%) POLARIZED

EQUIPMENTS

Light Grey to Medium Grey 20% 60% darkens in a few seconds Lightens in a few minutes

Base

70x60 mm |

0,74 mm

6 pcs.

LENSES

LAB CONSUMABLES

Ref. 06263 FC2 (τ 23.5%) POLARIZED

REFRACTION & ORTHOPTIC

Polarizing effect

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

Light Blue to Medium Blue 20% 60% darkens in a few seconds

INDEX

Lightens in a few minutes

40

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

6.4

LAB MOD SYSTEM

CLIP-ON SHAPING KIT CLIP-ON SHAPING KIT

FRAME PARTS

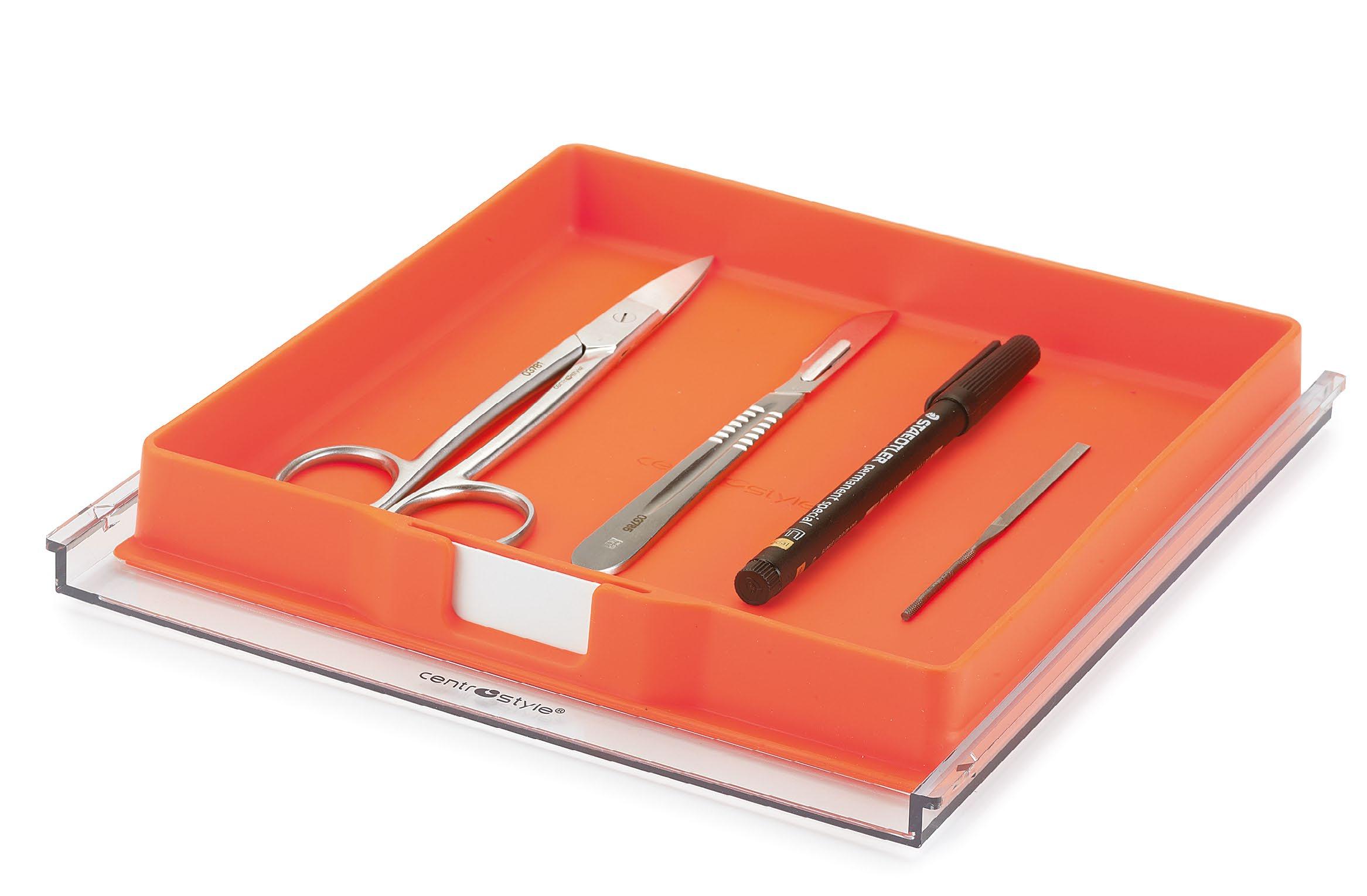

Ref. 03916 Clip-on or triacetate filters shaping kit composed of: Special marker pen (Ref. 06965) Stainless steel scissors (Ref. 03781) Flat needle file (Ref. 02908) Scalpel knife (Ref. 03785) Tray included, suitable for new LMS Cube.

VIDEO

TOOLS PLIERS EQUIPMENTS LAB CONSUMABLES LENSES REFRACTION & ORTHOPTIC INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

ALL RIGHTS RESERVED ©

41

LAB MOD SYSTEM

UV400 - Classic colours Base Ref. 06790 FC3 (τ 15%) Brown 65%

70x60 mm | Ref. 06791 FC3 (τ 15%) Grey 65%

MADE IN USA

0,74 mm

12 pcs.

Ref. 06792 FC3 (τ 13%) Green-Grey 65% G15

Base Ref. 06798 FC3 (τ 15%) Brown 65%

70x60 mm | Ref. 06799 FC3 (τ 15%) Grey 65%

1,10 mm

6 pcs.

Ref. 06797 FC3 (τ 13%) Green-Grey 65% G15

LENSES

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

6.4 POLARIZING SHEETS TRIACETATE BASE 6

REFRACTION & ORTHOPTIC

Polarizing effect

INDEX

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

42

ALL RIGHTS RESERVED ©

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

UV400 - Classic full colours 70x60 mm |

Ref. 06250 FC3 (τ 15%) Grey/Smoke 65%

Ref. 06251 FC3 (τ 14%) Green-Grey 65% G15

0,74 mm

6 pcs.

FRAME PARTS

Base

Ref. 06254 FC0 (τ 84%) Yellow 12%

Ref. 06252 FC3 (τ 14%) Brown 65%

LAB MOD SYSTEM

POLARIZING SHEETS TRIACETATE BASE 8 6.4

2 pcs.

TOOLS PLIERS EQUIPMENTS

Mirror 70x60 mm |

Ref. 06255 FC3 (τ 9.5%) Mirror Blue Base Brown 75%

0,74 mm

LAB CONSUMABLES

Base

2 pcs.

Ref. 06257 FC3 (τ 11.5%) Flash Mirror Silver Base Smoke 75%

LENSES REFRACTION & ORTHOPTIC INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

ALL RIGHTS RESERVED ©

43

UV400 - Impact resistant - Lenses manufactured by Carl Zeiss Vision Base B 2 Ø 80 mm |

2 pcs.

2,0 mm

Ref. 06583 FC1 (τ 72%) Light Green 20%

Ref. 06584 FC1 (τ 66%) Light Blue 20%

Ref. 06585 FC1 (τ 71%) Light Pink 20%

Ref. 06586 FC1 (τ 74%) Orange 20%

NEW

NEW

NEW

NEW

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

LAB MOD SYSTEM

6.5 POLYCARBONATE WITH INNER AR BASE 2

Ideal for Glasant frames LAB CONSUMABLES

Polycarbonate lens with an inner AR coating • Internal anti-reflection ensures excellent lens transparency, improving visual comfort.

Polycarbonate lens

REFRACTION & ORTHOPTIC

LENSES

Anti-reflective coating

INDEX

FILTERS COMPLYING WITH EN ISO 123121:2022 AND REGULATION (EU) 2016/425.

44

ALL RIGHTS RESERVED ©

6.5

UV400 - Impact resistant - Lenses manufactured by Carl Zeiss Vision

LAB MOD SYSTEM

POLYCARBONATE BASE 4 Classic Ø 75 mm |

6 pcs.

2,0 mm

Ref. 06696 FC3 (τ 14%) Grey

Ref. 06697 FC3 (τ 12%) Green Grey

Ref. 06698 FC3 (τ 10%) Brown

Ref.06699 FC2 (τ 30%) Blue

NEW

NEW

NEW

NEW

FRAME PARTS

Base

TOOLS PLIERS EQUIPMENTS

Fashion Base

Ref. 06591 FC1 (τ 62%) Light Blue 20%

2 pcs.

2,0 mm Ref. 06592 FC1 (τ 68%) Light Pink 20%

Ref. 06593 FC1 (τ 71%) Orange 20%

LAB CONSUMABLES

Ref. 06590 FC1 (τ 70%) Light Green 20%

Ø 80 mm |

LENSES REFRACTION & ORTHOPTIC

FILTERS COMPLYING WITH EN ISO 123121:2022 AND REGULATION (EU) 2016/425.

Ideal for Glasant frames

INDEX

ALL RIGHTS RESERVED ©

45

LAB MOD SYSTEM FRAME PARTS

6.5 Polycarbonate Special GAMING - Base 4 UV 400 with anti-reflective coating on both sides GAMING LENSES - ZEISS TECHNOLOGY Blue Light Reduction + Visual Performance

The gaming and e-sports market is growing rapidly, and more and more users spend many hours in front of LED screens with high blue light emission.

TOOLS

ZEISS gaming lenses were created to offer: • Reduction of artificial blue light • Improved concentration • Faster response times • Reduction of eye strain • Modern aesthetic look, without annoying blue reflections

Ø 80 mm |

Ref. 06572 NEW FC0 (τ 83.0%) Yellow

EQUIPMENTS

PLIERS

Base

2,0 mm

2 pcs.

Maximum Performance

The lens for those who want high performance • Maximum attention.

• Reactivity.

• Higher contrast.

Ideal for: competitive gamers, e-athletes, and those who want to improve focus and response times. For intense sessions, tournaments, and competitive gaming.

LAB CONSUMABLES

Anti-reflective coating Polycarbonate lenses

REFRACTION & ORTHOPTIC

LENSES

Anti-reflective coating

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (UE) 2016/425

46

ALL RIGHTS RESERVED ©

UV 400 with anti-reflective coating on both sides

Ø 80 mm |

Ref. 06570 NEW FC0 (τ 84.5%) Pink

2,0 mm

FRAME PARTS

Base

LAB MOD SYSTEM

Polycarbonate Special GAMING - Base 4 6.5 2 pcs.

Vibrant & Dynamic

More brilliance, more energy, distinctive look.

• Brighter, more vivid image.

• Clearer details on cold backgrounds.

• Slightly stimulating and energizing.

TOOLS

Ideal for: creatives, streamers, those using cold LEDs, and anyone who perceives the screen as “dull.”

Anti-reflective coating

PLIERS

Polycarbonate lenses

Anti-reflective coating

EQUIPMENTS LAB CONSUMABLES

Ref. 06571 NEW FC0 (τ 86.1%) Green

Balanced & Relaxing

Prolonged comfort, discreet aesthetics, more natural feel.

• Softer image.

• Less aggressive brilliance.

• Visual comfort, relaxing, and neutral.

Ideal for: PC professionals, consistent gamer and people sensitive to eye fatigue

LENSES

Anti-reflective coating Polycarbonate lenses

REFRACTION & ORTHOPTIC

Anti-reflective coating

ALL RIGHTS RESERVED ©

47

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (UE) 2016/425

UV400 - Classic Colours - Impact resistant Base

FRAME PARTS

LAB MOD SYSTEM

6.5 POLYCARBONATE PHOTOCHROMIC BASE 4 Ø 86 mm |

2,1 mm

2 pcs.

Ref. 06732 FC1 (τ 73%)

PLIERS

TOOLS

Ref. 06376 FC1 (τ 55%)

Dark Grey 65%

darkens in a few seconds Lightens in a few minutes

Light Blue 5%

Dark Grey 65%

darkens in a few seconds Lightens in a few minutes

Ref. 06377 FC1 (τ 70%)

LAB CONSUMABLES

EQUIPMENTS

Light Grey 5%

REFRACTION & ORTHOPTIC

LENSES

Ref. 05063 The photochromic lens tester with LED technology allows to quickly demonstrate the photochromic properties of a lens.

Light Green 5%

Dark Grey 65%

darkens in a few seconds FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

INDEX

Lightens in a few minutes

48

ALL RIGHTS RESERVED ©

UV400 - Fashion Colours - Impact resistant Ø 80 mm |

2,0 mm

2 pcs.

Ref. 06373 FC2 (τ 40%)

FRAME PARTS

Base

LAB MOD SYSTEM

POLYCARBONATE PHOTOCHROMIC GRADIENT BASE 4 6.5

Ref. 06374 FC2 (τ 40%)

TOOLS PLIERS

Gradient Grey 25%

Gradient Grey 85%

Gradient Green Grey Gradient Grey 25% 85%

Lightens in a few minutes

EQUIPMENTS

darkens in a few seconds

darkens in a few seconds Lightens in a few minutes

LAB CONSUMABLES

Ref. 06375 FC2 (τ 40%)

LENSES REFRACTION & ORTHOPTIC

Gradient Brown 25%

Gradient Grey 85%

darkens in a few seconds FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

INDEX

Lightens in a few minutes

ALL RIGHTS RESERVED ©

49

LAB MOD SYSTEM FRAME PARTS

PERFORMANCE SPORT lenses Base 6 Performance lenses for sport eyewear - Impacto Polycarbonate.

Manufactured by Carl Zeiss Vision Designed for outdoor activities and technical sports, they offer superior protection, durability, and optical quality.

Main features:

TOOLS

COMPLETE UV PROTECTION Total UV Protection: 100% UV protection to ensure visual safety in all lighting conditions.

SUPERIOR OPTICAL CLARITY High-quality materials ensure transparency and sharp vision, even in the most demanding sporting conditions.

HIGH IMPACT RESISTANCE Perfect for sports activities thanks to highly impact-resistant materials.

PREMIUM ANTI-SCRATCH TREATMENT Advanced hard coating for enhanced durability over time.

WATER

SNOW

FIELD

ROAD

TRAIL

TARGET

INDEX

REFRACTION & ORTHOPTIC

LENSES

LAB CONSUMABLES

EQUIPMENTS

PLIERS

LIGHTNESS AND COMFORT Materials engineered to reduce weight without compromising strength.

50

ALL RIGHTS RESERVED ©

LAB MOD SYSTEM

PERFORMANCE SPORT lenses Base 6 Performance lenses for sport eyewear - Impacto Polycarbonate.

Manufactured by Carl Zeiss Vision Ø 60x78 mm | Decentred

Ref. 06573 NEW FC3 (τ 11%) Blue Base Grey

2,0 mm

2 pcs.

FRAME PARTS

Base

Ideal for water sports

TOOLS

Visual Challenge The strong presence of blue light and water reflections reduces contrast, depth and the perception of colour nuances.

Treatments

Decentred lens

PLIERS

Polarized • reduces reflections and glare • improves sharpness and visual comfort • enhances perception of depth and detail Blue Multilayer • controls reflected blue light • improves contrast and colour nuances • optimises colour balance

EQUIPMENTS

Benefit Stable, precise, and comfortable vision even in high-brightness environments such as the sea, lakes and swimming pools.

Ø 75 mm |

Ref. 06574 NEW FC2 (τ 18%) Silver Base Pink

LAB CONSUMABLES

Base

2 pcs.

2,0 mm

For skiing and snow sports LENSES

Visual Challenge The high reflection of snow reduces the perception of shadows, depth and uneven terrain.

Treatment

Benefit Sharper and more relaxed vision, with better perception of snowy terrain.

REFRACTION & ORTHOPTIC

Super Silver • reduces glare and intense reflections • improves comfort and visual stability • increases protection and sharpness

INDEX

ALL RIGHTS RESERVED ©

51

LAB MOD SYSTEM

Performance lenses for sport eyewear - Impacto Polycarbonate.

Manufactured by Carl Zeiss Vision Base

Ø 75 mm |

Ref. 06575 NEW FC2 (τ 28%) Red Base Pink/Violet

2,0 mm

2 pcs.

For grass sports Visual Challenge The reflection of green light reduces contrast and the ability to see the field.

TOOLS

FRAME PARTS

PERFORMANCE SPORT lenses Base 6

Treatment

PLIERS

Flash ML Infrared • reduces reflections and light interference • improves comfort and detail definition • increases visual stability during movement

Benefit

Base

Ø 75 mm |

Ref. 06576 NEW FC2 (τ 20%) Bronze Base Brown

2 pcs.

2,0 mm

For cycling and road sports Visual Challenge The neutral light of asphalt and artificial blue light can cause eye strain.

LENSES

LAB CONSUMABLES

EQUIPMENTS

More responsive and precise vision, with better viewing of the field and play details.

Treatment

REFRACTION & ORTHOPTIC

Tri Flection Bronze • reduces reflections and light interference • improves comfort and visual stability • promotes greater perceptual safety

Benefit

INDEX

Fluid and comfortable vision, with better perception of the road even during prolonged use.

52

ALL RIGHTS RESERVED ©

LAB MOD SYSTEM

PERFORMANCE SPORT lenses Base 6 Performance lenses for sport eyewear - Impacto Polycarbonate.

Manufactured by Carl Zeiss Vision Ø 75 mm |

Ref. 06577 NEW FC2 (τ 26%) Violet Base Violet

2,0 mm

FRAME PARTS

Base

2 pcs.

For outdoor and natural paths TOOLS

Visual Challenge Vegetation, lighting changes, and uneven terrain make it harder to perceive obstacles and depth.

Treatment

PLIERS

Flash ML Violet • reduces reflections and glare • improves stability and visual comfort • optimises vision during changes in brightness

Benefit More stable and detailed vision, with greater control over the outdoor route.

EQUIPMENTS

Ø 75 mm |

Ref. 06578 NEW FC2 (τ 26%) Brown Base Pink/Violet

2 pcs.

2,0 mm

LAB CONSUMABLES

Base

For outdoor precision activities

LENSES

Visual Challenge High contrasts and complex backgrounds make it harder to spot the target quickly.

Treatment

REFRACTION & ORTHOPTIC

AR Red Front • reduces reflections and frontal interference • improves stability and visual comfort • increases speed and definition of perception

Benefit More precise and responsive vision, with better target identification and greater visual stability.

INDEX

ALL RIGHTS RESERVED ©

53

UV400 - Classic Colours - Impact resistant Base

FRAME PARTS

LAB MOD SYSTEM

6.5 POLYCARBONATE BASE 6 Ø 74 mm |

2,0 mm

Ref. 06700 FC3 (τ 13-15%) Green-Grey 75% G15

UV400 - Gradient

12 pcs.

Ref. 06702 FC3 (τ 11-13%) Brown 75%

Ref. 06705

FC0

Clear UV300

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06701 FC3 (τ 15-17%) Grey 75%

Clear

12 pcs.

Ref. 06706 FC1 (τ 60%) Light Blue Gradient 25%

Ref. 06778 FC3 (τ 11-13%) Medium Grey Gradient 60%

Ref. 06783 FC3 (τ 15%) Green-Grey Gradient 60% G15

Ref. 06787 FC3 (τ 12-14%) Medium Brown Gradient 60%

REFRACTION & ORTHOPTIC

LENSES

6 pcs.

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

54

ALL RIGHTS RESERVED ©

UV400 - 9 layers - Fashion Colours - Impact resistant Ø 76 mm |

Ref. 06718 FC3 (τ 10%) Mirror Blue Base Green 75%

2,0 mm

2 pcs.

Ref. 06720 FC3 (τ 9%) Mirror Green Base Brown 75%

Ref. 06724 FC3 (τ 15%) Mirror Red Base Blue 75%

FRAME PARTS

Base

LAB MOD SYSTEM

POLYCARBONATE MULTILAYER MIRRORED BASE 6 6.5

Ref. 06729 FC3 (τ 15%) Mirror Gold Base Brown 75%

TOOLS PLIERS EQUIPMENTS

UV400 - Flash Mirror Ø 74 mm |

2,0 mm

LAB CONSUMABLES

Base

6 pcs.

Ref. 06703 FC3 (τ 16-17%) Flash Mirror Base Grey 60%

LENSES REFRACTION & ORTHOPTIC

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

INDEX

ALL RIGHTS RESERVED ©

55

LAB MOD SYSTEM

6.5 POLYCARBONATE POLARIZING SHEETS BASE 6  BASE 8 UV400 - Anti-reflective Coating (AR) inside - Impact resistant Base

70x50 mm |

Ref. 06708 FC3 (τ 14-16%) Dark Grey 75%

1,5 mm

Ref. 06707 FC3 (τ 14-16%) Dark Green-Grey 75% G15

2 pcs.

Ref. 06709 FC3 (τ 12-14%) Dark Brown 75%

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

FRAME PARTS

MADE IN JAPAN

Base

70x50 mm |

Ref. 06715 FC3 (τ 14-16%) Dark Grey 75%

1,5 mm - Not decentred

2 pcs.

Ref. 06714 FC3 (τ 14-16%) Dark Green-Grey 75% G15

AR Coating inside

Each lens has a durable and effective AR Coating treatment on the inner side for enhanced vision.

Outer lens layer in polycarbonate

LENSES

Middle lens layer in polarized material Inner lens layer in polycarbonate Anti-reflective coating

REFRACTION & ORTHOPTIC

Polarizing effect

• Enables colours and contrasts to be seen as they really are.

• Recommended for adults when driving, playing golf, sailing, fishing, skiing.

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

56

ALL RIGHTS RESERVED ©

UV400 - Classic colours - Impact resistant 6 pcs.

Ø 80 mm | Decentred

Ref. 06711 FC3 (τ 15-17%) Grey 75%

Ref. 06710 FC3 (τ 13-15%) Green-Grey 75% G15

FRAME PARTS

Base

LAB MOD SYSTEM

6.5

POLYCARBONATE BASE 8

Ref. 06712 FC3 (τ 9-11%) Brown 75%

TOOLS PLIERS EQUIPMENTS LAB CONSUMABLES REFRACTION & ORTHOPTIC

The optical centre is decentred from the geometrical axis for better vision.

Thickness from 1,6 to 2,1 mm.

LENSES

Base 8 Decentred lenses

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

INDEX

ALL RIGHTS RESERVED ©

57

Lens with anti-reflective, hard coating and water-repellent coating Base

FRAME PARTS

LAB MOD SYSTEM

6.6 1.56ND BLUE LIGHT COMFORT BASE 4 Ø 70 mm |

1 pc.

2,0 mm

TOOLS

Ref. 50300 FC0 (τ 98%) Index 1.56nd 410 nm

Water-repellent coating 7 layers of anti-reflective coating Hard coating

PLIERS

Lens with blue light filter

Hard coating 7 layers of anti-reflective coating

LAB CONSUMABLES

EQUIPMENTS

Water-repellent coating

LENSES

100% UVA and UVB protection

REFRACTION & ORTHOPTIC

Ref. 05047 Lens tester for lenses with treatments

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

58

ALL RIGHTS RESERVED ©

410 nm

FRAME PARTS

Organic single vision lenses

LAB MOD SYSTEM

1.56ND LENSES BLUE LIGHT COMFORT BASE 4 6.6 Anti-reflection and hydrophobic treatment, with high resistance to scratches and easier cleaning.

Water-repellent coating 7 layers of anti-reflective coating

TOOLS

Hard coating

Lens with blue light filter

Hard coating 7 layers of anti-reflective coating

PLIERS

Water-repellent coating

BLUE LIGHT FILTER 100% UVA and UVB Protection

1 pc.

Ø 65 mm

Ø 70 mm

0

Power Ref.

50300*

+0,25 50301 +0,50 50302 +0,75 50303

-0,25 50298 -0,50 50297 -0,75 50296

+1,00 +1,25 +1,50 +1,75

50304 50305 50306 50307

-1,00 -1,25 -1,50 -1,75

+2,00 +2,25 +2,50 +2,75

50308 50309 50310 50311

-2,00 50291

ANTI-REFLECTION HMC HARD MULTICOAT

It is an anti-reflection treatment combined with hard coating; ensures excellent transparency, reduces the reflections of sunlight and artificial light by increasing the light transmission up to 99%. Indispensable for all high index lenses, it improves the aesthetic appearance and visual comfort

HYDROPHOBIC

The hydrophobic treatment allows water to slide quickly on the surfaces of the lens; it repels moisture and oily substances thanks to hydrophobic and oleo-phobic properties. This treatment allows a simple and easier cleaning of the lens and reduces the possibility of superficial scratches.

LENSES

50295 50294 50293 50292

LAB CONSUMABLES

Power Ref.

Negative lens

Hard coating on both sides of the lens. Protects from scratches. Extends the life of the lens. Recommended on all organic lenses.

EQUIPMENTS

HARD COATING HC HARD MULTICOAT

Base Positive lens

It protects the eyes from the harmful effects of blue light by reflecting it better than a lens with the anti-reflection coating – It blocks the blue light component up to 40% making the use of electronic devices more comfortable. Ensures 100% protection from ultraviolet light (UV 400).

REFRACTION & ORTHOPTIC

+3,00 50312 +3,50 50314 +4,00 50316 * Ø 70 mm

INDEX

Medical device compliant with EU Regulation no. 2017/745

ALL RIGHTS RESERVED ©

59

UV400 - Polarized with AR coating inside (7 layers) Base

FRAME PARTS

LAB MOD SYSTEM

6.7 MINERAL BASE 6 Ø 71 mm |

Ref. 06737 FC3 (τ 13-15%) Medium Green-Grey 65% G15

2 pcs.

Ref. 06736 FC3 (τ 11-13%) Medium Grey 65%

LAB CONSUMABLES

EQUIPMENTS

PLIERS

TOOLS

Ref. 06735 FC3 (τ 10-12%) Medium Brown 65%

2,0 mm

Polarizing effect AR coating inside LENSES

• High quality optical glass.

• Polarizing.

• Anti-reflective coating.

• High scratch resistance.

REFRACTION & ORTHOPTIC

Mineral lens Polarizing film Mineral lens 7 layers of anti-reflective coating

INDEX

FILTERS COMPLYING WITH EN ISO 12312-1:2022 AND REGULATION (EU) 2016/425.

60

ALL RIGHTS RESERVED ©

LAB MOD SYSTEM

POLARIZED TEST To simulate polarized vision

FRAME PARTS

IDEAL TEST TO HIGHLIGHT THE ADVANTAGES OF A POLARIZED VISION USING GLASSES WITH POLARIZED LENSES.

TOOLS PLIERS

Ref. 06597 Plexiglass display with graphics to highlight the contrast of colors in full sun.

Dim.: Display: 170x160 mm - Imagine: 150x100 mm Weight: 110 gr.

1 pc.

EQUIPMENTS

Vision with polarized lenses.

LAB CONSUMABLES LENSES REFRACTION & ORTHOPTIC

Ref. 06598 PVC Card with color effect for a quick polarized vision test.

Dim.: Card: 85x55 mm - Imagine: 50x20 mm Weight: 5 gr.

10 pcs.

INDEX

ALL RIGHTS RESERVED ©

61

LAB MOD SYSTEM FRAME PARTS

SUN LENS CASES - 32 LENSES Professional sample set available in two variants, designed to streamline the customer’s selection process.

CENTRO STYLE SUN LENS CASE (4 sections) Ref. 11165CS • CR39 Classic colors (solid and gradient)

TOOLS

• CR39 Fashion (solid, gradient, and mirrored) • CR39 Specials (Hard-coated and Photochromic) • Polycarbonate (Classic and Fashion)

EQUIPMENTS

PLIERS

Dimensions: 250x300x75 mm

SUN LENS CASE produced by CARL ZEISS VISION (4 sections) Ref. 11165Z • CR39 Classics (solid, gradient + special “DRIVE” lenses) • CR39 Fashion (solid, gradient, and mirrored) • CR39 Polarized Fashion Dimensions: 250x300x75 mm

LENSES

LAB CONSUMABLES

• CR39 Polarized (classic solid and gradient)

Ref. 11165 Dimensions: 250x300x75 mm Supplied without lenses and inserts.

INDEX

REFRACTION & ORTHOPTIC

SUN LENS SAMPLE CASE

62

ALL RIGHTS RESERVED ©

Professional sample set available in two variants, designed to streamline the customer’s selection process.

FRAME PARTS

NEW

LAB MOD SYSTEM

SUN LENS CASES - 45 LENSES

LENS DISPLAY CASE (3 drawers) Ref. 11166 Designed to organize and present a wide range of sunlenses Could contains 45 sunlenses.

TOOLS

Dimensions (closed): 480x315x80mm Dimensions (open): 480x315x390mm

PLIERS EQUIPMENTS

NEW LAB CONSUMABLES

DISPLAY CASE WITH COMPLETE LENS SELECTION Ref. 11166C Ideal for showcasing colors, coatings and technical features of sunlenses Contains 45 sunlenses Dimensions (closed): 480x315x80mm Dimensions (open): 480x315x390mm

LENSES REFRACTION & ORTHOPTIC INDEX

ALL RIGHTS RESERVED ©

63
