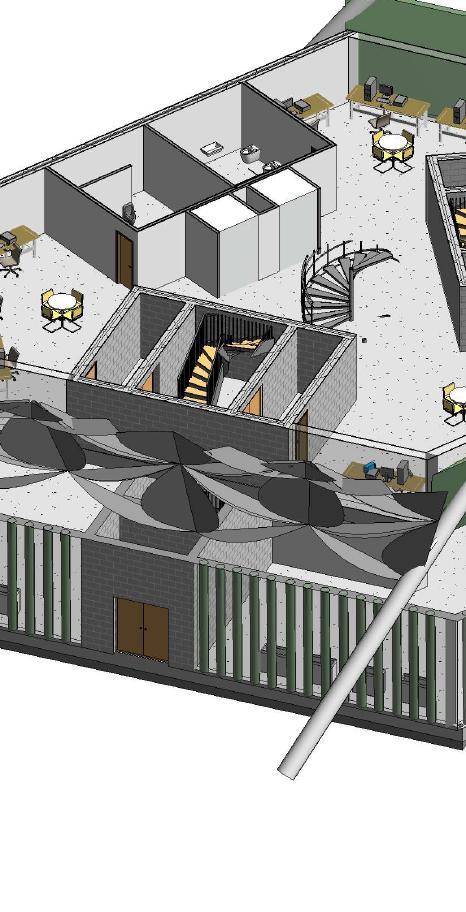

GROUND FLOOR SECTION BOX ORTHOGRAPHIC VIEW
ORTHOGRAPHIC VIEW
LEVEL 1 SECTION BOX
ORTHOGRAPHIC VIEW
LEVEL 1 SECTION BOX
ORTHOGRAPHIC VIEW
LEVEL 1 VIEW
LEVEL 2 SECTION BOX ORTHOGRAPHIC VIEW
LEVEL 2 SECTION BOX ORTHOGRAPHIC VIEW
PRIMARY & SECONDARY STRUCTURE
PARAMETRIC DESIGN
GRASSHOPPER
Adaptive solar envelope that opens and closes when light is present.
eqquiped

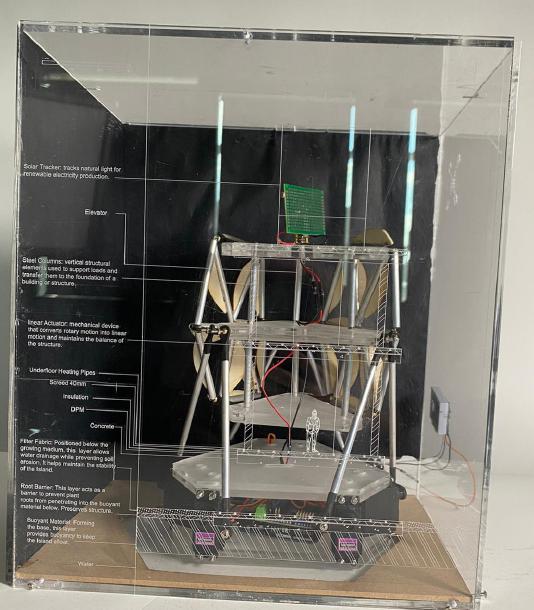

CHALLENGES: MATERIAL INTIALLY USED WAS 3D PRINTED AND HAD LOW LOAD BEARING. THE MATERIAL STARTED TO CRACK AS LOAD WAS APPLIED. ALSO REFINING THE PLASTIC MATERILA RISKED ALOT OF DAMAGE WHICH WOULD BE COSTLY AND TIME CONSUMING.
THE BLUE SERVOS WERE NOT STRONG ENOUGH TO CARRY THE LOAD IT WAS SUPPOSED TO AS THEY STRUGGLED TO MOVE WHEN 3 KG LOAD WAS APPLIED FOR TESTING.
SOLUTIONS: I USED 5MM ACRYLIC WHICH I LASER CUT AND GLUED WITH ACRYLIC CEMENT. THIS MADE THE STRUCTURE MORE STRONGER AND WAS ABLE TO CARRY LOADS UP 20KG WITH THE HELP OF METAL SERVOS INSTEAD OF PLASTIC ONES
CHALLENGES: TOO MUCH VOLTAGE WAS BURNING OUT THE SERVOS AND MAKING THE SERVOS TO CRASH.
SOLUTIONS: I REFINED THE CODE FOR THE STRUCTURE WHERE I ADDED INPUTES FROM USER COMMANDS ARE WITHIN ACCEPTABLE RANGES. IF ANY INPUT IS OUT OF RANGE, THE SYSTEM SHOULD REJECT IT OR TAKE APPROPRIATE ACTION TO PREVENT DAMAGE.
I ALSO ADDED A BUCK CONVERTOR TO MAINTAIN POSITIVE AND NEGATIVE VOLTS.
I ALSO ADDED AN MCU FOR BETTER USER CONTROL.
SOLUTIONS: I REFINED THE CODE FOR THE STRUCTURE WHERE I ADDED INPUTES FROM USER COMMANDS ARE WITHIN ACCEPTABLE RANGES. IF ANY INPUT IS OUT OF RANGE, THE SYSTEM SHOULD REJECT IT OR TAKE APPROPRIATE ACTION TO PREVENT DAMAGE.
I ALSO ADDED A BUCK CONVERTOR TO MAINTAIN POSITIVE AND NEGATIVE VOLTS.
I ALSO ADDED AN MCU FOR BETTER USER CONTROL.
