Removal and installation of fuel supply pump assembly 1
Removal
k Stop the machine on a level ground and set the lock bar to the frame to fix the front and rear frames.
k Lower the work equipment to the ground, stop the engine, apply the parking brake, and put chocks under the tires.
k Disconnect the cable from the negative (–) terminal of the battery.
1.Open and fix right engine side cover (1). a Check that the cover is locked securely.

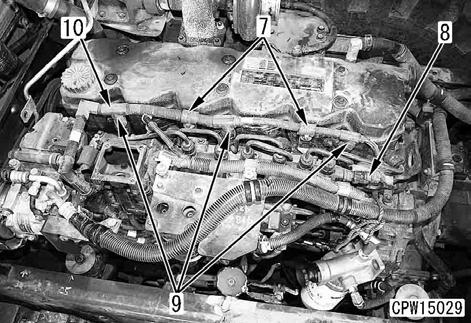

2.Remove fuel prefilter and bracket assembly (2).
a Fix fuel prefilter and bracket assembly (2) to the machine with ropes.
3.Disconnect wiring harness connector CN-CP3 (3) from fuel supply pump (4).
4.Disconnect fuel filter hoses (5) and (6) from fuel supply pump (4).
5.Disconnect fuel return hose (7) from fuel supply pump (4).
a If mud is sticking, lock (L) may become stiff. Accordingly, clean the connecting area.
a Press lock (L) from both sides and pull out hose (5).
a Plug the disconnected hose to prevent fuel leakage.
6.Disconnect fuel supply hose (8) from fuel supply pump (4). [*1]
7.Remove 2 clamps of boot (9) and fuel highpressure pipe (10).
8.Disconnect fuel high-pressure pipe (10) from fuel supply pump (4). [*2]
a Remove the boot on the common rail side of high-pressure pipe (10) and loosen the sleeve nut.

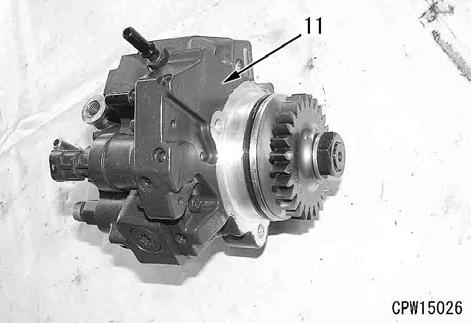

9.Remove 3 mounting nuts at part (A) and fuel supply pump assembly (11). [*3]
a Remove fuel supply pump assembly (11) and the gear together. The gear does not have a positioning mark (missing tooth), etc.
Installation
q Carry out installation in the reverse order to removal.
a The internal parts of the fuel hose adapter may be damaged when it is removed. Accordingly, do not reuse the fuel hose but use new one when assembling again, as a rule.
[*2]
q How to install high-pressure pipe (10)
1.Tighten the sleeve nut with the fingers.
2.Check that the high-pressure pipe is installed correctly and tighten the sleeve nut to the following torque.
3 Sleeve nut:
35 ± 3.5 Nm {3.57 ± 0.36 kgm}
k Be sure to use the genuine fuel highpressure pipe clamp and strictly observe the specified tightening torque.
3.Install boot (9).
a Direct the slit of the boot down.
a The boot is installed so that fuel will not spout over the hot parts of the engine and catch fire when it leaks for some reason.
[*3]

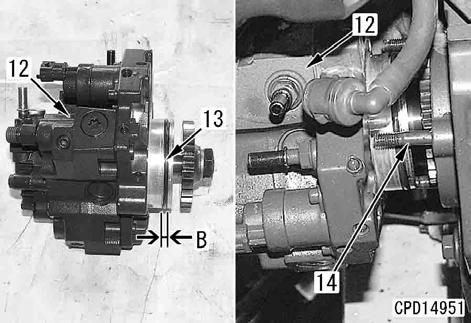

a If too much grease is applied to O-ring (13), it will ooze out. Accordingly, do not apply grease so much. (Apply grease to the O-ring groove area of part (B).)
a When installing new fuel supply pump mounting stud bolts (14) to replace the existing ones, apply LOCTITE (LT-2) to them.
Install fuel supply pump (12).
3 Fuel supply pump mounting nut: 24 ± 4 Nm {2.45 ± 0.41 kgm}
[*1]
3 Joint bolt: 19.6 – 29.4 Nm {2.0 – 3.0 kgm}
q Bleeding air
Bleed air from the fuel system. For details, see Testing and adjusting, "Bleeding air from fuel system".
Special tools
Removal
k Stop the machine on a level ground and set the lock bar to the frame to fix the front and rear frames.
k Lower the work equipment to the ground, stop the engine, apply the parking brake, and put chocks under the tires.
k Disconnect the cable from the negative (–) terminal of the battery.
k If the radiator coolant temperature is high, you may scald yourself with the hot coolant. Wait until the coolant is cooled, and then drain the coolant.
1.Loosen the radiator cap to drain the coolant.
6 Radiator: Approx. 22 l
2.Remove the engine hood assembly. For details, see "Removal and installation of engine hood assembly".
3.Lift off muffler (1).
a Take care that the muffler will not interfere with water drain tube (2).
4 Muffler assembly: Approx. 35 kg
4.Disconnect engine intake air heater wiring harness terminal CN-E07B (3).[*1]
5.Remove clamp (4) and bracket (4a).[*2]
6.Remove clamp (5), air hose (5a), mounting bolt (6a) and intake air inlet elbow (6).[*3]
a Remove the engine intake air heater, too.
7.Remove 2 wiring harness clamps (7).
8.Disconnect wiring harness connector (8).
a While pressing the lock of wiring harness connector (8) with flat-head screwdriver [1], pull the connector in the direction of the arrow.
a Do not remove fuel pressure sensor (PS) except for replacement.
9.Disconnect 3 wiring harness connectors (9). [*4]
a While pressing the lock of the wiring harness connector with flat-head screwdriver [2], pull the connector.
a Move wiring harness (10) toward the intake manifold.
10.Using hexagonal wrench (width across flats: 3mm), remove blow-by duct (11).[*5]
11.Remove 6 mounting nuts (12) and cylinder head cover (13). [*6]
12.Remove 6 boots (14). [*7]
13.Remove 6 high-pressure pipes (15).[*8] a Loosen the sleeve nut on the common rail side of each high-pressure pipe.
14.Position the crankshaft according to the following procedure.
1)Remove plug (16) under the starting motor and set tool A4
2)Rotate the crankshaft forward (counterclockwise seeing from the flywheel side) to set marks (M1) and (M2).
Mark (M1):Top of projection of front cover
Mark (M2):A wide slit on slitted revolution sensor disc at rear of crankshaft pulley
Mark (M3):Yellow paint on vibration damper (on prolongation of wide slit (M2))
a Set the projection top of mark (M1) within the wide slit (M2).
a There is yellow paint mark (M3) on the prolongation of wide slit (M2).
a When the marks are set as above, the piston of the No. 1 or No. 6 cylinder is 76 – 88° before the top dead center.
a See Testing and adjusting, "Adjusting valve clearance".
a Use tool A4 to rotate the crankshaft.
200 Engine and cooling system Removal and installation of fuel injector assembly
15.Remove the 12 mounting bolts and rocker arm (17).
a Loosen locknut (18), and then loosen adjustment screw (19) by 2 – 3 turns so that an excessive force will not be applied to the push rod when the rocker arm is installed.
16.Remove 12 crossheads (20).
a Record the positions and shapes of holes (a) and (b) of each crosshead. (Reinstall each crosshead in the same direction.)
17.Remove retaining nuts (21) and 6 inlet connectors (22).
a Before removing, clean the inlet connectors carefully so that mud, etc. sticking around them will not enter their holes.
a Tool A5 is set for removal of inlet connector (22). (See the special tools list.)

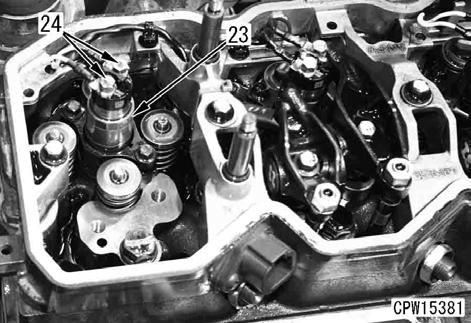

18.Remove 2 wiring harness mounting nuts (24) from fuel injector assembly (23).
Wiring harness color
Cylinder No.
White 1, 3, 5
Black 2, 4, 6
4)Insert fuel injector (23) in the cylinder head, directing its fuel inlet hole toward the air intake manifold.
5)Tighten 2 mounting bolts (25) of fuel injector (23) by 3 – 4 turns.
6)Apply engine oil (For details, see "Table of fuel, coolant and lubricants") to the mounting hole of inlet connector (22) on the cylinder head side.
7)Apply engine oil (For details, see "Table of fuel, coolant and lubricants") to O-ring (29) of inlet connector (22).

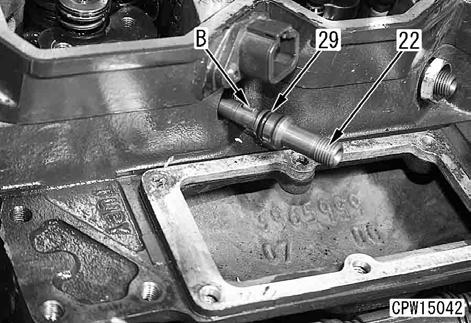

8)Insert inlet connector (22) perfectly, while setting part (B) to the groove on the cylinder head side.
9)Secure inlet connector (22) by tightening retaining nut (21) lightly.
3 Retaining nut (21): 15 ± 5 Nm {1.5 ± 0.5 kgm}
10)Tighten 2 mounting bolts (25) of fuel injector (23) alternately.
3 Fuel injector mounting bolt (25): 8.0 ± 0.8 Nm {0.8 ± 0.08 kgm}
11)Tighten retaining nut (21).
3 Retaining nut (21): 50 ± 5 Nm {5.1 ± 0.5 kgm}
12)Install the wiring harnesses to fuel injector (23) and tighten 2 mounting nuts (24).
3 Wiring harness mounting nut (24): 1.5 ± 0.25 Nm {0.15 ± 0.03 kgm} a Installed positions of wiring harnesses
Wiring harness color Cylinder No.
White 1, 3, 5
Black 2, 4, 6
a When the connector of injector harness is removed.
When assembling the injector harness connector (37) to the housing, apply gasket sealant (LG-7) to the O-ring portion (38) and the flange face of connector (39). When applying gasket sealant (LG-7) to the O-ring portion, be sure to apply a string of LG-7 f3 mm in diameter until Oring groove is completely filled. If O-ring is damaged, replace as a harness assembly.
3 Connector flange mounting bolt (40): 10 ± 2 Nm {1.0 ± 0.2 kgm}
q Precautions for installing inlet connector
1)When replacing the fuel injector assembly with new one, be sure to replace inlet connector, too.
2)Check the inlet connector visually. If it has any of the following faults, replace it.
1]There is a burr or a worn part at front end (a) or rear end (b) of the inlet connector.
2]There is foreign matter in the edge filter at rear end (c) of the inlet connector.
3]The O-ring at upper part (d) of the inlet connector is cracked or deteriorated.
200
q Carry out the following installation in the reverse order to removal.
[*1]
3 Wiring harness terminal CN-E07B (3): 4.0 ± 0.6 Nm {0.41 ± 0.06 kgm}
[*2]
3 Clamp (4): 10.8 – 26.5 Nm {1.1 – 2.7 kgm}
[*3]
3 Clamp (5): 8.8 ± 0.5 Nm {0.9 ± 0.05 kgm}
3 Intake air inlet elbow mounting bolt (6a): 24 ± 4 Nm {2.4 ± 0.4 kgm}
[*4]
k Install each fuel high-pressure pipe and wiring harness at least 10 mm apart from each other.
[*5]
3 Blow-by duct mounting bolt: 7 ± 2 Nm {0.7 ± 0.2 kgm}
[*6]
3 Cylinder head cover mounting nut (12): 24 ± 4 Nm {2.4 ± 0.4 kgm}
[*7], [*8]
k Do not bend the fuel high-pressure pipe to correct before installing.
k Be sure to use the genuine fuel high-pressure pipe clamps and observe the tightening torque.
a If the taper seal area of the fuel high-pressure pipe has any of the following defects, replace the fuel high-pressure pipe.
q There is visible lengthwise slit (b) or spot (c) in range (a) of 2 mm from the end.
q Taper seal end (d) at 2 mm from the end has stepped-type wear which your nail can feel.

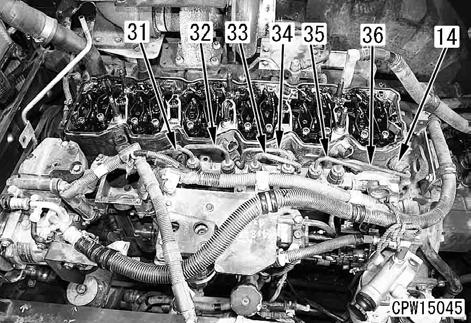

1)Temporarily install fuel high-pressure pipes (31) – (36).
3 Sleeve nut:
0.2 – 0.8 Nm {0.02 – 0.08 kgm}
2)Tighten fuel high-pressure pipes (31) –(36) in the following order.
1]Tighten the cylinder head side of fuel high-pressure pipes (31) and (36).
2]Tighten the common rail side of fuel high-pressure pipes (31) and (36).
3]Tighten the cylinder head side of fuel high-pressure pipes (32), (33), (34) and (35).
4]Tighten the common rail side of fuel high-pressure pipes (32), (33), (34) and (35).
3 Sleeve nut:
35 ± 3.5 Nm {3.6 ± 0.4 kgm}
3)Install 6 boots (14) to the fuel high-pressure pipes.
a Direct the slit of the boot out and down.
a The boots are installed so that fuel will not spout over the hot parts of the engine to catch fire when it leaks for some reason.
q Bleeding air
Bleed air from the fuel system. For details, see Testing and adjusting, "Bleeding air from fuel system".
q Refilling with coolant
Add coolant through the coolant filler to the specified level. Run the engine to circulate the coolant through the system. Then, check the coolant level again.
5 Total amount of coolant: Approx. 22 l (For details, see "Table of fuel, coolant and lubricants")
Special tools
7 795-790-4510Gauge
Removal
k Stop the machine on a level ground and set the lock bar to the frame to fix the front and rear frames.
k Lower the work equipment to the ground, stop the engine, apply the parking brake, and put chocks under the tires.
k Disconnect the cable from the negative (–) terminal of the battery.
k If the radiator coolant temperature is high, you may scald yourself with the hot coolant. Wait until the coolant is cooled, and then drain the coolant.
1.Loosen the radiator cap to drain the coolant.
6 Radiator: Approx. 22 l
2.Remove the engine hood assembly. For details, see "Removal and installation of engine hood assembly".
3.Lift off muffler (1). a Take care that the muffler will not interfere with water drain tube (2).
4 Muffler assembly: Approx. 35 kg
4.Disconnect engine intake air heater wiring harness terminal CN-E07B (3). [*1]
5.Remove clamp (4) and bracket (4a).[*2]
6.Remove clamp (5), air hose (5a), and intake air inlet elbow (6). [*3] a Remove the engine intake air heater, too.

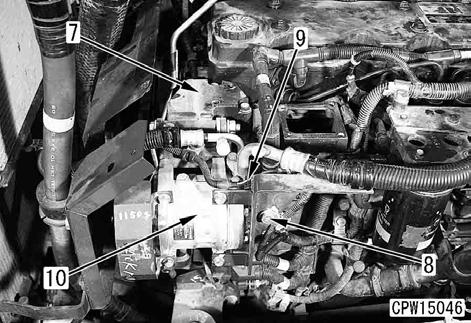

7.Remove bracket (7).
8.Remove wiring harness clamp (8).
9.Disconnect wiring harness connector (9).
10.Remove air conditioner compressor assembly (10). [*4] a Fix air conditioner compressor assembly (10) to the machine with ropes.
NOTE: If there is no response to click on the link above, please download the PDF document first and then clickonit.
200 Engine and cooling system Removal and installation of cylinder head assembly
23.Disconnect fuel drain hose (25). [*6]
24.Disconnect high-pressure pipe (26).[*7]
25.Remove 6 boots (27). [*8]
26.Remove 6 high-pressure pipes (28).[*9] a Loosen the sleeve nut on the common rail side of each high-pressure pipe.

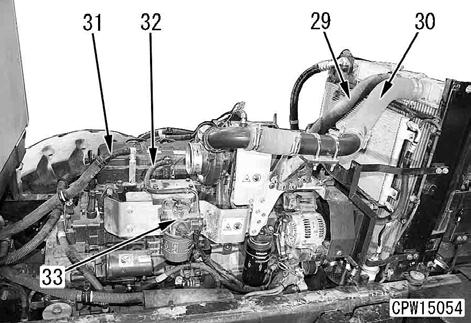

27.Disconnect radiator upper hose (29).[*10]
28.Disconnect air aftercooler upper hose (30). [*11]
29.Disconnect heater hose (31).
30.Disconnect corrosion resistor hose (32).
31.Remove corrosion resistor and bracket assembly (33).
