Academic Projects:

Project 1: Residential Home in a Rural Area

Designed residential structures harmonizing with rural settings, incorporating local aesthetics.

Ensured adherence to Ontario Building Code (OBC) requirements for structural integrity and safety.

Utilized Revit proficiently for detailed 3D models enhancing project visualization.

Project 2: Combined Retail and Office Space Two-Story Building

Collaborated with peers using Revit and AutoCAD for successful project completion.

Developed a versatile two-story building for retail and office use, focusing on code compliance.

Created detailed 3D models to improve project insights and presentations.

Project 3: Emergency Fire Station (Revit)

Designed a safety-focused fire station, adhering to Ontario Building Code standards.

Utilized Revit for detailed 3D models to enhance communication among stakeholders.

Applied efficient space planning, considering emergency response requirements.

Work Experience:

Production Worker at Armada Tool Works Ltd Lindsay, ON | 2023

Operated machinery and equipment according to safety guidelines and production schedules.

Actively participated in continuous improvement initiatives, enhancing efficiency.

Enhanced technical skills through operation and maintenance of specialized machinery.

Developed precision in assembling and inspecting tools.

Certifications:

LinkedIn Learning certifications for Revit, AutoCAD, Photoshop, Microsoft Word, and Excel

Additional Skills:

Familiarity with Ontario Building Code and By-Laws

Self-motivated, well-organized, and committed to delivering high-quality designs

Collaborative mindset with the ability to work effectively in team environments

Willingness to learn and adapt to new challenges and responsibilities

References:

Available upon request

CONTENTS

22 ARIA DRIVE Academic

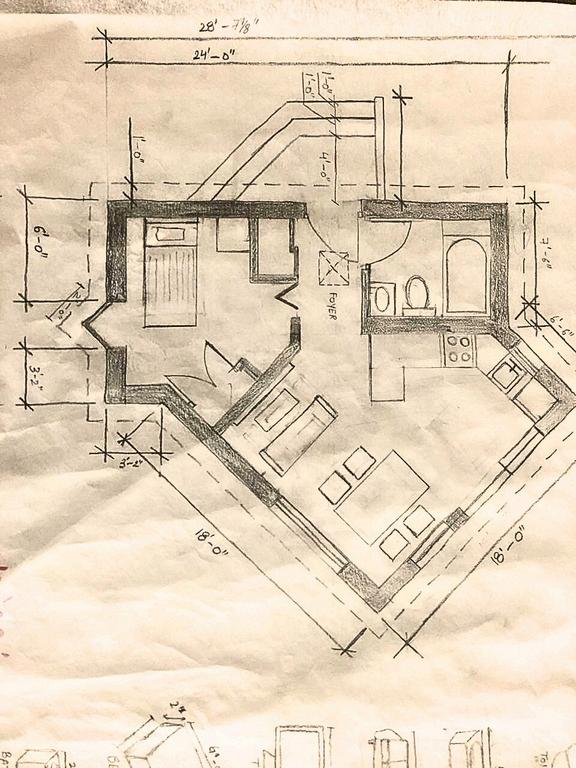

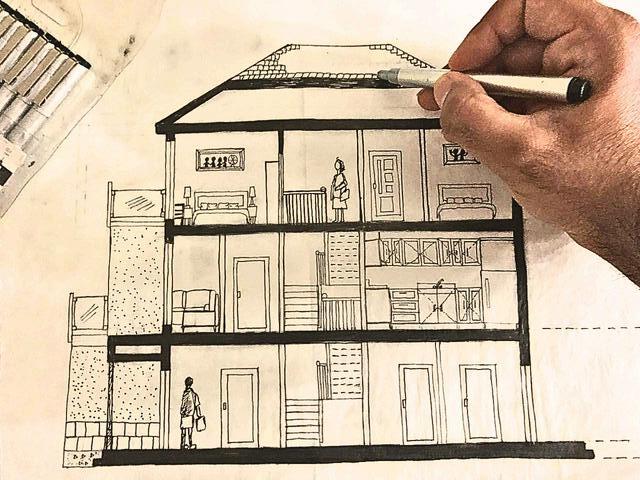

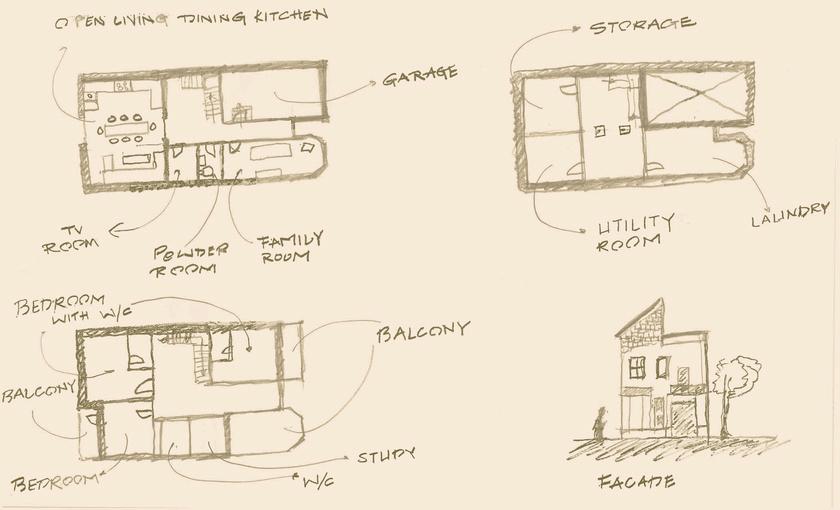

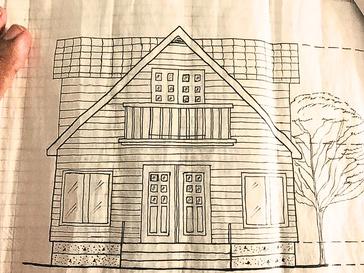

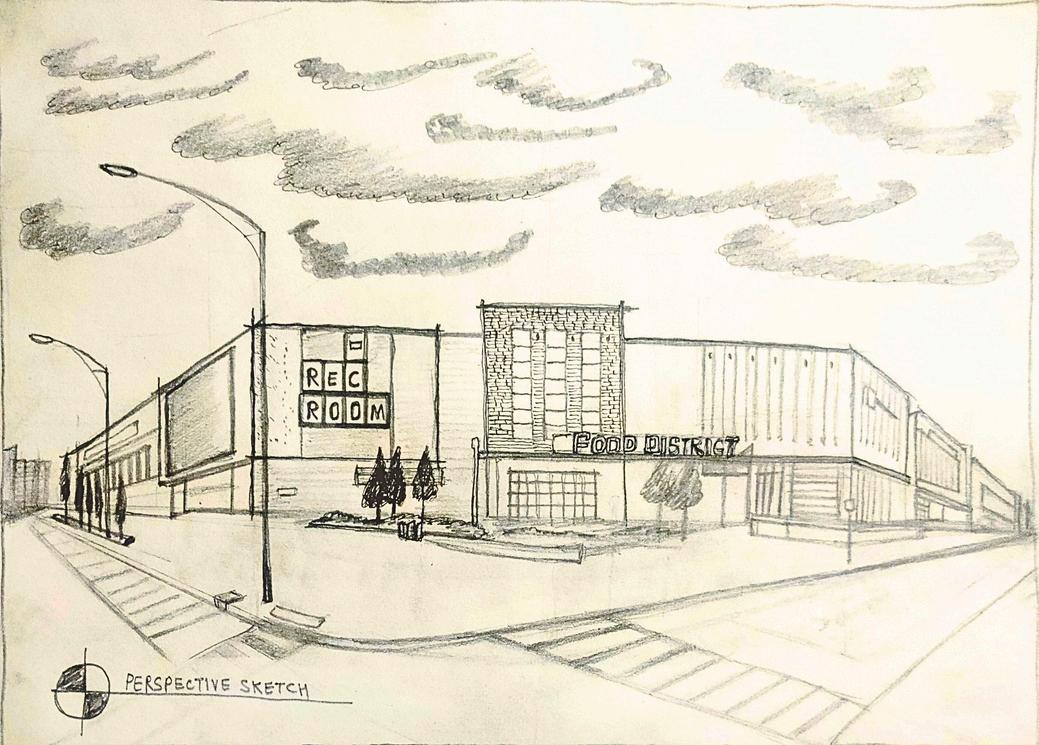

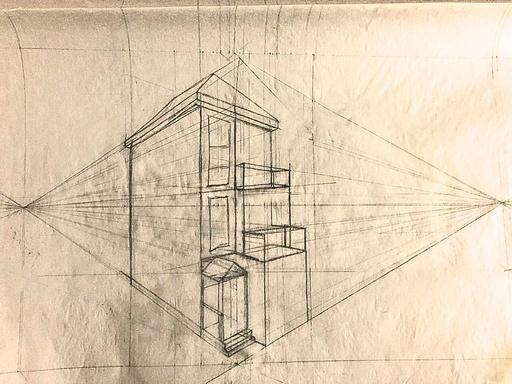

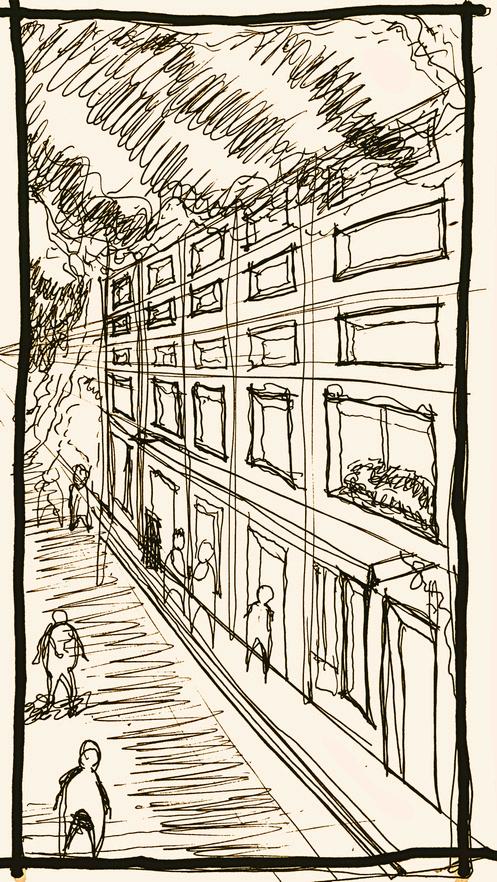

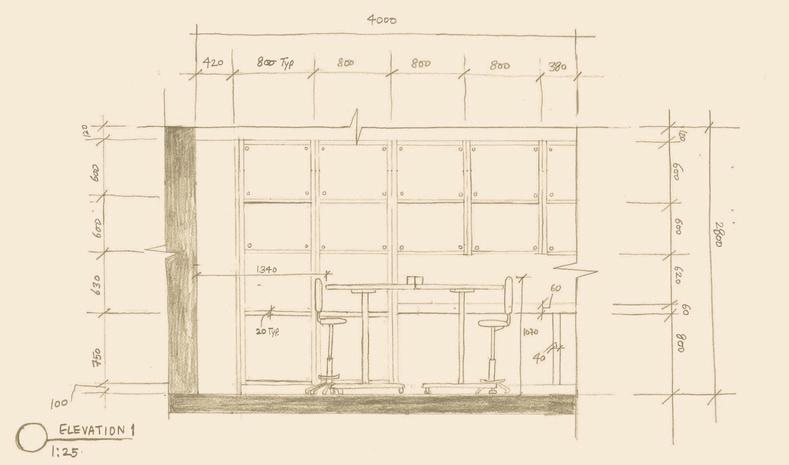

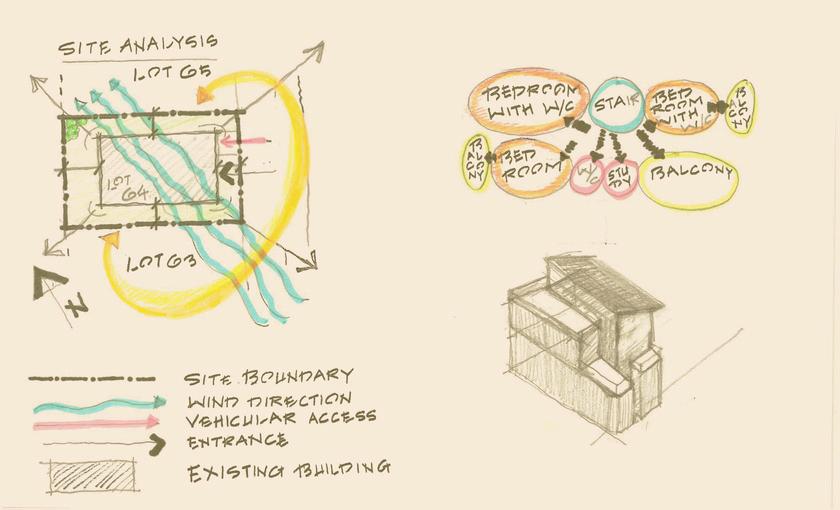

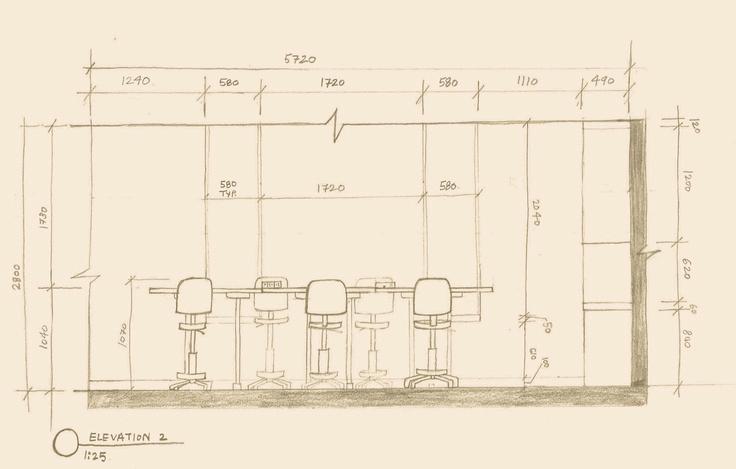

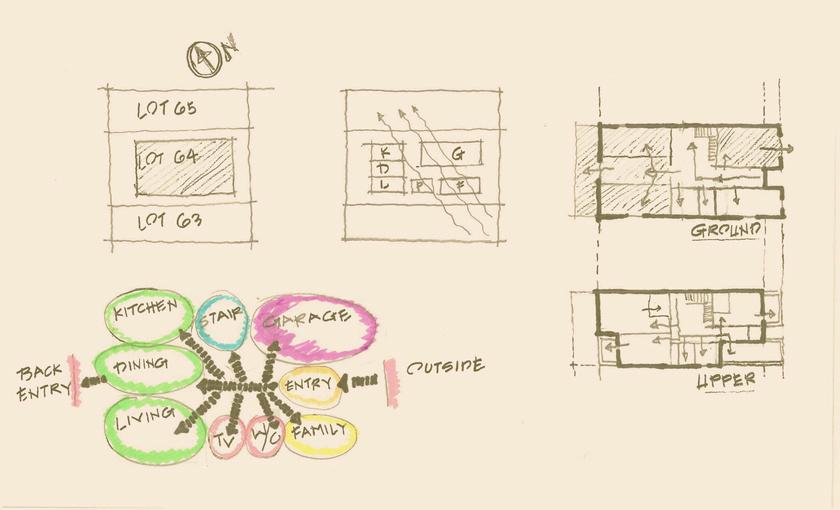

HAND SKETCHES Academic

22 ARIA DRIVE

Year: 2021, Academic Project BIM Sheridan College

The 22 Aria drive is an alternative look to the idea of a sustainable residential house located in Souther Ontario is a home is a Couple who is looking for a spacious garage, fully furnished basement, two story house.

The House was named after the street "Aria Drive" with a backyard big enough for the client's and his husband to throw pool parties, have bon-fires and have a vegetable garden too.

The Exterior of the house is all Natural brick with a concrete foundation.

The Interior is designed, keeping the flow such as visual links between spaces, keeping circulation in mind, storage such as coat store at the entrance, mud rooms, shelves, and cupboards and light such as glazings, windows seats creating light and zones within the space. All requested rooms are designed to satisfy the client's needs and interests.

" 22 Aria Drive" is a very Simple, peaceful place which the client can call home.

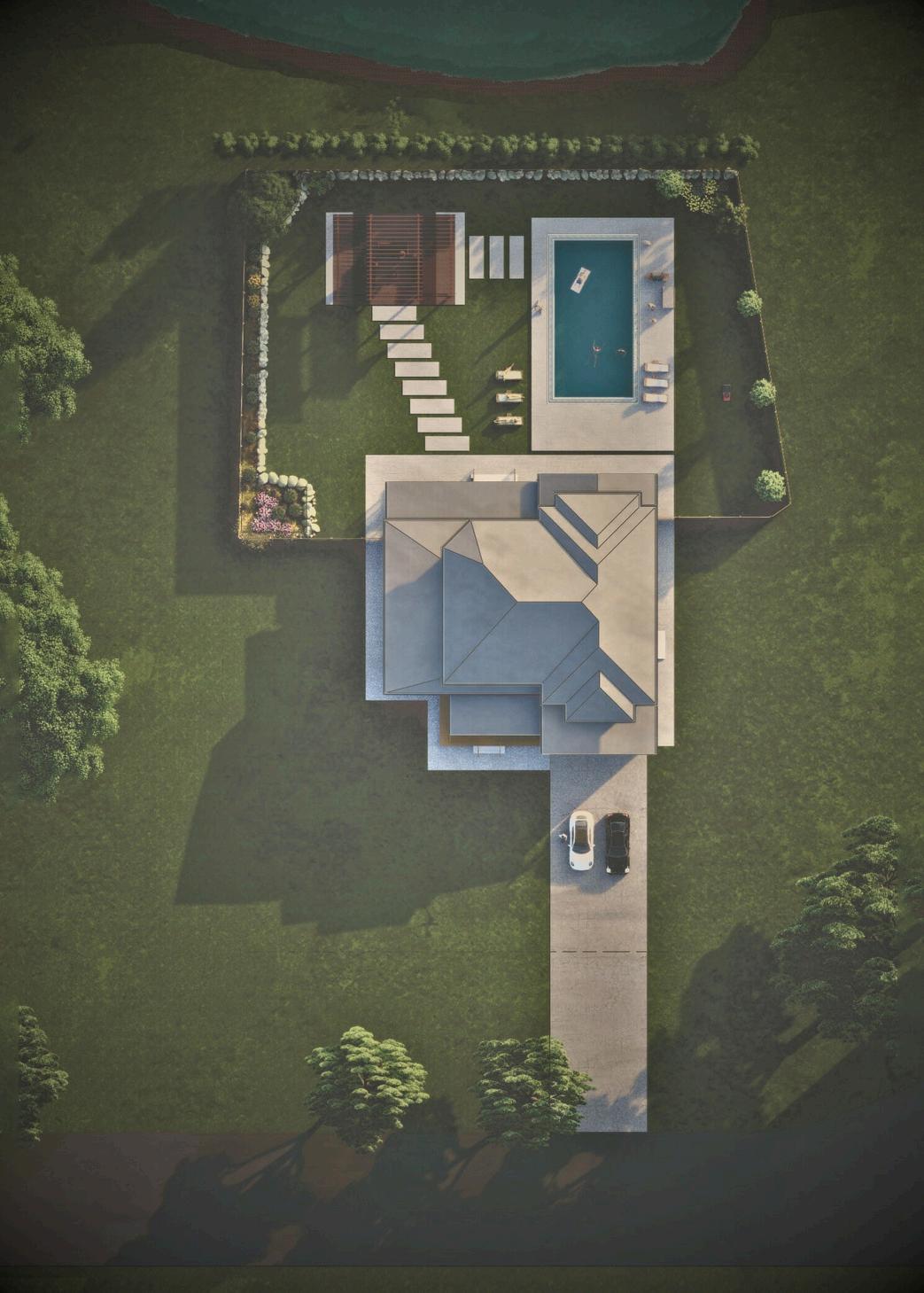

Siteanalysis

Site information

22 Aria Drive is located in Southern Ontario. The Façade is South West Oriented ensuring the main entrance and the garage is facing the roadway. On the North East of the Site is the small pond. On the East side of the Site, there is a residential neighborhood. On the West Side is the Valley.

The Site is located in a rural location therefore the setbacks are bit larger than urban and suburban settings. Minimum of 5 meters of side yards and 8 meters for front yard are provided. However, the backyard fence is extended beyond the setback for more privacy . Additional trees are planted between the neighborhood to have more privacy. Moreover, External Patio space play an important role in the backyard as it is the perfect place for relaxing with family and friends. along with a Swimming pool to relax on a sunny day. Landscape lighting around the pathway brightens the backyard area providing a soft ambiance during the night time for guiding people, adding an intriguing factor to the backyard setting. Flagstone pathway invites guests to stroll through the yard taking them to the Sitting area and Admire the Flower and vegetable garden and creates a wow factor in the backyard and turns it into an exterior paradise.

SECOND FLOOR ROOF

SECOND FLOOR CEILING

FIRST FLOOR CEILING

BASEMENT CEILING PATIO ROOF

BASEMENT WINDOWS WITH WINDOW WELL

SECONDFLOOR

GARAGE ROOF

GROUNDFLOOR

BASEMENTFLOOR

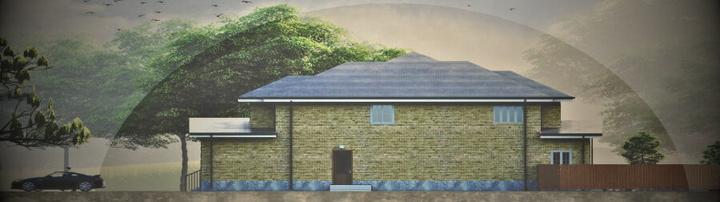

EAST ELEVATION

WEST ELEVATION

SOUTH ELEVATION

NORTH ELEVATION

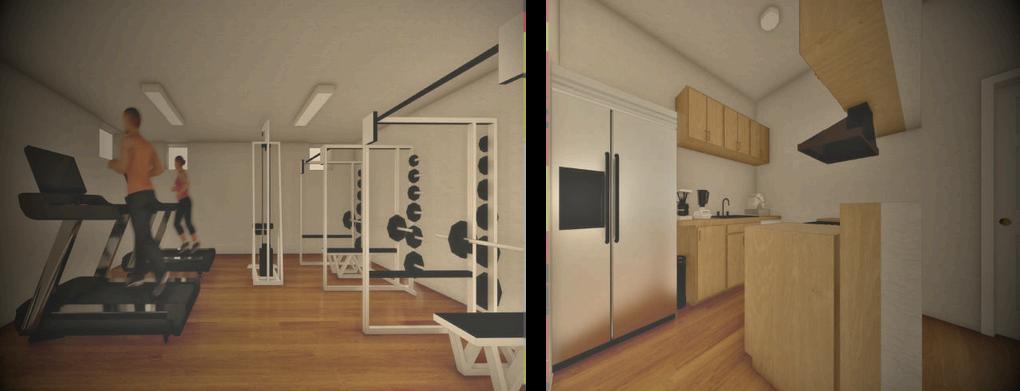

Workout Room in the Basement with Windows for Natural Lighting

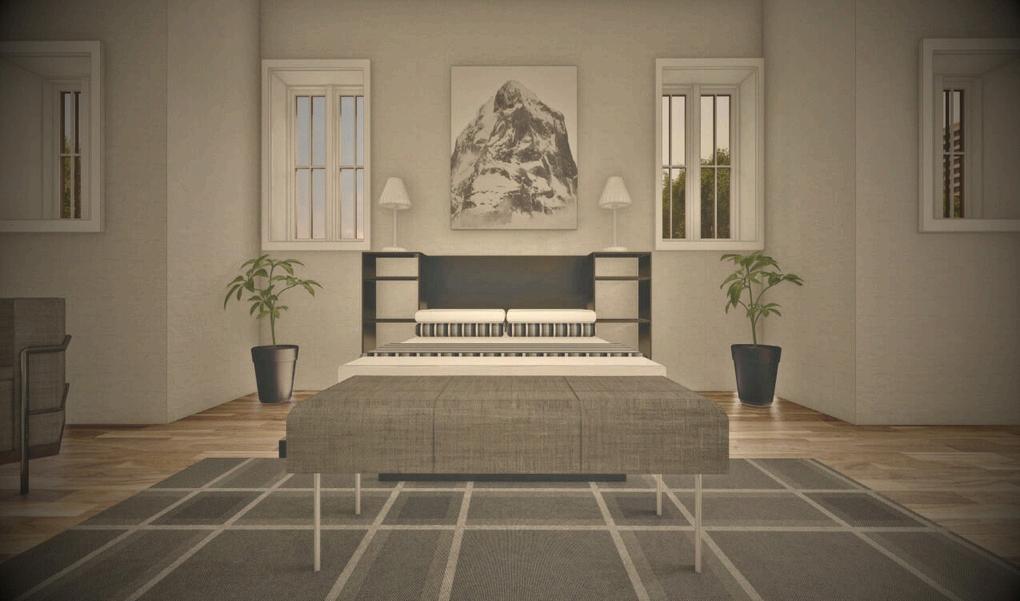

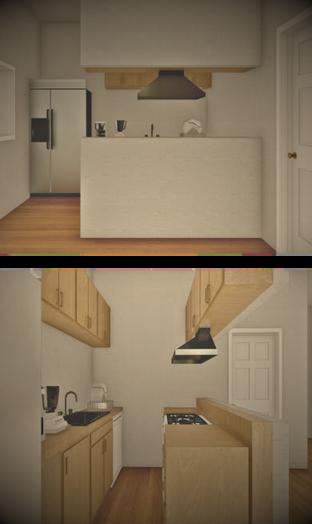

Master Bedroom Kitchen Percpective View The above two images show the Kitchen

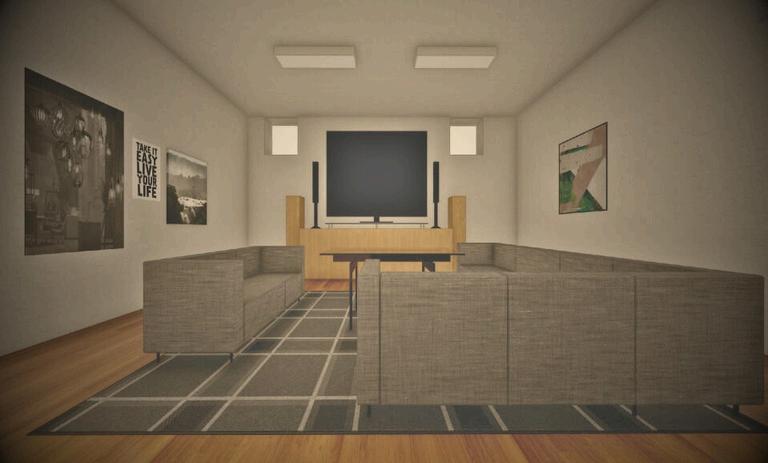

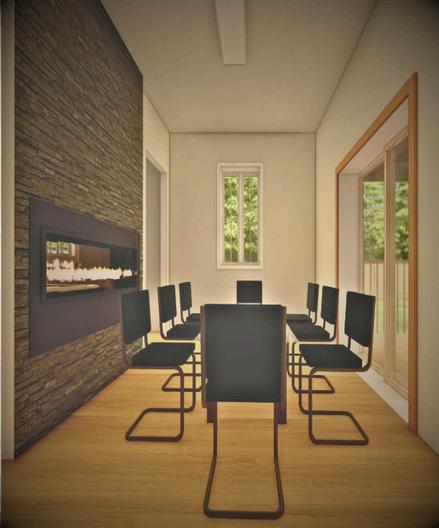

Entertainment Room in the Basement Dining Room Image Title

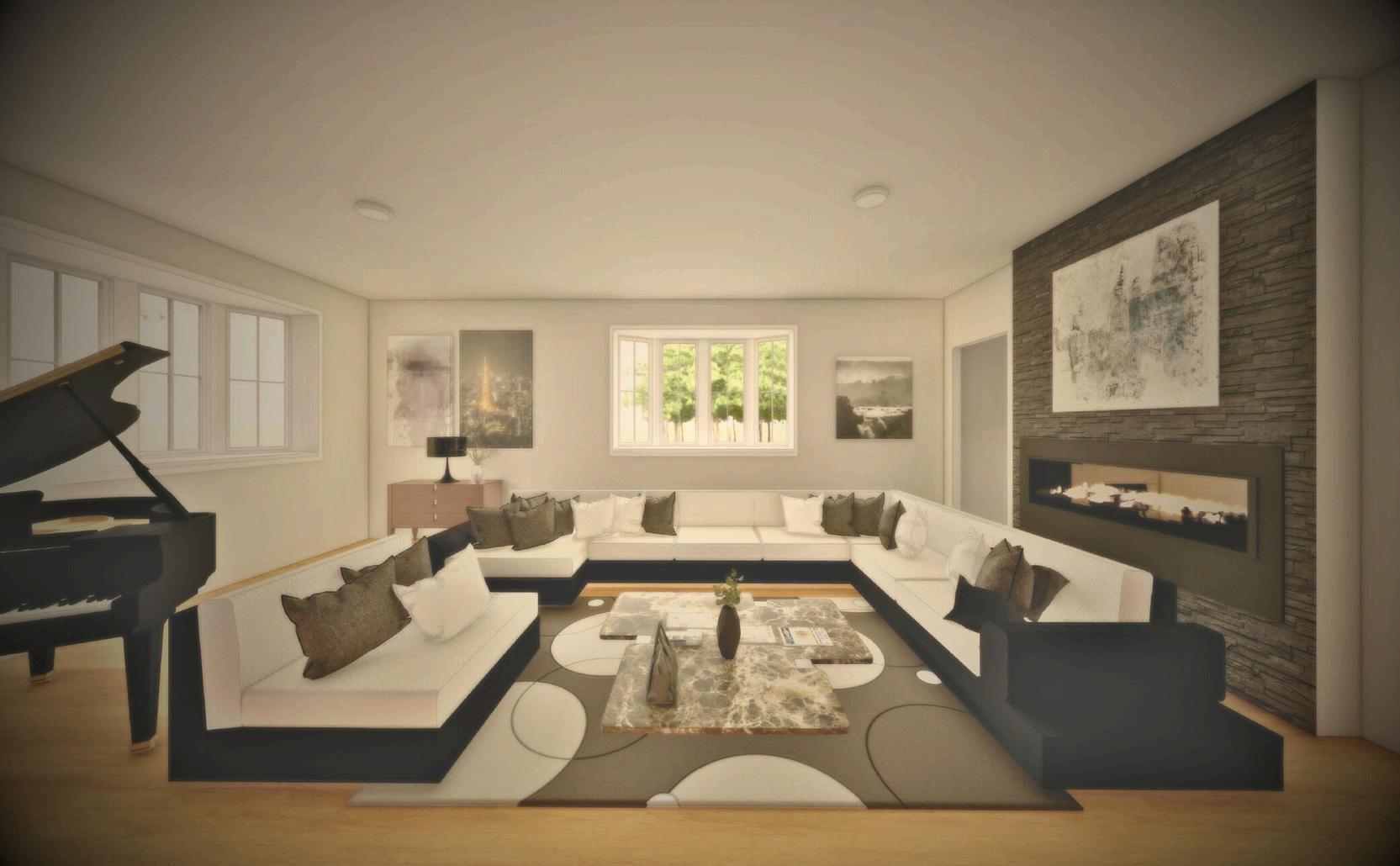

GREAT ROOM WITH AN ELECTRICAL FIRE PLACE SHARED WITH THE DINING ROOM

The interior view of the residence from the great room with the use of warm lighting to create a comfort mood.

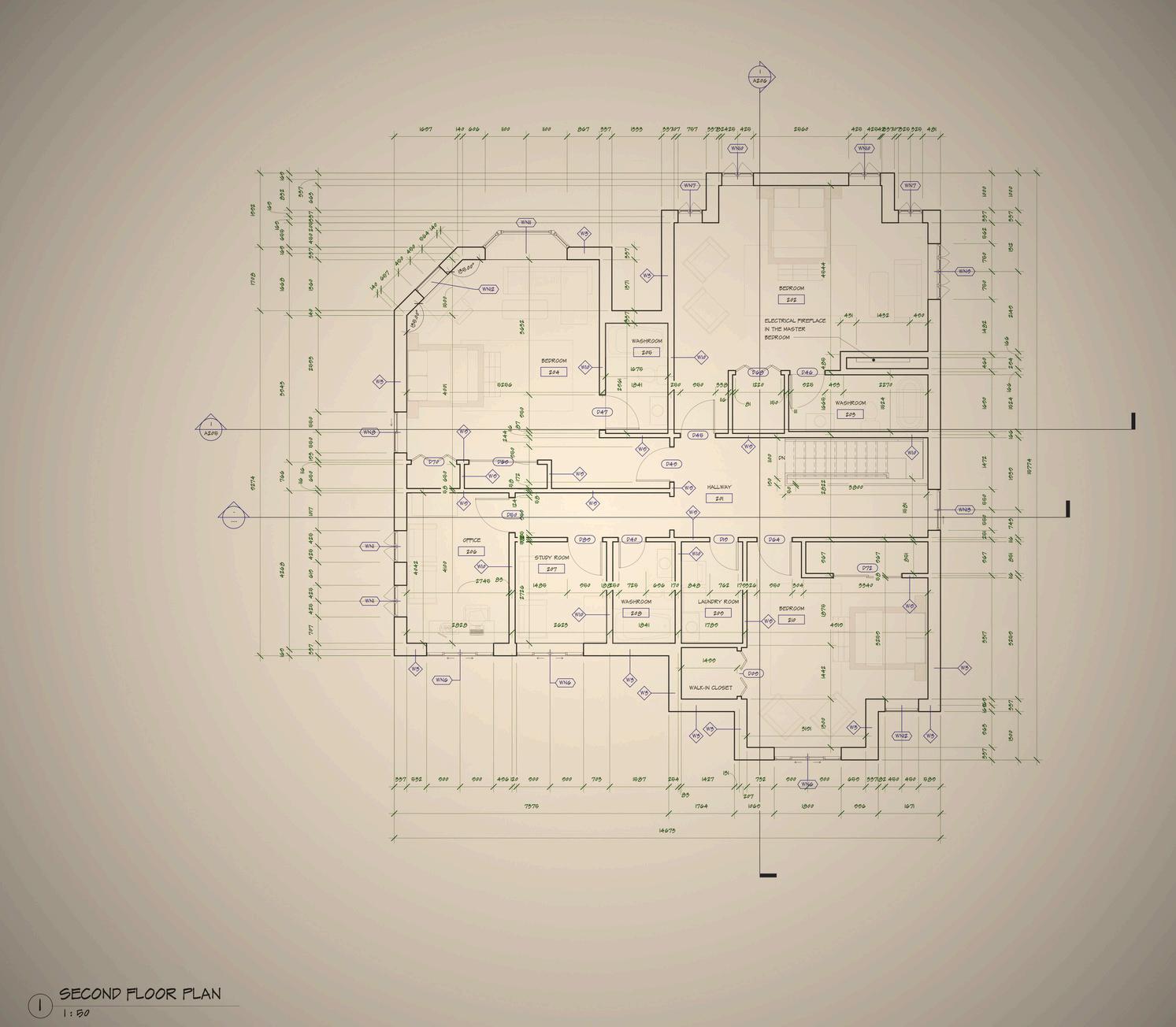

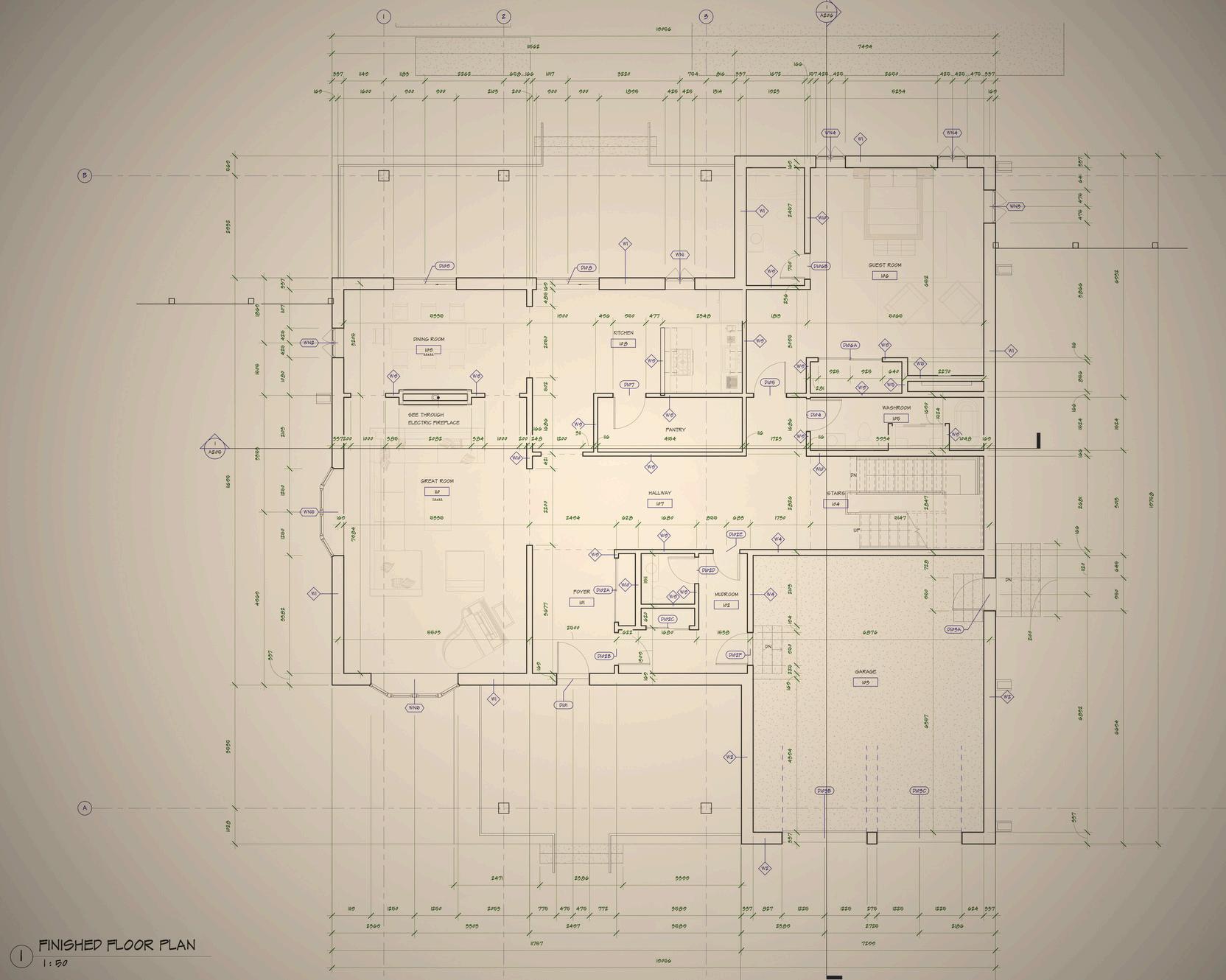

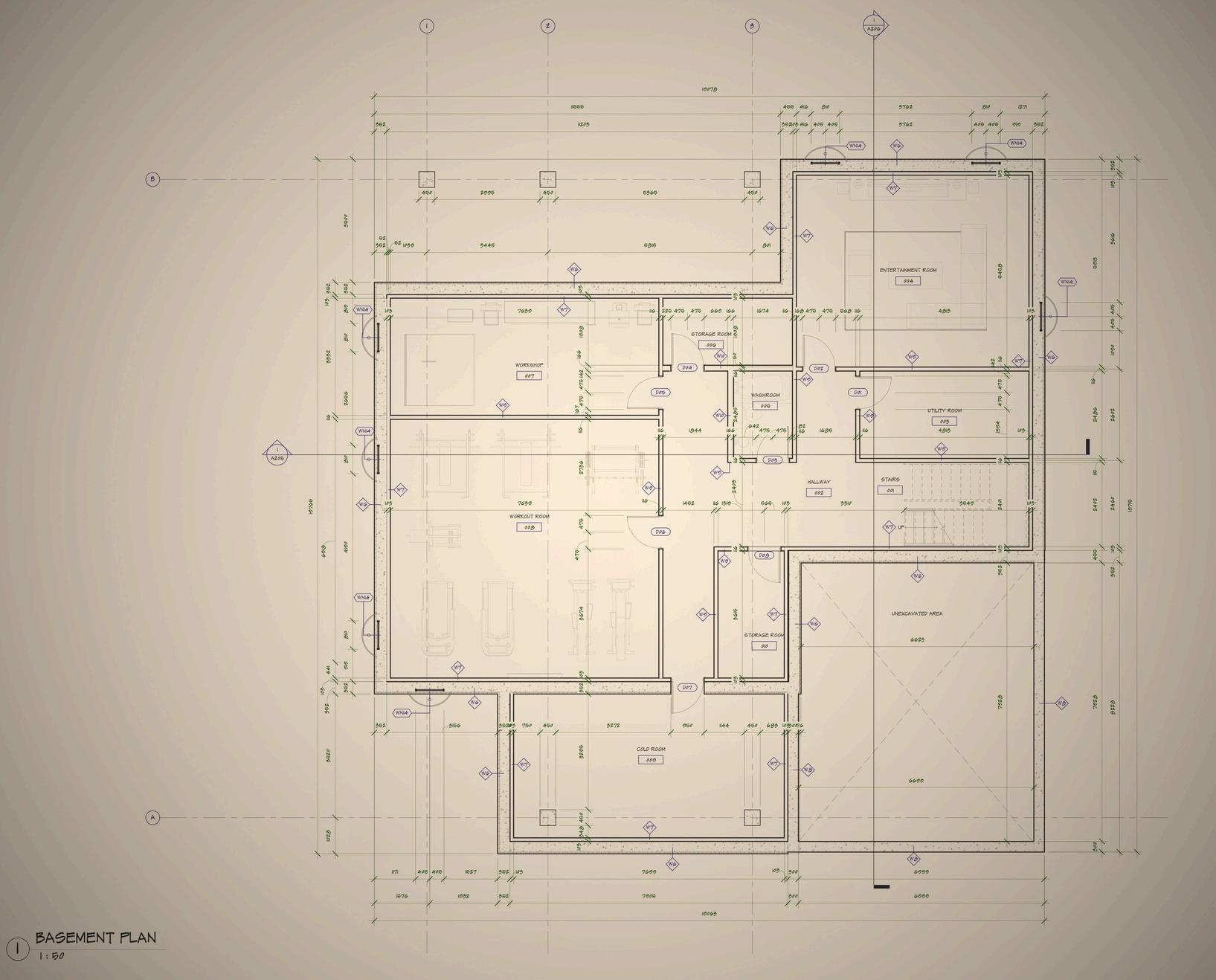

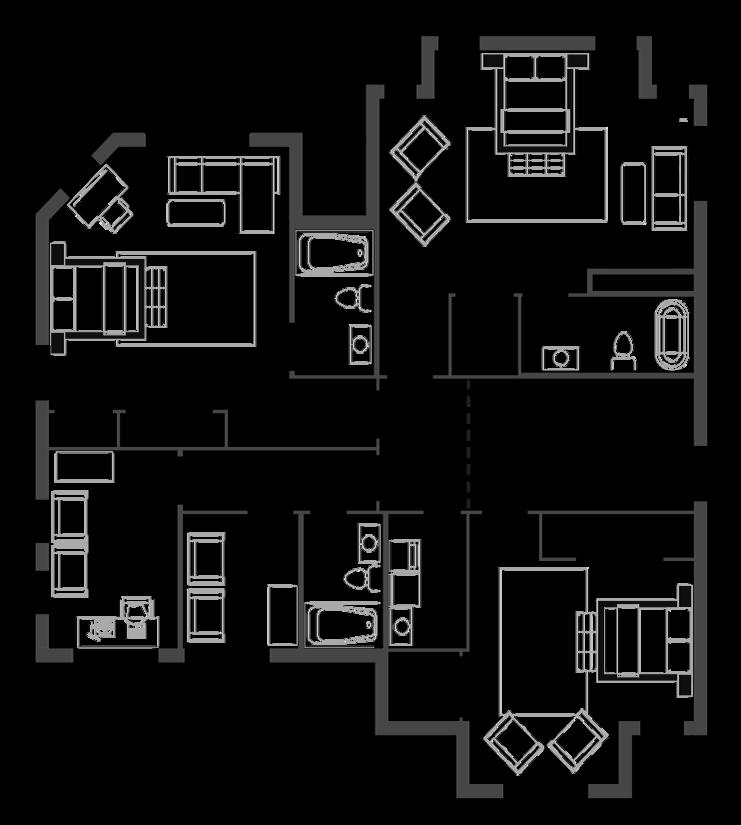

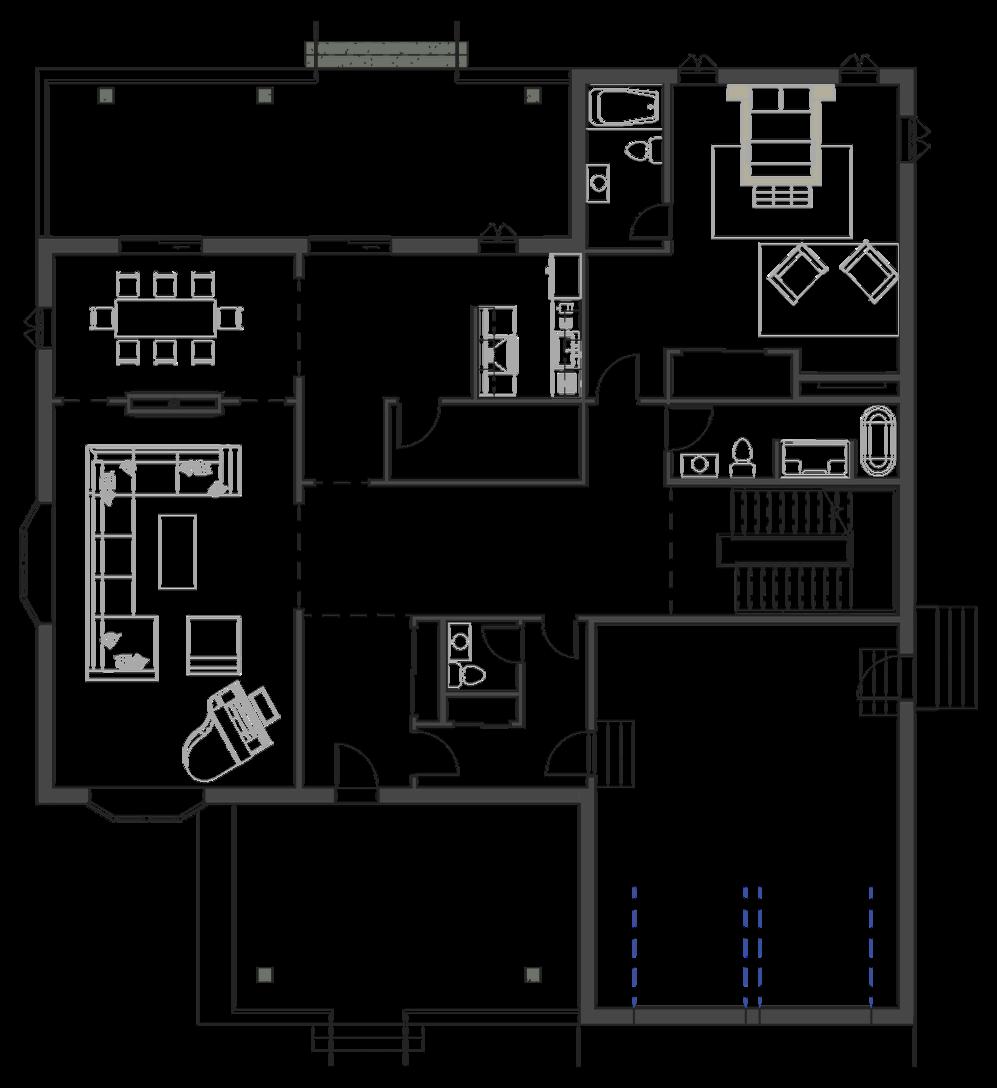

FLOOR PLANS

Floor Plans illustrating the complete layout of 22 ARIA DRIVE, from basement to ground and second floors, providing a comprehensive view of its functional design and spatial flow.

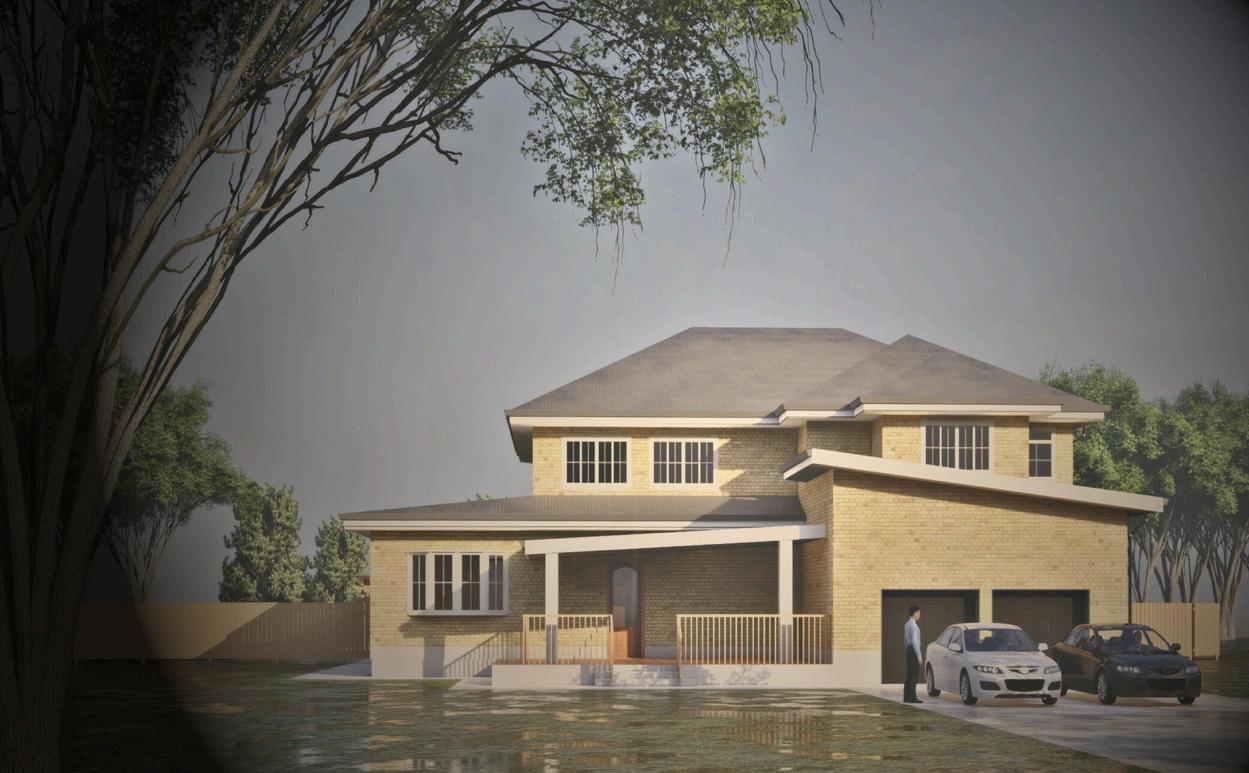

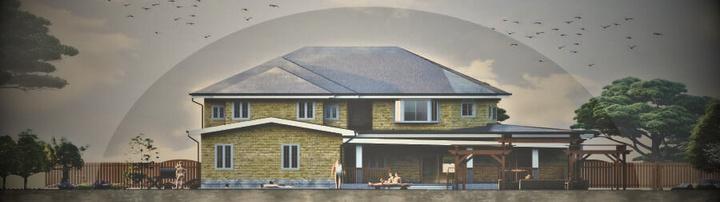

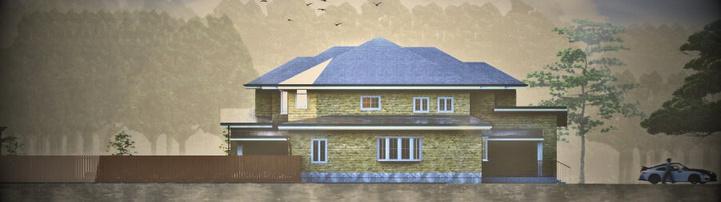

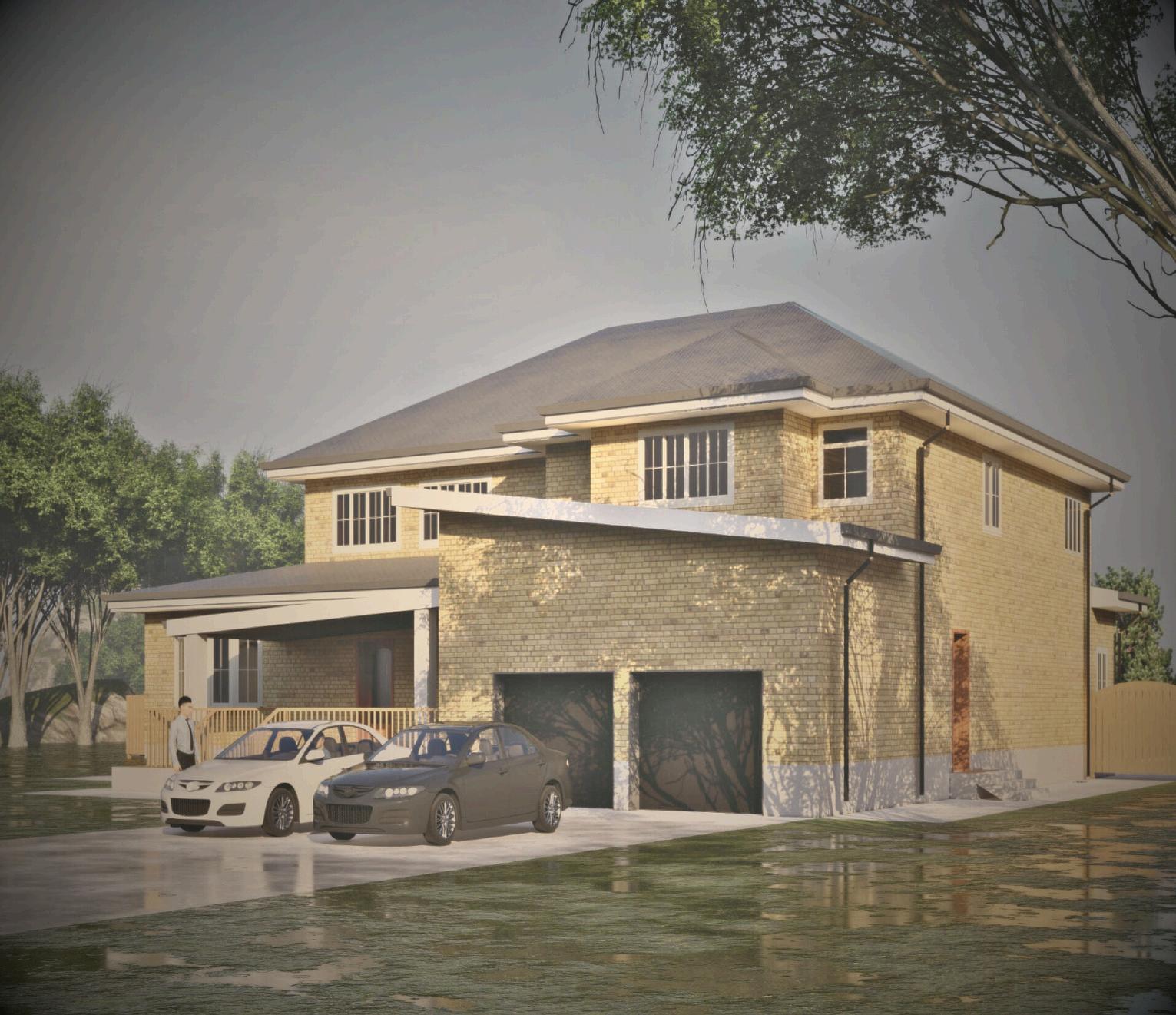

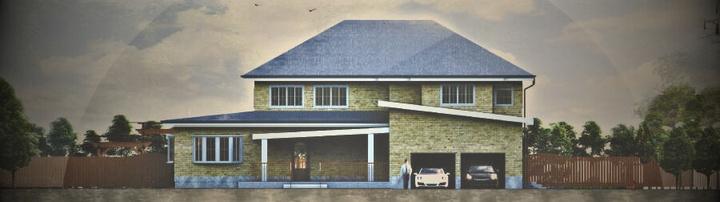

EXTERIOR VIEW OF THE HOUSE

"Exterior View: Offering a glimpse of 22 ARIA DRIVE from different vantage points, capturing its architectural charm and character in the daylight

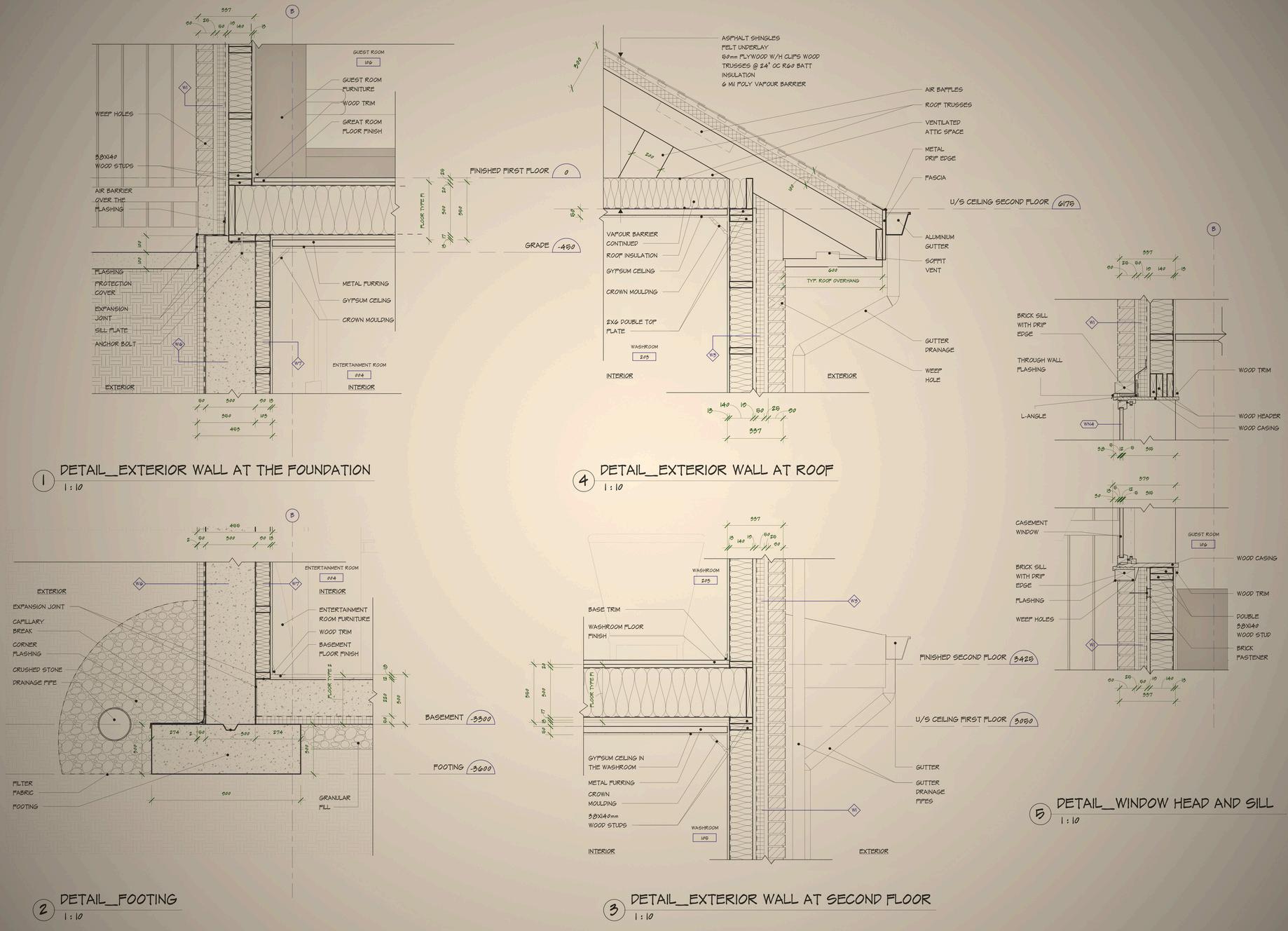

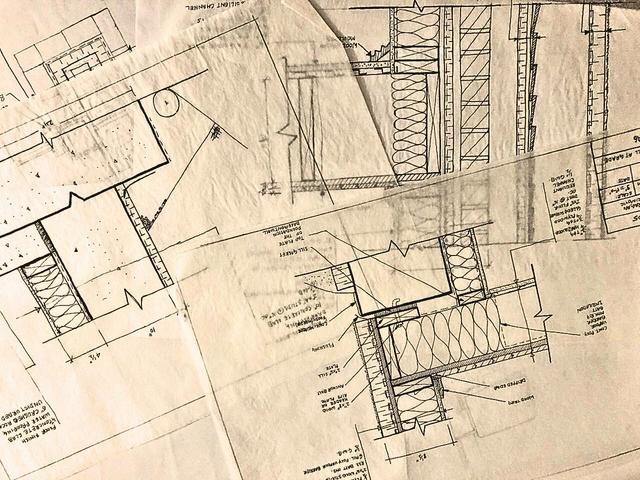

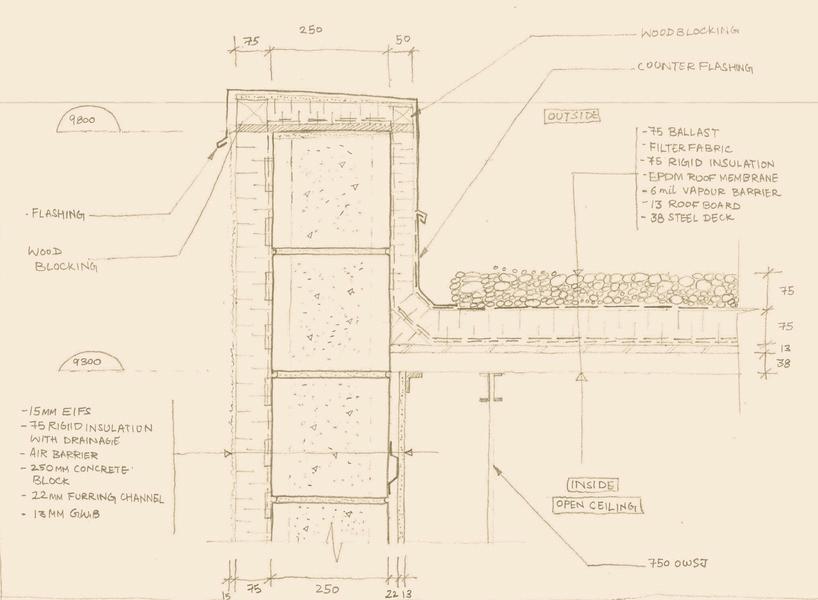

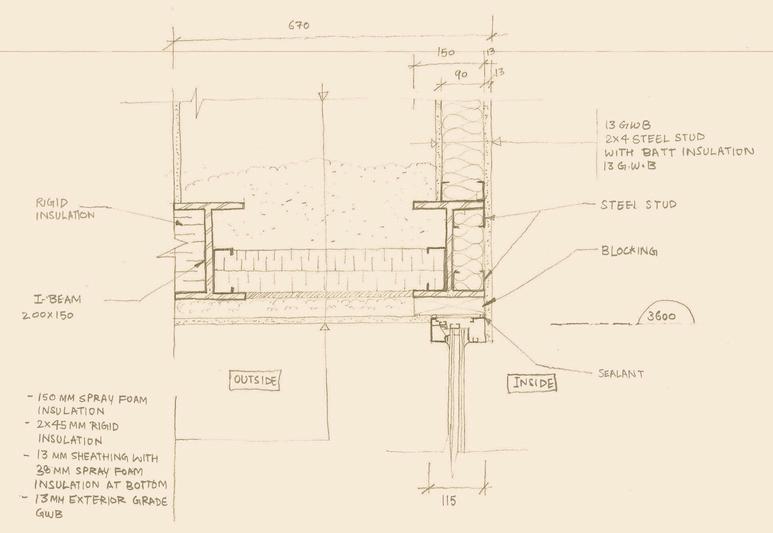

DETAIL SECTIONS

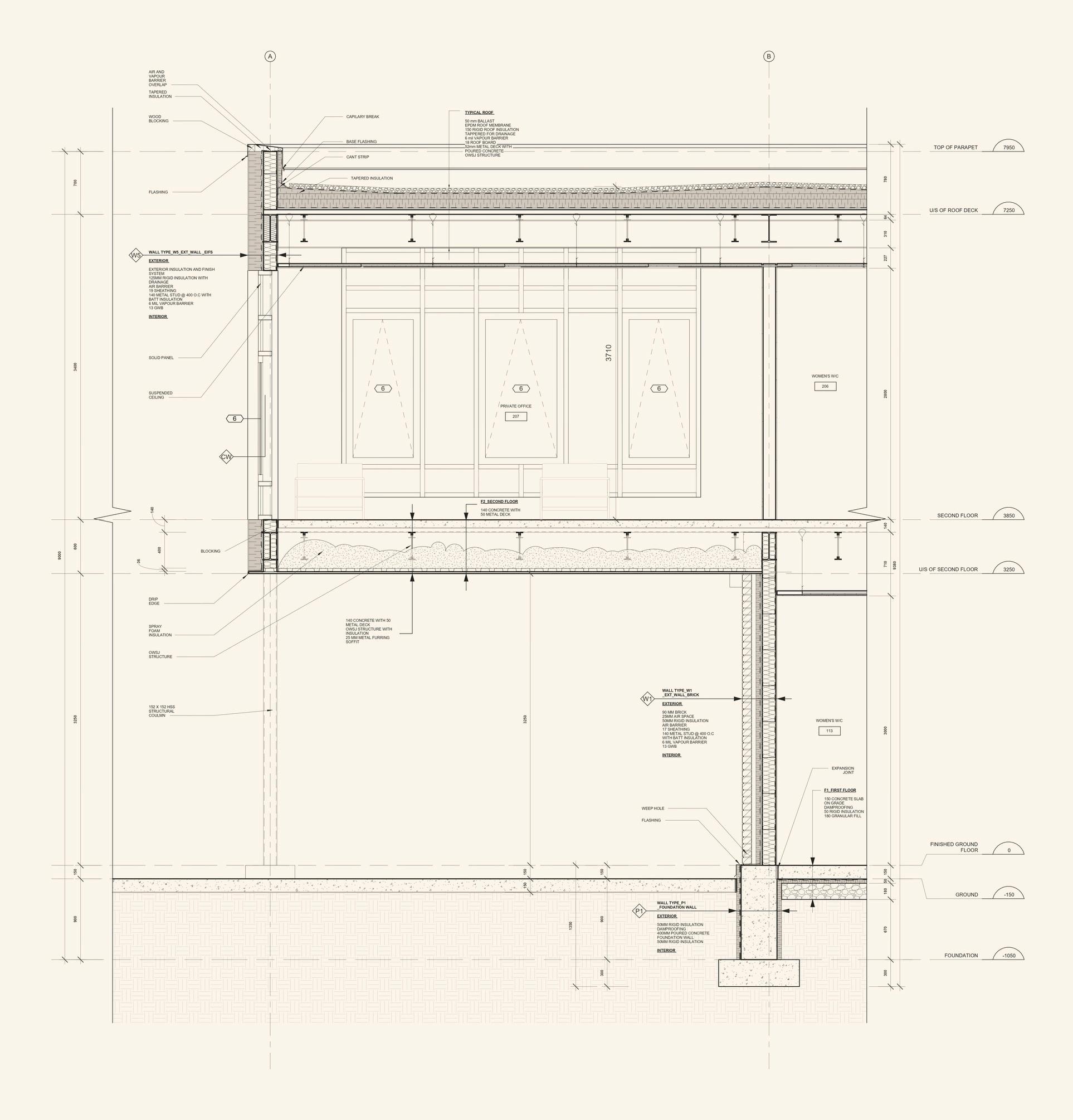

Detail Sections exploring the intricate architectural elements of 22 ARIA DRIVE, from its foundation to roofline, revealing the craftsmanship and design details.

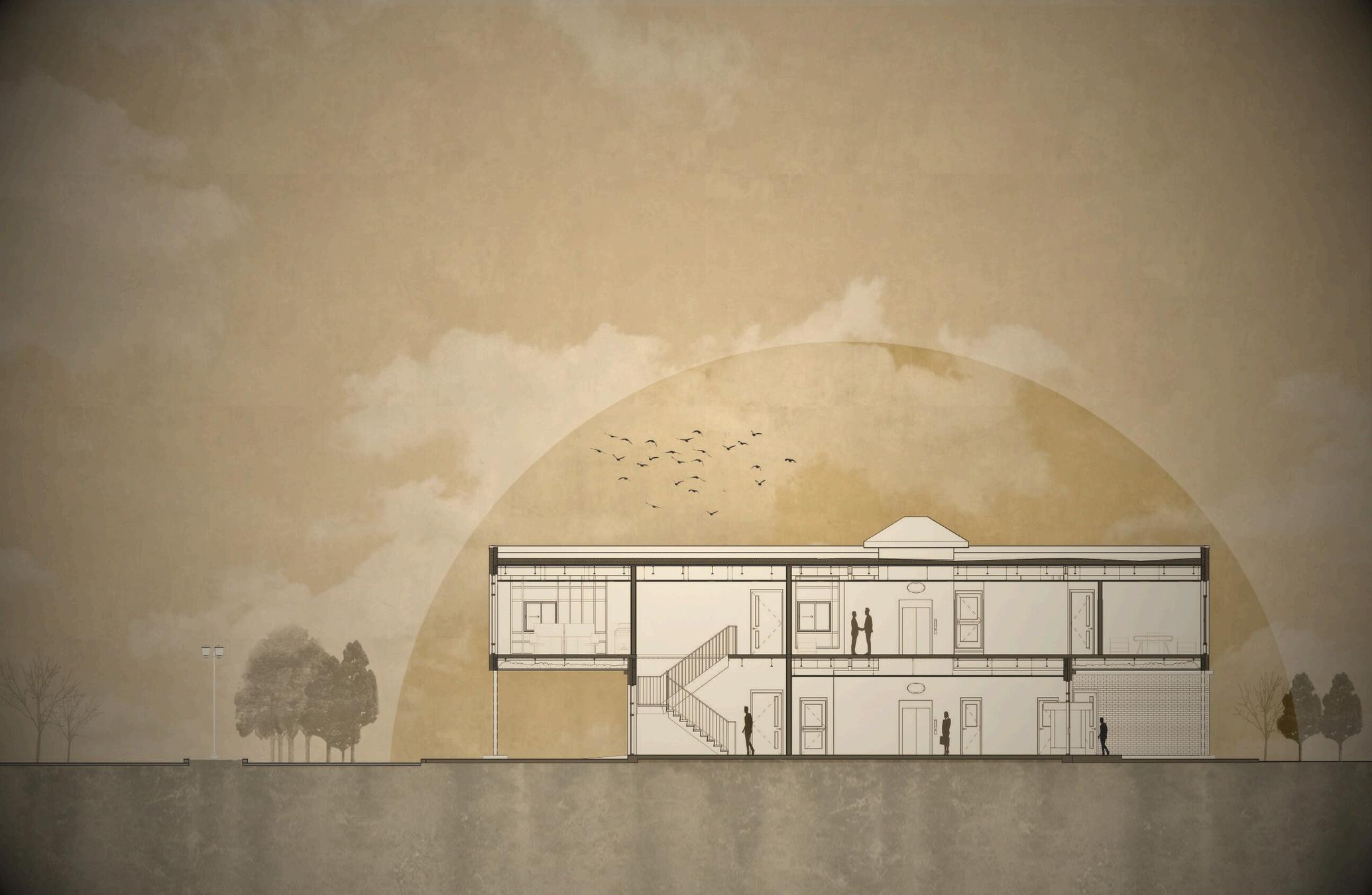

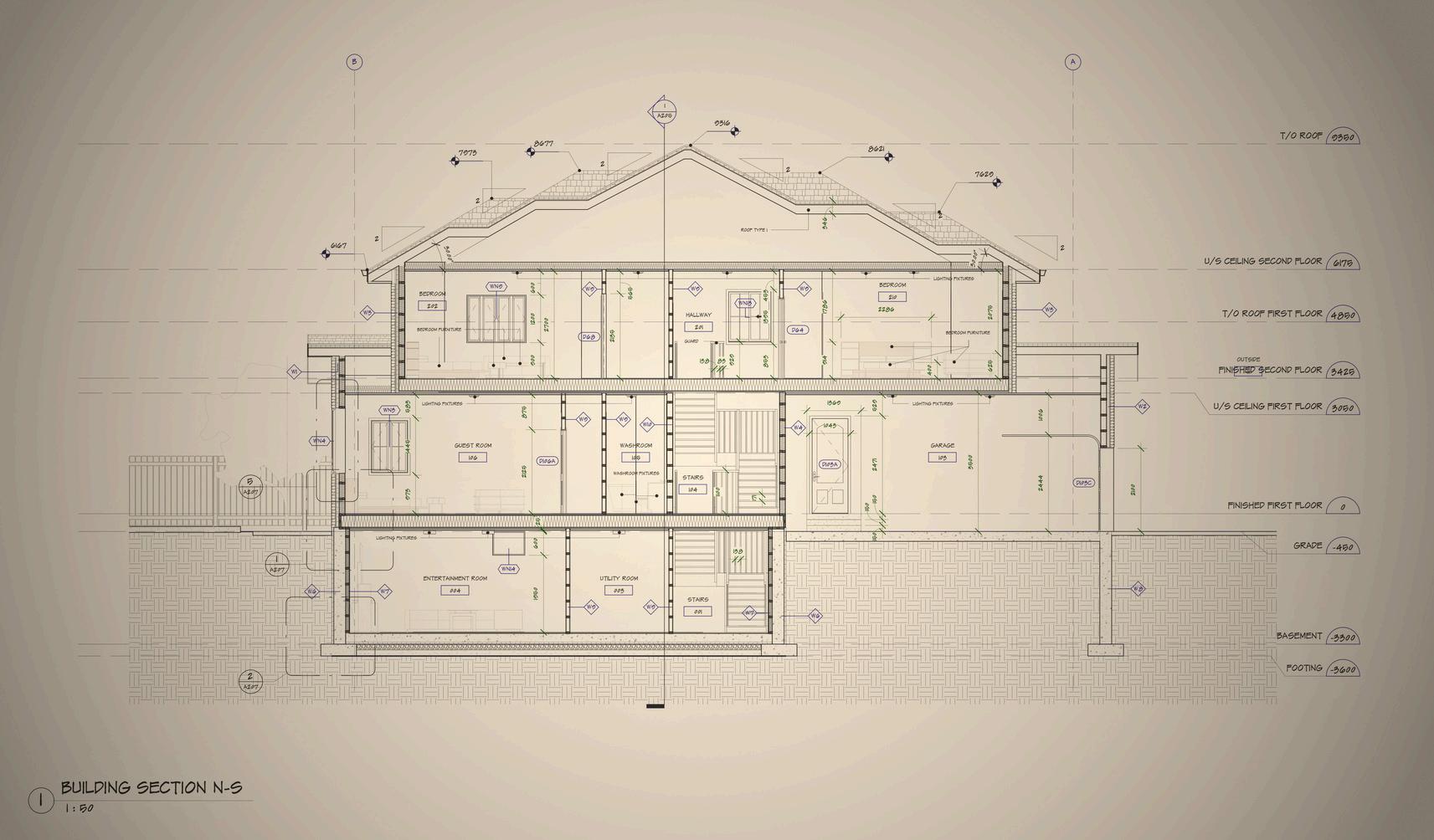

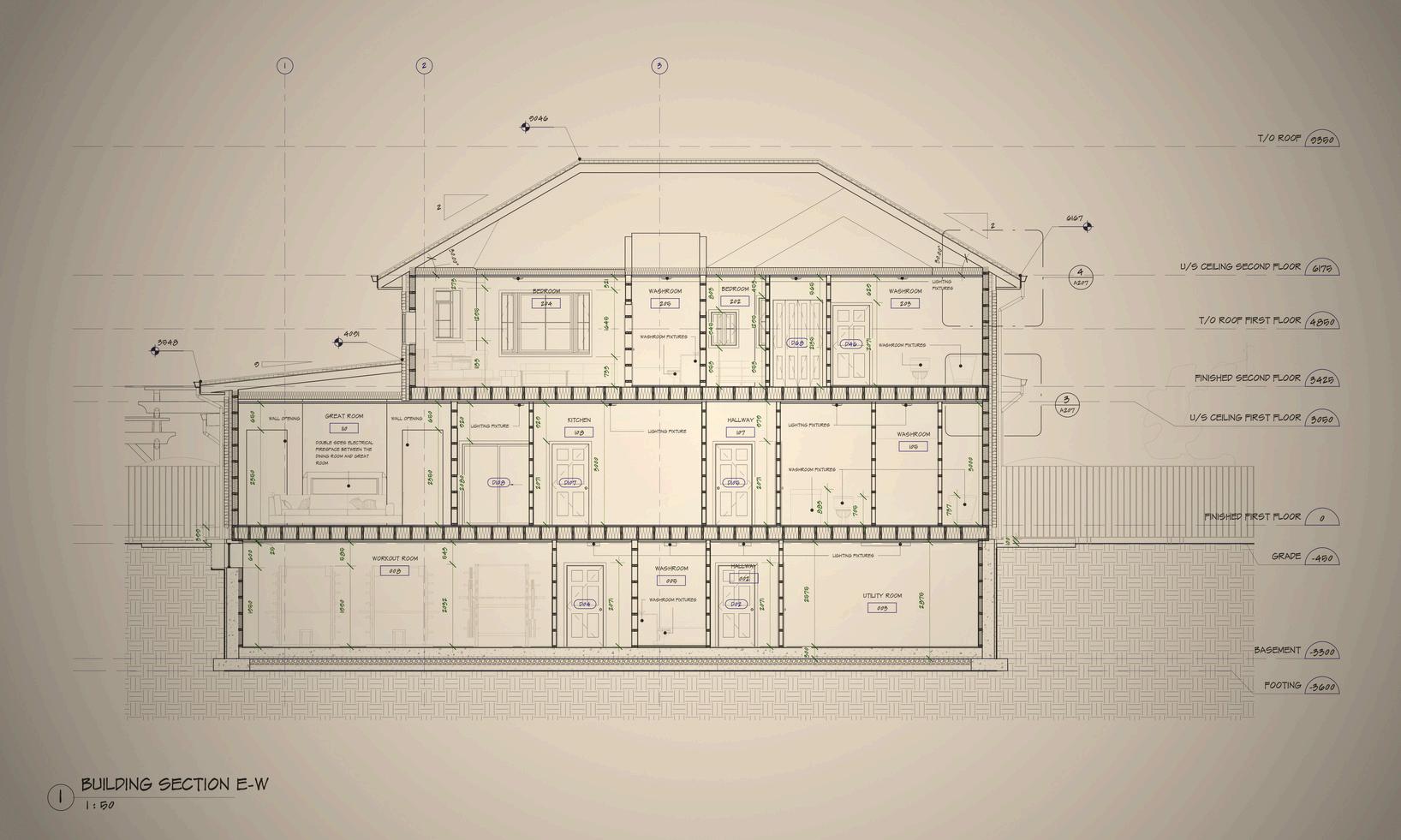

BUILDING SECTIONS

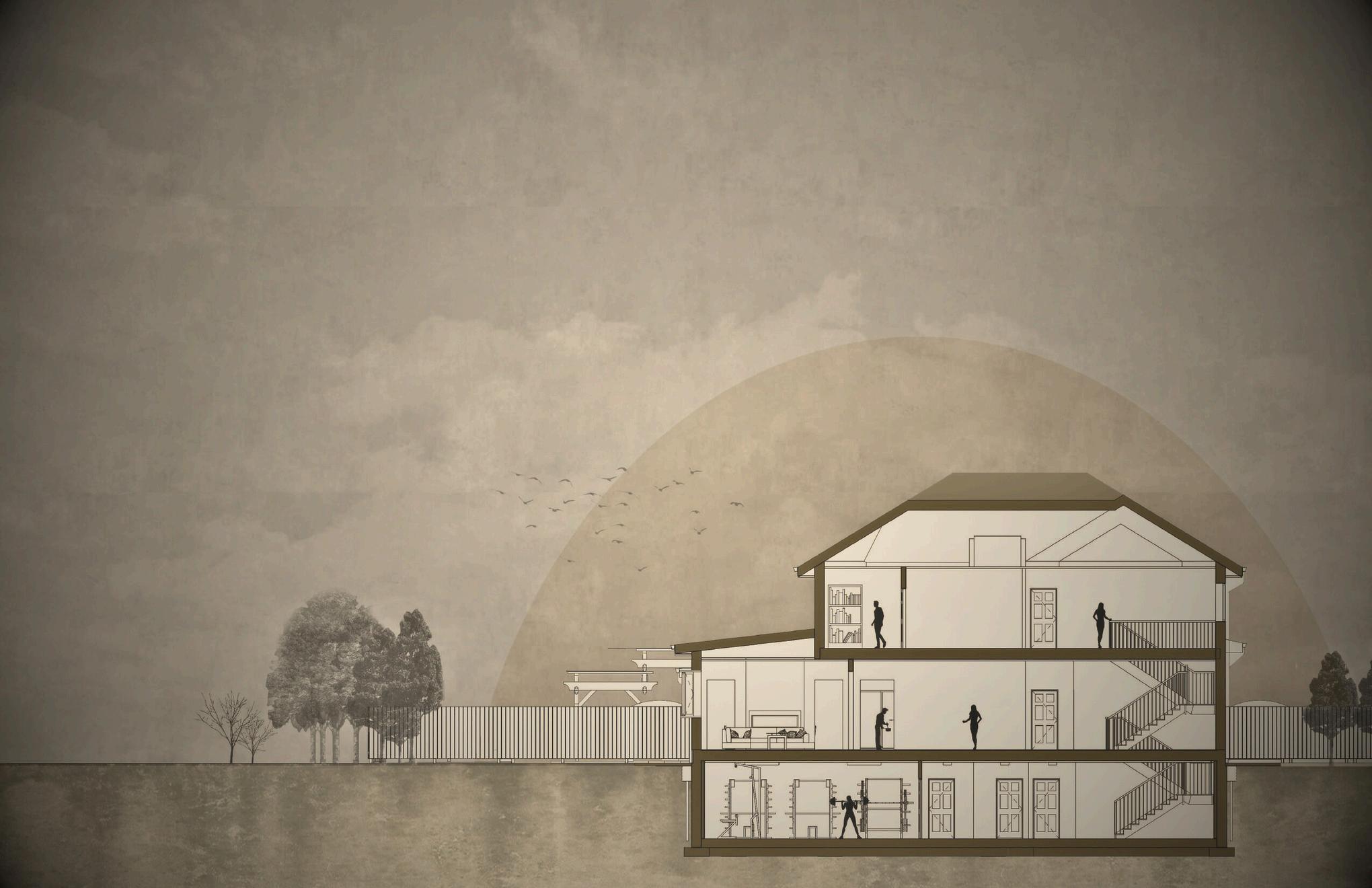

Building Sections: Delving into the structural composition of 22 ARIA DRIVE, illustrating its vertical dimensions and design intricacies from various angles

586 TRINITY DRIVE

2

Professor: Dragan Acimovic

Year: 2021, Academic

Team member: Baljinder Singh, Steven Marquez.

Brief

The 586 Trinity Drive is a two story building located in the Southern Region of Mississauga is a Commercial building with the First Floor Appointed for the retail and Second Floor for the Office Division. This two story building contains, Retail spaces, reception areas, Open offices, Private offices and Meeting rooms. The Predominant Materials are glass, Brick and EIFS. The Design concept is inspired by the two cuboids and represent balance. The Simplistic design makes it more aesthetically pleasing. The materials used for the exterior compliments each other. The Pattern of the curtain wall Mullions adds another This building not only satisfy the safety requirements, serviceability, durability but also the aesthetic ensuring structural performance through the entire service life

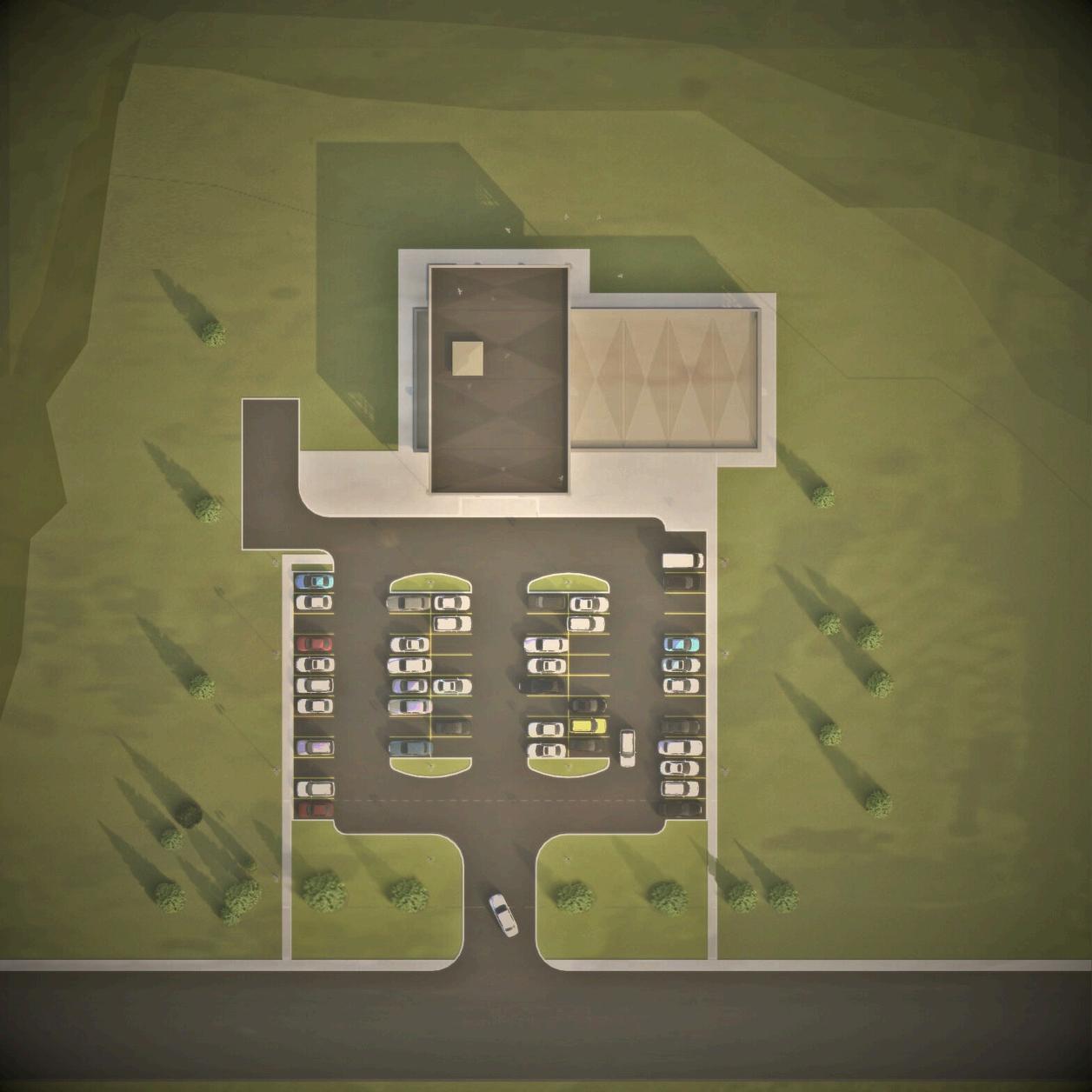

Siteanalysis

Site information

586 Trinity Drive is located in Souther Ontario. The Façade is South Oriented ensuring the main entrance is facing the roadway. The North, West, and East side of the Site are surrounded by vegetation.

The Site is located in a rural location. The setbacks of the building are 4.5 meters from the front yard and 1.5 meters for on the side yards and back yard are provided.

However, the Front building is approx. 52 meters away from the Property . Additional Land buffers are provided at the front. There is only one street entrance.

There are 54 parkings provide at the front with two Barrier free parkings and two Electrical parkings. For Parking, Asphalt pavement is used and catch basins are provided.

The distance between the parallel parkings is 7 meters. The building is away from the main street which reduces the amount of noise from the main street.

Concrete pavement sidewalks are provided for the overall building.

6

7

9

1

5

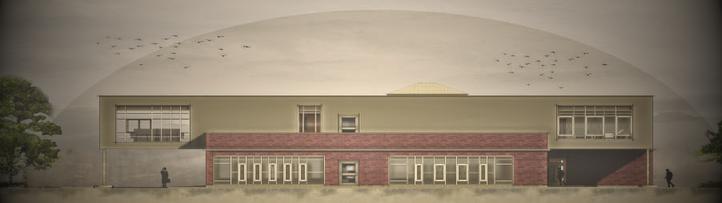

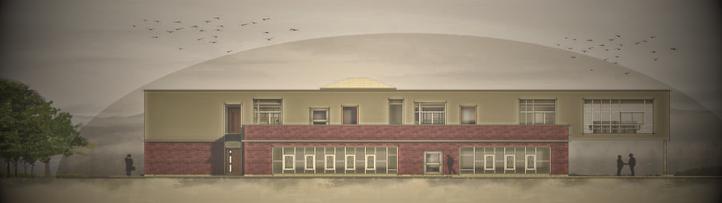

NORTH ELEVATION

SOUTH ELEVATION

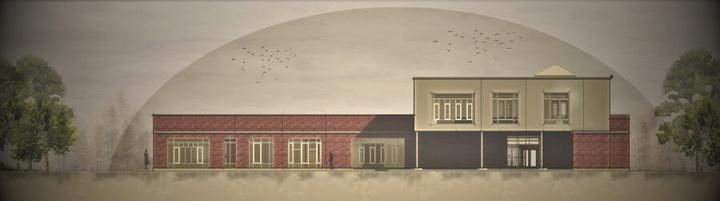

EAST ELEVATION

WEST ELEVATION

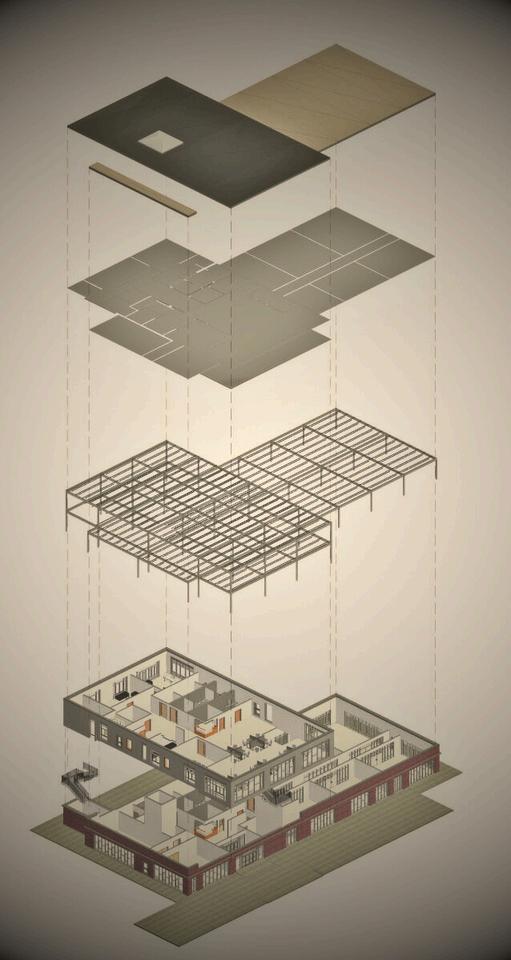

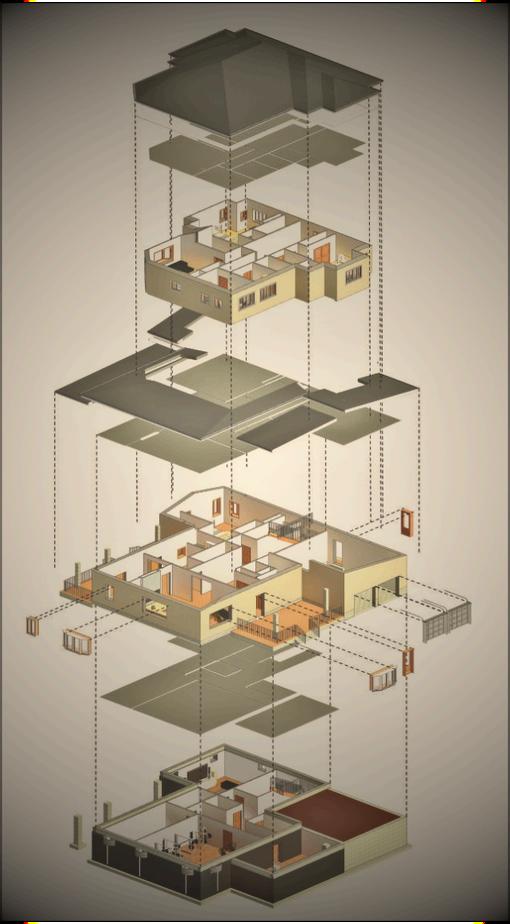

AXONOMETRICEXPLODEDDIAGRAM

SECOND FLOOR ROOF

SECONDFLOOR

EXIT STAIRS

GROUNDFLOOR

Private Office on the Second Floor with Natural lighting

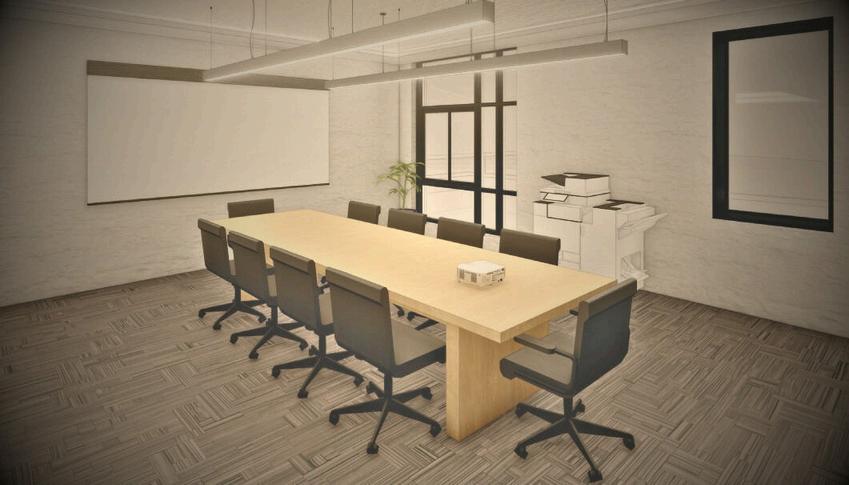

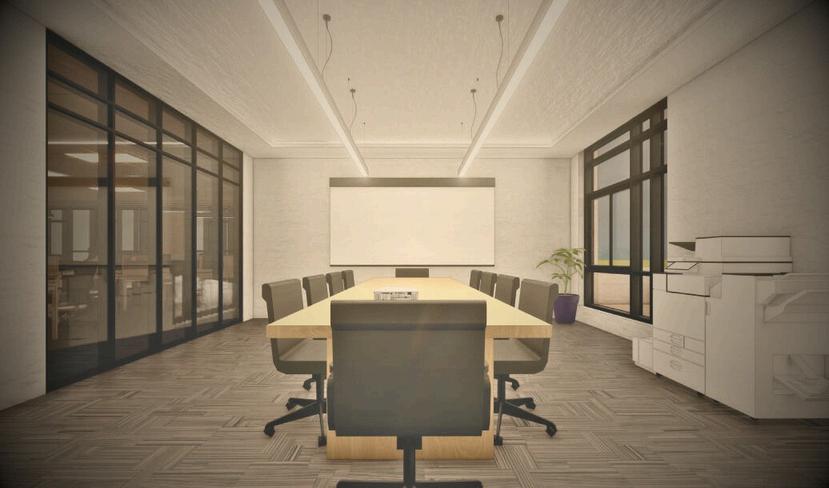

Conference room - Perspective View Reception Area

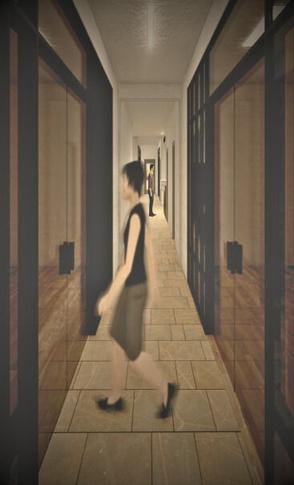

Conference room on the Second floor Hallway

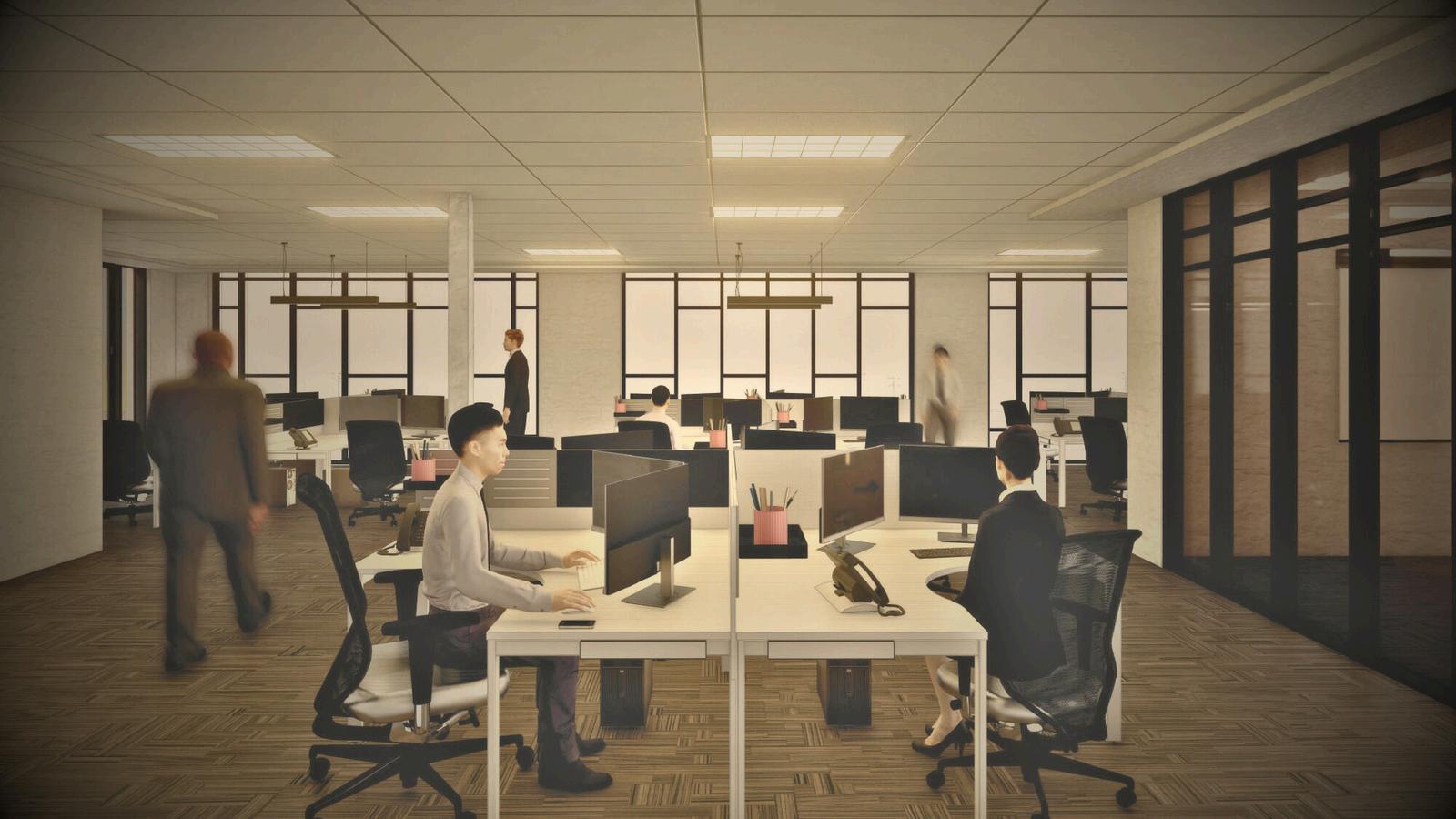

THE OPEN OFFICE

Immersed in the lively atmosphere of the second-floor workspace, this view captures individuals engaged in tasks, with desks arranged in an open layout promoting collaboration and a sense of shared energy.

MATERIALANALYSIS

The main materials of brick, EIFS (Exterior Insulation and Finish System), and the glass curtain wall create a balanced composition. Brick offers durability and tradition with its timeless appeal, while EIFS provides energy efficiency and design flexibility. The glass curtain wall, a modern touch, invites natural light and ventilation. Together, these materials blend solidity with transparency, tradition with innovation, forming a functional and aesthetically pleasing building envelope. Brick

EIFS

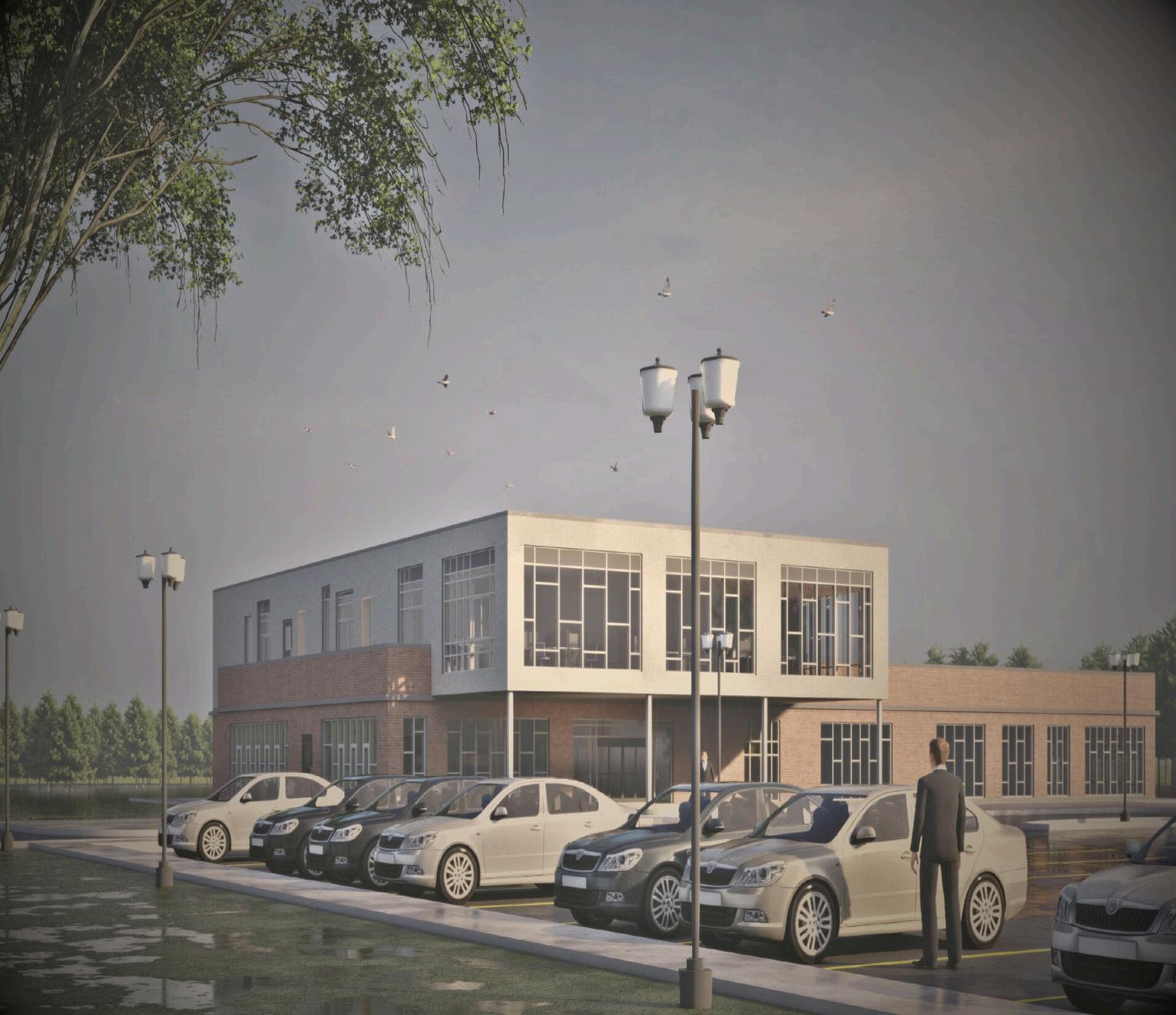

EXTERIOR VIEW OF THE BUILDING

The Exterior View of the 586 Trinity Drive on a sunday Morning

Aluminum Curtain Wall

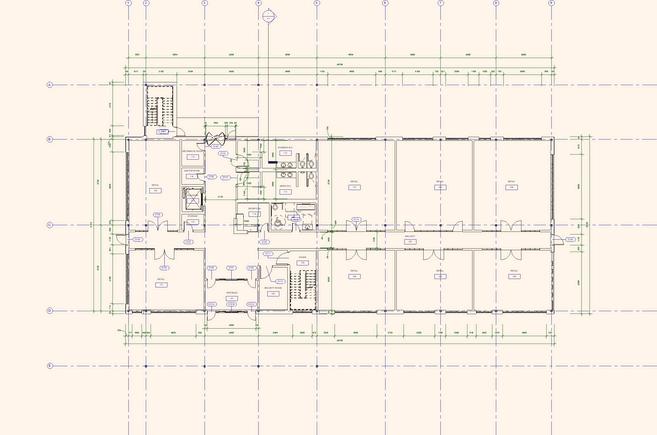

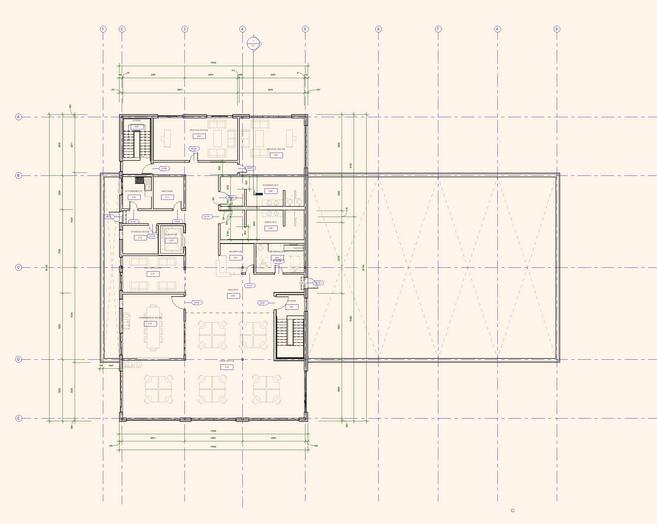

FLOOR PLANS

NINTHLINE DRIVE

151 MISSISSAUGA FIRE STATION

Professor: Sebastian Lubczynski, Architect, B.Arch Sci, M.Arch, OAA, MRAIC

Year: 2022, Academic

Team member: Rafael De Rosa

Brief

The Mississauga Fire Station 151 is located in western Mississauga across from a residential zone, vegetation on the east and community center on the west side. The fire station project proposes an alternate look at the concept of domestic architecture for the city of Mississauga. The 151 Mississauga Fire station is one story three bay, with a black Lime stone and Aluminum Composite panel for the facades with building's main openings- the main entrance, apparatus bay entrance facing the main road.

As a true believer of Homeostasis, I believe balance is the key and the contemporary architectural design of this fire station brings that balance forward.

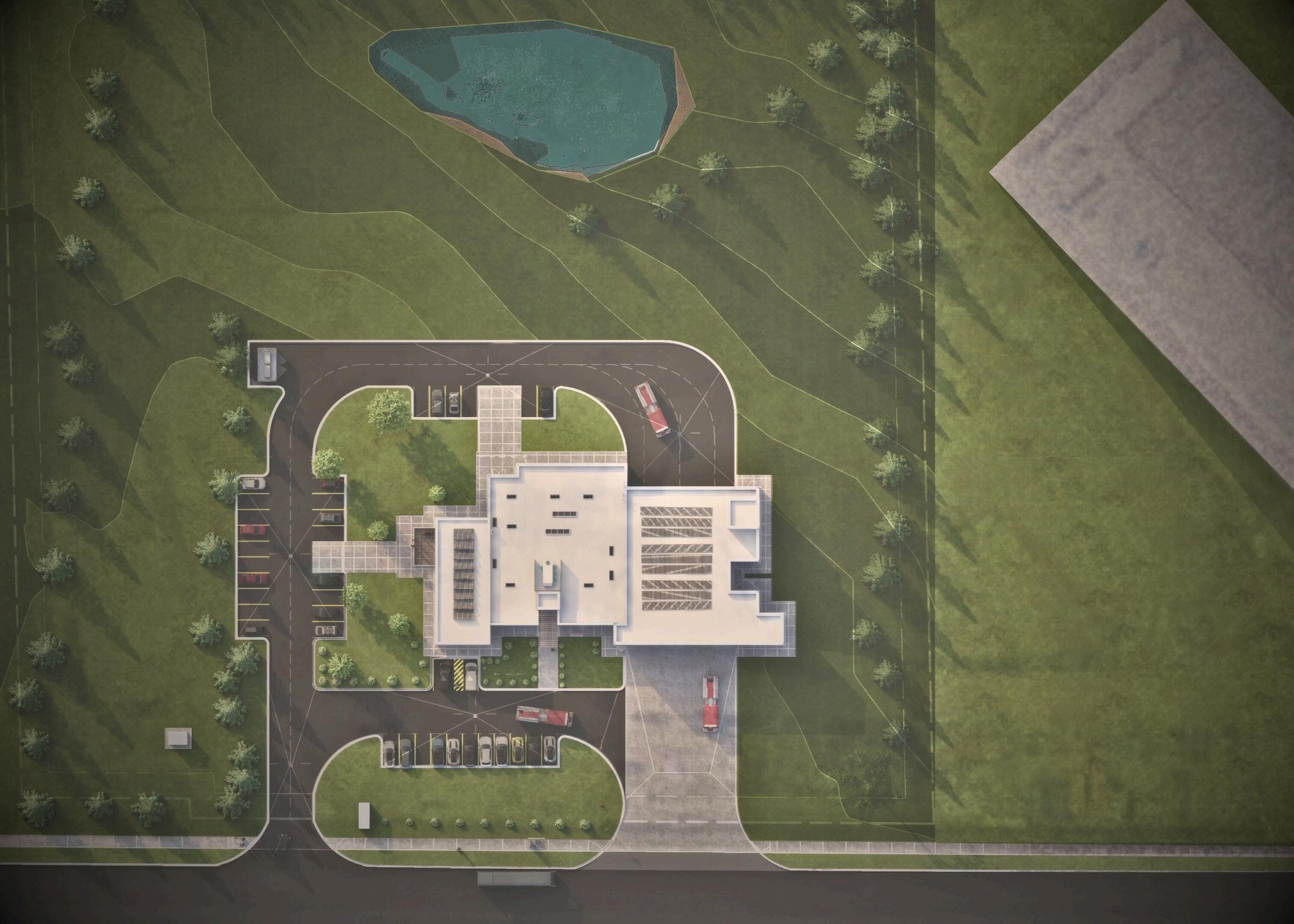

SITE PLAN

Site Information

The Site of Ninth Line in the City of Mississauga comprises of approximately 4.19 hectares. The site is situated across from 2 minor streets, Mayla Drive and Burdette Terrace and it is situated directly to the south of the Churchill Meadows Commu- nity Centre & Park. A low-density residential neighbourhood is situated to the east.

The site is situated on an existing parking lot for the Churchill Meadows Communi- ty Centre, and a portion of a MiWay bus terminal.

The site is currently zoned by the city as an Open Space Zone (OS1). An essential emergency service building is permitted in OS1 zones (City of Mississauga Zoning Bylaw, 2.1.95)

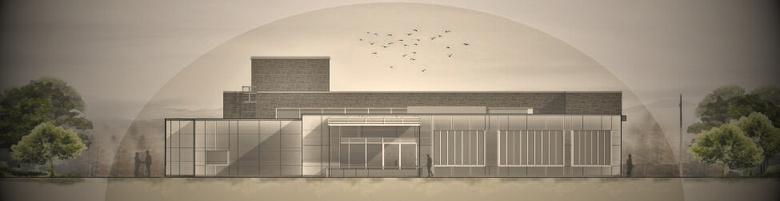

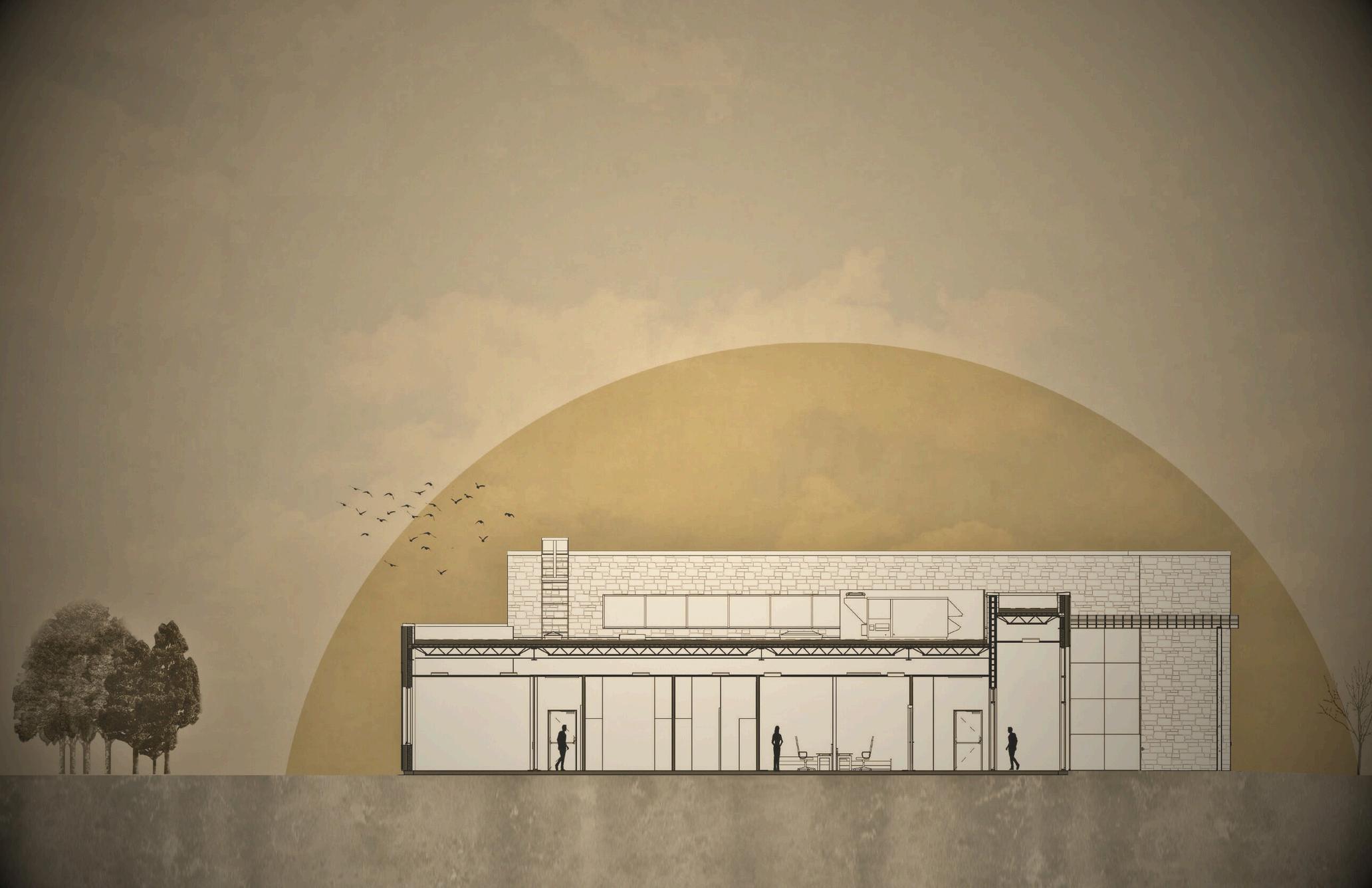

ELEVATION

ELEVATION

SUSTAINABILITY

At 151 Mississauga Fire Station, innovative sustainability takes center stage, prioritizing energy efficiency and occupant comfort. A reduced heating load is achieved through radiant floors and a Solar Panel system adorning the apparatus bay. A tranquil on-site stormwater management pond not only enhances the environment but also aids in water conservation. Every occupied space is thoughtfully designed to receive ample fresh air and daylight, reducing the need for electric lighting during daylight hours. The building envelope, well-insulated and high-performance, ensures minimal heat loss, completing the picture of a sustainable and comfortable architectural masterpiece.

MATERIALANALYSIS

Materials are the essence of architectural expression, each whispering its own narrative. Visualize the stone and aluminum composite at 151 Mississauga Fire Station, not simply static elements but dynamic forms evoking strength and contemporary flair. Yet, beyond their aesthetic allure, these materials serve a purpose. The glass curtain wall isn't just a facade; it's a gateway for daylight, ushering in the sun ' s rays to illuminate and warm the spaces within. Natural ventilation weaves through these walls, orchestrating a symphony of airflow that enlivens the building. Here, materials aren't just components; they're conduits for mood, light, and sustainability.

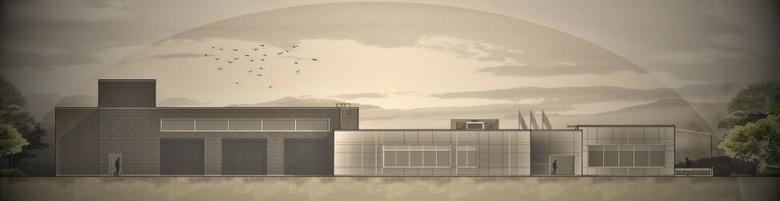

NORTH ELEVATION

EAST ELEVATION

WEST ELEVATION

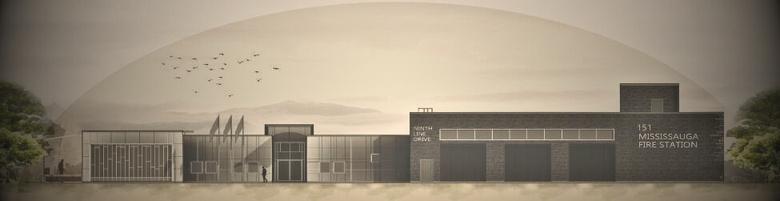

SOUTH ELEVATION

Black Stone

Solar Panel Low E glazing Windows

Aluminum Composite Panel Curtain wall Glass Storm Water management Pond

STRUCTUREPLAN

Providing a comprehensive overview of the structural layout and organization of 151 Mississauga Fire Station, showcasing its engineering backbone.

LOADBEARING WALLS

Mapping out the essential loadbearing walls throughout 151 Mississauga Fire Station, showcasing their pivotal role in supporting the building's structure and ensuring stability.

STRUCTURAL COLUMNS

Unveiling the sturdy and strategically placed columns that uphold the framework of 151 Mississauga Fire Station, blending functionality with architectural elegance.

151 mississaugafirestation CONCEPTDIAGRAM

FOUNDATION WALL

Noting the foundation walls of 151 Mississauga Fire Station.

STRIP FOOTING

Detailing the foundation support system of 151 Mississauga Fire Station, ensuring stability and strength.

OPEN WEB STEEL JOIST

Revealing the structural framework of 151 Mississauga Fire Station.

WIDE FLANGE BEAM

Revealing the robust wide flange beams that span the spaces of 151 Mississauga Fire Station, providing structural support and defining its expansive interior.

ENTOURAGE

Defining surrounding and it's connection with the interior.

DEFINING ENTRANCES

Defining the Main entrance , Staff entrance , and Apparatus bay entrances

VOLUME ADJUSTMENT

Shifting the masses

BUILDING VOLUME

Adjusting the building according to residential , Parking area, and administration, and training area

SITE REGULATION

Circulation of the overall building

KITCHEN AND DINING

DAY LOUNGE

Ensuring a comfortable living environment for the firefighters is paramount as the Fire stations are Occupied 24/7 so, Day Lounge with ample natural light and away from the noisy areas

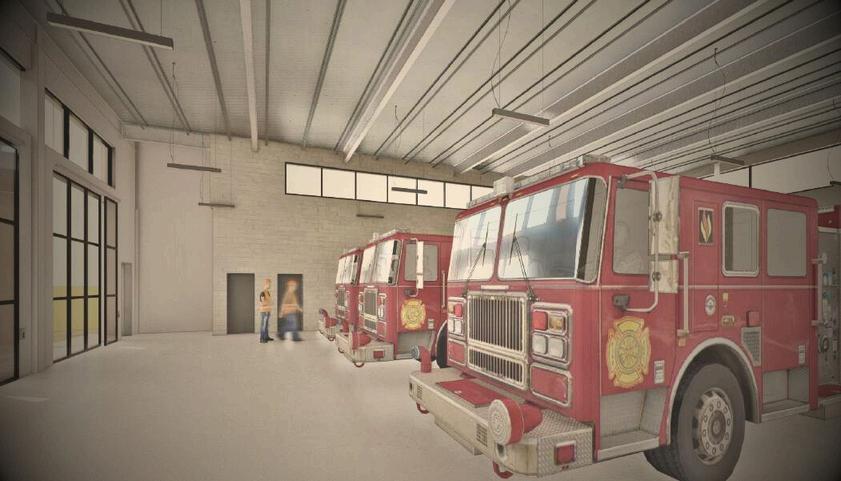

APPARATUS BAY

Kitchen and Dining are combined together for the Firemen to provide more open space along with a direct opening to the Day Lounge

GYM

Fitness is crucial for the Fire Fighters, therefore a fitness room to maintain their physical health

The Apparatus Bay sizing is crucial, therefore it is designed to accommodate three large vehicle sizes. It has ample amount of Day light with wide door openings and separate entrances,

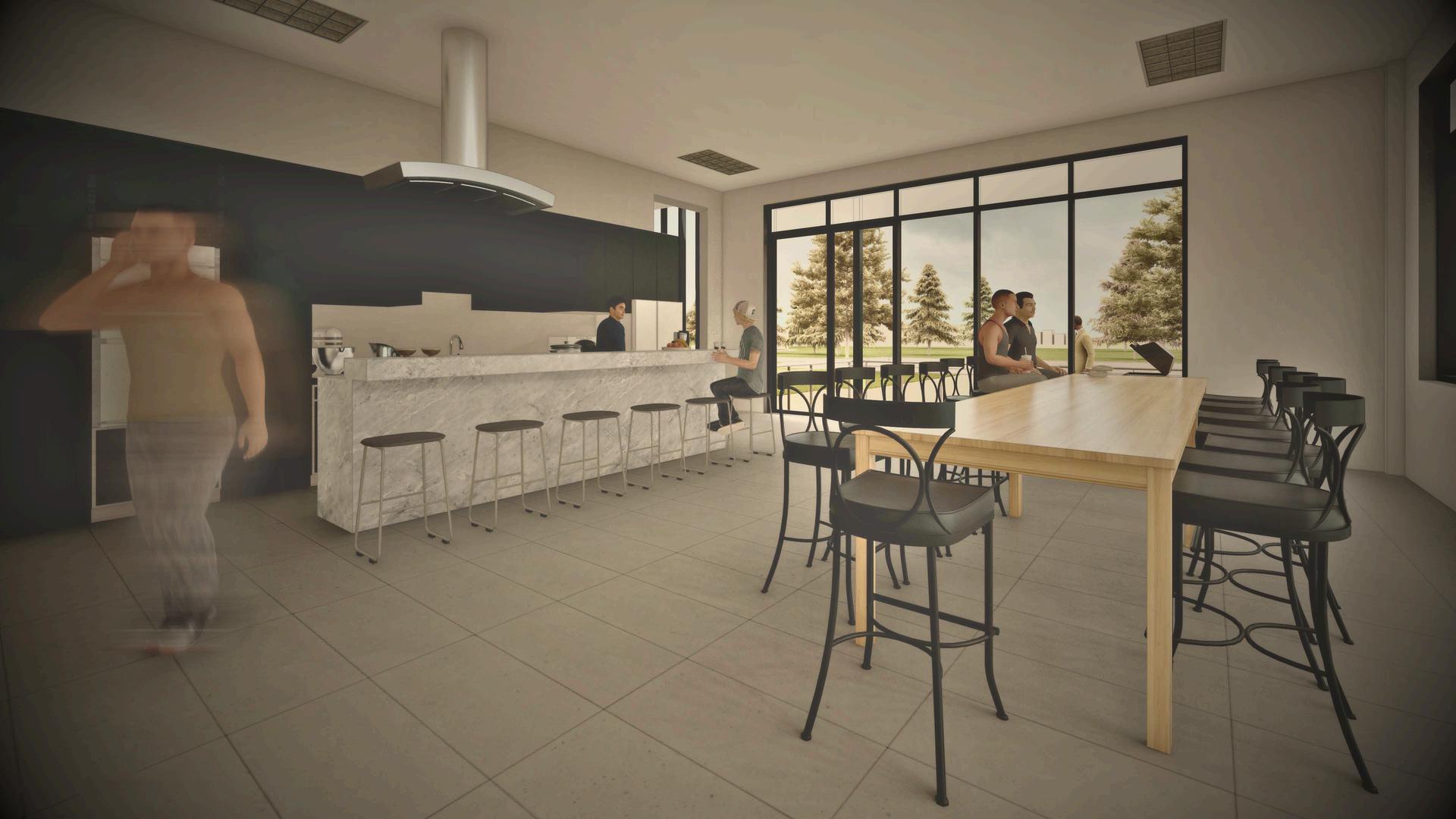

Offering an inviting interior view where the kitchen seamlessly merges with the dining area, creating a harmonious space for culinary delights and shared meals.

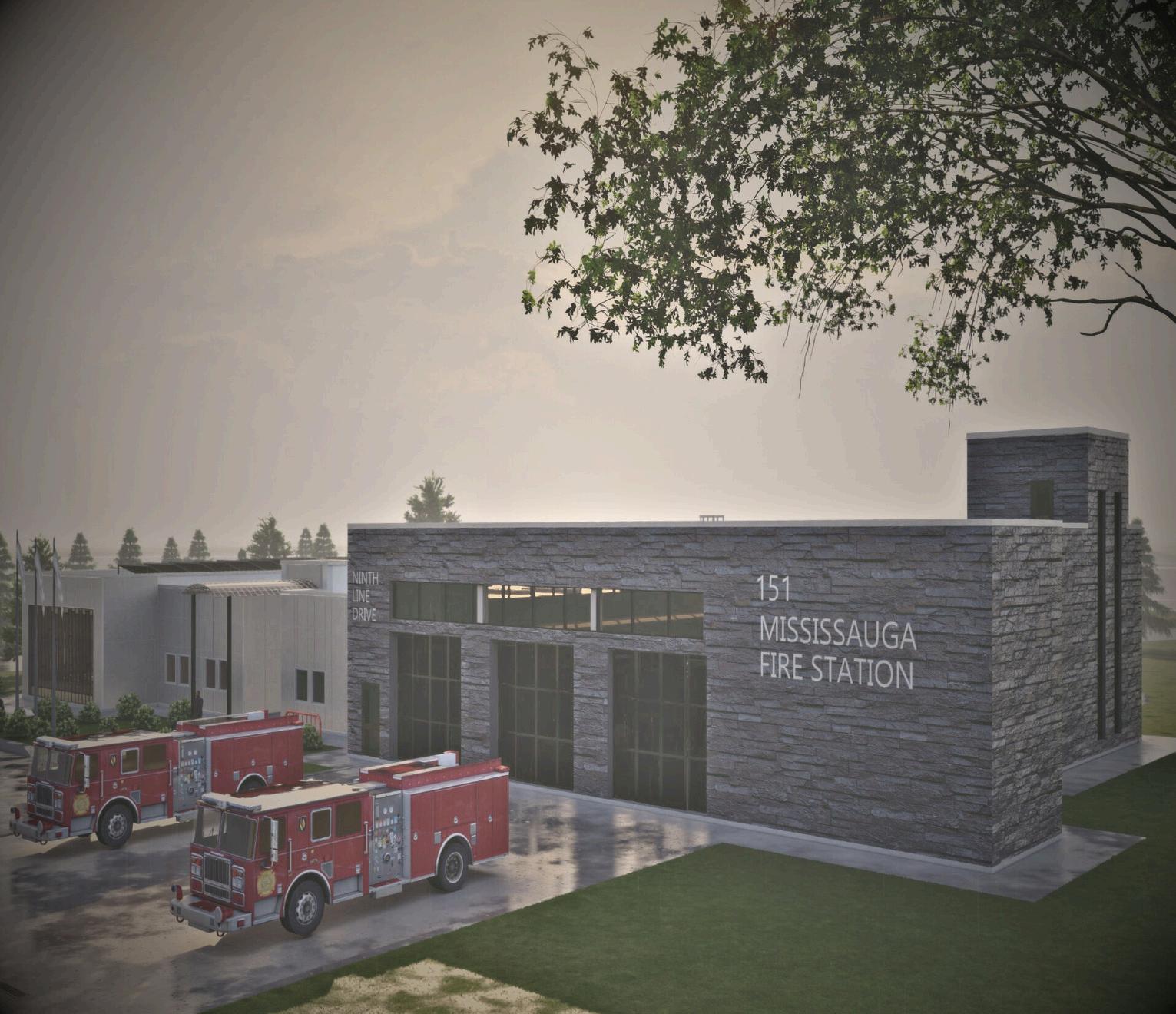

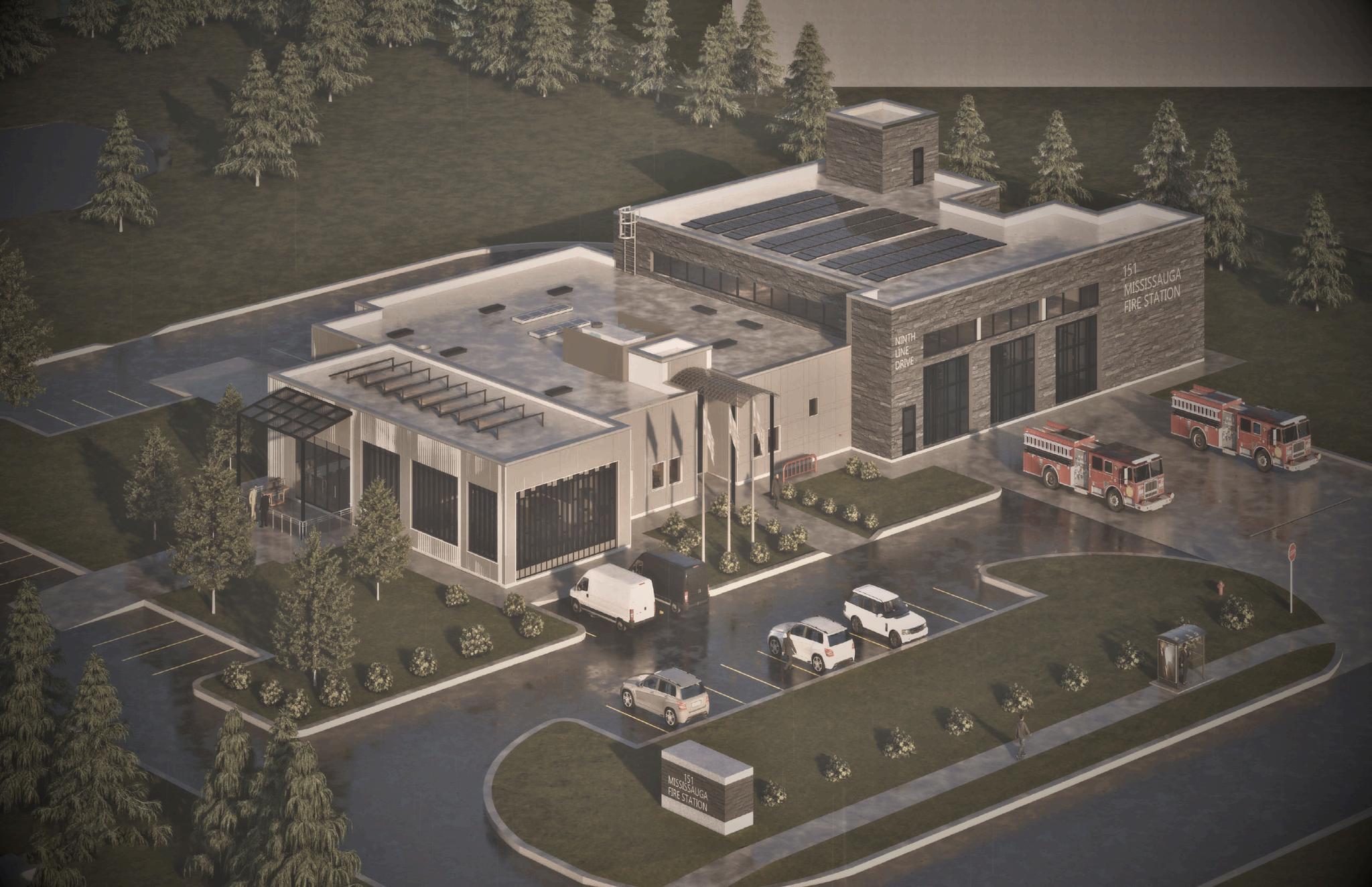

EXTERIOR VIEW

Perspective View: Providing an insightful angle of the 151 Mississauga Fire Station, highlighting its architectural character and functional design.
