Aspire zone foundation - Phase 2
Lusail stadium Legacy - Landscape design
Lusail Commercial Boulevard - Interface
Education City - Connectivity Design
Training sites for FIFA world cup 2022
Content
Aspire Zone Foundation - phase 2
Project breif: Ladscape Design for the Phase 2 of Aspire zone foundation in 1,487,433m2. The concept is EverydayFitness for public. The Project is multiuse development aimed to serve common public and incorporating health and fitness to every day routine.
Challenges:
• The scale of project
• Design at various scale - from Master plan to micro level landscape
• Concept stage
• Time limitation
Responsibilities :
• Lead landscape designer reporting to landscape project manager
• Developing concept stage design
• Multi disciplinary coordination
• Design decisions of activities and spaces
• Preparation of report ,Modelling and rendering
• Liase with the subconsultants
• Lead junior architects and draftsmen
• Attend Client meetings
Status : Ongoing Concept
PS: Due to the confidentialty nature of the project, the information provided here are not the final design. The design, drawings and images furnished are from initial stages.

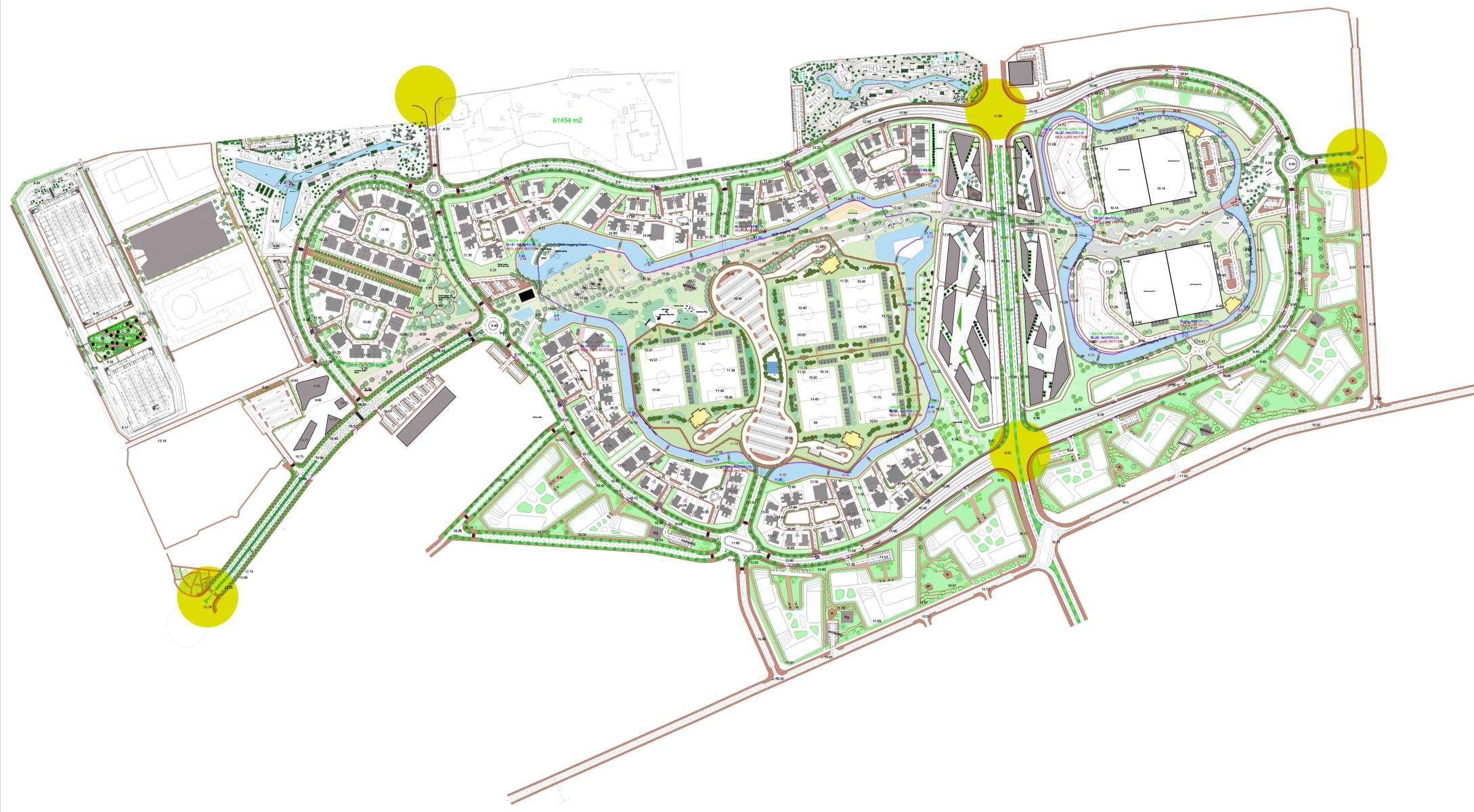

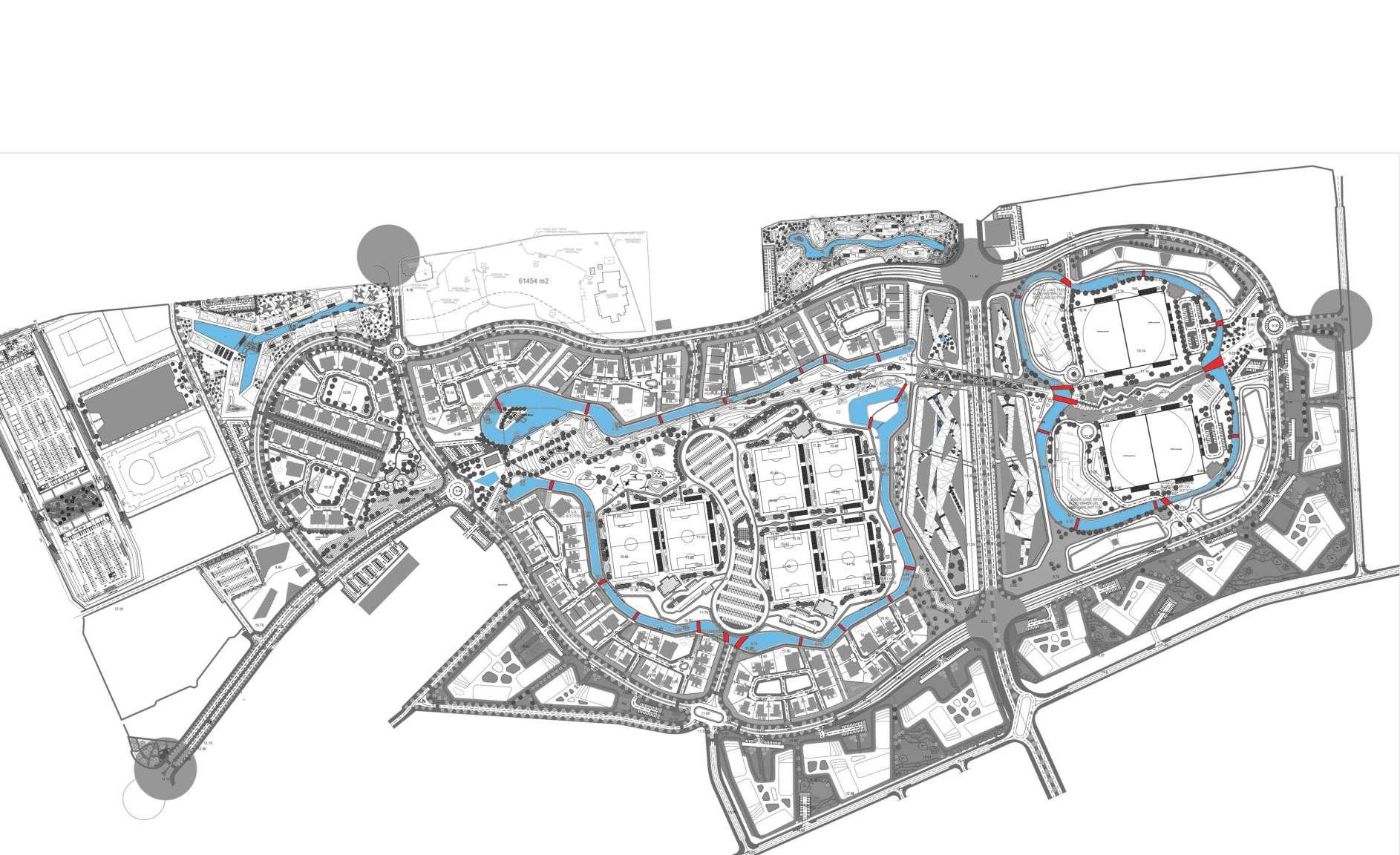

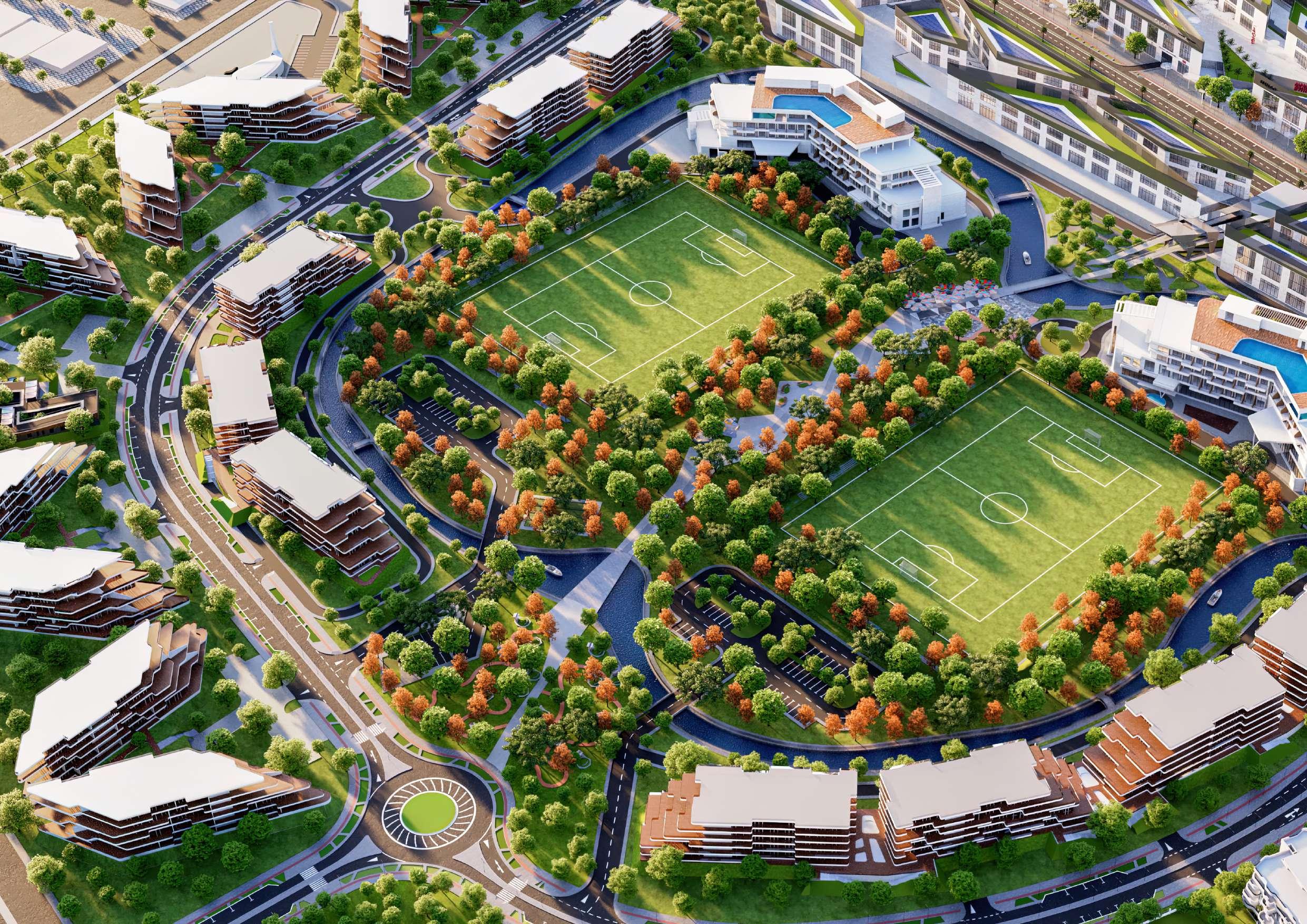

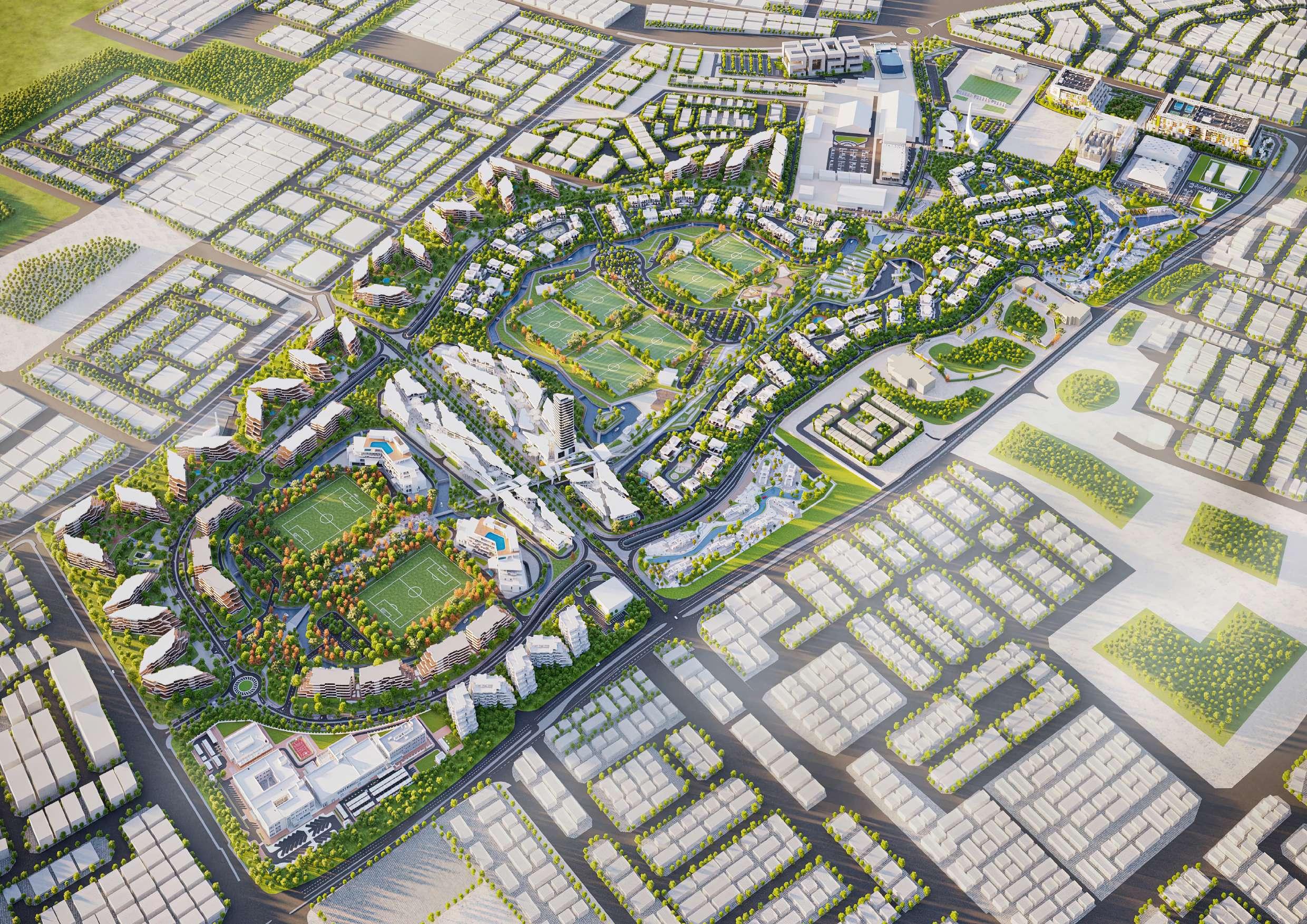

Landscape Master plan

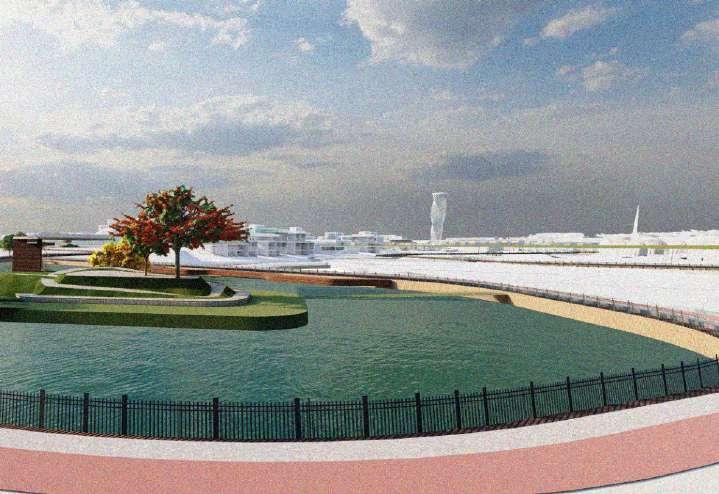

Hardscaping and Waterscaping

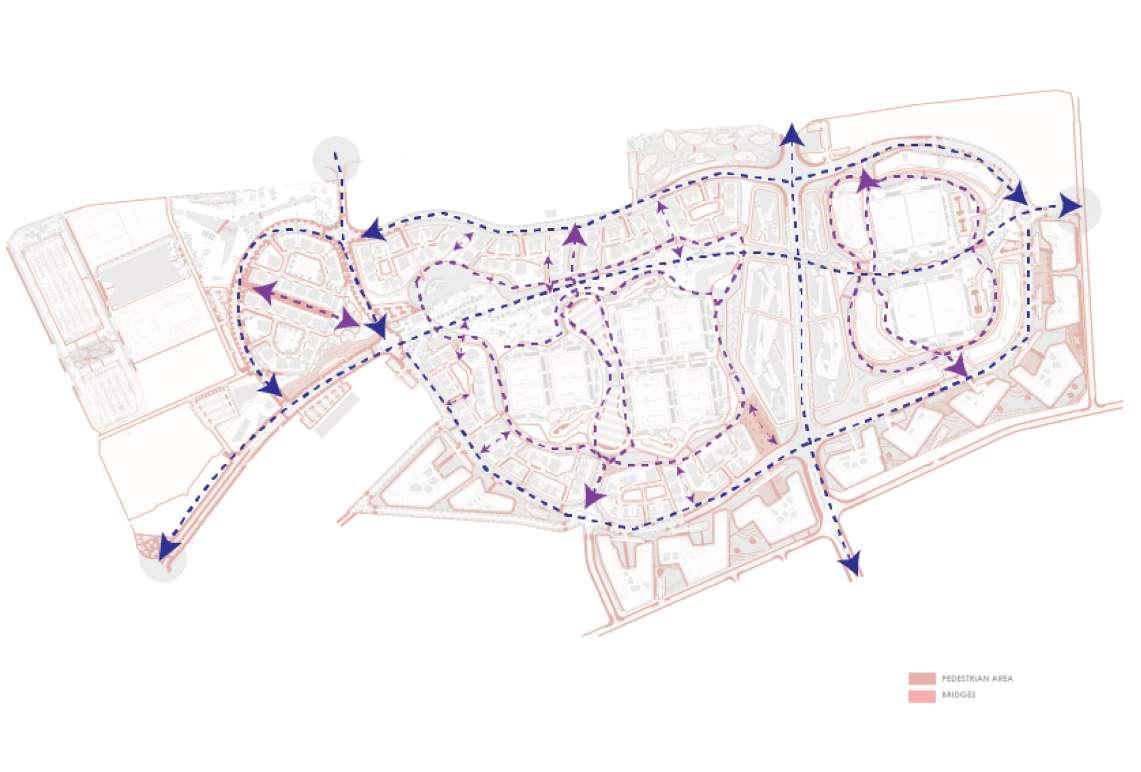

Pedestrian Connectivity

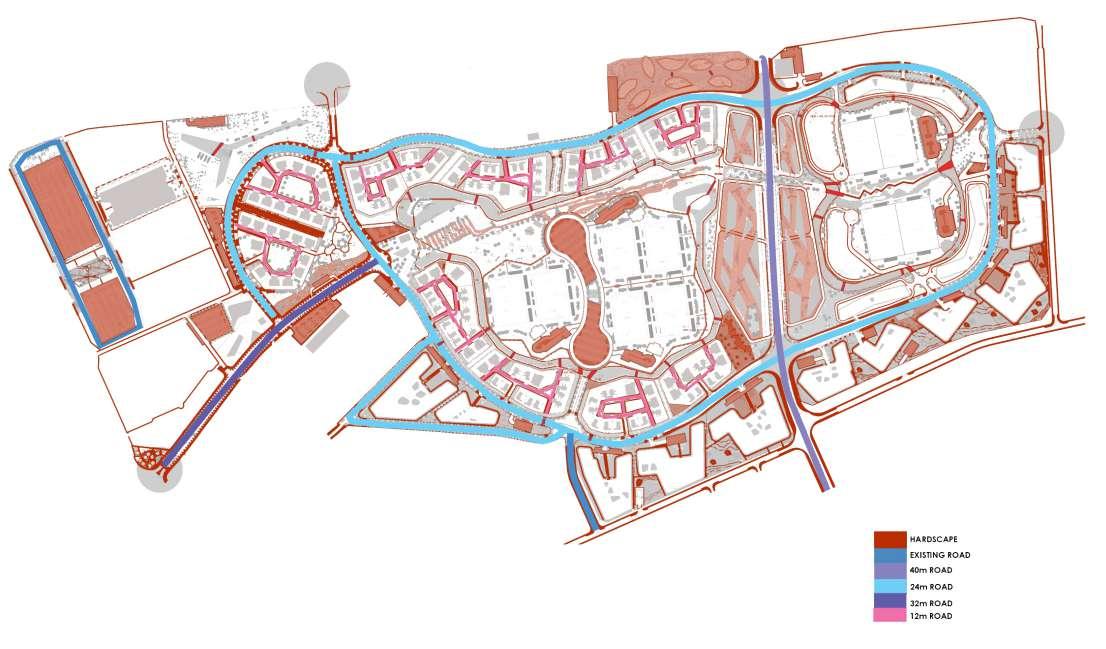

Raod Typology

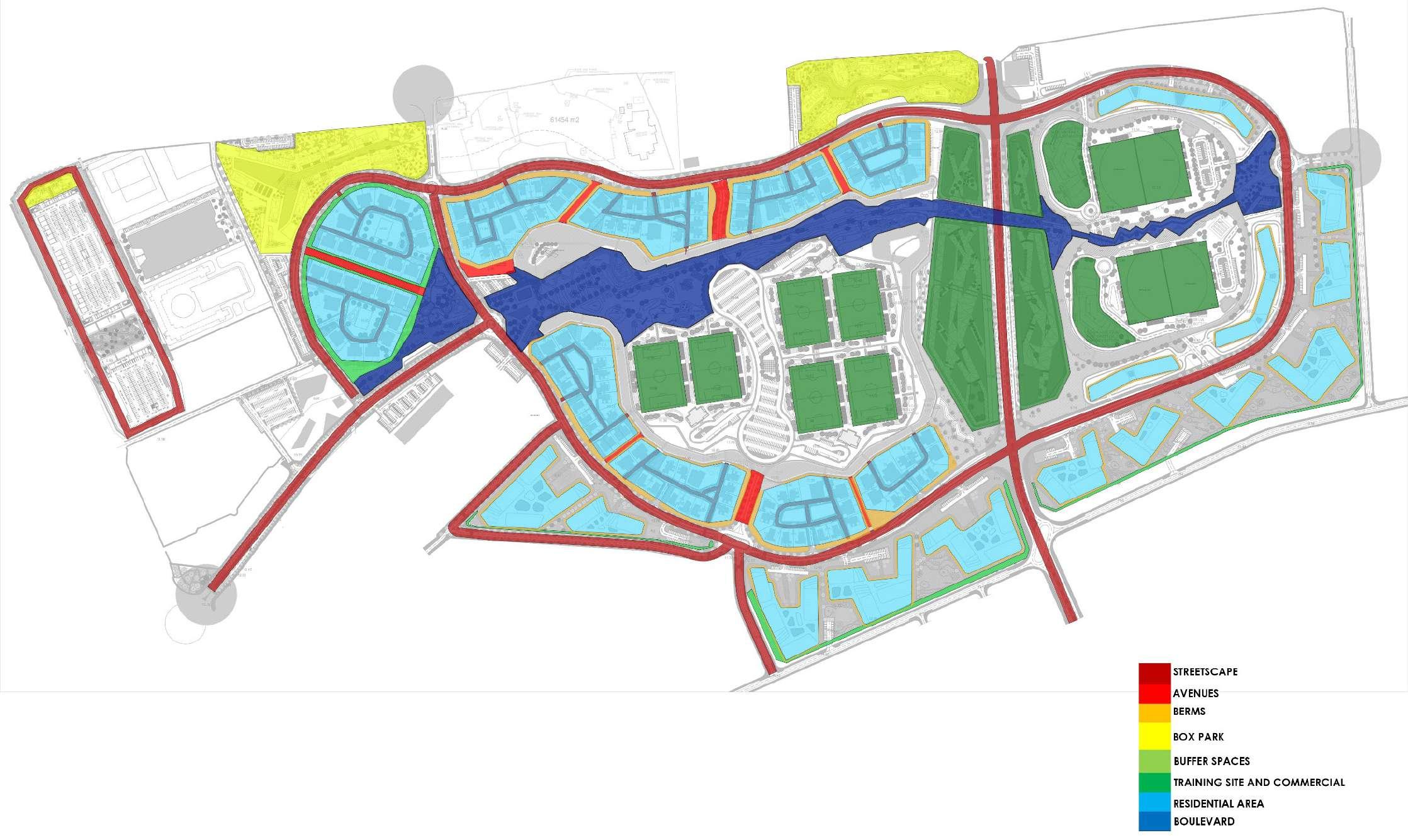

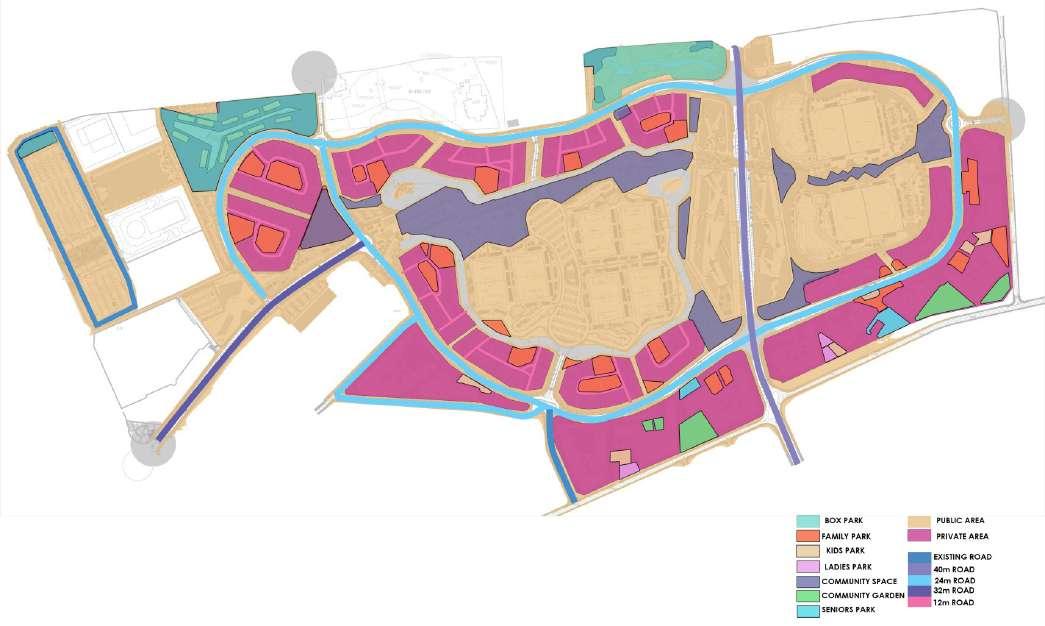

Landscape Public and Private Realm

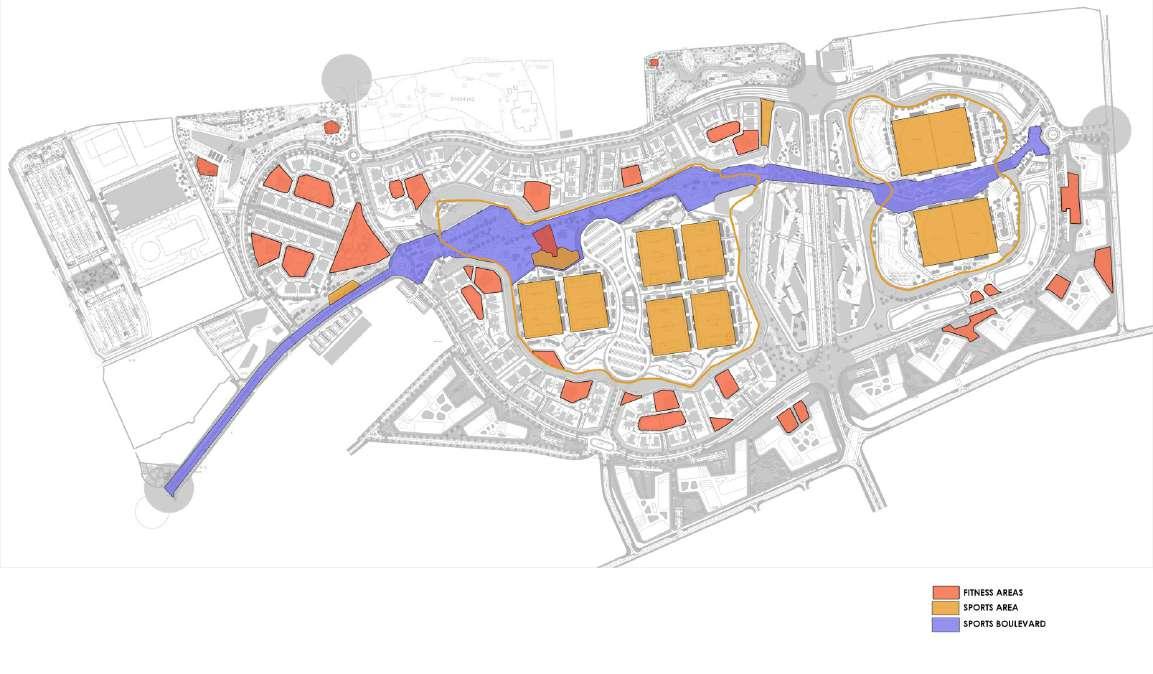

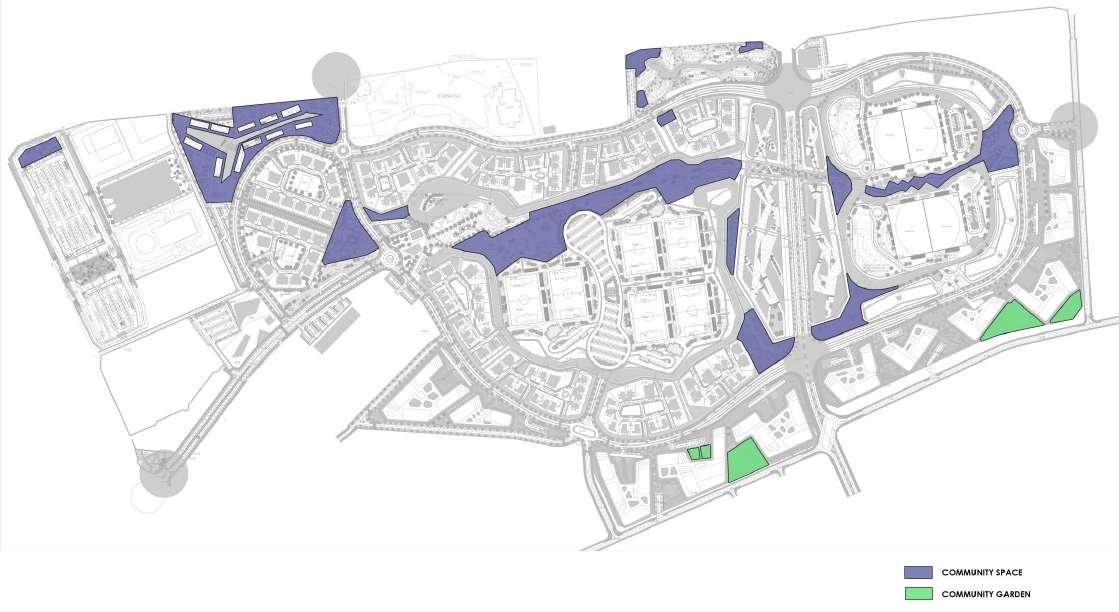

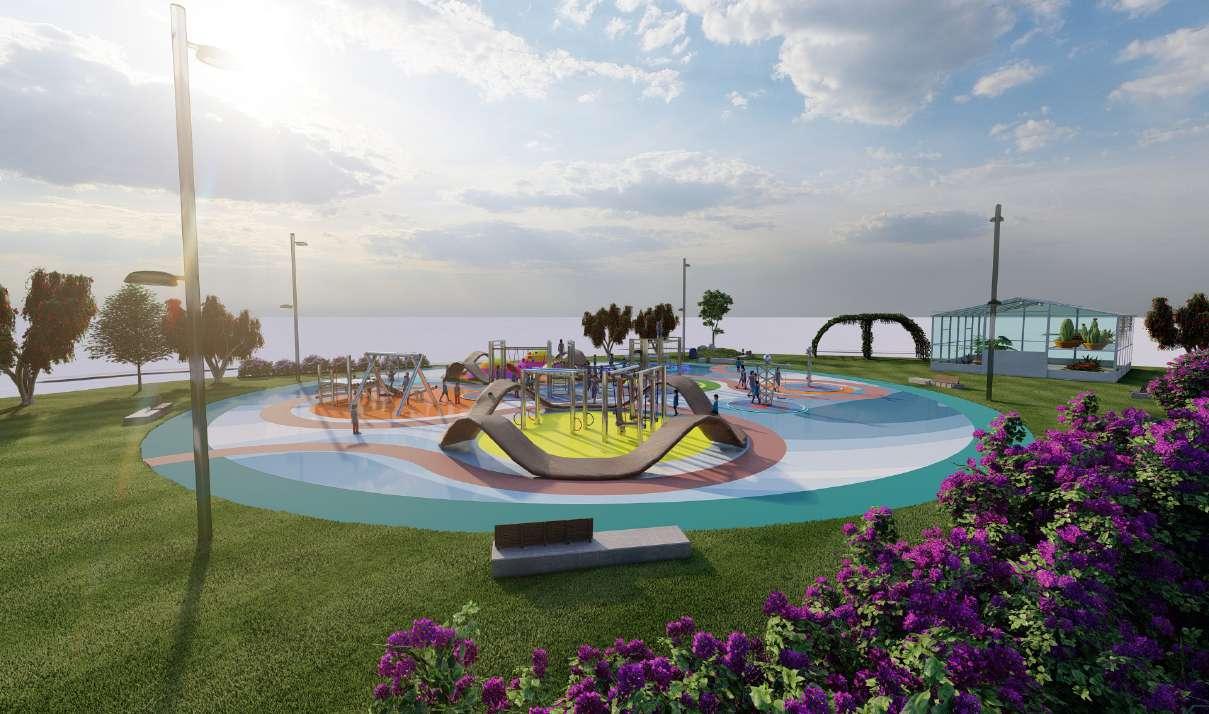

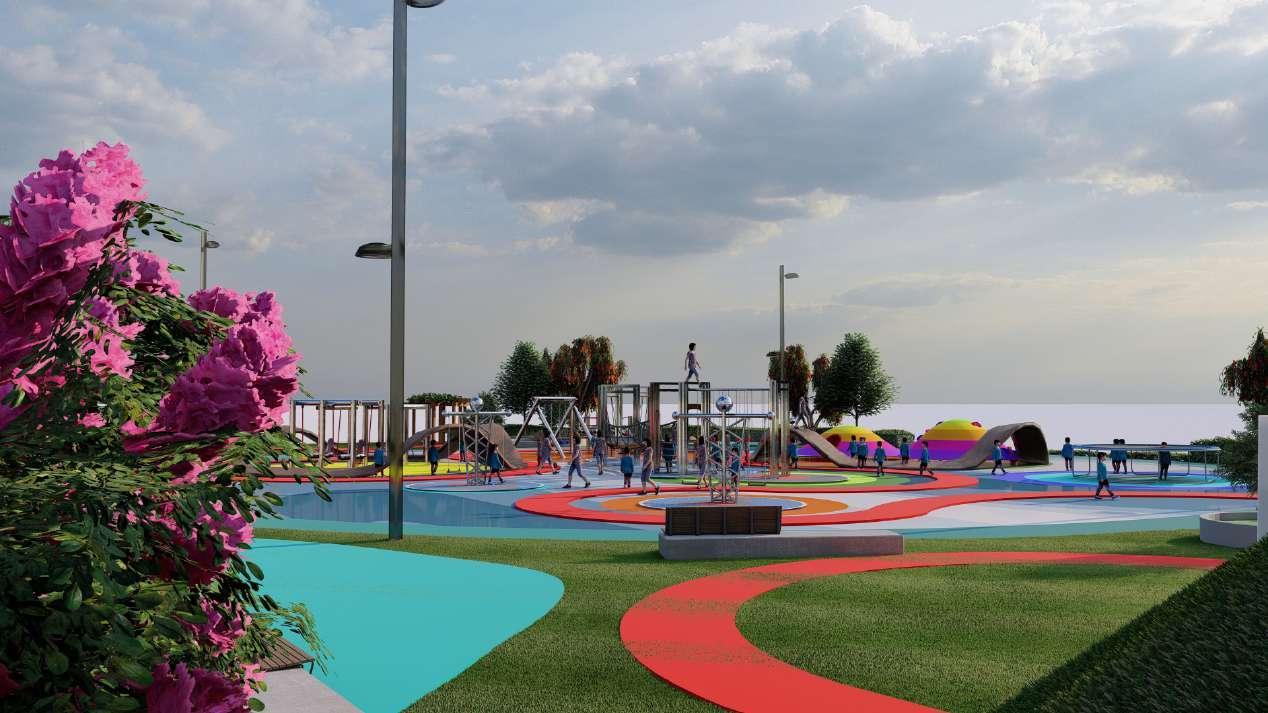

Activity Seggregator Sports Activity Generator Community Activity Generator

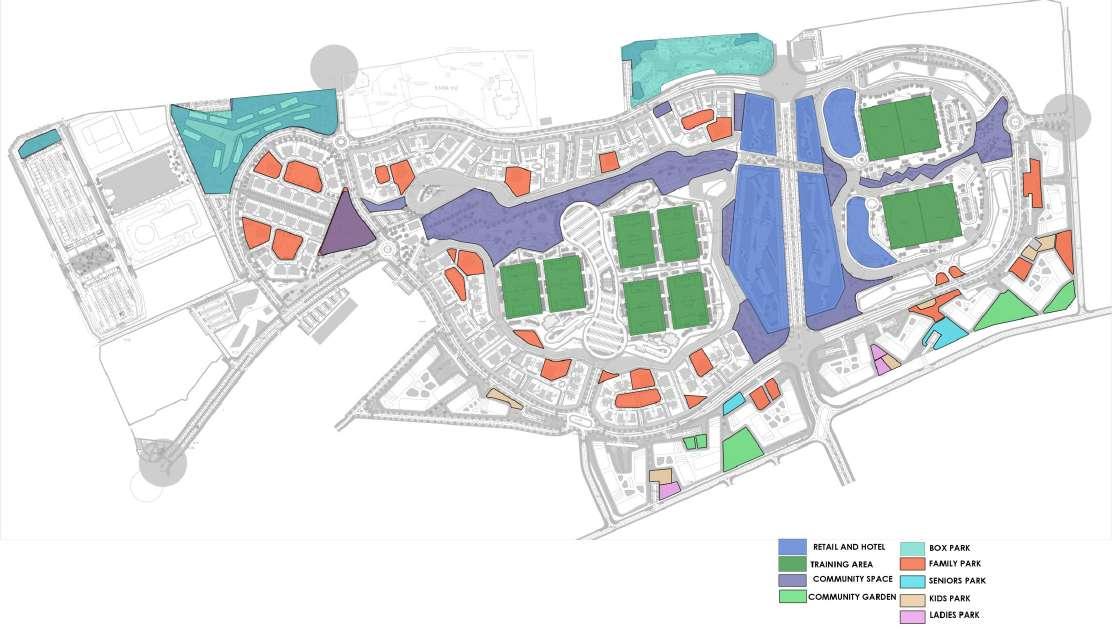

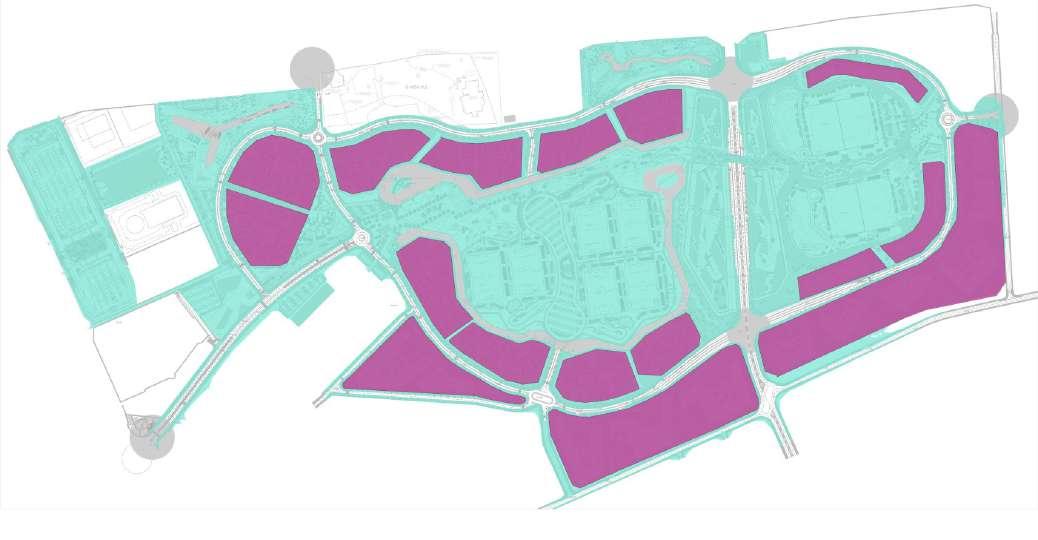

Division of Public realm and Private Landscape

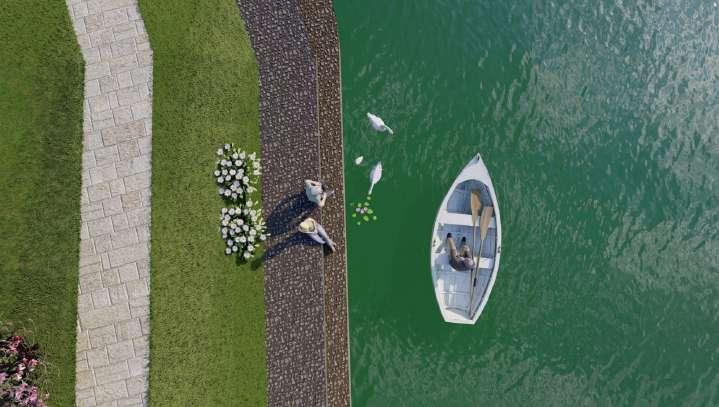

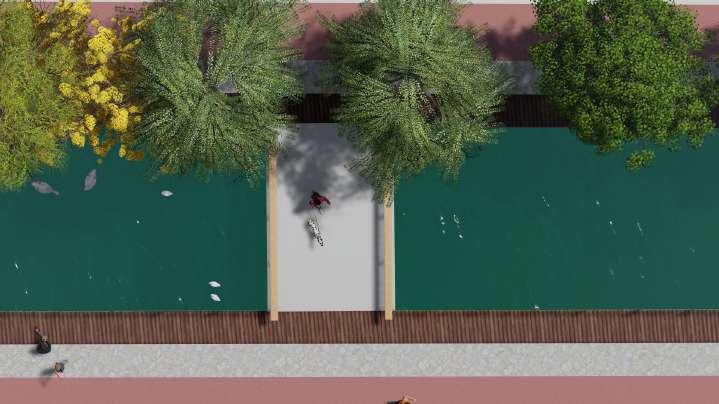

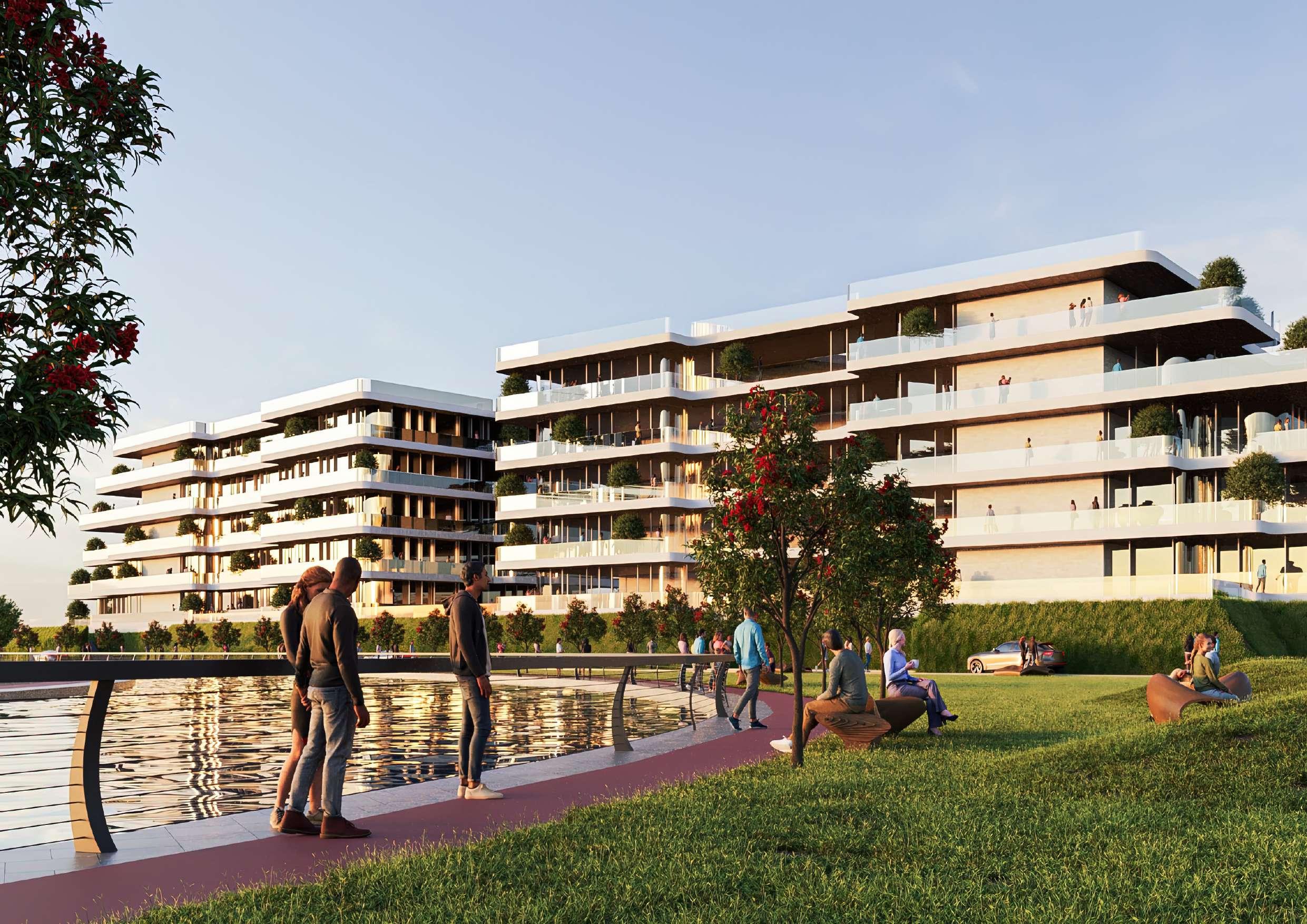

Waterscaping and Water activities
Plant Pallette Selection
Azadirecta indica Artiplex halimus Nerium oleander Lantana
Albizzia lebbek Carissa grandiflora Limonium axillare sesuvium portulacastrum
Acacia arabica Dodonaea viscosa Caesalpinia pulcherrima zygophyllum qatarense
Ceratonia siliqua Leucophyllum frutescens Zamia furfuracea catharanthus roseus
Alstonia scholaris Clerodendron inerme Agave Americana Aptenia cordifolia
Prosopis cineraria Bougainvillea glabra Ruellia brittoniana Arctotis hybrids
Delonix regia Bougainvillea spectabilis Frankenia hirsuta
Olea europea Lampranthus saturatus
Bauhinia purpurea Wedelia trilobata vitex agnus castus
ZIZIPHUS
SPINACHRISTII
Ficus nitida
Plumeria alba Bougainvillea glabra Scaevola frutescens Lantana Camera
Delonix regia Artiplex halimus Jasminum sambac Rhoeo discolor
Cassia glauca Quisqualis indica Aptenia cordifolia Russelia equisetiformis
Berms
Fruit and aroma garden
Coloured
Zoysia Japonica
Trees Hedges Shrubs Ground cover Remarks Wedelia trilobata Berms facing avenues shall be of coloured groundcover.
Pennisetum Setaceum
Pennisetum divisum Cynodon dactylon
Asparagus densiflorus
Lantana montevidensis
Russelia equisetiformis
Box parks
Berms facing road shall be wedelia trilobata.
Berms facing Boulevards shall have lawn groundcover with accent plants from the pallette
Trees Hedges Shrubs Ground cover Remarks
Plumeria alba Tecoma stans Zoysia Japonica Focal trees only at plaza.
Plumeria alba Bougeainvilla Russelia equisetiformis
Coccoloba uvifera
Chorisia speciosa
Zinnia Spp Pennisetum Setaceum
Caesalpinia
Pulcherrima Pennisetum divisum
Low height trees without any visual barrier.
Groundcover shall be walkable ( Lawn grass)
Buffer trees shall provide shades.
Flowering plants to be provided along with the deck
Trees Hedges Shrubs Ground cover Remarks
MIMUSOPS
ELENGI Jasminum sambac Wedelia trilobata
FICUS CARICA Bauhinia variegata Canavalia rosea
MORUS ALBA
NIGRA Quisqualis indica
terminalia
catappa Gardenia jasminoides
Prunus dolcis Ixora chinensis
Mangifera indica Ocimum sanctum
Citrus aurantiifolia
Psidium guajava
Musa spp
Zizipus Jujuba
Carica papaya
Punica granatum
Millingtonia hortensis
Plumeria alba
Moringa perigrina
Cassia glauca
Cassia fistula
Citrus limon
Fruit and aroma trees to be provided in the family park, ladies park , senior park etc.
Flowering planst and trees to be provided In the flower tunnel
Trees Hedges Shrubs Ground cover Remarks
Delonix regia Duranta erecta Cassia glauca Iresine herbstii
Bauhinia variegata Leucophylum frutescens Ruellia tuberosa Setcreasea pallida
Cassia fi stula Bougeainvilla Russeli
Lagerstroemia speciosa Alternanthera sp.
Peltophorum inerme
Brachychiton “Bella Donna”
To be used in boulevard, commercial and public spaces
Streetscape
Ground cover Remarks
The branching height of a tree on the traffic side of the street shall not be less than 6.5 m above the street. The branching height of trees on the pedestrian side of the street shall not be less than 2.0 m above the sidewalk. Large canopy trees on parking side.
Trees Hedges Shrubs
Camera

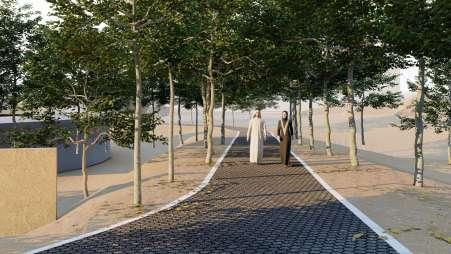

Avenues
Remarks
Trees Hedges Shrubs Ground cover
All trees on sides shall be of 3m height with larger canopies to shade the path. All the trees in the centre of the avenues shall be flowring and focal trees. Hedges shall be flowering and non toxic. Groundcovers shall be flowering and aesthetically pleasing in close views
Lusail stadium Legacy
Project breif: Landscape Design for the legacy Phase of Lusail Iconic stadium. The concept was developed based on the requirements from SC of delivery and legacy.
Challenges:

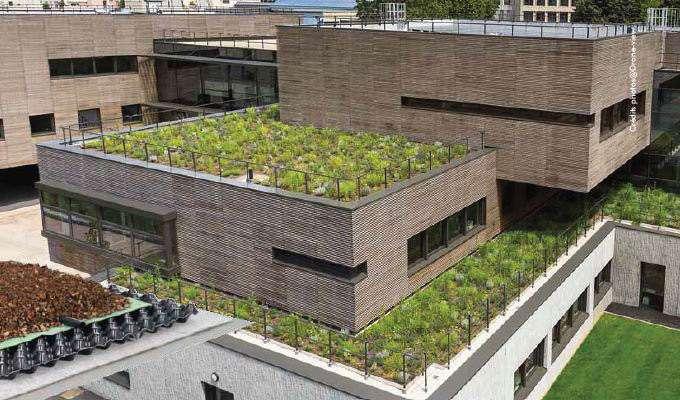

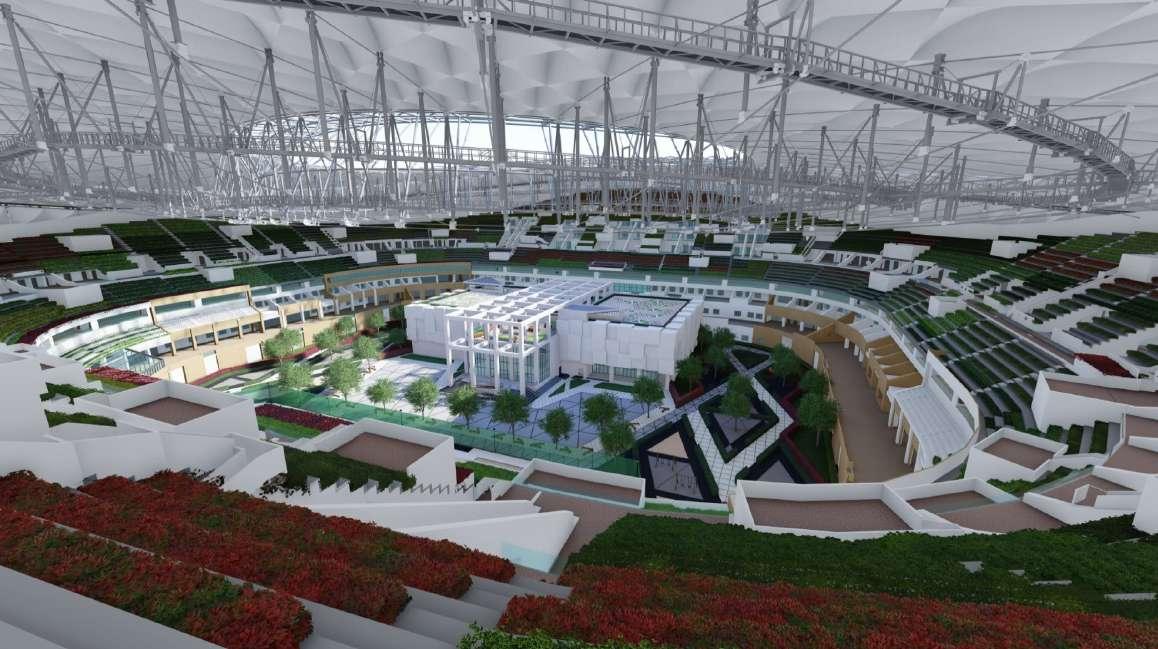

• Conversion of bleacher to terrace garden and issues associated with it
• selection of plants based on the availability of sunlight. Ambiguity of indoor
- Outdoor type
• Coordination with tournament phase design team to accomodate legacy design
• Limited case study availability and need to innovate
Responsibilities :
• Lead landscape designer
• Developing concept to detailed design
• Brainstroming utility requirement with tournament team, and other disciplines
• Design presentations with SC and GORD.
• Preparation of report and presentation for Supreme comittee of Delivery and legacy
• Modelling and rendering
• Lead junior architects and draftsmen
Status : Partially Completed in 2022
TOURNAMENT

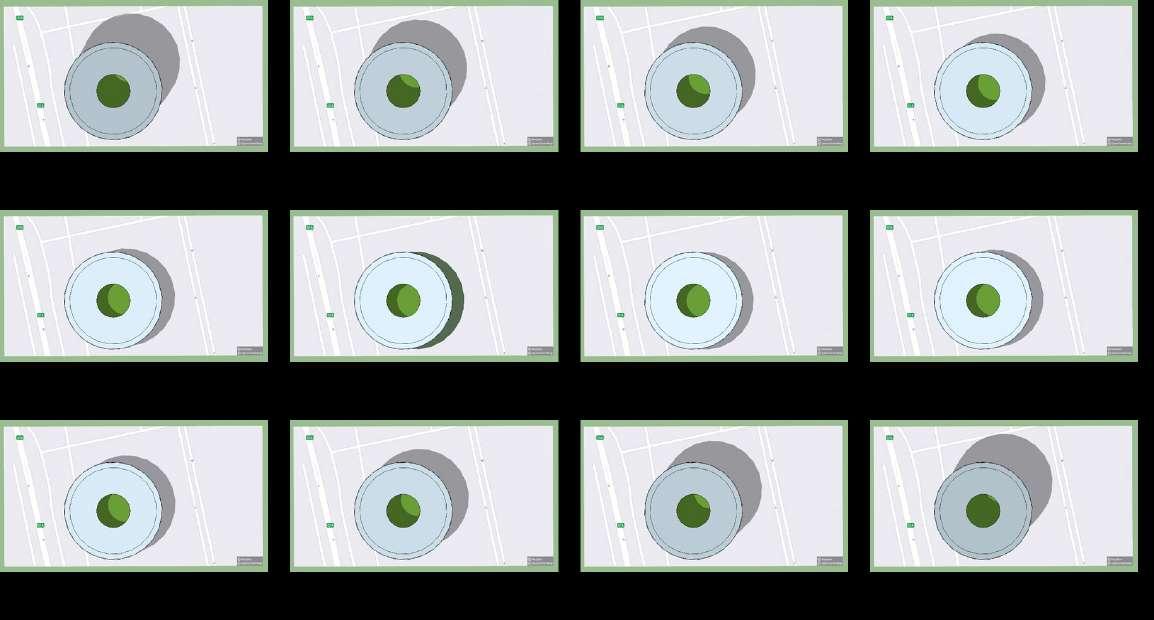

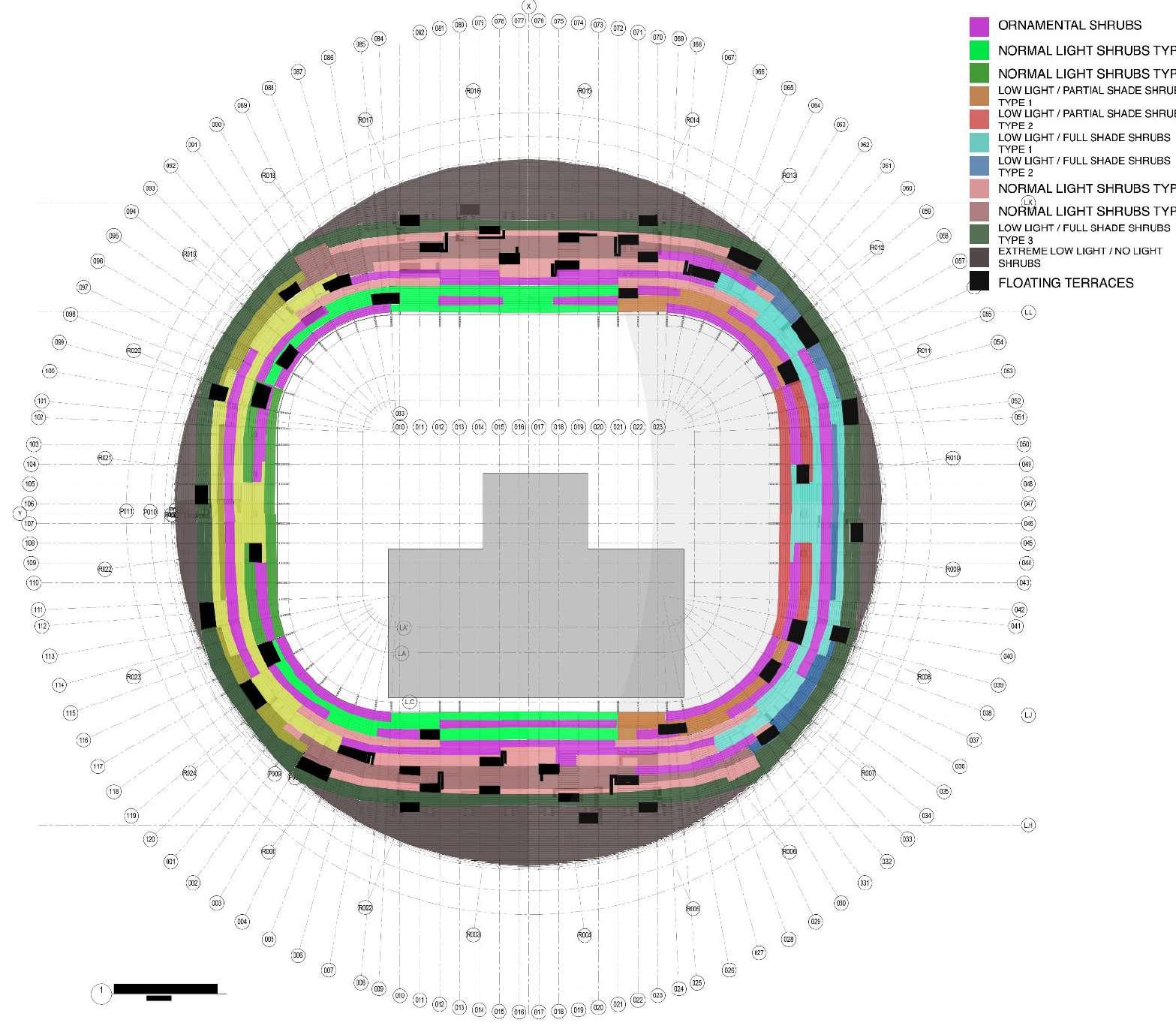

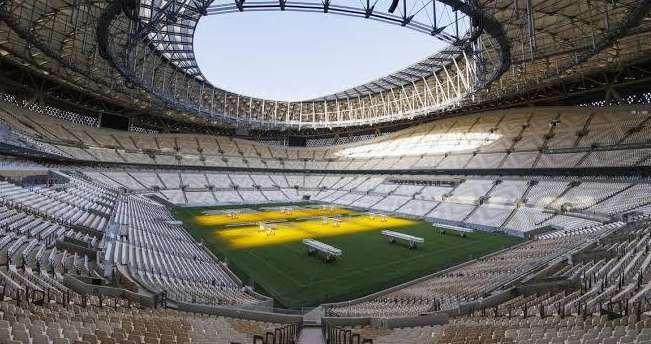

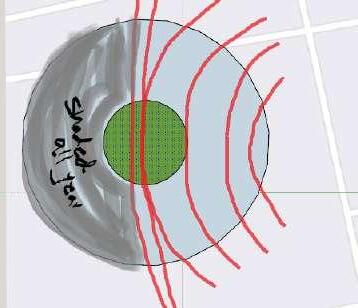

Initial Plant Study based on Solar study

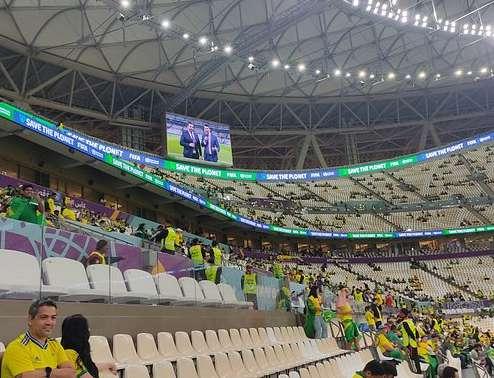

Planting has been proposed strategically considering the from structural design as well as availability of natural light due Solar analysis was carried out and the plants have been zoned based on sunlight requirement

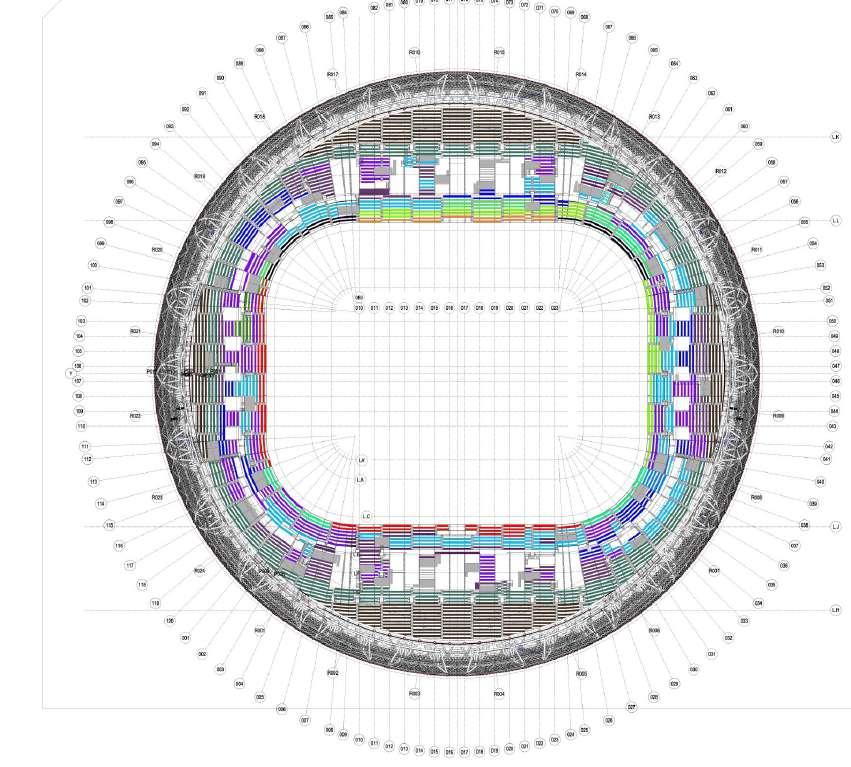

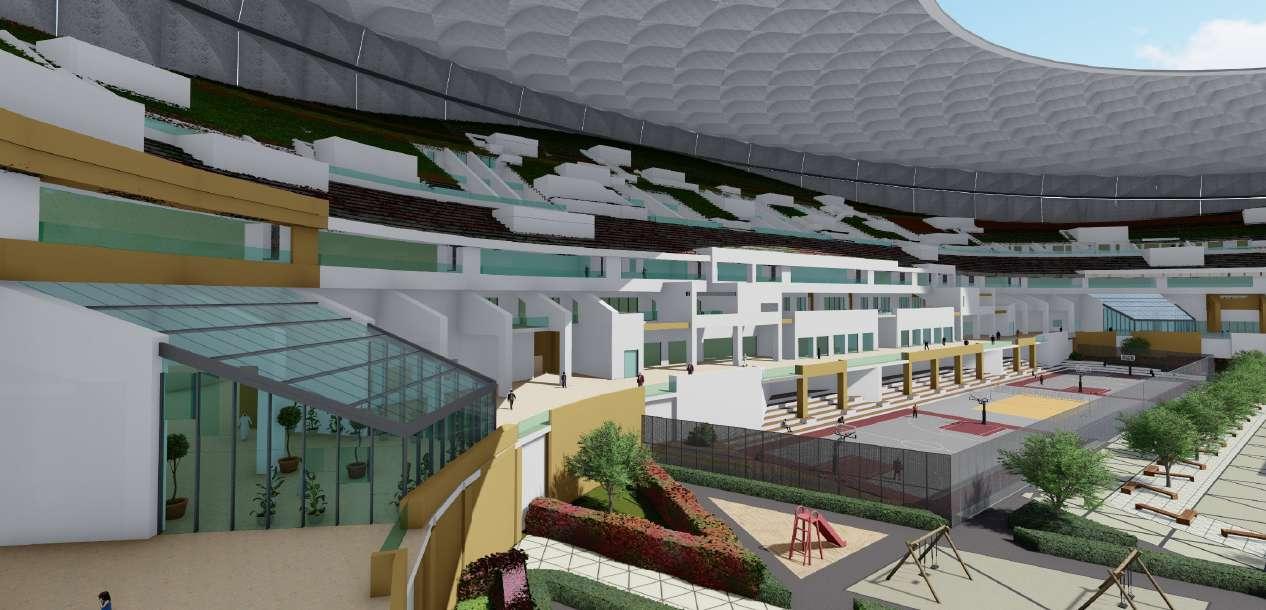

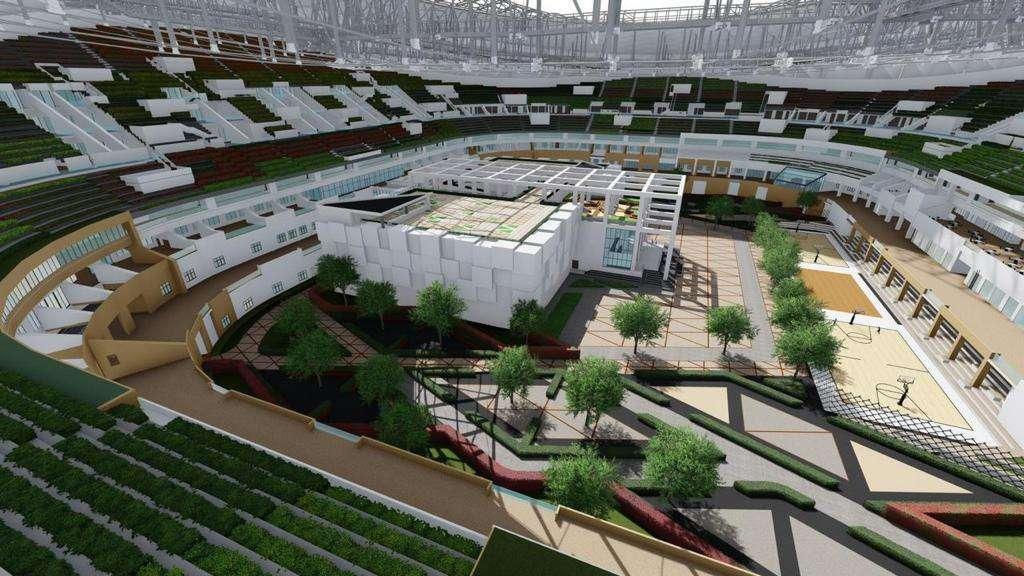

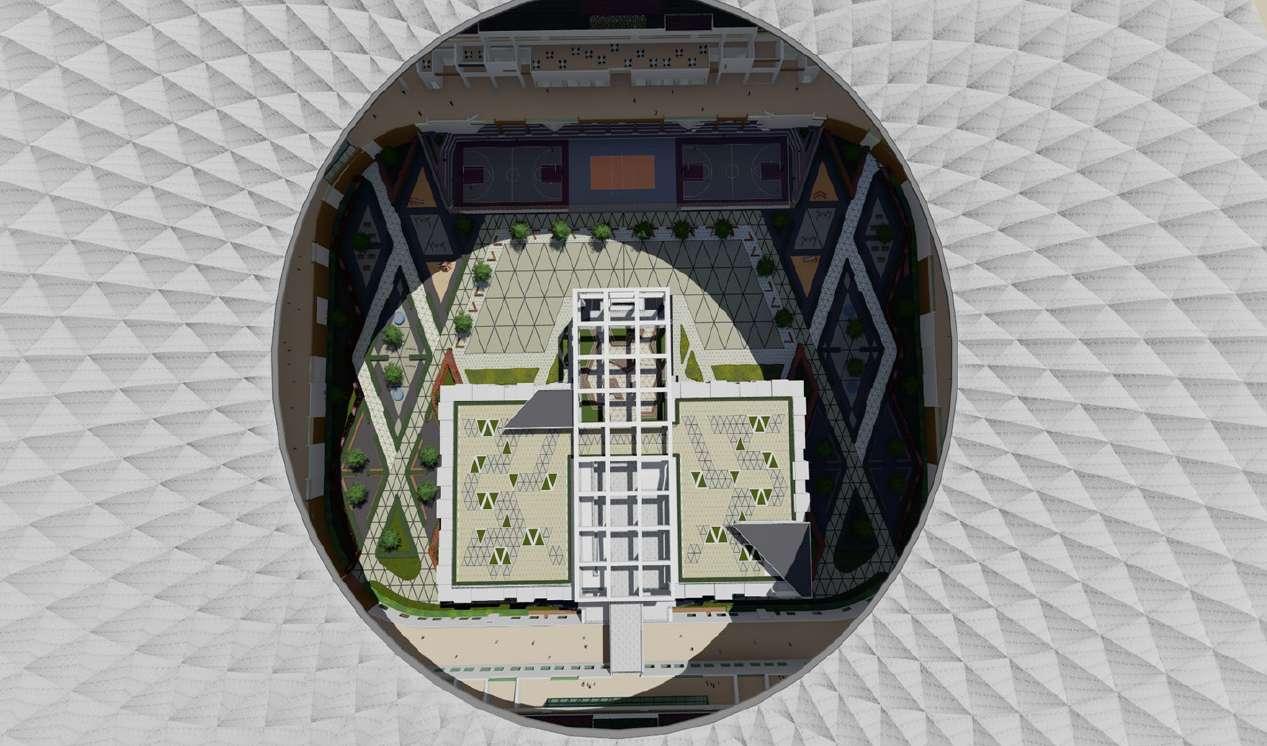

Since external landscape has been completed in tournament design phase, major focus was on the conversion of bleachers and pitch landscape which act as a school ground. Hardscaping has been chosen in order to limit the refelction and heat gain.
Final Plant Pallete
Connection to Infrastructure

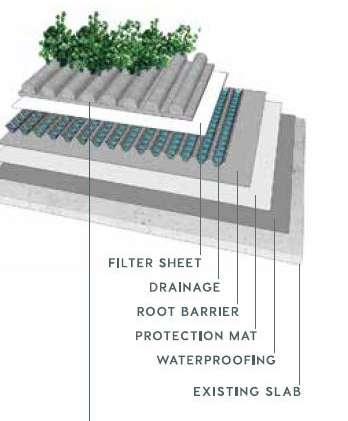

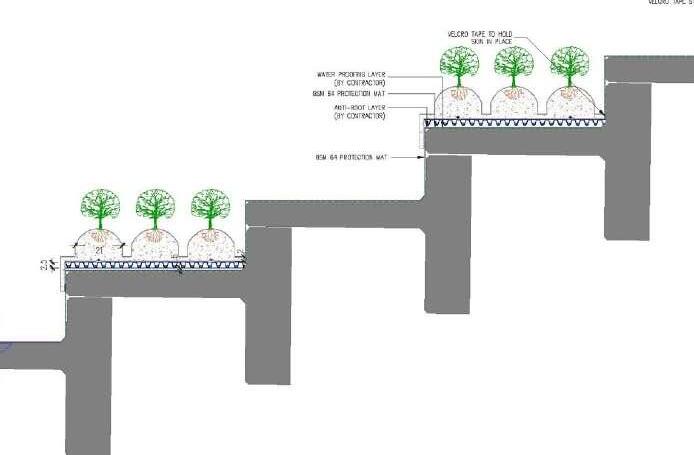

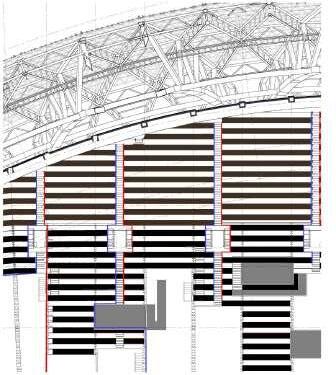

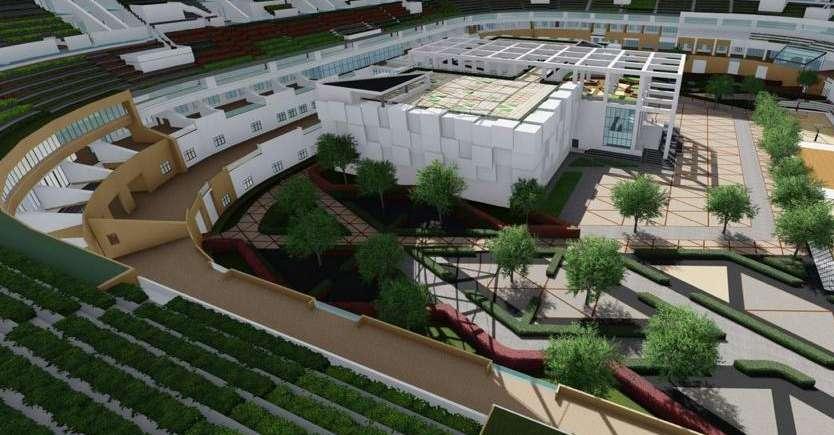

The proposed landscape design takes into consideration the technical challenges posed in the design conversion. As the bleachers are designed for human load, soil and plant load has to be minimised with minimal irrigation and drainage facilities available. An innovative method was used to landscape the bleachers in line with hydroponics. in order to reduce soil load, a system siimilar to hydroponics was employed. To reduce the irrigation system, cascading water system has been used and drainage ptovided only at the end lowest levels of the bleacher. This has been coordinated with the structural and mechanical team during the tournament phase and approved.
Plant pallete has been prepared cautiously considering the many structural and utility challegenes as well as sustainability.
Main concerns were
• Availability of sunlight
• Limited root system
• Limited water consumption
• Plant in total shall be small and light weight
• Shall adhere to GSAS requirements
• Shall be native or at least adaptive species
SN O INVENTORY LOCATION CODE BOTANICAL NAME COMMON NAME TYPE NATIVITY LIGHT REQUIREMENT WATER REQUIREMENT PLANTING MEDIUM MAX PLANT HEIGHT (m) MAX PLANT SPREAD (m) Water Requirements, Litres/day/pla nt or Litres/day/m2 1 LEGACY Bleacher RHO DIS Rhoeo discolor Boatlily Shrub Non Native Adaptive Low to Medium Light Bright Shade Low Modular Green Roof 0.3 0.3 10 2 LEGACY Bleacher IXO CHI Ixora chinensis Chinese ixora Shrub Non Native/Adaptive Half sun Full shade Medium Modular Green Roof 1.5 0.5 12 3 LEGACY Bleacher LAN MON Lantana montevidensis Big sage Shrub Non Native/Adaptive Indirect Light Low to Bright Light Partial Shade Low Modular Green Roof 1.8 1 2.5 4 LEGACY Bleacher ASP DEN Asparagus densiflorus Asparagus fern Shrub Non Native/Adaptive Medium to Bright Light Artificial Light Partial Shade Low Modular Green Roof 0.45 0.3 10 5 LEGACY Bleacher WED TRI Wedelia trilobata Creeping daisy Shrub Non Native/Adaptive Low to Medium Light Partial Shade Low Modular Green Roof 0.3 0.5 10 6 LEGACY Bleacher APT COR Aptenia Cordiflora Baby sun rose Shrub Non Native/Adaptive No Direct Light Medium to Bright Light Indirect Light Partial shade Low Modular Green Roof 0.15m 0.3 10 7 LEGACY Bleacher SAN TRI Sansevieria Trifasciata Snake Plant Shrub Non Native Adaptive No Direct Light Indirect Light Low to Bright Light Partial Shade Low Modular Green Roof 0.7 0.6 8 8 LEGACY Bleacher CAN IND Canna indica generalis Indian shot Shrub Non Native Adaptive No Direct Light Low Light Shaded Low Modular Green Roof 0.6 0.6 8 9 LEGACY Bleacher LAN CAM Lantana camara Big sage Shrub Non Native Adaptive Indirect Light Low to Bright Light Partial Shade Low PLANTER BOX 1.8 1 5 10 LEGACY Bleacher ALT DEN alternanthera dentata little ruby Shrub Non Native Adaptive No direct Light Low to Medium Light Artificial Light Partial Shade Low Modular Green Roof 1 0.3 2.5 11 LEGACY Terraces DRA MAR Dracaena Marginata Dragon Tree Shrub Non Native Adaptive No Direct Light Medium to Low Light Partial Shade High Planter box 2.4 1 20 12 LEGACY Terraces DRA REF Dracaena Reflexa Song of Jamaica Shrub Non Native Adaptive No Direct Light Medium to Low Light Partial Shade High Planter box 2.4 1.2 20 13 LEGACY Pitch ZOY Zoysia Lawn grass Grass Non Native Adaptive Partial Shade Medium Ground 0.05 - 15 14 TOURNAMENT Pitch CAE PUL Caesalpinia Pulcherrima Pride of Barbados Hedge Non Native Adaptive Full Sun Direct Light Part Shade Low Ground 6 3.5 10 15 TOURNAMENT Pitch DOD VIS Dodonaea viscosa Hopbush Hedge Semi-Native Full Sun Direct Light Part Shade Low Ground 3 10 16 TOURNAMENT Pitch HIB ROS Hibiscus Rosa Sinensis China Rose Shrub Non Native Adaptive Full Sun Direct Light Part Shade Low Ground 3 10 17 TOURNAMENT Pitch PLU OBT Plumeria obtusa Singapore Frangipani Tree Non Native Full Sun Direct Light High Ground 7.5 7.5 20 18 TOURNAMENT School Terrace LEU FRU Leucopyllum Frutescens Texas Ranger Shrub Native Full Sun Direct Light Low Ground 2.4 1.8 10 19 TOURNAMENT School Terrace PAS VAG Paspalum Vaginatum Seashore Paspalum Grass Non Native Full Sun Direct Light Low Ground 0.15 - 15 SN O INVENTORY LOCATION CODE BOTANICAL NAME COMMON NAME TYPE NATIVITY LIGHT REQUIREMENT WATER REQUIREMENT PLANTING MEDIUM MAX PLANT HEIGHT (m) MAX PLANT SPREAD (m) Water Requirements, Litres/day/pla nt or Litres/day/m2 1 LEGACY Bleacher RHO DIS Rhoeo discolor Boatlily Shrub Non Native / Adaptive Low to Medium Light Bright Shade Low Modular Green Roof 0.3 0.3 10 2 LEGACY Bleacher IXO CHI Ixora chinensis Chinese ixora Shrub Non Native/Adaptive Half sun Full shade Medium Modular Green Roof 1.5 0.5 12 3 LEGACY Bleacher LAN MON Lantana montevidensis Big sage Shrub Non Native/Adaptive Indirect Light Low to Bright Light Partial Shade Low Modular Green Roof 1.8 1 2.5 4 LEGACY Bleacher ASP DEN Asparagus densiflorus Asparagus fern Shrub Non Native/Adaptive Medium to Bright Light Artificial Light Partial Shade Low Modular Green Roof 0.45 0.3 10 5 LEGACY Bleacher WED TRI Wedelia trilobata Creeping daisy Shrub Non Native/Adaptive Low to Medium Light Partial Shade Low Modular Green Roof 0.3 0.5 10 6 LEGACY Bleacher APT COR Aptenia Cordiflora Baby sun rose Shrub Non Native/Adaptive No Direct Light Medium to Bright Light Indirect Light Partial shade Low Modular Green Roof 0.15m 0.3 10 7 LEGACY Bleacher SAN TRI Sansevieria Trifasciata Snake Plant Shrub Non Native / Adaptive No Direct Light Indirect Light Low to Bright Light Partial Shade Low Modular Green Roof 0.7 0.6 8 8 LEGACY Bleacher CAN IND Canna indica generalis Indian shot Shrub Non Native / Adaptive No Direct Light Low Light Shaded Low Modular Green Roof 0.6 0.6 8 9 LEGACY Bleacher LAN CAM Lantana camara Big sage Shrub Non Native / Adaptive Indirect Light Low to Bright Light Partial Shade Low PLANTER BOX 1.8 1 5 10 LEGACY Bleacher ALT DEN alternanthera dentata little ruby Shrub Non Native / Adaptive No direct Light Low to Medium Light Artificial Light Partial Shade Low Modular Green Roof 1 0.3 2.5 11 LEGACY Terraces DRA MAR Dracaena Marginata Dragon Tree Shrub Non Native / Adaptive No Direct Light Medium to Low Light Partial Shade High Planter box 2.4 1 20 12 LEGACY Terraces DRA REF Dracaena Reflexa Song of Jamaica Shrub Non Native / Adaptive No Direct Light Medium to Low Light Partial Shade High Planter box 2.4 1.2 20 13 LEGACY Pitch ZOY Zoysia Lawn grass Grass Non Native / Adaptive Partial Shade Medium Ground 0.05 - 15 14 TOURNAMENT Pitch CAE PUL Caesalpinia Pulcherrima Pride of Barbados Hedge Non Native / Adaptive Full Sun Direct Light Part Shade Low Ground 6 3.5 10 15 TOURNAMENT Pitch DOD VIS Dodonaea viscosa Hopbush Hedge Semi-Native Full Sun Direct Light Part Shade Low Ground 10 16 TOURNAMENT Pitch HIB ROS Hibiscus Rosa Sinensis China Rose Shrub Non Native / Adaptive Full Sun Direct Light Part Shade Low Ground 10 17 TOURNAMENT Pitch PLU OBT Plumeria obtusa Singapore Frangipani Tree Non Native Full Sun Direct Light High Ground 7.5 7.5 20 18 TOURNAMENT School Terrace LEU FRU Leucopyllum Frutescens Texas Ranger Shrub Native Full Sun Direct Light Low 2.4 1.8 10 19 TOURNAMENT School Terrace PAS VAG Paspalum Vaginatum Seashore Paspalum Grass Non Native Full Sun Direct Light Low Ground 0.15 - 15
Plant pallette
Lusail Commercial Boulevard interfacing
Project breif: Interface between the existing building ,road and tram stations at Lusail Commercial Boulevard to accomodate and enhance barrier free acess and outdoor cooling.
Challenges:
• Mismatch of levels at building and ROW.
• Direction of stormwater drainage
• Extracting information from BIM model
• Redesigning entrance to buildings and tram station to accomodate wheelchair access.
Responsibilities :
• Site study and grading
• Developing detailed design
• Drainage design
• Preparation of report and presentation for Qatari Diar
• Modelling and rendering
• Lead junior architects and draftsmen
• Multidisciplinary coordination
Status : Partially Completed in 2022

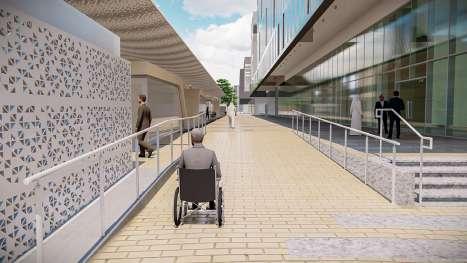

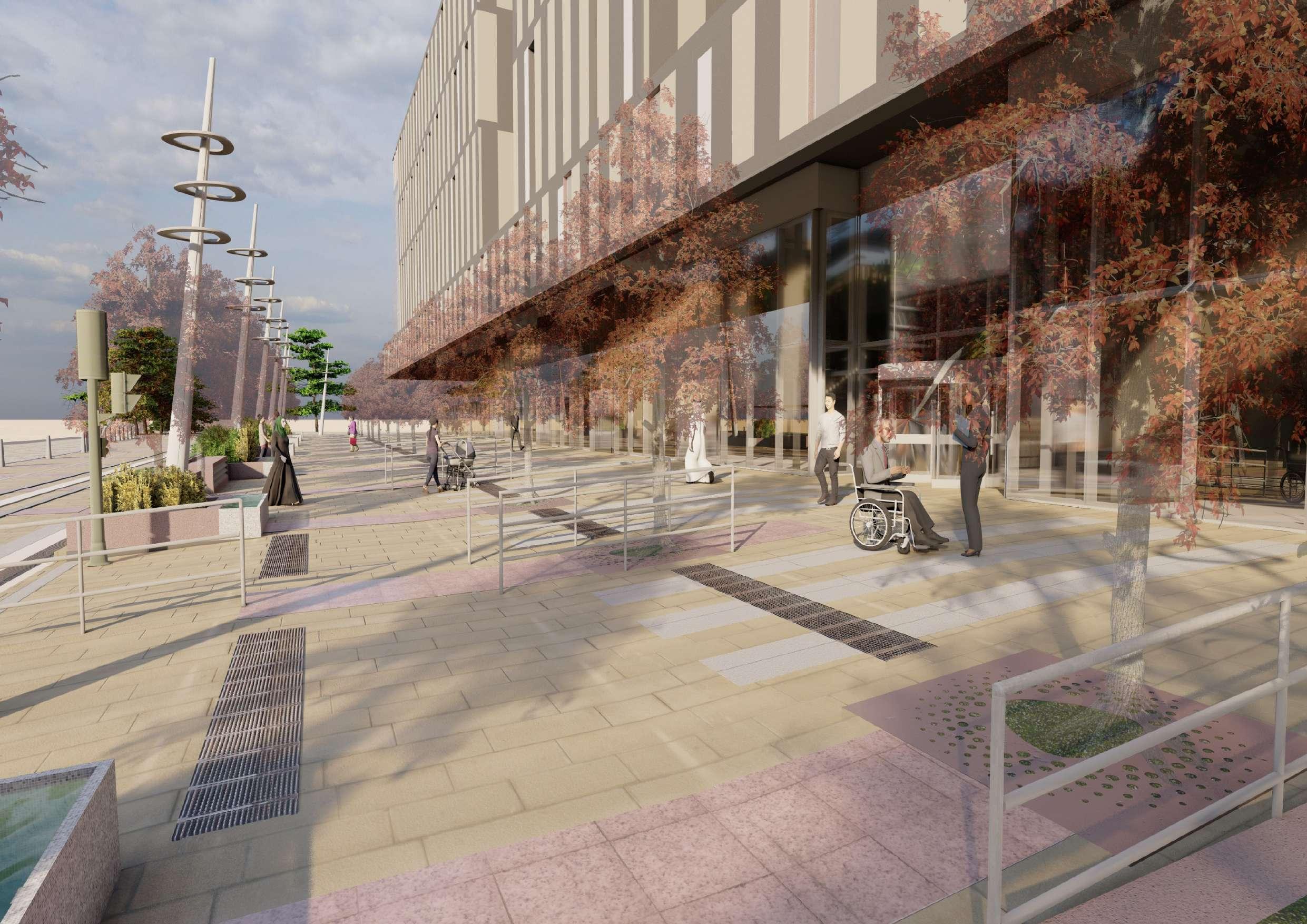

Entire project consisted of 18 buidling and their right of way. Each building had its own challenges. Heere the issues and solutions of a typical building is illustrated

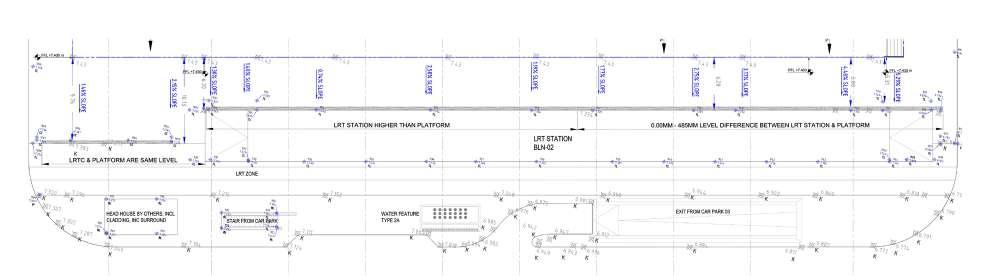

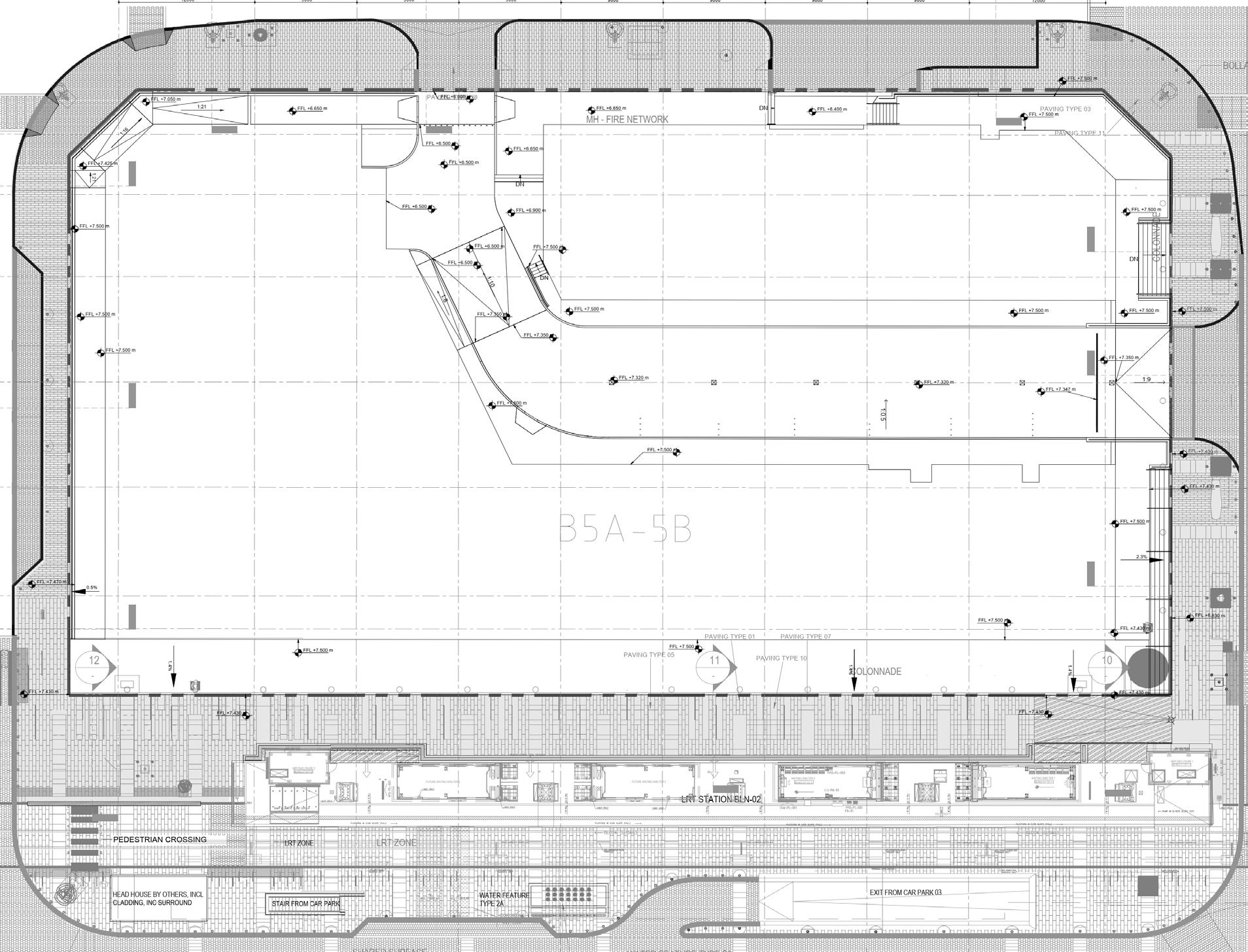

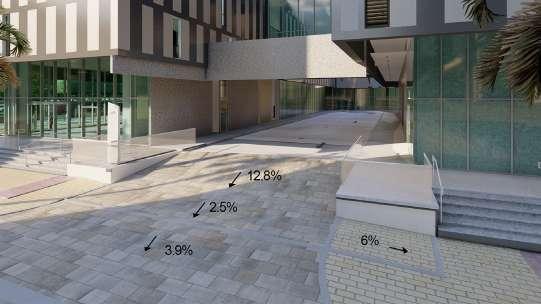

COMPARISON BETWEEN EXISTING LEVEL

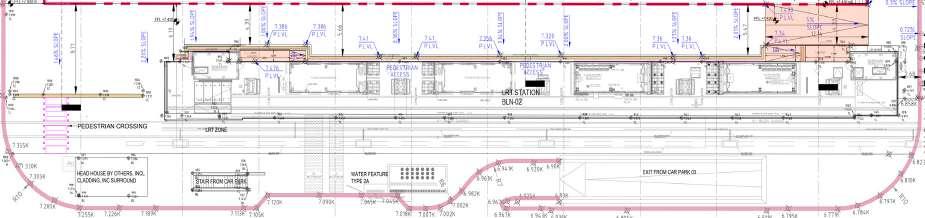

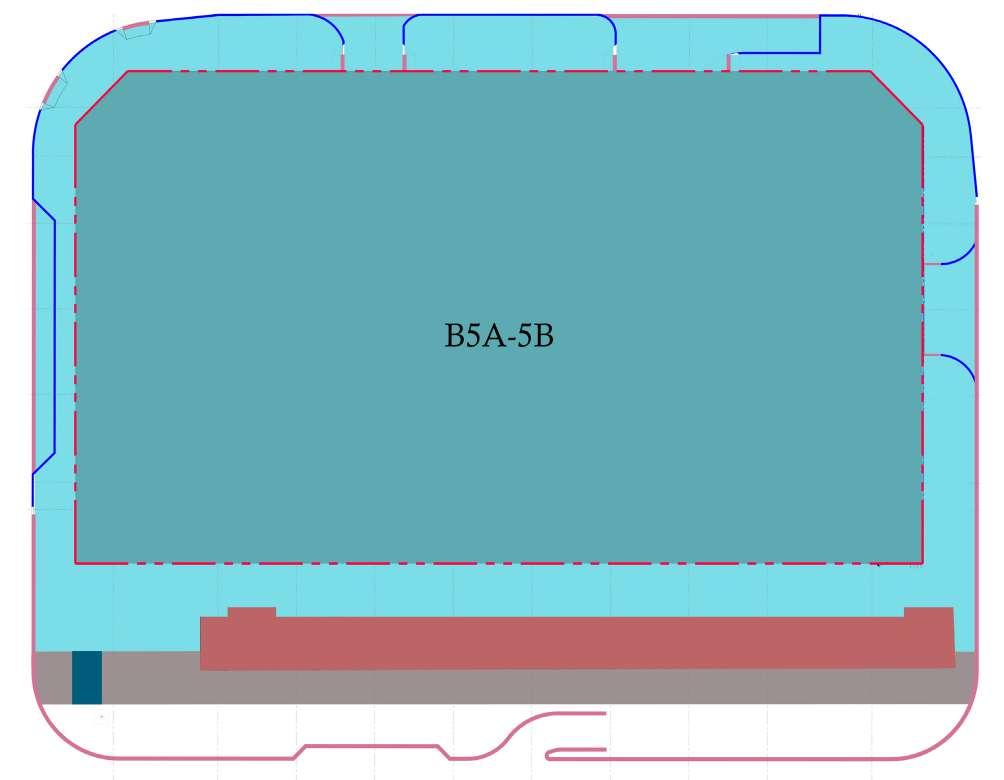

BUILDING B05A-05B
BUILDING B05A-05B
SCOPE OF WORK
SCOPE OF WORK
PEDESTRIAN CROSSING
PEDESTRIAN CROSSING

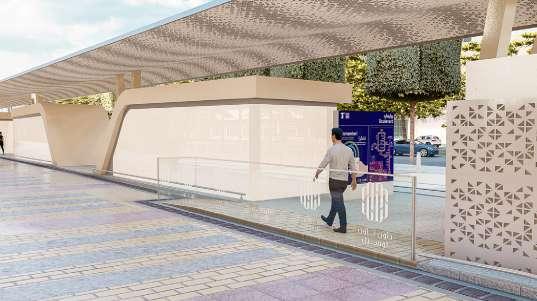

LRT STATION AND PLATFORM
LRT STATION AND PLATFORM
LRT TRACK
LRT TRACK
FLUSH KERB
FLUSH KERB
RAISED KERB
RAISED KERB

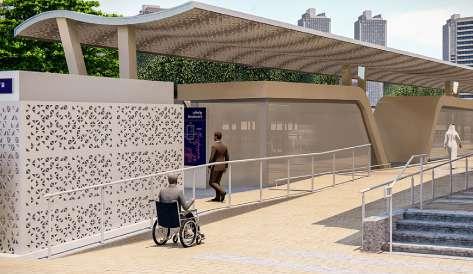

RAMP DOWN RAMP UP RAMP UP 05A-5B
05A-5B

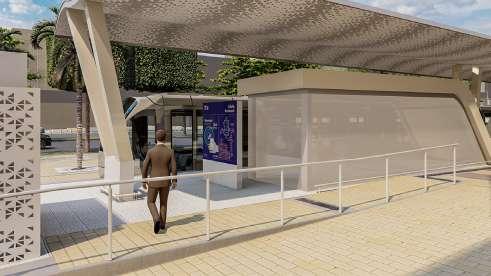

VIEW 2 VIEW 1 VIEW 6 VIEW 6 LRT STATION B05A – 05B MEP ENCLOSURE LRT STATION MEP ENCLOSURE LRT TRAM TRACK PROPOSED RAMP VIEW 1 VIEW 2 PROPOSED RAMP VIEW 3 PROPOSED UPSTAND PROPOSED RAMP PROPOSED RAMP PEDESTRIAN PATHWAY MEP ENCLOSURE PEDESTRIAN PATHWAY LRT PLATFORM VIEW 4 VIEW 5 PROPOSED
VIEW 6
–B05A-05B
EXISTING SLOPES/PATHWAY

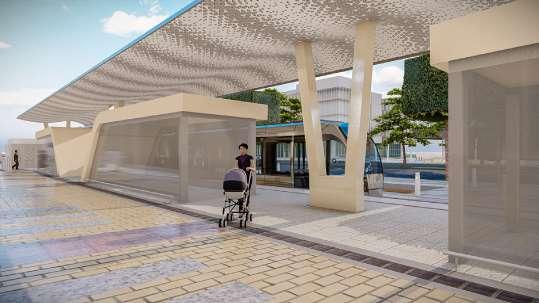

PROPOSED SLOPES/PATHWAY

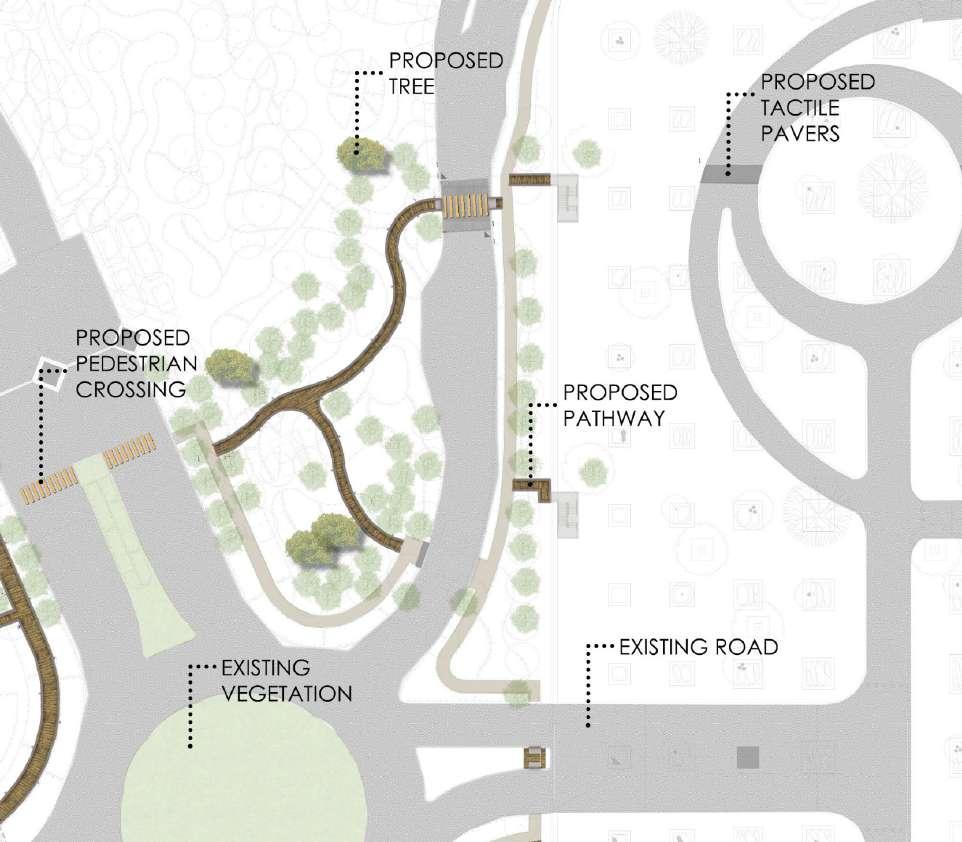

RASIED TABLE FOR PEDESTRIAN CROSSING
Training pitches for FIFA worldcup 2022
Project breif: Detailed design and approval of Training sites and allied facilities for FIFA worldcup 2022 in Sealine beach resort and Salwa Beach resort
Challenges:
• Connecting with existing landsape and utilities.
• Designing based on FIFA signature pitch guidelines
• Solving on site issues regarding drainage
Responsibilities :
• Pitch design
• Site study and grading
• Developing detailed design
• Drainage design
• Preparation of report
• Lead junior architects and draftsmen
• Co-ordinate with contractor and subconsultants
• Multidisciplinary coordination
• Attending client meetings with SC
Status : Completed in 2021

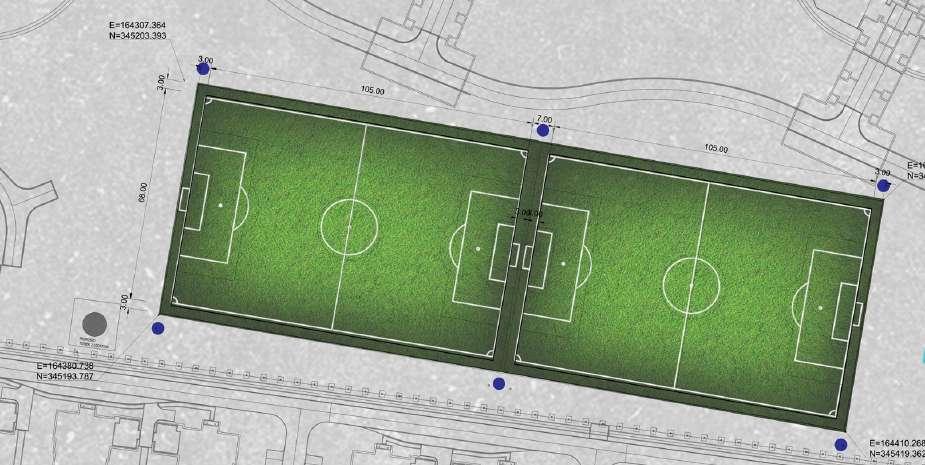

Fifa Signature Pitch

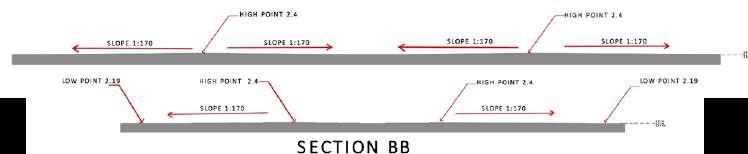

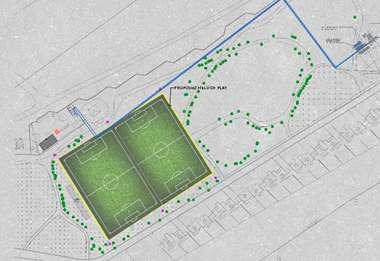

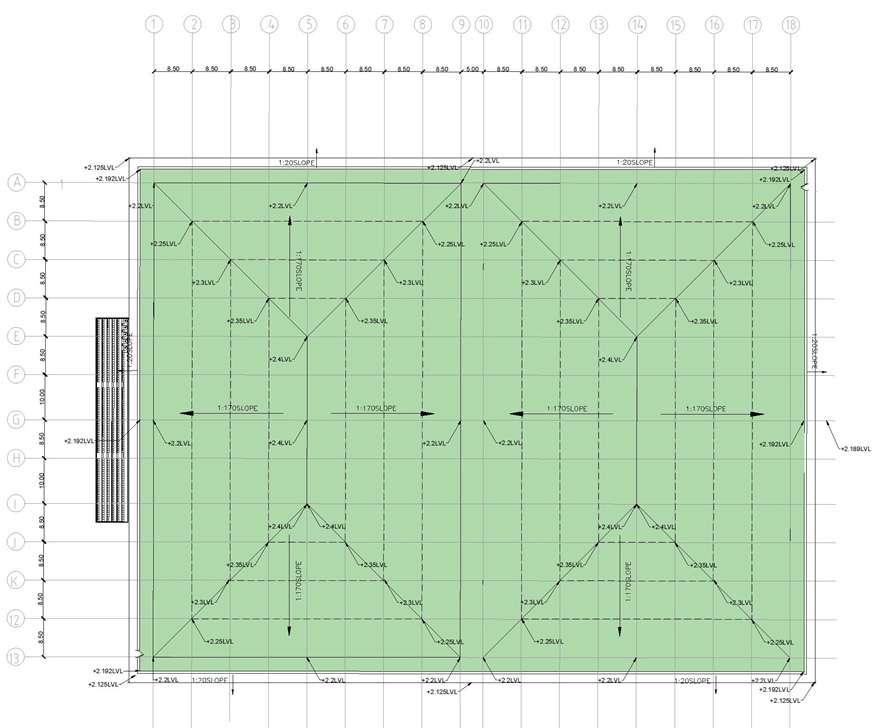

Grading Analysis

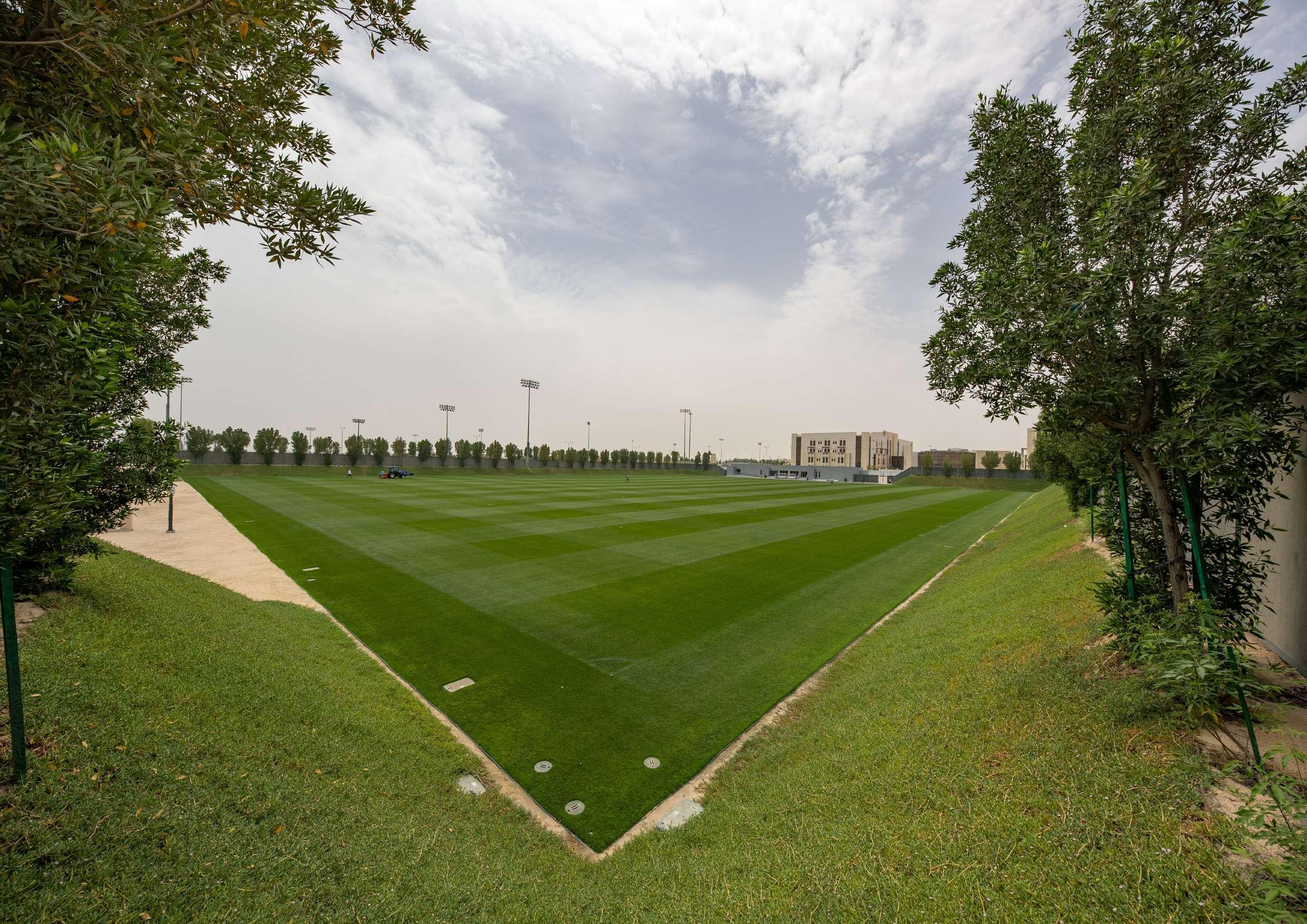

Pitch at Sealine beach resort
Pitch at Salwa beach resort Signature

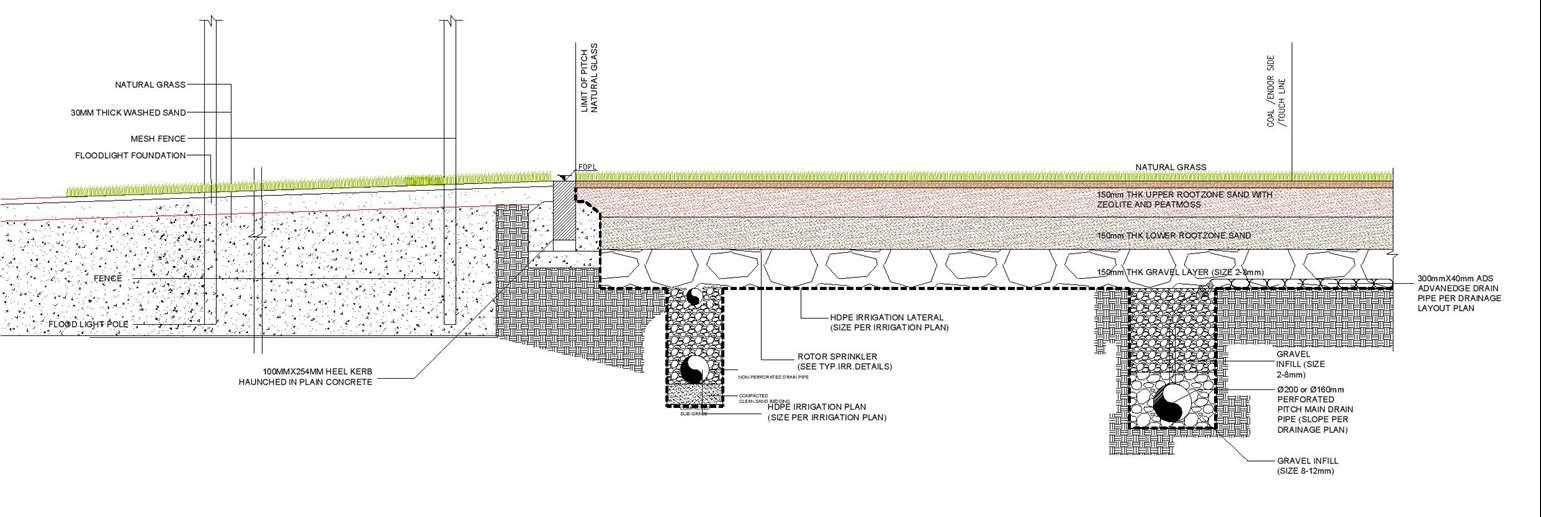

pitch details
Connectivity works at education city
Project breif: Connecting the gaps between existing pathways and landscape. Designing of the path way between Qatar foundation Head Quarters and Al Shaqab equisterian facility. Redesign of connectivity between Khalifa street and ceremonial court inside education city.
Challenges:
• Connecting with existing landsape and utilities.
• High profile client
• Selection of site specific materials
Responsibilities :
• Landscape design
• Site grading
• Developing detailed design
• Drainage design
• Selection of plants and hardscape material
• Lead junior architects and draftsmen
• Co-ordinate with contractor and subconsultants
• Multidisciplinary coordination
• Modelling, Rendering and Video Walkthrough making
Status : Completed in 2021

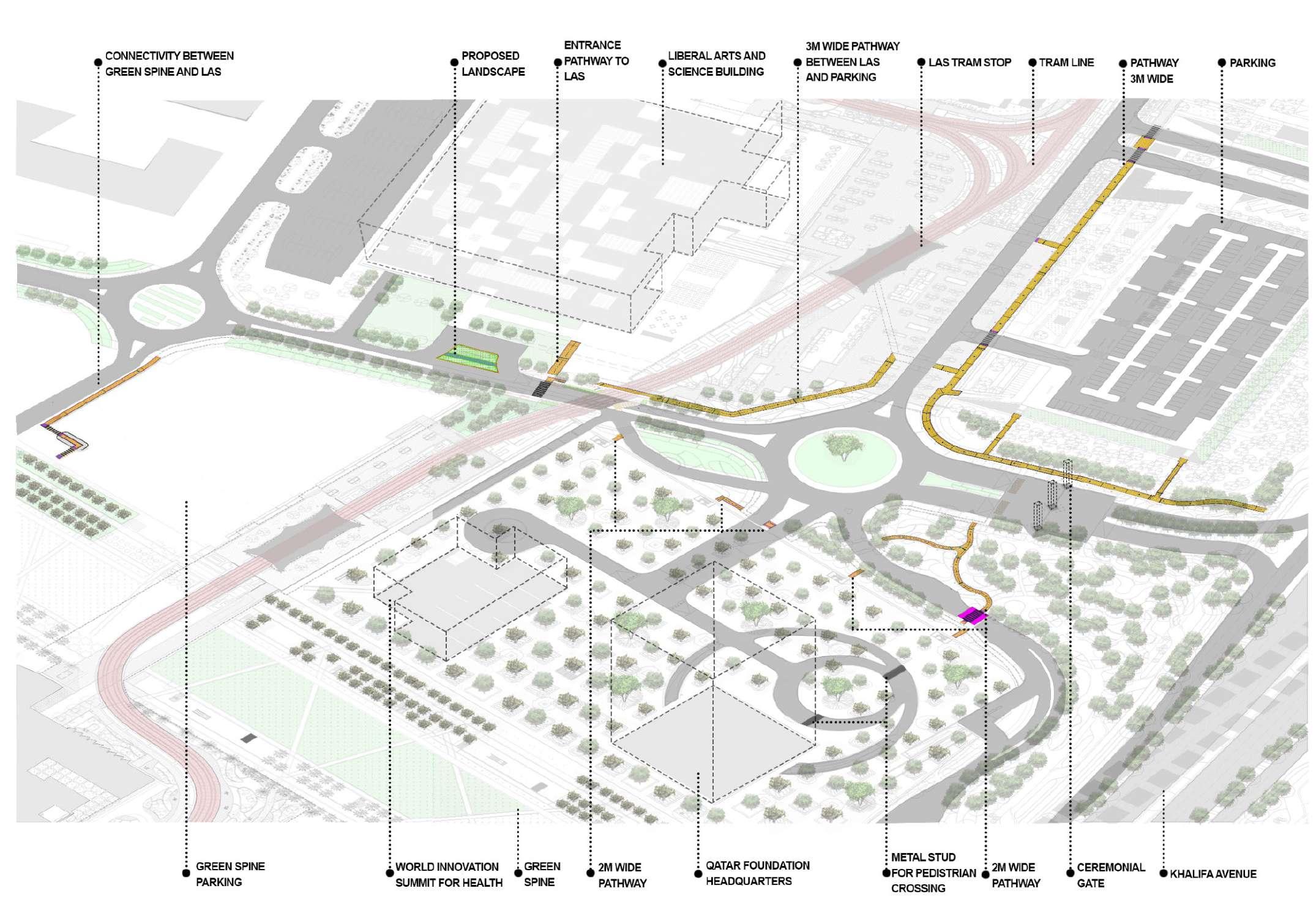

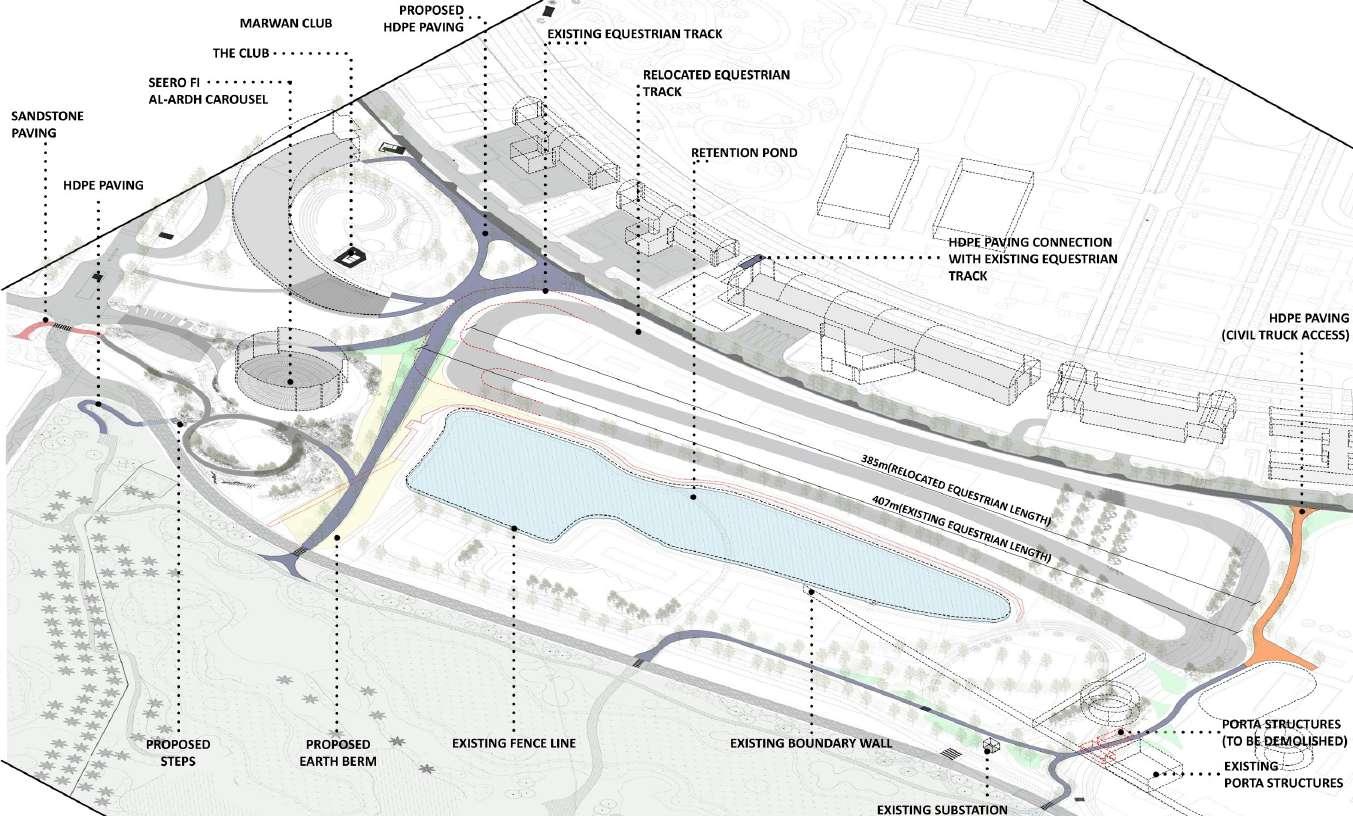

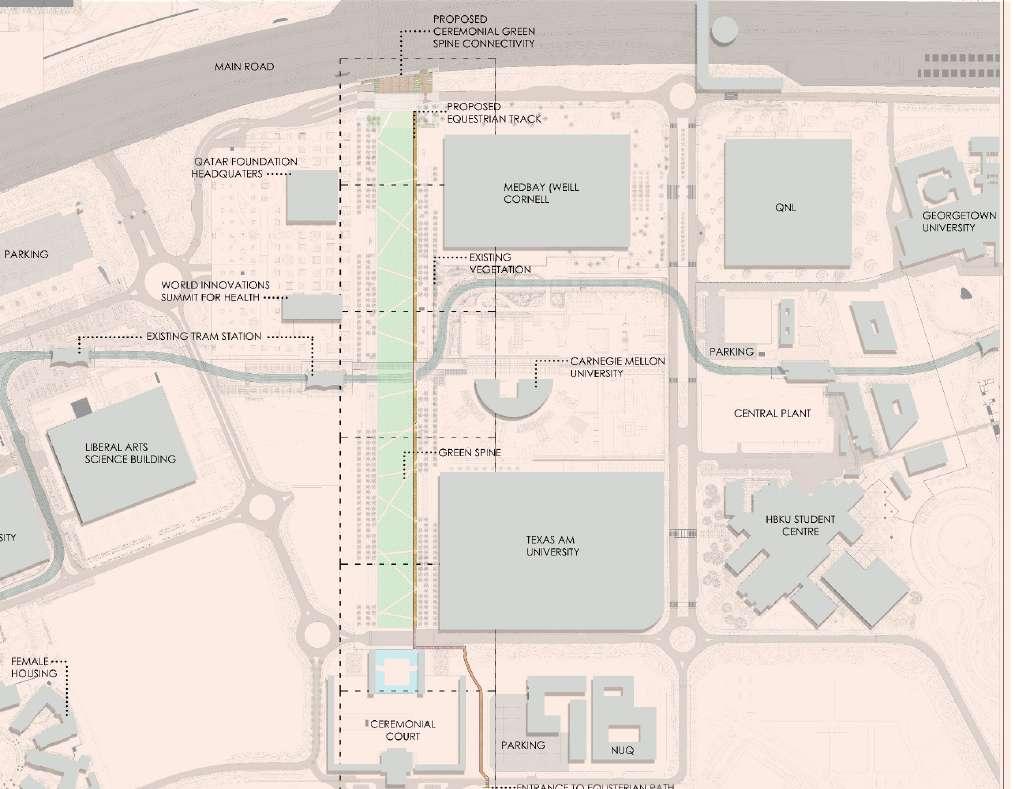

Master Plan

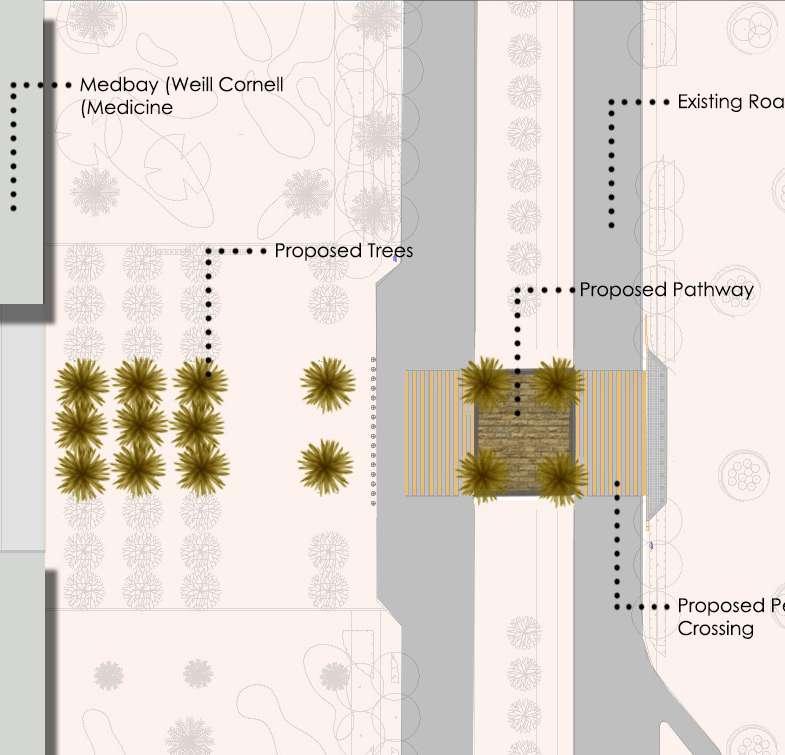

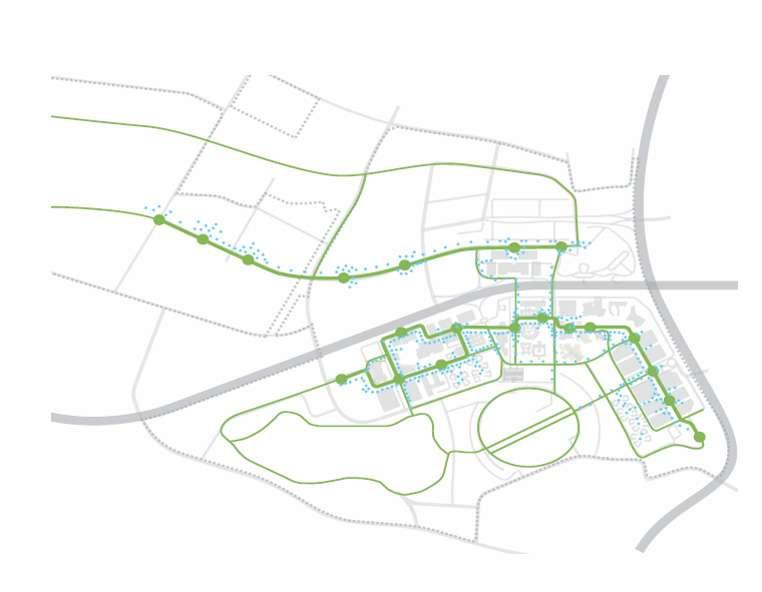

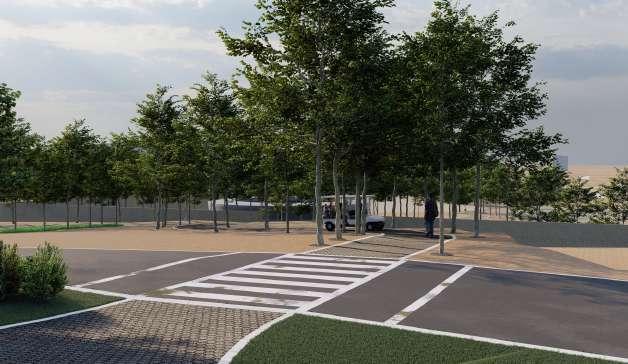

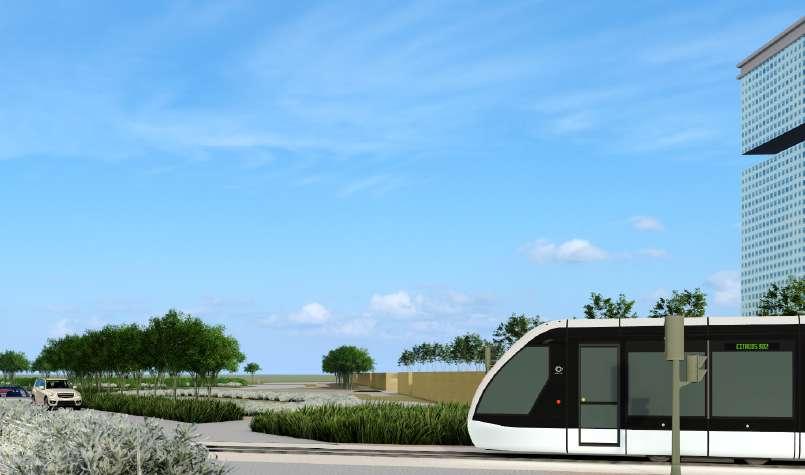

Bridging the gaps in connectivty at various spots in education city

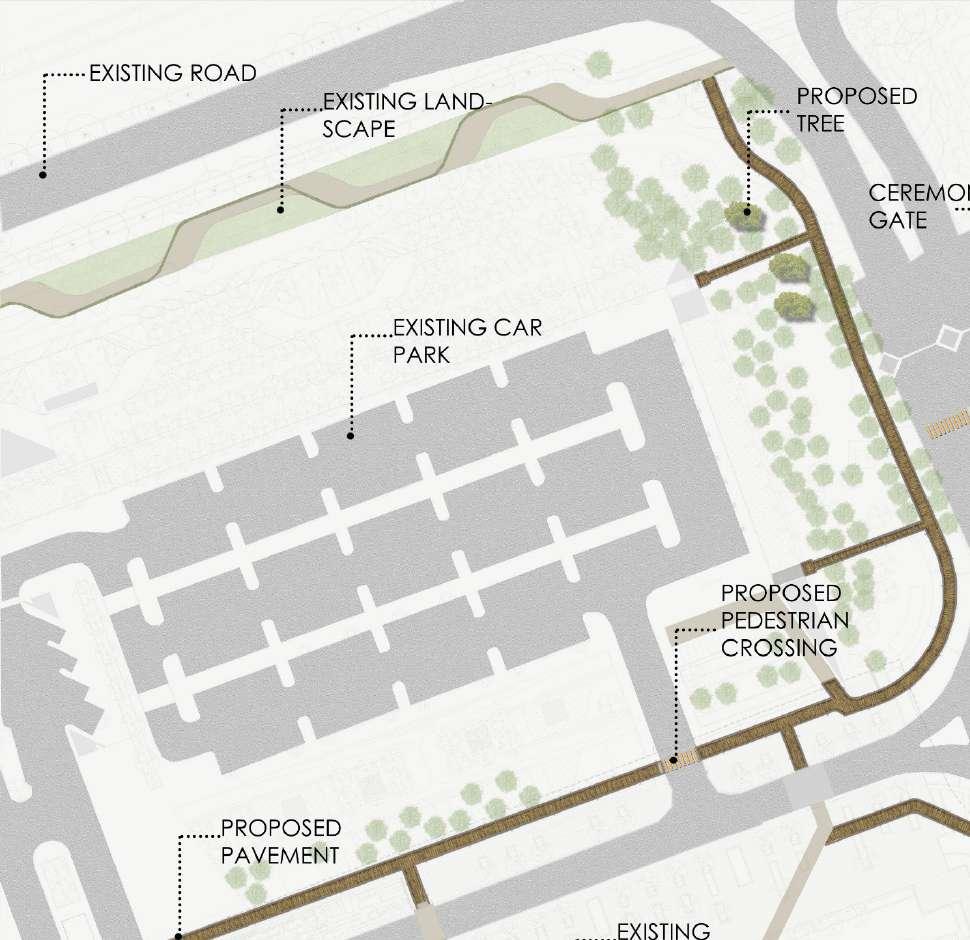

Ensuring the softscape and hardscape features matches the existing landscape . Design of pathways to ensure correct stormwater drainage without the need for further updates in infrastructure

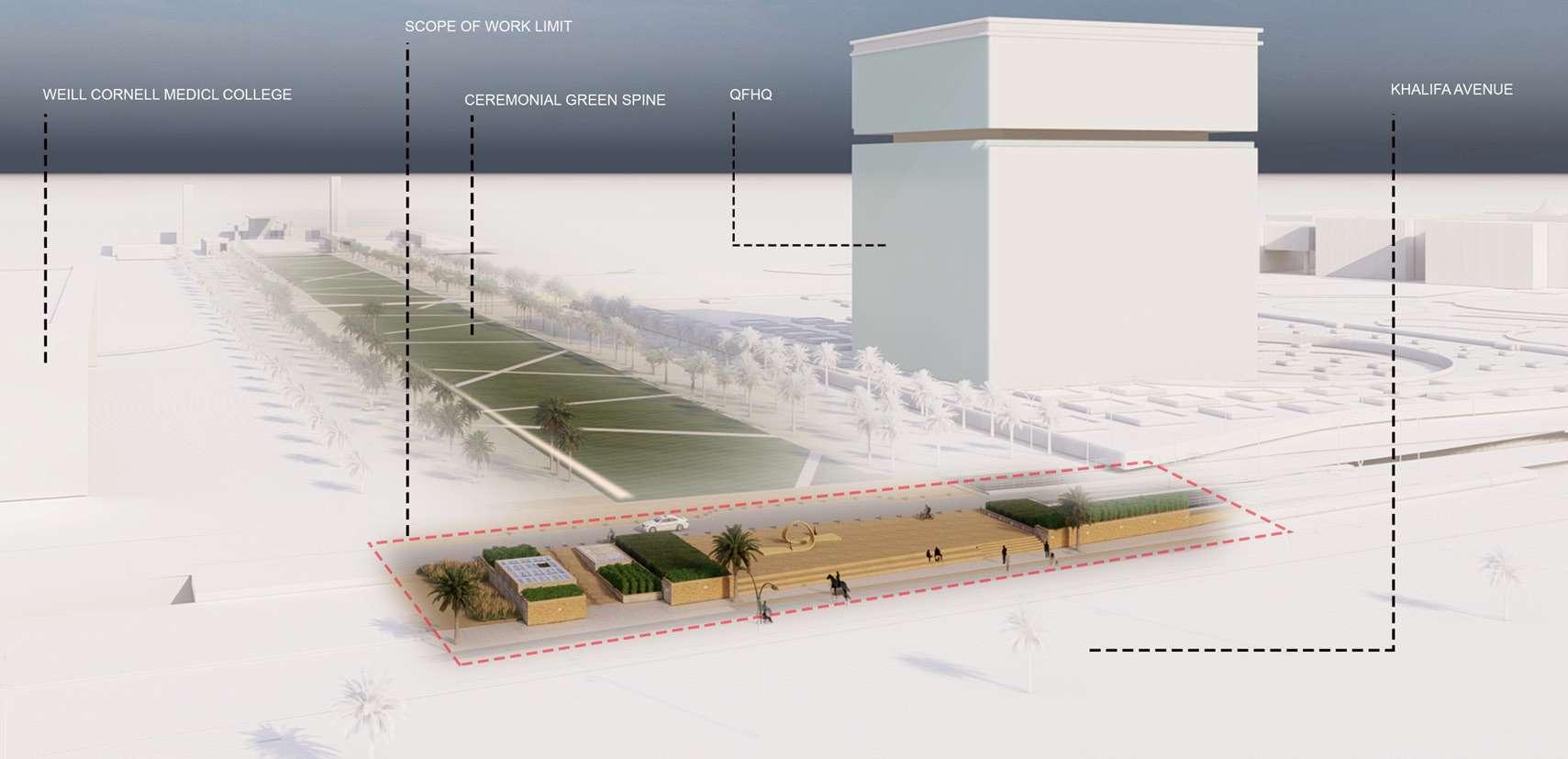

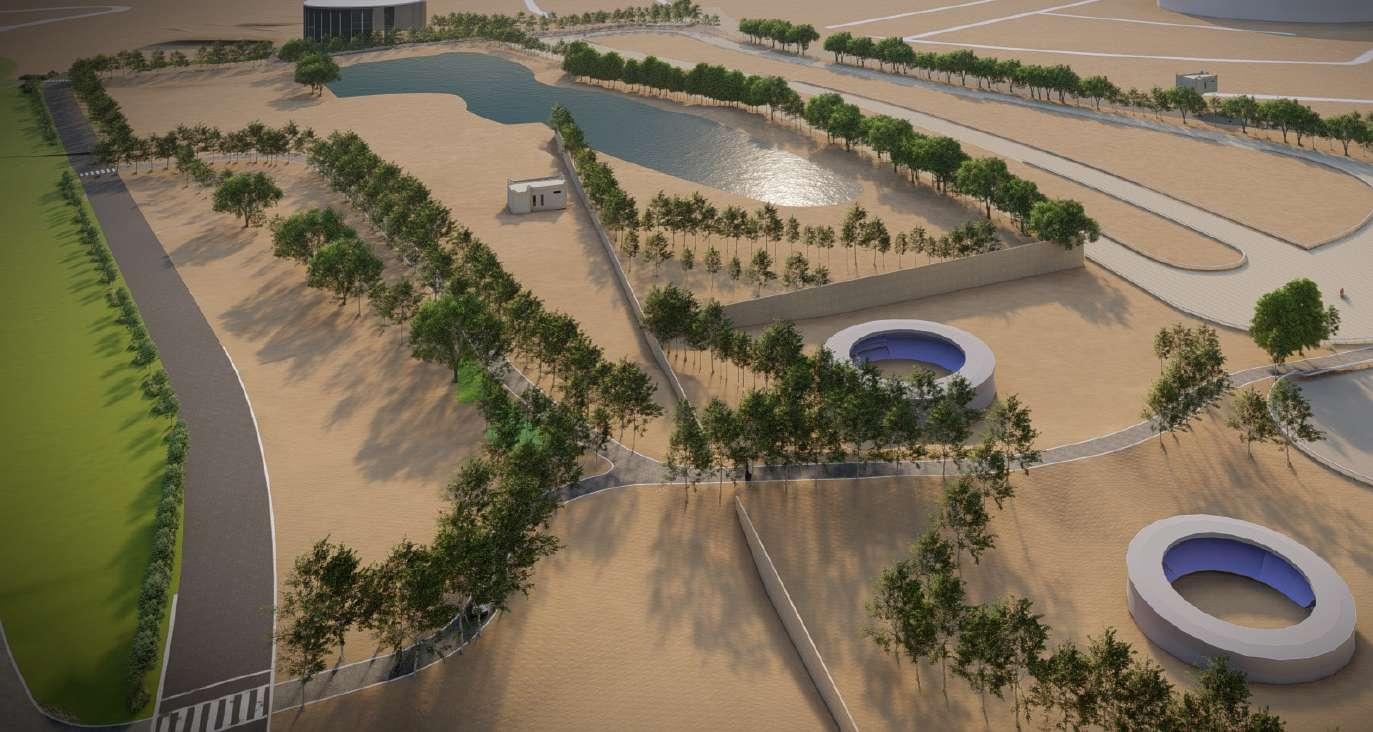

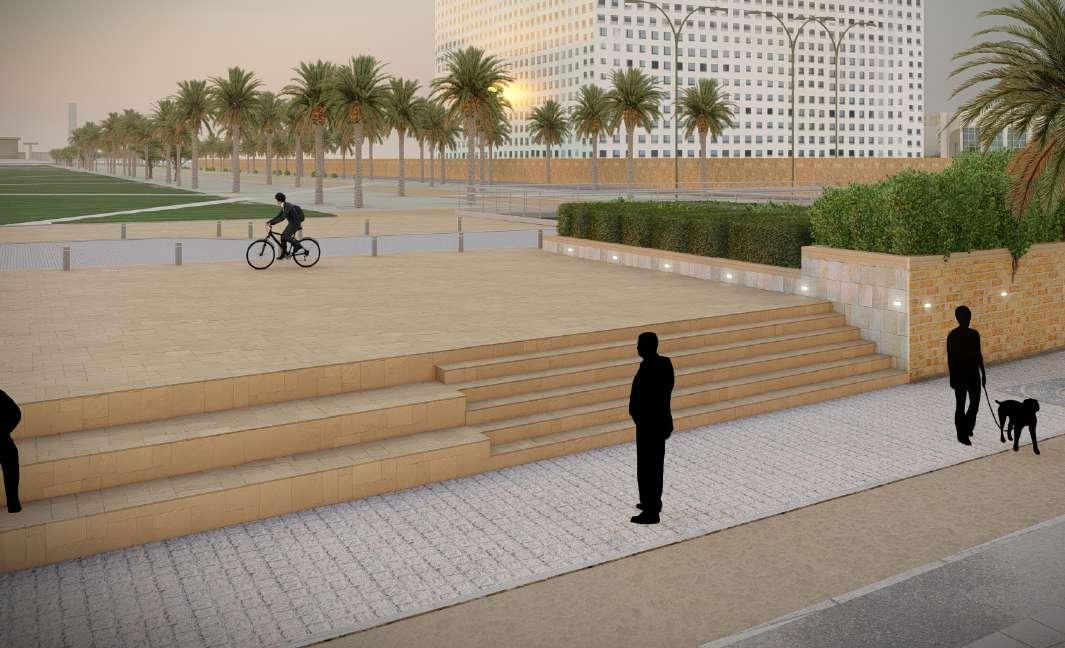

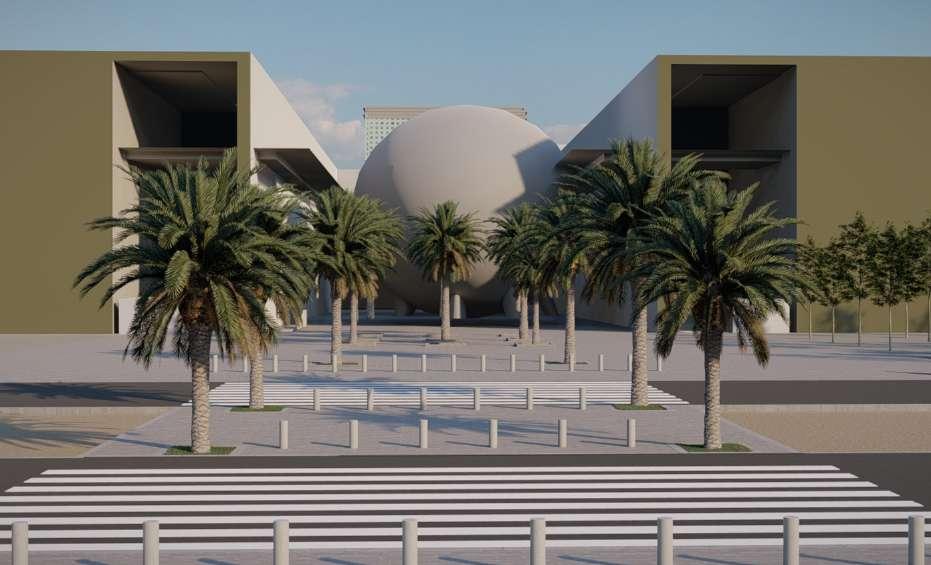

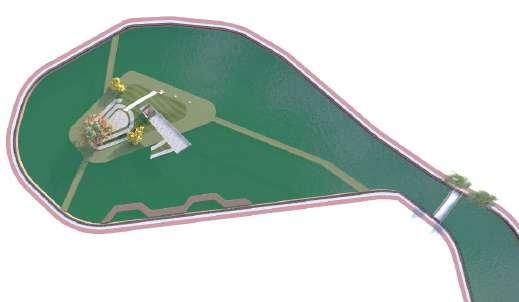

Connectivity between Khalifa street and ceremonial court inside education city. Design for Horse track

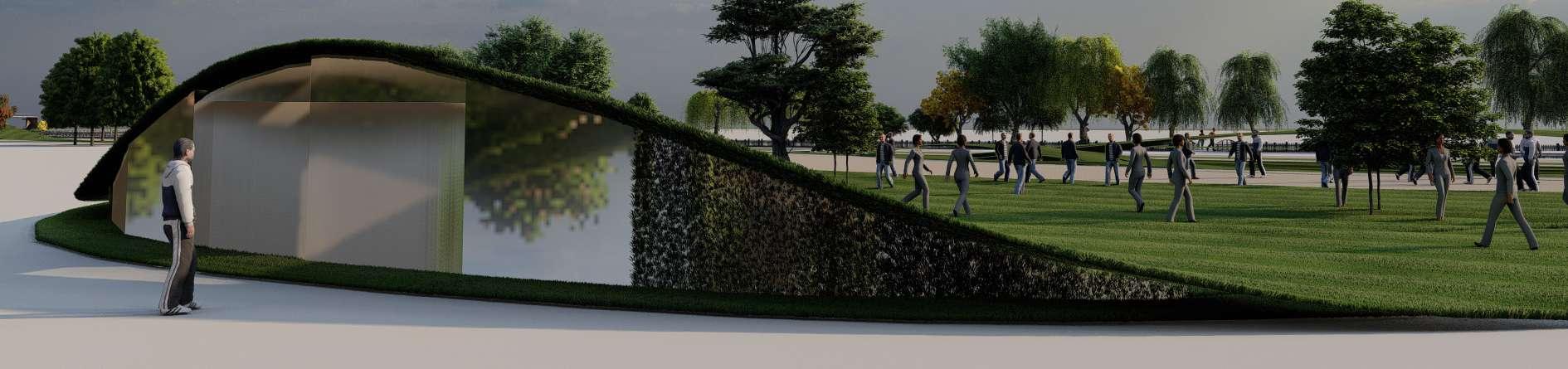

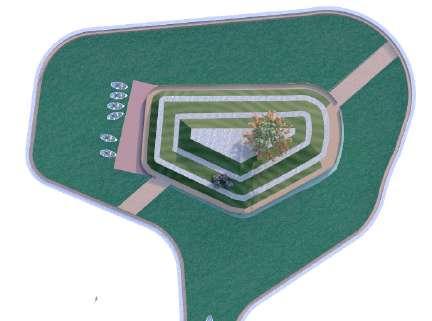

Design for the end podium and enclosure for the services

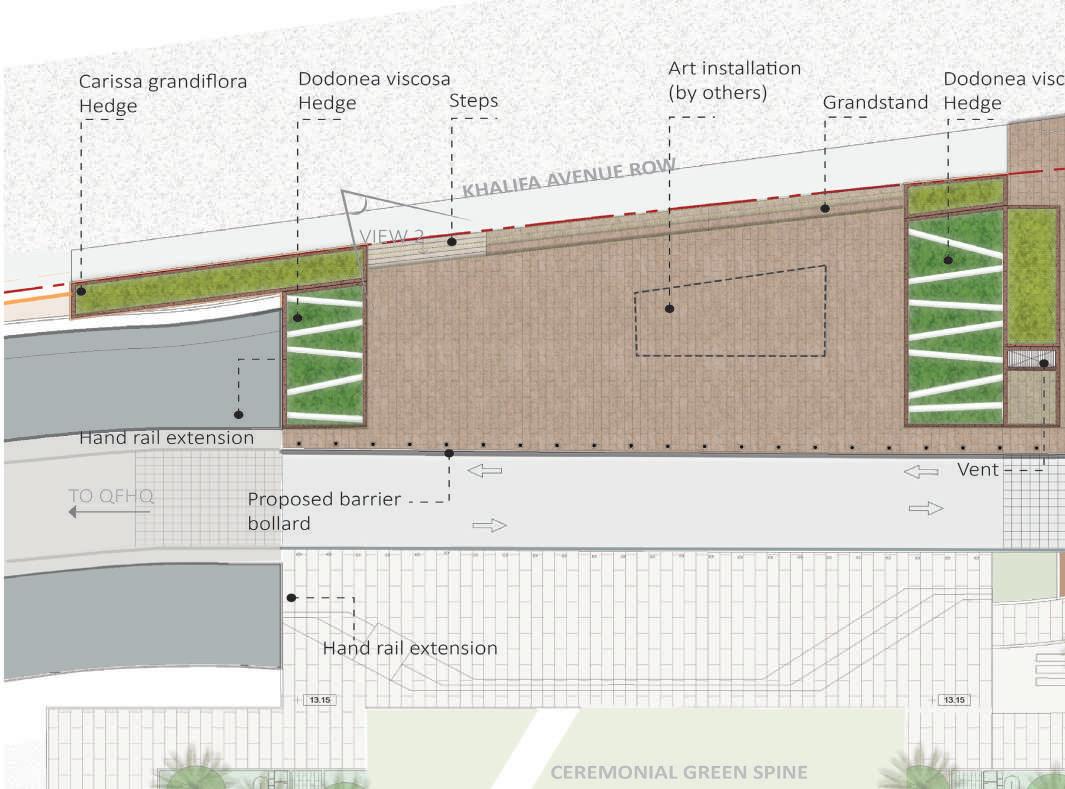

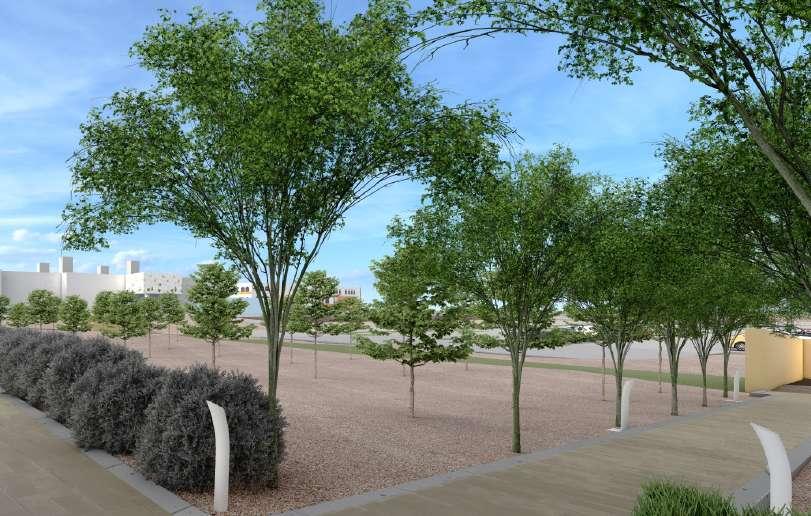

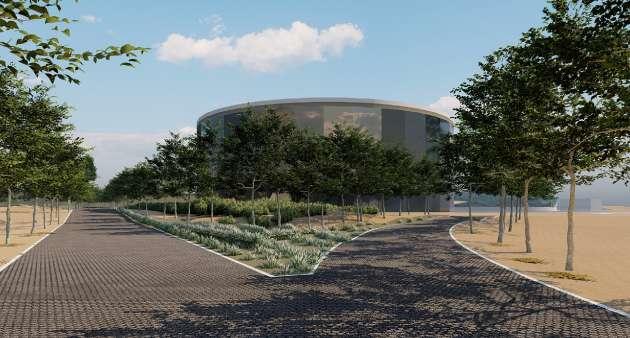

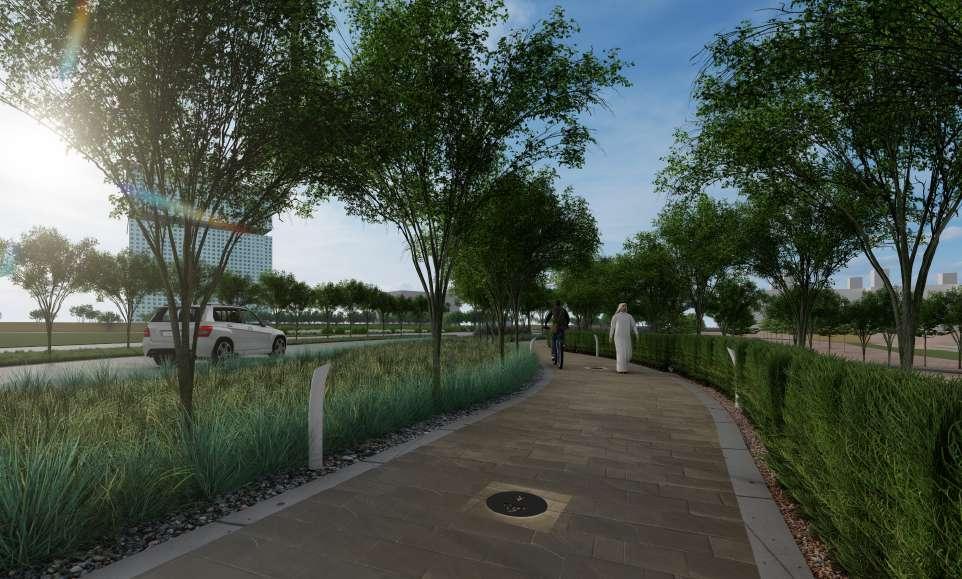

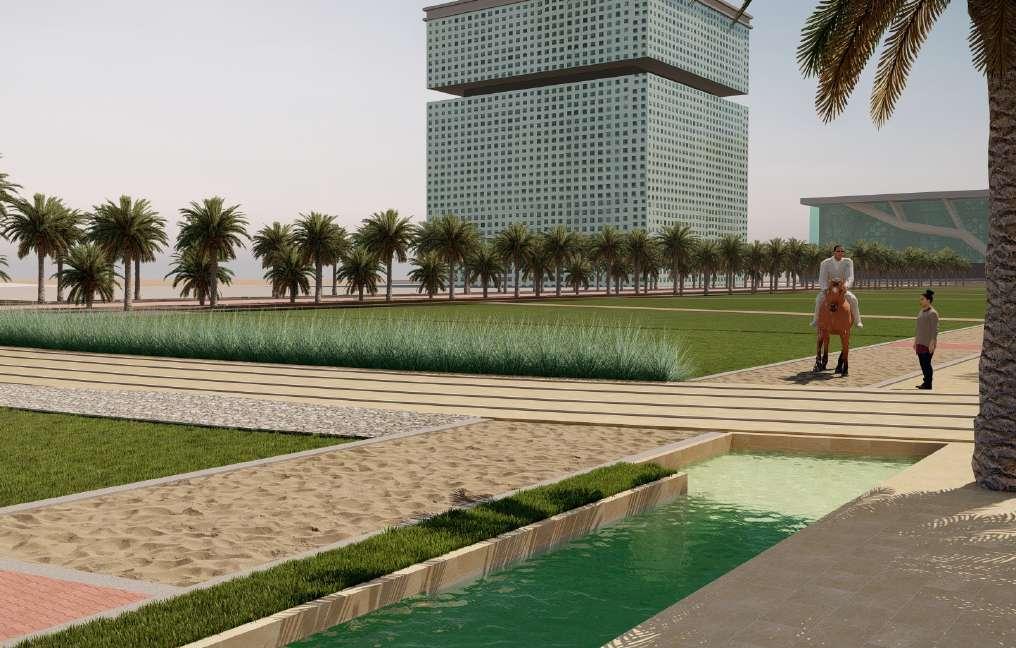

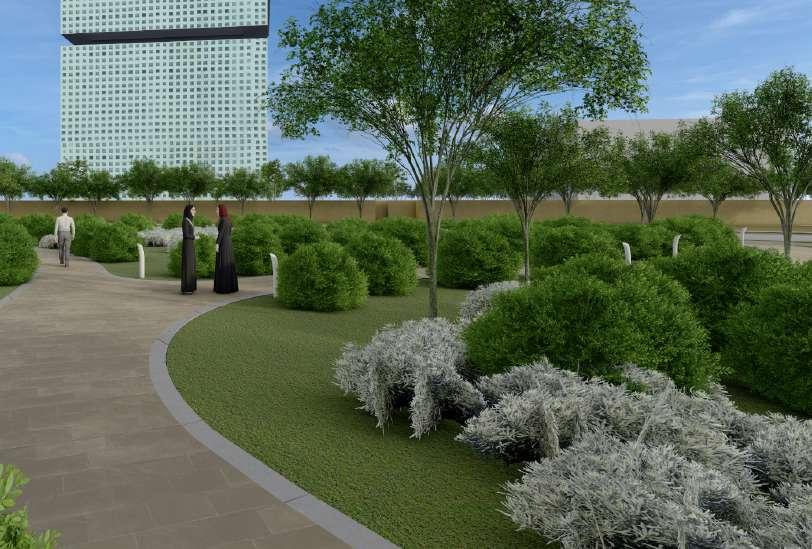

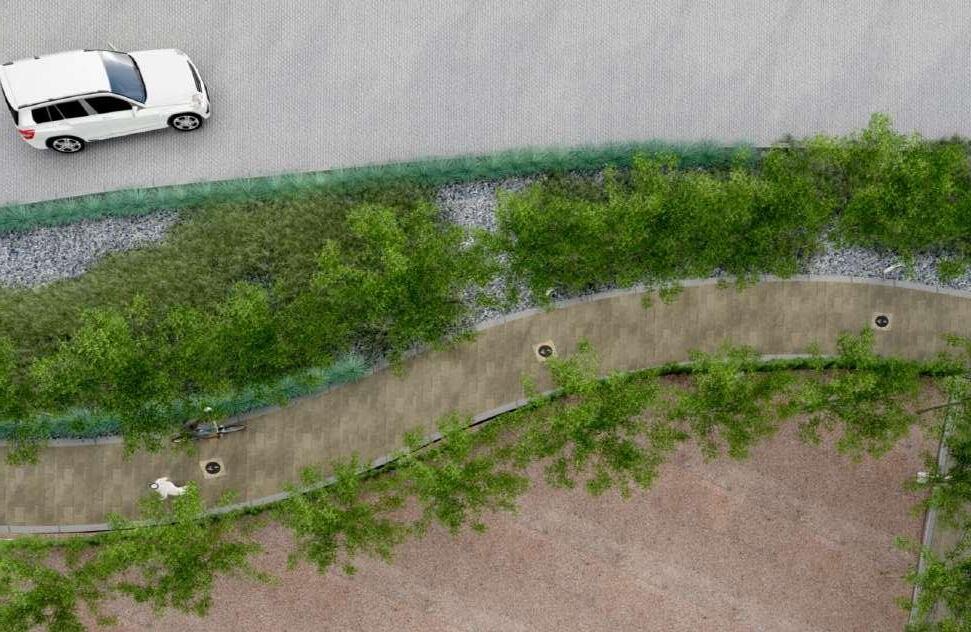

Path way between Qatar foundation Head Quarters and Al Shaqab equisterian facility.

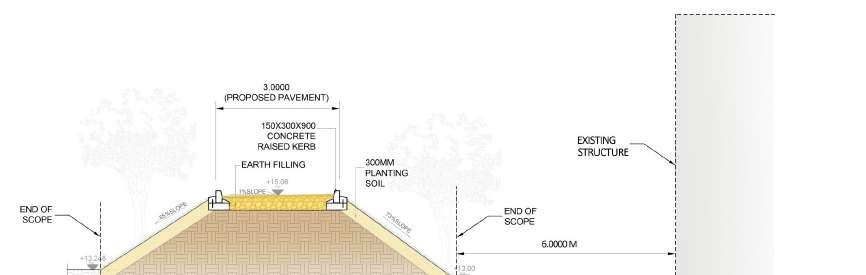

Pathway is designed as temporary yet of high quality to allow pedestrian as well as golf carts. Grading and drainage had to be designed considering the existing infrastructure.
Softscaping selection had been based on canopy size and plant pallete in QF master plan
