AUTEL MAXICHARGER

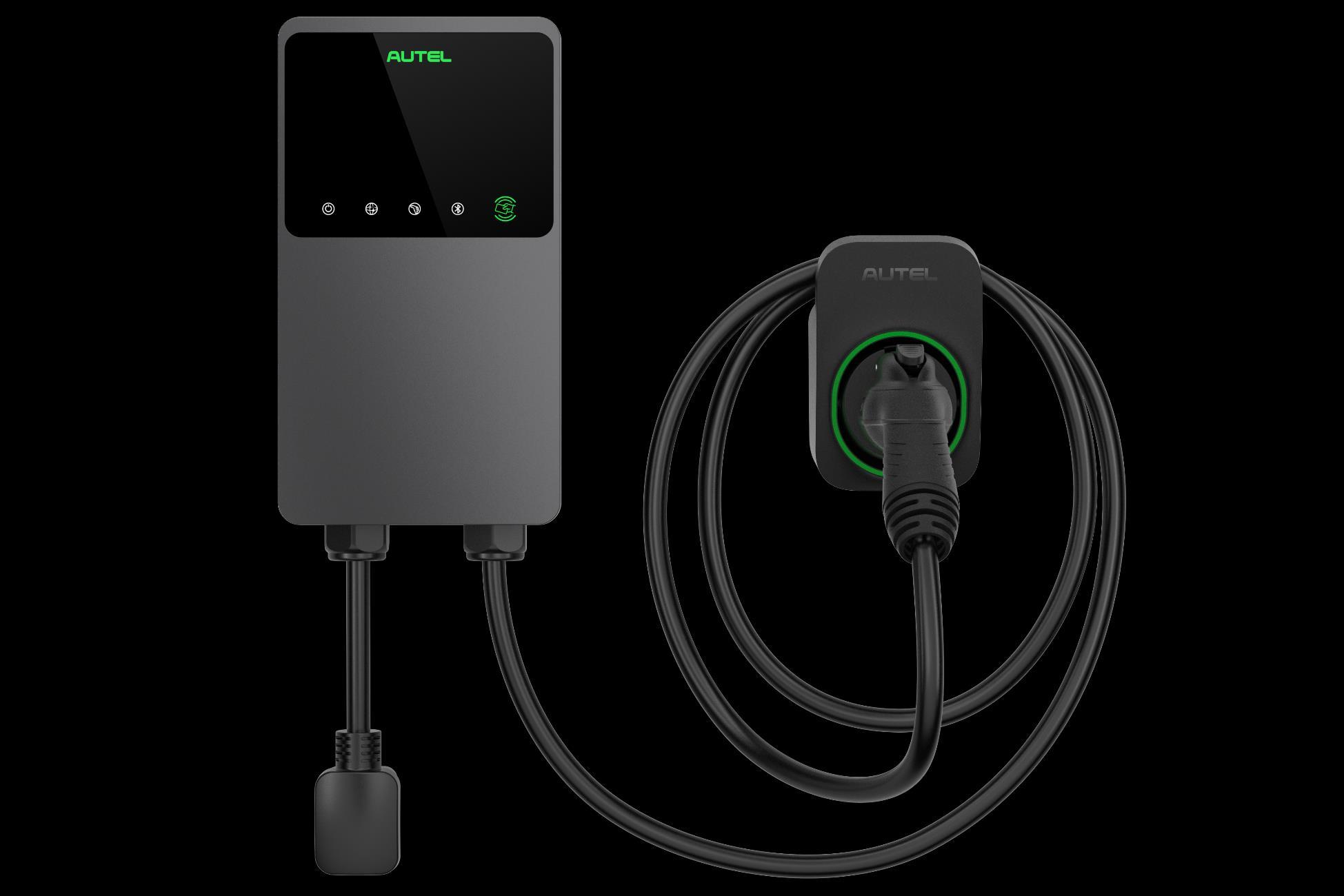

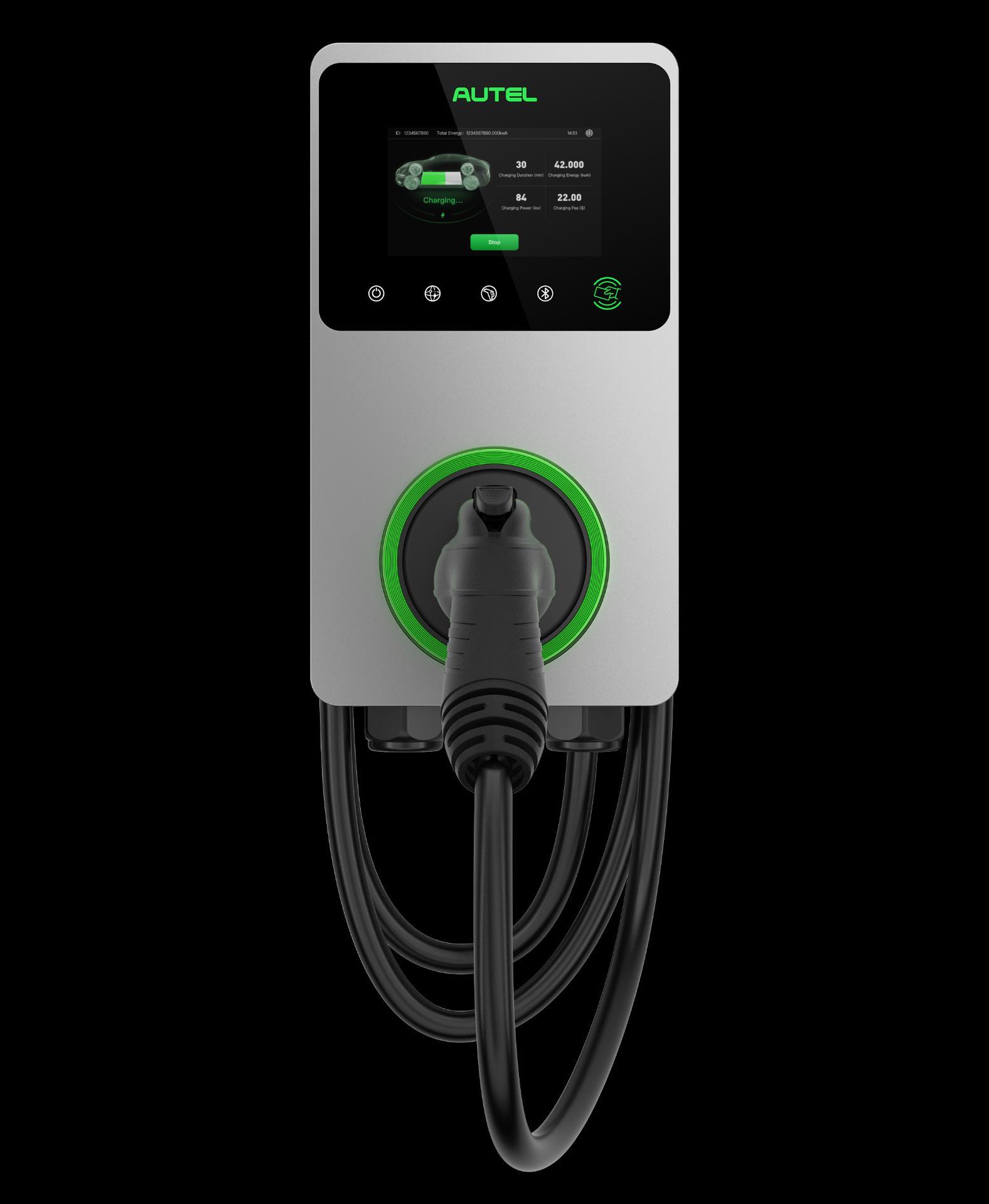

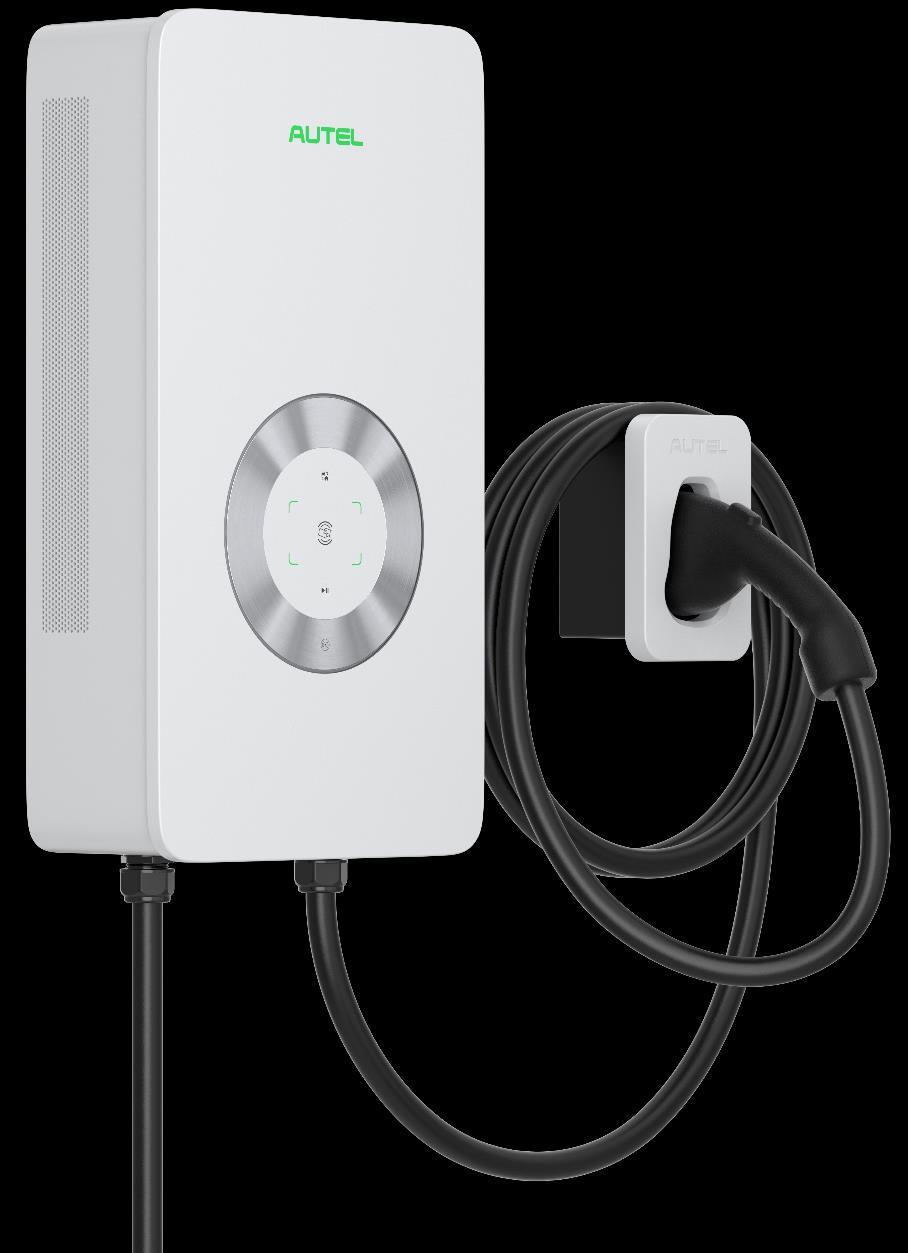

MaxiCharger AC Elite Home

Fast Home AC Charging

Charge faster and more efficiently

• Up to a maximum of 50A, creating 12kW of power for increased charging speed

• 9X faster than a traditional AC home charger

• Can be adjusted through a hardware switch or the APP

Smart Charging

Real-time notification and reporting

• Easily view schedules and details

• Charging status sessions

High Convenience

Ready to go and easy to install

• Comes standard with hardwired or NEMA 14-50/6-50 plug

• Plug in system can be installed in 8 minutes

• Hardwired version requires a certified electrician

Separate Holster

In-Body Holster

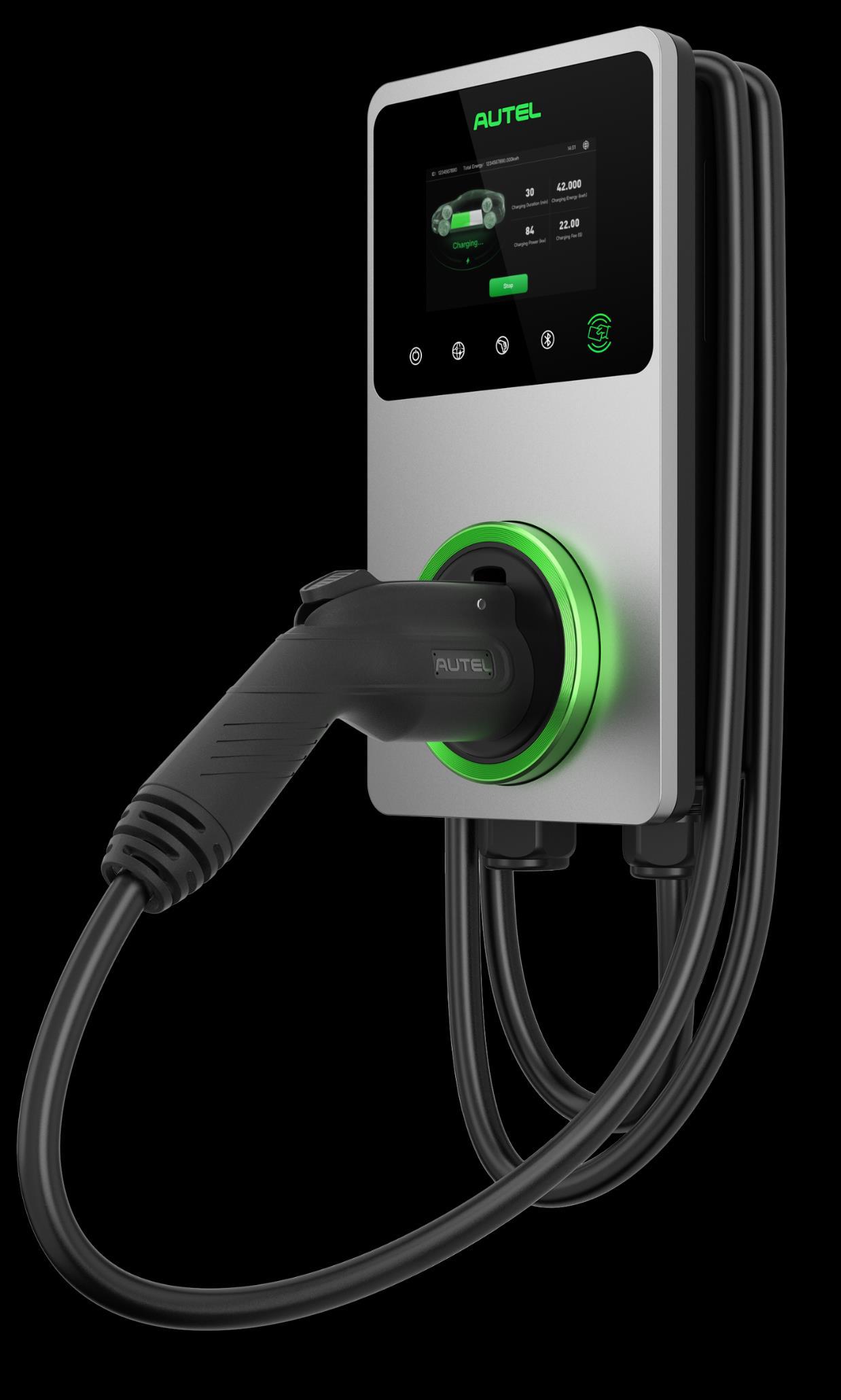

MaxiCharger AC Elite Home

MaxiCharger AC Elite Home

• OTA Update

• NEMA 4X Rating

• Adaptive Load Management

• Universal J1772 Interface with 25' Cable

• Status indicator

• NEMA plug or hardwire

• Wifi, Ethernet cable, Bluetooth

MaxiCharger AC Elite Home

Technical Specifications

Product Information

Input/output power rating and current 9.6kW (240V AC*40A) ; 12kW (240V AC*50A)

Output amperage adjustable via mobile app, from 6A to 50A

Input/output voltage 208V±15%; 240V±15%, 60Hz

Network type L1/N+PE, L1/L2/PE

Input cord NEMA 6-50 / NEMA 14-50 / Hardwired

Connector type SAE J1772, 7.5m (25')

Ground fault detection 20mA CCID

Protection

Overcurrent, overvoltage, undervoltage, integrated surge protection

Card reader Optional: ISO 15693, ISO 14443

Power measurement accuracy +/- 1.0%

Enclosure rating NEMA 4X

General Characteristics

Operating altitude 2000m Operating temperature range -40

Storage temperature range -40

Mounting Wall or floor using a pedestal

Dimensions (H×W×D) 336×187×85 mm

Status indication LED/APP

User interface Autel Charge APP; Autel Charge Cloud

User Interface

Connectivity Bluetooth, Wi-Fi, Ethernet, CAN, RS485 (For energy meter connection)

Communication protocols OCPP 1.6J

User authentication APP, AutoStart, RFID card

Software Update Software update OTA updates via web portal

Safety and compliance UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916

Certification and Standards

EMC compliance FCC 15 Class B

Certification Energy Star, OpenADR 2.0b

Warranty 36 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

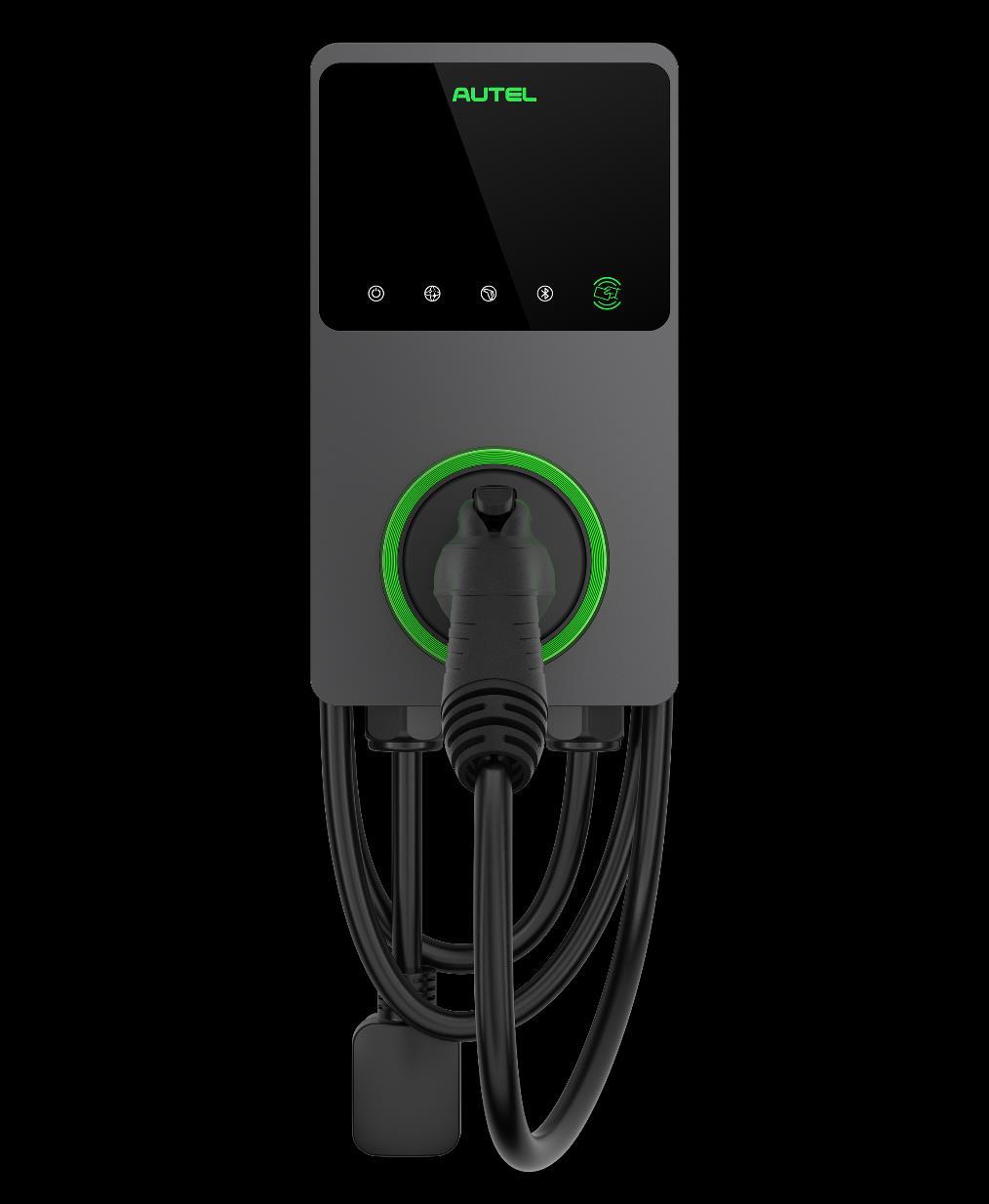

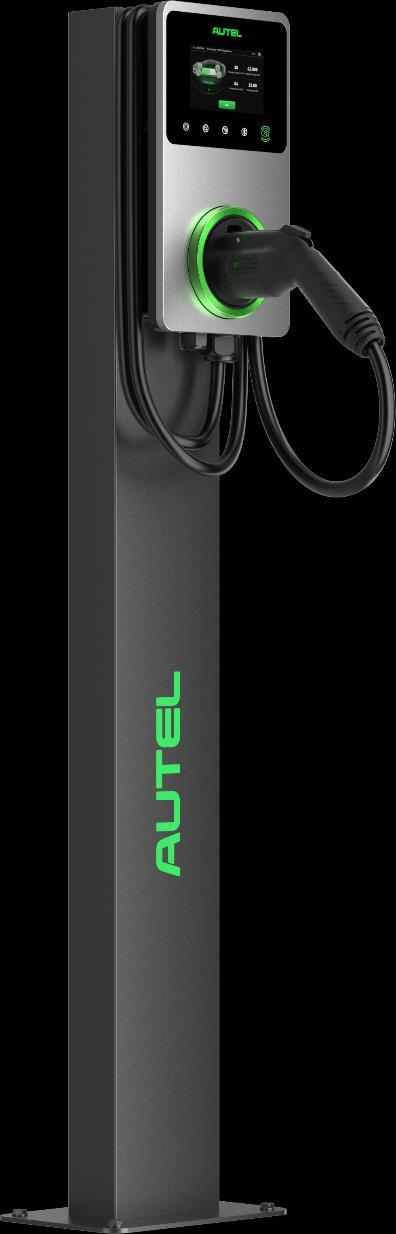

AUTEL MAXICHARGER AC Elite Business

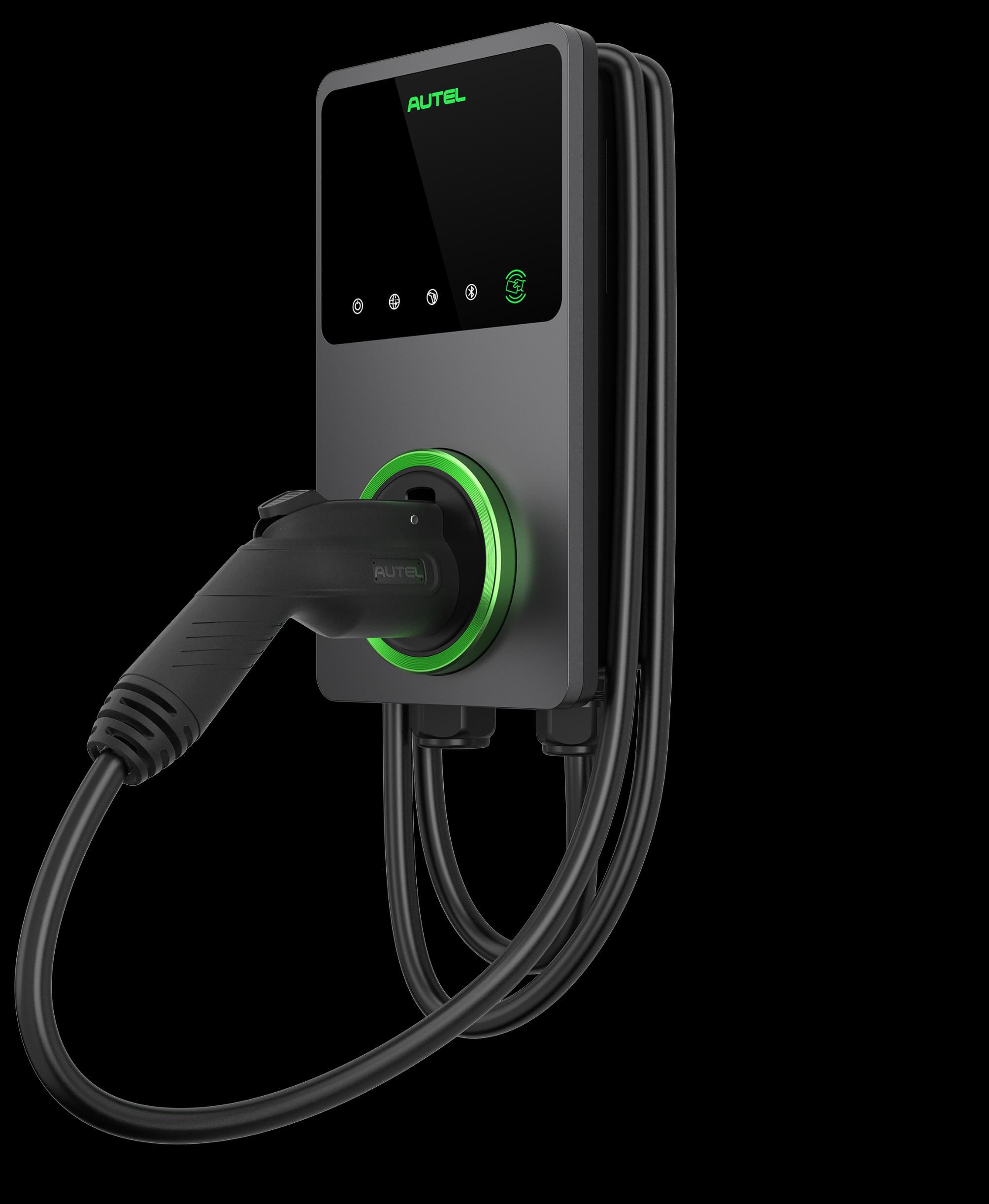

MaxiCharger AC Elite Business

Fast Commercial AC Charging

Charge faster and more efficiently

• Up to a maximum of 50A, creating 12kW of power for increased charging speed

• 9X faster than a traditional AC home charger

• Can be adjusted through a hardware switch or the APP

High Reliability and Durability

Built to last

• Evaluated and tested to UL standards

• NEMA 4X weather protection exterior rated for all-weather use

• Capable of charging at full power from temperature between –40℉ to 131℉

Cloud Based Smart Charging

High convenience

• Connected to Autel Cloud backend and easy way to control, monitor and run your business

• In real time dynamically balance energy to reducing electricity costs

• Easy to maintain

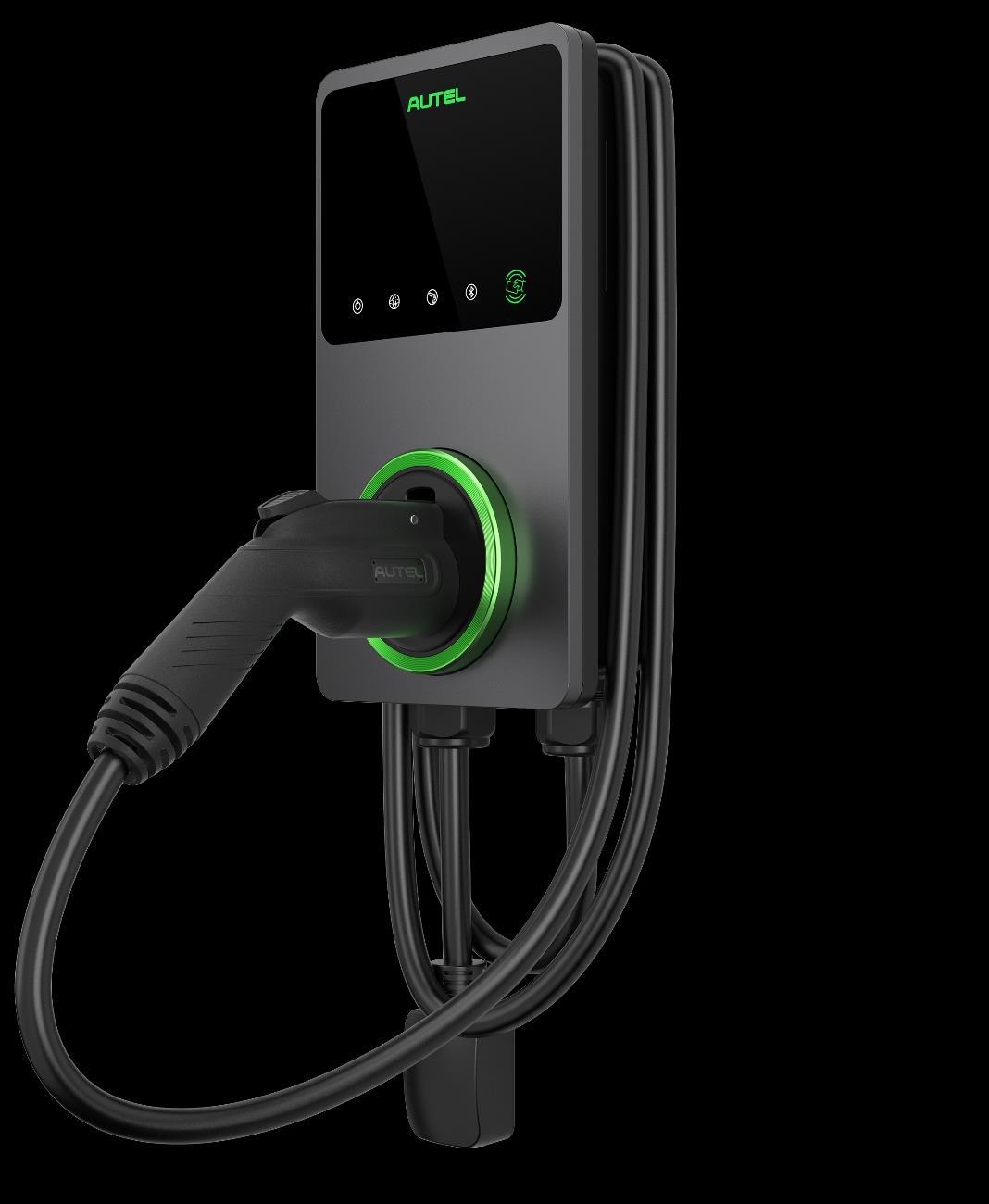

MaxiCharger AC Elite Business

MaxiCharger AC Elite Business

• OTA Update

• Cloud Portal and OCPP Capability

• Universal J1772 Interface with 25' Cable

• Real-Time Notification and Report

• Dynamic Load Balancing

• Revenue Generation

• 5-inch LCD Touch Screen

• Wifi, Ethernet cable, Bluetooth, 4G

MaxiCharger AC Elite Business

Technical Specifications

Product Information

Input/output power rating and current 12kW (240V AC*50A)

Input/output voltage 208V±15%; 240V±15%, 60Hz

Network type L1/N+PE, L1/L2/PE

Input cord Hardwired

Connector type SAE J1772, 7.5m (25')

Ground fault detection 20mA CCID

Protection Overcurrent, overvoltage, undervoltage, integrated surge protection

Card reader ISO 15693, ISO 14443

Power measurement accuracy +/- 1.0%, CTEP Certified

Enclosure rating NEMA 4X

Operating altitude 2000m

General Characteristics

Operating temperature range -40℉ ~ +131℉ (-40℃ ~ +55℃)

Storage temperature range -40℉ ~ +185℉ (-40℃ ~ +85℃)

Mounting Wall or floor using a pedestal

Dimensions (H×W×D) 336×187×85 mm

Status indication

LED/APP/Touch Screen (5 inch LCD, 800*480)

User interface Autel Charge APP; Autel Charge Cloud

User Interface

Connectivity Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485

Communication protocols OCPP 1.6J

User authentication APP, RFID card

Software Update Software update OTA updates via web portal

Safety and compliance UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916

Certification and Standards

EMC compliance

FCC 15 Class B

Certification Energy Star, OpenADR 2.0b

Warranty 36 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

AUTEL MAXICHARGER

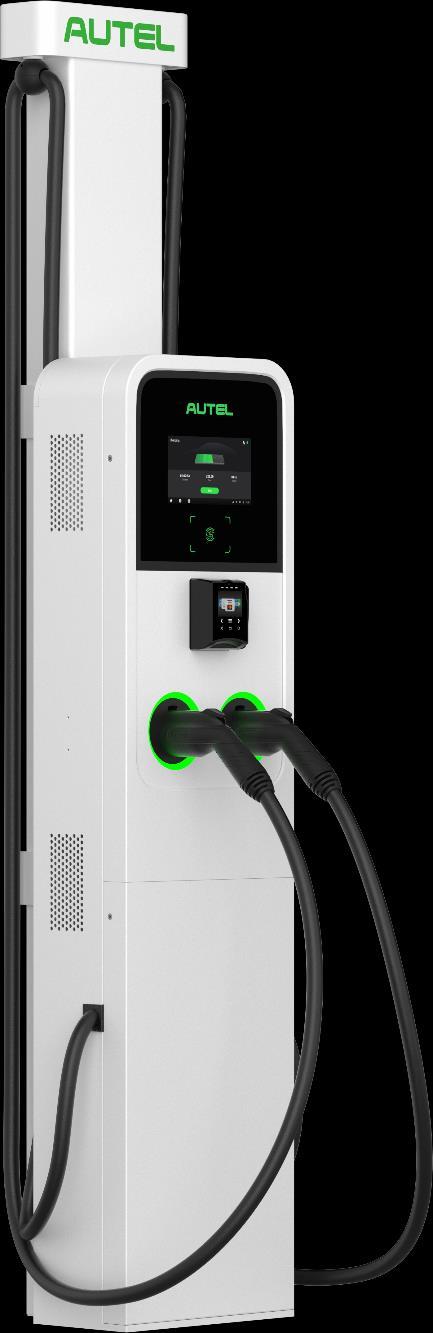

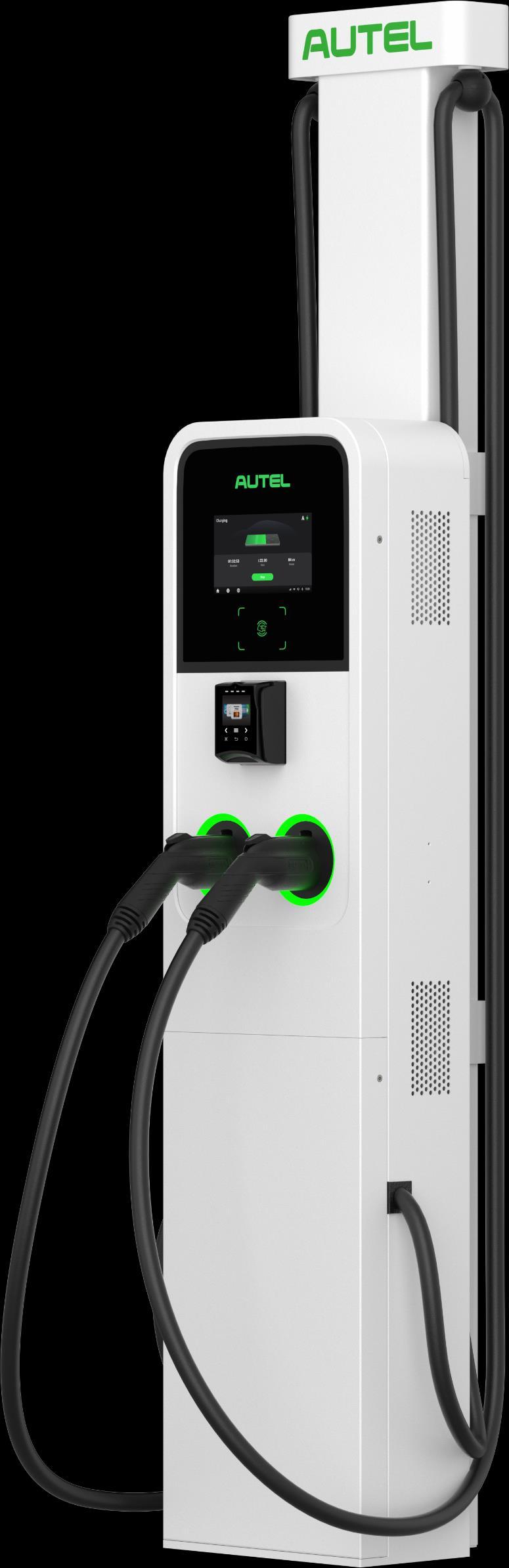

MaxiCharger AC Ultra

Fast and Efficient

Create an exceptional charging experience

• At 19.2kW per port this charger leads the industry by fast charging 2 vehicles simultaneously, and generates 75 miles of range within 60 min

• Designed with ISO 15118 Plug & Charge, for a hassle-free charging experience

Best-value Design

Tailored for commercial deployment

• Rugged design allows it to be wall-mounted or floor-mounted to support your application needs

• One-piece construction makes it easy to install resulting in lower costs and a faster ROI

Smart Charging

Future-proof, flexible and improves your bottom-line

• Smart functionality with compliance, can adapt its power usage and provide optimal charging today and into the future

• Reduce capital investment in power capacity

MaxiCharger AC Ultra

MaxiCharger AC Ultra

• Cable Management

• One-piece Pedestal Housing Combination

• WiFi Hotspot Sharing

• Power Sharing

• 8-inch HD Advertising Screen

• APP, RFID Card, Credit Card, Mobile Payment

• One-Stop Cloud Network Management

• OCPP Compliance

• Weather Resistant

2*19.2kW (240V AC*80A）

MaxiCharger AC Ultra

Product Information

Technical Specifications

General Characteristics

Input/output power rating and current

Output amperage adjustable via mobile app, from 6A to 80A

Input/output voltage 208V±15%; 240V±15%, 60Hz

Network type L1/N+PE, L1/L2/PE

Input cord Hardwired

Connector type SAE J1772, 7.5m (25’) or 5m

Ground fault detection 20mA CCID

Protection

Overcurrent, overvoltage, undervoltage, integrated surge protection

Card reader Optional: ISO 15693, ISO 14443

Power measurement accuracy +/- 1.0%

Enclosure rating NEMA 3R

Operating altitude 2000m

Operating temperature range -40℉ ~ +131℉ (-40℃ ~ +55℃)

Storage

Mounting Wall or floor using a pedestal

Dimensions (H×W×D) 625×320×170mm

Status indication LED/APP/LCD (8 inch touch screen, 1280*720)

User interface Autel Charge APP; Autel Charge Cloud

User Interface

Connectivity Bluetooth, Wi-Fi, Ethernet, 4G, RS485

Communication protocols OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)

User authentication APP, RFID card, Credit Cards (Optional)

Software Update Software update

Safety and compliance

OTA updates via web portal

UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916

Certification and Standards

EMC compliance

Certification

FCC 15 Class B

Energy Star, OpenADR 2.0b

Warranty 36 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

AUTEL MAXICHARGER

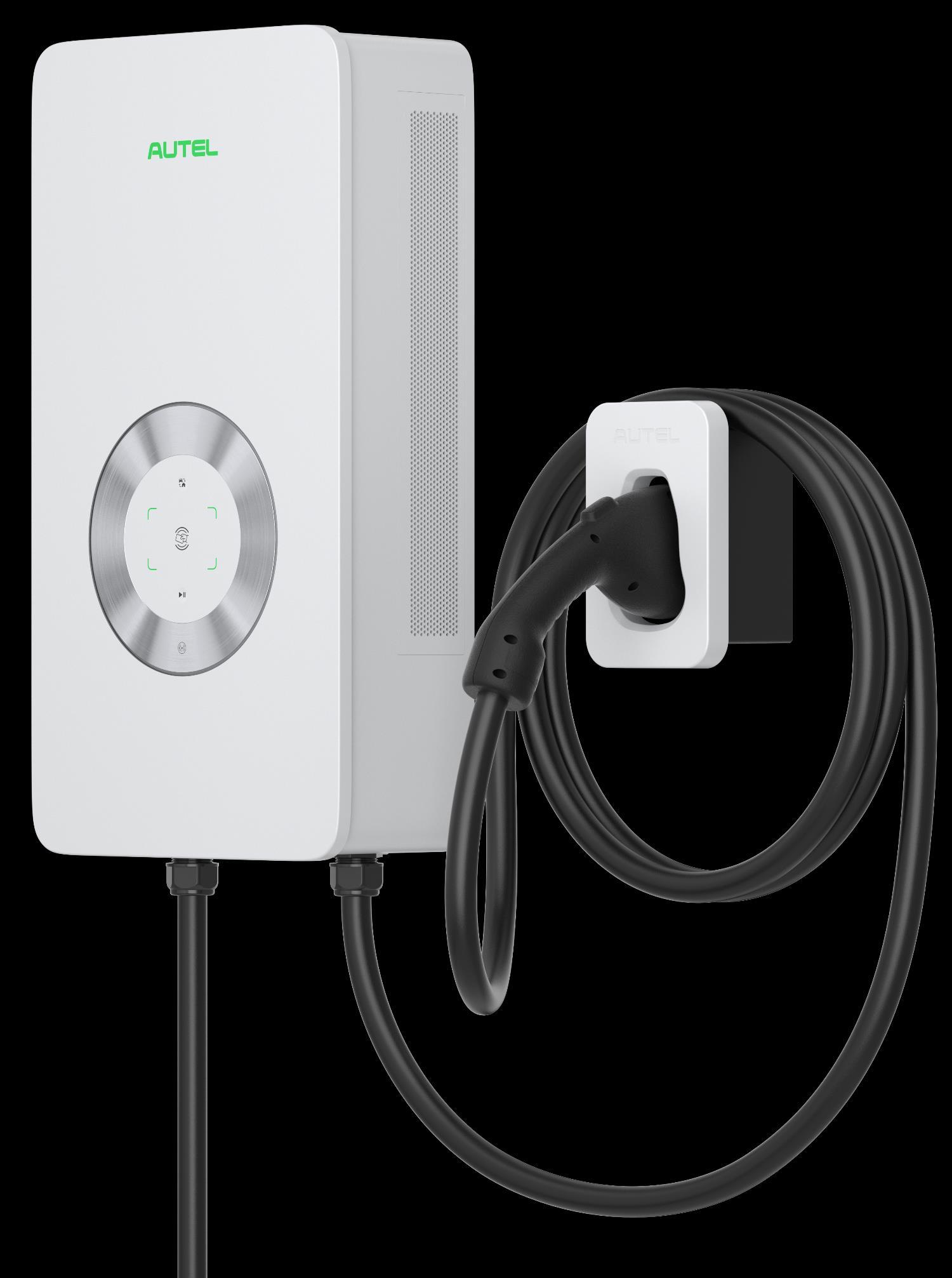

DC V2X

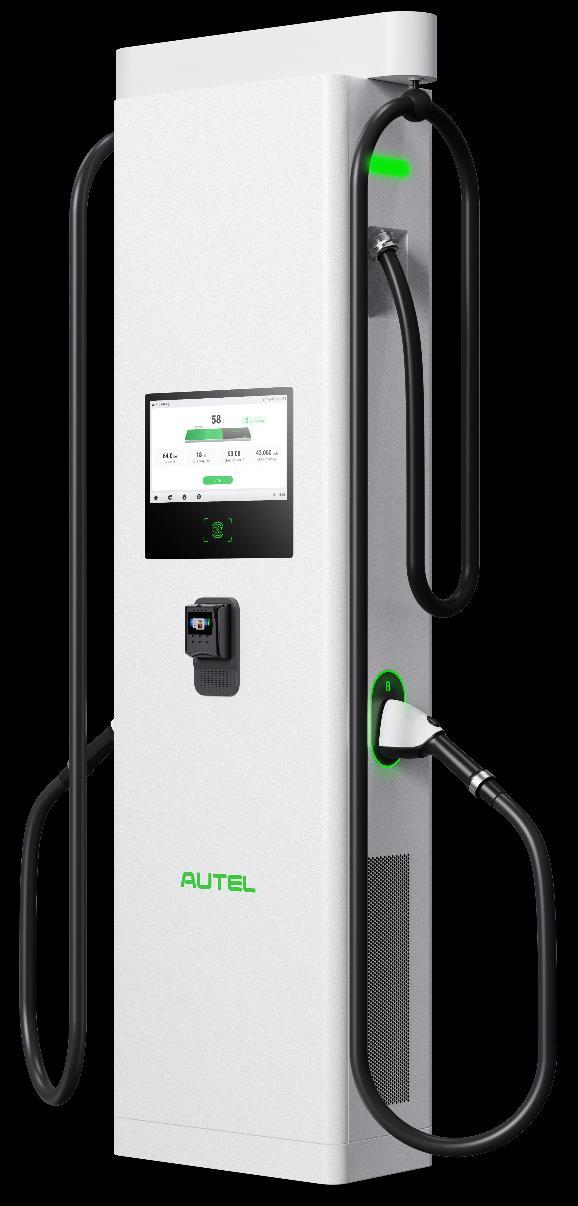

MaxiCharger DC V2X

Bi-Directional Power Conversion

Designed to be more than just a fast charger

• 12kW bi-directional power supports fast charging and provides supplemental power when needed

• ENERGY STAR® certified means you use less energy and ultimately save money

Intelligent Switching Technology

Reliable backup power under multiple situations

• During a blackout Auto Switch-on automatically disengages your home from the grid, and uses your EV to power your home

• The app or the cloud can be configured to divert energy from your vehicle to power your home during peak times when energy costs are the highest, saving your money

• V2X comes with future ready technology compatible with Home Energy Management System (HEMS)

Smart Micro-Grid of Tomorrow Today

Built for energy saving and a green future

• When integrated with solar and energy storage your EV becomes a microgrid, and our V2X charger enables intelligent power management distribution to cover energy demand changes and charges

• By redistributing energy back to the grid, you may be able to participate in green energy trading, helping to save electricity and reduce your electric bill

MaxiCharger DC V2X

MaxiCharger

DC V2X

• 97% Peak Efficiency

• NEMA 4X Rating

• IK10 High Impact Resistant

• Ultra-Low Noise Level < 50db

• Adaptive Load Management

• Aesthetic Design

• Compatible with CCS1, CHAdeMO

• Supports Plug-to-Charge and Plug & Charge

MaxiCharger DC V2X

Technical Specifications

DC Output Connection

Charging mode CCS1 or CHAdeMO

Output power 7/12kW

Output voltage CCS1: 150V DC-950V DC, CHAdeMO: 150V DC-500V DC

Output current 40A @ 300V

Number of outputs 1*CCS1 or 1*CHAdeMO

Peak efficiency ≥97%

Earthing system L1/L2/PE

Input voltage 208/240Vac

AC Input Connection

General Characteristics

Input frequency 60Hz

Power factor ≥0.99

Harmonic distortion (THDi) ≤5%

Enclosure rating NEMA 4X

Operating altitude 2000m

Operating temperature range -13℉ ~ +122℉ (-25℃ ~ +50℃)

Storage temperature range -40℉ ~ +185℉ (-40℃ ~ +85℃)

Mounting Wall or floor using a pedestal

Dimensions (H×W×D) 711×386×170mm

Cable length 5m

Status indication LED/APP

User interface Autel Charge APP; Autel Charge Cloud

User Interface

Connectivity Bluetooth, Wi-Fi, Ethernet, CAN, RS485

Communication protocols OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)

User authentication APP, RFID card

Software Update Software update

Safety and compliance

Grid standards

OTA updates via web portal

UL2202, CSA C22.2 No.107.1, UL9741, UL 1741:2021, CSA 22.2.107.1:2016, NEC Article 615

Certification and Standards

UL 1741 SA/SB:2021, IEEE 1547:2018, IEEE 1547.1:2020, Rule 21, HECO Rule 14; IEEE 1547.1:2022; Interoperability testing; PRD-024-1

EMC compliance FCC 15 Class B

Certification Energy Star, OpenADR 2.0b

Warranty 24 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

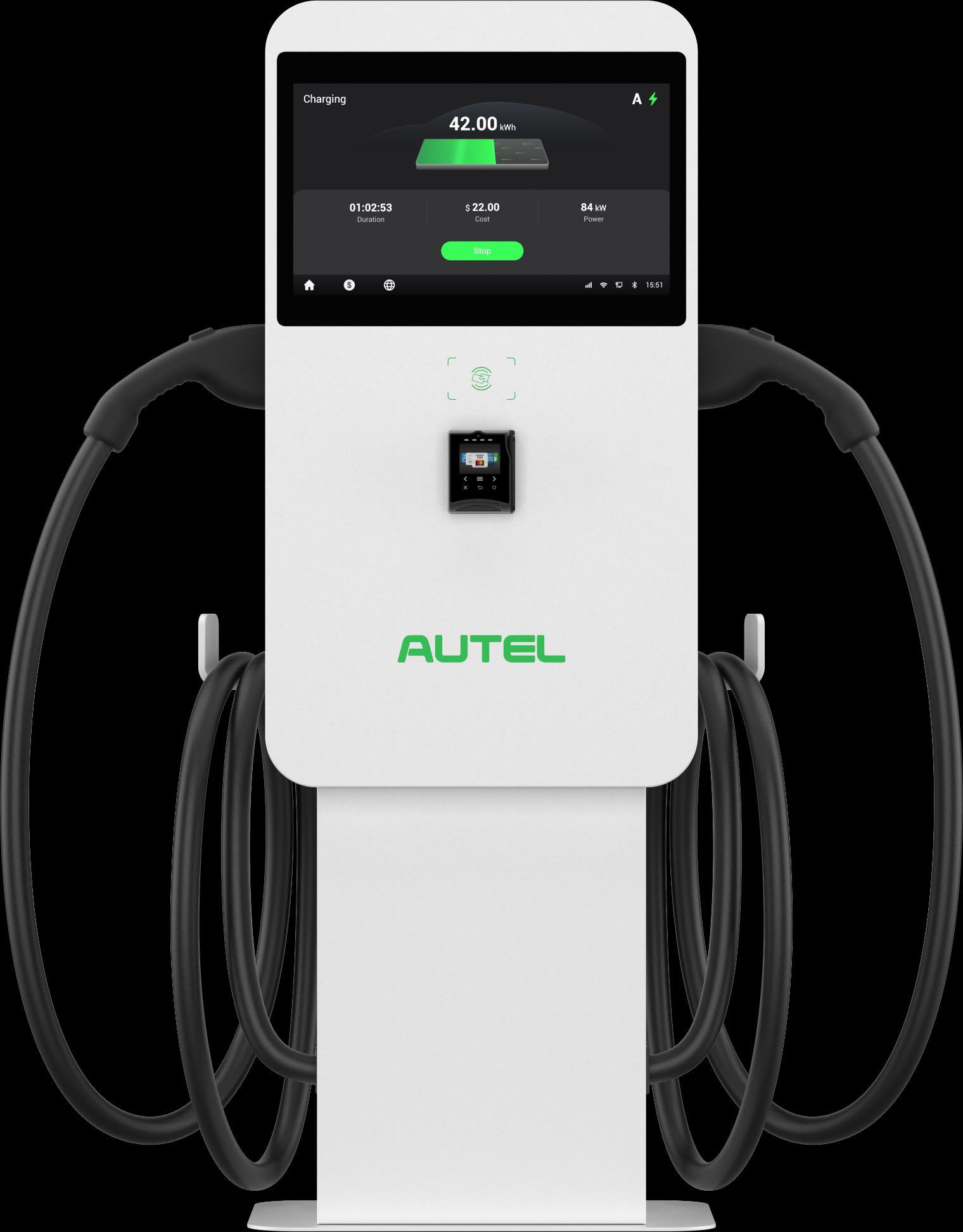

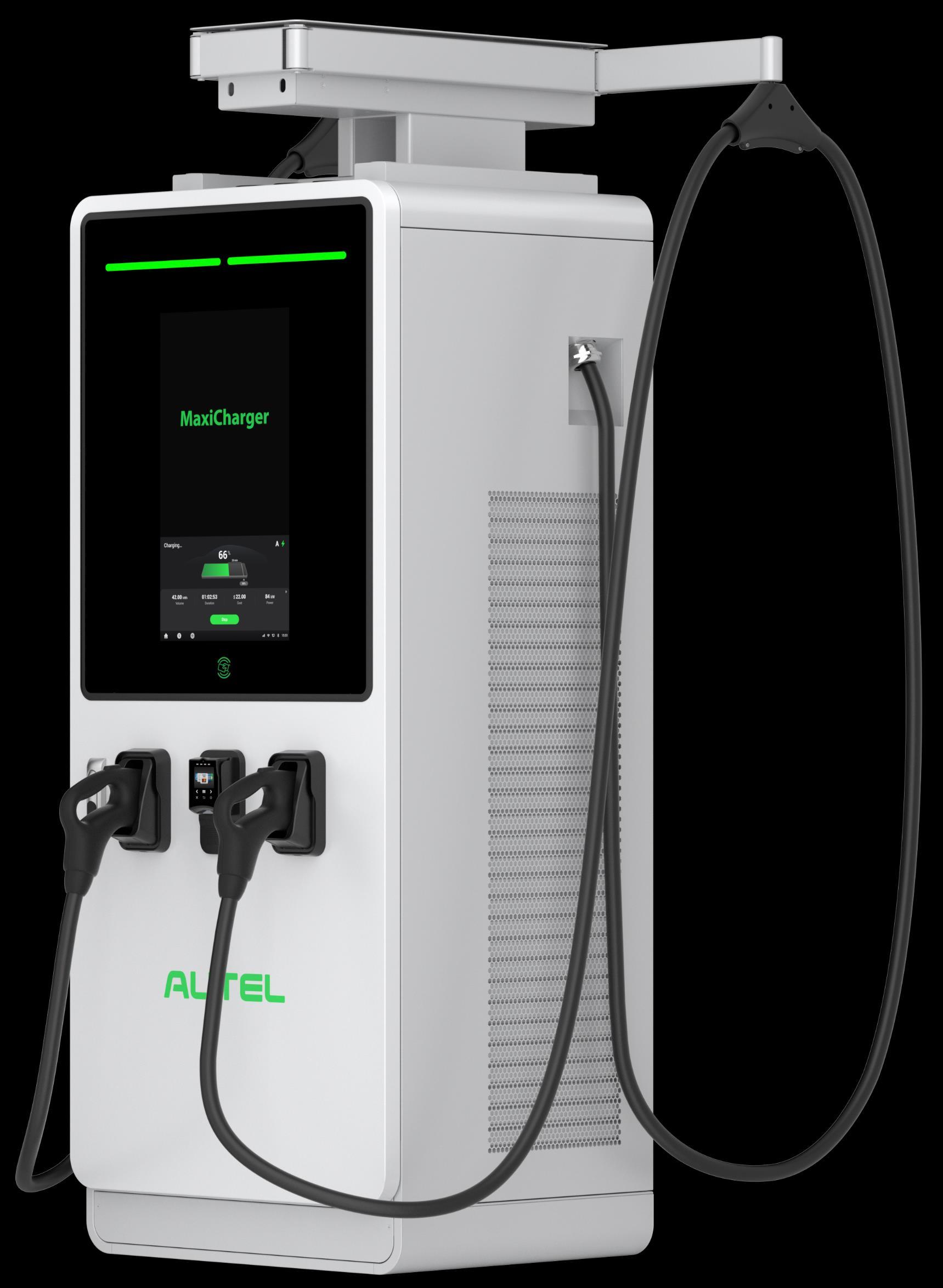

AUTEL MAXICHARGER DC Compact

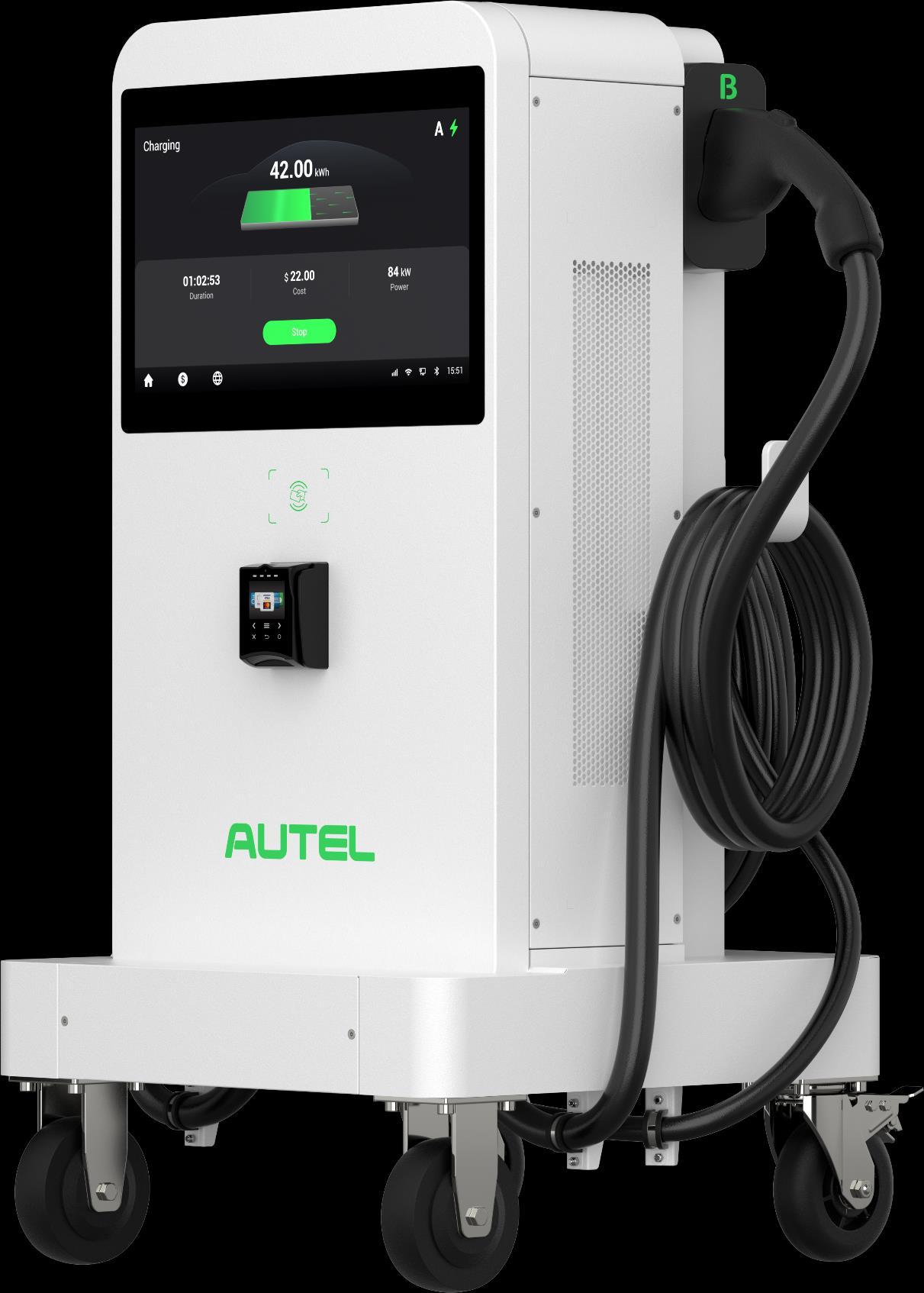

MaxiCharger DC Compact

MaxiCharger DC Compact

Fast and Effective

Built to Increase Charging Efficiency

• Dual-ports provide up to 40kW of power

• Charge 2 vehicles simultaneously

• A 30 min charge equates to 80+ miles of range

Compact Design

Optimized for Any Location

• Ultra-compact with big DC power in a small package

• Flexible installation allows for fixed or mobile positioning

• DC Compact has low installation costs, meaning a faster ROI due to reduced capital expenditures for the site operator

Smart Advertising and Communication Portal

Improve Your ROI

• User-friendly 21.5-inch LCD touch screen

• Powered by smart operating system, Android 10 with enhanced advertising placement

• Communicate, promote or attract customers generating new revenue streams

MaxiCharger DC Compact

MaxiCharger DC Compact

• OCPP Compliance

• One Stop Cloud Network Management

• 96% Charging Efficiency

• 18 Safety Monitoring Items

• Plug & Charge

• Smart Charging

• Compatible with CCS1, CHAdeMO

• Support APP, RFID Card, Credit Card, Mobile Payment

• Weather Resistant

39.4 inch

MaxiCharger DC Compact

Technical Specifications

DC Output Connection

Charging mode Mode 4: CCS1

Output power 40kW

Output voltage 150-950V

Max output current CCS1: 133A; CHAdeMO: 125A

Number of outputs 2*CCS1, or 1*CCS1+1*CHAdeMO, or 1*CCS1

Peak efficiency ≥96%

Earthing system 3P, PE (No neutral)

Input voltage 3-phase 480V AC+10%~-15%

AC Input Connection

General Characteristics

Input frequency 60Hz

Power factor ≥0.99

Harmonic distortion (THDi) ≤5%

Enclosure rating NEMA 3S

Operating altitude 2000m

Operating temperature range -22℉ ~ +131℉ (-30℃ ~ +55℃)

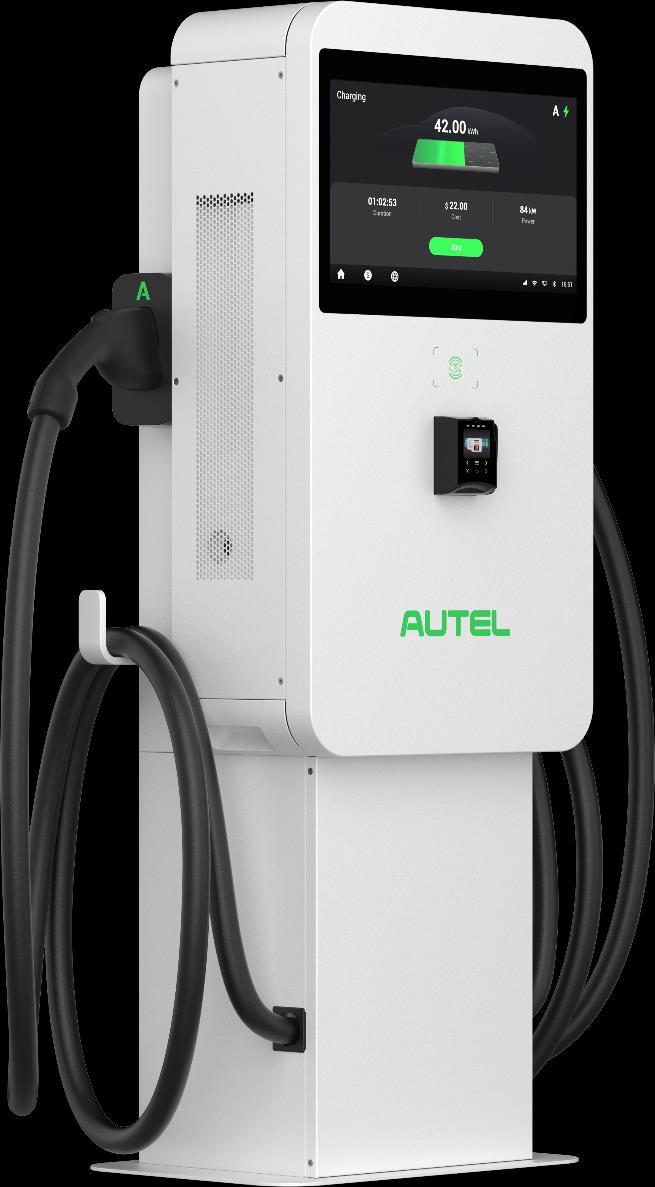

Storage temperature range -40℉ ~ +158℉ (-40℃ ~ +70℃)

Mounting Pedestal or wheels

Dimensions (H×W×D) 1000×550×265 mm

Screen type 21.5 inch LCD touch screen (1920*1080)

Cable length 5.5m standard; 7.5m optional

Status indication LED/LCD/APP

User interface Autel Charge APP; Autel Charge Cloud

User Interface

Connectivity 4G, Wi-Fi, Ethernet

Communication protocols OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)

User authentication APP, RFID card, Credit card (Optional)

Software Update Software update OTA updates via web portal

Safety and compliance

UL 2202, UL 2231-1, UL 2231-2, CSA No.107.1-16, NEC Article 625, ISO 15118

Certification and Standards

EMC compliance FCC 15 Class A

Warranty 24 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

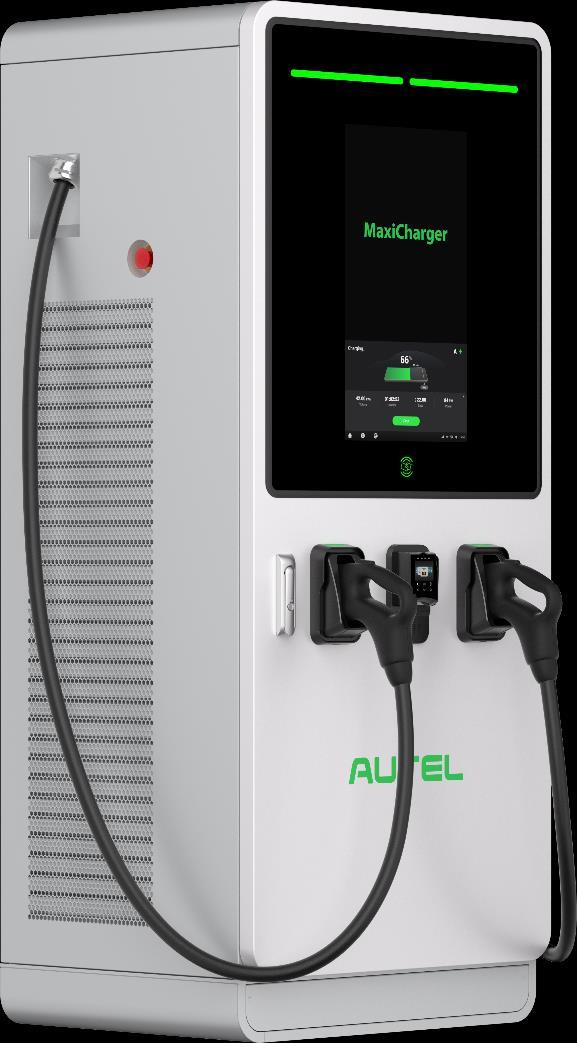

AUTEL MAXICHARGER DC Fast

MaxiCharger DC Fast

Powerful

Charge faster and more efficiently

• Up to 240 kW of fast charging

• Provides up to 125 miles of range in 10 min with a Maximum 400A output current

• Charging speed improved by up to 30% with boost mode

Smart

Advertising and Communication Portal

Improve your ROI

• Show the charging related Info like State of Charge (SOC), Cost, kWh

• Offer an additional channel to boost revenue with the display of advertisements

• Communicate, promote or attract customers generating new revenue streams

Highly Reliability

Charge without worries

• Continually testing and evaluating new vehicle for interoperability

• Compatible with all vehicles of IEC standards

• Charging success rate higher than industry average

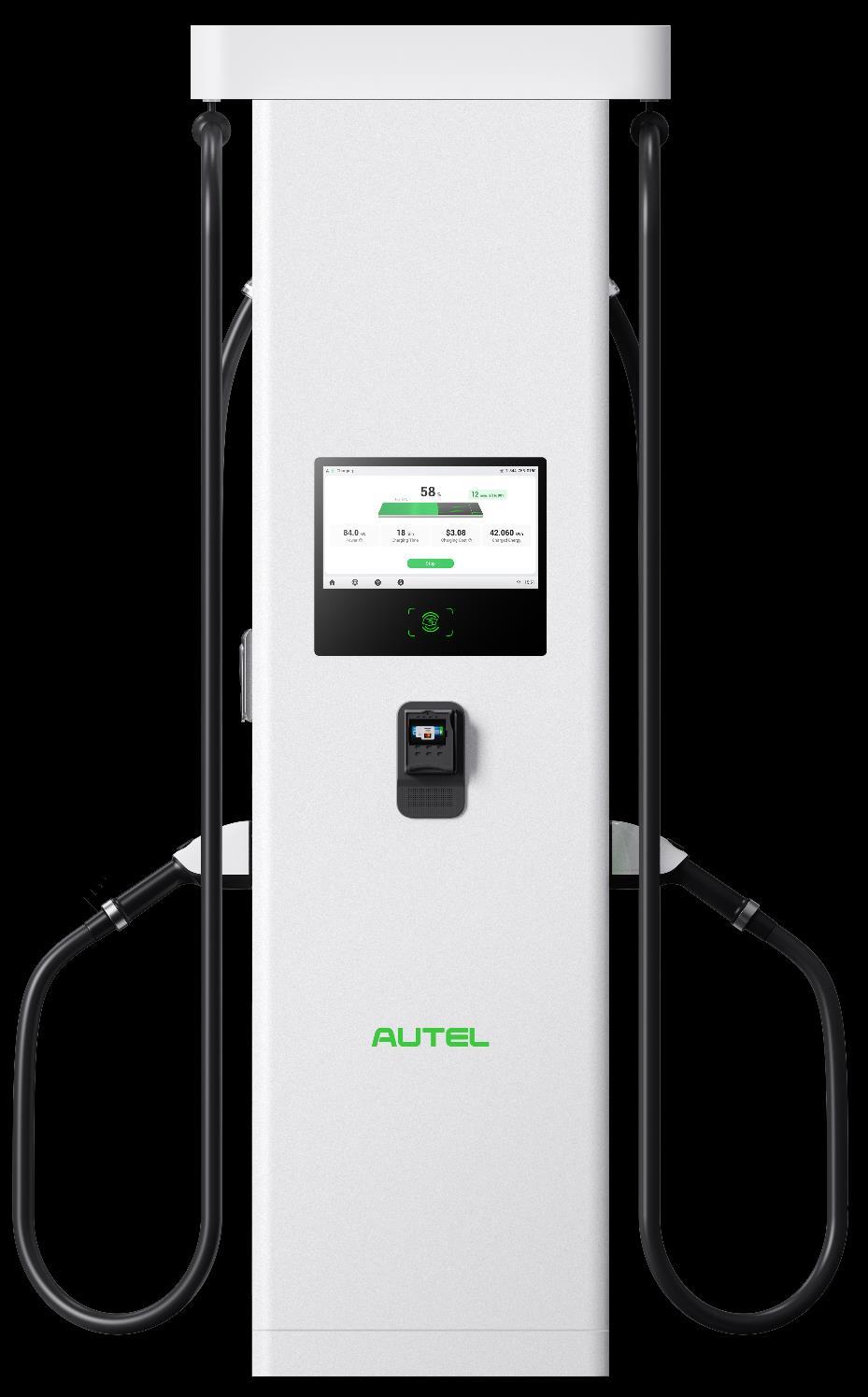

MaxiCharger DC Fast

MaxiCharger DC Fast

• Weather Resistant

• 21 Safety Monitoring Items

• Smart Cloud Portal & OCPP Capability

• Remote Update & Diagnostics

• Smart Charging

• Plug & Charge

• 96% Charging Efficiency

• Flexible Hardware & Software Customization

• Compatible with CCS1, CCS1 Boost or CHAdeMO

• Support APP, RFID Card, Credit Card, Mobile Payment

MaxiCharger DC Fast

Technical Specifications

DC Output Connection

Charging mode Mode 4: CCS1

Output power 60kW/120kW/180kW/240kW

Output voltage 150-950V

Output current

CCS1:Standard: 200A; Optional 300A (Nominal), 400A (Peak)

CHAdeMO: 125A or 200A

Number of outputs 2*CCS1, or 1*CCS1+1*CHAdeMO

Peak efficiency ≥96%

Earthing system 3P, PE (No neutral)

Input voltage 3-phase 480V AC+10%~-15%

AC Input Connection

General Characteristics

Input frequency 60Hz

Power factor ≥0.99

Harmonic distortion (THDi) ≤5%

Enclosure rating NEMA 3S

Operating altitude 2000m

Operating temperature range -31℉ ~ +131℉ (-35℃ ~ +55℃)

Storage temperature range -40℉ ~ +158℉ (-40℃ ~ +70℃)

Mounting Floor Standing

Dimensions (H×W×D) 1950×820×600mm (60kW/120kW) 1950×820×700mm (180kW/240kW)

Screen type 27 inch LCD touch screen (1920*1080)

Cable length 4.5m standard; 5.5m or 7.5m optional

Status indication LED/LCD/APP

User interface Autel Charge APP; Autel Charge Cloud

User Interface

Connectivity 4G, Wi-Fi, Ethernet

Communication protocols OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)

User authentication APP, RFID card, Credit card (Optional)

Software Update Software update OTA updates via web portal

Safety and compliance UL 2202, UL 2231-1, UL 2231-2, CSA No.107.1-16, NEC Article 625, ISO 15118

Certification and Standards

EMC compliance FCC 15 Class A

Warranty 24 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

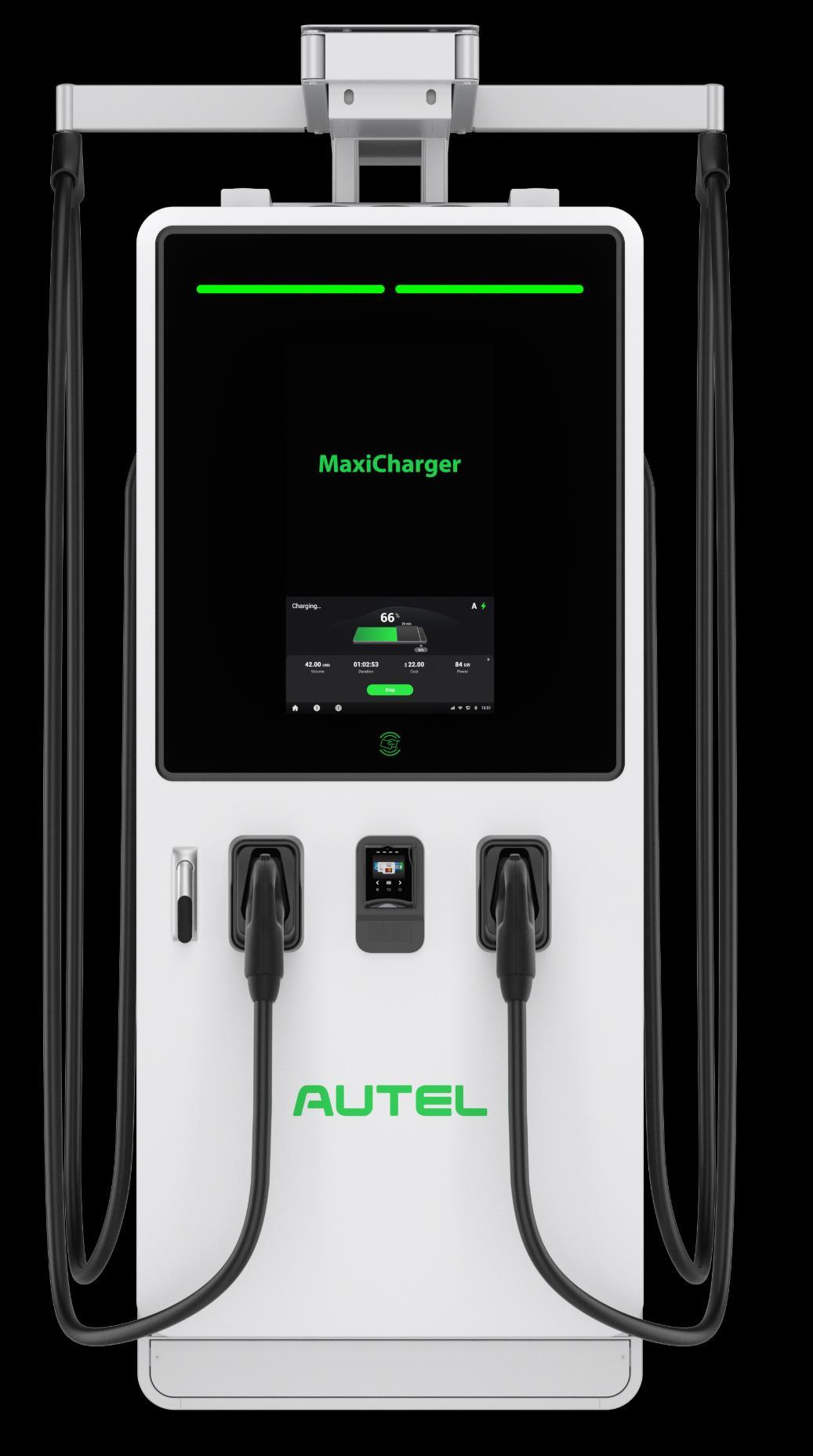

AUTEL MAXICHARGER

MaxiCharger DC HiPower

Ultra-Fast

Deliver a seamless and efficient charging experience

• Max. 650A liquid-cooling and low-temp fast charging tech provides up to 250 miles of range in 10 mins

• Smart Power Distribution can charge up to 8 vehicles simultaneously, increasing efficiency and utilization

Intelligent

Unlock new levels of battery health and charging Intelligence

• Revolutionary AI algorithm increases EV battery life by up to 20%

• Intelligent charging navigation planning system enhances battery health

Future-Proof

Built for energy-saving and a green future

• Dynamic module dispatching and load balancing reduce power expansion, saving up to 20,000 kWh per year

• Compatible with solar power, energy storage, and EMS for efficient energy management

Robust

Designed for high reliability to reduce costs

• Ultimate modularity for easy O&M with single person operation and 98% availability

• Self-protection system includes 21 system-level safety features

Height 78.7 inch

Width 66.9 inch

Depth 35.4 inch

Height 81.7 mm

Width 22.8 mm

Depth 12.6 mm

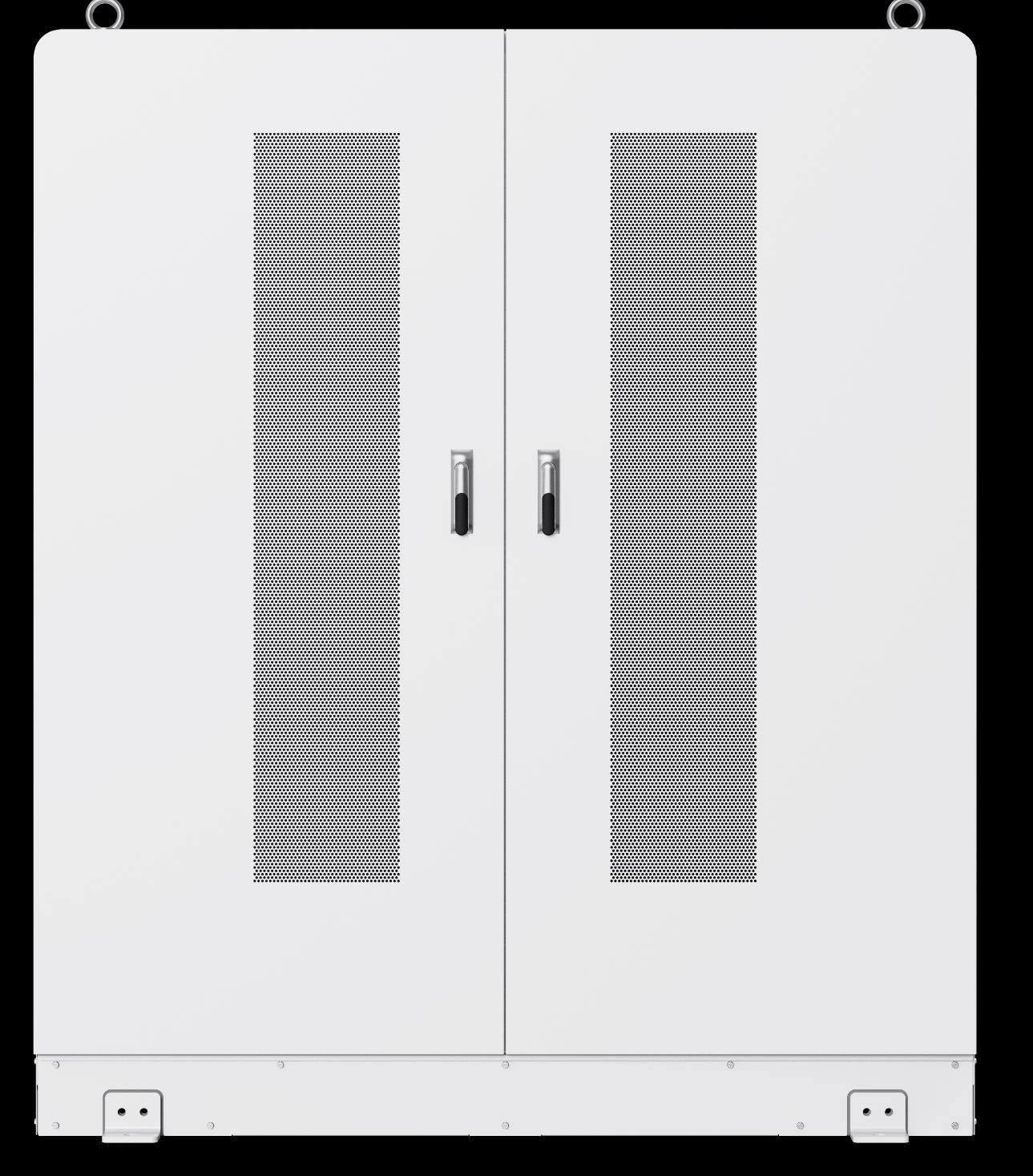

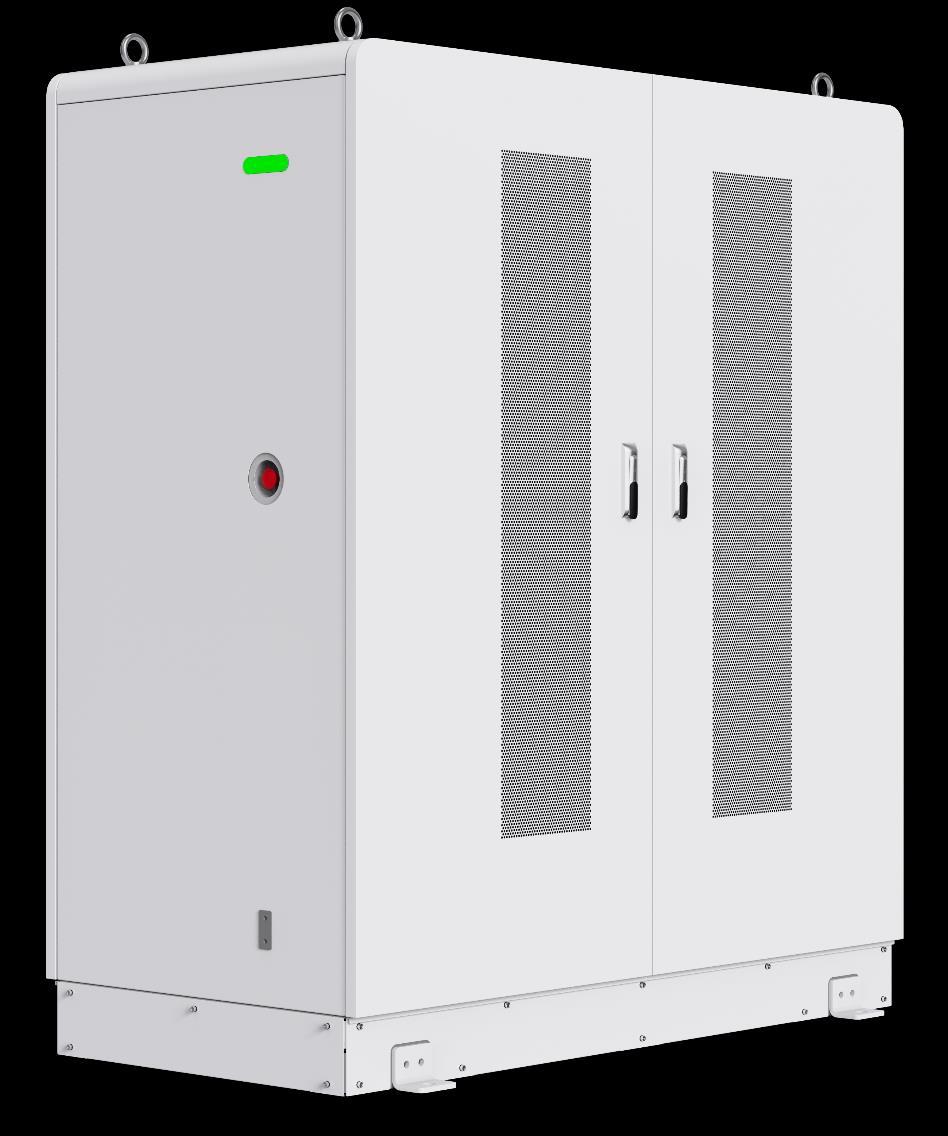

MaxiCharger DC HiPower

Technical Specifications

(Power Cabinet)

MaxiCharger DC HiPower

Technical Specifications (Dispenser)

User Interface Liquid Cooling Dispenser

User interface Autel Charge APP; Autel Charge Cloud Autel Charge APP; Autel Charge Cloud

Connectivity Ethernet Ethernet

Communication protocols OCPP 1.6J (OCPP 2.0.1 Optional)

OCPP 1.6J (OCPP 2.0.1 Optional)

User authentification APP, RFID card, QR code, Credit Card (Optional) APP, RFID card, QR code, Credit Card (Optional)

Software Update Liquid Cooling Dispenser

Software update OTA updates via web portal

Certification and Standards Liquid Cooling Dispenser

Safety standards UL 2202, UL 2231-1, UL 2231-2, NEC Article 625, CSA C22.2 No. 107.1-16;

Certification CSA, FCC part 15 Class A

Design life 10 years

Warranty 24 months, warranty extension possible

Boost Dispenser

OTA updates via web portal

Boost Dispenser

UL 2202, UL 2231-1, UL 2231-2, NEC Article 625, CSA C22.2 No. 107.1-16;

CSA, FCC part 15 Class A

10 years

24 months, warranty extension possible
