AUTEL MAXICHARGER AC Compact

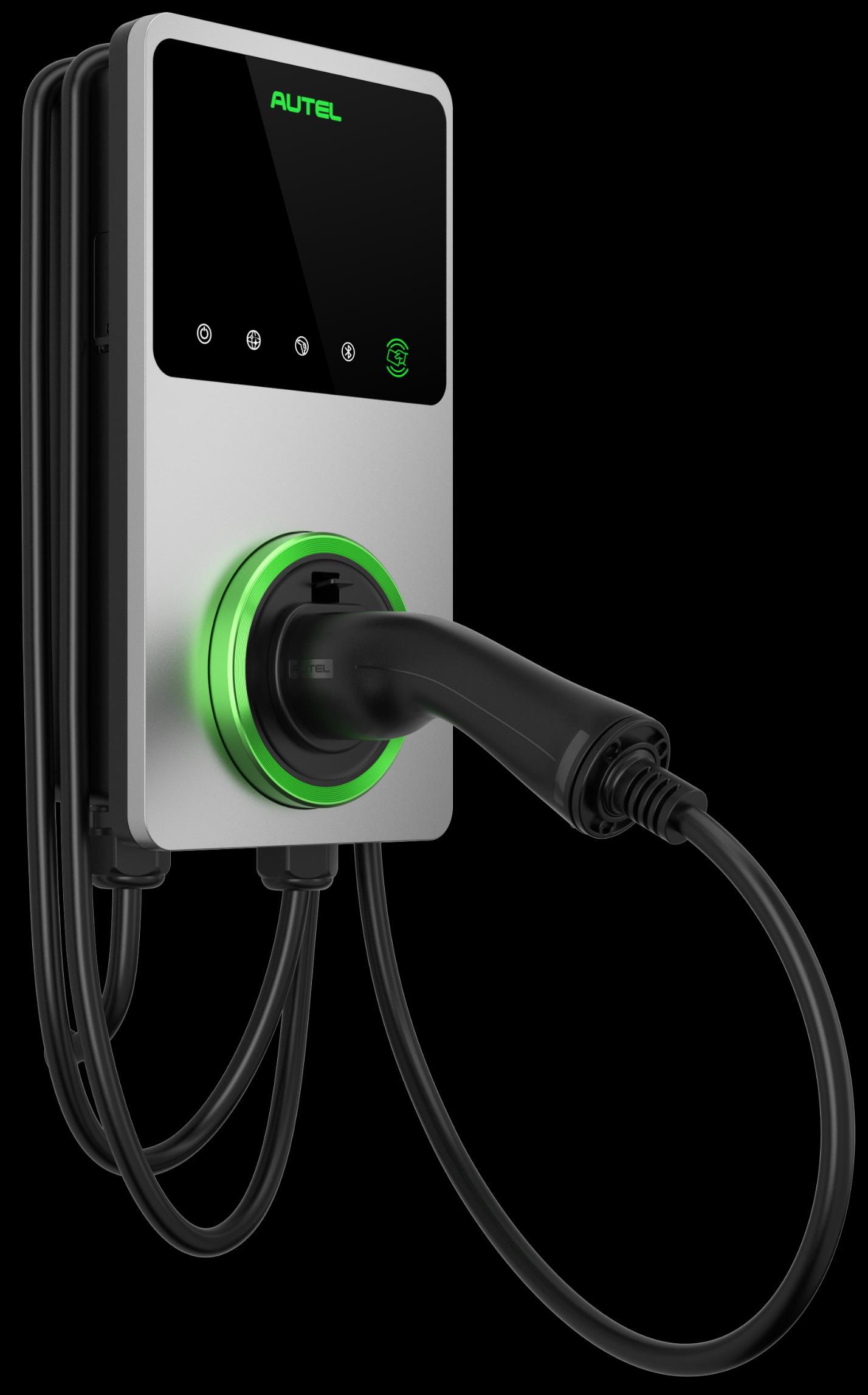

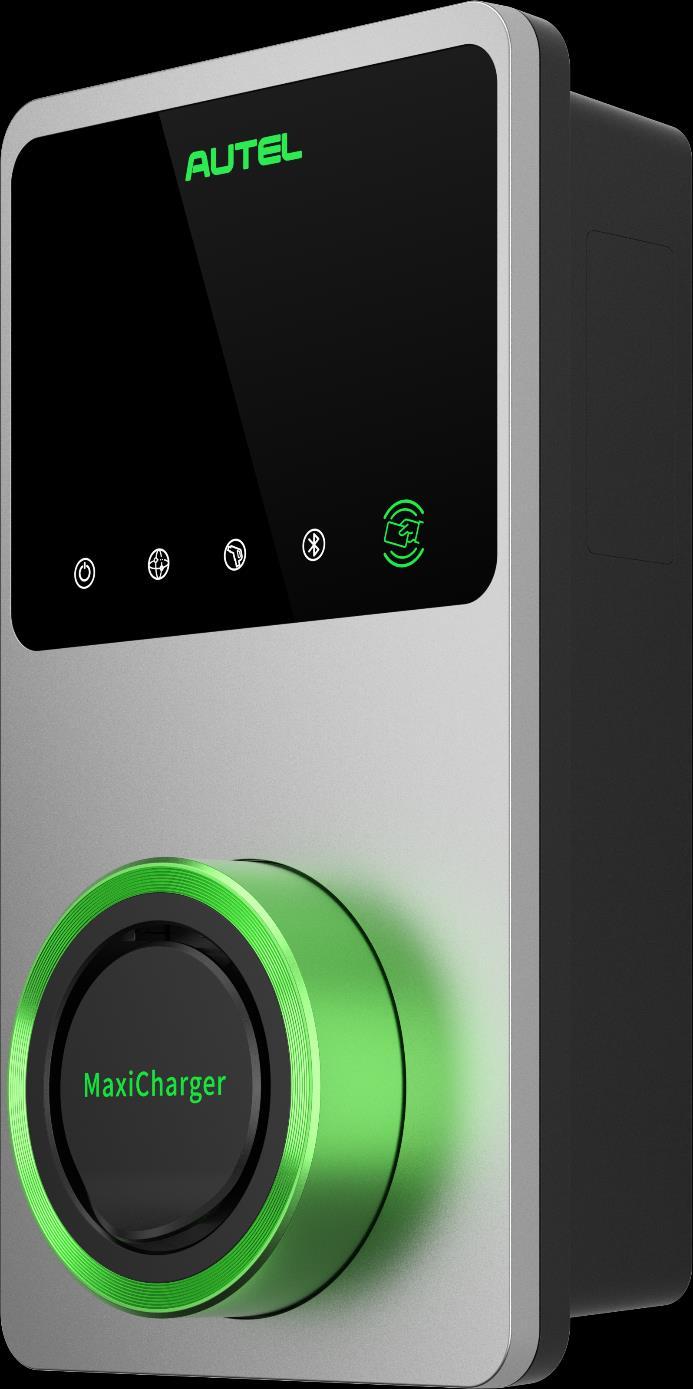

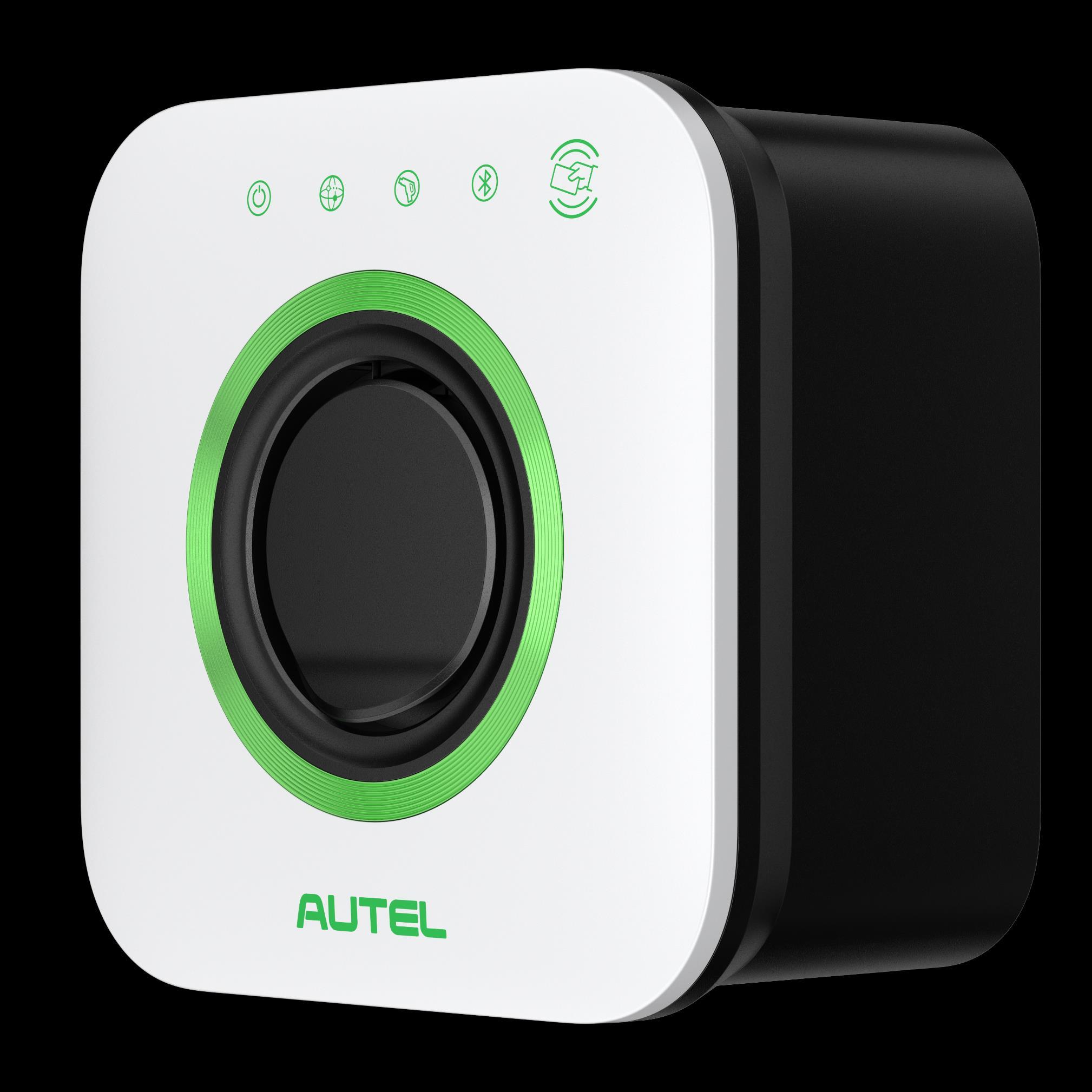

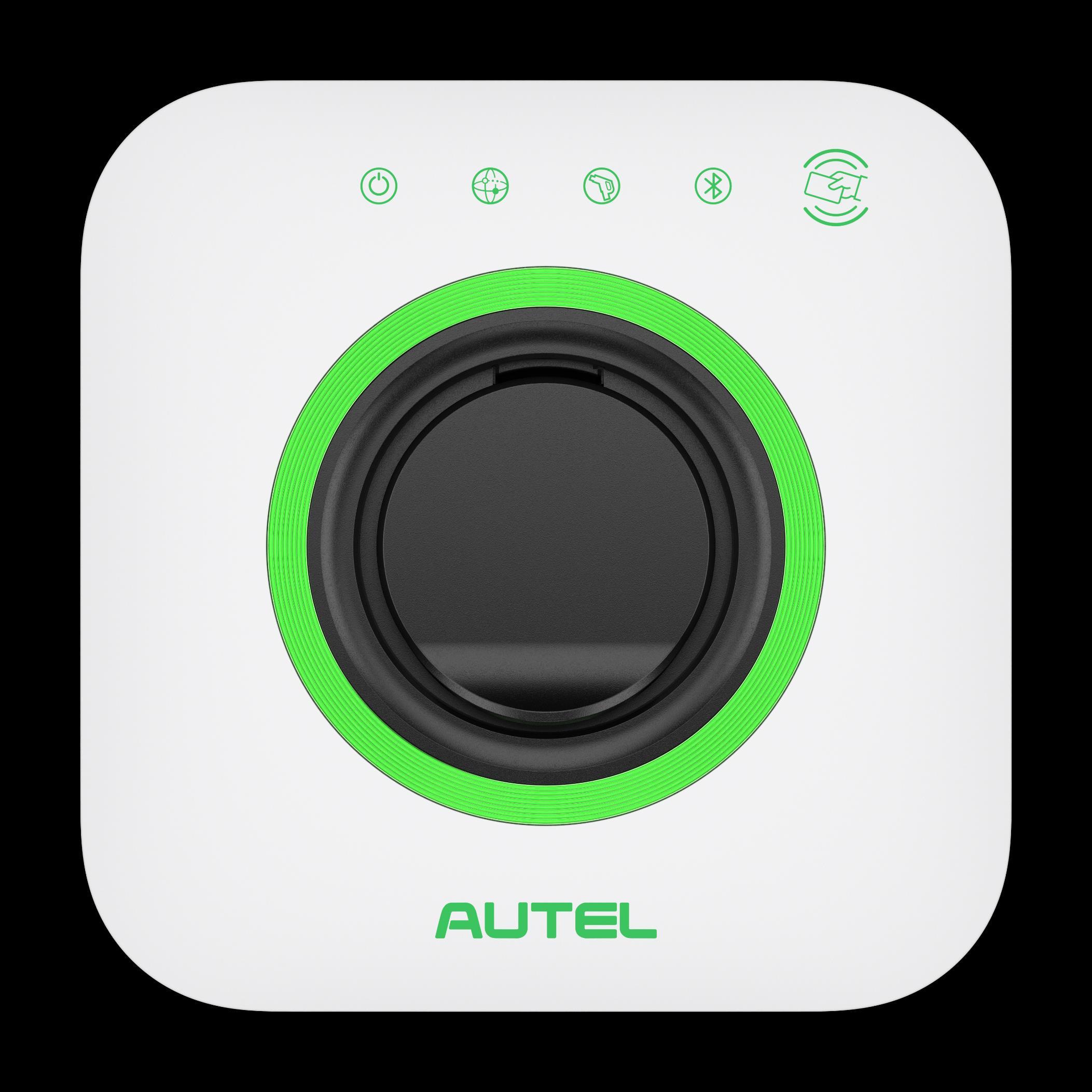

MaxiCharger AC Compact

MaxiCharger AC Compact

Fast

High-value choice to liven up home charging

• Up to 22kW AC charging, 3 times of the speed of common AC chargers

Simple

Optimized installation and maintenance costs

• Smaller than a mini tablet, lighter than a Laptop

• Features modular design, it is easier than ever to install and maintain at lower costs

Reliable

Considerate safety design in every situation

• Reliable charging in all scenes

• RCD Type A + DC 6mA leakage protection

Glacier White Frozen Silver Starlight Gold

MaxiCharger AC Compact

MaxiCharger AC Compact

• Compatible with all EVs with a Type 2 plug

• Adaptive Load Management

• Power Sharing

• Autel Charge App

• IK10 High Impact Resistance

• 24/7 Global Support

• Three-year Warranty

MaxiCharger AC Compact

Technical Specifications

Product information

Input/output power rating and current Single phase up to 7.4kW/32A; Three phase up to 22kW/32A

Input/output voltage 230V±15%, single phase; 400V±15%, three phase; 50Hz

(UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)

Network type

Single phase 3 Wire – L1, N, PE

Three phase 5 Wire – L1, L2, L3, N, PE

Input cord Hardwired

IEC 62196 type 2 normal socket

Connector type

IEC 62196 type 2 socket with shutter

IEC 62196 type 2 cable

Ground fault detection Type A + DC 6mA

Protection Overcurrent, overvoltage, undervoltage, integrated surge protection

Card reader (Optional) ISO 14443

Power measurement accuracy +/- 2.0%

Enclosure rating IP54, IK10, indoor or outdoor installation

Operating altitude 2000m

General characteristics

Operating temperature range -30℃~+50℃

Storage temperature range -40℃~+70℃

Mounting Wall or floor using a pedestal

Dimensions (H×W×D) 202×202×115 mm

Status indication LED/APP

User interface Autel Charge APP; Autel Charge Cloud

User interface

Connectivity Bluetooth, Wi-Fi

Communication protocols OCPP 1.6J

User authentication APP, AutoStart, RFID card (Optional)

Software update Software update OTA updates via web portal

Safety and compliance IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955

Certification and standards

EMC compliance FCC 15 Class B

Certification CE (TUV)

Warranty 36 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

AUTEL MAXICHARGER

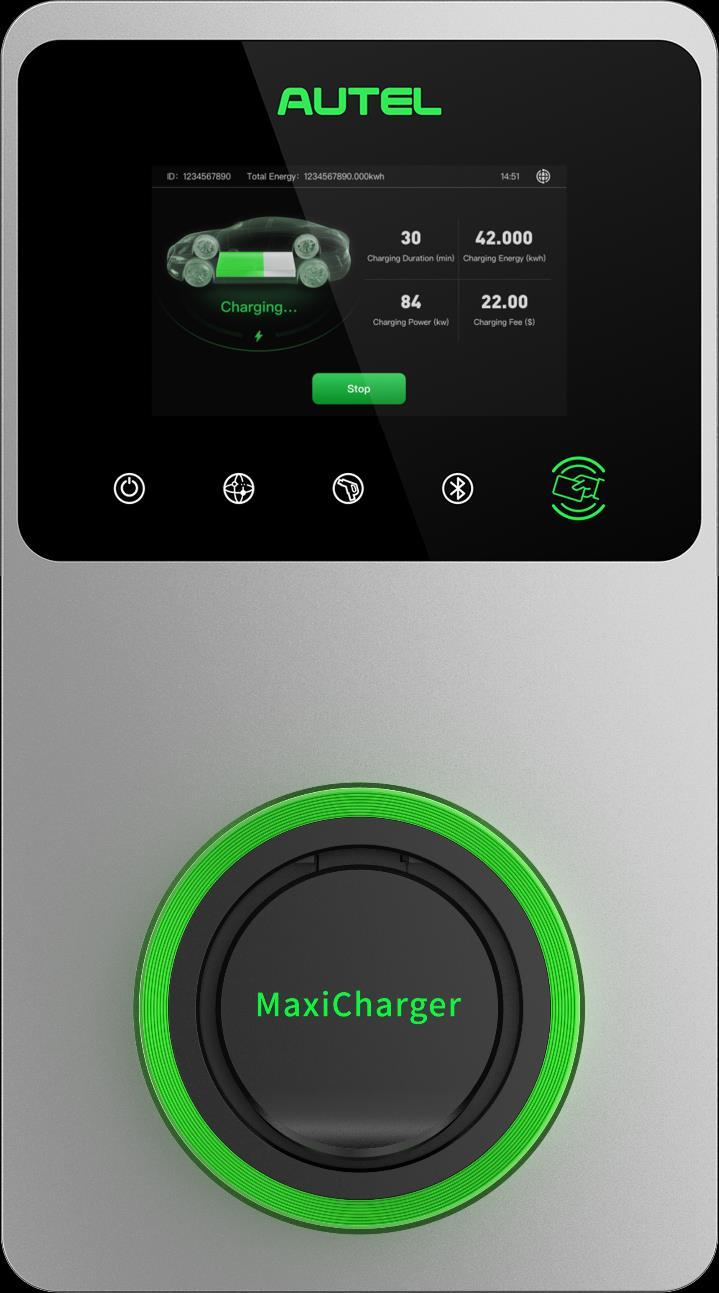

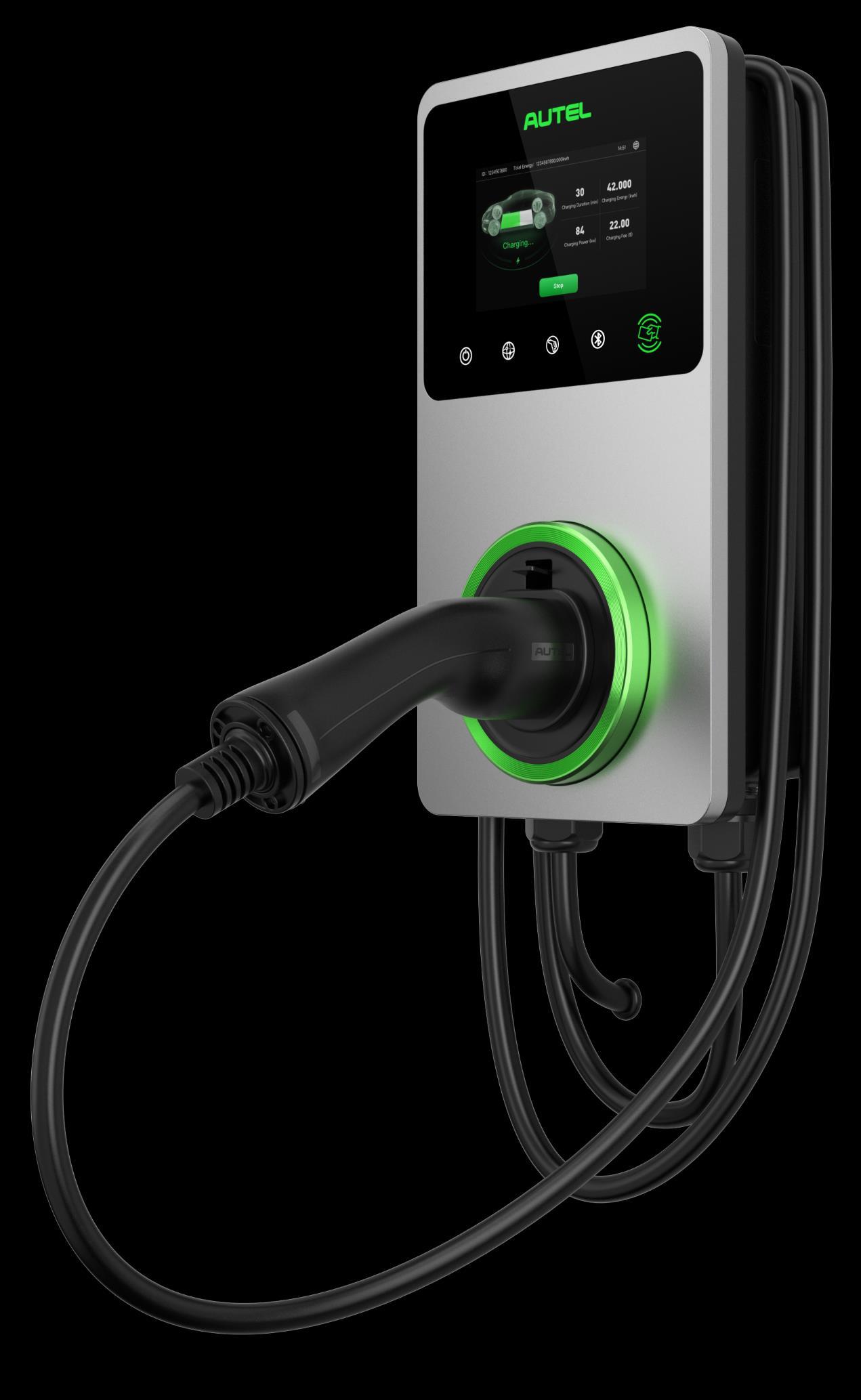

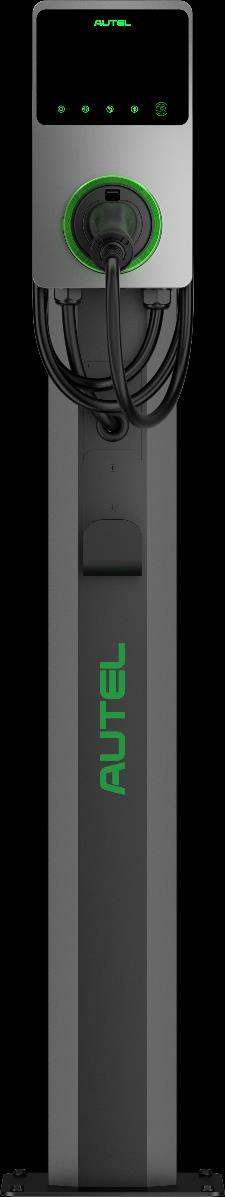

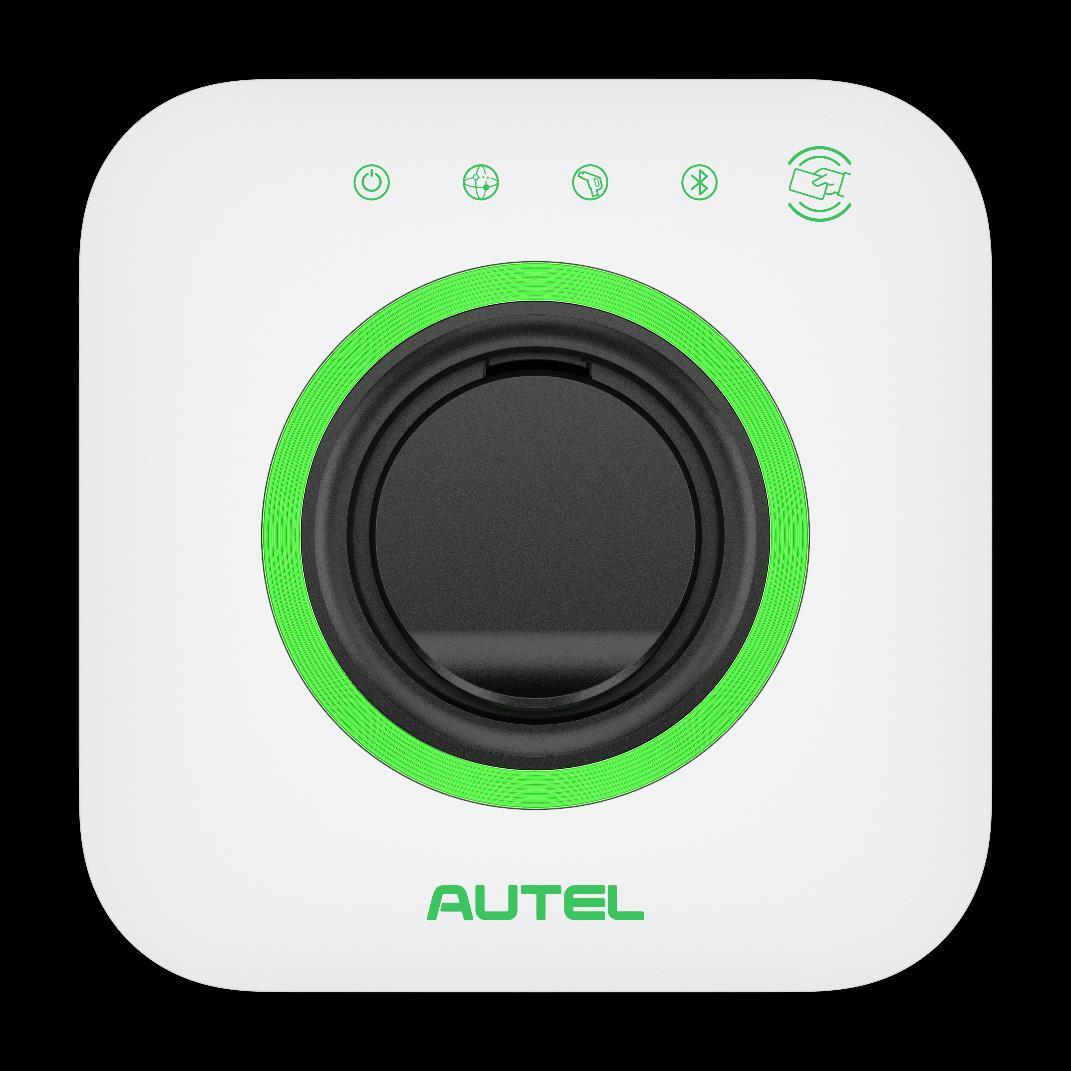

MaxiCharger AC Wallbox

Fast AC Charging

Charge faster and more efficiently

• Up to a maximum of 32A, creating 22kW of power for increased charging speed

• 7X faster than a traditional AC home charger

• Can be adjusted through a hardware switch or the APP

High Reliability and Durability

Built to last

• Evaluated and tested to CE standards

• IP65 weather protection exterior rated for all-weather use

• Capable of charging at full power from temperature between -40℃~+55℃

Cloud Based Smart Charging

High convenience

• Connected to Autel Cloud backend and easy way to control, monitor and run your business

• In real time dynamically balance energy to reducing electricity costs

• Easy to maintain

MaxiCharger AC Wallbox

MaxiCharger AC Wallbox

• Dynamic Load Balancing

• Revenue Generation

• 5-inch LCD Touch Screen (Optional)

• Wifi, Ethernet cable, Bluetooth, 4G (Optional)

• RCD Type A + DC 6mA Leakage Protection

• OTA Update

• Cloud Portal and OCPP Capability

• PME Protection (For UK only)

• Real-Time Notification and Report

MaxiCharger AC Wallbox

Technical Specifications

Product Information

Charging mode Type 2

Input/output power rating and current Single phase up to 7.4kW/32A; Three phase up to 22kW/32A

Input/output voltage

230V±15%, single phase; 400V±15%, three phase; 50Hz (UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)

Network type TT, TN

IEC 62196 type 2 plug, 5m

Connector type

IEC 62196 type 2 socket or socket with shutter

Internal RCD Type A + DC 6mA

Protection

Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)

Card reader (Optional) ISO 15693, ISO 14443

Power measurement accuracy +/- 1.0%; Build-in MID Certified meter (Only applicable to the products with LCD screen)

IP and IK rating IP65 (IP54 for socket version); IK10 (screen: IK08)

Operating altitude 2000m

General characteristics

Operating temperature range -40℃~+55℃

Storage temperature range -40℃~+85℃

Mounting Wall or floor using a pedestal

Dimensions (H×W×D) 336×187×85mm

Status indication LED/APP/Touch screen (Optional, 5 inch LCD, 800*480)

User interface Autel Charge APP; Autel Charge Cloud

User interface

Connectivity Bluetooth, Wi-Fi, Ethernet, 4G (Optional), CAN, RS485 for energy meter connection

Communication protocols OCPP 1.6J

User authentication APP, RFID card

Software update Software update OTA updates via web portal

Safety and Compliance IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/ -7

Certification and standards

Certification CE (TUV)

Warranty 36 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

AUTEL MAXICHARGER

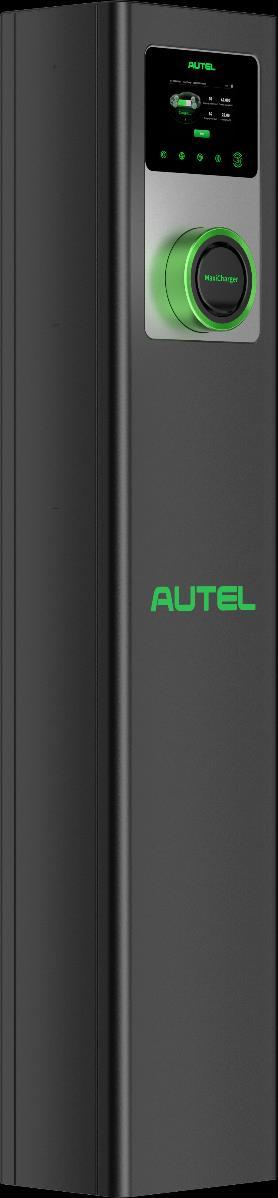

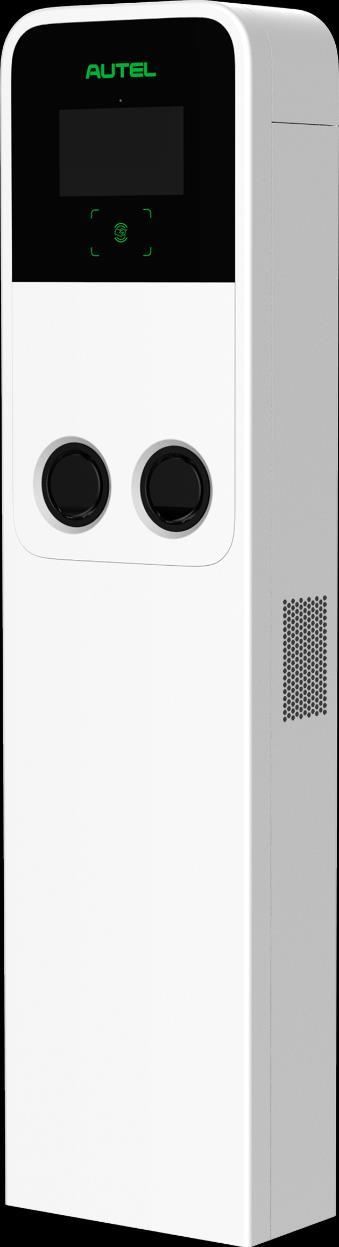

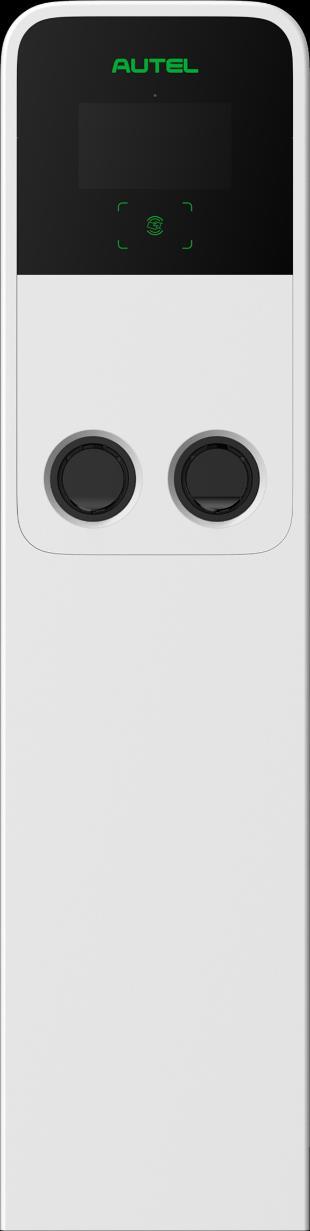

MaxiCharger AC Ultra

Fast and Efficient

Create an exceptional charging experience

• At 22kW per port this charger leads the industry by fast charging 2 vehicles simultaneously, and generates 140 km of range within 60 min

• Designed with ISO 15118 Plug & Charge, for a hassle-free charging experience

Best-Value Design

Tailored for commercial deployment

• Rugged design allows it to be wall-mounted or floor-mounted to support your application needs

• One-piece construction makes it easy to install resulting in a lower costs and a faster ROI

Smart Charging

Future-proof, flexible and improves your bottom-line

• Smart functionality with OCPP compliance, can adapt its power usage and provide optimal charging today and into the future

• Reduces capital investment in power capacity

MaxiCharger AC Ultra

MaxiCharger AC Ultra

• One-piece Pedestal Housing Combination

• WiFi Hotspot Sharing

• Power Sharing

• 8-inch HD Advertising Screen

• APP, RFID Card, Credit Card, Mobile Payment

• One-Stop Cloud Network Management

• OCPP Compliance

• Weather Resistant

AC Ultra

Technical Specifications

MaxiCharger AC Ultra

Product Information

Technical Specifications

Charging mode Type 2

Input/output power rating and current Single phase up to 2*7.4kW/32A; Three phase up to 2*22kW/32A

Input/output voltage 230V±15%, single phase; 400V±15%, three phase; 50Hz (UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)

Network type TT, TN, IT

Connector type IEC 62196 Type 2 Socket or Socket with shutter

Internal RCD Type A + DC 6mA

Protection Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)

Card reader (Optional) ISO 15693, ISO 14443

Power measurement accuracy +/- 1.0%; Build-in MID Certified meter

IP and IK rating IP54; IK10

Operating altitude 2000m

General characteristics

Operating temperature range -40℃~+55℃

Storage temperature range -40℃~+85℃

Mounting Wall or floor using a pedestal

Dimensions (H×W×D) 625×320×170mm

Status indication LED/APP/LCD (8 inch touch screen, 1280*720)

User interface Autel Charge APP; Autel Charge Cloud

User interface

Connectivity Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485

Communication protocols OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)

User authentication APP, RFID card, Credit Cards (Optional)

Software update Software update OTA updates via web portal

Safety and compliance IEC 61851-1, IEC 62311, IEC 62479, IEC 62955

Certification and standards

Certification CE (TUV), Eichrechtskonform (Optional)

Warranty 36 months, warranty extension possible

*Allpicturesshownareforillustrationpurposeonly,actualproductandspecificationsmayvaryduetoproductenhancement

AUTEL MAXICHARGER DC Compact

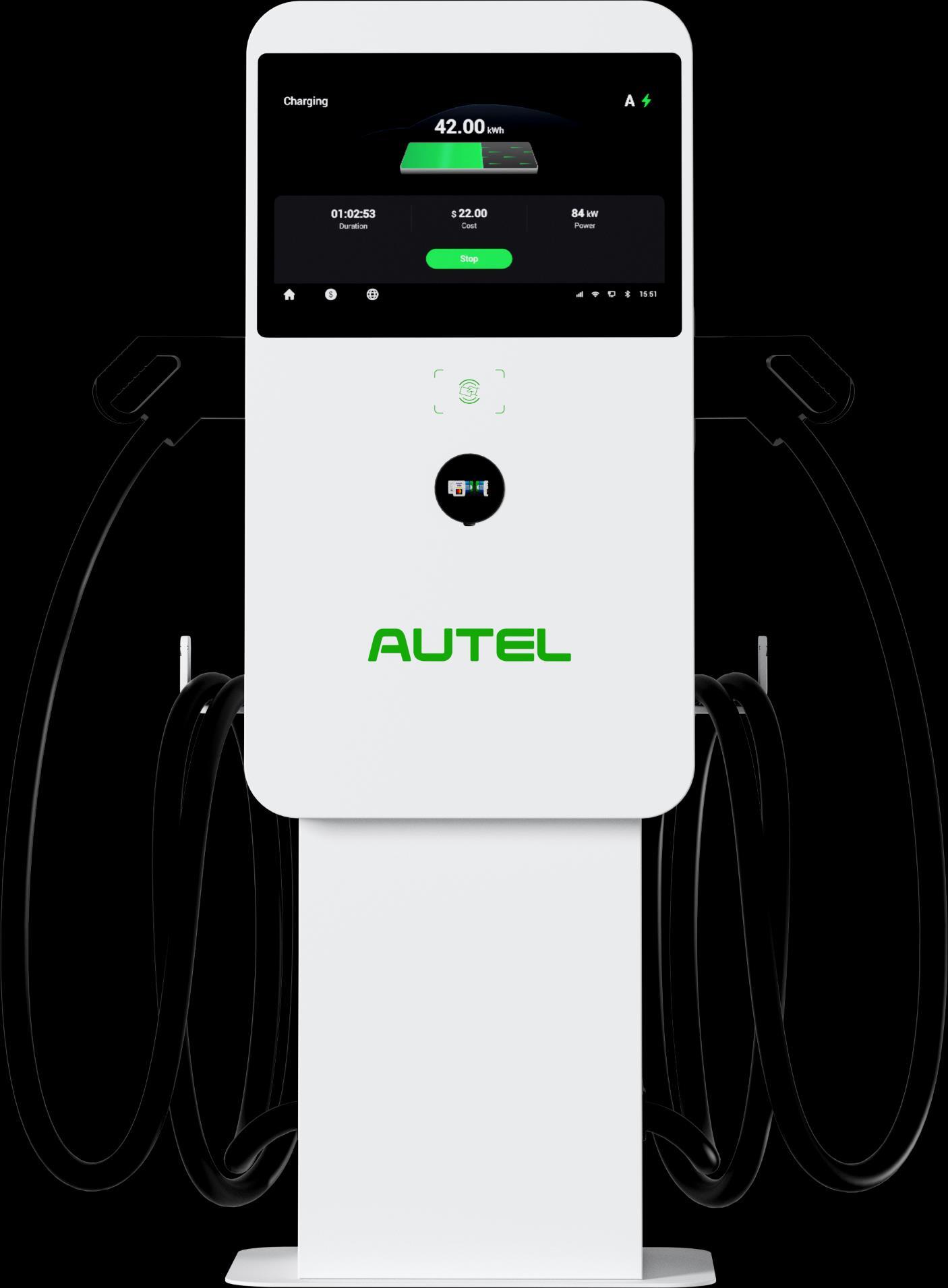

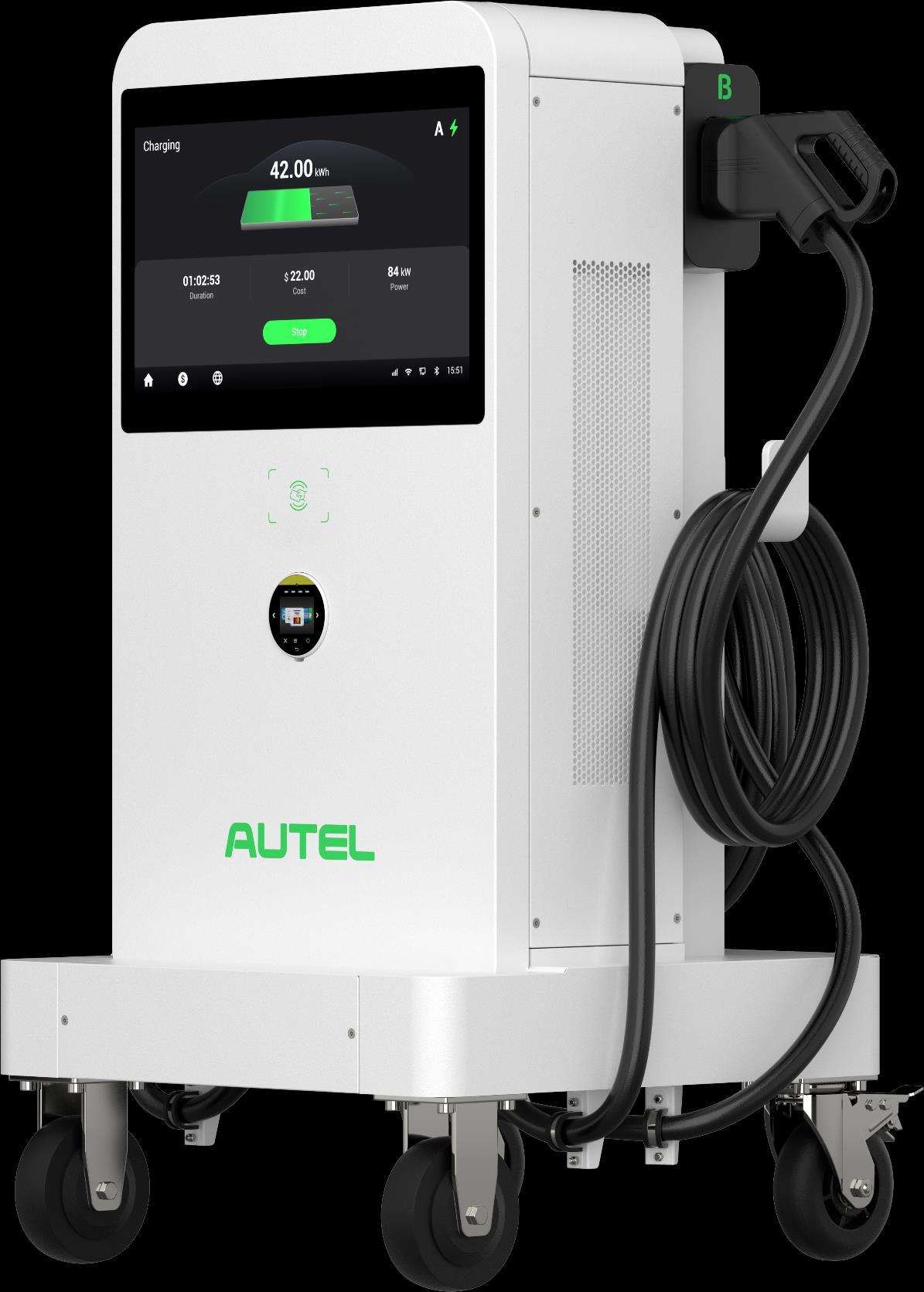

MaxiCharger DC Compact

Fast and Effective

Built to increase charging efficiency

• Dual-ports provide up to 47kW of power

• Charge 2 vehicles simultaneously

Compact Design

Optimized for any location

• Ultra-compact with big DC power in a small package

• Flexible installation allows for fixed or mobile positioning

• DC Compact has the lowest installation costs, meaning a faster ROI due to reduced capital expenditures for the site operator

Smart Advertising and Communication Platform

Improve your ROI

• User-friendly 21.5-inch LCD touch screen

• Powered by smart operating system, Android 10 with enhanced advertising placement

• Communicate, promote or attract customers generating new revenue streams

• A 30 min charge equates to 130 km of range With POS Machine

MaxiCharger DC Compact

MaxiCharger DC Compact

• OCPP Compliance

• One Stop Cloud Network Management

• 96% Charging Efficiency

• 20 Safety Monitoring Items

• Plug & Charge

• Smart Charging

• Compatible with CCS2, CHAdeMO

• APP, RFID Card, Credit Card, Mobile Payment

• Weather Resistant

Technical Specifications

MaxiCharger DC Compact

Technical Specifications

DC output connection

Charging mode Mode 4: CCS2

Output power Rated power 40kW (Max. 47kW)

Output voltage 150~950V

Max ouput current 133A

Number of outputs 2*CCS2, or 1*CCS2+1*CHAdeMO, or 1*CCS2

Peak efficiency ≥96%

Earthing system 3P, N, PE

Input voltage 3-phase 400V AC ±10%

AC input connection

General characteristics

Input frequency 50Hz

Power factor ≥0.99

Harmonic distortion (THDi) ≤5%

IP and IK rating IP54; IK10

Operating altitude 2000m

Operating temperature range -30℃~+55℃

Storage temperature range -40℃~+70℃

Mounting Pedestal or wheels

Dimensions (H×W×D) 1000×550×265 mm

Screen type 21.5 inch LCD touch screen (1920*1080)

Cable length 4m standard; 5m optional

Status indication LED/LCD/APP

User interface Autel Charge APP; Autel Charge Cloud

User interface

Connectivity 4G, Wi-Fi, Ethernet

Communication protocols OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)

User authentication APP, RFID card

Software update Software update OTA updates via web portal

Safety and Compliance IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118

Certification and standards

Certification CE, EMC Class A

Warranty 24 months, warranty extension possible

AUTEL MAXICHARGER DC Fast

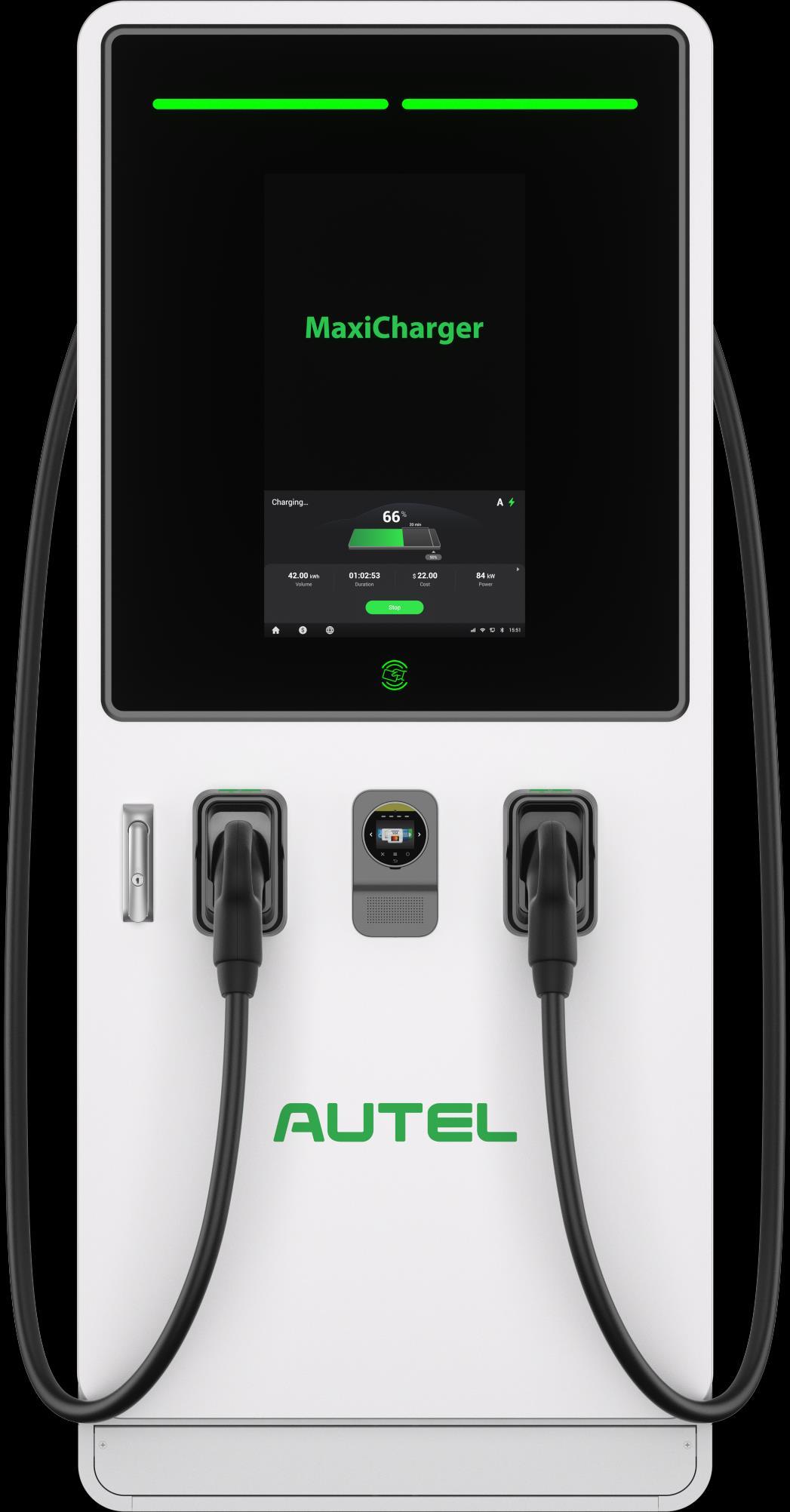

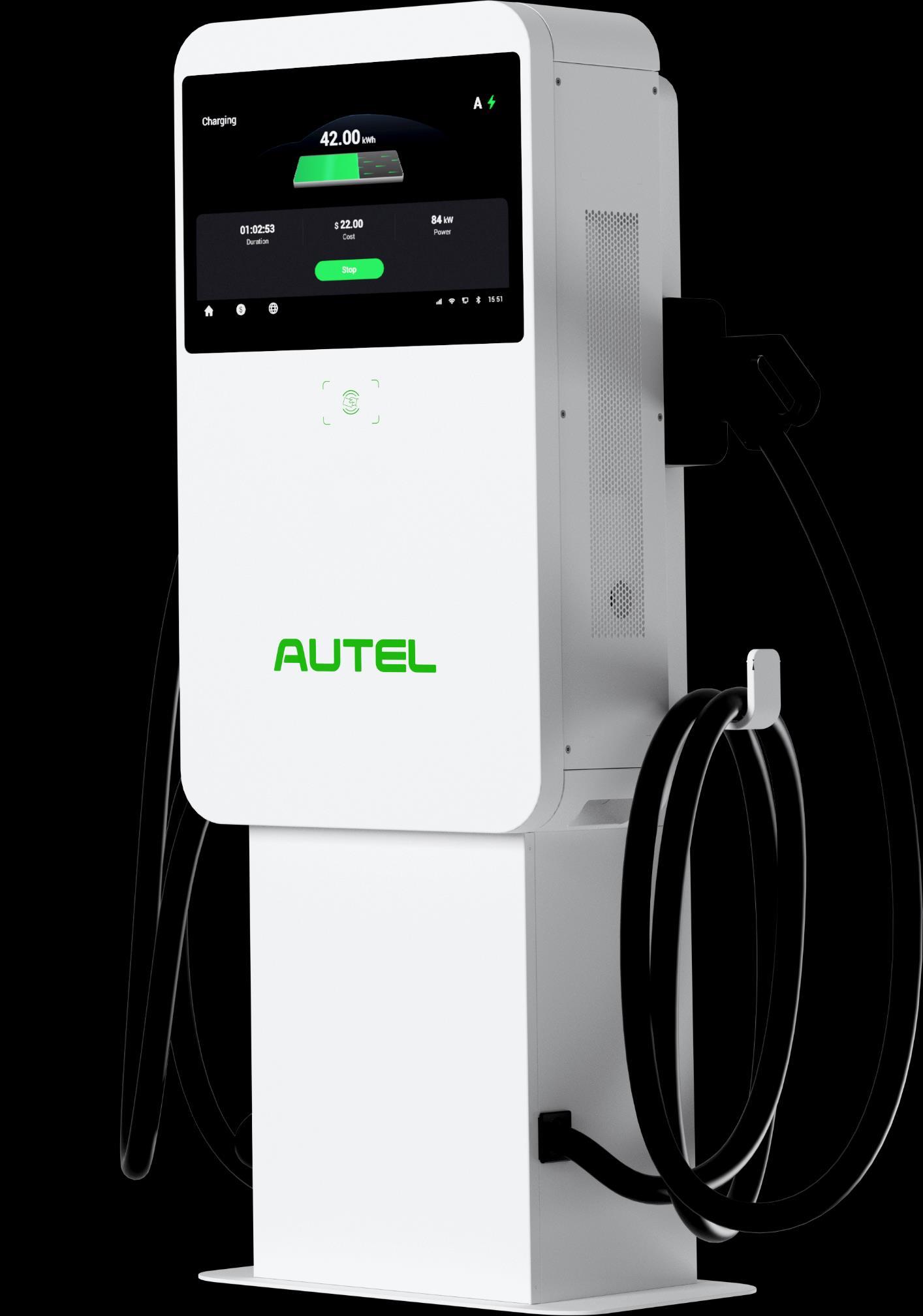

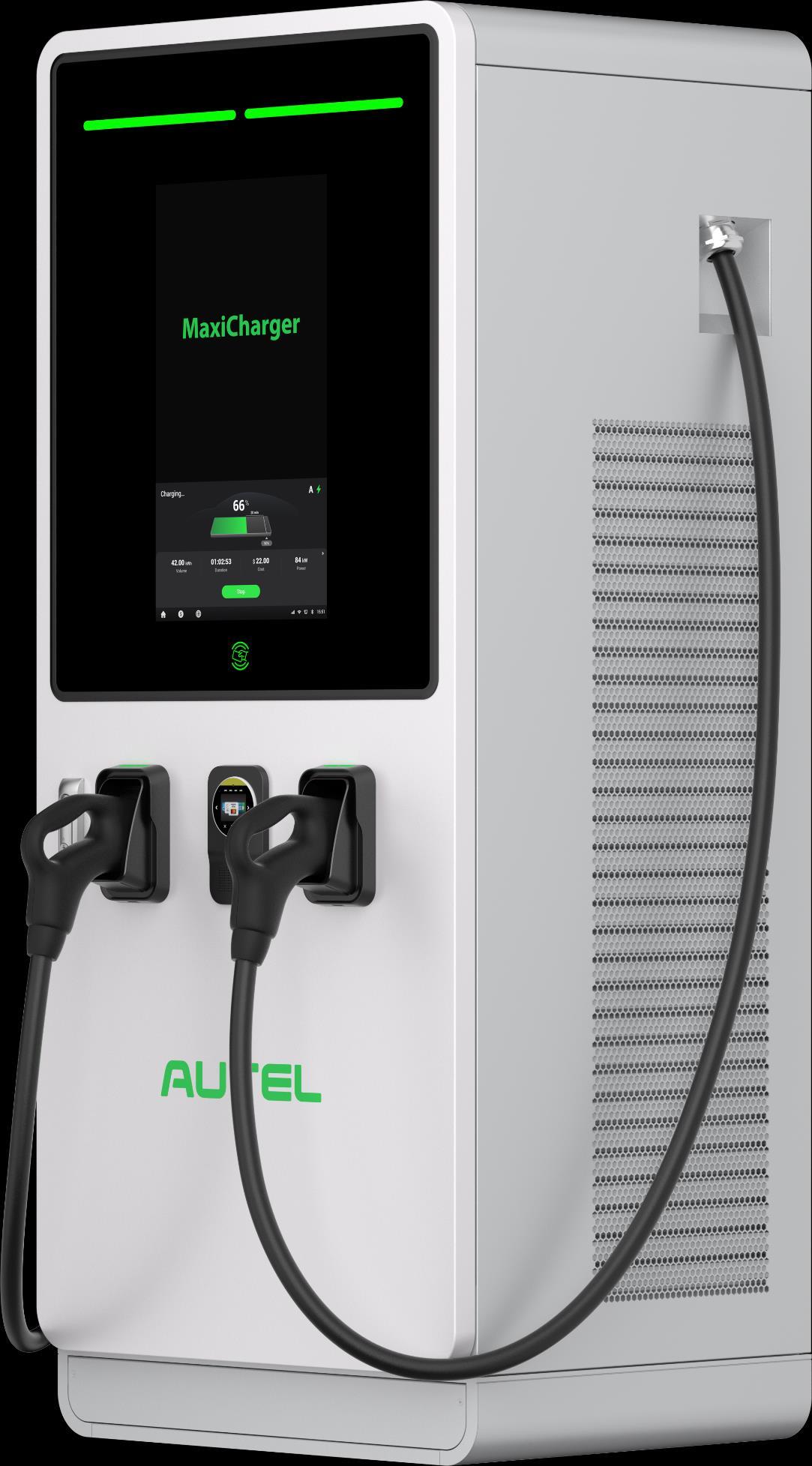

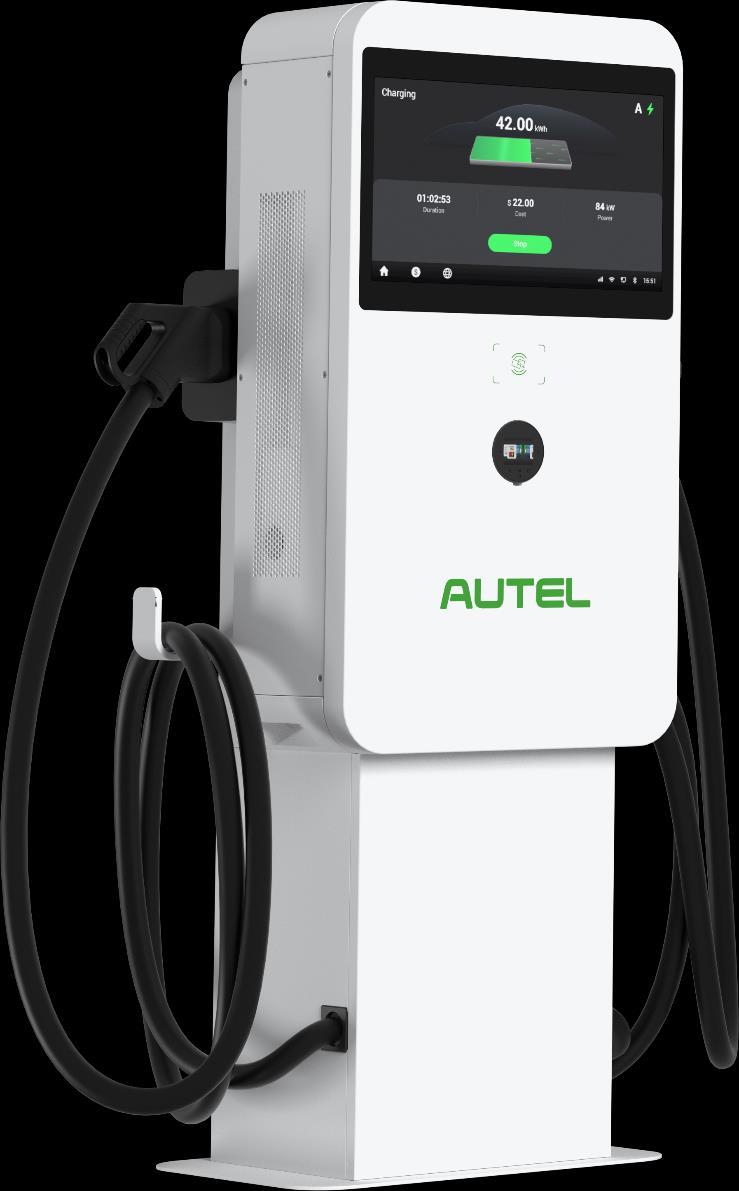

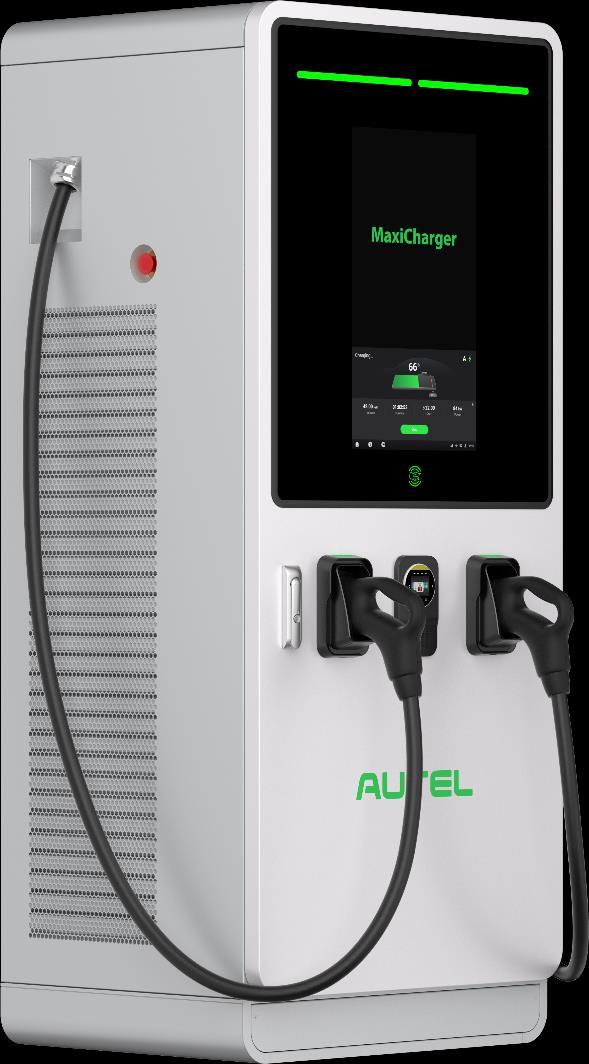

MaxiCharger DC Fast

Powerful

Charge faster and more efficiently

• Up to 240 kW of fast charging

• Provides up to 265 km of range in 10 min with a Maximum 400A output current

• Charging speed improved by up to 30% with boost mode

Smart Advertising and Communication Portal

Improve your ROI

• Show the charging related Info like State of Charge (SOC), Cost, kWh

• Offer an additional channel to boost revenue with the display of advertisements

• Communicate, promote or attract customers generating new revenue streams

Highly Reliability

Charge without worries

• Continually testing and evaluating new vehicle for interoperability

• Compatible with all vehicles of IEC standards

• Charging success rate higher than industry average

MaxiCharger DC Fast

MaxiCharger DC Fast

• Weather Resistant

• 21 Safety Monitoring Items

• Smart Cloud Portal & OCPP Capability

• Remote Update & Diagnostics

• Smart Charging

• Plug & Charge

• 96% Charging Efficiency

• Flexible Hardware & Software Customization

• Compatible with CCS2, CCS2 Boost or CHAdeMO

• Support APP, RFID Card, Credit Card, Mobile Payment

MaxiCharger DC Fast

Technical Specifications

DC output connection

Charging mode Mode 4: CCS2

Output power 60kW/120kW/180kW/240kW

Output voltage 150~950V

Output current CCS2: Standard: 200A; Optional 300A (Nominal), 400A (Peak) CHAdeMO: 125A or 200A

Number of outputs 2*CCS2, or 1*CCS2+1*CHAdeMO; 1*AC socket (Optional)

Peak efficiency ≥96%

Earthing system 3P, N, PE

Input voltage 3-phase 400V AC±10%

AC input connection

General characteristics

Input frequency 50Hz

Power factor ≥0.99

Harmonic distortion (THDi) ≤5%

IP and IK rating IP54; IK10

Operating altitude 2000m

Operating temperature range -35℃~+55℃

Storage temperature range -40℃~+70℃

Mounting Floor standing

Dimensions (H×W×D) 1950×820×600mm (60kW/120kW) 1950×820×700mm (180kW/240kW)

Screen type 27 inch LCD touch screen (1920*1080)

Cable length 4m standard; 5m, 6.5m or 7m optional

Status indication LED/LCD/APP

User interface Autel Charge APP; Autel Charge Cloud

User interface

Connectivity 4G, Wi-Fi, Ethernet

Communication protocols OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)

User authentication APP, RFID card, Credit card (Optional)

Software update Software update OTA updates via web portal

Safety and Compliance IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118

Certification and standards

Certification CE, EMC Class A, Eichrechtskonform (Optional)

Warranty 24 months, warranty extension possible
