1. THE TRANSIT NEXUS
Transforming an existing bus depot near a Bengaluru metro station into a modern, multifunctional hub. The project aims to enhance public transportation, offer diverse amenities, and improve the urban landscape.
Key components include an efficient bus terminal, transit accommodations, a variety of dining options, retail spaces, and public functions areas. Green spaces and sustainable features will be integrated, along with a focus on accessibility, security, and sustainability.
This transformation will not only elevate the efficiency of bus services but also create a vibrant community hub with cultural events, green spaces, and a wide range of services, benefiting both commuters and the public.
8th SEMESTER, URBAN DESIGN
Location : Kengeri, Bengaluru
Theme : Bus transit and terminal
5 | TRANSIT NEXUS

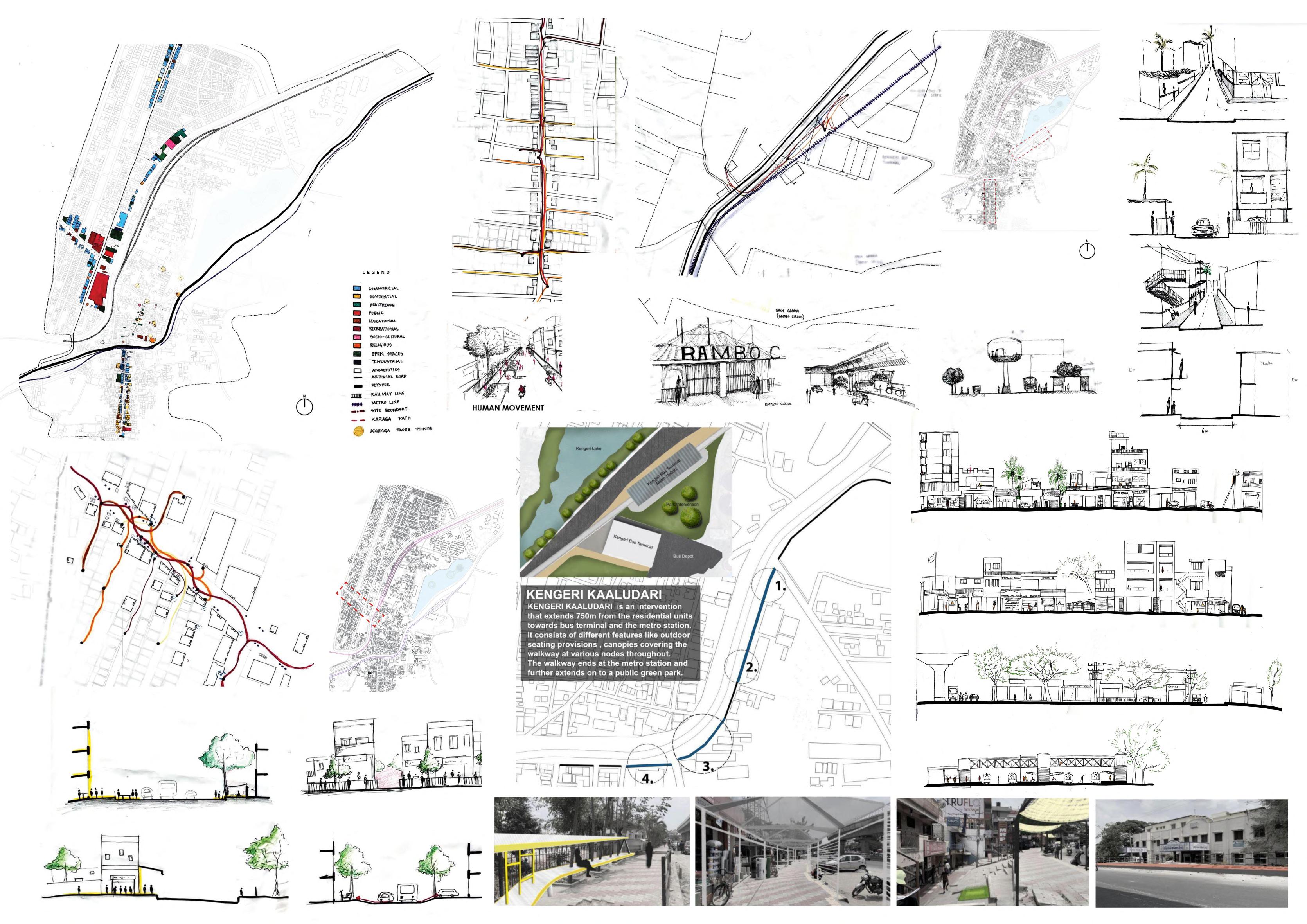

AD VIII CONCEPT AND SITE STUDY
LEGEND :1) Lobby 2) Admin 3) Supermarket 4) Bus drop zones
5) Waiting rooms
6) Seating and charging
7) WR, smoking rooms
8) Parking
9) Garage, services
Basement
Deciding the access points and main means of circulation Assigning spaces in turn for the built up GROUND FLOOR PLAN B A 9 | TRANSIT NEXUS 1) 6) 5) 4) 2) 1) 3) 8) 9) 10) 7) 10 0 20 50 100 B’ A’
10)

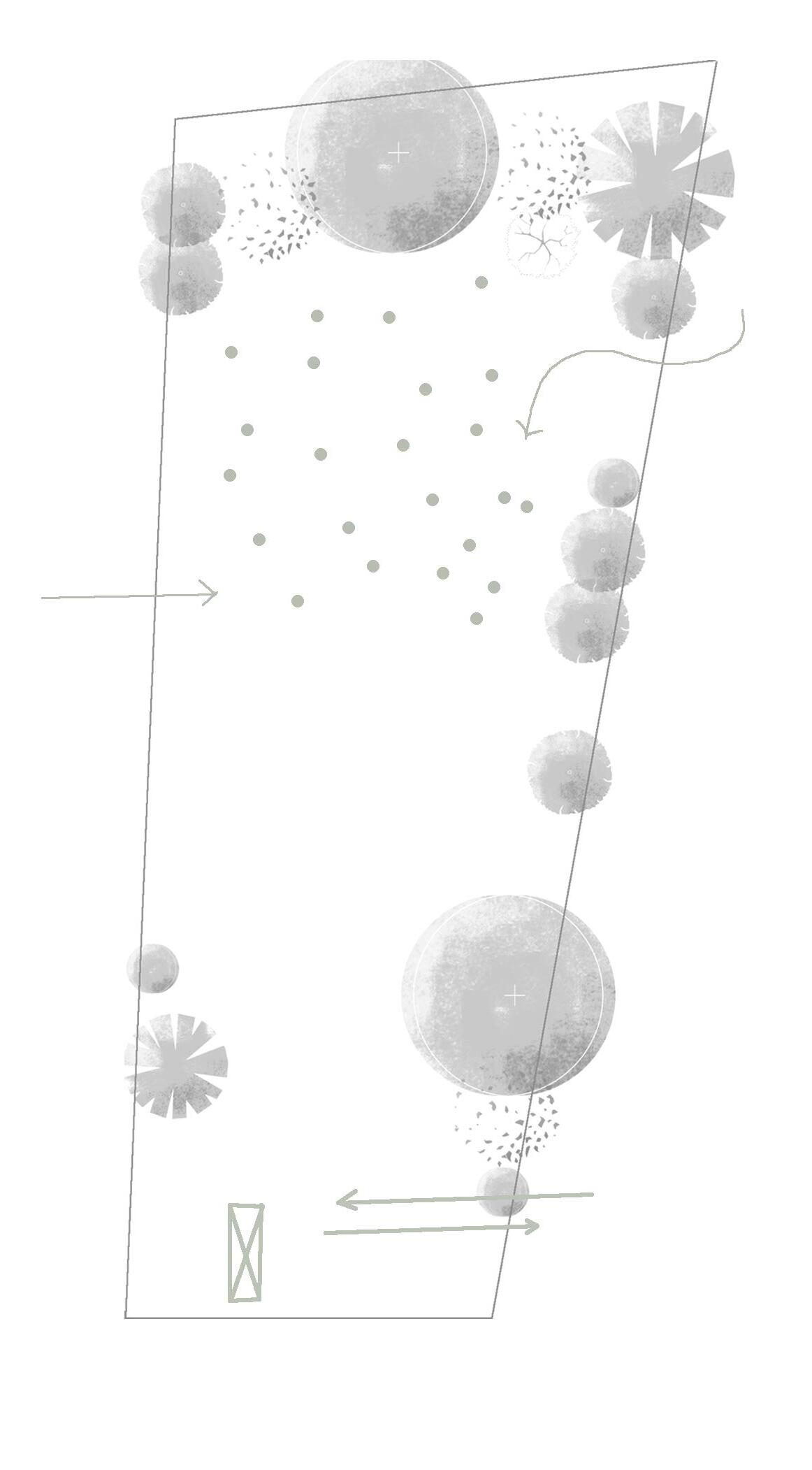

Retaining the exisiting landscape and adding onto the exisiting site
EXPLODED ISOMETRIC 10 0 20 50 100 11 | TRANSIT NEXUS MODEL VIEWS

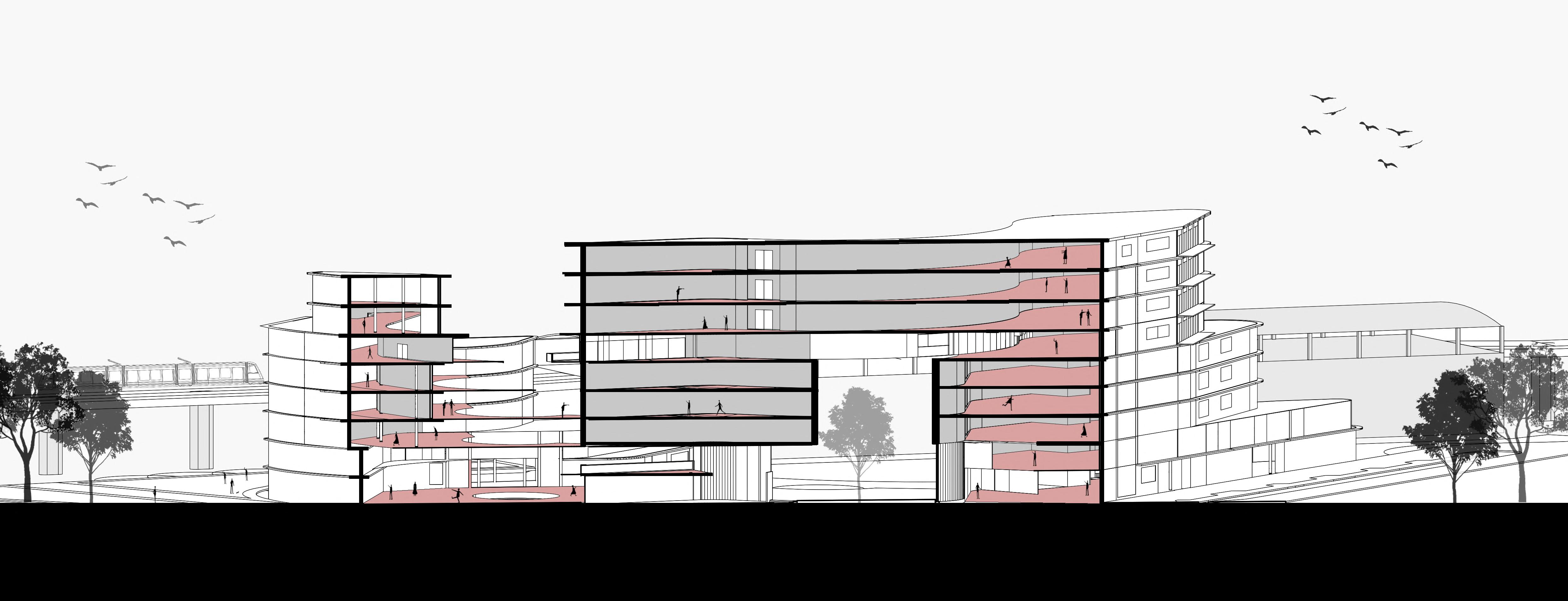

SECTION AA’ SECTION BB’ 10 0 20 50 100 10 0 20 50 100
2. COV-USEUM
In response to the challenges of the COVID-19 era, our architectural vision is a resilient museum dedicated to showcasing old historic art and artifacts.
Seamlessly integrated into the urban landscape, the design prioritizes adaptability with flexible exhibition spaces and curated outdoor areas connecting art to nature.
Leveraging cutting-edge technology, the museum offers enhanced visitor experiences while ensuring health and safety through touchless interfaces and effective crowd management.
With spaces for community engagement and a commitment to sustainability, this museum becomes a beacon of hope, preserving cultural heritage while embodying resilience in the face of adversity.
Location : Mahatma Gandhi park, Bengaluru
Theme : Museum
14 | COVUSEUM
15 | COVUSEUM
- Pedestrian entry
- Vehicular entry and parking

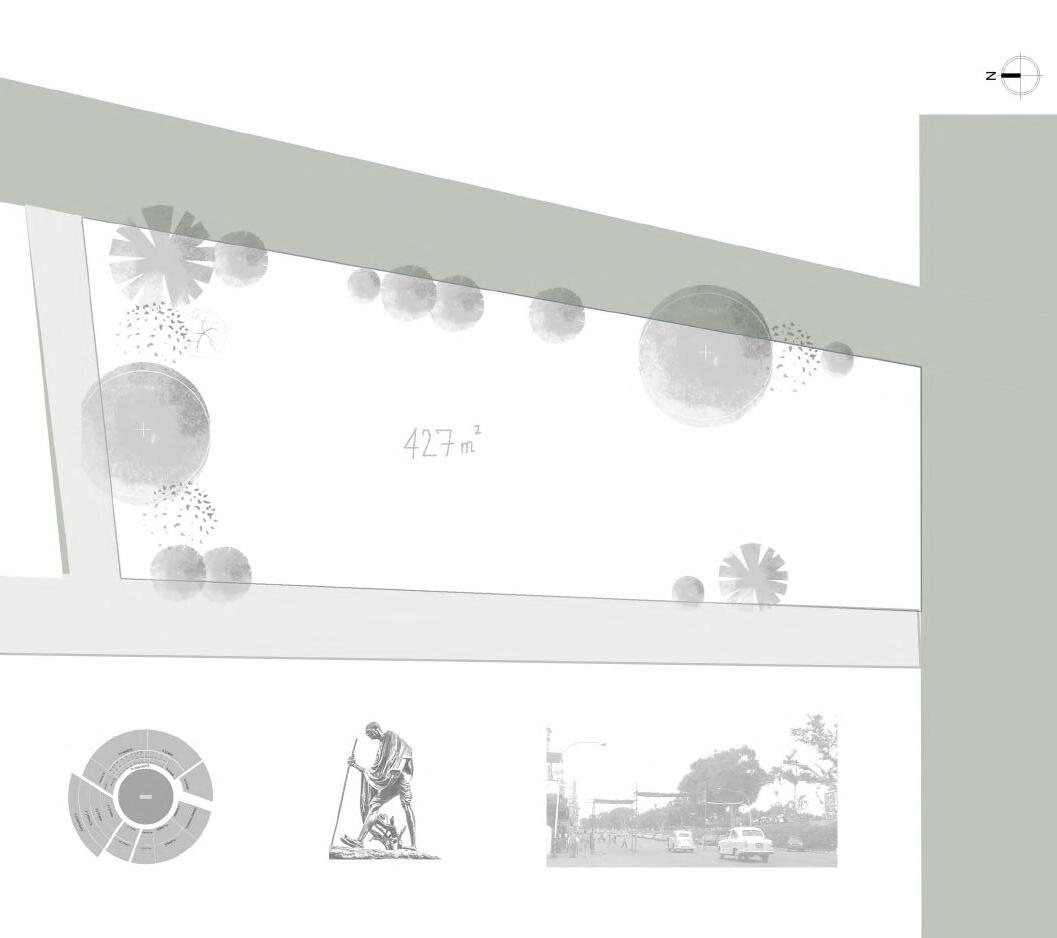

*Roads on two sides of the site and connectivity between site and mg park on other two sides.

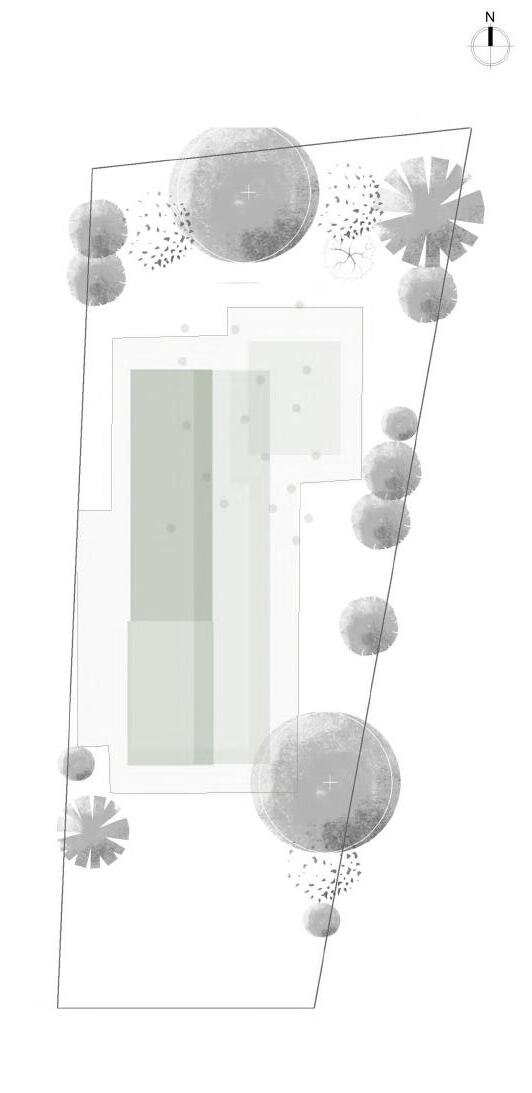

Zoning into public semi public and private spaces with assigned circulation and plinth

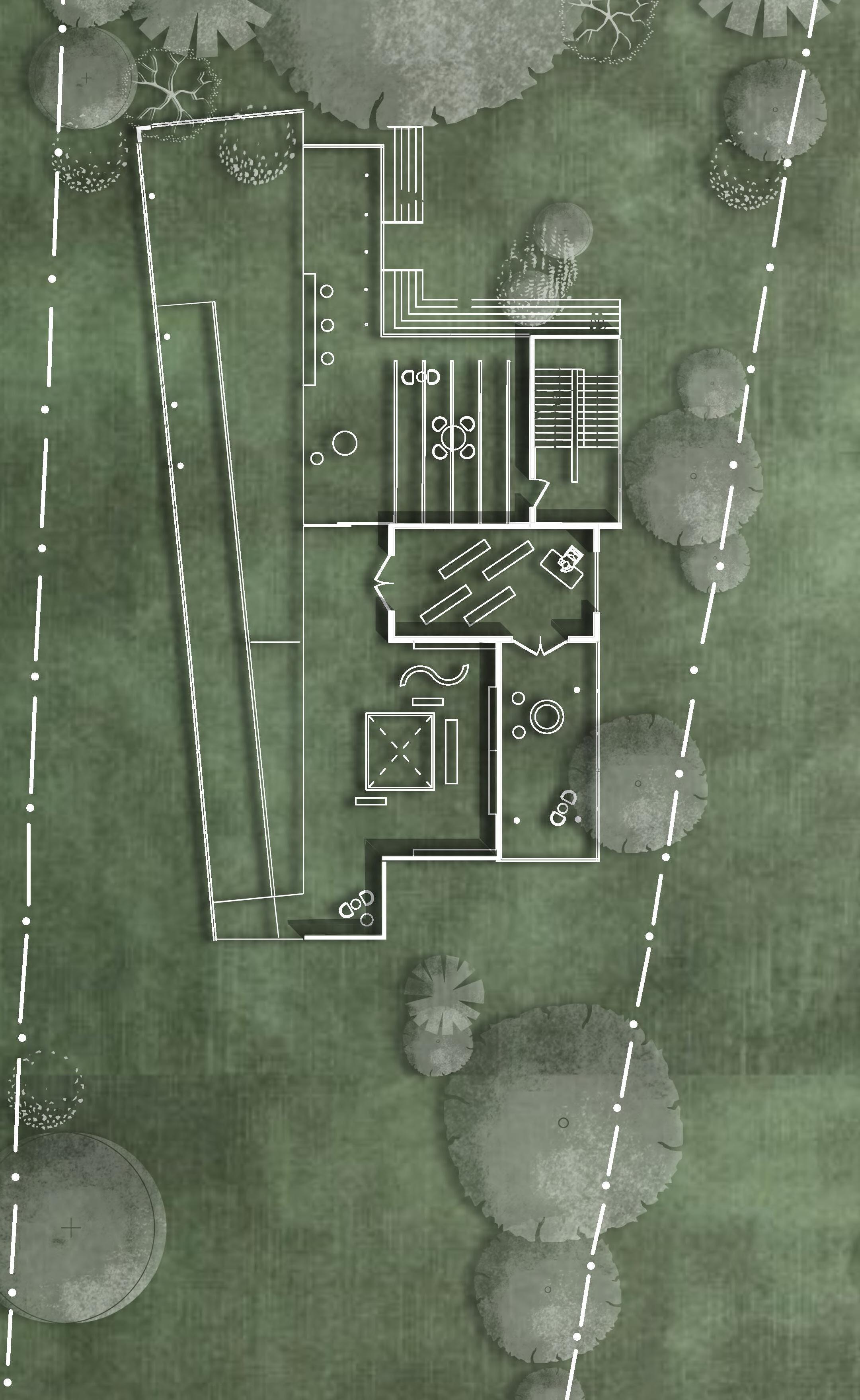

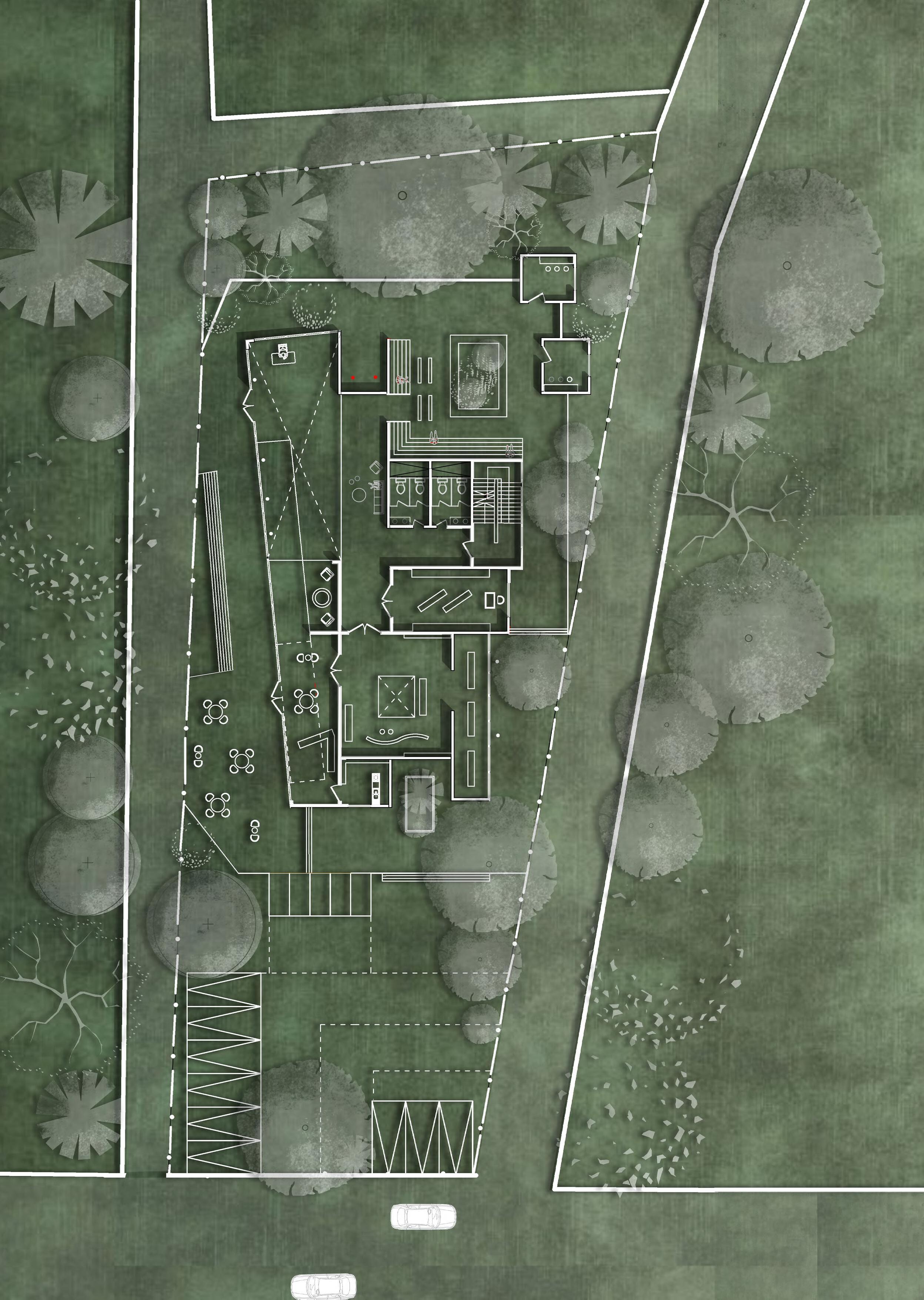

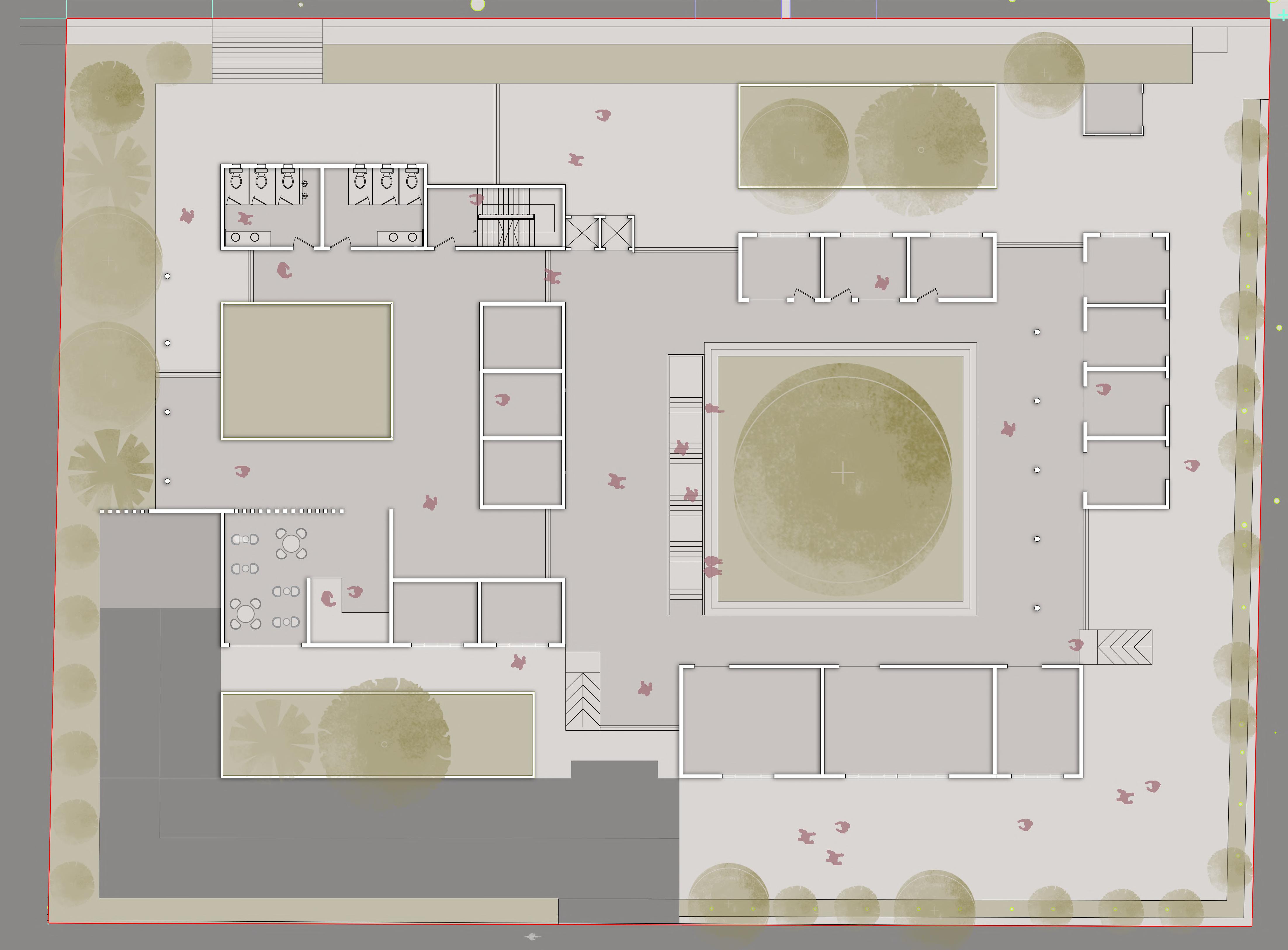

0 15 10 5 20 GROUND FLOOR PLAN LEGEND :-
2)
3)
4)
5)
6)
7)
8)
9)
1) 2) 7) 8) 6) 3) 4) 5) 9)
1) Lobby/Admin
Ramp
Cafe
Outdoor Seating
Exhibition Spaces
Washrooms/Core
O.A.T
Change room/Storage
Parking
Chinnaswamy Stadium Mahatma Gandhi Park M.G Road

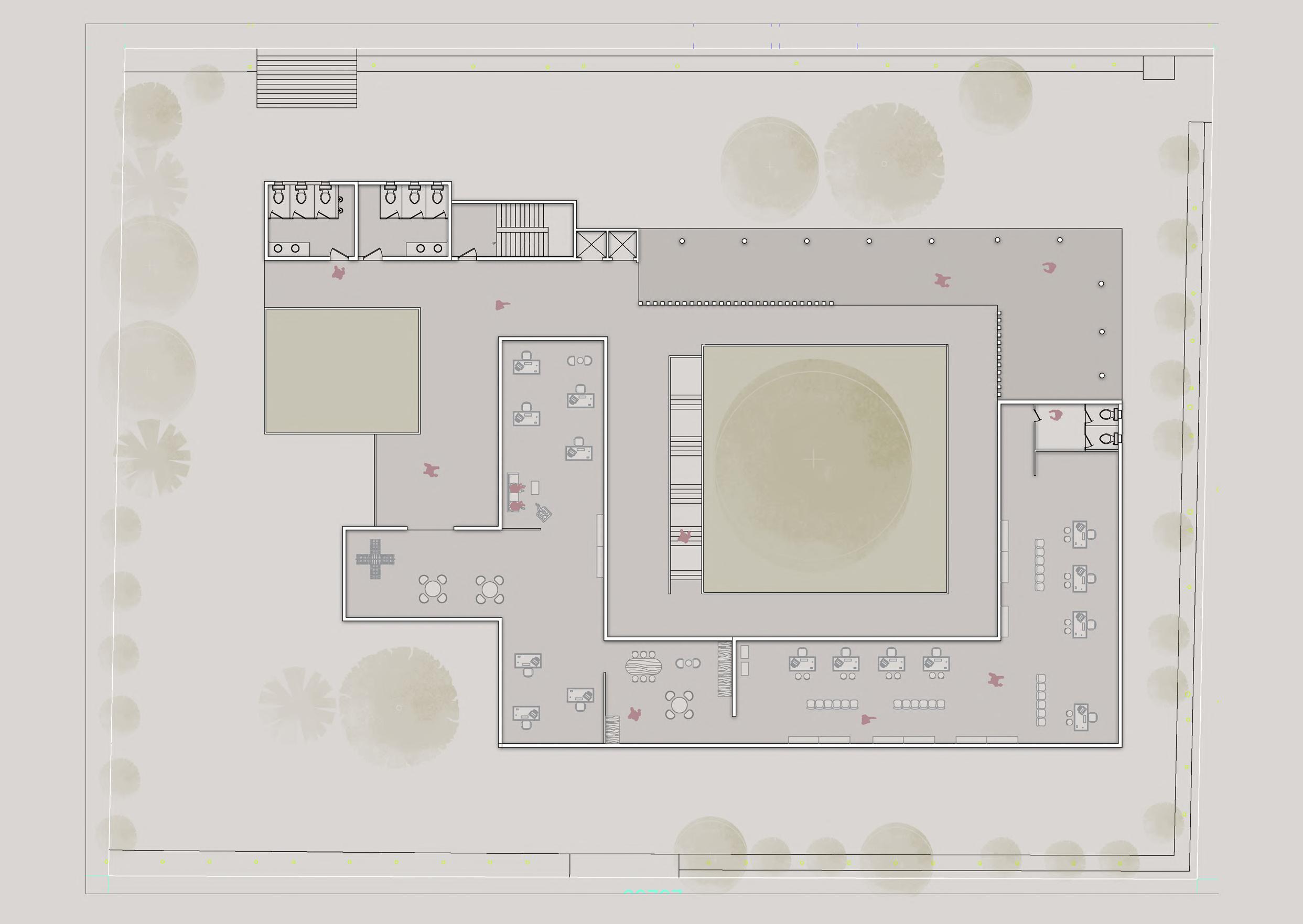

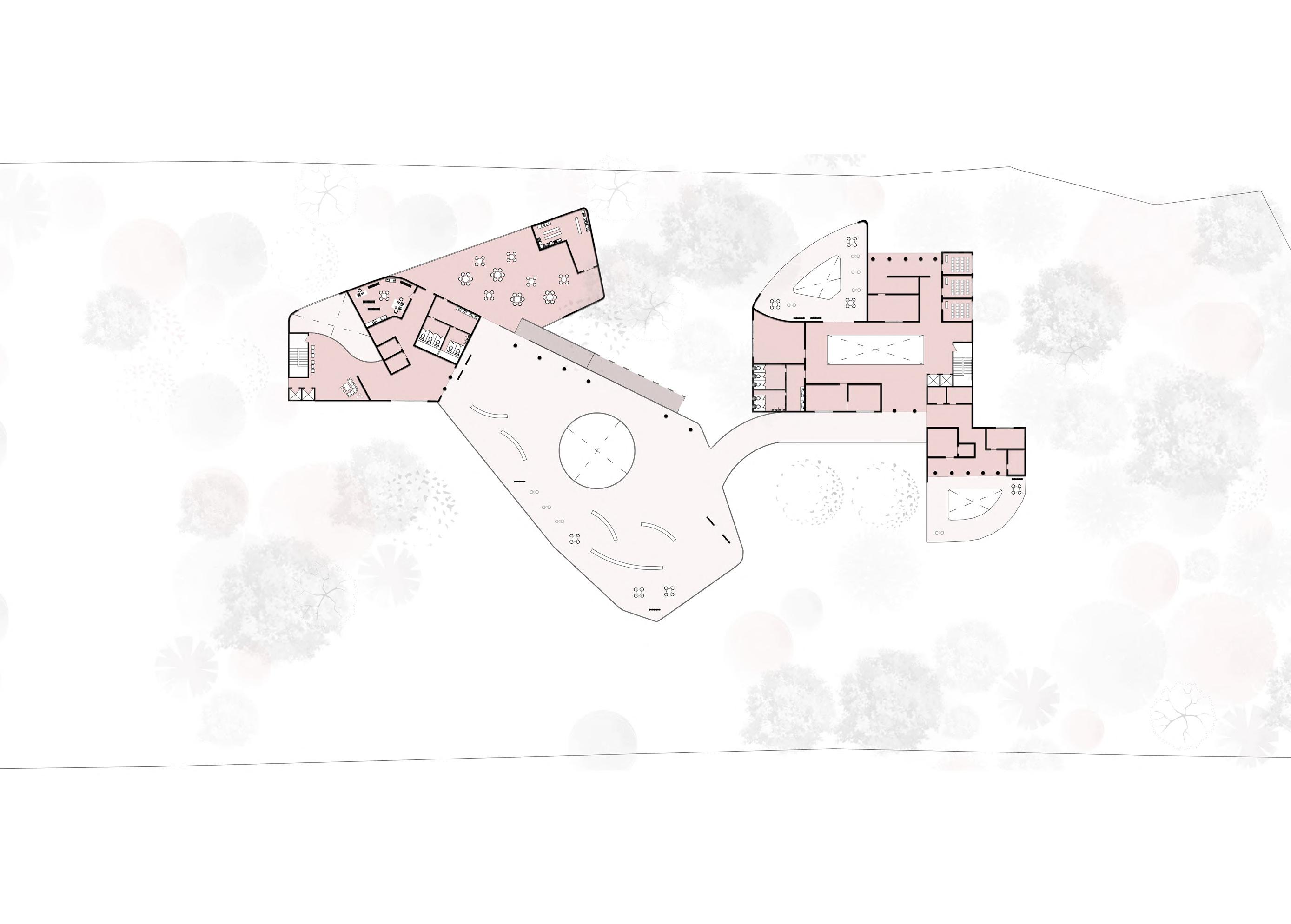

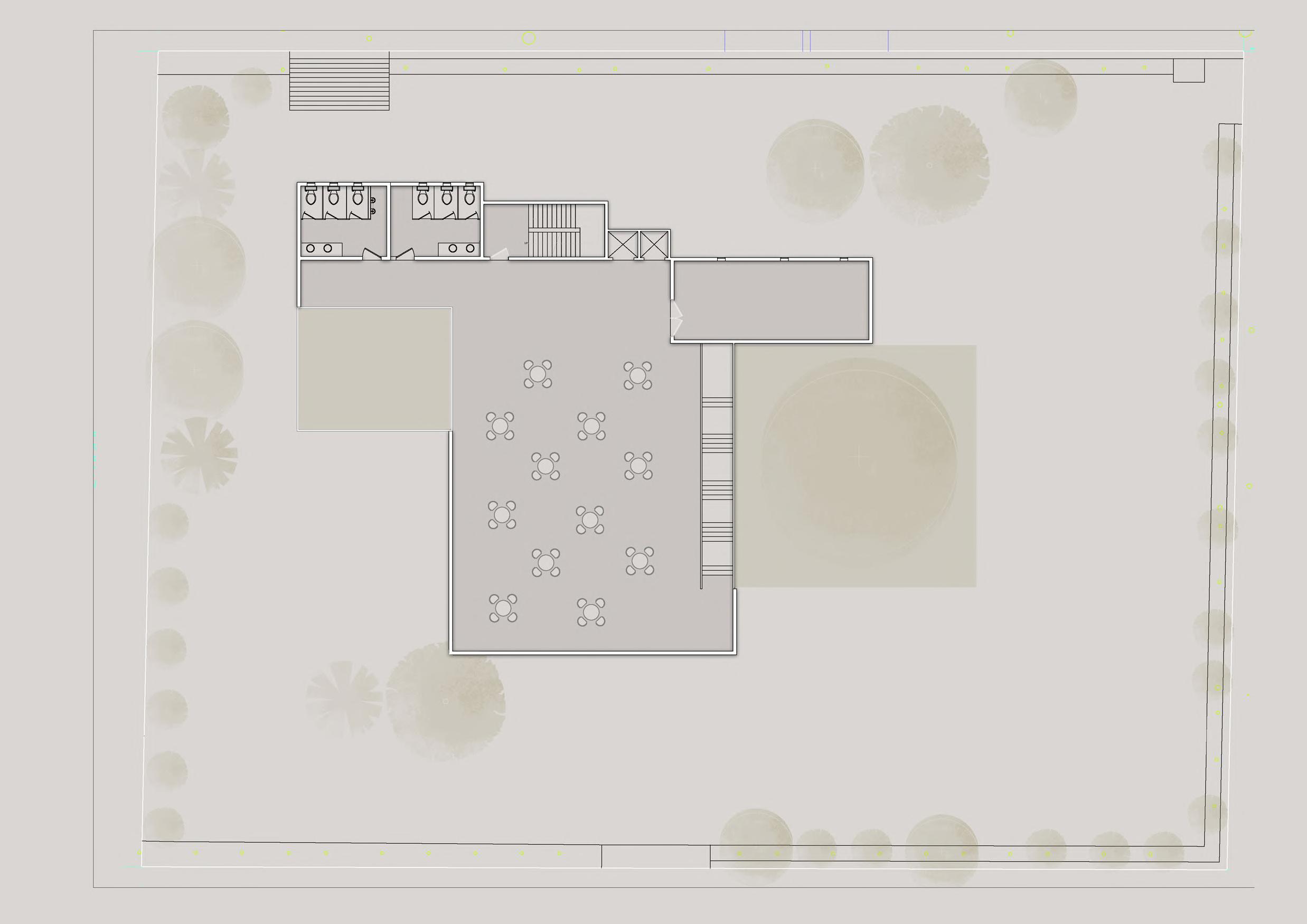

LEGEND :1) Ramp 2) Display Area 3) Library 4) Balcony 5) Outside Seating FIRST FLOOR PLAN 0 15 10 5 20 1) 2) 3) 4) 5)
MODEL VIEWS

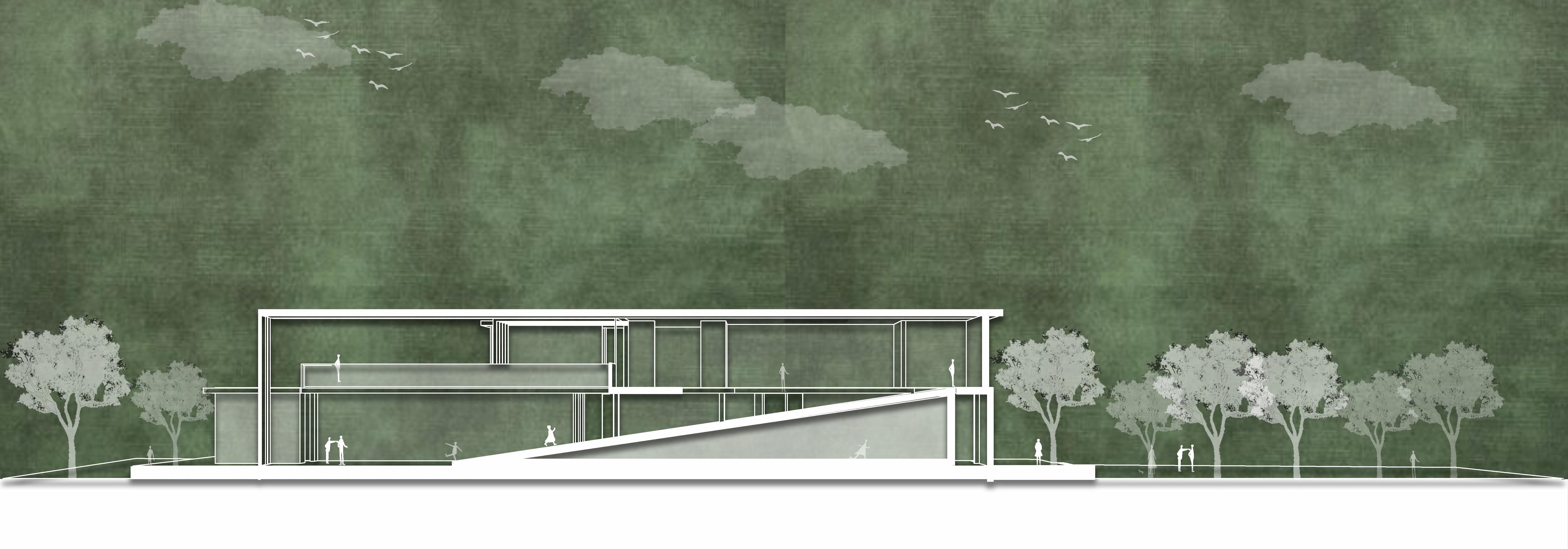

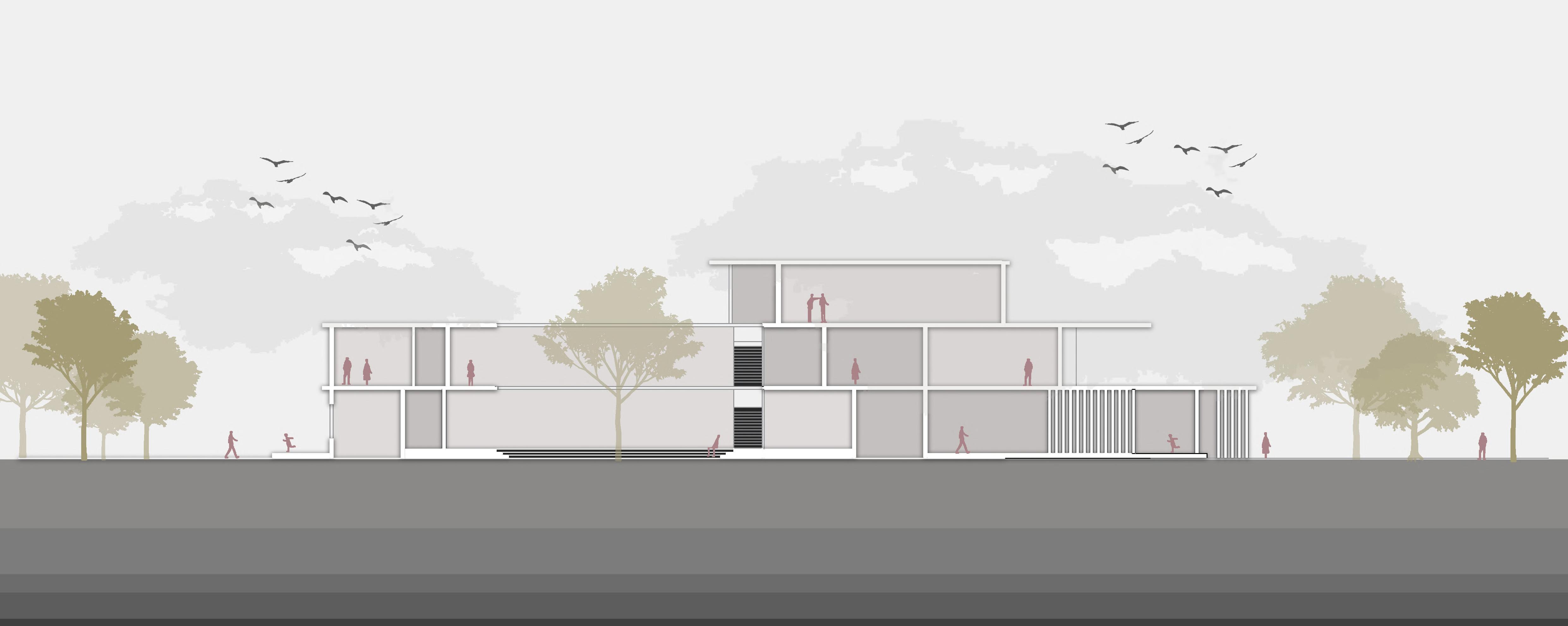

SECTION AA’ SECTION BB’ 20 | COVUSEUM 0 15 10 5 20 0 15 10 5 20 21 | COVUSEUM
VIEW 22 | COVUSEUM 0 15 10 5 20 23 | COVUSEUM

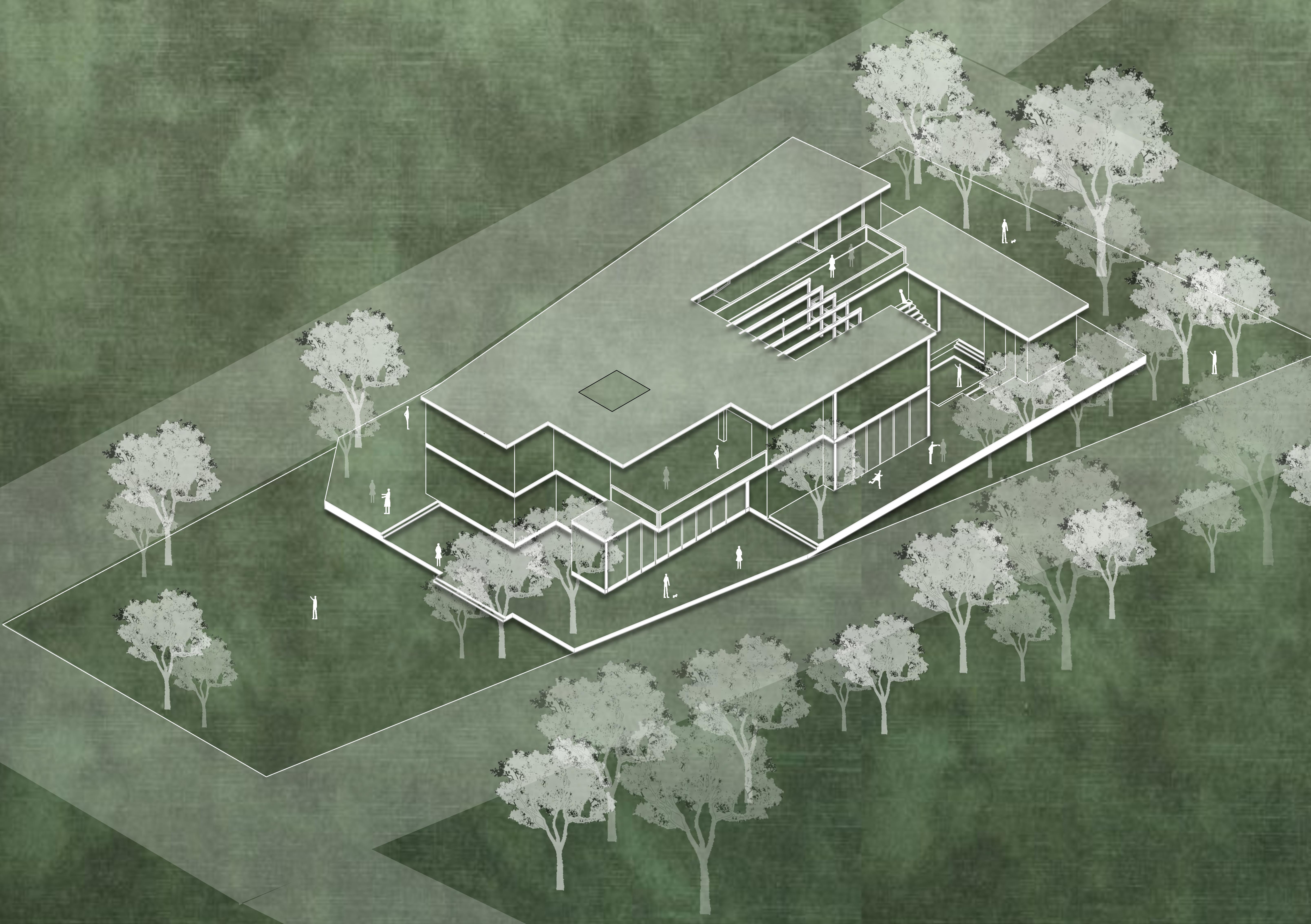

ISOMETRIC
3. B.D.A COMPLEX
This project reimagines the Bangalore Development Authority (BDA) building as a harmonious blend of heritage and modernity, preserving its original functions while incorporating sustainable features.
The vision includes transforming the BDA building into a multifunctional, community-centric space, aligning with Bangalore’s people-centric urban development goals.
Through a seamless integration of eco-friendly practices and the preservation of cultural identity, this project aims to revitalize the BDA building, ensuring it serves as a catalyst for inclusive and sustainable urban living in the dynamic landscape of Bangalore.
7th SEMESTER, RESTORATION PROJECT
Location : Koramagala 3rd Block, Bengaluru
Theme : Shopping Complex
24 | B.D.A COMPLEX 25 | B.D.A COMPLEX
4)
5)
GROUND
FLOOR PLAN LEGEND :1)
Cafe
2)
Market/Shops
3)
Washrooms
Vertical circulation
9)
1) 2) 2) 2) 8) 3) 4) 5) 4) 6) 7) 9) A B A’ B’ 0 15 10 5 20 27 | B.D.A COMPLEX
Kund
6)
Retail
7)
Storage/Services
8)
Two way shops
Ramp
FIRST FLOOR PLAN 0 15 10 5 20
MODEL VIEWS 28 | B.D.A COMPLEX
SECOND FLOOR PLAN
SECTION AA’ SECTION BB’ 30 | B.D.A COMPLEX 0 15 10 5 20 0 15 10 5 20
4. NOYYAL RIVERFRONT PROJECT
The proposed Integrated Fish Market, Treatment Facility, and Conservation Centre on Coimbatore’s lakefront strive to create a sustainable nexus between ecological preservation and community livelihoods.
Situated against the backdrop of the region’s unique lakefront, the project endeavors to address the challenges faced by the local fishery industry while fostering environmental conservation.
The architectural design, inspired by local aesthetics, seamlessly blends traditional elements with modern sustainability practices.
-THESIS PROJECT
Location : Ukkadam Lake, Coimbatore
Theme : Waterfront project
31 | B.D.A MARKET 32 | B.D.A MARKET
1) Water Treatment facility
2) Lobby
3) Processing Area
4) Cooling and storage
5) Auction room
6) Fish Market
7) Admin/ W.R
8) Temporary markets
9) Canteen with spill out
10) M.P.H
11) Labs and Research

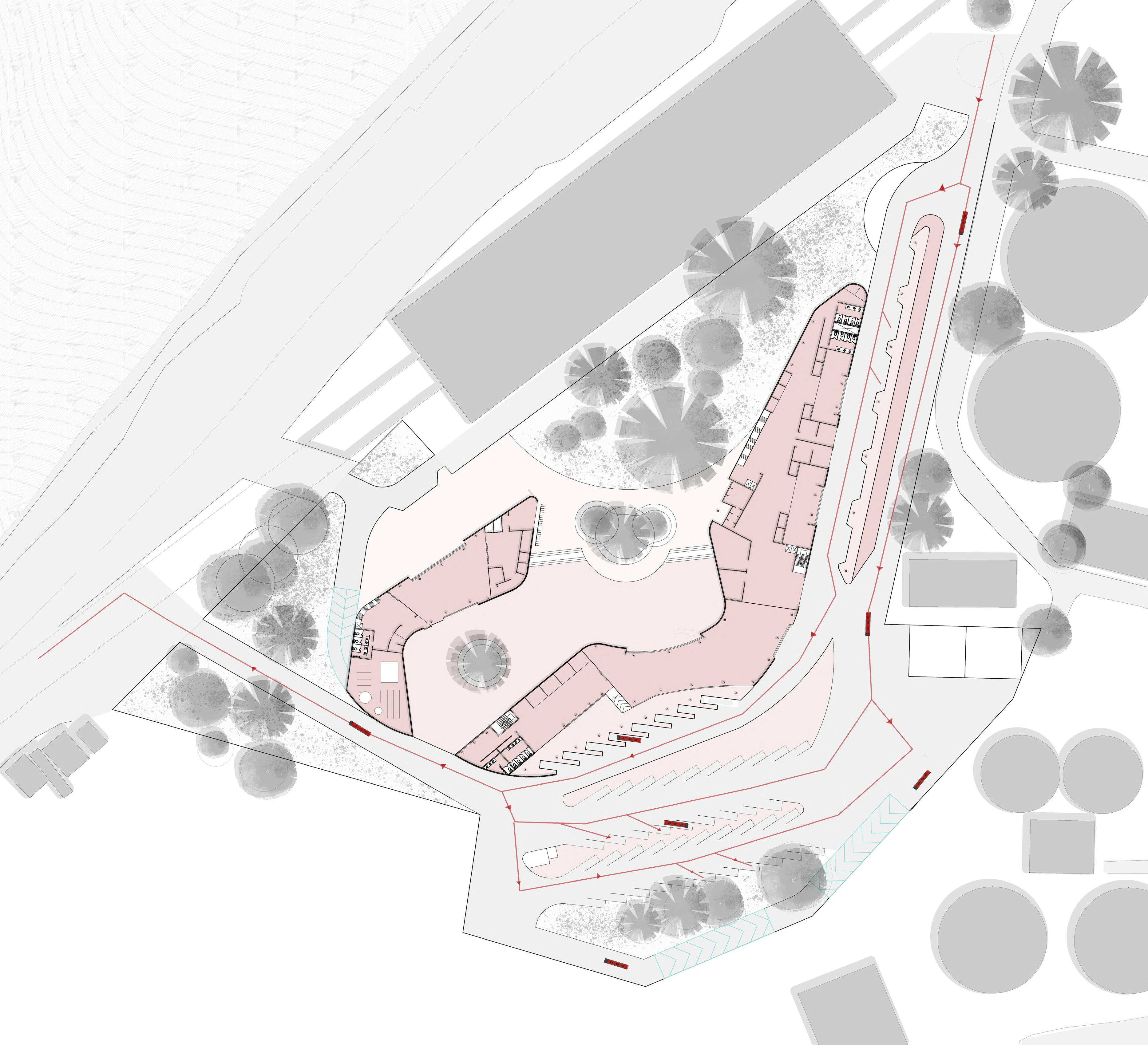

GROUND FLOOR PLAN 10 0 20 50 100 LEGEND
:-
1) 5) 2) 3) 4) 6) 7) 8) 10) 9) 11)
The treatment facility manages efficient water management and treatment, ensuring minimal impact on the delicate lake ecosystem. The fish market is envisioned as a dynamic space that not only facilitates daily trading activities but also serves as a communal hub for events, fostering a sense of community. The Conservation Centre is tailored to showcase the rich biodiversity of the Coimbatore lakefront, with interactive exhibits and educational spaces engaging the public in environmental awareness. Through a lens of environmental sustainability, community engagement, and regulatory compliance, this project aspires to contribute positively to Coimbatore’s economic and ecological landscape.
FIRST FLOOR PLAN 10 0 20 50 100
LEGEND :1) Lobby 2) Offices 3) Restaurant 4) Kitchen 5) Viewing Deck 6) Balconies 7) Labs 1) 2) 3) 4) 5) 6) 6) 7)
Fish market as a semi open space which transforms into a viewing deck on the roof level.
Conservation centre, outside seating, drop and pick up area
Canteen in the conservation centre opens up into the landsccaping.
Restaurant on cantilevered structure, opposite to the viewing deck both being sufficiently connected.
A view into the treatment facility as you walk by it, completely opened with glass for the public to see.

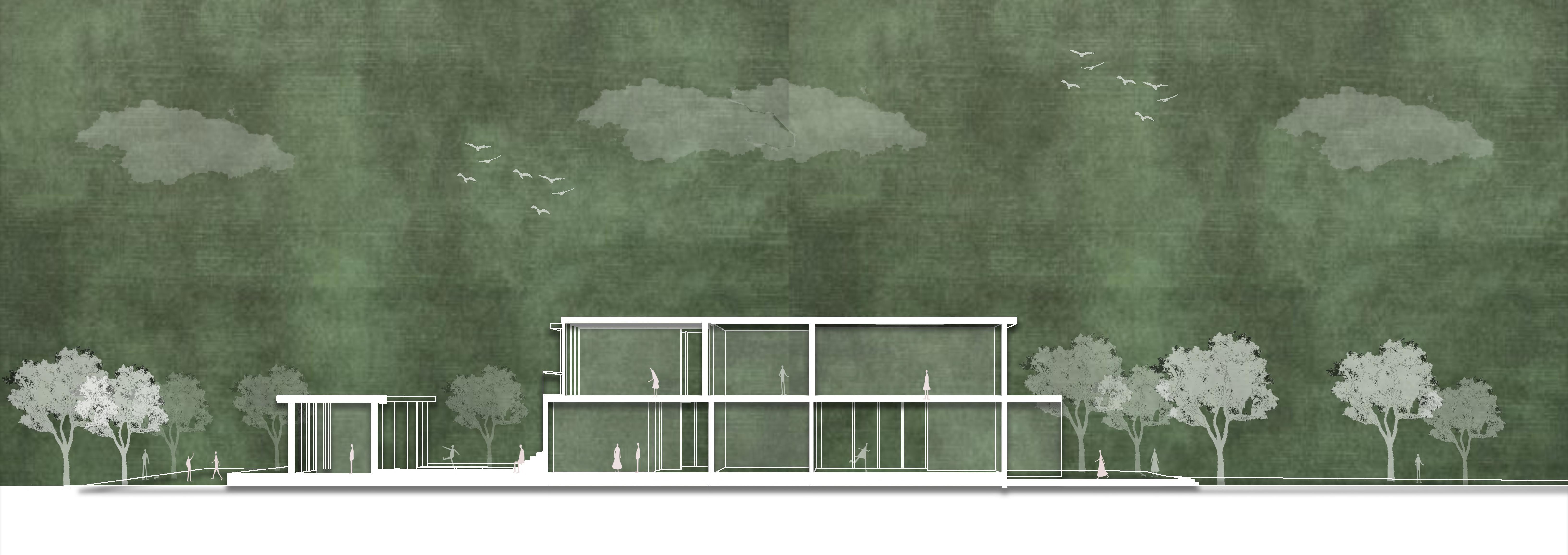

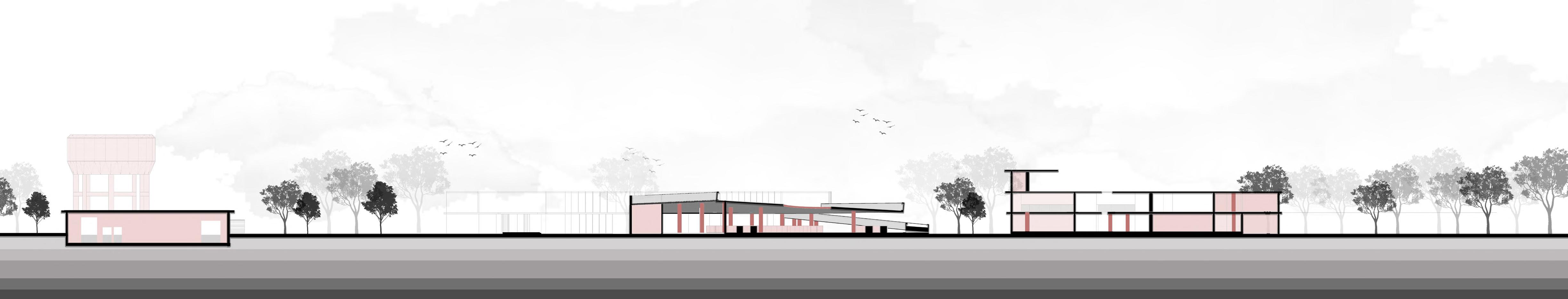

SECTION AA’ 10 0 20 50 100
Walkways and entries with seating. All these views showing the abundance of shading provided.
GROUND FLOOR/ RETAIL
5. TECHNICAL DRAWINGS
+350 LVL +350 LVL +350 LVL ARCHITECTS PHASES ARCHITECTS AND INTERIOR CONSULTANTS XYZ DRAWING TITLE WORKING DRAWING DATE DRAWN BY: ATUL SHIV CHECKED BY: SCALE: JOB NO: SHEET NO: 1 REVISION NO: GF/RETAIL DOOR WINDOW SCHEDULE CONSULTANTS 1 DRAWINGS TO BE READ, NOT SCALED. 2.DRAWING TO BE READ IN CONJUNCTION WITH RELEVANT DETAIL DRAWINGS 3.ALL DIMENSIONS ARE IN MILLIMETRES LEGEND GENERAL NOTE KEY PLAN (NOT TO SCALE) 11/12/2020 1:100 +800 LVL ARCHITECTS ATUL SHIV ARCHITECTS AND CONSULTANTS XYZ DRAWING TITLE DOOR WINDOW SCHEDULE CONSULTANTS 1 DRAWINGS TO BE READ, NOT SCALED. 2.DRAWING TO BE READ IN CONJUNCTION WITH RELEVANT DETAIL DRAWINGS 3.ALL DIMENSIONS ARE IN MILLIMETRES GENERAL NOTE KEY PLAN (NOT TO SCALE) ARCHITECTS ATUL SHIV ARCHITECTS AND CONSULTANTS XYZ DRAWING TITLE WORKING DRAWING DATE ATUL SHIV SCALE: SHEET NO: 1 REVISION NO: TYPICAL BASEMENT DOOR WINDOW SCHEDULE CONSULTANTS DRAWINGS TO BE READ, NOT SCALED. 2.DRAWING TO BE READ IN CONJUNCTION WITH RELEVANT DETAIL DRAWINGS 3.ALL DIMENSIONS ARE IN MILLIMETRES GENERAL NOTE KEY PLAN (NOT TO SCALE) 1:100 Parking spaces allotted Basement 12 Basement 2, 3, 4, 25 each In total = 112 parking spaces ARCHITECTS ATUL CONSULTANTS XYZ DRAWING WORKING DRAWN ATUL JOB 1 DOOR CONSULTANTS DRAWINGS 2.DRAWING KEY Parking spaces allotted Basement 1 Basement 2, 3, 4, 25 each In total 108 parking spaces ARCHITECTS PHASES ARCHITECTS CONSULTANTS XYZ DRAWING TITLE WORKING DRAWING DRAWN BY: ATUL SHIV SCALE: JOB NO: SHEET 1 REVISION GF/RETAIL DOOR WINDOW CONSULTANTS 1 DRAWINGS TO BE 2.DRAWING TO BE READ RELEVANT DETAIL 3.ALL DIMENSIONS LEGEND GENERAL NOTE KEY PLAN (NOT 1:100
39 | TECHNICAL DRAWINGS 40 | TECHNICAL DRAWINGS
FIRST FLOOR/ OFFICE BASEMENT AND TYPICAL BASEMENT SECTION
LAYOUT
SA DUCT SA DUCT 600X600 SUPPLY AIR DIFFUSER 600X600 RETURN AIR DIFFUSER FRESH AIR SUPPLY DUCT 600x600 PANEL GYPSUM 600x600 TRAP DOOR 600x600 PANEL LIGHT DOWNLIGHT SMOKE DETECTOR ABOVE CEILING U UPRIGHT SPRINKLERS PENDANT SPRINKLERS ARCHITECTS ATUL SHIV ARCHITECTS AND CONSULTANTS XYZ DRAWING TITLE WORKING DRAWING 2 DATE DRAWN BY: ATUL SHIV CHECKED BY: SCALE: JOB NO: SHEET NO: 1 REVISION NO: GF HVAC DOOR WINDOW SCHEDULE CONSULTANTS 1 DRAWINGS TO BE READ, NOT SCALED. 2.DRAWING TO BE READ IN CONJUNCTION WITH RELEVANT DETAIL DRAWINGS 3.ALL DIMENSIONS ARE IN MILLIMETRES GENERAL NOTE KEY PLAN (NOT TO SCALE) 1:100 +350 LVL +350 LVL +800 LVL 600X600 SUPPLY AIR DIFFUSER 600X600 RETURN AIR DIFFUSER FRESH AIR SUPPLY DUCT 600x600 PANEL GYPSUM 600x600 TRAP DOOR 600x600 PANEL LIGHT DOWNLIGHT SMOKE DETECTOR ABOVE CEILING UPRIGHT SPRINKLERS PENDANT SPRINKLERS SPEAKERS SMOKE DETECTORS ARCHITECTS ATUL SHIV ARCHITECTS AND CONSULTANTS XYZ DRAWING TITLE WORKING DRAWING 2 DATE DRAWN BY: ATUL SHIV CHECKED BY: SCALE: JOB NO: SHEET NO: 1 REVISION NO: OFFICE SPRINKLER SYSTEM DOOR WINDOW SCHEDULE CONSULTANTS 1 DRAWINGS TO BE READ, NOT SCALED. 2.DRAWING TO BE READ IN CONJUNCTION WITH RELEVANT DETAIL DRAWINGS 3.ALL DIMENSIONS ARE IN MILLIMETRES GENERAL NOTE KEY PLAN (NOT TO SCALE) 1:100 600X600 DIFFUSER 600X600 DIFFUSER FRESH AIR 600x600 600x600 600x600 DOWNLIGHT +350 LVL SA DUCT +350 LVL 600X600 SUPPLY DIFFUSER 600X600 RETURN DIFFUSER FRESH AIR SUPPLY 600x600 PANEL GYPSUM 600x600 TRAP DOOR 600x600 PANEL DOWNLIGHT AHU SA DUCT SA DUCT SA DUCT SA DUCT SA DUCT SA DUCT 23 +350 LVL +350 LVL +350 LVL +350 LVL +800 LVL 600X600 SUPPLY AIR DIFFUSER 600X600 RETURN AIR DIFFUSER FRESH AIR SUPPLY DUCT 600x600 PANEL GYPSUM 600x600 TRAP DOOR 600x600 PANEL LIGHT DOWNLIGHT SMOKE DETECTOR ABOVE CEILING U P UPRIGHT SPRINKLERS PENDANT SPRINKLERS +800 LVL +350 LVL +800 LVL U ARCHITECTS ATUL SHIV ARCHITECTS AND CONSULTANTS XYZ DRAWING TITLE WORKING DRAWING 2 DATE DRAWN BY: ATUL SHIV CHECKED BY: SCALE: COORDINATED OFFICE PLAN DOOR WINDOW SCHEDULE CONSULTANTS 1 DRAWINGS TO BE READ, NOT SCALED. 2.DRAWING TO BE READ IN CONJUNCTION WITH RELEVANT DETAIL DRAWINGS 3.ALL DIMENSIONS ARE IN MILLIMETRES GENERAL NOTE KEY PLAN (NOT TO SCALE) 1:100 41 | TECHNICAL DRAWINGS
SPRINKLER SYSTEM WIRING LIGHTING AND FALSE CEILING COORDINATED PLAN
DETAIL
HVAC LAYOUT FALSE CEILING
STAIRCASE
