NOWADAYS YOU HAVE TO BE LUCKY TO FIND A PUBLIC RESTROOM.
INSTEAD OF CROSSING STREETS AND PANICKING TO FIND A RESTROOM. THE IDEA WAS CAME UP WITH EXCHANGEABLE ESSENTIALS WAS CREATED TO HELP YOU WITH THAT SITUATION AND GO BEYOND THAT.
PICKING UP FROM 125TH STREET SINCE WE OBSERVED HOW BUSY AND USEFUL IT WOULD BE TO EVERYONE INCLUDING THE OTHERS
THAT AREN’T FROM THERE. ON THIS STREET WE SEE MANY VENDORS, INSTEAD OF CUTTING THEM OFF WE DECIDED TO ADD THEM INTO IT WHERE THEY WOULD USUALLY PLACE THEMSELVES ON THE STREET.
EXCHANGEABLE ESSEN TIALS
01

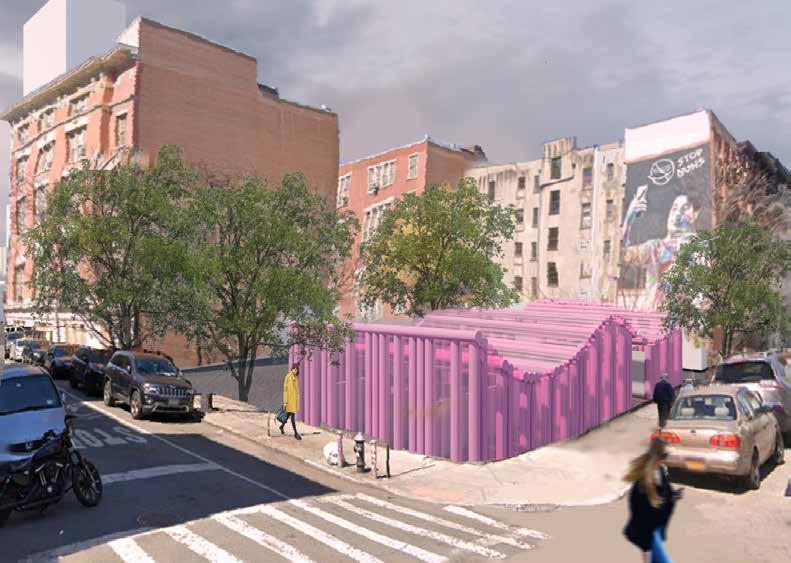

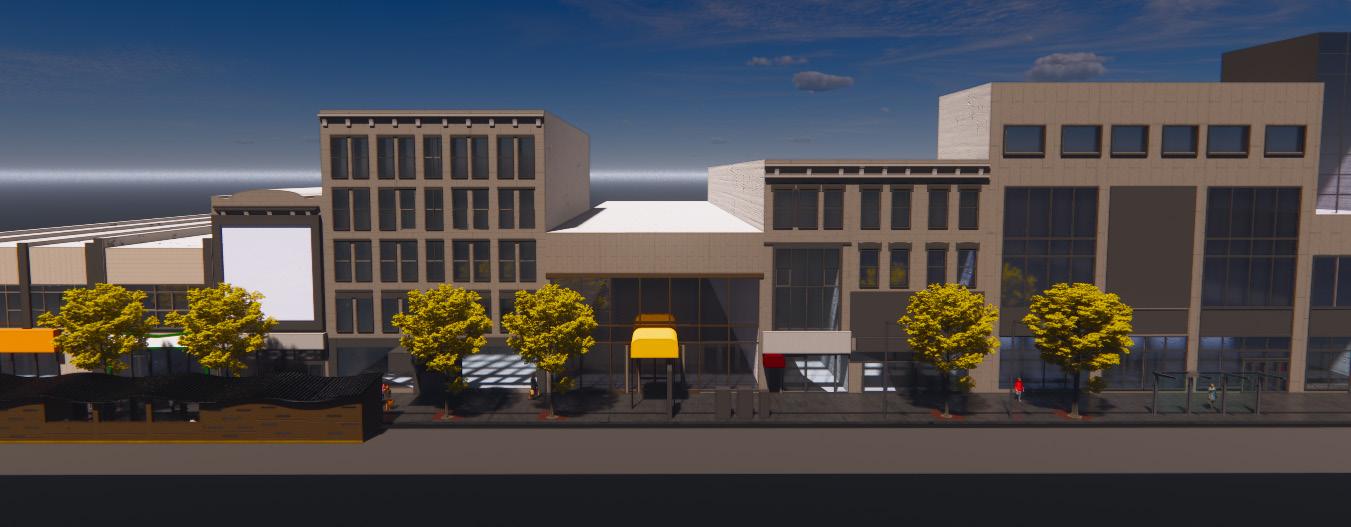

1 RENDERING OF SITE
STRUCTURE ON THE STREET
2 STREET
EXCHANGEABLE ESSENTIALS PLAN & DIAGRAMS
Legend Subway Lines Bus Routes Bus parking Bike lanes Proposed site Park Sidewalk Street Lots Shuttle bus Winter Solstice 12pm Summer Solstice 12pm Winter Solstice 12pm Summer Solstice 12pm Site Map and Observations Modular Diagrams Sun & Rain Diagrams Base Diagram Elevations Front Eleavtion Rear Elevation Winter Solstice 12pm Summer Solstice 12pm Winter Solstice 12pm Summer Solstice 12pm Legend Subway Lines Bus Routes Bus parking Bike lanes Proposed site Park Sidewalk Street Lots Shuttle bus Winter Solstice 12pm Summer Solstice 12pm Winter Solstice 12pm Summer Solstice 12pm Site Map and Observations Sun & Rain Diagrams Floor Plan Elevations Diagrams Base Diagram Seating A Seating B Elevation 9’ - 0” 9’ - 0” 10’ - 6” 10’ - 0” Doors Can Be Placed On Three Sides of Module Legend Subway Lines Bus Routes Bus parking Bike lanes Proposed site Park Sidewalk Street Lots Shuttle bus Winter Solstice 12pm Summer Solstice 12pm Winter Solstice 12pm Summer Solstice 12pm Observations Sun & Rain
Diagrams
3 BASE DIAGRAM SITE MAP & OBSERVATIONS SUN & RAIN DIAGRAMS FLOOR PLAN 5
EXCHANGEABLE ESSENTIALS ELEVATIONS, & DIAGRAM

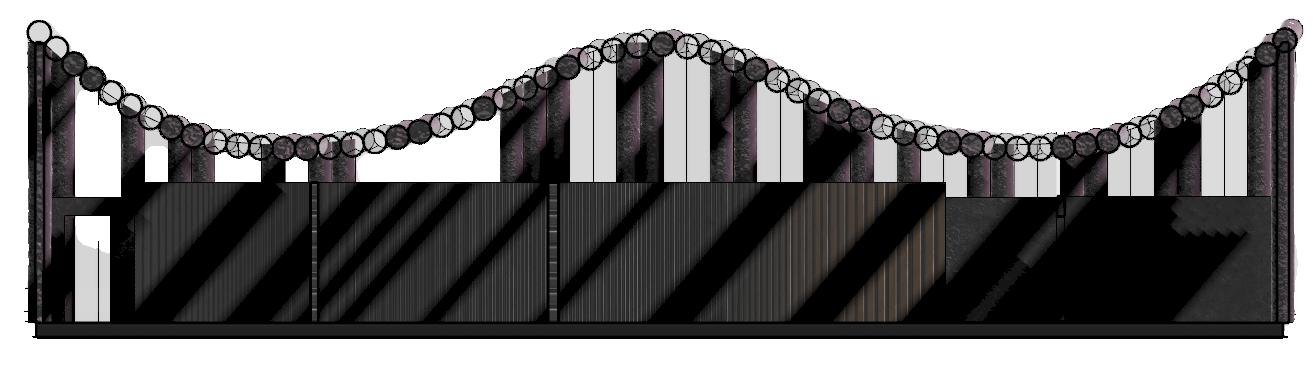

ELEVATIONS
FRONT ELEVATION
Front Eleavtion
REAR ELEVATION
Rear Elevation
Modular Diagrams
MODULAR DIAGRAMS
Modular Diagrams

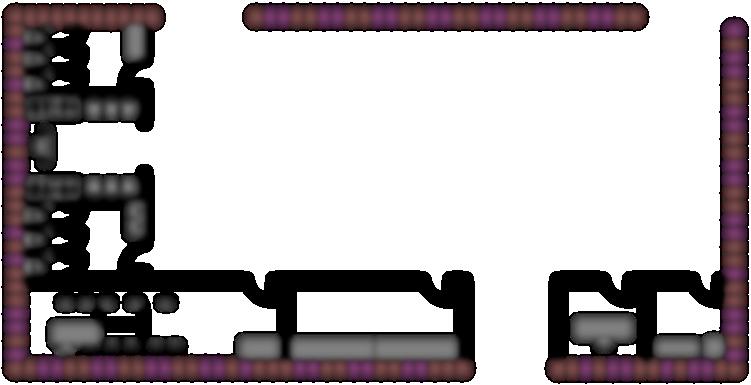

Base
Bathroom A Bathroom B ADA Bathroom Storage Seating A Seating B
Front Eleavtion Rear Elevation 9’ - 0” 9’ - 0” 10’ - 6” 10’ - 0” Doors Can Be Placed On Three Sides of Module
Diagram
Elevations
Bathroom A Bathroom B ADA Bathroom Storage Seating A Seating B
Elevations
4
BATHROOM B BATHROOM B STORAGE ADA BATHROOM SEATING B SEATING A 6

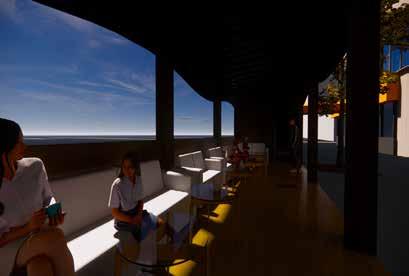

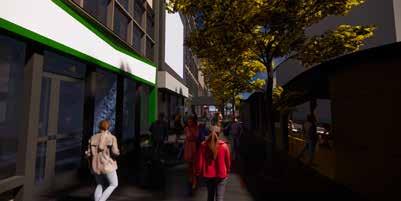

EXTERIOR VIEWS

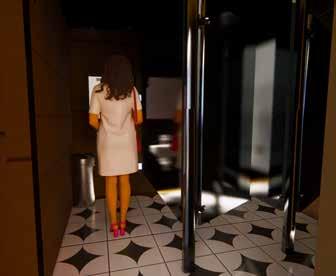

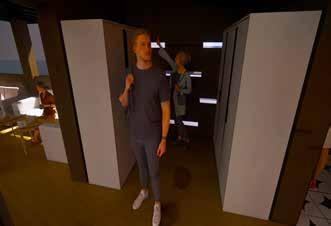

INTERIOR VIEWS
5

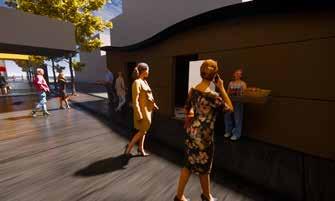

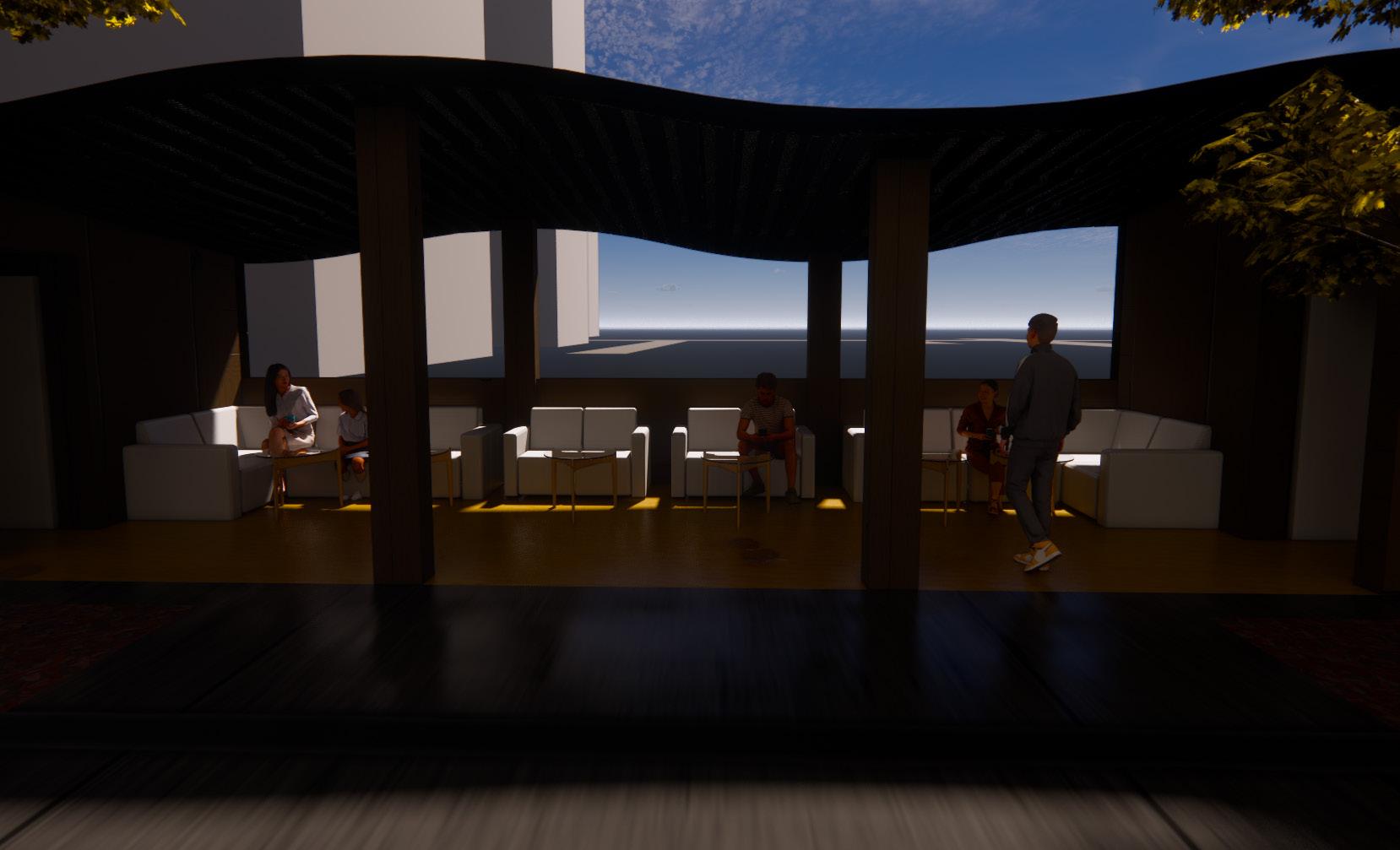

RENDERINGS OF THE SITE & STRUCTURE
7
IN THIS DESIGN, WE CREATED A STRUCTURE THAT HELD BATHROOMS AND A LOUNGE SPACE. DUE TO THIS, IT LEAD TO A SPACE THA TOOK OVER THE STREET LIKE A RESTRUANT WOULD USUALLY DO. ALTHOUGH KEEP THAT IN MIND, THE DESIGN ABOVE, WAS CREATED TO GIVE THE COMMUNITY A SPACE TO SELL THEIR GOODS, TAKE A SEAT,AND USE THE RESTROOM.

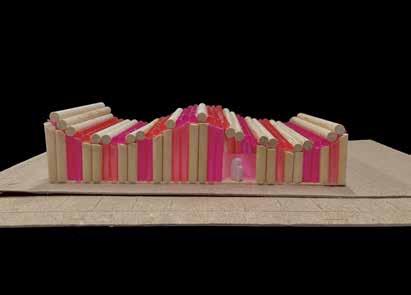

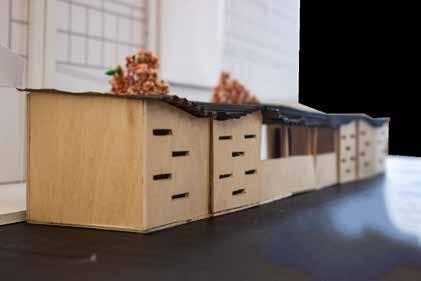

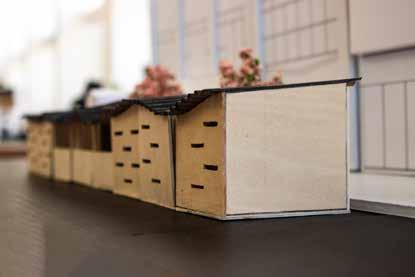

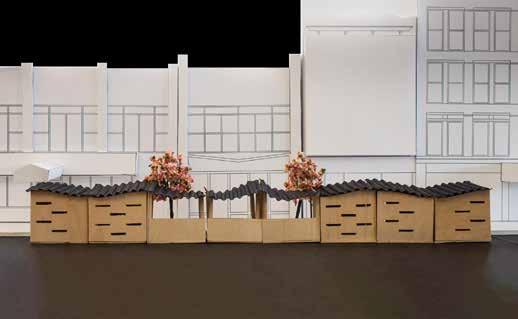

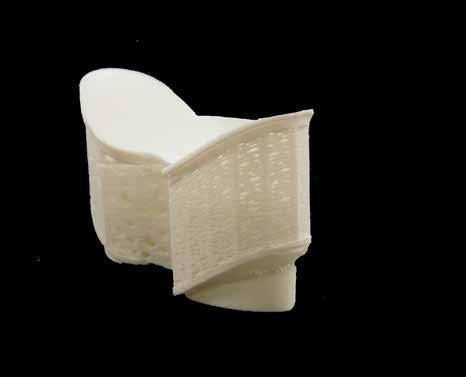

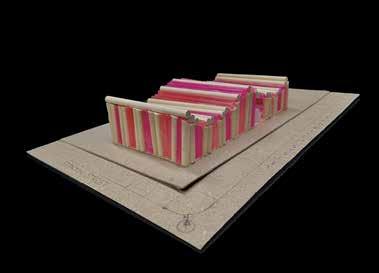

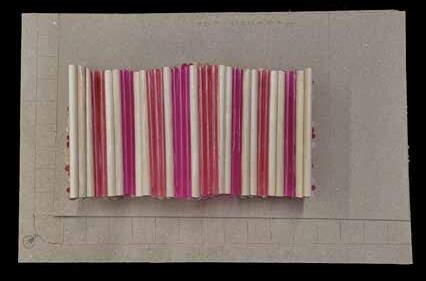

PHYSICAL MODEL OF THE SITE & STRUCTURE
68
02
WITHIN THE LAST PROJECT OF PULLING THE MODULES THAT WAS DONE BEFORE, I WANTED TO CREATE A SPACE FOR RESIDENCES IN THE APARTMENT WITH THEIR OWN NATURAL LIGHTING AND STICK WITH A PROGRAM THAT WAS INTENDED FOR DAILY ROUTINES. MAKING THESE CHANGES BETWEEN MY PLANS GAVE ME AN UNDERSTANDING OF HOW AN APARTMENT NEEDS ITS OWN STUDY AND SPACE ALL IN ONE. CONSIDERING AS WELL, AS BUILDING WITHIN THE FABRICS OF THE SUR-
INTER-VOIDS BUILDING
7 9

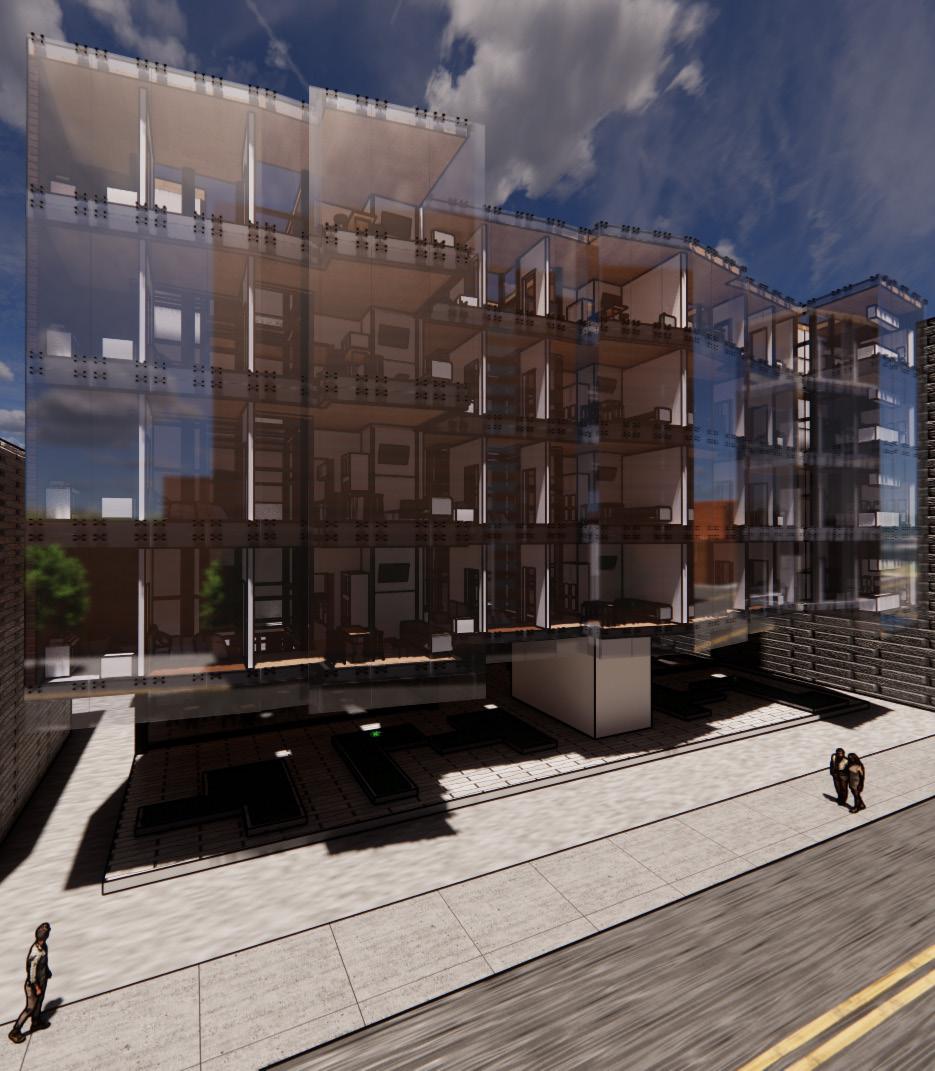

(RENDERING VIEW STRUCTURE WITHIN SITE) 8 10
Typical unit floor plans
TYPICAL UNIT FLOOR PLANS
Scale 1/4”=1’-0”
SCALE: 1/4”=1’-0”
9
11
1012
GROUND FLOOR PLAN
SCALE: 3/32”=1’-0”
Plan
Typical Floor Scale 3/32”=1’-0”
3/32”=1’-0”
11 13
TYPICAL FLOOR PLAN
SCALE: 3/32”=1’-0”
n Floor Plan 3/32”=1’-0”
12 14
Section I
Scale 3/32”=1’-0”
13
14
Section II
Scale 3/32”=1’-0”
15
16
Structure Diagram
STRUCTURE DIAGRAM
SCALE: 1/32”=1’-0”
Scale 1/32”=1’-0”
BASE STRUCTURE
01 02
FLOOR STRUCTURE
1917
OVERALL STRUCTURE
03 2018
THE VOIDS INBETWEEN THE WINDOWS

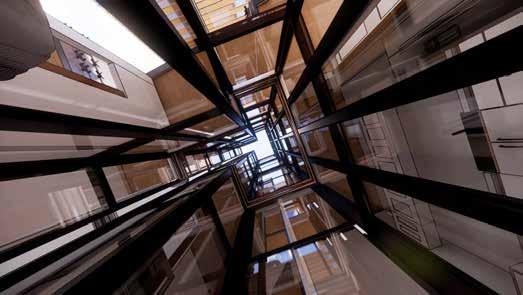

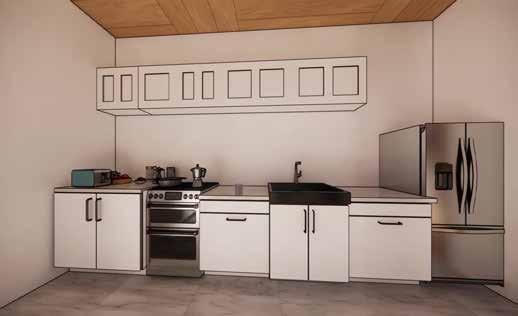

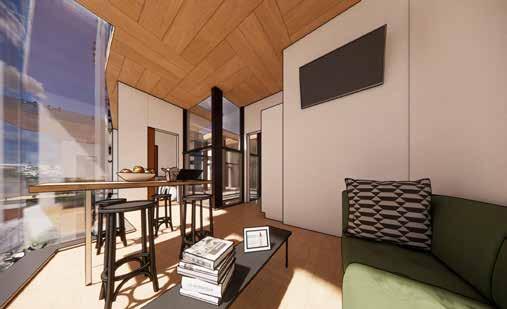

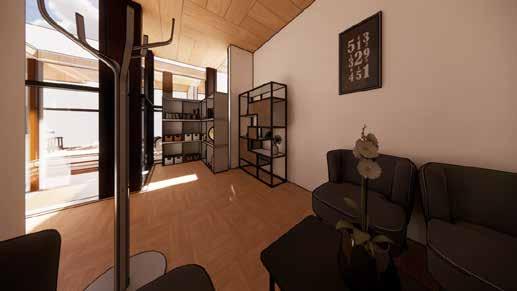

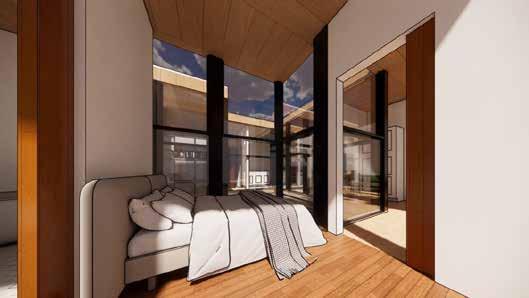

Residential interior views Residential interior views 19 INTERIOR VIEWS IN THE APARTMENT RENDERINGS
21

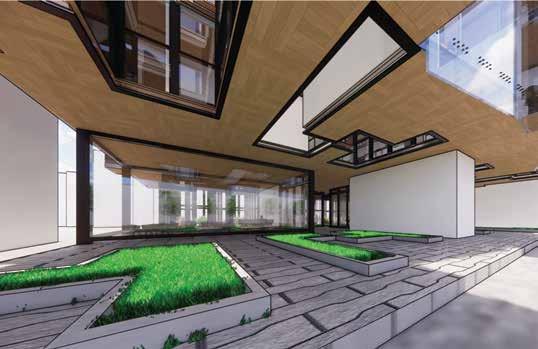

Ground Public Space 20
INTERIOR VIEWS IN THE APARTMENT 22
RENDERINGS

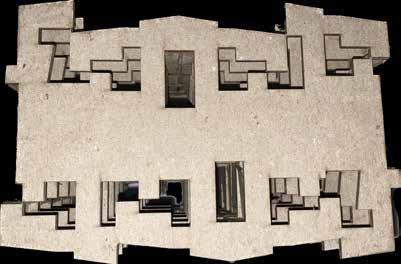

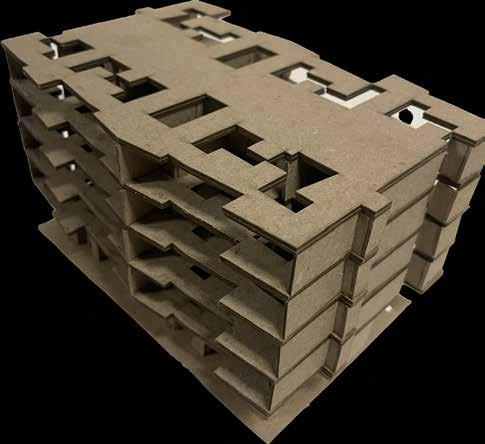

PHYSICAL MODEL OF APARTMENT 21 23
OF
IN SITE 22 24

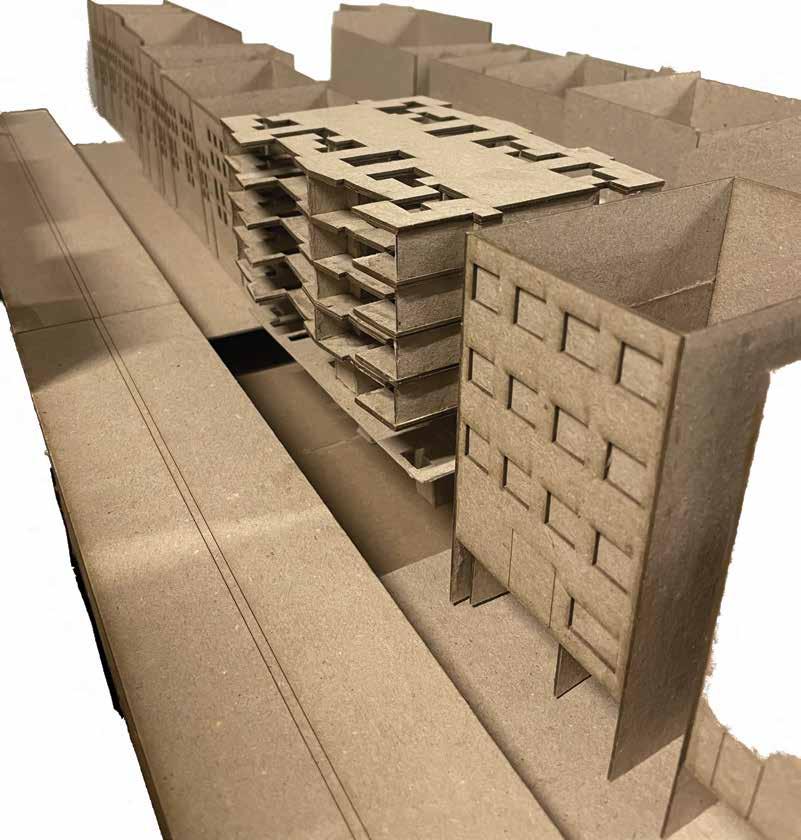

PHYSICAL MODEL
APARTMENT
THE ART GALLERY WAS OUR WARM-UP ASSIGNMENT TO COMMUTE PROGRAMS WITHIN A 3,200-SQUARE-FOOT LOT SPACE. WHEN CREATING THE ART GALLERY, I WANTED TO CREATE A GALLERY THAT JUST TOOK IN NATURAL LIGHTING, AND THEN LOOKING INTO EL PETIT COMTE KINDEGARTEN BY RCR ARCHITECTS INSPIRED THE ENVELOPE OF MY GALLERY. INCLUDING HOW THE DIFFERENCES IN MATERIAL DEPENDING ON THE SUN’S ORIENTATION MATTERED AS MUCH AS THE OCCUPATION OF EACH ROOM PRESENTED IN THE PLAN.
ANOXOMETRIC DRAWING
ANOXOMETRIC DRAWING
PLAN SCALE 1/8”=1’-0” SECTION
SCALE 1/8”=1’-0” A
A
PLAN SCALE 1/8”=1’-0” SECTION
SCALE 1/8”=1’-0” A 25 03 PLAN SCALE 1/8”=1’-0”
SCALE
ART GALLERY
A
SECTION A
1/8”=1’-0”
A 26
27 STANTON STREET ELDRIDGE STREET
80’
SCALE
40’
PLAN
1/8”=1’-0”
1- Reception
2- Bathroom
3- Exhibition
4- Work space
5- Storage
6-Director’s Office
7-Mechanical Room
8-Shipping & Delivery
9- Emergency Exit
28 STREET
SCALE 1/8”=1’-0”
SCALE 1/8”=1’-0”
SECTION
29 SECTION
30
SCALE 1/8”=1’-0”
31
OF ART
PHYSCIAL MODEL
GALLERY
32
OF ART GALLERY
RENDERING
THE SITE THAT WAS GIVEN WAS A BLOCK AWAY FROM THE ART GALLERY SITE, LOCATED ON THE LOWER EAST SIDE. THE SITE IS LOCATED, AT SARA D. ROOSEVELT PARK IS BETWEEN THE MAIN STREETS OF CHRYSTIE AND FORSYTH STREETS. WE MAINLY FOCUSED ON THE SEASON SUN ANALYSIS, SHADOW INTEL, PERSONAL INTEREST WHILE SPENDING TIME AT THE SITE, DEMOGRAPHICS, BUILDING CONTEXT, AND LANDMARKS.
ANALYSIS
SITE
33 210
04
225 240
34
9AM KEY 12PM 3PM
BUILDING USAGE & HEIGHTS
BUILDING USAGE
SCALE 1/64”=1’-0”
MIXED RESIDENTIAL & COMMERCIAL
MULTI-FAMILY ELEVATOR
COMMERCIAL & OFFICE
PUBLIC FACILITIES & INSTITUTIONS
MULTI-FAMILY WALK-UP
SCALE 1/64”=1’-0”
BUILDING
SCALE 1/64”=1’-0”
85' 150' 85' 150' 85' 150'
RECONSTRUCTION TIMELINE
2000’S 2020’S 1900’S 1920’S 1920’S 103’ 141’ 314’ 58’ 68’ 131’ 31’ 104’ 84 64’ 57’ 54’ 70’
BUILDING HEIGHTS
CHRYSTIE STREET
35
FORSYTH STREET
DEMOGRAPHIC & LANDMARKS
SITE LANDMARKS
ASIAN AFRICAN AMERICAN HISPANIC WHITE OTHER RACE DEMOGRAPHICS POPULATION DENSITY 19,850 PEOPLE ◦ 159.8 PEOPLE PER ACRE AGE DISTRIBUTION 1-18 YEARS 11.7% ◦ 19-59 YEARS 71.5% ◦ 60 AND OLDER 16.7% ASIAN 48.5% overview AFRICAN AMERICAN 3.3% HISPANIC 15.2% WHITE 30.6% OTHER 2.3%
SCALE 1/250”=1’-0” ST. PATRICK'S BASILICA 263 Mulberry St, New York, NY 10012 ◦ THIS ST. PATRICK’S BASILICA IS THE o ORIGINAL CATHEDRAL CHURCH OF THE ROMAN CATHOLIC ARCHDIOCESE OF NEW YORK ST. PATRICK'S, OVER DECADES, EXPANDED TO PROVIDE FOR THE SPIRITUAL AND MATERIAL NEEDS OF A DIVERSE COMMUNITY, INCLUDING ITALIAN, AFRICAN AMERICAN, CHINESE, AND VIETNAMESE CATHOLICS. Tenement Museum 103 Orchard St, New York, NY 10002 THE TENEMENT MUSEUM GIVES ITS VISITORS A WAY TO BE INFORMED ON HOW HOMES OF IMMIGRANTS, MIGRANTS, AND REFUGEES FAMILIES WITHIN THE CITY TENEMENTS FROM THE 1860’S-1980’S. ◦ IN ADDITION, THEY ALSO SHARE STORIES OF THE FAMILIES THAT LIVED IN THESE HOMES LOCATED IN THE LOWER EAST SIDE NEIGHBORHOOD OF MANHATTAN. Yonah Schimmel's Knish Bakery 137 E Houston St, New York, NY 10002 ◦ THIS BAKERY BEING HERE SINCE 1980’S FIRST STARTED ON A PUSHCART, SO YONAH SCHIMMEL, ROMANIAN JEWISH IMMIGRANT, TO MAKE A LIVING ON THE NEW YORK. Bowery Savings Bank Building 130 Bowery, New York, NY 10013 THE BOWERY SAVINGS BANK BUILDING WAS THE BANK’S FIRST BUILDING THAT SERVED NEW YORK CITY’S FOURTH SAVING BANK THE ARCHITECTURE WITHIN THE BANK USES ROMAN REVIVAL STYLE WITH THE INTENTION TO EXPRESS SIMPLICITY AND GRANDEUR. FOR EXAMPLE THE MG ARCHITECTS TOOK AWAY THE TELLER CAGE AND STORE TO CREATE MORE SPACE. The Bowery Ballroom 6 Delancey St, New York, NY 10002 ◦ THIS BALLROOM WAS FIRST A RETAIL STORE, LATER WAS A SHOE STORE, TREE-MARK STORES, FOR 30 YEARS. ◦ SINCE 1997 TO PRESENT DAY IS NOW A MUSIC VENUE SHOWN ABOVE. New Museum 235 Bowery, New York, NY 10002 ◦ THIS MUSEUM WAS FOUNDED JANUARY 1,1977, AS WELL WAS THE FIRST MUSEUM DEVOTED TO CONTEMPORARY ART IN NEW YORK CITY. ◦ THE MUSEUM MOSTLY FOCUSED ON PRESENTING WORK OF LIVING ARTIST WHO HAVE NOT GOTTEN A WIDE EXPOSURE OR CRITICISM. LANDMARKS SITE 36

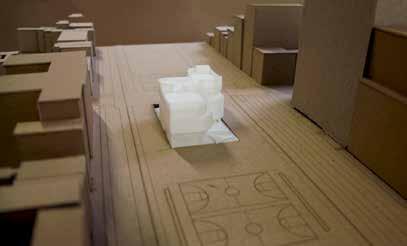

RESERACH PHYSICAL MODEL 1/8”=1-0”
05
SUSTAINABLE TECH
AFTER SITE ANALYSIS, WE GOT TO FOCUS ON ECOLOGICAL TECHNOLOGY THAT WOULD HELP US UNDERSTAND COMPONENTS OF DIFFERENT ECO-TECHNOLOGY THAT CAN BENEFIT THE PROJECT FOR THE BETTER. THE MAIN ECOTECHNOLOGY THAT I FOCUSED ON WAS THE SHADING DEVICES THIS WOULD GIVE THE BUILDING AN ADVANTAGE FOR BETTER LIGHTING AND BEING ABLE TO CONTROL IT IN DIFFERENT WAYS. THESE SHADING DEVICES WOULD LATER, BE IMPLEMENTED INTO THE VEIL PROJECT.
37

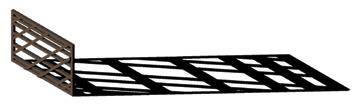

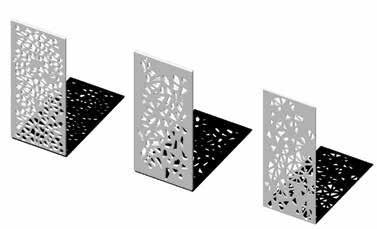

TYPES OF SHADING DEVICES
EGGCRATE TYPES SHADING DEVICES
EGGCRATE WITH HORIZONTAL LOUVERS
EGGCRATE
LOUVERS
LOUVERS
PROS & CONS SHADING DEVICES
• HIGHER COST TO RETROFIT THAN INTERNAL BLINDS
• REDUCE UNWELCOME SOLAR GAINS
• REDUCE COOLING LOADS IN SUMMER
• LIGHTING CONTROL
• PROVIDE GOOD QUALITY LIGHTING WITHOUT GLARE
• UV PROTECTION
• APPLICABLE TO ALL BUILDINGS
&
• CAN IMPACT ON OCCUPANT VIEWS
• MAY NOT BE WATERPROOF DEPENDING ON THE MATERIALS
• THE SHADING DEVICES ARE GENERALLY CLASSIFIED ACCORDING TO THEIR POSITION
YEAR-ROUND SHADING, DESIGNING WITH VENTILATION IN MIND
COMPLETE YEAR-ROUND SHADING, ONLY DURING MAJOR SUNSHINE HOURS
& CLOUDY NO SHADING COLD & SUNNY DURING SUMMER MONTHS ONLY
COMPOSITE DURING SUMMER MONTHS ONLY
IDEAL ORIENTATION VIEW RESTRICTION TYPES IDEAL ORIENTATION VIEW RESTRICTION TYPES
N W E S
E
N
EGGCRATE EGGCRATE WITH HORIZONTAL
W
S
PERFORATED PANELS W E
N
EGGCRATE WITH SLANTED
W E S N
S
EGGCRATE WITH SLANTED LOUVERS
PROS CONS
EXTERIOR
DAYLIGHT TO ENTER WITHIN A SPACE WHILE KEEPING DIRECT SUNLIGHT AND HEAT OUT. DEPENDING ON
COMPLETING THE CONSTRUCTION
MAINTENANCE OF A BUILDING CLIMATIC ZONE
HOT
WARM
SHADING DEVICES ALLOWS
THEIR LOCATION, SHADING DEVICES CREATE AN ADDITIONAL OBSTACLE FOR
AND
SHADING REQUIREMENTS
& DRY COMPLETE YEAR-ROUND SHADING
HUMID COMPLETE
TEMPERATE
COLD
SOLAR EXPOSURE DEPENDS ON THE TIME OF YEAR OPTIMAL OVERHANGING POSITION WINTER SUMMER 38
THE VEIL
06
THE MAIN COMPONENT OF THE BUILDING IS THE CURVES THE PURPOSE OF THE CURVES WAS TO GATHER THE SURROUNDINGS TOGETHER AT A MEETING POINT. TO CATCH THE PEOPLE’S ATTENTION WITHIN THE CORE OF THE COMMUNITY CENTER WERE DIFFERENCES IN HEIGHTS FROM ONE FLOOR TO THE OTHER. THE PROGRAM SPACES ARE DIVIDED BY THE MIDDLE CORE AND LIGHTING.
USING THE ECO-TECHNOLOGY RESEARCH WE IMPLEMENT INTO THE BUILDING, CONTROLLING THE AMOUNT OF LIGHT THE BUILDING.
THE FACADE WAS DETERMINED BY THE ORIENTATION OF THE SUN THAT FOCUSES ON THE MAIN SEASONS (WINTER AND SUMMER). IN ADDITION, TAKING INTO CONSIDERATION CONTROLLING THE LIGHT, I MADE A GRADIENT OPENING SYSTEM TO MANAGE THE SUN INTAKE IN THE BUILDING. THIS SHADING DEVICE CREATED A LIGHT VEIL SYSTEM TO ISOLATE THE INTERIOR SPACES FROM THE EXTERIOR SPACES.
39
CONCEPT PHYSICAL MODEL
EXTERIOR PROGRAMS
ENTRY PLAZA
ENTRY PLAZA
OUTDOOR TO FORUM
OUTDOOR TO FORUM
OUTDOOR TO READING
OUTDOOR TO READING
AMPHITHEATER
AMPHITHEATER
INTERIOR PROGRAMS
ENTRY AND MULTI-PURPOSE AREA
ENTRY AND MULTI-PURPOSE AREA
ADMINSTRATION
ADMINSTRATION
THEATER
THEATER LIBARY
CIRCULATION
CIRCULATION
LIBARY

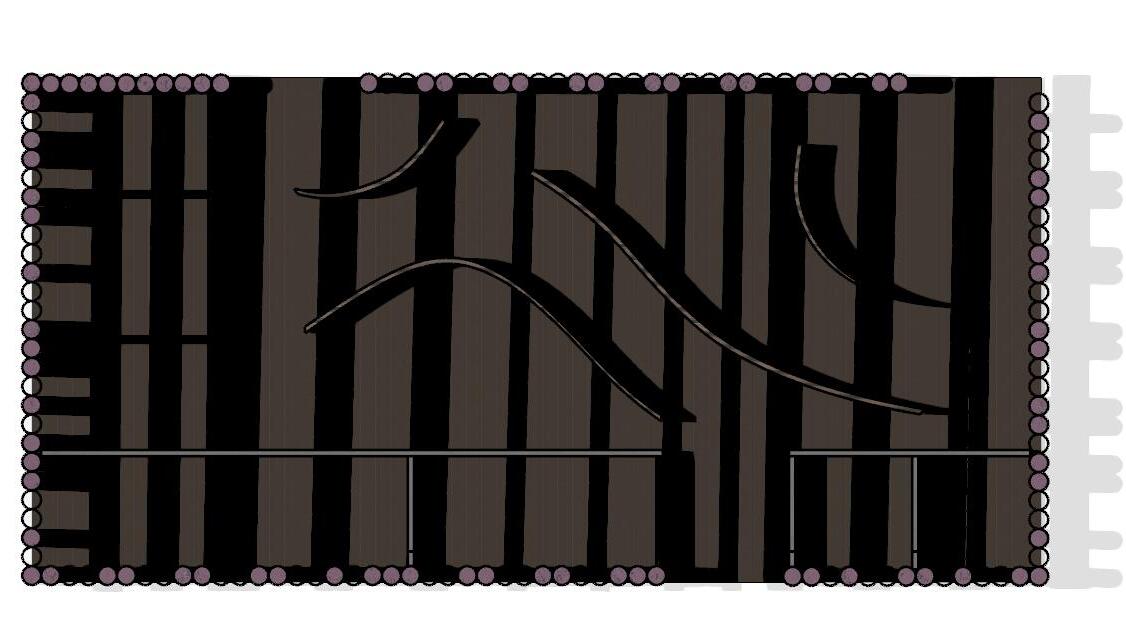

PLAN VIEW ISOMETRIC VIEW ELEVATION VIEW 01 02 03 04 05 06 SUBTRACTION FINAL MASSING MERGING INITIAL MASSING SETBACK + ENVELOPE CUTS FOR PROGRAM 40
DIAGRAM
PROGRAM DIAGRAM CONCEPT
PLANS 1-2 (CELLER & GROUND LEVEL)
UP N CELLAR LEVEL UP BATHROOM BATHROOM MECHANICAL ROOM UTILITY ROOM THEATER N GROUND LEVEL UP UP DOWN ENTRY / MULTI-PURPOSE SPACE LIBRARY AMPHITHEATER
FORSYTH ST S1
CHRYSTIE ST
41
PLANS 3-4
& ROOF LEVEL)
CHRYSTIE
SECOND LEVEL N UP UP ADMINSTRATION OPEN TO BELOW OPEN TO BELOW OPEN TO BELOW
FORSYTH ST ROOF LEVEL
ST FORSYTH ST CHRYSTIE ST
42
(SECOND

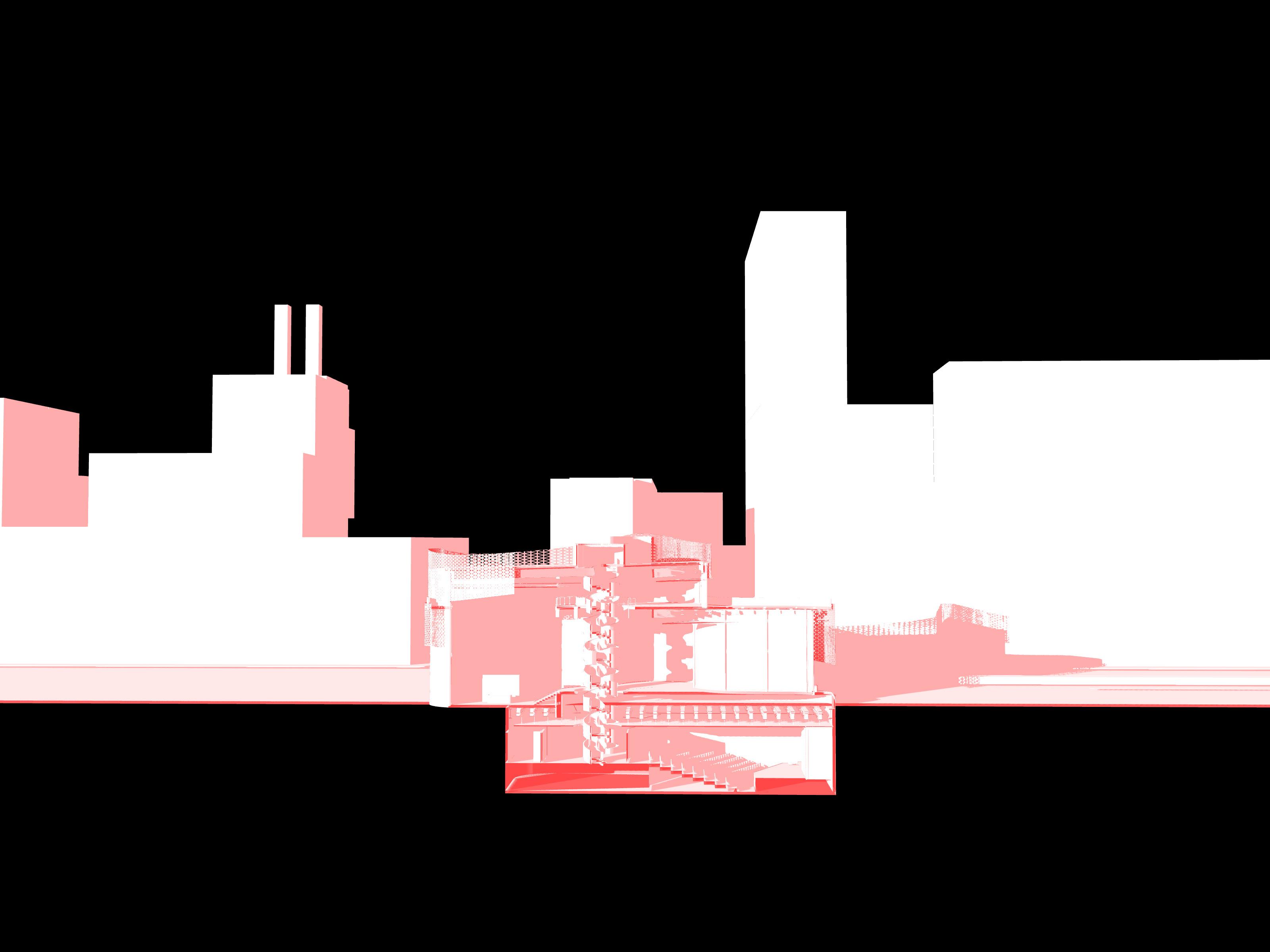

SCALE 1/16”=1’-0” SECTION A
SCALE 1/16”=1’-0”
SECTION A
43
44

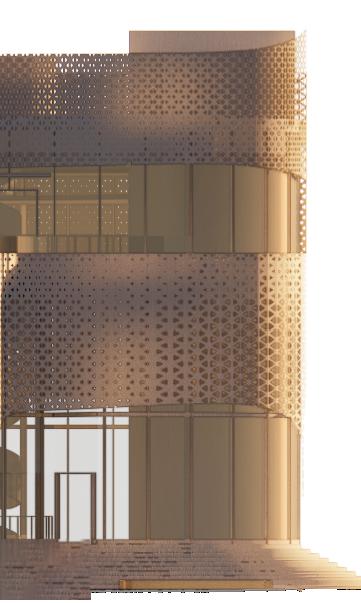

WALL SECTION WITH ELEVATION
1’ METAL PERFORATED FACADE 1’ WOOD FLOOR 5” REINFORCED CONCRETE SLAB 6” WOOD FINISH FLOOR 2” X 8” MULLIONS 2’ DROP CEILING HANGER 5” DROP CELING
GLASS GLAZED
2”
45
RENDERINGS

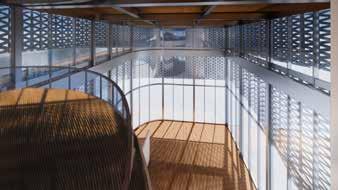

SECOND FLOOR OPENING

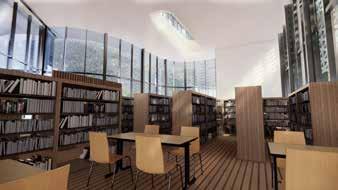

LIBRARY

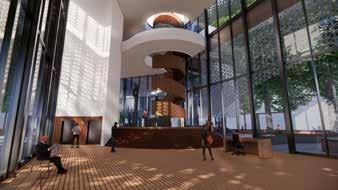

ENTRY

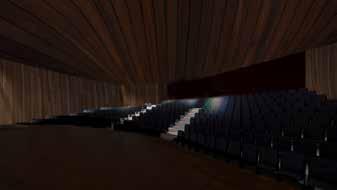

THEATER

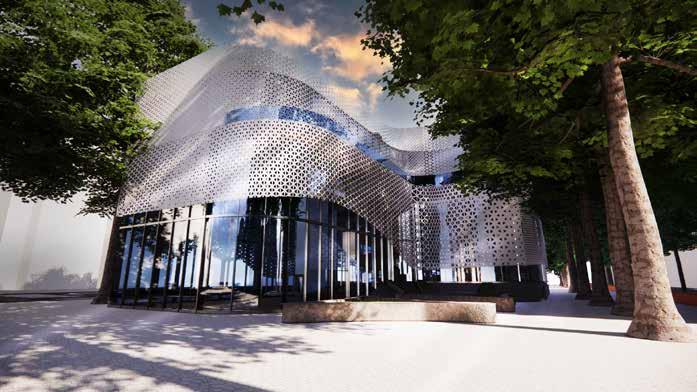

EXTERIOR
46
1/8”=1’-0”

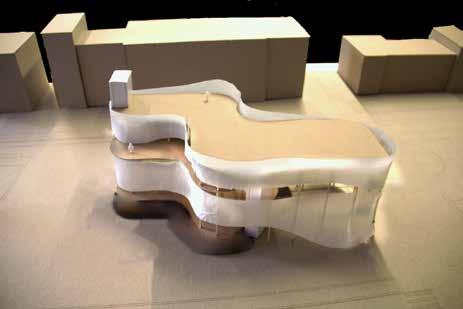

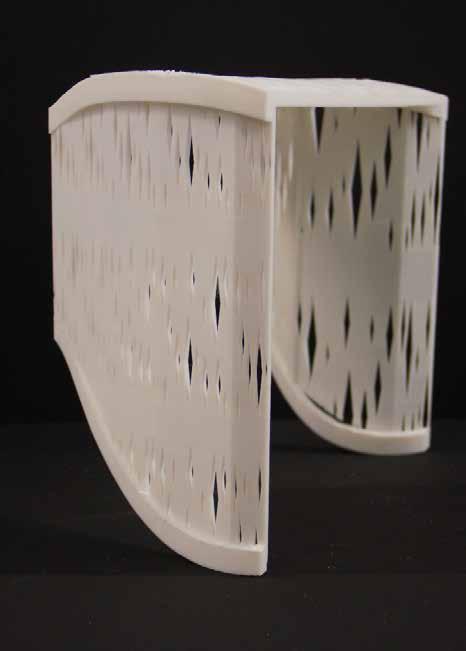

PHYSICAL MODELS 47
SCALE 1/32”=1’-0”
SCALE
48
