ARCHITECTURE DESIGN PORTFOLIO
- ARCHITECT ABDUL WAHID H
ARCHITECTURAL DETAIL DRAWINGS 3D MODELLING & RENDERING GRAPHIC DESIGN PROJECT MANAGEMENT EXPERTISE IN TEAM WORK SITE COORDINATION 1 2 3 4 5 6
CREATIVE SPACES - QATAR
Interior,Fitout & Contracting
SAFEER RESIDENCE
Residencial Design & Execution
Location : Thanjavur, Tamil Nadu, India
ASHIQ KITCHEN INTERIOR
Classical Kitchen Interior Design & Execution
Location : Thanjavur, Tamil Nadu, India
ARUNA RESIDENCE
Contemporary Restaurant Design & Execution
Location : Chennai, India
ECO DOME
Farm House (Earthen structure) Design & Execution
Location : Karnataka, India
FUNICULAR ROOF
Restaurant Design & Execution
Location : Abu Sidra Mall, Qatar
PAPA JOHNS AMIGOS
Restaurant Design & Execution
Location : Vendome Mall, Lusail, Qatar
SOY TOKYO
Restaurant Design & Execution
Location : Vendome Mall, Lusail, Qatar
ECO TONE - CHENNAI, INDIA
Architecture, Interior & Landscape
BANQUET CEREMONY HALL
Banquet Hall Design & Supervision
Location : Thanjavur, Tamil Nadu, India
HIGHWAY RESTAURANT
Restaurant Design & Supervision
Location : Trichy, Tamil Nadu, India
AYURVEDIC CENTER
Landscape Design & Execution
Location : Chennai, India
SWIM POOL
Landscape Design & Execution
Location : Chennai, India
12 13
Entrance Porch Design & Execution
Location : Karnataka, India
14
Modular kitchen Interior Design & Execution
Location : Tamil Nadu, India
AASATH KITCHEN INTERIOR BAMBOO PAVILION
Students Center Design & Execution
Location : Ahmedabad, India
MUDHANDS - BANGALORE, INDIA
Architecture, Interior & Research
15

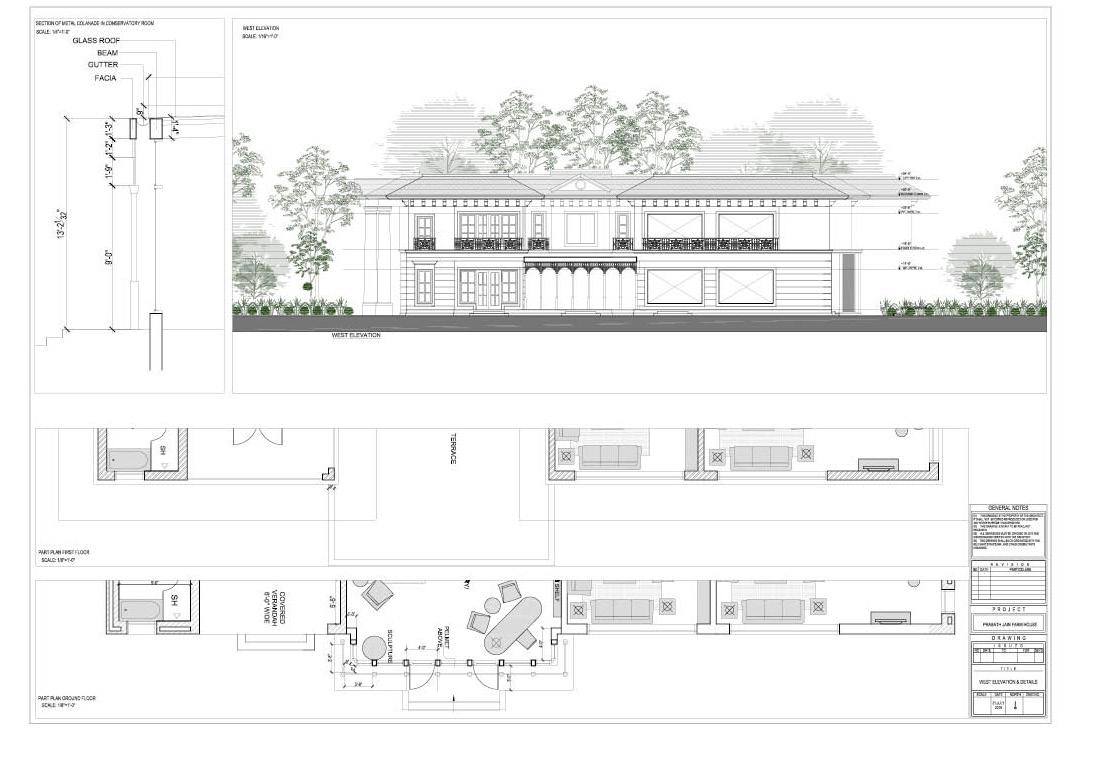

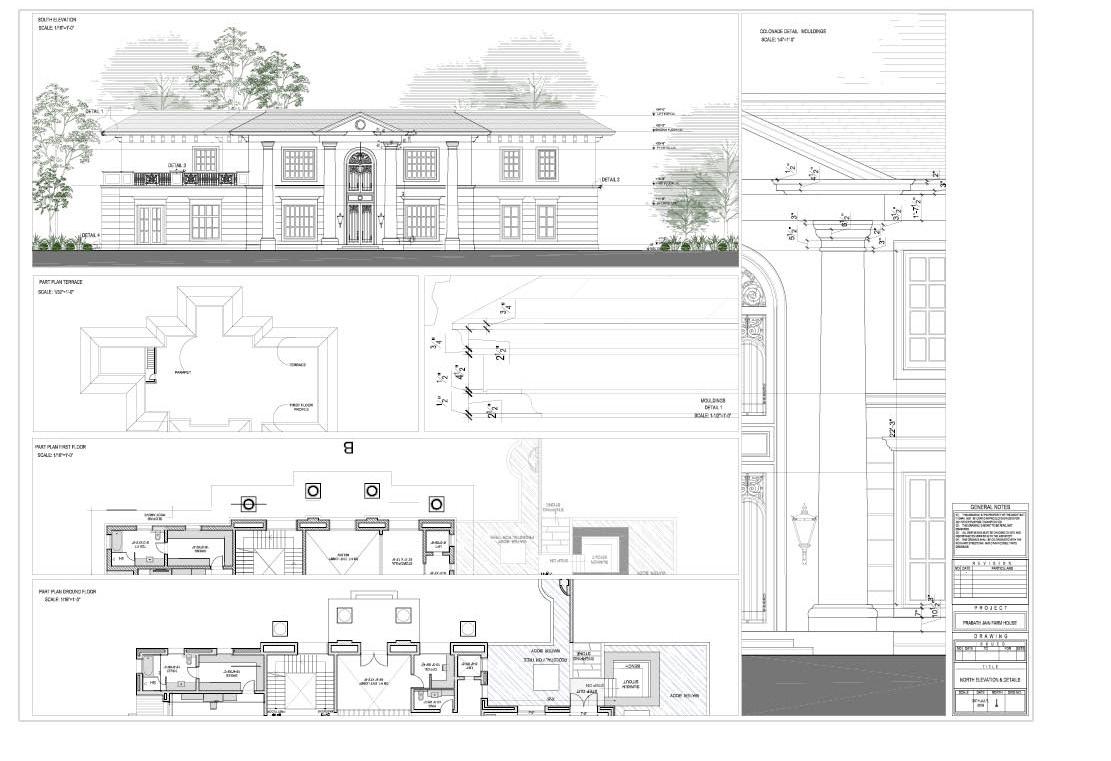

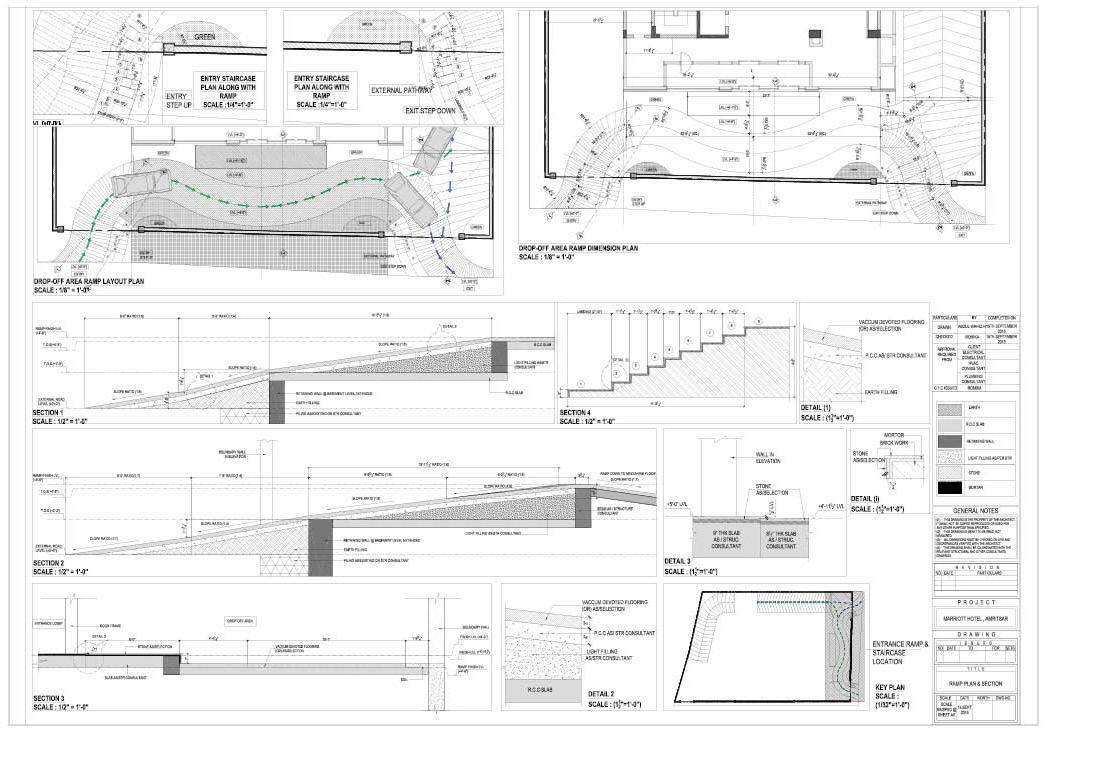

INTERNSHIP DESIGNS & DETAILINGS
Concept Developement,Detailing & Drafting
Location : Bangalore, India
CONTENT
01 02 03 04 05 07 06 08 09 10 11
PORTFOLIO
ARCHITECTURE

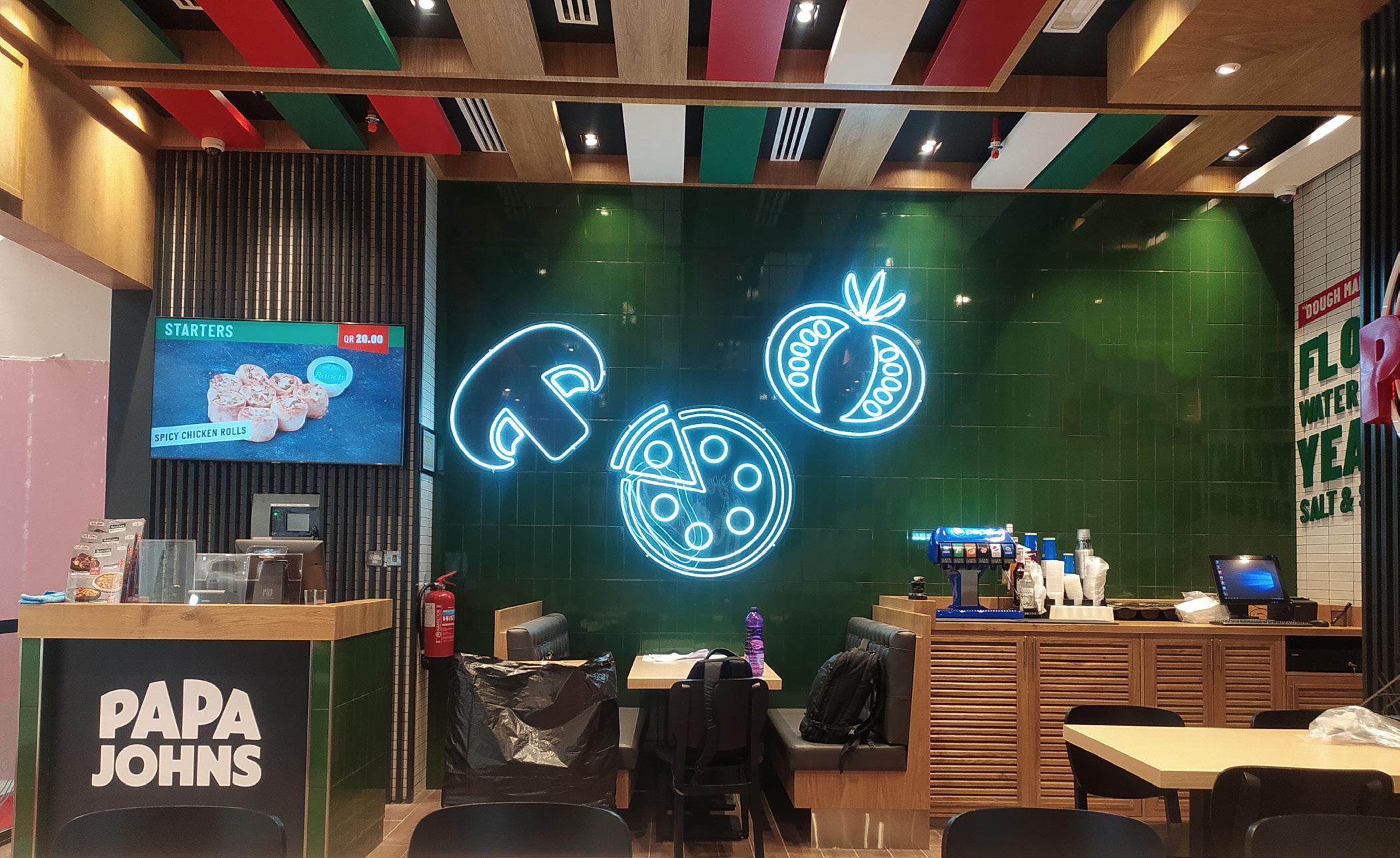

PAPAJOHNS
Design + Build Restaurant

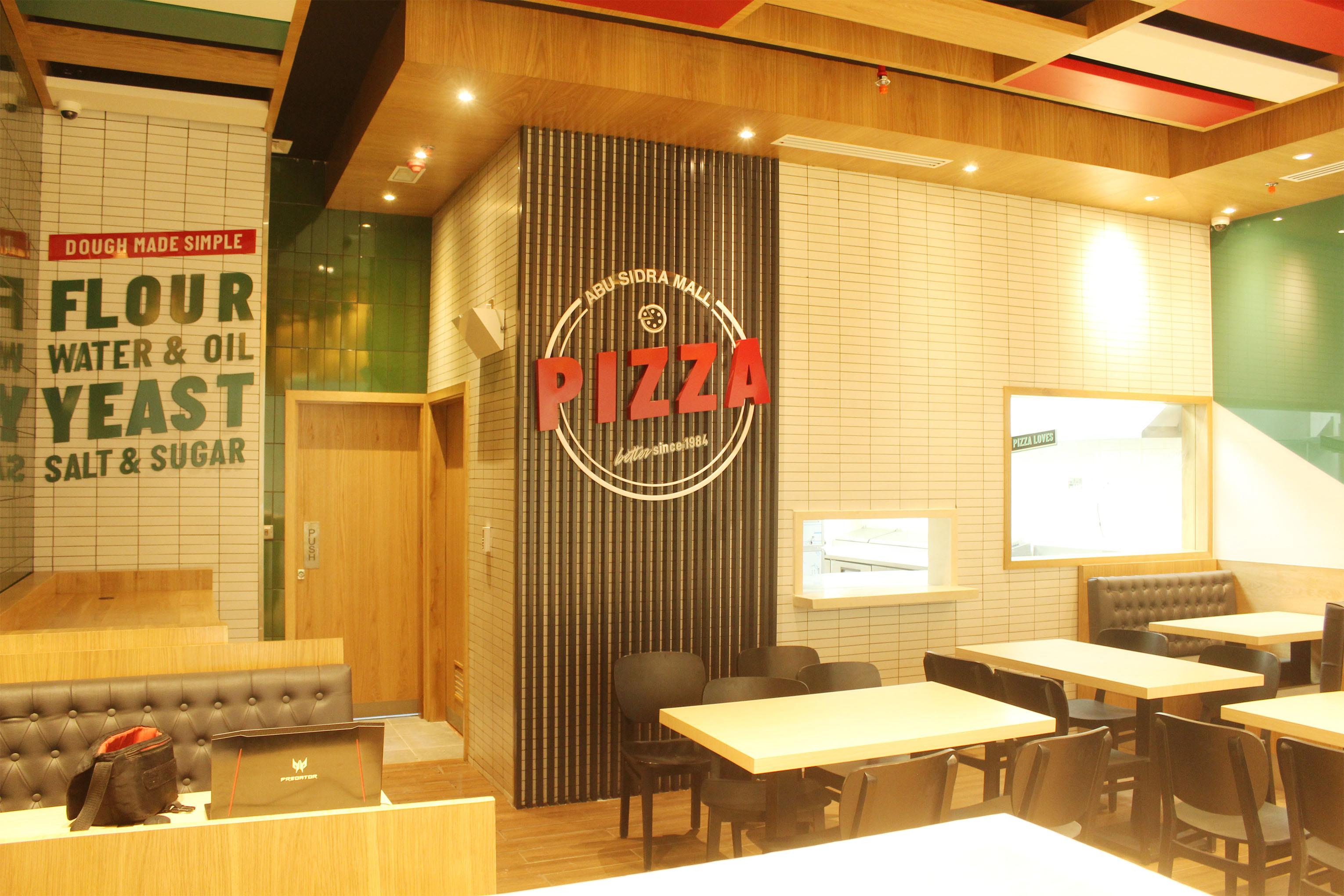

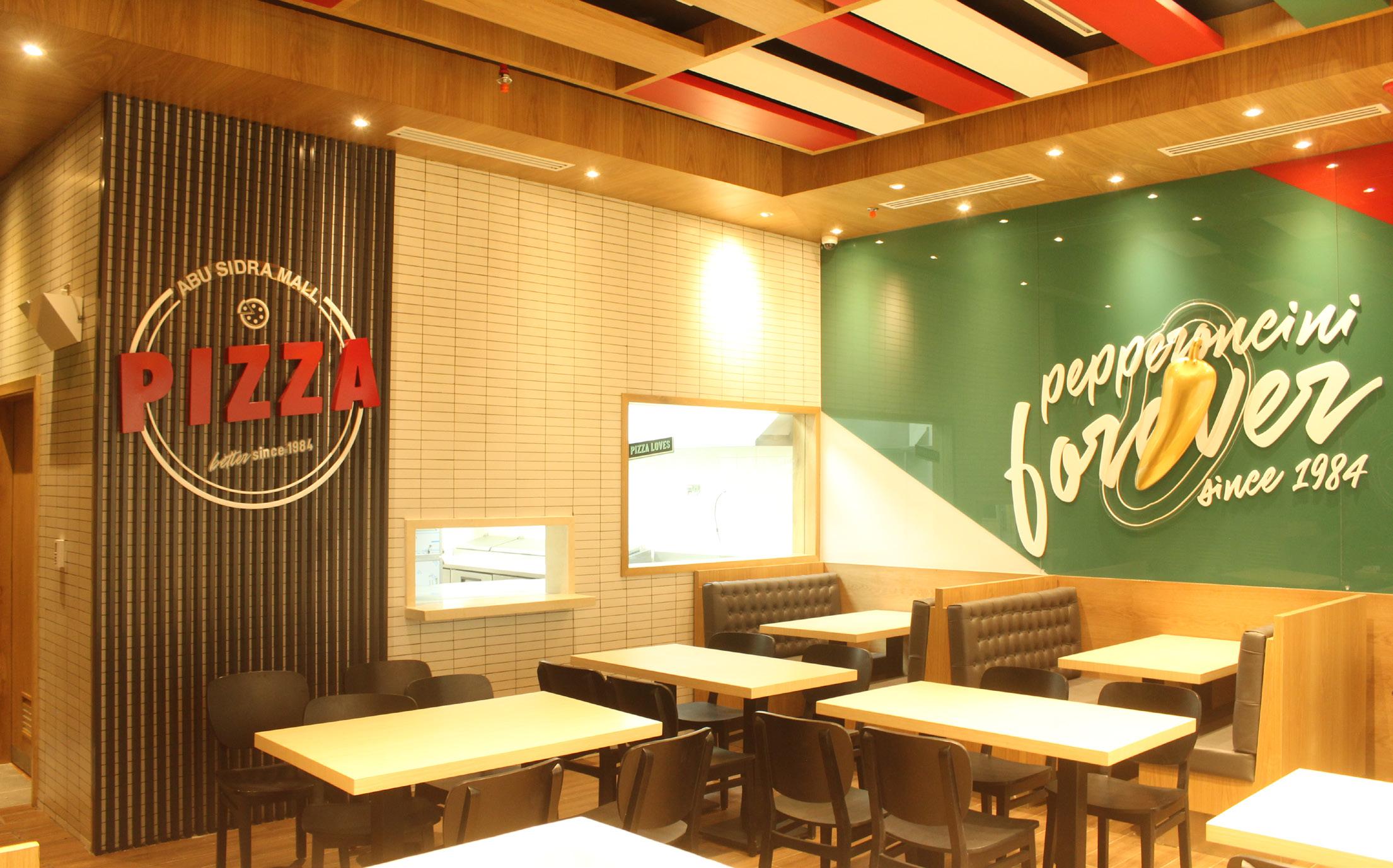

Papa Johns’s is a US-brand restaurant popularly known for its pizza. The client approached us to build a franchise at Abu Sidra mall, Qatar with an area of 108 sq.m. Our team studied morphology and made a design according to their guidelines. We started executing this restaurant with well skilled laborers. With a time duration of 2 and half months, we completed this project. All the furniture used here was made by our team.
Design + Built + Furniture
PAPA JOHNS Floor Plan & RCP PAPA JOHNS Floor Plan & RCP Floor Plan Reflected Ceiling Plan
PAPA JOHNS Features PAPA JOHNS Features

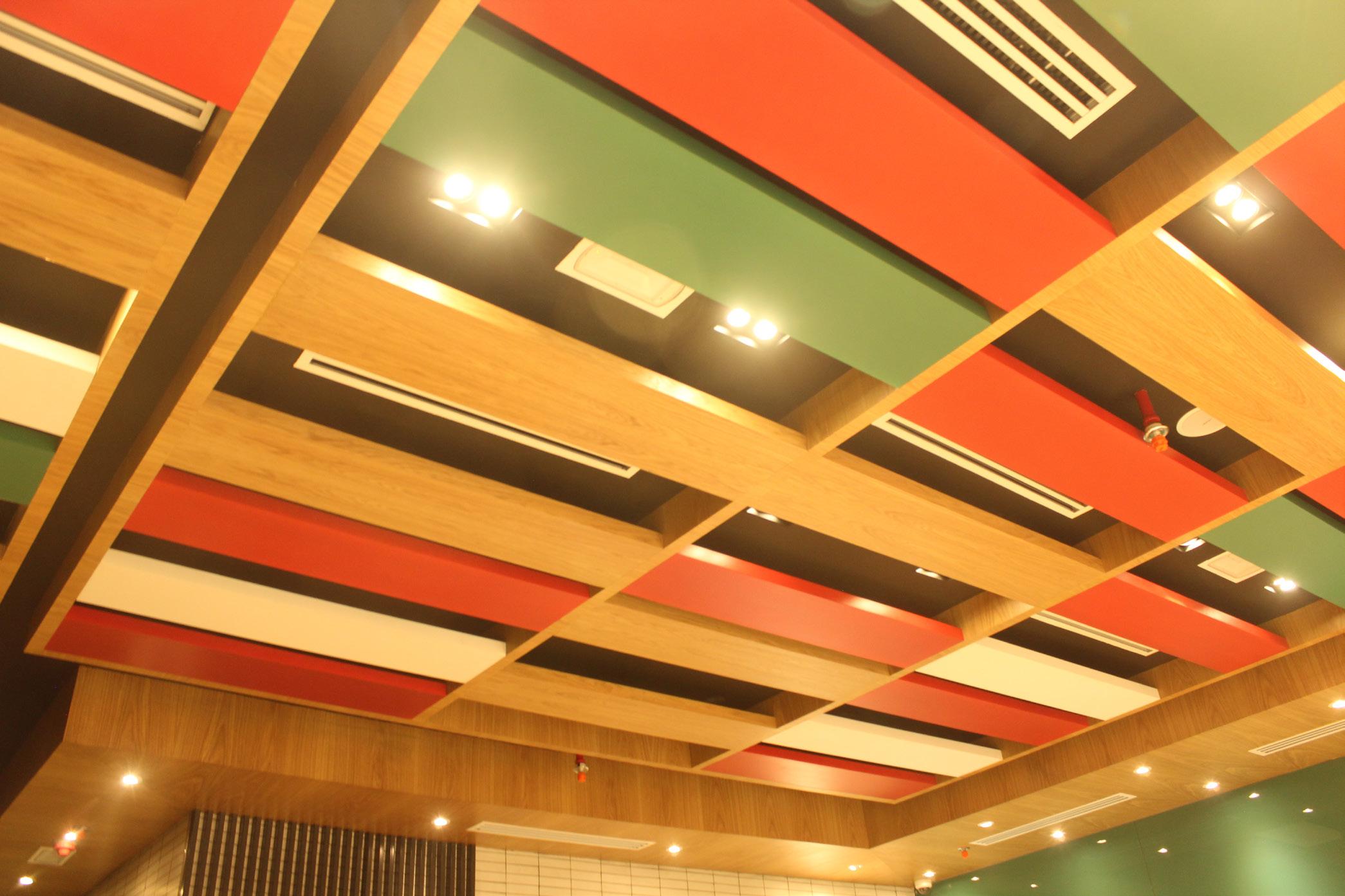

False ceiling Feature
B
B
Section C
Section
Section
PAPA JOHNS
&
PAPA JOHNS Section & Elevation
Section
Elevation
Shop Front Elevation
Shop Front Elevation
Section B
Section B
PAPA JOHNS

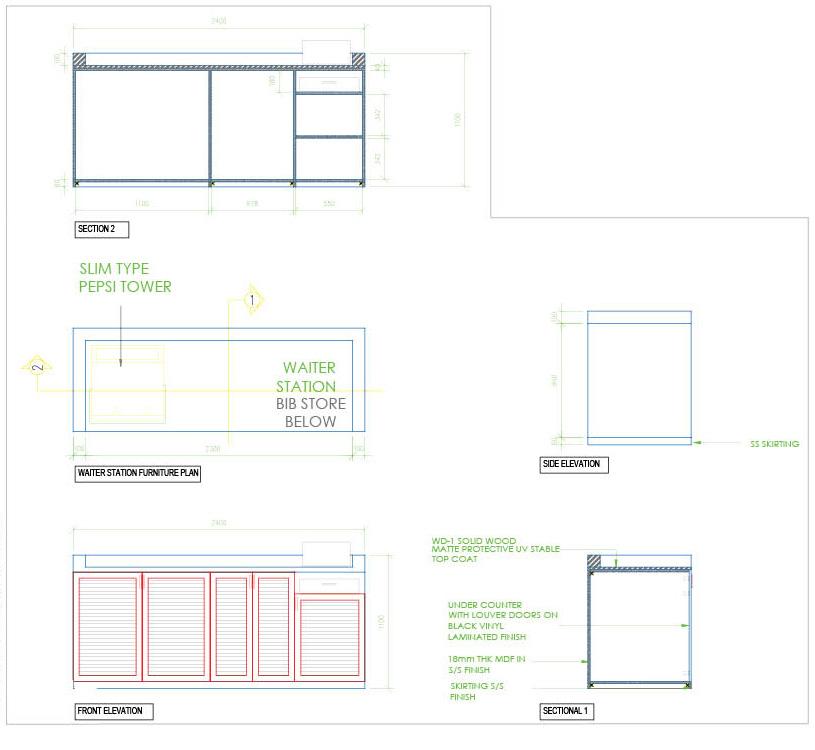

Waiter Station & Graphical Elements

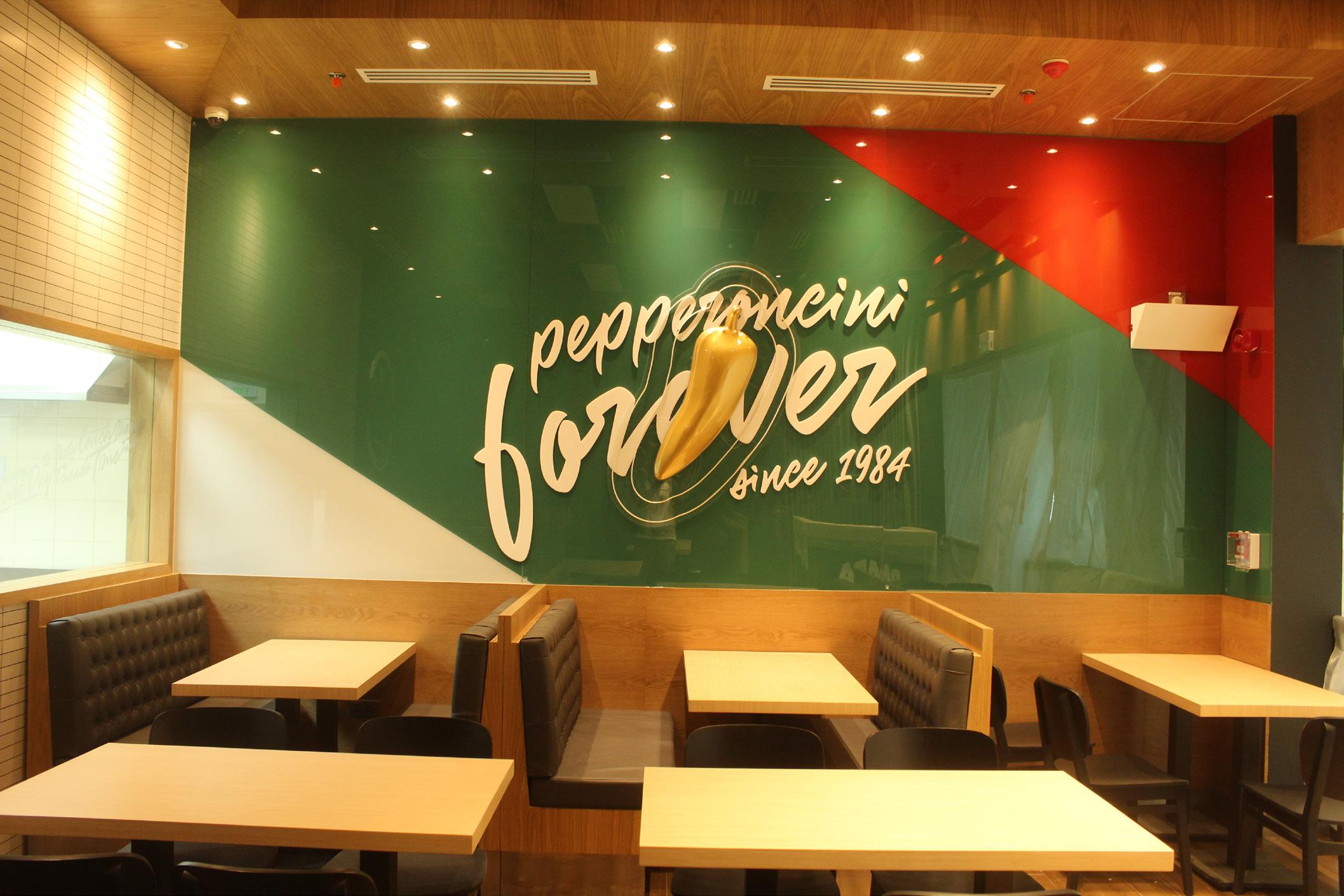

Local Wall A1 Framed Lifestyle Photos C4 Dimensional Sauce/Dough Recipe B5 Pizza B6
Neon/Vinyl/Dimensional Iconography Dimensional Sauce/Dough Recipe B1 B5 Local Wall A1 Share, Dip, Dunk A2 Neon/Vinyl/Dimensional Icons B1 Neon Pepperoncini B2
5. Graphics
Example Palette 2
Local Wall A1 Share, Dip, A2 Example
Iconography Neon Pepperoncini Location Board Slogan
5. Graphics
Palette 3
PAPA JOHNS Waiter Station &Graphical
Elements
& Furnitures
PAPA JOHNS

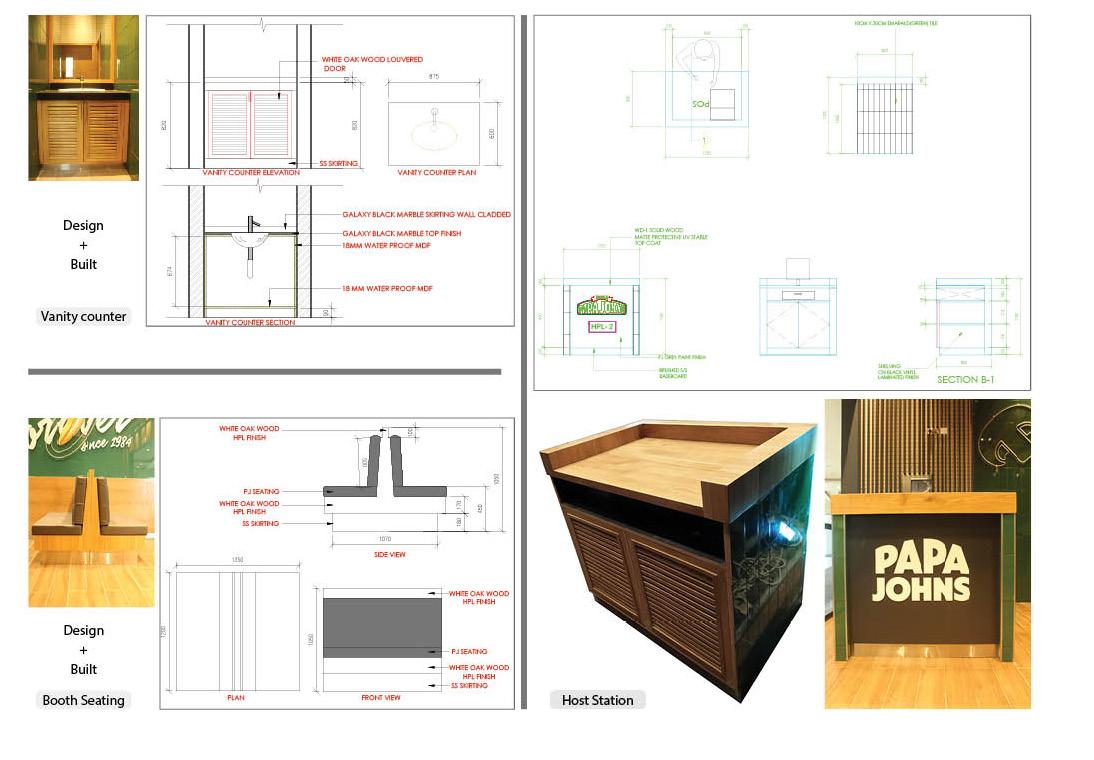

Vanity counter & Furnitures
PAPA JOHNS Vanity counter
PAPA JOHNS

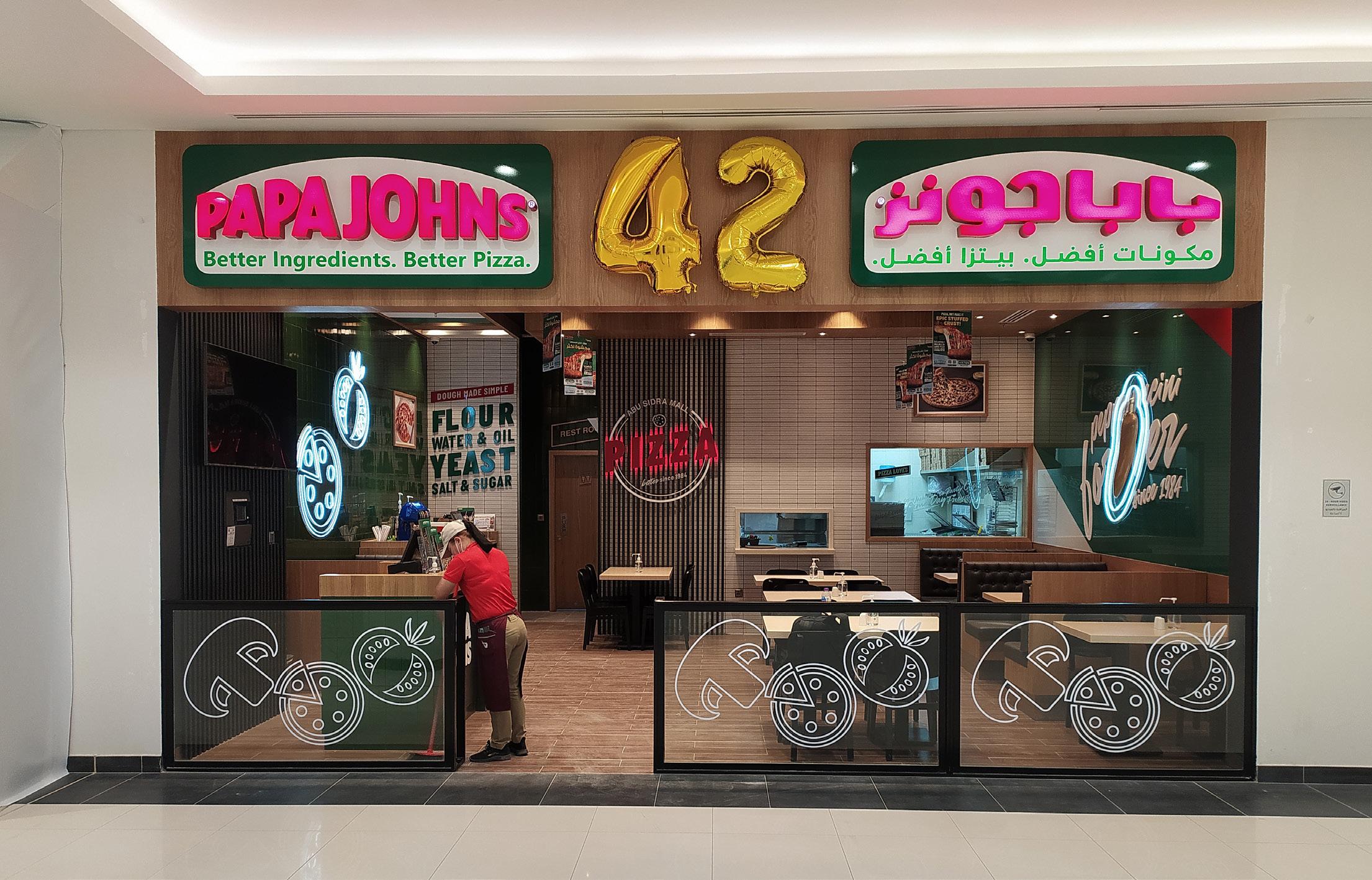

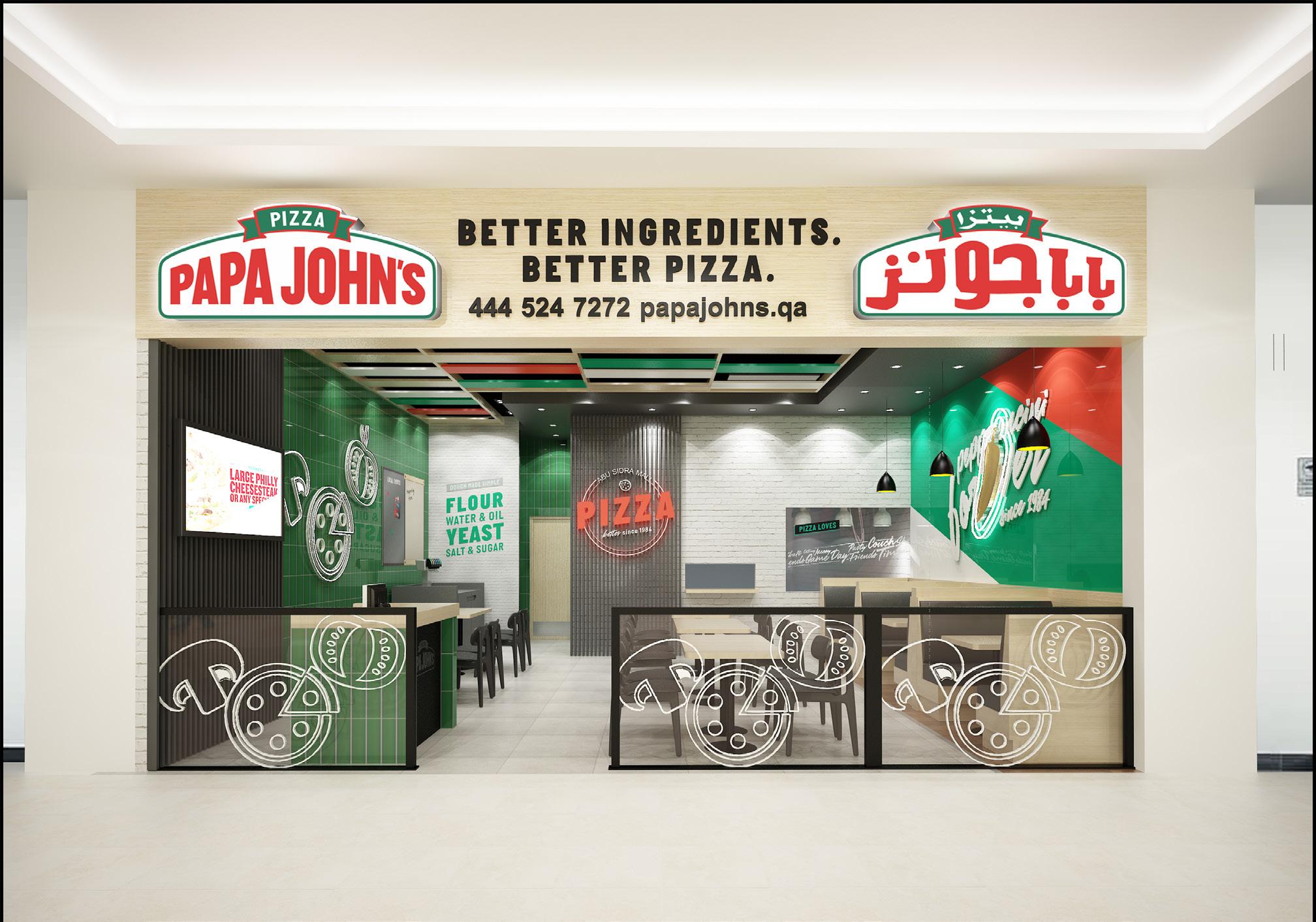

Shop Front
PROPOSED SHOP FRONT ELEVATION
EXECUTED SHOP FRONT ELEVATION
PROPOSED SHOP DINNING INTERIOR

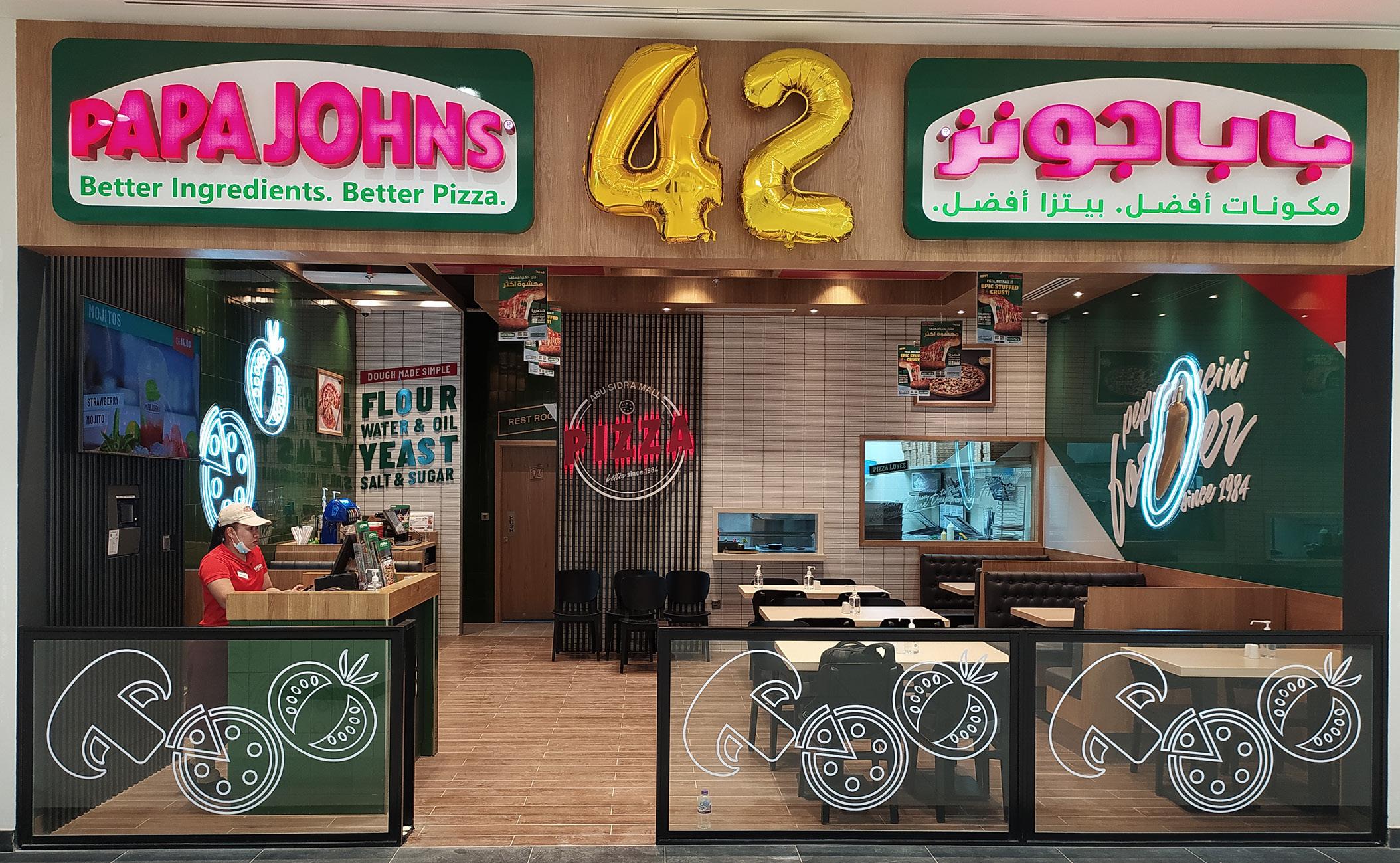

EXECUTED SHOP DINNING INTERIOR
PAPA JOHNS Shop Front
Comment 6.6 : Submit partition layout with detailed legends showing all the detail of partition/paneling at next submission

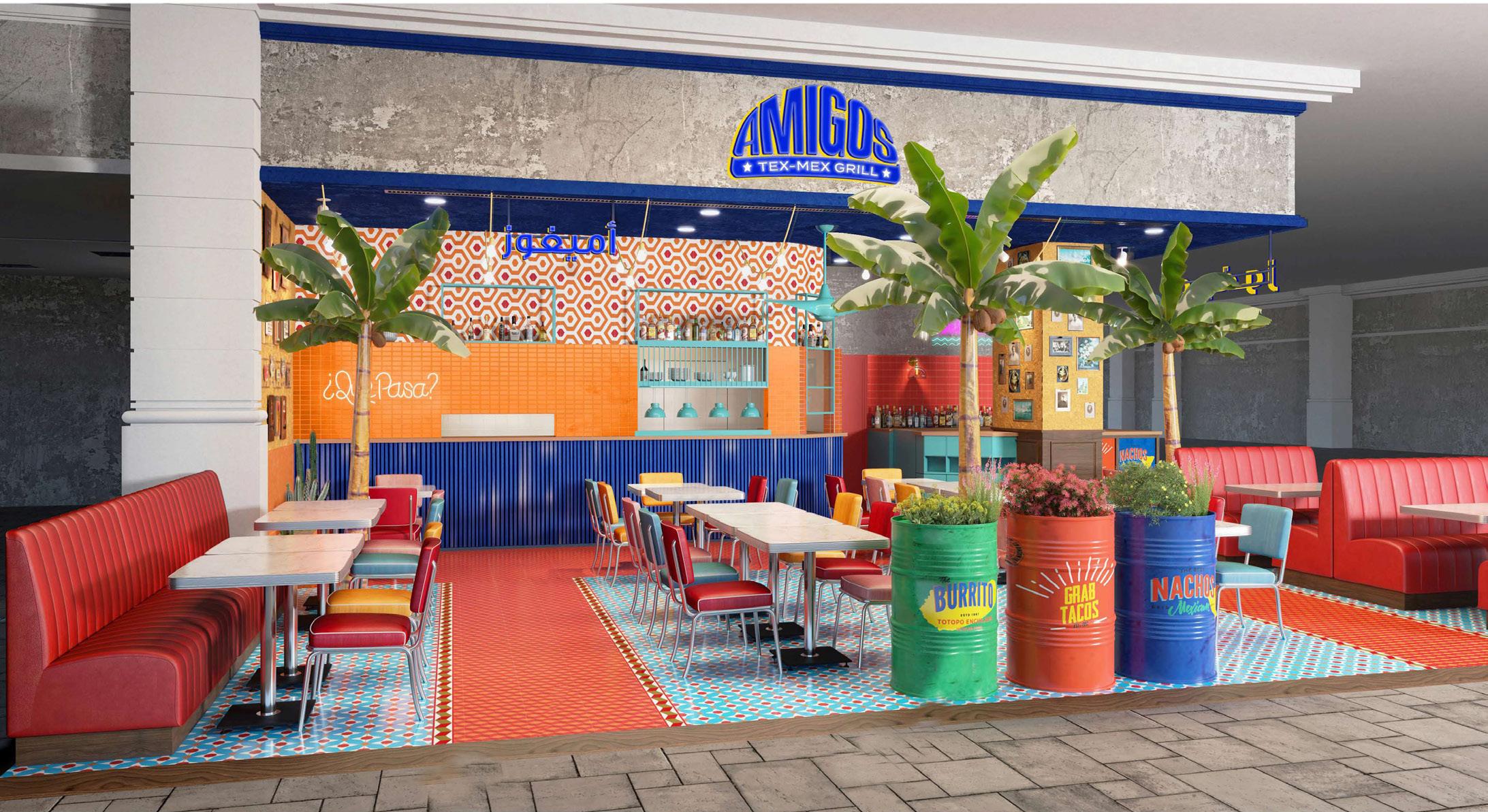

AMIGOS
Design + Build Restaurant

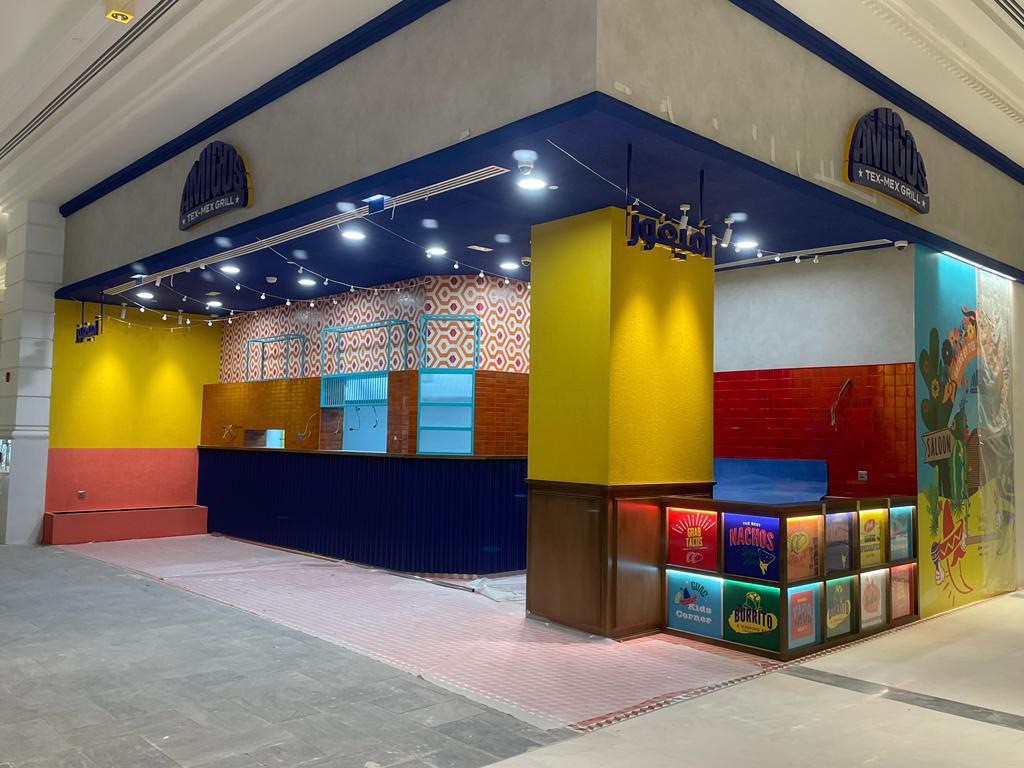

Amigos a franchise restaurant that originated in china. The site location is Vendome mall, Lusail, Qatar.With a small team having skilled laborers we completed this project within 2 months. The cladded Materials and finishes were a big task which we sourced from other countries.
Scope of work : Design + Built + Furniture
Location : Vendome Mall, Lusail, Qatar
SECTION ELEVATION BB STEEL BARREL FOR GRAPHICS & GREENERY ARTIFICIAL PALM TREE CEMENT BOARD CLADDING WITH GYPSUM CORNICE BLUE PAINT RECESSED LEVEL ORANGE WHITE CEMENT TILES ORANGE GLAZED TILES 2600 4030 WALL WHITE TILES 3400 1300 1930 1190 1000 1210 3230 STEEL SHELVING LED BULB STRING LIGHT YELLOW ROUGH PAINT WALL FINISH RED ORANGE ROUGH PAINT FLOWER BED ARTIFICIAL CACTUS LEATHER DINNER BENCH LED NEON & ALL SIDES LIT LOGO SIGN PROJECT DATE CHECKED BY DRAWN BY 30 JUNE 2021 PROJECT NO APPROVED BY PROJECT DETAIL: SCALE 50 @ A3 072 GG GG REV DRAWING # SH DWG SHOP FRONT Important Note Do not scale these drawings. All dimensions are millimeters unless indicated otherwise. These drawing are indicative plans only and not final plans, the contractor is responsible to be aware of all relevant information and techniques in which the work will be carried out. The contractor responsible to check all dimensions on site, conjunction with this drawings before commencing any work or fabrication, otherwise the contractor shall be held responsible for any cost of damages. Any discrepancies found in these drawings are to be brought to the immediate notice of the representative of G/ Studio. These plans should not be read or followed individually but always complete set. All drawings and its contents are the copyright of G/ Studio and must not be retained, copied or used without any form approval from the company. GG DESIGN DEVELOPMENT PHASE DRY WALL PARTITION EXISTING MALL'S WALL LEASE LINE LEASE LINE KITCHEN DINNING BACK KITCHEN OUTDOOR DINNING WALL LEGENDS SYMBOLS EXISTING MALL'S WALL DESCRIPTION 00 CREATIVE SPACES TRADING & CONTRACTING P.O. BOX 32273, DOHA, QATAR Creative Spaces PH 00974-44417452 SPACES CREATIVE AMIGOS SF 114 A PARTITION LAYOUT DRAWING Lusail, Qatar Vendome Mall 1:50
LIT GRAPHIC COUNTER WOOD CLADDING CONCRETE PATINA WALL PAINT FINISH WITH ARTWORK PAINTED OVER SIDE SHOP FRONT RED ORANGE ROUGH CONCRETE PAINT FINISH WITH FLOWER BED MALL COLUMN YELLOW ROUGH PAINT WALL FINISH WITH HANGING PHOTO FRAMES CEMENT BOARD CLADDING WITH GYPSUM CORNICE BLUE PAINT RECESSED LEVEL ORANGE & WHITE CEMENT TILES ORANGE GLAZED TILES 1190 1000 1210 126 1048 126 LED NEON & ALL SIDES LIT LOGO SIGN HALF SIDE & FACE LIT LED LOGO WITH BLUE STEEL PROFILE INSTALLED ON CEILING HUNG STEEL STRUCTURE PAINTED BLUE WOOD TOP YELLOW ROUGH PAINT FINISH WITH HANGING PHOTO FRAMES ORANGE GLAZED TILES RECESSED LEVEL ORANGE & WHITE CEMENT GLASS WINDOW RED TILES CORRUGATED GALVANIZED STEEL SHEET BLUE PAINT YELLOW ROUGH PAINT FINISH CONCRETE PATINA WALL PAINT FINISH WOOD CLADDING MATERIAL FINISHES LEGENDS SYMBOLS DESCRIBTION ORANGE GLAZED TILES RECESSED LEVEL ORANGE & WHITE CEMENT TILES GLASS WINDOW RED TILES CORRUGATED GALVANIZED STEEL SHEET BLUE PAINT YELLOW PATINA WALLPAINTWITH HANGING PHOTO FRAMES CONCRETE PATINA WALL PAINT FINISH WOOD CLADDING 20X20MM STEEL FRAME SHELVING CYAN PAINT LED NEON SIGN LIGHT BOXES COUNTER BLUE CABINET YELLOW PATINA WALL PAINT WITH HANGING PHOTO FRAMES Cocktails sign RED TILES RED DOOR MAIN SHOP FRONT CEMENT BOARD CLADDING WITH GYPSUM CORNICE BLUE PAINT WOOD TOP CONCRETE PATINA WALL PAINT FINISH CONCRETE PATINA WALL PAINT FINISH 1190 1000 1210 126 1048 126 1300 OPENING 3400 WOOD CLADDING GLASS WINDOW WOOD TOP OPENING HEATING LAMPS MALL COLUMN CORRUGATED GALVANIZED STEEL SHEET BLUE PAINT ORANGE GLAZED TILES RECESSED LEVEL ORANGE & WHITE CEMENT TILES HALF SIDE & FACE LIT LED LOGO WITH BLUE STEEL PROFILE INSTALLED ON CEILING HUNG STEEL STRUCTURE PAINTED BLUE LED NEON & ALL SIDES LIT LOGO SIGN 1310 1150 CREATIVE SPACES TRADING CO.W.L.L. P.O. BOX 32273, DOHA, QATAR Creative Spaces PH 00974-44417452 SPACES CREATIVE AMIGOS SF REVISED MAIN Lusail, Qatar Vendome 1:50
AMIGOS Plan & Sections
AMIGOS Plan & Sections
Floor Plan
Front Elevation C
Front Elevation B
Shop Front Elevation A Shop
Shop
AMIGOS
Shop Front
PROPOSED SHOP FRONT ELEVATION

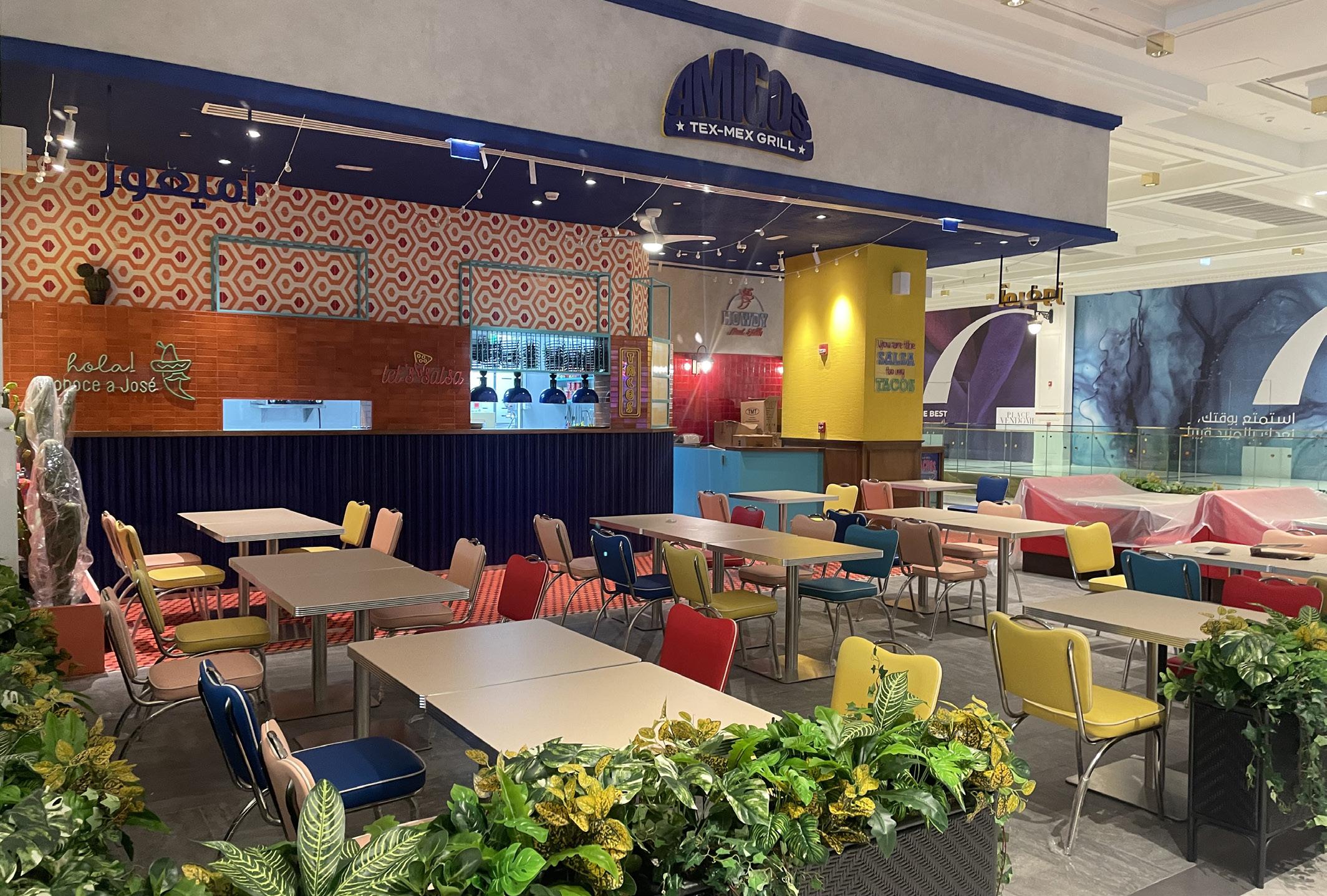

EXECUTED SHOP FRONT ELEVATION
PROPOSED SHOP FRONT ELEVATION
EXECUTED SHOP FRONT ELEVATION
AMIGOS Shop Front
SOY TOKYO
Plan & Shop Front Elevation
SOY TOKYO
Design + Build Restaurant

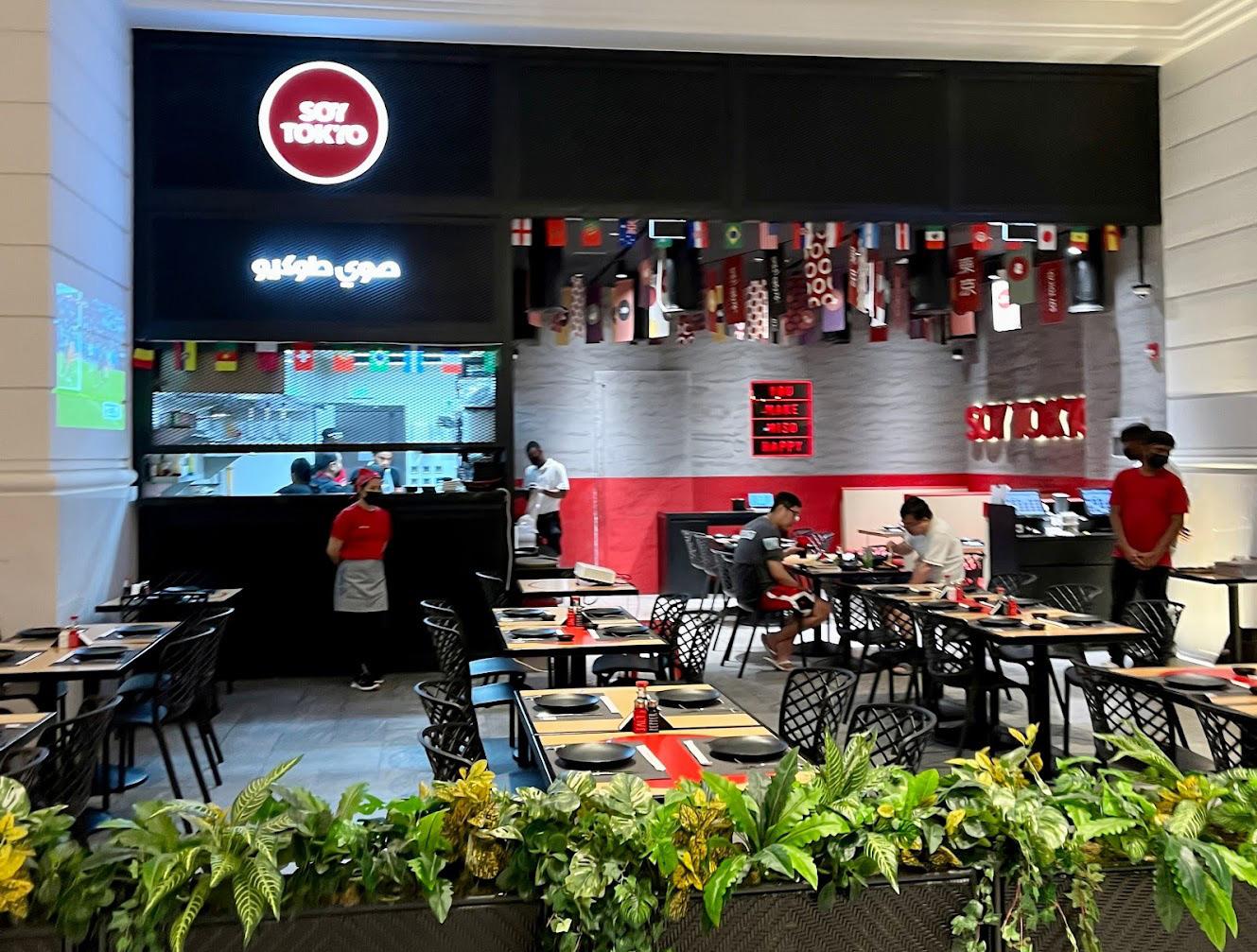

Soy Tokyo is one of the people’s favorite Japanese cuisine which we built at the location of Vendome mall, Lusail, Qatar. Visually it attracts people through its steel mesh structure and the hanging flags placed in the false ceiling. we designed it with an outdoor dining setup where we had used the mall’s carpet area. Artificial Planter boxes were used as an aesthetical element as well as a barrigation.
Scope of work : Design + Built + Furniture
Location : Vendome Mall, Lusail, Qatar
SF 114
Detail A
STEEL STRUCTURE WITH EXPANDED PANEL FRAMES BLACK PAINT
MALL COLUMN MALL CEILING SHOP FRONT STEEL FRAMED EXPANDED PANEL BLACK PAINT BLACK MARBLE TOP FLYING SHELF 1650 VOID FOR FOOD SERVICE LED NEON SLOGAN LED NEON WITH RED STRIP SLEEVE 80MM THK FACE & SIDES LIT ACRYLIC LETTERS WITH STEEL LETTER PROFILE & BACKGROUND LACQUER RED PAINT RED ROUGH PAINT CONCRETE WALL FINISH PAINT 1150 1303 600 2800 4700 1900 SLIDING DOOR WITH WALL FINISHES 70MM FACE & SIDES LIT ACRYLIC LETTERS WITH STEEL LETTER PROFILE & BACKGROUND LACQUER RED PAINT EXPOSED DUCTS PAINTED BLACK SEE THROUGH RED ROUGH PAINT STEEL STRUCTURE WITH EXPANDED PANEL FRAMES BLACK PAINT BLACK MARBLE TOP FLYING SHELF CONCRETE WALL FINISH PAINT SYMBOLS DESCRIPTION STORE FRONT MATERIAL LEGENDS CREATIVE SPACES CO.W.L.L. P.O. BOX 32273, DOHA, QATAR Creative Spaces PH 00974-44417452 CREATIVE SOY TOKYO SHOP FRONT Lusail, Vendome 1:50 COMMENT 1.6 KINDLY PROVIDE DETAILED AND ALL MATERIAL AND FINISHES SPECS IN STOREFRONT/FOH. TENANT SHALL PROVIDE HIGH QUALITY FINISHES AS PER THE DESIGN G G G G G D HAC E HAC E A A Water meter 70 DINNING AREA KITCHEN AREA SERVICE COUNTER SHOP FLOOR FINISH (BY TENANT) 5MM THICK MILD STEEL EPOXY PAINTED WITH FLAT HEAD EXPANSION BOLT EXISTING CONCRETE SLAB BY LANDLORD 38x38mm VERT. TUBULAR STEEL FIXED TO FLOOR AND CEILING SOFFIT 12.5mm THK. GYPSUM BOARD Cement Board (Paint or Tile) FINISH EXISTING DEMISE WALL TYPICAL FREE STAND SELF SUPPORTING GYPSUM / Calcium Silicate boards WALL CLADDING WITH SHS 40X40X40MM DETAIL- NTS Section BB SHS 40X40X40CM FIXED TO FLOOR AND CEILING SOFFIT COMMENT 1.2 ALL DETAILS OF JUNCTIONS BETWEEN TENANT AND MALL DEVELOPEMENT SHALL BE SUBMITTED WITHIN DETAILED DESIGN, DETAILS OF INTERFACE SHALL BE VERIFIED AND CONFIRMED BY TENANT AFTER ACCURATE SITE SURVEY.
SOY TOKYO Plan & Shop Front Elevation
Plan
Shop Front Elevation A Shop Front Elevation A
Floor
CEREMONY BANQUET HALL Floor Plan
21'-4 N S W E 5'-9" 12' 5'-7 5'-7 12'-4 " 6' 10' 45'-11" 5'-7 61'-3" 6' 15'-4 57'-4 6' 6' 15' 23' 12' 109'-8 13'-6" 69'-9 12'-9" 79'-1" 58'-7 16'-4 12' DINING HALL 243 Person HAND WASH VESSEL WASH KITCHEN GOODS LIFT D4 D6 D6 O6 O6 O6 UP Riser 6" Tread 11" UP LOBBY LIFT-1 LIFT-2 B A S E M E N T F L O O R P L A N 7317 Sq.ft P R O P O S E D S U N D E X M A H A L A T T H A N J A V O O R PANTRY PASSAGE 1' 1' 9" 3' 4' 4' 1' 3' 3' 1 3 7 9 11 13 15 17 19 21 4' 4' 3'-1 8'-10 17'-4 12'-4 Riser Tread 12" 61'-3" 9'-2" 1 3 5 7 9 13 15 17 19 11 (-8'-0" lvl) 8' ENTRANCE DOOR 14'-10 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 V7.6 5'-9" 21 6'-5 " 8'-10 Date 28-05-19 Rev Date 19-06-19 Rev Date 21-06-19 23 V6 V6 1' 1' 1' 1' 1' 2'-3" 2'-3" 1'-0 1'-0 1' 3'-6 3'-6 3'-6 3'-6 1' 1' 1' 1' 1' 1' 1'-0 1'-0 2'-2 2'-3" 4" 4 1'-11 " 1'-11 2' 2' 2' 2' 2'-10 " 4'-11 5" 5" ORCHESTRA R O A D N S W E DN 12' 5'-7 5'-7 5'-7 12'-9" 1' 25' 19'-8 69'-9 109'-8 13'-6" 15' STORE 58'-7 12' 4' 1'1'1' 3' 4' 1'1'1' 3' UP 31' 15' 6'-6" D3.6 UP STAGE UP LOBBY LIFT-1 LIFT-2 PORTICO 12' 20'-3 9'-7 11' 6' MARRIAGE HALL 317 Person 61'-3" 25'-9 15' 26'-6 81'-5 2'-3" 79'-1" 16'-4 35 37 39 41 43 27 29 31 33 23 25 45 Riser Tread 12" * Riser 6" Tread 11" (+3'-0" lvl) W9.6 ENTRANCE DOOR W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 (+3'-0" lvl) (+1'-6" lvl) D3 11'-3" 8'-2 9'-9" 1 3 5 7 9 13 15 17 19 5'-9" 21 11 47 1' 17' 4' 4' 1'-3" 1'-3" 1'-3" 1'-3" 2'-6 2'-6 2'-6 2'-6 Date 28-05-19 Rev Date 19-06-19 Rev Date 21-06-19 Rev Date 20-02-20 Rev Date 03-03-20 Rev Date 10-08-20 Rev Date 21-08-20 Rev Date 21-10-20 P R O P O S E D S U N D E X M A H A L A T T H A N J A V O O R 5' 5' 21'-3 GOODS LIFT 103'-5 D6 JOINERY DETAILS PARTICULARS SYM S.NO SIZE ENTRANCE DOOR ED 1 15'-0" x 7'-0" 2 3 4 5 D3.6 D3 DOOR DOOR 3'-6" x 7'-0" 3'-0" x 7'-0" 1 1 1 No's W9.6 WINDOW 9'-6" x 6'-2" 12 D6 DOOR 6'-0" x 7'-0" 1 G R O U N D F L O O R P L A N 7809 Sq.ft 3' 3' Open Lift 5' 5' 9'-7" Emergency Exit - D6 12'-2 12'-2 Planter box Planter box RCC Base slab N S W E Dn 12' 5'-7 5'-7 5'-7 Below stage Up Lobby Lift-1 Lift-2 12' 44'-11" 11' 6' Mezzanine Hall 250 Person M E Z Z A N N E F L O O R P L A N 5777 Sq.ft P R O P O S E D S U N D E X M A H A L A T T H A N J A V O O R 50'-1" 30' Groom Toilet Bride Toilet Bath Bath Toilet Toilet Wash 5' 5'-8 6'-8 5' 4' 4' 11' 11' 5' 5'-3 6' 7' 15' 11' 5' 4'-6" 4'-9 4'-7 4'-8" 4'-7" 14'-0 5'-2" 6'-6 8'-10 31'-3" 16' 61'-3" 5'-4" 4'-3" 5' Store 58'-7 109'-8 13'-6" 69'-9 12'-9" 79'-1" 16'-4 61 63 65 67 69 60 53 55 57 59 19'-8 Gents Bath Bath Toilet Toilet Ladies 3' D3 D2 D2 D2 D2 D2 D2 D2 D2 D2 D3 D5 D3 D3 D2 Riser 5 Tread 12" * (+14'-0" lvl) V2 V2 V2 V2 V2 V2 V2 V2 V4 V4 W3 V2 ENTRANCE DOOR 15' W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 W9.6 Date 28-05-19 Rev Date 19-06-19 Rev Date 20-02-20 Rev Date 03-03-20 Rev Date 10-08-20 51 49 70 48 3'-1 1'-7 1'-10 1'-6 1'-1" 1'-1" 10 8" 1'-7" 1'-7" 1'-4" 1'-4" 1'-3 1'-3 3'-7 3'-10 1'-3" 1'-3" 2'-6 2'-6 2'-6 2'-6 JOINERY DETAILS PARTICULARS SYM S.NO SIZE ENTRANCE DOOR ED 1 15'-0" x 7'-0" 2 3 4 5 D3 D2 DOOR DOOR 3'-0" 7'-0" 2'-6" x 7'-0" 1 4 10 No's W9.6 WINDOW 9'-6" x 6'-2" 12 D5 DOOR 5'-0" x 7'-0" 1 6 V4 VENTILATOR 4'-0" 2'-0" 2 7 V2 9 VENTILATOR 2'-0" x 2'-0" W3 WINDOW 3'-0" 6'-2" 1 8 81'-0 25' 19'-8 4'-3" 31'-0 16'-0 7'-6" 7'-6" Open Lift 5' 5' 3'-5" 3'-3" 9" 9" 5' 9" 9" 9" 1' 2'-6" 2'-6" 9" 1' 9" 9" 9" 5' Brick wall Column Roof beam Gutter slab Brick wall Column Roof beam Gutter slab Brick wall Brick wall 62'-9" SECOND FLOOR ROOF TRUSS DETAIL SECTION - 1-1 31'-42" 31'-41" 3'-6" 3'-53 4 " 3'-5 " 3'-53 4 " 3'-6" 3'-53 4 " 3'-5 " 3'-5 " 3'-6" 6' 2L-50x50x6 L-50x50x6 L-60x60x6 L-50x50x6 2L-100x100x10 L-50x50x6 Roof covering Purlin ISMC125
CEREMONY BANQUET HALL Floor Plan

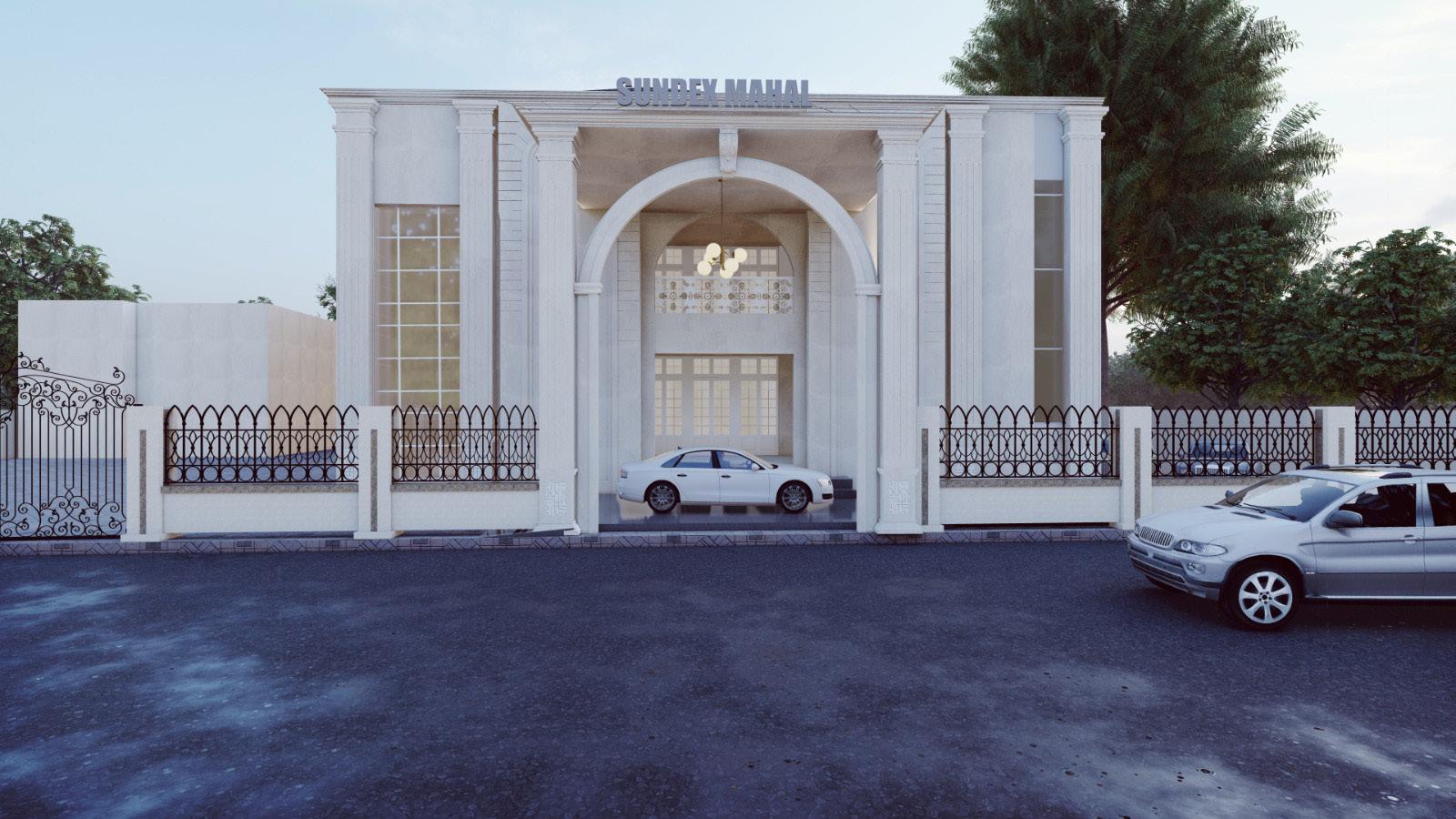

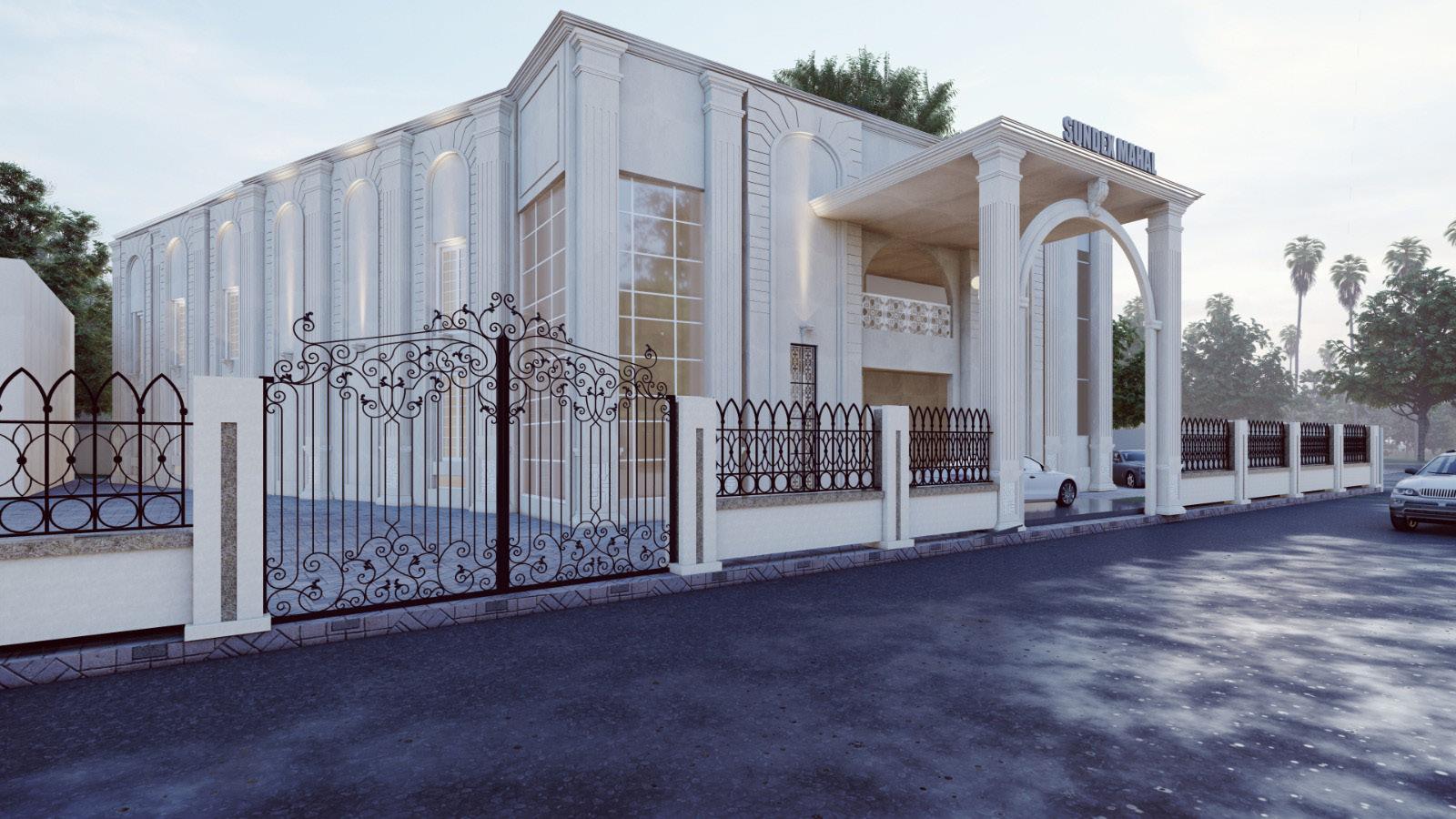

CEREMONY BANQUET HALL
Elevation Design
CEREMONY BANQUET HALL Elevation Design
HIGHWAY RESTAURANT

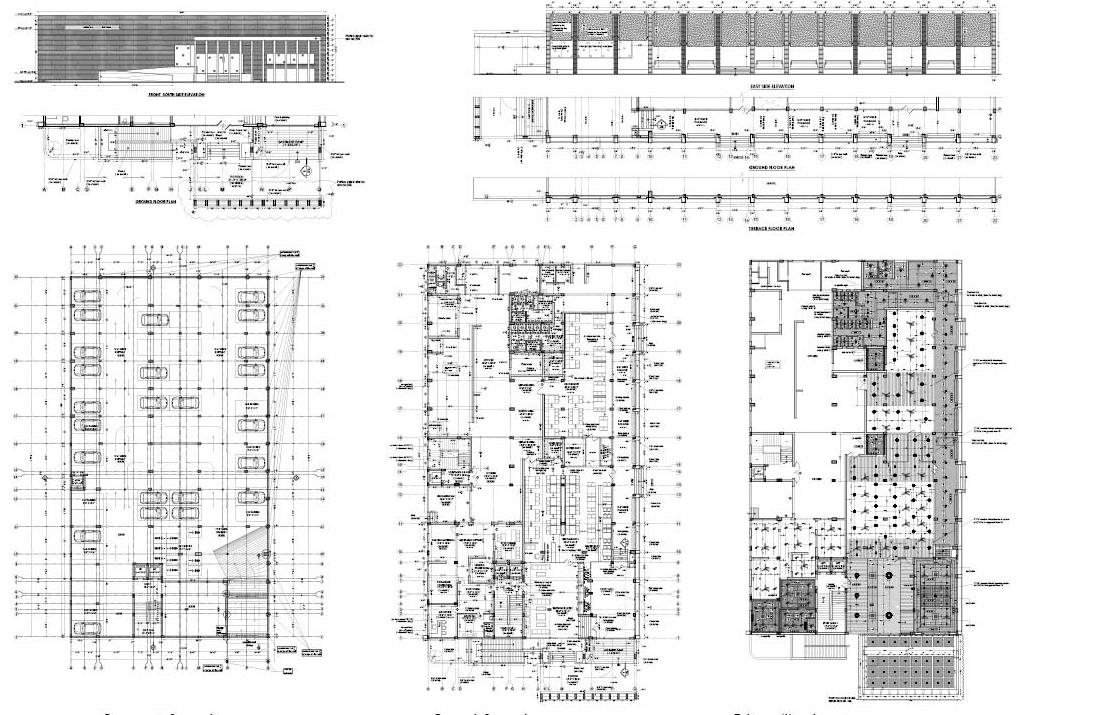

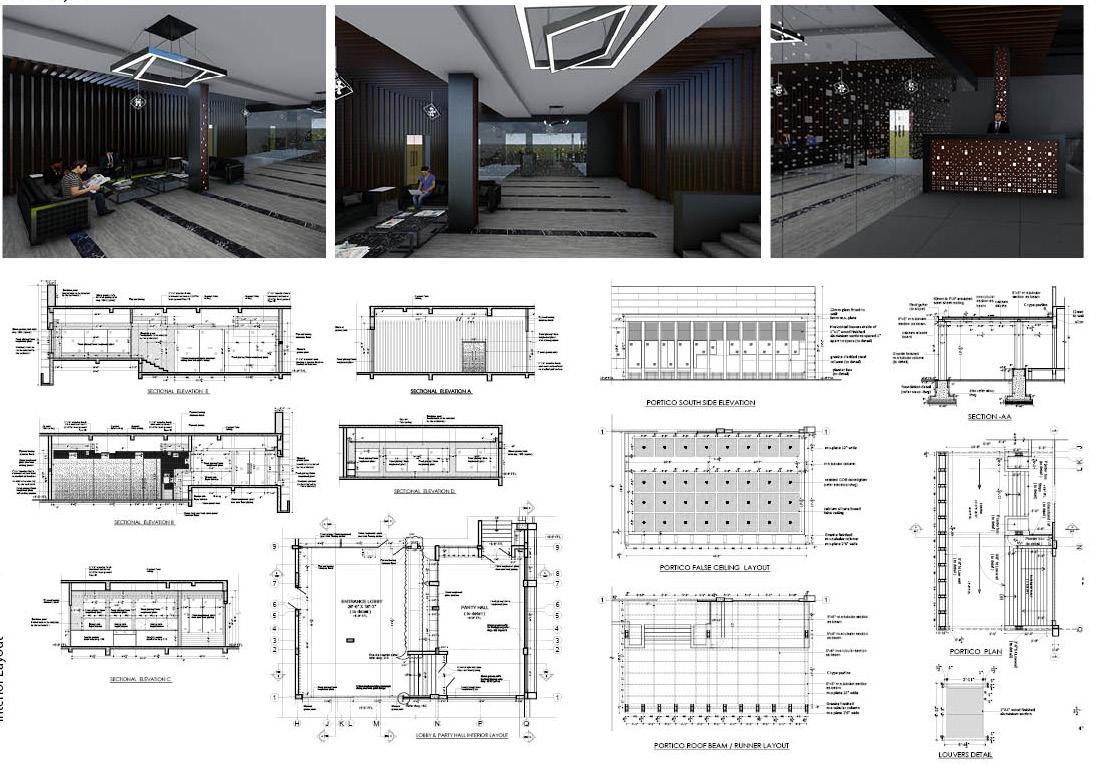

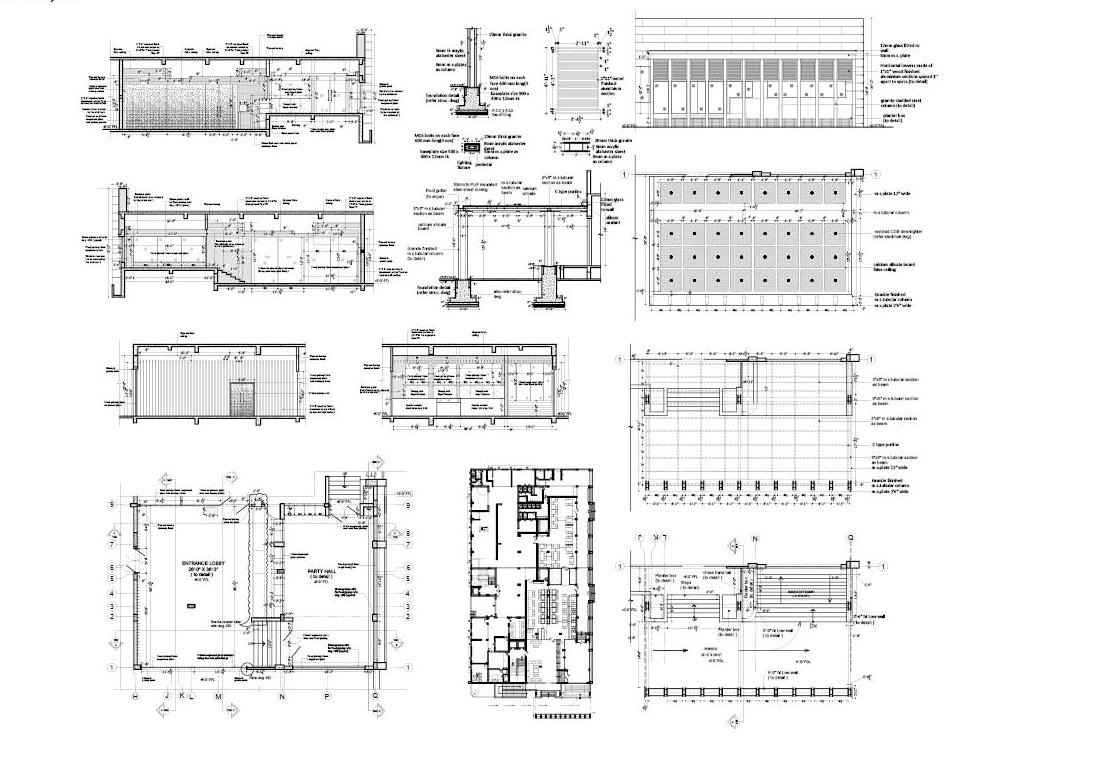

Working Drawing Details
Basement floor plan Ground floor plan False ceiling layout
HIGHWAY
Working Drawing Detail
RESTAURANT
HIGHWAY RESTAURANT
Interior Layout
HIGHWAY RESTAURANT Interior Layout
HIGHWAY RESTAURANT
Interior Layout
HIGHWAY RESTAURANT Interior Layout

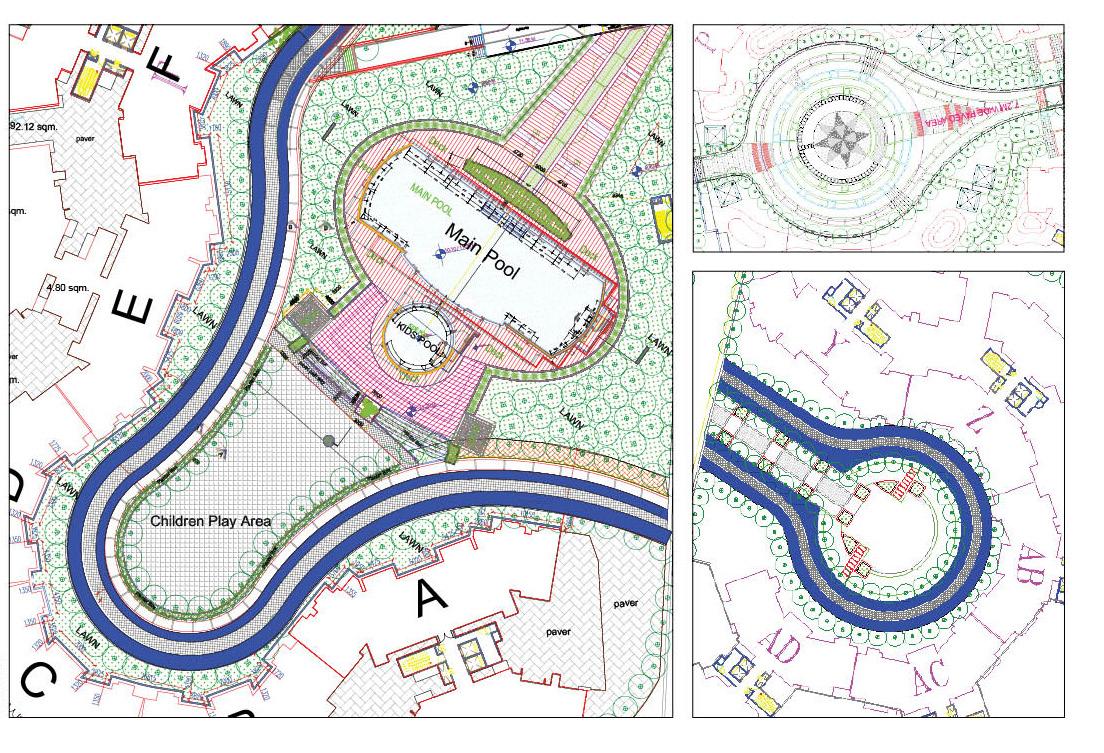

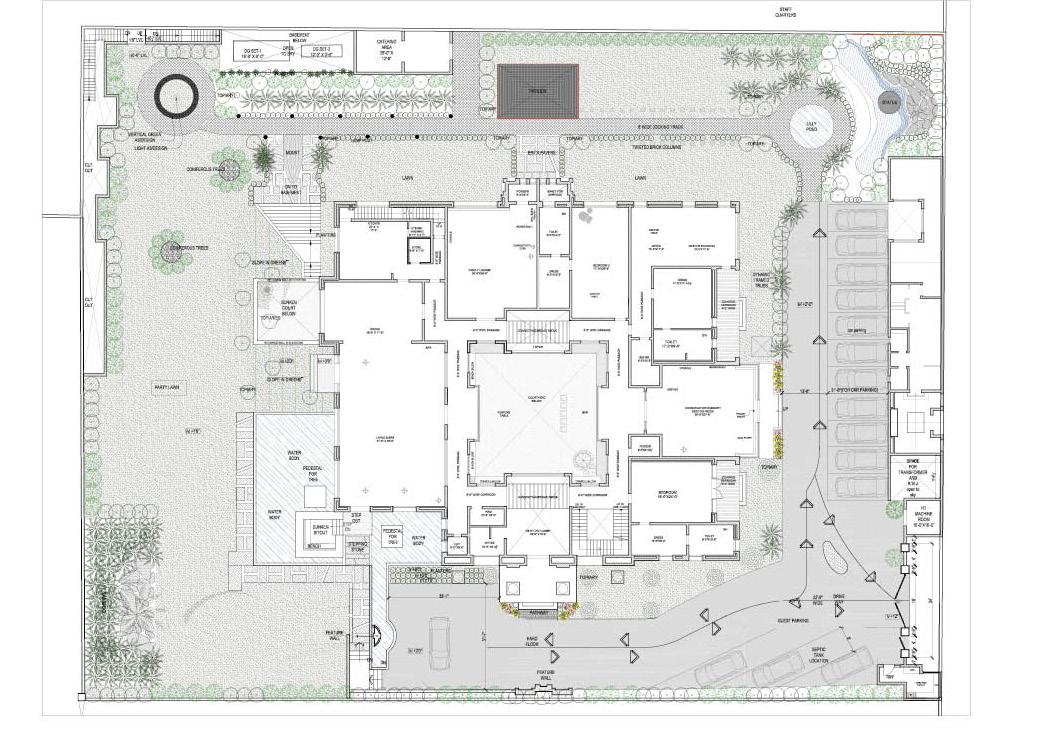

LANDSCAPE DESIGN Ayurvedic Center
450 wide and 450 deep PLANTER/ TRENCH ROOM 15 ROOM 13 UP NEW DOOR D/A W2 W2 W2 W2 ROOM 14 LADIES TOILET DUCT -25 W3 D4 V3 D9 -600 W3 W3 W3 W3 D1 LIFT FIRE DUCT 1000X750 D1 THERAPY HALL -1 21490 X 11700 RAMP DWN -150 RAMP UP W3 ±0.00 -300 UP -750 -450 -300 -300 -150 UP UP 3600 SEPTIC TANK RAMP UP (PATHWAY / BUGGYWAY) XERISCAPE GARDEN 230 thick and 2100 high MURAL WALL RAMP UP RAMP UP SIGNAGE -300 RAMP UP 3000 4000 R7615 R7100 R7030 R7030 R3300 -300 -500 -500 -450 -450 -600 -600 -450 -450 PLANTER 3000 wide SHADED PATHWAY 6767 14128 27893 R14450 R15000 MEMBRANE STEEL STRUCTURE SHADE CANOPY CANTILEVER 450 wide and 450 high STONE BENCH 450 wide and 450 high STONE BENCH(Tpy.) WPC ECO DECK FLOORING FINE HAND DRESSED GREY GRANITE FLOORING EXISTING TREE EXISTING TREE R8000 R7000R6000 R5000 R10000R10450 CORTEN STEEL edging (Typ.) R8108 R10870 R13870R14320R14759 3226 5627 7604 3126 2658 R12000 R15000R14000R13000 R16450R16000 R5000 R6000 R7000 R8000 R10000 R10450 R7550R8000R9000R10000R11000R12000R13516 5700 4092 3908 R13000 R14000 R15000 R4421 R3000 R3000 R3000 R3000 R3000 CENTER POINT -600 -600 -450 -450 -450 -300 -300 -300 -300 -300 24203 17098 4979 450 wide and 450 high STONE PLANTER (Tpy.) 4252 5472 PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PLANTING EARTH. 25 MM THK STONE CLADDING (ML-XX) SIZE) LAID OVER 25MM THK. MORTAR BED. WATERPROOFING MEMBRANE AS/SPECS.. 25 MM THK STONE COPING (ML-XX) SIZE LAID OVER 25MM THK. MORTAR BED,WITH 10MM BULL NOSING ON OUTER EDGE BRICK UPSTAND SEATING R.C.C UPSTAND AS/STR. WATERPROOFING MEMBRANE AS/SPECS.. METAL GIRDER 50 MM THK STONE (ML-xx ) SIZE LAID OVER 25mm THK. MORTAR WITH 10MM BULL NOSING ON OUTER EDGE P.C.C BED AS/STR. SUB LAYER AS/STRUC. PLANTING EARTH. METAL GIRDER FFL ±00 TOF +600 TOG +150 TOF +200 LVL -400 TOF +600 TOG +150 TOF +200 PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION
LANDSCAPE DESIGN Ayurvedic Center
LANDSCAPE DESIGN
Ayurvedic Center
LANDSCAPE
Ayurvedic Center
DESIGN
LANDSCAPE DESIGN Ayurvedic Center
LANDSCAPE DESIGN Ayurvedic Center

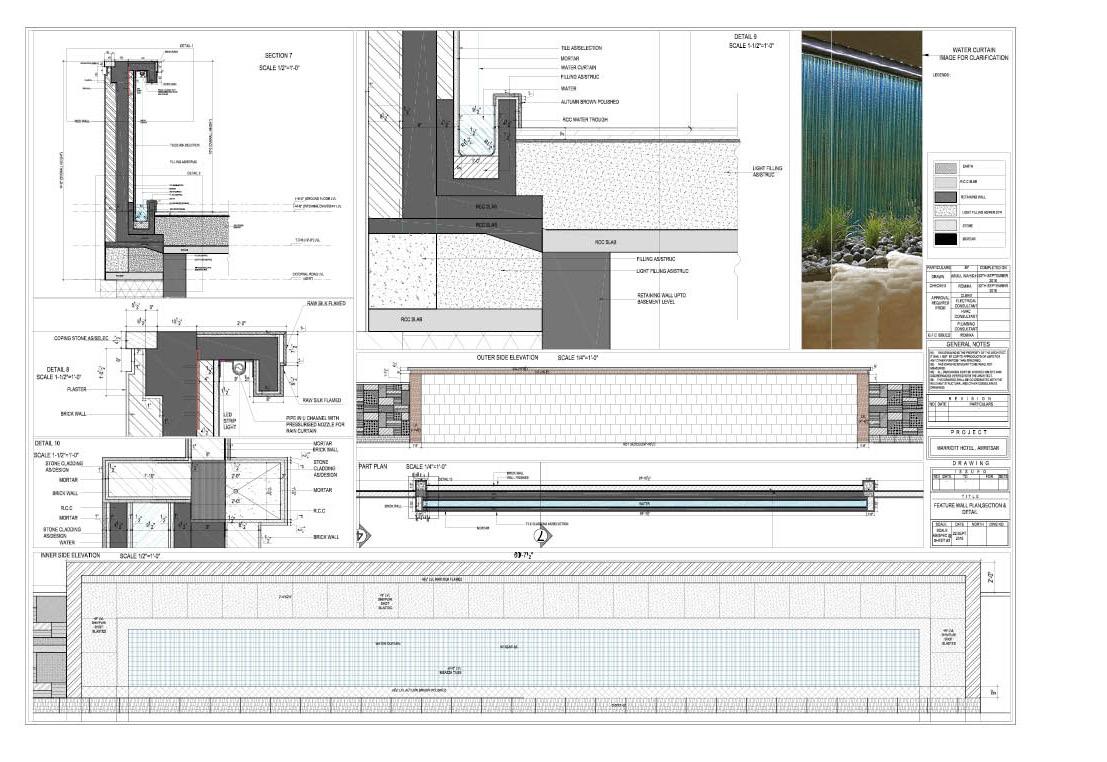

LANDSCAPE DESIGN
LANDSCAPE
Swim Pool
DESIGN Swim Pool
LANDSCAPE DESIGN Swim Pool
LANDSCAPE
DESIGN Swim Pool

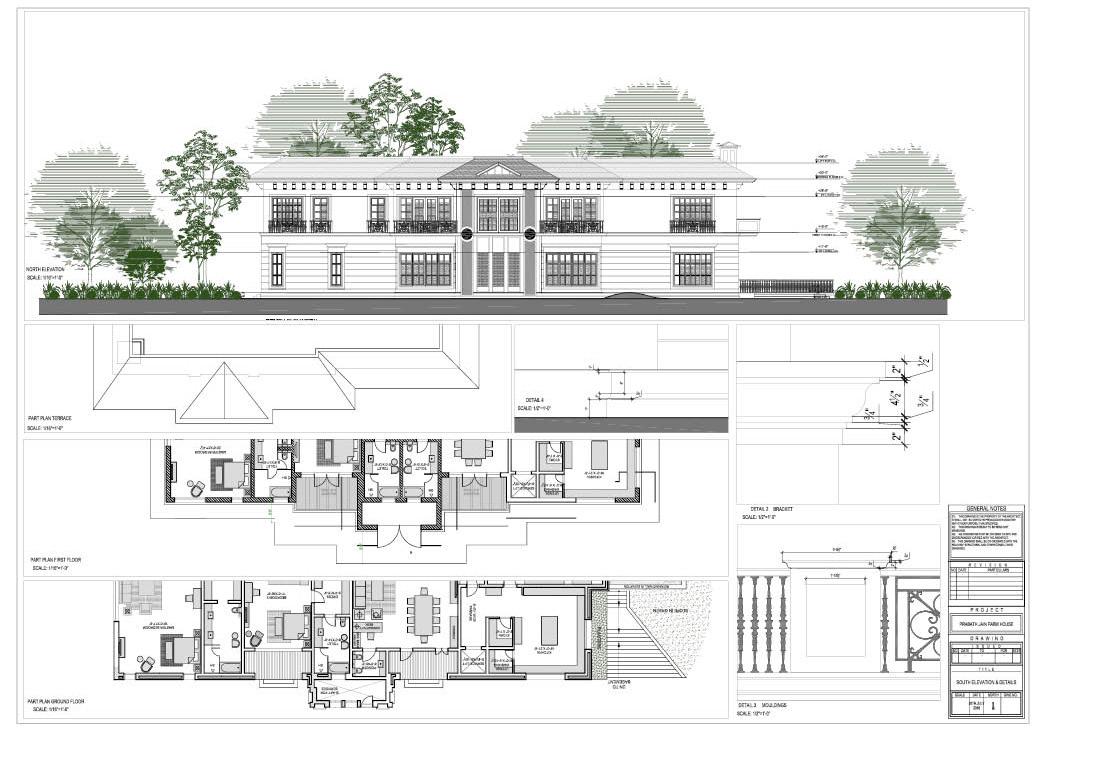

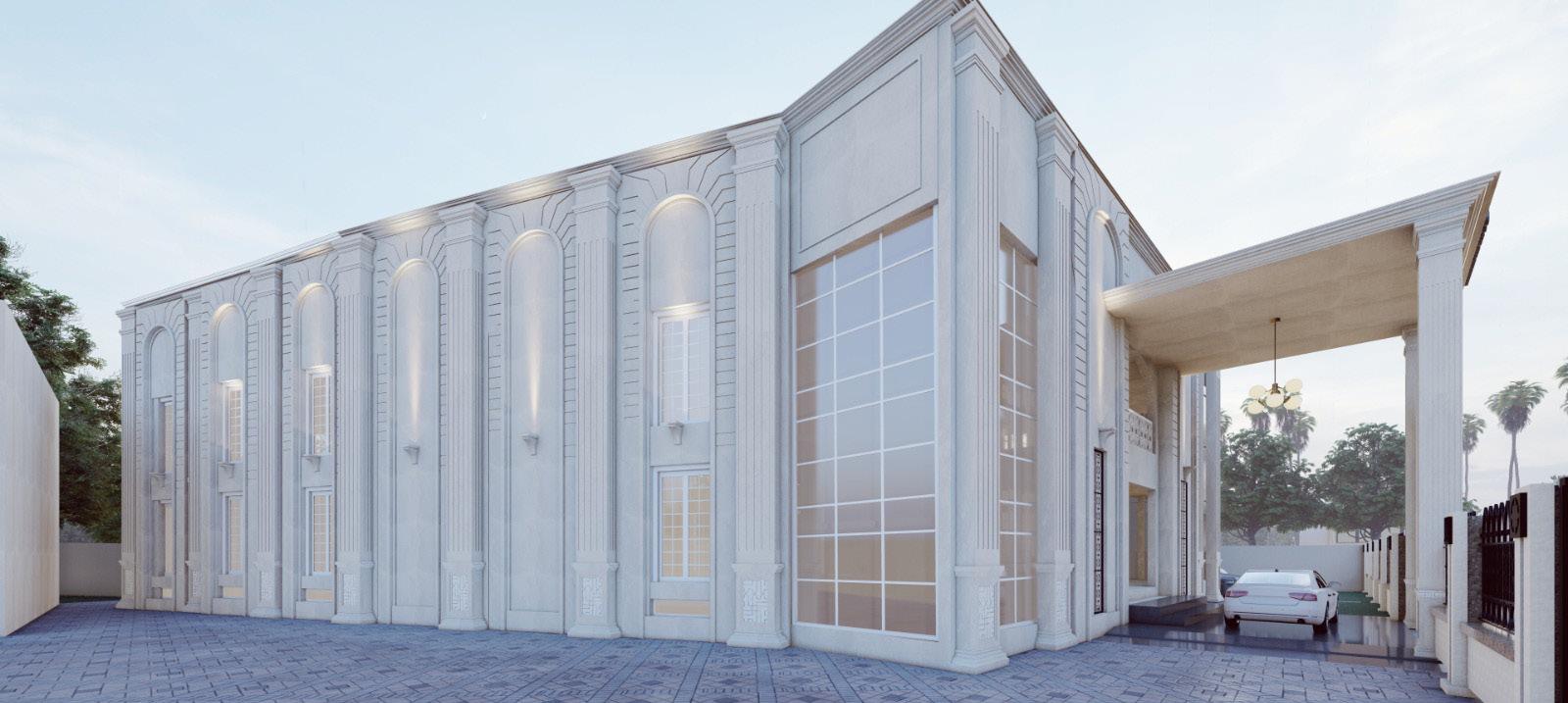

SAFEER RESIDENCE

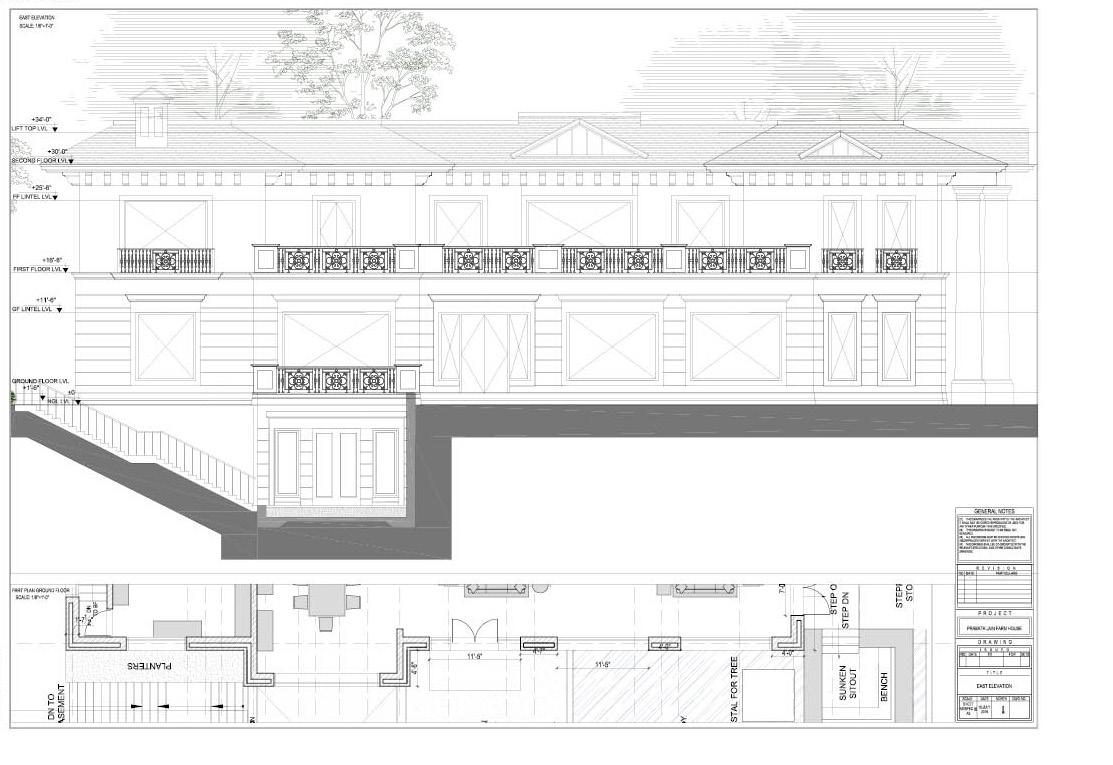

Elevation
SAFEER RESIDENCE
Design + Build Islamic Style Residence
Location : Tamil Nadu, India
The idealogy of this design is to build an Islamic-style residence as per the client’s family convenience and cultural activities. We made a massive entrance, big arches, calligraphies, and a big balcony with a dome which represents grandness in the way of Islamic style architecture
SAFEER RESIDENCE Elevation
View
Exterior
DINNING 17'9"X9'0" BED ROOM 13'0"X12'0" BED ROOM 13'0"X15'0" STUDY KITCHEN 11'0"X13'0" LIVING 15'9"X23'0" FOYER 15'9"X7'0" UTILITY 11'4"X8'10" TOILET 6'0"X4'0" BATH 6'0"X4'6" TOILET 7'0"X5'0" WALK IN WARDROPE 5'7"X5'0" ENTRY TOILET 5'0"X7'0" BED ROOM 11'0"X8'0" 9" 18'-3" 54' 11'-3" 9" 85' 3' 31' 11'-3" 9" 3' 10' 4' PARKING 12'0"X21'10" OUTDOOR SEATING TOTAL PLOT AREA 3910 SQ.FT GROUND FLOOR TOTAL BUILT UP AREA -1722SQ.FT ROAD ROAD GENERAL NOTE SCHEMATIC DESIGN CONSTRUCTION This will certify that this drawing has been fully explained to me. I have reviewed it. fully understand it and approval it for: AMENDMENT DESCRIPTION REV. DATE PROJECT TITLE 1. All dimensions to be checked and verified on site by Contractors, any discrepancies must be reported immediately to the Architect before commencement of works. 2. Doubts and confusion of any kind related to site, drawings, lack of prior to commencement of construction, fabrication or installation. The contractor supplier will be solely responsible for failure to do so. SCALE GROUND FLOOR PLAN DD-SD-FF-01 1:70 Ar.Mohamed Jasim.K D2U BED ROOM 13'0"X15'0" STUDY BALCONY 15'9"X19'0" TOILET 7'0"X5'0" 9" 18'-3" 54' 9" 85' 46' 3' 31' 11'-3" 9" 3' 4' UP BALCONY 12'0"X21'10" MAJLIS 15'9"X13'0" OPEN TERRACE SEATING TOTAL PLOT AREA3910 SQ.FT FIRST FLOOR TOTAL BUILT UP AREA -1392 SQ.FT PERGOLA STRUCTURE ROAD DRAWING TITLE GENERAL NOTE SCHEMATIC DESIGN CONSTRUCTION This will certify that this drawing has been fully explained to me. have reviewed it. fully understand it and approval it for: AMENDMENT DESCRIPTION REV. DATE ARCHITECTS DRAWING NO 1. All dimensions to be checked and verified on site by Contractors, any discrepancies must be reported immediately to the Architect before 2. Doubts and confusion of any kind related to site, drawings, lack of information or contradictions shall be clarified with prior to commencement of construction, fabrication or installation. The contractor supplier will be solely responsible for failure to do so. SCALE FIRST FLOOR PLAN 1:70 Ar.Mohamed Jasim.K 9751223879 9952200962 D2U SAFEER RESIDENCE Plan & Elevation SAFEER RESIDENCE Plan & Elevation Facade View Side Elevation View First Floor Plan
Floor Plan
Ground
ASHIQ RESIDENCE
Classical Kitchen Interior
Classical Kitchen Interior
Design + Build
Kitchen Interior
This is an interesting project that the client who was inspired by the classical designs approached us to make a modular kitchen that has to be in the shade of a palace. This is an island kitchen but laterally the client regrets to use the island for cooking and shifted the stove to another side so we used the island as a breakfast counter below the island we used the space as a crockery unit on one side and vegetable storage rack on another side with proper ventilation. Wall units are all very tall and hold more storage giving us massive look too. As classical architectural elements cornices, brackets, and fludes were also placed and painted as rosewood. We majorly used teak wood for styles and fireproof MDF for shutters and we painted it all as rosewood. And for handles and hinges, we have gone with a brass finish. Chandeliers were provided at the top of the island to make it even more luxury
Location : Tamil Nadu, India
ASHIQ RESIDENCE Classical Kitchen Interior
Elevation Design
ARUNA RESIDENCE
Location : Tamil Nadu, India
Design + Build Contemporary Style Residence
A contemporary residential design with G + 4 built structure. We treated this design with minimal aesthetical elements.
ARUNA RESIDENCE
ARUNA RESIDENCE Elevation Design

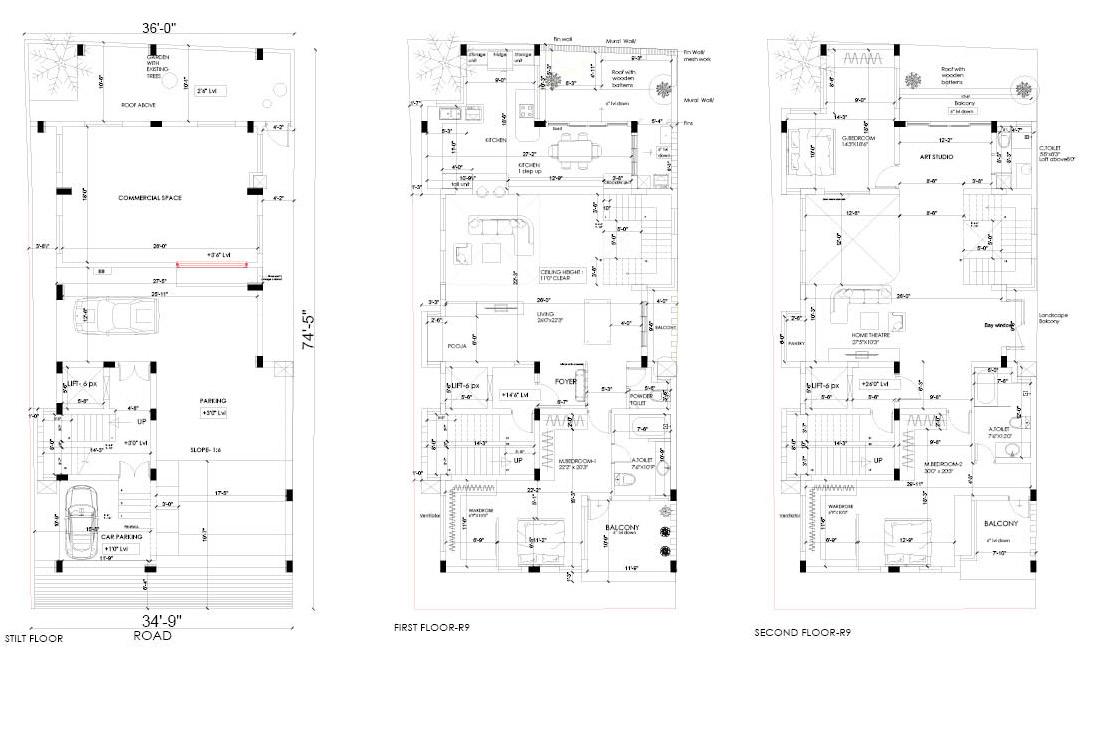

Floor Plan ARUNA RESIDENCE Floor Plan
ARUNA RESIDENCE
Interior Design
ARUNA RESIDENCE
Interior Design
ARUNA RESIDENCE
ARUNA RESIDENCE
Interior Design
ARUNA
RESIDENCE Interior Design
Interior Design
ARUNA RESIDENCE
ARUNA RESIDENCE
Interior Design
Design + Build Farm house

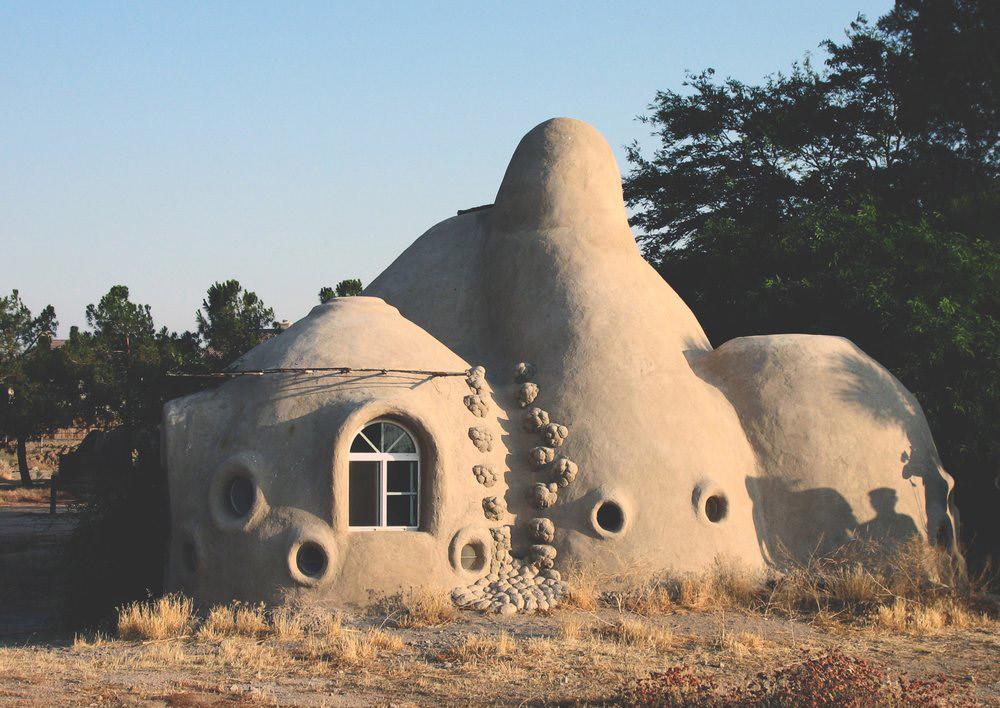

Eco Dome an interesting project which we executed in a village at Karnataka.The main moto of this concept is to make a earthen structure with the locally available materials around the site. It’s also a low cost constuction technique which can be affordable for EWS peoples too.The client is an farmer having huge lands but he lives in a city which is far away from the farm lands. So to maintain the farm lands and to enjoy the week ends he needs a eco friendly farm house. So as per his wish he gone with earthen materials .
Materials Used : Cement + Red soil + Gunny bags
ECO
DOME
SECTION OF HALL AND KITCHEN SECTION C SECTION C SCALE:1:40 SCALE:1:30 ECO DOME Plan & Process ECO DOME Plan & Process Floor Plan Execution Process Section Materials Used : Cement + Red soil + Gunny bags 1 2 3 4 5
FUNICULAR ROOF
Design + Prototype + Build
Low Cost Roofing
Funicular Roofing is an one of the greatest idea for low cost roofing .We can reduce the cost of concreate & reinforcement in the slab where funicular roofing is placed.We went with the diameter of 3 meter.We had arranged the bricks in the angle of 60 degree for the structural stability. It is more stable as like concreate slab so without fear we can jump or play on this funicular roof.As a result the aesthetical view of this roofing is really amazing looks like a blossom of a flower
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 A A 9' MESH MORTAR 10MM ROD 10MM ROD CONCRETE M-SAND AS A PROTECTING LAYER CONCRETE FAN BOX CONDUIT PIPE DETAIL A •••••• 10" 8" 9 1 2 " 1 2 3" 2 1 2" 3" 9" 3" 4" 3" 3" 9" FUNICULAR ROOF DETAIL MUD HANDS SECTION A PLAN OF FUNICULAR ROOF (9'-0") DETAIL A REFRACTORY BRICK WIRE CUT BRICK KEY PLAN SCALE:1:16 SCALE:1:4 SCALE:1:10
ECO DOME Plan & Process ECO DOME Plan & Process
Execution Details
Modular Kitchen Interior
AASATH KITCHEN INTERIOR
AASATH KITCHEN INTERIOR Modular Kitchen Interior

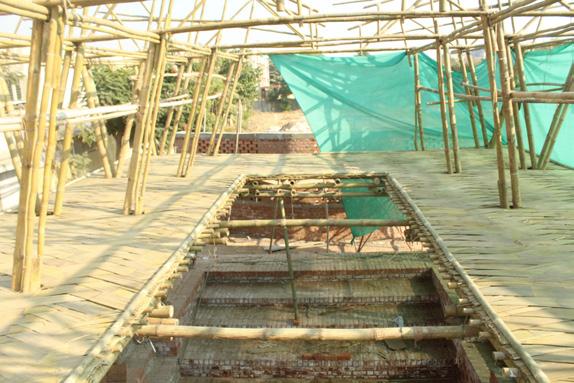

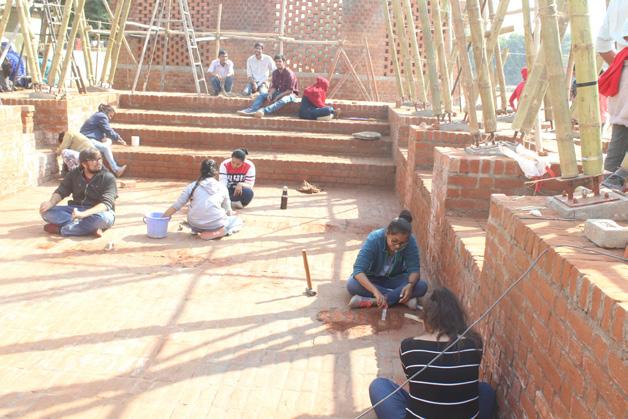

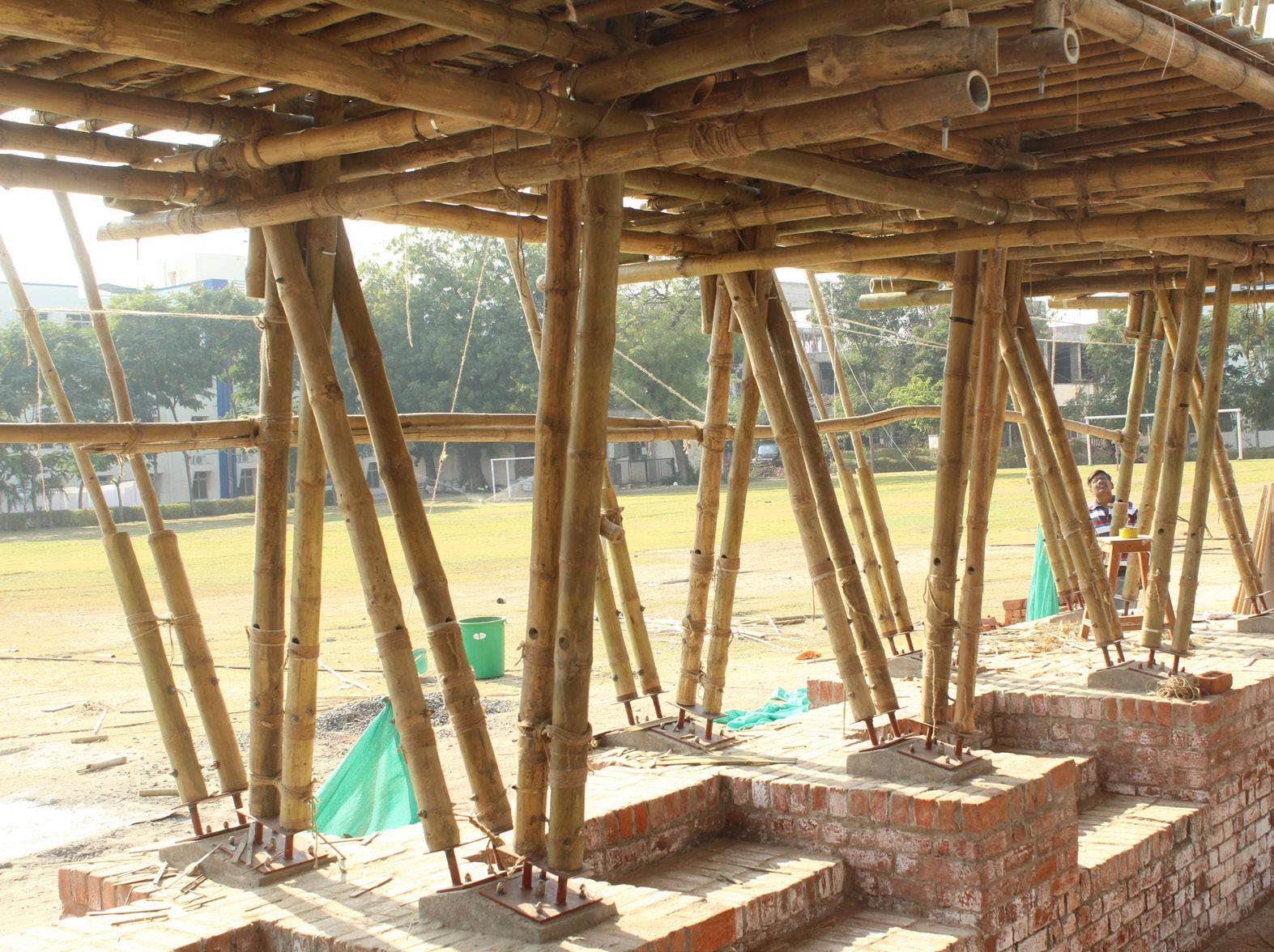

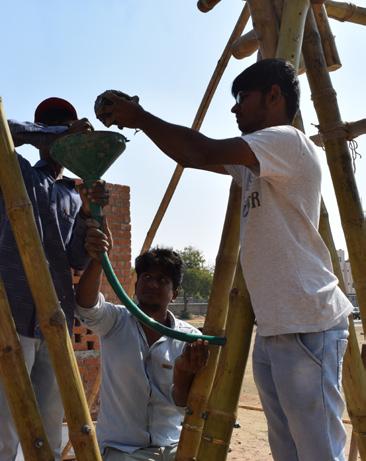

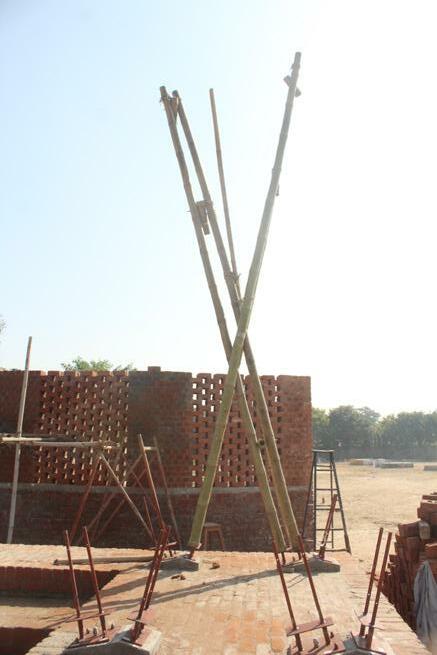

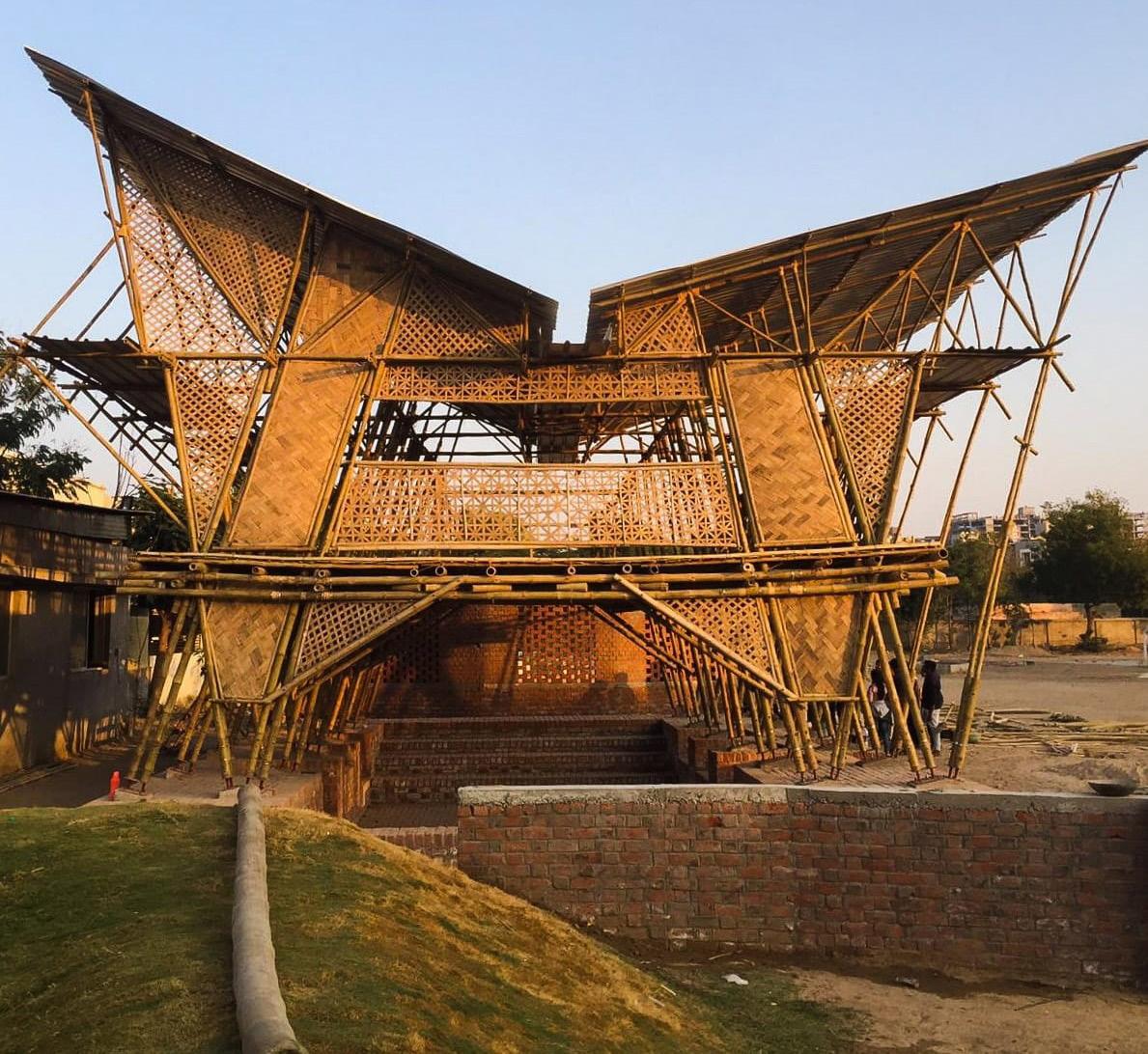

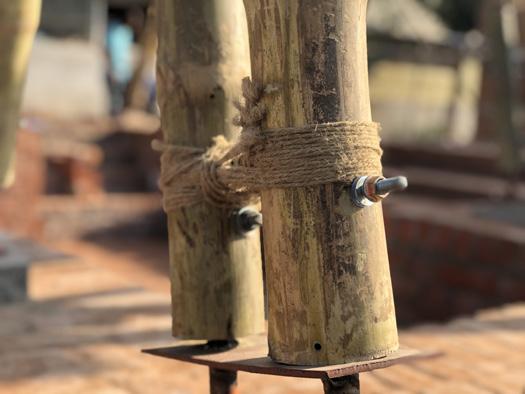

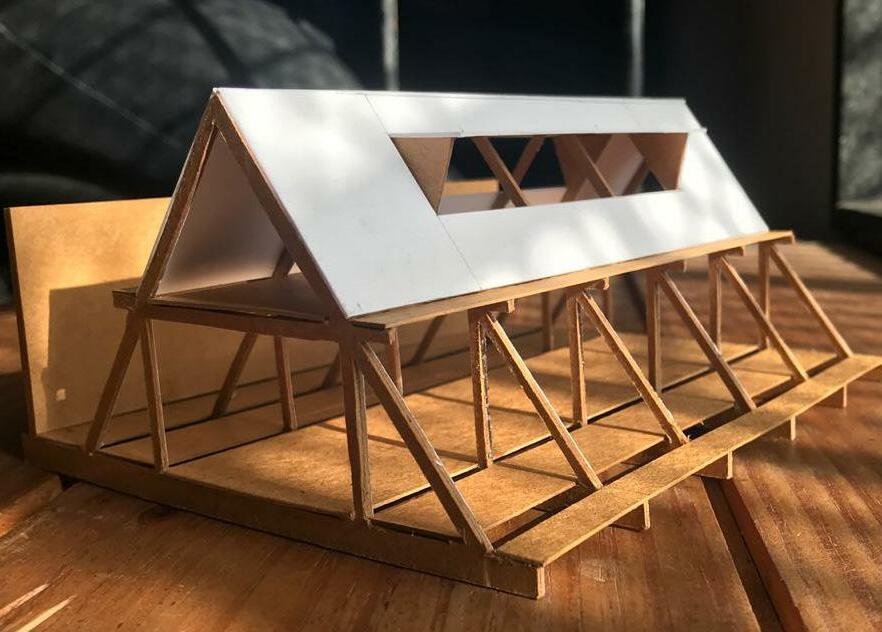

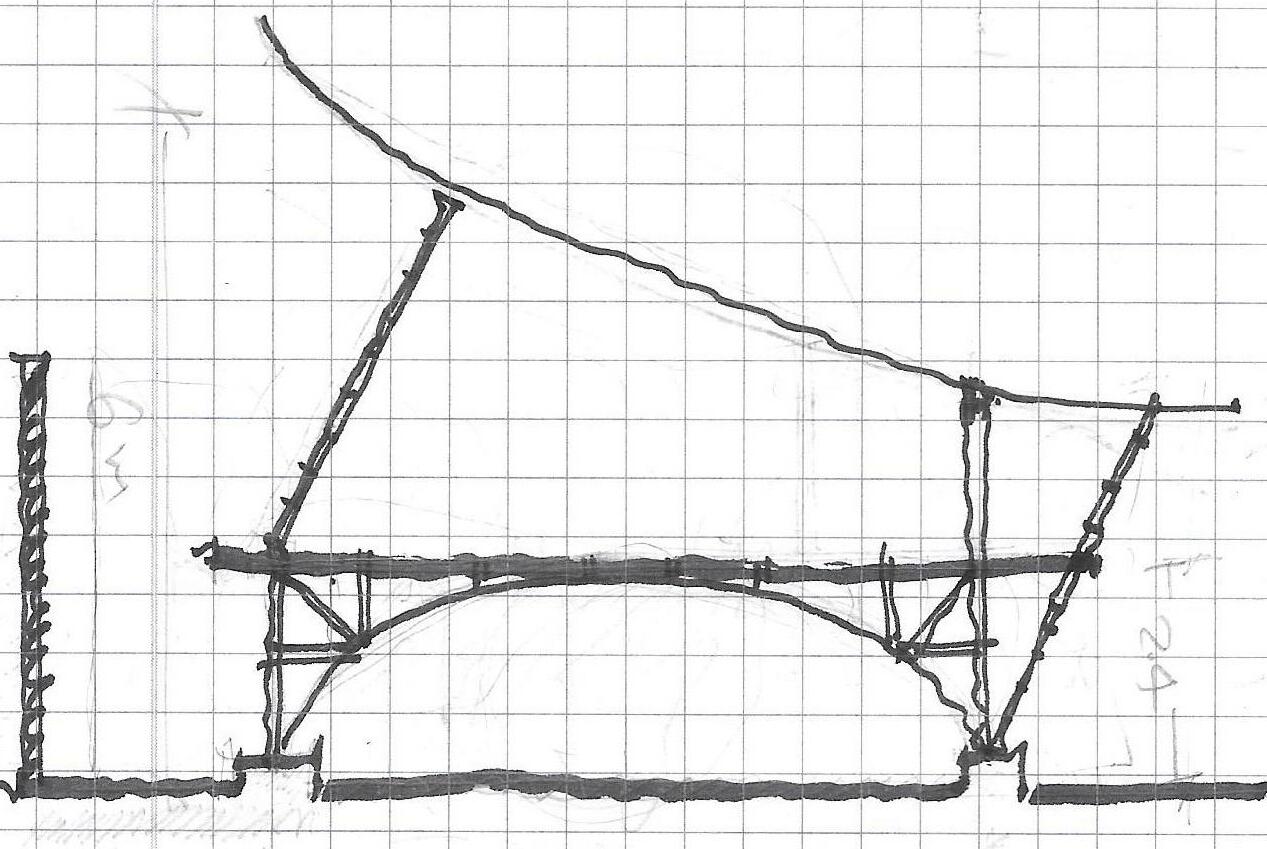

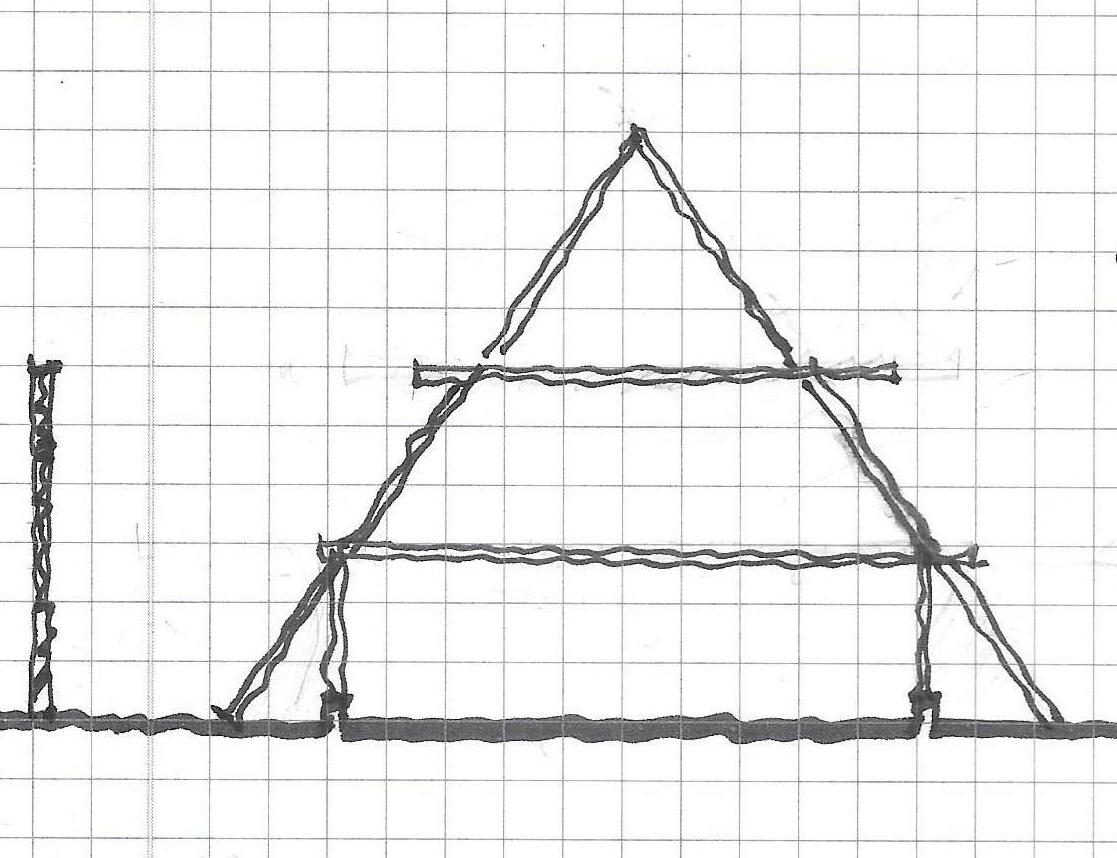

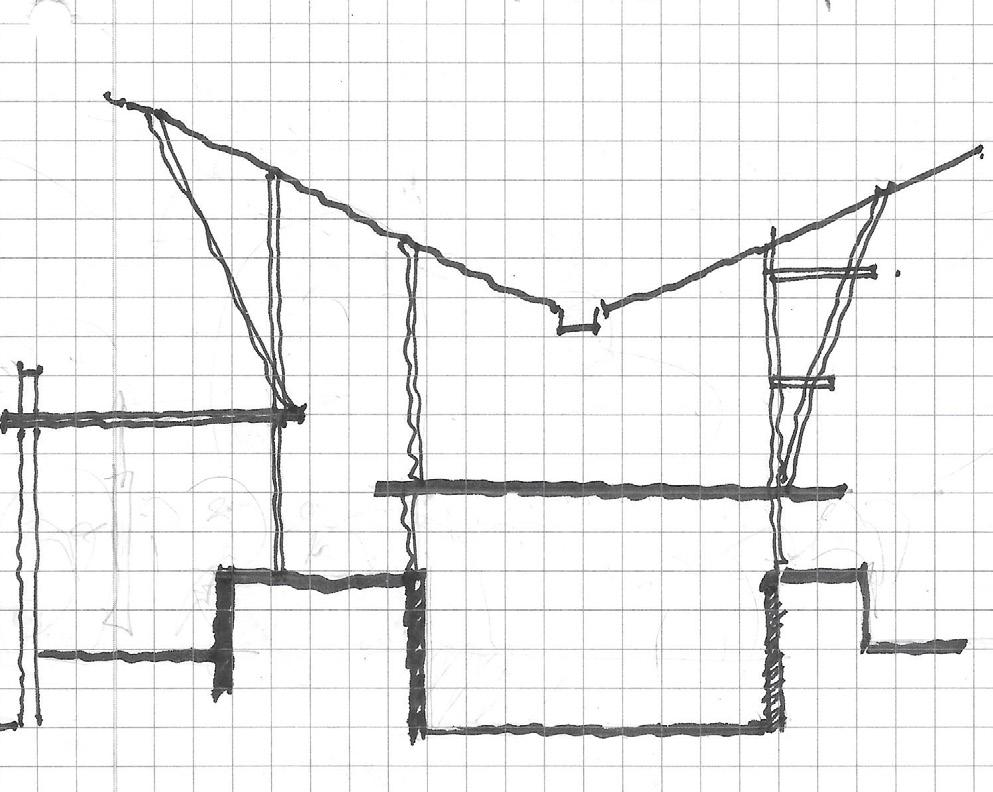

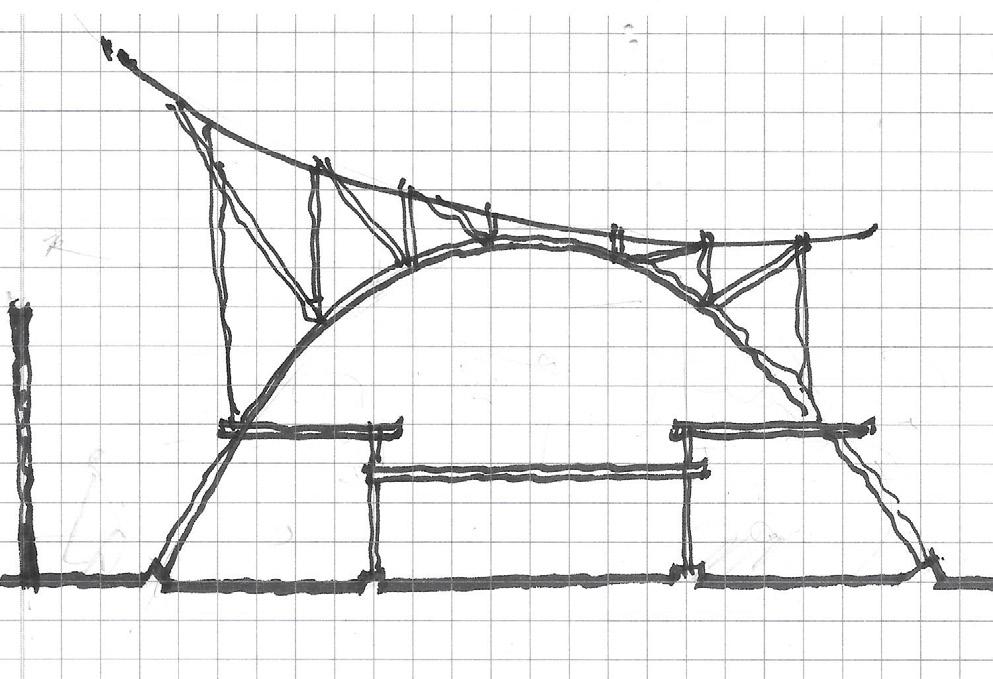

Design + Build Workshop

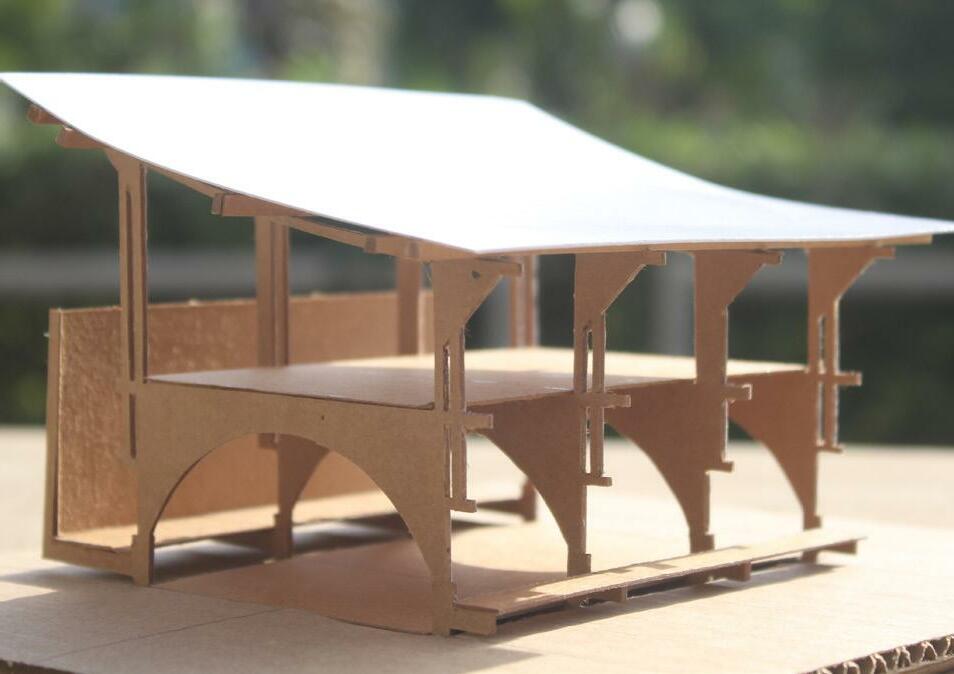

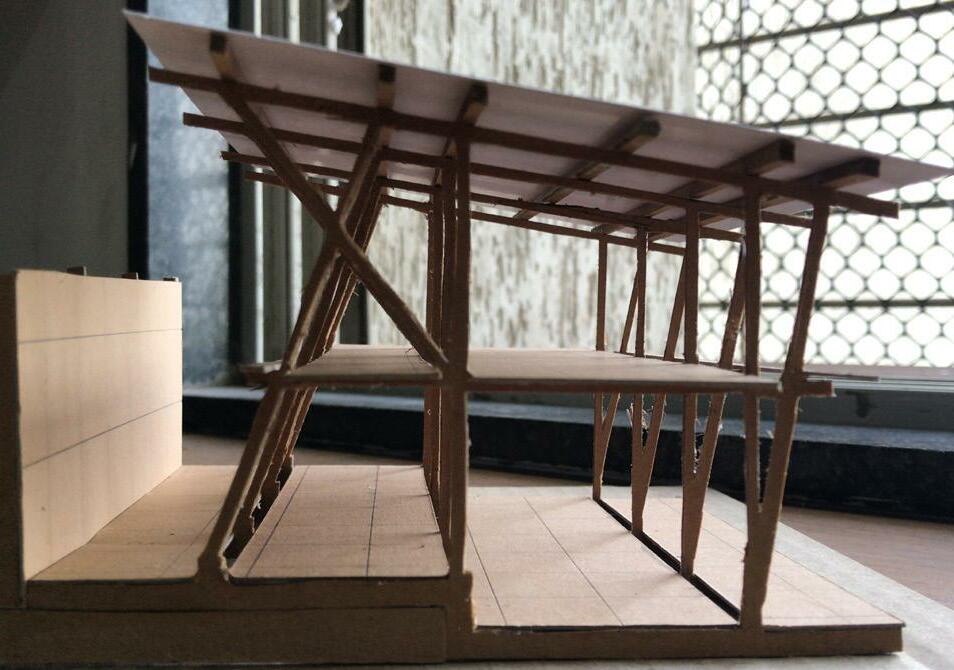

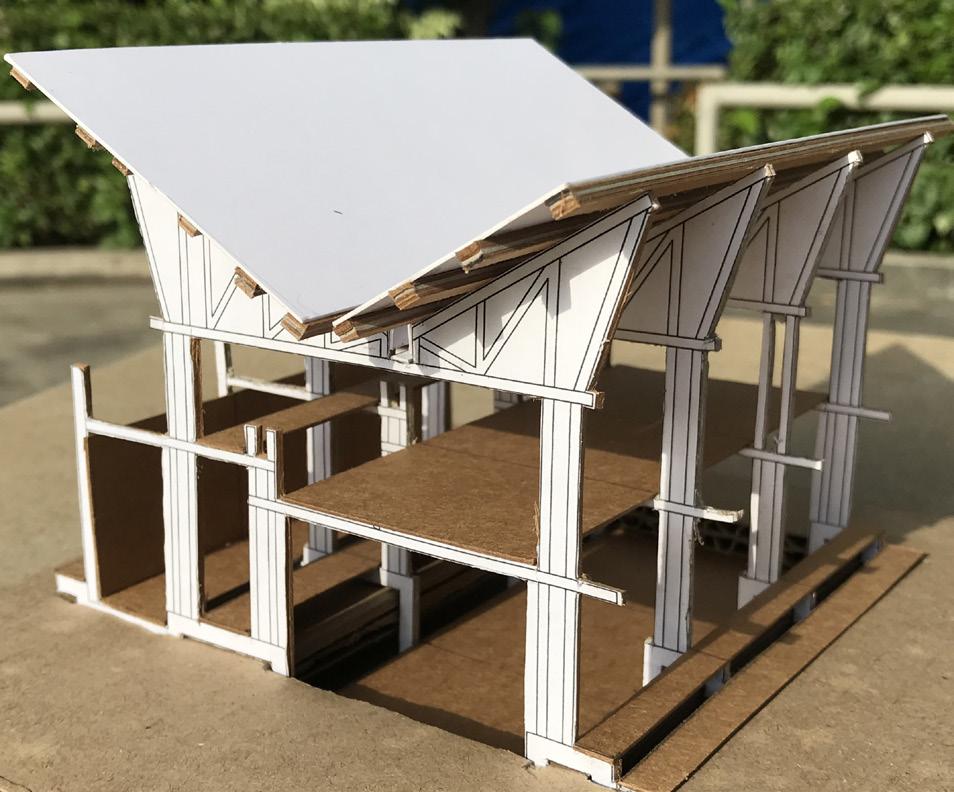

Risilient Prototype
Year 2018 - 2019
Role Junior Architect
Institute SAL School of Architecture(Ahmedabad)

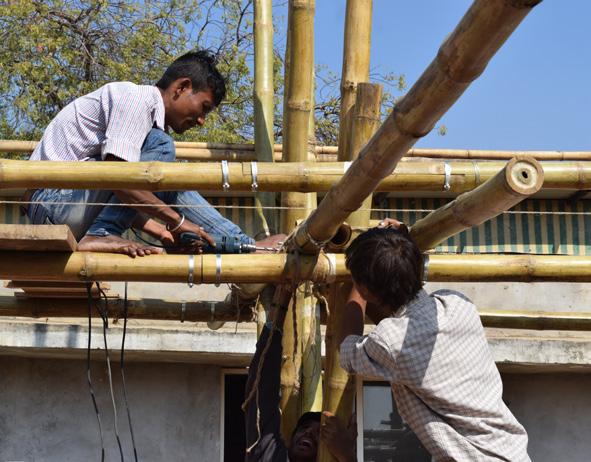

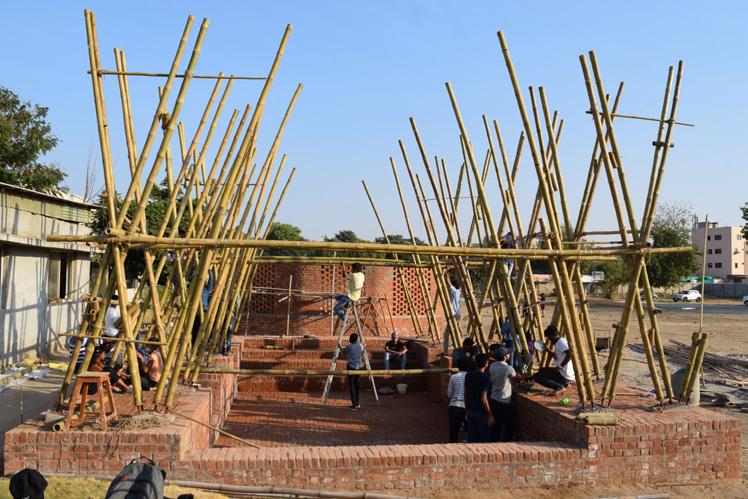

Program Bamboo workshop
Level UG Students
Course Type Design and hands on workshop

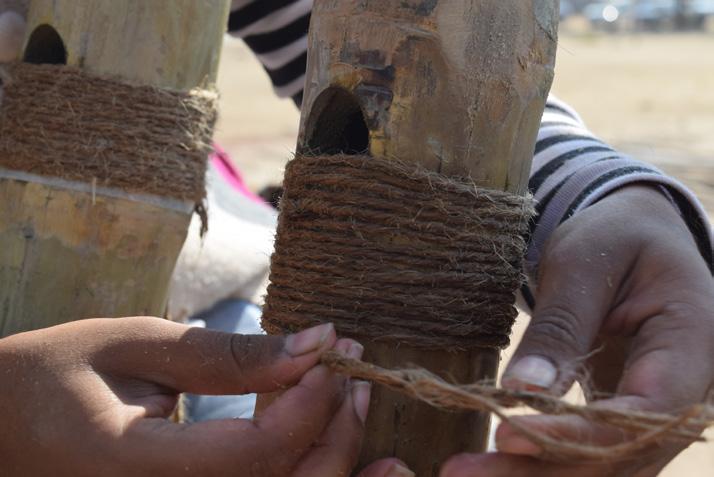

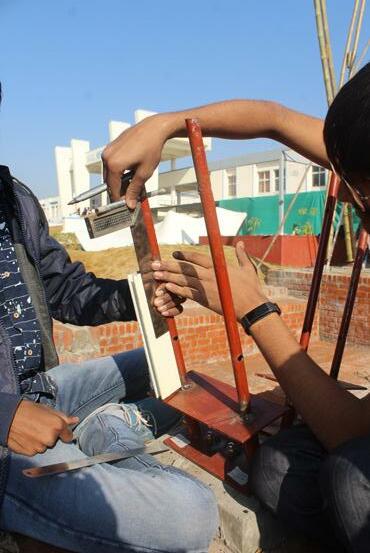

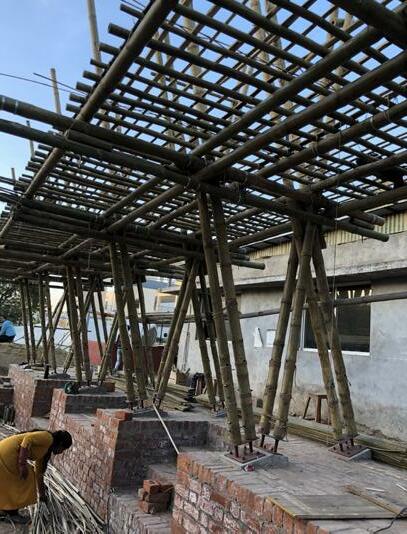

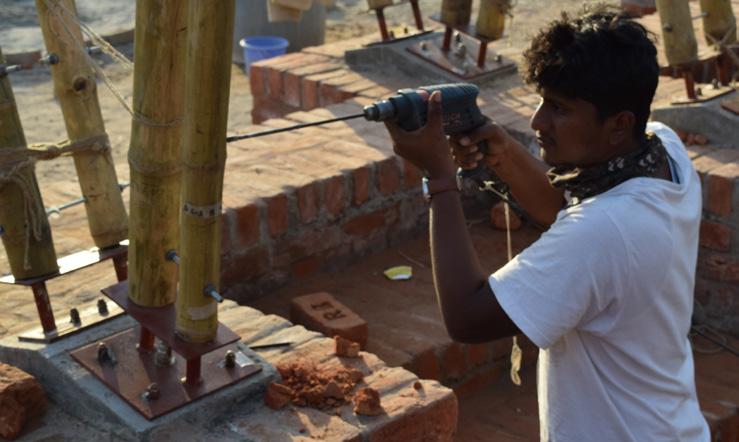

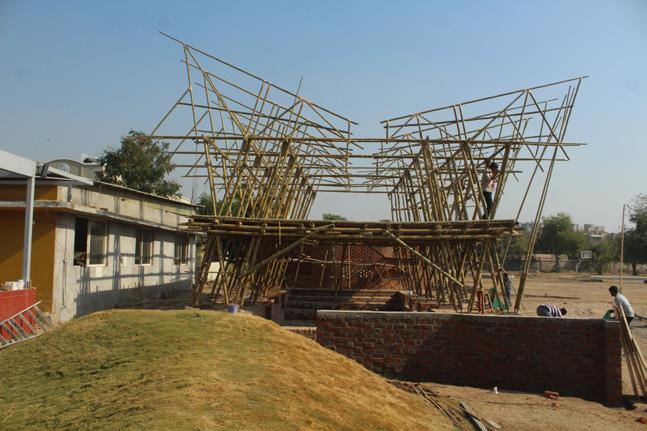

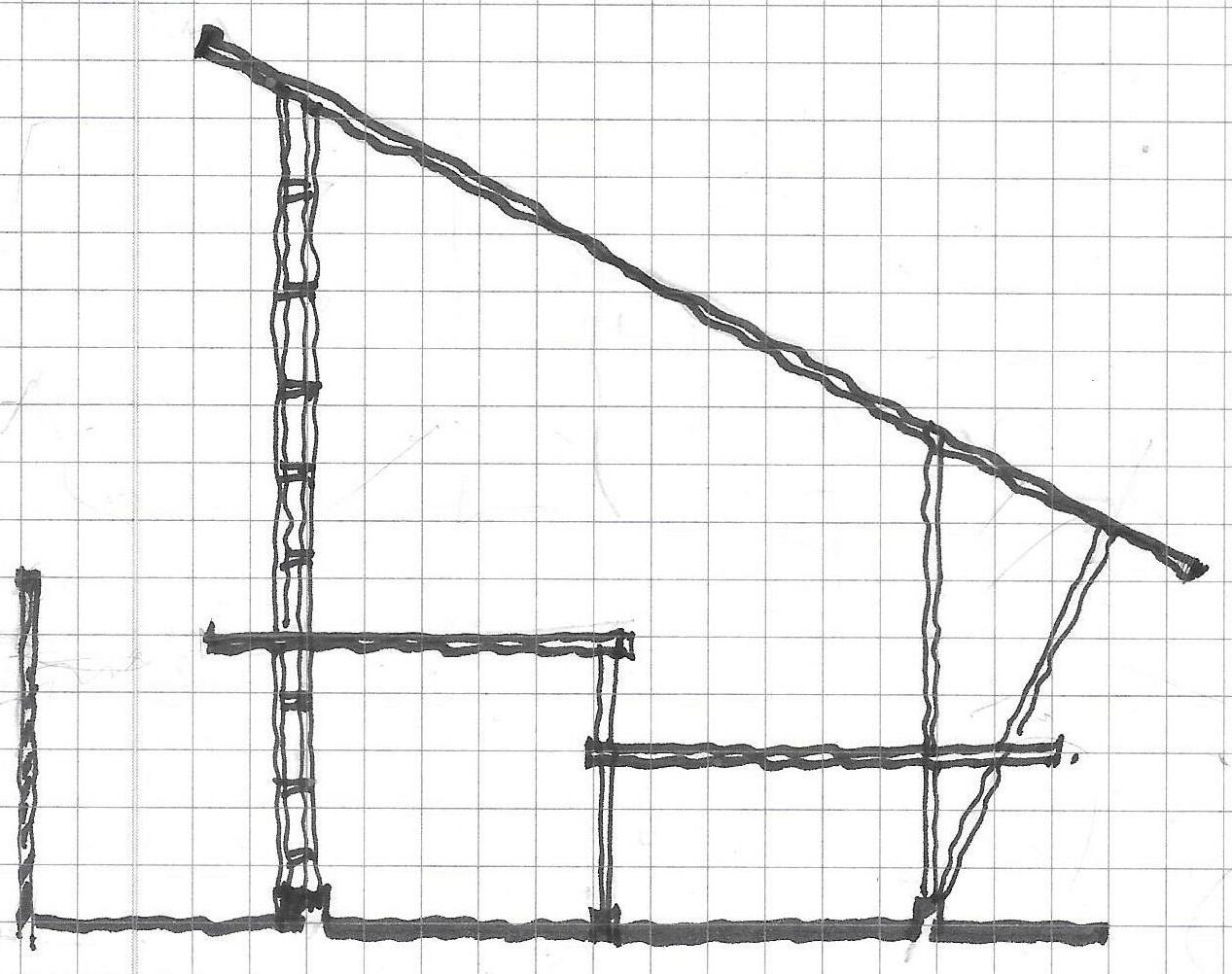

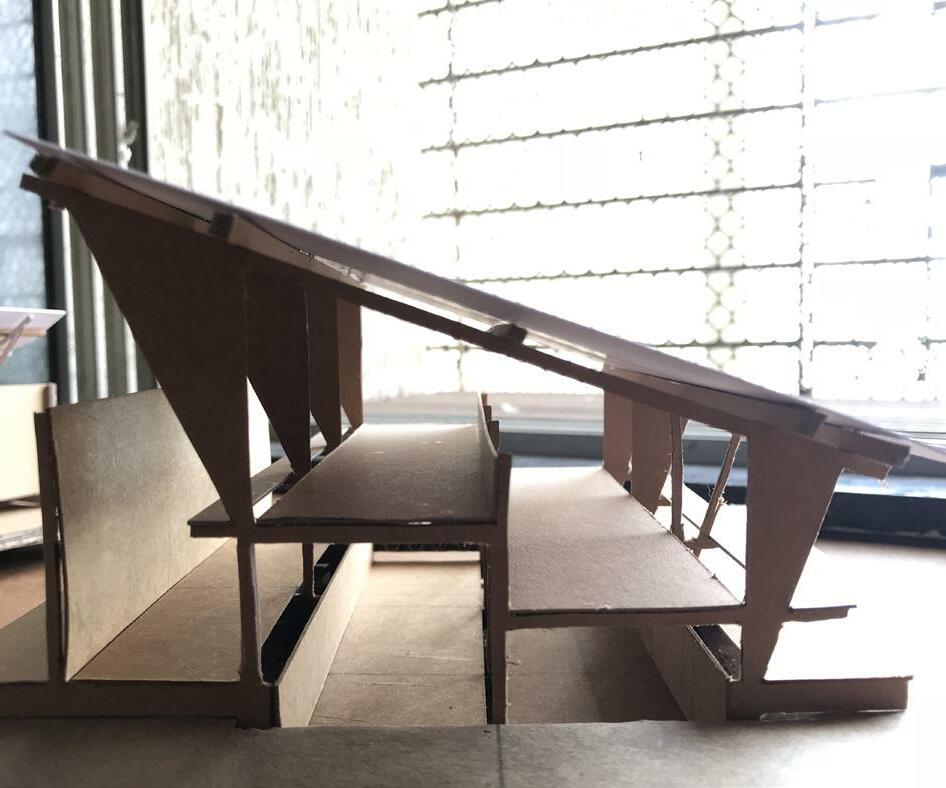

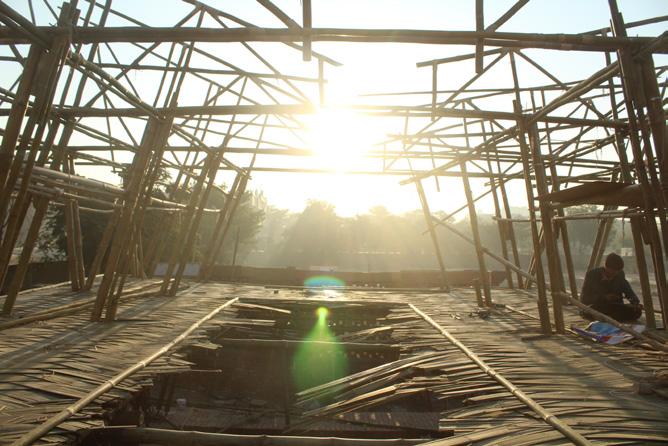

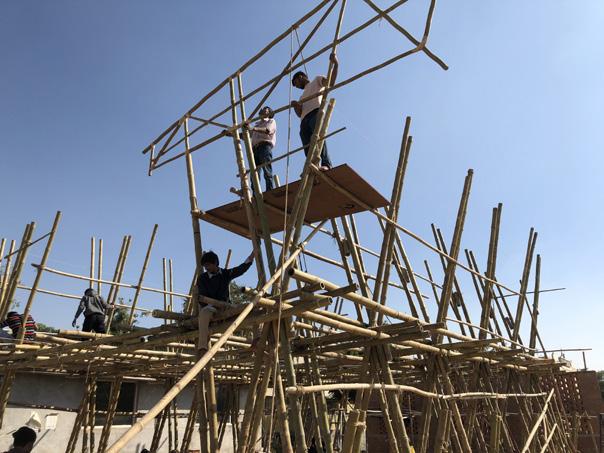

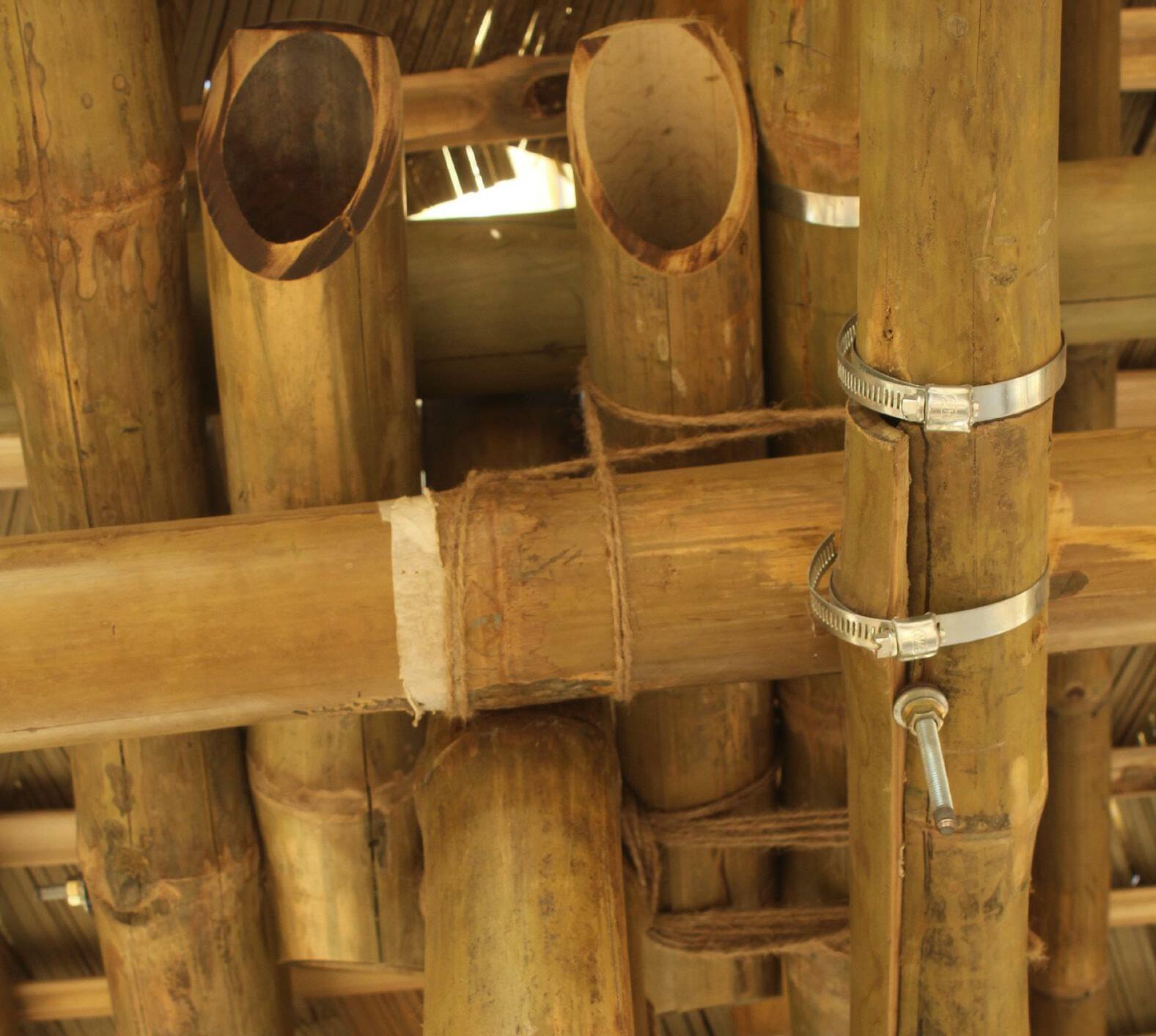

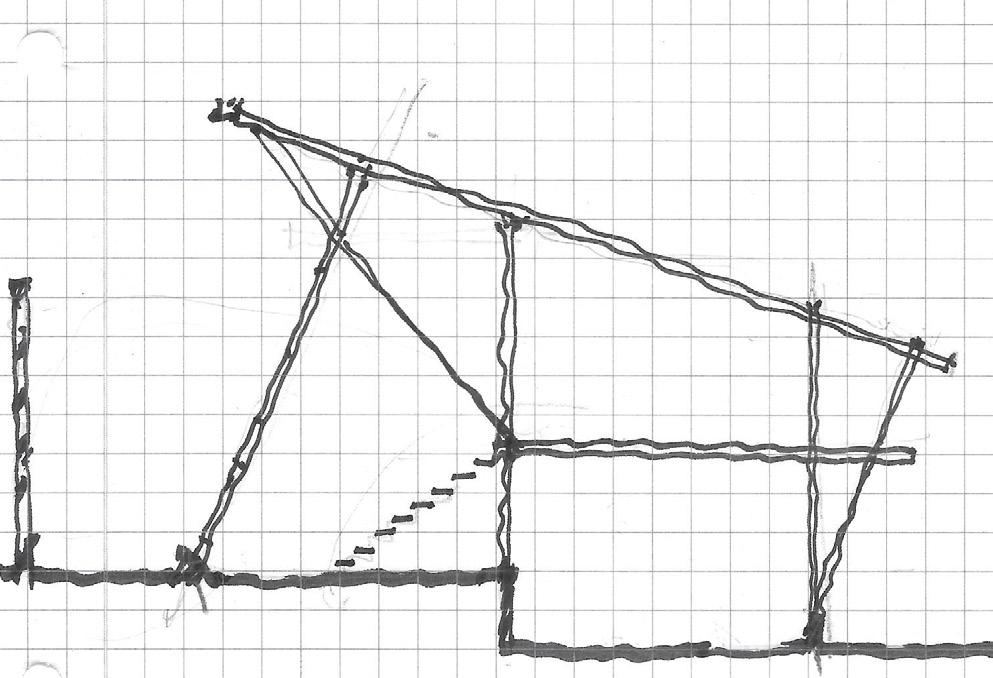

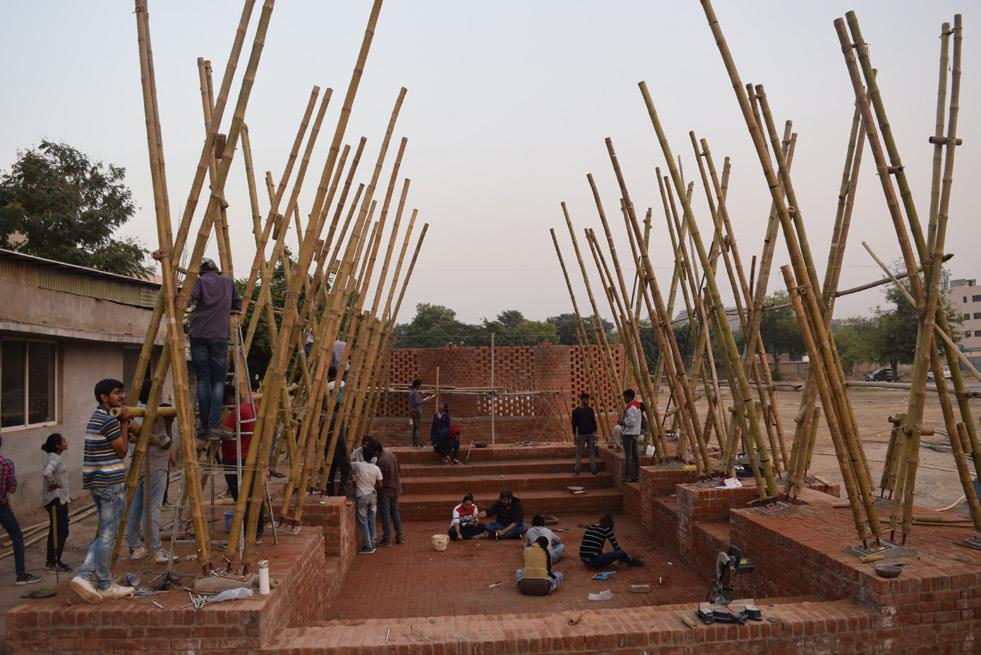

Form is an outcome of material manipulation under force. A workshop with intense hands on undertaking attempts to establish a relationship between material and form, through articulation of forces. Thereby development of material system by articulating interaction of rigid (linear- timber, bamboo, steel / planar – veneer, ply, timber, laminate, steel) and flexible materials. Using both the stiffness and flexibility present in materials or induced using simple techniques or operations for material manipulation; we shall develop this ‘material system’ as an assembly where interactions of matter and energies compute form, driven by complex constraints and feedbacks from manufacturing, environment and human interaction. In the process, material rather than being a passive receptor of form begins to be an active generator of form. Here working models and prototypes are primary design tools be it understanding form, material behaviour, stability and structural behaviour. Output 1:1 scale prototypes in different materials

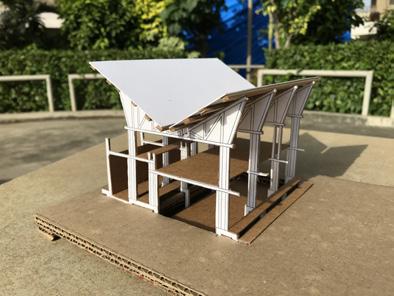

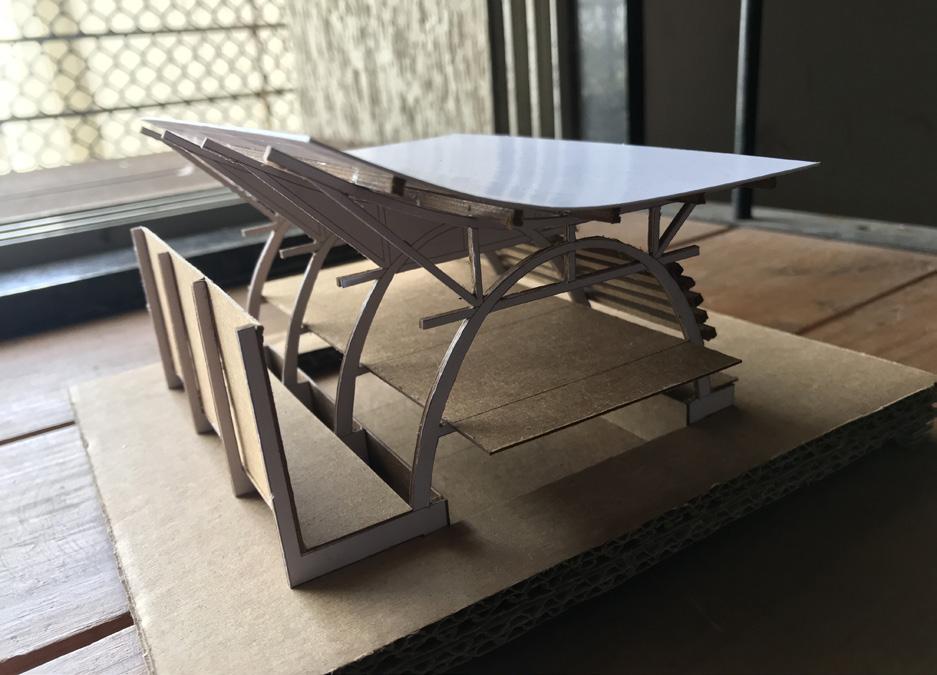

MC INTENSE HAND-ON WORKSHOP UNKNOWN KNOWN PROTOTYPE CONTEXT a) BAMBOO b) FLOOD c) EARTHQUAKE MAKING WORKING WITH ARTISANS TECHNOLOGY UPLIFTMENT COMMUNITY PARTICIPATION BUILDING ON SITE LOCAL GLOBAL REGIONAL EXTRACT ASBTRACT
