01 Context

“A Place With No Character”

The site for my studio project was Canbury Car park. It is located in the north of Kingston, and is surrounded by two main roads, the A307 and A308. The car park is also surrounded by several general stores, such as a car garage and food delivery service store. Alongside these to the east of the site, there are further buildings. The purpose of our project this year was essentially to bring life and character to the site, due to the initial sites current ‘run down’ buildings.

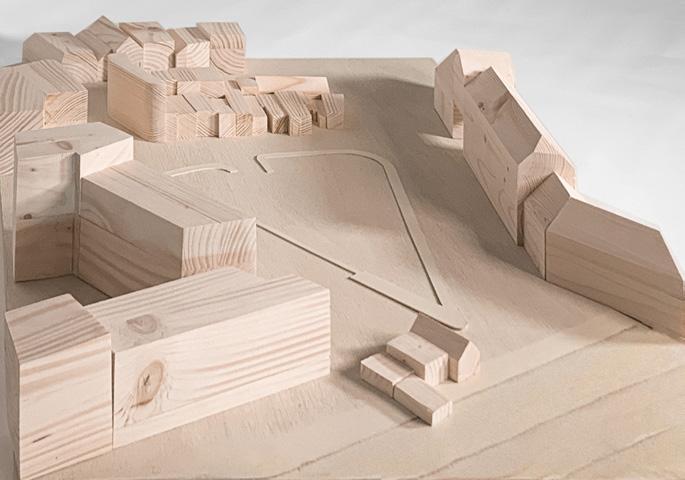

Figure1 - Wooden Site Model Of Canbury Car Park

02 Site Proposal

Figure 2 displays a project proposal I presented in my final year. It displays two residential buildings and a community centre located on Canbury Car Park. In order to comply to the studios brief and ensure character with functionality, I had a double skin facade for my residential buildings, one being 5 storeys high, and the other 4. Moreover, in accordance to the brief, my communal space was a multi sports centre.

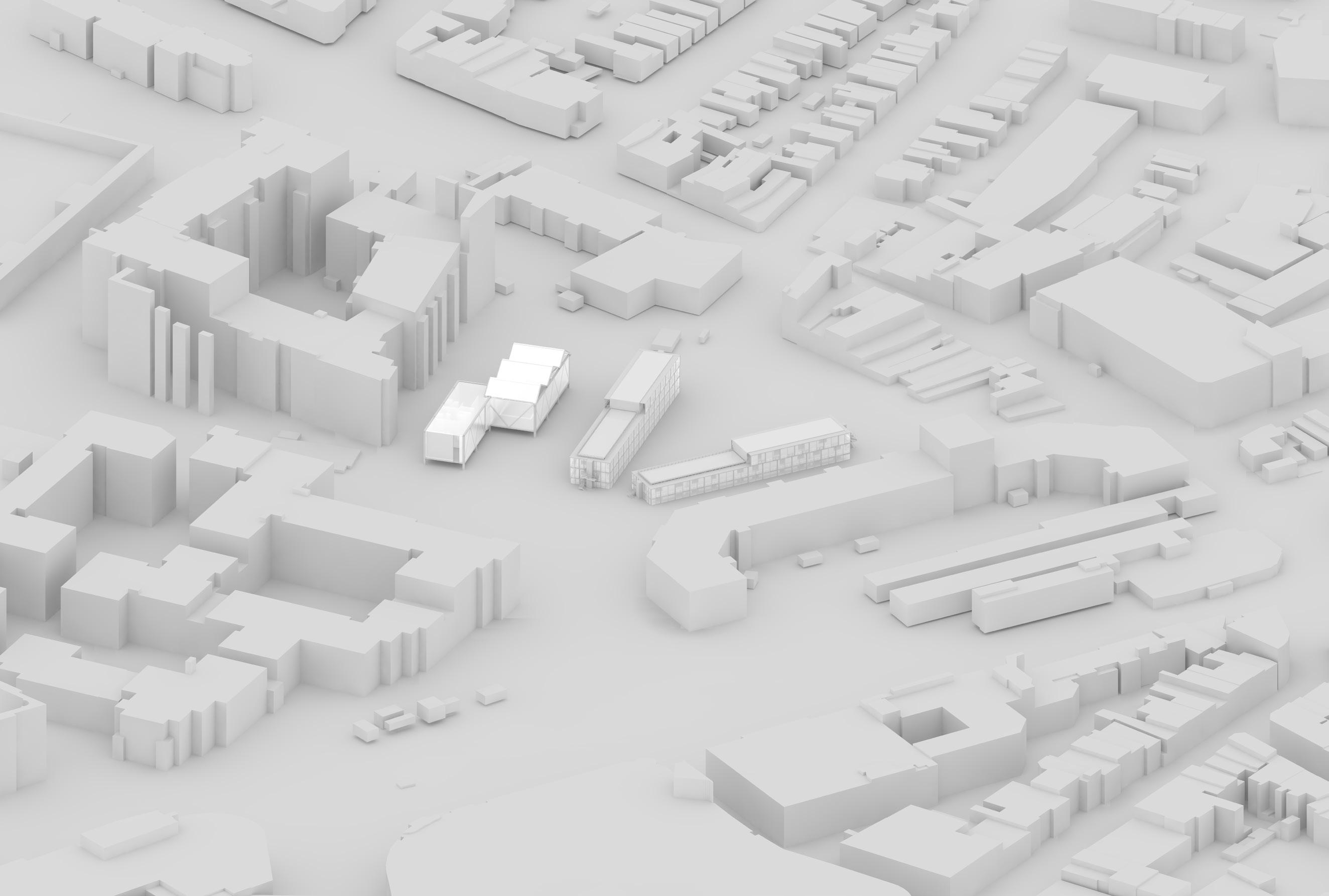

Figure 2- 3D Render, Vectorworks of Site & Proposal

Canbury Project

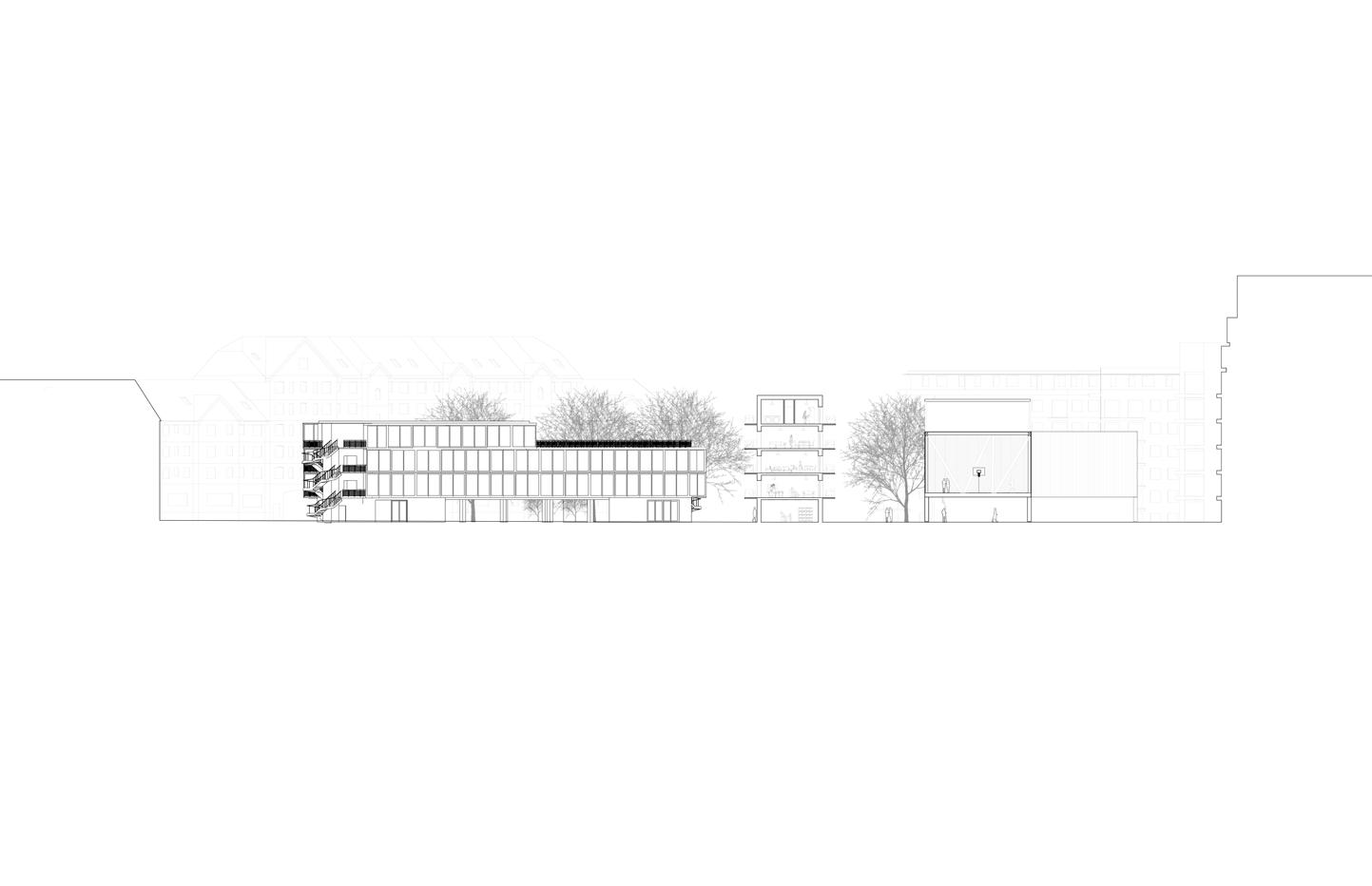

Figure 5- Site section

A- 1 Bedroom Residential building

B- 2 & 3 Bedroom Residential building

C- Multi Sports Centre

VECTORWORKS EDUCATIONAL VERSION

9 & 10- 3D Interior Render of 3 Bedroom Apartment, Living Room

VECTORWORKS EDUCATIONAL VERSION

Figure

Figure 6- One bedroom Flat

Figure 7- Two Bedroom Flat

Figure 8- Three Bedroom Flat

06 Floor Plans

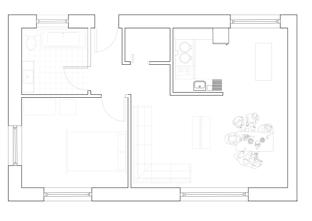

One Bedroom Plan

Inspired by David Chipperfields lastest project, my buildings provides character that is missing from the site. The double skin facade that is displayed in my plans is made from fritted glass and surrounds the building, ensuring privacy from the public and a private sense of space for the buildings residents. The ground floor provides access to the stairs and lifts whilst also being a space where residents are able to access their mail. The last floor is strictly for the residents, providing them with necessities (laundry room) and entertainment (cinema room).

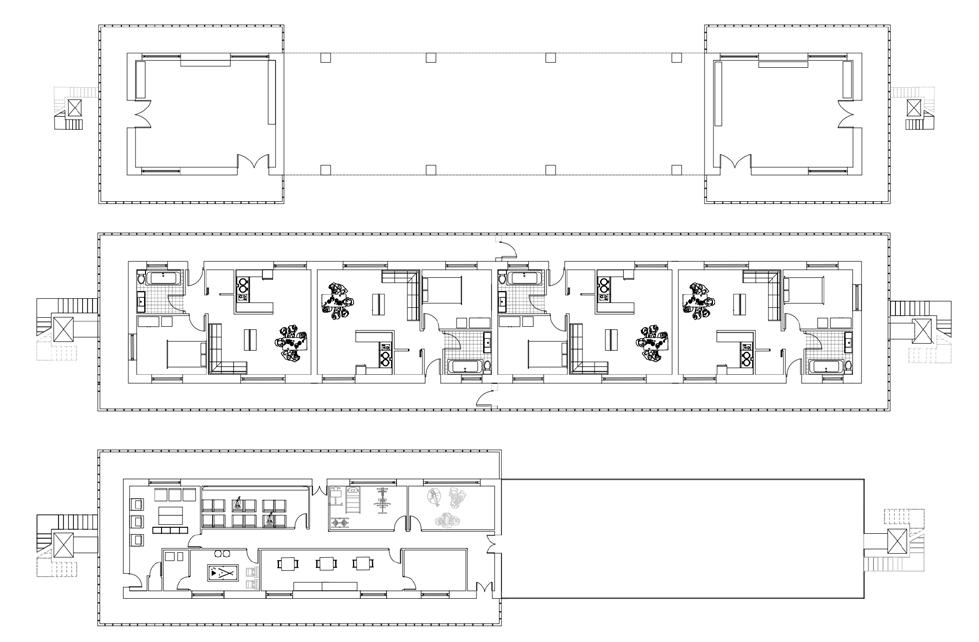

11- Ground, Main and Final Floor plans of 1 Bedroom Apartment Building

Figure

Technical Drawing

Vectorworks Educational Version

Roof

Roof membrane - 1.5mm

Coverboard- 25mm

Insulation- 300mm

Air & Vapor Barrier Membrane

Structural Sheathing- 20mm

Air Cavity

Vapor Permeable AB CLT

Middle Floor

Plasterboard - 9.5mm

CLT- 125mm

Impact Sound Insulation- 100mm

Screedboard- 20mm

Wall

Timberboards- 100x25

Timber Battens

Vapour Barrier

Air gap- 50mm

Boared- 20mm

Wood Fibre Insulation-200mm Clt

Ground Floor

Timberboards- 20mm

Screedboard- 20mm

Insulation-200mm

Damp Roof membrane

Concrete- 400mm

Figure 12- Detail Section

Vectorworks Educational Version

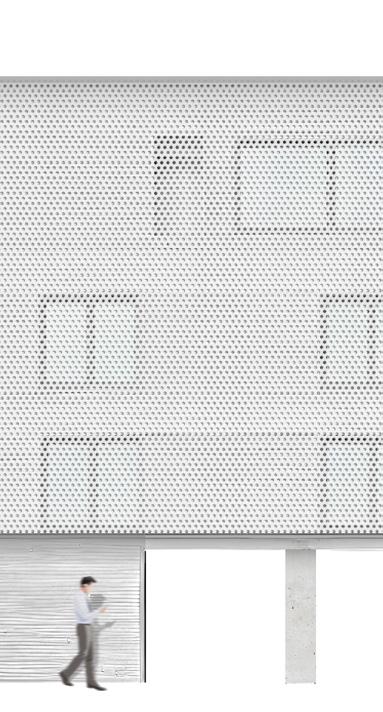

Figure 13- Elevation of Residential Building

Drawings

Figure 14- Elevation Drawing, Three Bedroom Residential Building

Figure 15- Section Drawing, on site.

09 Sustainability

Vectorworks Educational

Passivhaus

Sustainbility was a big part of my project, therefore I took a passivhaus approach. Throughout, my proposal has net zero principles, reducing operational and embodied carbon emissions. Furthermore, the primary structure of my building is made from CLT. offering carbon benefits, known as a regenerative material, that is also clean in construction. Passivhaus design elements were implemented throughout, for example, triple glazed windows and thick wall insulation. We can also observe the implementation of natural features- rain water harvesting. Overall, all the elements combined create a sustainble building in line with RIBAS requirements.

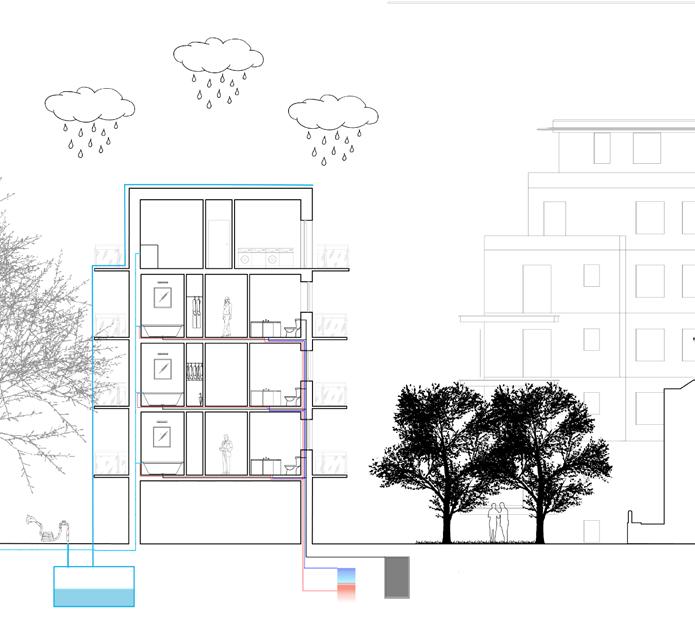

Figure 16- Passivhaus & Water Management Diagram

Educational Version

Vectorworks

Vectorworks Educational Version

Sunglight Diagram

Acoustic Diagram

Wind Diagram

Construction Diagram Dead & Live Load Diagram

Figure 17- Sustainable Design

11Modelling

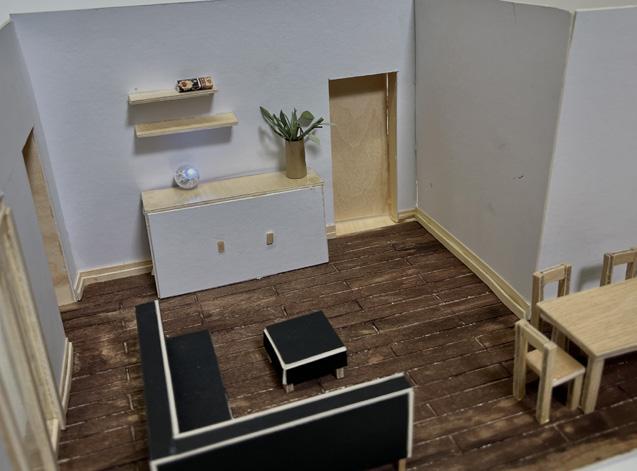

To properly observe the space I created, I made a quick interior model from mountboard and wood to be able to comprehend the use of space. This particular model is displaying the living room and parts of the open floor plan, which would include the dining space near the kitchen. The model highlights the movement of the space created and captures the way a room could be inhabited successfully.

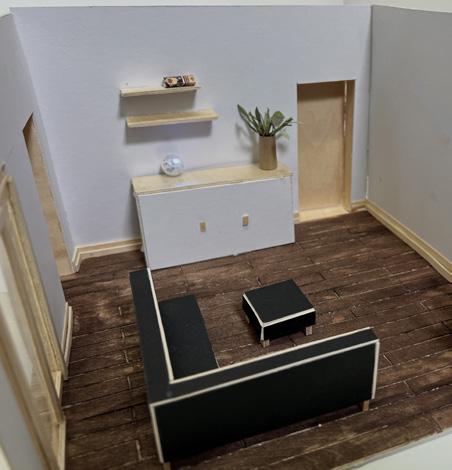

Figure 18- Interior Model displaying space being utilised

Interior model

12 Interior

Residential Space

The main design of my project is perfectly illustrated through the image on the right. Using photoshop I was able to display my vision for the space outside the flats and its response to the site. The sceme introduces privacy, with the skin facades use of fritted glass, bringing modernity and development to the run down space of Canbury.

Figure 19- Interior Perspective Collage of Residential Buildings

Figure 20- Interior Render Of Early Stages Of Proposal

14 Proposal Render On Site

Facade & Height

The renders on the right display the residential buildings upon the site. However, the main focus of the images is its experimentation with the facade. It displays the idea of the future of canbury.

Canbury is locted in between a series of a buildings, which went from 25 storeys to 17, due to residents and councils growing concern of the impact the height of the building would have on the site. This concern impacted my overall buildings height, making my heighest building 15m. This is to ensure there were no complications and ensured maximum light capacity entering all buildings proposed and existing.

Figure 21- Exterior Render Of Early Stages Of Proposal

15 Proposal

Vectorworks Educational Version

Figure 22 - 3D Model of proposal on site

Vectorworks Educational Version

16 Construction

Figure 23 displays the process of construction of the residential building. It overlines simply some steps that would be taken to erect the building. The clt is already prepared off site, and is bought to the site by a truck. The rest of the building is then constructed on the site. After the panels have all been erected and the structure is standing, the external cladding and interior finishes can begin. The timber external cladding is placed and the windows and doors assembly follow.

Figure 23- Construction Diagram Of Residential Building

Construction Process

17 Final Render & Section

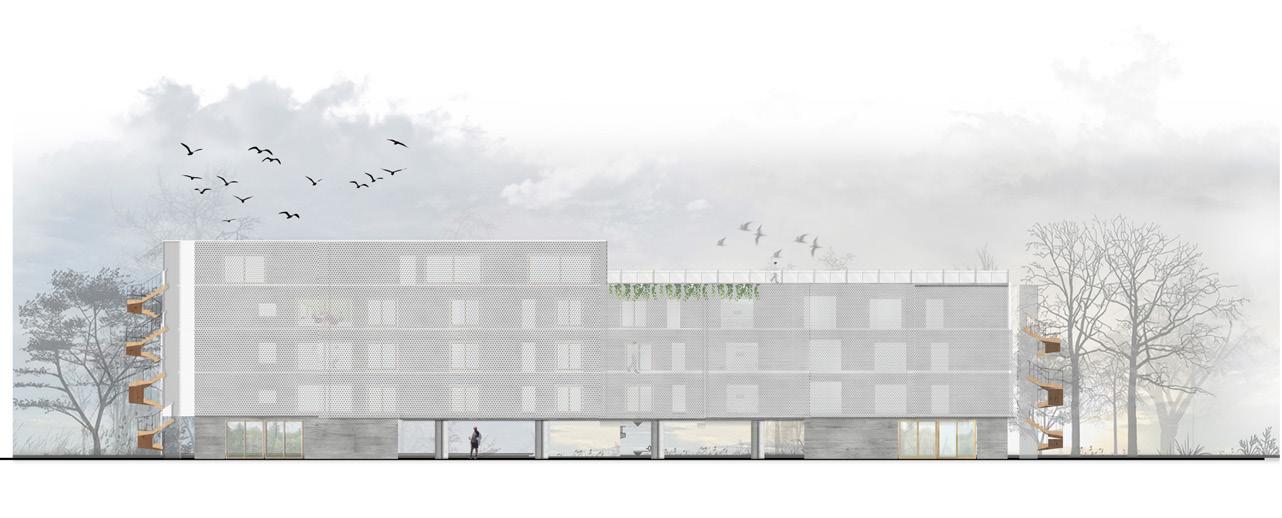

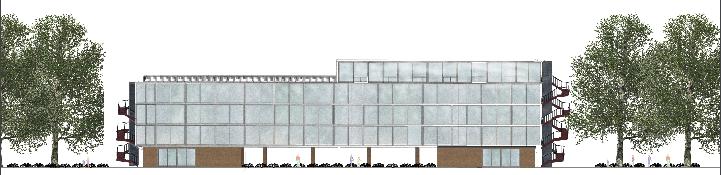

Figure 25- Elevation Drawing, Three Bedroom Building

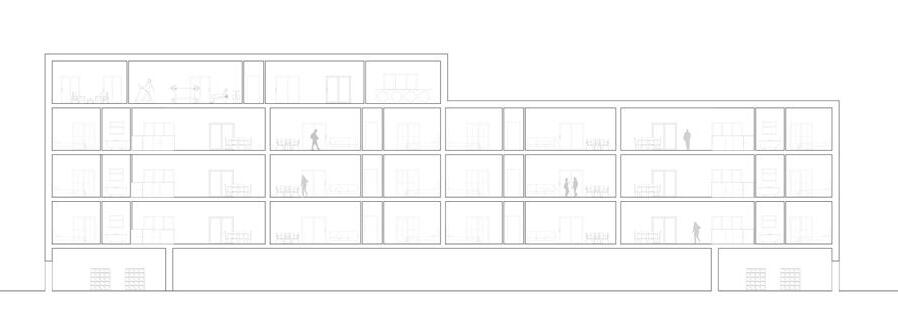

Figure 26- Section Drawing, Three Bedroom Building

18 Final Community Centre Plan

-Storage

-Changing Rooms

-Corridor -WC

-Lounge Area

-Sport Centre

Sports Centre

External wall displays the glass, with timber beams and timber structure cut through. The main sports hall serves functionally for football, basketball, tennis etc.

Figure 27- Structural Floor plan of multi sports centre

19 Year 2 Project

“Suburban

Factory District”

For our second year project, the site was in tolworth, a suburban area which is also a carpark. The overall aim was to create a housing scheme including one, two and three bedrooms, alongisde a factory. The objective was to also ensure there was some cohesion inbetween the factory, housing and surrounding site. Additionally, it was emphasised that our buildings must comply with passivhaus standards and be sustainable. With all these requirements from the brief considered, the result is displayed in fig 28 and 29. I utilised solar panles on both the factory and housing schemes, which created some unison amongst the two buildings whilst also opting for CLT to be the primary structure of them both. The scheme became nicely completed, moulding well within the sites landscape and surrounding buildings.

Figure 28- Residential Building, Housing and Factory

Figure 29- Aerial view Residential Building, Housing .and Factory Render

Figure 30- Close up view of housing scheme with intense light directed towards solar panels

20 Shelter Project

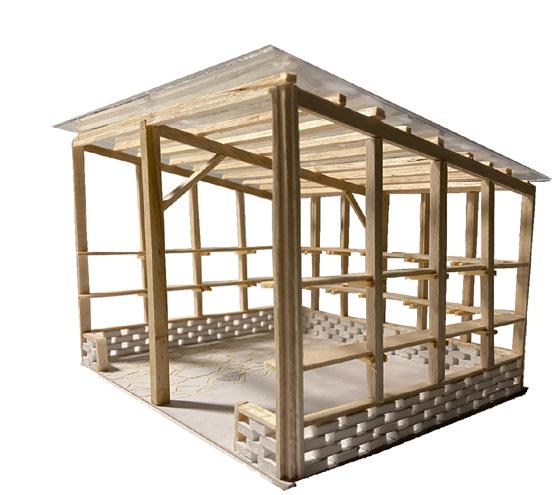

During a group project in second year, we were tasked to design a shelter for a local garden. During the group project, me and another member of the group were assigned the role of creating the model of our proposal. Here we successfully displayed our vision of the shelter. We had the idea to use the honeycomb method for the bricks, and to use timber for the rest of the structure. This was depicted through the use of balsa wood and foamboard. Our groups hardwork was displayed successfully through this model, in turn, our proposal was made and is currently standing in the garden.

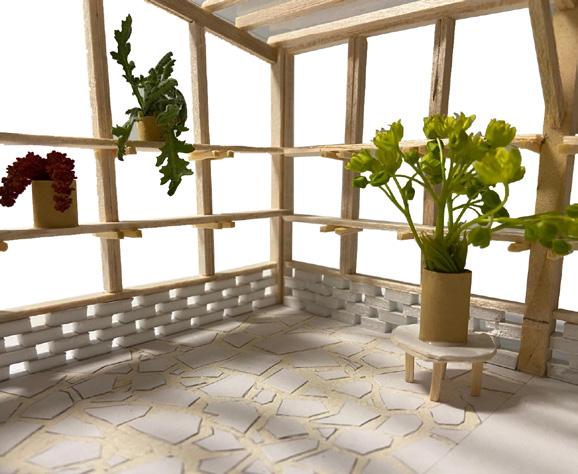

Figure 30- Shelter Model for Hogsmill garden, scale 1:20

Hogsmill Garden
