2 CONTENTS RESUME ENVIRONMENTAL PSYCHOLOGY RESEARCH INSTITUTE AND EXPERIENTIAL MUSEUM APARTMENT COMPLEX AT CHENGALPATTU, TAMIL NADU SRINIDHI NILEYA, RESIDENCE AT BANGALORE LEISURE RESORT, GOA ARCHULT 19 AMBIENCE WORK GWC OFFICE BUILDING AT QATAR 4 6 8 16 18 19 20

MEERA OFFICE BUILDING AT QATAR

MEERA SENIOR STAFF ACCOMMODATION AT QATAR

AL MEERA SENIOR AND JUNIOR STAFF ACCOMMODATION AT QATAR

PLACE TO BE, AMBOSELLI NATIONAL PARK, KENYA

CENTRE AT PUDUKOTAI, TAMIL NADU.

RESIDENCE

TRICHY, TAMIL NADU

3 AL
AL
A
ARTWORKS CULTURAL
AGRAHARAM
AT
22 24 26 28 29 30 28

RESUME

Alwin

(H) Arakkunnam (P.O)

Kerala, India |

WORK EXPERIENCE

Intern Architect at QDC (Qatar Design Consortium)

Qatar : June - Nov, 2018

involved : Design, working drawings, presentations, client meetings)

Intern Architect at SDeG (Sujit Nair Design Group) Bangalore, India : May - July, 2019

involved : Working drawings, presentations)

Freelance Architect at freelnacer.in

platform) : July, 2019 - present

involved : Architectural & Interior Design)

4
Mathew Male | 10 April 1997 alwinlc14@gmail.com +917907925617 Maniyamkott Edayath
Ernakulam,
682313
Doha,
(Work
(Work
(Online
(Work
‘

LANGUAGES & HOBBIES

Languages : English, Malayalam, Tamil & Hindi Hobbies : Art, Literature, Travel, Music & Sports

EDUCATIONAL QUALIFICATIONS

2013 - Completed High School Education with 94.0% from Montfort School Anakkara, Idukki, Kerala, India

2015 - Completed Higher Secondary Education with 95.2% from St.Antonys Public School, Kanjirappalli, Kerala, India

2020 - Completed B.Arch with 7.92 CGPA from NIT Trichy, Tamil Nadu, India

ARCHITECTURAL SKILLS & INTERESTS

Conceptualization & Sketching | BIM Modeling using Revit | Detail Drawings & Presentations, Autocad & InDesign

3D visualization & Post Processing, Sketchup, Lumion, Vray for Revit and Photoshop | Physical & Digital Model Making

Contextual & Vernacular Architecture | Climatic Design Strategies | Sensory Experience of Architecture

Sustainable and Low Cost Construction | Up-cycling & Material Integrity | Client Specific and Intimate Design

ACHIEVEMENTS & AWARDS

Painting, Pencil Drawing School & District Level 1st & 2nd Prices 2012 & 2013

Special Mention in NASA LIK Trophy, 2017 | Winner of Inter Dept. Movie and Dance Teams, Horizons 2016 Co-Captain of NITT Basketball Team & Winner of Inter NIT 18,19 & Colosseum 20 Tournaments Ambience Head of TedX NIT Trichy 2017 and Archcult 2019

5

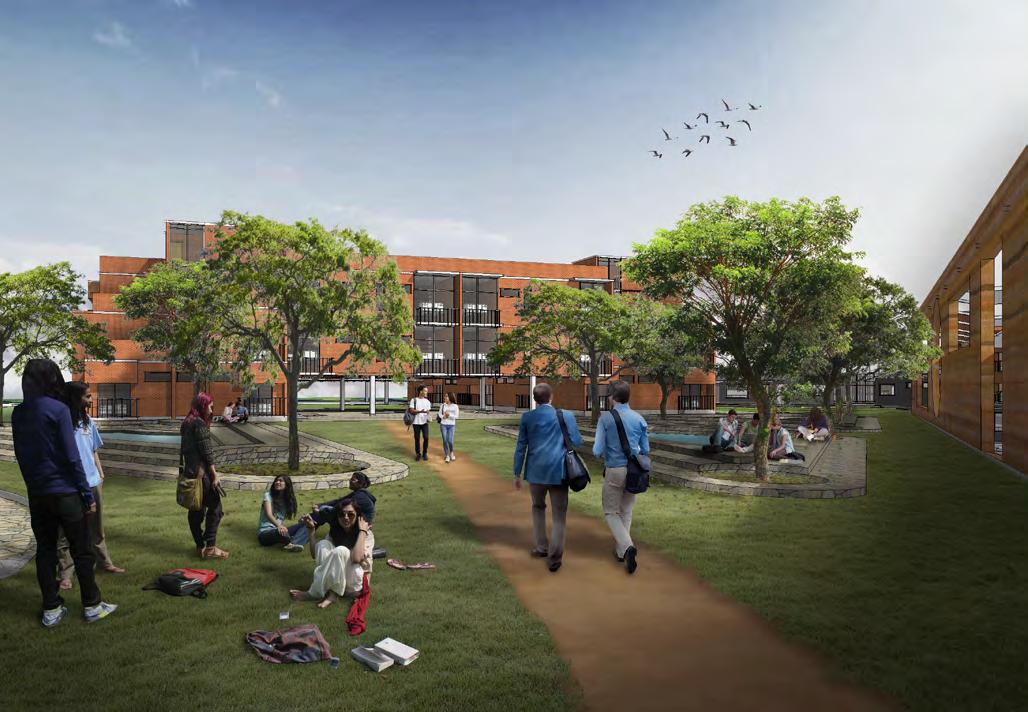

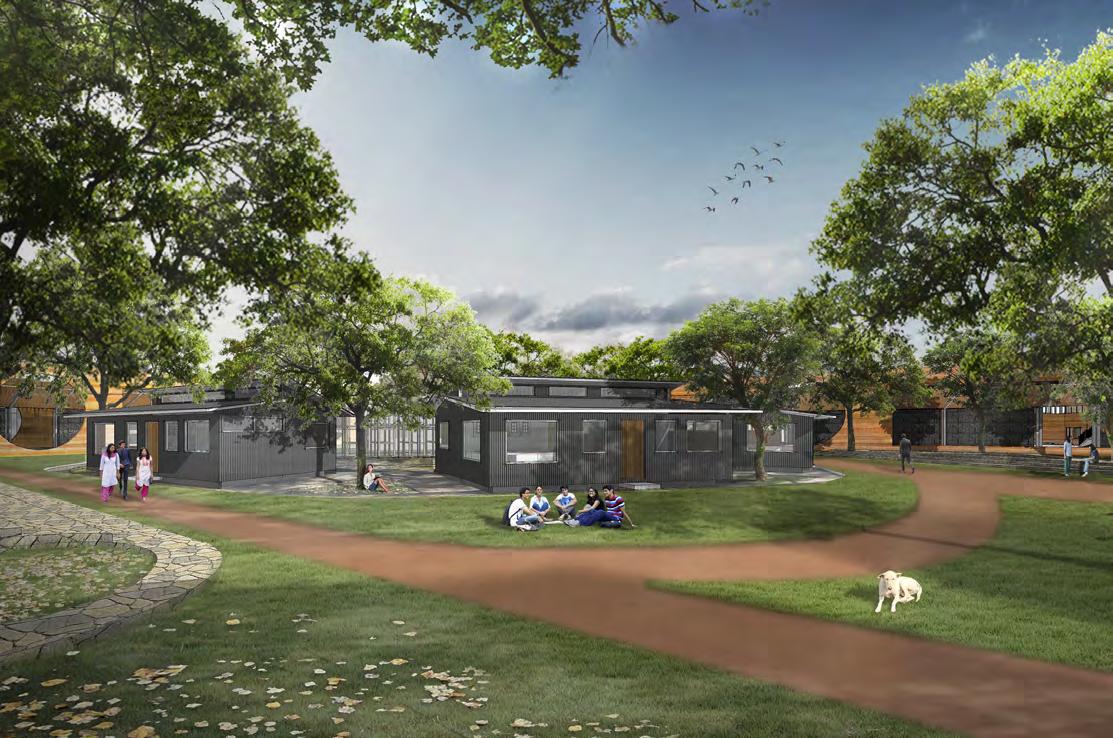

ENVIRONMENTAL PSYCHOLOGY RESEARCH INSTITUTE AND EXPERIENTIAL MUSEUM, BANGLORE( B.ARCH THESIS

The

includes

student accommodation.

development of the

combines the fields of architecture,

through

approach.

6
project
a research institute, an experiential museum, academic facilities and
It
Engineering and psychology creating a platform for the
field
a holistic
| JAN - MAY 2020 )
7

APARTMENT COMPLEX AT CHENGALPATTU, TAMIL NADU ( ACADEMIC WORK | JULY - NOV 2019 )

A thirty six storey luxury apartment complex that holds the warmth and comfort of home. The key considerations made for design are climatic comfort, energy efficiency, natural lighting and cross-ventilation, material integrity and user experience.

8

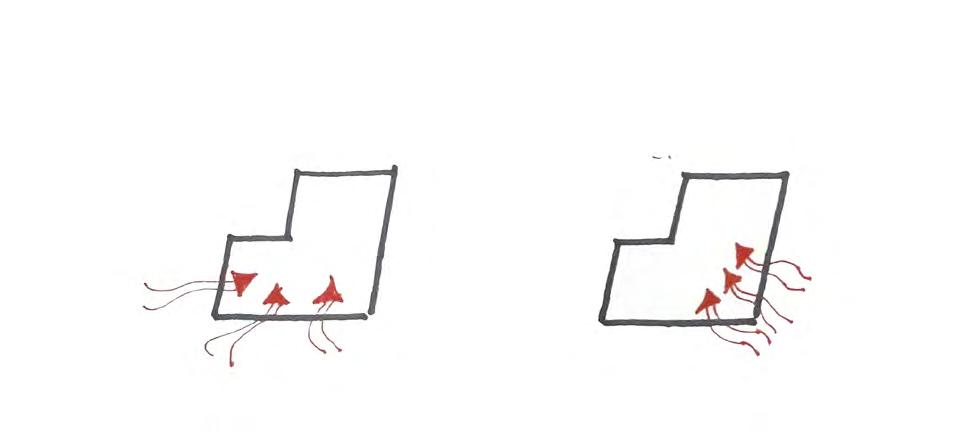

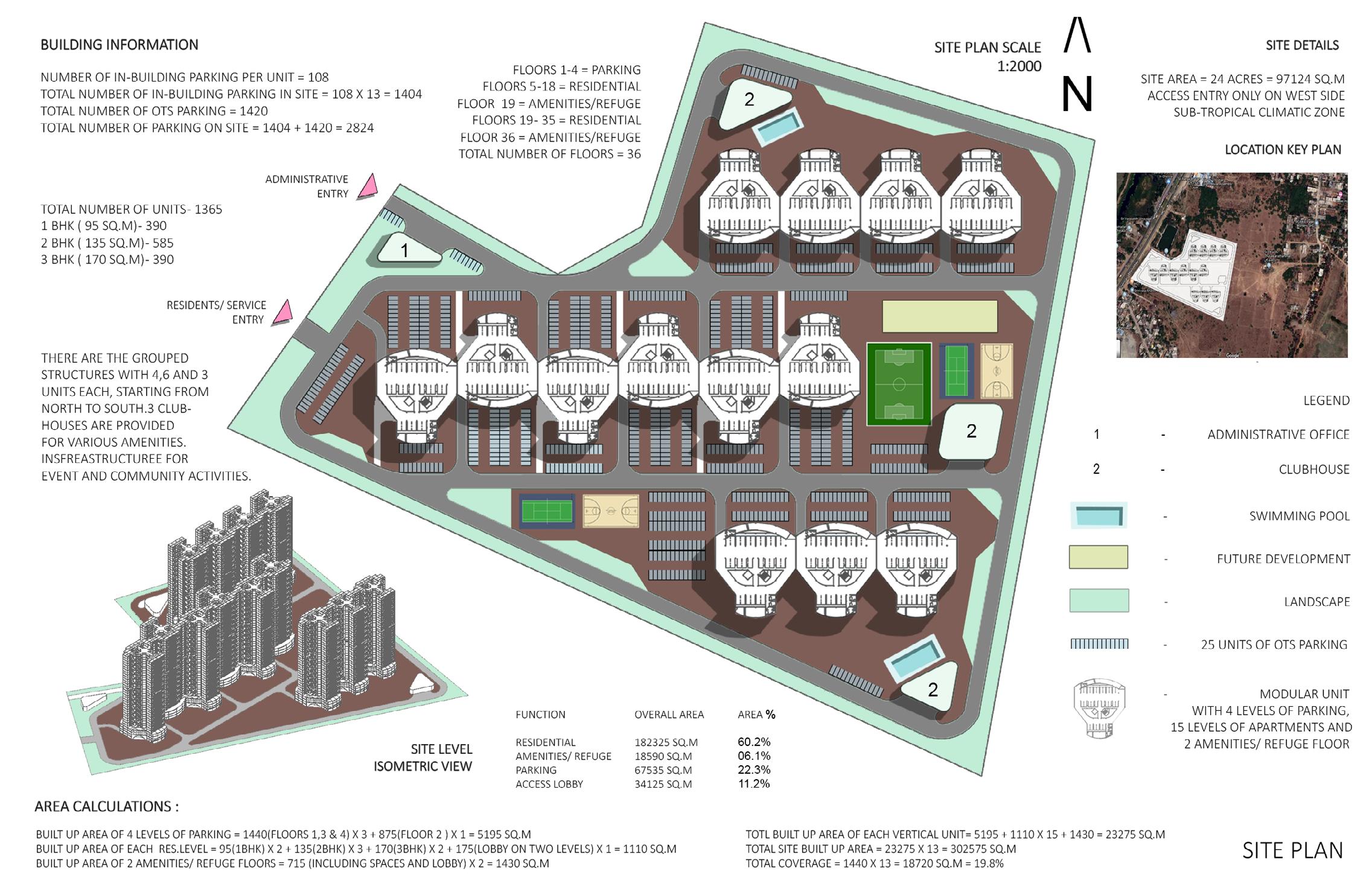

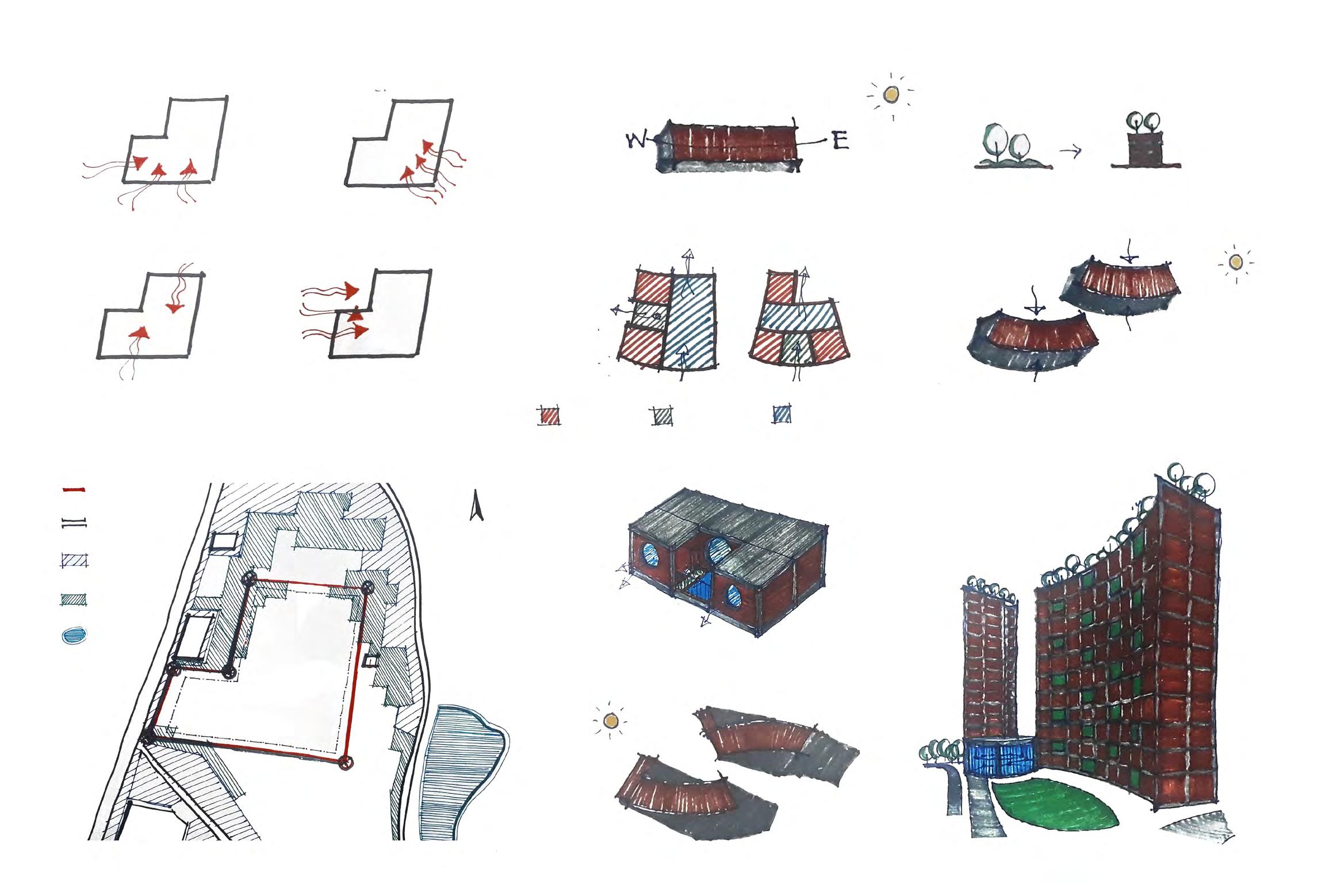

9 Harsh south & west radiation Predominant summer winds SITE BOUNDARY ROAD RESIDENTIAL GREENERY WATER BODY Cool breeze from water body Aligning building to E-W axis Bedrooms Gardens Living/Dining/Kitch Retaining vegetation in site Absorb predominant windsNoise pollution from highways Site proximity and features Mutual shading to reduce heat gain Conceptual sketch of the apartment
Isometric
of a typical 2bhk N
10
11 3 BHK - A 3 BHK - A3 BHK - B 3 BHK - B STAIRWELL STAIRWELL ACCESS LOBBY ACCESS LOBBY GARBAGE CHUTE GARBAGE CHUTE LIFT LIFT 2 BHK - A 2 BHK - A2 BHK - B 2 BHK - B 1 BHK - A 1 BHK - B 2 BHK - C 2 BHK - C The residential module has two levels and it contains 7 apartment units as shown. The duplex design of apartment allows high circulation of air through cross ventilation. And natural light is available on all spaces according to requirement. All the apartments except 1bhk-b has access from level 1. MODULAR APARTMENT UNIT - LEVEL 1 MODULAR APARTMENT UNIT - LEVEL2

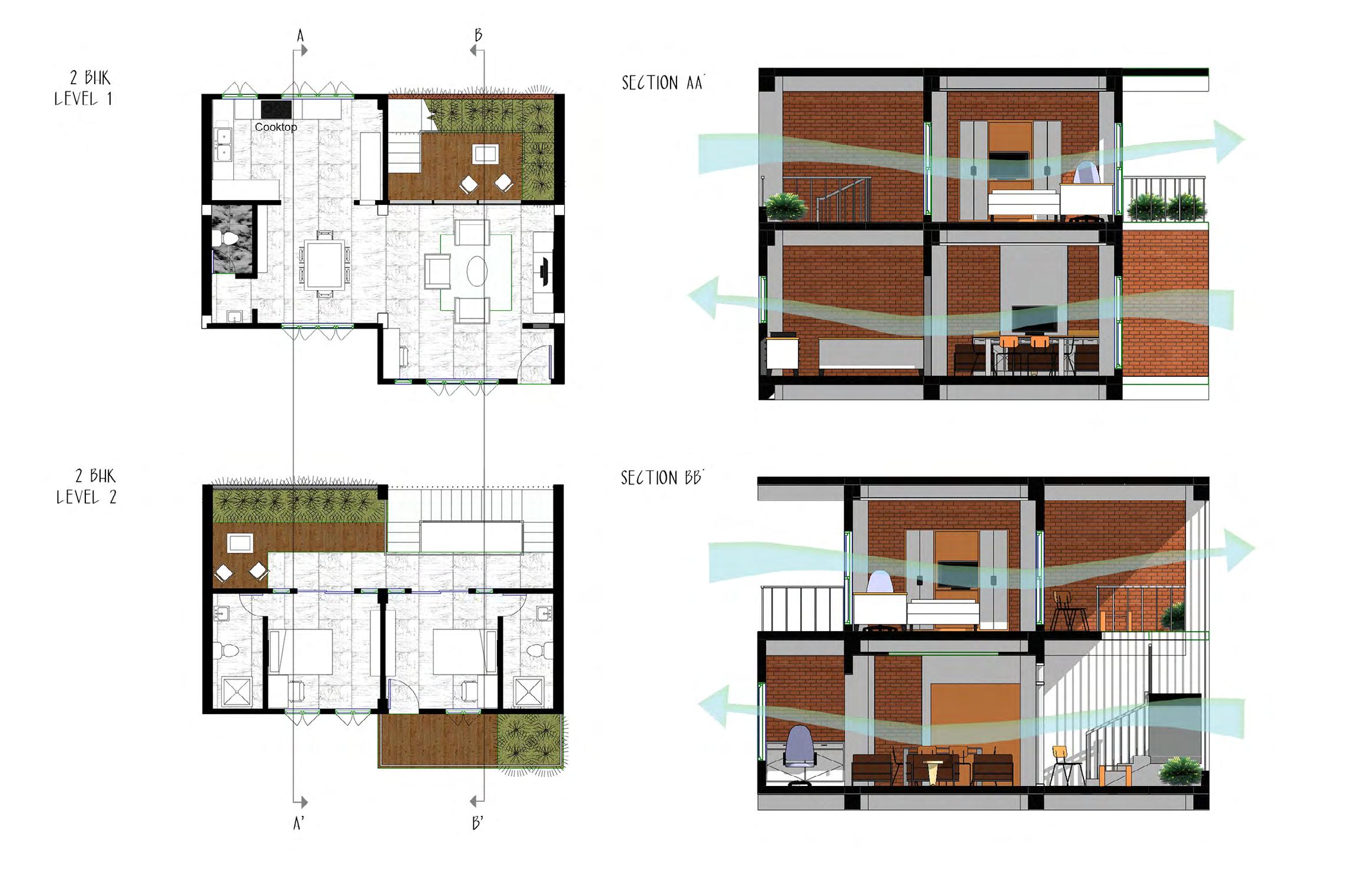

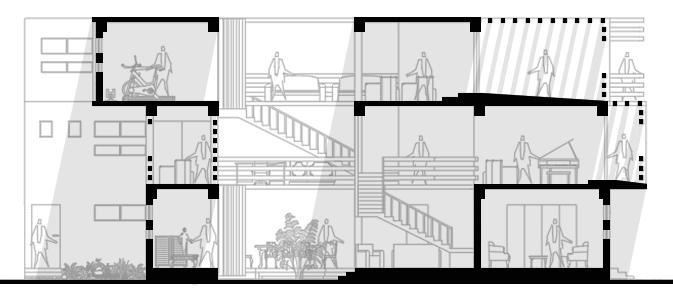

The 2BHK unit is a duplex that consists of living, dining, kitchen, 2 bedrooms and balconies. The cross sections depict how cross ventilation can be achieved by the management of openings as the need arises. The layout allows a visual transparency through an open planning approach. A sense of intimacy and warmth is achieved by incorporating the concept of material integrity.

12

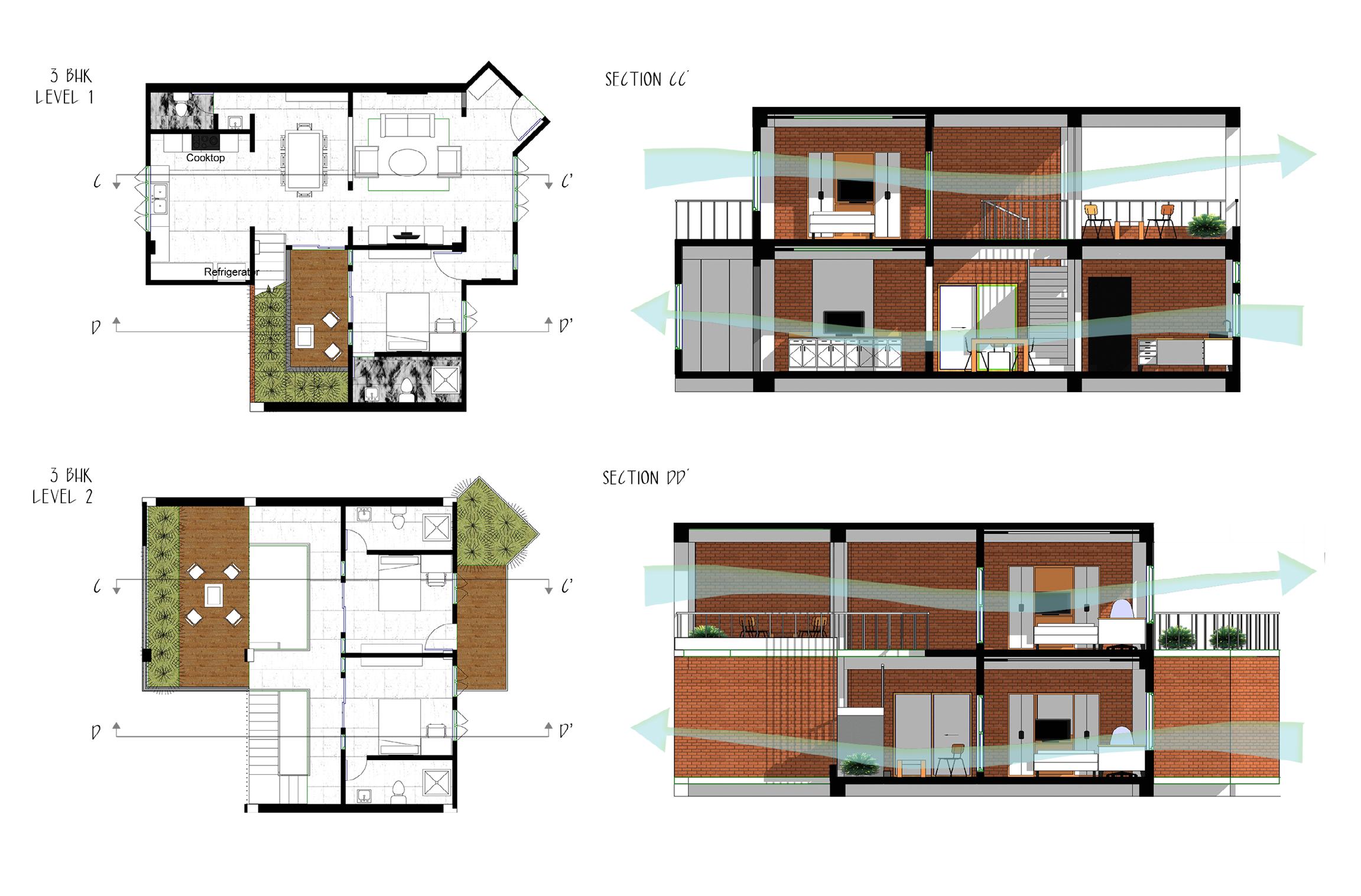

The 1BHK and 3BHK units have the same layout at the primary level with a living, dining, kitchen, 1 bedroom and balcony. The 3BHK has a level 2 accessed from the balcony and the upper level consists of 2 additional bedrooms and balcony. The modularity in the layout allows for ease in Structural load manage ment. The concepts of natural cross ventilation and material integrity are applied in 1BHK and 3BHK as well.

13

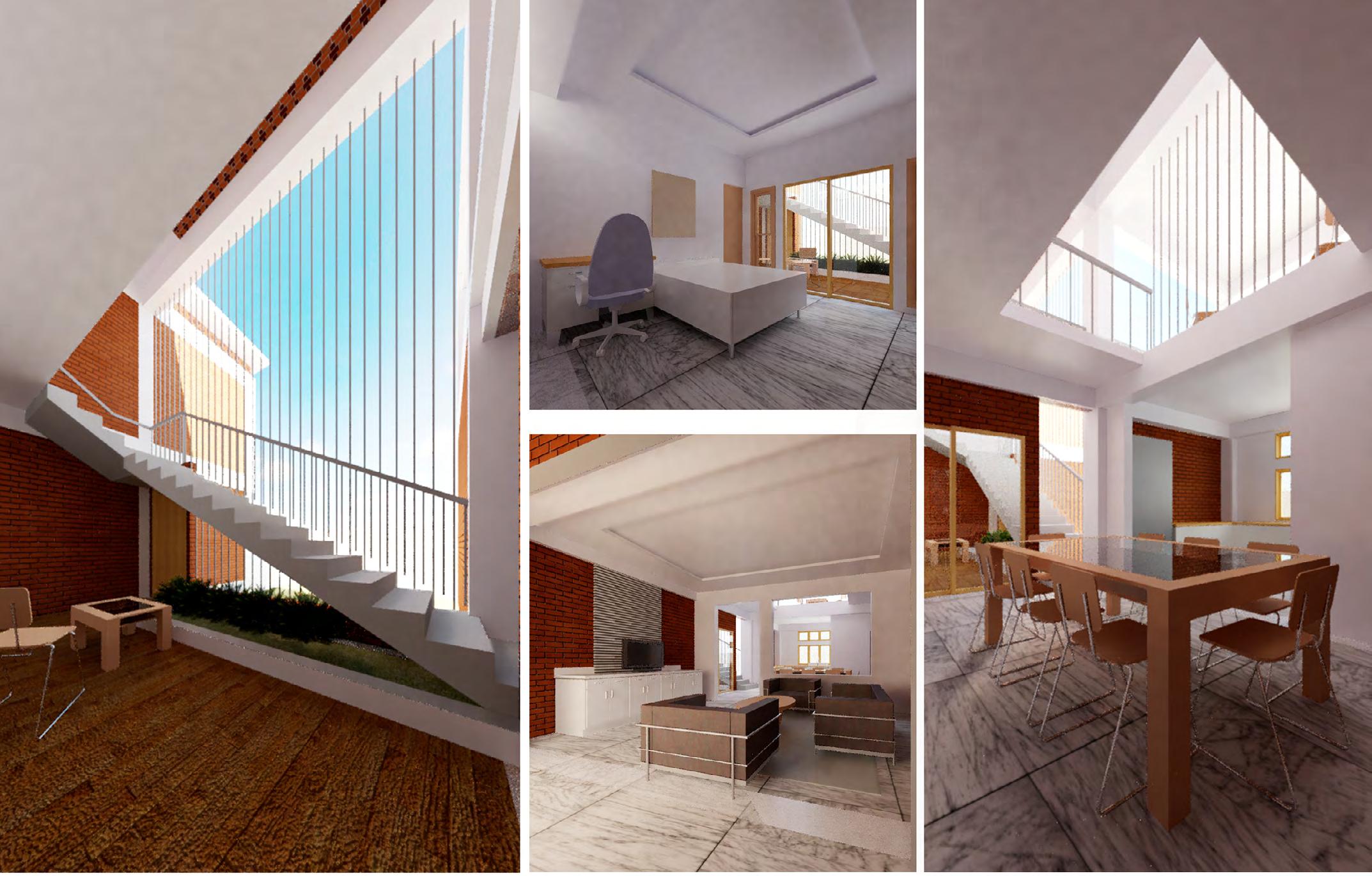

14 Starting from left; 1. 3BHK balcony with access
stairs;
2. Lower
level bedroom
in a 3BHK
unit;
3.Living
room of a 2bhk unit;
4.
Dining of 3bhk unit.
15

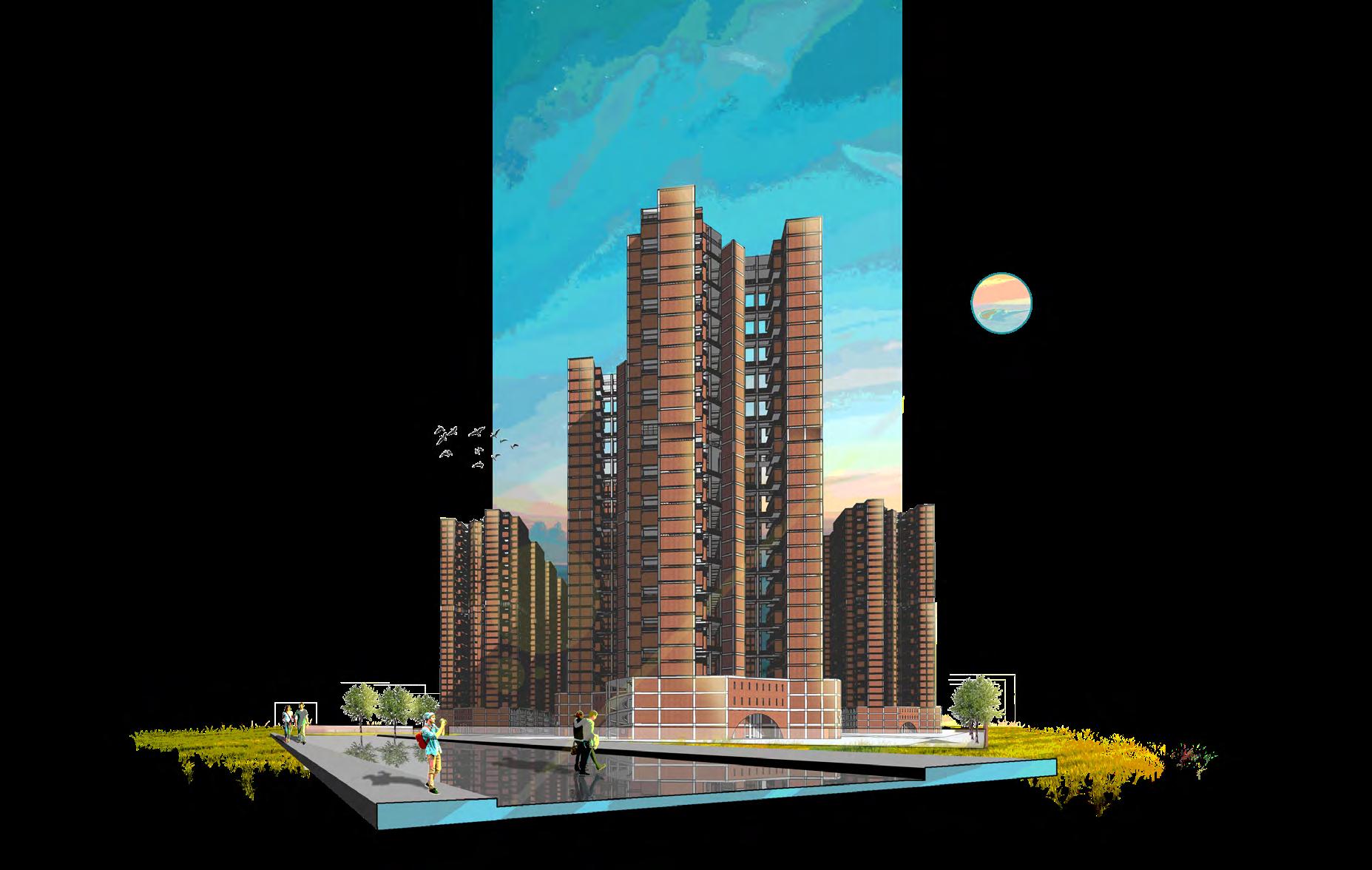

Perspective view of the apartment as viewed from beyond highway.

SRINIDHI NILEYA,

BANGALORE

16
RESIDENCE AT

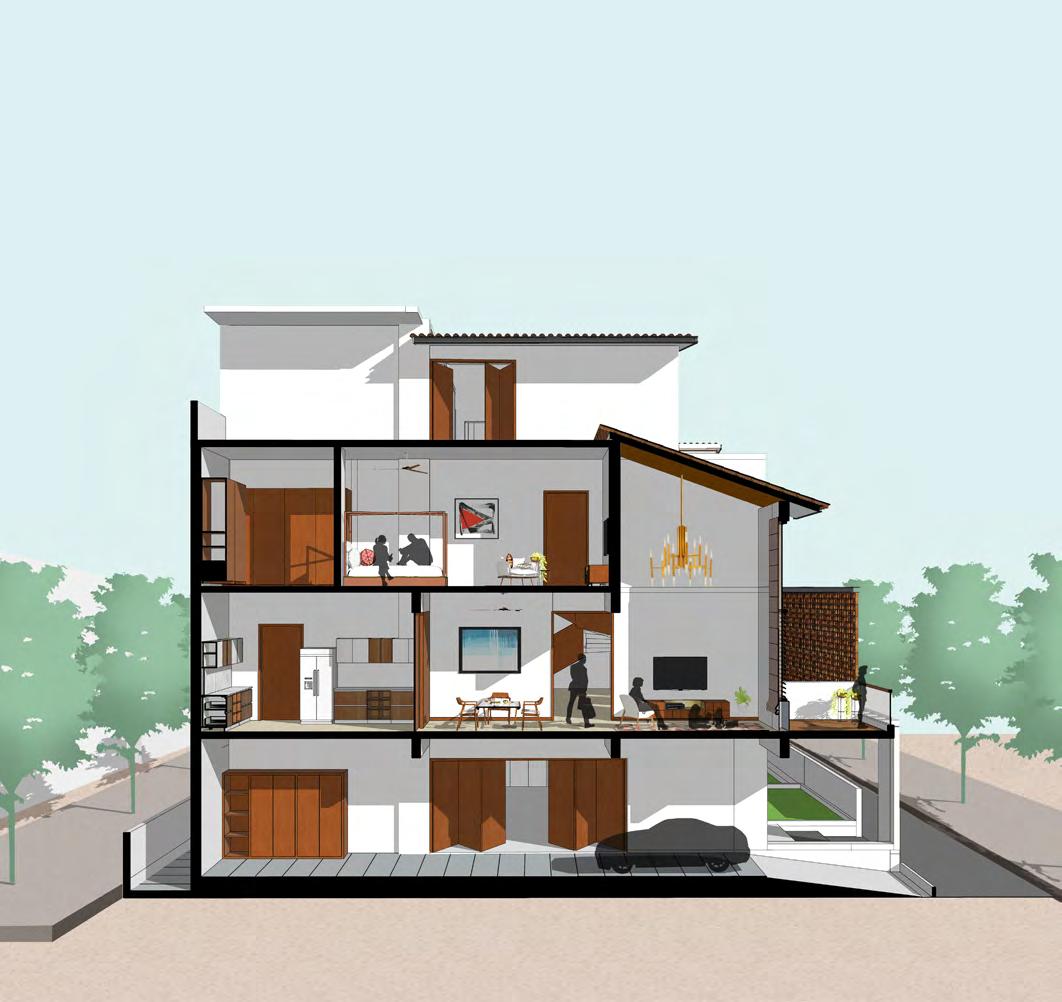

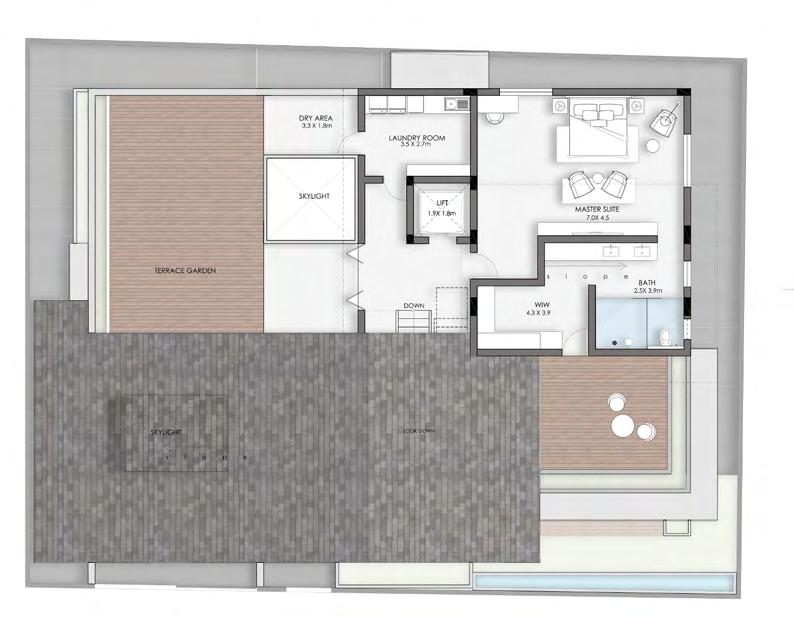

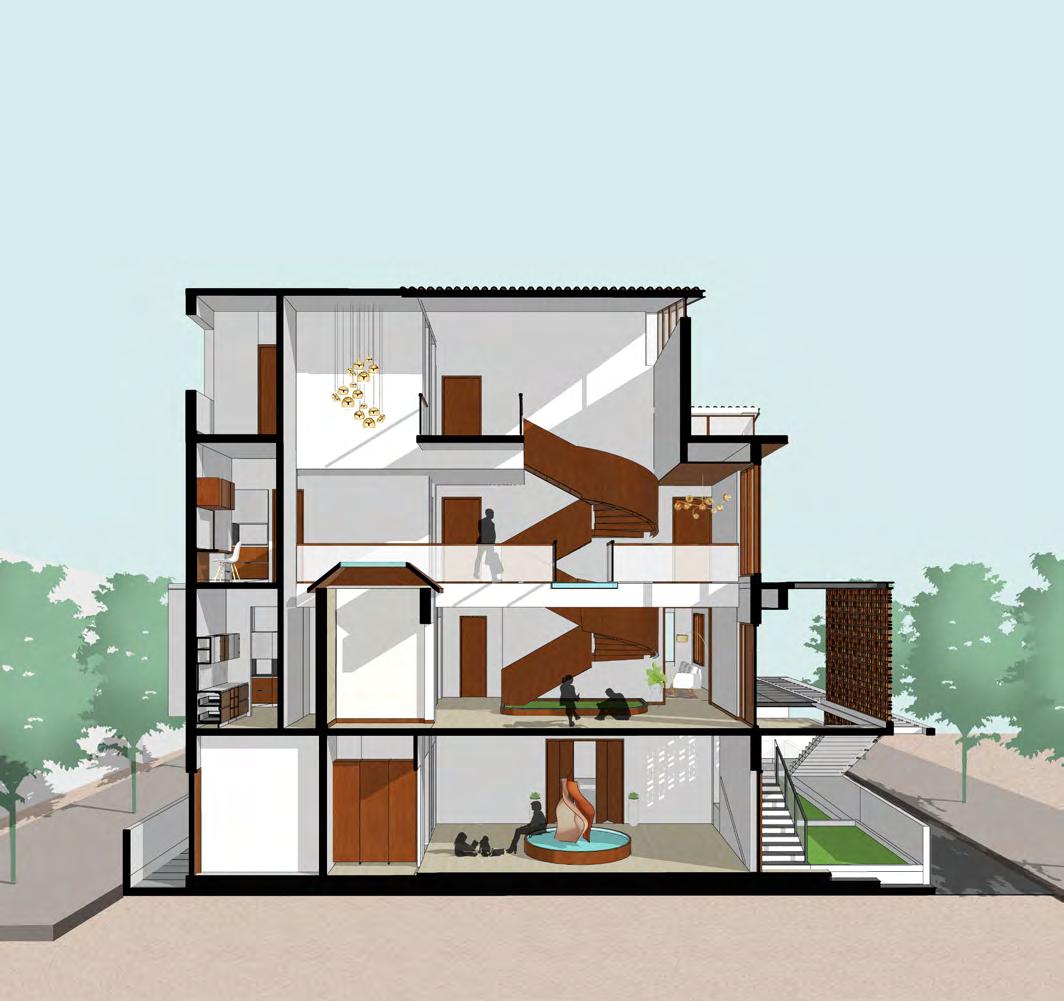

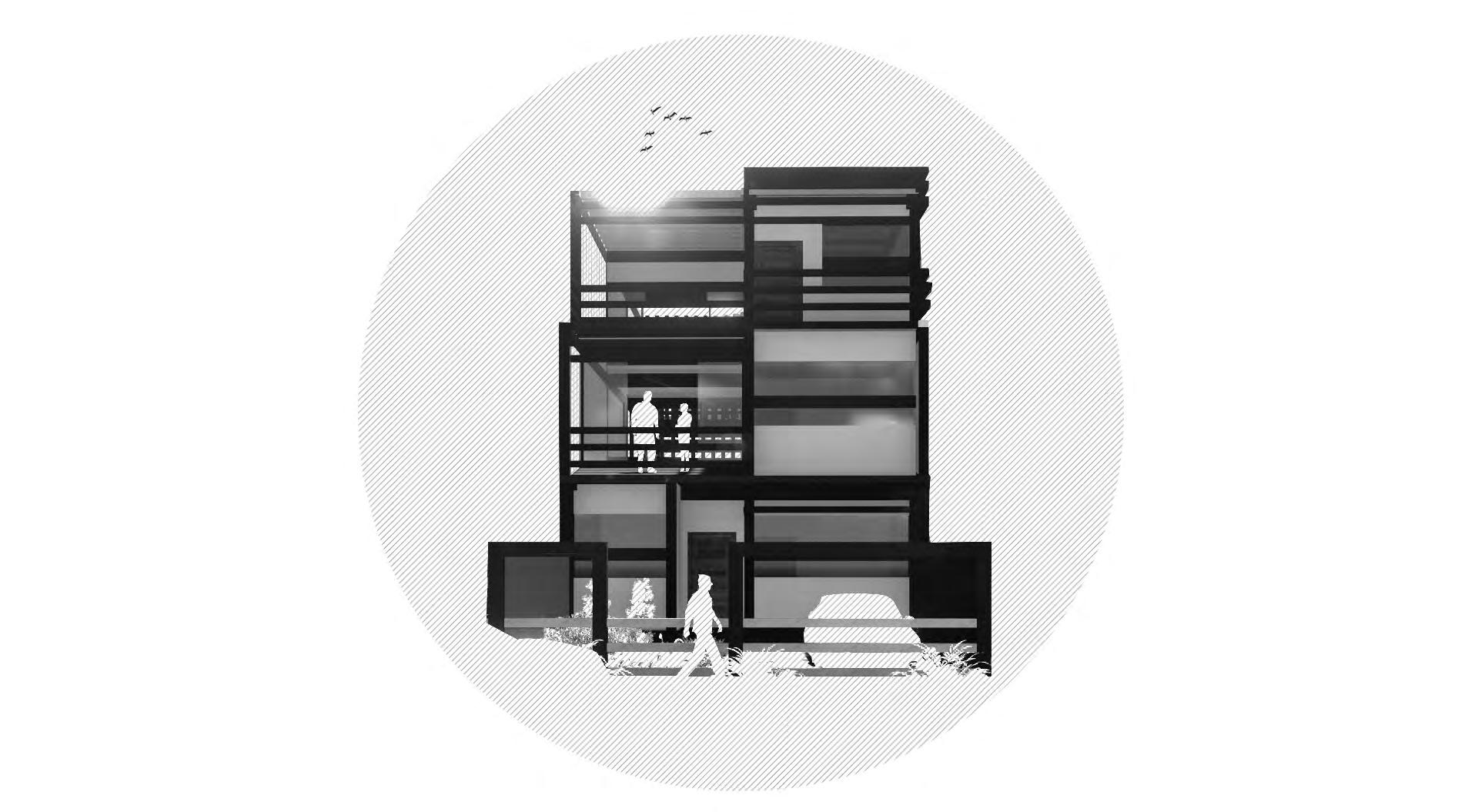

( INTERNSHIP WORK | SDEG | MAY - JULY 2019 ) Rendered floor plans and sectional perspective views using Photoshop Longitudinal section
through stilt floor parking Longitudinal section through stilt floor lobby

Stilt floor plan

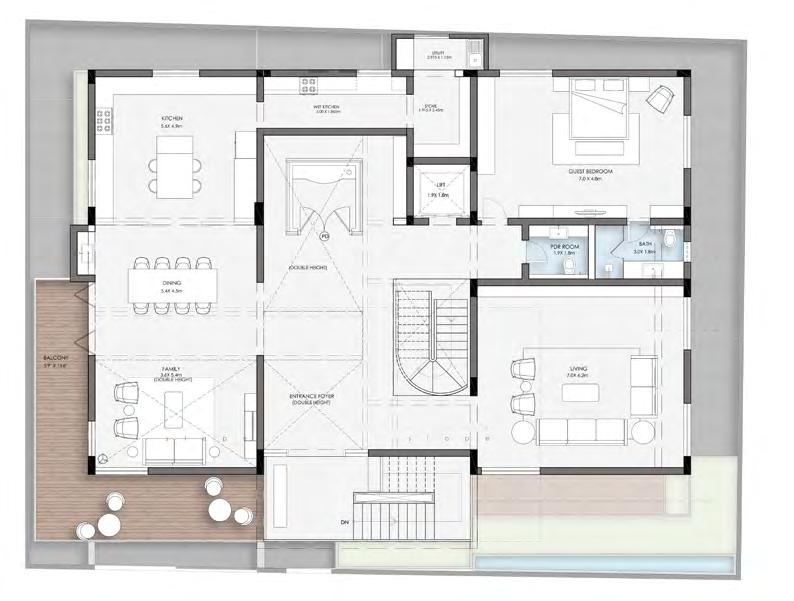

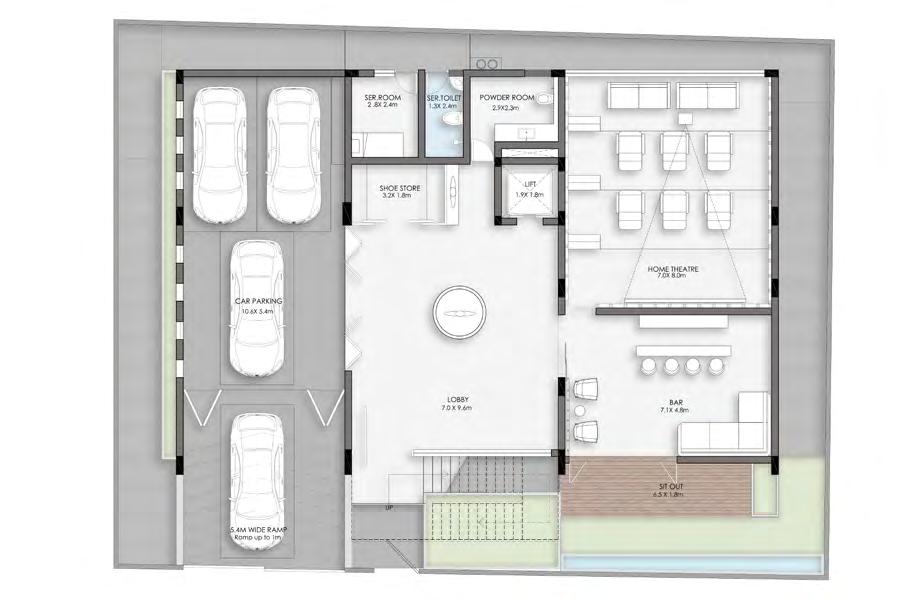

Ground floor plan

First floor plan

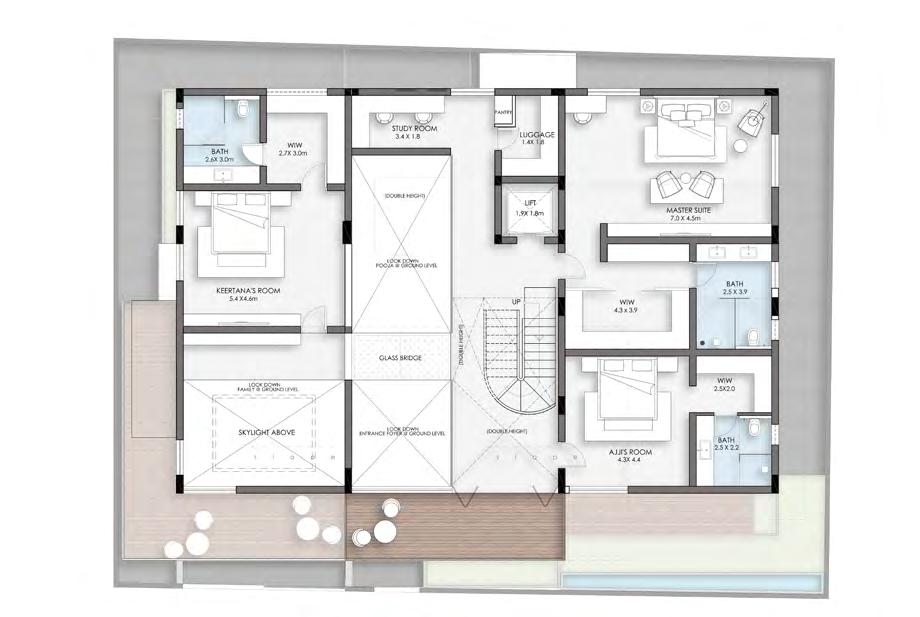

Second floor plan

17

LEISURE RESORT, GOA

INTERNSHIP WORK

SDEG

MAY

18
(
|
|

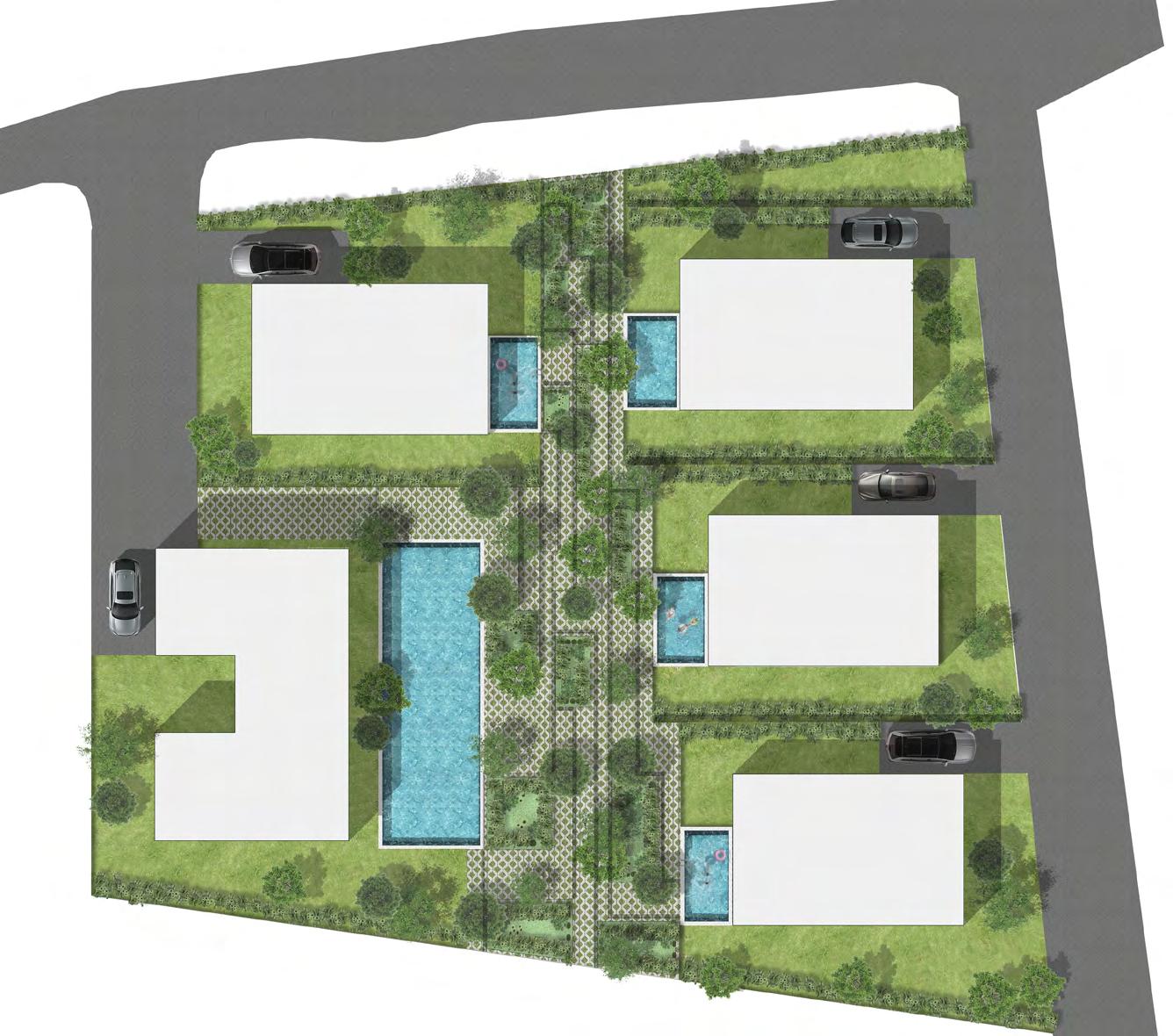

- JULY 2019 ) Site plan of proposed
resort
in
Goa rendered
in
Photoshop
The task at hand was to portray the lush green trees and plants of the site along with the
cheerful
lifestyle around the pool.

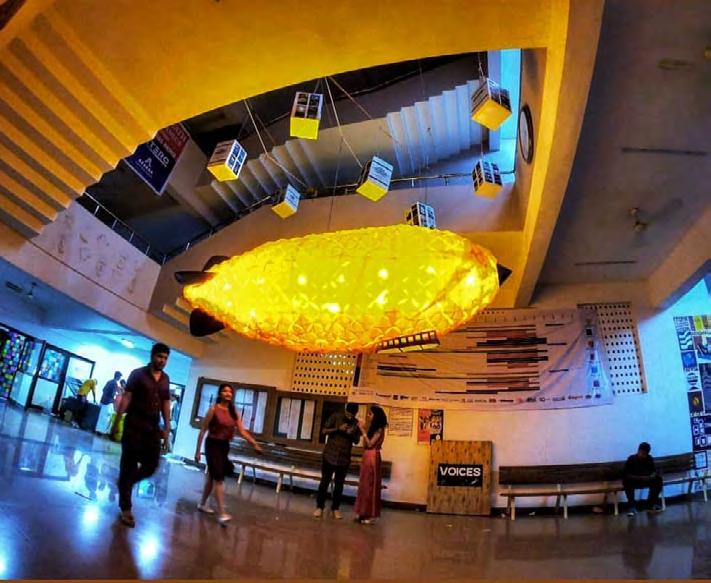

19 ARCHULT 19 ( JAN - FEB 2019 ) Ambience work done for Archcult 19 Punk
20

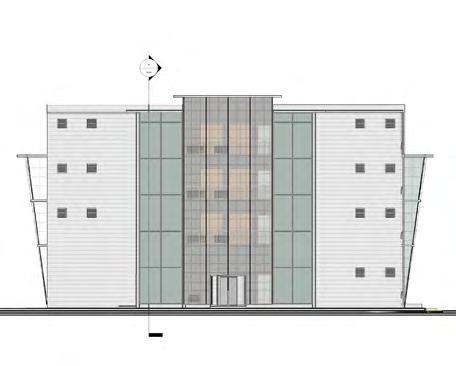

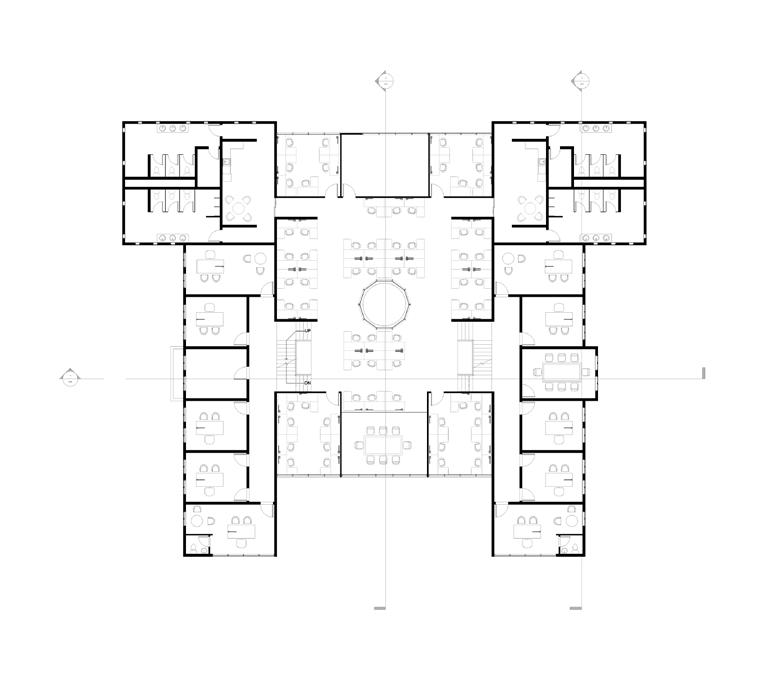

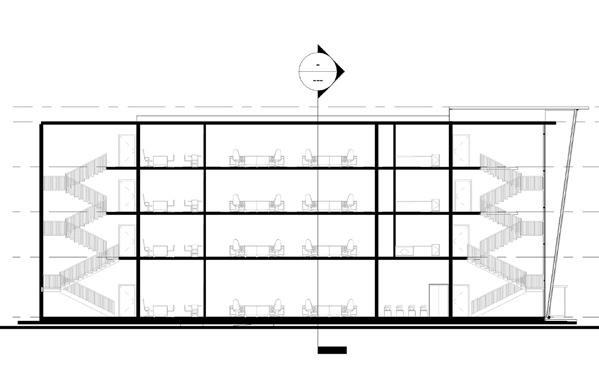

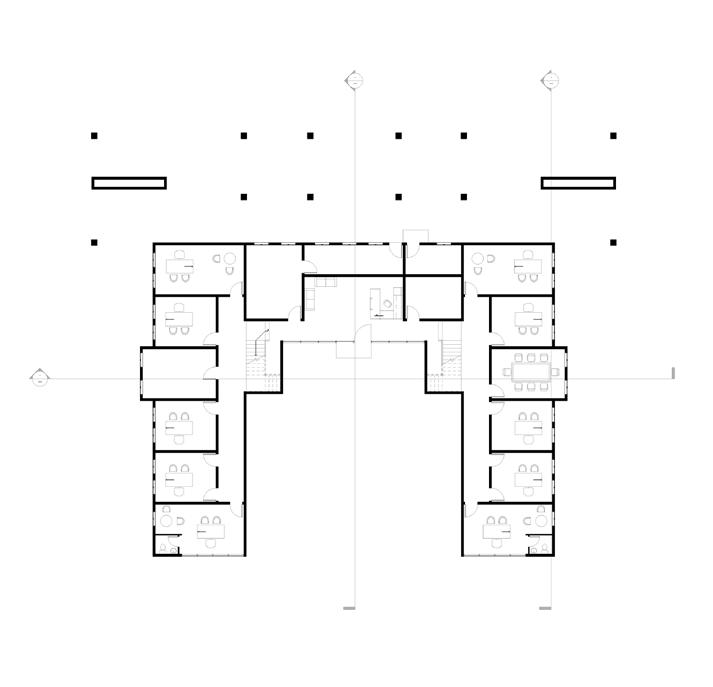

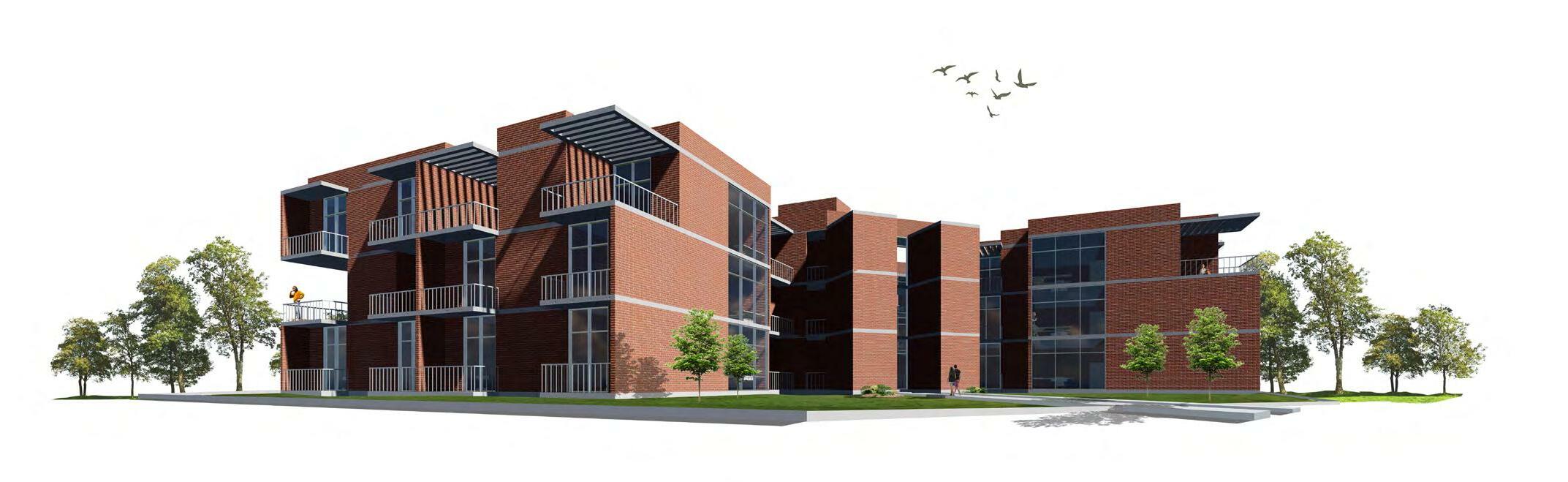

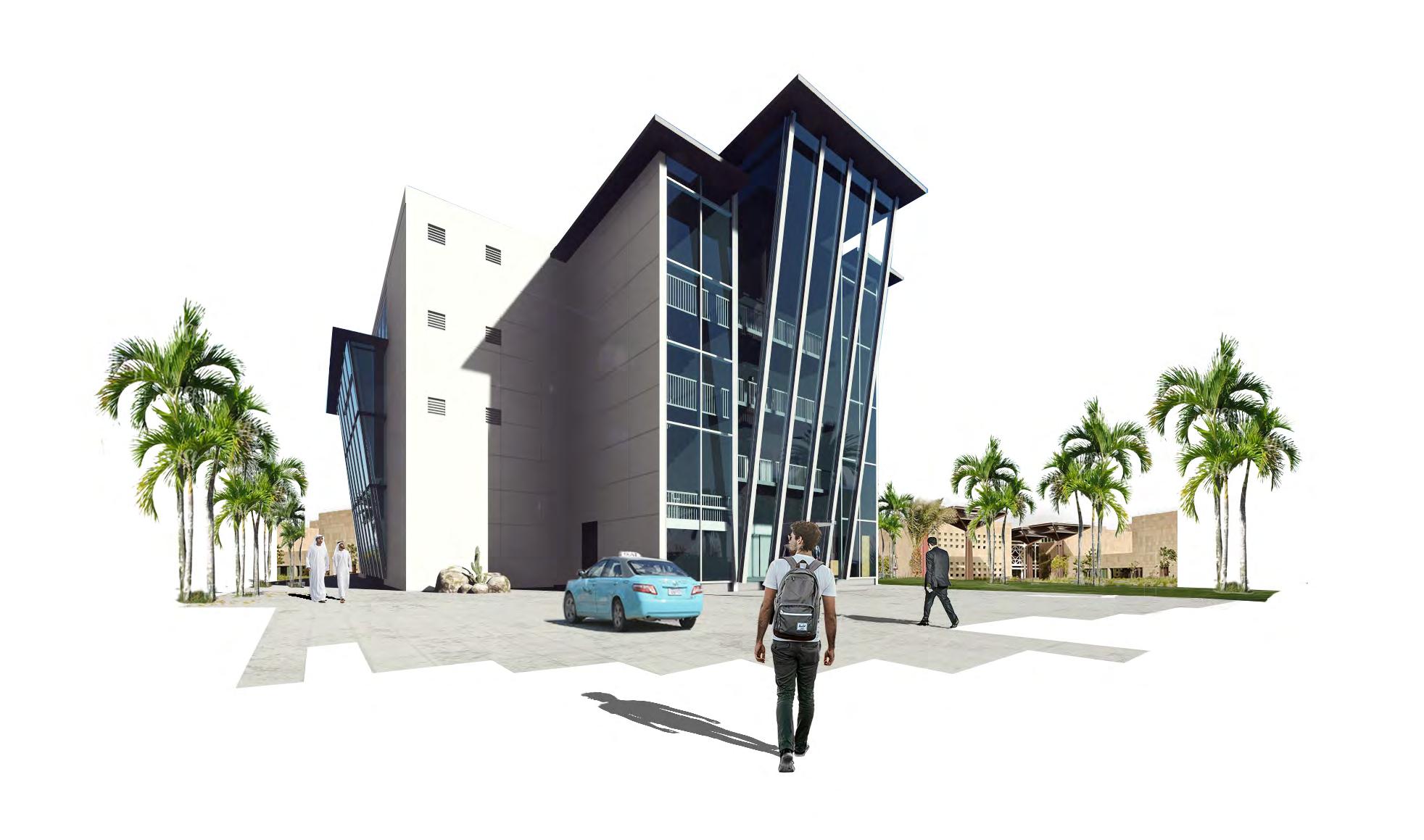

A four storey office building proposed for GWC - Logistics complex at Ras Laffan, Qatar
GWC
OFFICE BUILDING AT QATAR ( INTERNSHIP WORK | QDC | JULY - NOV 2018)

ENTRANCE LOBBY

STAIR

CORRIDOR/LOBBY

- HAND WASH

- PANTRY

- WOMENS TOILET

MENS

TRAINING/MEETING

- DINING HALL

- OPEN OFFICE

- KITCHEN

- UTENSILS WASH

- KITCHEN STORE

- INDIVIDUAL OFFICE

- STAFF TOILET

- STAFF LOCKERS

- STAFF LOBBY

- OFFICE

- OFFICE STORE

- ELECTRICAL ROOM

- IDF ROOM

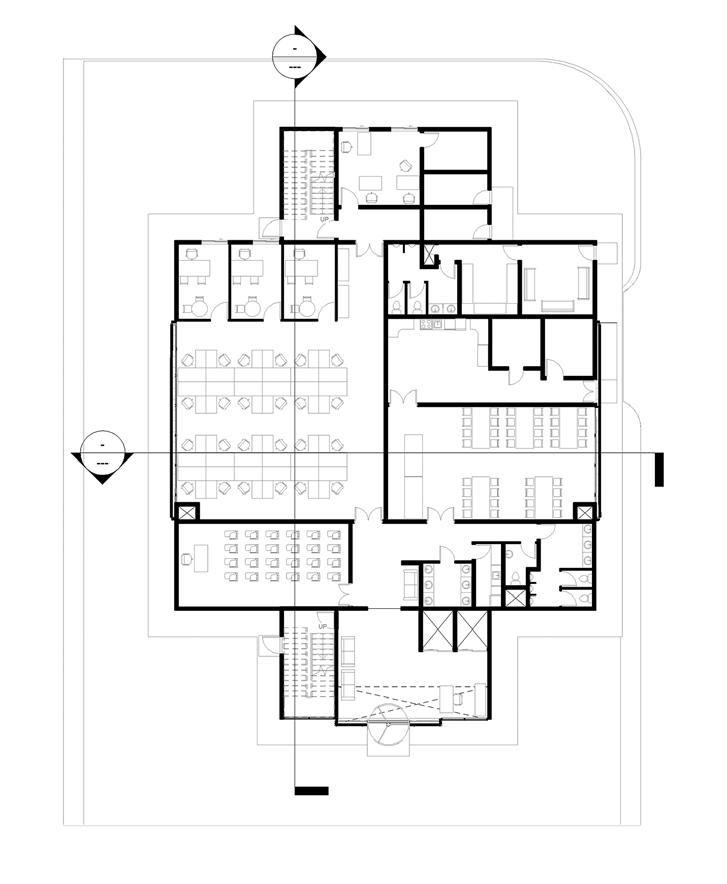

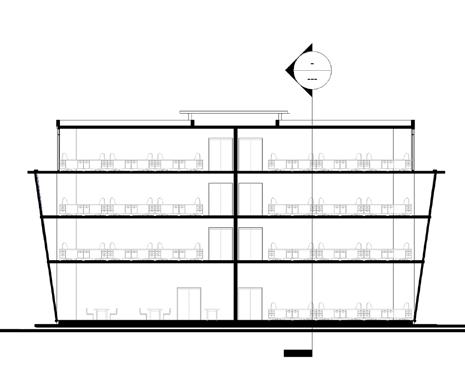

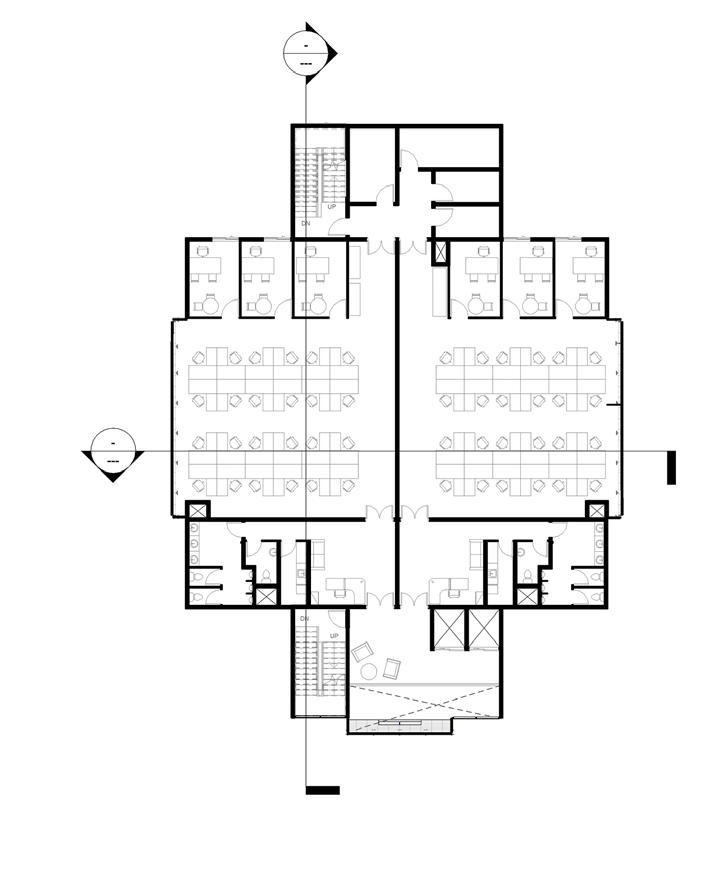

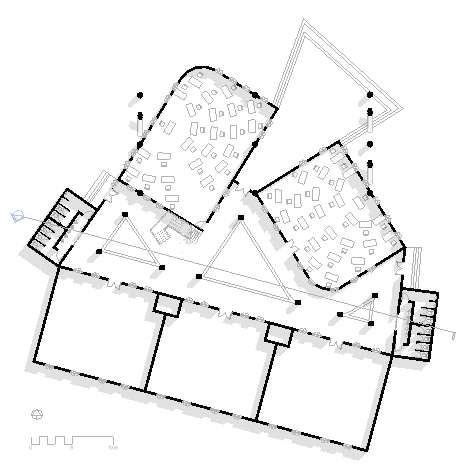

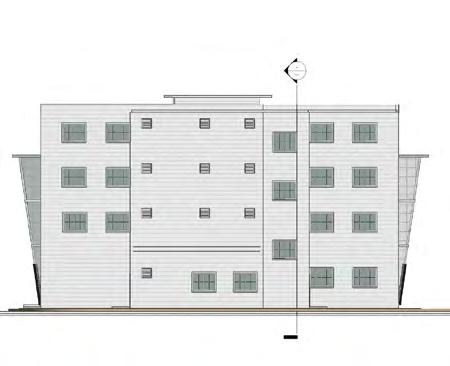

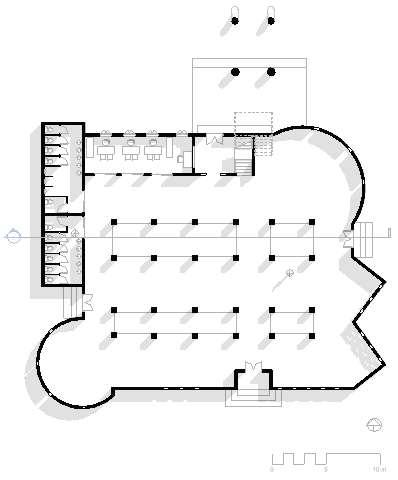

21 Ground floor planLegend B’ B’ B B A AA’ A’ 0 2 2 2 4 6 667 77 5 55 8 11 9 12 13 14 14 1414 14 1414 14 1416 1715 20 20 21 21 19 18 19 19 0 -
1 -
WELL 2 -
7 -
TOILET 12
17
3 - LIFT 8 -
ROOM 13
18
FOR 4 4
9
14
19
5
10
15
20
6
11
16
21
1 1 1 1 3 33 3 10 10 10 Typical floor plan /\ N Section AA’ Section BB’ North South

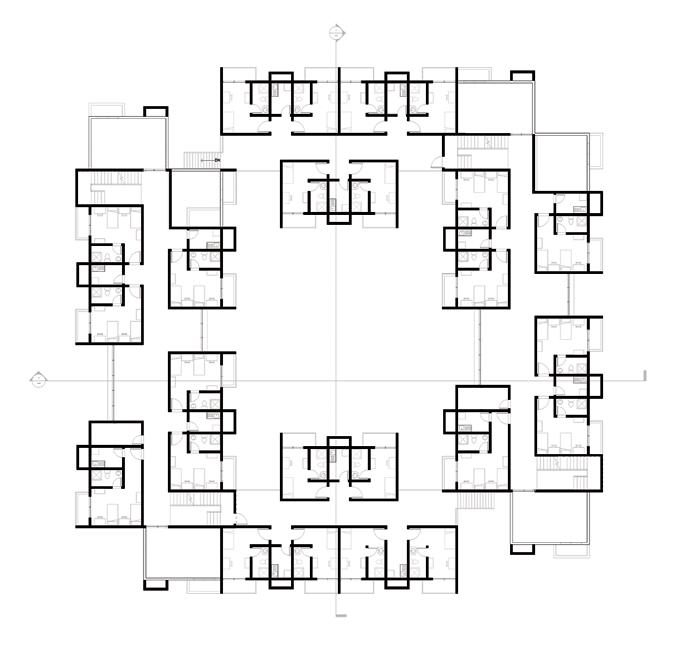

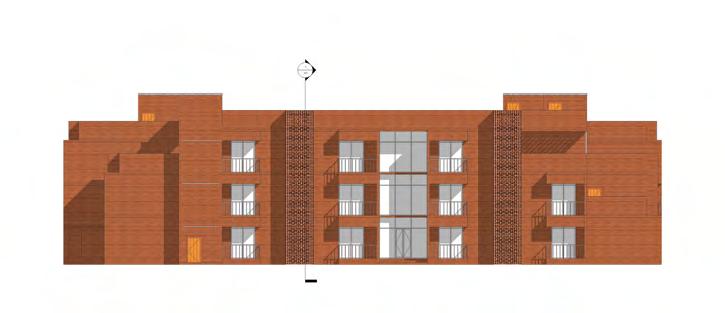

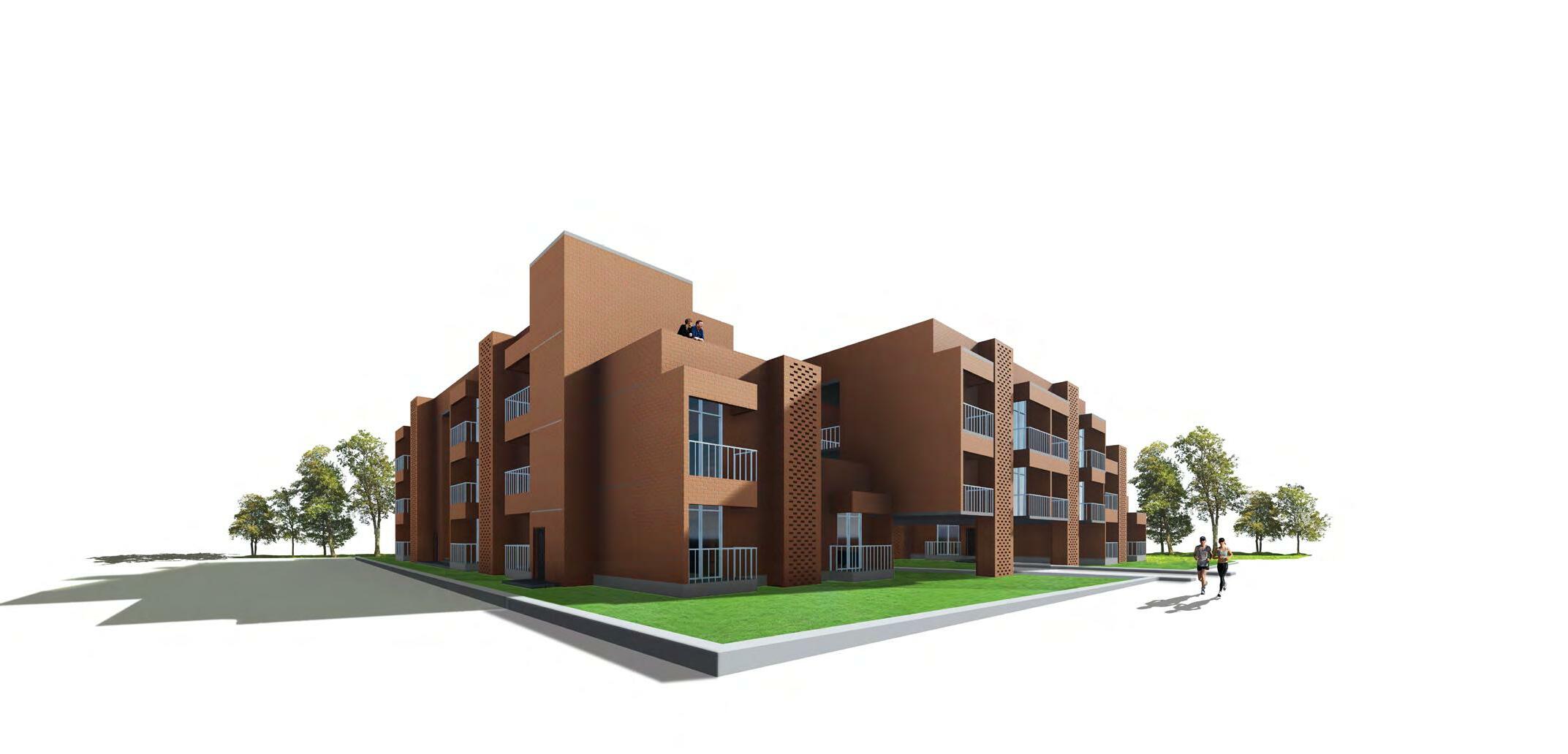

AL MEERA SENIOR STAFF ACCOMMODATION AT QATAR ( INTERNSHIP WORK | QDC | JULY - NOV 2018 )

A three storey housing project proposed for Al Meera Central warehousing and services at West Wukair, Qatar

22
23 0 - ENTRY / EXIT 0A A A B B B B’ B’ B’ A’ A’ A’ 0 1 1 1 1 1 1 1 1 1 1 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 5 5 5 5 5 5 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 4 4 4 4 4 4 4 4 4 5 5 5 5 5 5 4 4 4 4 4 4 0 0 3 3 2 3 3 2 3 3 1 - ACCESS CORRIDOR 2 - ELECTRICAL ROOM 7 - OPEN TERRACE / RECREATIONAL SPACE 3 - STORE ROOM 4 - ROOM FOR 2 WITH ATTACHED BATHROOM AND PANTRY 5 - STAIR WELL 6 - ROOM FOR 2 WITH ATTACHED BATHROOM AND PANTRY Legend Ground floor plan Second floor plan EastSection AA’ SouthSection BB’ First floor plan /\ N

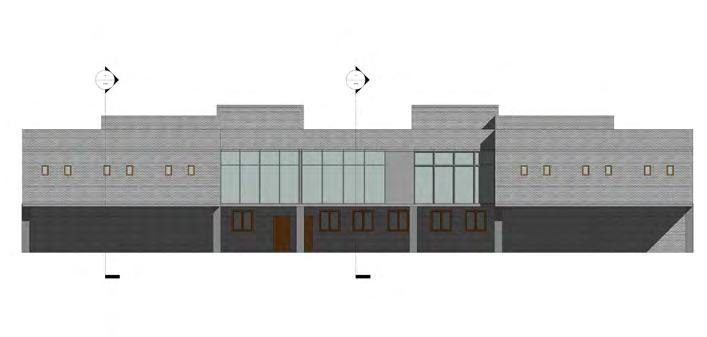

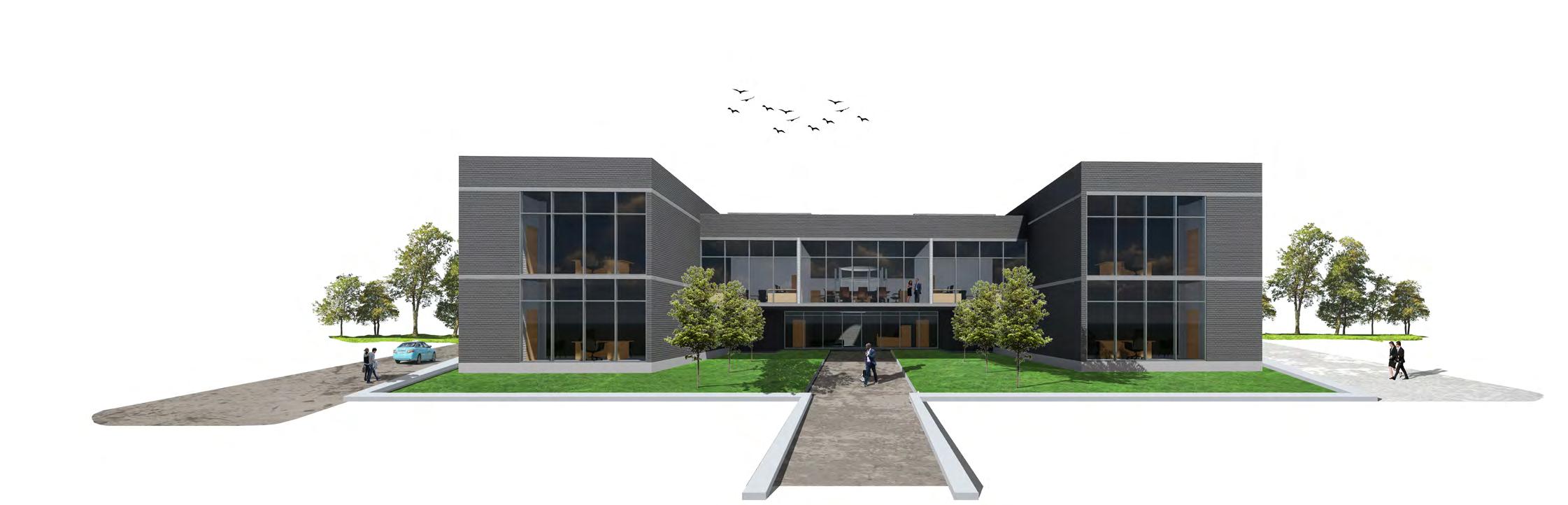

AL MEERA OFFICE BUILDING AT QATAR ( INTERNSHIP WORK | QDC | JULY - NOV 2018)

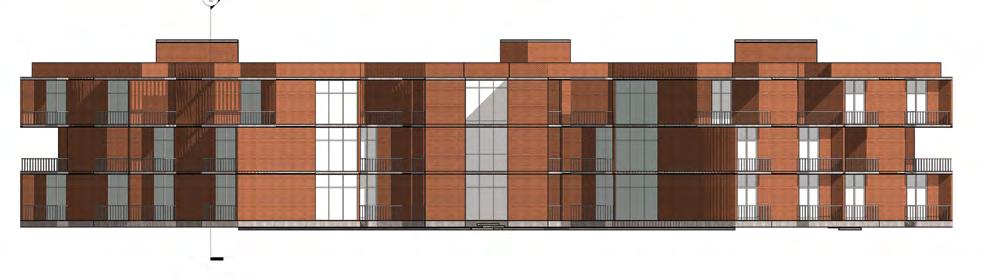

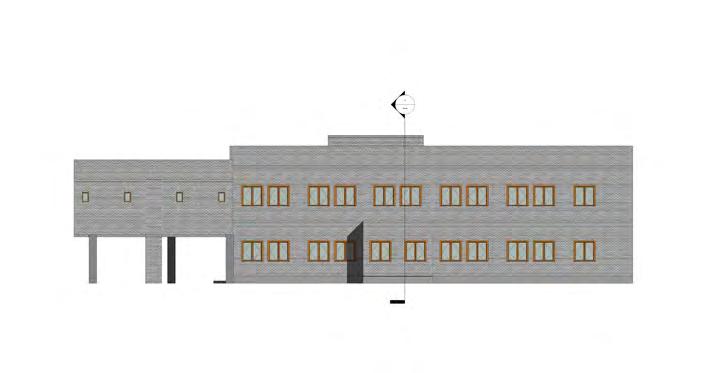

A two storey administration building proposed for Al Meera central warehousing and services at West Wukair, Qatar

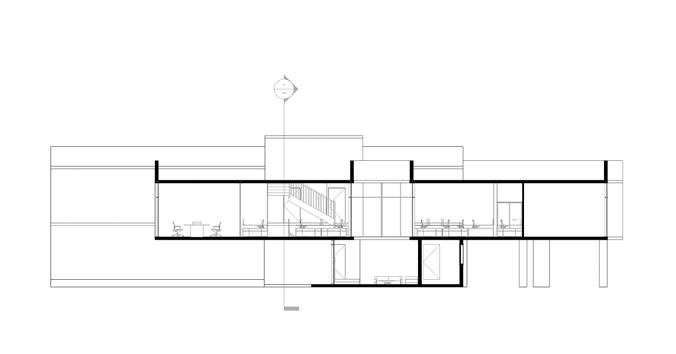

24

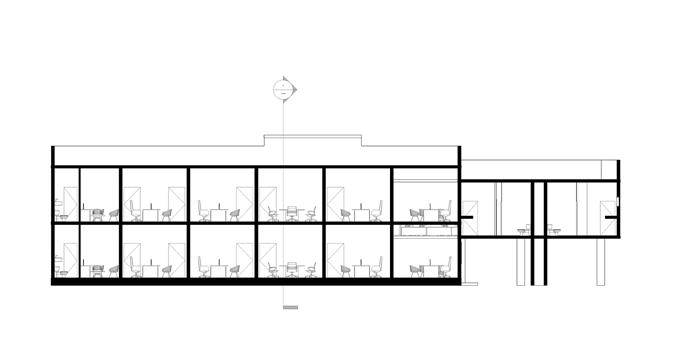

floor plan

floor plan

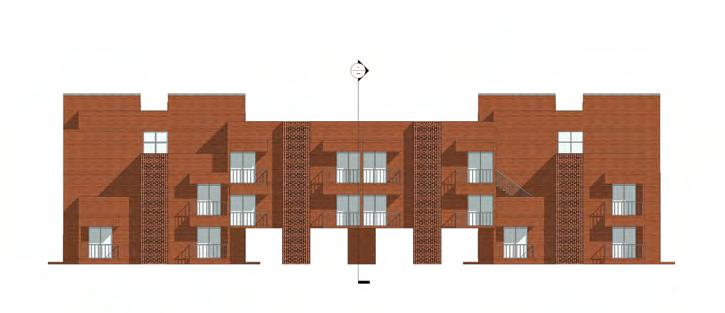

25 0 - ENTRY / EXIT 0 12 3 4 5 6 68A AA’ A’ B B B’ B’ C C C’ C’ 8 12 12 12 12 13 1115 15 1616 1717 14 14 14 14 9 9 7 77 7 10 7 77 7 7 77 7 7 77 7 7 77 7 6 6 1 - RECEPTION 2 - CCTV SERVER ROOM 7 - INDIVIDUAL OFFICES 12 - OPEN OFFICE FOR 36 17 - WOMENS TOILET 3 - CCTV MONITOR ROOM 8 - IT SERVER ROOM 13 - TRAINING ROOM 4 - ELECTRICAL ROOM 9 - MEETING ROOM 14 - CLOSED OFFICE FOR 8 5 - IDF ROOM 10 - SKY LIGHT 15 - PANTRY 6 - STAIR WELL 11 - PRAYER ROOM 16 - MENS TOILET Ground

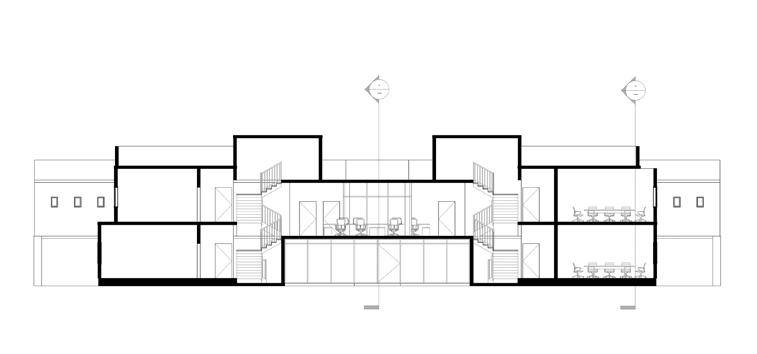

Legend West Section AA’ NorthSouth Section BB’Section BB’ First
/\ N

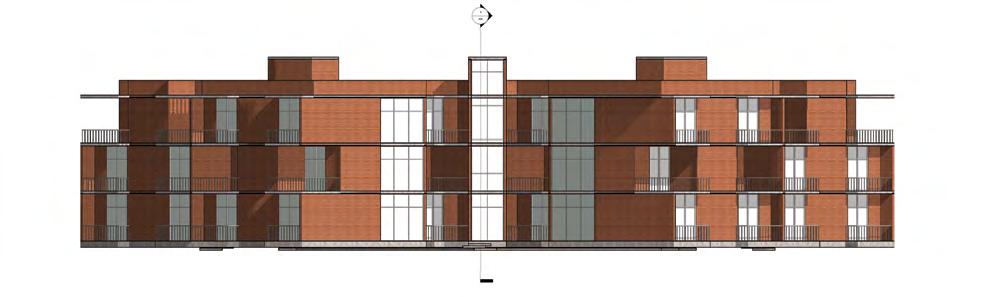

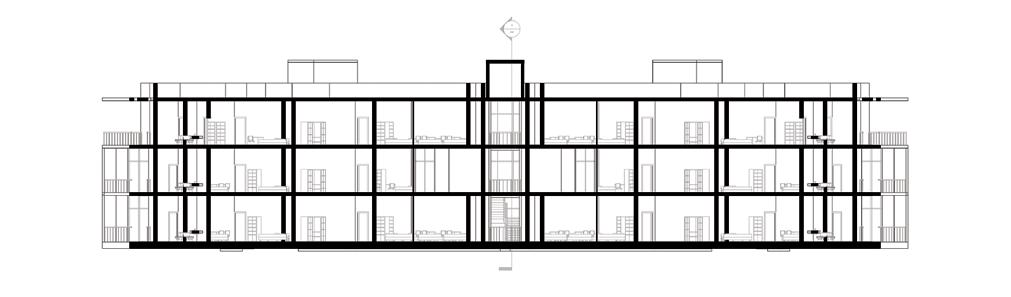

AL MEERA SENIOR AND JUNIOR STAFF ACCOMMODATION AT QATAR ( INTERNSHIP WORK | QDC | JULY - NOV 2018)

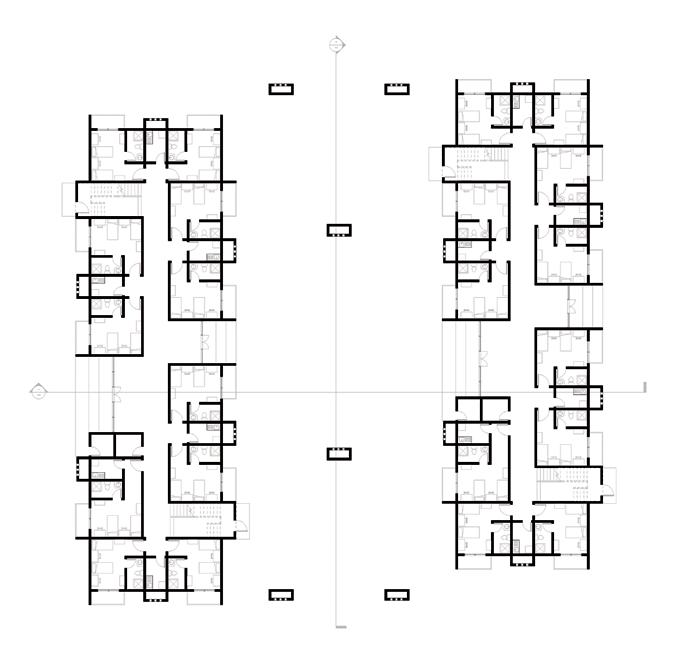

A three storey housing project proposed for Al Meera central warehousing and services at West Wukair, Qatar

26

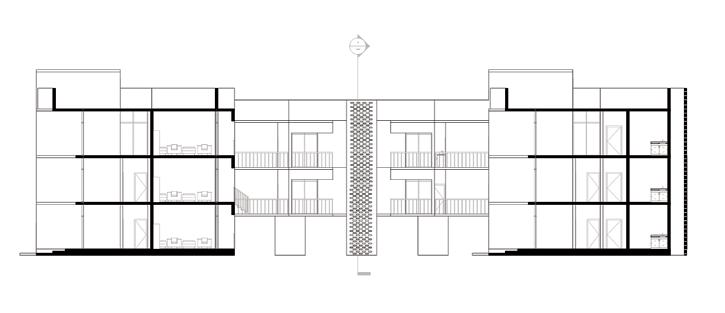

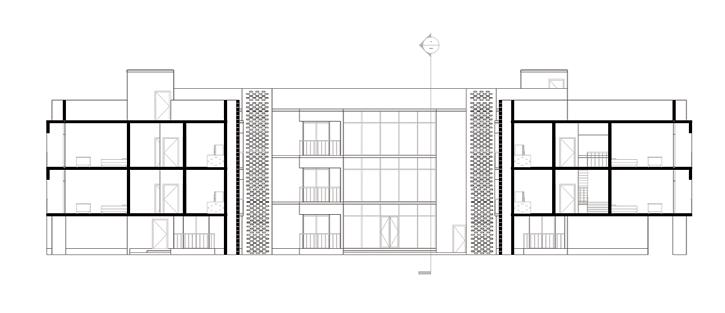

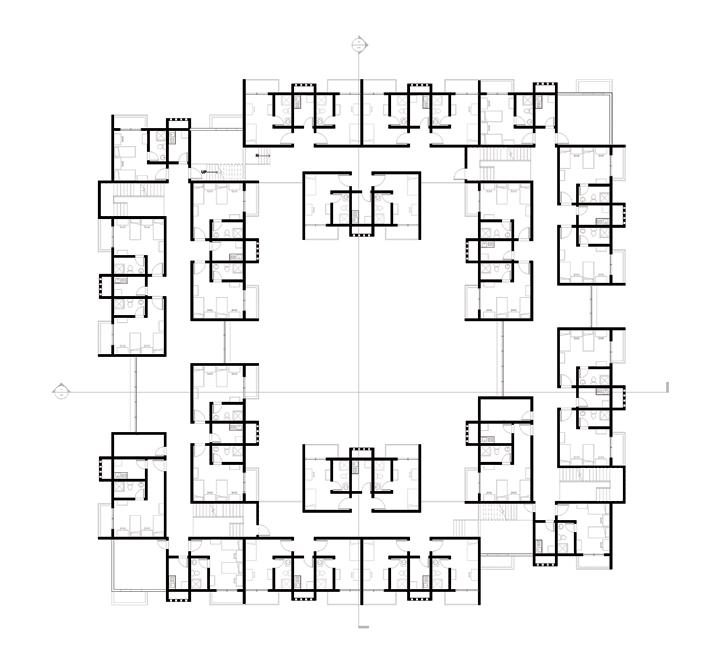

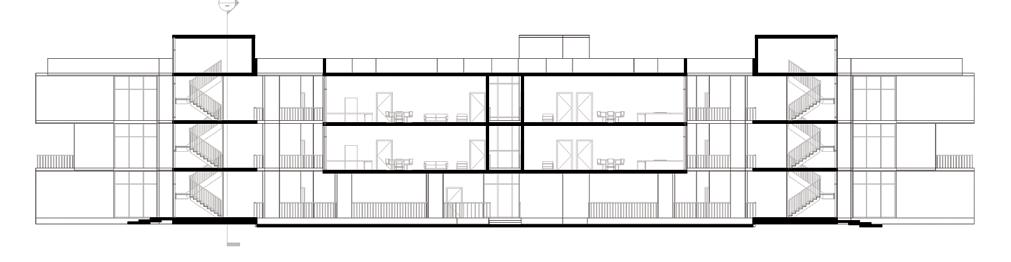

27 Section AA’ Section BB’ Ground floor planLegend Typical floor plan South East 0 - PRAYER ROOM 1 - REST ROOM 2 - LOBBY 7 - BEDROOM FOR 4 WITH ATTACHED TOILET AND BALCONY 3 - ENTRY/EXIT 8 - STAIR WELL 4 - ELECTRICAL ROOM 9 - ACCESS CORRIDOR 5 - IDF ROOM 10 - LANDSCAPE 6 - OPEN LIVING, DINING AND KITCHEN 11 - ROOM FOR 2 WITH ATTACHED TOILET AND BALCONY 12 - ROOM FOR 1 WITH ATTACHED TOILET 0 1 2 3 3 4 46 66 6 6 6 6 12 12 12 12 12 12 12 12 6 6 6 6 6 6 6 6 6 6 6 7 7 7 7 11 7 117 11 7 7 7 117 11 7 77 7 7 77 7 7 7 7 7 7 7 7 11 11 11 1111 7 77 9 9 10 10 9 9 9 9 9 9 9 7 7 7 7 7 7 7 11 7 11 4 4 5 5 5 5 8 8 88 8 8 8 8 33A B’ B’ B B AA’ A’ /\ N
28

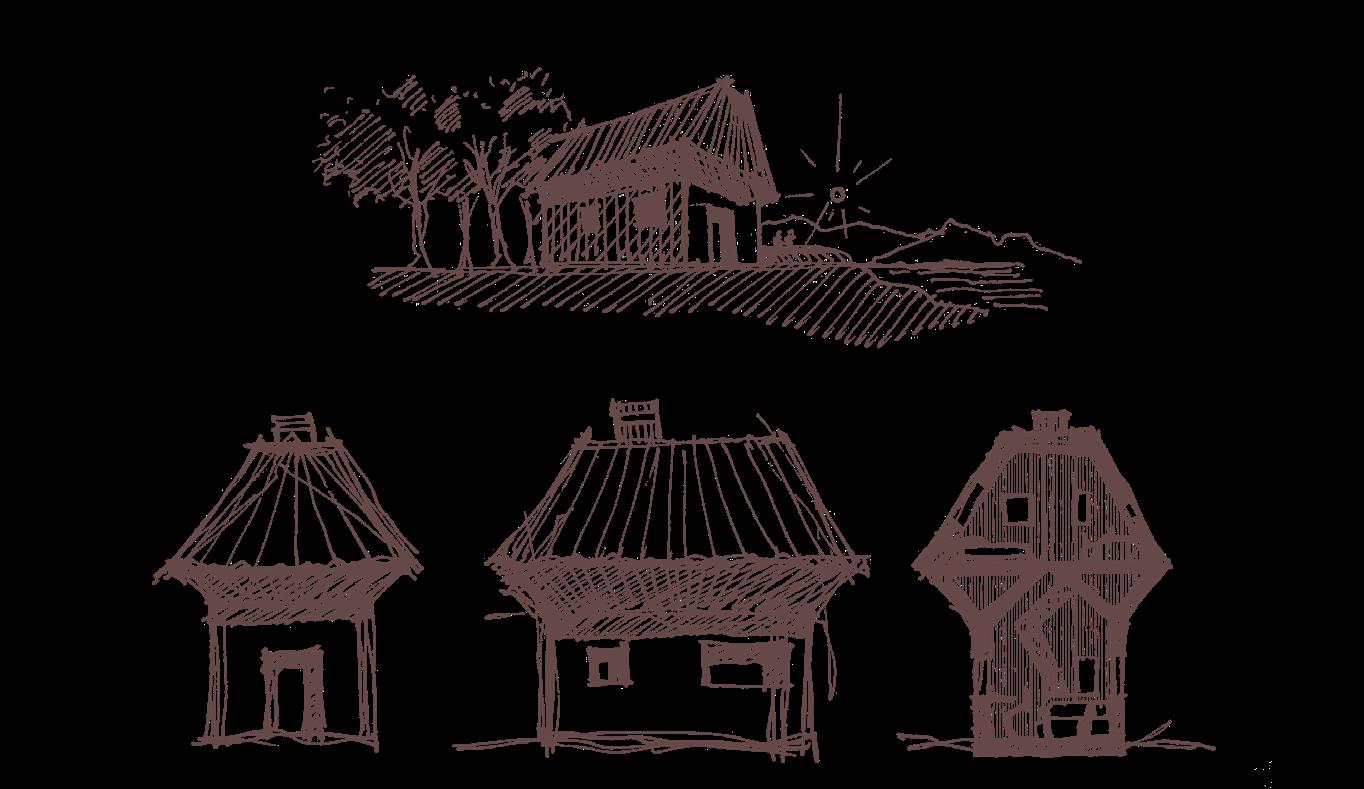

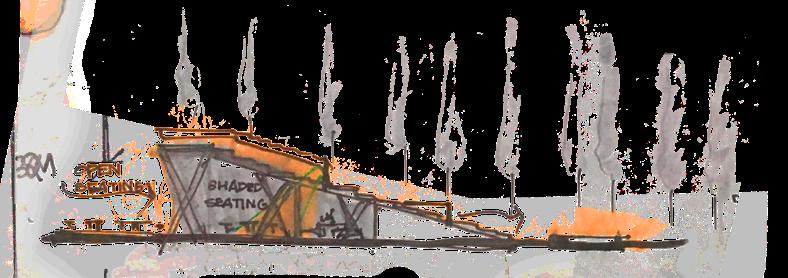

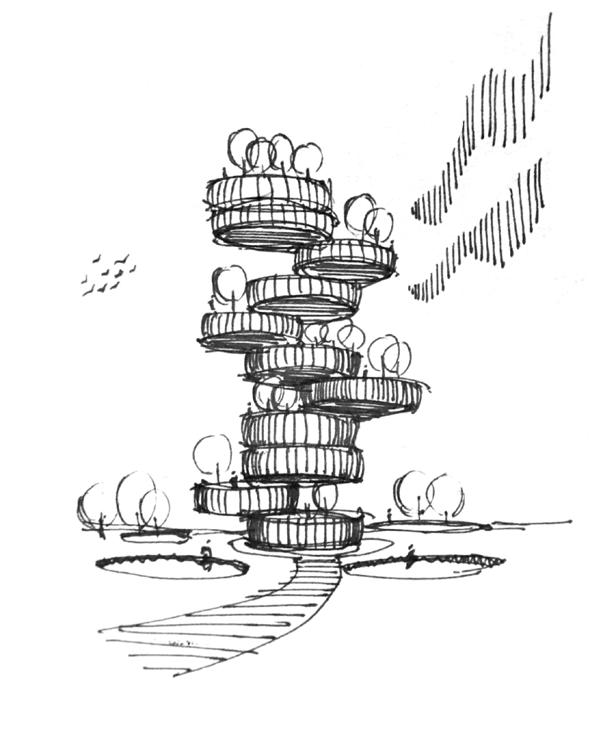

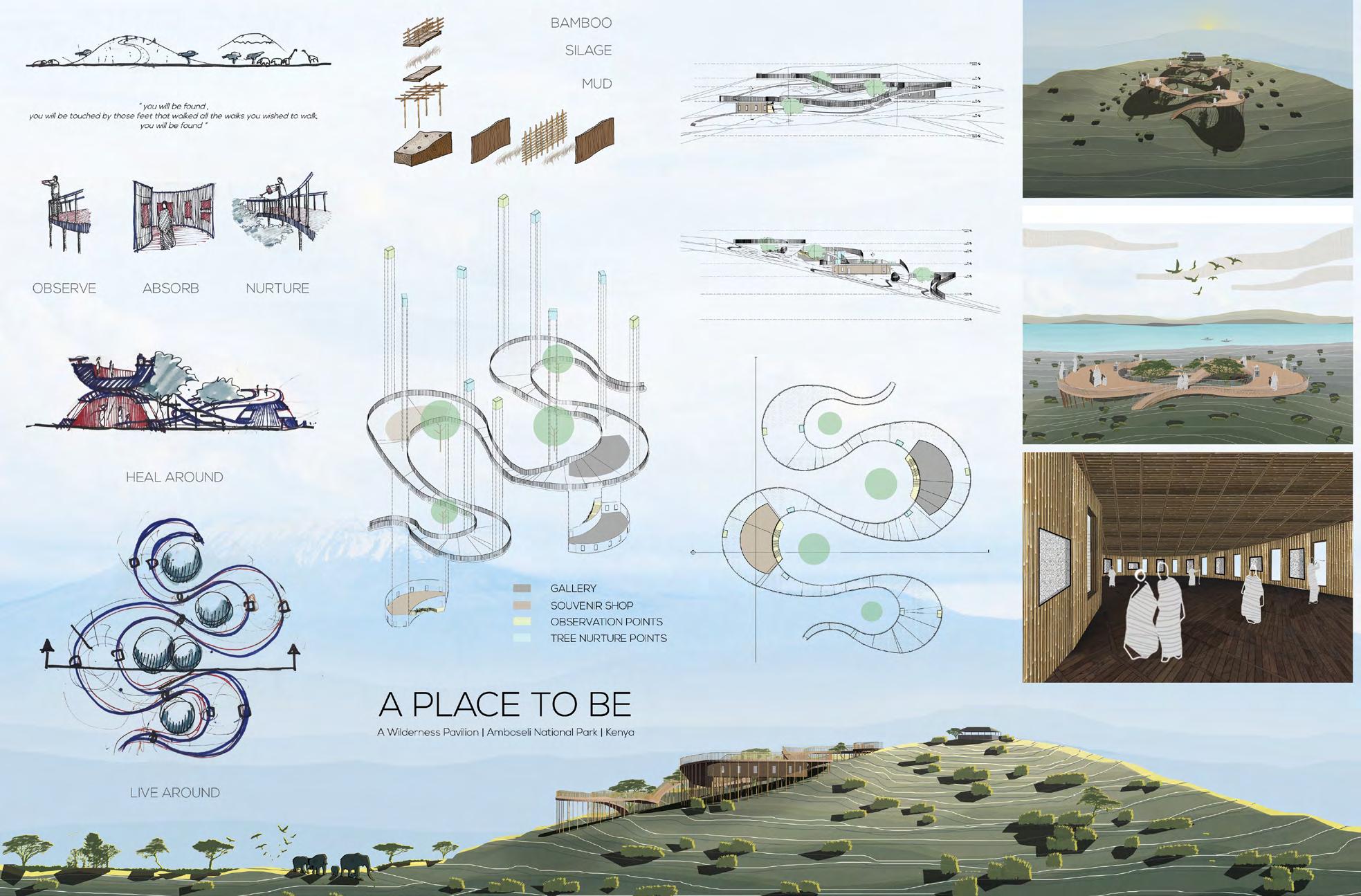

The
brief

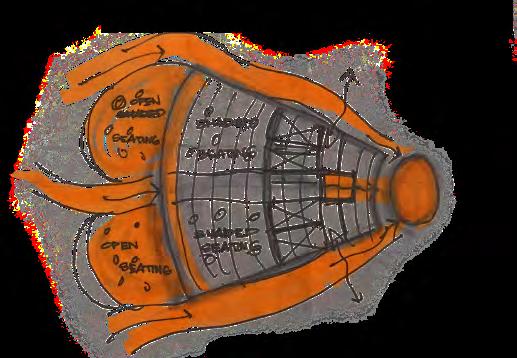

called for the design of a tourist pavilion in kenya. The structure aims to instill the idea of building and living around nature.

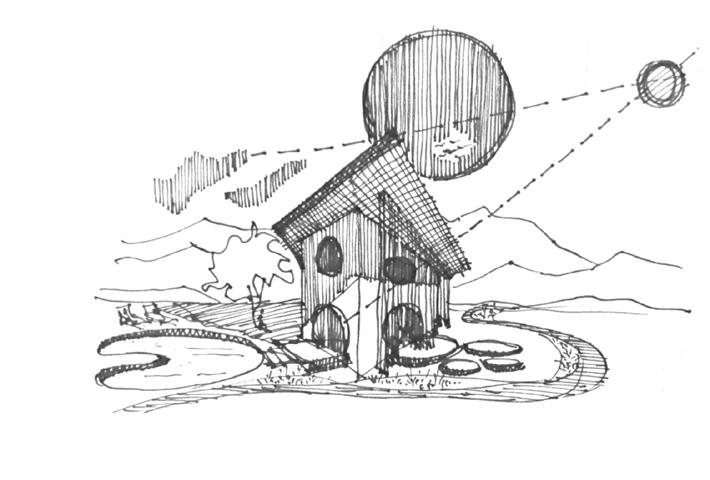

A PLACE TO BE, AMBOSELLI NATIONAL PARK, KENYA ( ARCHITECTURAL COMPETITION | OCT 2018 )
29 ARTWORKS (JULY 2015 - MAY 2020)

CULTURAL CENTRE AT PUDUKOTAI, TAMIL NADU. ( ACADEMIC WORK | JAN - MAY 2018 )

The concept aims to create spaces that allow the users to experience them as a holistic single unit ,contradicting the conventional norms of - a building, its fenced surroundings and a road that leads to it. A Seamless Design.

Softwares used: Revit + Lumion + Photoshop

30

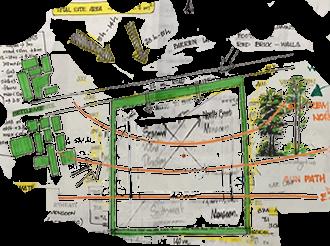

Climatic and

Amphitheater

shopping complex section

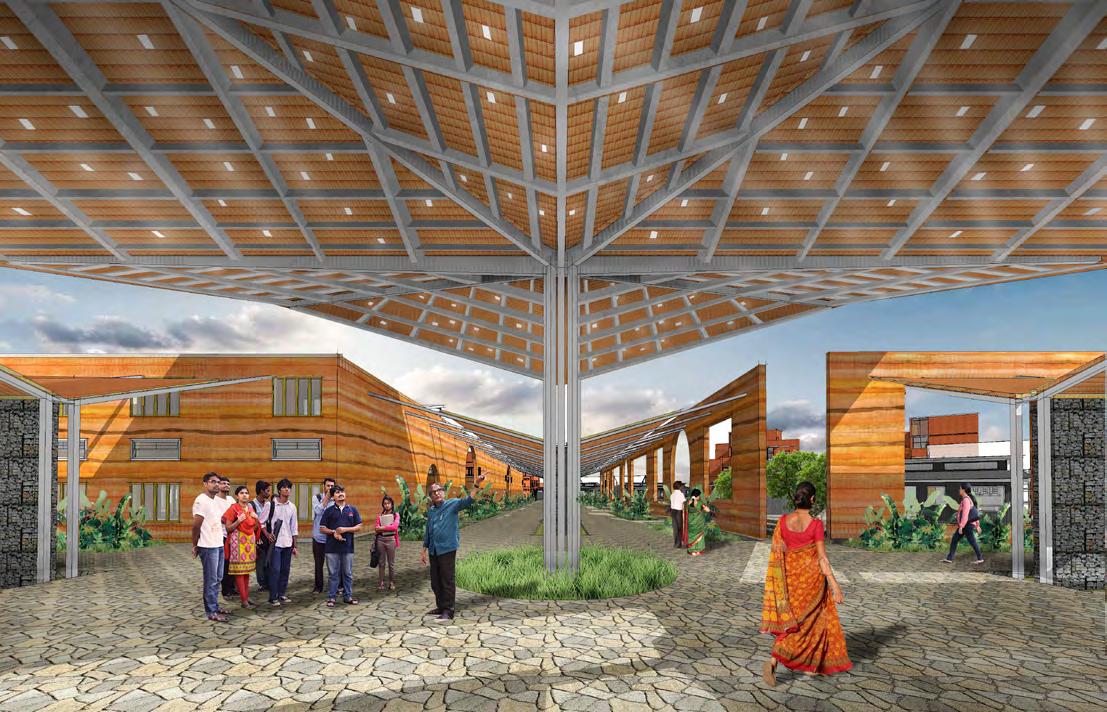

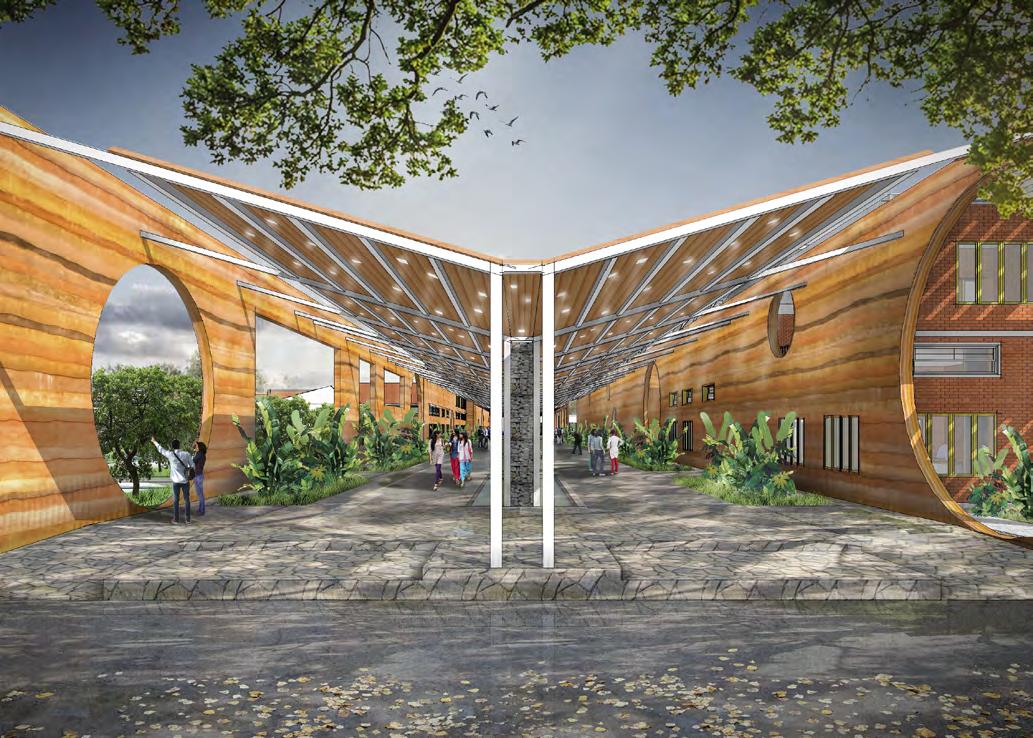

Overhead pathways at site level

Play of light and shadow

Amphitheater

31
contextual
analysis
of Constructing
around trees and site features Blending of built and natural spaces
Rethinking architectural elements
Multipurpose space solu
+
+ shopping complex plan N

The campus zoning is done in such a way that social interactions and public gatherings are maximized.

Every individual block is crucially connected to one another and this used to an advantage such that these junctions are activate thus pro moting cultural exchange and social interaction.

1 - ADMIN BLOCK

2 - AUDITORIUM

3 - ACADEMIC BLOCK

4 - AMPHITHEATER

5 - PARKING

6 - FUTURE DEVELOPMENT

Legend Site level - isometric view

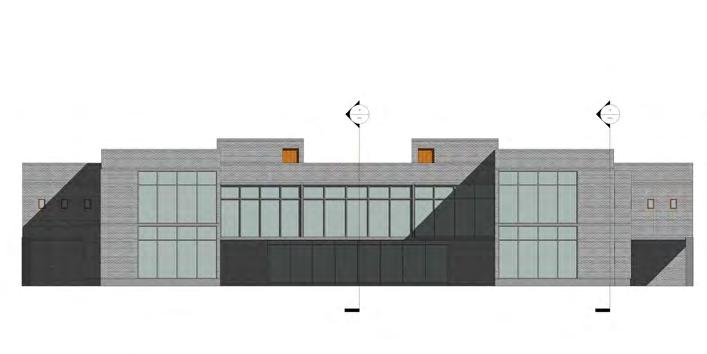

Elevation of the campus as viewed from the highway

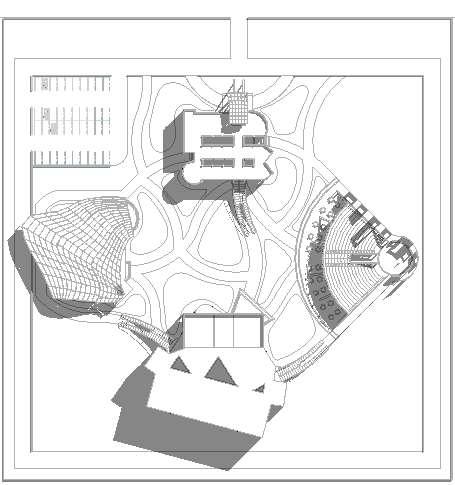

Site plan

32
33 0 - ENTRANCE LOBBY 1 - STAIR WELL 2 - CORRIDOR/LOBBY 7 - ENTRY FROM ACADEMIC BLOCK 12 -DIRECTORS ROOM 3 - OFFICE 8 - ENTRY FROM AMPHITHEATER 13 - MEETING SPACE 4 - GENTS RESTROOM 9 - ENTRY FROM AUDITORIUM 5 - LADIES REST ROOM 10 - CONFERENCE ROOM 6 - EXHIBITION SPACES 11 - STAFF ROOMS Administrative block - Ground floor plan Administrative block -First floor plan Administrative block - Longitudinal sectionAdministrative block - Perspective view Legend /\ N

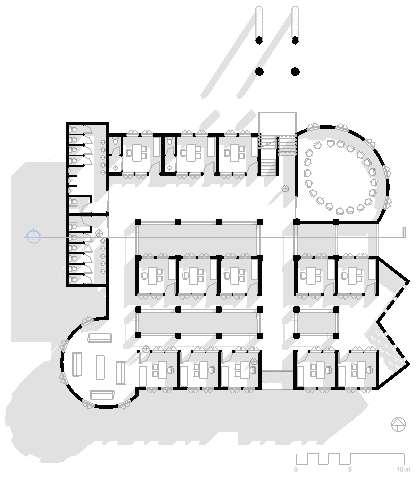

Academic block - Ground floor plan

Academic block - First floor plan

Academic block - Transverse section

Academic block - Perspective view

34
0 - ENTRANCE LOBBY 1 - ART STUDIOS 2 - CORRIDOR/LOBBY 7 - MENS TOILET 12 - AUDIO VISUAL ROOM 3 - LIFT 8 - MUSIC STUDIO 4 - DANCE STUDIO 9 - THEATRICAL STUDIO 5 - COURTYARD 10 - LIBRARY 6 - WOMENS TOILET 11 - STUDENT ACTIVITY ROOM /\ N Legend

The amphitheater also acts a social hub with eateries, dining spaces, public amenities, meet ings and gatherings etc become the heart of this structure

- ENTRY

- STAGE

- HOUSE

- RESTAURANT UNITS

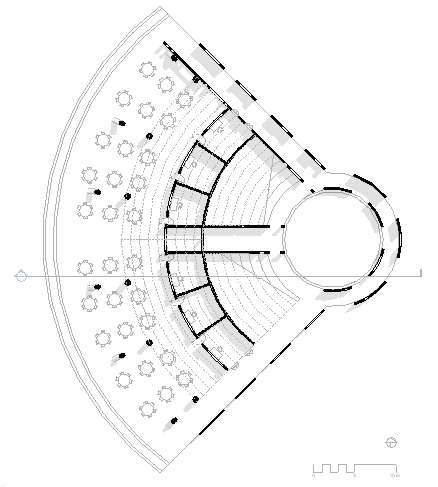

- DINING

- ACCESS WAYS

- HOUSE ACCESS

complex -

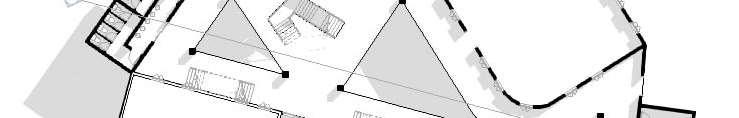

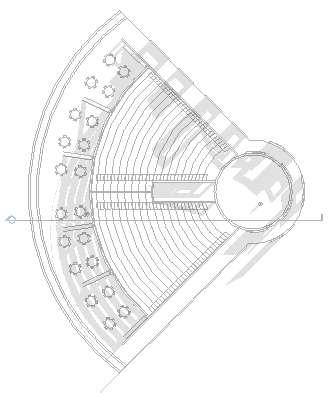

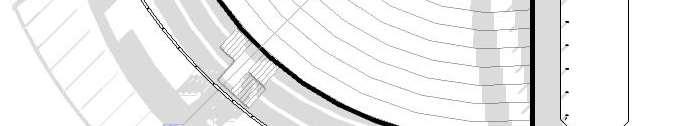

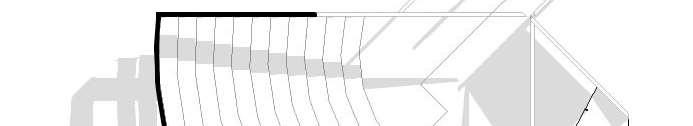

Amphitheater complex - Level 1 plan

complex - Level 2 plan

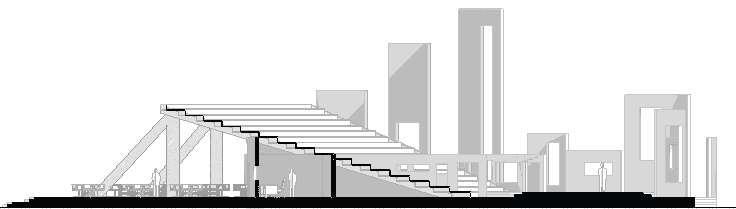

Amphitheater complex - Longitudinal section

35 0
. 1
2
3
4
5
6
Amphitheater
Amphitheater

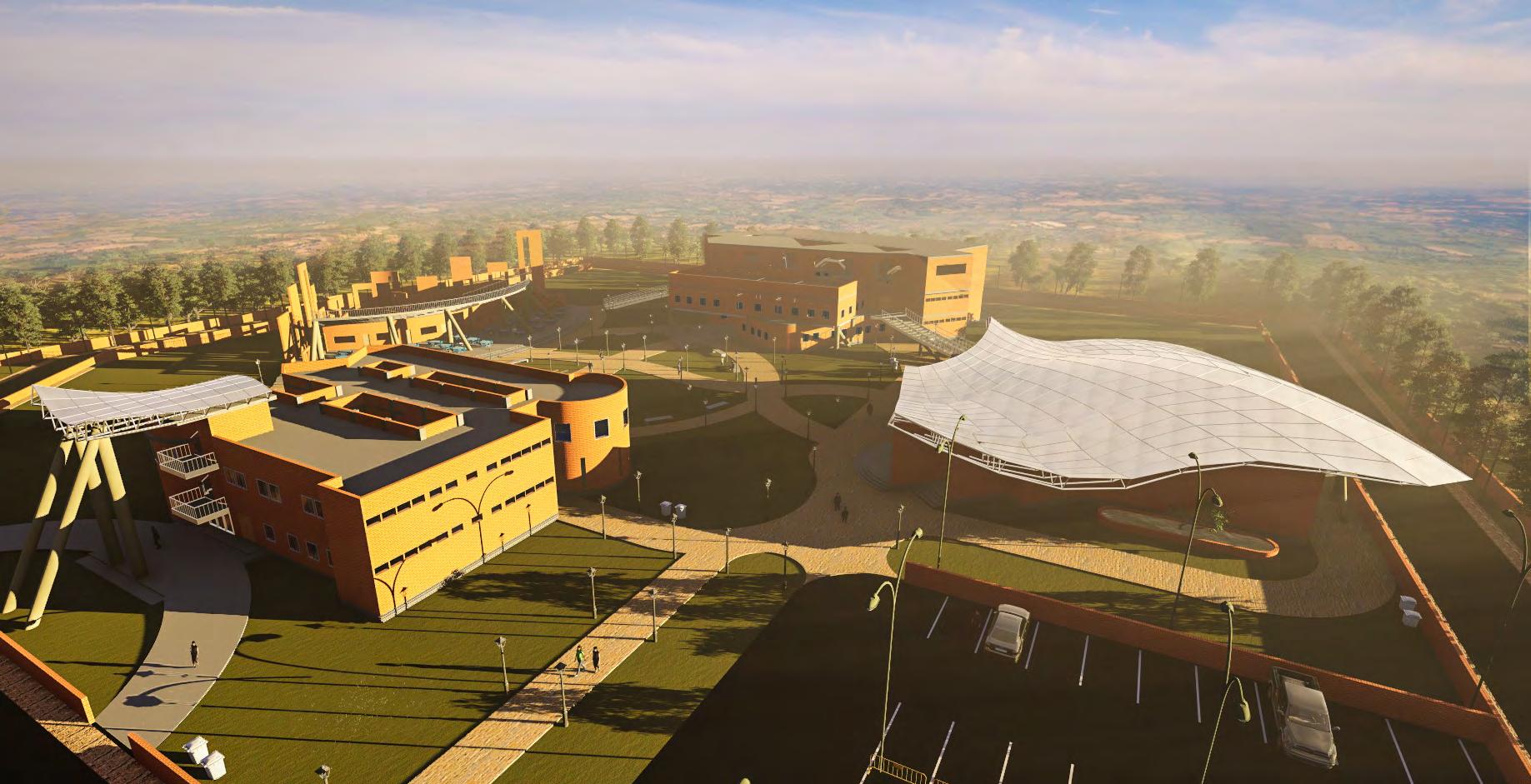

Aerial view /\ N Legend

0 - ENTRANCE LOBBY

- STAIR WELL

- STUDENTS LOBBY

- GUEST LOBBY

- STAGE

- HOUSE

- WOMENS TOILET

- MENS TOILET

- MAKE UP ROOM

- GREEN ROOM

- BACK STAGE

- REHEARSAL STAGE

- HOUSE ACCESS

- GUEST LOBBY

Legend

Auditorium complex - Longitudinal section

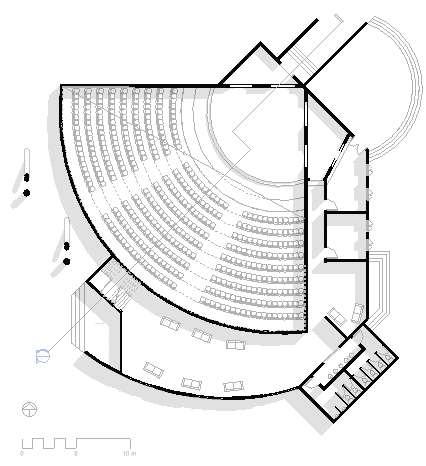

Auditorium complex - Level 1 plan

Auditorium complex - Level 2 plan

Auditorium complex - Perspective view

36
1
2
7
12
12
3
8
4
9
5
10
6
11
/\ N

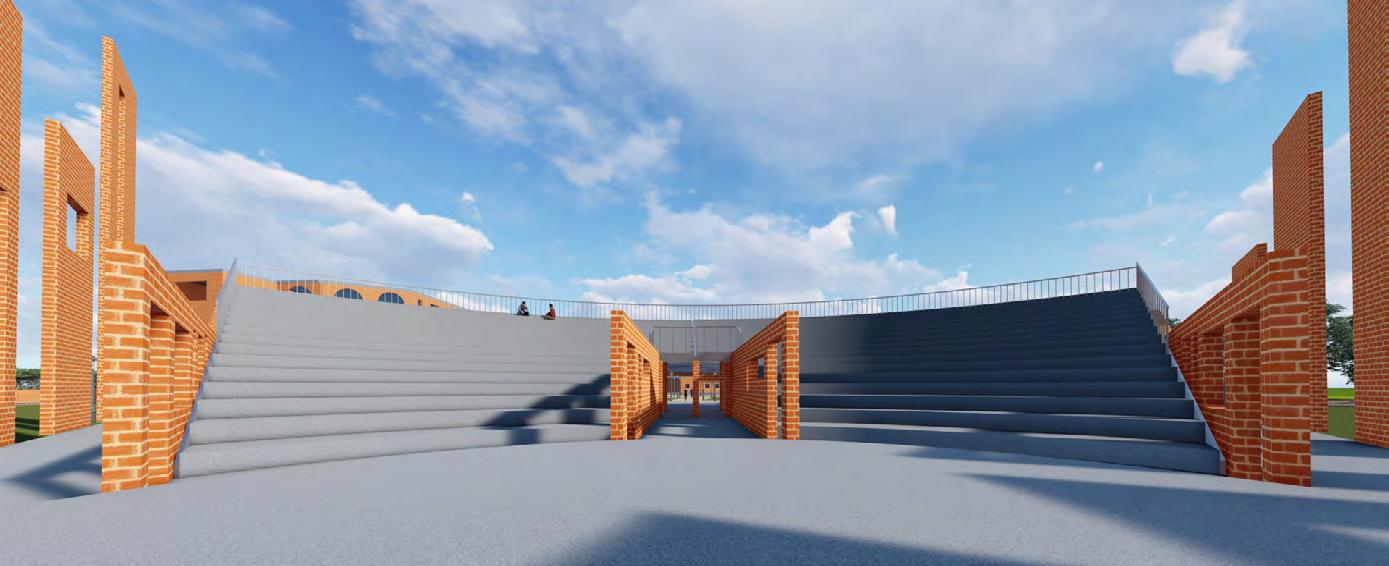

Starting

37
from top left; 1. View of amphitheater, 2.View of
auditorium facade,
3.Courtyard
opening of academic block

AGRAHARAM RESIDENCE AT TRICHY, TAMIL NADU ( ACADEMIC WORK | JULY - NOV 2016)

The brief called for a wall to wall construction, leaving only the smaller edges of the building with access to natural light and ventilation.

38

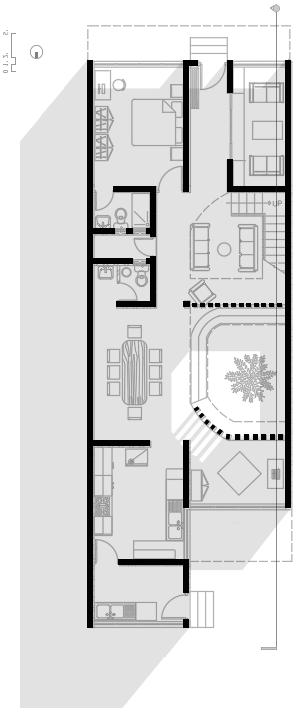

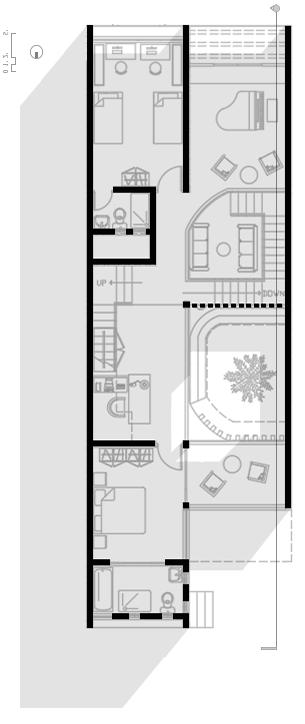

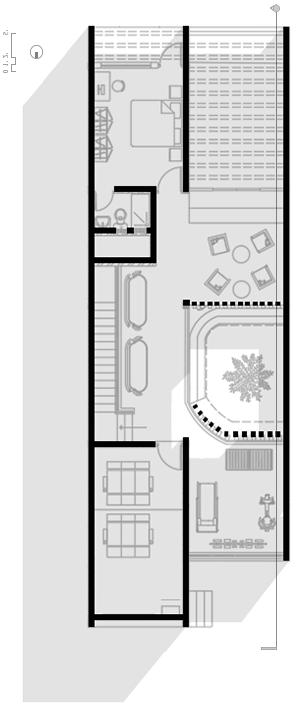

39 Ground floor planLegend 1. MAIN ENTRY 1. REAR ENTRY 2. FOYER 3. VISITORS ROOM 4. GRAND PARENTS ROOM 5. ATTACHED BATH & TOILET 6. DUCT 7. DOUBLE HEIGHT LIVING & STAIRS 8. DINING 9. COMMON WASH AND TOILET 10. COURTYARD 11. PRAYER ROOM 12. KITCHEN 13. WORK AREA 14. MUSIC SPACE/KIDS ZONE 15. KIDS BEDROOM 16. WORK SPACE AND STAIRS 17. MASTER BEDROOM 18. FANTASY BATHSPACE 19. BALCONY/ READING SPACE 20. SHADED GATHERING ZONE 21. OPEN TO SKY GATHERING ZONE 22. GUEST BEDROOM 23. GYM/ YOGA SPACE 24. AUDIO VISUAL ROOM 25. ACCESS TO TERRACE The concept aims to create an atmosphere that encloses the spaces from the harsh sun radiations and revolve around the courtyard that acts as a source of comfort from within. An internal healing. \/ N First floor plan Second floor plan 0 1 A A A B B B 2 34 5 5 5 6 6 6 7 8 9 10 11 12 13 19 1415 16 17 18 21 20 20 25 24 23 22
40

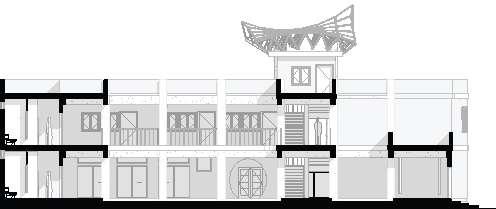

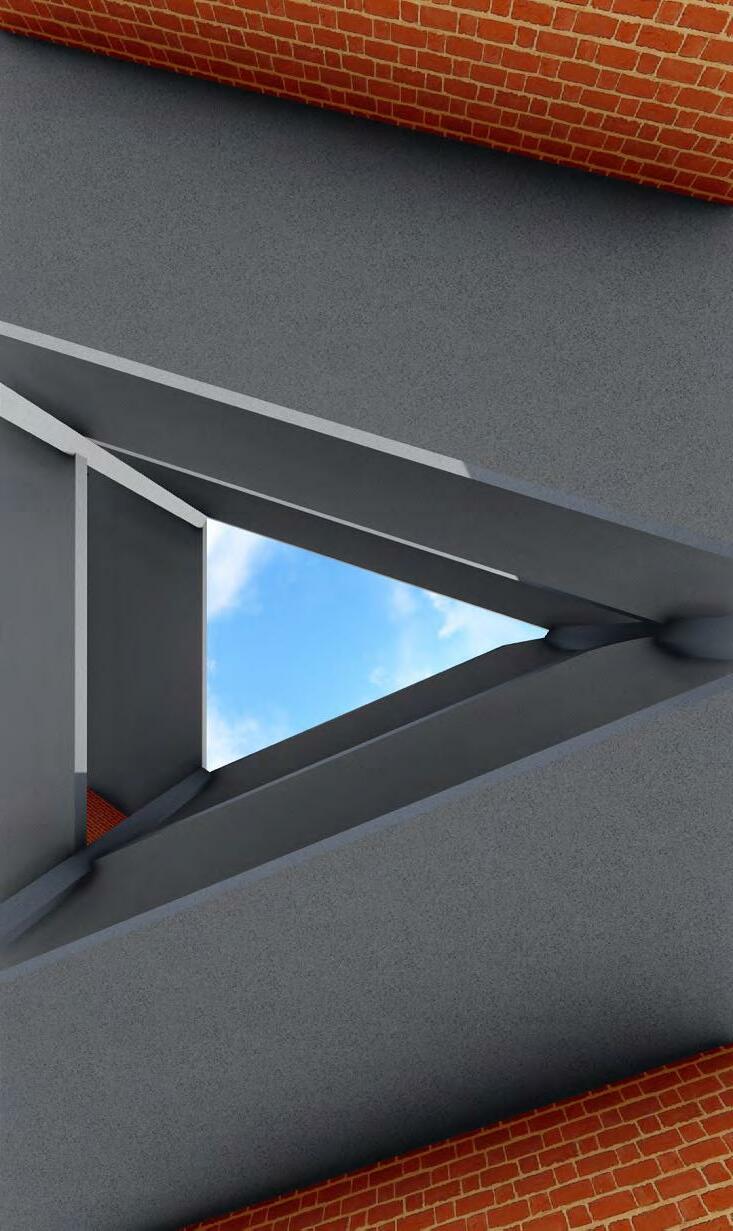

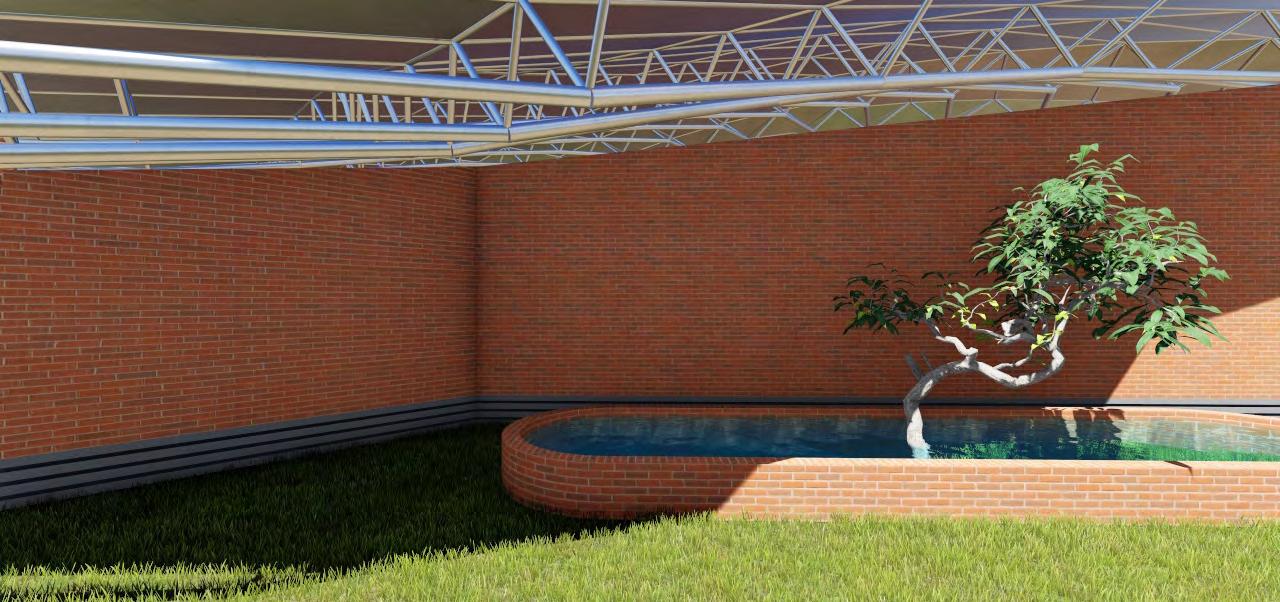

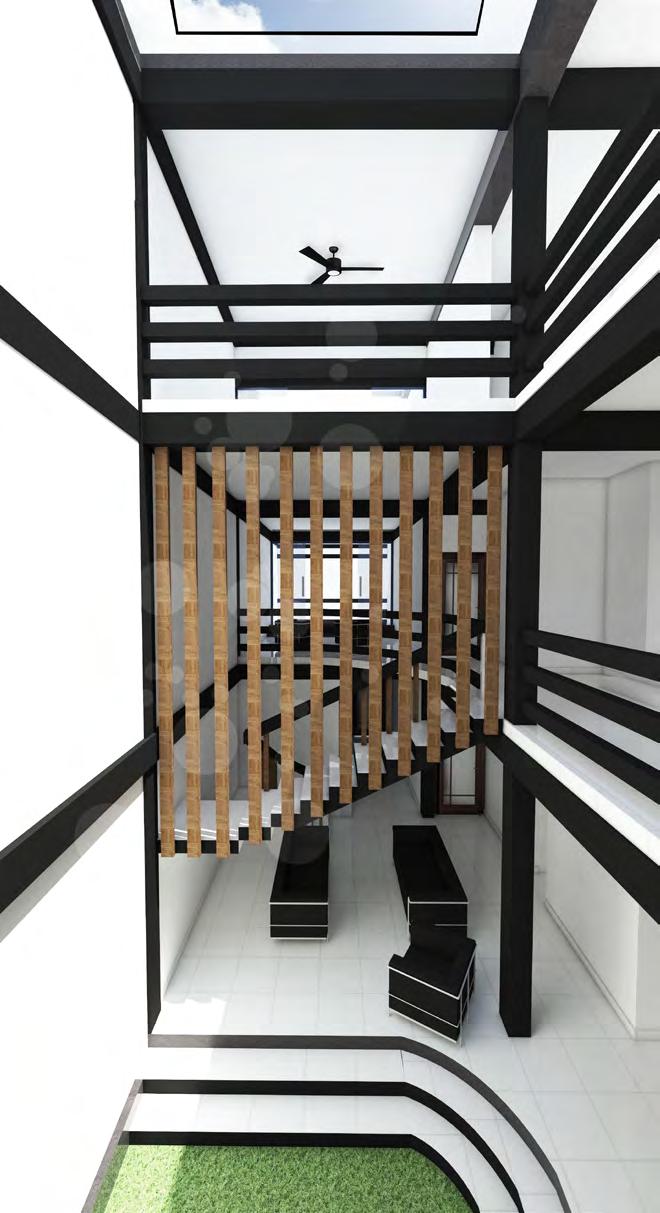

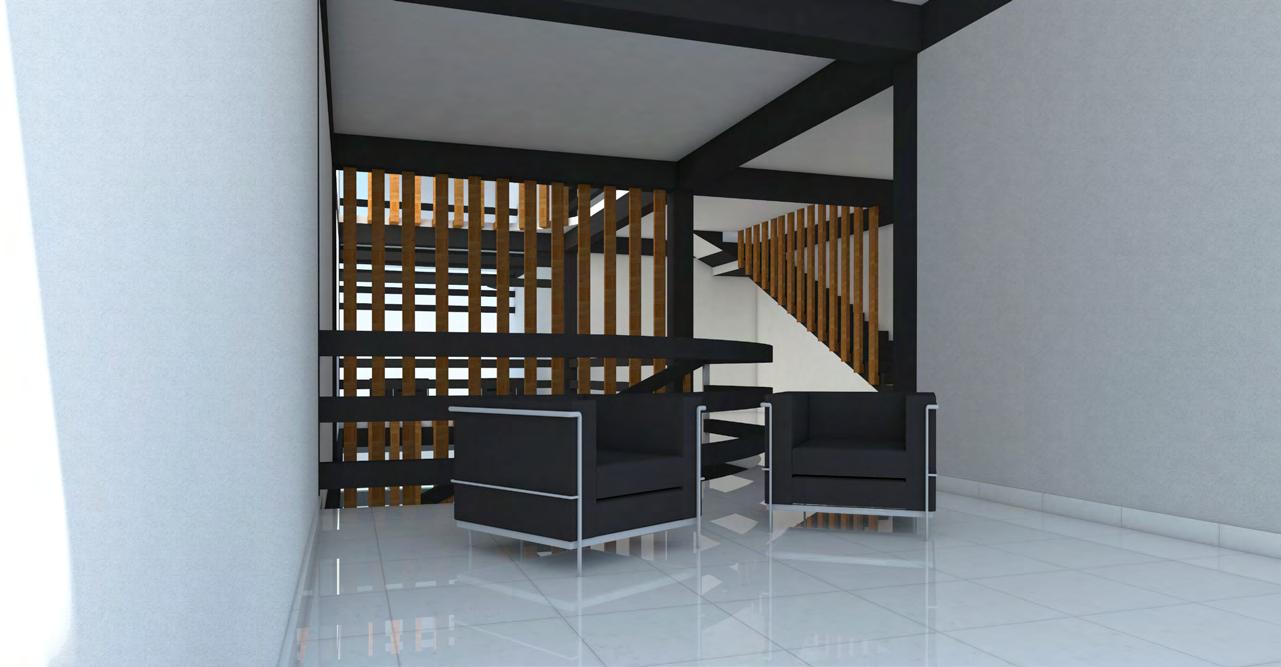

Interior view of reading space Section AB View of open to sky courtyard

As architects our goodness is more important than our greatness and our compassion more eventful than our passion -Samuel Mockbee

The world is not in need of groundbreaking innovations or unique solutions,but people who can put in the simple effort and execute the right practices.

The former caters to man’s ego and the latter brings about change.

41
