PROJECT OVERVIEW
PROJECT PLAN
7
SITE MODEL

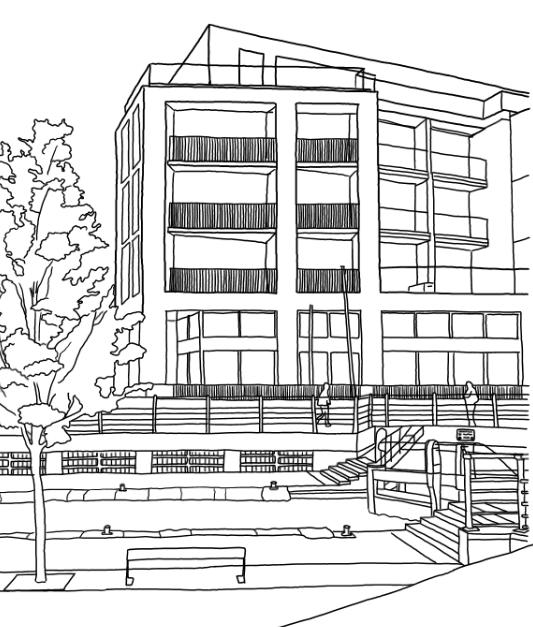

SITE SKETCHES
FLOOR PLANS
OUTDOOR SITE VISUAL
GARDEN VISUAL
SECTION RENDER
AERIAL SKETCHES
INDOOR VISUALS
SUSTAINABILITY DIAGRAMS
ENVIRONMENTAL CONTROL STRATEGY
EXTERNAL ENVELOPE
STRUCTURAL STRATEGY
The design thesis for The School of Sustainable Art and Design aims to explore the relationship between human and environmental well-being through sustainable processes and biodesign. It envisions a thriving, eco-friendly school that repurposes an old leather factory and produces sustainable products. The school features various spaces that cater to different learning needs and emphasizes outdoor learning areas that are biodiverse and provide partial shelter.
OFFICES/MEETING
LIFE CYCLE ASSESSMENT PASSIVE SOLAR GAIN WATER HARVESTING NATURAL VENTILATION SUSTAINABLE DESIGN ENERGY EFFICIENCY LIGHTING
Rainwater harvesting has been implemented to reuse water for the toilet facilities and to irrigate the green roofs within the design.
PLANTS
GROWING MEDIUM
GEOTEXTILE FILTER FABRIC GREEN ROOF
DRAINAGE & STORAGE
ROOT BARRIER
WATERPROOFING COMPOUND
CONCRETE SLAB OR SCREED
EXISTING WALL DETAIL USED IN PROJECT
EXISTING BRICK CLADDING
STEEL CONNECTING PLATES
GLULAM STRUCTURE
INSULATION BEHIND STRUCTURE
WALL TIES
PREFABRICATED INSULATION PANELS
GYPSUM PLASTERBOARD
Areas where the existing wall is getting reused.
