I N T R O D U C T I O N

Orang Asli is a collective term (which means original or first peoples in Malay) for some 18 ethnic groups of less than 150,000 in total who are widely regarded as comprising peninsular Malaysia’s original inhabitants (in the sense that they pre date the arrival of Malays) They are generally divided into three distinct groupings: the Negrito, Senoi and Proto Malay The Temoq, Senoi and Negrito speak related languages known as Aslian, which belong to the Mon Khmer family, while the ancestors of the ProtoMalay spoke languages that, like Malay, belonged to the Austronesian family of languages

ARCHITECTURE

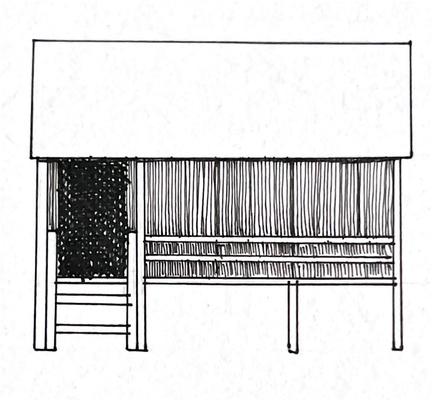

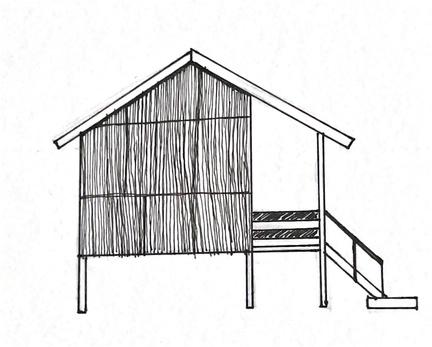

the traditional small house the new house provided by goverment

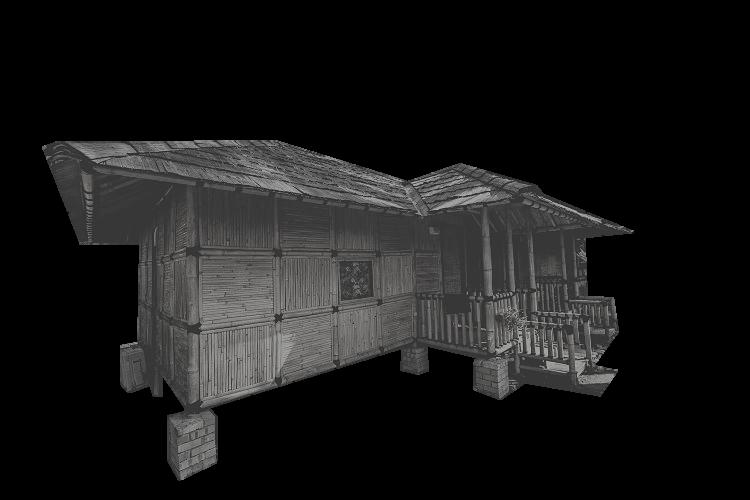

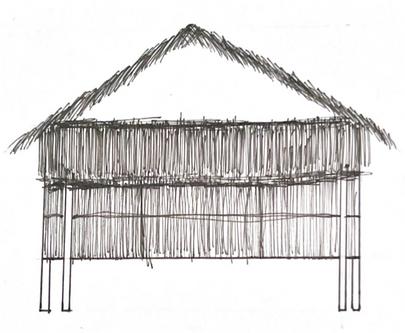

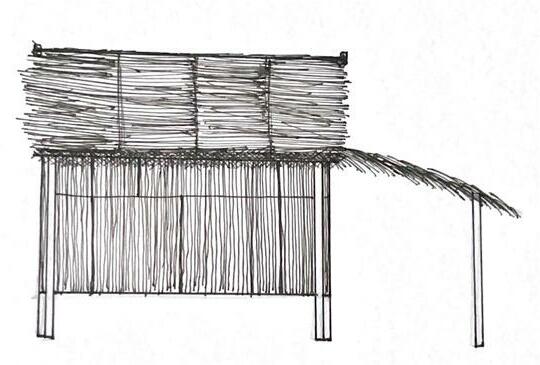

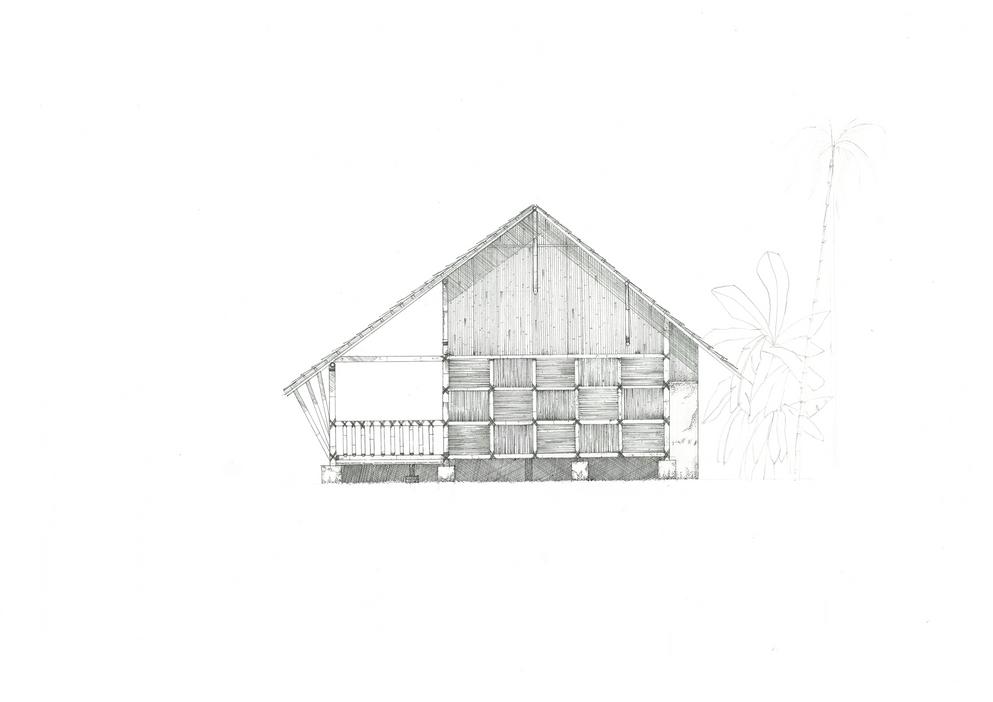

The traditional SMALL house commonly still use the nature materials in their house construction, they used bamboo as their main materials, such as for the column and the framing as for the roof, they use dry palm leaves to cover their house while the wall and floor it use the stripped bamboo that is tied became a bamboo sheet, some also use the dry palm leaves for it

this type of house has modernised a bit at roofting part that used metal sheet as the replacement of dry palm leaves but the rest part of the house still mostly the same, such as the wood/bamboo as the framing and the bamboo sheet/dry palm leaves as the finishes spaces

a - sleeping area b - kitchen with fire place c - sitting area

materials

a b c dry palm bleaf amboo dry palm leaves sheet

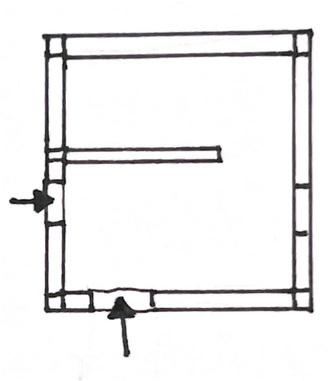

this is the common/typical FLOOR PLAN OF mah meri tribe houses, which usually has 3 space sections with 2 entrance doors an open space between the kitchen and sitting area and no connecting door between the sleeping area and the open space area

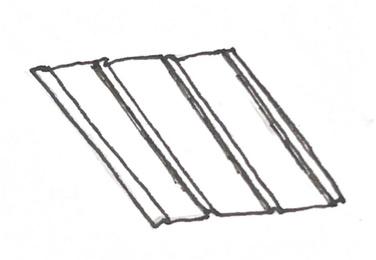

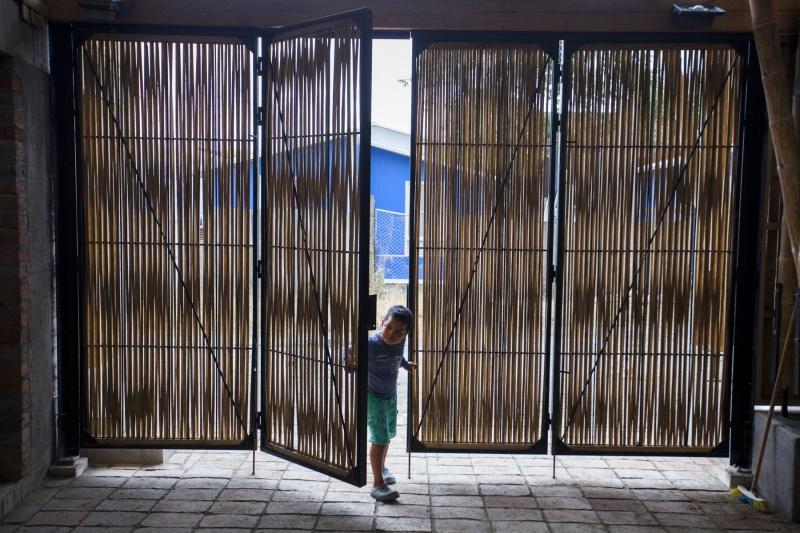

bamboo strip sheet

P 2

I N T R O D U C T I O N

Tadom Hill Resorts started out as a village of the indigenous Temuan tribe, surrounded by acres of forests fronting an emerald lake (that used to be a limestone quarry) Five years ago, the village evolved into a 45 acre bamboo resort as the Temuan aborigines shared their piece of paradise with the world

What makes Tadom Hill Resort special is the unique bamboo culture that plays a prominent part in the aboriginal lifestyle. The whole resort is built almost entirely out of bamboo materials that are traditionally used by the aborigines to build their homes.

Tadom Hill Resorts pride themselves on being an environmentally friendly and sustainable resort, coexisting harmoniously with the environment and at the same time empowering the local community The majority of the staff members comprise of local aborigines in the area. More than a resort, they are a community and a family.

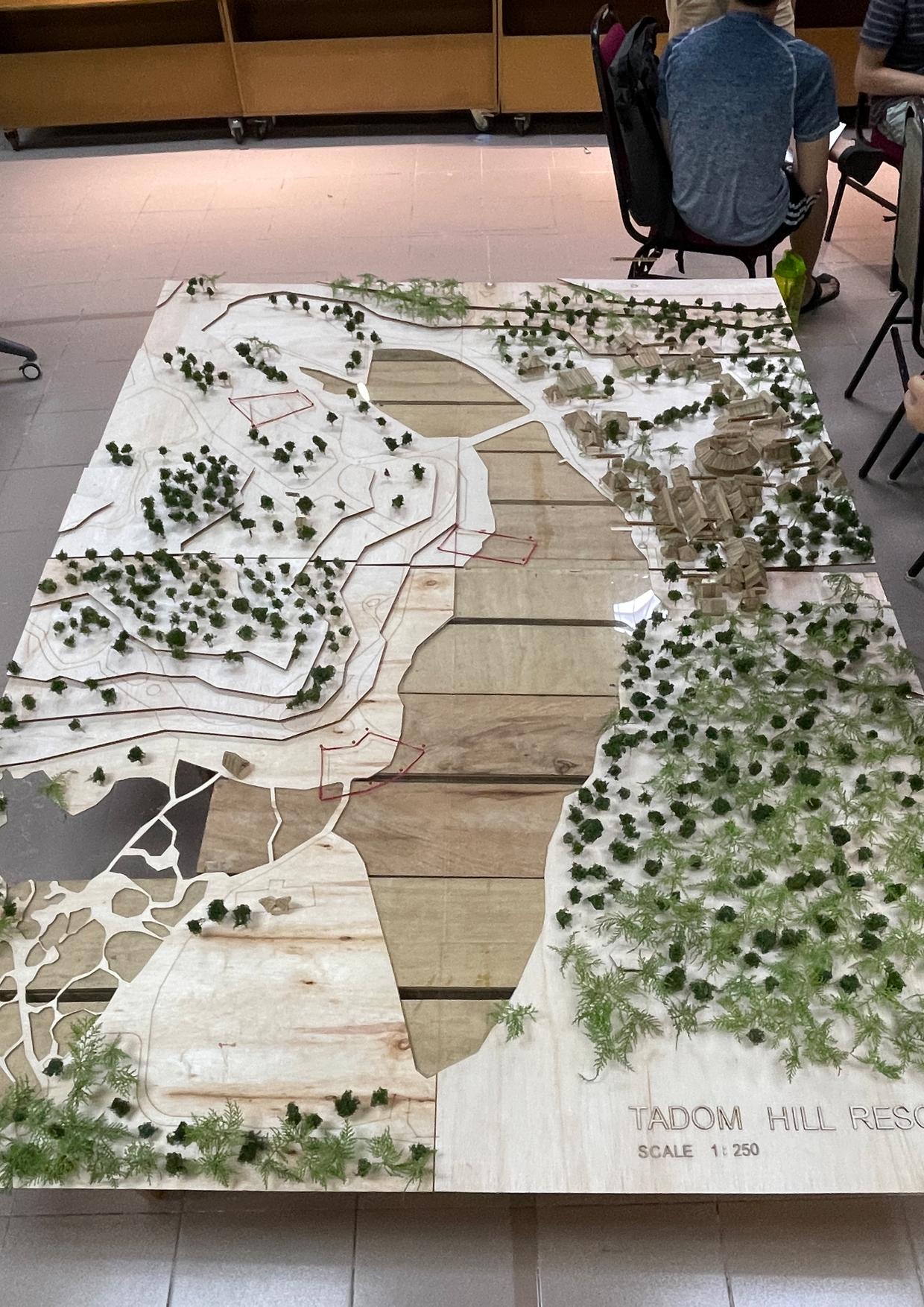

3 DAYS IN TADOM HILL

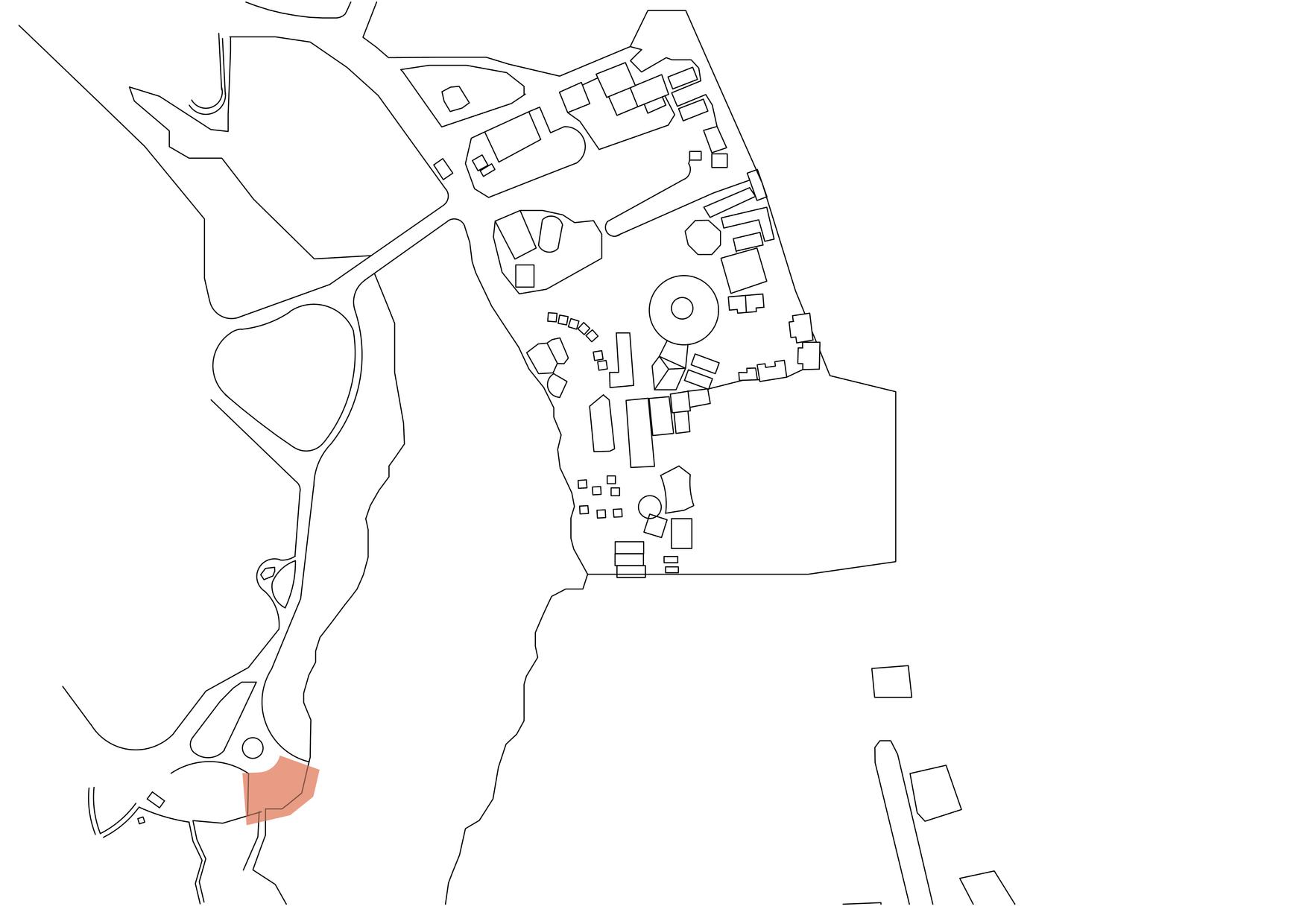

analysis

& PHYSICAL CHARACTERISTICS

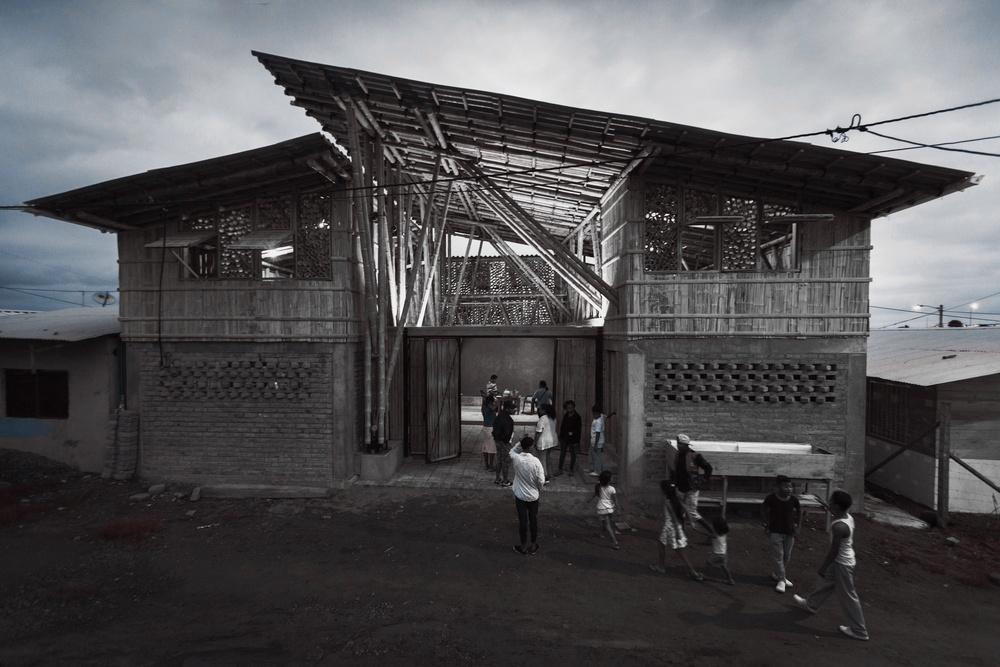

VERNACULAR ARCHITECTURE

Vernacular; a sort of regional or local building that uses conventional supplies and resources from the area where the structure is located.

As a result, this architecture is closely tied to its surroundings and cognizant of the unique geographic and cultural characteristics of them, being greatly impacted by them.

Unlike traditional architecture, the architectural space in contemporary architecture depends on the man-made cityscape to harmonize and rationalize it with the individuality of the buildings.

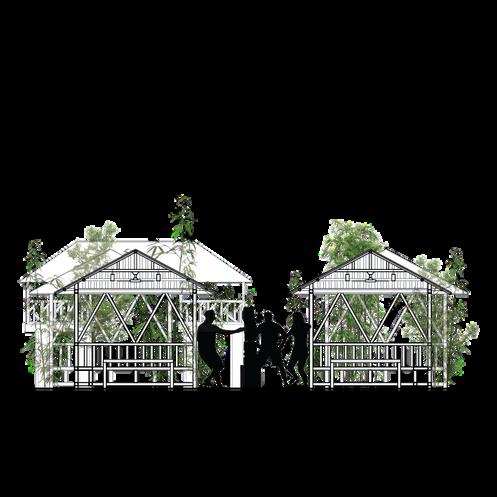

BAMBOO MADU CHALET

A lengthy symmetrical form with two main doors to enter each rooms that has two different shape of roof, which is the trapezoid shaped for the center part and triangle shaped for the terrace.

LAKE SIDE BAMBOO

MINI CHALET

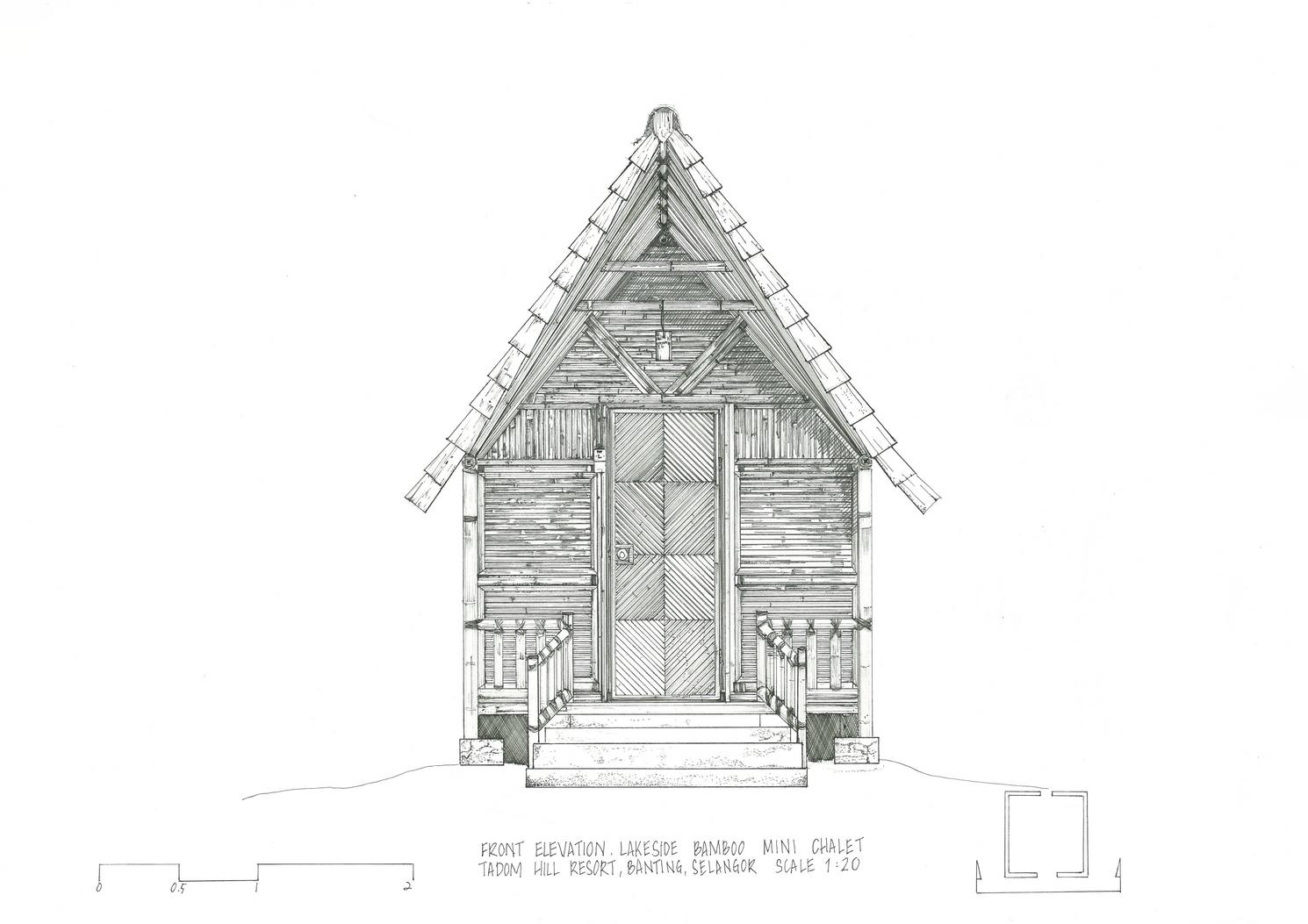

A small size building that has an extended out roofing to the front part of the building.

SEMANTAN CHALET

A long symmetrical building with two entrance door to two different rooms. The roof itself is different with the other, which is the extruded up trapezoid roof.

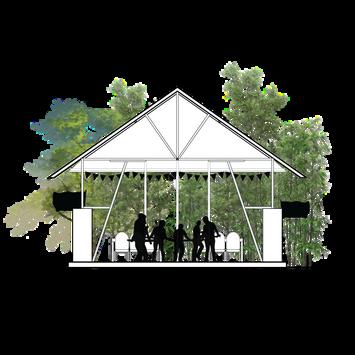

HALL / CAFE

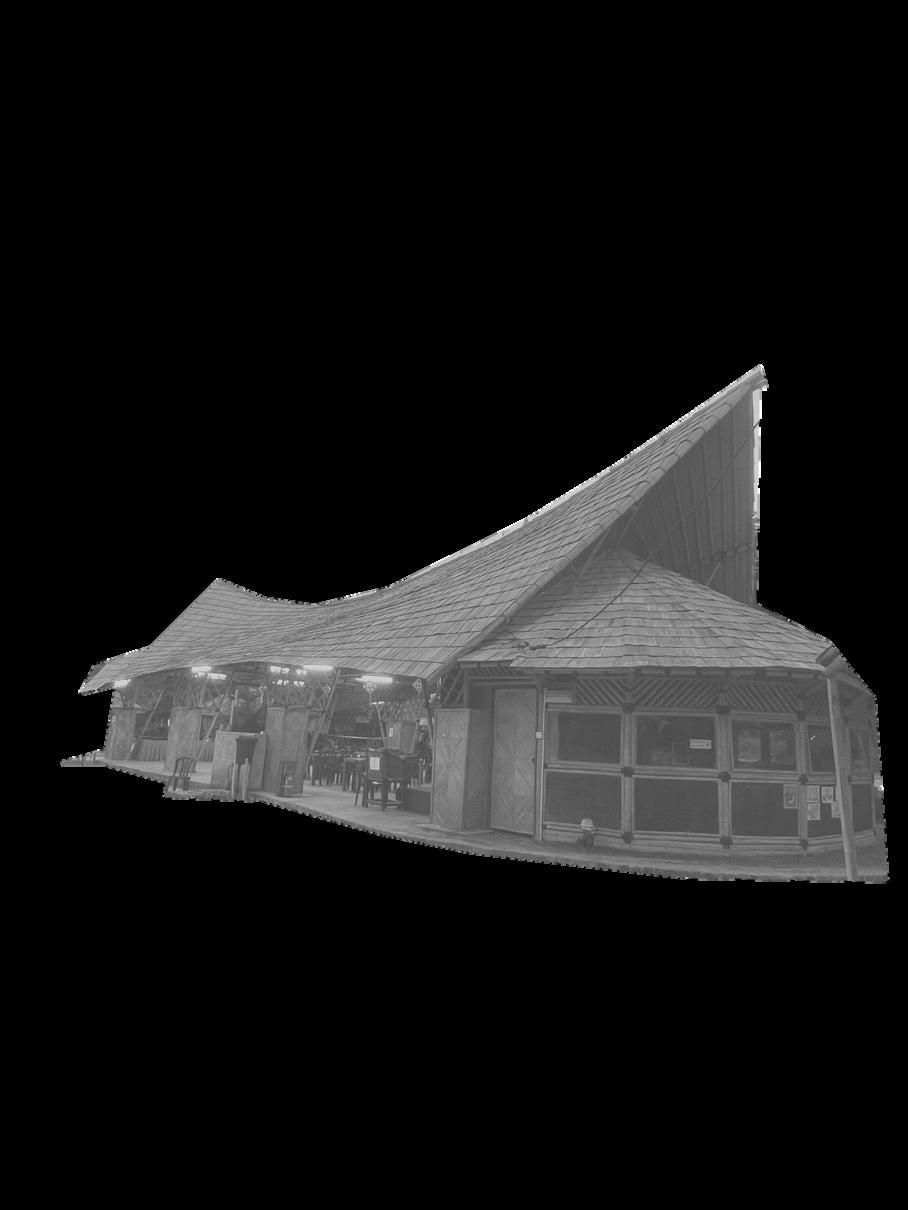

An open hall / cafe that has a very high bamboo structured roof and columns that is decorated with bamboo pattern around it.

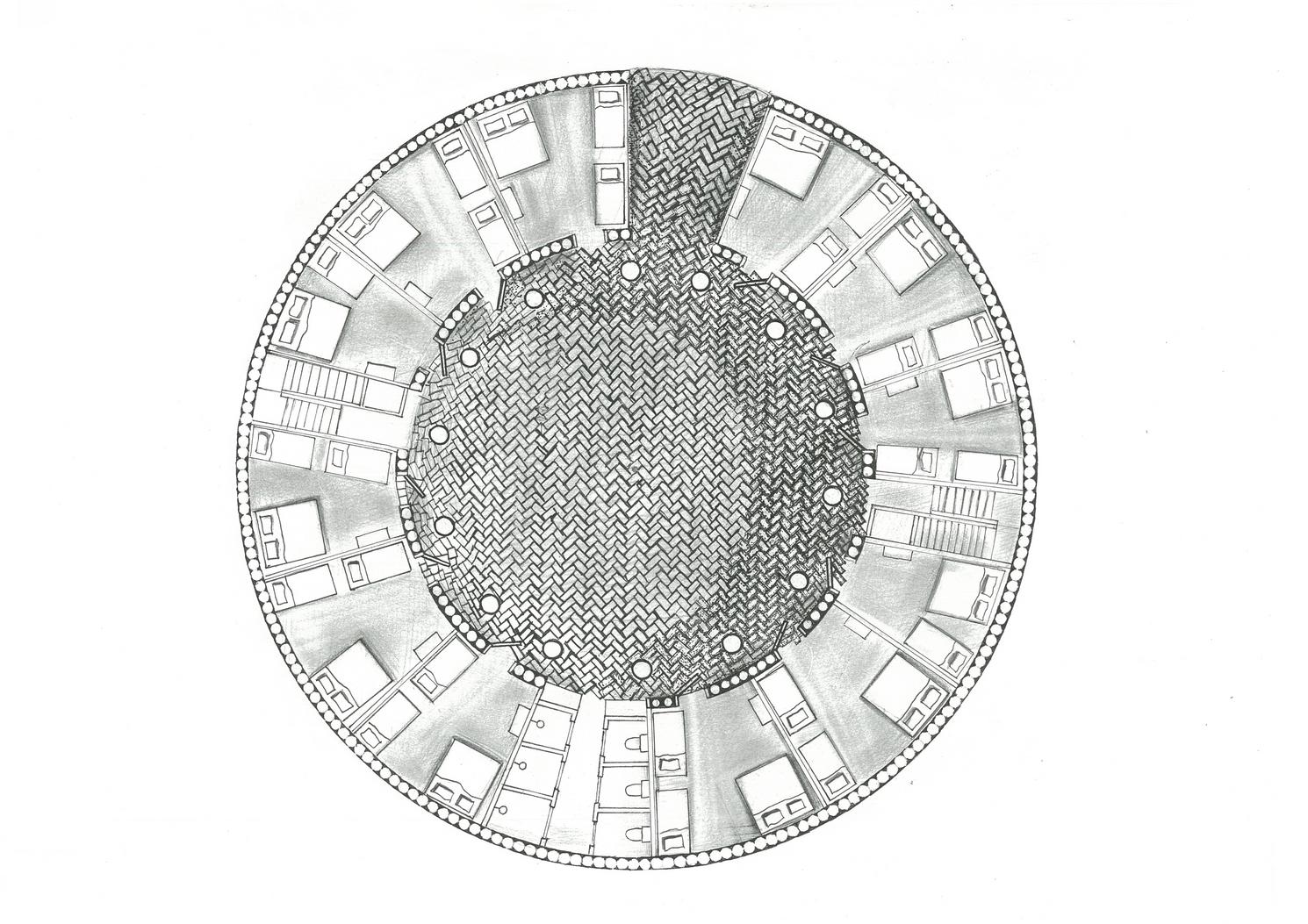

HAKKA VILLAGE

Circular shaped building with bricks as the exterior floor finishes and artificial grass for the interior floor.

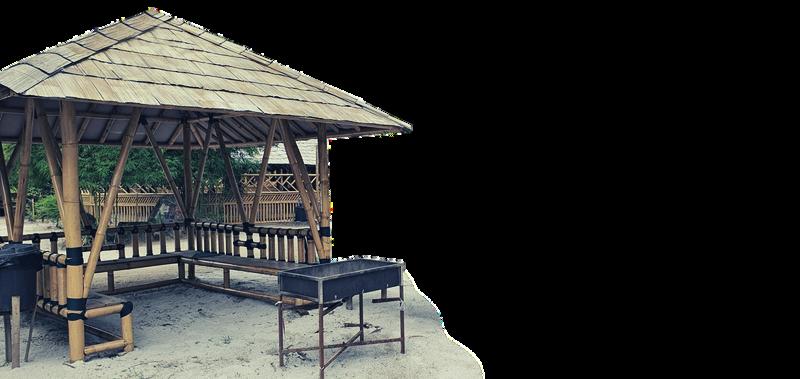

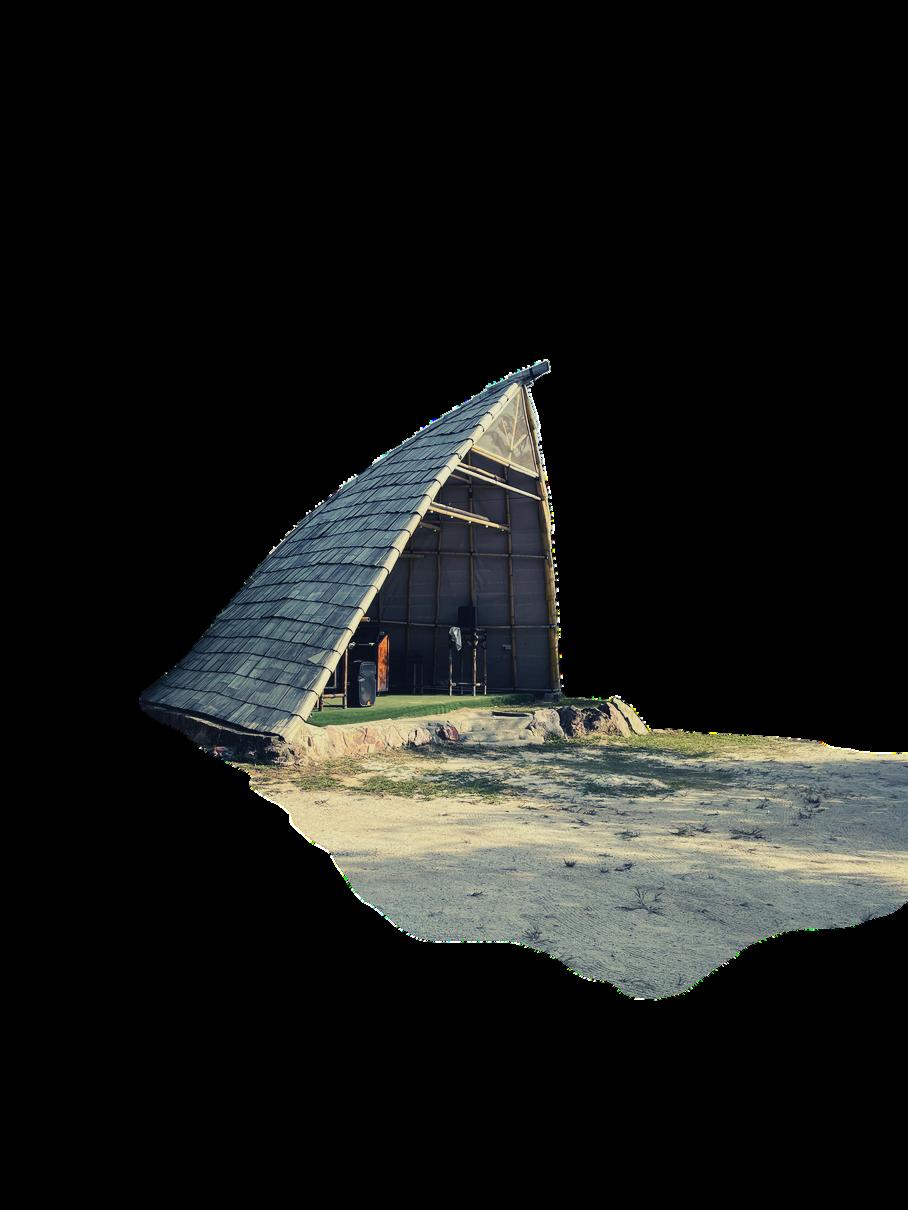

BAMBOO HUT

Has a long roof from the top center to almost three quarters of the building

GENDUI CHALET

Has a short roof compare to the other roofing type and extended out roof to both side of building.

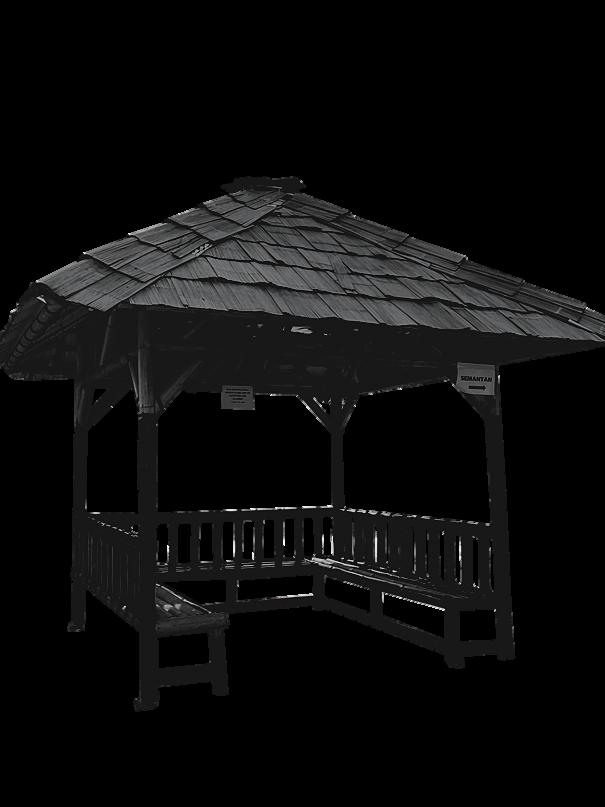

HAMMOCK SPHERE

An open space for living accommodation. It has four column with a big column in the center of the building.

LAKE SIDE CAFE

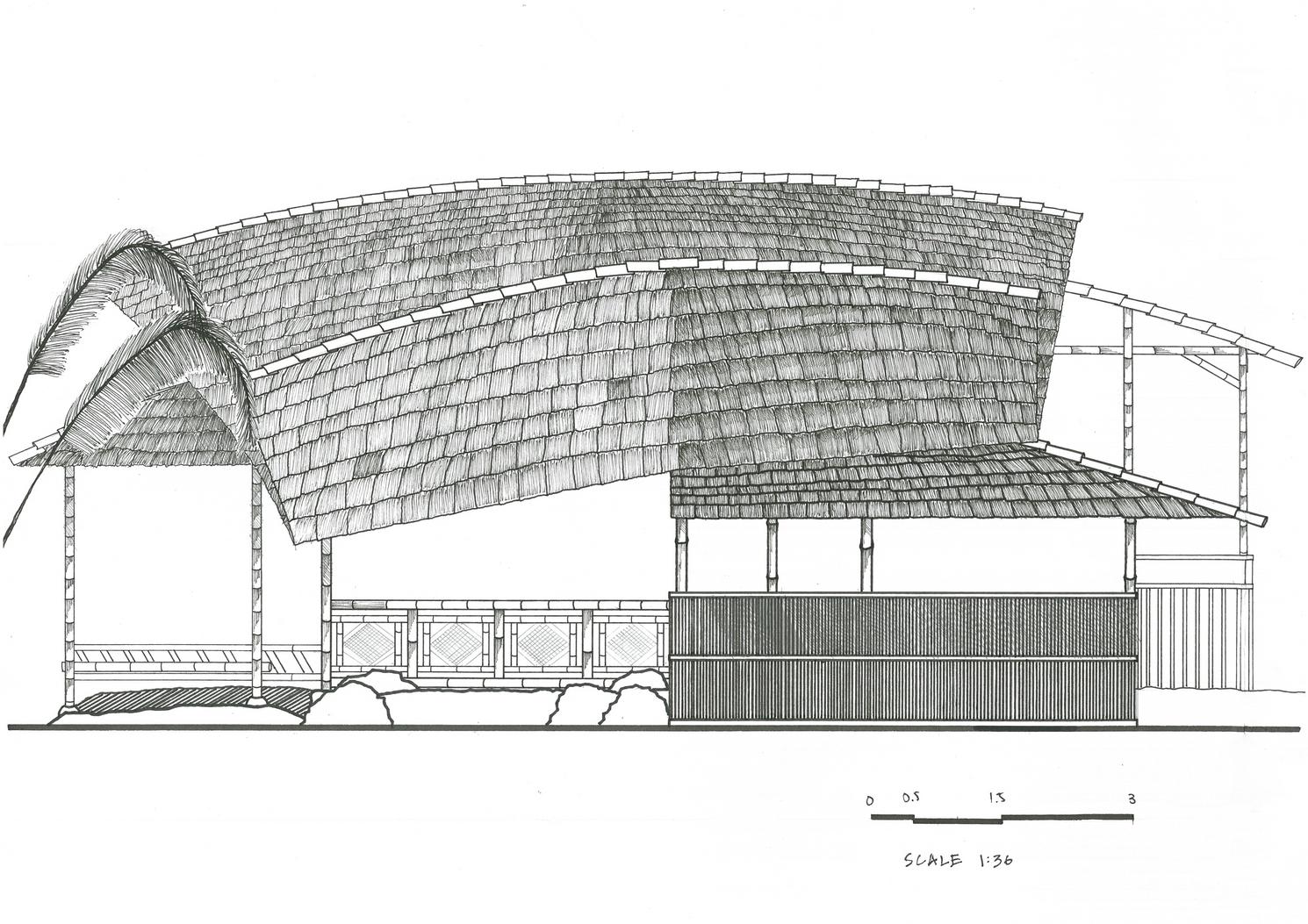

The lake side cafe was built with a very high arc roof.

Sufi : So, you mostly know the things around here, is there any places that is specifically for the Orang Asli Temuan? For example toilet or a rest area that is only for the Orang Temuan?

Staff : No

Sufi : No? okay One more thing that I want to ask about the area around here, if there is like Hari Moyang, is there any festival or ceremony that is held in here? Or dance like Tarian Sewang

Staff : There is if doing the celebration, but for dancing there is none Sufi : oh, got celebration here?

Staff : yes here got to do the celebration

Sufi : Is the project doing something like eating together?

Staff : yes, they will eat together

Sufi : but they didn’t do the dance in here right?

Staff : yes

Sufi : okay, is that all? Or there is more like every year doing another ceremony festival?

Staff : they will held it every year, at the end of the year

Sufi : the end of the year, December 31st it is. About the visitors in here. Mostly what kind of people that come to here? Is it Chinese, Malay or?

Staff : got Chinese people, Malay people, there is also foreigner

Sufi : what if in percentage?

Staff : if in percentage, Chinese it is Sufi : oh, mostly Chinese? In 60%?

Staff : 70%

Sufi : oh 70% So Malay 20% and Indian 10%

Haddad : As a worker in here, are you satisfied with the facility that is provided in here or want to add something else?

Staff : overall okay

Haddad : it is okay? Need something to add or change?

Sufi : For example, the weather is hot and the hill is far to go, is there any other place that is cooler? Is there something that is need to be added or even repaired?

Staff : If the weather like this, they can put air conditioner here Sufi : So if the weather is hot, then it is very hot isn’t it?

Staff : Yes, it is hot because it’s open Sufi : So the air ventilation is not enough

Haddad : What is your role in here for your work?

Staff : Receptionist

Haddad : Receptionist only? Like manager? Or other?

Staff : Receptionist only

Sufi : How long have you been working in here?

Staff : 2017

Sufi : Oh 2017, quite long

Haddad : After that, Tadom sometimes often got flooded right, as a worker, what was the problem that you faced during the flood? Is it the facility? Or when the time came to work?

Staff : After the flood, need to clean up house right, right after that need to went out to tell the customer to not to come due to the flood

Sufi : Okay So during the flood, the kampung area, like the orang temuan resident, they gathered in one place Were they also went to the top of the hill?

Staff : Oh yes they were Sufi : So they came to help the orang asli is it For about the activities, there is flying fox, kayak, and pinball?

Staff : No pinball, got go kart

Sufi : Got go kart, ATV, else?

Staff : Else got water activity, bamboo ride, waterslide

Sufi : Else than that? Got anymore?

Staff : Only that

Sufi : Alright If based on your observation, mostly the visitor here, they attracted with what kind of activity that the Tadom people not really enjoy it?

Staff : Like what?

Sufi : for example

Staff : The customer enjoyed it but

Sufi : Like this one specific activity got a lot of customer always play it, like that one activity have a lot of people interest in with the other one that have very little popularity in it

Staff : The water activity

Sufi : Water activity is it, the kayak also free isn’t it. The least? Like archery?

Staff : Yes archery

Sufi : Archery got less people interest in

Staff : Go kart

Sufi : Because of extreme right?

Haddad : According to you, is there any activity that can attract people to come visit more?

Staff : Need to add more some activities

Haddad : Need to add more activities it is, any example? Like pinball or else?

Staff : Pinball

Haddad : Oh right

Staff : Student activity

Haddad : Okay

Cindy : The time is normally when is like holiday week is it?

Staff : Holiday got lot of people, public holiday

Sufi : What if weekday?

Staff : It depends, for example in normal days, if there is something like ? for 3 days 2 nights, it always have a group of visitors

Sufi : Oh, mostly that came to here is in group is it?

Staff : There is group

Sufi : A big group it is Oh, so when visitors came, mostly is Malaysian or foreigner?

Staff : Mostly Malaysian

Sufi : Malaysian it is If foreigner like the white people lesser is it? One more thing, I asked some people just now, 70% worker in here are Orang Temuan, here got Malay people?

Staff : Yes there is Sufi : Chinese?

Staff : yes

Sufi : no Indian?

Staff : No

Sufi : Also got Indonesian here?

Staff : Yes

Sufi : So there is four, Orang Temuan, Malay, Chinese, Indonesian

Haddad : Last question, mostly that are working here are Orang Temuan Do you have any opinion do the Orang Temuan need to be give something? Kindness or benefit? Because we are using their land right

Staff : It makes them more developed

Haddad : Makes them feel more happier is it In here, is there any problem that they are facing so that us could give any contribution to them?

Staff : Problem facing by who?

Haddad : The Orang Temuan, but from your opinion

Staff : The problem, I think they are more like scared to went out for working, like they are more to gardening, work by themselves

Sufi : Is it because of? Don’t know? Or they are not use to it?

Staff : Yes, they are not use to it

Sufi : Alright, that is all from us Thank you for your time

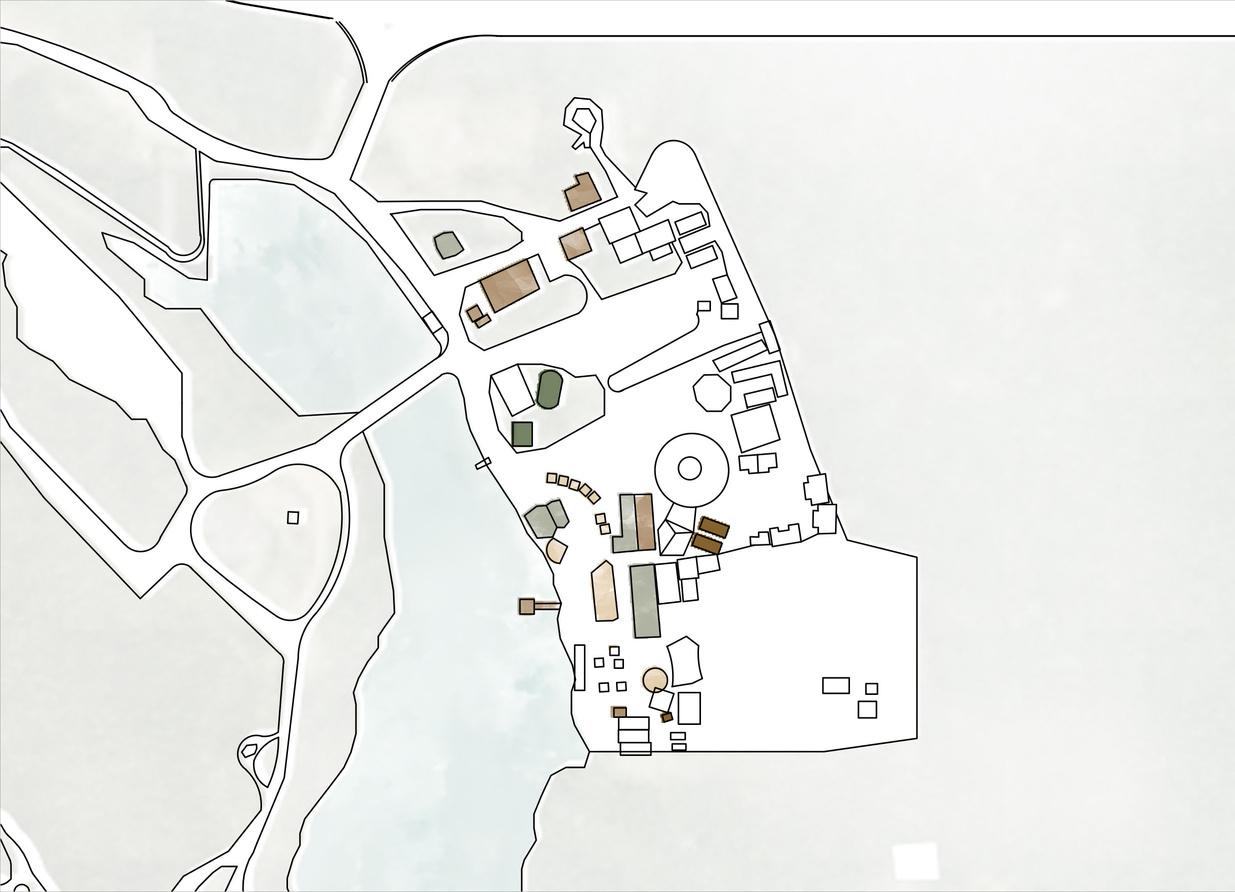

HAKKA VILLAGE

SEMANTAN CHALET

LAKE SIDE CAFE

BAMBOO MADU CHALET

BAMBOO HUT

HALL/CAFE

HAMMOCK SPHERE

3

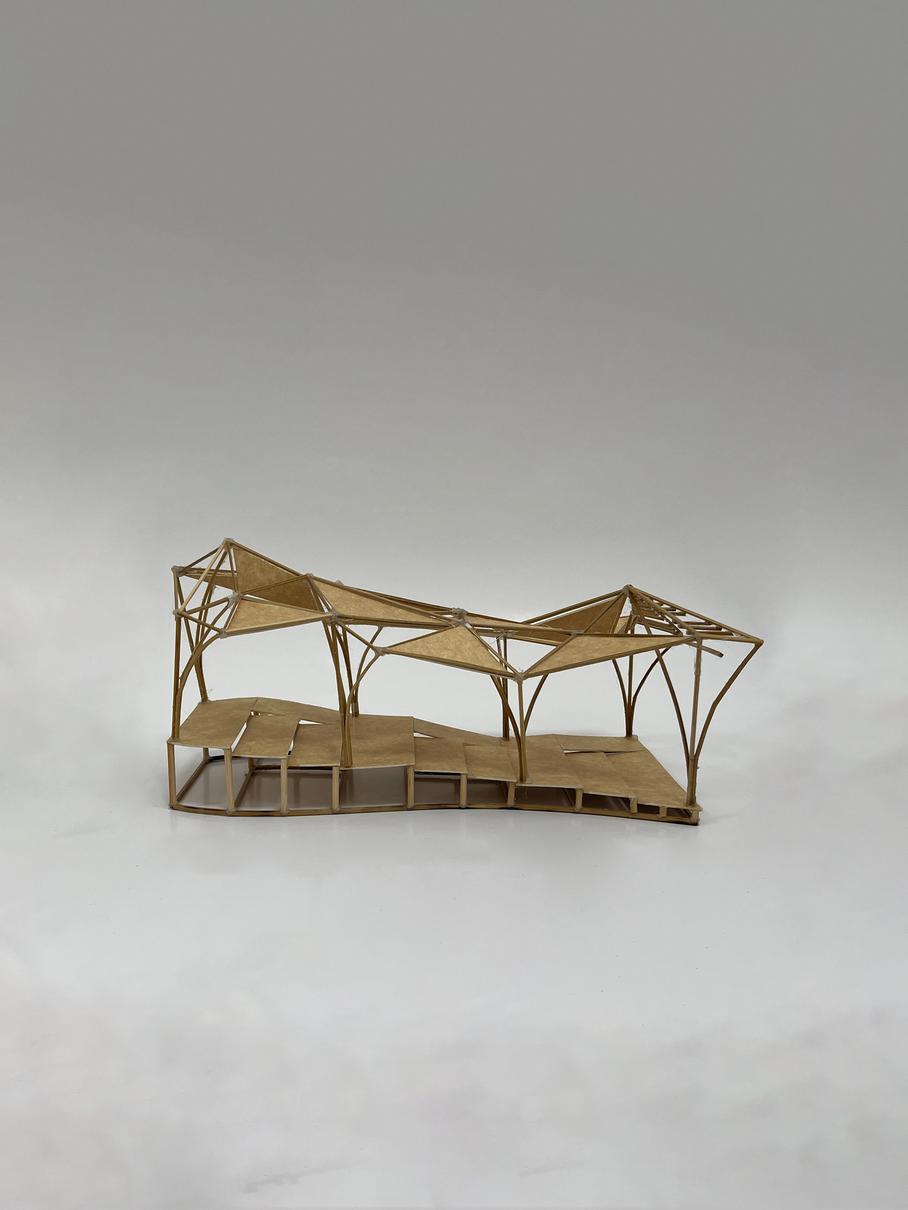

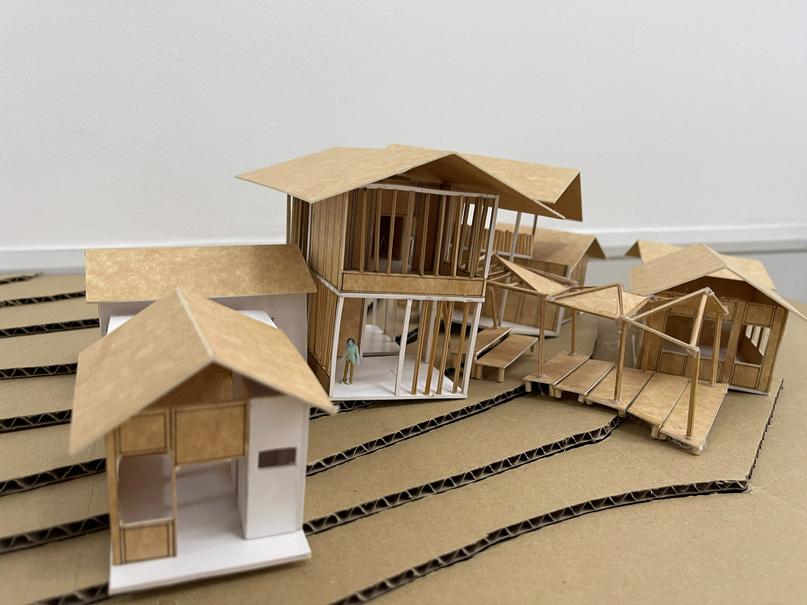

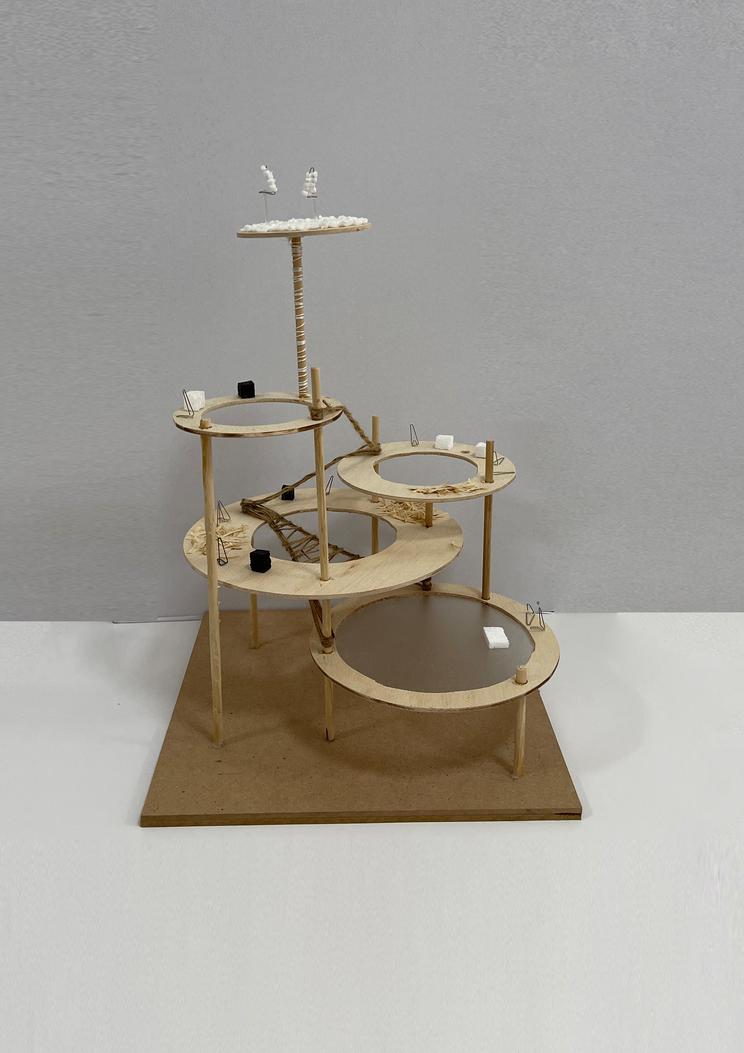

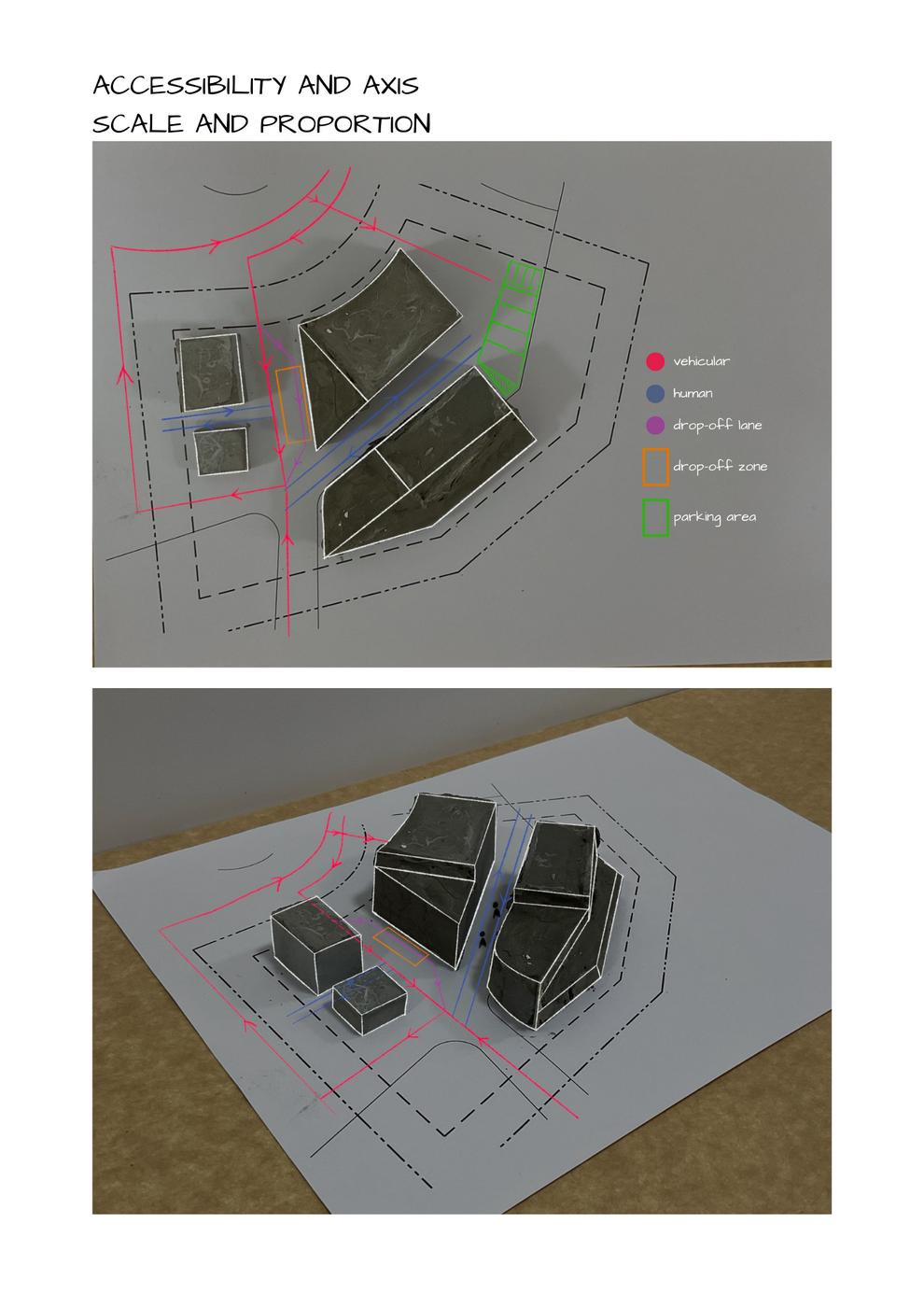

I N T R O D U C T I O N

the

the business of

of area of

in

are expected to

this project

will have the

enhance the existing condition of the

techniques to communicate

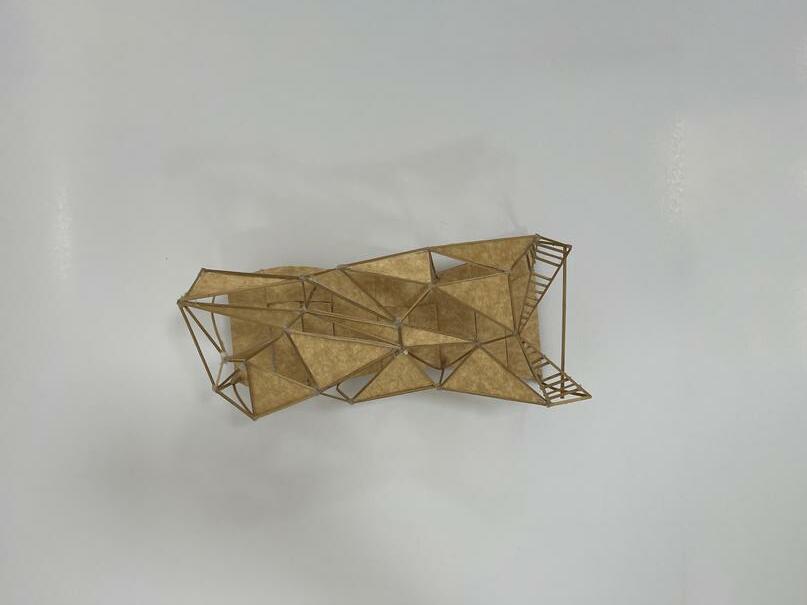

design

ideation in your proposal.

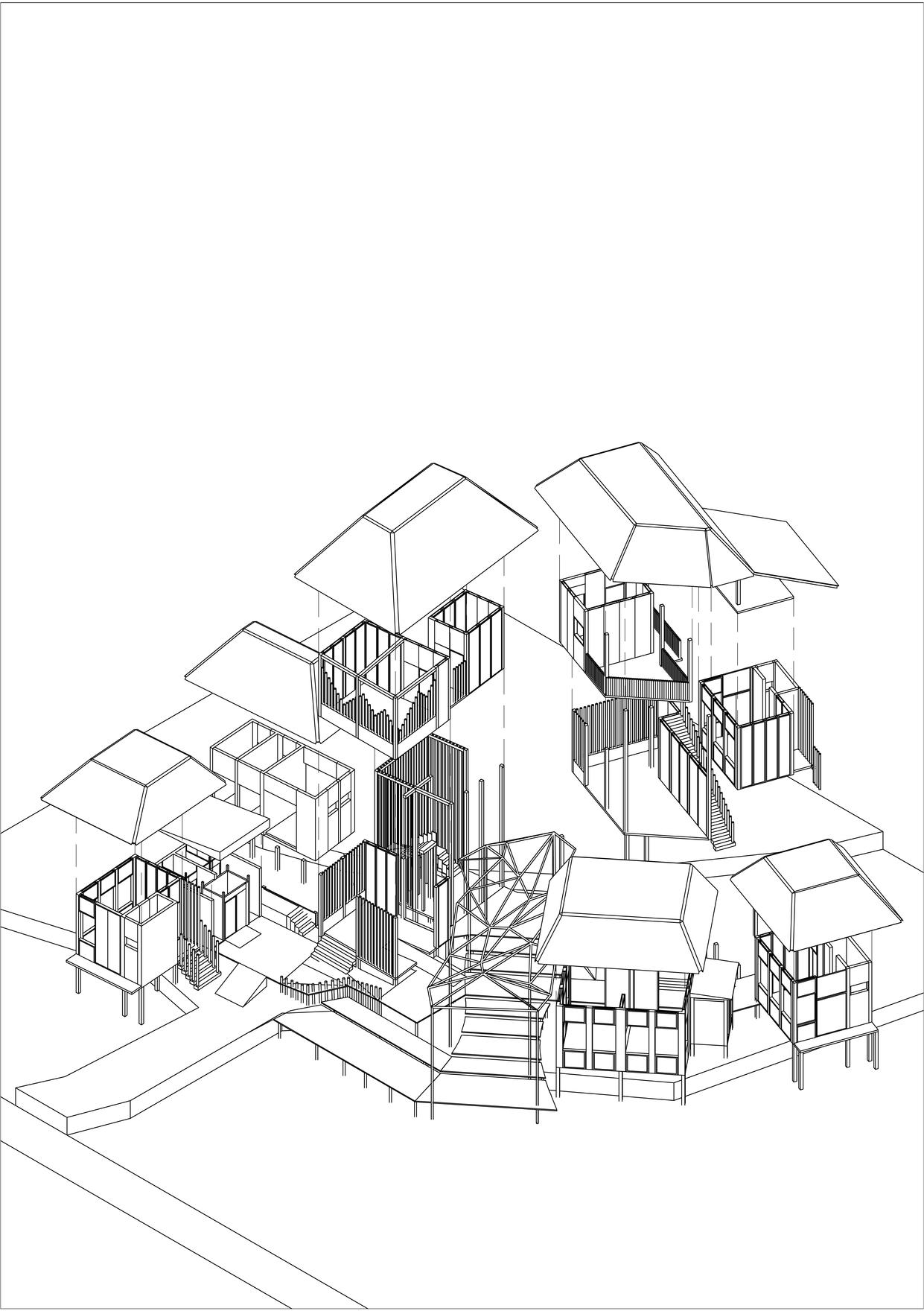

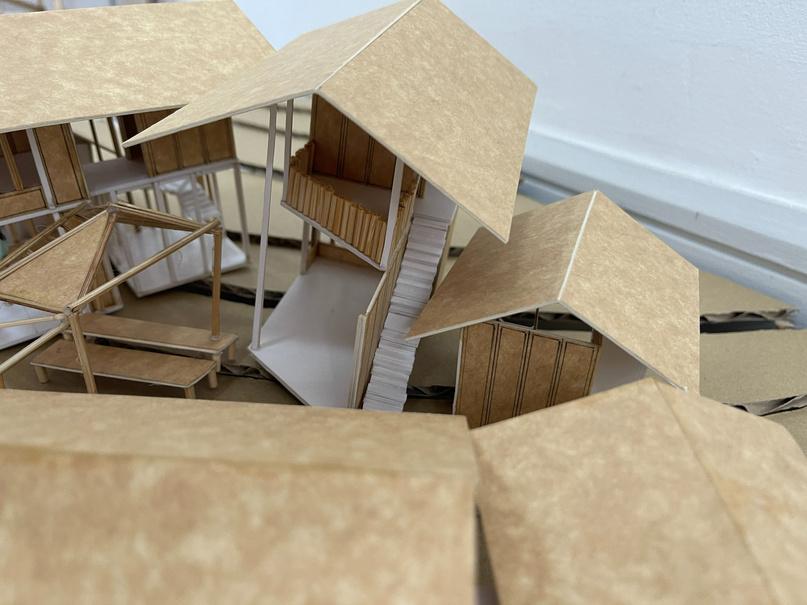

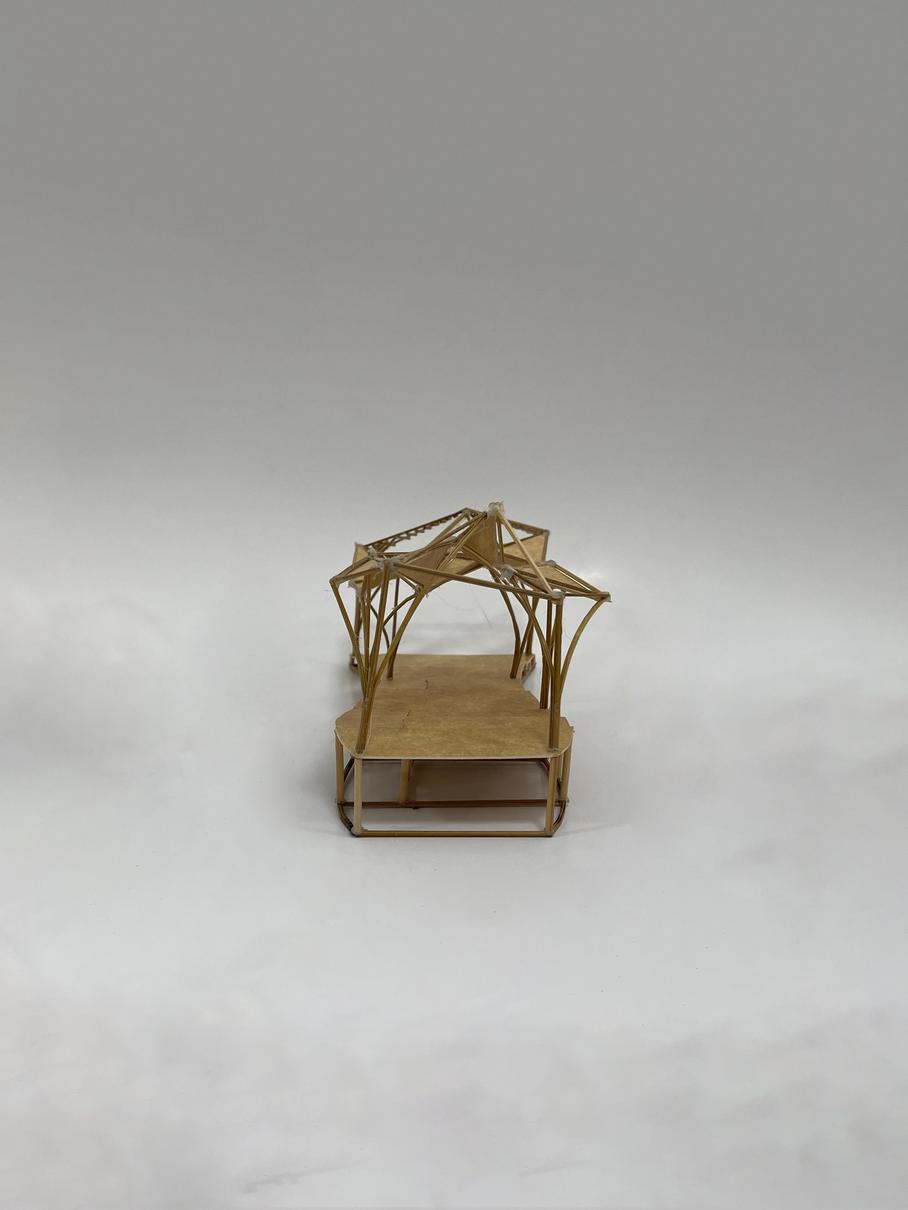

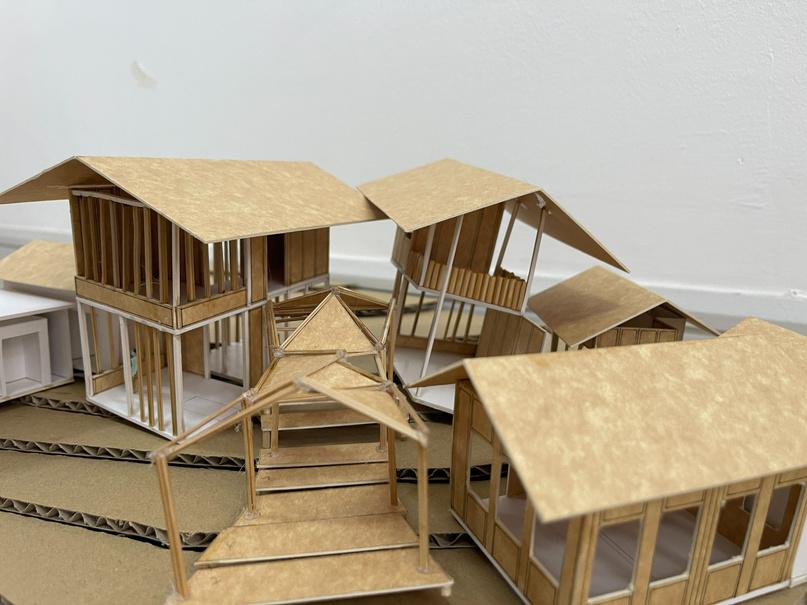

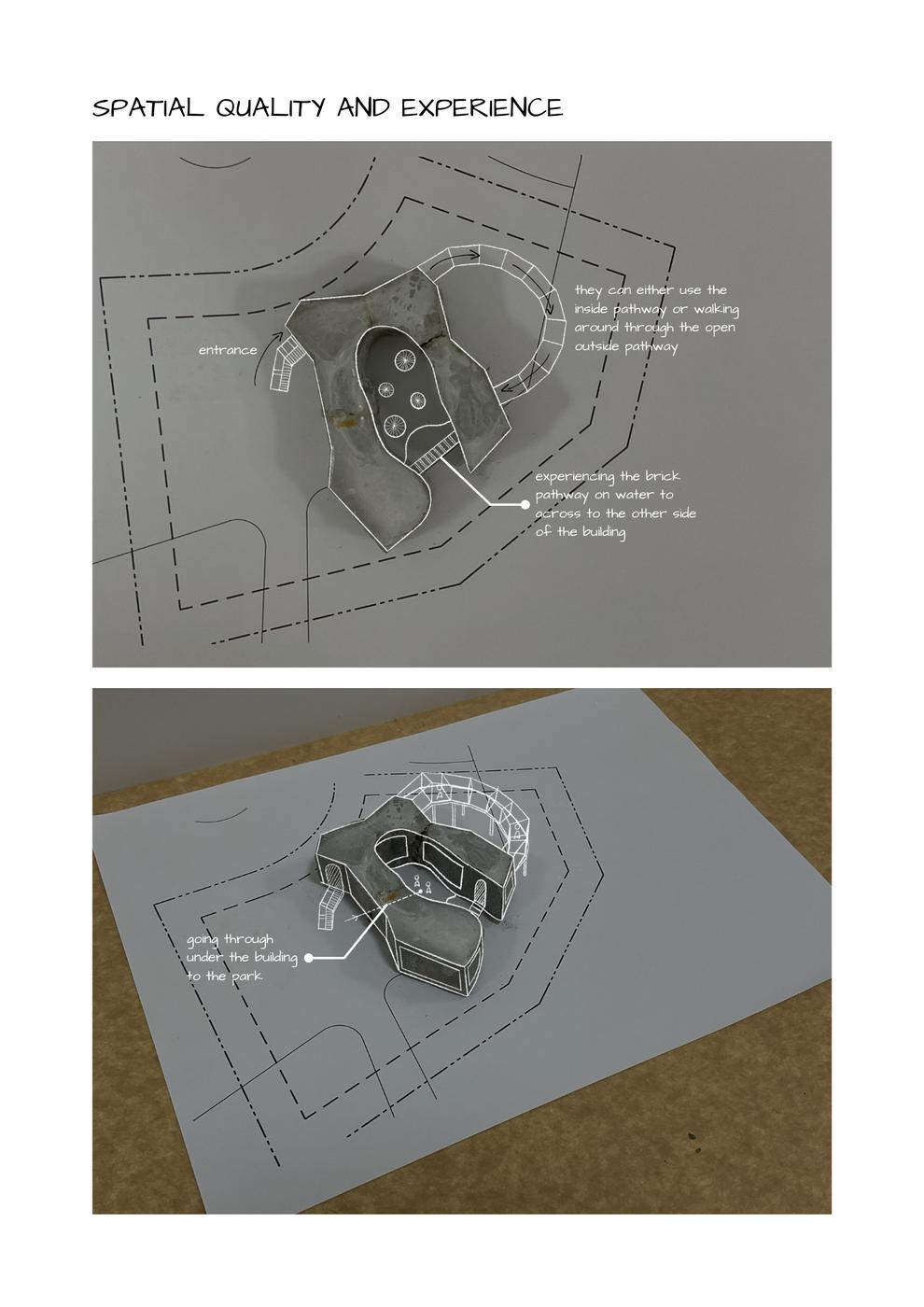

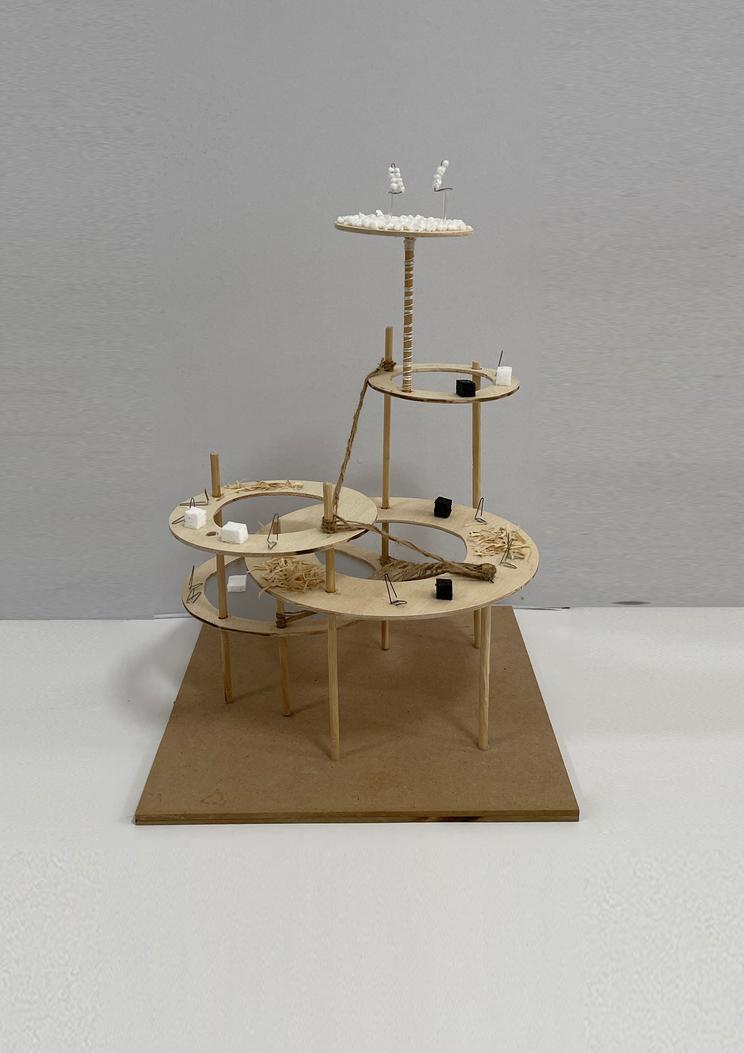

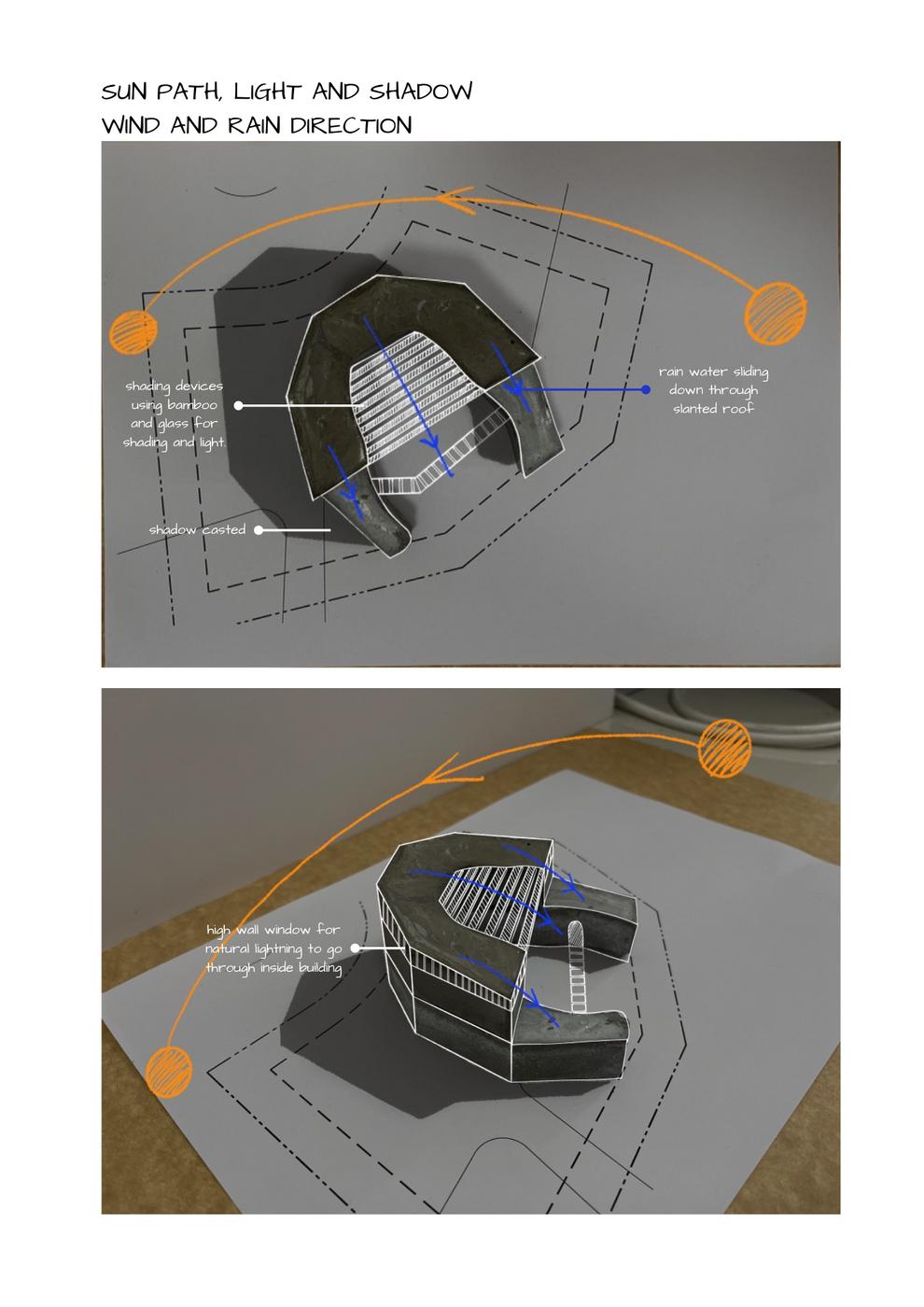

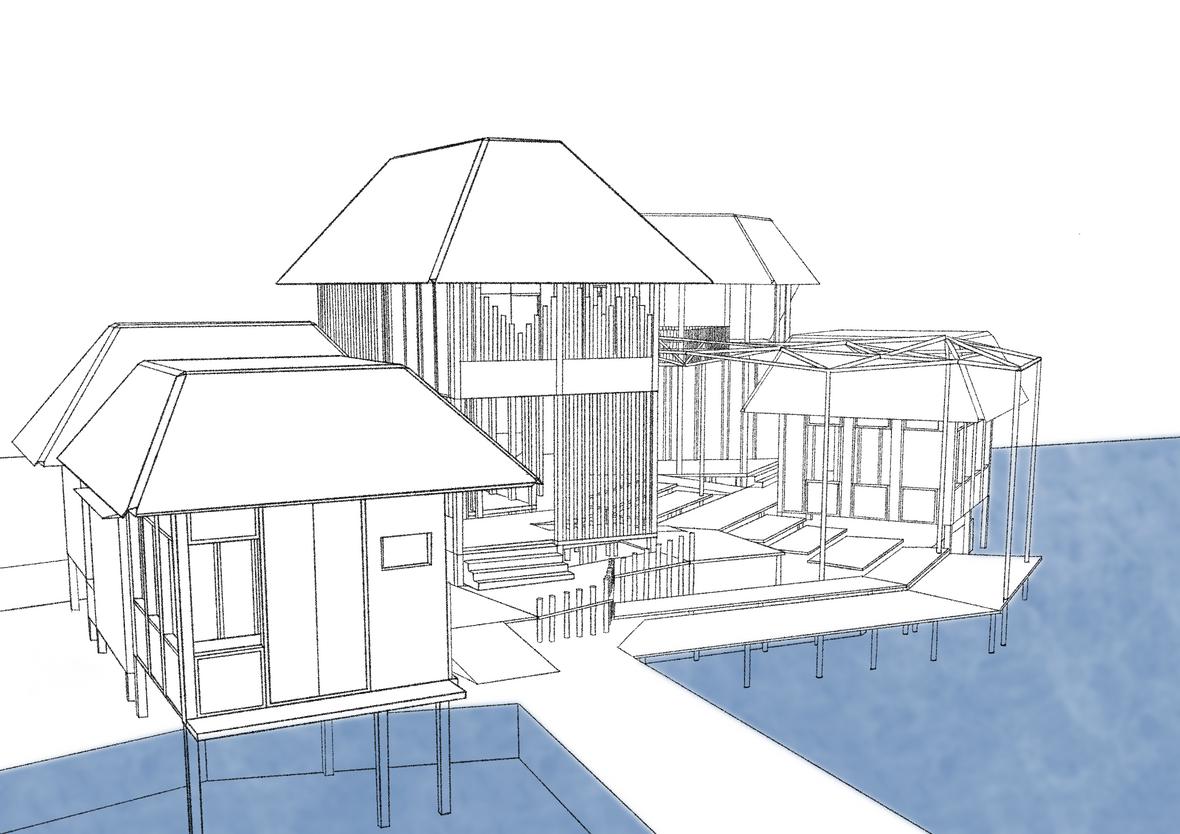

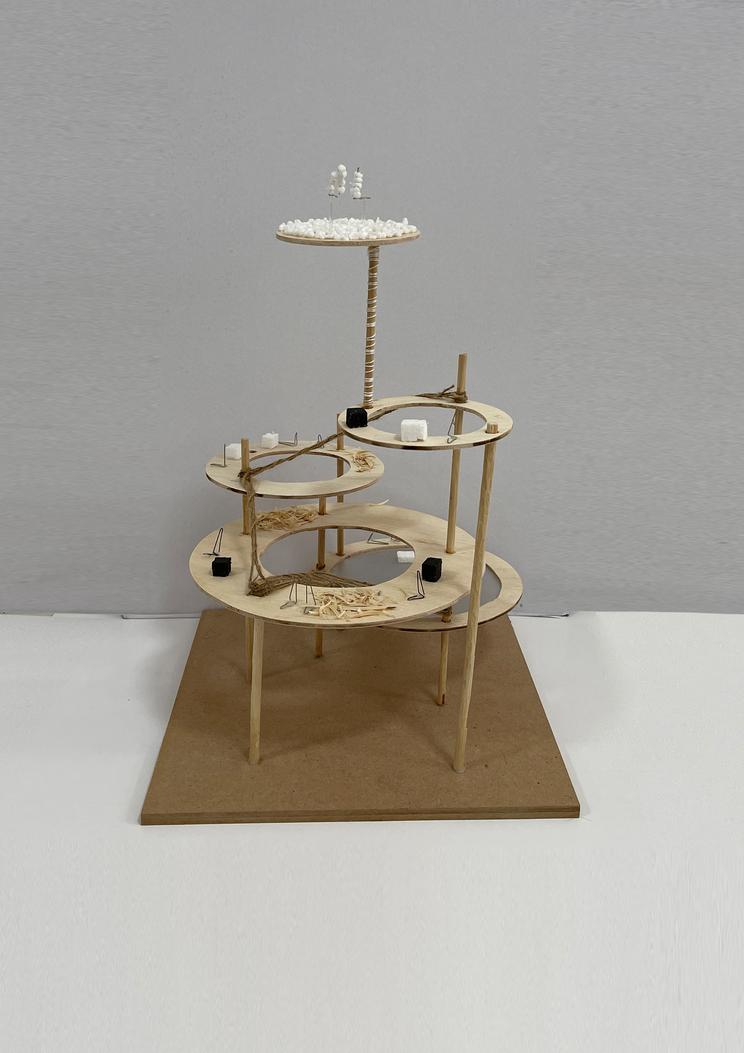

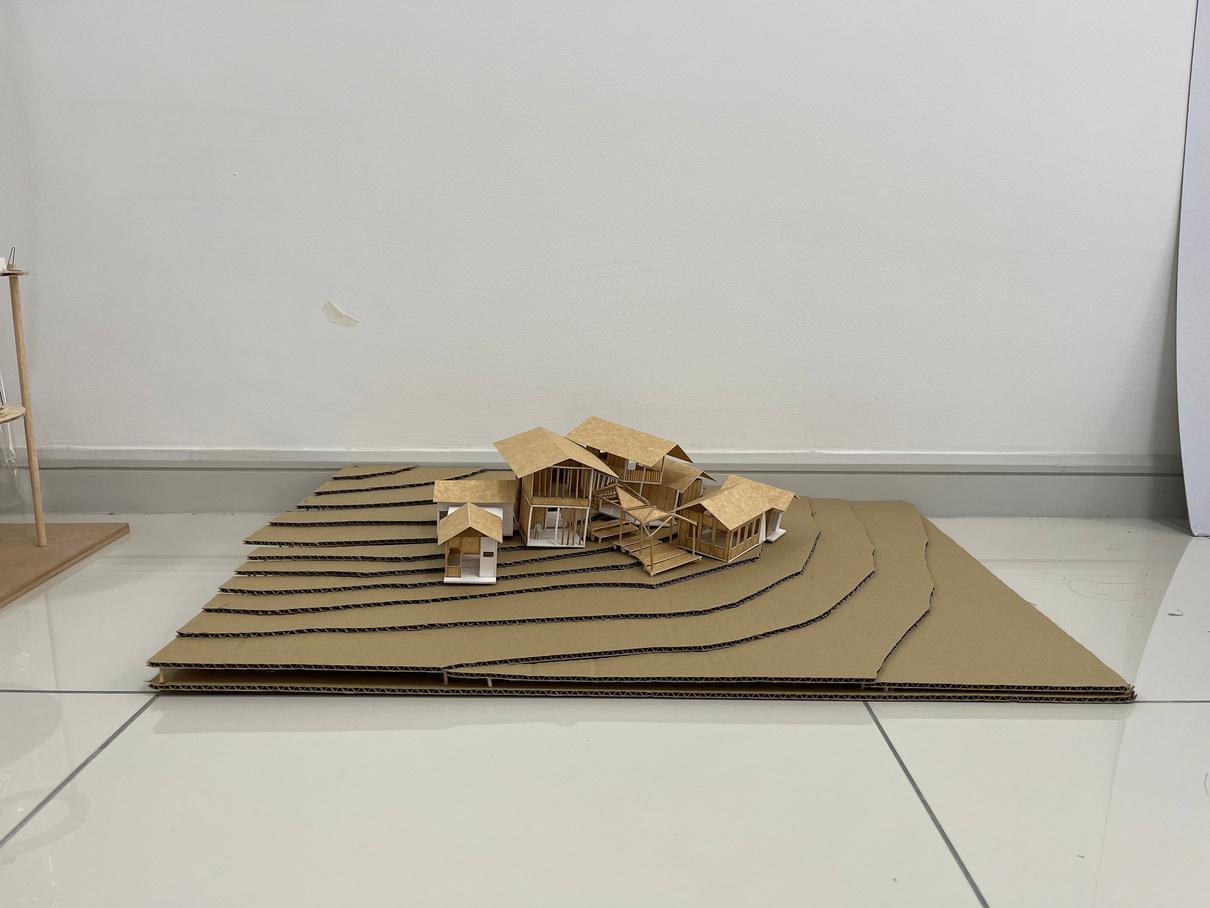

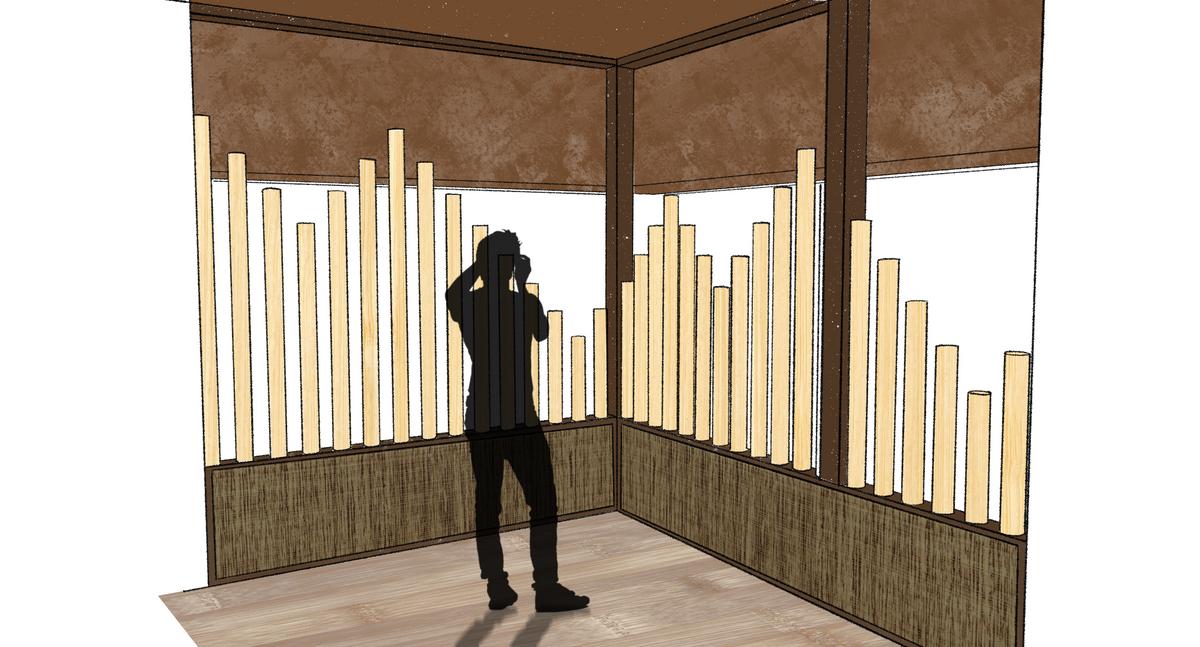

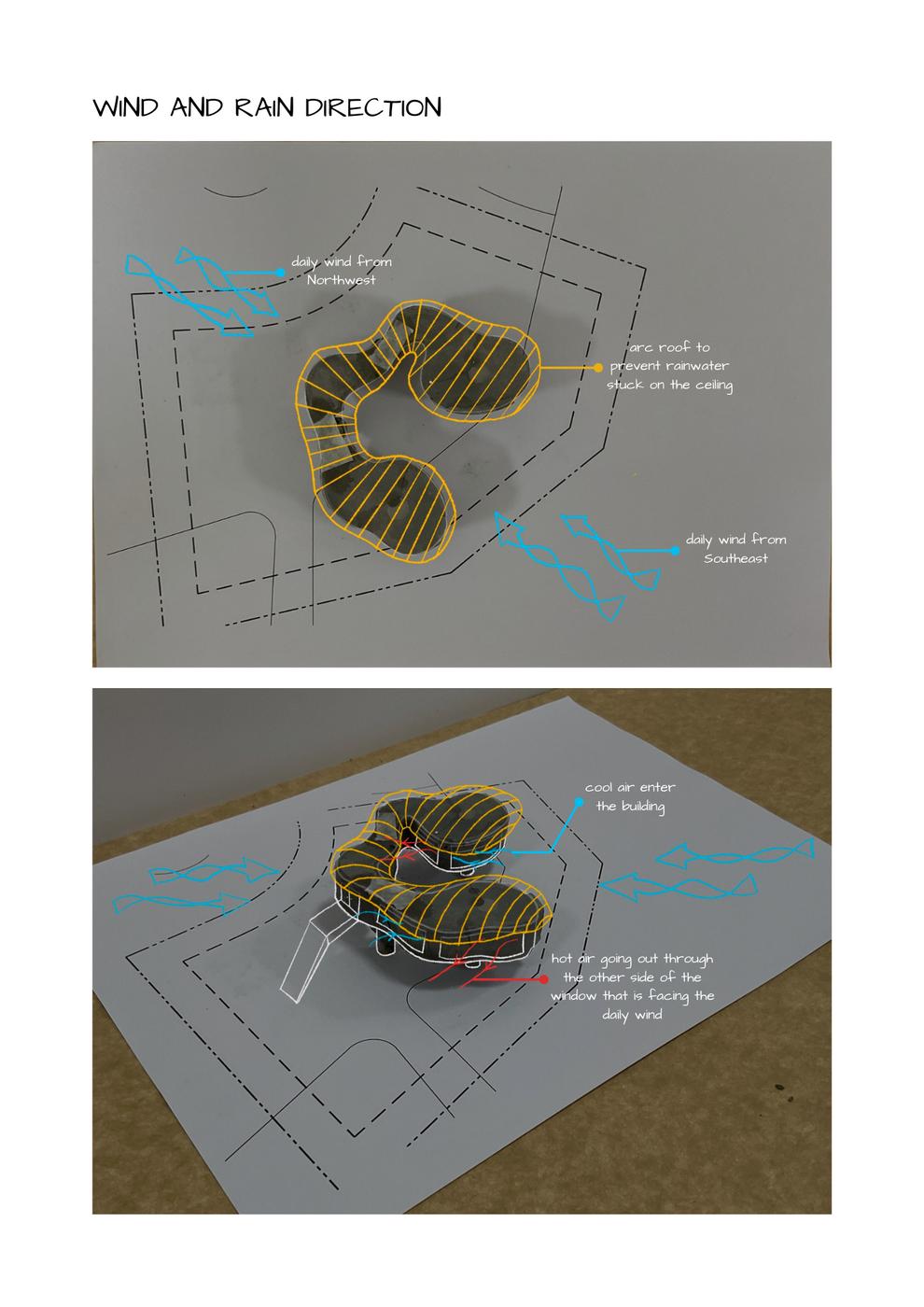

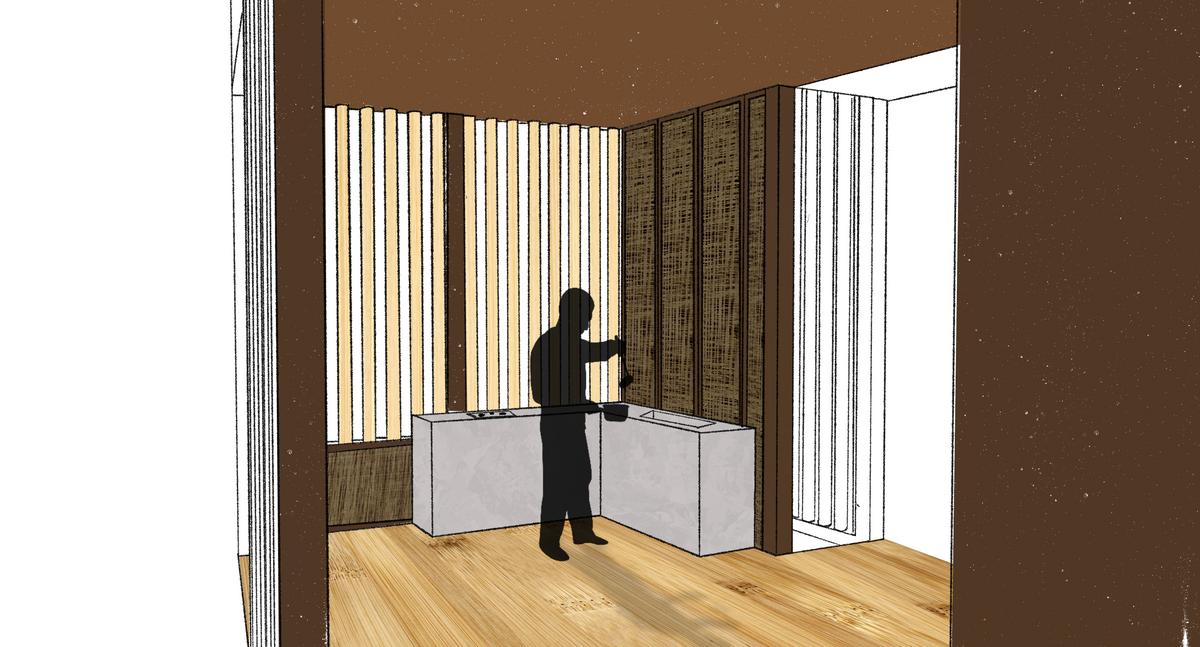

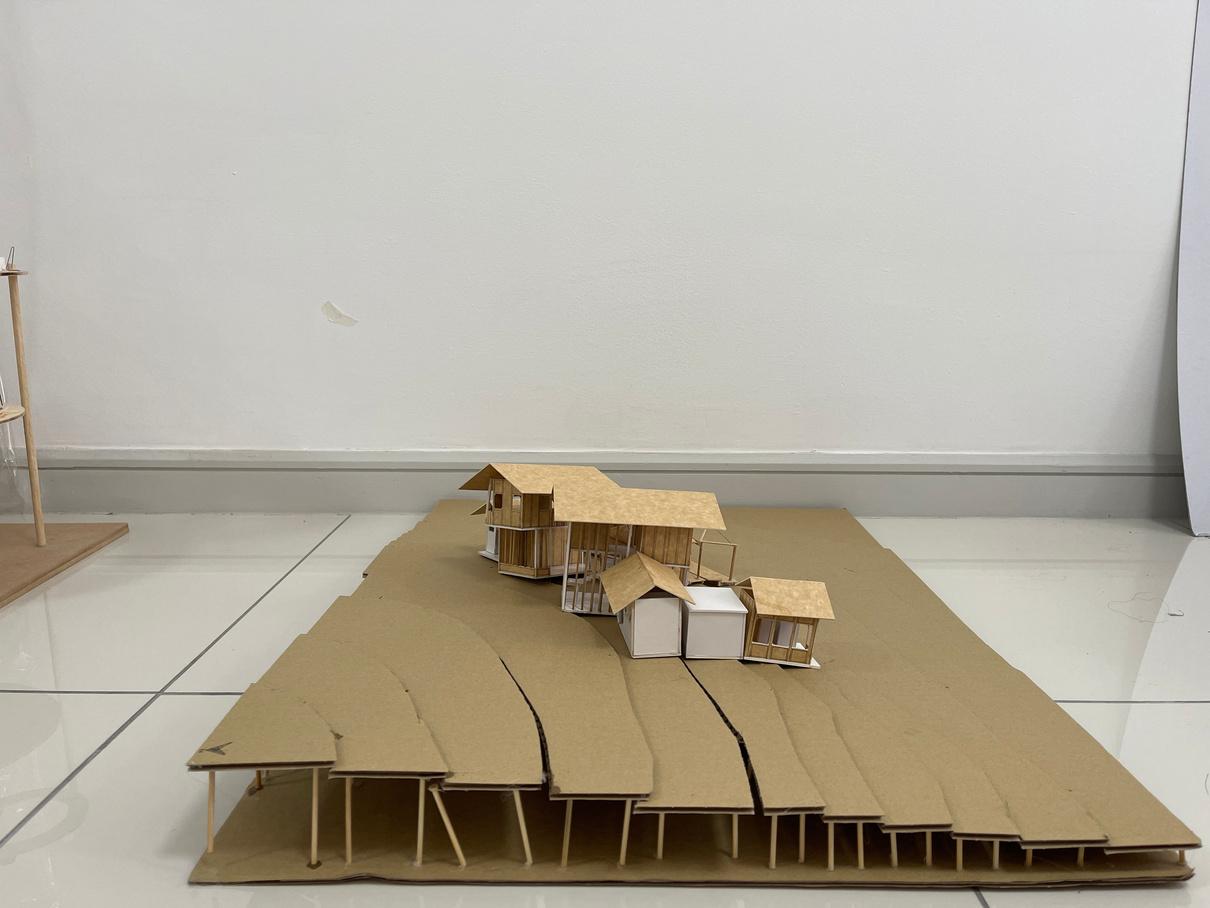

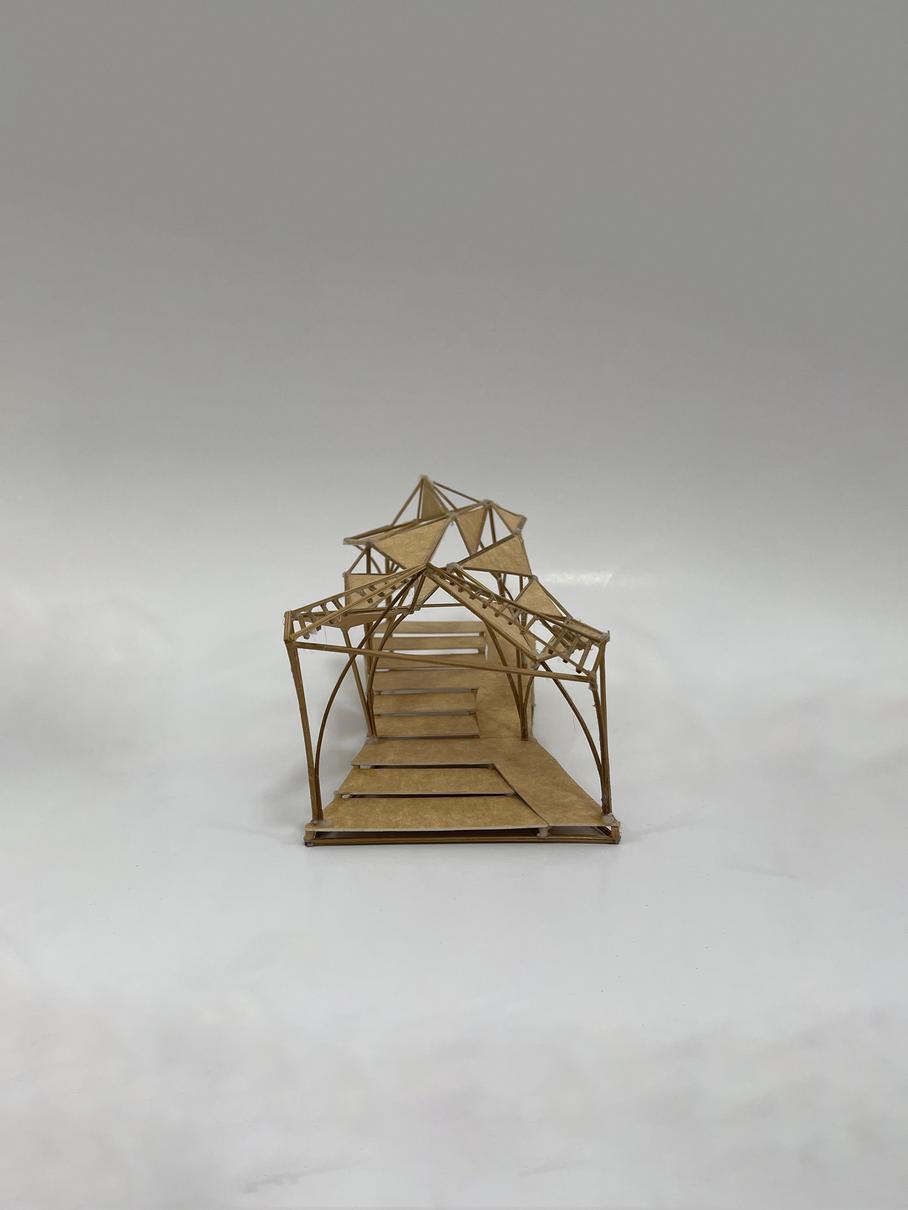

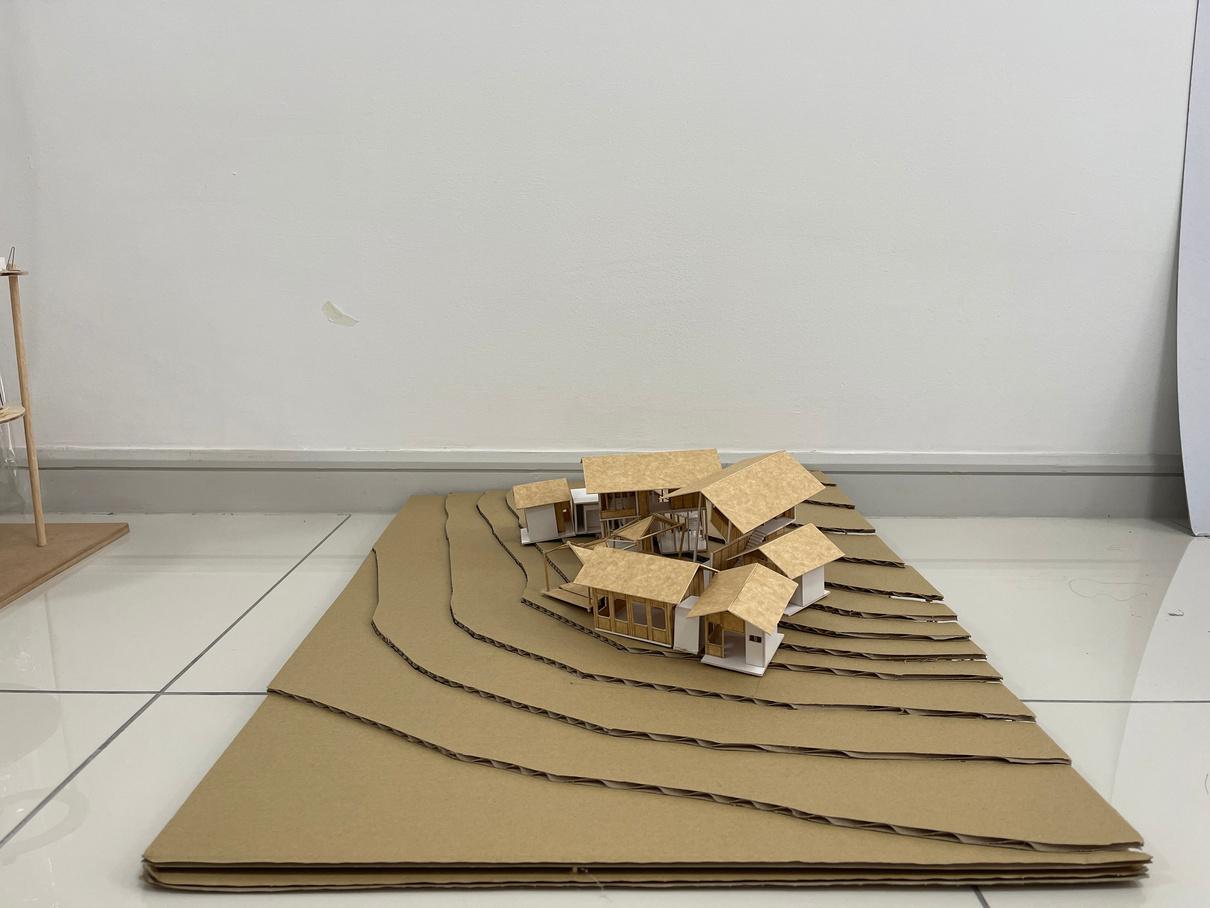

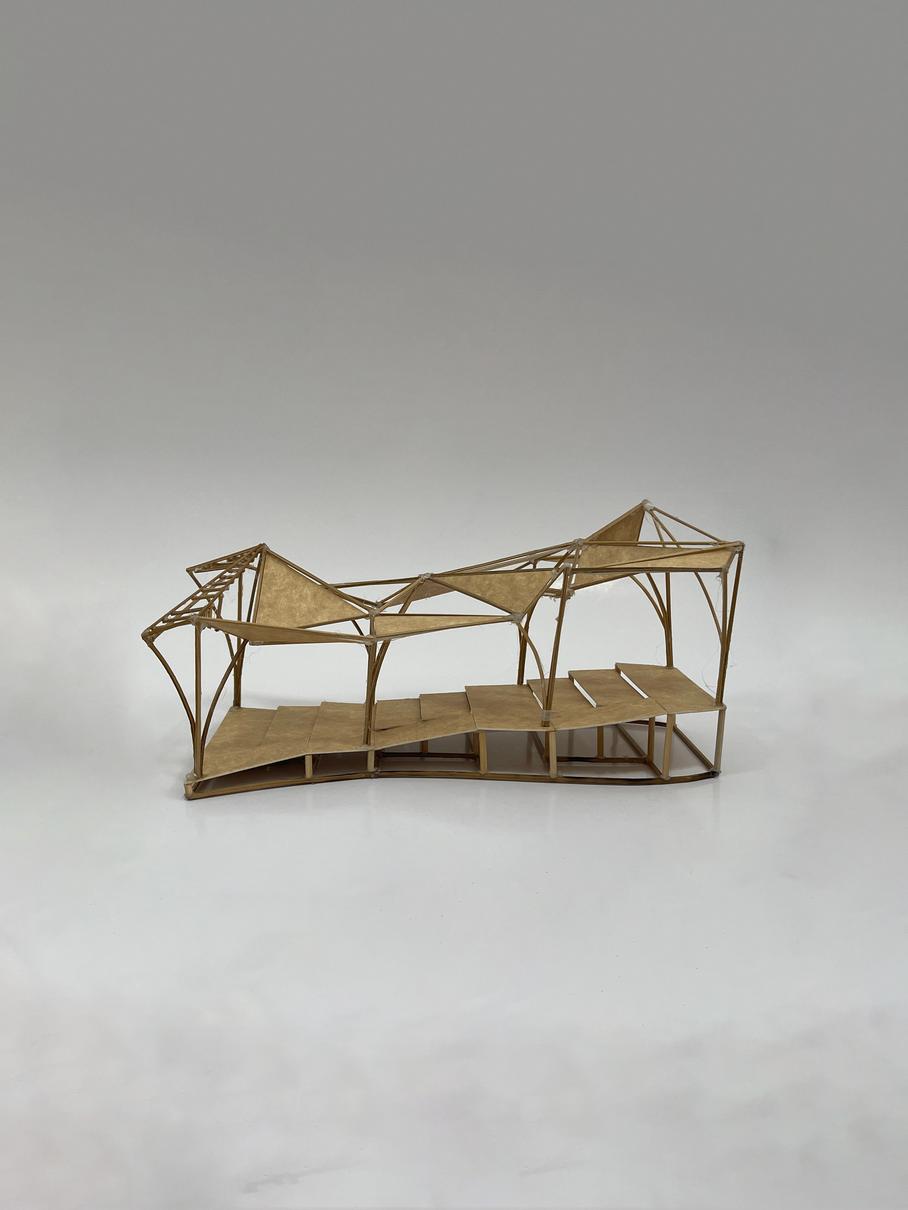

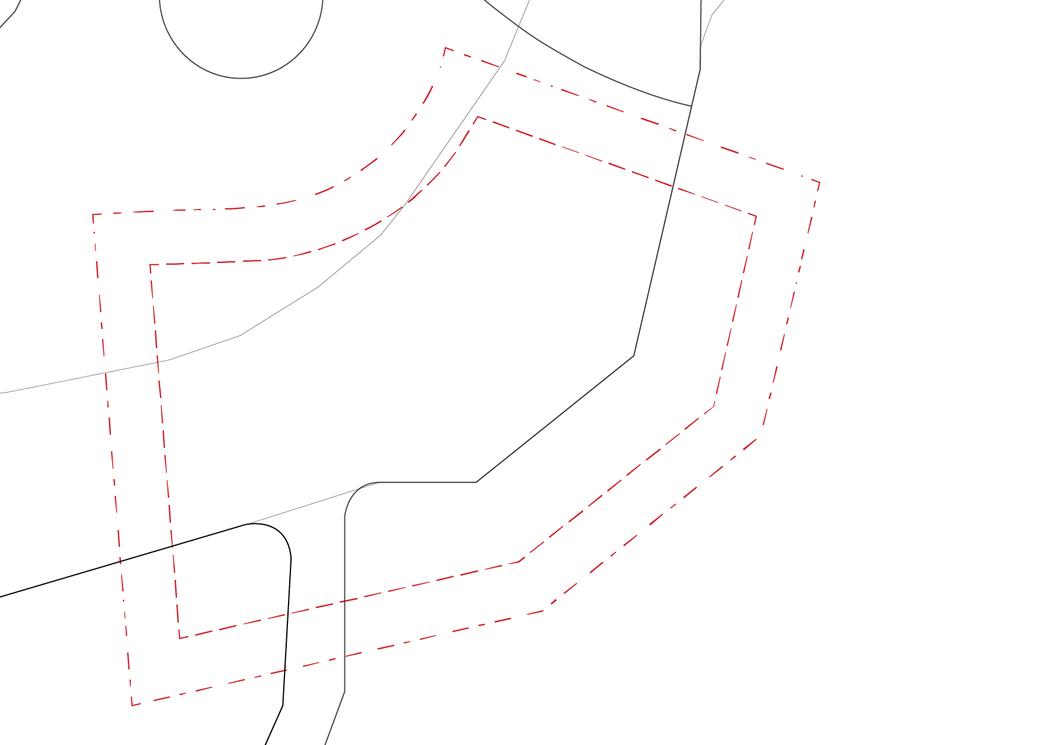

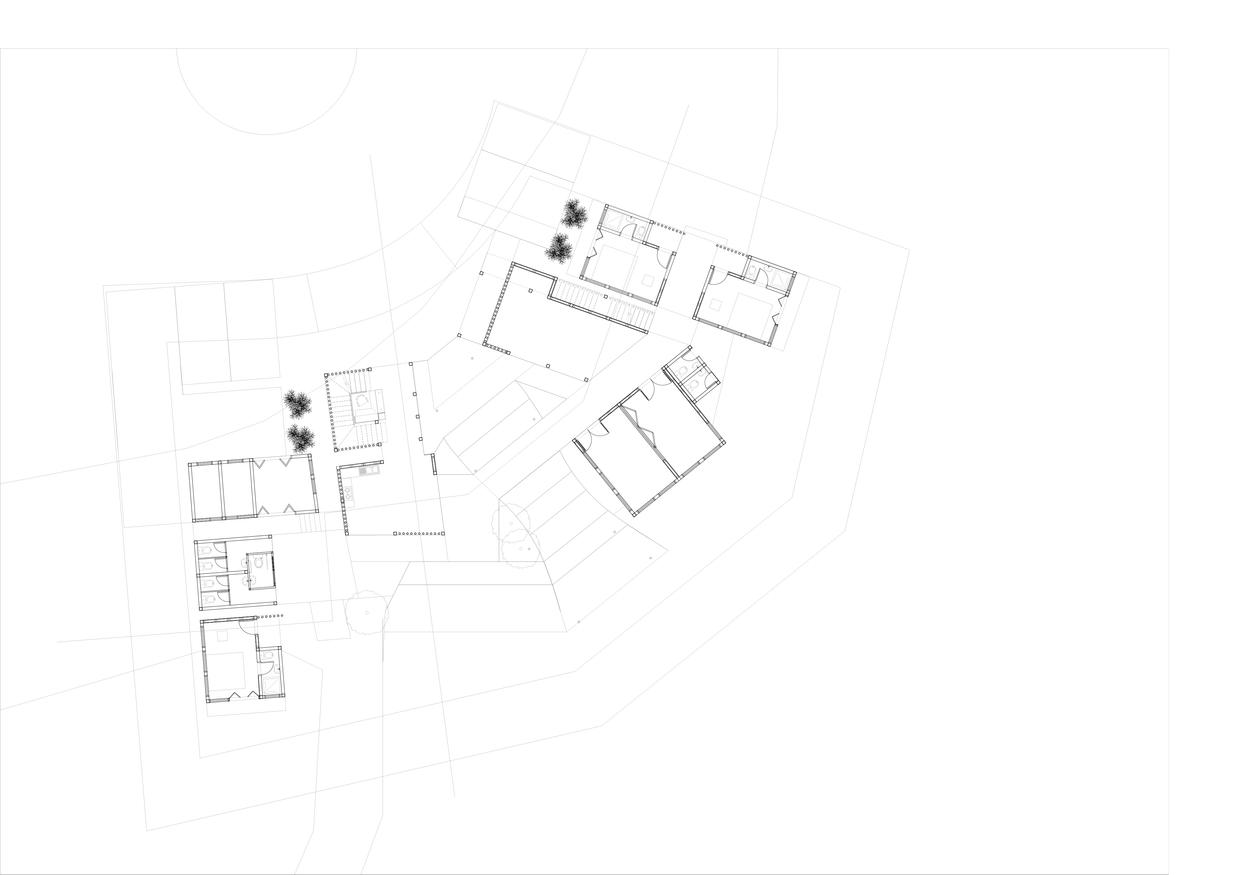

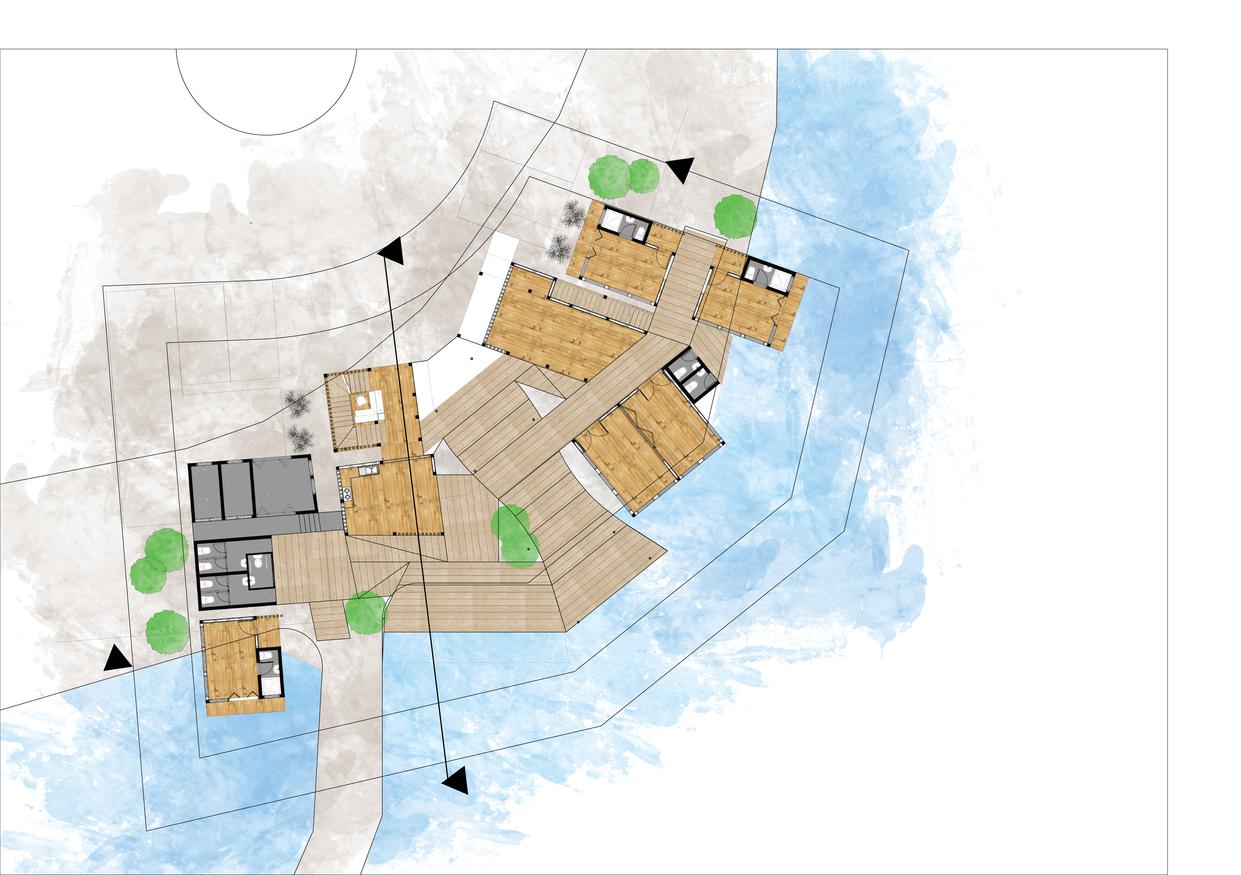

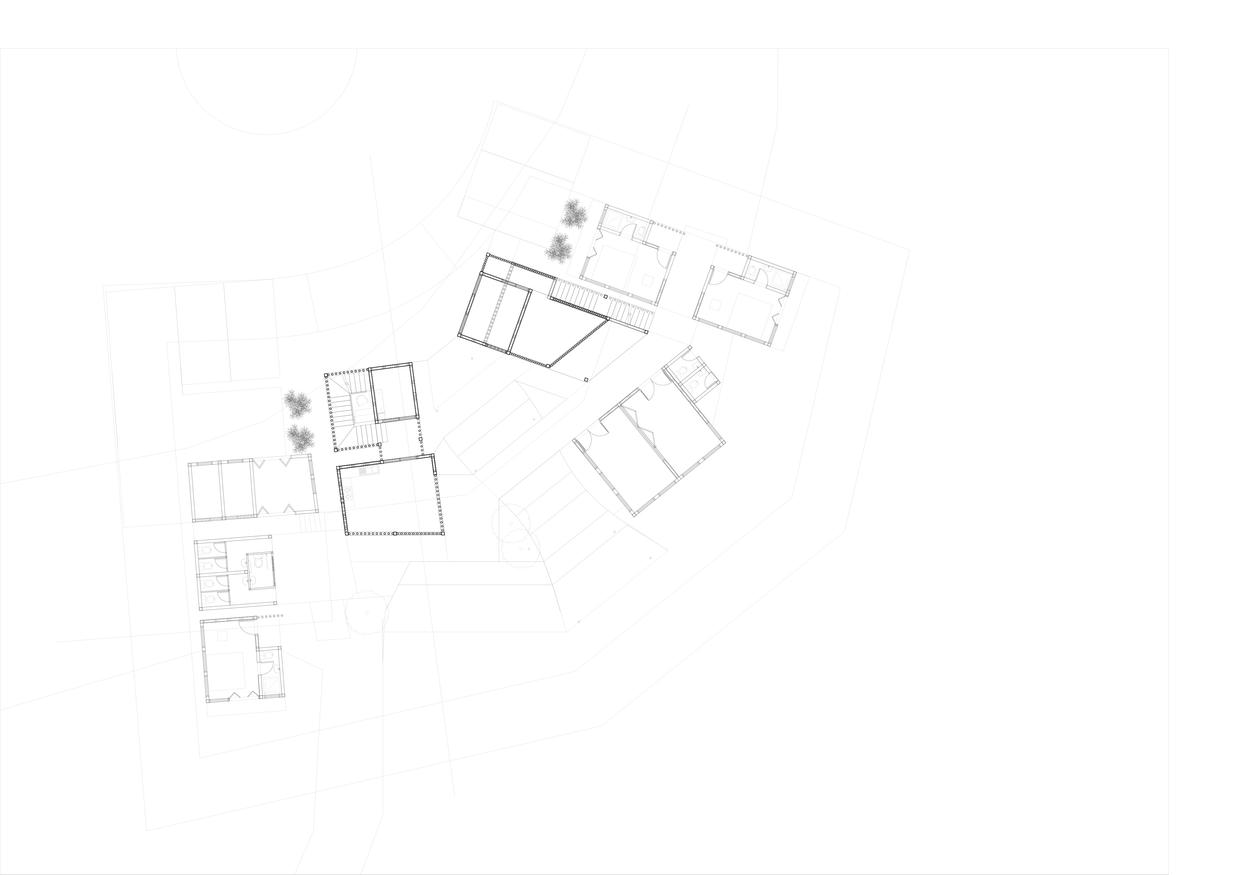

GROUND FLOOR PLAN A5 @1:300

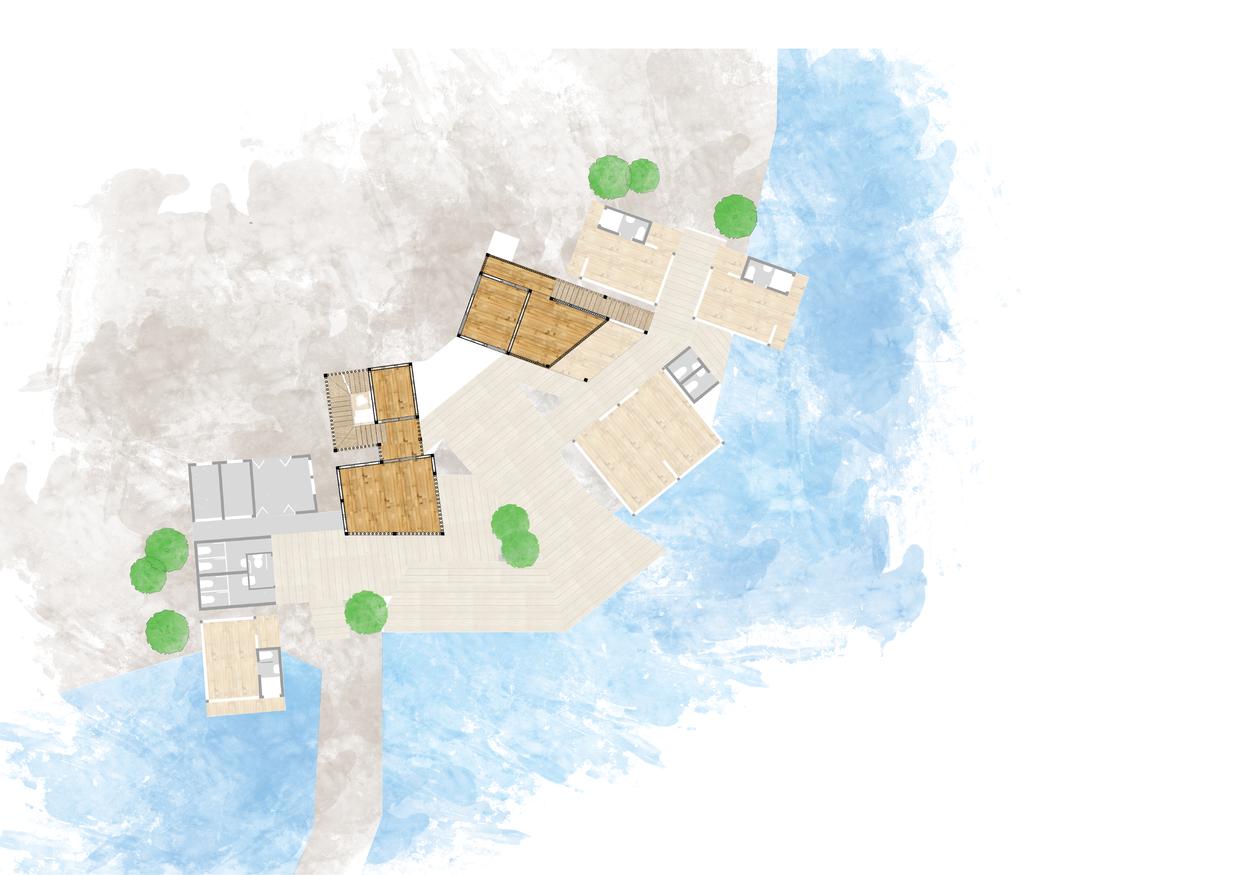

FIRST FLOOR PLAN A5 @1:300

GROUND FLOOR PLAN A5 @1:300

FIRST FLOOR PLAN A5 @1:300

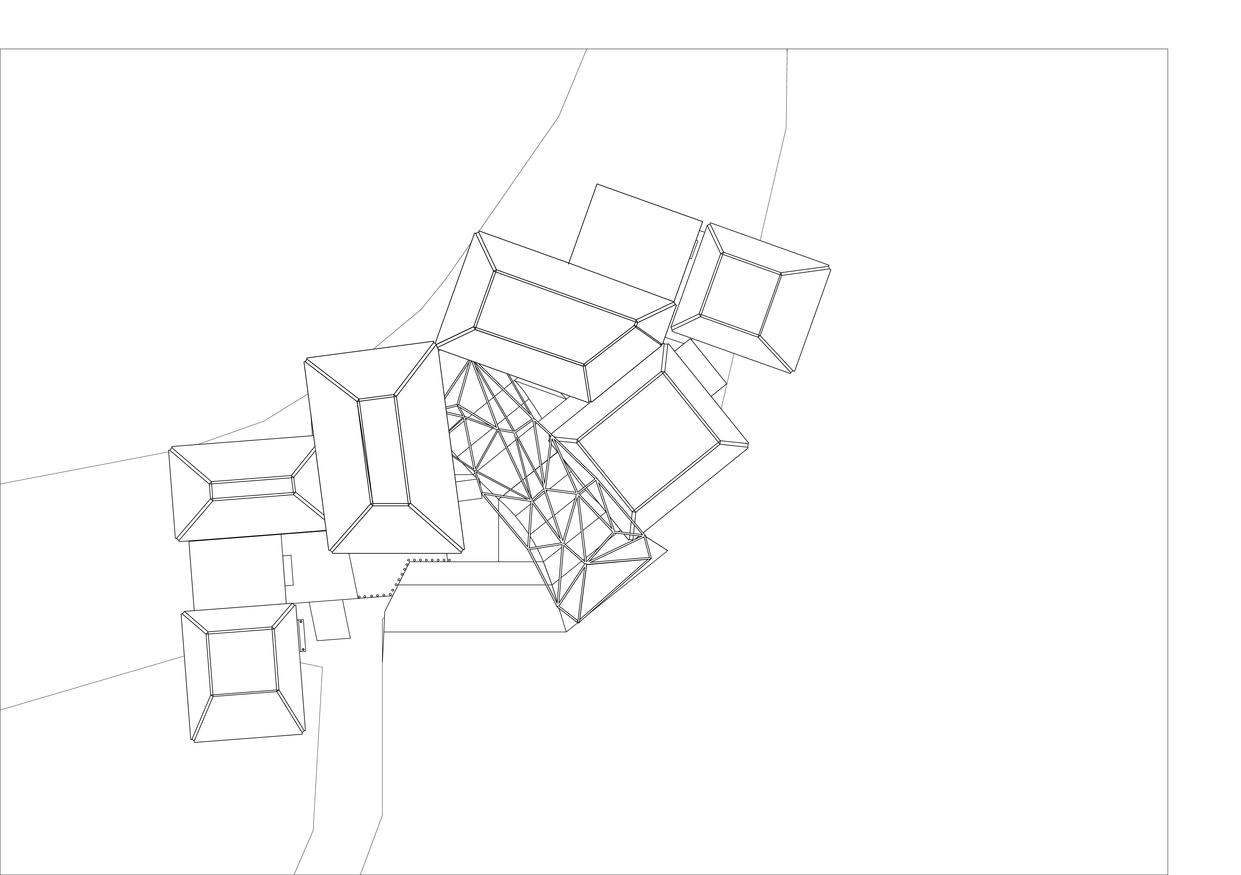

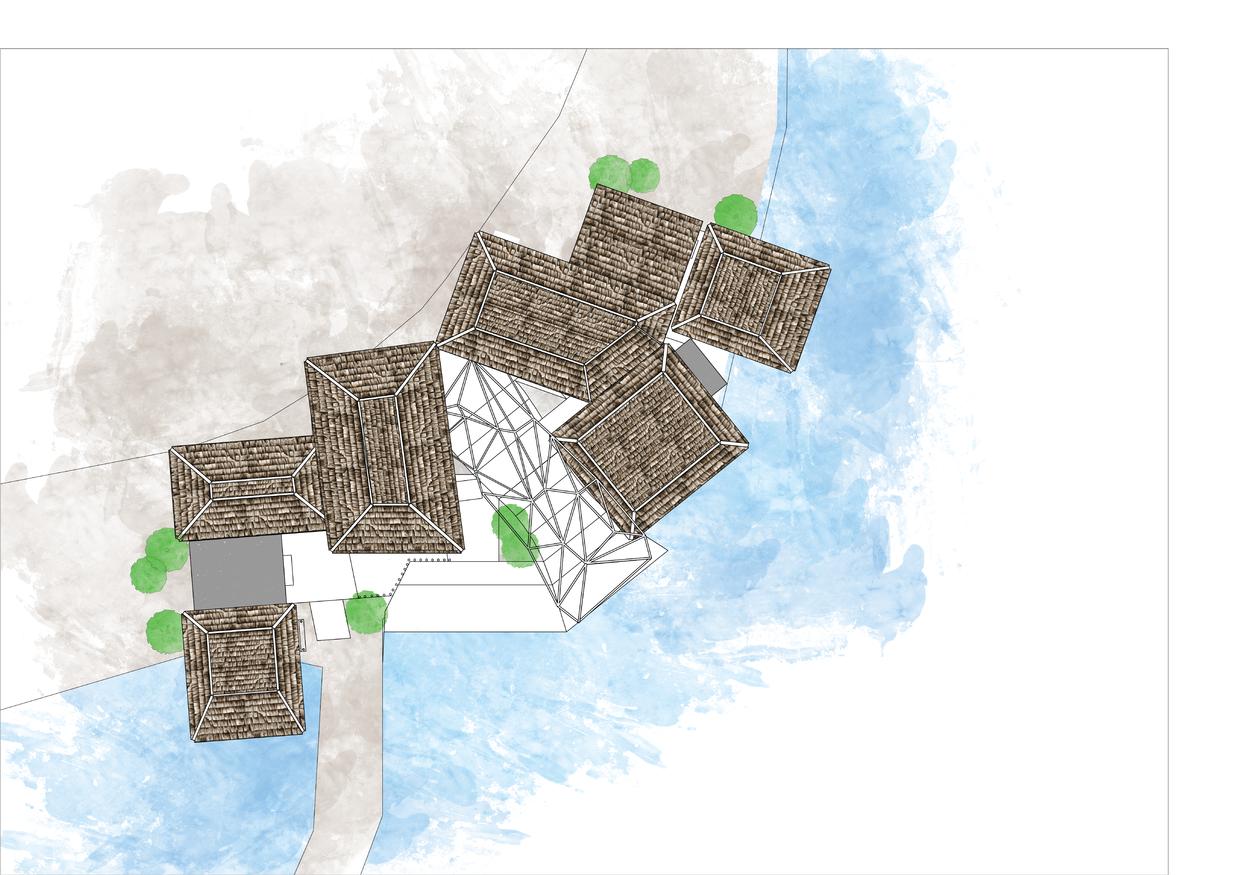

ROOF PLAN A5 @1:300

ROOF PLAN A5 @1:300

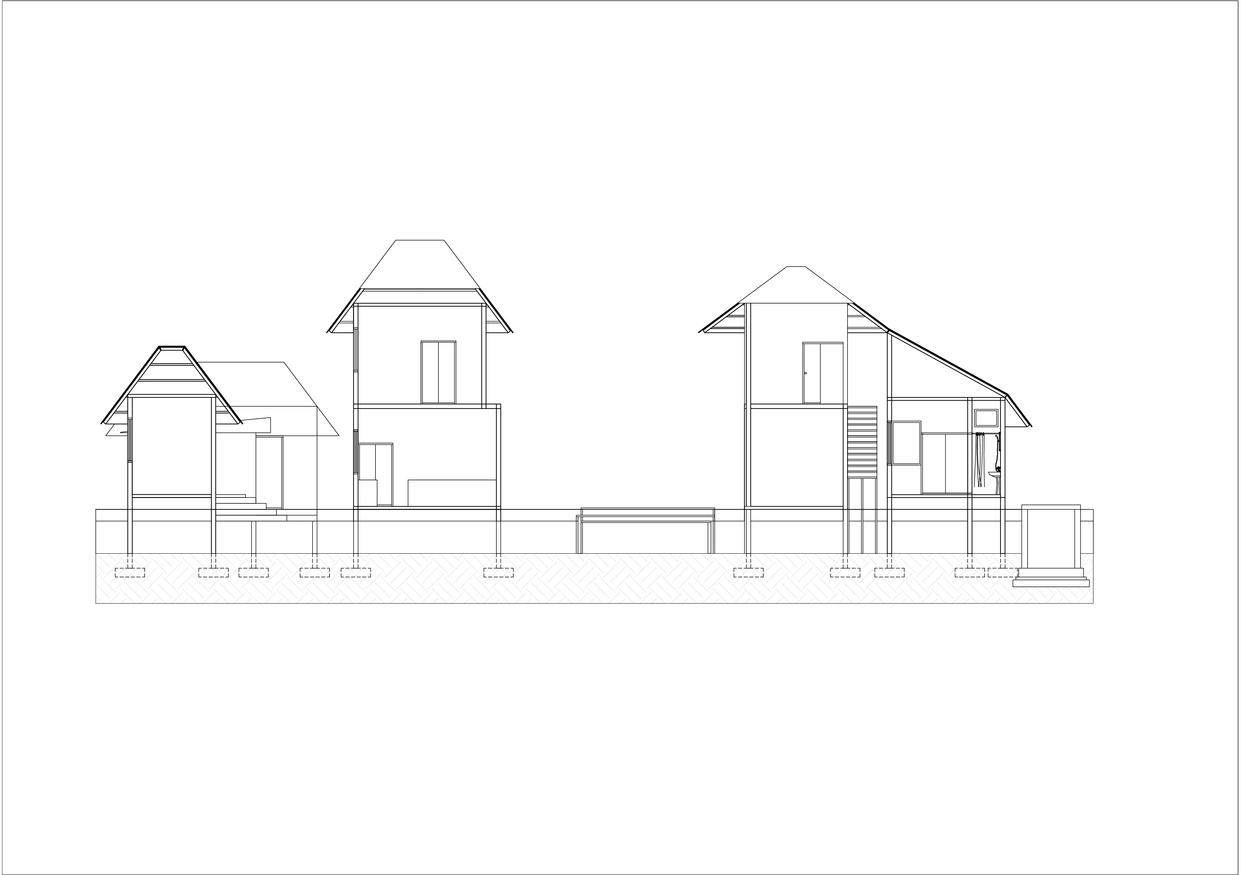

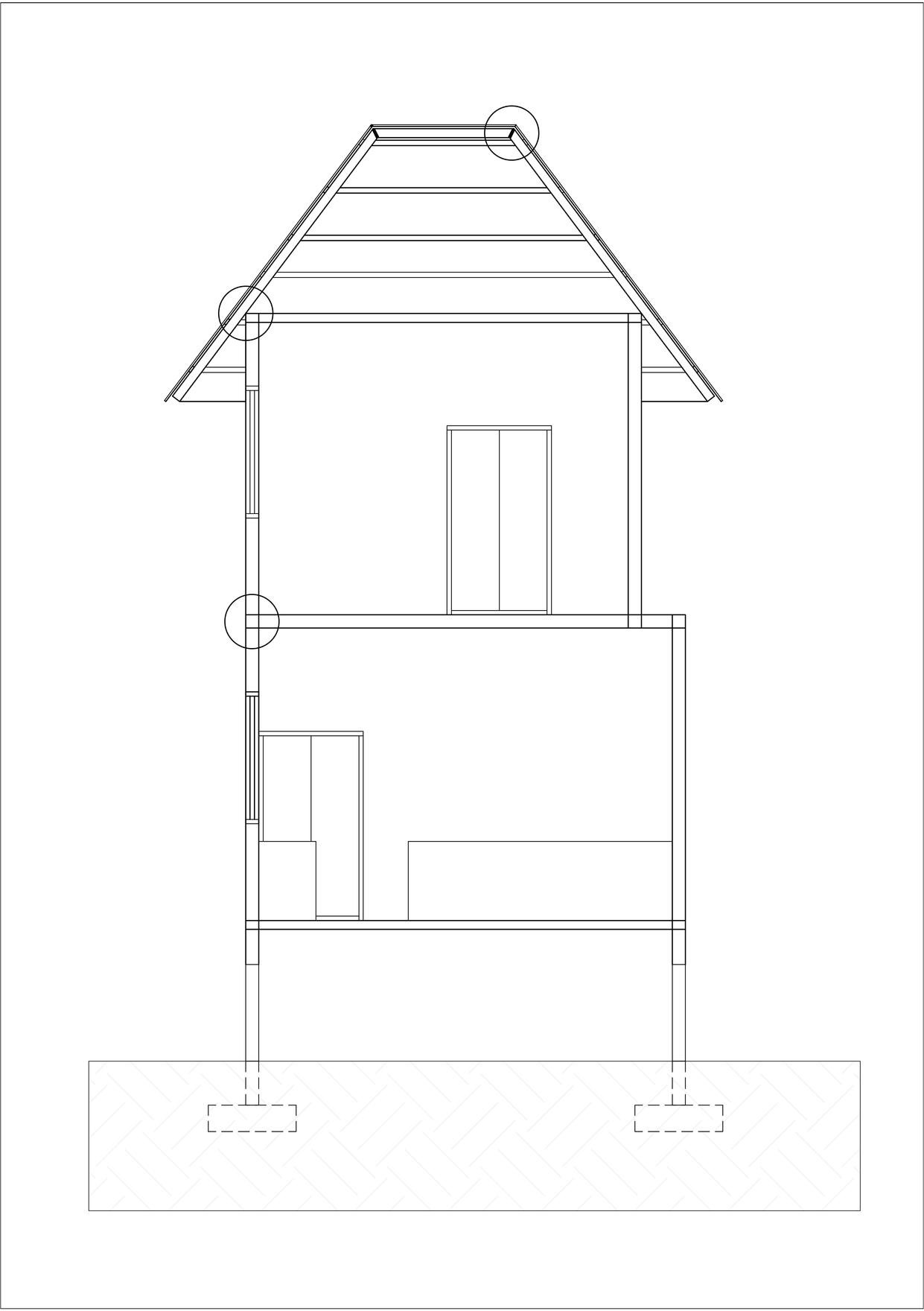

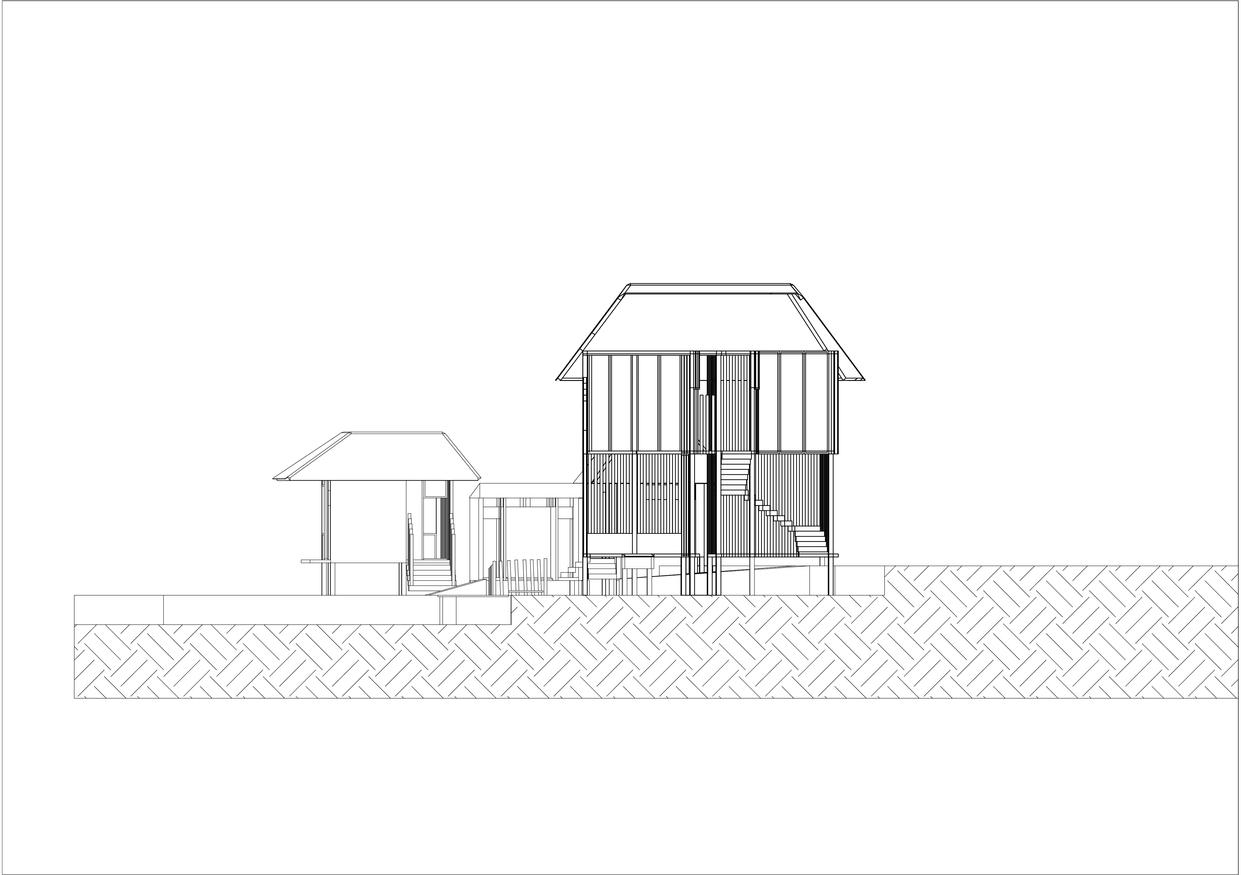

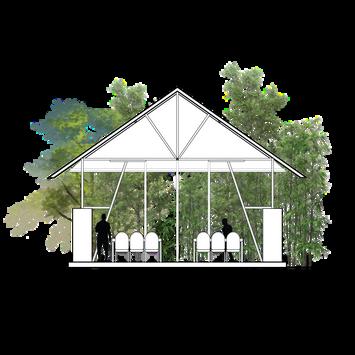

SECTION X X' A5 @1:200

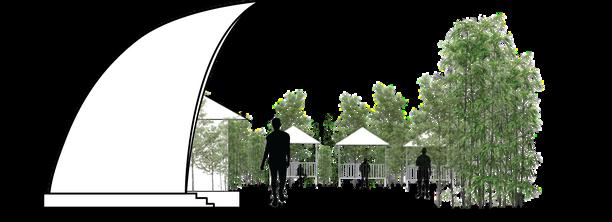

SECTION Y Y' A5 @1:200

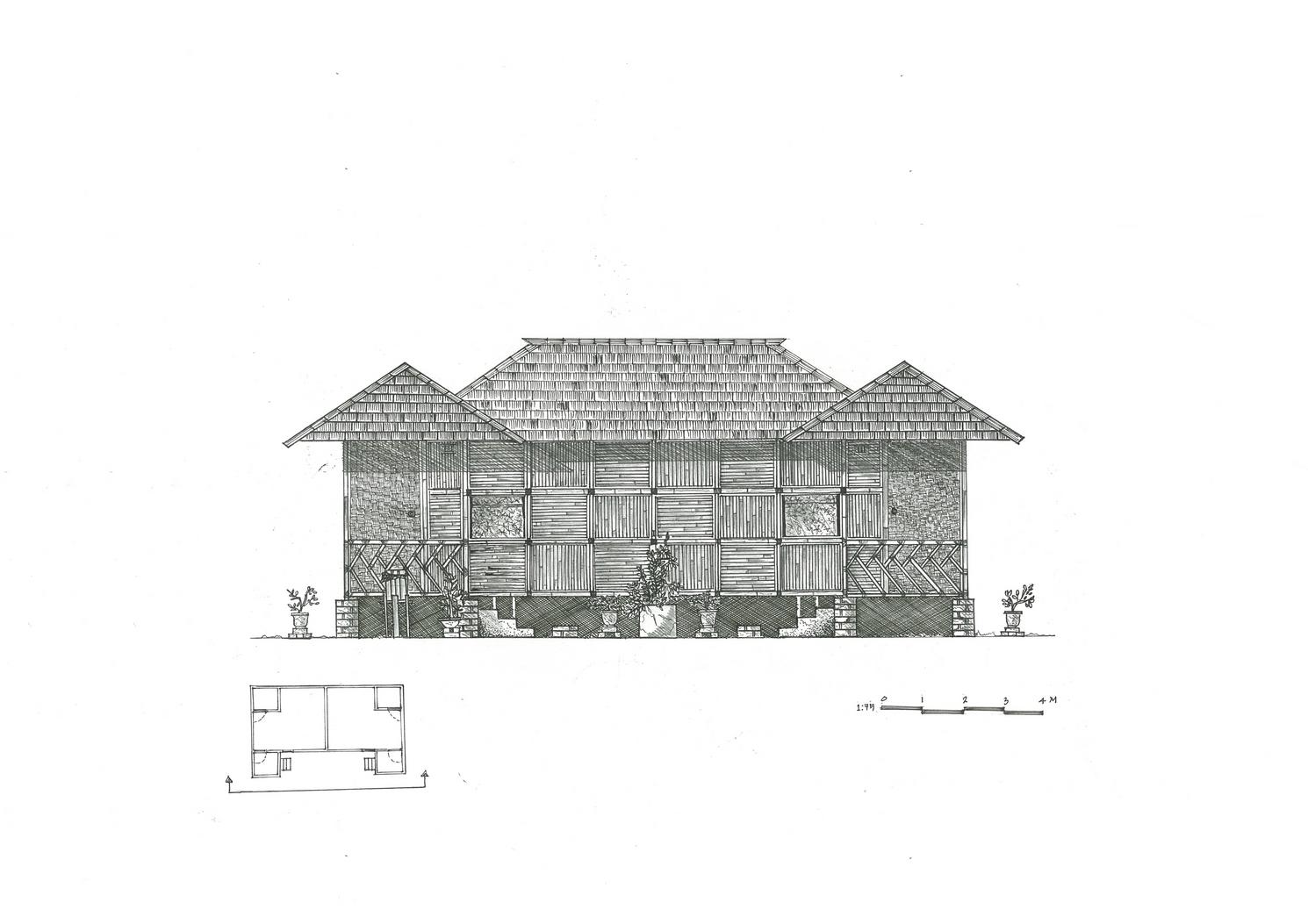

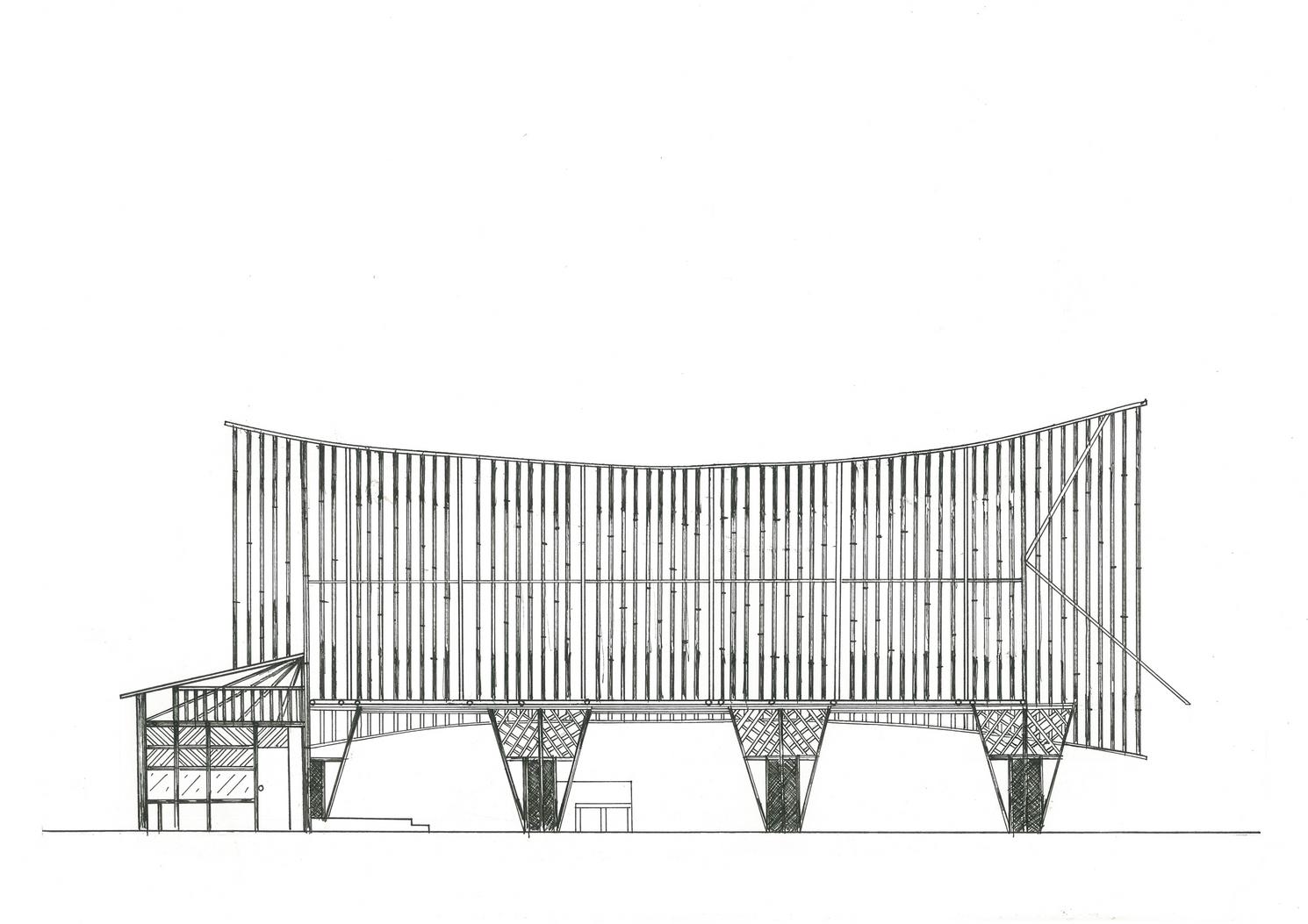

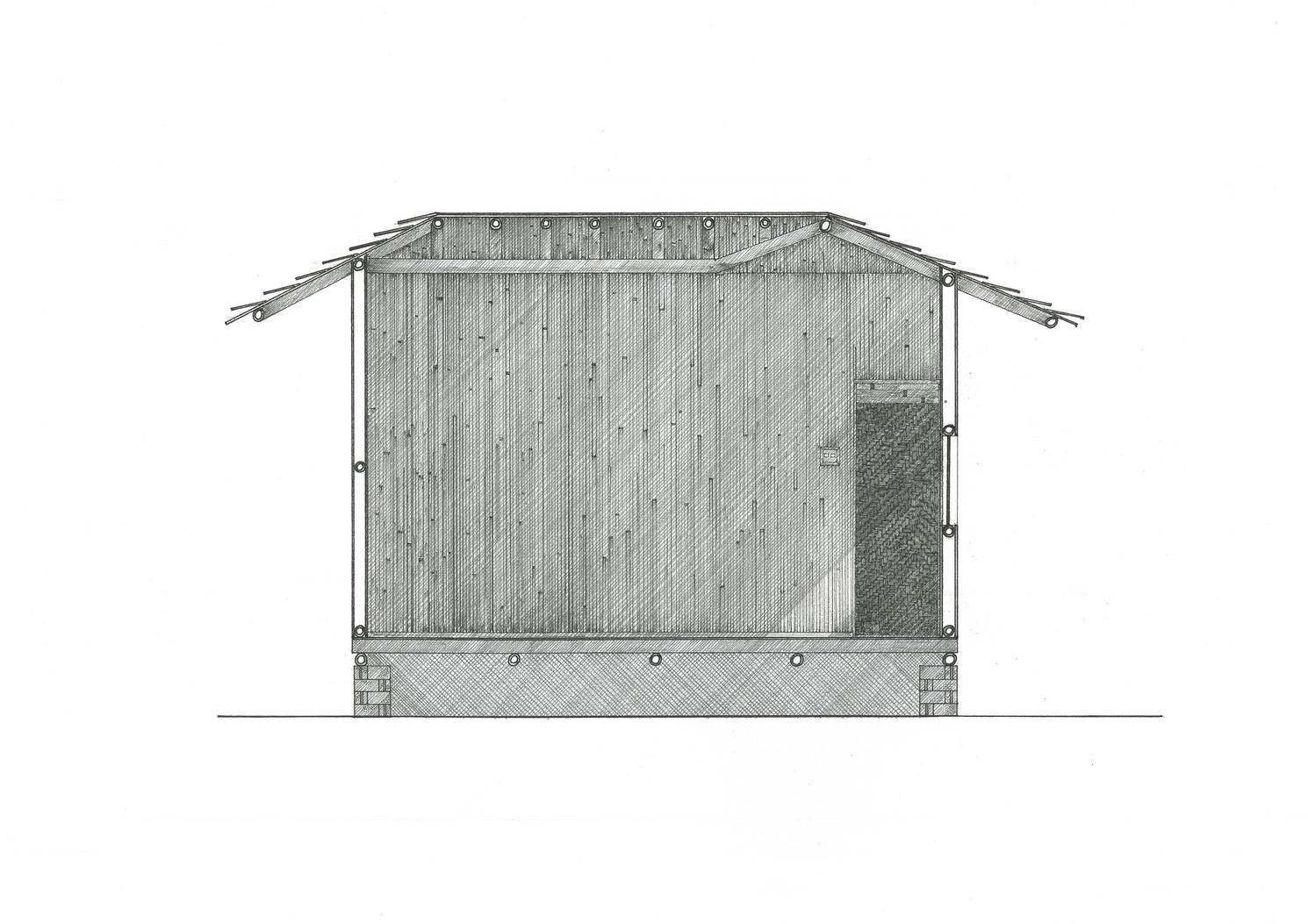

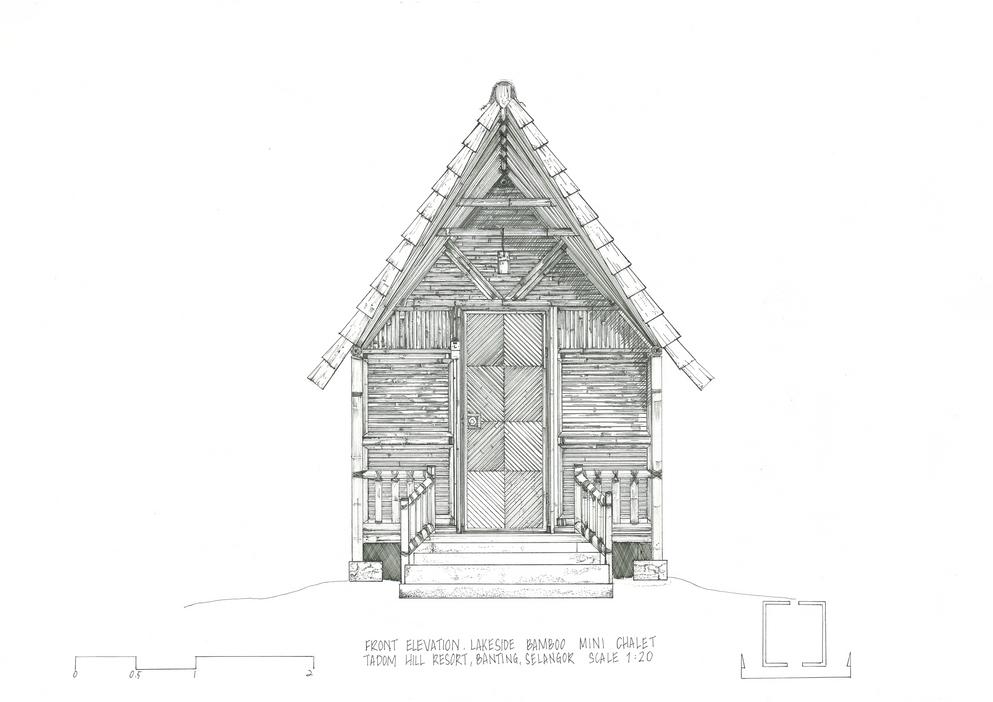

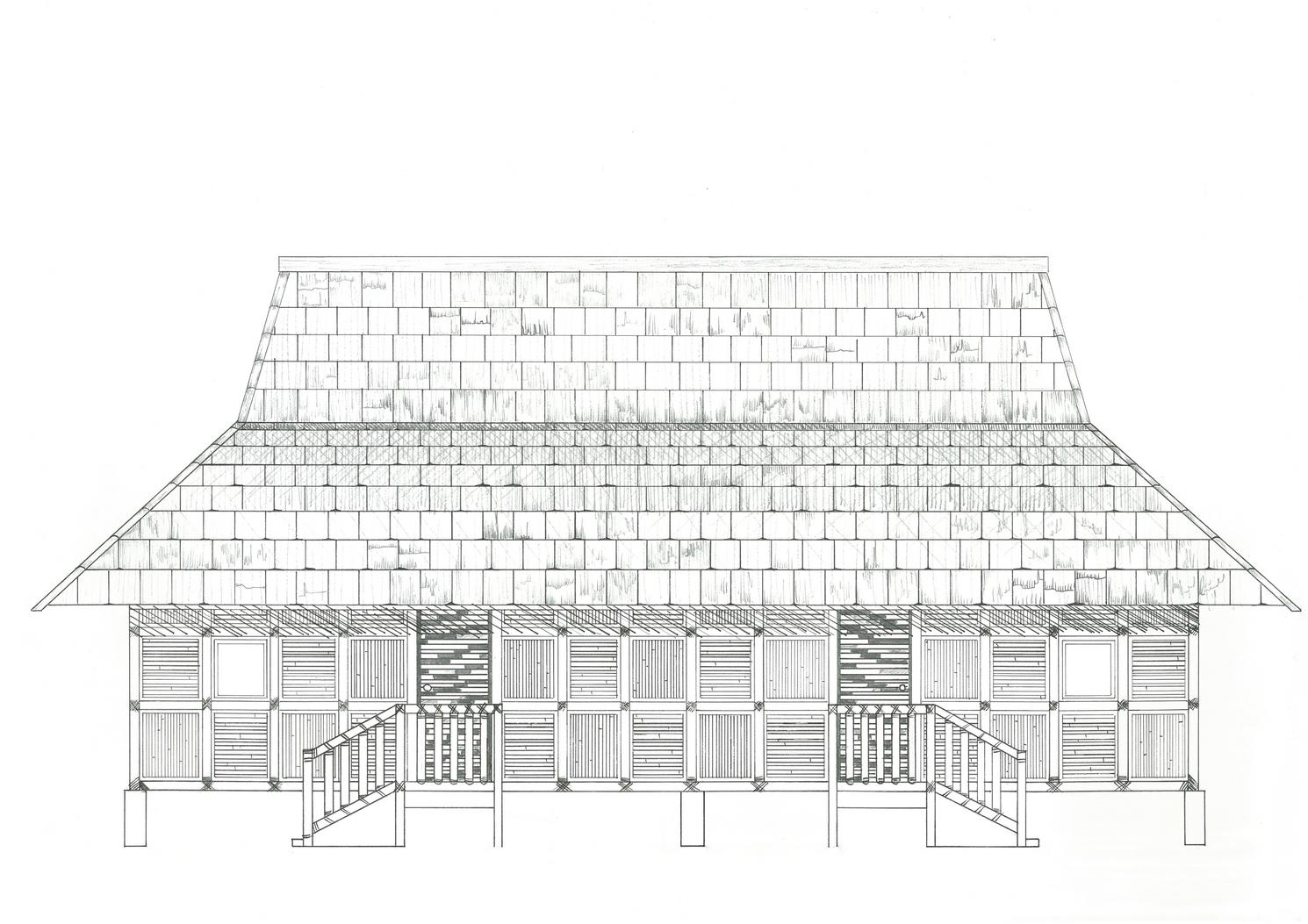

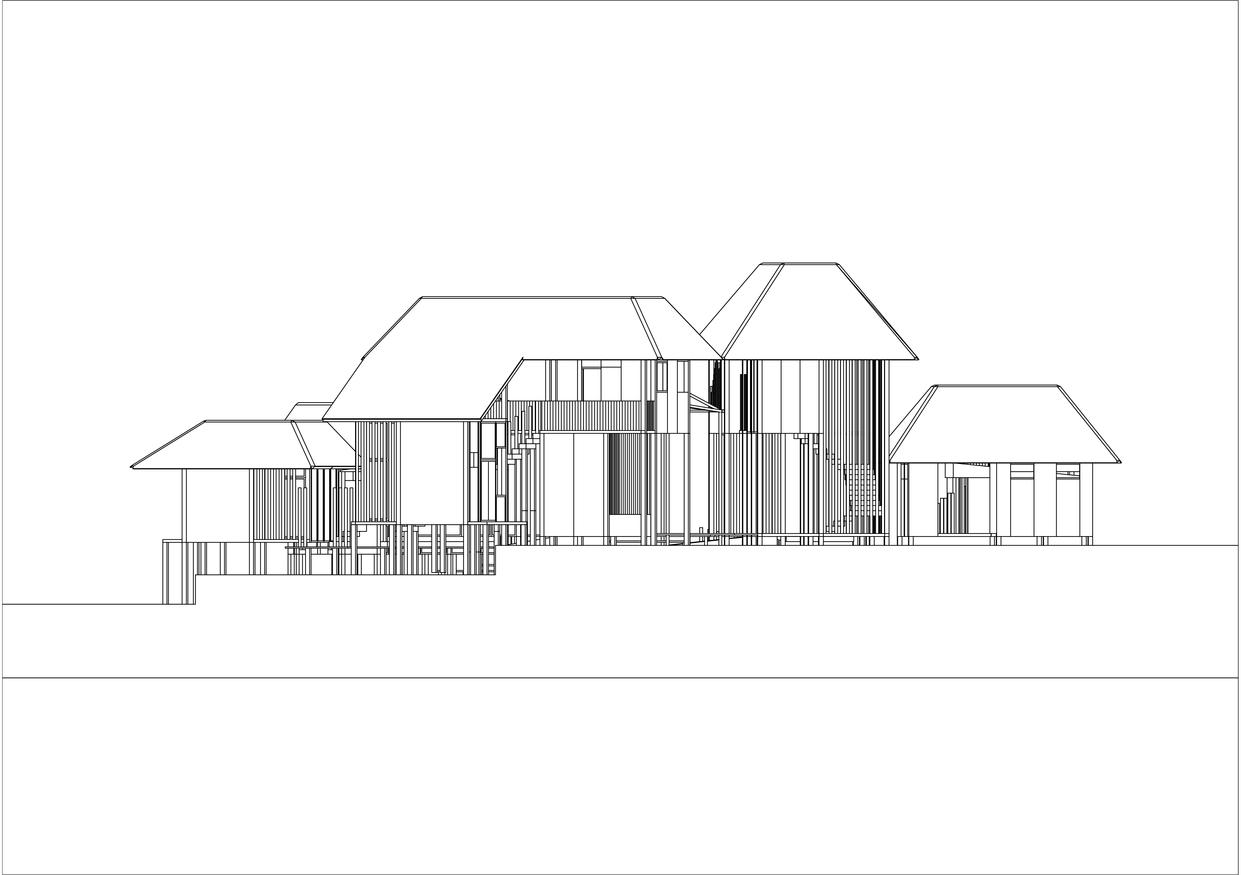

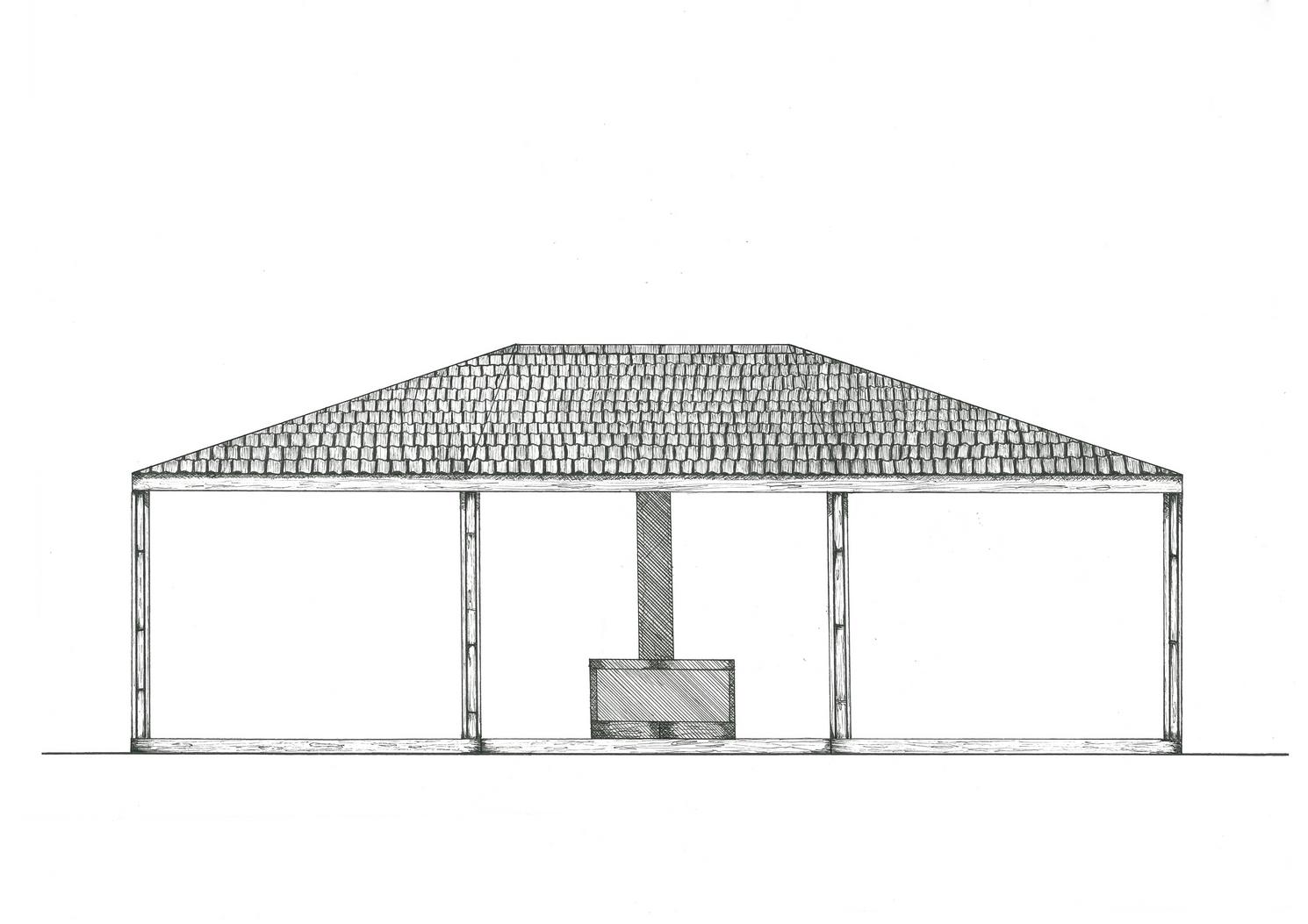

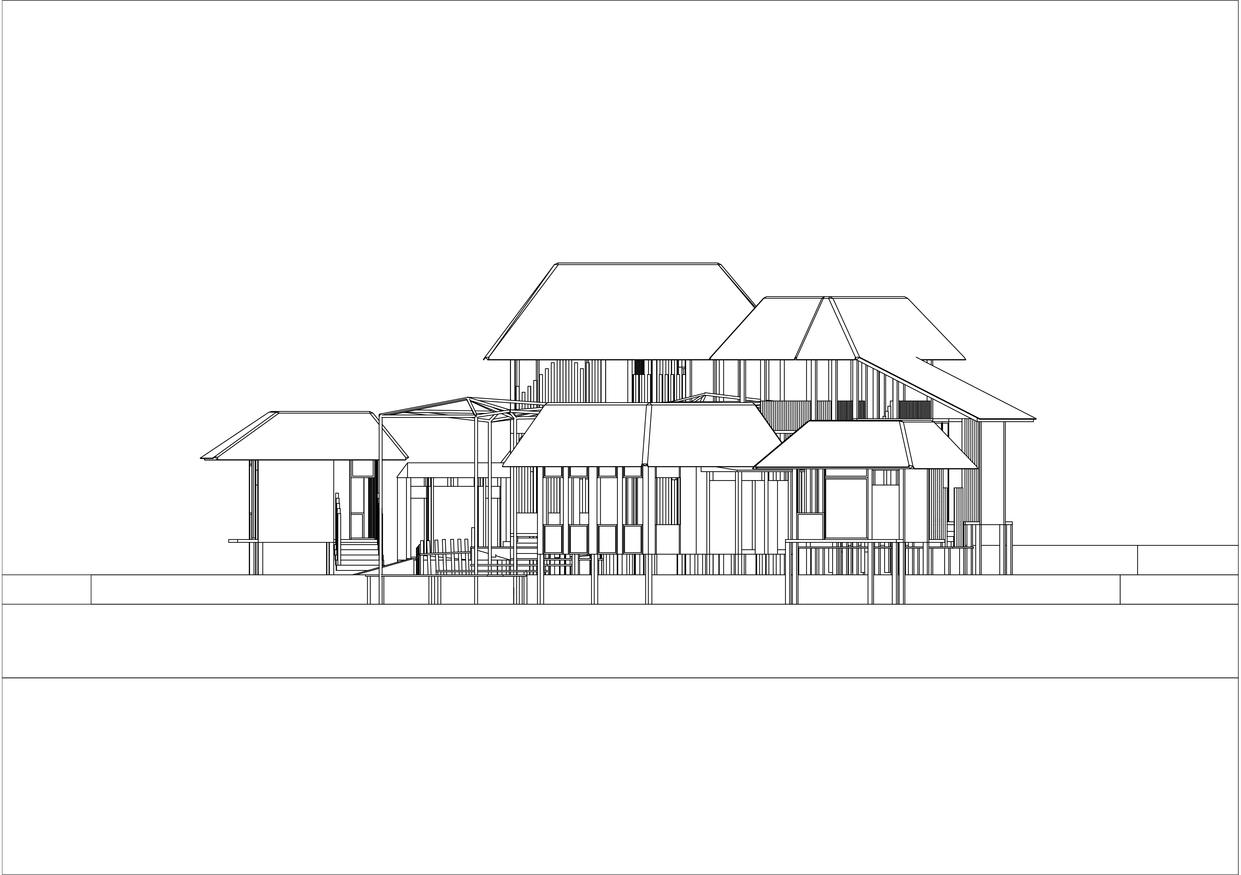

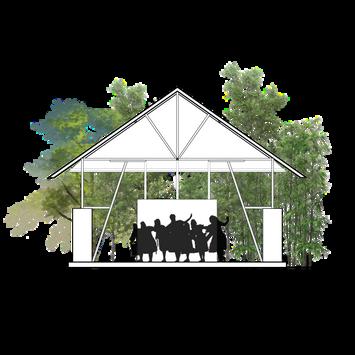

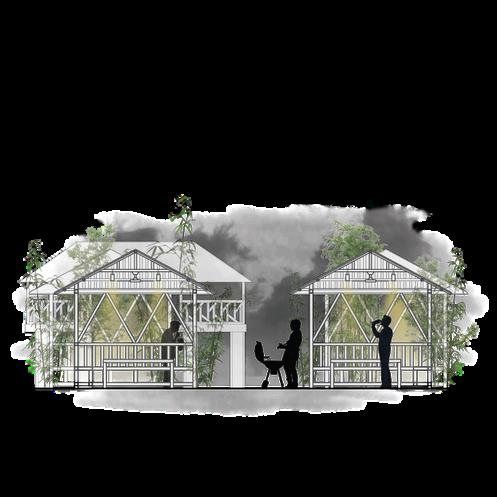

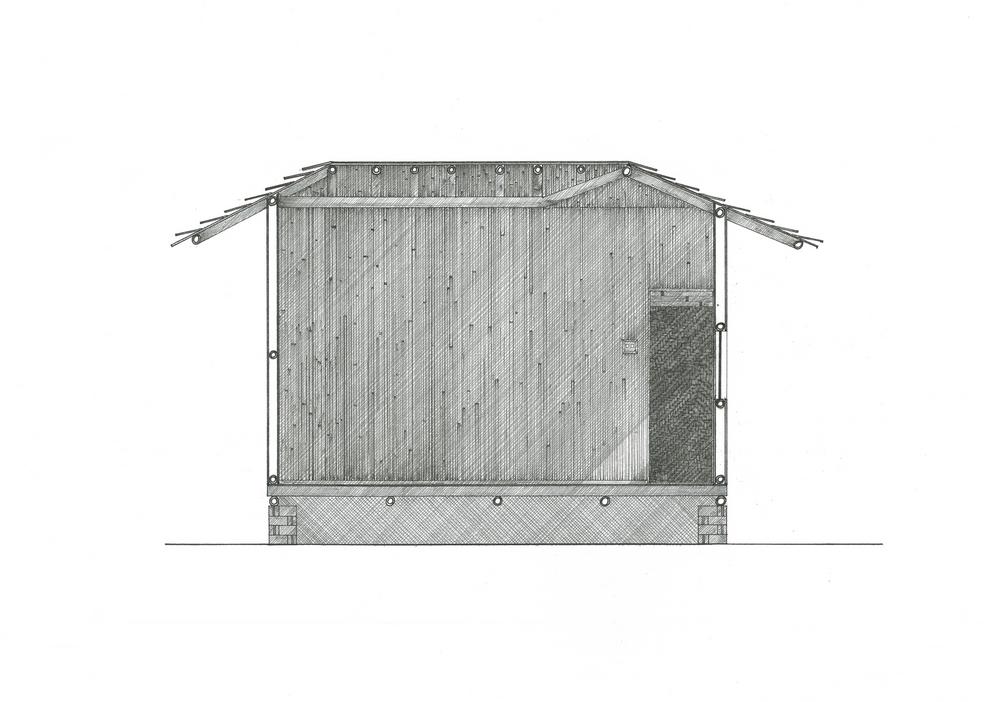

FRONT ELEVATION A5 @1:200

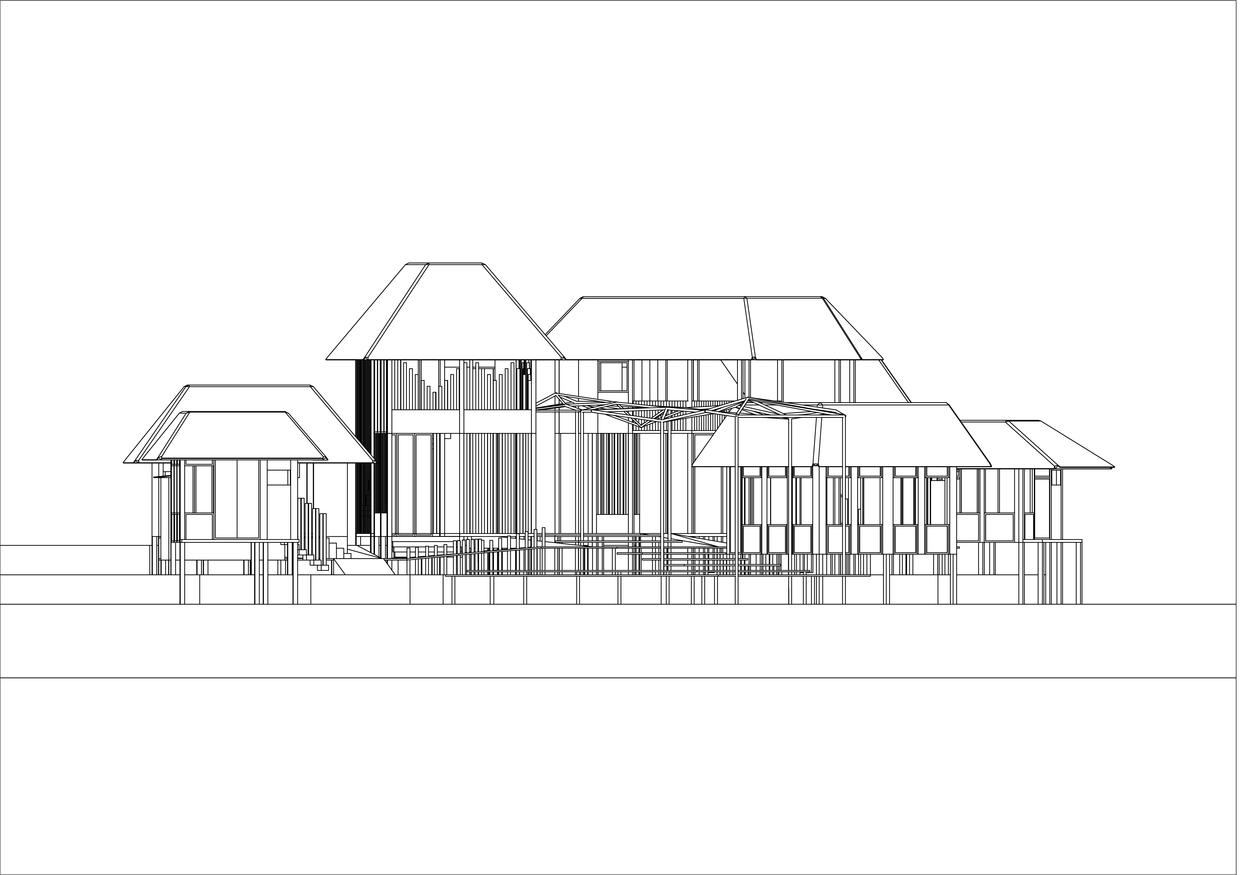

REAR ELEVATION A5 @1:200

RIGHT ELEVATION A5 @1:200

LEFT ELEVATION A5 @1:200

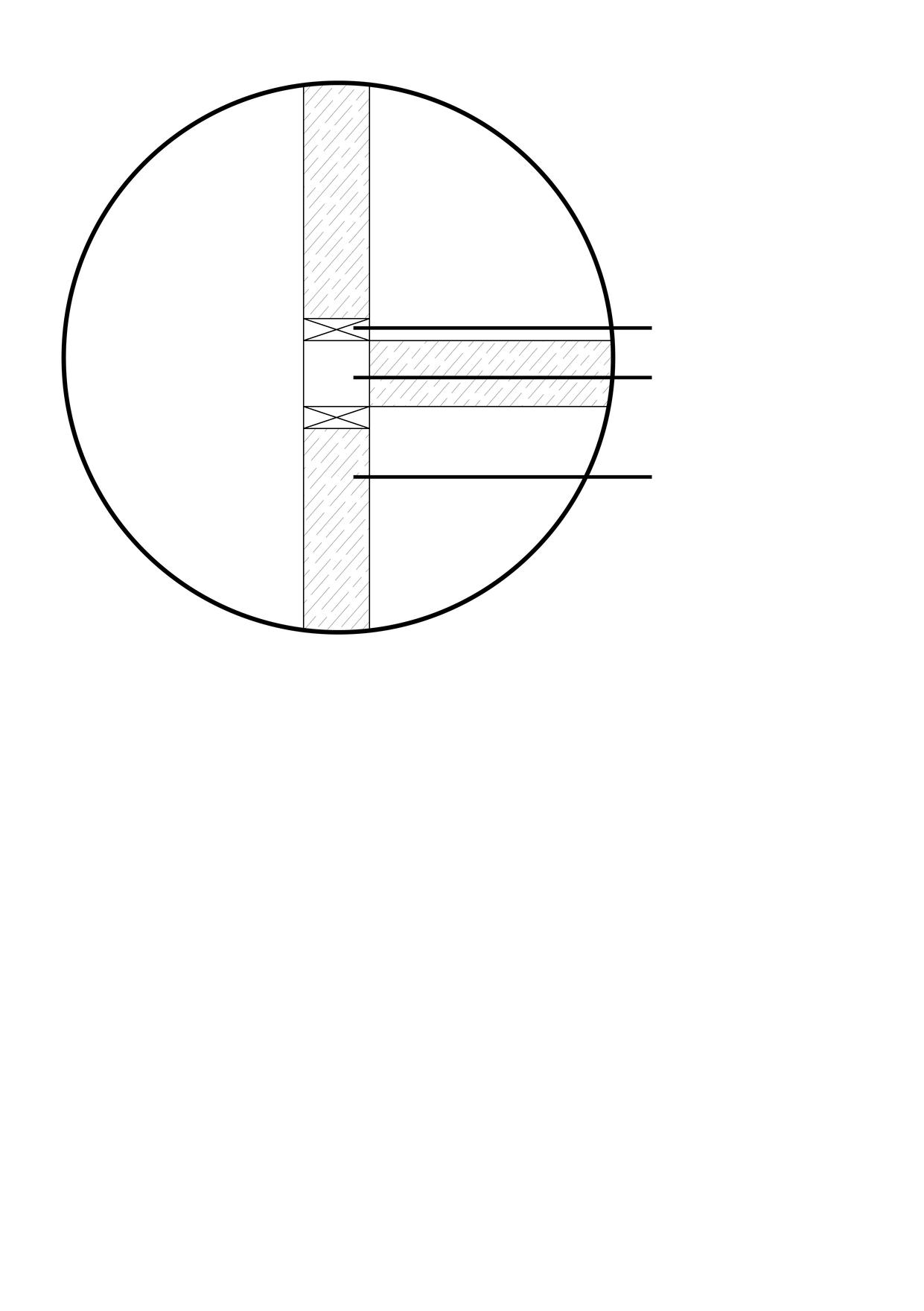

DETAIL

DETAIL

DETAIL

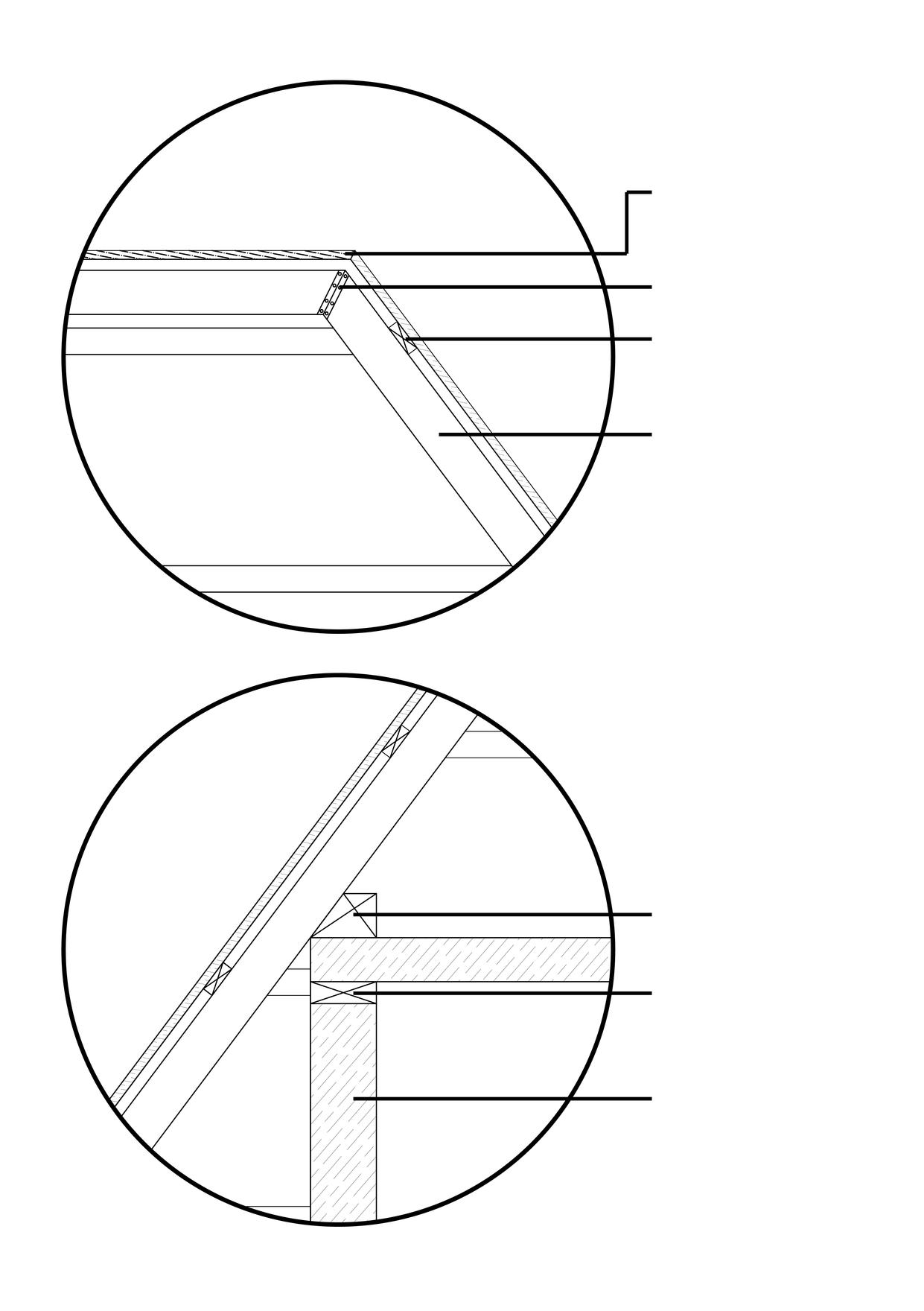

20MM THK BAMBOO ROOF SHINGLES RAFTER HANGER

25MM THK WOODEN BATTEN 100MM THK WOODEN RAFTER

DETAIL

TIMBER WALL

TIMBER WALL

TIMBER WALL

TIMBER WALL PLATE

CONCRETE BEAM TIMBER WALL FINISHES

DETAIL

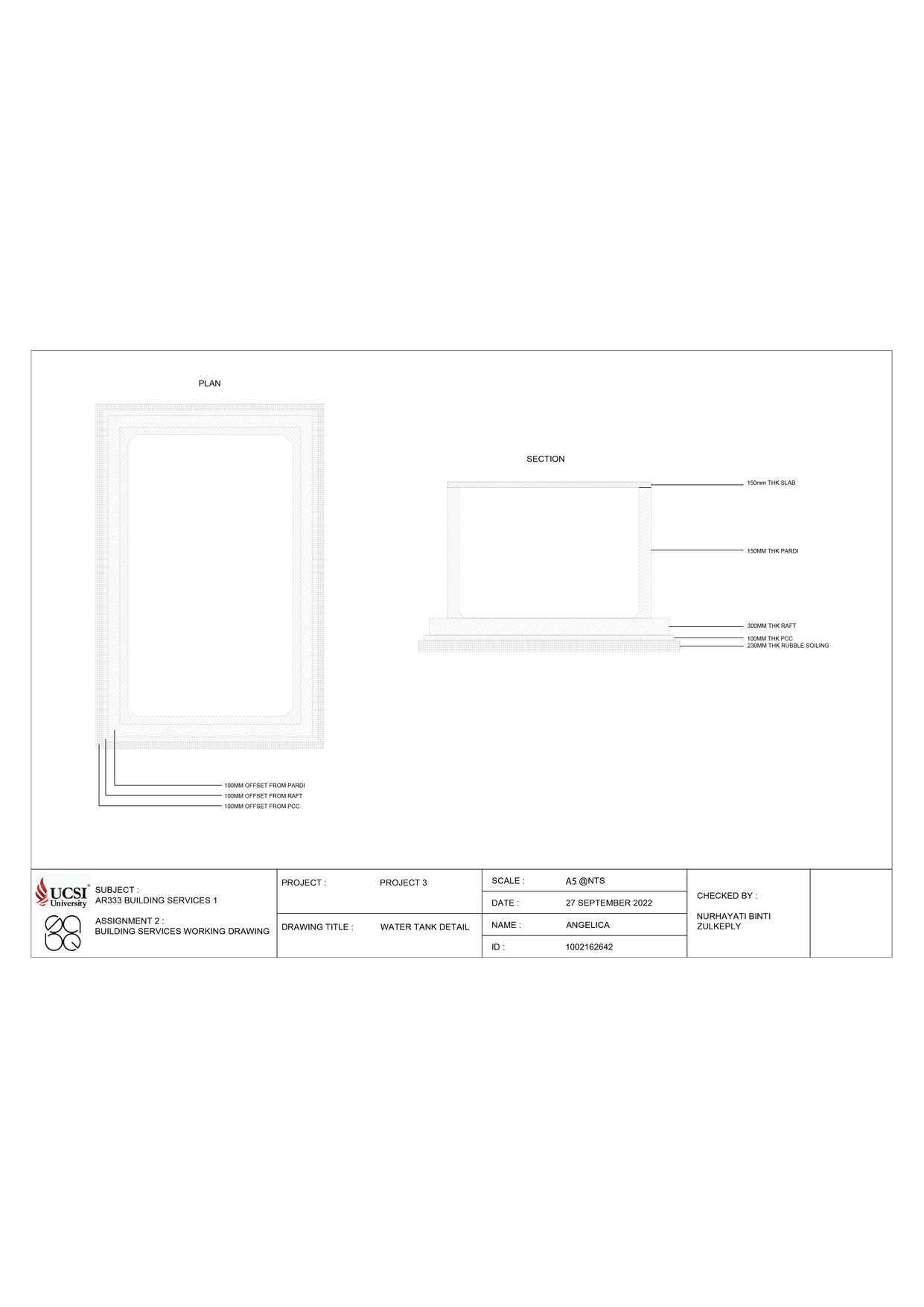

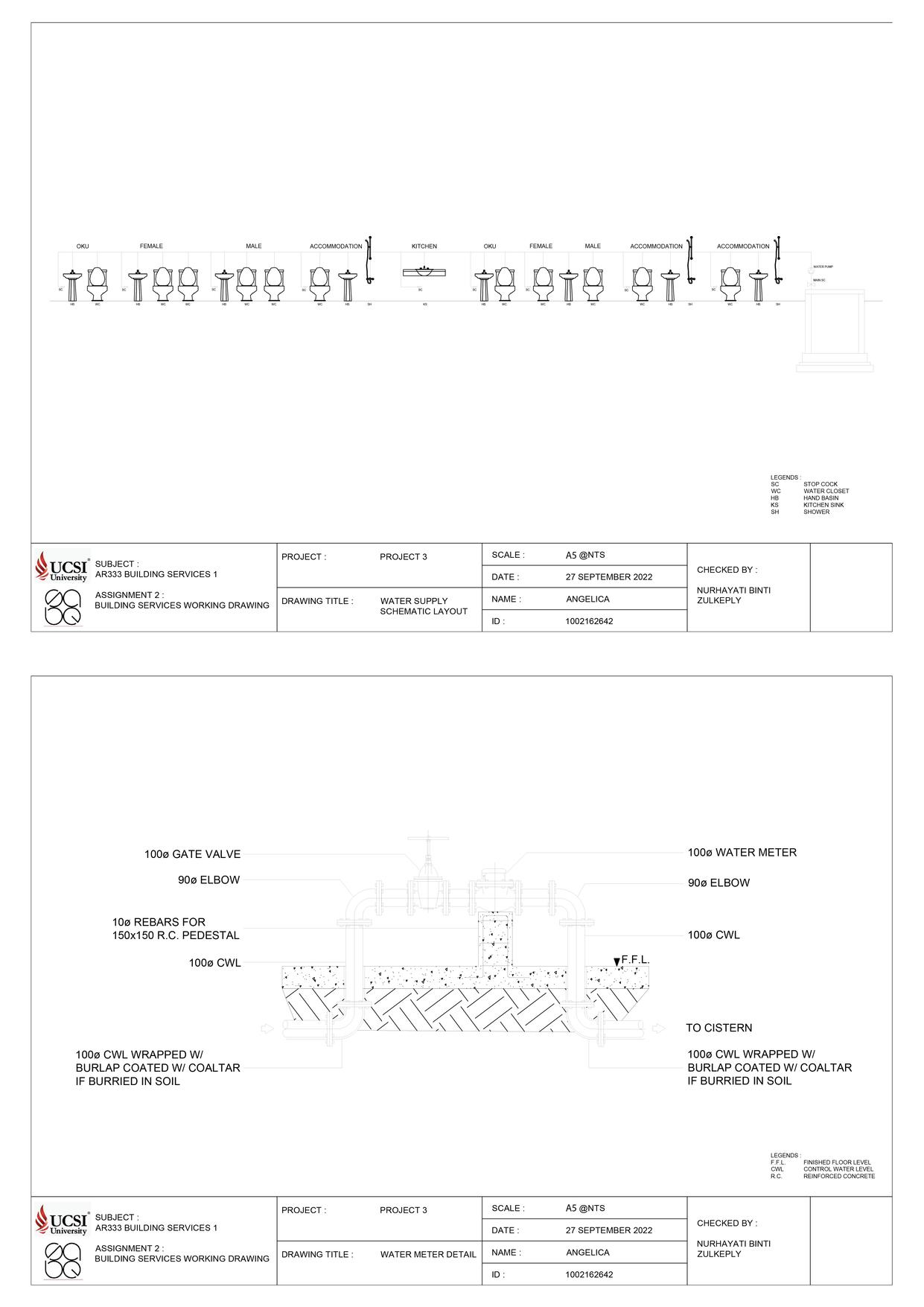

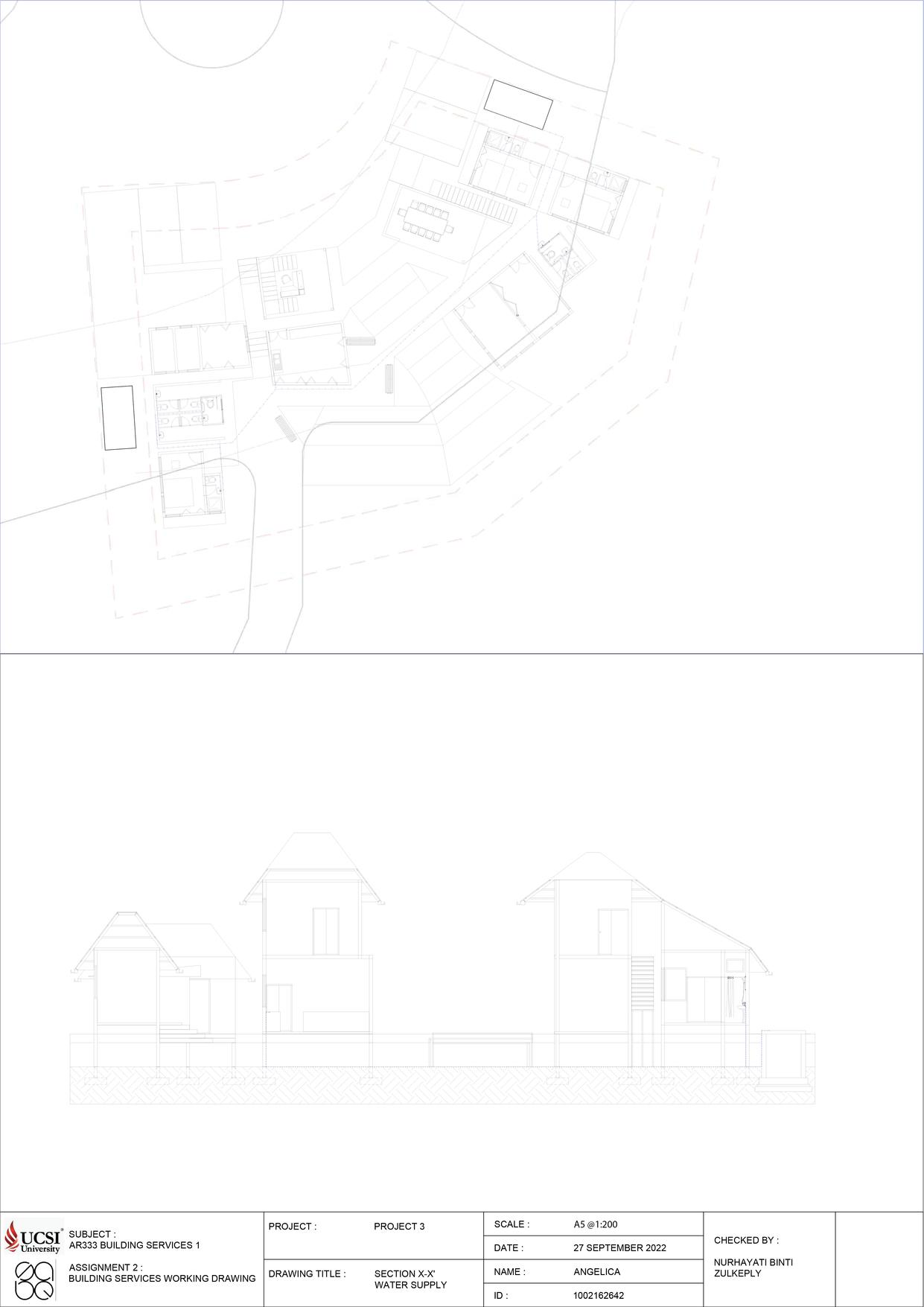

GROUND FLOOR PLAN; WATER SUPPLY A5 @1:300

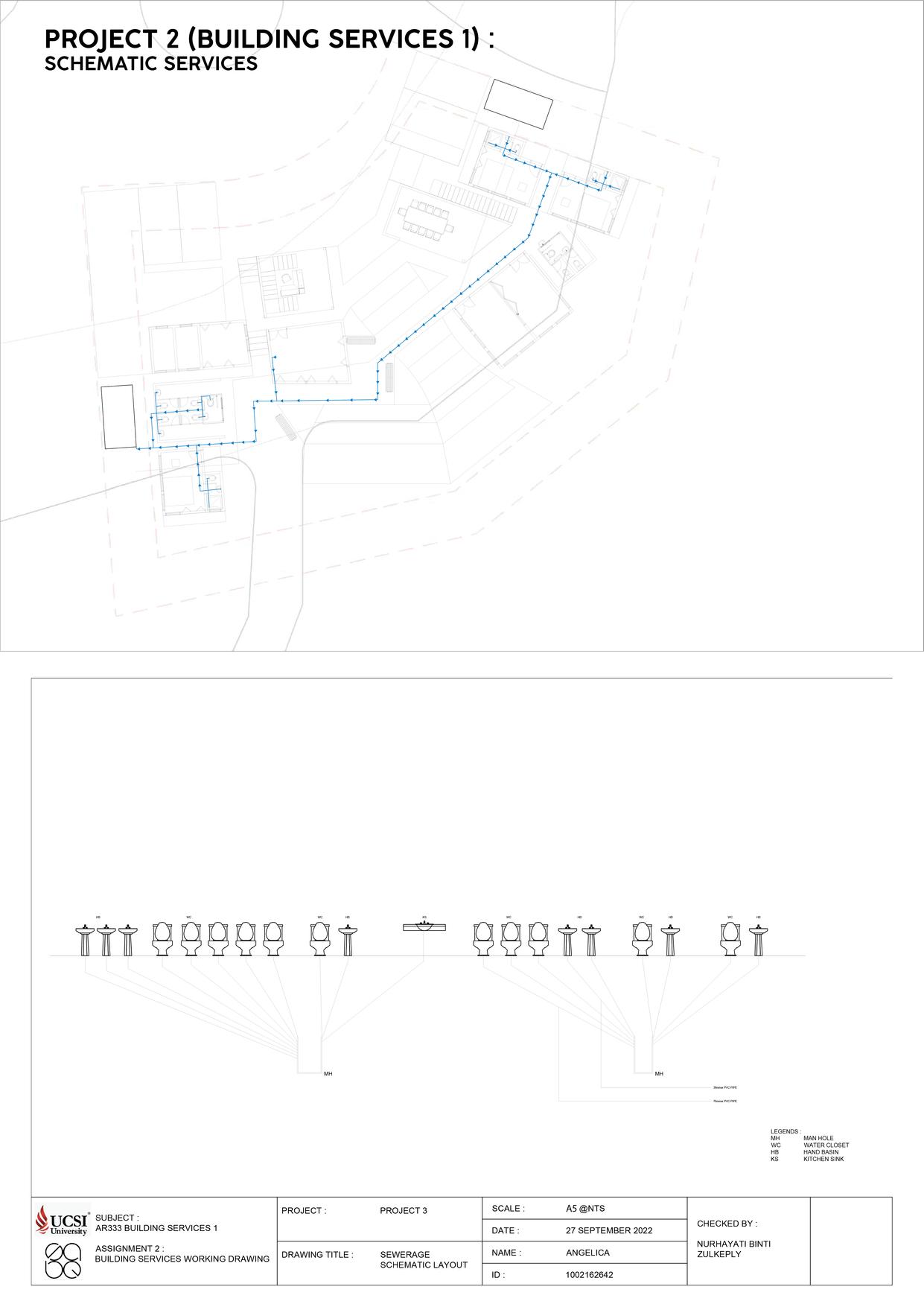

GROUND FLOOR PLAN; SEWERAGE A5 @1:300

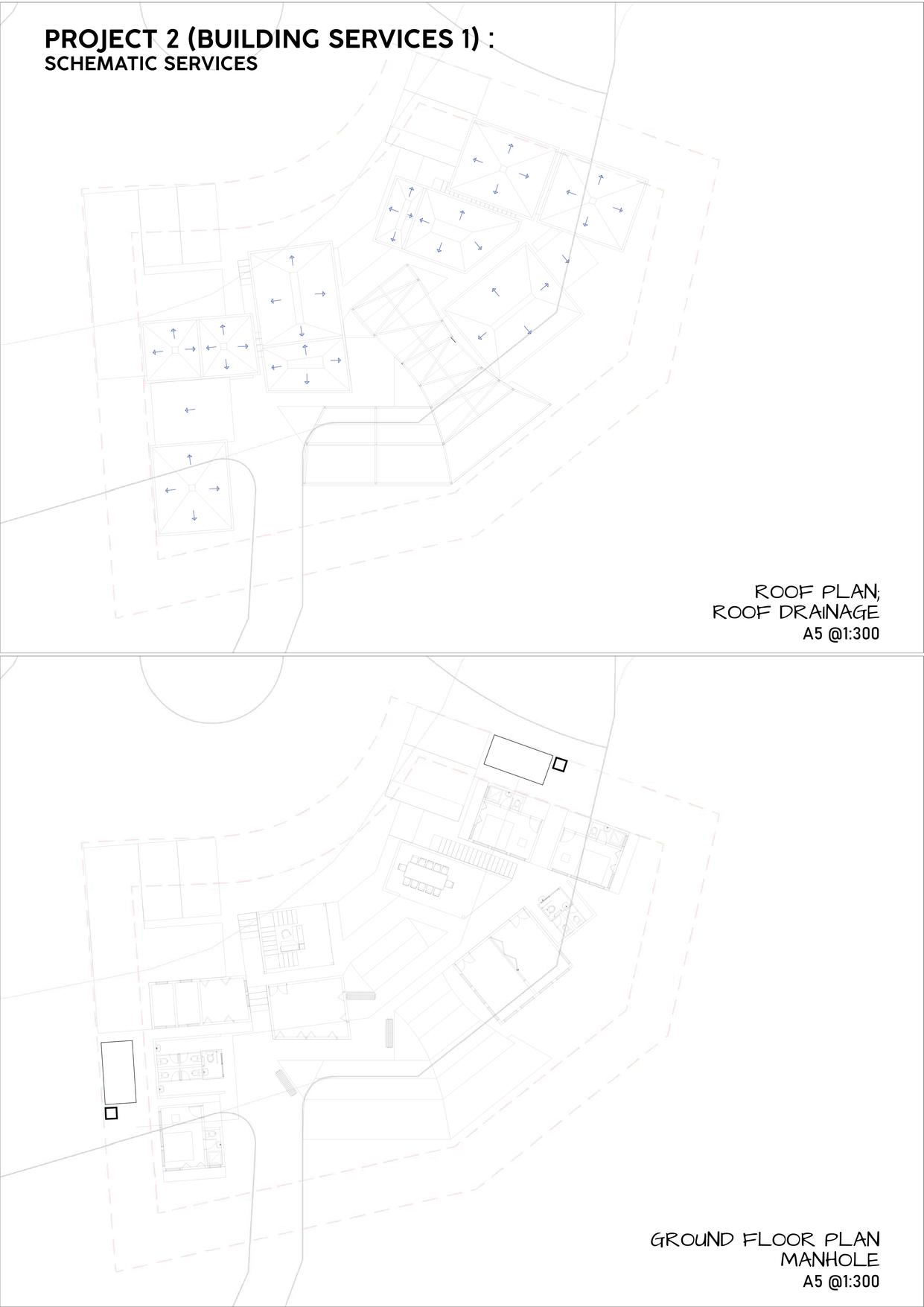

ROOF PLAN; ROOF DRAINAGE A5 @1:300

GROUND FLOOR PLAN; MANHOLE A5 @1:300

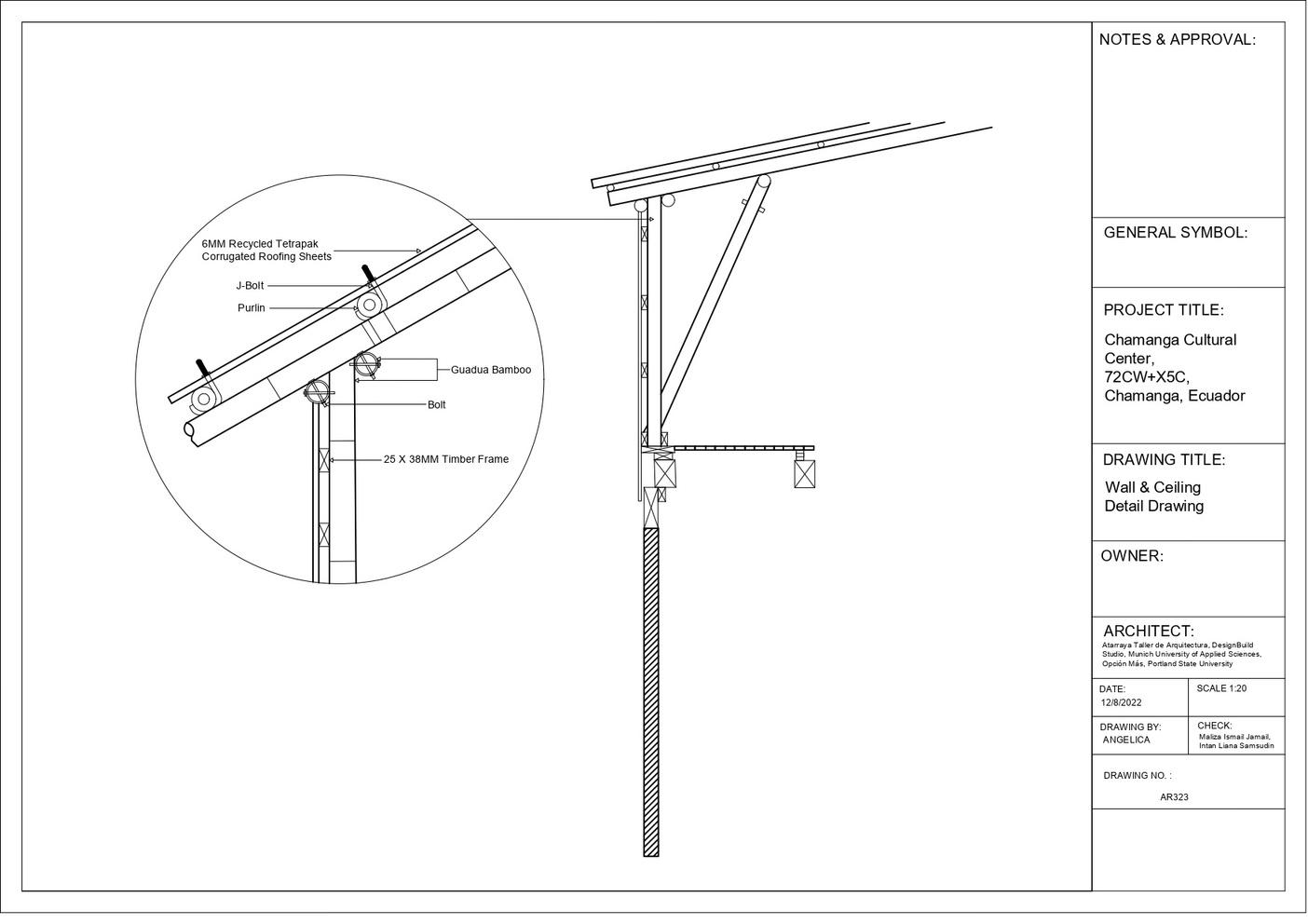

WALL & CEILING DETAIL DRAWING SCALE 1:20

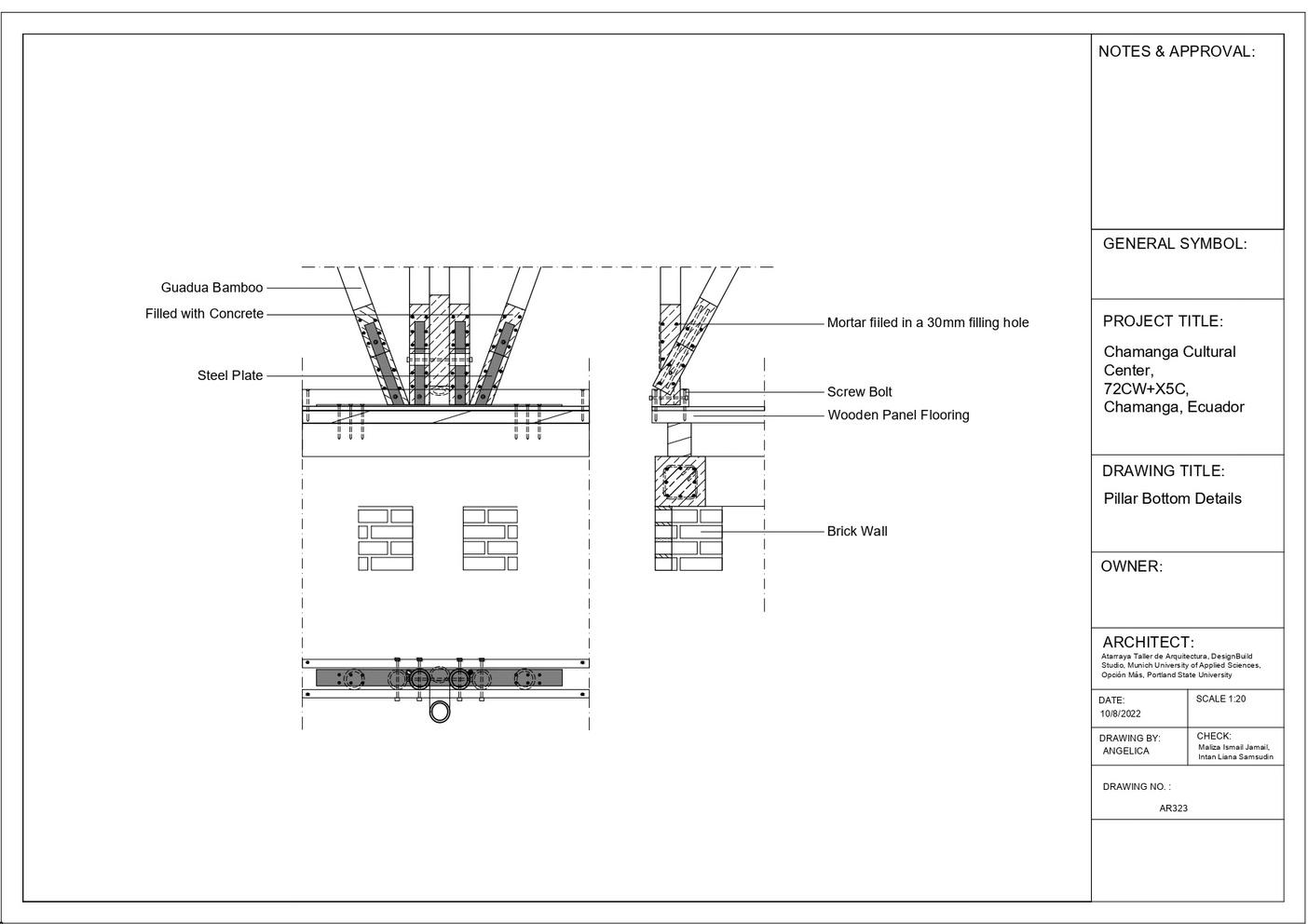

PILLAR BOTTOM DETAIL DRAWING SCALE
