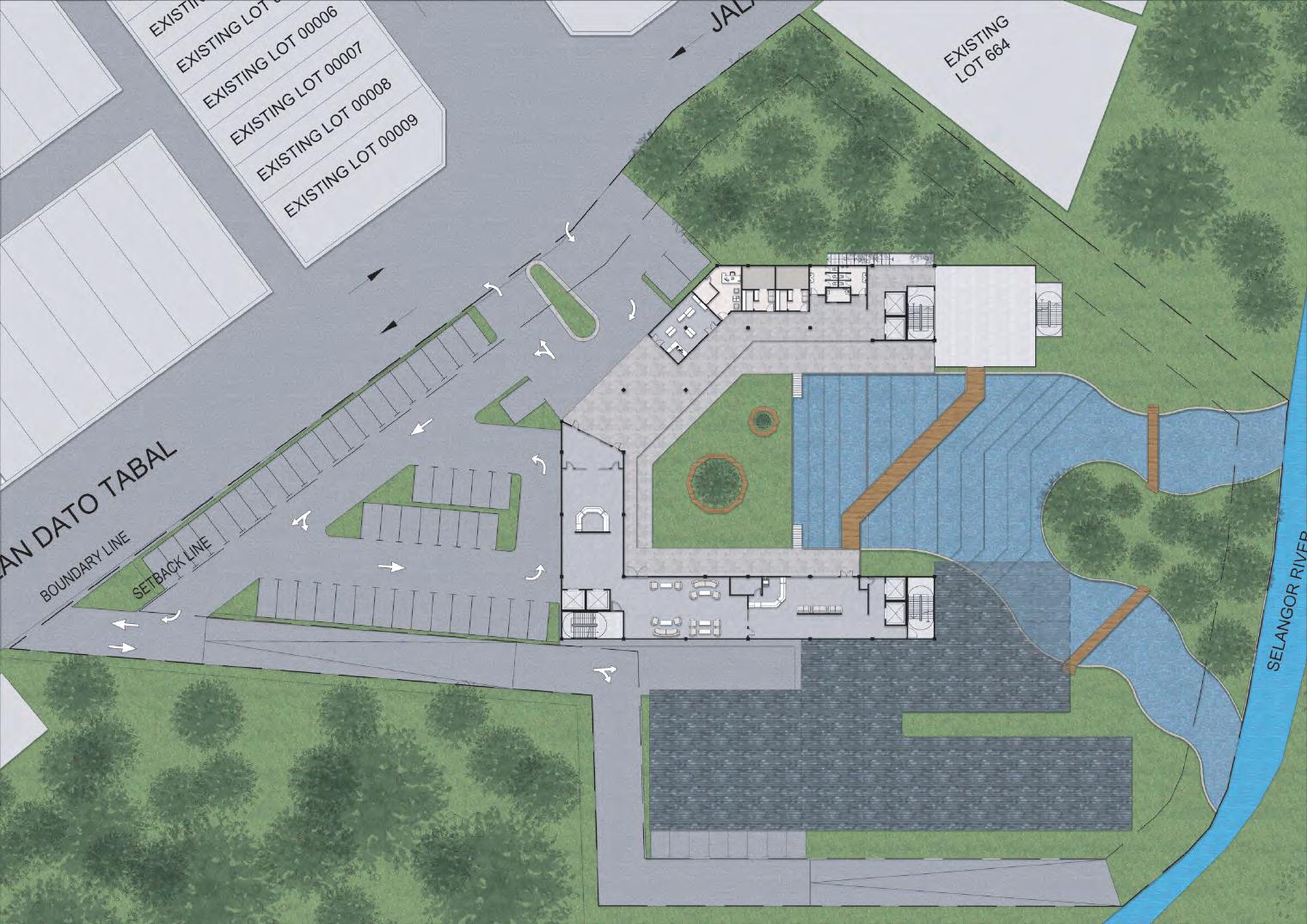

JALANDATOTABAL
BOUNDARYLINESETBACKLINE
EXISTINGLOT16
JALANDATOTABAL
EXISTING LOT659 EXISTING LOT660
EXISTING LOT663 EXISTING LOT664
SELANGOR RIVER
1. 120mm THK brickwall with 15mm THK plaster on both sides finishes
2. 140mm THK R.C. floor slab with 10mm THK porcelain floor tiles
3. 250mm x 600mm R.C. beam
4. 20mm THK plastered ceiling board
5. 250mm x 350mm aluminium rectangular ducting pipe for air-conditioning
6. 25mm dia. rigid metal conduit electrical pipe
6. 25mm dia. PVC water pipe
7. 20mm x 20mm THK aluminium framing with 4mm dia. THK wire mesh
8. W300mm x L500mm x H600mm planter box
9. W70mm x L100mm x H920mm timber railing
10. 150mm x 100mm timber rafter @600mm spacing
11. 10mm roof ridge covered with asphalt
12. 7.5mm THK asphalt roof shingles
13. 25mm x 25mm x1200mm timber batten @200mm spacing
14. 58mm dia. aluminium gutter bracket
