ANAHI RAMOS GRADUATE EXAM PORTFOLIO

DESIGN

RAINWATER EDUCATION AND CONSERVATION CENTER

ARCH 403

Team- Brenda Mora, Ethan Baum & Mason Burns

PROJECT SUMMARY

Rainwater Education and Conservation Center is a multipurpose office building designed with a strong focus on water, both as a functional resource and an educational element. The flexible office floors can adapt to the needs of different tenants, ensuring versatility. On the first floor, an art gallery showcases the building’s water collection system through interactive educational spaces on the second floor, allowing visitors to observe the filtration process via a visible water cistern. A publicly accessible café further connects the building with the community. Additionally, a rooftop café provides a unique gathering space with views of Seattle. Rainwater is collected through drainage points on the roof, naturally filtered, and stored in the cistern. It is then purified using UV and chlorine disinfection before being distributed throughout the building, with the first and second floors dedicated to educating the public about the water purification process.

REFLECTION

This project shows my understanding of how the design process starts with the conceptual phase to the final product. There were limitations on what we could and couldn’t do with the code guidelines for where the building was taking place. Not only code but also the guidelines the professors gave us to follow, such as keeping the skin design of the building low-cost, using the living building challenge to help guide the design of the building itself, and having a type of gallery in the first two floors for those in the community and surroundings to enjoy. A design challenge we had when designing was to create a unique shape that is not just a rectangle to let natural daylight into the building. It was important to have natural daylight in our building due to the fact it is an office building. People will spend most of their days in the office, and providing natural daylight to the spaces will help the health and happiness of people. With that, we carved a crescent-like part of the building on the east side to have natural daylight coming from the glass facade and the creation of balconies to create outdoor spaces for those in the building. The structure also supported vertical fins across the building, allowing for the flow of water, and making use of our pre-designed water collection system. Our concept for the project is a gallery space based on water collection and what water can do within a building. The first and second floors of the structure support a water collection area, helping to distribute both water throughout the structure and also to educate visitors on the importance of the reservation and collection of natural resources to not support hapless waste of resources. Overall, this project helps shape the understanding of the design and construction phase and how it will look in the real world, and a better understanding of how architects and construction managers work together to reach a goal when there are limitations.

CONCEPT DEVELOPMENT

Living Building Challenge

Applying the Living Building Challenge guidelines to shape the building’s design by selecting four out of the seven categories.

Crafting a beautiful and unique facade design.

Selecting locally sourced natural materials for the building to reduce costs and ensure longlasting durability.

Building Guidelines

Implementing a water cycle system within the building by collecting and reusing water efficiently.

Designing environments that support the physical and psychological well-being of individuals working in the building.

DESIGN PROCESS

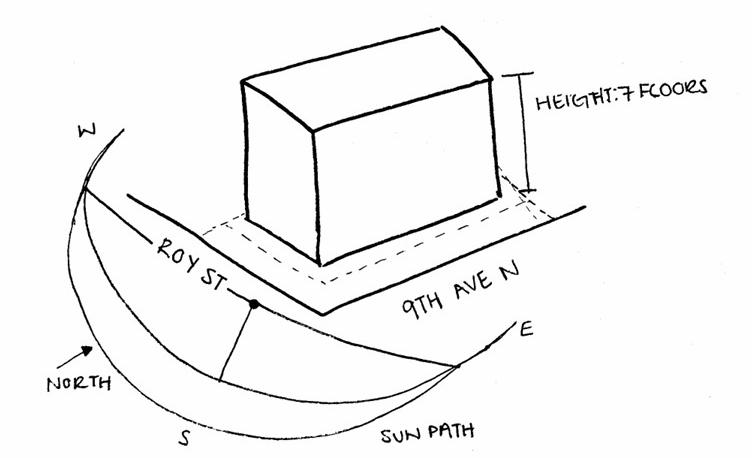

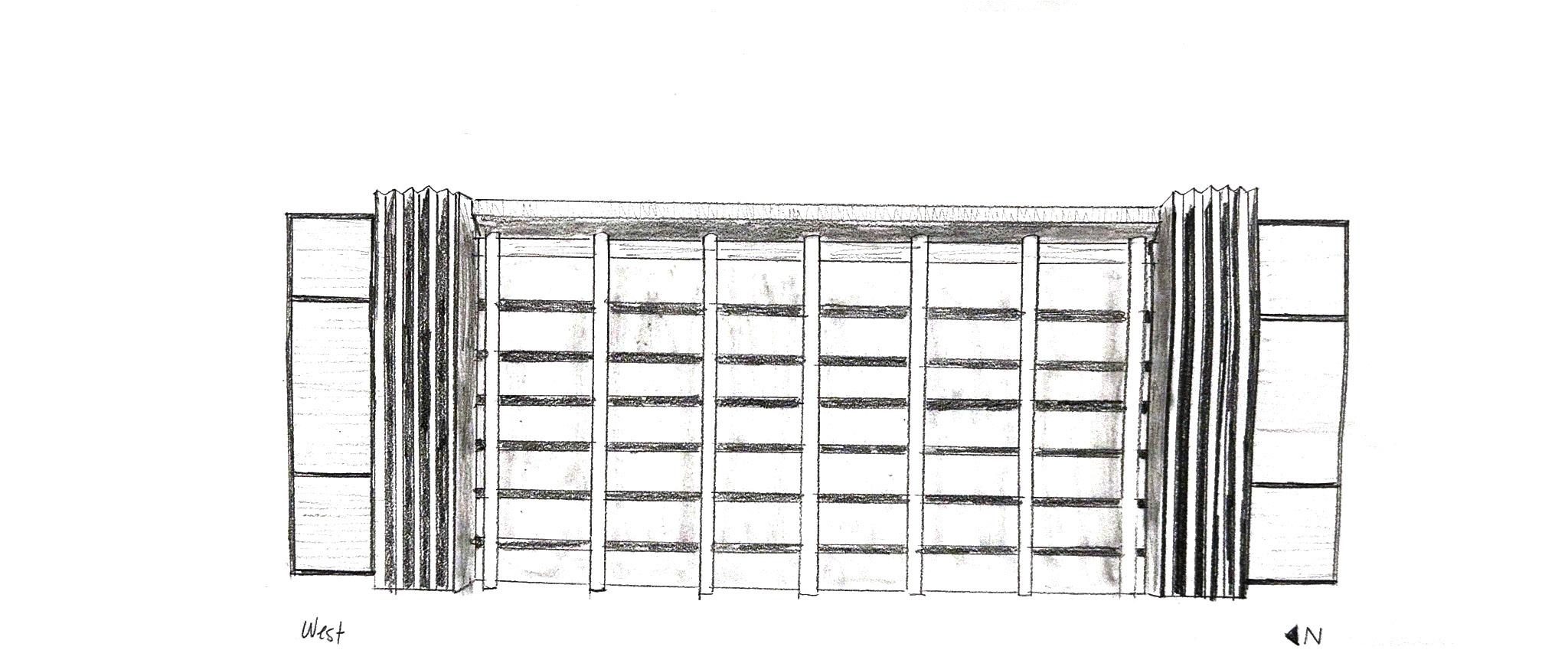

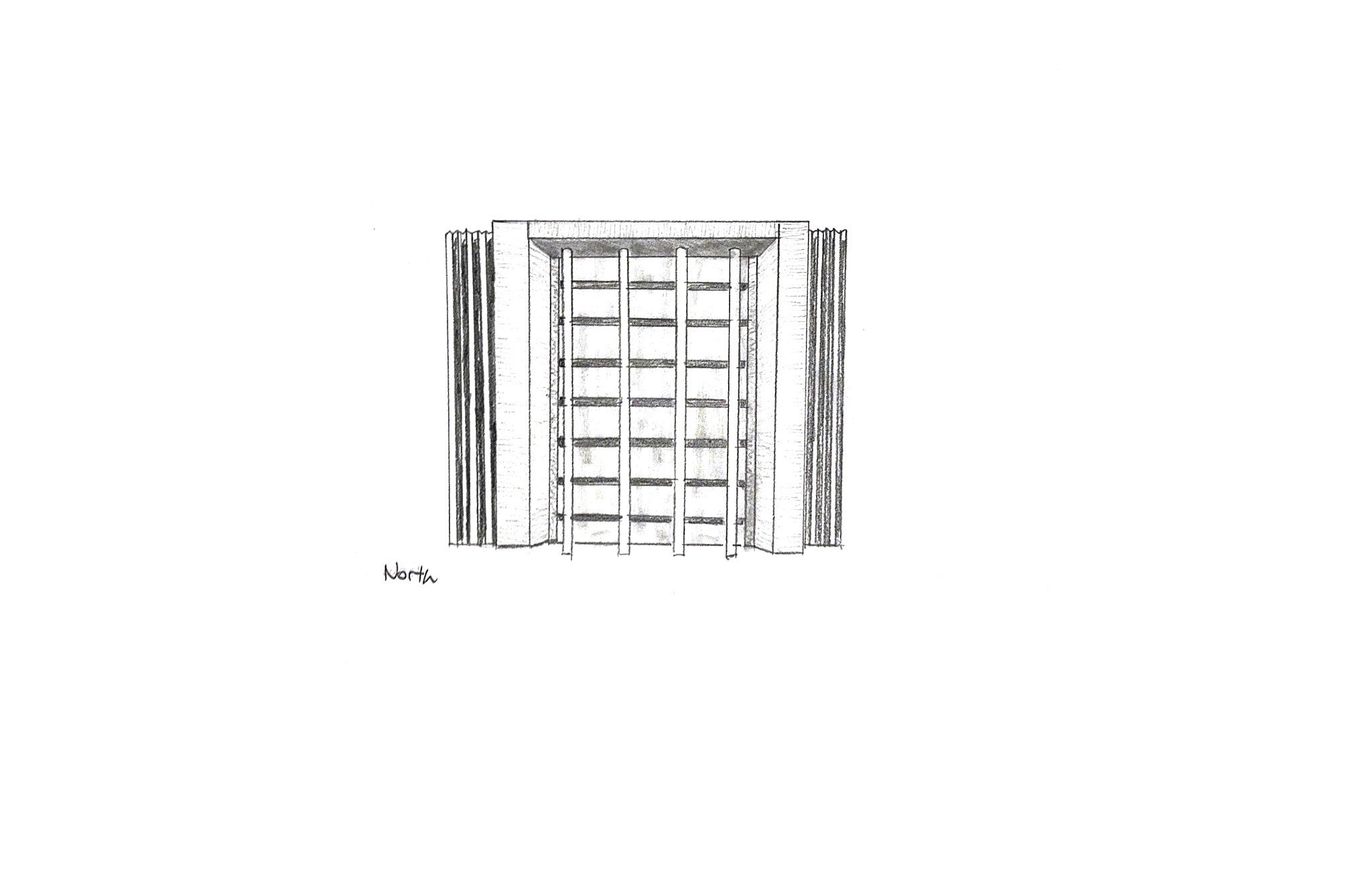

Sketch Iterations

Iteration 1

Cutting out the ends of the building to create interesting end caps.

Iteration 2

Iteration 3

Curving the east side of the building to create an interesting facade.

Cutting the middle of the east side of the building to create spaces for outdoor spaces and let natural light into the building.

Iteration 4

Removing parts of the east side to create outdoor spaces and defining the circulation of the building.

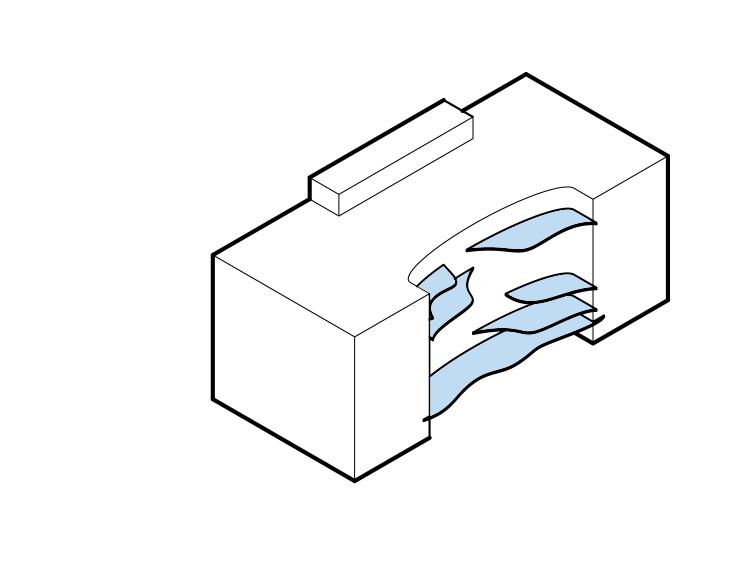

Iteration Concept 1

Combination of iteration One and two combine to create this iteration. By combining them, there are spaces on both ends of the building to have interactions between the sidewalk and the building itself. Creation of outdoor spaces in the middle for the public to use.

RFP Project Goals

Carving for Light & Health

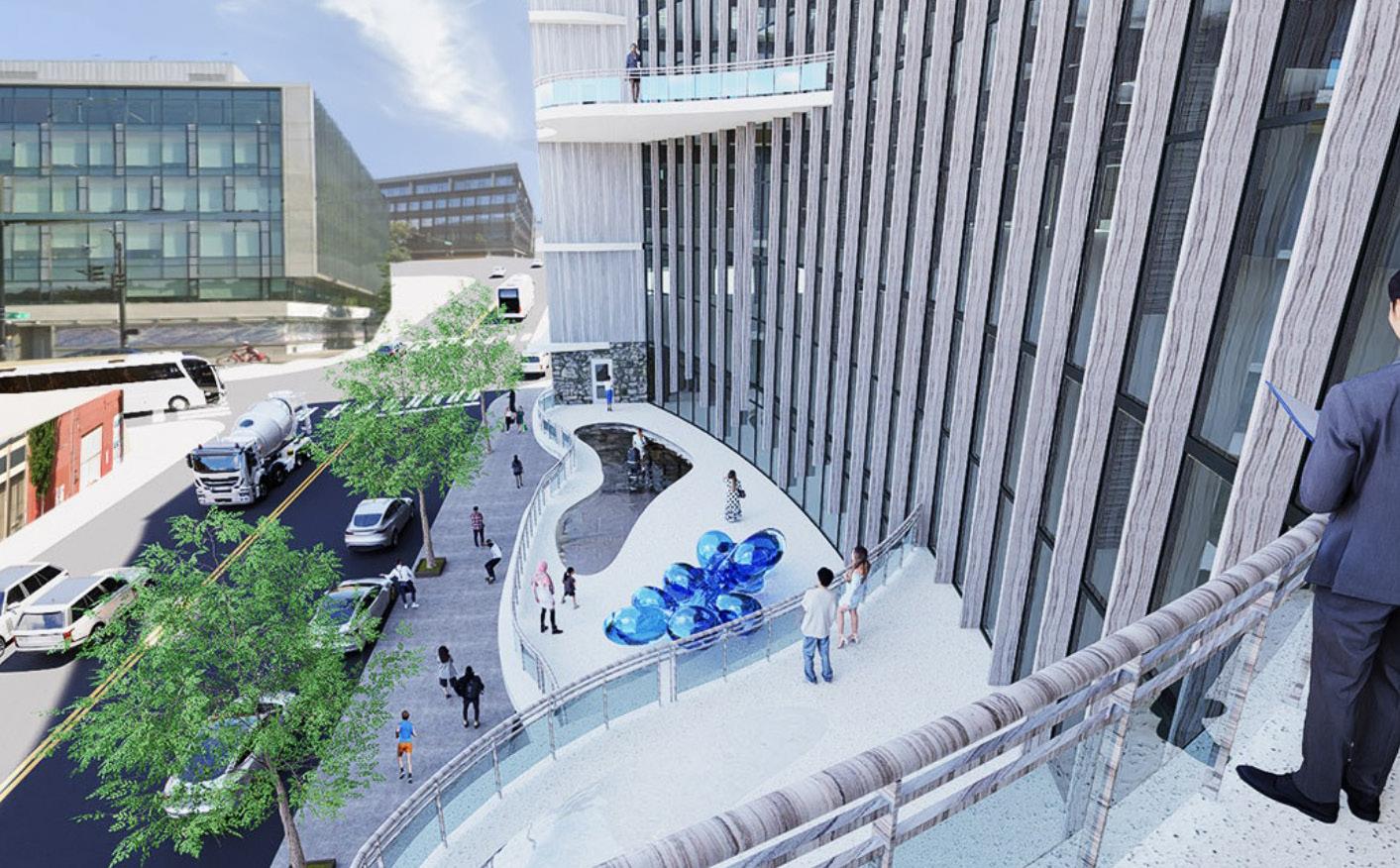

Creation of Outdoor Space

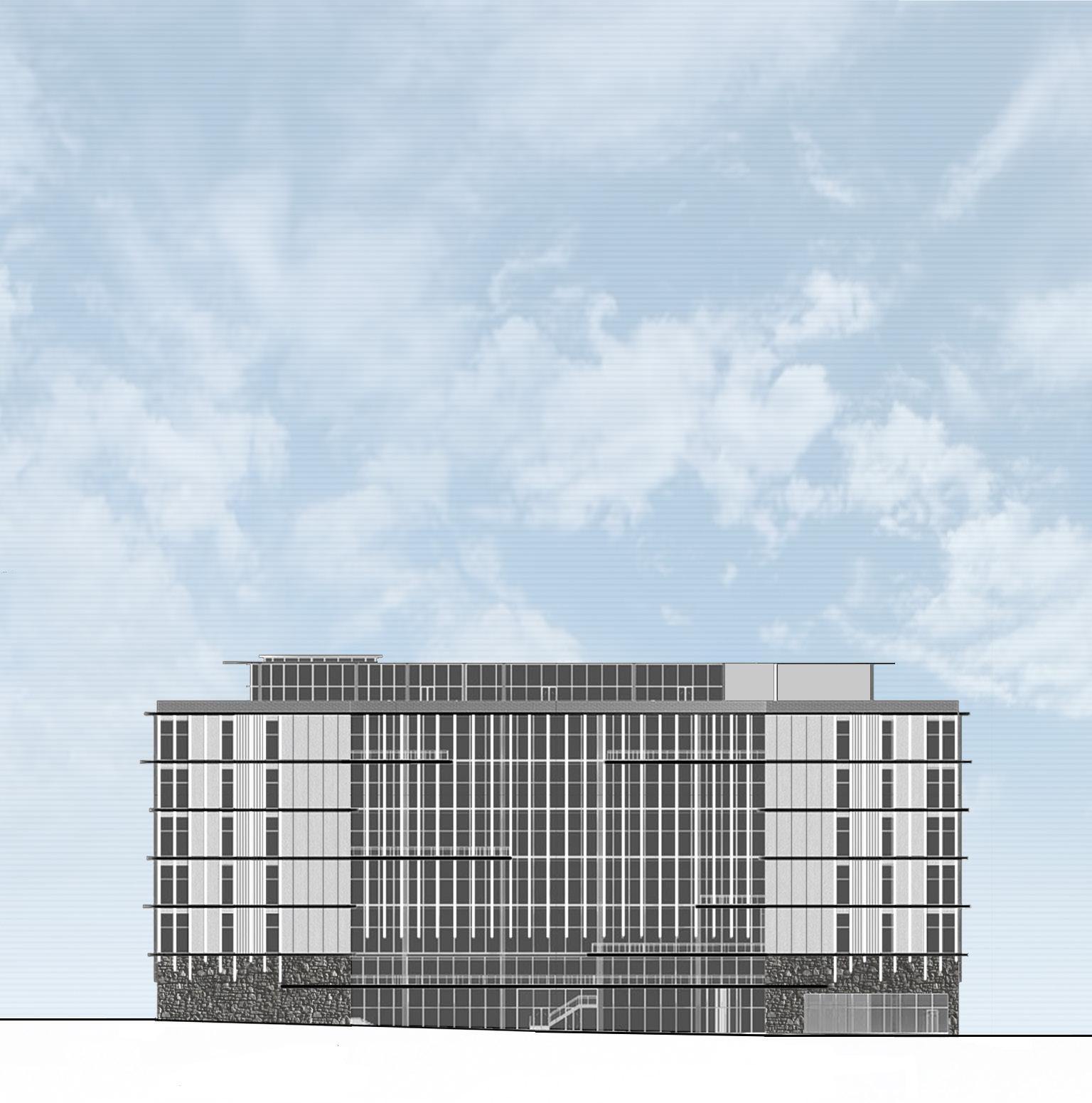

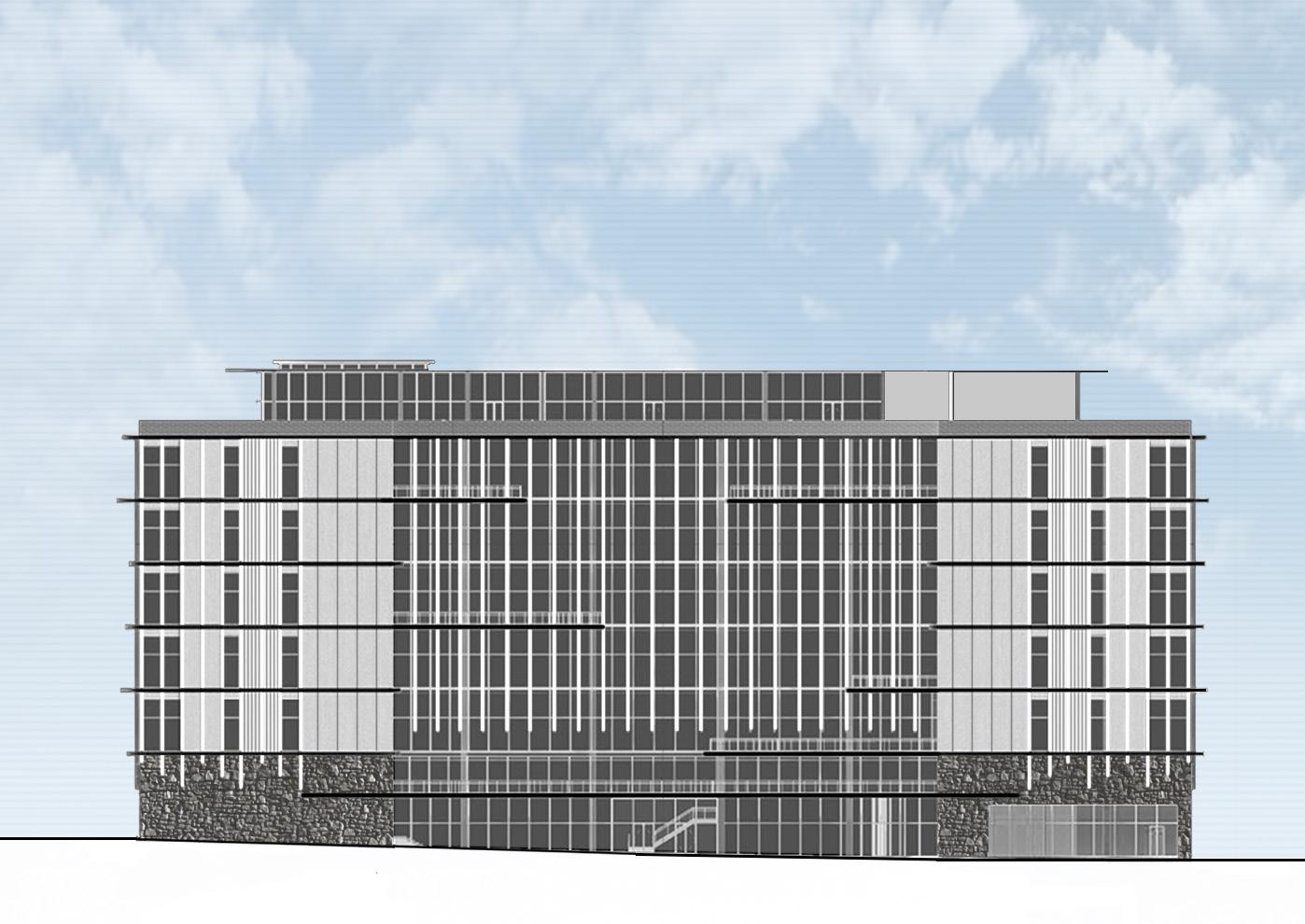

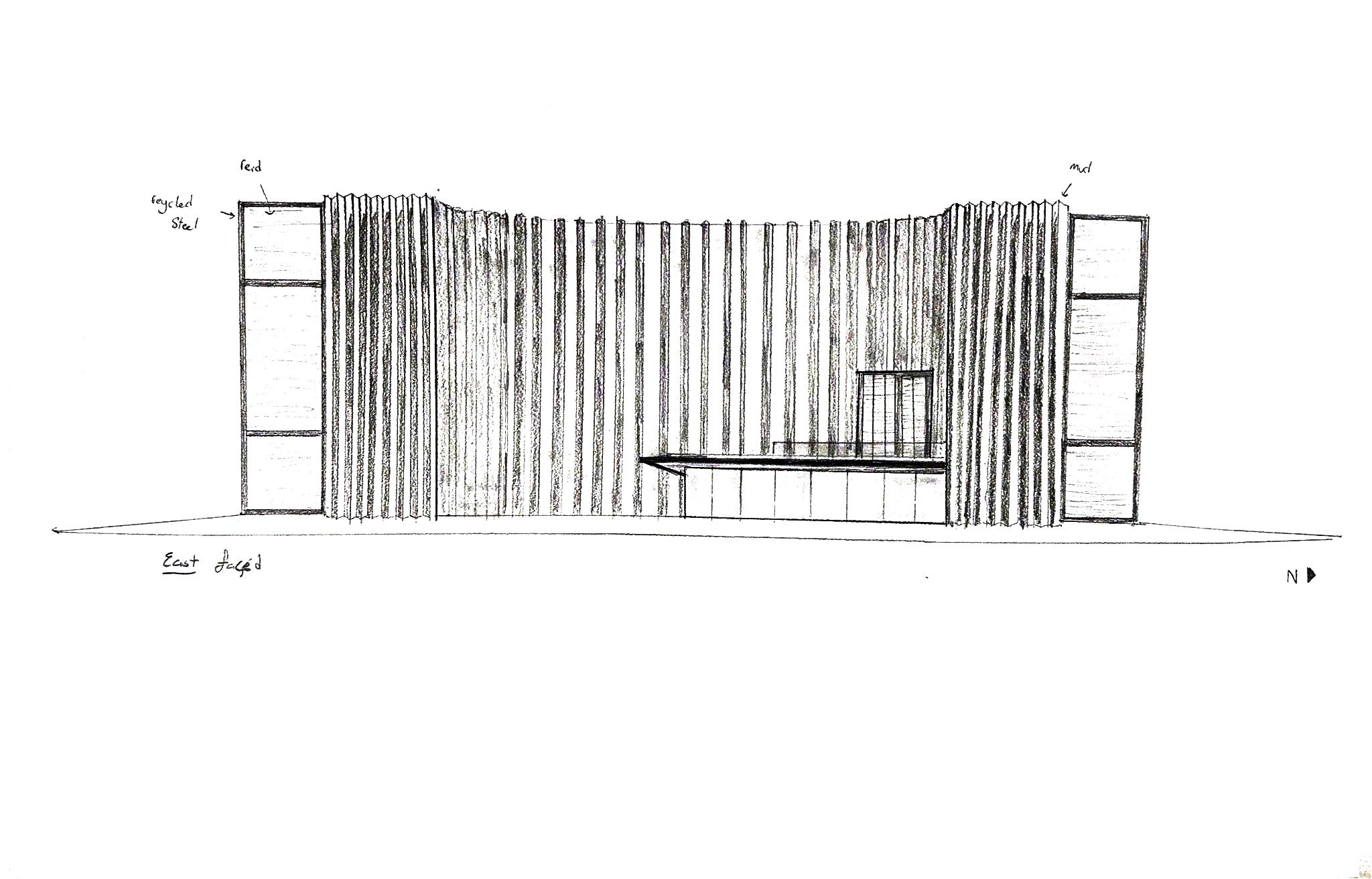

EAST ELEVATION

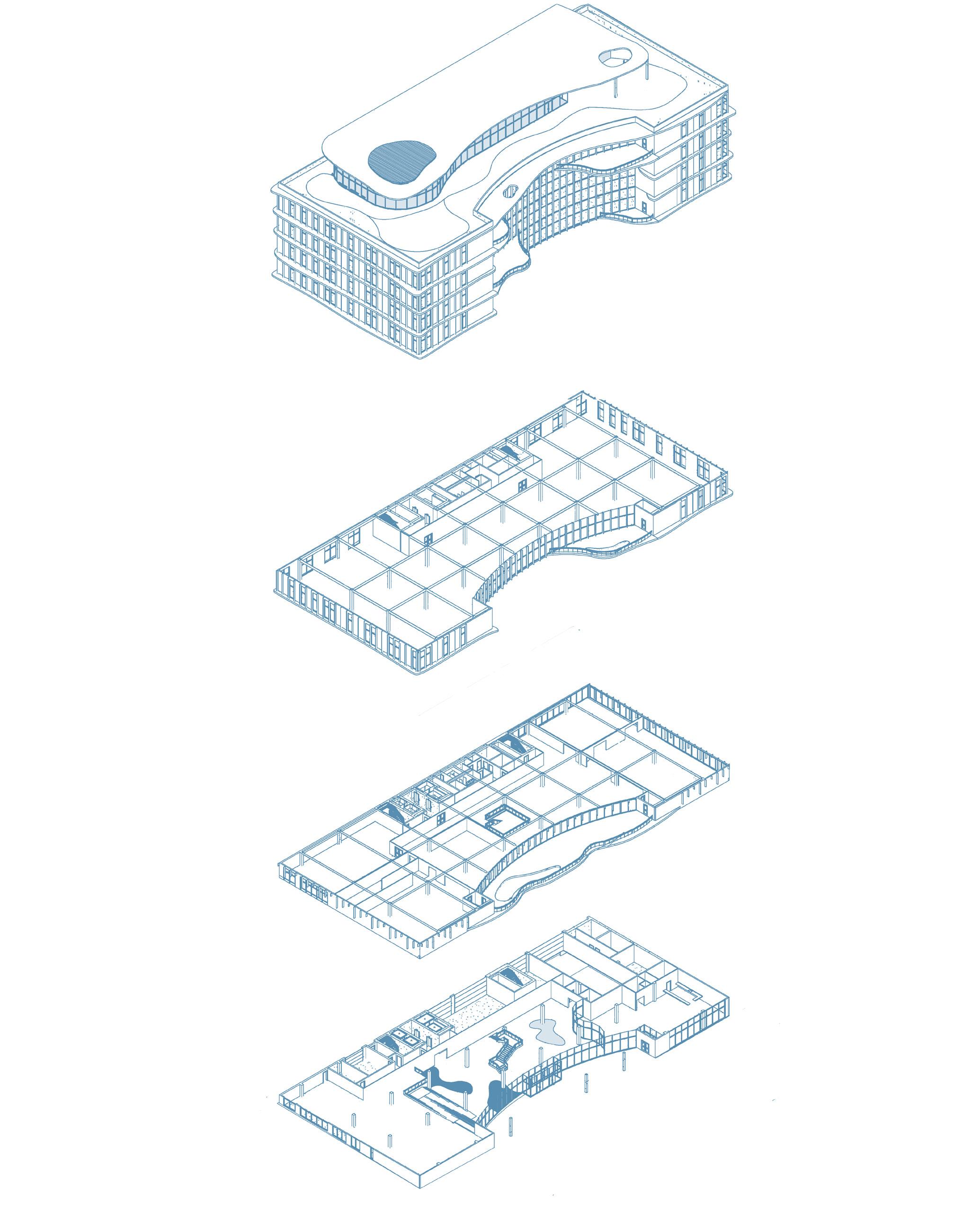

PROGRAM

• Education Space

• Water Tank Systems

• Cafe

• Lobby

• Lounge

• Collaboration Space

• Exhibition Space

• Screens

• Water Toys

• Water Tub

• Water in Environment

L3 - L7

• Typical Leasing Office Plan

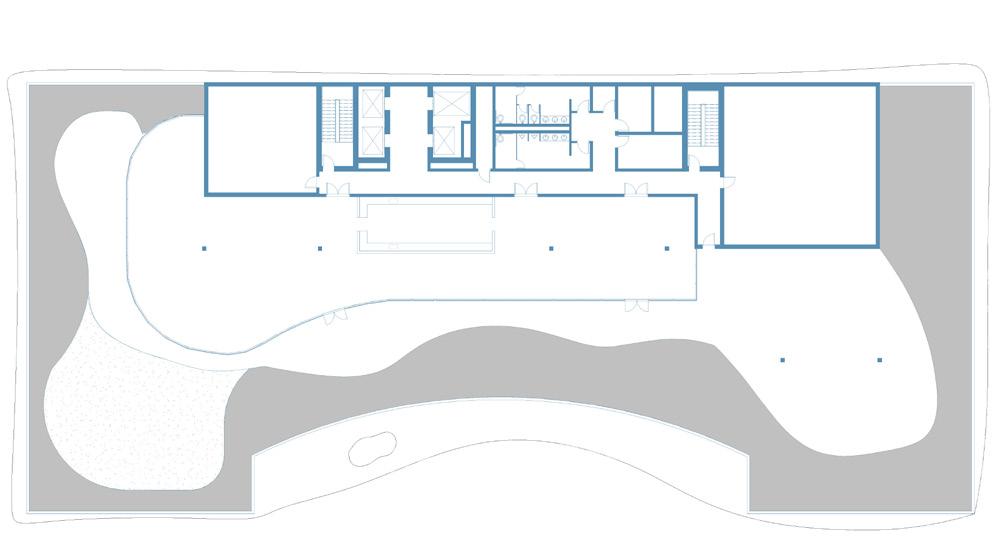

Rooftop Level

• Cafe

• Outdoor Space

Lounge, cafe and water systems

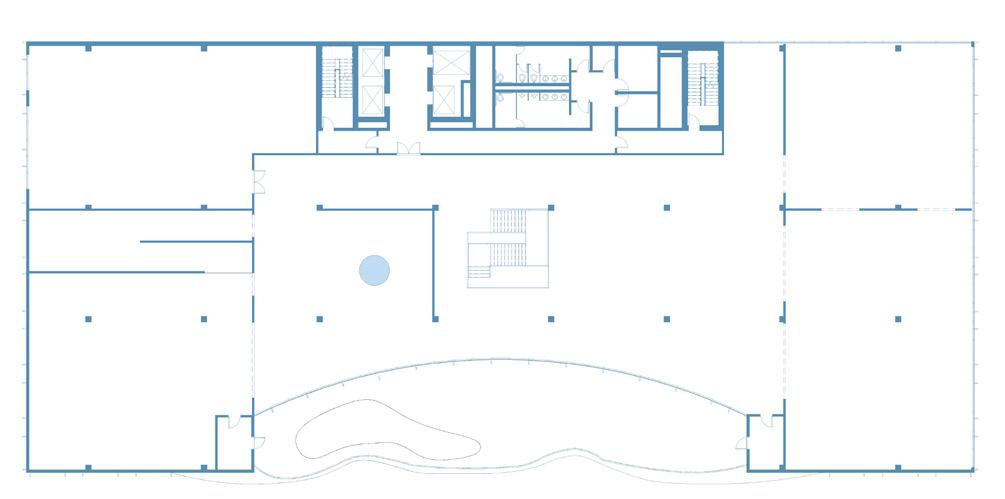

Typical Leasing Office Plan

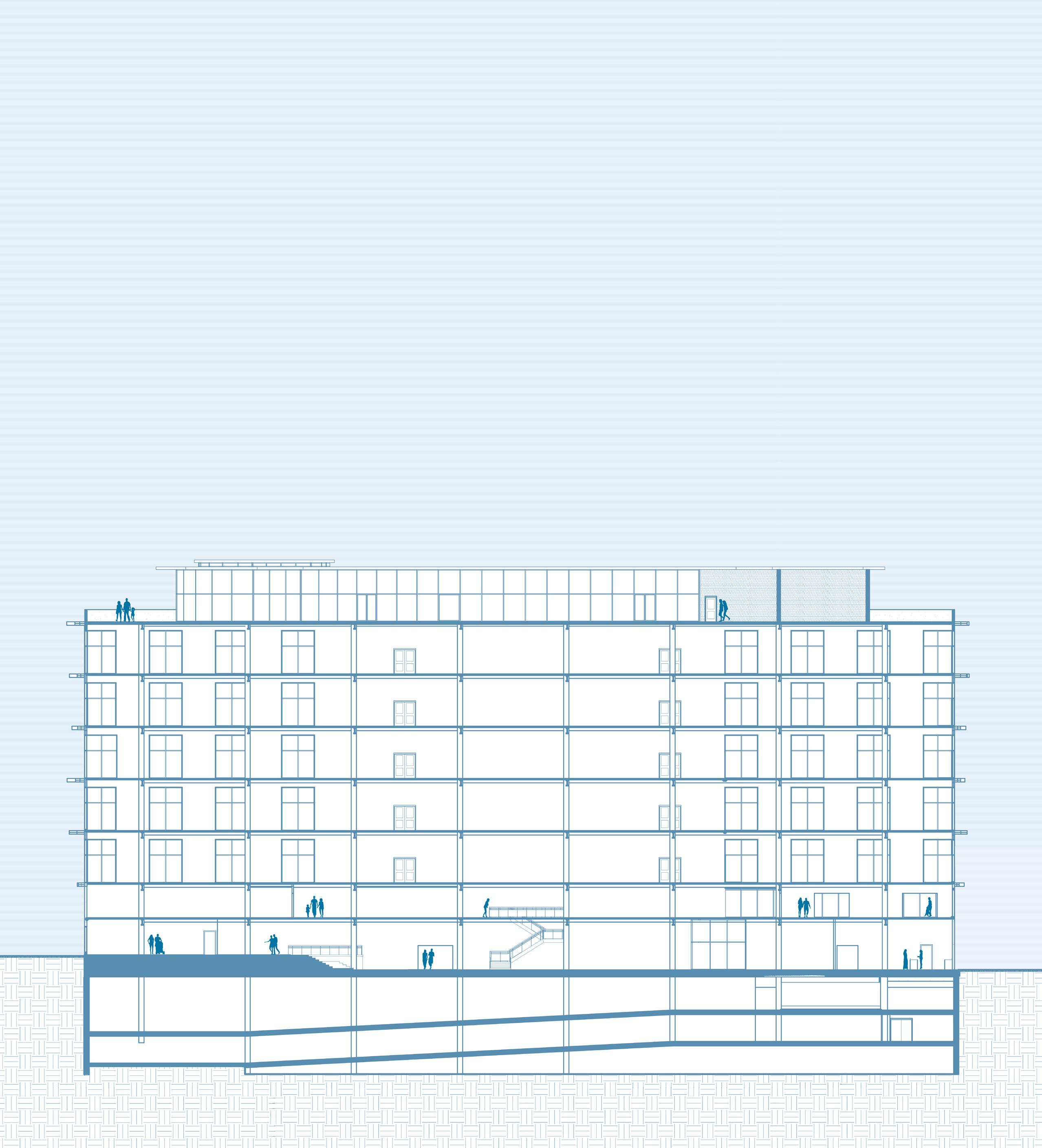

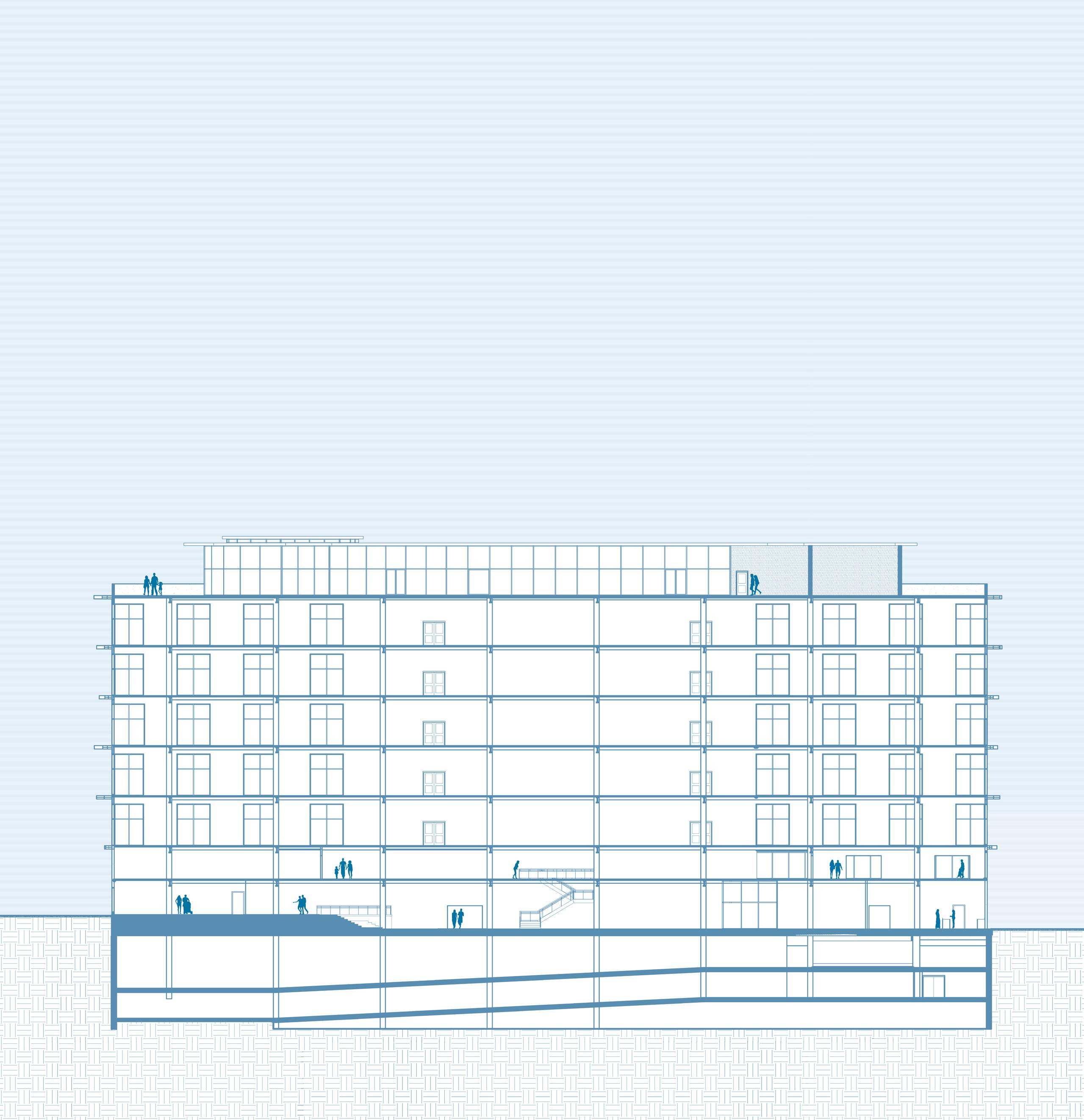

EAST SECTION

Education center and activities

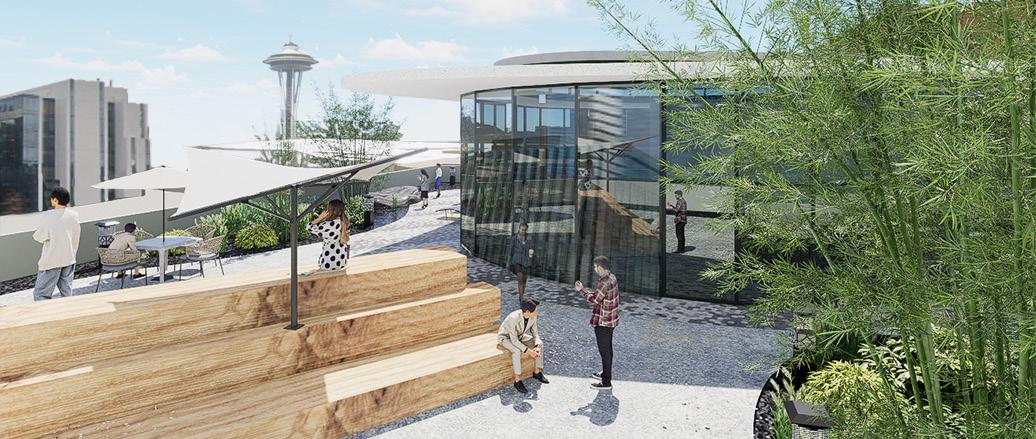

ROOFTOP

Restaurant and outdoor space

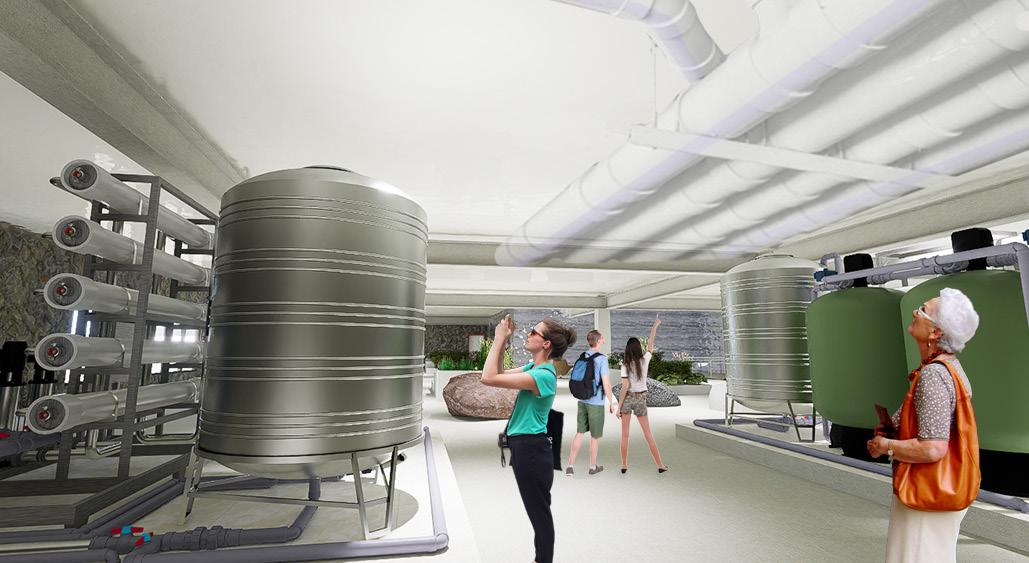

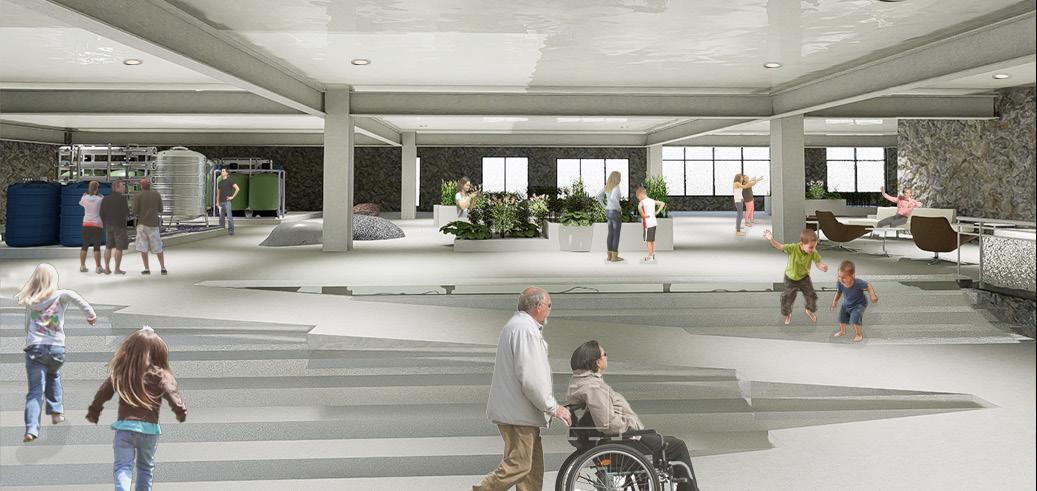

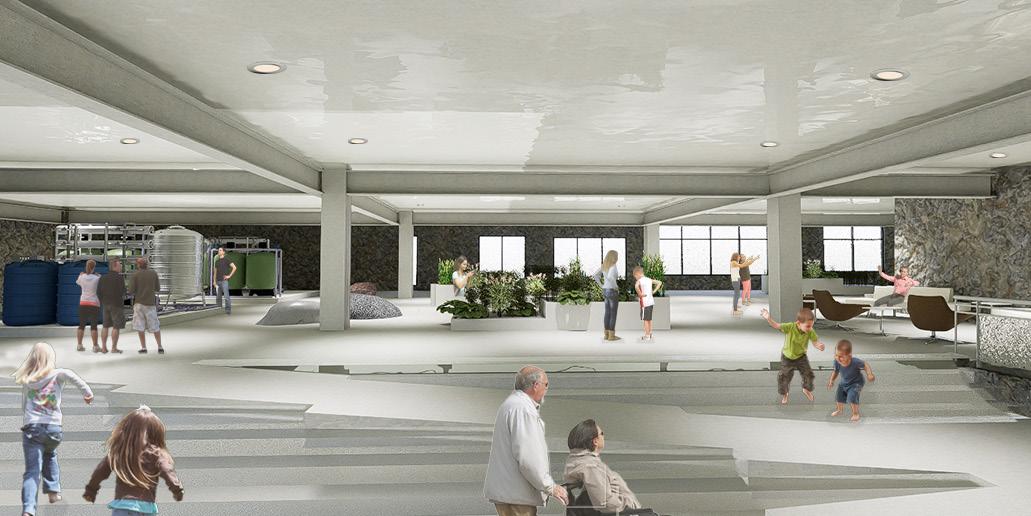

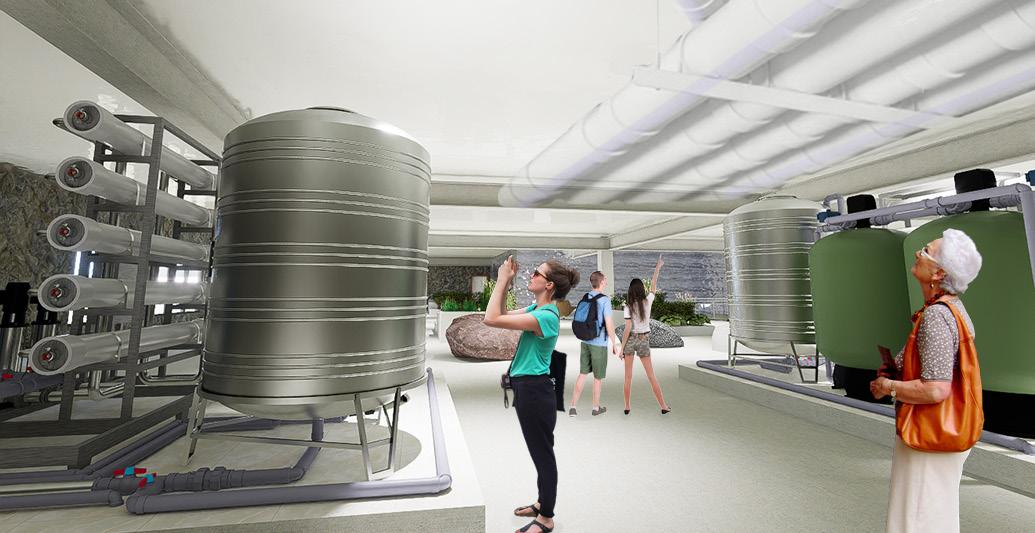

L1 WATER COLLECTION SYSTEM

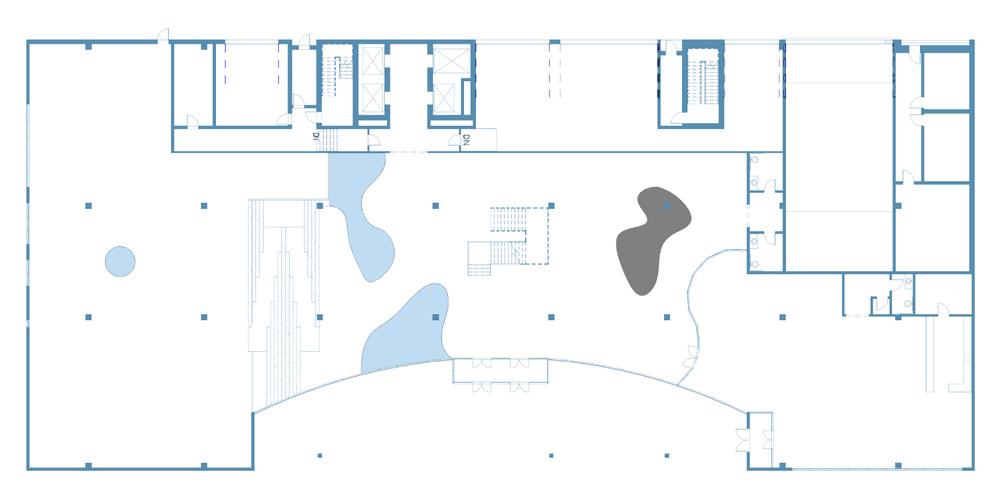

L1 LOUNGE

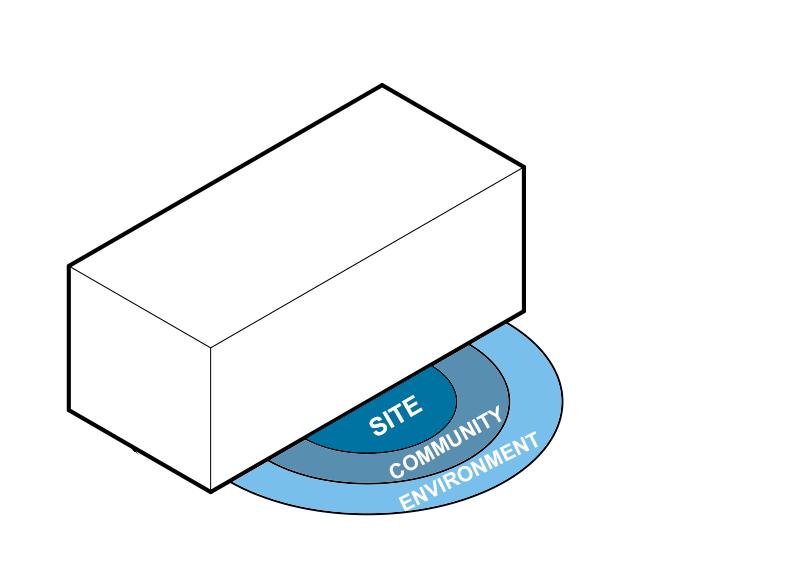

ECOLOGICAL KNOWLEDGE AND RESPONSIBILITY

Post Falls, ID

MILLSTONE CENTER

ARCH 511

Team- Michaela Dixon

PROJECT SUMMARY

Millstone Center revitalizes the historic Idaho Veneer mill, transforming it into a much-needed community center. Currently, Post Falls lacks essential recreational facilities such as a gym, accessible gym equipment, and a community pool. The goal is to fill this gap by creating a flexible, welcoming space where residents can come together, exercise, and engage in a variety of activities, fostering community growth and connection. In addition to recreational amenities, emphasis is placed on walkability and outdoor spaces. The design features walking paths that connect the residential area, outdoor spaces, and the community center, creating a cohesive and integrated experience. Recognizing the city’s rapid population growth, residential apartments have also been included as part of the design. This approach fosters a sense of unity and encourages interaction, making the space more than just a collection of facilities but a true hub for community engagement.

REFLECTION

Post Falls is a growing city, which means that there is going to be land that is being used strictly to construct homes, apartment complexes, or commercial spaces with rigid guidelines on how to do it by code. When touring the site, realize that there aren’t sidewalks around the site itself and if there were strictly straight sidewalk paths in grid form. With that in mind, breaking the grid-like paths and creating a more organic approach to sidewalks for people to enjoy when coming into the site. The project consists of apartments and mixed-use, but most importantly, a hub for the community to enjoy with the community, recreational, and aquatic centers. Creation of a hub for the community of Post Falls. The paths created are to foster walkability since there isn’t much that is going on in Post Falls due to the lack of sidewalks. These sidewalk paths are carefully planned to weave through green spaces, gardens, and recreational zones, offering residents an opportunity to experience the environment firsthand while encouraging physical activity and social engagement. The addition of local landscaping native to Post Falls to strengthen the local ecosystem to help promote the biodiversity in the area to protect the local wildlife. When it came to the creation of paths throughout the site, we looked into creating access going through the existing structure from the previous veneer mill. Wanting to keep the existing structure to be reused for the community hub was challenging because we had to plan out where exactly people going through the site would want to walk through to create a sense of shortcuts to get from one place to another and make it easy for them. Overall, this project highlights how architects can strategically master plans by considering both ecological factors and the adaptive reuse of existing structures, ensuring minimal disruption to the ecosystem.

Sun and Wind Paths

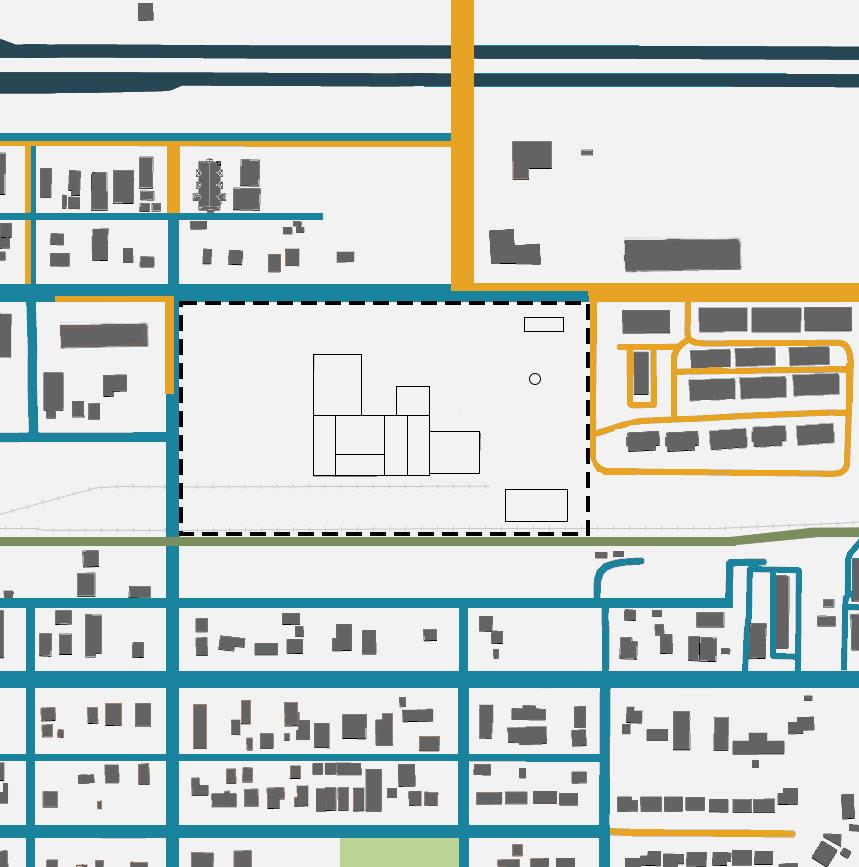

Walkability Map

No Sidewalks

Sidewalks

Centennial Trail

Walkable towns can significantly reduce carbon emissions, but Post Falls isn’t set up for that yet. In theory, residents could walk from place to place, but the town’s infrastructure makes it nearly impossible. Older neighborhoods lack sidewalks entirely, while newer developments include them, creating a patchwork that doesn’t support true walkability. Without consistent pedestrianfriendly planning, the city isn’t designed to encourage walking as a primary mode of transportation.

Proposing for Post Falls:

• The site will feature sidewalks that extend throughout the entire area.

• Integrate sidewalks with building structures.

Make interesting sidewalk patterns to encourage walking to increase foot traffic in the area.

SITE

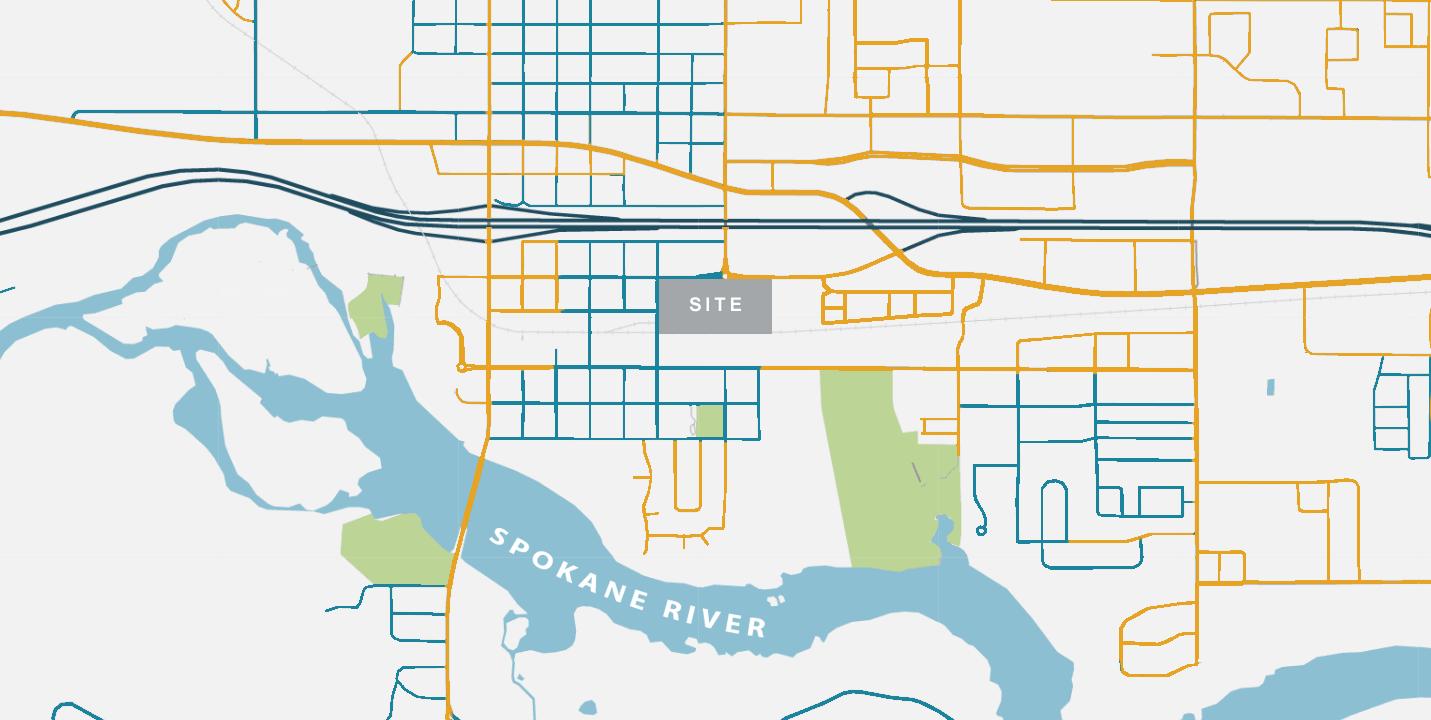

Marco Walkability Map

SIDEWALK DEVELOPMENT

Current Sidewalk Conditions Around Post Falls

Older/ Underdeveloped Neighborhoods

Against the Grid System

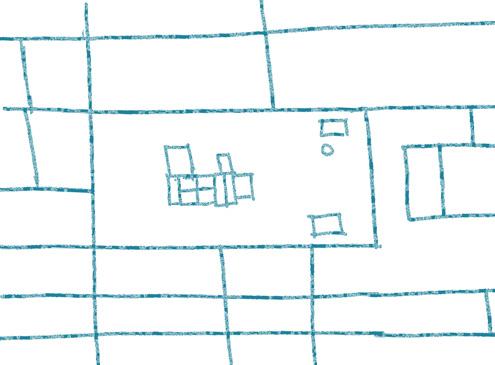

Existing Site With Grid System

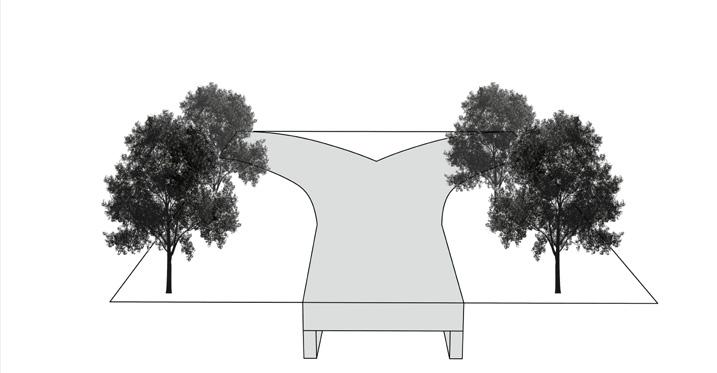

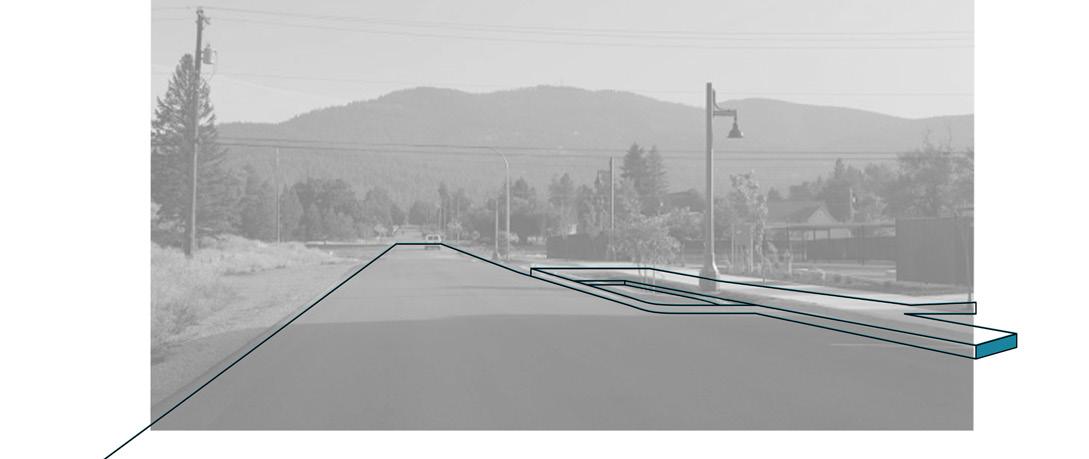

Sidewalk Design Process

New Development Neighborhoods

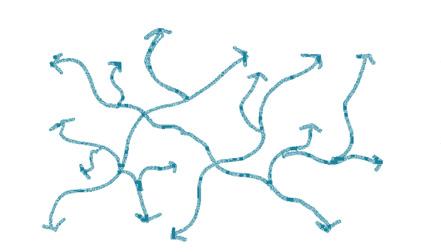

Grid Path Continue Organic Paths

Regular Linear Sidewalk

Curved Sidewalk- To Create More Exiting Path of Travel

Addition of Vegetation to Sidewalks Paths for Shade

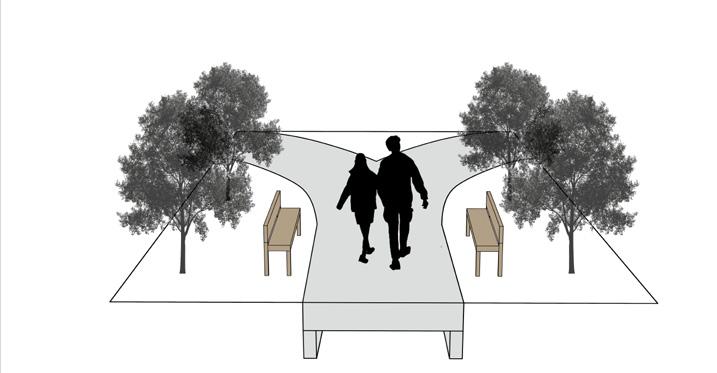

Addition of Sitting Spaces Throughout the Sidewalk Trails

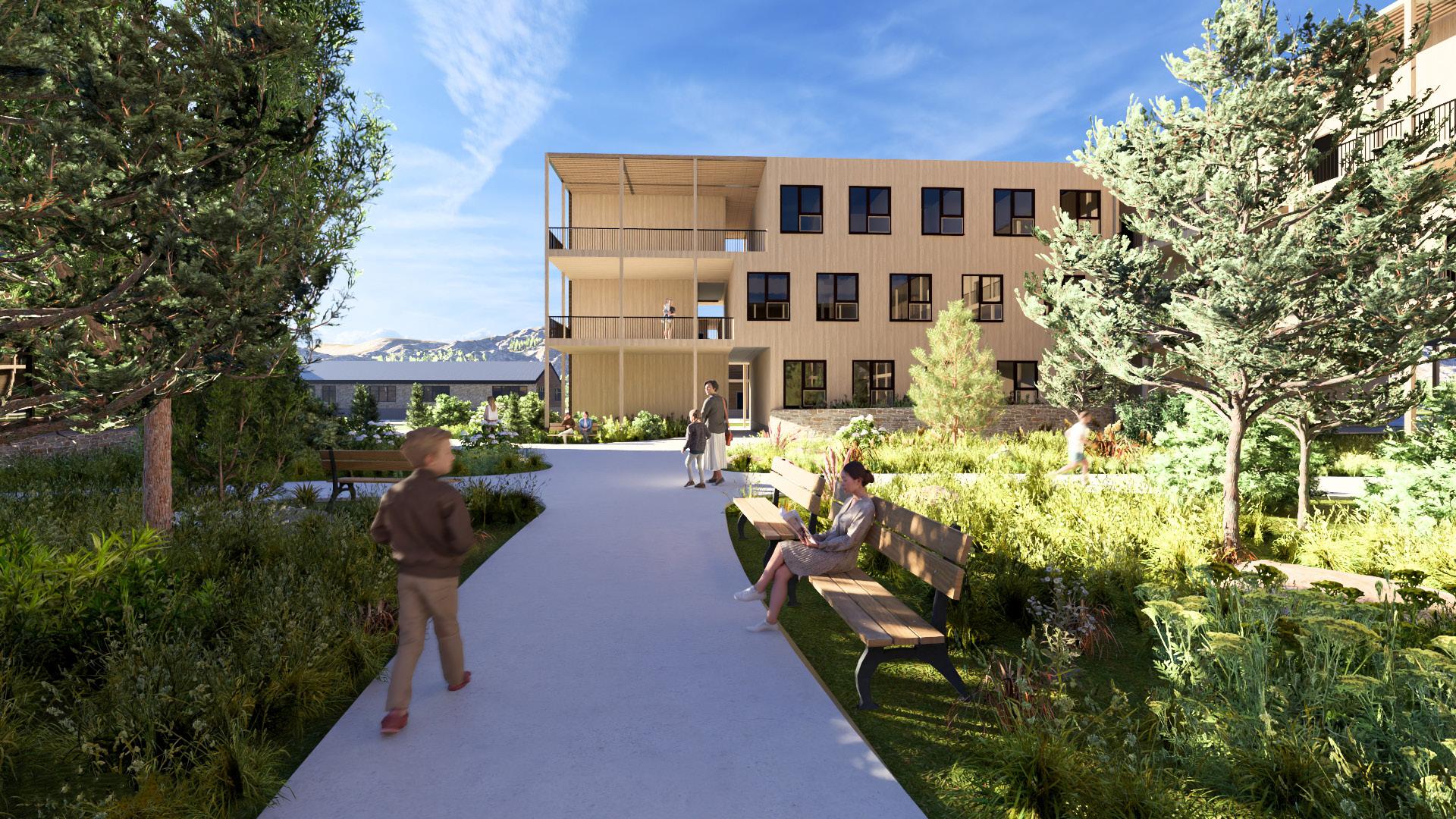

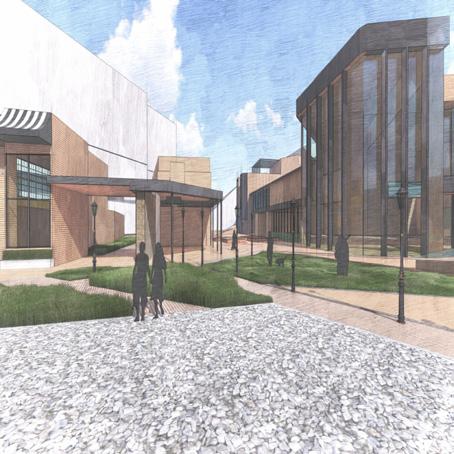

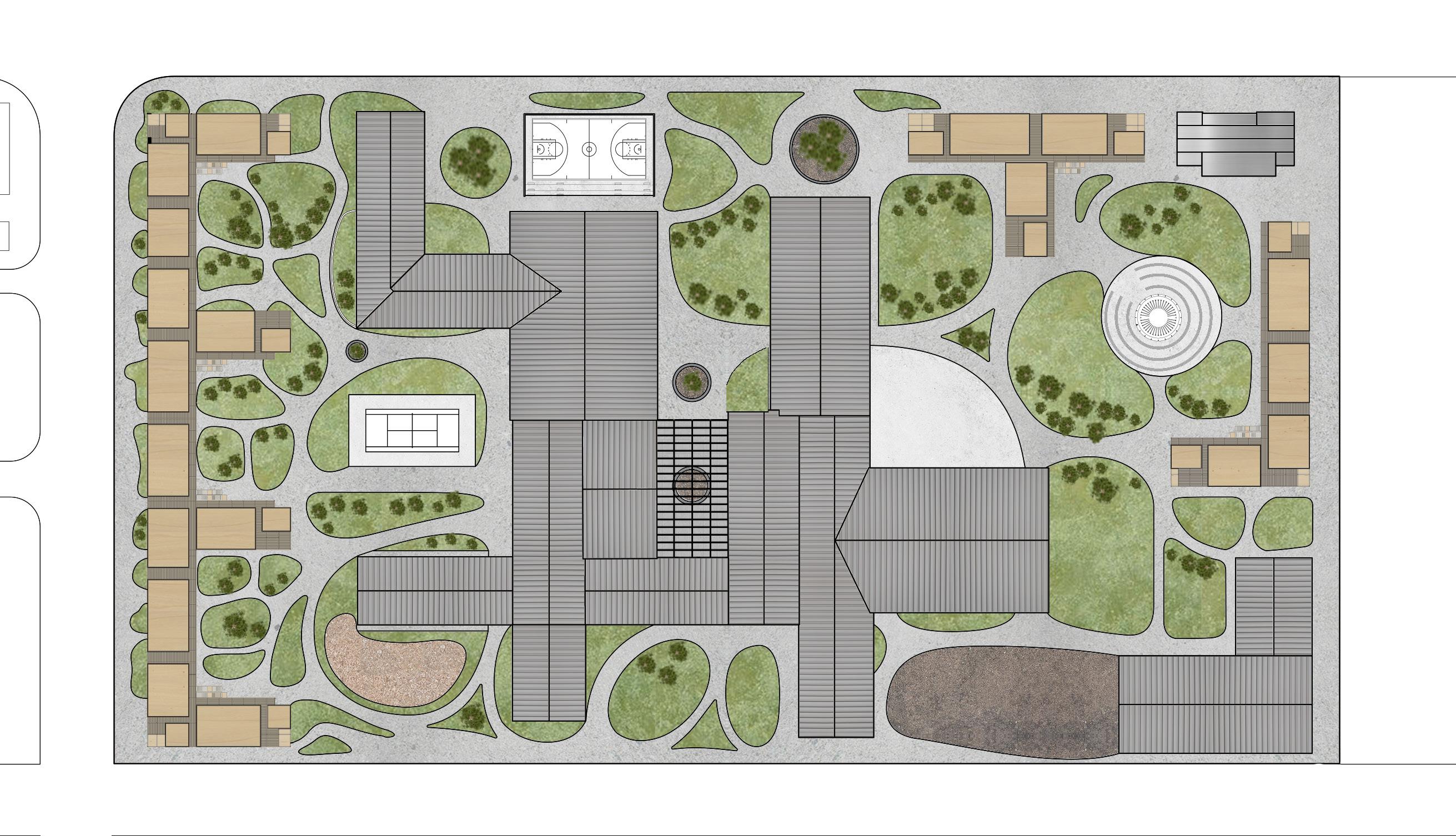

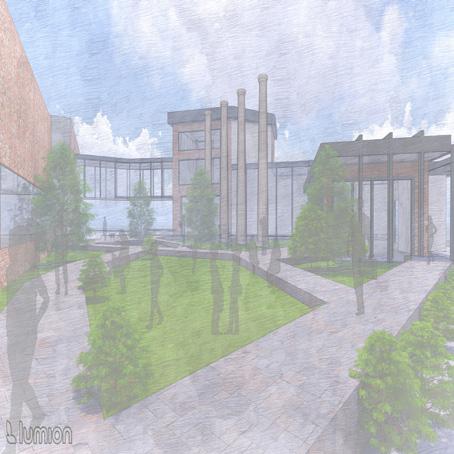

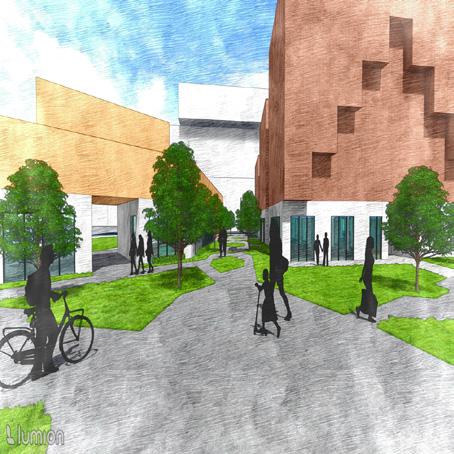

PATHS OF TRAVEL ON SITE

The focus was not only on outdoor circulation but also on how people navigate and access spaces within both existing structures and new buildings across the site. This includes designing intuitive pathways and entry points that enhance connectivity and create a seamless flow between indoor and outdoor environments.

VEGETATION AND MATERIALS TYPES

Western red cedar trees placed throughtout to help CO2 emissions

Use of CLT to reduce carbon footprint while it is a local material

Human and environment interaction with walkable paths in an organic design

Local vegetation to improve CO2 emission

Vegetation

Building Materials

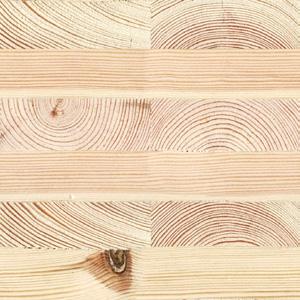

CLT Wood

Locally

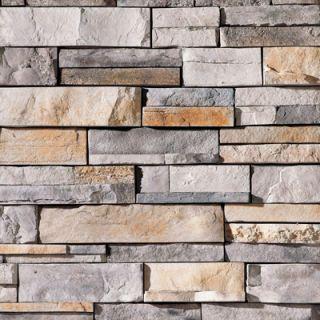

Stone

Reclaimed Wood

Lupine

Western Red Cedar

Idaho Fescue

Douglass Fir

Locally sourced stone complements the landscape, providing durable, lowmaintenance weather resistance

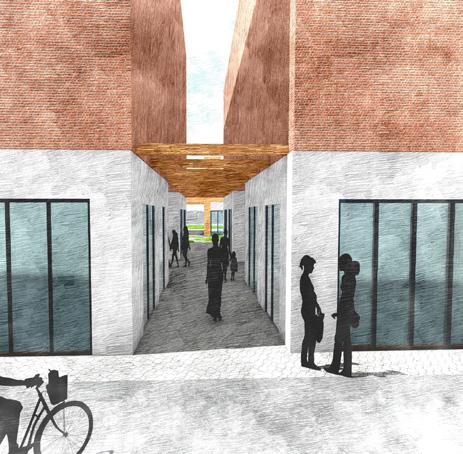

Walkway opening for crossventilation for passive cooling

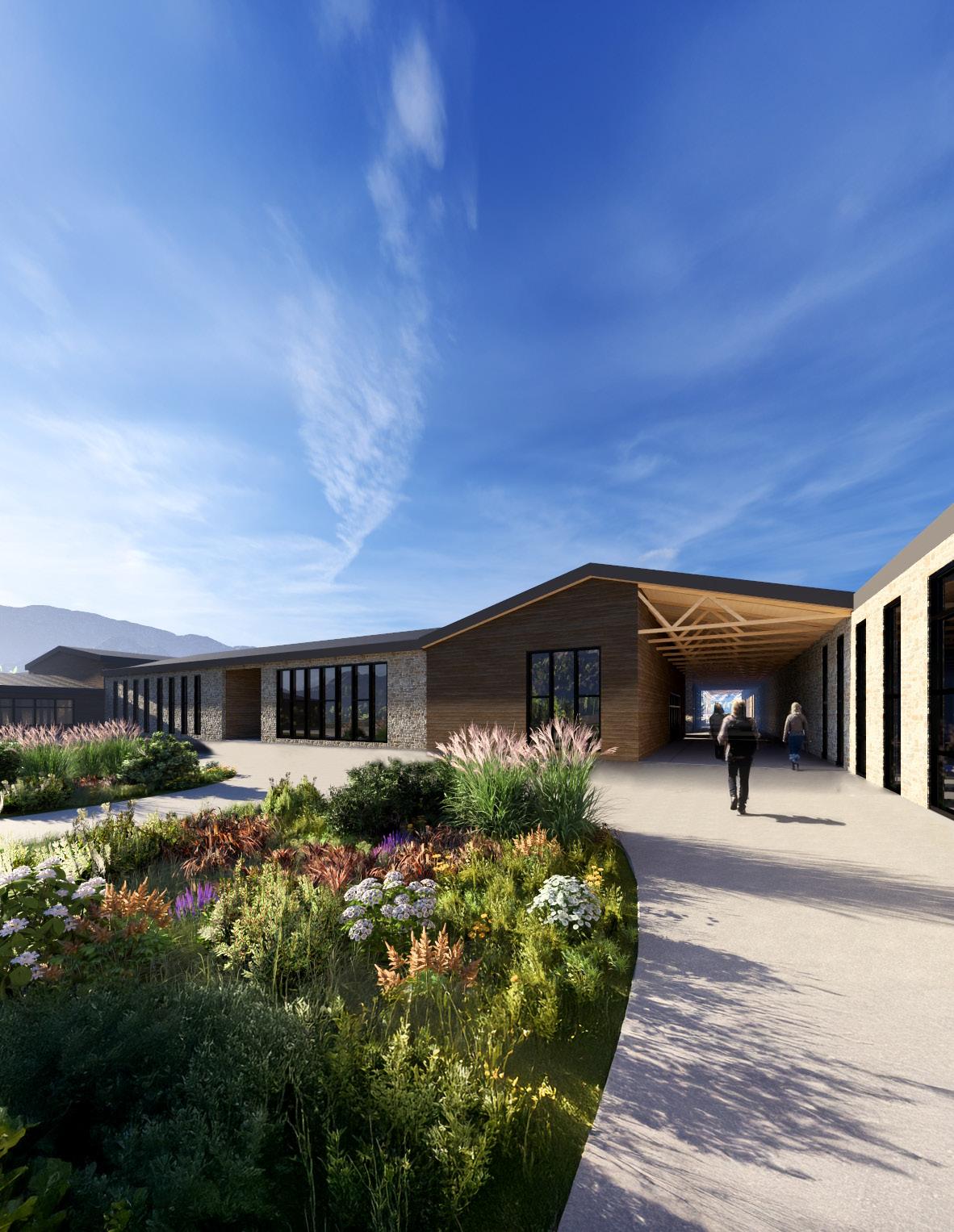

Human and environment interaction with walkable paths

Local vegetation to improve CO2 emission

AQUATIC CENTER

Reuse existing building material from previous wood mill

Use of CLT to reduce carbon footprint while it is a local material

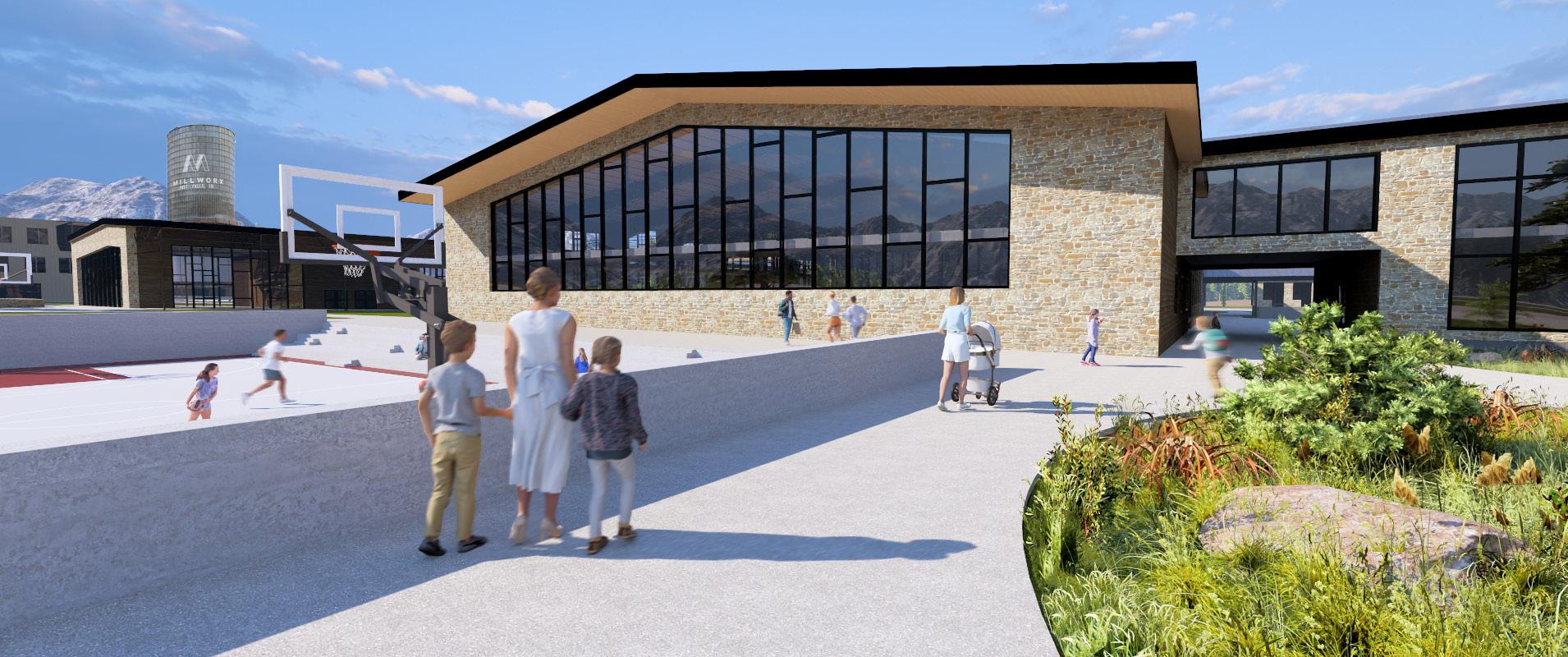

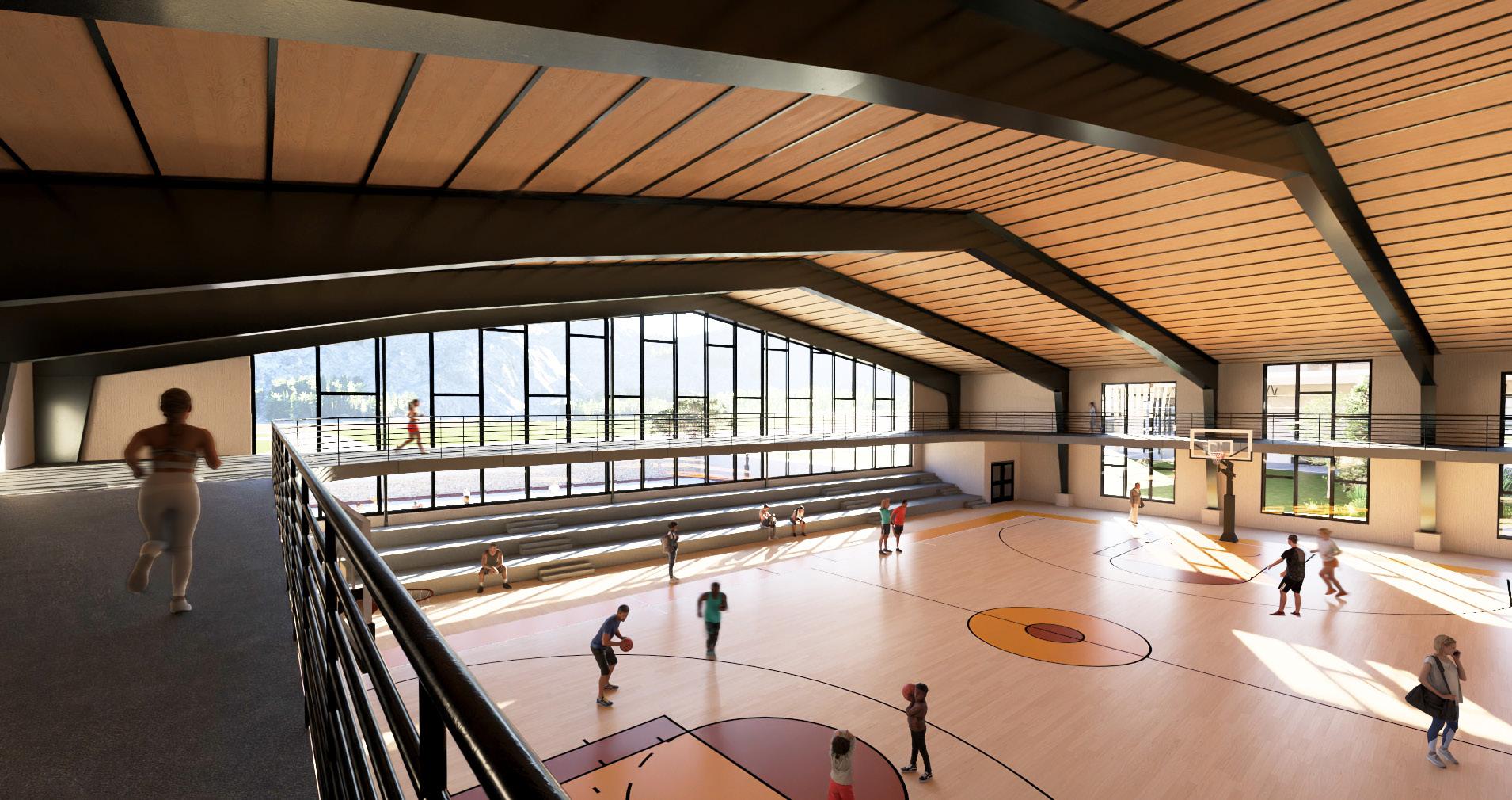

RECREATIONAL CENTER

FABRICATION LAB COMMUNITY CENTER

OPEN OUTDOOR SPACE

I-5 REVIVAL LID

ARCH 510

Team- Yuen Lei Lam & Sweta Waiba

PROJECT SUMMARY

The I-5 Revival Lid challenges the structured grid system of Seattle and its division of neighborhoods within the area. This project addresses the needs of the area, such as affordable housing, community spaces such as a community center, and P-patch gardens, while stimulating economic growth with commercial spaces and food markets. The lid helps to curate an experience for the tourists within Seattle and helps them see what is beyond the intersection; there are neighborhoods with history and uniqueness beyond the highway, and now the lid. The lid is a place to help support the surrounding neighborhoods but also connects them within the lid to create a gathering space for people to meet. Within the lid, we look to restore walkability, urban history, culture, and tourism for Seattle in spaces taken over by intersections.

This project critically examines the fractures within Seattle’s urban fabric, particularly how neighborhoods have been divided and what it truly means to reconnect them. Rather than simply claiming that bridging physical gaps will resolve social disconnection, the lid over I-5 is designed to test how architectural interventions can restore divided neighborhoods. By prioritizing walkability to access one neighborhood to another better and sharing public spaces for everyone, interaction among diverse communities in the neighborhoods can be fostered. Its success could address deeper social and historical divides caused by I-5 intervention. It aspires to create a more inclusive, connected, and vibrant Seattle.

SEATTLE LOST CONNECTIONS

Before the 1960s in Seattle, the area where the intersection goes through was filled with land where residents of Seattle lived. After Intersection 5 was approved, that changed; residents and retail businesses of the area were removed from their respective areas, forcing them to move elsewhere in the city. What was left was bridges connecting neighborhoods above the busy intersection. Connections to neighborhoods left the community heartbroken, mostly in the First Hill and Capitol Hill neighborhoods, which were connected to the heart of downtown Seattle. In theory, this project will help reduce urban fragmentation by bridging physical and social divides, promote sustainable mobility by prioritizing walkability in the area, and enhance social interaction by strengthening shared spaces that bring diverse communities together. By reclaiming urban land, it aspires to create a more inclusive, connected, vibrant Seattle.

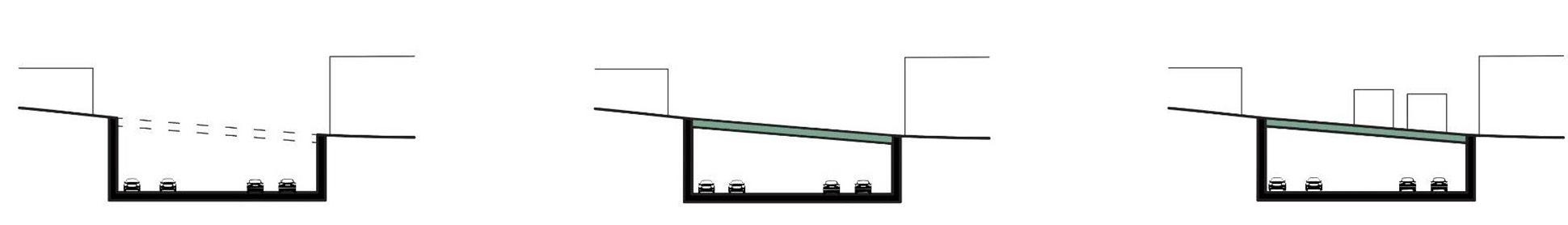

I- 5 LID DEVELOPMENT: FREEWAY PARK AND THE FUTURE

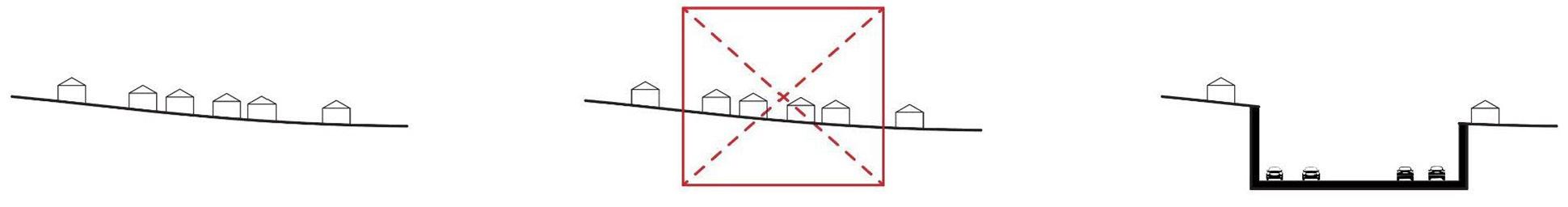

Prior to 1960

Evicting residents for a Seattle highway I-5 cutting through Seattle neighborhoods

Neighborhood separation, limiting interactions

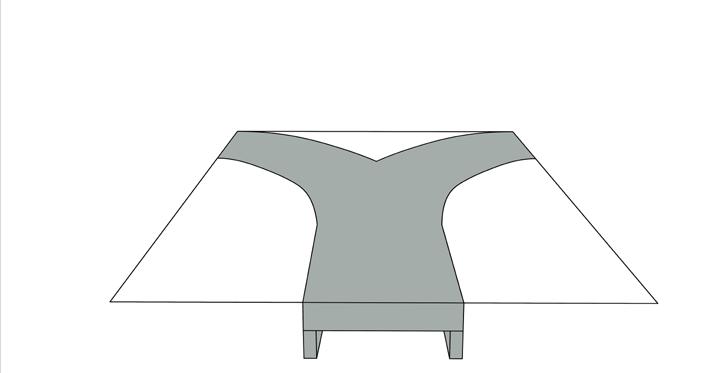

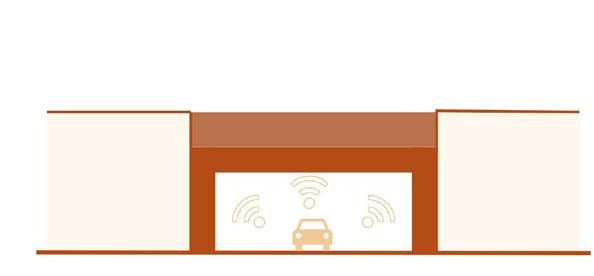

Highway lid uniting neighborhoods

LID’S RESTORING LOST CONNECTIONS

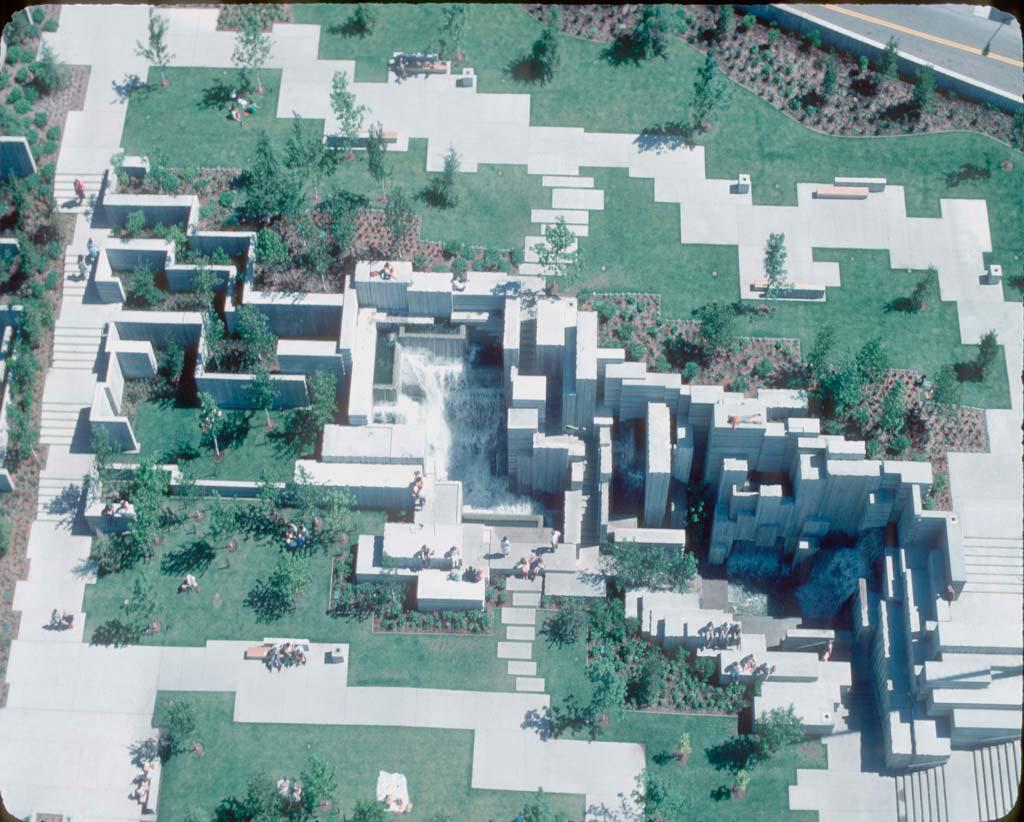

Freeway Park is not an actual park situated on land, but more so on top of Intercession 5; it is a lid. It is the only lid that Seattle has currently, and in the future, the city wants to expand lid projects throughout the intersection to bring connections back to Seattle among neighborhoods. Reclaiming the space that was tragically taken away from the intercept to become community space. Freeway Park helps reconnect the communities that were ripped apart; the lid helps create this beautiful landscape for the community and tourists to use. Bring in green space to the busy up-and-coming city to bring people into space. Freeway Parks have different gathering spaces, fountains, plaza spaces, and different paths to get from one place to another in the city with its brutal architecture. It is a historical landmark that brings together the community.

Lid integrating green space and buildings

view, 1970s (Courtesy Seattle Municipal

Sources “Freeway Park.” Arch Journey, archjourney.org/projects/freeway-park/. Accessed 2 Mar. 2025. Joyce, Mariah, and Mariah Joyce. “Celebrating 40 Years of Seattle’s First I-5 Lid: Happy Birthday, Freeway Park.” CHS Capitol Hill Seattle News, 11 July 2016, www.capitolhillseattle.com/2016/06/celebrating-40-years-of-seattles-first-i-5-lid-happy-birthday-freeway-park/. Accessed 2 Mar. 2025. Seattle I-5 History, June 2016, lidi5.org/wp-content/uploads/2016/06/seattle-i-5-history.pdf. Accessed 2 Mar. 2025. Webb, Alice. “Freeway Park, Seattle.” Land Perspectives, 1 Feb. 2018, landperspectives.com/2018/02/01/freeway-park-seattle/. Accessed 2 Mar. 2025.

Aerial

Archives, CC BY 2.0)

Seattle, WA

SURROUNDING NEIGHBORHOODS

Downtown Retail Core:

• Densest area of Seattle

• Unlimited height zoning in some areas

• Predominantly office buildings

• Single buildings can occupy a full block

Denny Triangle:

• Dense employment centers

Mid-rise, larger footprint buildings

• Underwent remarkable transformation from lowdensity to tech hub

First Hill:

• Zoning allows high-rise development

• Rapidly growing neighborhood

• Dense residential uses

• Important institutional uses: hospitals, higher education, religious institutions

Capitol Hill:

• Smaller lots and lower heights

• Mixed-use with residential population

• Hub of small businesses, restaurants, bars, art, and music

• Home to LGBTQIA+ communities and culture

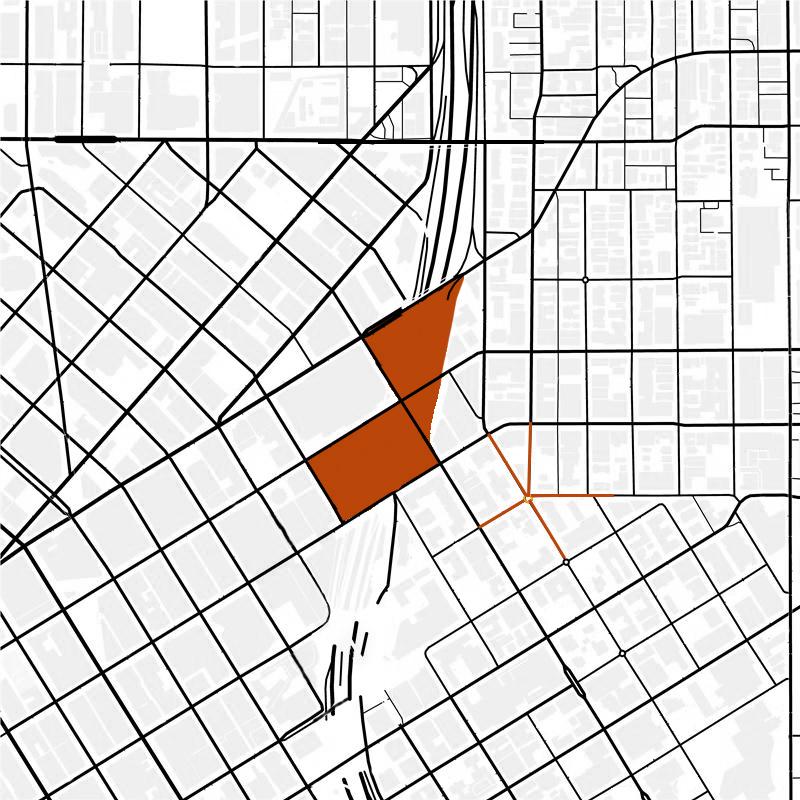

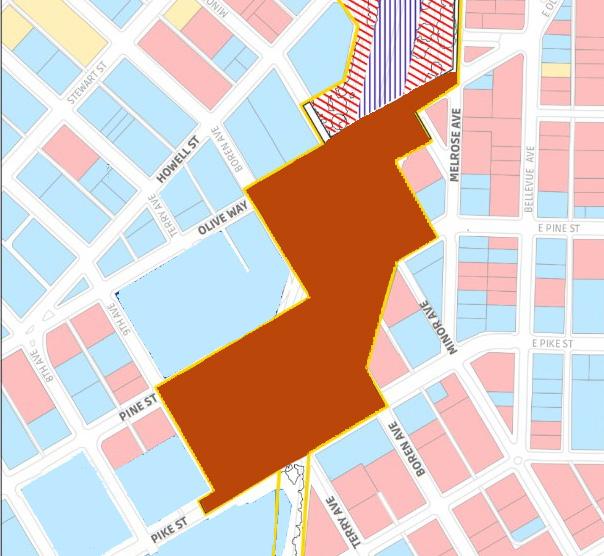

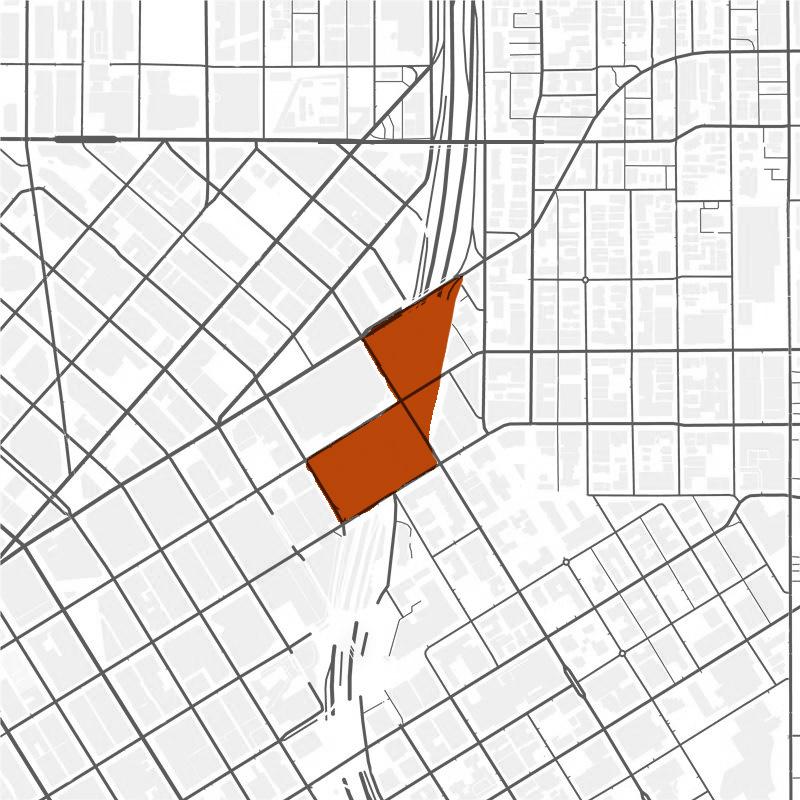

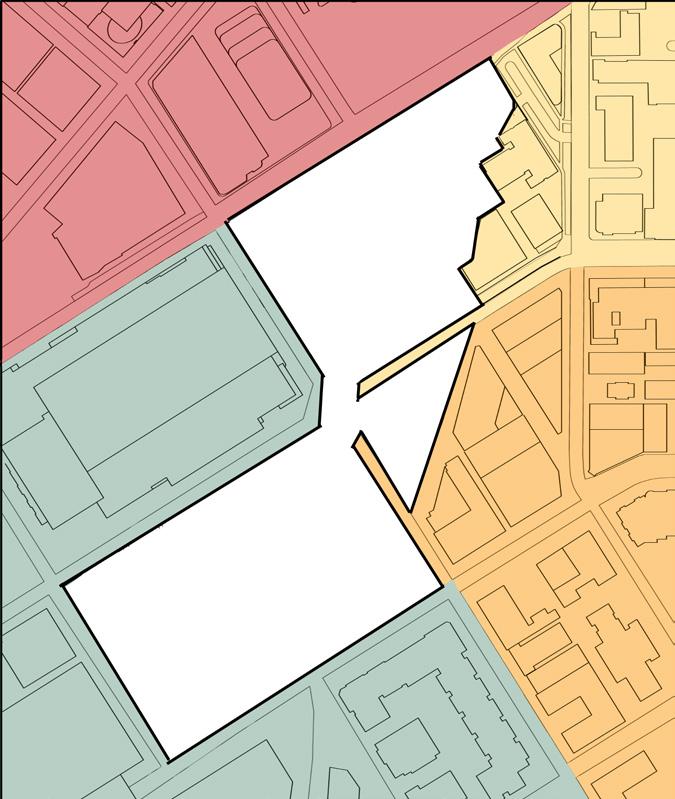

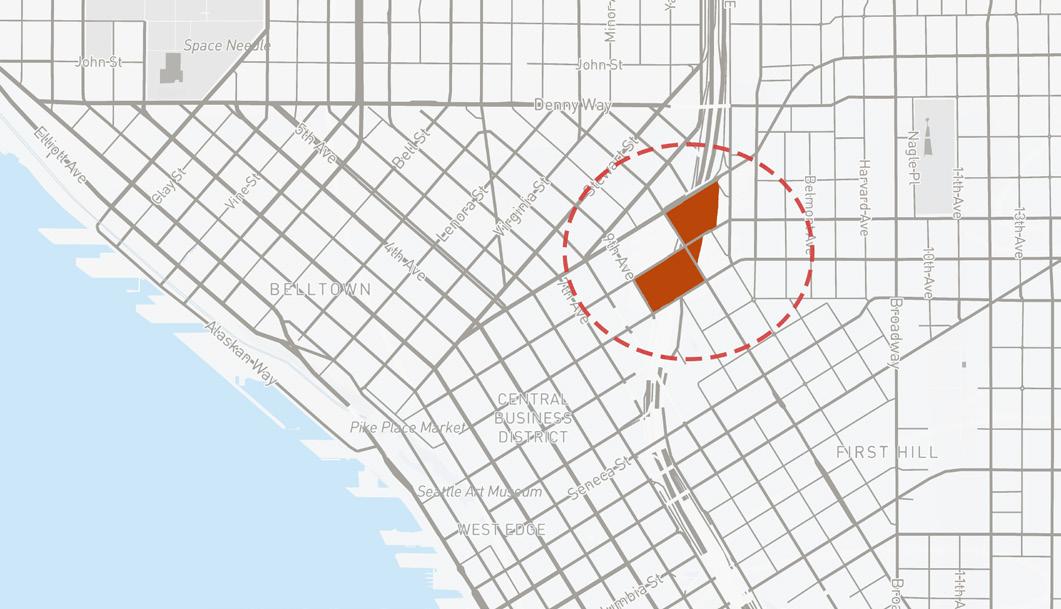

SITE ZONING

The lid is situated at the heart of the intersection, bridging five major neighborhoods known for their impactful community programs. However, the construction of I-5 disrupted their cultural and social ties, creating a disconnect between them. As a result, these neighborhoods function independently rather than as a cohesive, interconnected community as they once did.

Analyzing the site’s surroundings, it is easy to see that there are social aspects that are missing and that the community needs. In comparison to having been broken apart, creating shared spaces between the neighborhoods will encourage interaction and engagement with one another. The lid will help create a more unique Seattle, to go beyond the historically established neighborhoods into how they were when they were connected before. Reclaim the city’s cultural spaces to create an expansion to strengthen the connection. The lid will be fundamental when it comes to incorporating housing solutions due to the lack of housing in the city, additionally bringing in local income with newly developed commercial spaces for the community members and tourists.

Capitol Hill

First Hill

Retail Core

Denny Triangle

South Lake Union LID

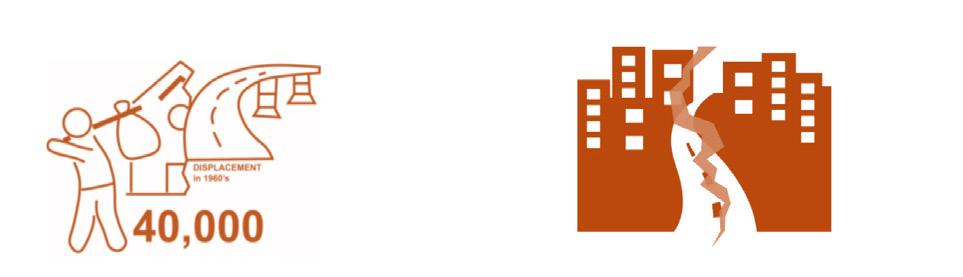

Displacements

Social & Economic Fragmentation Disrupt Community Connectivity

Increase Traffic Environment & Health Noise & Air Pollution

BREAKING THE GRID FOR UNITY OF NEIGHBORHOODS

Restoring Community Connection Between Neighborhoods

Creation of Lid to Reduce Issues

A goal for the lid is to create union within, to not continue with the established grid system of the city. Not continuing the grid to the lid helps prevent the separation of spaces between all the neighborhoods to prevent history from repeating itself with the separation of neighborhoods.

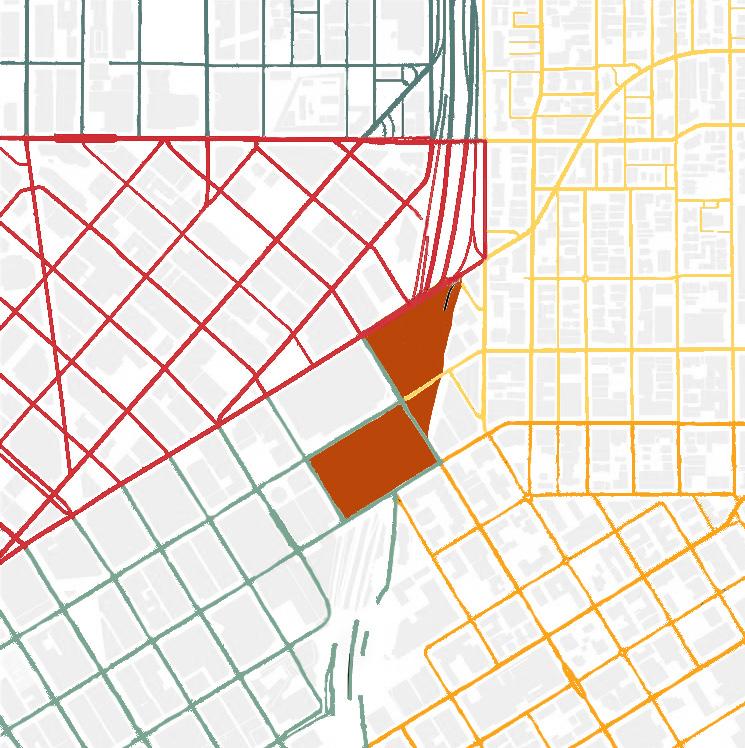

Looking at the overall grid of Seattle

Selection of an interesting grid pattern that doesn’t follow a natural rigid grid

Breaking the grid to create spaces where it can be broken down for cultural, social, and economic reasons to better the environment. The grid division is like the division of neighborhoods, but instead of creating a boundary, it is more for the unity of it.

PROCESS DIAGRAM CREATION OF SPACES FOR CULTURE,

SOCIAL & ECONOMICS

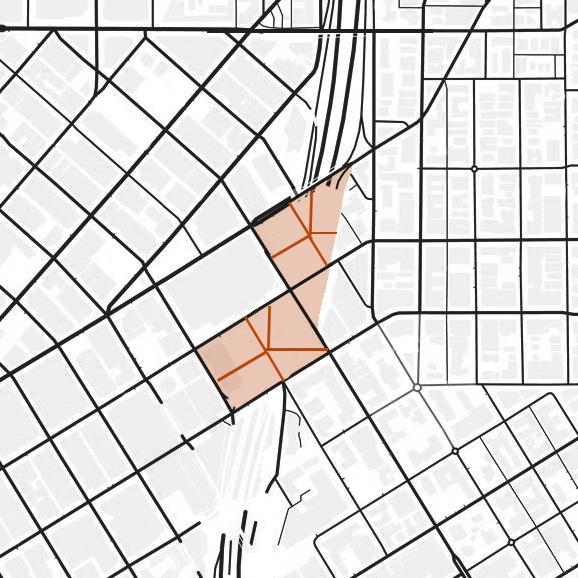

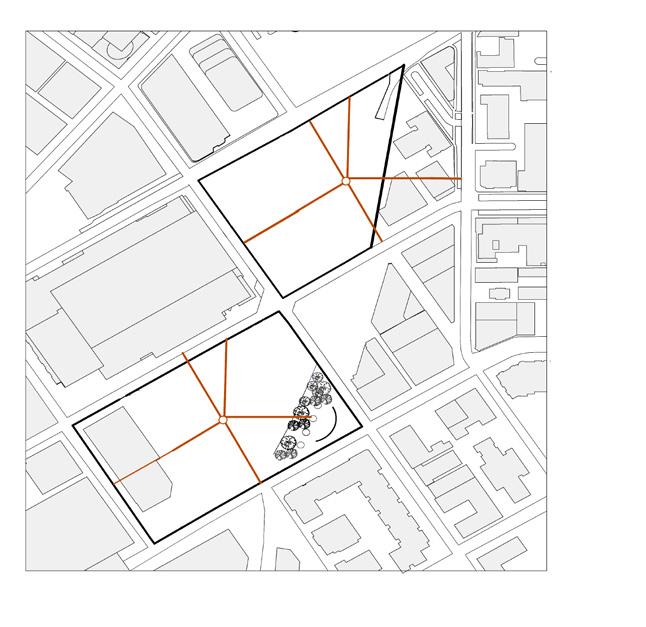

Starting grid pattern on lids

Rotating lid pattern for the creation of spaces

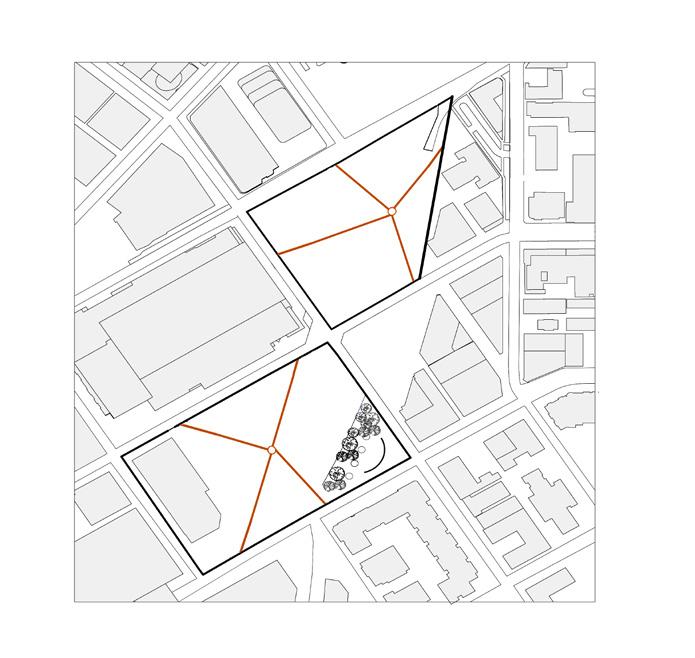

Final rotating lid patterns

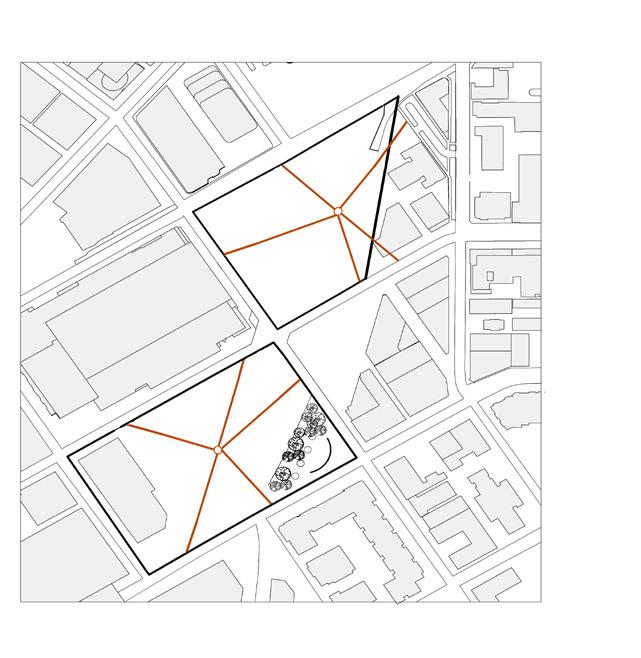

Removal of the leg of the grid pattern to create more room for the program

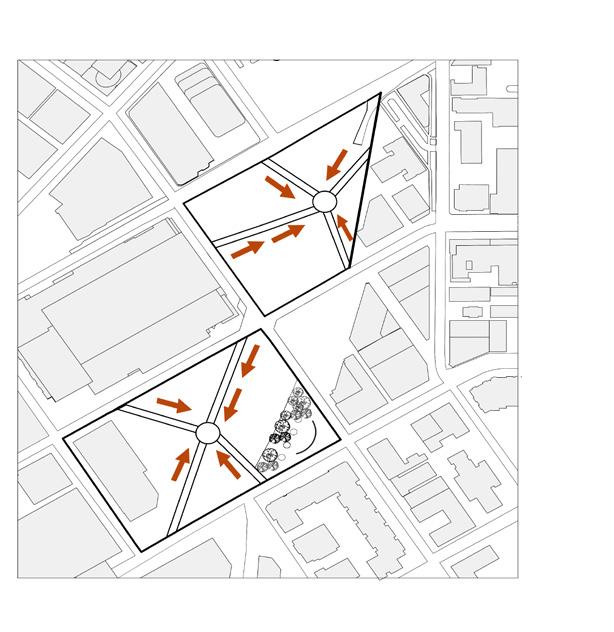

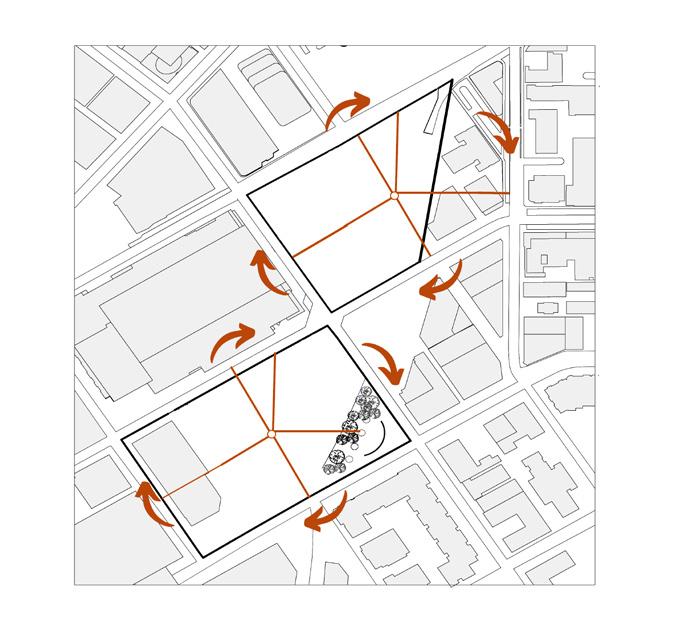

Creation of pathways that come to the center

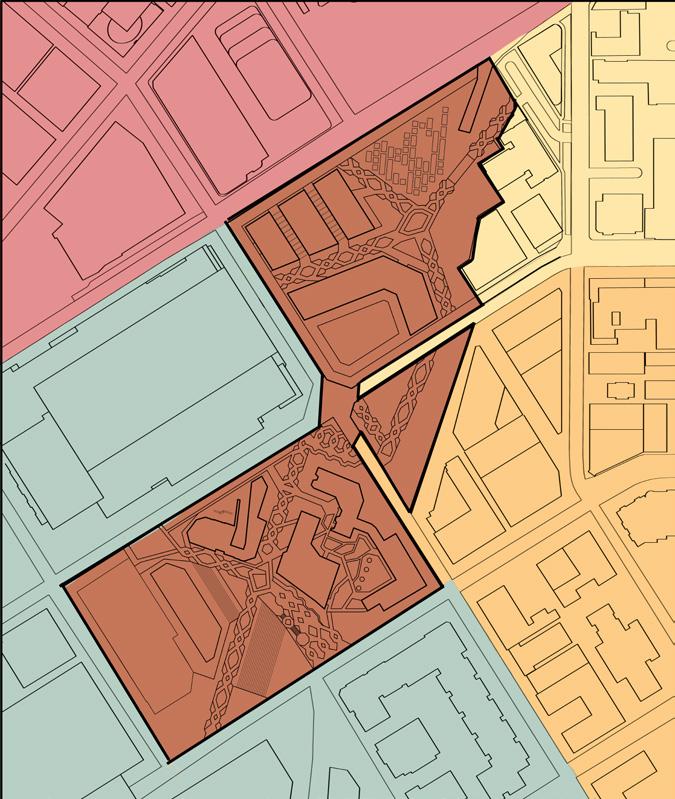

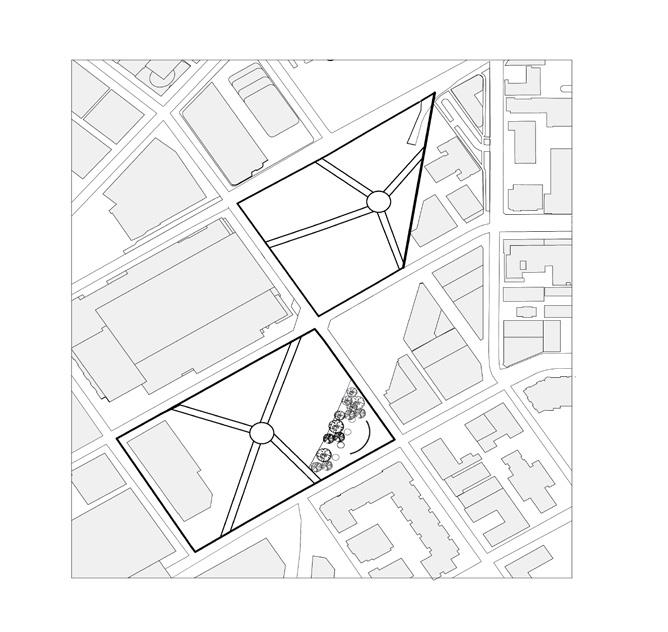

Final lid pattern for program with meeting point

Economic

The community’s economy would increase because previously there were no economic factors. With commercial, affordable housing for those in need, in addition to the continuation of the farmers’ market, the economy of the area will grow.

Social

With the addition of outdoor and community centers, there would be more foot traffic in the area. Providing the needs of the community in the rapidly growing city. Helping increases social interaction between those living in the established neighborhoods around the lid.

Culture

Traditions previously celebrated will have another home to be able to expand. In addition to creating new traditions within the lids to celebrate the union of neighborhoods through the lid.

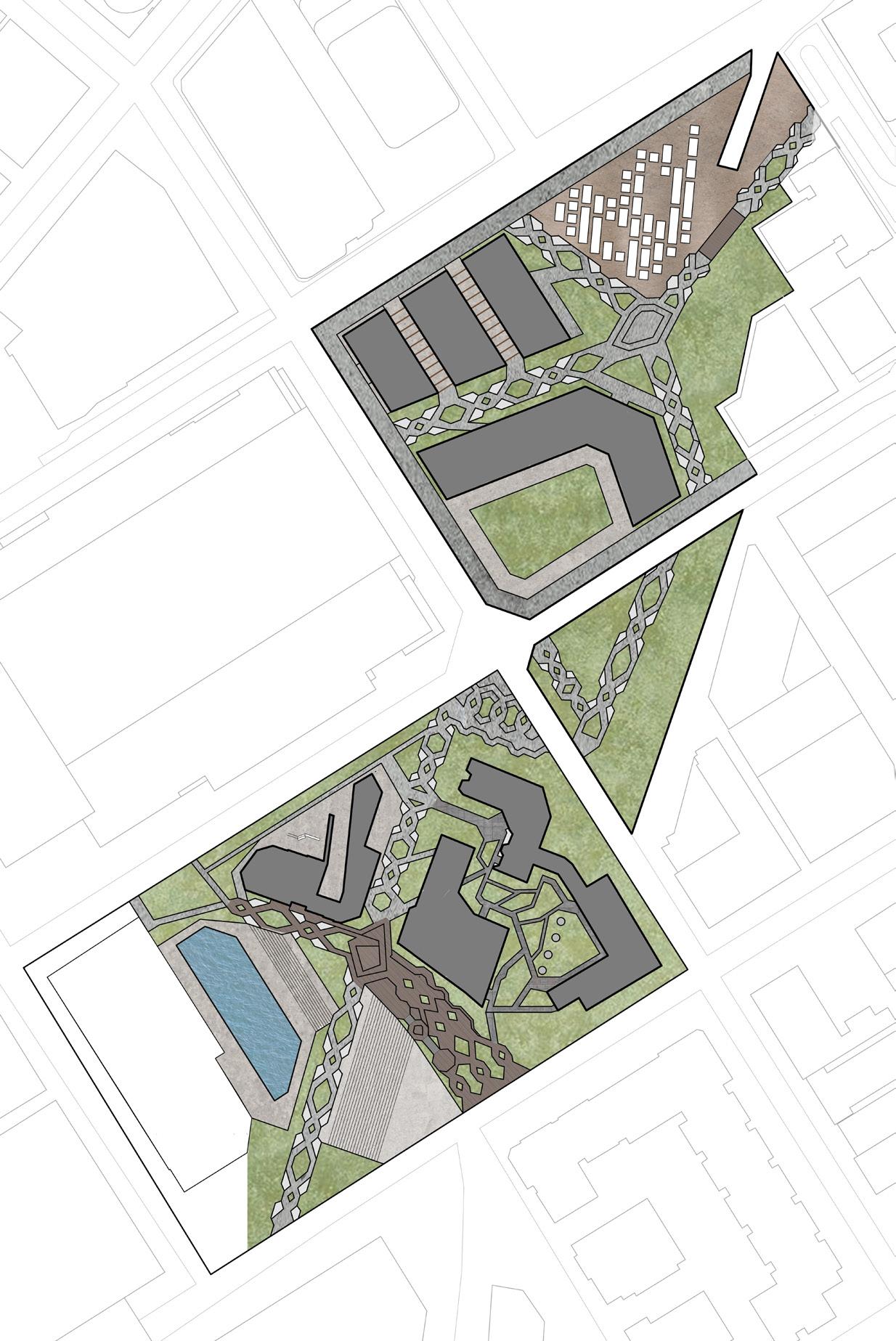

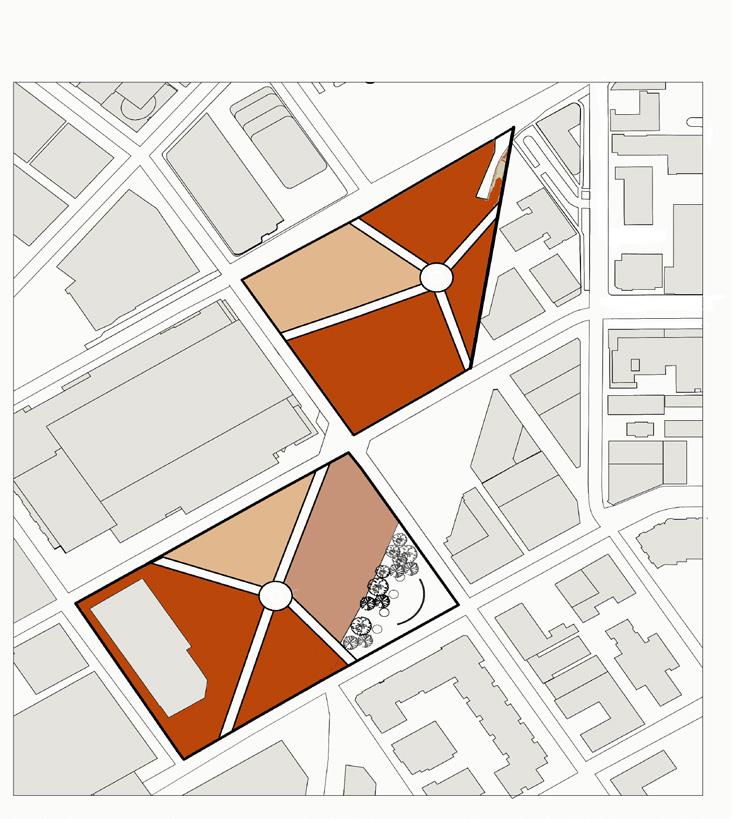

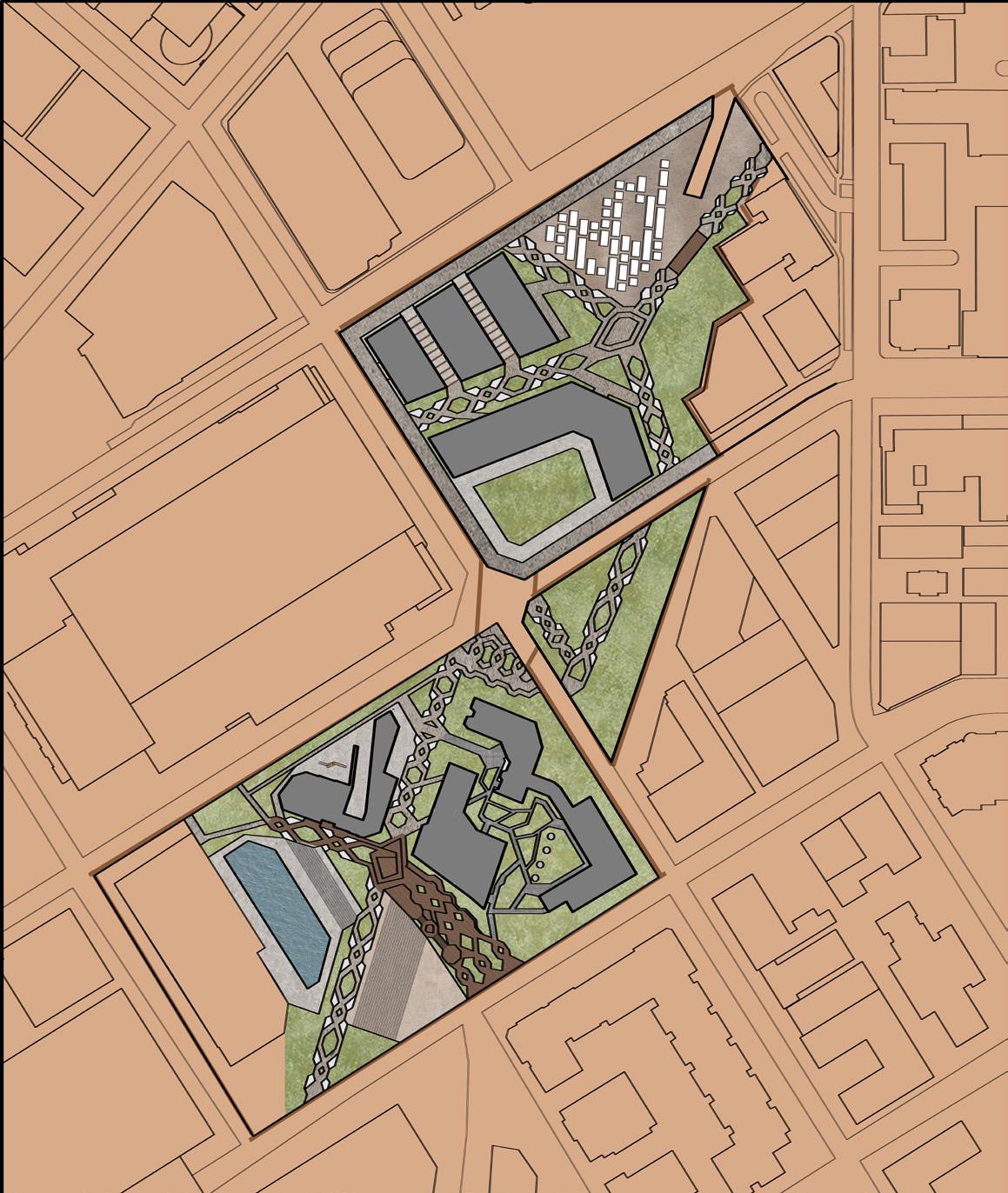

Final Lid Pattern for Program

Economic Social Culture

The introduction of I-5 disrupted neighborhood connections, creating a void between them.

Reconnecting neighborhoods by building a lid over I-5, bringing the community together into a unified space.

While each neighborhoods has its own identity, the lid offers an opportunity to unite them through program and landscape to restore connections.

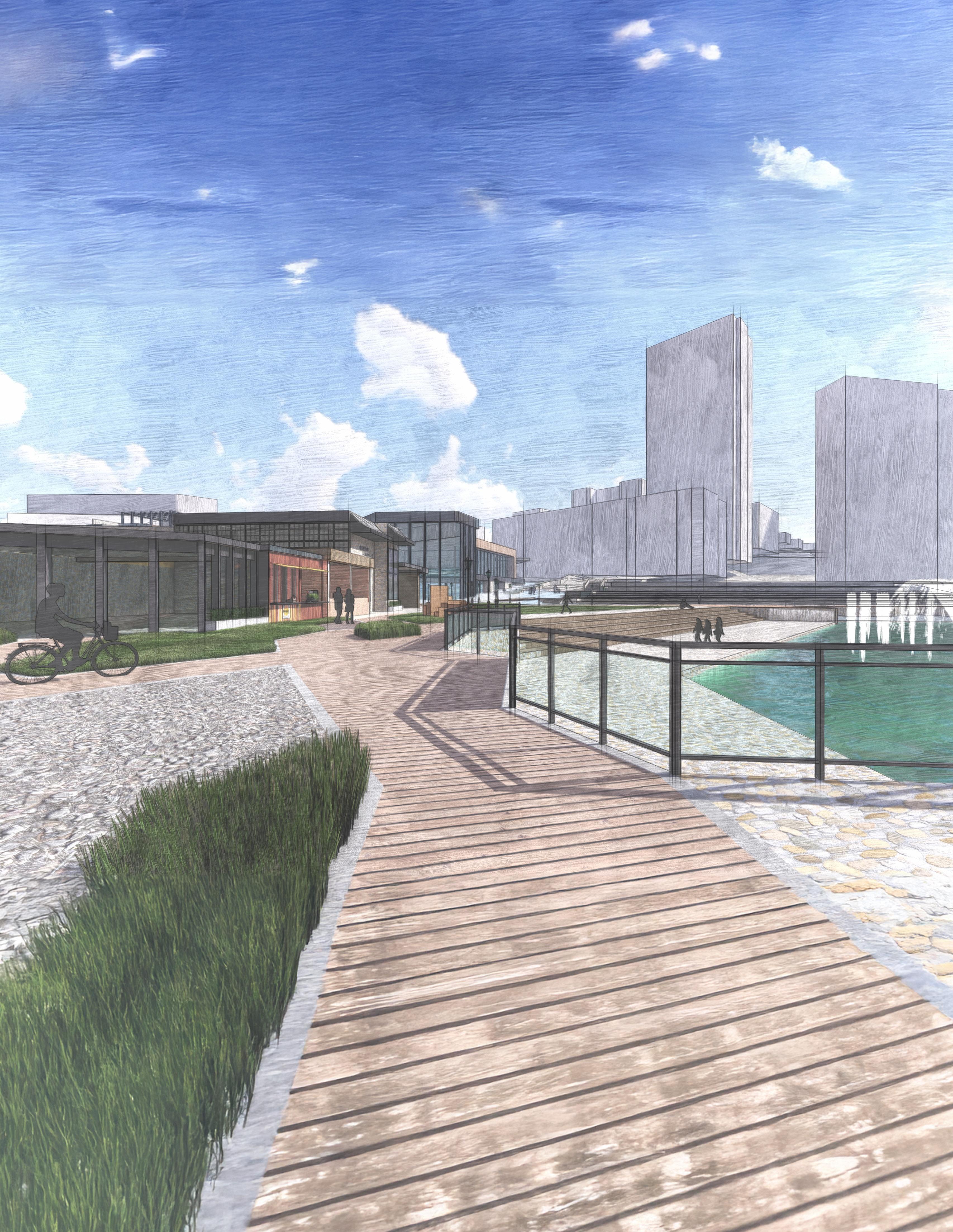

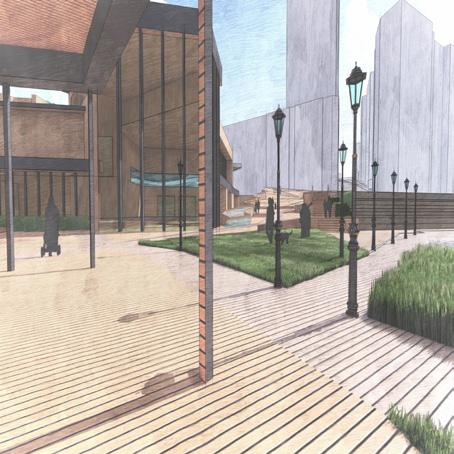

Neighborhoods once divided by I-5 are now reconnecting, coming together as one. The lid design fosters stronger social and cultural interactions, allowing seamless engagement among residents. Its thoughtful landscape design encourages people to gather at the heart of both lids, creating new connections.

Both lids offer a variety of programs catering to both locals and tourists, providing a vibrant space that contributes to Seattle’s growth by utilizing previously unused land. This additional space fosters community events, outdoor markets, recreational areas, and cultural activities, enriching the urban experience. By repurposing the area over I-5, the lids not only bridge the gap between neighborhoods but also create a dynamic hub for innovation, fostering a sense of shared identity and belonging among residents and visitors alike.

Commercial Center & Apartments

LID 1

• Tourist District Cultural Center

• Performance Art Center

• Outdoor Amphitheater

• Food Market

• Water Feature

Food Market

Mixed Use & Community Center

LID2

LID 2

• Community P-Patch Garden

• Commercial Center

• Community Center

• Apartments

Cultural Center

LID1

Tourist District

RAINWATER EDUCATION AND CONSERVATION CENTER

ARCH 403

Team- Brenda Mora, Ethan Baum & Mason Burns

PROJECT SUMMARY

Keeping the skin design of the building low-cost, using the living building challenge to help guide the design of the building itself. Not only low-cost but also designed with a unique building shape that lets in natural daylight with the right amount of glazing. Natural daylight is important since five of the floors are office spaces. People will spend most of their days in the office, and providing natural daylight to the spaces will help people’s health and happiness. With that, we carved a crescentlike part of the building on the east side to have natural daylight coming from the glass facade and the creation of balconies to create outdoor spaces for those in the building.

The structure also supported vertical fins across the building, allowing for water flow with the philosophy of “If it doesn’t move by water, it is shaped by water.” Make sure that the materials align with the motive of water due to the goal of collecting water to be reused again in the building with the pre-designed water collection system. Our concept for the project is a gallery space based on water collection and what water can do within a building. The first two floors of the structure support a water collection area, helping to distribute water throughout the structure and also to educate visitors.

DESIGN PROCESS

Sketch Iterations of Building Shape

Iteration 1

Cutting out the ends of the building to create interesting end caps to let natural light in into the building.

Iteration 2

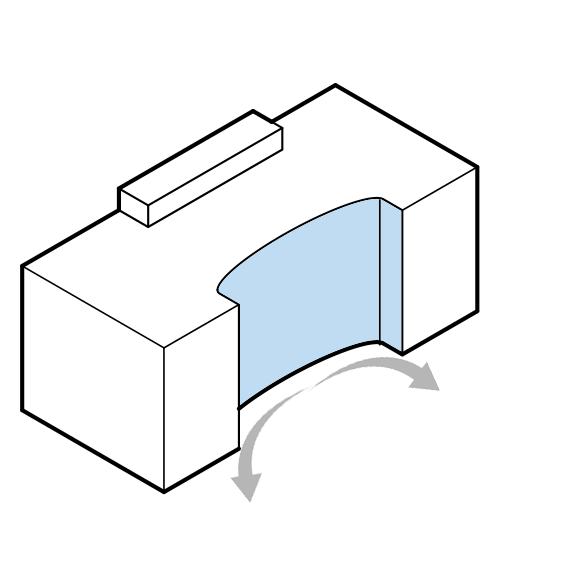

Iteration 3

Cutting the middle of the east side of the building to let natural light into the building. Helps increase the amount of natural light entering the building.

Curving the east side of the building to create an interesting facade while keeping the end the same with no change.

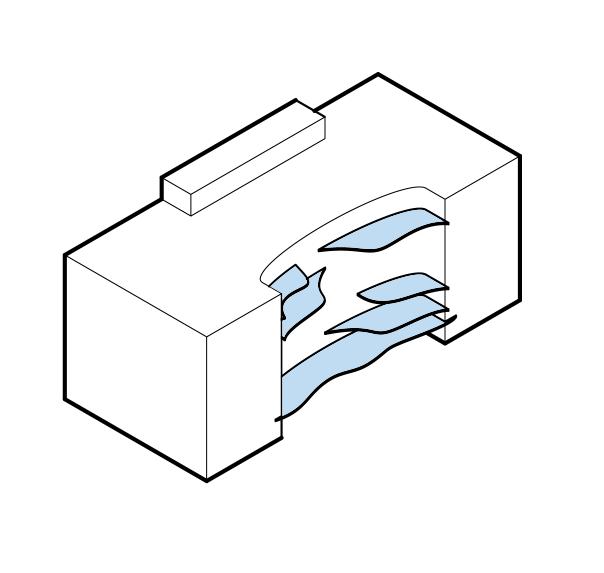

Iteration 4

Removing parts of the east side facade creating cut out wells for light, while defining the circulation of the building.

The overall goal is to form the office building facade to help natural light in to control thermal comfort within the building using natural resources. Have a better understanding of how the shape of the building affects daylight, but moving forward, how does the glazing of the building through curtain walls affect the daylight that is entering the building.

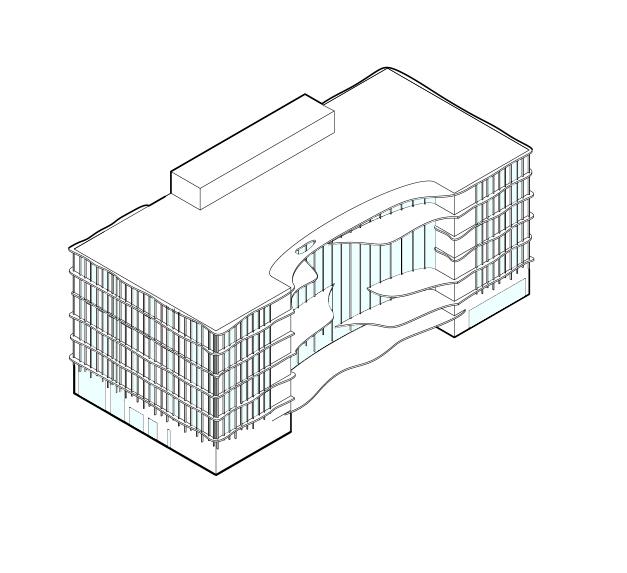

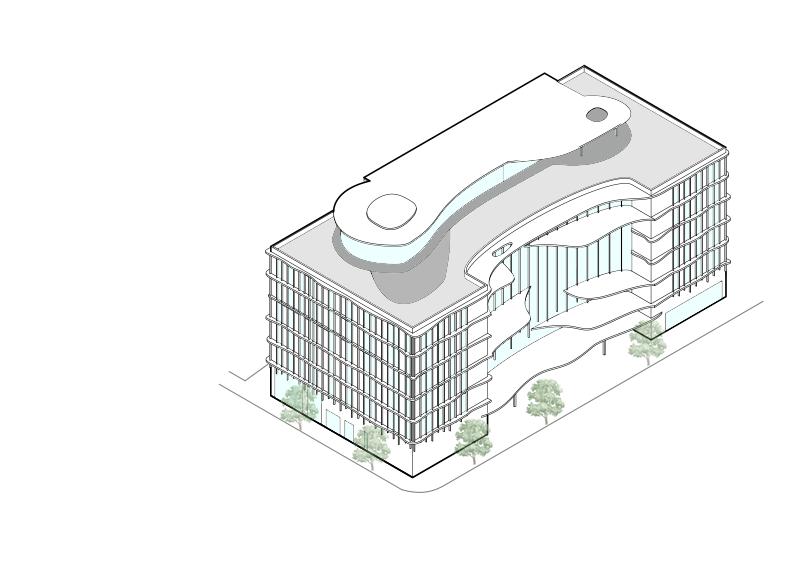

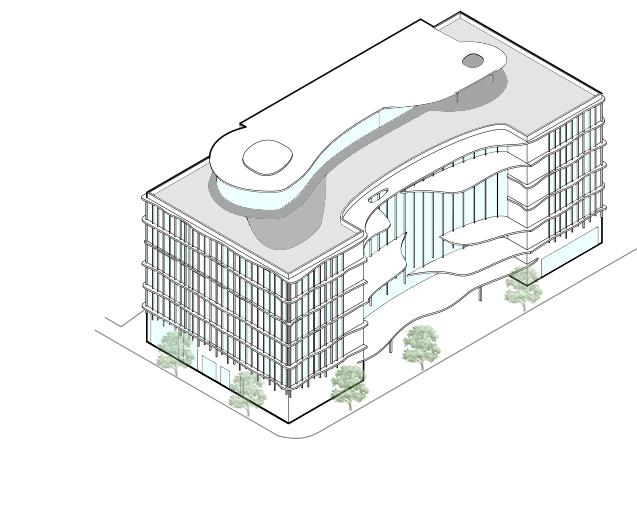

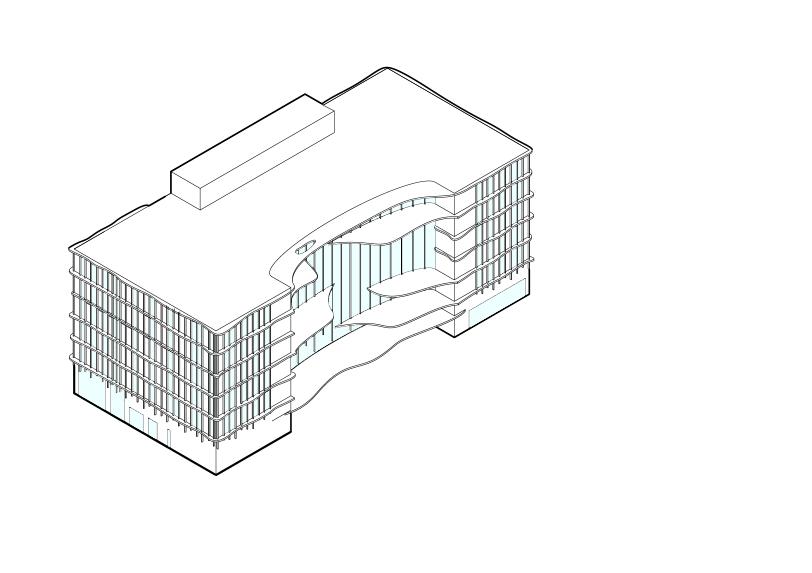

FINAL BUILDING SHAPE AND FACADE DESIGN

The selection of the facade material was guided by the principle: “If it doesn’t move by water, it is shaped by water.” This philosophy extends to the overall design approach, which centers on the collection and reuse of water within the building. The choice of materials plays a crucial role in shaping this concept, not only by responding to water but also by enhancing the building’s functionality and aesthetics

Aluminum Panel Cladding

Shaped by water

A cost-effective, durable, and lowmaintenance material is used for the majority of the building’s facade. Made from recycled materials, it ensures longevity while contributing to the building’s sustainability approach in reusing materials.

Fluted Aluminum Panel Cladding

Shaped by water

Fluted aluminum panels enhance the building’s aesthetic by evoking the fluidity of water. Their design not only reinforces the water-inspired concept but also facilitates water movement across the surface, aligning with the building’s overall emphasis on water flow and reuse.

Aluminum Fin Shaped by water

Versatile material used as a shading device to help reduce the amount of daylight entering the building. Its adaptable design allows for varying vertical lengths, creating a dynamic facade that mimics the movement of water while enhancing shading and daylight control within the building.

Recycled Road Concrete Basic building material

The building’s design achieves a natural aesthetic by re-purposing materials sourced directly from the site. This approach not only minimizes costs but also enhances sustainability while maintaining a strong connection to the environment.

BEAM AND COLUMN STRUCTURAL FRAMING SYSTEM

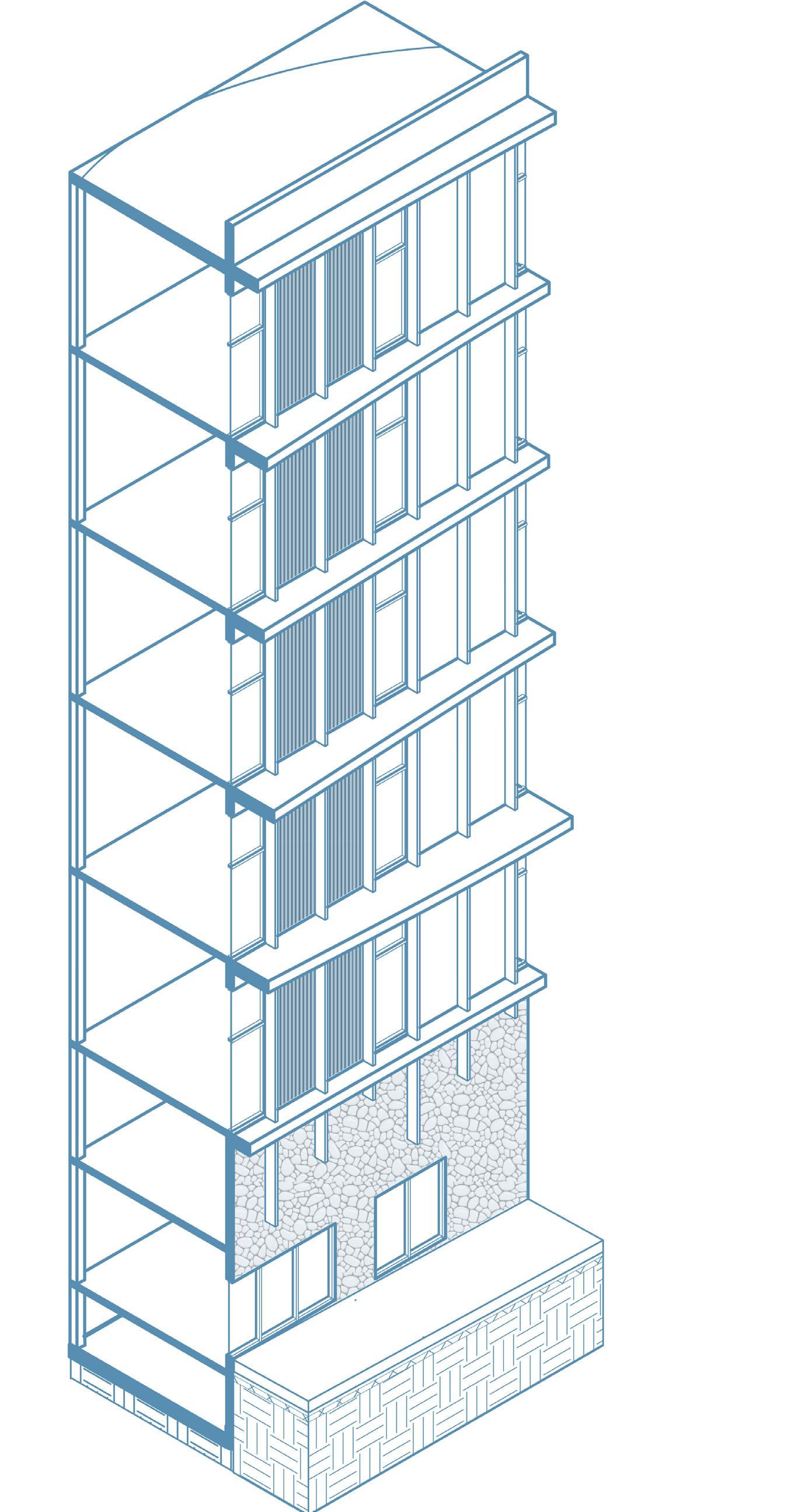

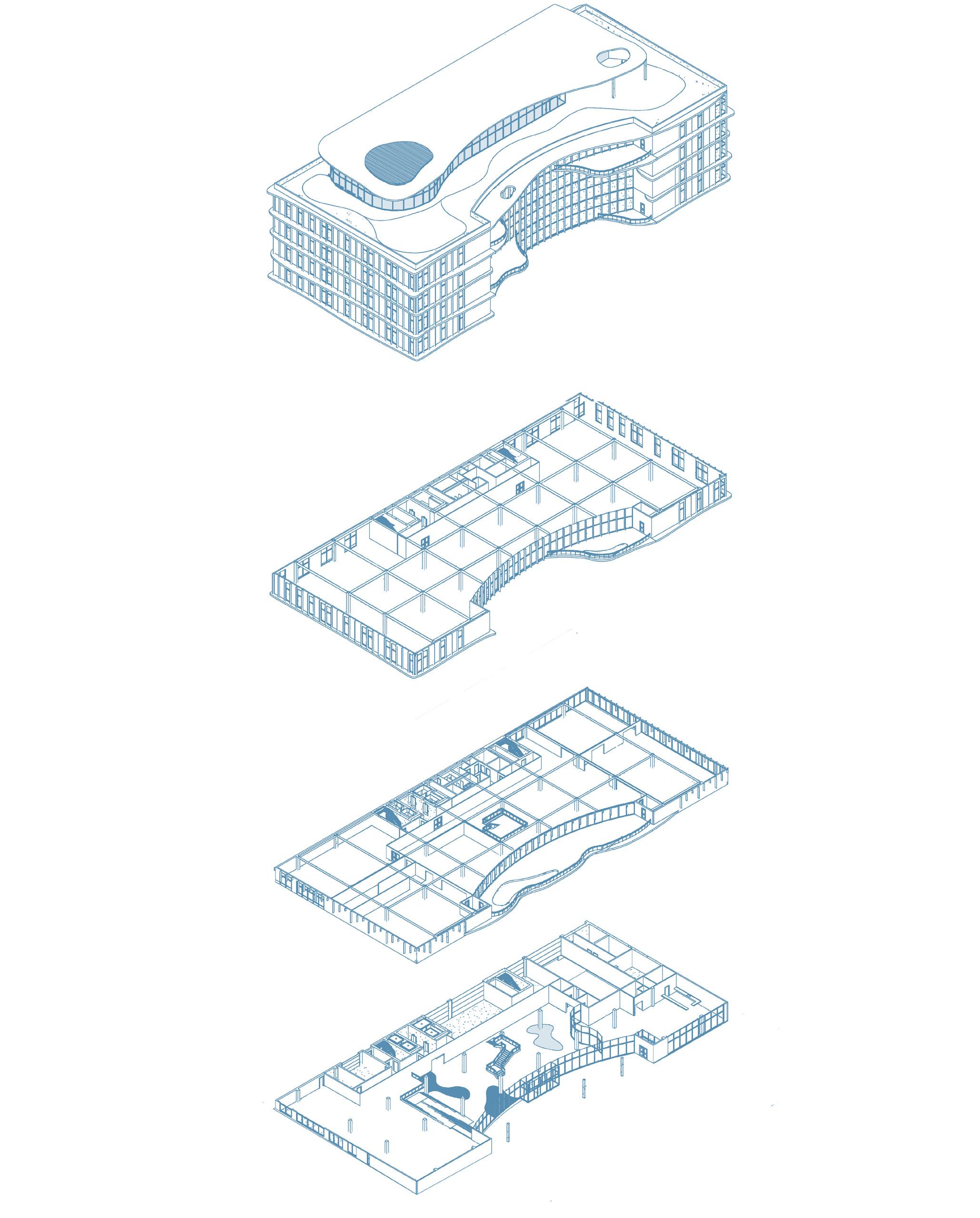

Structural System Axonometric

EGRESS SYSTEM- FLOOR PLANS

Structural System Top View

L3 ROOFTOP

Daylight was a main focus when designing the skin facade of the building. The east facade provides a great amount of daylight that is entering on each leasing floor. In addition to more light entering from both the north and south sides of the building. Daylight entering the building will help with using artificial lighting within the building itself, preventing it from being over lit on each floor.

L4-L7

Floors have similar daylight pattern

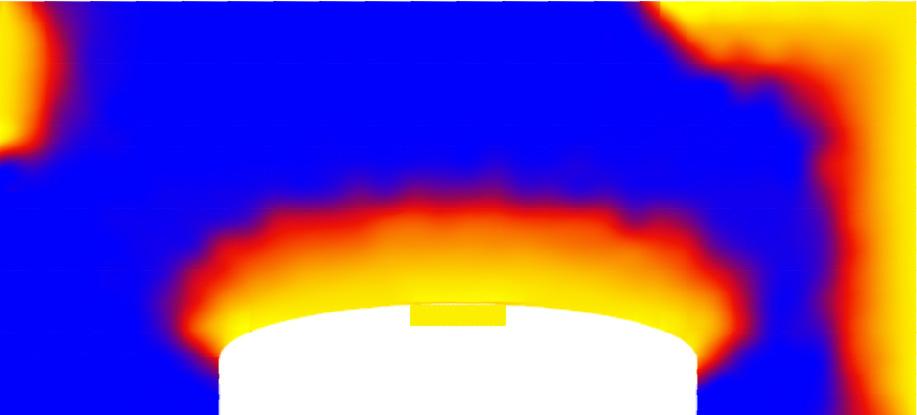

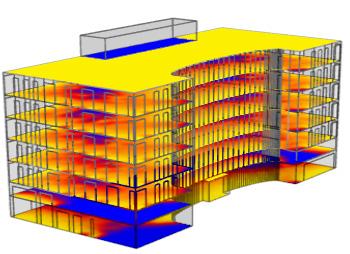

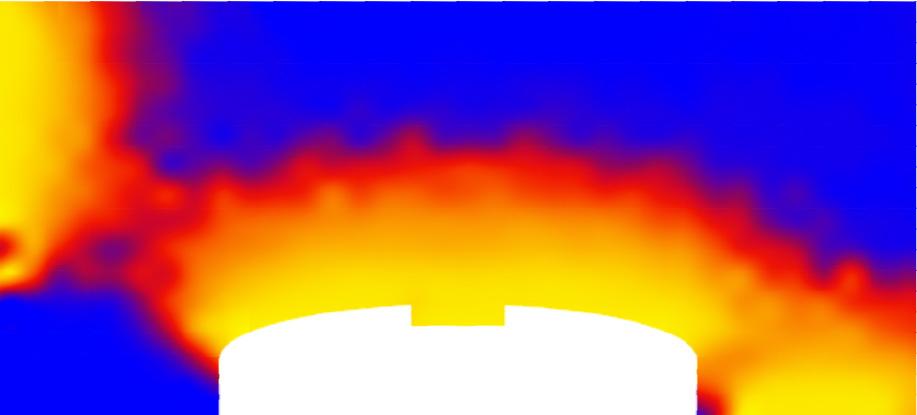

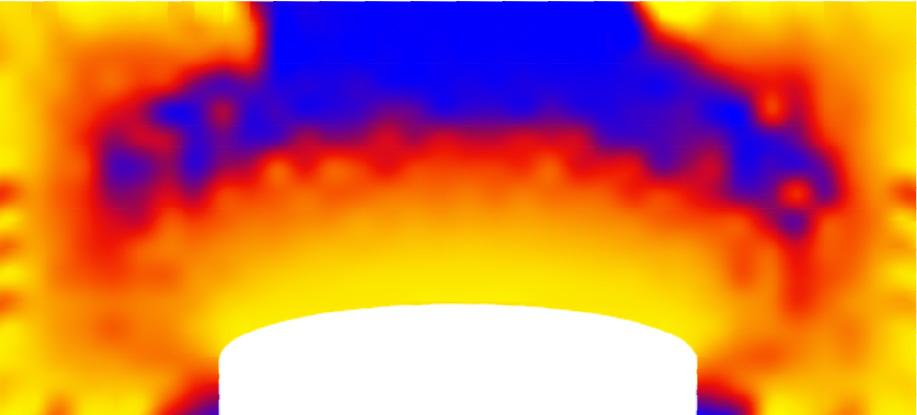

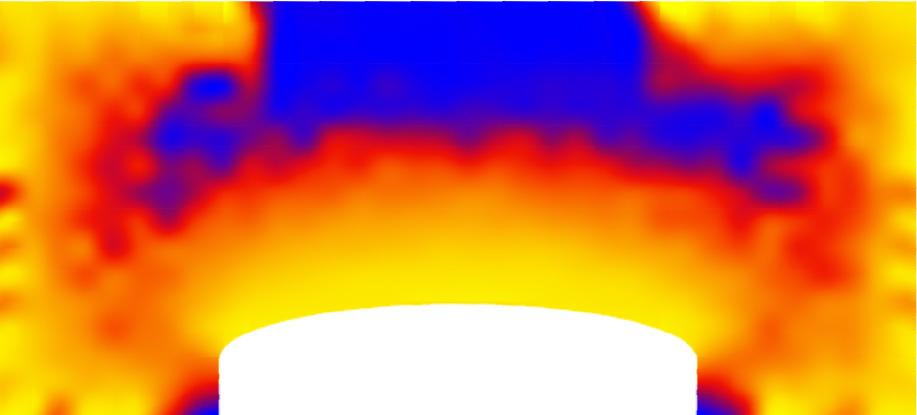

Daylight Per Floor

1. 3’-6” Parapet Roof Aluminum Panel Air Gap Steel Sys. Structure

2. Water Collection Roof Pebble Filter System Top Treatment Transition Media Bottom Drain Mesh System Bottom Fill

3. Aluminum Overhang (Will Vary By Size)

4. 1 1/2” X 12” Aluminum Horizontal Fin System

5. Typ. Concrete Balcony

6. 5/8” Concrete Board

7. K-Series Steel Joist Brace

8. 3” Concrete On Composite Metal Deck

9. 1 1/2” Thermal Bridging

10. 1/2” Pressure Treated Sill

11. Typ. Storefront Curtain Wall Window Glazing

12. 2.5” X 5” Horizontal Mullion

13. Cw Sealant

14. Facade Construction Recycled Concrete Slabs

15. 3 5/16” Insulation

16. 5/8” Gypsum Board

17. 5/8” Steel Bolt

18. Concrete Footing

19. Typ. Storefront Curtain Wall Window Glazing 2.5” X 5” Horizontal Mullion

20. 5/8” Steel Bolt

21. Aluminum Panel

22. 1/2” Sheathing

23. Vapor Retarder

24. 3 1/2” Rigid Foam Insulation

25. 1” Air Barrier

26. 0’-3”X1’-0” Aluminum Fin

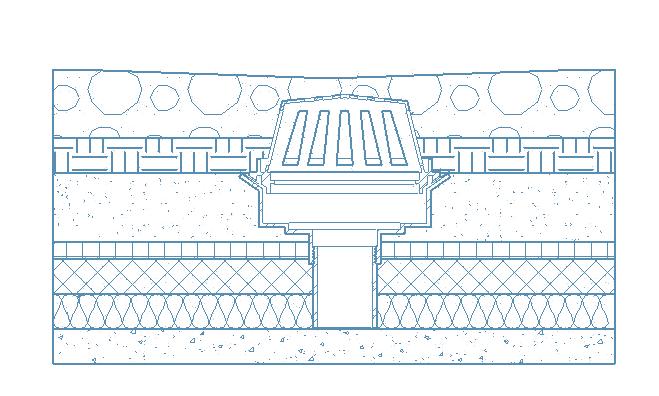

Rainwater will be harvested through multiple drainage points on the roof, where it will undergo initial filtration using natural elements. It will then be channeled into a cistern on the first floor for further purification via UV and chlorine disinfection systems. Once treated, the water will be distributed throughout the building, with a primary focus on the first and second floors, where it will be showcased to the public.
