6mm Laminated safety glass panels placed in Faded-Black painted aluminium frame.
175mm - 200mm
dia. Saligna Timber Gumpole CCA Treated H4 Column to engineers spec.
South
Scale
75mm thickness Fibreglass Roof Ridge with underlayer polyolefin membrane to manufacters spec. North
6mm Laminated safety glass panels placed in Faded-Black painted aluminium frame.
175mm - 200mm
dia. Saligna Timber Gumpole CCA Treated H4 Column to engineers spec.
75mm thickness Fibreglass Roof Ridge with underlayer polyolefin membrane according to manufacters specifications.

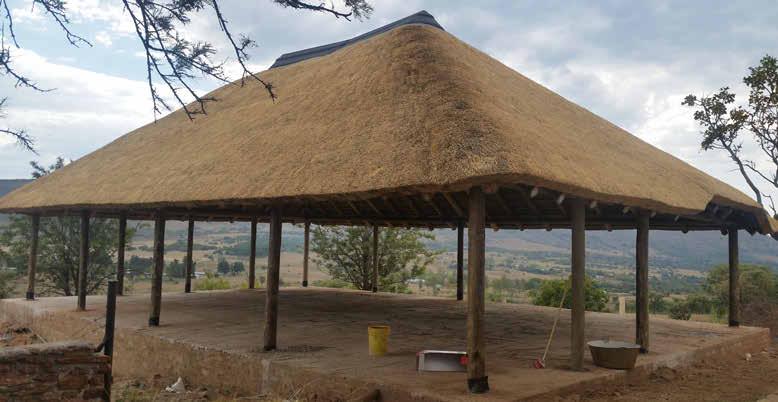

200mm Thick Cape Reed Thatch Roof, With 45° Slope In All Directions.
3000 3000 3000 3m Height 3m Height 3m Height Plastered
3000mm Master Manual Traffic Barrier Boom Gate.
150mm dia. Saligna Timber Gumpole CCA Treated H4 Column to engineers spec.
3000 3m Height
200mm Thick Cape Reed Thatch Roof, With 45° Slope In All Directions.
175mm200mm dia. Saligna Timber Gumpole CCA Treated H4 Column to engineers spec.
16mm dia. Galvanised Threaded Rod spaced at 150mm c/c
200mm Thick Cape Reed Thatch Roof, With 45° Pitch In All Directions. 140mm x 190mm x 390mm Modular Masonry Block Brick
Stair Note: Reinforced Concrete Stairs, With Screed Finish.
MAIRS Powder Coated Steel Mechnical Entry Turnstile
Note: All joints of structural importance in rafters and posts should be bolted down according to the engineers spec.
Riser: 200 max. Thread: 250 min.
East Elevation
Scale 1: 100
75mm thickness Fibreglass Roof Ridge with underlayer polyolefin membrane.
100mm - 125mm
Plastered Plastered Plastered
dia. Saligna Timber Gumpole CCA Treated H2 Ridge Post as per engineers spec.
Galvanised Wire Mesh
25 to 32mm
dia. Saligna Timber Lath spaced at 250mm c/c With Roof Nail fixing
0.125mm Fabric Fire Retardant
West Sectional Elevation
Scale 1: 100
100mm - 125mm
dia. Saligna Timber Gumpole CCA Treated H2 Rafters spaced at 750mm c/c, as per engineers spec.
25mm - 32mm dia. Saligna Timber Lath spaced at 250mm c/c With Roof Nail Fixing
140mm x 190mm x 390mm Modular Masonry Block Brick
Note: All joints of structural importance in rafters and posts should be bolted down according to the engineers spec.
Section A-A
Scale 1: 50
1000mm x 800mm Concrete Pad Foundation
200mm Thick Cape Reed Thatch Roof, With 45° Pitch.
01. Gumpole Detail
Scale 1: 25
75mm thickness Fibreglass Roof Ridge with underlayer polyolefin membrane according to manufacters specifications.
200mm Thick Cape Reed Thatch Roof, With 45° Slope In All Directions.
02. Roof Ridge Detail
Scale 1: 25
25 to 32mm
dia. Saligna Timber Lath spaced at 250mm c/c
45° Pitch
100mm - 125mm
dia. Saligna Timber Gumpole CCA Treated H2 Ridge Post spaced at 750mm c/c, as per engineers spec.
45° Pitch
3000mm Master Manual Traffic Barrier Boom Gate. 100 000
100mm dia. Timber Gumpole CCA Treated H2 Tie Beam
125mm - 150mm dia. Timber Gumpole CCA Treated H2 Tie Beam Fixed With M16 Bolt.
175mm - 200mm dia. Saligna Timber Gumpole CCA Treated H4 Column to engineers spec.
175mm reinforced concrete roof
Plastered Masonry Brick Guard House
6mm Laminated safety glass panels placed in Faded-Black painted aluminium frame.
200mm x 600mm Reinforced Concrete Strip Foundation.
03. Edge Detail
Scale 1: 25
25mm polished screed on 75mm surface bed Hip End Structural members. dpc
200mm x 600mm Reinforced Concrete Strip Foundation.
04. Foundation Detail
Scale 1: 25
900mm High Varnished SOMERSET-TIMBERS SA
Pine Timber Handrail.
South Elevation
Scale 1: 100
2 String Stacked Strawbale With SA
Pine Timber Panel Cladding
West Elevation
Scale 1: 100
80mm Dia.
Galvanised Steel
Gutter With Downpipe Outlet
To Underside Of Timber Decking
6mm Corrguated Galvanised Steel Roof Sheet with 5° mono pitch.
900mm High Varnished Meranti Timber Handrail As per detail.
Ridge
900mm High Varnished SOMERSETTIMBERS SA Pine Timber Handrail As per detail.
19mm x 140mm
Gypsum Fascia Board
6mm Corrguated Galvanised Steel Roof Sheet with 5° mono pitch.
1000 meter SA Pine Timber Deck Walkway Around Buidling
38mm x 38mm SA Pine Brandering fixed to strawbale with galvanized steel wires.
4mm Tension Wire, @ 900mm c/c for strawbale compression.
900mm High
6mm Corrguated Galvanised Steel Roof Sheet with 5° mono pitch.
80mm x 80mm SA
Scale 1:50
19mm x 140mm
Gypsum Fascia Board
300mm thick reinforced concrete retaining wall with 110mm brick protective layer
6mm Corrguated Galvanised Steel Roof Sheet with 5° mono pitch.
19mm x 140mm
Patio Patio
800mm x 200mm
Reinforced Concrete Foundation To Engineers Spec.
300mm thick reinforced concrete retaining wall with 110mm brick protective layer .
2 String Stacked Strawbale With SA Pine Timber Panel Cladding
East Elevation
Scale 1: 100
80mm Dia. Galvanised Steel Gutter With Downpipe Outlet.
Note: All SA Pine Timber Available at SOMERSETTIMBERS Store.
300mm thick reinforced concrete retaining wall with 110mm brick protective layer .
450mm x 450mm x 300mm
Concrete Footing On Levelled Aggregrated Pad
80mm Dia. Galvanised Steel Gutter With Downpipe Outlet To Underside Of Timber Decking
4mm Tension Wire, @ 900mm c/c for strawbale compression.
1000 meter SA Pine Timber Deck Walkway Around Buidling
38mm thick OSB Panels fixed with Nails To Batterns
Varnished SA Pine Timber Deck
SA Pine Timber
As per
Outdoor Patio
Varnished SA Pine Timber Deck
80mm x 80mm SA
Handrail Timber Support Post
1000 meter SA Pine Timber Deck Walkway Around Buidling
380mm x 460mm x 920mm 2 String Stacked Strawbale With 38mm Nailed SA Pine Timber Panel Cladding
2 String Stacked Strawbale With SA Pine Timber Panel Cladding
80mm Dia. Galvanised Steel Gutter With Downpipe Outlet.
North Elevation
Scale 1: 100
450mm x 450mm x 300mm
Concrete Footing On Levelled Aggregrated Pad
Gypsum Fascia Board Parking
200mm ramp @ 1:12 slope, With 900 mm High Hand Rails.
900mm High Varnished SOMERSETTIMBERS SA Pine Timber Handrail.
Stair Note: Varnished SOMERSET-TIMBERS SA Pine Timber Stairs. Riser: 160mm. Thread: 250mm.
300mm thick reinforced concrete retaining wall with 110mm brick protective layer
Pikinton Planar Curtain Wall system With 15mm
thick THS Safety Glass With 50mm x 150mm
Rainwater Concrete Channel
3100mm x 3600mm
LEROY MERLIN 4
Panel Aluminium Folding Door
x2: 140mm x 467mm
GLULAM Laminated Saligna Portal Frame fixed to 10mm Black Oxide dipped internal steel base with M20 Bolts.
Aluminium Mullions Between Panels Composite Wall: 100mm XPS Insulation Board, With 12mm OSB Internal Board finish Between 156mm x 50mm Purlin Fixings, as per detail
Joint At 10metres c/c Composite Wall: Safintra 0.50mm thick Saflok 700® Colorplus® AZ 150 interlocking external sheeting
Joint At 10metres c/c 2mm Zinc Plated Steel Bracing Cable @ both ends
x2: 140mm x 467mm Laminated Saligna Portal Frame fixed to 10mm Black Oxide dipped internal steel base with M20 Bolts.
Floor Plan
Scale 1: 100
Gutter Calculations: Square Area Of 25 deg slope: = 5, 866m x 30m = 175,98 sqm = sqm x average rainfall = 175,98sqm x 135mm = 23 757,30 sq.mm
Steel Gutter Sizing = 180mm x 180mm = 32 400 sq.mm 32 400sq.mm > 23 757,30 sq.mm
- Sufficient Gutter Sizing. Applicable for both sides.
x2: 140mm x 467mm
Laminated Saligna Portal Frame fixed to 10mm Black Oxide dipped internal steel base with M20 Bolts.
180mm x 180mm Black Oxide Mild Steel Gutter With Brackets Fixed Over Last Purlin
1500mm x 2400mm
ROCKLITE Class A Galvanised Steel Double Fire Door
Roof Note: Safintra 0.50mm thick Saflok 700® Colorplus® AZ 150 interlocking external sheeting fixed to 152mm x 50mm
Galvanised Steel Purlins at 950mm c/c
2mm Zinc Plated Steel Bracing Cable @ both roof ends
Rainwater Concrete Channel
Structural Roof Plan
Scale 1: 100
25 deg.
Roof Pitch
2mm Zinc Plated Steel Bracing Cable @ both roof ends
152mm x 50mm
Galvanised Steel Purlins Spaced at 950mm c/c Fixed Into laminated Saligna Portal Frame
Downpipes: area = π x r2
area = π x (60)2
area = 7853, 98 sq.mm = 23 757,30 7853, 98 sq.mm
Steel Downpipe Sizing = 3, 0248
180mm x 180mm Black Oxide Mild Steel Gutter With Brackets Fixed Over Last Purlin
x2: 140mm x 467mm
Laminated Saligna Portal Frame fixed to 10mm Black Oxide dipped internal steel base with M20 Bolts.
Safintra 0.50mm thick Saflok 700® Colorplus® AZ 150 interlocking external roof sheet laid using Saflok 700 Clip 35 as per manufacter spec.
Aluminium Roof Ridge Over Apex
300mm x 300mm
Aluminium Side Flashing
180mm x 180mm Black
Oxide Mild Steel Gutter With Brackets Fixed Over Last Purlin
AWNMASTER Aluminium Canopy with Pilkinton Planar 19mm Toughened Glass, connected using Aluminium Glass fitting clamps.
Gutter Calculations: Square Area Of 25 deg slope: = 5, 866m x 30m = 175,98 sqm = sqm x average rainfall = 175,98sqm x 135mm = 23 757,30 sq.mm
Steel Gutter Sizing = 180mm x 180mm = 32 400 sq.mm 32 400sq.mm > 23 757,30 sq.mm - Sufficient Gutter Sizing. Applicable for both sides.
Downpipes: area = π x r2 area = π x (60)2 area = 7853, 98 sq.mm = 23 757,30 7853, 98 sq.mm
Steel Downpipe Sizing = 3, 0248
1:100
Safintra 0.50mm thick Saflok 700® Colorplus® AZ 150 interlocking external roof sheet laid using Saflok 700 Clip 35 as per manufacter spec.
Aluminium Roof Ridge Over Apex
180mm x 180mm Black
Oxide Mild Steel Gutter With Brackets Fixed Over Last Purlin
Cladding: Safintra 0.50mm thick Saflok 700® Colorplus® AZ 150 interlocking external sheeting
100mm dia. mild steel downpipe
300mm x 300mm Aluminium Side Flashing
180mm x 180mm Black Oxide Mild Steel Gutter With Brackets Fixed Over Last Purlin
100mm dia. mild steel downpipe 100mm dia. mild steel downpipe 100mm dia. mild steel downpipe
Pikinton Planar Curtain Wall system With 15mm thick THS Safety Glass With 50mm x 150mm Aluminium Mullions Between Panels
AWNMASTER Aluminium Canopy with Pilkinton Planar 19mm Toughened Glass, connected using Aluminium Glass fitting clamps.
Wall: Safintra 0.50mm thick Saflok 700® Colorplus® AZ 150 interlocking external sheeting
Gutter Calculations:
Safintra 0.50mm thick Saflok 700® Colorplus® AZ 150 interlocking external roof sheet laid using Saflok 700 Clip 35 as per manufacter spec.
50mm x 15mm Black Oxide Bracing Tie
Pikinton Planar Curtain Wall system With 15mm thick THS Safety Glass With 50mm x 150mm
Aluminium Mullions Between Panels
6mm dia. zinc-plated steel Cable
Aluminium Glass fitting clamps.
19mm Pilkinton Planar Toughened Glass
60mm dia. support Aluminium Rod
Square Area Of 25 deg slope: = 5, 866m x 30m = 175,98 sqm = sqm x average rainfall = 175,98sqm x 135mm = 23 757,30 sq.mm
Steel Gutter Sizing = 180mm x 180mm = 32 400 sq.mm 32 400sq.mm > 23 757,30 sq.mm - Sufficient Gutter Sizing. Applicable for both sides.
Downpipes: area = π x r2 area = π x (60)2 area = 7853, 98 sq.mm = 23 757,30 7853, 98 sq.mm
Steel Downpipe Sizing = 3, 0248
Pikinton Planar Curtain Wall system With 15mm thick THS Safety Glass With 50mm x 150mm
AWNMASTER Aluminium
Canopy Custom Made to Manufacters spec.
08. Canopy Detail
50mm x 15mm Black Oxide Bracing Tie
19mm Pilkinton Planar Toughened Glass
Aluminium Mullions Between Panels Aluminium Glass fitting clamps.
6mm dia. zinc-plated steel Cable
Scale 1: 10
Aluminium Canopy Plate, Bolted into Aluminium Vertical Curtain Wall Profile Using M8 Bolts, As per Manufacter Spec.
6mm dia. Zinc Plated Steel Bracing Cable
06. Section B-B
Scale 1:25
AWNMASTER Aluminium Canopy Custom Made to Manufacters spec.
6mm dia. Zinc Plated Steel Bracing Cable
2000 2835 2670
50mm x 15mm Black Oxide Column Bracing Tie
10mm x 200mm x 250mm Black Oxide
Steel Base Plate Bolted With M20 Bolts Into BUCO Laminated Saligna Portal Frame
Curtain W. 4/4
Aluminium Profile
400mm x 800mm
Reinforced Concrete Footing
60mm dia. support Aluminium Rod
Canopy 4/4
10mm x 200mm x 250mm Black Oxide Steel Base Plate Bolted With M20 Bolts Into BUCO Laminated Saligna Portal Frame
50mm x 15mm Black Oxide Column Bracing Tie
07. Curtain Wall Detail
Scale 1: 10
Powder Coated Aluminium Alloy Framing Section.
Aluminium Standard Flashing
Pikinton Planar Curtain Wall system With 15mm thick THS Safety Glass 400mm x 800mm
Reinforced Concrete Footing
Department of Architecture & Industrial Design
4
CONTRACT DOCUMENTATION
Name
Amogelang Molai
Student number
218133940
Drawing description
Community Hall: Portal Frame Construction
Project Name
Community Hall
Date Out Date In
19-10-2022Exams
Scale
As Stated
Sheet No.
