ARCHITECTURE PORTFOLIO

Works of Amjad Venkitta (2016-2023)

CURRICULUM VITAE

AMJAD VENKITTA DESIGN ARCHITECT COA REGISTRATION-

CA/2019/104770

ABU DHABI , UAE amjadvk@gmail.com +971 523707722

In my role as a Design Architect, I hold a firm belief in the transformative power of architecture to shape and enhance the human experience. Each project I undertake is approached as a visionary dream, pursued with unwavering dedication until it becomes a reality. Environmental responsiveness stands as a pivotal aspect of my design philosophy, and I am committed to harmonizing the site’s energy, meeting client aspirations, and prioritizing user experiences in my creative process. Guided by both a deep sense of purpose and ethical standards, I am confident that through our work, we can positively impact and improve the world we inhabit.

EDUCATION

Degree-B.Arch(2016)

MES School of Architecture, Kuttippuram, India

Pre Degree(2011)

EXPERIENCE

Firms associated with 2022 June- present: MZ Architects, AbuDhabi Website www.mz-architects.com

Malabar Special Police School, Malappuram, India

Matriculation(2009)

Islahiya HSS, Malappuram, India

SOFTWARE SKILLS

• Autodesk AutoCAD

• Autodesk Revit

• Adobe Photoshop

• Adobe InDesign

• Adobe Illustrator

• Adobe After Effects

• Sketch up

• V Ray

• Lumion

• Rhinoceros

• Grasshopper

• Microsoft Office

• D5 render

PERSONAL SKILLS

• Hand Sketching

• Creativity

• Design ideation & Concept Development

• Communication & Presentation

• Team player

LANGUAGES KNOWN

2021 June- 2022 June : KOA Real Estate developers LLC, Al Barari, Dubai Website http://koa.ae

2019-2021: Morphogenesis, New Delhi, India Website https://www.morphogenesis.org/

2018-2019: CnT Architects, Bangalore,India Website https://www.cnt.co.in/

2016-2018: Premizer Properties India Pvt Ltd, Cochin, India

Project Typologies worked on

• Highrise Residential

• Hospitality- Resort

• Extension of International Airport

• University Campus Master plan

• Hitech Hospital

• Mixed Use Tower-Retail,Office & Multiplex

ACHIEVEMENTS

• Silver Medal in All India Students Design Competition conducted by Indian Institute of Engineers and NRDF,2015.

• Special Jury mention in IIA Natcon Student Design Competition conducted by IIAWest Bengal chapter, 2015.

• Model making English Hindi Malayalam Tamil Football Trekking Animal Fancy

INTERESTS

Highrise residential development at Abu Dhabi

Mountain resort & chalets at Ras Al Khaimah

Residential tower at Palm Jumeirah Dubai

Residential towers at Abu Dhabi

Passenger Experience Centre- Airport Terminal Extension at New Delhi

Mixed Use Development at Kolkata

Hi-Tech Hospital at Hyderabad

Master Planning of University Campus at Bangalore

Students’ Hostel in University Campus at Bangalore

Office Tower at Hyderabad Resorts,

Category - Residential highrise

Location - Yas Island, Abu Dhabi

Site Area - 29912 sqm

BU Area - 190,000 sq.m

Phase involved - Schematic Design,Detail design

Master developer - Miral

Client - Nineyards real estate development

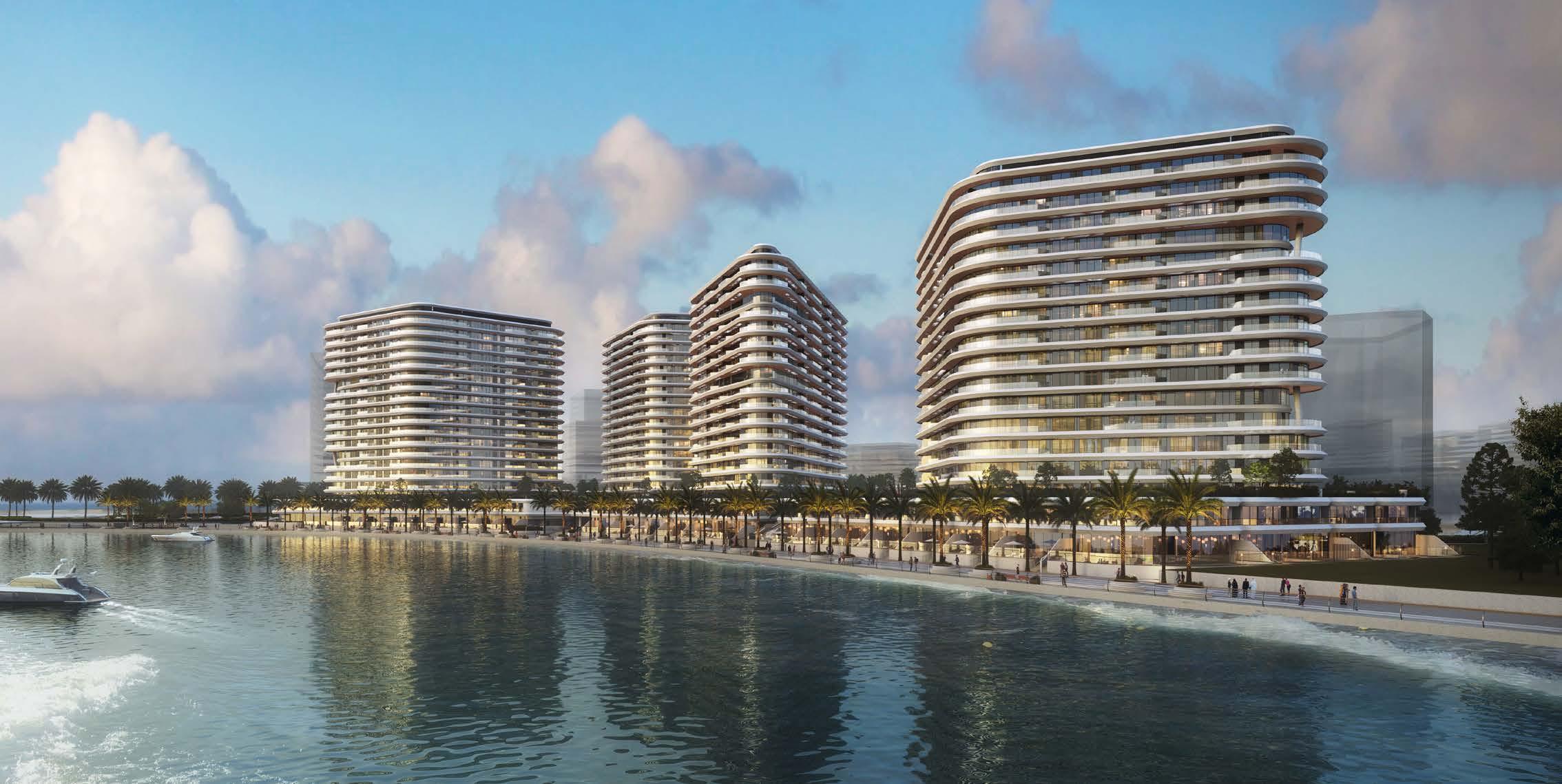

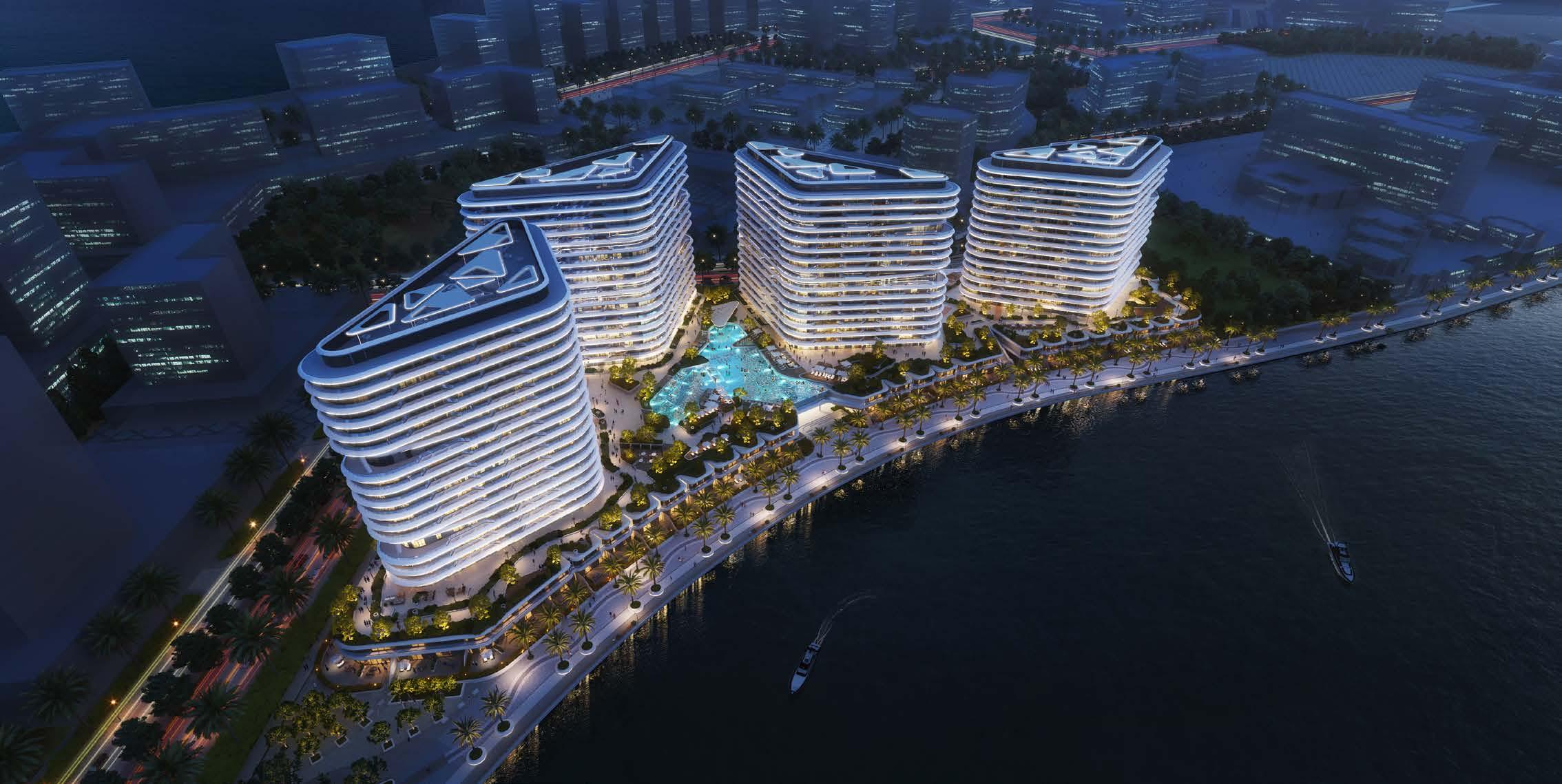

HIGHRISE RESIDENTIAL DEVELOPMENT

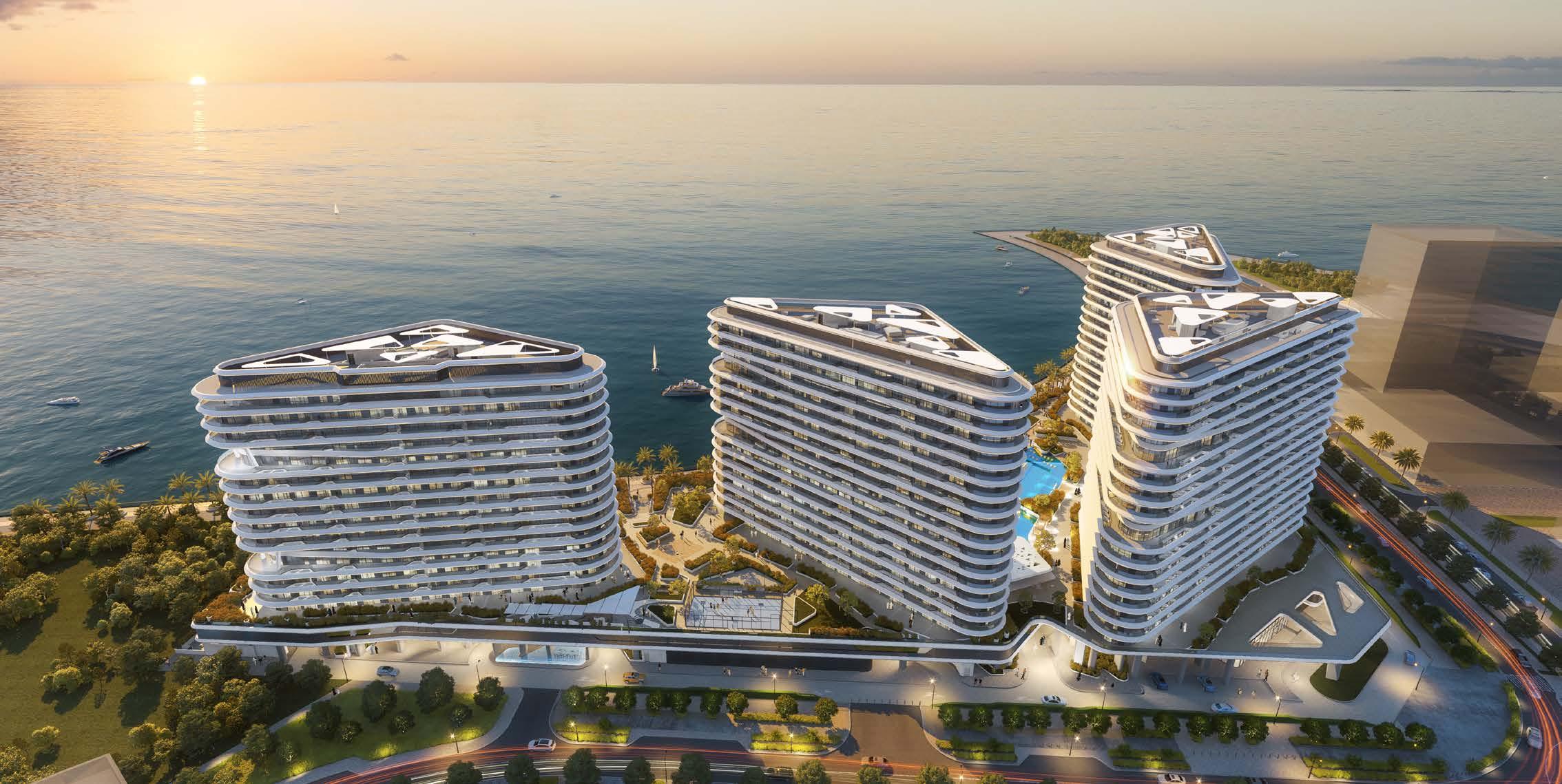

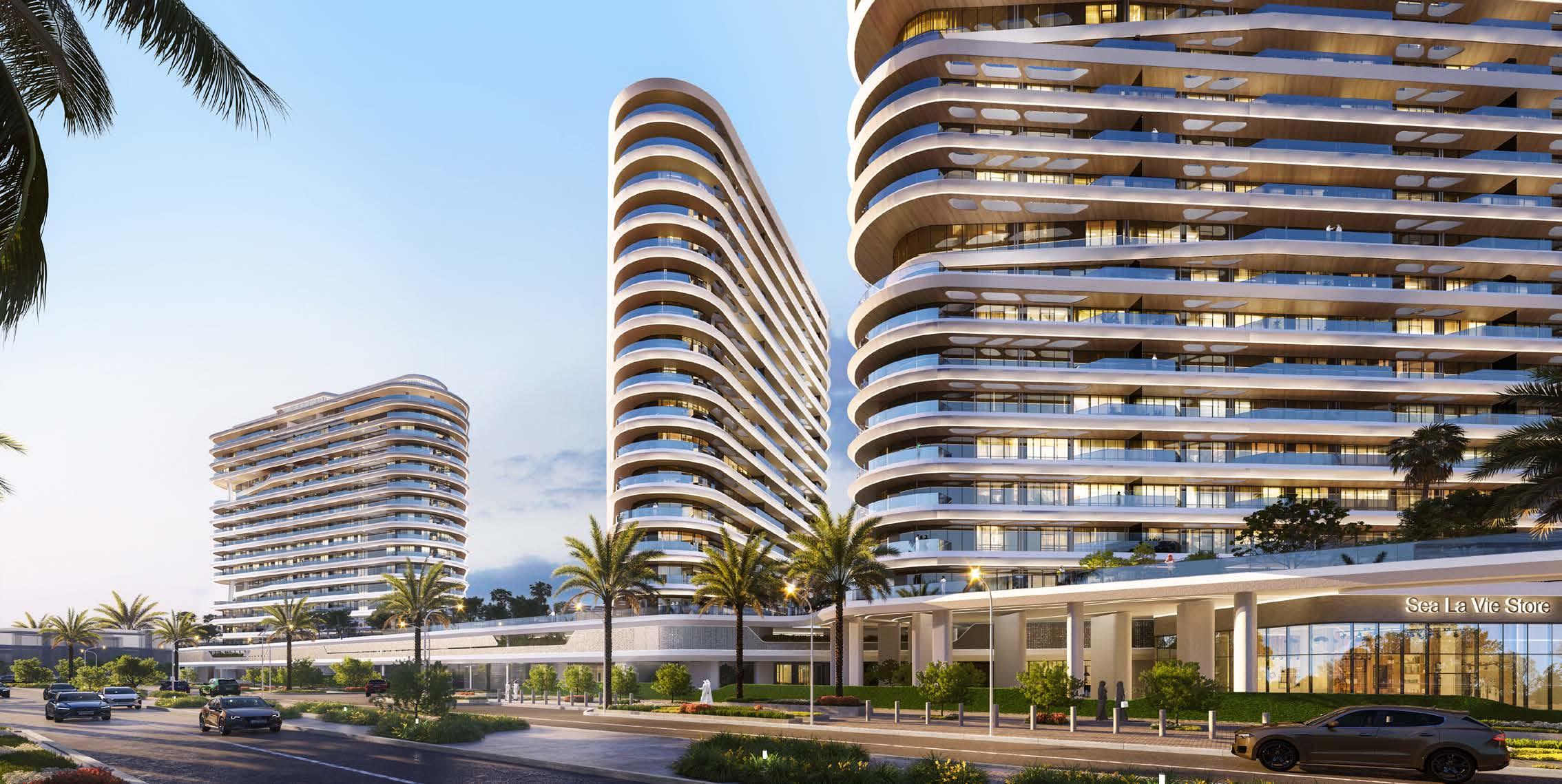

Situated along the seafront, the residential highrise development cleverly harnesses the dynamic possibilities of triangular geometry in its design. Comprising a basement, ground level, and podium parking, the project boasts four residential towers. The podium level is a vibrant hub, featuring an inviting infinity pool and a variety of amenities such as a children’s play area, gym, and barbecue spaces. With a maximum height of 78 meters spanning 18 floors, the project offers a total of 668 residential units, ranging from cozy 1-bedroom apartments to opulent 4-bedroom premium townhouses, ensuring a diverse range of housing options.

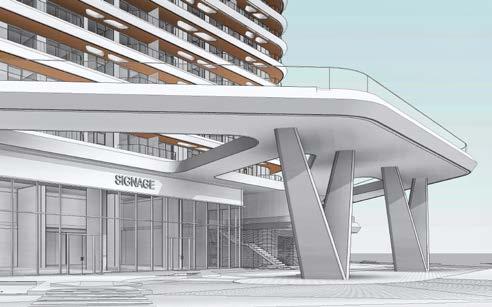

Involvement - Ground floor planning, 3D Modelling, Graphics & Diagrams, Hand sketches, DD report, Arrival experience design, Tower design,Consultant coordination, Presentations for client meetings, Report for award submission, Client meetings

Skillsets used - Hand sketching, Revit, Autocad, Sketchup, Photoshop, Indesign, Lumion

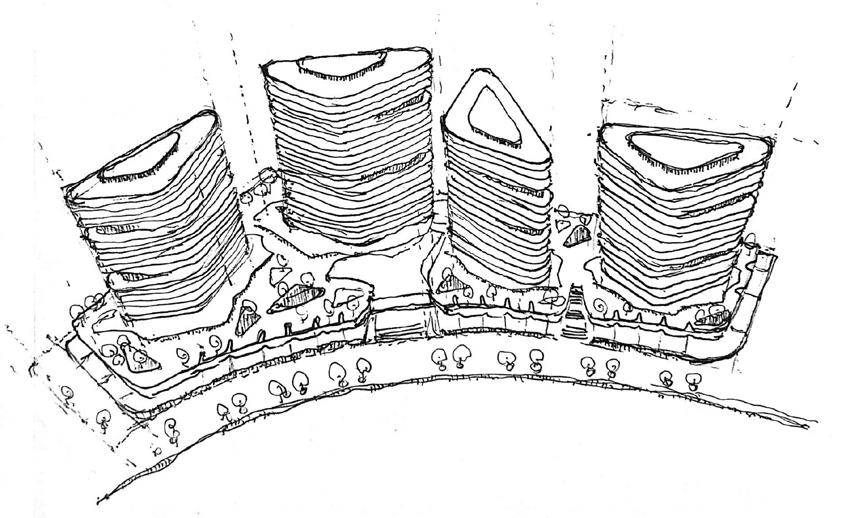

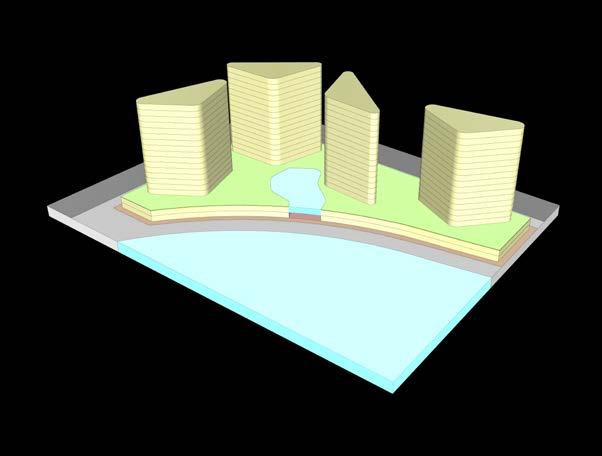

Unleashing the potential of Triangular Geometry to maximise limitless sea views

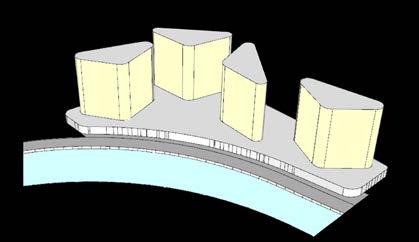

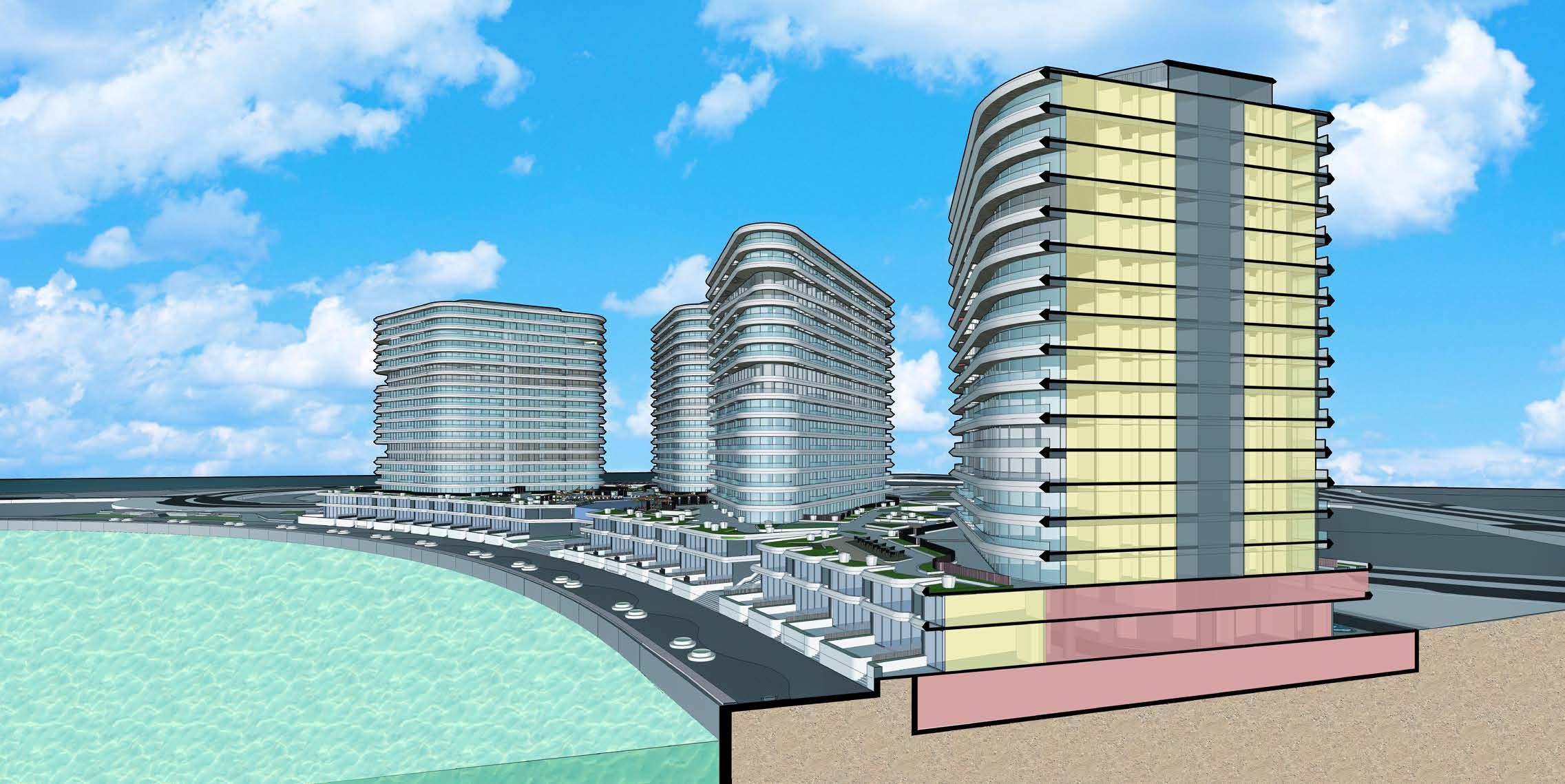

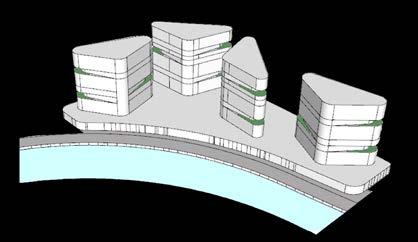

Tower orientation to maximize the sea views

Alterations in the volume forming double heights for duplex apartments and creating green pockets along the buildings

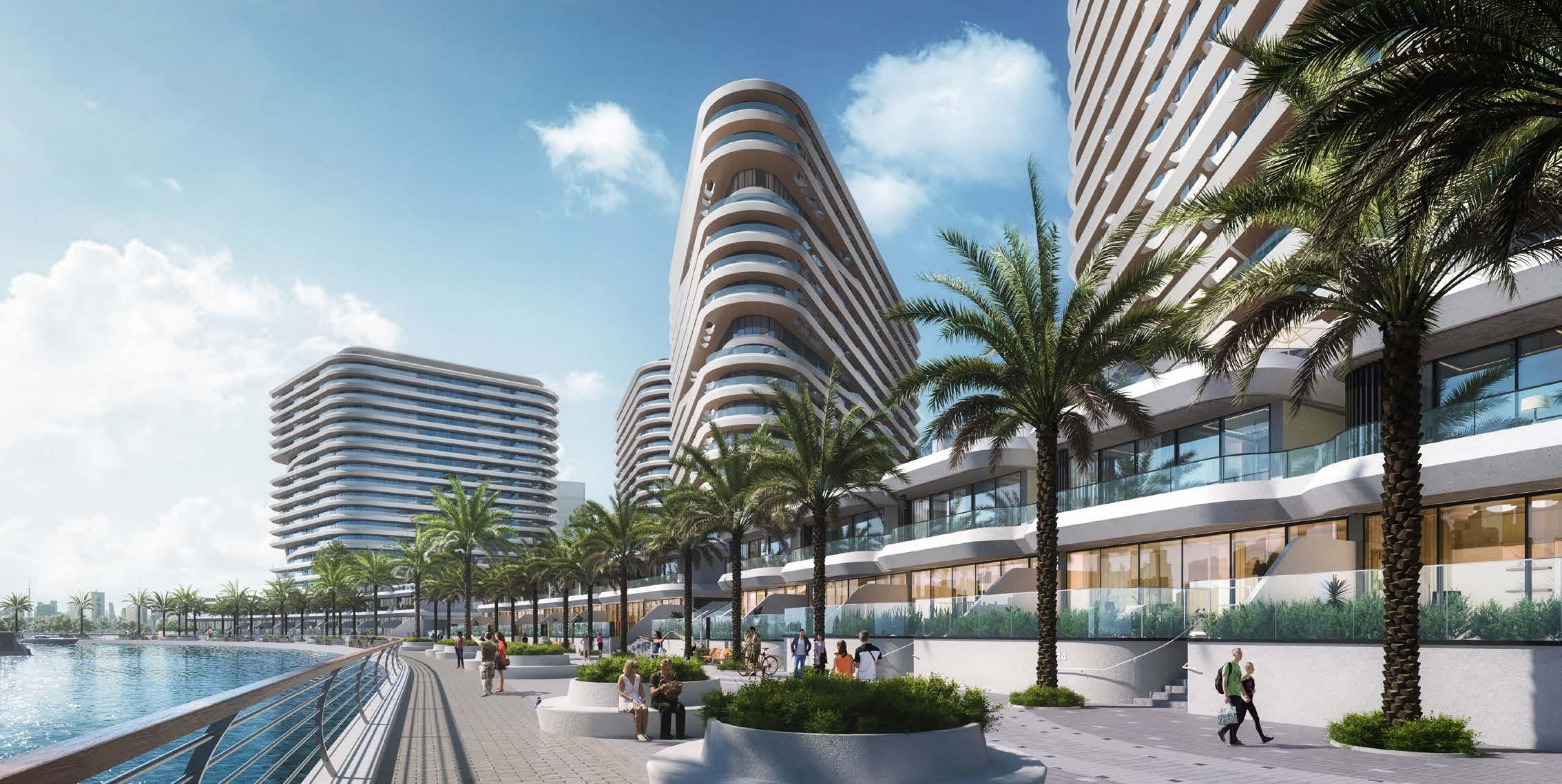

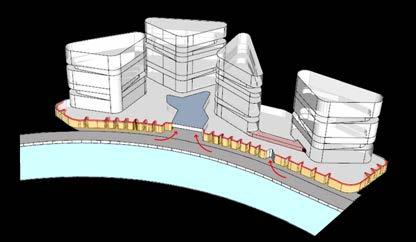

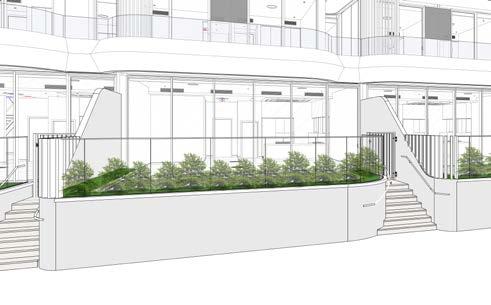

Access points were created on the townhouses edge to create a direct connection between the plot and the waterfront promenade. Podium edge alterations providing light to townhouses

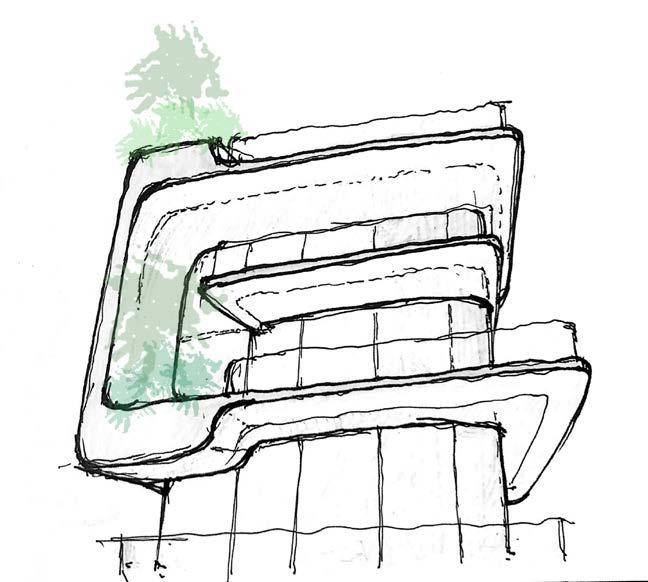

1- Double height balconies

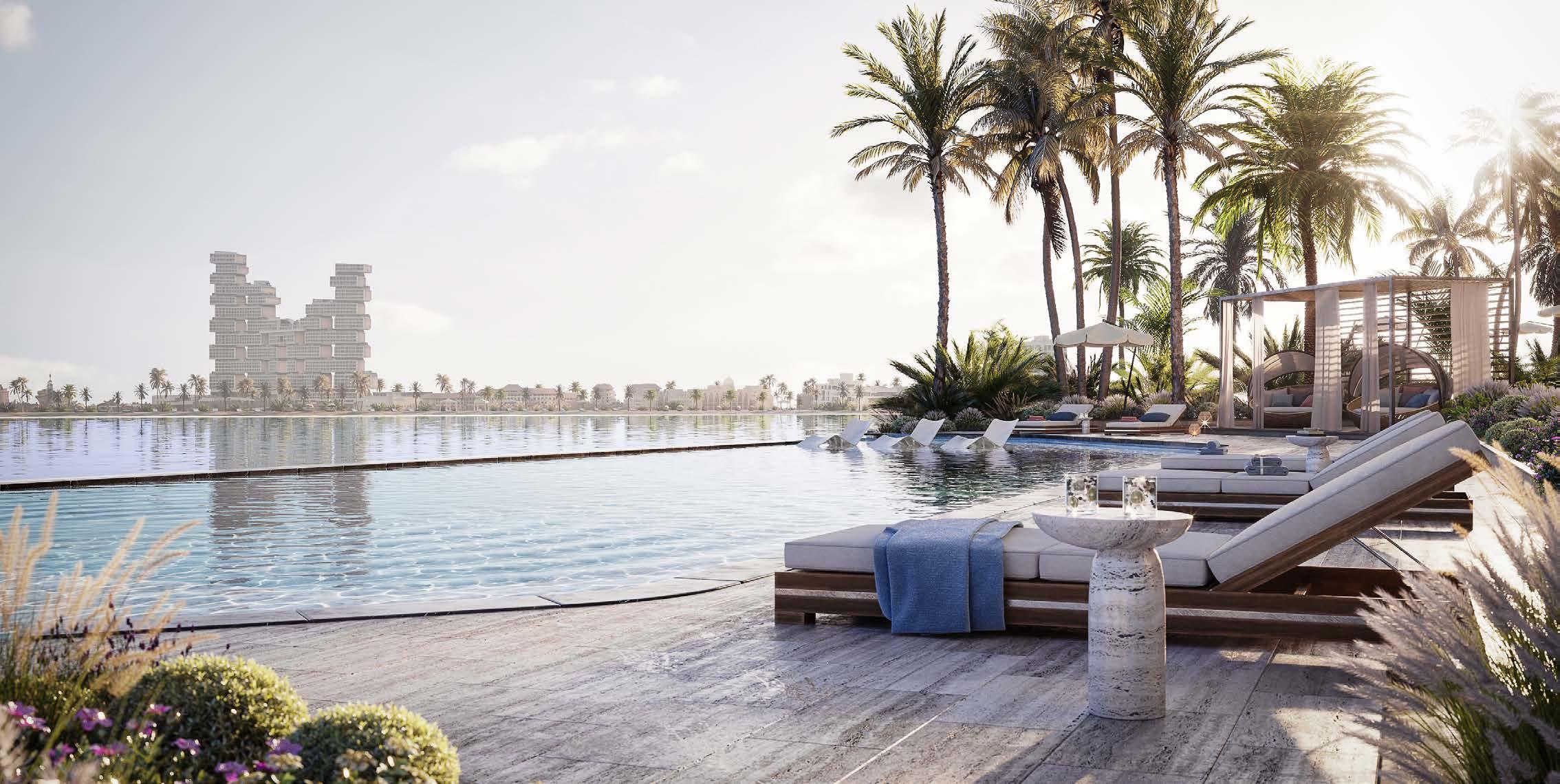

2-Mega infinity pool/ Lagoon

3- Town house private terrace

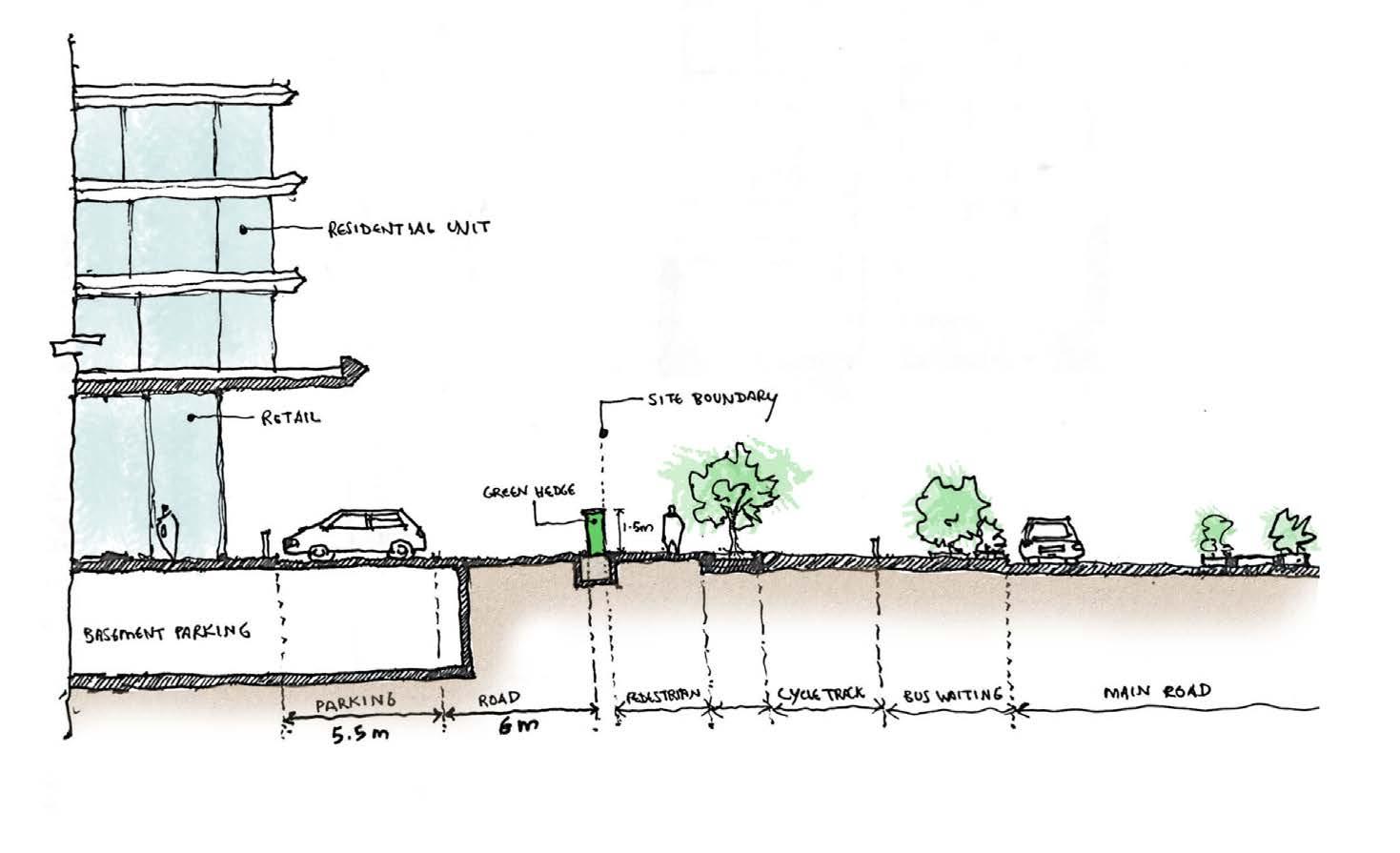

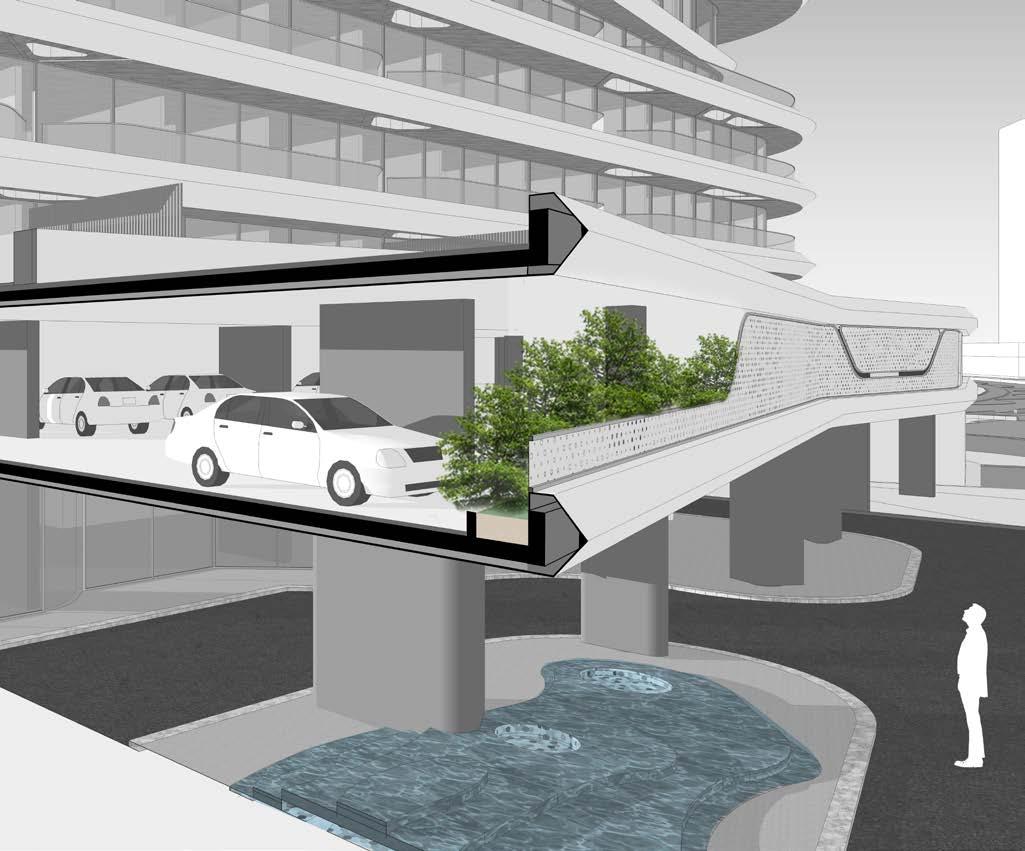

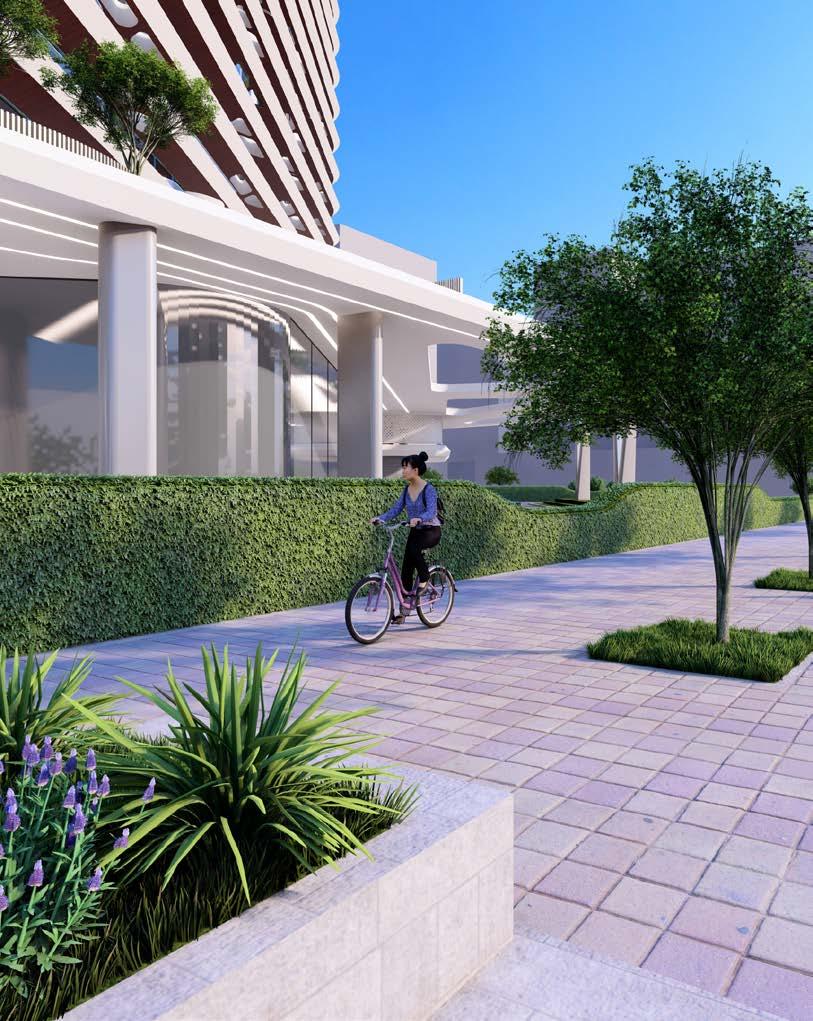

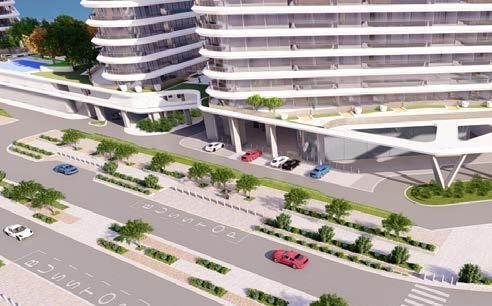

1.5 m high green hedge helps to screen direct view towards the parking area from the street but not completely blocking visibility of retail.

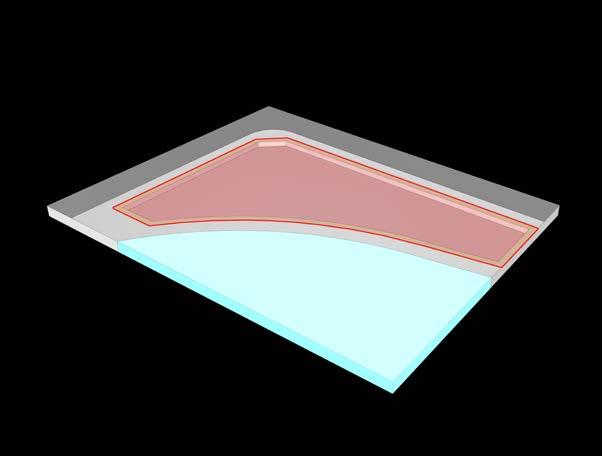

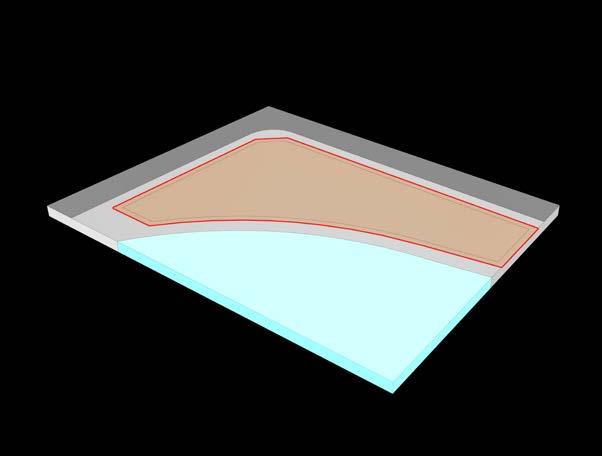

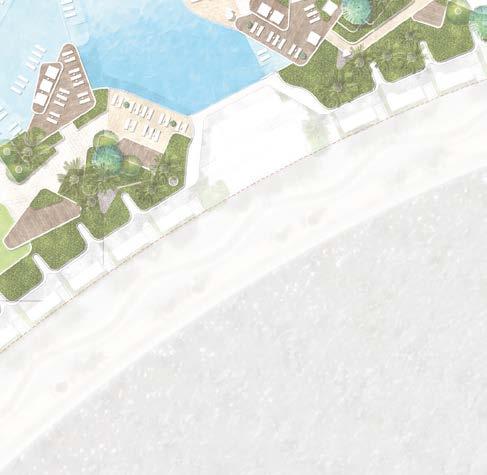

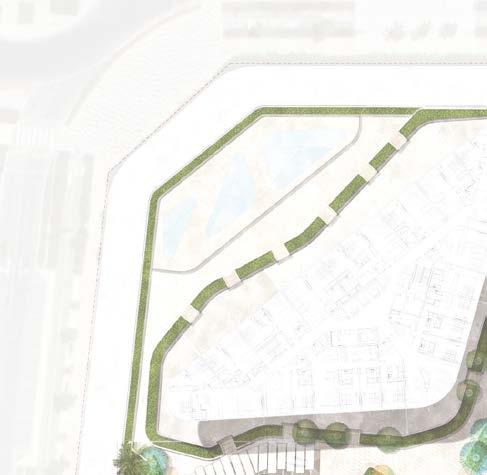

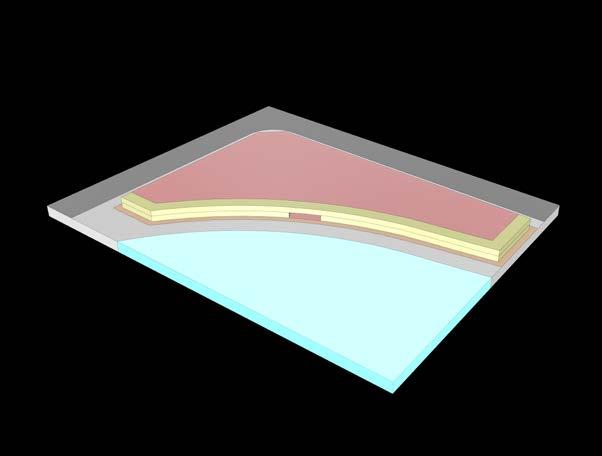

Plot

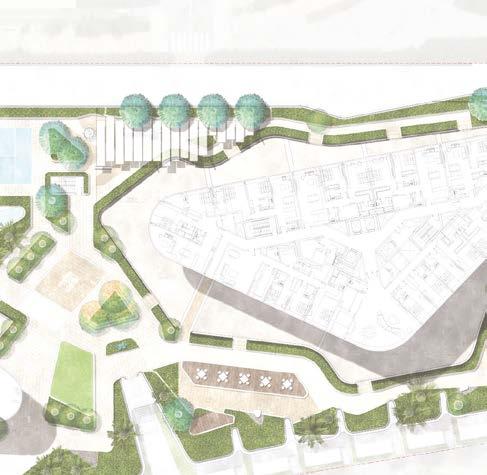

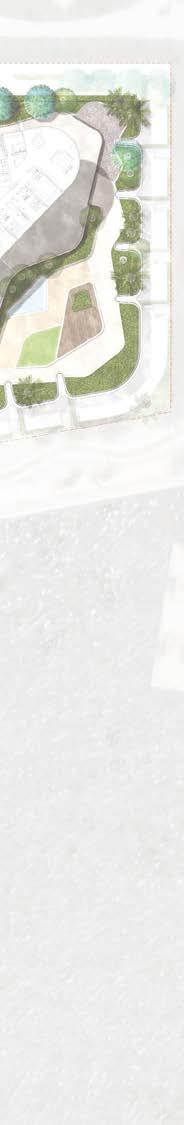

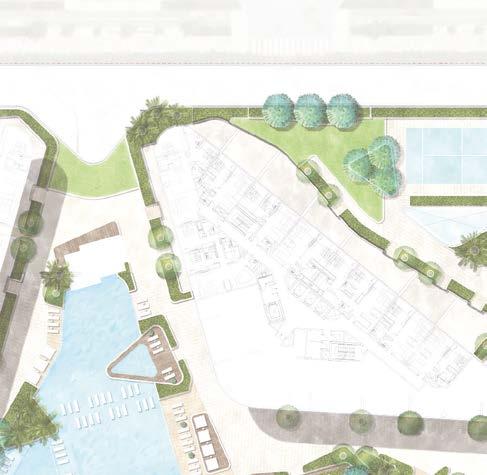

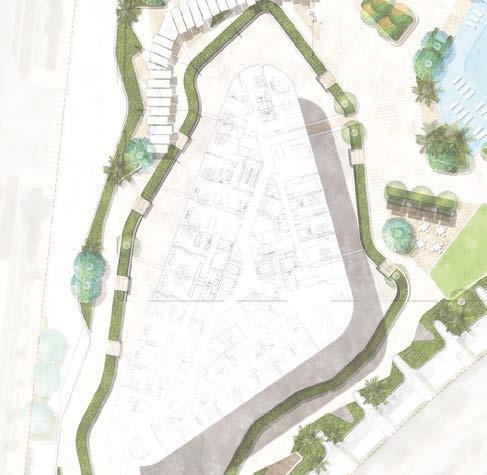

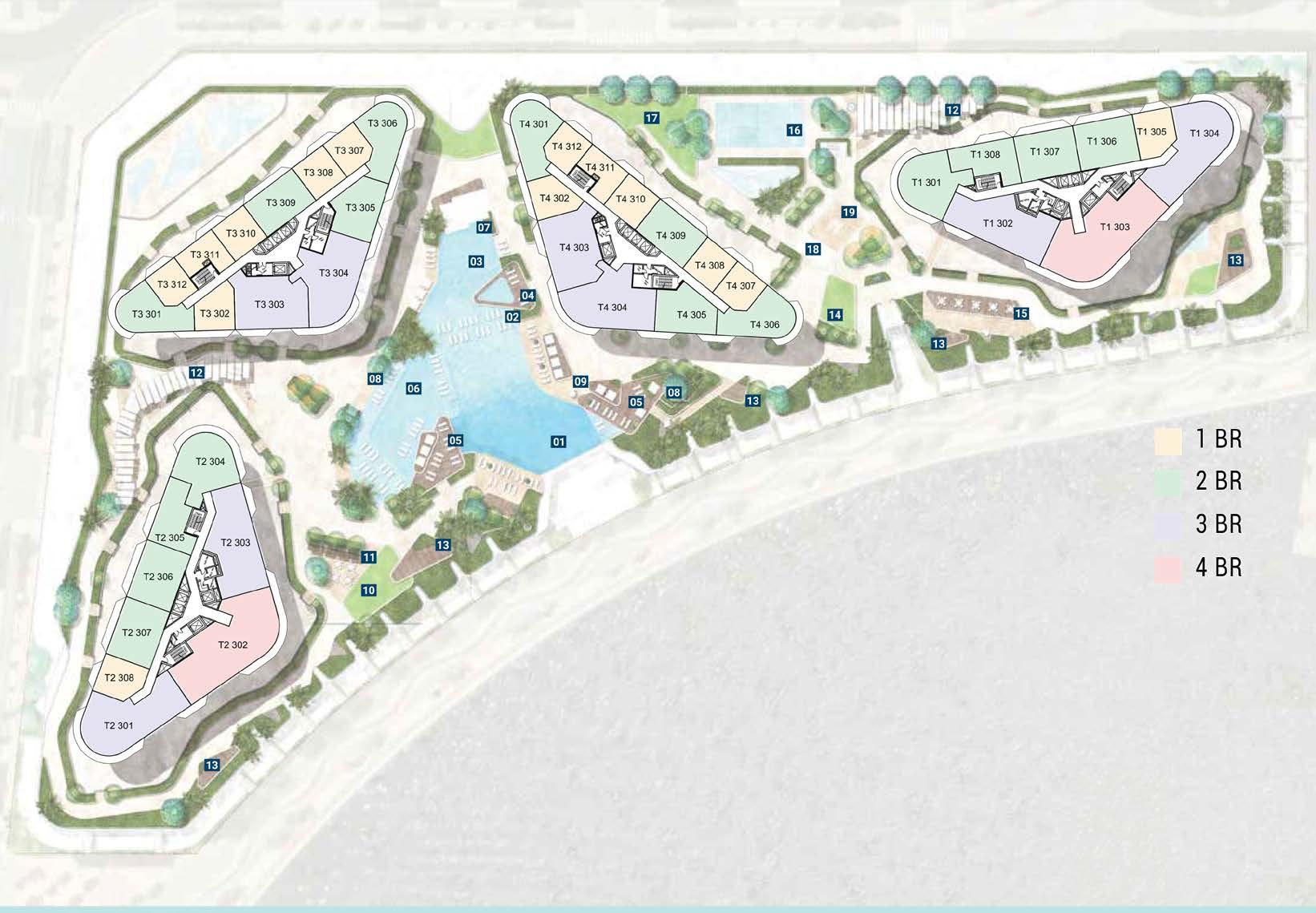

Podium floor plan

Typical floor plan

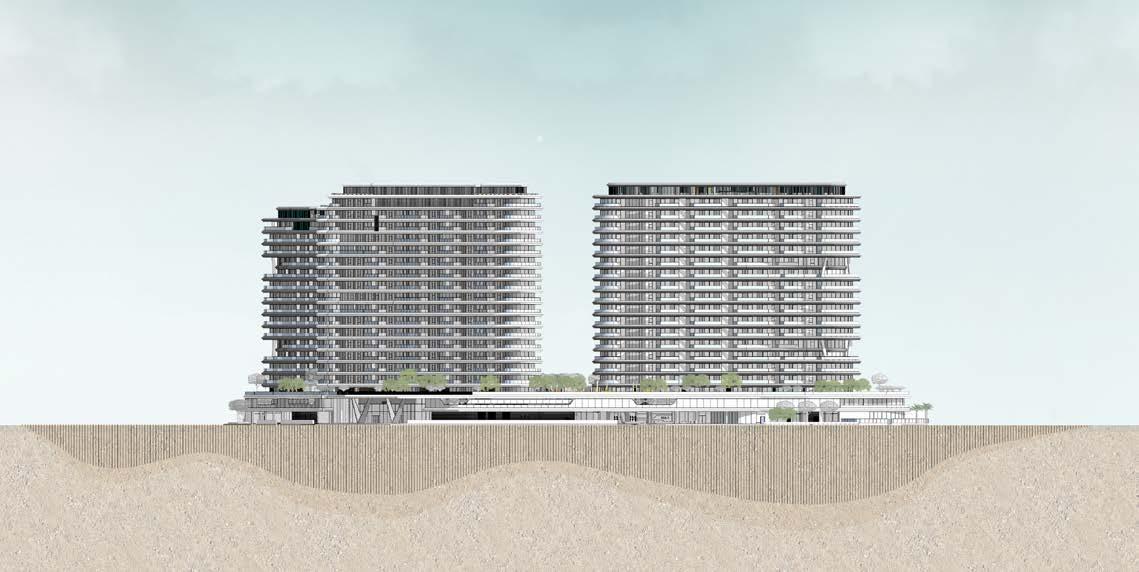

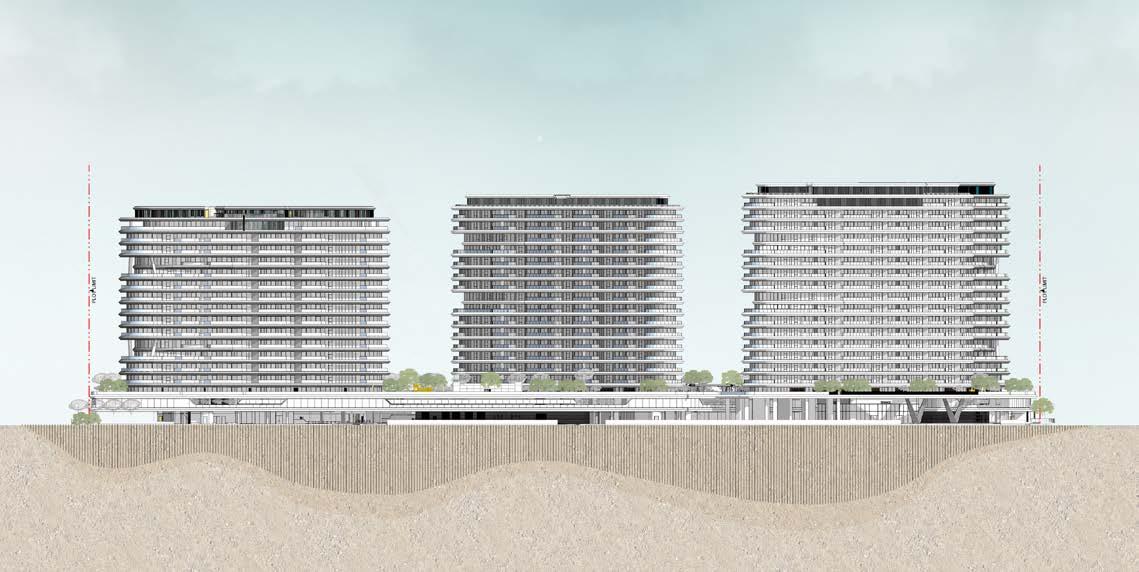

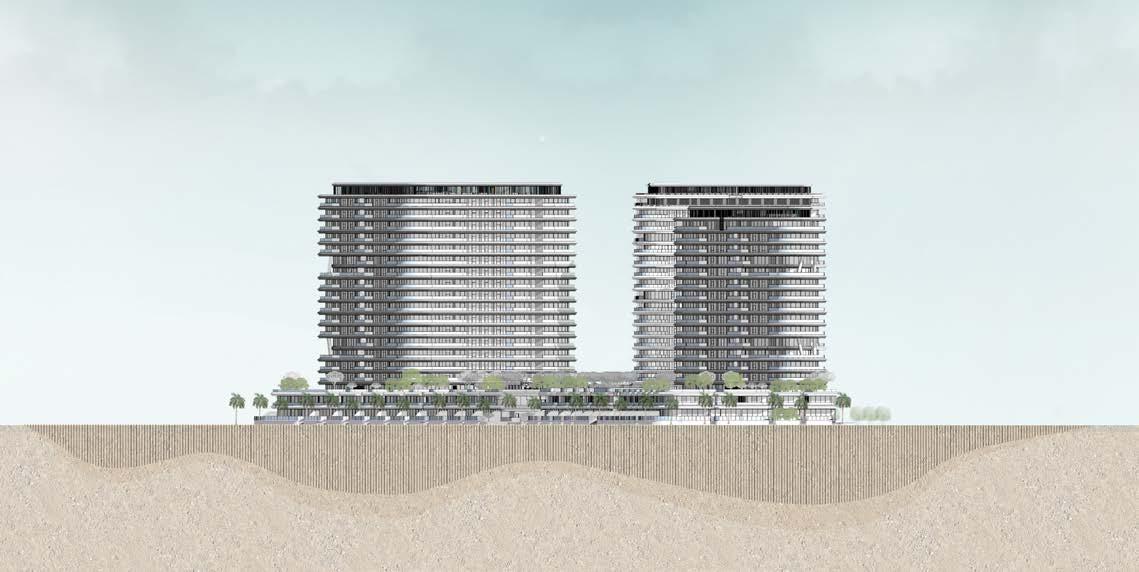

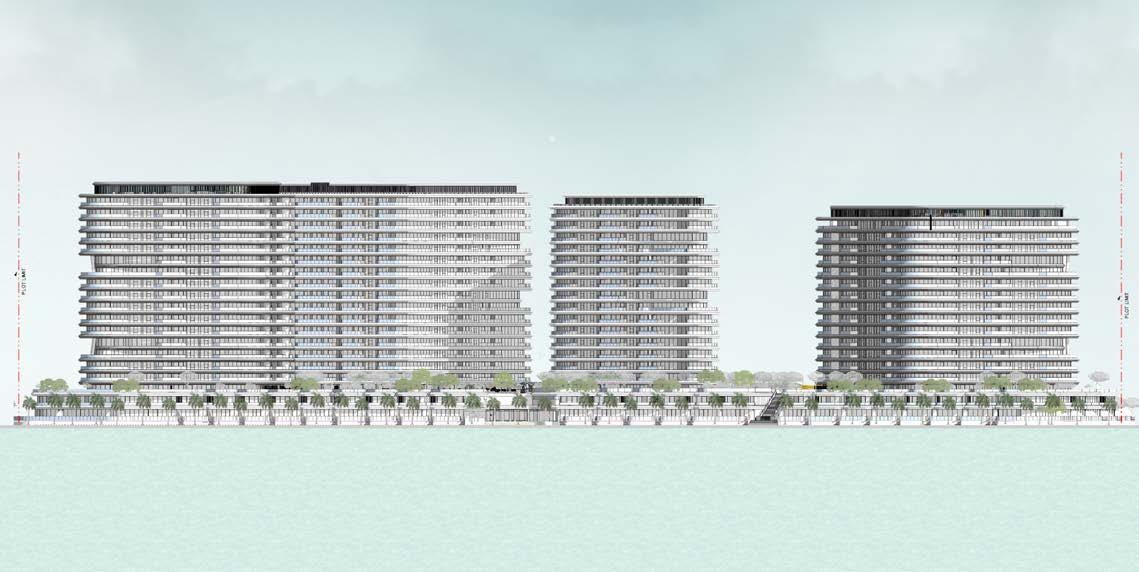

Elevation

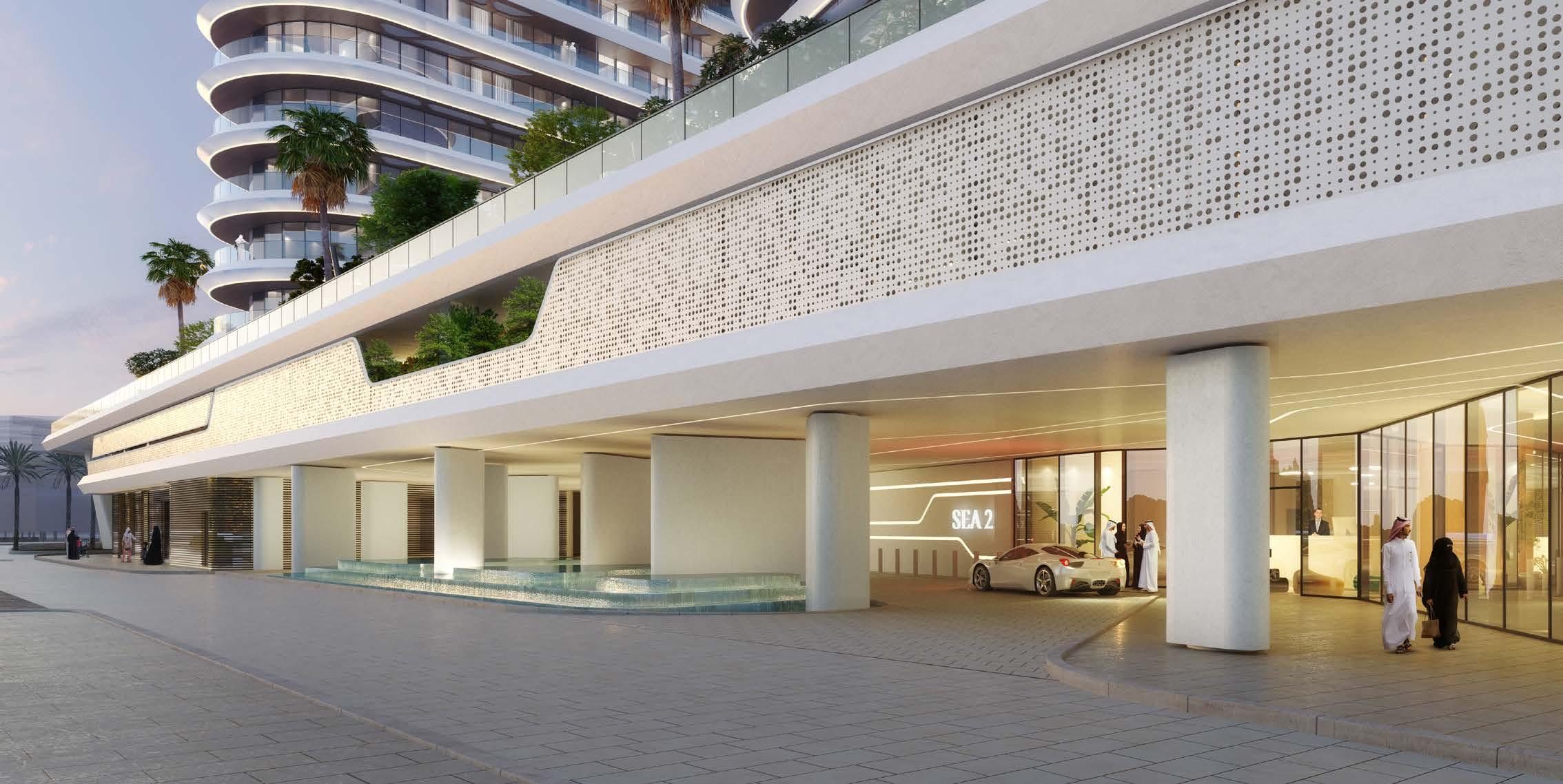

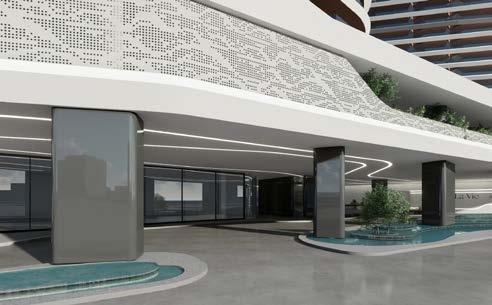

Aluminium perforated screen

Partial ventilation for podium parking

Light weight & eco friendly false ceilings

Wooden cladded ceiling

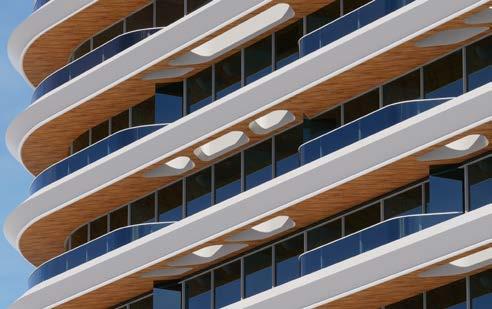

Premium & aesthetic balcony soffits

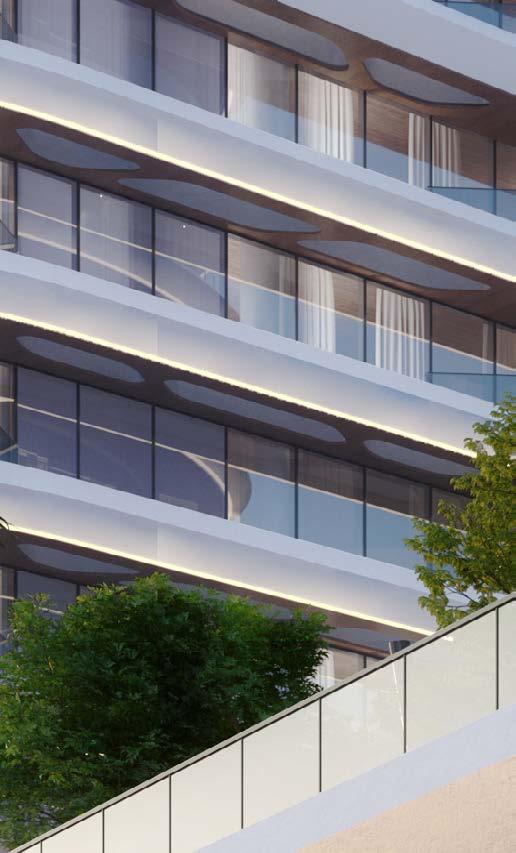

Clean & elegant slab edge treatment

Transparency that blurs the lines between indoors & outdoors

Covering the substation

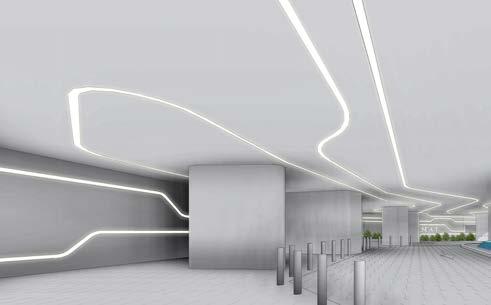

Horizontal louvers Strip lights on ceiling

Ambient light detail

Strip lights on cladded wall

Ambient light detail

Elegant and clean column

Light grey GRC cladding White texture paint

Promenade side wall treatment

Glass fiber reinforced gypsum (GFRG)

Glass fiber reinforced concrete (GRC)

Glass curtain wall & balustrade

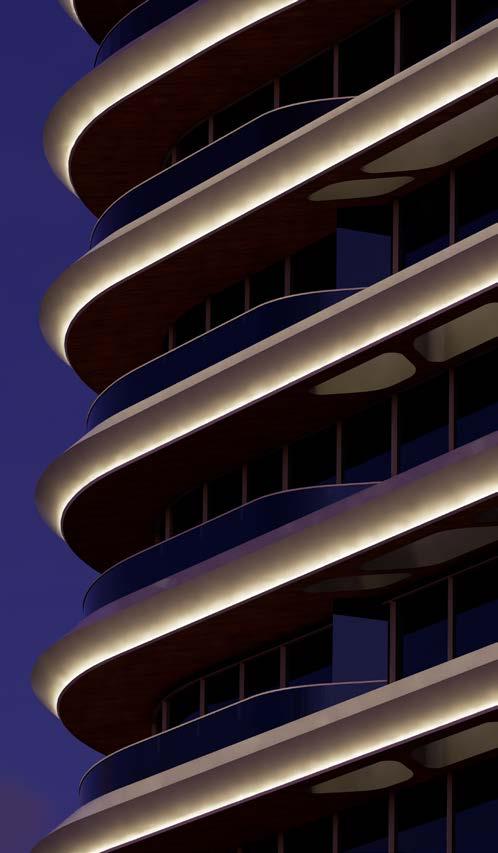

Indirect lighting orientation was utilized to avoid disturbing tower residents while emphasizing the building’s architectural theme

Planter

Aluminium perforated screen

Aluminium frame GRC Cladding

Voids on slab

The project won 5 awards at the Arabian Property Awards 2023-24

Category - Hospitality

Location - Ras al Khaimah, UAE

Site Area - 66,000 sqm

GF Area - 20,000 sq.m

Phase involved - Concept Design

Master developer - Aldar properties

Client - Aldar properties

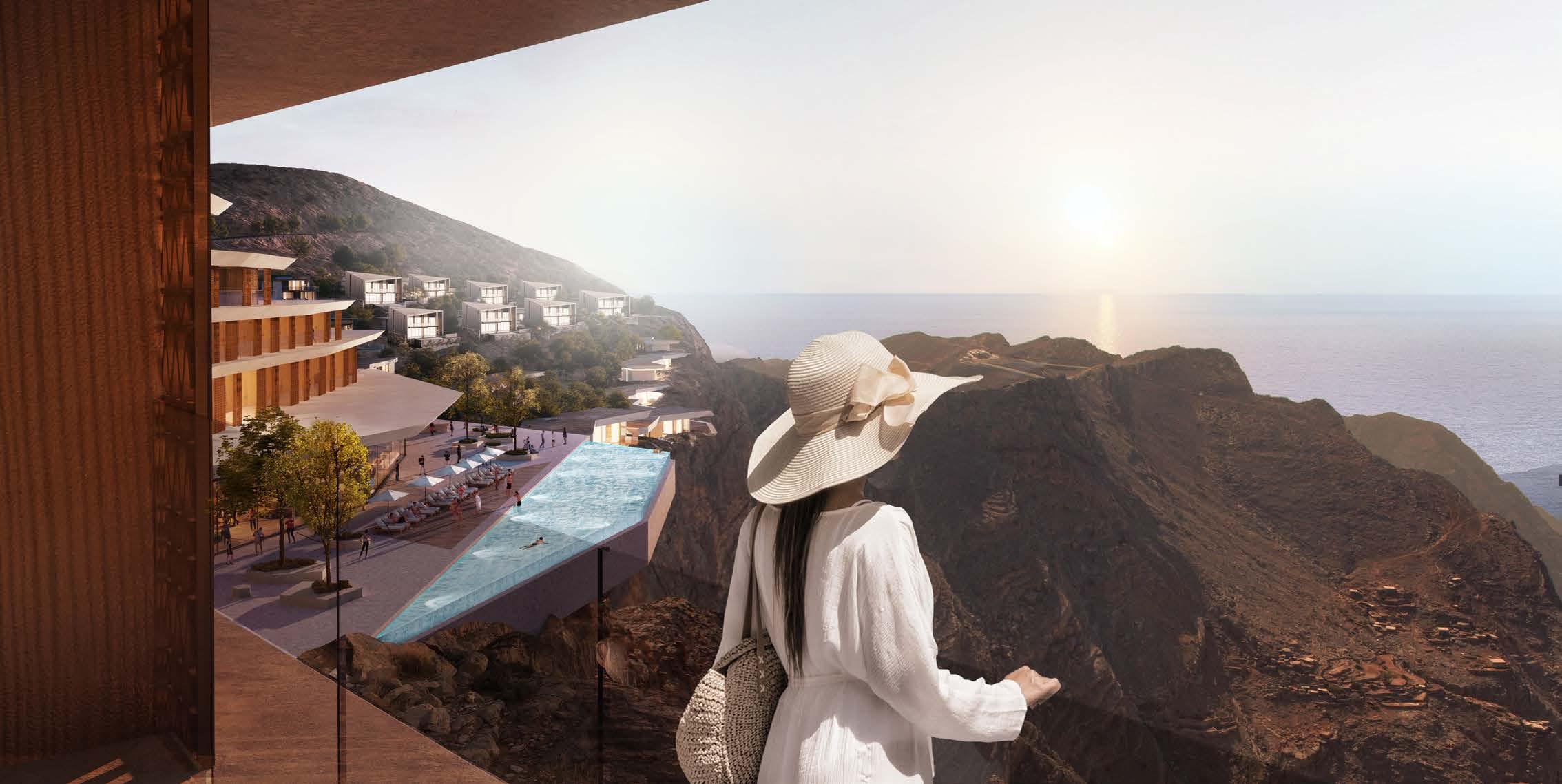

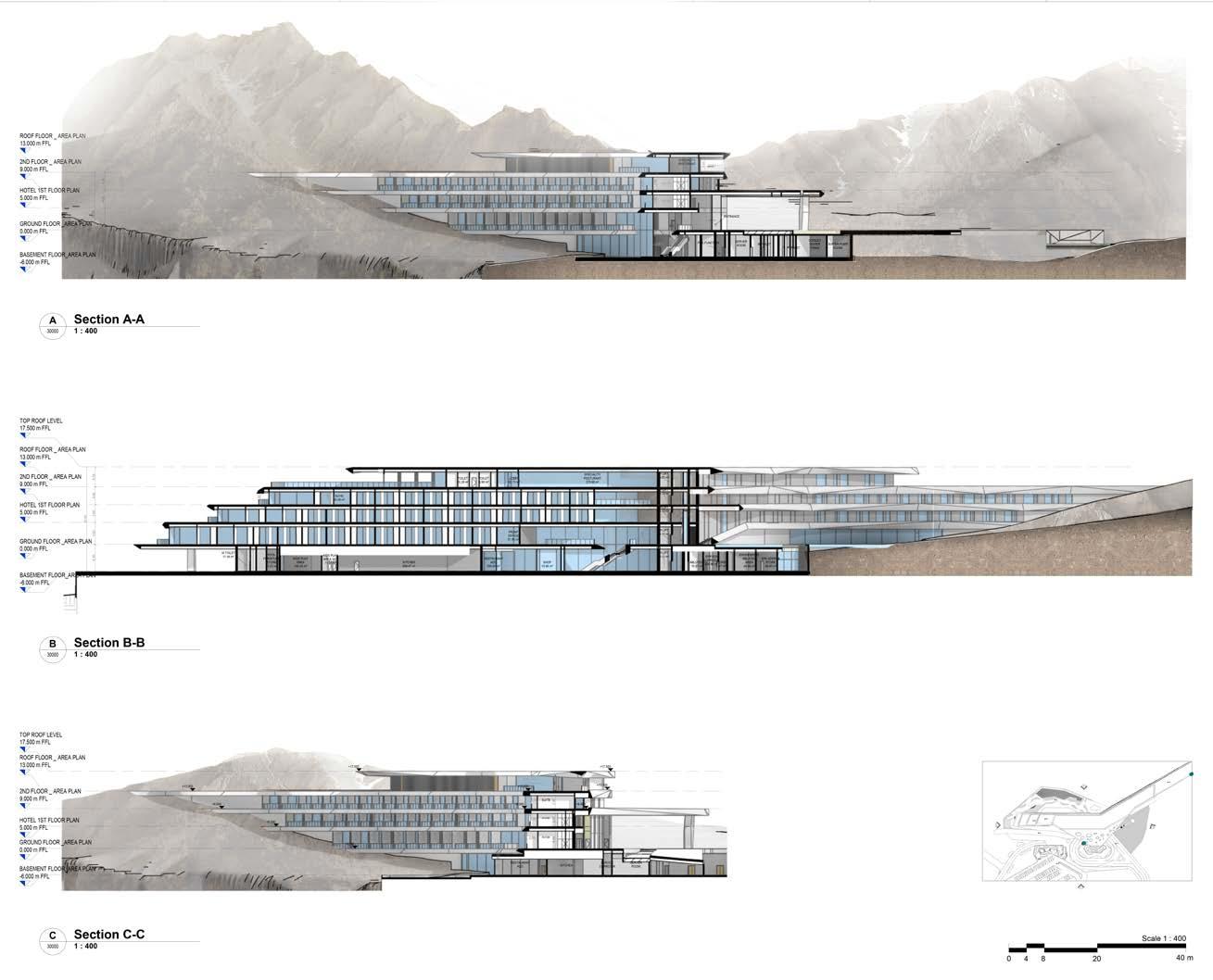

MOUNTAIN RESORT & CHALETS

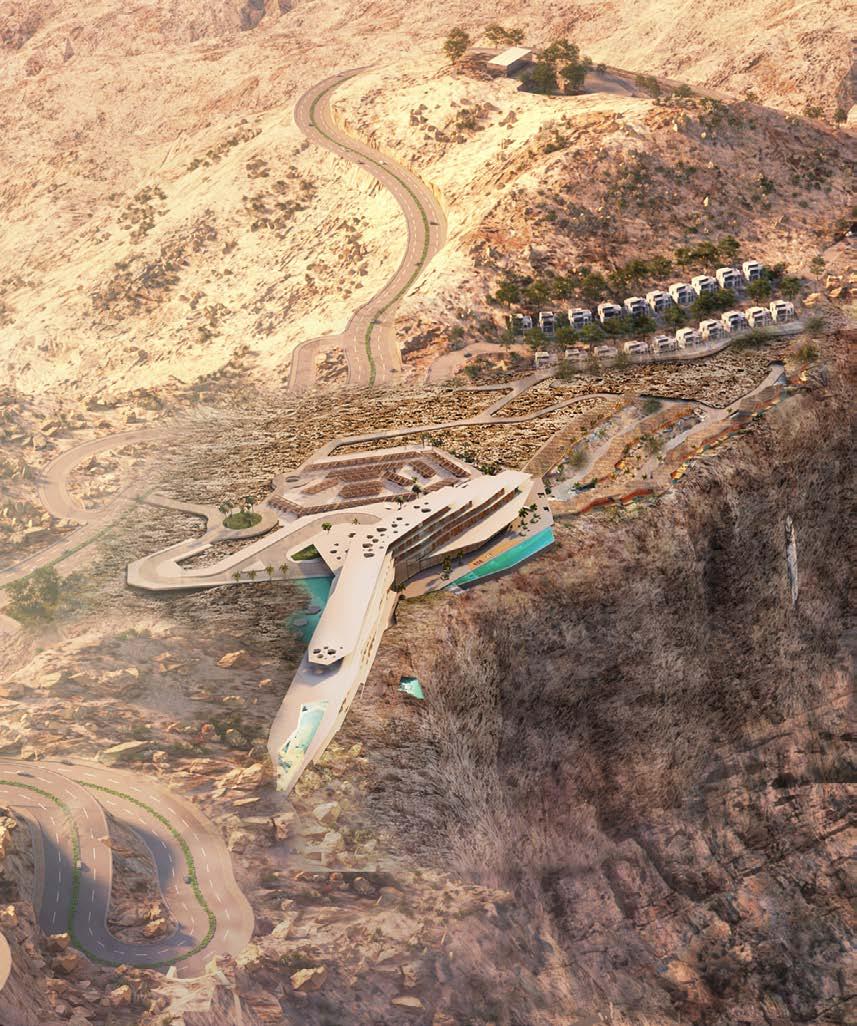

Inspired by the merging of the design with the natural terrains, the project draws its inspiration from the intricate geometry of mountain cracks and the captivating story of layered landscapes. This hospitality project, located in Ras al Khaimah on a 66,000 sqm site, spans a total gross floor area of 20,000 sqm and offers 120 keys across a series of low-rise structures with three floors each.

In my role as an active member of the design team, I collaborated closely with the Design Head. I contributed through hand sketches during the concept design stages and for client presentations, designed diagrams and graphics using software like SketchUp and Photoshop, and developed 3D designs in SketchUp. I also produced compelling renders for client presentations using Lumion and prepared presentation boards and reports to facilitate client progress meetings, ensuring a seamless design process.

Involvement - Design ideation, Concept design, Planning, 3D Modelling, Graphics & Diagrams, Hand sketches, Presentations for client meetings, Research

Skillsets used - Hand sketching, Revit, Autocad, Sketchup, Photoshop, Indesign, Lumion

Geometry of Cracks

Story of Layers

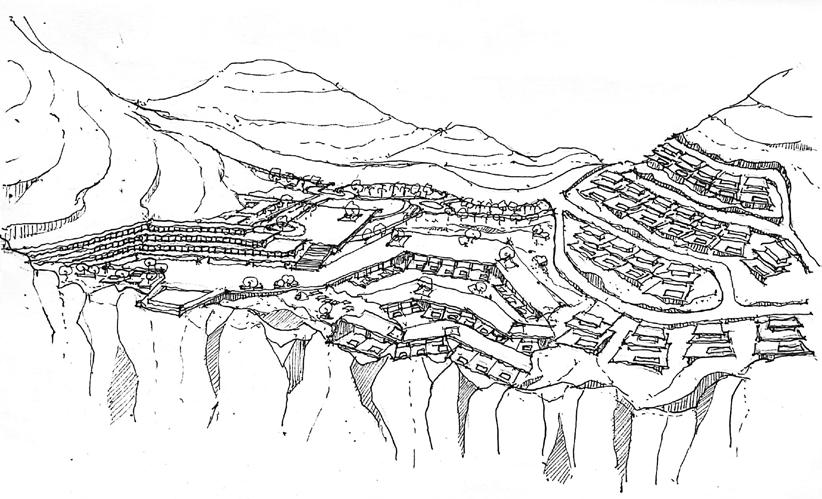

Merging with the Terrain

Texture of the mountain as design inspiration for the elevation treatment.

Local topography of sedimentary rocks, with its evident layers reminds the visitors of their story of origin and creation. Design approach to layered architecture as an integration with the land.

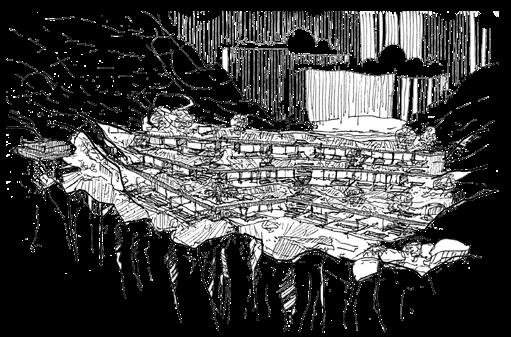

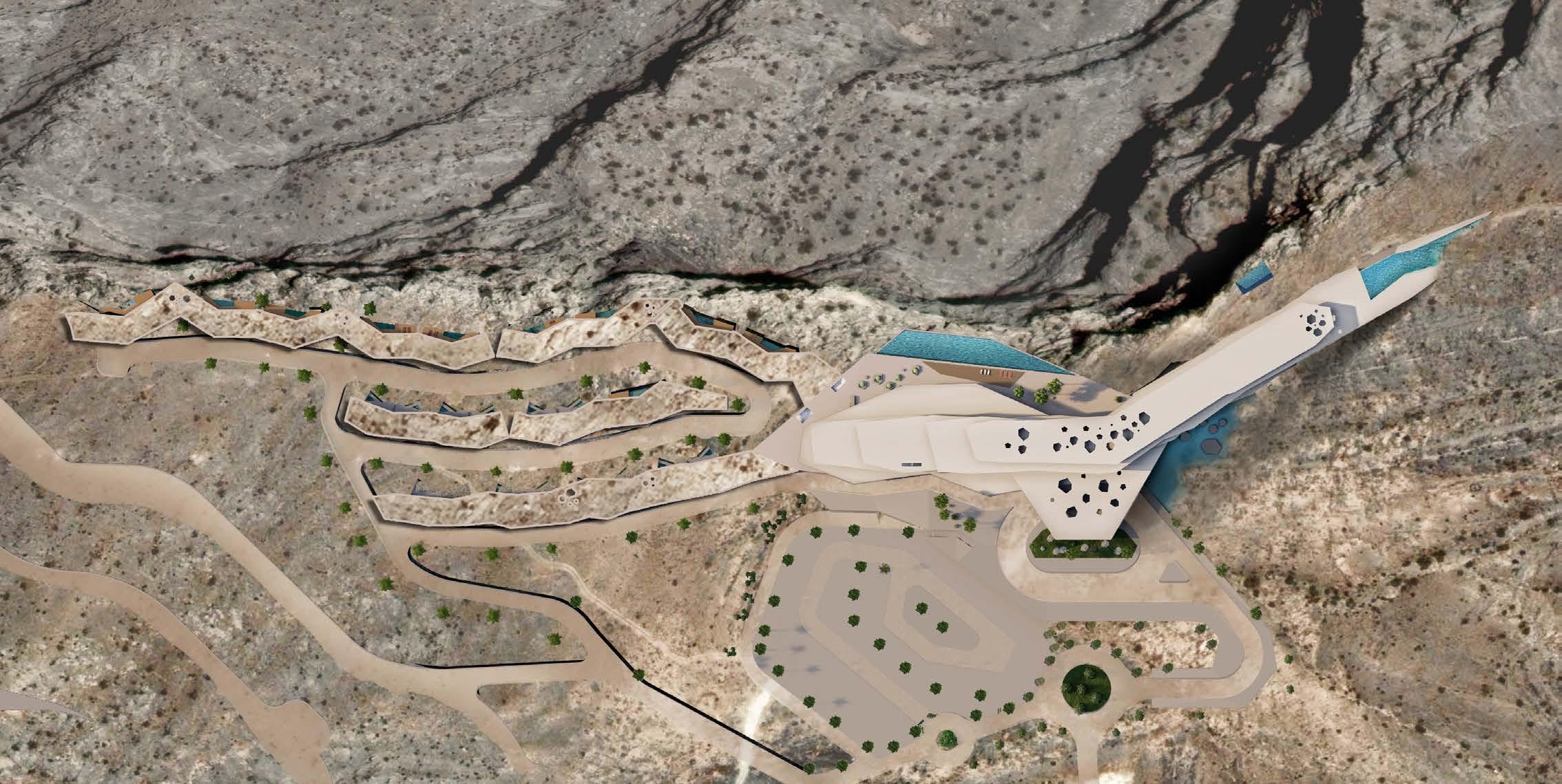

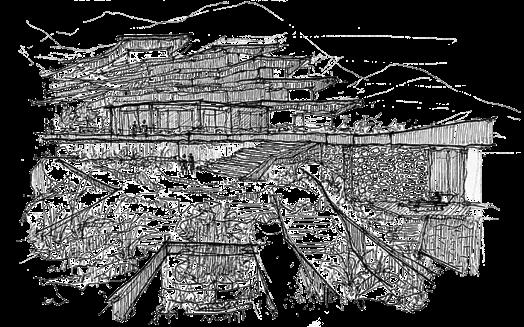

The Resort building merges with the natural mountainous topography whereby it appears that the architecture emerges from the earth.

MOUNTAIN RESORT & CHALETS

Category - Residential

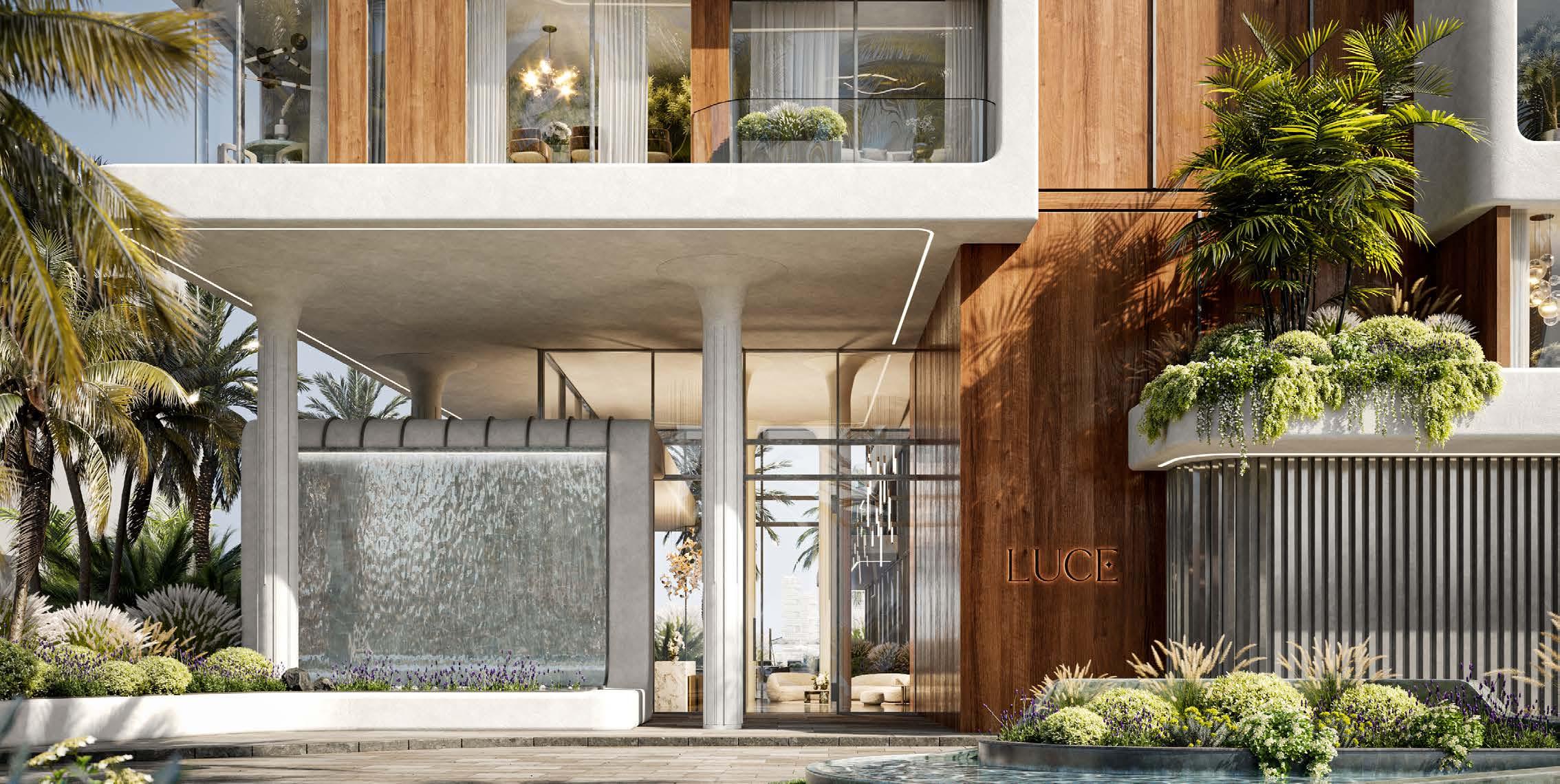

Location - Palm Jumeirah, Dubai

Site Area - 4831 sqm

GF Area - 11,600 sq.m

Phase involved - Concept Design

Master developer - Nakheel

Client - Taraf Development

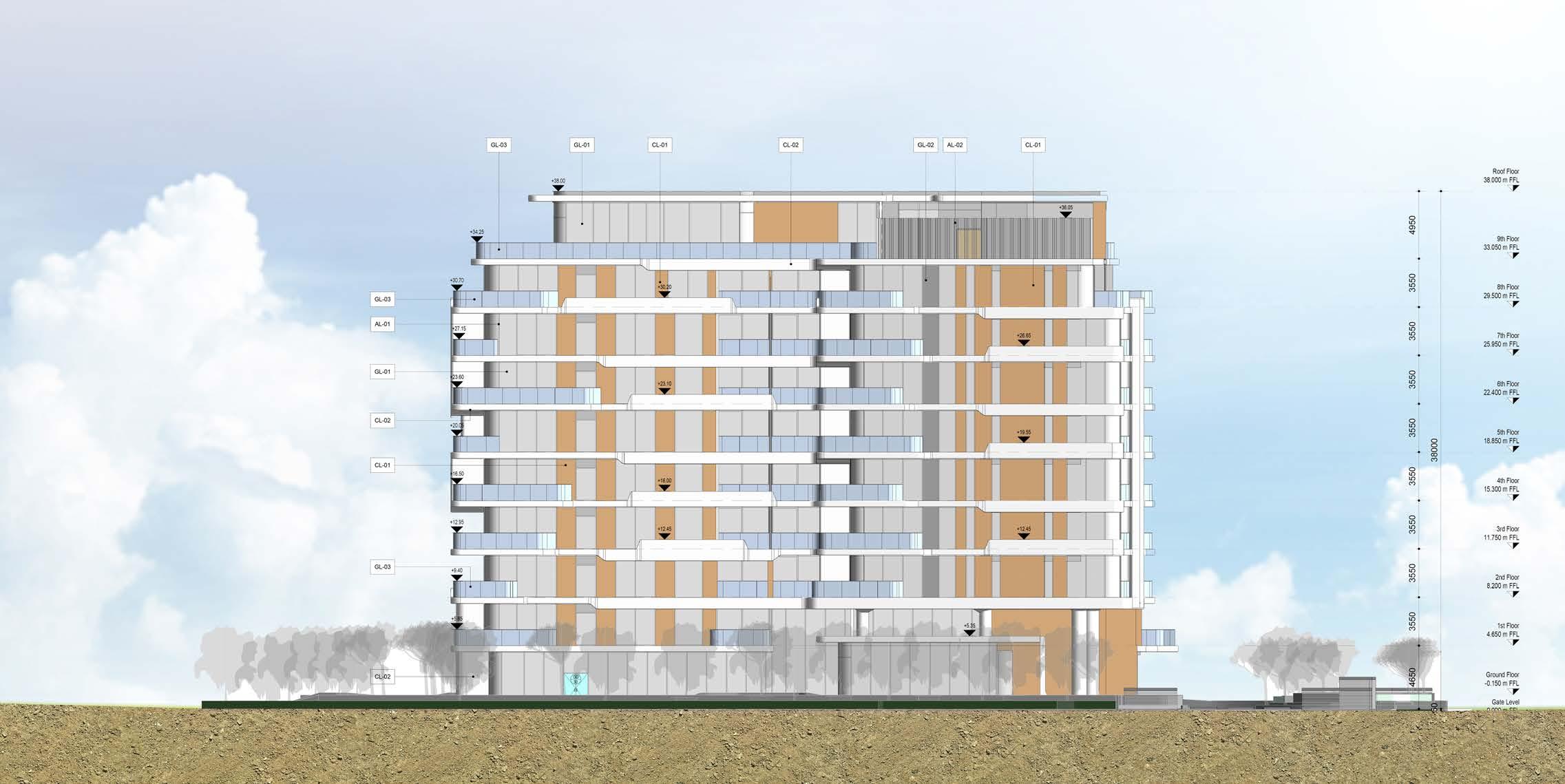

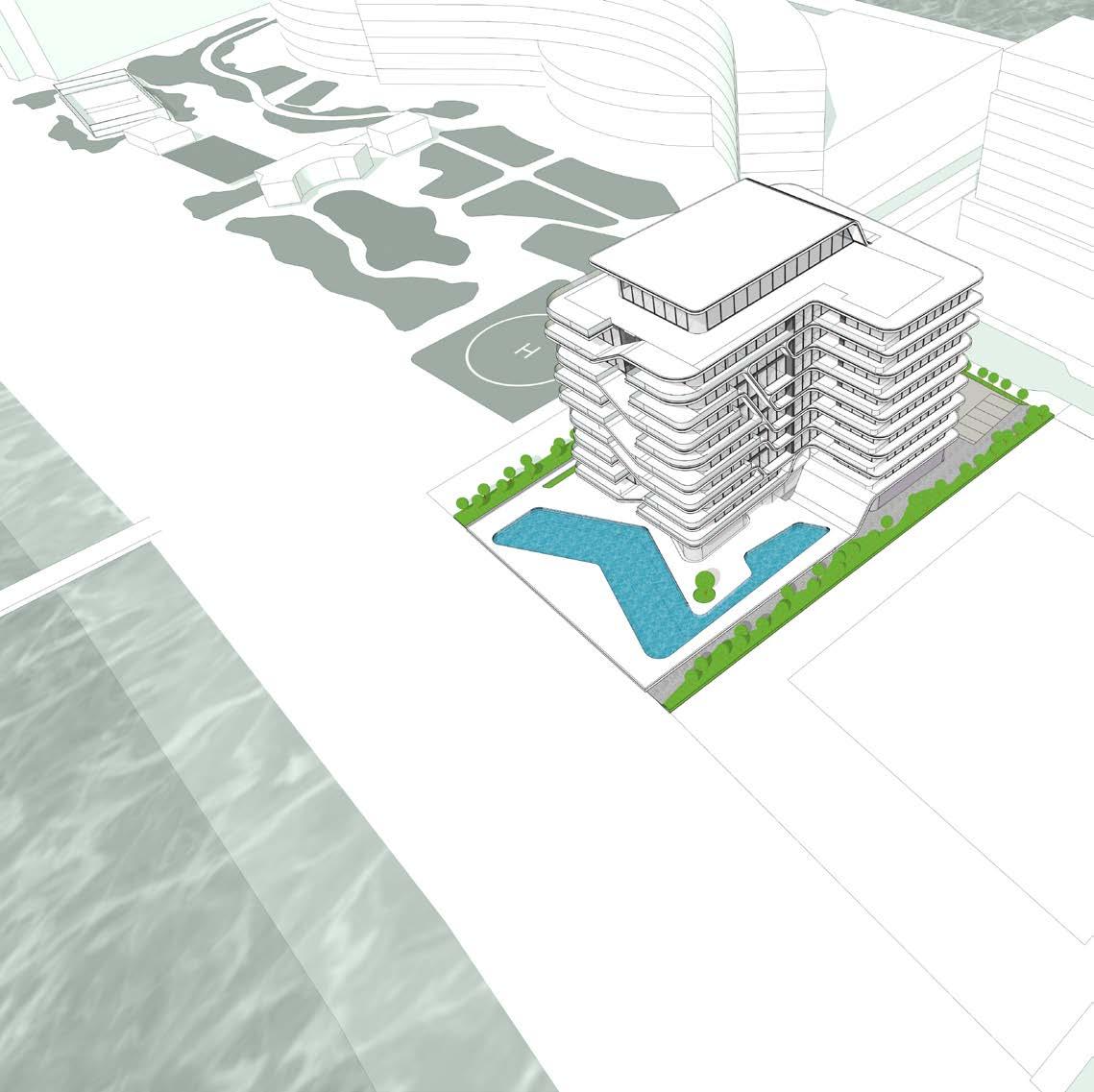

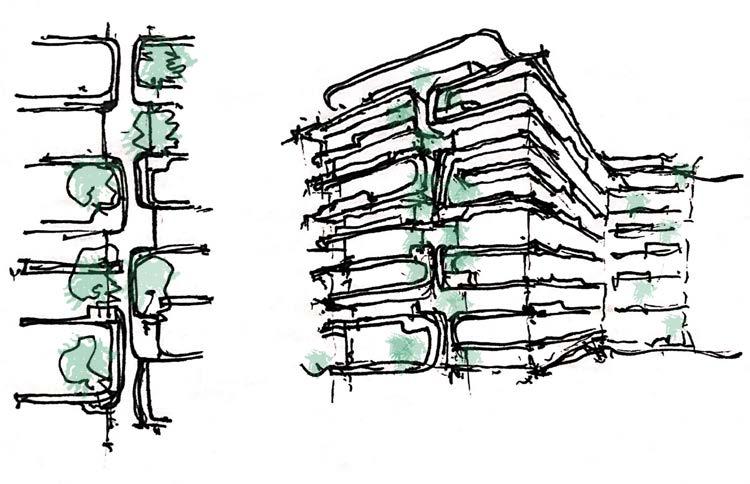

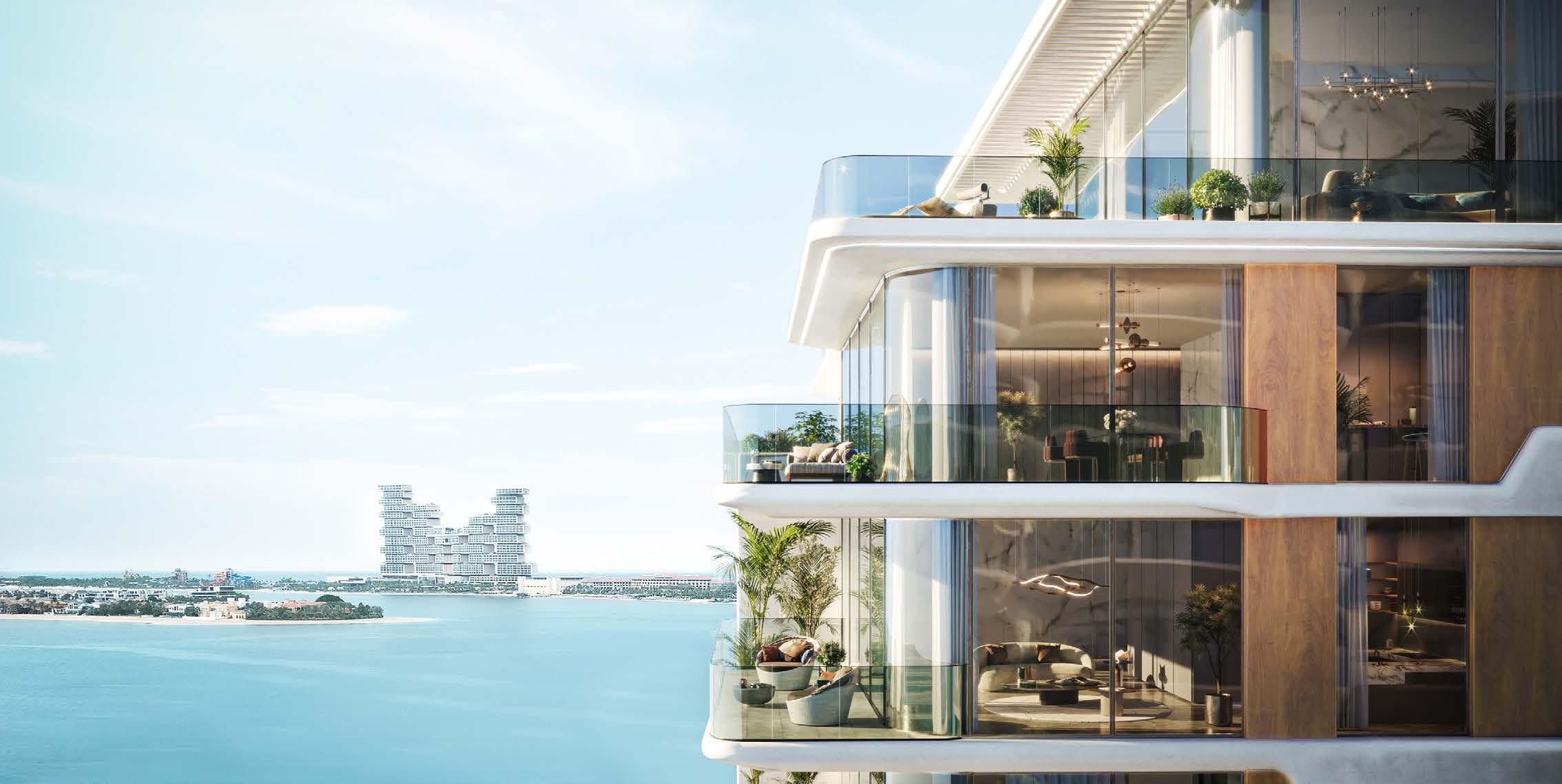

The design concept for this residential project finds inspiration in the fusion of abstract sand patterns and vertical oasis elements, resulting in stunning balconies overlooking the seaside. This single tower development, situated on a 4,831 sqm site, encompasses 38 units distributed across 9 floors. My role within the project was highly active as a member of the design team, collaborating closely with the Design Head. I contributed to the project by creating hand sketches during the concept design stages and for client presentations, meticulously planning the floor plates using AutoCAD, designing the tower facades using SketchUp, and crafting design diagrams and graphics with the help of SketchUp and Photoshop.I engaged in 3D design and development , prepared presentation boards and reports essential for client progress meetings, especially during the concept design stage. My responsibilities also extended to coordinating with various consultants, including those in structure, MEP, and visualization, and actively participating in client meetings, ensuring a holistic approach to project success.

Involvement - Design ideation, Concept design, Planning, 3D Modelling, Graphics & Diagrams, Hand sketches, Presentations for client meetings, Client meetings

Skillsets used - Hand sketching, Autocad, Sketchup, Photoshop, Indesign
