SUPER spaces.

Alonzo Colon & Stanzin Namgyal Chicago Studio. Fall 2022 Mentor Firm :JGMA Professor: Chip Von Weise
1 2 3 4 5 6 7 8 9 10 11 12 13 14 Prologue The Sequence Act I Intermission Project Overview 4-11 12-21 22-25 Demographics Traditional Stage Wyly Theatre Extended Stage SUPERspaces SUPERlobby Via Verde Taipei Performing Arts Center Thesis Diagrams Superspaces Site Plan Program Traditional Blackbox Antithesis Precedent Studies Social Transformation
Act II Intermission Act III Epilogue 26-37 38-45 46-57 58-73 Stage MEP+Life Safety Accessibility Unit Code Matrix SUPERstage Past Iterations Sketches 3d Print Model Concept to Detail Elevations SUPERspaces SUPERlobby Transformation MEP+Code Social Awareness Past Iterations+Sketches

Prologue Project Overview

Introduction

The affordable housing project houses a philharmonic rehearsal and venue space and responds to the existing social constructs within the South Shore neighborhood and within the broader context of Chicago. The Philharmonic blackbox aims to serve as a catalyst for positive relationships within the community as well as the different social identities that engage within this buiding due to the programmatic construct of the building. Conceived as a functioning icon, the building is centered around the South Shore community and the residents of the building. These relationships are further enabled by the use of SUPERSPACES.

4
Prologue / Main Render / Description text

The first of the super spaces is the SUPERLOBBY. A dynamic space that combine the Philharmonic and the residential lobbies. It forms a lobby that becomes more than a transition space with added functions such as a music library, cafe and an unpaid public viewing box into the Blackbox.

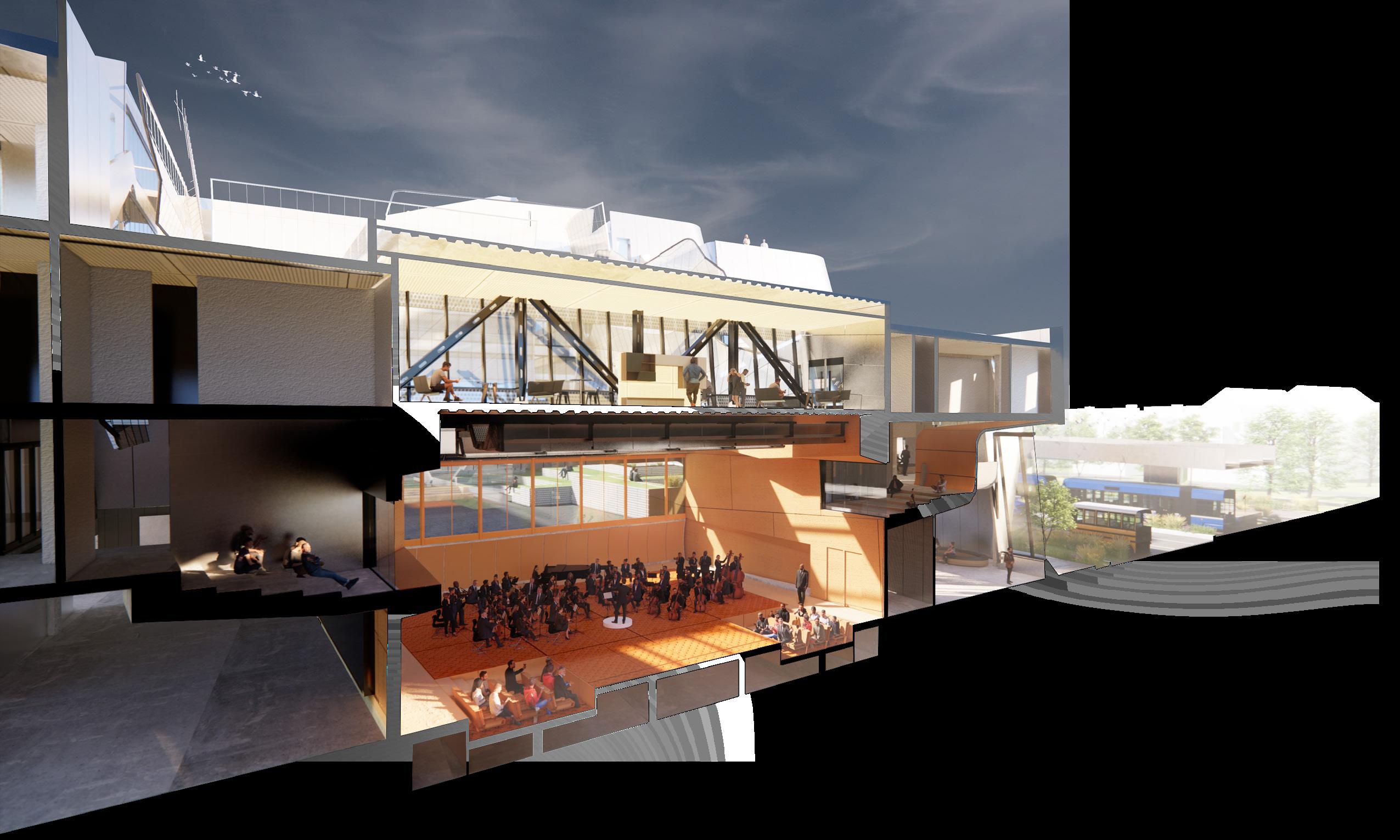

Adjacent to the SUPERLOBBY is the SUPERSTAGE. It is the epicenter of the building. It contains the Black Box in the middle with a public plaza and private courtyard on opposing sides allowing for flexible stage configurations. This creates a space that has the potential to host intimate productions as well as full scale festivals. Through the expansion of the blackbox, the stage can utilize the adjacent spaces to become one single continouos space.

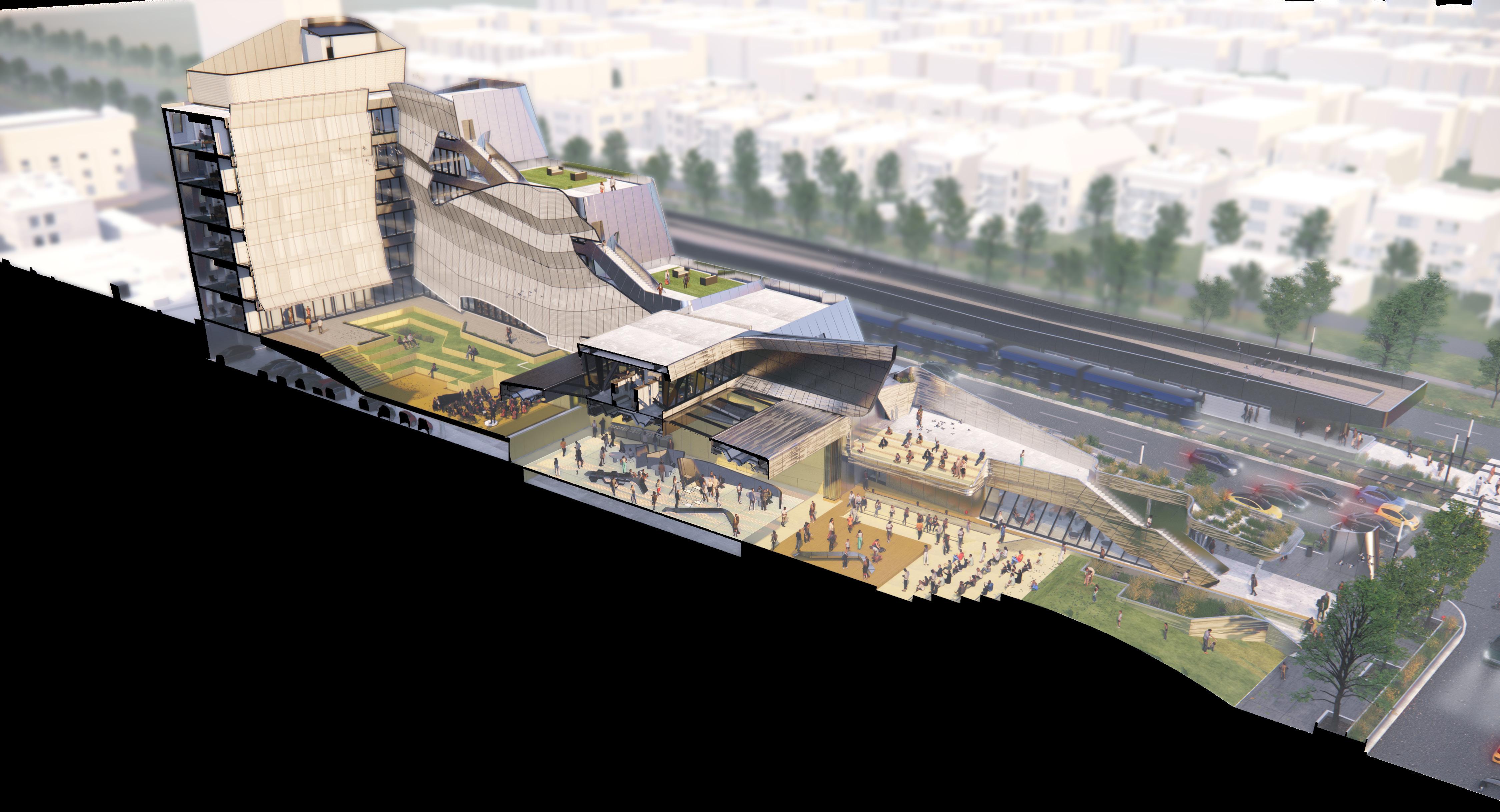

Prologue / Main Render / Description text

5

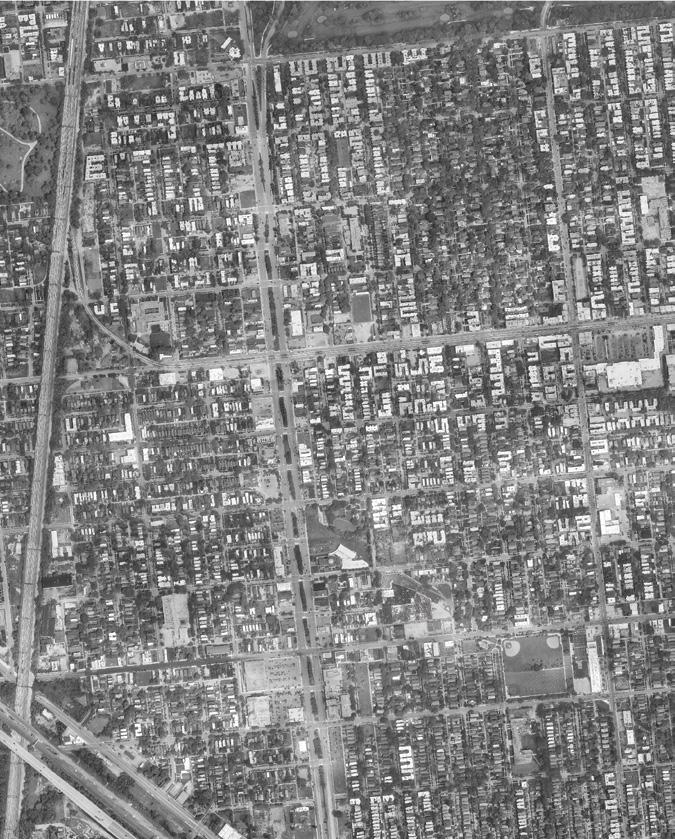

Site

Income Distribution Map

Income Distribution Map

$100,000+ $52,000 $42,000 $32,000 $26,000 $20,000

$100,000+ $52,000 $42,000 $32,000 $26,000 $20,000

Southshore has a large and isolated wealth gap and was historically a redlined district

Southshore has a large and isolated wealth gap and was historically a redlined district

South Shore Population: 90% African American 50,000 People

South Shore Population: 90% African American 50,000 People Southshore Community

6 Prologue / Demographics / The Southshore neighborhood has had 50+ years of disinvestment and this project is designed to create a spark for this community

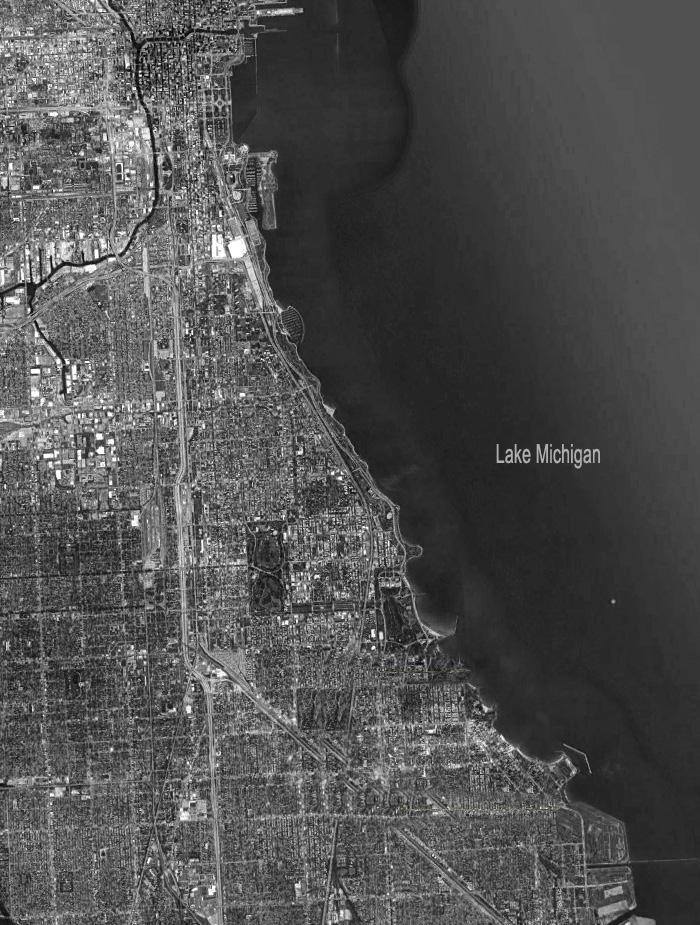

Southside Chicago

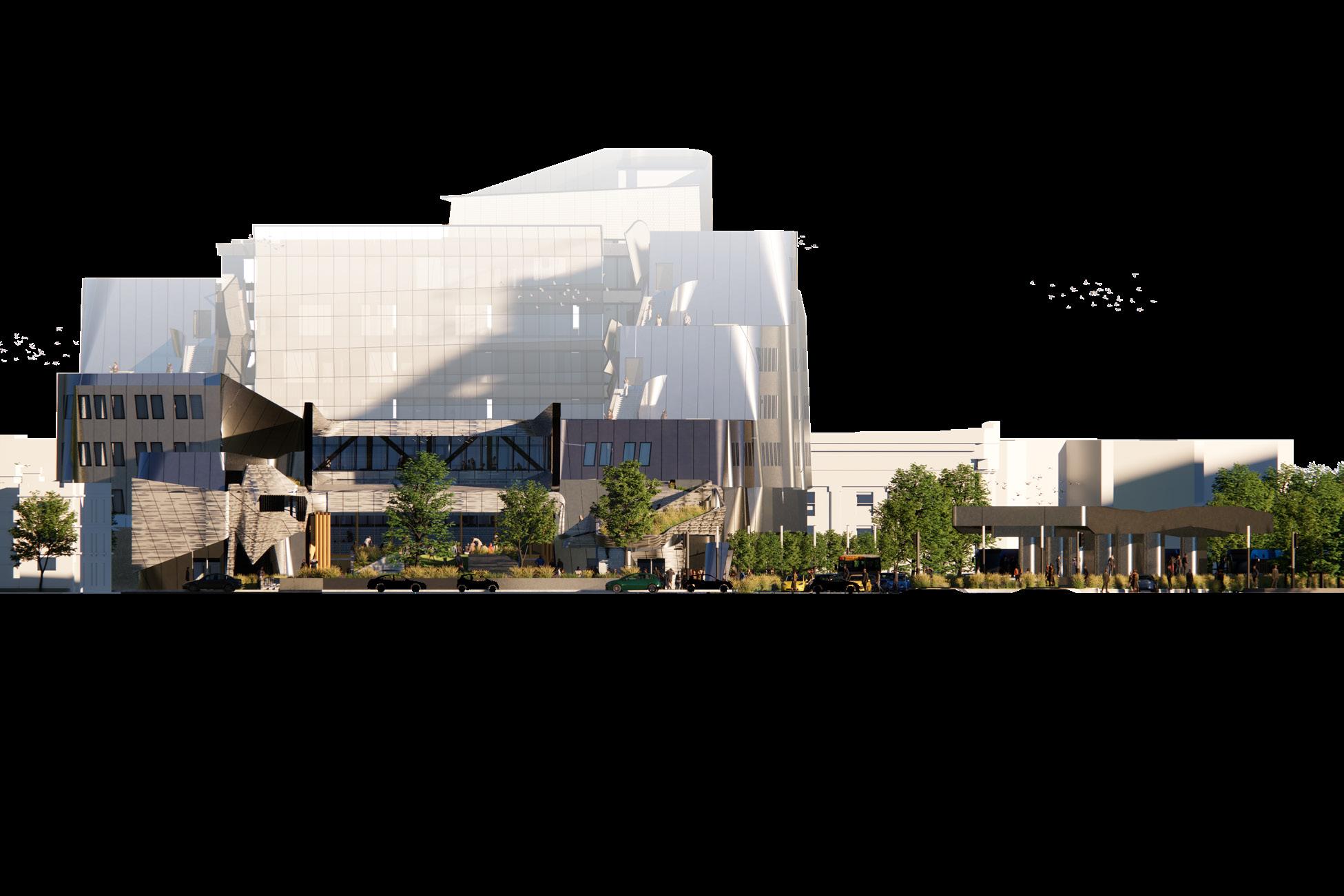

Prologue / North Facade From Train / Located on S stony Island Ave, this building marks the entrance to the Southshore community as an icon with the addition of the CTA green line extending to our site.

7

Site Plan (Roof)

The building wraps around the central Philharmonic Blackbox stepping down with outdoor terraces and viewing decks.

8 Prologue / Site Plan / As the entrance to the neighborhood, the building presents a large opening at the south end for the community to engage with the building.

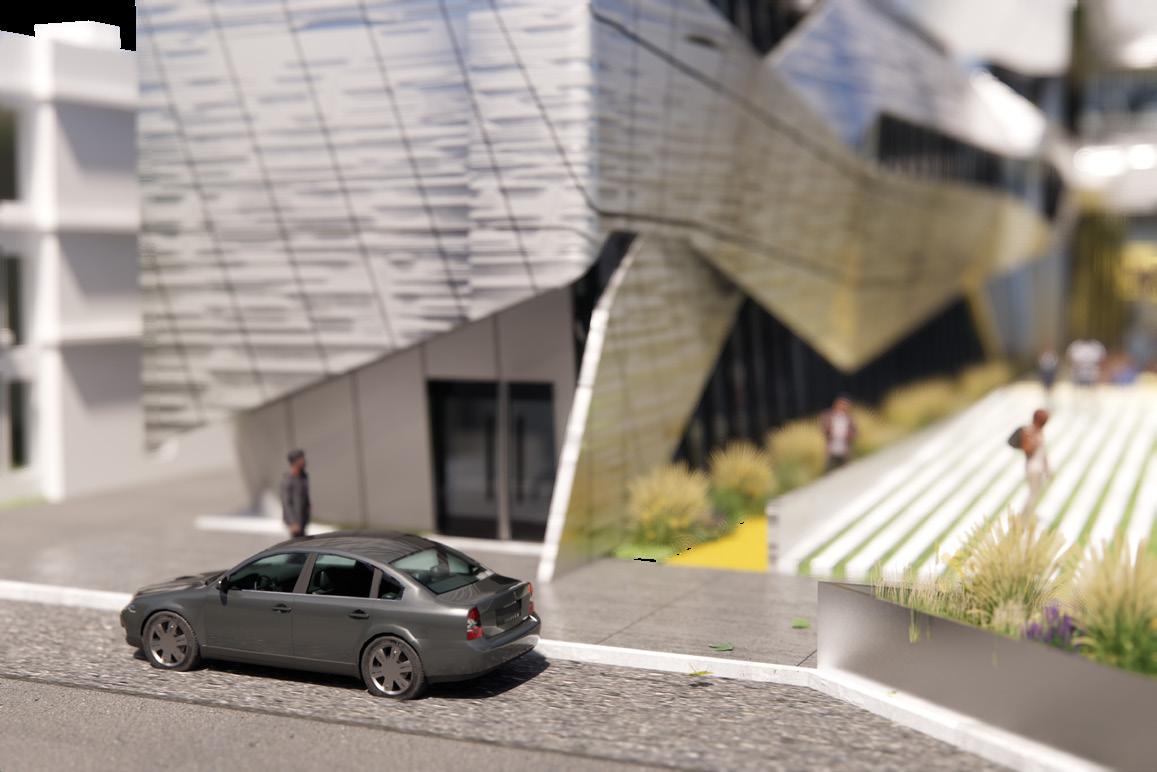

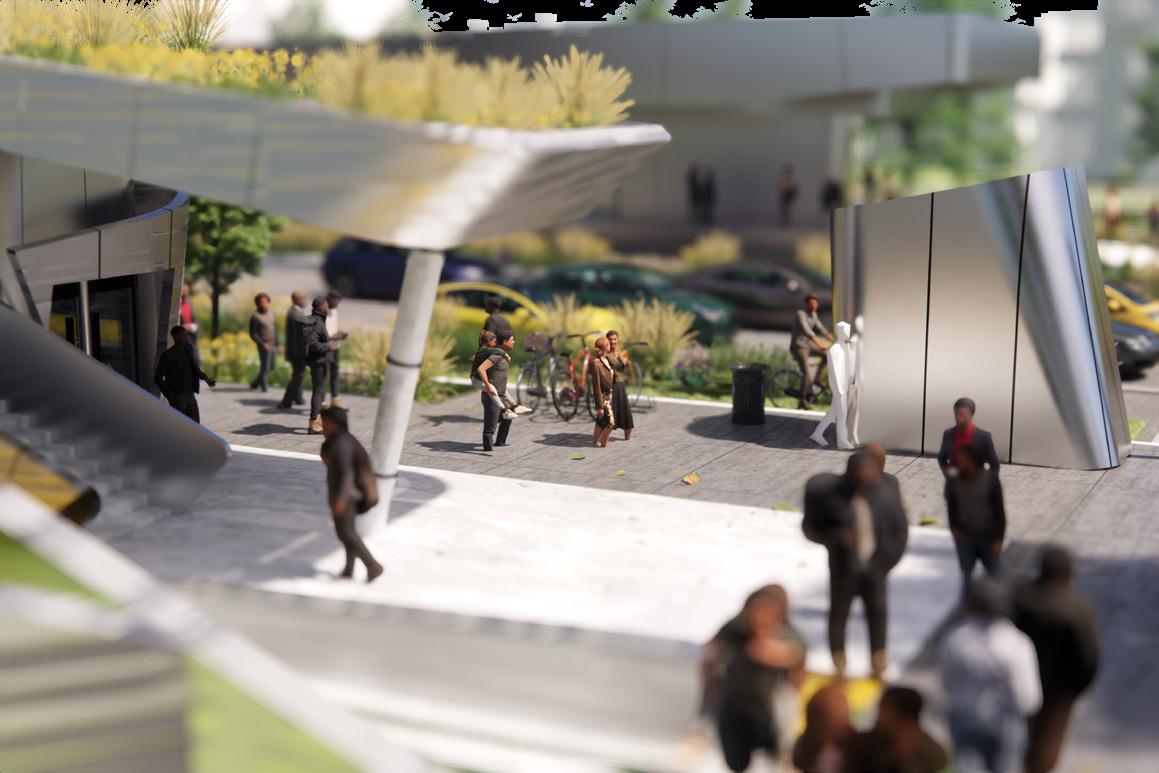

Prologue / Render From Major Intersection / The street, as previously designed for only cars, has received a complete restructure of the road system. accomodating a more pedestrian friendly accessway.

9

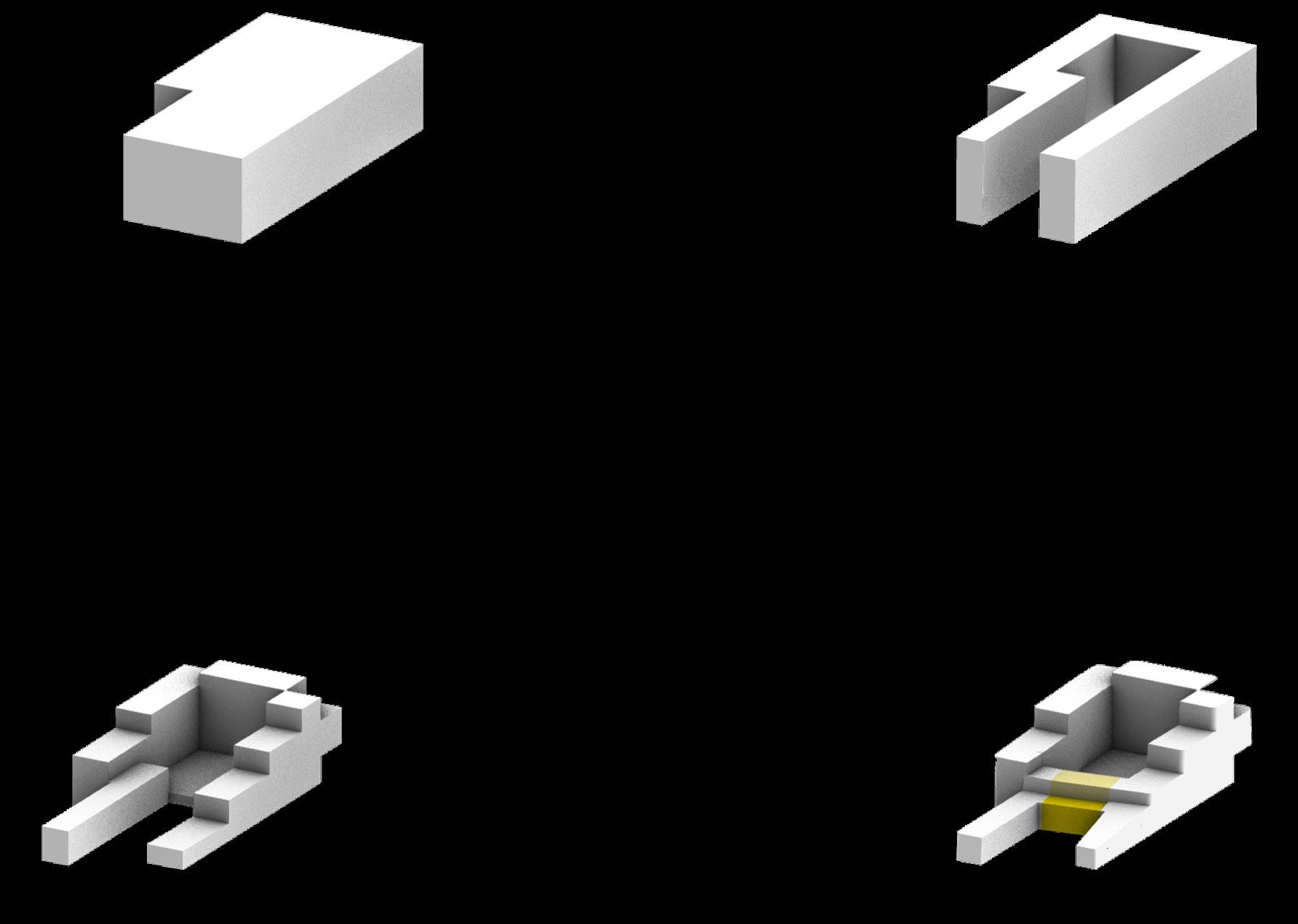

EXTRUDED SITE

The easiest method of fitting housing requirement was using the whole extent of the site.

CARVE

Contextualizing the building it scales the city down to the close knit feel of the community.

SUBTRACT

Creating a space for the Philharmonic, to develop and engage with the community a channel was created through the building.

BRIDGE

Creating the epicenter of the project, the bridge is the space bringing the 3 social identities together.

10 Prologue / Massing / The massing of our space carves out a block, steps it back, and recreates space in the middle for the community.

11 Prologue / Program / The space creates a relationship between two main contrasting programs, affordable housing & space for the Chicago Philharmonic. RESIDENTIAL PHILHARMONIC OFFICES SUPERSTAGE AMPHITHEATRE BLACK BOX COURTYARD SUPERLOBBY PHILHARMONIC LOBBY RESIDENTIAL LOBBY UNPAID PUBLIC BOX COMMUNITY CAFE MUSIC LIBRARY PRIMARY MASS PROPOSED CTA GREEN LINE EXTENSION

ACT I

Traditional Blackbox Antithesis

Id: Philharmonic Guests Size:
People
Philharmonic Concert Standard Blackbox Configuration Social
200
Stage: Prescenium Stage Doors: Closed
14
/

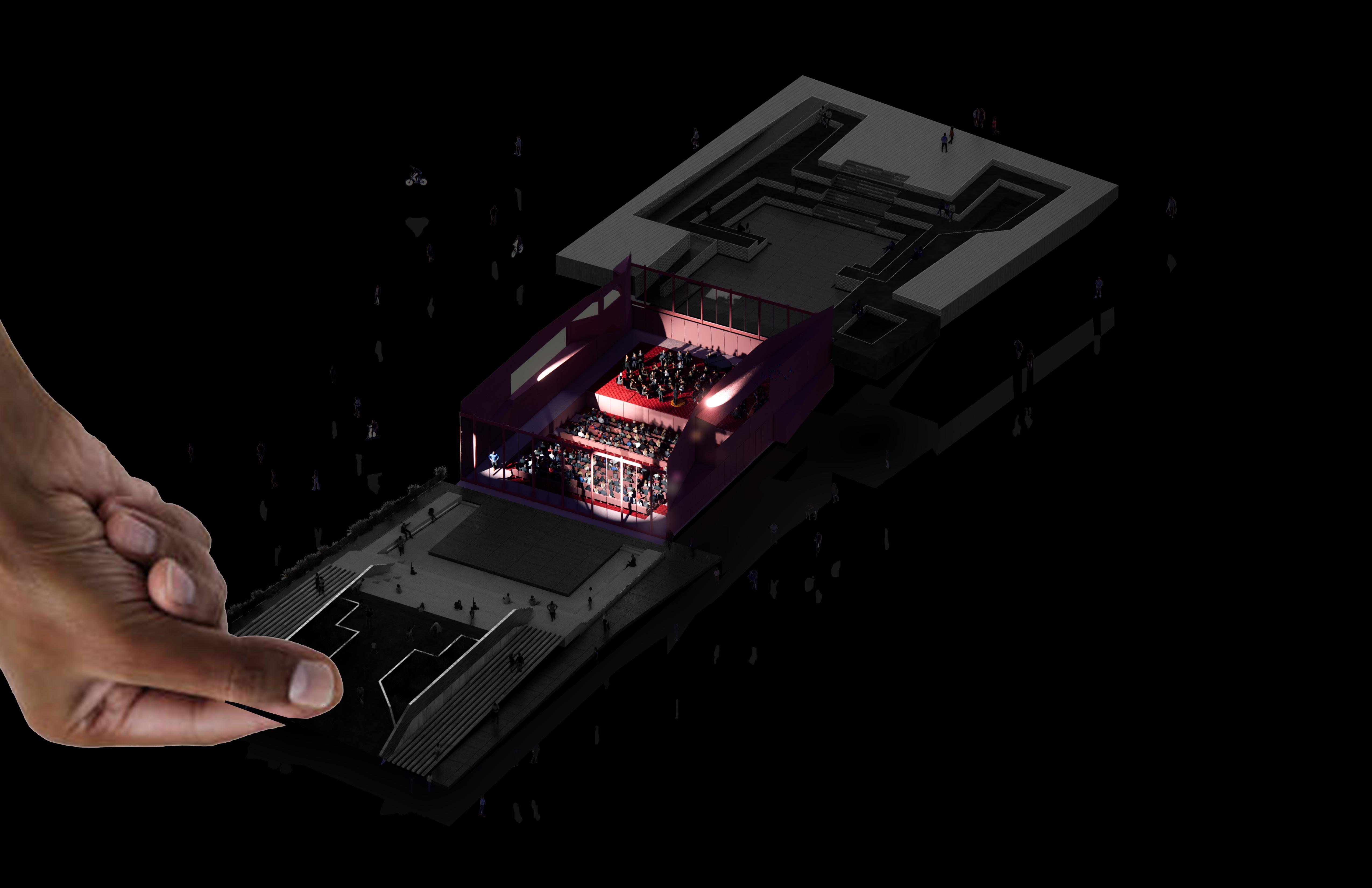

Act I
Traditional Stage W/Shades
15
“Welcome to our Blackbox! I’m your conductor. Sorry wait, let’s open up the shades.”
16 Act I / Traditional Stage

“Ahh, much better. Welcome to our Blackbox! I hope you enjoyed taking the new Green line station on your way in. I’m going to take you on a tour around our facility. As you look around, our main concept is about music accessibility, so hopefully that gives you some framework as we go.

17

Philharmonic Orchestra Southshore Community

Philharmonic Guests

18 Act I / 3 Social Identities/ ”At this site is the convergence of 3 social identites. Traditionally, only the philharmonic guests attend our concerts and they are not widely accessible to other identities”

Affordable Housing Residents Blackbox Blackbox

Act I / Traditional Blackbox Antithesis / ”Challenging our preconceived notion about concert spaces, we want to open our doors up to engage with the community inviting them into our spaces.”

19
Southshore Community Philharmonic Guests Affordable Housing Residents Blackbox

Standard Blackbox Configuration - Philharmonic Concert

Social Id: Philharmonic Guests

Size: 200 People Stage: Prescenium Stage Doors: Closed

SUPERstage - Festival

Social Id: Philharmonic Guests, Southshore Community, Affordable Housing Residents Size: 1000 People Stage: Flat Stage Doors: Open Both Sides

20 Act I / Stage Configurations / “Yes, literally opening our doors up through different stage configurations. This enables different scales of engagement from intimate productions to large scale festivals.”

1
3

SUPERSPACES

Superspaces

In creating the connection between the 3 social identities, the building is a social condensor creating social interaction through the action involved within the spaces.

Action Social Condensor

Sociospatial Architecture

These spaces were conceived based on their ability to enhance the social capacity of the space through a variety of field conditions. The ability for spaces to unify their diverse elements while respecting the identity of each individually.

In reading this space, the interpretation should rely more on its spatial syntax and ability to perform as a social architecture, as opposed to its formal qualities.

Extended Stage - Joint Concert

Social Id: Philharmonic Guests, Southshore Community Size: 200 People Stage: Traverse Stage Doors: Open one side

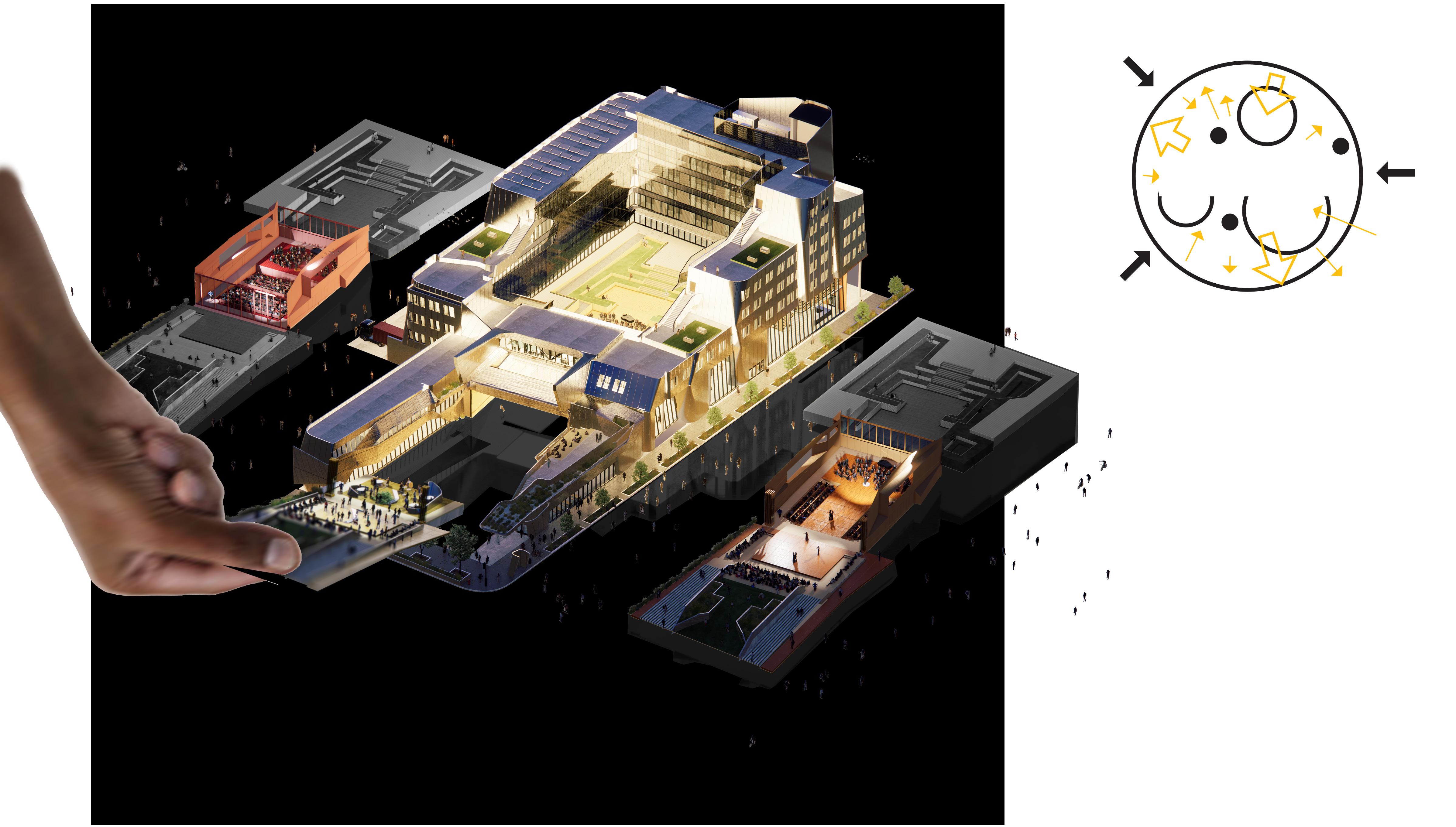

Act I / Superspaces / “This building is a culmination of superspaces. It creates relationships between a variety of programs in a way that accomplishes a social trajectory. ”

21
2

Intermission Precedent Studies

22
Prologue / Main Render / Description text
“Welcome to the first intermission, please have a look at our precedent studies that we deeply studied throughout the semester while we change scenes.”

Taipei Performing Arts Center

A space that redefines the idea of a multistage building creating stages that interconnect within the building in a way that makes the performance venue accessible.

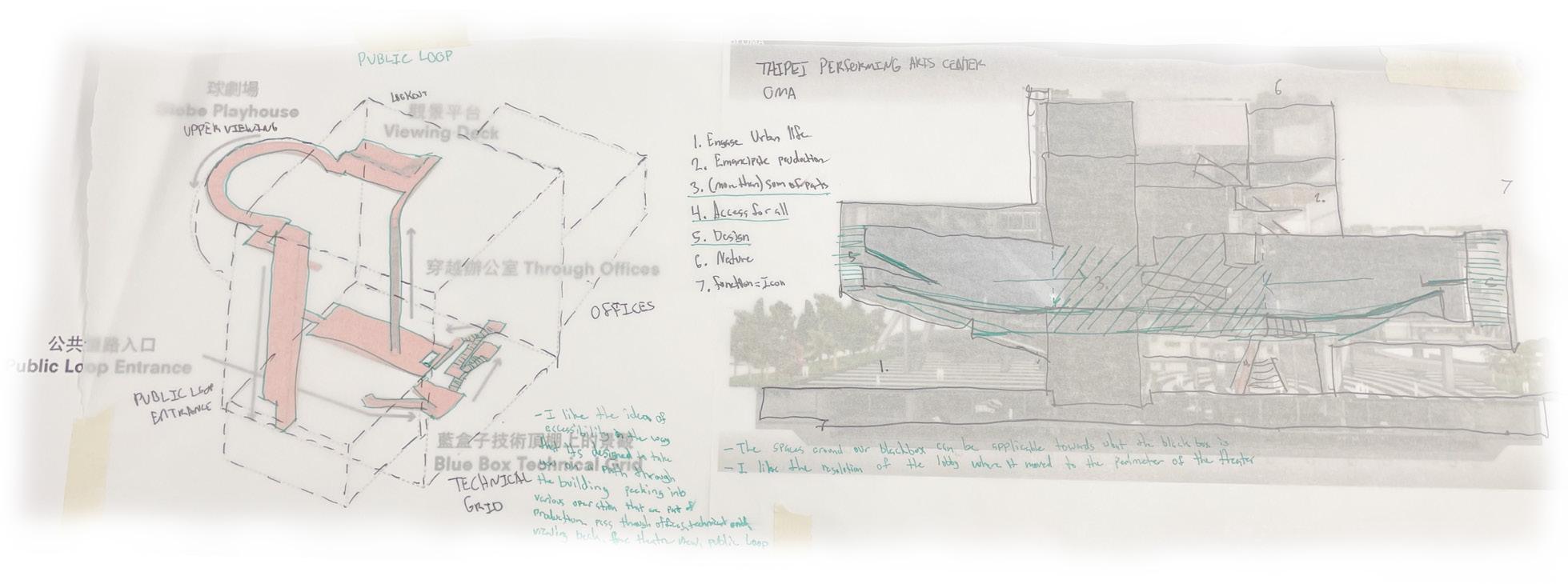

Intermission / Taipei Performing Arts Center OMA/ “A lot of our inspiration for the SUPERspaces came from Taipei, in the way it created a social condition around 3 stages and a public loop.”

23

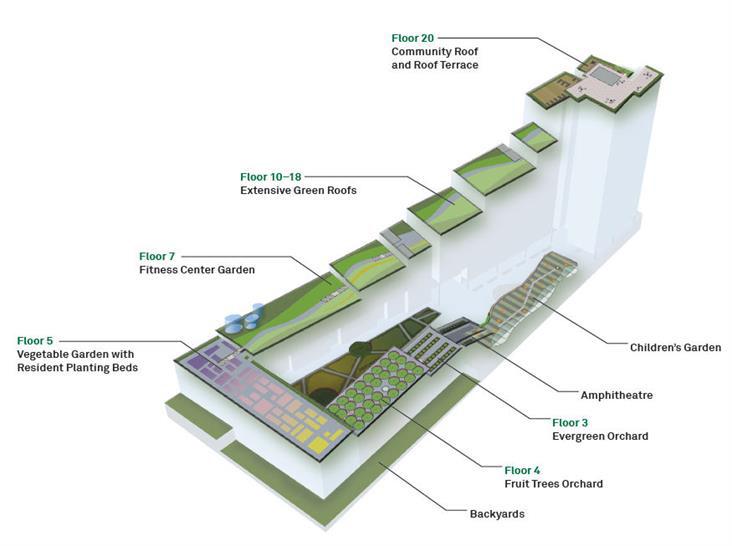

Via Verde

This project is a model of sustainability using terraces that step down as a wide variety of occupiable green spaces for the residents.

24

Intermission / Via Verde Dattner Architects/ “The carving out of the mass to create terraces was inspired by the green roofs relationships of Via Verde.”

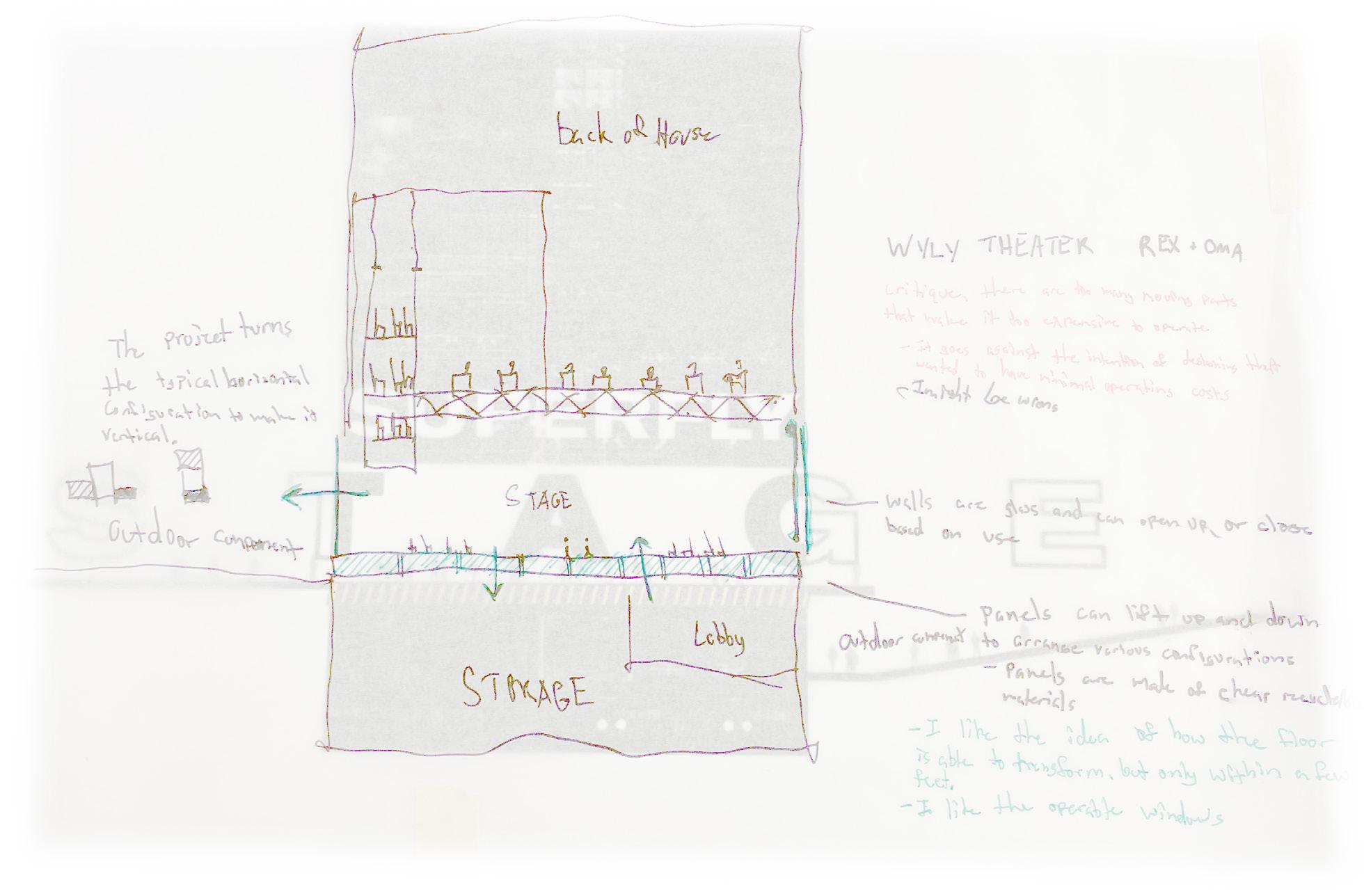

Wyly Theater

The Wyly theater is the ultimate form of transformation in a theater where the stage has the ability to transform in a wide variety of ways to support varying types of performances.

Intermission /

REX+OMA/ “In making the blackbox functional, we were inspired by the large scale variability of the Wyly Theater.”

Wyly Theater

25

ACT II Social Transformation

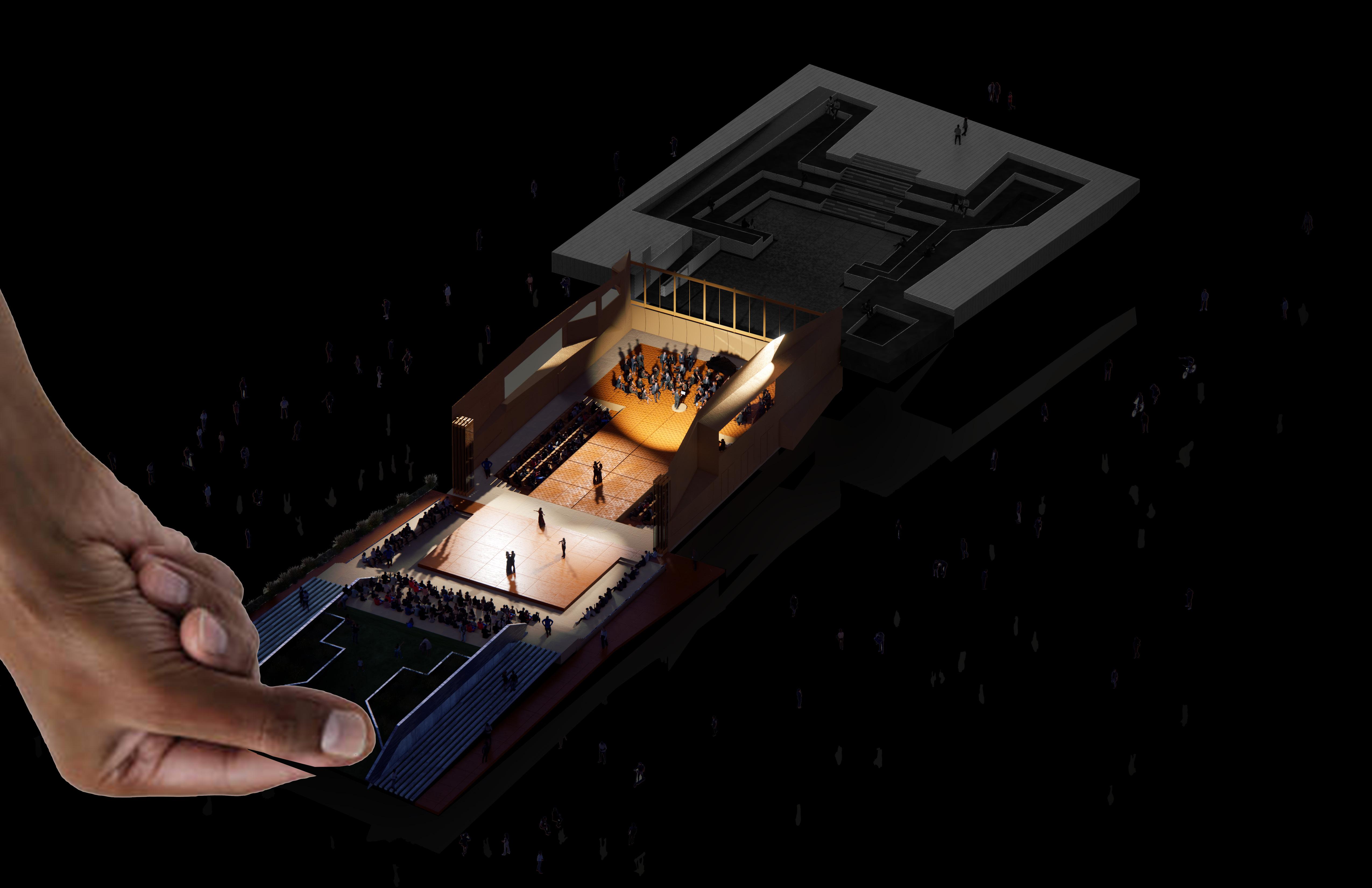

Joint Concert

Extended Stage

Social Id: Philharmonic Guests, Southshore Community Size: 400 People Stage: Traverse Stage Doors: Open one side

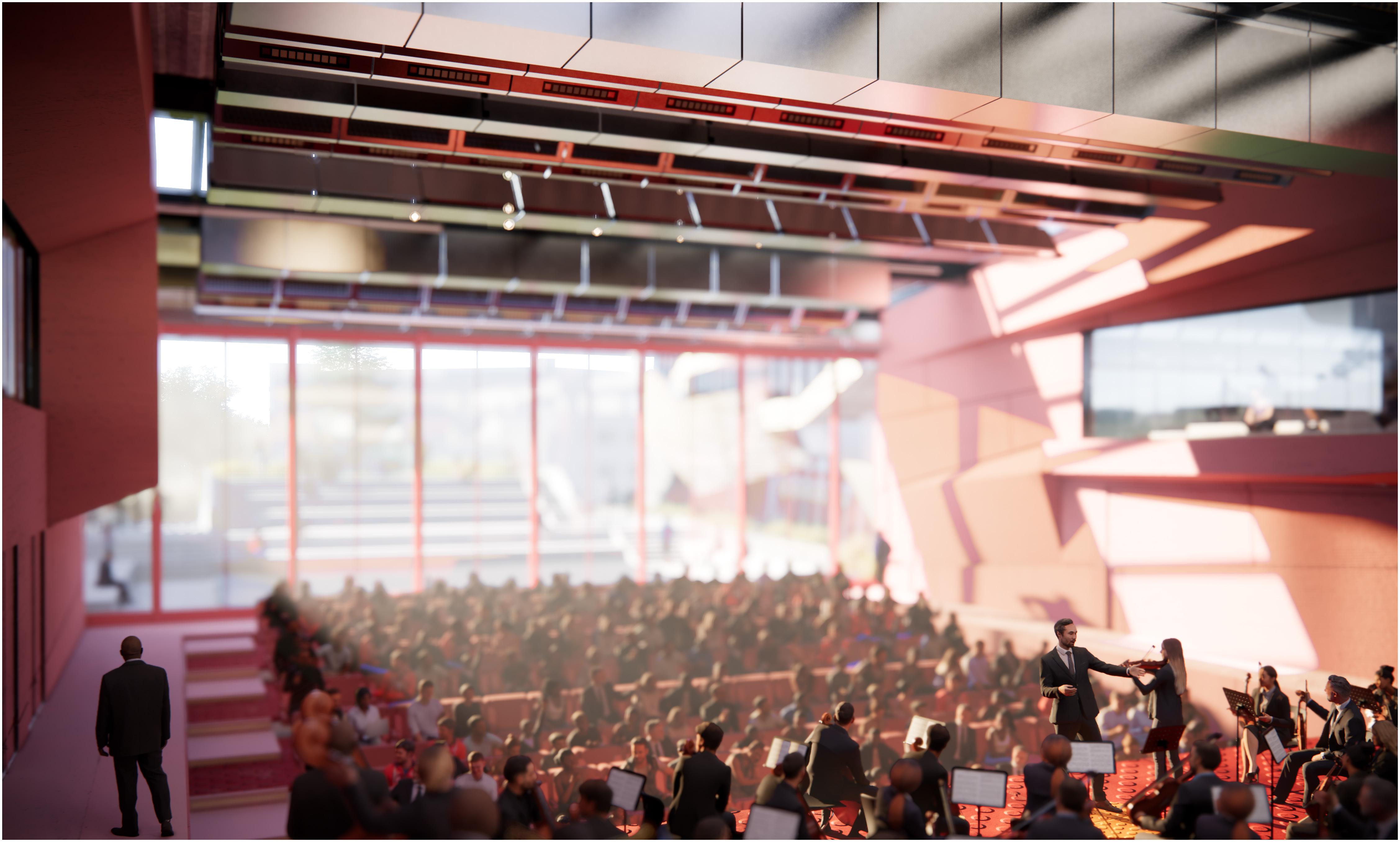

28 Act II / Joint Concert

”Welcome back, as you can see we changed setting and are now performing as a joint concert with local dancers. As part of our mission to create social transformation, we work to create events involving local artists, singers, dancers, and performers. Let’s cut it in half to see how this works.”

29

How SUPERspace Works

Variation

The ability for the stage to transform.

Expansion

The ability for the stage to expand into other spaces.

Passivity

The ability for the building to provide a visual connection to the blackbox.

Viewing Decks

The blackbox hosts residents (Left) and the general public (right) through portal windows increasing music accessibility. The ammenity level exists above the blackbox with windows that give a visual and sound connection to the blackbox below.

30 Act II / Social Conditions / “In our stage both the general public and residents are invited to our productions with or without a ticket through the theaters infrastructure constantly providing a visual connection to the blackbox.”

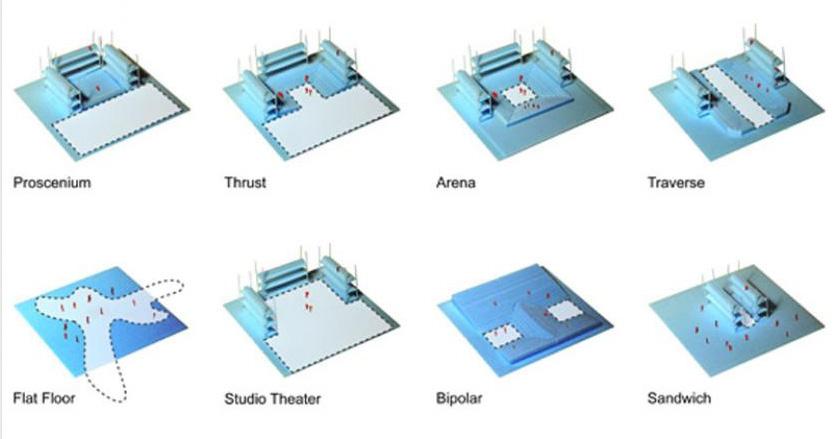

Variation Transformation

The stage, fixed with actuators can transform moving up and down to different configurations that can accomodate events setup for the philharmonic, the public, or the residents.

Public

A Residents

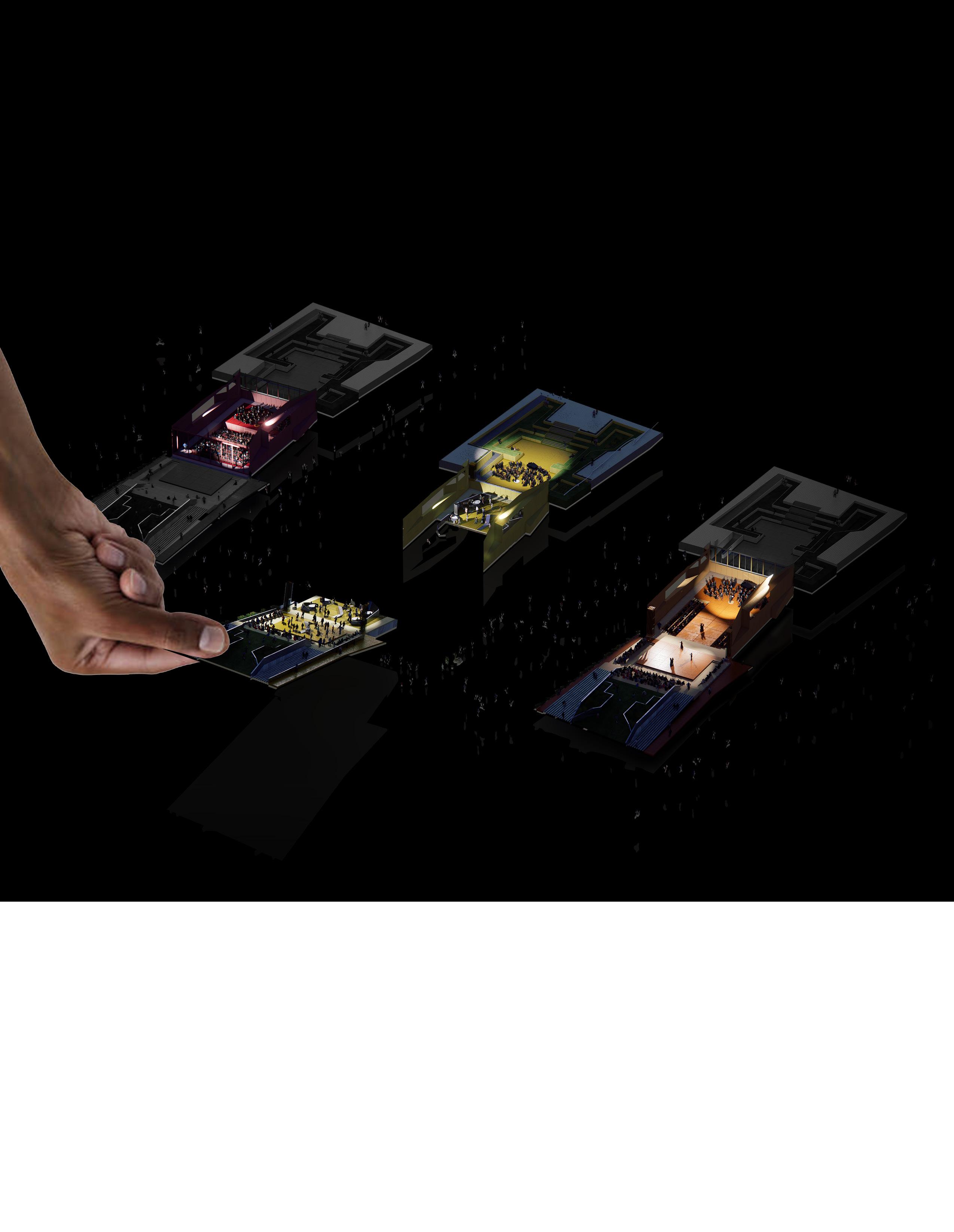

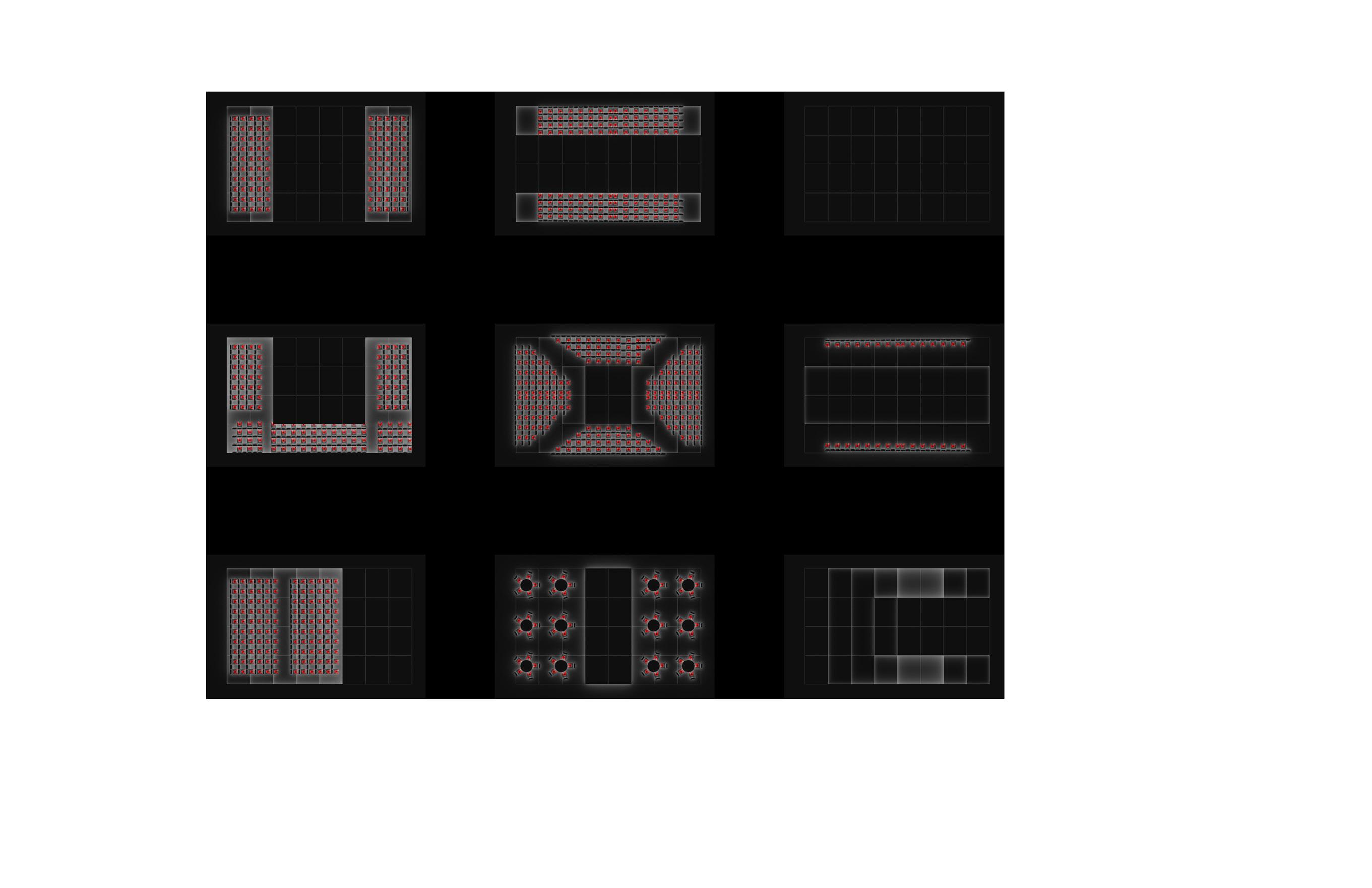

Thrust Stage Arena Stage Studio Stage

Proscenium Stage Dinner Stage Bipolar Stage

Act II/ Variation / ”This infrastructure also allows for the blackbox stage to transform. The stage panels can move up and down, seating can be stored underneath the stage. Our space can be leased out to different groups within the community supporting a wide variety of event types.”

31
Philharmonic Partner Concert Traverse Stage Flat Concert

Field

Act II / Expansion / “Supporting the variety of events, the walls of the blackbox can open up to expand the venue creating more performance space, adding seating, or opening up to the public.”

Courtyard Amphitheater Blackbox Courtyard Amphitheater Blackbox Stage Amphitheater Blackbox
32
1. Courtyard 2. Blackbox 3. Amphitheater
B Expansion
Conditions There are 3 spaces that are associated with the Blackbox that form the superstage. Each space individually serve its own function, but is also designed for the ability to become part of the blackbox.

Passivity

Visual Connection

The massing of the building was designed around the blackbox where every part of the building functions to provide at minimum a visual connection to the things that are happening in the space.

C

Courtyard Outdoor Terrace Single Loaded Corridor

Act II / Passivity / With this expansion, the traditional hierarchy of a concert hall is broken. Now the residents of the space are put at the fore front of the viewership experience creating a constant visual engagement with the building.”

33

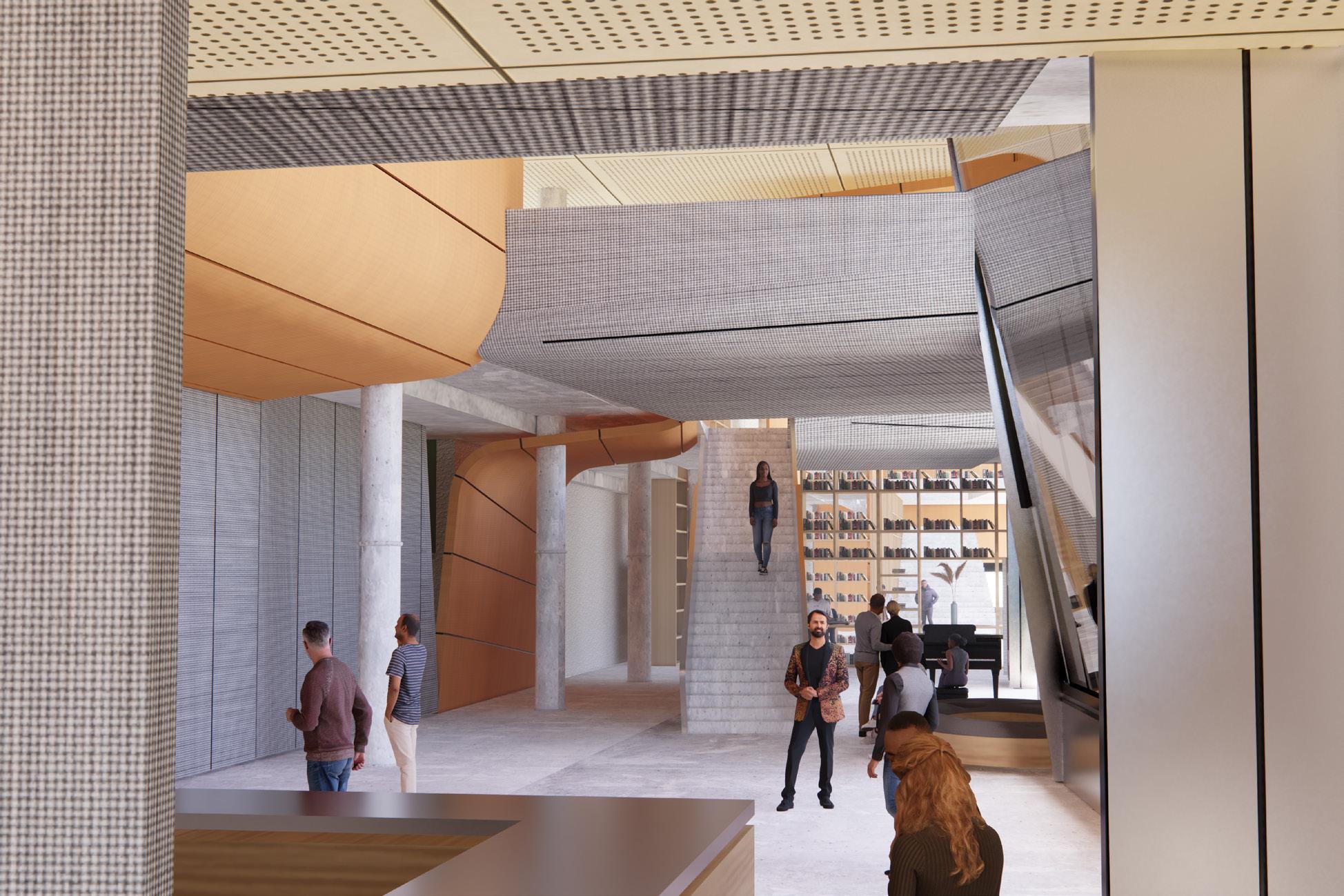

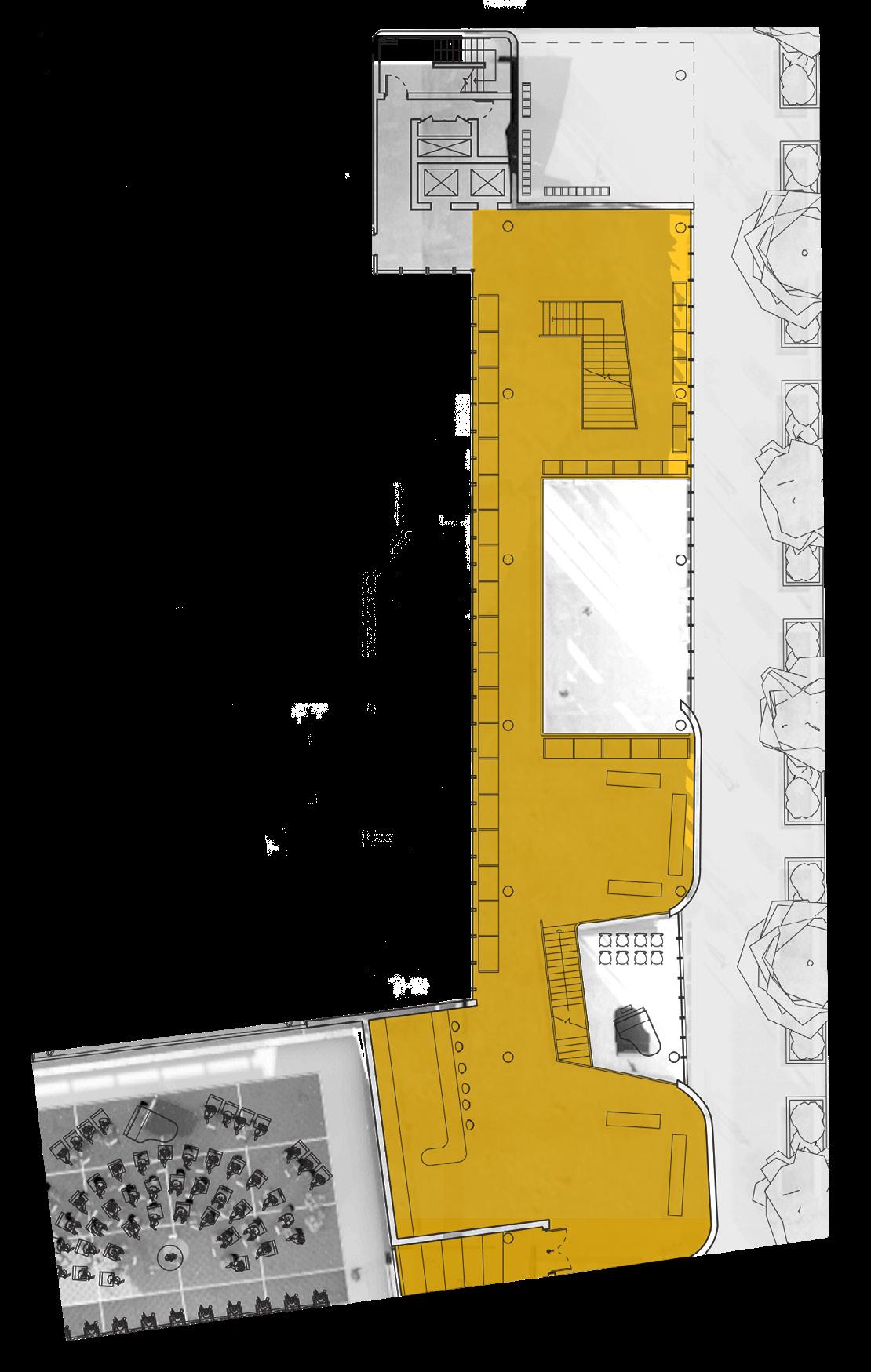

How The SUPERlobby Works

Transitional Destinations

The superlobby creates a synergy upon the transitional spaces for the philharmonic and the residents. They are flanked by a cafe and music library on the first level, and with its verticality works with the idea of passivity to bring an additional connection to the blackbox.

34 Act II / SuperLobby
Balcony Level 2 Level 1 Cafe Viewing Deck Bar Blackbox Lobby Music Library Music Library Residential Lobby

Music Library

Level 1

Level 2

Music Library

Blackbox Lobby

Bar

Viewing Deck

“On your way in you probably stopped by the cafe to grab some food before heading into the blackbox. Well this was very intentional as the lobby is also a SUPERspace. The SUPERlobby works to create a synergy of interactions as you move towards your destination.”

35
Residential Lobby 128 N 64 32ft 1 in = 60 ft 256 128 N 64 32ft 1 in = 60 ft 256 40

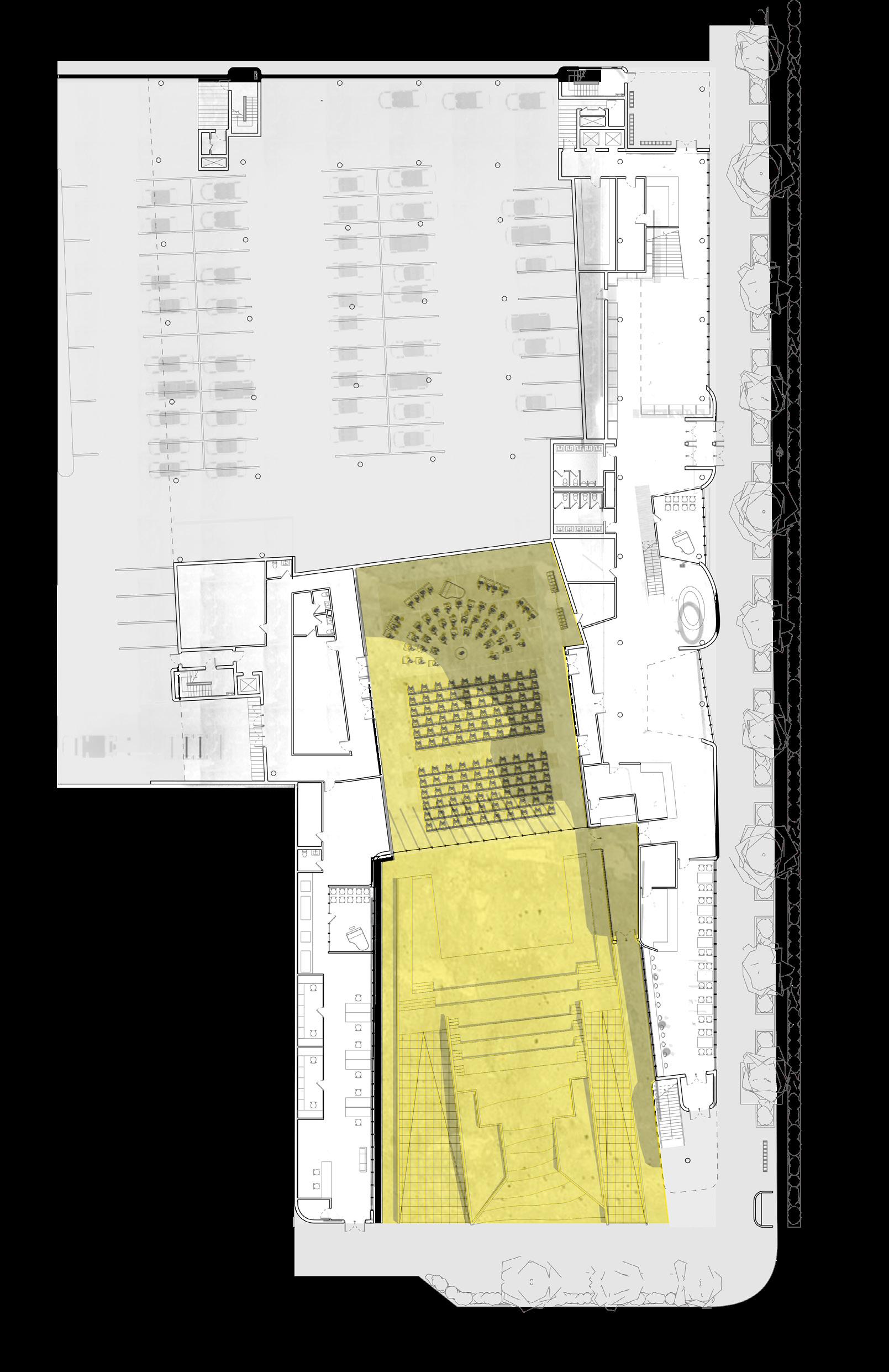

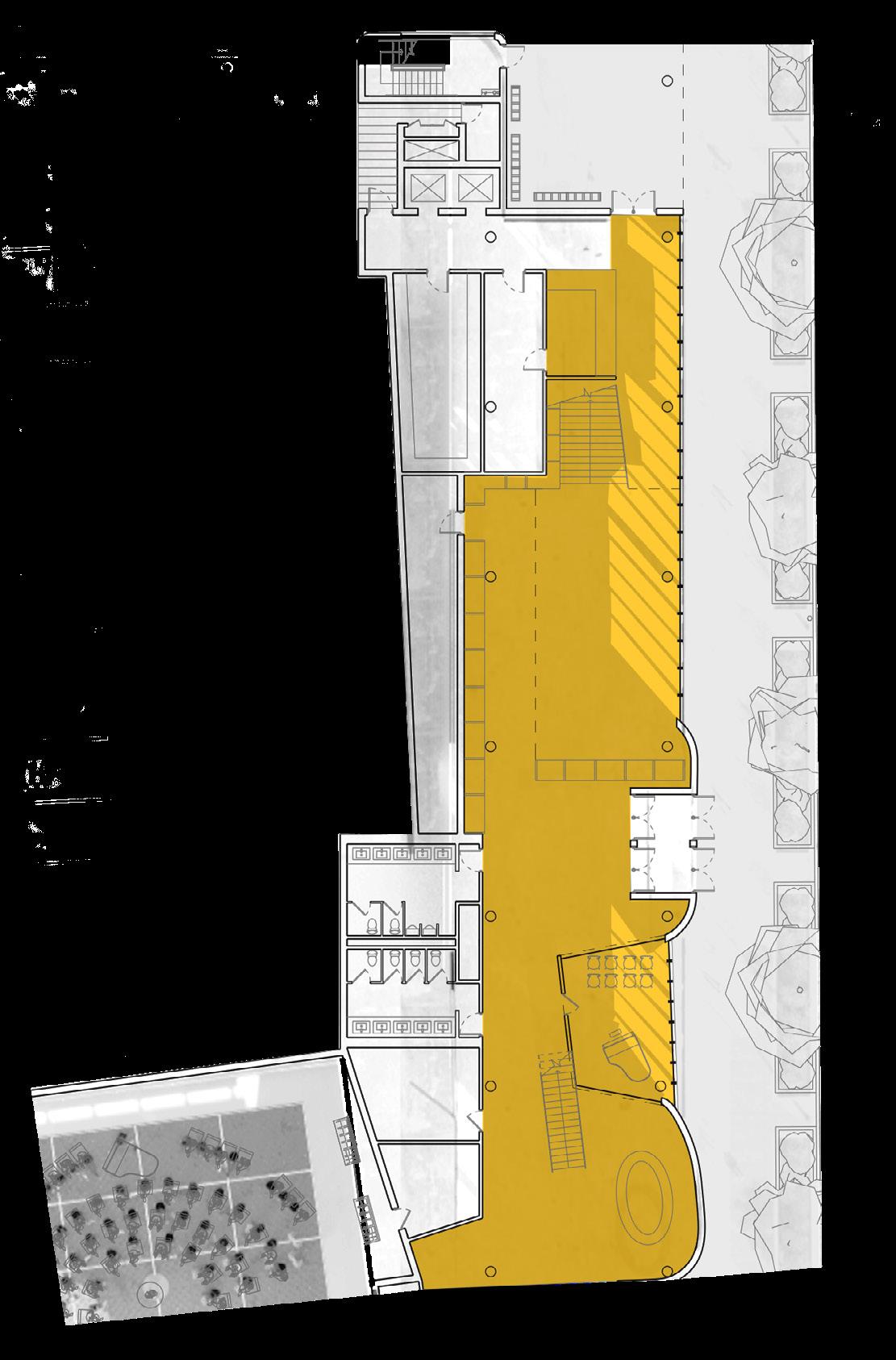

Act II / 1 st Floor / “To this point you’ve seen the SUPERspace, you’re probably still questioning, well where is the parking? We actually have parking on the first level”.

36
Level 1
Philharmonic Office Amphitheater Cafe Amphitheater Blackbox Blackbox Lobby Music Library Residential Lobby Back of House Covered Parking 128 N 64 32ft 1 in = 60 ft 256 128 N 64 32ft 1 in = 60 ft 256

Act II / 2nd Floor / It is just disguised as covered parking underneath the residential courtyard. The courtyard exists on the second level to separate the residential experience providing a layer of privacy and intimacy for the residents.

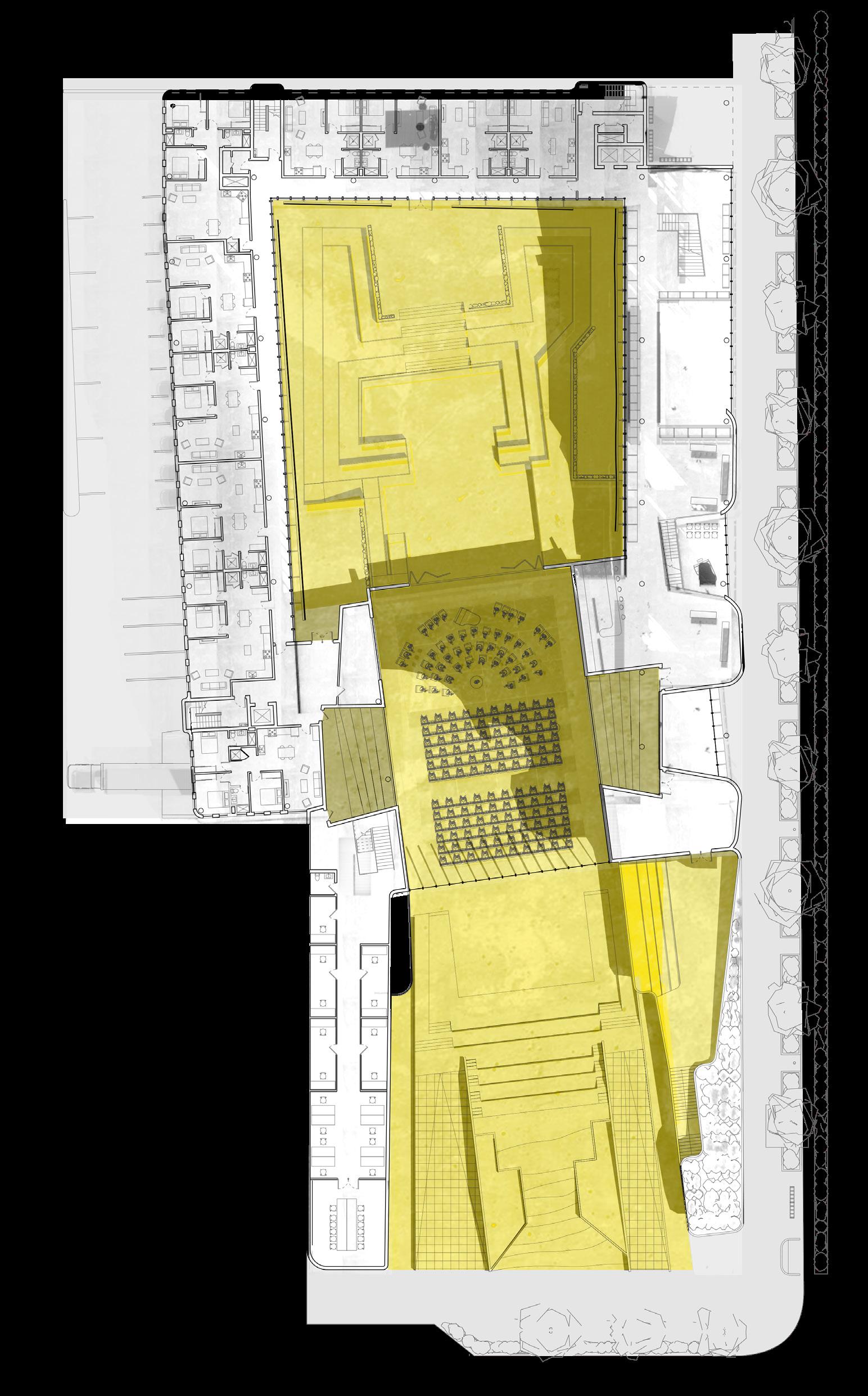

37
Level 2
Balcony Amphitheater Blackbox Courtyard Viewing Deck Bar Residential Lobby Affordable Housing Units 128
1
ft
128
32ft
ft
Philharmonic Office
N 64 32ft
in = 60
256
N 64
1 in = 60
256

Intermission Building Systems

38
Prologue / Main Render / Description text
“While we take another break to change scenes again, we thought it’d be importnat for you to know that this building does stand and meet all code requirements.”

Electrical Legend

Single Outlet Double Outlet Double Outlet GFCI Quad Outlet GFCI

Single Switch

Double Switch

Ceiling Fan

Pendant Light

Hallway Light

Emergency Sign

Recessed Light Quad Switch

Emergency Light

Wall Light

Ceiling Fan

Pendant Light

Hallway Light

Emergency Sign

Recessed Light Switch

Emergency Light

Wall Light

Plumbing Legend

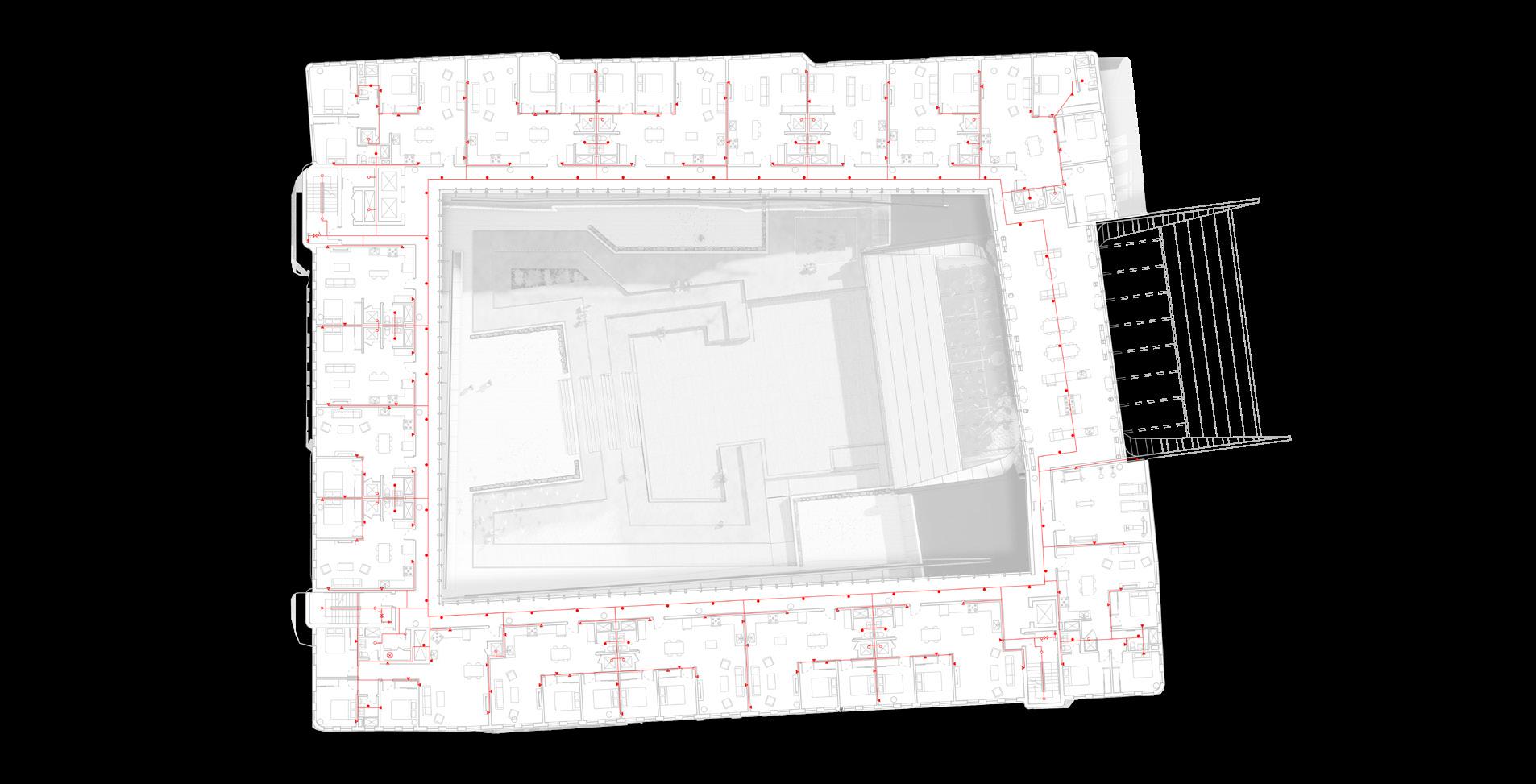

Intermission / Electrical + Plumbing / “Our housing units all have in unit washer and dryers, with plumbing for kitchens and toilets insured not to mix with the electricity running through the walls.”

39
F 4 2 G G
Double Switch Switch Outlet Double Outlet Double Outlet GFCI Outlet GFCI F 4 2 G G Restrooms Bathtubs Laundry Kitchen

Mechanical

Heat Pumps: Heat pumps should be supplied for every bedroom and living room spaces.

Life Safety

Sprinklers:

Automatic sprinkler system 3 Separated sprinkler lines Max spacing of sprinklers = 15 ft Each unit has sprinkler system

40 Intermission / Mechanical + Life Safety / ”Our housing units have a central air handling unit pushing air out to each unit and is equipped with an automatic sprinkler system”

Structural

Average Column Spacing = 25’0”

Ammenity Structure:

12”x12” Cross Braced Steel Metal Deck + 4 in Concrete Slab Span = 60’

Average Column Spacing = 15’3”

Egress

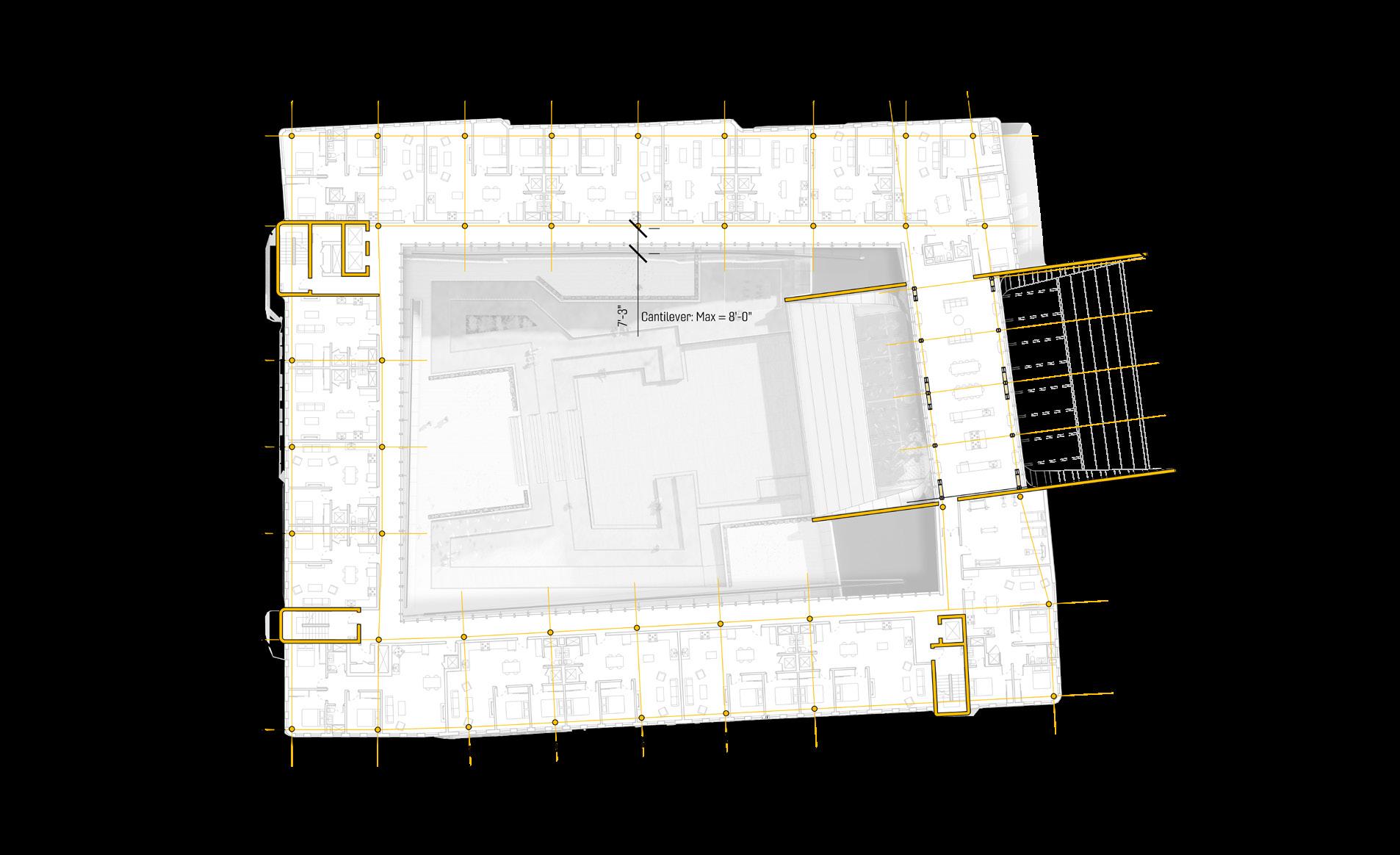

Intermission/ Structural + Egress / “The primary structure of our building is concrete, with steel being used to create a span across the blackbox for the ammenity level. with three concrete stair cores.”

41
DOOR #2 EGRESS CAPACITY: REQUIRED: 0.15" X OCCUPANCY OR 32" MIN 0.15" X 202 = 30.3" PROVIDED: 36", 240 PEOPLE DOOR #3 EGRESS CAPACITY: REQUIRED: 0.15" X OCCUPANCY OR 32" MIN 0.15" X 202 = 30.3" PROVIDED: 36", 240 PEOPLE MAXIMUM TRAVEL DISTANCE: 250FT. MAXIMUM DEAD END CORRIDOR DISTANCE: 50FT OCCUPANCY LOAD CALCULATION RESIDENTIAL 125 SQ. FT. PER PERSON 14,041 SQ. FT./125 = 113 PEOPLE FITNESS ROOM 40 SQ. FT. PER PERSON 509 SQ. FT./40 = 13 PEOPLE LOUNGE 20 SQ. FT. PER PERSON 1517 SQ. FT./20 = 76 PEOPLE TOTAL OCCUPANCY LOAD = 202 PEOPLE DOOR #1 EGRESS CAPACITY: REQUIRED: 0.15" X OCCUPANCY OR 32" MIN 0.15" X 202 = 30.3" PROVIDED: 36", 240 PEOPLE STAIR #3 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" MIN 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE STAIR #2 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" MIN 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE STAIR #1 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" MIN 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE OCCUPANCY LOAD CALCULATION RESIDENTIAL 125 SQ. FT. PER PERSON 14,041 SQ. FT./125 = 113 PEOPLE FITNESS ROOM 40 SQ. FT. PER PERSON 509 SQ. FT./40 = 13 PEOPLE LOUNGE 20 SQ. FT. PER PERSON 1517 SQ. FT./20 = 76 PEOPLE TOTAL OCCUPANCY LOAD = 202 PEOPLE STAIR #3 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE STAIR #2 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE STAIR #1 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE MAXIMUM TRAVEL DISTANCE TO EXIT STAIR #3 = 123FT. MAXIMUM TRAVEL DISTANCE TO EXIT STAIR #1 = 225FT. MAXIMUM TRAVEL DISTANCE TO EXIT STAIR #2 = 106FT. DOOR #2 EGRESS CAPACITY: REQUIRED: 0.15" X OCCUPANCY OR 32" MIN 0.15" X 202 = 30.3" PROVIDED: 36", 240 PEOPLE DOOR #3 EGRESS CAPACITY: REQUIRED: 0.15" X OCCUPANCY OR 32" MIN 0.15" X 202 = 30.3" PROVIDED: 36", 240 PEOPLE MAXIMUM TRAVEL DISTANCE: 250FT. MAXIMUM DEAD END CORRIDOR DISTANCE: 50FT OCCUPANCY LOAD CALCULATION RESIDENTIAL 125 SQ. FT. PER PERSON 14,041 SQ. FT./125 = 113 PEOPLE FITNESS ROOM 40 SQ. FT. PER PERSON 509 SQ. FT./40 = 13 PEOPLE LOUNGE 20 SQ. FT. PER PERSON 1517 SQ. FT./20 = 76 PEOPLE TOTAL OCCUPANCY LOAD = 202 PEOPLE DOOR #1 EGRESS CAPACITY: REQUIRED: 0.15" X OCCUPANCY OR 32" MIN 0.15" X 202 = 30.3" PROVIDED: 36", 240 PEOPLE STAIR #3 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" MIN 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE STAIR #2 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" MIN 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE STAIR #1 EGRESS CAPACITY: REQUIRED: 0.2" X OCCUPANCY OR 44" MIN 0.2" X 202 = 40.4" PROVIDED: 44", 220 PEOPLE MAXIMUM TRAVEL DISTANCE TO EXIT STAIR #3 = 123FT. MAXIMUM TRAVEL DISTANCE TO EXIT STAIR #1 = 225FT. MAXIMUM TRAVEL DISTANCE TO EXIT STAIR #2 = 106FT.
Residential Structure: 12”x12” Circular concrete Columns 9 in Concrete Slab Max Cantilever = 8’0”

Accessibility Unit

COUNTERS @ 34" MAX

5'0" 5'0" OPENINGS: 32" MIN

5'0"

5'6" (36" MIN) Grab Bars

3'0" (36" MIN)

5'0"

42 Intermission / Accessibility Unit / “If you haven’t looked closely at our units yet, yes we do have an ada accessible unit, here is a closer look at it.”

KITCHEN: CLEAR FLOOR CENTERED ON WORK SURFACE; TOE AND KNEE CLEARANCE PROVIDED

Zoning Code

Intermission / Zoning Code / “With our building being both a reisdential and assembly space, the zoning for our building followed under planned development.”

43
44 Intermission / Building Code
Building Code

Building Code

“This is the last of it, the building code section is going over all of the requirements for our building to function like all other buildings would.”

45

ACT III Social Awareness

Festival SUPERstage

Social Id: Philharmonic Guests, Southshore Community, Affordable Housing Residents Size: 1000 People Stage: Flat Stage Doors: Open Both Sides

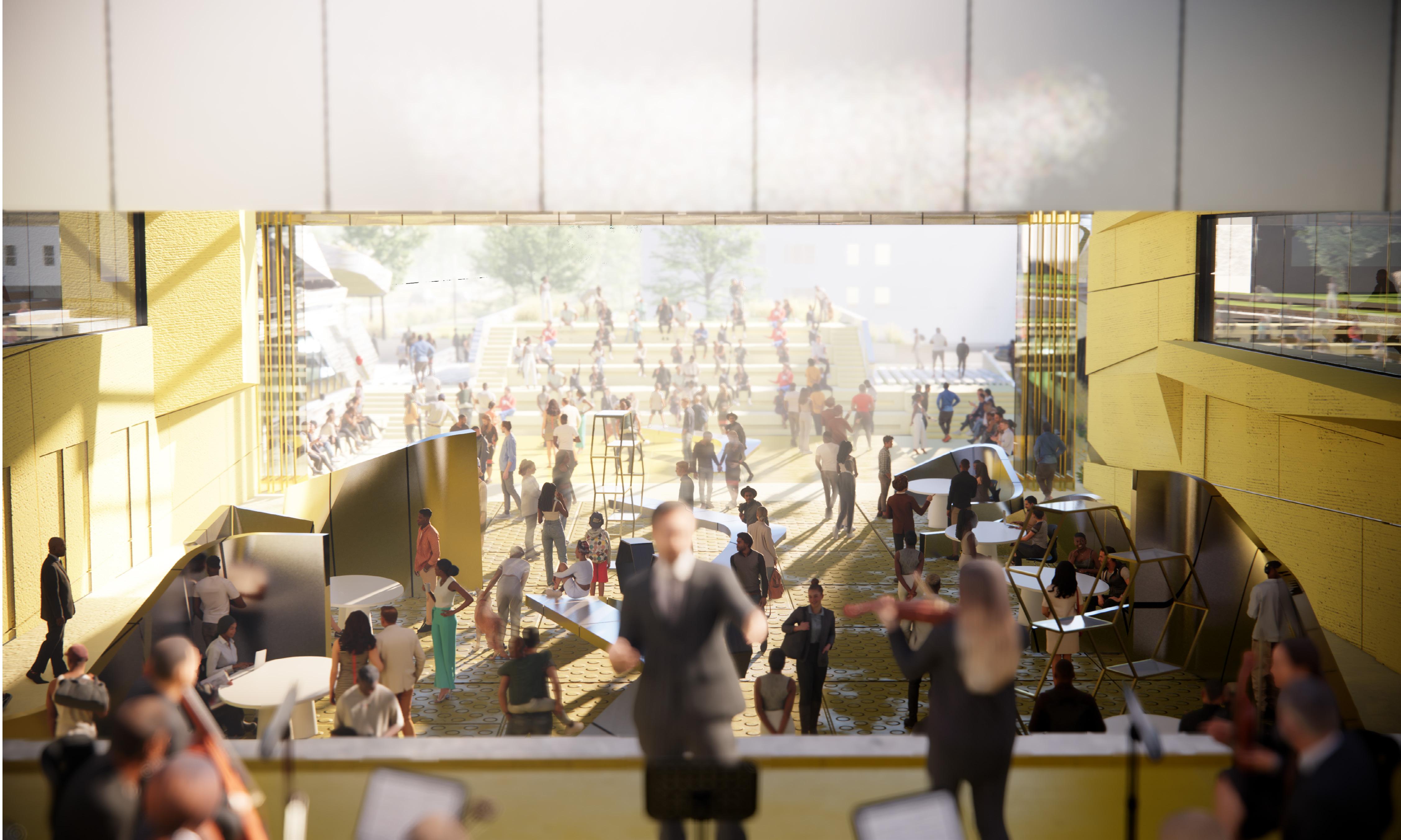

48 Act III / Festival

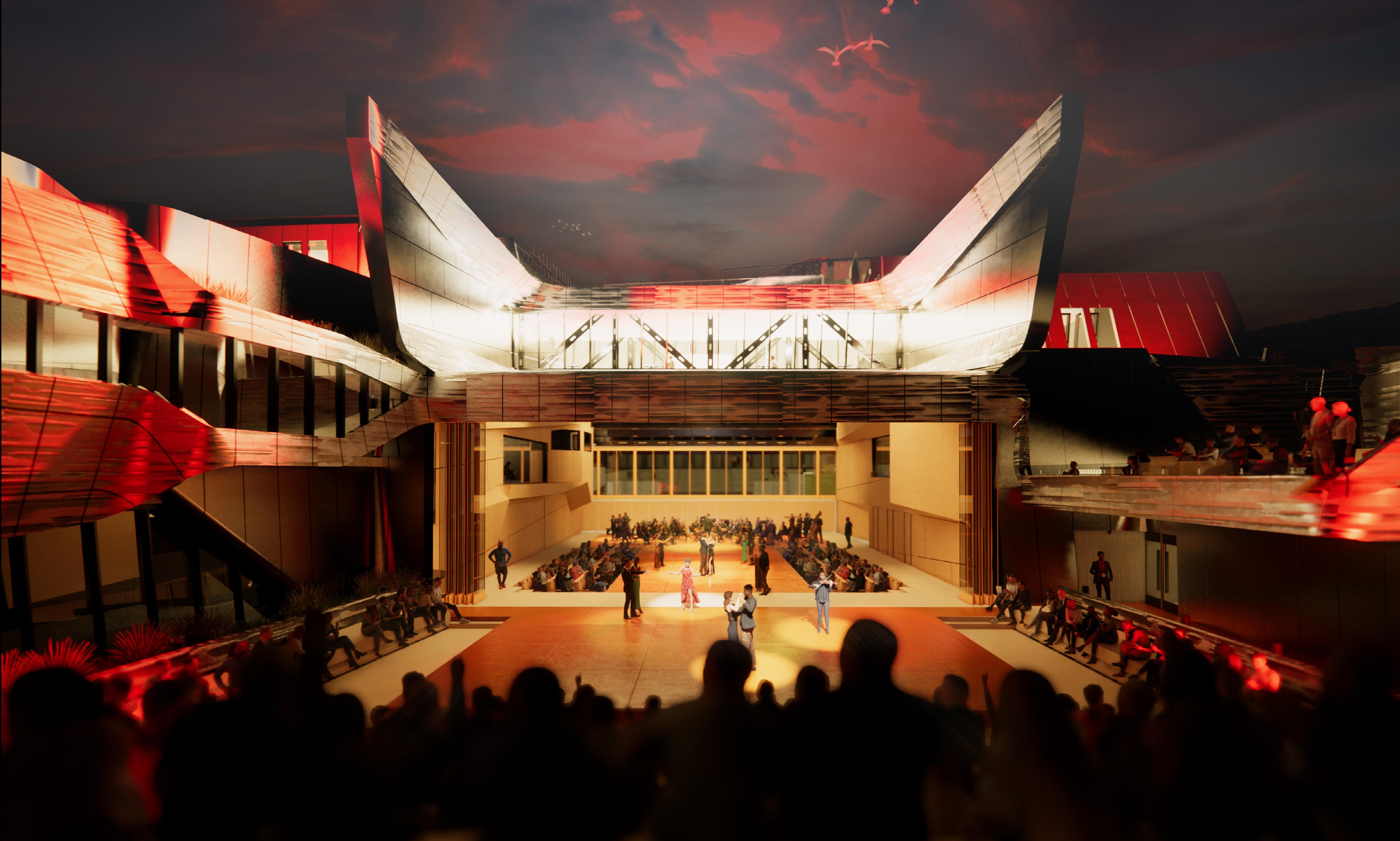

“Back again, welcome to our last Act. Our SUPERstage. Here we open the doors to the affordable housing residents, Southshore community, and traditional blackbox guests at our festival. This space is a social condesor creating the most potential for diverse social interactions and action as a festival.

49

CoveredParking

Courtyard

What is the SUPERstage?

The superstage is the ultimate form of social interpretation within the buildng creating an event space that is more grand and impactful than what either of these programs could provide on their own.

Flexible Internal Relationships

The stage has leveled out to become a flat stage for all guests to freely move around the festival.

Permeable Boundaries

The doors of the stage have opened up on both sides where the orchestra is now perched up on the courtyard.

Multiple Pathways of Visibility

This event is now has a visual connection to every aspect of the building from the amphitheater to the courtyard.

Blackbox

SUPERstage

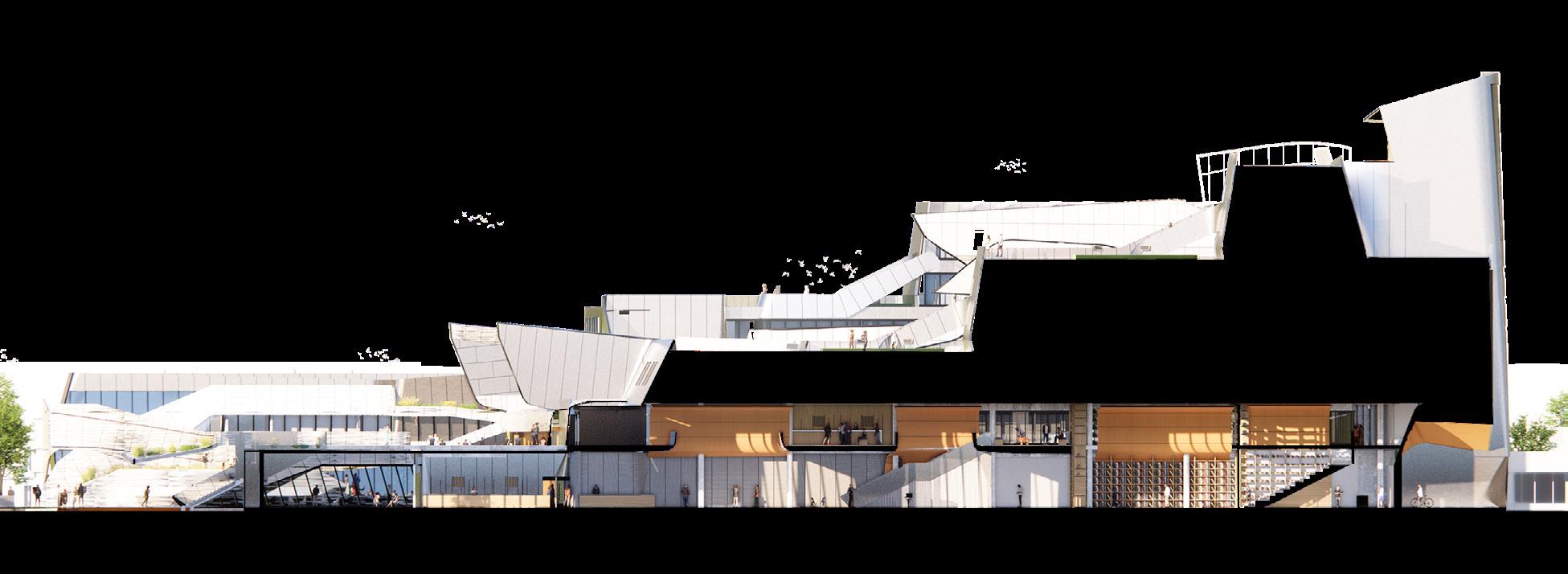

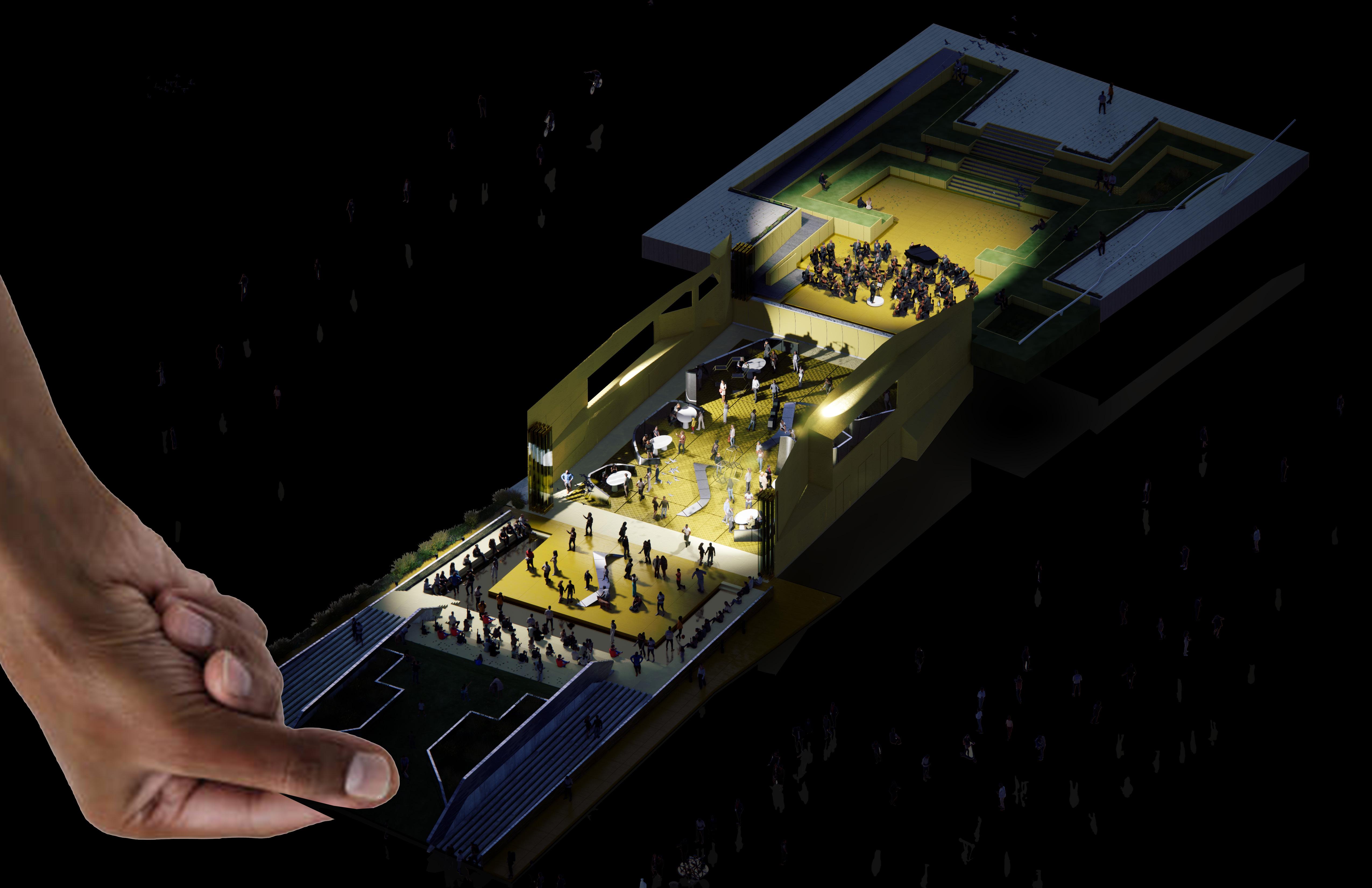

50 Act III / Main Render
Reflective Perforated Screen SUPERSTAGE

Amphitheater

“Becoming a festival, the seating is stored under the stage, the doors are opened up and the people come together creating a transformational space and experience. To be a resident here, it is necessary for you to have some level of interest in what is happening here.”

51 Screen

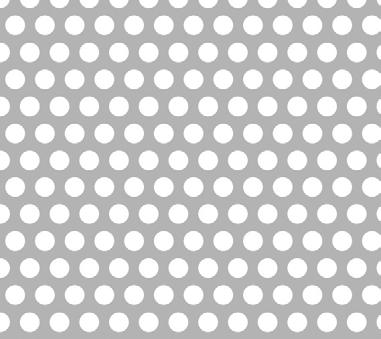

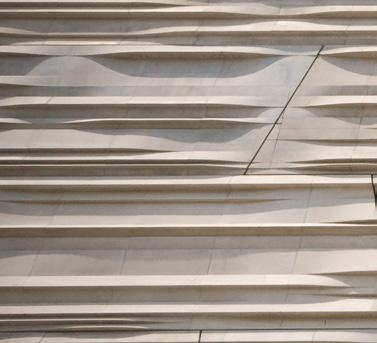

The Perforated Metal Screen

Sustainability

Through its perforation, finish, and texture the screen both diffuses and reflects light better managing indoor temperatures, and providing more natural light for the courtyard.

Privacy

The screen system allows one way visibility for the residents to see out, while combining with a multi layer system of sound isolation for the units.

Aesthetic

In its iconic nature, the screen provides the backdrop to the blakcbox theater unifying and enclosing the courtyard/ residential space. Window

Multi-Layer Sound Absorbtion Out

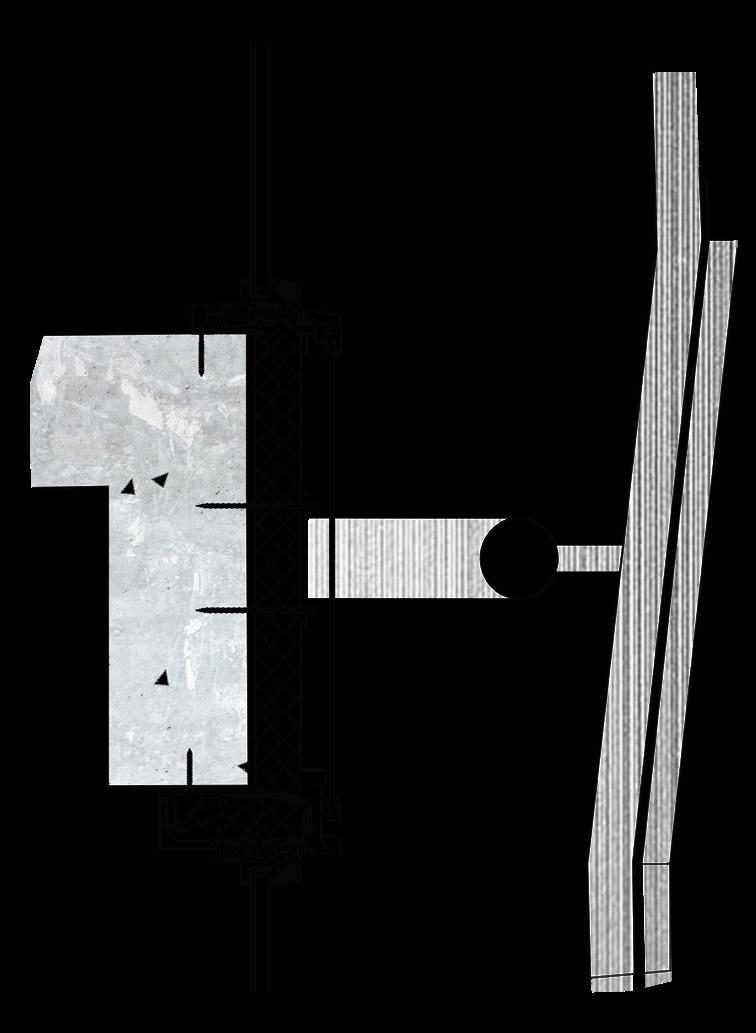

Screen Assembly

52 Act III / Concept to Detail/ “Now having heard all about our space, if you haven’t started to question already I’ll go ahead and ask. You’ve talked alot about the blackbox, but how about the residence and privacy? I haven’t seen any sustainability either. Are you greenwashing your building?”

9” Concrete Slab 1’ Concrete Downstand Aluminum Channel Double Pane Glass 4” Rigid Insulation Fluid Applied Vapor Barrier Spandrel
Wall Assembly
Panel
Metal Facade Panel Aluminum Hanger Mullion Dead Load Strut Secondary Steel Girder

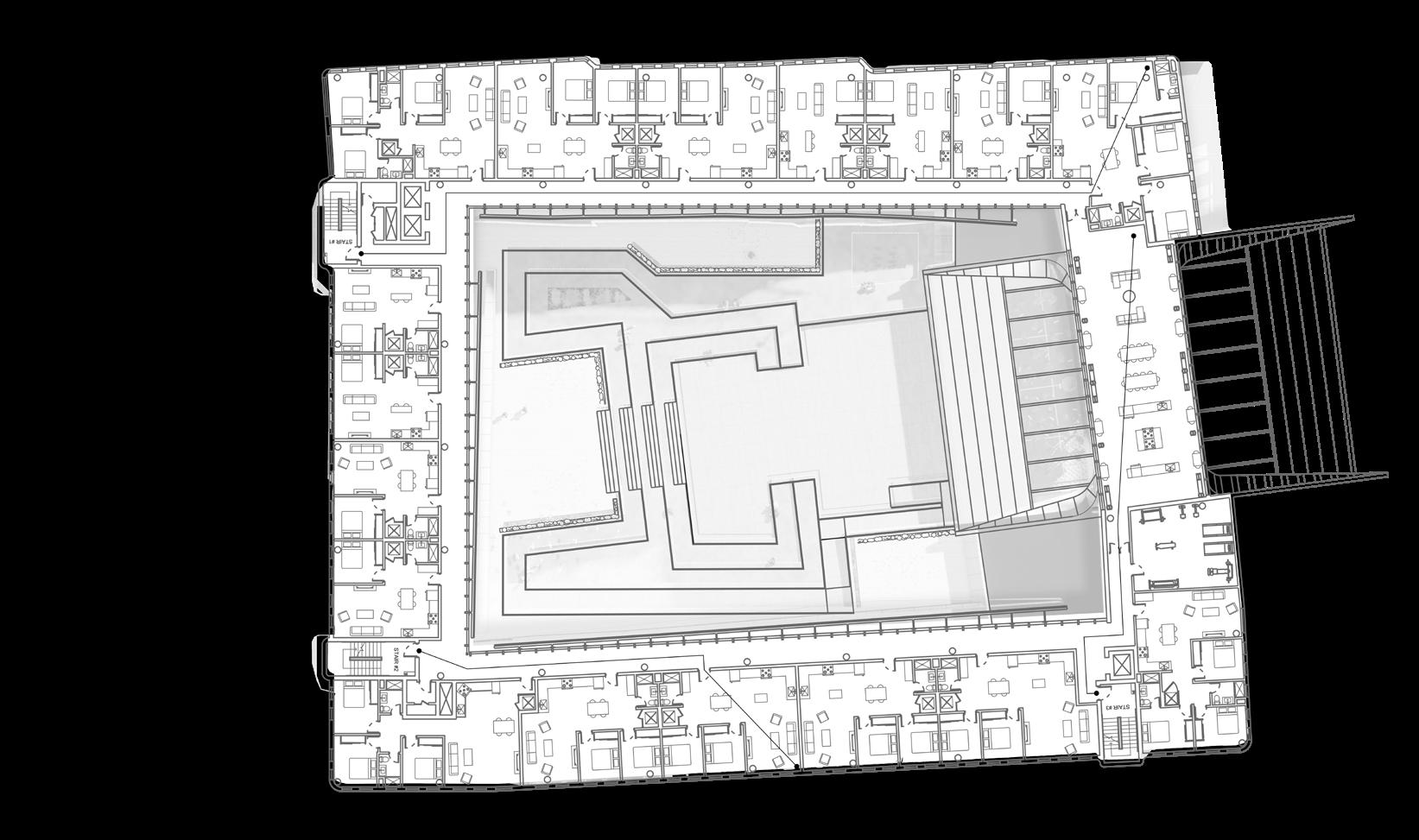

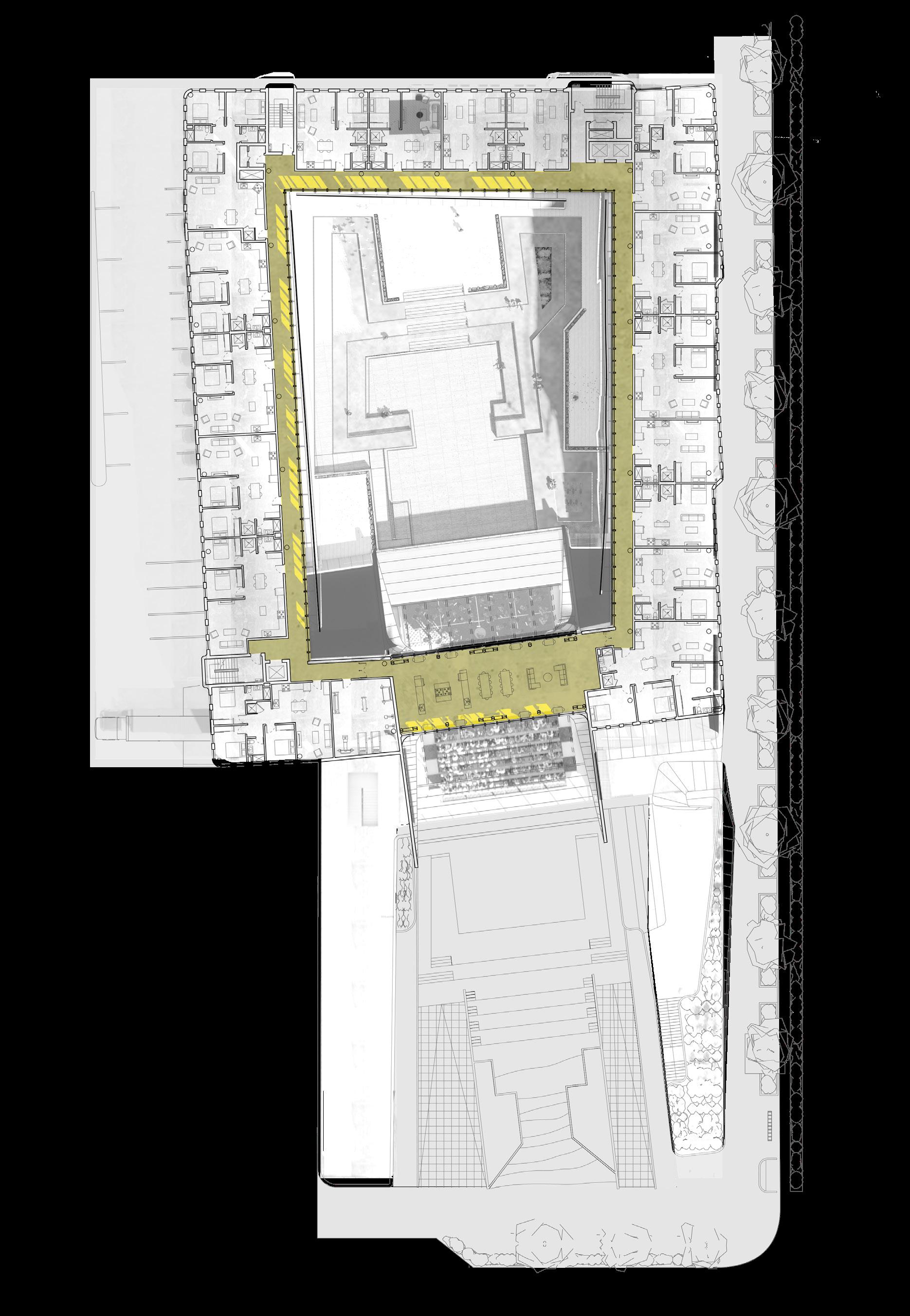

Level 3

Affordable Housing Units

Courtyard

Act III /3rd Floor Plan / “Well the metal screen that you’ve been looking at is much more than just aesthetic. It is very functional in diffusing and reflecting sunlight, while providing layers of both visual, and sound privacy.”

53
Amphitheater Affordable Housing Units Ammenity Space Affordable Housing Units Multi-Layer Sound Absorbtion Out 128 N 64 32ft 1 in = 60 ft 256 128 N 64 32ft 1 in = 60 ft 256
54 Act III / Facade Dichotomy
Perforated
Enclosing residential Component
2
Metal Screen
East Elevation
East Interior Facade

Metal Panel

1 3Stepping the building down towards the blackbox

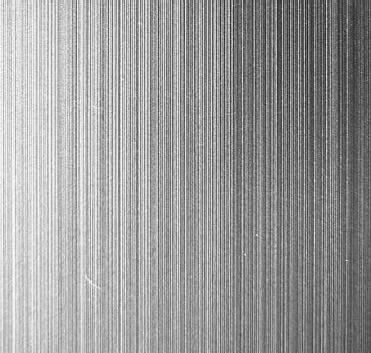

Textured Metal Panel Opening Public Component

“The metal screen is one of three main facade materials that all work to reinforce the idea of the convergence of the blackbox. The metal panel wraps around the outside of the building and transitions to the textured panel coming into the blackbox.”

55

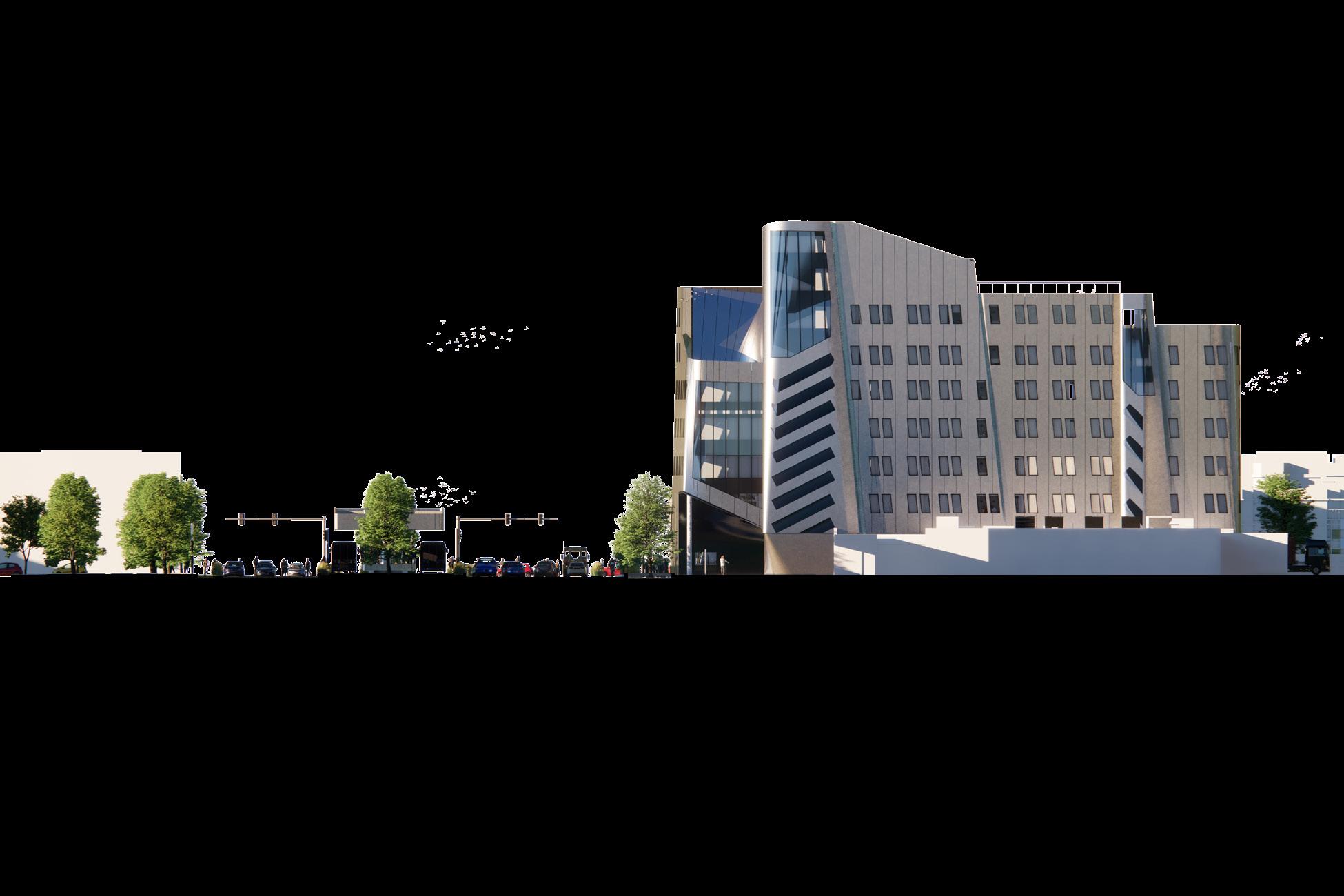

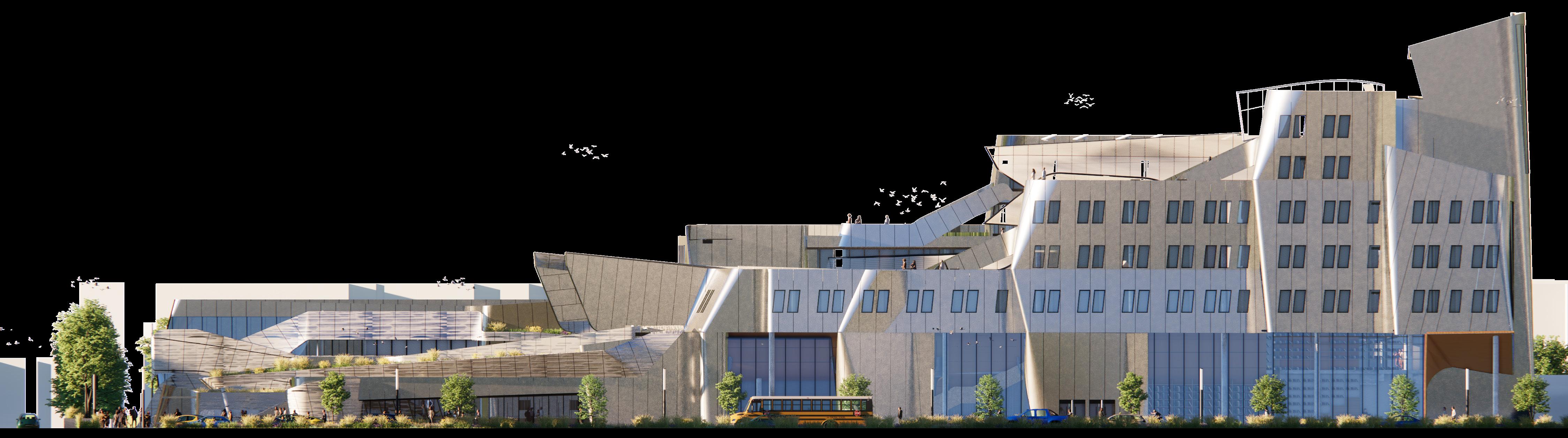

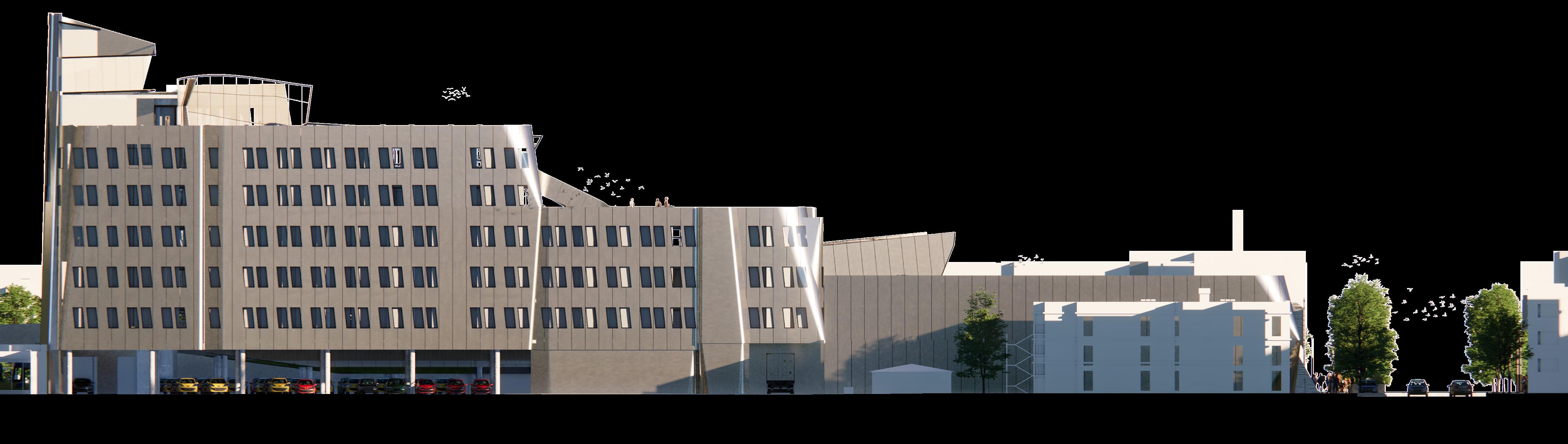

North Elevation

110 ft

West Elevation 110 ft

56
/
Act III

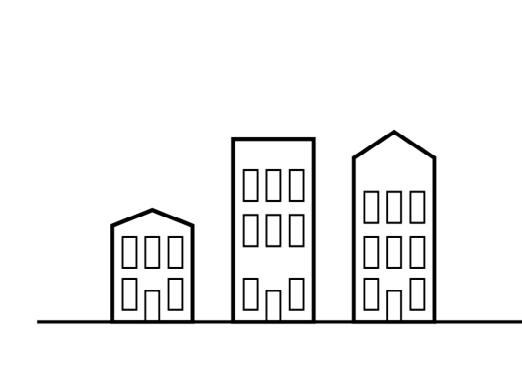

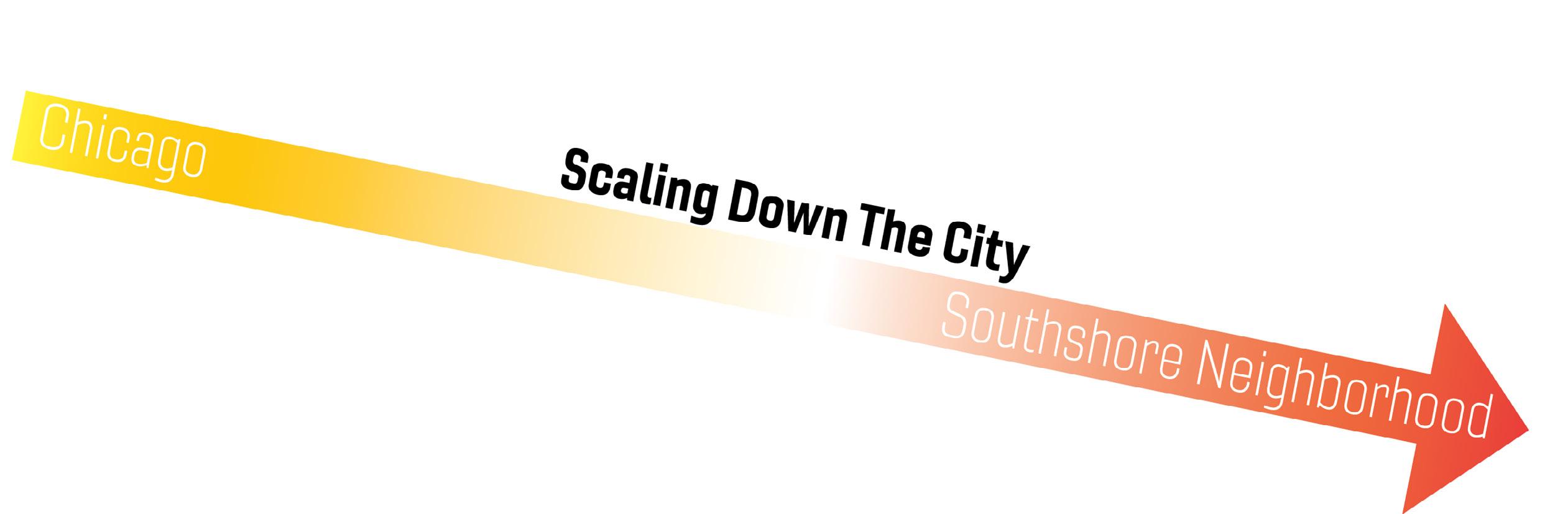

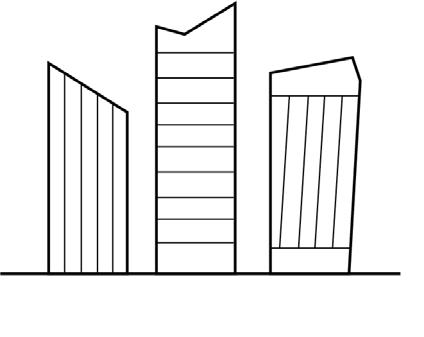

Scaling Down the City

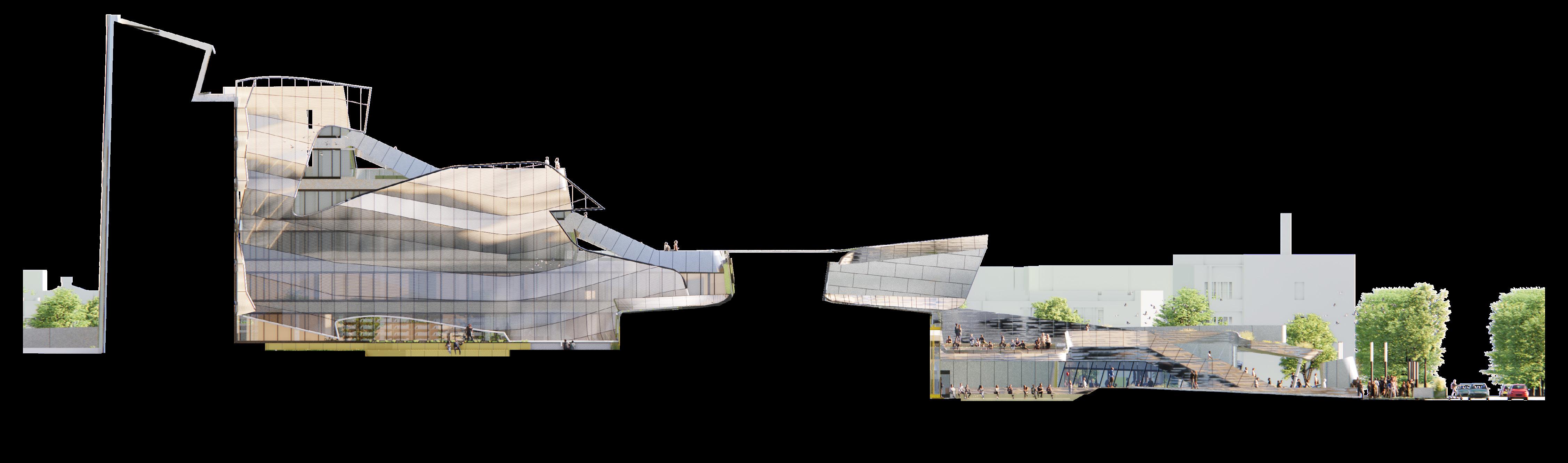

South Elevation

“This transition and convergance to the blackbox and neighborhood occurs in the massing of the building taking the scale of Chicago, and bringing it down to the scale of the neighborhood. The formal expression takes the energy of the neighborhood and focuses it down towards the blackbox.”

57

Epilogue

Past Work + Other

“On your way out don’t forget, valet pickup is in the front, and trains and the bus run every 15 minutes. If you have time, stick around a little bit and check out our past iterations. This project took quite a few drastic changes getting to where it has finished. ”

58
/
/
Prologue
Main Render
Description text
59

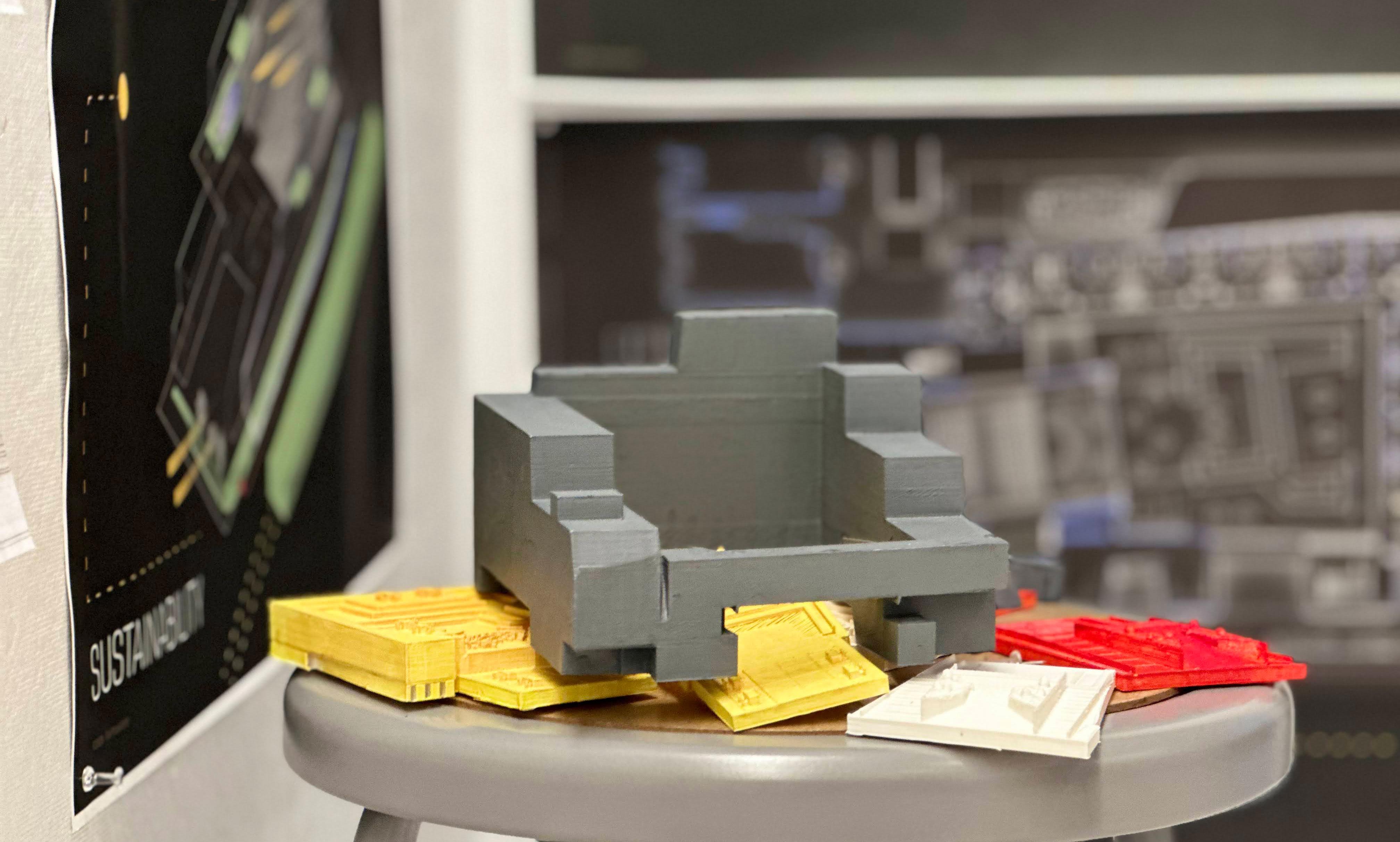

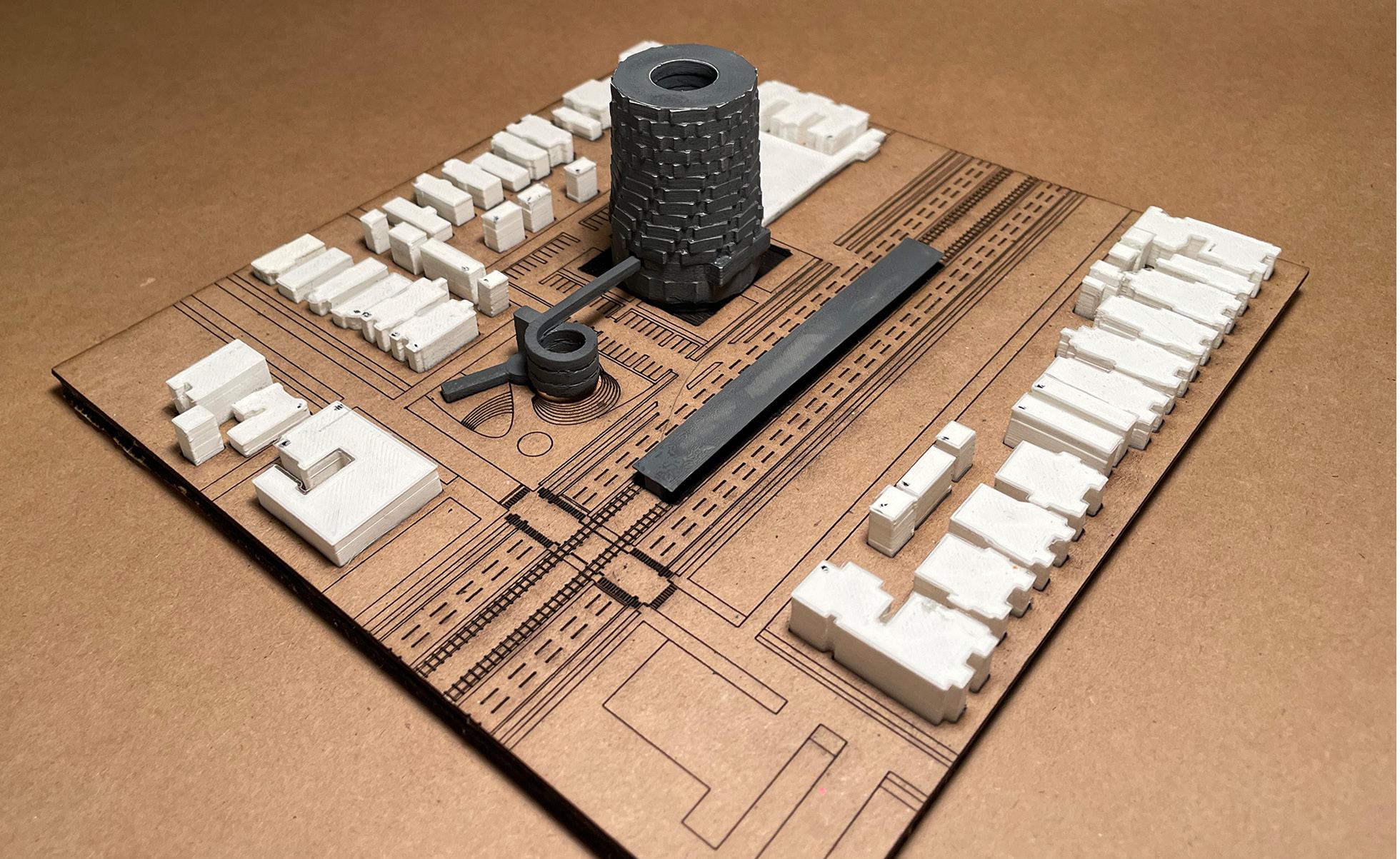

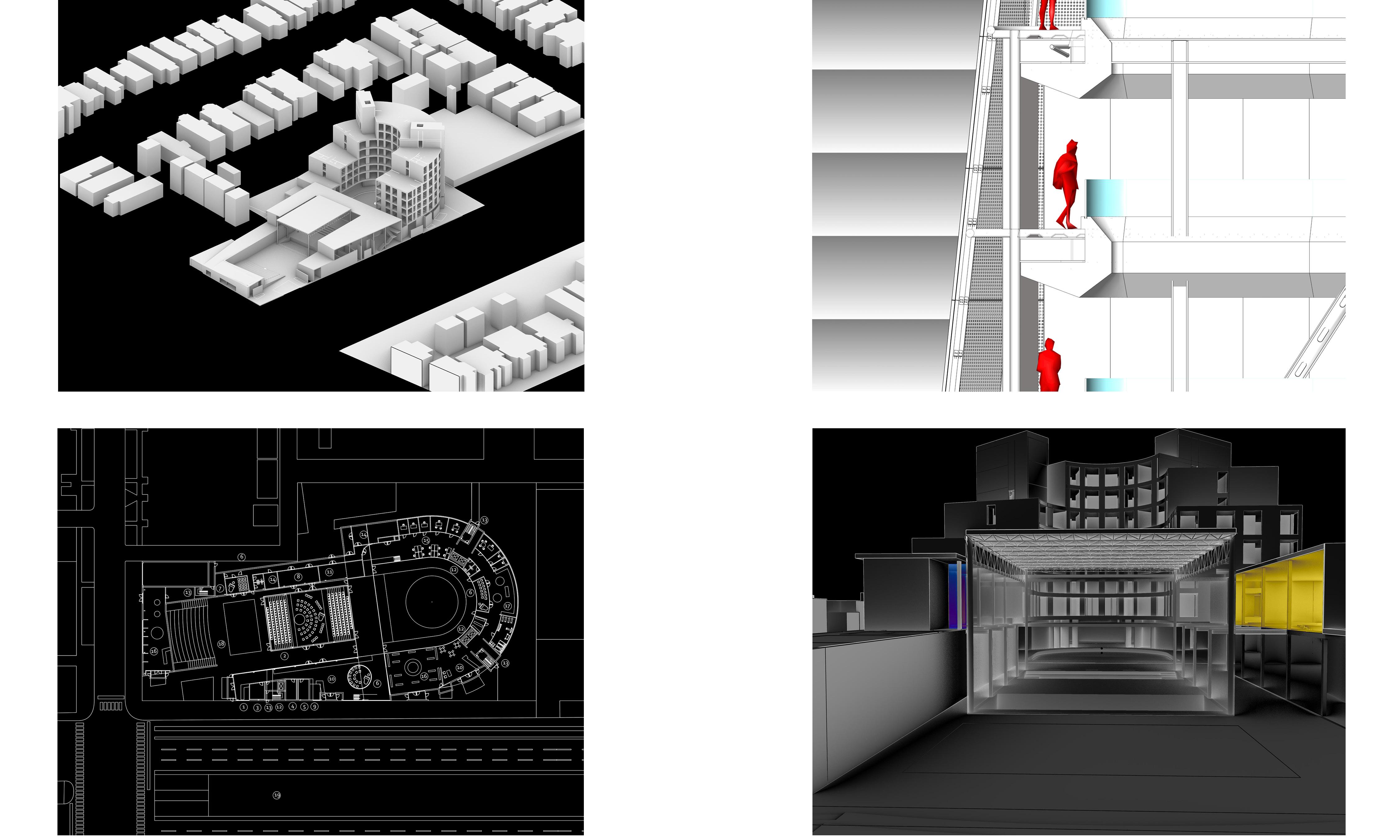

Epilogue / Injection / “Our initial idea was far from where we are currently. Our Original idea was very formally iconic with the idea of creating an auditorium within the atrium of the building.”

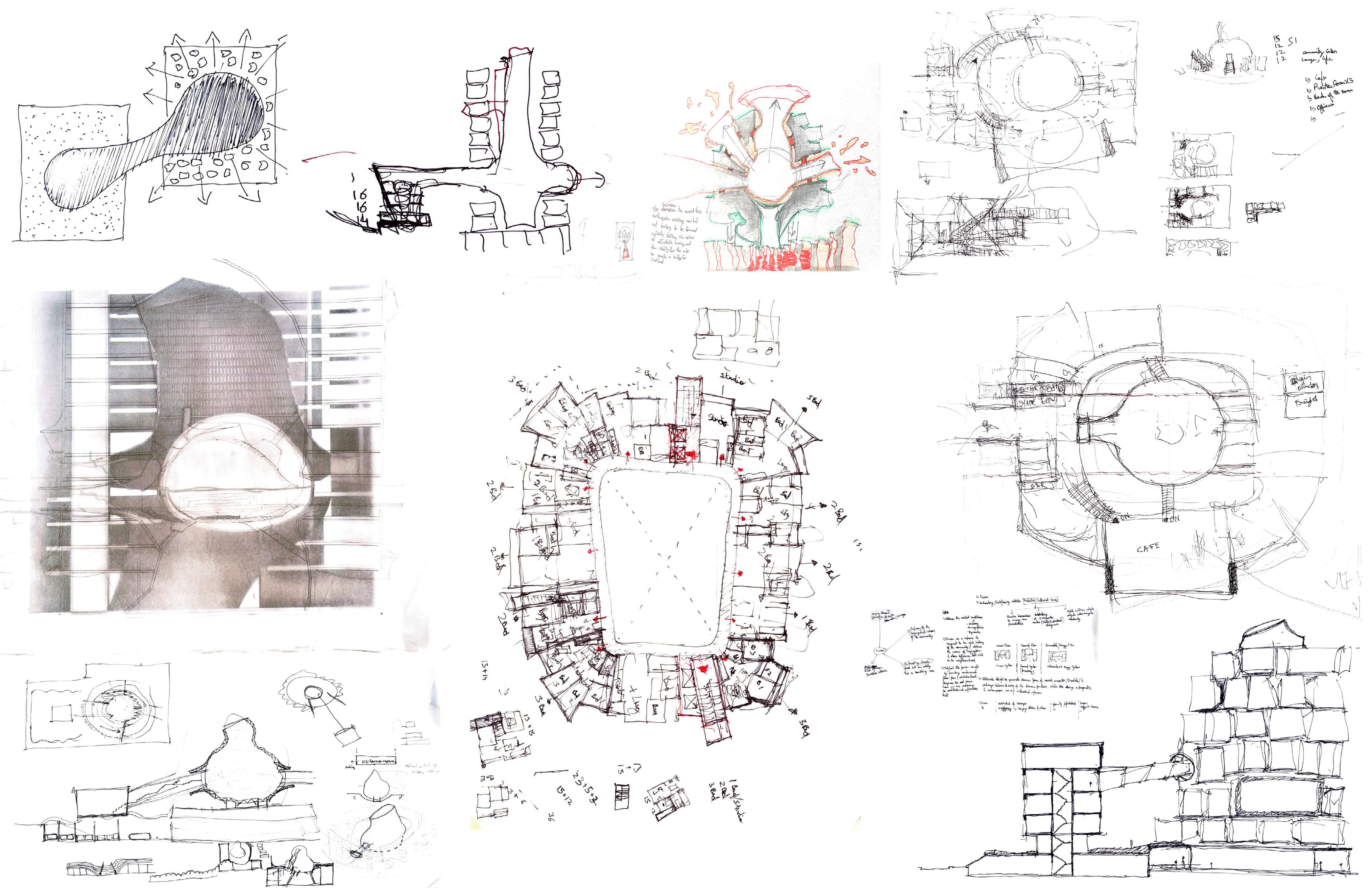

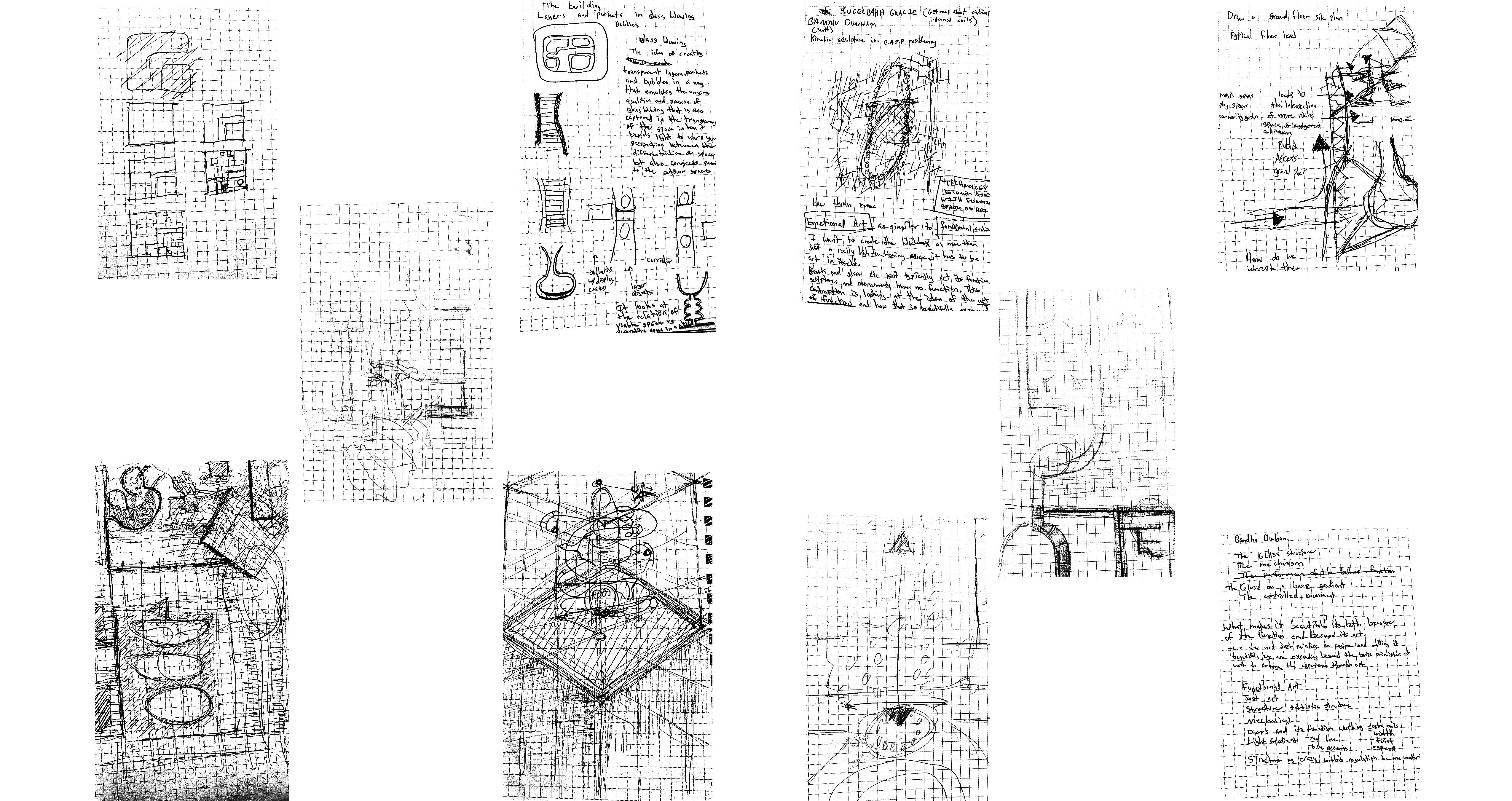

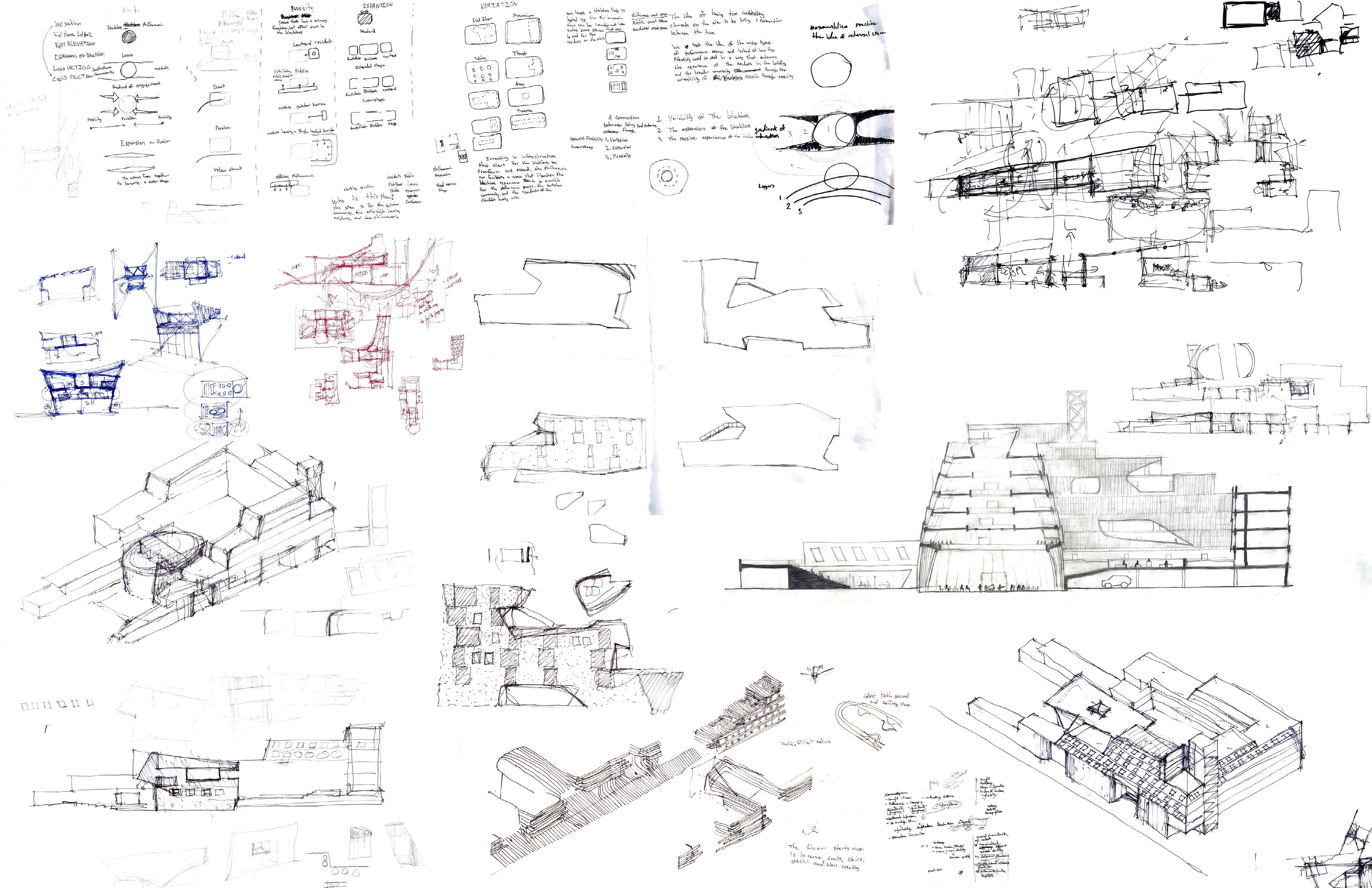

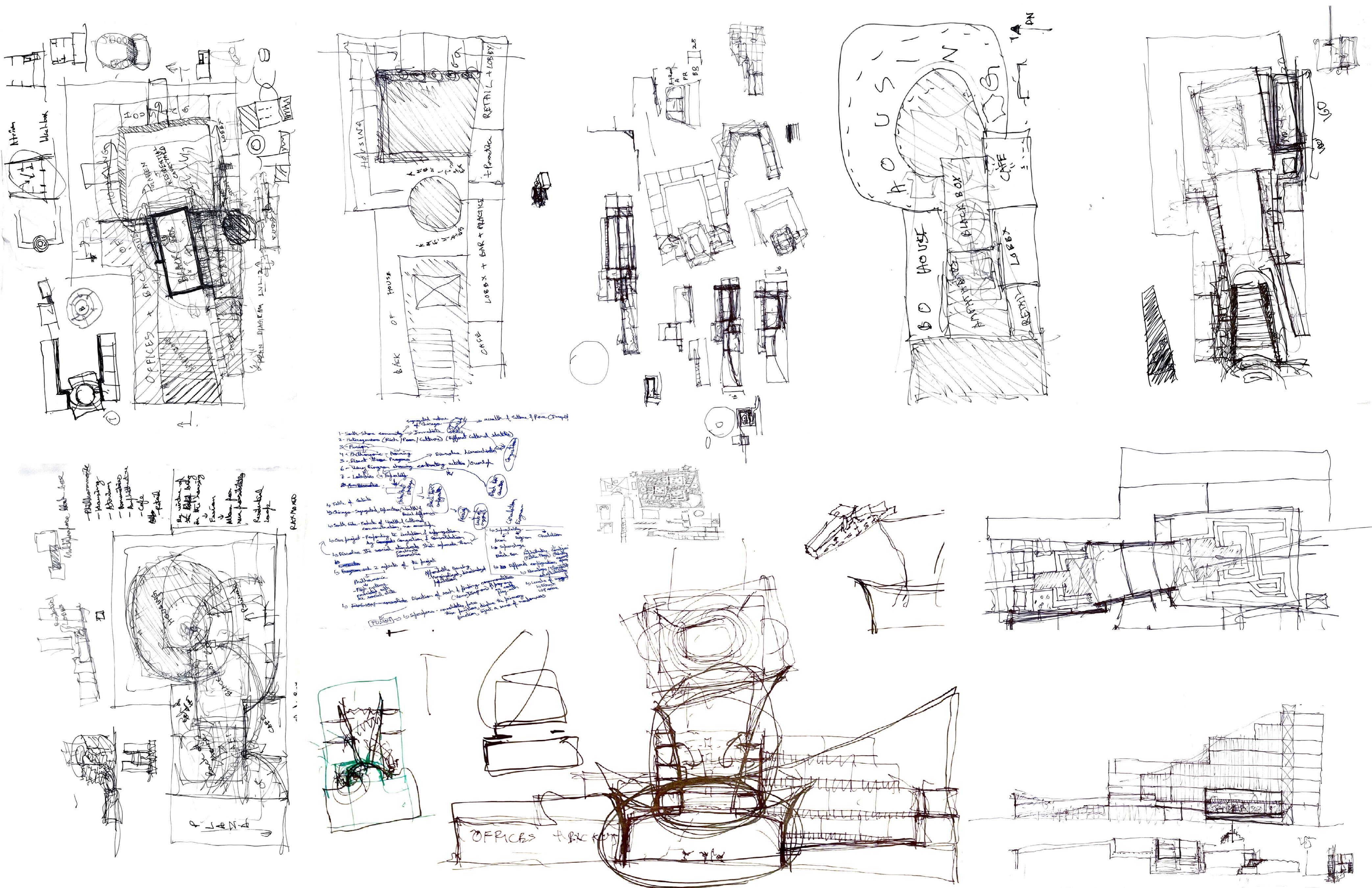

60 Epilogue / Travel Sketches

“Throughout the semester we took quite a few trips all of which helped to develop our thoughts through the project.”

61

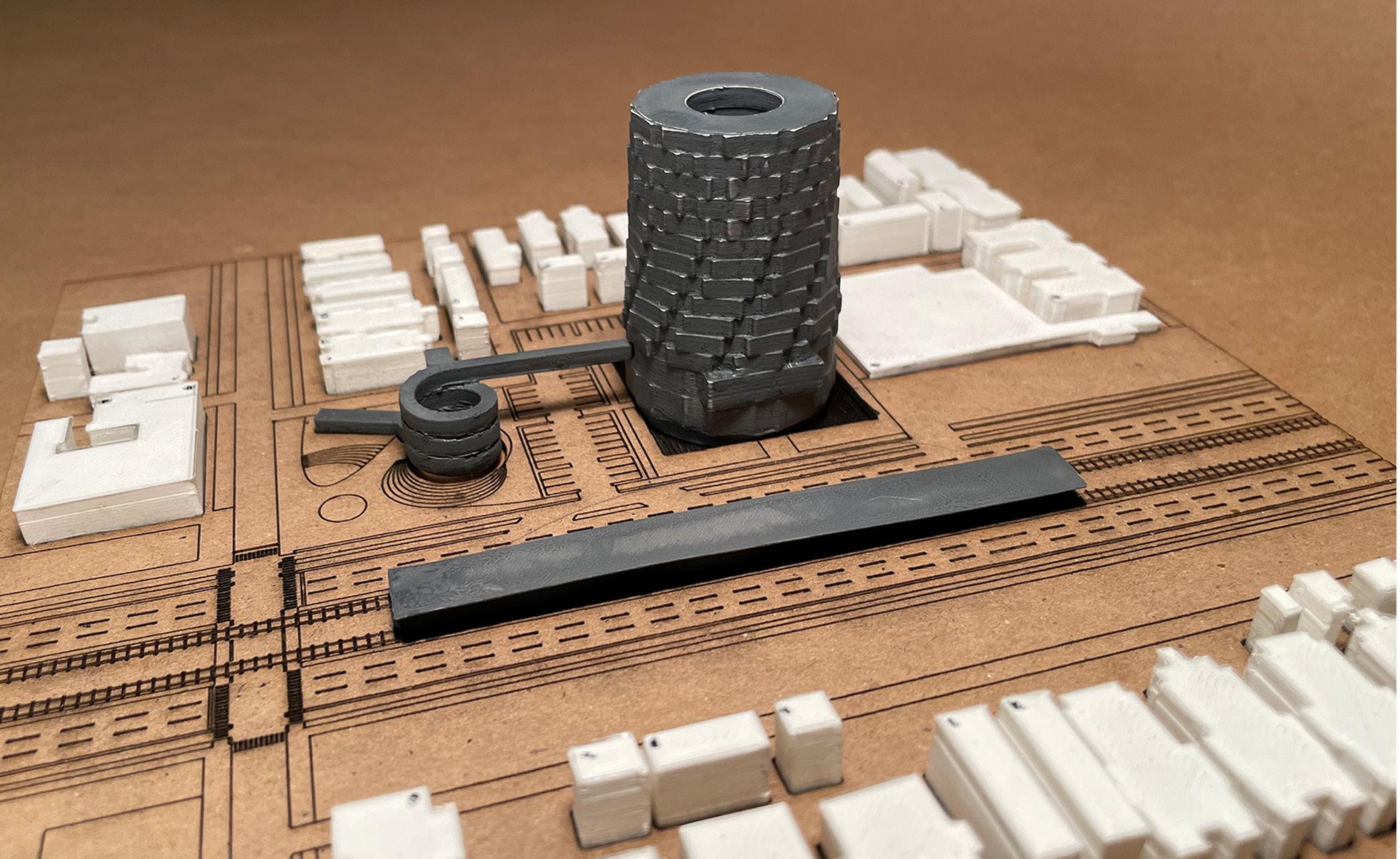

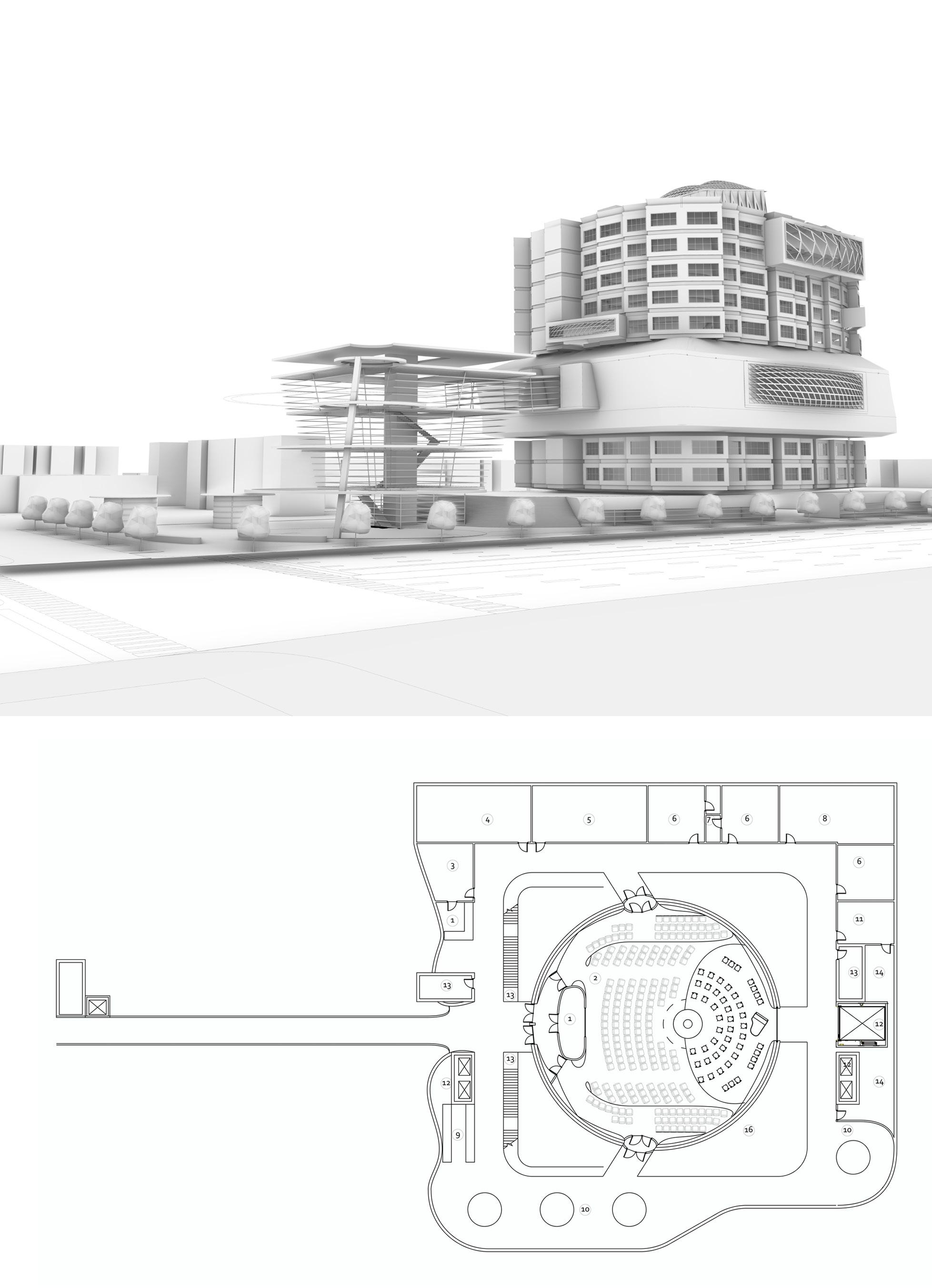

62 Epilogue / 1st Iteration

“This exploration took us all the way to midterms before we decided to drastically change. We were very interested in creating a formal masterpiece injecting music directly into the culture of the affordable housing and neighborhood.”

63
64 Epilogue / 1st
Iteration

“Like this is completely different. The main critiques that pushed us beyond this iteration was that creating a space like this created more logistical problems than things it was solving through its concept.”

65
66 Epilogue
/ 2nd Iteration

“We then set course towards where the project ended up. Alot of our first passes still retained a wide array of components from the original concept, both good and bad.”

67
68 Epilogue / 2nd Iteration

This page is right about at midterms where we had just over ago changed our project. Here you are able to really grasp where the project originated and developed from.”

69

Epilogue / 2nd, 3rd, 4th+ Iteration (Lost count)

70

“From this point on, we had been iterating countless times, restarting, reshuffling, detailing, and bolstering the language we use to talk about our project and conceptual design decisions.

71
72
/ Final
Epilogue
Presentation
73
“Alas we’ve arrived at our final presentation. We spent time after time toiling through our ideas before finally landing with SUPERspaces. Then the rest is history.”

SUPER spaces.

Reflection

This semester has been extremely intense, challenging and rewarding all in one. We’ve been pushed beyond our limits to do more than we’ve ever been asked to through the extensive iterations of the 3 variations of our concept. The process of working through this project has been the most enriching providing us both with a strong foundation as we head onto our future endeavors. Chip, thanks for the continuous efforts to push to succeed and not settle for anything less, and providing us with a strong support cast

2022
Alonzo Colon & Stanzin Namgyal Chicago Studio. Fall Mentor Firm :JGMA Professor: Chip Von Weise
