ARCHITECTURE PORTFOLIO

ALEX STRAKA

ALEX STRAKA

THEY / THEM

Architectural Designer | Honors Bachelor of Architecture Student | Art History

WORK EXPERIENCE

John S AndrewsArchitectsLLC, Chestnut Hill, PA— Architectural Staff/Drafter

Preparesdrawingsanddocumentationforresidentialprojects inAutoCAD

Performs site survey analysis and drafting

Extensive experience in construction and structural documentation for permits JANUARY 2024 - PRESENT

Atwater Kent Collection, Philadelphia, PA— Gallery Attendant

JUNE 2023 - SEPTEMBER 2023

Created a welcoming / informative environment by talking to visitors about the exhibition

Performed cataloging tasks through the application PastPerfect for online database expansion and metadata enhancement

Urban Engineers Inc, State College, PA— Design Intern

JUNE 2022 - AUGUST 2022

Utilized Bluebeam, Excel, Outlook, and Bentley MicroStation

Assisted as Secretary for American Society for Highway Engineers Clearfield

Worked directly with clients and colleagues in meetings and site visits

EDUCATION

Drexel University, Philadelphia, PA— Bachelor of Architecture Degree, Art History Minor

SEPTEMBER 2021 - JUNE 2027

3.91 GPA, Dean’s List (top 10%), Member of Pennoni Honors Program

Architectural history grader for the 2023-2024 school year Representative for the NOMAS Drexel Chapter (2023-24), member of AIAS Drexel Chapter

REFERENCES

STUDIO PROFESSOR FOR THE BIKE STATION PROJECT (FALL TERM 2023): Patricia Kucker, RA

pk652@drexel.edu* — 513-384-8187

Jacklynn Niemiec, AIA, LEED AP

STUDIO PROFESSOR FOR THE COURTYARD HOUSE PROJECT (FALL TERM 2022):

jnn33@drexel.edu* — 215-459-4320

Dan Carriker

SUPERVISOR/CO-WORKER FROM URBAN ENGINEERS:

decarriker@urbanengineers.com — 703-725-2693*

State College / Philadelphia, PA

814-826-8600

alexandriastraka@gmail.com

I have a strong passion for Visual Art, which I express by crafting and vending at Art Markets. I also enjoy horticulture, hiking, and rock climbing.

SKILLS

AutoCAD

INTERESTS AWARDS

Rhinoceros 7

Revit

Enscape

Adobe Suite

Microsoft Office 2D Design Model Making

2024 Design Excellence Award Recipient (Drexel)

Westphal Portfolio

Scholarship (Drexel) 2021 Scholastic Art and Writing Awards Gold Key Clare Fund for Visual Arts

Scholarship Winner

+100 Hours of community service

MICA Pre-College Program Graduate (2019)

BIKE STATION

PAGES 4-9

PAGES 10-15

GREEN SCHOOL COURTYARD

HOUSE

GREENSCHOOL

PAGES 16-19PAGES 20-21

LANDMARK BIKE STATION

BARTRAM’S GARDEN, PHILADELPHIA, USA

When ﬁrst visiting Bartram’s North, I was struck by the different environmental conditions of the site. The narrowness of the area along the path, the juxtaposition between the clearings and dense forest, and the few viewpoints between the trees looking out past the river. In my design, I wanted to amplify the clearing between the barge and the monument site. My two structures emulate the enclosure already found within the site while providing visualanchors along the path.

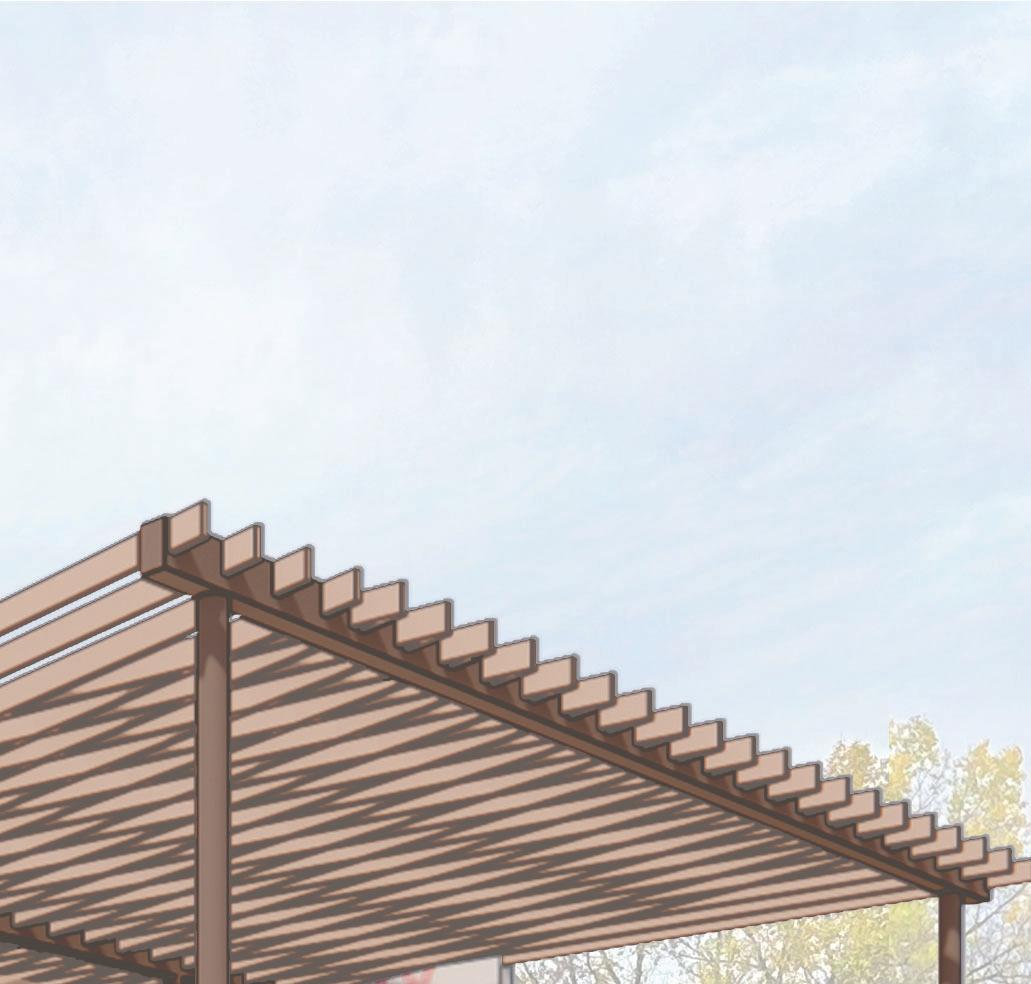

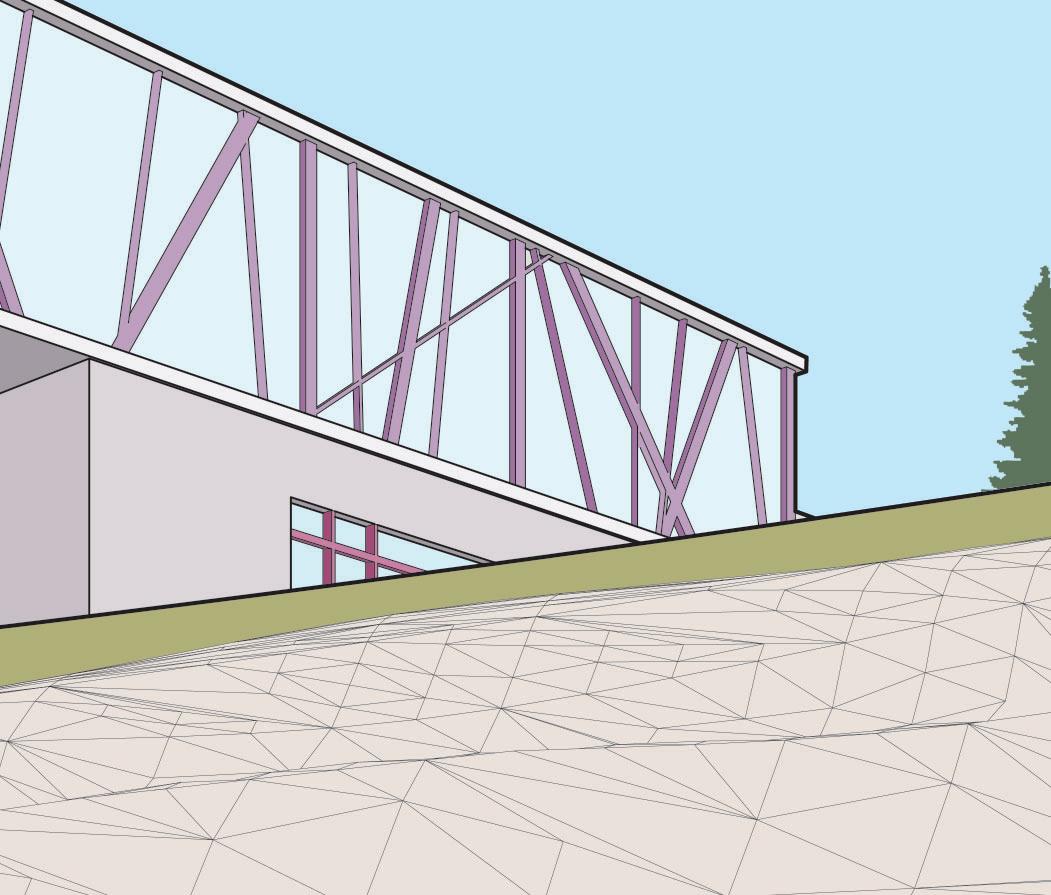

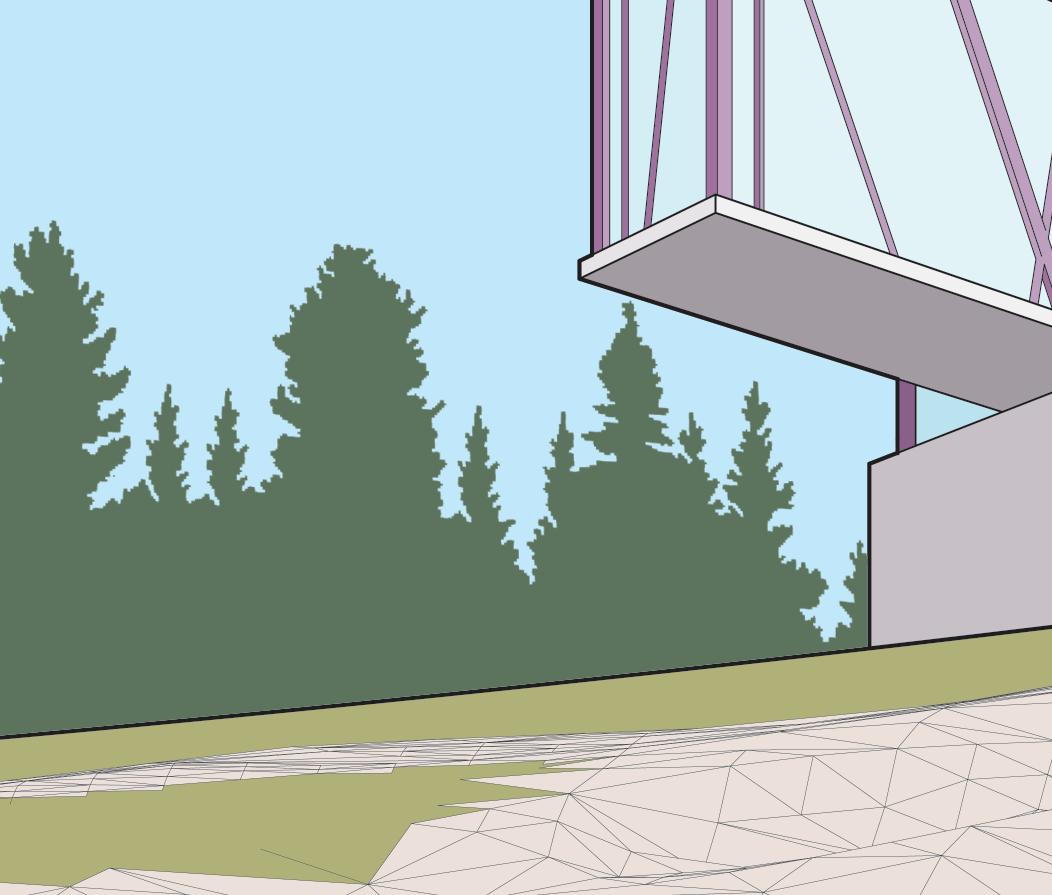

The bike shop, which is more open and pronounced, features long ramps for cycling access and a large two-story lattice roof. A counter allows for controlled interaction between the worker and bike renters/ snack customers. A staircase allows visitors to enjoy views of the surrounding park and the skyline from over the trees. While the bathrooms share a similar roof, its lower elevation and large retaining walls ensure a more private experience than its counterpart. Both buildings act as an edge to deﬁne the large gathering space between them, which can host a multitude of activities.

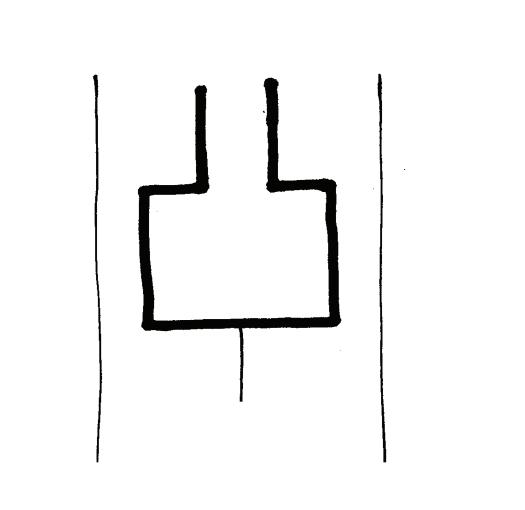

Parti Diagram

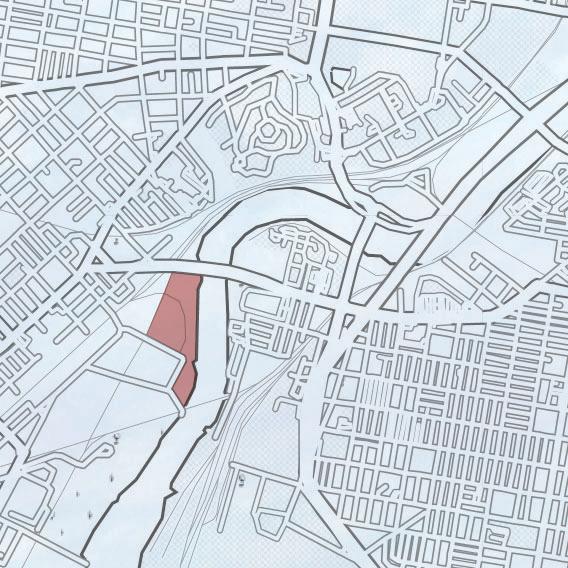

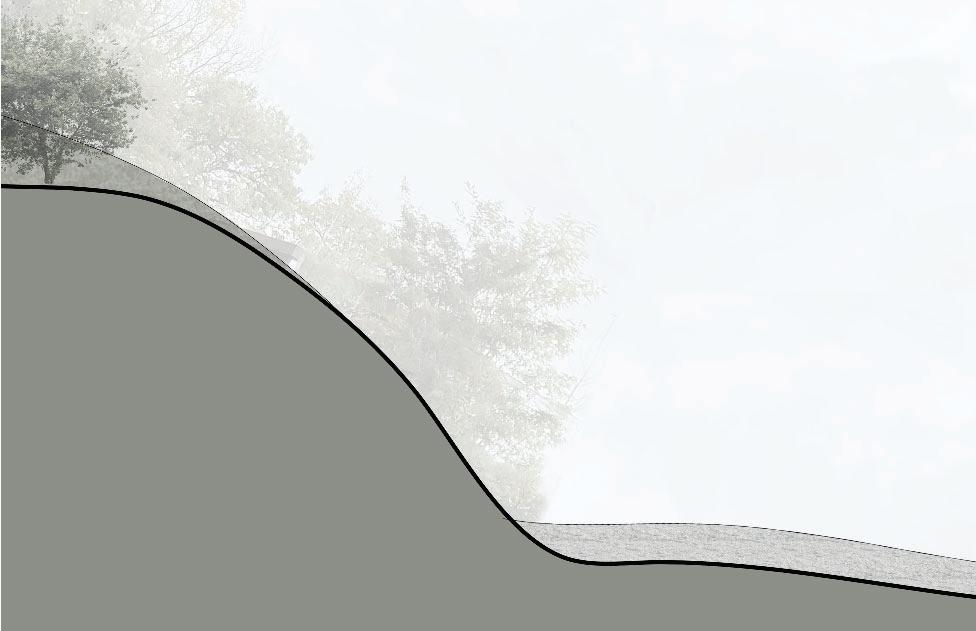

Bartram’s North within the context of Southwest Philadelphia

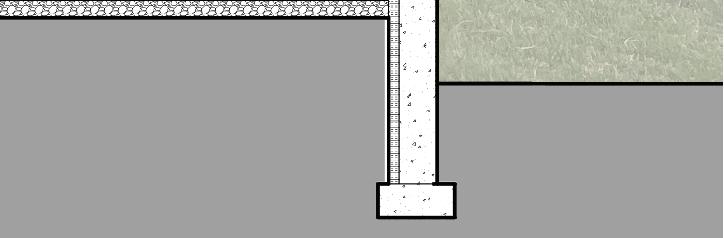

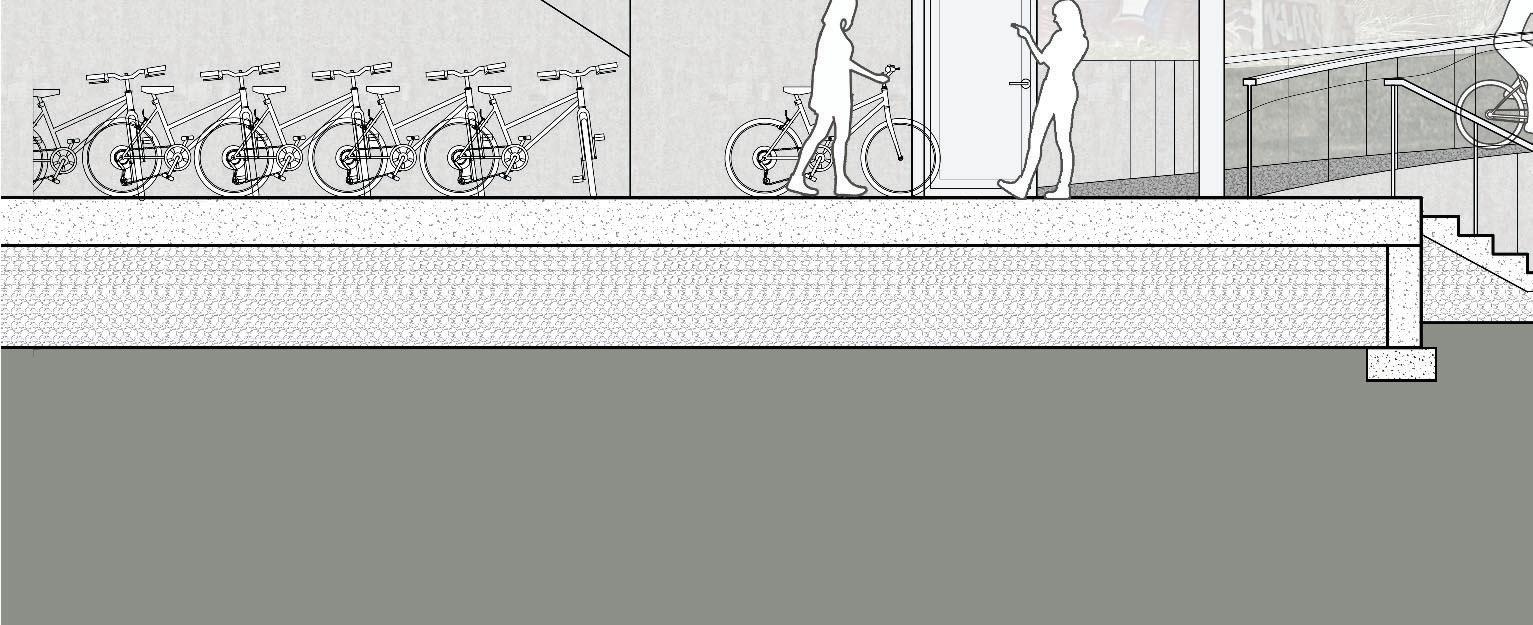

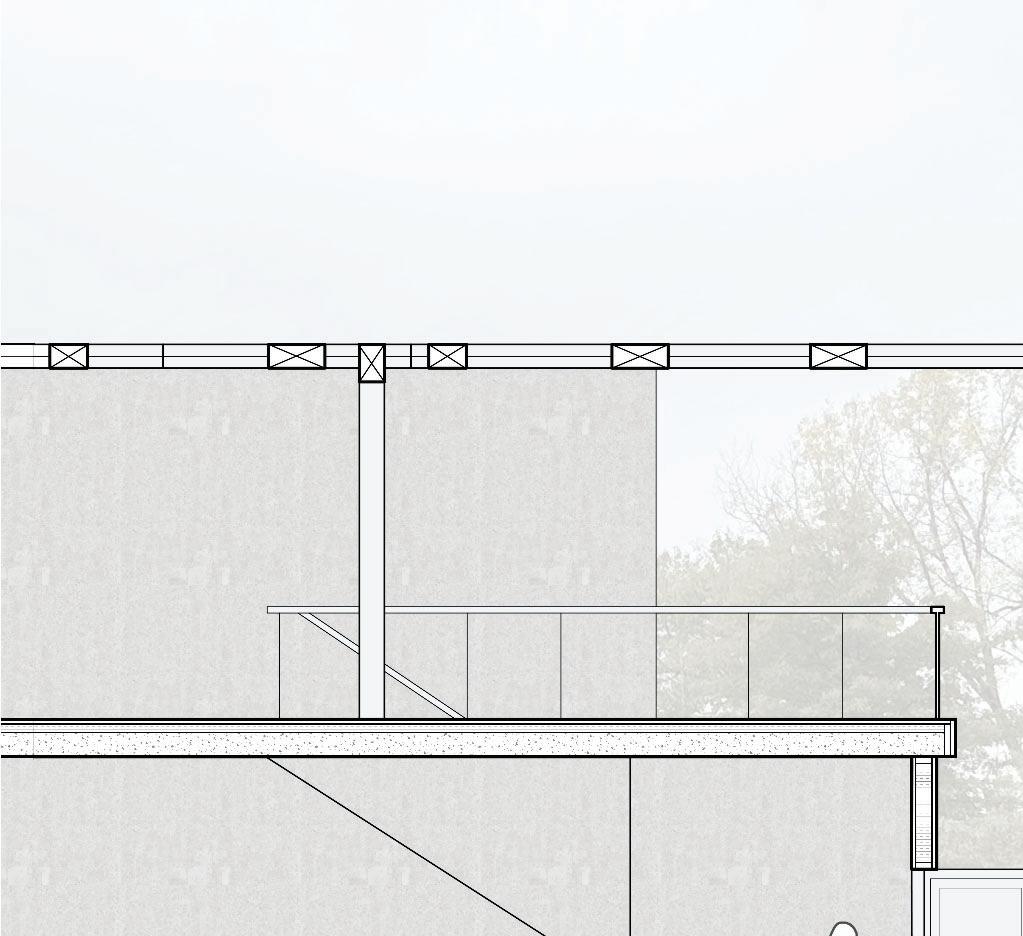

DETAILED SECTION

A closer look at the materiality within the bike station

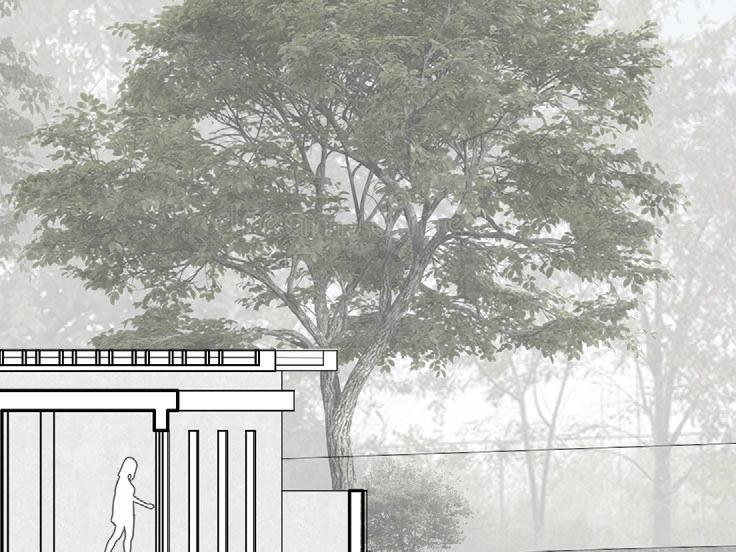

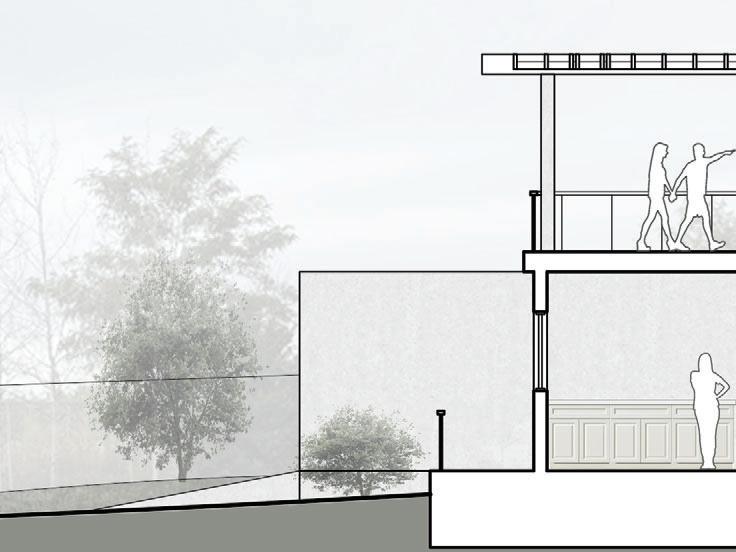

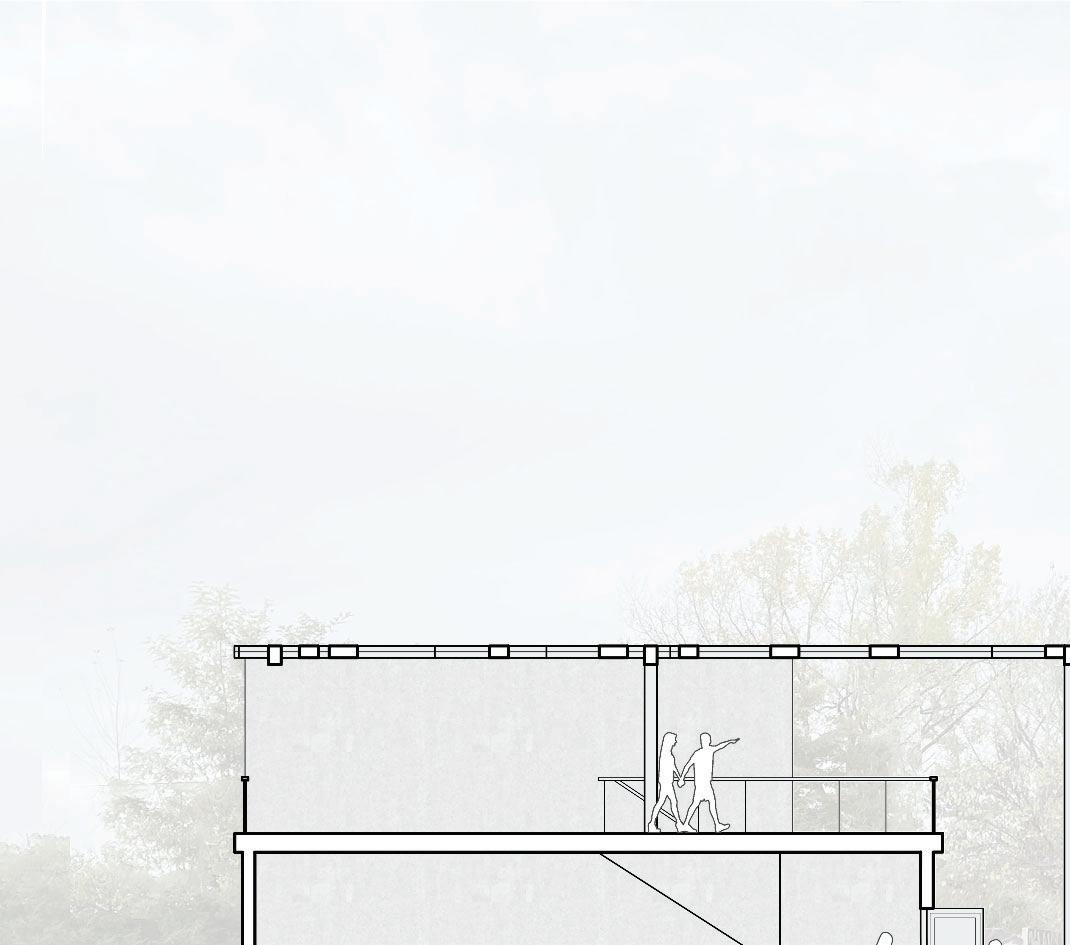

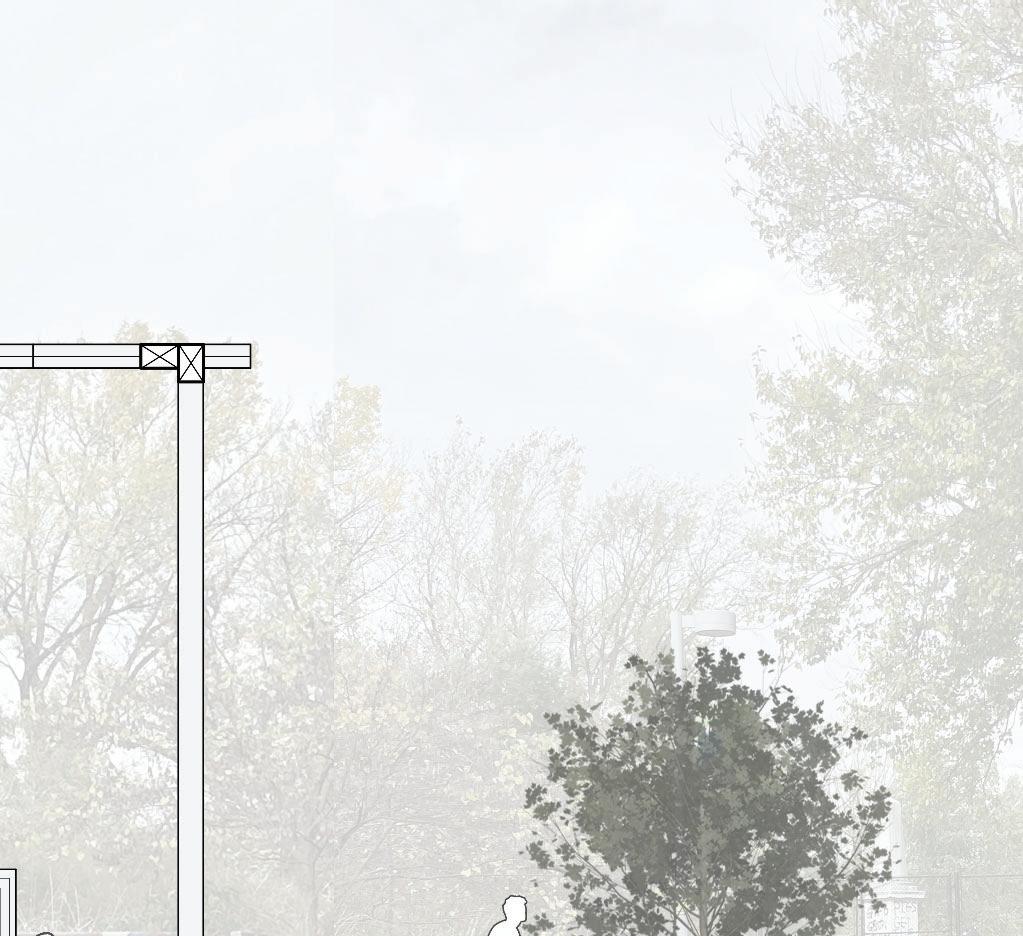

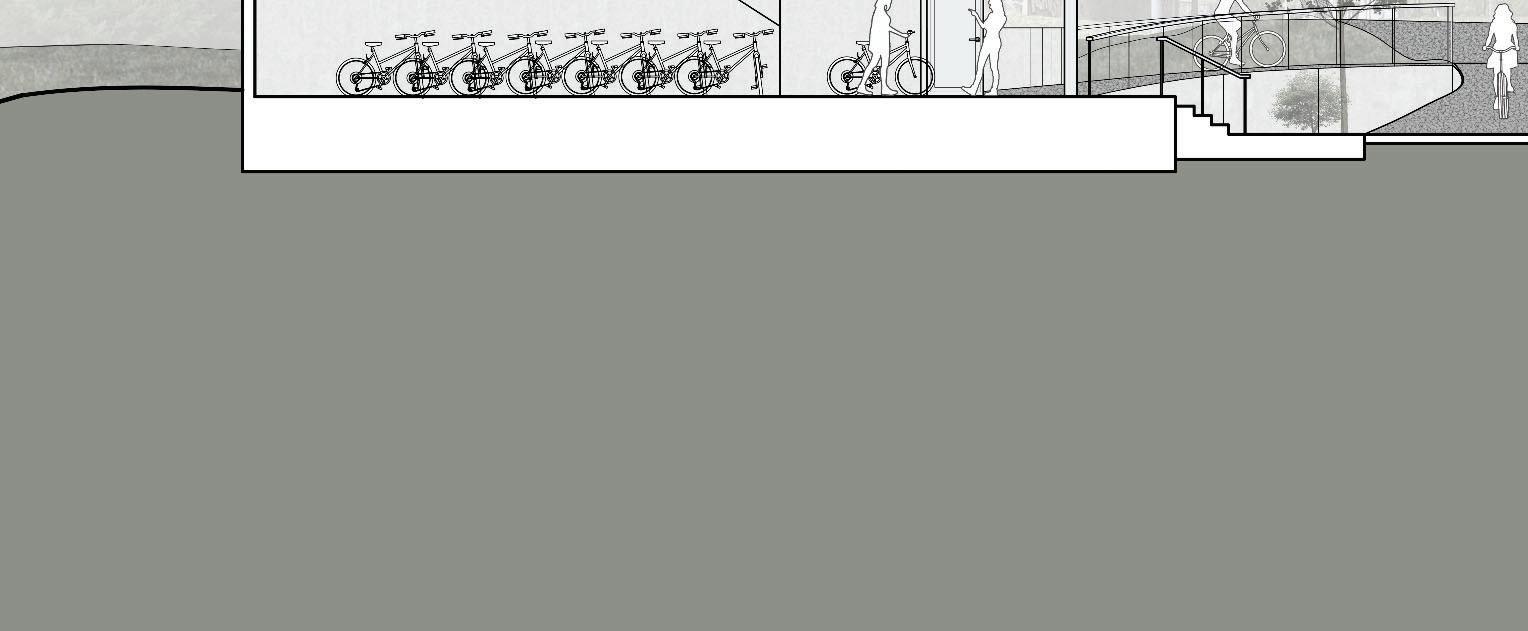

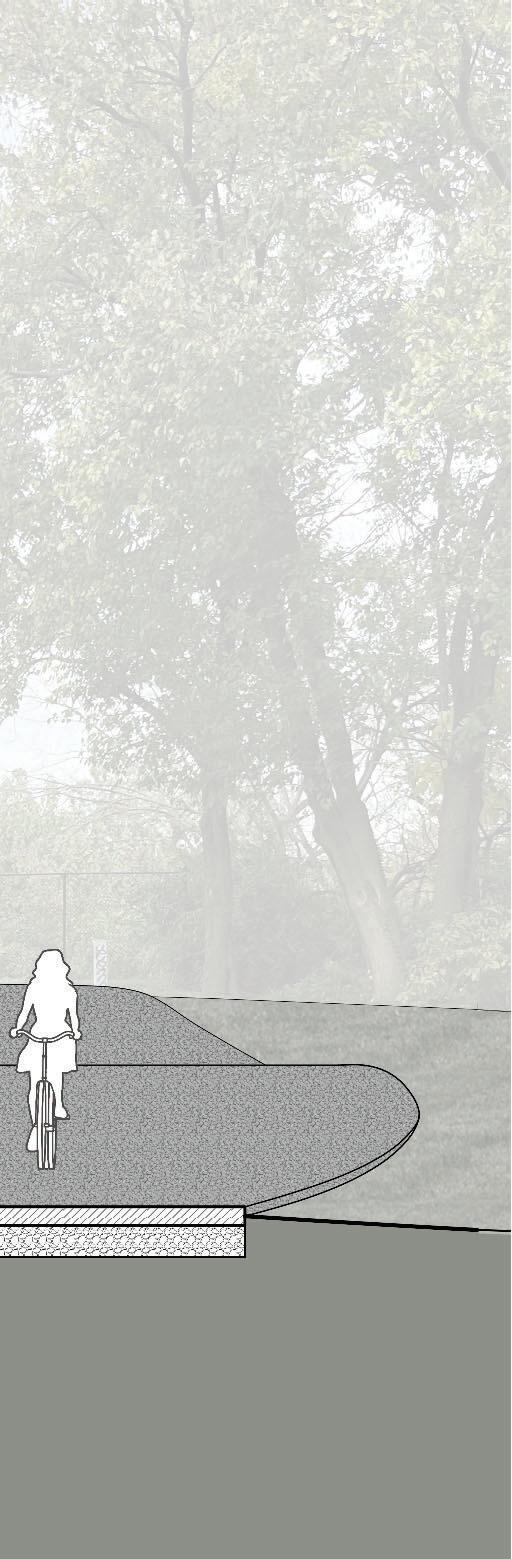

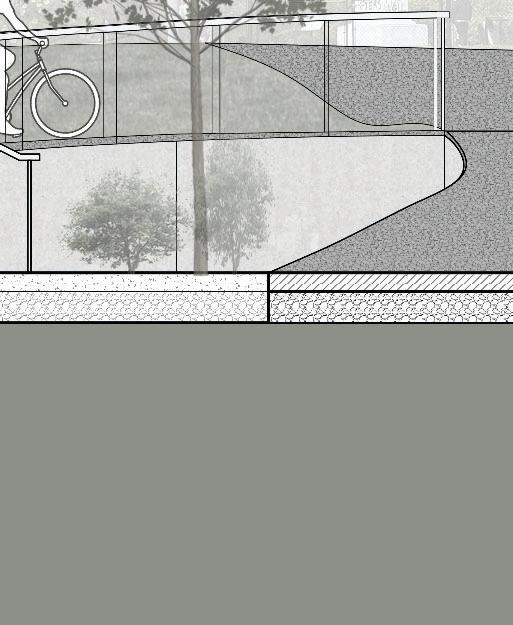

RENDERED CROSS SECTION

The main connection between the water and land is illustrated along with user experience for renting bikes

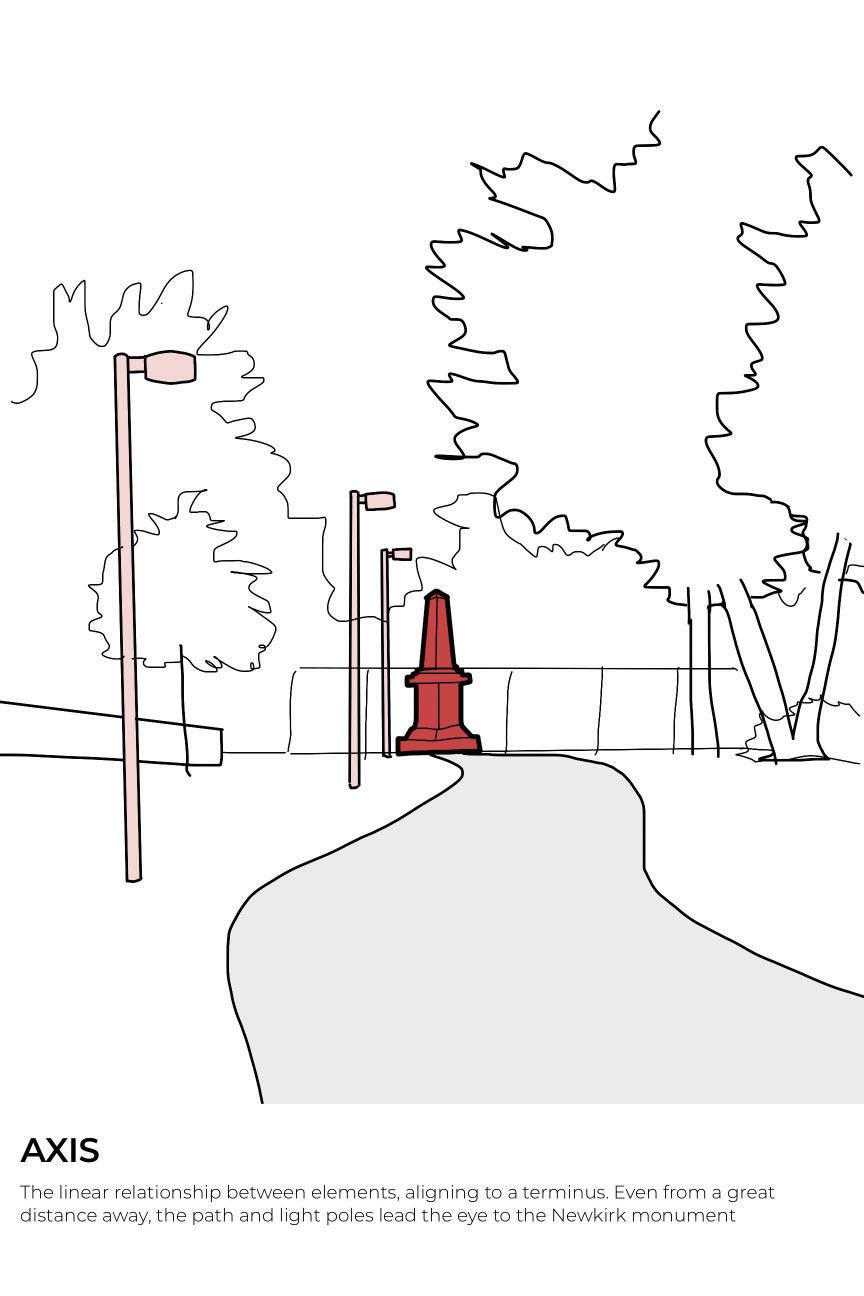

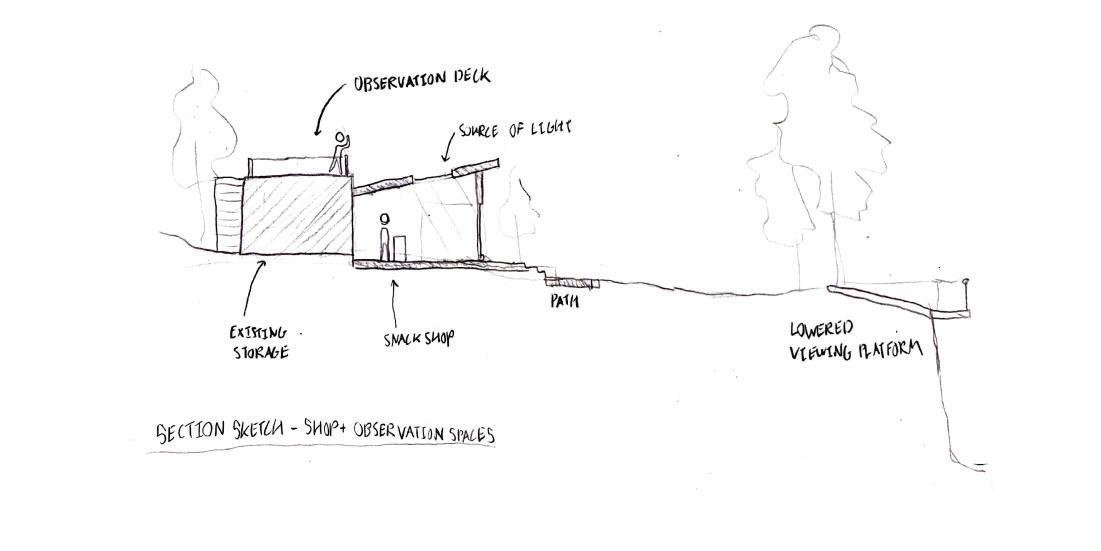

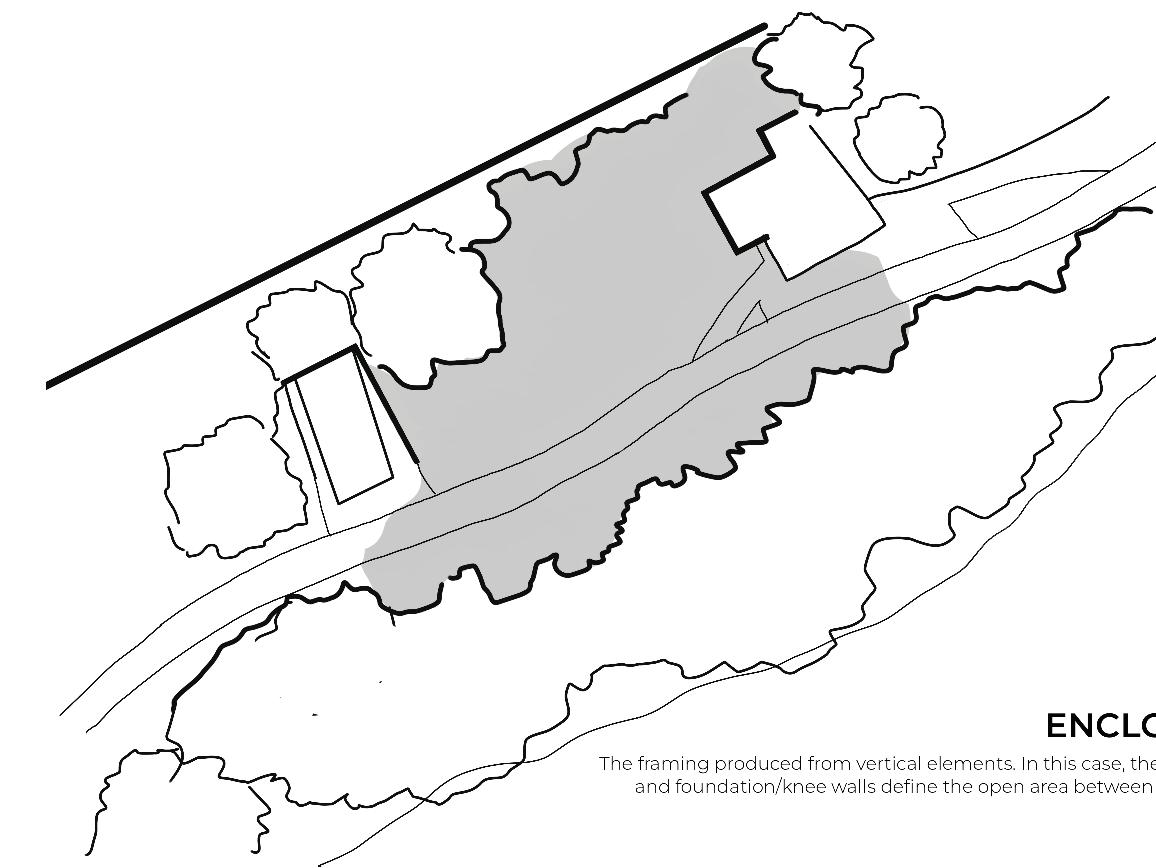

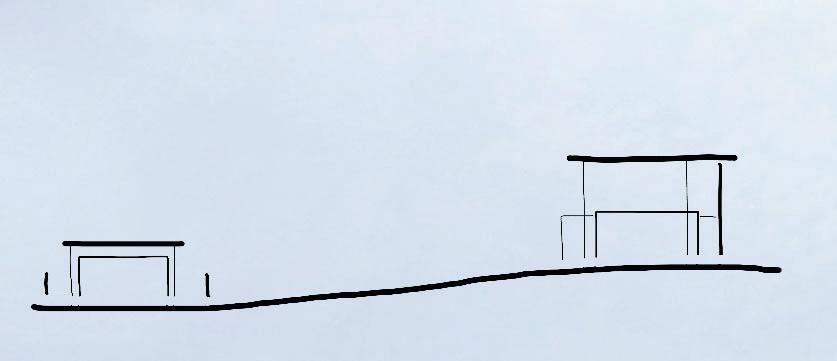

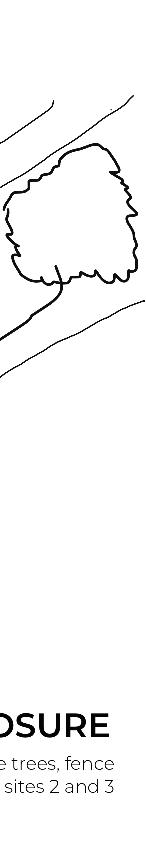

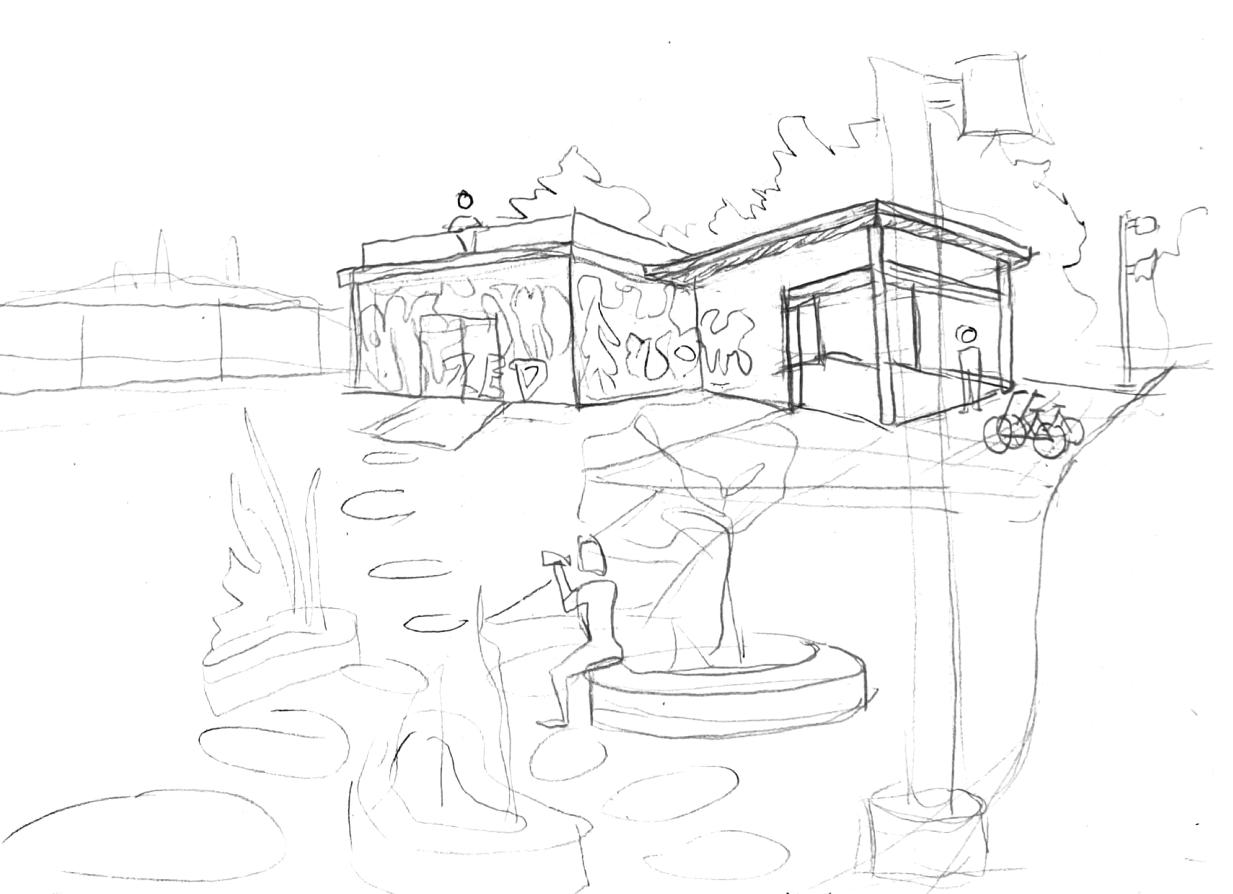

Early sketch and design vocabulary diagrams based on the key visual aspects of the site SKETCHES AND VOCAB DIAGRAMS

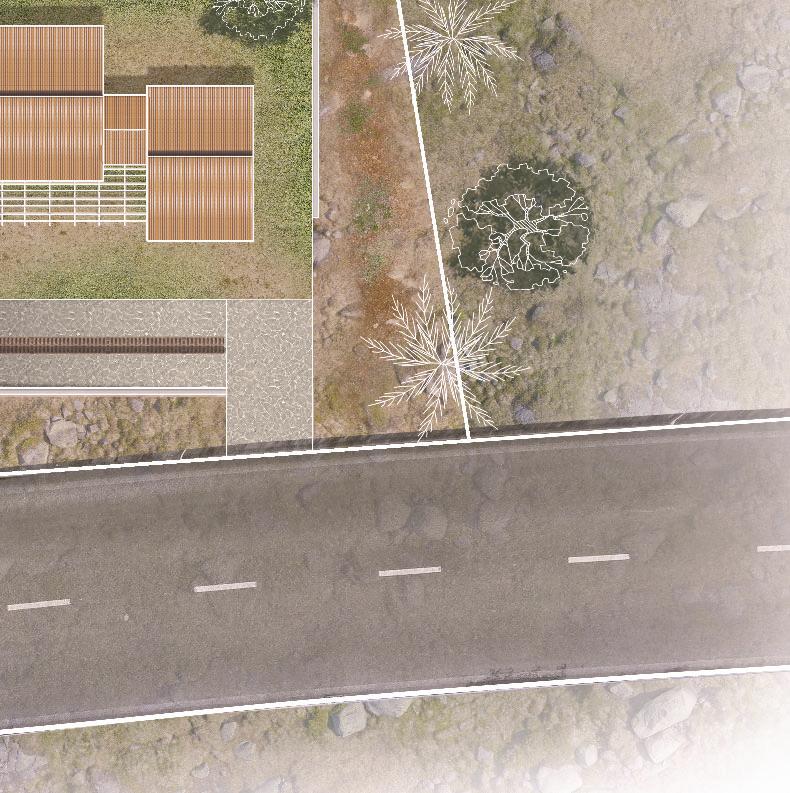

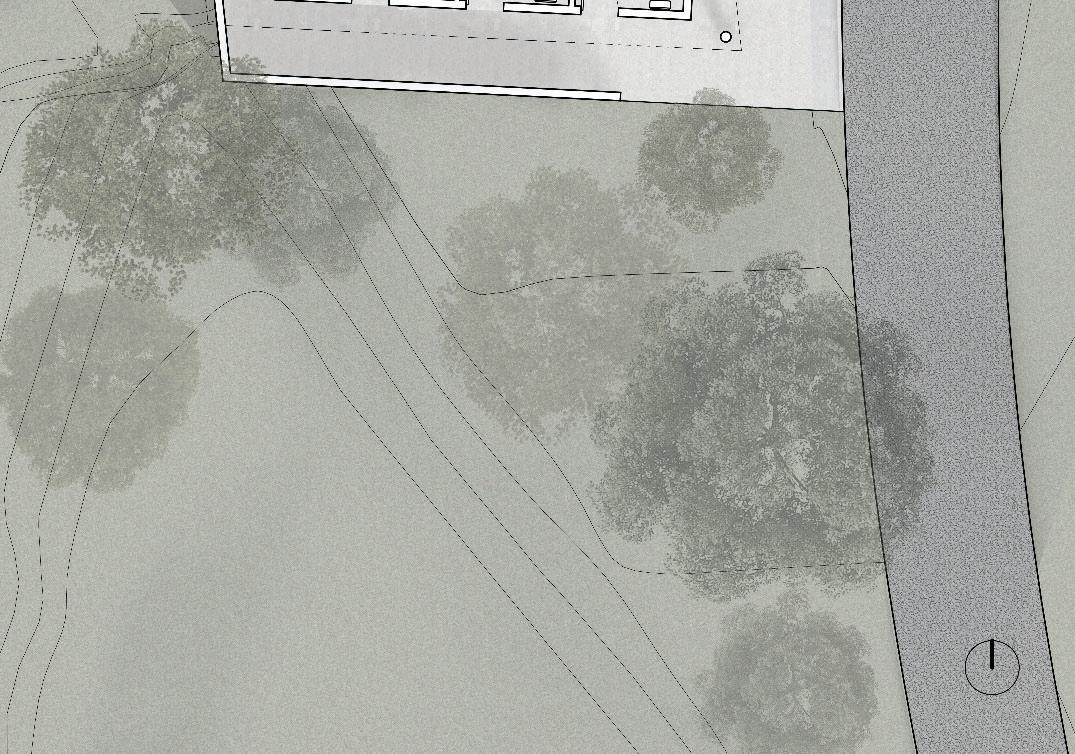

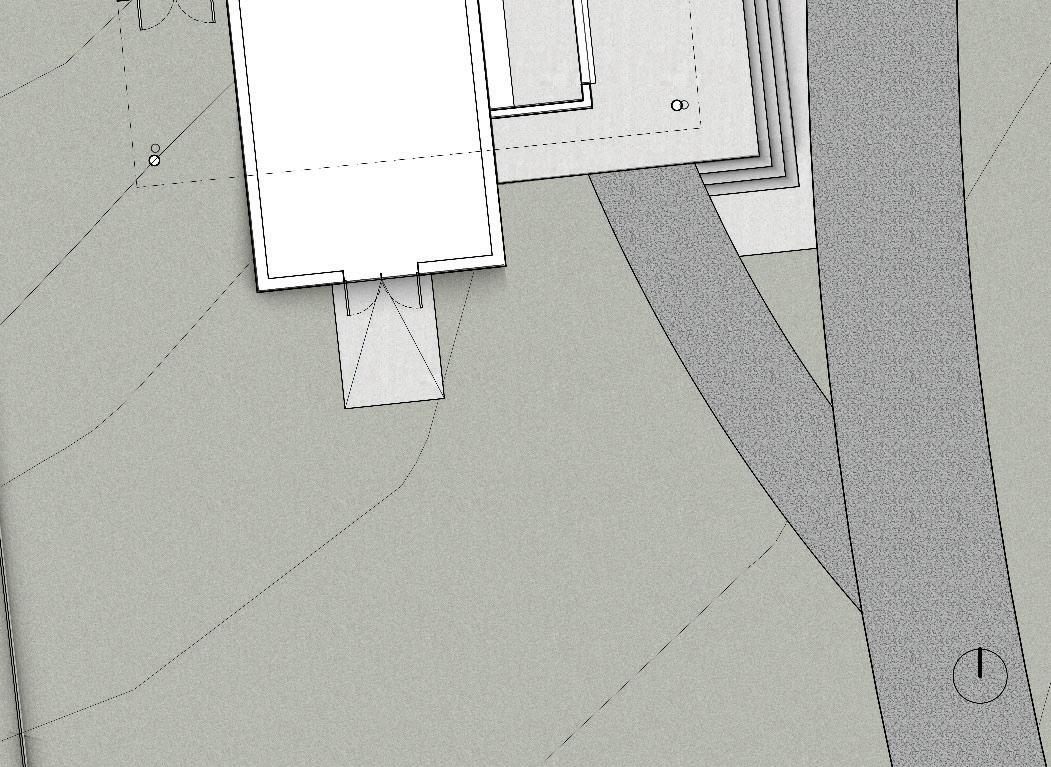

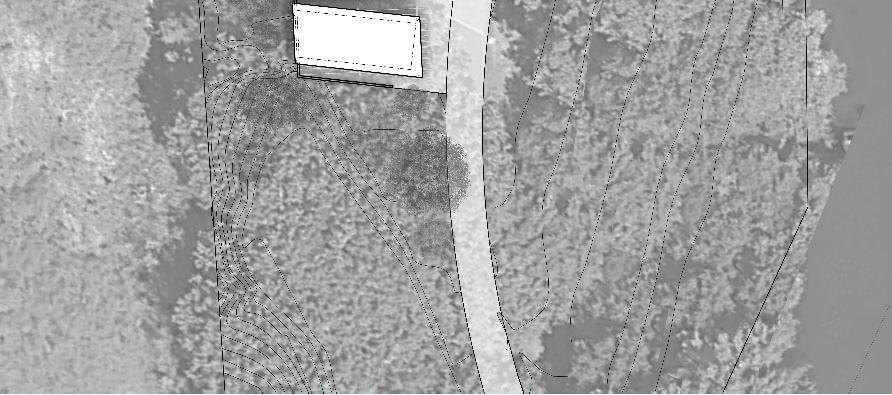

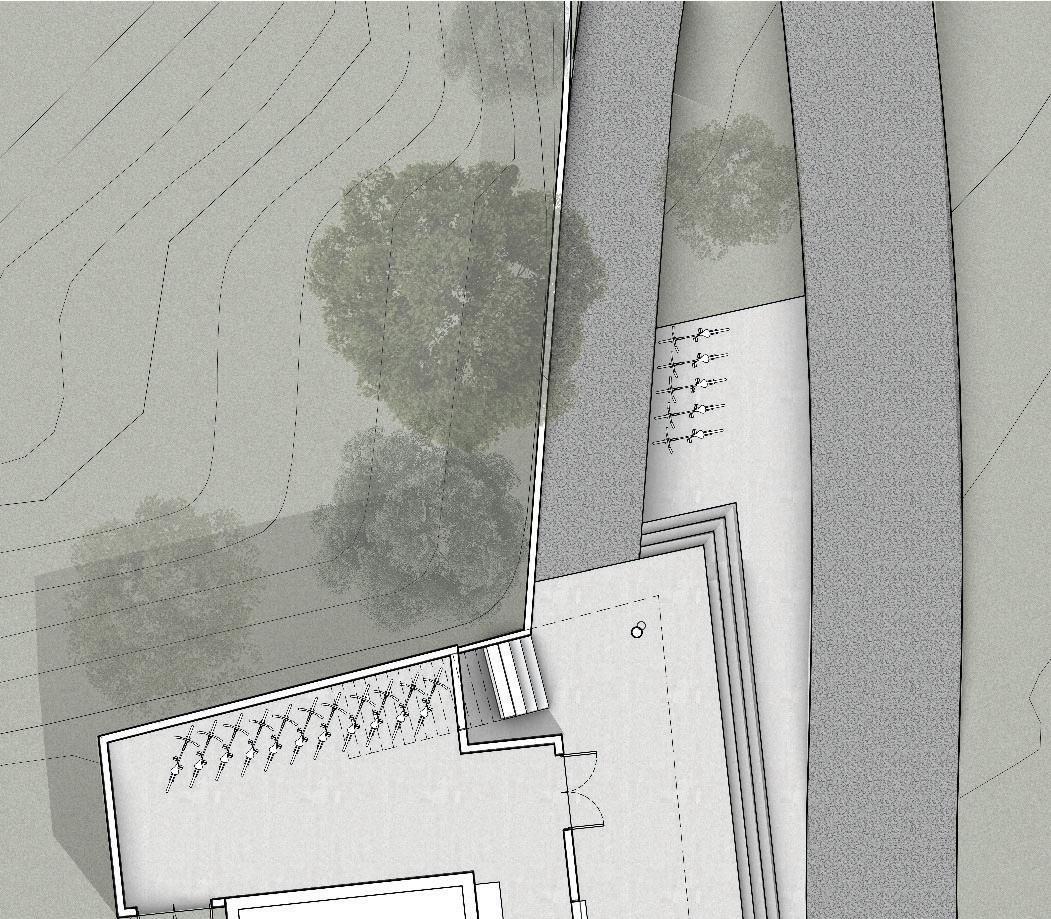

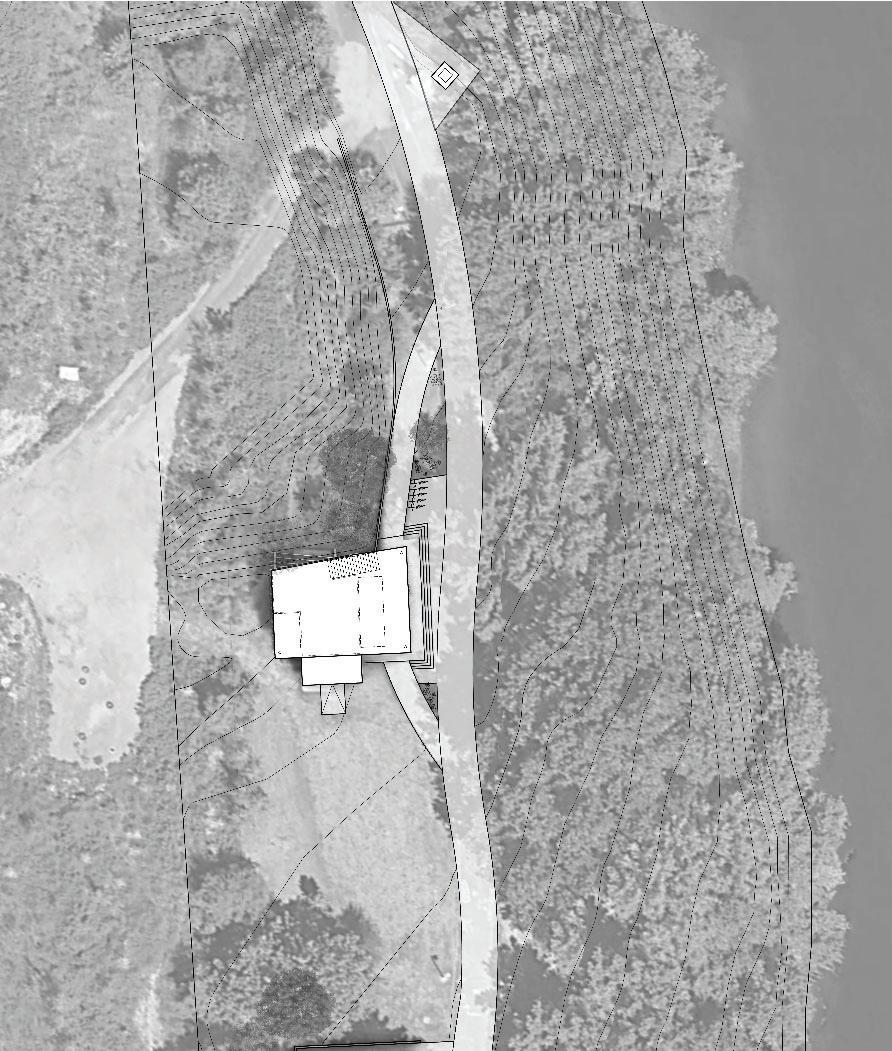

SITE PLAN

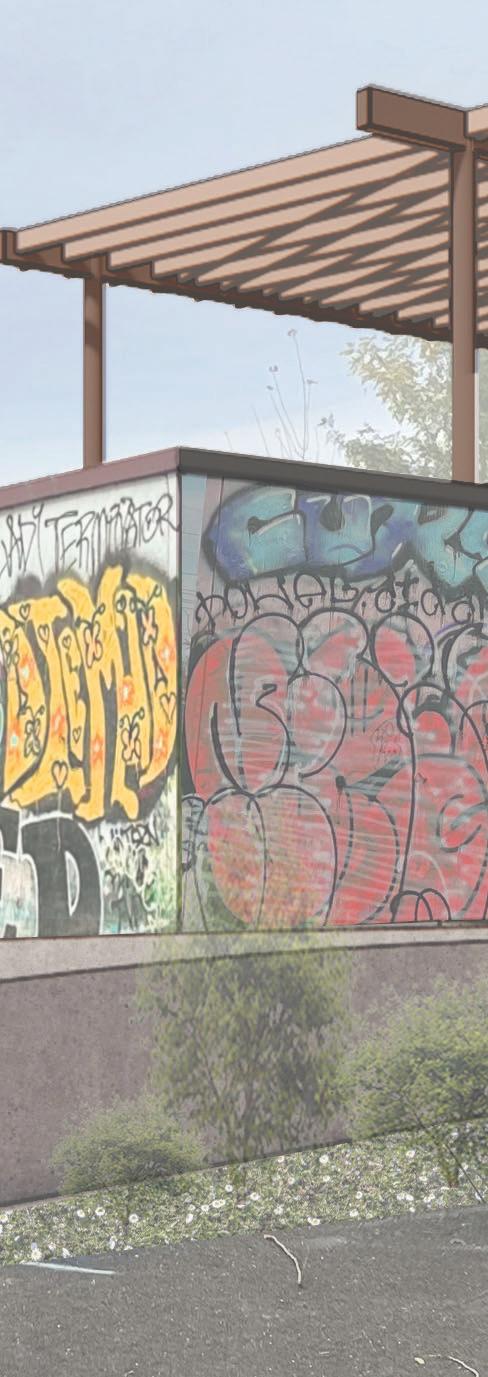

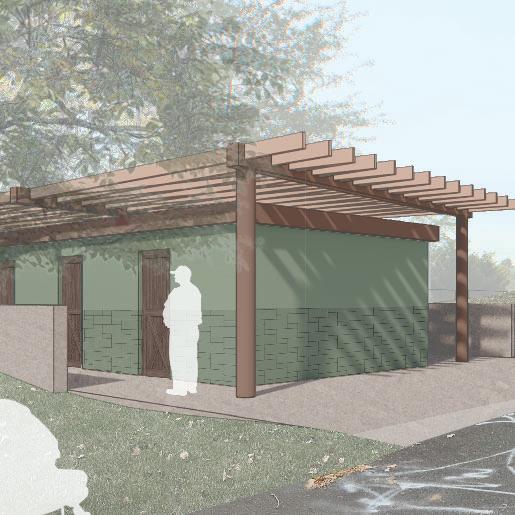

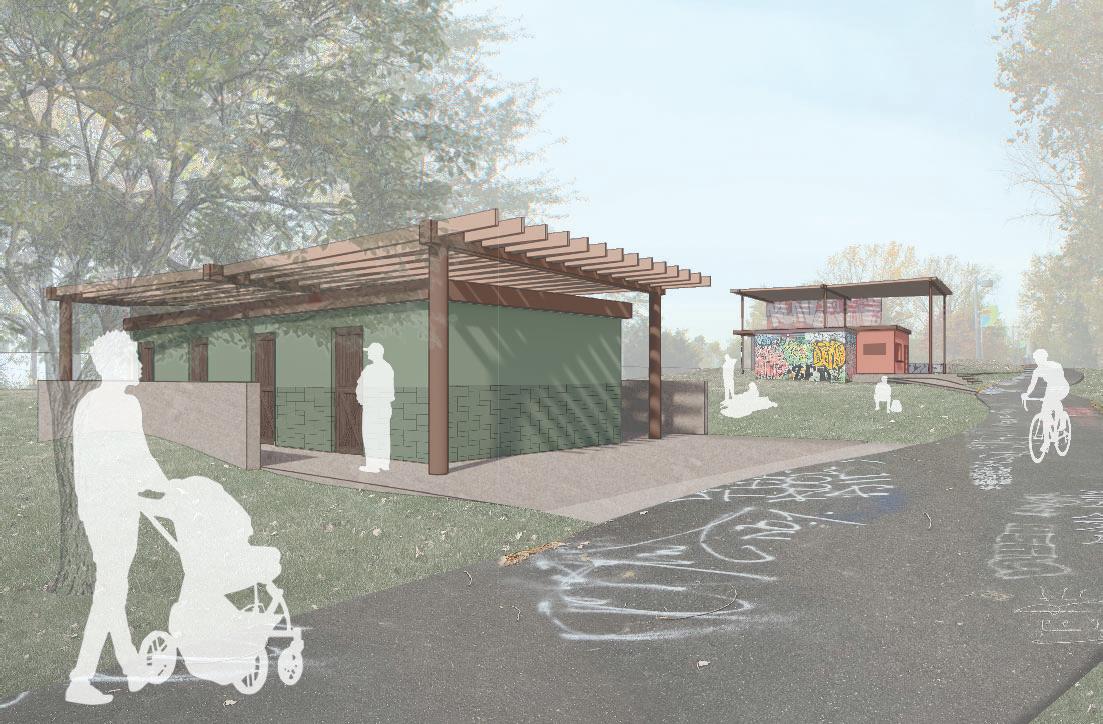

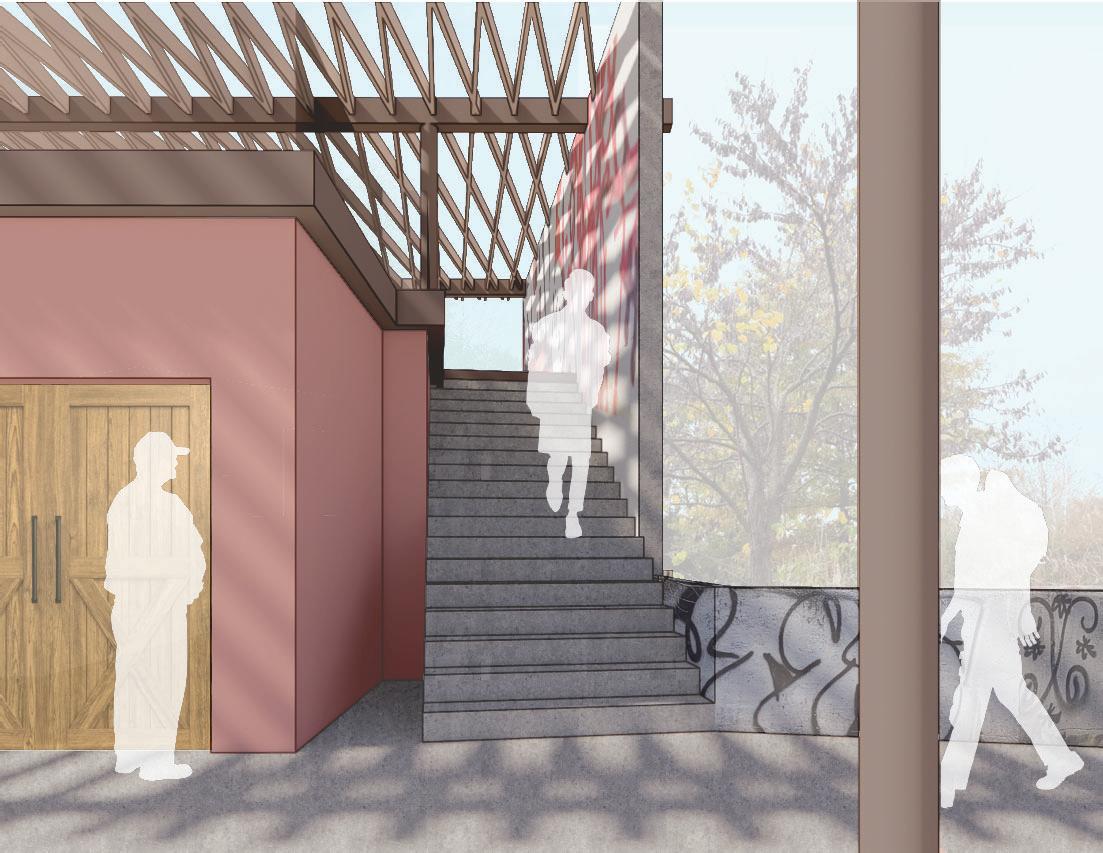

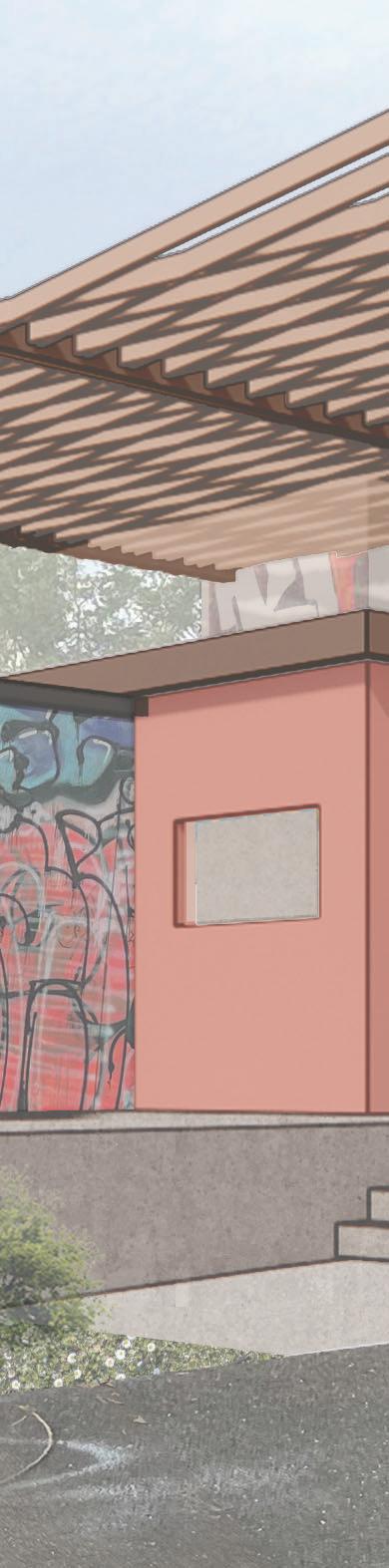

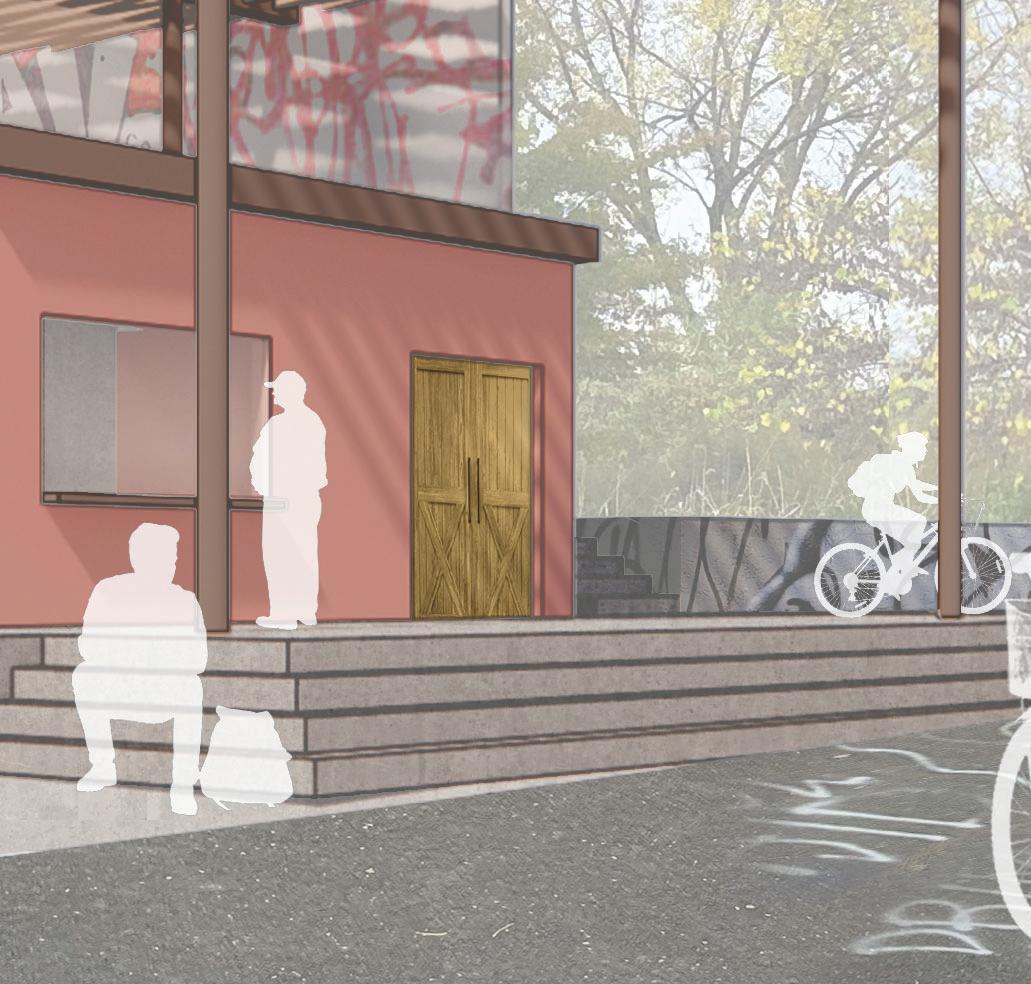

EXPERIENTIAL PERSPECTIVES

Visualizes how various spaces throughout the stations would be approached or utilized

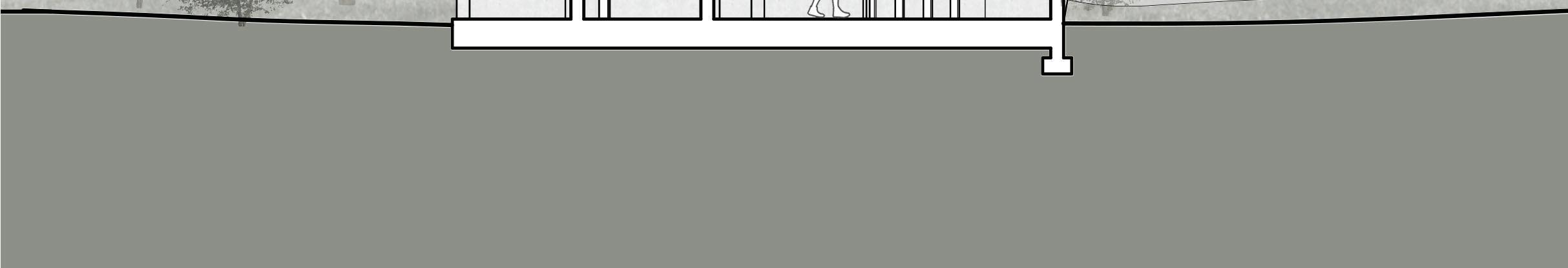

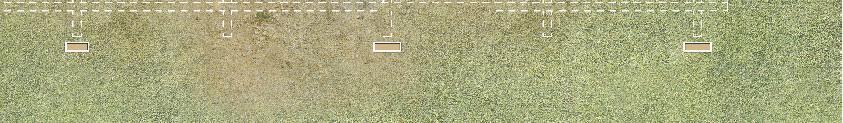

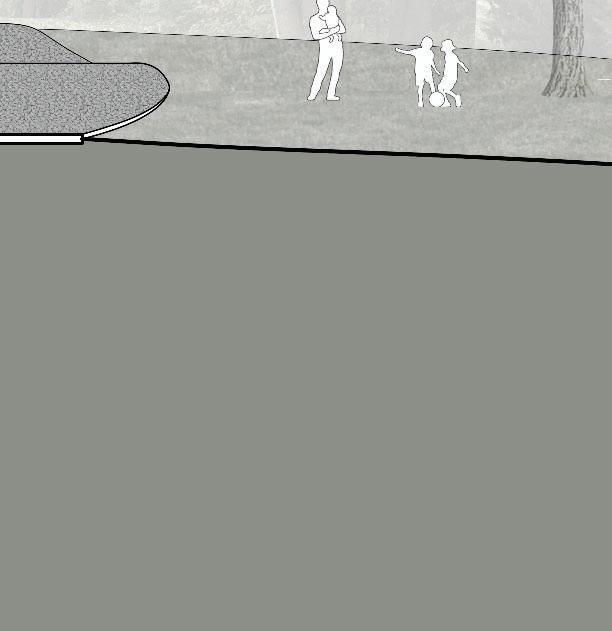

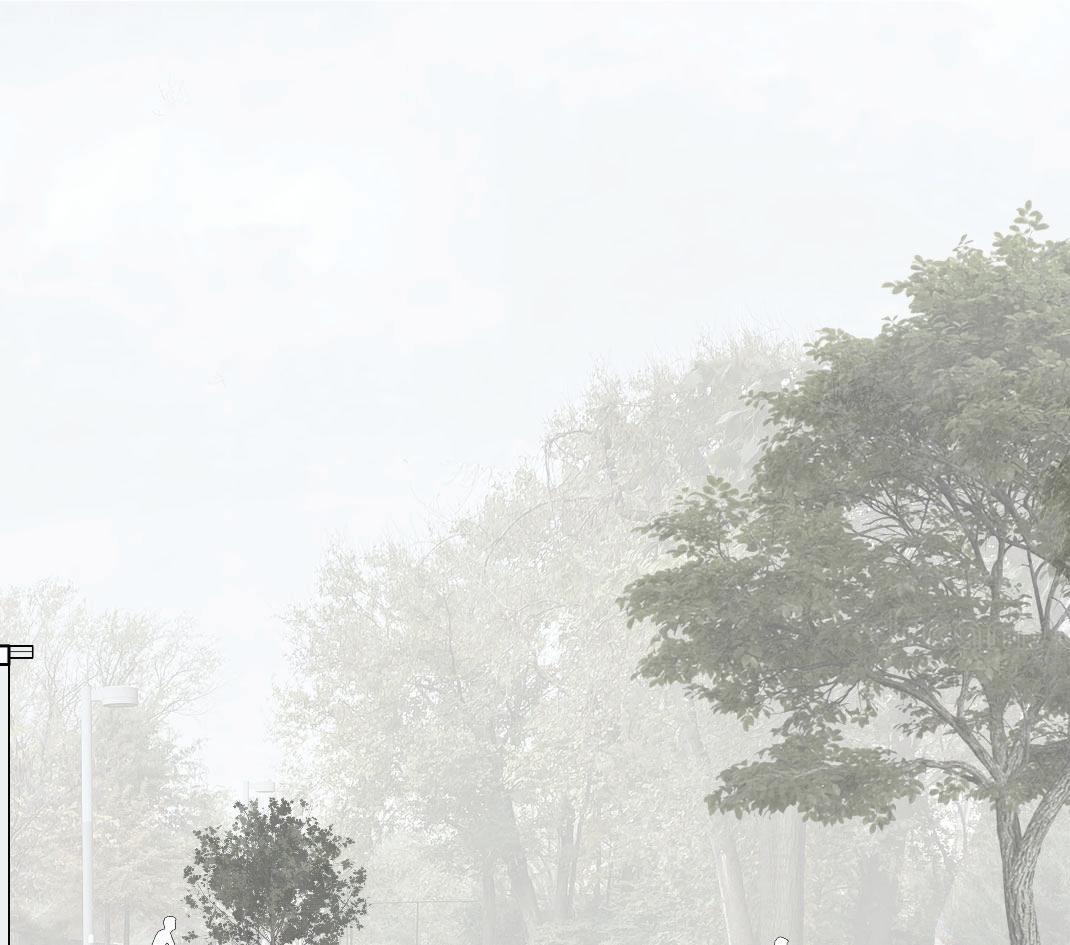

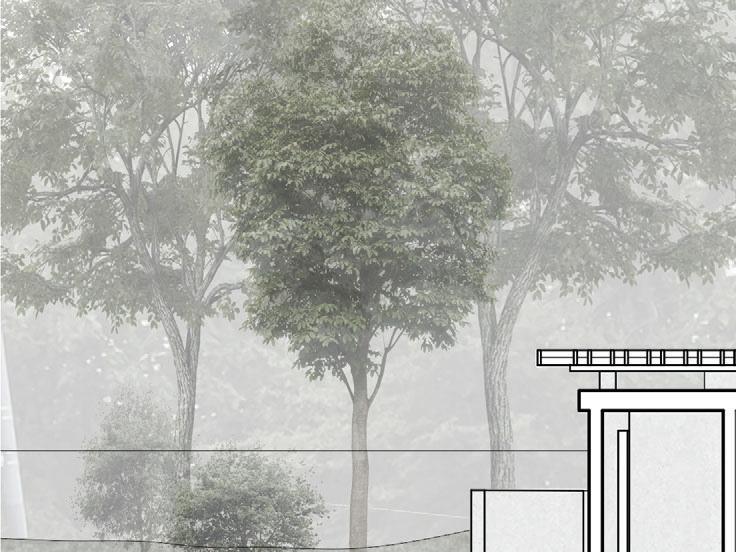

RENDERED LONGITUDIAL SECTION

The connection between the two stations, showing the gathering space created by built and natural landscape

BIKE STATION FLOOR

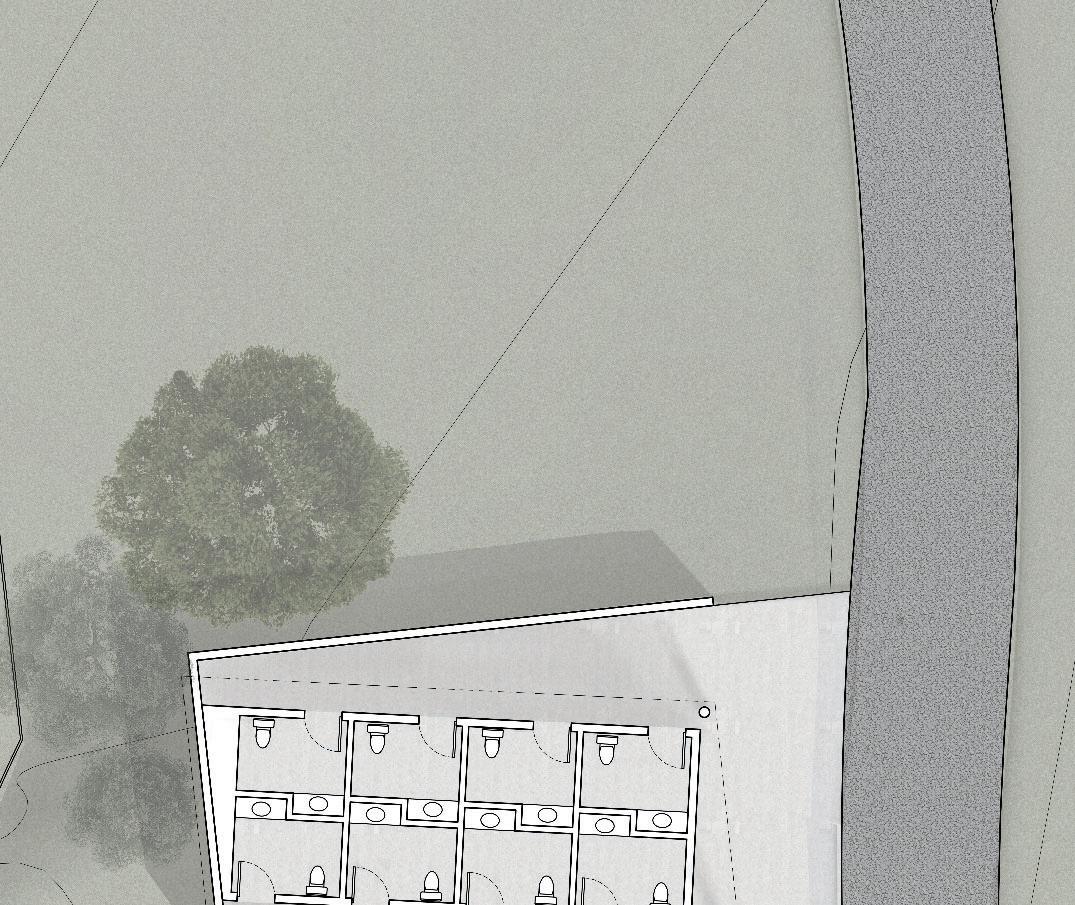

PLANBATHROOM FLOOR PLAN

The ﬂoor plan shows how the proposed bike storage and snack station wraps around the existing storage facility

The bathroom station features eight single-stall restrooms, all ADA accessible

THE COURTYARD HOUSE

MANTUA, PHILADELPHIA, USA

The Courtyard House is an intergenerational rowhouse that encourages residents to engage within the household and the community without compromising privacy. It is a part of a larger proposed housing development on the right side of a vacant lot in the neighborhood Mantua.

There are two units per row home with an entrance for both physical separation and interior access to either unit. The 1st generation unit has a compact layout while giving enough space to be self-sufﬁcient. The 2nd and 3rd generation unit features an open concept living area with the bedrooms on the upper ﬂoors. The roof deck, which is accessible through the larger unit provides ample possibilities in addition to the backyard and attached patio.

Parti Diagram

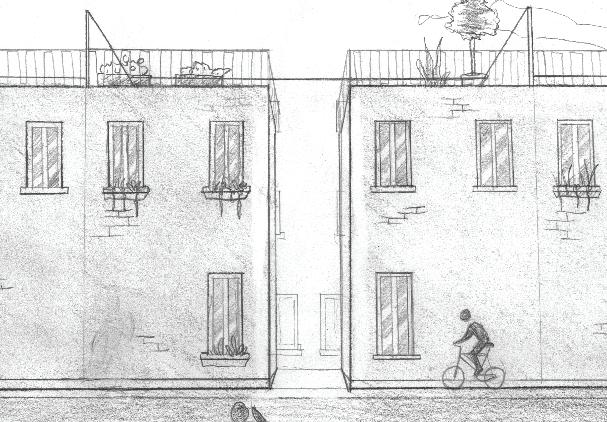

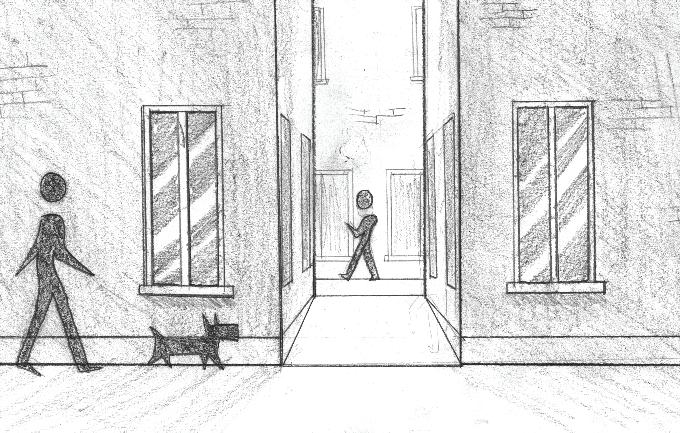

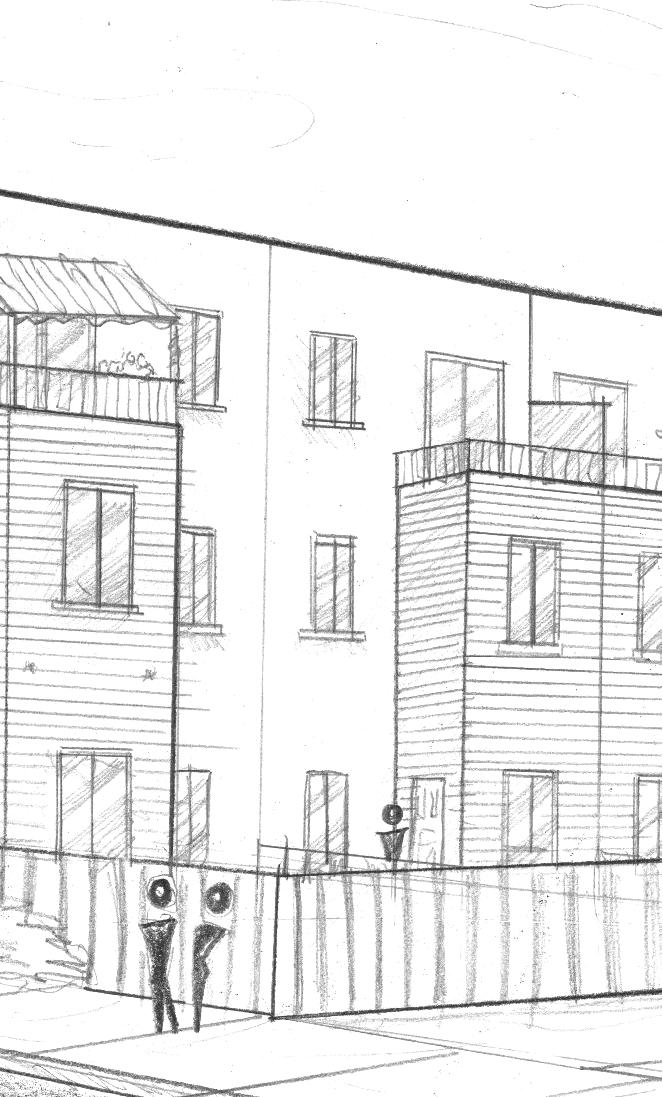

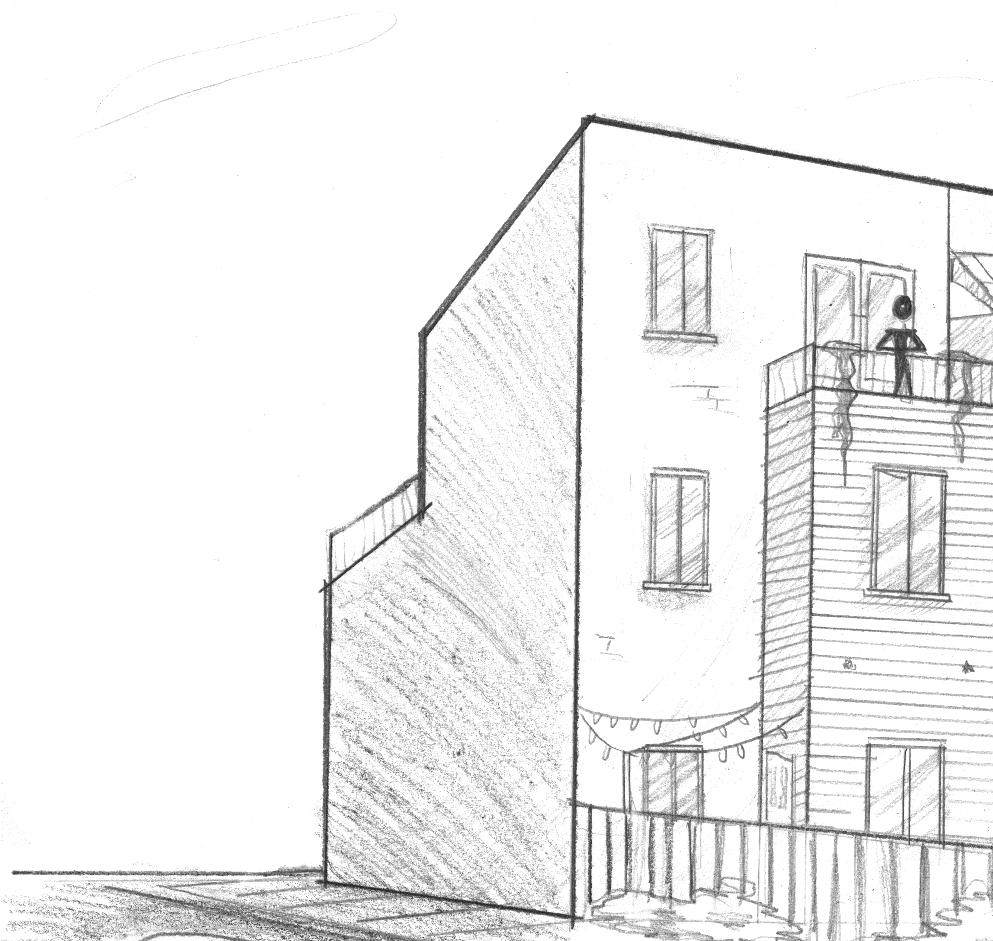

Early Process Perspective Sketches

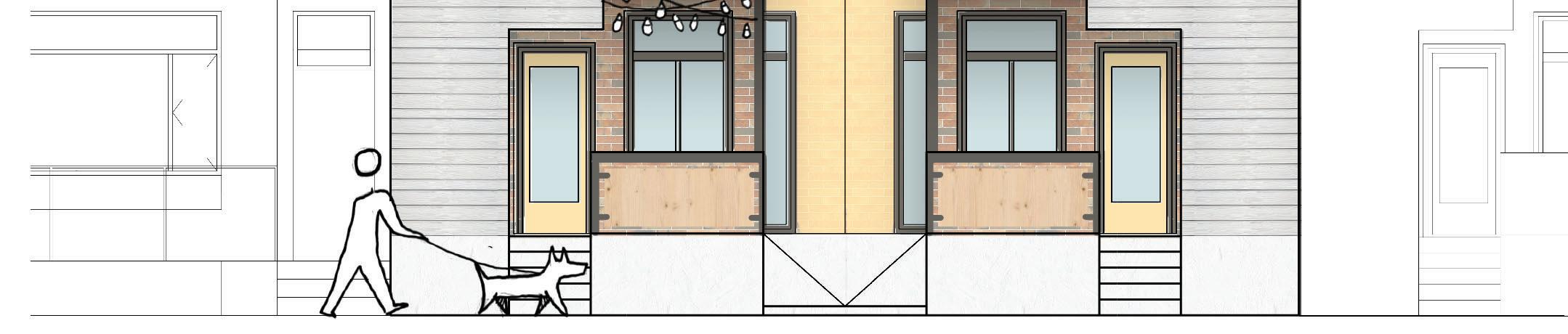

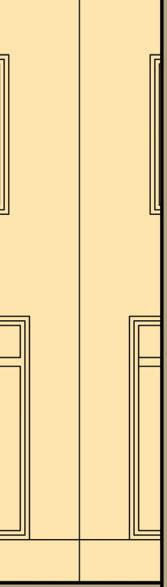

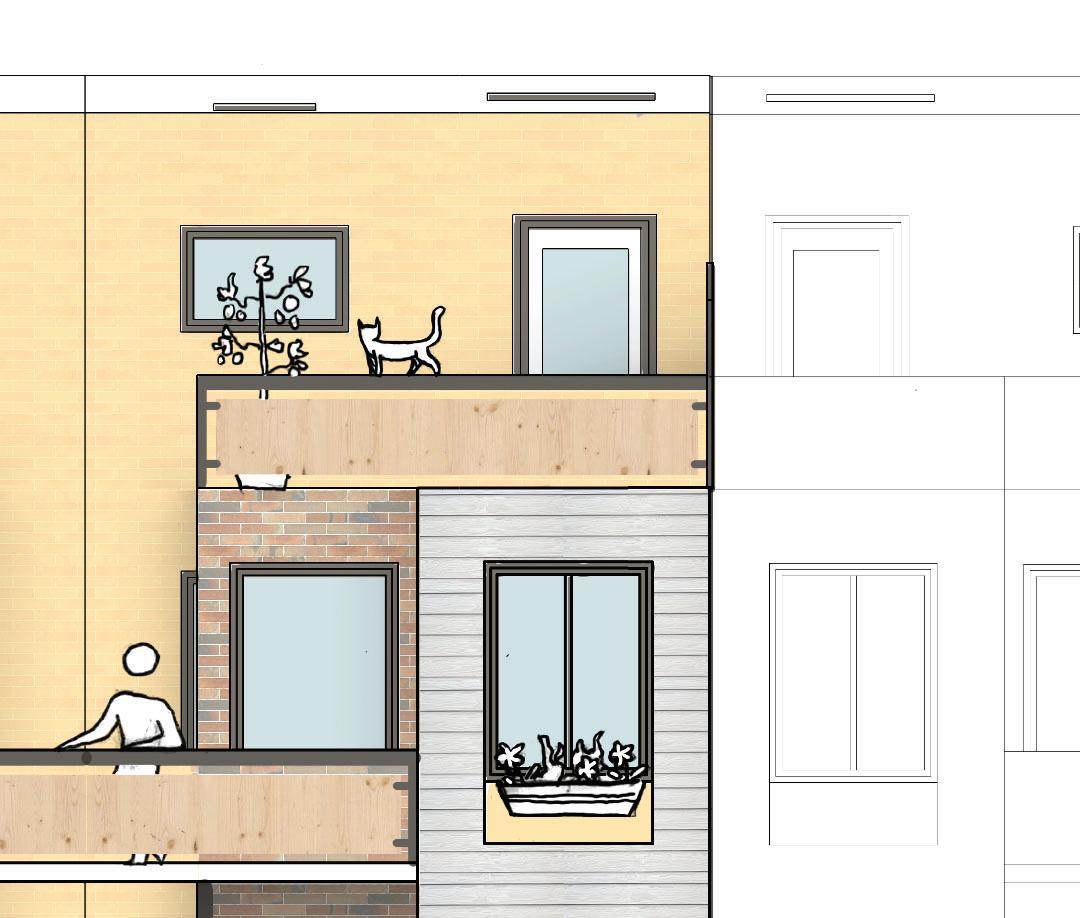

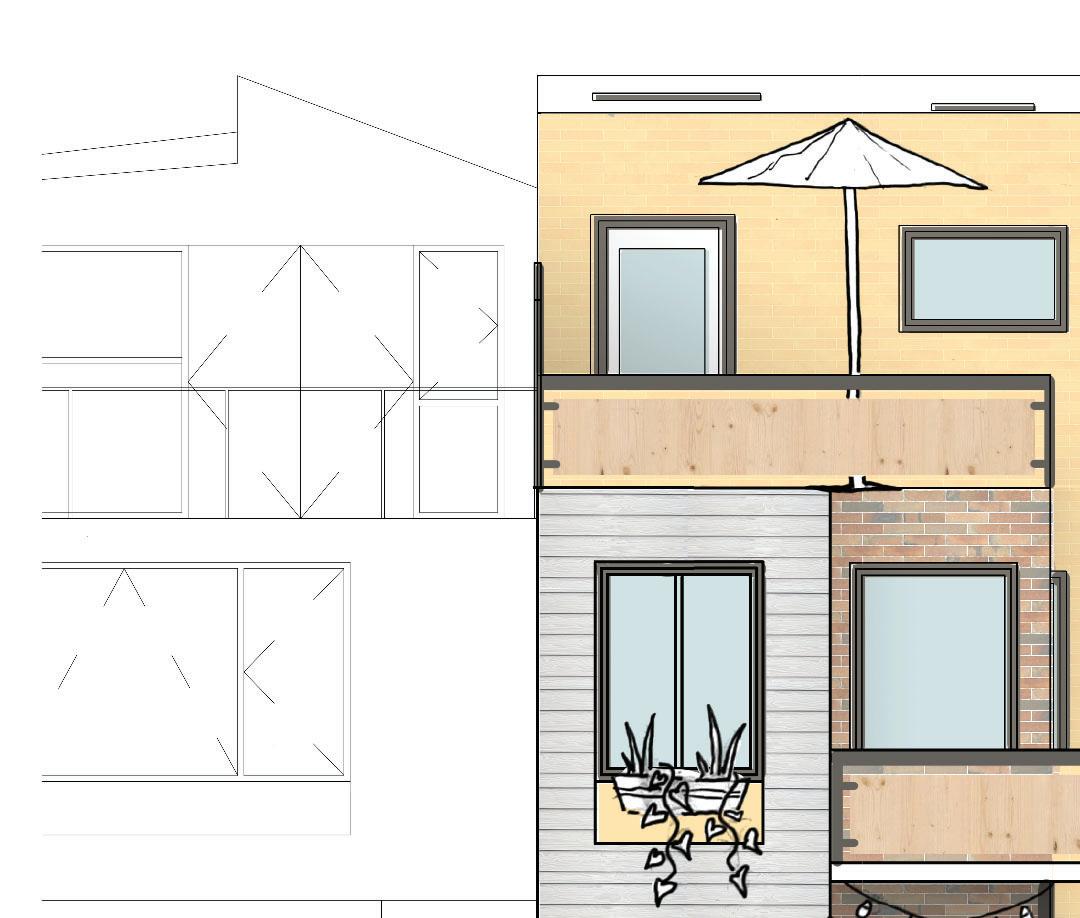

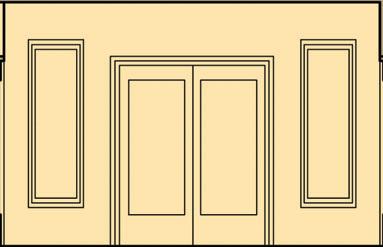

ELEVATION + PARTIAL PLAN

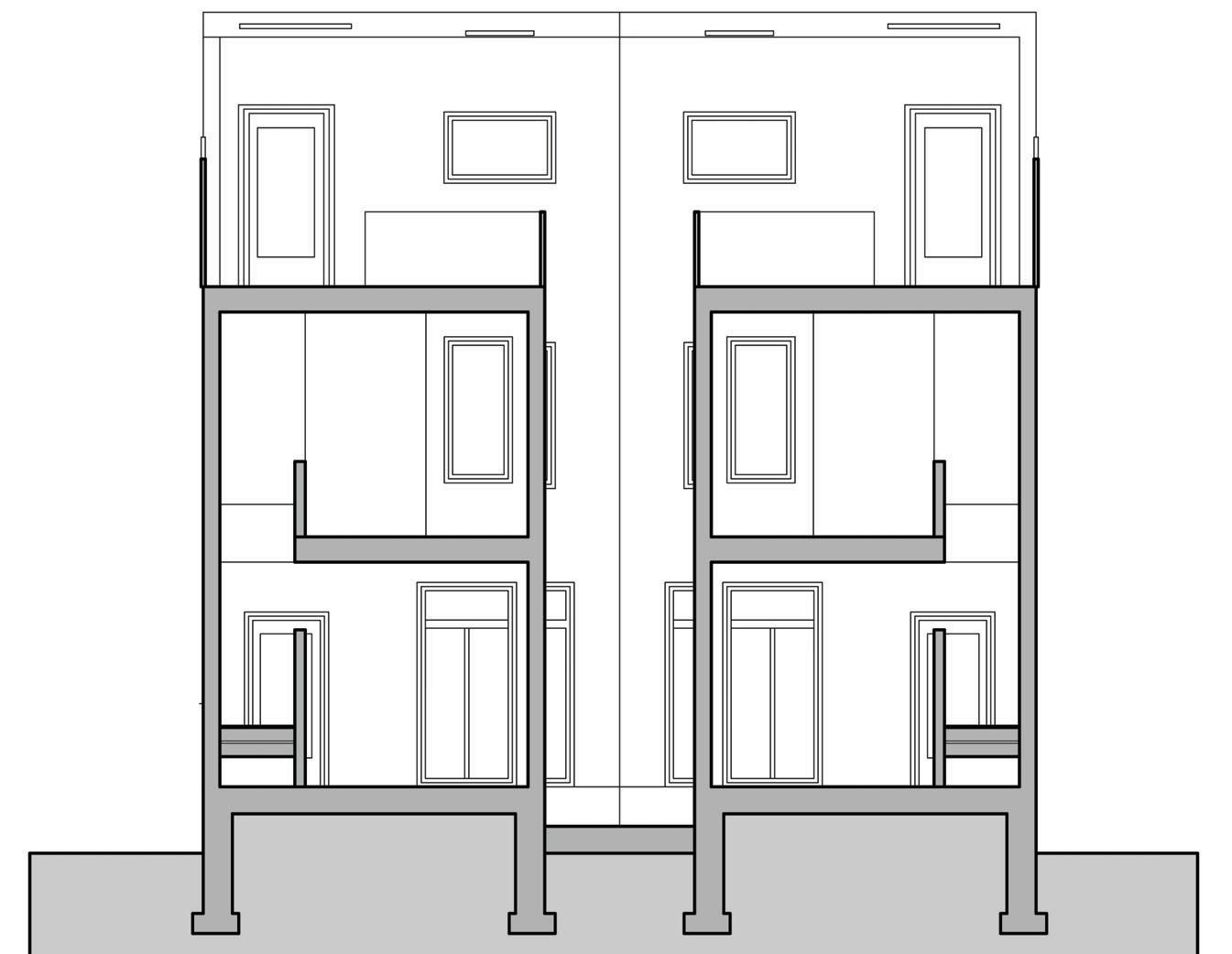

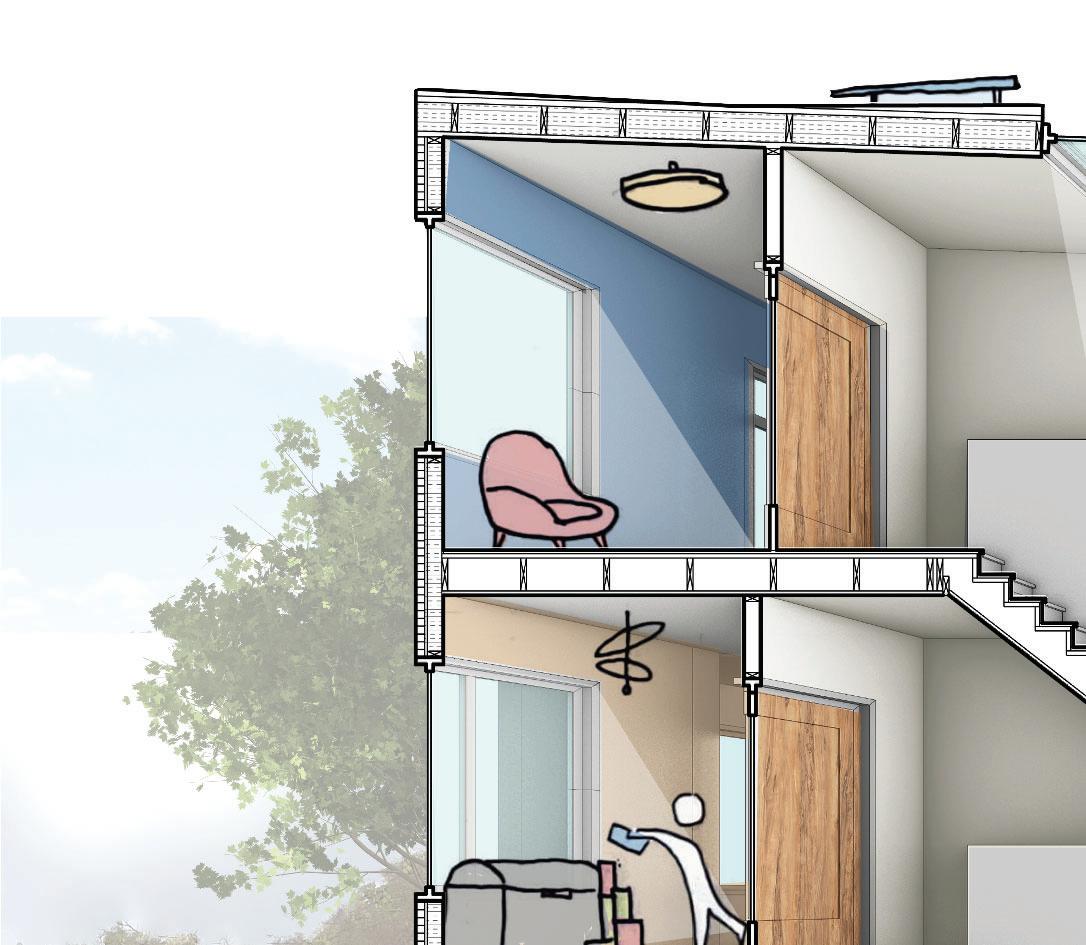

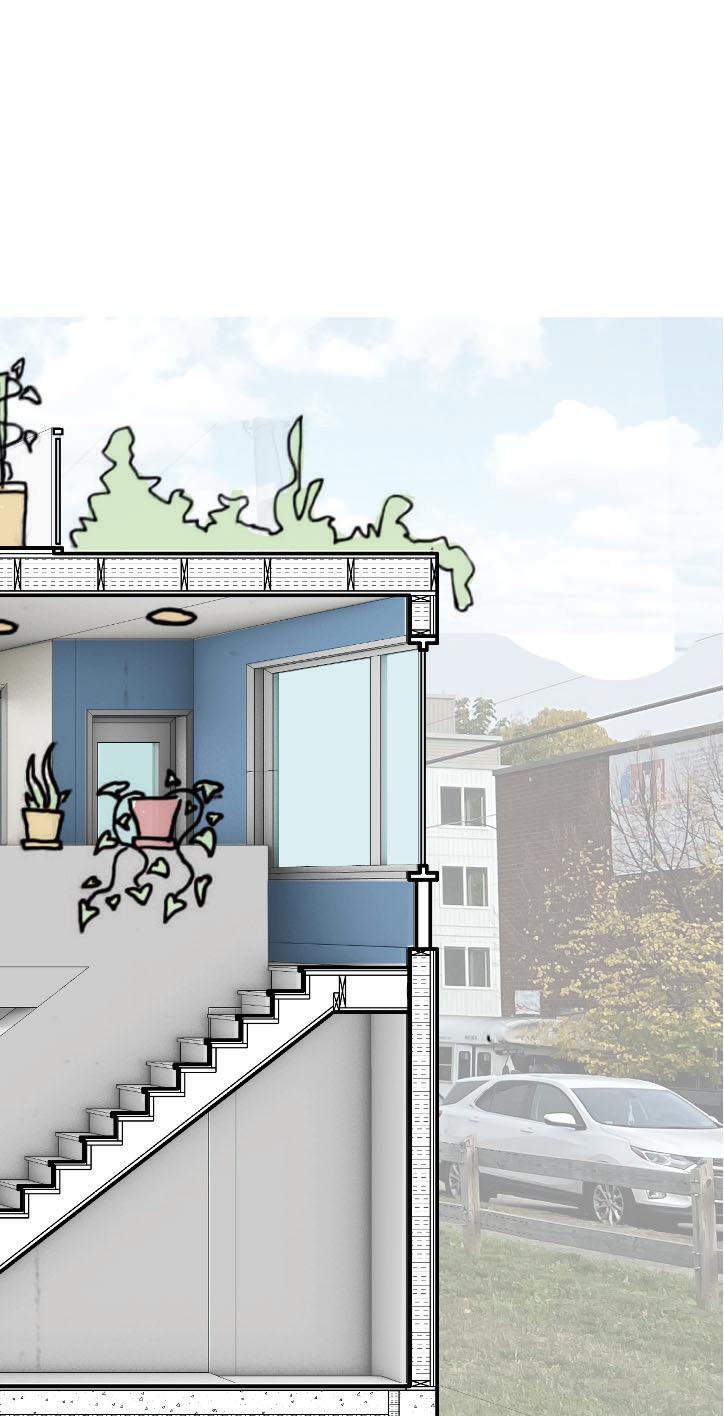

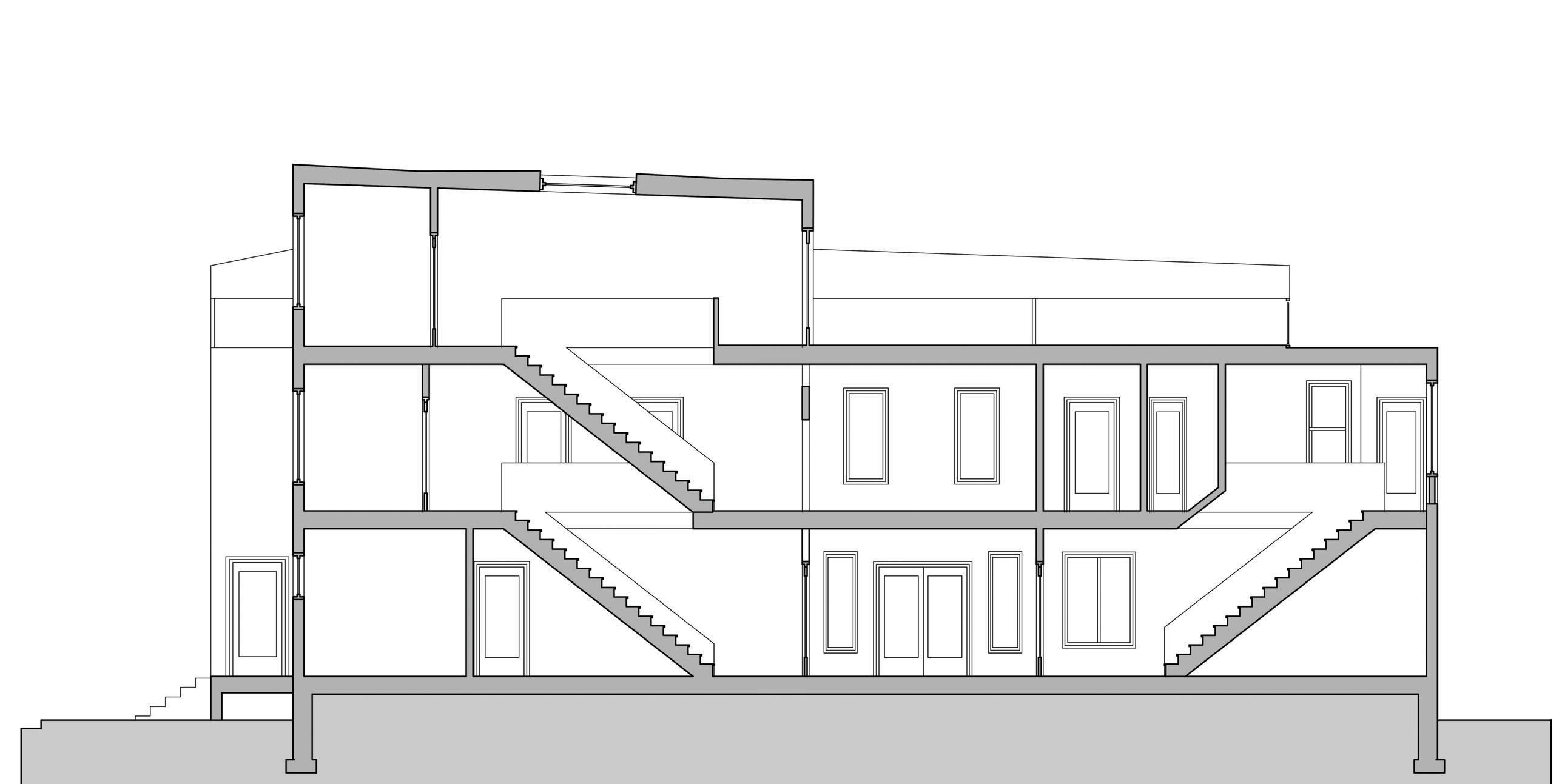

SECTIONS

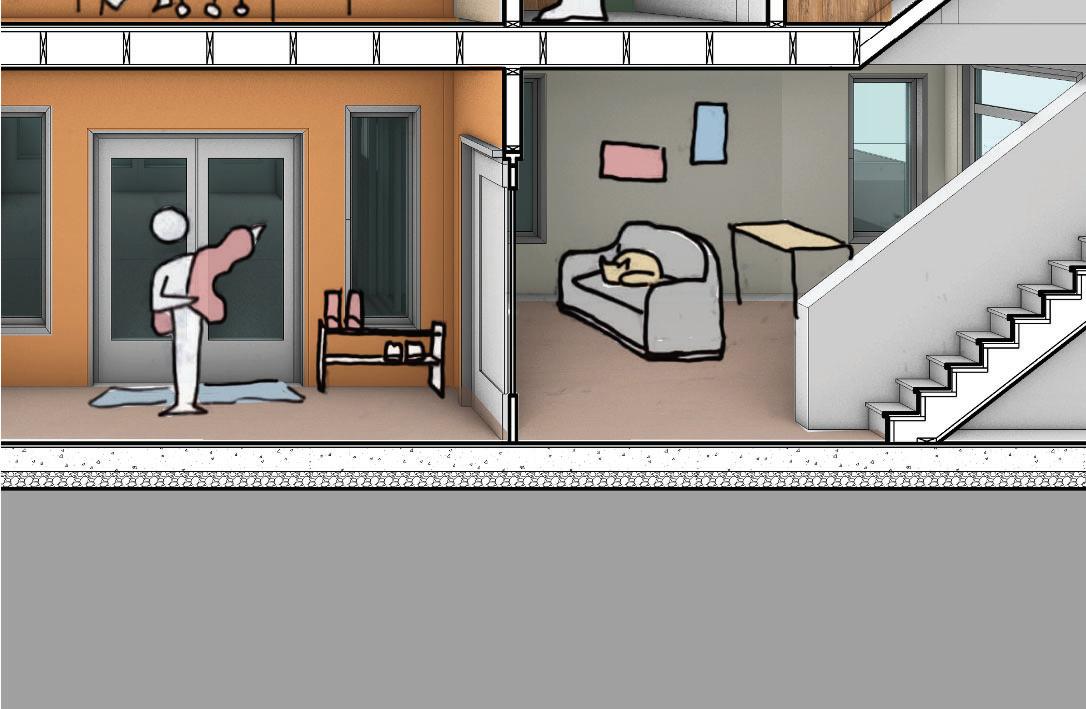

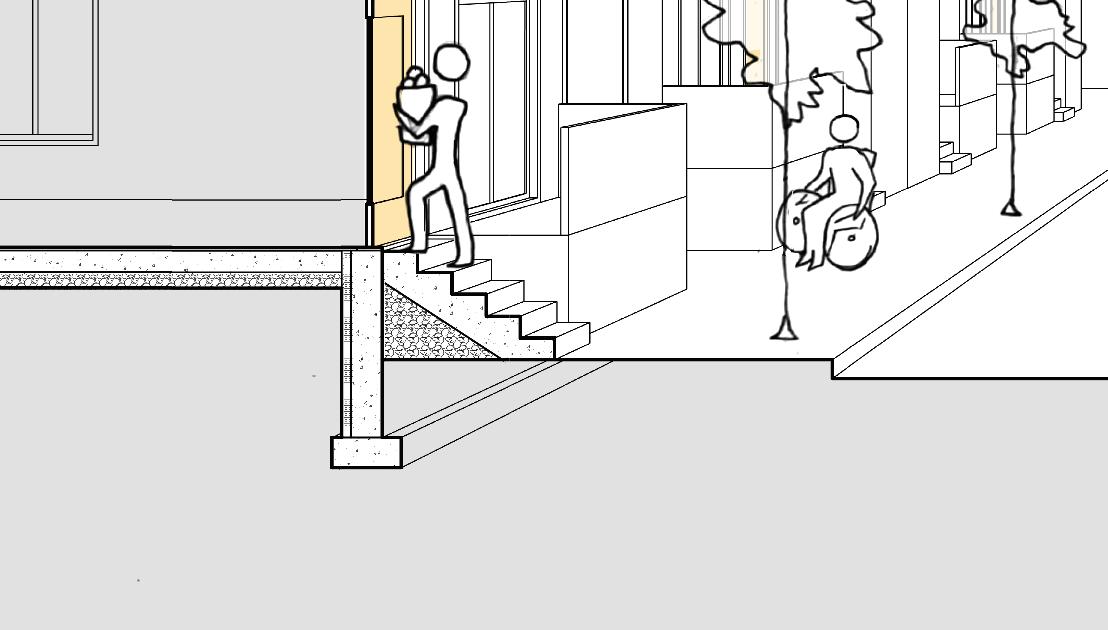

Through the sections and elevation, the connections between the interior and exterior are illustrated, emphasising the shared entry of both the courtyard and the secondary entrance towards the center [highlighted in the longitudinal and cross section].

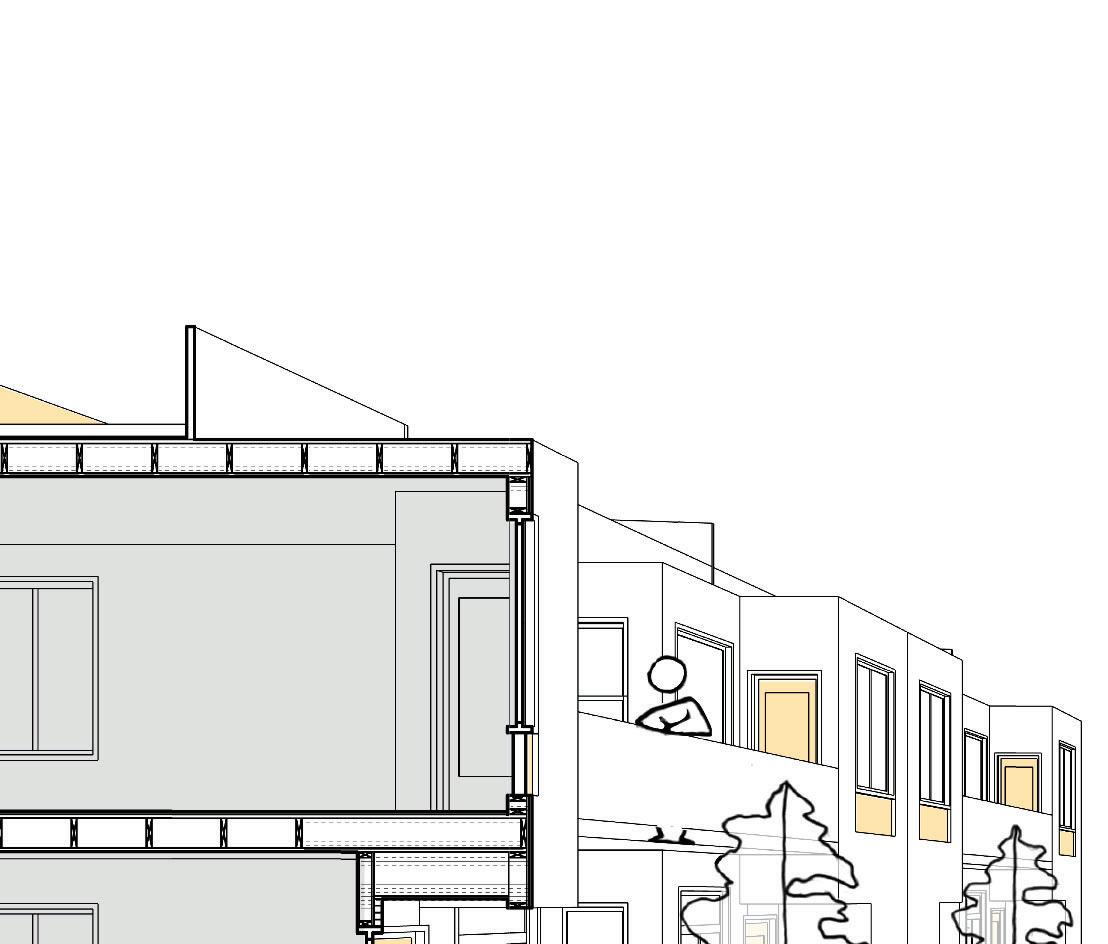

SECTION PERSPECTIVE: WALLACE STREET

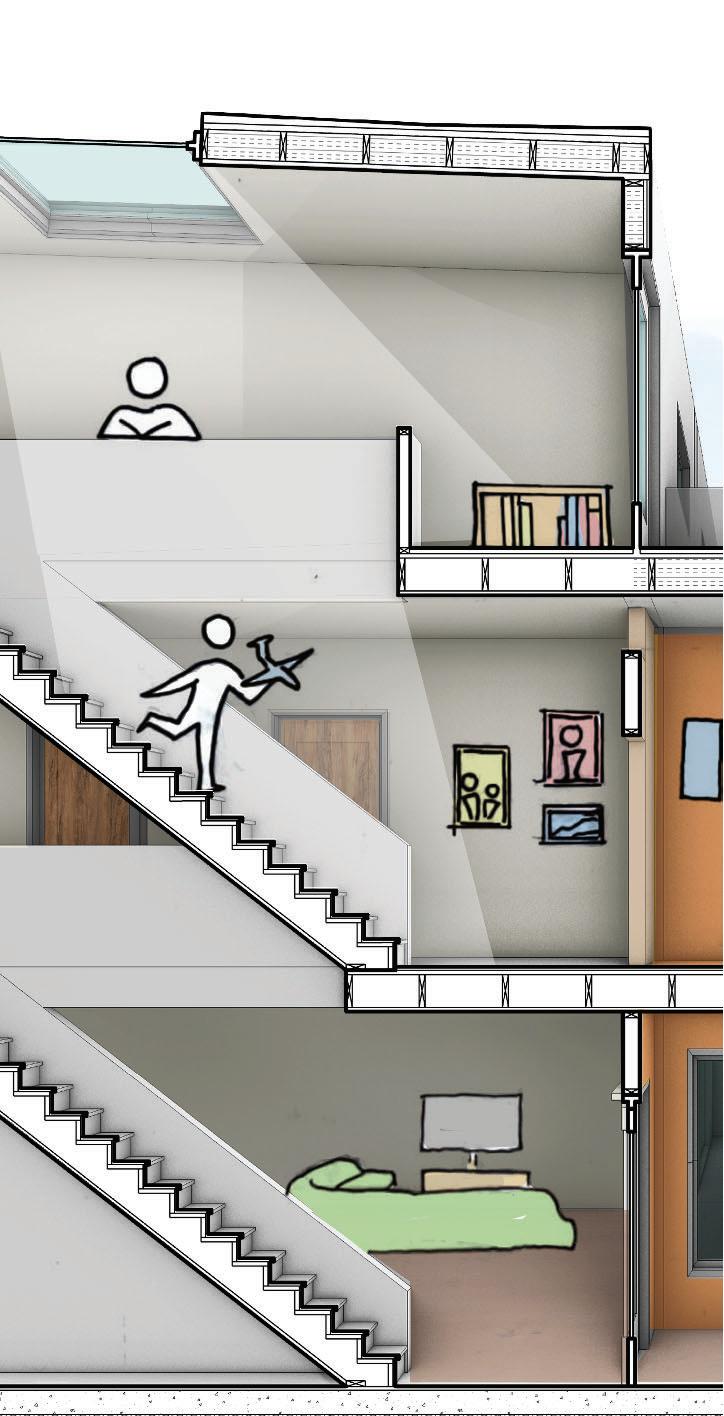

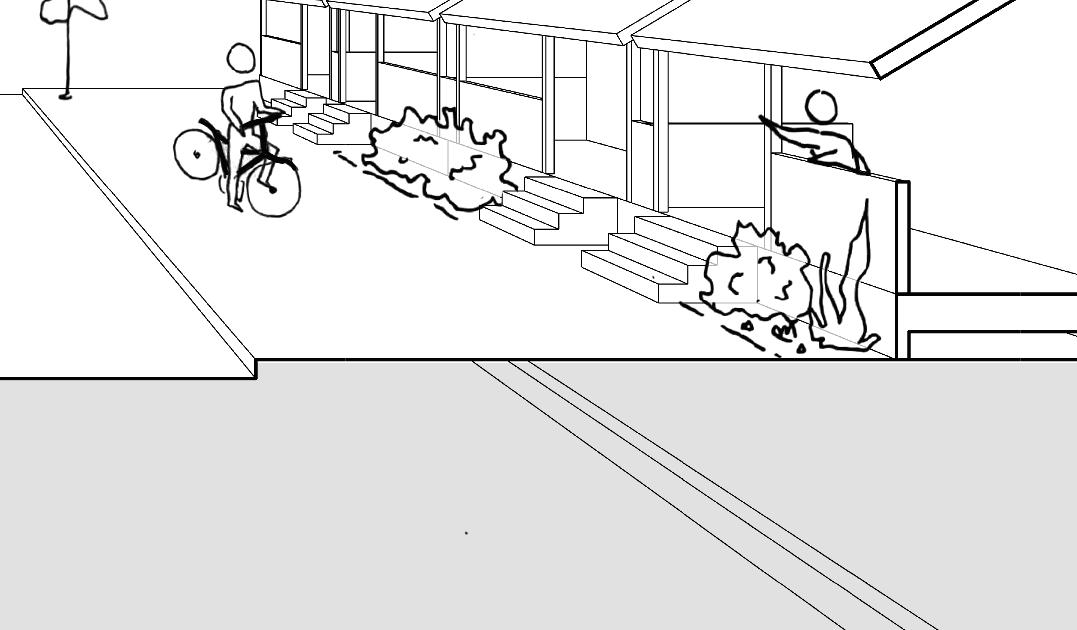

The north entry facade on Wallace Street mimics the already established porch culture, embracing connections and eyes on the street. The overhang provides shelter to the 1st generation’s outdoor space and functions as the structure which the shared balcony extends from

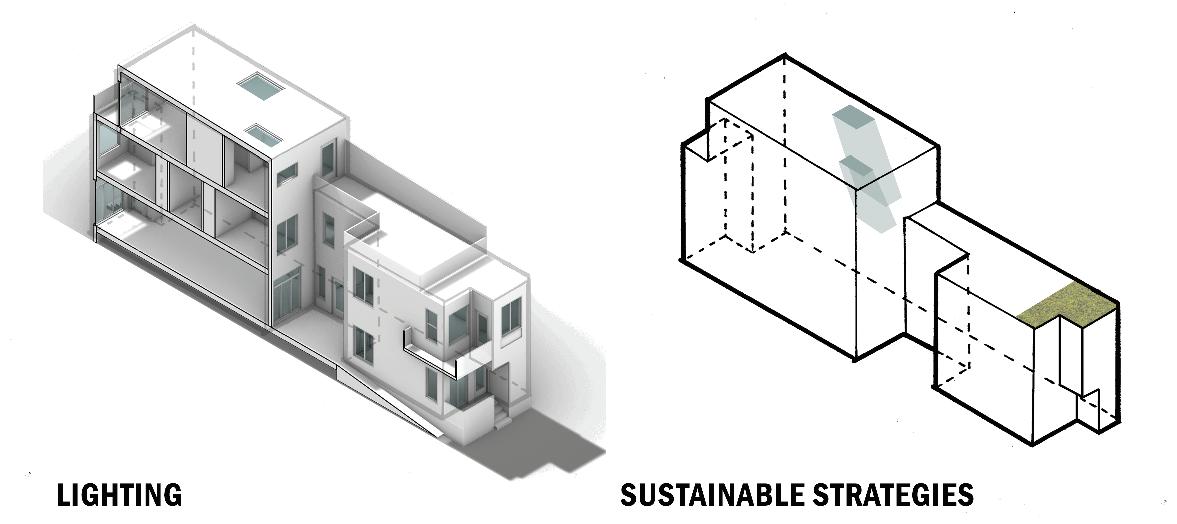

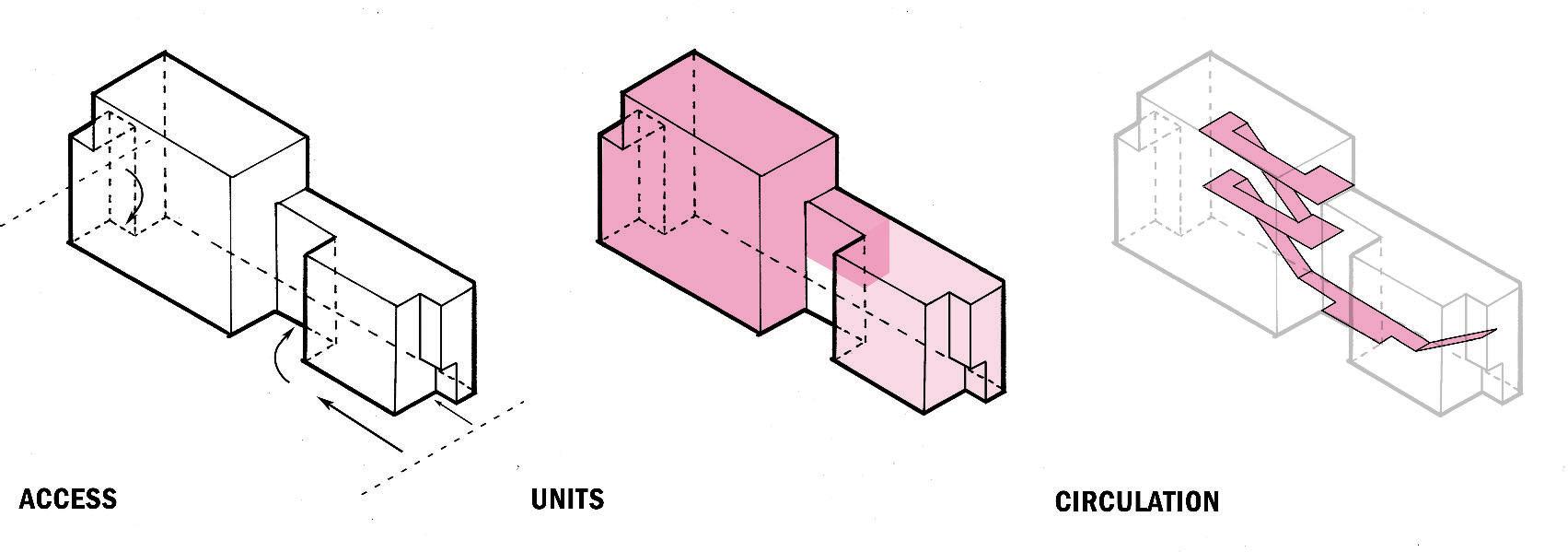

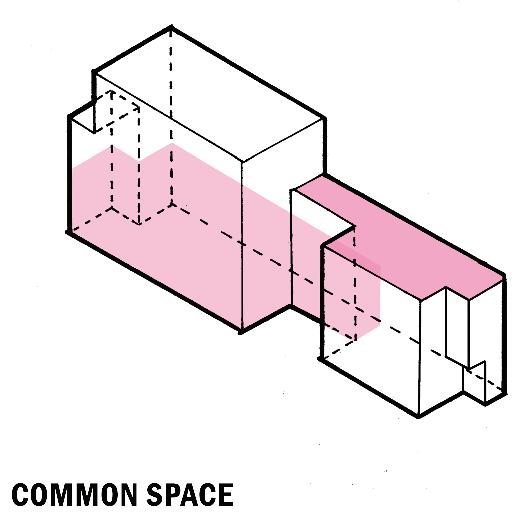

ISOMETRIC DIAGRAMS

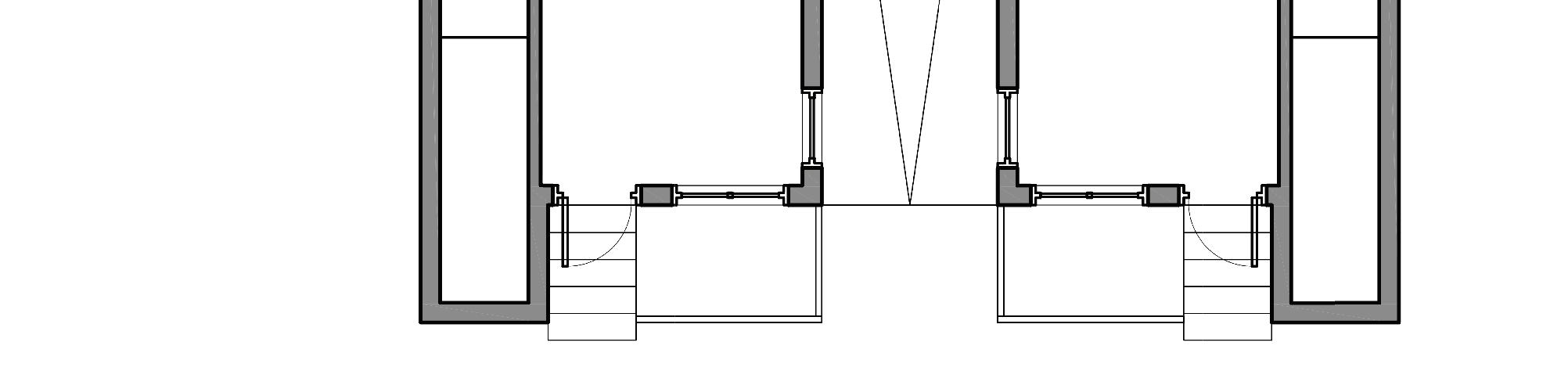

FLOOR PLANS

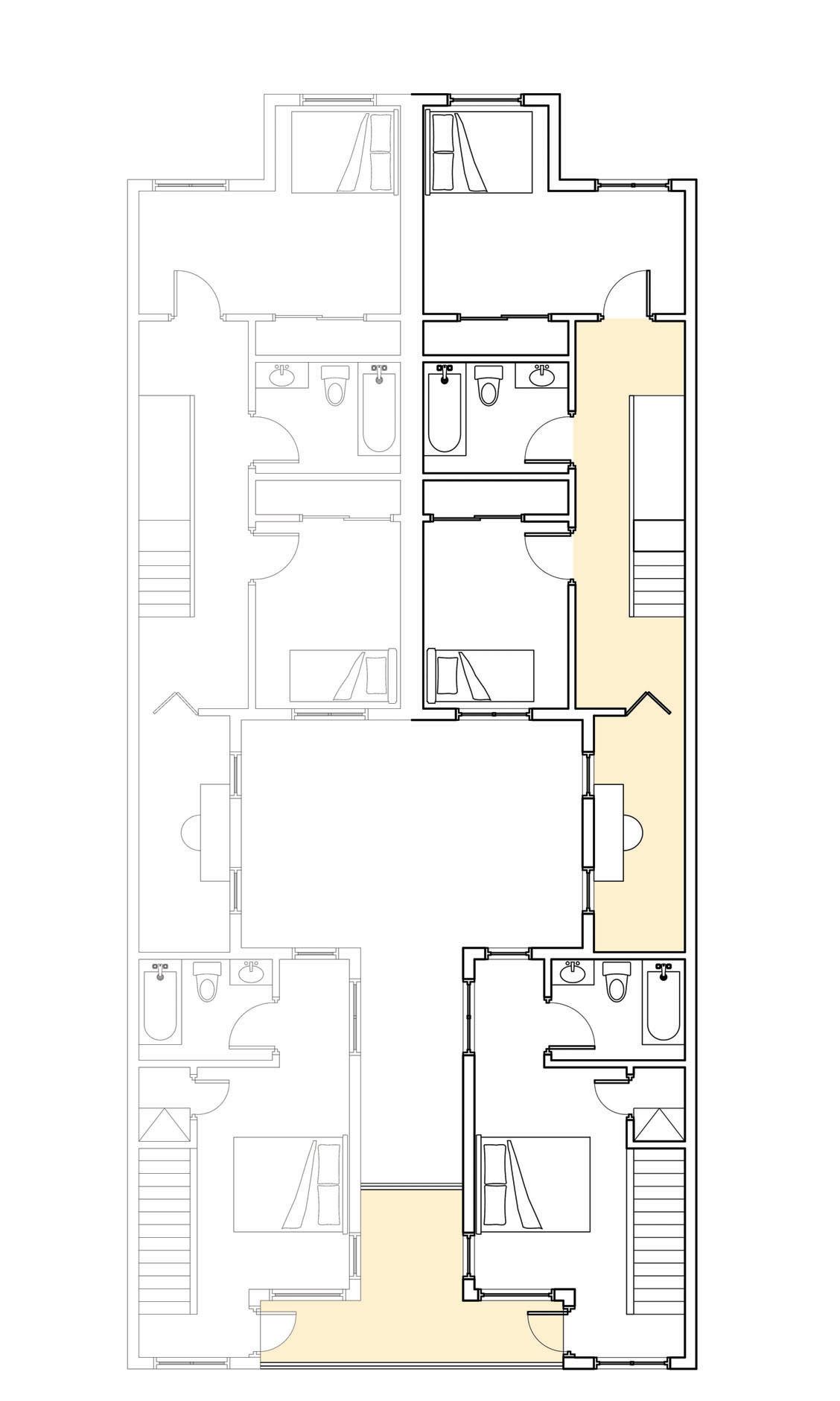

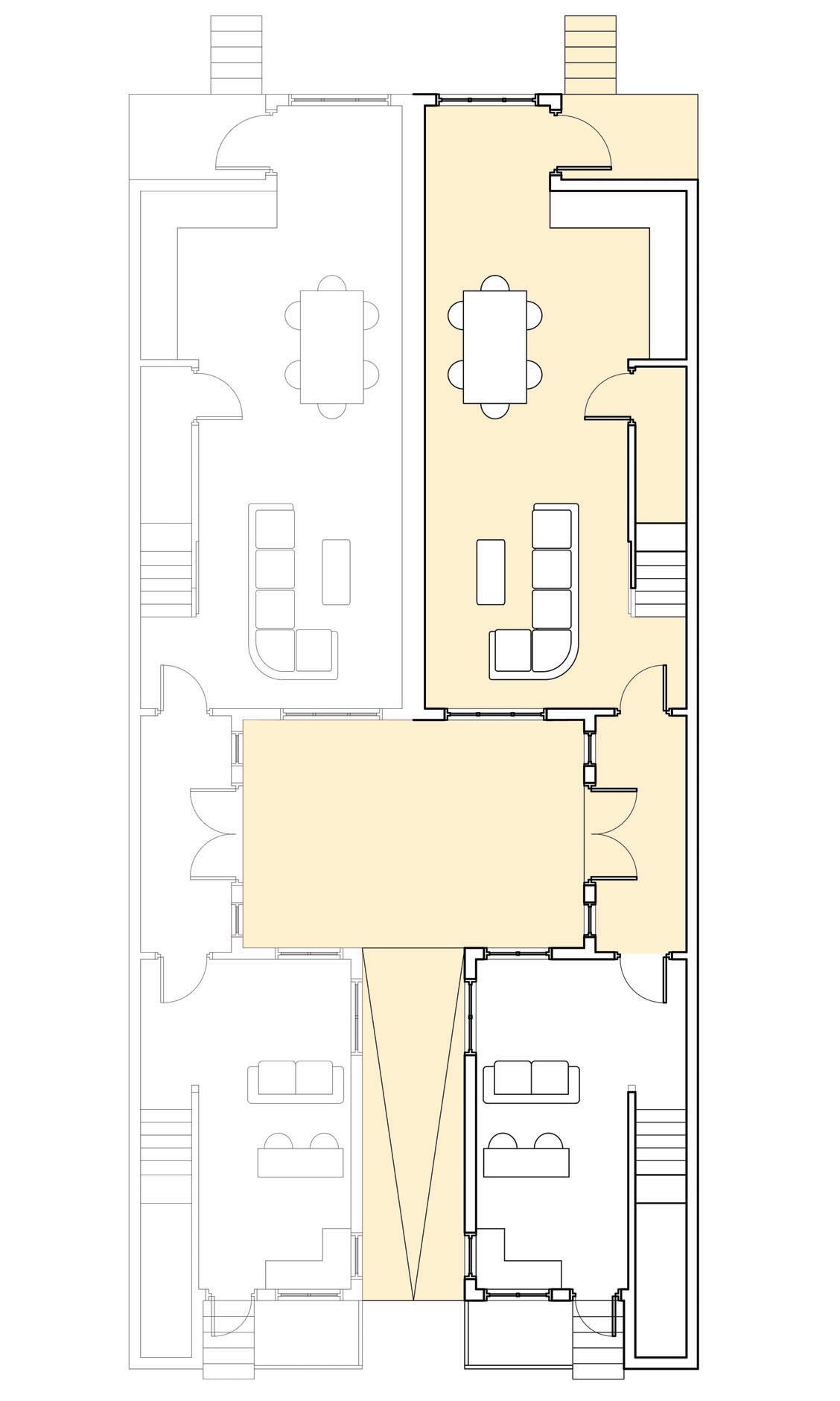

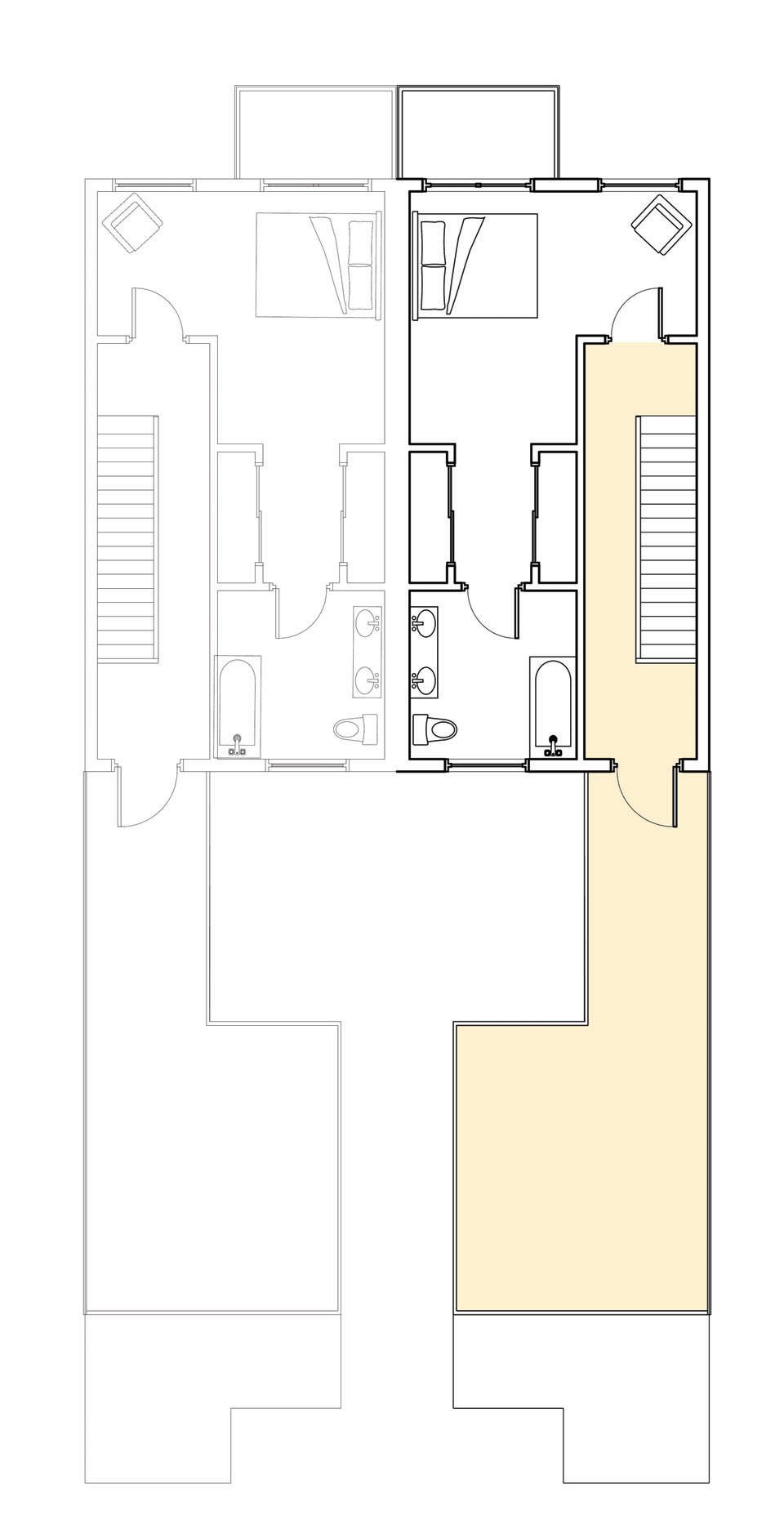

(from left to right) The ground, second, and third ﬂoor plans utilize the yellow to communicate the shared or common areas within the design between the family or the residents of both rowhouses

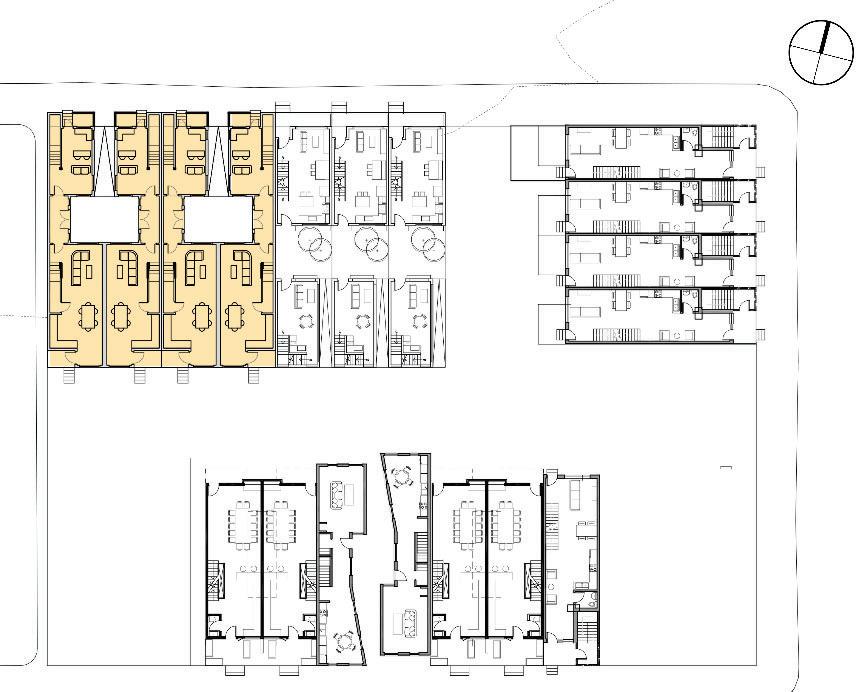

Site Plan with the Courtyard House highlighted

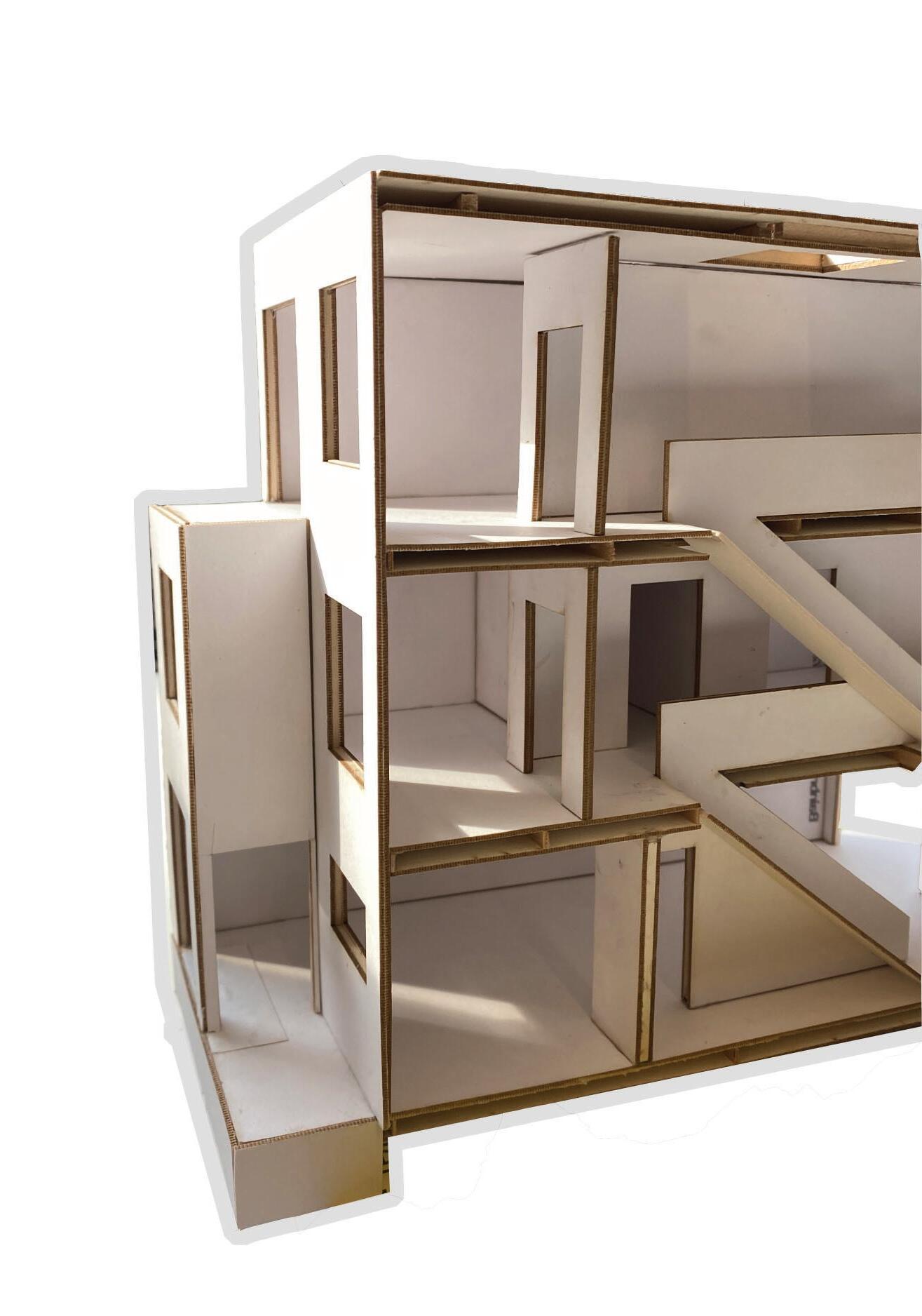

This photograph of the constructed model showcases how the light reaches into the southside of the house

ST. ANN’S BAY TERRACE SCHOOL

DRAX HALL - ST. ANN’S BAY, JAMACIA

The St. Ann’s Bay Green School is a response to an interesting yet challenging query: Design an outdoor school using twenty two shipping containers on a steep and off-grid site in Jamaica. The majority of the project pertained to creating a classroom module that utilized prevailing winds for passive cooling. To help mitigate heat gain within the shipping container, I proposed a “swooped” roof, which allows higher breezes to be funneled in from the top and circulate throughout the space. Diagonally placed windows and sliding doors provide adjustable apertures for cross ventilation. Extensive testing was completed using physical model iderations and wind chamber testing to ensure our designs were effective.

The green school is composed of three large terraces. This was done to not only provide separation for the lower and upper school, but adequate open space for program requirements. A large ramp connects students from the entrance to their classroom and communal spaces. The embedded drains, scuppers, and detention pond all ensure that water run-off does not leave the site and impact surrounding land.

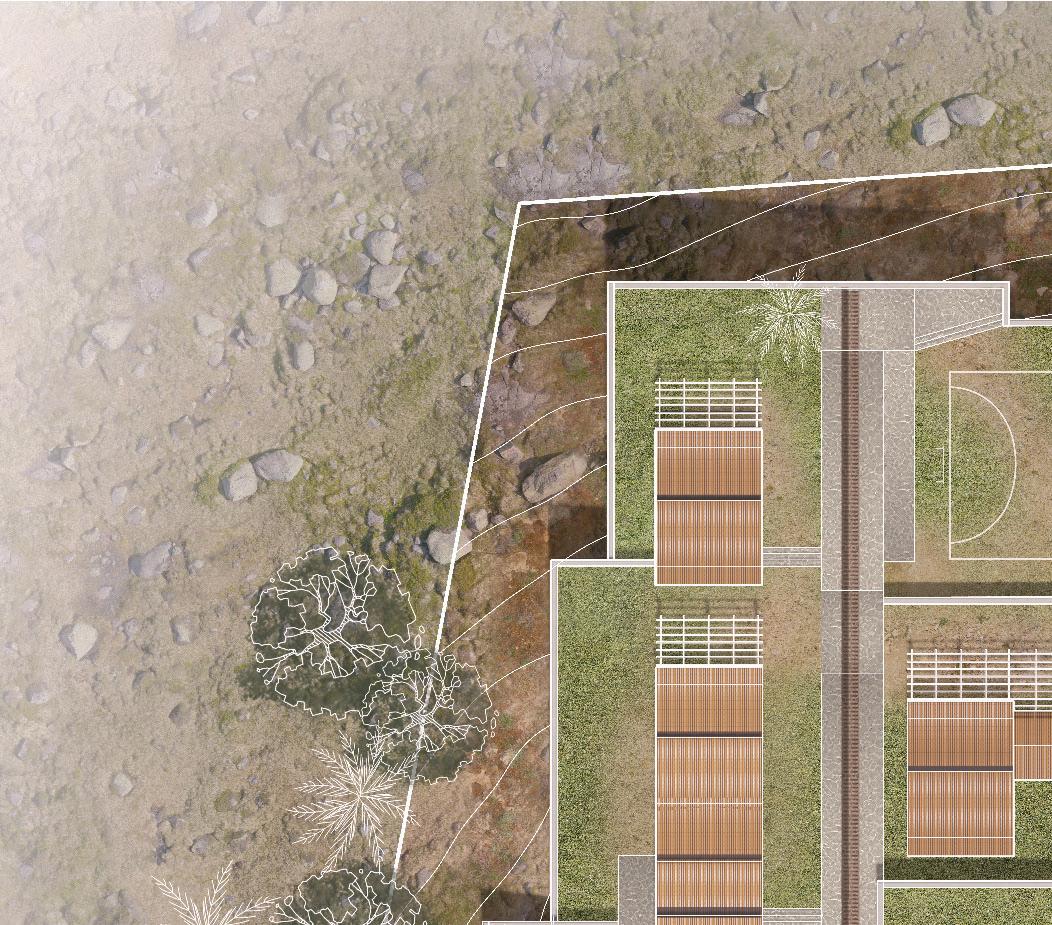

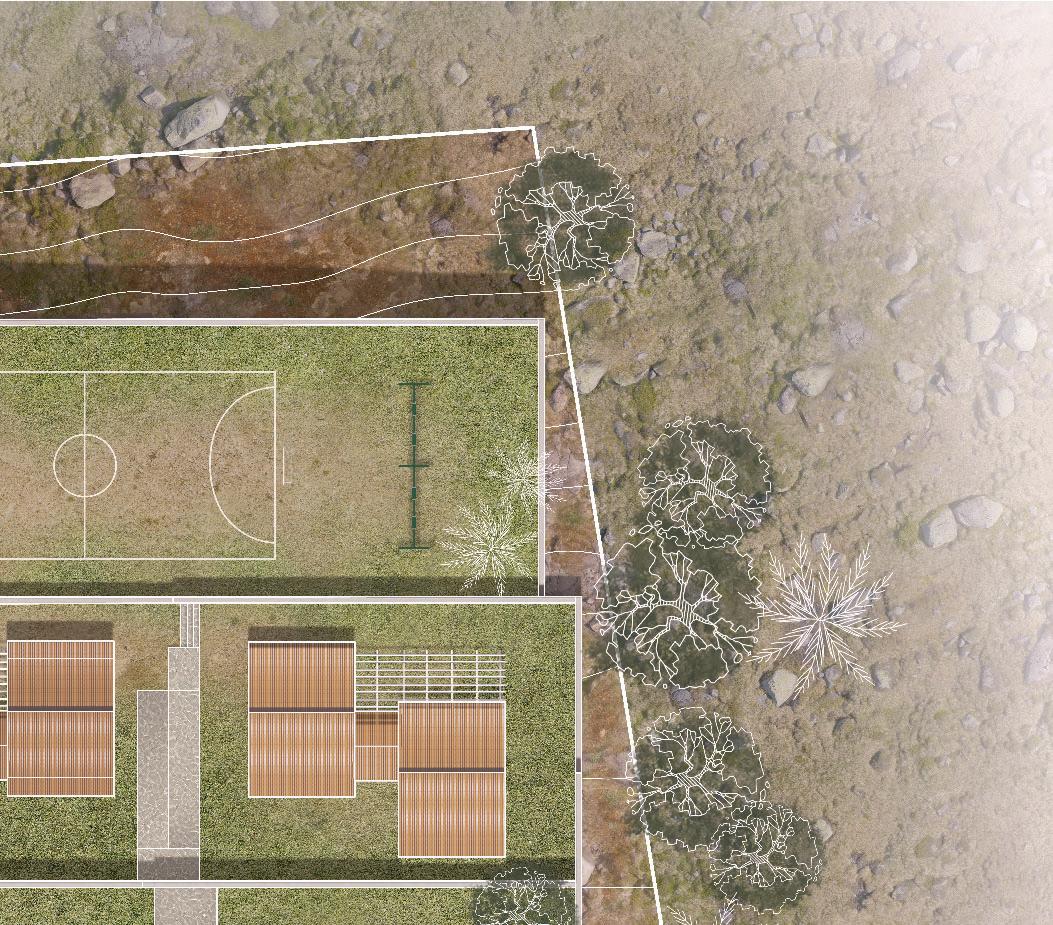

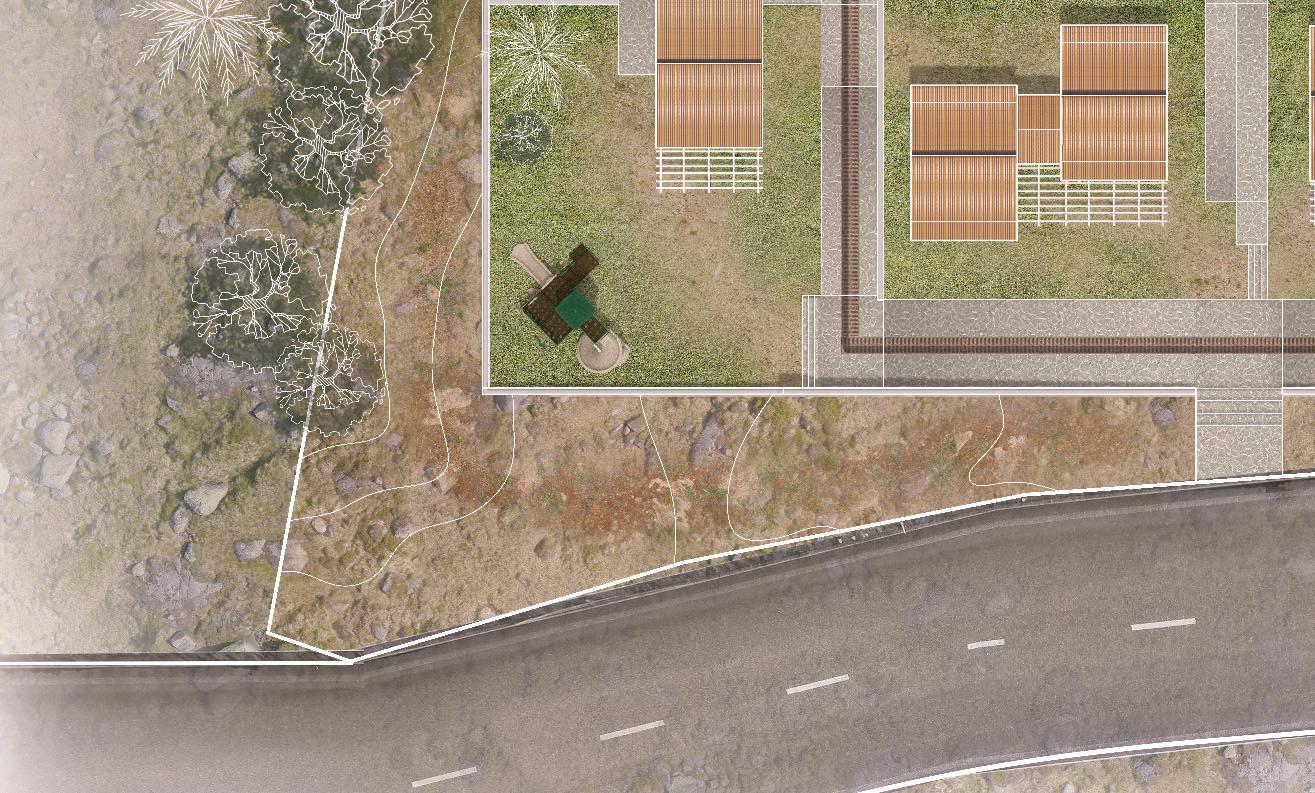

(Left) Master plan for the proposed green school: The larger terraces house the lower and upper school classrooms, while the left are used for communal space and administrative facilities.

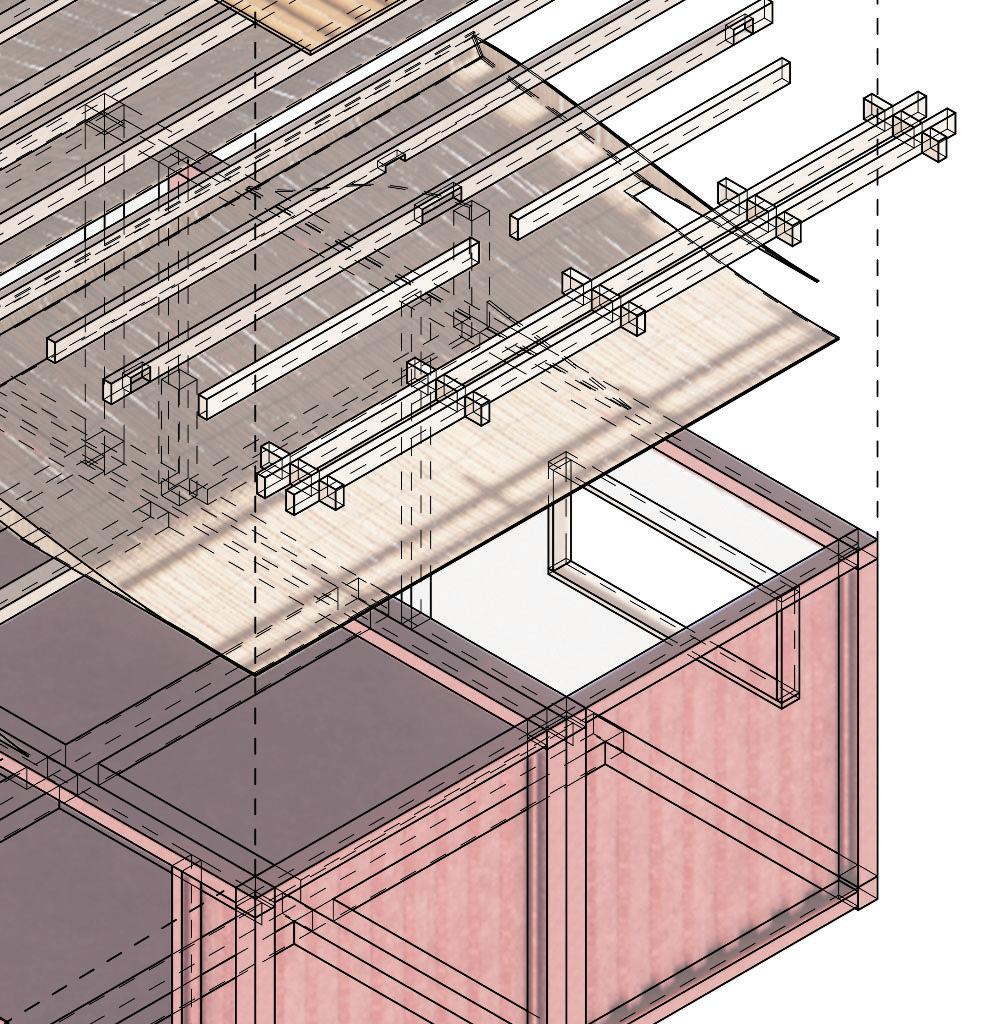

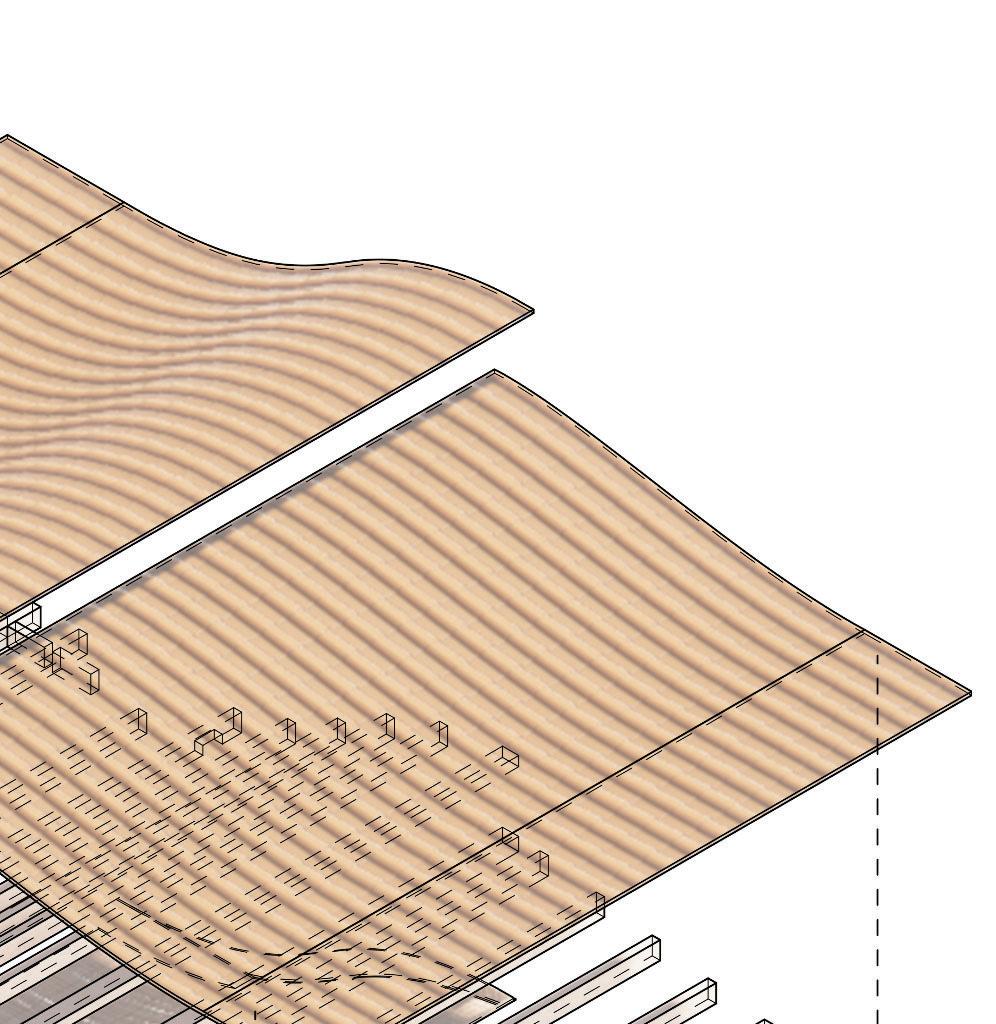

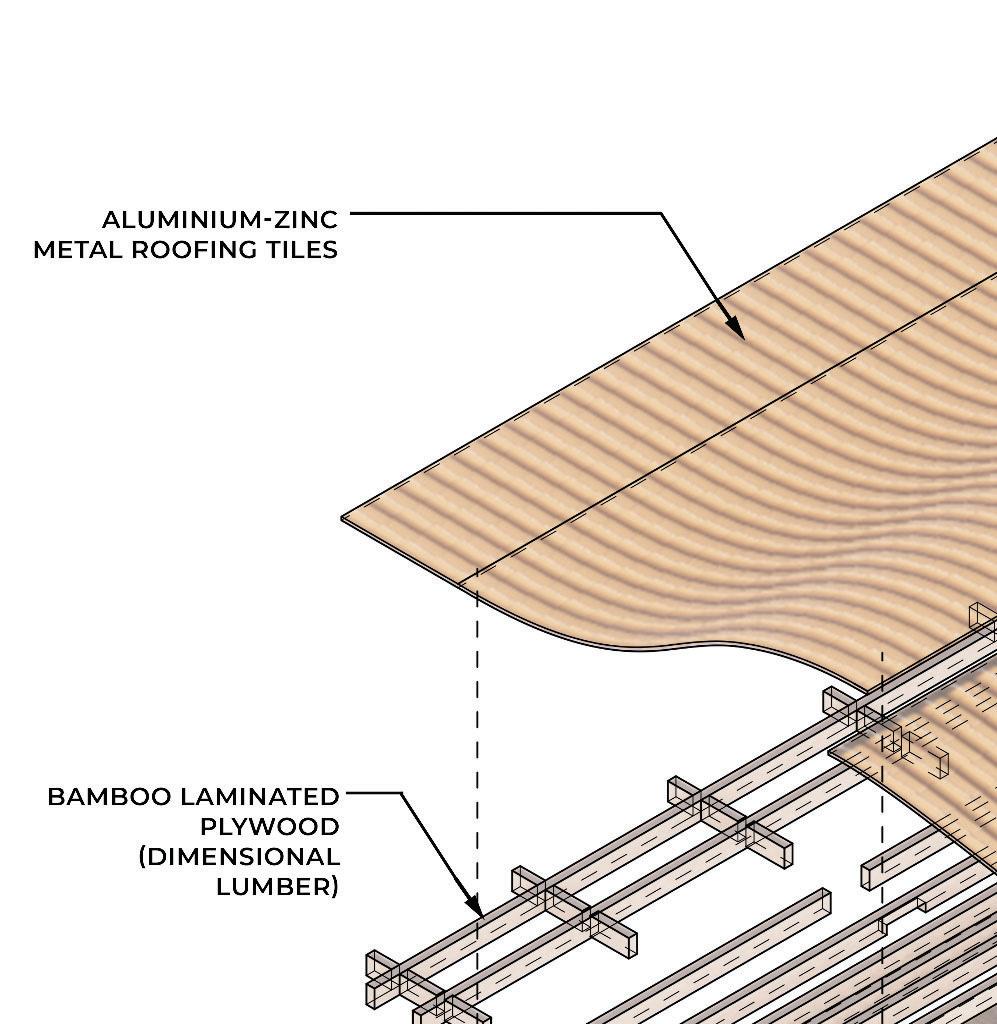

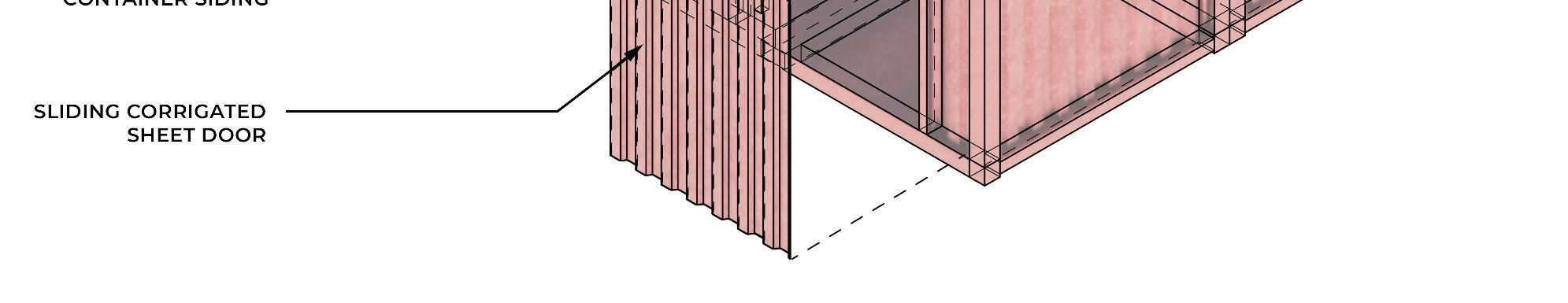

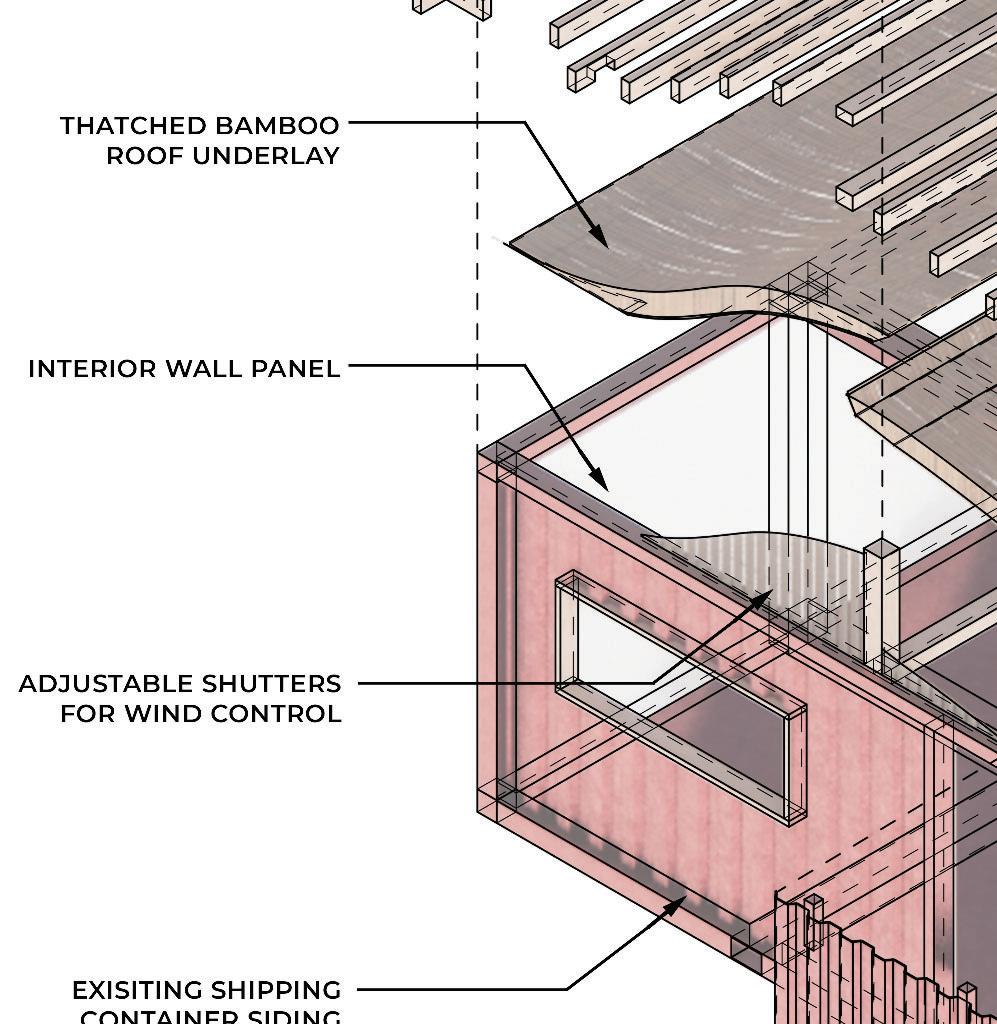

(Below) Exploded isometric of the classroom module showcasing the materiality of the design. In addition to the shipping container, the other materials have been selected based on commonality and availability within Jamaica.

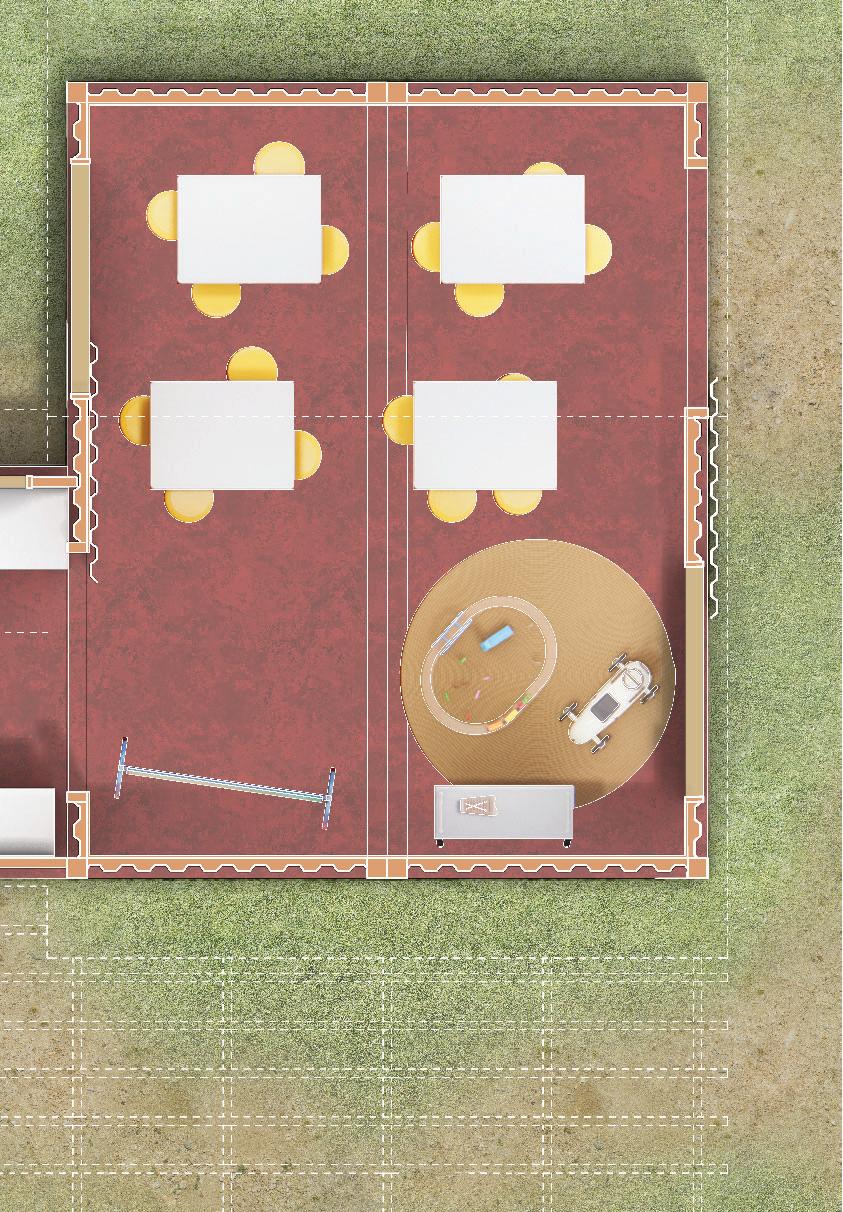

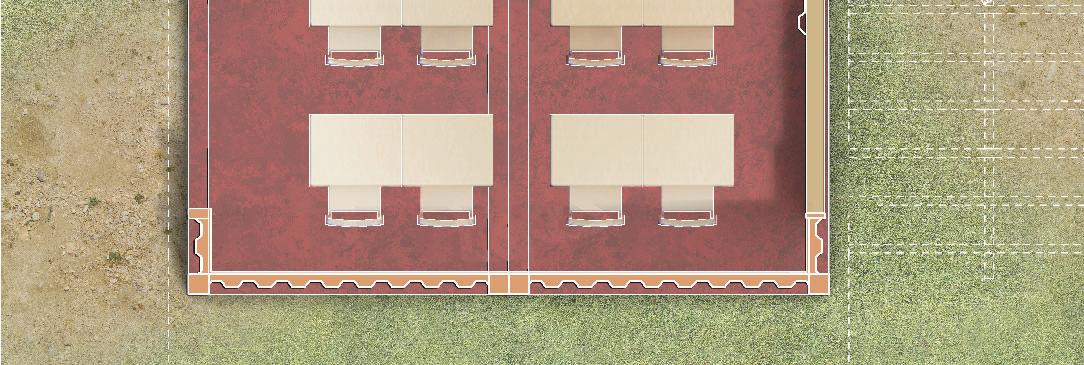

DOUBLE CLASSROOM PLAN WITH EXAMPLE LAYOUTS

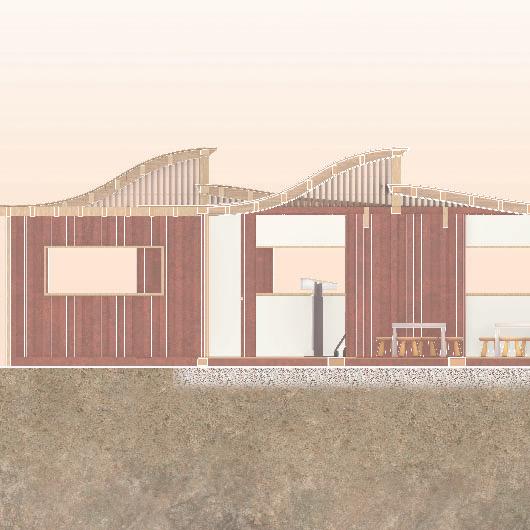

SECTION A

The connection between the two stations, showing the gathering space created by built and natural landscape

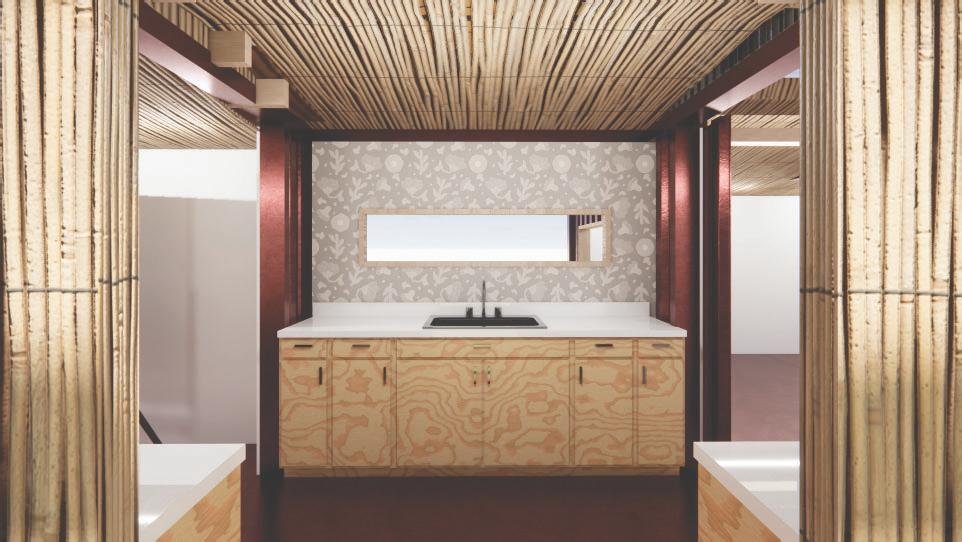

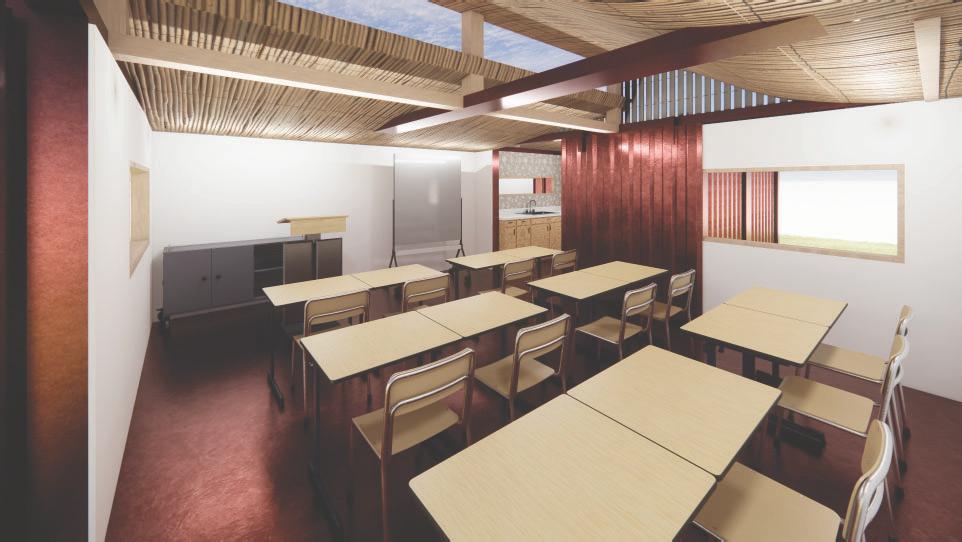

PERSPECTIVES AND SECTIONS

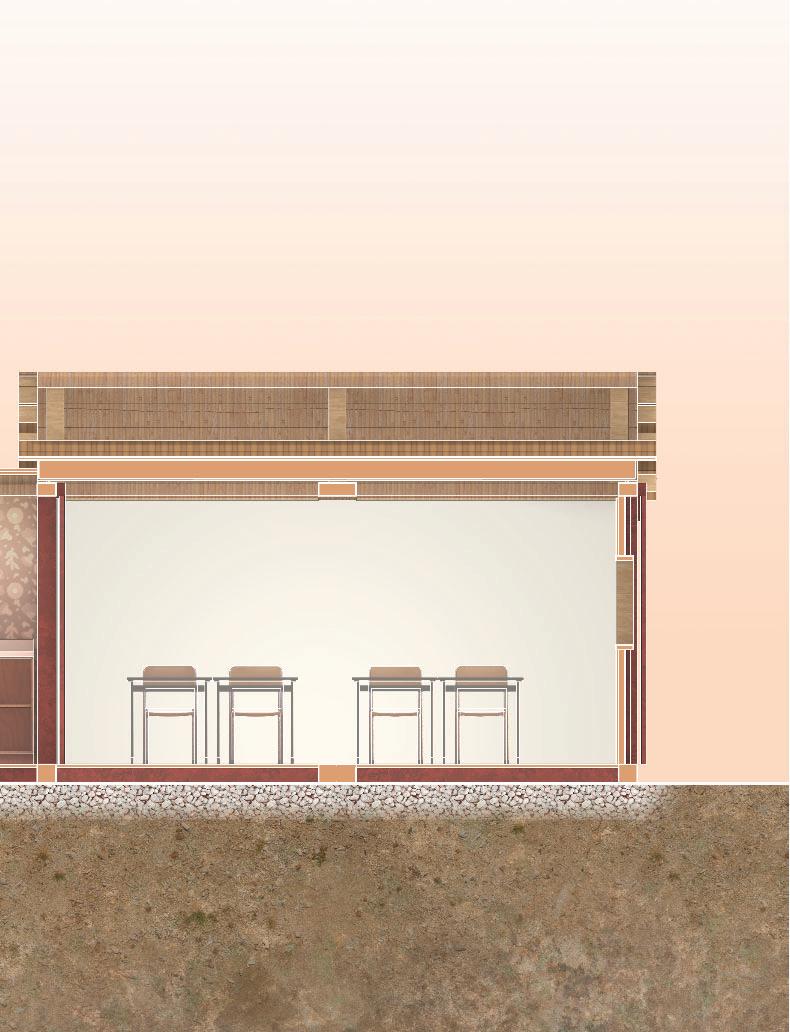

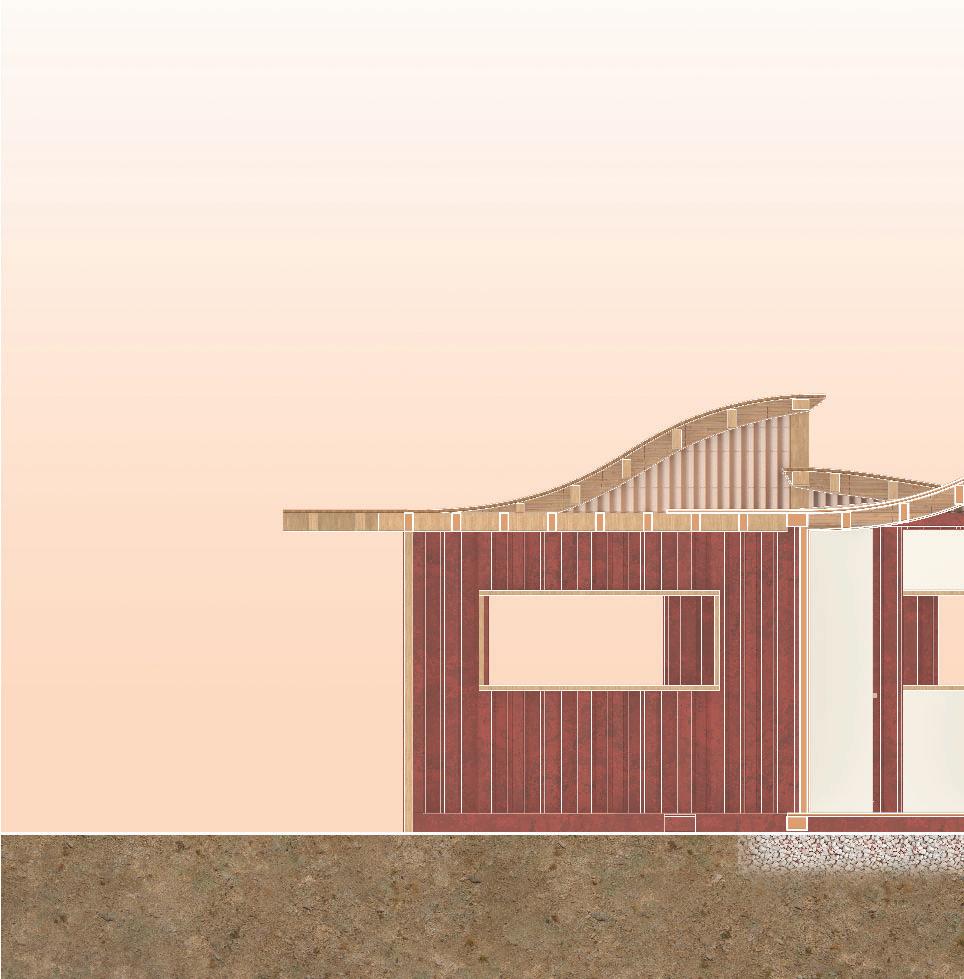

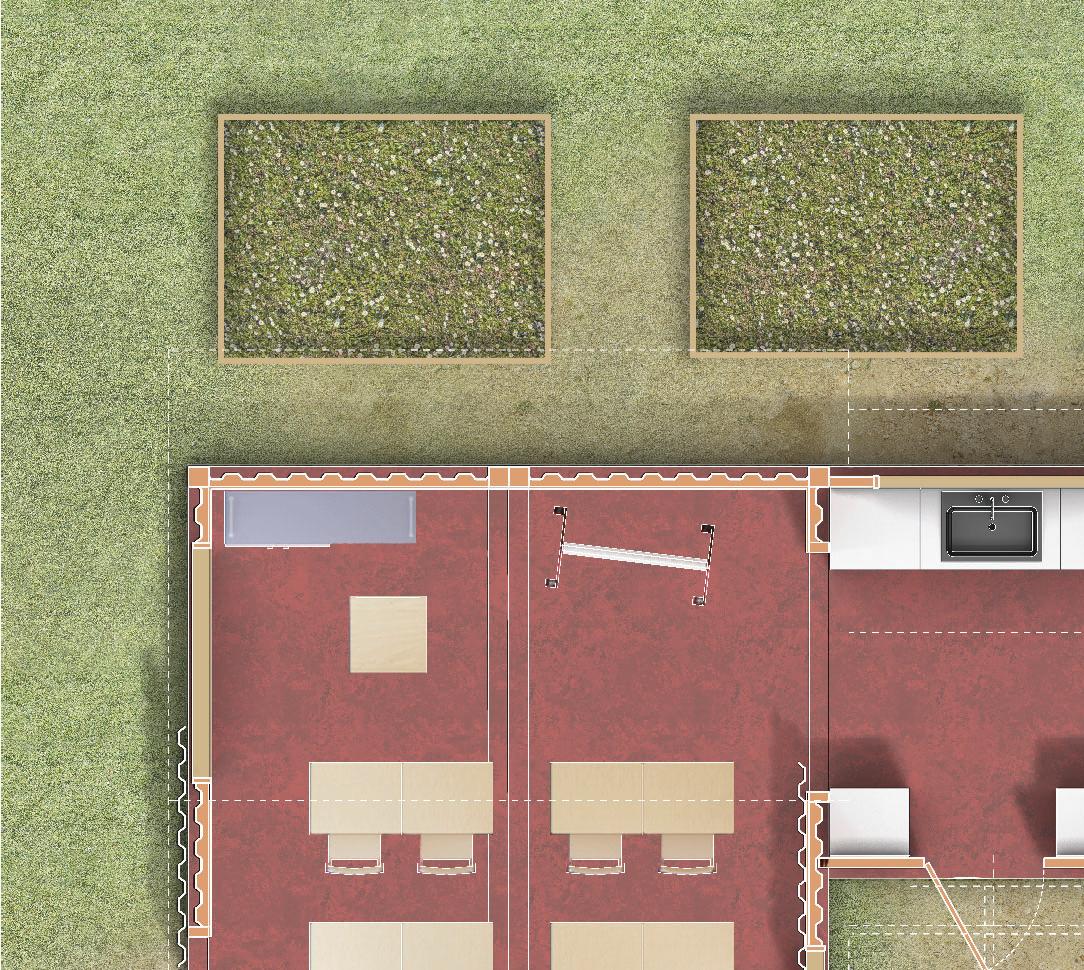

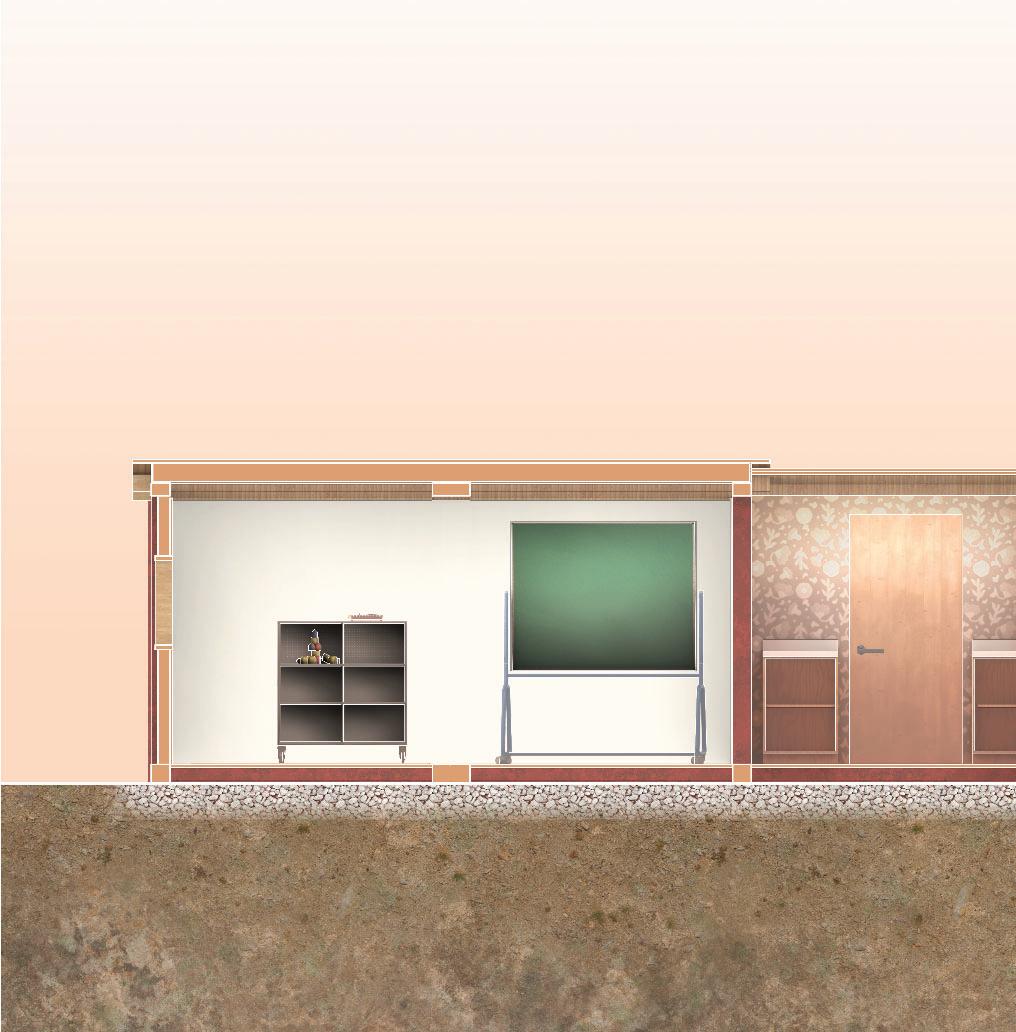

These drawings help to illustrate the construction and layout of the double classroom module. In this conﬁguration, the two classrooms are divided by a storage and handwashing station, utilizing rainwater collected from the roof which is fed into an adjacent rain barrel (see circled location above the sink) or the garden plots.

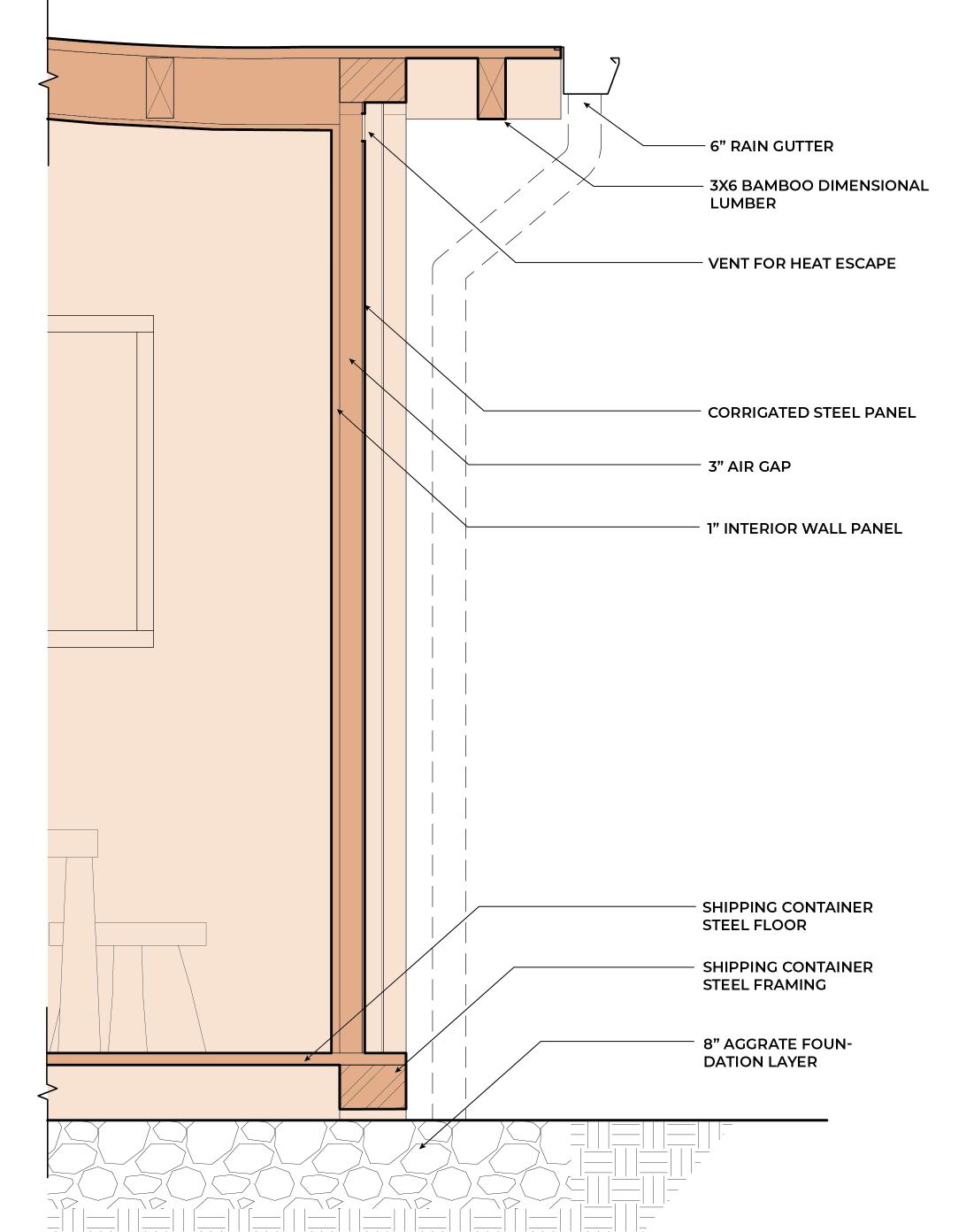

SECTION C - ENLARGED DETAIL

SECTION B

The connection between the two stations, showing the gathering space created by built and natural landscape

AP PORTFOLIO JOURNEY THROUGH THE DREAMSCAPE
