Alexis' Architecture Portfolio

P O R T F O L I

P O R T F O L I

P O R T F O L I O P O R T F O L I

Professional Experience

ARCHITECTURAL INTERN

IBUKU

Badung Regency, Bali / March 2022 - August 2022

Attend client meetings to discuss the project's requirements

Utilizing Autodesk Revit, aid in the creation of the design's drawing

Visit construction sites to ensure that the work is completed on time and according to the design

IN HOUSE DESIGNER

IDECA SMART HOME OFFICE

North Sumatera, Indonesia / Sept 2021 - Des 2021

Create an ideal concept

Assist project team members accomplish their tasks

Examine and evaluate the materials that will be utilized

Monitoring and executing the project to guarantee that the project's goal is met

ARCHITECTURE INTERN

MAT ARCHITECT BY TONY JACKSON

North Sumatera, Indonesia / Feb 2019 - May 2019

Perform assignments under the direct supervision of an Architect, or other professionals

Assists in the preparation of design, sketches, diagram, and final working drawings

Relies on instructions and pre-established guidelines to perform the job, works under immediate supervision

Education

BAMBOO U COURSES AND WORKSHOPS

Participant Bamboo U, Bali / March 2022

Design exploration with Bamboo structure

Bamboo carpentry, innovation & engineering

Material & bamboo forestry

Learning about human connection & nature immersion with bamboo

BINA NUSANTARA UNIVERSITY

5th Semester in Architecture / Faculty of Engineering

Current GPA 3 82/4 00

Jakarta, Indonesia / Sep 2019 - Present

MAT DESIGN SCHOOL, TONY JACKSON ACADEMY

Associate Degree in Architecture and Design

North Sumatera, Indonesia/ Nov 2018 - Jul 2019

Foundation Architect & Interior

BIM Revit Architecture

BIM Revit Interior

3D Rendering Interior + Exteriors

Autodesk 3ds Max

SMA METHODIST-3

High School in Natural Sciences Major

North Sumatera, Indonesia / 2016-2018

Leadership & Co-curricular Activities

ARCHITECTURE GRAND FESTIVAL (one of The Biggest Project by @himarsbinus)

Staff of Publication Committee

Binus University, Indonesia / Sept 2021 - Jan 2022

Develop Instagram content for promotions

In charge of the advertisement on the social media committee

Make contact with a number of schools and institutions to let them informed about the competition

Gives idea to the design committee

VIRTUAL TRIP INDONESIA-SINGAPORE

Educator

Temasek Polytechnic, Singapore / Apr 2021

Educate Temasek Polytechnic student on how to speak the proper Indonesian language Exchange Culture

International Experience

International Networking

STUDENT E-XCHANGE- INTERCULTURAL DESIGN

Participant

Temasek Polytechnic, Singapore / Mar 2021

International Experience

International Networking Design a culturally relevant exhibition space in Singapore Exchange Culture

HIMNIGHT 2020: ON-AIR

Staff of Event Committee

Binus University, Indonesia / Dec 2020

Supervised the event committee

Supervised the advertisement committee

Gives idea to the design committee

SSEARCH HIMARS BINUS

Speaker Binus University, Indonesia / Jan 2021

Share a cultural gallery project

Provide students at Binus University with a new perspective on Indonesian culture Provides a fresh perspective on vernacular architecture

THE 2020 ASIAN ENGLISH OLYMPICS

Liaison Officers (News Casting) Jakarta, Indonesia / Jan 2020 - Feb 2020

International Experience

International Networking Organizational Experience

Skills

SOFT SKILLS

Time Management

Flexibility

Leadership

International Networking

Critical observation

Desire to learn

HARD SKILLS

Autodesk Revit

Enscape

Rhinoceros 3D

Adobe Photoshop

Autocad

Advanced Advanced Intermediate Intermediate Intermediate

Hi.

My name is Alexis Shelindera An architectural student with an unquenchable desire to work in the creative realms of design. I have four years of expertise utilizing BIM software such as Autodesk Revit for projects of various sizes Through housing, gallery, hotel, and educational projects, I am dedicated to improving people's lives and communities. I like collaborating with others, aiding with architectural design solutions, and furthering my education and training

+6281264035601

byalexisshelin@gmail com

@byalexisshelin

Jl Abdiluhur 1 No 16 , Medan

" Female architects have no limitations, even though we climb scaffolding in heels or dresses "

Sumba Gallery

Sumbanese Uma Mbatangu "Peaked House"

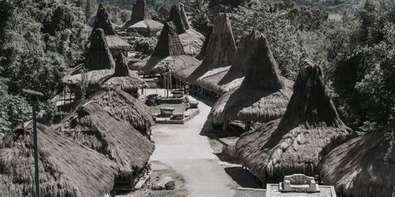

The typical architectural shape of a Sumbanese traditional house is depicted in this cultural gallery. The exhibition focuses on the application of Marapu's philosophy and concept Marapu is linked to the Sumba people's belief in respecting their ancestors Traditional architecture, solar shading, and spatial programming are all represented in galleries This galley also features an indoor art performance space, exhibition space, and auditorium

Project Data

2020 / Art Gallery

Location

Sumba Gallery

Sumbanese Uma Mbatangu "Peaked House"

Abstract

Cultural heritage is the transmission of a community's way of life from generation to generation It is proof of human development and innovation Architectural heritage, or should we say Vernacular Architecture, serves as a bridge between the past and the present, telling stories about the past and depicting the evolution of any culture

Observation

The purpose of this project is to raise cultural heritage knowledge among the public, which will aid in heritage conservation and provide tourist and art enthusiast amenities With the intent of developing solar shading and incorporating traditional architecture into the design.

Check out the video Video

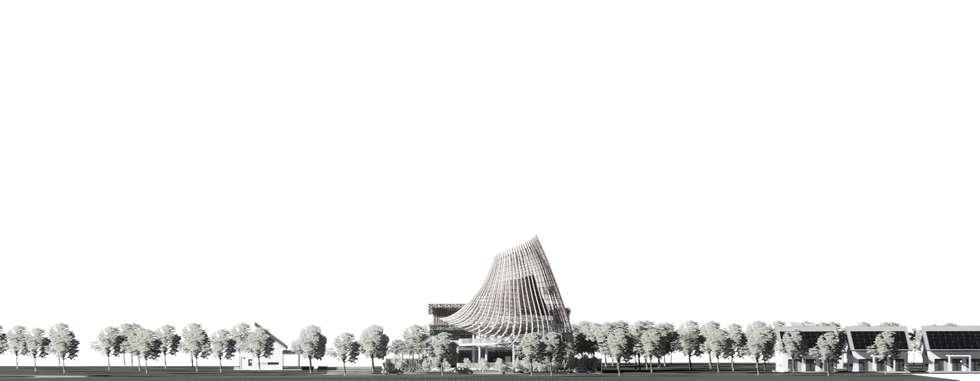

Front View of Sumba Gallery

Sumba's people beliefs

The old Marapu religion, which includes both ancestor and god worship, is still practiced by the Sumbanese tribe

Traditional Sumbese rites, traditional places of worship (umaratu), traditional architecture, ornate carvings, and fabrics, as well as jewelry and weaponry, the philosophical heart of Sumbese cultural expression

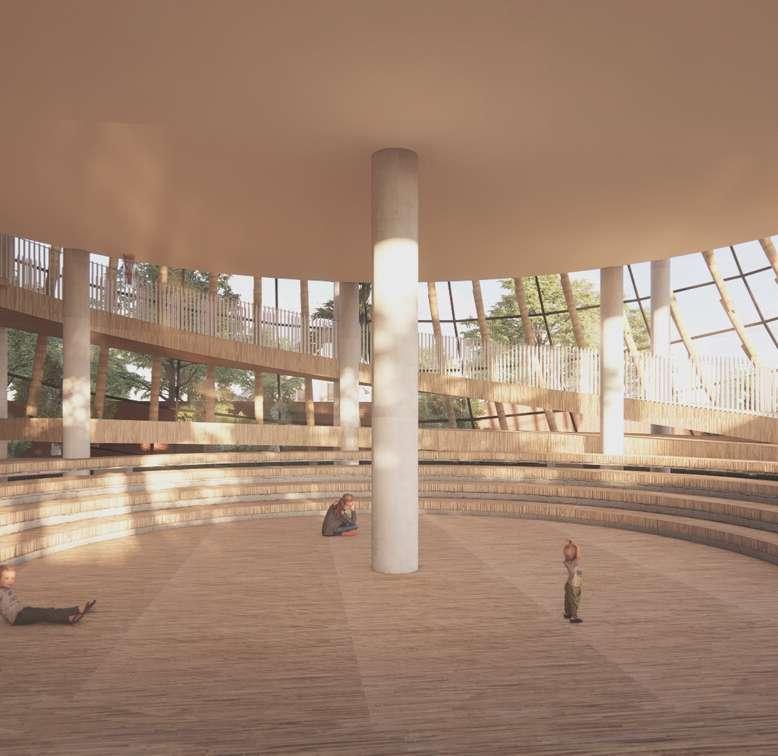

The main attraction of this building is the Circular Ramp with a tall Core View to the Building can be viewed from JL MANDALA PERMAI VII & JL TRIMARAN INDAH 6

Main Road (CROWDED) = the trees can reduce noise to levels that allow normal outdoor activities to occur

Back Area Residential neighborhood requires privacy , to reduce the noises , it is blocked by the service area

Car & Motorcycle = The access is from the Main Road ( JL MANDALA PERMAI VII)

Service = The right side of the site Main Road ( JL MANDALA PERMAI VII) is the entrance to the Service zone

Theoretically, the resulting path of the wind flow is spirals in an outwards direction from areas of high pressure. Therefore ,the form of the tube is such that it helps the air to flow smoothly

Open view to the Main road.

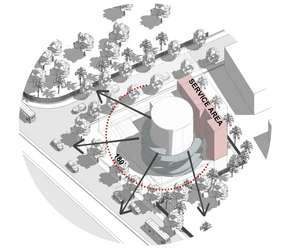

The Ramp is the area with the best 180˚ View Back Area to the Residential neighborhood requires privacy so it is blocked by the service area

View from Site View to Site

The Solar Shading is applied in the Core of the building as shades

Exhibition Auditorium

MAINSOLARSHADING

Aluminium

COLOUMN

Round Concrete Column 750mm

SKYLIGHT

Trituff Copolyester skylights

WALLS Conwood (wood Texture)

ROOF Solid slab of concrete capping

FLOOR

Conwood (wood Texture)

RAMPHANDLE

Aluminium

CIRCULARRAMP

Conwood (wood Texture)

SECONDARYSOLARSHADING

Aluminum Foam

CURTAINWALL

Storefront

CARRAMP

Concrete

BEAM

Concrete Beam

COLOUMN

Rectangular Concrete

BEAM

Concrete Beam

PILECAP Concrete Pile Cap Explode Structure

Inside the building, this exploded axonometry will depict the material, building system, and building envelope

Marapu is at the core of their culture, serving as a source of values and life philosophy while also having a significant impact on their daily lives. The ramp, also known as Marapu, is the gallery's major core Marapu is also something the people (native Sumbanese people) couldn't live without. They believe man is part of the universe and inseparable

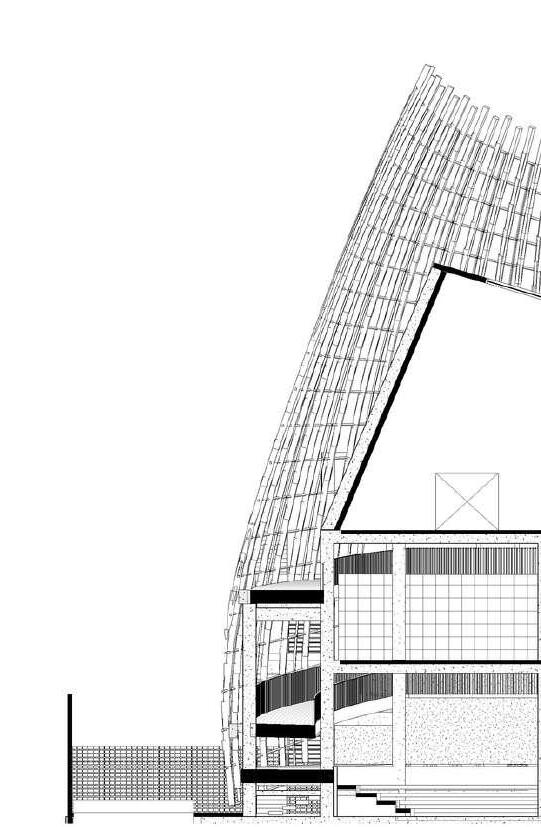

Side Section

Front Section

Solar Shading

Second Solar Shading

GRAVE STONE

Grave stones are always made big and majestic, apart from being a form of respect for ancestors as well as a reflection of greatness and the nobility of the owner

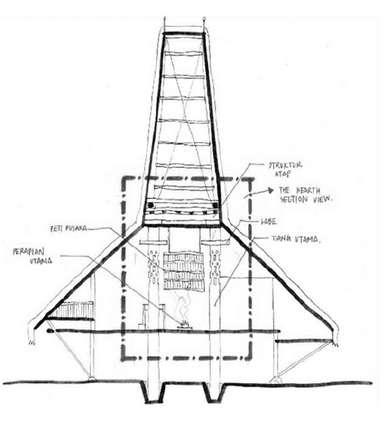

Traditional Architecture

Marapu is the original belief of the people of Sumba Some of the application on the gallery :

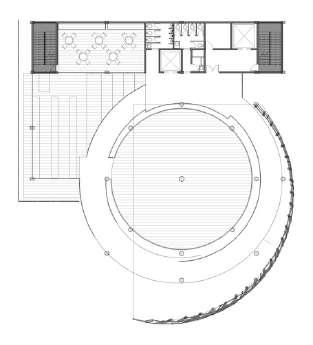

•PLAN

•PHILOSPHY OF RAMP

•PHILOSPHY OF RATIO

CORE

Marapu is the core of their culture as source of their values, life philosophy, as well as having a major influence on their lives. Inside the Gallery, there is a main core at the top of the roof so the main core of this Gallery is the Ramp (Stage and Entertainment,Exhibition & Auditorium)

RATIO

The architecture of the traditional Sumba house is not only interesting In terms of architecture which has a roof in the form of towering towers, but also from a cultural perspective The traditional house is a reflection of the cosmology (view of the world system), the beliefs and respect of the people of Sumba towards their ancestors. For the roof it has a ratio of 2: 3

RAMP

Historically, the attire of the adult Sumba community tend to be based on the level of importance as well as the circle of environment in an event rather than hierarchical social status.

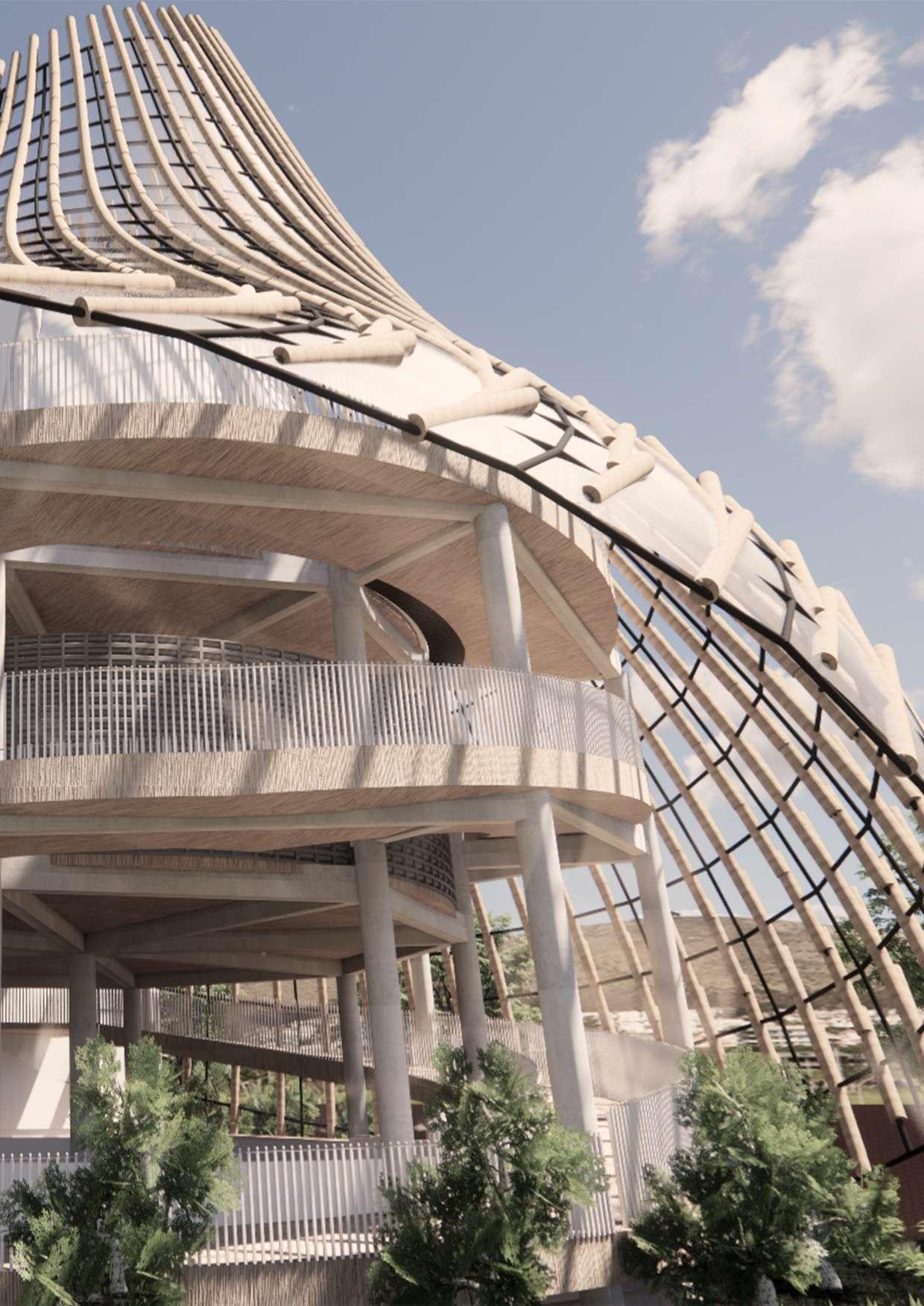

Main Solar Shading

The concept of the main solar shading is the elements, such as the rafters, are made from bamboo cane

The UPWARD style of the bamboo maintaining the natural order of their original upright or source-to-flow to Marapu. It also provide completeness, strength, and spiritual power

2 - RATIO

CORE RAMP

3 - RATIO

Shel-lo

Indoor Exhibition

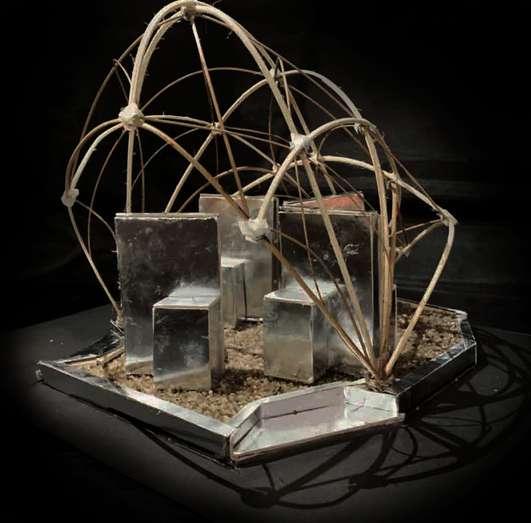

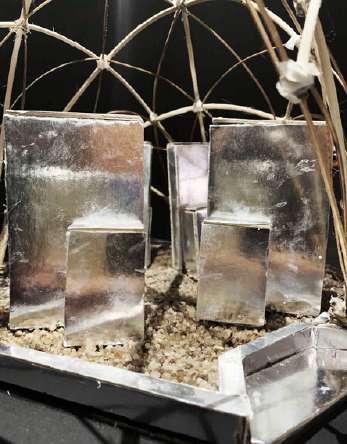

An architecture show with eight mockups is on display at the Bamboo Pavilion The design of this show features eco-friendly materials such as bamboo and gravel The massive parametric design of this show attracts a large number of visitors

Bamboo

Exhibition Banner: Acrylic Mirror Pebles

Project Data

2019 / Exhibition

Location Site Area

Indoor Exhibition Shel-lo

Abstract

Interactivity in an exhibition means that both people and architecture have agency tailored discussions between them and their visitors.

Observation

The focus of this exhibition is to look at emerging flexible and forms of construction technology as well as fresh design ideas

The structure must also be lightweight and prefabricated for ease of manufacture.

Bamboo Pavillion Small Exhibition

Universitas Bina Nusantara, Kampus Anggrek 25 sqm

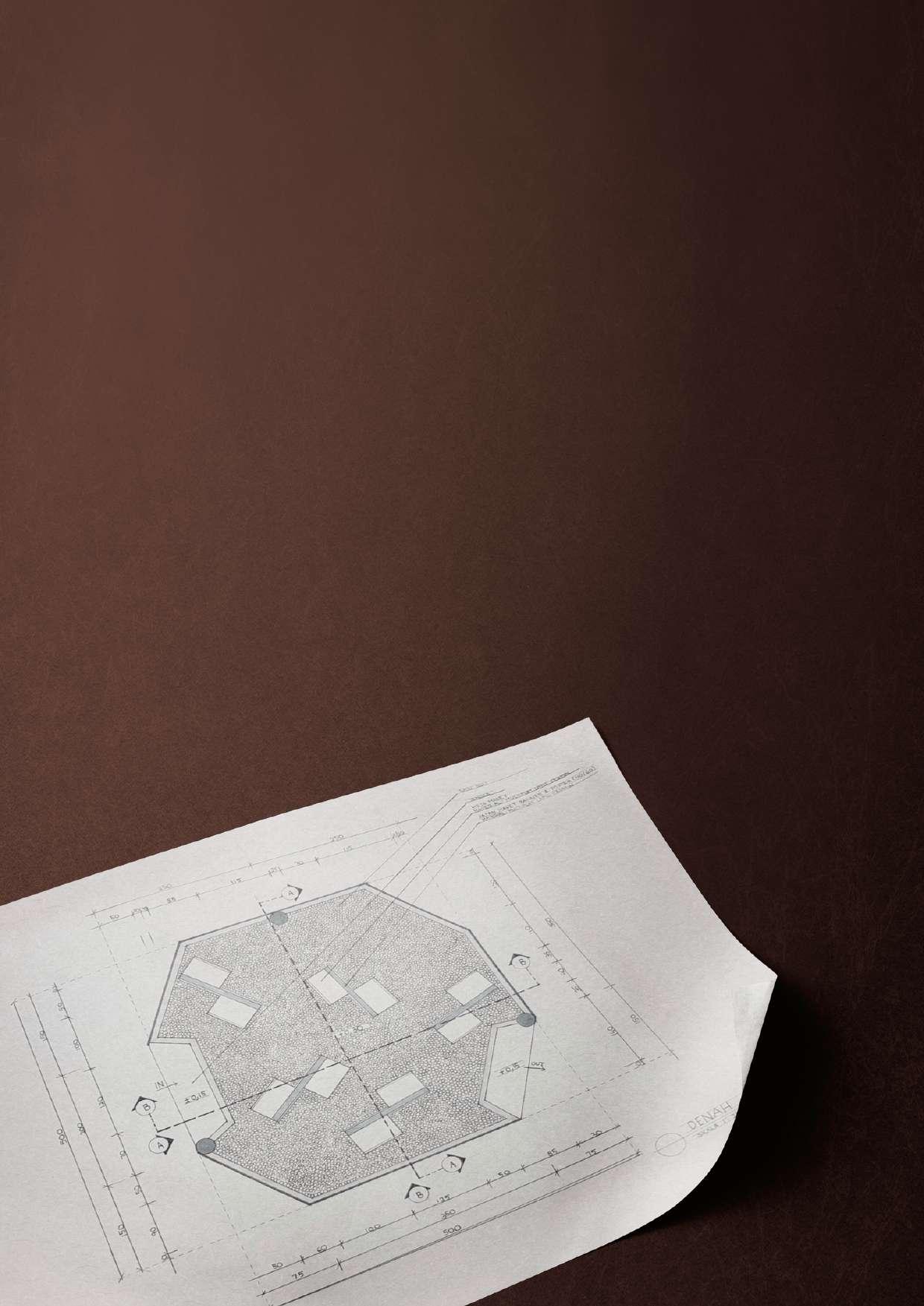

3d Drawing

Concept

Structure Overview

This design is inspired by the Sydney Opera House, especially the structure's curvature, which represents the building's hierarchy

The Sydney Opera House is shaped like a huge shell with layers of views ranging from vast to small

Details

A gravel stone, which is a very popular item nowadays, is used to create dimensionality on the floor inside the exhibition. The mockup table's mirrored surface provides the sense that the mockups are floating

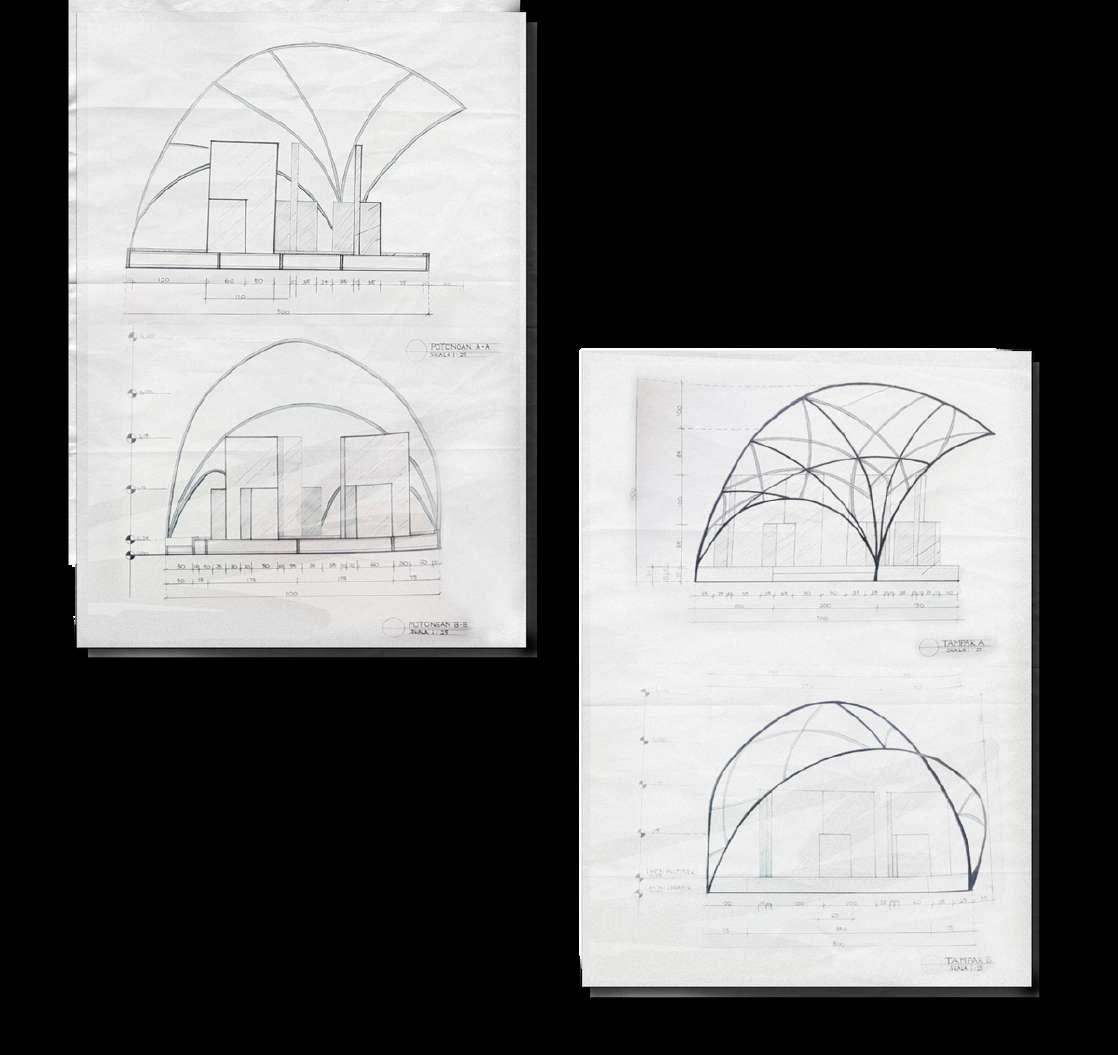

Elevation

Section

The bamboo construction and hollow steel foundation are represented in this section of the exhibition

The elevation shows front view and side view of the exhibition

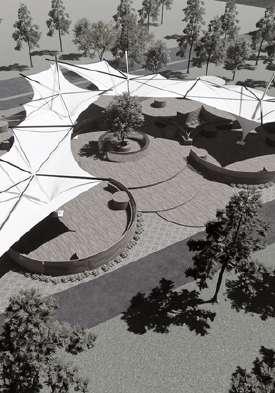

2020 / Outdoor Location Site Area Idea

Forest

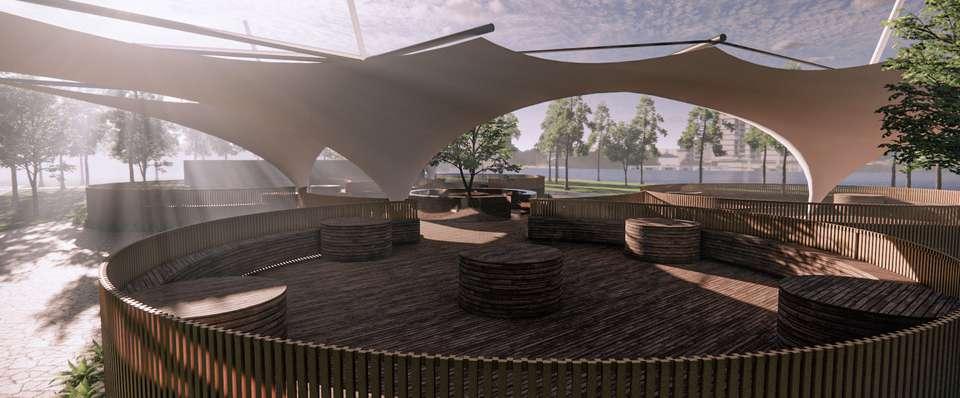

Mobile events (Flora & Fauna Exhibition) Outdoor Exhibition

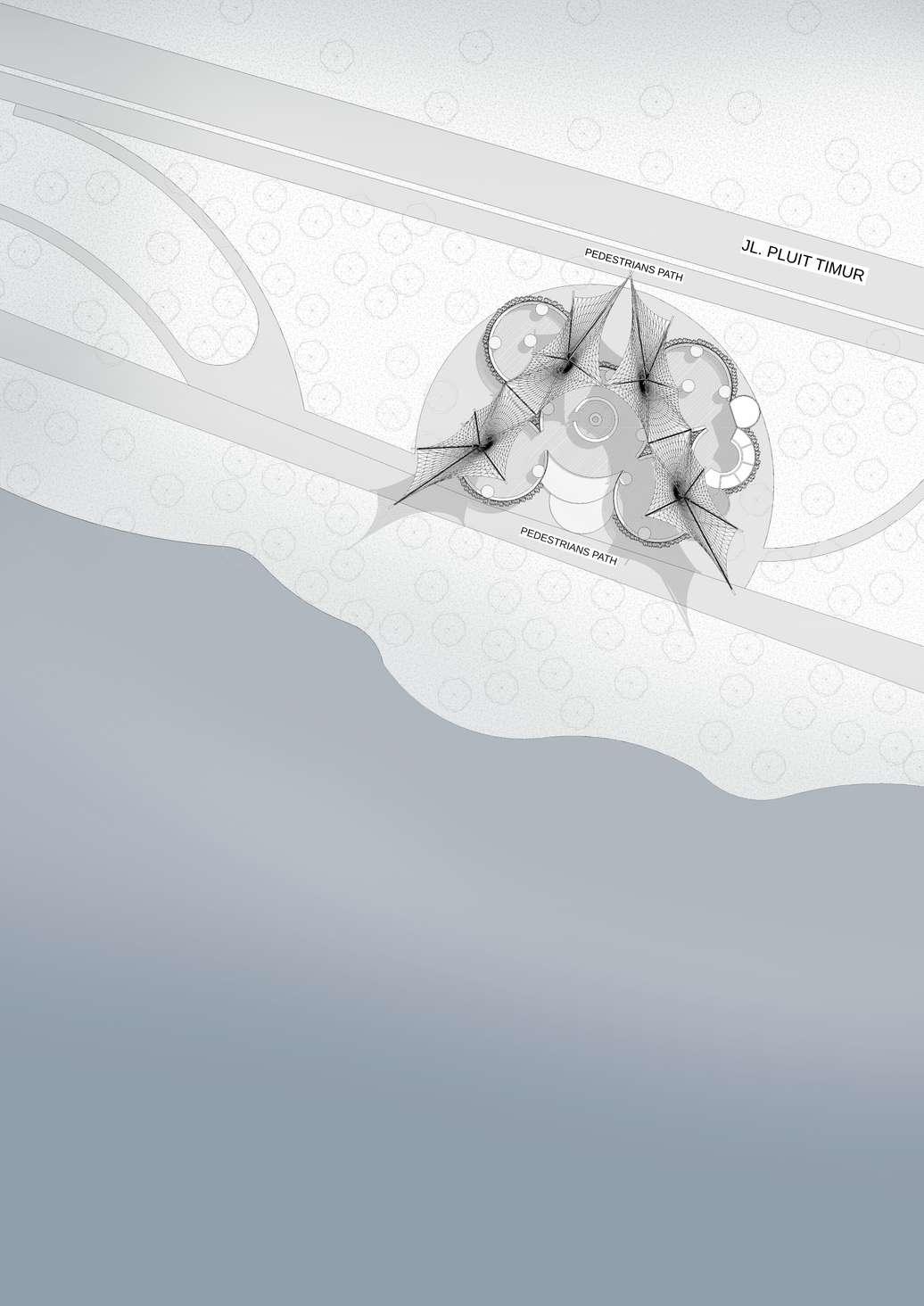

TAMAN WADUK PLUIT JAKARTA 1180m2

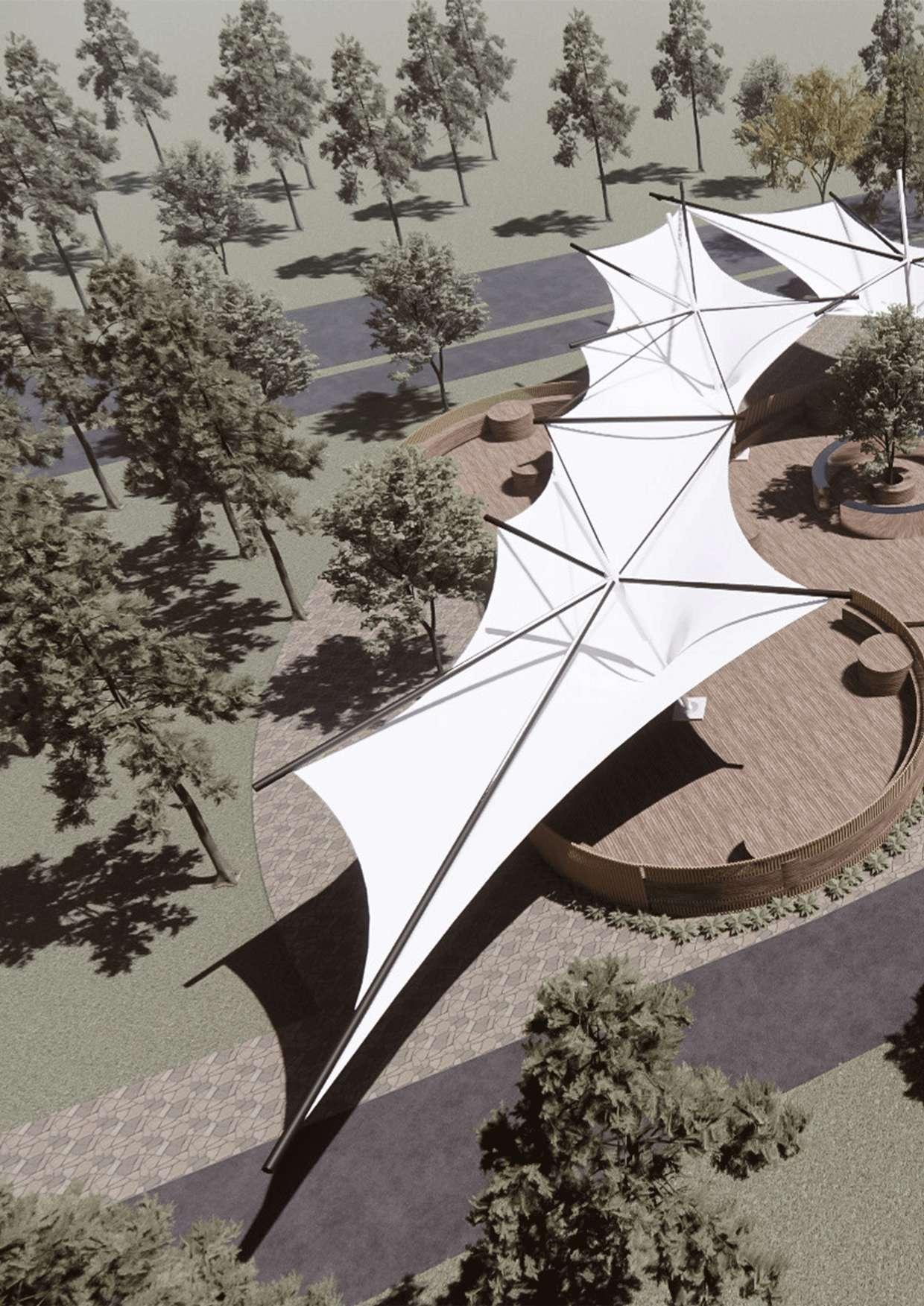

This concept took an image of a bat, where: the basic shape it is just a small bat wings, Whereas the basic form, it is mirrored into a bigger shape but still resembles a bat

Lightweight Structure, High-Tech, and Structure as an Architecture Expression

Load Analysis & Work Force

Compression Force

Steel masts transfer weight of the structure to the temporary footplate

Cable Tension

The cable tension works by keeping the steel masts (support mast/webbing) forces through pre-tensioning.

Fabric Tension

The fabric is pre-tensioned pulled by the steel masts (support mast/webbing)

Uplift & Downward Wind

Uplift Wind is blocked by the below points of the tensile structure

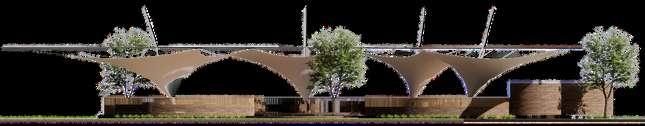

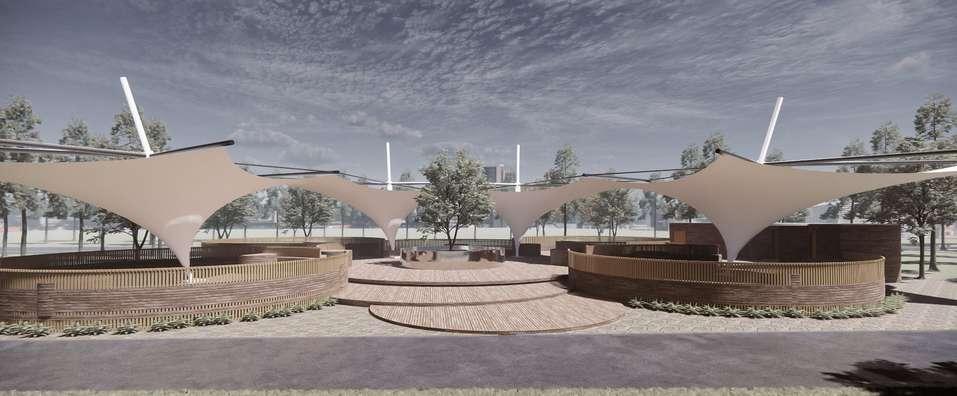

Front View

Side View

Section 2

Section 1

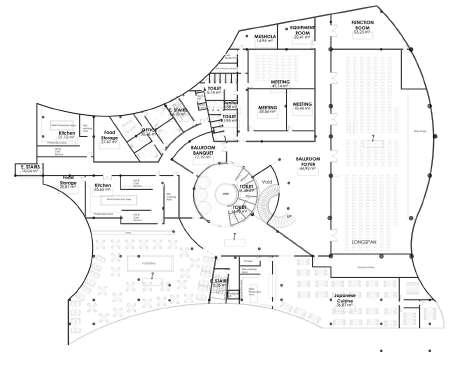

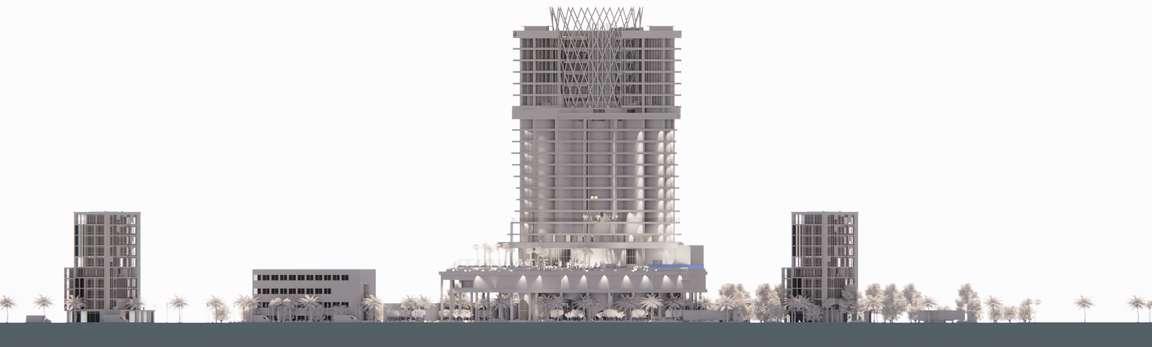

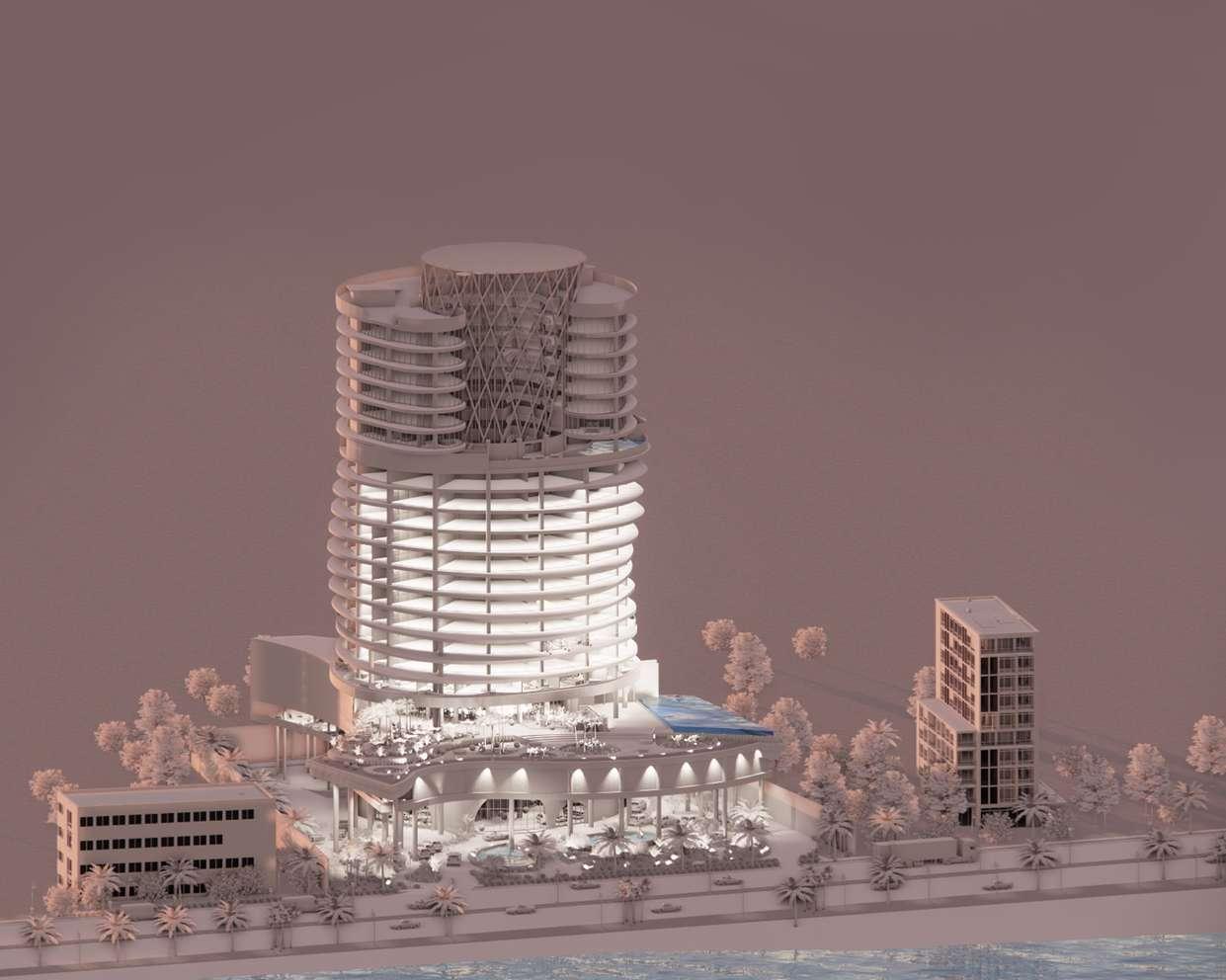

The MEER

Four Star Hotel

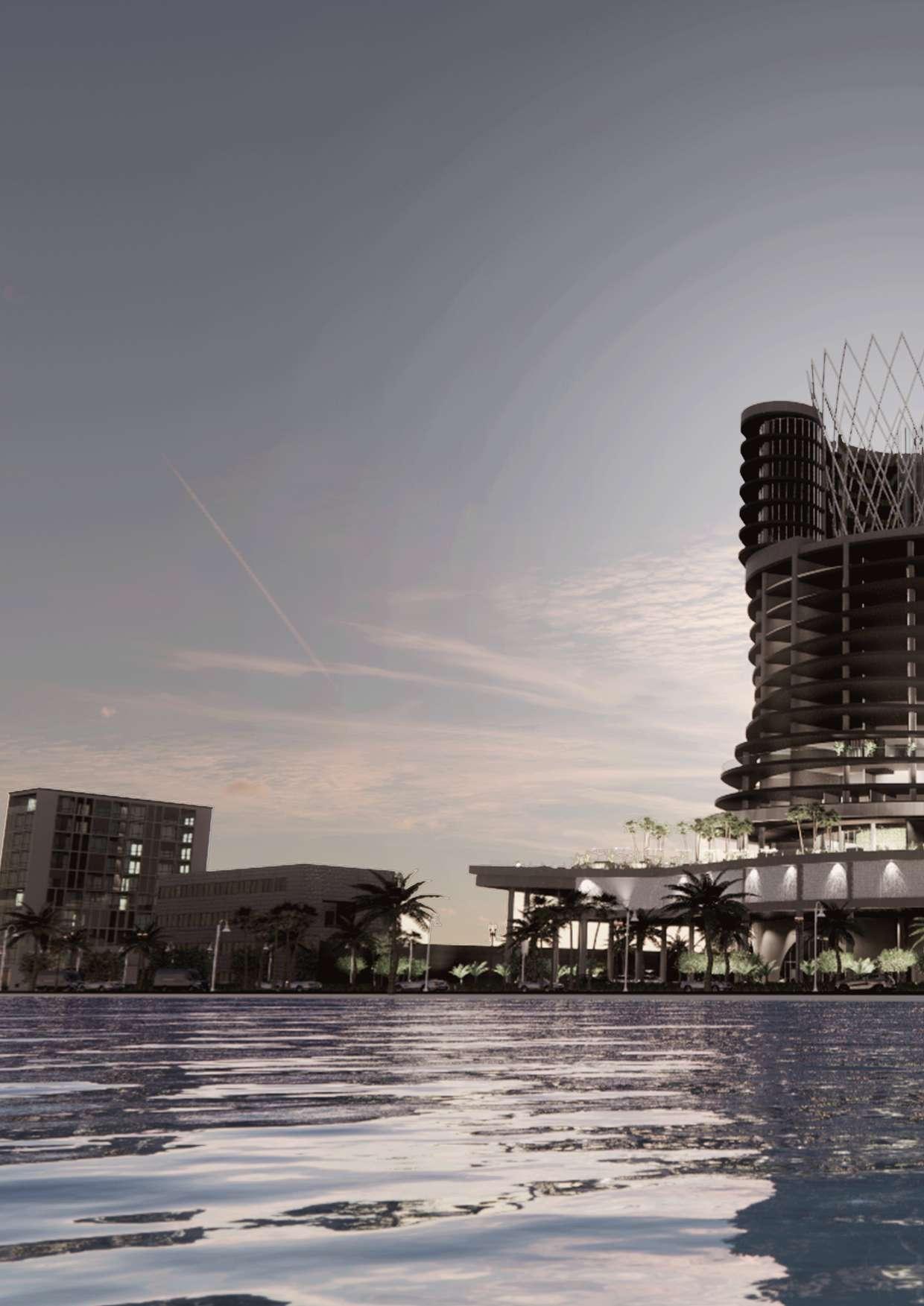

The hotel's appearance is reminiscent of ocean waves. Many IndoEuropeans believe in a great sea or river surrounding the planet Meer is the German word for 'sea ' Outstanding first impressions are the cornerstone of all great visitor encounters This hotel's initial impression is its wave appearance, which evokes ocean emotions

The Meer

Abstract

The project aims to boast of Jakarta City Being Planned is a long-term project to realize the vision of Ancol as a theme park a major in Indonesia Moreover, the company is owned by the DKI Provincial Government which aims to advance the capital city.

Quality Objective

Develop a four-star resort hotel that meets leisure needs. The design is in line with the requirements The plan adheres to the structure and systems of the building. The design takes into account the context in which it is placed. Water management is accounted for in the design

Worksheet detail

Link

This hotel strives to be environmentally friendly, with features such as cross ventilation and rainwater collecting Inside the building, the bracing structure design is unique

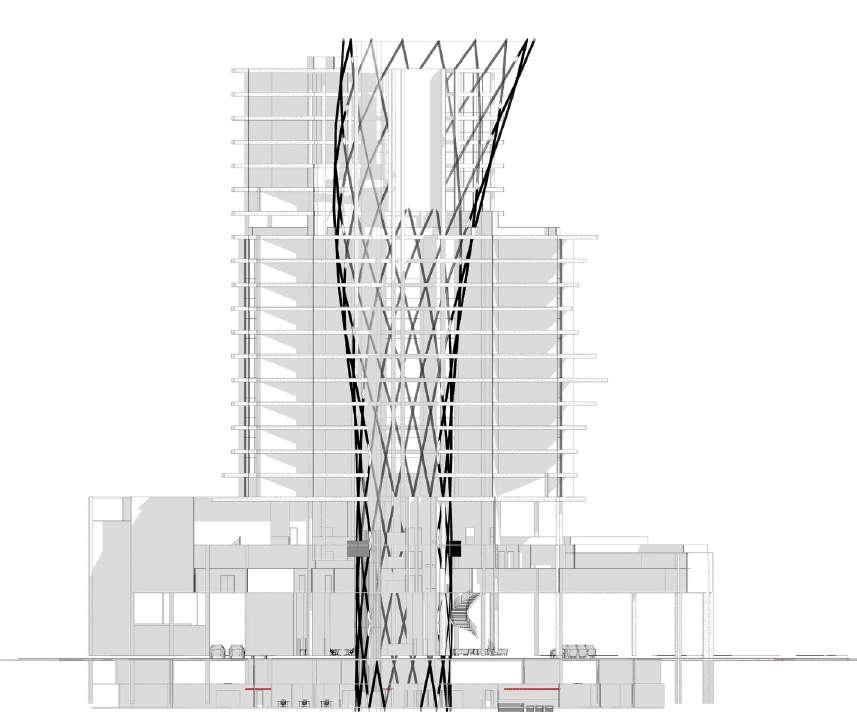

Structure Overview

BRACINGCORE

UPPERSTRUCTURE

MIDDLESTUCTURE

Sustainable Aspiration

SUNSHADE

The extruded facade fins provide sun shadingwhilestillallowingdirectsunlight

Rain Water Harvesting

RAINWATERCOLLECTION

Rain water is collected and treated onsite thenstoredforfutureuse

GREENROOF

The green roof helps to clean and filtrate therainwater,whilereducingheatgains

NATURALLIGHT&VENTILATION

The bracing system allows fresh air and natural light into the center of the building Plantingsimprovetheairquality

CHIMNEYEFFECT

The central atrium provides passive ventilationthroughoutthebuilding,operable louvers at the top allows warm air to enscape

CROSSVENTILATION

Single loaded corridors allow cross ventilation through the housing units Providinng natural air flow & temperature regulation

EXPLANATION :

Rainwater harvesting works by separating the area into three zones

1 GROUND TANKS

There is a storage area for the rainwater in the basement-2 floor zone. The water will flow upward through the pipe

2 4th FLOOR WATER BASIN

In the 4th-floor zone, some of the filtered water will be stored in a water basin The water will flow upward through the pipe

3 ROOF TANKS

The water will be purified and kept in the roof zone before being used as toilet flush water disposal on floors 16 to 23 The pipe will flow in a downward direction

HVAC System

COOLINGTOWER&CHILLER

TYPE OF HVAC

In this building, I used the HVAC system type FCU (Fan Coil Unit)

FCU (FAN COIL UNIT)

In which the system FCU is used, there is no need to free up space for an AHU Room H d the FCU work?

ROOMSHAFT(ACPIPE)

d water are linked to the MAIN SHAFT and then distribute it to FCU unit in This type does not require a duct, allowing the ceiling to be freely suites room section)

es not require a duct, allowing the ceiling to be freely opened m section:

M DETAIL SECTION FCUunit

BLUE(CHILLERATAUWATERSUPPLY)

RED(RETURNPIPE)

g uses a Fan Coil Unit system with two pipes water system U)

system using Fan Coil Unit which is classified as e system requires the main components, namely coil, sometimes a heating coil and chiller are also

tem with two pipes as cooled water or hot water.

as a chiller or water supply, ipe as a return pipe

ORWATERSUPPLY PIPE

ROOMSHAFT MAINSHAFT

This hotel has its own uniqueness, visitors can come and stay at this hotel with a spectacular view, both indoor and outdoor The view is an important aspect of this building where there is an Atrium that is equipped with an elevator capsule. In addition, the sustainable aspiration of this building raises the aspect of rainwater harvesting with a gutter system

ADC

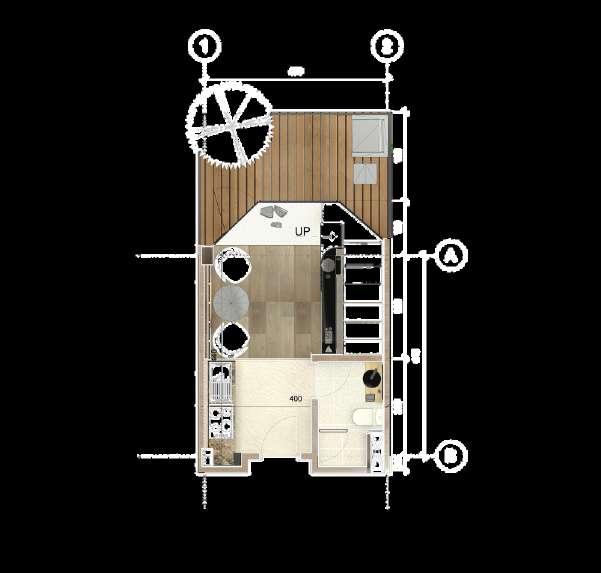

Interior Apartment

Using a Simplistic color combination and Art Deco-inspired shapes, the ADC's design is inspired by the style Loft apartments are highly sought after in Indonesia's real estate market Spacious empty spaces in lofts are still a popular design choice in today's design.

A.D.C

The series includes a novel art deco armchair, living room, and pantry settings, all designed with open areas in mind While maintaining the luxurious and sophisticated look, ADC is meant to be in conversation to create pleasant places for leisure, relaxation, and socializing. Color alterations were given special attention, with the option of creating a monochrome of grey-like and ma

Interior Apartment

To give some geometry to the facade area, a trapezoidal shape is included. This creates a little inside garden by allowing light to enter the space

Color Palette Material

There are three types of colors that are complimentary to these high-shine metallic or black Deco embellishments and are close to today's norm

The stunning art ornamentation elevates the Art Deco components such as the gold linear accents and geometric wall

Floor Finishes

Taco Vinyl TV 502 hampton

Size : 152,4 x 914,4 mm

Wall Decoration

MCM Wall Granite

Size : 770x370mm

Wall Finishes

LEGANZA STUCCO FINISH STC - 240

Color 006 Pigeon

Wall Panel

Wood Panel fin solid sungkai wood (white dove) 90x10xH:230 cm

Furniture Finishes

TACO HPL

TH 003 D BLACK DOVE

#988175 #1B1714 #F0E3D5

PendantLight

TVArea

WallPanel

Mirrored Table

Bed Table

Entrance Door

ToiletDoor

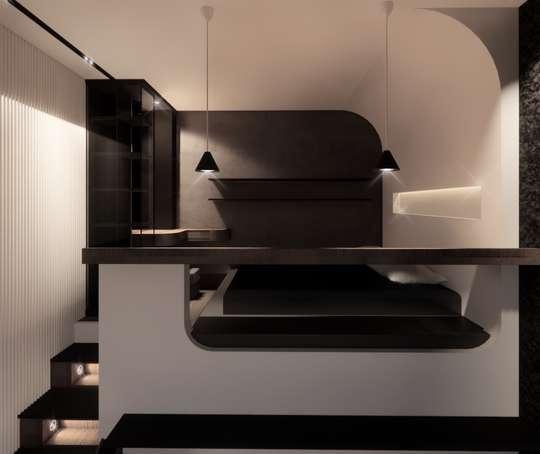

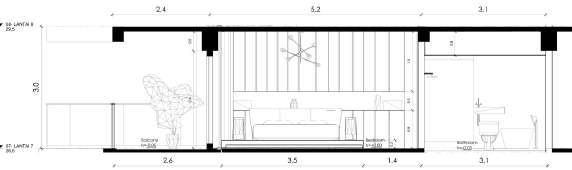

When it comes to the bedroom, it's a custom-made package of pieces that includes every piece of furniture, mullion, and partition. In this section, the general lighting is cut off. There are several accent lights in this unit, which employs dim illumination (50 lux) The gloomy color scheme creates a serene atmosphere The unique floor arrangement and architecture of the ADC loft enable its residents to benefit from the advantages of togetherness, flexibility, and timeless beauty

Detail Furniture Link

Detail

Poster Link

Poster

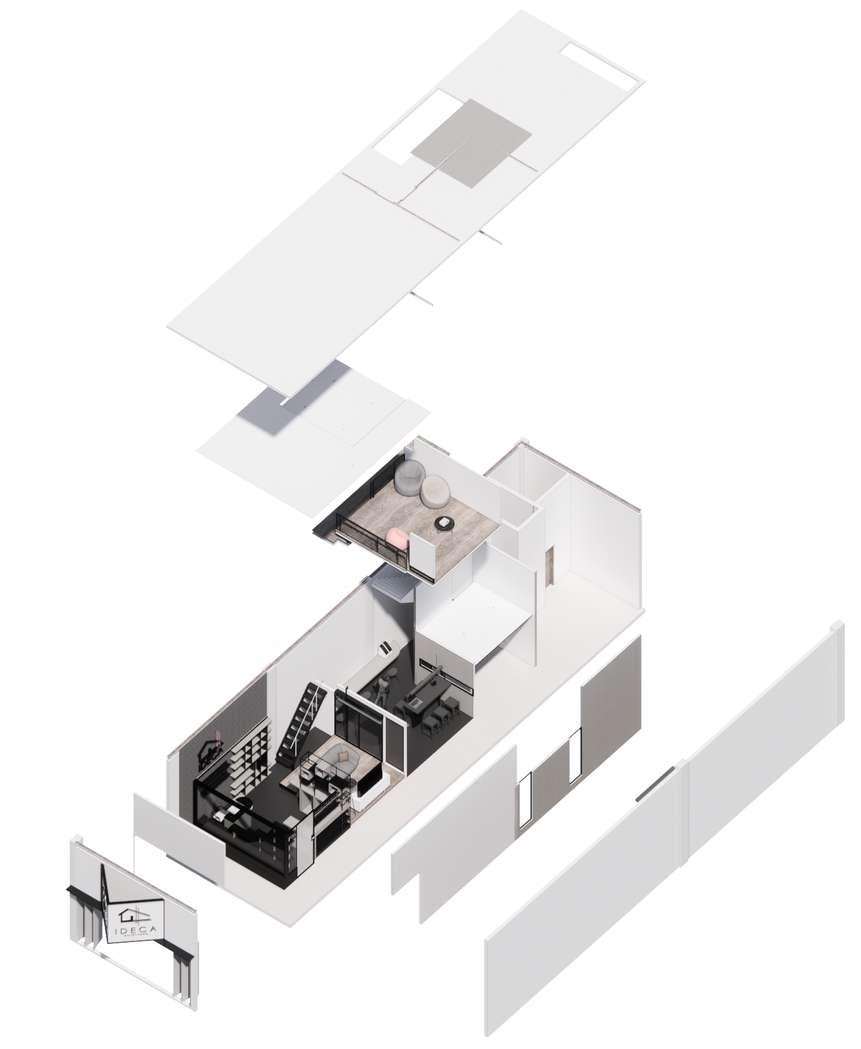

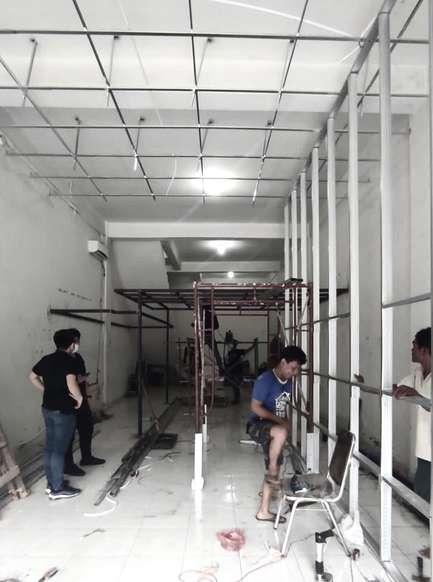

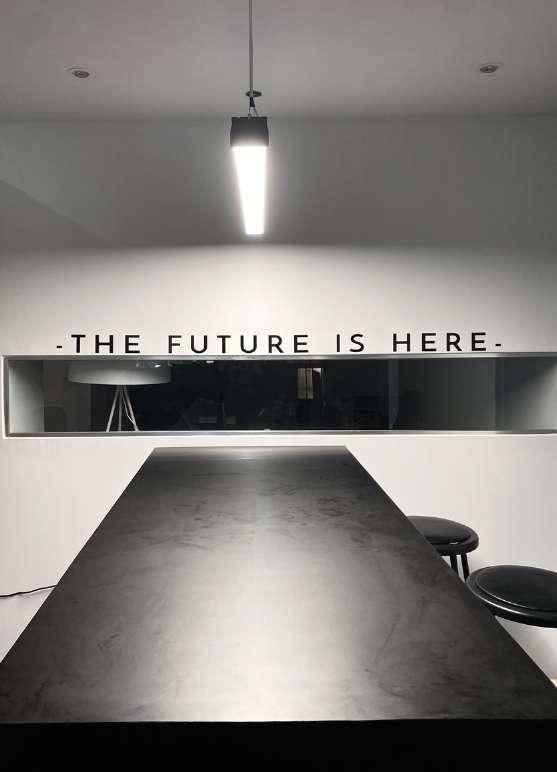

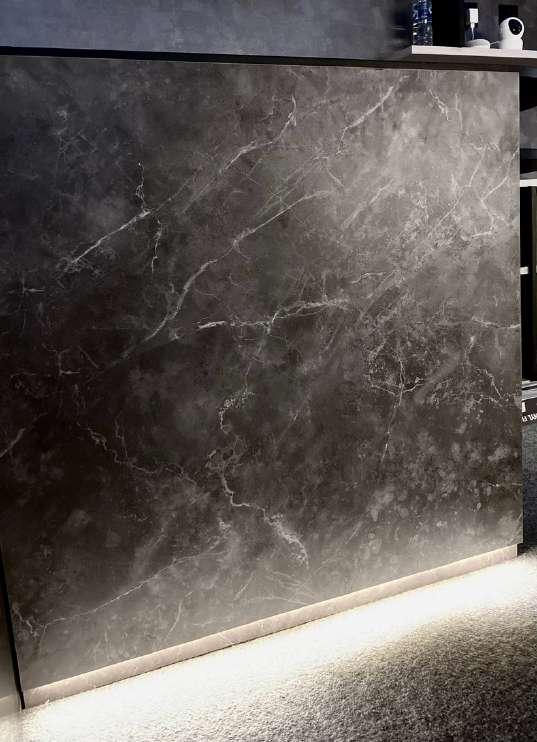

IDECA

Smart Home Store

Using a Simplistic color combination and Art Decoinspired shapes, the ADC's design is inspired by the style. Loft apartments are highly sought after in Indonesia's real estate market Spacious empty spaces in lofts are still a popular design choice in today's design

Ideca

This building aims to develop a smart home shop with a demonstration space where visitors may experience smart home technology firsthand We created an all-white interior in order to create a welcoming retail area and to announce the new use of the building to the passers-by

Concept

This smart home stores is divided into four sections All the smart gadgets are on display in the first Zone, which is a retail area Conceptually, the second Zone is a "living room" where individuals may experience the simulation. The rear portion of the store is an open area where all of the employees are able to work together. As a cinema area, a projector is installed on the mezzanine

Construction Progress

Beginning on October 4, 2020 and ending on December 19, 2020, the project is accomplished. After only three months of hard work, the design was completed

Material

Floor Finishes

Vinyl Avoli Oak

Size : 152 4 x 914 4 mm

Furniture Reception Finish

Vinyl Grey Marble

Furniture Finishes

HPL Freya Wood

Floor Carpet

Carpet Tile

Furniture Drawing

Smart Home Store

Concept

This building aims to develop a smart home shop with a demonstration space where visitors may experience smart home technology firsthand We created an all-white interior in order to create a welcoming retail area and to announce the new use of the building to the passers-by

P O R T F O L I O P O R T F O L I O P O R T F O L I O P O R T F O L I O
