FINAL YEAR 08

VIA-KA ECO-TOURISM INTERPRETATION CENTRE CONCEPT : RE-INCEPTION

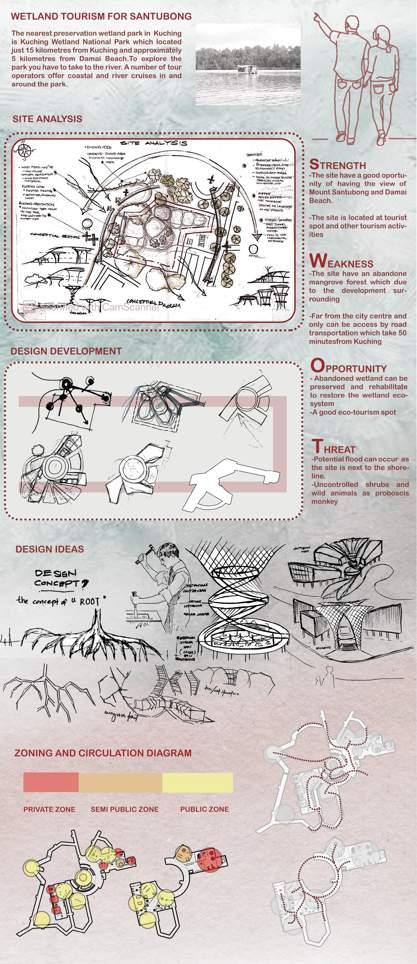

Via-ka Interpretation Centre is a wetland based preservation centre that aims to focus on interactive education and wider discovery on wetland species.

The concept, Re-Inception refers to the rebirth of the wetland which the intention is to revive the natural wetland that has been abandoned and uncontrolled due to the nearby development.

This concept derived from the characteristic of mangrove root as it is a nursery habitat for the sea life species.

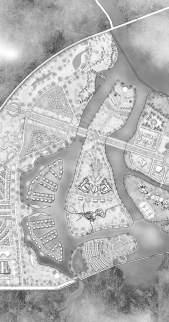

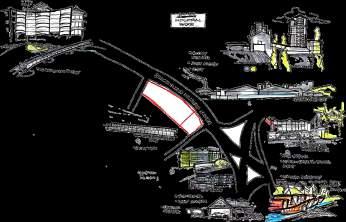

LOCATION PLAN

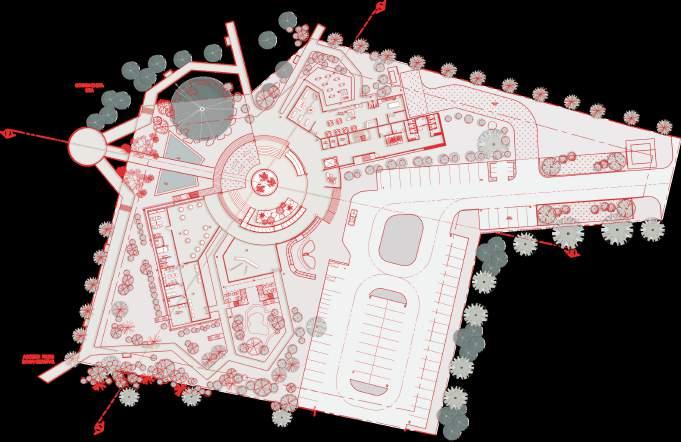

SITE PLAN

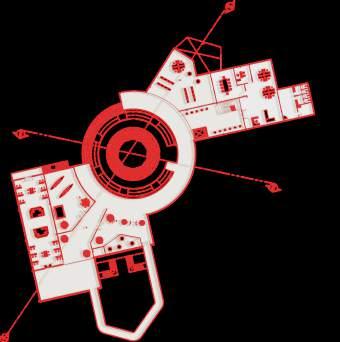

GROUND FLOOR

FIRST FLOOR

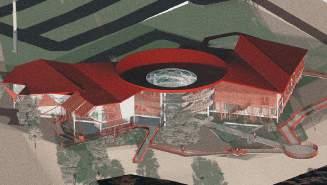

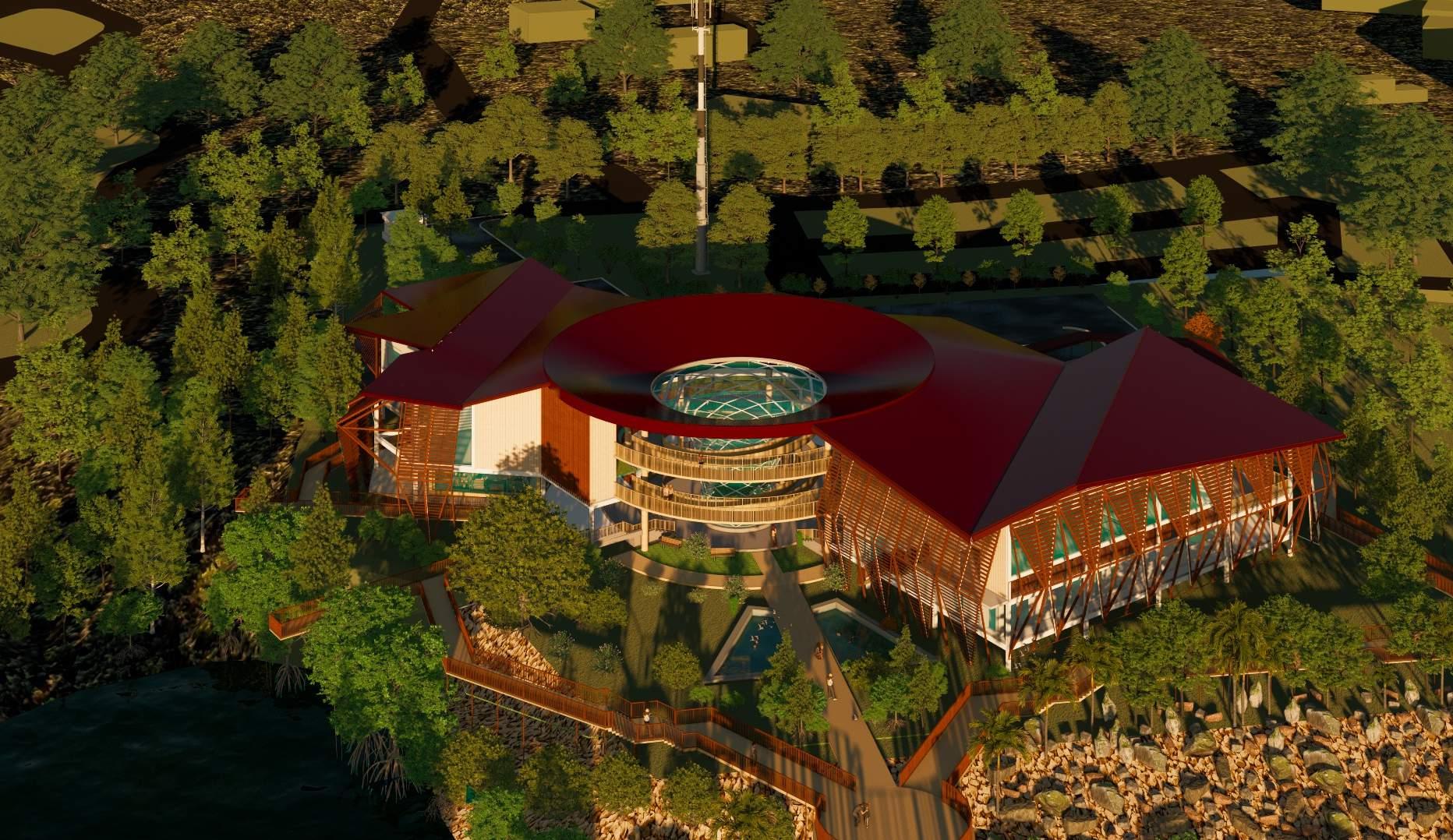

BIRD VIEW

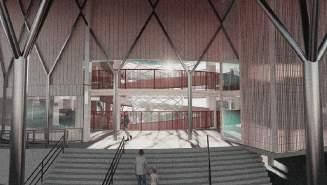

LOBBY

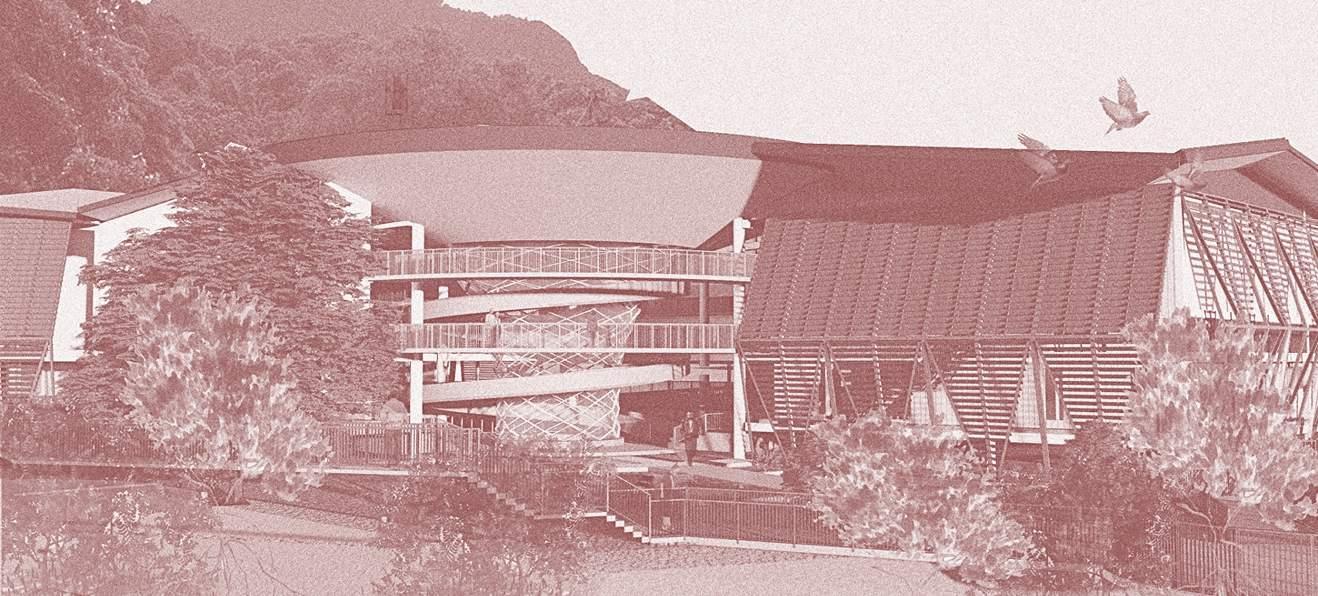

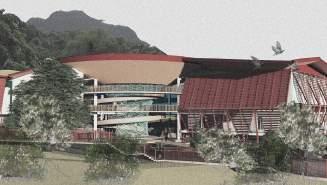

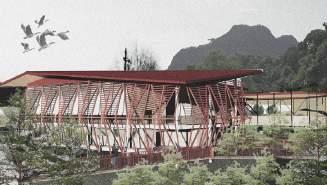

EXTERIOR LANDSCAPE

BIRD VIEW

EXTERIOR LANDSCAPE

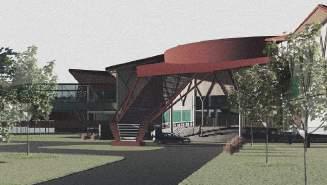

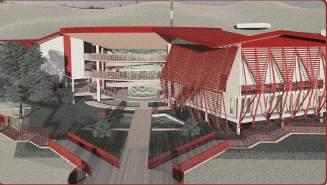

ENTRANCE

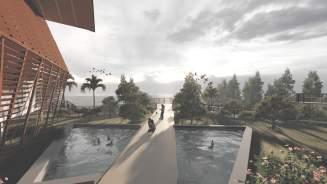

VIEW OF THE SEA

SCAN FOR ANIMATION

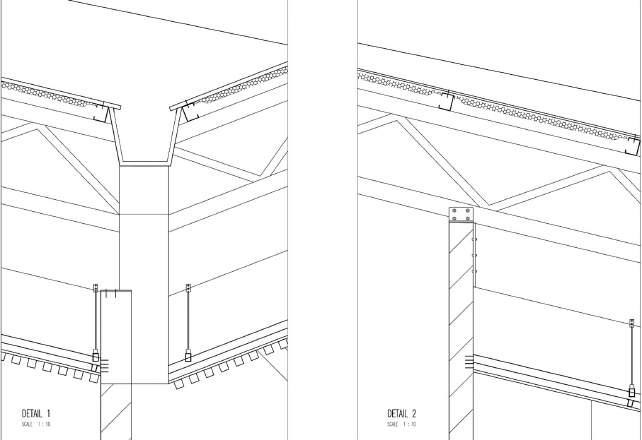

DETAIL roof

legends 1 2 3 4 5

STEEL BEAM RC COLUMN STEEL TRUSS C PURLIN ECOWOOL INSULATION 6 METAL GUTTER 7 METAL FLASHING 8 COLOR COATED METAL ROOFING SHEET 9 RAINWATER DOWNPIPE 10 STEEL PLATE

8 5

5

8

4

4 7

3

3

9

2

1 1

DETAIL ROOF

DETAIL ROOF

NTS

NTS

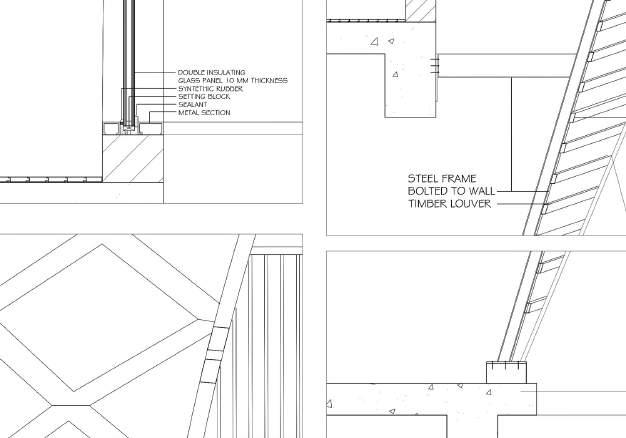

DETAIL low e- glass

double insulation glass panel 10mm thickness syntethic rubber setting block sealant metal section

steel frame bolted to wall timber louver

DETAIL atrium structure

detail timber facade

hardwood frame steel angle bracket concrete stump

mild steel rectangular section -connected by steel nodes

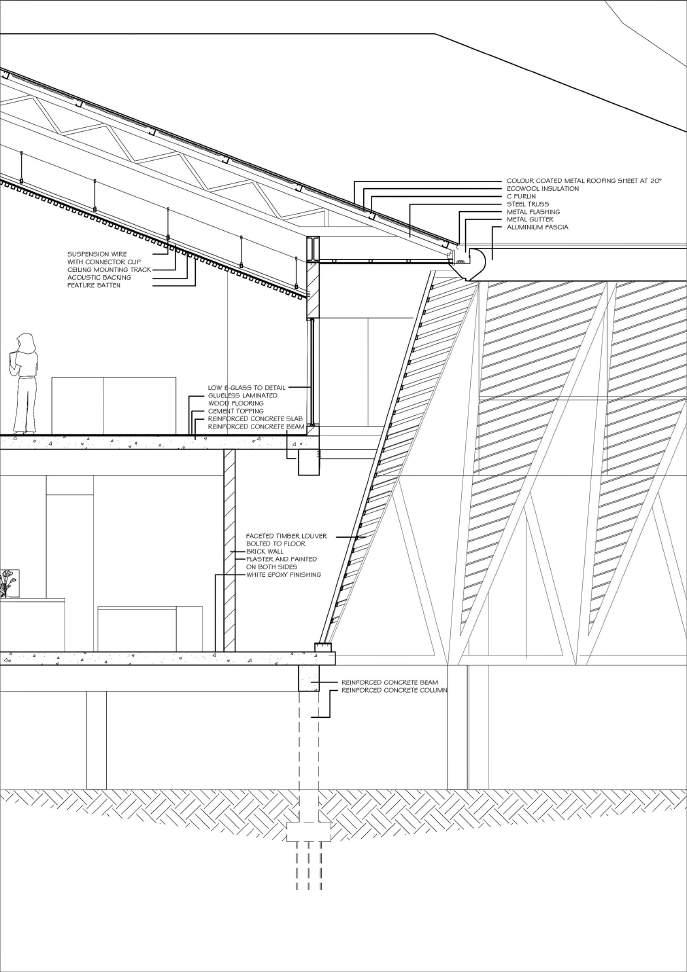

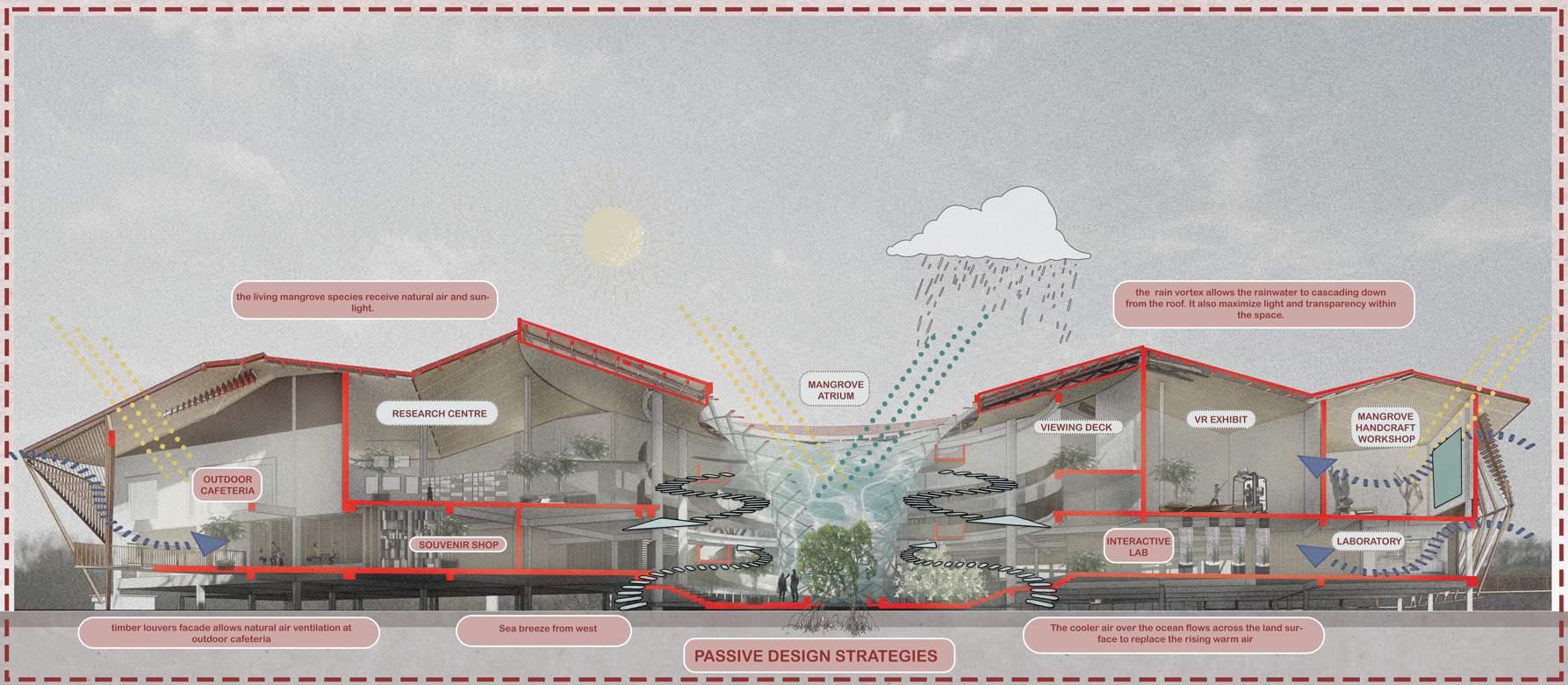

BAY SECTION

PRESENTATION BOARD

FINAL YEAR 07

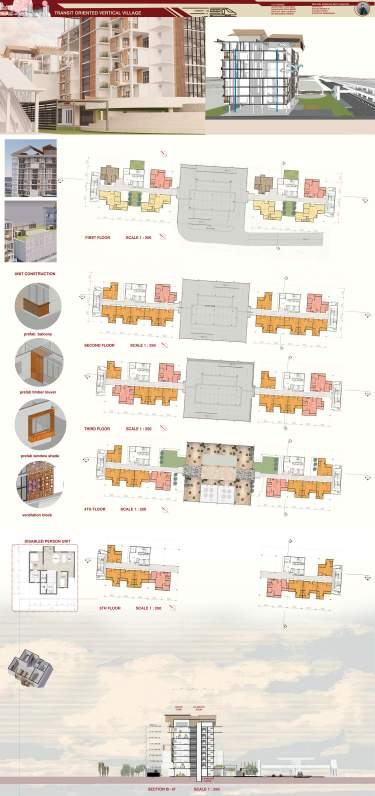

VREKA TRANSIT ORIENTED VERTICAL VILLAGE

CONCEPT : PERMEABLE HOUSE

VReka Residensi comes with a new approach in a way to realive the cultural element in a vertical living setting. This project also integrated with the new development of ART Station which potentially become an important public transportation for the resident.

This design concept derived from the masterplan of the project which is ‘pulang kampung’ where it is embracing the sense of coming home or belongs to.

Here is the significance of permeability where we have to be flexible while adapting to a different environment.

Therefore, permeable house in this concept refers to the flexibility to adapt with our needs within the spaces and environment.

This element of permeability is not a common approach as it is also one of the unity element that we have in the past. It is where the transition happens between two reality. Our local traditional house have unique features of being permeable to the environment and lifestyle which will derived the design.

Here is the design combined with local culture element and how the space play roles in revitalizing the lifestyle.

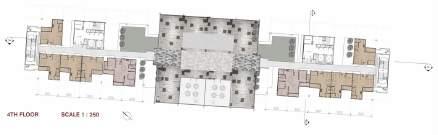

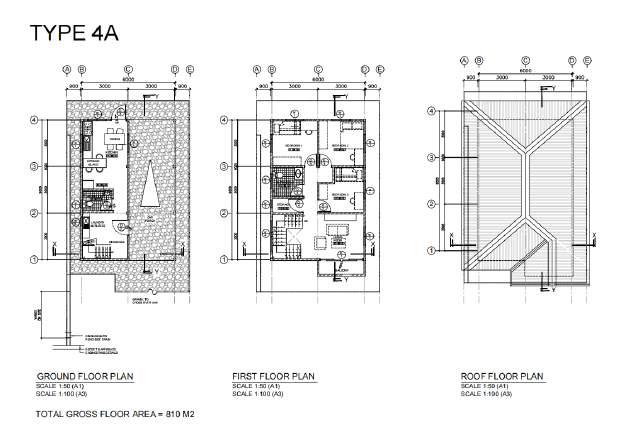

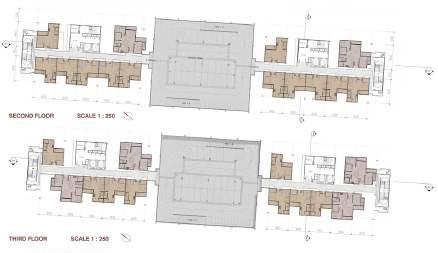

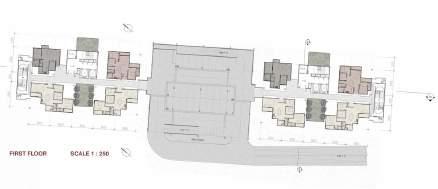

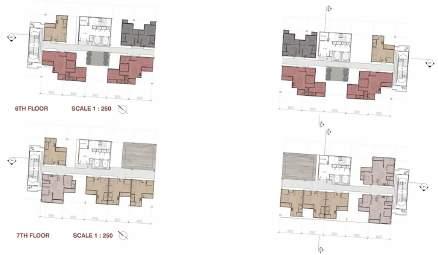

FLOOR PLANS

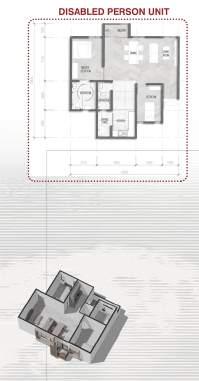

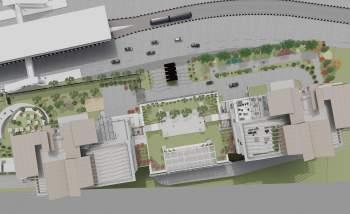

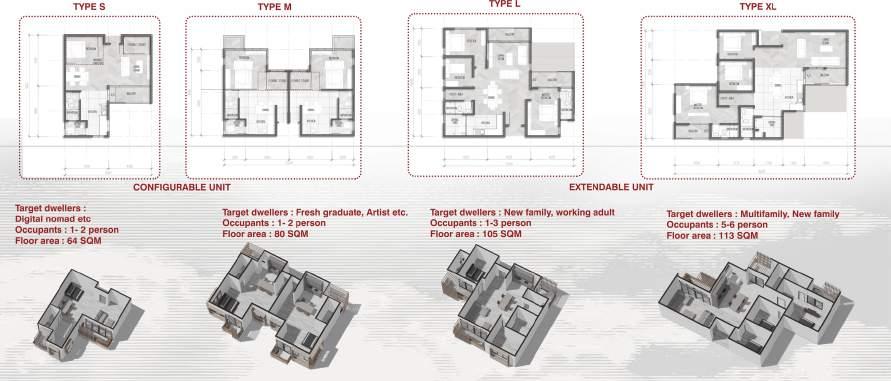

GROUND FLOOR & UNIT TYPE

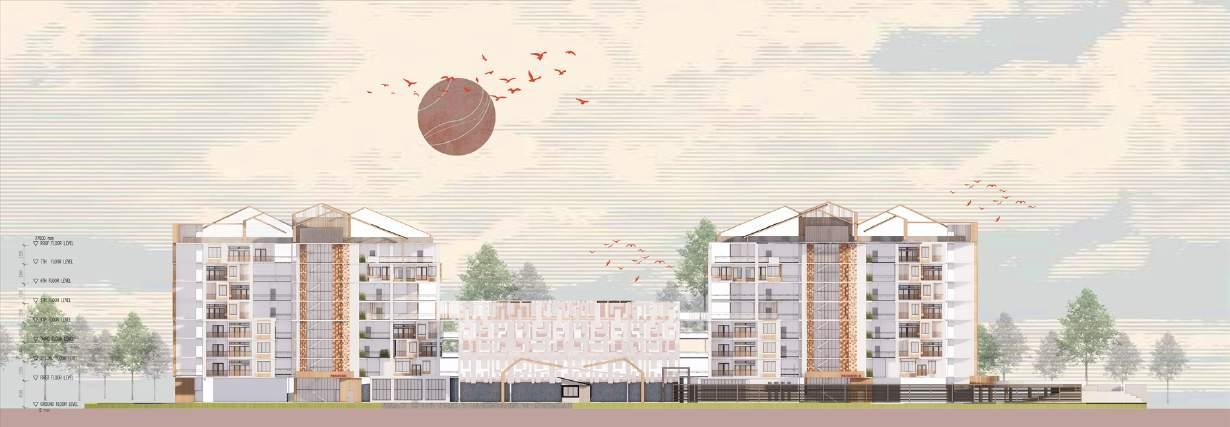

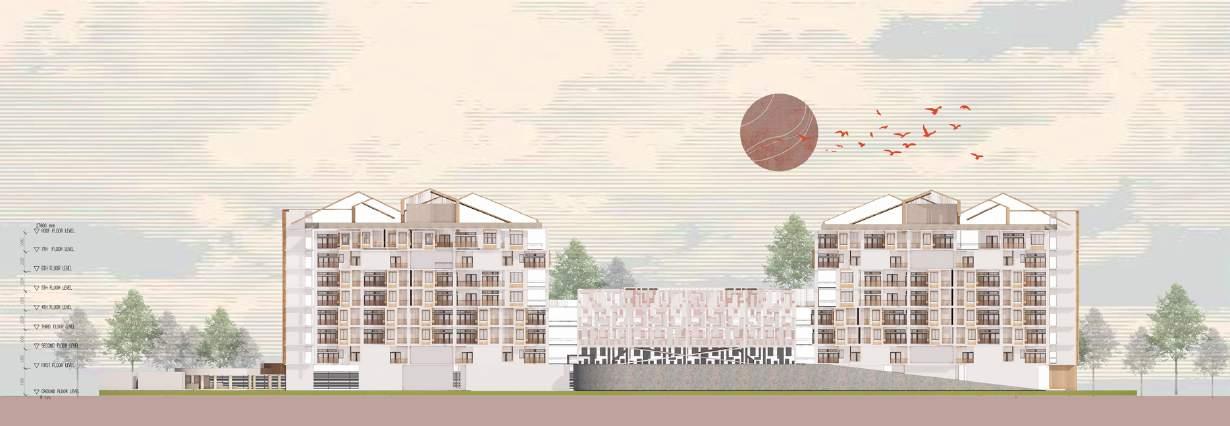

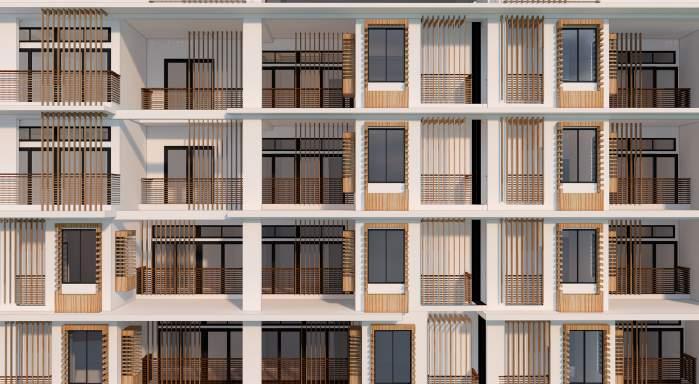

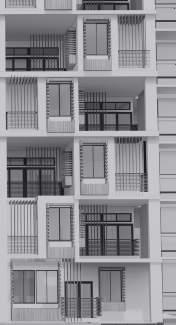

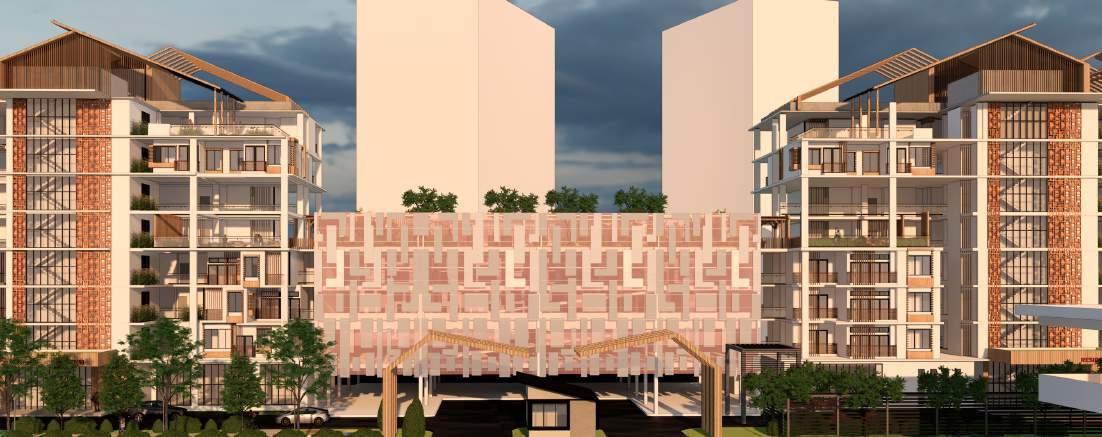

FRONT ELEVATION

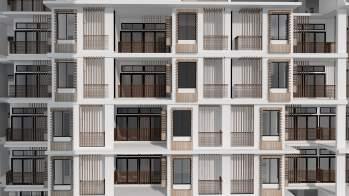

REAR ELEVATION

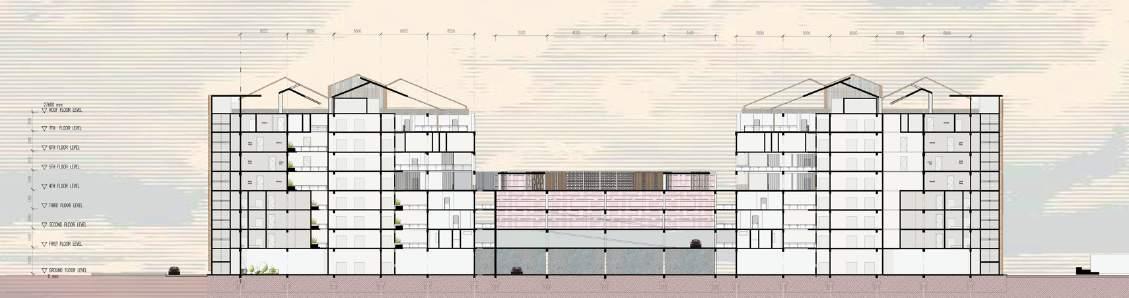

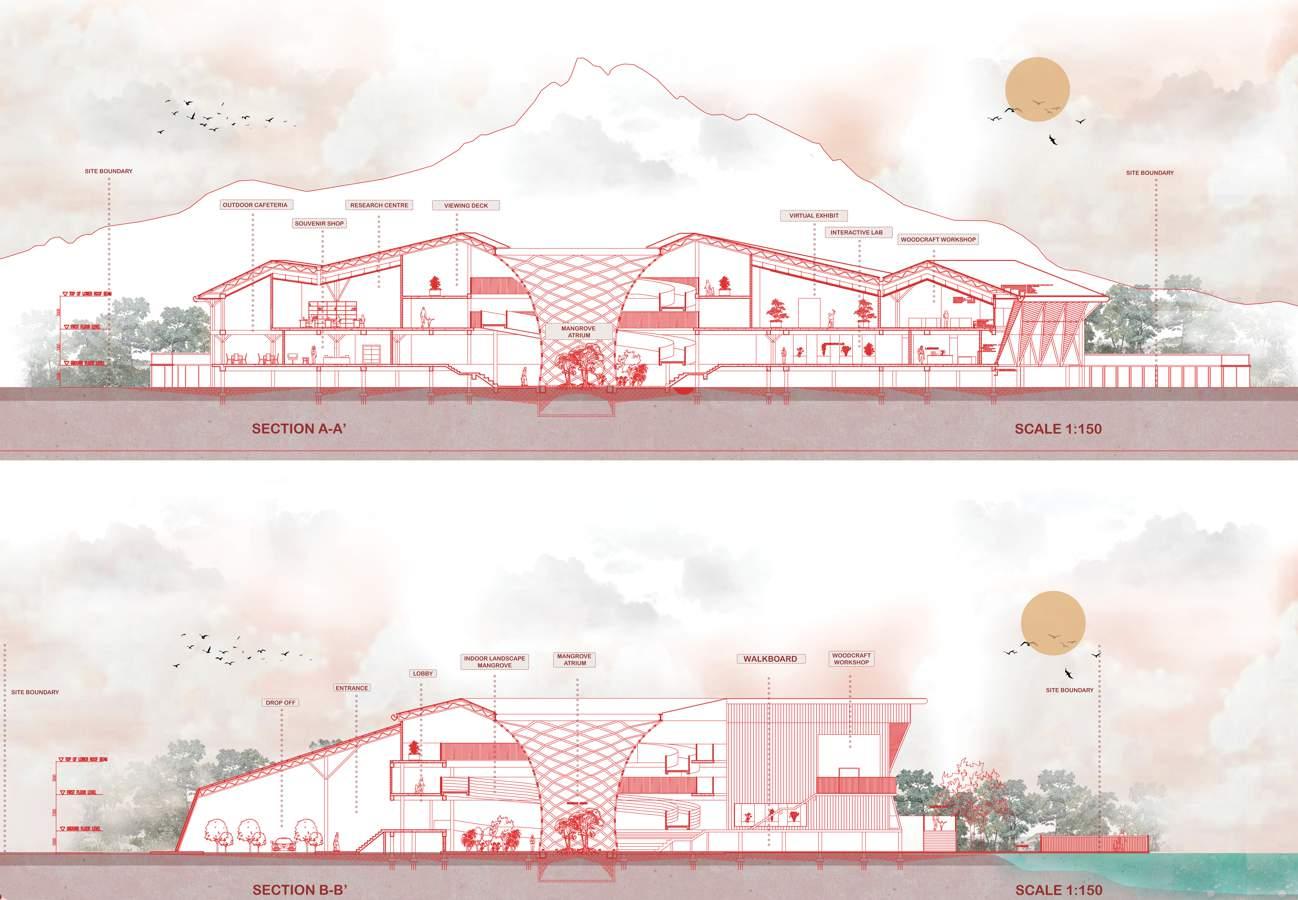

SECTION A-A’

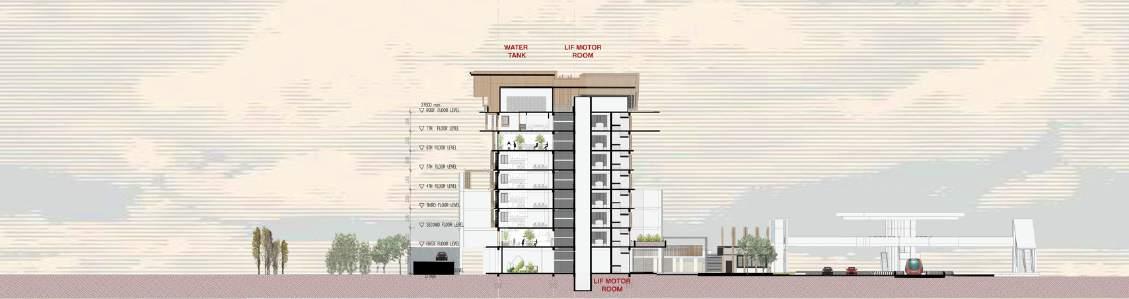

SECTION B-B’

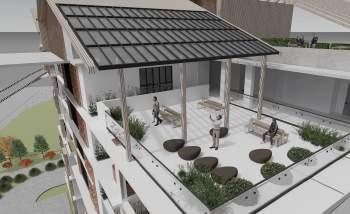

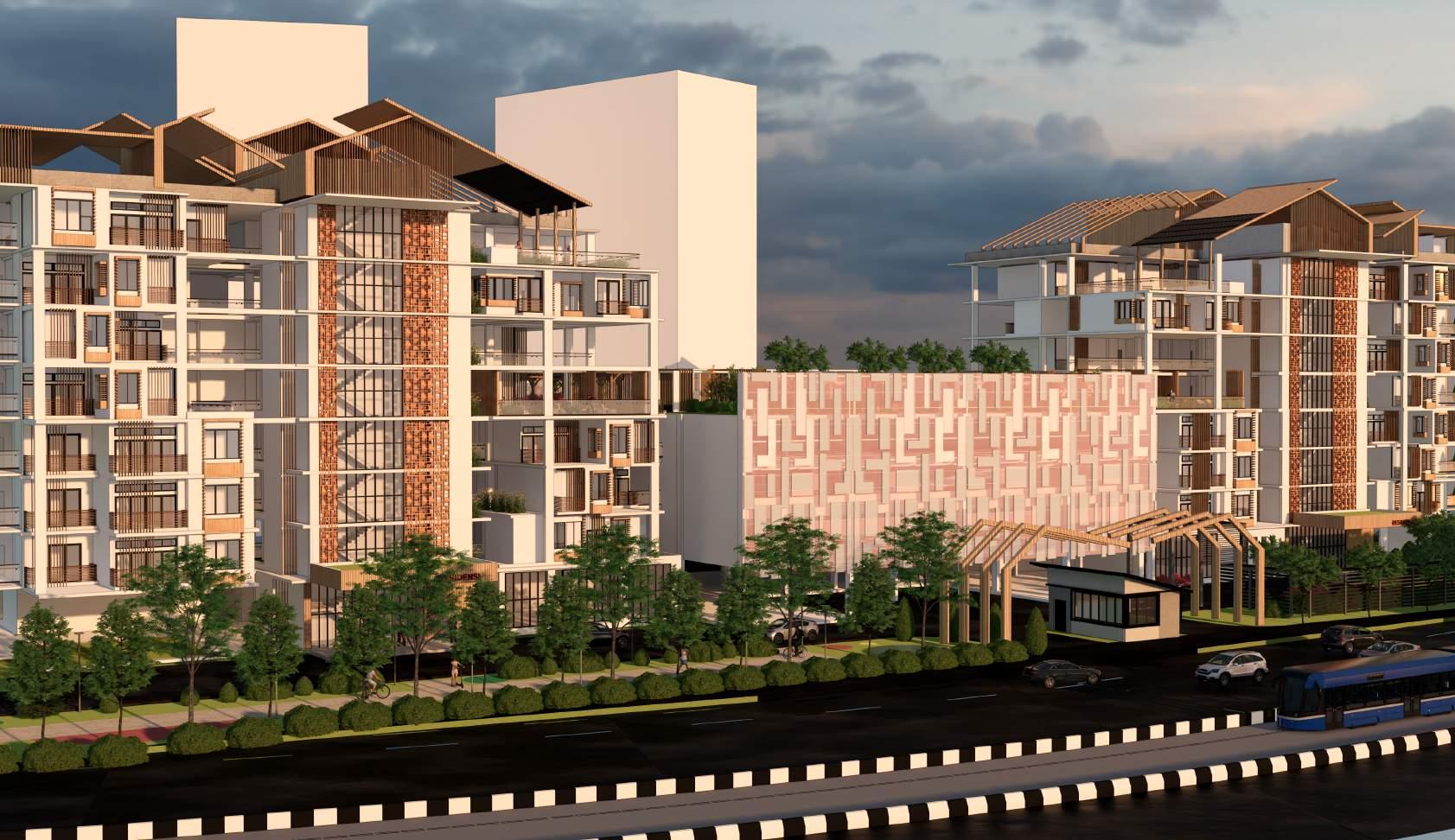

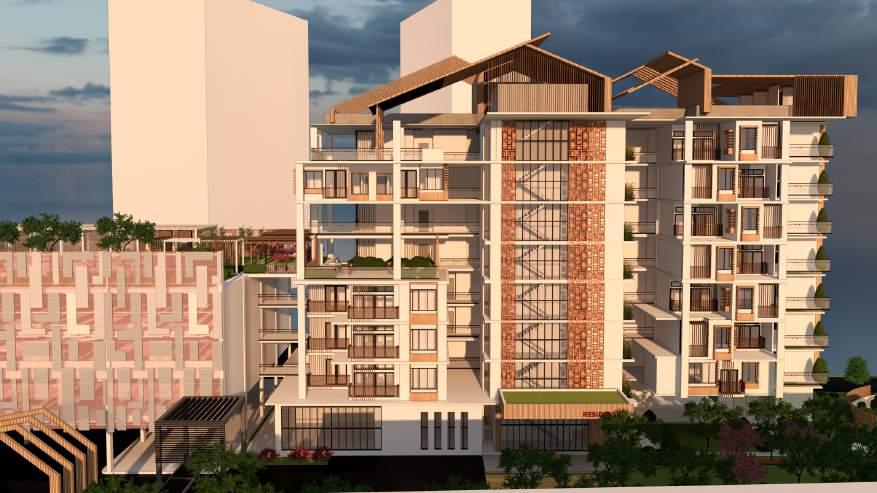

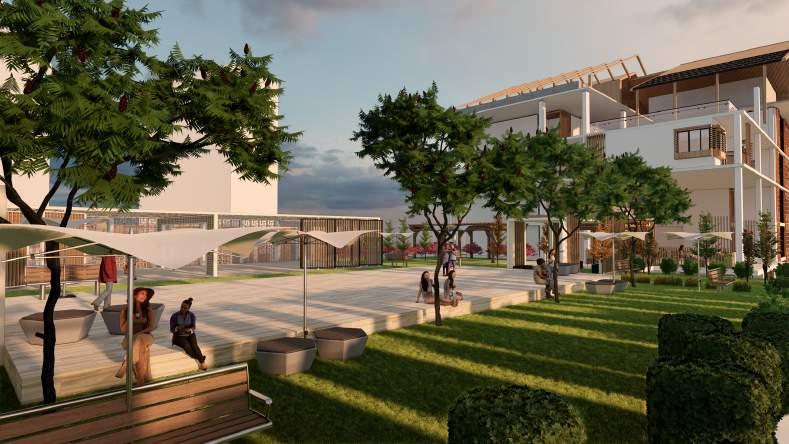

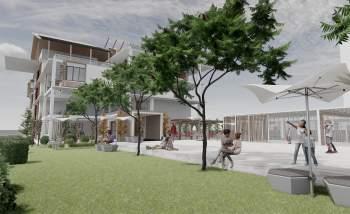

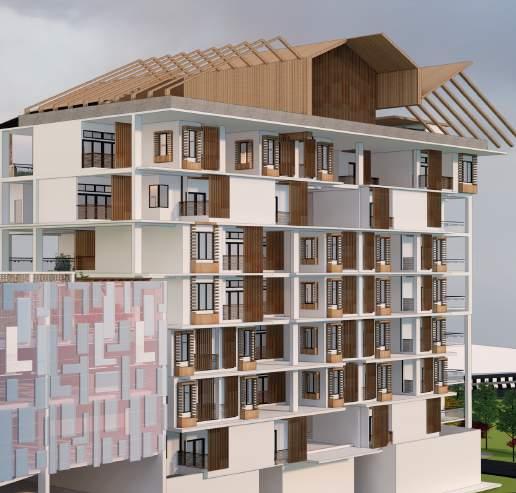

PERSPECTIVES

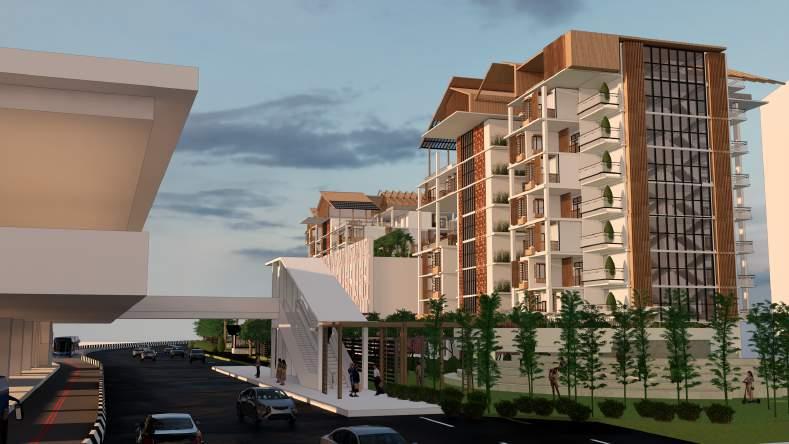

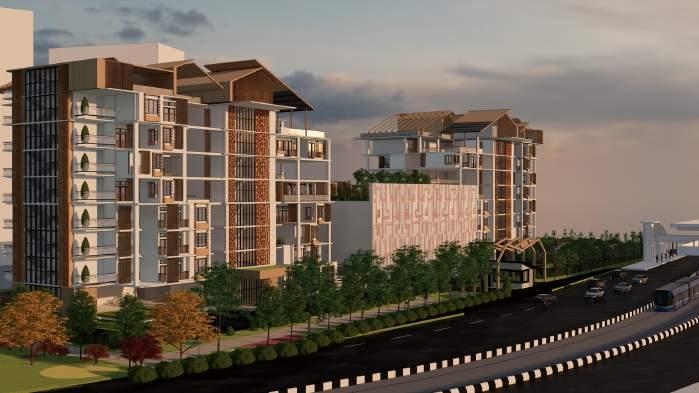

PERSPECTIVES

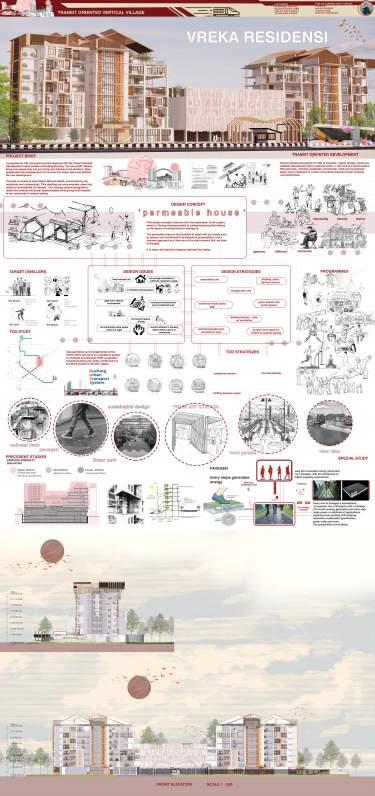

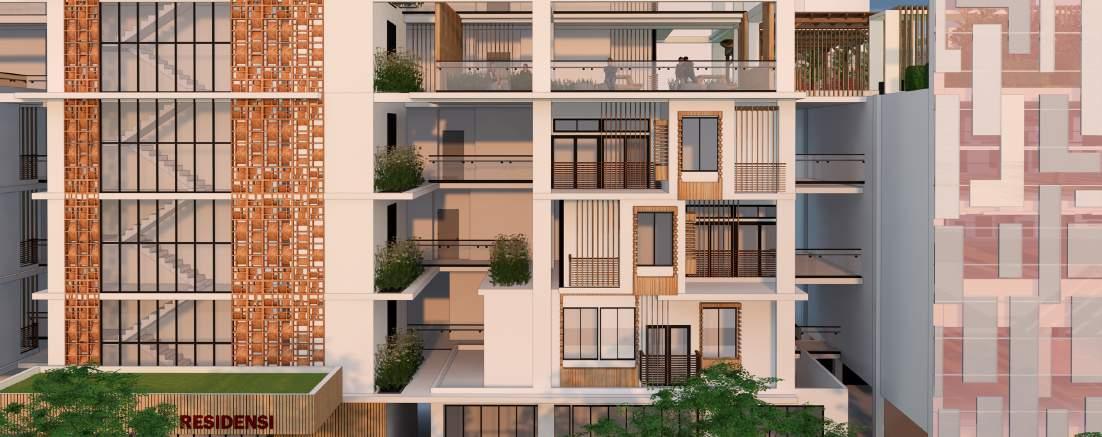

VREKA RESIDENSI VReka Residensi focuses on resolving the design issues which related to housing issues, site issues and target dwellers.

The proposed extendable unit and configurable unit as a respond to the flexibility of the space. Target users having option of rearrange their layout based on their needs. Amenities that are provided also fulfill the community social demand as they can enjoy cultural activity or celebration

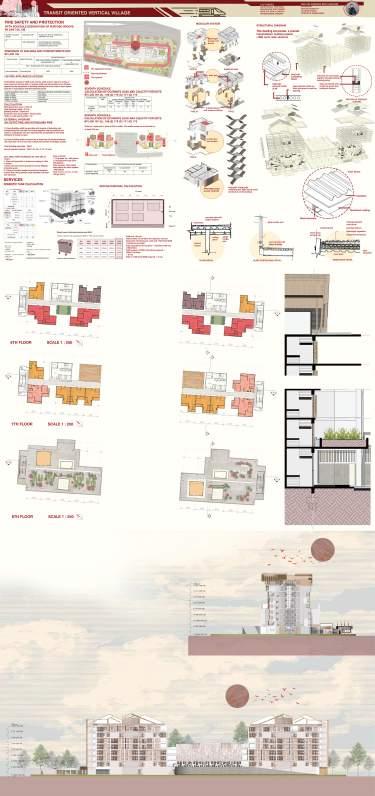

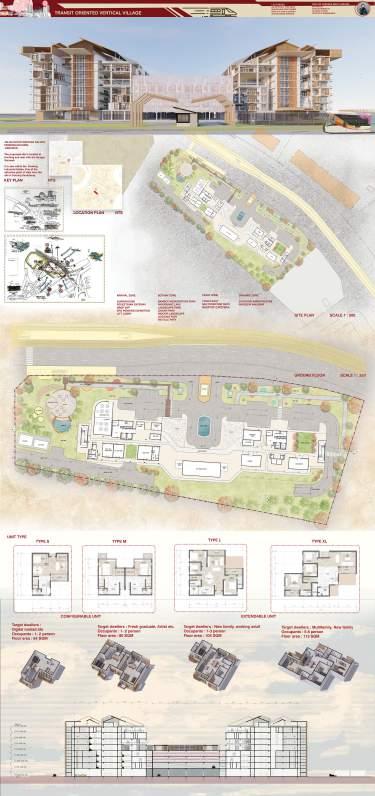

PRESENTATION BOARD

THIRD YEAR 05

VINTARA CO-WORKING HUB

CONCEPT : URBAN JUNGLE

Urban jungle is inspired from Kelvin Chan, the client’s approach where he always trying to reconnect and embracing the nature through his photography works. Based on site analysis, since the proposed site is located at urban area and surrounded by undeveloped green area, this derived the idea to bring the nature outside into the building itself. It is to rebalance the active and passive spaces within the co-working environment. Green elements used to reconnect the outdoor into the indoor spaces such as working pod and studio. The green also become a part of the building, which serves as a facade and natural shading devices.

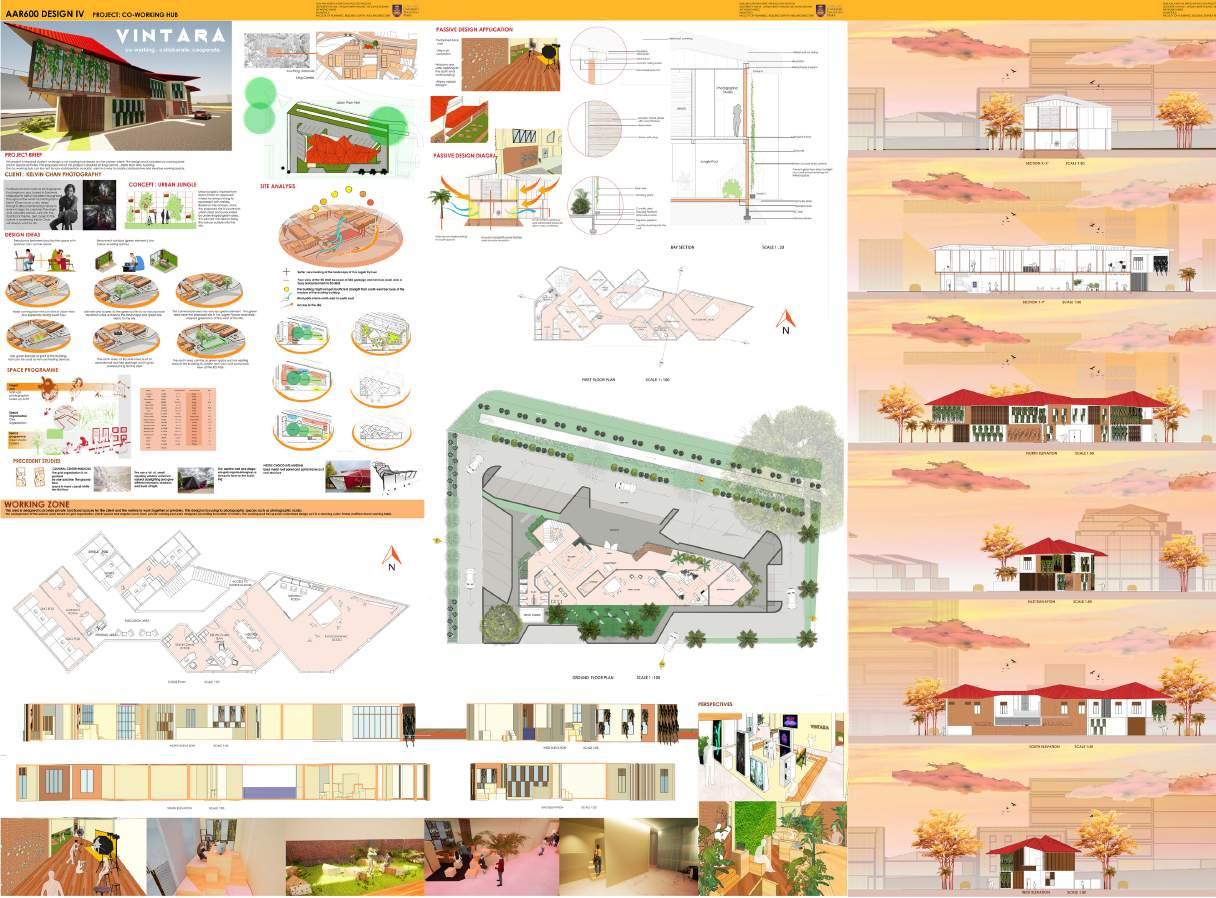

PRESENTATION BOARD

INTERNSHIP WORKS

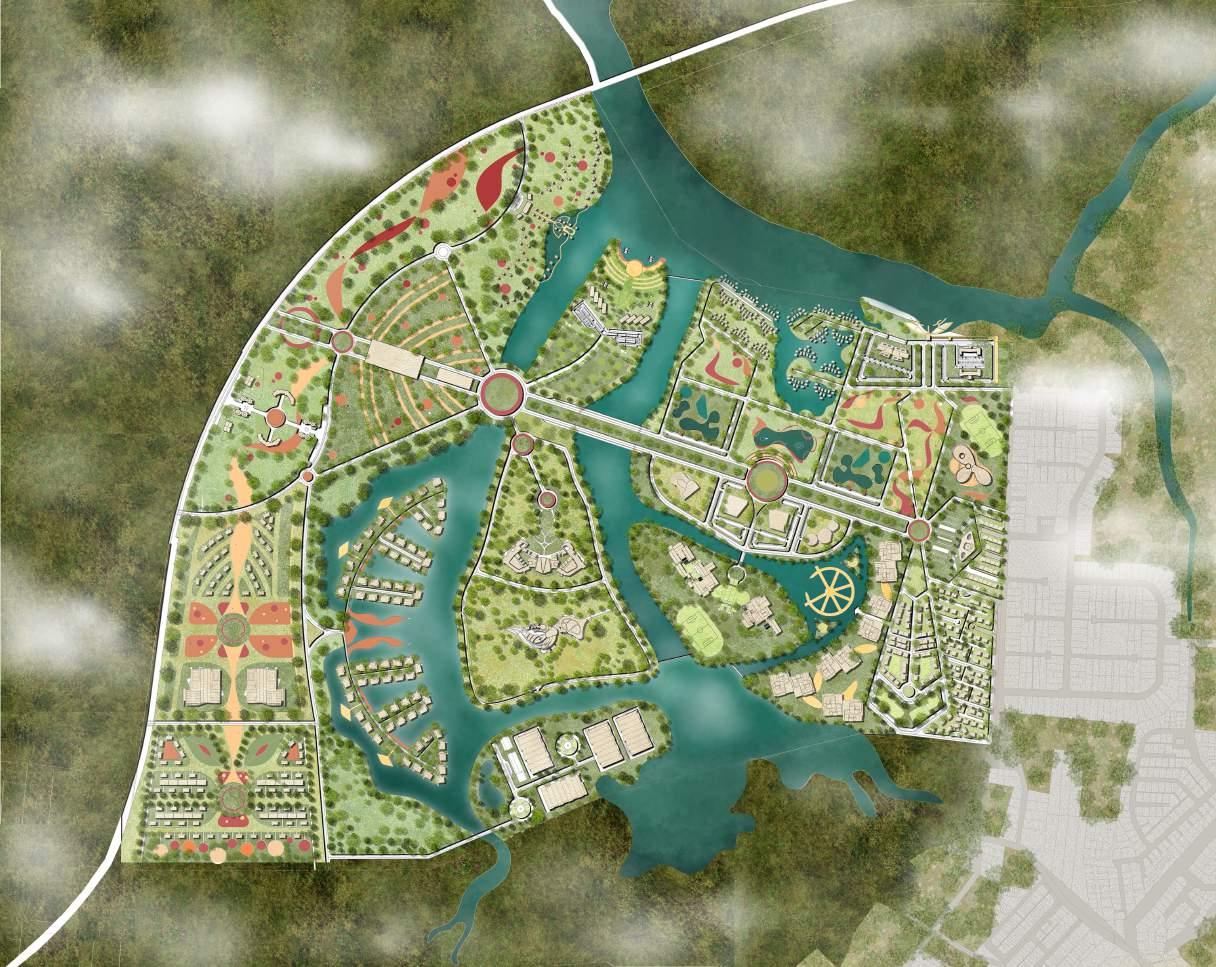

MASTERPLAN

PARTICIPATION: SCHEMATIC DESIGN Proposed design brief and conceptual sketches Preparing schematic design and 3d model for the client Preparing presentation for meeting with the client DESIGN DEVELOPMENT Developed more detailed drawing, 3d model and rendering Involved in project meeting with other consultant FREELANCE Focuses on 3d model and rendering

INTERNSHIP WORKS

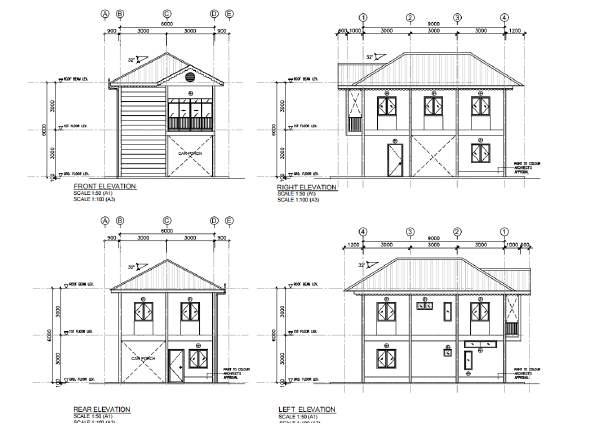

HOUSING DESIGN DEVELOPMENT Assigned to do detailed drawings and 3d model Participated with site meeting with other consultant

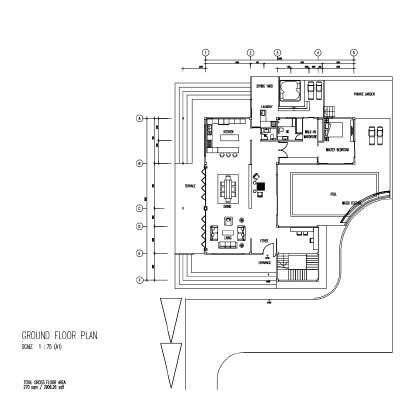

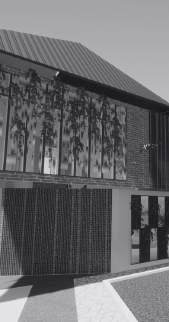

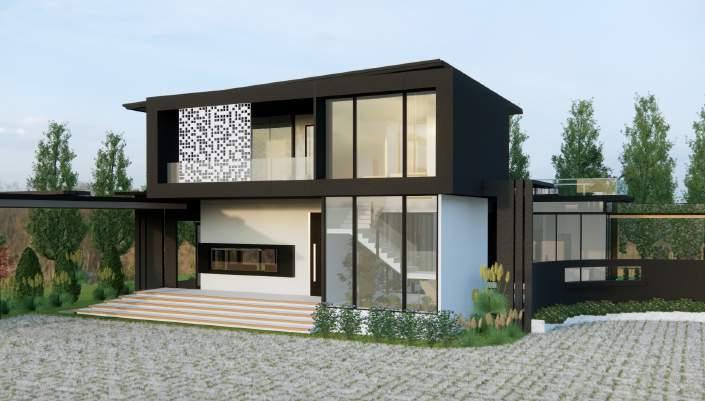

PRIVATE RESIDENCE DESIGN DEVELOPMENT Assigned to do detailed floor plan, detailed 3d with rendering

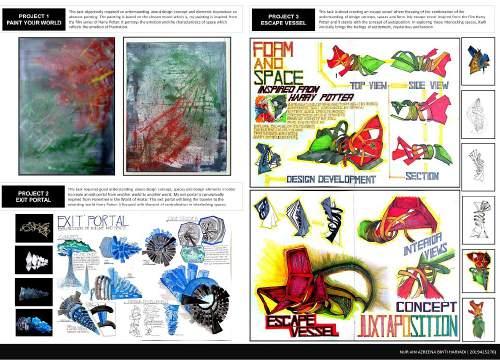

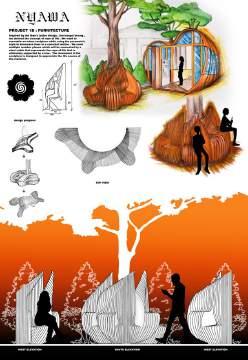

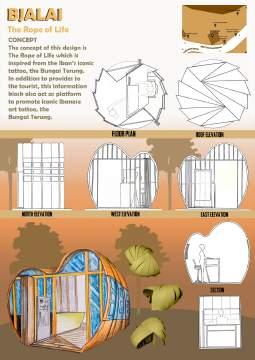

LOWER SEMESTER

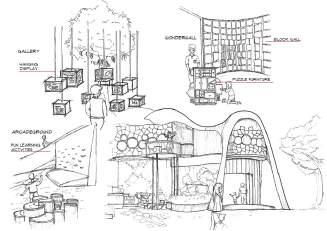

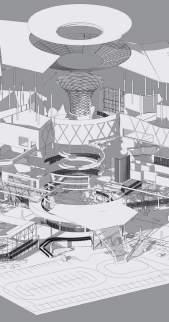

SEMESTER 04 KOOKY’S VISITOR CENTRE CONCEPT : HYPER-BOLIC

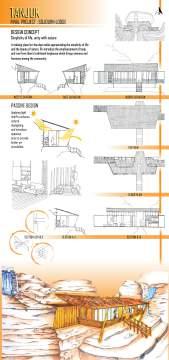

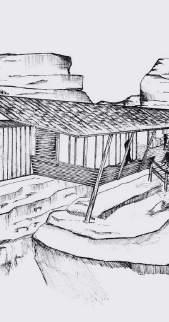

SEMESTER 03 TANJUK SOJOURN LODGE CONCEPT : SIMPLICITY, UNITY

SEMESTER 02 ESCAPE PORTAL CONCEPT : JUXTAPOSITION

PRESENTATION BOARD
