KHAN ADNAN AHSAN

01 URBAN HOUSING - 2021 AD - SEM VII 1/3 02 INTERNATIONAL FINANCIAL CENTER - 2022 AD - SEM IX 4/6 00 THESIS WORK 03 MIXED-USE BUILDING - 2021 INTERNSHIP 7/9 05 WORKING DRAWING - 2021 AD - SEM VII 12/13 06 APIC COMPETITION - 2020 SPECIAL MENTION GROUP OF 3 14 07 INTACH COMPETITION - 2020 WINNER GROUP PROJECT 15 08 OTHER WORKS AND SKILLS 16/17 SELECTED

04 AANGANWADI - 2020 AD - SEM IV 10/11

WORKS

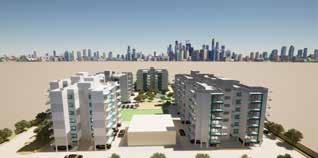

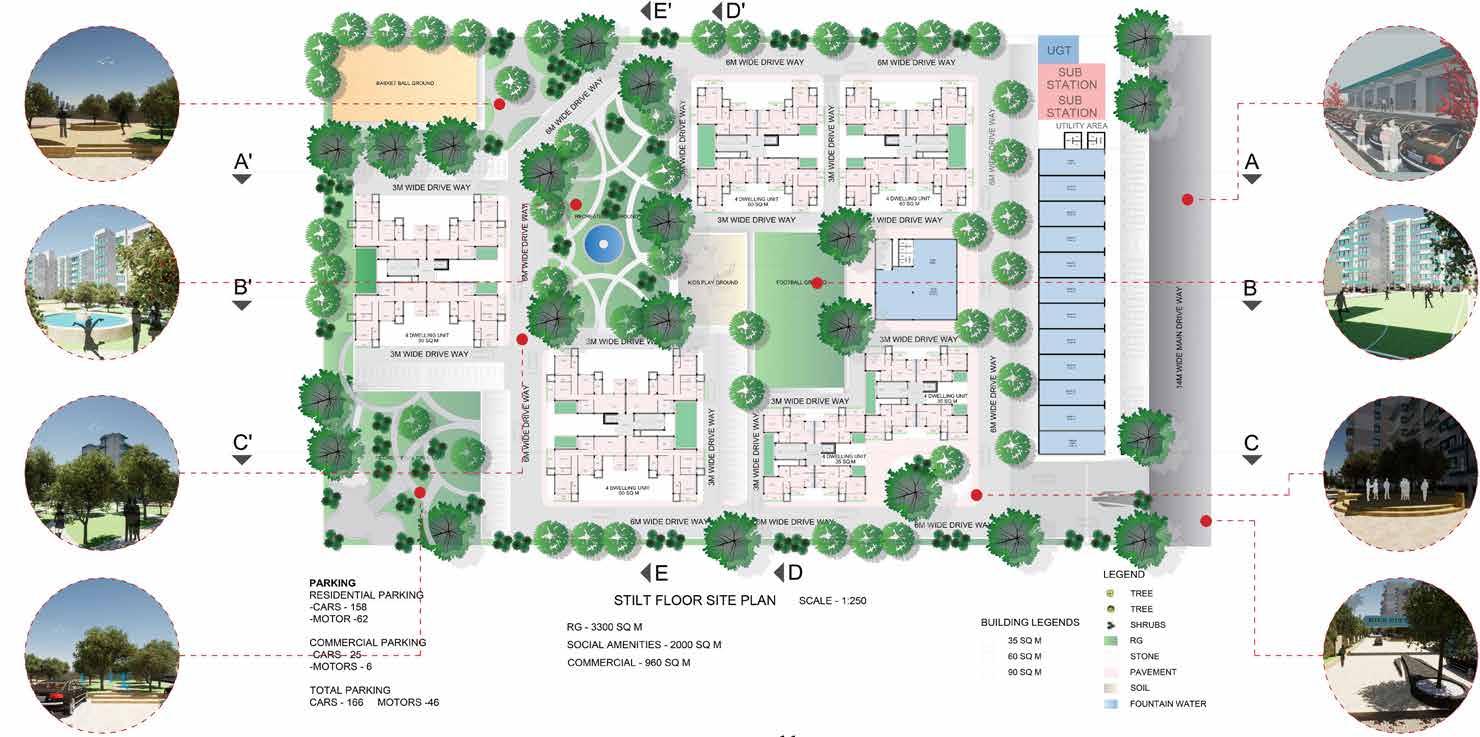

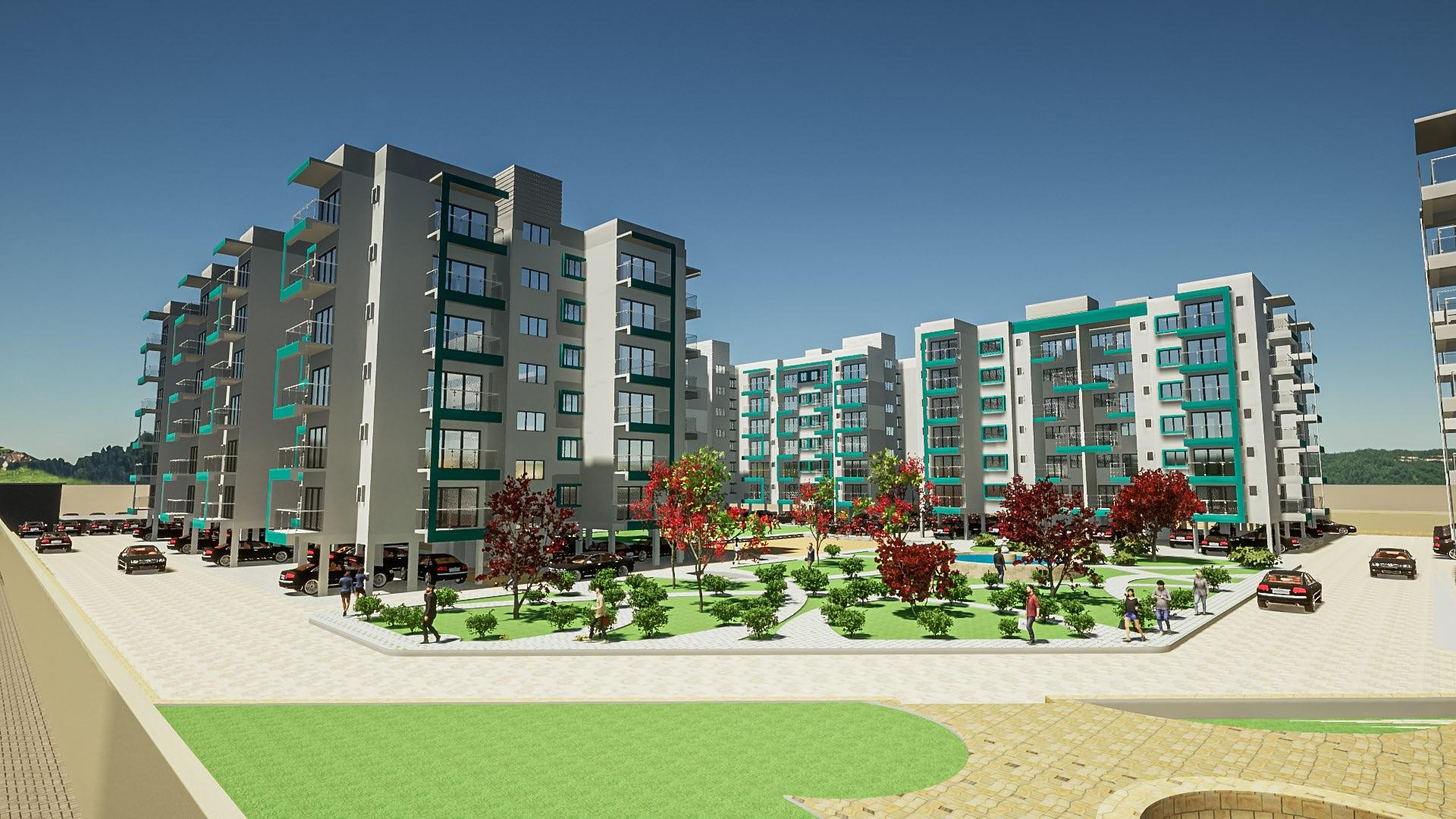

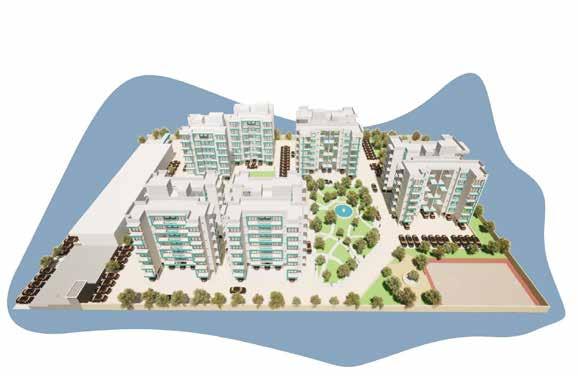

URBAN HOUSING -2021

Semester - VII AD

Site - Mumbai

Softwares - Autocad, Sketchup, Twin motion, Photoshop, InDesign.

1 (1)

PROJECT BRIEF

URBAN SCHEME FOR WORK FROM HOME ACCOMODATION IN NEW TOWN AREA OUTSIDE MUMBAI IN THE WORLD OF PANDEMIC SOCIAL DISTANCING HAS BECOME A NEED OF THE HOUR MANTAINING SPATIAL AND PHYSICAL SEPERATION TO AVOID CONTACK BETWEEN PERSONS IS THE NEW NEW SOCIAL RULE .THE PROJECTS AIMS TO PROVIDE ACCOMODATION OUTSIDE MUMBAI TO DECONJEST THE EXISTING LAND CONSTRAINS CITY SITUATED ALONG MUMBAI PUNE EXPRESS WAY ,48 DWELLING UNITS TO BE GIVEN OF 35 - 40 SQ.M , 60 SQM. AND 90 SQ.M., 15% TO BE GIVEN AS RECREATIONAL GROUND AND 5% FOR SOCIAL AMENITIES UTILITIES AND COMMERCIAL ACTIVITIES RESPECTIVELY.

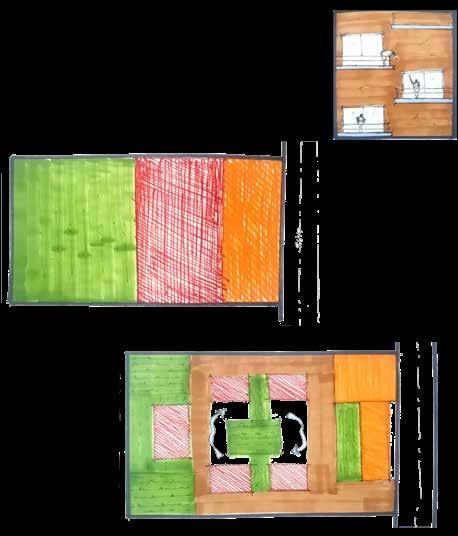

CONCEPTUAL DESIGN

Due to covid situation and to maintain social distancing. People do not interact much for safety purposes, this lead to design an housing that are visually connected and can reduce the feeling isolated.

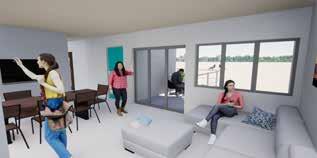

DWELLING UNIT ARE DESIGN IN A WAY SO THAT THEY GET A VISUALLY CONNECTED AND GET STUDIO ROOM IN THE SAME AMOUNT SAPCE.

ZONE - 1

Commercial spaces are putted in the front for easy acces to the people of outside also.

The building space are in the middle for surrounded with people and then the recreational ground.

Back so that it can be used for kids safety purposes.

ZONE - 2

Commercial spaces and the utility space outside so that it can be access for the servicess and people easily.

The buildings are formed as a circle so that people can can be visually connected and do not feel isolated.

The recreational spaces are around the site that act as a stay point and the amenities and the kids area on the centre of the building so that every one have

7 6 PROCESS PLAN 4 DWELLING UNIT AT (1,3,5) PER FLOOR 90 SQ M 4 DWELLING UNIT AT (2,4,6) PER FLOOR 90 SQ M 4 DWELLING UNIT AT PER FLOOR 60 SQ M 4 DWELLING UNIT AT PER FLOOR 35 SQ M FURNITURE LAYOUT PLAN FURNITURE LAYOUT PLAN FURNITURE LAYOUT PLAN FURNITURE LAYOUT PLAN

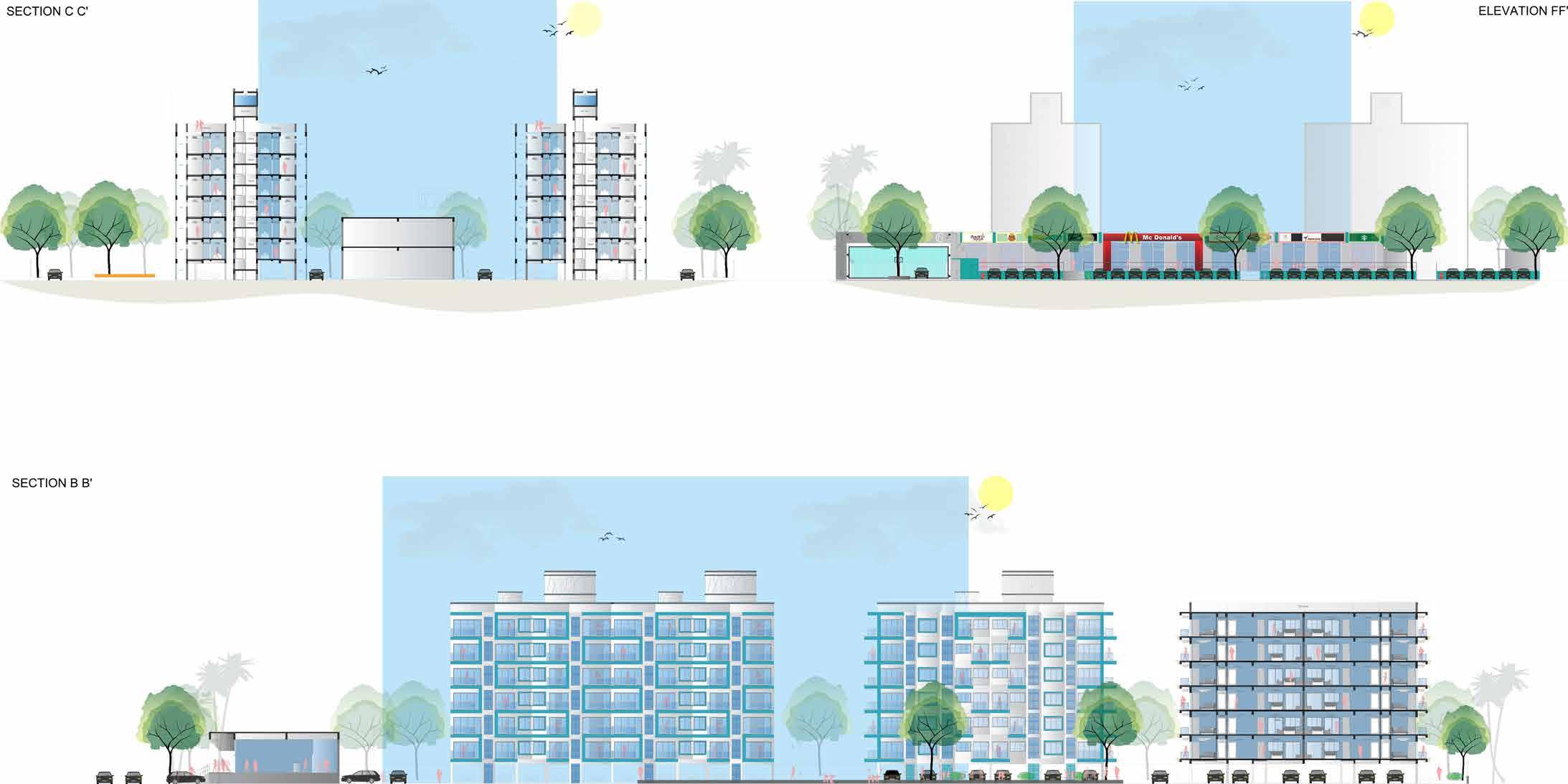

9 8 90 sq m 90 sq m 35 sq m 60 sq m 60 sq m 35 sq m 60 sq m commercial commercial commercial SECTION SECTION (3)

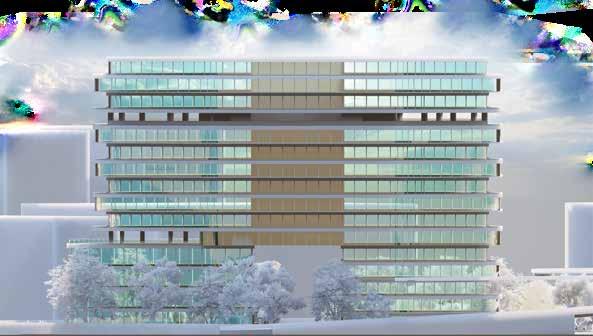

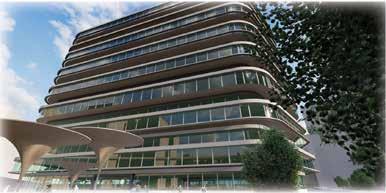

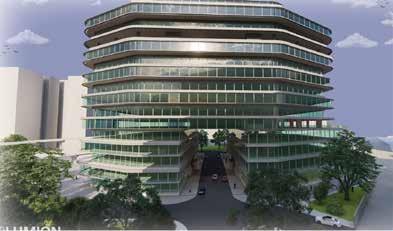

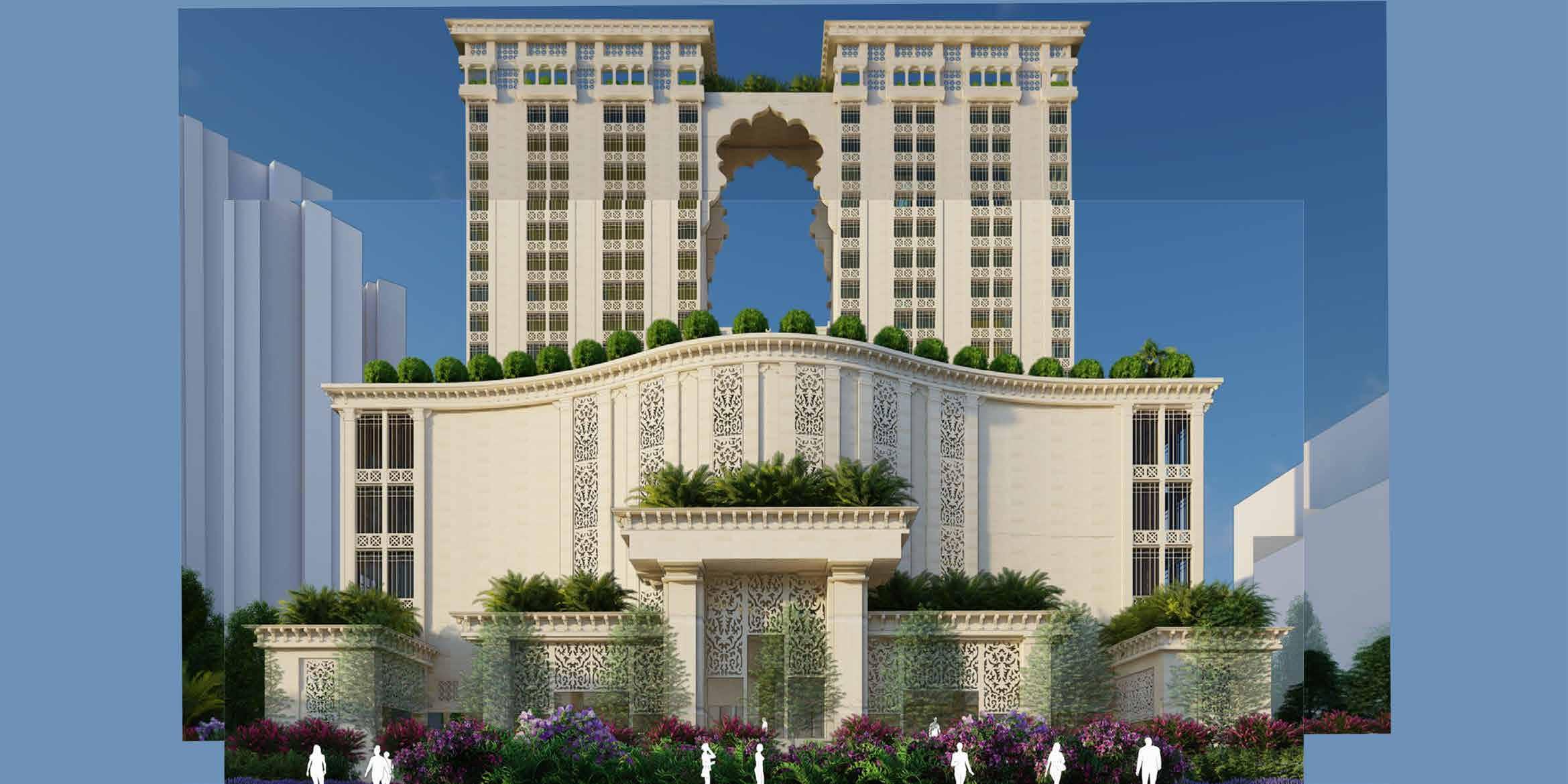

INTERNATIONAL FINANCIAL CENTRE

-2022

Semester - IX AD

Site - Mumbai

Softwares - Autocad, Sketchup, Lumion, Photoshop, InDesign.

2 (4)

PROJECT BRIEF

PROPOSED DESIGN FOR INTERNATIONAL FINANCIAL CENTER AT BANDRA KURLA COMPLEX MUMBAI

“AN INTERNATIONAL FINANCIAL SERVICE CENTRE CATERS TO CUSTOMERS OUTSIDE THE JURISDICTION OF THE DOMESTIC ECONOMY. SUCH CENTERS DEAL WITH FLOWS OF FINANCE, FINANCIAL PRODUCTS AND SERVICES ACROSS BORDERS”

CENTRAL OPENING AND INITIATING-

PROPOSED MOTILAL NEHRU SRA SCHEME

24.0m.WIDEKANZULIMANROAD24.0m.WIDEKANZULIMANROAD

ADDING MORE FACES TO THE FACADE AND CREATING PEDESTRIAN ACCESS

PROPOSEDMTNLMETROSTATION

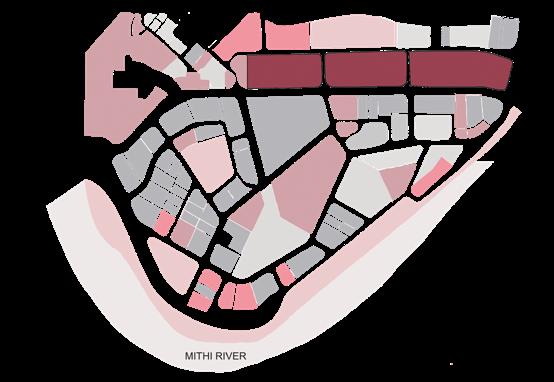

SITE

COMMERCIAL RESIDENTIAL INSTITUTIONAL HOTELS

OTHERS GREEN SPACE

MAKING THE FORM DYNAMIC AND FINALIZING THE CIRCULATION

MASS ON SITE

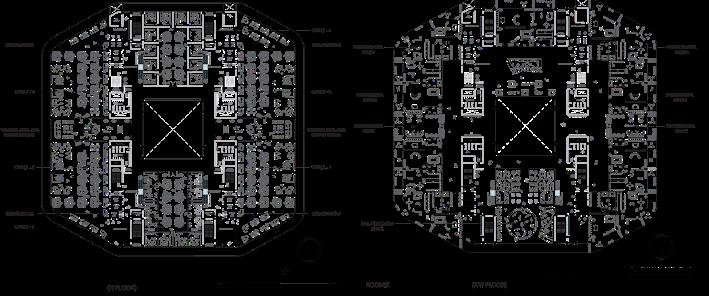

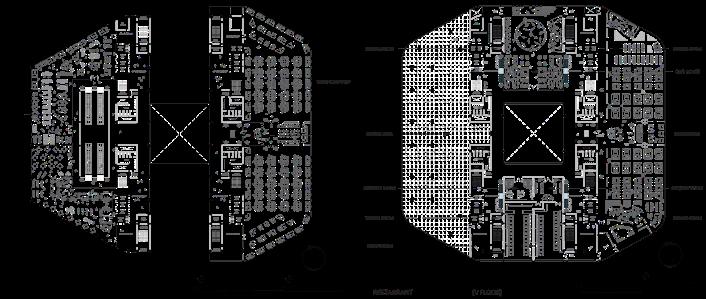

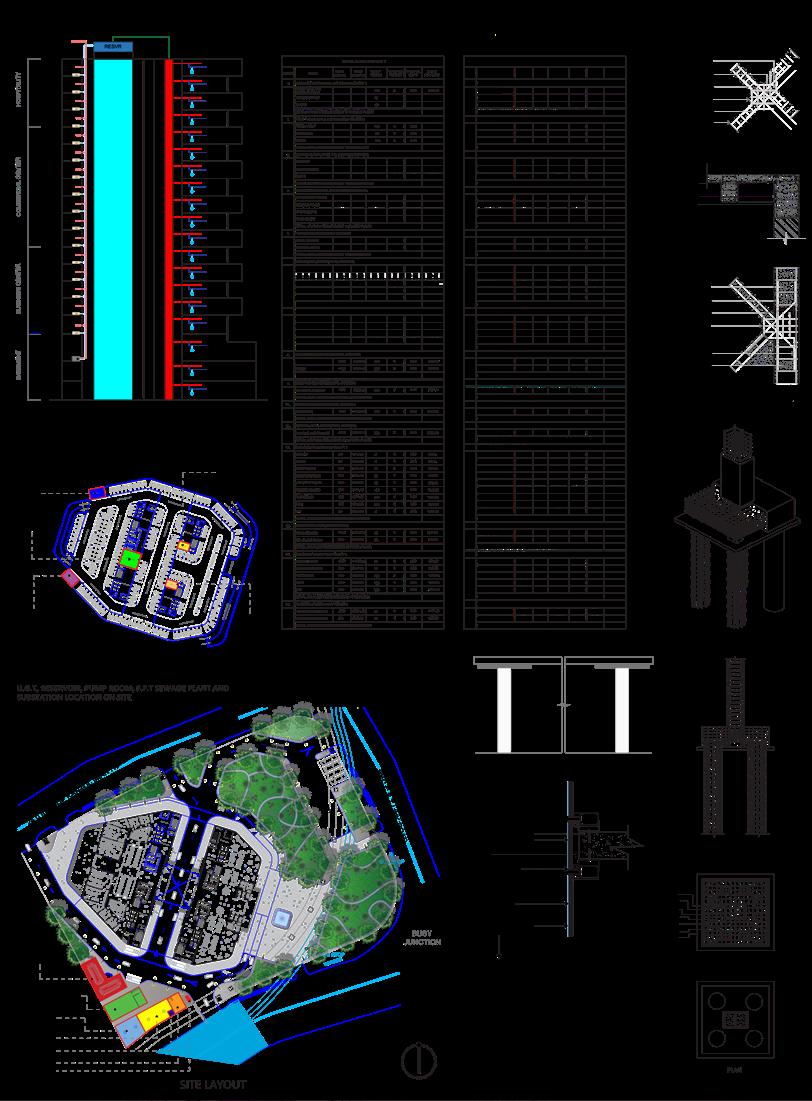

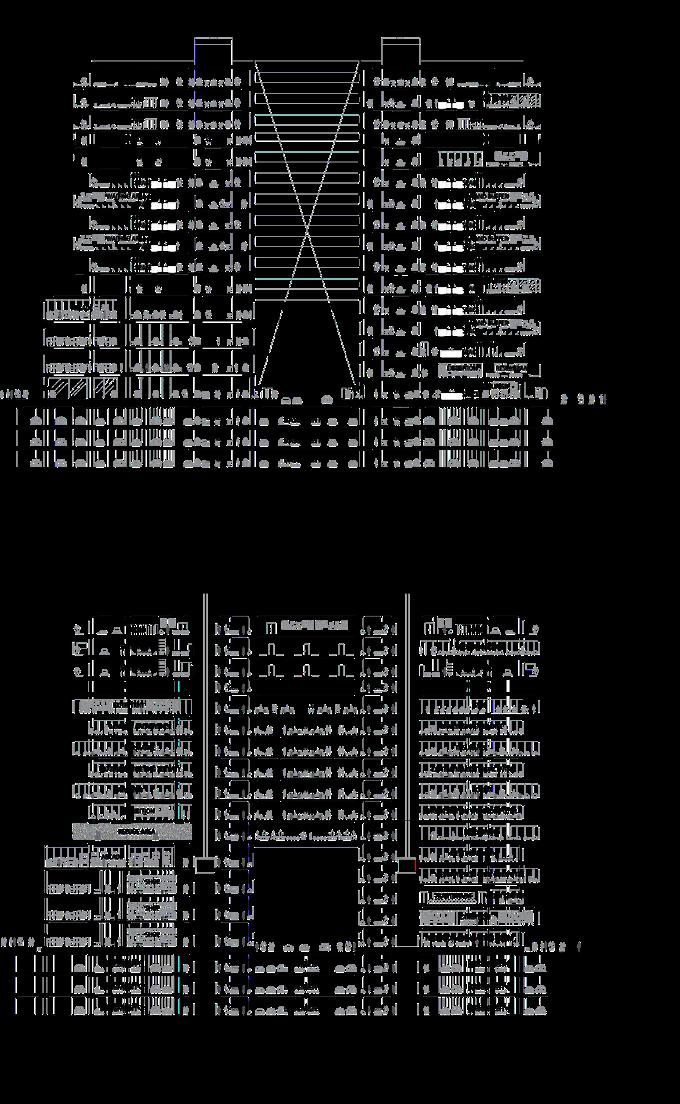

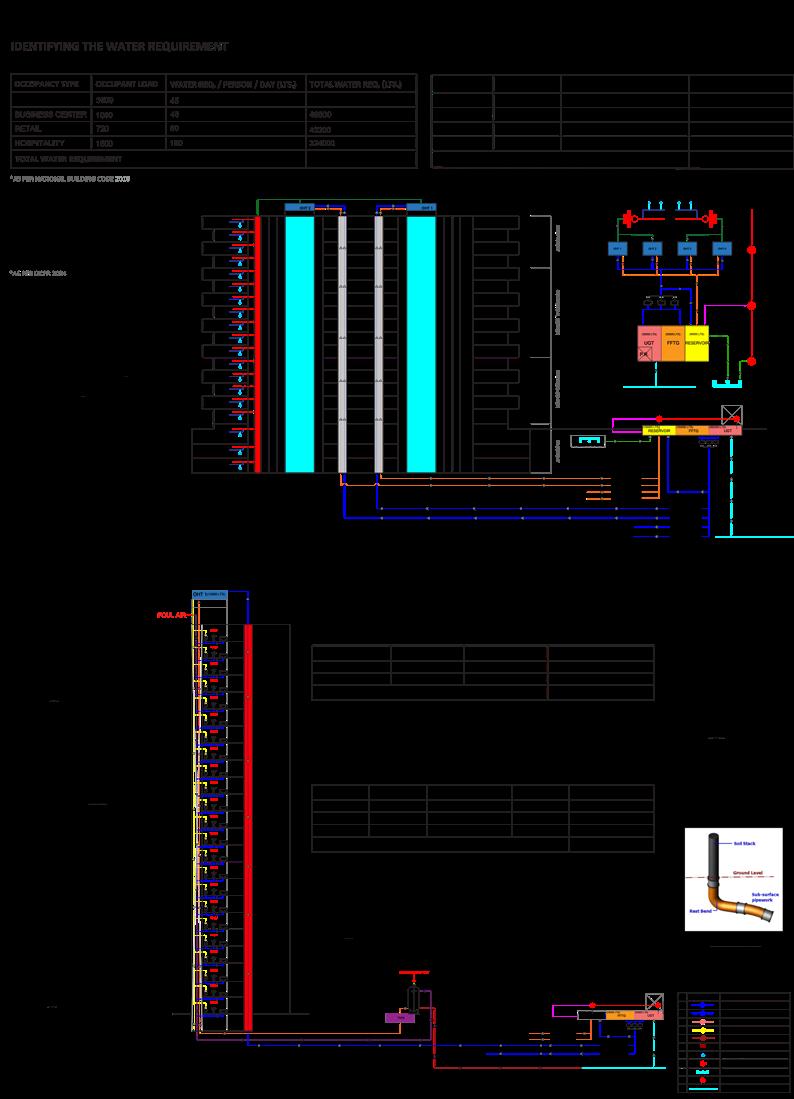

VERTICAL ZONING

TOILET SHAFT LIFT LIFT BUFFER STAIRCASELOBY MIDLANDING TOILET SHAFT SHAFT SHAFT HAFT PLANTROOM BUFFER LIFT/STAIRCASELOBY SERVICE FIRELOBY LANDING MIDLANDING SHAFT TOILET SHAFT SHAFT LIFT SHAFT SHAFT FIRE DUCT DUCTELEC UTILITY BUFFER STAIRCASELOBY SERVICE LOBY LANDING LANDING 3.6M LANDING TOILET SHAFT SHAFT SHAFT 2.5M SHAFT FIRE DUCT ELEC UTILITY BUFFER STAIRCASELOBY SERVICE FIRELOBY LANDING LANDING 3.6M LANDING 45m WIDEBKLR 45m WIDEBKLR BUS STOP BKC C.S.T LINK ROAD BUS STOP BUSY JUNCTION S.T.P. 17.5 10 WASTE PLANT SUBSTATION 270 SQ.M. VEHICULAR EXIT/ SERVICE ENTRY VEHICULAR EXIT/ SERVICE ENTRY 10 M WIDE 10 M WIDE 10 M WIDE 10 WIDE 10MWIDE PEDESTRIAN ENTRY/EXIT PEDESTRIAN ENTRY/EXIT RICKSHAW STAND RESERVOIR 15.5 10.5 UGT 18.5 M 10.5 SQ.M P.R. VEHICULAR ENTRY VEHICULAR ENTRY BKC C.S.T LINK ROAD

MITHI RIVER 20 M 50 M

M KB' KA' KB KA A B C CONCEPT

(5)

(6)

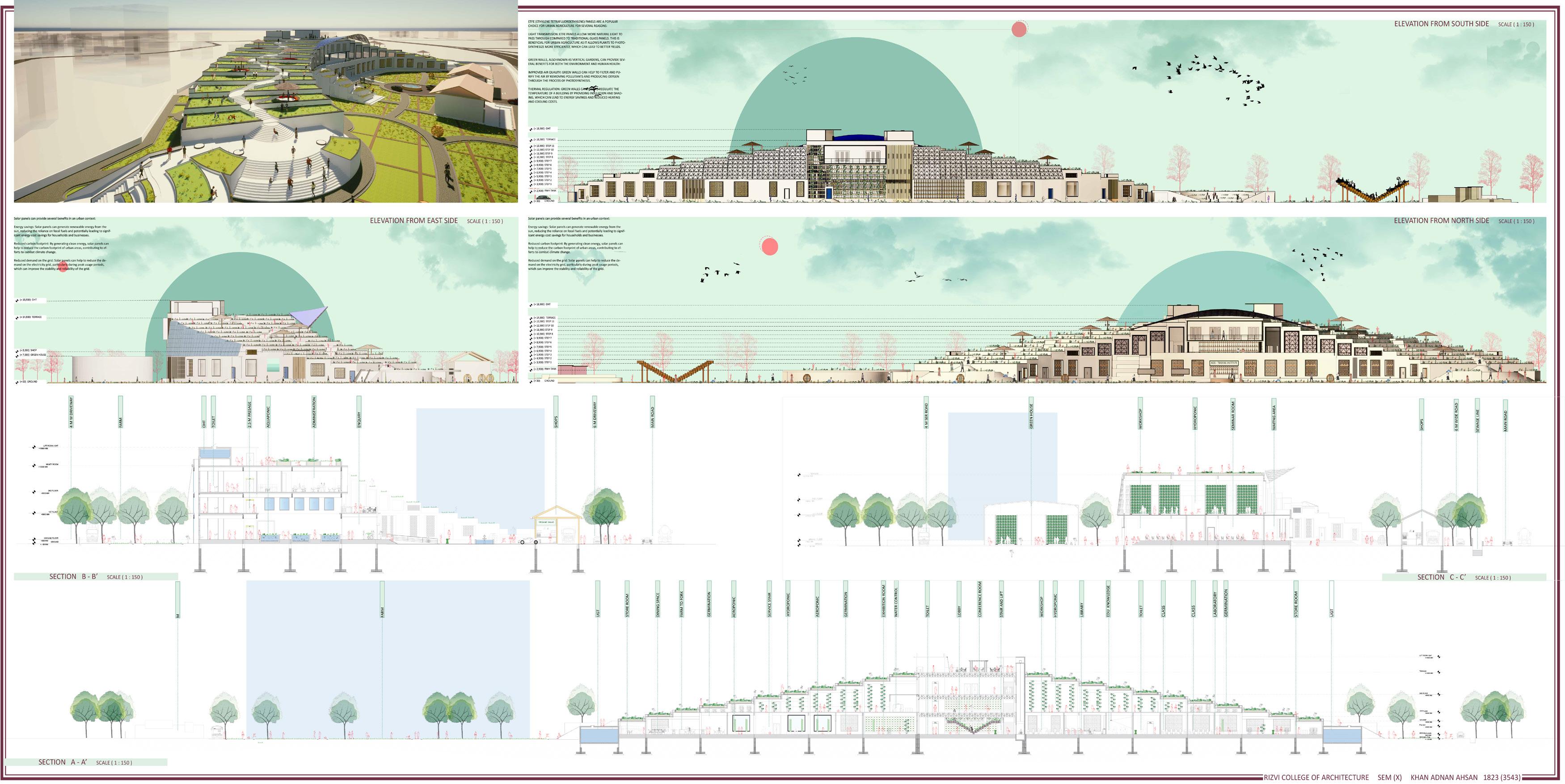

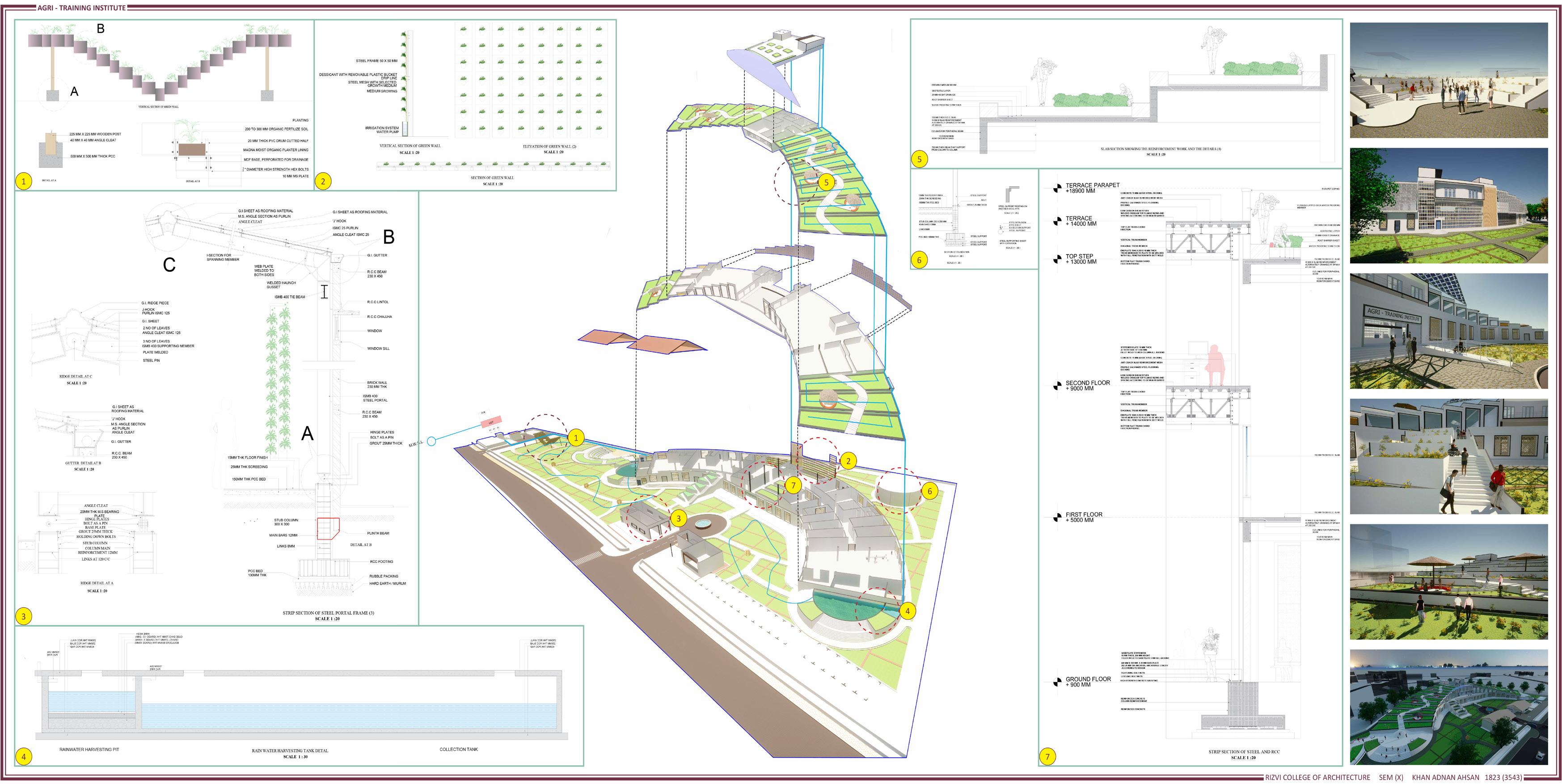

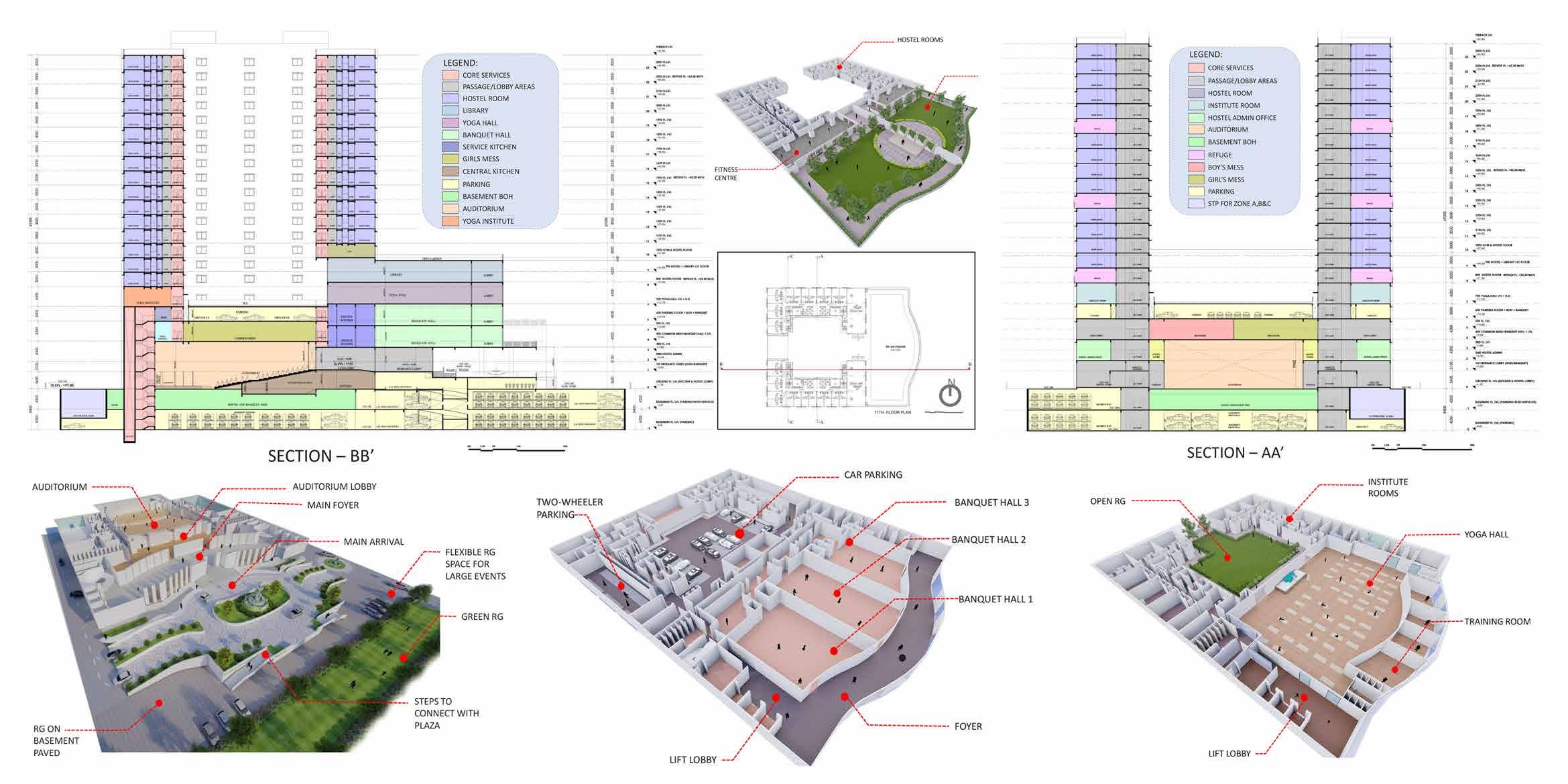

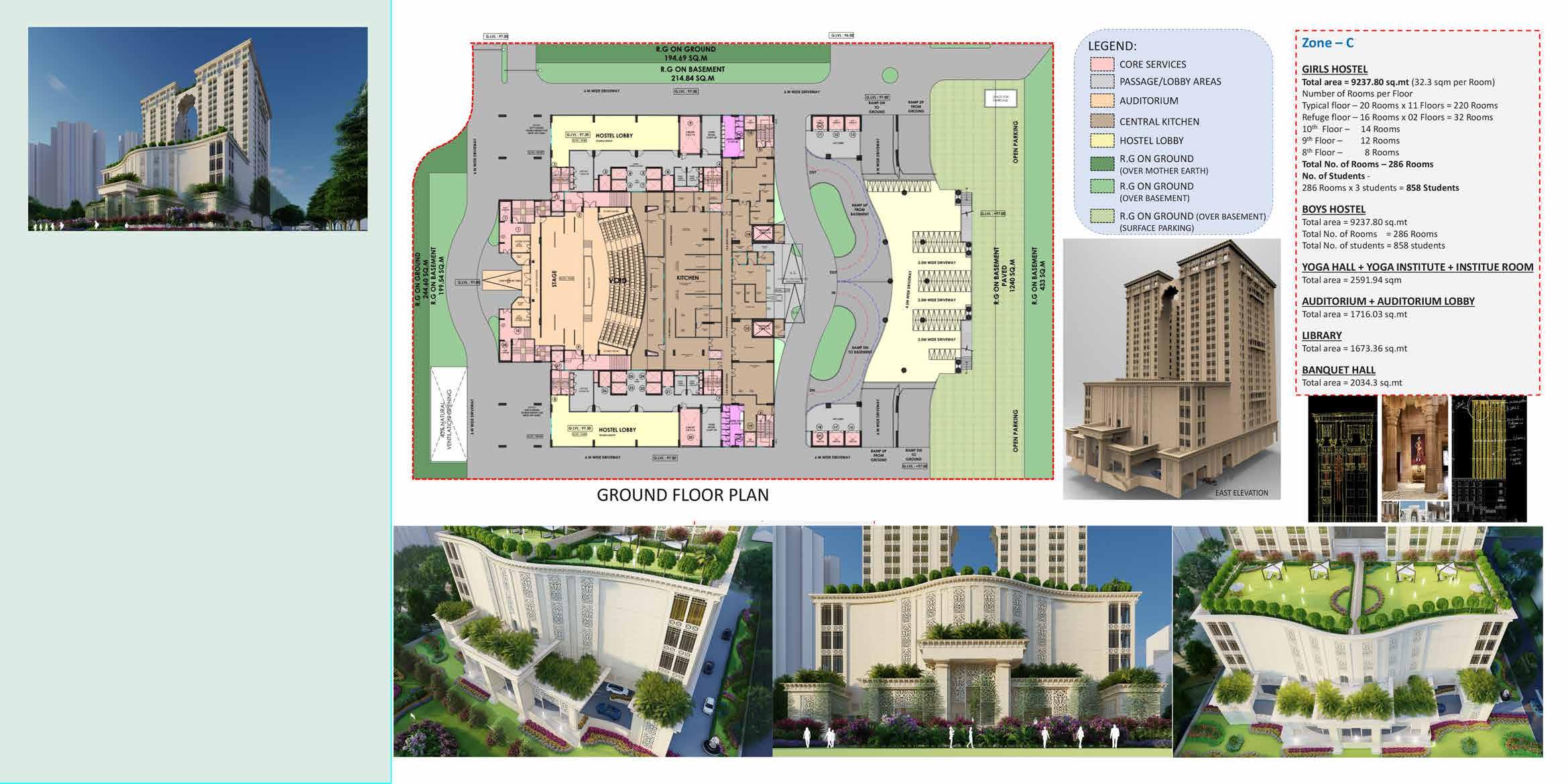

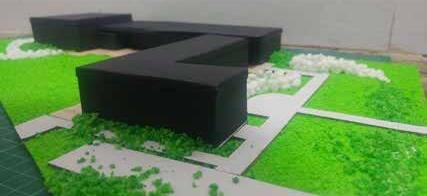

MIXED-USE BUILDING -2021

INTERNSHIP

Site - BORIVALI

Softwares - Autocad, Revit, Enscape, Photoshop, InDesign.

3 (7)

PROJECT BRIEF

THIS IS AN MIX USED BUILDING IT IS DIVIDED IN TO 3 ZONE A,B AND C. THIS WORK IS FOR THE ZONE C, WHERE WE HAVE AUDITORIUM, YOGA HALL,BANQUET HALL, LIBRARY, INSTITUTION AND HOSTELS. PLOT AREA - 8245 SQ M.

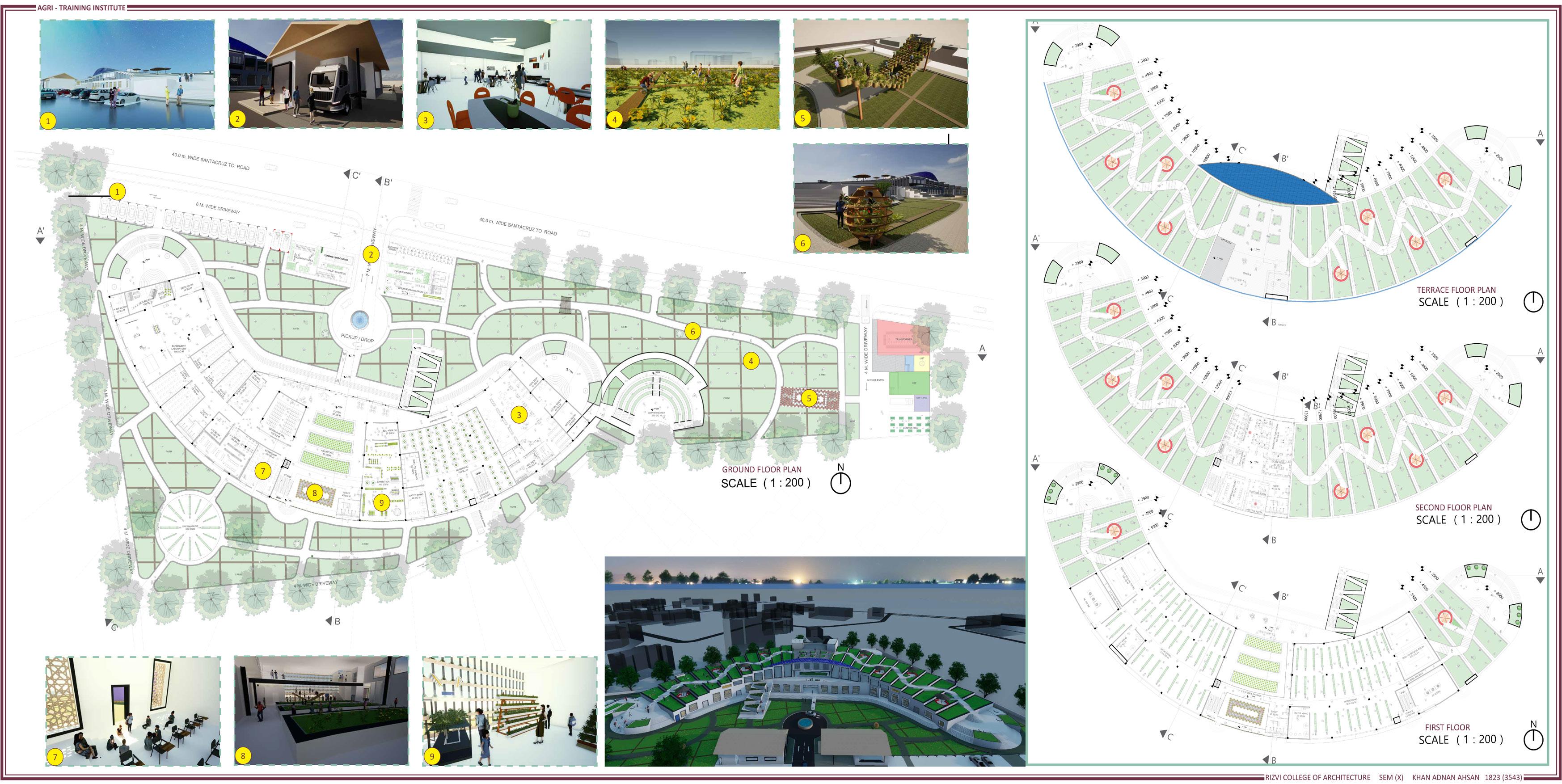

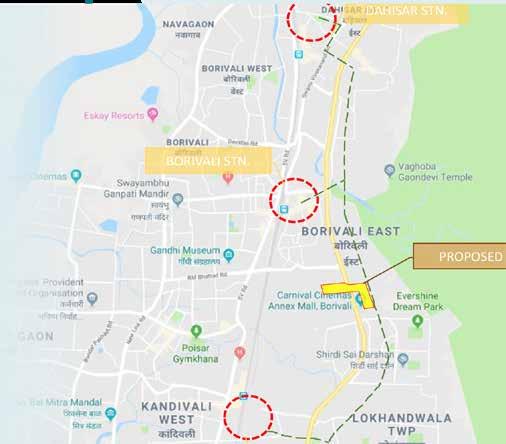

THE SITE IS LOCATED IN BORIVALI, MAHARASHTRA EAST. THE NEAR RAILWAY STATION IS BORIVALI AND ALSO IT IS CLOSE TO WESTERN EXPRESS HIGHWAY

(8)

(9)

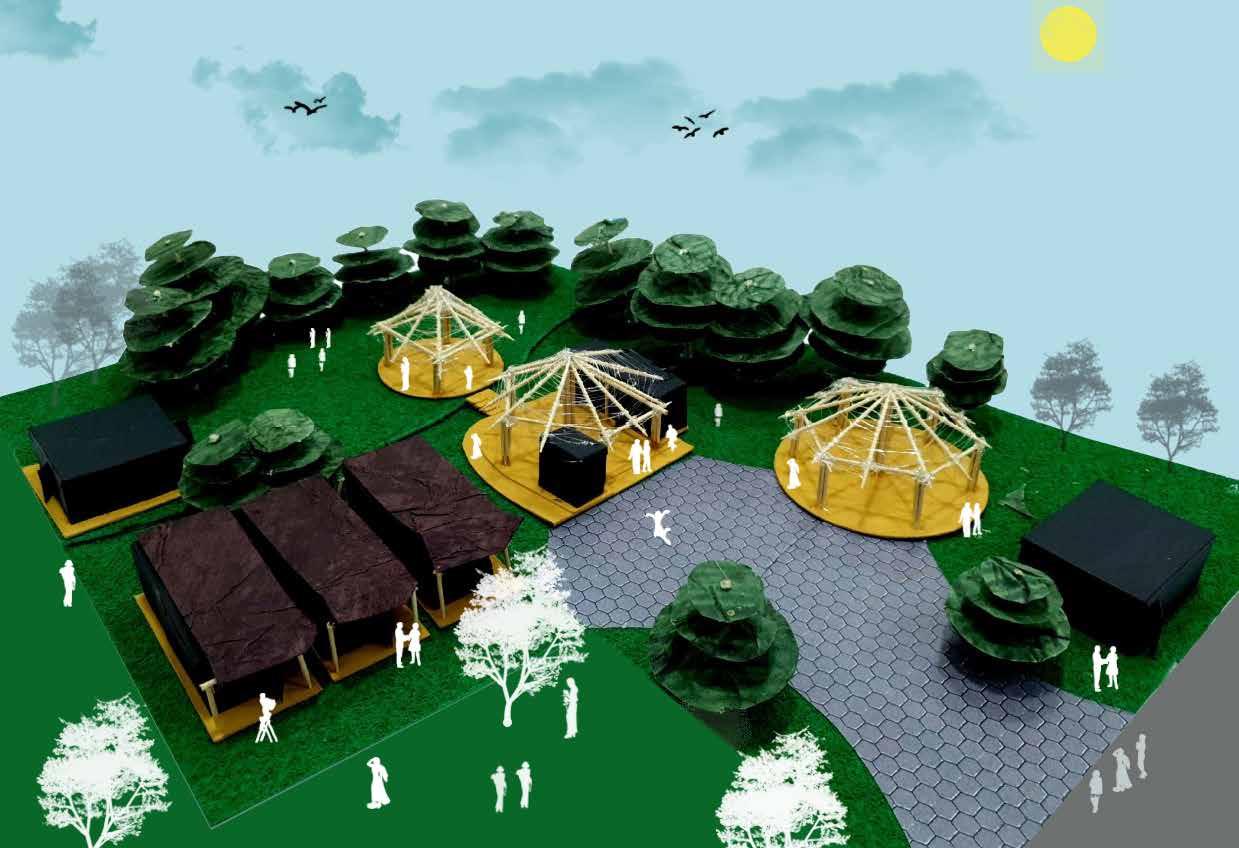

AANGAN WADI -2020

Semester - IV AD

Site - BHUBHNESHWAR

Softwares - Hand draft, physical model, Photoshop, InDesign 3 3

(10)

PROJECT BRIEF

DESIGNING AN ANGANWADI FOR KIDS AND WOMENS OF THE VILLAGE , PROVIDING A VIABLE INCOME GENERATION MODEL FOR THE PEOPLE , CREATING A VIABLE AND SUSTAINABLE HOUSING MODEL BY ENHANCING THE EXISTING PLANNING AND METHOD OF CONSTRUCTION , TO SET AN EXAMPLE TO THE RESIDENTS OF THE VILLAGE

SITE LOCATION

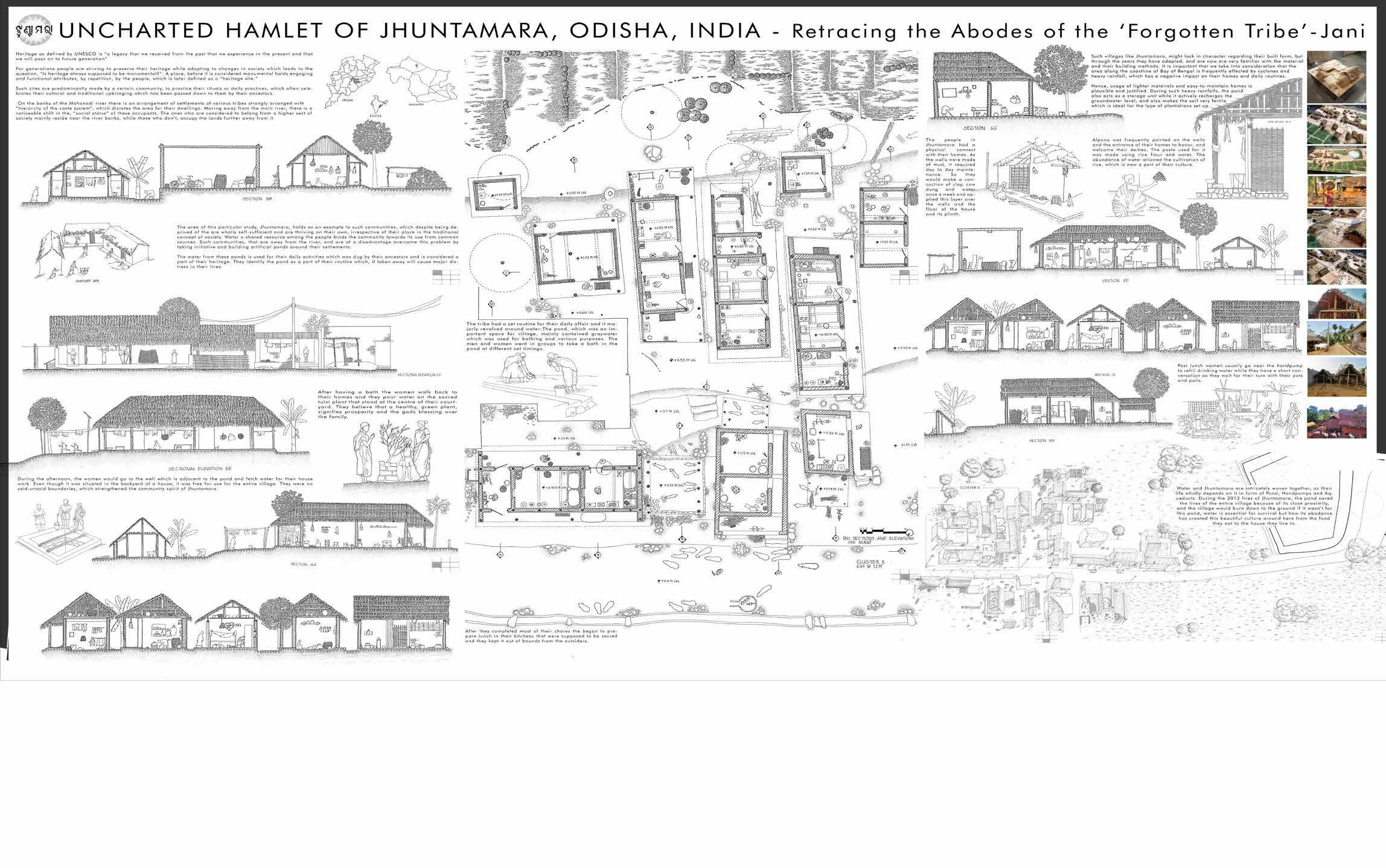

JANI TRIBE, JHUNTAMARA, ODISHA, BHUBHNESHWAR.

PROJECT DESCRIPTION

NAME :- JHOOMWADI

INTRESTING SPACES AND ACTIVITIES :-

• A PLAYFUL SPACE UNDER ONE ROOF SURROUNDED WITH WATER BODY

• A VERNACULAR HOUSING MODEL IS FLEXIBLE ENOUGH TO CONVERT ITSELF INTO AN INTROVERT AND AN EXTROVERT HOUSE

• CONSTRUCT WITH THE SAME MATERIAL WHICH AREA EASILY ACCESSIBLE.

THE DESIGN IDEA IS TO HAVE A OPEN AND CLOSE SPACES AT THE SAME TIME AND VISUALLY CONNECTED T EACH OTHER AND A PLAY FUL SPACE.

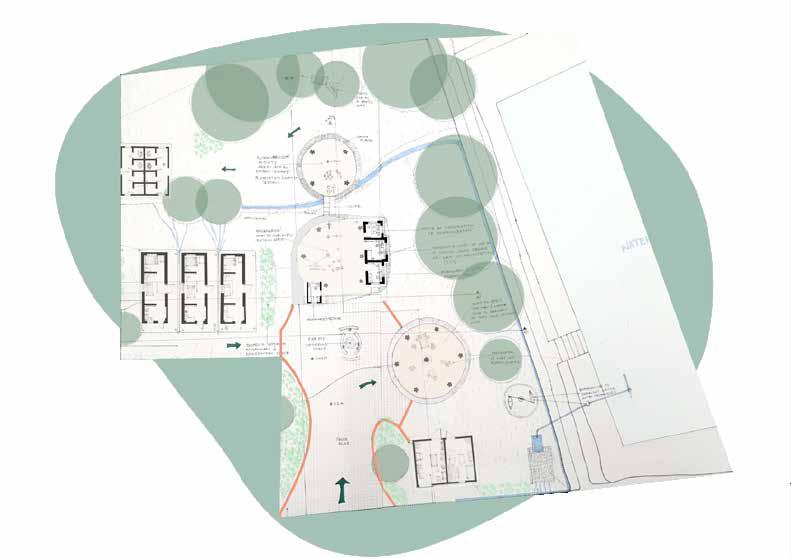

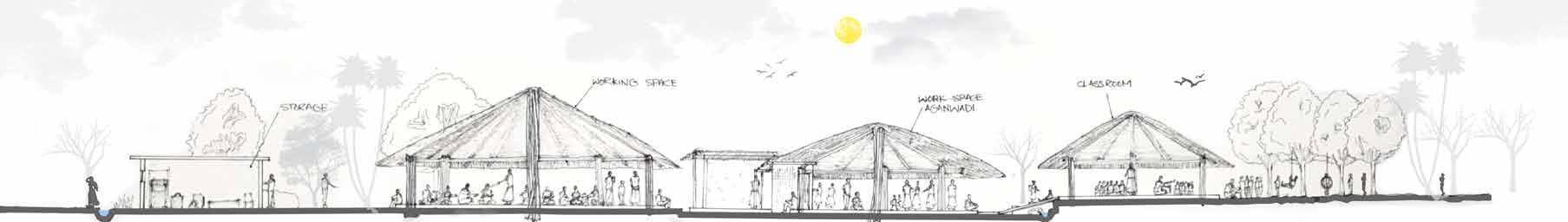

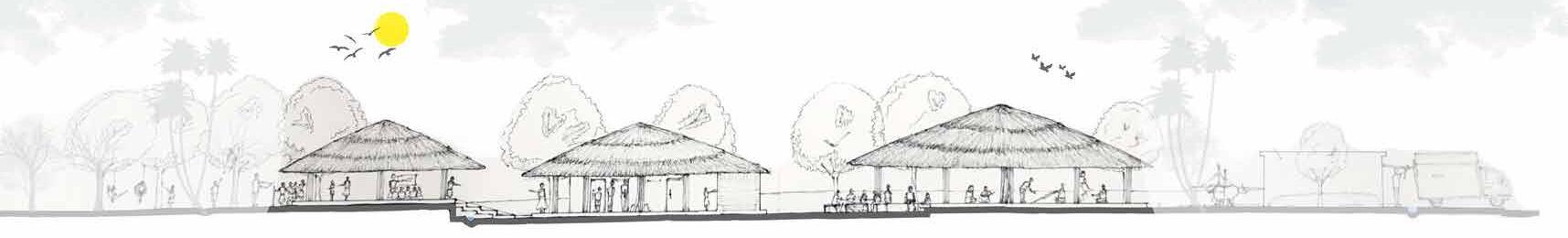

19 18PROCESS PLAN AND SECTOION

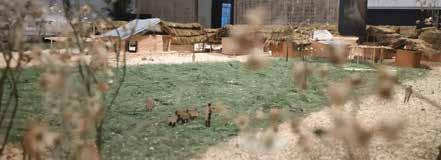

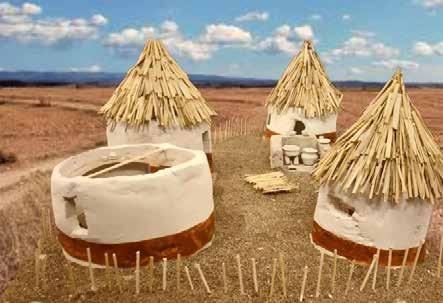

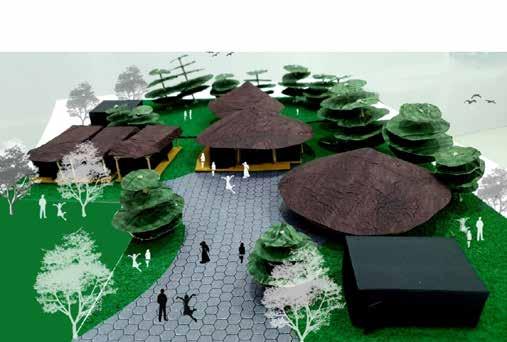

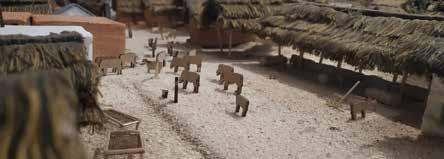

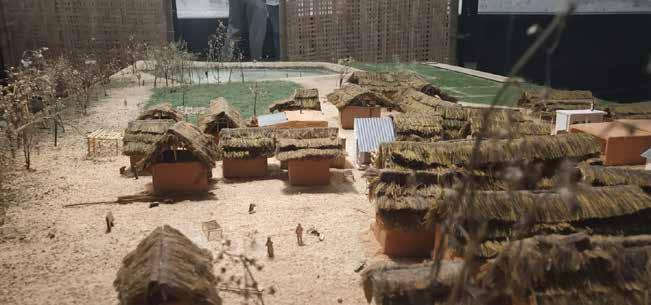

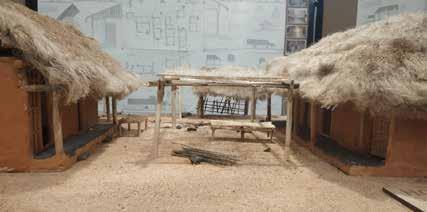

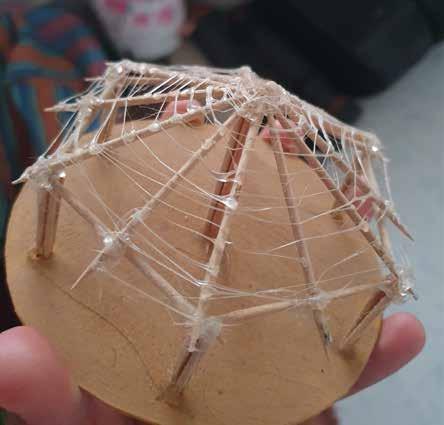

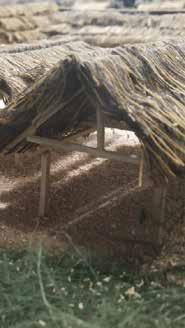

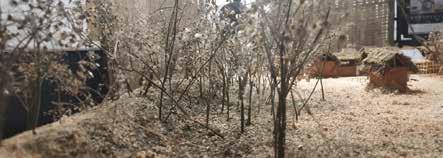

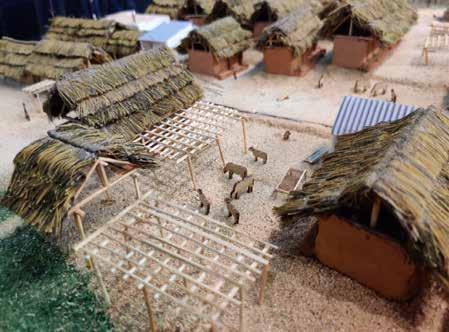

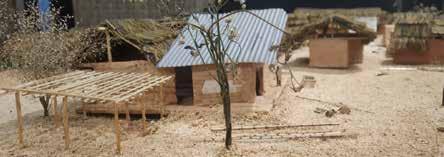

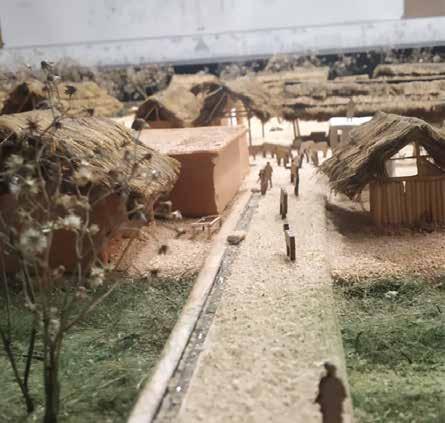

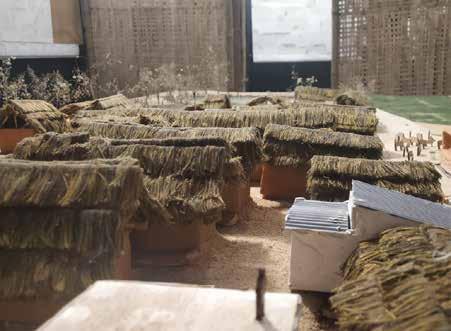

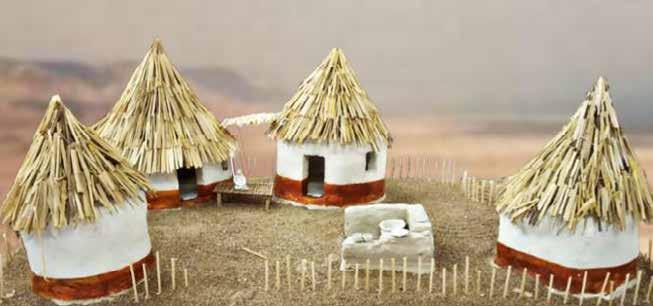

MODEL VIEWS

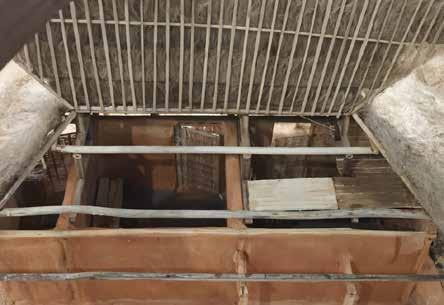

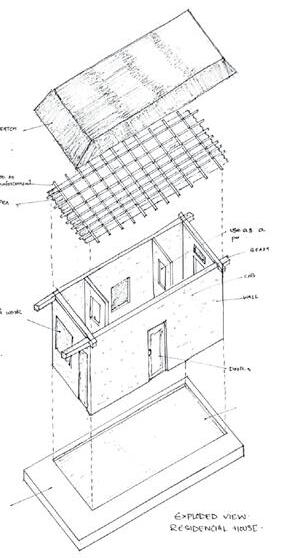

CONSTRUCTION TECNIQUE OF A HOUSE ELEVATION FROM THE ROAD SIDE

(11)

SECTION B-B’

WORKING DRAWING

PROJECT BRIEF:

Design a bunglow or weekend home with part or full terrace having formal or informal functions and intresting volumetric space in it. the criterias for the designing the required bunglow area such hat it should be ground plus two storey. the foot print area in the range of 1800 - 2500 sq feet and the total build up area of the G+2 storey not more than 6000-9000 sq feet.

GROUND FLOOR PLAN

21 20 O.H.T. PARAPET +16100 O.H.T. TOP +15450 MUMPTY LEVEL END MUMPTY LEVEL BOTTOM +11850 TERRACE FLOOR +9600 THIRD MIDLANDING +8100 SECOND FLOOR SECOND MIDLANDING +5100 FIRST FLOOR +3600 PLINTH LEVEL +600 GROUND LEVEL FRAMING MADE FROM 25 X 25 MM ALUMINIUM BOX SECTION TO FIT THE REQUIRED FINISHED HPL SHEETS OF MM THICKNESS (EACH PANEL SIZE IS APPROX. FEET ALUMINIUM FRAMING IS SCREWED INTO THE WALL USING ANGLE CLEAT AND HPL PANEL IS RIVETTED INTO THE FRAMING FRAMING MADE FROM 50 50 MM ALUMINIUM BOX SECTION TO FIT THE REQUIRED FINISHED HPL SHEETS OF 6 MM THICKNESS (EACH PANEL SIZE IS APPROX. 4 X 15 FEET ALUMINIUM FRAMING IS SCREWED INTO THE WALL USING ANGLE CLEAT AND HPL PANEL IS RIVETTED INTO THE FRAMING 150 X150 MM AND 3000 MM LONG WOOD BATTEN CONNECTED WITH ANGLE SECTION CONNECTED IN A BEAM 50 MM AND 270 MM DEEP THICK PLASTER PROJECTION @ 415 MM c/c ,800X800 MM BOTH SIDE PROVIDED PROVIDED WITH COAT OF NEROLAC PRIMER AND FINISHED WITH JSW EXTERNAL WALL TEXTURED PAINT 2 COATS OF PLASTER 18 MM THICK AND COAT OF NEROLAC PRIMER FINISHED WITH JSW EXTERNAL WALL TEXTURED PAINT SS AND GLASS RAILING OF SAINT GOBAIN BRAND ,EACH GLASS PANEL SIZE 1000 X 725 (STANDARD SIZE FOLLOWED THROUGHOUT) O.H.T. PARAPET +16100 O.H.T. TOP +15450 MUMPTY LEVEL END +13650 MUMPTY LEVEL BOTTOM +11850 TERRACE FLOOR +9600 THIRD MIDLANDING +8100 SECOND FLOOR +6600 SECOND MIDLANDING +5100 FIRST FLOOR +3600 FIRST MIDLANDING +2100 PLINTH LEVEL +600 GROUND LEVEL FRAMING MADE FROM 25 X 25 MM ALUMINIUM BOX SECTION TO FIT THE REQUIRED FINISHED HPL SHEETS OF MM THICKNESS (EACH PANEL SIZE IS APPROX. FEET ALUMINIUM FRAMING IS SCREWED INTO THE WALL USING ANGLE CLEAT AND HPL PANEL IS RIVETTED INTO THE FRAMING FRAMING MADE FROM 50 X 50 MM ALUMINIUM BOX SECTION TO FIT THE REQUIRED FINISHED HPL SHEETS OF MM THICKNESS (EACH PANEL SIZE IS APPROX. 15 FEET ALUMINIUM FRAMING IS SCREWED INTO THE WALL USING ANGLE CLEAT AND HPL PANEL IS RIVETTED INTO THE FRAMING COATS OF PLASTER 18 MM THICK AND 1 COAT OF NEROLAC PRIMER FINISHED WITH JSW EXTERNAL WALL TEXTURED PAINT 150 X150 MM AND 3000 MM LONG WOOD BATTEN CONNECTED WITH ANGLE SECTION CONNECTED IN A BEAM 50 MM AND 270 MM DEEP THICK PLASTER PROJECTION @ 415 MM c/c ,1800X4500 MM BOTH SIDE PROVIDED PROVIDED WITH 1 COAT OF NEROLAC PRIMER AND FINISHED WITH JSW EXTERNAL WALL TEXTURED PAINT 50 270 MM DEEP THICK PLASTER PROJECTION WITH WOODEN FINISH BATTEN IN UNEVEN WAY 50 MM AND 270 MM DEEP THICK PLASTER PROJECTION @ 415 MM c/c ,800X800 MM BOTH SIDE PROVIDED PROVIDED WITH 1 COAT OF NEROLAC PRIMER AND FINISHED WITH JSW EXTERNAL WALL TEXTURED PAINT O.H.T. PARAPET O.H.T. TOP +15450 RCC OVERHEAD TANK OHT MUMPTY LEVEL END +13650 MUMPTY ROOM MUMPTY LEVEL MUMPTY LEVEL BOTTOM +11850 150 MM THICK R.C.C SLAB TERRACE WALL 450 MM DEEP R.C.C. BEAM TERRACE FLOOR +9600 600 MM DEEP R.C.C. BEAM MIDLANDING THIRD MIDLANDING +8100 LOBBY 100 MM THICK P.C.C PATLI 300 MM WIDE TREAD 150 MM HIGH RISER SECOND FLOOR +6600 MIDLANDING SECOND MIDLANDING +5100 LOBBY 150 MM HT SKIRTING RAILING DROP MOULD 10 MM TILES OPEN TERRACE GARDEN FIRST FLOOR +3600 MIDLANDING 30 MM THICK SCREED 10 MM WATER PROOFING 150 MM BBC 150 MM THICK R.C.C SLAB 230X150 LINTEL WINDOW FIRST MIDLANDING +2100 LOBBY 150 MM THICK R.C.C CILL 150 MM HT SKIRTING LIVING ROOM 600 MM DEEP R.C.C. BEAM 10 MM TILES 30 MM THICK SCREED GROUND LEVEL +0 PLINTH PROTECTION 230 MM THICK DRY RUBBLE PACKING 18 MM THICK EXTERNAL PLASTER 12 MM THICK INTERNAL PLASTER 230MM THICK BRICK WALL COAT OF PAINT AND PLASTER COAT PAINT AND PLASTER ELEVATION TREATMENT (HPL CLADDING) ALUMINIUM JALI PANEL O.H.T. PARAPET +16100 O.H.T. TOP +15450 RCC OVERHEAD TANK OHT MUMPTY LEVEL END +13650 MUMPTY ROOM MUMPTY LEVEL MUMPTY LEVEL BOTTOM +11850 150 THK CHAJJA TERRACE TERRACE FLOOR +9600 DUCT MASTER BEDROOM MIDLANDING THIRD MIDLANDING MASTER BEDROOM OPEN GARDEN SECOND FLOOR +6600 DUCT MASTER BEDROOM MIDLANDING SECOND MIDLANDING 150 MM THK RCC CILL 230X150 MM LINTEL 30 MM SCREEDING 10 MM TILES OFFICE AREA FIRST FLOOR +3600 MASTER BEDROOM DUCT SERVENT ROOM MIDLANDING FIRST MIDLANDING +2100 PARKING AREA GUEST BEDROOM PLINTH LEVEL +600 GROUND LEVEL 150 MM THICK R.C.C CILL 150 MM HT SKIRTING PLINTH PROTECTION 600 MM DEEP R.C.C. BEAM 10 MM TILES 30 MM THICK SCREED 230 MM THICK DRY RUBBLE PACKING DUCT 200 MM BBC 150 MM SLAB 150 MM THICK R.C.C SLAB 150 MM THICK R.C.C CILL WINDOW 550 MM DEEP R.C.C. BEAM 150 MM HT SKIRTING 150 MM THICK R.C.C CILL 10 MM TILES 30 MM THICK SCREED TERRACE DROP MOULD 10 MM TILES 150 MM THICK R.C.C SLAB 30 MM THICK SCREED 10 MM WATER PROOFING 150 MM BBC 230X150 LINTEL ELEVATION TREATMENT HPL CLADDING ALUMINIUM JALI PANEL ENTRY 9M WIDE ROAD 6 M WIDE ROAD 6000 25460 4000 WIDE 0 (1575,3500) PERMANENT BENCHMARK (MANHOLE) TEMPORARY (PEDESTAL) BENCHMARK 7677 3153 AA AB AC AE AD 29238 5000 EQ EQ 5000 EQ EQ 3940 2500 DWG. NO. NAME ROLL NO. YEAR 3RD YEAR EXAM. SEAT NO. WORKING DRAWING SCALE COLLEGE STAMP GUIDE'S SIGN. Description of the Project BUNGALOW DESIGN NOTES :THIS AN ACADEMIC EXERCISE. DRAWINGS SHOULD NOT BE MEASURED. DATA'S ARE ASSUMED WHEREVER REQUIRED. R.C.C FRAMED STRUCTURE. REFER SEPARATE NOTES FOR MINIMUM DEPTH,THICKNESS,PROJECT SPECIFICATIONS FOR STRUCTURAL MEMBERS. WALLS ARE AND 230 AND 150 MM. THK. RESPECTIVELY. BRICKS TO BE LAID WITH FROGS UPWARDS. MORTARS SHOULD NOT EXCEED MM THICKNESS. FIRST COAT TO BE MADE WITH WATER PROOFING ADMIXTURES. 10.DRIP MOULD TO BE PROVIDED TO ANY PROJECTIONS. 11.PLASTER THICKNESS 12 MM INTERNALLY AND MM EXTERNALLY. 12. ALL DIMENSIONS ARE FROM UNFINISHED UNFINISHED FACE. 13.LEVELS ARE MENTION WITH REFERENCE THE GROUND FLOOR LEVEL. 14. ARCHITECTURAL PROJECTIONS SUCH CHAJJA,CANOPIES TO BE SHOWN DOTTED LINE, EXCEPTION FOR CASE SPECIFIC. 15. VOIDS MARKED WITH DIAGONAL LINES. 16.DRAWINGS TO BE CHECKED THOROUGHLY THE SITE ENGINEER BEFORE THE EXECUTION OF WORK. 17. ANY AMBIGUITY CLARIFIED BY THE ARCHITECT WITH IMMEDIATE EFFECT WRITING. LEGEND. SETTING OUT PLAN N ALL MEASUREMENTS ARE IN MILIMETERS LANDSCAPE FOOTPRINT AREA VEHICULAR MOVEMENT SHALLOW FOUNDATION BENCHMARK 01 1:100 KHAN ADNAN AHSAN 1823 1823 ad (26035,3500) aa (1575,18790) (26035,18790) EQ G+2 BUNGLOW FOOT PRINT AREA 313 SQ M 4570 4570 4570 6000 8120 6900

POWDER ROOM 3300 1770 5.8 SQ M 12 13 14 15 16 17 18 19 20 11 10 MIDLANDING 3500 1750 mm 6.1 SQ M 400 400 +2100 5500 KITCHEN 3500 5000 17.5 SQ M +600 PARKING AREA 5500 4885 26.4 SQ M +100 GUEST ROOM 3500 5000 mm 17.5 sq m +600 GUEST ROOM 3500 x 5000 mm 17.5 sq m +600 DUCT 4.5 SQ TOILET 1500 X 3000 4.5 SQ M +550 TOILET 1500 3000 4.5 SQ +550 STORE ROOM 3500 2200 7.7 SQ +600 MM CORRIDOR 14800 2200 32.5 SQ M +600 MM DINING AREA MM 5000 5000 25 SQ M +600 2700 COURTYARD 2700 X 3200 8.64 SQ M +450 MM 3000 300 1930 3600 1910 2000 400 2700 400 3500 1500 3500 3500 3500 400 2700 400 2400 615 500 2230 1200 3500 6000 4940 1500 12420 1500 3500 3345 4500 CEILING SCHEDULE SR.NO. CEILING NO. C1 C2 DESCRIPTION 12mm THICK WATER PROOFING AGENT MIXED WITH CEMENT,2 COATS OF PRIMER,2 COATS OF WHITE WASH 12mm THICK GYPSUM PLASTER,2 COATS OF WHITE WASH,2 COATS OF PRIMER,2 COATS OF APPROVED PAINT SKIRTING SCHEDULE SR.NO.SKIRTING NO. DESCRIPTION 18mm MARBLE OF 150mm HT.,WITH 10mm THICK CEMENT MORTAR AND WHITE CEMENT GROUT 10mm VERIFIED TILES OF 150 mm HT.,WITH 10mm CEMENT MORTAR AND WHITE CEMENT GROUT 10mm ANTI-SKID VITRIFIED TILES OF 100 mm HT.,WITH 10mm CEMENT MORTAR AND WHITE CEMENT GROUT 10mm VITRIFIED TILES OF 150 mm HT.,WITH 10mm CEMENT MORTAR AND WHITE CEMENT GROUT LOCATION LIVING ROOM, FOYER, BEDROOM,KITCHEN, STORE ROOM, WALK-IN-WARDROBE TOILET DRY BALCONY D3 LOCATION TOILET ALL SR NO. 1. 2. 3. 4. SR NO. WINDOW W1 W2 W3 W4 DOOR D1 D2 DESCRIPTION SHUTTER ALUMINIUM FRAMED SLIDING WINDOW MM THK GLASS FIXED BETWEEN ALUMINIUM FRAMES HINGED AT THE SUPPORTS DESCRIPTION T.W FRAME SIZE 150x150 WITH MM THICK SINGLE SHUTTER FINISHED WITH MELAMINE POLISH T.W FRAME SIZE 150x150 WITH MM THICK T.W FRAME OF SIZE 150x150 WITH MM THICKDOUBLE UNFINISHED SIZE 3600X1500 2700X1500 3600X2100 500X1500 NOS. CILL LINTEL UNFINISHED SIZE 1200X2100 1050X2100 750X2100 600 600 1500 00 2100 2100 2100 2100 NOS. LINTEL 2100 2100 2100 WALL SCHEDULE SR.NO. WALL NO. W1 W2 W3 DESCRIPTION 12mm THICK GYPSUM PLASTER,2 COATS OF WHITE WASH,2 COATS OF PRIMER,2 COATS OF APPROVED PAINT 10mm CERAMIC DADO TILES TILL 2.1m HT. FIXED WITH CEMENT MORTAR (1:4) 12mm THICK WATER PROOFING AGENT MIXED WITH CEMENT, 10mm CERAMIC DADO TILES LOCATION LIVING ROOM,BEDROOM, CORRIDOR,DINING,STORE ROOM, KITCHEN TOILET FLOOR SCHEDULE SR.NO. FLOOR NO. DESCRIPTION 40mm THICK 1:6 SCREEDING,18mm MARBLE,WITH WHITE CEMENT GROUT 40mm THICK 1:6 SCREEDING,10mm VITRIFIED TILES,WITH WHITE CEMENT GROUT 40mm WATER PROOFING AGENT SCREEDING,200mm BBC LAID TO SLOPE,10mm ANTI-SKID VITRIFIED TILES 40mm THICK 1:6 SCREEDING,10mm VITRIFIED TILES,WITH WHITE CEMENT GROUT LOCATION FOYER,LIVING ROOM, DINING,CORRIDOR BEDROOM,KITCHEN, STORE ROOM, WALK-IN-WARDROBE TOILET BALCONY D1 D1 D2 D2 D2 D3 D3 D3 W4 W1 W1 W2 W2 W2 W2 W2 PLINTH +600 +00 +600 LIVING ROOM 6000 6000 mm 36 sq W3 W3 W3 W3 D4 D4 D4 PAINT 1200X2100 2100 SHUTTER ALUMINIUM FRAMED SLIDING WINDOW MM THICK GLASS AS PER APPROVED SIZE SHUTTER ALUMINIUM FRAMED SLIDING WINDOW MM THICK GLASS AS PER APPROVED SIZE 1500 300 300 300 1250 3500 1700 100 1700 280 1050 2565 750 2660 1050 1200 DUCT 4.5 SQ 6400 2660 1070 2660 2435 1160 2435 2660 670 3935 1160 1970 3560 1795 1470 3560 1470 22150 18900 C D G H C D G H C1 C12 C18 C6 C2 C3 C4 C5 C7 C10 C11 C13 C14 C15 C16 C17 C19 C20 C21 C22 C23 FOYER 2000 2200 4.4 SQ MM PLINTH DINING AREA ,CORRIDOR C8 C9 (FRENCH WINDOW) X' Y' 14800 PLINTH +600 2000 600 600 600 3300

PLAN AT HEIGHT 2250 FROM PLINTH LEVEL N ALL MEASUREMENTS ARE IN MILIMETERS DWG. NO. NAME ROLL NO. YEAR 3RD YEAR EXAM. SEAT NO. WORKING DRAWING SCALE COLLEGE STAMP & GUIDE'S SIGN. Description of the Project BUNGALOW DESIGN NOTES :1. THIS IS AN ACADEMIC EXERCISE. 2. DRAWINGS SHOULD NOT BE MEASURED. 3. DATA'S ARE ASSUMED WHEREVER REQUIRED. 4. R.C.C FRAMED STRUCTURE. 5. REFER SEPARATE NOTES FOR MINIMUM DEPTH,THICKNESS,PROJECT SPECIFICATIONS FOR STRUCTURAL MEMBERS. 6. WALLS ARE AND 230 AND 150 MM. THK. RESPECTIVELY. 7. BRICKS TO BE LAID WITH FROGS UPWARDS. 8. MORTARS SHOULD NOT EXCEED 18 MM IN THICKNESS. 9. FIRST COAT TO BE MADE WITH WATER PROOFING ADMIXTURES. 10.DRIP MOULD TO BE PROVIDED TO ANY PROJECTIONS. 11.PLASTER THICKNESS 12 MM INTERNALLY AND 18 MM EXTERNALLY. 12. ALL DIMENSIONS ARE FROM UNFINISHED TO UNFINISHED FACE. 13.LEVELS ARE MENTION WITH REFERENCE TO THE GROUND FLOOR LEVEL. 14. ARCHITECTURAL PROJECTIONS SUCH AS CHAJJA,CANOPIES TO BE SHOWN IN DOTTED LINE, EXCEPTION FOR CASE SPECIFIC. 15. VOIDS TO BE MARKED WITH DIAGONAL LINES. 16.DRAWINGS TO BE CHECKED THOROUGHLY BY THE SITE ENGINEER BEFORE THE EXECUTION OF WORK. 17. ANY AMBIGUITY TO BE CLARIFIED BY THE ARCHITECT WITH IMMEDIATE EFFECT IN WRITING. LEGEND. CHAJJA ABOVE CHAJJA ABOVE CHAJJA ABOVE CHAJJA ABOVE CHAJJA ABOVE CHAJJA ABOVE 1823 1823 KHAN ADNAN AHSAN 04 1:50 BRICK WALL SUNK SLAB NAHANI TRAP PLINTH plan SECTION AND ELEVATION

4 5 (12)

DETAIL OF THE HINGE OF ENTRY GATE (HINGE WELDED TO THE ENTER GATE AND SCREWED INTO THE COLUMN WITH THE HELP OF MS PLATE)

(SCALE 1:5)

1 MM THK STAINLES STEEL

FRAME WORK 50X50MM

SQURE SECTION

MM DIA STEEL PIPES

AT SQUARE SECTION 50X50X100 MM L ANGLE CLEAT SCREW SCREW IN PLASTER

150 MM THICK PCC COPING

DETAIL AT B DEPICTING THE JOINERY OF STEEL FRAME TO THE BUND WALL(ANGLE CLEAT WELDED TO MS FRAME AND SCREWED INTO COPING)

300X100 MM COPING

10 MM THICK CHINA MOSAIC

30 MM SAND SCREED

10 M M WATER PROOFING

150 MM BBC

PCC VATA DETAIL

230 MM THK WALL

150 MM THK SLAB

350 MM DEEP BEAM

230 MM THK WALLL

230X150 MM LINTEL

ALUMINIUM SUPPORT HINGE BY SIDE

1500X200X50 MM WOODEN BATTEN

150 MM THICK R.C.C CILL

18 MM THICK PLASTER

300X300 MM TILES

10 MM TILES

30 MM SCREEDING

200 MM BBC

150 MM SLAB

650 MM DEEP BEAM

12 MM PLASTER

230X150 MM LINTEL

ALUMINIUM SUPPORT HINGE BY SIDE

1500X200X50 MM WOODEN BATTEN

150 MM THICK R.C.C CILL

18 MM THICK PLASTER

300X300 MM TILES

10 MM TILES

30 MM SCREEDING

200 MM BBC

150 MM SLAB

650 MM DEEP BEAM

12 MM PLASTER

230X150 MM LINTEL

ALUMINIUM SUPPORT HINGE BY SIDE

1200X2100 MM MS GATE

150 MM THICK R.C.C CILL

18 MM THICK PLASTER

300X300 MM TILES

10 MM TILES

30 MM SCREEDING

200 MM BBC

150 MM SLAB

350 MM DEEP R.C.C. BEAM

230 MM THICK DRY

RUBBLE PACKING

23 22 VEHICULAR GATE ENTRY GATE LIGHTRON LED ANTIQUE COPING MS FRAME WORK 50X50 STEEL SQUARE FRAME WARM WHITE METAL LED OUTDOOR +2530 +2050 +1900 BRICK WALL(BUND) +500 EXTERNAL WALL LIGHT +400 FOOTPATH FINISHED FLOOR +00 ROAD LEVEL -150 SS JALLI TOP COPING LAMP WPC CLADDING 100X600 MM NORTH ELEVATION AA' OF COMPOUND WALL SCALE 1:25 15 MM DIA STEEL PIPE SEC WITH 15 MM DIA STEEL PIPES OUTDOOR WALL LIGHT UP AND DOWN WALL LIGHT OUTSIDE KERB STONE 230 THK BRICK WALL 50 X 100 MM L ANGLE 230 THK DRY RUBBLE BRICKWORK 150 THK PCC 50 MM THK PCC 150 THK PCC MS FRAME WORK 50X50 STEEL SQUARE FRAME WITH 15 MM DIA STEEL PIPES MM THK STAINLES STEEL COLOURED SHEET PCC COPING WARM WHITE METAL LED OUTDOOR SECTION B-B' (1:20) DETAIL DEPICTING THE JOINARY OF SHEET AND MS FRAME WITH REVITED JOIN 1 MM THK STAINLES STEEL WPC SHEET (6MM) RIVET MS HOLLOW SECTION (SCALE 1:5) (SCALE

SECTION MS GATE(EPOXY

RCC COLUMN

PLASTER

FINISHED)

1:5)

THK MS ANGLE SECTION

ROLLING CIRCULAR

PAINT

230 X 230 MM

THK PAINT &

(SCALE

150 150 150 KITCHEN 3500 X 5000 17.5 SQ M +600 W2 1920 1200 880 2800 800 720 2208 584 1032 600 776 16 3376 950 X 775 FRIDGE 12 MM INTERNAL PLASTER WITH WATER PROOFING 115 MM THICK BRICK WALL 530 X 320 MICROWAVE 730 X 500 GAS STOVE 680 MM WIDE GRANITE KITCHEN COUNTER 1150 X 510 NIRALI SS SINK ALUMINIUM SLIDING WINDOW 600 X 600 FLOOR TILES 230 X 350 COLUMN 230 X 350 COLUMN 2232 3968 4000 960 UPPER CABINETS UPPER CABINETS FAST SS HANDEL HOLE TO HOLE 96 MM PLAN AT HEIGHT 2100 FROM FINISH FLOOR LEVEL A' A B B' C' C CEILING +2800 UPPER CABINETS TOP +2320 2ND UPPER CABINETS TOP +1870 1ST UPPER CABINETS TOP +1420 KITCHEN PLATFORM +800 FINISH FLOOR +0 GROUND FLOOR -50 230 MM THK BRICK WALL FAST SS HANDEL HOLE TO HOLE 128 MM 600 X 300 DADO TILES 230 MM THK BRICK WALL 18 MM THK EXTERNAL PLASTER 500 MM DEEP BEAM 90 MM GRANITE FASCIA LOWER CABINETS DRAWERS 64 MM GRANITE SKIRTING 150 MM THK PCC SLAB 610 MM DEEP PLINTH BEAM 10 MM THK FLOOR TILES 40 MM SAND SCREED OVER HEAD CABINETS OF 18 MM THK MARINE PLYWOOD AND 0.8 MM LAMINET SECTION B B' 416 416 416 416 434 540 540 832 416 453 591 231 185 166 582 402 402 83 813 748 554 C D 18 X 95 GRANITE FASCIA ARALDITE 40 MM THK MORTAR FILLING TMBER FRAMEWORK 18 MM THK PLYWOOD SHUTTER WITH 0.8 MM LAMINATE 18 MM THICK BLACK TELEPHONIC GRANITE 18 MM THK KADAPPA ALUMINIUM SLIDING WINDOW GRANITE FRAME FOR WINDOW 100 MM THK RCC SILL 18 MM THICK BLACK TELEPHONIC GRANITE 40 MM THICK MORTAR FILLING 18 MM THK KADAPPA 10 MM DADO TILES 10 MM THK SLURRY 230 MM THK BRICK WALL 18 MM THK PLASTER WITH WATER PROOFING 18 MM THK MARINE PLYWOOD WITH 0.8 MM LAMINATE 18 MM THK KADAPPA 65 MM GRANITE SKIRTING MORTAR FILLING DETAIL AT B DEPICTING THE KITCHEN PLATFORM AT SKIRTING DETAIL AT A DEPICTING THE KITCHEN PLATFORM AND WALL CONSTRUCTION DETAIL DETAIL AT C DEPICTING THE FASCIA PATTI

STEEL

FIXED

COLOURED SHEET

1:5)

GROUND LEVEL +0 PLINTH LEVEL +600 FIRST FLOOR +3600 SECOND MIDLANDING +5100 THIRD MIDLANDING +8100 PLINTH LEVEL +1800 PLINTH LEVEL +2600 PLINTH LEVEL +4800 PLINTH LEVEL +5600 PLINTH LEVEL +6300 PLINTH LEVEL +7100 PLINTH LEVEL +9300 A B DOOR SHUTTER 18 MM THICK BLACK TELEPHONIC GRANITE ARALDITE 10 MM THICK TILES MORTAR 30 MM THICK SAND SCREED 210 MM THICK B.B.C. 18 MM THICK BLACK TELEPHONIC GRANITE 20 MM THICK CHERRY WOOD TREAD PASTE FOR FINISHING SCREW 18 MM THICK KADAPPA 12 MM THICK MORTAR RCC STAIRCASE ALT DETAIL DEPICTING THE BOTTOM JAM OF THE TOILET DOOR (1:5) ZOOM IN DETAIL DEPICTING THE FIXING OF TREAD RISER WOODEN PLANK (1:1) MM DIA MS HOLLOW SECTION 100X100X5 BASE PLATE NOSING PCC VATA CHINA MOSAIC 30 MM THICK SAND SCREED WATER PROOFING 100 MM THICK B.B.C. 230 MM THICK BRICK WALL DETAIL AT A DEPICTING THE VATA (1:5) 18 MM THICK KADAPPA ANTI SKID GROOVE 20 MM NOSING 18 MM THICK KADAPPA DETAIL AT C DEPICTING THE BALUSTER SETTING IN TREAD (1:5) SECTION BALUSTER HOLE IN BASE PLATE 10X30 MM SCREW 230 MM THK WALL 18 MM EXTERNAL P;ASTER 230X150 MM LINTEL 20 MM THK GRANITE LINTEL FINISH EXAUST FAN 20 MM THK ALUMINIUM FRAME 8 MM THK GLASS 20 MM THK GRANITE SILL FINISH 230X150 SILL L\ 230 MM THK WALL DETAIL AT B DEPICTING THE GRANITE AND ALUMINIUM FRAME (1:10) KITCHEN DETAIL COMPOUND DETAIL (13)

PROJECT

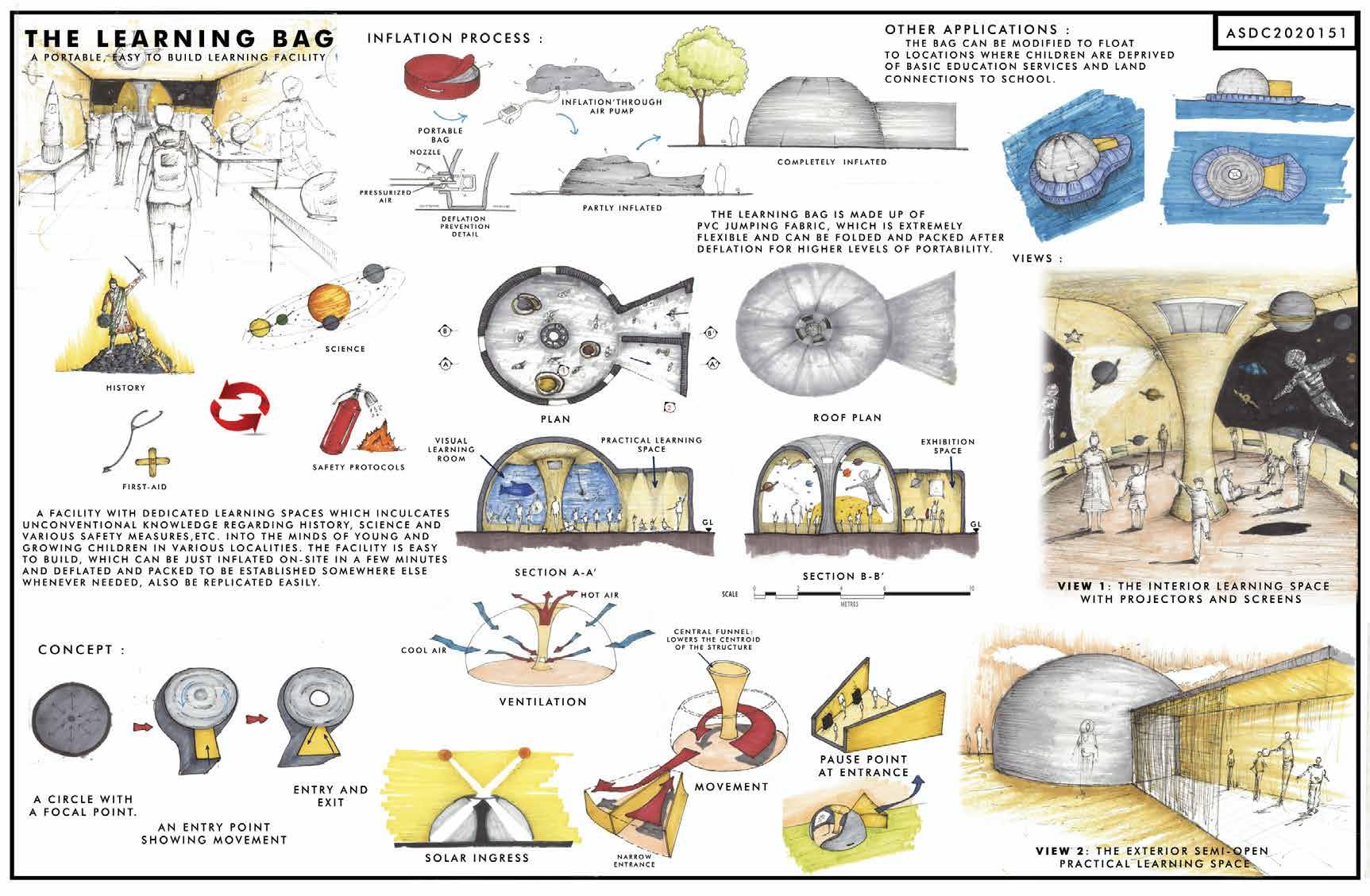

THE INTENT OF THE PROJECT IS TO DESIGN A NONCONVENTIONAL MOBILE EDUCATIONAL FACILITY THAT ENCOURAGES AND PROVIDE FREE LEARNING FOR KIDS UPTO AGED 15 YEARS A FACILITY THAT CAN BE MADE AVAILABLE IN EVERY NEIGHBOUR HOOD , EVERY STREET EVERY CORNER OF YOUR CITY / VILLAGE / TOWN . OF KIDS ARE UNABLE TO REACH THE FACILITY THEN FACILITY COULD REACH THEM

PROJECT DESCRIPTION

NAME :-

THE LEARNING BAG

IMPORTANT :-

• THE LEARNING BAG’IS PORTABLE PRODUCT WORKS ON INFLATION AND DEFLATION PRICIPLE

• IT CAN BE CREATED WHERE EVER AND WHENEVER WE WANT , (JUST FILL IN THE AIR (INFLATION) CREATE YOUR OWN SPACE A, REMOVE THE AIR (DEFLATION) PACK IT IN THE PROVIDED BAG AND TAKE WHEREVER YOU WANT

• IDEA OF 360 DEGREE PROJECTION AND CREATES THE FACILITY A FOCAL POINT AND NOT INVITE MORE AND CROWD BUT ALSO CREATES INTREST IN LEARNING

• THE FACILITY CAN ALSO FLOAT ON WATER

• THE LEARNING BAG’ CAN NOT ONLY BE USED FOR EDUCATIONAL PURPOSES BUT ALSO FOR DIFFERENT FUNCTIONS

TOTAL AREA OF THE PROJECT :45 SQ.M

24 APIC COMPETITION 5 COMPETITION

6 (14)

SPECIAL MENTION (GROUP OF 3)
