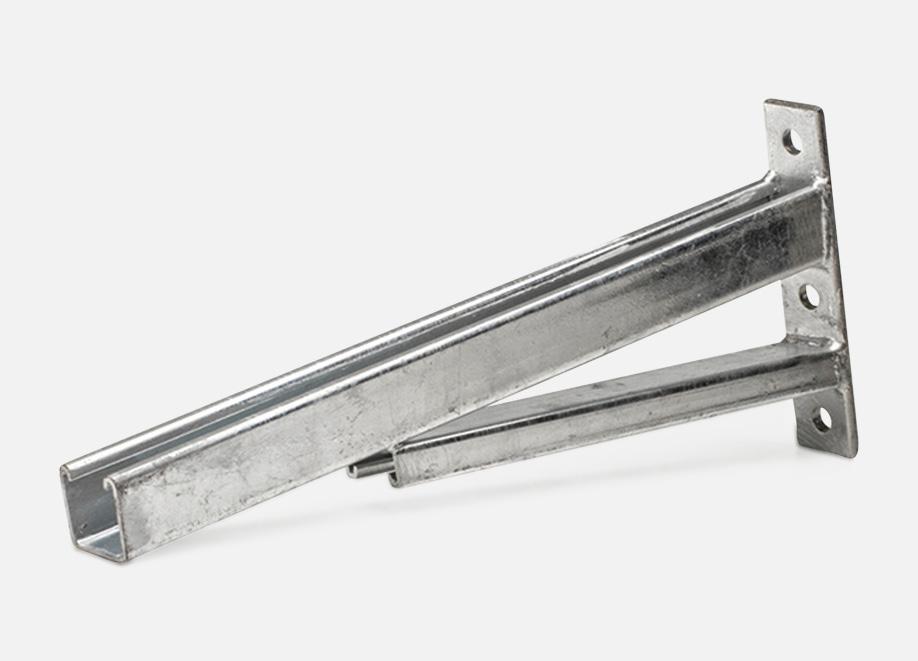

Used for the installation of building services for supporting anything from pipe work, duct work, equipment, and cable tray.
This model is braced with a longer base plate for greater strength than the unbraced option.
• Adjustable & Modular Design: Allows easy on-site configuration and alignment without welding, ideal for modular construction.
• Versatile Application: Compatible with multiple brackets, fittings, and service supports for various orientations and load conditions.
• Corrosion Resistant: Available in hot-dip galvanized or stainless-steel finish for enhanced durability in harsh environments.
• Lightweight & Strong: High load capacity with reduced structural weight, ensuring easier handling and transport.
• Low Maintenance: Components can be replaced or adjusted easily without specialized tools.
• Cost-Effective Solution: Minimises fabrication and rework, providing an efficient alternative to rigid welded systems.
• Independent tested and verified by third-party organisations.
laycomm
Safety Factor of 1.5 has been applied.
Note: The allowable point load is determined at the end of the Cantilever Bracket. Actual load capacity may vary depending on the post position, support conditions, and application.
For project-specific verification or engineering guidance, please contact Acura Group.
All load data is applied with appropriate safety factors and verified in accordance with relevant AS/NZS engineering standards.
The M12 concrete anchor to be selected to satisfy the Cantilever Bracket allowable loading.
