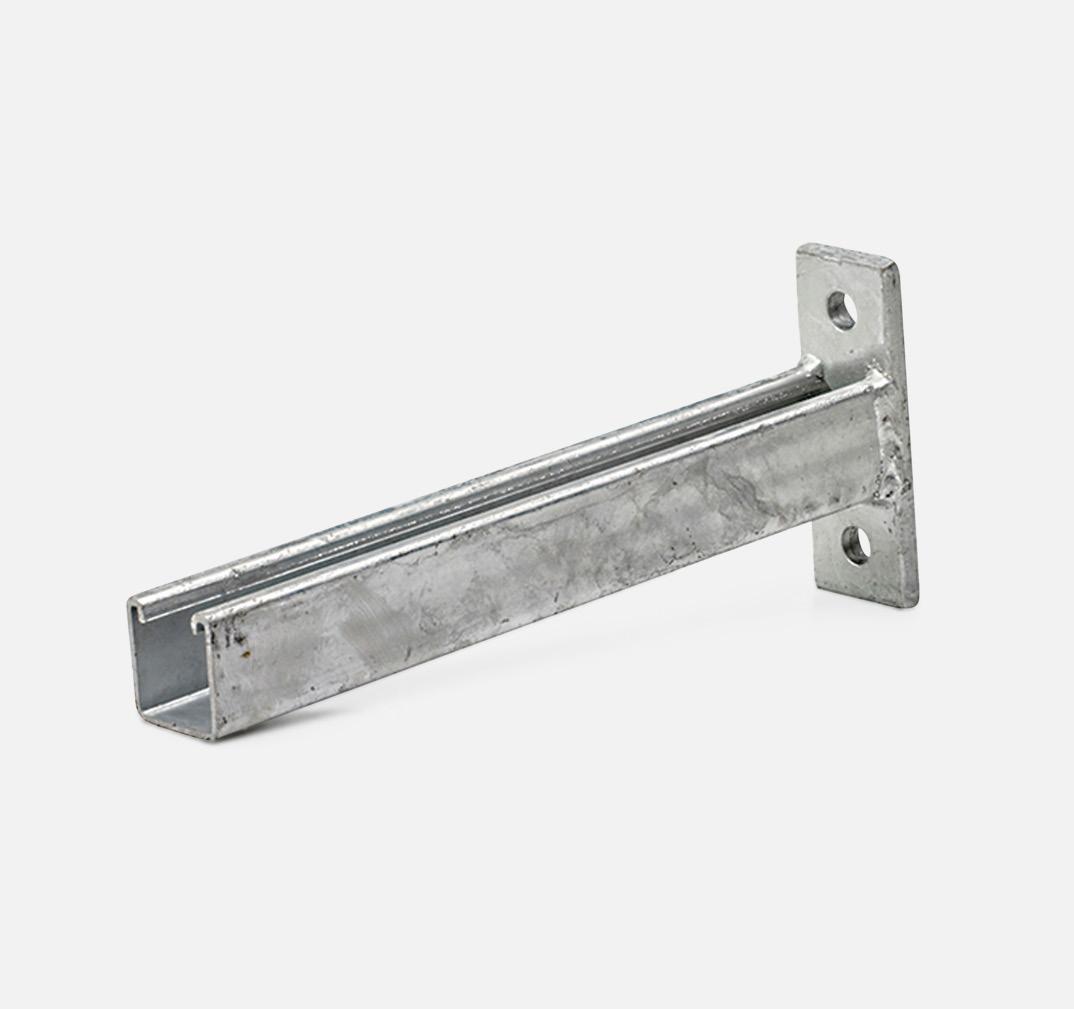

ACURA Group Unbraced Cantilever Bracket Tech Data Sheet.
Used for the installation of building services for supporting anything from pipe work, duct work, equipment, and cable tray.
This model is unbraced for compact applications and can be used in multiple directions.
Adjustable & Modular Design: Allows easy on-site configuration and alignment without welding, ideal for modular construction.
Versatile Application: Compatible with multiple brackets, fittings, and service supports for various orientations and load conditions.
Corrosion Resistant: Available in hot-dip galvanized or stainless-steel finish for enhanced durability in harsh environments.
Lightweight & Strong: High load capacity with reduced structural weight, ensuring easier handling and transport.
Low Maintenance: Components can be replaced or adjusted easily without specialized tools.
Cost-Effective Solution: Minimizes fabrication and rework, providing an efficient alternative to rigid welded systems.
Independent tested and verified by third-party organisations.
laycomm
Safety Factor of 1.5 has been applied.
Note: The allowable point load is determined at the end of the Cantilever Bracket. Actual load capacity may vary depending on the post position, support conditions, and application.
For project-specific verification or engineering guidance, please contact Acura Group.
All load data is applied with appropriate safety factors and verified in accordance with relevant AS/NZS engineering standards.
The M12 concrete anchor to be selected to satisfy the Cantilever Bracket allowable loading.
