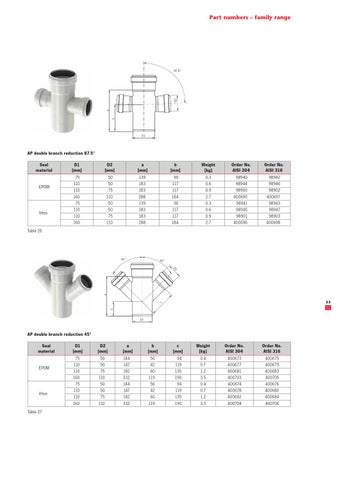

Part numbers – family range
b
a
D2
87,5°
D1
AP double branch reduction 87.5° Seal material
EPDM
Viton
D1 [mm]
D2 [mm]
a [mm]
b [mm]
Weight [kg]
Order No. AISI 304
Order No. AISI 316
75 110 110 160 75 110 110 160
50 50 75 110 50 50 75 110
139 183 183 288 139 183 183 288
90 117 117 184 90 117 117 184
0.3 0.6 0.9 2.7 0.3 0.6 0.9 2.7
98940 98944 98900 400695 98941 98945 98901 400696
98942 98946 98902 400697 98943 98947 98903 400698
Table 26
45°
45°
a
D2
b
c
33
D1
AP double branch reduction 45° Seal material
EPDM
Viton
Table 27
D1 [mm]
D2 [mm]
a [mm]
b [mm]
c [mm]
Weight [kg]
Order No. AISI 304
Order No. AISI 316
75 110 110 160 75 110 110 160
50 50 75 110 50 50 75 110
144 147 182 332 144 147 182 332
56 42 60 119 56 42 60 119
94 119 135 190 94 119 135 190
0.4 0.7 1.2 3.5 0.4 0.7 1.2 3.5
400673 400677 400681 400703 400674 400678 400682 400704
400675 400679 400683 400705 400676 400680 400684 400706
