CONTENTS ACADEMIC WORKS 01

NEXUS LIBRARY +

02

SANTA ANA MULTI-USE HOUSING

03

MT. WILSON SCIENTIST RETREAT

04

SCHOOL OF ARCHITECTURE

05

SHOHEI OHTANI SPORTS MEDICAL CENTER

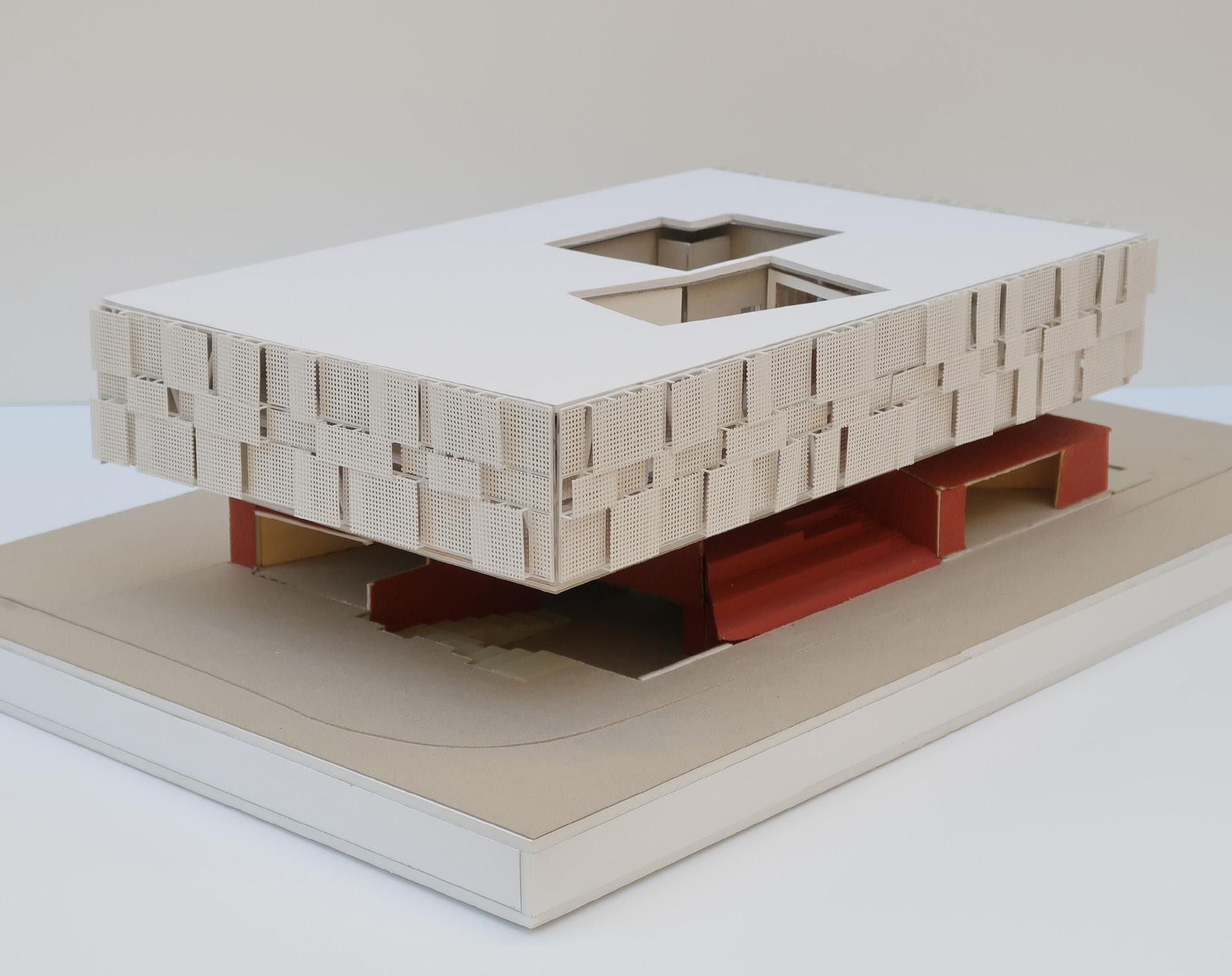

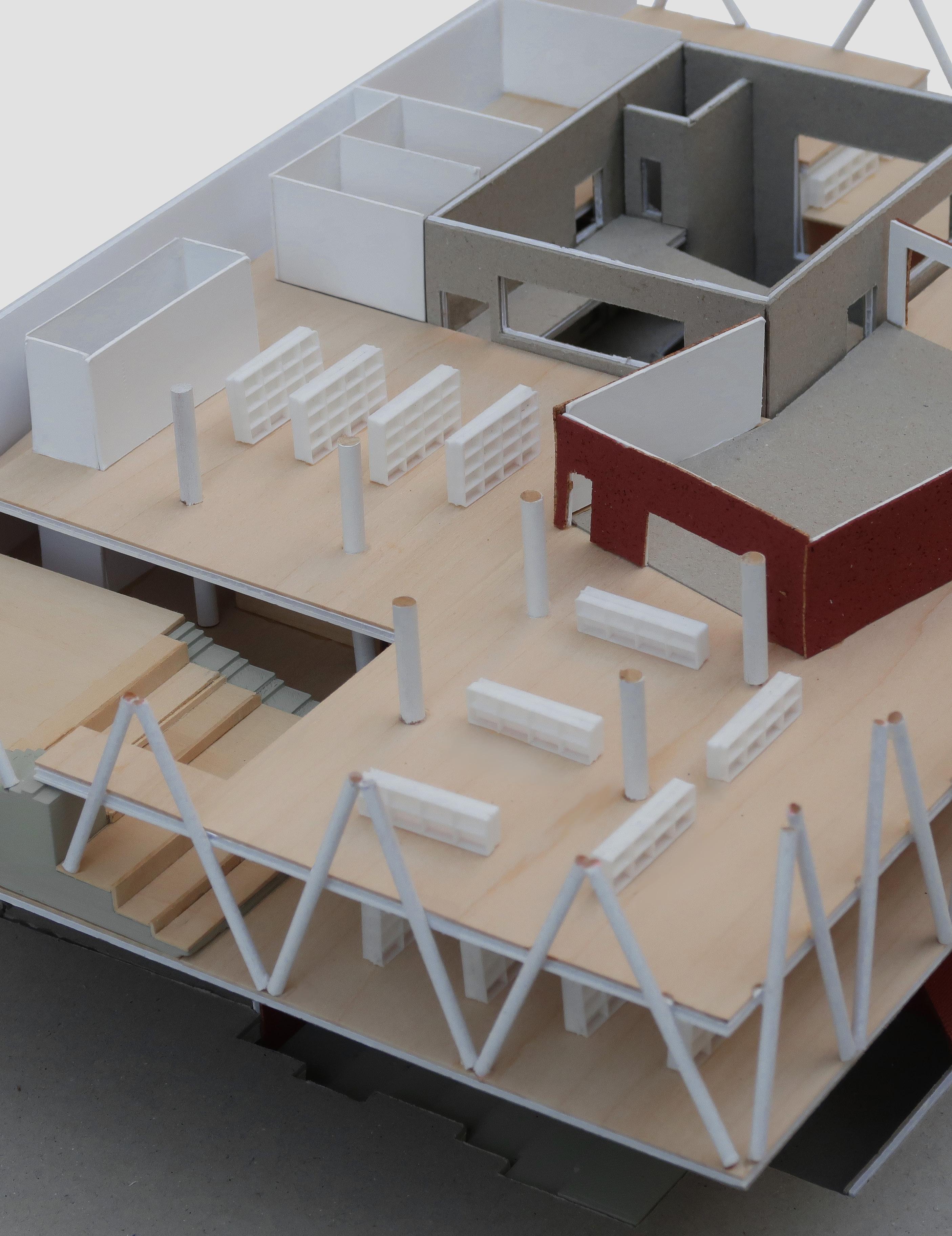

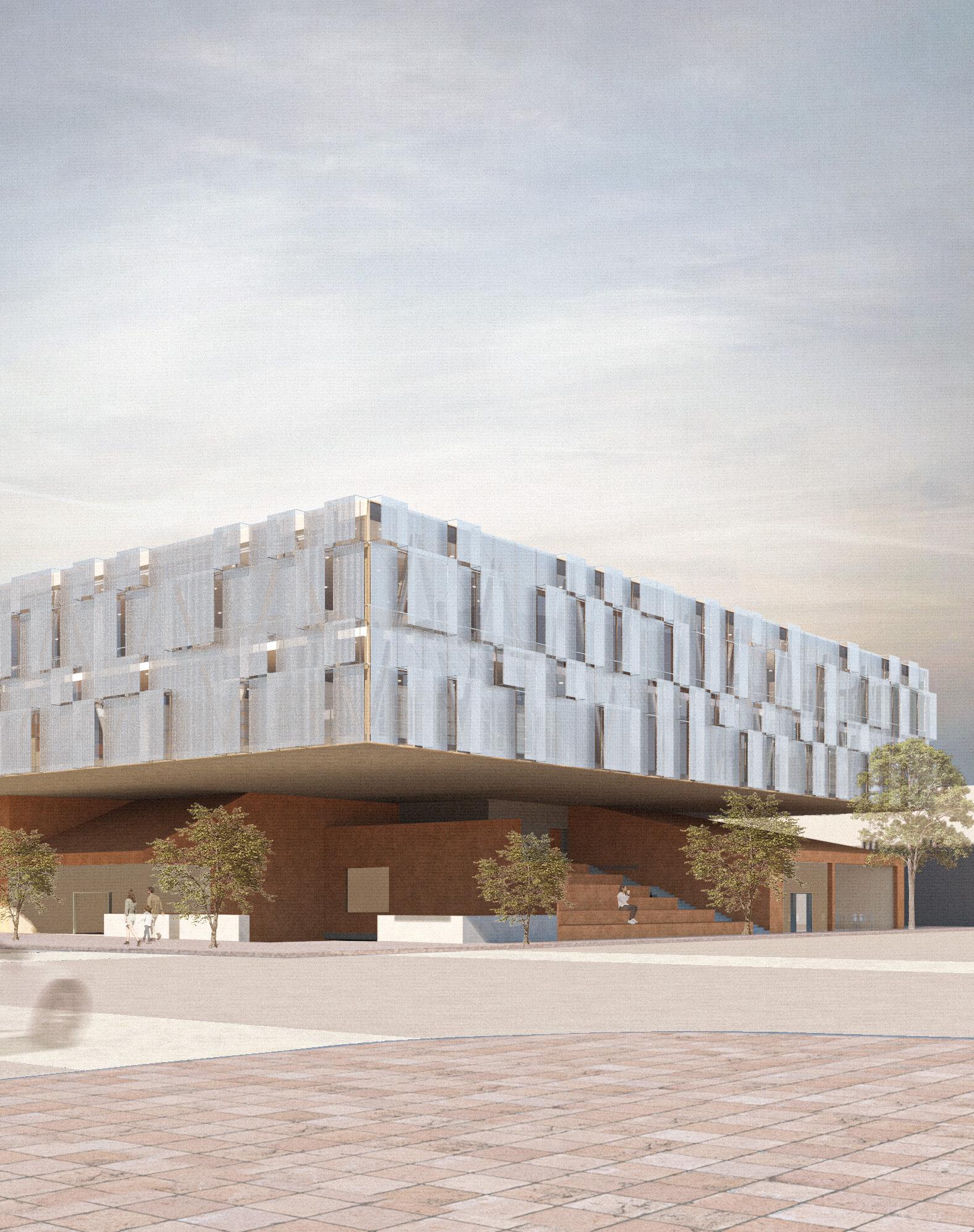

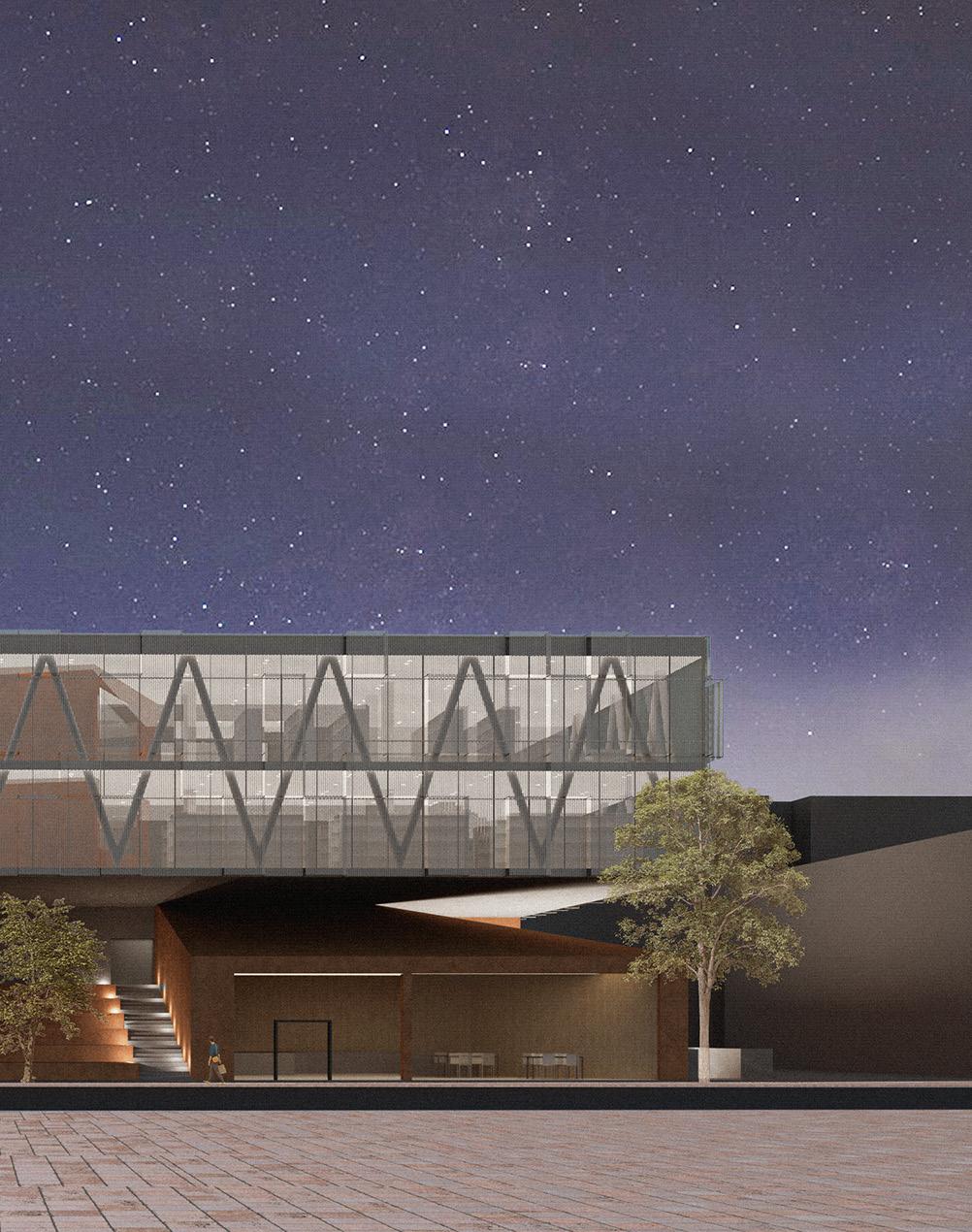

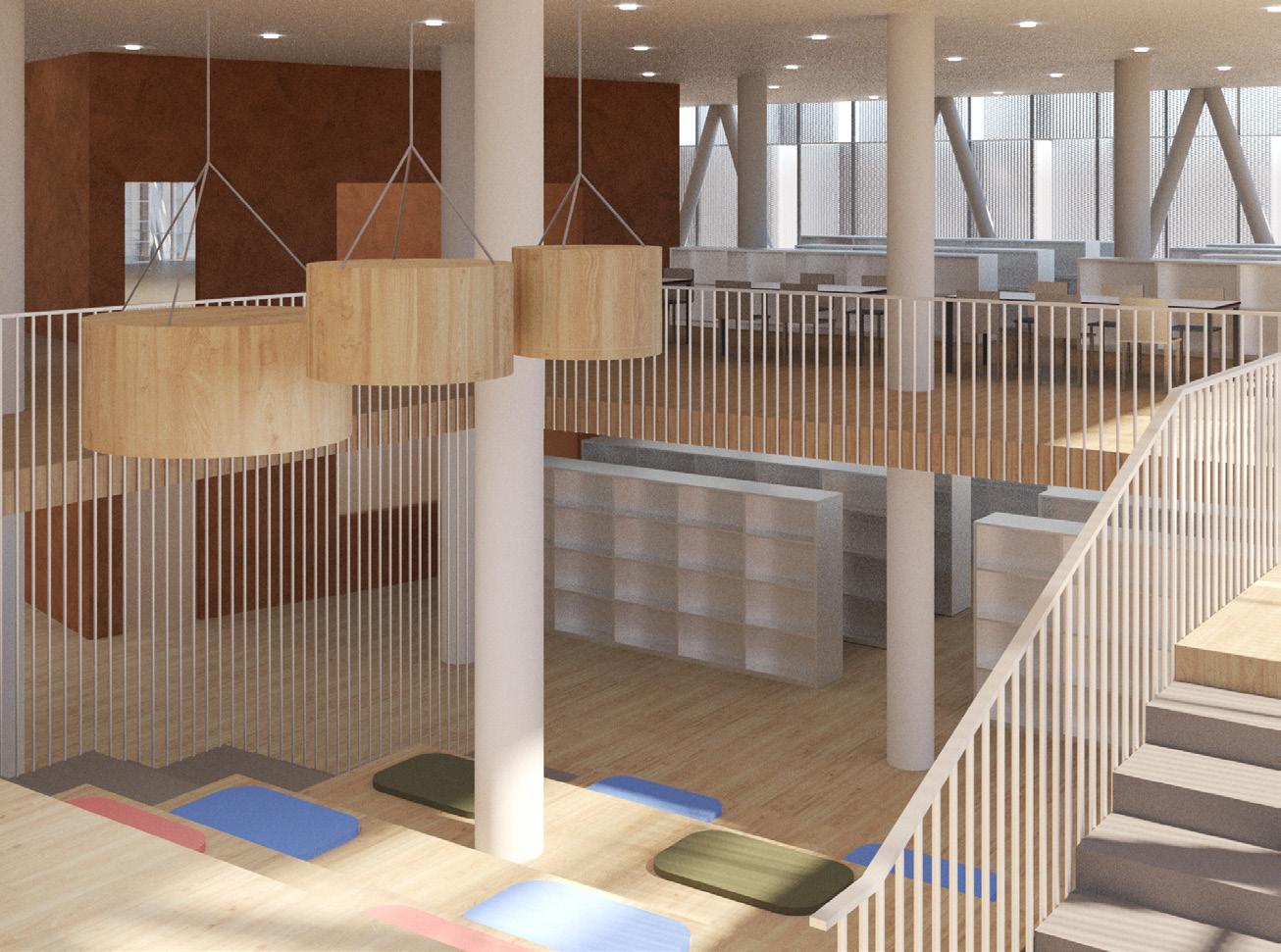

NEXUS LIBRARY + Inglewood, California

This project promotes civic engagement and community connectivity through a library+ program. It supports local economic development via reintegration services and transitional employment while creating democratic spaces for leisure and informal exchange. The design splits a singular volume, creating a terracotta-grounded plaza below and a transparent, floating library above, symbolizing knowledge and openness. A central concrete core links these elements, blending public spaces into a cohesive experience. The contrasting materials and layered design offer diverse interactions, fostering inclusivity and engagement. By integrating plaza, library, and hybrid spaces, the project strengthens community bonds and redefines public space functionality.

Contributed by: Kimberly Yan

Rhino / Vray / Photoshop / Illustrator

EDUCATION EDUCATION

Library

HYBRIDITY HYBRIDITY

Library-Plaza Library-Plaza

Library

INTERACTION INTERACTION Core

Core

COMMUNITY COMMUNITY Plaza

MASSING

Plaza

PROGRAM

Programmatic Organization

8

7

UP

6

UP

5

UP

11

11

9

10

UNDERGROUND PLAN

0

5

1

nce

17

20

18

17

11

SECTION Longitudinal

2

20

16

11

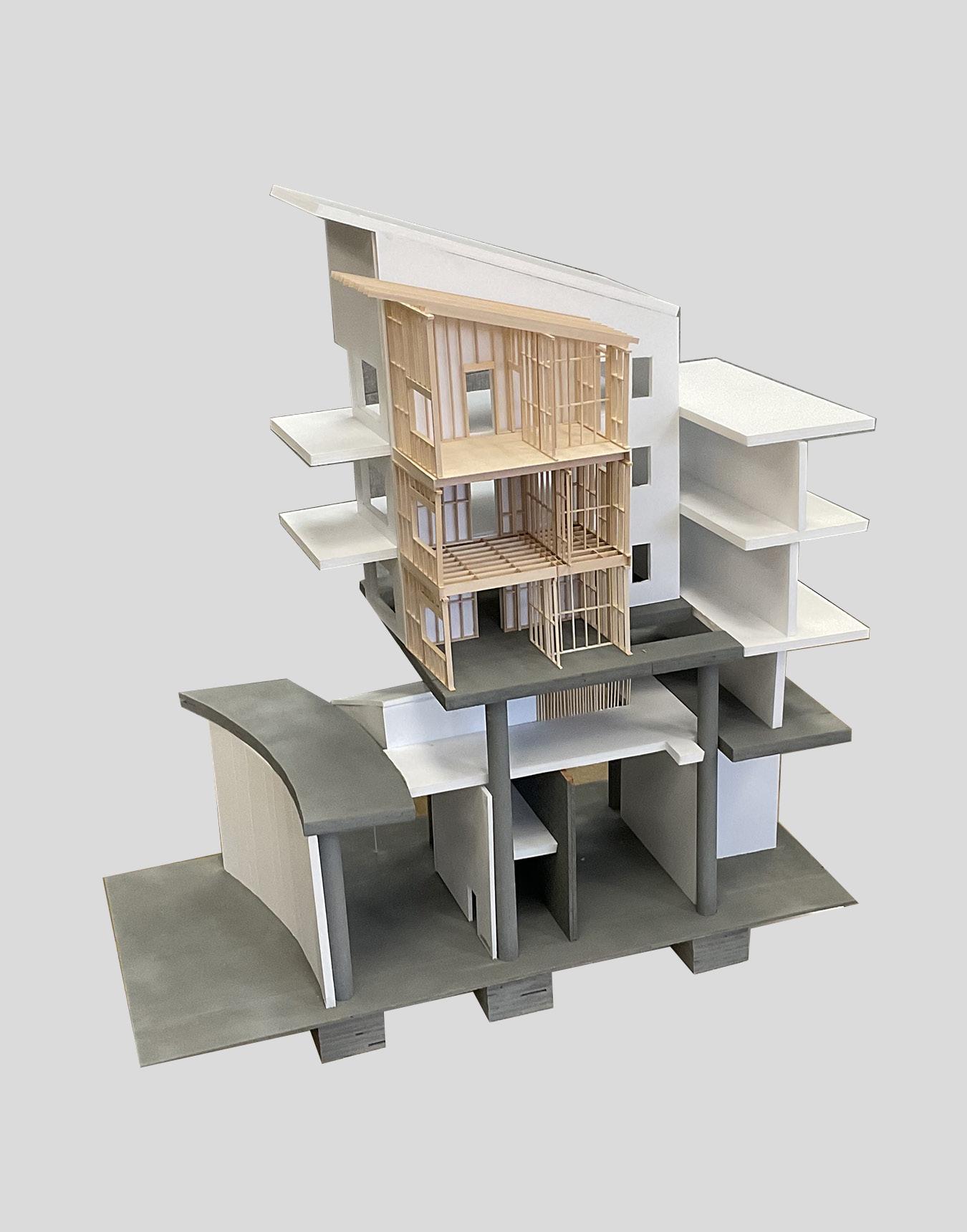

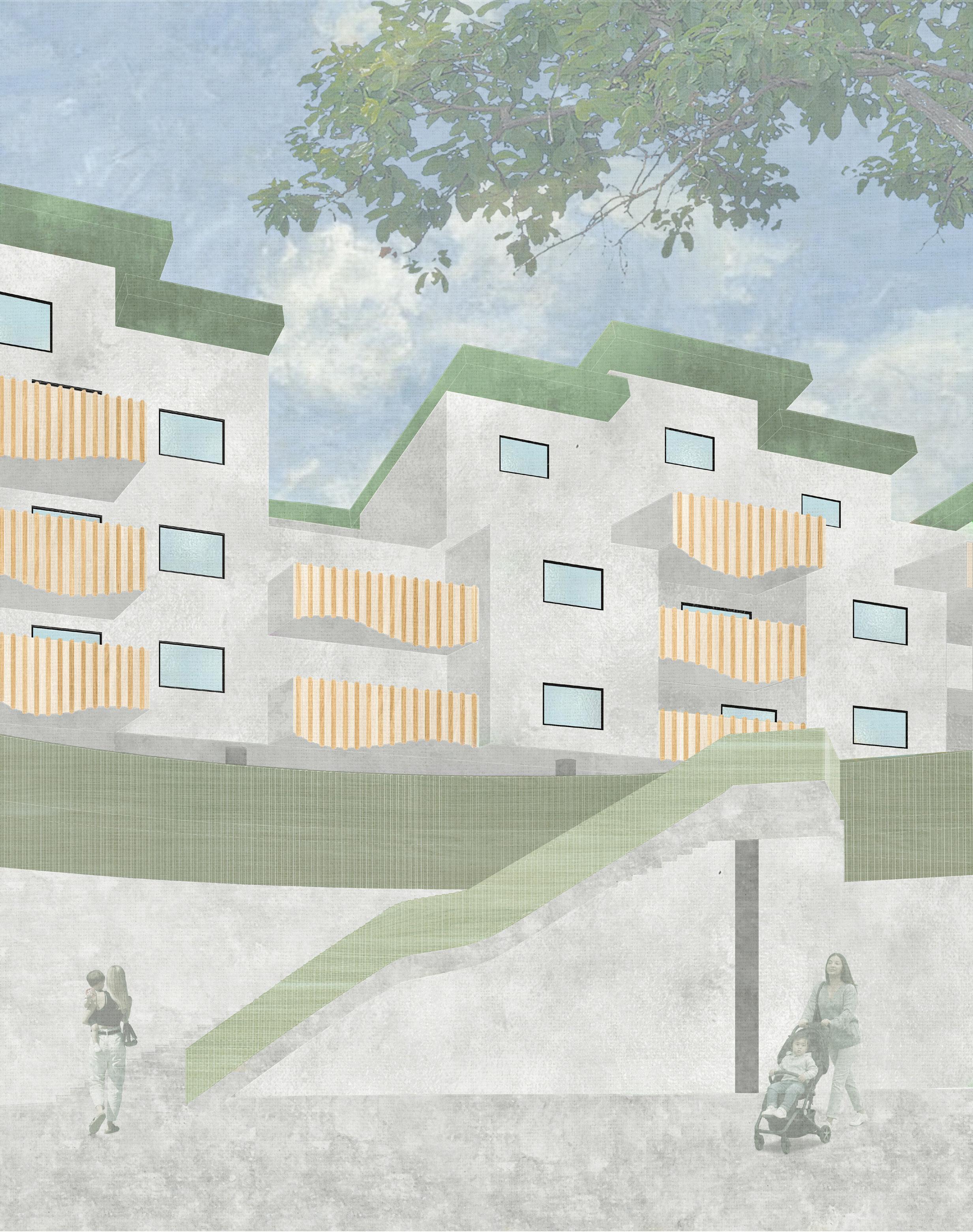

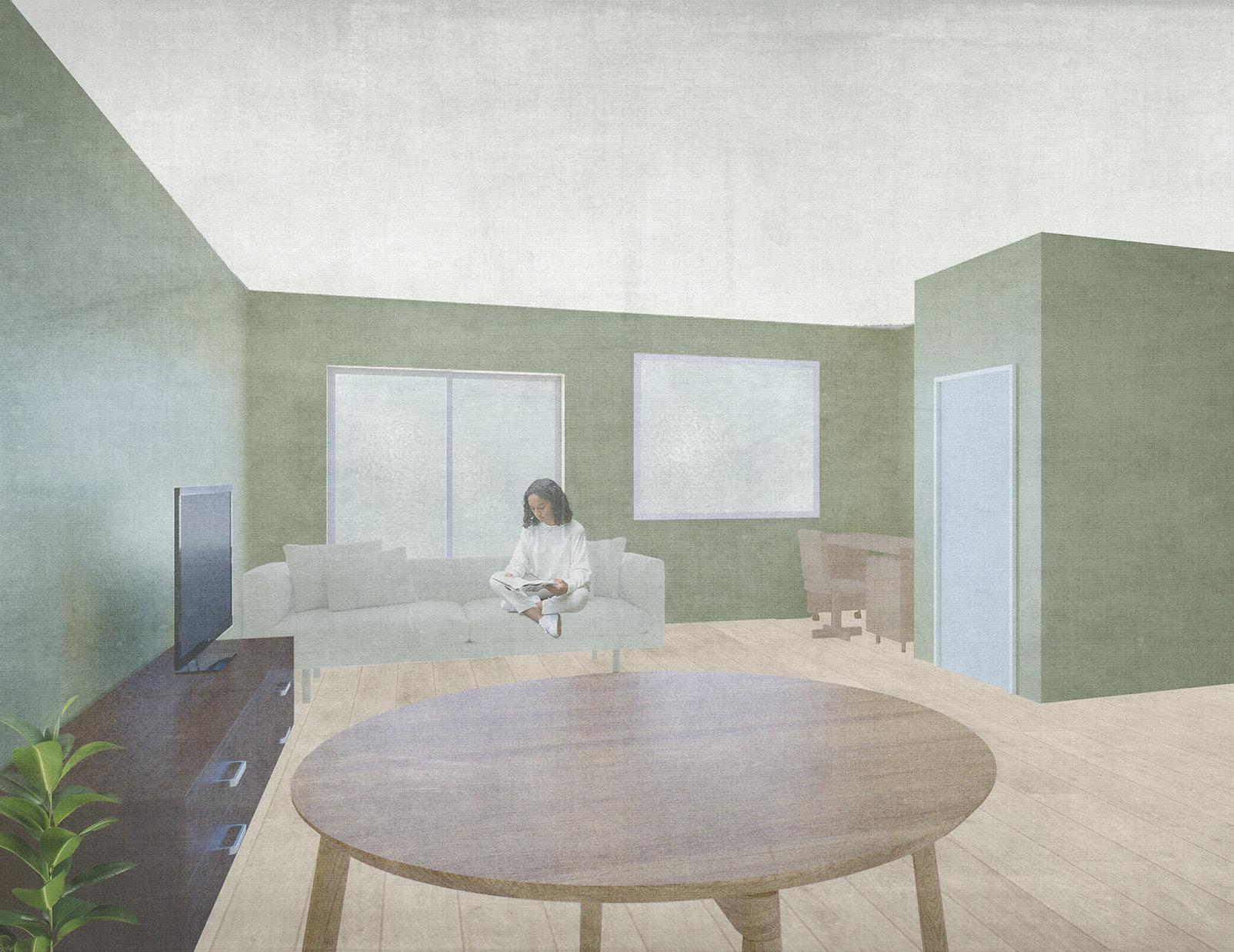

SANTA ANA MIXED-USE HOUSING Santa Ana, California

This 60 plus unit housing project in Santa Ana features a unique design centered around a circular plaza, integrating commercial and residential spaces. The apartments include studio spaces, one-bedroom, two-bedroom, and live-work units, designed to interconnect like building blocks, fostering a sense of community. The two-story plaza serves as a shared hub, with the ground level hosting stores that draw public visitors and promote interaction between residents and the public.

Partially public access extends to the second level, while the upper floors remain private for residents. This interconnected design blurs the boundaries between living, working, and social spaces, creating a unified community.

Rhino / Vray / Photoshop / Illustrator / Revit

A-300

02

11

12

2

3

14'-0"

35'-0"

4 25'-0"

25'-0"

5

6

7

25'-0"

20'-0"

8 20'-0"

9

10

25'-0"

20'-0"

7'-0"

B

1

36'-0"

A

A-201 03

Live-Work

Retail

Live-Work

Retail

Live-Work

C Retail

39'-4"

A-201 04

D

UP Retail Cafe

Service

E 30'-0"

A-300 01

30'-0"

13

Loading Dock

Retail

F Retail 30'-0"

Retail

M

F Live-Work

G

Lobby

30'-0"

N

Live-Work

30'-0"

A-201 02

UP

Retail Retail

H 30'-0"

O

I 30'-0"

Retail

P J

30'-0"

Q

Daycare

Retail

12'-0"

K R

L

GROUND PLAN

A-201 01

Retail

1’-9”

3’-6”

3’-8”

1’-1”

5’-0”

6’-0”

01

1’-1”

6’-0”

4’-1”

5’-8”

7’-0”

Studio Unit Plan

ADA Studio Unit Plan

02

Scale: 1/4” = 1’-0”

7’-8”

Scale: 1/4” = 1’-0”

10’-4”

21’-2” 18’-4”

18’-0”

1’-9”

2’-0”

4’-5”

9’-0”

4’-0”

18’-0” 7’-0”

7’-0”

4’-0”

6’-0”

4’-0”

8’-0”

4’-0”

7’-8” 15’-5”

14’-4”

1’-9”

2’-0”

`12’-2”

2’-0”

5’-9”

3’-2”

16’-8”

16’-2”

18’-0”

39’-8”

4’-0”

28’-0”

10’-4”

8’-0”

10’-0”

5’-6”

6’-6”

2’-0”

14’-0”

5’-8”

11”

1’-3”

11’-10”

4’-9”

8’-0”

1’-8”

1’-0”

5’-8”

1’-9”

5’-4”

8’-0”

6’-4”

4’-9”

10’-10”

6’-4”

5’-4”

8’-4”

8’-10”

2’-0”

8’-0”

8’-0”

28’-0”

6’-0”

1’-0”

10’-10”

5’-8”

1’-3”

620 N Santiago St, Santa Ana, CA 92701

10’-4” 1’-2” 3’-0” 1’-6” 4’-1”

5’-8”

MIXED-USE MULTI-FAMILY HOUSING

SANTA ANA HOUSING

36’-10”

11’-8” 4’-0”

2’-0”

1’-9” 1’-1”

3’-0”

7’-6”

8’-0”

8’-0” 4’-0” 18’-0”

8’-0” 6’-0”

3’-0”

5’-9”

6’-0”

4’-0” 4’-0” 28’-0”

4’-0” 9’-2”

6’-6”

1’-1”

2’-0”

20’-10”

4’-2”

6”

6’-4”

3’-0”

1’-0”

1’-4”

5’-8”

9’-8”

9’-8”

5’-0”

3’-10”

SA

10’-10”

4’-0”

1’-0”

10’-7”

6’-10”

6’-10”

10’-0”

7’-10”

3’-0”

1’-5”

3’-2”

3’-0”

5’-9”

3’-2”

18’-0”

7’-8”

10’-4”

City of Santa Ana

7’-10”

4’-0”

6’-2”

4’-0”

18’-0”

05

18’-0” 6’-0”

4’-0”

8’-0”

ADA 1 Bedroom Unit Plan

2 Bedroom Unit Plan

Scale: 1/4” = 1’-0”

1 2

MIDTERM FINAL 32’-4”

04

06

2’-0”

2 Bedroom Unit Plan

1 Bedroom Unit Plan

18’-0”

1’-10”

18’-3”

14’-0”

36’-8”

32’-4”

Scale: 1/4” = 1’-0”

Scale: 1/4” = 1’-0”

ONE BEDROOM

2’-0”

6’-10”

4’-0”

14’-4”

Date 3/24/2023 5/12/2023

TWO BEDROOM 36’-9”

36’-9”

6”

9’-8”

Description

Scale: 1/4” = 1’-0”

3’-2”

STUIDO

03

18’-0”

No.

24’-2”

4’-0”

4’-10”

3’-9”

8’-5” 4’-0”

2’-3”

5’-0”

8’-0”

2’-0”

8’-3”

J.B. J.B.

5’-8”

1’-0”

5’-4”

8’-0”

6’-4”

4’-9” 3’-10”

4’-0”

6’-2”

4’-0”

6’-0”

UNIT PLANS 8’-0”

1’-4”

1’-9” 1’-3”

5’-6”

4’-9”

4’-0”

6’-10”

4’-0”

36’-9”

07 18’-3”

Live-Work First Floor Unit Plan

07

Scale: 1/4” = 1’-0”

A-400

14’-0”

an 32’-4”

SCALE

As Indicated

Live-Work Second Floor Unit Plan Scale: 1/4” = 1’-0”

16’-5”

20’-9”

20’-9” 4’-0”

SANTA ANA May 12, 2023

Issued By

2’-6”

Project Number Date Checked By

4’-8”

6’-1”

10’-4”

12’-0”

5’-10”

18’-0”

NOT FOR CONSTRUCTION

20’-9”

4’-0”

10’-4”

5’-8”

8’-0”

6’-0”

8’-10”

5’-8”

2’-2”

5’-9”

3’-1”

3’-0” 1’-4”

2’-0”

8’-4”

28’-0”

lan

SA

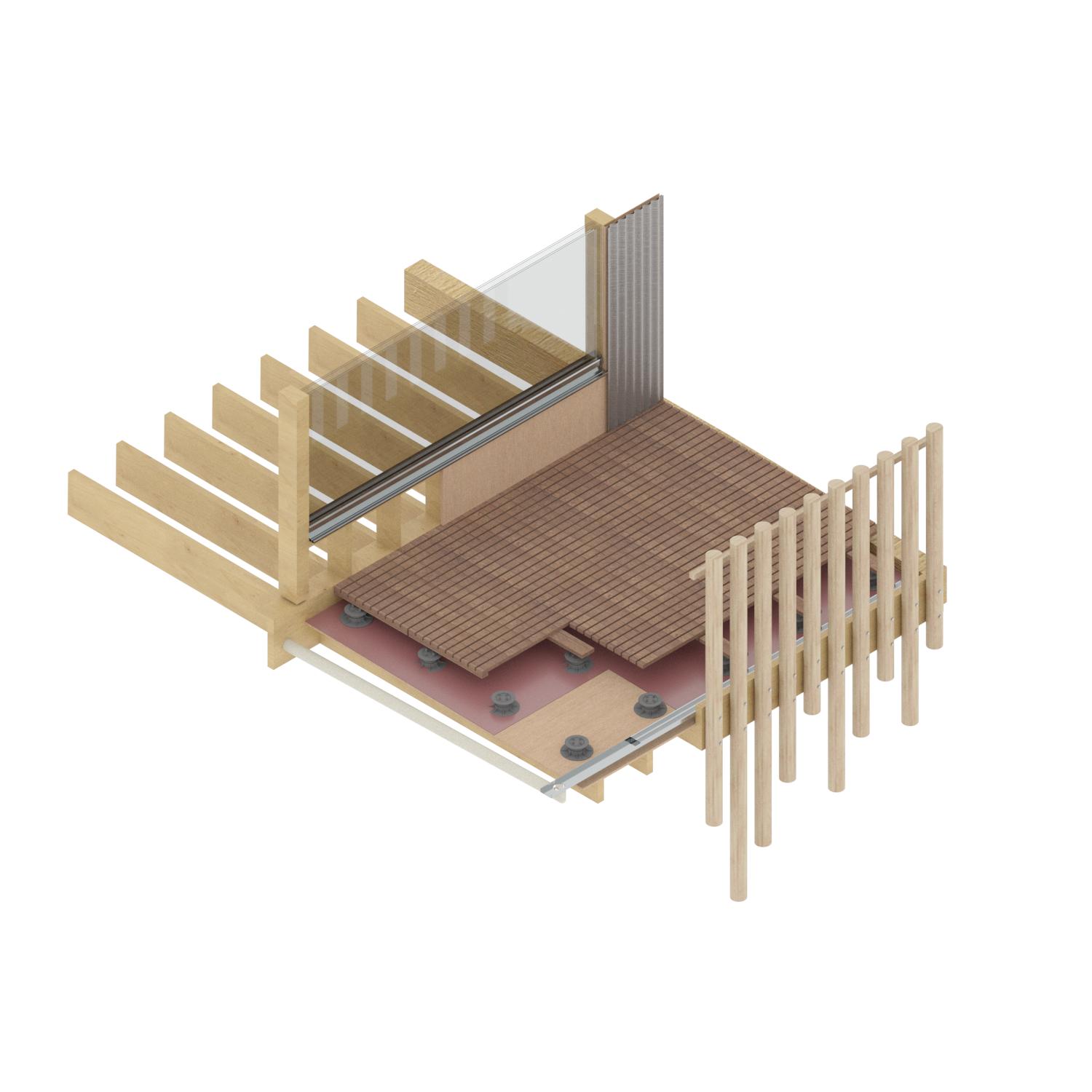

Flashing Stainless Steel Clip Enkamat Weather Barrier 2 x 12 Roof Rafter Plywood Sheathing FloorFloor Beam 66 xX1212 Beam

Weather Barrier

SANTA ANA

Corrugated Metal Panel Corrugated Metal Panel

6 Double Top Plate

Window Window

6 Stud

6 Stud

Insulation

Plywood Sheathing Plywood Sheathing

ugated Metal Panel

king Wood Deck Finish Wood Deck Finish

ue & Groove Finish

City of S 14

15

16

17

18

19

20

21

22

23

24

25

26

27

Descrip

1 2

MIDTE FINA

T.O. ROOF 74’-0”

CMU Blocks

2 x 12 Joist Floor Joist 2 X 12 Floor Window Sill Window Sill

FIFTH F.F. 50’-0”

FOURTH F.F. 40’-0”

Barrier WeatherWeather Barrier Bison Pedestal Bison Pedestal Drainage Pipe Drainage Pipe

Gypsum Wall Board

Lightgauge Steel Stud

THIRD F.F. 30’-0”

SECOND F.F. 20’-0”

4” Pipe Guardrail 4” Pipe Guardrail

Linear Drainage Linear Drainage

GROUND F.F. 0’-0”

NOT FOR CO

Concrete

Project Number Date

’-0”

oor

No.

Issued By

24 x 24 Tile

Checked By

Cementitious Bond Coat

DETA

ete Column

”

AA

AB

AC

01

AD

Balcony Condition AE

AF

AG

AH

AI

AJ

AK

AL

AM

AN

AO

AP

AQ

AR

AS

AT

Not To Scale SCALE

ELEVATION West

A-5

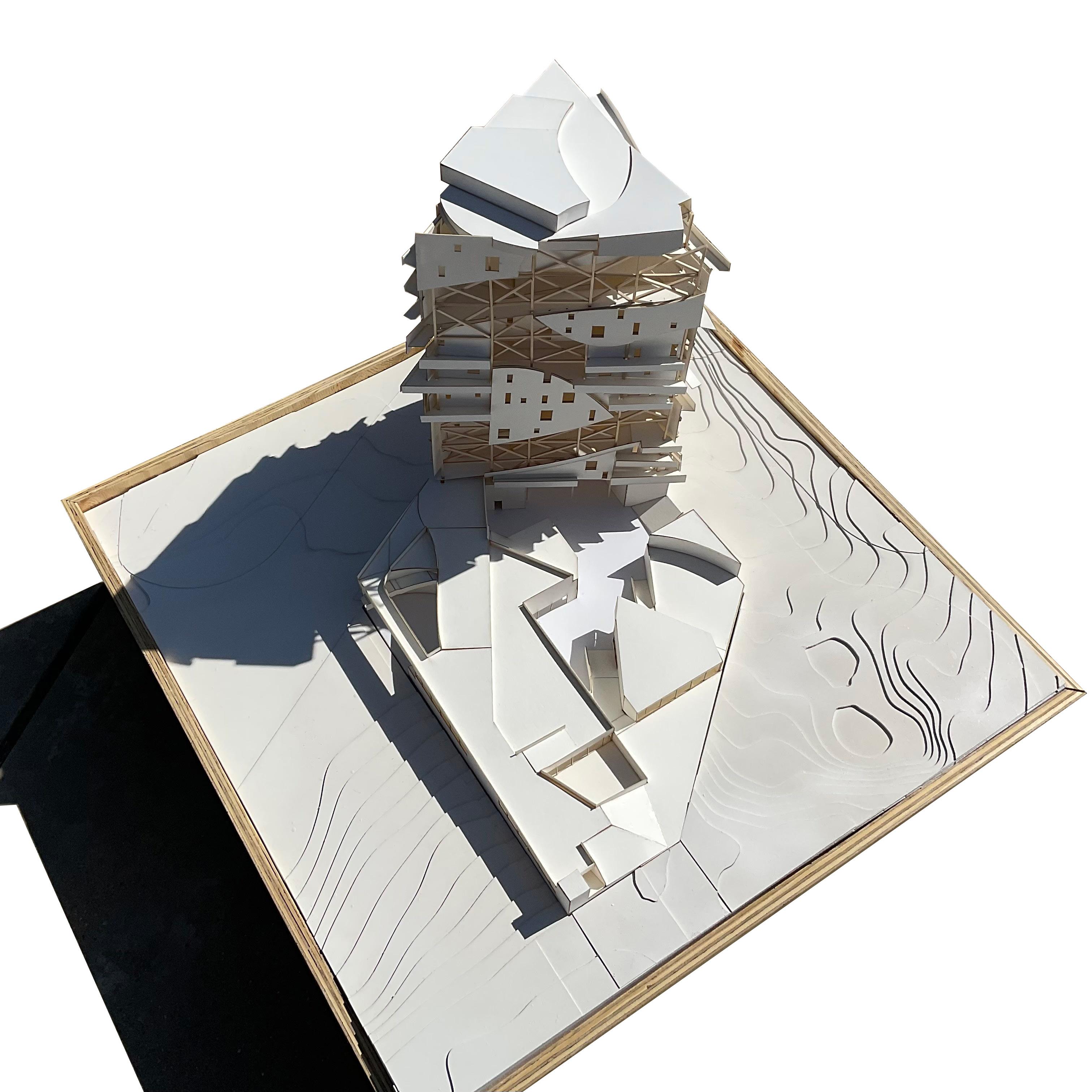

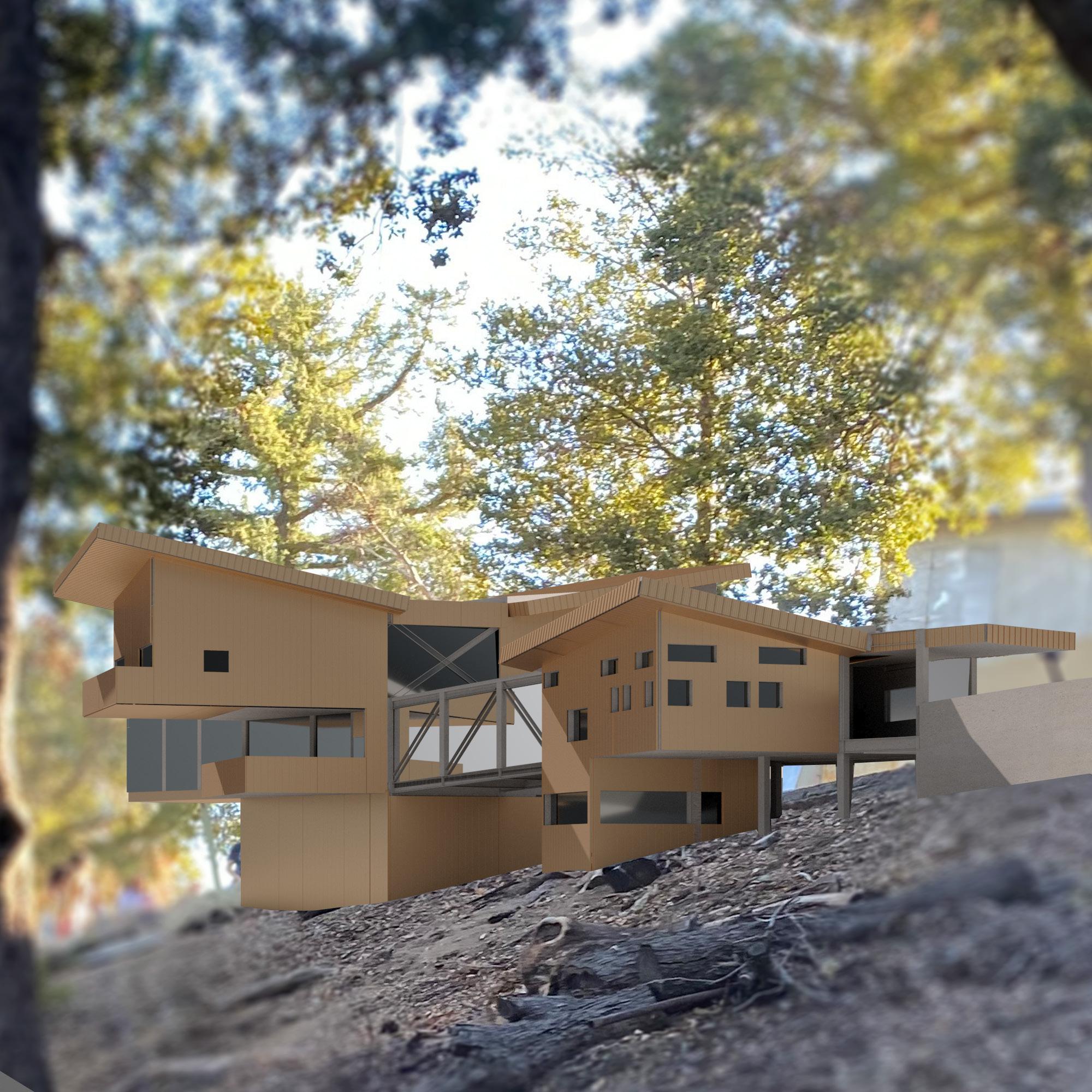

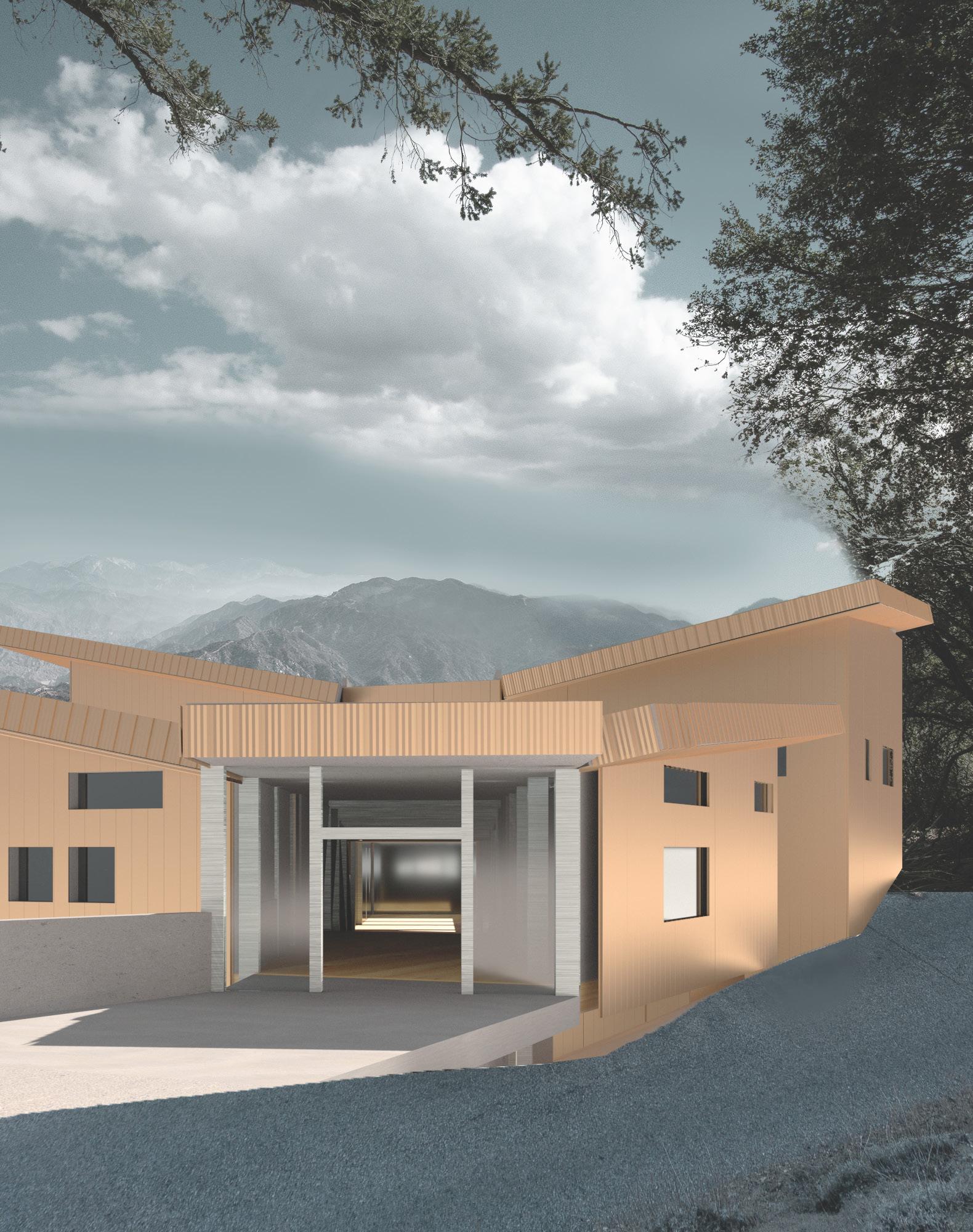

MT. WILSON SCIENTIST RETREAT Pasadena, California

The Mt. Wilson Scientist Retreat serves as a dual-purpose facility for researchers and visitors. Researchers have dedicated living spaces, offices, and labs, while visitors can tour the working areas. The facility’s centerpiece is a bridge spanning its entirety, beginning at the entrance and ending at a meeting deck. Both researchers and visitors traverse the bridge, experiencing dynamic spatial conditions that highlight changes in height, shifting from narrow passages to expansive spaces.

While public and private areas are largely separate, the bridge near the meeting deck serves as a point of interaction, fostering communication and collaboration between researchers and visitors.

Rhino / Vray / Photoshop / Illustrator

ction 4, Anton Schneider unta Abe

EX04: Scientist Retr CPP/ARC ARC3011A F2

3FT 567

FT 5673

10 E.L. 0'-0"

567 3FT

5663FT

5663FT

5663F T

56 53F T

5653FT

5653FT

5653FT

5653FT

5643FT

3FT 565 FT 53 56

564 3FT 5633FT

564 3FT

564 3F T

5633 FT

5633FT

56 43 FT

5633FT

5623FT

5623FT

5623FT

5623FT 5613FT

5613FT

FT 5613

5613FT

16

32

64

FT 5633

SITE PLAN

Site Plan Scale: 3/32” = 1’-0”

0

T 5623F

5613FT

N

128

PRIVATE PRIVATE

KITCHEN

STORAGE

POWDER

CLOSET

CLOSET

MISC/SERVICES

PUBLIC PUBLIC

TRASH

BATHROOM

DAYROOM

BEDROOM

BEDROOM

SERVICE CLOSET

BATHROOM PUBLIC PUBLIC

DECK

RESTROOM

MEETING DECK (SKY) RESEARCH OFFICE

RESEARCH LAB

PARKING

PRIVATE PUBLIC

MEETING DECK (ENVIORNMENT)

PROGRAM DIAGRAM

Section 4, Anton Schneider Shunta Abe

EX04: Scientist Retreat CPP/ARC ARC3011A F2022

S2

S2

1

2

5

4

3

7

6 39'-6"

2

5665 ft 5669 ft

5663 ft

10 4

E.L. - 3'-0"

1

9'-0"

8'-0"

9'-0"

9'-0"

22'-6"

6

3

2

E.L. - 12'-0"

UP

DN

3 DN

2

I

E.L. - 12'-0" DN

DN

E.L. 0'-0" 9'-0"

E.L. 0'-0"

E.L. - 3'-0" UP

5661 ft

8'-0"

E.L. 0'-0"

6

C D

5667 ft5663 ft D 5665 ft5661 ft

17'-0"

9

17'-0"

12'-0" 12'-0"

8

E.L. 0'-0"

H

22'-6"

5671 ft5667 ft

10

1

3'-6"

5673 ft5669 ft

H

11'-0"

11'-0"

4

3'-6"

C

5675 ft5671 ft

7

13'-3" 8'-6"

5677 ft 5673 ft

7

12'-0"

B

7

18'-0"

17'-6"

9

13'-3"

5675 ft

11'-0"

16'-0" 8

8'-6" 12'-0"

B

6

11'-0"

39'-6"

32'-0" 16'-0"

5677 ft

5

17'-6"

16'-0"

A

A

4

3

32'-0" 16'-0"

18'-0"

1

I E.L. - 3'-0"

20'-0"

E.L. - 3'-0"

5

6'-0"

20'-0"

5

E

1. Lobby 2. Research Lab 3. Research Office 4. ADA Restroom 1.

5. Lobby Meeting Deck 2. Research Lab 3. Research Office 4. ADA Restroom 5. Meeting Deck

5

0"

15'-

5

33'-0"

6'-0"

E S1 F

0"

15'-

S1

33'-0"

6. Dayroom 7. Kitchen 8. Storage 9. Powder Room 6.

10.Dayroom Parking 7. Kitchen 8. Storage 9. Powder Room 10. Parking

F

0'

5'

10'

20'

40'

0'

5'

10'

20'

40'

N N

Second Floor Plan Scale: 1/8” = 1’-0”

GROUND PLAN

S2

1

2

3

4

5

6

7

2

3

4

5

6

7

S2

1

32'-0" 16'-0" E.L. 15'-6"

32'-0"

B C

12'-0" 12'-0"

10

18'-0"

Slope 2 1/2:12 E.L. 15'-6"

E.L. + 7'-0"

12'-0"

B

H 16'-0"

E.L. + 7'-0"

2'-0"

A

16'-0"

10

18'-0"

16'-0"

A

E.L. 0'-0"

H Slope 2 1/2:12

E.L. 0'-0"

E.L. - 3'-0"

8'-0"

9'-0"

9'-0"

8'-0"

9'-0"

9'-0"

CONCEPT OF SPACE

Section 4, Anton Schneider Shunta Abe

EX04: Scientist Retreat CPP/ARC ARC3011A F2022

5

6

7

2

3

4

1

E.L. + 12'-6"

E.L. + 9'-0" 5

2

5

E.L. 0'-0" ASL 5673 ft E.L. - 3'-0"

3 15

Section S1 Scale: 1/8” = 1’-0”

14

E.L. - 19'-0"

SECTION Longitudinal

A

B

C

D

E

F

G

Section 4, Anton Schneider Shunta Abe

EX04: Scientist Retreat CPP/ARC ARC3011A F2022

Metal Panel (Flushed)

Plywood Sheathing

Section 4, Anton Schneider Furring Strip Metal Panel Shunta Abe (Flushed)

W18x Beam Plywood Sheathing

Nail Furring Strip Rigid Insulation Nail

Metal Standing Seam Exterior Furring Strip Metal Standing Seam

Water Proofing

Exterior

Weather Barrier Rigid Insulation

Furring Strip

Cement Board Plywood Sheathing

Cement Board Nail

Furring Strip

Furring Strip

Nail

Nail

Nail

Lightgauge Stud Plywood Sheathing

Rigid Insulation

Rigid Insulation

Plywood Sheathing Plywood Sheathing

Rigid Insulation

Batt Insulation Lightgauge Stud

Weather Barrier

W14x Beam

Plywood Sheathing

Lightgauge Joist

Lightgauge Stud

Batt Insulation W14x Beam Plywood Sheathing

Lightgauge Joist

Batt Insulation

Plywood Sheathing Tongue & Groove

Plywood Sheathing

Gypsum Wall Board Tongue & Groove

Tongue & Groove

W.A. - 01

Interior

R.A. - 01

Interior

W.A. - 01

W.A. - 01

W.A. - 01

R.A. - 01

Interior

Interior

Plywood Sheathing

Lightgauge Joist

W18x Beam Batt Insulation

Weather Barrier

Lightgauge Joist

Weather Barrier Plywood Sheathing Lightgauge Stud

W18x Beam

Plywood Sheathing

Plywood Sheathing Suspension Cable

Rigid Insulation

Tongue & Groove Finished Floor

Interior

Tongue & Groove Finished Floor

Suspension Cable

Batt Insulation

Batt Insulation Gypsum Wall Board

R.A. - 01

Lightgauge Joist Batt Insulation Metal Panel (Flushed)

Metal Panel (Flushed)

Weather Barrier

Water Proofing

Interior

Batt Exterior Insulation W18x Beam

Exterior

Batt Insulation Lightgauge Joist

Plywood Sheathing Nail Weather Barrier

Suspension Cable

Rigid Insulation Nail

Weather Barrier

Nail

Metal Panel (Flushed) Furring Strip

F.A. - 01

Nail

Rigid Insulation

Exterior

Metal Panel (Flushed)

Tongue & Groove

Plywood Sheathing

Weather Barrier

Furring Strip Rigid Insulation

Batt Insulation

Plywood Sheathing

Suspension Cable

Plywood Sheathing

Furring Strip

Rigid Insulation

Metal Panel (Flushed)

Exterior

Exterior

F.A. - 01

F.A. - 01

Furring Strip Metal Panel (Flushed) Exterior

F.A. - 01

W.A. - 01

F.A. - 01

D-2

R.A. - 01

D-2 Mullion Backer Rod and Caulking Metal Sill Plate

R.A. - 01

Finished Wood Cap

Mullion Shim

Metal Panel (Flushed) Flashing Tape

Flexible Flashing Mullion Track Finished Boxed Wood Cap BackerTrack Rod and Caulking

Furring Strip

Metal Panel (Flushed) Metal Sill Plate Flashing Tape

Nail

Shim

Rigid Insulation

Tongue & Groove

Pan Flashing

Metal Panel (Flushed)

Shim Flexible Flashing

Flashing Tape

Pan Flashing Boxed Track

D-1

Furring Strip Weather Barrier Nail

Weather Barrier

Flexible Flashing Track

Boxed Sheathing Track Furring StripPlywood

Strip Rigid Furring Insulation

Nail

Nail Plywood Sheathing

Plywood Sheathing

Plywood Sheathing

D-1 D-1

D-1

Track Tongue & Groove

Rigid Insulation Plywood Sheathing

Rigid Insulation

W.A. - 01

Plywood Sheathing

Metal Sill Plate Finished Wood Cap

Plywood Sheathing

Metal Panel (Flushed) Weather Barrier Flashing Tape

W.A. - 01

Pan Flashing Backer Rod and Caulking

Weather Barrier

Metal Sill Plate

Corner Flashing

D - 01

Tongue & Groove

D-1

Standing Seam Cement Board Rigid Insulation Furring Strip Nail Plywood Sheathing W14x Beam Water Proofing Flashing Tape Weather Barrier

Corner Flashing

Flashing

D-1

Standing Seam Corner Flashing Cement Board Standing Seam Rigid Insulation Cement Board

F.A. - 01

Rigid Insulation Furring Strip Nail

Nail Furring Strip

W14x Beam

Water Proofing W14x Beam

Water Proofing Flashing Tape Weather Barrier

Flashing Tape Water Proofing

Flashing

Weather Barrier Flashing Tape Flashing Weather Barrier

Metal Panel (Flushed)

Metal Panel (Flushed) Flashing Metal Panel (Flushed)

D-2

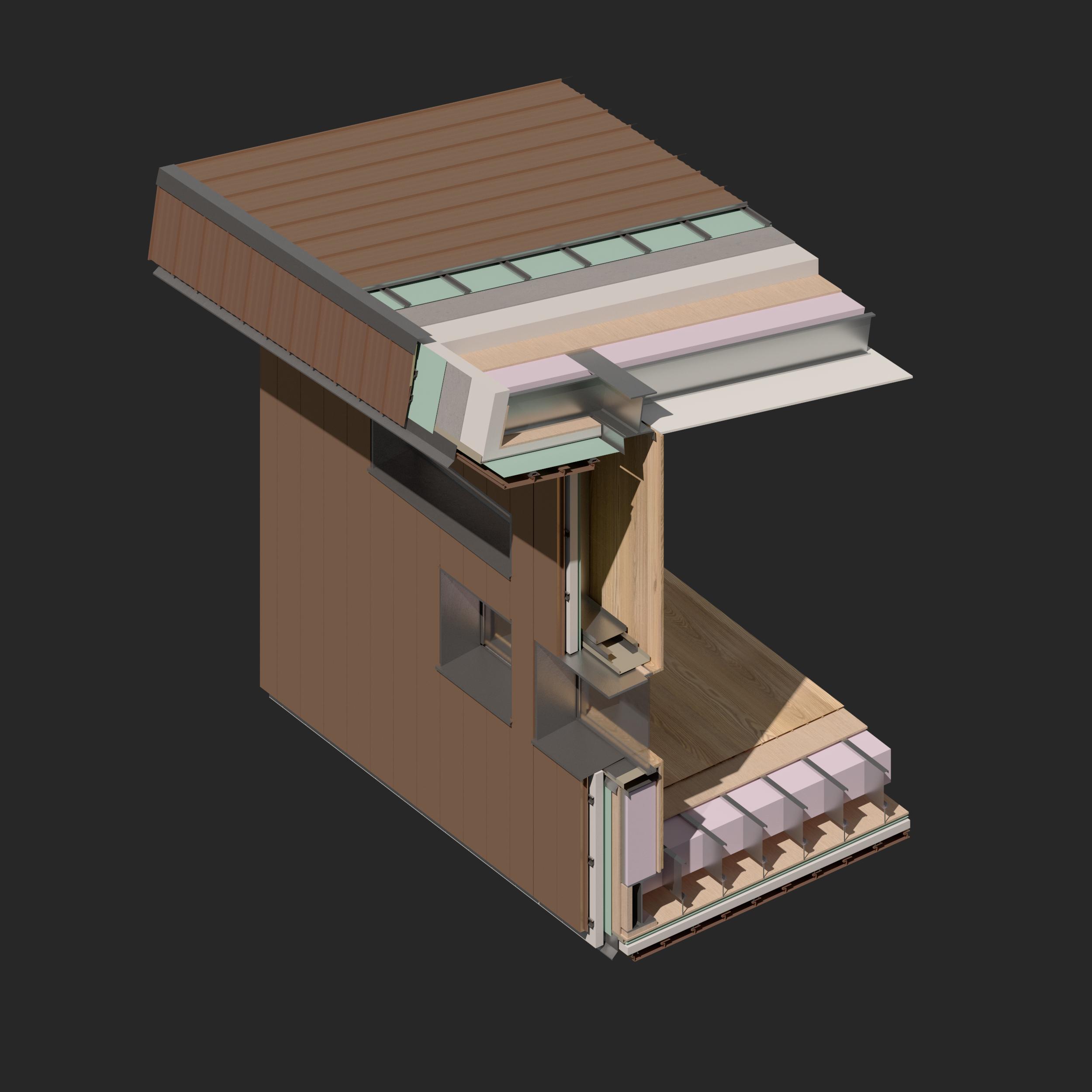

WALL SECTION

Cement Board

D-2

Plywood Sheathing

W14x Beam Plywood Sheathing

F.A. - 01

Standing Seam

Metal Panel (Flushed)

Furring Strip Rigid Insulation

Plywood Sheathing Nail

Detail Section

Corner Flashing

D-2

D - 02

D-2

Corten Steel Standing Seam

Waterproof Membrane Furring Strip

Rigid Insulation Plywood Sheathing

Cement Board Lightgauge Steel Joist

Batt Insulation Finished Gypsum Wall Board

Corner Flashing

Waterproof Membrane Cement Board Flashing Flashing Tape Weather Barrier W14 Beam

Tongue & Groove Finished Floor Plywood Sheathing Track

Batt Insulation Lightgauge Steel

Box Track Flexable Flashing

Suspension Cable Plywood Sheathing

W18 Beam Mullion Double Pane Glass Sill Plate Pan Flashing Flexible Flashing Flashing Weather Barrier Flashing

AXONOMETRIC CHUNK

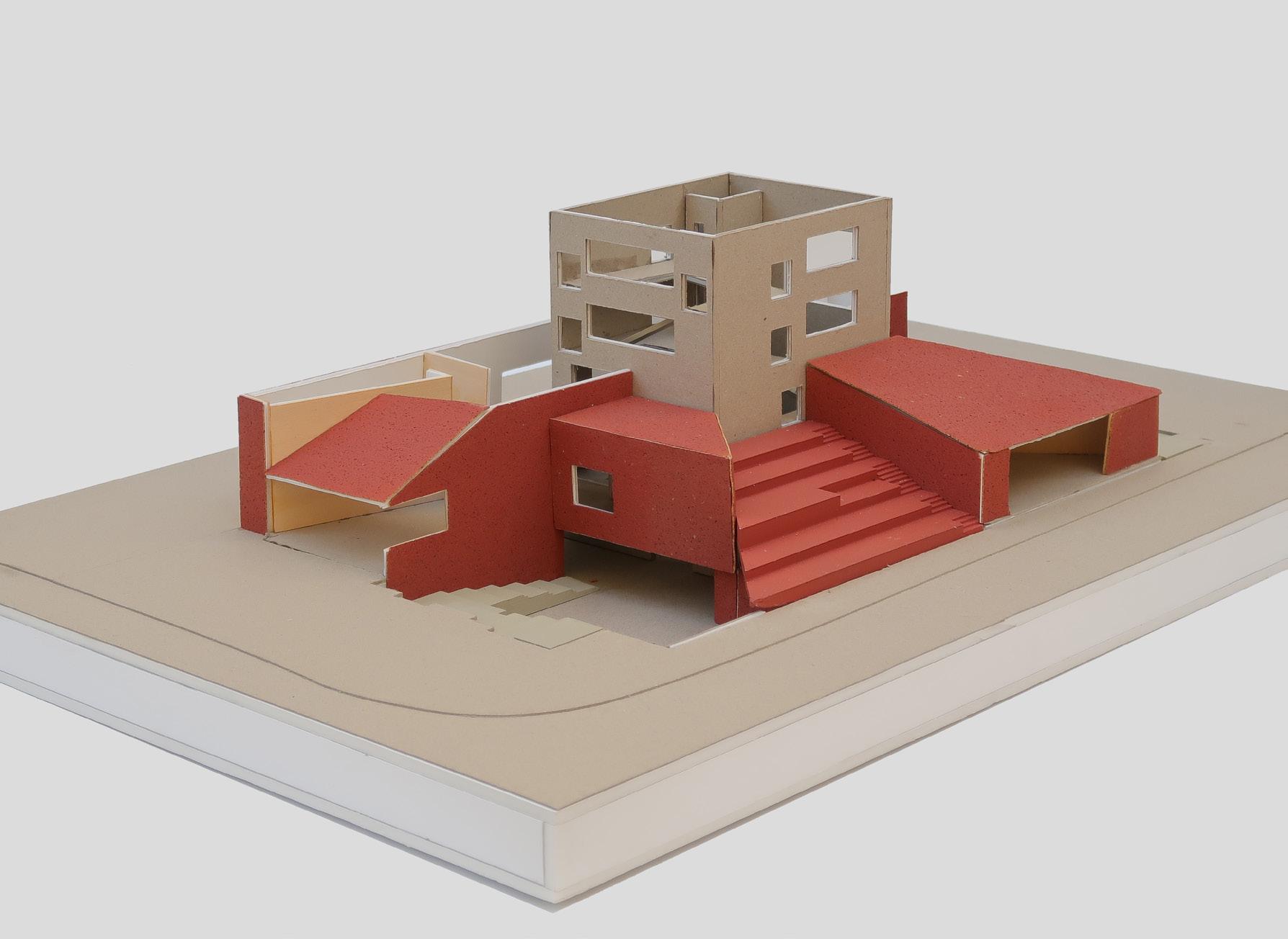

SCHOOL OF ARCHITECTURE Cal Poly Pomona, Pomona

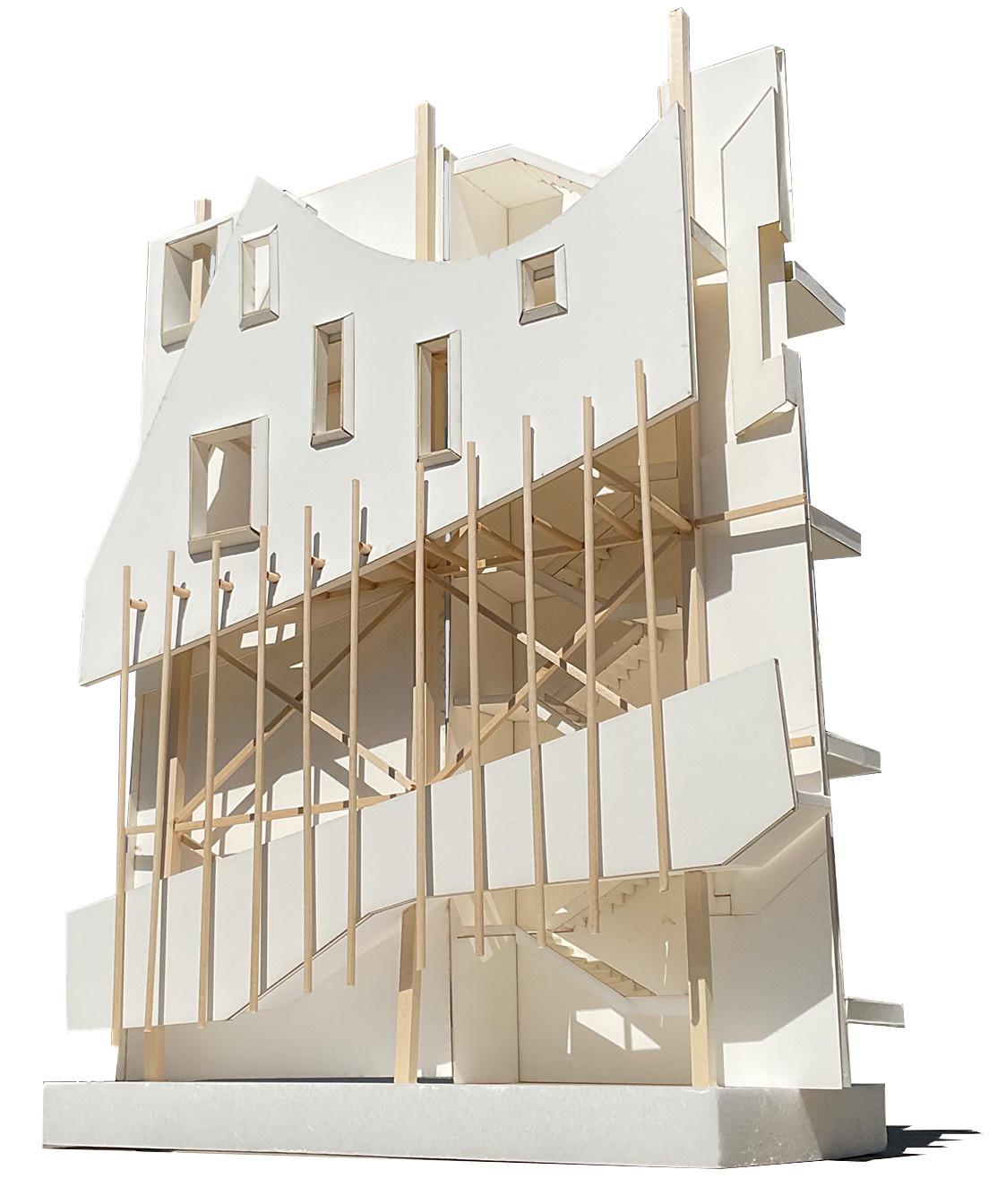

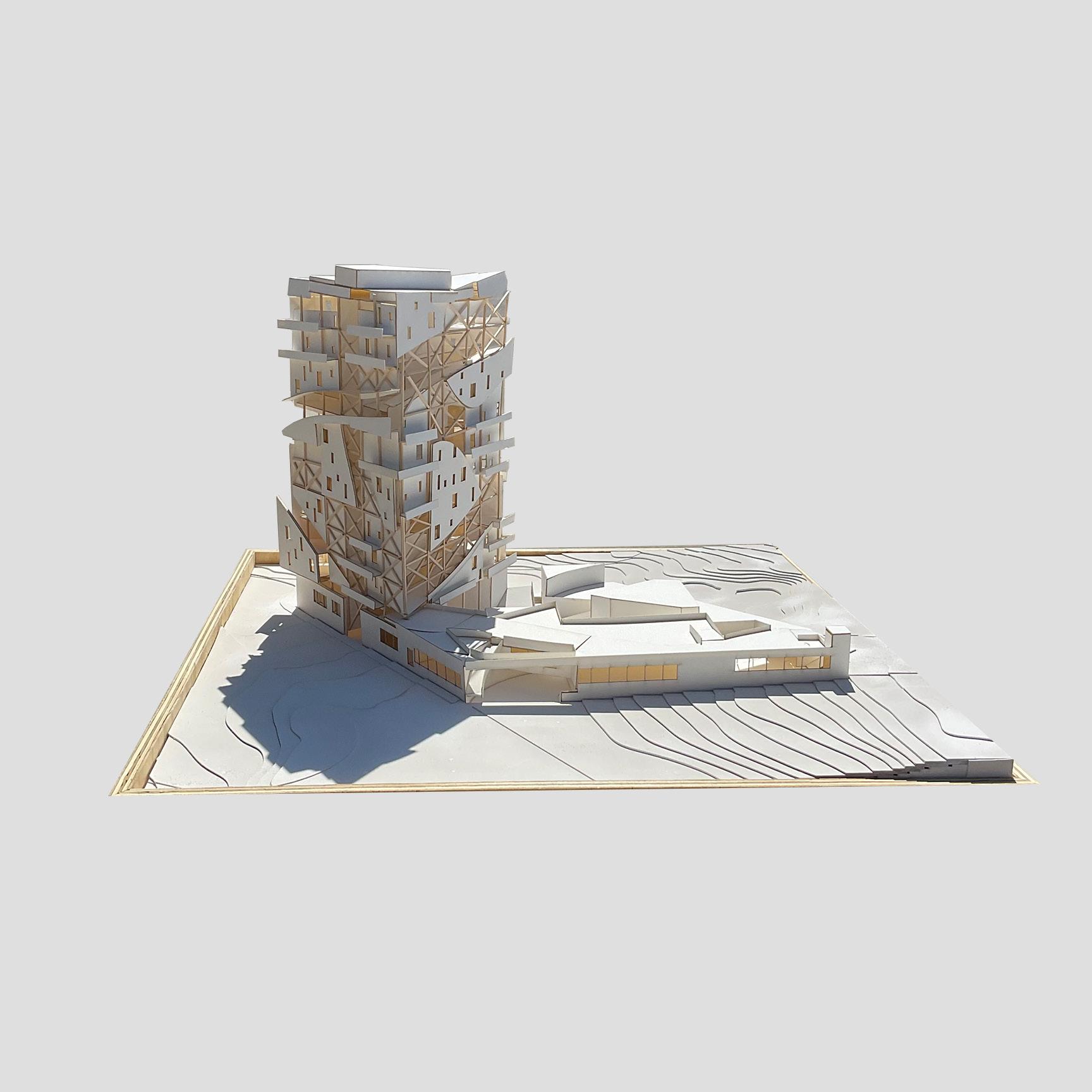

The tower and plinth embody the balance between progress and reflection in architecture. Featuring diverse materials, exposed structures, extrusions, and dynamic circulation, the design is both iconic and inviting. The tower’s facade combines glass and concrete for its exterior and metal for structural support, creating a visually striking appearance. A circulation path wraps around the tower from the second level to the roof, seamlessly connecting floors, with additional pathways on the plinth roof linking to this system. Unique extrusions in the facade define each floor’s interior space, while the plinth incorporates similar elements, enriching its programmatic functions and spatial experience.

Rhino / Illustrator / Photoshop

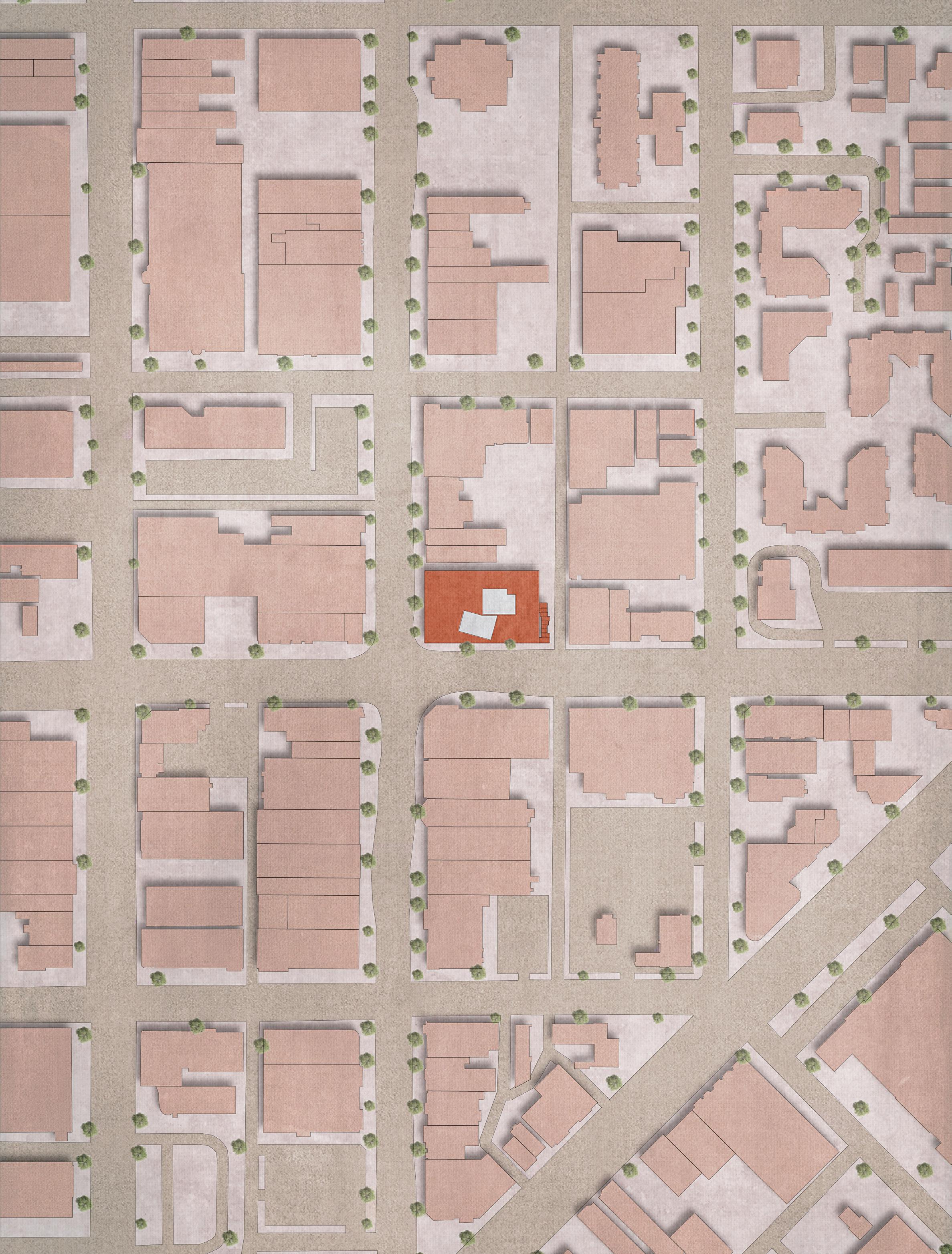

FIGURE GROUND

Facade and Plinth Origin

3

7

5

5

1

UP

4

UP

UP

UP

3

6

2

UP

5 2 UP

B

UP

7

Hardscape Softscape 1

1 Gallery 2 Fabrication Lab 3 Model Shop 4 Lecture 5 Seminar 6 Reception 7 Storage

A

Ground Floor Plan 1/16” = 1’ - 0”

GROUND FLOOR PLINTH PLAN

0 5

15

35 (ft)

ELEVATION North

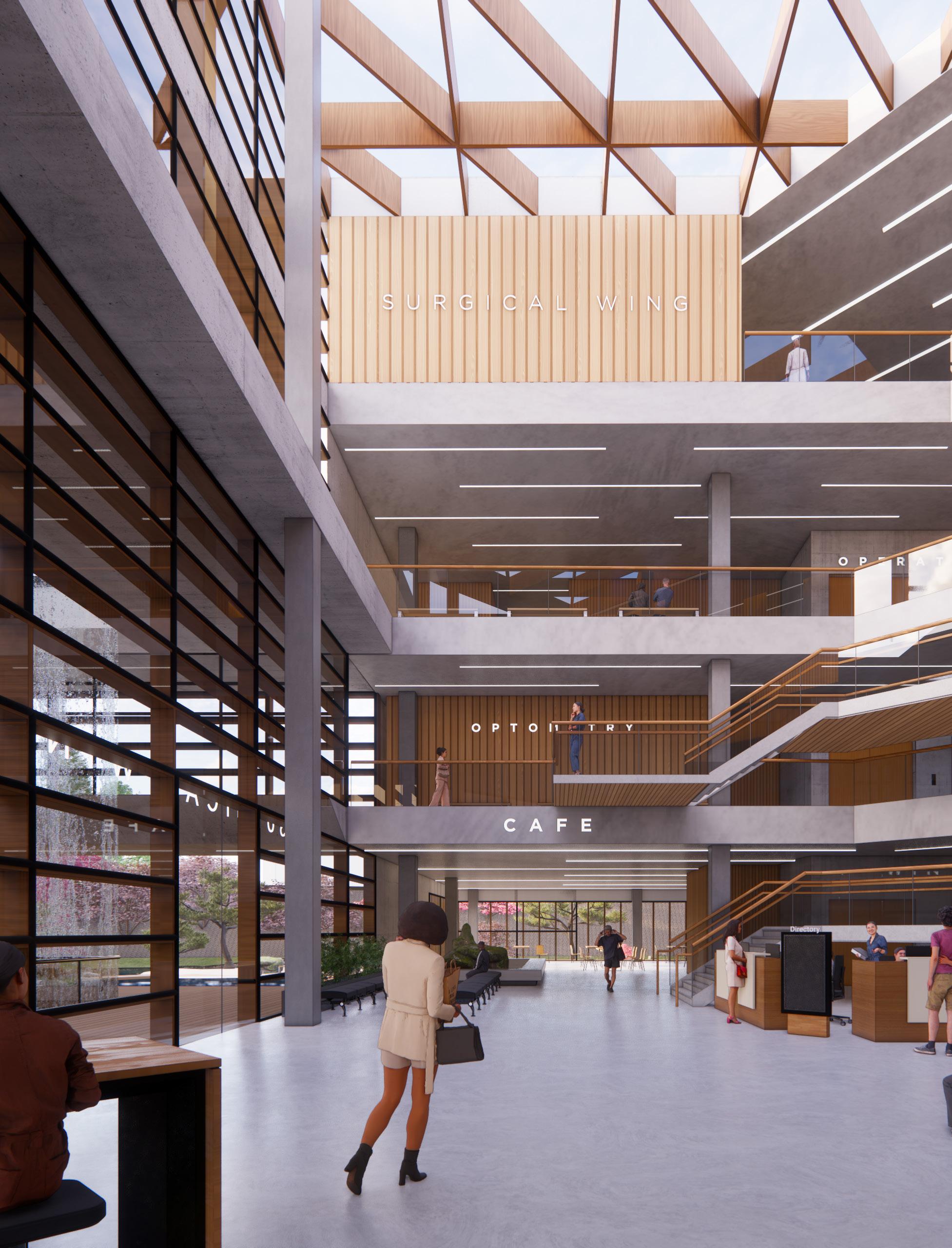

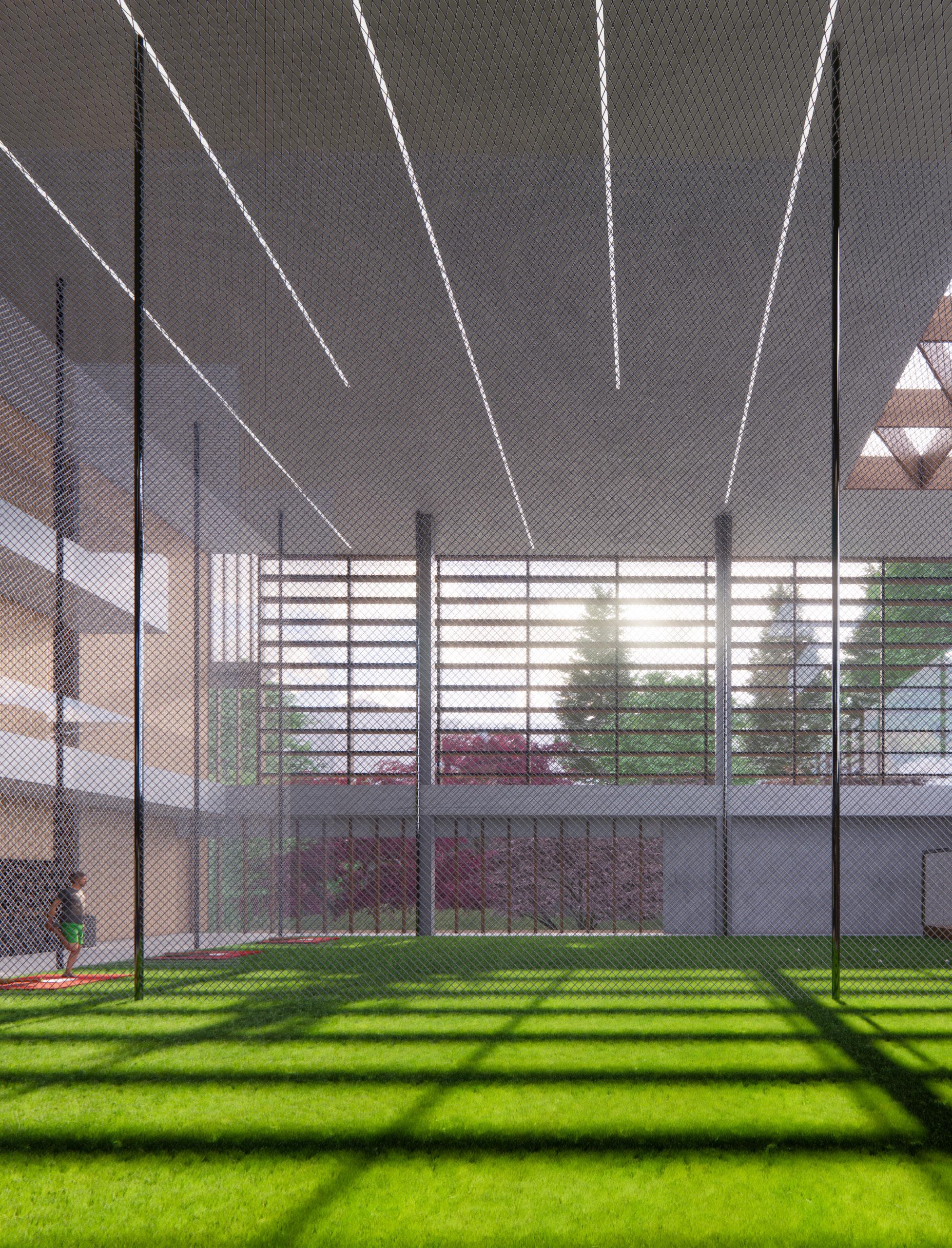

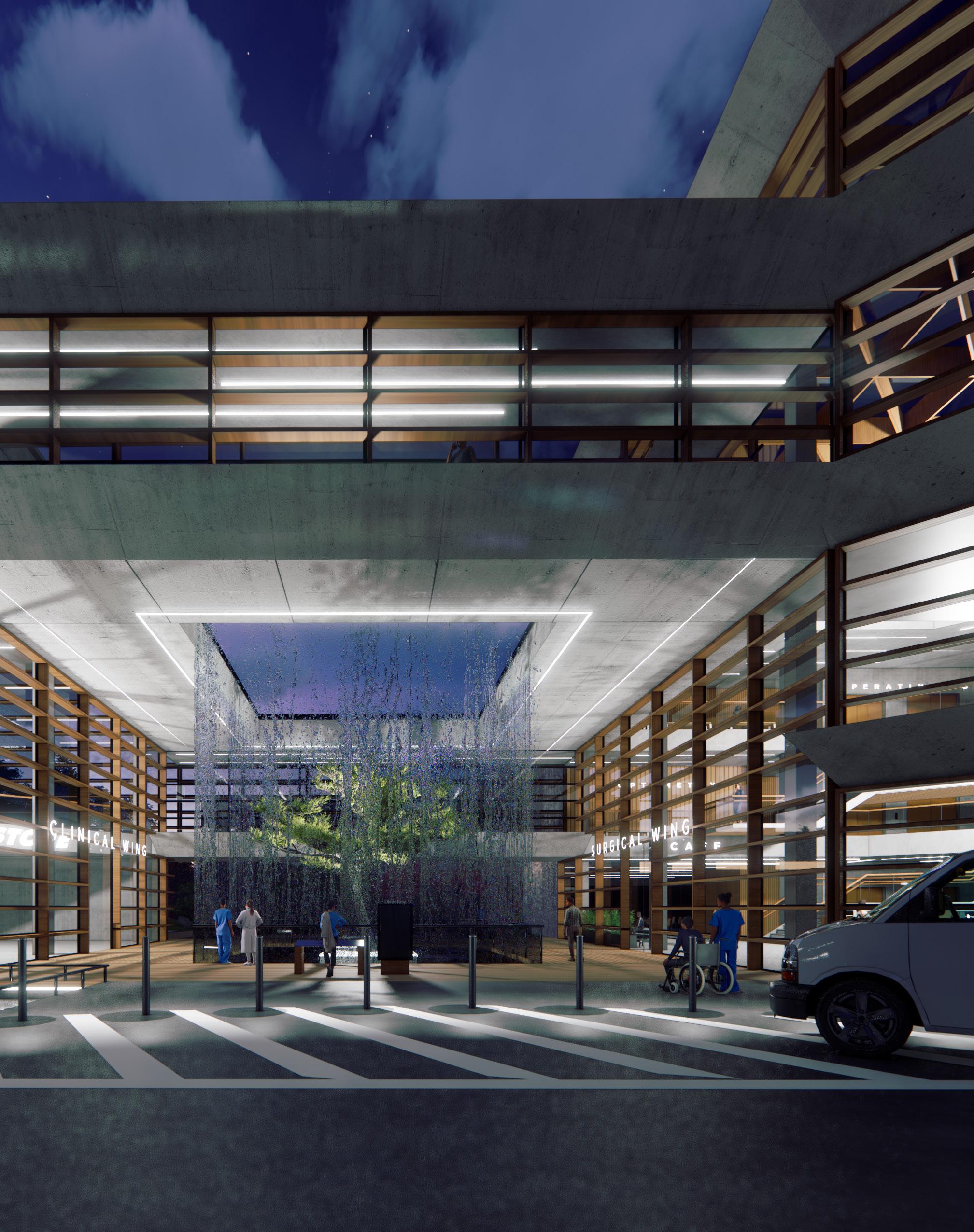

SHOHEI OHTANI SPORTS MEDICAL CENTER Beaverton, Oregon

The Shohei Ohtani Orthopedic and Outpatient Surgery Center seamlessly integrates the natural site conditions of river and land, creating a cohesive and tranquil environment. The design prioritizes user experience with landscaped entries from the north and south, clear wayfinding, and discernable signage for two distinct buildings—surgical and clinical. Abundant natural light, wide apertures, and a thoughtfully landscaped site harmonize nature with architecture. Beyond enhancing patient care, the center offers grand rehabilitation spaces, blending indoor and outdoor environments. This approach ensures patients recovering from sports injuries or other conditions can rehabilitate in expansive, thoughtful spaces that transcend traditional boundaries.

Contributed by: Josh Casten, Katherine Kelly, Kalei Gallion, Eric Seifert Rhino / Enscape / Photoshop / Illustrator / Revit

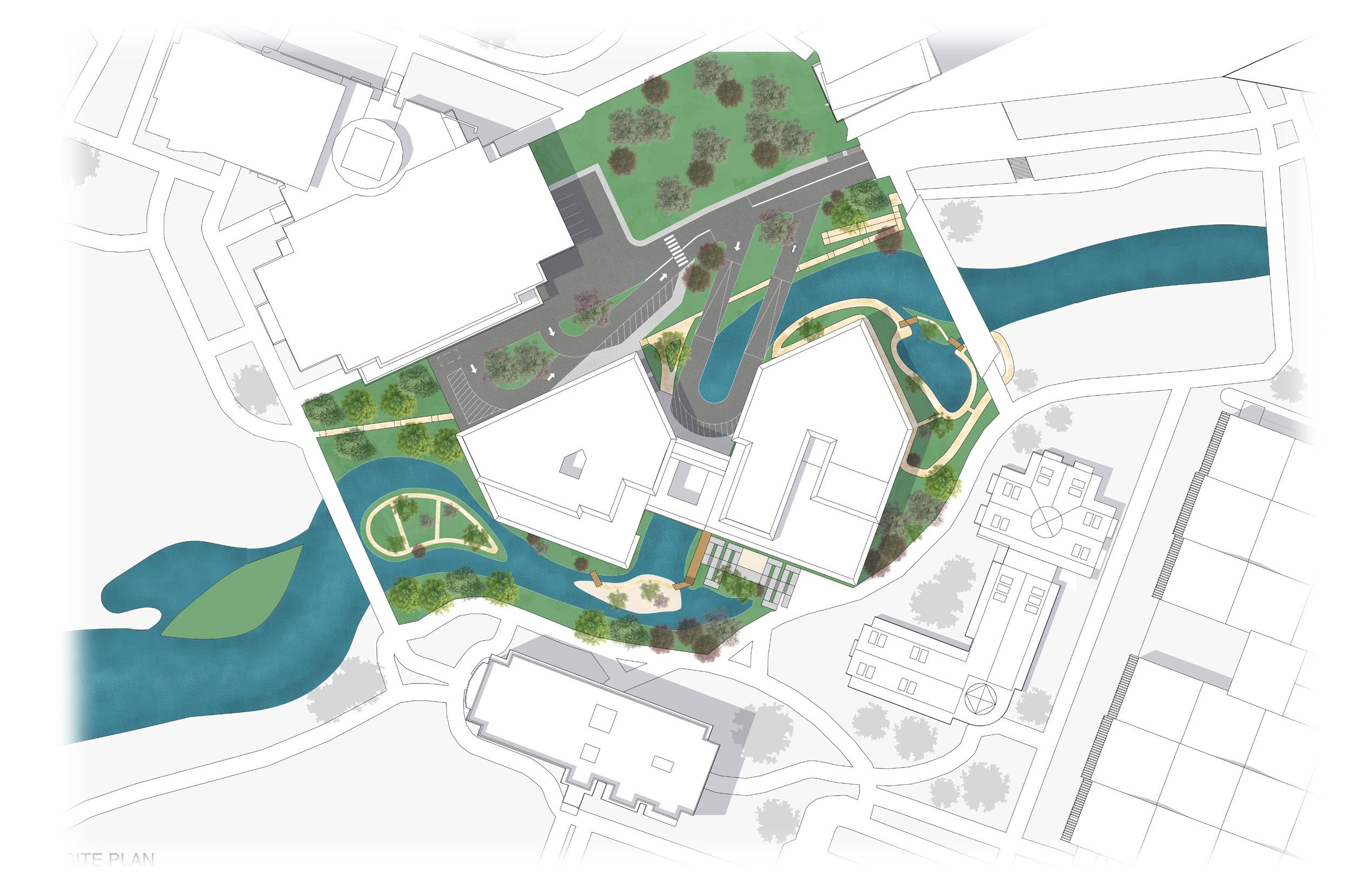

SITE PLAN

SITE PLAN

L

ELEVATION South

Connect to

Emphasize

Compleme

Look Out P

Symbolize

PARTI DIAGRAM

B

ORTHOPEDIC SERVICE A

C

PLUMONARY/ CARDIOLOGY CAFE RIVER FLOOR PLAN

RIVER FLOOR PLAN

PHYSICAL THERAPY

B

A

NIKE STORE

0

0 10 20 0

10

10

20

20

40 50

50

100

100

80

LEVEL 3 CLINIC C

STERILE PROCESSING

PROVIDERS OFFICES

STAFF AMENITIES

STAFF AMENITIES

MECHANICAL

LEVEL 2 CLINIC B

OR & PRE-OP

PROVIDERS OFFICES

LEVEL 1 CLINIC A

PHARMACY & LAB

PROVIDERS OFFICES

VISION & OPTOMETRY BUILDING SUPPORT

RIVER LEVEL LOBBY

PHYSICAL THERAPY

ORTHO CAFE & NIKE STORE

LOBBY

BUILDING SUPPORT CARDIOLOGY

PROGRAM DIAGRAM

B

CLINIC B

POST-OP OPERATIONAL ROOM

WAITING AREA

A

PROVIDER B

WATER

PRE-OP C

LEVEL 2 FLOOR PLAN

SECOND LEVEL FLOOR PLAN

B

A

00

0 10 20 10 10

20 20

40 50

50

100 100

80
