Item Part NumberQtyDescription
Comments
1 3787337M31 Engine [A] MF 5445 PEL RG37915 4296002M11 Engine [A] MF 5445 PEL RG81706 4296006M11 Engine MF 5445 PEL RG70643 3787338M31 Engine MF 5445 PEL RG37832 4296001M11 Engine MF 5445 PEL RG81695 3787339M11 Engine [A,B] MF 5455 PEL RG37916
4275990M31 Engine [A] MF 5455 PEL RG38121 4296004M11 Engine [A] MF 5455 PEL RG70645 3787340M11 Engine [B] MF 5455 PEL RG37826 4275989M31 Engine MF 5455 PEL RG38120 4296003M11 Engine MF 5455 PEL RG51452
2 3780423M21 Fan [A] Diameter 490 3 4272460M11 Pulley 4272336M21 Pulley [A,E]
Up to Serial or Engine Number T094025 4294810M11 Pulley [A]
From Serial or Engine Number T094026
4 3780201M21 Spacer [A]
Up to Serial or Engine Number P174007 Thickness 27 MM
5 3009287X14 Hex Socket Screw [A]
Up to Serial or Engine Number P174007 M8 X 40 3009286X14 Hex Socket Screw [A] From Serial or Engine Number P174008 M8 X 35 6 3780604M91 1 Kit, Belt [A] Length 1295 MM 4274692M91 1 Kit, Belt Length 1420 MM 7 3821818M931 Startermotor See Page - Reference Number 010-0030/1 See Page - Reference Number 010-0035/1 8 391006X1X Stud M10 X 30 3011643X11 Stud M10 X 25 9 339402X13 Nut M10 10 391990X14 Hex Socket Screw [A]
Up to Serial or Engine Number P174007 M8 X 25 11 390972X14 Flat Washer [A]
Up to Serial or Engine Number P174007 Diameter 8-17 X 1,7 12 394367X14 Locknut [A]
Up to Serial or Engine Number P174007 M8 13 4272345M11 Spacer [A]
Up to Serial or Engine Number P174007 14 4272562M11 Spacer Up to Serial or Engine Number P174013 Thickness 61 MM 4276593M21 Spacer From Serial or Engine Number P174014 Thickness 40 MM 15 3009289X14 Hex Socket Screw Up to Serial or Engine Number P174013 M8 X 70 16 3582657M21 Fan 17 394367X14 Locknut Up to Serial or Engine Number P174013 M8
Engine & Equipment
Item Part NumberQtyDescription
Comments
Up to Serial or Engine Number P174013 19 3714512M11 Gasket
18 4272345M11 Spacer
Up to Serial or Engine Number N104011 Length 185 MM 19 4272084M11 Staple From Serial or Engine Number N104012 Length 175MM
20 3783129M11 Staple Length 25 MM 21 3009491X11 Cap Screw M10 X 20
Up to Serial or Engine Number R132068 21 3009493X11 Cap Screw [D] M10 X 30
From Serial or Engine Number R132069 22 4272105M31 Cowl 23 339123X13 Cap Screw M8 X 20 24 390972X13 Flat Washer Diameter 8-17 X 1,7 25 4272150M21 Cowl [A] 26 339123X11 Cap Screw [A] M8 X 20 27 339761X11 Cap Screw [A] M8 X 25 28 390972X12 Flat Washer [A] Diameter 8-17 X 1,7 29 4272155M41 Cowl 30 4272154M41 Cowl 31 3779774M21 Strap 32 3783713M31 Support 33 4272157M11 Strap Up to Serial or Engine Number R132068 33 4287378M11 Support [D] From Serial or Engine Number R132069 34 339123X17 Cap Screw M8 X 20 35 391039X16 Flat Washer 36 3581330M11 Gasket
Up to Serial or Engine Number N104011 Length 250 MM 36 3778991M11 Gasket From Serial or Engine Number N104012 Length 285MM 37 3616268M11 Gasket Up to Serial or Engine Number N104011 Length 350 MM 37 4272087M11 Staple From Serial or Engine Number N104011 38 3778851M11 Gasket Up to Serial or Engine Number N104011 Length 215 MM 38 3784893M11 Gasket From Serial or Engine Number N104012 Length 204MM 39 3782735M13 Gasket Length 140 MM 40 4276820M21 Cowl From Serial or Engine Number M331066 41 3009291X12 Screw From Serial or Engine Number M331066 M10 X 20 42 339123X11 Cap Screw Up to Serial or Engine Number M264000 M8 X 20 43 339169X11 Nut From Serial or Engine Number M264001 M8 44 3581507M12 Clip Diameter 18 MM 45 3010815X14 Stud From Serial or Engine Number P174014 M8 X 65 46 3783351M11 Clutch [A] From Serial or Engine Number P174008 47 3780425M31 Spacer [A] From Serial or Engine Number P174008 48 391990X14 Hex Socket Screw Up to Serial or Engine Number P174013 M8 X 25 49 390972X14 Flat Washer Up to Serial or Engine Number P174013 50 3783123M11 Clutch From Serial or Engine Number P174014 51 1441461X14 Locknut From Serial or Engine Number P174014 M8 52 4225432M911 Short Engine
FOOTNOTE[A] FOR HIGH VISIBILITY TRACTOR FOOTNOTE[B] FOR JAPANESE MARKET ONLY FOOTNOTE[D] EXCEPT TRACTOR R129007 FOOTNOTE[E] EXCEPT TRACTOR T094027
Engine & Equipment - Platform With Ploughing Glass
Item Part NumberQtyDescription Comments
1 3787337M31 Engine [A] MF 5445 PEL RG37915 4296002M11 Engine [A] MF 5445 PEL RG81706 4296006M11 Engine MF 5445 PEL RG70643 3787338M31 Engine MF 5445 PEL RG37832 4296001M11 Engine MF 5445 PEL RG81695 3787339M11 Engine [A,B] MF 5455 PEL RG37916 4275990M31 Engine [A] MF 5455 PEL RG38121 4296004M11 Engine [A] MF 5455 PEL RG70645 3787340M11 Engine [B] MF 5455 PEL RG37826 4275989M31 Engine MF 5455 PEL RG38120 4296003M11 Engine MF 5455 PEL RG51452
2 3780423M21 Fan [A] Diameter 490
3 3783351M11 Clutch [A]
4 390796X14 Hex Socket Screw [A] M8 X 16
5 390972X14 Flat Washer [A] Diameter 8-17 X 1,7
6 3780604M91 1 Kit, Belt [A] Length 1295 MM
7 4272336M21 Pulley [A,E]
Up to Serial or Engine Number T094025 4294810M11 Pulley [A] From Serial or Engine Number T094026
8 3780425M31 Spacer [A] 9 3009286X14 Hex Socket Screw [A] M8 X 35 10 3582657M21 Fan 11 3783123M11 Clutch 12 390972X14 Flat Washer 13 390796X14 Hex Socket Screw M8 X 16 14 4272460M11 Pulley 15 4274692M91 1 Kit, Belt Length 1420 MM
16 4276593M21 Spacer 17 3019069X14 Stud Up to Serial or Engine Number P174013 M8 X 70 3010815X14 Stud From Serial or Engine Number P174014 M8 X 65
18 339169X14 Nut [A] M8 1441461X14 Locknut M8 19 3714512M11 Gasket
Up to Serial or Engine Number N104011 Length 185 MM 4272084M11 Staple From Serial or Engine Number N104012 Length 175MM
20 3783129M11 Staple Length 25 MM 21 3009491X11 Cap Screw M10 X 20
Up to Serial or Engine Number R132068 3009493X11 Cap Screw [D] M10 X 30 From Serial or Engine Number R132069 22 4272105M31 Cowl 23 339123X13 Cap Screw M8 X 20 24 390972X13 Flat Washer Diameter 8-17 X 1,7
Engine & Equipment - Platform With Ploughing Glass
Item Part NumberQtyDescription Comments
25 4272150M21 Cowl [A] 26 339337X11 Cap Screw [A] M8 X 30 27 339761X11 Cap Screw [A] M8 X 25 28 390972X12 Flat Washer [A] Diameter 8-17 X 1,7 29 4272155M41 Cowl 30 4272154M41 Cowl 31 3779774M21 Strap 32 3783713M31 Support 33 4272157M11 Strap Up to Serial or Engine Number R132068 33 4287378M11 Support [D] From Serial or Engine Number R132069 34 339123X16 Cap Screw M8 X 20 35 391039X16 Flat Washer 36 3581330M11 Gasket
Up to Serial or Engine Number N104011 Length 250 MM 36 3778991M11 Gasket From Serial or Engine Number N104012 Length 285MM
37 3616268M11 Gasket Up to Serial or Engine Number N104011 Length 350 MM
37 4272087M11 Staple From Serial or Engine Number N104012 Length 335MM 38 3778851M11 Gasket Up to Serial or Engine Number N104011 Length 215 MM 38 3784893M11 Gasket From Serial or Engine Number N104012 Length 204MM 39 3782735M13 Gasket Length 140 MM 40 3821818M931 Startermotor See Page - Reference Number 010-0030/1 See Page - Reference Number 010-0035/1
41 391006X1X Stud M10 X 30 41 3011643X11 Stud M10 X 25 42 339402X13 Nut M10 43 4276820M21 Cowl From Serial or Engine Number M331066 44 3009291X12 Screw From Serial or Engine Number M331066 M10 X 20 45 339123X11 Cap Screw Up to Serial or Engine Number M264000 M8 X 20 46 339169X11 Nut From Serial or Engine Number M264001 M8 47 3009289X14 Hex Socket Screw M8 X 70 48 3581507M12 Clip Diameter 18 MM 49 4225432M911 Short Engine
FOOTNOTE[A] TRACTOR STEEP NOSE ONLY FOOTNOTE[B] FOR JAPANESE MARKET ONLY FOOTNOTE[D] EXCEPT TRACTOR R129007 FOOTNOTE[E] EXCEPT TRACTOR T094027
Alternator & Bracket
ItemPart NumberQtyDescriptionComments
1 3821974M911 Alternator 80 AMP
See Page - Reference Number 010-0025/1
2 4274222M41 Support Up to Serial or Engine Number R132068
3 339169X11 Nut M8
4 391245X11 Cap Screw M8 X 130
5 3009501X12 Cap Screw Up to Serial or Engine Number N154034 M10 X 70
3009502X12 Cap Screw From Serial or Engine Number N154035 M10 X 80
6 339402X12 Nut M10
7 4274255M11 Tensioner
8 339010X11 Cap Screw M8 X 40
Up to Serial or Engine Number N154034 339337X11 Cap Screw M8 X 30
From Serial or Engine Number N154035
9 339761X11 Cap Screw M8 X 25
10 385361X11 Flat WasherDiameter 9-17 X 3,2
11 3788263M11 Spacer Up to Serial or Engine Number 04-MAY-2004 Diameter 9-16 X 25
12 4287231M11 Support [C]
From Serial or Engine Number R132069
13 4287232M11 Support [C]
From Serial or Engine Number R132069
FOOTNOTE[C] EXCEPT TRACTOR R129007
Alternator - 120 Amp
ItemPart NumberQtyDescription Comments
1 3788017M911 Alternator
2 1 Nose (1)
Not serviced,order REF. 1
3 3904379M911 Kit, Bearing (2)
4 1 Rotor (1)
Not serviced,order REF. 1
5 3904382M911 Kit, Bearing (1) 6 1 Stator (1)
Not serviced,order REF. 1
7 1 Rear Cover Assy. (1)
Not serviced,order REF. 1
8 3904380M911 Kit, Bolt (1)
9 3904383M911 Rectifier (1)
10 3904385M911 Regulator (1)
11 1 Kit, Brush (10)
Not serviced,order REF. 10
12 3904384M11 Cover (1)
13 3903847M911 Pulley (1)
14 1 Kit, Nut (13)
Not serviced,order REF. 13

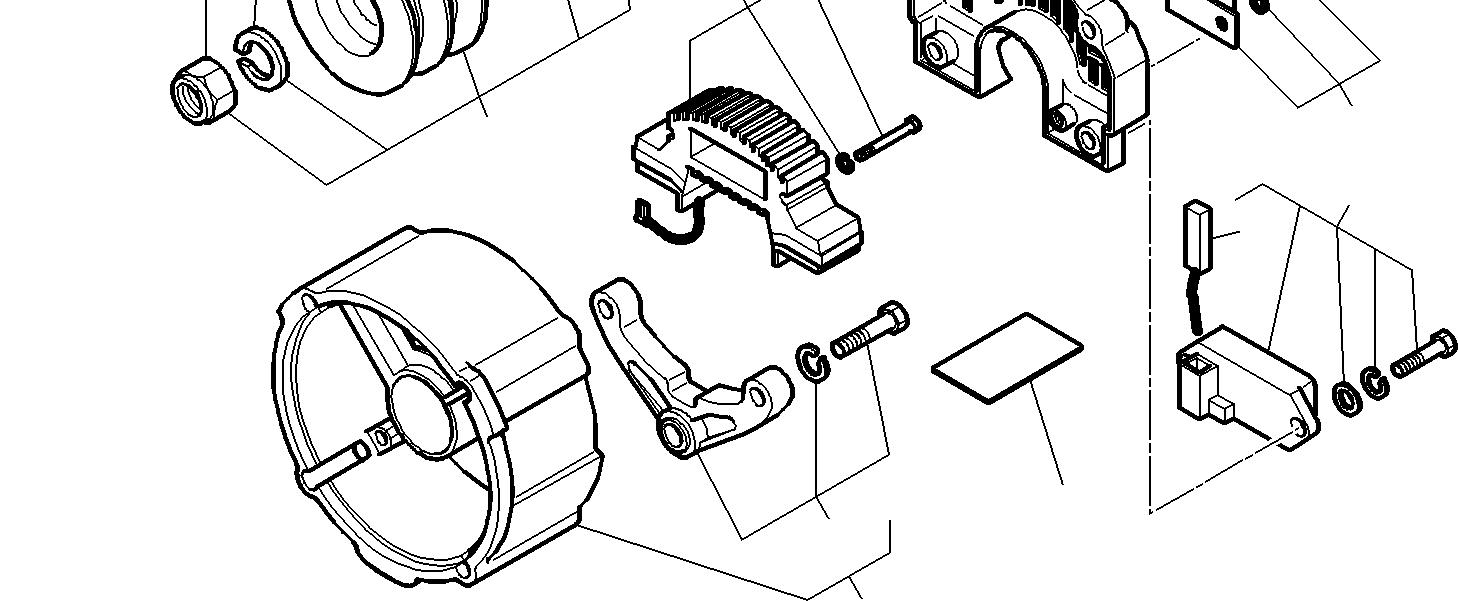

Alternator - 80 Amp
ItemPart NumberQtyDescription Comments
1 3821974M911 Alternator
2 3904367M11 Fan (1)
3 1 Kit, Drive (1) Not serviced,order REF. 1
4 3904368M911 Kit, Bearing (3)
5 1 Stator (1) Not serviced,order REF. 1
6 3904369M911 Kit, Bolt (1)
7 1 Rotor (1) Not serviced,order REF. 1
8 3903846M911 Pulley (1)
9 3904371M911 Kit, Bearing (1)
10 3904377M911 Rectifier (1)
11 1 Rear Cover Assy. (1) Not serviced,order REF. 1
12 1 Parts Pack (11) Not serviced,order REF. 1
13 3904373M911 Capacitor (1)
14 3904374M11 Gasket (1)
15 3904378M911 Cover (1)
16 3904376M911 Regulator (1)
17 1 Kit, Brush (16) Not serviced,order REF. 16
Starter - Up to Serial or Engine Number T008029
ItemPart NumberQtyDescriptionComments
1 3821818M911 Startermotor[A]
2 1 Housing (1)
Not serviced,order REF. 1
3 3903761M11 Bearing (2)
4 3904359M911 Kit, Solenoid (1)
5 3904360M11 Drive Gear (1)
6 3904361M911 Kit, Lever (1) 7 1 Reducer (1)
Not serviced,order REF. 1 8 1 Rotor (1)
Not serviced,order REF. 1
9 3904362M911 Kit, Bearing (1) 10 3904363M911 Parts Pack (1) 11 1 Stator (1) Not serviced,order REF. 1
12 3904364M911 Holder (1)
13 3904365M911 Kit, Brush (12) 14 1 Cover (1) Not serviced,order REF. 1
15 3786093M11 Protection.
16 3786092M11 Nut M10 17 3788193M11 Label
FOOTNOTE[A] THE APPROPRIATE SAFETY DECALS MUST BE ORDERED AND FITTED TO THIS PART
