Massey Ferguson 6475 TRACTOR TIER 3 (Perkins Engine) Service Parts Catalogue Manual (Part Number 39

Ferguson 6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 3906139 Engine & Equipment Page010-0000

Massey

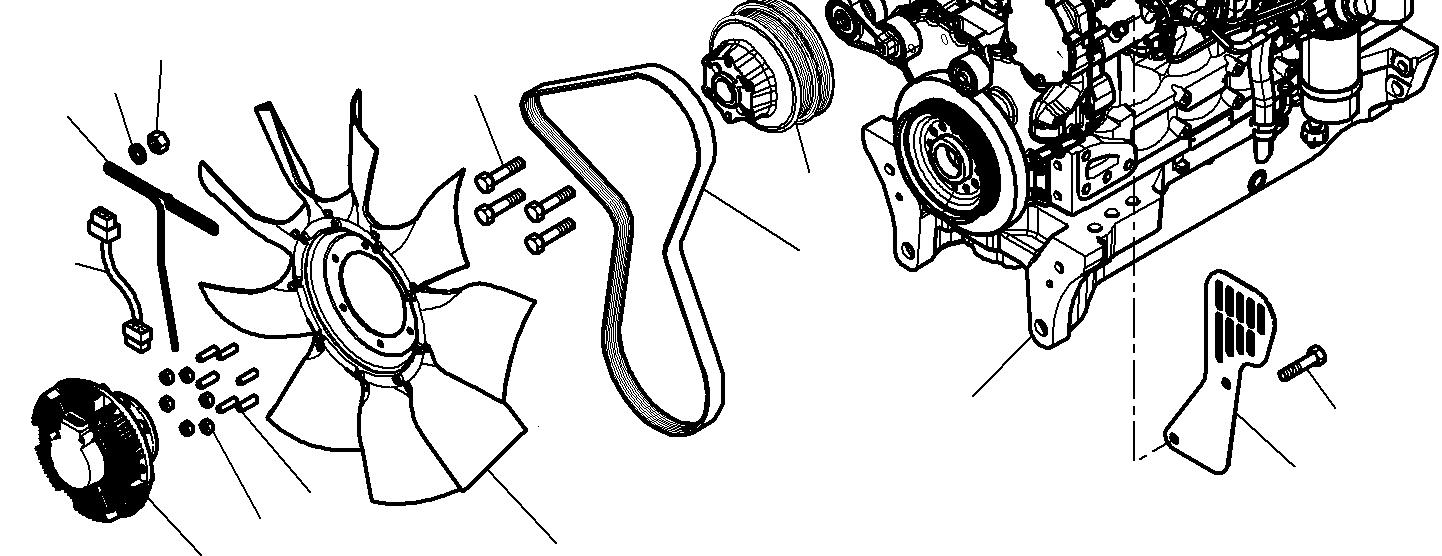

MF 6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 1-WA06-043-D 17 16 12 15 21 21 21 14 24 29 29 22 22 22 13 18 18 19 19 20 34 23 31 32 33 30 27 35 26 36 7 6 9 5 10 25 8 11 28 3 2 4 1 RefWA061043-1 Page010-0005

Engine & Equipment

ItemPart NumberQtyDescription Comments

1 4282824M11 Clutch

2 1441932X16 Nut Metric Up to Serial or Engine Number T052003 M10

339402X1 6 Nut From Serial or Engine Number T052004 M10 Zn

3 3011339X16 Stud Up to Serial or Engine Number U313017 M10 X 22 1442072X16 Stud From Serial or Engine Number U313018 M10 X 20

4 4282823M11 Fan

5 4276866M41 Support

6 390971X12 Flat Washer

7 339030X12 Nut M6 8 4285560M3 1 Belt 9 1442525X14 Hex Socket ScrewM8 X 45 10 4347266M11 Pulley 11 4226441M911 Short Engine [E] 4280559M11 Engine PEL PJ38483 12 391005X12 Stud M10 X 25 391006X11 Stud M10 X 30 13 3823621M941 Startermotor [A]

14 339402X1 3 Nut M10

15 3786092M11 Nut M10 16 3786093M11 Protection. 17 3788193M11 Label

18 3009491X12 Hex Cap Screw M10 X 20 19 390734X11 Flat Washer 20 4290570M11 Support 21 339124X14 Hex Cap Screw M8 X 16 22 390972X15 Flat Washer 23 339169X11 Nut 24 4290569M21 Cowl 25 4272811M41 Harness 26 3009491X12 Hex Cap Screw M10 X 20 27 4284077M51 Support [C] 28 4287276M11 Cowl 29 339124X13 Hex Cap Screw M8 X 16 30 4287275M11 Cowl 4287799M11 Cowl [D] 31 3009494X11 Hex Cap Screw M10 X 35 32 339282X11 Hex Cap Screw M10 X 16 33 3388803M11 Spacer 34 4291044M11 Strap 35 339124X11 Hex Cap Screw M6 X 16 36 3387756M11 Clip

Massey Ferguson

3906139

6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139

Page010-0005

FOOTNOTE[A] THE APPROPRIATE SAFETY DECALS MUST BE ORDERED AND FITTED TO THIS PART FOOTNOTE[C] ENGINE WITHOUT AIR COMPRESSOR FOOTNOTE[D] WITH FRONT LINKAGE FOOTNOTE[E] NOT ILLUSTRATED

MF 6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 1-WA10-018-A 8 1 2 9 7 4 3 5 6 RefWA101018-1 Page010-0010

6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 3906139

Alternator & Bracket

ItemPart NumberQtyDescription Comments

1 4281879M931 Alternator 120 AMP 4281880M931 Alternator 150 AMP

2 3907770M911 Pulley (1) 3907771M911 Pulley (1)

3 4226287M911 Arm

4 3637096M11 Carriage Bolt

5 4226646M11 Bracket

6 4222552M12 Dowel (5)

7 3640340M12 Carriage Bolt

8 3009504X12

Hex Cap Screw Up to Serial or Engine Number T052003 M10 X 100 Cl 8.8

3009298X12 Hex Socket ScrewFrom Serial or Engine Number T052004 M10 X 100 Cl10.9

9 4287207M12 Spacer

Massey Ferguson

Page010-0010

MF 6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 1-WC51-004-A 2

RefWC511004-1 Page010-0015

1 3

6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 3906139

Starter Page010-0015

ItemPart NumberQtyDescriptionComments

1 3823621M941 Startermotor[A]

2 3904366M911 Kit, SolenoidUp to Serial or Engine Number T029032

3 3905503M921 Kit, SolenoidFrom Serial or Engine Number T029033

FOOTNOTE[A] THE APPROPRIATE SAFETY DECALS MUST BE ORDERED AND FITTED TO THIS PART

Massey Ferguson

MF 6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 1-WH17-004-A 2 1 3 4 7 8 6 5 RefWH171004-1 Page010-0020

6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 3906139

Fan Drive Section

ItemPart NumberQtyDescription Comments

1 4226825M11 Housing Repairs and replaces 4226405M1

2 4226635M11 Spacer

3 3637734M14 Carriage Bolt

4 4226399M11 Bracket

5 4226288M11 Pulley

6 4226250M11 Hex Cap Screw (5)

7 3637076M11 Carriage Bolt

8 3638441M11 Hex Cap Screw

Massey Ferguson

Page010-0020

MF 6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 1-WH01-015-B 40 1 37 36 38 19 27 20 26 16 17 21 14 10 15 23 22 13 29 18 30 8 28 31 32 24 11 9 25 12 35 33 42 34 2 41 39 6 5 4 3 7 RefWH011015-1 Page010-0025

Cylinder Block

Item Part NumberQtyDescription Comments

1 4226630M911 Cylinder-Block

2 1 Cylinder-Block (1) Not serviced,order REF. 1

3 1 Bearing Cap (1) Not serviced,order REF. 1

4 4 Bearing Cap (1) Not serviced,order REF. 1

5 1 Bearing Cap (1) Not serviced,order REF. 1

6 1 Bearing Cap (1) Not serviced,order REF. 1

7 4226327M114 Hex Cap Screw (1)

8 4226301M11 Bush (1) 9 4224863M11 Plug (1) 10 4224863M11 Plug (1) 11 4226283M14 Plug (1)

12 731354M12 Plug (1) 13 4226283M11 Plug (1) 14 4224873M12 Plug (1) 15 731354M13 Plug (1) 16 4224884M11 Plug (1) 17 4226265M11 O Ring (1)

18 376606X11 Plug (1) 19 4224009M12 Dowel (1) 20 4226283M11 Plug (1) 21 4224874M11 Plug (1) 22 737725M11 Dowel (1) 23 4224866M11 Plug (1) 24 4226139M16 Jet (1) 25 3641648M16 Carriage Bolt (1) 26 4224860M18 Carriage Bolt 27 4226606M11 Housing 28 3637044M11 Carriage Bolt 29 4226444M91 1 Speed Sensor 30 4226267M11 Seal (29) 31 4226184M91 1 Sensor [B] 32 4226211M11 O Ring (31) 33 3637008M11 Carriage Bolt 34 4226436M11 Plate 35 4226254M11 O Ring (34) 36 3637008M14 Carriage Bolt 37 4224936M11 Blanking Plate 38 4224973M11 Joint 39 4226285M11 Plug 40 744450M11 Adaptor 41 4224882M11 Plug 42 4224751M11 O Ring

FOOTNOTE[B] OIL PRESS

3 / Perkins Engine ) - 3906139 3906139

Massey

Ferguson 6475 TRACTOR ( TIER

Page010-0025

Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL.NOWAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then clickonit.

MF 6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 1-WH08-005-A 31 32 22 33 30 24 23 25 8 18 9 17 19 20 21 6 16 15 7 13 14 12 11 10 5 4 3 2 1 28 27 26 29 RefWH081005-1 Page010-0030

6475

Timing Gear & Camshaft

ItemPart NumberQtyDescription Comments

1 1476280X11 Carriage Bolt

2 747557M11 Washer

3 4224838M11 Gear,Crankshaft

4 4224830M11 Thrust Washer

5 1476145X11 Dowel

6 4226404M911 Camshaft

7 709058451 Woodruff Key (6) 8 4226309M112 Pushrod 9 4226308M112 Tappet

10 3637096M13 Carriage Bolt

11 4226219M11 Plate

12 4225413M11 Distributor Gear 13 4225881M11 Hub 14 3637092M14 Carriage Bolt 15 3637110M12 Carriage Bolt 16 4226647M11 Timing Case 17 4226270M11 Seal 18 3637008M16 Carriage Bolt 19 4226378M11 Joint 20 4225320M11 Plug 21 4224783M11 Plug 22 3637008M12 Carriage Bolt 23 4226419M911 Connection 24 4224760M11 O Ring (23) 25 4226398M11 Gasket (23) 26 4225403M911 Timinggear Cover 27 4224958M11 Joint (26) 28 3637044M110 Carriage Bolt 29 4222836M15 Carriage Bolt 30 744450M11 Adaptor 31 3637220M12 Carriage Bolt 32 4226420M11 Connection 33 4226381M11 Seal

Massey Ferguson

3906139

TRACTOR ( TIER 3 / Perkins Engine ) - 3906139

Page010-0030

MF 6475 TRACTOR ( TIER 3 / Perkins Engine ) - 3906139 1-WH02-015-A 10 9 1 4 16 6 5 5 2 18 7 17 19 3 25 8 24 28 23 27 26 13 12 11 14 22 15 21 20 RefWH021015-1 Page010-0035
