WORK 1

Academic research

University of Pennsylvania

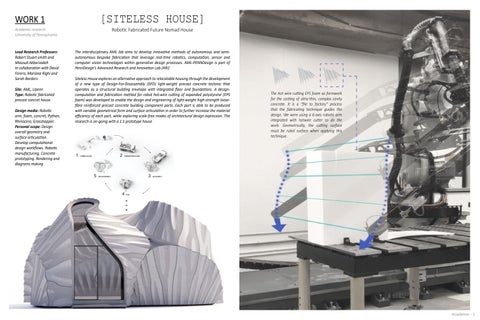

[SITELESS HOUSE]

Robotic Fabricated Future Nomad House

Lead Research Professors: Robert Stuart-smith and Masoud Akbarzadeh

In collaboration with David Forero, Mariana Righi and Sarah Borders

Site: AML, Upenn

Type: Robotic fabricated precast concret house.

Design media: Robotic arm, foam, concret, Python, Rhinocero, Grasshopper.

Personal scope: Design overall geometry and surface articulation. Develop computational design workflows. Robotic manufacturing. Concrete prototyping. Rendering and diagrams making

The interdisciplinary AML lab aims to develop innovative methods of autonomous and semiautonomous bespoke fabrication that leverage real-time robotics, computation, sensor and computer vision technologies within generative design processes. AML-PENNDesign is part of PennDesign’s Advanced Research and Innovation Lab (ARI)

Siteless House explores an alternative approach to relocatable housing through the development of a new type of Design-For-Disassembly (DFD) light-weight precast concrete tectonic that operates as a structural building envelope with integrated floor and foundations. A designcomputation and fabrication method for robot hot-wire cutting of expanded polystyrene (EPS foam) was developed to enable the design and engineering of light-weight high-strength loosefibre reinforced precast concrete building component parts. Each part is able to be produced with variable geometrical form and surface articulation in order to further increase the material efficiency of each part, while exploring scale-free modes of architectural design expression. The research is on-going with a 1:1 prototype house

The hot wire cutting EPS foam as formwork for the casting of ultra-thin, complex cavity concrete. It is a “file to factory” process that the fabricating technique guides the design. We were using a 6-axis robotic arm integrated with hotwire cutter to do the work. Geometrically, the cutting surface must be ruled surface when applying this technique.

MACHINE LEARNING AIDED PATTERN DESIGN

The articulation of the surface is created by the intersection of two surfaces. The pattern is the critical factor for the structural properties, the size and the aesthetic value. Our approach involves encoding the surface pattern, construct an artificial neural network with multiple hidden layers .

Train the machine learning model with large amount of random samples. Then Use the trained model to quickly generate and filter ideal pattern. After selecting the pattern, use the parametrical finetuning method to adjust the details.

Testing the surface pattern by wire cutting

PANELIZATION & FOAM CUTTING

PANELIZATION & FOAM CUTTING

The panelization of the whole design is crucial for the robotic fabrication. Each precast mold consists of a variable number of EPS blocks, sculpted by multiple hot-wirecuts using an ABB IRB4600-60, 6-axis industrial robot arm coupled with a hot-wire end-effector.

The panelization of the whole design is crucial for the robotic fabrication. Each precast mold consists of a variable number of EPS blocks, sculpted by multiple hot-wirecuts using an ABB IRB4600-60, 6-axis industrial robot arm coupled with a hot-wire end-effector.

CASTING

CASTING MOLD DETAILS

PROTOTYPE - CONCRET CASTING FOR ONE SINGLE PANEL

PROTOTYPE - CONCRET CASTING FOR ONE SINGLE PANEL

Wood frame case

Wood frame case

First casting

First casting

Flip the mold

Flip the mold

First demolding

First demolding

Second casting

Second casting

Final demolding

Final demolding

The Prototype - Back

The Prototype - Front

Front

WORK 2 [CISTERNAL LOGIC]

Academic studio design

University of Pennsylvania

Dexamani Square Culture Center 2.0

Instructor: Cecil Balmond , Ezio Blasetti

In collaboration with Lei Zhou

Arch 704 Research Studio

Spring 2018

Site: Athens, Greece

Area: 1,460 sqm

Type: Mixed-use; Museum

Floors: 2F

Design media: Python, Rhinocero, Grasshopper

Personal scope: All the programmings of the genaretive design, 90% of the digital model. All the diagrams, animations and floor plans and physical models.

Dexamani Square is a complex and stunning urban public space at the center of Athens. The site is entrenched in deep geological, infrastructural, and cultural history. it includes the archeological ruins of a Hadrian-era aqueduct, two water reservoirs with rich architectural elements, an open air theater, cafes and other public spaces. The site functioned as a water nymphaeum of sorts, a neighborhood meeting place for local residents, and as a distribution basin for a larger and more extended community. The technical wonder that the Hadrian aqueduct is, both in terms of its capacity and sustainability throughout history and until the present times, as it still can operate as a canal for providing water for urban irrigation.

We employ a genarative computational design approach inspired by the shape grammer and an truchet tiling method, to translate the features of turbulent flow into architectural form,. We laid out a field over the whole site related to the human flow density, then use it as a guide for placing building blocks.Our project proposes a continuation and also intensification of the hybrid program that is already found on the site, the Dexamani Square. The final generatied design conveys the feeling of water, respects the culture of the site, and is highly self-similar from meters large structural block, to nano lego size decorative blocks, subdivided more than ten times.

2D Truchet tiling research

Inspired by the truchet tiling method. We designed complex yet clear units system. A total of 7 fundamentally different units which could be seamlessly connected to each other through a specific shape gramemer were created, which can be manipulate by the genarative script.

Deconstructing the cube & applying 2D Truchet units

Reconstructing the cube: 2x2x2x2x2x2 = 64 Units

Cutting line of units

Iteration of the field

The the genarative script exploit the logic of the fields, to creat the shapes of the buildings as well as the landscape, by manipulating basic units from large to small.

We use Field to indicate design intend, regarding the appeal and human flow on each key location. Tho logic of field can be converted to numbers.

Ground floor Plan

Second floor Plan

The chunk models are showing interior space and forms.The continuity of the components is also proving the feasibility of the structure and the workability for architectural space.

With the same methed of form finding logic,the landscape and the building naturaly connect together. The continuity the self-fractal feature at the votex point of the water flow we simulated are well realized in the building form. This strong feature on the form also gives different spatial experiences in different spaces.

Physical Model-massing

Physical Model-Street view

WORK 3

Professional Design Archi-Tectonics

[ASIAN GAME 2022]

BIM through Whole Life Span, Integrated with Advanced Technologies

Design Lead: Winka Dubbeldam, Justin Korhammer

Design team: Paul Starosta, Max Boerman, Dongliang Li, Maud Fonteyne, Soyeon Cha, Boden Davies, Alex Bahr, Dan Rothbart, Bowen Qin

Type: Master plan with Stadiums and other buildings.

Scope: SD&DD phase, advising the CD phase. Construction completed 2021

Personal scope: Parametrical design of the building facade. BIM expert establishing BIM workflow. Revising the DD,CD drawings.

As winners of this Invited Competition for the Asian Games 2022, we were asked to design a mile-long park with two stadiums, a commercial mall, a fitness building, a visitors center, and three parking garages. Working in conjunction with !Melk Landscape design, Thornton Tomasetti Structural Engineers, M.I.C. Traffic Engineers, and Ryan Soames Mep Engineers, we developed a scheme that offered an alternative view of the client’s request, one that will live on far beyond the Asian Games themselves, and will be the Green Lung for the city. This resulted in this winning commission.

This project integrated computer aided manufacturing (CAM), machine learning, and internet of things (IoT) with BIM process. The purpose is to solve design and manufacturing problems and tightly connect virtual design data with the real-world construction process. The integrated application in the table tennis hybrid stadium, helped to accelerate the process of design, and reduced the time and cost for manufacturing and construction.

Construction completed at 2021, this collaborative project has been awarded the 2019 PLAN Award Honorable Mention, the 2020 Architizer A+ Popular Choice Award, and the 2020 Longtu Cup National BIM Contest First Prize, 2022 Luban Award.

The stadium structures at both ends of the park are connected by a sunken Valley Village mall. Like pebbles in a river, two iconic stadiums and various other building objects are forming the gravitational nodes of a fluid park landscape for the surrounding city.

View of the whole park

Table Tenas a sequence of into the landscape.

The intersection of the stadium’s 2 volumes, a glass diagrid volume and a brass shingled ring, allow visitors to meander through and to slip into the inner volume with the seating arena, a special shape , a hybrid between a sport arena and theater seating, ready for the future of Hangzhou.

volume and a brass shingled ring, na, a special shape , a hybrid between As a legacy project, the stadium diagrid facade. The Stadium has renewable able design, and an energy saving

Stadium exploded view

Inspired by traditional Cong stone in HangZhou, Table Tennis stadium is designed as a multi-dimensional body, seamlessly integrating the event spaces through a sequence of layers and thresholds into the surrounding park landscape.

TABLE TENNIS STAIDUM

MACHINE LEARNING AIDED PANEL STANDARIZATION

Machine learning has been used for curtain wall panel standardization, and to solve manufacturing problems. we conducted a two-step clustering machine learning model: First we clustered the panels into 10 groups by K-mean with area feature , then we trained each of the ten groups into 85 smaller groups by Gaussian Mixture Models. Then each group has been be standardized to a standard type of panel.

Iteration of panel clustering

Final panel clustering and labeling

Brass panels at the entrance

Brass panels details

The manufacturing method for steel structure is based on metal bending. Based on this method, we rationalized the model to meet the manufacturing requirements, the final model was modified to sweep surfaces with rectangular section frames on the control grid based on arc length, so that all surfaces would be developable surfaces

Glass panels facade

Structure under construction

VALLEY VILLAGE SHOPPING CONCEPT

The stadium structures at both ends of the park are connected by a sunken Valley Village mall, an undulating commercial spine with shops, restaurants, kiosks and underground parking, crossing below the existing Yiyang Road and River. This fluid and natural connection between various programs guarantees not only the seamless circulation during the Asian Games, but also the future success of the project as a lively and active urban space.

Valley Village Commercial Center

Valley Village Section

VALLEY VILLAGE SHOPPING CONCEPT

The Valley Village Shopping extends the activity of the streets into the landscape to add a much-needed green heart to the area, strengthens and diversifies the ecology its entire context, and creates a new center of public life in Hangzhou that will be used long after the Games end. The design is well-equipped to house activities like nature walks, basketball and skateboarding, shopping, picnics, waterfront dining, community events, and more.

Solar Wings

WORK 4

Professional Design

Archi-Tectonics

[NOHO LOFT]

Historical Landmark Penthouse Renovation

Design team: Winka Dubbeldam, Boden Davies, Bowen Qin

Type: single family coop landmark Penhouse Renovation

Scope: SD, DD, CD, construction completed 2020

Personal scope: CD & Construction administration

Located in NoHo, Bleecker street, This is a wood structure brick building built in 1900,. Though just a single family apartment, the attribute of LPC and coop and also penhouse make It complecated enough for a challenging design and construction.

Previously, this house have been renovated several times, the shape and size of each room are inproper and space-wasting. Admired the old aesthatic of the vintage building, we expose as much valuble element of the building, and reorganize the space to different function zone. Finally, the house intergrate the Beauty of Hundred years Bricks and wood and the modest bright Penhouse.

Detail of the south wall

South wall drawing

Master Bedroom

Site Administration

WORK 5

Professional Design Archi-Tectonics

[HARLEM TOWNHOUSE]

Single Family Brown-stone Towhouse Renovation

Design team: Justin Korhammer, Bowen Qin, Wouter Van den Heuvel

Type: Single family townhouse renovation

Scope: SD, DD, CD, construction completed 2022

Personal scope: SD, DD and CD

Our design transfer the previous dark and dim interior into bright modern single family home. After entering through the foyer, an open living room spans the full width of the townhouse a open kitchen overlooks the garden directly off the balcony. including a large island and dining area leading outside onto the Parlor Floor’s garden. Each home features hardwood floors, exposed brick, decorative fireplaces, quartz countertops and in-floor heating.

room

View of the W.I.C

View of the kitchen

View of the Master bathroom

Located on a beautiful, tree lined townhouse block and sitting across from the stunning Italian Gothic Revival style St. Aloysius Church, it is a great post-war building.

WORK 6

Exhibition

The Kroiz Gallery at the Architectural Archives

Curator: Ariel Genadt

Personal role: Curatorial assistant, exhibition content provider

Time: Jun-Sep 2018

[CRITICAL ABSTRACTIONS]

Modern Architecture in Japan 1868-2018

In considering what abstraction actually means in architecture, Genadt, who teaches the course “Modern Architecture in Japan—Culture, Place, Tectonics,” approached the exhibit with three guiding themes: one, that architecture is not as context-free as abstraction in art can be; two, that architecture is relative and may have meaning based on what is not shown; and three, that architecture is not disconnected from symbolism—that a building may prompt a variety of unpredictable associations.

Piano’s Hermes headquarters building fully absorbs Japanese architectural and life philosophy. It is a completely handmade glass curtain wall, which is cleanly and purely suspended from the top of the building, such as Japanese soji. It resembles a fuzzy translucent shutter during the day, restrained into the city, and at night it becomes the whole bright luminous body. As the floors rise, the privacy of the space increases, and the garden on the top floor reaches the same level of privacy as the Japanese inner court.

Reiyukai Shakaden Temple

Yusuhara Wood Bridge

Drawing: The day and night of Mason Hermes - By Bowen Qin

WORK 7

Academic studio design

University of Pennsylvania

Instructor: Simon Kim

In collaboration with Zihao Fang and Weimeng Zhang

Arch 701 Design Studio

Fall 2018

Design media: Rhinocero, Grasshopper, Arduino

Personal scope: All the programmings of the kinetic Physical model, 70 percent of the drawings.

Kinetic Prototype: Breathing chamber

Kinetic Prototype: Warning color

incubation chamber

parturition tunnel

hyper core

Physical model

WORK 8

Workshop/Exhibition

Tongji University

[ROBOTIC SPACIAL]

Inspired by traditional Chinese wood structure

Instructor: Phillip Yuan, Hua Chai. In collaboration with Claudia, Omer, Darkhan

Personal scope: Wood work, Assembling, Digital model. Time: Summer 2016

In this project, we designed the load-bearing system using robotic arms to process timber. The geometry was Inspired by DouGong, a system of wooden brachkets inserted between top of colums and crossbeam s in Chinese traditional architecture.

We construct the big wood structure in the shape of umbrella. It was placed in the center of the rostrum, significantly improved the atmosphere of the hall.

Structure Analysis

WORK 9

[THE ODE]

The Ode is a boutique service specializing in bespoke space design,and event styling.

Inheirting the gene from the venue, a former Brooklyn warehouse, we carried the architectural form into the space design. The order was introduced by the hanging drapery and refactory table.

We built a “table garden” through stone, grass and foods, inviting guests to feel the texture and temperature of building materials. The menu design is inspired the facade of client’s house; the floor plan of the space is printed on the back of the guest nameplate, which really makes the theme run through every detail on the table.

Personal role: Space Design, Stationary Design, Site Arrangment, Event planning.
