Stephanie Zumba
DESIGN PORTFOLIO
B.S. INTERIOR ARCHITECTURE
M. ARCH (1ST-YEAR)
Internship Work
PARIS MÉTRO
Paris Métro Tile
Heritage Tile Internship SketchUp and Lumion
Heritage Tile is a tile company that strives to provide historically authentic tile/stone products and design services. As a summer Interior Architecture Intern one of my projects was to design Parisian/Art Nouveau style bathrooms that he Paris nd are
Floor Tile Pattern
Métro Tile - Specialty Tile

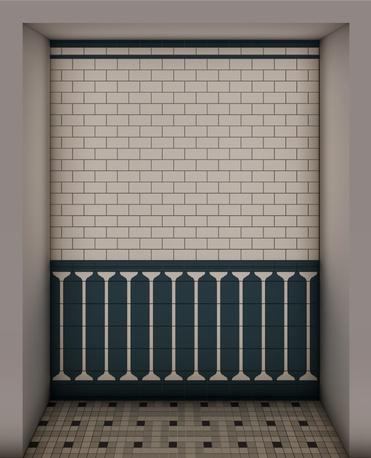

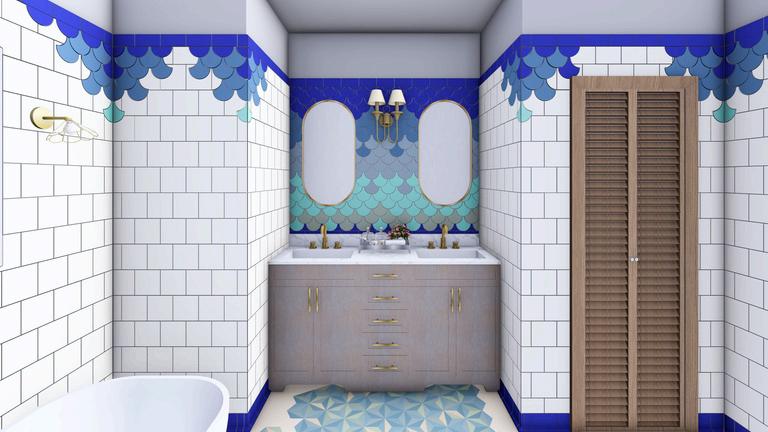

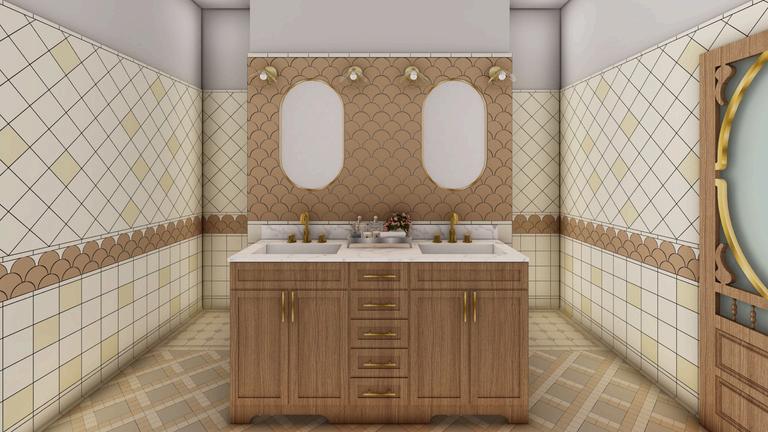

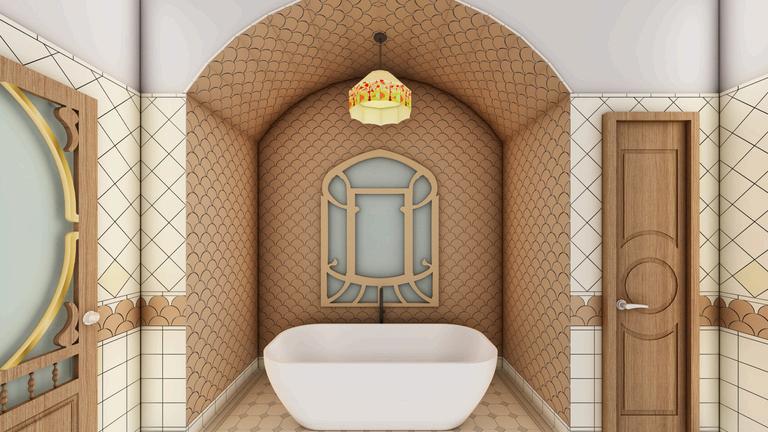

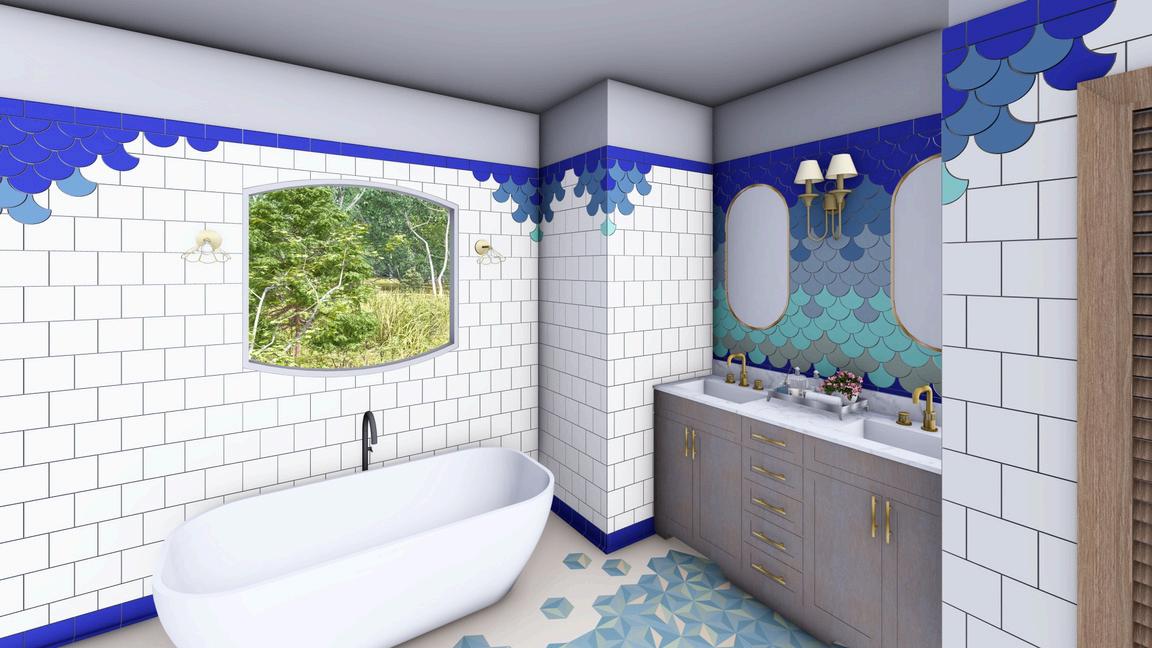

This bathroom has a couple of tile patterns. Large tiles are used as wainscot, with the scallop specialty tile topping off the wainscot. The same large tile is then turned diagonally for the upper half.
These bathrooms also use a sanitary cove base, a tile that rounds out at the bottom to meet with the floor and make it easier to clean
WALL CONCEPTS

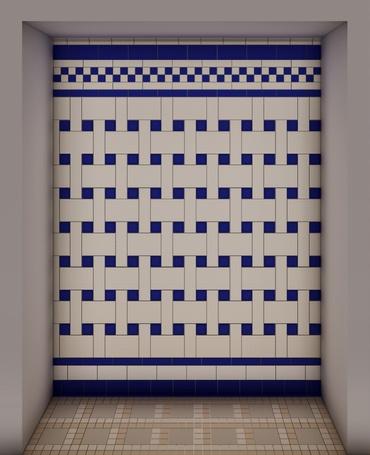

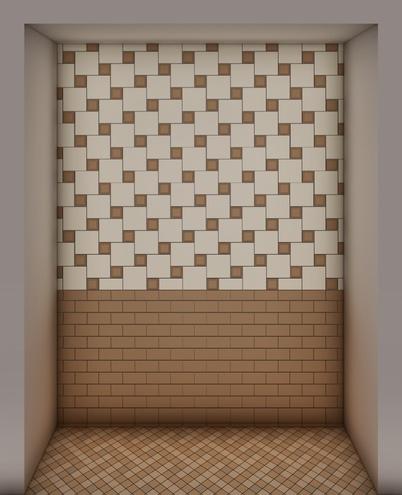

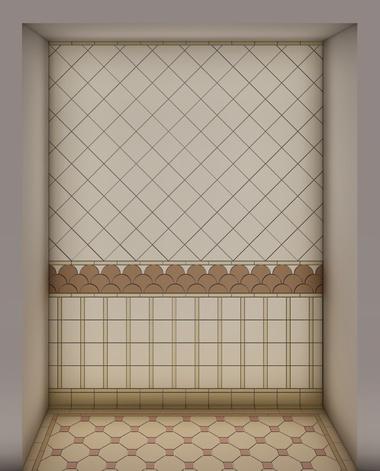

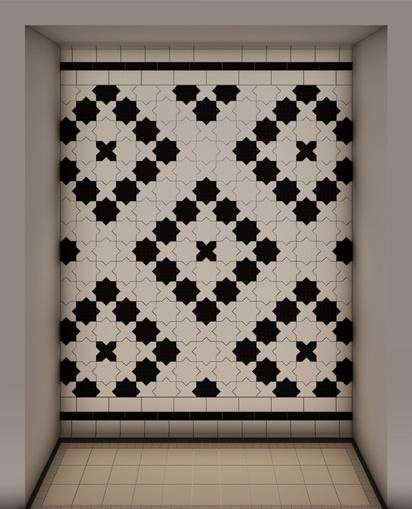

These wall concepts are smaller examples of how Métro Tile can be used on wall installations.
A.D. BARNES PARK
A.D. Barnes Park
Nature Pavilion Miami, FL
Rhino, Revit, Illustrator, Lumion
CONCEPT

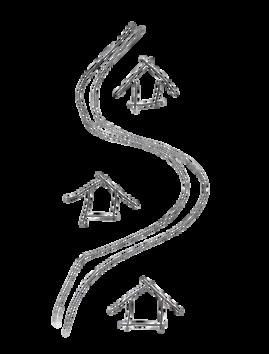

This project explores the dynamic transition from urban life to nature mirroring the park‘s evolution from structured, human-designed landscapes to untamed natural surroundings. The design embraces this progression through a spatial hierarchy that flows from private to public.

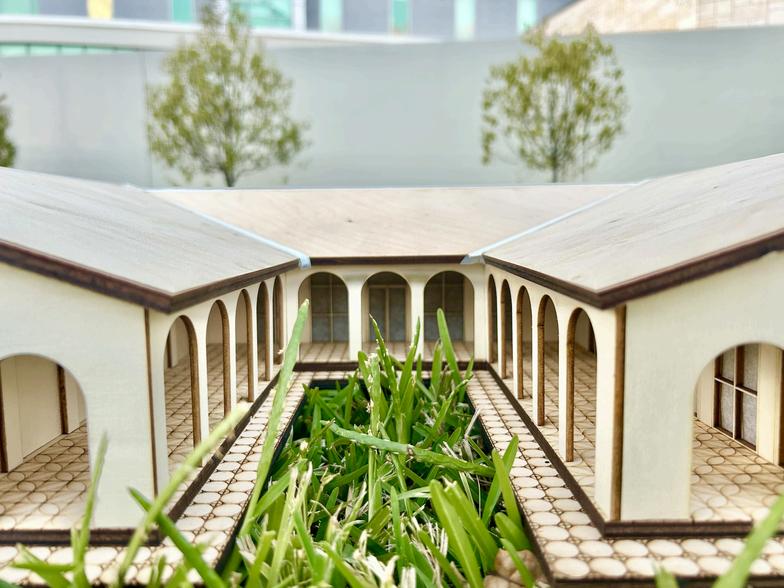

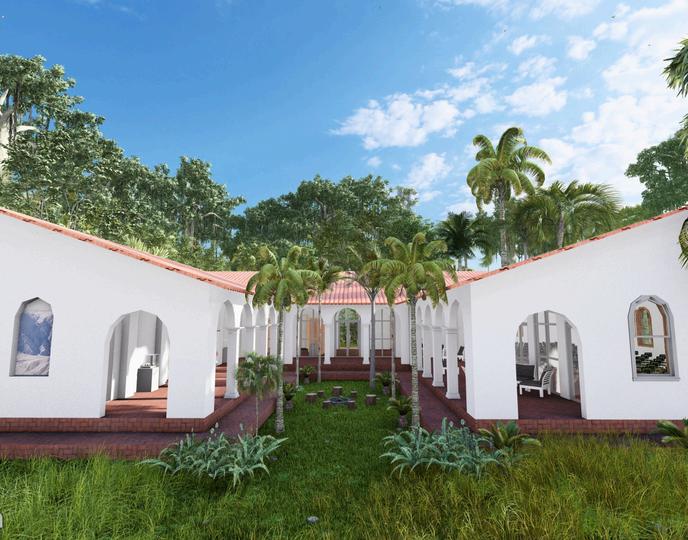

Drawing inspiration from the Mediterranean Revival style a hallmark of Coral Gables’ architectural heritage the nature center integrates open patios as a vital design element.

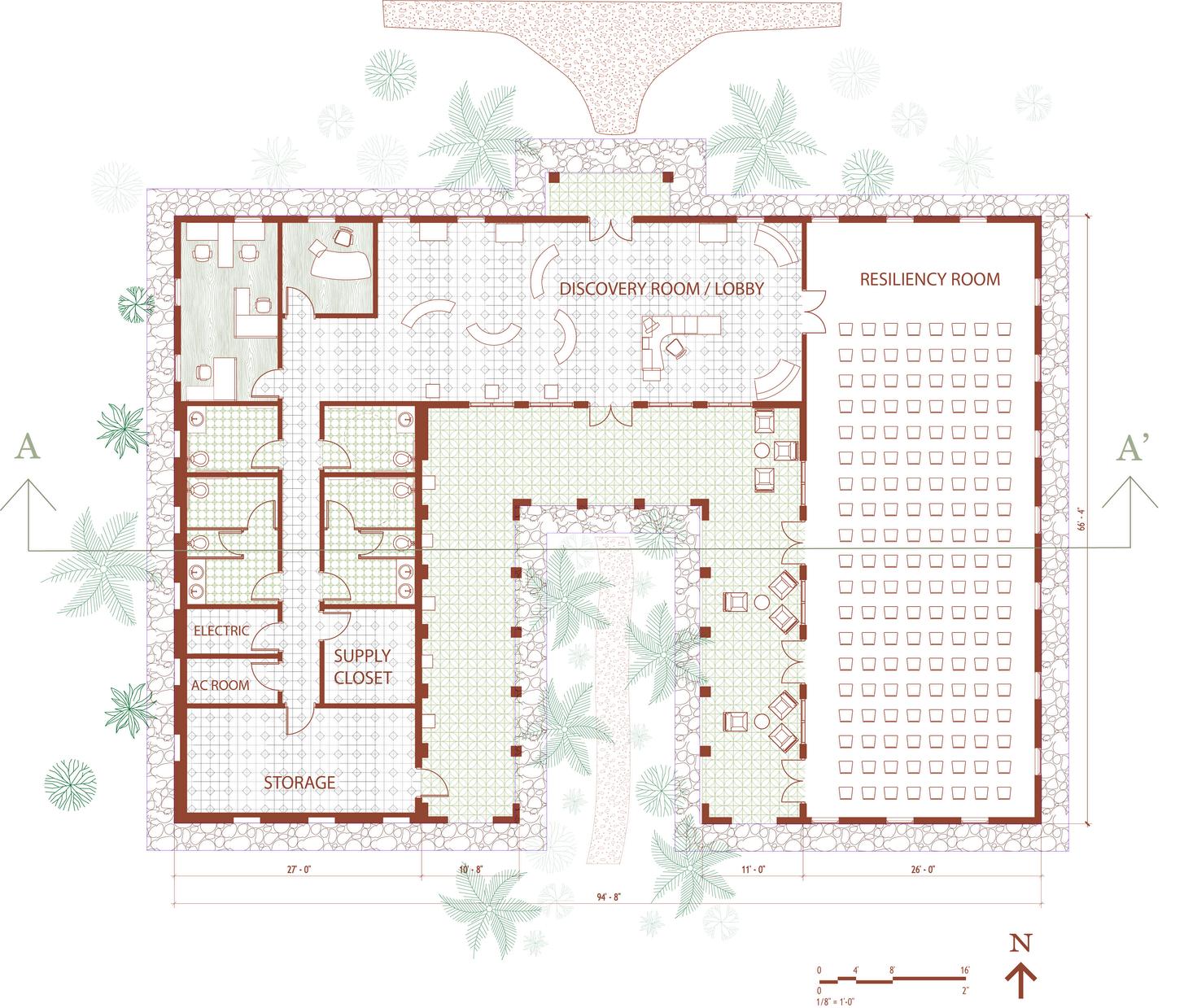

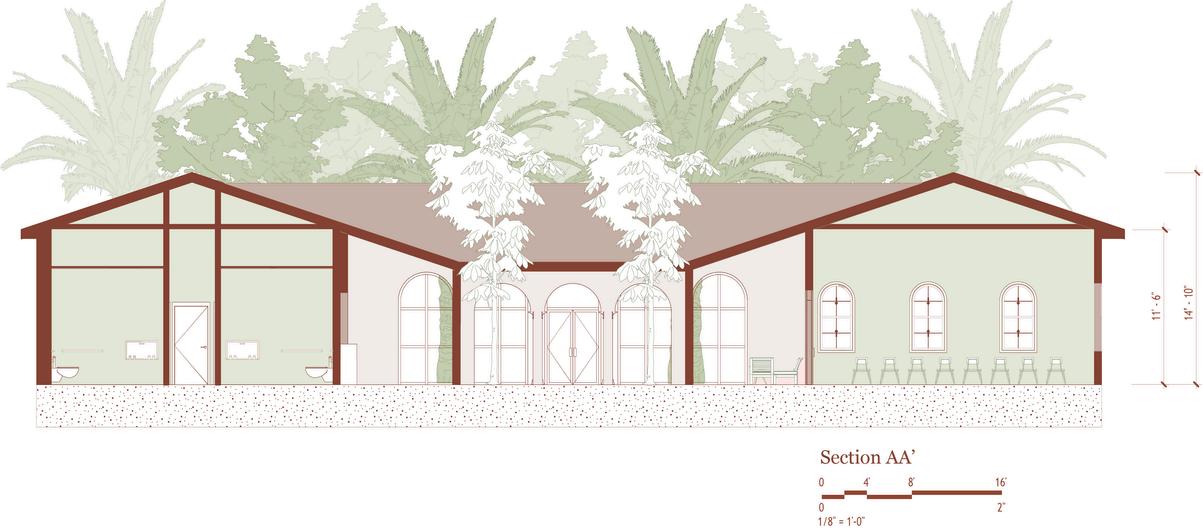

SCHEMATIC DESIGN
The patios not only honor the region‘s historical aesthetic but also serve as functional extensions of the discovery and resiliency rooms, offering additional flexible spaces By blurring the boundary between interior and exterior the patio becomes a threshold that enriches the experience of transitioning from built environments to the natural world.

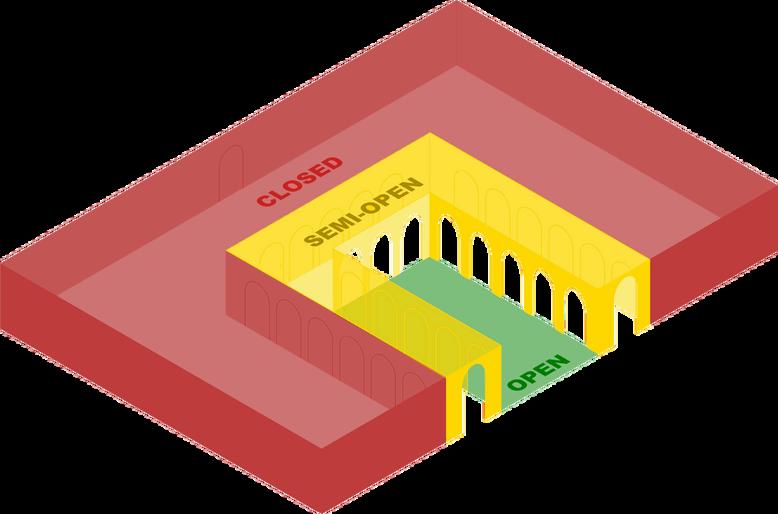

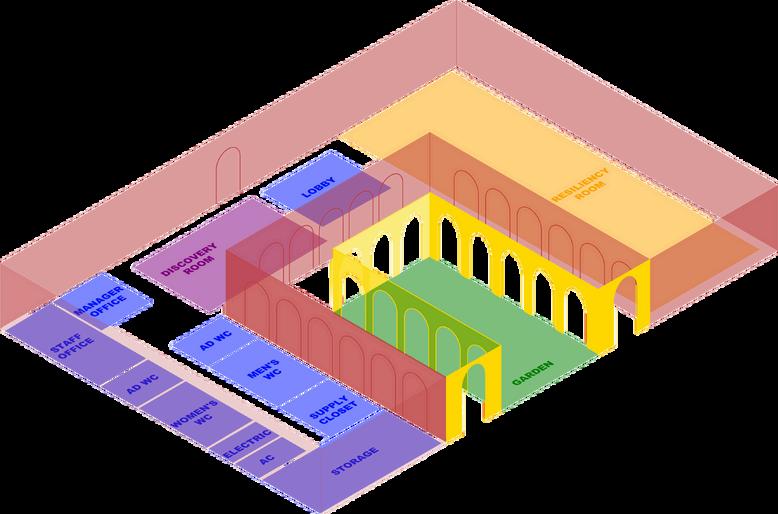

Massing Diagram
Program Diagram

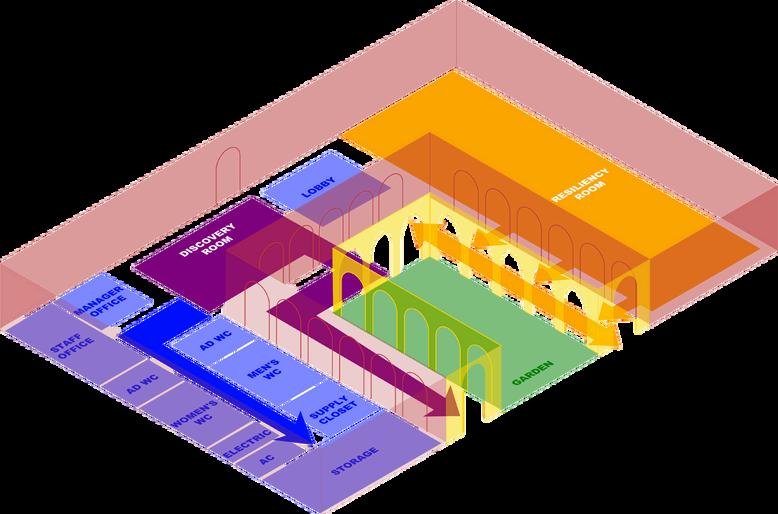

Circulation Diagram
VANTAGE POINT
Vantage Point
Landmark Miami, FL
Rhino, Illustrator, InDesign
CONCEPT STATEMENT

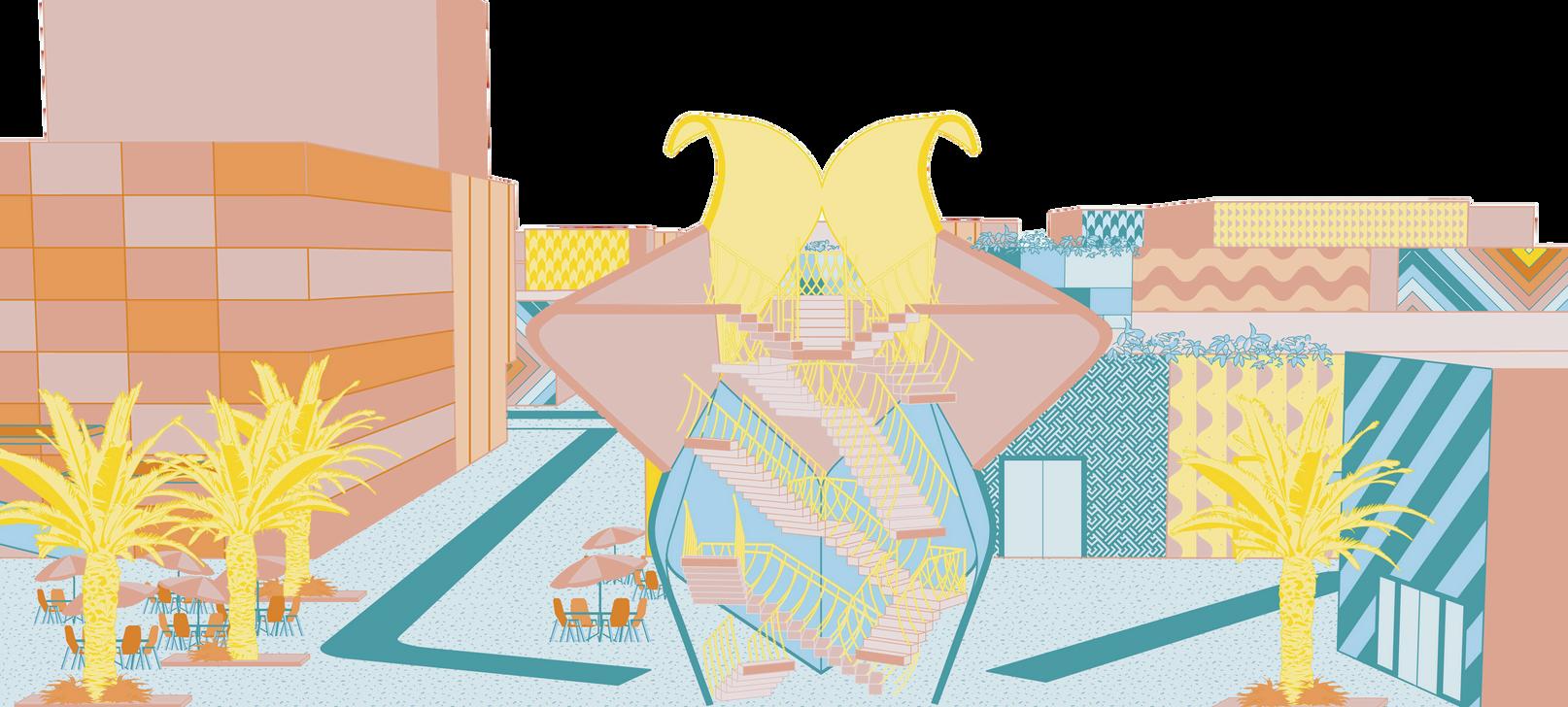

Vantage Point is a dynamic architectural intervention located in Miami's Design District, conceived as both a visual and experiential landmark By merging aesthetics with functionality, Vantage Point offers visitors the opportunity to ascend through a network of balconies and staircases to admire the vibrant facades and artistic diversity of the district.

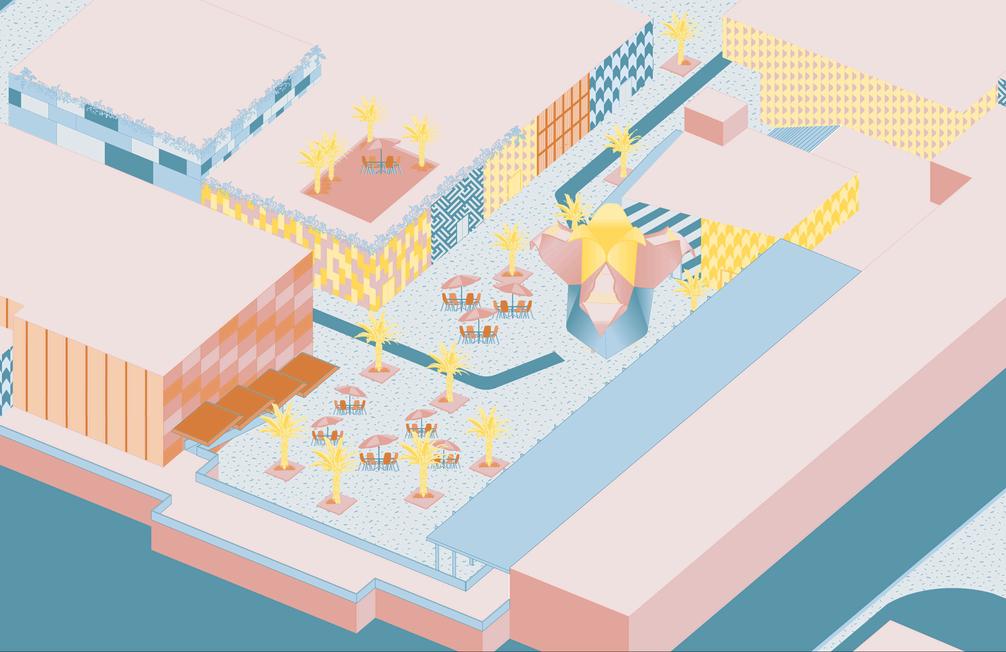

Isometric

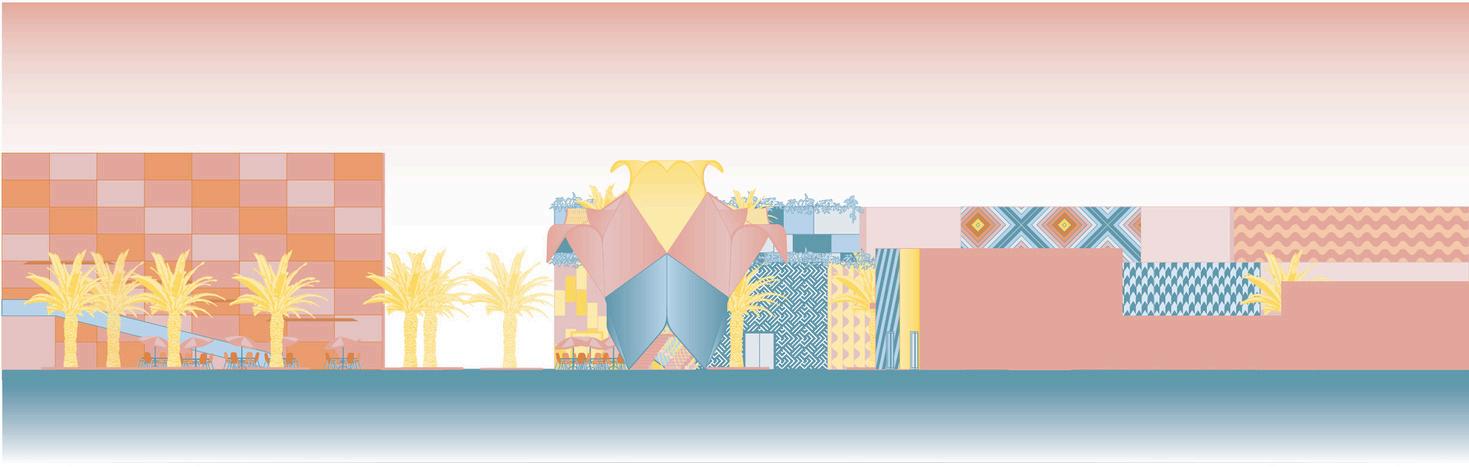

Front Elevation
OCTAHEDRON DODECAHEDRON

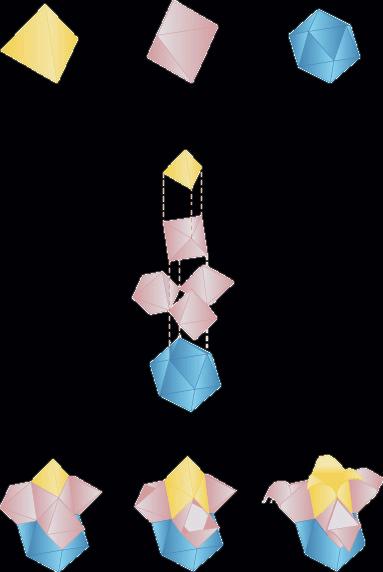

The structure is formed by an intricate configuration of polyhedrons—tetrahedrons, octahedrons and dodecahedrons—resulting in a multifaceted geometry that reflects the district's creative ethos
The staircases not only create varied pathways for exploration but also double a an active space for cardio workouts addin layer of recreational programming Throug its playful yet purposeful design, Vantage Point invites engagement with both the physical environment and the community.
Section Perspective

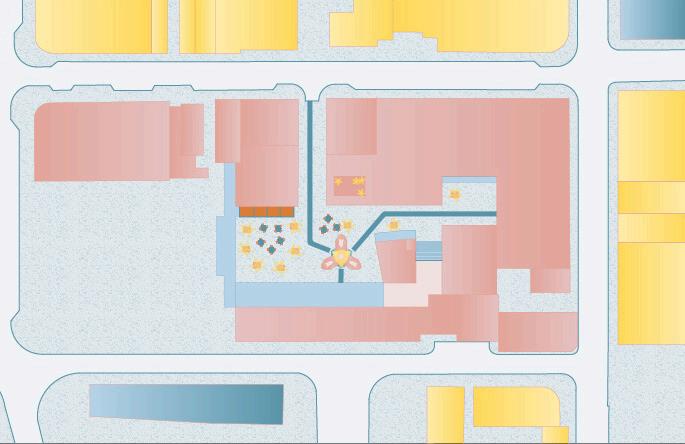

Site Plan

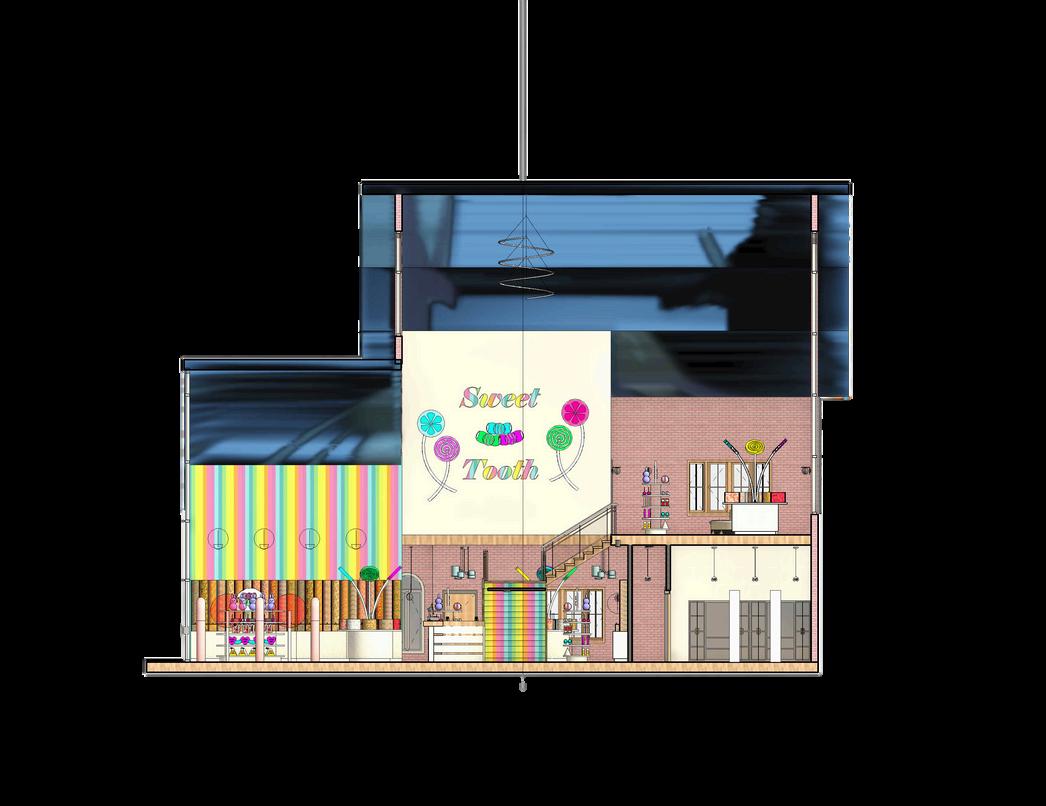

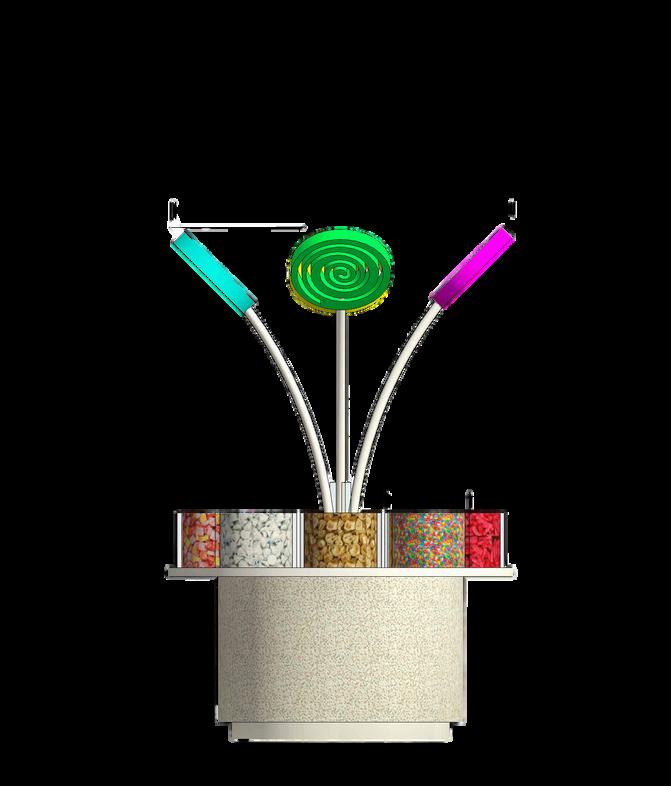

Sweet Tooth
Confectionary Store Madison, FL Revit and Lumion

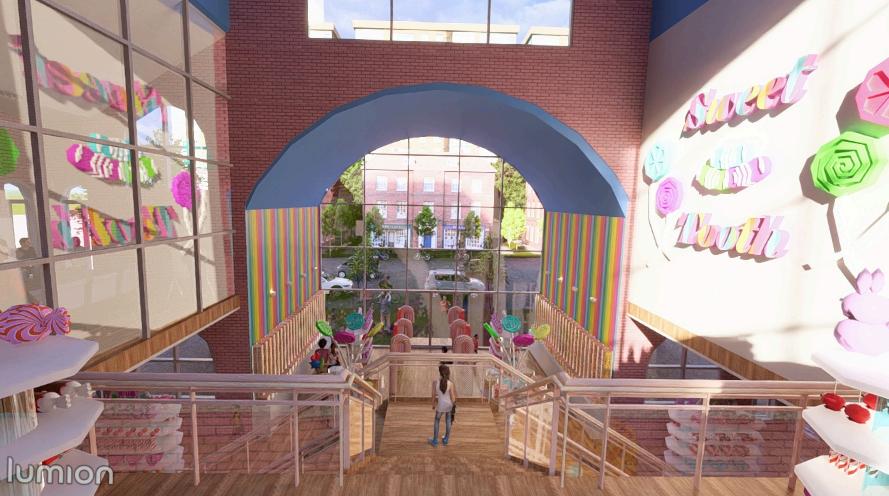

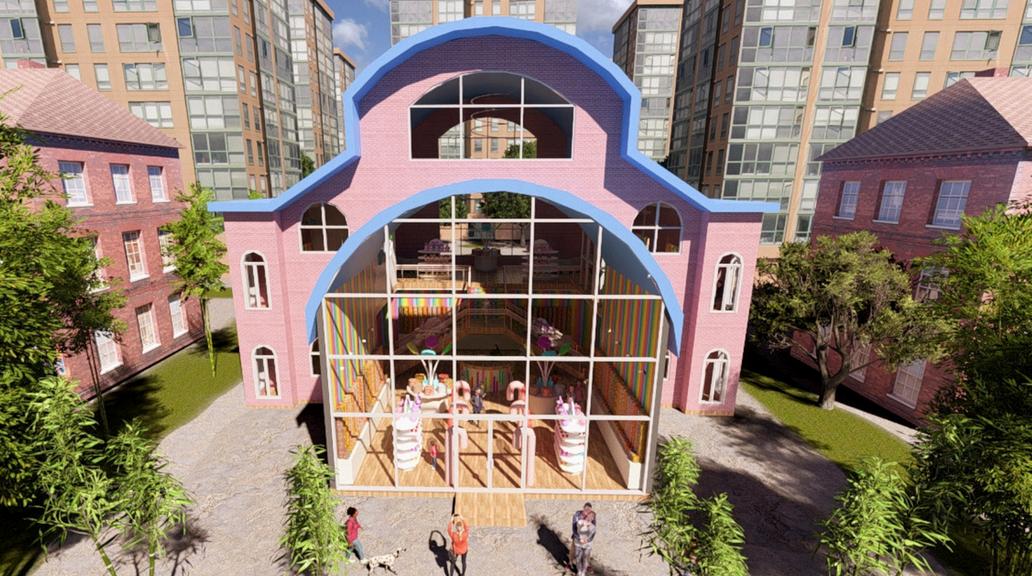

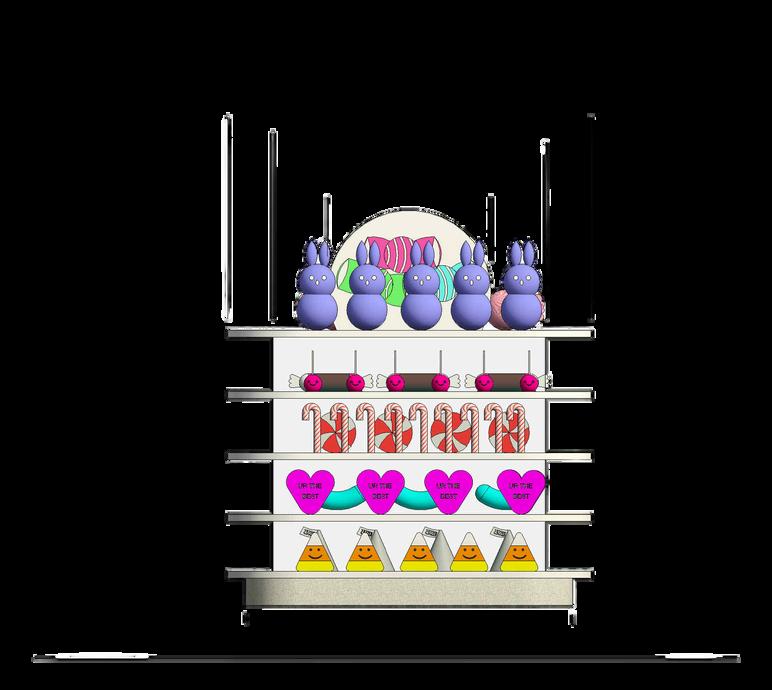

A developer is working with a potential tenant to remodel an industrial warehouse into a retail space Sweet Tooth is a project proposal to convert the warehouse into a fun and welcoming confectionery store
Vivid colors, large windows and rounded features are used for a playful look
Employee spaces are kept out of the public eye, except for the conference room on the second floor which has glass walls that allows staff to overlook the store Level1FLOOR PLAN 0'-0" Level2FLOOR PLAN 12'-5"
1ST FLOOR
Bathroom entrance within eyesight of customers as they walk by Office has more private location and entrance
FLOORPLANS
2ND FLOOR
Surrounded by solid walls for privacy

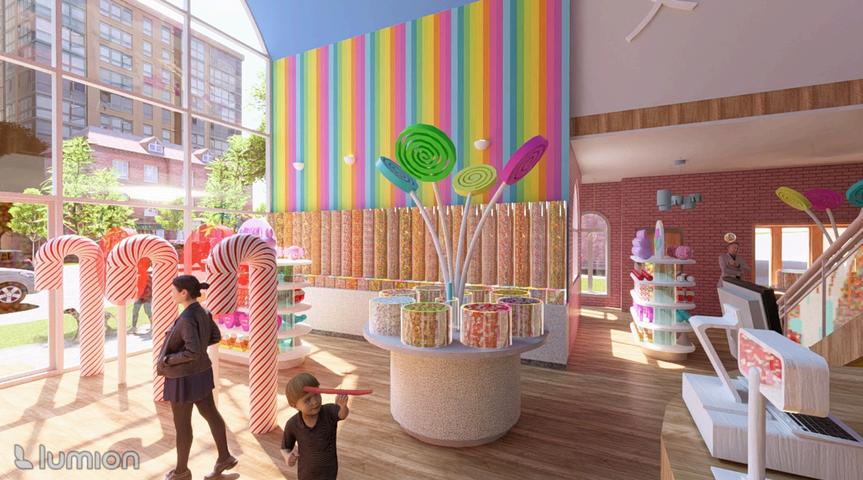

Cash wrap in center of store for customer visual access
Surrounded by glass because this is a semipublic zone Emergency exit from second floor Nook. Taller windows for more sunlight access
HOPE & A FUTURE
Hope & a Future
Intergenerational Living Community
Madison, WI
Revit
MISSION STATEMENT
To extend housing for Hope and the Future - an intergenerational community that will provide seniors and young families a place where they can connect, restore, and flourish
GOAL STATEMENTS
Add 15 units for seniors and 4 apartments for young families, creating more affordable housing Create contact zones for residents to connect and create a community. The resulting impact will better the health of their seniors while giving them a sense of independence and giving families a source of reliance when raising their children.

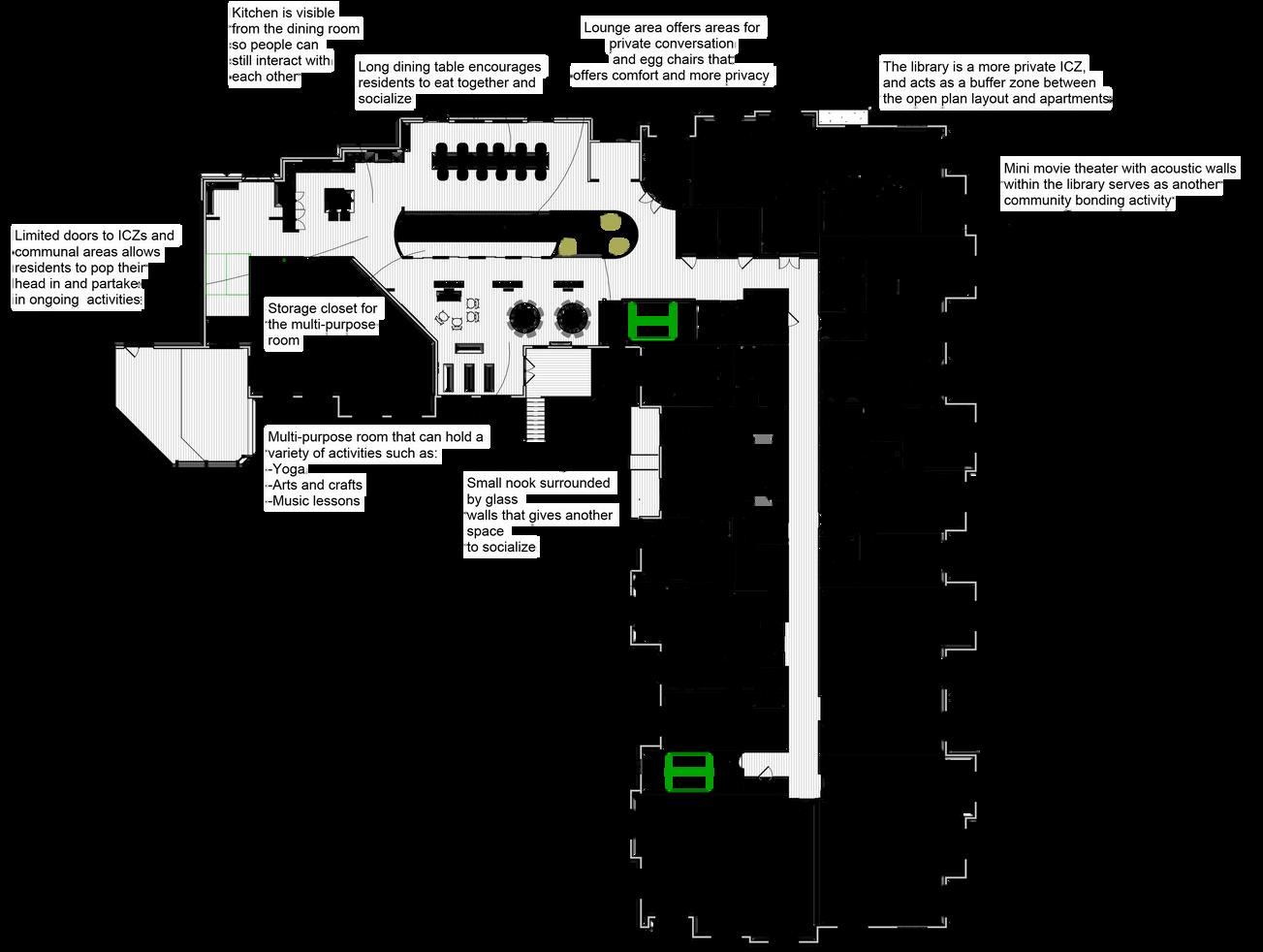

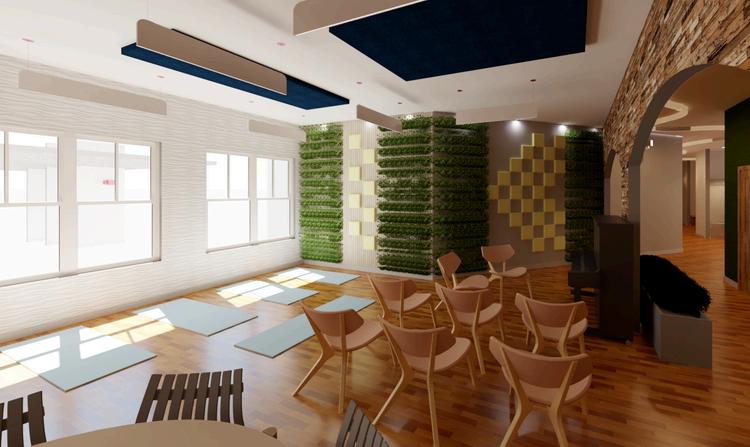

An open, multi-use space near the main hallway enables residents to easily engage in ongoing activities
On the opposite side, the dining room lounge area and kitchen are located close together to enhance the sense of community

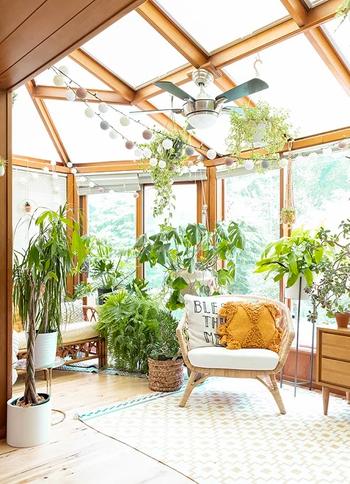

BRINGING THE OUTDOORS IN
BIOPHILIA
Biophilic design can improve mental health, social connections, and aid in physical recovery.
Using biophilic design to increase health and foster connections
CLIMATE
Designing interiors that embrace biophilic design patterns can decreases the degree of seasonal associated depression
ICZ
Intergenerational communal zones (ICZ) mixed with biophilia will improve health and relationships across generations.

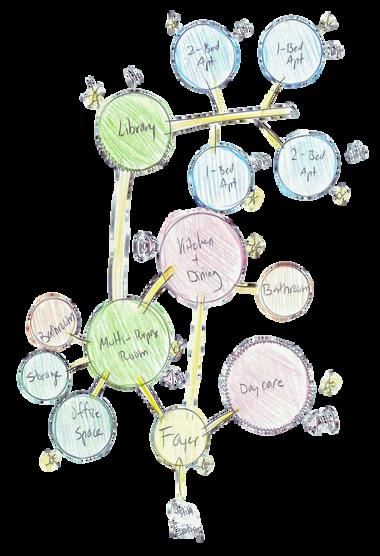

BUBBLE DIAGRAM
The foyer daycare, multi-purpose room, and kitchen/dining are adjacent to each other so that all the loud spaces are clustered together
The library is semi-adjacent to the ICZs separating the communal areas from the more private resident apartments
PARTII DIAGRAM
Fluid circulation within the communal areas leads residents to each ICZ without relying on an egg crate floorplan
SCHEMATIC DESIGN

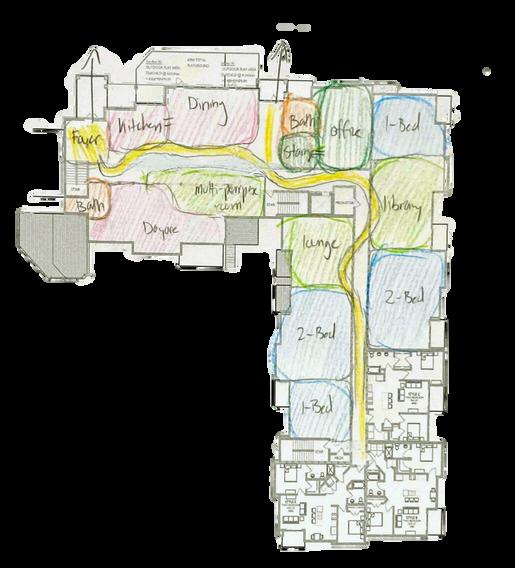

LOOSE FLOOR PLAN
Spaces are laid out to create circulation that weaves in and about. The open ICZs let residents peek in as they go to other facilities.
The final floorplan switches the library with the top 1-bedroom apartment so as to create a solid distinction between ICZ and private zones.
*Daycare and 3 of the apartments are handled by other designers
B E H A V I O R A L A N A L Y S I S
SLEEPING CREATIVITY
Sleeping Creativity
Bed & Breakfast
Sleeping Creativity
Madison, WI
AutoCAD and SketchUp
Bed & Breakfast
Christina King a retiree, hopes to change the first floor of her Victorian home to a Bed & Breakfast (B&B). She wants to incorporate a design that allows her to live independently as she ages. Additionally, she’s a ceramic artist and would like to incorporate ceramic lessons into her B&B.
Sleeping Creativity focuses on excitement-inducing spaces that promote social interactions. This would be a great opportunity for the clientele to enjoy their stay and for Christina to enjoy their company while remaining active. Each space is ADAaccessible and takes into account universal design

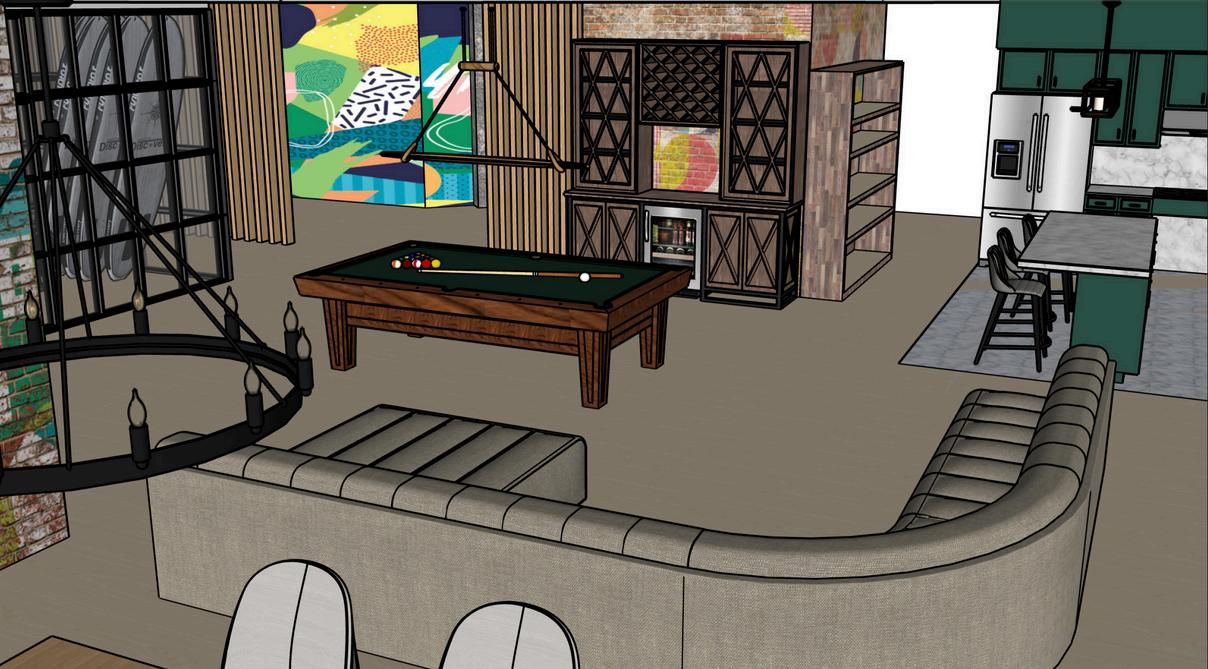

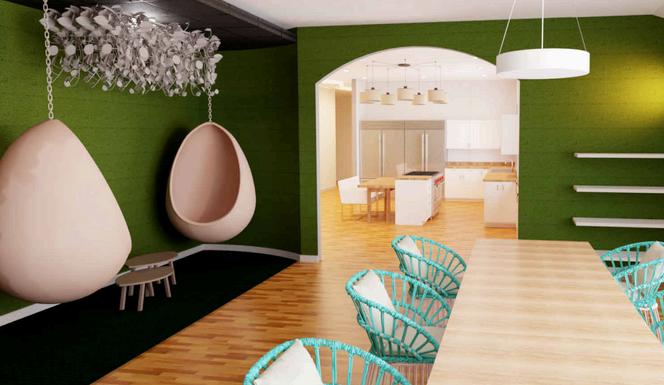

Living and dining room as seen from the foyer

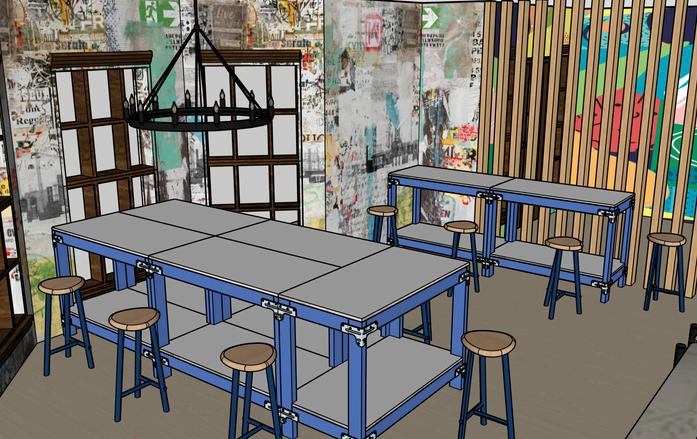

Ceramics room next to the main entrance
SCHEMATIC DESIGN
Communal and private areas are separated for privacy. Communal areas are connected with each other for increased social interactions and visual access.
Smiley faces in the block diagram represent initial ideas about where to add designs that spark conversation.

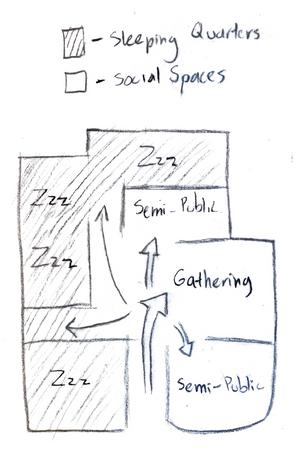

Partii Diagram

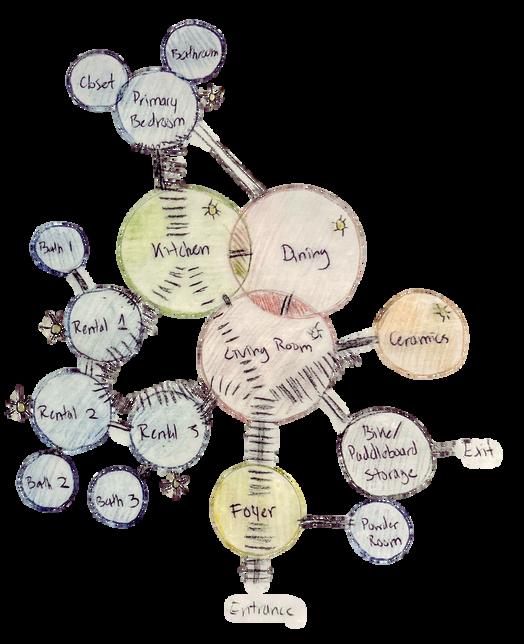

Bubble Diagram
Block Diagram

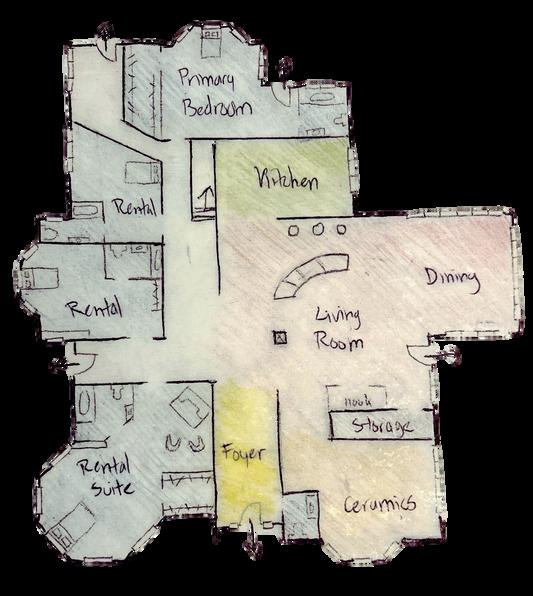

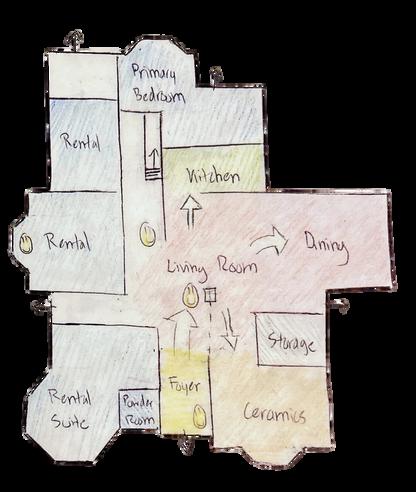

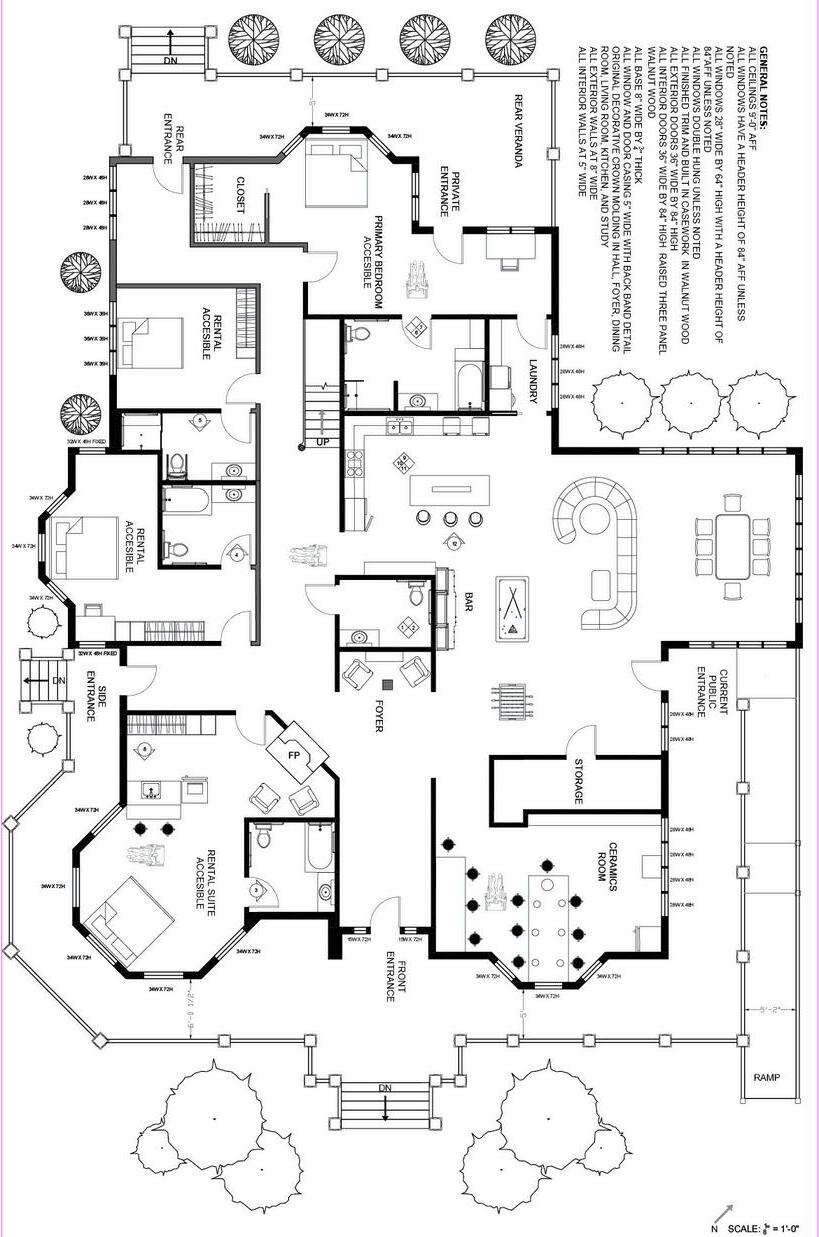

Loose Floor Plan
Noise control
buffers
Rental bedrooms
Main
communal areas
Other
Christina’s room is at the end of the hall for more privacy and less noise
Laundry room is accessible to Christina and her clients with less walking distance for Christina
Kitchen dining and living rooms are in an open layout to encourage communication and collaboration
Roundaboutexcellent for play
Storage space separates communal spaces and establishes the ceramics room as another zone
Slat partition walls allow for visual access to communal areas when first entering the B&B

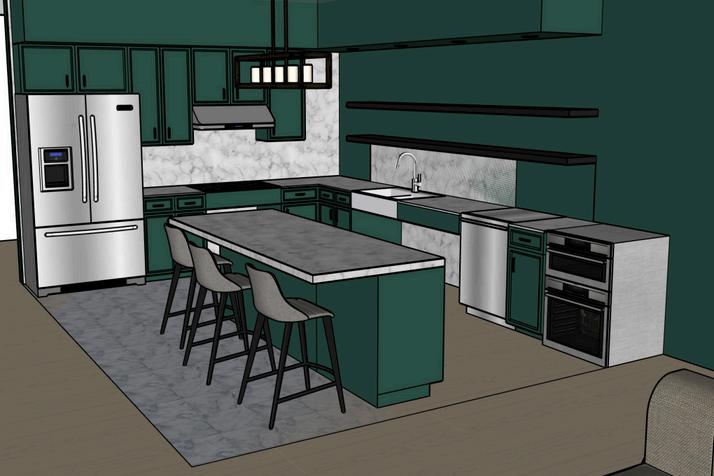

KITCHEN
The tranquil green color theme offers a soothing ambiance for the kitchen. The open plan layout allows cooks to still converse and interact with those in other parts of the communal spaces

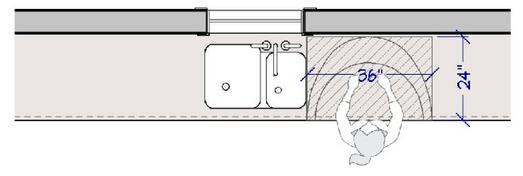

36" x 24" deep counter space area right next to sink for primary preparation with knee space

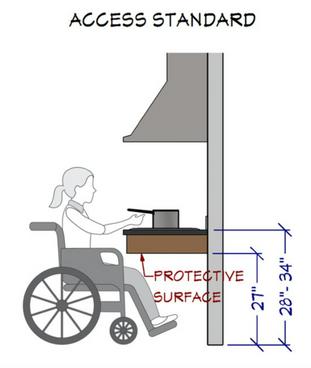

27" legroom space underneath the sink, stovetop, and kitchen island for ADA accessibility.
34" countertops and landing counter space next to each appliance as suggested by the National Kitchen & Bath Association (NKBA)

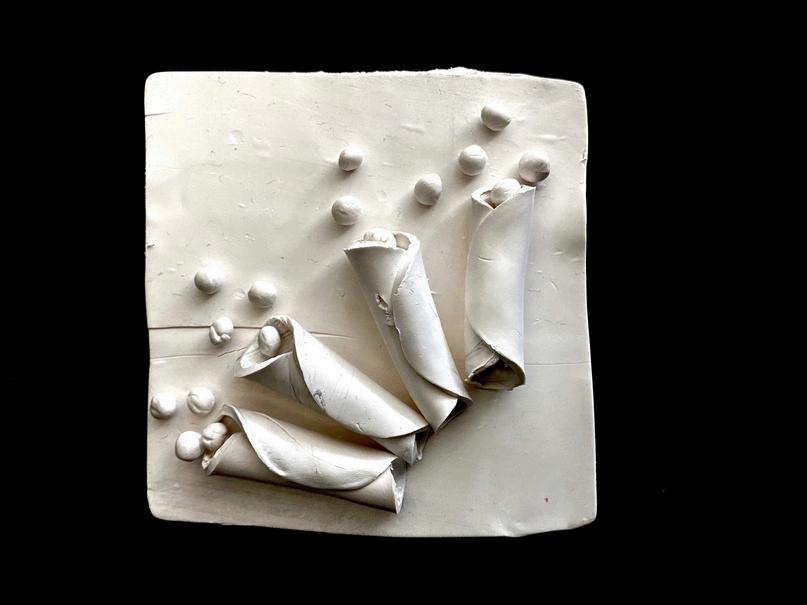

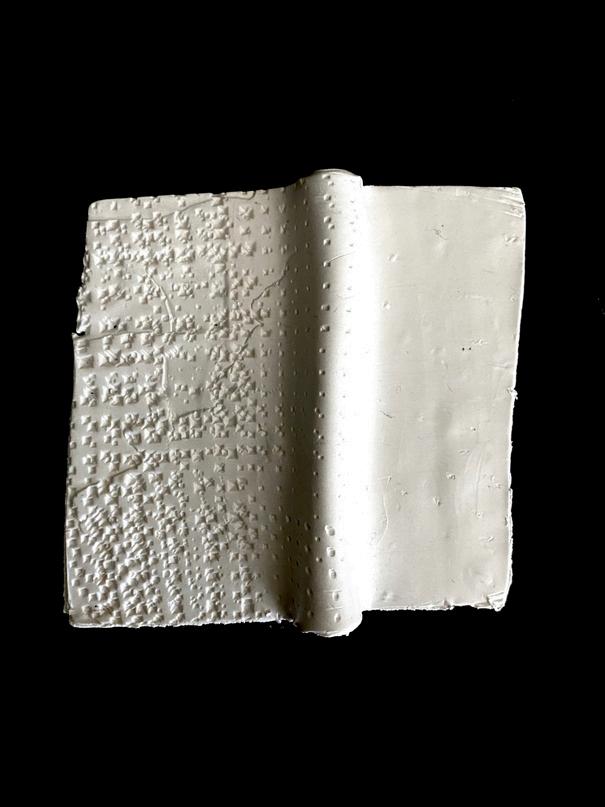

CLAY CONTRASTS
OTHER WORKS

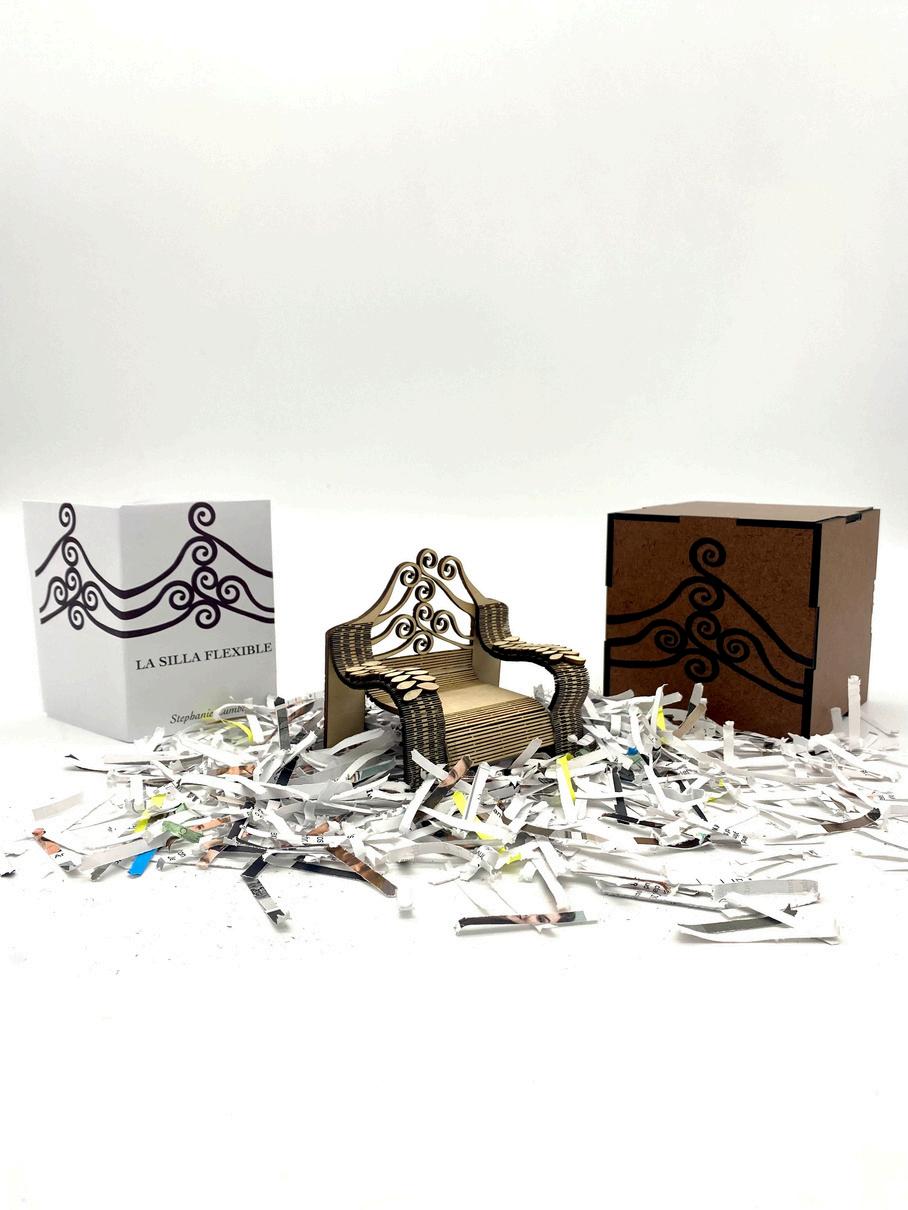

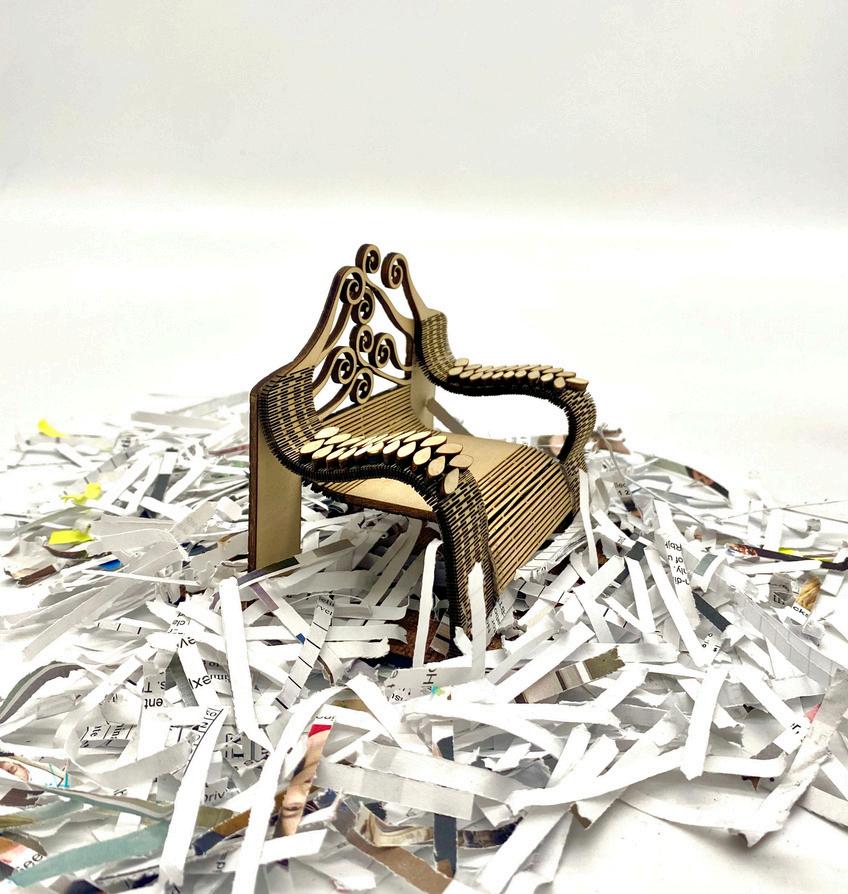

FUNCTIONAL ART
ILLUSTRATOR & LASER CUTTER
I chose this textile because of its familiarity. My family is from Ecuador’s Andes region and these types of blouses are commonly worn with skirts called polleras. Both garments portray flower themes through their embroidery and flowy
ART NOUVEAU
PERIOD ROOM
Perspective Views
PRISMA COLOR MARKERS & GRAPHITE

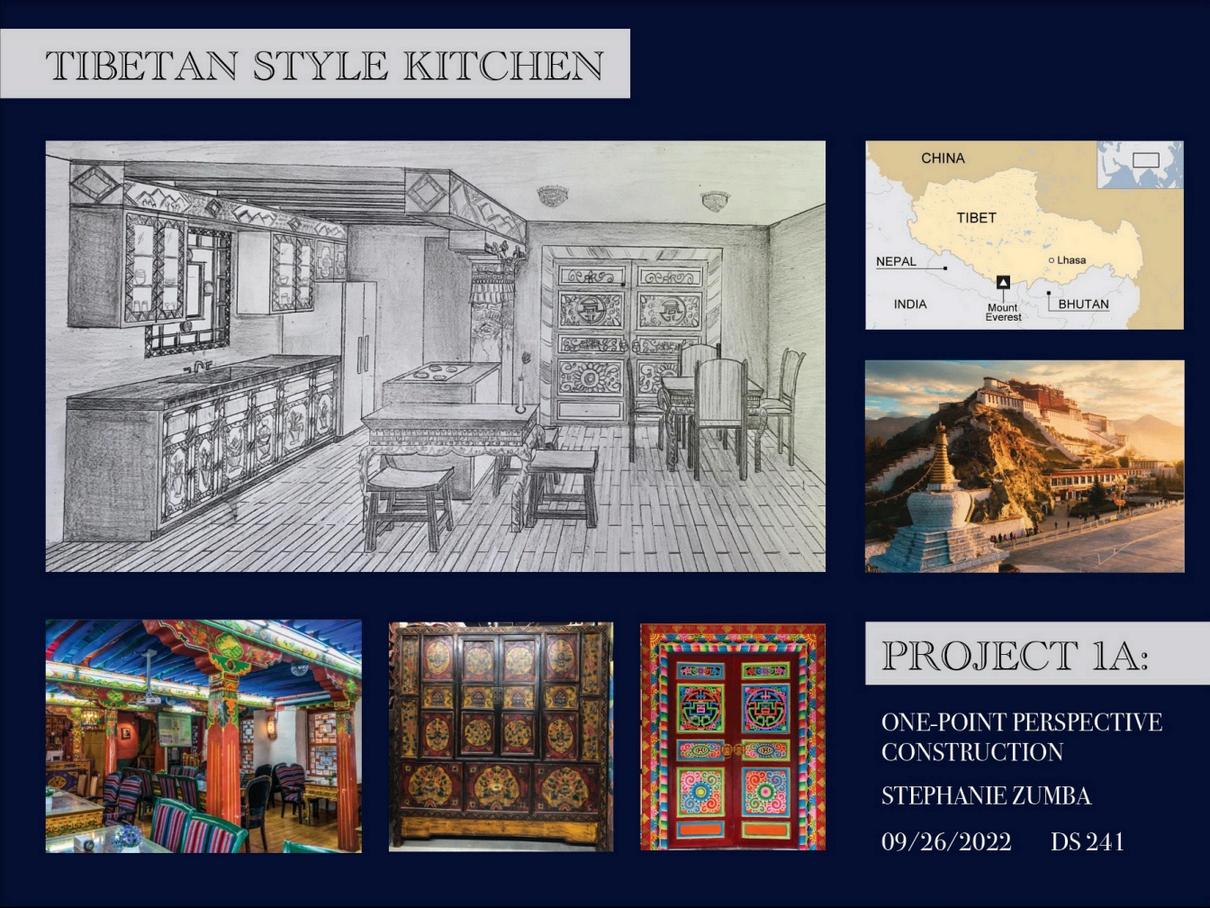

TIBETAN STYLE KITCHEN
ONE POINT PERSPECTIVE
COLOR RENDERING
PRISMA COLOR MARKERS
Reference
