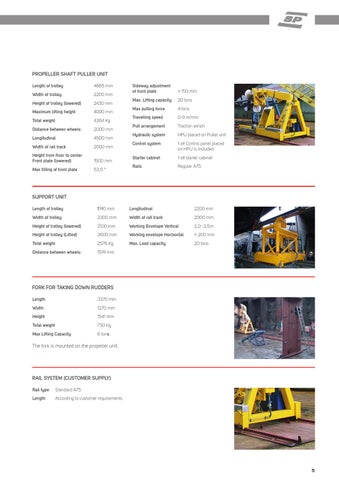

SE Propeller Shaft Puller Unit Length of trolley
4865 mm
Width of trolley
2200 mm
Height of trolley (lowered)
2430 mm
Maximum lifting height
4000 mm
Total weight
4364 Kg
Distance between wheels:
2000 mm
Longitudinal
4500 mm
Width of rail track
2000 mm
Height from floor to center Front plate (lowered)
1500 mm
Max tilting of front plate
53,5 °
Sideway adjustment of front plate
± 150 mm
Max. Lifting capacity
20 tons
Max pulling force
4 tons
Travelling speed
0-9 m/min
Pull arrangement
Traction winch
Hydraulic system
HPU placed on Puller unit
Control system
1 off Control panel placed on HPU is included
Starter cabinet
1 off starter cabinet
Rails
Regular A75
Support Unit Length of trolley
1740 mm
Longitudinal
2200 mm
Width of trolley
2300 mm
Width of rail track
2000 mm
Height of trolley (lowered)
2100 mm
Working Envelope Vertical
2,0 -3,5m
Height of trolley (Lifted)
3600 mm
Working envelope Horizontal
± 200 mm
Total weight
2576 Kg
Max. Load capacity
20 tons
Distance between wheels:
1574 mm
Fork for taking down rudders Length
3370 mm
Width
1270 mm
Height
1541 mm
Total weight
730 Kg
Max Lifting Capacity
6 tons
The fork is mounted on the propeller unit.
Rail System (Customer supply) Rail type
Standard A75
Length
According to customer requirements
