RIVERSIDECULTURALFUSION

RiverfrontCulturalHub

LIMZHIWEI

LIMZHIWEI 1001954454

BachelorofScience(Hons)inArchitecture

UCSIUniversity

AR718IntegratedArchitectural DesignProject

Year3Sem6 January2024-May2024

+6012-2539600

limzhiwei24100101@gmail.com 56000Cheras,KualaLumpur

01Project1

TheINTERLUDEbetweenoldandnewKualaKubuBharu KKB

02Project2

SuburbanAnalysis&BuildingStrategies

03Project3

TheOLD,theNEWnadtheINTERLUDEwithSustainable Architecture

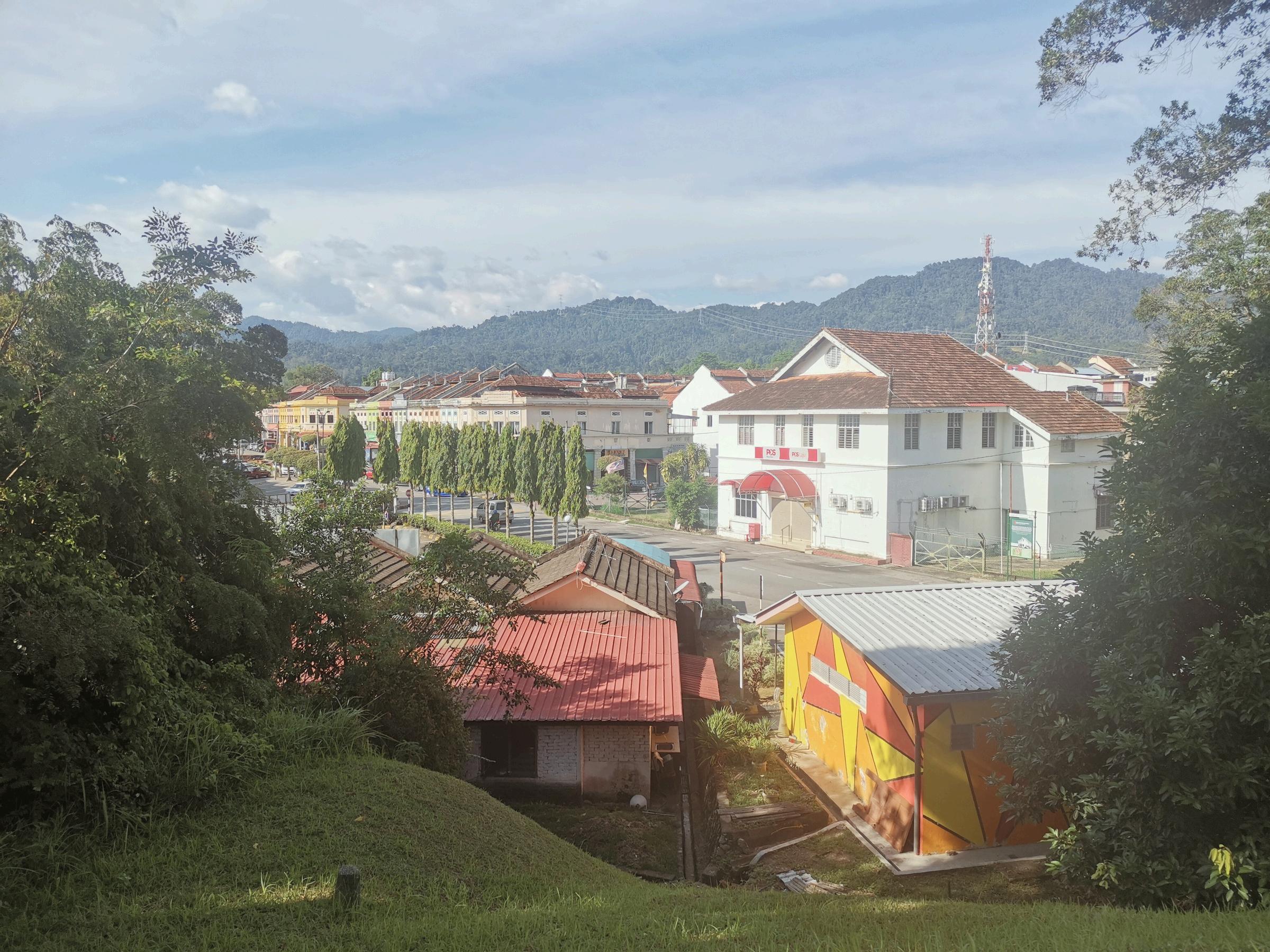

TheContext In the heart of Selangor, Malaysia, lies the quaint town of Kuala Kubu Bharu, a hidden gem nestled amidst the breathtaking landscapes of Hulu Selangor district. Renowned for its natural beauty and richhistoricalheritage,KualaKubuBharupresentsacaptivatingcanvasforarchitecturalexploration andinnovation.

Aspiring peoples embarking in this charming locale are poised to uncover the town's unique character and contribute to its evolving architectural narrative. From colonial-era structures that echo the town's mining past to modern developments harmoniously integrated into its serene surroundings,KualaKubuBharuoffersadiversearrayofarchitecturalinfluencesandopportunities.

The town's architectural landscape is a testament to its vibrant history and cultural diversity. Strolling through its streets, one encounters a blend of architectural styles, ranging from British colonial buildings adorned with intricate detailing to traditional Malay houses exuding rustic charm. Each structure tells a story, reflecting the aspirations and identities of the people who have shaped KualaKubuBharuovertheyears.

Beyonditshistoricalarchitecture,KualaKubuBharupresentsacanvasforcontemporarydesignand sustainable development. With its lush greenery and proximity to natural wonders such as Bukit KutuandChilingWaterfall,thetownbeckonspeoplestoenvisioneco-friendlystructuresthatcoexist harmoniously with the surrounding environment. Whether it is designing innovative eco-resorts or revitalizingheritagebuildingsformodernuse,thepossibilitiesforarchitecturalexplorationinKuala KubuBharuareboundless.

UNITB

The INTERLUDE between old and new Kuala KubuBharuKKB

EMBRACINGDICHOTOMY-KualaKubuBharu

Capturing the essence of Kuala Kubu Bharu through the interplay of positive and negative spaces in abstractartisanuancedendeavor.Positivespacescometolife,showcasingthetown'svibrancy the richarchitecture,culturalhubs,communityinteraction,andbustlingeconomicdistricts.Filledshapes and vibrant areas vividly depict the dynamic urban experience, highlighting the diversity and energy thatdefineKualaKubuBharu.

In contrast, negative spaces strategically convey the town's natural beauty, serene retreats, historical stillness, contemplative moments, and the delicate balance between urban development and natural harmony. These open areas serve as a visual breath, encapsulating the untouched allure of the naturalsurroundingsandofferingacounterpointtotheurbanhustle.Negativespacesalsosymbolize places for reflection, preserving historical charm, and contributing to the overall equilibrium in the town.

The integration of positive and negative spaces is pivotal in illustrating the intricate relationship between urban life and nature in Kuala Kubu Bharu. This combined expression seamlessly blends these spaces, demonstrating the coexistence of architectural dynamism with the tranquility of the natural landscape. The flow and movement within the composition mirror the perpetual interaction betweenthebuiltenvironmentandthetown'spristinenaturalheritage.

Furthermore,thisartisticrepresentationencompassesthefusionofculturalelements,wherepositive spaces serve as nodes for community connections, and negative spaces offer moments of solace. This approach captures the diverse experiences of residents navigating through both active and serene realmsinthetown.

In summary, these photographs serve as a visual narrative, encapsulating the emotional resonance anddistinctcharacterofKualaKubuBharu.Itpresentsalayeredinterpretation,unveilingthetown's cultural vibrancy, historical richness, and the delicate equilibrium between development and preservation.

AJOURNEYUNFINISHED-KualaKubuBharu

Initially, Kuala Kubu Bharu boasted breathtaking scenery, earning its name from the convergence of two rivers, creating a picturesque landscape. The town, originally named Kuala Kubu, flourished amidst its natural beauty, attracting settlers and visitorsalike.

However, tragedy struck in 1883 when the Selangor River dam ruptured,unleashingacatastrophic flood that engulfed the town. The devastation was repeated in 1926 when the dam broke again, burying homes and businesses beneathlayersofmudanddebris.

In the aftermath of the floods, the British authorities made the bold decision to relocate the town to higher ground, initiating the rebuilding process. Thus, Kuala Kubu Bharu, meaning "New Kuala Kubu," emerged from the ruins, symbolizingresilienceandrenewal.

Despite the town's rebirth, the preservation of its old heritage posed challenges to its development. Fears of losing precious historical landmarks hindered progress, leading to a struggle between preserving the past and embracing the future. This ongoing battle remains a limitation in the town's journey toward continued development, marking it as an unfinished story awaitingresolution.

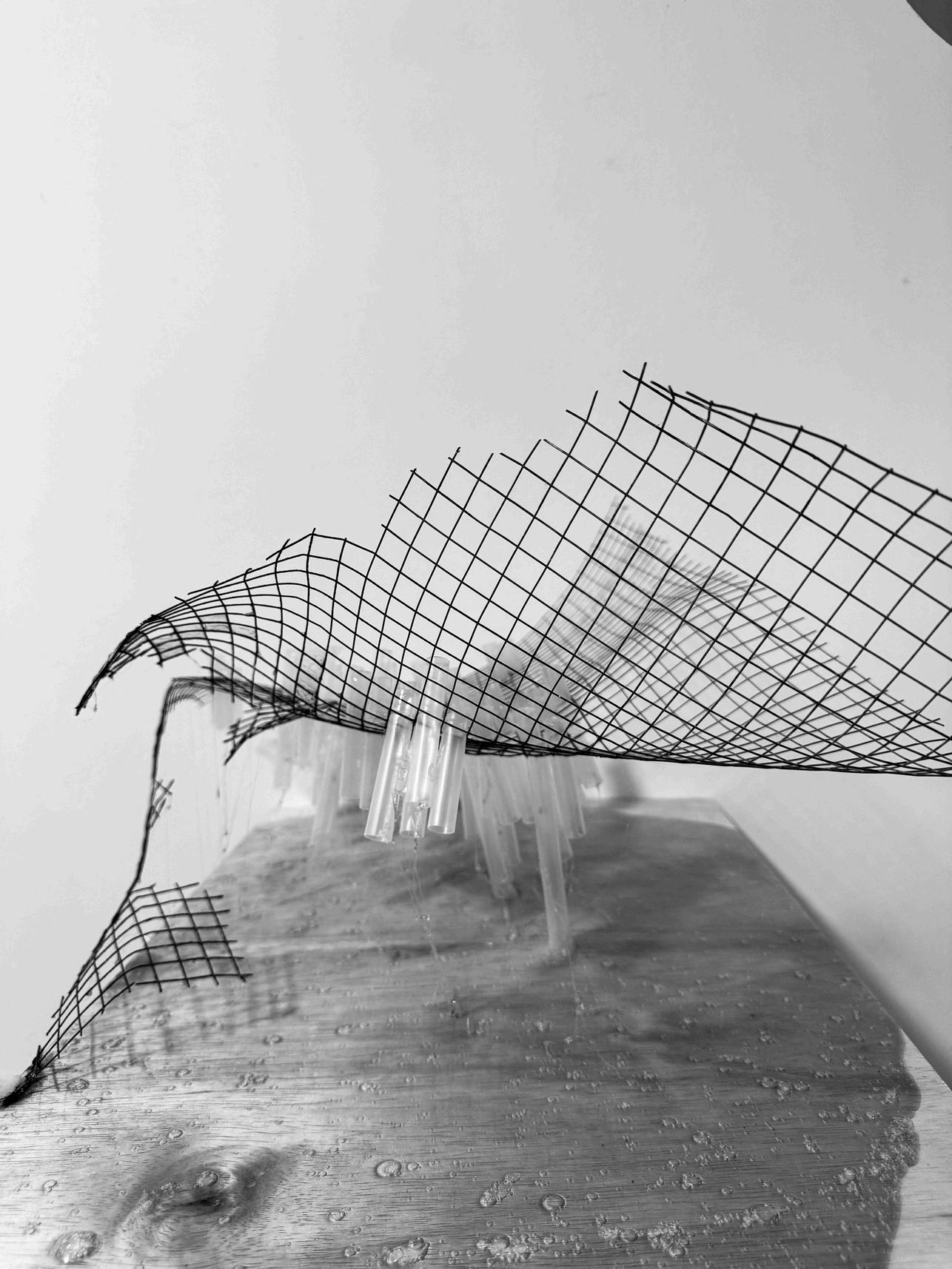

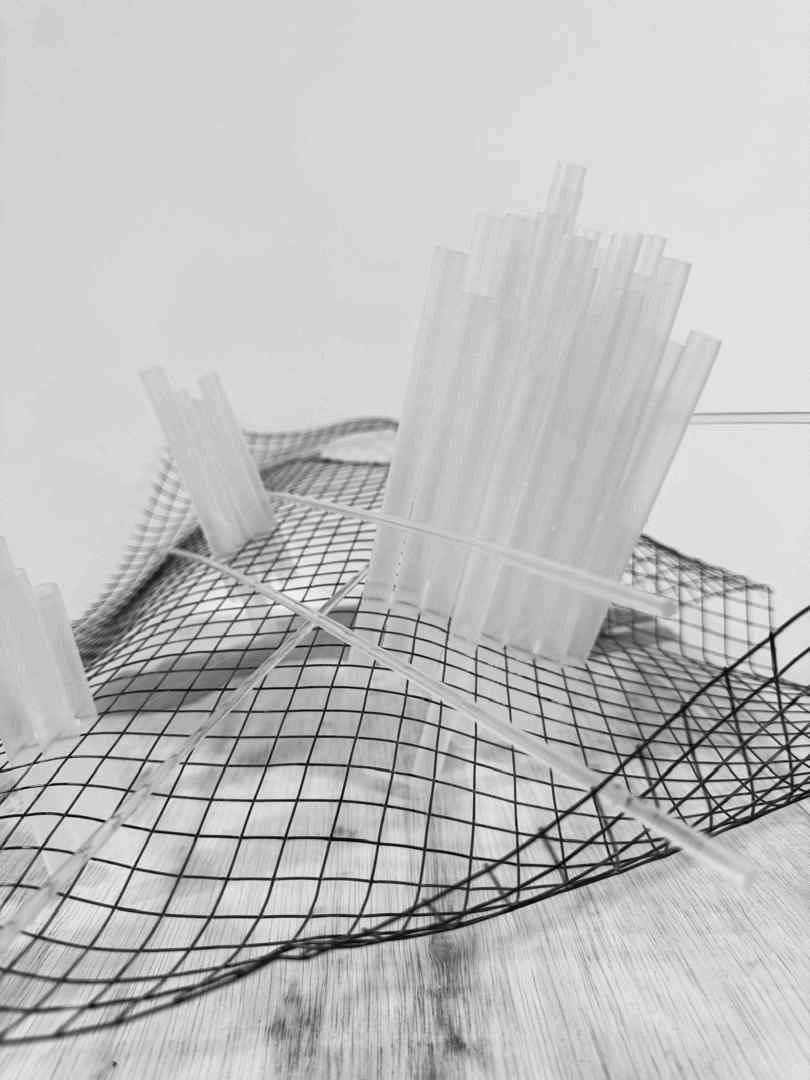

WireMesh-representmountains

BlueSlime-representwater

PlasticStraw-representbuildingstandsinKualaKubuBharu

ClearStick-representstrugglingfacedbythelocal

IntheheartofMalaysia,nestledamidstlushlandscapesandhistoriclandmarks,liesthetownofKualaKubuBharu.Witharichtapestryofculturalheritage,the townhasabackgroundstorywovenwiththeaspirationsofacommunityeagertoforgeahead,yetboundbythelimitationsoftheirownperception.

Chapter1:ATapestryofTradition

Centuries ago, Kuala Kubu Bharu emerged as a cultural hub, drawing influences from diverse communities that settled along its riverbanks. The town's architectural heritage, characterized by colonial-era buildings and traditional structures, stands testament to a vibrant past. However, as time unfolded, the communityfoundthemselvesensconcedwithinthecomfortoffamiliarcustomsandwaysofthinking.

Chapter2:AspirationsAnew

In the modern era, a spirit of progress and development began to stir within the community. The residents of Kuala Kubu Bharu envisioned a town that seamlessly blended historical charm with contemporary advancements. They yearned for economic growth, improved infrastructure, and a dynamic urban landscapethatwouldattractbothlocalsandvisitors.

Chapter3:Self-ImposedBoundaries

However, the journey towards progress faced an unexpected impediment the minds of the residents themselves. Entrenched in the warmth of tradition, the communityfounditchallengingtoperceivenewideas,technologies,andunconventionalapproaches.Thewallsofself-imposedboundaries,constructedbyfearof theunknown,castshadowsovertheprospectofembracingchange.

Chapter4:ThoughtCloudsofLimitation

Abstract thought clouds lingered over Kuala Kubu Bharu, encapsulating the residents' apprehensions and limiting their vision. These ethereal forms, shaped by thecollectiveconsciousness,hoveredaboveurbanspacesandnaturealike.Withintheseclouds,whispersofuncertainty,fearoftheunfamiliar,andresistanceto innovationechoed,creatingacomplextapestryofmentalconstraints.

Chapter5:ChainsofHabit

Residents, though eager for progress, found themselves entwined in chains woven from the threads of habit and tradition. The weight of these metaphorical chainsrestrictedthecommunity'sabilitytoexplore,adapt,andperceivenewopportunities,leavingthetown'spotentialconstrainedbyareluctancetobreakfree fromfamiliarnorms.

Chapter6:TheStruggleWithin

Amidstthestruggleforprogress,adichotomyemerged.TheresidentsofKualaKubuBharuyearnedtostepintothefuture,yetthefamiliarcomfortofthepast proved to be a formidable force. The town found itself at a crossroads, torn between the desire for advancement and the challenges posed by the intricacies of theirowncollectivemindset.

Chapter7:SeekingHarmony

Asthenarrativeunfolds,acallforharmonyresonatesthroughthecommunity.Residentsgrapplewiththeneedtopreservetheirculturalrootswhileembracing the evolving landscape of progress. In this struggle, the town of Kuala Kubu Bharu seeks a delicate balance a harmony that harmonizes urban development withthepreservationofculturalheritage.

Epilogue:AJourneyUnfinished

Kuala Kubu Bharu's story continues, echoing the aspirations of a community navigating the complexities of progress and tradition. The abstract thought clouds andchains,symbolicofself-imposedlimitations,serveasremindersoftheongoingstruggle.Thetownyearnstounravelitspotential,evolvingintoaharmonious blendofthepastandthefuture,wheretheconstraintsofthemindyieldtothelimitlesspossibilitiesthatlieahead.

SuburbanAnalysis&BuildingStrategies

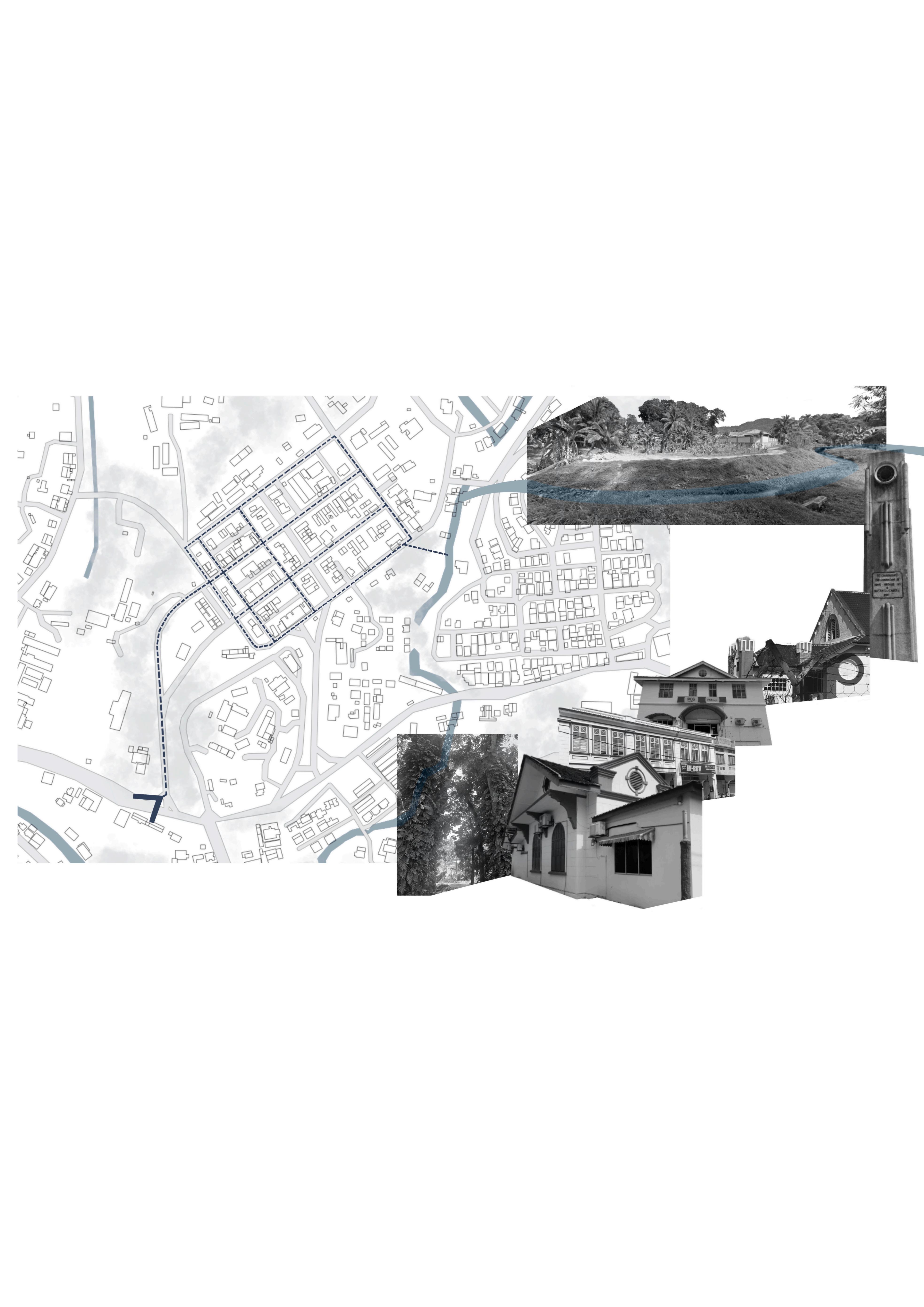

BACKGROUND-KUALAKUBUBHARU

Kuala Kubu Bharu, nestled in Malaysia's scenic landscapes, tells a tale of cultural richness and historical architecture. Having flourished as a cultural center for centuries, the town now harmonizes colonial-era buildings with a lively community. However, modern aspirations for progress encountered obstacles, with mental boundaries hindering openness to new ideas. Challenges included abstract clouds of uncertainty and traditional chains limiting potential. Amidst this struggle, a town tornbetweenprogressanditscollectivemindsetemerged.KualaKubuBharuseeksa balance, preserving its heritage while embracing progress an ongoing journey towardsaharmoniousfusionofpastandfuturepossibilities.

ISSUE

LackofPublicGatheringPlace

The lack of dedicated public gathering spaces limits opportunities for community members, including teenagers, to interact and socialize. Without central meeting points, residents may miss out on chances to connect, share experiences, and build a stronger sense of community.

LackofTeenager’sParticipation

Teenagers often seek spaces where they can express themselves,socialize,andactivelyparticipateincommunity life. The lack of dedicated public gathering spaces in Kuala Kubu Bharu may lead to a disengagement of teenagers from community activities, hindering their integration into thebroadersocialfabric.

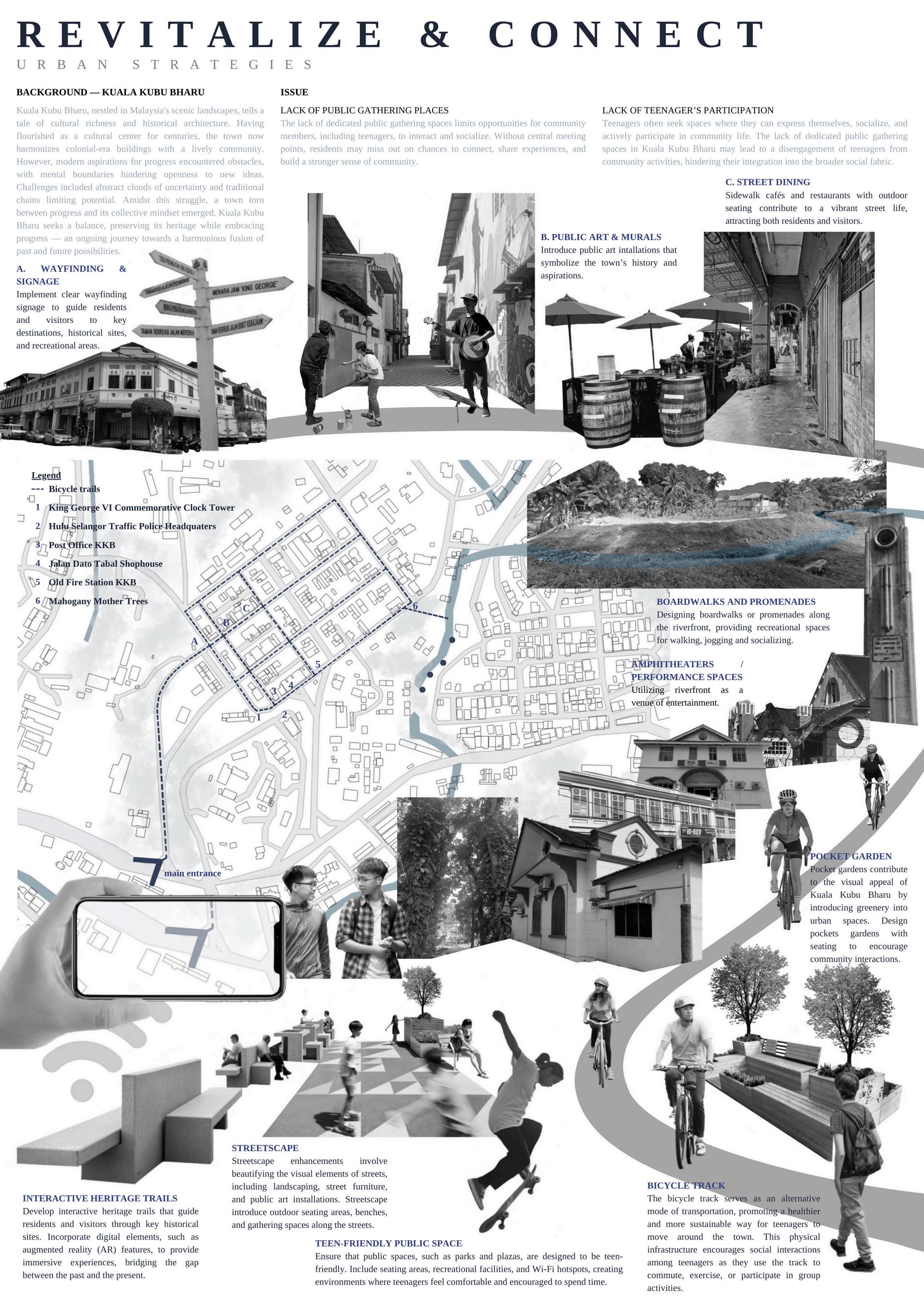

REVITALIZE&CONNECT

Like many historic towns, Kuala Kubu Bharu faces the dual challenge of preserving its rich heritage while adapting to the demands of modernity. In response to these challenges, a series of innovative strategies are proposedtorevitalizeandconnectKualaKubuBharu.Byblendingpastandfuture,andfosteringcommunity engagement,thesestrategiesseektousherKualaKubuBharuintoaneweraofvitalityandvibrancy.

Bicycletrails

1 KingGeorgeVICommemorativeClockTower

2 HuluSelangorTrafficPoliceHeadquaters

3 PostOfficeKKB

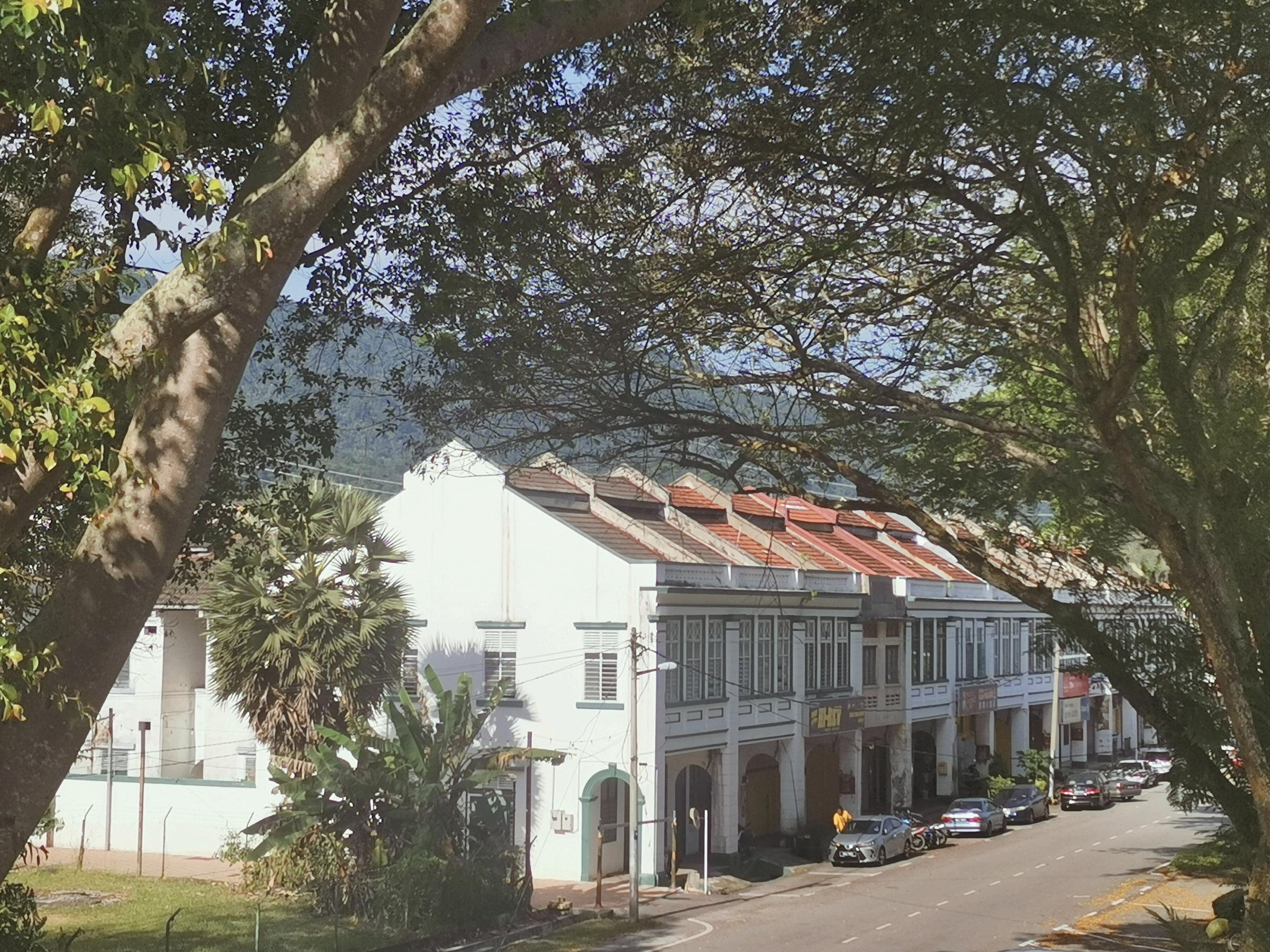

4 JalanDatoTabalShophouse

5 OldFireStationKKB

6 MahoganyMotherTrees

A.Wayfinding&Signage

Implement clear wayfinding signage to guide residents and visitors to key destinations, historical sites, and recreational areas.

B.PublicArt&Murals

Introduce public art intallations that symbolize the town’s history andaspirations.

C.StreetDining

Sidewalk cafés and restaurants withoutdoorseatingcontributeto a vibrant street life, attracting bothresidentsandvisitors.

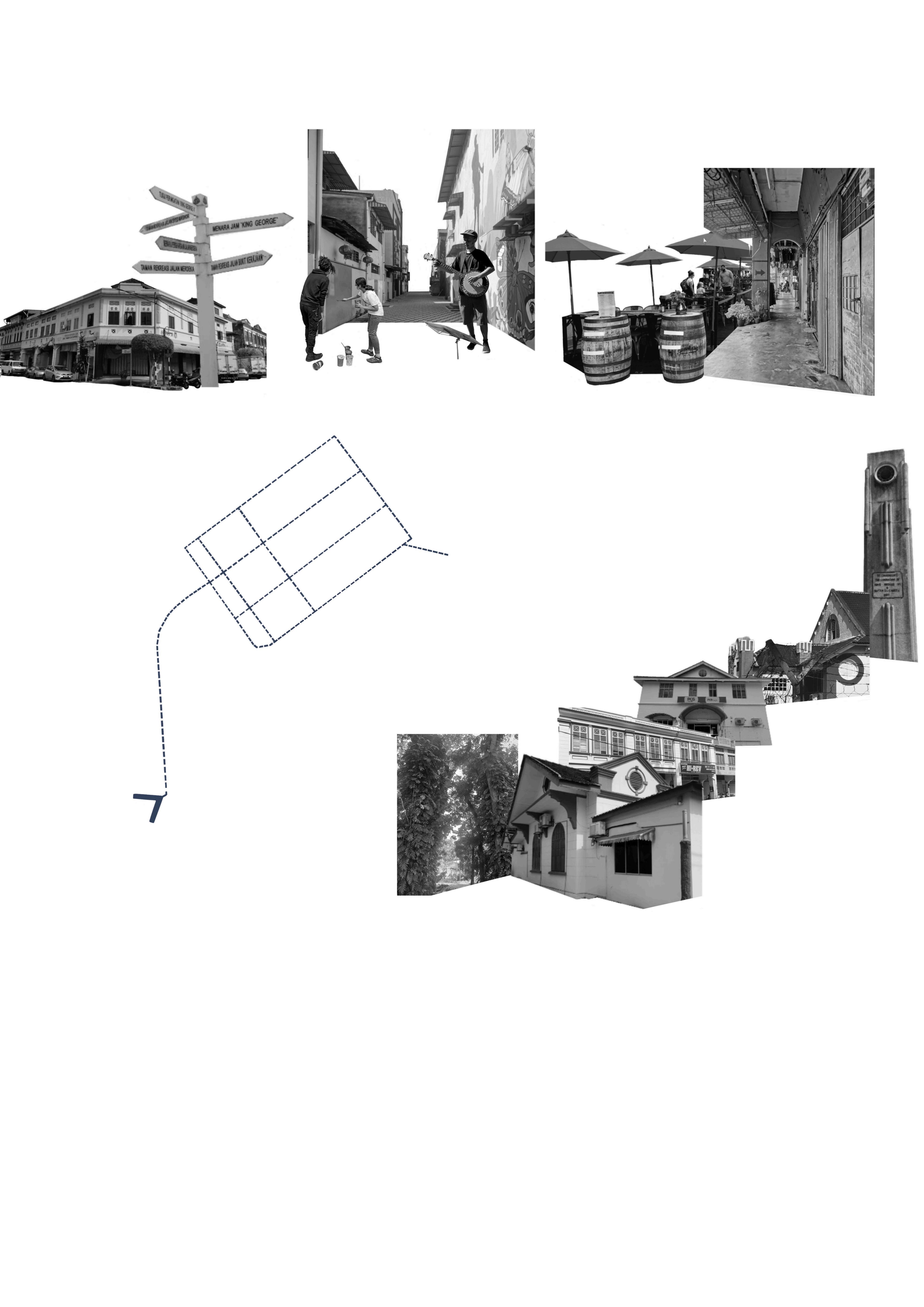

InteractiveHeritageTrails

Develop interactive heritage trails that guide residents and visitors through key historical sites. Incorporate digital elements, such as augmented reality (AR) features, to provide immersive experiences, bridging the gap betweenthepastandthepresent.

BicycleTrack

The bicycle track serves as an alternative mode of transportation, promoting a healthier and more sustainable way for teenagers to move around the town. This physical infrastructure encourages social interactions among teenagers as they use the track to commute, exercise, or participate in groupactivities.

Teen-FriendlyPublicSpace

Ensure that public spaces, such as parks and plazas, are designed to be teen-friendly. Include seating areas, recreational facilities, and Wi-Fi hotspots, creating environments where teenagers feel comfortable and encouragedtospendtime.

Streetscape

Streetscape enhancements involve beautifying the visual elements of streets, including landscaping, street furniture, and public art installations. Streetscape introduce outdoor seating areas, benches, and gathering spaces alongthestreets.

PocketGarden

Pocketgardenscontributetothevisualappeal of Kuala Kubu Bharu by introducing greenery into urban spaces. Design pockets gardens with seating area to encourage community interactions.

NEIGHBOUR

Mother Tree

EXISTING

GRID

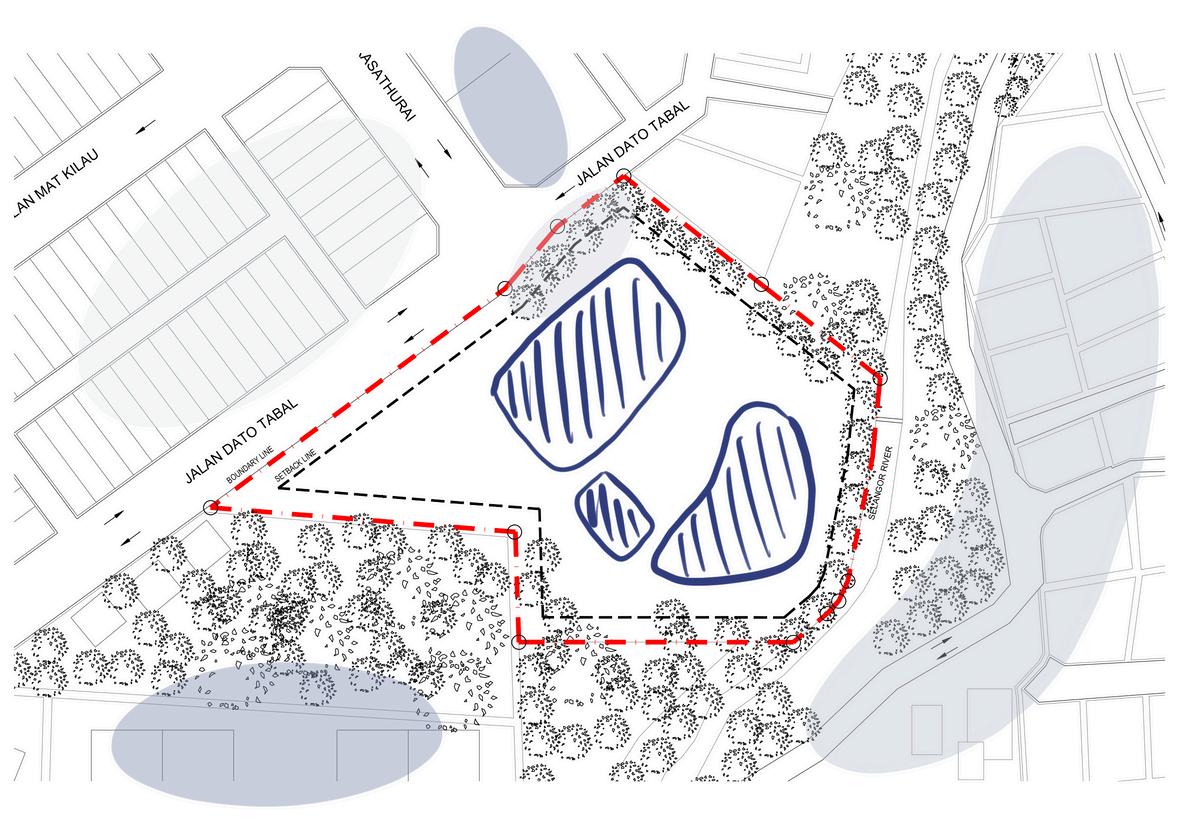

Making the frontage of the building facing to the commercial buildings, office buildings and residential buildings to “connect” the communitytothesite.

The existing site is planted with the tree preserved, which is Mahogany Mother Tree. To make the building merge into the trees on the site, the building is designed to be surrounded by Mahogany Mother Trees. Some of the trees located at the center of the site will be replanted to be surrounded the site and building.

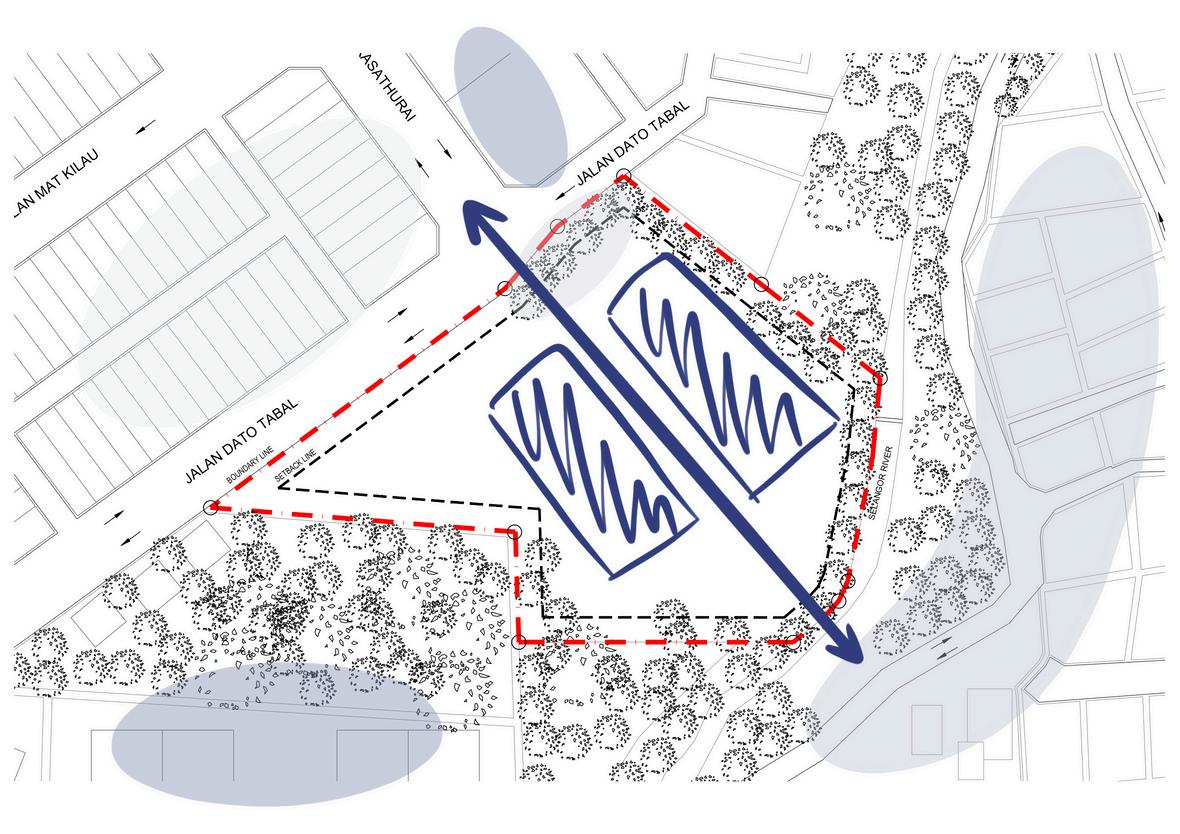

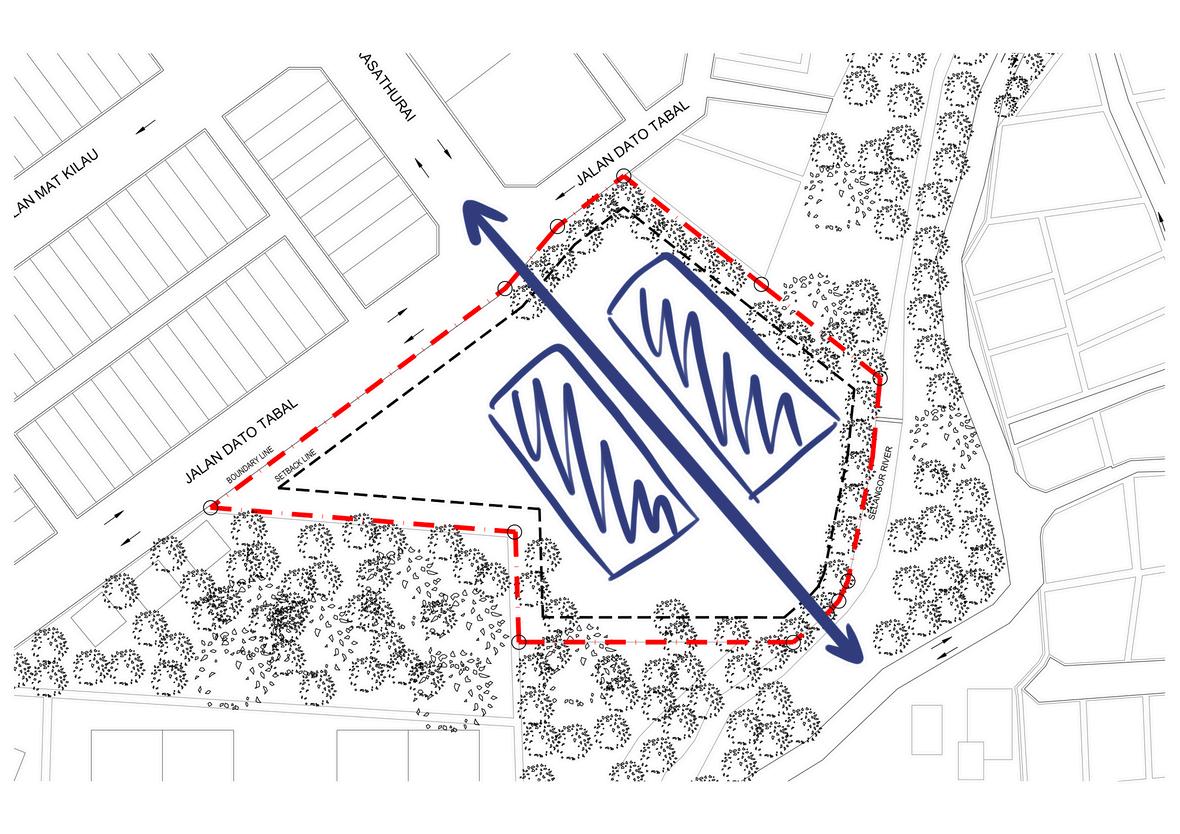

Using the main road as a grid, separating the programme building into 2 to accommodate different kind of activity purposes.

Planning the building ingress visible to the main road access sothatthevisitorsareawareof thepresenceofthebuildingand interesting activities happened onthesite.

slope

SLOPE VIEW

creatingsense ofheight

morning sun afternoon sun

riverfront events

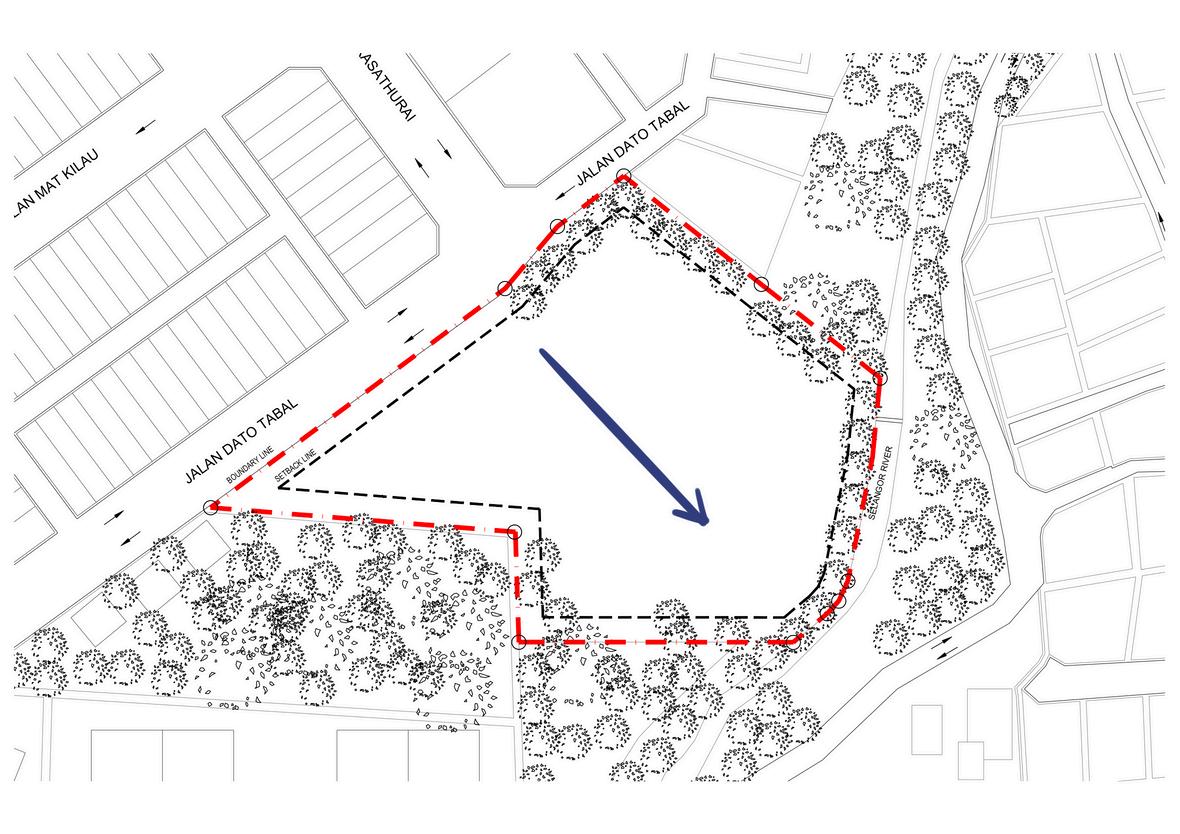

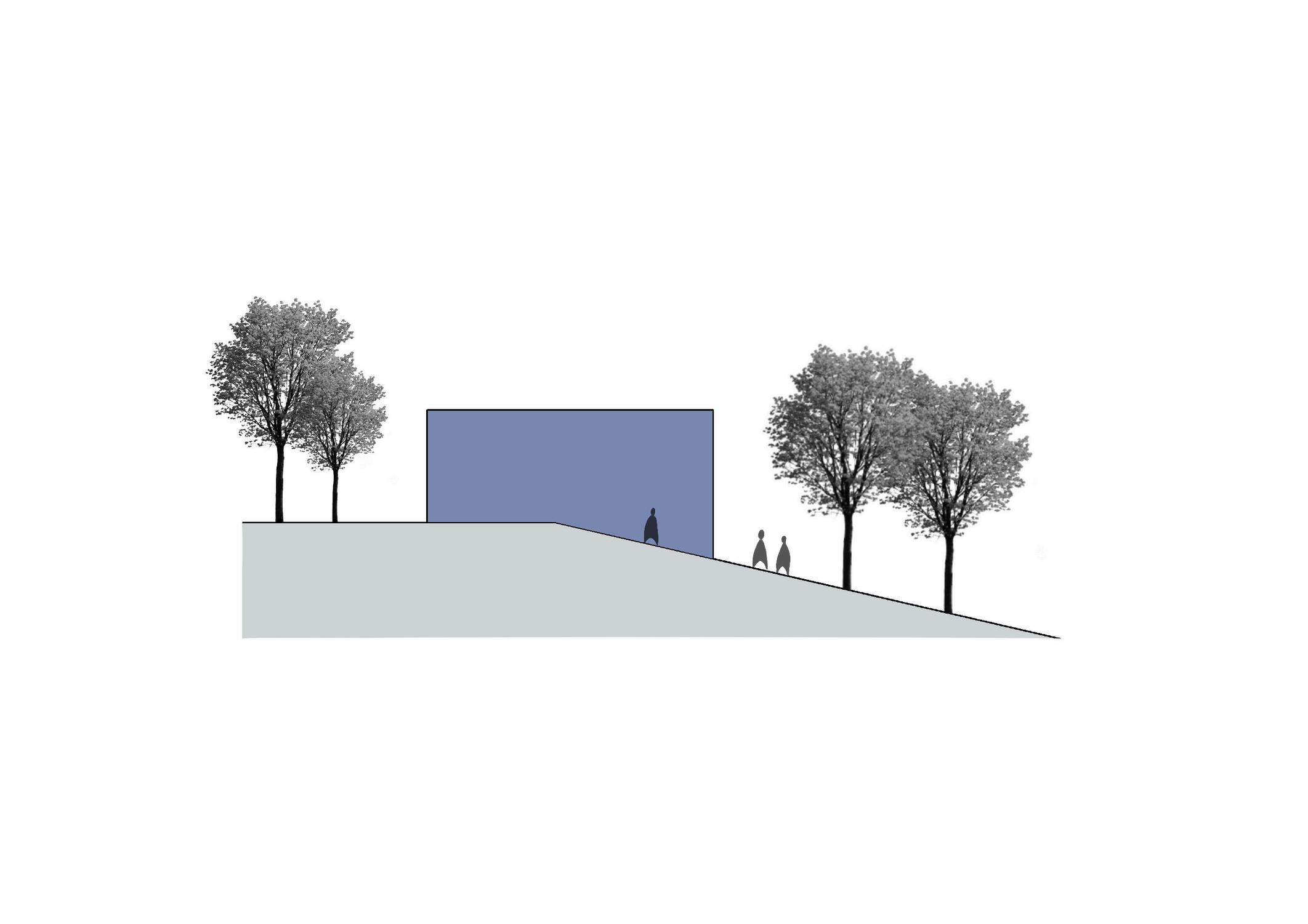

Sloping site giving an opportunity to creating the building on different level planes, making the building more interesting on its appearance.

Utilizing the sloping site with creating a sense of height view towards the river and the residential area. Enjoying and appreciatingtothewholeimage ofKualaKubuBharu.

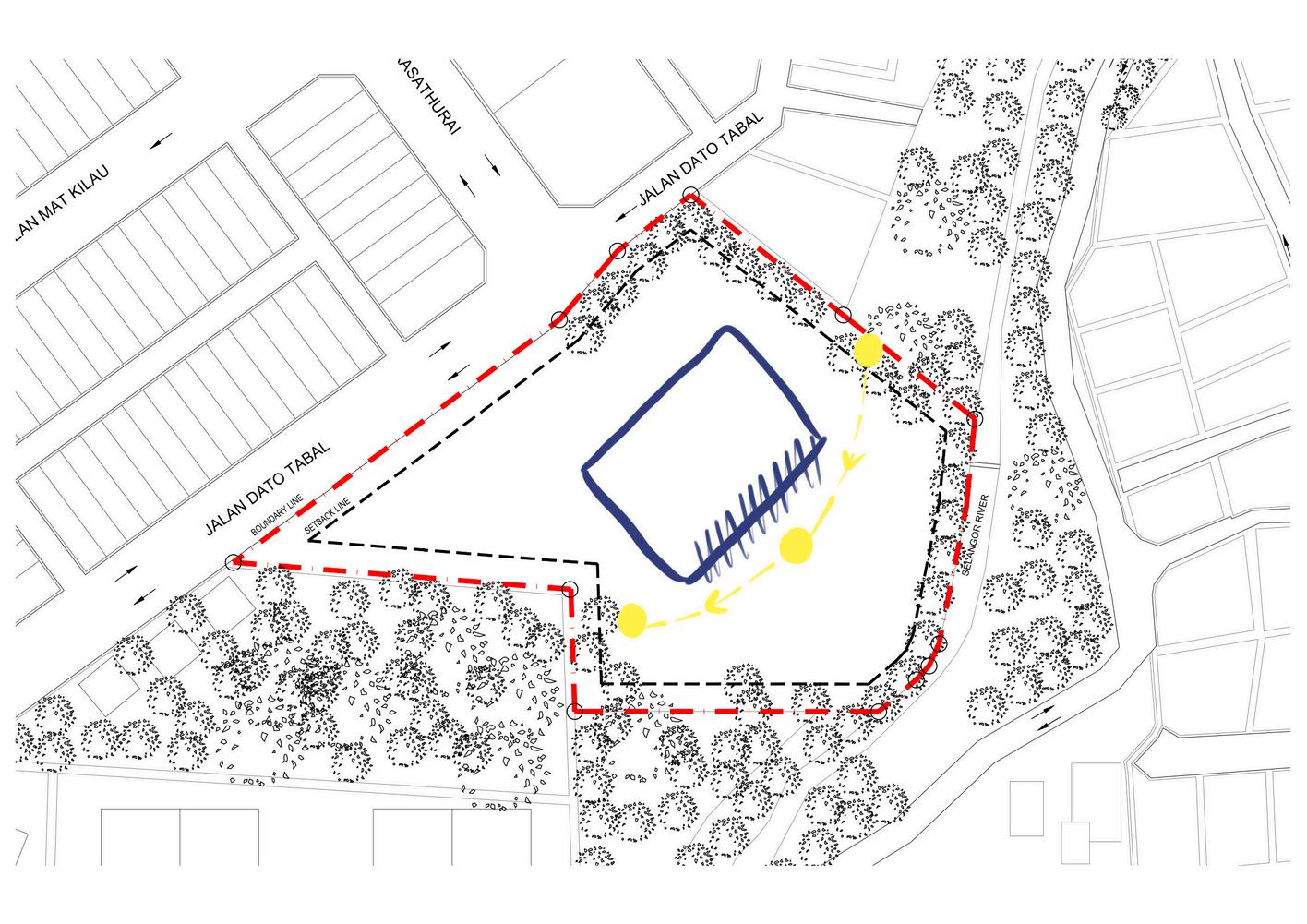

Shading device / strategies to shade the occupants from the hotafternoonsun.

Utilizing riverfront as a venue of entertainment, creating or proposing some interesting events or activities along the river.

BUILDINGSTRATEGY

PUBLIC PARTIC

accommodation cultural hub

parkinglot dropoff area

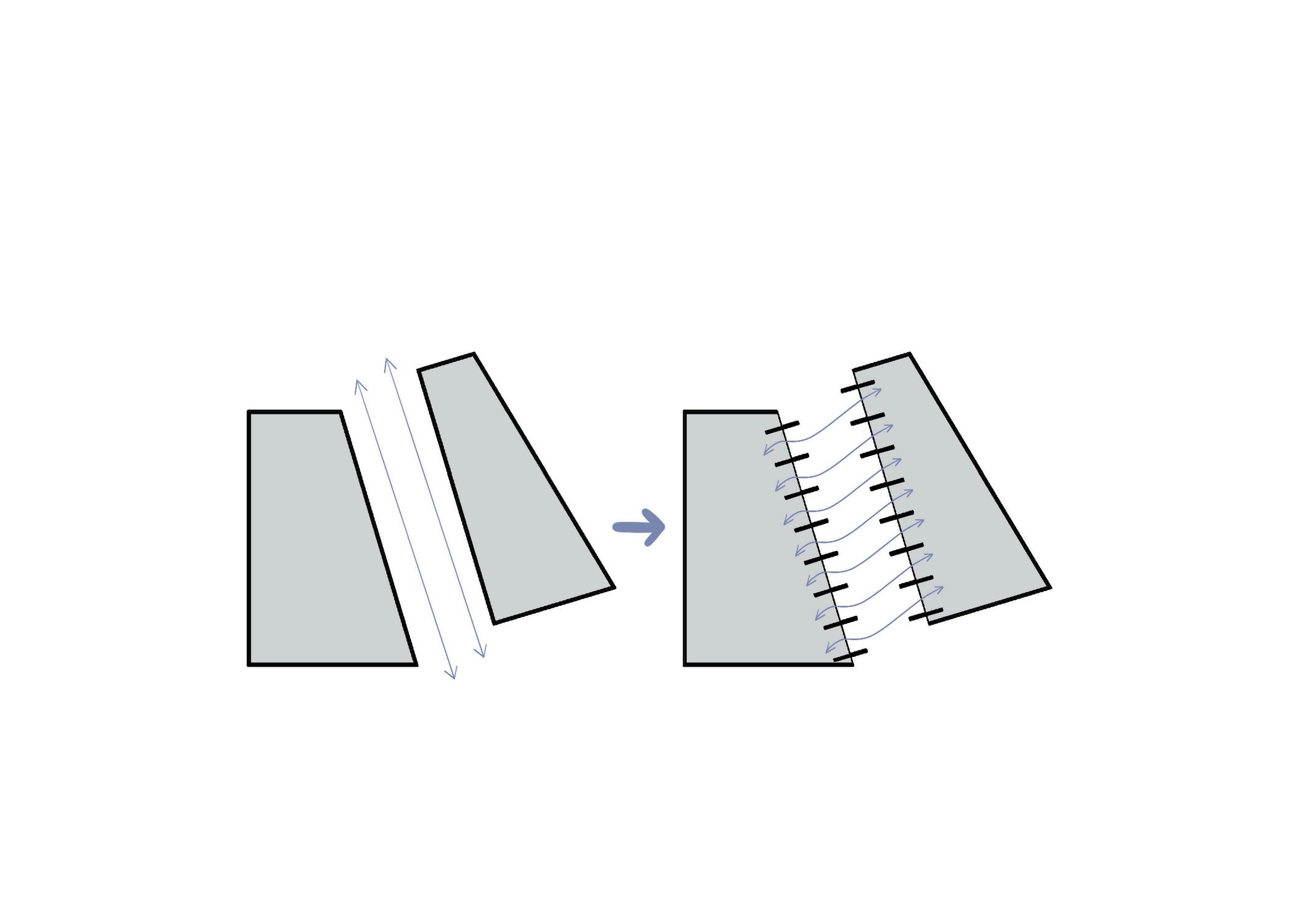

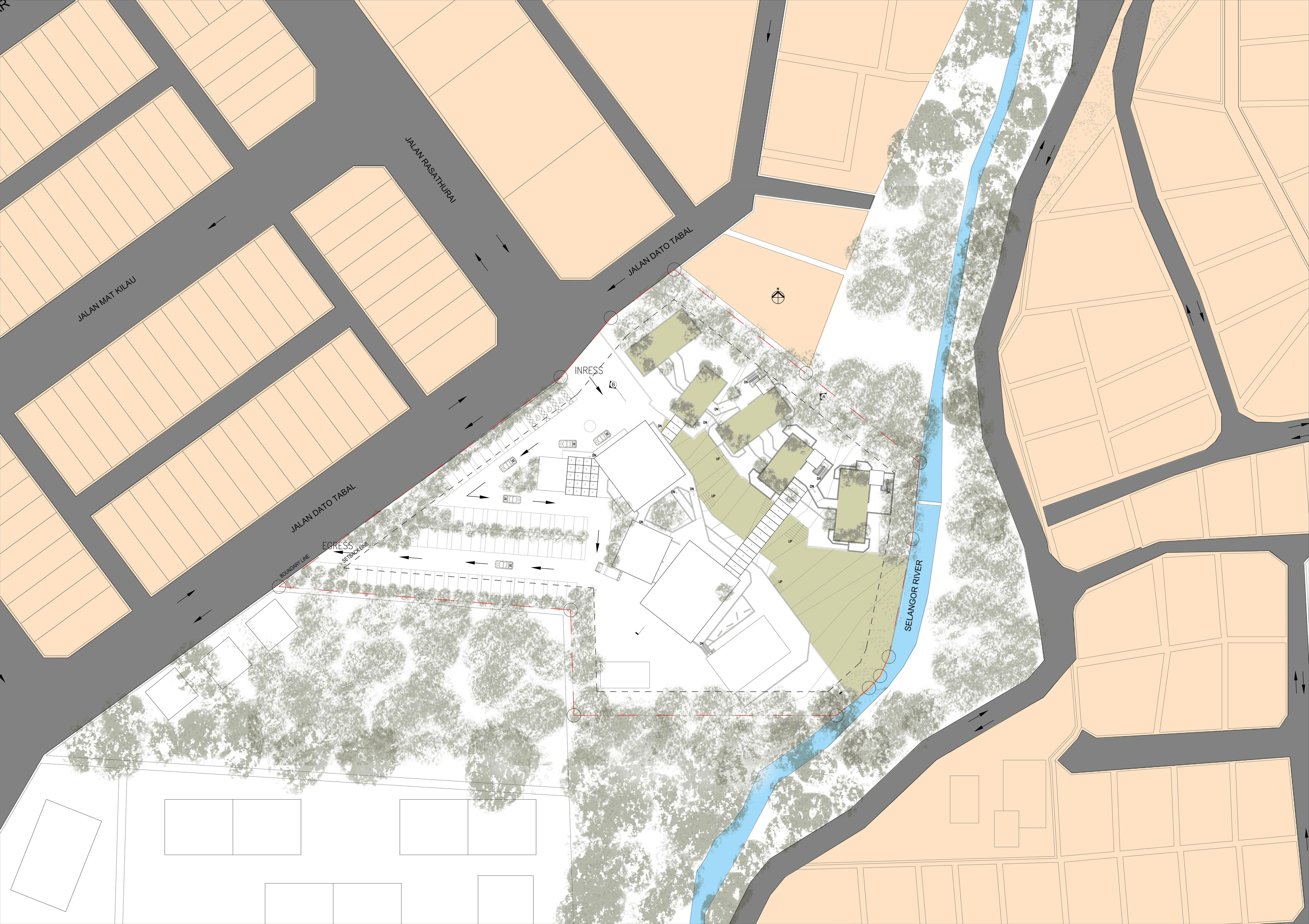

To connect the community from the opposite side to foster communityengagement.

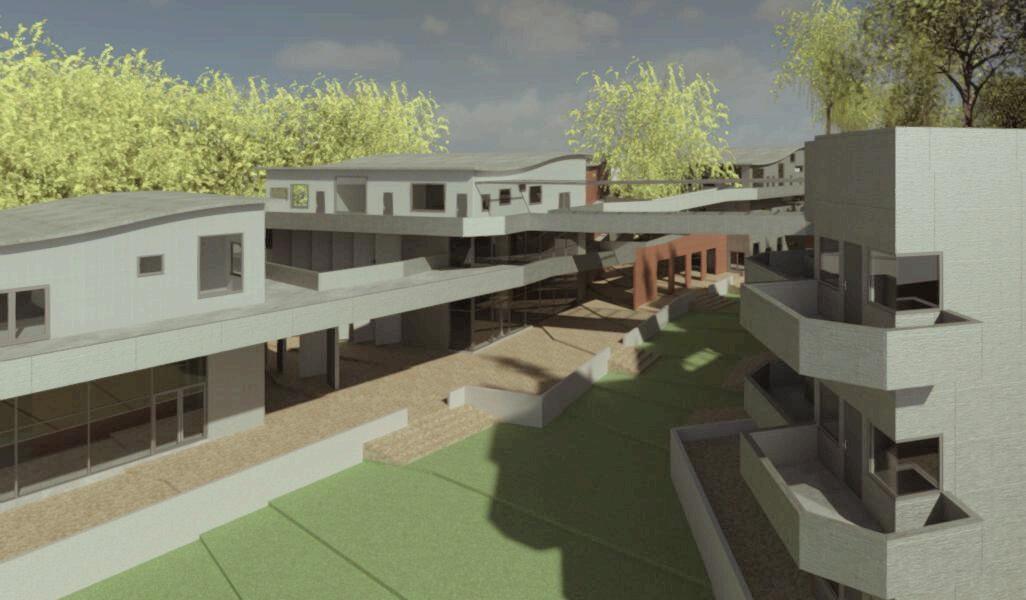

To gather the community on the site, a plaza is created located at the center of the site and building. Making the building is liven up by people and activities proposed on the site.

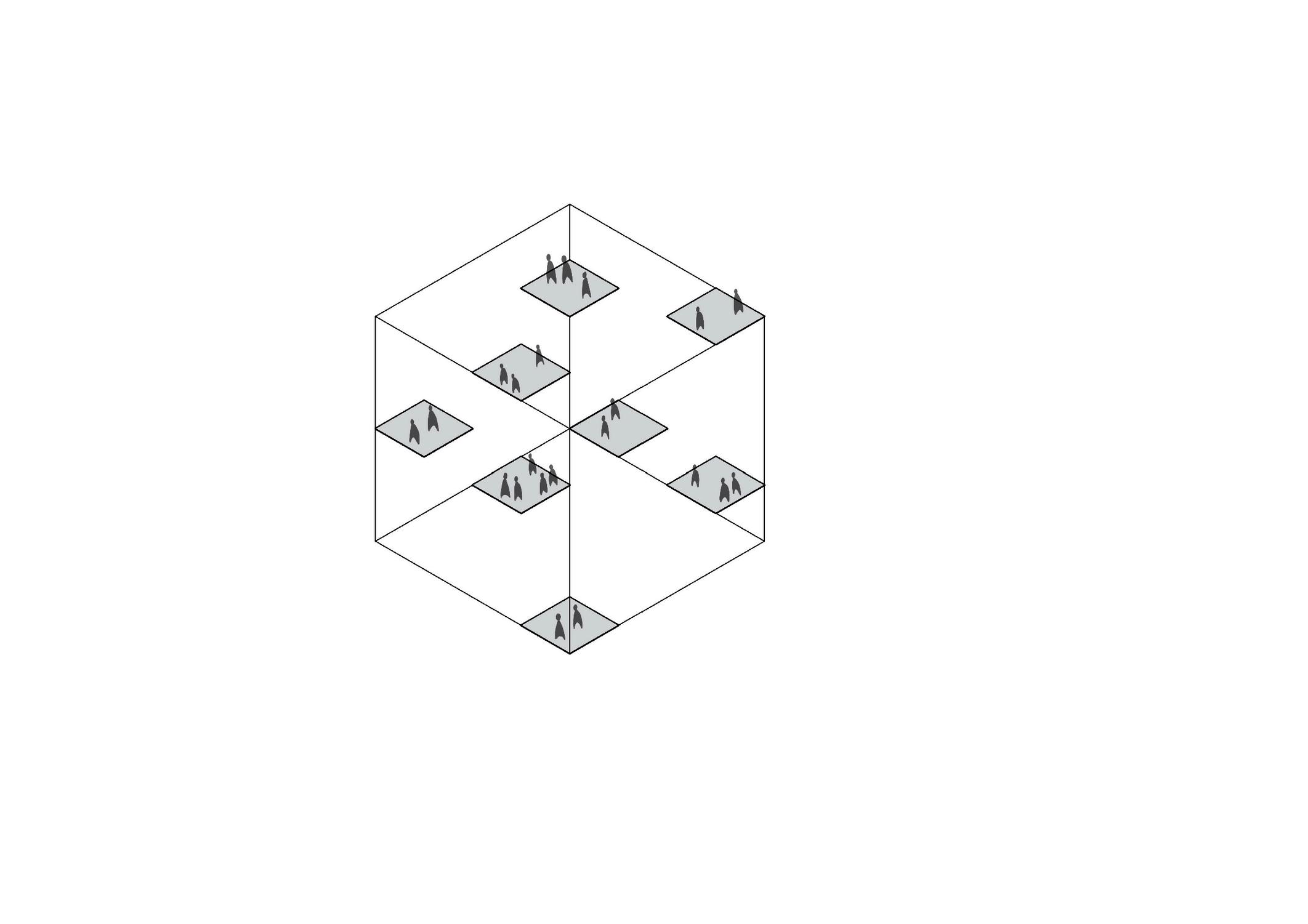

The building is seperated into modular to accommodate different kind of activity purposes. The separated modular are arranged scattered on the site by dividing them into 2 building typology which is cultural hub and accommodation.

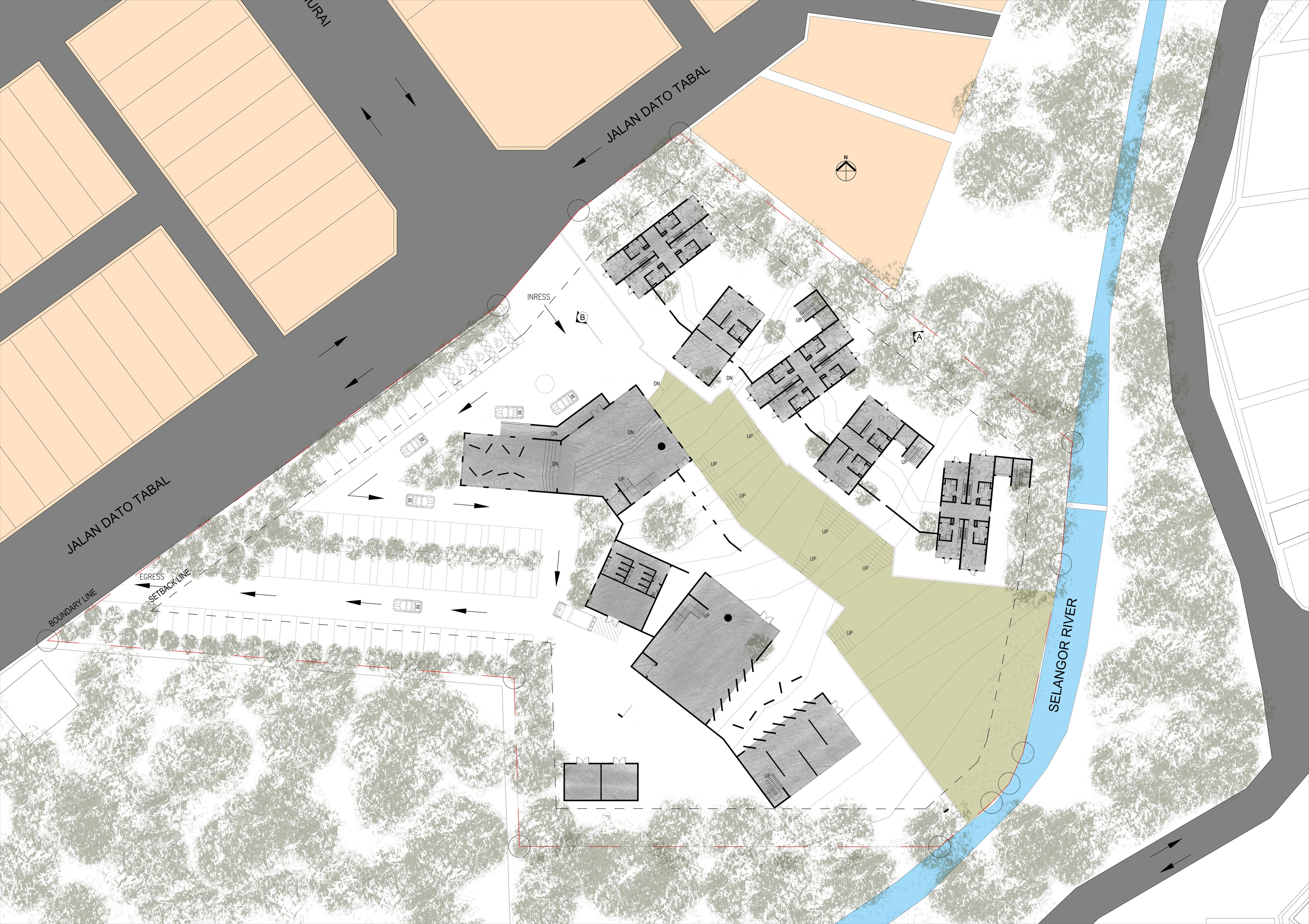

The vehicular circulation on site is planned by bringing the vehicles from the main road access, locating the drop off areainfrontofthebuildingand arrangingtheparkinglotsalong thewaytothebuildingegress.

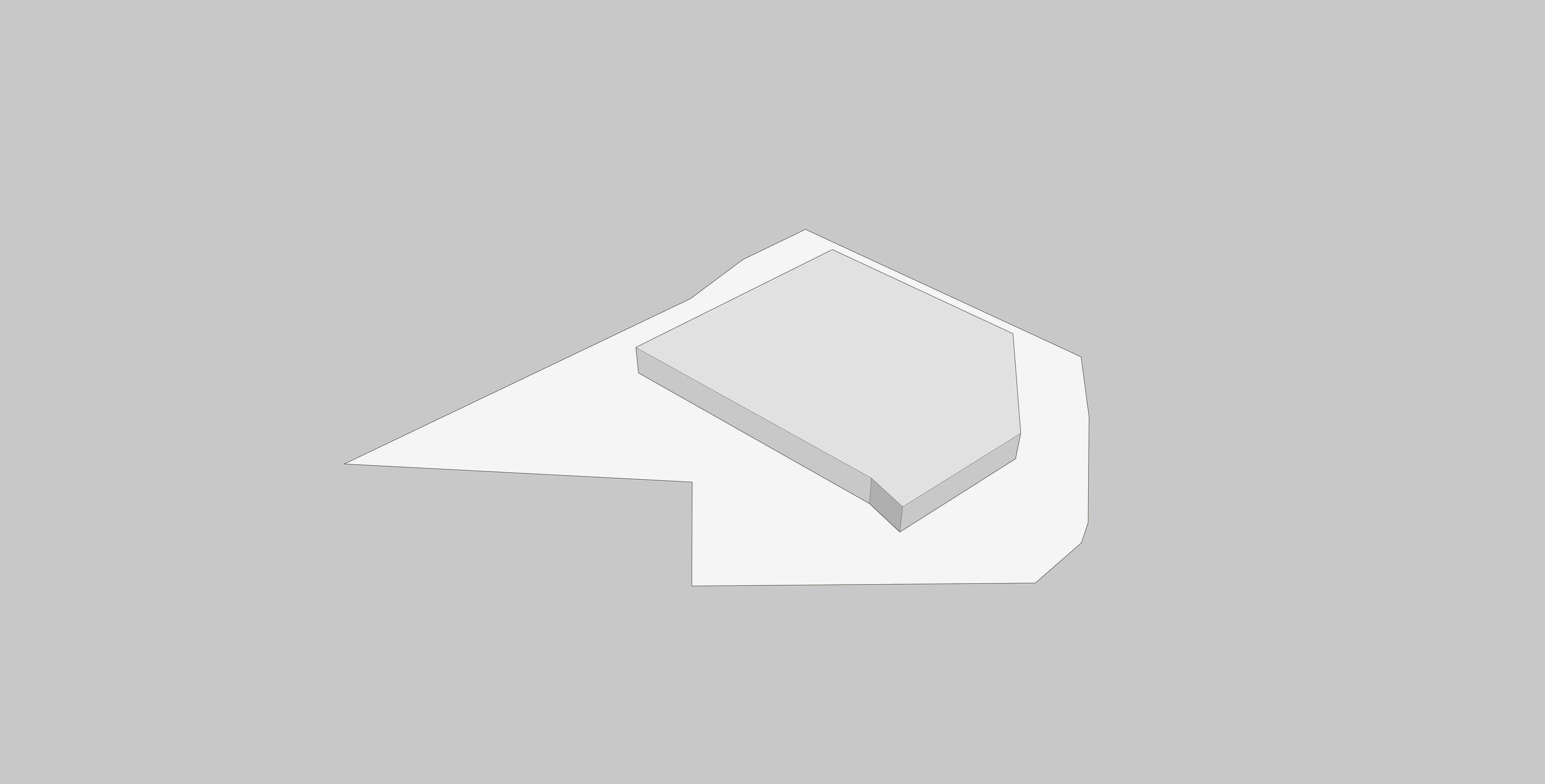

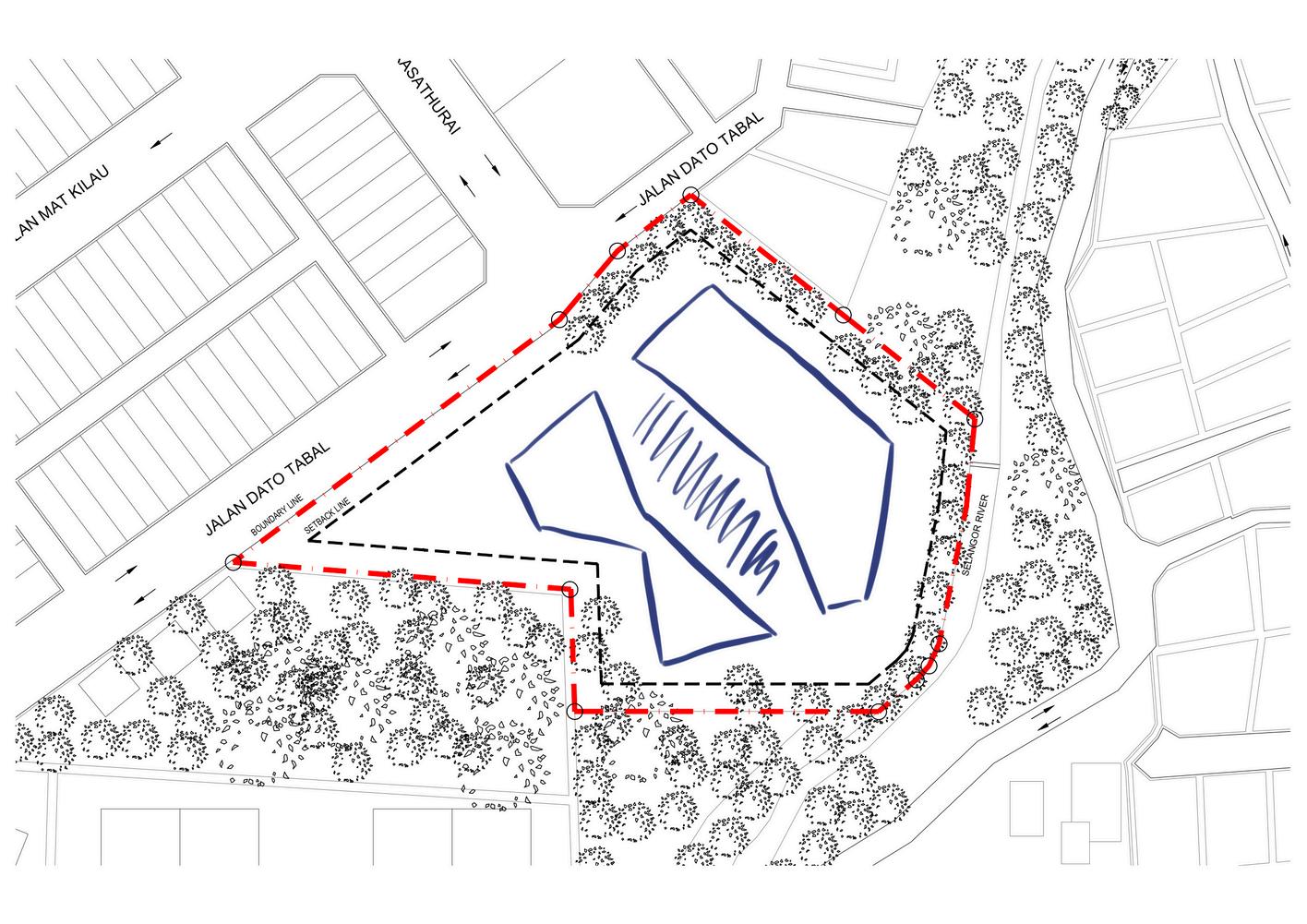

DESIGNDEVELOPMENT

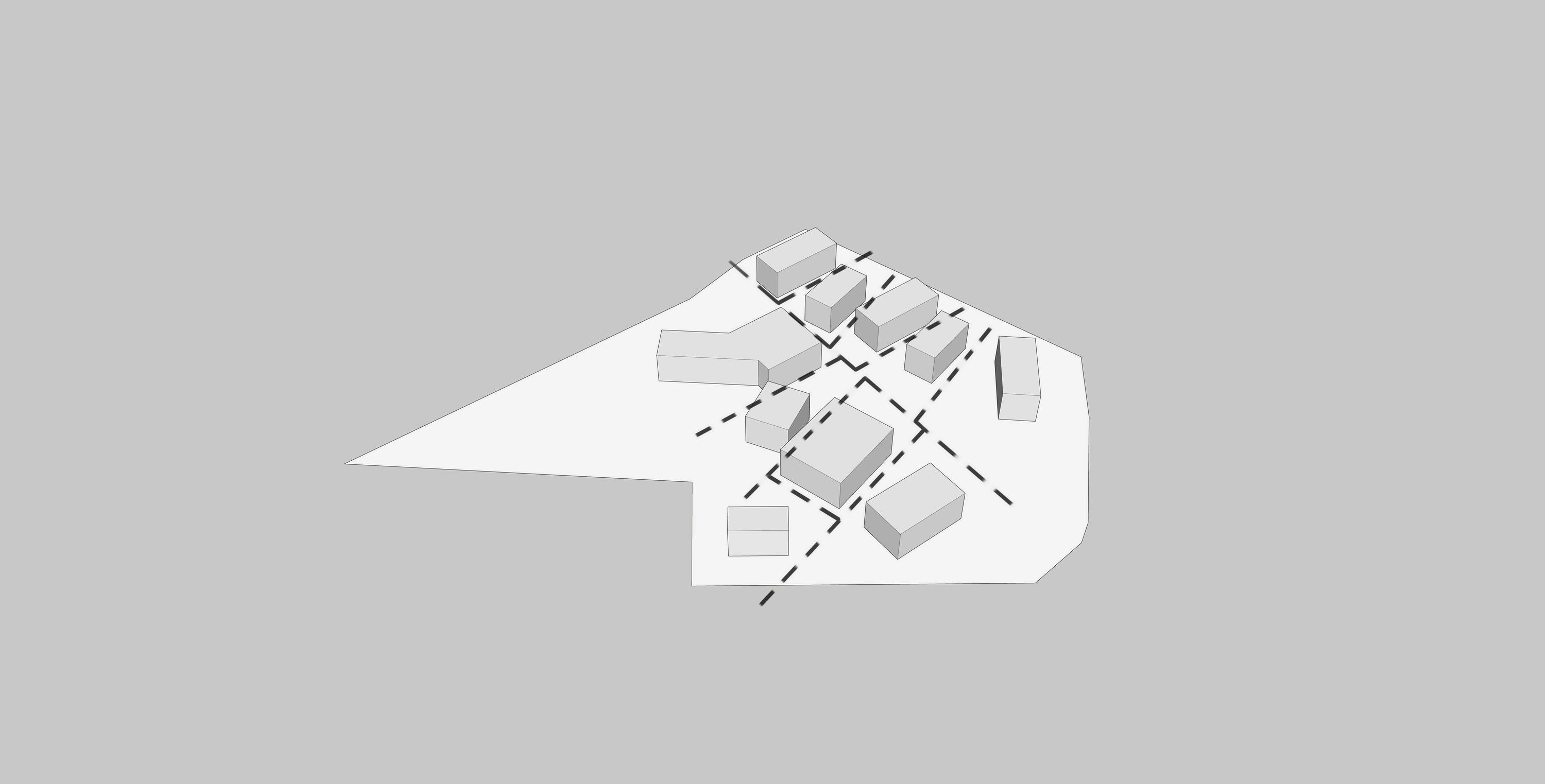

SPLIT

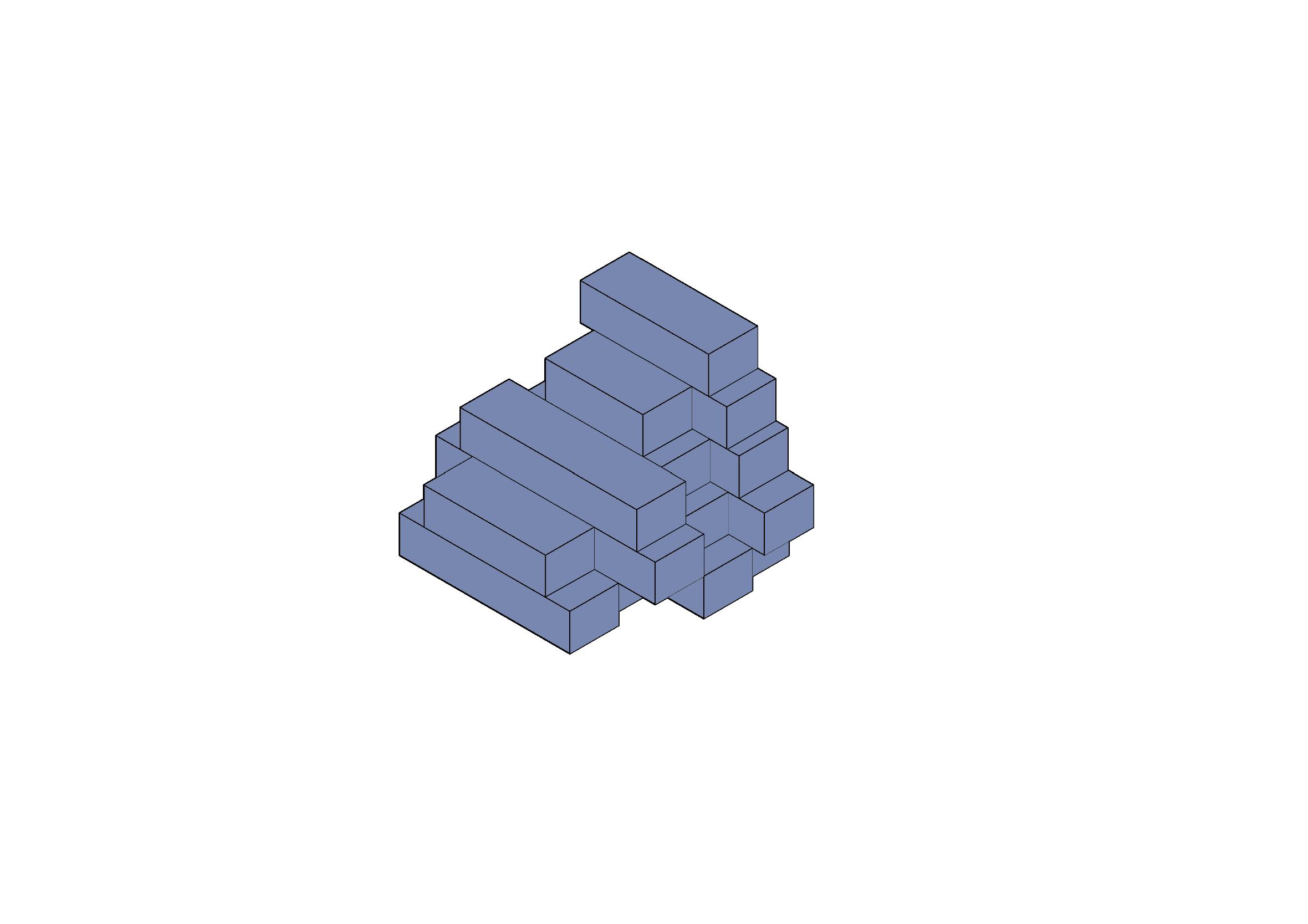

VOLUM E SEGREGA T E STEPS

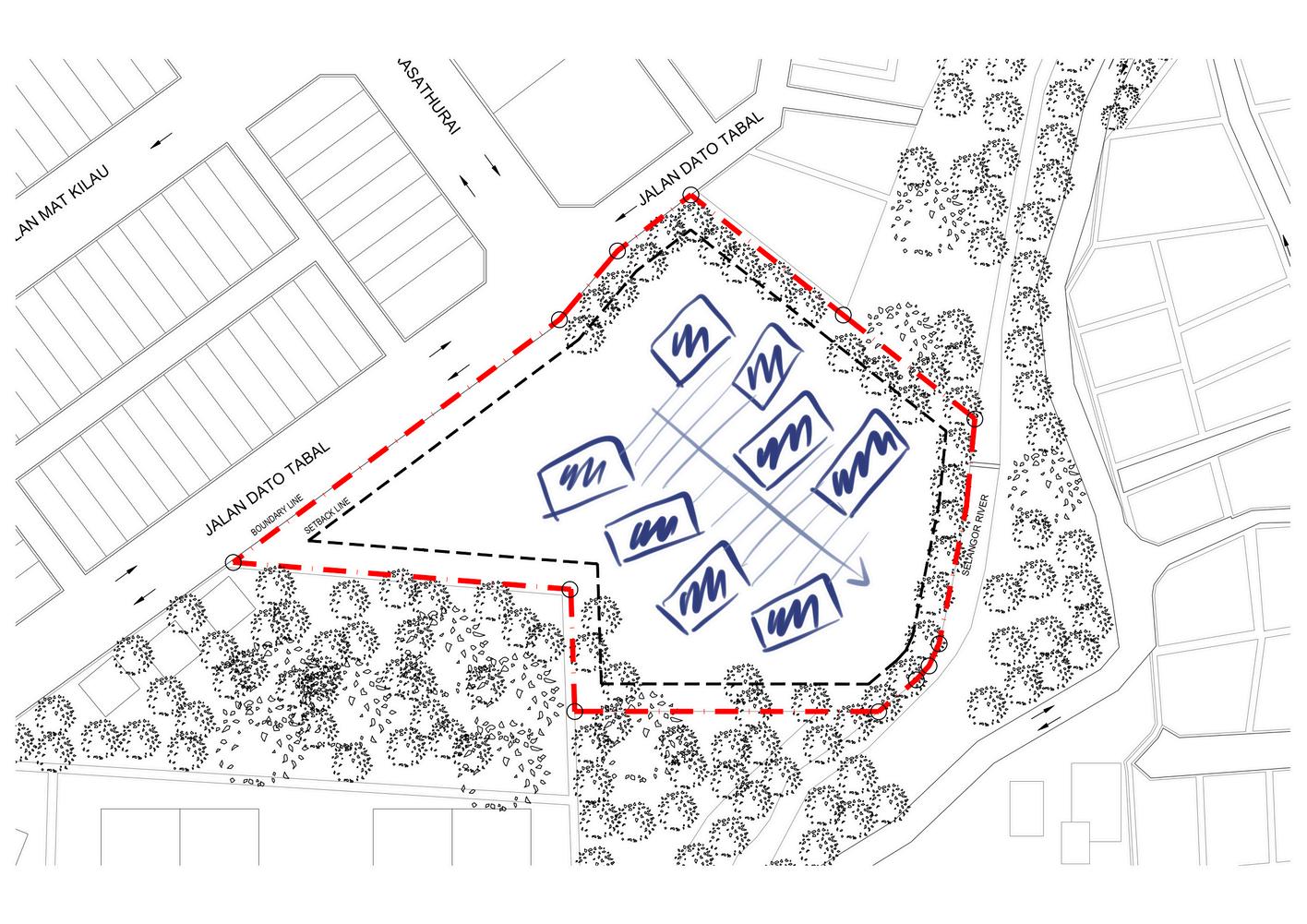

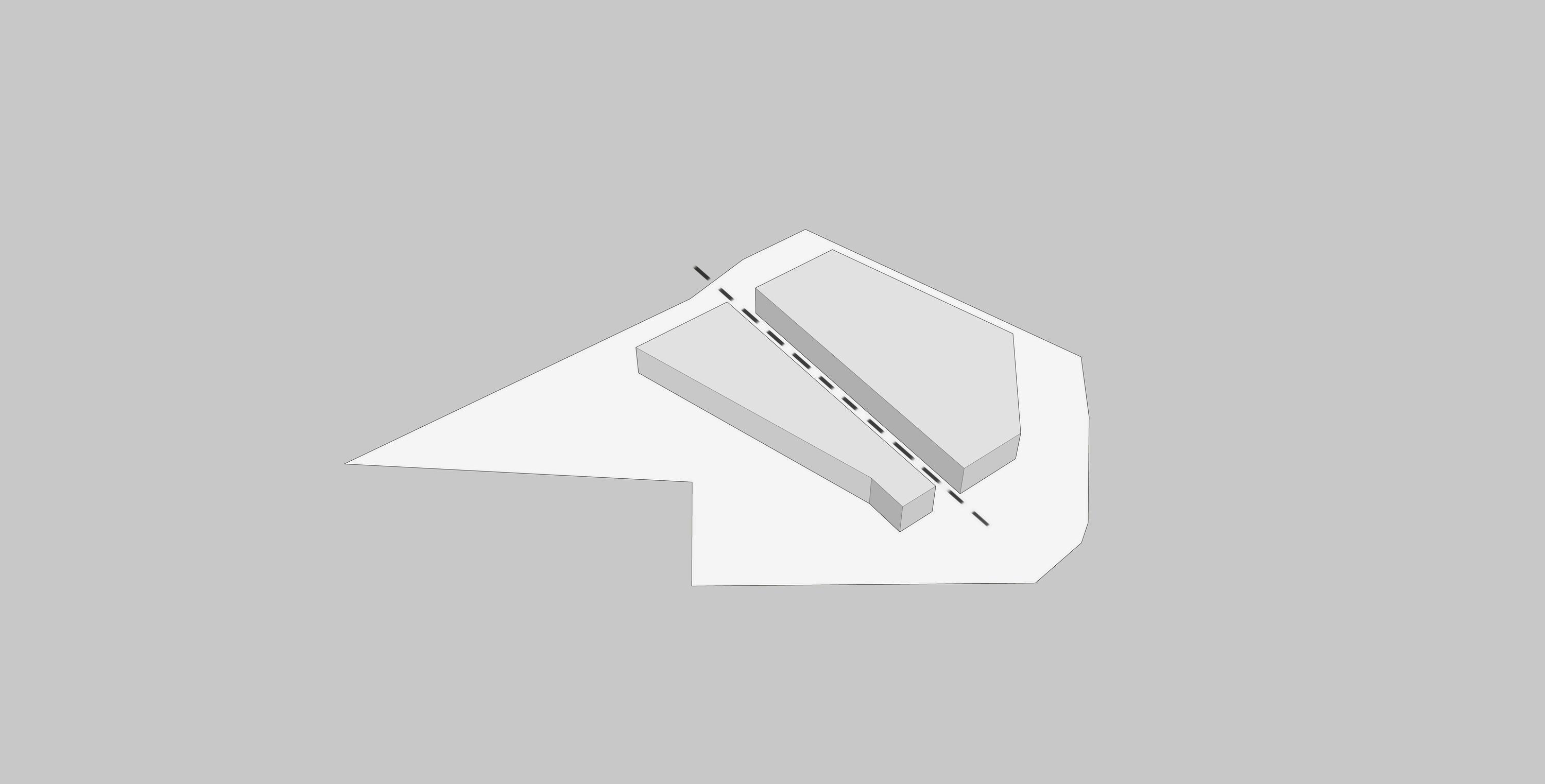

Creatingavolumeonthesite. Split the volume followed the grid of the main road to attract peopletothesite.

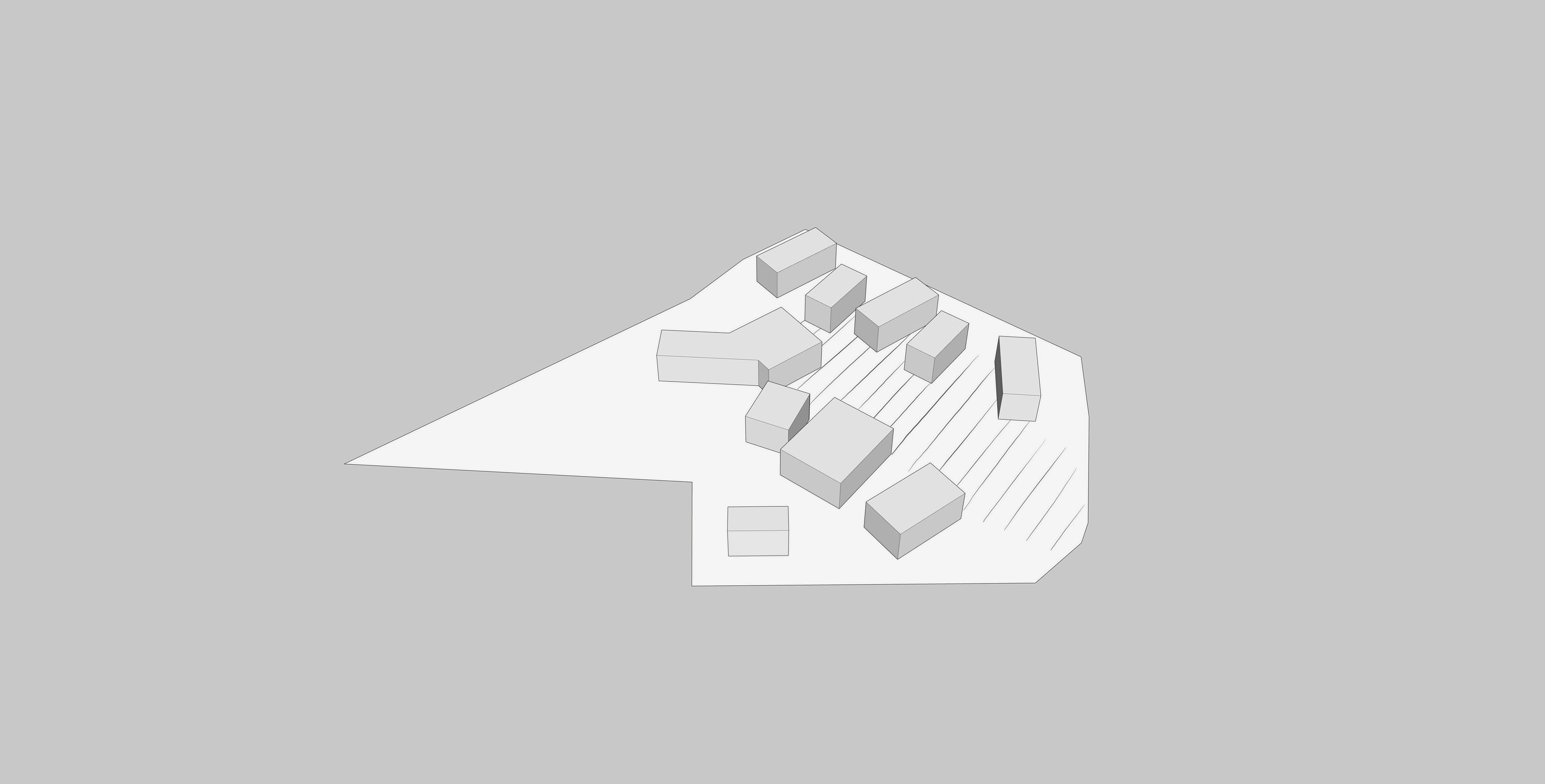

Segregate the volumes into blocks and arrange them to be scatteredonthesite.

Creatingstepswithintheblocks for circulation purpose and communityengagement.

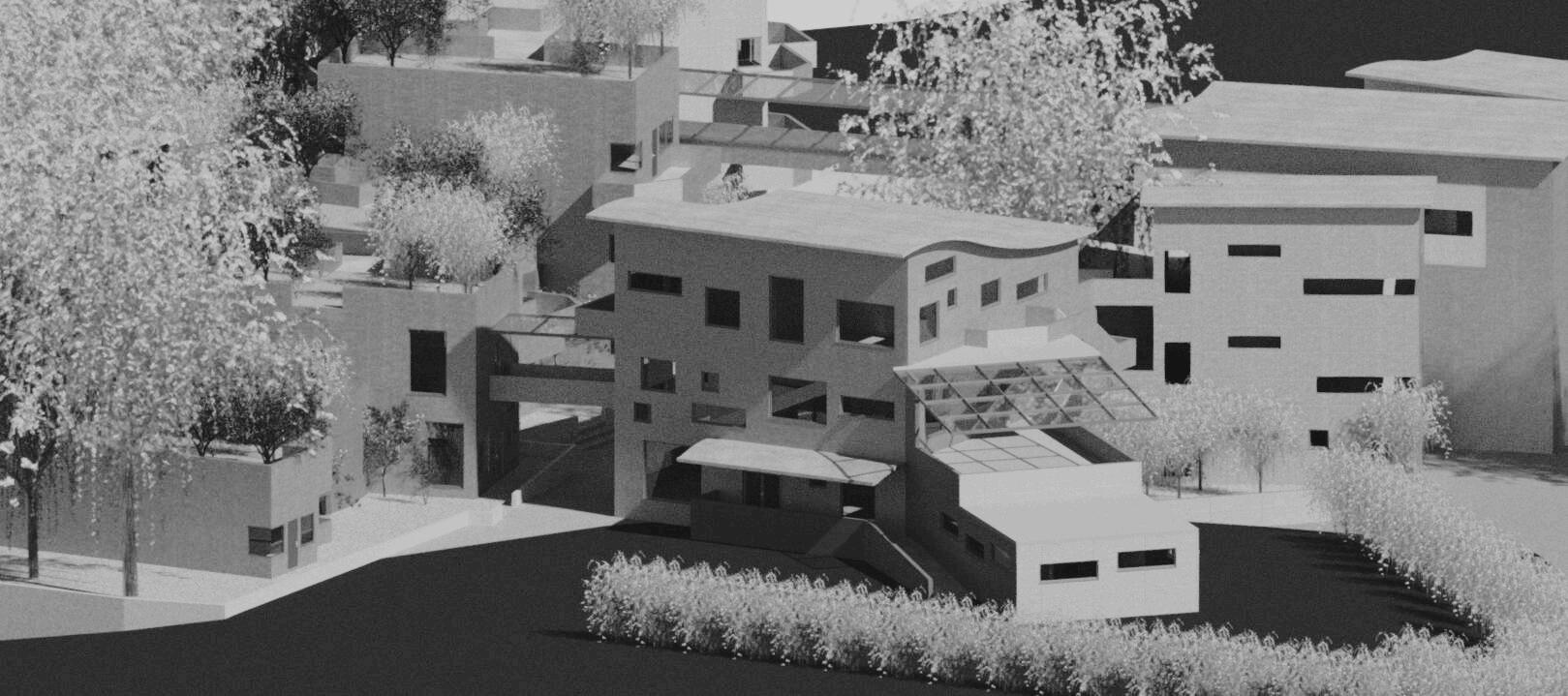

The OLD, the NEW nad the INTERLUDE with Sustainable Architecture

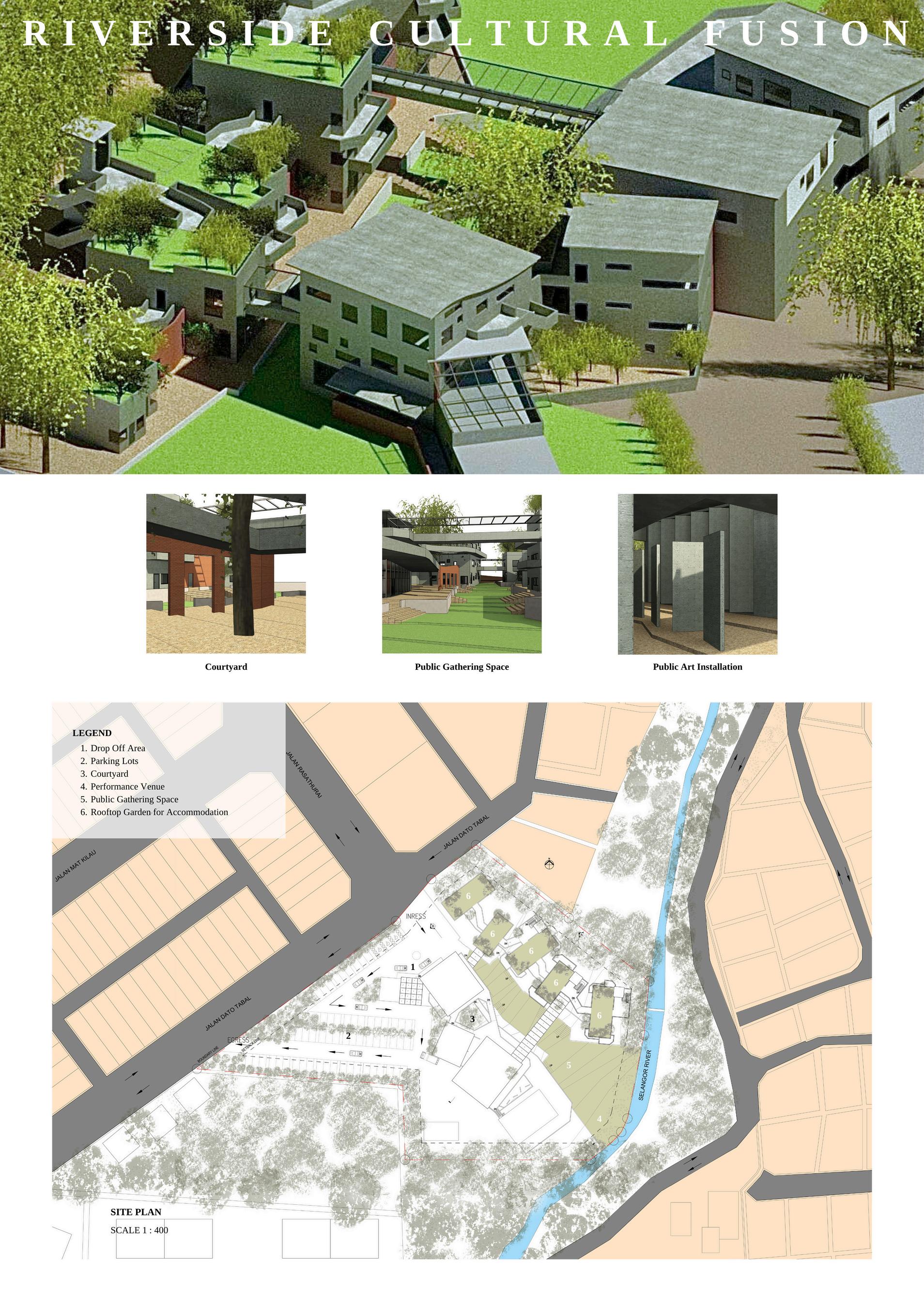

RIVERSIDECULTURALFUSION

RiverfrontCulturalHub

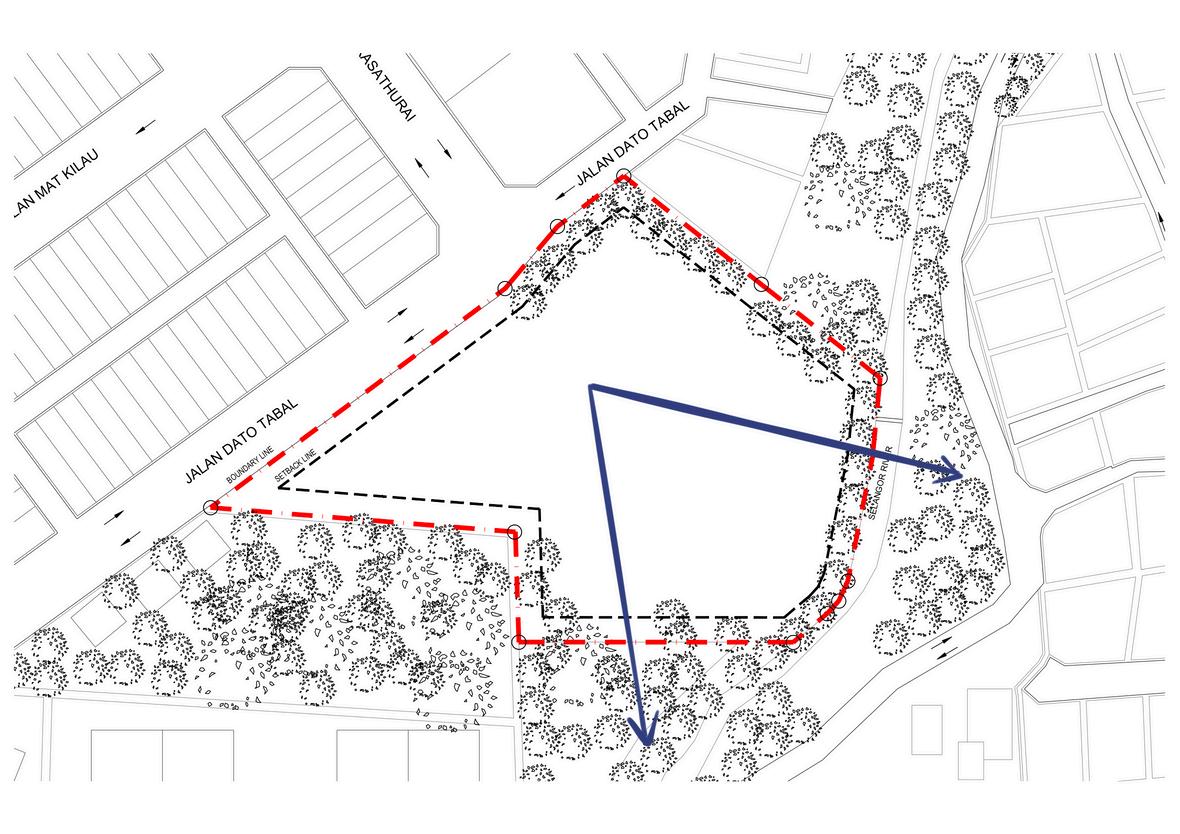

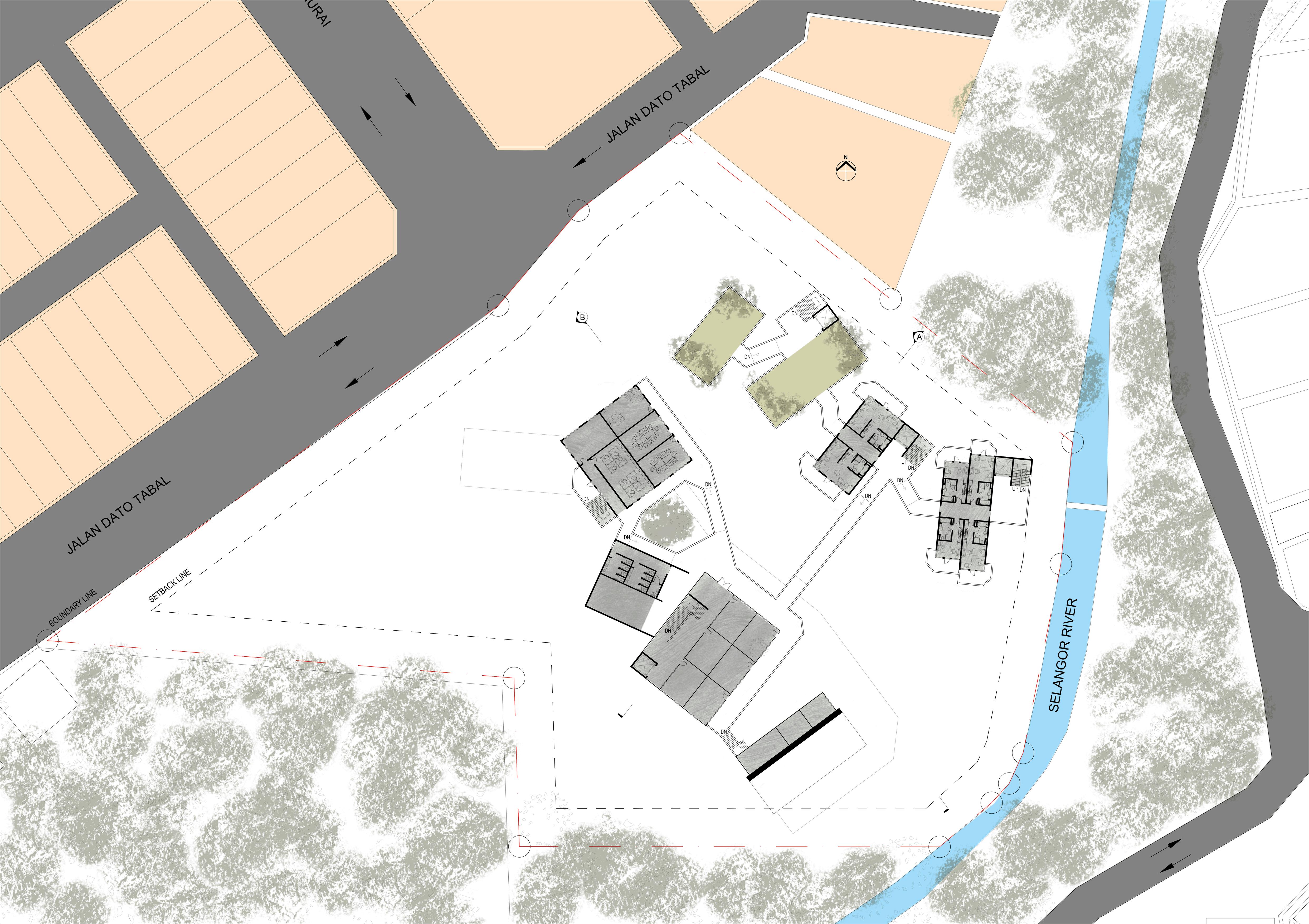

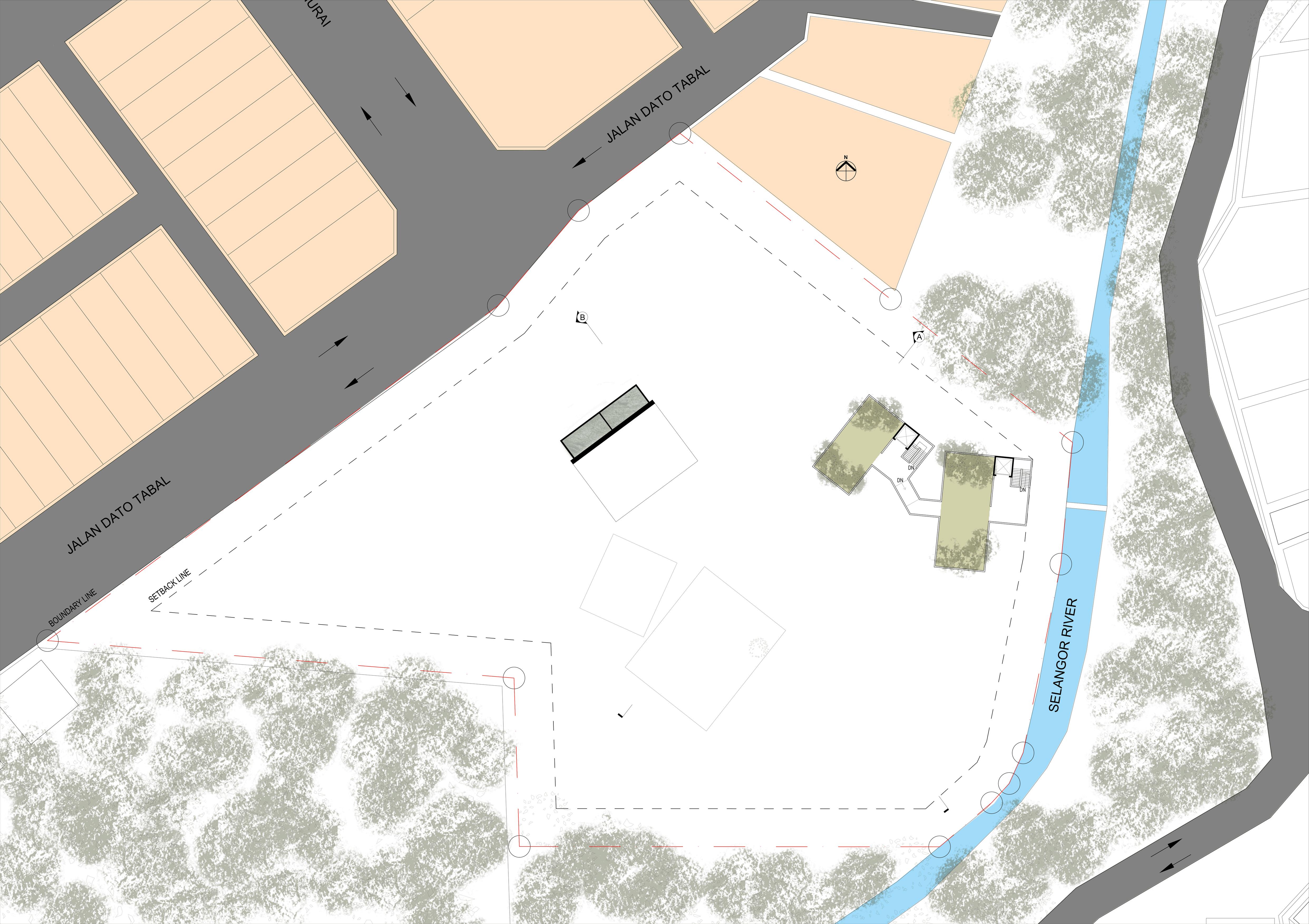

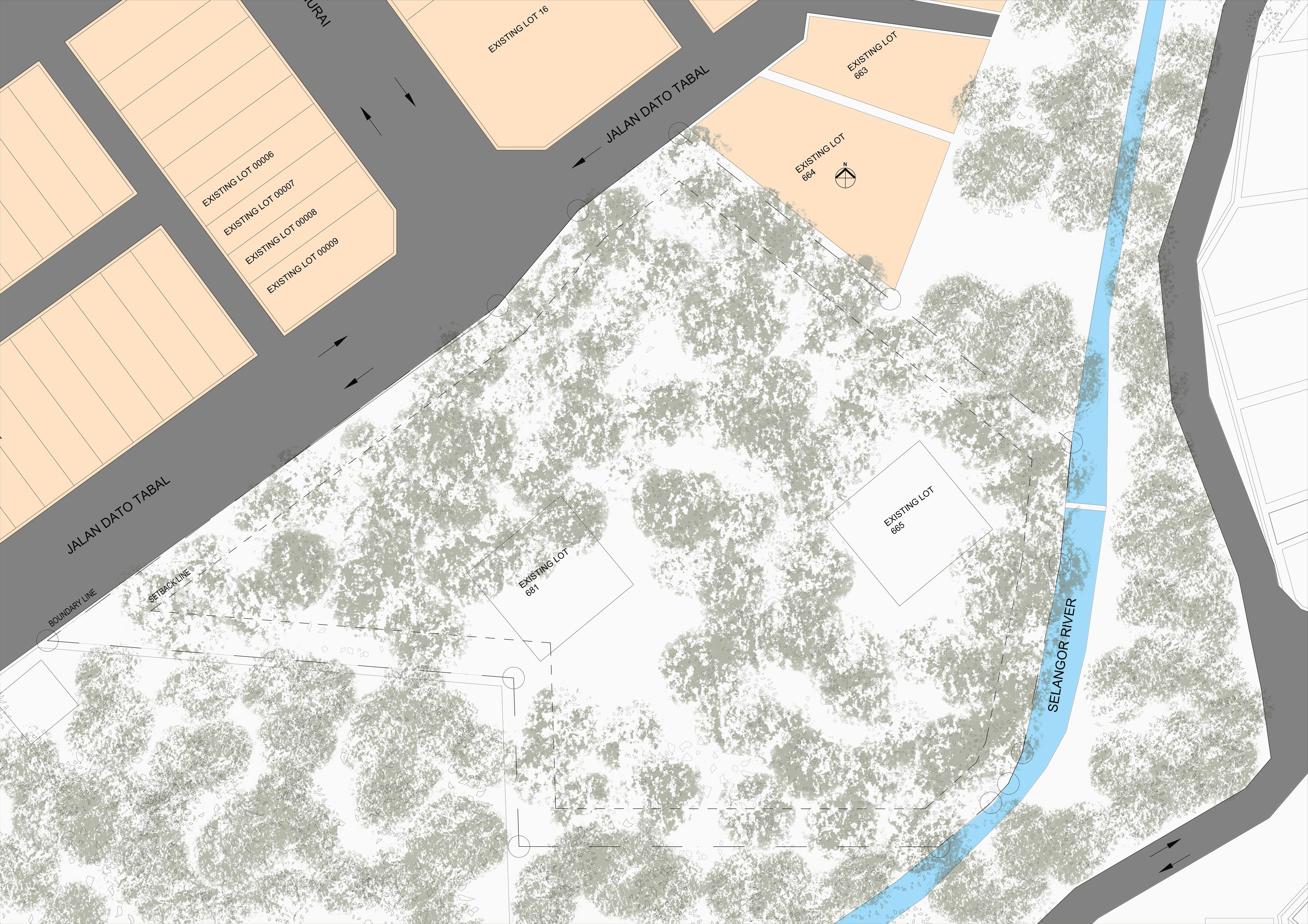

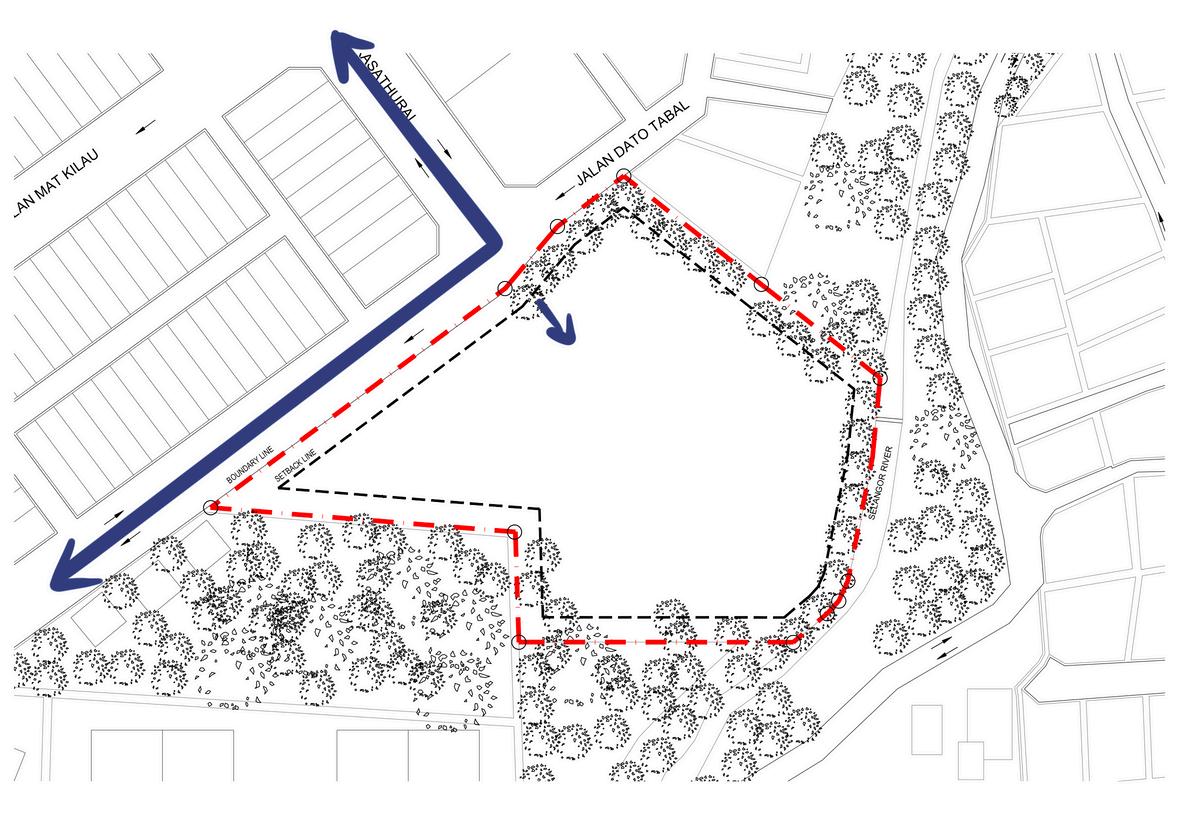

LOCATION

SiteSelection:SiteB

TotalArea:10360.13m²

SiteSelection

ThedecisiontochooseKualaKubuBharuasthesiteformyarchitecturalprojectwasinfluencedbyseveralkeyfactors,includingitshistorical significance,naturalbeauty,accessibility,andmostimportantly,itspotentialforcommunityengagementandinnovationinthearts.

Kuala Kubu Bharu is not just a town; it is a vibrant community hub teeming with commercial shophouses, offices, and residential areas. The siteselectionaimstobridgethegapbetweenthesediverseelements,fosteringasenseofconnectivityandpromotingcommunityengagement. Strategically locating the project within this bustling environment envisions creating a focal point that brings people together, encouraging interaction,andenhancingthesocialfabricofthecommunity.

Furthermore,situatedincloseproximitytotheSelangorRiverandsurroundedbyapreservedwoodwithabundantMahoganyMotherTrees, thesiteoffersauniqueopportunitytopromoteinnovationinthearts.Thesereneriverfrontsettingandlushnaturalsurroundingsprovidean inspiringbackdropforartisticexplorationandexpression.Theprojectisenvisionedasmorethanjustaphysicalstructurebutasacanvasfor creativeendeavors,wherelocalartistsandartisanscanshowcasetheirtalentsandcontributetotheculturalenrichmentofthecommunity.

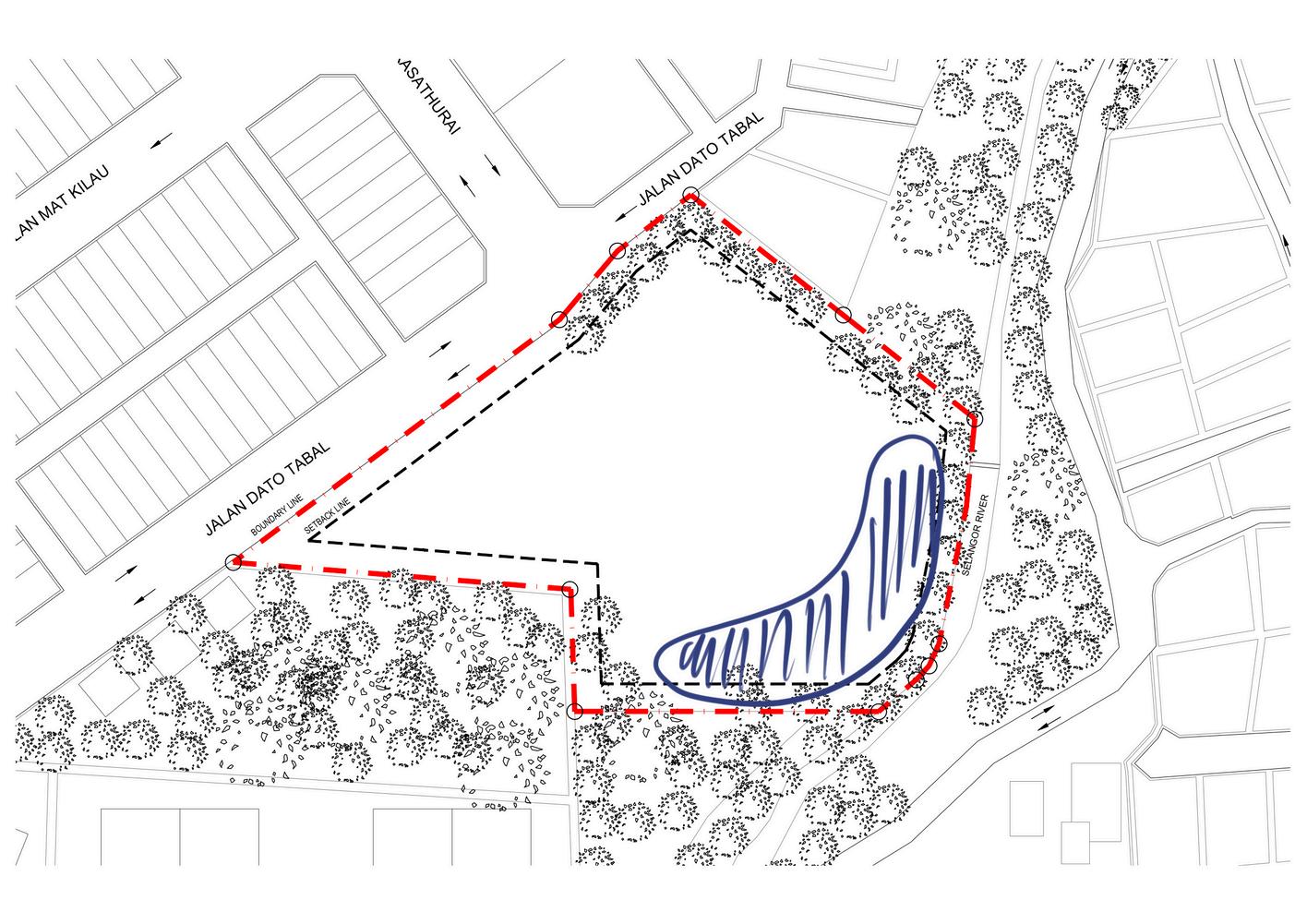

Morover, it is worth noting that the selected site exhibits distinctive topographical features, with a sloping terrain descending approximately 10 meters from high to low, culminating at the riverbank. This elevation variation presents an exciting design challenge and opportunity. Proposing the incorporation of large slanted steps leading from the elevated portion of the site down to the river, creating a dynamic visual element while providing easy access and enhancing connectivity between different levels.This design approach not only adds aesthetic appeal butalsoenrichestheuserexperience,invitingindividualstotraverseandengagewiththesiteinameaningfulway.

In summary, the selection of Kuala Kubu Bharu as the site for the architectural project is driven by its potential to foster community engagement, promote innovation in the arts, and leverage its unique topographical features to create a dynamic and inclusive space for all. Through collaboration with the local community and thoughtful design integration, it is aim to realize a project that not only serves its functionalpurposebutalsobecomesacatalystforsocialinteraction,creativity,andculturalenrichment.

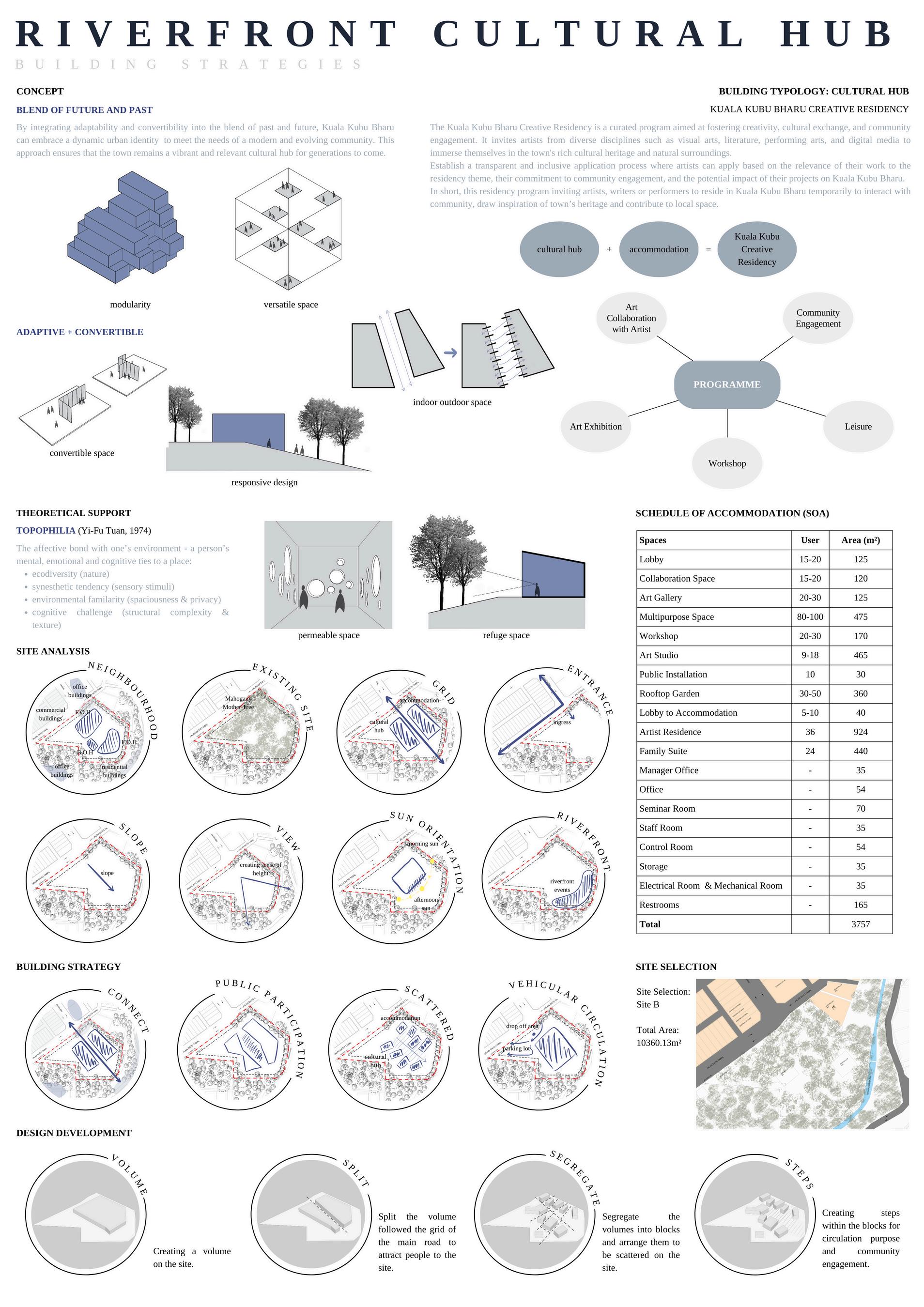

CONCEPT

BlendofFuture&Past

By integrating adaptability and convertibility into the blend of past and future, Kuala Kubu Bharu can embrace a dynamic urban identity to meet the needs

Adaptvie+Convertible

convertiblespace

responsivedesign

THEORETICALSUPPORT

Topophilia(Yi-FuTuan,1974)

The affective bond with one’s environment - a person’s mental, emotional and cognitive ties to aplace:

ecodiversity(nature)

synesthetictendency(sensorystimuli)

environmental familarity (spaciousness & privacy)

cognitive challenge (structural complexity & texture) refugespace

permeables

TARGETUSERS

A platform for local artists to showcase their talents and contribute to the town's culturalvibrancy.

Innovative design elements captivate aesthetes, providing them with a visually stimulating environmenttoenjoy.

Providing a welcoming space for community gatherings and cultural activities enhances the quality of life for residents and strengthens community bonds.

Tailoredamenitiesandactivitiesoffer teenagers a space for socializing, exploration,andcreativeexpression.

Enhancing the tourist experience through cultural events and attractionsfostersadeeperconnectionwiththelocalcommunity.

KUALAKUBUBHARUCREATIVERESIDENCY

TheKualaKubuBharuCreativeResidencyis

a curated program aimed at fostering creativity, cultural exchange, and community engagement. It invites artists from diverse disciplines such as visual arts, literature, performing arts, and digital media to immerse themselves in the town's rich culturalheritageandnaturalsurroundings.

Establish a transparent and inclusive application process where artists can apply based on the relevance of their work to the residency theme, their commitment to community engagement, and the potential impact of their projects on Kuala Kubu Bharu.

In short, this residency program inviting artists, writers or performers to reside in Kuala Kubu Bharu temporarily to interact with community, draw inspiration of town’s heritageandcontributetolocalspace.

+ culturalhub accommodation = KualaKubuCreative Residency

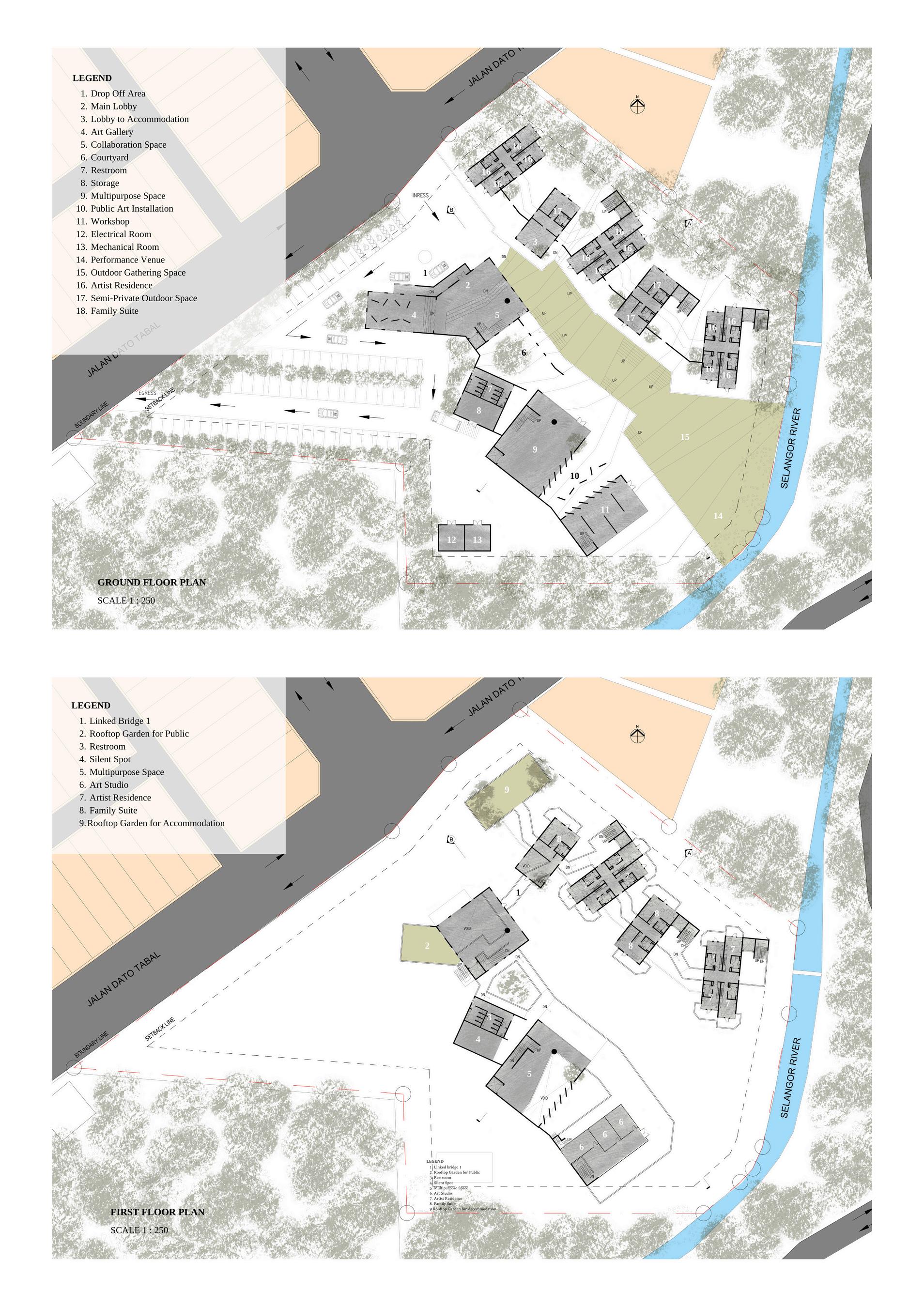

SCHEDULEOFACCOMMODATION(SOA)

Courtyard

Instead of just having an indoor collaboration space, an outdoor collaboration space is designed for artists and visitors for art discussion / collaborationpurposes.

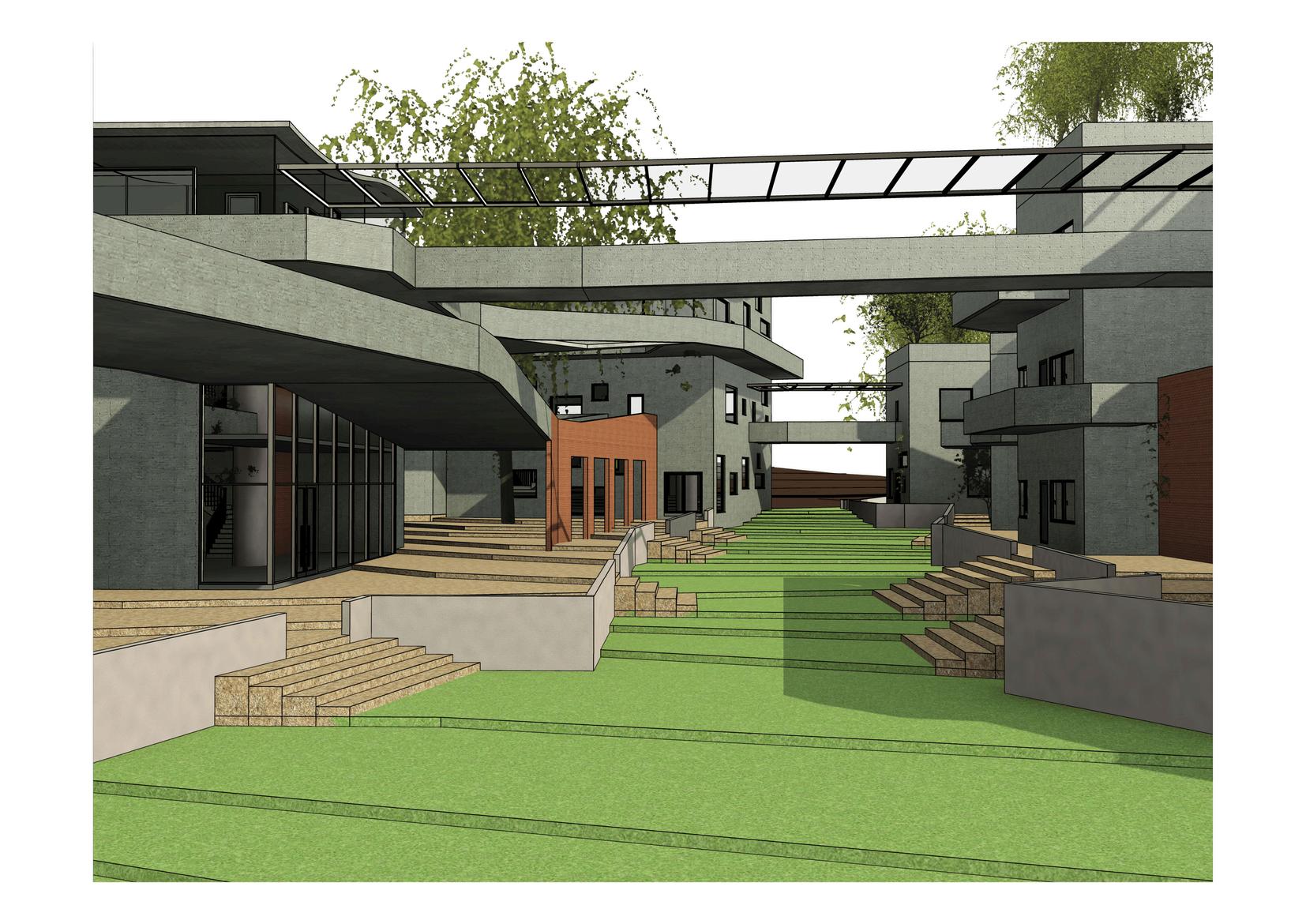

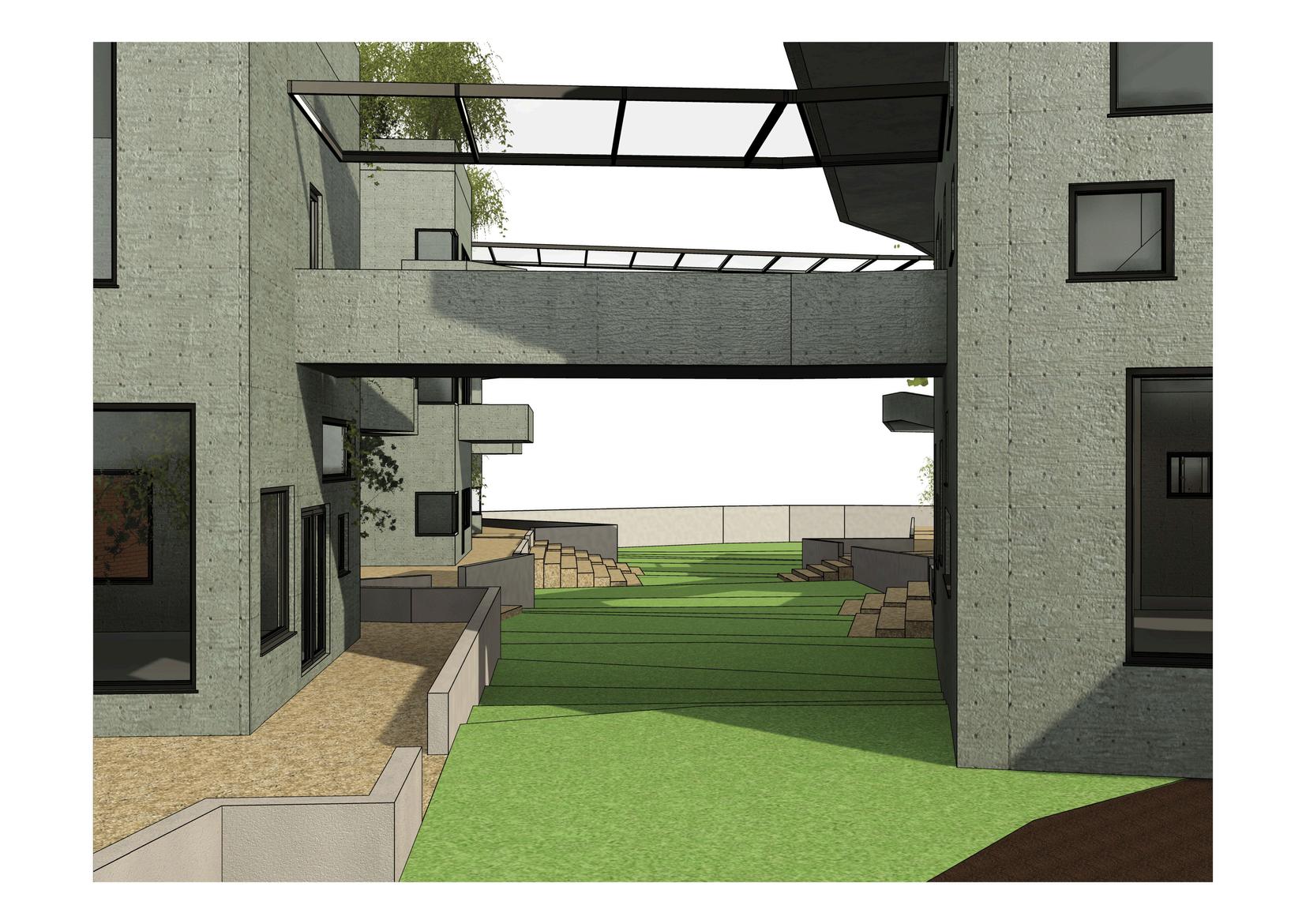

PublicGatheringSpace

To gather community to the site for community engagement. The people can sit on the steps and chit-chatting together as well as enjoying the performanceswhenitheld.

PublicArtInstallation

The pivoted wall serves as an outdoor artinstallationpurposes.

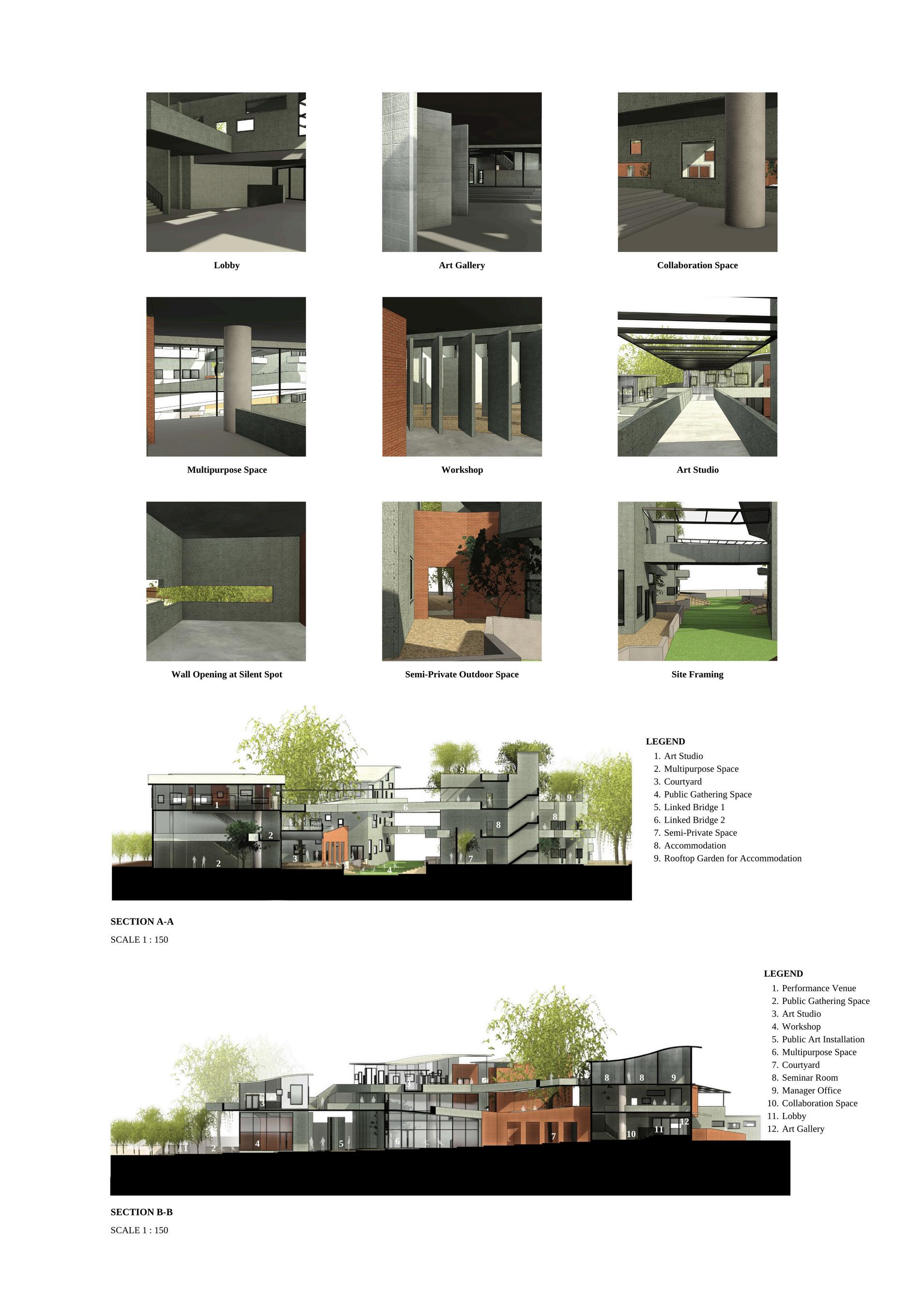

Lobby

A place to welcome the visitors and letting them know well about the buildingandactivitiesheld.

ArtGallery

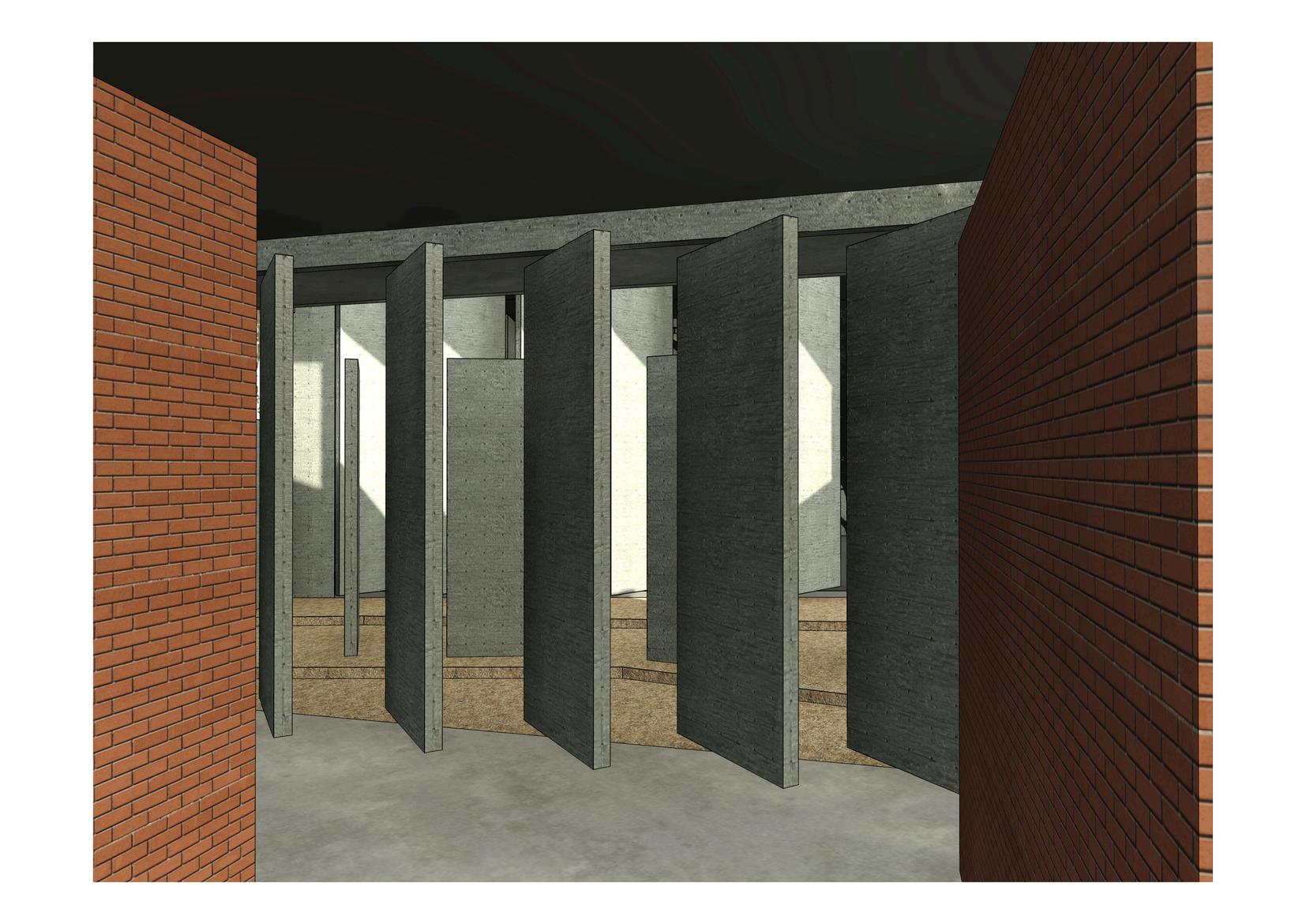

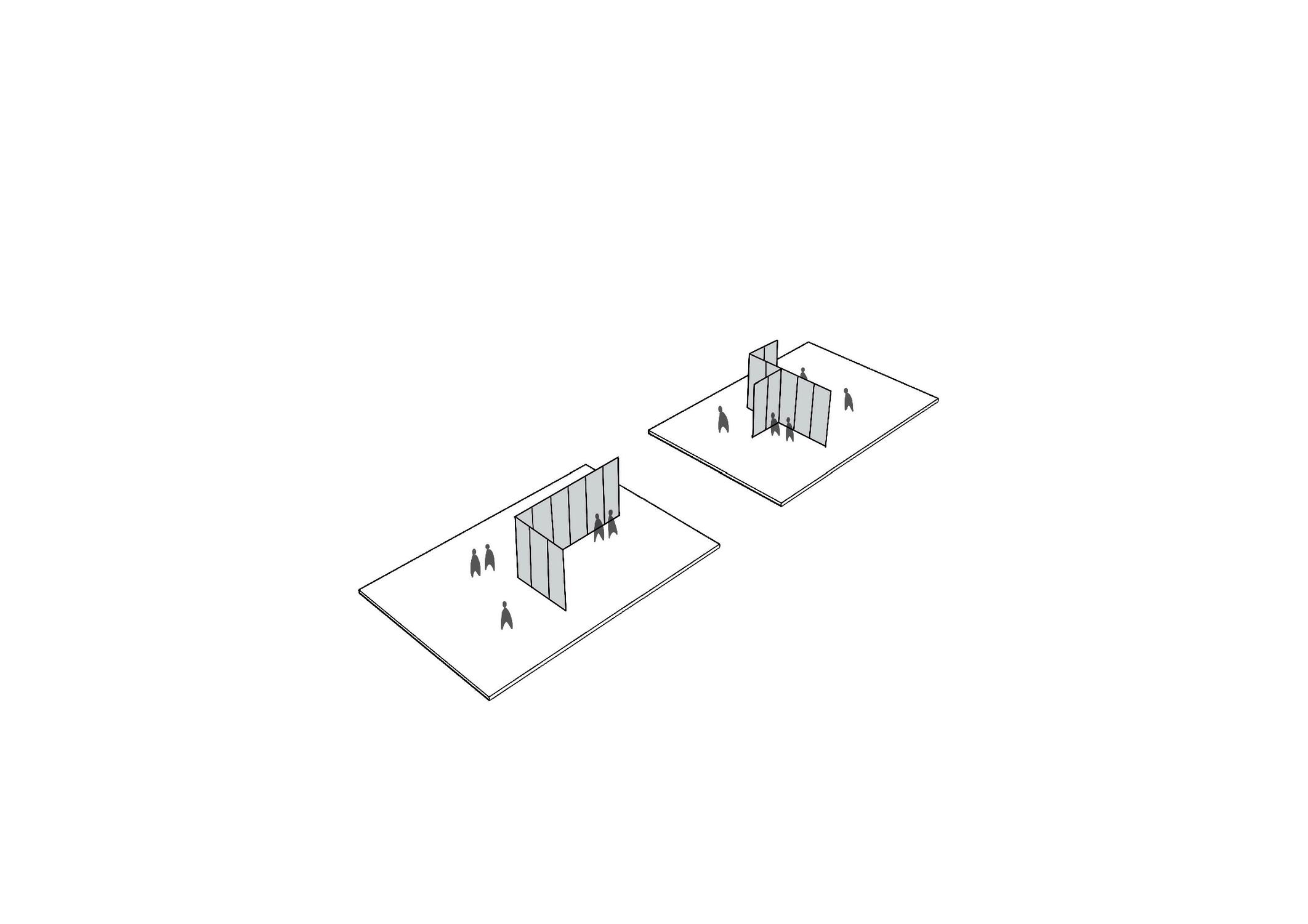

Pivoted wall which can be rotated into different angle horizontally serving for exhibition purposes to hang and show theartwork.

CollaborationSpace

An indoor collaboration space for artists and visitors to communicate and carry outdiscussion.

MultipurposeSpace

A double volume multipurpose space is created to accommodate different activities carried out throughout the year.

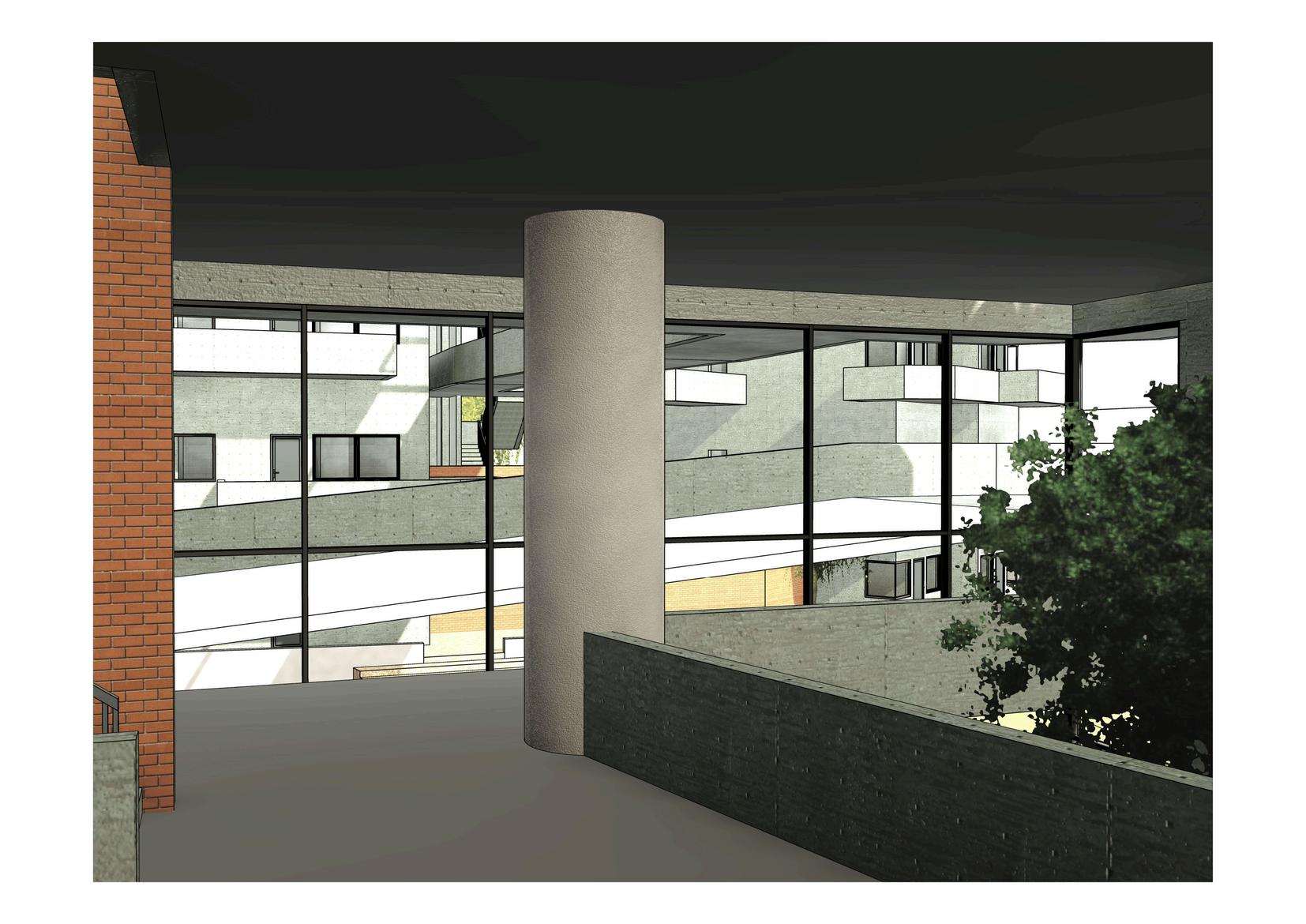

Round column is used as part of the designofthebuildingtomakeacontrast between the round shape of the column andthemodularshapeofthespace.

The pivoted wall serves as the openings of the building and also can be used for exhibitionpurposesatthesametime.

Workshop

An art workshop is designed with using brick wall as a partition for different kind of activities held together at the same time. Brick wall incorporate into the concrete wall space making an aestheticappearancetothespaceitself.

ArtStudio

A private art studio made up of polycarbonate wall is provided for the artist who prefer to have a quiet personal space to carry out their artwork.

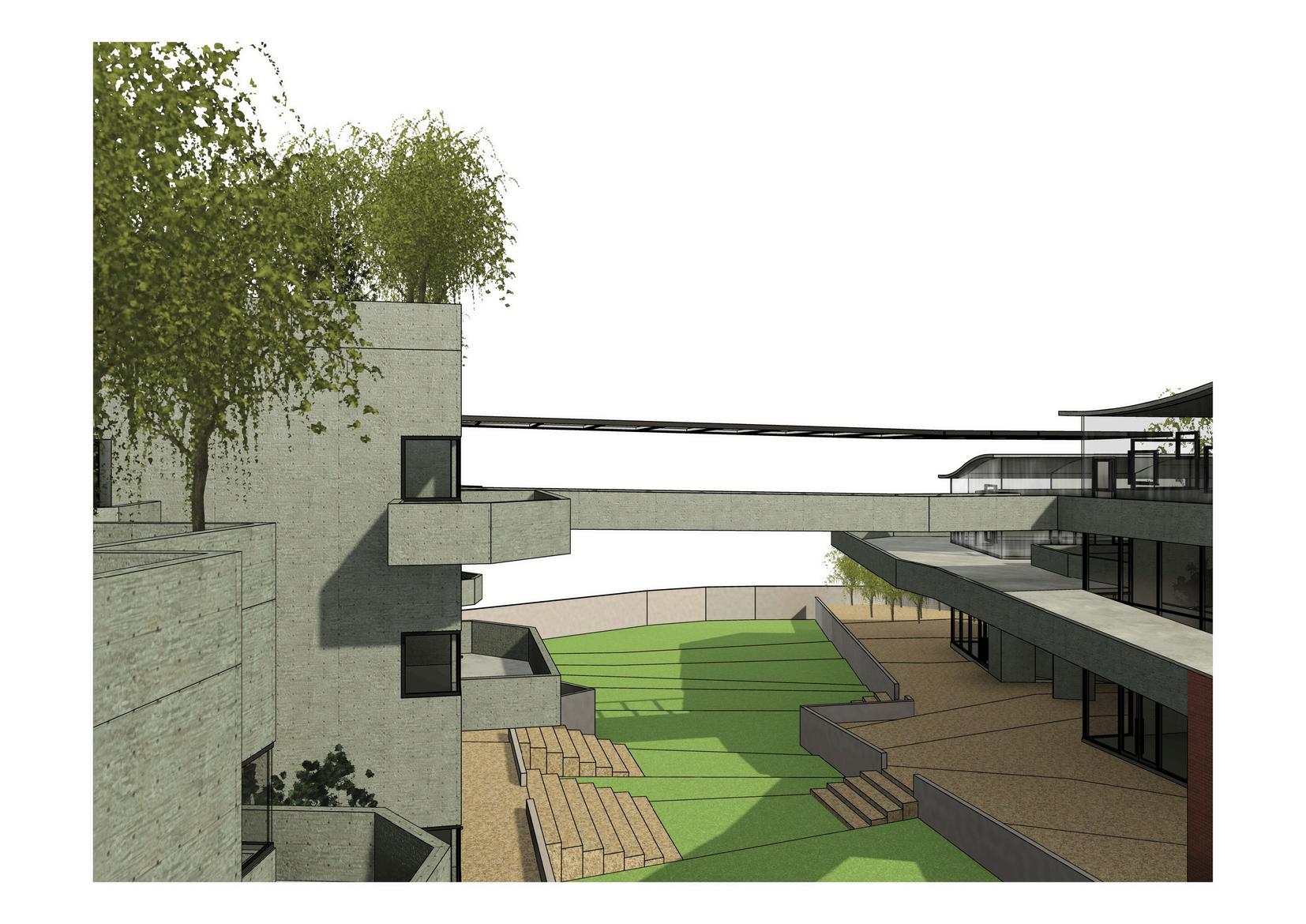

LinkedBridge1

Linkedbridge1isdesignedtoframethe image of the activities happened on the site to attract people to the site. Meanwhile, it also connect the cultural hubandaccommodationtogether.

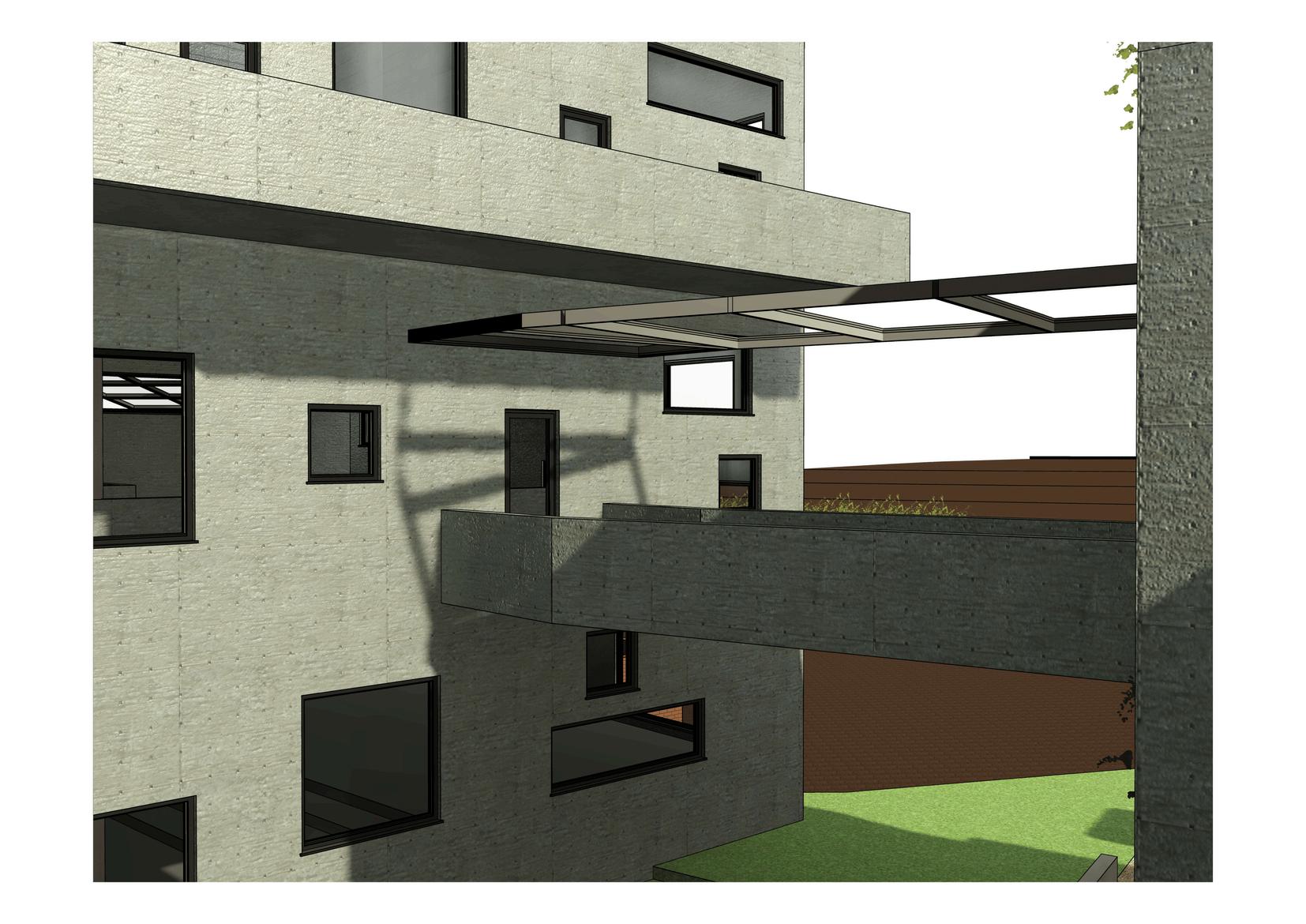

LinkedBridge2

Linked bridge 2 is designed to bring convenient for the artists as a linkage for their resting space and working spacetogether.

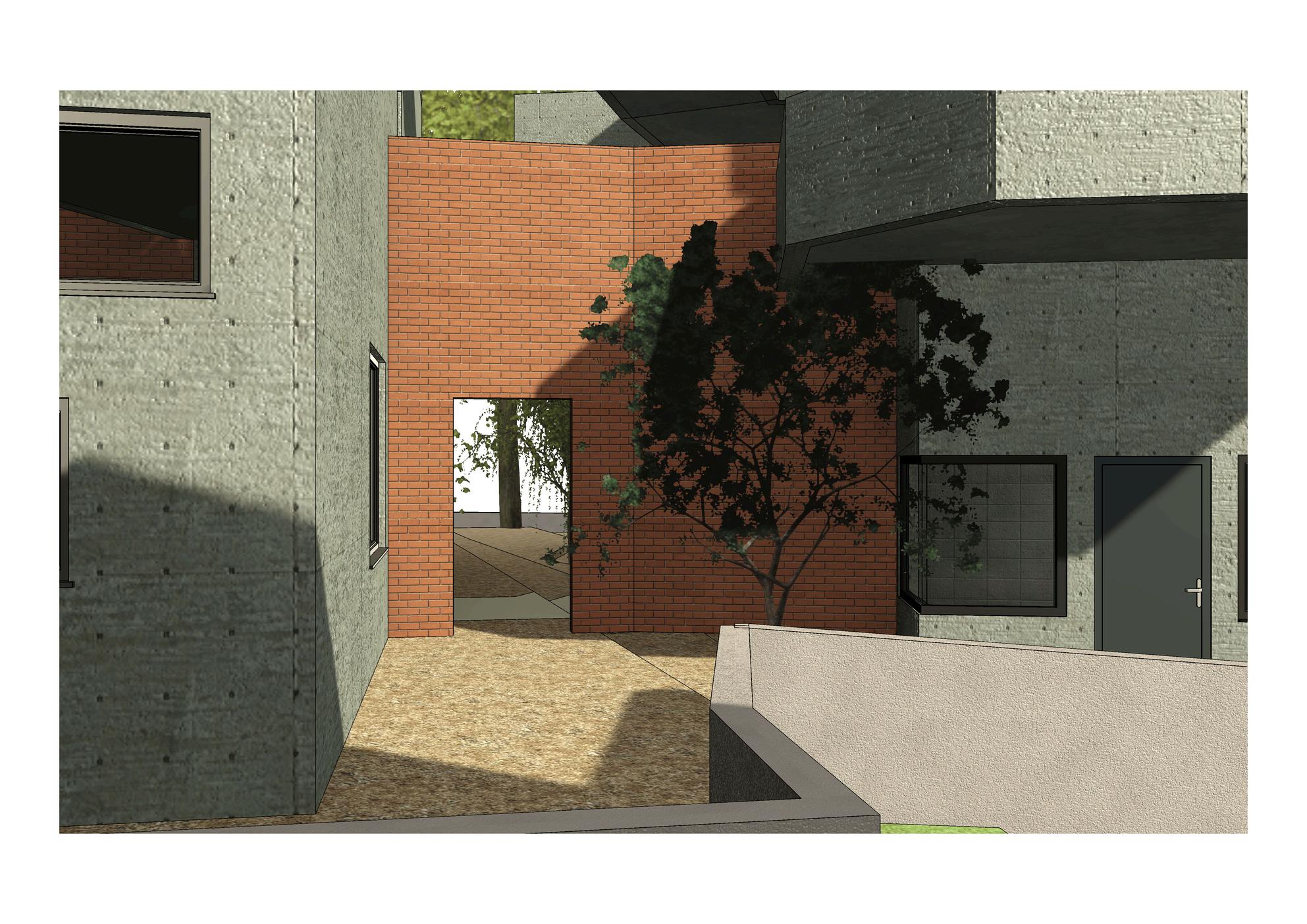

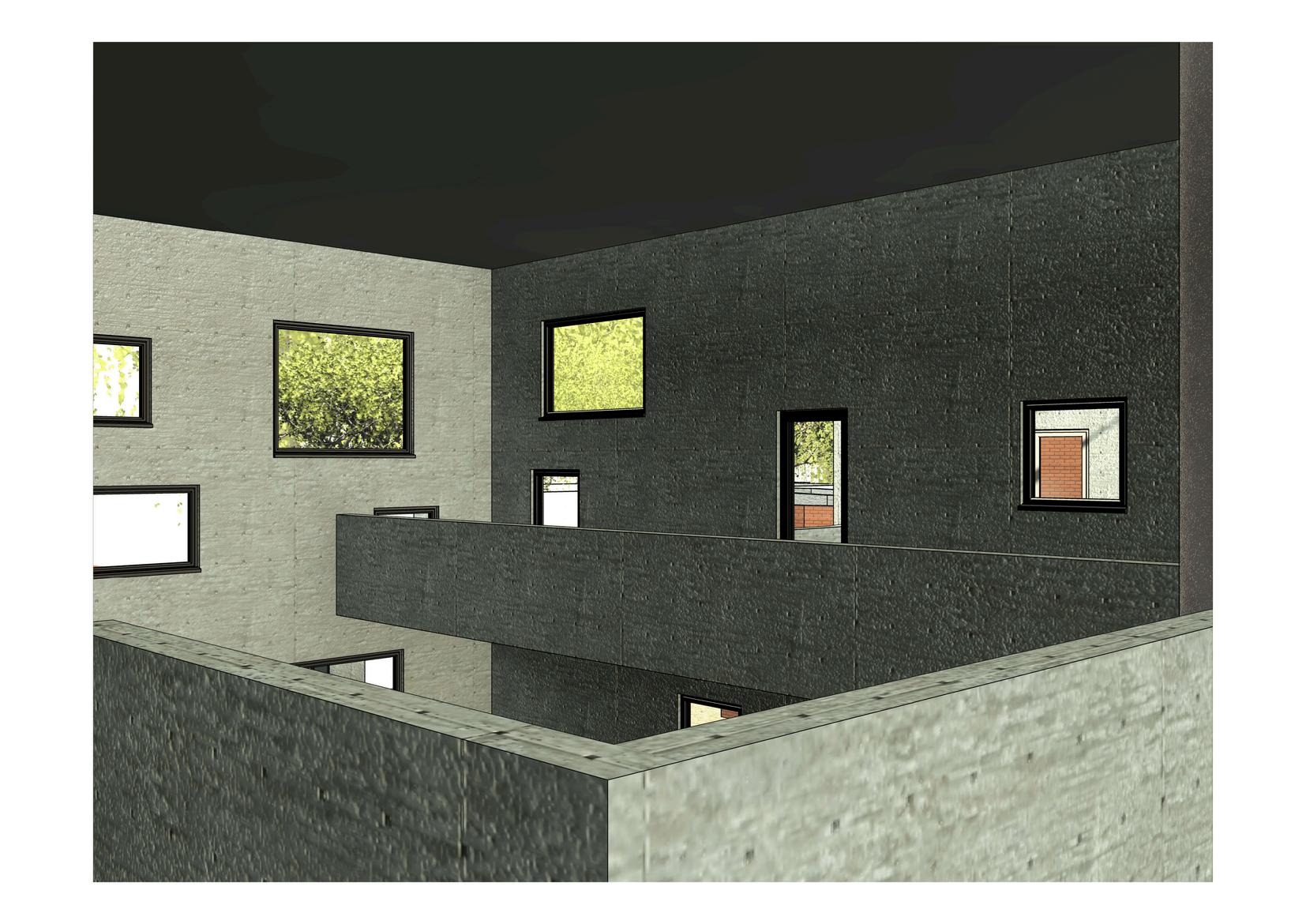

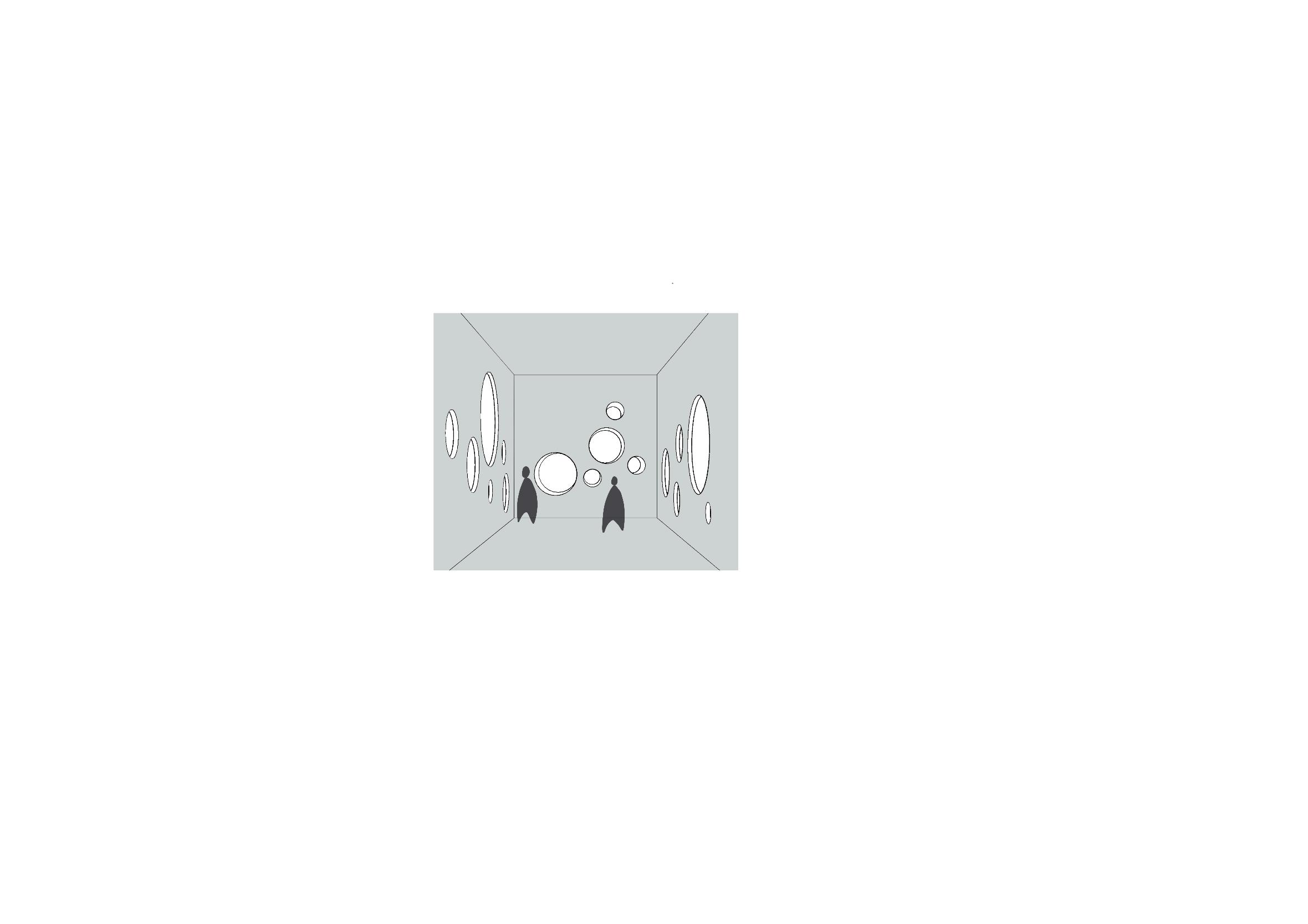

WallOpeningatSilentSpot

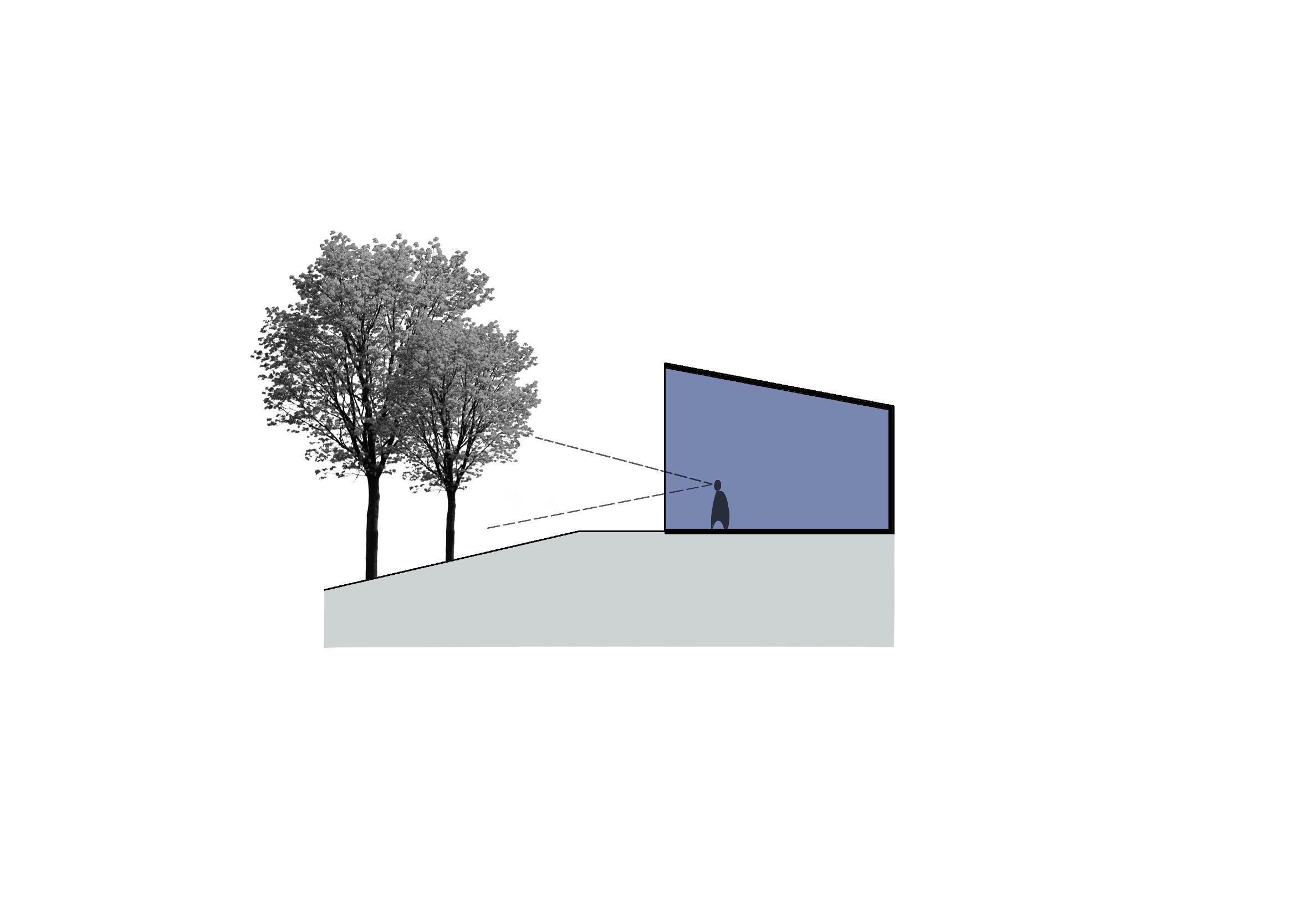

Wall opening designed at the silent spot is to allow people having their own personal space for relaxing and having viewcreatedtothetreesonthesite.

Semi-PrivateOutdoorSpace

A semi-private outdoor space is separated from the public spaces and is located within the accommodation spaces and is blocked off by the red brickwallsfromthepublicaccess.

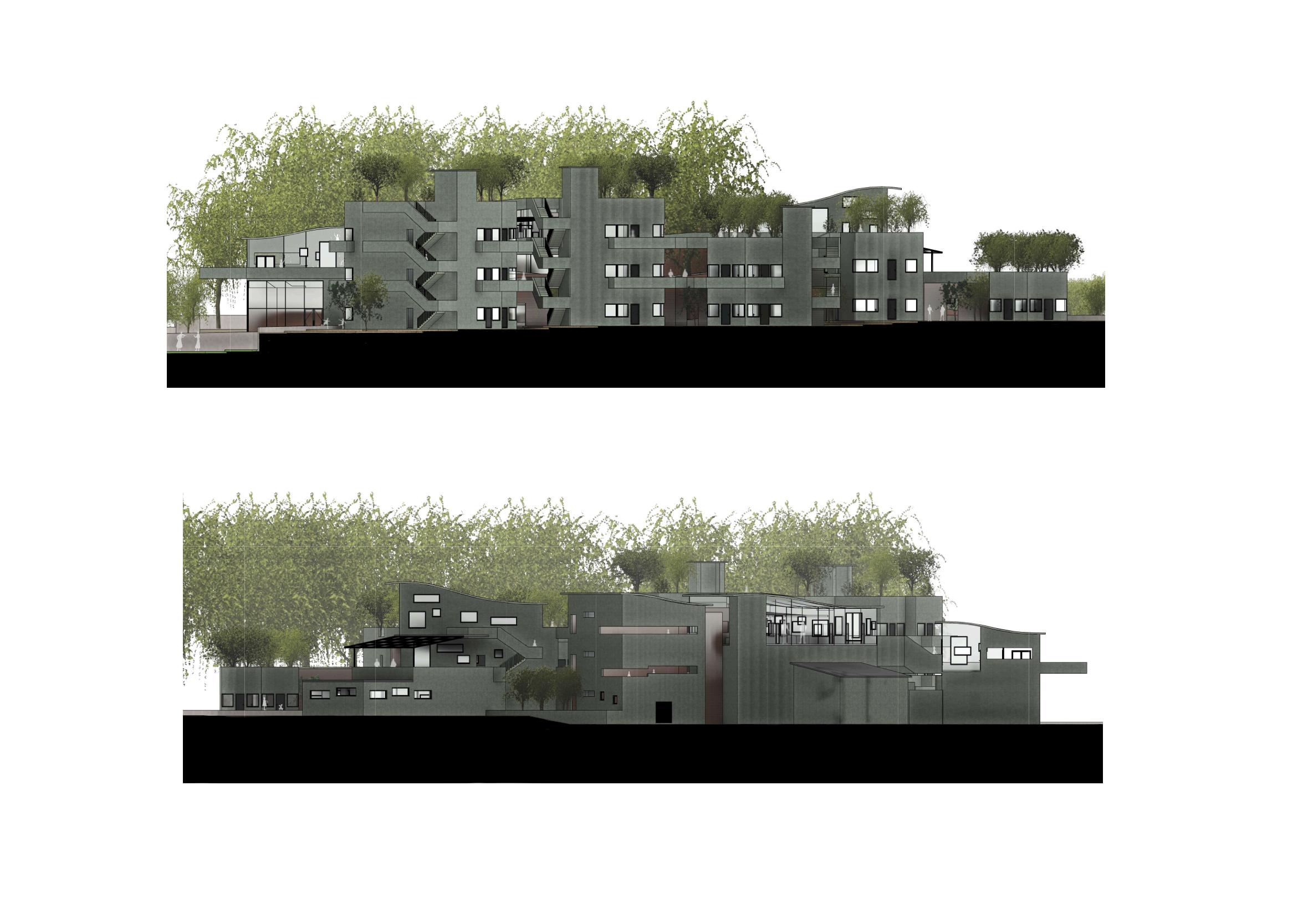

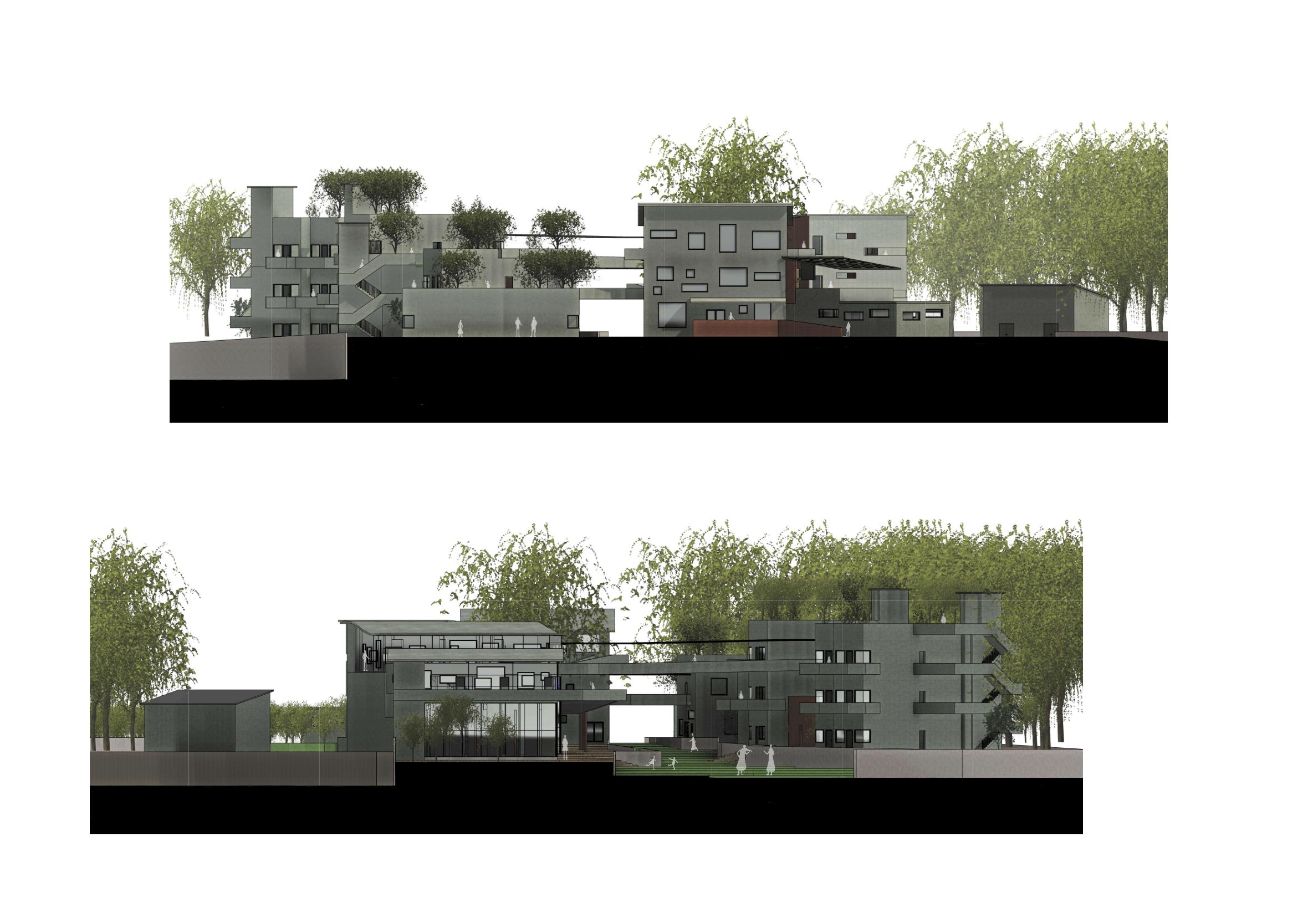

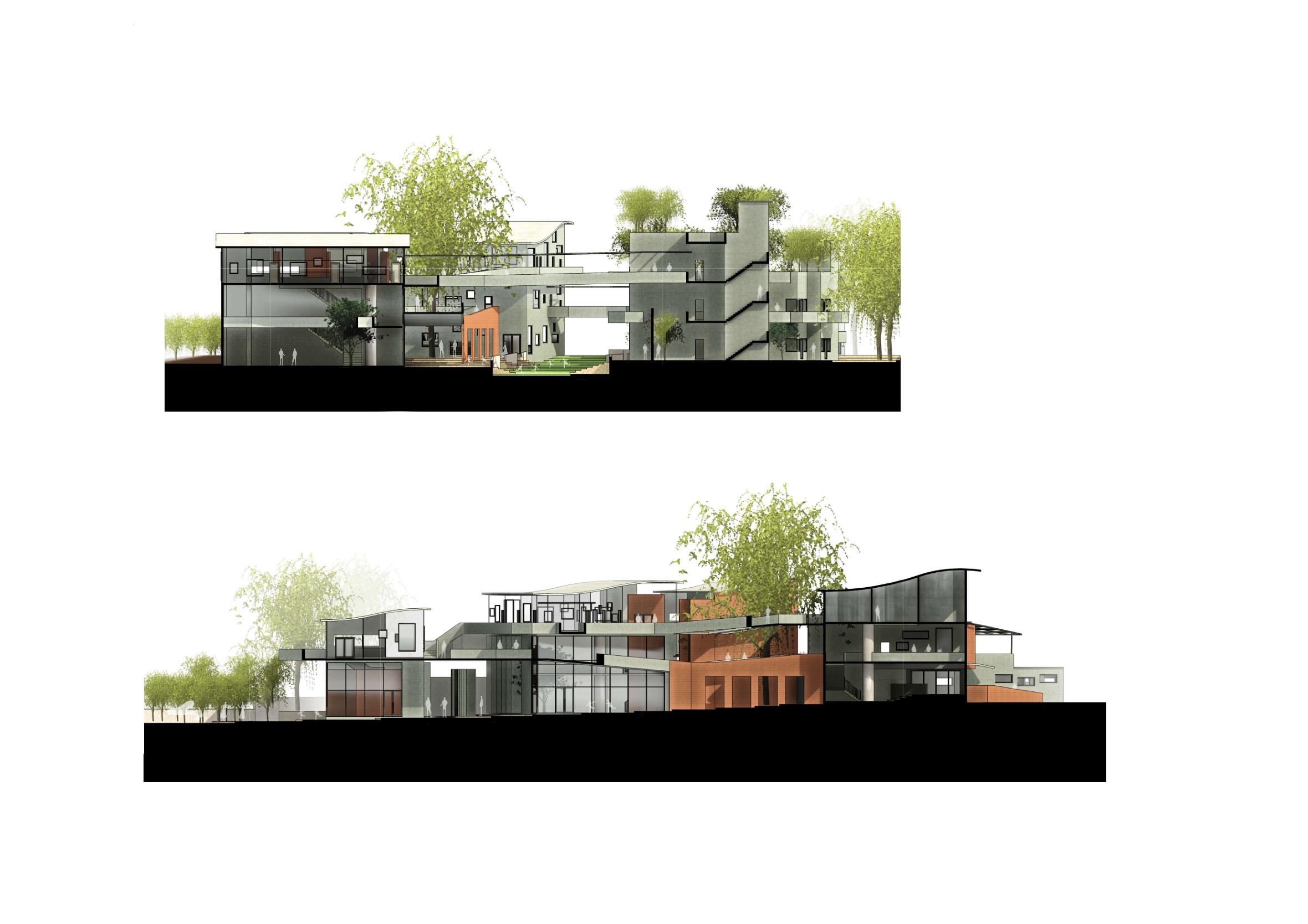

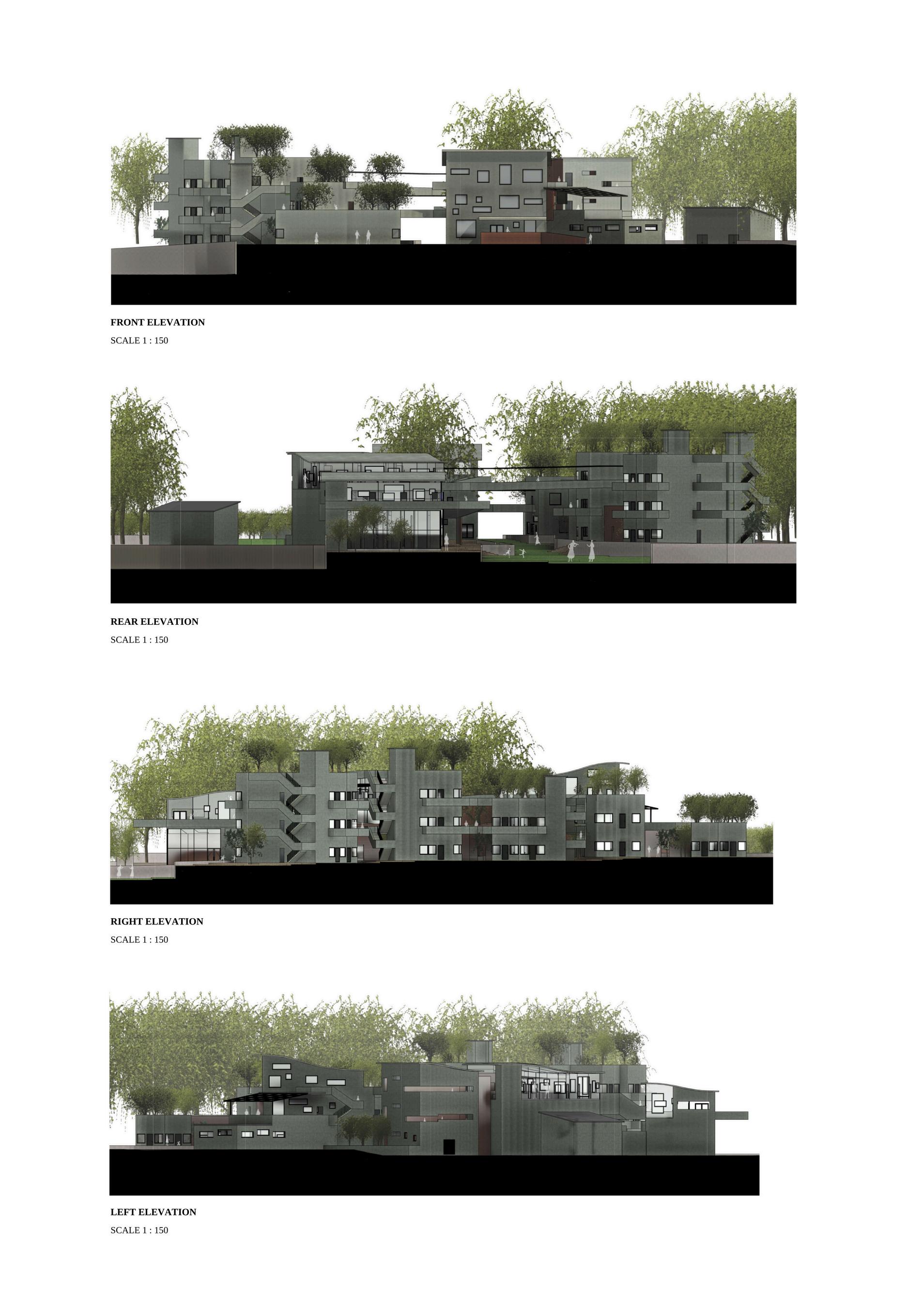

FrontElevation

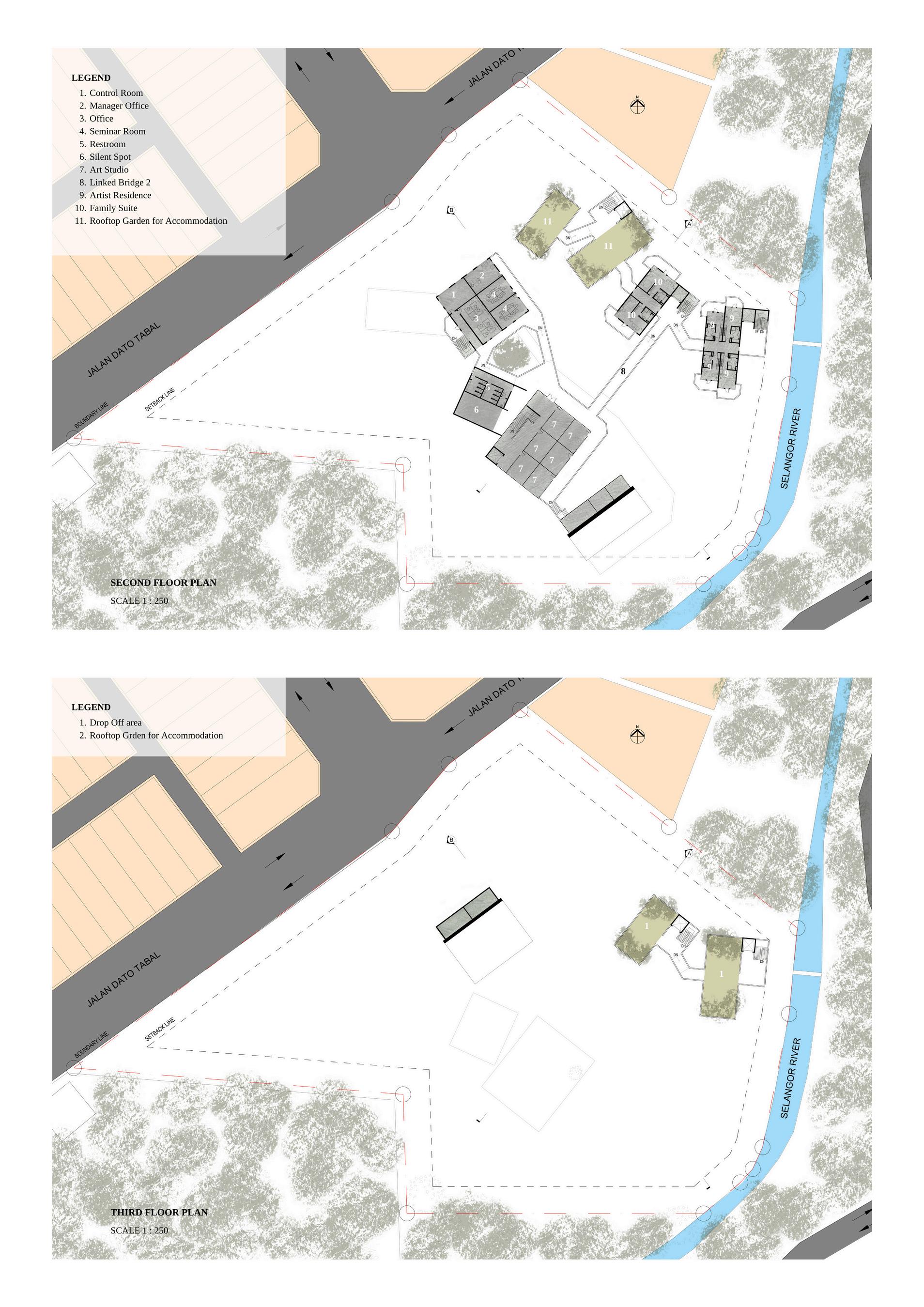

LEGEND

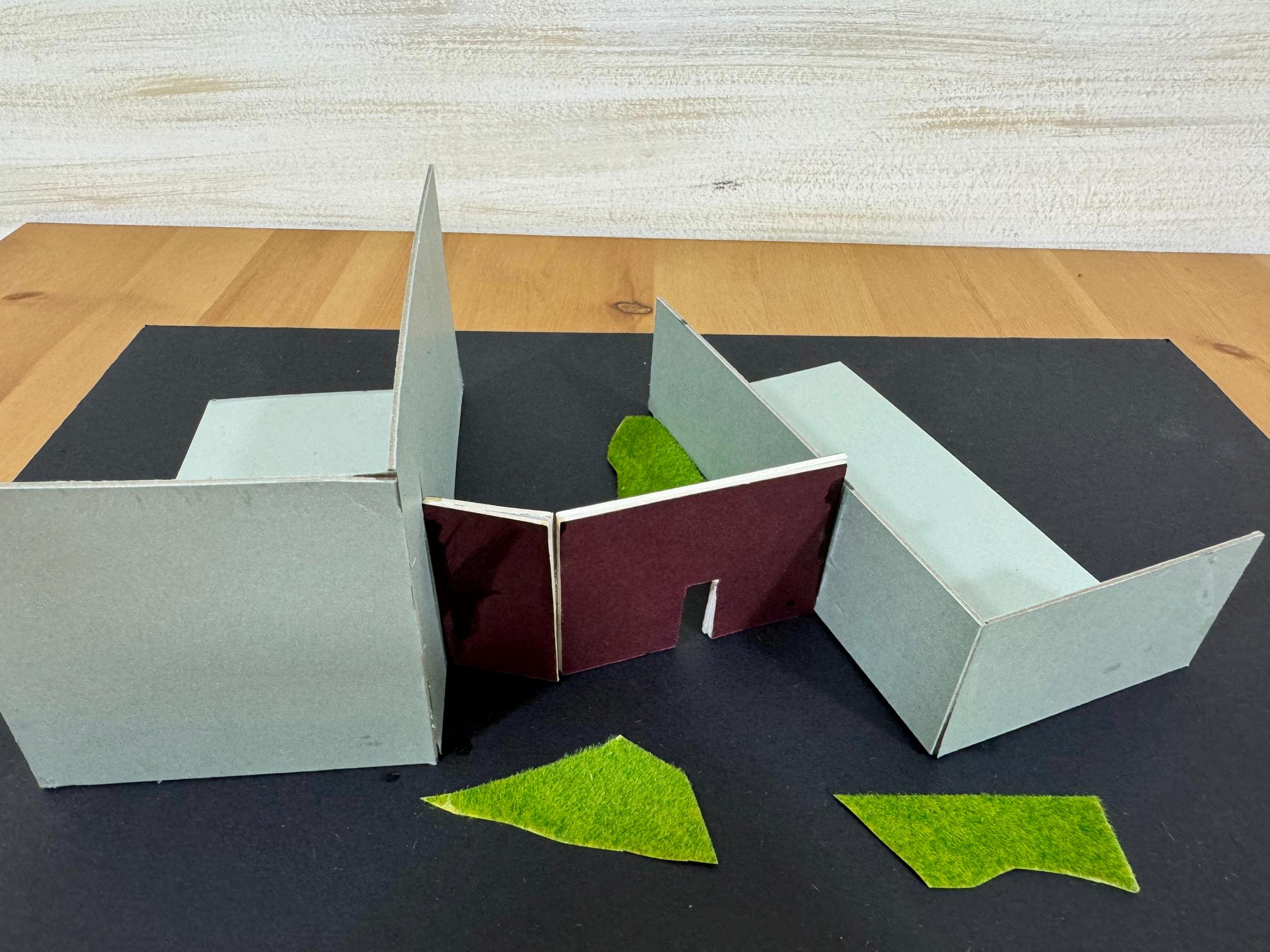

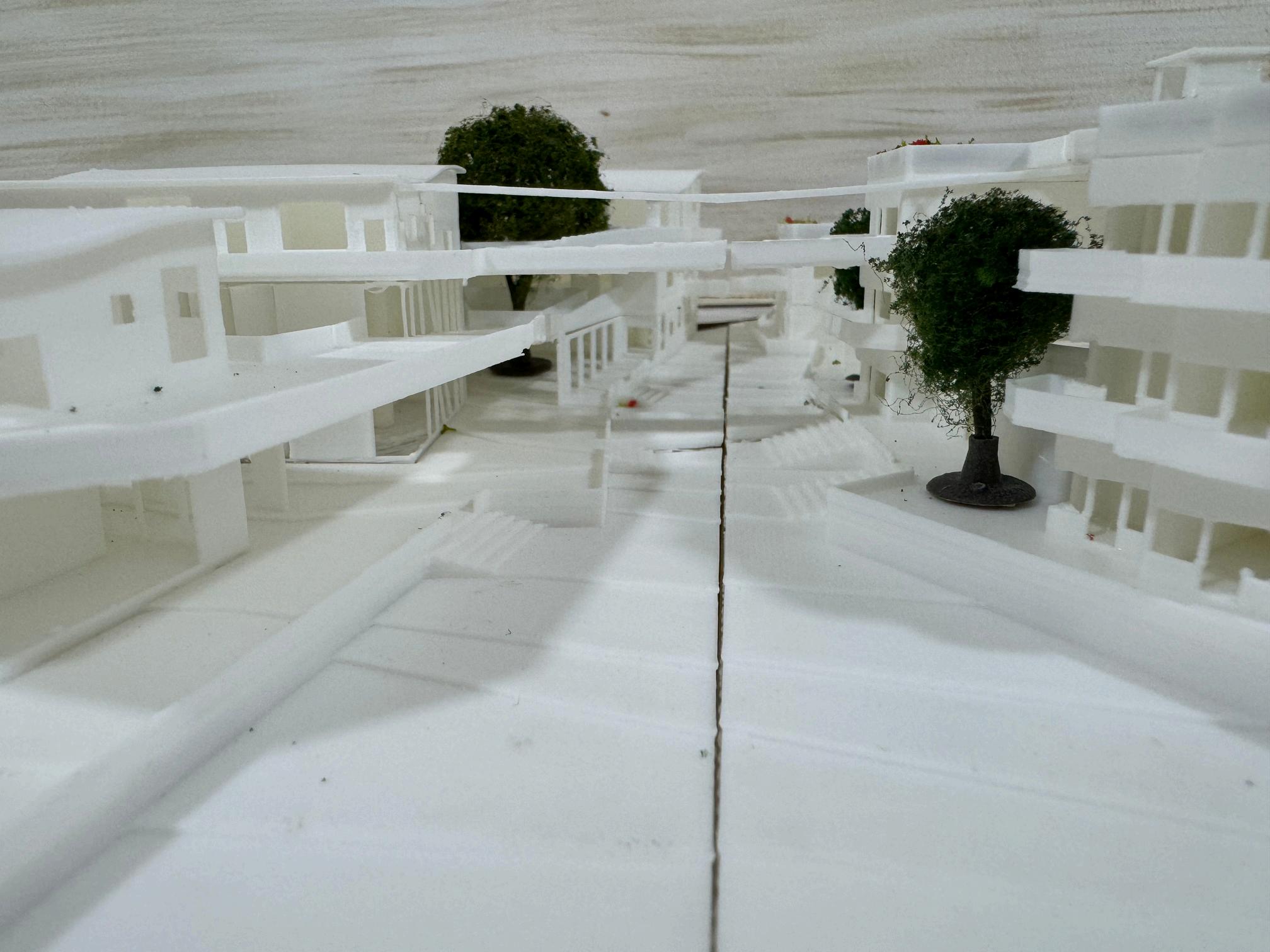

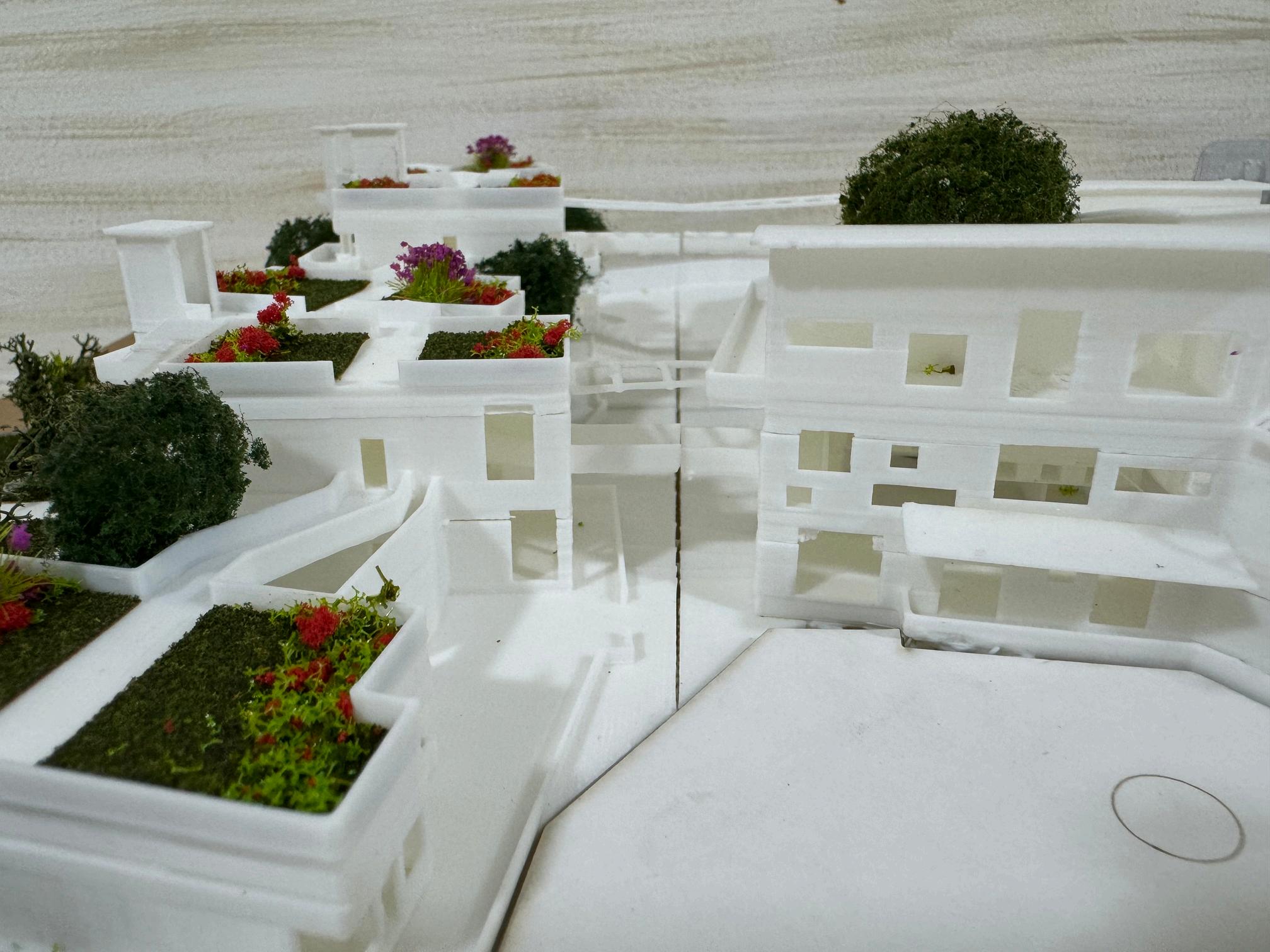

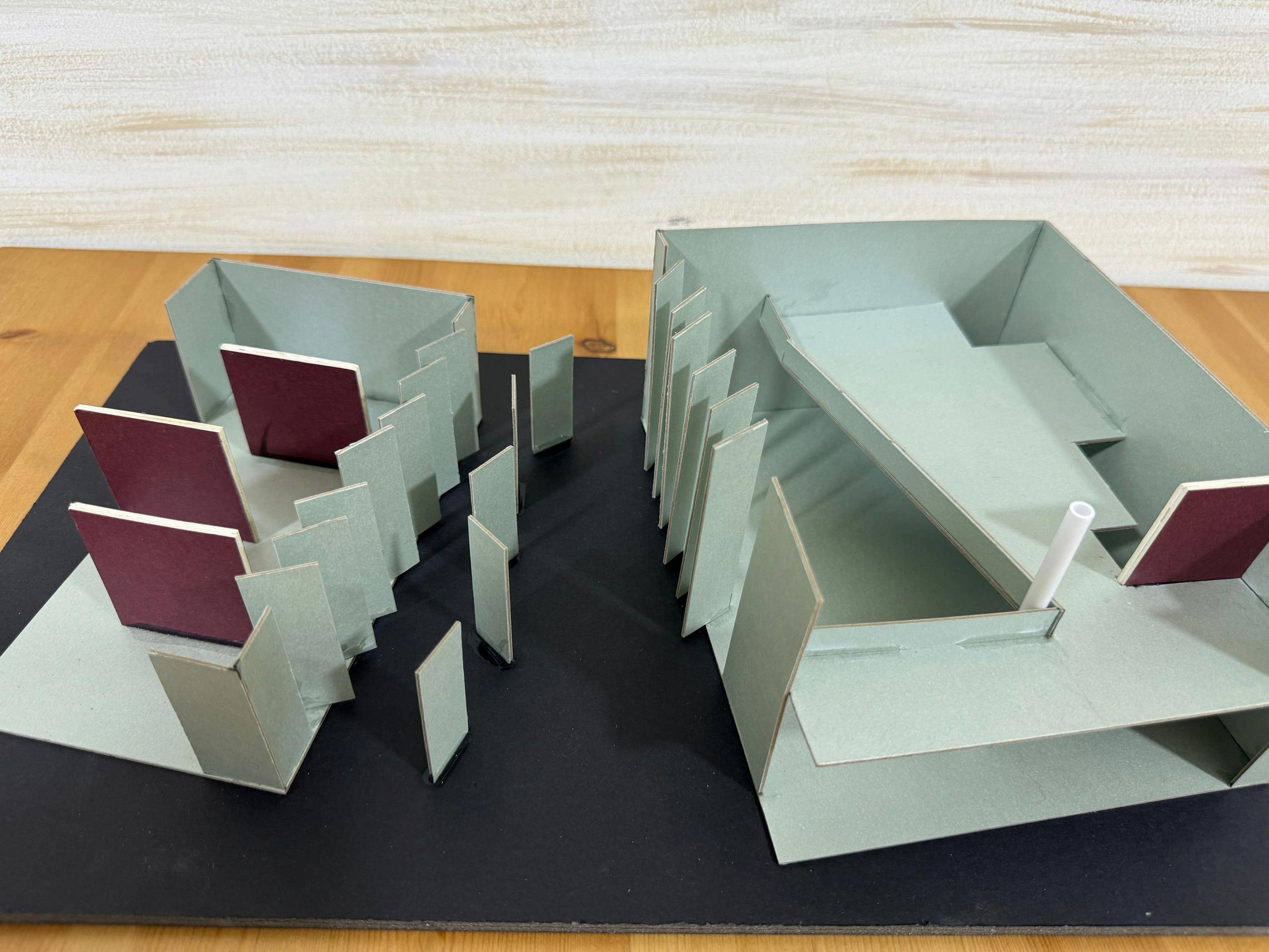

THEMOCKUPMODELaboutspaces

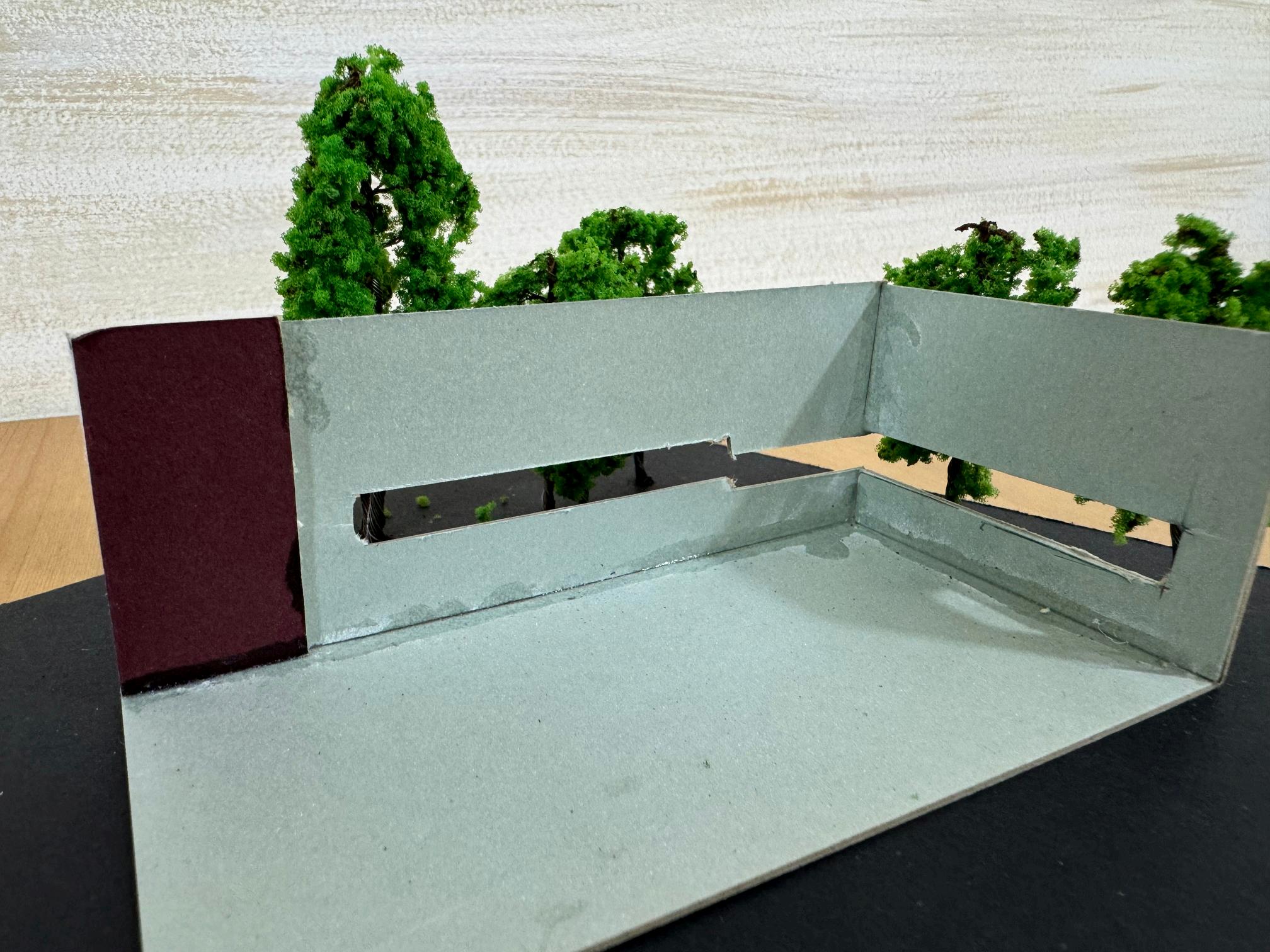

Semi-PrivateSpaceCreatedwithinAccommodation WallOpeningsforOutsideView

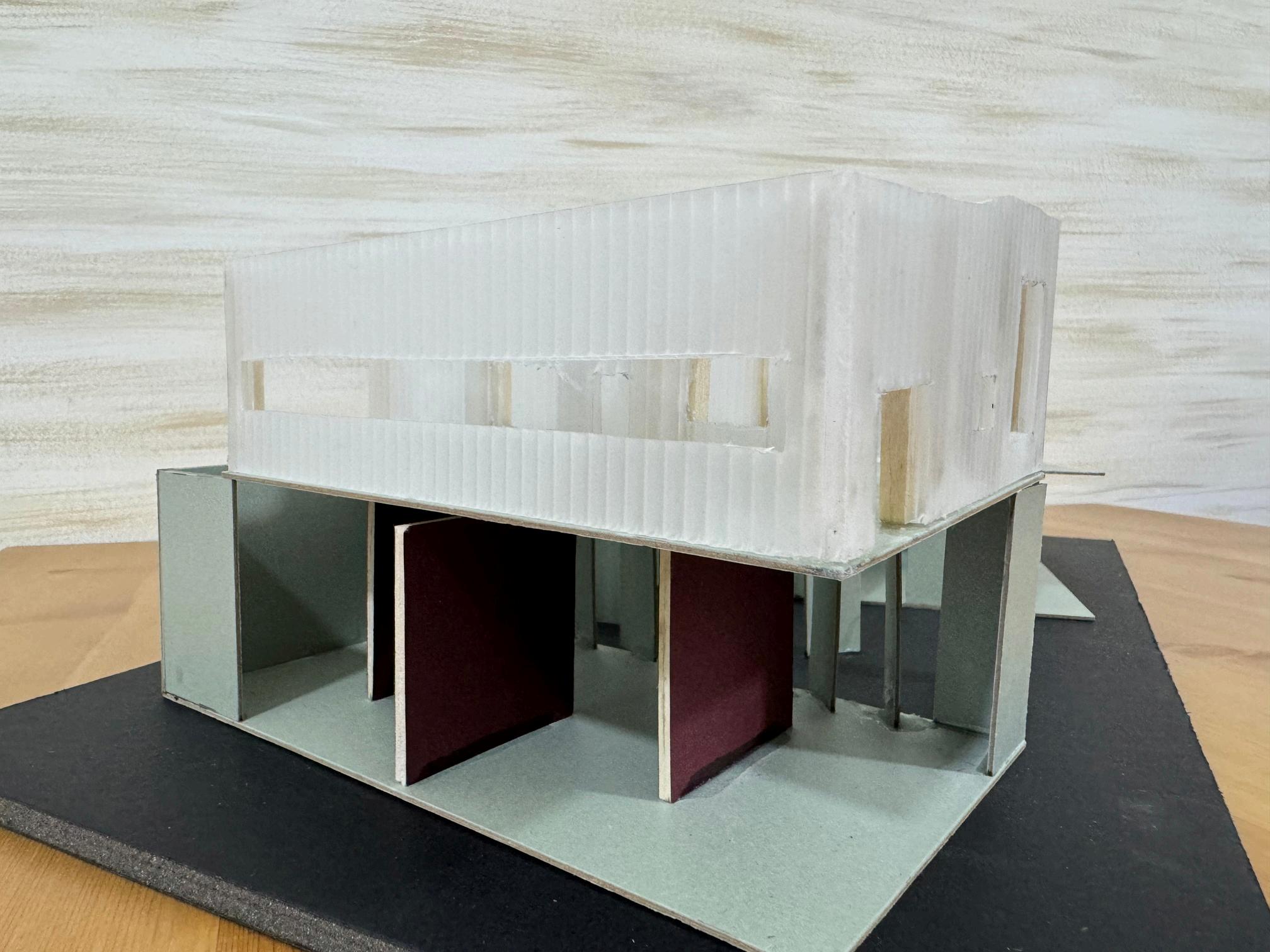

Workshop,PublicArtInstallation&MultipurposeSpace ArtStudiowithPolycarbonateWall

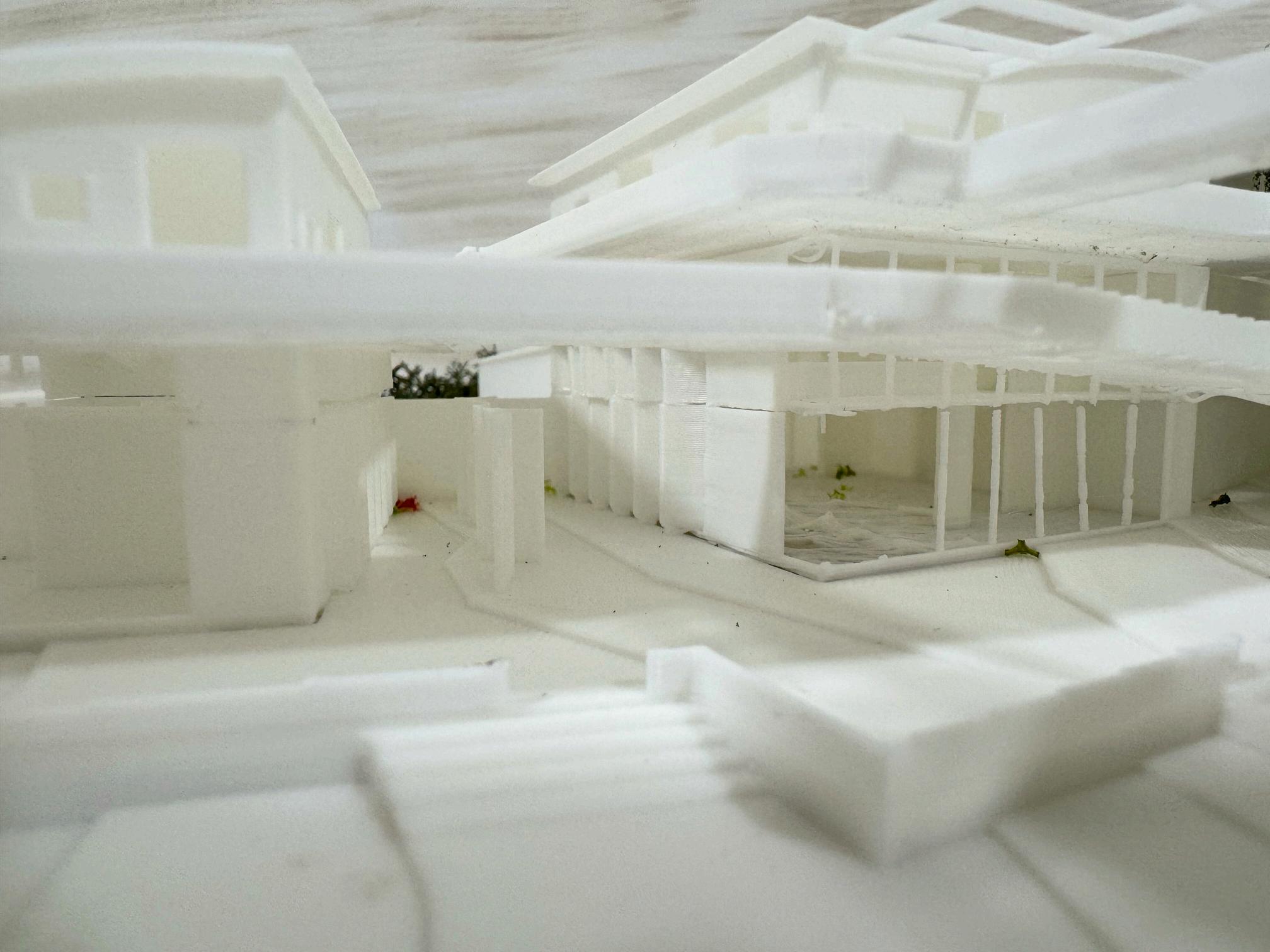

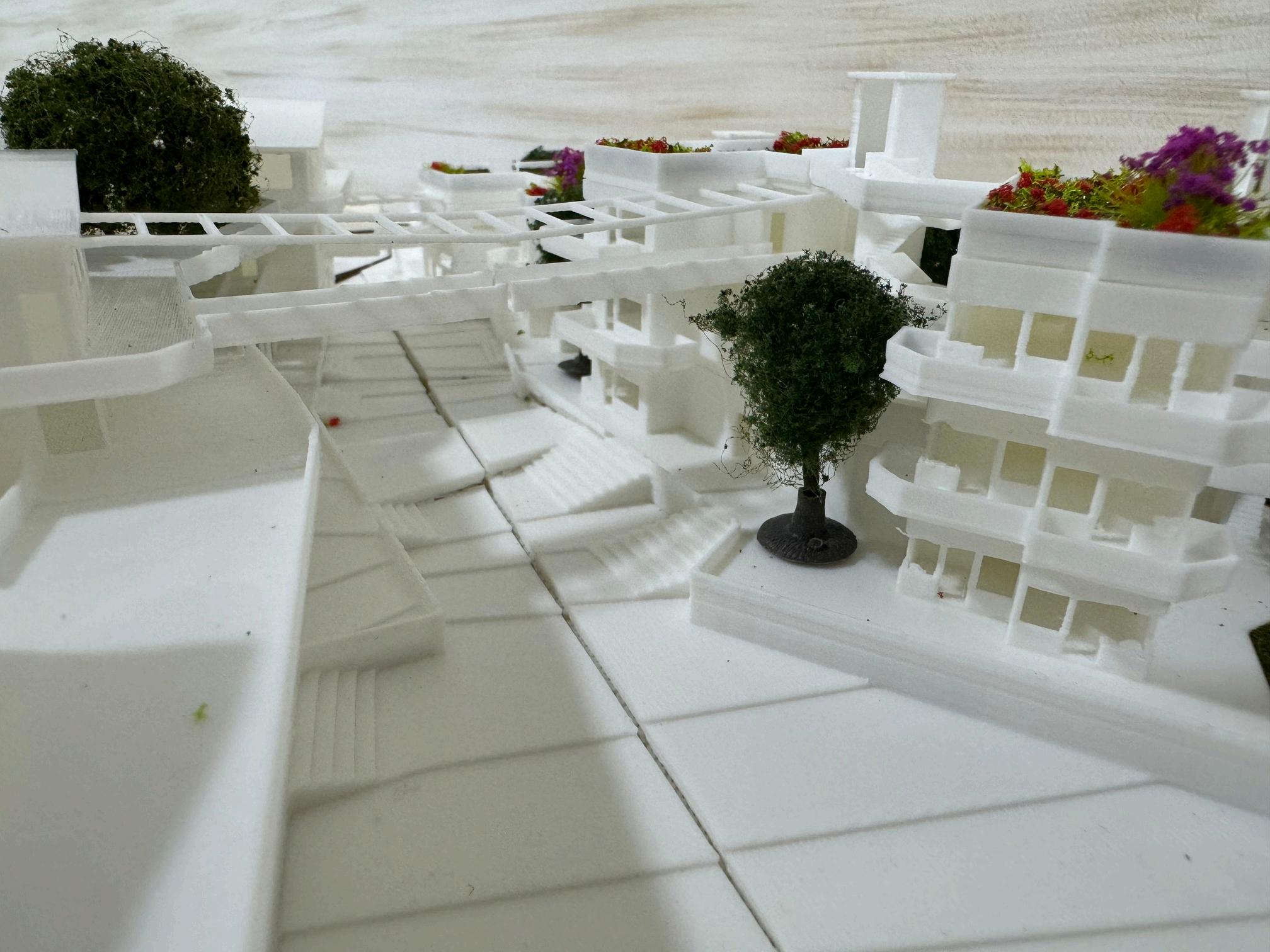

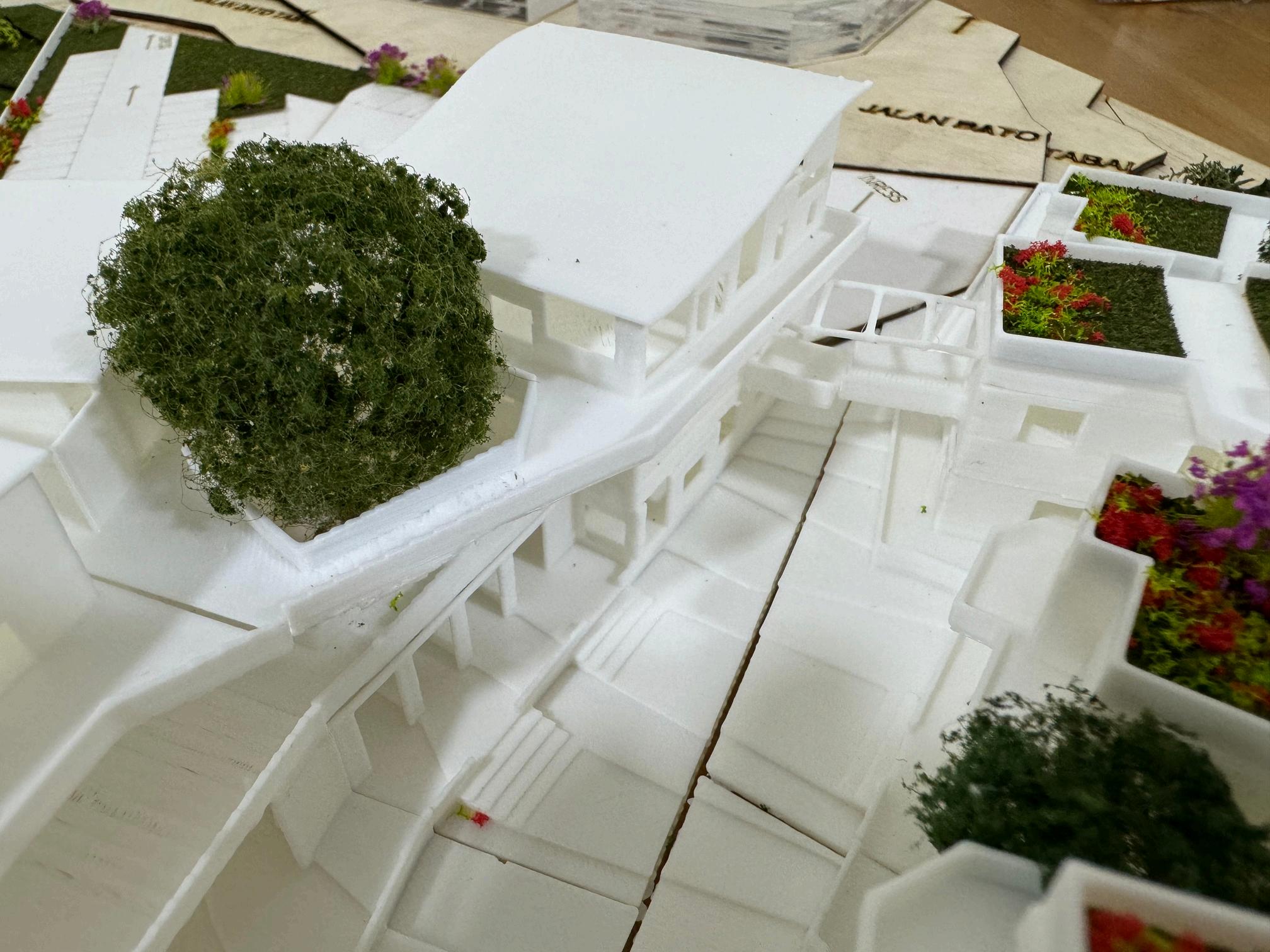

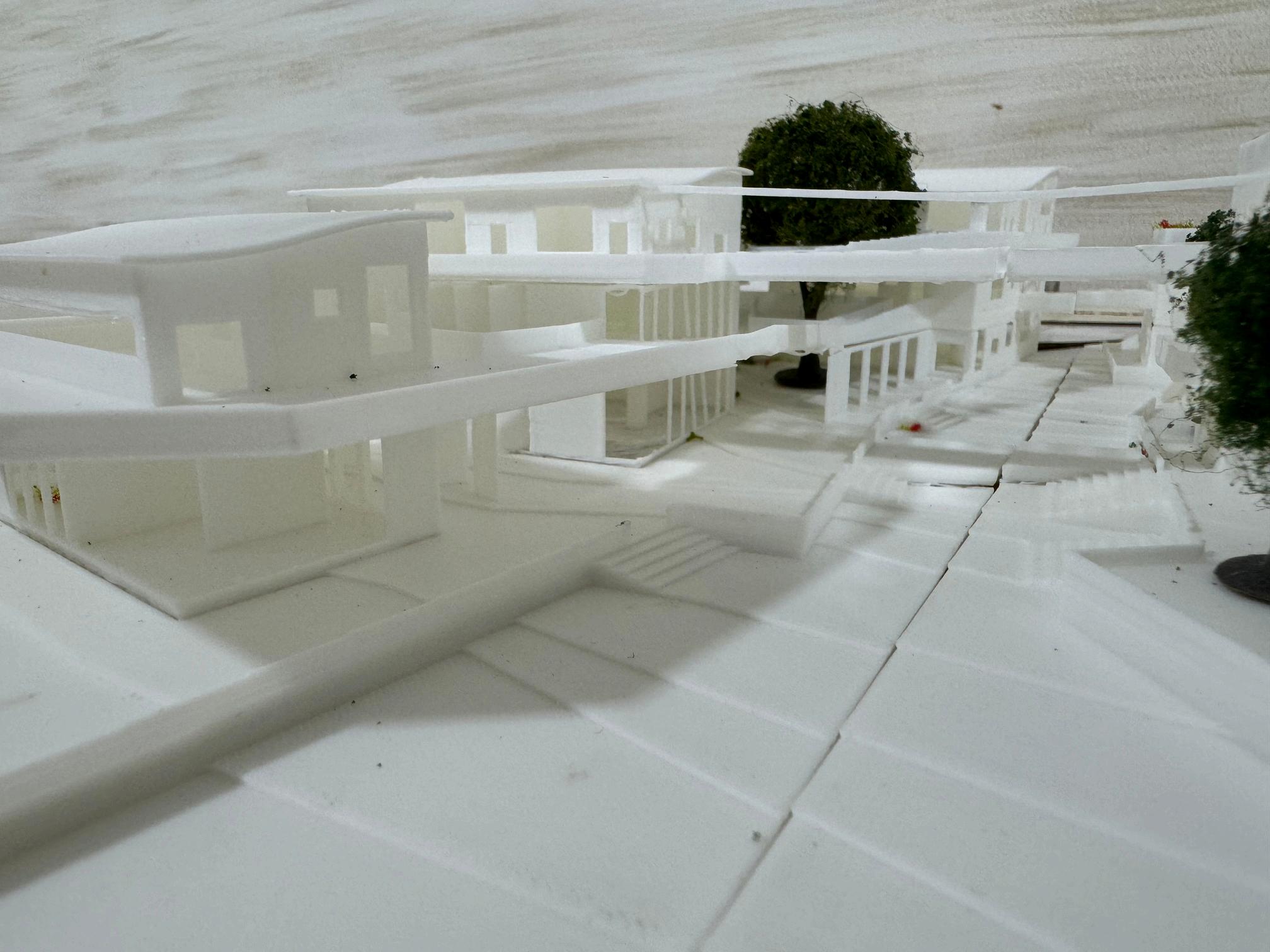

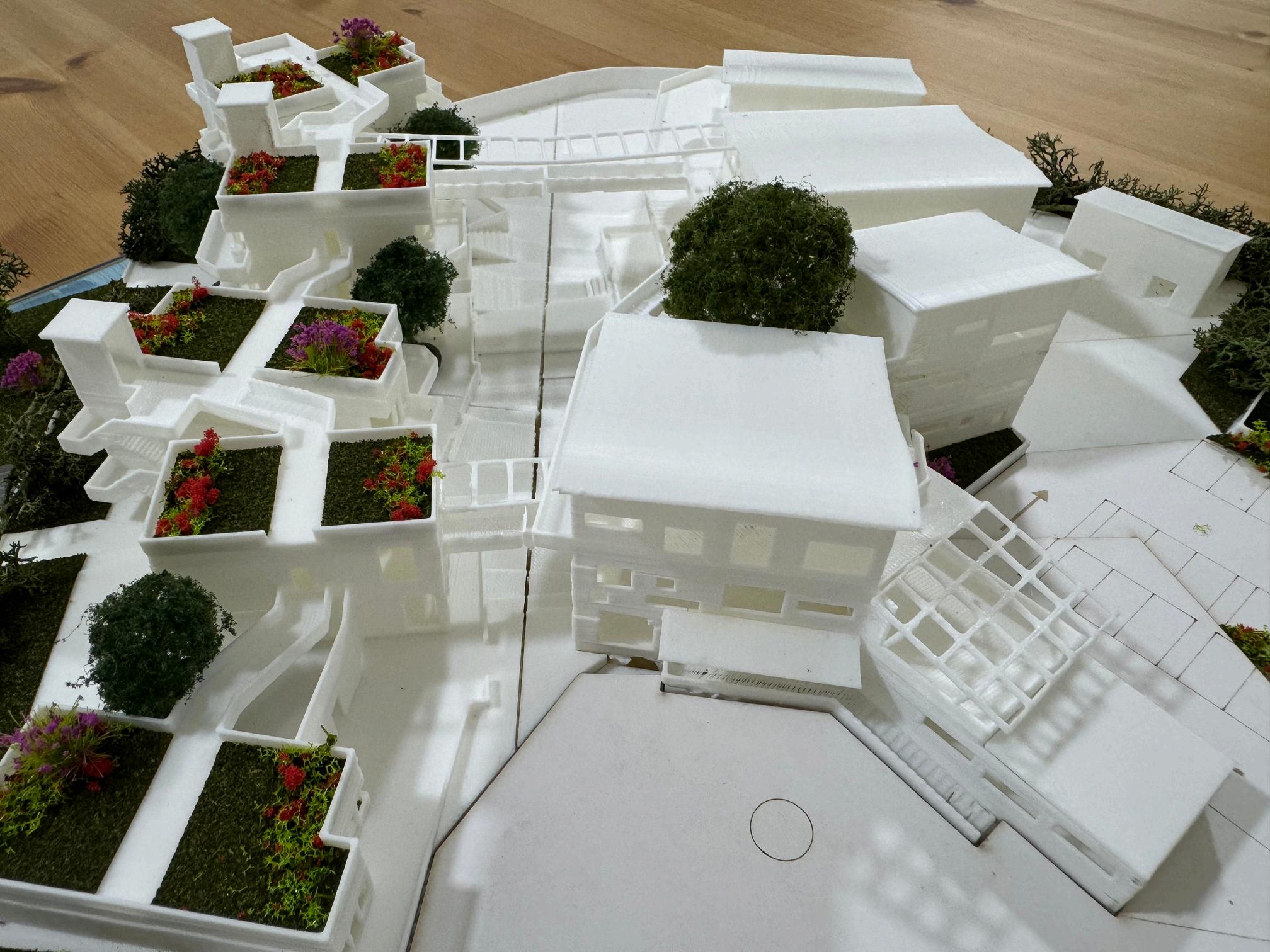

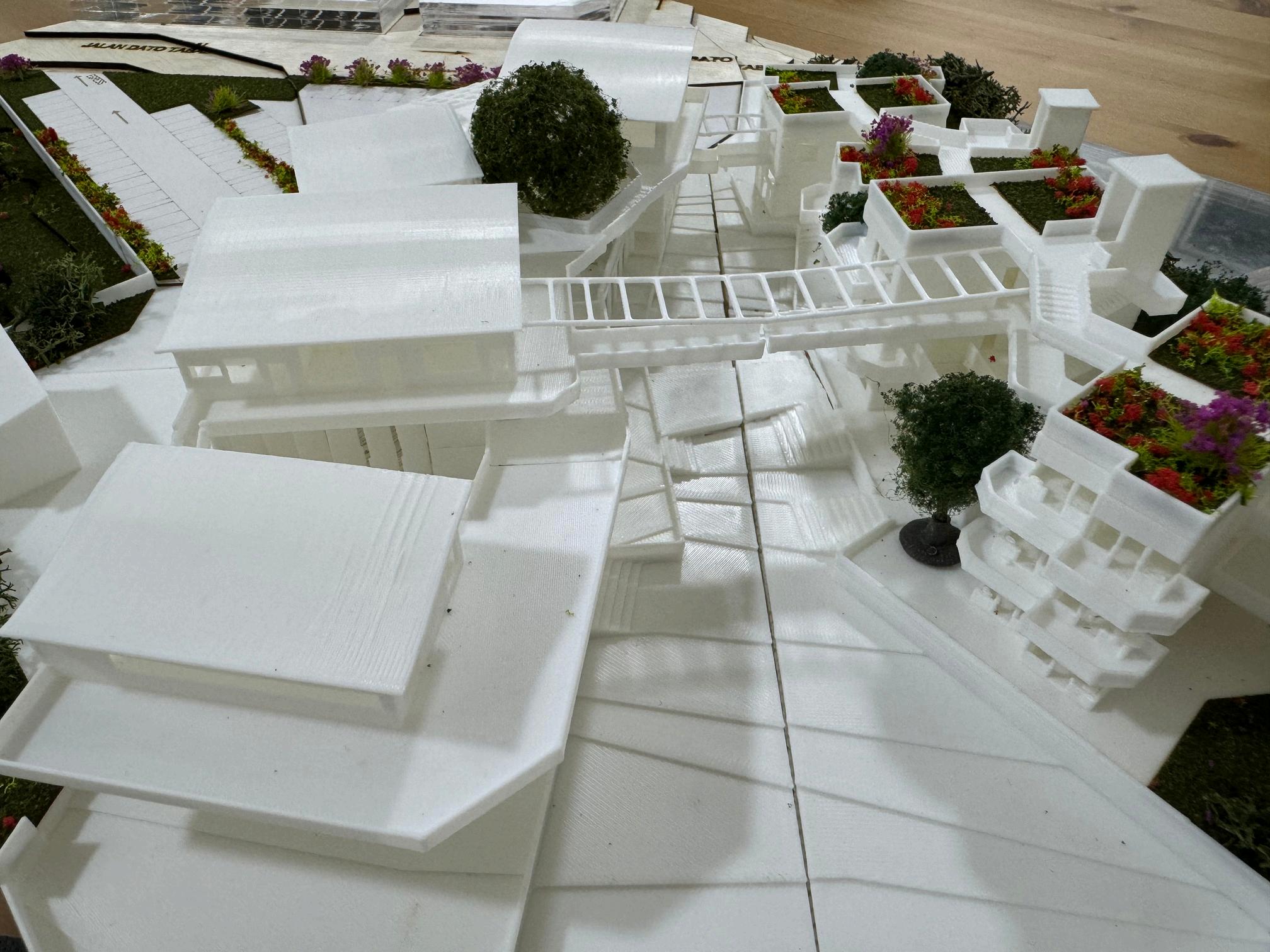

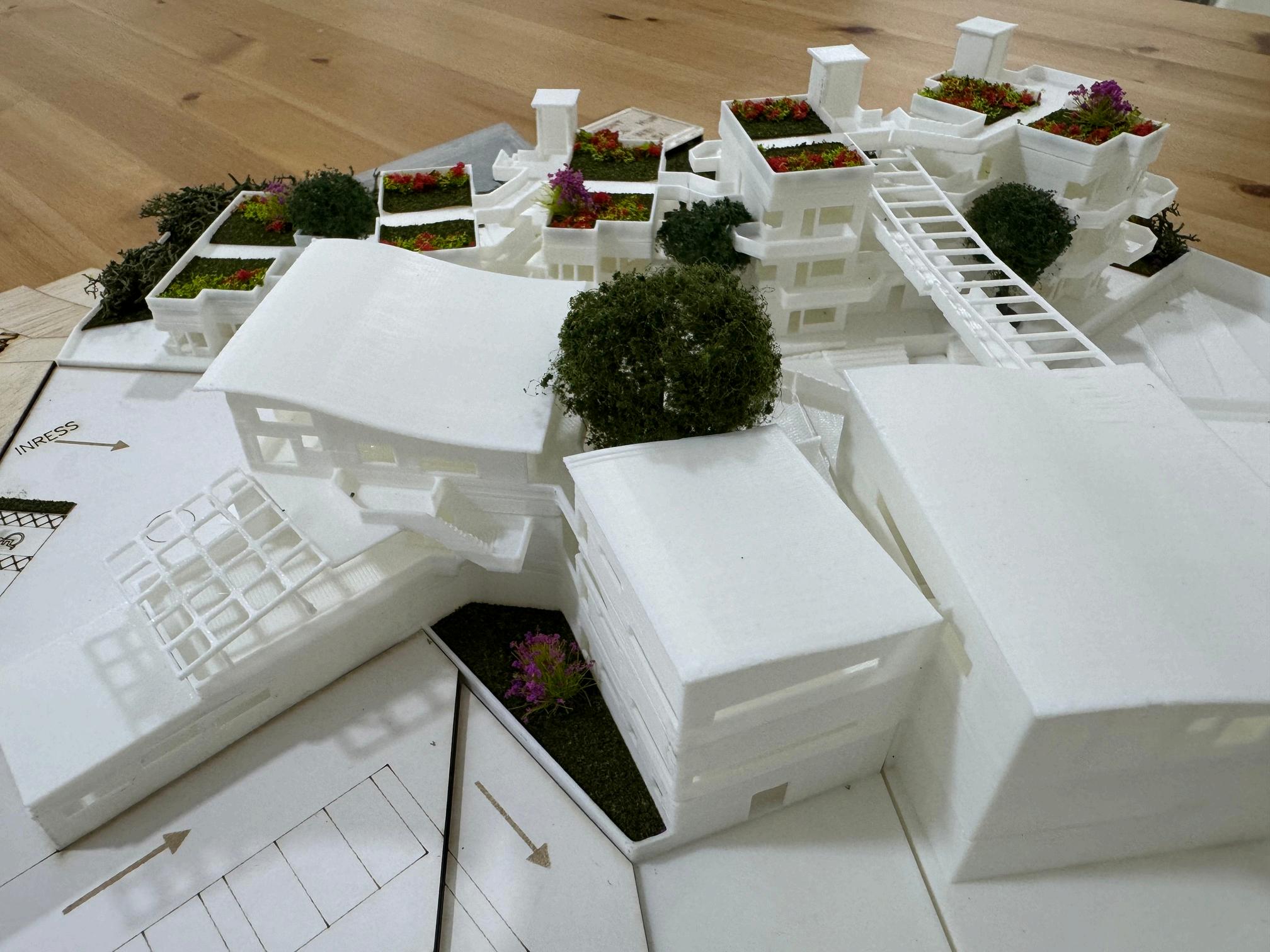

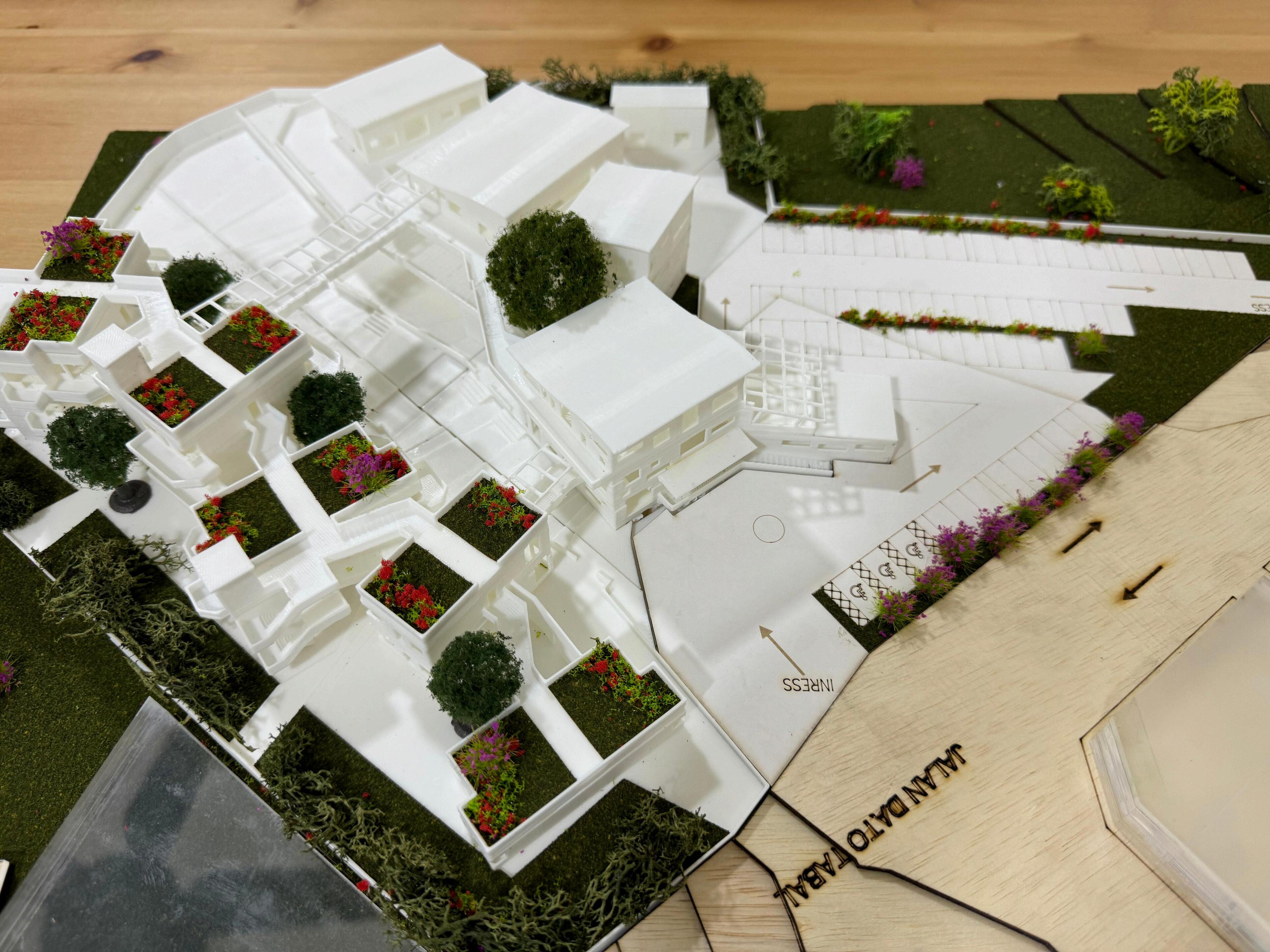

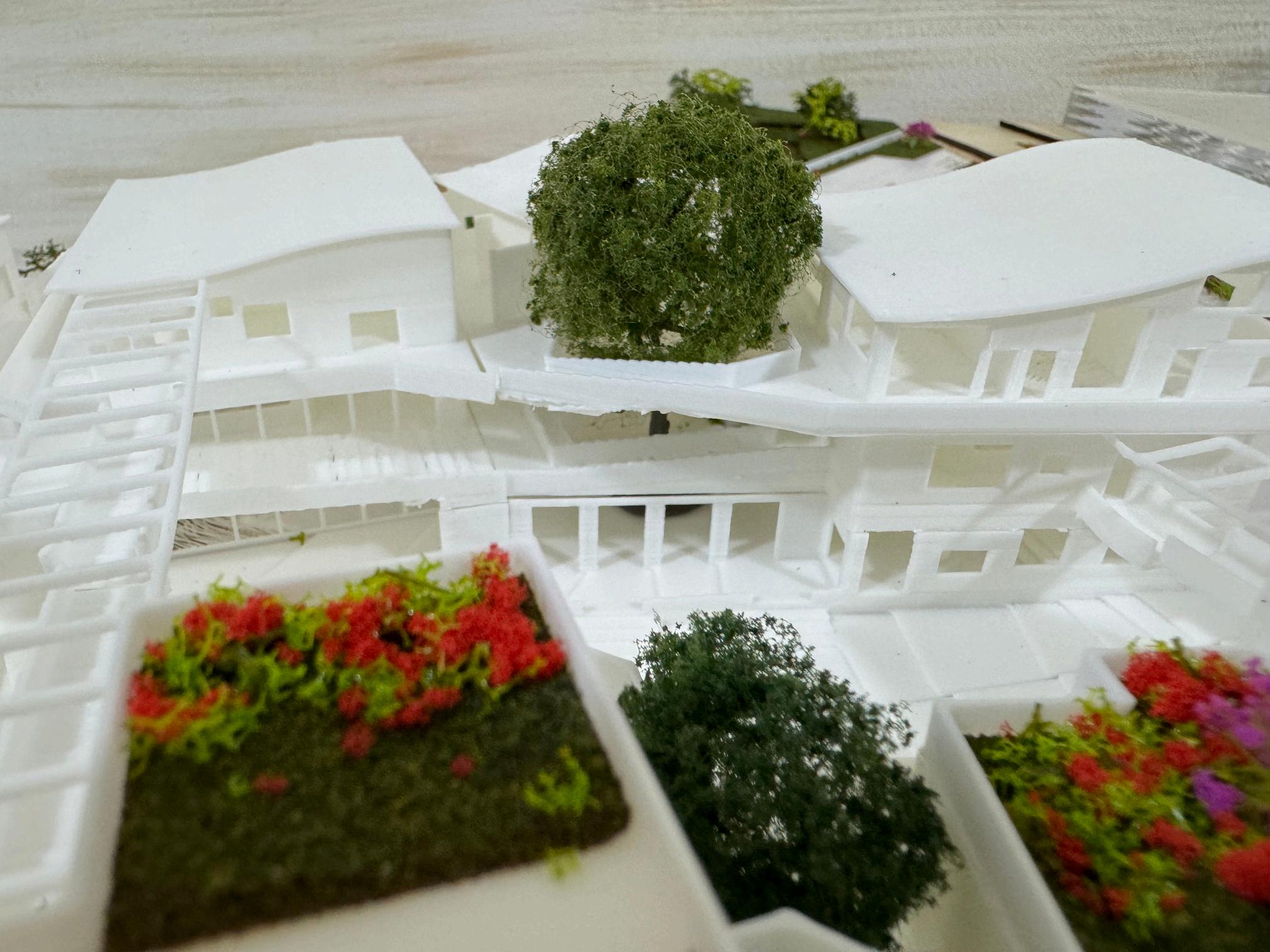

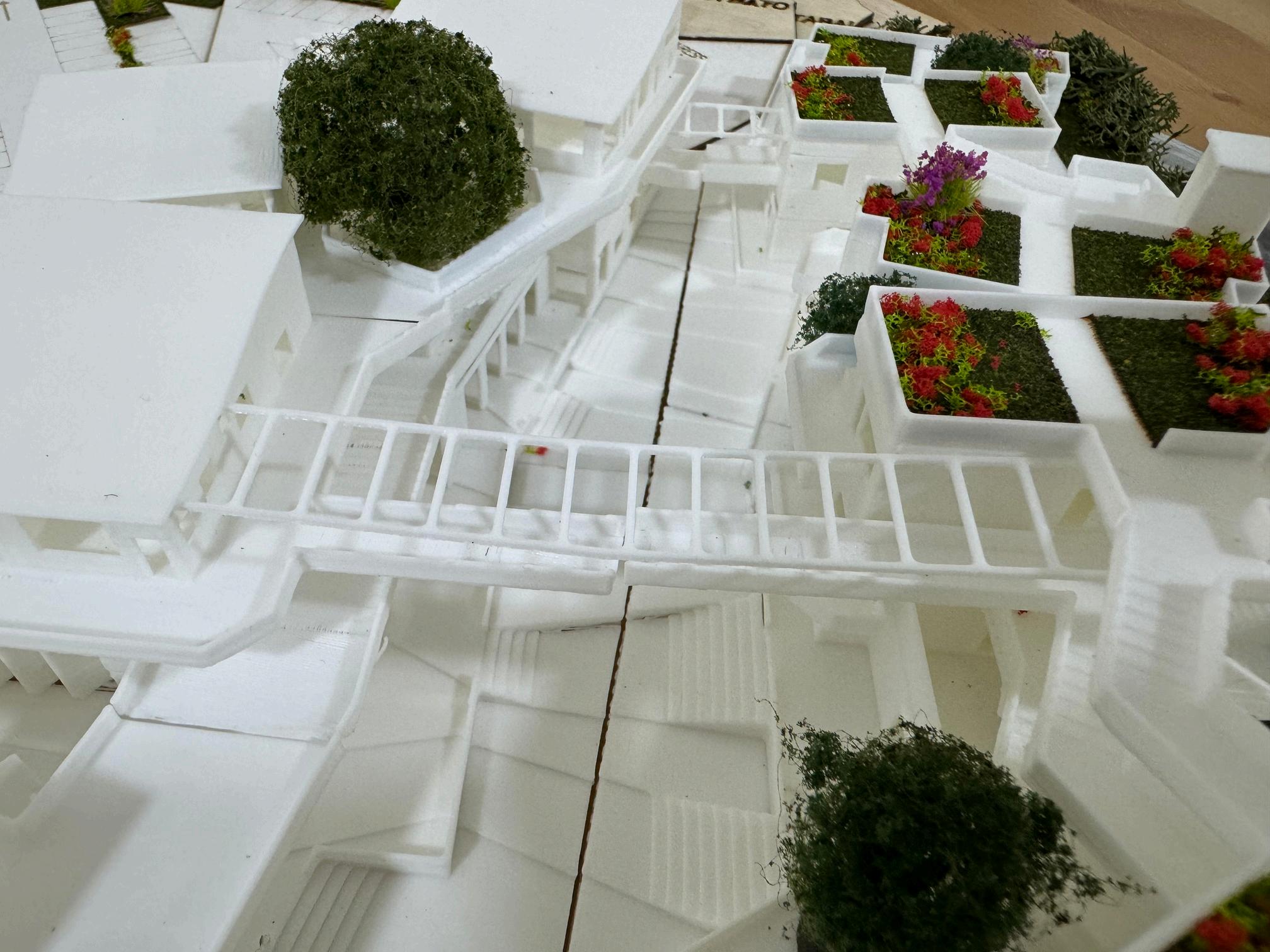

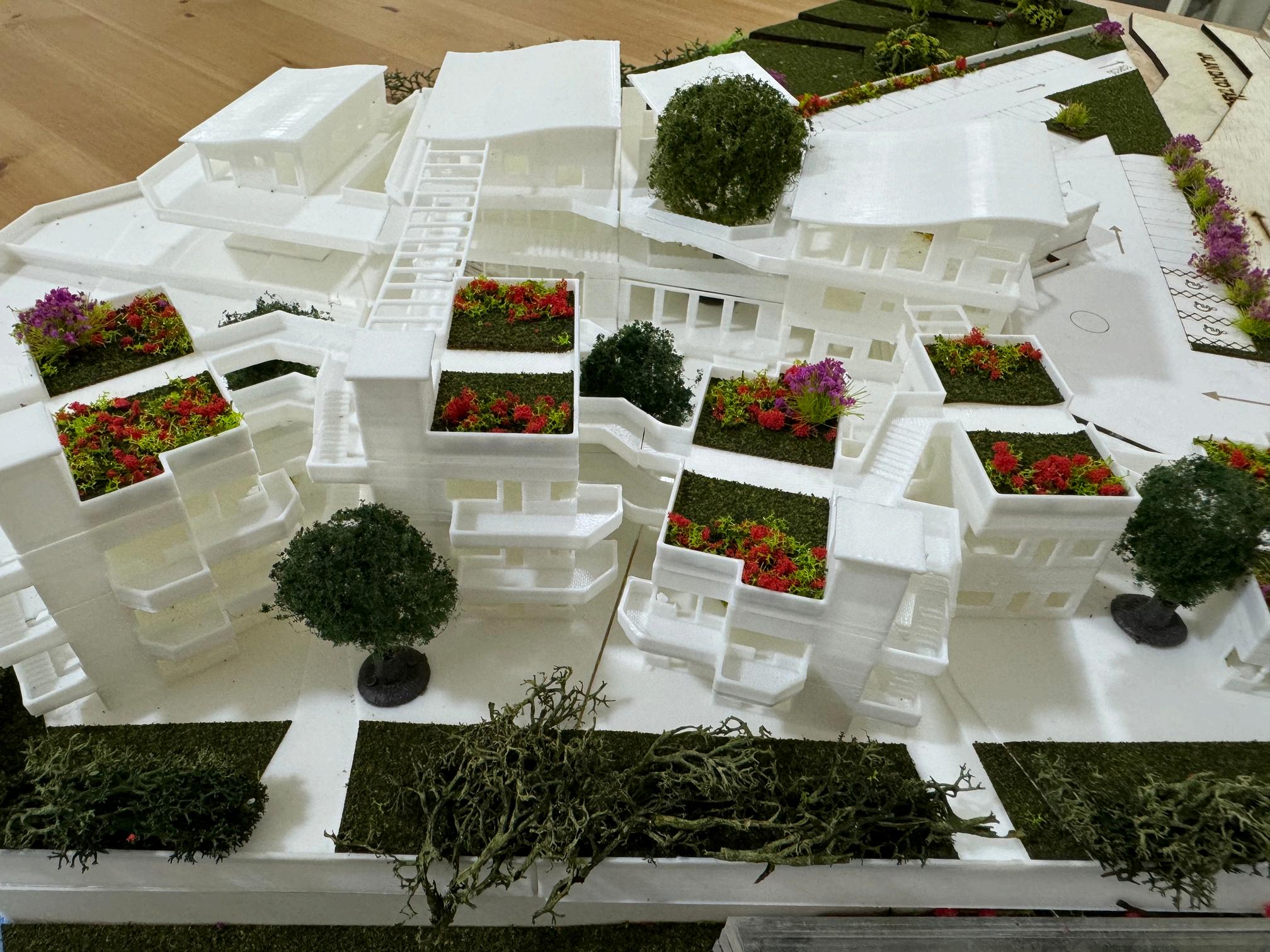

THEMODEL
