ARCHITECTURAL DESIGN PROJECT 06 ZAIN ABDUL HANNAN | S064171 PORTFOLIO
ZAIN ABDUL HANNAN INTERESTS COMPUTER PROGRAMS CINEMATOGRAPHY DRONE PILOT PHOTOGRAPHY READING ARCHITECTURE 3D VISUALIZATION @xaaanu +960 9704040 xain251@gmail.com
Content About CONCEPT LOCATION PLAN DESIGN DEVELOPMENT SITE PLAN FLOOR PLANS ELEVATION SECTIONAL PERSPECTIVE SECTIONAL BLOWUPS FLOOR PLAN BLOWUPS STRUCTURAL ELEMENTS MODEL PICTURES Master plan Individual design

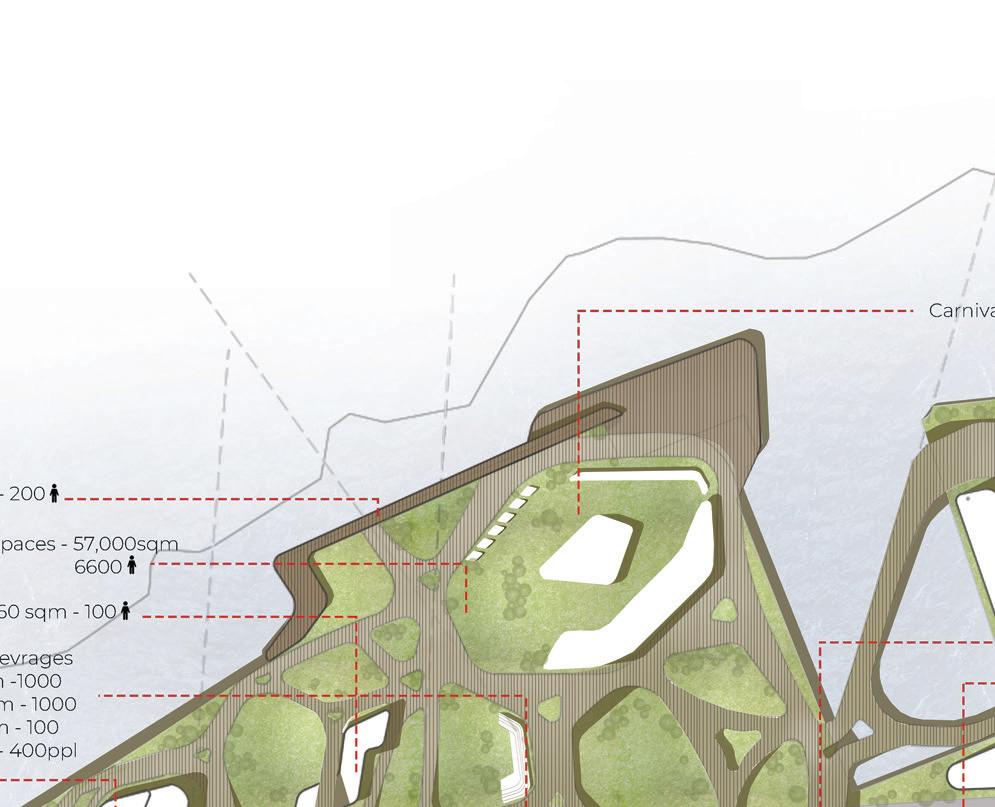

Master plan
Revitilization through diversion
Male’ city is a jungle. everyday can feel slow and monotone when you are stuck in the same continous loop. the everyday ccyle of life in the city is void of interesting & spontanous interactions. our aim is to revitalize the life of everyday citizen by divert ing peopel toward a state of bliss, so that they can greater appreciate the complexi ties of modern day life.
PAGE 4

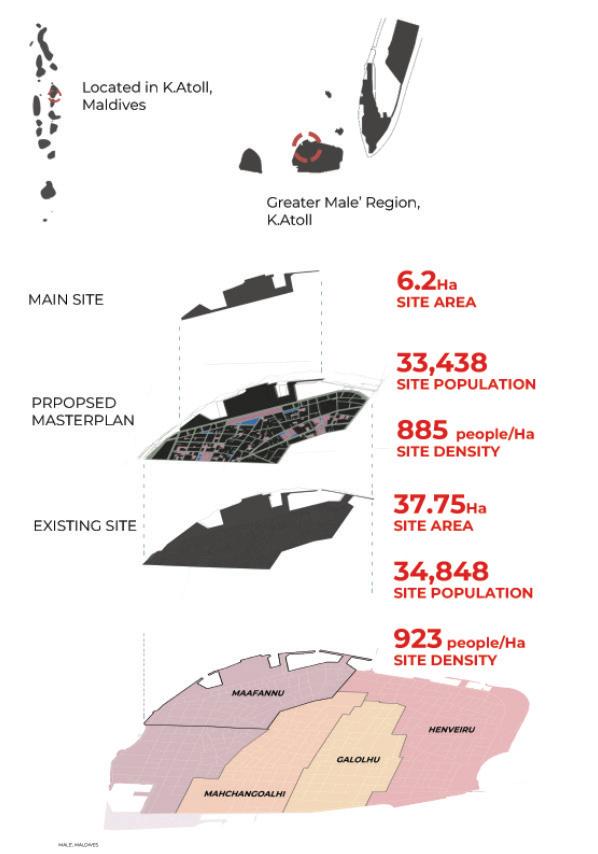

PAGE 5 SITE DETAIL

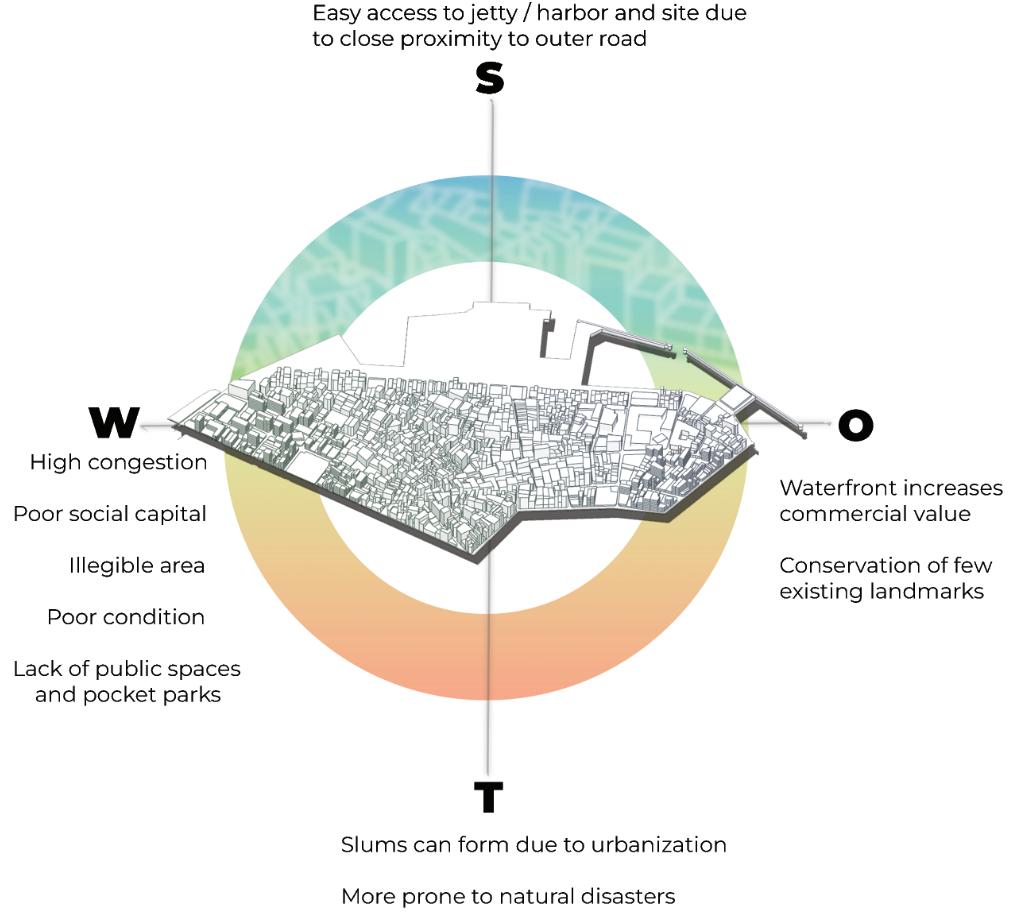

S.W.O.T
PAGE 6
PAGE 7

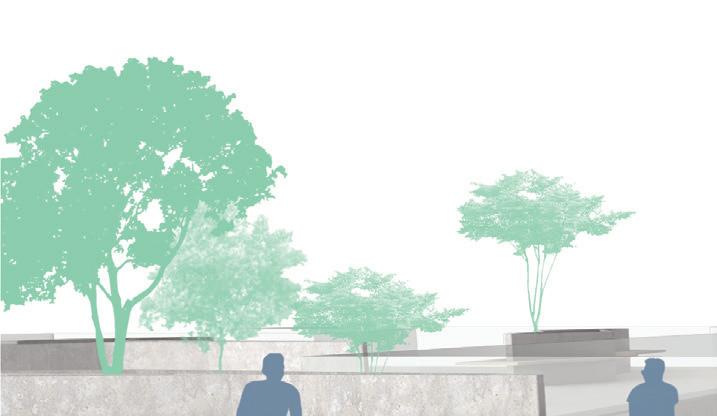

PERSPECTIVES
PAGE 8

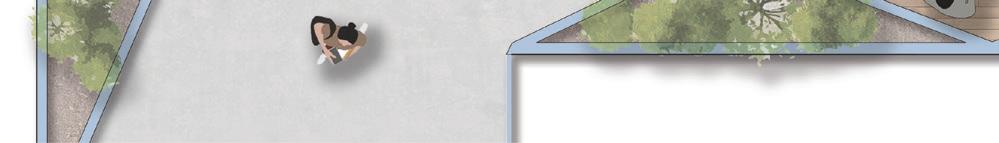

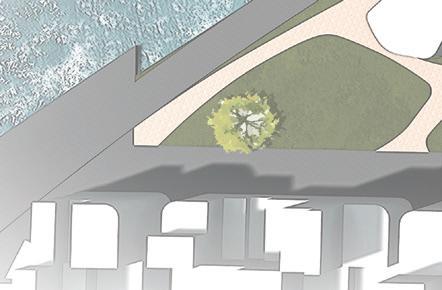

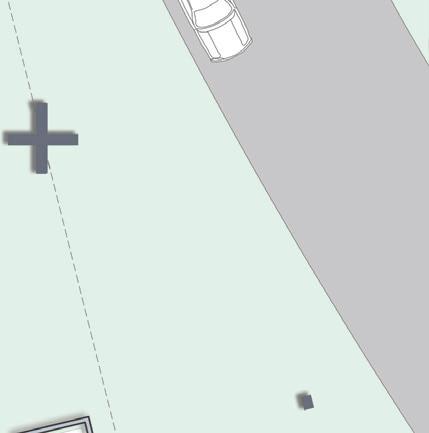

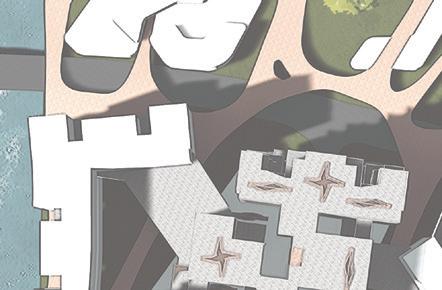

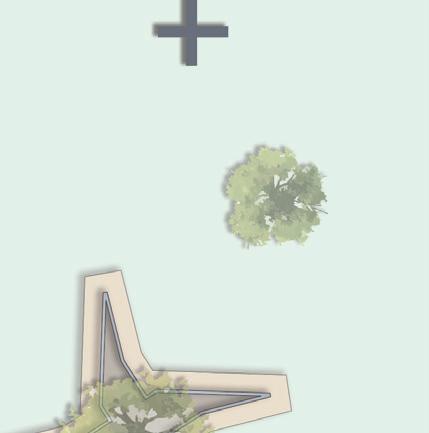

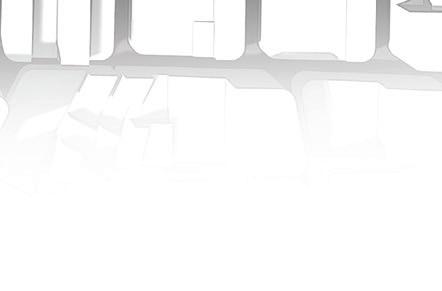

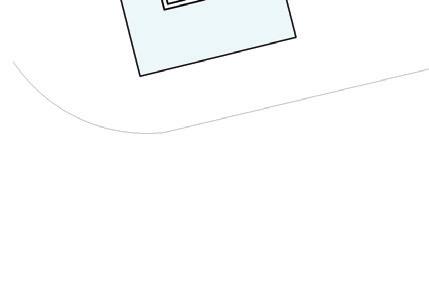

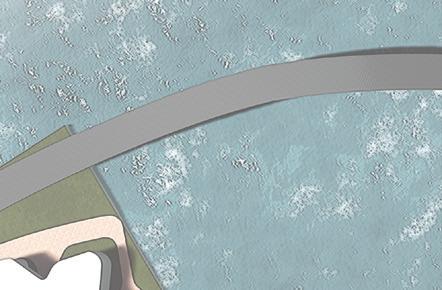

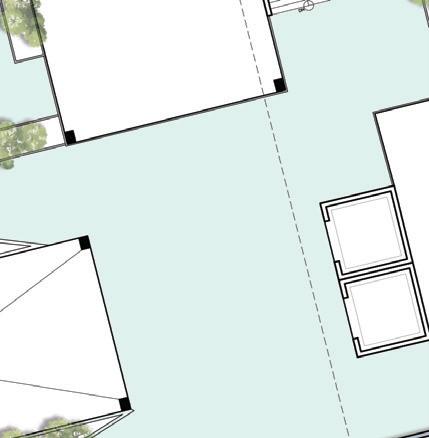

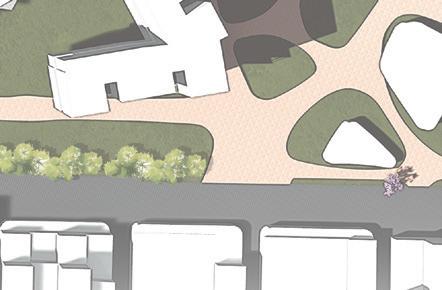

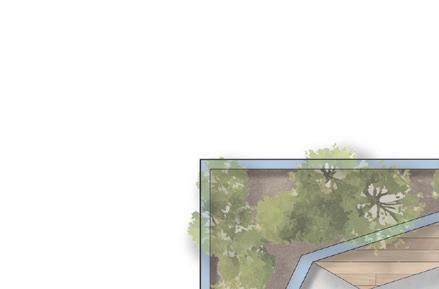

SITE PLAN
Individual project - Stimulate
NARRATIVE
People living in male city has a very monotone lifestyle. The existing buildings and public spaces do not give a stimulation that draws peoples attentions during their daily activities. This lifestyle makes people live a solitary life. And the communities to have a low social capital that they can depend on.
The intent is to stimulate the senses by allowing for interactions through an energetic environment. Thus, creating a better social capital within the community.
PAGE 9
Lifestyle Lively Lifestyle Residential units Residential units Communal space
Stimulate the mind of people by incorporating spaces that encourage people to interact with one another and is more lively, energetic. Monotone
buildings

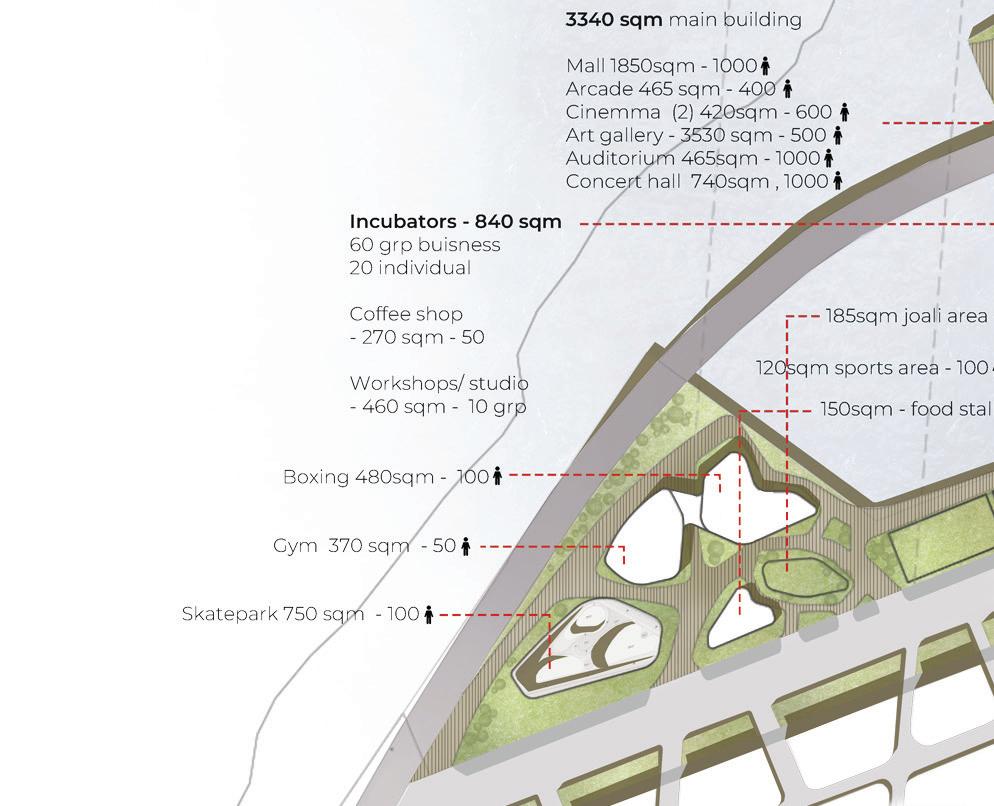

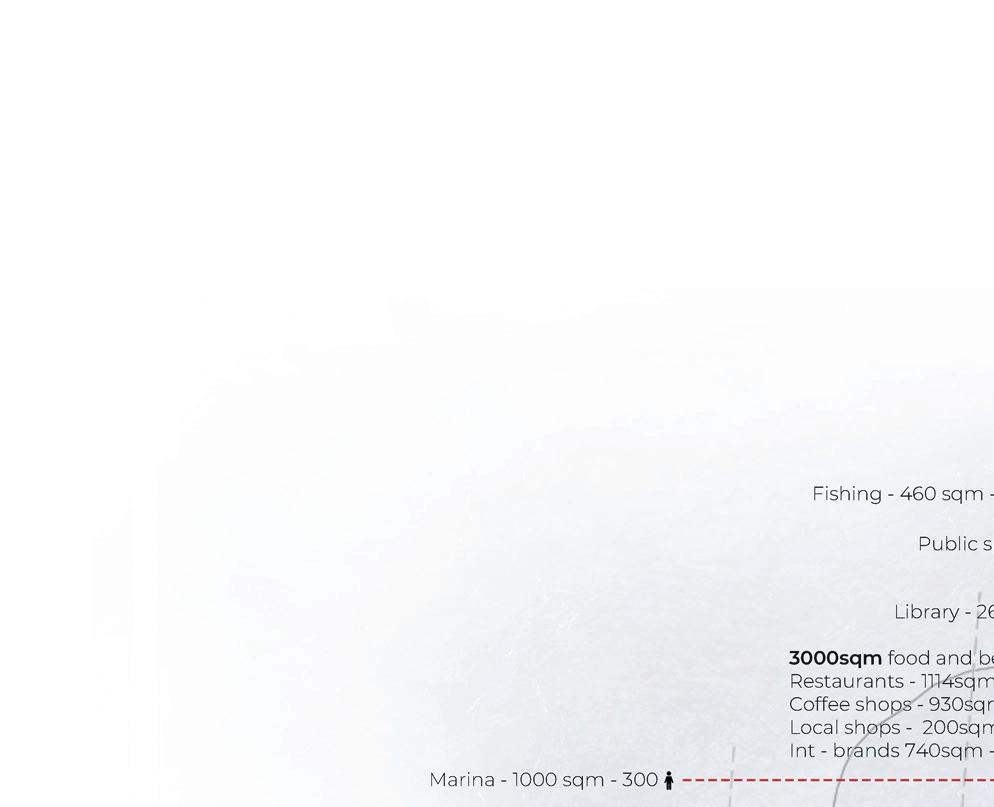

PROGRAM Communal space Residential units Residential units Balcony Balcony Balcony Residential units Main building PAGE 10 Public area Public area Public area Commercial Commercial Commercial Commercial Commercial Commercial Residential Residential Residential Residential Residential Residential Residential Residential Residential Residential Residential Residential Connected Indirectly connected

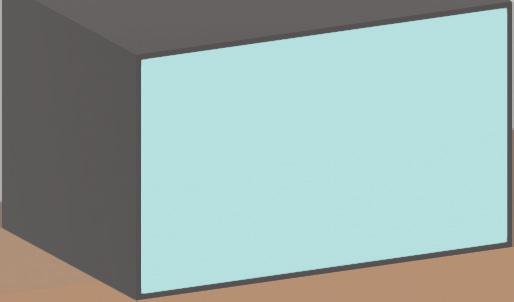

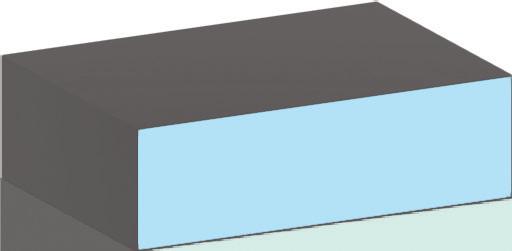

DEVELOPMENT

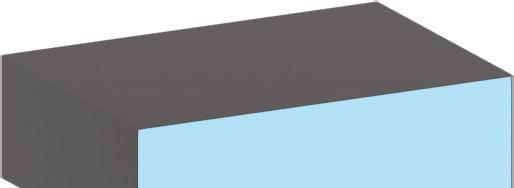

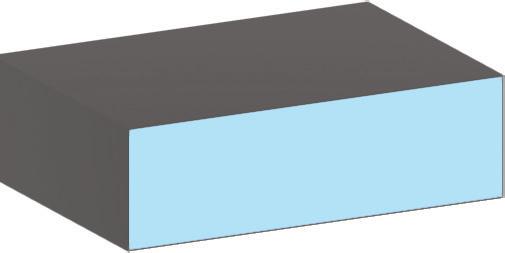

SITE AREA .
1. 30000 m2 site with an open space in the front and back.
ORIENTATION
2. Site front is facing the city of male’ and the back is facing sea side.
NATURAL LIGHT/ VENTILATION
3. Sides curved out strategically to allow natural light to enter the build ing and make it more lively. Total build up area after cut out is 1842 m2.
Communal areas
RESIDENTIAL UNIT ORIENTATION
4. All units are arranged in a way that each unit can get access to ether the sea view or the cityscape view.
COMMUNAL AREAS
5. Communal areas placed in between apartments to improve visual connections and sunlight reachability.
BALCONY
6. Balcony's area is extended differently in each floor. Due to different layout of each floor.
SUSTAINABILITY
7. Kinetic solar panel facade incorporated to the outer walls. Water collected from the roof to water the plants.
PAGE 11
PAGE 12 SITE
PLAN

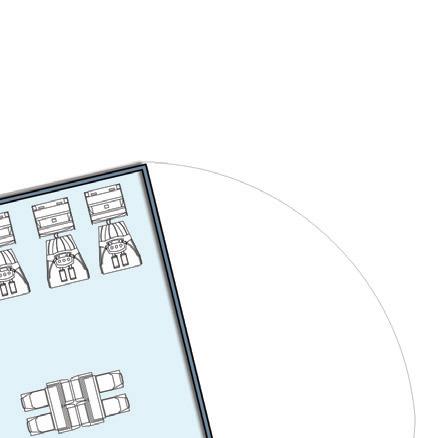

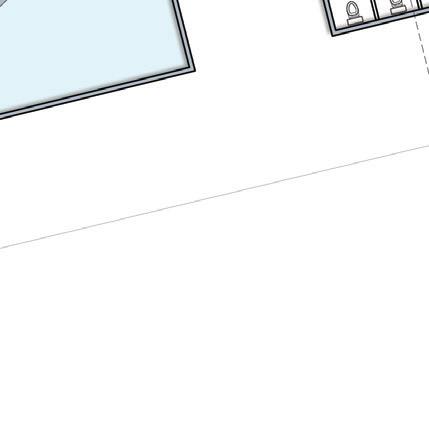

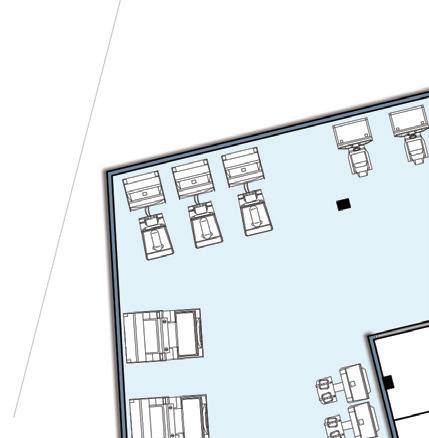

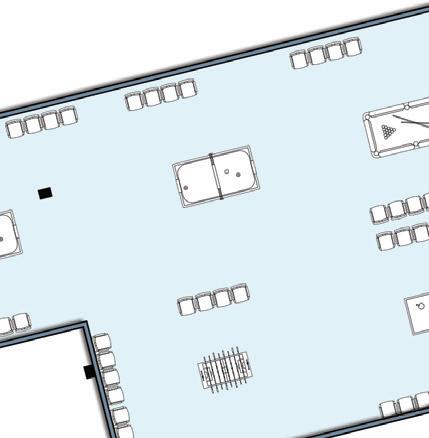

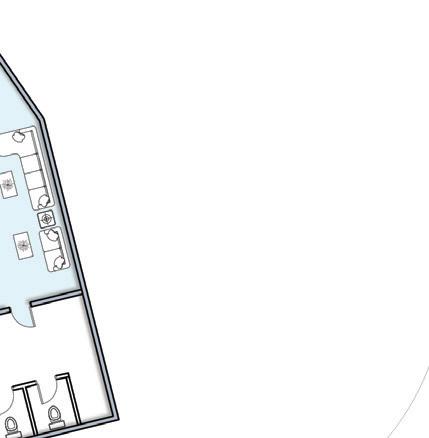

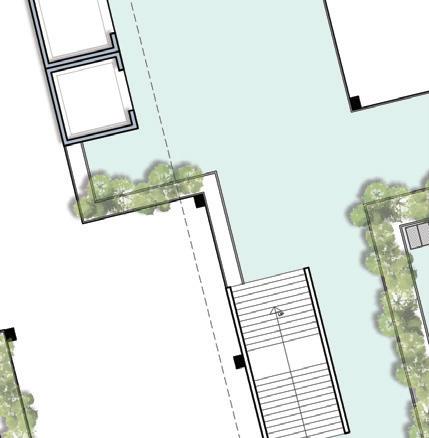

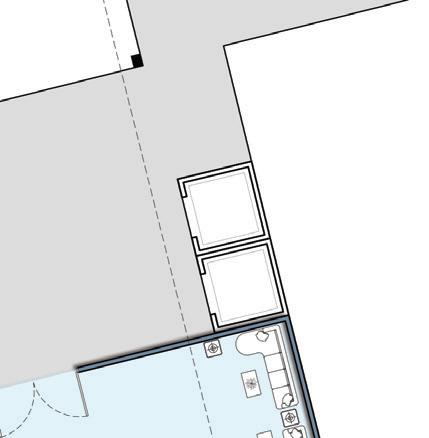

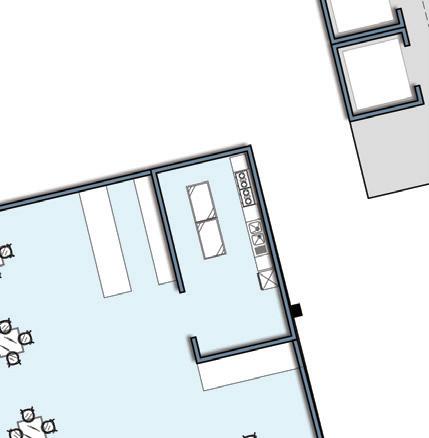

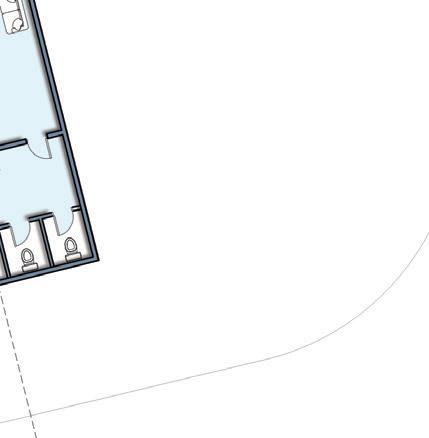

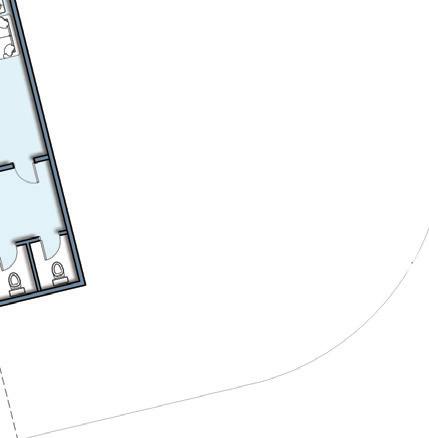

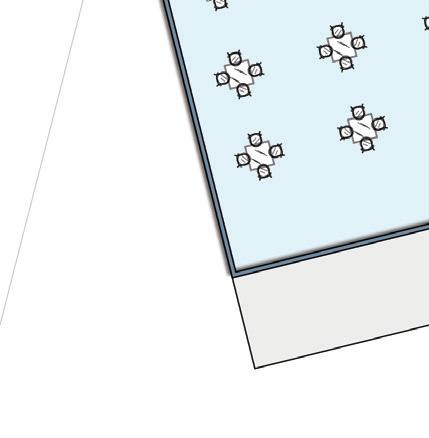

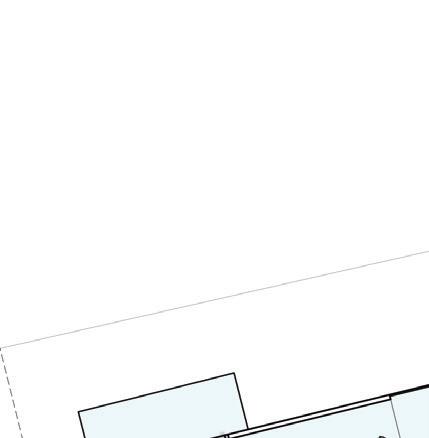

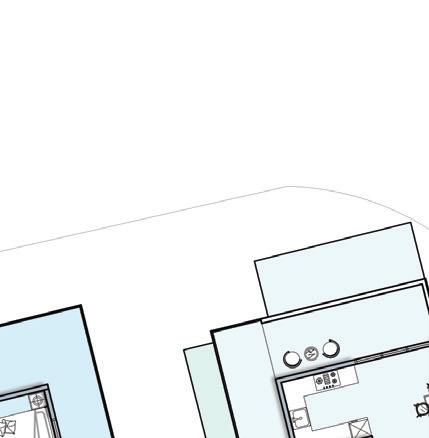

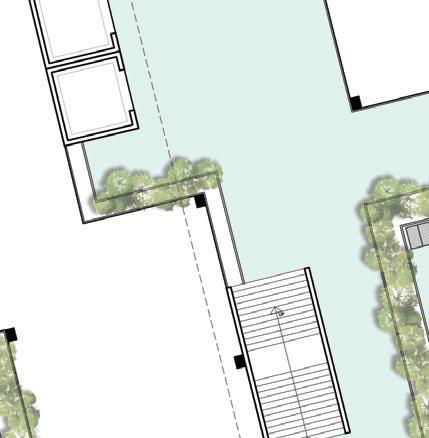

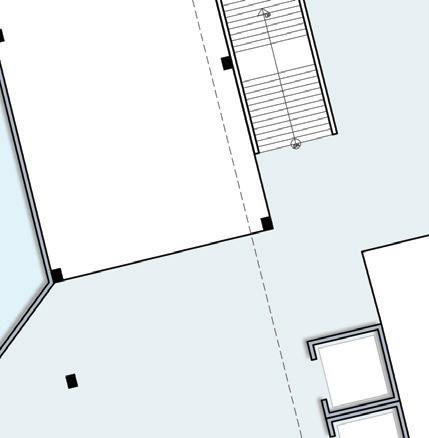

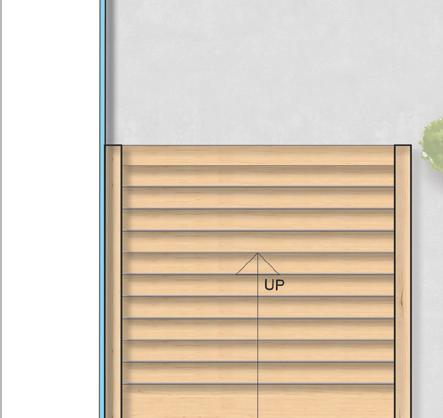

FLOOR PLANS
PAGE 13
FIRST FLOOR PLAN
SECOND FLOOR PLAN
THIRD FLOOR PLAN
FOURTH FLOOR PLAN
FIFTH FLOOR PLAN
PAGE 18
SIXTH FLOOR PLAN
SEVENTH FLOOR PLAN
EIGHT FLOOR PLAN
NINTH FLOOR PLAN

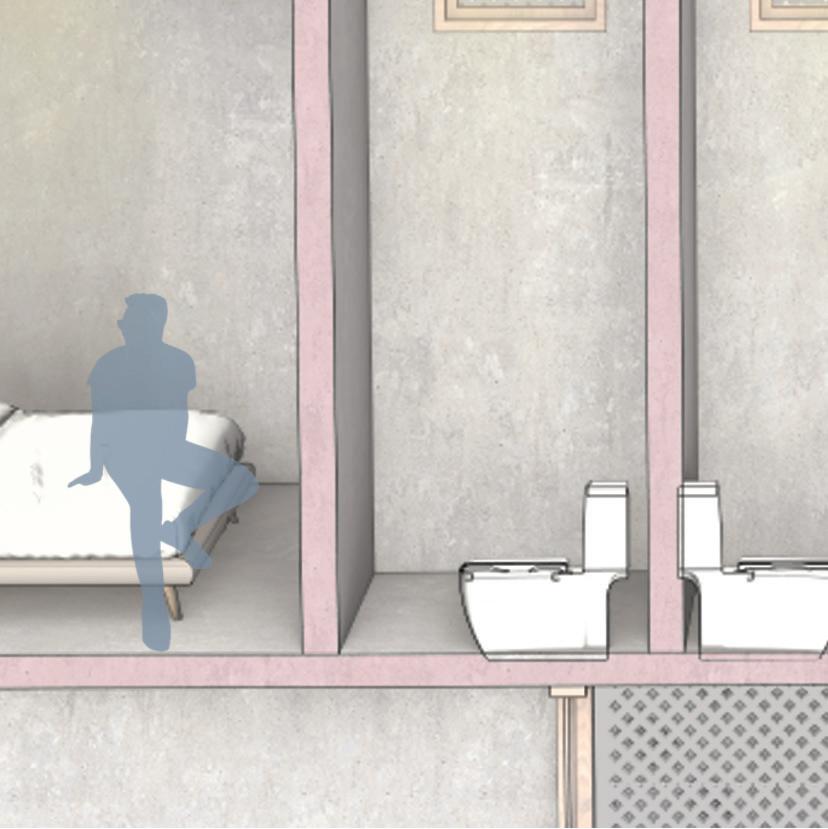

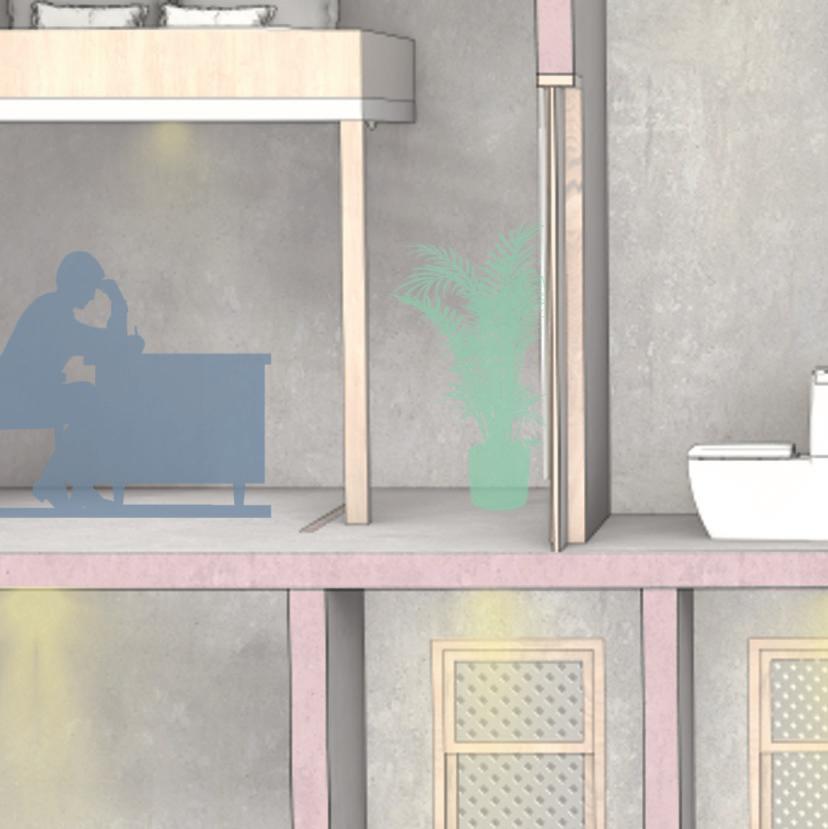

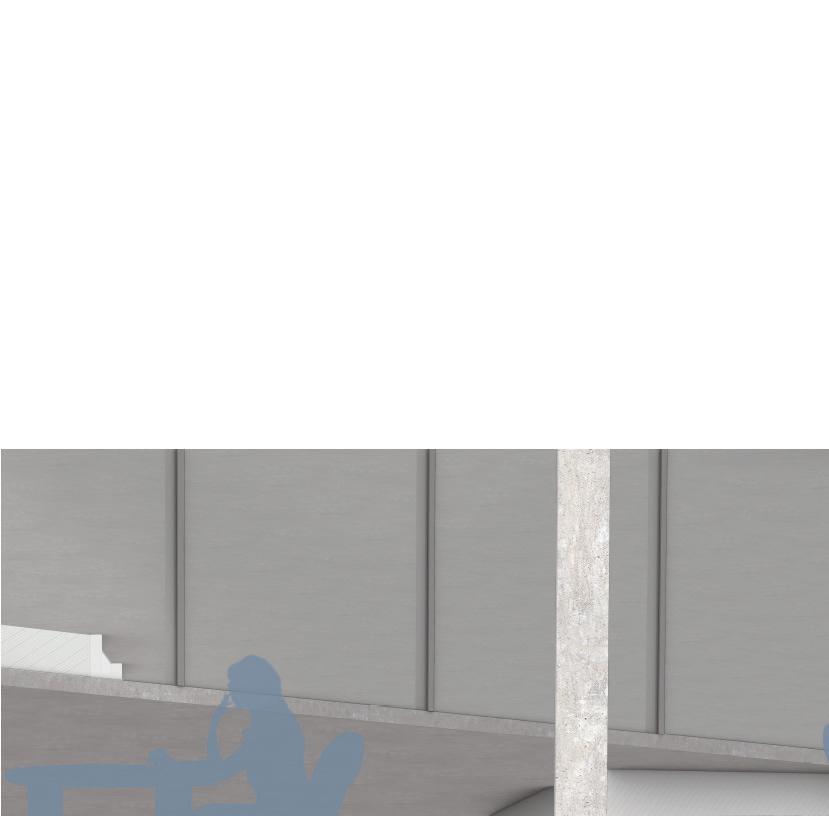

Blow up - 3
Voids in the building allow for much easier ventilation and also allows natural light to enter all the levels of the building.

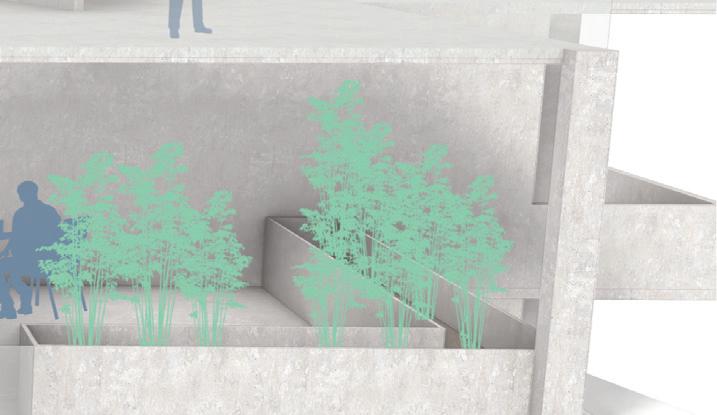

Water storage unit that collects water from the roof and transfers to planter box in all the levels through an irrigation system
Each floors balcony are a cantilevered in a different distance depending on the roof of the floor below.
Blow up - 2
Blow up - 1
PAGE 23

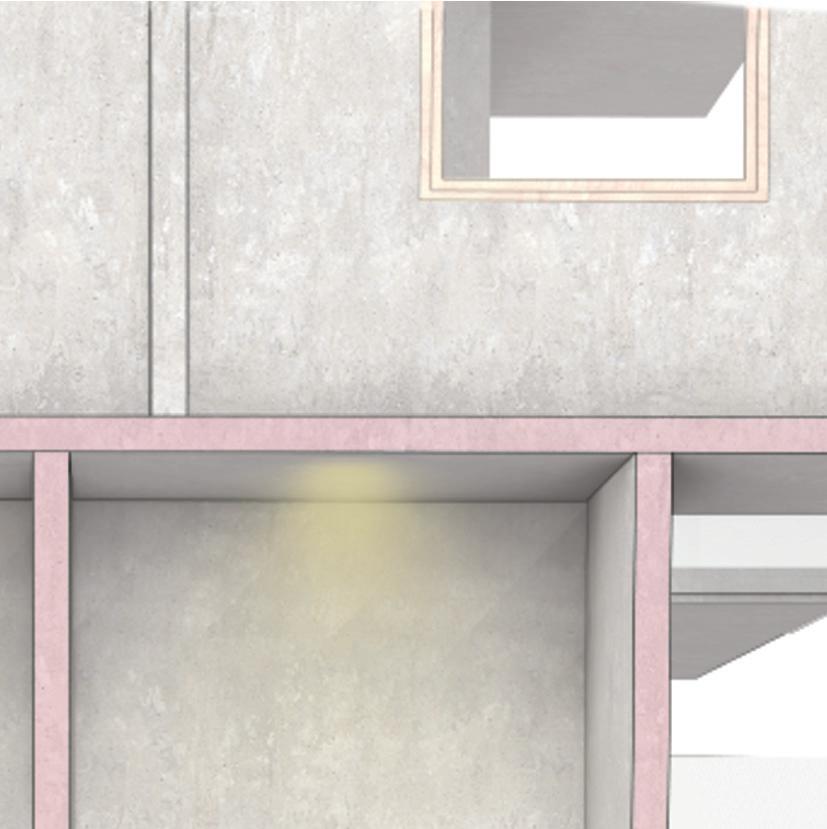

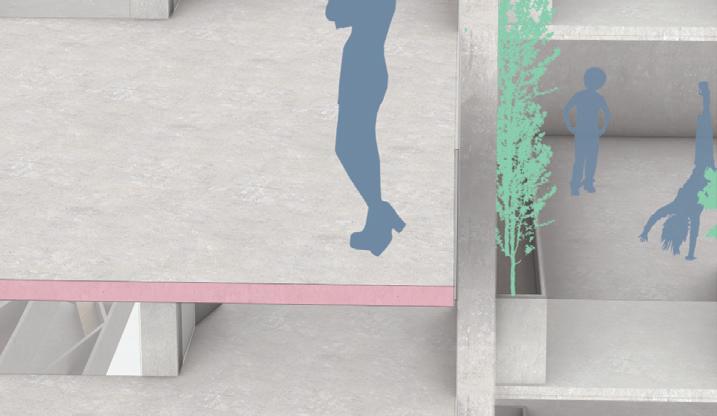

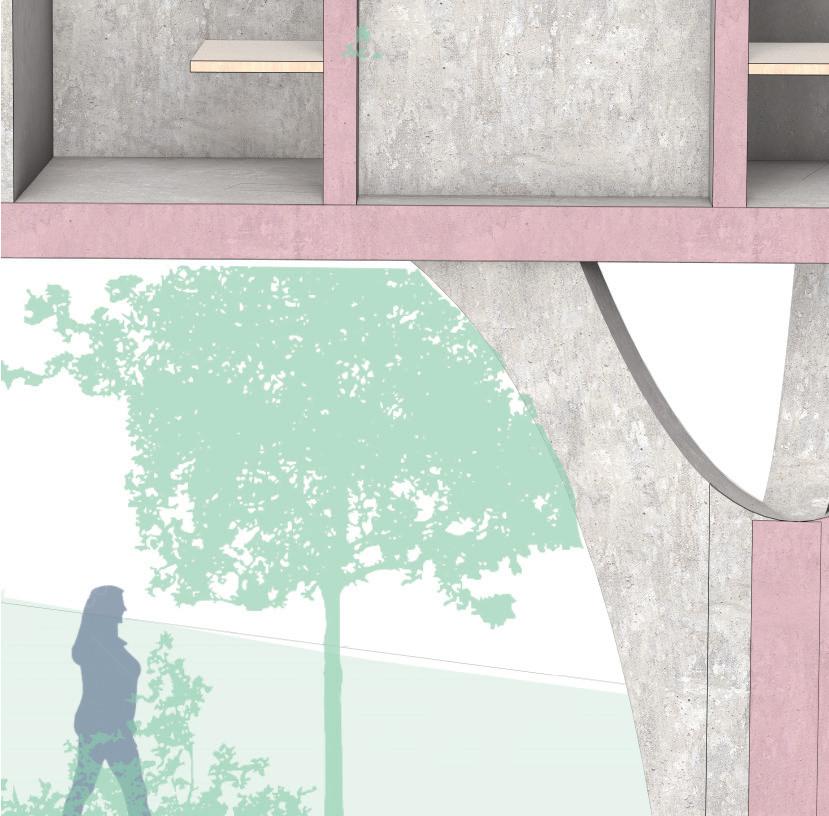

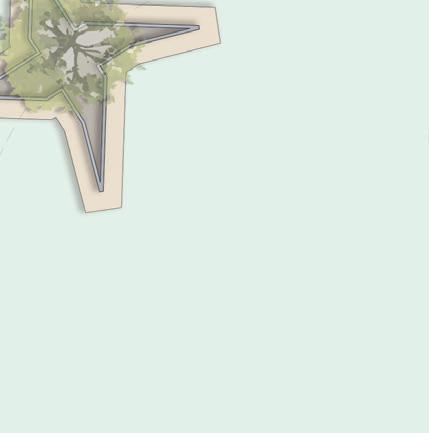

Concrete tree columns

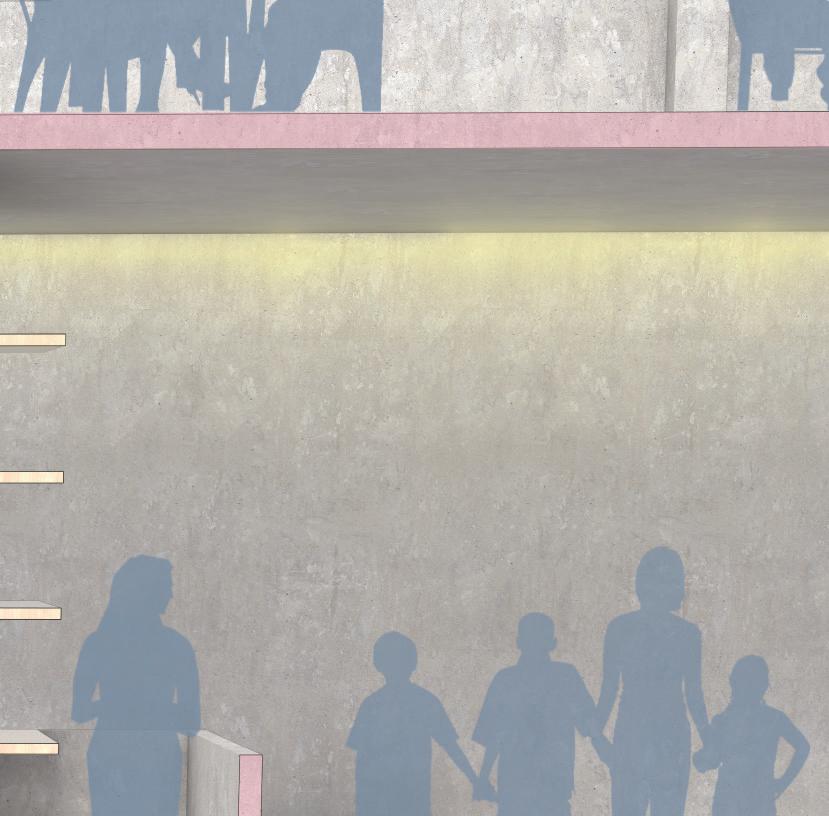

6m Height ground floor to create a lofty open feeling.
Ground floor made to a public domain where people can interact and relax
BLOWUP -
PAGE 24
1
PAGE 25
level

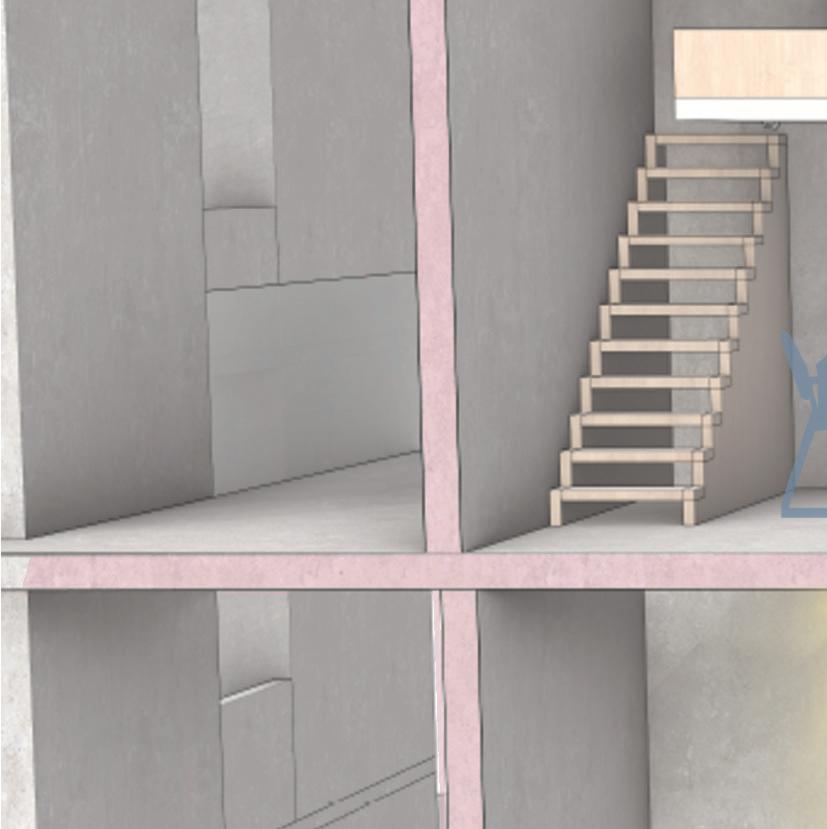

Concrete tree columns Mezzanine
beds for BLOWUP - 2

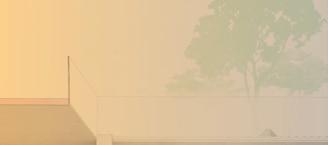

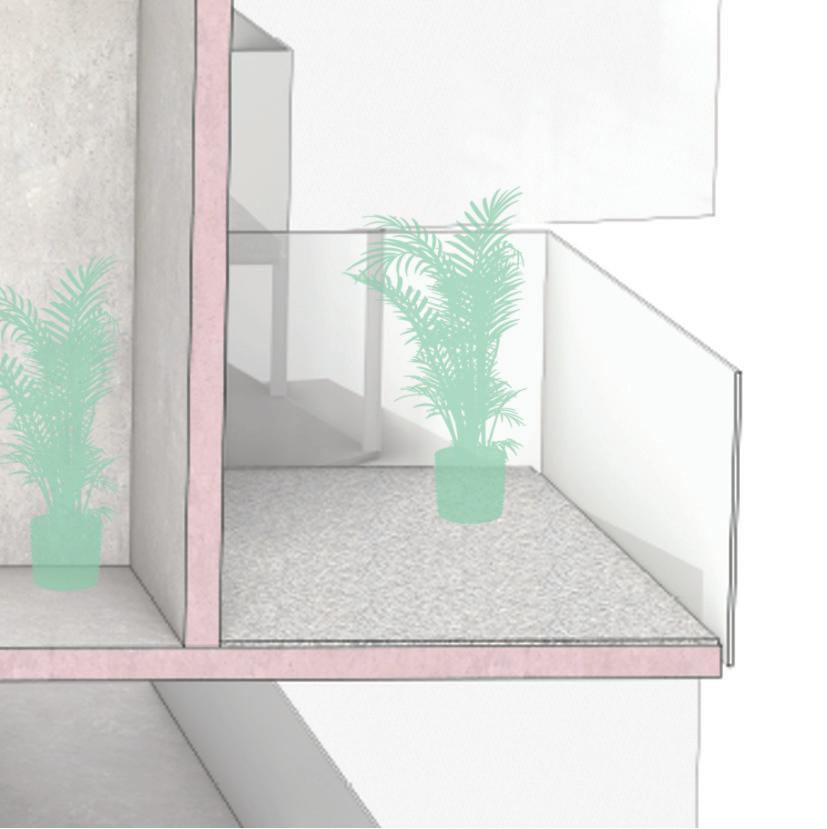

Tempered glass railing bolted to the slabs
Children can gather and play in the communal spaces
PAGE 26
BLOWUP - 3

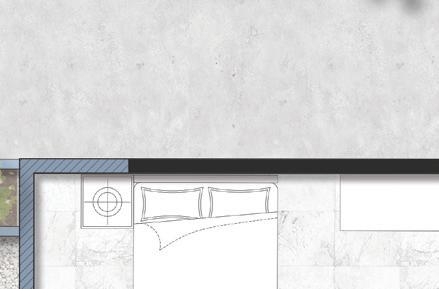

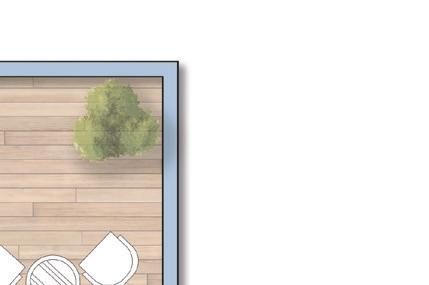

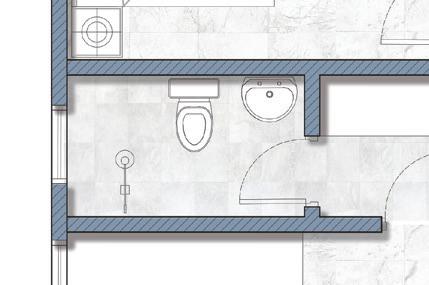

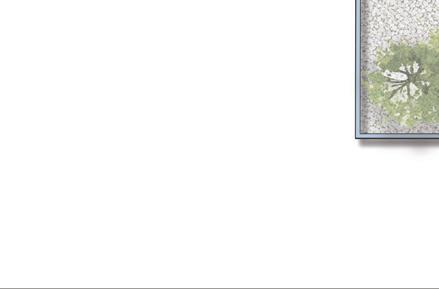

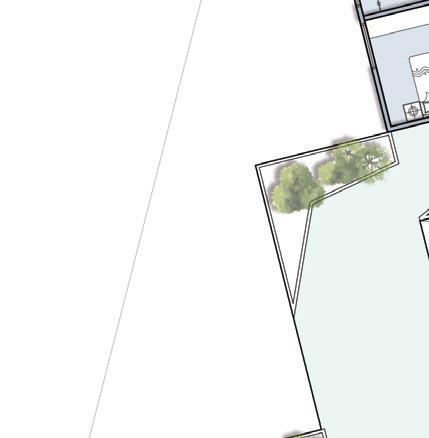

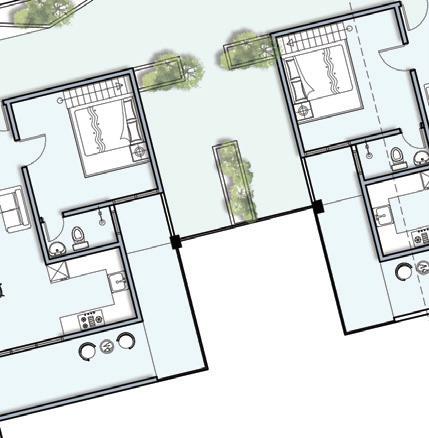

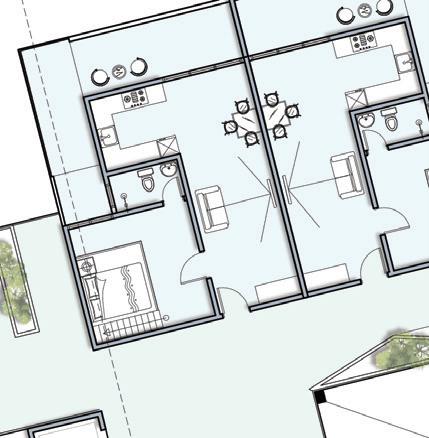

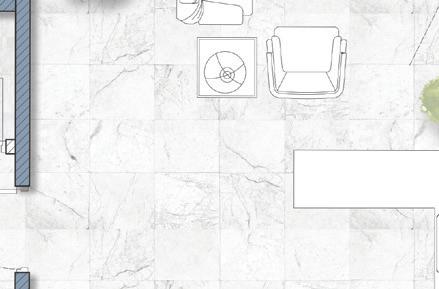

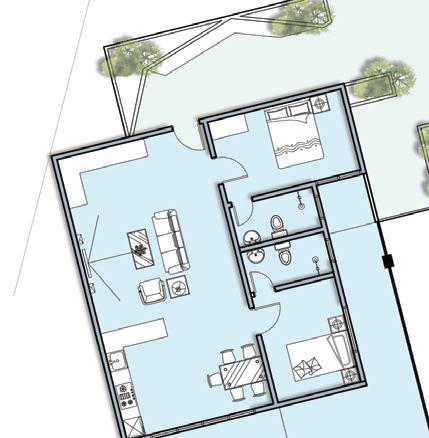

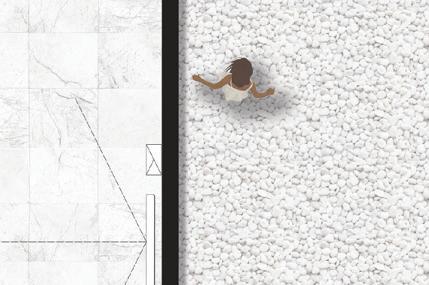

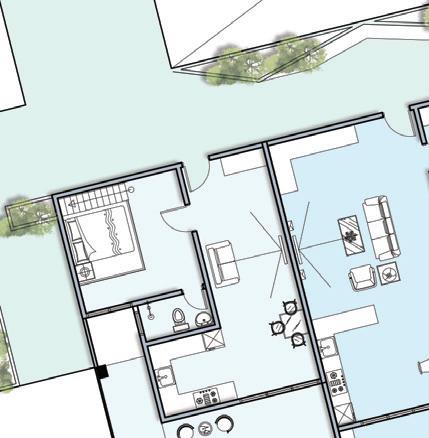

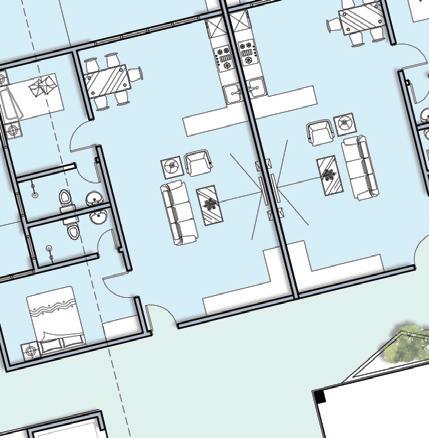

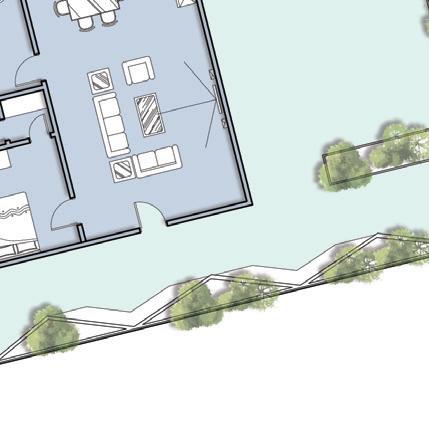

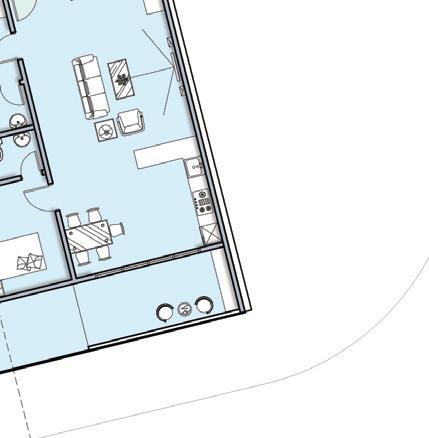

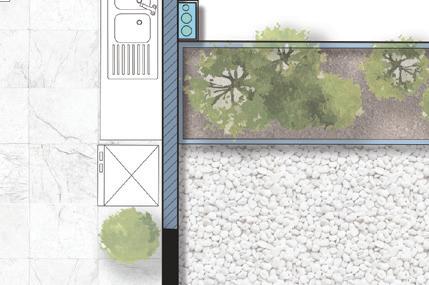

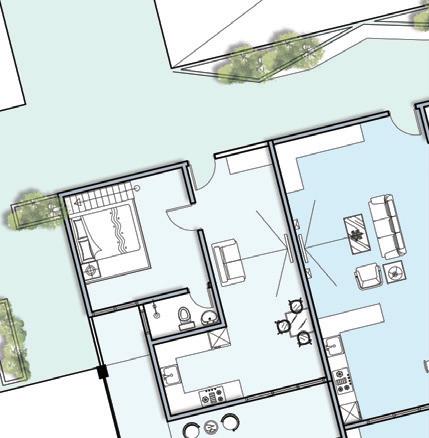

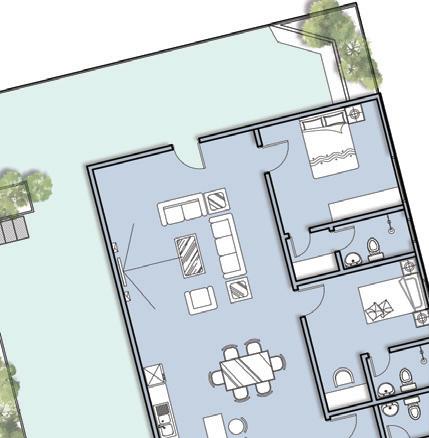

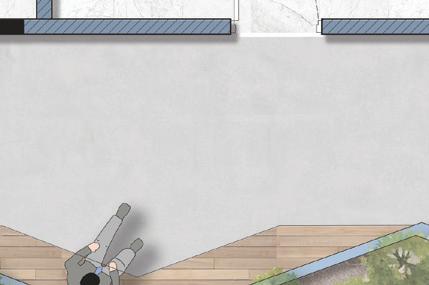

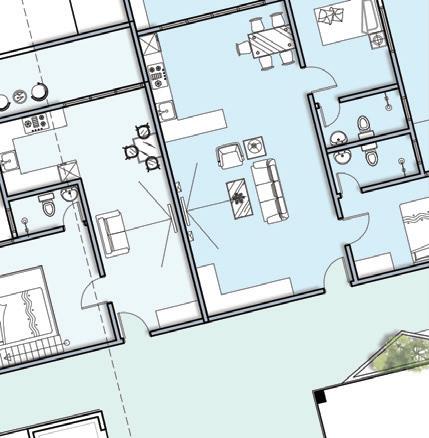

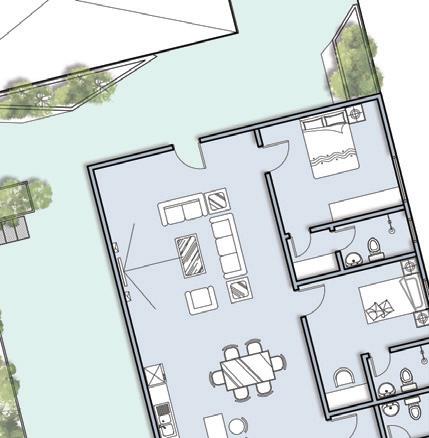

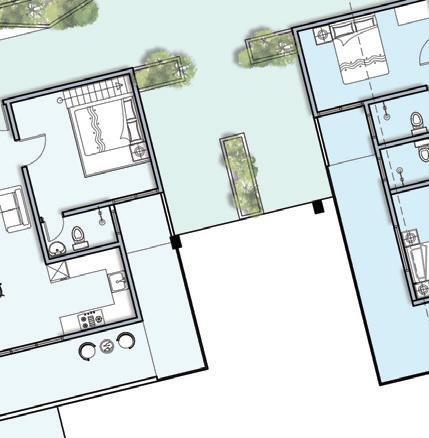

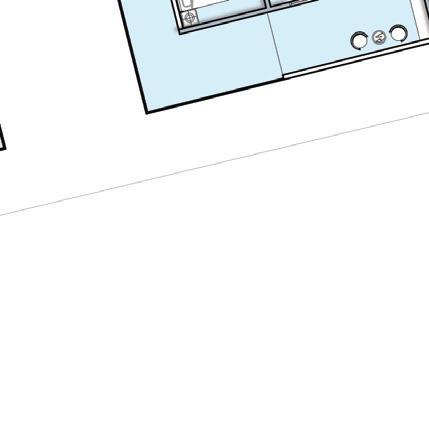

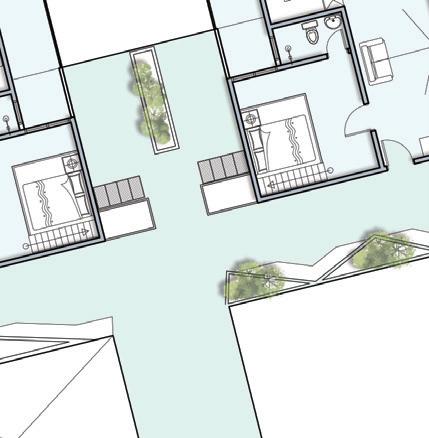

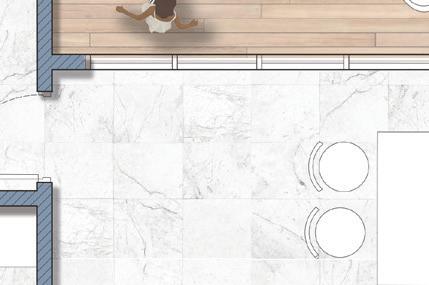

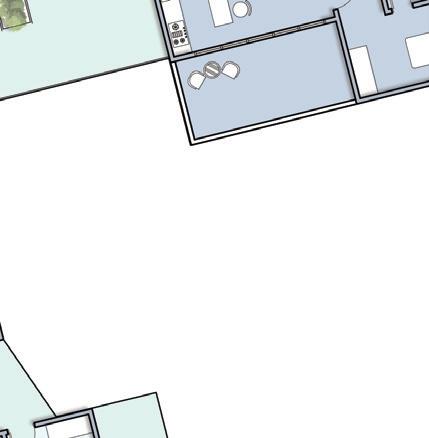

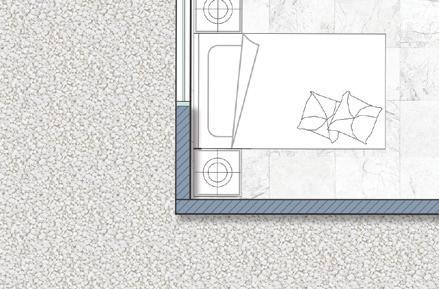

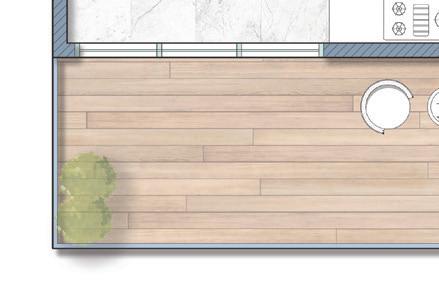

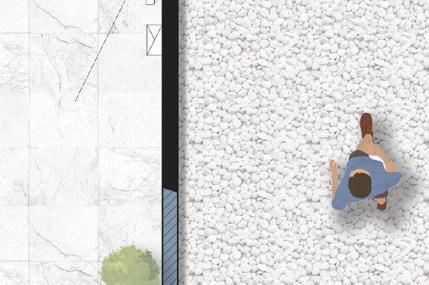

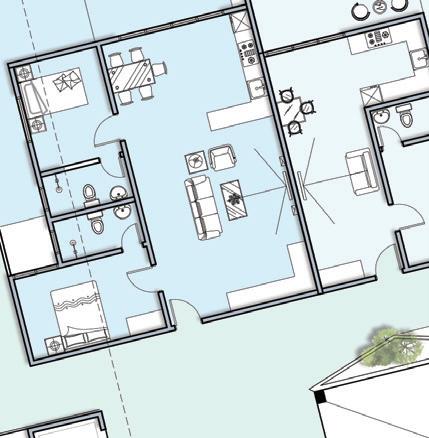

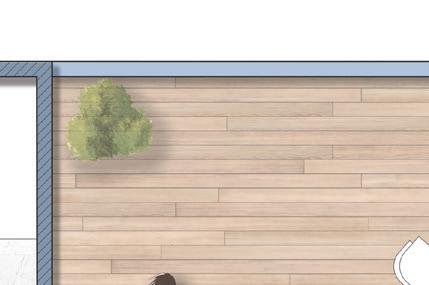

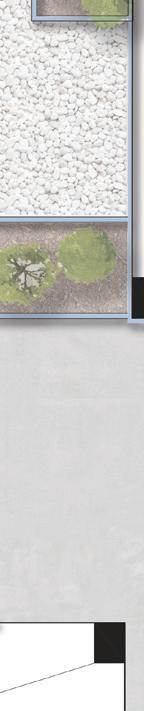

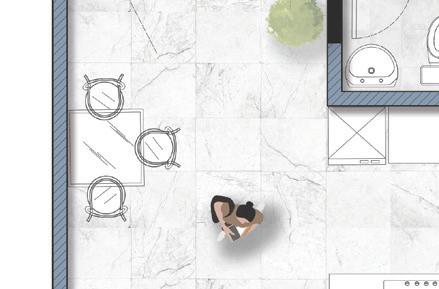

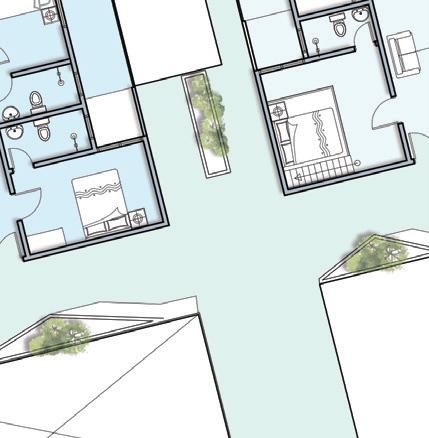

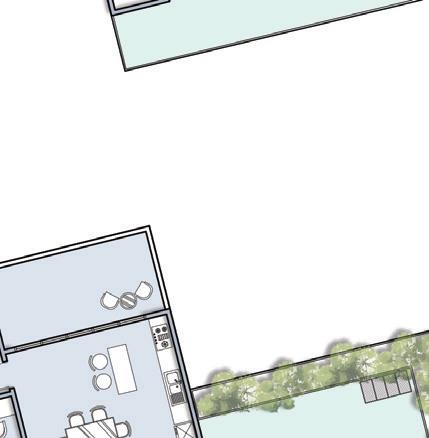

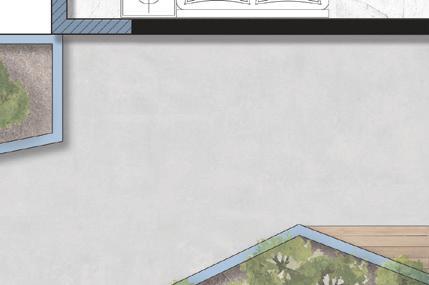

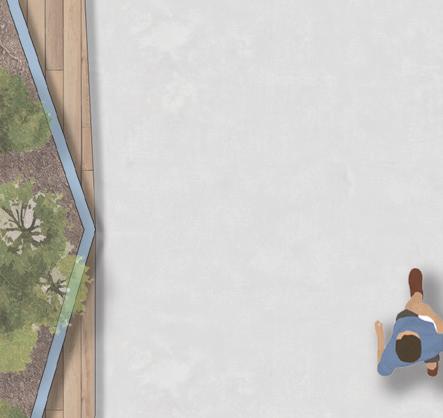

BLOWUP PLAN 2 Sitting room Sitting room Kitchen/ Dinning Kitchen/ Dinning Balcony Balcony Balcony Balcony Toilet Toilet Toilet Bedroom 1 Master bedroom Tempered glass railings Wooden deck balcony Gravel on balcony and public spaces Tile floor finishes Services UNIT 1 70 SQM UNIT 2 114 SQM PUBLIC SPACE 1 (Spaces between two apartments) Master bedroom PAGE 28

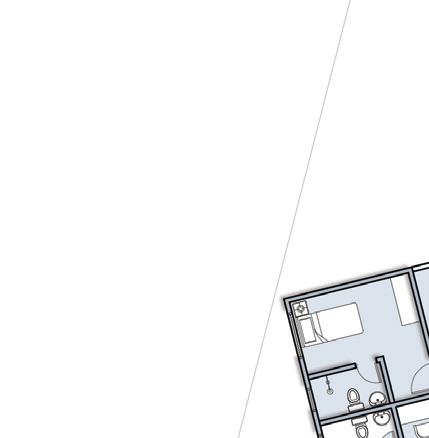

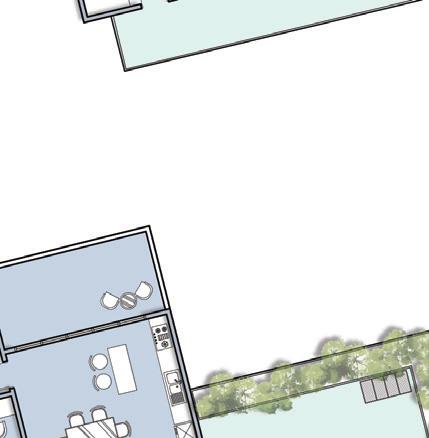

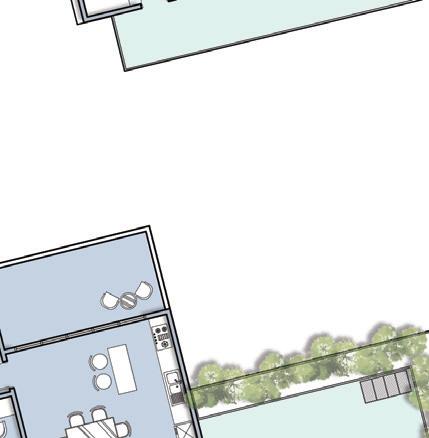

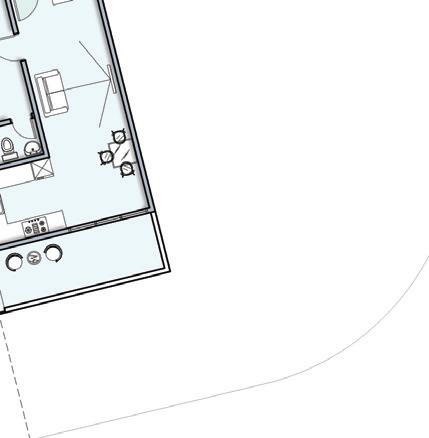

PAGE 27 PUBLIC SPACE 2 (Space next to unit 3) Sitting room Kitchen/ Dinning Balcony Toilet Toilet Toilet Bedroom 1 Bedroom 2 UNIT 3 133 SQM Master bedroom BLOWUP PLAN 1
PAGE 29 BLOWUP PLAN 3

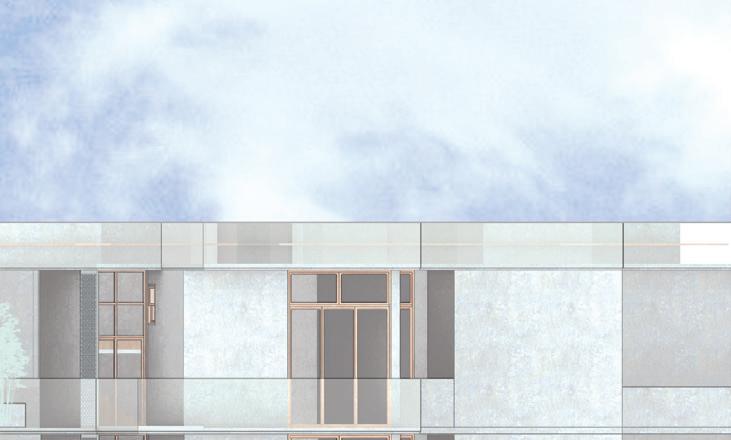

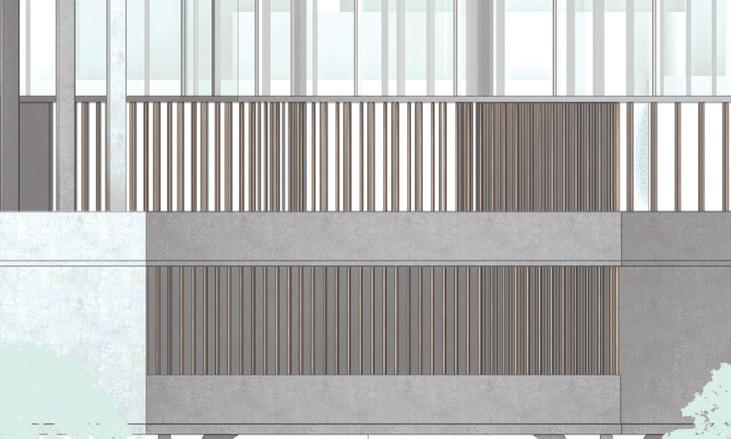

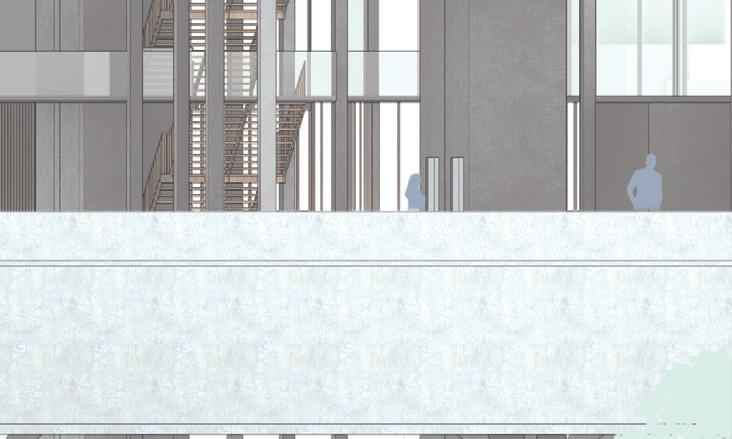

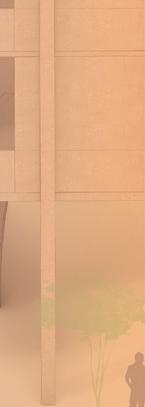

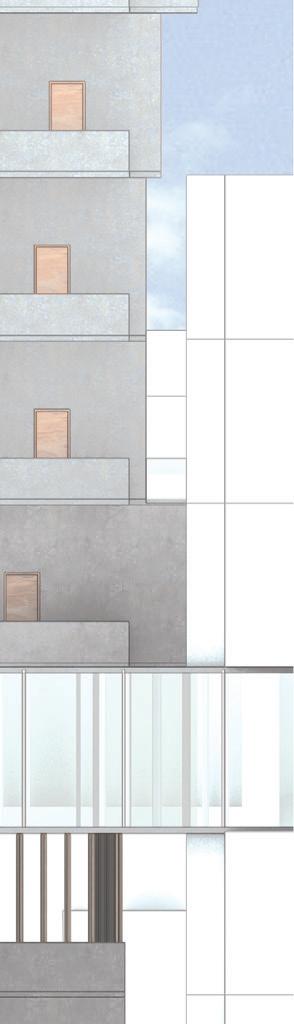

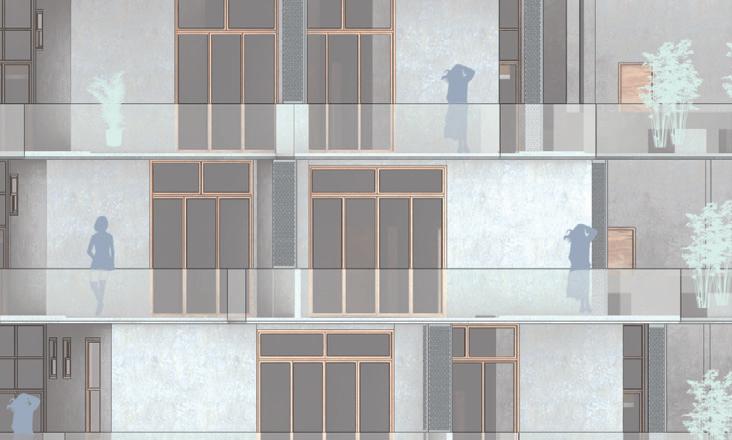

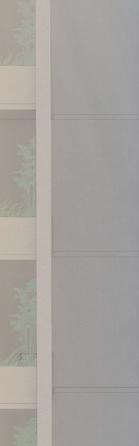

PAGE 30 ELEVATION

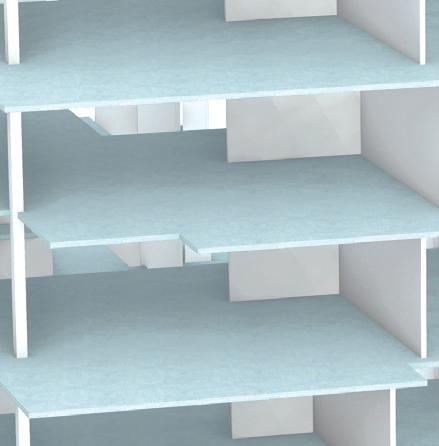

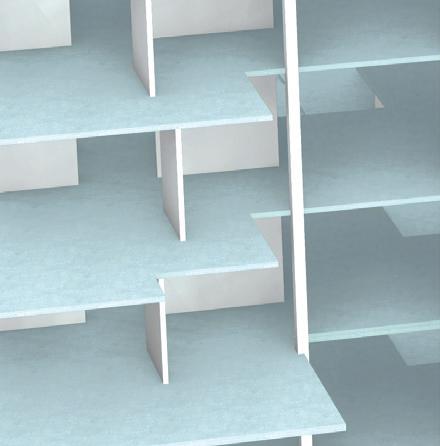

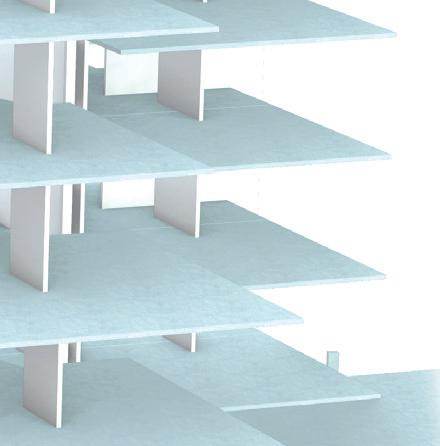

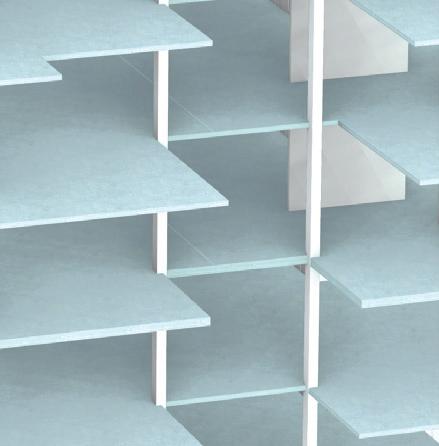

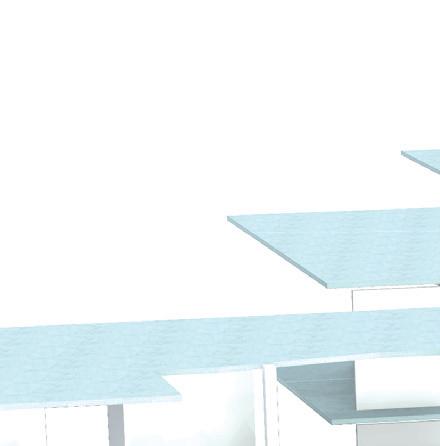

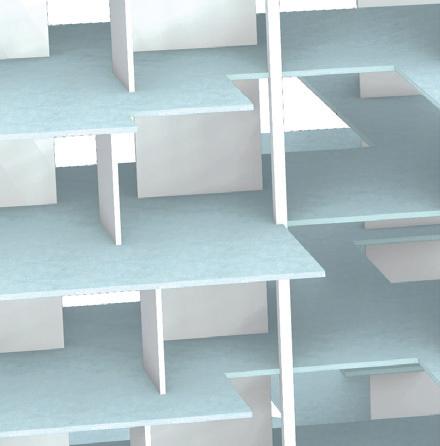

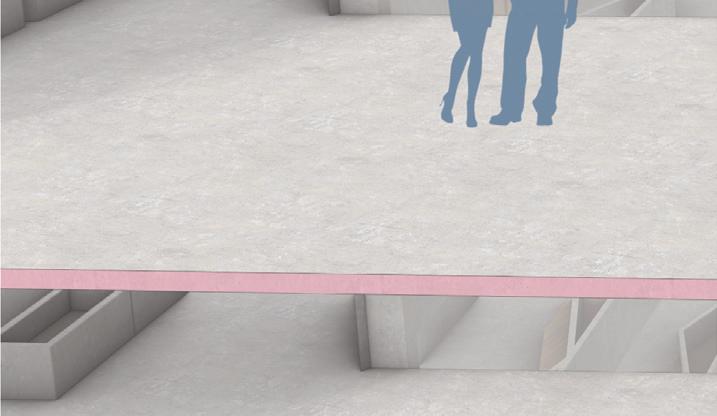

STRUCTURAL ELEMENTS
Shear walls in all the residential levels so that due to columns not much view is lost.
Lifts acts as cores that keeps the building stable
Columns that support cantilevered balcony
First and fourth floor slabs thicker to hold more structural weight.
PAGE 31

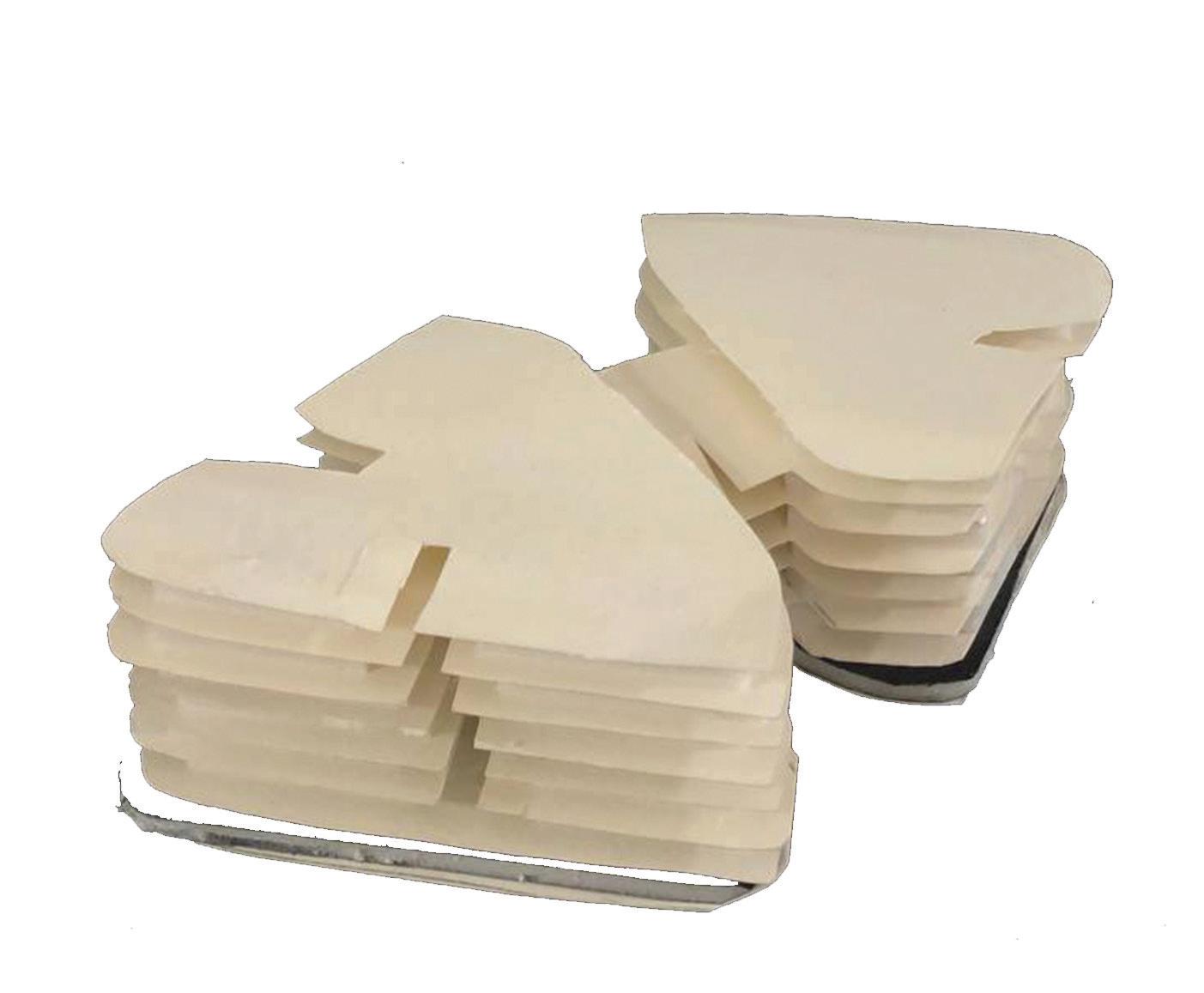

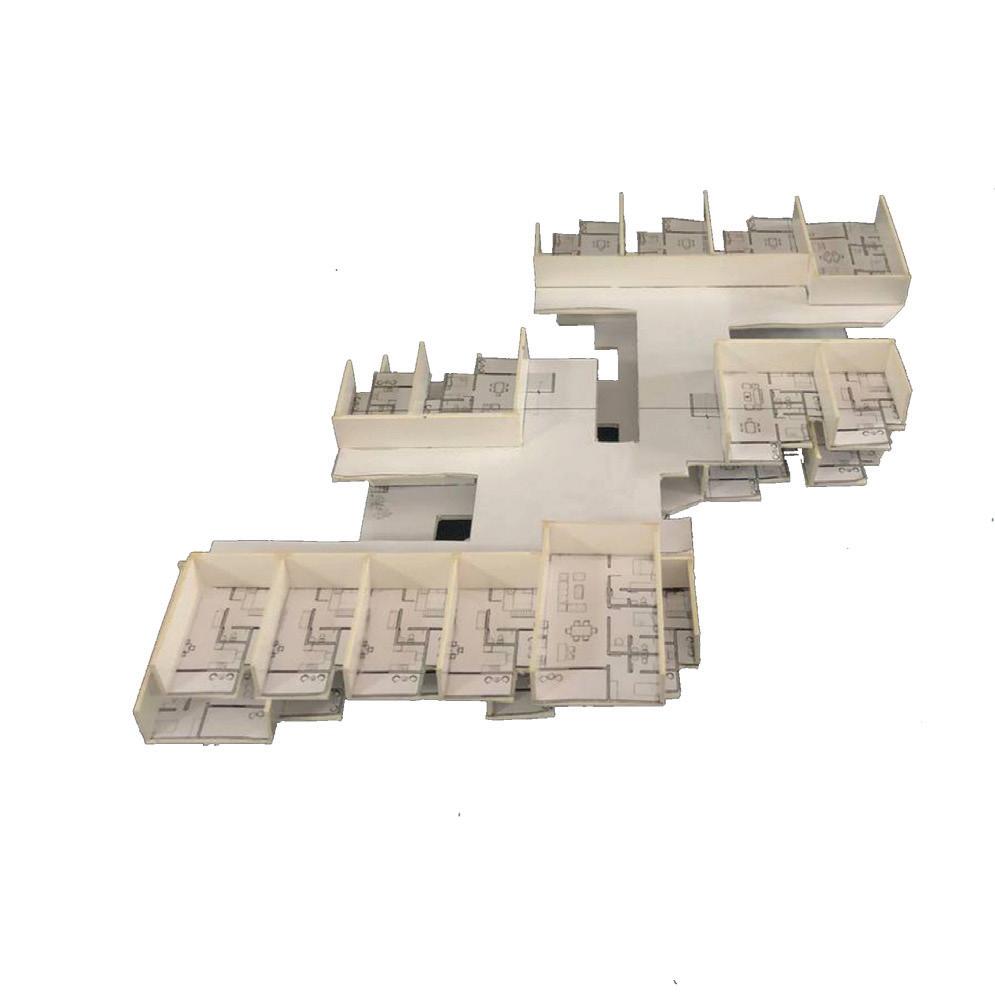

PAGE 32 MODEL PICS
PAGE 33
