Godo Zabur Singh
S5 Interim Presentation
Seoul, South Korea
Seoul South Korea
Seoul, South Korea
Seoul, South Korea
Seoul, South Korea

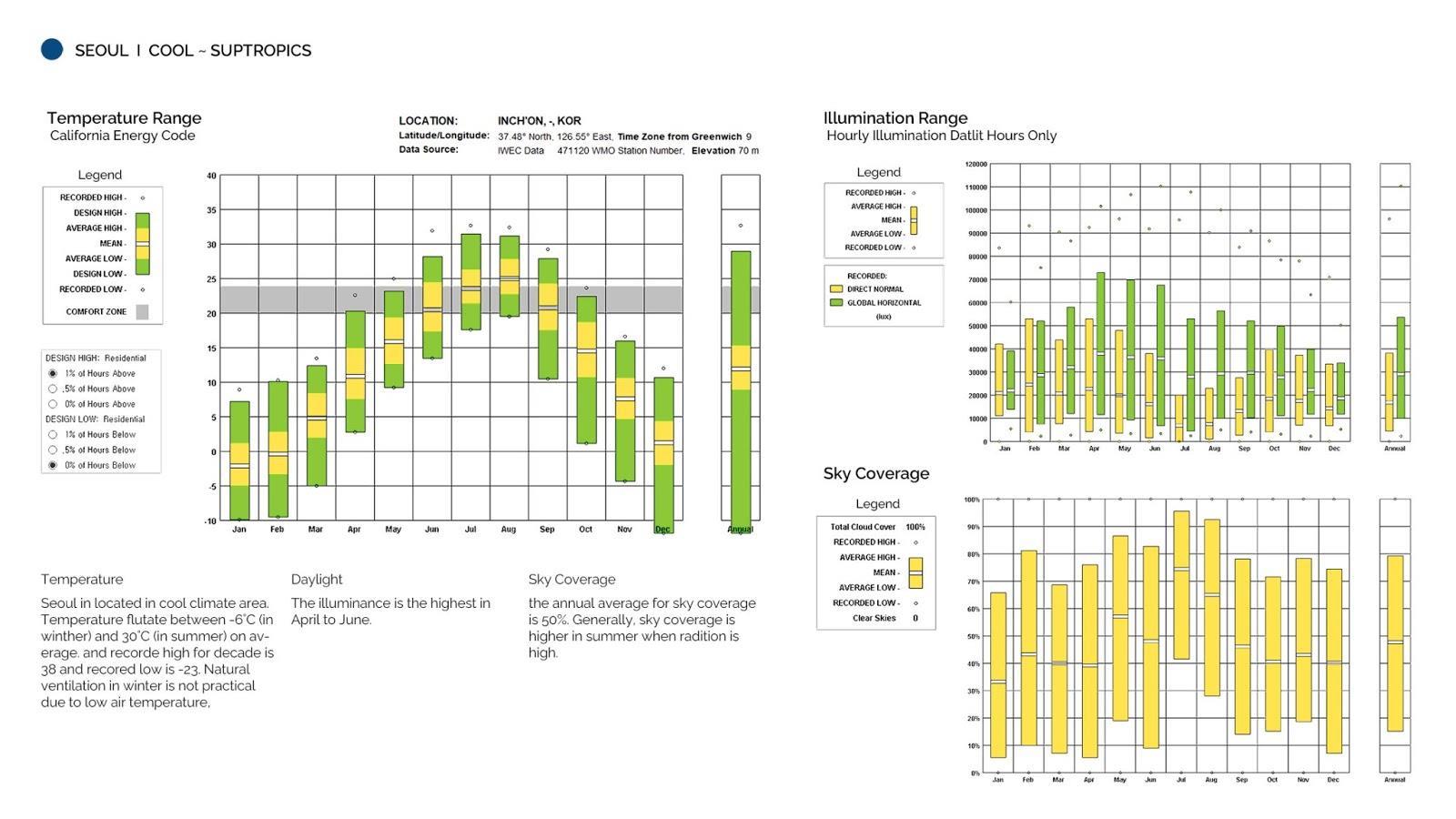

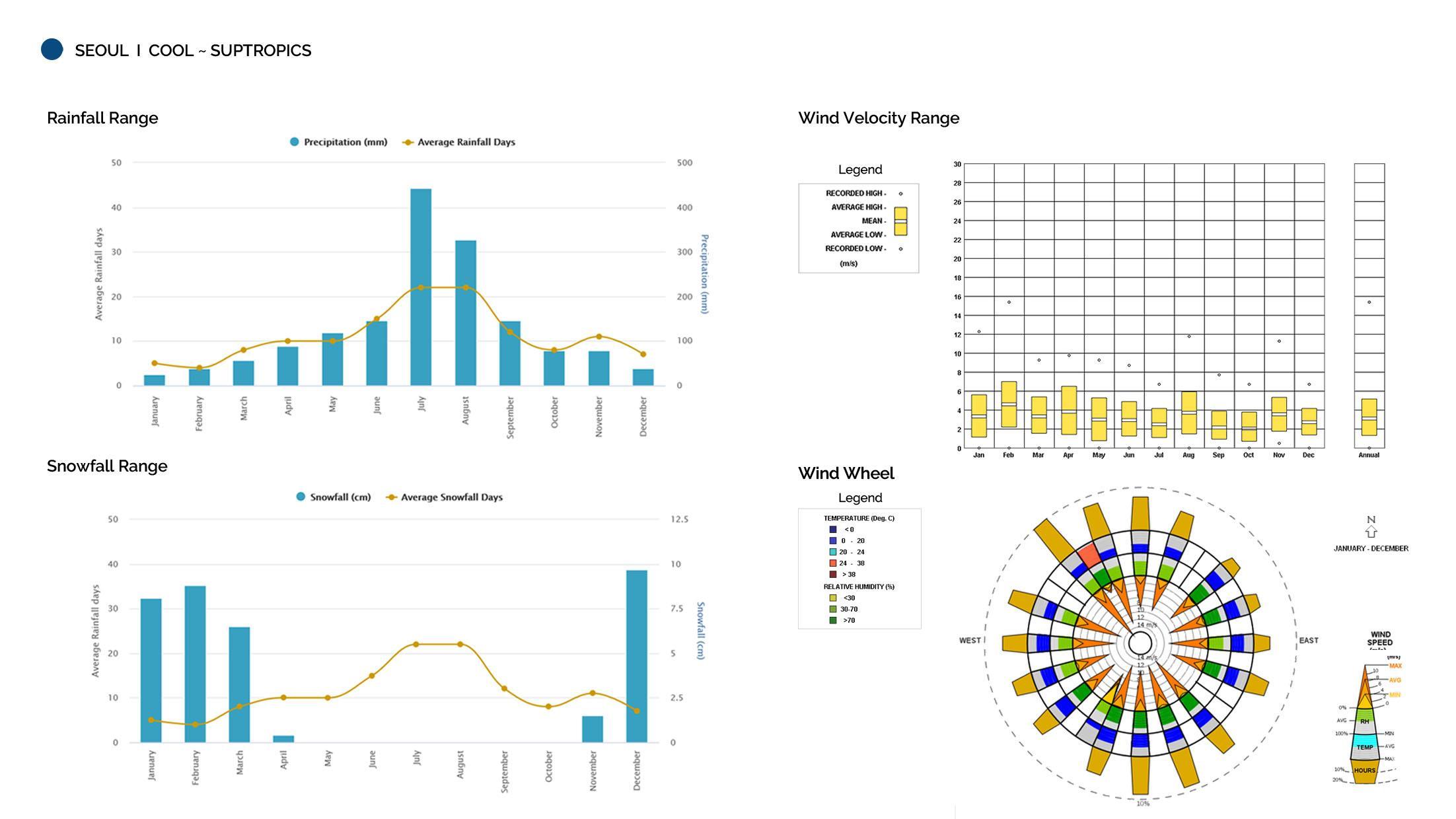

Climate of Seoul
Seoul, South Korea

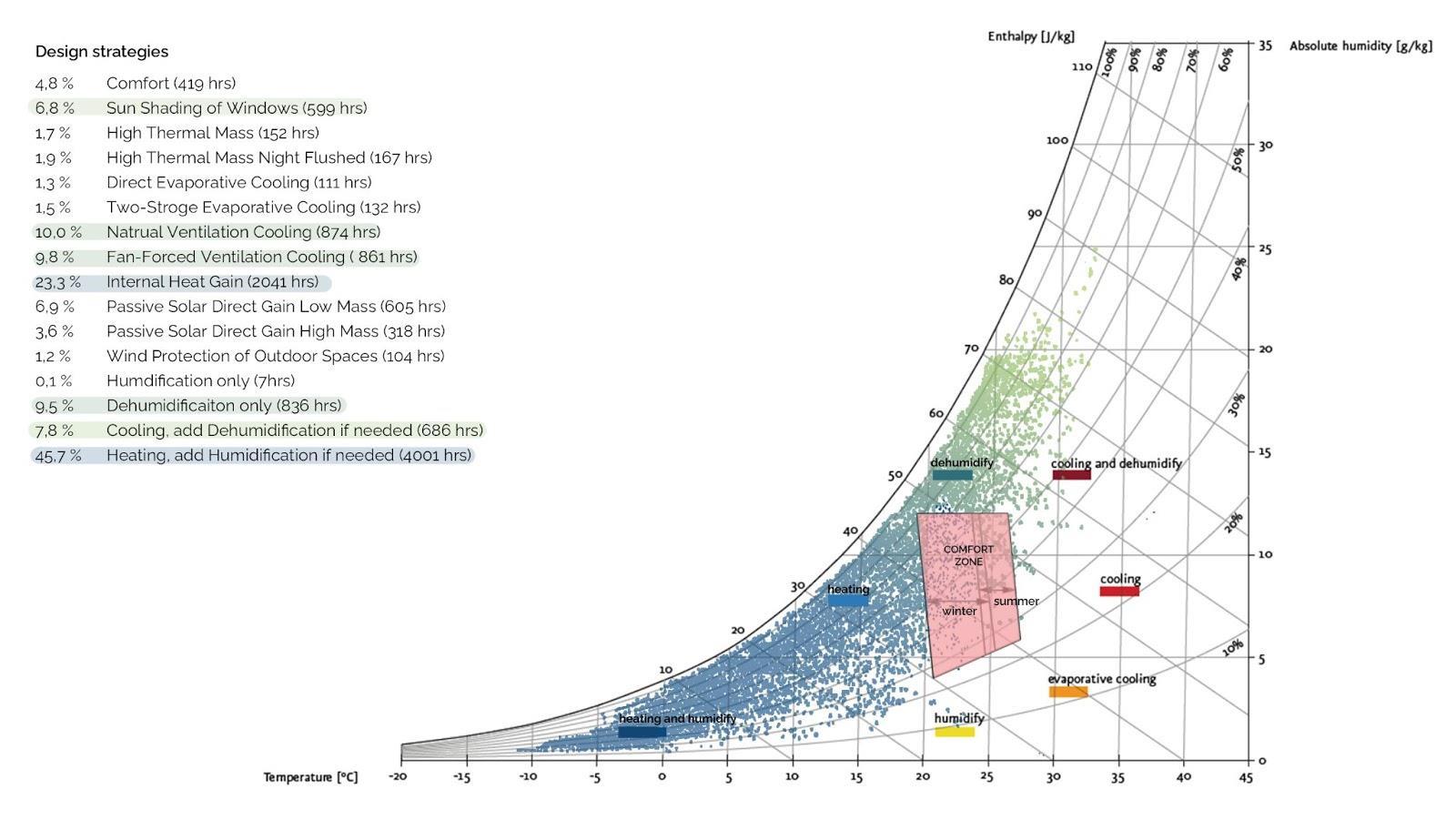

Source from climate consultant Seoul, South Korea
Source from climate consultant, https://www.worldweatheronline.com/ Seoul, South Korea
Source from climate consultant

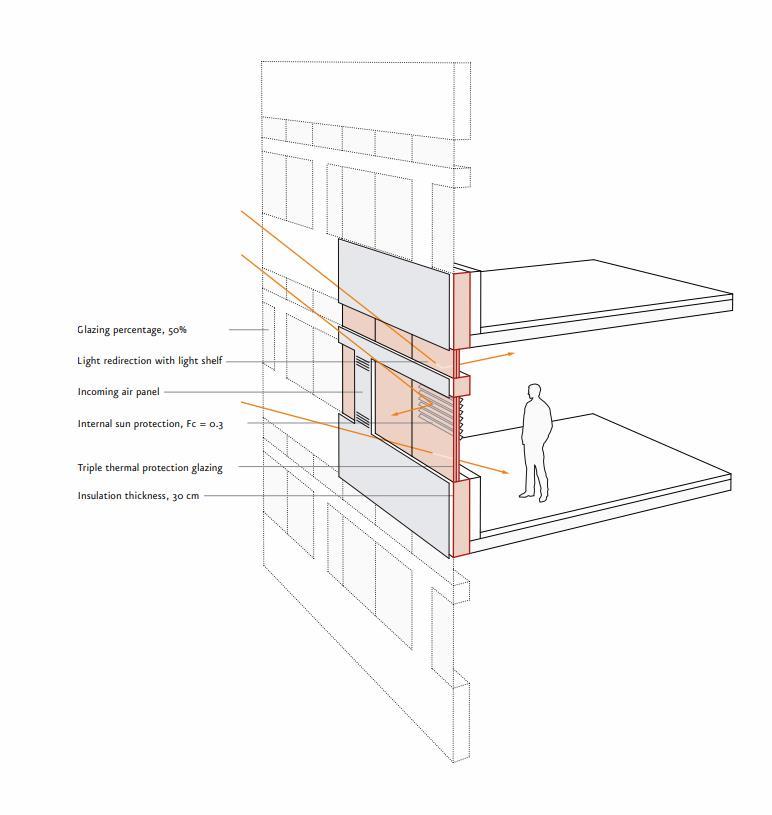

Building skin design strategies
1. Glazing percentage
- south: up to 50% à maximize solar gain in winter and sun is at high at summer
- west, east: 30 ~ 50%
- north: 30 %
2 .Sun protection
- mobile sun protection (between winter and summer)
- west, east: block low sun (highest radiation incidence in summer)
- internal sun protection is sufficient
3. Heat protection Glazing
- Triple heat protection glazing
4. Good thermal Insulation
- insulation layer 20-30 cm
- thermal bridges should be avoided

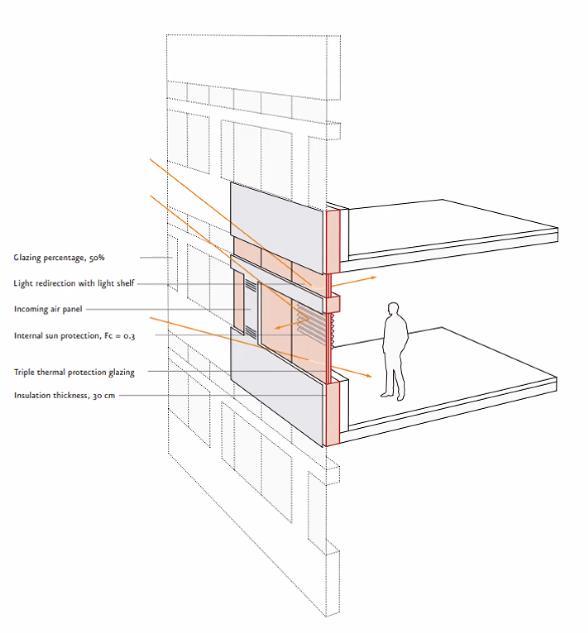

Diagram from building to suit the climate a handbook Seoul, South Korea

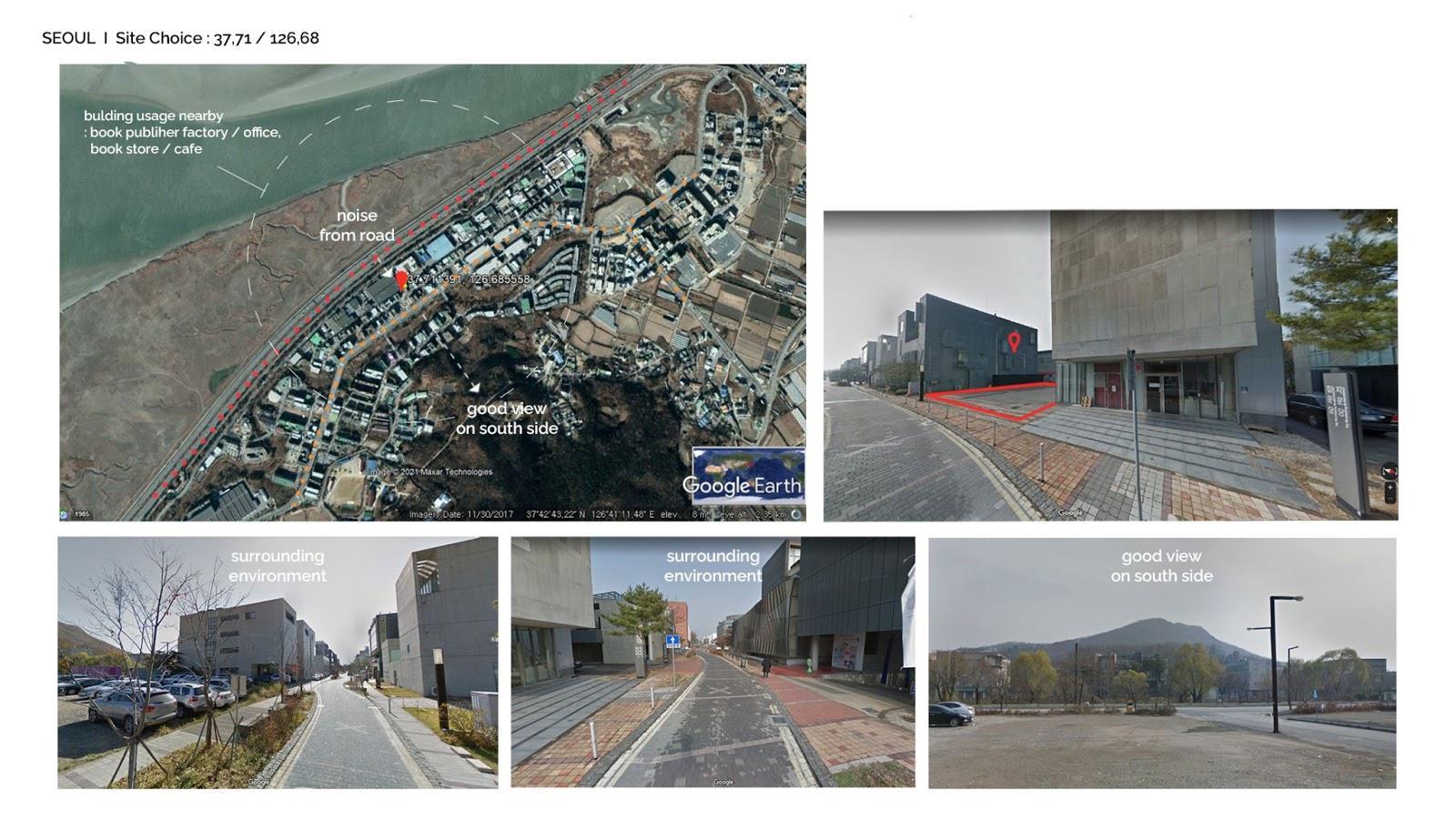

Site Selection
Seoul, South Korea
from google map
Seoul, South Korea

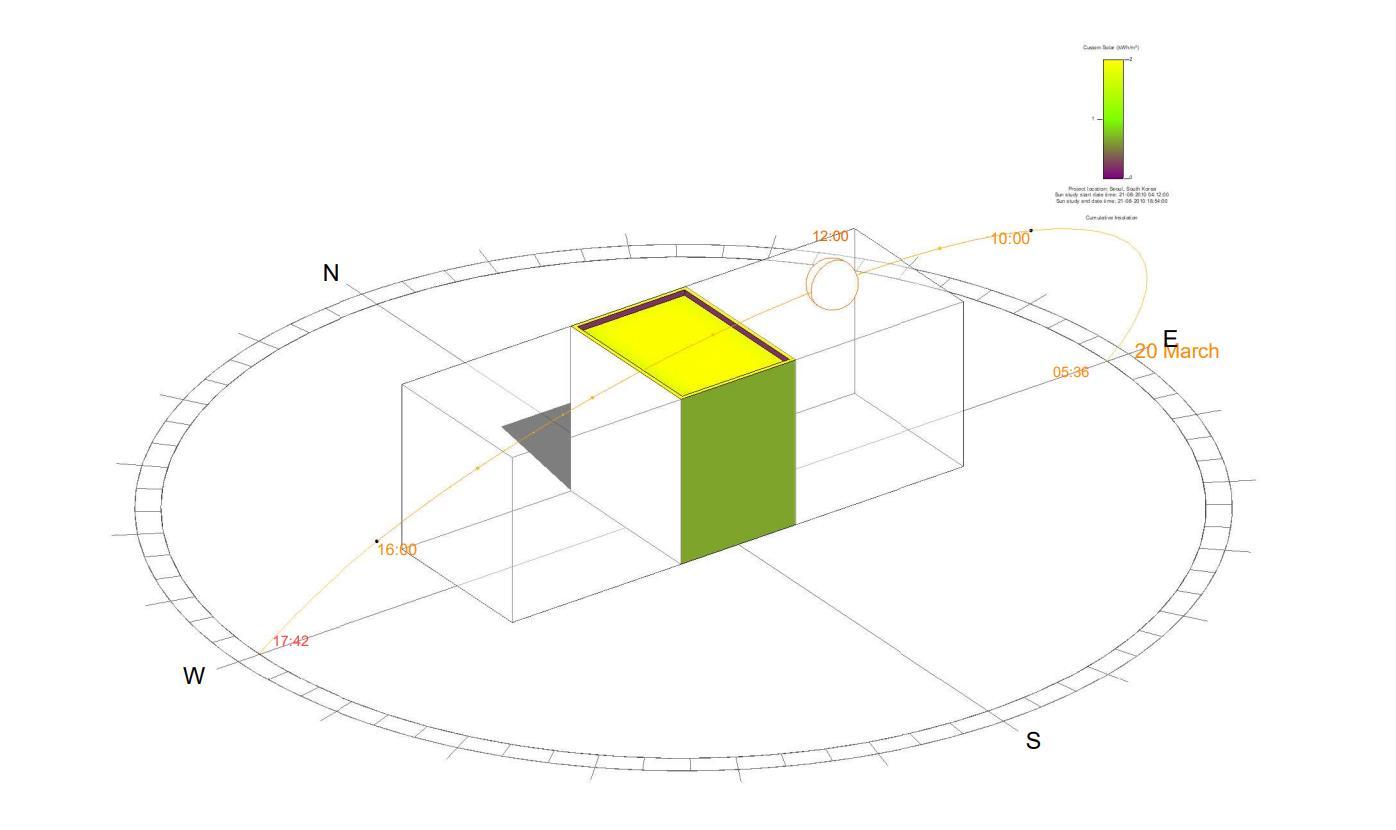

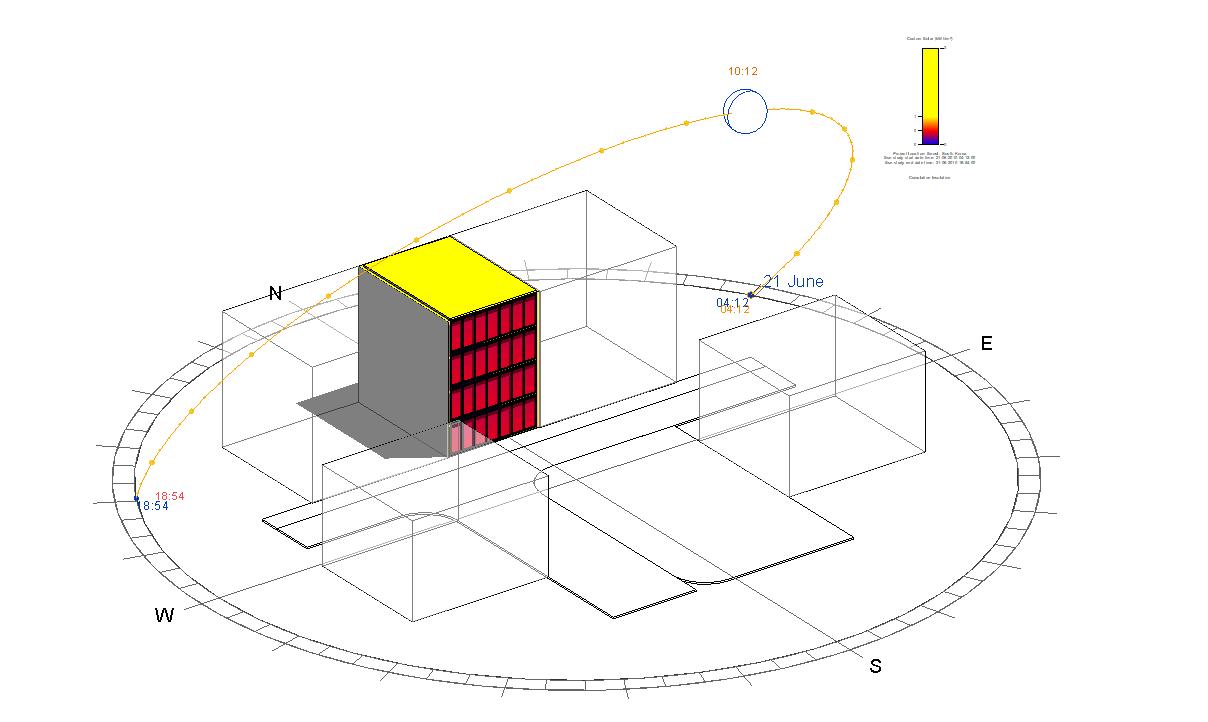

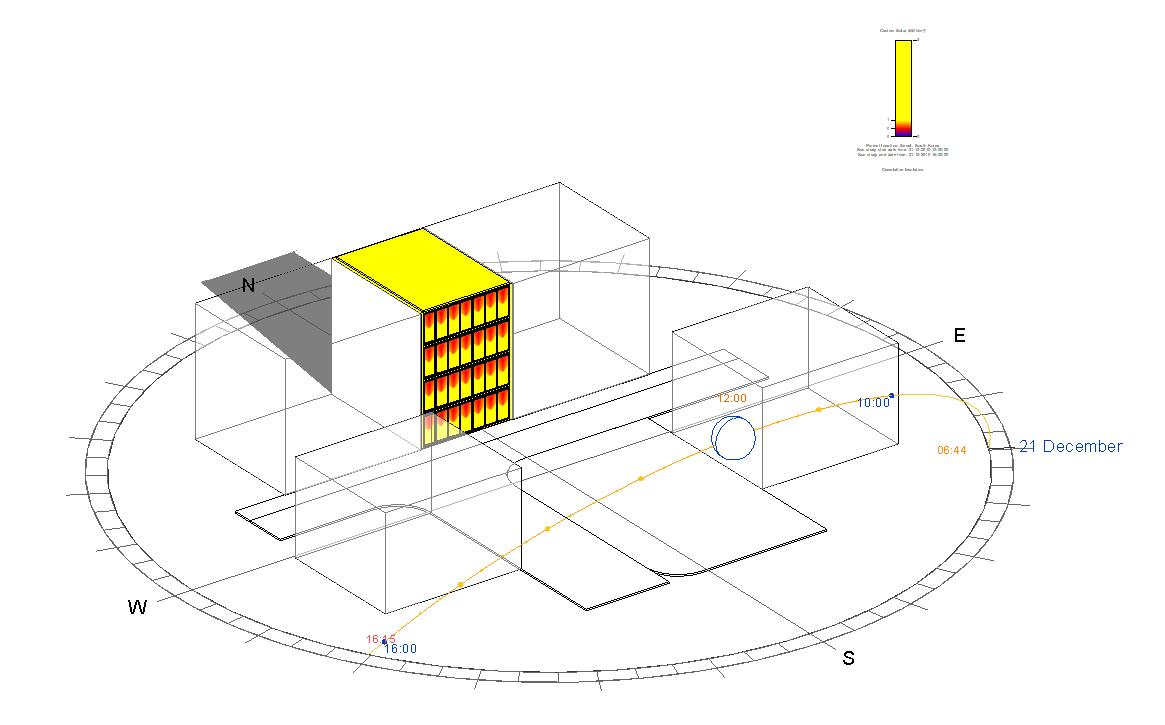

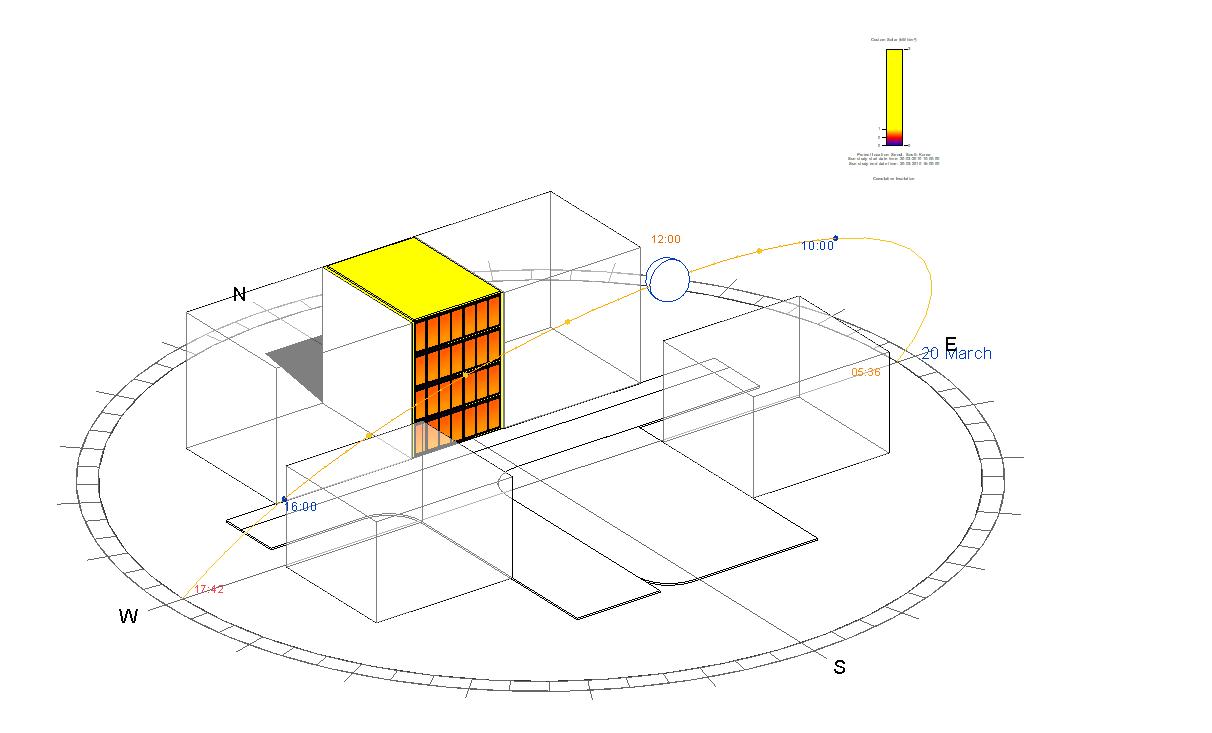

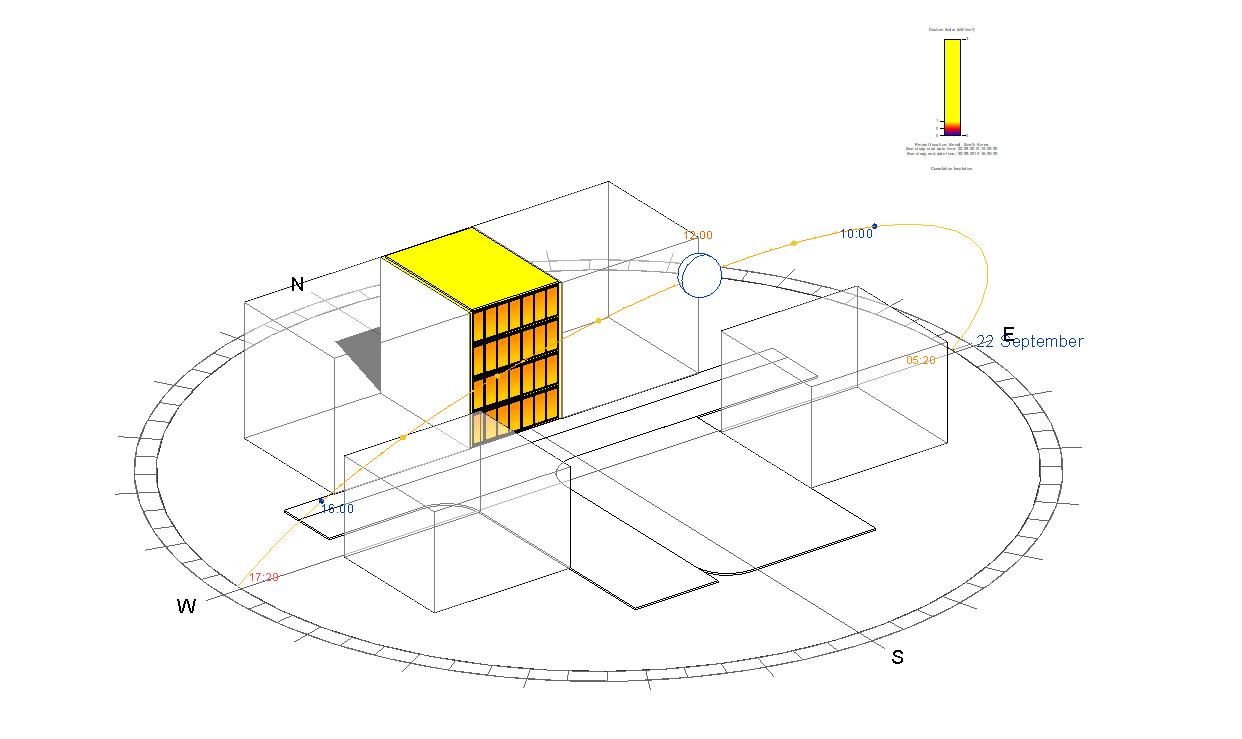

21 December 21 March 21 September Sun Path Analysis 21 June Seoul, South Korea
Site Analysis
Seoul, South Korea
Architecture Practices
A popular trend in contemporary Korean residential architecture is to borrow architectural elements from the traditional Korean home, called Hanok, while giving the structures a modern touch
Seoul, South Korea

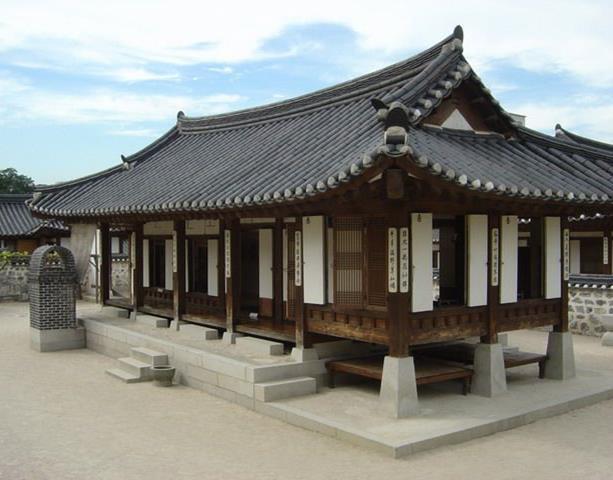

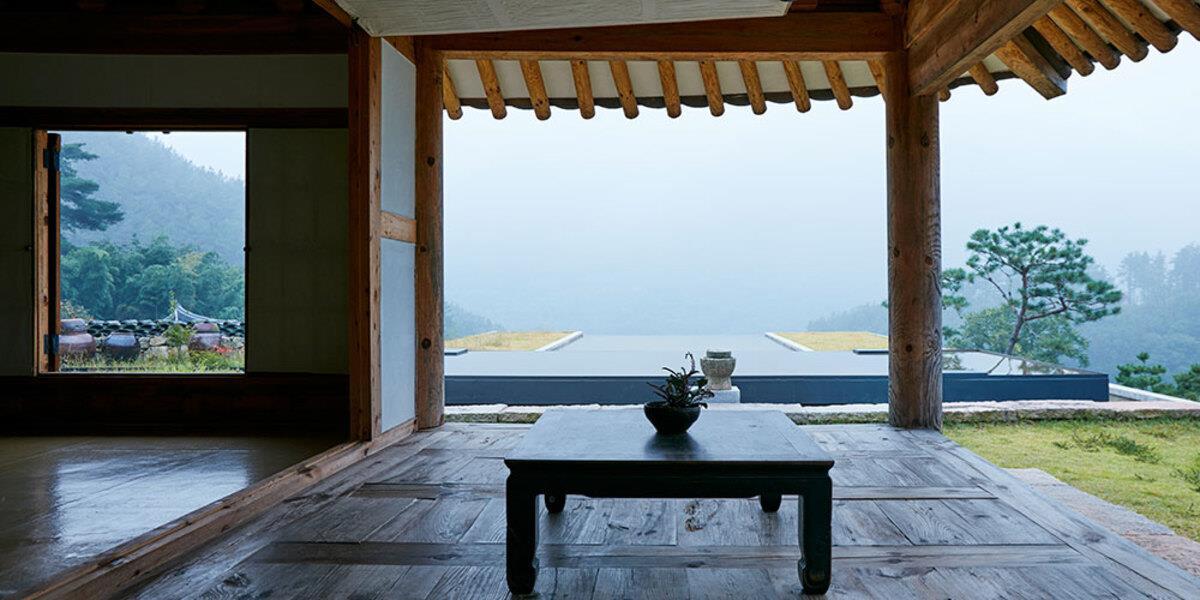

Korean Vernacular Architecture: ‘Hanok’
Passive design

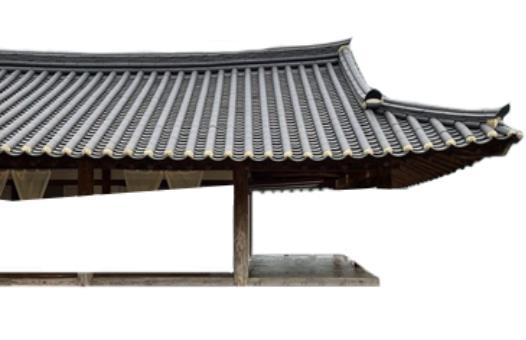

P1 roof with eaves
P2
P3
Culture
C1 Intermediate space
C2 Sedentary culture

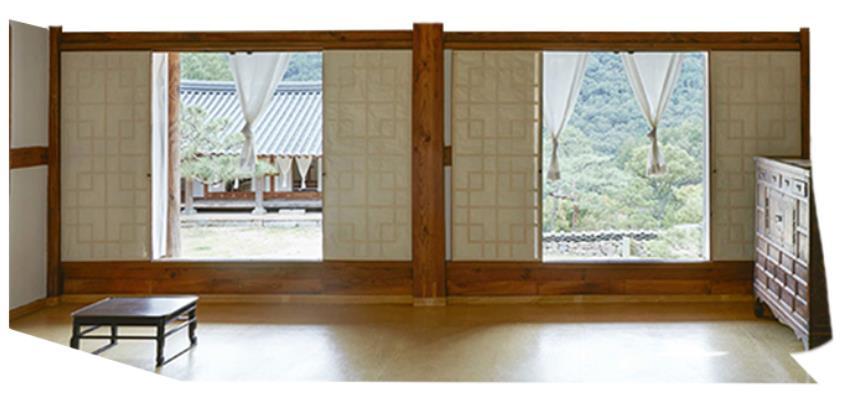

P2 Facing Door & Window
P3
Lifted on platform
C1 Intermediate space
P1 Roof
C2 Sedentary culture
wood
Baked sand paper Stone (granite)
facing large windows or door
lifted house by stone platform
Picture from http://awon.kr/2015/inner.php?sMenu=main Seoul, South Korea

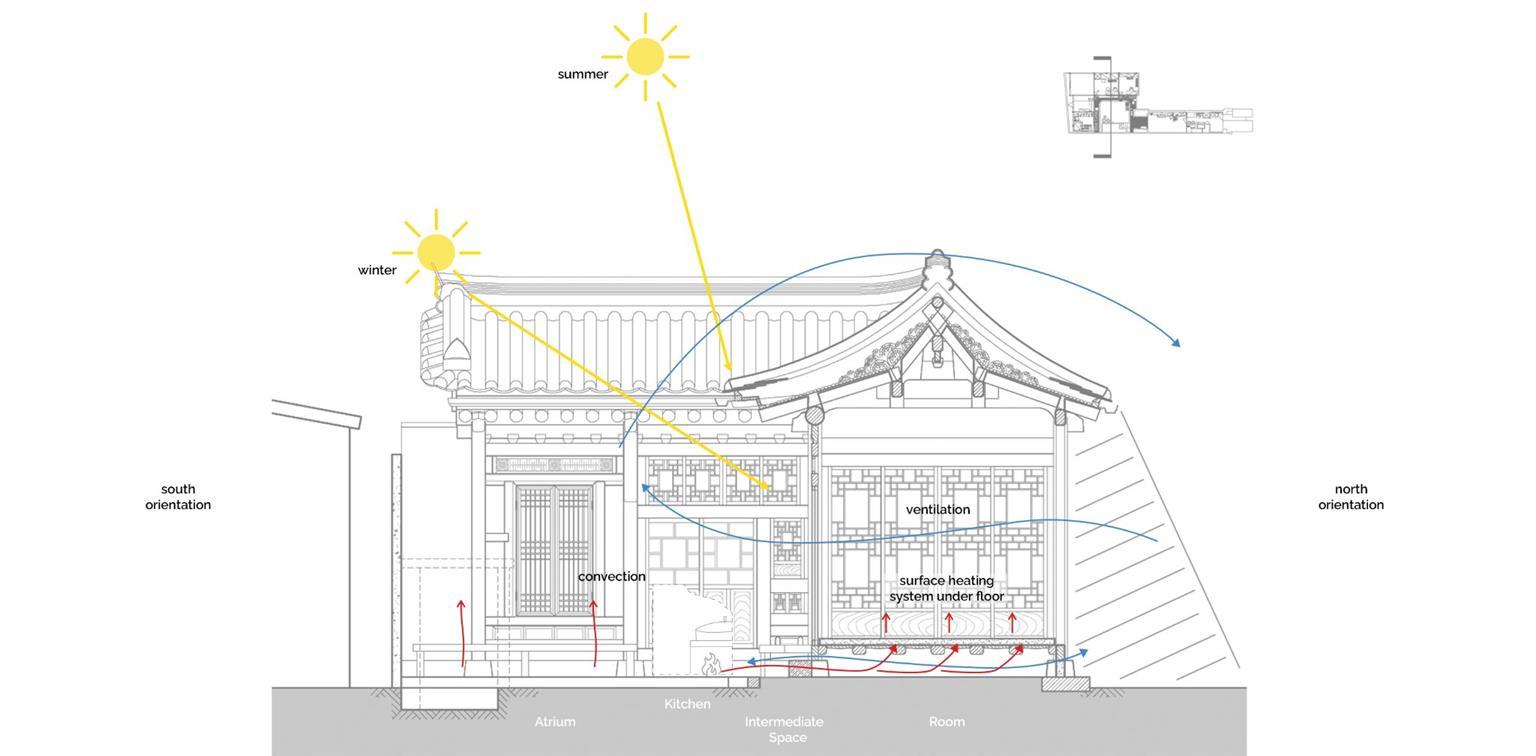

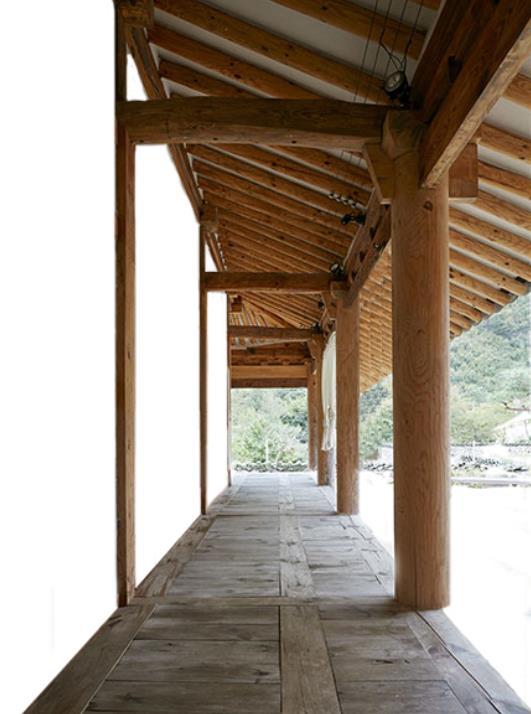

Passive System from Korean Vernacular Architecture
P1: Shade of roof
P2: Facing large door and window
Seoul, South Korea
Form Context
Seoul, South Korea
Picture from http://awon.kr/2015/inner.php?sMenu=main

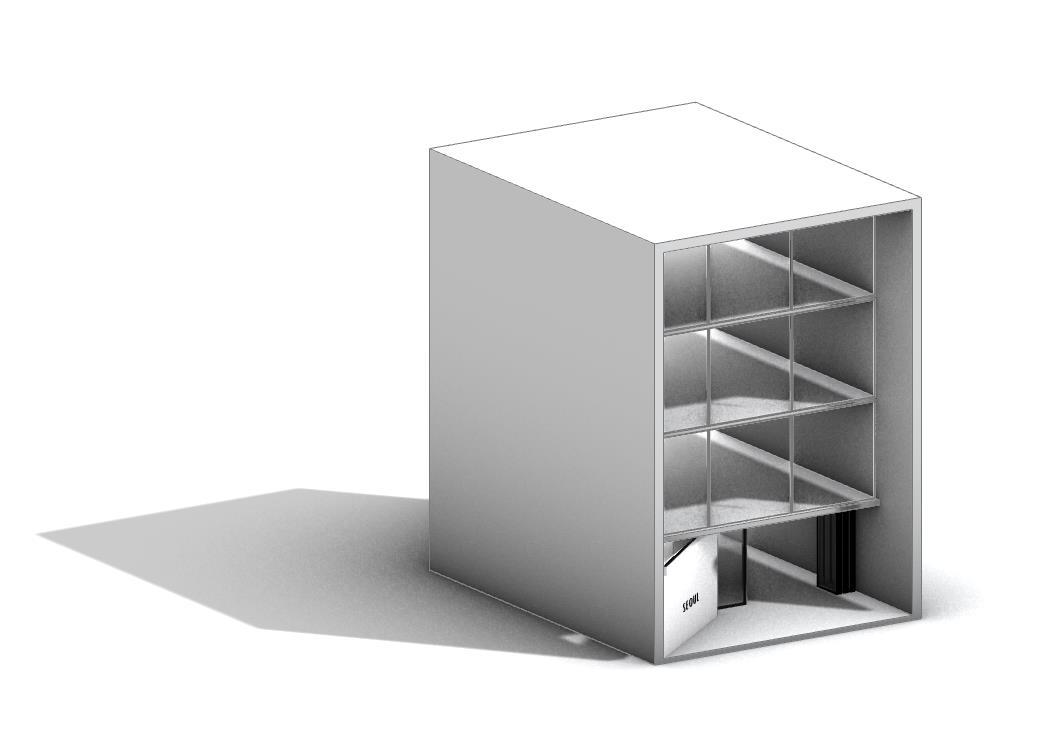

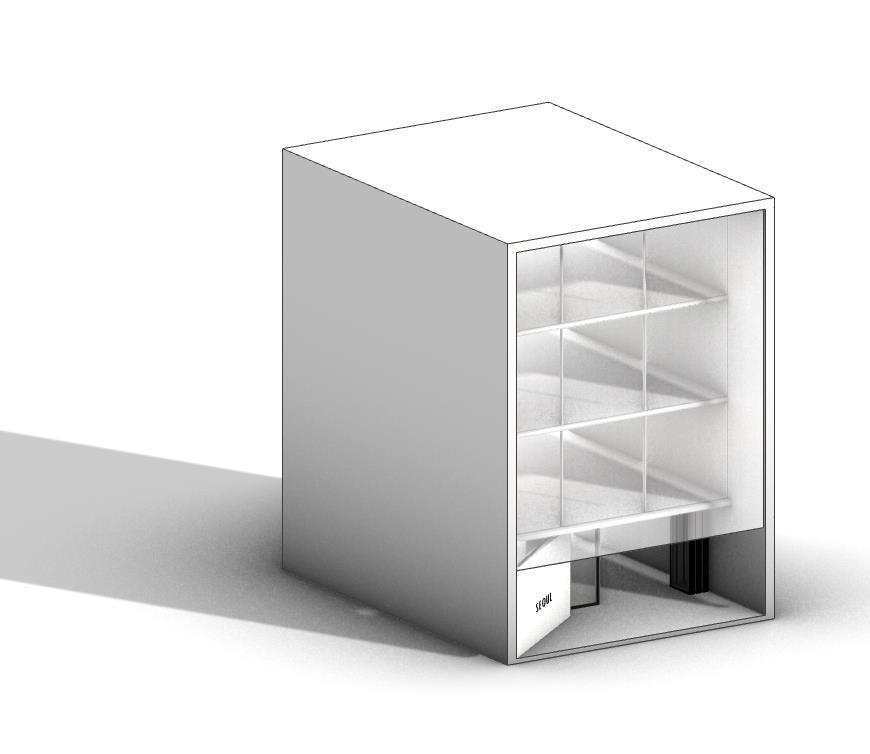

Design Process
Seoul, South Korea

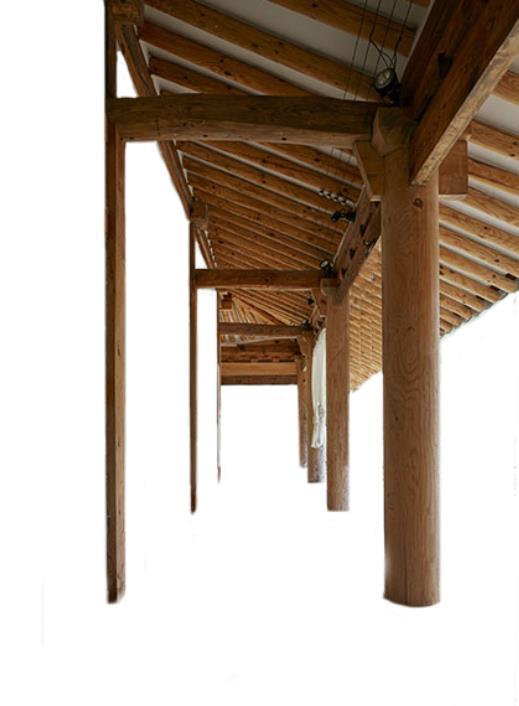

Deep roof
Wooden
Picture from http://awon.kr/2015/inner.php?sMenu=main
Design Process
South Korea
structure Seoul,

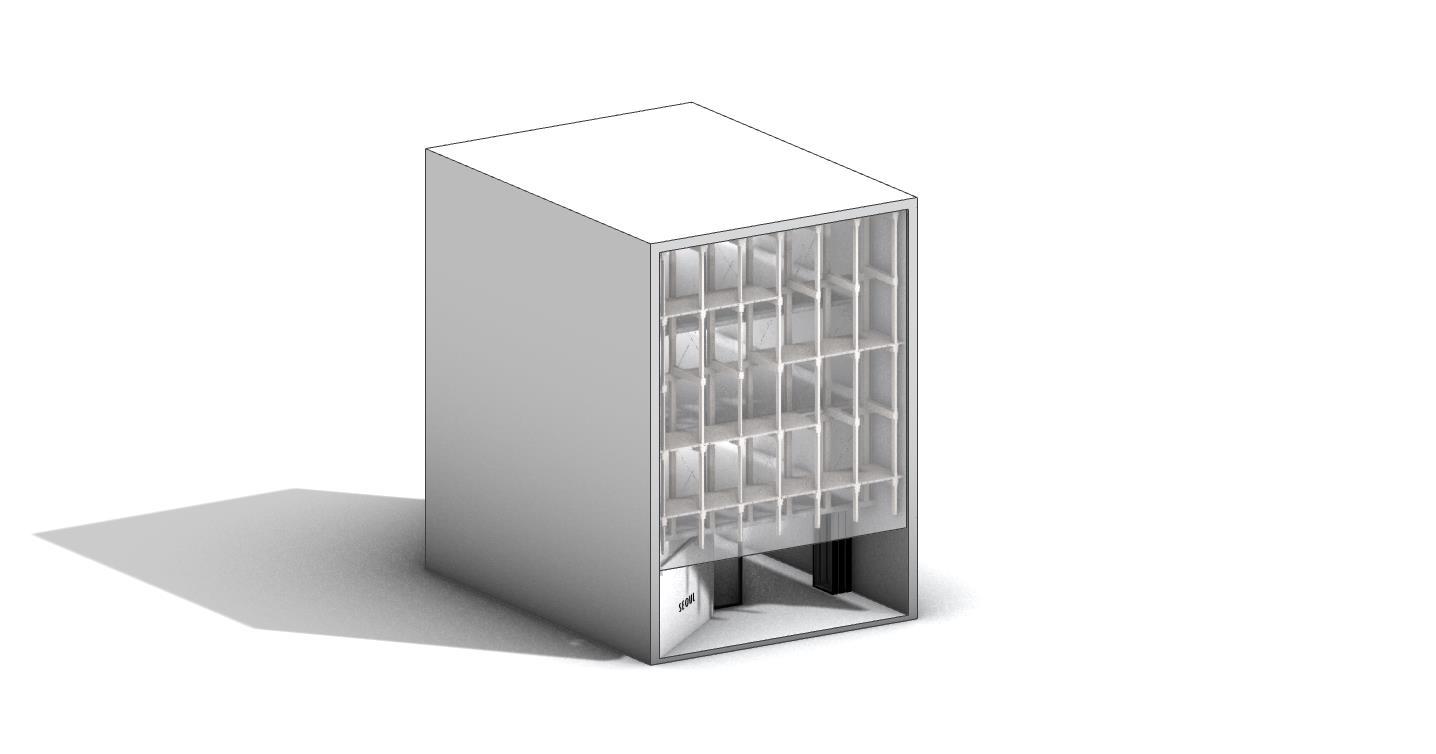

Design Process
Intermediate
Picture from http://awon.kr/2015/inner.php?sMenu=main
South Korea
terrace Seoul,
Picture from https://m.post.naver.com/viewer/postView.nhn?volumeNo=11204453&memberNo=26341231
Polycarbonate Paper Seoul, South Korea
Design Process
Design Process
Picture from http://awon.kr/2015/inner.php?sMenu=main

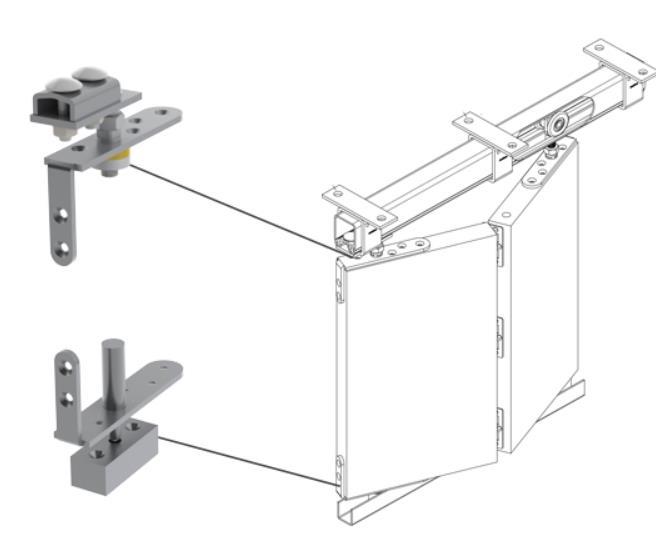

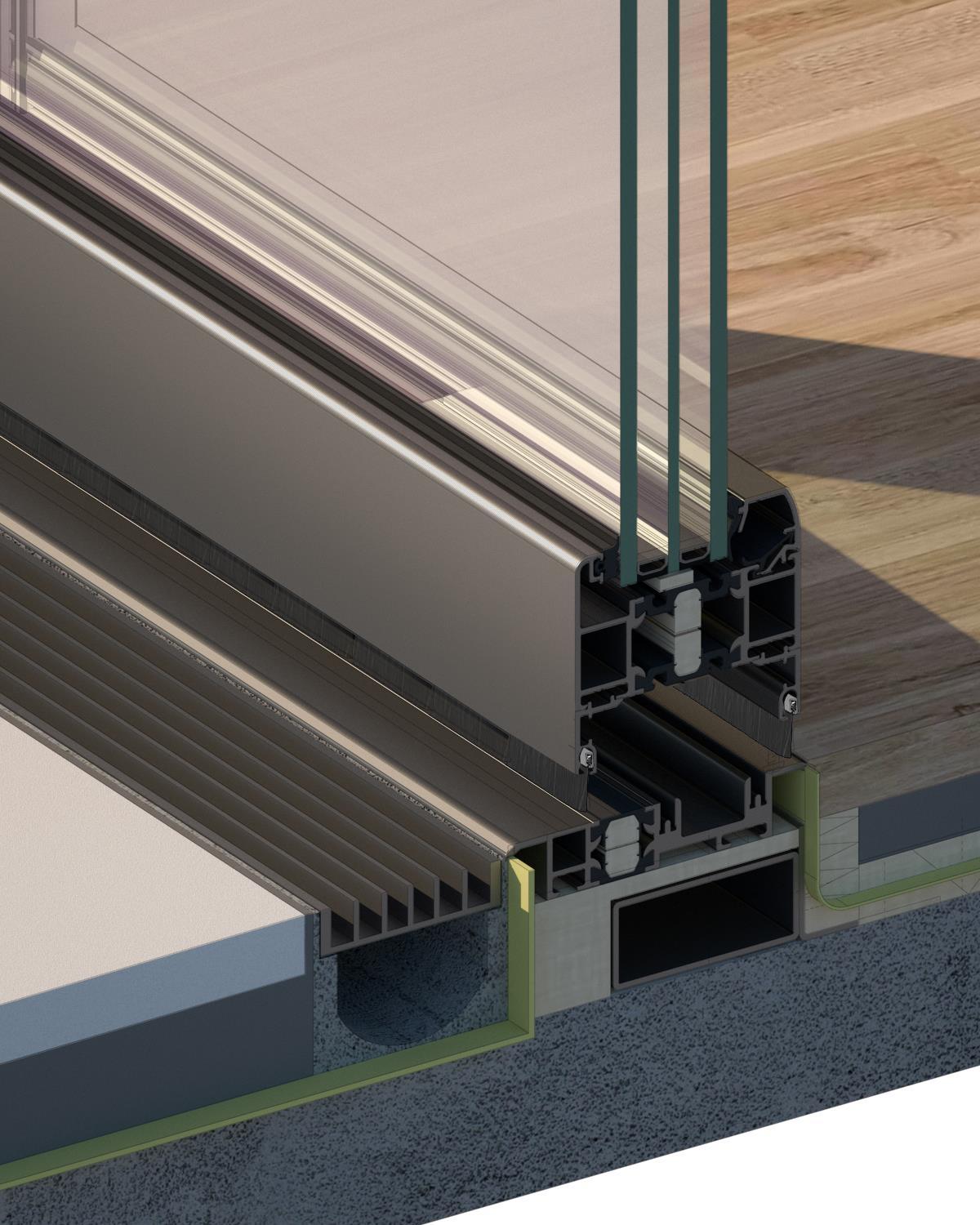

Detail from https://helaform.com/en/folding-doors-transform-according-need/
Folding sliding door
Seoul, South Korea
Function Climate
Seoul, South Korea
1 pm, 21, July, 2020
Seoul, South Korea 1 pm, 21, January, 2020

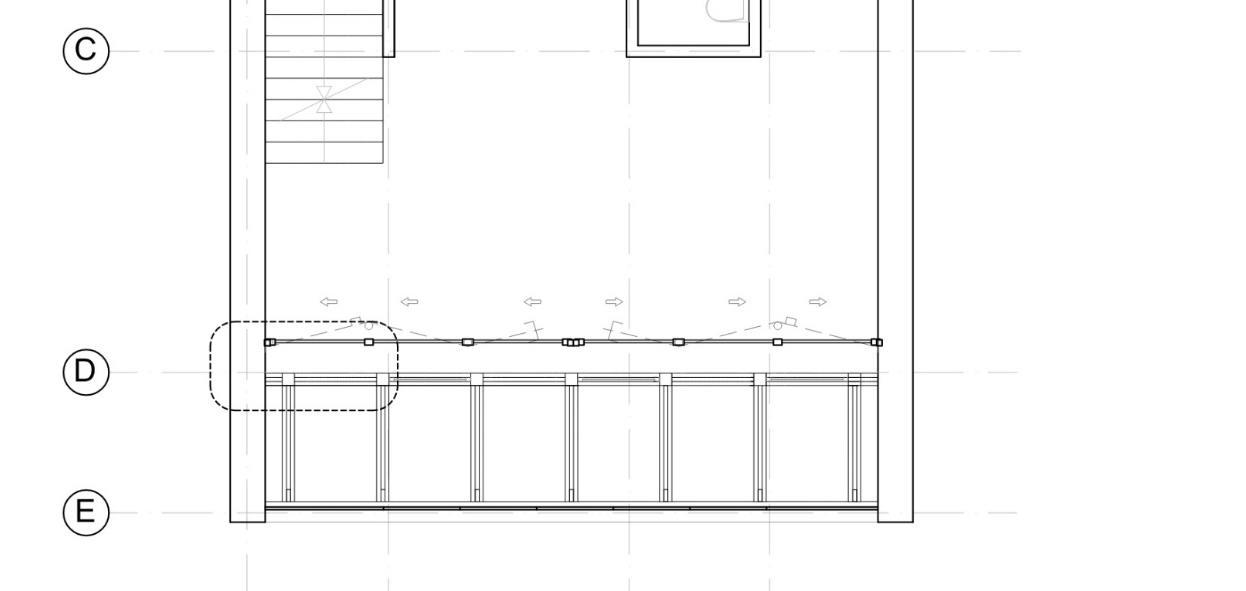

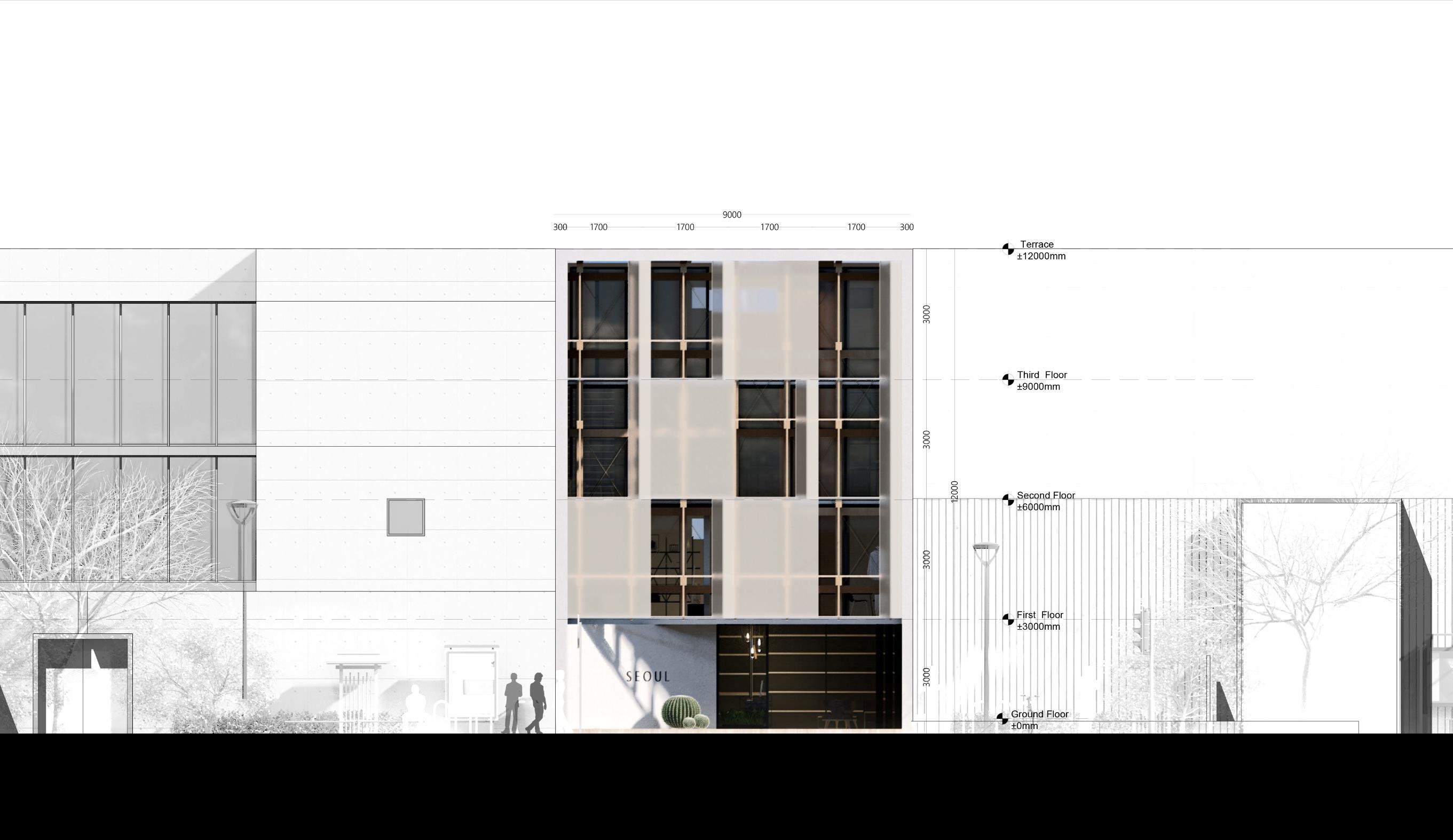

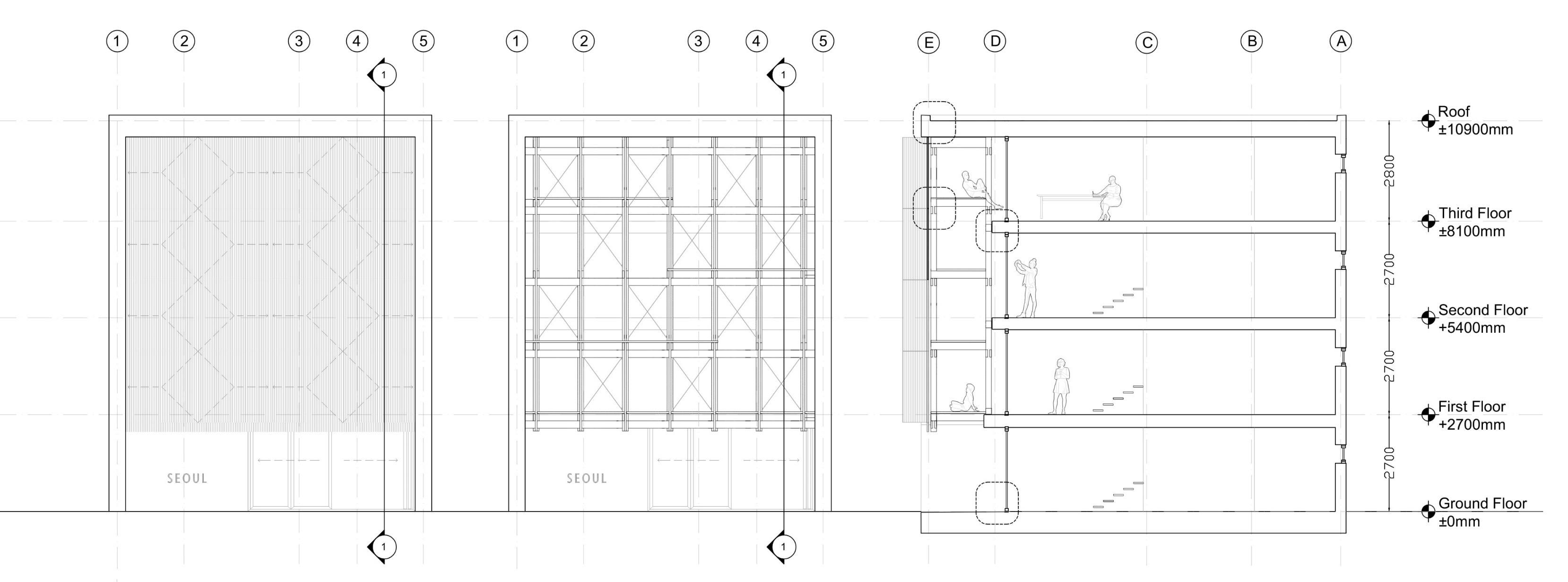

Seoul, South Korea Elevation
Seoul, South Korea
Seoul, South Korea
Seoul, South Korea

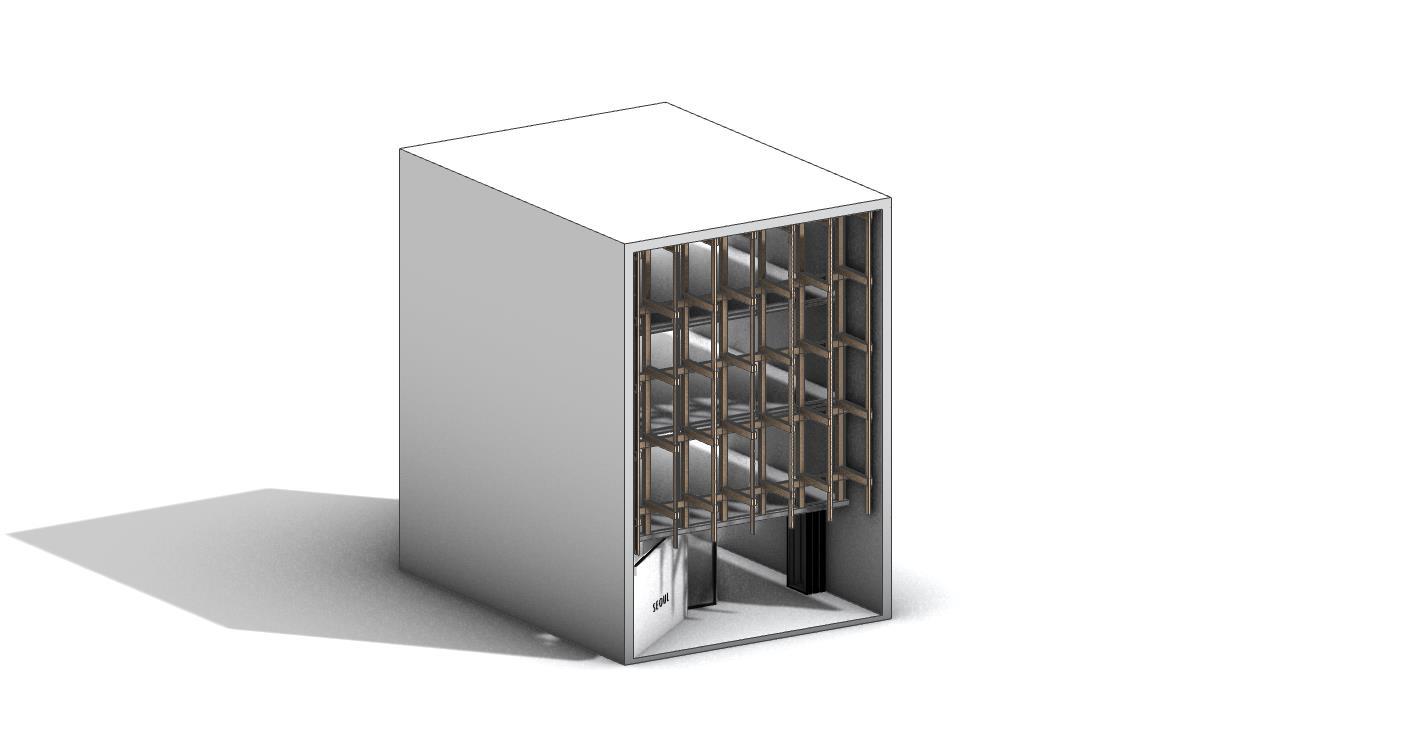

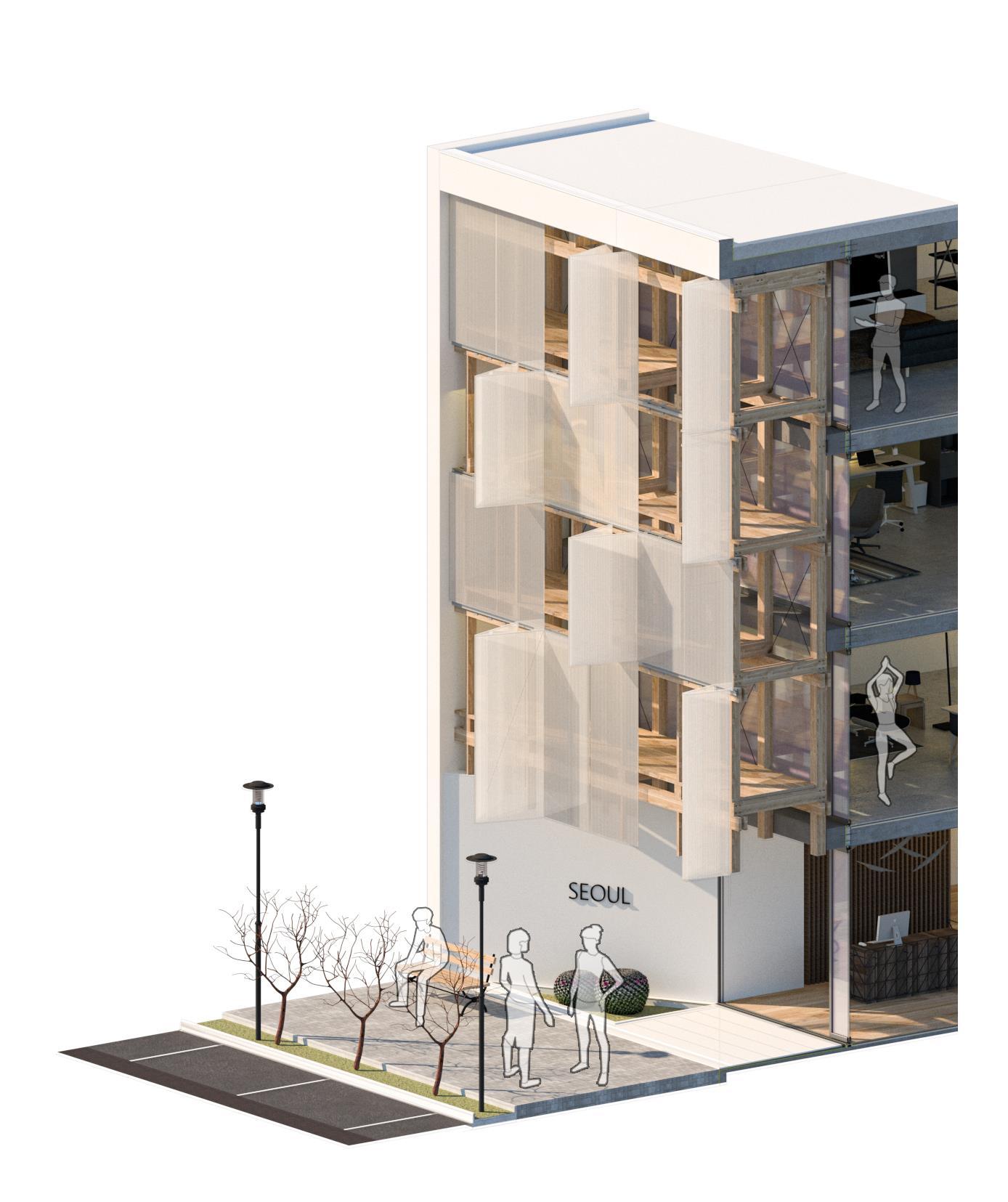

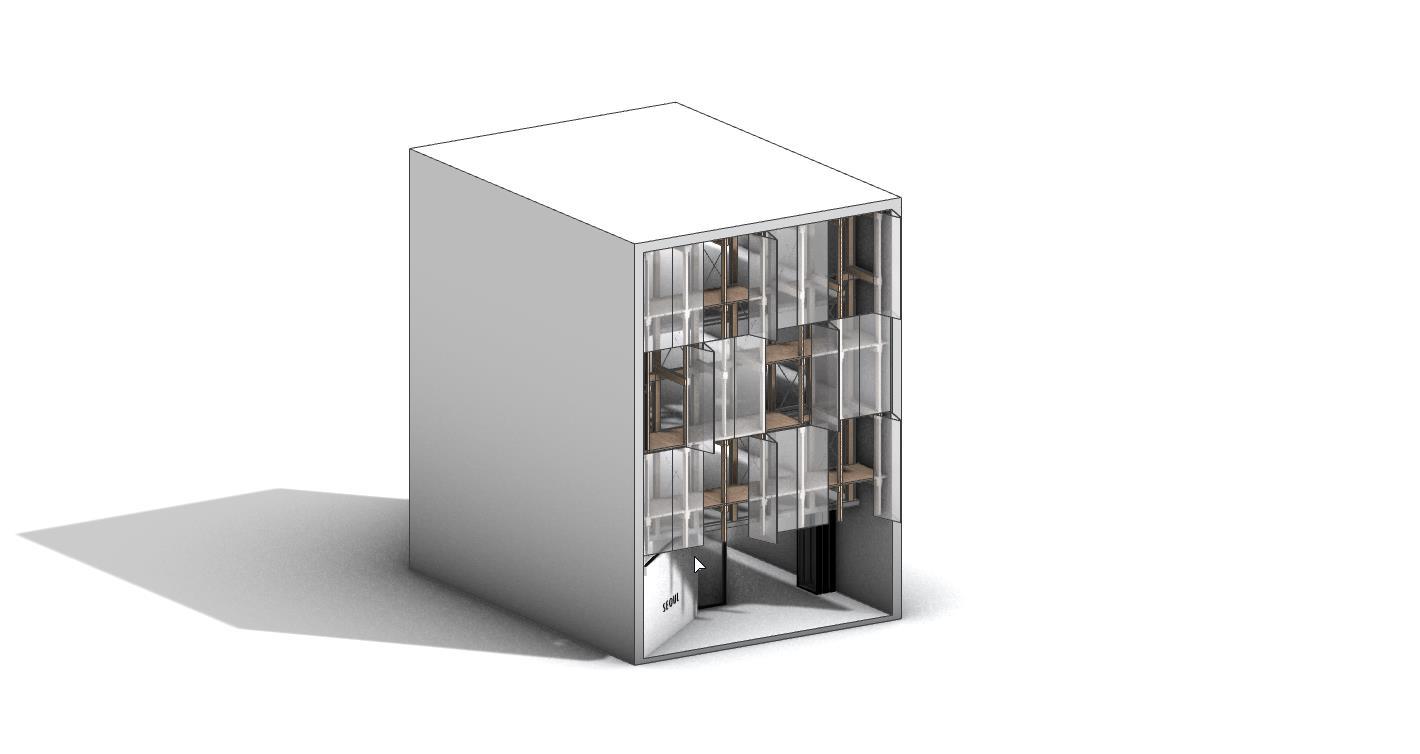

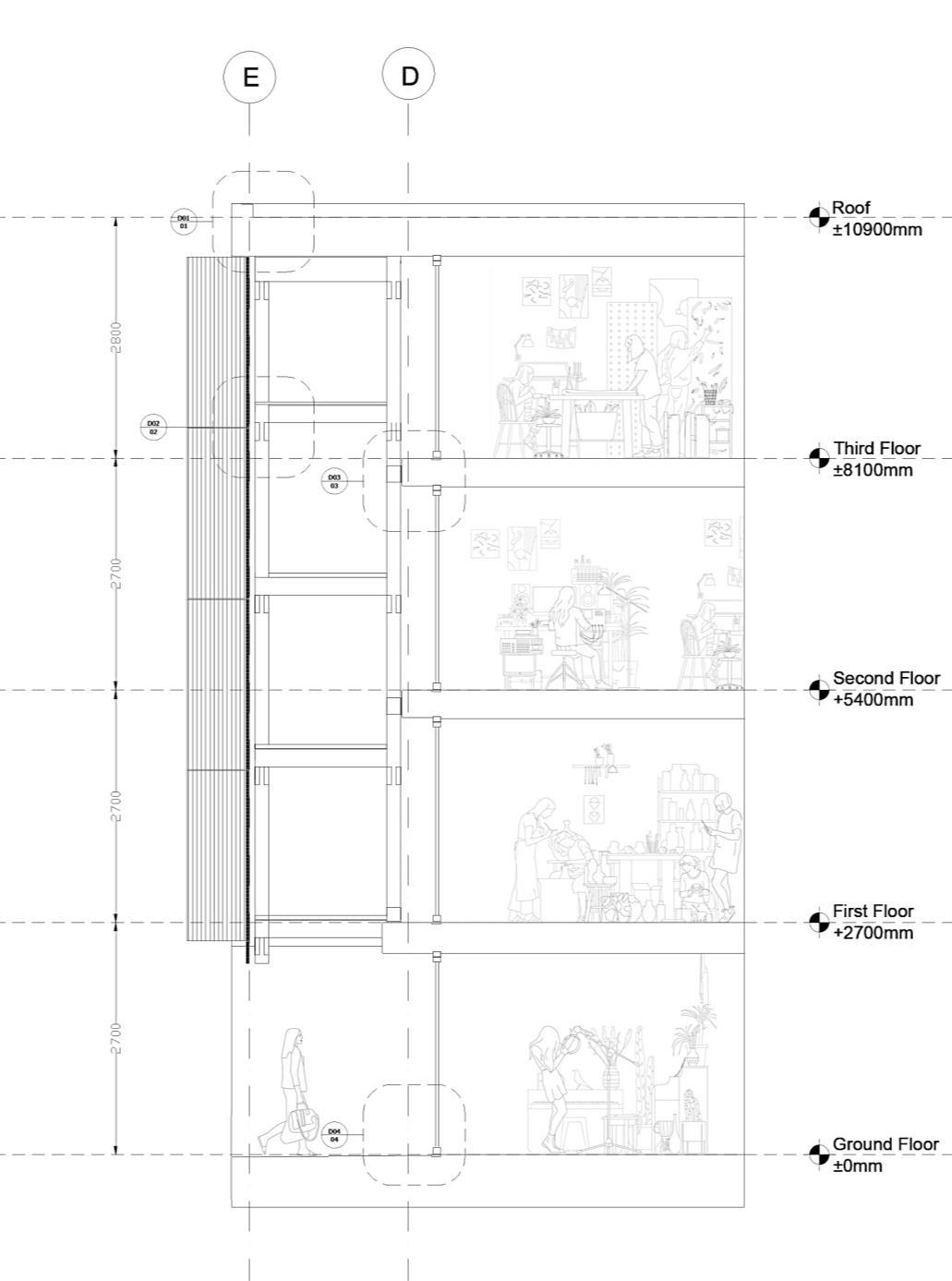

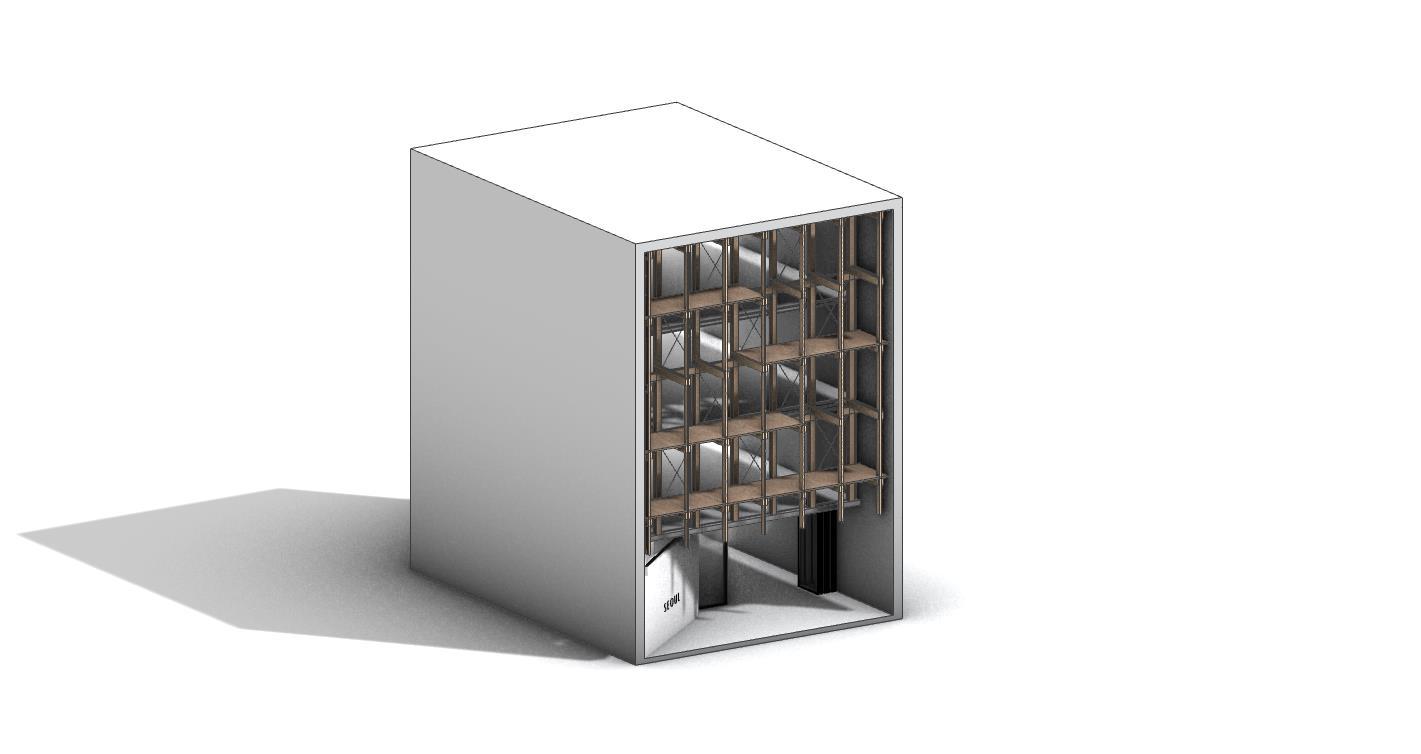

Section AA’ Isometric Section AA’
Exploded Section AA’

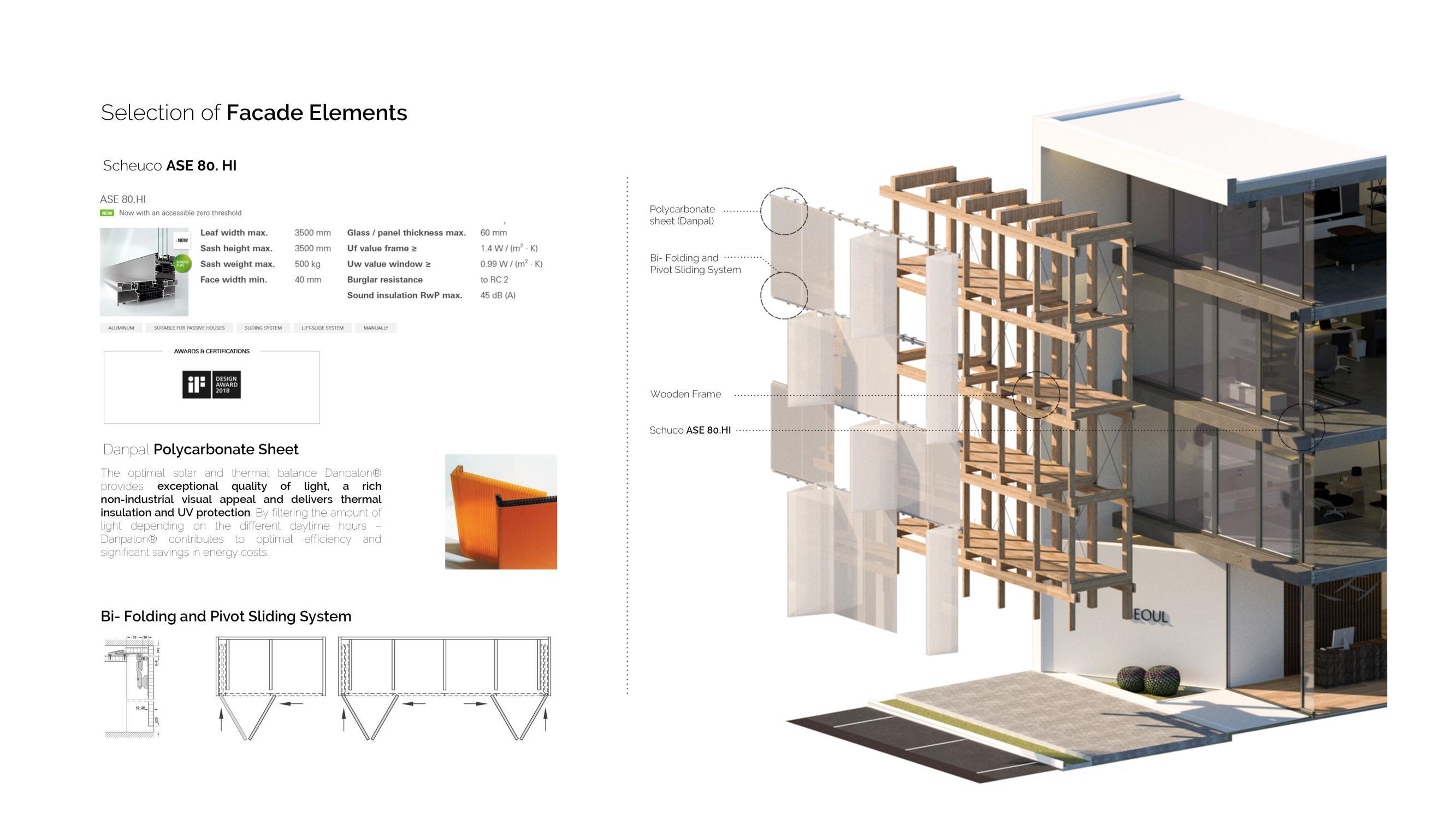

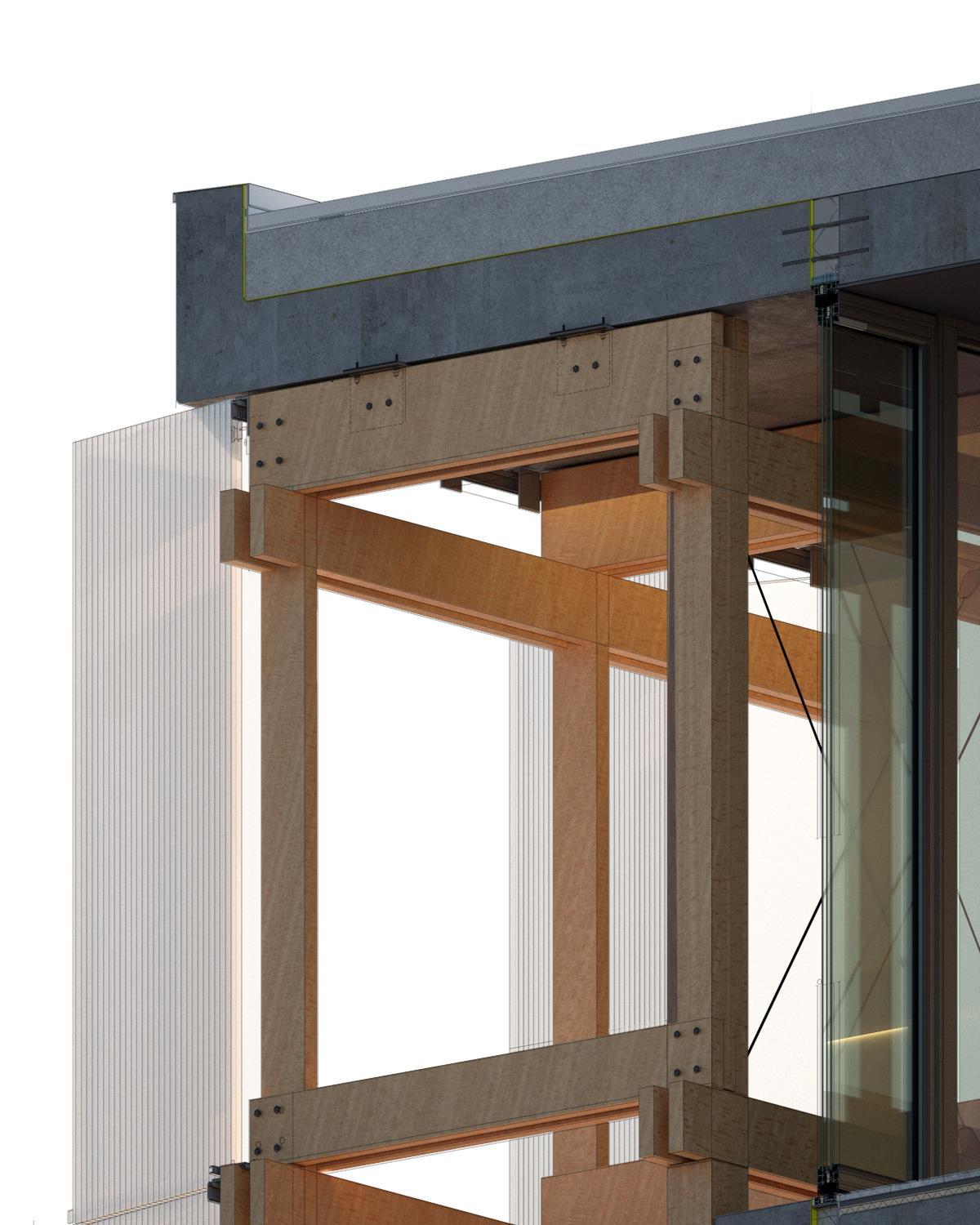

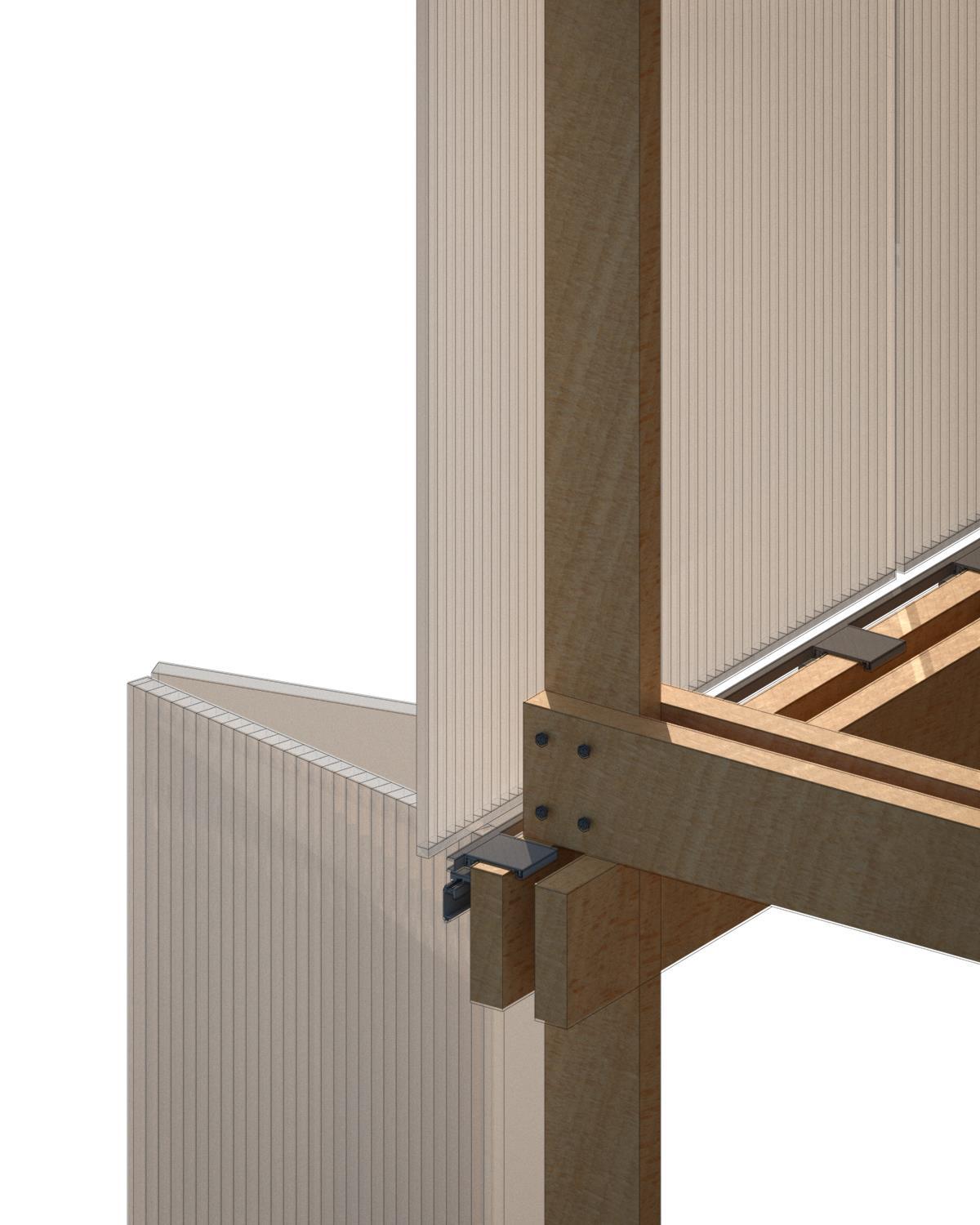

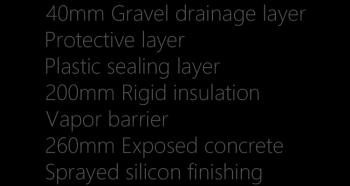

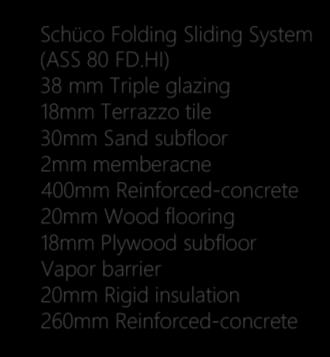

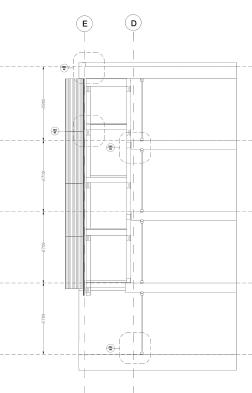

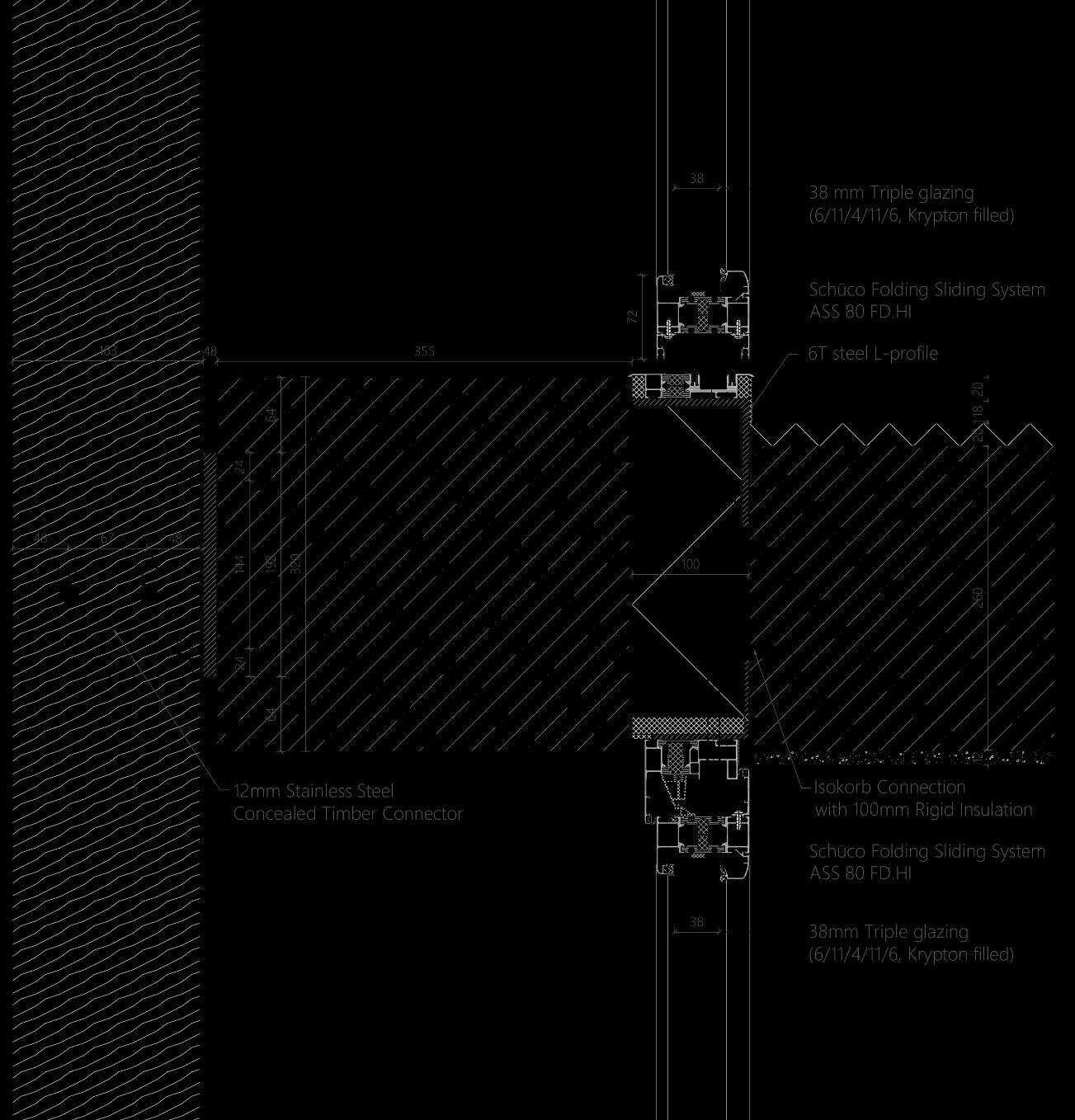

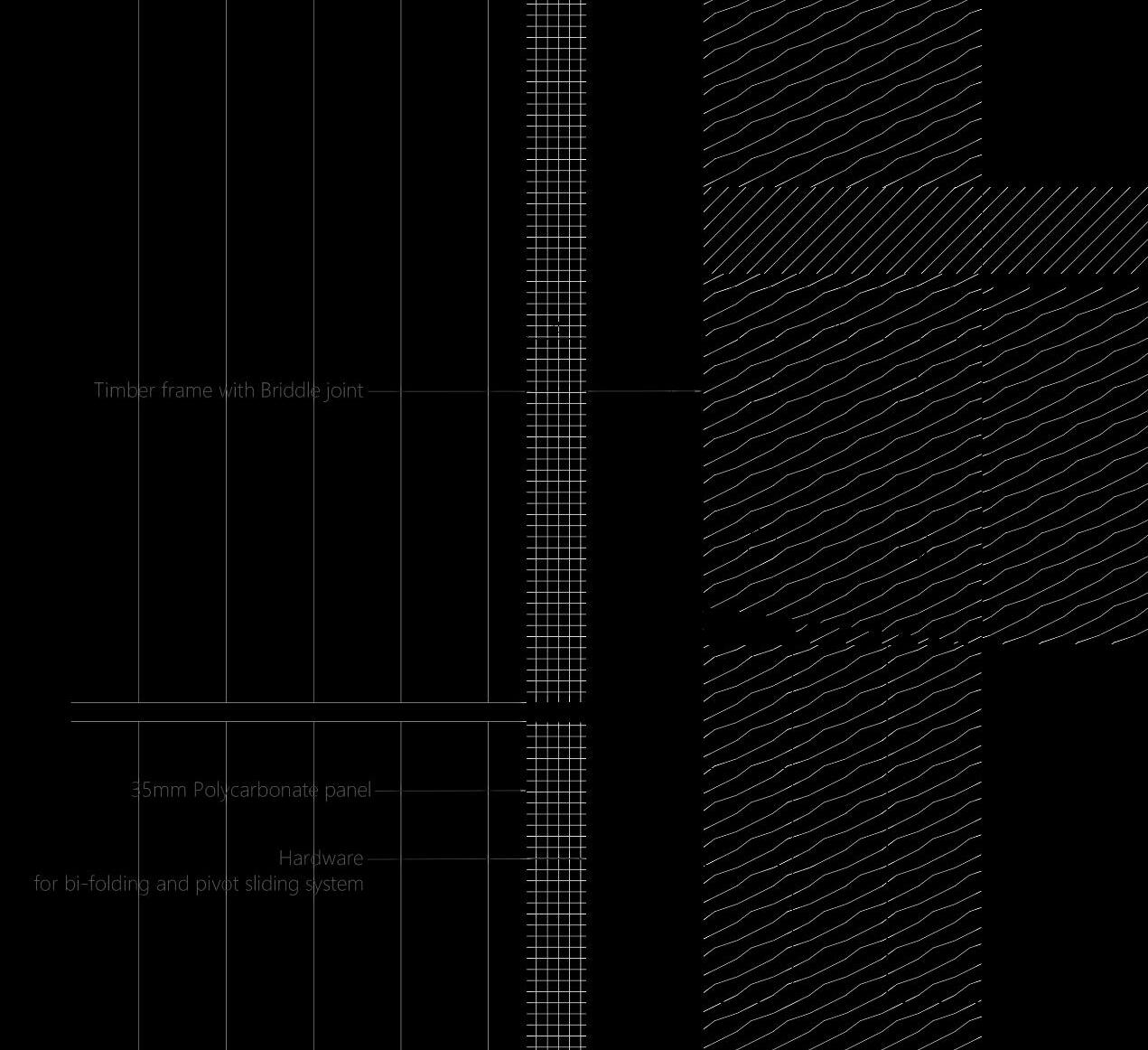

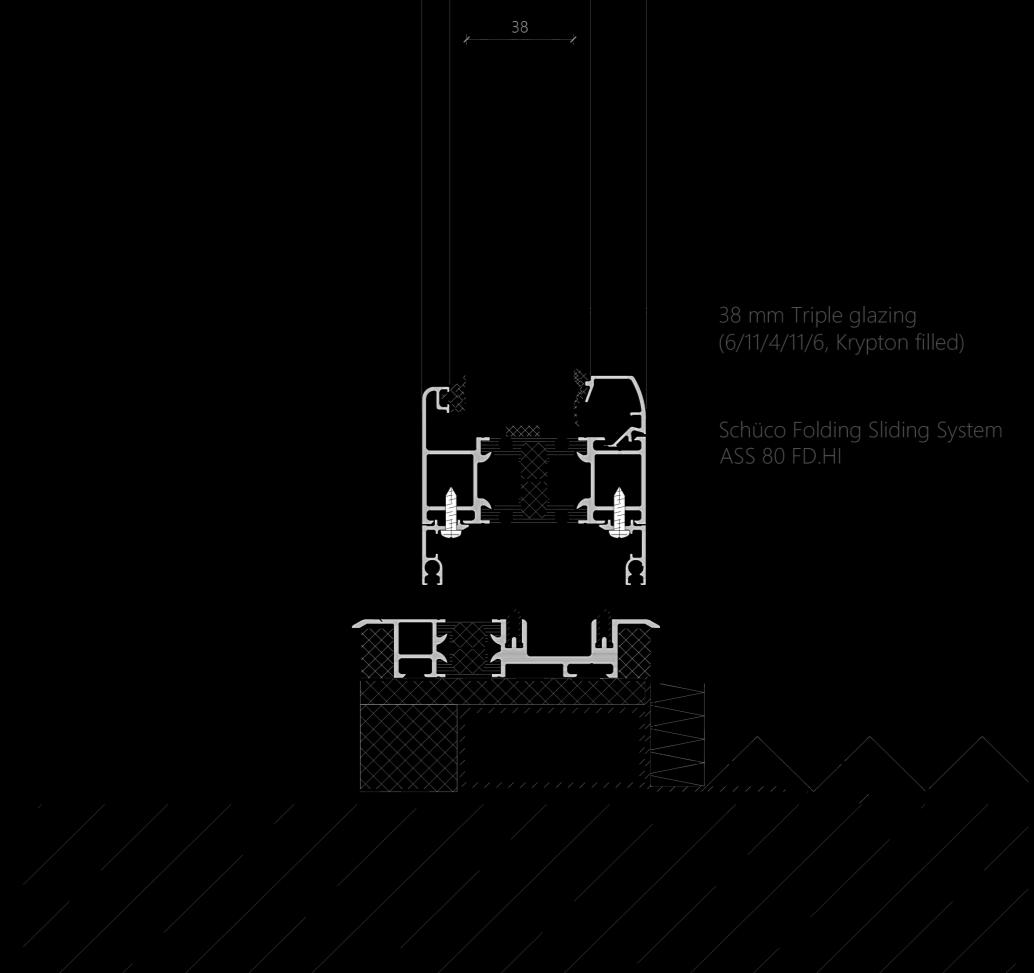

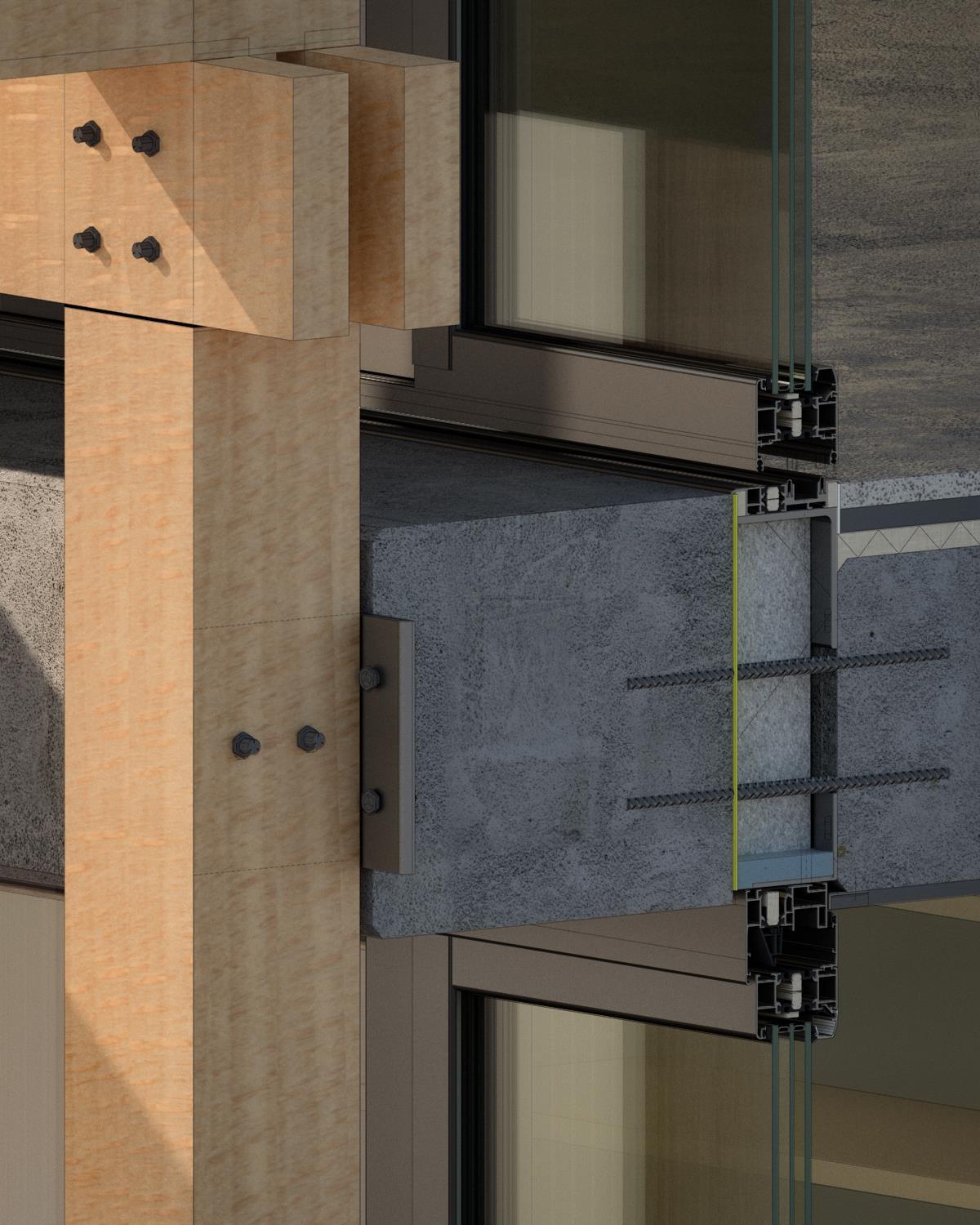

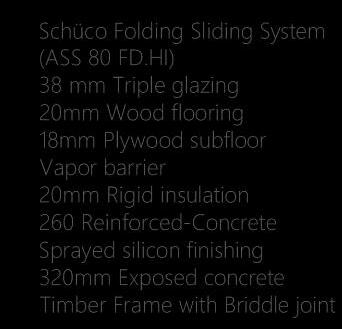

Facade Details
Physical Model Visualization
