JCB 531-70WM Telescopic Handlers (Loadall) Parts Catalogue Manual (Serial Number 02083497-02084497) by z5c3v8d0zaz

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E200-25-1 PUMP/MOTOR INSTALLATION ASSEMBLIES VARIABLE PUMP Item Part # Change No Description Usage Code QTY 1 333/L5469 Pump variable, displacement 1

2 332/C6029 Adaptor Suction 1 3 333/F9533 Pipe Fan Suction 1 4 45/920133 Coupling pump drive 1 5 828/10401 O Ring 5" 1 6 2401/0218 O Ring 1 7 1620/2058 Adaptor 3/4BSP x 7/8SAE M/M 1 8 816/90085 Adaptor tee 1 9 817/04762 Label variflow pump empty 1 10 816/90274 Cap blanking 3/4"BSP Female 1 11 816/90929 Adaptor 1"1/16 SAE - BEAD 1 12 648/32501 Hose 70mm 1 13 2201/0007 Clip Wormdrive 2 14 1620/2056 Adaptor 1 15 1620/2059 Adaptor 3/4BSP/1-1/16SAE M/M 1 16 45/904100 Connector pressure test 1 17 332/F9842 Adaptor tee positional 1 18 716/D5692 Hydraulic Temp Sender 1 19 332/E7121 Plate harness tie 1 20 826/01144 Tie Cable 200mm 1 21 1315/0108Z Setscrew Zinc 1 22 1412/0001Z Washer 1/4" Large 1 23 1315/0508Z Setscrew M12 X 30 4 24 1425/0009Z Washer Spring M12 4 25 1316/0509Z Setscrew 2 26 1391/3509Z Capscrew 2 27 823/00309 Washer hardened (13mm x 23mm x 2.7mm) 4 28 4101/0200 Fluid Locking 0 29 4003/1300 Grease 0

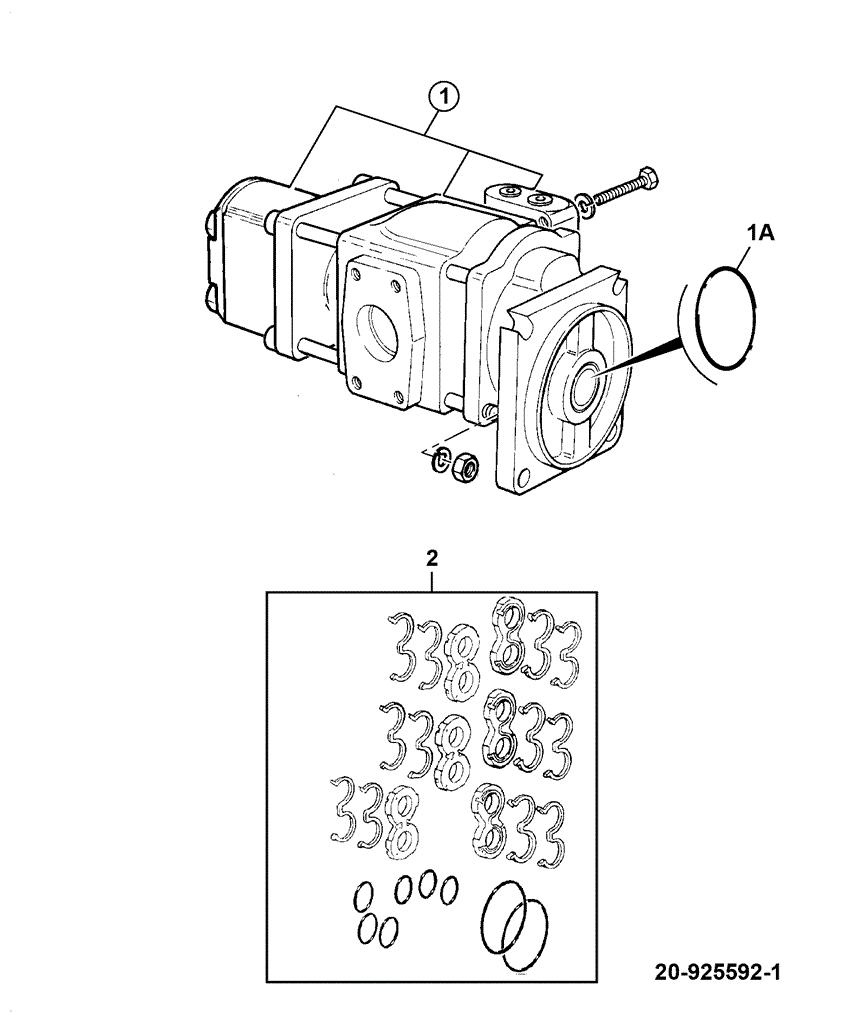

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E200-30-1 PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 2 STAGE Item Part # Change No Description Usage Code QTY A 20/925592 Pump Hydraulic- 2 Stage 1

1 :20/950883 Valve Port Mounted 1 1A ::20/402003 O Ring 1 2 :904/20312 Kit Seal 1

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E200-35-1 PUMP/MOTOR INSTALLATION ASSEMBLIES VARIABLE PUMP POWER CONTROL Item Part # Change No Description Usage Code QTY A 332/F3925 Pump Variable Power Control 1

1 335/C3352 Pump Assembly 1 2 332/E3830 Gear Pump 1 3 335/C3355 Socket Head 2 4 20/952513 Valve assembly control 1 5 335/C3356 Valve Control Assembly 1 6 335/C3355 Socket Head 1 7 333/L4239 Screw Stop 1 8 335/C3360 Nut 1 9 335/C3361 Nut Cap 1 10 335/C3362 O Ring 2 11 335/C3363 Seal Ring 1 12 20/952479 Ring Retaining 1 13 20/952311 Gasket 1 14 20/952312 Screw socket head 4 15 335/C3356 Valve Control Assembly 1 16 335/C3364 O Ring 2 B **** 'See Remark' 02469730SEALKIT 1

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E200-40-1 PUMP/MOTOR INSTALLATION ASSEMBLIES VARIABLE PUMP DISP Item Part # Change No Description Usage Code QTY A 332/D9382 Pump Variable Disp Pump 1

1 335/A3146 Pump Assembly 1 2 335/C3355 Socket Head 2 3 332/E3830 Gear Pump 1 4 20/952513 Valve assembly control 1 5 20/952514 Valve Assembly control, solenoid operated 1 6 335/C8413 Knob Adjusting 1 7 335/C3355 Socket Head 2 8 333/L4239 Screw Stop 1 9 335/C3360 Nut 1 10 335/C3362 O Ring 2 11 335/C3363 Seal Ring 1 12 20/952479 Ring Retaining 1 13 20/952311 Gasket 1 14 20/952312 Screw socket head 4 15 335/C3364 O Ring 1 B 335/A0287 Kit seal 1

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E200-45-1 PUMP/MOTOR INSTALLATION ASSEMBLIES VARIABLE PUMP DISP Item Part # Change No Description Usage Code QTY A 332/H3193 Pump Variable Displacement 1

1 335/A3146 Pump Assembly 1 2 335/C3355 Socket Head 2 3 332/E3830 Gear Pump 1 4 20/952513 Valve assembly control 1 5 20/952514 Valve Assembly control, solenoid operated 1 6 335/C8413 Knob Adjusting 1 7 335/C3355 Socket Head 2 8 333/L4239 Screw Stop 1 9 335/C3360 Nut 1 10 20/952513 Valve assembly control 1 11 335/C3362 O Ring 2 12 335/C3363 Seal Ring 1 13 20/952479 Ring Retaining 1 14 20/952311 Gasket 1 15 20/952312 Screw socket head 4 16 335/C3364 O Ring 1 B **** 'See Remark' 02469730SAEALKIT 1

9822/0090 E210-1-1 PUMPS GEAR 3 STAGE

Item Part # Change No Description Usage Code QTY 1 20/925591 Pump Hydraulic - 3 Stage 1 2 :35/910098 Valve Priority Steer 1

3 :904/20146 Seal Kit 1

9822/0090 E210-5-1 PUMPS GEAR 2 STAGE PUMP

Item Part # Change No Description Usage Code QTY A 332/E6671 Pump 2 Stage 110l/m 1 1 904/20146 Seal Kit 1

Item Part # Change No Description Usage Code QTY 10 332/F3925 Pump Variable Power Control 1 20 332/C6029 Adaptor Suction 1

9822/0090 E220-1-1 PUMPS VARIFLOW

30 2401/0218 O Ring 1 40 1745/0002 Plug 9/16 O Ring Boss 1 50 1425/0009Z Washer Spring M12 4 60 1315/0508Z Setscrew M12 X 30 4 70 1620/2059 Adaptor 3/4BSP/1-1/16SAE M/M 1 80 816/90929 Adaptor 1"1/16 SAE - BEAD 1 90 2201/0007 Clip Wormdrive 2 100 648/32501 Hose 70mm 1 110 332/C8155 Pipe Fan Suction 1 120 1620/2058 Adaptor 3/4BSP x 7/8SAE M/M 1 130 816/90085 Adaptor tee 1 140 817/04762 Label variflow pump empty 1 150 816/90274 Cap blanking 3/4"BSP Female 1 160 1620/2056 Adaptor 1 170 1620/2050 Adaptor 1/4BSP x 7/16SAE 1 180 45/920133 Coupling pump drive 1 190 45/904100 Connector pressure test 1 200 823/00309 Washer hardened (13mm x 23mm x 2.7mm) 4 210 1391/3509Z Capscrew 2 220 1316/0509Z Setscrew 2 230 828/10401 O Ring 5" 1 240 4101/0200 Fluid Locking 0

9822/0090 E220-5-1 PUMPS VARIFLOW

Item Part # Change No Description Usage Code QTY 1 728/C2747 Pump control ECU 1 2 1315/0205Z Setscrew M6 x 20mm 2

3 1370/0103Z Nut Self Lock M6 2 4 1420/0006Z Washer (M6) 4 5 332/L7118 Bracket ECU/ Relay MTG 1 6 1420/0008Z Washer (M10) 2 7 1315/0408Z Setscrew M10 x 30 2

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E220-10-1 PUMPS VARIFLOW COMPONENTS 333/L5469 Item Part # Change No Description Usage Code QTY A 333/L5469 Pump variable, displacement 1

2 :20/952513 Valve assembly control 1 2A ::20/925311 Pump Low Flow 1 2B ::20/925312 Motor wheel drive 4 2C ::20/925361 Motor hydraulic 1 3 :20/952514 Valve Assembly control, solenoid operated 1 3A ::332/C1911 Solenoid 1 3B ::333/C5172 Valve EK 1 4 20/952519 Kit-seal 1 10 332/E0800 Lead Test 1

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E260-1-1 OTHER HYDRAULIC PUMPS VARIABLE PUMP Item Part # Change No Description Usage Code QTY 10 332/H3193 Pump Variable Displacement 1

20 828/10401 O Ring 5" 1 30 45/920133 Coupling pump drive 1 40 45/904100 Connector pressure test 1 50 332/F9842 Adaptor tee positional 1 60 1620/2056 Adaptor 1 70 2401/0218 O Ring 1 80 332/C6029 Adaptor Suction 1 90 1620/2059 Adaptor 3/4BSP/1-1/16SAE M/M 1 100 332/C8155 Pipe Fan Suction 1 110 823/00309 Washer hardened (13mm x 23mm x 2.7mm) 8 120 1315/0508Z Setscrew M12 X 30 4 130 2201/0007 Clip Wormdrive 2 140 648/32501 Hose 70mm 1 150 701/80578 Sender Temperature-Hyd Oil 1 160 816/90929 Adaptor 1"1/16 SAE - BEAD 1 170 1620/2058 Adaptor 3/4BSP x 7/8SAE M/M 1 180 816/90085 Adaptor tee 1 190 817/04762 Label variflow pump empty 1 200 816/90274 Cap blanking 3/4"BSP Female 1 210 826/01144 Tie Cable 200mm 1 220 1391/3509Z Capscrew 2 230 1316/0509Z Setscrew 2 240 332/E7121 Plate harness tie 1 250 1412/0001Z Washer 1/4" Large 1 260 1315/0108Z Setscrew Zinc 1 270 4101/0200 Fluid Locking 0

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E260-5-1 OTHER HYDRAULIC PUMPS VARIABLE PUMP Item Part # Change No Description Usage Code QTY 1 333/C6593 Pump Variable Displacement 1

2 332/C6029 Adaptor Suction 1 3 333/F9533 Pipe Fan Suction 1 4 45/920133 Coupling pump drive 1 5 828/10401 O Ring 5" 1 6 2401/0218 O Ring 1 7 1620/2058 Adaptor 3/4BSP x 7/8SAE M/M 1 8 816/90085 Adaptor tee 1 9 817/04762 Label variflow pump empty 1 10 816/90274 Cap blanking 3/4"BSP Female 1 11 816/90929 Adaptor 1"1/16 SAE - BEAD 1 12 648/32501 Hose 70mm 1 13 2201/0007 Clip Wormdrive 2 14 1620/2056 Adaptor 1 15 1620/2059 Adaptor 3/4BSP/1-1/16SAE M/M 1 16 45/904100 Connector pressure test 1 17 1620/2050 Adaptor 1/4BSP x 7/16SAE 1 18 701/80578 <30/09/2012 Sender Temperature-Hyd Oil 1 18 716/D5692 >01/10/2012 Hydraulic Temp Sender 1 19 332/E7121 Plate harness tie 1 20 826/01144 Tie Cable 200mm 1 21 1315/0108Z Setscrew Zinc 1 22 1412/0001Z Washer 1/4" Large 1 23 1315/0508Z Setscrew M12 X 30 4 24 1425/0009Z Washer Spring M12 4 25 1316/0509Z Setscrew 2 26 1391/3509Z Capscrew 2 27 823/00309 Washer hardened (13mm x 23mm x 2.7mm) 4 28 4101/0200 Fluid Locking 0 29 4003/1300 Grease 0

Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL.NOWAITING

NOTE:

If there is no response to click on the link above, please download the PDF document first and then clickonit.

GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/ GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 531-70WM 0208320102083201,02083497-02084497,02144565-02149565,02173052-02183052,02183053-02183999,02336575-02356575 9822/0090 \ E HYDRAULICS \ E02 PUMP & M0T0RS 9822/0090 E260-10-1 OTHER HYDRAULIC PUMPS VARIABLE PUMP COMPONENTS,

Item Part # Change No Description Usage Code QTY A 333/C6593 Pump Variable Displacement 1

333/C6593

A1 :333/G9221 Pump Gear 1 2 :20/952514 Valve Assembly control, solenoid operated 1 2A ::332/C1911 Solenoid 1 3 :20/952513 Valve assembly control 1 3A ::20/952311 Gasket 1 3B ::20/952312 Screw socket head 4 4 20/952361 Screw locking 1

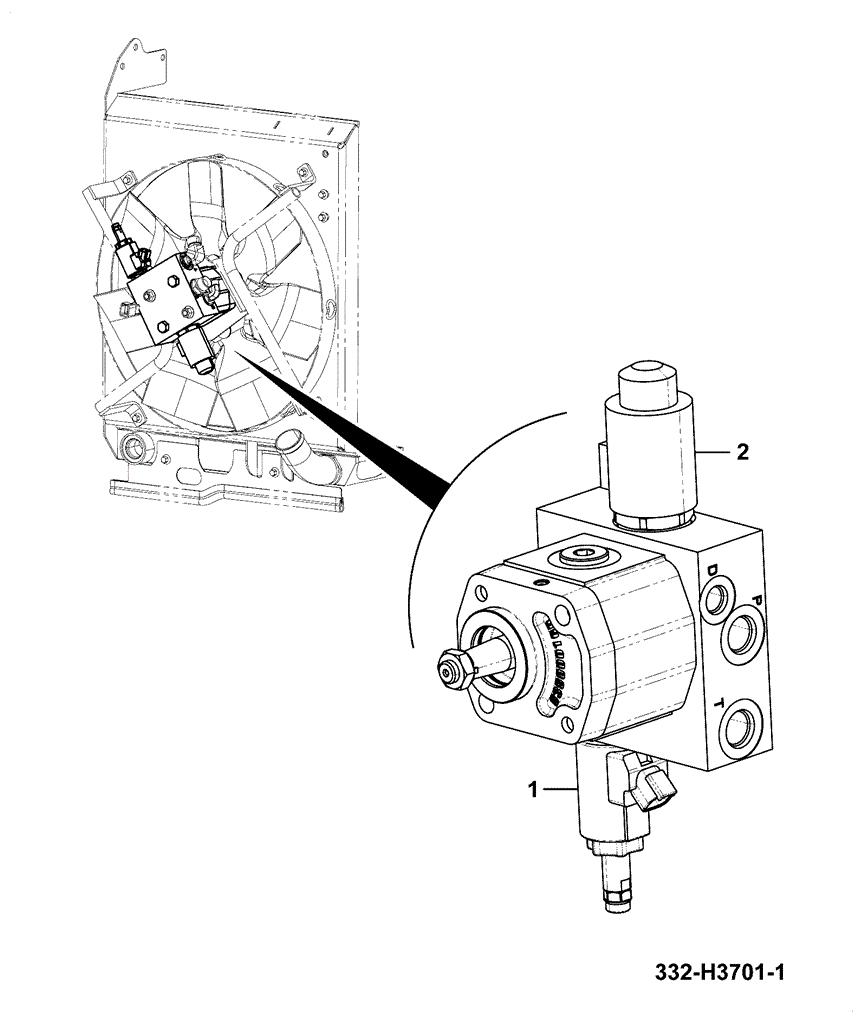

Item Part # Change No Description Usage Code QTY A 332/H3701 Fan motor variable 1

MOTOR COMPONENTS
