YUXIN LIU 2021-2023
LANDSCAPE DESIGN PORTFOLIO
YUXIN LIU
Add： Southbank
Phone：0423737060
Email： lyxivy0713@gmail.com
Visa: Permanent Resident
I am Yuxin, originally from Yantai, China. I began my education and life in Melbourne from high school onwards. After completing my postgraduate studies, I returned to Shenzhen, China, and embarked on a 1.5year career in landscape architecture.
I chose two street design projects because they each represent the corresponding design policies adopted by cities at different stages of development. At the same time, both projects involve transforming car-oriented street designs into pedestrian-friendly streets.
During my work, I deeply realized the complexities and challenges of landscape design, from conceptualization to implementation. A successful project requires not only thorough site investigations and innovative design concepts but also close communication with stakeholders and relevant departments at every stage of the project's development, ensuring interdisciplinary collaboration.
LONGWAN STREET
SHENZHEN
SUPER HEADQUARTERS
LONGWAN CITY STREET DESIGN
2022-2023
SITE:
SIZE:
TYPE:
STATE: DONGGUAN, CHINA 90000 ㎡
STREET DESIGN, GUIDELINE CONCEPTION DESIGN

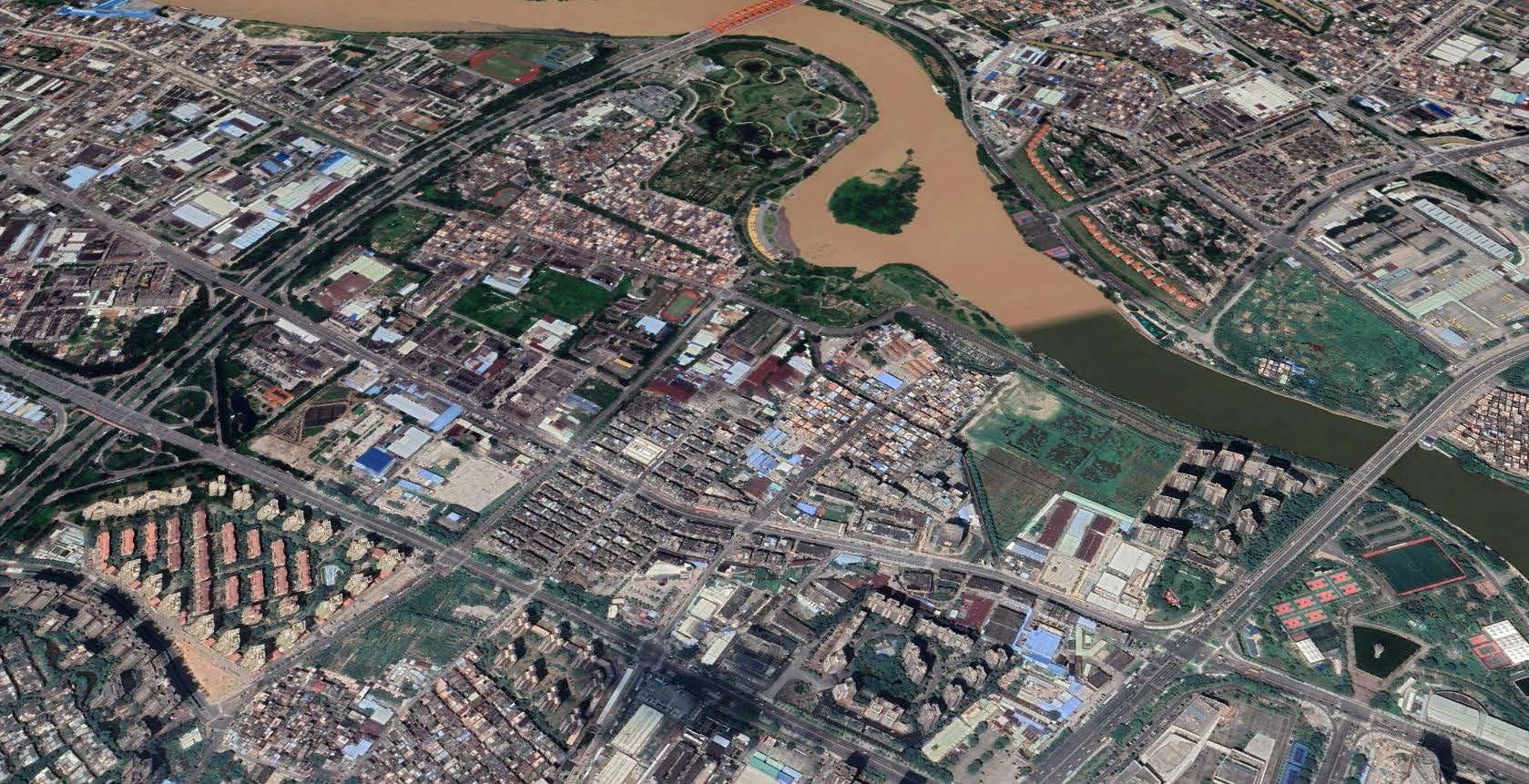

LongWan City is an old town that will enhance street quality and facilities through a bottom-up strategy, and endow an appropriate theme to lead through that combines with local culture and existing resources.

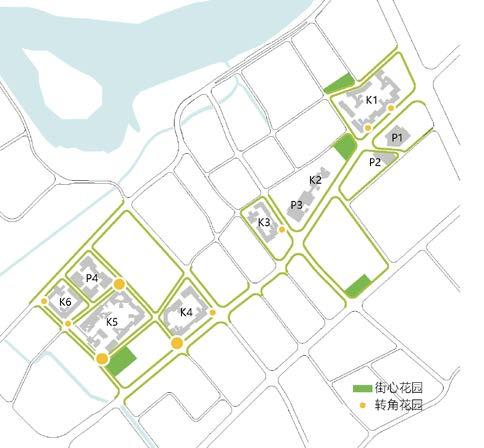

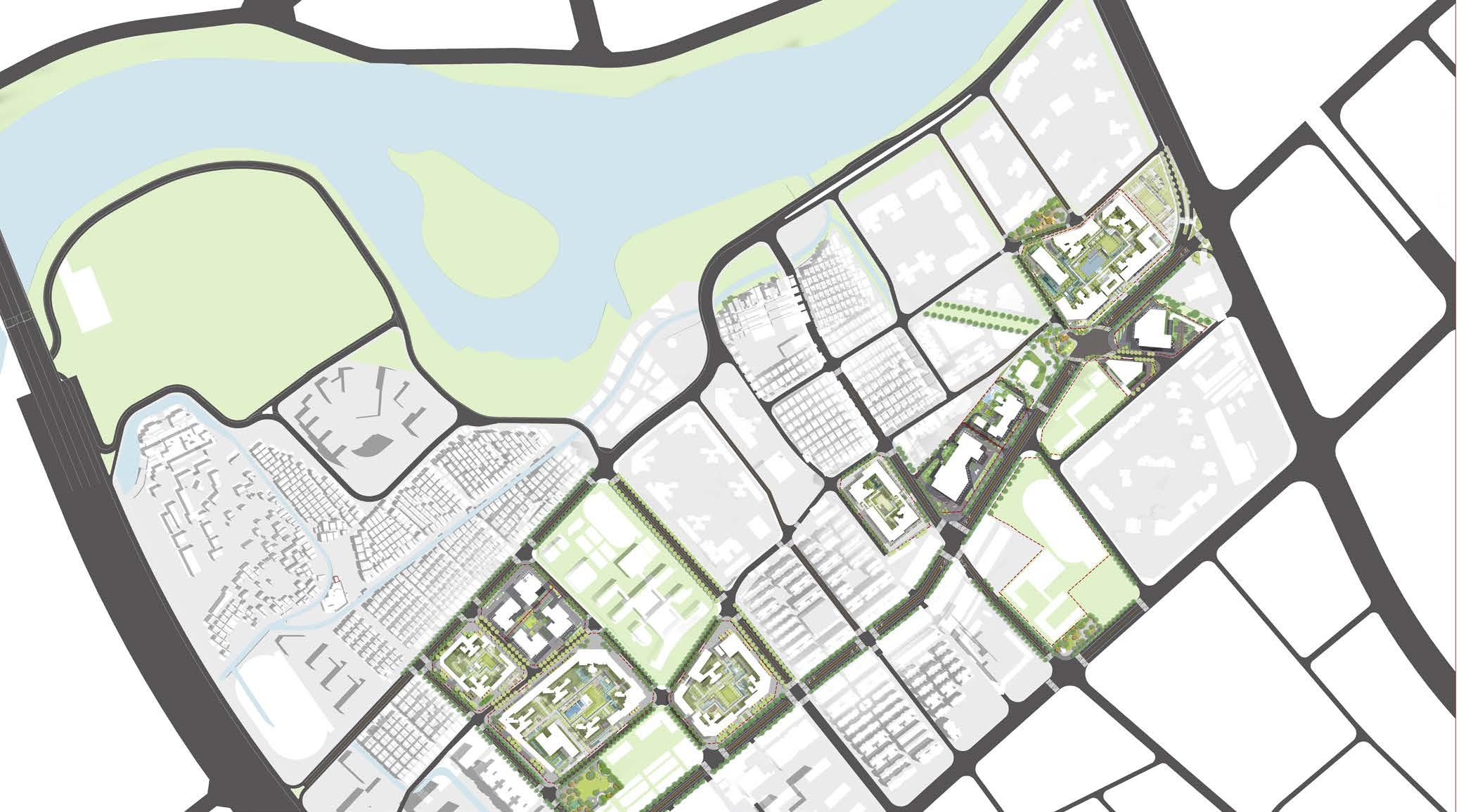

The project design range includes 17 streets, 4 community gardens and various highlights corners.
BOTTOM-UP STREET IMPROVEMENT

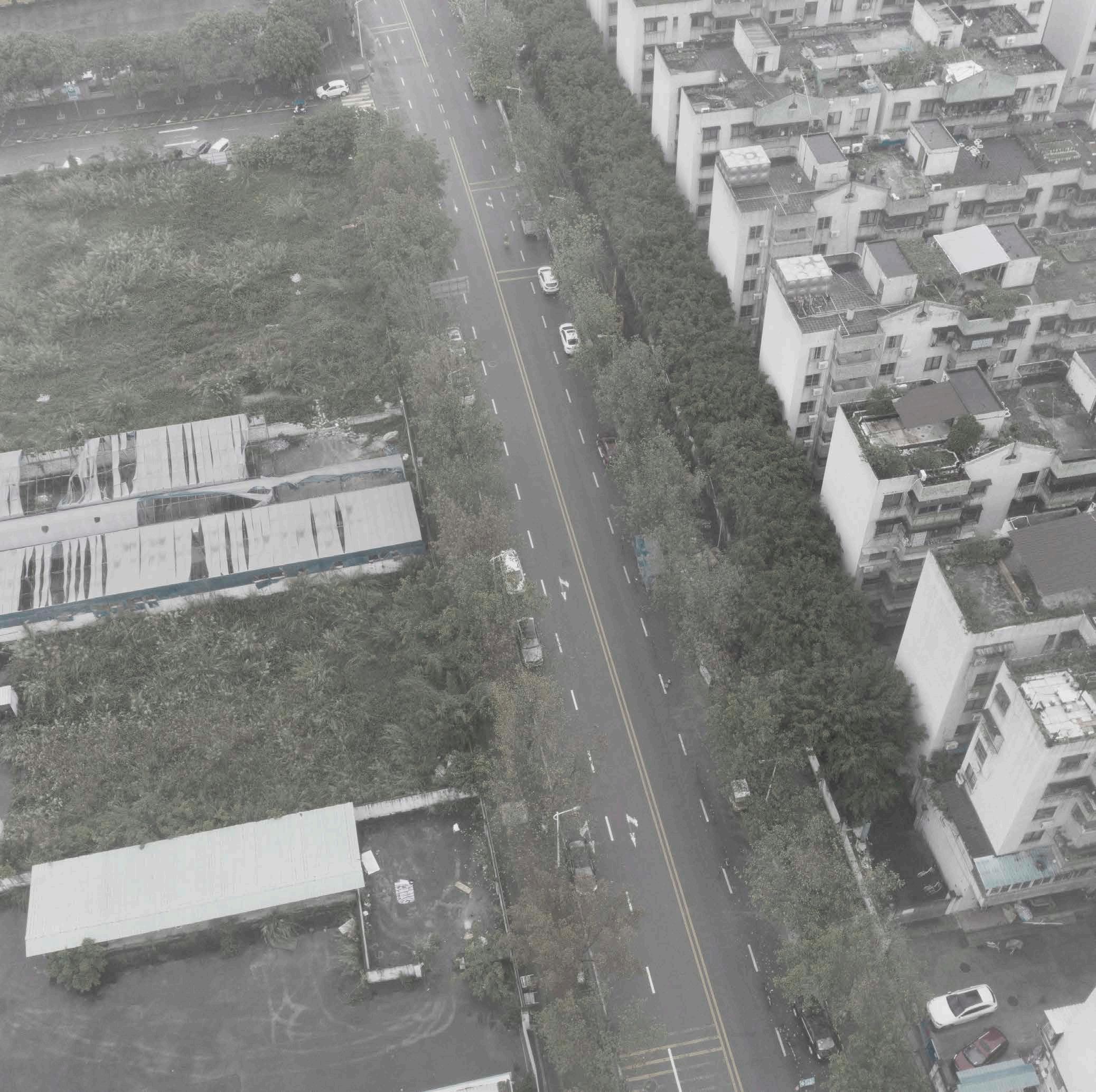

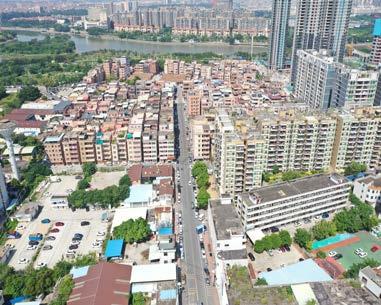

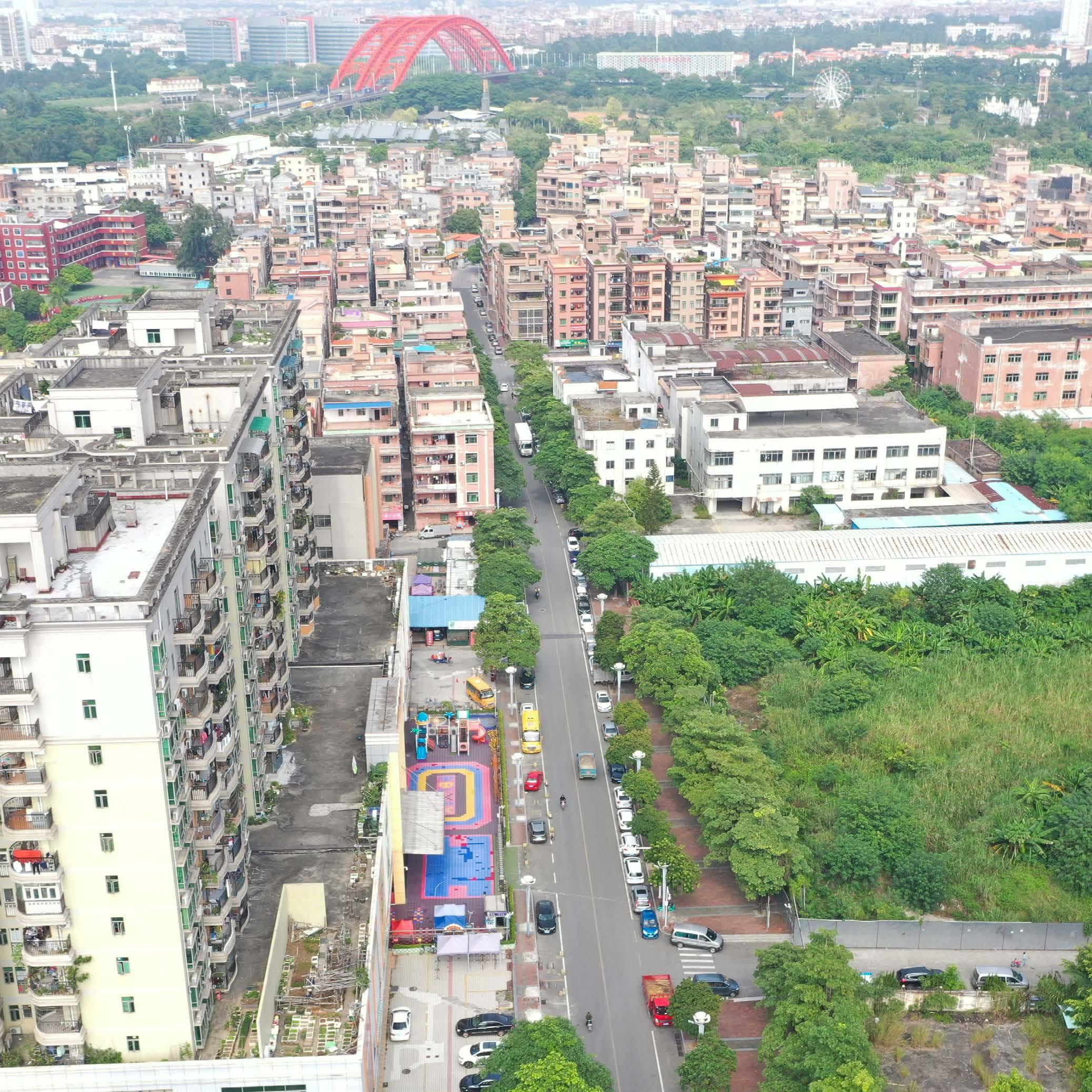

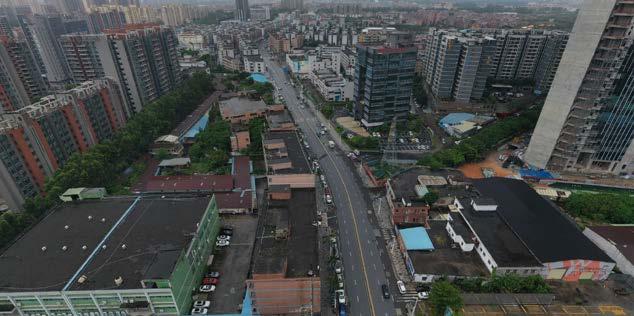

EXISTED PROBLEM

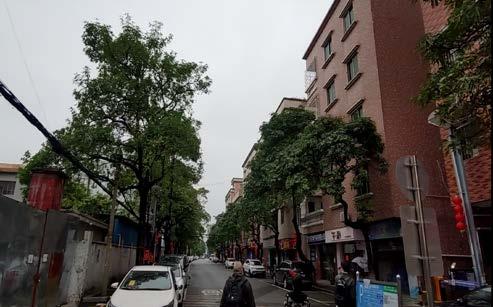

Residential Road-
The street pavement is outdated and lacks service facilities.
Waterway Corridor-

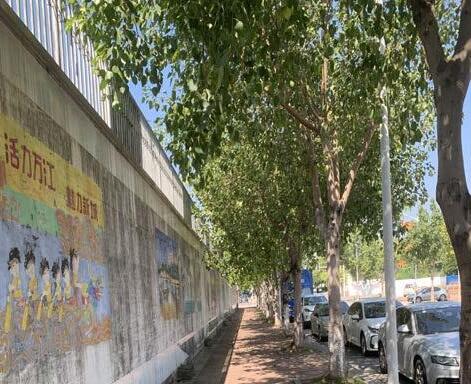

The walls surrounding residential and the school are detracting from the overall quality.
Central Corridor
The Street lack of trees ,plants and service facilities. Road is interrupted by the urban village.
Urban Village Wall-
Building walls around urban villages makes it difficult to have direct access to the waterfront in the near future.
-EXISTEDOLD RESIDENTIAL AND FACTORY BUILDING -TO BE DEVELOPEDTO BE DEVELOPED PARK
-EXISTEDURBAN VILLAGE -EXISTEDOLD RESIDENTIAL CONMMUNITY -TO BE DEVELOPEDPRIMARY SCHOOL
Connecting East and West blocks-
The old facades are affecting the coordination of the overall aesthetic.
East Block-
It is an important area for showcasing urban development.
-NEWRESIDENTIAL BUILDING
SITE 3 KEY ISSUES:
1.Sparse and discontinuous trees and plants
2. Outdated Road Pavement
3. Lack of amenity furniture and attractive nodes
BAXIN ROAD
SHENGLI ROAD
TANGCHEN ROAD

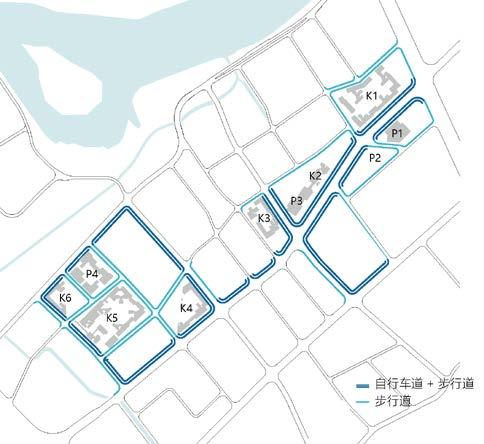

STREET DESIGN SYSTEM

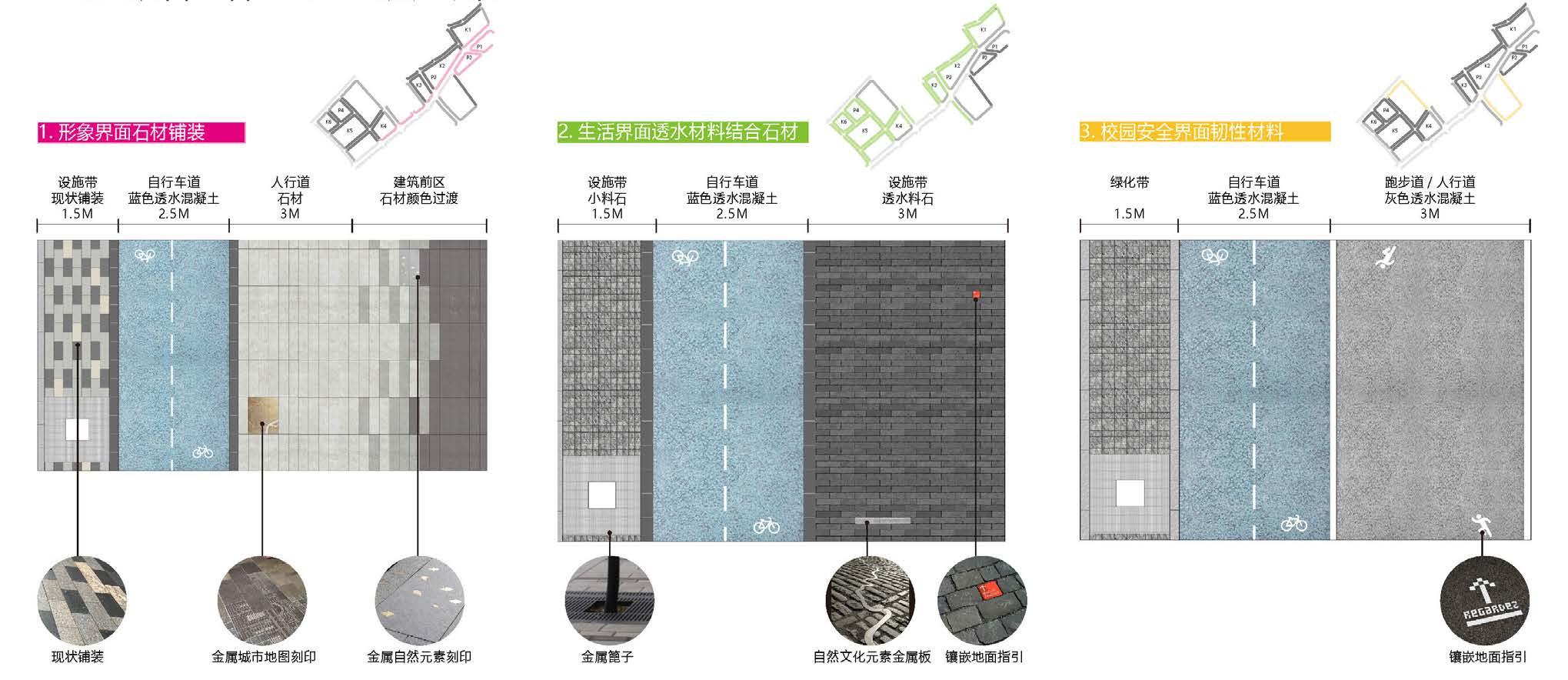

PAVEMENT DESIGN
1. Commercial Pavement
2. Residential Pavement 3. School Pavement
BIKE LANE Permeable Concrete BIKE LANE Permeable Concrete
BIKE LANE Permeable Concrete
WALKING/ RUNNING LANE Permeable Concrete
WALKING LANE Permeable Stone
WALKING LANE Stone (Grey) COMMERCIAL AREA Stone (Dark Grey)

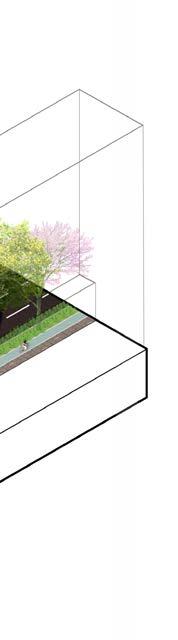

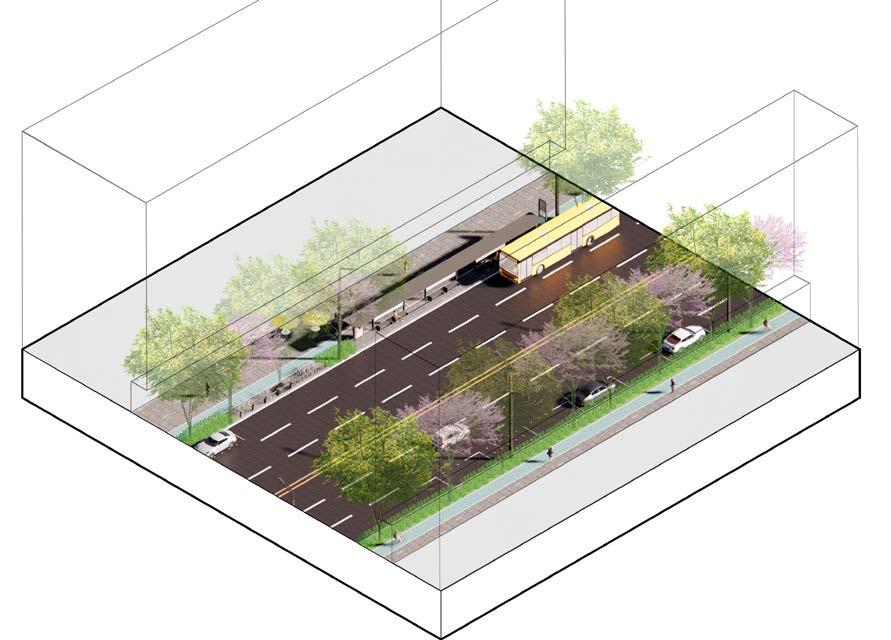

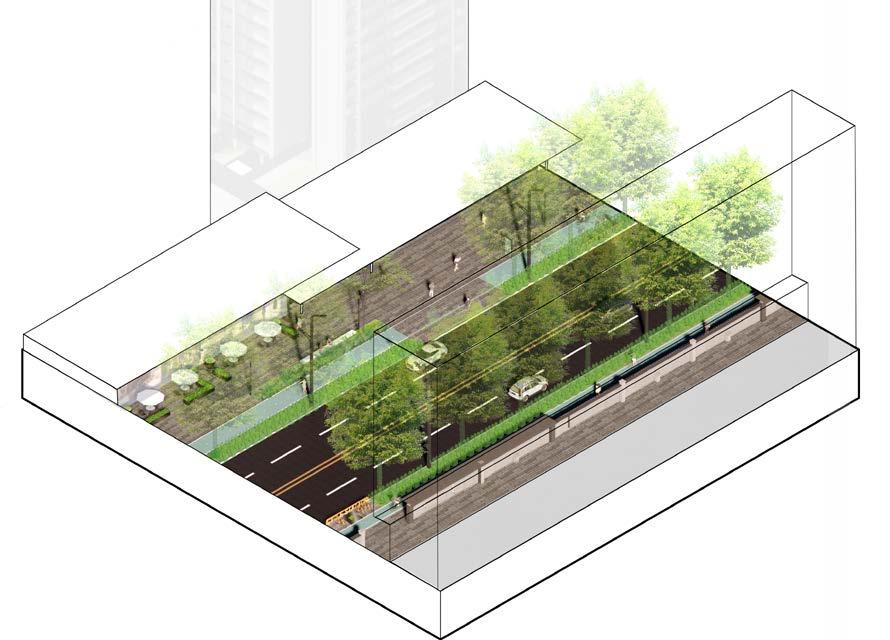

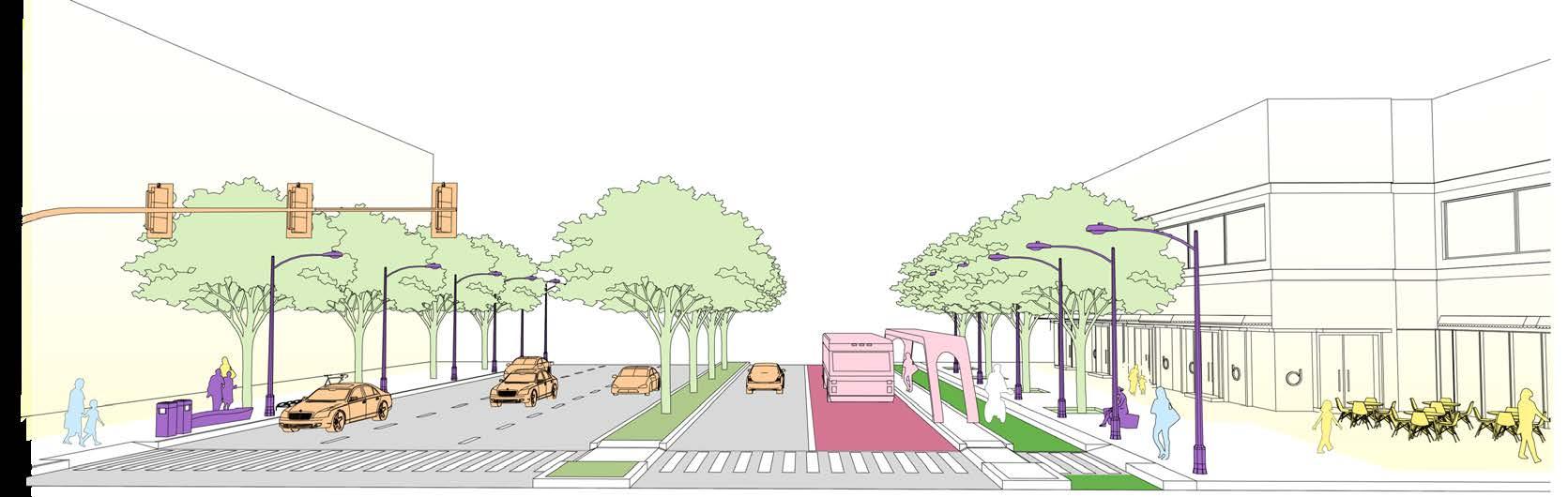

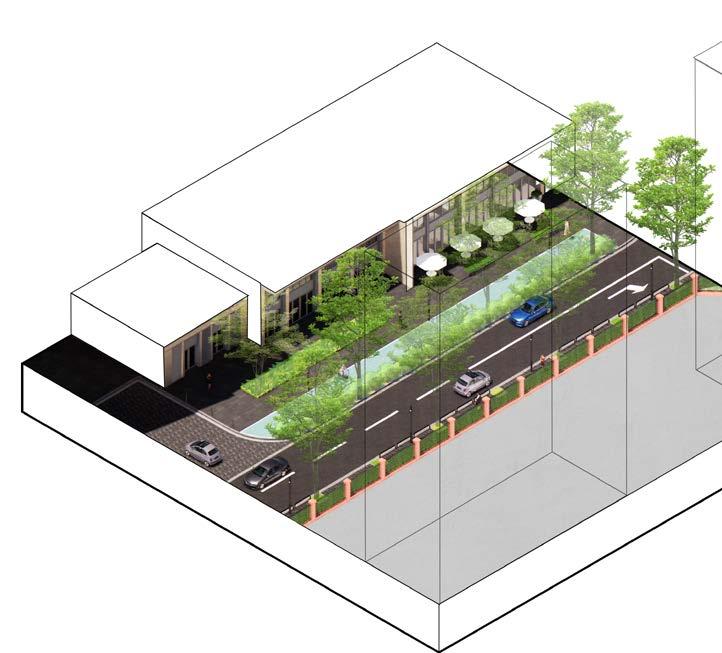

STREET MODULE
EXISTED STREET IMPROVEMENT
EXISTED RESIDENCE
COMMERCIAL STREET
CONMMUNITY STREET
EXISTED RESIDENCE
Renew Pavement on Both Side
Renew Bus Station
Add Tall Trees
Continuous Green Belt
Bike Parking Point
Side Car Parking
Permeable Bike Lane
APARTMENT WITH GROUND COMMERCIAL
APARTMENT WITH GROUND COMMERCIAL
EXISTED RESIDENCE
Maintain the Existed Tree
Renew Pavement on Both Side
Commercial Pop-up Area EXISTED
Continuous Green Belt

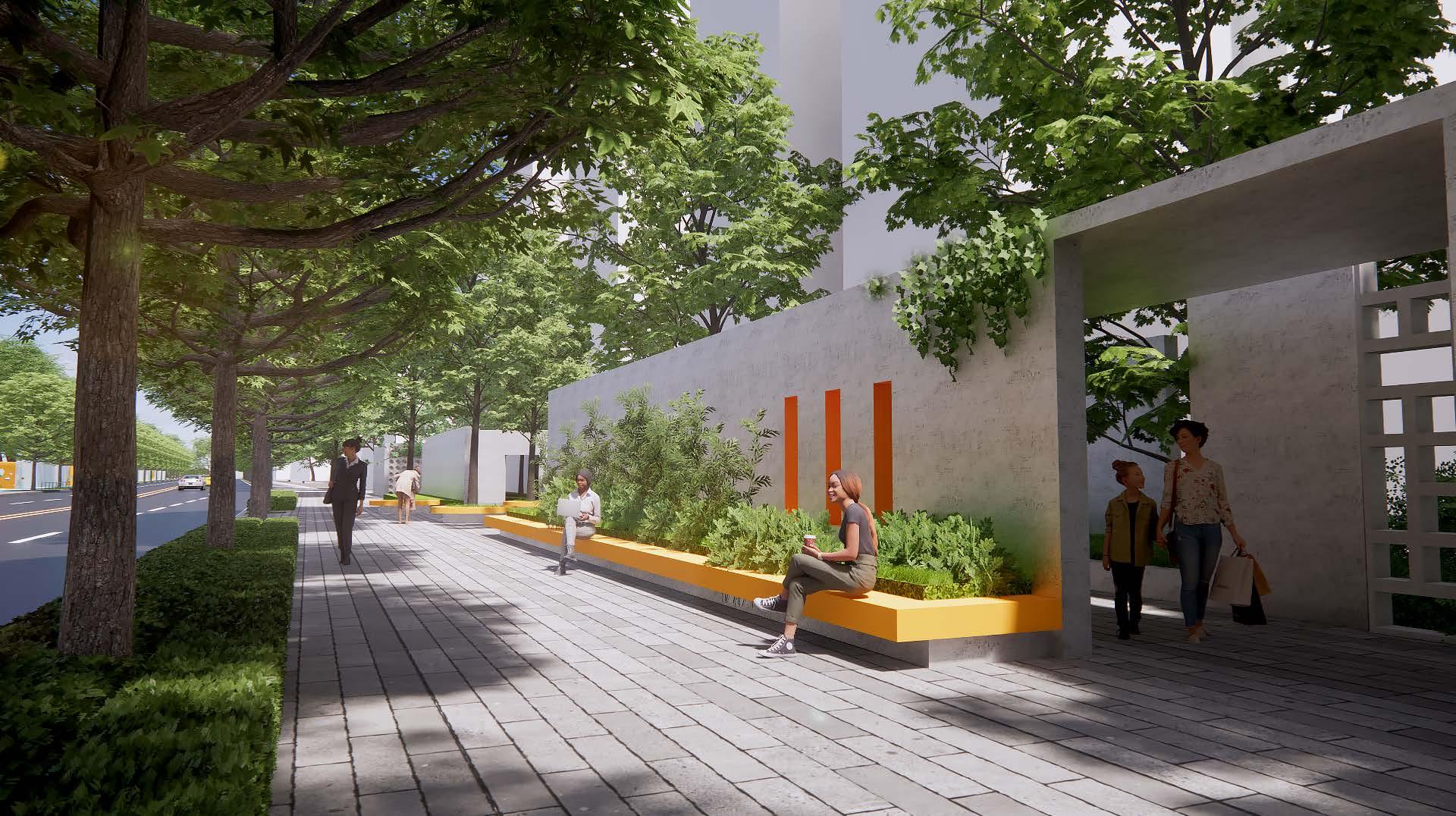

Street Wall Re-design
Bike Parking Area
Permeable Bike Lane
SCHOOL SAFETY STREET
APARTMENT WITH GROUND COMMERCIAL
STREET SCENE
Renew Pavement on Both Side
Commercial Pop-up Area
Building Front Pokect Park
Add Tall Trees
Side Car Parking
Continuous Green Belt
Permeable Bike Lane
COMMERCIAL STREET
SCHOOL SAFETY STREET
Renew Pavement on Both Side
Planting Vertical Form Tree
Commercial Pop-up Area
Building Front Pokect Park
Side Safety Bollard
Wall Greening
2. CONMMUNITY THEATER
3. READING CORNER

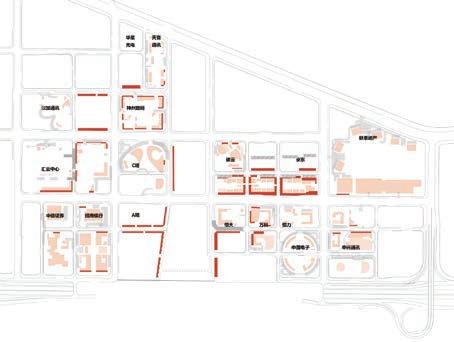

SHENZHEN SUPER HEADQUARTER GUIDELINE
2021-2022
SITE: SIZE:
TYPE:
STATE: SHENZHEN, CHINA 1170000 ㎡
STREET DESIGN, GUIDELINE CONCEPTION DESIGN

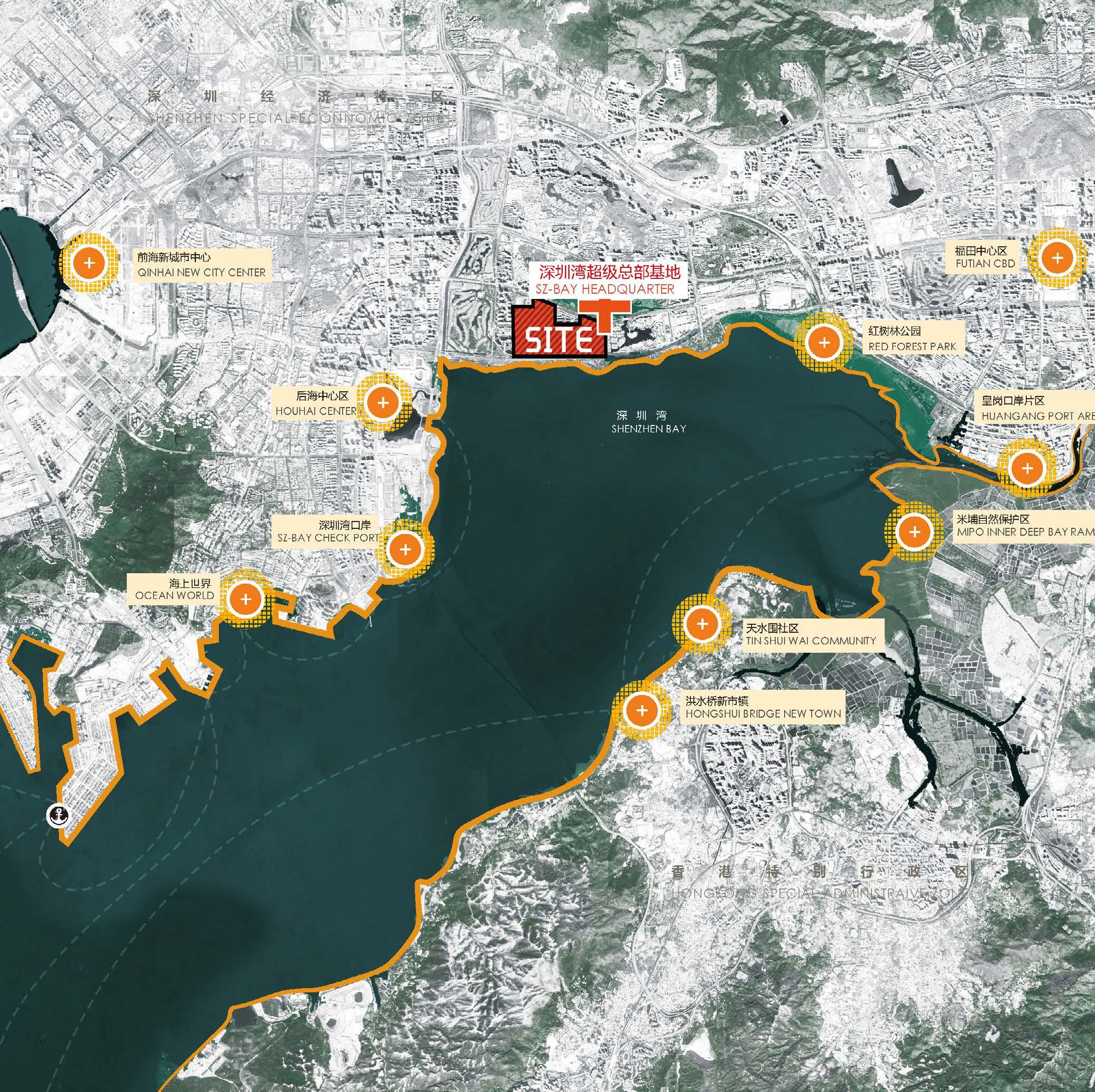

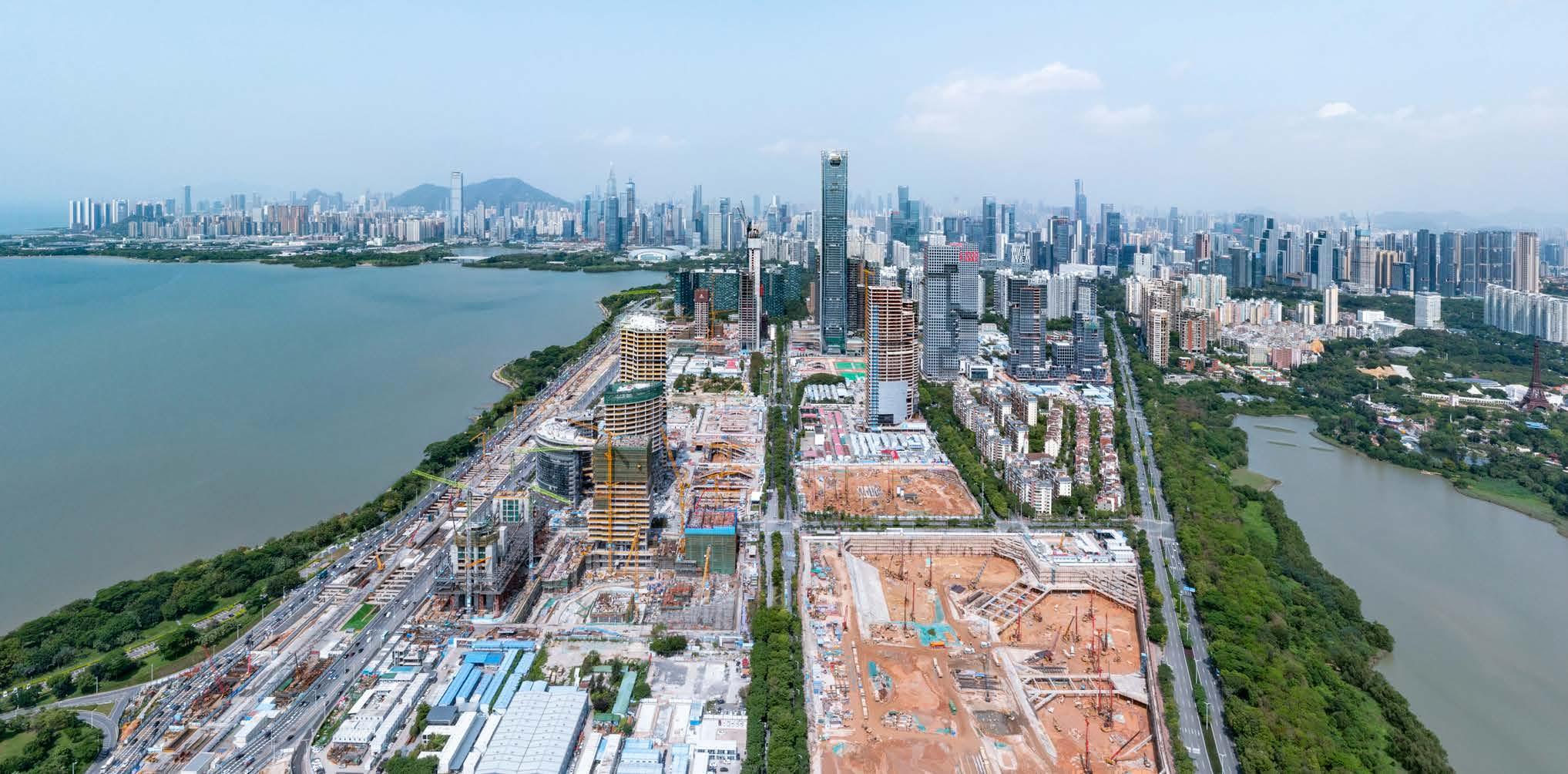

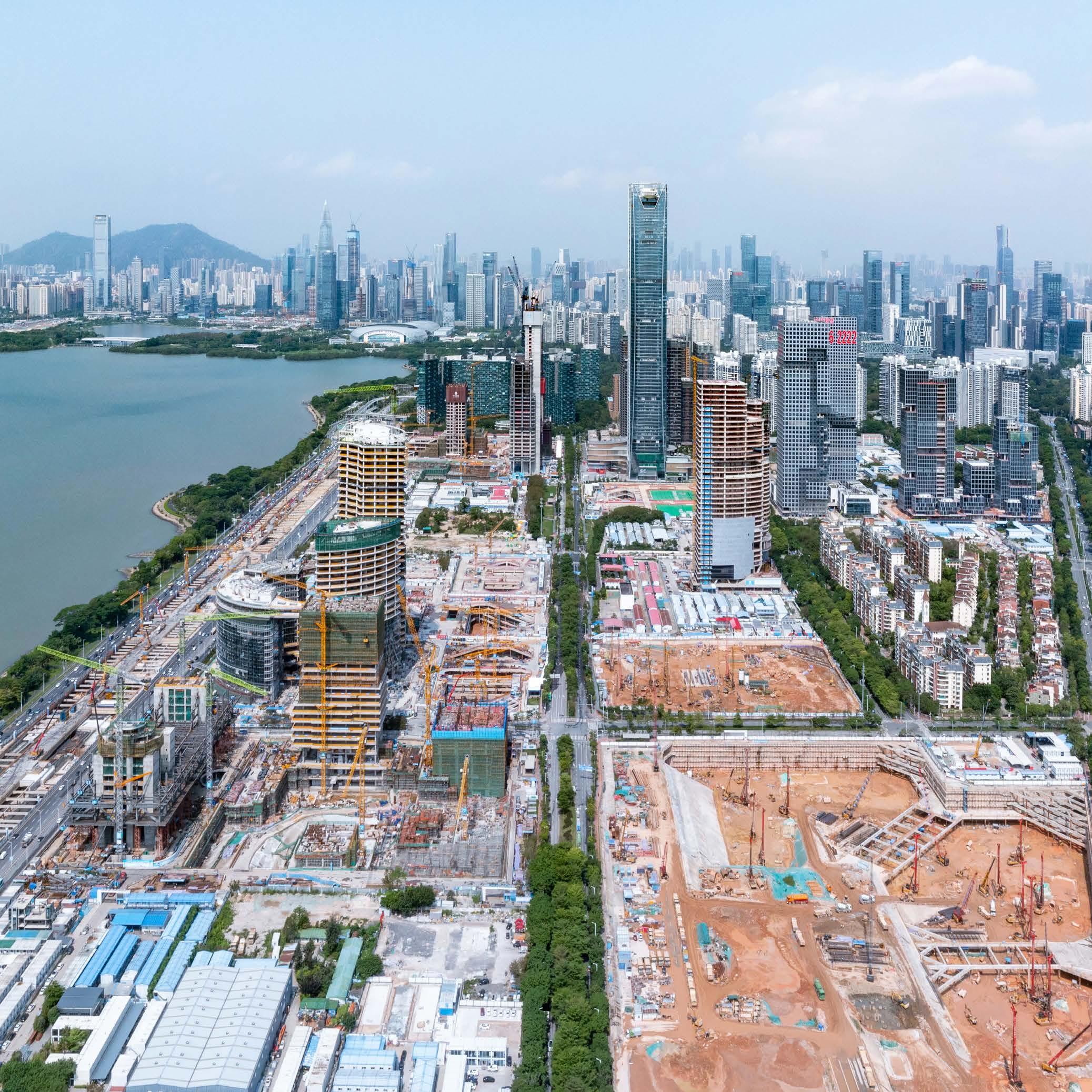

Shenzhen Bay Super Headquarters will be an important business and financial centre in Shenzhen serving the Greater Bay Area of Guangdong, Hong Kong and Macau.
The project is a composite system including transport, power and municipal utilities etc and planned specific theme (Futuristic Technology) of the site , the top-down overall strategy require ‘Street Guideline’ to charge with the on the ground area to determine management system and street design concept.

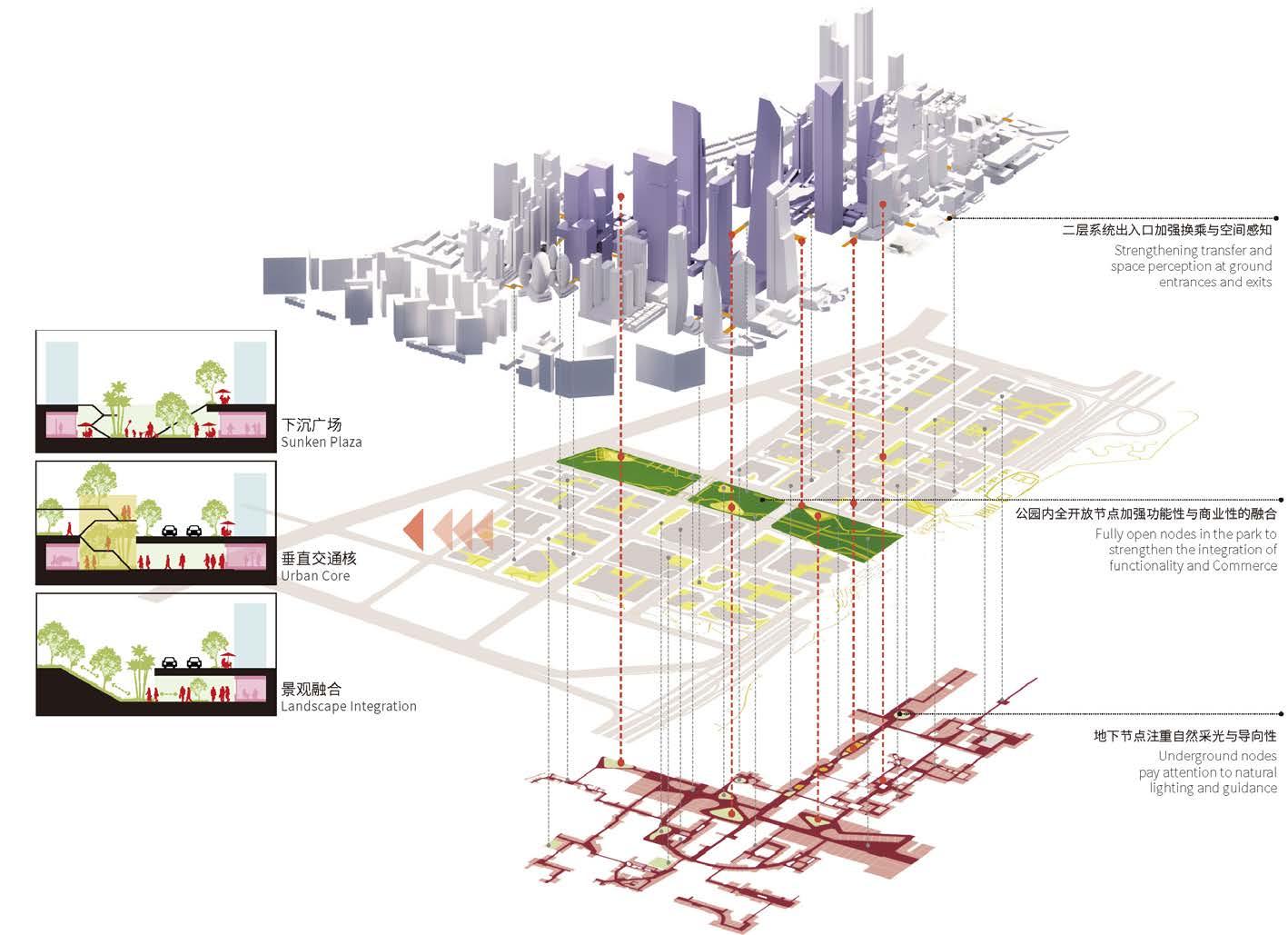

TOP-DOWN STREET GUIDELINE
MULTIDIMENSIONAL COMPOSITE
LANDSCAPE

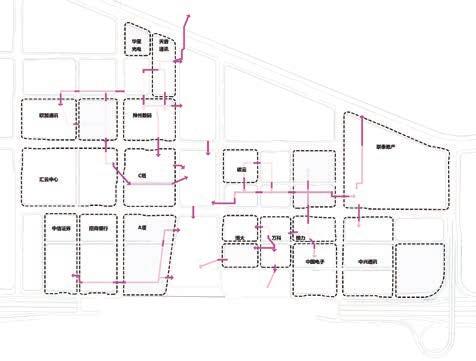

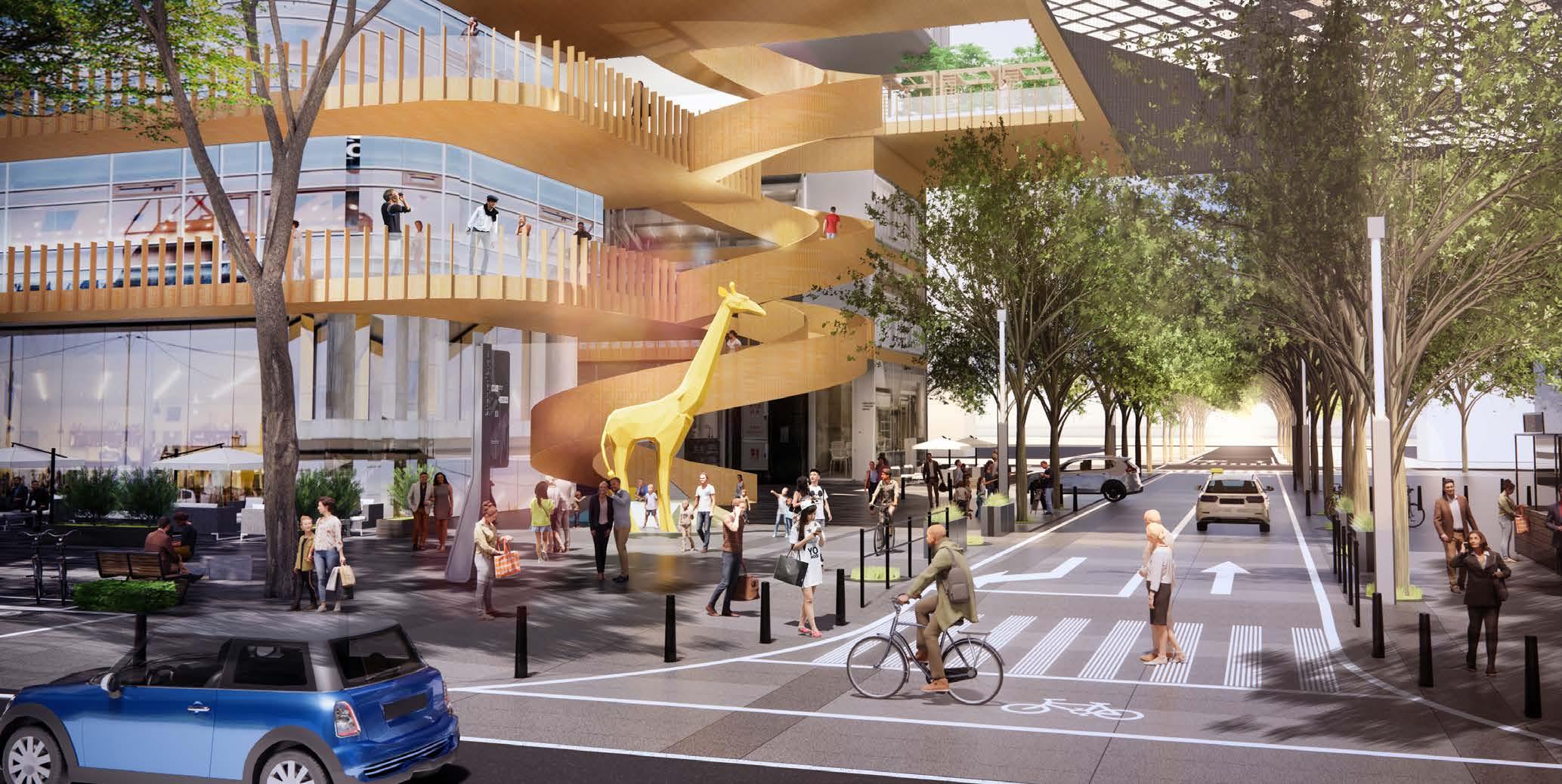

ELEVETED WALKWAYS
Enhancing the transfer experience and spatial perception between the ground entrances and exits and the second-floor corridor.
STREET GUIDELINE
Maximizing the connectivity of park nodes and street public space to enhance the seamless integration of functional and commercial aspects.
UNDERGROUND SYSTEM
Underground nodes focus on natural lighting and wayfinding.
STREET DESIGN ELEMENTS
非机动车道
慢跑环线 running�line
STREET DESIGN SYSTEM
移动/固定冲凉房 shower�room
双排行道树
Shading Construction
HEALTHY TRAVEL SYSTEM COOLING SYSTEM SOCIAL SYSTEM ECOLOGICAL SPONGE SYSTEM
Bicycle Lane
Double Row Tree

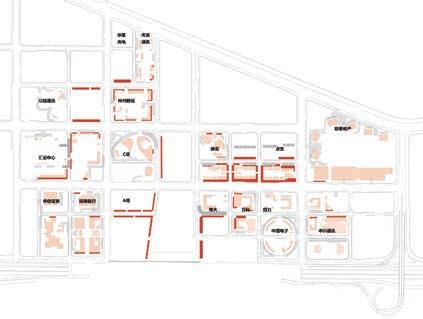

Active ground floor and outdoor seating
Sunken green space
健康出行体系 HEALTHY�TRAVEL�SYSTEM
Shower Room
活跃首层及外摆 first�floor�and�swing�sp ace
艺术街角 ar t�corner
二层体系 air�walk�system
活跃首层及外摆 first�floor�and�swing�sp ace
轻社交体系
清凉体系 COOLING�SYSTEM
Runing Line Art Corner
Single Row Tree Rain Garden
Intersection Shading
COMMUNICATION�SYSTEM
轻社交体系 COMMUNICATION�SYSTEM
COOLING�SYSTEM
Elevated Walkway
生态海绵体系 ECOLOGICAL�SPONGE�SYSTEM
Sunken Planting Pocket
轻社交体系 COMMUNICATION�SYSTEM
阴影和构筑 shadows�and�structu
first�floor�and�swing�sp ace
双排行道树 double�r
生态海绵体系 ECOLOGICAL�SPONGE�SYSTEM

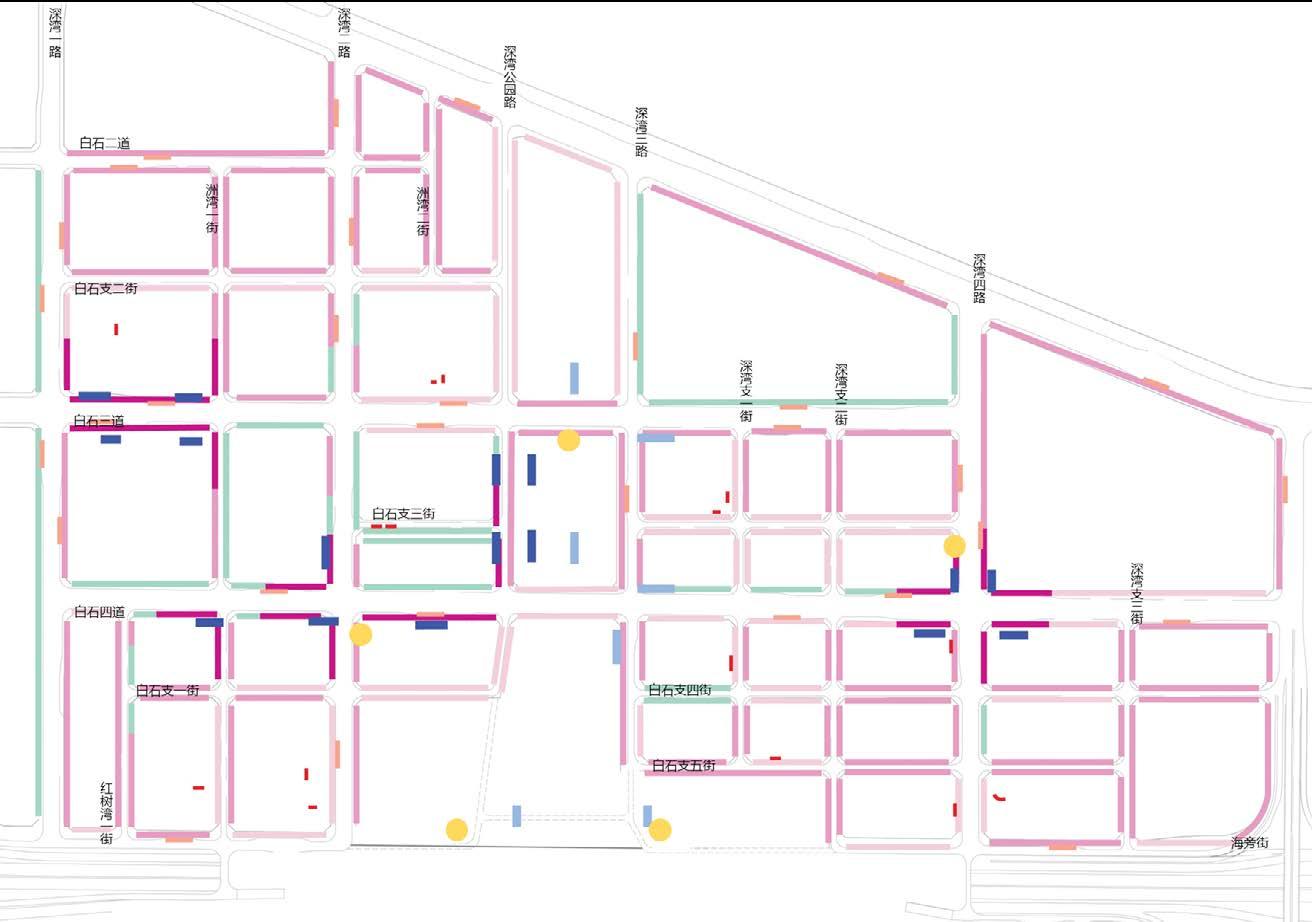

STREET BIKE PARKING SYSTEM
单排行道树 single�r
路口遮阴 ad�shade
下凹式绿地 sunken�green�space
下凹式种植池 sunken�planting�pond
sunken�green�space
雨水花园 rain�garden
生态海绵体系 ECOLOGICAL�SPONGE�SYSTEM
下凹式种植池 sunken�planting�pond
雨水花园 rain�garden
0% No parking(limited space/ Fire Engine Access)
10% (Commercial Street)
20% (Functional Street/ Bus Station)
60% (Within 70m around the metro station)
Underground parking (Plot Owner Designed) Subway entrance (trans cross cities) Subway entrance (trans within Shenzhen) Bus Station
Underground Bike parking structure

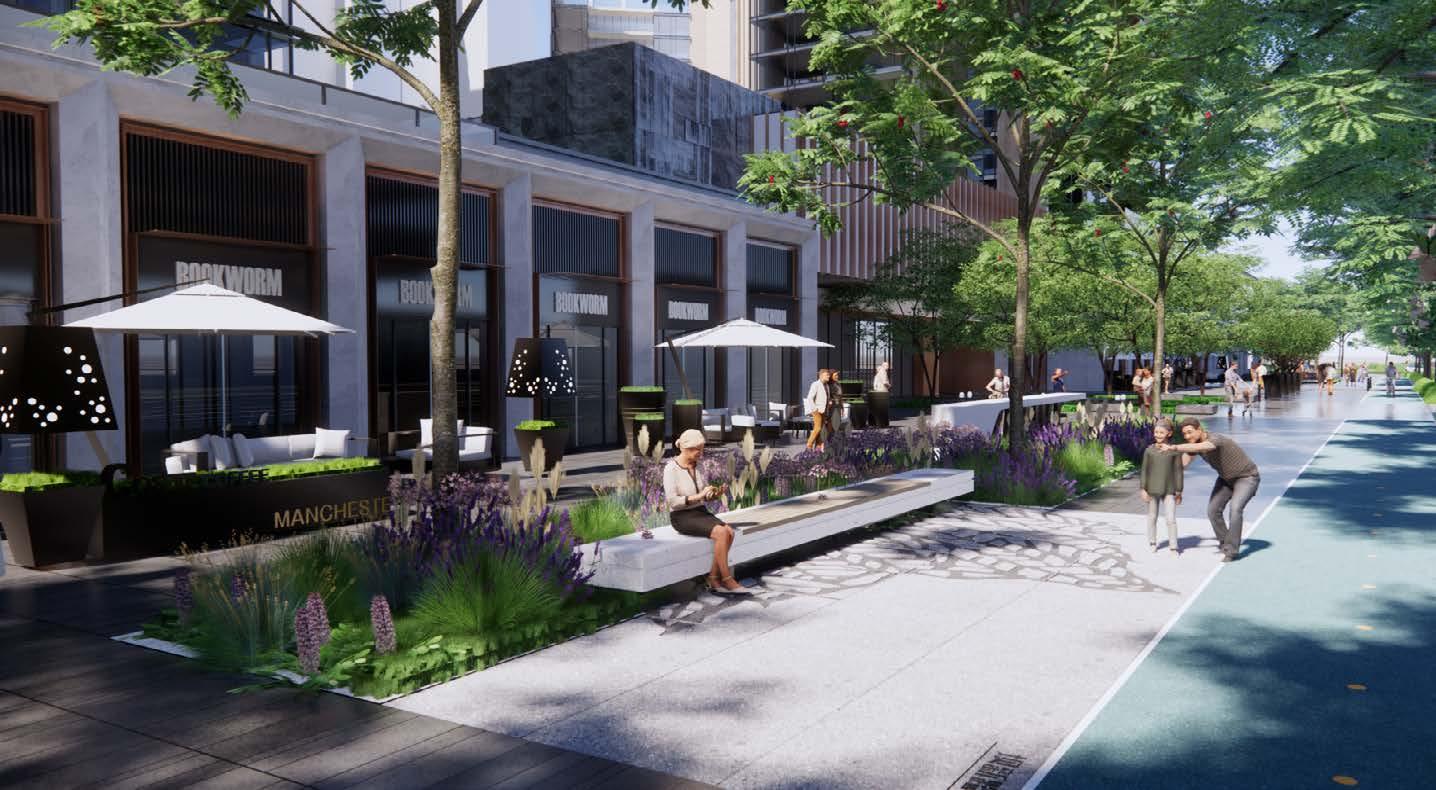

Setting up outdoor stalls to create a commercial and entertainment atmosphere
Communication space
Creating a 24-hour vibrant neighborhood with mixed-use buildings
Seats along the street provide rest space
Striking public transport signs
Convenient pedestrian access
Overpass facilities and sidewalks with unified paving, pedestrian priority passage
The entrances and exits of bus terminals are paved with sidewalks, ensuring pedestrian priority
Utilize the space of the central green belt to arrange urban display installations.
Subway and bus connections
Set up bicycle parking areas near bicycle lanes.
Dedicated bike lane
Solar-powered street lights provide nighttime illumination for pedestrians and save energy
